KENMORE Water Softener Manual L0522348
User Manual: KENMORE KENMORE Water softener Manual KENMORE Water softener Owner's Manual, KENMORE Water softener installation guides
Open the PDF directly: View PDF .
Page Count: 36
OWNER'S
MANUAL
MODEL NOS.
UltraSoft 800
625.388800[_
UltraSoft 880
625.388880[_
Caution:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product.
If you have questions when
installing, operating or main-
taining your softener, and
when setting the timer, call
this toll-free number...
1-800-426-9345
M - F, 7 am - 8 pm, CST
For repair or replacement
parts, call this toll-free num-
ber...
1-800-366-7278
See back cover for other
Sears service numbers.
www.KenmoreWater.com
SAVE THIS MANUAL
UltraSoft Water Softeners
with High Performance Valve
_i, Warranty
_i, Start Up /Setting Timer
4, How It Works
_i, Care Of
_i, Specifications
_i, Repair Parts
Systems Tested and Certified by NSF International
against NSF/ANSI Standard 44 for softener performance
and the chemical reduction claims specified on the perfor-
mance data sheet,
I Roebuck and 3333 Hoffman IL 60179 USA I
I
Sears, Co., Beverly Road, Estates,
l
PRINTEDIN U.S.A. 7276563 (Rev. C 8/24/05)
Use the plastic bag and tie provided, to hang manuals
nearby the softener for future reference,
WARRANTY
A
A
N
T
Y
SEARS RESIDENTIAL WATER SOFTENER
FULL ONE YEAR WARRANTY ON WATER SOFTENER
For one year from the date of purchase, when this water softener is installed and
maintained in accordance with our instructions, Sears will repair, free of charge,
defects in material or workmanship in this water softener.
FULL THREE YEAR ELECTRONICS WARRANTY
For a period of three years from date of purchase, Sears will replace the BRINE
TANK LIGHT, ELECTRONIC BOARD, SENSOR HOUSING, WIRING HARNESS,
TRANSFORMER, MICRO SWITCH, DRIVE MOTOR, OR POWER CABLE,
should they be defective in material or workmanship.
FULL TEN YEAR WARRANTY AGAINST LEAKS
For ten years from the date of purchase, Sears will furnish and install a new current
model water softener tank or salt storage drum, free of charge, if either the tank
or drum develop a leak.
TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS
SERVICE CENTER THROUGHOUT THE UNITED STATES. This warranty ap-
plies only while this product is in use in the United States.
This warranty gives you specific legal rights, and you may have other rights which
vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a
prompt, quality installation by Sears Authorized Installers.
SEARS INSTALLATION POLICY SEARS INSTALLATION WARRANTY
All installation labor arranged by Sears shall be per-
formed in a neat, workmanlike manner in accor-
dance with generally accepted trade practices. Fur-
ther, all installations shall comply with all local
laws, codes, regulations, and ordinances. Customer
shall also be protected, during installation, by insur-
ance relating to Property Damage, Workman's
Compensation and Public Liability.
In addition to any warranty extended to you on the
Sears merchandise involved, which warranty be-
comes effective the date the merchandise is
installed, should the workmanship of any Sears ar-
ranged installation prove faulty within one year,
Sears will, upon notice from you, cause such faults
to be corrected at no additional cost to you.
FACTS AND FIGURES TO KEEP salt hole cover.
Fill in the blanks below and keep this book in a safe place so you always have
these facts.
Water Softener Model No.±
Serial Number
Date Installed
Water Hardness
Iron Content
pH
Water Pressure
Water Flow Rate
iaste And/Or Odor
Grains Per Gallon
Parts Per Million
Pounds /Square Inch
Gallons Per Minute
rating decal
± The model number is on the rating decal, located on the rim, under the salt hole cover.
A
Iii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iiTABLE OF CONTENTS
A
B
E
0
F
C
O
N
E
N
,JJJJ JJJ_J_J_J_J,
a.
B.
C.
D.
E.
a.
B.
a.
B.
C.
D.
A.
a.
WATER SOFTENER START UP
Safety Guides
Check List of Step-By-Step Guides To Install
Program The Timer
Sanitizing The Water Softener
Adding Salt to The Storage Tank
HOW YOUR WATER SOFTENER WORKS
Faceplate Timer Features
Soft Water Service and Regeneration
CARE OF YOUR WATER SOFTENER
Salt: Adding to Storage Tank /Salt Bridge
Keeping The Water Softener Clean
Protect The Water Softener From Freezing
Checklist (Not Getting Soft Water)
ABOUT YOUR WATER SOFTENER
Dimensions /Specifications
PAGE NO.
1-1
1-2
1-3, 1-4
1-5
1-6
2-1 to 2-3
2-4 to 2-6
3-1
3-2
3-3
3-4
4-1,4-2
B.
C.
a.
SERVICE TECH. INFORMATION
Troubleshooting ....
Rotary Valve Service
Water Flow Through The Softener Valve-
5-1 to 5-4
5-5
5-6 to 5-8
B.
C.
REPAIR PARTS FOR WATER SOFTENER
Water Softener Complete
Brine Valve Assembly ....
Valve Assembly
6-1, 6-2
6-3, 6-4
6-5, 6-6
B
SECTION1 WATER SOFTENER START UP
S
C
T
N
_JJJJJJJJJJJJJJJJ.
_JJJJ JJJJJJJJJJ.
_JJJJ JJJJJJJJJJ.
_JJ_[JJJJJJJJJ"
A. SAFETY GUIDES
•Read all steps, guides and rules carefully before
installing and using your new water softener. Follow
all steps exactly to correctly install. Failure to follow
them could cause personal injury or property damage.
Reading this book will also help you to get all of the
benefits from your water softener.
•Your water softener will remove hardness minerals
and "clear water" iron* from water, up to the limits
shown on page 4-1. It will not remove other types of
iron, acids, tastes and odors, etc. It will not purify pol-
luted water or make it safe to drink.
•Protect the softener and piping from freezing. Dam-
age from freezing voids the softener warranty. See
page 3-3.
CAUTIONS
PLEASE READ AND COMPLY WITH THE FOLLOWING
GUIDES TO PREVENT DAMAGE TO THE SOFTENER
OR OTHER PROPERTY, PERSONAL INJURY, OR POS-
SIBLE FATAL SHOCK.
•THIS SOFTENER WORKS ON 24 VOLTS ONLY. BE
SURE TO USE ONLY THE TRANSFORMER INCLUDED,
AND PLUG IT INTO A NOMINAL 120V, 60 CYCLE
HOUSEHOLD OUTLET THAT IS GROUNDED AND
PROPERLY PROTECTED BY AN OVERCURRENT DE-
VICE SUCH AS A CIRCUIT BREAKER OR FUSE. IF THE
TRANSFORMER IS REPLACED, USE ONLY AN AU-
THORIZED SERVICE, CLASS II, 24 VOLT, 10 VA,
TRANSFORMER.
•Unplug the transformer right away if the power
cable should become damaged or frayed. Make re-
pairs, or replace the transformer, before plugging
back into the power outlet.
•Always unplug the softener from electrical power
before removing outer valve covers.
•This system is not intended to be used for treating
water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after
the system.
* The capacity to reduce clear water iron is substantiated
by WQA test data.
1-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION1 WATER SOFTENER START UP
B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL
To be sure you have done all the steps to install the
softener, read the following list. Refer to the Installa-
tion Manual, part no. 7258997, for step-by-step
guides.
Page numbers referred to are in the Installation
Manual unless otherwise noted.
_-" Is the house water flow going INTO the softener
valve INLET? Trace piping to be sure. See pages
2-4 and 2-5.
w" Is the plumbing bypass valve (or 3 valves) set for
SERVICE? Bypass valve(s) should always re-
main in soft water service position. Position in
"bypass" only if needed for softener repairs. See
FIG. 14, page 4-1 of this manual.
_-" Is the valve drain hose connected the right way,
and without sharp bends or kinks that could
stop or reduce water flow? See page 3-5 in the
installation manual.
Page numbers referred to are in the Installation
Manual unless otherwise noted.
_-" Is the transformer plugged into an inside, al-
ways live, grounded, 120V-60Hz electrical out-
let? See pages 3-8 and 3-9 in the installation
manual, and the wiring schematic on page 5-1 of
this manual.
w" Be sure to restart the water heater. See page 3- 9.
California Efficiency Requirement
Your Kenmore Water Softener has a "High Effi-
ciency" feature with an "ON" or "OFF" setting.
This softener setting is shipped in the "OFF"
position, which utilizes the maximum rated ca-
pacity while most often achieving maximum salt
efficiencies. When installing this unit in the State
of California, you MUST turn this setting to the
"ON" position which may initiate more frequent
recharges, however it will operate at 4000 grains
per pound of salt or higher.
If you wish to turn the Salt Efficiency feature
"ON" ( "E" icon will show in display), follow
the instructions in the Faceplate Timer Features,
Section 2 of this manual.
plastic
INLET
v Iv Ji J,
3- a e ,ir___r_. 1
Bypass Valve(s)
NOTE: Codes in the state of Massachusetts require installation
by a licensed plumber. For installation, use plumbing code
248- CMR of the Commonwealth of Massachusetts,
1-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION1 WATER SOFTENER START UP
C. PROGRAM THE TIMER
F
display
STATUS
LOW
SALT
POWER
ON
UP button
Cus_merAss_nce
1-800-426-9345
Kenmo_Wa_com
RECHARGE button
\
@--PRESS FOR
TONIGHT
HOLD FOR
IMMEDIATE
DOWN button SELECT button
J
When the transformer is plugged in, a welcoming
screen will show along with the model code HF45,
and a test number (example: G1.0) for 10 seconds.
Pressing the SELECT key will advance to next
screen. Pressing any other key will keep the wel-
come screen on for another 10 seconds. Next, choice
of language. Then, 12:00 PM and PRESENT TIME
appear.
Model: HF45
Version: G1.0
Thank You
For Choosing Kenmore
...For Quality Water
Present Time:
m PM
AV CHANGE SELECT
Notes:
If .... shows in the display, press the UP A or-
DOWN V button until HF45 shows. Then, press the
SELECT button to set, and change to the Language
display.
To check the model code, unplug the transformer at
the wall outlet and plug in again, if other than HF45
shows, see page 5-3 to reset.
SOUND "BEEPER": A "beeper" sounds while
pressing buttons for timer set-up. One beep signals
a change in the face plate display. Repeated beeps
mean the timer will not accept a change from the
button you have pressed, telling you to use another
button. For example, while setting the hardness
(step 2), the beeper sounds repeatedly when the dis-
play reaches 1 using the DOWN button, or the high-
est hardness setting using the UP button.
_SET LANGUAGE
• Press the UP /DOWN buttons to move the black
bar over the language preferred. Press SELECT to
enter and go to next screen.
_SET PRESENT TIME OF DAY
If the words PRESENT TIME do not show in the dis-
play, press the SELECT button (FIG. 2) until they do.
• Press the UP /DOWN buttons to set the present
time. Press UP to set the clock ahead; press DOWN
to set the clock back.
If the present time is be-
tween noon and mid-
night, be sure PM shows.
If the present time is be-
tween midnight and
noon, be sure AM shows.
Present Time:
m PM
AV CHANGE SELECT
Present Time:
m AM
Each press of the UP
/DOWN buttons AV CHANGE SELECT
changes the time by one
minute. Holding the buttons in changes the clock
16 minutes each second.
1-3
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION1 WATER SOFTENER START UP

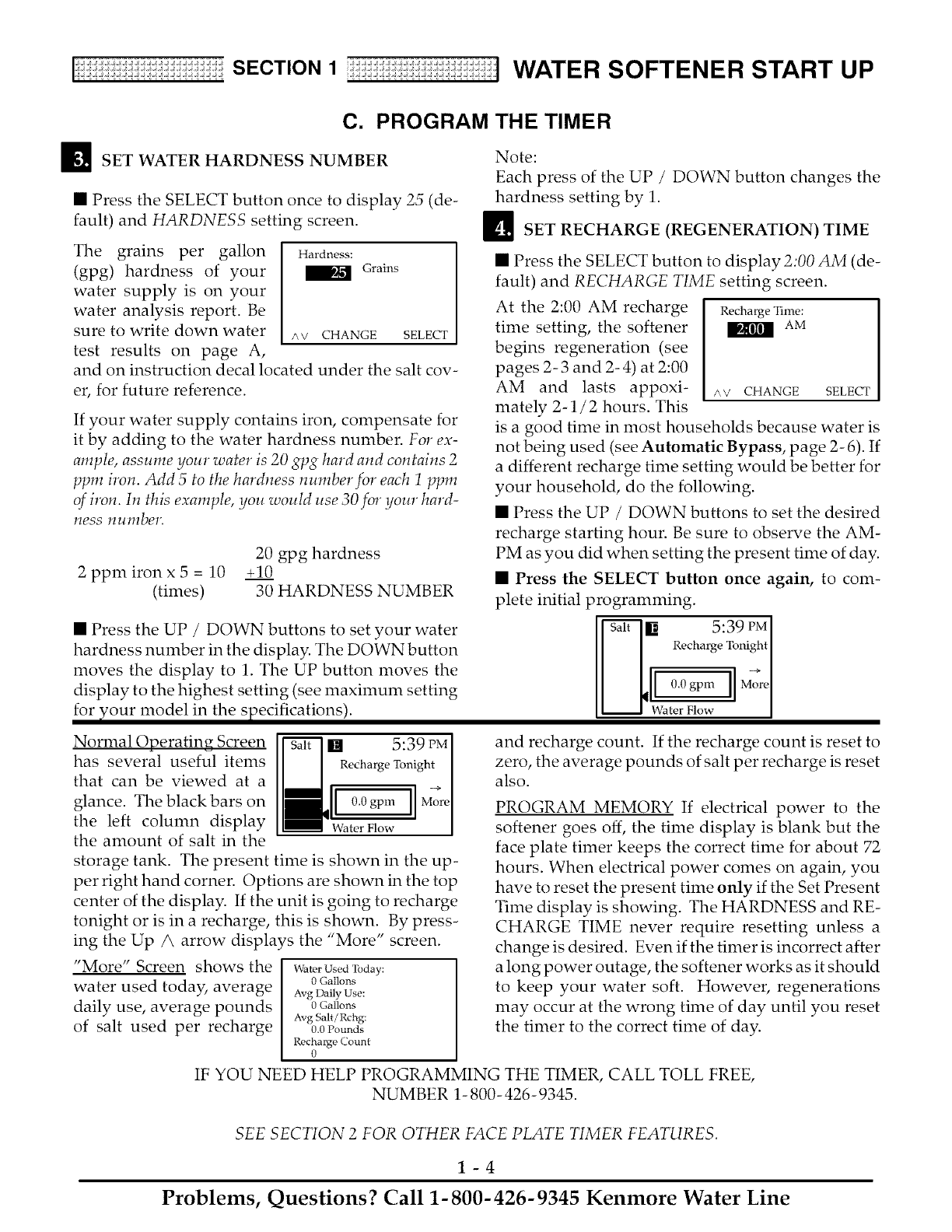

C. PROGRAM THE TIMER
_SET WATER HARDNESS NUMBER
• Press the SELECT button once to display 25 (de-
fault) and HARDNESS setting screen.
The grains per gallon Hardness:
(gpg) hardness of your _ Grains
water supply is on your
water analysis report. Be
sure to write down water Av CHANGE SELECT
test results on page A,
and on instruction decal located under the salt cov-
er, for future reference.
If your water supply contains iron, compensate for
it by adding to the water hardness number. For ex-
ample, assume your water is 20 gpg hard and contains 2
ppm iron. Add 5 to the hardness number for each 1 ppm
of iron. In this example, you would use 30for your hard-
ness number.
20 gpg hardness
2 ppmironx 5 = 10 +10
(times) 30 HARDNESS NUMBER
• Press the UP /DOWN buttons to set your water
hardness number in the display. The DOWN button
moves the display to 1. The UP button moves the
display to the highest setting (see maximum setting
Note:
Each press of the UP /DOWN button changes the
hardness setting by 1.
_SET RECHARGE (REGENERATION) TIME
• Press the SELECT button to display 2:00 AM (de-
fault) and RECHARGE TIME setting screen.
At the 2:00 AM recharge RechargeTime:
time setting, the softener _ AM
begins regeneration (see
pages 2-3 and 2-4) at 2:00
AM and lasts appoxi- Av CHANGE SELECT
mately 2-1/2 hours. This
is a good time in most households because water is
not being used (see Automatic Bypass, page 2-6). If
a different recharge time setting would be better for
your household, do the following.
• Press the UP /DOWN buttons to set the desired
recharge starting hour. Be sure to observe the AM-
PM as you did when setting the present time of day.
• Press the SELECT button once again, to com-
plete initial programming.
l! 5:39 PM[
Recharge Tonight
[ ]1More
Water Flow
Normal Operating Screen
has several useful items
that can be viewed at a
glance. The black bars on
the left column display
the amount of salt in the
[] 5:39 PM I
Recharge Tonight I
]]More
Water Flow
storage tank. The present time is shown in the up-
per right hand corner. Options are shown in the top
center of the display. If the unit is going to recharge
tonight or is in a recharge, this is shown. By press-
ing the Up/X arrow displays the "More" screen.
"More" Screen shows the PCaterUsed'ibday:
water used today, average
daily use, average pounds
of salt used per recharge
0 Gallons
Avg Daily Use:
0 Gallons
Avg Salt/Rchg:
0.0 Pounds
R_,charg,, Count
0
and recharge count. If the recharge count is reset to
zero, the average pounds of salt per recharge is reset
also.
PROGRAM MEMORY If electrical power to the
softener goes off, the time display is blank but the
face plate timer keeps the correct time for about 72
hours. When electrical power comes on again, you
have to reset the present time only if the Set Present
Time display is showing. The HARDNESS and RE-
CHARGE TIME never require resetting unless a
change is desired. Even if the timer is incorrect after
a long power outage, the softener works as it should
to keep your water soft. However, regenerations
may occur at the wrong time of day until you reset
the timer to the correct time of day.
IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE,
NUM BER 1- 800- 426- 9345.
SEE SECTION 2FOR OTHER FACE PLATE TIMER FEATURES.
1-4
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION1 WATER SOFTENER START UP
D. SANITIZE THE
Care is taken at the factory to keep your water soft-
ener clean and sanitary. Materials used to make the
softener will not infect or contaminate your water
supply, and will not cause bacteria to form or grow.
However, during shipping, storage, installing and
operating, bacteria could get into the softener. For
this reason, sanitizing as follows is suggested _i9
when installing.
_The first time you sanitize your softener, be sure
to do all steps in the installation manual, and on
pages 1-2, 1-3 and 1-4 of this manual first.
Note: Be certain the bypass valve is pulled out
to "service" position.
_lJ Lift the salt hole cover and use a pail to fill the
salt storage tank with 3 gallons of water.
_ Remove the brinewell cover (FIG. 2 and 3) and
pour about 3/4 ounce, or 1 to 2 tablespoons, of
common 5.25%, unscented, household bleach
(Clorox, Linco, BoPeep, White Sail, Eagle, etc.)
in the softener brinewell.
D Press the RECHARGE button and hold for 3 se-
conds to start a recharge. This first recharge does
several things.
• It draws the bleach into and through the softener
to sanitize it.
• It fills the salt tank to the water level needed.
• It gets all the air out of the resin tank.
• It prepares the resin bed (see page 2-3) for ser-
vice and flushes residual chlorine from the soften-
er.
Notes:
This recharge takes about 2-1/2 or 2- 3/4 hours, de-
pending on the salt type setting (page 1-4).
You can sanitize the softener with o1"without salt
in the storage tank.
WATER SOFTENER
water,
about 3 gallons
brinewell cover
(remove and add
about 3/4 oz.
bleach)
brinewell
1" Recommended by the Water Quality Assodation. On some
water supplies, the water softener may need periodic
disinfecting.
1-5
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION1 WATER SOFTENER START UP
E. ADDING SALT TO THE STORAGE TANK
Brine (salt dissolved in water) is needed for each
and every regeneration. The water for making brine
is metered into the salt storage tank by the softener.
You must keep salt in the tank, but because the wa-
ter softener is very efficient, it is not necessary to
keep it full. In humid areas, it is best to fill the stor-
age tank one quarter to one half full, and to refill it
more often. Salt bridging (see page 3-1) occurs more
often when conditions are humid.
Use NUGGET or PELLET water softener salt. DO
NOT use rock salts, as they have dirt and sediments
that will stop the softener from working.
When the salt cover is opened, the tank light turns
on and the display automatically goes to the Set Salt
Level display.
Before adding salt, be sure the brinewell cover is in
place on the top of the brinewell. It is recommended
to set the salt monitor system, although it is not re-
quired for proper operation (see page 2-2).
POTASSIUM CHLORIDE, alternate to salt: The de-
sign of this softener allows for the use of potassium
chloride in place of salt (sodium chloride).
1) Place only one bag of KC1 in your softener at a
time (the salt storage tank should contain no more
than 60 pounds of KC1 at any one time).
2) A softener using KC1 should not be placed in
areas with temperature fluctuations and high hu-
midity (KC1 will harden in these environments and
may make the softener inoperable).
3) Check the brine tank and brinewell (black tube in
salt storage tank) monthly. If hardening is present,
pour small amounts of warm water on hardened
areas until they loosen.
4) If you do use potassium chloride, see page 2-2 to
set the timer for its use.
Note: The salt monitor system, page 2-2, is cali-
brated to the density of nugget or pellet water soft-
ener salt. The monitor will not work as accurately
with other types of salt including rock and solar.
WATER SOFTENING SALT WITH IRON REMOV-
ING ADDITIVES -- Some salts have an additive to
help the softener handle iron in the water supply.
These salts may be used if your water supply has a
high iron content, although it is recommended to
use Sears Resin Bed Cleaner 42-34426, for periodic
treatments to keep your resin bed clean. This is
available at your local Sears store.
_._ brinewell
cover
salt
storage
tank _ brinewell
Sodium information: Water softeners using sodium
chloride for regeneration add sodium to the water.
Persons who are on sodium restricted diets should
consider the added sodium as part of their overall
sodium intake. For example, if your water supply is
15 grains hard, you would have to drink 3 quarts of
softened water to consume 335 milligrams of so-
dium. That is equivalent to eating 2-1/2 slices of
white bread.
Persons who are concerned about their drinking
water should consider a Kenmore Drinking Water
System that will remove or reduce in excess of 90%
of the sodium and other drinking water contami-
nants.
1-6
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :i:_!! :i:_ SECTION 2 :i:!!! :i:_!! :i:_i]HOW YOUR WATER SOFTENER WORKS

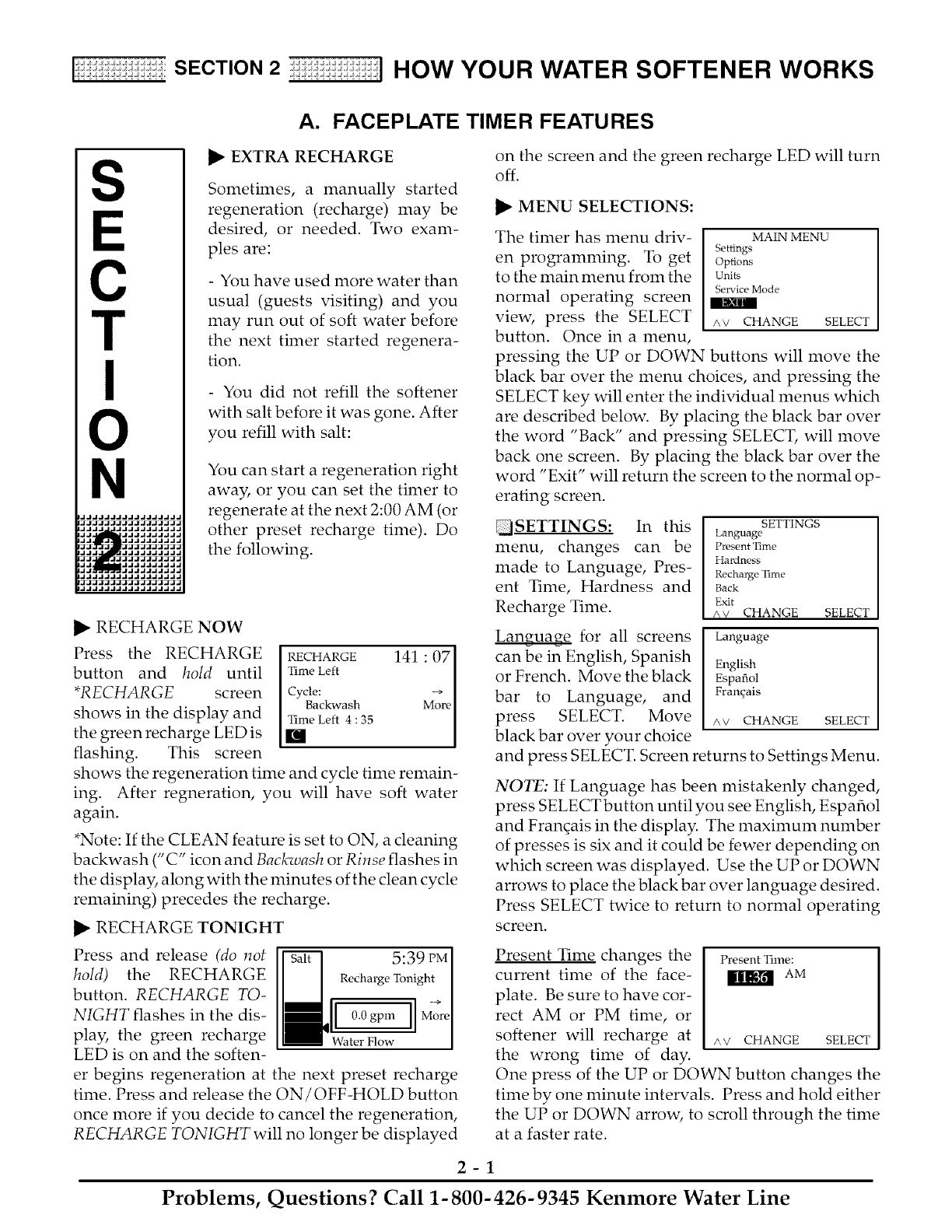

A. FACEPLATE TIMER FEATURES
S
C
TIL_III|
N
,JJJJJJJJJJJJJJJJ.
,JJJJ JJJJJJJJJJ.
'dJ_idJdJdJdJ"
,JJ JJJJJJJJJ.
,JJJ JJJJJJJJJ.
,JJ JJJJJJJJJ.
_dJ dJdJdJdJ.
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
I_ EXTRA RECHARGE
Sometimes, a manually started
regeneration (recharge) may be
desired, or needed. Two exam-
ples are:
- You have used more water than
usual (guests visiting) and you
may run out of soft water before
the next timer started regenera-
tion.
- You did not refill the softener
with salt before it was gone. After
you refill with salt:
You can start a regeneration right
away, or you can set the timer to
regenerate at the next 2:00 AM (or
other preset recharge time). Do
the following.
RECHARGE NOW
Press the RECHARGE
button and hold until
*RECHARGE screen
shows in the display and
the green recharge LED is
flashing. This screen
RECHARGE 141 :
Time Left
Cycle:
Backwash Morerome Left 4 : 35
shows the regeneration time and cycle time remain-
ing. After regneration, you will have soft water
again.
*Note: If the CLEAN feature is set to ON, a cleaning
backwash (" C" icon and Backwash or Rinse flashes in
the display, along with the minutes of the clean cycle
remaining) precedes the recharge.
RECHARGE TONIGHT
Press and release (do not
hold) the RECHARGE
button. RECHARGE TO-
),rIGHT flashes in the dis-
play, the green recharge
LED is on and the soften-
5:39 PM I
Recharge Tonight I
]]Moro
Water Flow
er begins regeneration at the next preset recharge
time. Press and release the ON/OFF-HOLD button
once more if you decide to cancel the regeneration,
RECHARGE TONIGHT will no longer be displayed
on the screen and the green recharge LED will turn
off.
MENU SELECTIONS:
The timer has menu driv-
en programming. To get
to the main menu from the
normal operating screen
view, press the SELECT
button. Once in a menu,
MAIN MENU
Settings
Options
Units
Service Mode
/_v CHANGE SELECT
pressing the UP or DOWN buttons will move the
black bar over the menu choices, and pressing the
SELECT key will enter the individual menus which
are described below. By placing the black bar over
the word "Back" and pressing SELECT, will move
back one screen. By placing the black bar over the
word "Exit" will return the screen to the normal op-
erating screen.
In this
menu, changes can be
made to Language, Pres-
ent Time, Hardness and
Recharge Time.
Language for all screens
can be in English, Spanish
or French. Move the black
bar to Language, and
press SELECT. Move
black bar over your choice
and press SELECT. Screen
SETTINGS
Language
P_sent Eme
Hardness
Recharge 2hne
Back
Exit
/_V CHANGE SELECT
Language
English
Espafiol
Frangais
/_v CHANGE SELECT
returns to Settings Menu.
NOTE: If Language has been mistakenly changed,
press SELECT button until you see English, Espaflol
and Frangais in the display. The maximum number
of presses is six and it could be fewer depending on
which screen was displayed. Use the UP or DOWN
arrows to place the black bar over language desired.
Press SELECT twice to return to normal operating
screen.
Present Time changes the Present Time:
current time of the face- _ AM
plate. Be sure to have cor-
rect AM or PM time, or
softener will recharge at av CHANGE SELECT
the wrong time of day.
One press of the UP or DOWN button changes the
time by one minute intervals. Press and hold either
the UP or DOWN arrow, to scroll through the time
at a faster rate.
2-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! _,i_ !! _,i_ SECTION 2_i:!!! _,i_ !! _,i_i] HOW YOUR WATER SOFTENER WORKS
A. FACEPLATE TIMER FEATURES

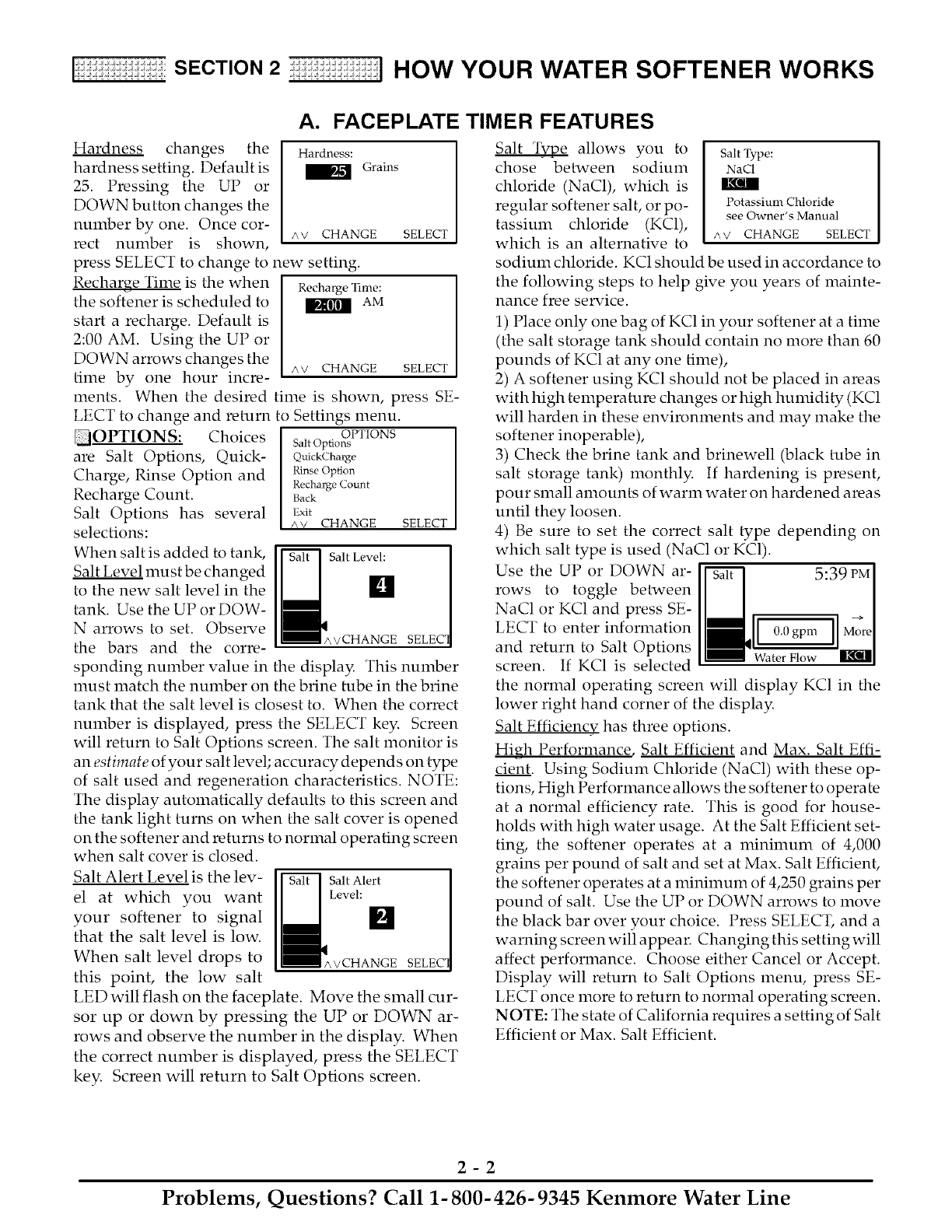

Hardness changes the
hardness setting. Default is
25. Pressing the UP or
DOWN button changes the
nmnber by one. Once cor-
rect number is shown,
press SELEC I' to change to
Recharge Fime is the when
the softener is scheduled to
start a recharge. Default is
2:00 AM. Using the UP or
DOWN arrows changes the
time by one hour incre-
ments. When the desired
Hardness:
Grains
/_v CHANGE SELECT
new setting.
Recharge Time:
AM
/_v CHANGE SELECT
time is shown, press SE-
LECT to change and return to Settings menu.
Choices SaltOptionOPTIONS
are Salt Options, Quick- QuickCharge
Charge, Rinse Option and RinsE.Option
Recharge Count
Recharge Count. Back
Salt Options has several Exit
selections: /,v CHANGE
When salt is added to tank,
Salt Level nmst be changed
to the new salt level in the
tank. Use the UP or DOW-
N arrows to set. Observe
the bars and the corre-
sponding number value in the display. This number
nmst match the number on the brine tube in the brine
tank that the salt level is closest to. When the correct
number is displayed, press the SELECT key. Screen
will return to Salt Options screen. The salt monitor is
an estimate of your salt level; accuracy depends on type
of salt used and regeneration characteristics. NOTE:
The display automatically defaults to this screen and
the tank light turns on when the salt cover is opened
on the softener and returns to normal operating screen
when salt cover is closed.
SELECT
Salt Level:m ]
/CHANGE SELEC
Salt Alert Level is the lev-
el at which you want
your softener to signal
that the salt level is low.
When salt level drops to
this point, the low salt
Salt Alert ]
Level: ll
/CHANGE SELEC
LED will flash on the faceplate. Move the small cur-
sor up or down by pressing the UP or DOWN ar-
rows and observe the number in the display. When
the correct number is displayed, press the SELECT
key. Screen will return to Salt Options screen.
Salt rlype allows you to SaltType:
chose between sodium NaC1
chloride (NaC1), which is
regular softener salt, or po- Potassium Chloride
see Owner's Manual
tassium chloride (KC1), /_v CHANGE SELECT
which is an alternative to
sodium chloride. KC1 should be used in accordance to
the following steps to help give you years of mainte-
nance free service.
1) Place only one bag of KC1 in your softener at a time
(the salt storage tank should contain no more than 60
pounds of KC1 at any one time),
2) A softener using KC1 should not be placed in areas
with high temperature changes or high humidity (KC1
will harden in these environments and may make the
softener inoperable),
3) Check the brine tank and brinewell (black tube in
salt storage tank) monthly, if hardening is present,
pour small amounts of warm water on hardened areas
until they loosen.
4) Be sure to set the correct salt type depending on
which salt type is used (NaC1 or KC1).
Use the UP or DOWN ar-
rows to toggle between
NaC1 or KC1 and press SE-
LECI' to enter information
and return to Salt Options
screen, if KC1 is selected
5:39 PM
0.0 gpn_ _More I
Wa_ Ilml
the normal operating screen will display KC1 in the
lower right hand corner of the display.
Salt Efficiency has three options.
High Performance, Salt Efficient and Max. Salt Effi-
cient. Using Sodium Chloride (NaC1) with these op-
tions, High Performance allows the softener to operate
at a normal efficiency rate. This is good for house-
holds with high water usage. At the Salt Efficient set-
ting, the softener operates at a mininmm of 4,000
grains per pound of salt and set at Max. Salt Efficient,
the softener operates at a mininmn_ of 4,250 grains per
pound of salt. Use the UP or DOWN arrows to move
the black bar over your choice. Press SELECI, and a
warning screen will appear. Changing this setting will
affect performance. Choose either Cancel or Accept.
Display will return to Salt Options menu, press SE-
LECI' once more to return to normal operating screen.
NOTE: The state of California requires a setting of Salt
Efficient or Max. Salt Efficient.
2-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :,i_!!:,i_ SECTION 2_i:!!! :,i_!!:,i_i] HOW YOUR WATER SOFTENER WORKS

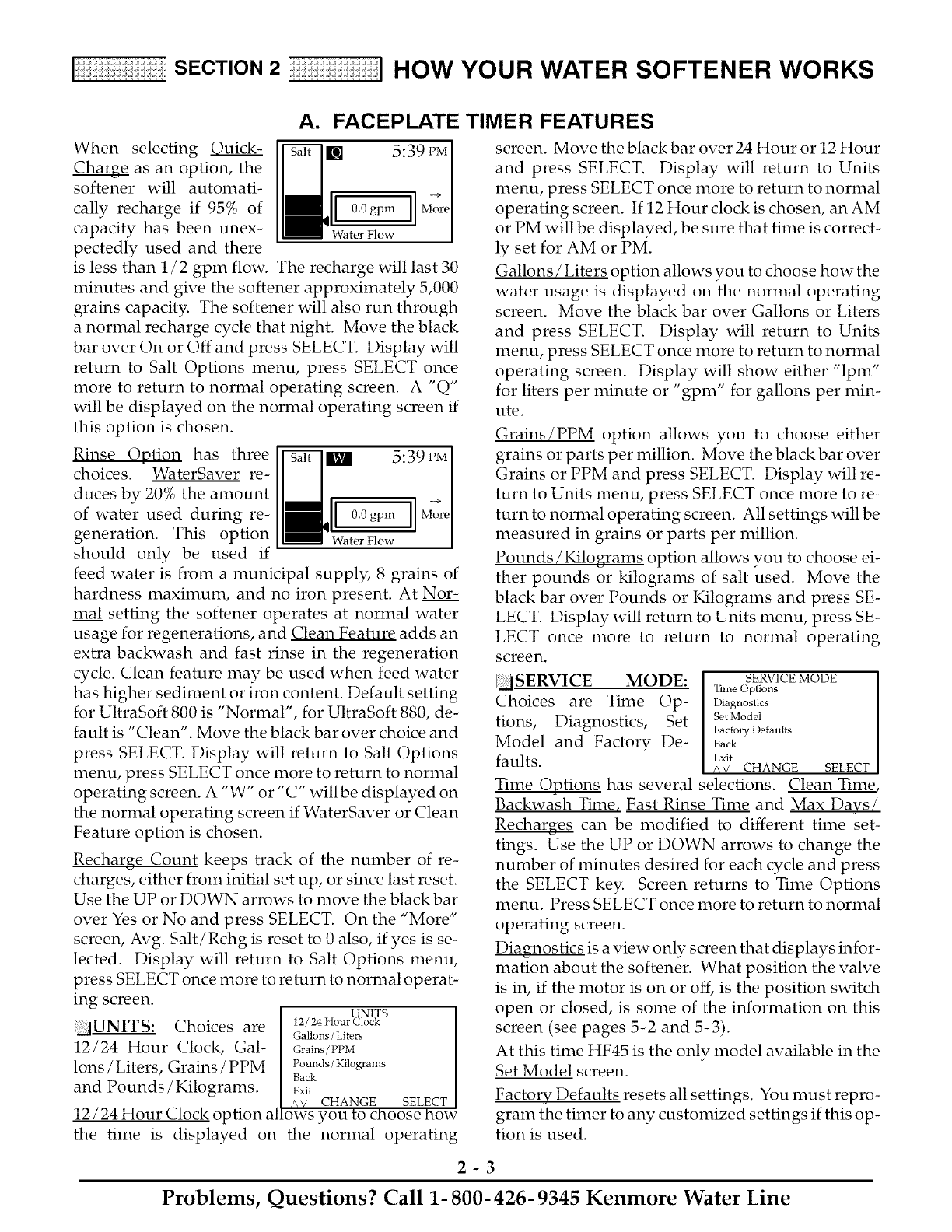

A. FACEPLATE
When selecting Ouick-
Charg.e. as an option, the
softener will automati-
cally recharge if 95% of
capacity has been unex-
pectedly used and there
[] 5:39 PM
11Mor
is less than 1/2 gpm flow. The recharge will last 30
minutes and give the softener approximately 5,000
grains capacity. The softener will also run through
a normal recharge cycle that night. Move the black
bar over On or Off and press SELECT. Display will
return to Salt Options menu, press SELECT once
more to return to normal operating screen. A "Q"
will be displayed on the normal operating screen if
this option is chosen.
Rinse Option has three
choices. WaterSaver re-
duces by 20% the amount
of water used during re-
generation. This option
should only be used if
Im 5:39 PM
11Mor
feed water is from a municipal supply, 8 grains of
hardness maximum, and no iron present. At Nor-
real setting the softener operates at normal water
usage for regenerations, and Clean Feature adds an
extra backwash and fast rinse in the regeneration
cycle. Clean feature may be used when feed water
has higher sediment or iron content. Default setting
for UltraSoft 800 is "Normal", for UltraSoft 880, de-
fault is "Clean". Move the black bar over choice and
press SELECT. Display will return to Salt Options
menu, press SELECT once more to return to normal
operating screen. A "W" or "C" will be displayed on
the normal operating screen if WaterSaver or Clean
Feature option is chosen.
Recharge Count keeps track of the number of re-
charges, either from initial set up, or since last reset.
Use the UP or DOWN arrows to move the black bar
over Yes or No and press SELECT. On the "More"
screen, Avg. Salt/Rchg is reset to 0 also, if yes is se-
lected. Display will return to Salt Options menu,
press SELECT once more to return to normal operab
ing screen.
Choices are
12/24 tIour Clock, Gal-
lons /Liters, Grains /PPM
and Pounds /Kilograms.
12/24 t{our Clock option al
the time is displayed on
12/24 Hour UC_cIkTS I
Gallons/Liters ]
Grains/PPM ]
Pounds/Kilograms ]
Back ]
Exit I
/\V CHANGE SELECT ]
ows you to choose now
the normal operating
TIMER FEATURES
screen. Move the black bar over 24 ttour or 12 Hour
and press SELECT. Display will return to Units
menu, press SELECT once more to return to normal
operating screen. If 12 ttour clock is chosen, an AM
or PM will be displayed, be sure that time is correct-
ly set for AM or PM.
Gallons /Liters option allows you to choose how the
water usage is displayed on the normal operating
screen. Move the black bar over Gallons or Liters
and press SELECT. Display will return to Units
menu, press SELECT once more to return to normal
operating screen. Display will show either "lpm"
for liters per minute or "gpm" for gallons per min-
ute.
Grains/PPM option allows you to choose either
grains or parts per million. Move the blackbar over
Grains or PPM and press SELECT. Display will re-
turn to Units menu, press SELECT once more to re-
turn to normal operating screen. All settings will be
measured in grains or parts per million.
Pounds/Kilograms option allows you to choose ei-
ther pounds or kilograms of salt used. Move the
black bar over Pounds or Kilograms and press SE-
LECT. Display will return to Units menu, press SE-
LECT once more to return to normal operating
screen.
MODE:
Choices are Time Op-
tions, Diagnostics, Set
Model and Factory De-
faults.
SERVICE MODE
'lime Options
Diagnostics
Set Model
Factory Defaults
Back
Exit
V CHANGE SELECT
Time Options has several selections. Clean Time,
Backwash Time, Fast Rinse Time and Max Days/
Recharges can be modified to different time set-
tings. Use the UP or DOWN arrows to change the
number of minutes desired for each cycle and press
the SELECT key. Screen returns to Time Options
menu. Press SELECT once more to return to normal
operating screen.
Diagnostics is a view only screen that displays infor-
mation about the softener. What position the valve
is in, if the motor is on or off, is the position switch
open or closed, is some of the information on this
screen (see pages 5-2 and 5-3).
At this time HF45 is the only model available in the
Set Model screen.
Factory Defaults resets all settings. You must repro-
gram the timer to any customized settings if this op-
tion is used.
2-3
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_!!:;_ SECTION 2_i:!!! :;_!!:;_i] HOW YOUR WATER SOFTENER WORKS

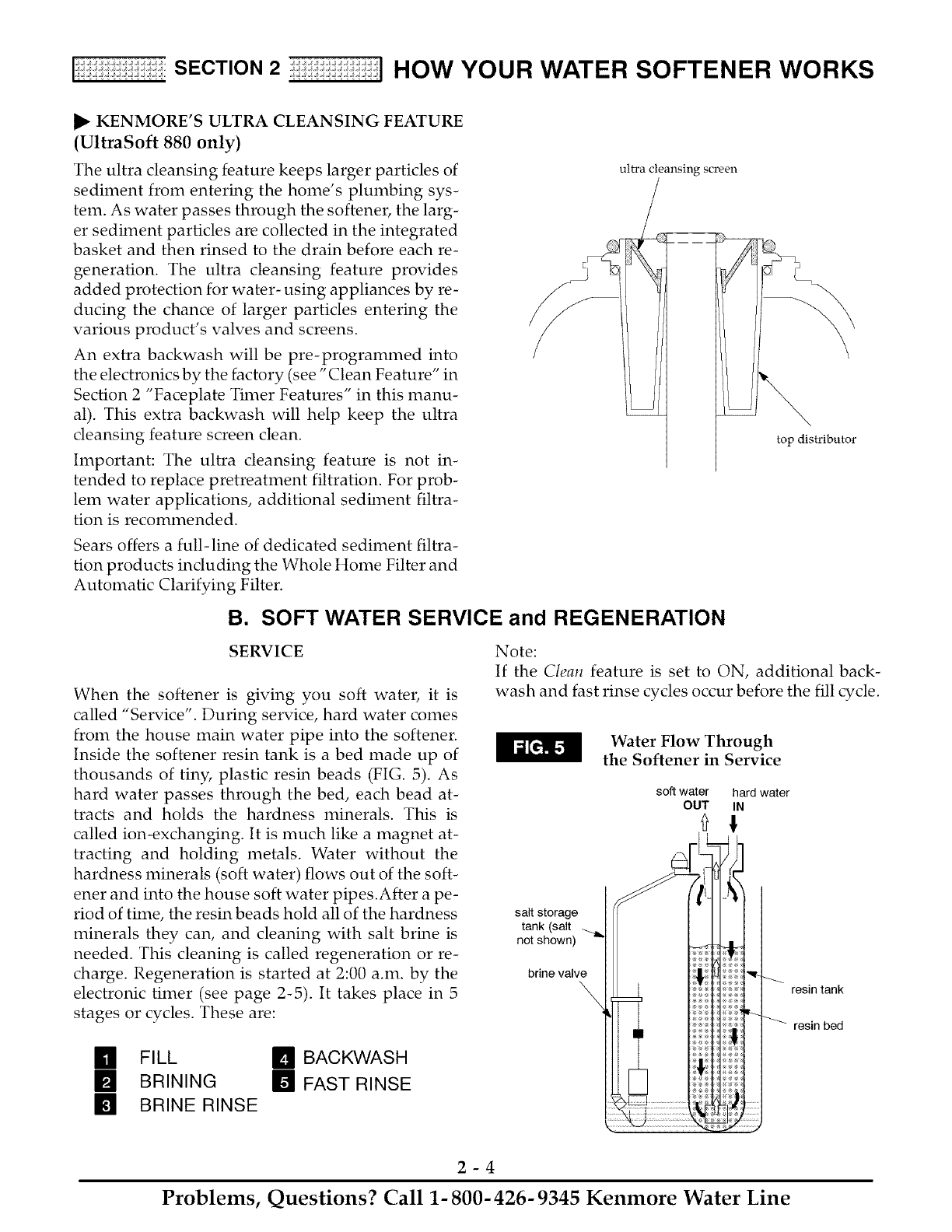

KENMORE'S ULTRA CLEANSING FEATURE
(UltraSoft 880 only)
The ultra cleansing feature keeps larger particles of
sediment from entering the home's plumbing sys-
tem. As water passes through the softener, the larg-
er sedhnent particles are collected in the integrated
basket and then rinsed to the drain before each re-
generation. The ultra cleansing feature provides
added protection for water- using appliances by re-
ducing the chance of larger particles entering the
various product's valves and screens.
An extra backwash will be pre-programmed into
the electronics by the factory (see "Clean Feature" in
Section 2 "Faceplate Thner Features" in this manu-
al). This extra backwash will help keep the ultra
cleansing feature screen clean.
hnportant: The ultra cleansing feature is not in-
tended to replace pretreatment filtration. For prob-
lem water applications, additional sedhnent filtra-
tion is recommended.
Sears offers a full-line of dedicated sediment filtra-
tion products including the Whole ttome Filter and
Automatic Clarifying Filter.
ultra cleansing screen
/
top distributor
B. SOFT WATER SERVICE and REGENERATION
SERVICE
When the softener is giving you soft water, it is
called "Service". During service, hard water comes
from the house main water pipe into the softener.
Inside the softener resin tank is a bed made up of
thousands of tiny, plastic resin beads (FIG. 5). As
hard water passes through the bed, each bead at-
tracts and holds the hardness minerals. This is
called ion-exchanging. It is much like a magnet at-
tracting and holding metals. Water without the
hardness minerals (soft water) flows out of the soft-
ener and into the house soft water pipes.After a pe-
riod of time, the resin beads hold all of the hardness
minerals they can, and cleaning with salt brine is
needed. This cleaning is called regeneration or re-
charge. Regeneration is started at 2:00 aan. by the
electronic timer (see page 2-5). It takes place in 5
stages or cycles. These are:
Note:
If the Clean feature is set to ON, additional back-
wash and fast rinse cycles occur before the fill cycle.
Water Flow Through
the Softener in Service
soft water hard water
OUT IN
salt storage
tank (salt
not shown)
brine valve
resin tank
resin bed
ml FILL [] BACKWASH
[] BRINING [] FAST RINSE
[] BRINE RINSE
2-4
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_!!:;_ SECTION 2_i:!!! :;_!!:;_i] HOW YOUR WATER SOFTENER WORKS
B. SOFT WATER SERVICE and REGENERATION
REGENERATION
[] FILL: Salt, dissolved in water, is called brine.
Brine is needed to clean the hardness minerals from
the resin beads. To make the brine, water flows into
the salt storage area during the fill stage as shown
in FIG. 6. Fill cycle length depends on how much
soft water making capacity you have used since the
last regeneration. As you use more water, fill time
increases so more brine is made. The greater
amount of brine cleans more hardness minerals
from the resin bed.
Water Flow Through
the Softener in Fill
salt storage
tank
brine valve\
soft water hard water
OUT IN
\
fill water
2-5
[] BRINING: During brining, the brine is moved
from the salt storage area, into the resin tank. Inside
the resin tank, brine cleans hardness minerals from
the resin beads and they are discharged out the
drain. How much brine is needed to clean the resin
depends on:
--the hardness of your watei,
--the amount of water used during service,
- - the amount of resin in the softener,
--how fast the brine goes through the bed.
The nozzle and venturi (FIG. 7) make suction to take
brine from the salt tank and put it into the resin tank.
They keep the brine flow down to a very slow rate
to get the best resin cleaning with the least salt.
[] BRINE RINSE: After all of the brine is moved
into the resin tank, the brine valve closes. Water
keeps flowing the same way it did during brining
except the brine flow has stopped, t tardness miner-
als and brine flush from the resin tank to the drain.
Brining and brine rinse together vary in the length
of time they take, relative to the fill cycle length.
Water Flow Through the Softener
in Brining and Brine Rinse
hard water hard water
bypass OUT t I IN
drain
brine valve
\
\brine
_]_ BACKWASH: During backwash, water flows
UP through the resin tank (FIG. 8) at a fast rate to
flush iron minerals, dirt and sediments from the bed
and to the drain. The bed lifts and expands for good
cleaning.
Water Flow Through the
Softener in Backwash
hard water hard water
bypass OUT tfIN
drain
resin bed lifted
and expanded
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_!!:;_ SECTION 2_i:!!! :;_!!:;_i] HOW YOUR WATER SOFTENER WORKS
B. SOFT WATER SERVICE and REGENERATION

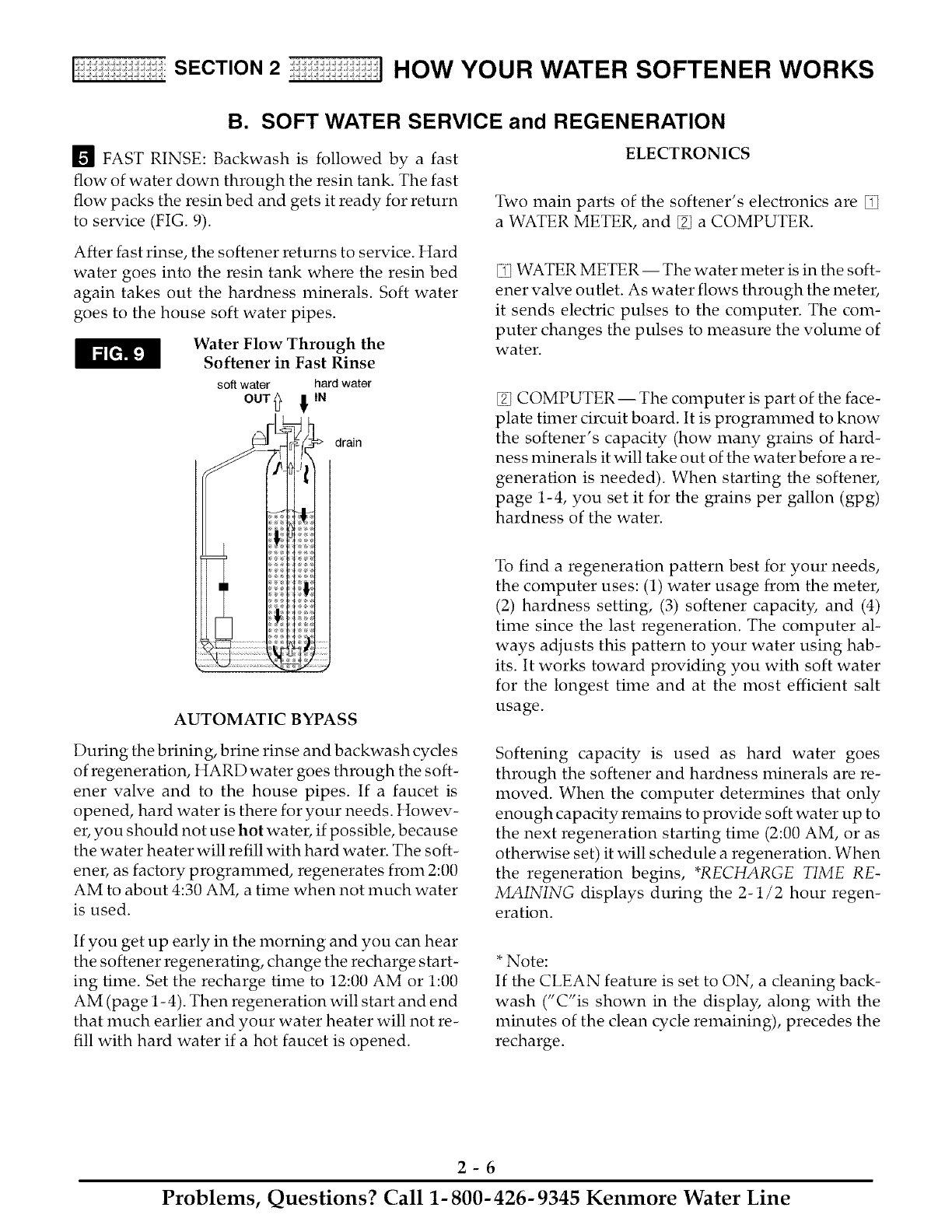

[] FAST RINSE: Backwash is followed by a fast
flow of water down through the resin tank. The fast
flow packs the resin bed and gets it ready for return
to service (FIG. 9).
ELECTRONICS
Two main parts of the softener's electronics are
a WATER METER, and _ a COMPUTER.
After fast rinse, the softener returns to service. Hard
water goes into the resin tank where the resin bed
again takes out the hardness minerals. Soft water
goes to the house soft water pipes.
Water Flow Through the
Softener in Fast Rinse
soft water hard water
ooT !'"
drain
WATER METER-- The water meter is in the soft-
ener valve outlet. As water flows through the meter,
it sends electric pulses to the computer. The com-
puter changes the pulses to measure the volume of
water.
COMPUTER-- The computer is part of the face-
plate thner circuit board. It is programmed to know
the softener's capacity (how many grains of hard-
ness minerals it will take out of the water before a re-
generation is needed). When starting the softener,
page 1-4, you set it for the grains per gallon (gpg)
hardness of the water.
AUTOMATIC BYPASS
During the brining, brine rinse and backwash cycles
of regeneration, HARD water goes through the soft-
ener valve and to the house pipes. If a faucet is
opened, hard water is there for your needs, t towev-
er, you should not use hot water, if possible, because
the water heater will refill with hard water. The soft-
ener, as factory programmed, regenerates from 2:00
AM to about 4:30 AM, a time when not much water
is used.
If you get up early in the morning and you can hear
the softener regenerating, change the recharge start-
ing time. Set the recharge time to 12:00 AM or 1:00
AM (page 1-4). Then regeneration will start and end
that much earlier and your water heater will not re-
fill with hard water if a hot faucet is opened.
To find a regeneration pattern best for your needs,
the computer uses: (1) water usage from the meter,
(2) hardness setting, (3) softener capacity, and (4)
time since the last regeneration. The computer al-
ways adjusts this pattern to your water using hab-
its. It works toward providing you with soft water
for the longest time and at the most efficient salt
usage.
Softening capacity is used as hard water goes
through the softener and hardness minerals are re-
moved. When the computer determines that only
enough capacity remains to provide soft water up to
the next regeneration starting time (2:00 AM, or as
otherwise set) it will schedule a regeneration. When
the regeneration begins, *RECHARGE TIME RE-
MAINING displays during the 2-1/2 hour regen-
eration.
* Note:
If the CLEAN feature is set to ON, a cleaning back-
wash ("C"is shown in the display, along with the
minutes of the clean cycle remaining), precedes the
recharge.
2-6
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

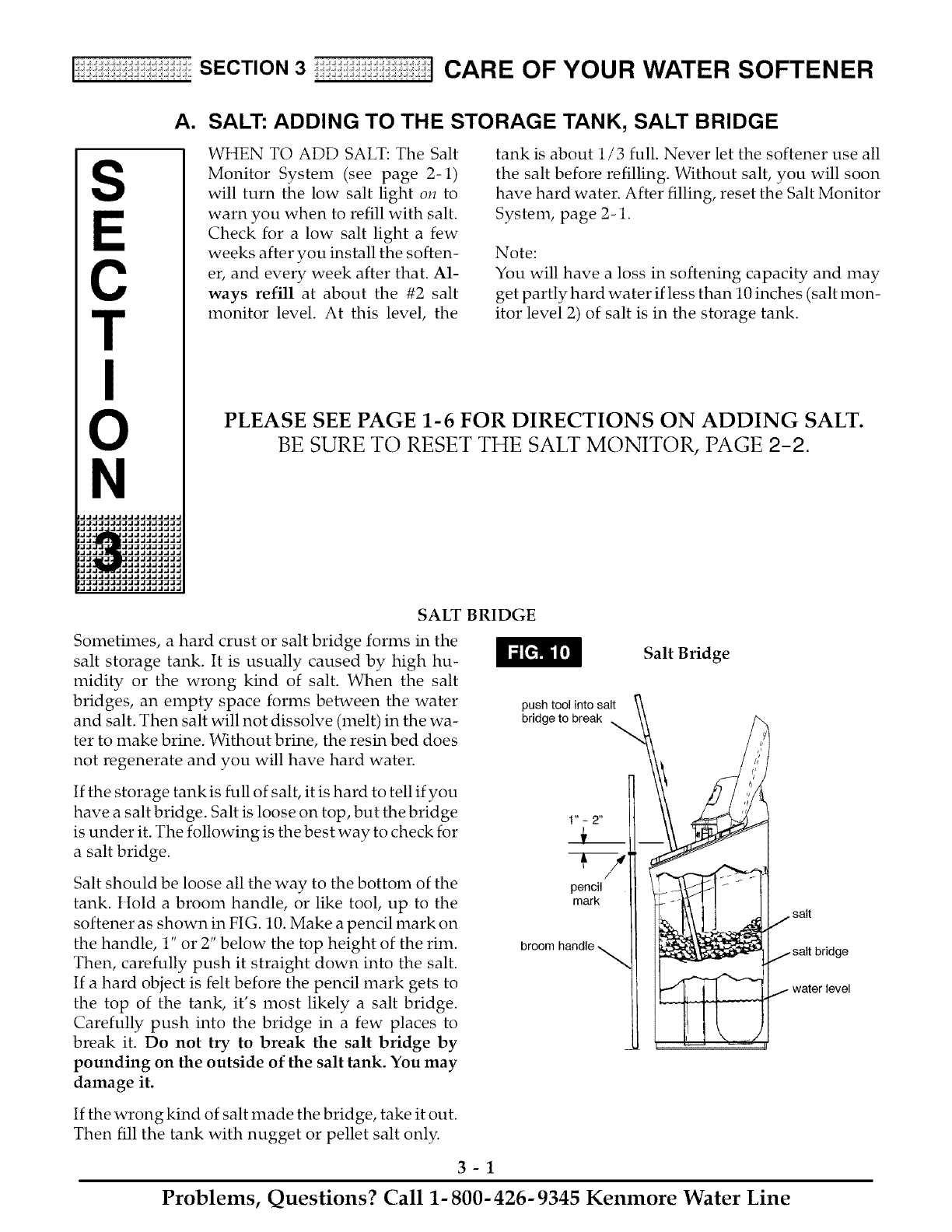

[i!i !! :i:_!! :i:_!! :i:i SECTION 3CARE OF YOUR WATER SOFTENER
A. SALT: ADDING TO THE STORAGE TANK, SALT BRIDGE
S
C
T
N
,JJJJJJJJJJJJJJJJ.
,JJJJ JJJJJJJJJJJ.
'dJ_dJdJdJdJ.
,JJ JJJJJJJJJ.
,JJJJ JJJJJJJJJ.
,JJ JJJJJJJJJ.
_dJ dJdJdJdJ.
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
WHEN TO ADD SALT: The Salt
Monitor System (see page 2-1)
will turn the low salt light on to
warn you when to refill with salt.
Check for a low salt light a few
weeks after you install the soften-
er, and every week after that. Al-
ways refill at about the #2 salt
monitor level. At this level, the
tank is about 1/3 full. Never let the softener use all
the salt before refilling. Without salt, you will soon
have hard water. After filling, reset the Salt Monitor
System, page 2-1.
Note:
You will have a loss in softening capacity and may
get partly hard water if less than 10 inches (salt mon-
itor level 2) of salt is in the storage tank.
PLEASE SEE PAGE 1-6 FOR DIRECTIONS ON ADDING SALT.
BE SURE TO RESET THE SALT MONITOR, PAGE 2-2.
SALT BRIDGE
Sometimes, a hard crust or salt bridge forms in the
salt storage tank. It is usually caused by high hu-
midity or the wrong kind of salt. When the salt
bridges, an empty space forms between the water
and salt. Then salt will not dissolve (melt) in the wa-
ter to make brine. Without brine, the resin bed does
not regenerate and you will have hard water.
push tool into salt
bridge to break
Salt Bridge
If the storage tank is full of salt, it is hard to tell if you
have a salt bridge. Salt is loose on top, but the bridge
is under it. The following is the best way to check for
a salt bridge.
Salt should be loose all the way to the bottom of the
tank. t{old a broom handle, or like tool, up to the
softener as shown in FIG. 10. Make a pencil mark on
the handle, 1" or 2" below the top height of the rim.
Then, carefully push it straight down into the salt.
If a hard object is felt before the pencil mark gets to
the top of the tank, it's most likely a salt bridge.
Carefully push into the bridge in a few places to
break it. Do not try to break the salt bridge by
pounding on the outside of the salt tank. You may
damage it.
1 _ -2 _
pencil
mark
broom handle
salt
water level
If the wrong kind of salt made the bridge, take it out.
Then fill the tank with nugget or pellet salt only.
3-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_!!:;_!!:;:i SECTION 3CARE OF YOUR WATER SOFTENER
B. KEEPING THE WATER SOFTENER CLEAN

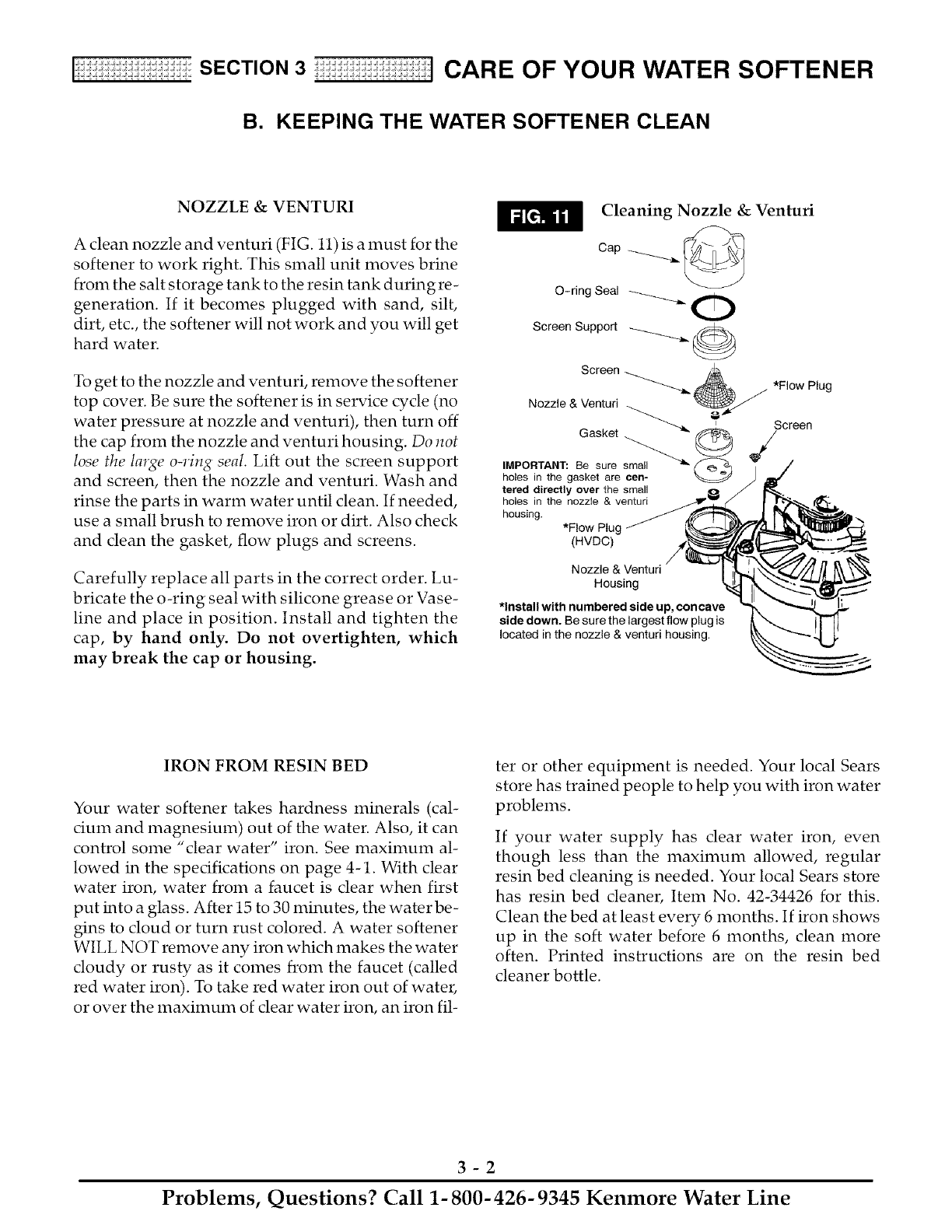

NOZZLE & VENTURI
A clean nozzle and venturi (FIG. 11) is a must for the
softener to work right. This small unit moves brine
from the salt storage tank to the resin tank duringre-
generation. If it becomes plugged with sand, silt,
dirt, etc., the softener will not work and you will get
hard water.
To get to the nozzle and venturi, remove the softener
top cover. Be sure the softener is in service cycle (no
water pressure at nozzle and venturi), then turn off
the cap from the nozzle and venturi housing. Do not
lose the large o-ring seal. Lift out the screen support
and screen, then the nozzle and venturi. Wash and
rinse the parts in warm water until clean. If needed,
use a small brush to remove iron or dirt. Also check
and clean the gasket, flow plugs and screens.
Carefully replace all parts in the correct order. Lu-
bricate the o-ring seal with silicone grease or Vase-
line and place in position. Install and tighten the
cap, by hand only. Do not overtighten, which
may break the cap or housing.
Cleaning Nozzle & Venturi
Cap _
O-ring Seal --.__.___
Screen Support _._._..
Screen
*Flow Plug
Nozzle&_itkUell _ _ Screen
tered directly over the smell
holes in the nozzle & venturi
housing.
*Flow Plug
(HVDC)
Nozzle & Venturi
Housing
*Install with numbered side up, concave
side down. Be sure the largest flow plug is
located inthe nozzle & venturi housing.
IRON FROM RESIN BED
Your water softener takes hardness minerals (cal-
cium and magnesium) out of the water. Also, it can
control some "clear water" iron. See maximum al-
lowed in the specifications on page 4-1. With clear
water iron, water from a faucet is clear when first
put into a glass. After 15 to 30 minutes, the waterbe-
gins to cloud or turn rust colored. A water softener
WILL NOT remove any iron which makes the water
cloudy or rusty as it comes from the faucet (called
red water iron). To take red water iron out of watei,
or over the maximum of clear water iron, an iron ill-
ter or other equipment is needed. Your local Sears
store has trained people to help you with iron water
problems.
If your water supply has clear water iron, even
though less than the maximum allowed, regular
resin bed cleaning is needed. Your local Sears store
has resin bed cleaner, Item No. 42-34426 for this.
Clean the bed at least every 6 months. If iron shows
up in the soft water before 6 months, clean more
often. Printed instructions are on the resin bed
cleaner bottle.
3-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :i _!!:i _!!:i :i SECTION 3CARE OF YOUR WATER SOFTENER

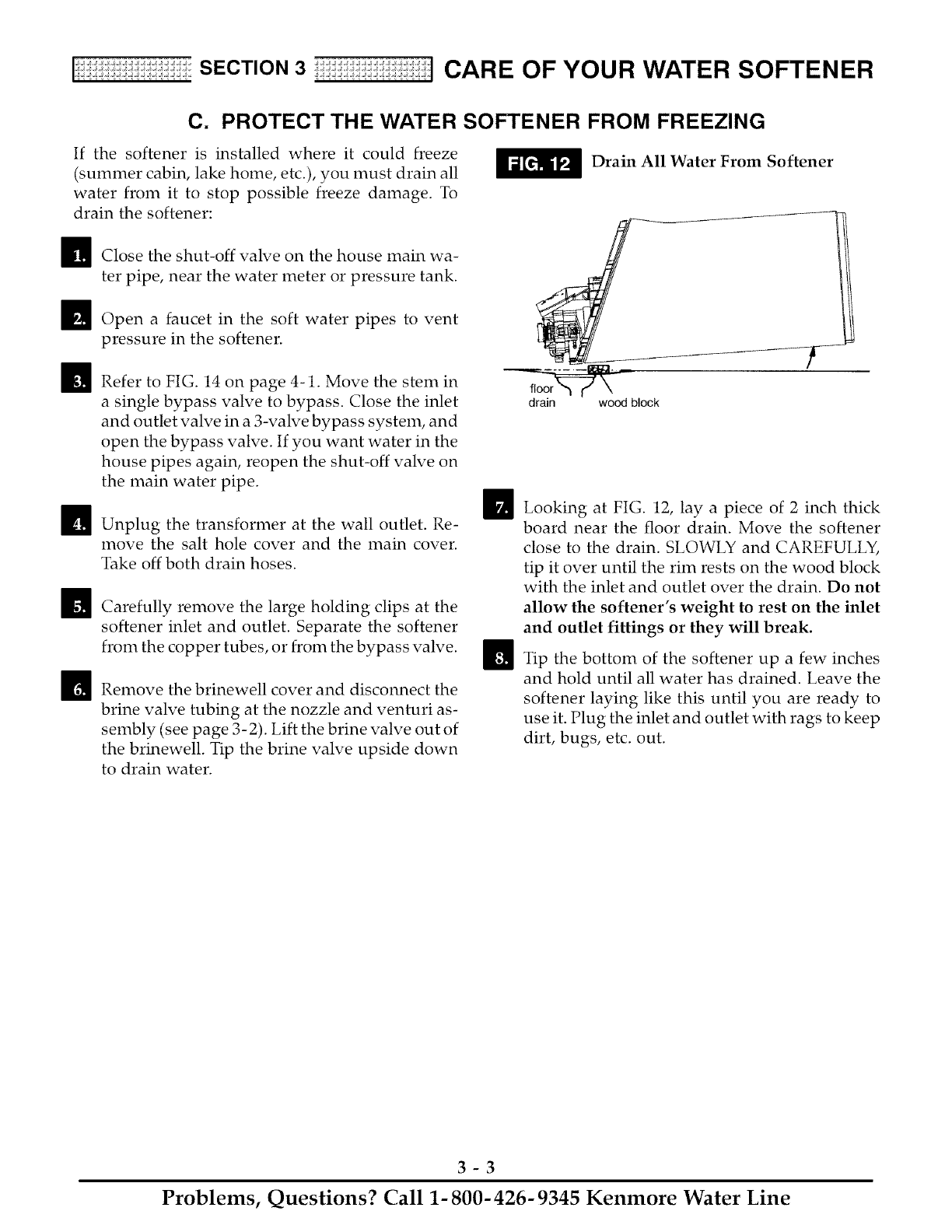

C. PROTECT THE WATER SOFTENER FROM FREEZING
If the softener is installed where it could fl_eeze
(summer cabin, lake home, etc.), you must drain all
water from it to stop possible freeze damage. To
drain the softener:
_1_ Close the shut-off valve on the house main wa-
ter pipe, near the water ineter or pressure tank.
_! Open a faucet in the soft water pipes to vent
pressure in the softener.
_ Refer to FIG. 14 on page 4-1. Move the stem in
a single bypass valve to bypass. Close the inlet
and outlet valve in a 3-valve bypass system, and
open the bypass valve. If you want water in the
house pipes again, reopen the shut-off valve on
the main water pipe.
_ Unplug the transformer at the wall outlet. Re-
move the salt hole cover and the main cover.
Take off both drain hoses.
_ Carefully remove the large holding clips at the
softener inlet and outlet. Separate the softener
from the copper tubes, or from the bypass valve.
_1_ Remove the brinewell cover and disconnect the
brine valve tubing at the nozzle and venturi as-
sembly (see page 3-2). Lift the brine valve out of
the brinewell. Tip the brine valve upside down
to drain water.
Drain All Water From Softener
drain wood block
m
m
Looking at FIG. 12, lay a piece of 2 inch thick
board near the floor drain. Move the softener
close to the drain. SLOWLY and CAREFULLY,
tip it over until the rim rests on the wood block
with the inlet and outlet over the drain. Do not
allow the softener's weight to rest on the inlet
and outlet fittings or they will break.
Tip the bottom of the softener up a few inches
and hold until all water has drained. Leave the
softener laying like this until you are ready to
use it. Plug the inlet and outlet with rags to keep
dirt, bugs, etc. out.
3-3
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_ !! :; _ !! :;_iSECTION 3CARE OF YOUR WATER SOFTENER

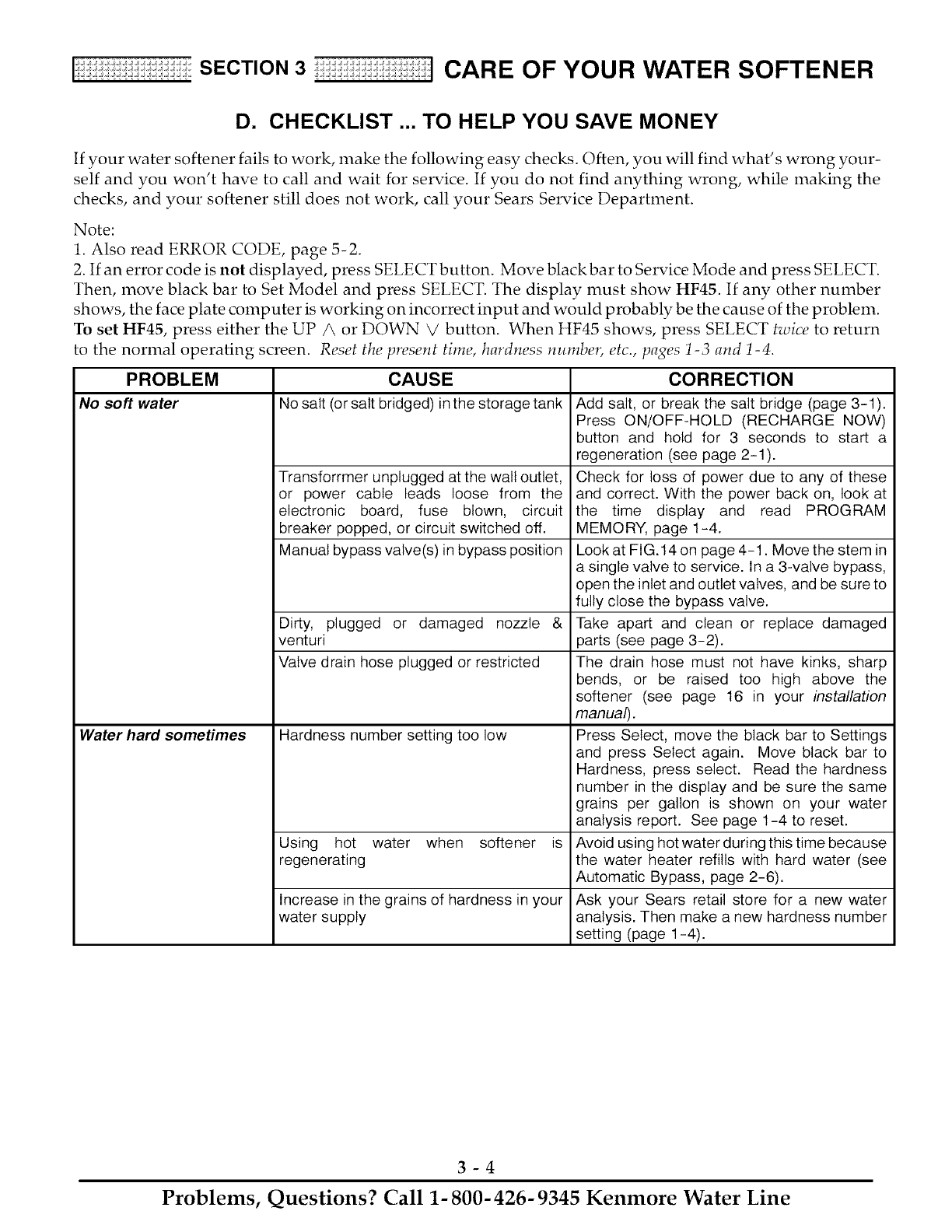

D. CHECKLIST ... TO HELP YOU SAVE MONEY
If your water softener fails to work, make the following easy checks. Often, you will find what's wrong your-
self and you won't have to call and wait for service. If you do not find anything wrong, while making the
checks, and your softener still does not work, call your Sears Service Department.
Note:
1. Also read ERROR CODE, page 5-2.
2. If an error code is not displayed, press SELECT button. Move black bar to Service Mode and press SELECT.
Then, move black bar to Set Model and press SELECT. The display must show HF45. If any other number
shows, the face plate computer is working on incorrect input and would probably be the cause of the problem.
To set HF45, press either the UP/X or DOWN V button. When ttF45 shows, press SELECT twice to return
to the normal operating screen. Reset the present time, hardness numbel, etc., pages 1-3 and 1-4.
PROBLEM CAUSE CORRECTION
No soft water No salt (or salt bridged) in the storage tank
Transforrmer unplugged at the wall outlet,
or power cable leads loose from the
electronic board, fuse blown, circuit
breaker popped, or circuit switched off.
Manual bypass valve(s) in bypass position
Dirty, plugged or damaged nozzle &
venturi
Valve drain hose plugged or restricted
Water hard sometimes Hardness number setting too low
Using hot water when softener is
regenerating
Increase in the grains of hardness in your
water supply
Add salt, or break the salt bridge (page 3-1).
Press ON/OFF-HOLD (RECHARGE NOW)
button and hold for 3 seconds to start a
regeneration (see page 2-1).
Check for loss of power due to any of these
and correct. With the power back on, look at
the time display and read PROGRAM
MEMORY, page 1-4.
Look at FIG.14 on page 4-1. Move the stem in
a single valve to service. In a 3-valve bypass,
open the inlet and outlet valves, and be sure to
fully close the bypass valve.
Take apart and clean or replace damaged
parts (see page 3-2).
The drain hose must not have kinks, sharp
bends, or be raised too high above the
softener (see page 16 in your installation
manual).
Press Select, move the black bar to Settings
and press Select again. Move black bar to
Hardness, press select. Read the hardness
number in the display and be sure the same
grains per gallon is shown on your water
analysis report. See page 1-4 to reset.
Avoid using hot water during this time because
the water heater refills with hard water (see
Automatic Bypass, page 2-6).
Ask your Sears retail store for a new water
analysis. Then make a new hardness number
setting (page 1-4).
3-4
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! _;_ !! _;_ SECTION 4KNOW ABOUT YOUR WATER SOFTENER
A. DIMENSIONS /SPECIFICATIONS
S
C
T
N
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
,JJJJ JJJJJ_JJJ.
'JJJ_JJJJJJJJ-
,JJ JJJJJJJJJ.
,JJJJJ JJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
7
A
\/'
1
C
[
E
t
A
B
C
D
E
F1
F2
CM
Salt Tank Height 34 86.4
Resin Tank Diameter 10 25.4
(nominal)
Resin Tank Height 40 101.6
(nominal)
Inlet-Outlet Height 41-1/2 105.4
Overall Height 48 121.9
Length 21 53.3
Width 17 43.2
Distance between inlet- 3-7/8 9.8
outlet center lines
MODEL NOS. UltraSoft 800 & UltraSoft 880
BYPASS VALVES
Bypass valve(s) should always remain in soft
water service position. Position in "bypass" only
if needed for softener repairs.
SINGLE BYPASS
PULL OUT
for service
)_PUSH IN
for bypass
3-VALVE BYPASS
FOR SERVICE
close bypass valve
open inlet & outlet valves
FOR BYPASS
open bypass valve
close inlet & outlet valves
Outlet
Valve
Bypass
Valve
Inlet
Valve
TIMER HF CODE HF45
WATER SUPPLY TO WATER SOFTENER
Minimum water system flow (gpm) 3
Minimum-Max. water pressure (psi) 20 - 125
Minimum-Max. water temperature (° F) 40 - 120
Maximum water hardness (gpg) 160
Maximum "clear water" iron (ppm) *12
SALT FOR WATER SOFTENER
Type of salt needed nugget or pellet
Alternate type of salt pure, evaporated, com-
pacted water softener salt
gpm = gallons per minute gpg = grains per gallon
psi = pounds per square inch ppm = parts per million
* Capacity to remove clear water iron is substantiated by WQA test data. State of Wisconsin requires
additional treatment if water supply contains greater than 5 ppm clear water iron.
4-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :;_!!:;_ SECTION 4KNOW ABOUT YOUR WATER SOFTENER
35
3O
25
u)
O.
vo. 20
£
r_
.e 15
o_
a. 10
A. DIMENSIONS /SPECIFICATIONS

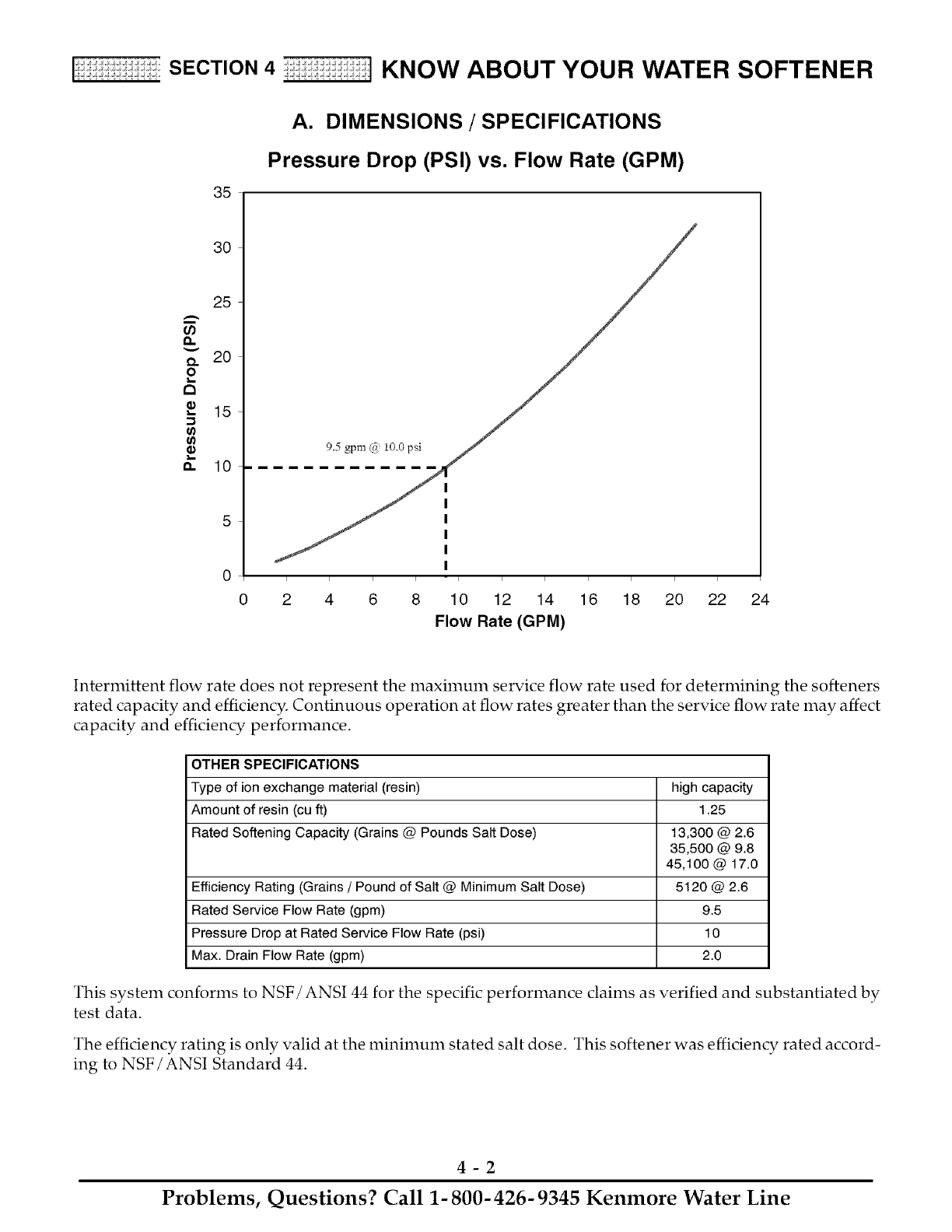

Pressure Drop (PSI) vs. Flow Rate (GPM)
i
0 22 24
.5 . "
iiiiiiiiii
2 4 6 8 10 12 14 16 18 20
Flow Rate (GPM)
Intermittent flow rate does not represent the maximum service flow rate used for determining the softeners
rated capacity and efficiency. Continuous operation at flow rates greater than the service flow rate may affect
capacity and efficiency performance.
OTHER SPECIFICATIONS
Type of ion exchange material (resin) high capacity
Amount of resin (cu ft) 1,25
Rated Softening Capacity (Grains @ Pounds Salt Dose) 13,300 @ 2.6
35,500 @ 9.8
45,100 @ 17,0
Efficiency Rating (Grains /Pound of Salt @ Minimum Salt Dose) 5120 @ 2.6
Rated Service Flow Rate (gpm) 9.5
Pressure Drop at Rated Service Flow Rate (psi) 10
Max. Drain Flow Rate (gpm) 2.0
This system conforms to NSF/ANSI 44 for the specific performance claims as verified and substantiated by
test data.
The efficiency rating is only valid at the minimum stated salt dose. This softener was efficiency rated accord-
ing to NSF/ANSI Standard 44.
4-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

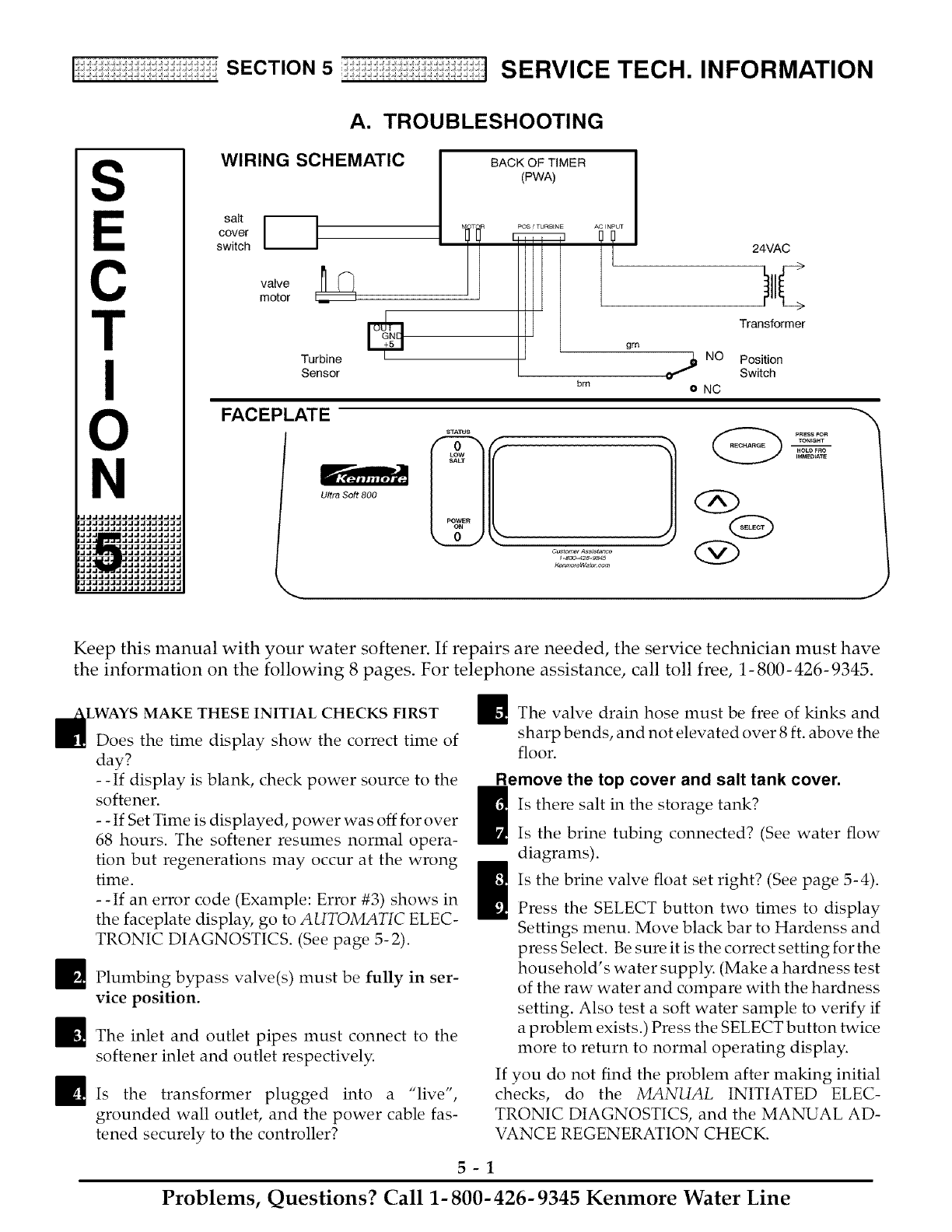

[i!i !! :;:_!! :;:_!! :;:_!! :; SECTION 5SERVICE TECH. INFORMATION
S
C
T
N
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
,JJ JJJJJJJJ=
,JJ JJJJJJJJJ=
_dJ dJdJdJdJ.
,JJJJJJJJJJJJJJJJ=
,JJJJJJJJJJJJJJJJ=
A. TROUBLESHOOTING
WIRING SCHEMATIC
salt
cover
switch
valve _
motor
Turbine
Sensor
BACK OF TIMER
(PWA)
POS /TURBINE AC INPUT I
gm
bm
24VAC
Transformer
FACEPLATE
UltmSo#800
O_ NO Position
Switch
oNC
TON_HT
HOU) FRO
,J
Keep this manual with your water softener. If repairs are needed, the service technician must have
the information on the following 8 pages. For telephone assistance, call toll free, 1-800-426-9345.
MAKE THESE INITIAL CHECKS FIRST
Does the time display show the correct time of
day?
- -If display is blank, check power source to the
softener.
- - If Set Time is displayed, power was off for over
68 hours. The softener resumes normal opera-
tion but regenerations may occur at the wrong
time.
- -if an error code (Example: Error #3) shows in
the faceplate display, go to AUTOMATIC ELEC-
TRONIC DIAGNOSTICS. (See page 5-2).
_ Plumbing bypass valve(s) must be fully in ser-
vice position.
_1_ The inlet and outlet pipes must connect to the
softener inlet and outlet respectively.
_Is the transformer plugged into a "live",
grounded wall outlet, and the power cable fas-
tened securely to the controller?
_l-_The valve drain hose must be free of kinks and
sharp bends, and not elevated over 8 ft. above the
floor.
Remove the top cover and salt tank cover.
EIs there salt in the storage tank?
Is the brine tubing connected? (See water flow
diagrams).
EIs the brine valve float set right? (See page 5-4).
Press the SELECT button two times to display
Settings menu. Move black bar to Hardenss and
press Select. Be sure it is the correct setting for the
household's water supply. (Make a hardness test
of the raw water and compare with the hardness
setting. Also test a soft water sample to verify if
a problem exists.) Press the SELECT button twice
more to return to normal operating display.
If you do not find the problem after making initial
checks, do the MANUAL INITIATED ELEC-
TRONIC DIAGNOSTICS, and the MANUAL AD-
VANCE REGENERATION CHECK.
5-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! :i:_!! :i:_!! :i:_!! :j SECTION 5SERVICE TECH. INFORMATION
A. TROUBLESHOOTING

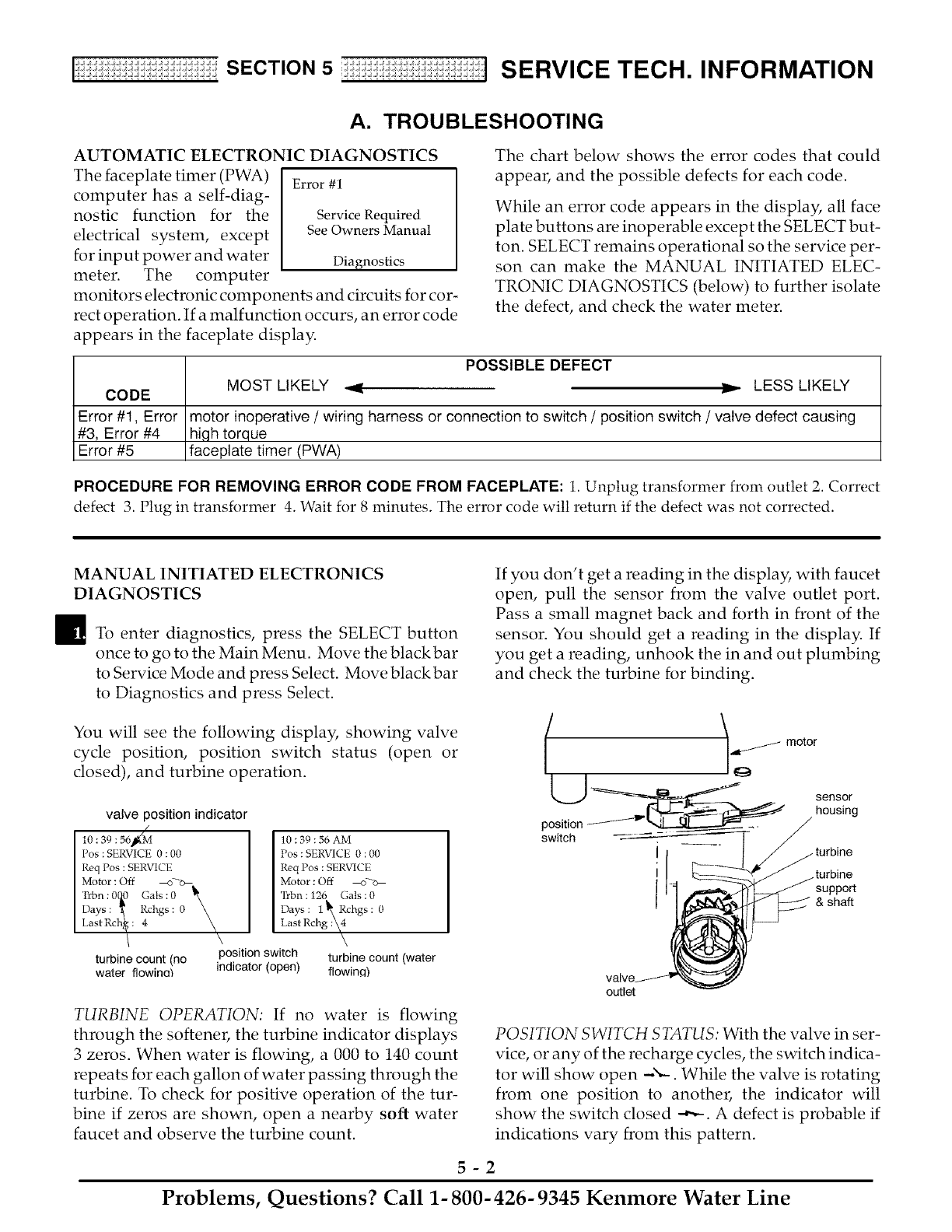

AUTOMATIC ELECTRONIC DIAGNOSTICS
The faceplate timer (PWA)
computer has a self-diag-
nostic function for the
electrical system, except
for input power and water
meter. The computer
monitors electronic components and circuits for cor-
rect operation. If a malfunction occurs, an error code
appears in the faceplate display.
Error #1
Service Required
See Owners Manual
Diagnostics
The chart below shows the error codes that could
appear, and the possible defects for each code.
While an error code appears in the display, all face
plate buttons are inoperable except the SELECT but-
ton. SELECT remains operational so the service per-
son can make the MANUAL INITIATED ELEC-
TRONIC DIAGNOSTICS (below) to further isolate
the defect, and check the water meter.
POSSIBLE DEFECT
MOST LIKELY _-- _, LESS LIKELY
CODE -_
Error #1, Error motor inoperative /wiring harness or connection to switch /position switch /valve defect causing
#3, Error #4 hiqh torque
Error #5 faceplate timer (PWA)
PROCEDURE FOR REMOVING ERROR CODE FROM FACEPLATE: 1. Unplug transformer from outlet 2. Correct
defect 3. Plug in transformer 4. Wait for 8 minutes. The error code will return if the defect was not corrected.
MANUAL INITIATED ELECTRONICS
DIAGNOSTICS
_To enter diagnostics, press the SELECT button
once to go to the Main Menu. Move the blackbar
to Service Mode and press Select. Move black bar
to Diagnostics and press Select.
You will see the following display, showing valve
cycle position, position switch status (open or
closed), and turbine operation.
valve position indicator
f
{10:39:56_M
Pos : SERVICE 0 : 00
Req Pos : SERVICE
Motor : Off _-_c_
"Kbn: 0_0 Gals: 0 _1_
Days: _ chgs: 0 _Last Rch_ : R
/ \
turbine count (no
water Ilowino_
10:39:56AM
Pos : SERVICE 0 : 00
Req Pos : SERVICE
Motor : Off _-'_
Trbn : 126 Gals : 0
Days : 1 _Rchgs : 0
Last Rchg :\4\
position switch turbine count (water
indicator (open) flowin¢l)
TURBINE OPERATION: If no water is flowing
through the softener, the turbine indicator displays
3 zeros. When water is flowing, a 000 to 140 count
repeats for each gallon of water passing through the
turbine. To check for positive operation of the tur-
bine if zeros are shown, open a nearby soft water
faucet and observe the turbine count.
If you don't get a reading in the display, with faucet
open, pull the sensor from the valve outlet port.
Pass a small magnet back and forth in front of the
sensor. You should get a reading in the display. If
you get a reading, unhook the in and out plumbing
and check the turbine for binding.
switch
sensor
housing
/
turbine
support
& shaft
outlet
POSITION SWITCH STATUS: With the valve in ser-
vice, or any of the recharge cycles, the switch indica-
tor will show open _N-. While the valve is rotating
from one position to another, the indicator will
show the switch closed --,_-. A defect is probable if
indications vary from this pattern.
5-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! _i_ !! _i_ !! _i_ !! _iSECTION 5SERVICE TECH. INFORMATION
A. TROUBLESHOOTING

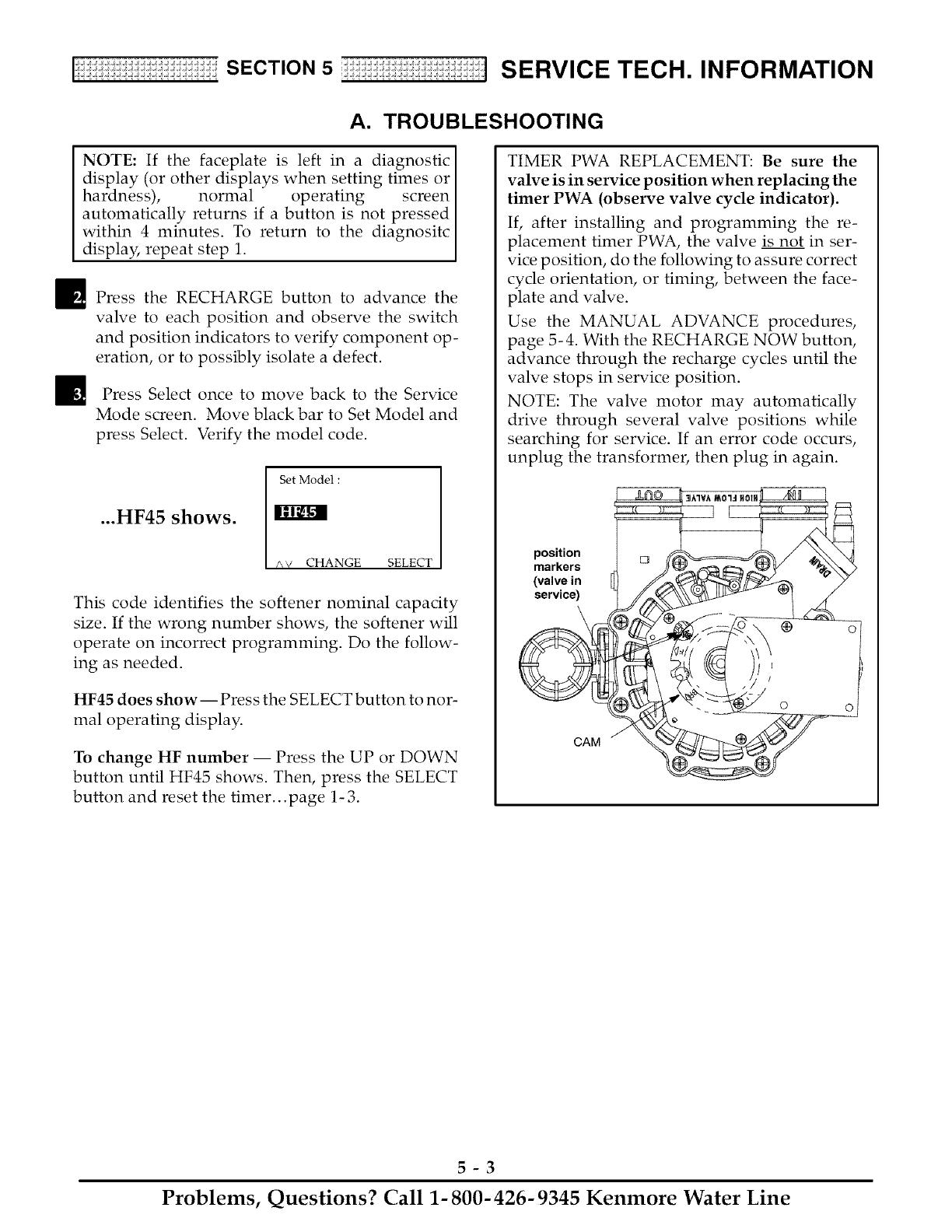

NOTE: If the faceplate is left in a diagnostic
display (or other displays when setting times or
hardness), normal operating screen
automatically returns if a button is not pressed
within 4 minutes. To return to the diagnositc
display, repeat step 1.
_ Press the RECHARGE button to advance the
valve to each position and observe the switch
and position indicators to verify component op-
eration, or to possibly isolate a defect.
_1_ Press Select once to move back to the Service
Mode screen. Move black bar to Set Model and
press Select. Verify the model code.
Set Model :
...HF45 shows.
V CHANGE SELECT
This code identifies the softener nominal capacity
size. if the wrong number shows, the softener will
operate on incorrect programming. Do the follow-
ing as needed.
HF45 does show--Press the SELECT button to nor-
mal operating display.
To change HF number -- Press the UP or DOWN
button until HF45 shows. Then, press the SELECT
button and reset the timer...page 1-3.
TIMER PWA REPLACEMENT: Be sure the
valve is in service position when replacing the
timer PWA (observe valve cycle indicator).
IL after installing and programming the re-
placement timer PWA, the valve is not in ser-
vice position, do the following to assure correct
cycle orientation, or timing, between the face-
plate and valve.
Use the MANUAL ADVANCE procedures,
page 5- 4. With the RECHARGE NOW button,
advance through the recharge cycles until the
valve stops in service position.
NOTE: The valve motor may automatically
drive through several valve positions while
searching for service. If an error code occurs,
unplug the transformer, then plug in again.
position
markers
(valve in
service)
CAM
5-3
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! _;_ !! _;_ !! _;_ !! _;SECTION 5SERVICE TECH. INFORMATION
A. TROUBLESHOOTING

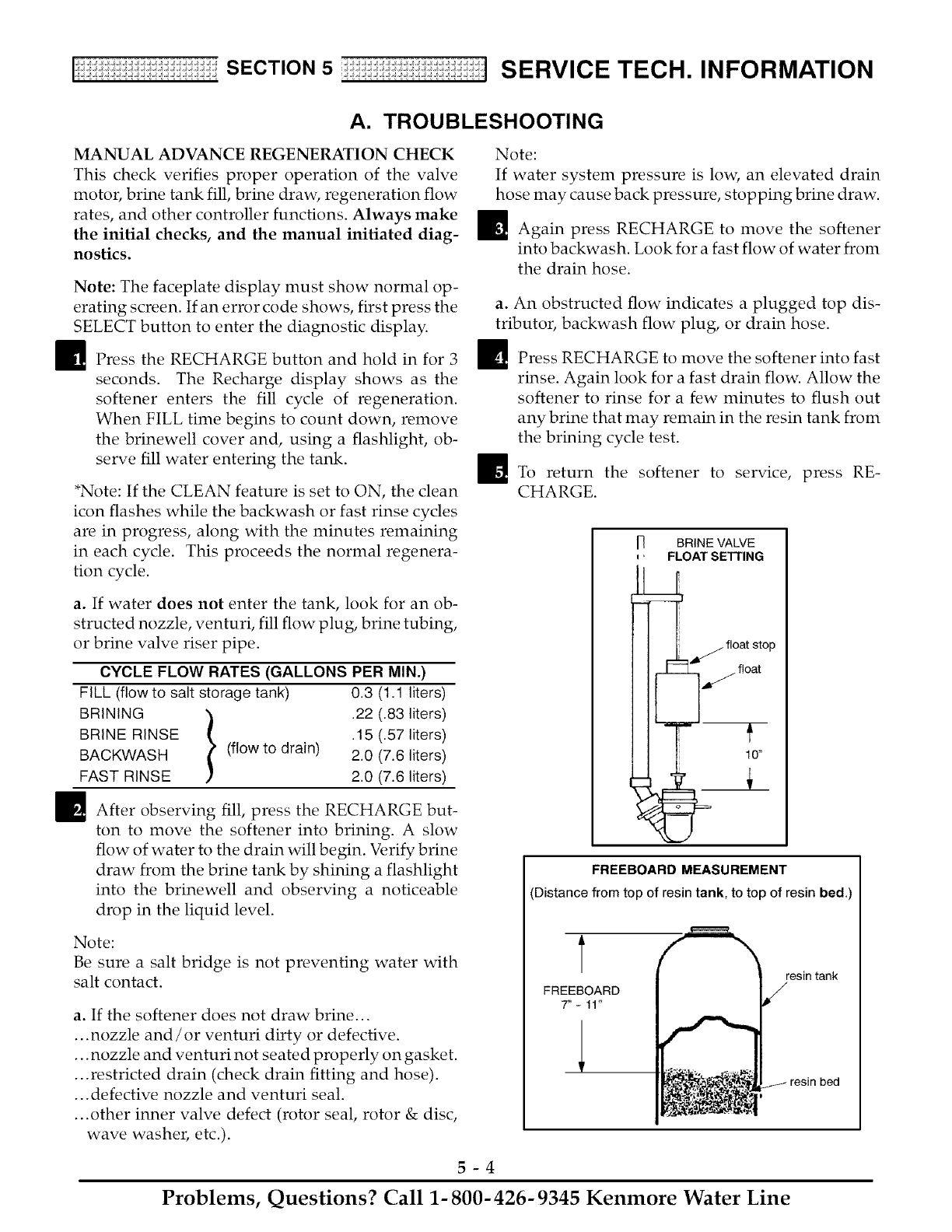

MANUAL ADVANCE REGENERATION CHECK
This check verifies proper operation of the valve
motor, brine tank fill, brine draw, regeneration flow
rates, and other controller functions. Always make
the initial checks, and the manual initiated diag-
nostics.
Note: The faceplate display must show normal op-
erating screen. If an error code shows, first press the
SELECT button to enter the diagnostic display.
_ Press the RECHARGE button and hold in for 3
seconds. The Recharge display shows as the
softener enters the fill cycle of regeneration.
When FILL time begins to count down, remove
the brinewell cover and, using a flashlight, ob-
serve fill water entering the tank.
*Note: if the CLEAN feature is set to ON, the clean
icon flashes while the backwash or fast rinse cycles
are in progress, along with the minutes remaining
in each cycle. This proceeds the normal regenera-
tion cycle.
a. If water does not enter the tank, look for an ob-
structed nozzle, venturi, fill flow plug, brine tubing,
or brine valve riser pipe.
CYCLE FLOW RATES (GALLONS PER MIN.)
FILL (flow to salt storage tank) 0.3 (1.1 liters)
BRINING '_ .22 (.83 liters)
BRINE RINSE l .15 (.57 liters)
BACKWASH (flow to drain) 2.0 (7.6 liters)
FAST RINSE 2.0 (7.6 liters)
_ After observing fill, press the RECHARGE but-
ton to move the softener into brining. A slow
flow of water to the drain will begin. Verify brine
draw from the brine tank by shining a flashlight
into the brinewell and observing a noticeable
drop in the liquid level.
Note:
Be sure a salt bridge is not preventing water with
salt contact.
a. If the softener does not draw brine...
...nozzle and/or venturi dirty or defective.
...nozzle and venturi not seated properly on gasket.
...restricted drain (check drain fitting and hose).
...defective nozzle and venturi seal.
...other inner valve defect (rotor seal, rotor & disc,
wave washer, etc.).
Note:
If water system pressure is low, an elevated drain
hose may cause back pressure, stopping brine draw.
_I_ Again press RECHARGE to move the softener
into backwash. Look for a fast flow of water from
the drain hose.
a. An obstructed flow indicates a plugged top dis-
tributor, backwash flow plug, or drain hose.
ImPress RECHARGE to move the softener into fast
rinse. Again look for a fast drain flow. Allow the
softener to rinse for a few minutes to flush out
any brine that may remain in the resin tank from
the brining cycle test.
_To return the softener to service, press RE-
CHARGE.
[1 BRINE VALVE
,' FLOAT SETTING
__ float stop
float
FREEBOARD MEASUREMENT
Distance from top of resin tank, to top of resin bed.)
FREEBOARD
7"-11"
resin tank
5-4
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
[i!i !! _;_ !! _;_ !! _;_ !! _;SECTION 5SERVICE TECH. INFORMATION
B. ROTARY VALVE SERVICE
Before working on the valve, turn off the water sup-
ply and disconnect from electrical power. TO RE-
LIEVE PRESSURE:
• 3 VALVE BYPASS: Close the inlet valve and open
a soft water faucet. Then close the outlet valve and
open the bypass valve.
• SEARS SPECIAL BYPASS: Slide the bypass valve
stem to bypass position. Loosen three hex head
screws toward the back side of the valve to allow
pressure water to bleed out. Catch water with a rag.
DISASSEMBLY
To remove a part or group of parts, refer to the valve
drawing. A common screwdriver or nut driver,
Phillips screwdriver and pliers are the only tools
needed to completely disassemble.
SERVICING THE VALVE
Inspect all o-rings, seals and gaskets for wear or de-
fects.
Inspect the bottom surface of the rotor for scratches,
chips or wear.
Note:
If replacement is needed, be sure to use the current
replacement part.
ASSEMBLY
Be sure all parts are in place and in the proper posi-
tion. Lubricate ALL o-rings and seals with FDA ap-
proved silicone grease. To install the rotor seal, first
place the seal into the valve groove, rounded side
down (see cross-section). Apply a light coating of
silicone grease to the seal's crossing ribs. Then, care-
fully center the wear strip on the seal, and push it
downward onto the seal.
criss-cross pattern. If a torque wrench is available,
torque to 30-40 inch pounds.
Install bearing onto gear shaft. Install motor plate
and tighten screws to a snug fit. See page 6- 5 for de-
tailed schematic.
Lubricate the gear on the motor, and the valve cam
gear with Molykote grease, or other high quality
gear lubricant.
Be sure to orient switch as shown, with lever toward
the cam.
motor mounting
T_._._ -/screws
mc°te°rplate //motor
plastic bearing
cam & gear "'_ 1
switch
seal rotor
rotor seal
Install the nozzle and venturi seal and drain seal.
Assemble wave washer bearing, the wave washer,
and two o-rings onto the rotor top shaft. Then center
the rotor in the valve body, on the rotor seal. sensor
housing
Lower the cover onto the valve body and rotor shaft.
Then install the cover holding screws. Before tight- see
ening the screws, install the valve cam and gear. assembly
Then, turn the rotor (clockwise only) to service posi- service,
tion. Tighten the valve assembly screws using a page3-2
drain seal
nozzle & venturi seal
l_rbiene support
5-5
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 5 SERVICE TECH. INFORMATION

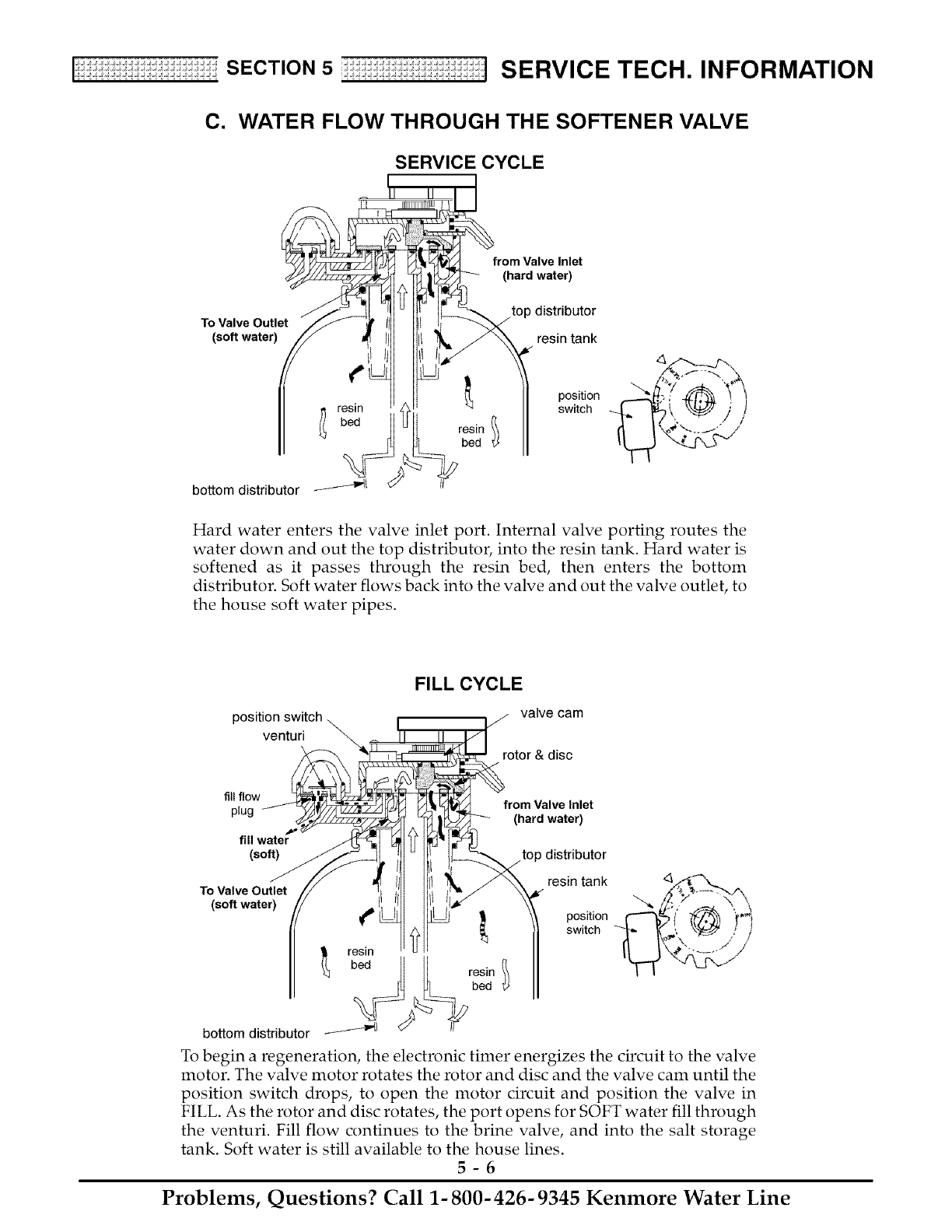

C. WATER FLOW THROUGH THE SOFTENER VALVE
SERVICE CYCLE
from Valve Inlet
(hard water)
top distributor
To Valve Outlet
(soft water) resin tank
¢
resin
I bed
bottom distributor _"{_
position
switch
Hard water enters the valve inlet port. Internal valve porting routes the
water down and out the top distributor, into the resin tank. Hard water is
softened as it passes through the resin bed, then enters the bottom
distributor. Soft water flows back into the valve and out the vane outlet, to
the house soft water pipes.
position switch
venturi
FILL CYCLE
valve cam
rotor & disc
fill flow
plug from Valve Inlet
(hard water)
fill water
(soft)
To Valve Outlet
(soft water) €
resin
bed
bottom distributor _1
resin
bed
top distributor
resin tank "_ L_/_._
To begin a regeneration, the electronic timer energizes the circuit to the valve
motor. The valve motor rotates the rotor and disc and the valve cam until the
position switch drops, to open the motor circuit and position the valve in
FILL. As the rotor and disc rotates, the port opens for SOFT water fill through
the venturi. Fill flow continues to the brine valve, and into the salt storage
tank. Soft water is still available to the house lines.
5-6
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

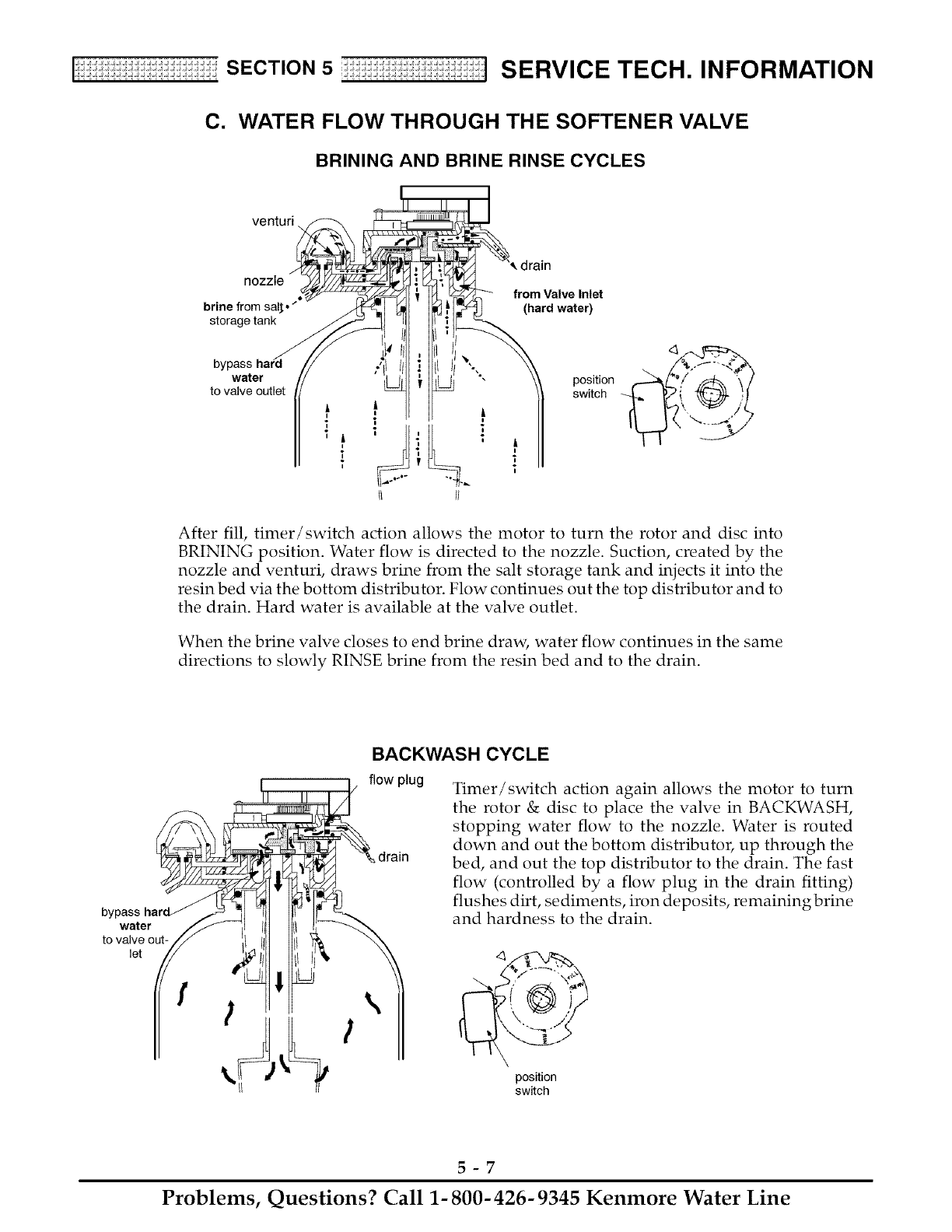

SECTION 5 SERVICE TECH. INFORMATION
C. WATER FLOW THROUGH THE SOFTENER VALVE
BRINING AND BRINE RINSE CYCLES
venturi
nozzle
• from Valve Inlet
brine from sal$ ." (hard water)
storage tank
water
to valve outlet
After fill, timer/switch action allows the motor to turn the rotor and disc into
BRINING position. Water flow is directed to the nozzle. Suction, created by the
nozzle and venturi, draws brine from the salt storage tank and injects it into the
resin bed via the bottom distributor. Flow continues out the top distributor and to
the drain. Hard water is available at the vane outlet.
When the brine valve closes to end brine draw, water flow continues in the same
directions to slowly RINSE brine from the resin bed and to the drain.
bypass
water
to valve out-
let
f
BACKWASH CYCLE
flow plug
drain
Timer/switch action again allows the motor to turn
the rotor & disc to place the valve in BACKWASH,
stopping water flow to the nozzle. Water is routed
down and out the bottom distributor, up through the
bed, and out the top distributor to the drain. The fast
flow (controlled by a flow plug in the drain fitting)
flushes dirt, sediments, iron deposits, remaining brine
and hardness to the drain.
\
position
switch
5-7
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

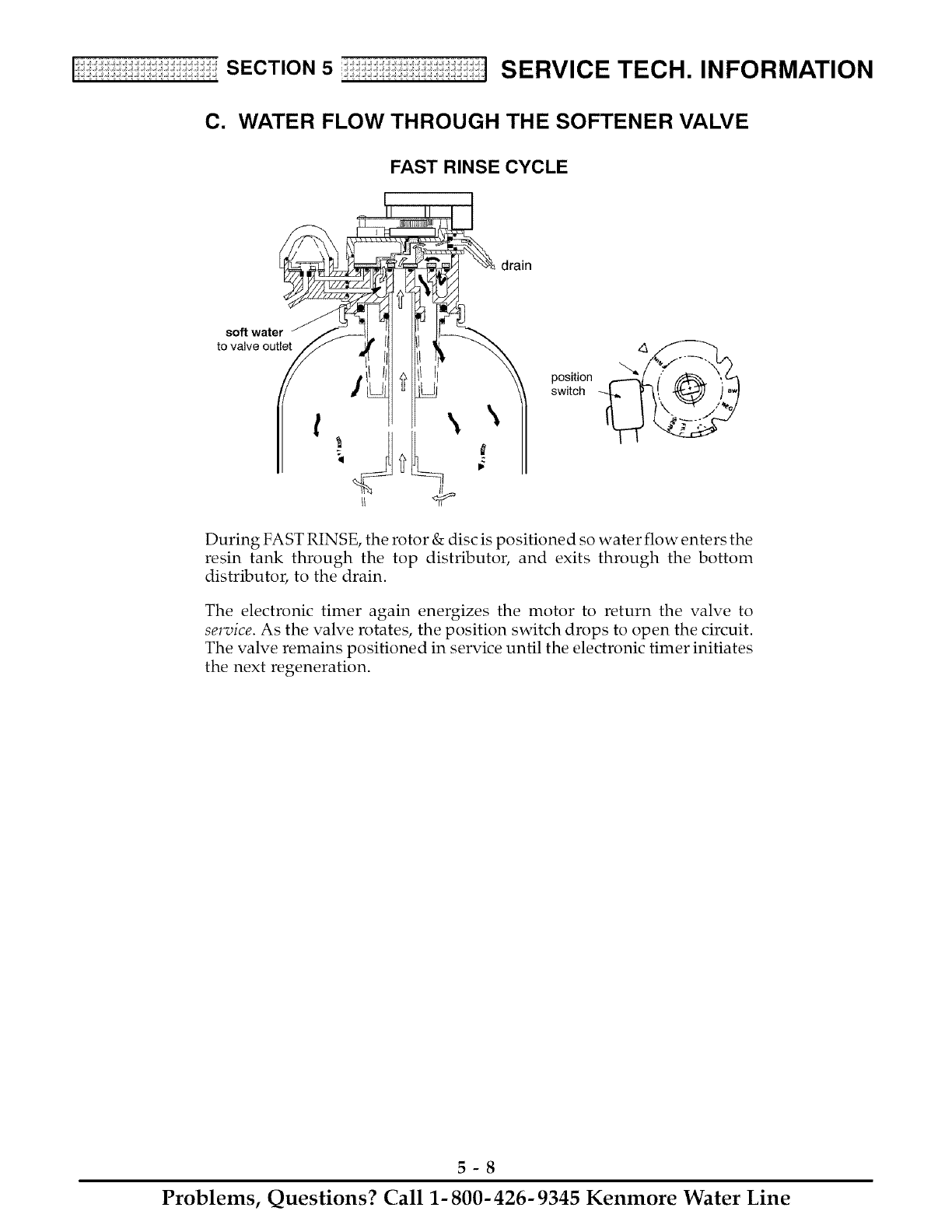

SECTION 5 SERVICE TECH. INFORMATION
C. WATER FLOW THROUGH THE SOFTENER VALVE
FAST RINSE CYCLE
drain
soft water
to valve outlet
\position
switch
During FAST RINSE, the rotor & disc is positioned so water flow enters the
resin tank through the top distributor, and exits through the bottom
distributor, to the drain.
The electronic timer again energizes the motor to return the valve to
service. As the valve rotates, the position switch drops to open the circuit.
The valve remains positioned in service until the electronic timer initiates
the next regeneration.
5-8
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

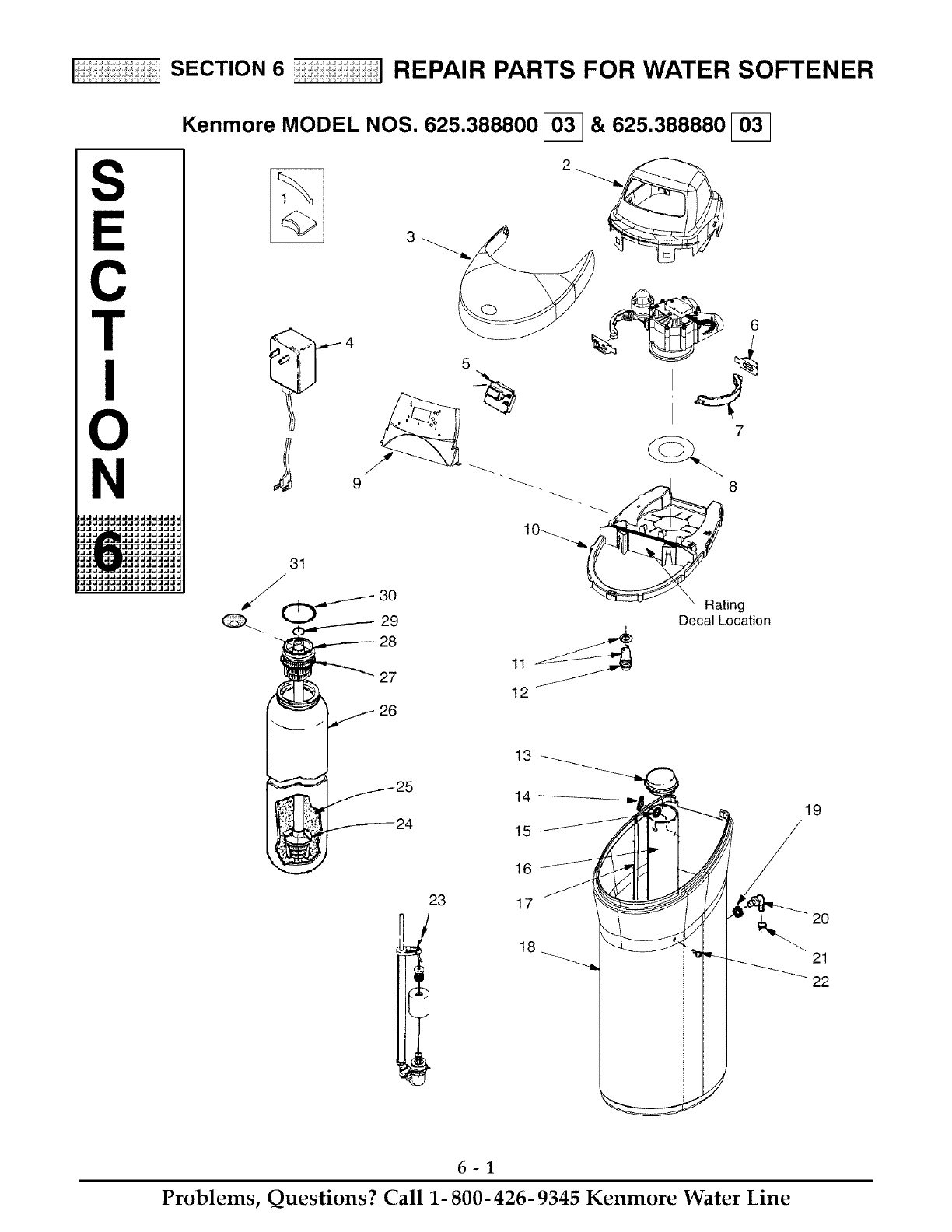

SECTION 6REPAIR PARTS FOR WATER SOFTENER
S
C
T
N
,JJJJJJJJJJJJJJJJ.
,JJJJ JJJJJJJJJJ.
'dJd_dJdJdJdJ.
,JJ JJJJJJJJJ.
,JJ JJJJJJJJ.
,JJ JJJJJJJJJ.
_dJ dJdJdJdJ.
,JJJJJJJJJJJJJJJJ.
,JJJJJJJJJJJJJJJJ.
Kenmore MODEL NOS. 625.388800 _0_ & 625.388880 _0_
5
9
31
_.._30
(_)_ _ 29
27
23
/
18_ _
19
/
_ 22
6-1
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 6REPAIR PARTS FOR WATER SOFTENER
KEY
NO.
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Kenmore MODEL NOS. 625.388800 _0_ & 625.388880 _0_
WATER SOFTENER COMPLETE
PART DESCRIPTION
NUMBER
7229948
7233159
7264582
7234545
7264825
7252373
7234765
7088033
7176292
7232446
7229956
7268104
7264469
7232276
7137939
7252268
7219888
7082150
7003847
7109871
7214236
7234773
Cover Lock (req'd for ship. only)
Rim Insert (req'd for shipping only)
Cover (main)
Salt Hole Cover (order following
decals)
Instruction Decal
Salt Hole Cover Decal,
UltraSoft 800
Salt Hole Cover Decal,
UltraSoft 880
Transformer, 24V-10VA •
Timer Rept. (PWA)
Clamp Retainer (2 req.)
Clamp Section (2 req.)
Vapor Barrier
Faceptate (order following decal)
Faceptate Decal, UltraSoft 800
Faceplate Decal, UltraSoft 880
Rim (incl. Key No. 11 & 12)
Light Asm
O-Ring
BrinewelI Cover
Wing Nut, 1/4"
O-Ring
BrinewelI
Decal, Salt Level
Salt Storage Tank
KEY PART
NO. NUMBER
19 9003500
20 1103200
21 0900431
22 7232250
23 7116488
24 7105047
25 0502272
26 7235478
27 7170270
28 7077870
29 7170254
30 7170296
31 7265025
• 3442699
• 7195995
• 7258997
• 7276563
DESCRIPTION
Grommet •
Tube Adaptor •
Tube Clamp •
Plastic Screw, 1/4" x 5/8"
Brine Valve Assem. (also see page
6-2)
Replacement Distributor
Resin
Resin Tank (includes Key No. 25)
O-Ring, 2-3/4" x 3"
Top Distributor
O-Ring, 13/16" x 1-1/16"
O-Ring, 2-7/8" x 3-1/4"
Ultra Cleansing Screen,
UltraSoft 880 only
Resin Bed Cleaner
Parts Bag, (includes parts marked
with a •, pages 6-2, 6-4 & 6-6)
- order manuals separately if
necessary
Installation Manual
Owners Manual
• not illustrated
aligns with top of brinewelI
• included in parts bag
6-2
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 6REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388800 _0_ & 625.388880 _0_
18 --'---_
17
f/ \
!
I
\ J
15
_ 5
8
9
2O
INLET -OUTLET
GROUNDING CLAMPS
6-3
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 6REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388800 _0_ & 625.388880 _0_
KEY PART
NO. NUMBER
1 7168647
2 0513860
3 7097202
4 0516947
5 7093216
6 7092278
7 7170288
8 0516211
9 0516924
10 7116713
11 7092252
12 1205500
13 7131365
14 7094979
15 7092294
16 7176161
17 7095470
18 7113016
19 7171349
20 7248706
DESCRIPTION
Ceramic Weight
Float Stop
Float (includes Key No. 4)
Float Seal
Float Rod & Stem
Guide Cap
O-Ring 15/16 x 1-3/16
Seal
Retainer, Bottom Seal
Clip
Brine Valve Body
Clip
Screen
Insert
Retaining Ring
O-Ring, 5/16 x 9/16
Brine Tube
Tubing Assy. (includes Key Nos. 14, 15 & 16)
Cone Screen
Grounding Clamp Kit •
• included in parts bag, page 6-2
6-4
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 6REPAIR PARTS FOR WATER SOFTENER
I VALVEASSEMBLY I
46
42
28
29
12
13
14
//-15
_16
17
11 10 9
25
26
27
21
\
23
24
6-5
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
SECTION 6REPAIR PARTS FOR WATER SOFTENER
Kenmore MODEL NOS. 625.388800 [_] & 625.388880 [_]
VALVE ASSEMBLY
KEY PART
NO. NUMBER
1 7224087
2 7228544
3 7231393
4 0900857
5 7171250
6 7219545
7 7169180
8 0900431
9 7271270
10 7170288
11 0501228
12 7170327
13 7173024
14 7174313
15 7185500
16 7173032
17 7185495
18 7172989
19 7171187
20 7129889
21 7077642
22 7089306
23 7271204
24 7170262
25 7094898
26 7101548
27 7232234
28 7248722
29 0900060
DESCRIPTION
Screw, #8-32 x 1" (2 req.)
Motor (incl. 2 ea. of Key No. 1)
Motor Plate
Screw, #6-20 x 3/8 (3 req.)
Bearing
Cam and Gear
Clip (Drain)
Hose Clamp
Drain Hose Adaptor
O-ring, 15/16 x 1-3/16
Flow Plug #18
O-ring, 5/8 x 13/16
O-ring, 1-1/8 x 1-1/2
Bearing, Wave Washer
Rotor & Disc
O-ring, 4-1/2 x 4-7/8
Rotor Seal
Seal
Plug (Drain Seal)
Spring
Copper Tube, 1" (2 req.) •
Clip (2 req.) •
Installation Adaptor, 1" NPT
(2 req.) •
O-ring, 1-1/8 x 1-3/8 (4 req.) •
Turbine Support
Turbine
Reducer, 1" to 3/4" (2 req.) [_ •
Wire Harness (Sensor)
O-ring
KEY PART
NO. NUMBER
30 7081201
31 7195482
32 7171145
33 7170319
34 7081104
35 1202600
36 7095030
37 1148800
38 7114533
- 7204362
39 7084607
40 7146043
41 7167659
42 7170262
43 7199729
44 7175199
45 7171161
46 7172997
47 7145186
48 7140738
• 3479901
• 7187065
• 7185487
• 7139999
• 42-34403
• 7123613
• notillustr_ed
DESCRIPTION
Retainer (Nozzle & Venturi)
Seal (Nozzle & Venturi)
Valve Body
O-ring, 1/4 x 3/8 (2 req.)
Nozzle & Venturi Housing
Nut - Ferrule
Cone Screen
Flow Plug, .3 gpm
Nozzle and Venturi - Gasket Kit
Gasket only
Flow Plug, .15 gpm
Screen
Screen Support
O-ring, 1-1/8 x 1-3/8
Cap
Wave Washer
Valve Cover
Screw, #10 x 2-5/8 (8 req.)
Switch
Screw, #4-24 x 3/4 (2 req.)
Adaptor Kit, 1" to 1-1/4"
Nozzle & Venturi Assy. (incl. Key
Nos. 34, and 36 through 43)
Seal Kit (incl. Key Nos. 12, 13, 16,
17, 18 and 31)
Drain Tubing, 3/8" I.D. x 20'
Flexible Connectors, 1"
Silicone Grease (for O-rings)
C] included with softener
[_ 2 included - use only for connecting to 3/4" plumbing
• included in parts bag, page 6-2
• not included (optional)
BYPASS INSTALLATION VALVE
KEY PART DESCRIPTION
NO. NUMBER
-7214317
49 7172882
50 7173016
51 7214155
52 7175238
Bypass Valve • (Includes
following parts)
Stem
O-ring, 1.109 I.D. x 1.387 O.D. (4)
Bypass Body
C-ring
49
50 51
52
6-6
Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line
OWNER'S
MANUAL
MODEL NOS.
UltraSoft 800
625.388800_
UltraSoft 880
625.388880_
The model number of your
water softener is found on
the rating decal. This decal
is on the rim, under the salt
cover.
When requesting service
or ordering parts, always
provide the following infor-
mation:
41, Product Type
41, Model Number
41, Part Number
@ Part Description
www.KenmoreWater.com
Water Softeners
Your Home
For repair-in your homo-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to dodt-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
(1-800-469_4663)
Ca_ an_ime, day or night (US.A, and Canada)
CCC:
wv#_,sea_s,com wrww,aears ca
OurHome iiiiiiiiiiiii
For repair of carRy-in items Hke vacuums, lawn equipment,
and electronics, call or go ondine for the location of your nearest uuuuuu_
Sears Parts & Repair Center,
1.8oo.488-1222
Call anytimm day or night (U,S,A, only)
TO purchase a protection agreement (USA.)
or maintenance agreement (Canada)on, a product serviced by Sears:
1-800-827.86ss_usA> 1-80o-361-6e6s_Coo°da>
Para pe@ servicio de reparaci6n Au Canada po_r servi_ en frangais:
a domicilio,y pa,aordenarpiezas: i.800.LE.FO-.(ER_:
1-888-SU-HOGAR '_ (;-800-533493'r)
(1_888W84-_27) www.sears ca
® M_I_ Re@i_i_d_ /Y¸__a_8 _e _b_ _ ii_ M_r_ de, _'i!_ d_ _l_ _eb_ok a_d C@
¢L Geacs Reeb_c$, ##¢i Ce
I Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. I
