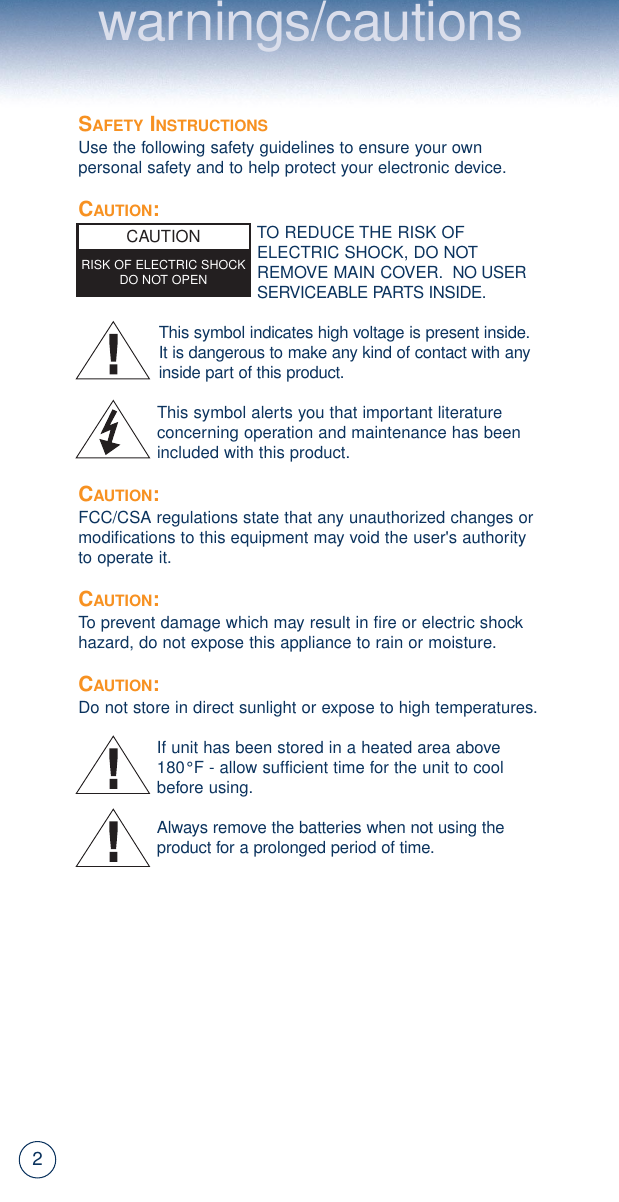

2SAFETY INSTRUCTIONSUse the following safety guidelines to ensure your ownpersonal safety and to help protect your electronic device.CAUTION:TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOTREMOVE MAIN COVER. NO USERSERVICEABLE PARTS INSIDE.This symbol indicates high voltage is present inside.It is dangerous to make any kind of contact with anyinside part of this product.This symbol alerts you that important literatureconcerning operation and maintenance has beenincluded with this product.CAUTION:FCC/CSA regulations state that any unauthorized changes ormodifications to this equipment may void the user's authorityto operate it.CAUTION:To prevent damage which may result in fire or electric shockhazard, do not expose this appliance to rain or moisture.CAUTION:Do not store in direct sunlight or expose to high temperatures.If unit has been stored in a heated area above 180°F - allow sufficient time for the unit to coolbefore using.Always remove the batteries when not using theproduct for a prolonged period of time.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENwarnings/cautions

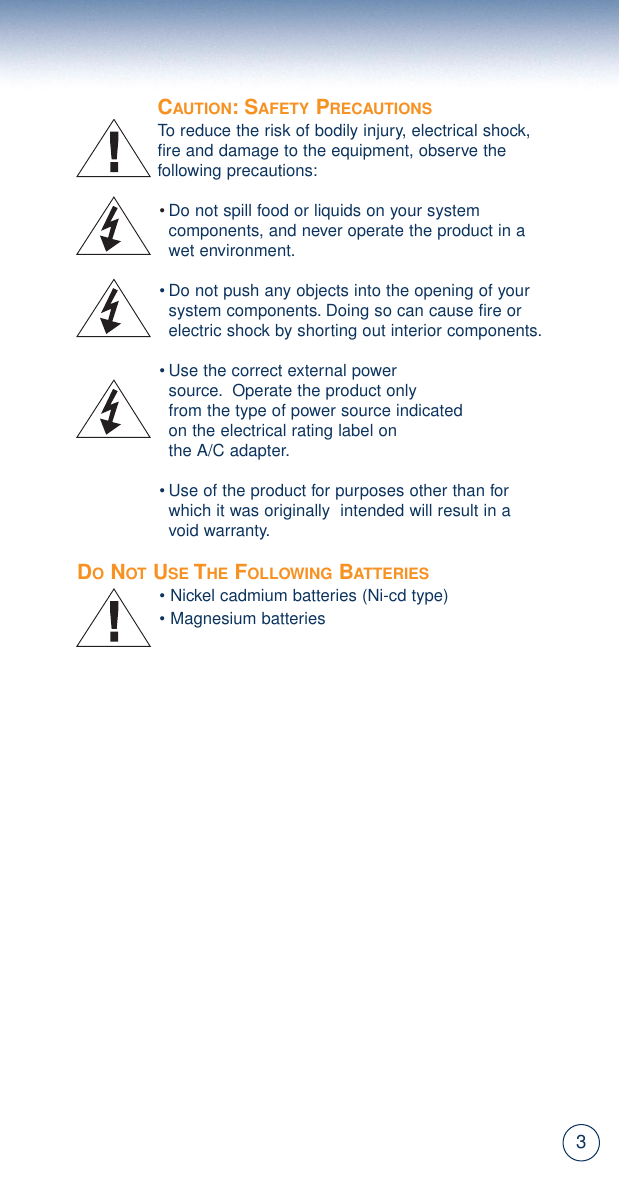

3CAUTION: SAFETY PRECAUTIONSTo reduce the risk of bodily injury, electrical shock,fire and damage to the equipment, observe the following precautions:•Do not spill food or liquids on your system components, and never operate the product in a wet environment.• Do not push any objects into the opening of your system components. Doing so can cause fire or electric shock by shorting out interior components.• Use the correct external power source. Operate the product only from the type of power source indicated on the electrical rating label on the A/C adapter.• Use of the product for purposes other than for which it was originally  intended will result in a void warranty.DONOT USE THE FOLLOWING BATTERIES• Nickel cadmium batteries (Ni-cd type)• Magnesium batteries

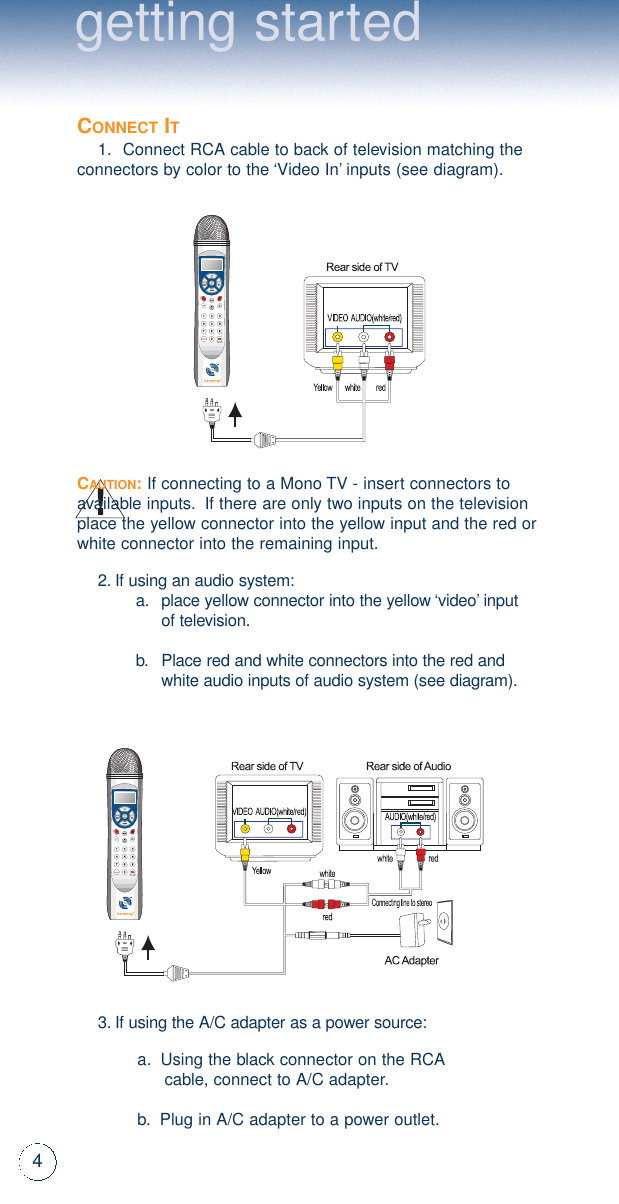

4getting startedCONNECTIT1.Connect RCA cable to back of television matching theconnectors by color to the ‘Video In’inputs (see diagram).CAUTION:If connecting to a Mono TV - insert connectors toavailable inputs.If there are only two inputs on the televisionplace the yellow connector into the yellow input and the red orwhite connector into the remaining input.2.If using an audio system:a.place yellow connector into the yellow ‘video’input of television.b.Place red and white connectors into the red andwhite audio inputs of audio system (see diagram).3.If using the A/C adapter as a power source:a.Using the black connector on the RCA cable, connect to A/C adapter.b.Plug in A/C adapter to a power outlet.

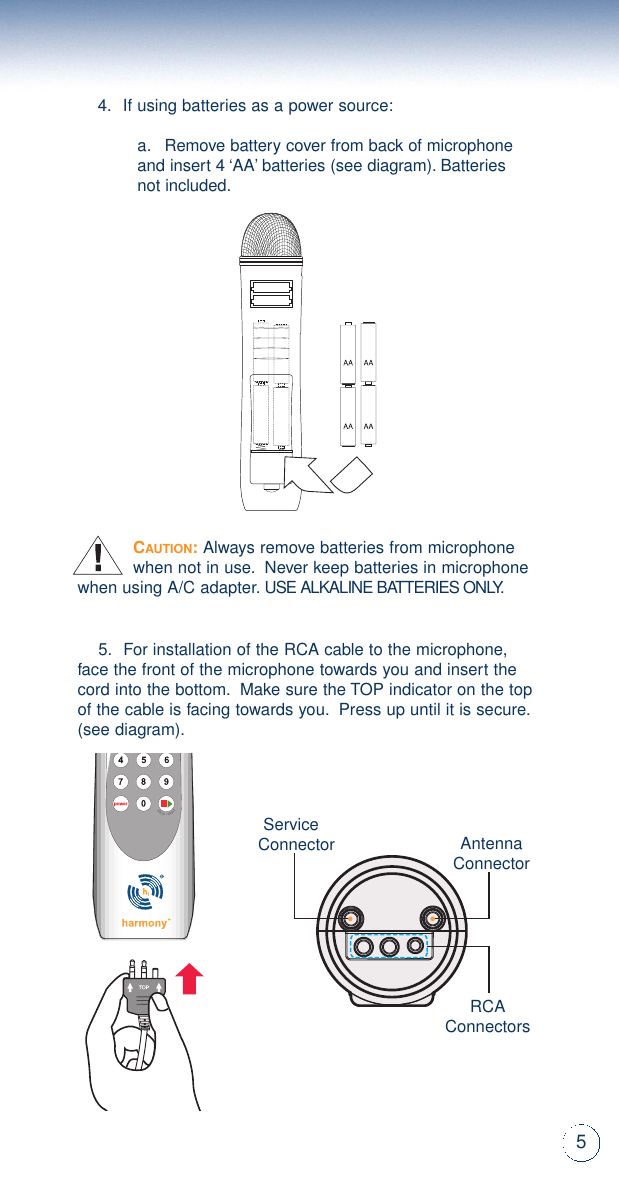

5CAUTION:Always remove batteries from microphonewhen not in use.Never keep batteries in microphonewhen using A/C adapter.USE ALKALINE BATTERIES ONLY.5.For installation of the RCA cable to the microphone,face the front of the microphone towards you and insert thecord into the bottom.Make sure the TOP indicator on the topof the cable is facing towards you.Press up until it is secure.(see diagram).AntennaConnectorServiceConnector4.If using batteries as a power source:a.Remove battery cover from back of microphoneand insert 4 ‘AA’batteries (see diagram).Batteriesnot included.RCAConnectors

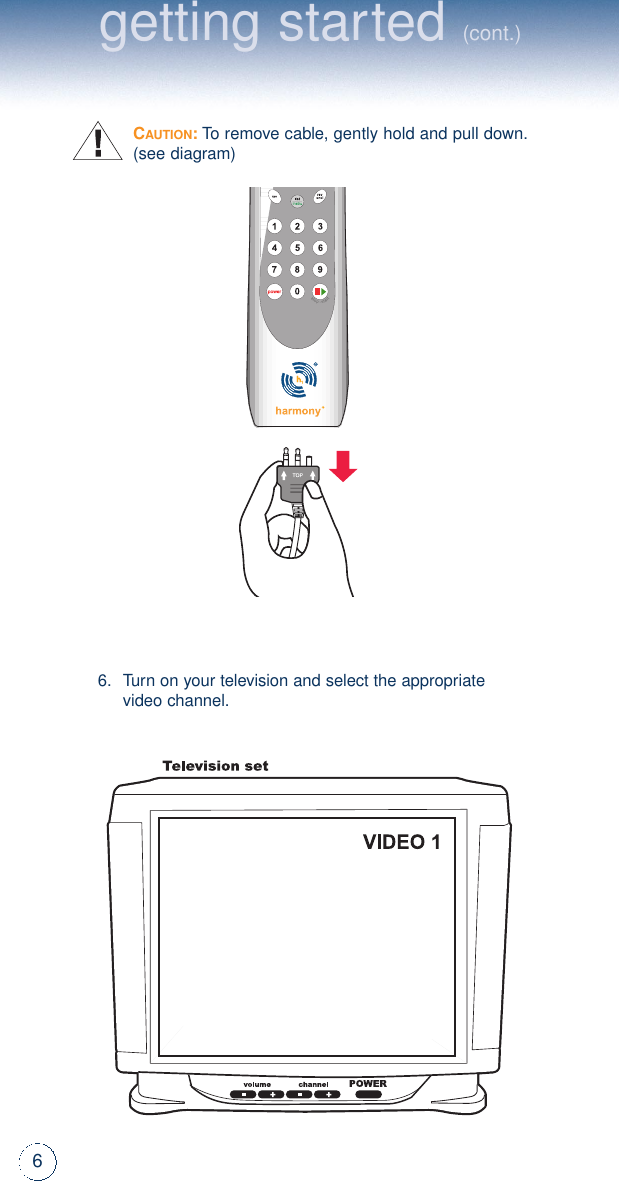

6getting started(cont.)CAUTION:To remove cable, gently hold and pull down.(see diagram)6.Turn on your television and select the appropriate video channel.

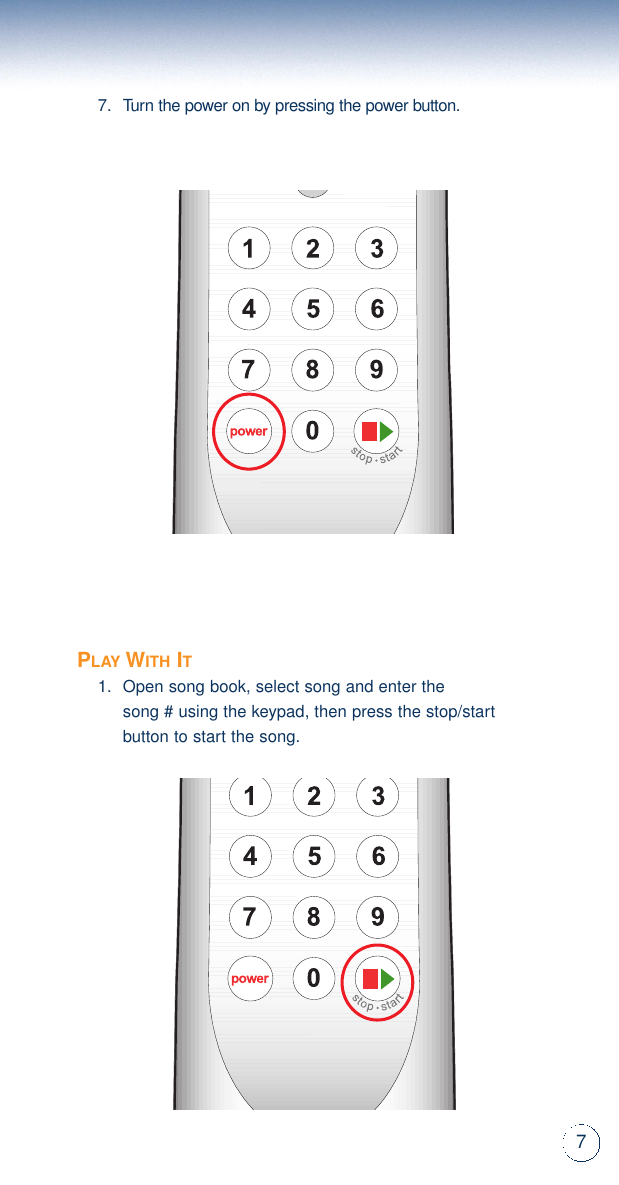

77.Turn the power on by pressing the power button.PLAYWITHIT1.Open song book, select song and enter the song # using the keypad, then press the stop/startbutton to start the song.

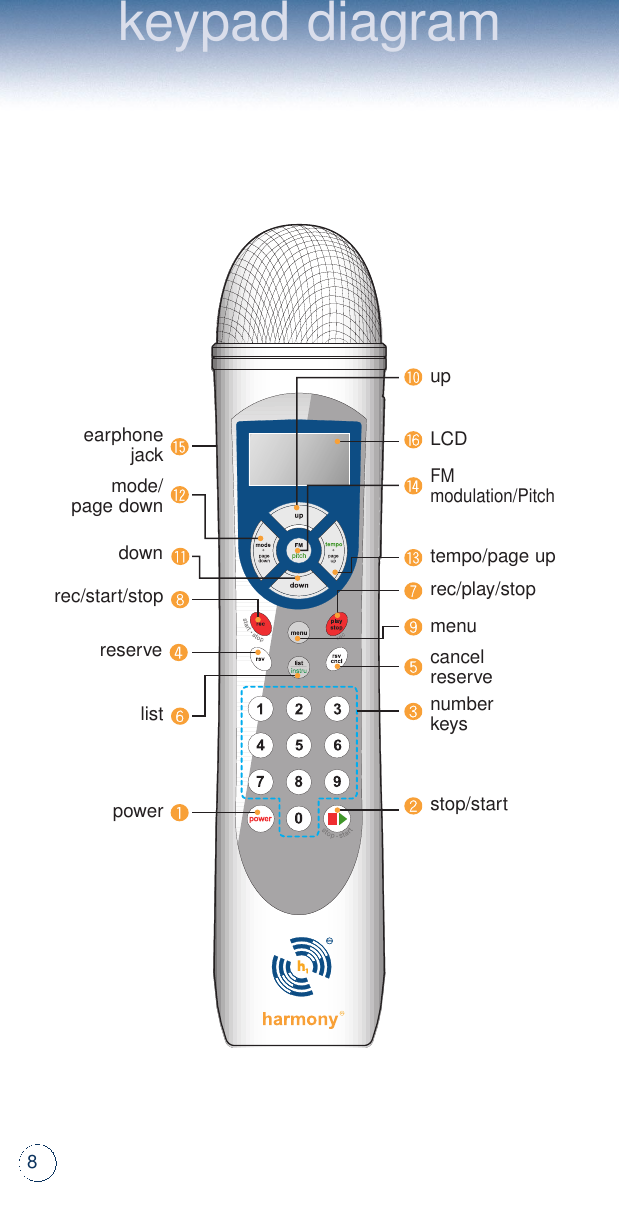

8keypad diagramupearphonejackmode/page downLCDFM modulation/Pitchtempo/page uprec/play/stopdownrec/start/stopreservelistpower stop/startnumberkeyscancel reservemenu

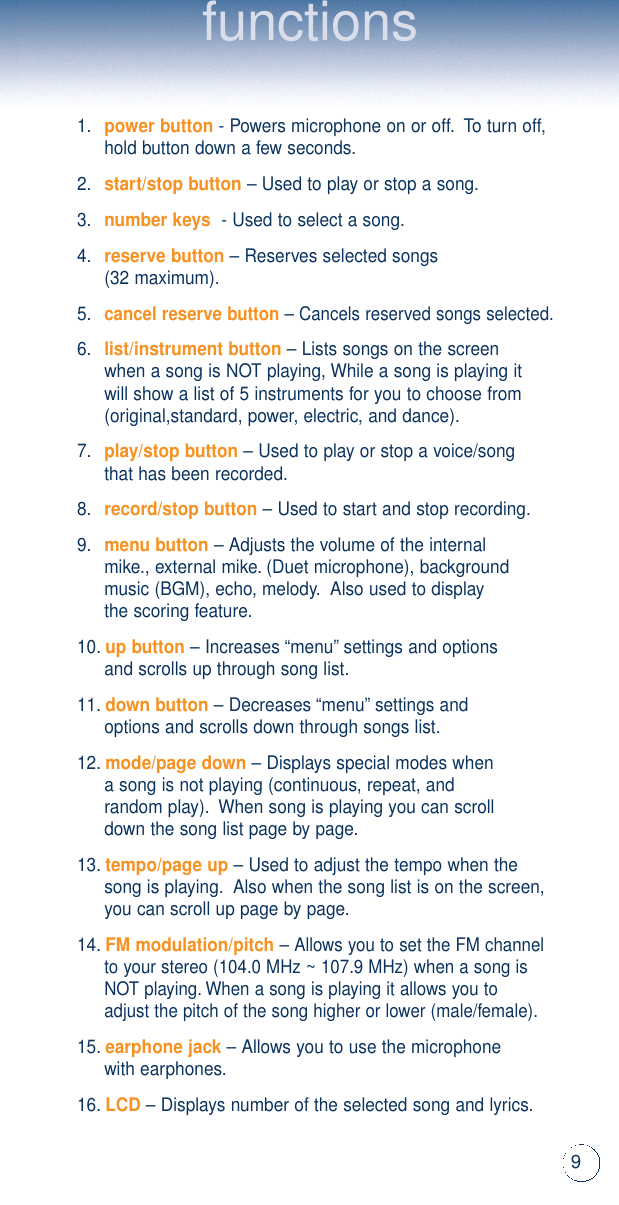

9functions1.power button- Powers microphone on or off.To turn off, hold button down a few seconds.2.start/stop button– Used to play or stop a song.3.number keys- Used to select a song.4.reserve button– Reserves selected songs (32 maximum).5.cancel reserve button– Cancels reserved songs selected.6.list/instrument button– Lists songs on the screenwhen a song is NOT playing, While a song is playing itwill show a list of 5 instruments for you to choose from(original,standard, power, electric, and dance).7.play/stop button– Used to play or stop a voice/songthat has been recorded.8.record/stop button– Used to start and stop recording.9.menu button– Adjusts the volume of the internal mike., external mike.(Duet microphone), backgroundmusic (BGM), echo, melody.Also used to display the scoring feature.10.up button– Increases “menu”settings and optionsand scrolls up through song list.11.down button– Decreases “menu”settings andoptions and scrolls down through songs list.12.mode/page down– Displays special modes whena song is not playing (continuous, repeat, and random play).When song is playing you can scroll down the song list page by page.13.tempo/page up– Used to adjust the tempo when the song is playing.Also when the song list is on the screen,you can scroll up page by page.14.FM modulation/pitch– Allows you to set the FM channel to your stereo (104.0 MHz ~ 107.9 MHz) when a song is NOT playing.When a song is playing it allows you to adjust the pitch of the song higher or lower (male/female).15.earphone jack– Allows you to use the microphonewith earphones.16.LCD– Displays number of the selected song and lyrics.

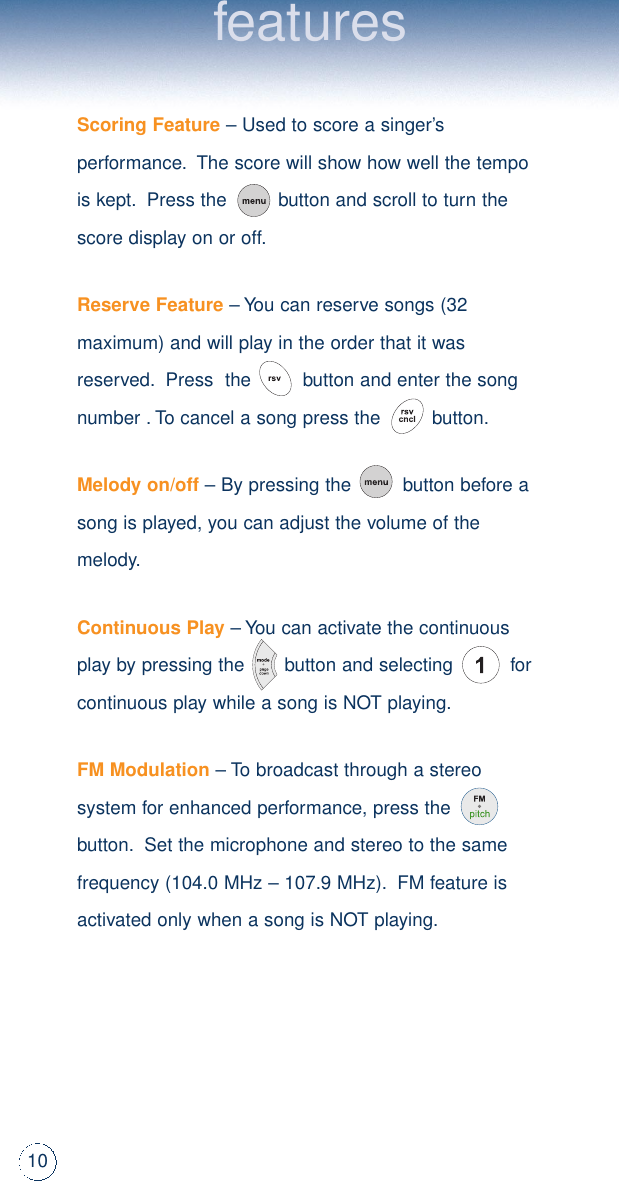

10featuresScoring Feature– Used to score a singer’sperformance.The score will show how well the tempois kept.Press the         button and scroll to turn thescore display on or off.Reserve Feature– You can reserve songs (32maximum) and will play in the order that it wasreserved.Press  the         button and enter the songnumber .To cancel a song press the         button.Melody on/off– By pressing the         button before asong is played, you can adjust the volume of themelody.Continuous Play– You can activate the continuousplay by pressing the       button and selecting          forcontinuous play while a song is NOT playing.FM Modulation– To broadcast through a stereosystem for enhanced performance, press thebutton.Set the microphone and stereo to the samefrequency (104.0 MHz – 107.9 MHz).FM feature isactivated only when a song is NOT playing.

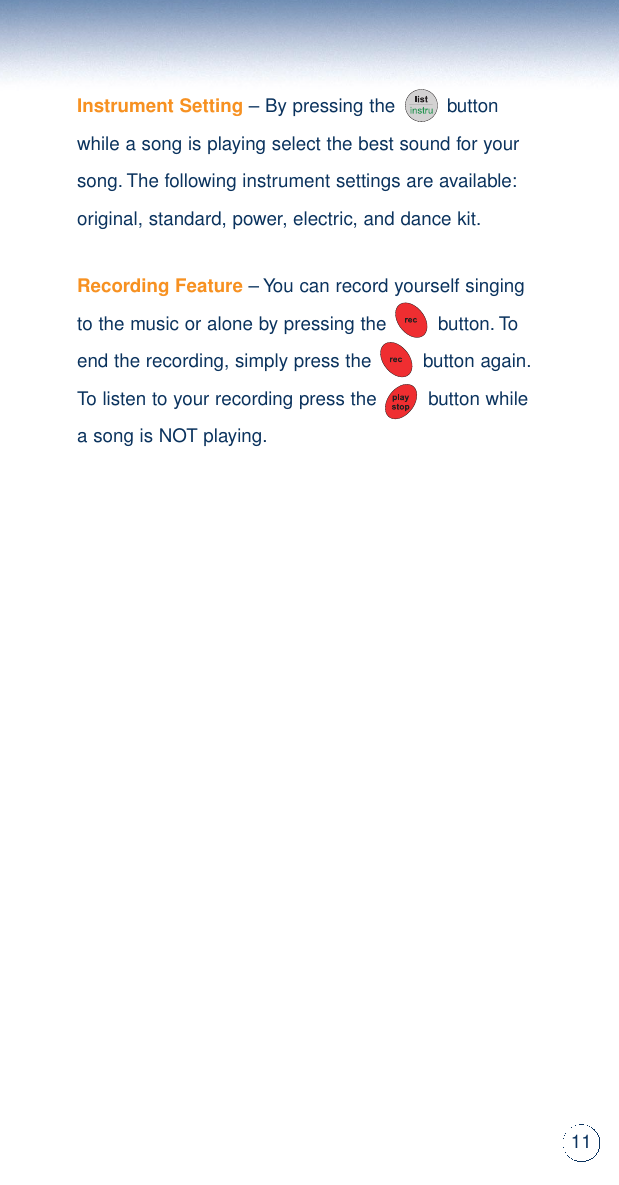

11Instrument Setting– By pressing the         buttonwhile a song is playing select the best sound for yoursong.The following instrument settings are available:original, standard, power, electric, and dance kit.Recording Feature– You can record yourself singingto the music or alone by pressing the         button.Toend the recording, simply press the         button again.To listen to your recording press the         button whilea song is NOT playing.

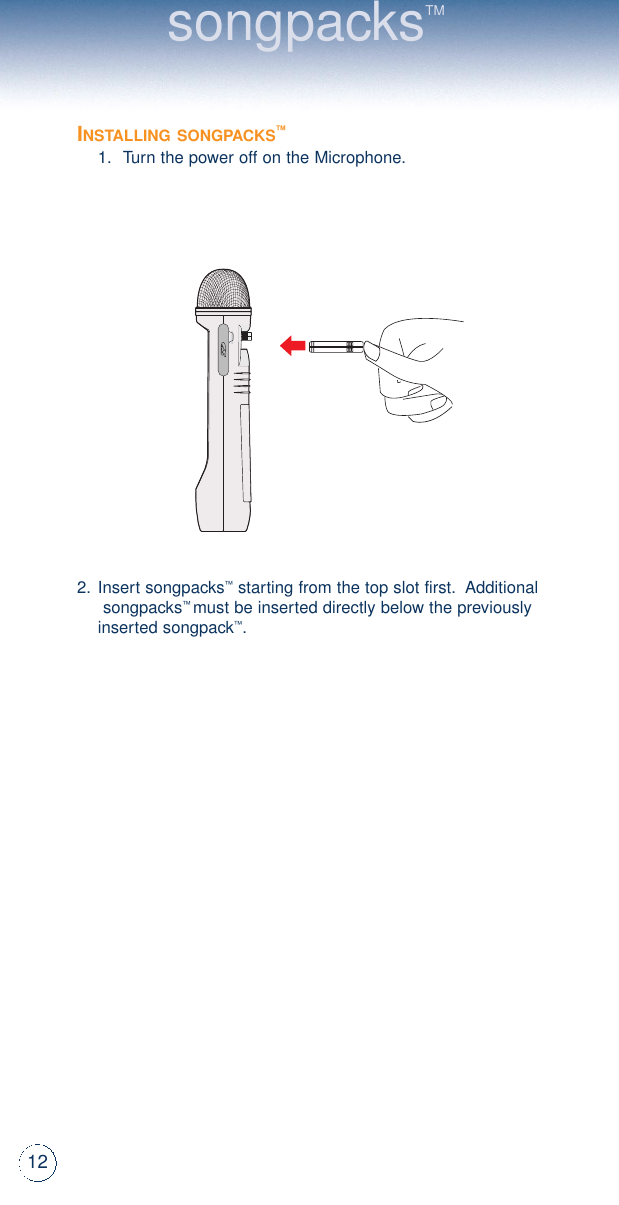

12songpacksTMINSTALLINGSONGPACKS™1.Turn the power off on the Microphone.2.Insert songpacks™starting from the top slot first.Additionalsongpacks™must be inserted directly below the previously inserted songpack™.

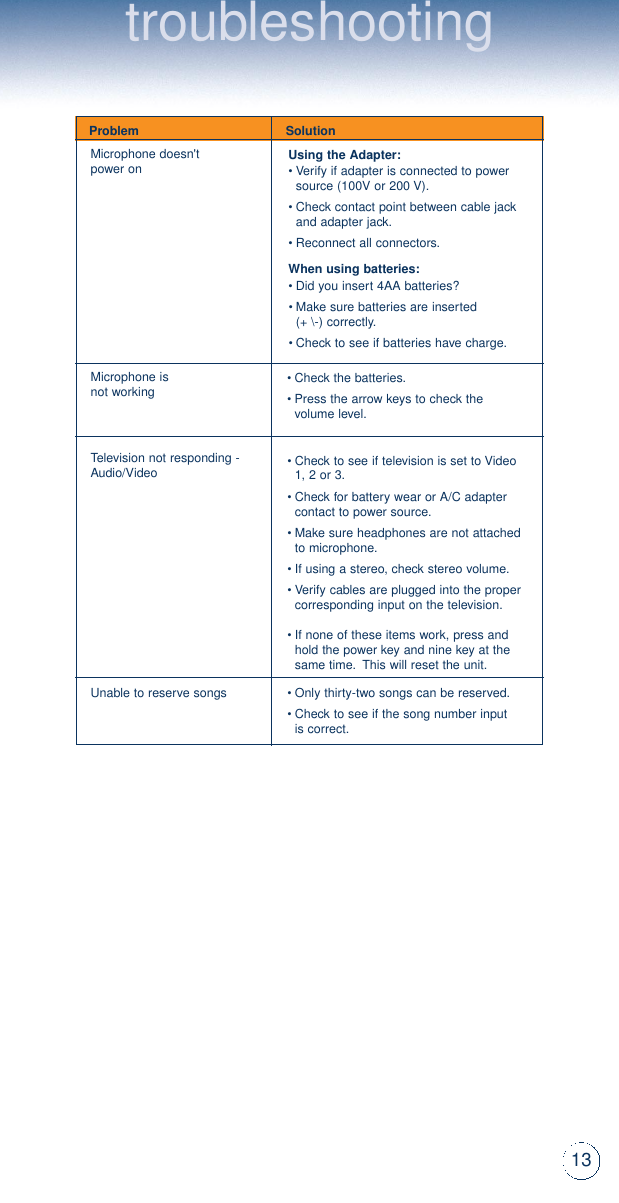

troubleshootingMicrophone doesn'tpower on Using the Adapter:•Verify if adapter is connected to powersource (100V or 200 V).•Check contact point between cable jack and adapter jack.•Reconnect all connectors.When using batteries:•Did you insert 4AA batteries?•Make sure batteries are inserted(+ \-) correctly.•Check to see if batteries have charge.Microphone isnot working •Check the batteries.•Press the arrow keys to check the volume level.Television not responding -Audio/Video •Check to see if television is set to Video1, 2 or 3.•Check for battery wear or A/C adaptercontact to power source.•Make sure headphones are not attachedto microphone.•If using a stereo, check stereo volume.•Verify cables are plugged into the propercorresponding input on the television.•If none of these items work, press and hold the power key and nine key at thesame time.This will reset the unit.•Only thirty-two songs can be reserved.•Check to see if the song number input is correct.Unable to reserve songsProblem Solution13

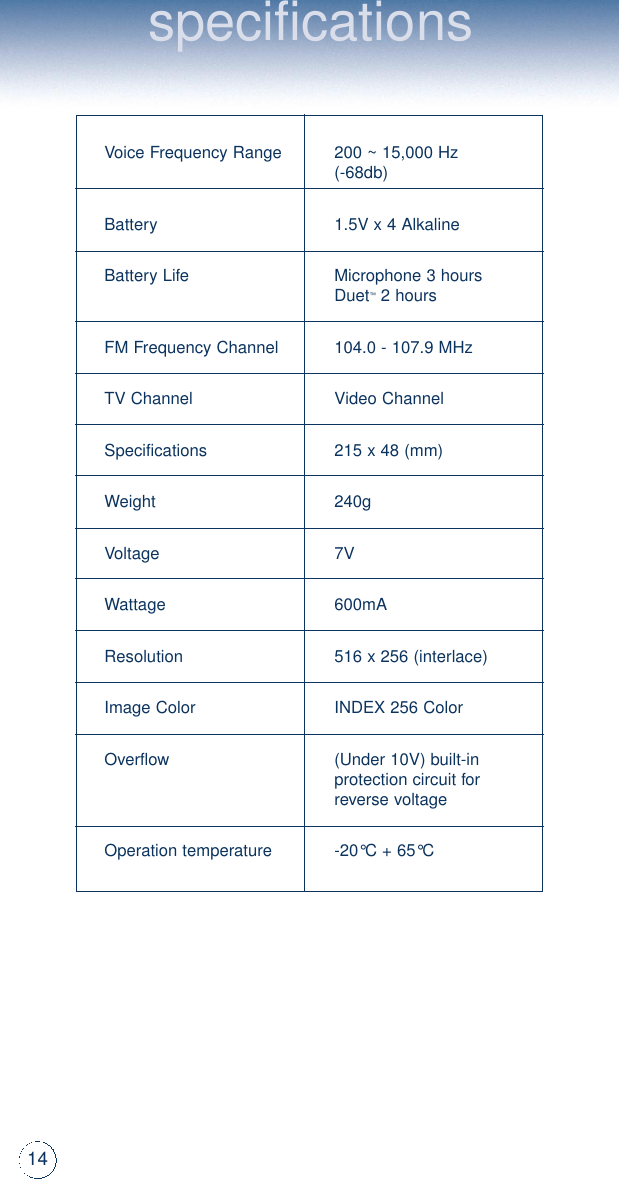

Voice Frequency Range 200 ~ 15,000 Hz (-68db)Battery 1.5V x 4 AlkalineBattery Life Microphone 3 hoursDuet™2 hoursFM Frequency Channel 104.0 - 107.9 MHzTV Channel Video ChannelSpecifications 215 x 48 (mm)Weight 240gVoltage 7VWattage 600mAResolution 516 x 256 (interlace)Image Color INDEX 256 ColorOverflow (Under 10V) built-in protection circuit forreverse voltageOperation temperature -20°C + 65°Cspecifications14

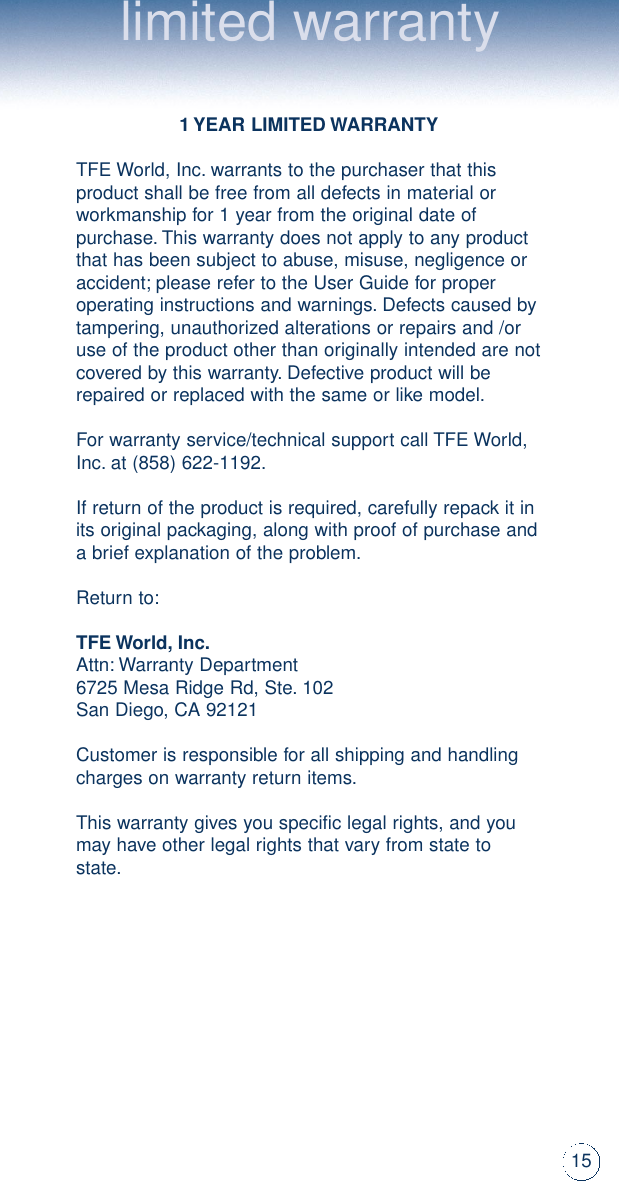

limited warranty1 YEAR LIMITED WARRANTYTFE World, Inc.warrants to the purchaser that thisproduct shall be free from all defects in material orworkmanship for 1 year from the original date ofpurchase.This warranty does not apply to any productthat has been subject to abuse, misuse, negligence oraccident;please refer to the User Guide for properoperating instructions and warnings.Defects caused bytampering, unauthorized alterations or repairs and /oruse of the product other than originally intended are notcovered by this warranty.Defective product will berepaired or replaced with the same or like model.For warranty service/technical support call TFE World,Inc.at (858) 622-1192.If return of the product is required, carefully repack it inits original packaging, along with proof of purchase anda brief explanation of the problem.Return to:TFE World,Inc.Attn:Warranty Department 6725 Mesa Ridge Rd, Ste.102San Diego, CA 92121Customer is responsible for all shipping and handlingcharges on warranty return items.This warranty gives you specific legal rights, and youmay have other legal rights that vary from state tostate.15
