KROHNE FMCW10G52 Tank Level Probing Radar User Manual MA OPTIWAVE5200 en 160704 4001904903 R03

KROHNE, Inc Tank Level Probing Radar MA OPTIWAVE5200 en 160704 4001904903 R03

Contents

User Manual EN - JH5FMCW10G52.pdf

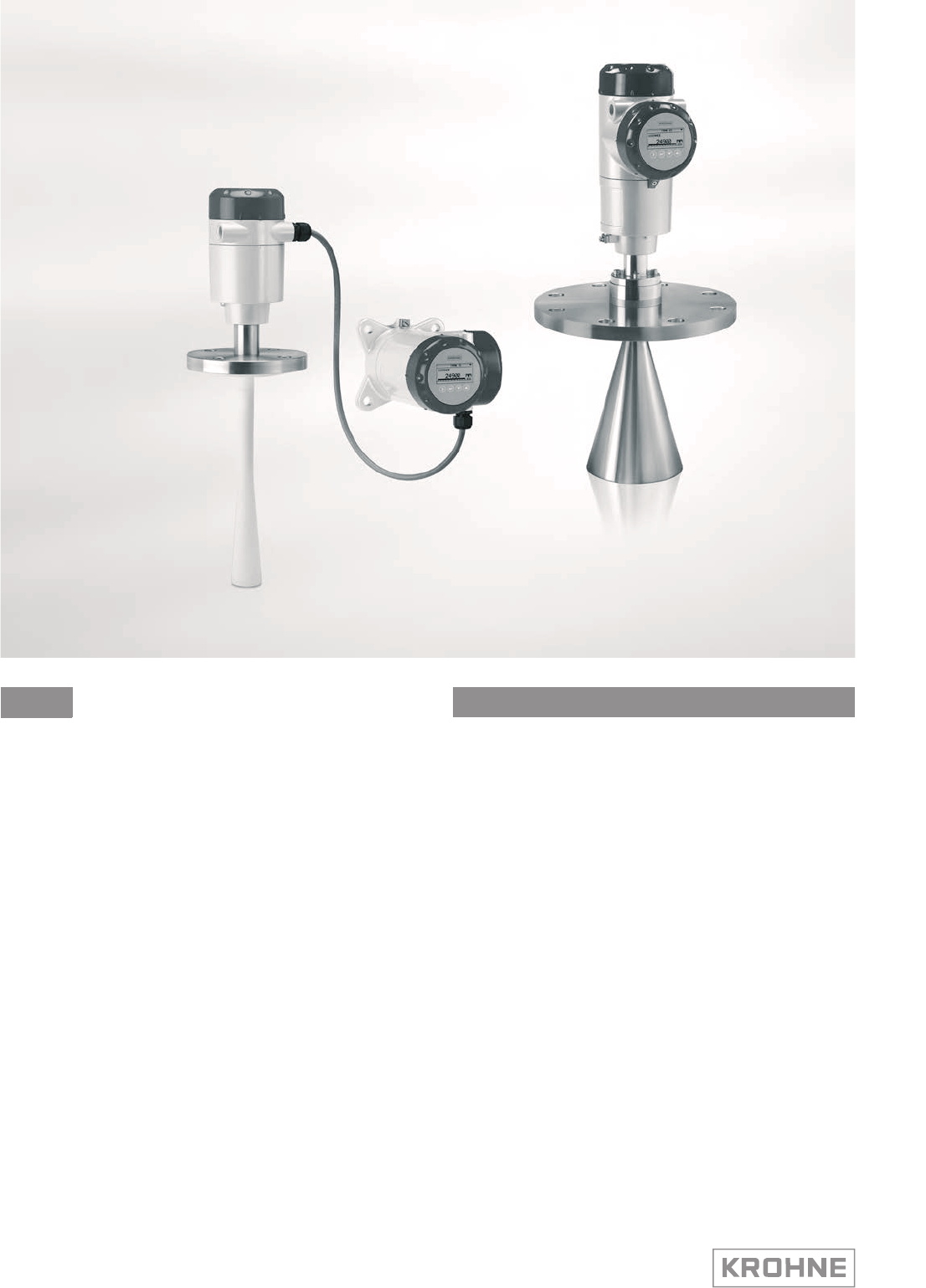

Radar (FMCW) Level Transmitter for liquids in storage
and process applications
OPTIWAVE 5200 C/F
OPTIWAVE 5200 C/FOPTIWAVE 5200 C/F
OPTIWAVE 5200 C/F Handbook
HandbookHandbook
Handbook
© KROHNE 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without
the prior written authorisation of KROHNE Messtechnik GmbH.
Subject to change without notice.
2
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Copyright 2016 by
KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany)
:
IMPRINT
:::::::::::::::::::::::::::::::::::::::
CONTENTS
3
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
OPTIWAVE 5200 C/F
1 Safety instructions 7
1.1 Software history ............................................................................................................... 7
1.2 Intended use ..................................................................................................................... 7
1.3 Certification ...................................................................................................................... 8
1.4 Radio approvals ................................................................................................................ 9
1.4.1 European Union (EU)............................................................................................................... 9
1.4.2 U.S.A...................................................................................................................................... 10
1.4.3 Canada................................................................................................................................... 11
1.5 Safety instructions from the manufacturer................................................................... 12
1.5.1 Copyright and data protection .............................................................................................. 12
1.5.2 Disclaimer ............................................................................................................................. 12
1.5.3 Product liability and warranty .............................................................................................. 13
1.5.4 Information concerning the documentation......................................................................... 13
1.5.5 Warnings and symbols used................................................................................................. 14
1.6 Safety instructions for the operator............................................................................... 14
2 Device description 15

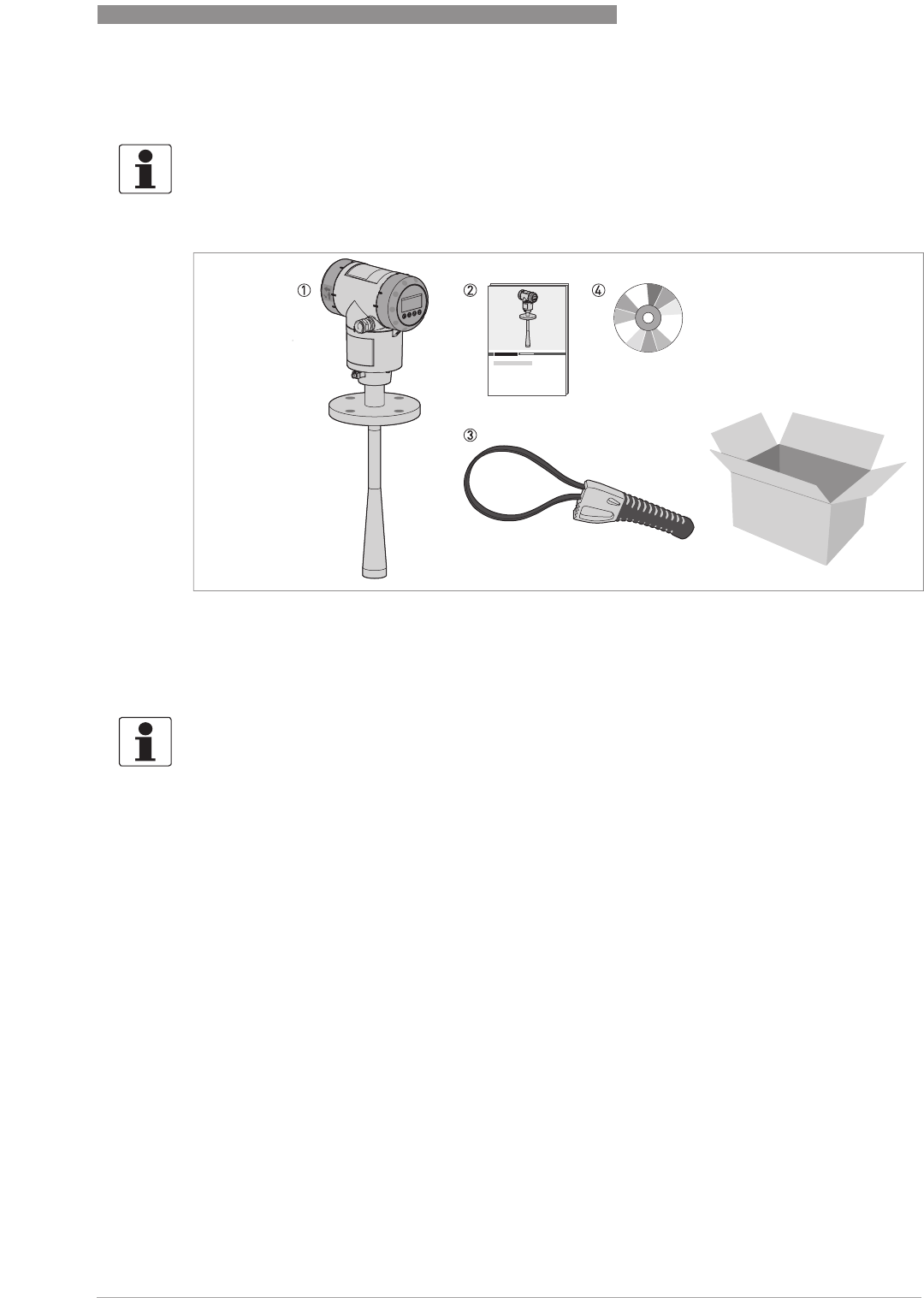

2.1 Scope of delivery............................................................................................................. 15

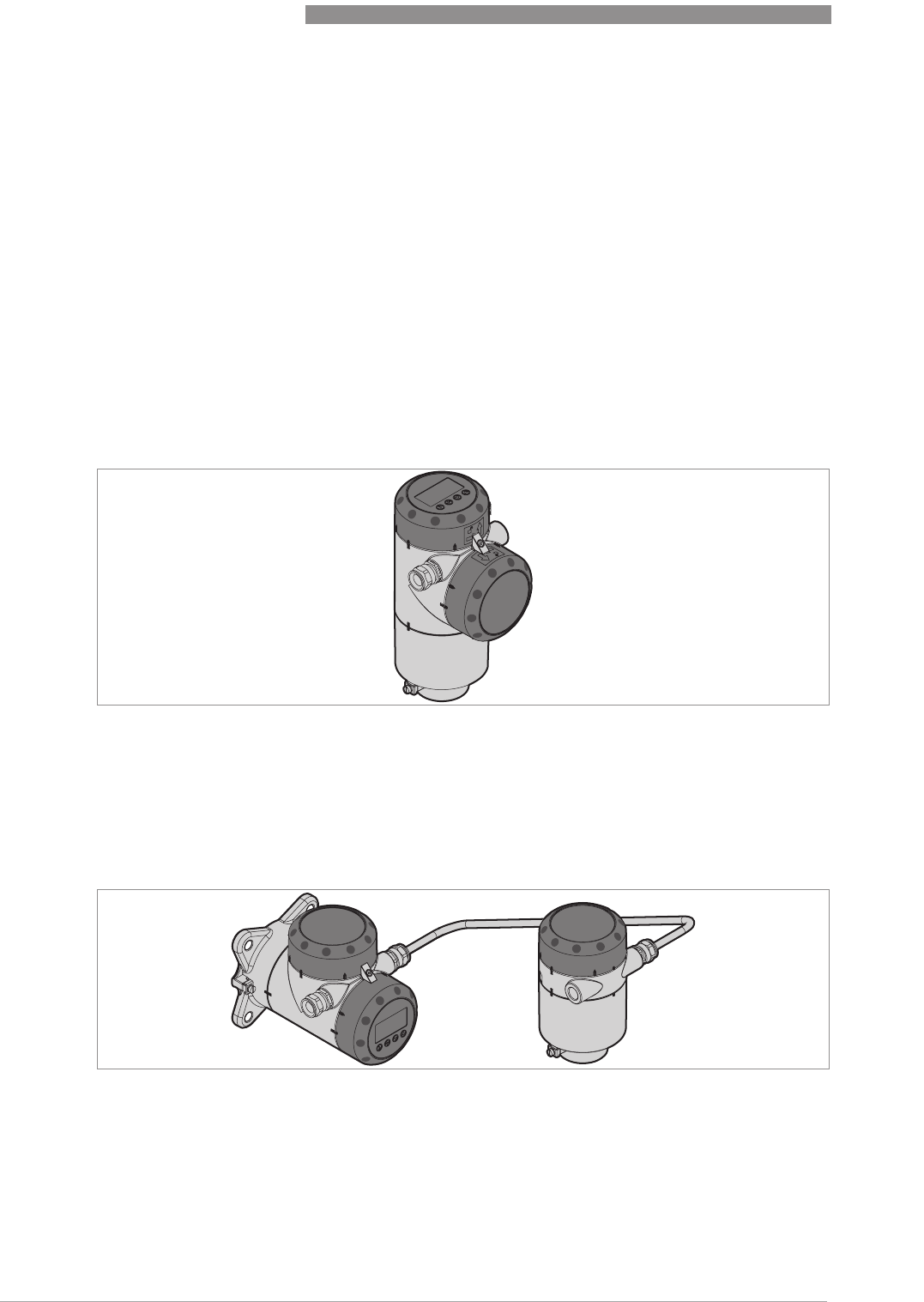

2.2 Device description .......................................................................................................... 16
2.3 Visual Check ................................................................................................................... 18

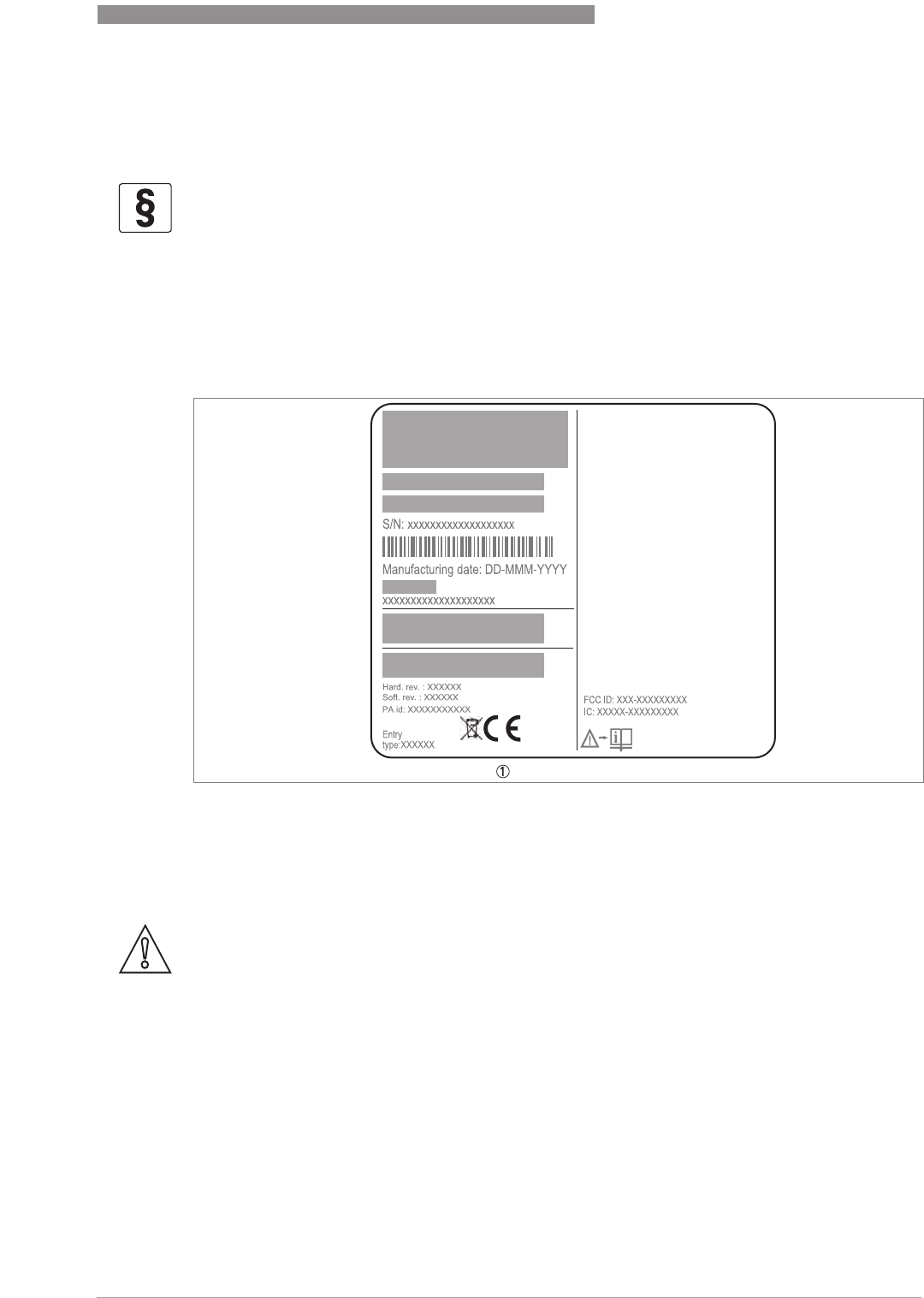

2.4 Nameplates .................................................................................................................... 19

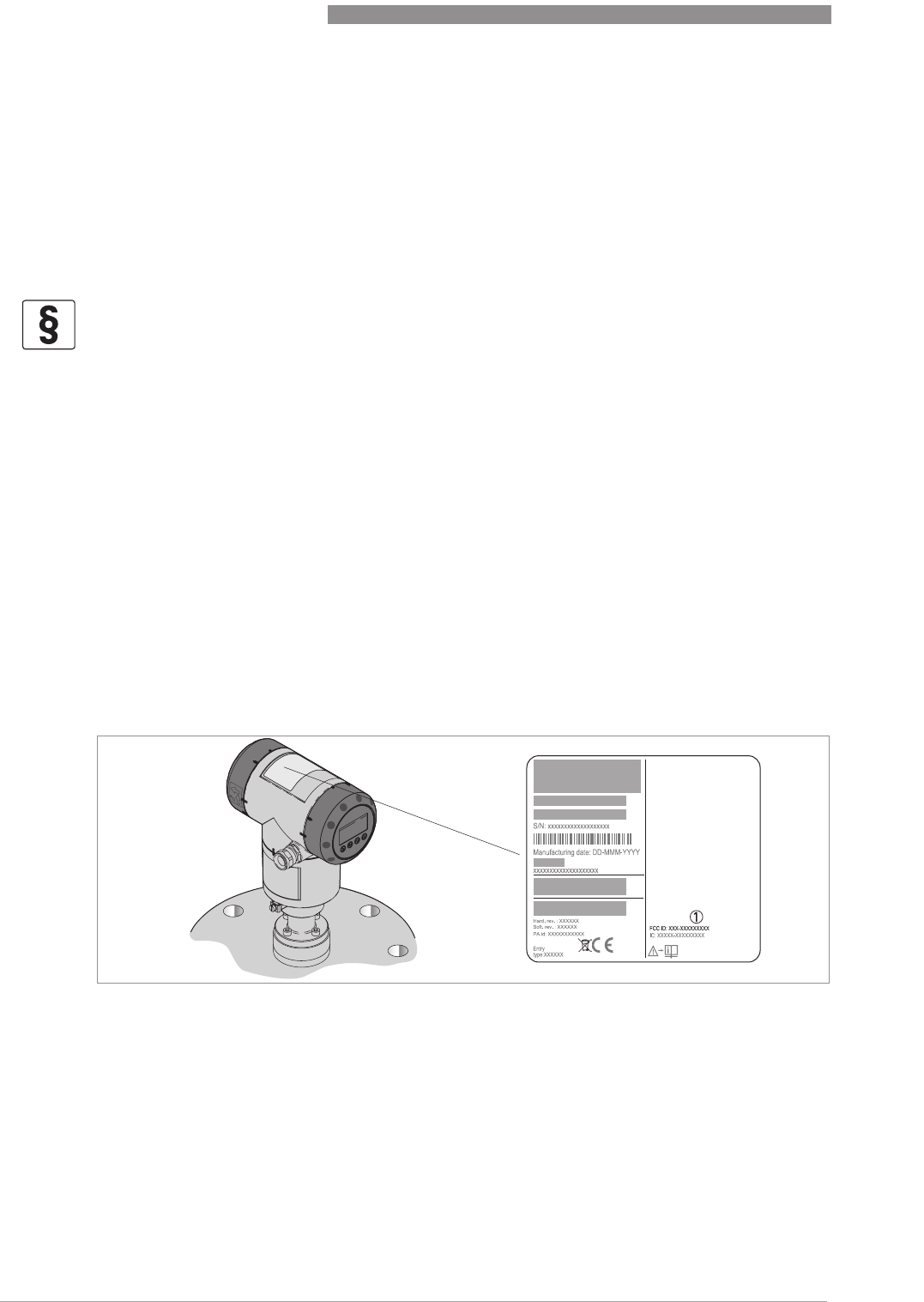

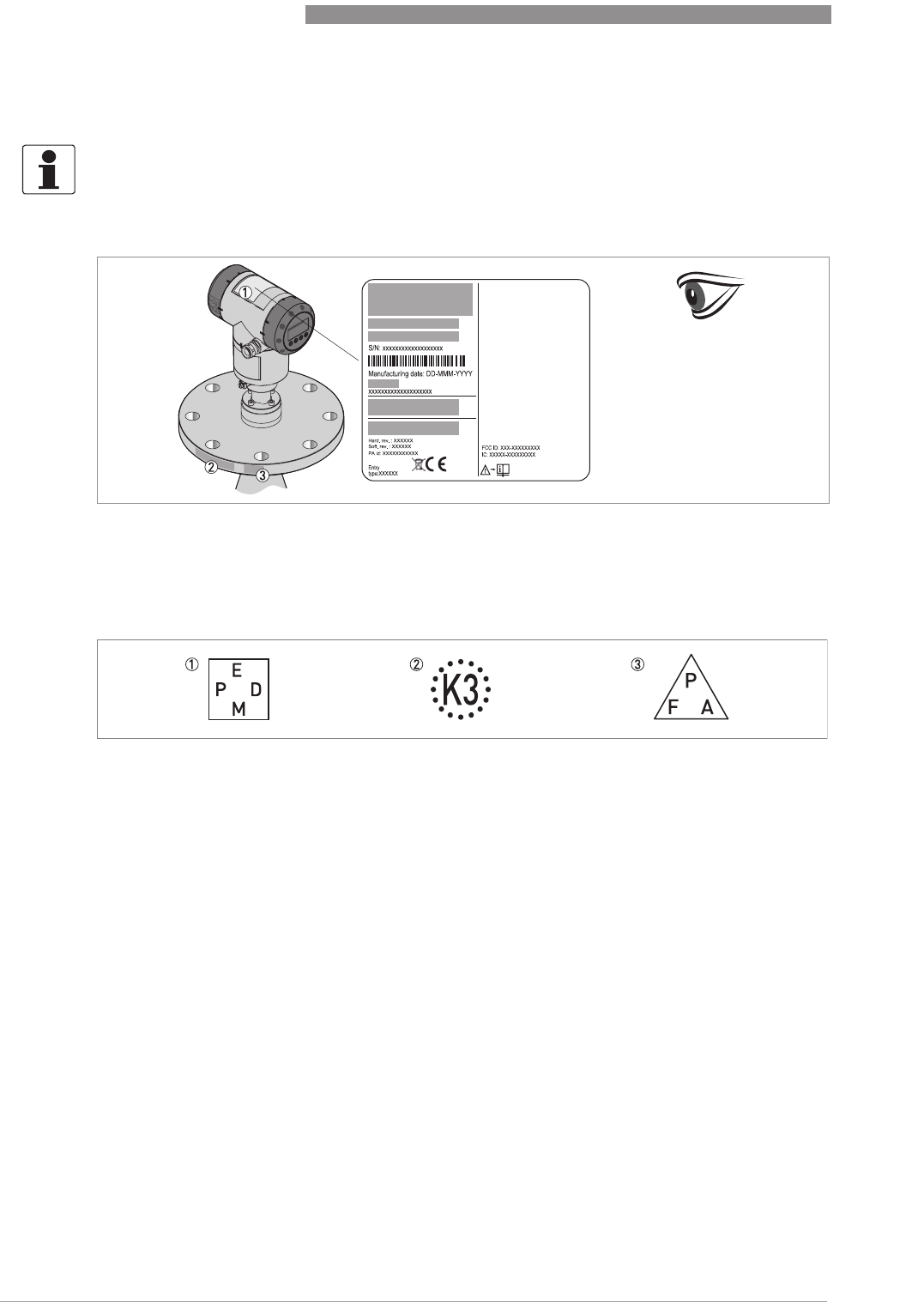

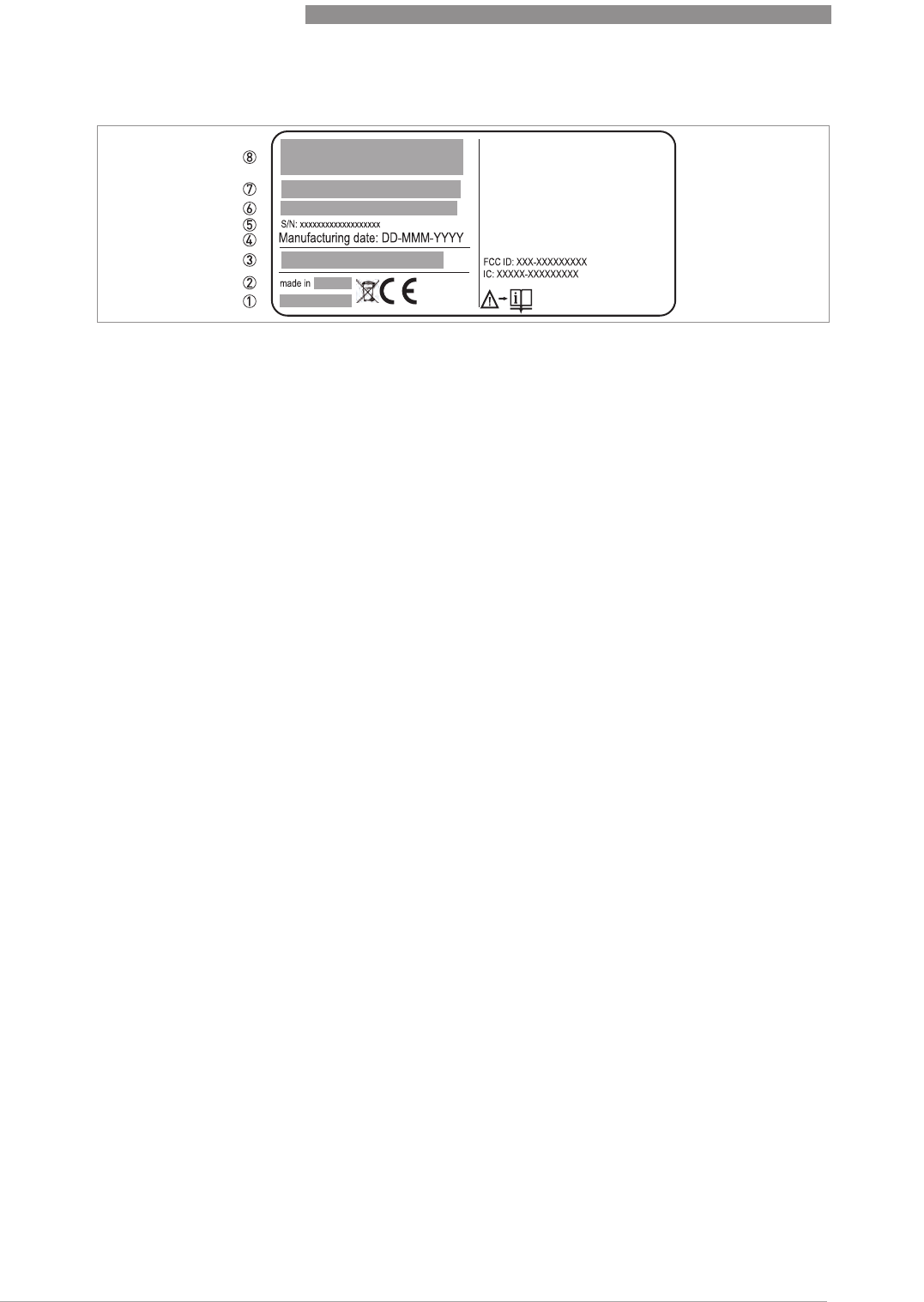

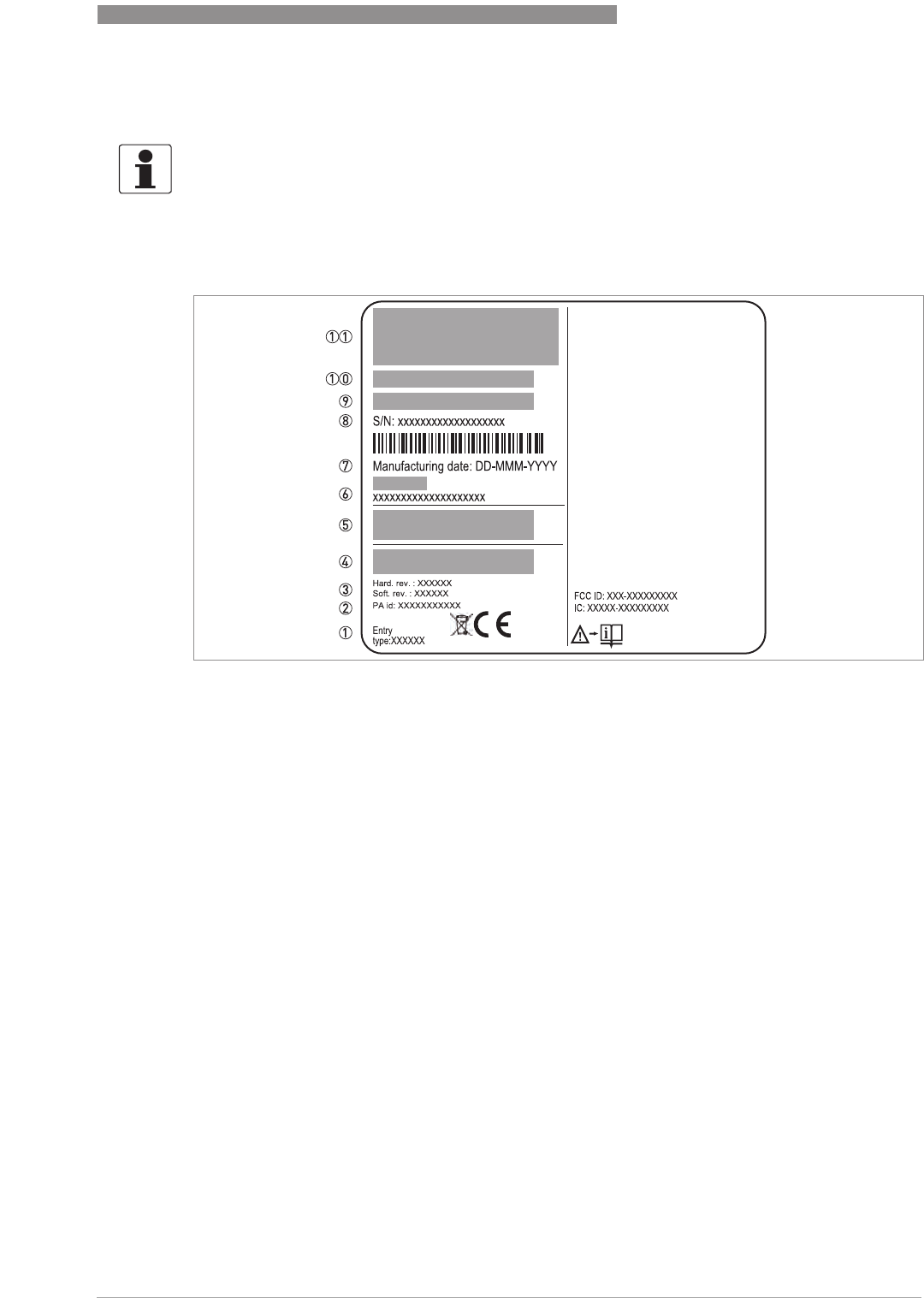

2.4.1 Nameplate (examples).......................................................................................................... 19
3 Installation 21
3.1 General notes on installation ......................................................................................... 21

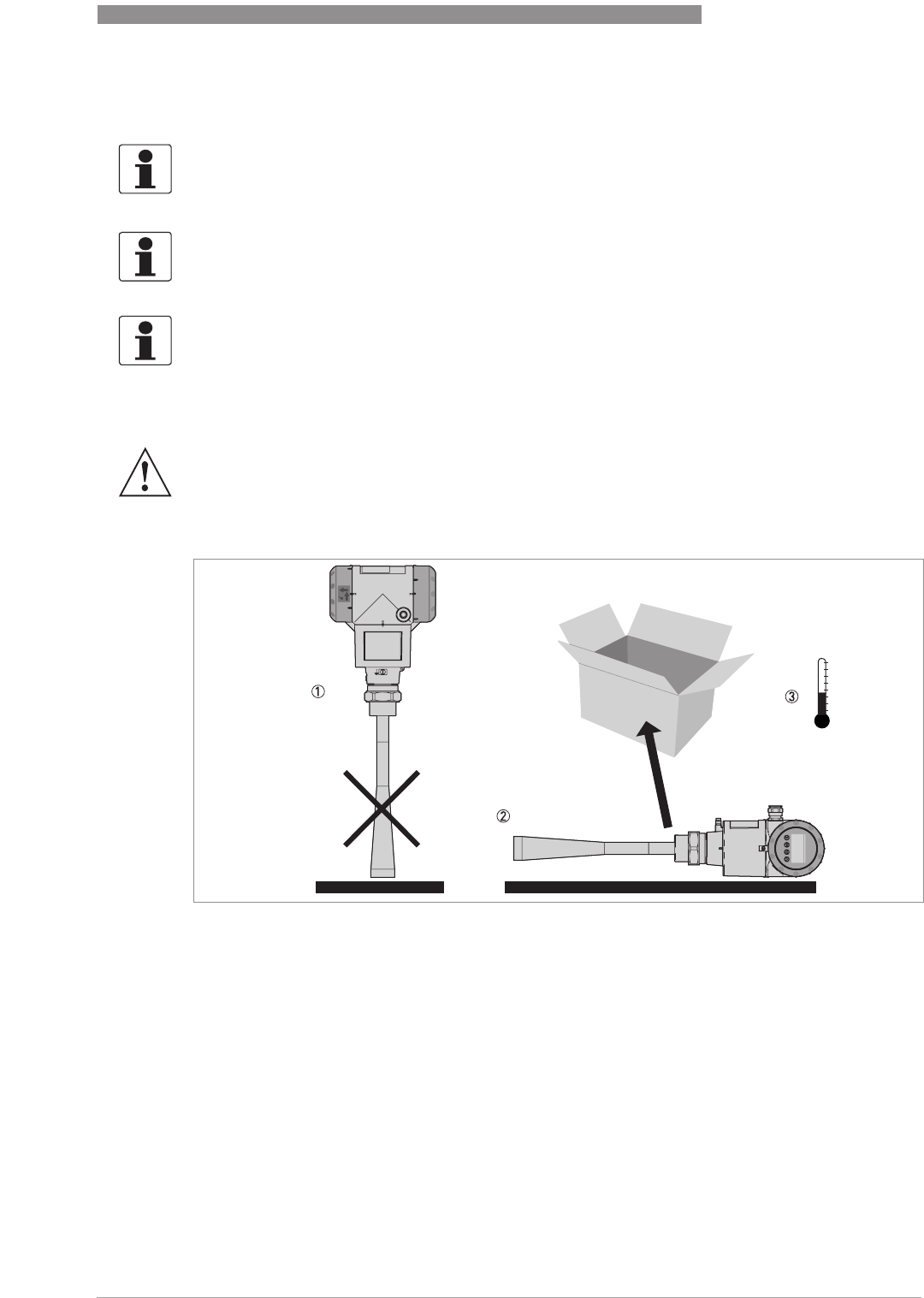

3.2 Storage ........................................................................................................................... 21

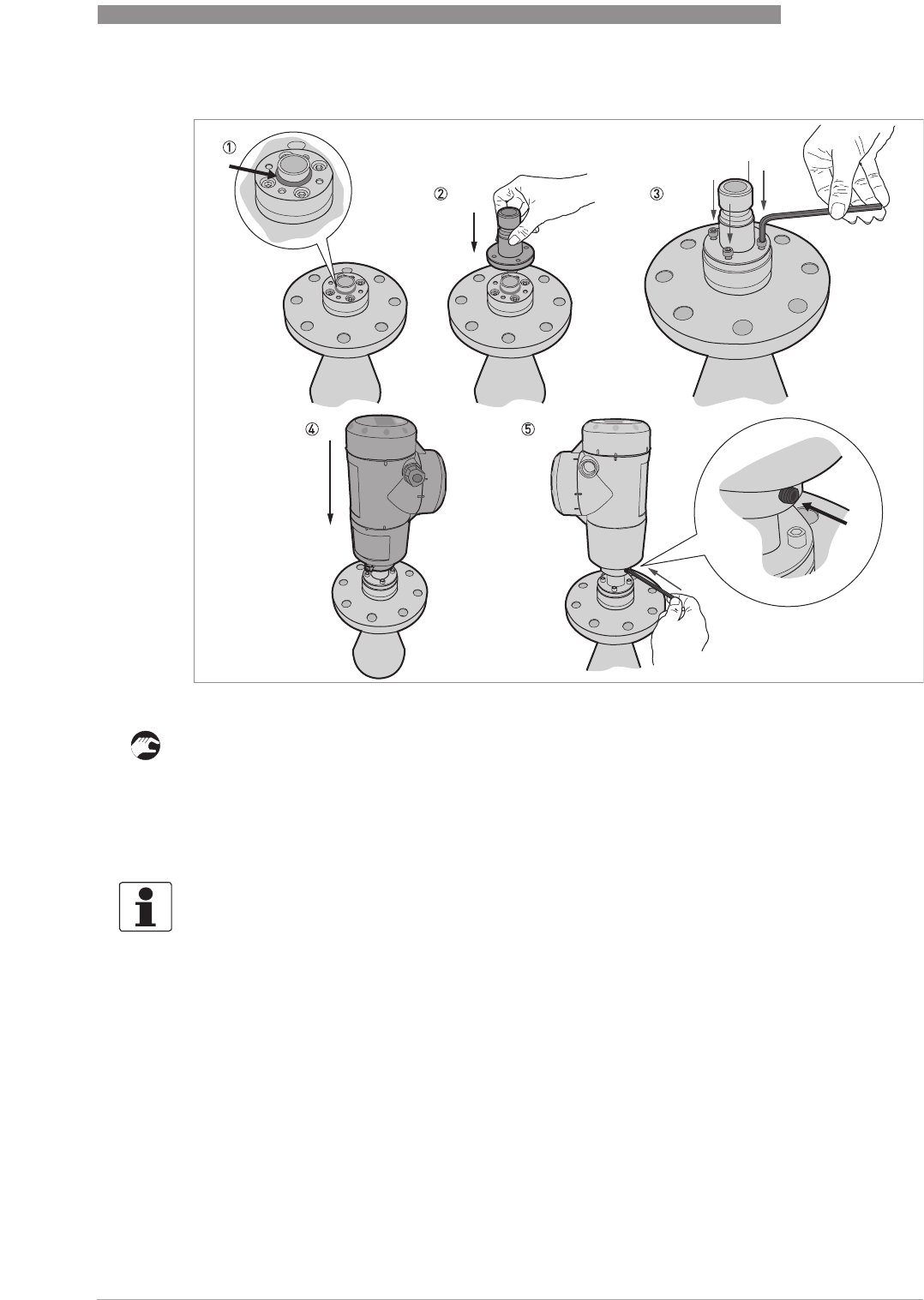

3.3 How to assemble the PTFE Wave Horn antenna ........................................................... 22
3.4 Transport ........................................................................................................................ 23
3.5 Pre-installation requirements ....................................................................................... 23
3.6 Installation...................................................................................................................... 23

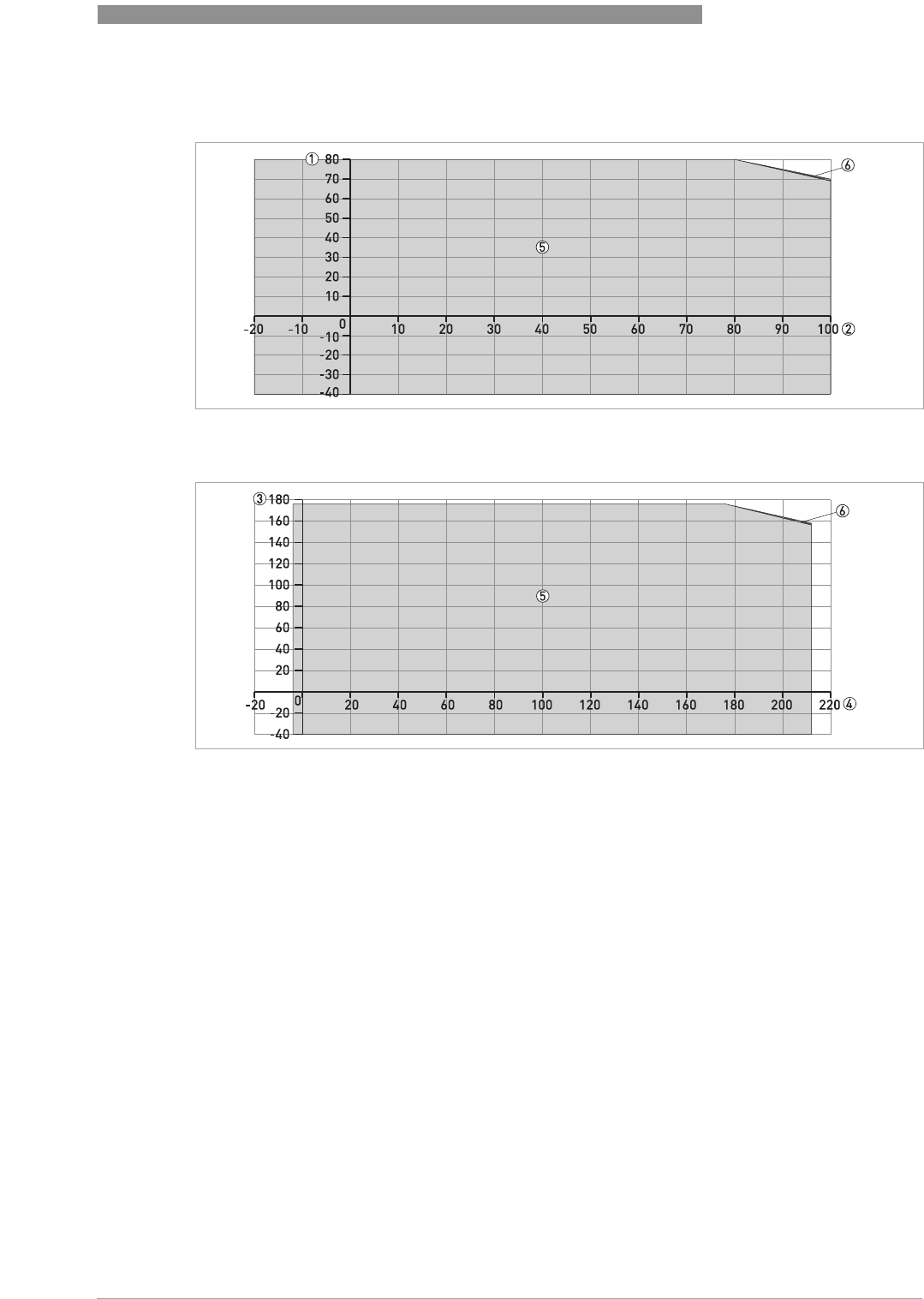

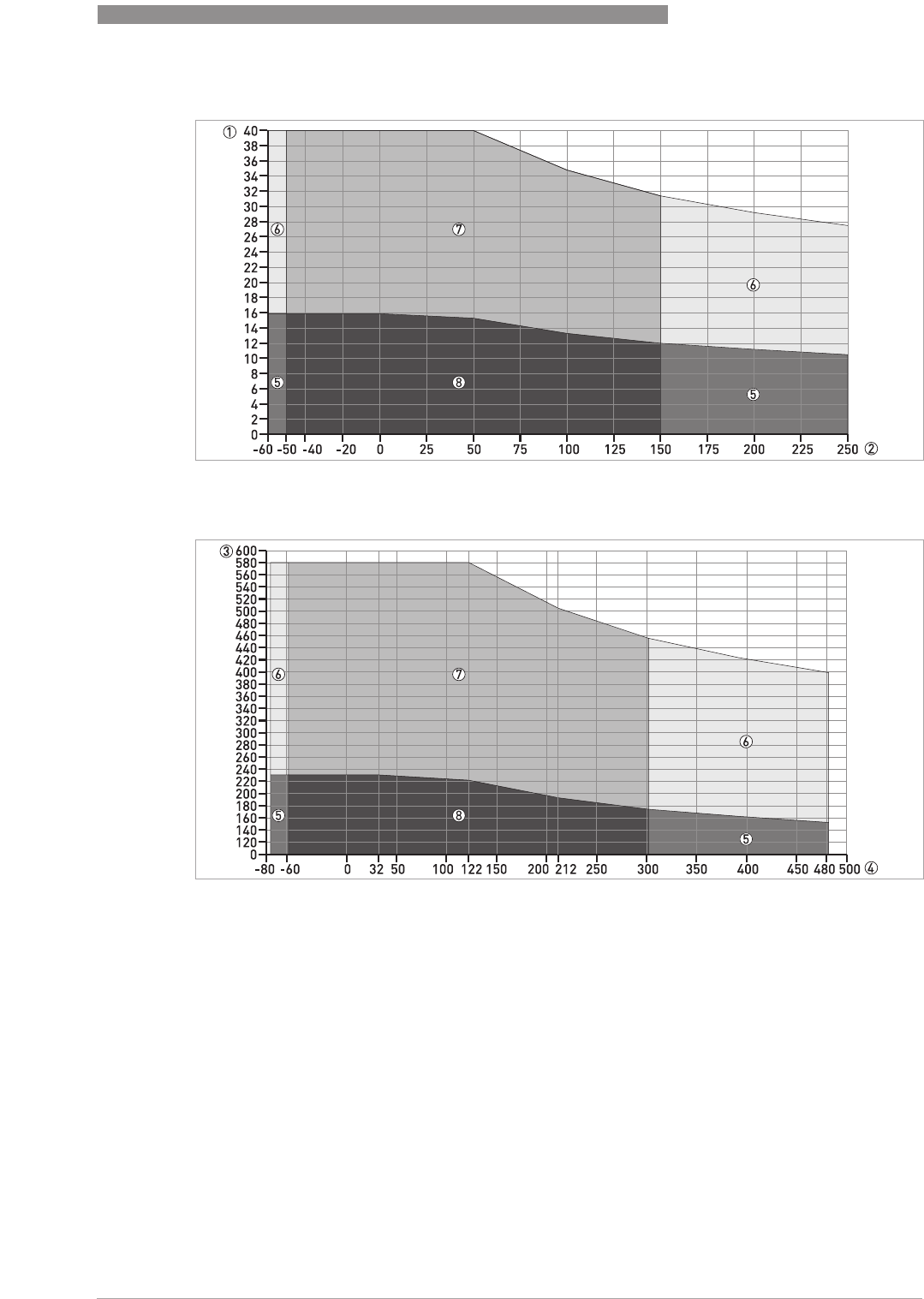

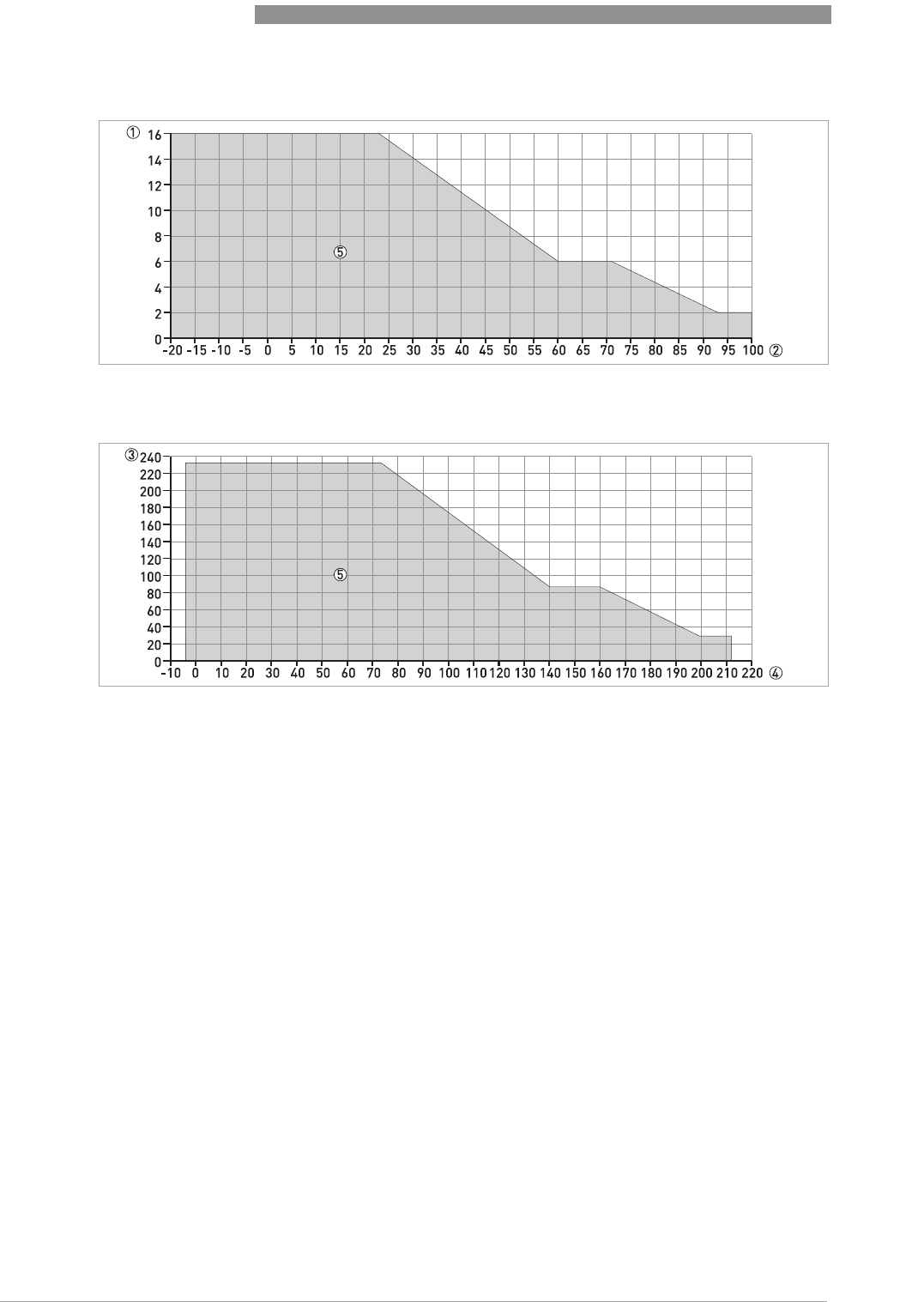

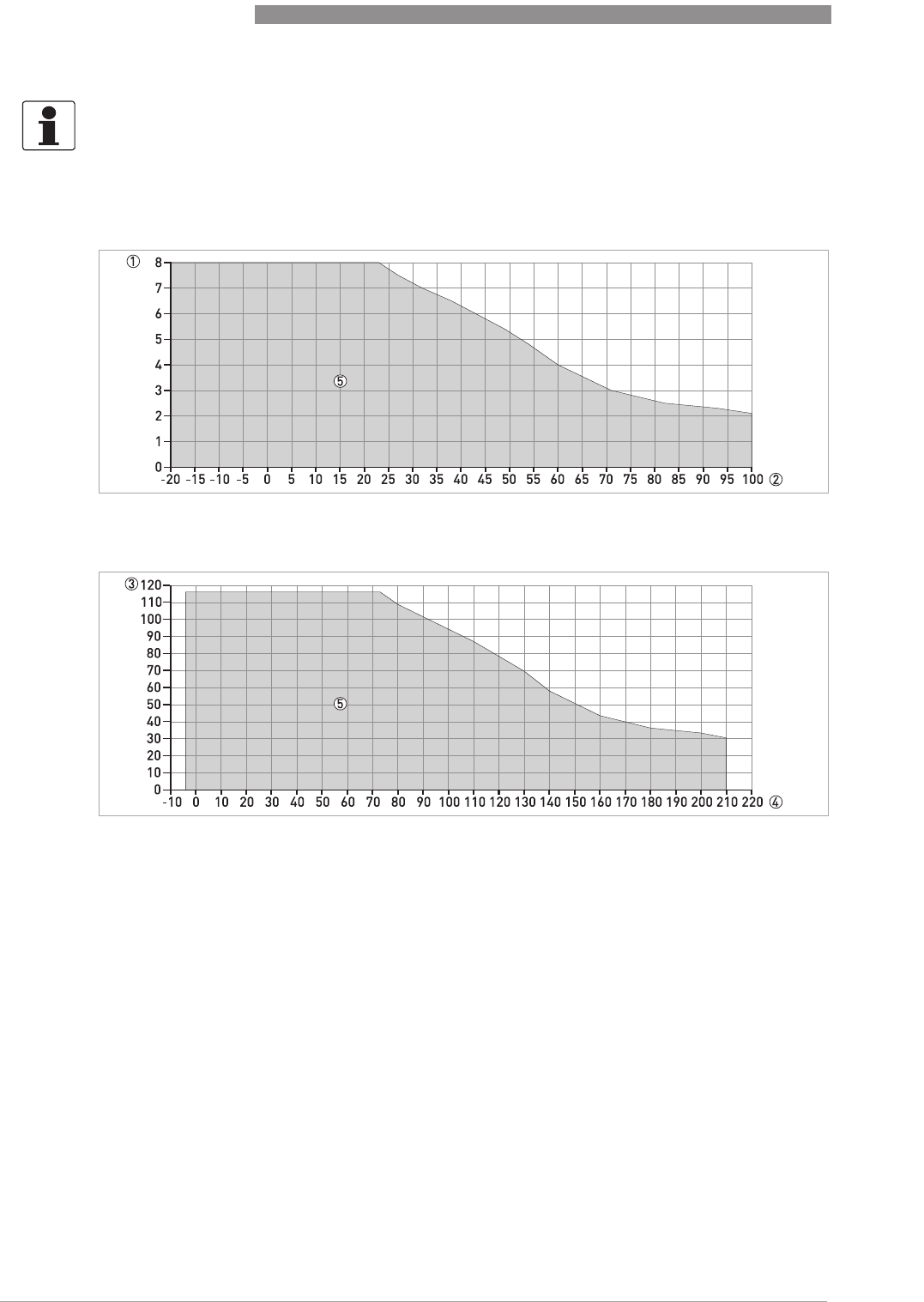

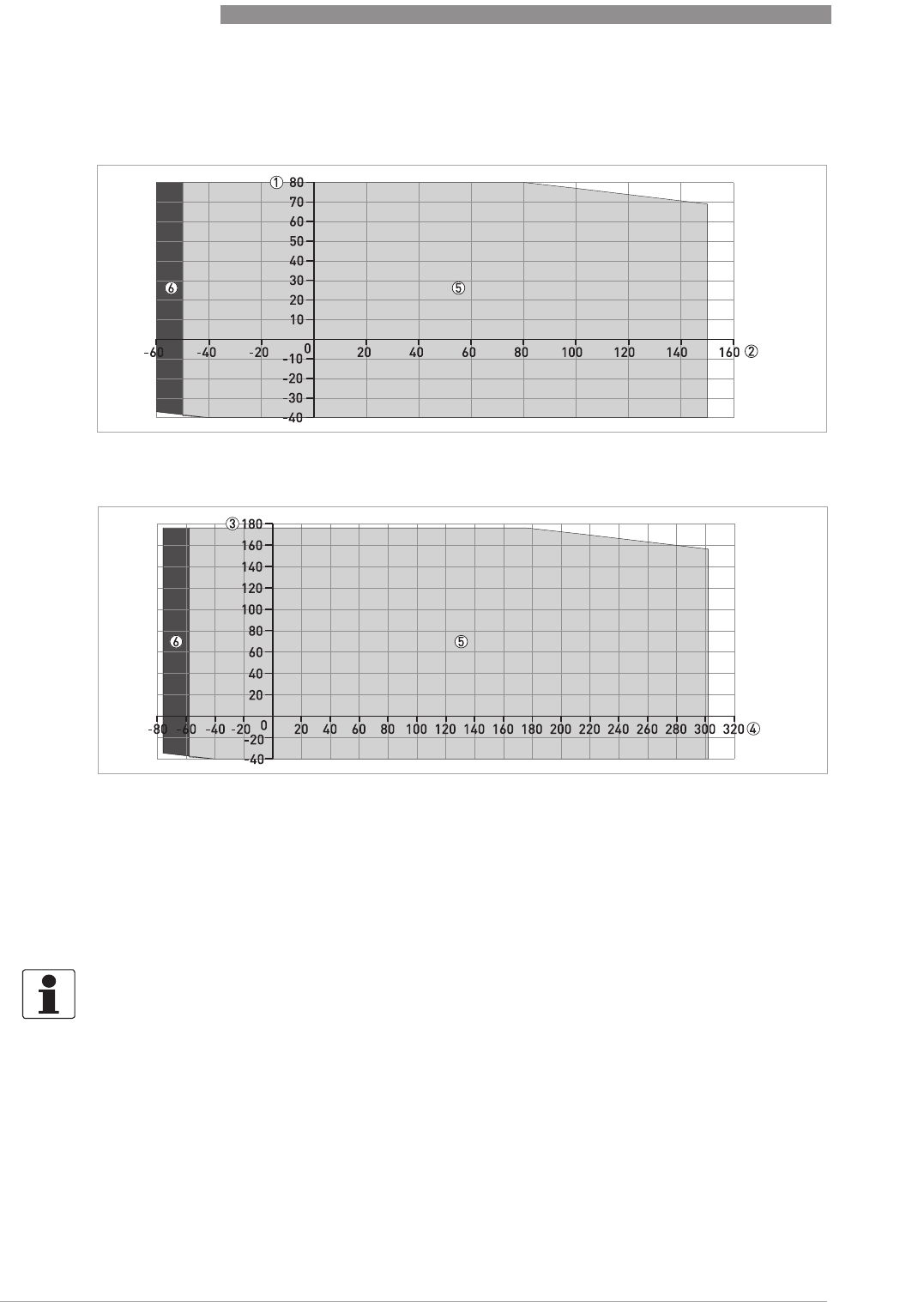

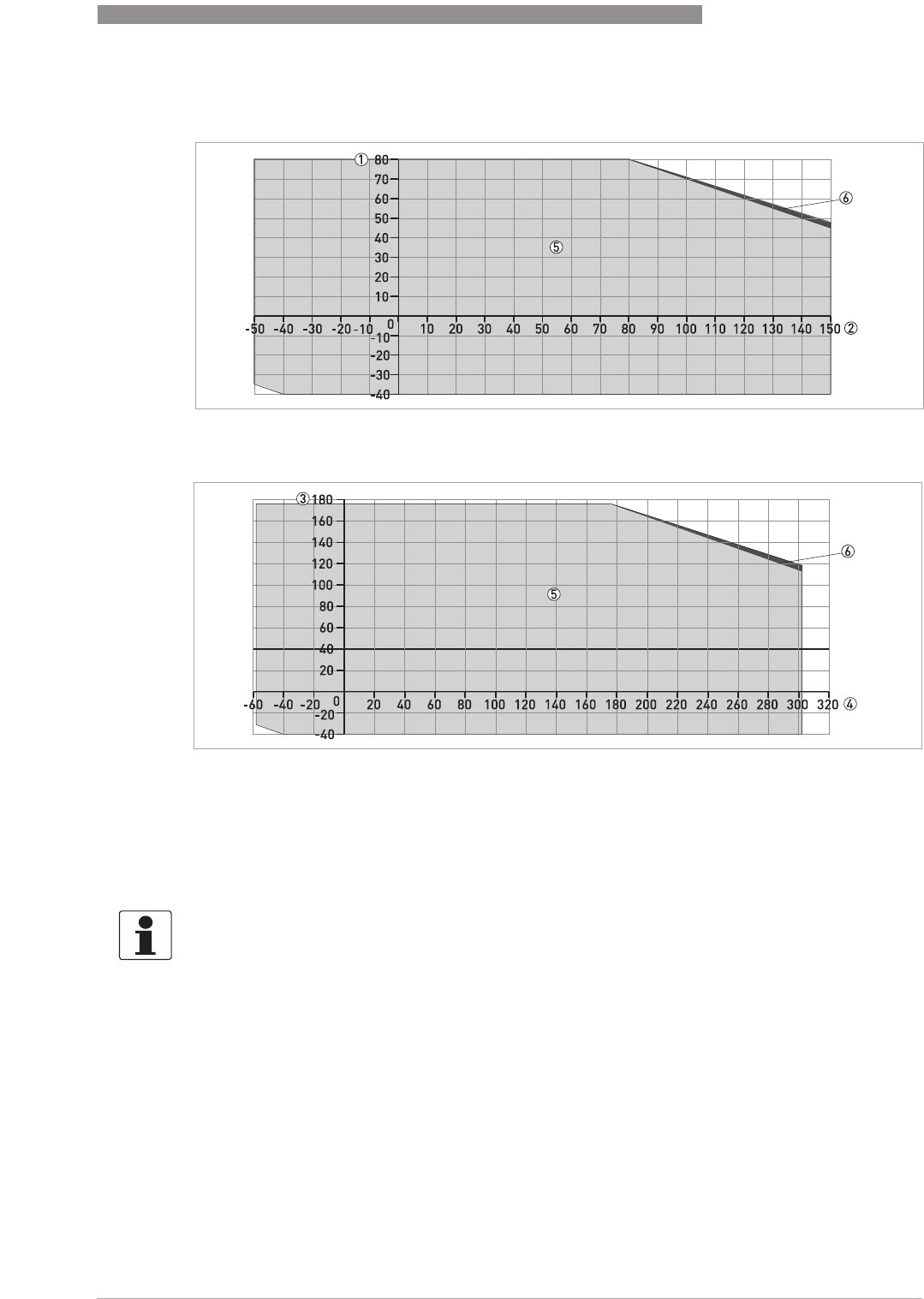

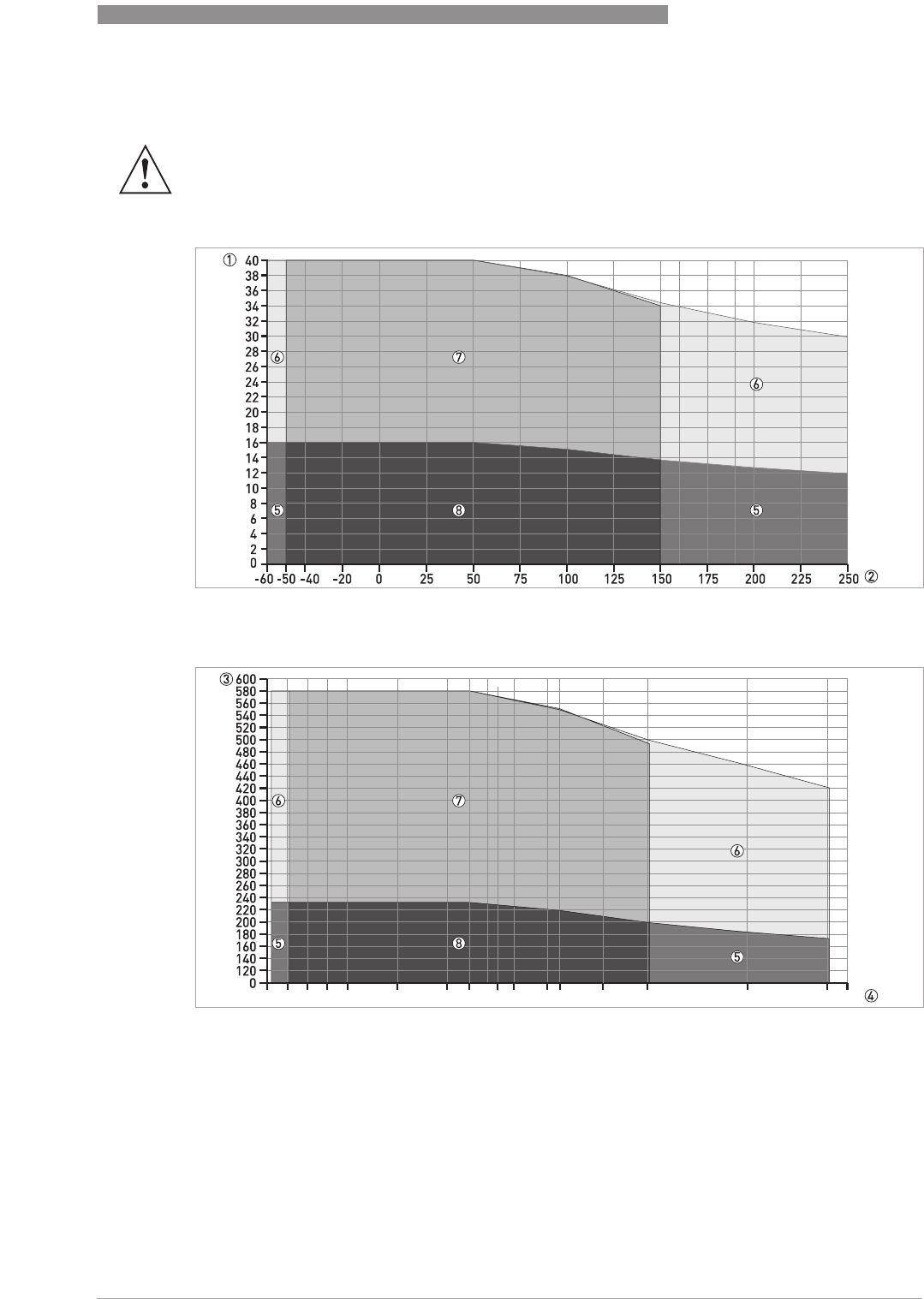

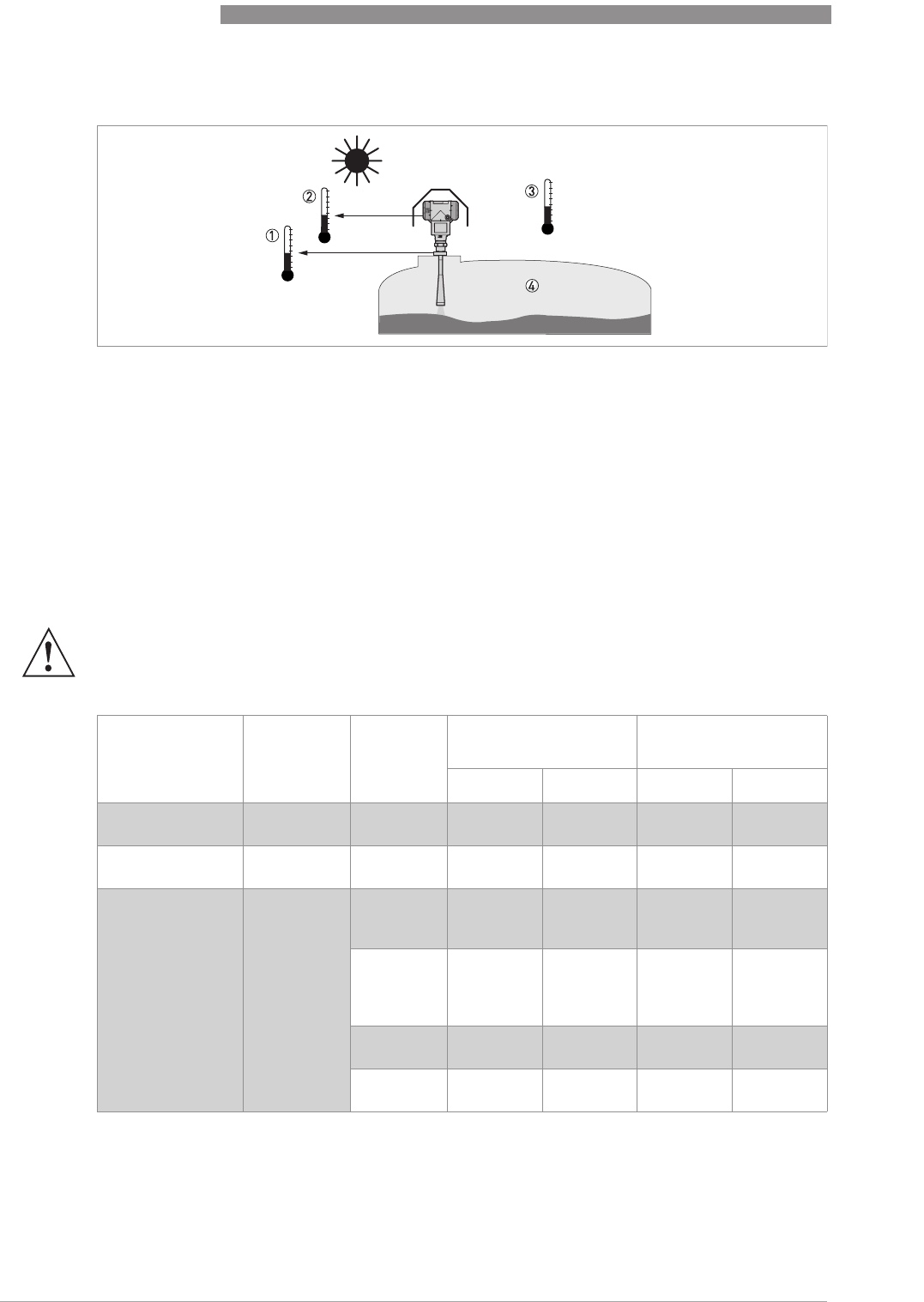

3.6.1 Pressure and temperature ranges....................................................................................... 23

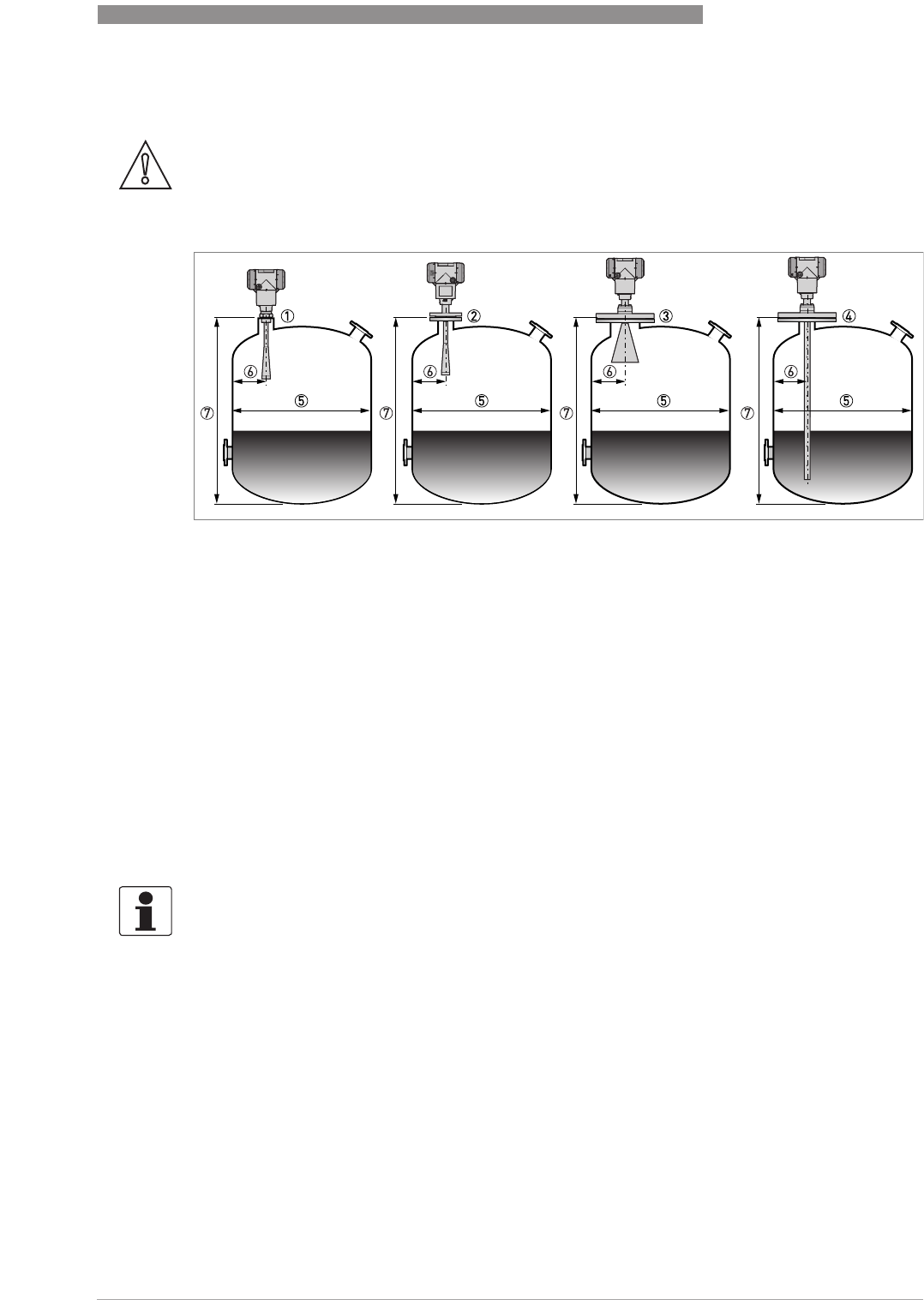

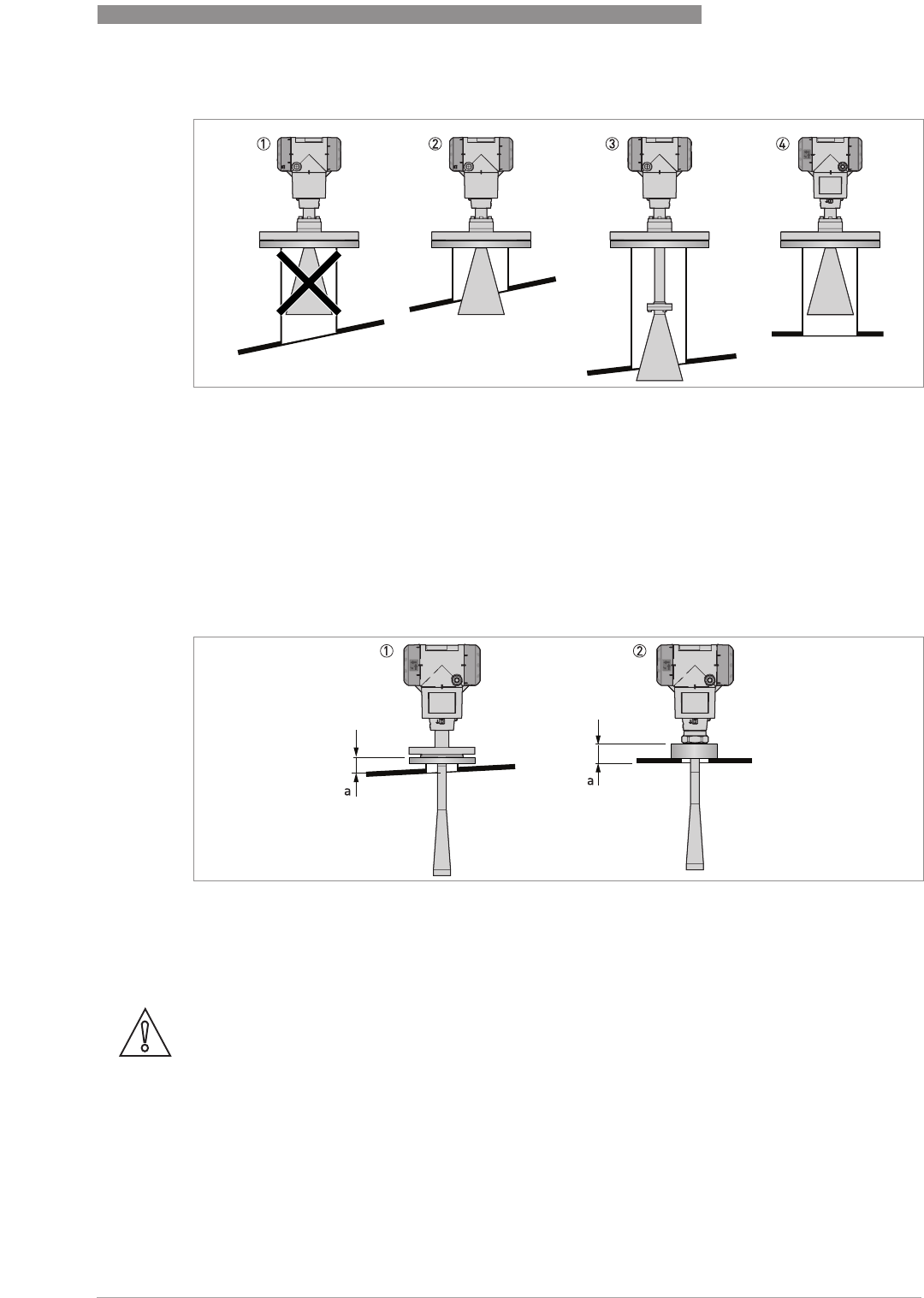

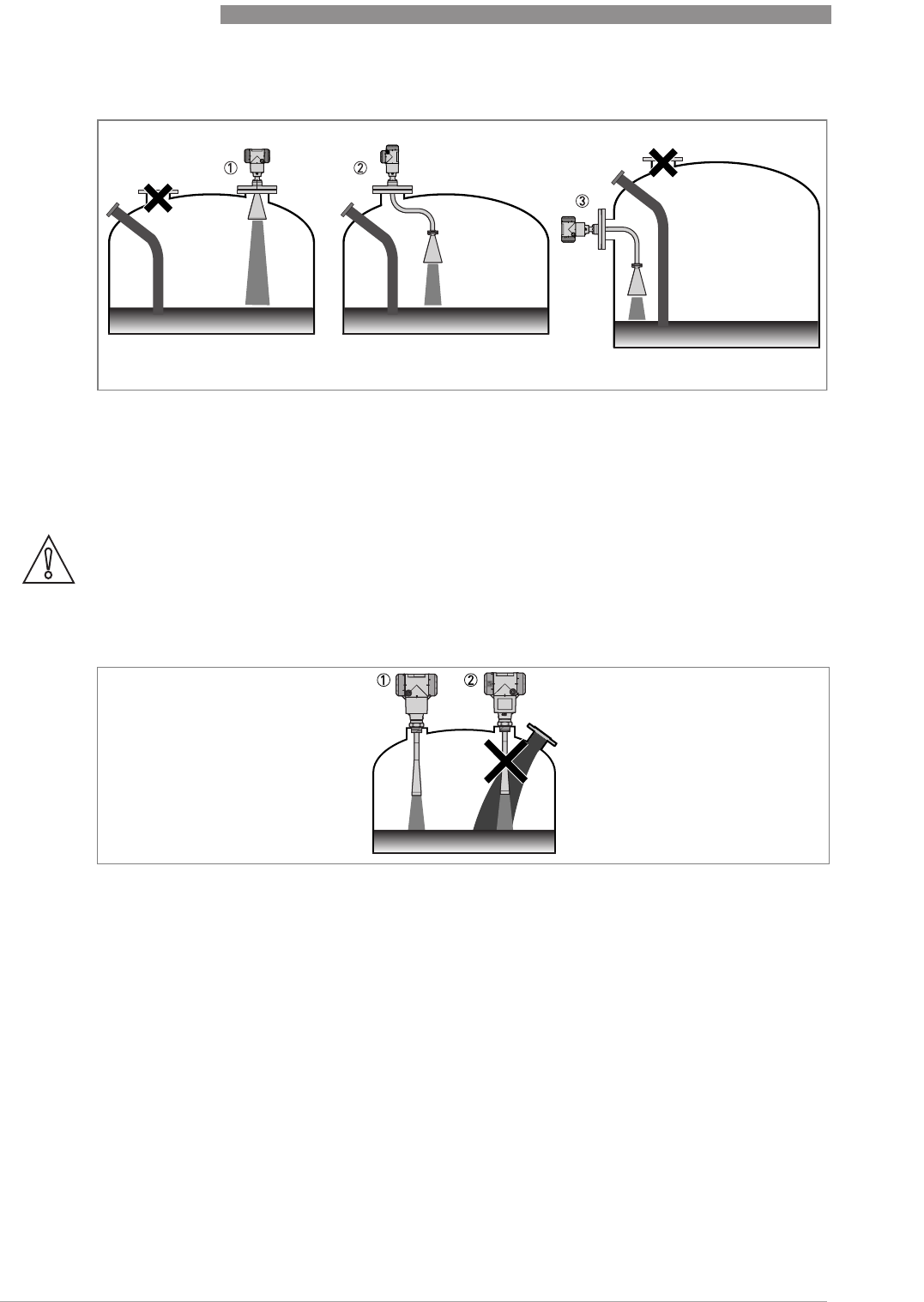

3.6.2 Recommended mounting position........................................................................................ 29

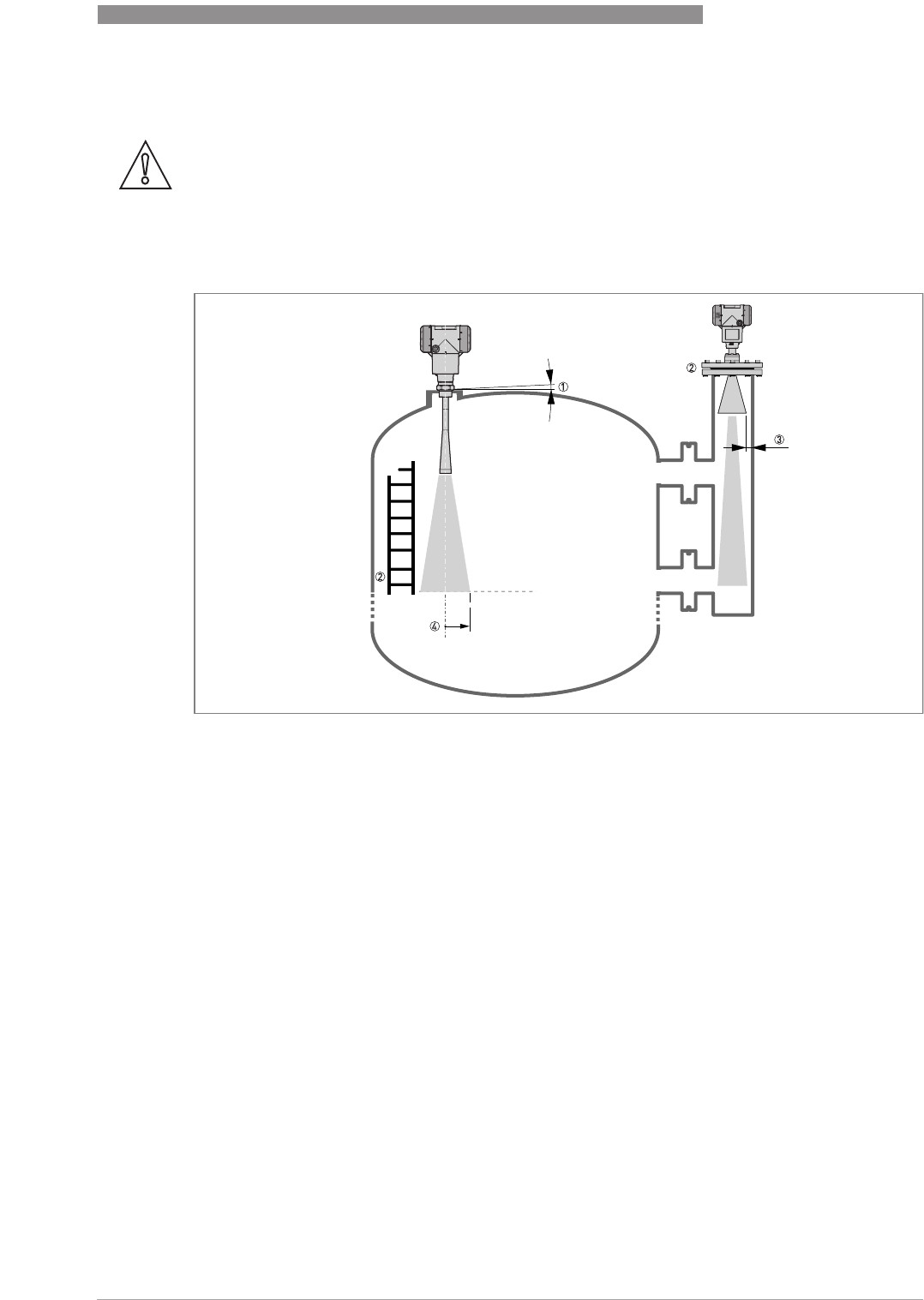

3.6.3 Mounting restrictions............................................................................................................ 31

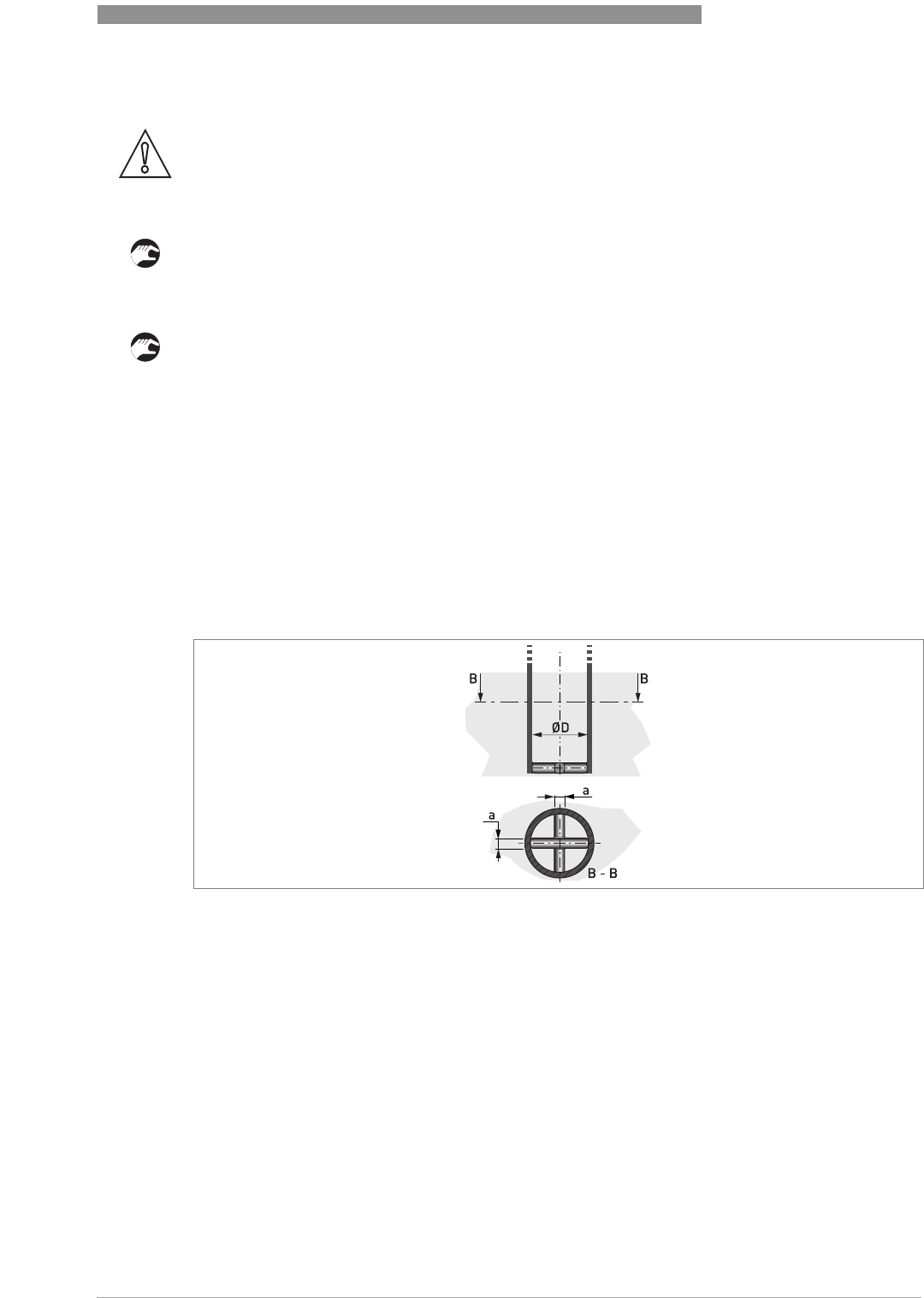

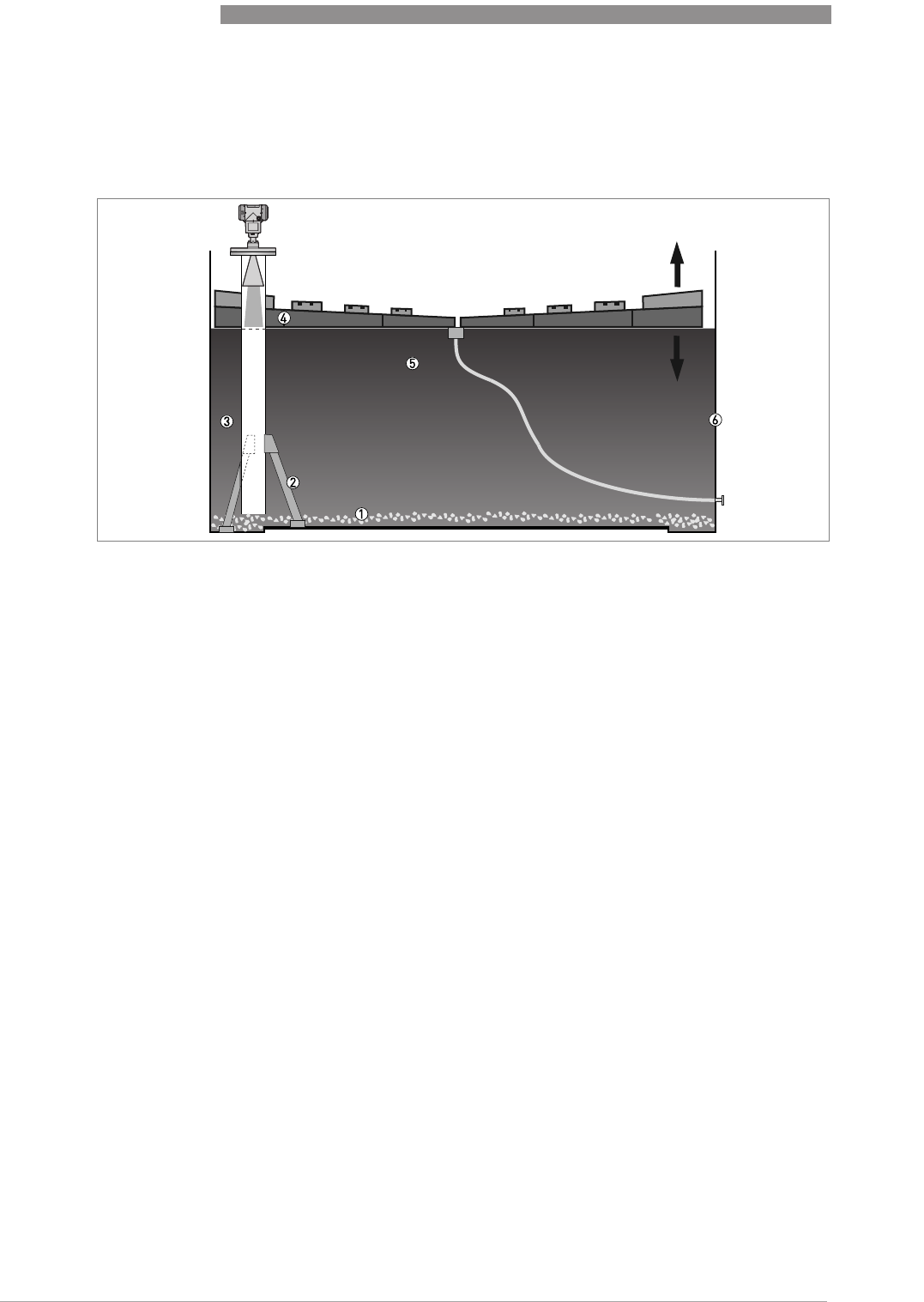

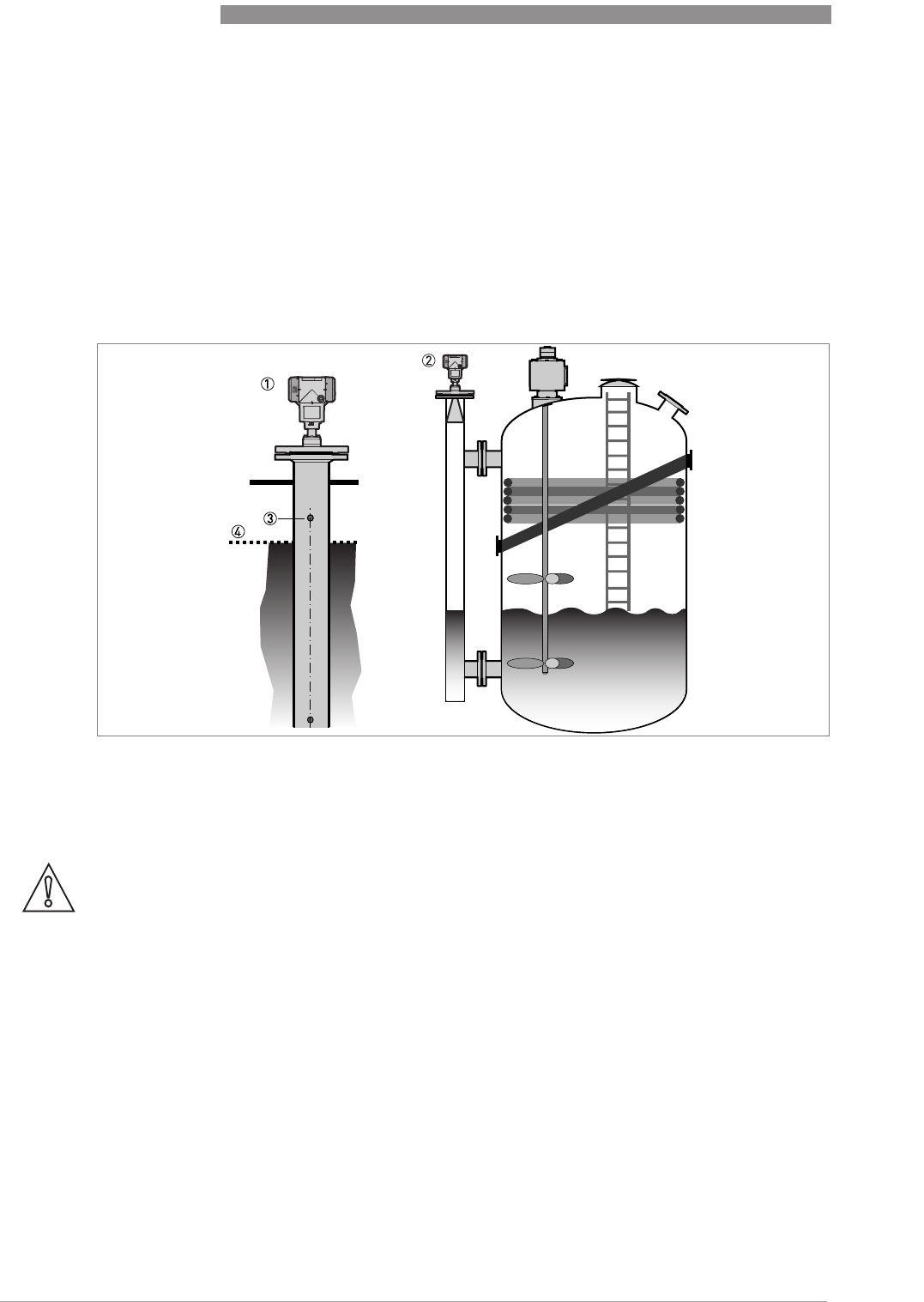

3.6.4 Standpipes (stilling wells and bypass chambers) ................................................................ 36

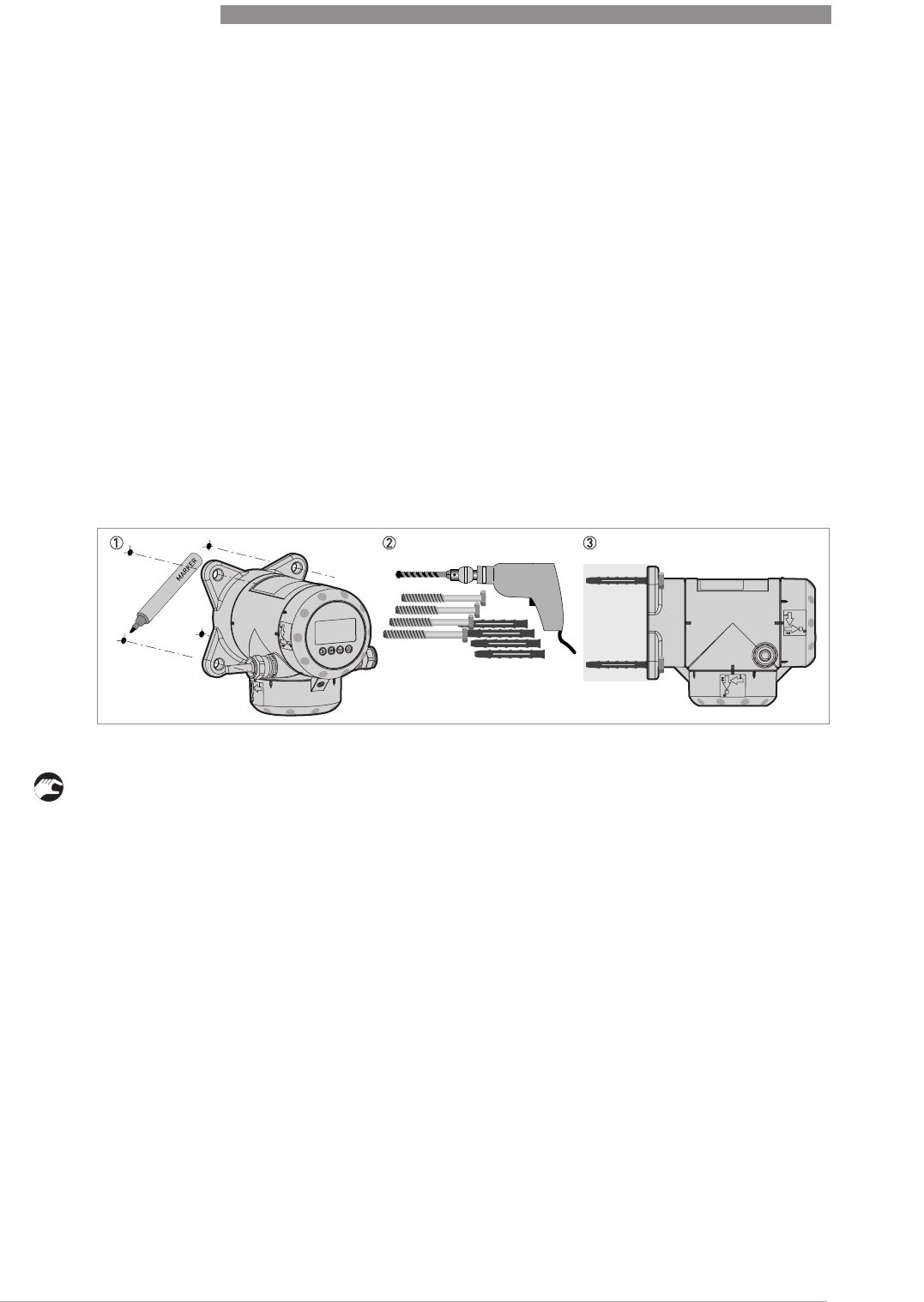

3.6.5 Wall support for the remote version .................................................................................... 40

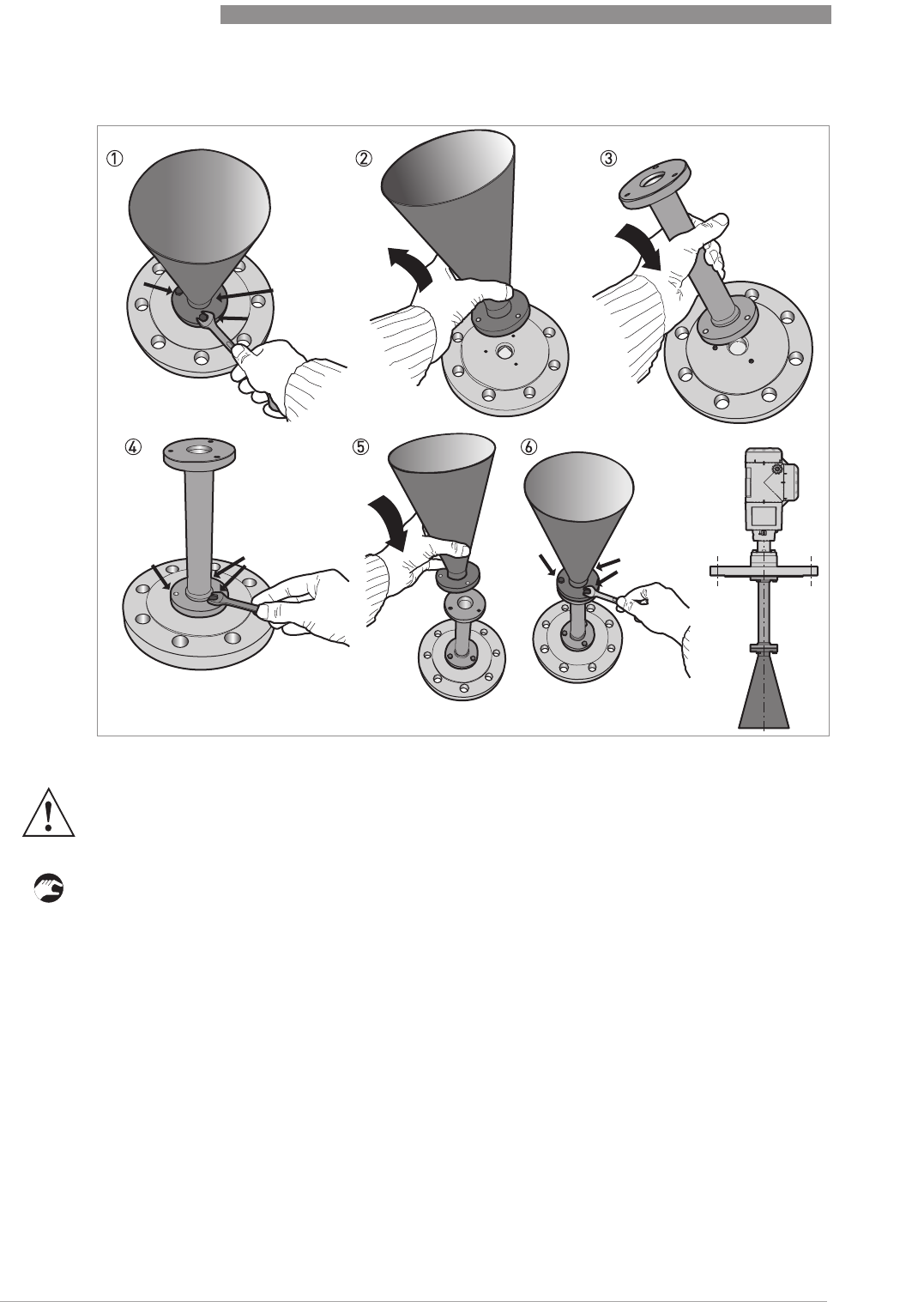

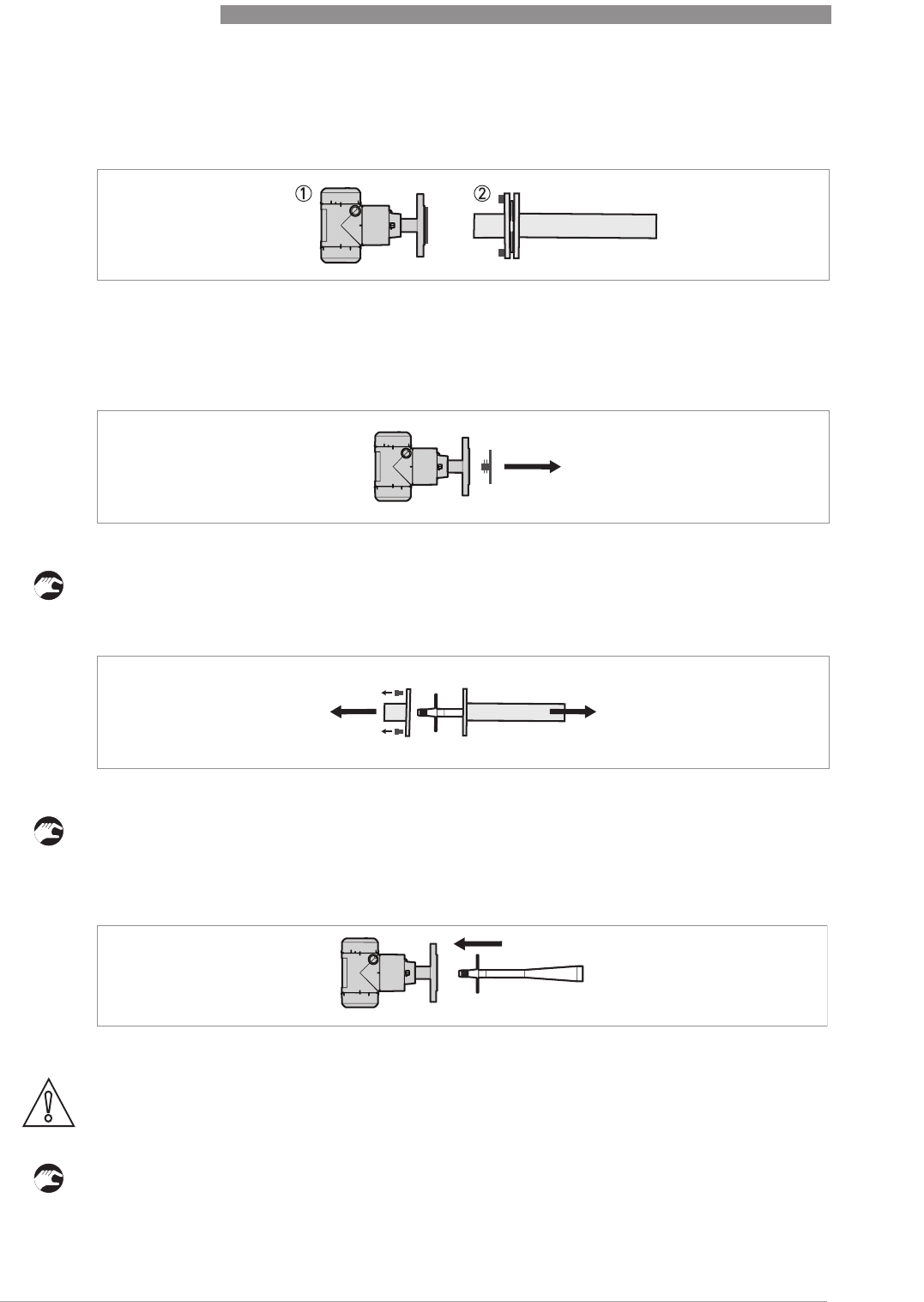

3.6.6 How to attach an antenna extension (Metallic Horn or Wave Guide antennas)................... 41

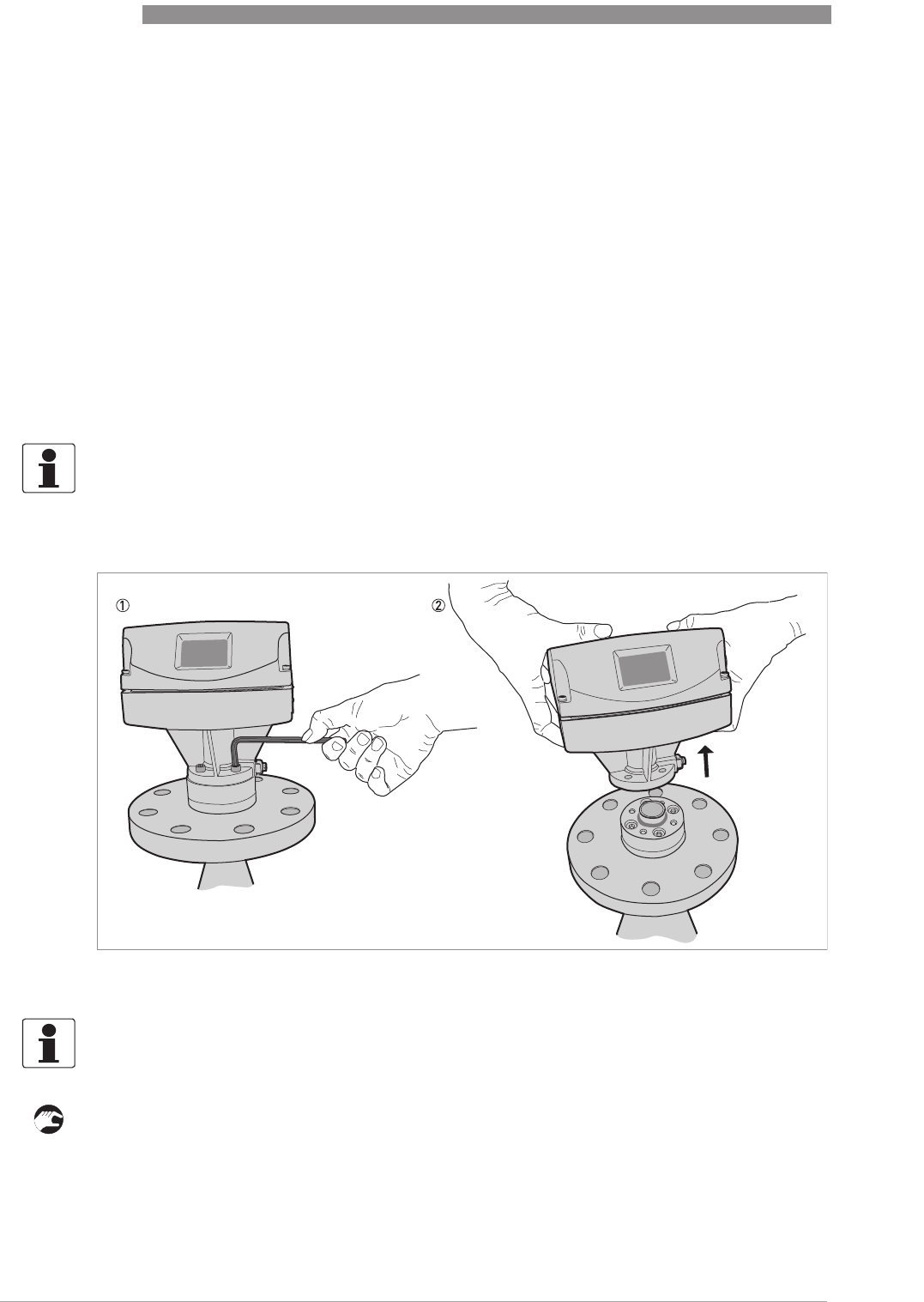

3.6.7 How to turn or remove the signal converter ........................................................................ 44

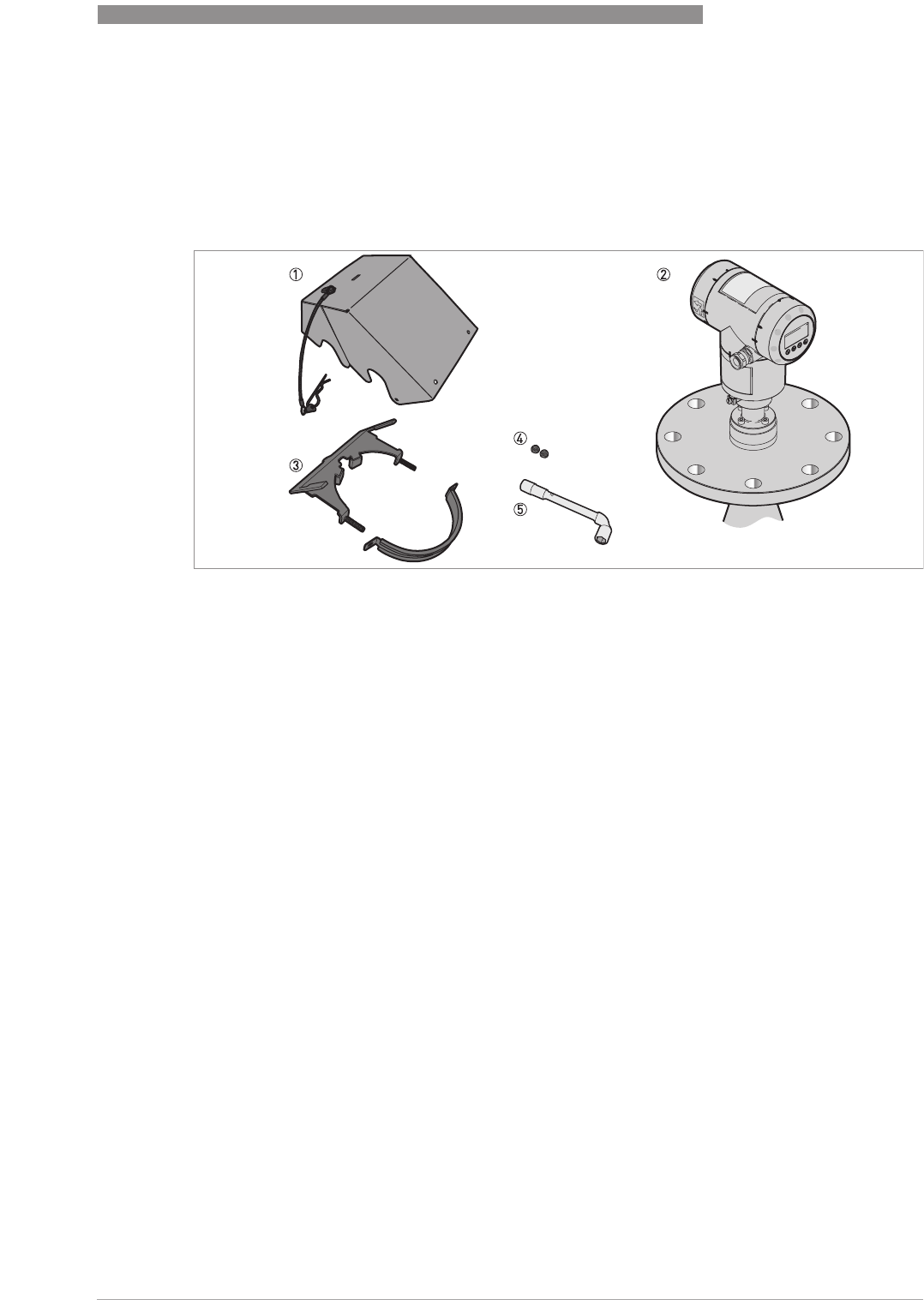

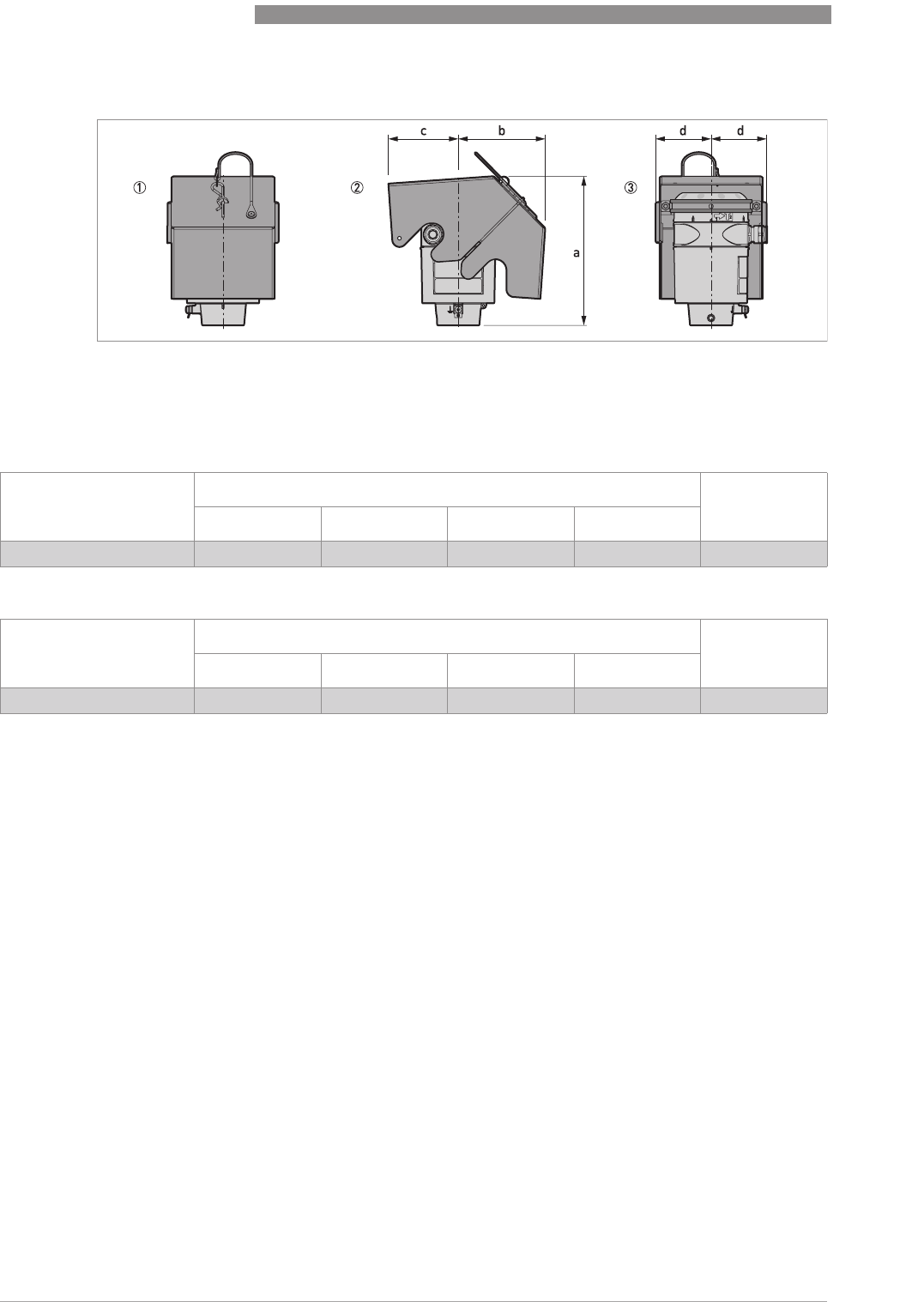

3.6.8 How to attach the weather protection to the device............................................................. 45

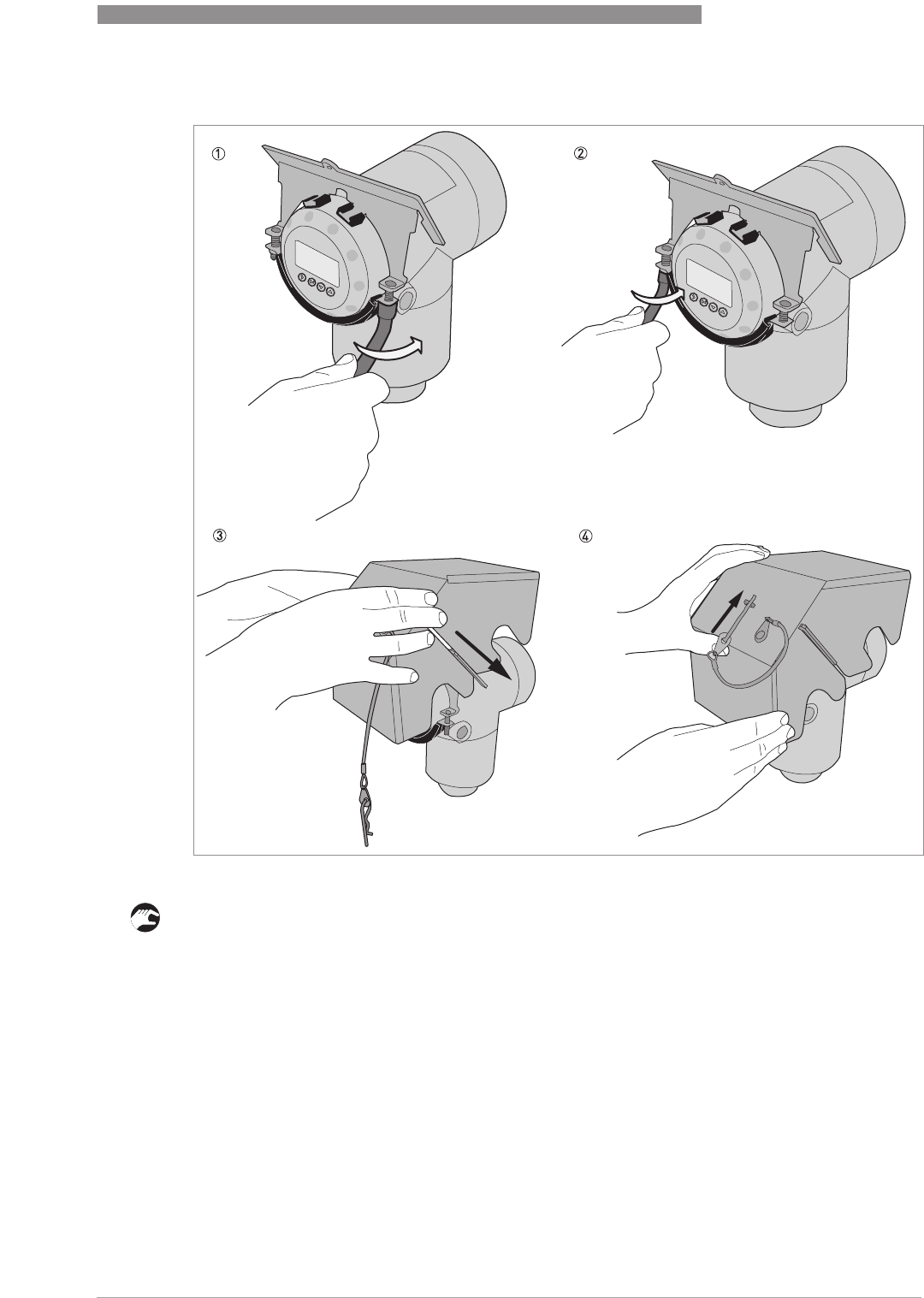

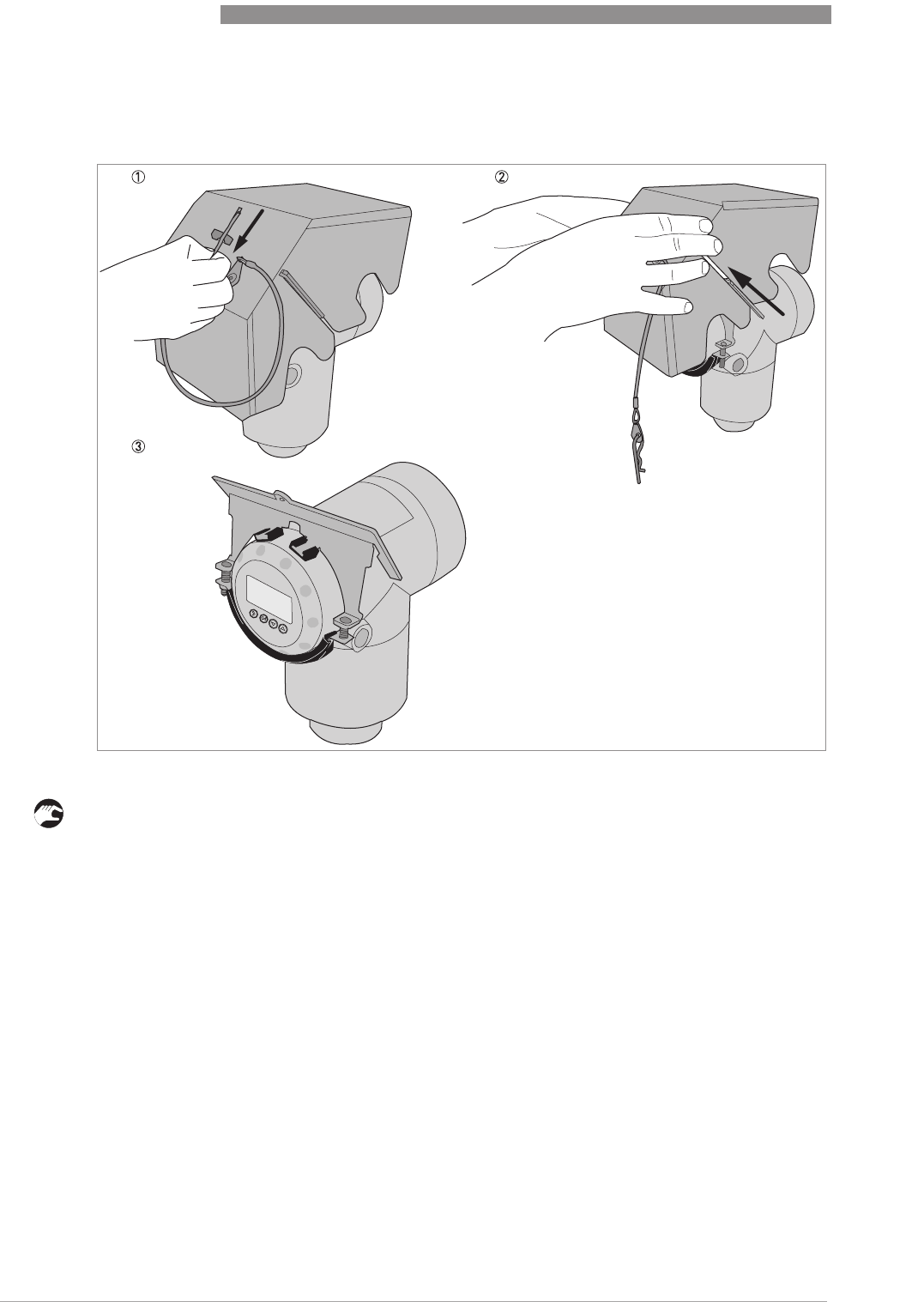

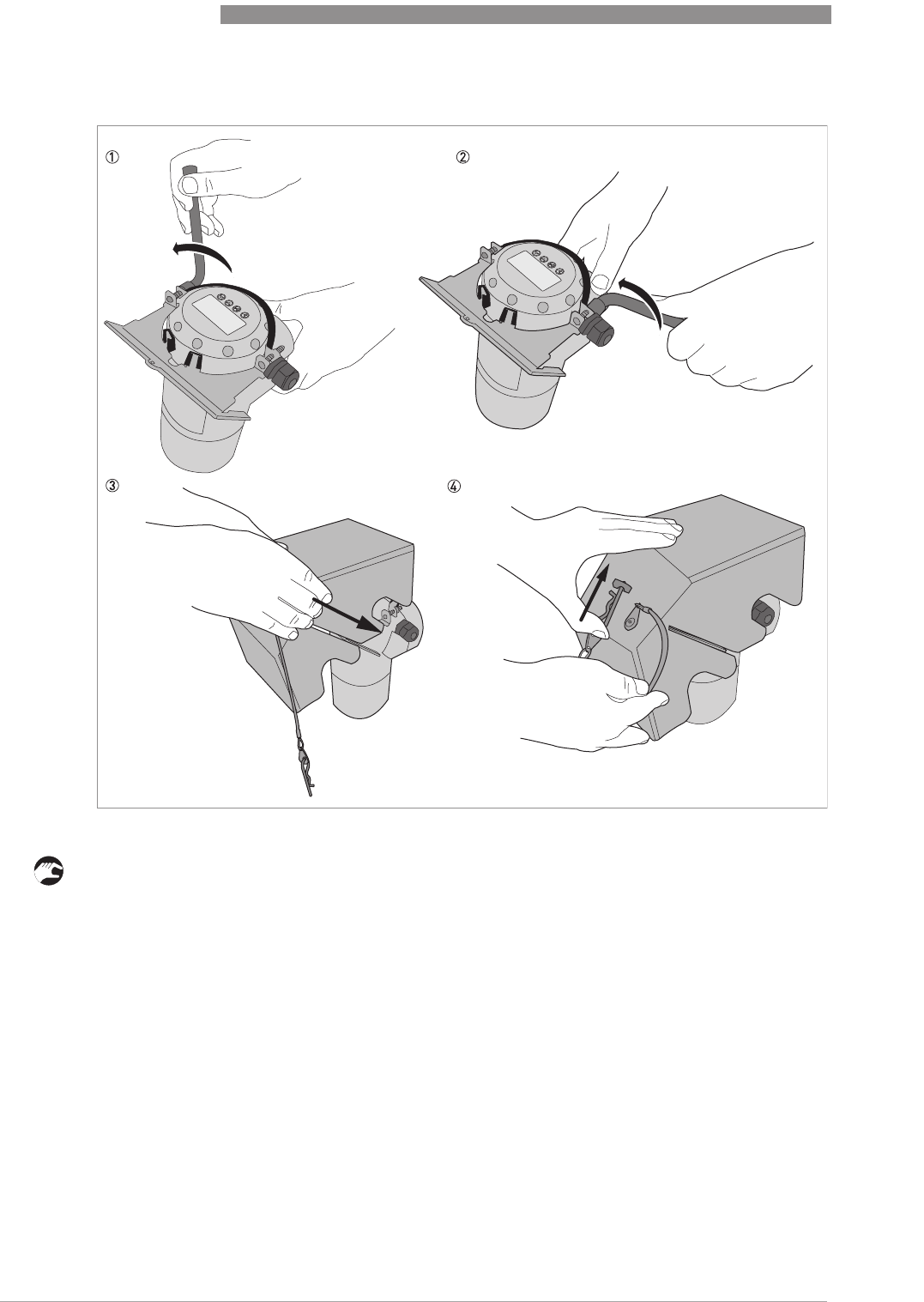

3.6.9 How to open the weather protection .................................................................................... 48
4 Electrical connections 49
4.1 Safety instructions.......................................................................................................... 49
4.2 General notes ................................................................................................................. 49
CONTENTS
4
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
OPTIWAVE 5200 C/F

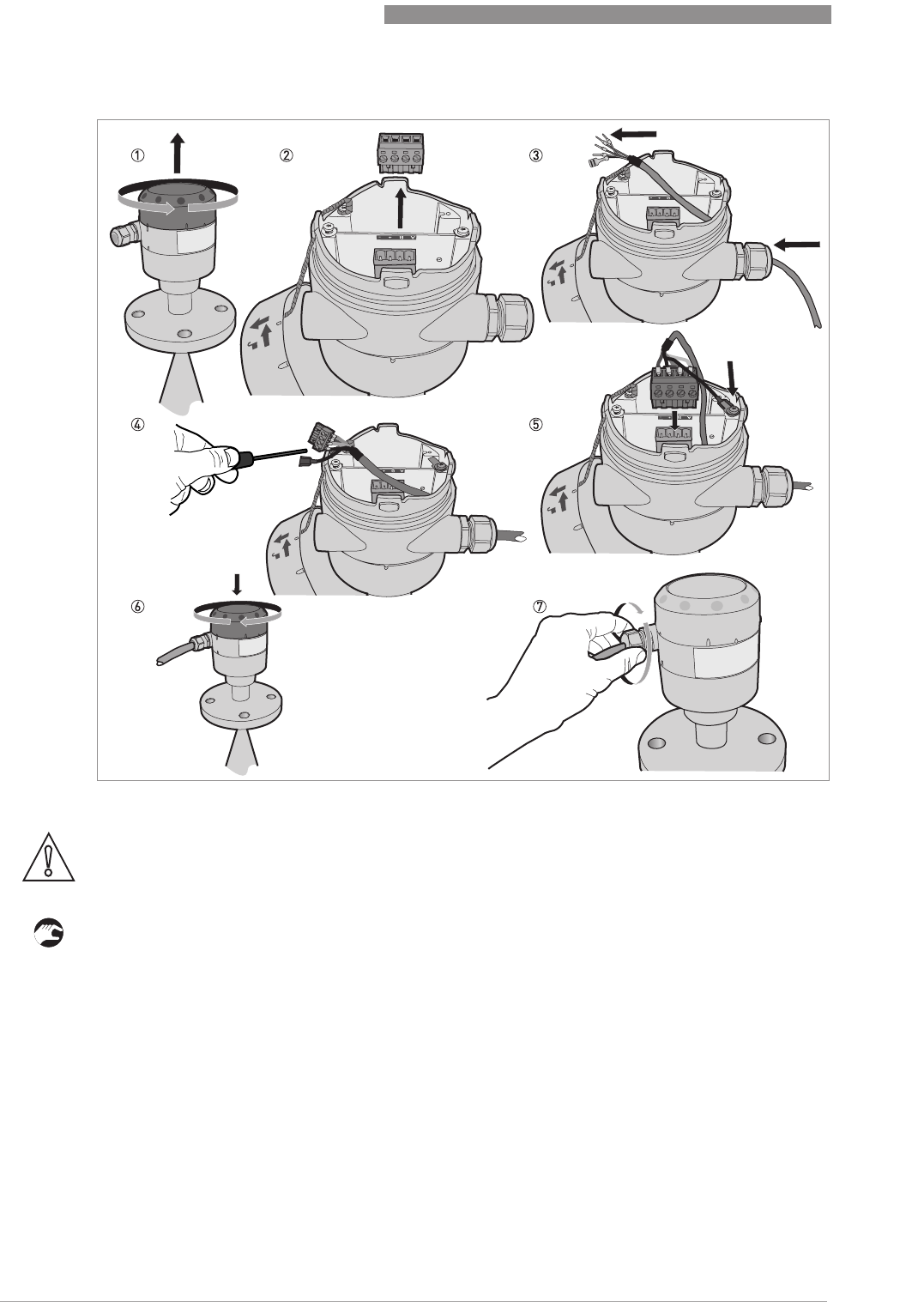

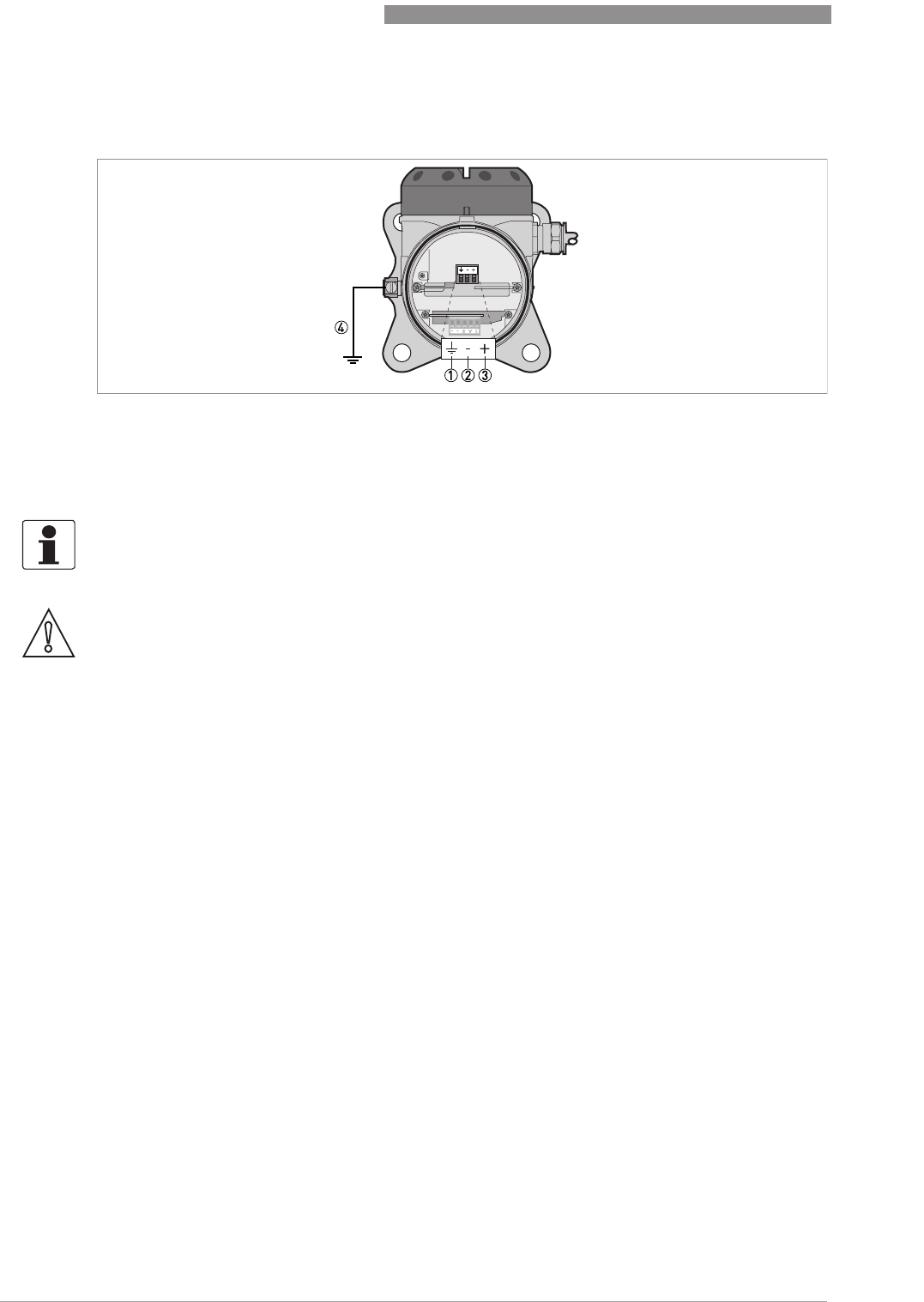

4.3 Electrical installation: 2-wire, loop-powered ................................................................ 50
4.3.1 Compact version ................................................................................................................... 50
4.3.2 Remote version ..................................................................................................................... 52
4.4 Remote device data ........................................................................................................ 53
4.4.1 Requirements for signal cables supplied by the customer ................................................. 53

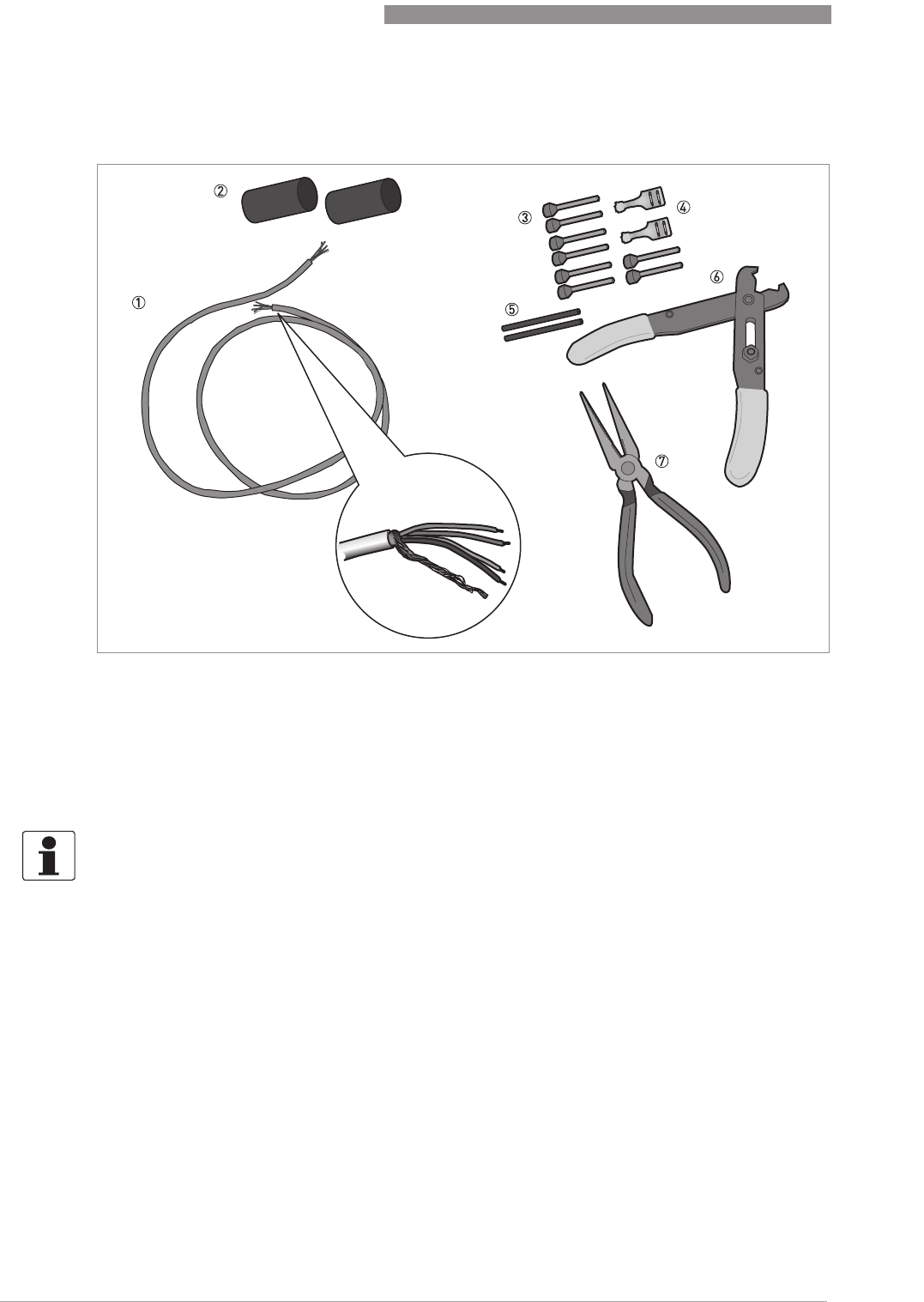

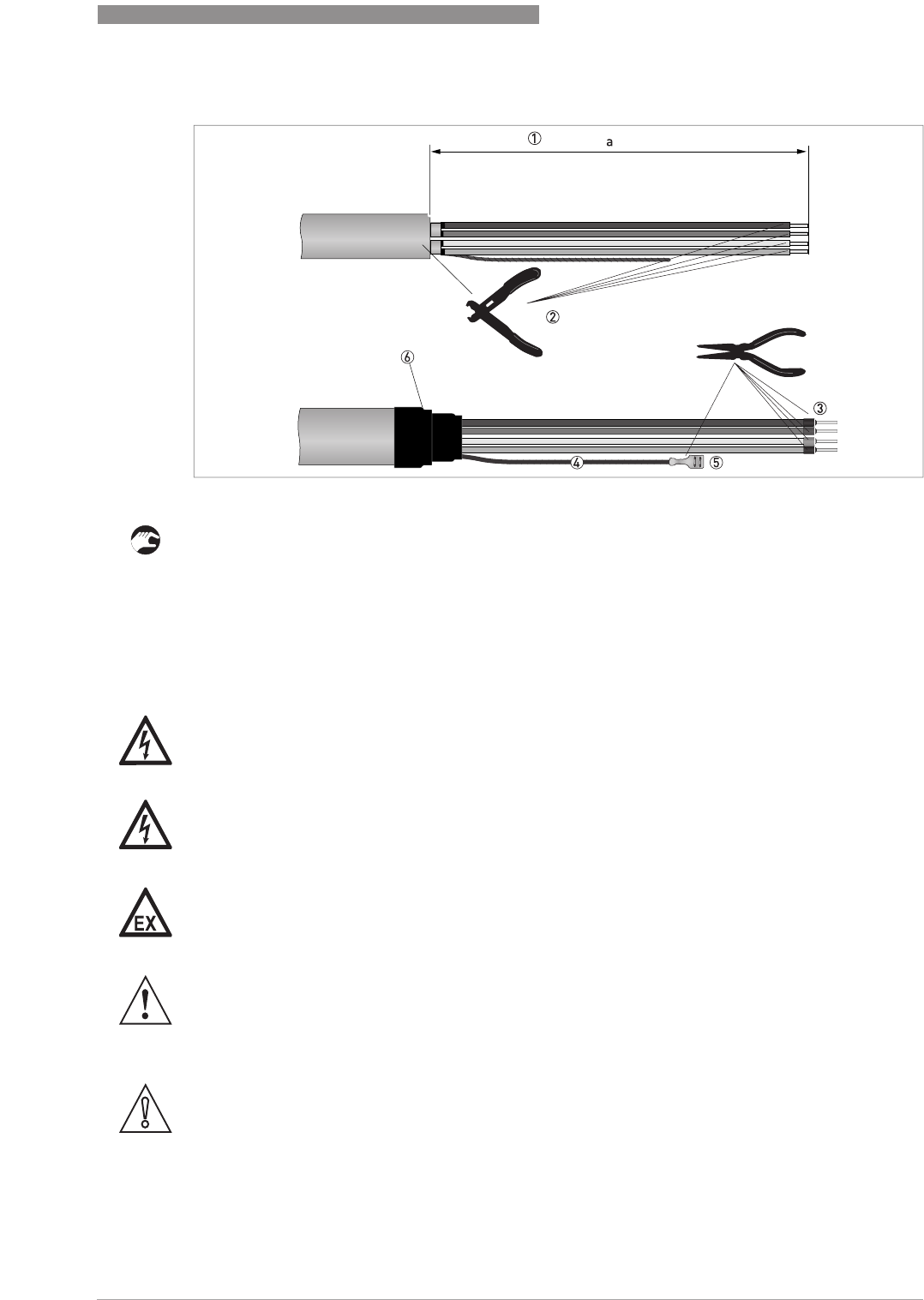

4.4.2 How to prepare a signal cable supplied by the customer.................................................... 54

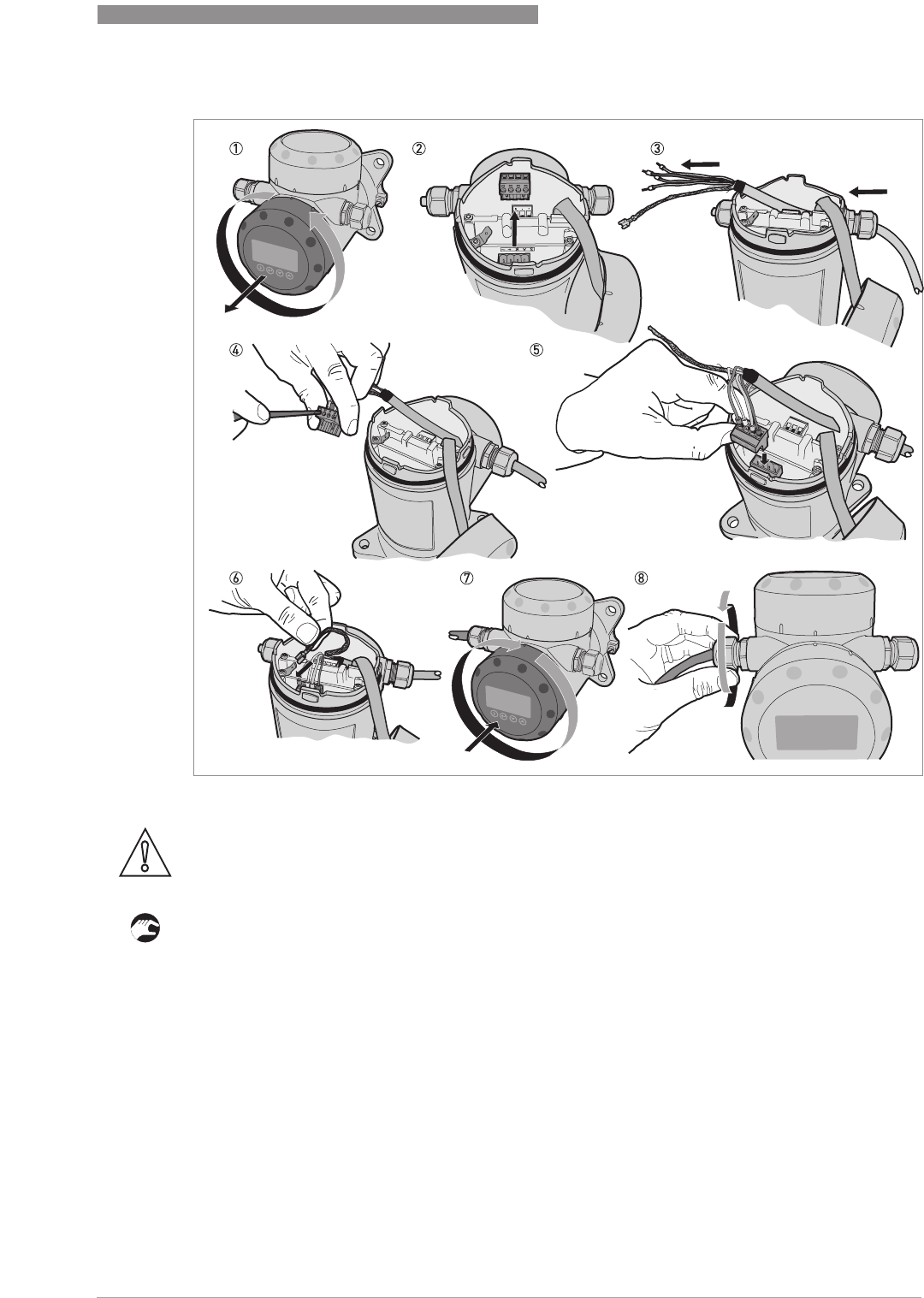

4.4.3 How to connect the signal cable to the device ..................................................................... 55
4.5 Electrical connection for current output ....................................................................... 59
4.5.1 Non-Ex devices ..................................................................................................................... 59
4.5.2 Devices for hazardous locations........................................................................................... 59
4.6 Protection category ........................................................................................................60
4.7 Networks ........................................................................................................................ 61
4.7.1 General information.............................................................................................................. 61

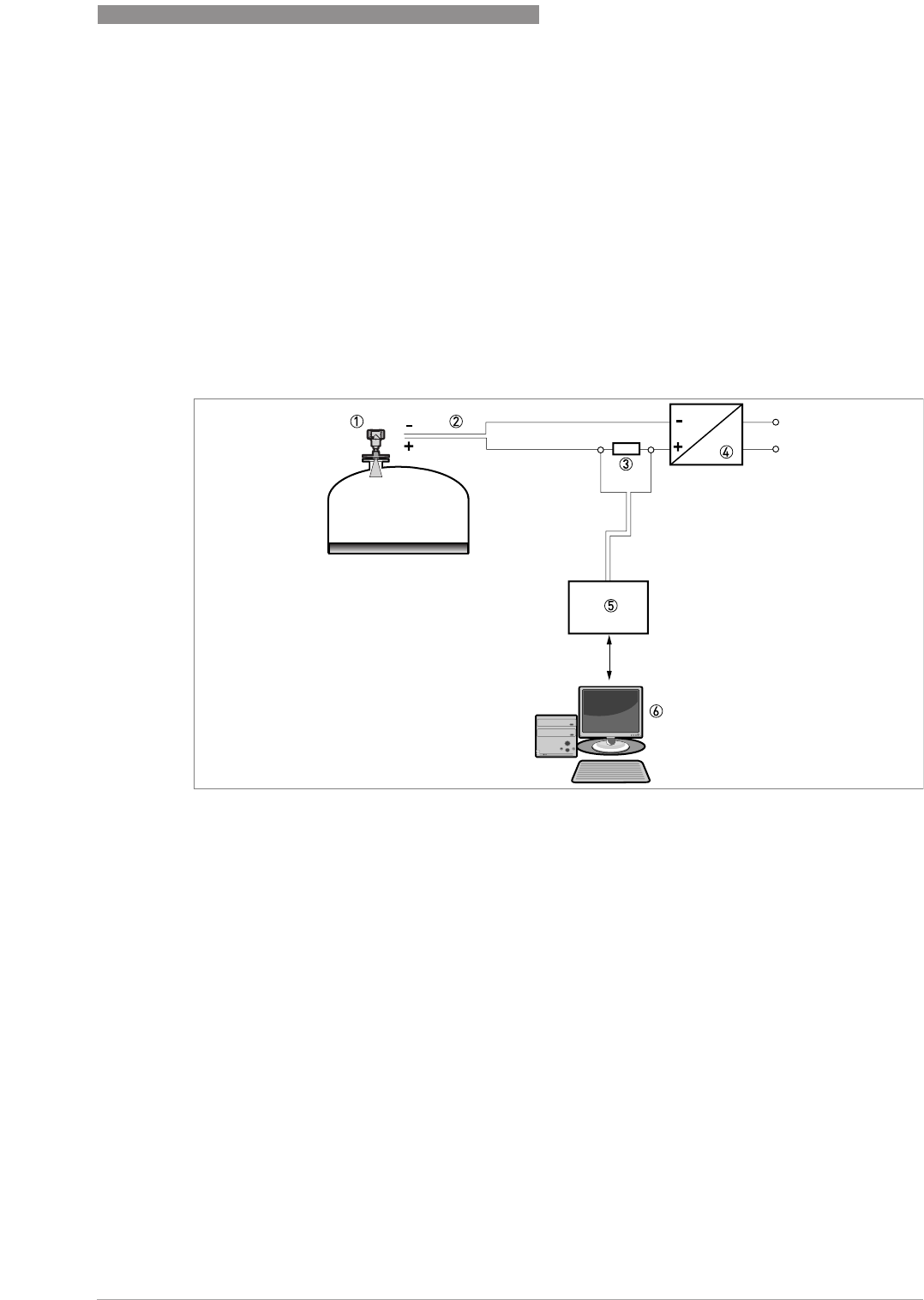

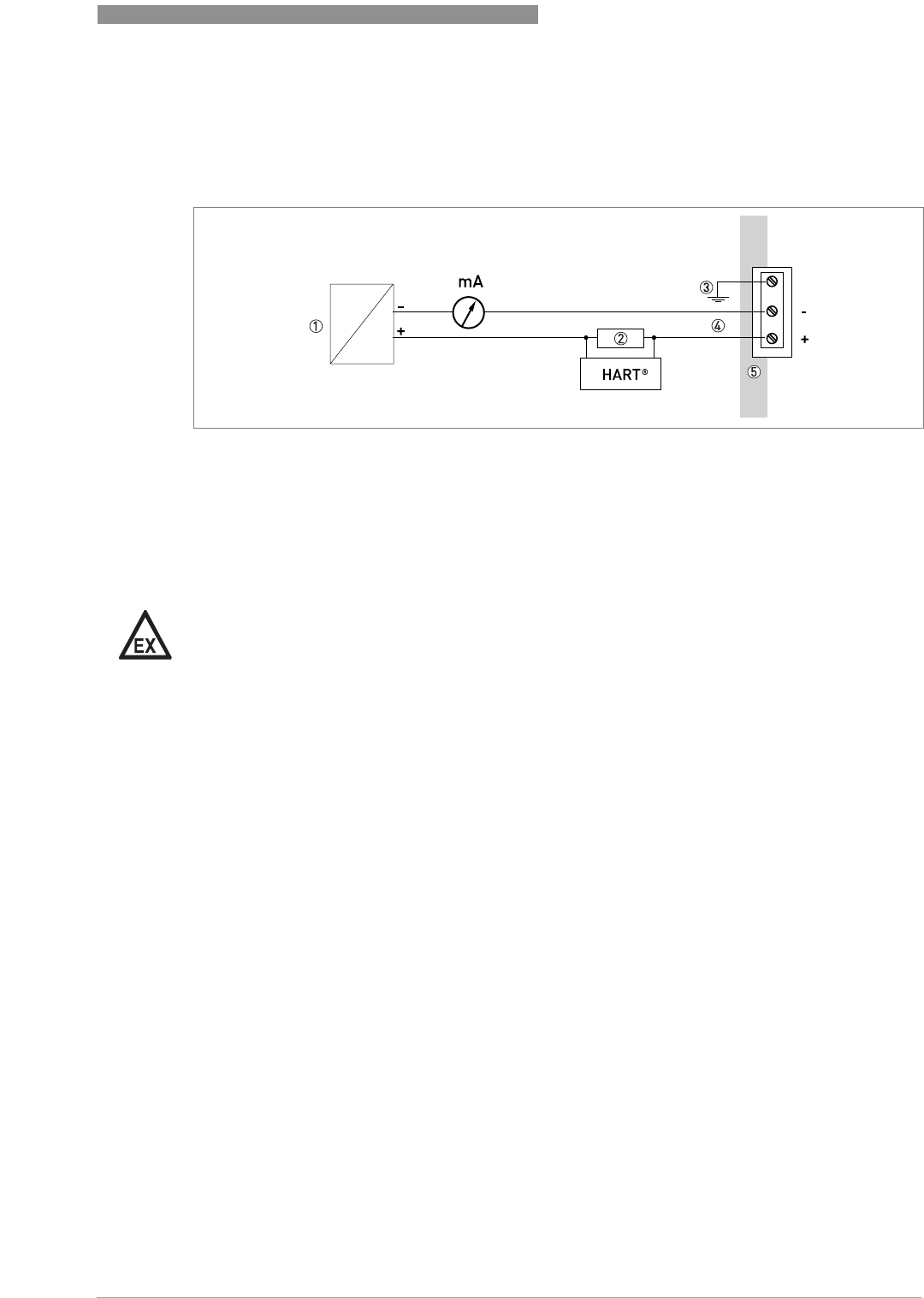

4.7.2 Point-to-point connection..................................................................................................... 61

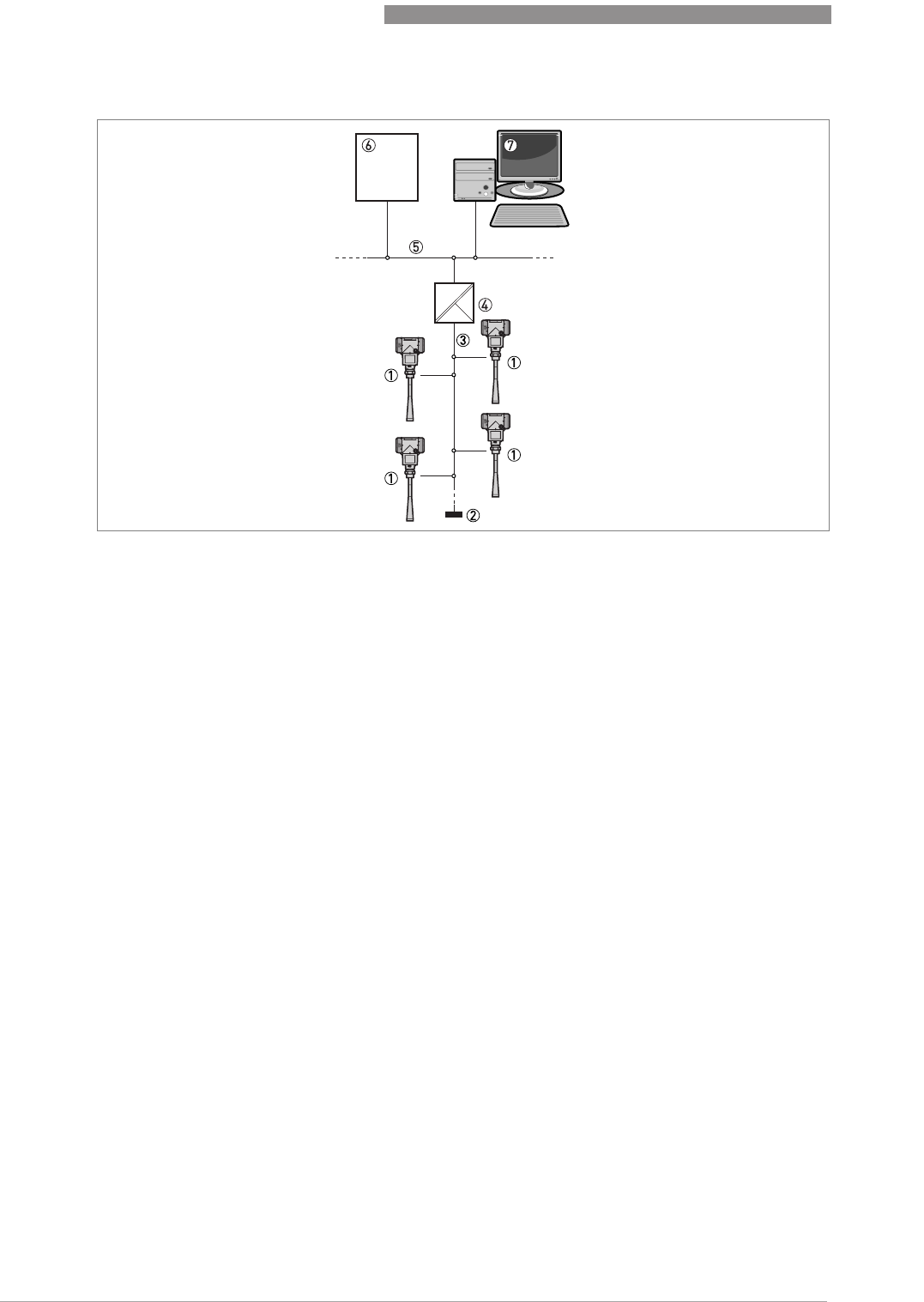

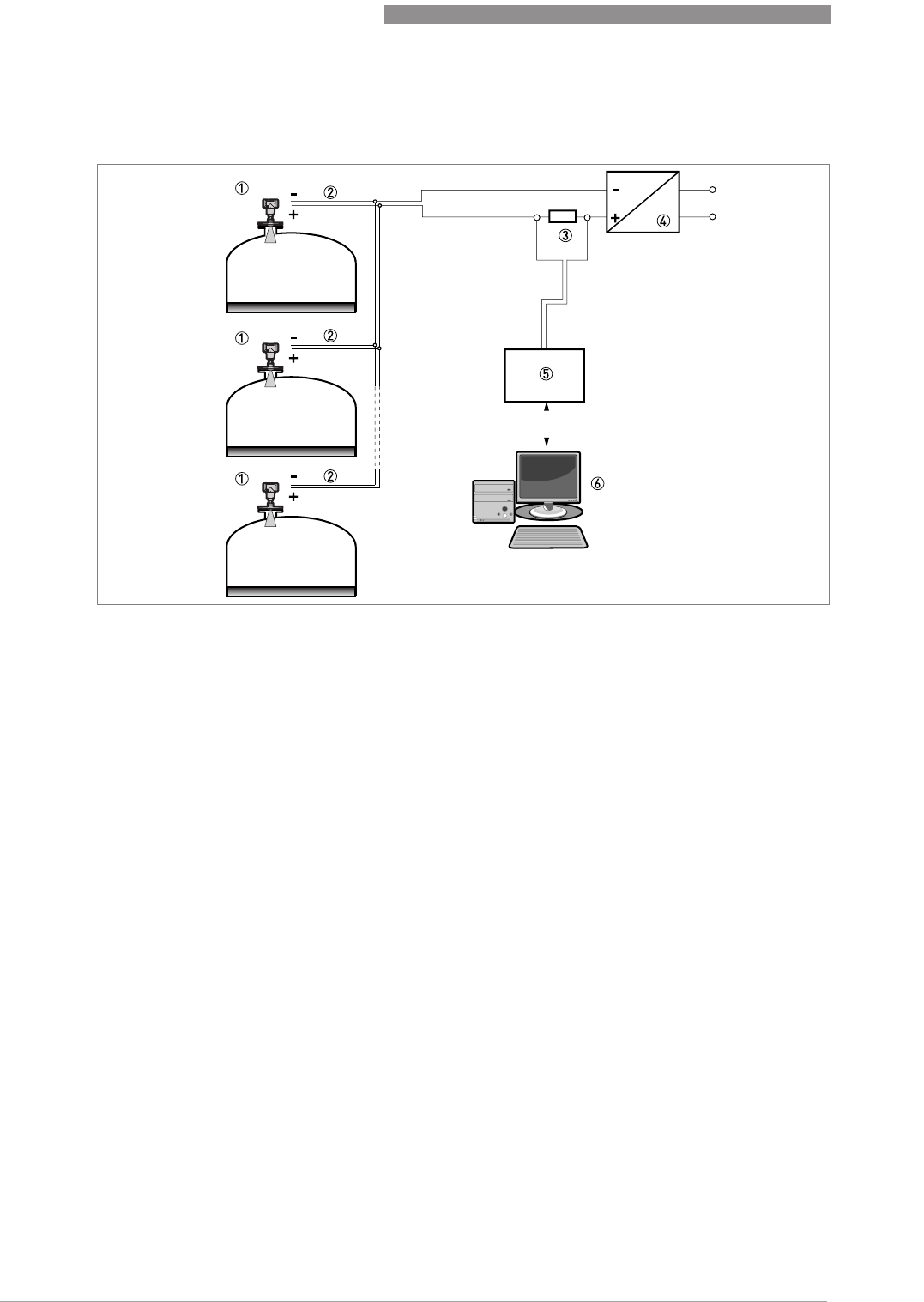

4.7.3 Multi-drop networks ............................................................................................................. 62

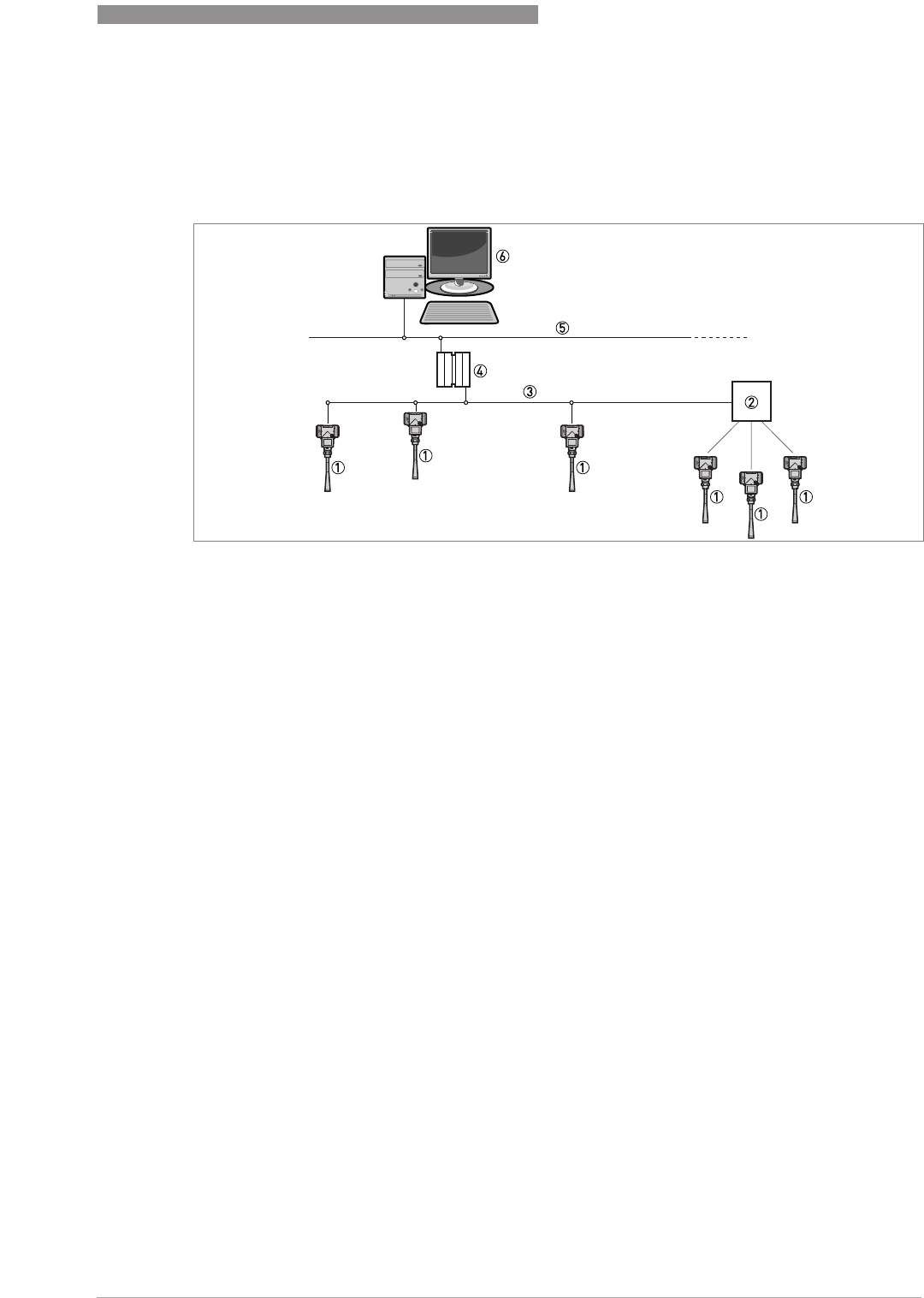

4.7.4 Fieldbus networks................................................................................................................. 63
5 Start-up 65
5.1 How to start the device................................................................................................... 65
5.1.1 Start-up checklist ................................................................................................................. 65
5.1.2 How to start the device ......................................................................................................... 65
5.2 Operating concept ..........................................................................................................65

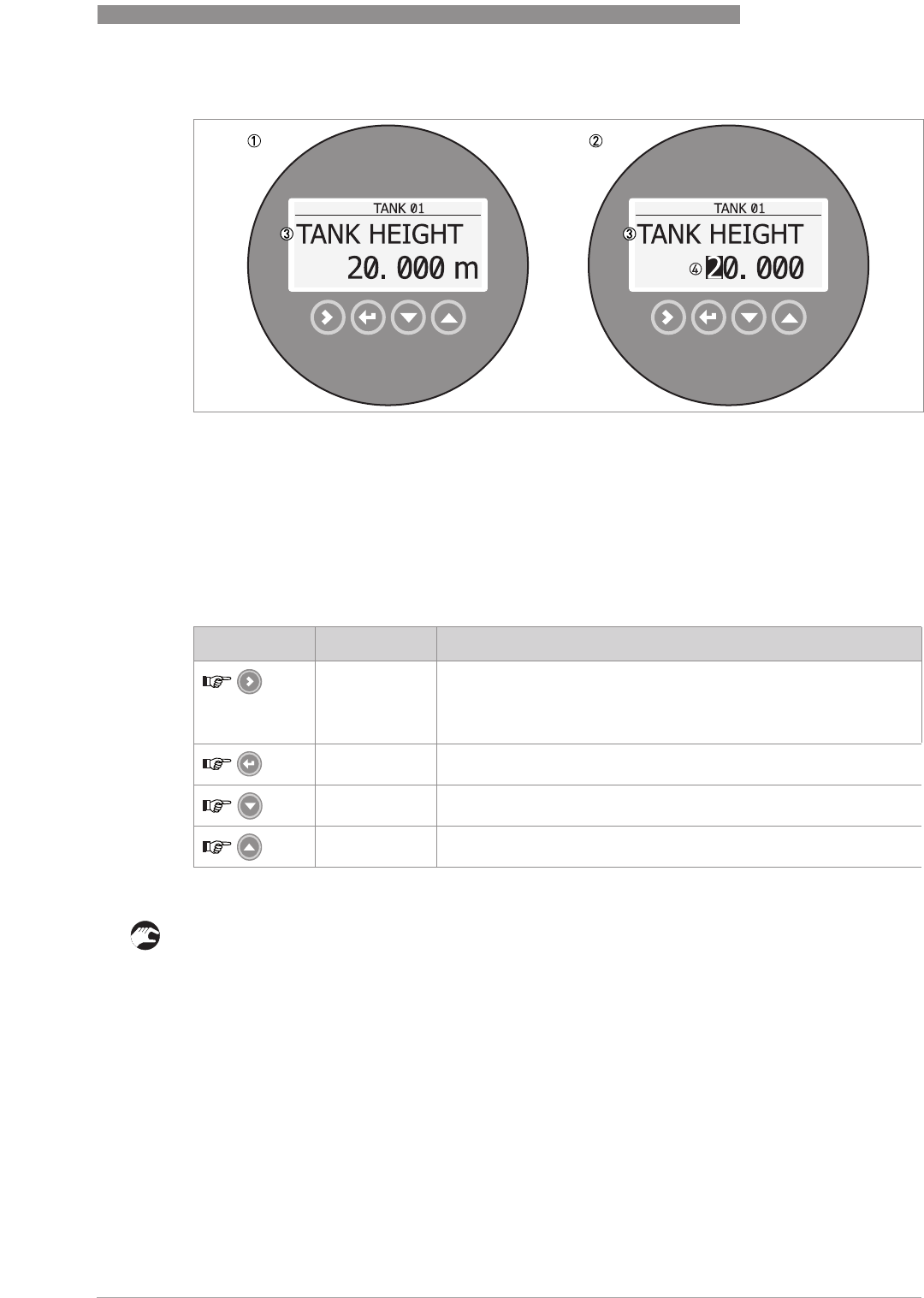

5.3 Digital display screen .....................................................................................................66

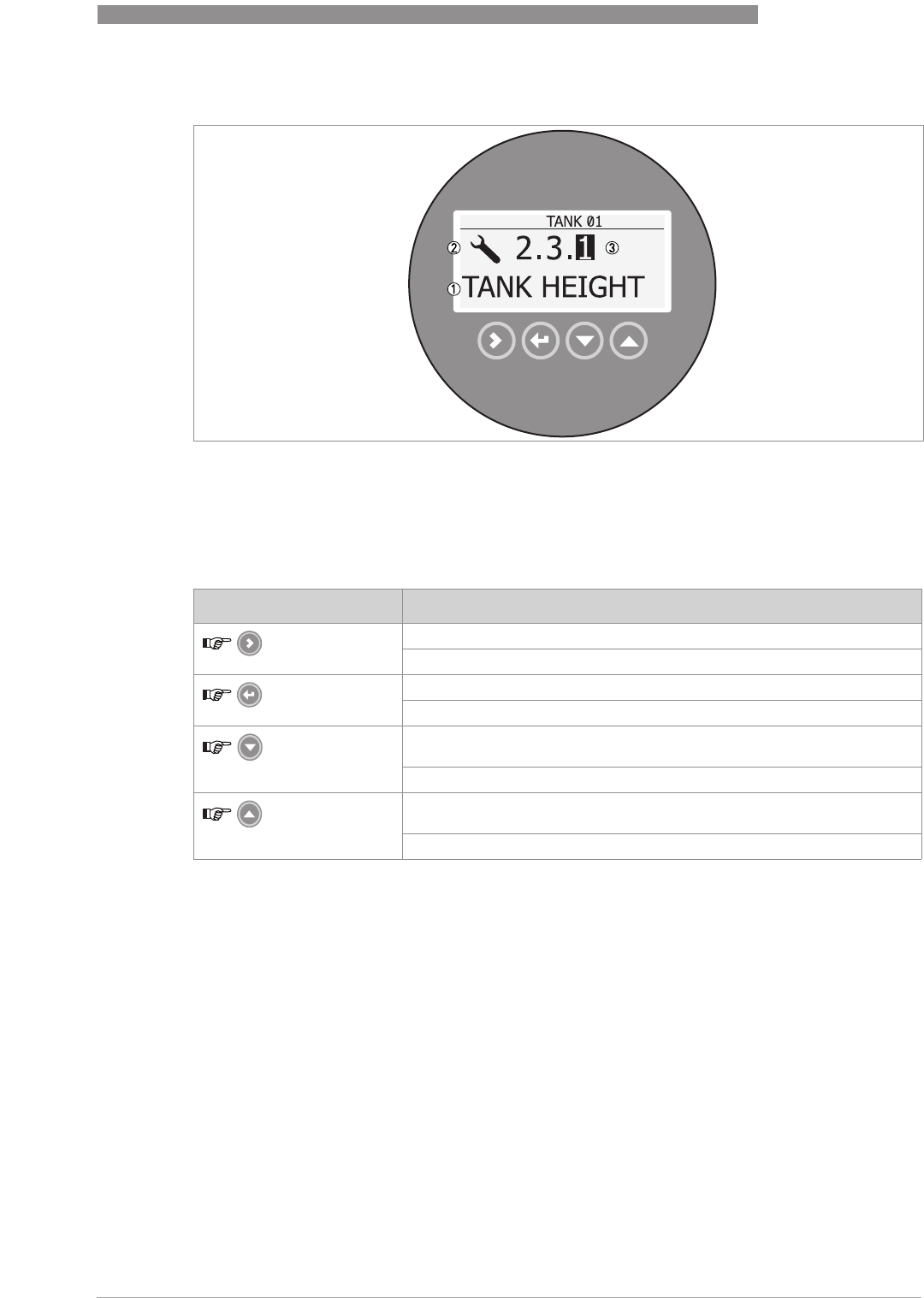

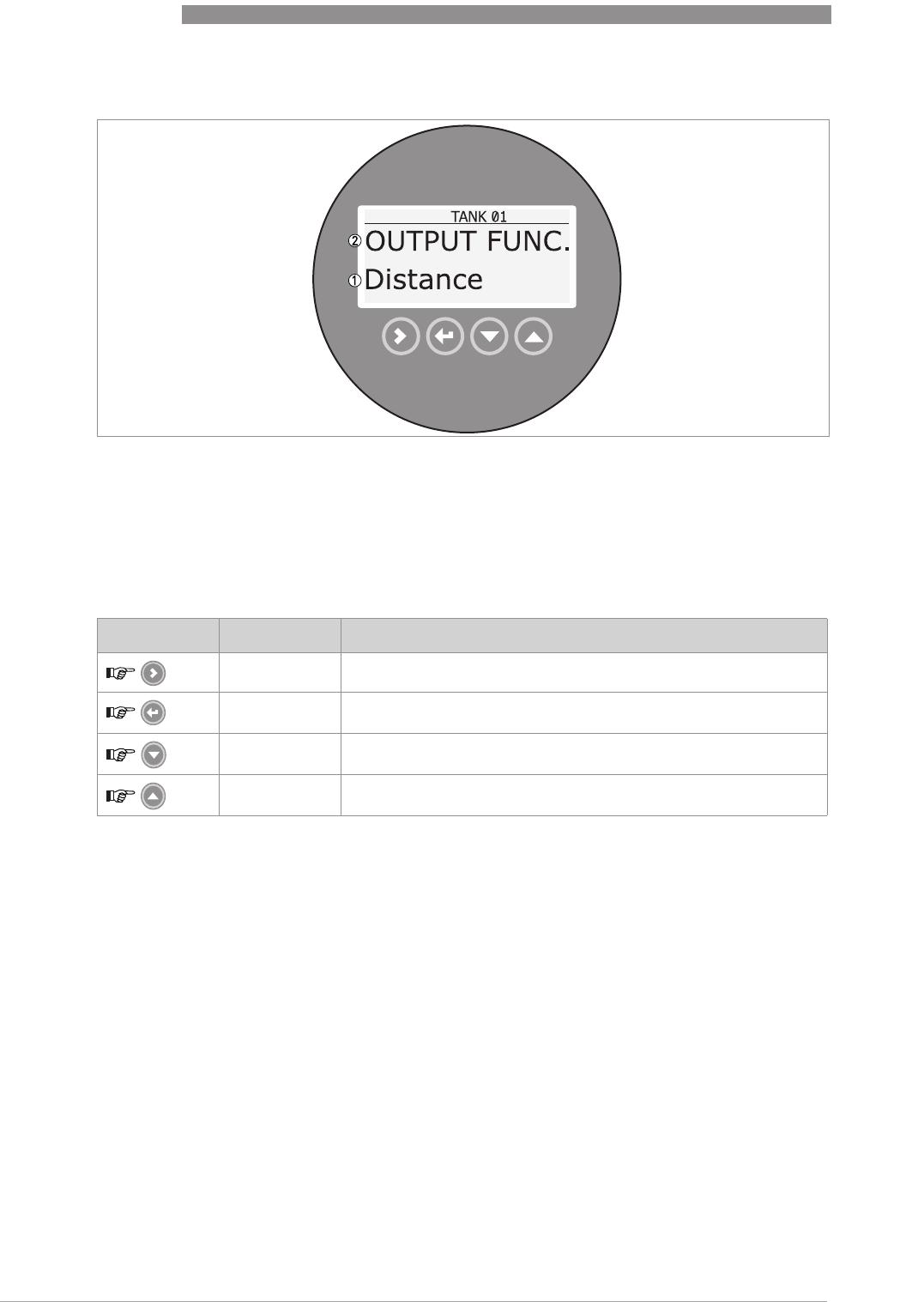

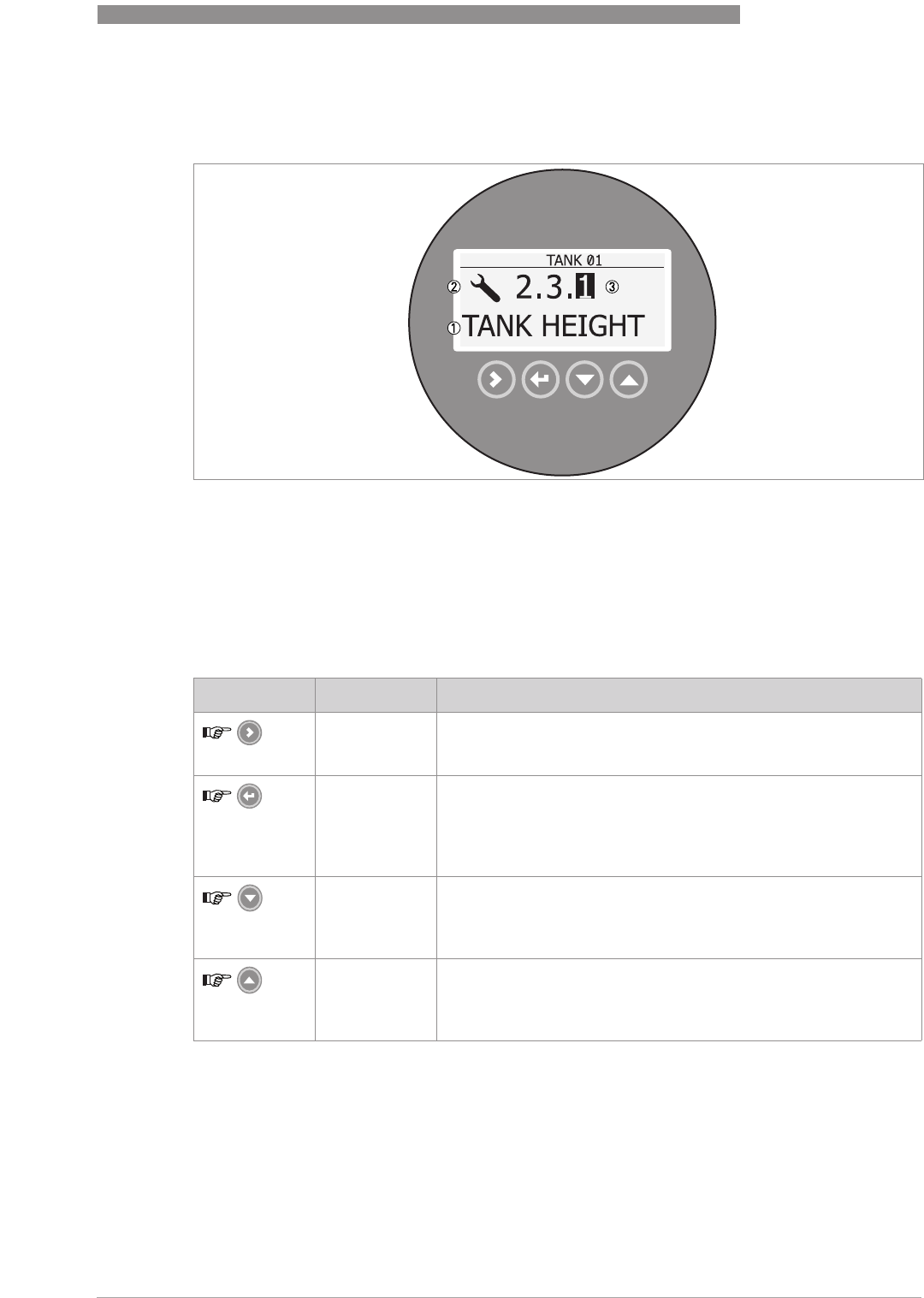

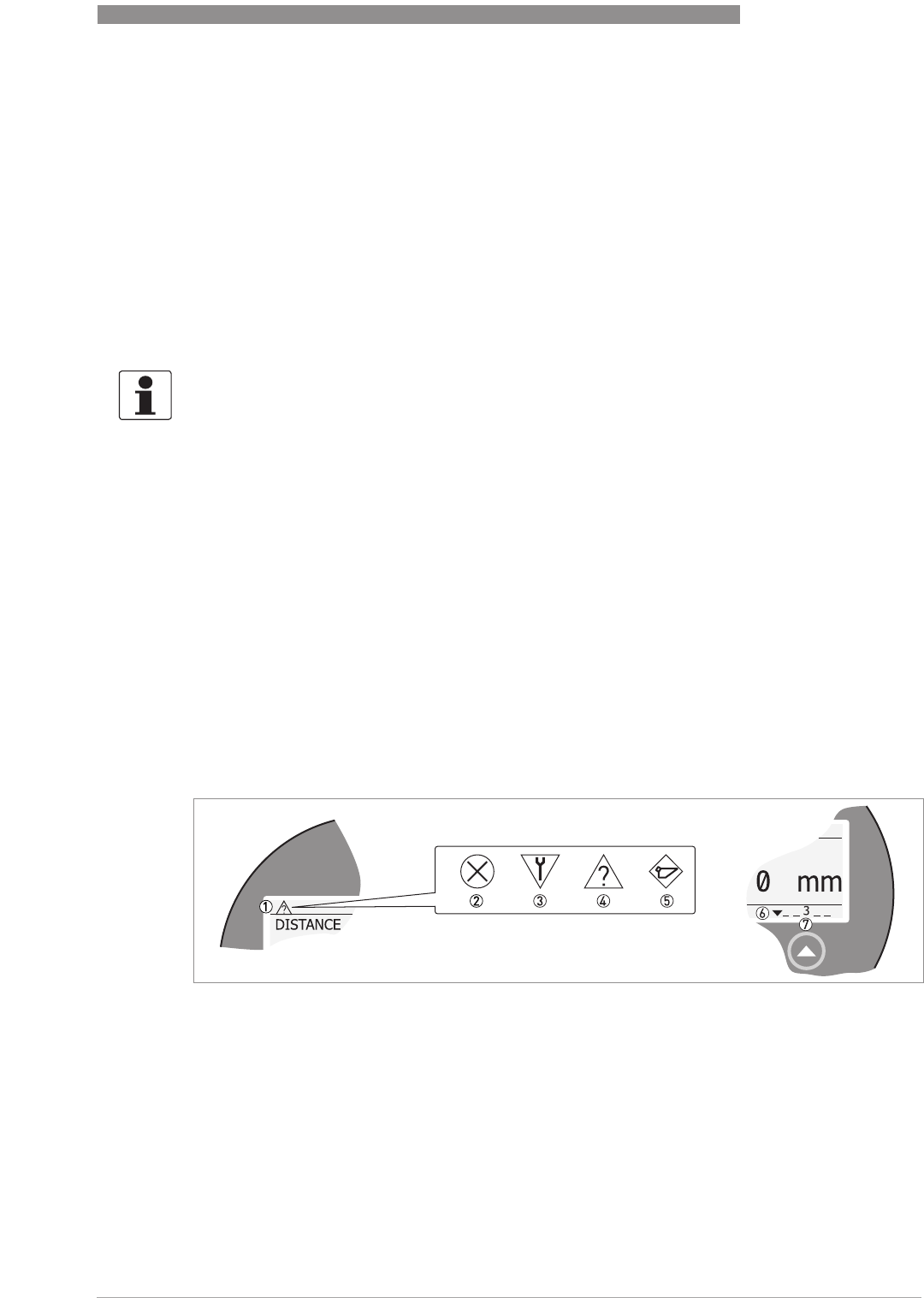

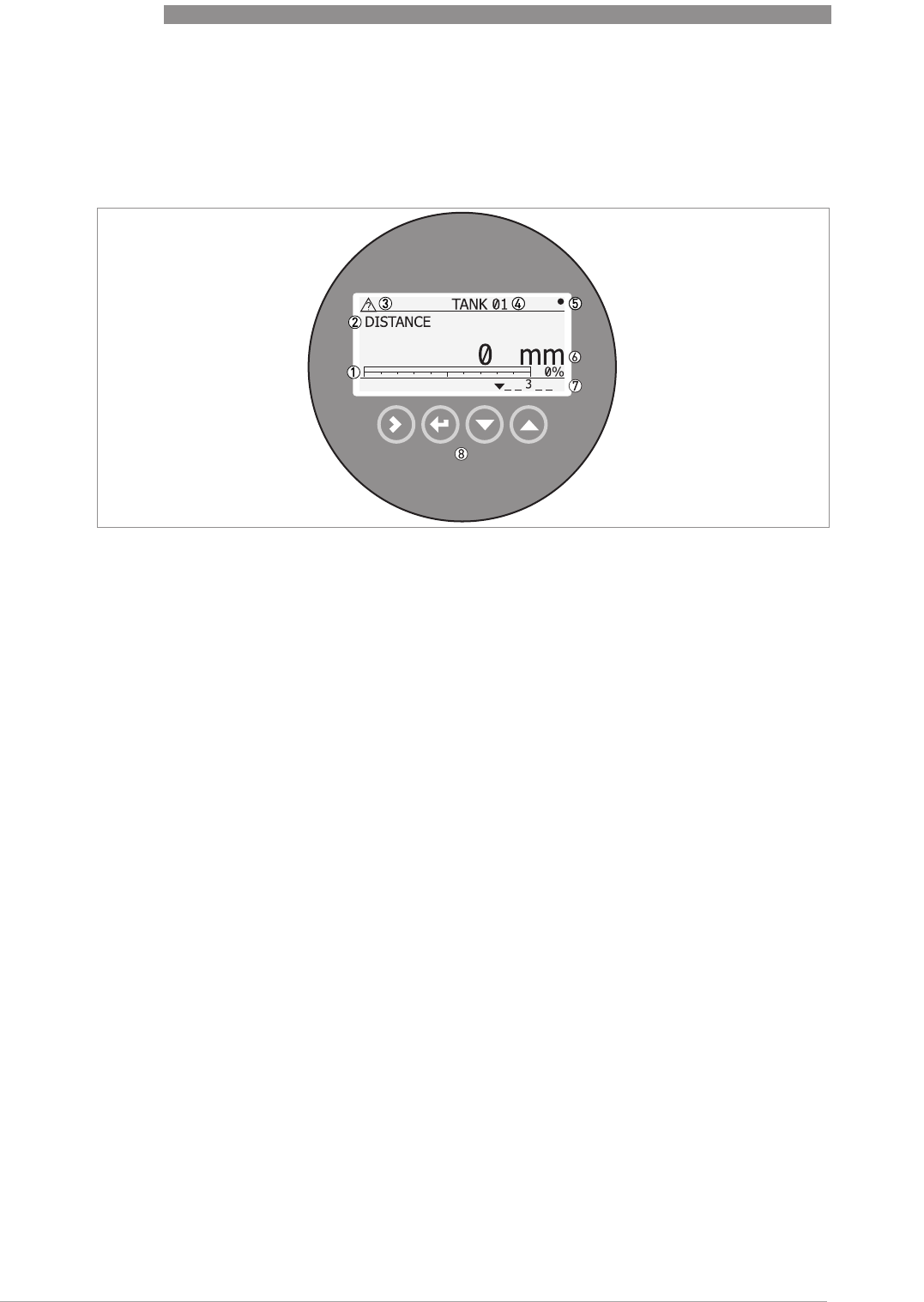

5.3.1 Local display screen layout .................................................................................................. 66
5.3.2 Functions of keypad buttons................................................................................................. 67
5.4 Remote communication with PACTware™ .................................................................... 67
5.5 Remote communication with the AMS™ Device Manager............................................. 68
6 Operation 69
6.1 User modes .................................................................................................................... 69
6.2 Normal mode.................................................................................................................. 69
6.3 Configuration mode........................................................................................................ 70
6.3.1 General notes........................................................................................................................ 70
6.3.2 How to get access to the commissioning menu................................................................... 71
6.3.3 Menu overview ...................................................................................................................... 72
6.3.4 Keypad functions................................................................................................................... 73
6.3.5 Function description ............................................................................................................. 76
6.4 Further information on device configuration................................................................. 83

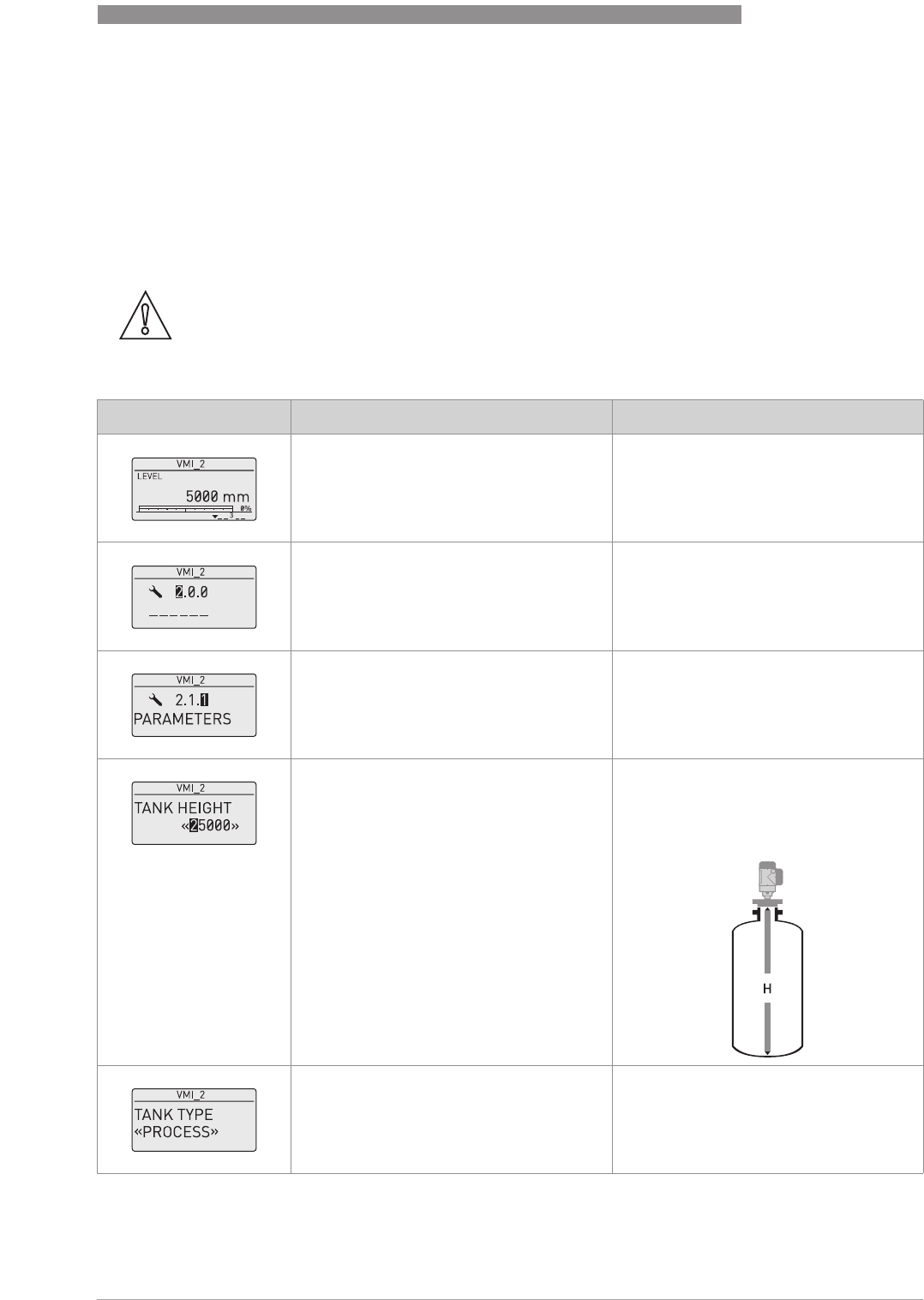

6.4.1 Quick Setup (Parameters) .................................................................................................... 83

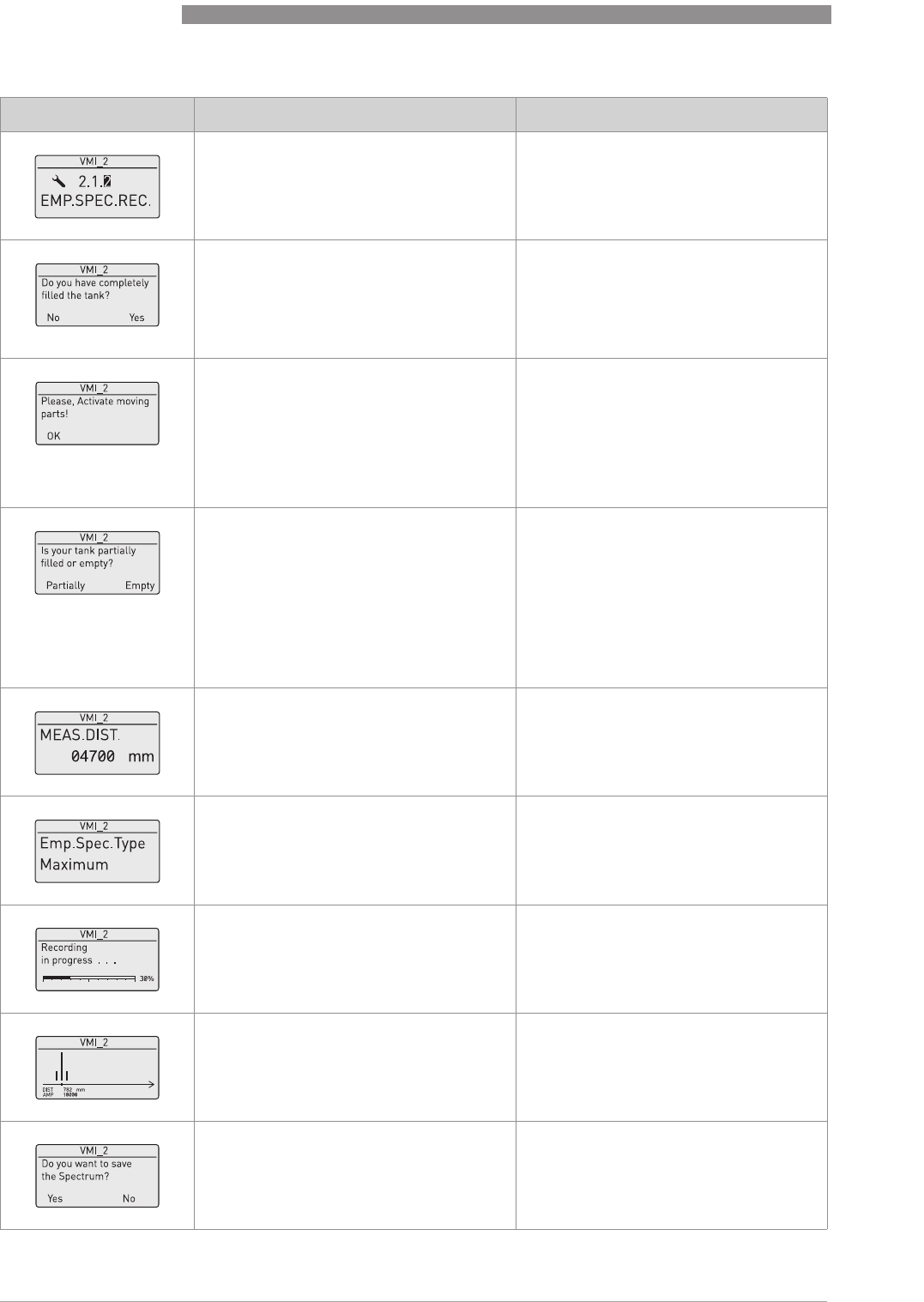

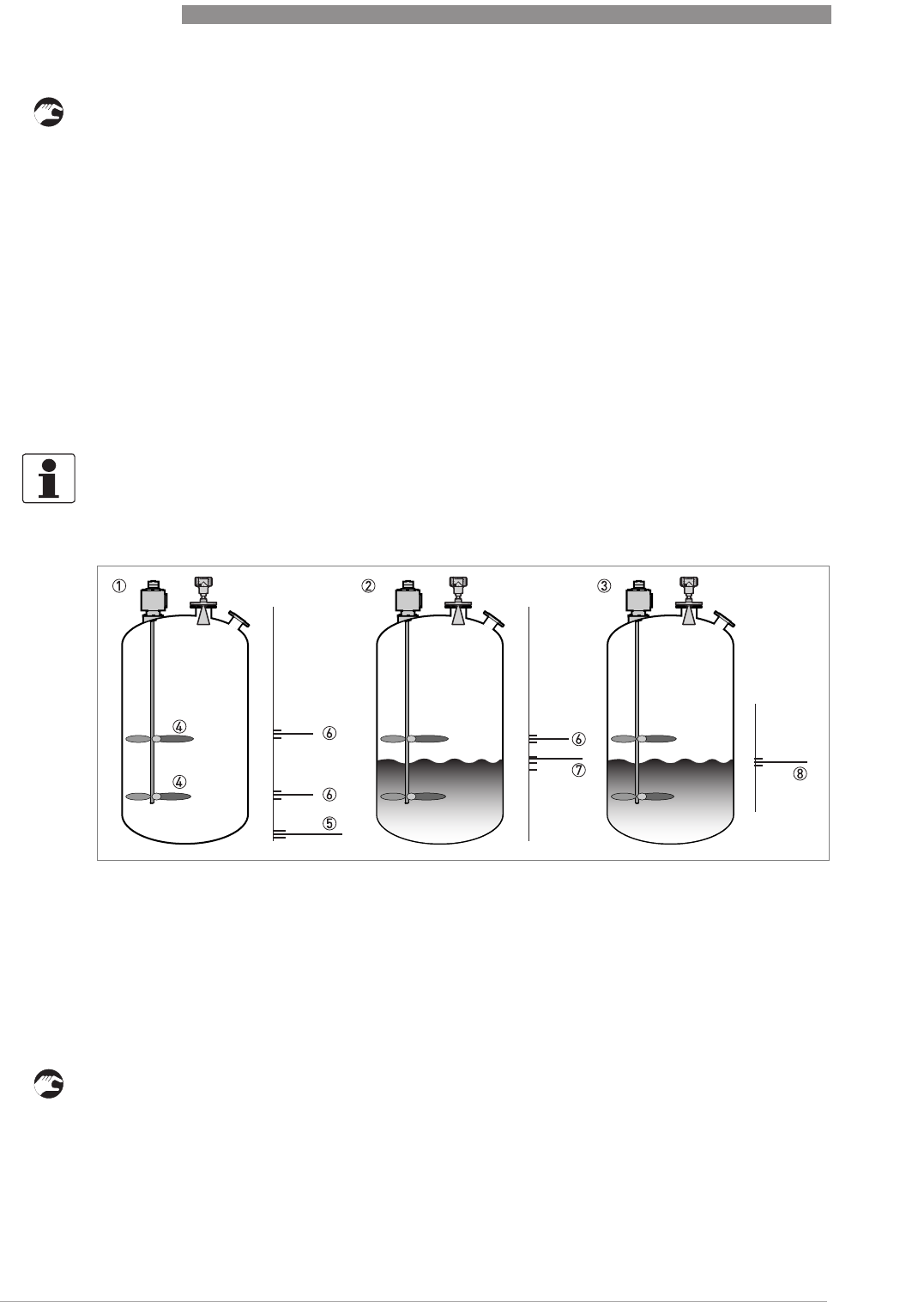

6.4.2 Empty spectrum recording................................................................................................... 85
6.4.3 Test........................................................................................................................................ 87
6.4.4 Protection of the device settings .......................................................................................... 88
6.4.5 HART® network configuration ............................................................................................. 88
6.4.6 Distance measurement ........................................................................................................ 89

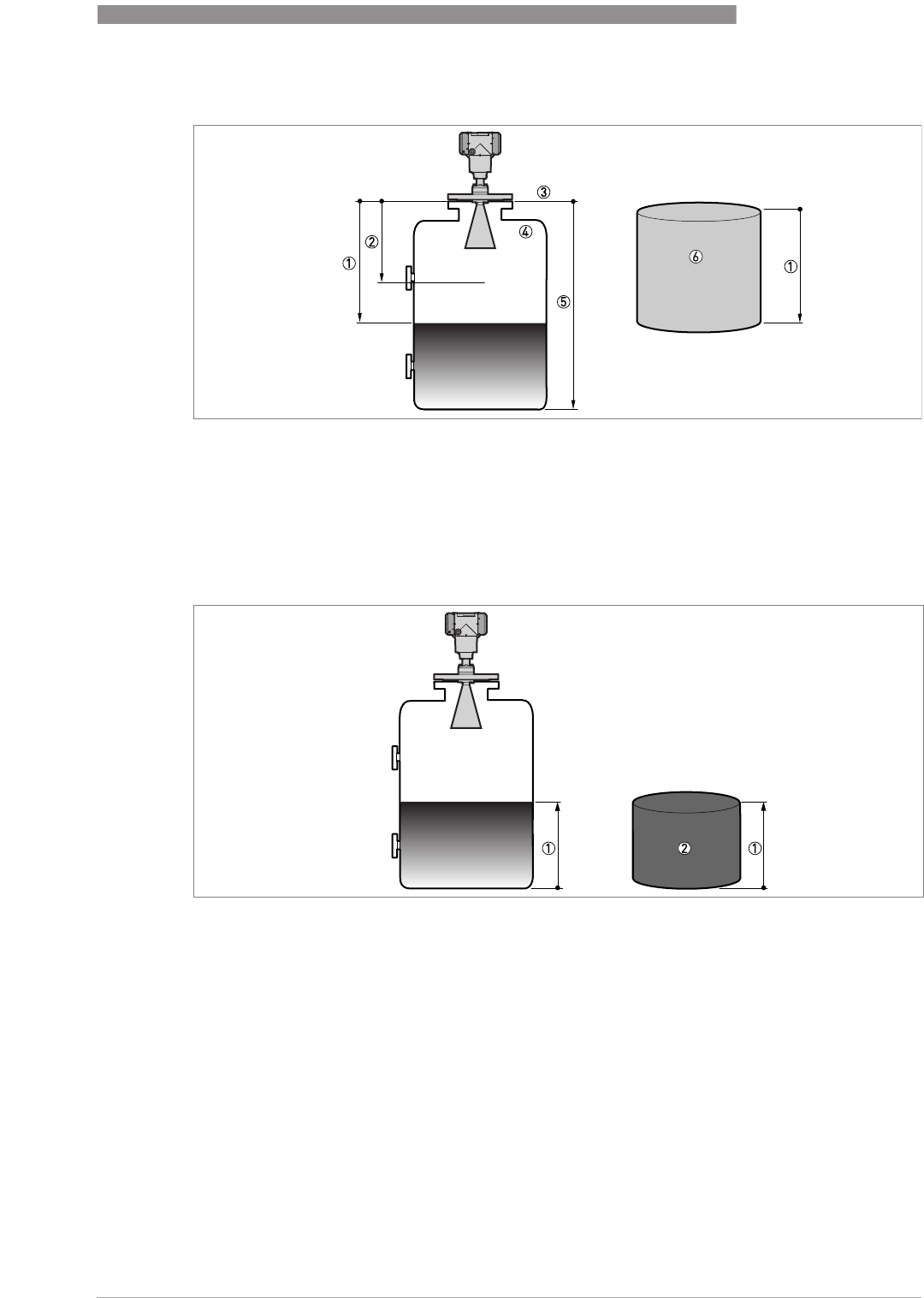

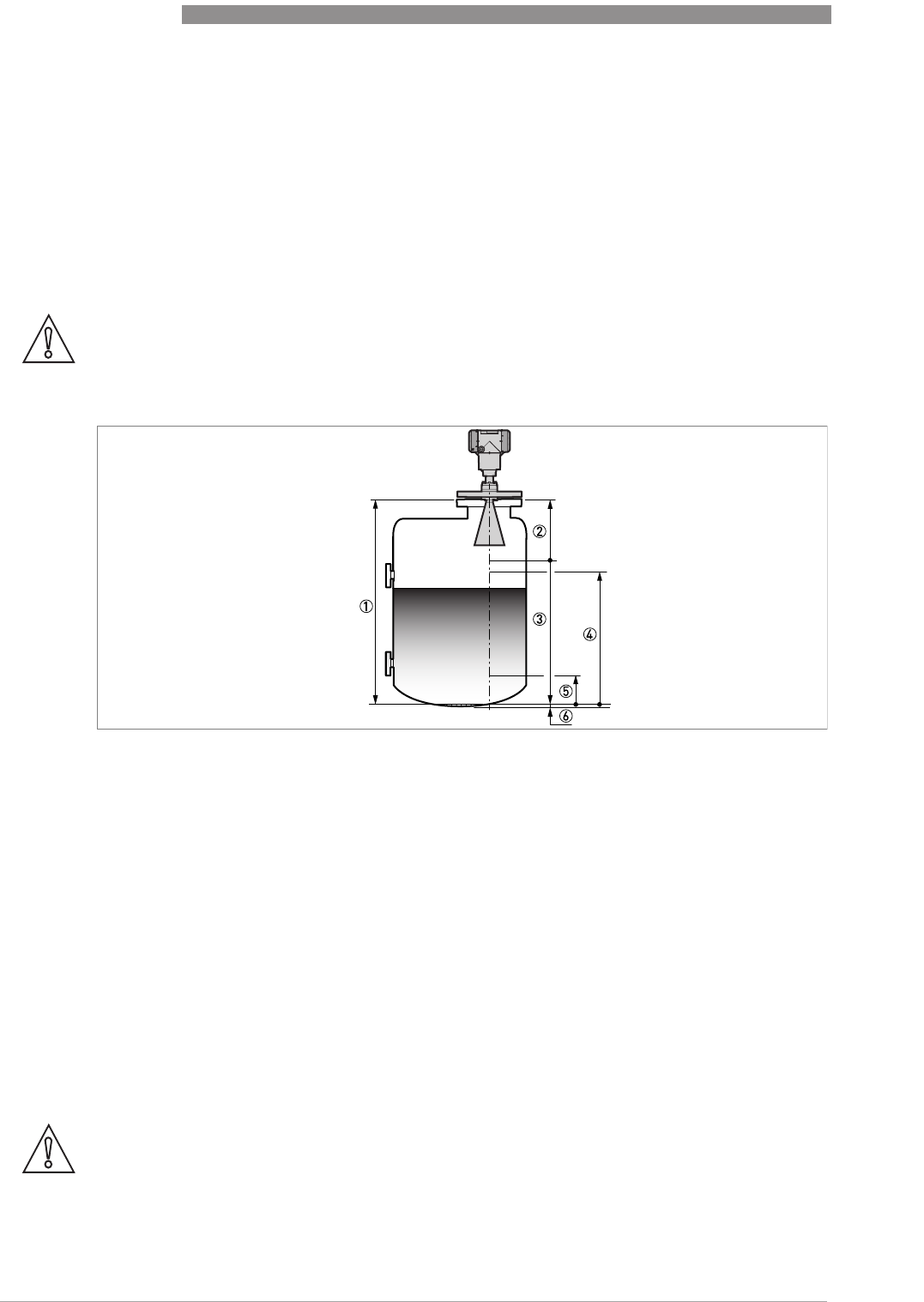

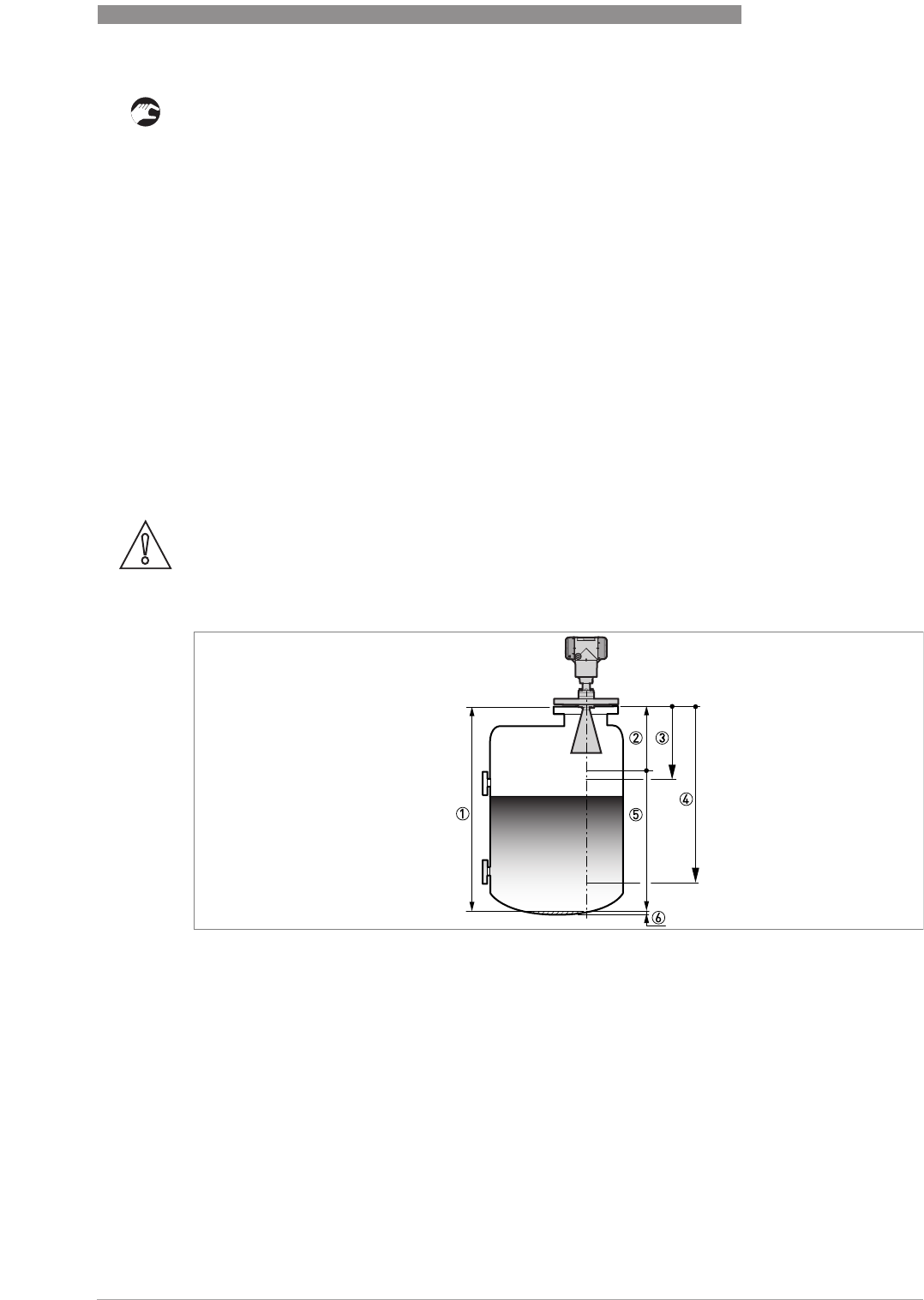

6.4.7 Level measurement .............................................................................................................. 90

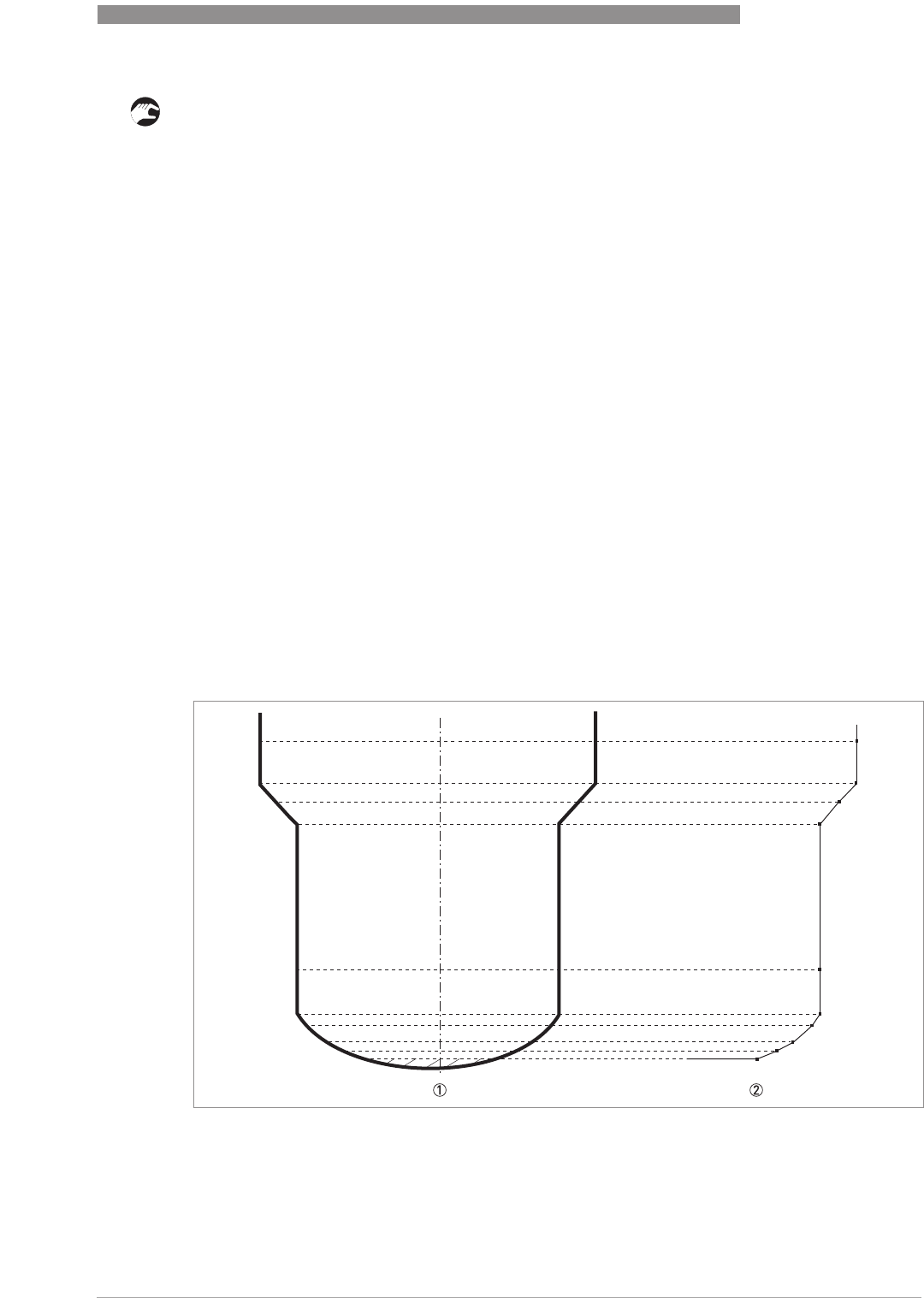

6.4.8 How to configure the device to measure volume or mass................................................... 90
6.4.9 How to make a filter to remove radar signal interference .................................................. 92
6.5 Status and error messages............................................................................................ 93
6.5.1 Device status (markers)........................................................................................................ 93
6.5.2 Error handling....................................................................................................................... 95
CONTENTS
5
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
OPTIWAVE 5200 C/F
7 Service 99
7.1 Periodic maintenance..................................................................................................... 99
7.2 How to clean horn antennas under process conditions ................................................ 99
7.3 Heating or cooling horn antennas under process conditions ..................................... 100
7.4 How to replace device components ............................................................................. 100
7.4.1 Service warranty ................................................................................................................. 100
7.4.2 Replacement of the BM 70x signal converter with the OPTIWAVE 5200 signal converter 101
7.5 Spare parts availability................................................................................................. 104
7.6 Availability of services .................................................................................................. 104
7.7 Returning the device to the manufacturer................................................................... 105
7.7.1 General information............................................................................................................ 105
7.7.2 Form (for copying) to accompany a returned device.......................................................... 106
7.8 Disposal ........................................................................................................................ 107
8 Technical data 108

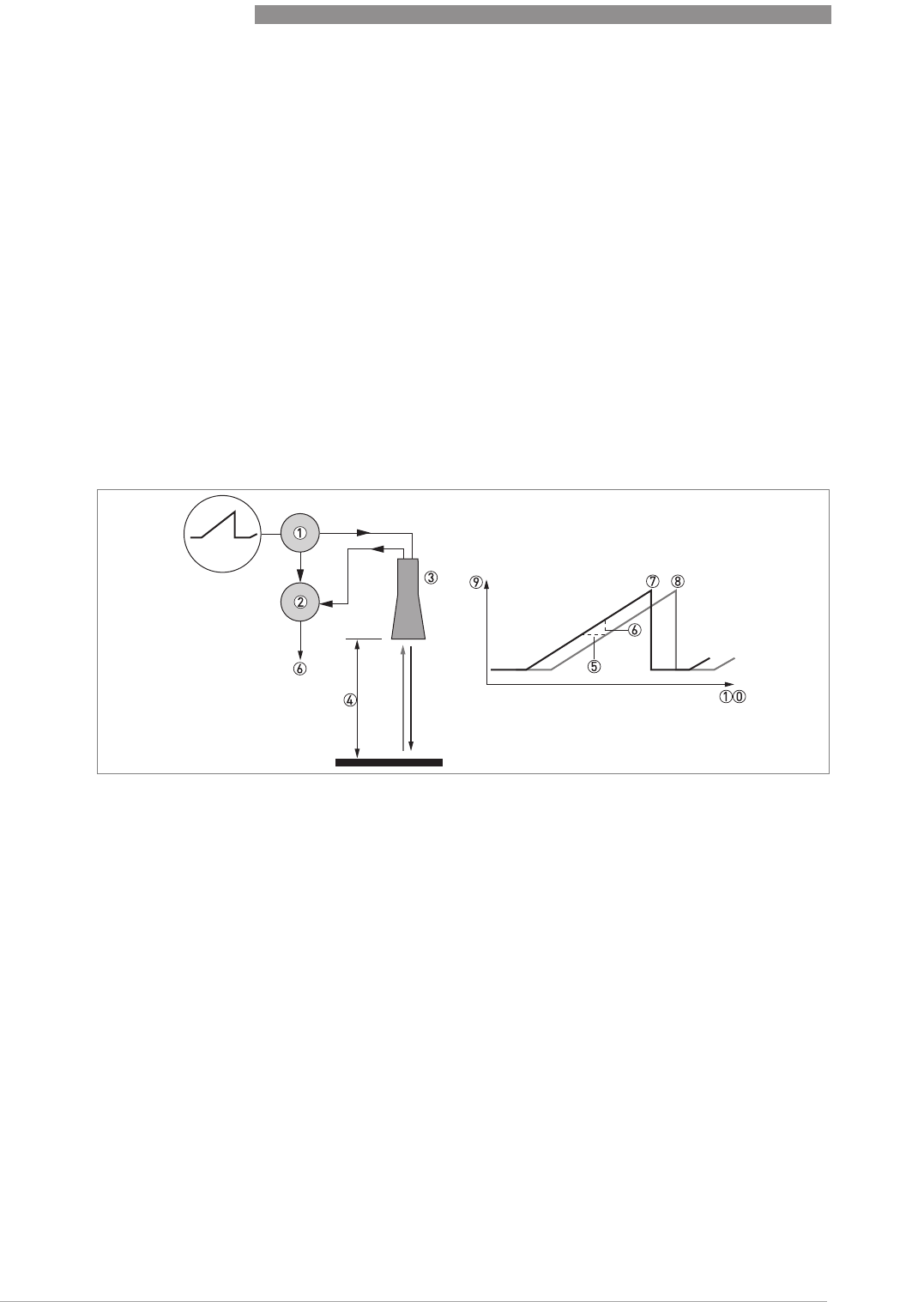

8.1 Measuring principle...................................................................................................... 108
8.2 Technical data............................................................................................................... 110

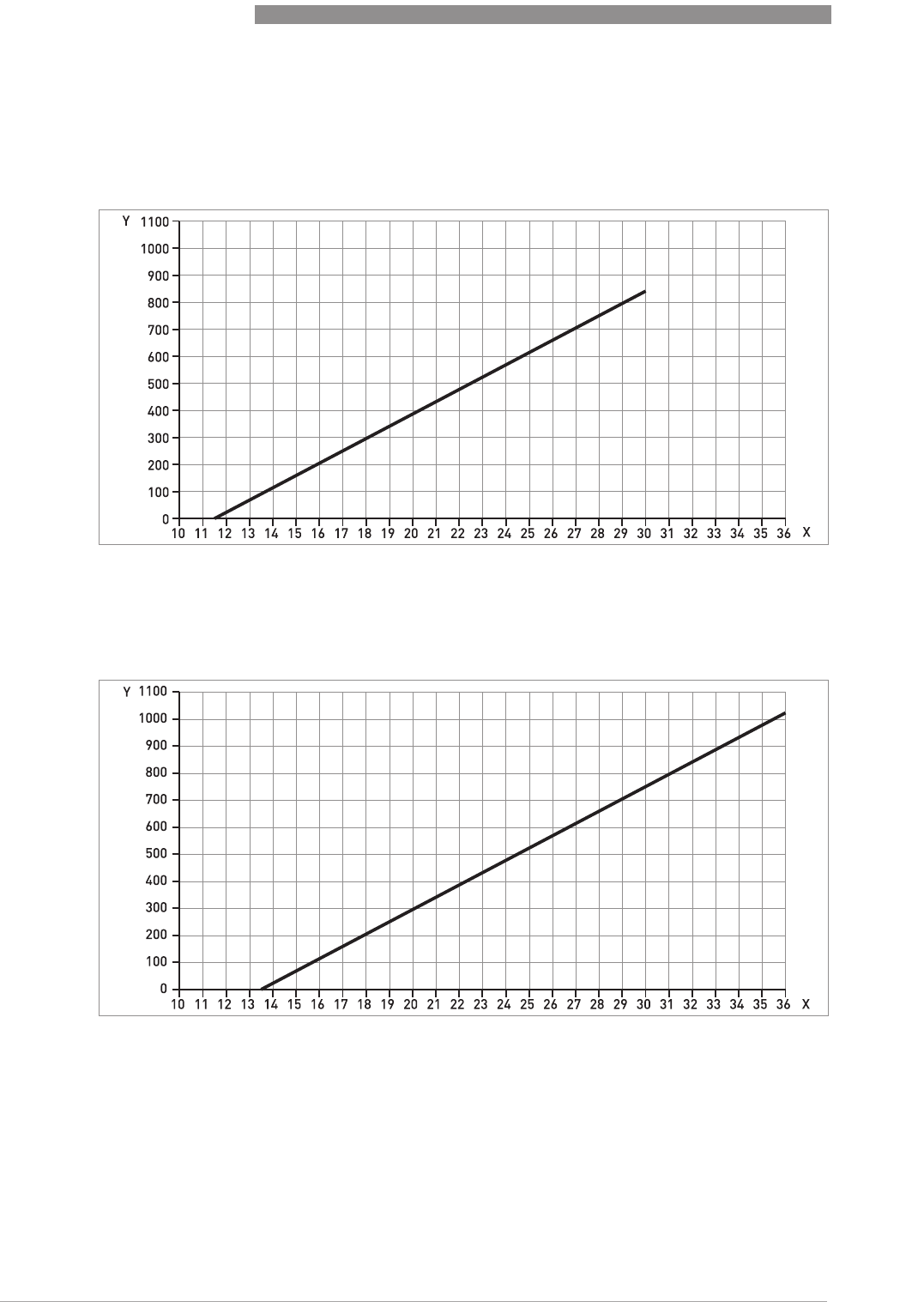

8.3 Minimum power supply voltage ................................................................................... 118

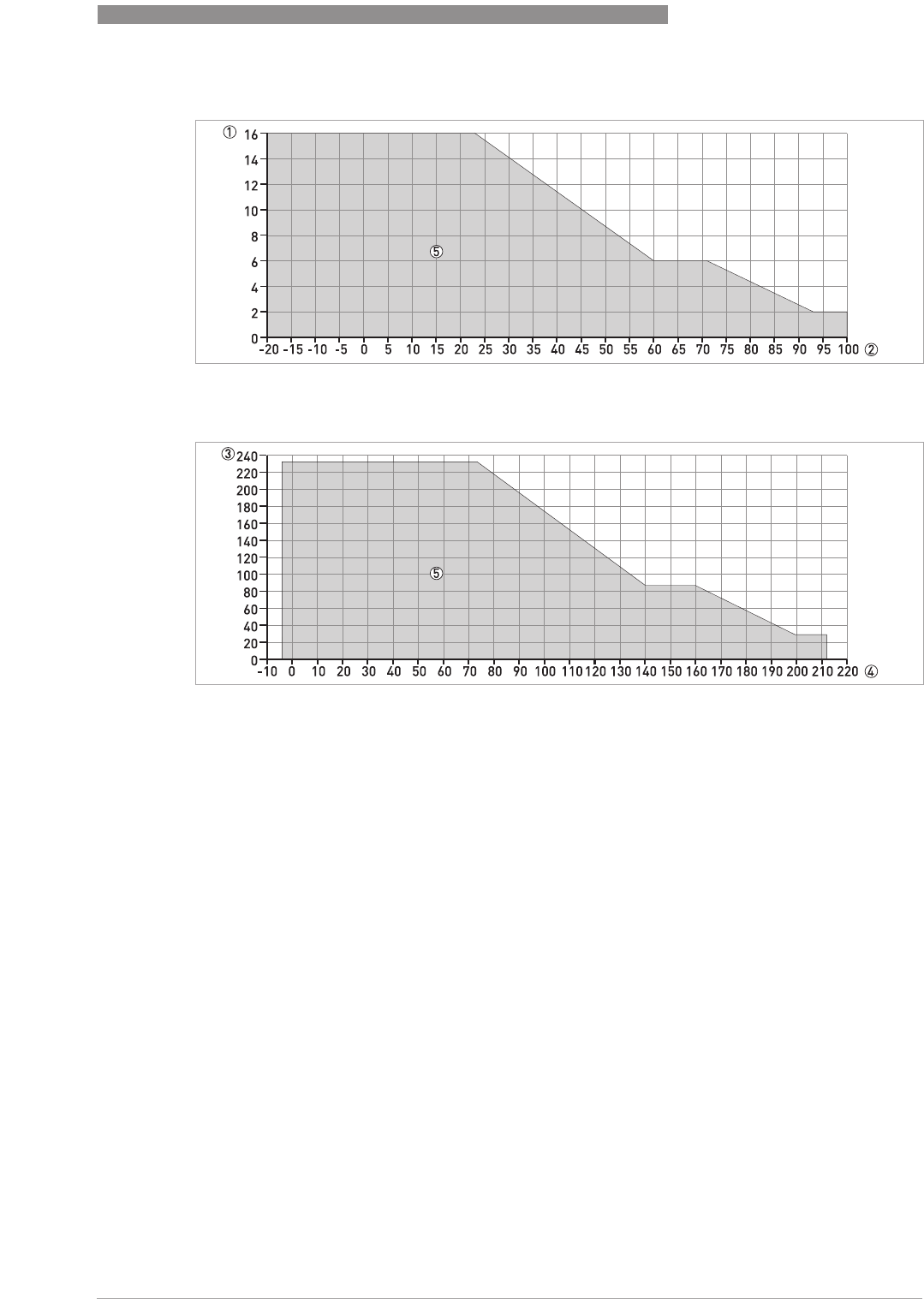

8.4 Pressure ratings...........................................................................................................119

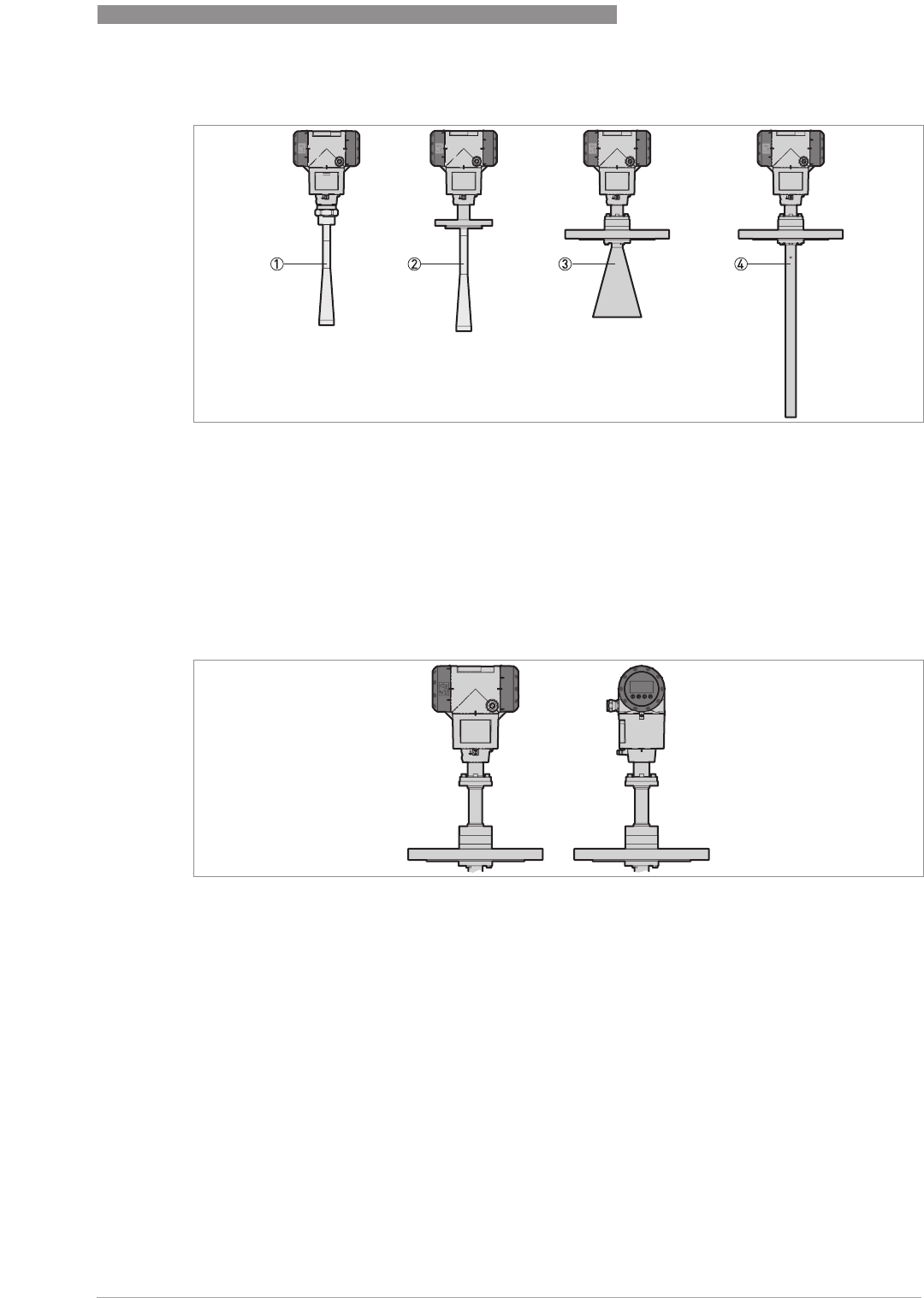

8.5 Antenna selection......................................................................................................... 125

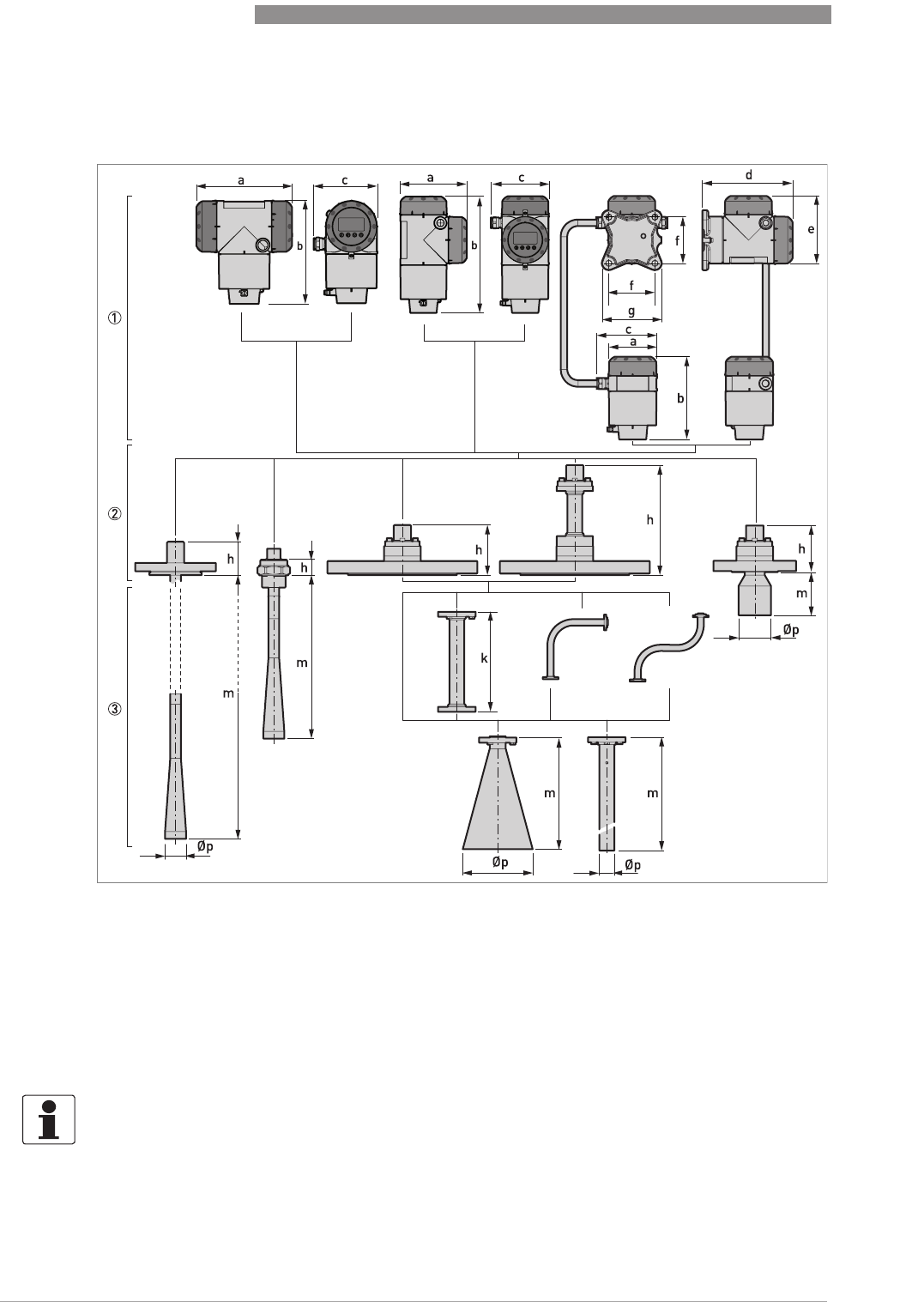

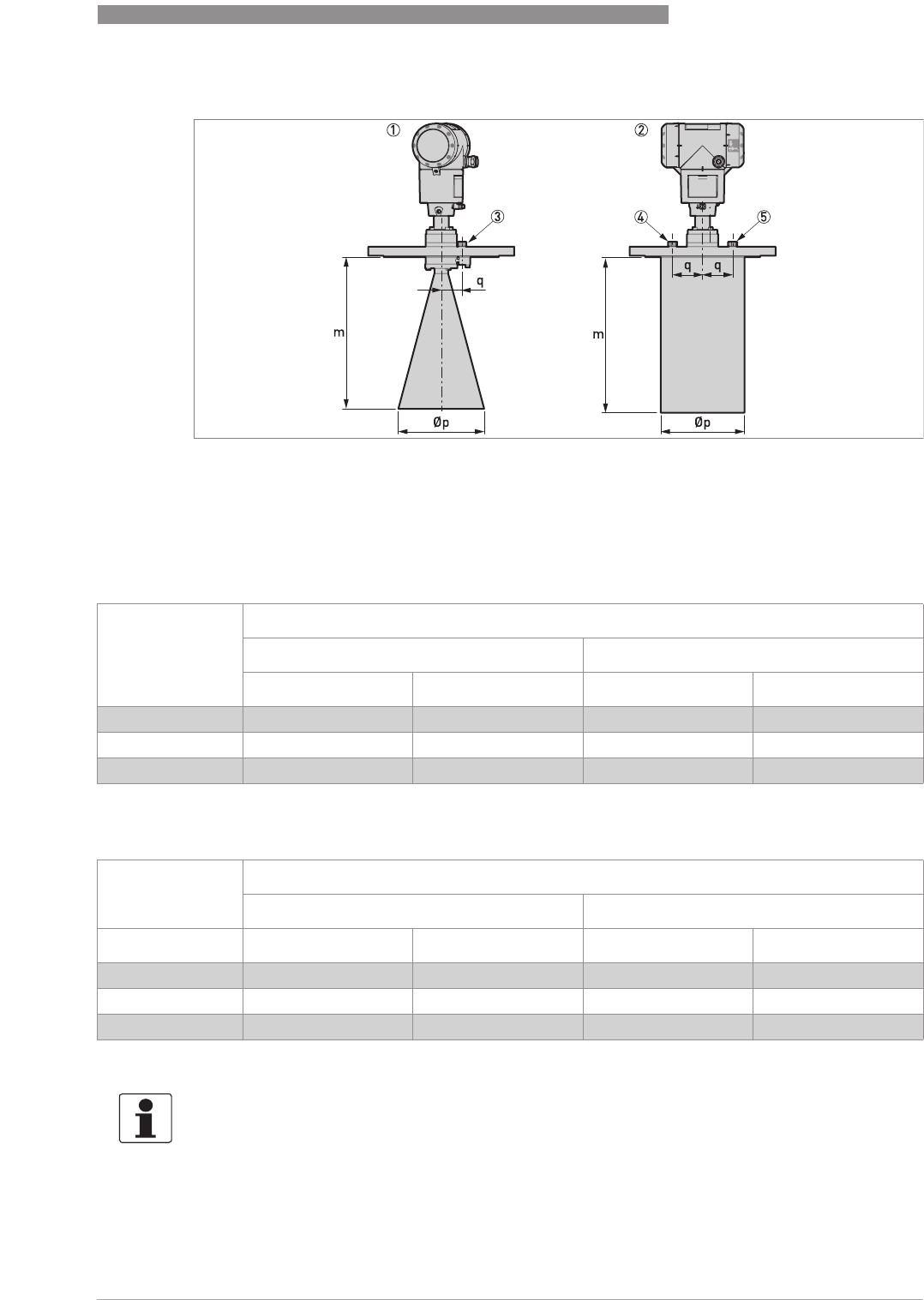

8.6 Dimensions and weights .............................................................................................. 126
9 Description of HART interface 135
9.1 General description ...................................................................................................... 135
9.2 Software description .................................................................................................... 135
9.3 Connection variants...................................................................................................... 136
9.3.1 Point-to-Point connection – analogue / digital mode ........................................................ 136
9.3.2 Multi-Drop connection (2-wire connection) ....................................................................... 136
9.4 HART® device variables............................................................................................... 136
9.5 Field Communicator 375/475 (FC 375/475) ................................................................. 137
9.5.1 Installation .......................................................................................................................... 137
9.5.2 Operation............................................................................................................................. 137
9.6 Asset Management Solutions (AMS®) ......................................................................... 137
9.6.1 Installation .......................................................................................................................... 137
9.6.2 Operation............................................................................................................................. 138
9.6.3 Parameter for the basic configuration ............................................................................... 138
9.7 Field Device Tool / Device Type Manager (FDT / DTM)................................................ 138
9.7.1 Installation .......................................................................................................................... 138
9.7.2 Operation............................................................................................................................. 138
9.8 Process Device Manager (PDM)................................................................................... 138
9.8.1 Installation .......................................................................................................................... 138
9.8.2 Operation............................................................................................................................. 139
9.9 HART® menu tree for Basic-DD .................................................................................. 139
9.9.1 Overview Basic-DD menu tree (positions in menu tree).................................................... 139
9.9.2 Basic-DD menu tree (details for settings).......................................................................... 140
9.10 HART® menu tree for AMS......................................................................................... 141
9.10.1 Overview AMS menu tree (positions in menu tree) .......................................................... 141
9.10.2 AMS menu tree (details for settings)................................................................................ 142
CONTENTS
6
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
OPTIWAVE 5200 C/F
9.11 HART® menu tree for PDM ........................................................................................ 143
9.11.1 Overview PDM menu tree (positions in menu tree).......................................................... 143
9.11.2 PDM menu tree (details for settings) ............................................................................... 144
10 Appendix 146
10.1 Order code .................................................................................................................. 146
10.2 Spare parts ................................................................................................................. 152

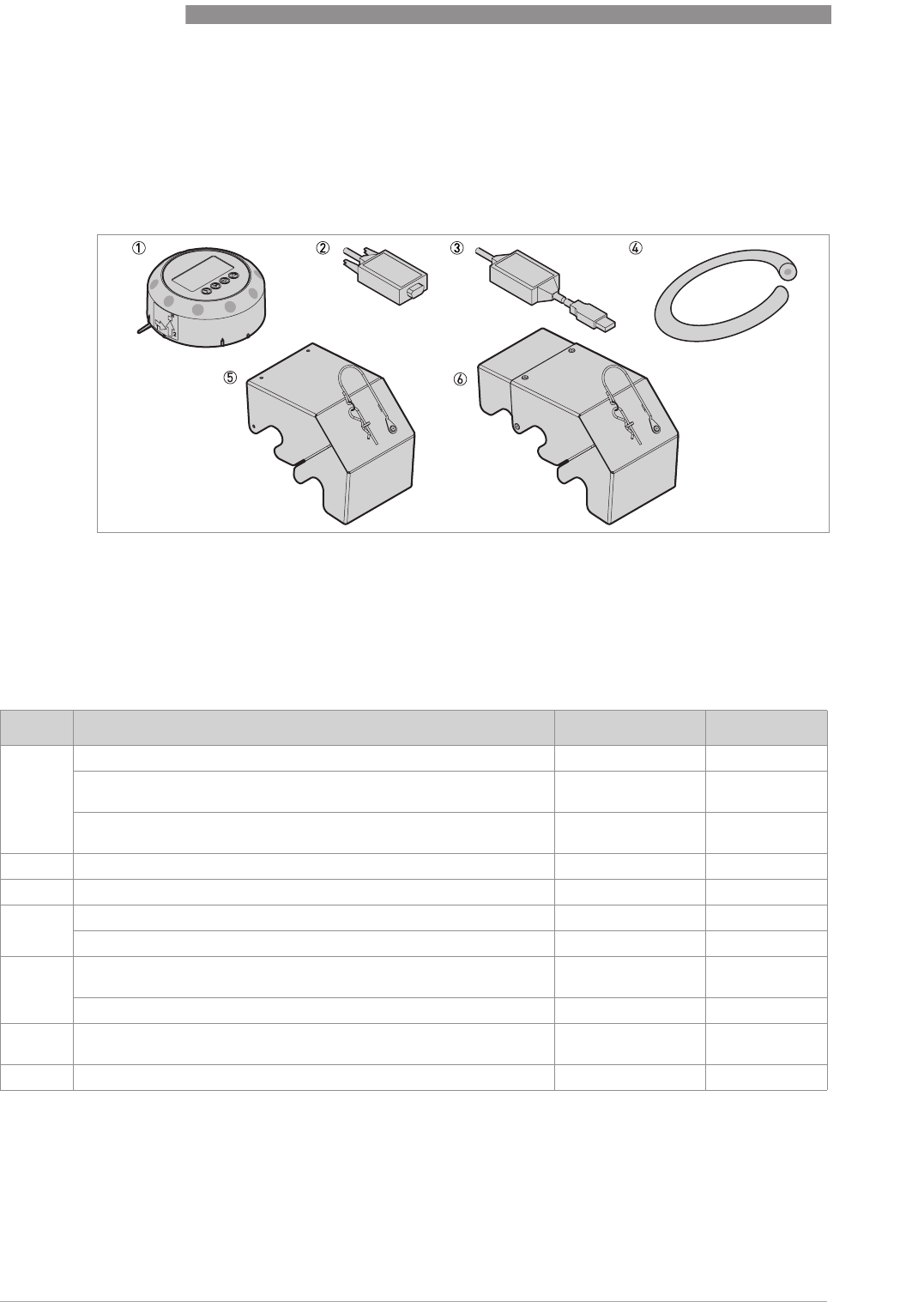

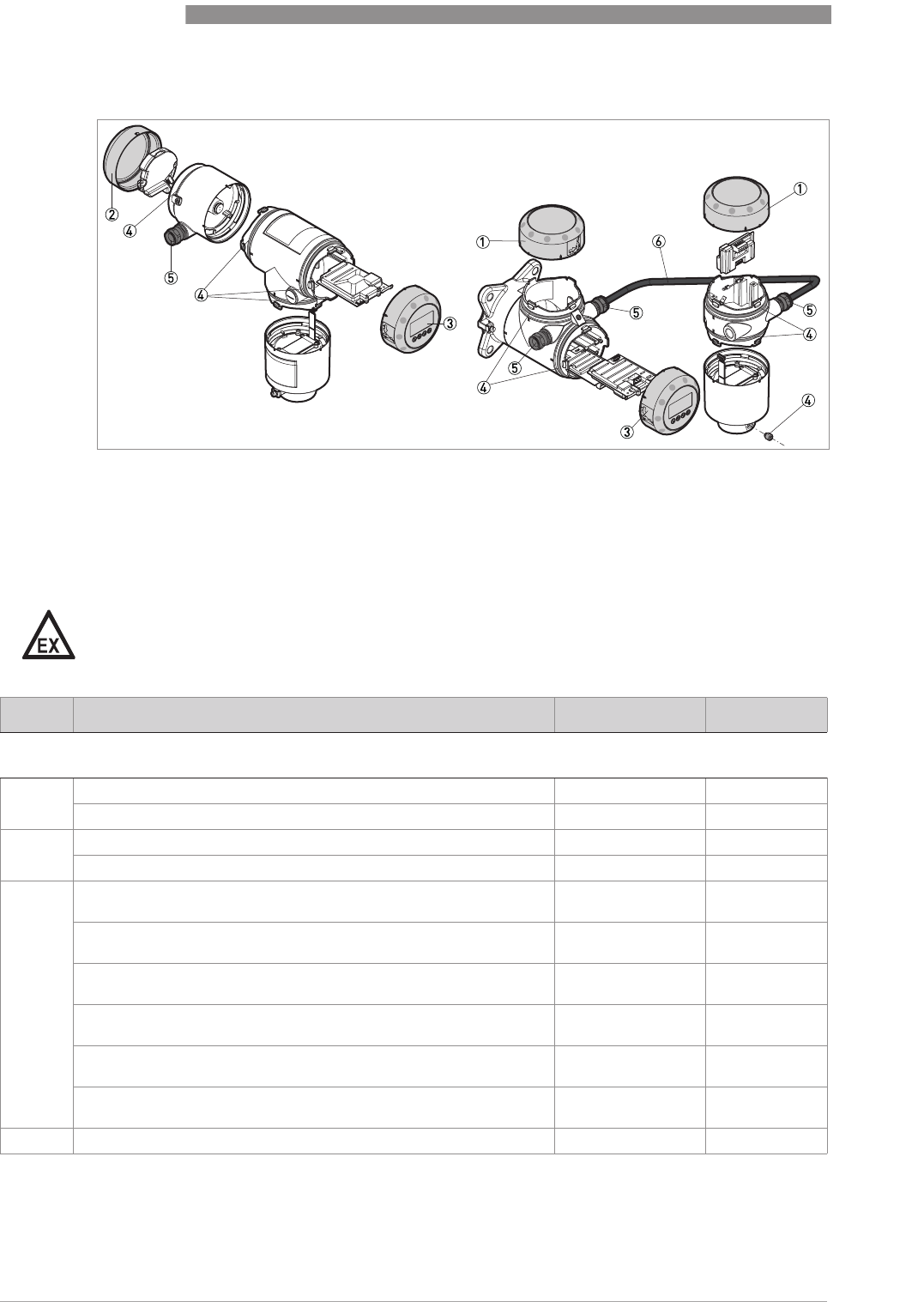

10.3 Accessories................................................................................................................. 158
10.4 Glossary ...................................................................................................................... 159

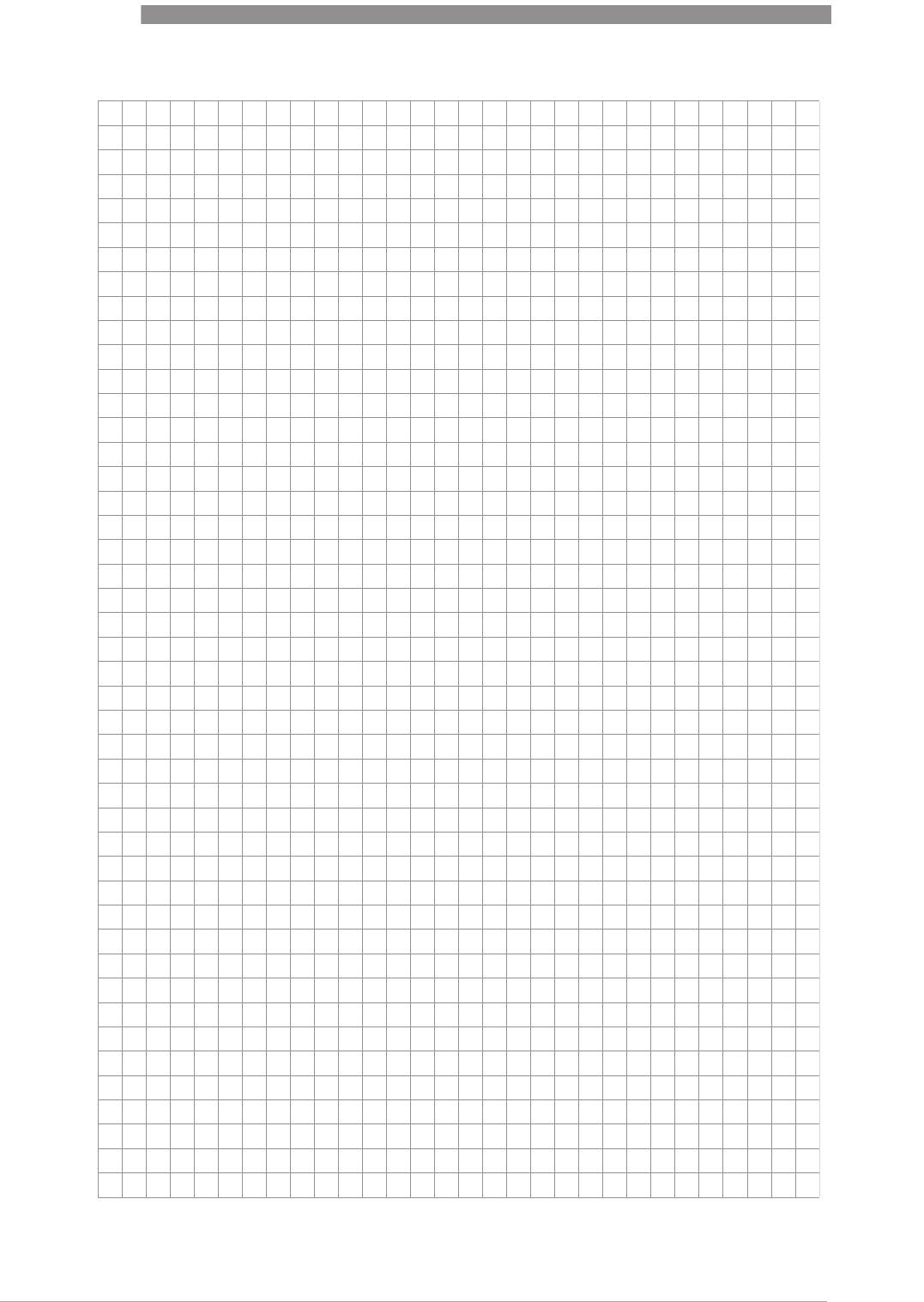

11 Notes 162
SAFETY INSTRUCTIONS
1
7
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.1 Software history
"Firmware revision" agrees with NAMUR NE 53. It is a series of numbers used to record the
revision status of embedded software (firmware) in electronic equipment assemblies. It gives
data on the type of changes made and the effect that changes have on compatibility.
Data about software revisions is shown in menu 1.1.0 IDENT. For more data, refer to
Function
description
on page 76. If it is not possible to refer to the device menu, record the serial number
of the device (given on the device nameplate) and speak to the supplier.
1.2 Intended use
This radar level transmitter measures distance, level, mass, volume, flow rate (in open
channels) and reflectivity of liquids, pastes and slurries. It does not touch the measured product.
Release
date
Printed circuit
assembly
Firmware
revision
Hardware
revision
Changes and compatibility Documentation
2013-01-11 Converter 1.00.05 4000342401k —HB OPTIWAVE
5200 R01 + R02
Sensor 1.00.06 4001025501h
HMI (LCD display option) 1.00.03 4000487601n
2016-06-27 Converter 1.00.11 4000342401p HART commands + auto tests HB OPTIWAVE
5200 R03
Sensor 1.00.16 4001025501o Auto tests
HMI (LCD display option) 1.00.06 4000487601r Conversion units
CAUTION!
Responsibility for the use of the measuring devices with regard to suitability, intended use and
corrosion resistance of the used materials against the measured fluid lies solely with the
operator.
INFORMATION!
The manufacturer is not liable for any damage resulting from improper use or use for other than
the intended purpose.
1
SAFETY INSTRUCTIONS
8
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.3 Certification
In accordance with the commitment to customer service and safety, the device
described in this document meets the following safety requirements:
•Electromagnetic Compatibility (EMC) Directive 2014/30/EU. Thus, the device agrees with the
EMC requirements of “Electrical equipment for measurement, control and laboratory use” in
European Standard EN 61326-1.
•European Directive 2014/53/EU (Radio Equipment Directive – RED). The device agrees with
European Standard ETSI EN 302 372. For more data, refer to
European Union (EU)
on page 9.
•Low-Voltage Directive 2014/35/EU. The device agrees with European Standard EN 61010-1.
•SIL-approved devices agree with European Standard EN 61508.
All devices are based on the CE marking and meet the requirements of NAMUR Guidelines
NE 21, NE 43, NE 53 and NE 107.
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
SAFETY INSTRUCTIONS
1
9
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.4 Radio approvals
1.4.1 European Union (EU)
According to ETSI EN 302 372-2 (2011), the radiated power outside a metallic tank is less than
-41.3 dBm.
The device and the tank agree with Annex B of ETSI EN 302 372-1 if you obey the
regulations that follow:
•Install the device in a permanent position on a closed metallic tank, a reinforced concrete
tank or a structure with a closed space made of an equivalent material. Make sure that the
device is correctly attached. We recommend that you install the device on the top of the tank
and the antenna points down.
•Seal flanges and attachments with EMI/RFI shielding gaskets. This gasket is supplied as an
accessory. For the order code, refer to
Accessories
on page 158.
•Sight glasses must have a microwave-proof layer on them.
•Close all openings and process connections.
LEGAL NOTICE!
This level transmitter is intended for installation in closed tanks. It meets the requirements of
the RED (Radio Equipment Directive) 2014/53/EU for use in the member countries of the EU.
An industry agreement includes approval for use of the frequency band (8.5...10.6 GHz) in
industrial environments.
Refer to EN 302 372 for installation conditions.

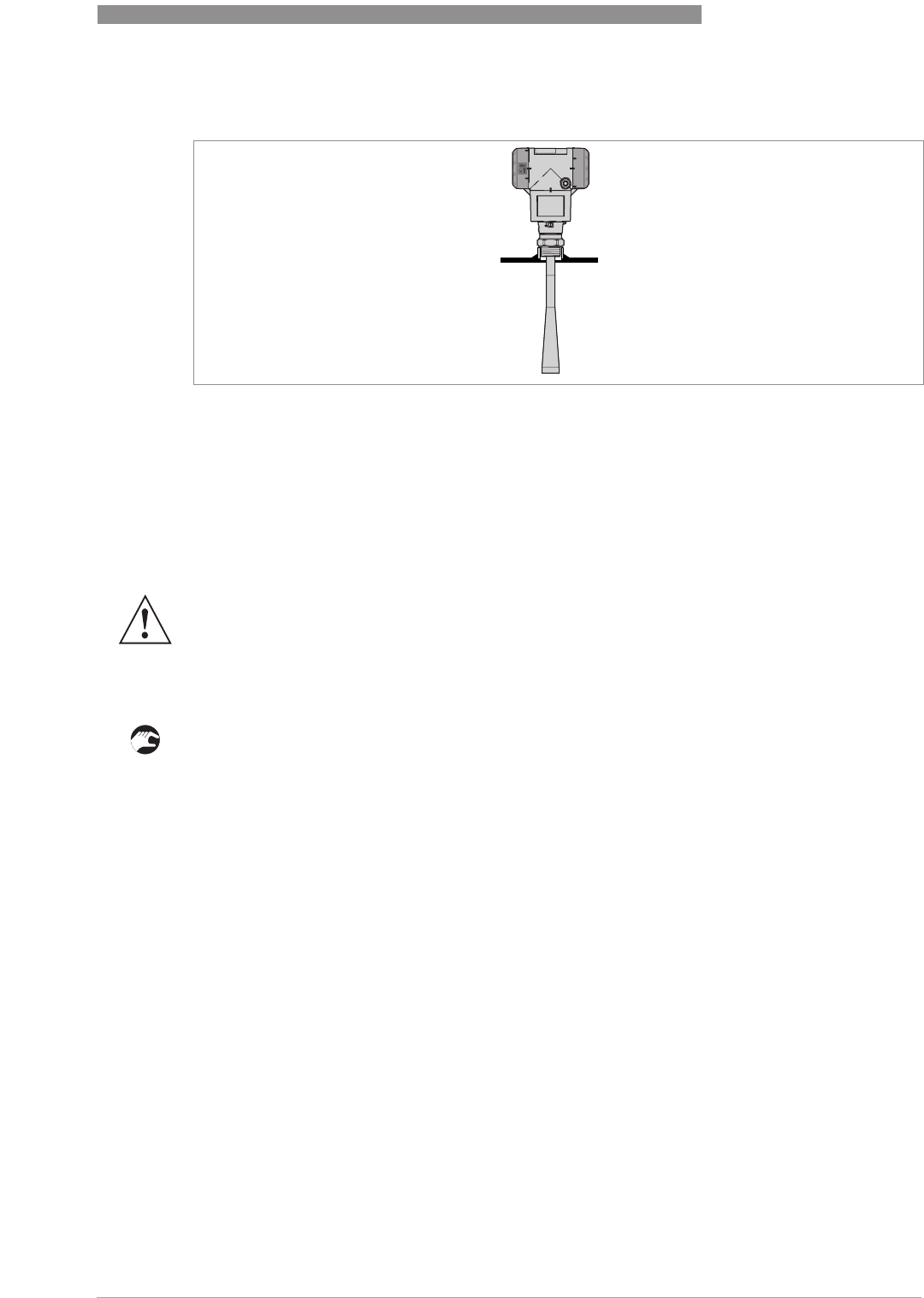

Figure 1-1: Radio approval information on the nameplate
1 CE sign
CAUTION!
Obey the regulations in Annex B of ETSI EN 302 372-1 to prevent the emission of radar signals
and radar signal interference.
1
SAFETY INSTRUCTIONS
10
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
•Only approved personnel can install the device.
For data about how to install EMI/RFI shielding gaskets, refer to the instructions supplied with
this accessory.
The radio approval certificate is given on the DVD-ROM supplied with the device.
1.4.2 U.S.A.
This legal information is shown on the device nameplate.
The radio approval certificate is given on the DVD-ROM supplied with the device.
LEGAL NOTICE!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference which may cause un-
desired operation.
Changes or modifications made to this equipment not expressly approved by KROHNE may void
the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
Figure 1-2: FCC ID number label
1 FCC ID
Devices made in France: Q6BFMCW10G52
Devices made in the USA: JH5FMCW10G52
SAFETY INSTRUCTIONS
1
11
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.4.3 Canada
This legal information is shown on the device nameplate.
The radio approval certificate is given on the DVD-ROM supplied with the device.
LEGAL NOTICE!
This device complies with Industry Canada licence-exempt RSS 210. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference which may cause un-
desired operation.
Changes or modifications made to this equipment not expressly approved by KROHNE may void
the IC authorization to operate this equipment.
Figure 1-3: IC number label
1 IC number
Devices made in France: 1991D-FMCW10G52
Devices made in the USA: 1991A-FMCW10G52
1
SAFETY INSTRUCTIONS
12
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.5 Safety instructions from the manufacturer
1.5.1 Copyright and data protection
The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.
The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.
The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.
The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.
We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.
We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.
1.5.2 Disclaimer
The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.
This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.
Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.
The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.
SAFETY INSTRUCTIONS
1
13
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.5.3 Product liability and warranty
The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation or operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.
1.5.4 Information concerning the documentation
To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.
If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of icons as shown below.
1
SAFETY INSTRUCTIONS
14
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1.5.5 Warnings and symbols used
Safety warnings are indicated by the following symbols.
• HANDLING
HANDLINGHANDLING
HANDLING
This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.
iRESULT
RESULTRESULT
RESULT
This symbol refers to all important consequences of the previous actions.
1.6 Safety instructions for the operator
DANGER!
This warning refers to the immediate danger when working with electricity.
DANGER!
This warning refers to the immediate danger of burns caused by heat or hot surfaces.
DANGER!
This warning refers to the immediate danger when using this device in a hazardous atmosphere.
DANGER!
These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.
WARNING!
Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.
CAUTION!
Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.
INFORMATION!
These instructions contain important information for the handling of the device.
LEGAL NOTICE!
This note contains information on statutory directives and standards.
WARNING!
In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.
DEVICE DESCRIPTION
2
15
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.1 Scope of delivery
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
Figure 2-1: Scope of delivery
1 Signal converter and antenna (compact version)
2 Quick Start
3 Strap wrench
4 DVD-ROM (including Handbook, Quick Start, Technical Data Sheet and related software)
INFORMATION!
METALLIC HORN AND WAVE GUIDE ANTENNAS
If the device has an antenna extension option, this part is attached to the device if the antenna
extension length, L
ext
≤ 300 mm / 11.8
¨
. If L
ext
> 300 mm / 11.8
¨
, then the antenna extension is
not attached to the device. Obey the assembly procedure on page 41
.
2
DEVICE DESCRIPTION
16
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.2 Device description
The FMCW radar level transmitter is designed to measure the distance, level, mass, volume,
flow rate and reflection of liquids, pastes and slurries. Radar level transmitters use an antenna
to guide a signal to the surface of the measured product. Radar is a non-contact technology. It is
particularly suitable for the level measurement of corrosive and viscous products. For more data
about the measuring principle, refer to
Measuring principle
on page 108.
The signal converter of the device has 2 versions: Compact and Remote (Field). The converter
can also be ordered with horizontal or vertical housing options for easy access to the device
terminals and the optional display.
Compact version
Compact versionCompact version
Compact version
The signal converter is attached directly to the process connection and the antenna (vertical
housing option shown).
Remote (Field) version
Remote (Field) versionRemote (Field) version
Remote (Field) version
The signal converter is installed away from the process connection (for example, at the bottom
of the tank). The antenna is installed at the top of the tank. The signal cable between the signal
converter and the antenna has a maximum length of 100 m / 328 ft.
The illustration that follows shows the types of antenna. Antenna extensions are available for
PTFE Wave Horn and Metallic Horn antenna options for long nozzles.
Figure 2-2: Compact version
Figure 2-3: Remote version
DEVICE DESCRIPTION
2
17
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
If the process connection temperature is more than +150°C / +302°F, the device has a high-
temperature (HT) extension. This is only available for Metallic Horn and Wave Guide antenna
options.
For more data about device options, refer to
Technical data
on page 108.
You can use the LCD display option or PACTware™ software installed on a computer or a
workstation for device configuration. The device configuration menu has a quick set-up wizard.
You usually will not need this document to install, set up and operate the device.
Figure 2-4: Types of antenna
1 PP Wave Horn antenna (G 1½...2 or 1½...2 NPT threaded connection only)
2 PTFE Wave Horn antenna (DN50...200 / 2¨...8¨ flange connections)
3 Metallic Horn antenna (available antenna sizes: DN80 (3¨), DN100 (4¨), DN150 (6¨) and DN200(8¨))
4 Wave Guide antenna (Length options: 1...6 m / 3.28...19.68 ft, in increments of 0.5 m / 1.64 ft)
Figure 2-5: Signal converter with the HT extension
2
DEVICE DESCRIPTION
18
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.3 Visual Check
If the device is supplied with an FKM/FPM gasket, there is no symbol on the side of the process
connection.
INFORMATION!
Inspect the packaging carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
Figure 2-6: Visual check
1 Device nameplate (for more data, refer to
Nameplate (examples)
on page 19)
2 Process connection data (size and pressure rating, material reference and heat number)
3 Gasket material data – refer to the illustration that follows
Figure 2-7: Symbols for the supplied gasket material (on the side of the process connection)
1 EPDM
2 Kalrez® 6375
3 PFA
DEVICE DESCRIPTION
2
19
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.4 Nameplates
2.4.1 Nameplate (examples)
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
Figure 2-8: Compact (C) and remote (F) versions: Non-Ex nameplate attached to the housing
1 Cable entry size
2 PROFIBUS Device ID (Profile ID) – only available with the PROFIBUS PA output option
3 Hardware revision / Software revision (according to NAMUR NE 53)
4 Signal output (analog, HART®, fieldbus, etc.), input voltage and maximum current (fieldbus options: basic current)
5 Degree of ingress protection (according to EN 60529 / IEC 60529)
6 Customer tag number
7 Date of manufacture
8 Serial number
9 Type code (defined in order)
10 Model name and number. The last letter "X" is either:
C = compact version or
F = remote (field) version
11 Company logo, name and postal address
Country of manufacture / Company web address
2
DEVICE DESCRIPTION
20
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Figure 2-9: Remote (F) version: Non-Ex nameplate attached to the antenna assembly
1 Company web address
2 Country of manufacture
3 Degree of ingress protection (according to EN 60529 / IEC 60529)
4 Date of manufacture
5 Serial number
6 Type code (defined in order)
7 Model name and number. The last letter = "F" remote (field) version
8 Company logo, name and postal address
INSTALLATION
3
21
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.1 General notes on installation
3.2 Storage
•Store the device in a dry and dust-free location.
•Store the device in its original packing.
INFORMATION!
Inspect the packaging carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
WARNING!
Do not keep the device in a vertical position. This will damage the antenna and the device will not
measure correctly.
Figure 3-1: Storage conditions
1 When you put the device into storage, do not keep it in a vertical position
2 Put the device on its side. We recommend that you use the packaging in which it was delivered.
3 Storage temperature range: -50…+85°C/ -58…+185°F (min. -40°C/ -40°F for devices with the integrated LCD display
option)
3
INSTALLATION
22
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.3 How to assemble the PTFE Wave Horn antenna
• Remove the plastic cover from the process connection.
• Remove the 4 wingnuts and screws that attach cardboard packaging.
• Remove the top and the bottom of the cardboard packaging from the PTFE Wave Horn
antenna.
• Attach the Wave Horn antenna to the process connection. Put the end of the antenna that has
a thread in the fitting on the process connection.
Figure 3-2: Equipment needed to assemble the device
1 Signal converter and process connection (compact version) or antenna housing and process connection (remote ver-
sion)
2 PTFE Wave Horn antenna in cardboard packaging. The cardboard packaging is attached with 4 screws and wingnuts.
Part 1: Remove the protective cover from the process connection
Figure 3-3: Part 1: Remove the protective cover from the process connection
Part2: Remove the cardboard packaging from the PTFE Wave Horn antenna
Figure 3-4: Part2: Remove the cardboard packaging from the PTFE Wave Horn antenna
Part3A: Attach the PTFE Wave Horn antenna to the process connection
Figure 3-5: Part3A: Attach the PTFE Wave Horn antenna to the process connection
CAUTION!
Do not use tools to attach the antenna to the process connection.
INSTALLATION
3
23
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
• Turn the PTFE Wave Horn antenna. Tighten with your fingers.
• Make sure that the thread is engaged fully.
iEnd of the procedure.
3.4 Transport
3.5 Pre-installation requirements
•Make sure that there is sufficient space on all sides.
•Protect the signal converter from direct sunlight. If necessary, install the weather protection
accessory.
•Do not subject the signal converter to heavy vibrations.
3.6 Installation
3.6.1 Pressure and temperature ranges

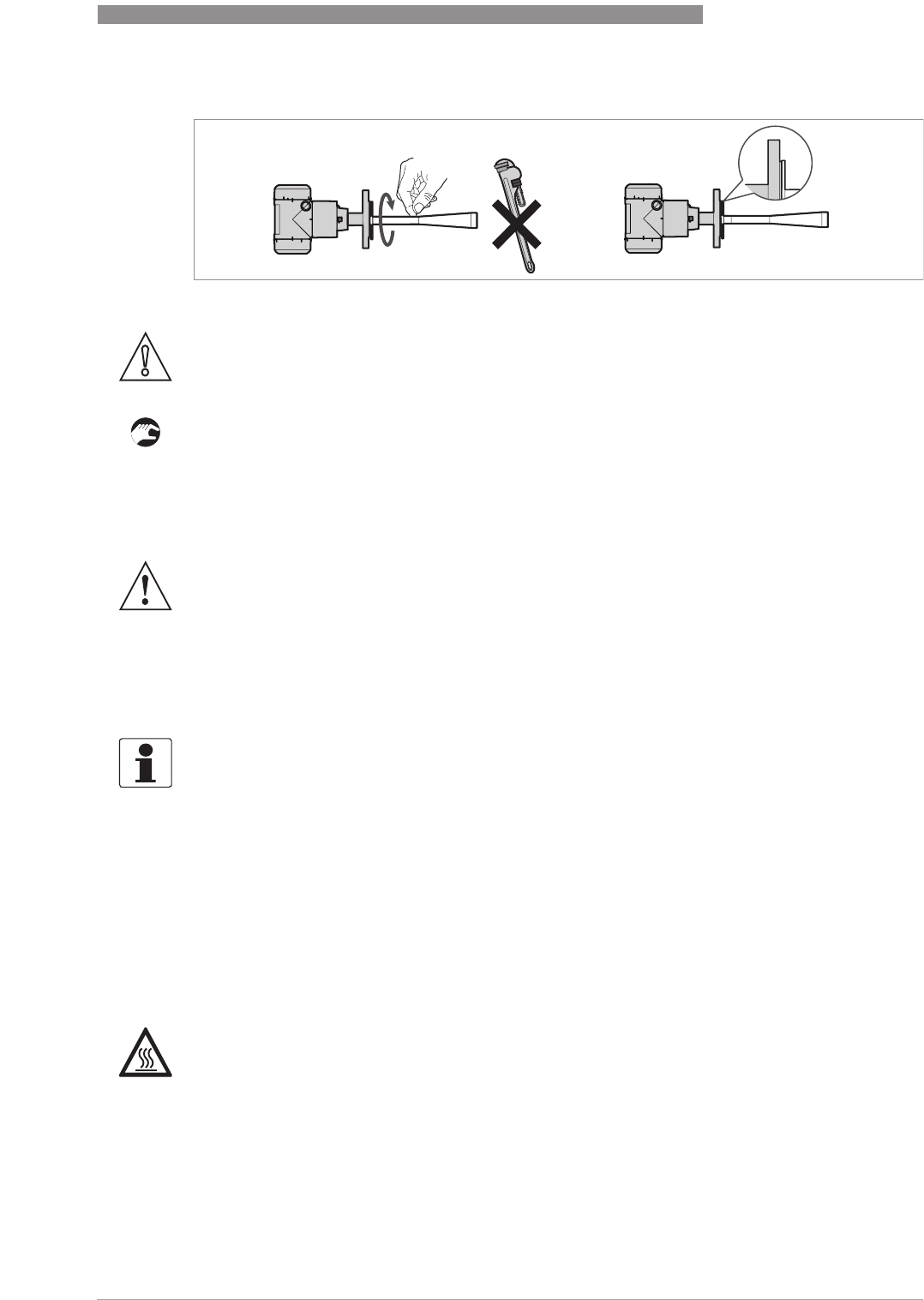

Part3B: Attach the PTFE Wave Horn antenna to the process connection
Figure 3-6: Part3B: Attach the PTFE Wave Horn antenna to the process connection
CAUTION!
Do not use tools to attach the antenna to the process connection.
WARNING!
•
Depending on the version, the device will weight approx. 5...30 kg / 11...66 lb. To carry, use
both hands to lift the device carefully by the converter housing. If necessary, lift the device
with a hoist.
•
When handling the device, avoid hard blows, jolts, impact, etc. to prevent damage.
INFORMATION!
Obey the precautions that follow to make sure that the device is correctly installed.
DANGER!
If the ambient temperature is more than +70
°
C / +158
°
F, there is a risk of injury if you touch the
device. Use a protective cover or metallic grid to prevent injury.
3
INSTALLATION
24
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
For more data on pressure ratings, refer to
Pressure ratings
on page 119
Figure 3-7: Pressure and temperature ranges
1 Temperature at the process connection
Non-Ex devices: The temperature range depends on the type of antenna, process connection and the seal material.
Refer to the table that follows.
Devices with Hazardous Location approvals: see supplementary instructions
2 Ambient temperature for operation of the display
-20...+60°C / -4...+140°F
If the ambient temperature is not between these limits, the display screen switches off automatically. The device con-
tinues to operate.
3 Ambient temperature
Non-Ex devices: refer to the ambient temperature / flange temperature graphs in this section
Devices with Hazardous Location approvals: see supplementary instructions
4 Process pressure
Depends on the type of antenna and process connection. Refer to the table that follows.
WARNING!
The process connection temperature range must agree with the temperature limits of the
gasket material.
Antenna type Process
connection
Seal Process connection
temperature
Process pressure
[°C] [°F] [barg] [psig]
PP Wave Horn G1½...2;
1½...2 NPT —-20...+100 -4...+212 -1...16 -14.5...232
PTFE Wave Horn Flange with
PTFE plate
—-50...+150 -58...+302 -1...40 -14.5...580
Metallic Horn
Wave Guide
Flange Metaglas®
with
FKM/FPM
-40...+200
1
-40...+392
1
-1...40
2
-14.5...580
2
Metaglas®
with
Kalrez®
6375
-20...+250
1
-4...+482
1
-1...40
2
-14.5...580
2
Metaglas®
with PFA
-60...+130
1
-76...+266
1
-1...40
2
-14.5...580
2
Metaglas®
with EPDM
-50...+130
1
-58...+266
1
-1...40
2
-14.5...580
2
1Higher temperature on request
2Higher pressure on request
INSTALLATION
3
25
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
PP Wave Horn: compact and remote versions
Ambient temperature / flange temperature, flange and threaded connection, in °C
Figure 3-8: Ambient temperature / flange temperature, flange and threaded connection, in °C
Ambient temperature / flange temperature, flange and threaded connection, in °F
Figure 3-9: Ambient temperature / flange temperature, flange and threaded connection, in °F
1 Maximum ambient temperature, °C
2 Maximum flange temperature, °C
3 Maximum ambient temperature, °F
4 Maximum flange temperature, °F
5 Compact and remote versions of the device with the PP Wave Horn antenna
6 Remote version of the device with the PP Wave Horn antenna
3
INSTALLATION
26
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

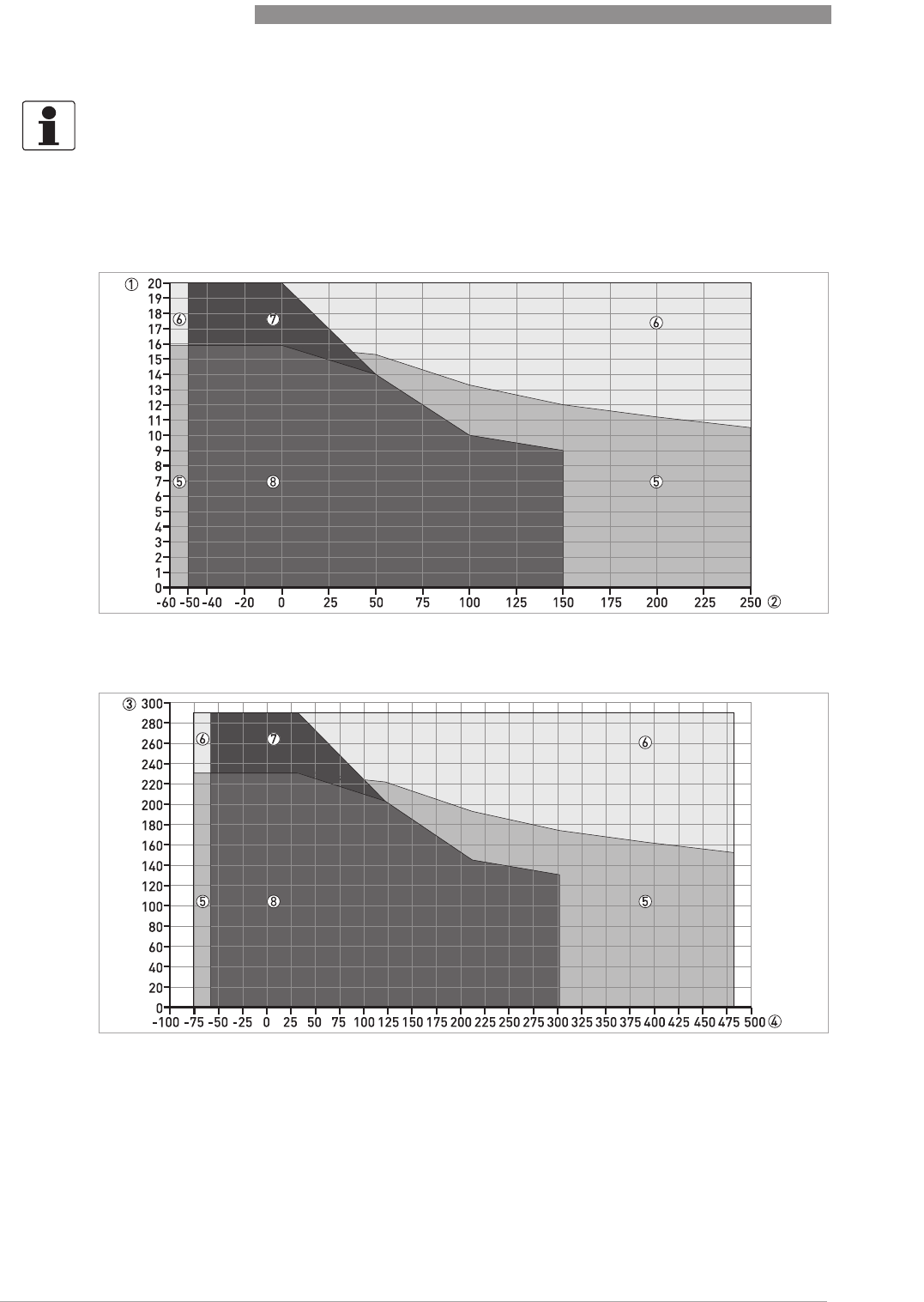

PTFE Wave Horn: compact and remote versions
Ambient temperature / flange temperature, flange and threaded connection, in °C
Figure 3-10: Ambient temperature / flange temperature, flange and threaded connection, in °C
Ambient temperature / flange temperature, flange and threaded connection, in °F
Figure 3-11: Ambient temperature / flange temperature, flange and threaded connection, in °F
1 Maximum ambient temperature, °C
2 Maximum flange temperature, °C
3 Maximum ambient temperature, °F
4 Maximum flange temperature, °F
5 Compact and remote versions of the device with the PTFE Wave Horn antenna
6 Compact version of the device with the PTFE Wave Horn antenna
INFORMATION!
When the process temperature is -50
°
C/ -58
°
F, there is a de-rating for the ambient
temperature. The minimum ambient temperature is -36
°
C / -32.8
°
F.
INSTALLATION
3
27
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Metallic Horn and Wave Guide: compact and remote versions
Ambient temperature / flange temperature, flange and threaded connection, in °C
Figure 3-12: Ambient temperature / flange temperature, flange and threaded connection, in °C
Ambient temperature / flange temperature, flange and threaded connection, in °F
Figure 3-13: Ambient temperature / flange temperature, flange and threaded connection, in °F
1 Maximum ambient temperature, °C
2 Maximum flange temperature, °C
3 Maximum ambient temperature, °F
4 Maximum flange temperature, °F
5 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna
6 Compact version of the device with the Metallic Horn or Wave Guide antenna
INFORMATION!
When the process temperature is -50
°
C/ -58
°
F and the device has an EPDM gasket, there is a
de-rating for the ambient temperature. The minimum ambient temperature is -35
°
C/ -31
°
F.
3
INSTALLATION
28
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Metallic Horn and Wave Guide: compact and remote versions with the high-
temperature (HT) extension
Ambient temperature / flange temperature, flange and threaded connection, in °C
Figure 3-14: Ambient temperature / flange temperature, flange and threaded connection, in °C
Ambient temperature / flange temperature, flange and threaded connection, in °F
Figure 3-15: Ambient temperature / flange temperature, flange and threaded connection, in °F
1 Maximum ambient temperature, °C
2 Maximum flange temperature, °C
3 Maximum ambient temperature, °F
4 Maximum flange temperature, °F
5 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna, the HT extension and EPDM
and PFA gaskets
6 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna, the HT extension and a PFA
gasket
INFORMATION!
When the process temperature is -50
°
C/ -58
°
F and the device has an EPDM gasket, there is a
de-rating for the ambient temperature. The minimum ambient temperature is -39
°
C / -38.2
°
F.
When the process temperature is -60
°
C/ -76
°
F and the device has a PFA gasket, there is a de-
rating for the ambient temperature. The minimum ambient temperature is -37
°
C / -34.6
°
F.
INSTALLATION
3
29
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.2 Recommended mounting position
CAUTION!
Follow these recommendations to make sure that the device measures correctly. They have an
effect on the performance of the device.
Figure 3-16: Recommended mounting position for liquids, pastes and slurries
1 Sockets for the PP Wave Horn antenna
2 Nozzles for the PTFE Wave Horn antenna
3 Nozzles for DN150 or DN200 Metallic Horn antennas
4 Nozzles for Wave Guide antennas
5 Tank diameter
6 Minimum distance of the nozzle or socket from the tank wall (depends on the antenna type and size - refer to items
1, 2 , 3 and 4 in this list):
- PP/PTFE Wave Horn (1 and 2): 1/7 × tank height
- Metallic Horn (3): 1/10 × tank height
- Wave Guide (4): There is no minimum distance from the Wave Guide antenna to metallic walls and other metal ob-
jects
Maximum distance of nozzle from the tank wall (depends on the antenna type and size - refer to items 1, 2 and 3 in
this list):
- PP/PTFE Wave Horn (1 and 2): 1/3 × tank diameter
- Metallic Horn (3): 1/3 × tank diameter
- Wave Guide (4): There is no maximum distance from the Wave Guide antenna to metallic walls and other metal ob-
jects
7 Tank height
INFORMATION!
If there is a nozzle on the tank before installation, the nozzle must be a minimum of 200 mm /
7.9
¨
from the tank wall. The tank wall must be flat and there must not be obstacles adjacent to
the nozzle or on the tank wall.
3
INSTALLATION
30
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Point the device in the correct direction
Figure 3-17: Point the device in the correct direction to get the best performance
Point the tag hole on the housing in the direction of the nearest tank wall.
1 Tag hole
2 Nearest tank wall
Figure 3-18: A maximum of 4 FMCW radar level meters can be operated in a tank
Figure 3-19: Tanks with dish-shaped or conical bottoms
Dish-shaped or conical bottoms have an effect on the measuring range. The device cannot measure to the bottom of the
tank.
1 Axis of radar beam
2 Minimum level reading
INSTALLATION
3
31
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.3 Mounting restrictions
We recommend that you prepare the installation when the tank is empty.
CAUTION!
Follow these recommendations to make sure that the device measures correctly. They have an
effect on the performance of the device.
Mounting restrictions: General data
Figure 3-20: Mounting restrictions: General data
1 Do not tilt the device more than 2°
2 We recommend that you do an empty spectrum recording if there are obstacles in the radar beam (refer to Operation
OperationOperation
Operation).
If necessary, install a bypass chamber or stilling well or use an S-bend antenna extension or an L-bend antenna ex-
tension (the device must be installed on the side of the tank) to move the device away from obstacles.
3 2.5 mm / 0.1¨ max. for high-dielectric constant liquids
4 Beam radius (DN80 (3¨) Metallic Horn antenna): increments of 290 mm/m or 3.4¨/ft (16°)
Beam radius (DN100 (4¨) Metallic Horn antenna): increments of 210 mm/m or 2.6¨/ft (12°)
Beam radius (DN150 (6¨) Metallic Horn antenna): increments of 140 mm/m or 1.7¨/ft (8°)
Beam radius (DN200 (8¨) Metallic Horn antenna): increments of 100 mm/m or 1.3¨/ft (6°)
Beam radius (PP Wave Horn and PTFE Wave Horn antenna): increments of 176 mm/m or 2.1¨/ft (10°)
3
INSTALLATION
32
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Obstacles in the tank
Figure 3-21: Obstacles in the tank
Do not put the device directly above obstacles (agitator, support beams, heating tubes etc.). Parasitic signals from obsta-
cles will cause the device to measure incorrectly.
1 Solution 1: Put the device on another process connection away from obstacles
2 Solution 2: Use the same process connection, but also use an S-bend extension
3 Solution 3: Attach the device to the side of the tank and use an L-bend (right angle) extension
CAUTION!
Do not put the device near to the product inlet. If the product that enters the tank touches the
antenna, the device will measure incorrectly. If the product fills the tank directly below the
antenna, the device will also measure incorrectly.
Figure 3-22: Product inlets
1 The device is in the correct position.
2 The device is too near to the product inlet.
INSTALLATION
3
33
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
The antenna must project out of the nozzle. If necessary, use an antenna extension. But if the
tank roof is flat and the tank fitting is symmetrical, it is not necessary for the antenna to project
out of the nozzle. Thus, the device can have a larger measuring range.
Devices with Metallic Horn antenna
Figure 3-23: Devices with Metallic Horn antenna
1 If the roof is not flat, the antenna must project out of the nozzle
2 Short tank nozzle
3 Long tank nozzle (device with an antenna extension)
4 If the roof is flat and the tank fitting is symmetrical, it is not necessary for the antenna to project out of the nozzle.
Thus, the device can have a larger measuring range.
Devices with PTFE or PP Wave Horn antenna
Figure 3-24: Devices with PTFE or PP Wave Horn antenna
Recommended height of tank process connection, a = 44...200 mm / 1.7...7.87¨
1 Device with a PTFE Wave Horn antenna and a flange connection. There are antenna extension options available
(100 mm / 4¨, 200 mm / 8¨ and 300 mm / 12¨) for long nozzles.
2 Device with a PP Wave Horn antenna and a thread connection
CAUTION!
Do not install devices with Wave Horn antennas on plastic nozzles that have a diameter of
50 mm / 2
¨
.
3
INSTALLATION
34
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Do an Empty Spectrum recording (refer to Operation
OperationOperation
Operation) to remove parasitic signals with a filter.
Equipment needed:
•Device
•Flange gasket (not supplied)
•Wrench (not supplied)
• Make sure the flange on the nozzle is level.
• Make sure that you use the applicable gasket for the flange dimensions and the process.
• Align the gasket correctly on the flange facing of the nozzle.
• Lower the antenna carefully into the tank.
• Make sure that you point the device in the correct direction. Refer to "Point the device in the
correct direction" in this section.
• Tighten the flange bolts.
iRefer to local rules and regulations for the correct torque to apply to the bolts.
CAUTION!
If there are parasitic signals, the device will not measure correctly. Parasitic signals are caused
by:
•
Objects in the tank.
•
Sharp corners that are perpendicular to the path of the radar beam.
•
Sudden changes in tank diameter in the path of the radar beam.
Requirements for flange connections
Figure 3-25: Flange connection
INSTALLATION
3
35
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Equipment needed:
•Device
•Gasket for G 1½A or G 2A connection (not supplied)
•Thread seal tape (PTFE) for 1½NPT or 2 NPT connection (not supplied)
•50 mm / 2¨ wrench (not supplied)
• Make sure the tank connection is level.
• ISO 228-1 (G) connection:
ISO 228-1 (G) connection:ISO 228-1 (G) connection:
ISO 228-1 (G) connection: Make sure that you use the applicable gasket for the connection
dimensions and the process.
• ISO 228-1 (G) connection:
ISO 228-1 (G) connection:ISO 228-1 (G) connection:
ISO 228-1 (G) connection: Align the gasket correctly.
• NPT connection:
NPT connection:NPT connection:
NPT connection: Wind the thread seal tape around the process connection in agreement with
good engineering practice.
• Lower the antenna carefully into the tank.
• Turn the threaded connection on the antenna to attach the device to the process connection.
• Make sure that you point the device in the correct direction. Refer to "Point the device in the
correct direction" in this section.
• Tighten the connection to the correct torque (not more than 40 Nm).
Requirements for threaded connections
Figure 3-26: Threaded connection
WARNING!
Do not tighten the connection to a torque more than 40 N
·
m / 29.5 lb
·
ft. If the connection is too
tight, this will damage the thread.
To prevent damage to the antenna, make sure that the minimum diameter of the hole for a
1
½
NPT or 2 NPT thread connection is not less than 43.4 mm / 1.71
¨
.
3
INSTALLATION
36
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.4 Standpipes (stilling wells and bypass chambers)
Use a standpipe if:
•There is highly conductive foam in the tank.
•The liquid is very turbulent or agitated.
•There are too many other objects in the tank.
•The device is measuring a liquid (petro-chemicals) in a tank with a floating roof.
•The device is installed in a horizontal cylindrical tank (refer to the end of this section).
Figure 3-27: Installation recommendations for standpipes (stilling wells and bypass chambers)
1 A stilling well solution
2 A bypass chamber solution
3 Air circulation hole
4 Level of the liquid
CAUTION!
•
The standpipe must be electrically conductive.
•
The inside diameter of the standpipe must not be more than 5 mm / 0.2
¨
over the diameter of
the antenna (for a high-dielectric constant liquid).
•
The standpipe must be straight. There must be no sudden changes in internal diameter
greater than 1 mm / 0.04
¨
.
•
The standpipe must be vertical.
•
Recommended surface roughness: <
±
0.1 mm / 0.004
¨
.
•
Make sure that there are no deposits at the bottom of the standpipe.
•
Make sure that there is liquid in the standpipe.
INSTALLATION
3
37
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Stilling wells – general notes
Installation in tanks containing one liquid and foam
• Drill an air circulation hole (max. Ø10 mm / 0.4¨) in the stilling well above the maximum level.
• Remove the burr from the hole.
Installation in tanks containing one liquid or more without foam
• Drill an air circulation hole (max. Ø10 mm / 0.4¨) in the stilling well above the maximum level.
• Drill 1 or more liquid circulation holes in the stilling well (if there is more than 1 liquid in the
tank).
iThese holes help the liquid to move freely between the stilling well and the tank.
• Remove the burr from the hole.
Stilling wells – reference point
We recommend that you attach a flat cruciform target at the bottom of the stilling well. It must
have a width of 1/3 of the internal diameter of the stilling well tube. This target is the limit of the
measuring range in the stilling well.
CAUTION!
You can drill an air circulation hole if the stilling well is in a closed space (a metallic container).
This condition is necessary to obey TLPR standards. For more data, refer to Radio approvals on
page 9
.
Figure 3-28: Reference point in the stilling well
a≥ 1/3 × ØD
3
INSTALLATION
38
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Stilling wells: floating roofs
If the device must be installed on a tank with a floating roof, install it in a stilling well.
Figure 3-29: Floating roofs
1 Sediment
2 Support fixtures
3 Stilling well
4 Floating roof
5 Product
6 Tank
INSTALLATION
3
39
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Stilling wells: horizontal cylindrical tanks
We recommend that you install the device in a stilling well if the device:
•is for a horizontal cylindrical tank,
•is in a metallic tank,
•measures a product with a high dielectric constant and
•is on the centerline of the tank.

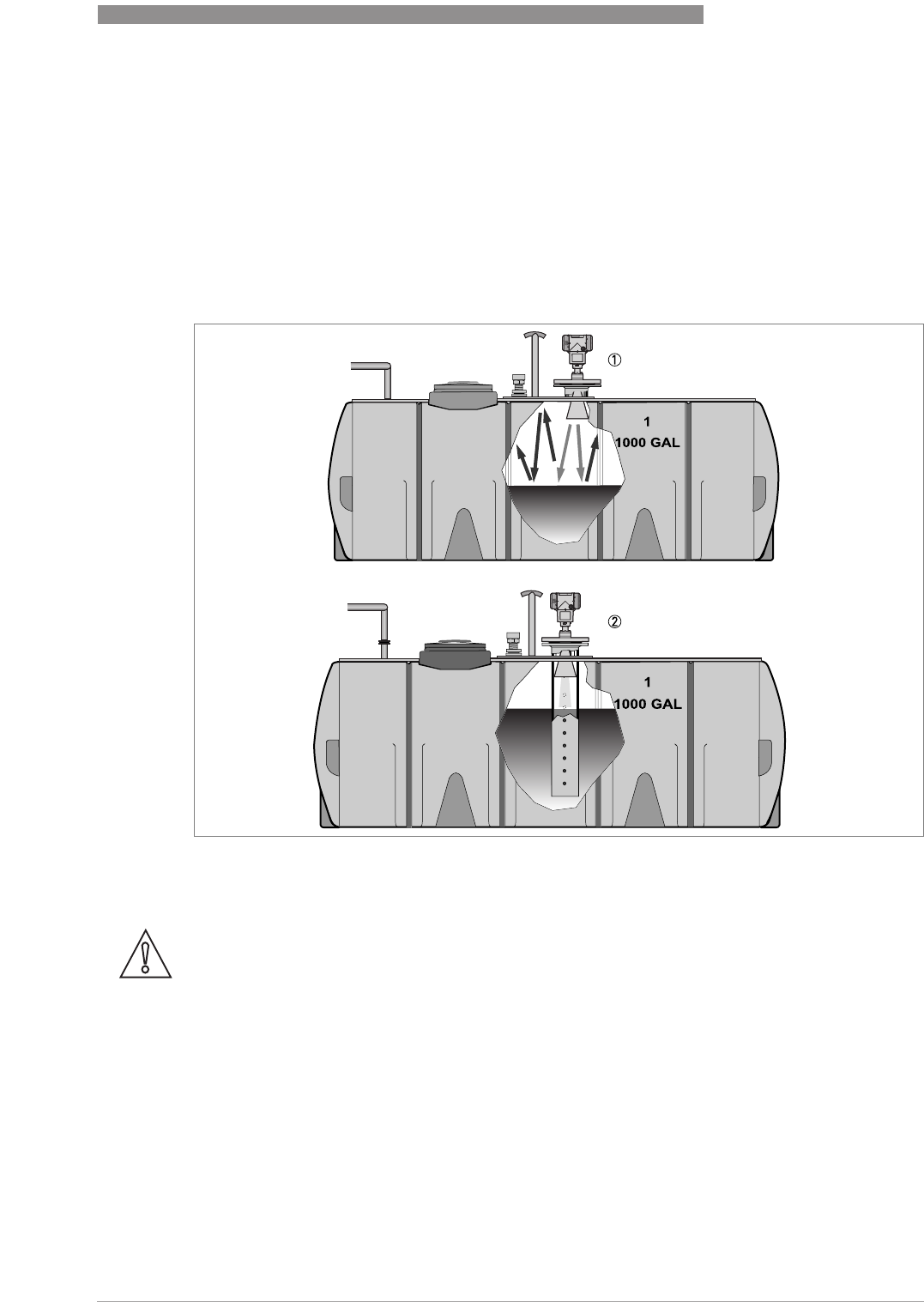

Figure 3-30: Horizontal cylindrical tanks
1 The device is installed without a stilling well. There are multiple reflections. Refer to the CAUTION! that follows.
2 The device is installed in a stilling well and measures correctly.
CAUTION!
If the device is installed in horizontal cylindrical tank that contains a high dielectric constant
liquid without a stilling well, do not put it on the tank centerline. This will cause multiple
reflections and the device will not measure accurately. Use the 2.3.12 Multiple Reflections
2.3.12 Multiple Reflections2.3.12 Multiple Reflections
2.3.12 Multiple Reflections
function in Supervisor > Basic Parameters
Supervisor > Basic ParametersSupervisor > Basic Parameters
Supervisor > Basic Parameters to keep the effects of multiple reflections to a
minimum. For more data, refer to Function description on page 76
(2. Supervisor).
3
INSTALLATION
40
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Bypass chambers
Installation next to tanks containing one liquid and foam
•The top process connection of the bypass chamber must be above the maximum level of
liquid.
•The bottom process connection of the bypass chamber must be below the lowest measured
level of liquid.
Installation next to tanks containing more than one liquid
•The top process connection of the bypass chamber must be above the maximum level of
liquid.
•The bottom process connection of the bypass chamber must be below the lowest measured
level of liquid.
•Additional process connections are necessary for the liquids to circulate freely along the
length of the bypass chamber.
3.6.5 Wall support for the remote version
1 Use marks on the wall to help you put the wall support in the correct position. For more data,
refer to
Dimensions and weights
on page 126.
2 Use equipment and tools that agree with health and safety regulations and good engineering
practice.
3 Make sure the wall support is correctly attached to the wall.
Figure 3-31: Wall support for the remote version (attached to the remote converter)
INSTALLATION
3
41
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.6 How to attach an antenna extension (Metallic Horn or Wave Guide antennas)
Obey the assembly procedure that follows:
CAUTION!
IF THE ANTENNA EXTENSION IS SUPPLIED WITH THE DEVICE AS AN OPTION:
If the antenna extension is attached to the device, no more work is necessary.
If the antenna extension is not attached to the device, refer to Procedure 1 in this section. It is not
necessary to change the device settings. The manufacturer sets the related menu items to the
correct values in the factory.
IF THE ANTENNA EXTENSION IS SUPPLIED AFTER DELIVERY OF THE DEVICE (SPARE PART):
You must attach the antenna extension to the device and change the device settings in the
SUPERVISOR menu. If you have a straight antenna extension, refer to Procedures 1 and 2A. If you
have an S-bend or L-bend (right-angle) antenna extension, refer to Procedures 1 and 2B.
DANGER!
If you installed the device on the tank before the procedure, make the device safe (de-energize
the circuit, clean the device etc.) before you continue the work.
Equipment needed
Figure 3-32: Equipment needed
1 Device (with a Metallic Horn or Wave Guide antenna option only)
2 Antenna extension. From left to right: straight, S-bend and L-bend (right-angle) extension.
3 10 mm open-end or box-end wrench (not supplied)
4 3 hex head screws M6×25-A4-70 (supplied in a plastic sachet)
3
INSTALLATION
42
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Procedure 1: How to attach an antenna extension
1 Remove the 3 hex head screws from the antenna with the 10 mm wrench.
2 Remove the antenna. Make sure that you do not damage the PTFE cone when you remove the
antenna.
3 Attach the antenna extension below the flange. Make sure that the antenna extension is fully
engaged. Make sure that you do not damage the PTFE cone when you attach the antenna ex-
tension.
4 Attach 3 hex head screws to the antenna extension with a 10 mm wrench. Tighten the screws
to a torque of 8 Nm.
5 Attach the antenna below the antenna extension.
6 Attach 3 hex head screws to the antenna with a 10 mm wrench. Tighten the screws to a torque
of 8 Nm.
iIf the antenna extension is supplied with the device, it is not necessary to change the device
settings. End of the procedure.
7 If the antenna extension is supplied after delivery of the device, it is necessary to change the
device settings. Make a selection from one of the procedures (2A or 2B) that follow: straight
Figure 3-33: Procedure: How to attach an antenna extension
WARNING!
Make sure that you do not damage the PTFE cone when you remove or install the antenna.
INSTALLATION
3
43
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
antenna extension, S-bend antenna extension or L-bend (right angle) antenna extension.
Procedure 2A: Device settings for a device with a straight antenna extension
• Enter the SUPERVISOR menu (2.0.0).
• Push [>
>>
>], 2 × [
], [>
>>
>] and 6 × [
] to go to menu item ANTENNA EXTENSION (2.3.7).
• Push [>
>>
>] to change the value. Push [>
>>
>] to change the position of the cursor. Push [
] to
decrease the value or [
] to increase the value.
iIf the antenna extension has a length of 500 mm, enter the value "500" (if units for this
menu item are in mm).
• Push 3 × [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iEnd of the procedure.
Procedure 2B: Device settings for a device with an S-bend or L-bend (right angle)
antenna extension
• Enter the SUPERVISOR menu (2.0.0).
• Push [>
>>
>], 2 × [
], [>
>>
>] and 6 × [
] to go to menu item ANTENNA EXTENSION (2.3.7).
• Push [>
>>
>] to change the value. Push [>
>>
>] to change the position of the cursor. Push [
] to
decrease the value or [
] to increase the value.
iIf units are in mm, enter the value "221" (for an S-bend extension) or "236" (for an L-bend
extension).
• Push [^
^^
^] to go back to the menu. Push 2 × [
] to go to menu item DIST.PIECE (2.3.9).
• Push [>
>>
>] to change the value. Push [>
>>
>] to change the position of the cursor. Push [
] to
decrease the value or [
] to increase the value.
iIf units are in mm, enter the value "243" (for an S-bend extension) or "236" (for an L-bend
extension).
• Push 3 × [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iEnd of the procedure.
Settings for devices with antenna extensions in mm
For more data about the dimensions of devices with antenna extensionsFor more data about the
dimensions of devices with antenna extensions, refer to
Dimensions and weights
on page 126.
Antenna extension type Device settings
ANTENNA EXTENSION (2.3.7) DIST.PIECE (2.3.9)
Straight 10 2
S-bend 221 243 2
L-bend (right angle) 236 236 2
1This value depends on the length of the antenna extension. Enter the length of the antenna extension: 100, 200, 300,
400, 500 or 1000 mm
2If the device has a high temperature extension, add 120 mm to this value
3
INSTALLATION
44
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

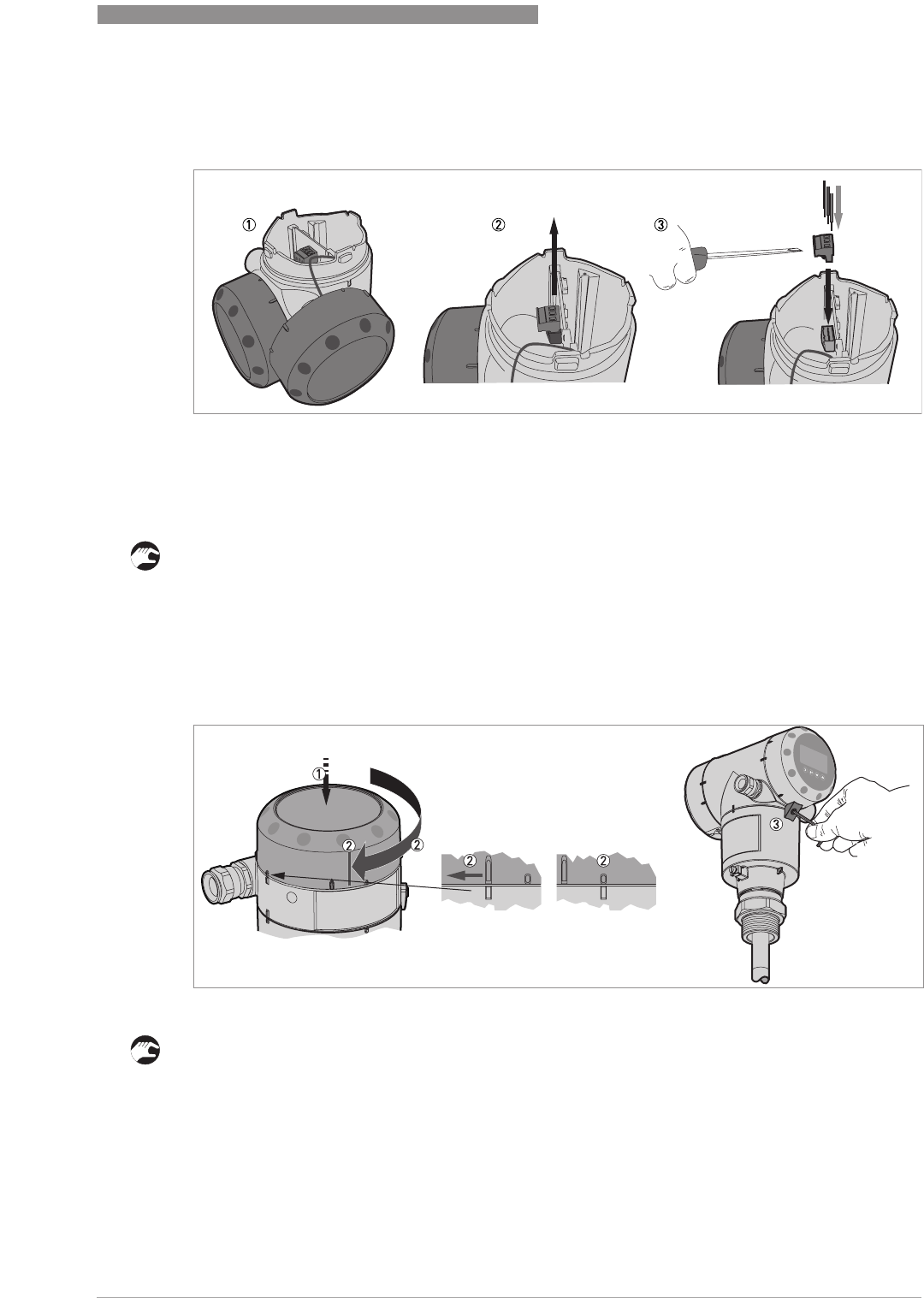

3.6.7 How to turn or remove the signal converter
The converter turns 360°, but we recommend that the tag hole on the housing points to the
nearest tank wall. For more data, refer to
Recommended mounting position
on page 29. The
converter can be removed from the process connection assembly under process conditions.
Figure 3-34: How to turn or remove the signal converter
1 Tool: 5 mm Allen wrench (not supplied) for the lock screw on the signal converter
2 Cover for the wave guide hole on top of the process connection assembly (not supplied)
CAUTION!

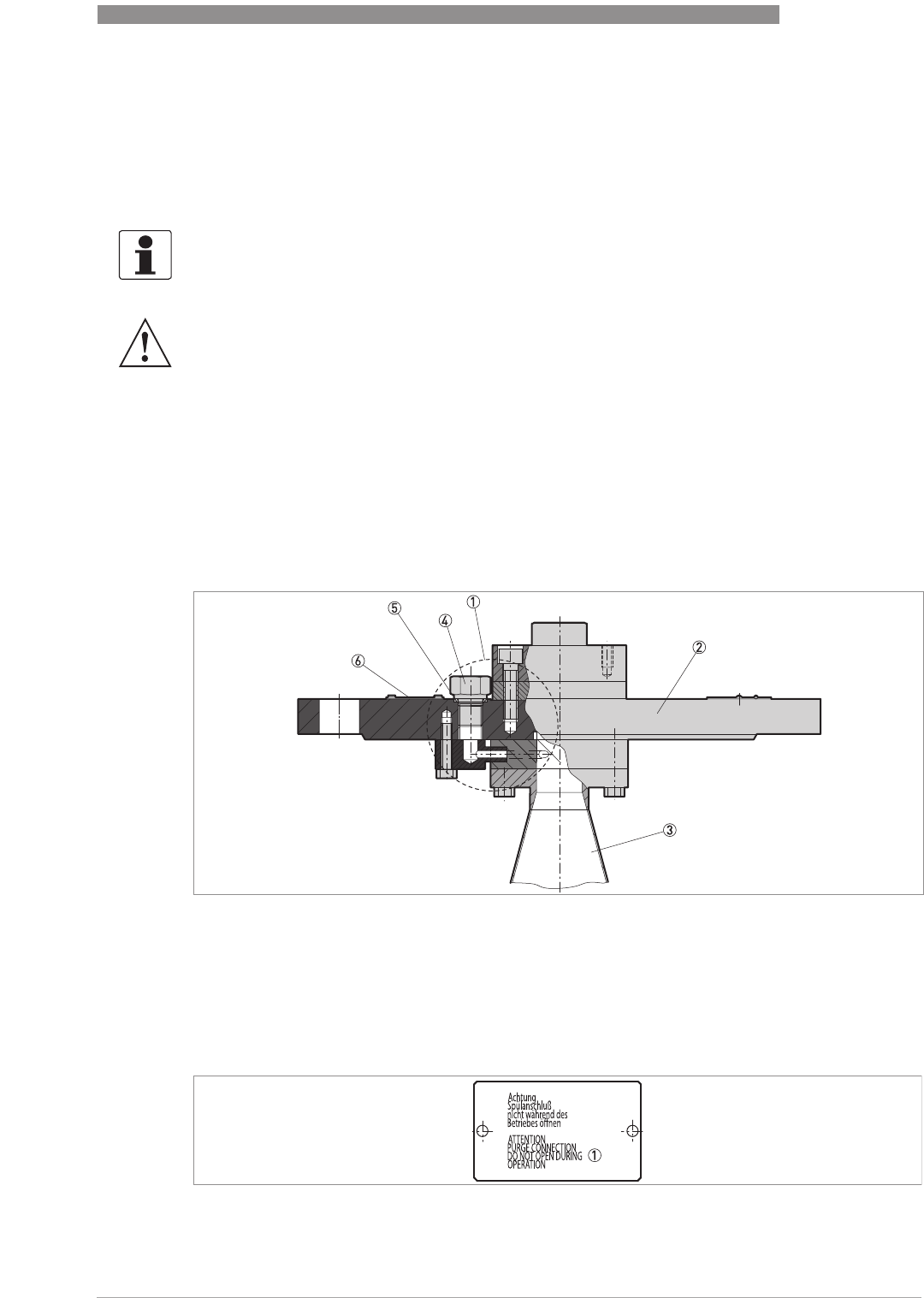

Do not loosen the 4 socket head screws on the process connection assembly.
If you remove the housing, put a cover on the wave guide hole on top of the process connection
assembly. Make sure that the wave guide hole is clean and dry.
When the housing is attached to the process connection assembly, tighten the lock screw with
the 5 mm Allen wrench 1.
INSTALLATION
3
45
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.8 How to attach the weather protection to the device
The device and the weather protection option are supplied disassembled in the same box. The
weather protection can also be supplied as an accessory. You must attach the weather
protection when you install the device.
Figure 3-35: Equipment needed
1 Weather protection cover (with an R-clip to hold the cover on the clamp)
2 Device
3 Weather protection clamp (2 parts)
4 10 mm socket wrench (not supplied)
5 2 locking nuts
3
INSTALLATION
46
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
• Put the weather protection clamp around the top of the device.
• Attach the two locking nuts to the threads on the weather protection clamp. Tighten the
locking nuts with a 10 mm socket wrench.
• Lower the weather protection cover onto weather protection clamp until the hole for the lock
is in the slot at the front of the cover.
• Put the R-clip into the hole at the front of the weather protection cover.
• End of the procedure.
Figure 3-36: Installation of the weather protection on a vertical signal converter
INSTALLATION
3
47
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
• Put the weather protection clamp around the front of the device (the end of the device that is
nearest to the cable entry).
• Attach the two locking nuts to the threads on the weather protection clamp. Tighten the
locking nuts with a 10 mm socket wrench.
• Lower the weather protection cover onto weather protection clamp until the hole for the lock
is in the slot at the front of the cover.
• Put the R-clip into the hole at the front of the weather protection cover.
• End of the procedure.
The overall dimensions of the weather protection are on page 126.
Figure 3-37: Installation of the weather protection on a horizontal signal converter
3
INSTALLATION
48
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3.6.9 How to open the weather protection
1 Remove the R-clip from the hole at the front of the weather protection cover.
2 Remove the weather protection cover.
iLift the display screen cover.
Figure 3-38: How to open the weather protection
ELECTRICAL CONNECTIONS
4
49
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.1 Safety instructions
4.2 General notes
This chapter includes electrical connection data about devices with the 4...20mA output and
HART® communication options.
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!
DANGER!
Observe the national regulations for electrical installations!
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
INFORMATION!
Devices with the FOUNDATION
Devices with the FOUNDATIONDevices with the FOUNDATION
Devices with the FOUNDATION
™
fieldbus output option:
fieldbus output option: fieldbus output option:
fieldbus output option:
For electrical connection data, refer to the "Description of FOUNDATION
™
fieldbus interface"
supplementary instructions.
INFORMATION!
Devices with the PROFIBUS PA output option:
Devices with the PROFIBUS PA output option:Devices with the PROFIBUS PA output option:
Devices with the PROFIBUS PA output option:
For electrical connection data, refer to the "Description of PROFIBUS PA interface"
supplementary instructions.
4
ELECTRICAL CONNECTIONS
50
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

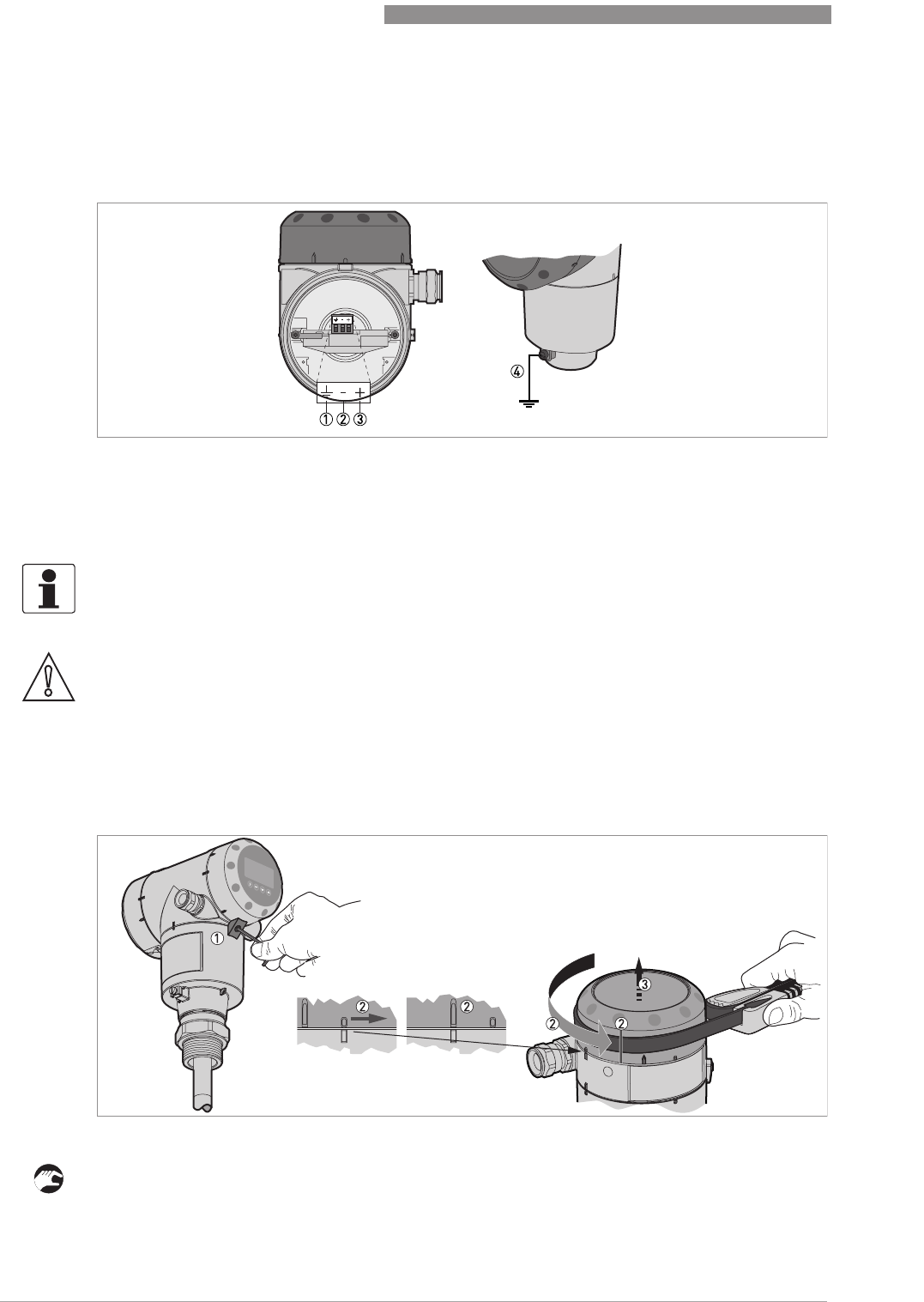

4.3 Electrical installation: 2-wire, loop-powered
4.3.1 Compact version
1 Loosen the lock screw with a 2.5 mm Allen wrench.
2 Turn the cover counterclockwise with a strap wrench.
Terminals for electrical installation
Figure 4-1: Terminals for electrical installation
1 Grounding terminal in the housing (if the electrical cable is shielded)
2 Current output -
3 Current output +
4 Location of the external grounding terminal (at the bottom of the converter)
INFORMATION!
Electrical power to the output terminal energizes the device. The output terminal is also used for
HART
®
communication.
CAUTION!
•
Use the applicable electrical cables with the cable glands.
•
Make sure that the current is not more than 5 A or that there is 5 A-rated fuse in the
electrical circuit that energizes the device.
•
Make sure that the polarity of the power supply is correct. If the polarity is incorrect, you will
not cause damage to the device but the device will not operate.
Figure 4-2: How to open the terminal compartment cover
ELECTRICAL CONNECTIONS
4
51
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3 Remove the cover.
Equipment needed:
•Small slotted tip screwdriver (not supplied)
Procedure:
1 Do not disconnect the safety cord from the terminal compartment cover. Put the terminal
compartment cover adjacent to the housing.
2 Remove the connector from the circuit board.
3 Connect the electrical wires to the connector. Attach the connector to the circuit board. Tight-
en the cable entry glands.
1 Put the cover on the housing and push it down.
2 Turn the cover clockwise until it is fully engaged.
3 Tighten the lock screw.
Figure 4-3: Procedure for electrical installation
Figure 4-4: How to close the terminal compartment cover
4
ELECTRICAL CONNECTIONS
52
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.3.2 Remote version
For more electrical installation data, refer to
Compact version
on page 50.
Terminals for electrical installation
Figure 4-5: Terminals for electrical installation
1 Grounding terminal in the housing (if the electrical cable is shielded)
2 Current output -
3 Current output +
4 Location of the external grounding terminal (on the wall support)
INFORMATION!
Electrical power to the output terminal energizes the device. The output terminal is also used for
HART
®
communication.
CAUTION!
•
Use the applicable electrical cables with the cable glands.
•
Make sure that the current is not more than 5 A or that there is 5 A-rated fuse in the
electrical circuit that energizes the device.
•
Make sure that the polarity of the power supply is correct. If the polarity is incorrect, you will
not cause damage to the device but the device will not operate.
ELECTRICAL CONNECTIONS
4
53
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.4 Remote device data
4.4.1 Requirements for signal cables supplied by the customer
Non-Ex devices only:
Non-Ex devices only: Non-Ex devices only:
Non-Ex devices only: The signal cable is an option for non-Ex devices. If the signal cable is not
supplied by the device manufacturer, the cable must have properties that follow:
Basic properties
•Twisted cable 2 by 2, shielded or screened. For example, multicore cable — reference
MCD 5123 — from Cabletec ICS/JP Electronics.
Maximum length of the signal cable
•100 m / 328 ft
Temperature
•Use electrical cable with the applicable temperature rating for the operating conditions.
•Ambient temperature range: -40...+80°C / -40...+176°F
•We recommend that the cable agrees with UL 94V-0.
Dimensions of the insulated conductors
•Min.-max. cross-sectional area of the conductors: 4×0.326...4×2.5 mm² (22....14 AWG),
shielded cable
•Use the applicable cable for the cable glands (Ø6....10 mm / 0.24...0.39¨).
•Use the applicable cable glands for the cable entry openings in the housing.
Electrical characteristics
•Test voltage: Insulated conductor / shield (screen) ≥500 VAC
•Line resistance: < 55 Ω/km
•The cable must agree with EN 60811 (Low Voltage Directive) or equivalent national
regulations.
DANGER!
An Ex-approved signal cable is supplied by the manufacturer with devices for hazardous
locations. Use of this signal cable is mandatory.
4
ELECTRICAL CONNECTIONS
54
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.4.2 How to prepare a signal cable supplied by the customer
Figure 4-6: Equipment needed to prepare the signal cable
1 Signal cable (supplied on request)
2 2 heat-shrinkable sleeves for the PVC jacket (not supplied)
3 8 ferrules for the end of the conductors (not supplied)
4 2 Faston connectors for the shield wires
5 Shield wire insulation, 2 sleeves
6 Wire stripper (not supplied)
7 Crimping pliers (not supplied)
INFORMATION!
•
The Faston connector for the stranded drain wire must agree with DIN 46 228: E 1.5-8
•
The wire end ferrules for the twisted pair of conductors must agree with DIN 46 228: E 0.5-8
ELECTRICAL CONNECTIONS
4
55
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1 Remove the PVC jacket from the wire to dimension "a". a = 50 mm / 2¨.
2 Remove the insulation from the wire. Obey national regulations for electrical wiring.
3 Crimp the wire end ferrules on the conductors.
4 Install shield wire insulation on the 2 ends of the shield wire.
5 Crimp the Faston connectors on the 2 ends of the shield wire.
6 Install a heat-shrinkable sleeve on the PVC jacket.
4.4.3 How to connect the signal cable to the device
Figure 4-7: How to prepare the signal cable
DANGER!
Cables may only be connected when the power is switched off.
DANGER!
The device must be grounded in accordance with regulations in order to protect personnel
against electric shocks.
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
CAUTION!
Do not wind the signal cable. This configuration will prevent interference from electromagnetic
fields.
4
ELECTRICAL CONNECTIONS
56
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Equipment needed
Figure 4-8: Equipment needed to prepare the signal cable
1 Remote converter
2 Antenna housing
3 Signal cable (supplied on request for non-Ex devices) – for more data refer to, refer to
How to prepare a signal cable
supplied by the customer
on page 54
4 Small slotted-tip screwdriver (not supplied)
Connections between the remote converter and the antenna housing
Figure 4-9: Connections between the remote converter and the antenna housing
1 Remote converter
2 Antenna housing
3 Power supply: voltage in -
4 Power supply: voltage in +
5 Signal cable B
6 Signal cable A
7 Shielding wire (attached to Faston connectors in the housings of the remote converter and the antenna housing)
ELECTRICAL CONNECTIONS
4
57
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1 Remove the terminal compartment cover.
2 Remove the 4-pin connector.
3 Put the signal cable into the opening of the cable gland.
4 Put the electrical wires in the connector terminals. Tighten the terminal screws with a small
slotted-tip screwdriver. Make sure that the electrical wires agree with the terminals. For
more data, refer to the electrical schema in this section.
5 Put the connector into the 4-pin socket.
6 Attach the Faston connector (drain wire).
7 Attach the terminal compartment cover.
8 Tighten the cable gland. Make sure that the remote converter is correctly sealed.
How to connect the signal cable to the remote converter
Figure 4-10: How to connect the signal cable to the remote converter
CAUTION!
Bending radius of the signal cable: ≥50 mm / 2
¨
4
ELECTRICAL CONNECTIONS
58
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1 Remove the terminal compartment cover.
2 Remove the 4-pin connector.
3 Put the signal cable into the opening of the cable gland.
4 Put the electrical wires in the connector terminals. Tighten the terminal screws with a small
slotted-tip screwdriver. Make sure that the electrical wires agree with the terminals. For
more data, refer to the electrical schema in this section.
5 Put the connector into the 4-pin socket. Attach the Faston connector (drain wire).
6 Attach the terminal compartment cover.
7 Tighten the cable gland. Make sure that the probe housing is correctly sealed.
How to connect the signal cable to the antenna housing
Figure 4-11: How to connect the signal cable to the antenna housing
CAUTION!
Bending radius of the signal cable: ≥50 mm / 2
¨
ELECTRICAL CONNECTIONS
4
59
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.5 Electrical connection for current output
4.5.1 Non-Ex devices
4.5.2 Devices for hazardous locations
Figure 4-12: Electrical connections for non-Ex devices
1 Power supply
2 Resistor for HART® communication
3 Optional connection to the grounding terminal
4 Output: 11.5...30 VDC for an output of 22 mA at the terminal
5 Device
DANGER!
For electrical data for device operation in hazardous locations, refer to the related certificates of
compliance and supplementary instructions (ATEX, IECEx, etc.). You can find this documentation
on the DVD-ROM delivered with the device or it can be downloaded free of charge from the
website (Download Center).
4
ELECTRICAL CONNECTIONS
60
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

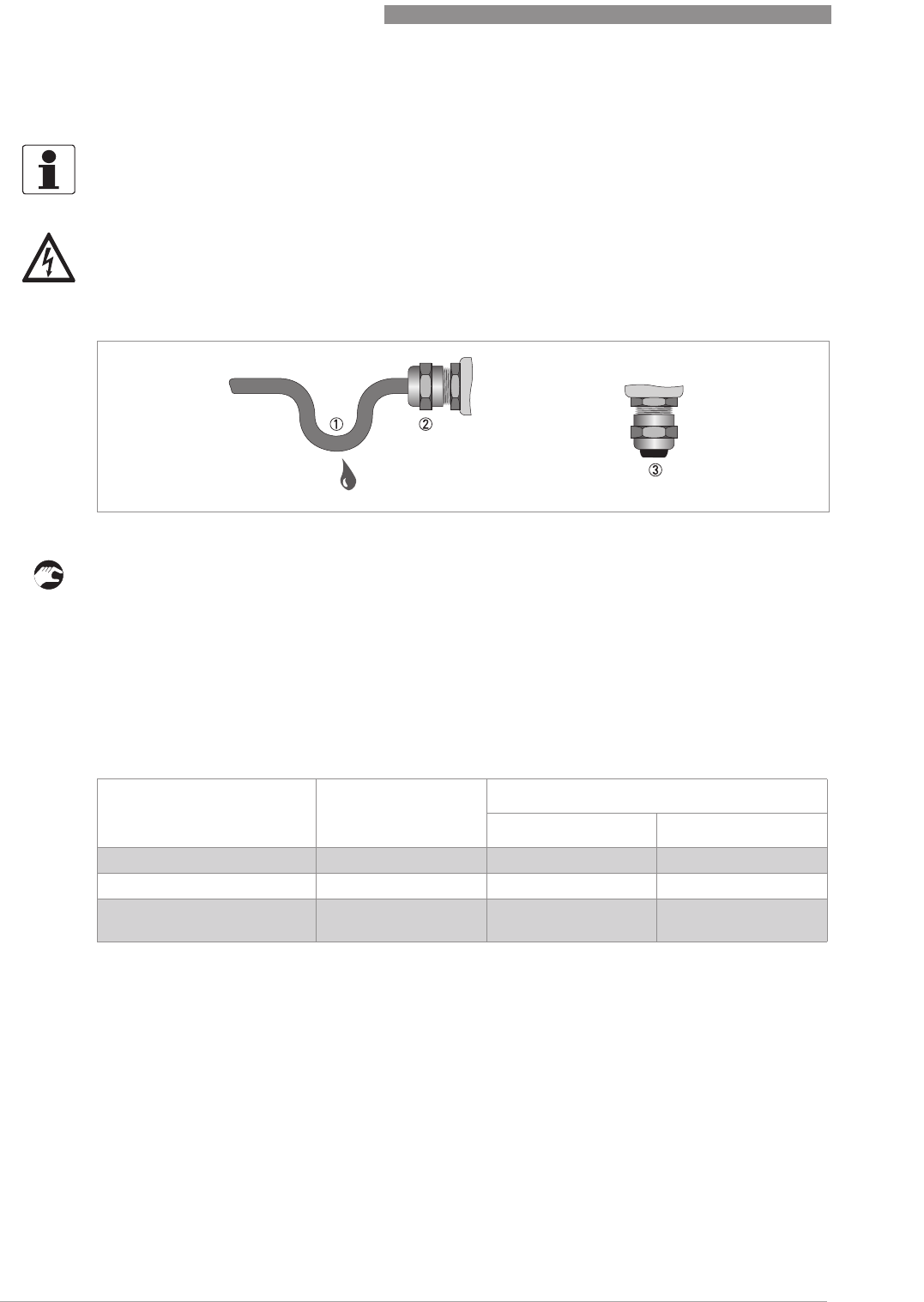

4.6 Protection category
• Make sure that the gaskets are not damaged.
• Make sure that the electrical cables are not damaged.
• Make sure that the electrical cables agree with the national electrical code.
• The cables are in a loop in front of the device 1 so water does not go into the housing.
• Tighten the cable feedthroughs 2.
• Close unused cable feedthroughs with dummy plugs 3.
Refer to the table that follows for the diameter of the outer sheath of the electrical cable:
Min. / Max. diameter of the electrical cable
INFORMATION!
The device fulfils all requirements per protection category IP66 / IP67. It also fulfils all
requirements per NEMA type 4X (housing) and type 6P (antenna).
DANGER!
Make sure that the cable gland is watertight.
Figure 4-13: How to make the installation agree with protection category IP67
Type of electrical cable Approval Min. / Max. diameter of the electrical cable
[mm] [inches]
Power supply / output non-Ex / Ex i 6...7.5 0.24...0.3
Power supply / output Exd 6...10 0.24...0.39
Signal cable (for the remote
version) 1
non-Ex / Ex i / Ex d 6...10 0.24...0.39
1This electrical cable is connected between the remote converter and the antenna housing
ELECTRICAL CONNECTIONS
4
61
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.7 Networks
4.7.1 General information
The device uses the HART® communication protocol. This protocol agrees with the HART®
Communication Foundation standard. The device can be connected point-to-point. It can also
have a polling address of 1 to 63 in a multi-drop network.
The device output is factory-set to communicate point-to-point. To change the communication
mode from point-to-point
point-to-pointpoint-to-point
point-to-point to multi-drop
multi-dropmulti-drop
multi-drop, refer to
HART
® network configuration on page 88.
4.7.2 Point-to-point connection
Figure 4-14: Point-to-point connection (non-Ex)
1 Address of the device (0 for point-to-point connection)
2 4...20 mA + HART®
3 Resistor for HART® communication
4 Power supply
5 HART® converter
6 HART® communication software
4
ELECTRICAL CONNECTIONS
62
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.7.3 Multi-drop networks
Figure 4-15: Multi-drop network (non-Ex)
1 Address of the device (each device must have a different address in multidrop networks)
2 4mA + HART®
3 Resistor for HART® communication
4 Power supply
5 HART® converter
6 HART® communication software
ELECTRICAL CONNECTIONS
4
63
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
4.7.4 Fieldbus networks
For more data, refer to the supplementary instructions for FOUNDATION™ fieldbus and
PROFIBUS PA.
FOUNDATION™ fieldbus network (non-Ex)
Figure 4-16: FOUNDATION™ fieldbus network (non-Ex)
1 Field device
2 Junction box
3 H1 network
4 H1/HSE converter
5 High Speed Ethernet (HSE)
6 Workstation
4
ELECTRICAL CONNECTIONS
64
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
PROFIBUS PA/DP network (non-Ex)
Figure 4-17: PROFIBUS PA/DP network (non-Ex)
1 Field device
2 Bus termination
3 PROFIBUS PA bus segment
4 Segment coupler (PA/DP link)
5 PROFIBUS DP bus line
6 Control system (PLC / Class 1 master device)
7 Engineering or operator workstation (Control tool / Class 2 master device)
START-UP
5
65
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
5.1 How to start the device
5.1.1 Start-up checklist
Check these points before you energize the device:
•Are all the wetted components (antenna, flange and gaskets) chemically resistant to the
product in the tank?
•Does the information on the signal converter nameplate agree with the operating data?
•Did you correctly install the device on the tank?
•Do the electrical connections agree with the national electrical codes? Use the applicable
electrical cables with the cable glands.
5.1.2 How to start the device
• Connect the converter to the power supply.
• Energize the converter.
iDevices with the LCD display option only:
Devices with the LCD display option only:Devices with the LCD display option only:
Devices with the LCD display option only: After 10 seconds the screen will display "Starting
up". After 20 seconds the screen will display the software version numbers. After 30
seconds the default screen will appear.
• The device will display readings.
5.2 Operating concept
You can read measurements and configure the device with:
•A digital display screen (optional).
•A connection to a system or PC with PACTware™. You can download the Device Type
Manager (DTM) file from the website. It is also supplied on the DVD-ROM delivered with the
device.
•A connection to a system or PC with AMS™. You can download the Device Description (DD)
file from the website. It is also supplied on the DVD-ROM delivered with the device.
•A connection to a HART® Field Communicator. You can download the Device Description (DD)
file from the website. It is also supplied on the DVD-ROM delivered with the device.
DANGER!
Before you energize the device, make sure that the supply voltage and polarity are correct.
DANGER!
If the device has a Hazardous Locations approval, make sure that the device and the installation
agrees with the requirements of the certificate of compliance.
INFORMATION!
This chapter and the start of the chapter that follows tell you what data is given on the device
display in normal mode and how to change device settings in configuration mode. If you know
about how this device operates, you can ignore this data. Continue with the quick setup
procedure. For more data about this procedure, refer to Quick Setup (Parameters) on page 83
.
5
START-UP
66
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
5.3 Digital display screen
5.3.1 Local display screen layout
The current output percentage is only shown if the measurement type (refer to item 2 in the
illustration) is the same as the output function. The parameter is set in menu item 2.4.1 (OUTPUT
FUNC.). For example, if the output function is set to "Level" and the device shows "Level"
measurements in normal mode, the bar graph and value is shown (refer to item 1 in the
illustration).
Figure 5-1: Local display screen layout in Normal mode
1 Current output percentage (bar graph and text — only shown if the current output function is the same as the mea-
surement on the screen in normal mode)
2 Measurement type (in this example, distance)
3 Device status (NE 107 symbols)
4 Device tag name
5 Updated measurement data symbol (the symbol flashes each time the measurement data is updated)
6 Measurement value and units
7 Device status (markers)
8 Keypad buttons (refer to the table in the section that follows)
START-UP
5
67
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
5.3.2 Functions of keypad buttons
For data on keypad functions, refer to
Normal mode
on page 69.
5.4 Remote communication with PACTware™
PACTware™ displays measurement information clearly and lets you configure the device from a
remote location. It is an Open Source, open configuration software for all field devices. It uses
Field Device Tool (FDT) technology. FDT is a communication standard for sending information
between the system and the field device. This standard agrees with IEC 62453. Field devices are
easily integrated. Installation is supported by a user-friendly Wizard.
Install these software programs and equipment:
•Microsoft® .NET Framework version 1.1 or later.
•PACTware.
Figure 5-2: Local display screen layout in configuration mode
1 Function name
2 Configuration mode symbol
3 Menu number
Keypad button Function
[Right] Normal mode:
Normal mode:Normal mode:
Normal mode: Enter Information menu (Enter Configuration mode)
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Move cursor to the right
[Return / Escape] Normal mode:
Normal mode:Normal mode:
Normal mode: Change units (m, cm, mm, in, ft)
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Exit
[Down] Normal mode:
Normal mode:Normal mode:
Normal mode: Change measurement type (distance, level , output (%),
output (mA), conversion, ullage conversion, reflection) 1
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Decrease value or change parameter
[Up] Normal mode:
Normal mode:Normal mode:
Normal mode: Change measurement type (distance, level , output (%),
output (mA), conversion, ullage conversion, reflection) 1
Configuration mode:
Configuration mode:Configuration mode:
Configuration mode: Increase value or change parameter
1If you have made a strapping table in menu item 2.8.1 INPUT TABLE for volume or mass measurement, "Conversion"
and "Ullage Conv." will be shown in the list of measurement types
5
START-UP
68
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
•HART® converter (USB, RS232...).
•The Device Type Manager (DTM) for the device.
The software and installation instructions are given on the DVD-ROM supplied with the device.
You can also download the latest version of PACTware™ and the DTM from our website.
Refer also to the PACTware™ consortium site at http://www.pactware.com.
5.5 Remote communication with the AMS™ Device Manager
The AMS™ Device Manager is an industrial Plant Asset Management (PAM) software tool. Its
role is to:
•Store configuration information for each device.
•Support HART® and FOUNDATION™ fieldbus devices.
•Store and read process data.
•Store and read diagnostic status information.
•Help plan preventive maintenance to reduce a plant's downtime to a minimum.
The DD file is given on the DVD-ROM supplied with the device. You can also download it from our
website.
INFORMATION!
The DTM for this device agrees with the FDT1.2 specification. For more data, refer to the related
certificate in the Product Catalog on the FDT Group website (http://www.fdtgroup.org/product-
catalog/certified-dtms).
Figure 5-3: Screen from the PACTware™ user interface
1 DTM menu
2 Information for device identification
3 Configuration summary
OPERATION
6
69
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.1 User modes
6.2 Normal mode
This mode shows measurement data. Use the table that follows:
•for the selection of the measurement type (level, distance, percentage, conversion and
reflection) and
•for the selection of the measurement units
Some measurement types will only be available if the device has the correct parameters entered
in the configuration mode.
Keypad functions
Normal mode
Normal modeNormal mode
Normal mode This mode displays measurement data. For more data, refer to
Normal
mode
on page 69.
Configuration mode
Configuration modeConfiguration mode
Configuration mode Use this mode to view parameters, commission the device, create tables
for volume or mass measurement, change critical values to measure in
difficult process conditions. To get access to supervisor menu, refer to
Protection of the device settings
on page 88. For more data on menu items,
refer to
Function description
on page 76.
Button Description Function "Hot key" function
Right Enter configuration mode. —
Return /
Escape Change the measurement units. The device will show the
firmware version numbers in
menu item 1.1.0 IDENT..
Down Change the measurement type. —
Up Change the measurement type. The display language will change
when you push this button for 2
seconds. Push the button again
and it will go back to the original
language.
6
OPERATION
70
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Measurement type definitions
6.3 Configuration mode
6.3.1 General notes
Change the settings of your device in Configuration
ConfigurationConfiguration
Configuration mode. Data about the menus is given on page
76. You can:
•Use the 1.0.0 INFORMATION
1.0.0 INFORMATION1.0.0 INFORMATION
1.0.0 INFORMATION menu to read settings, device software versions and error
records. For more data about the Information menu, refer to Table 1: Info.
•Use the 2.0.0 SUPERVISOR
2.0.0 SUPERVISOR2.0.0 SUPERVISOR
2.0.0 SUPERVISOR menu to commission the device, to run diagnostic tests, set up a
conversion table for volume, mass or flow rate measurement, change critical parameters for
difficult process conditions, reset the device and change basic parameters (tank height etc.),
output settings, HART Address etc. For more data about the Supervisor menu, refer to Table
2: Supervisor.
Measurement type Description Available units
LEVEL This is a display and an output function option.
It is the height from the bottom of the tank to
the surface of the liquid (Tank height -
Distance).
m, cm, mm, in (inches), ft
(feet)
DISTANCE This is a display and an output function option.
It is the distance from the face of the flange (or
thread stop) to the surface of the liquid.
m, cm, mm, in (inches), ft
(feet)
CONVERSION This is a display and an output function option.
It gives the volume or mass of the tank
contents. This data is available if you prepare a
volume or mass table in configuration mode.
For data on how to prepare the conversion
table, refer to
How to configure the device to
measure volume or mass
on page 90. If the
device is used with PACTware™ software, it
can also show flow rate in a channel. 6 flow
profiles are available in the menu: Parshall
(ISO 9826), Venturi Rectangular (ISO 4359),
Venturi Trapezoidal (ISO 4359), Venturi U
(ISO 4359), V-Notch (ISO 1438) or Rectangular
Notch (ISO 1438).
m3, L, gal (US gallons), ImpG
(Imperial gallons), ft3, bbl (oil
barrel), kg, t, Ston, Lton, m,
cm, mm, in, ft, m3/h, ft3/h
ULLAGE CONV. This is a display and an output function option.
It gives the empty volume or remaining mass
that can be put in the tank. This data is
available if you prepare a volume or mass table
in configuration mode. For data on how to
prepare the conversion table, refer to
How to
configure the device to measure volume or
mass
on page 90.
m3, L, gal (US gallons), ImpG
(Imperial gallons), ft3, bbl (oil
barrel), kg, t, Ston, Lton, m,
cm, mm, in, ft, m3/h, ft3/h
REFLECTION This is a display and an output function option.
It is the percentage of the emitted radar signal
which makes a reflection on the surface of the
liquid and is received by the device.
%
OUTPUT I (mA) The current output of the device. mA
OUTPUT I (%) The percentage of the current output.
0% = 4 mA. 100% = 20 mA. %
CAUTION!
The commissioning (parameters) procedure is mandatory.
OPERATION
6
71
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.3.2 How to get access to the commissioning menu
The commissioning menu contains the menu items that are necessary for most configurations of
the device. The menu items are divided into 2 groups: "Parameters" and "Empty Spectrum
Recording". The "Parameters" group lets the supervisor set the tank height, tank type (process,
storage etc.), output function, output current range, 4 mA output setting, 20 mA output setting,
error delay and tag name. "Empty Spectrum Recording" is a procedure that finds interference
signals in the tank and uses a filter to remove them from the measurement data.
Do the steps that follow:
• Push the [>
>>
>] button.
iThis shows the Information
InformationInformation
Information menu. The Information
InformationInformation
Information menu is read only and does not have
password security.
• Push the [
] button one time to scroll up to the Supervisor
SupervisorSupervisor
Supervisor menu.
iThe screen shows the text "2.0.0 SUPERVISOR".
• Push the [>
>>
>] button one time.
iThe screen shows a line. You must enter the password. Push the buttons under the display
screen 6 times (in total and in a given order) to get access to Configuration mode.
• Type in the password. The factory-set password is [>
>>
>], [^
^^
^], [
], [
], [>
>>
>] and [^
^^
^].
iThe device shows the text "2.1.0 COMMISSION.".
• Push [>
>>
>]. Do the basic configuration of the device in the "'Parameters" menu. For more data on
the procedure, refer to
Quick Setup (Parameters)
on page 83. Push [^
^^
^] at the end of each step
of the procedure to continue to the next step.
• Push [
] to go to menu item 2.1.2 EMP.SPEC.REC. Push [>
>>
>] to start the empty spectrum
recording procedure. For more data, refer to
Empty spectrum recording
on page 85.
CAUTION!
SIL-approved devices:
SIL-approved devices:SIL-approved devices:
SIL-approved devices: For data about critical device parameters, refer to the Safety Manual.
INFORMATION!
It is not possible to enter the 3.0.0 SERVICE and 4.0.0 MASTER menus. These menus are for
factory calibration and approved personnel only.
CAUTION!
SIL-approved devices: For data about critical device parameters for SIL approval, refer to the
Safety Manual (SIL approval).
INFORMATION!
HOW TO SET THE SUPERVISOR PASSWORD TO "ON" OR "OFF"
The supervisor password is set to "on" by default. If it is necessary to set this function to "off",
refer to Function description on page 76
, Table 2: Supervisor menu, menu item PSWD YES/NO
(2.7.4).
INFORMATION!
HOW TO CHANGE THE SUPERVISOR PASSWORD
You can change the password for the supervisor menu. For more data, refer to Function
description on page 76
, Table 2: Supervisor menu, menu item PASSWORD (2.7.5).
6
OPERATION
72
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.3.3 Menu overview
1.0.0 Info. (Information)
1.1.0 Ident. (Identification)
1.2.0 Output
1.3.0 History
2.0.0 Supervisor
2.1.0 Commission. (Commissioning)
2.2.0 Tests
2.3.0 Basic Param. (Basic Parameters)
2.4.0 Output I
2.5.0 Application
2.6.0 Communicat. (Communication)
2.7.0 Display
2.8.0 Conv. Table (Conversion Table)
2.9.0 Config/Reset
3.0.0 Service
n/a Password locked. Menus for factory calibration and qualified
service personnel only.
4.0.0 Master
n/a Password locked. Menus for factory calibration and qualified
service personnel only.
OPERATION
6
73
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.3.4 Keypad functions
This is what you see when you are in Configuration mode. The functions of the buttons are given
in the table that follows:
Functions of buttons for menu navigation
Figure 6-1: Local display screen layout in configuration mode
1 Function name
2 Configuration mode symbol
3 Menu number
Button Description Function
Right
•
Go down to the sub-menu level (for example, from menu 1.0.0 to
sub-menu 1.1.0).
•
Enter the menu item
Enter /
Esc (Escape)
•
Go up to the menu level (for example, from sub-menu 1.1.0 to
menu 1.0.0).
•
Go to Normal mode. If you changed settings in Configuration mode,
you must save or cancel your new settings. For more data, refer to
the end of this section.
Down
•
Scroll down the menu list (for example, from menu 2.0.0 to menu
1.0.0).
•
Scroll down the sub-menu list (for example, from sub-menu 2.2.0
to sub-menu 2.1.0).
Up
•
Scroll up the menu list (for example, from menu 1.0.0 to menu
2.0.0).
•
Scroll up the sub-menu list (for example, from sub-menu 2.1.0 to
sub-menu 2.2.0).
6
OPERATION
74
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
This is what you see when you select a menu item that has a list of parameters. The functions of
the buttons are given in the table that follows:
Function of buttons in menu items that have a list of parameters
Lists of parameters in menu items
Figure 6-2: Lists of parameters in menu items
1 Parameter
2 Menu name
Button Description Function
Right n/a
Enter /
Esc (Escape) Select the parameter and go back to the menu
Down Move down the list
Up Move up the list
OPERATION
6
75
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

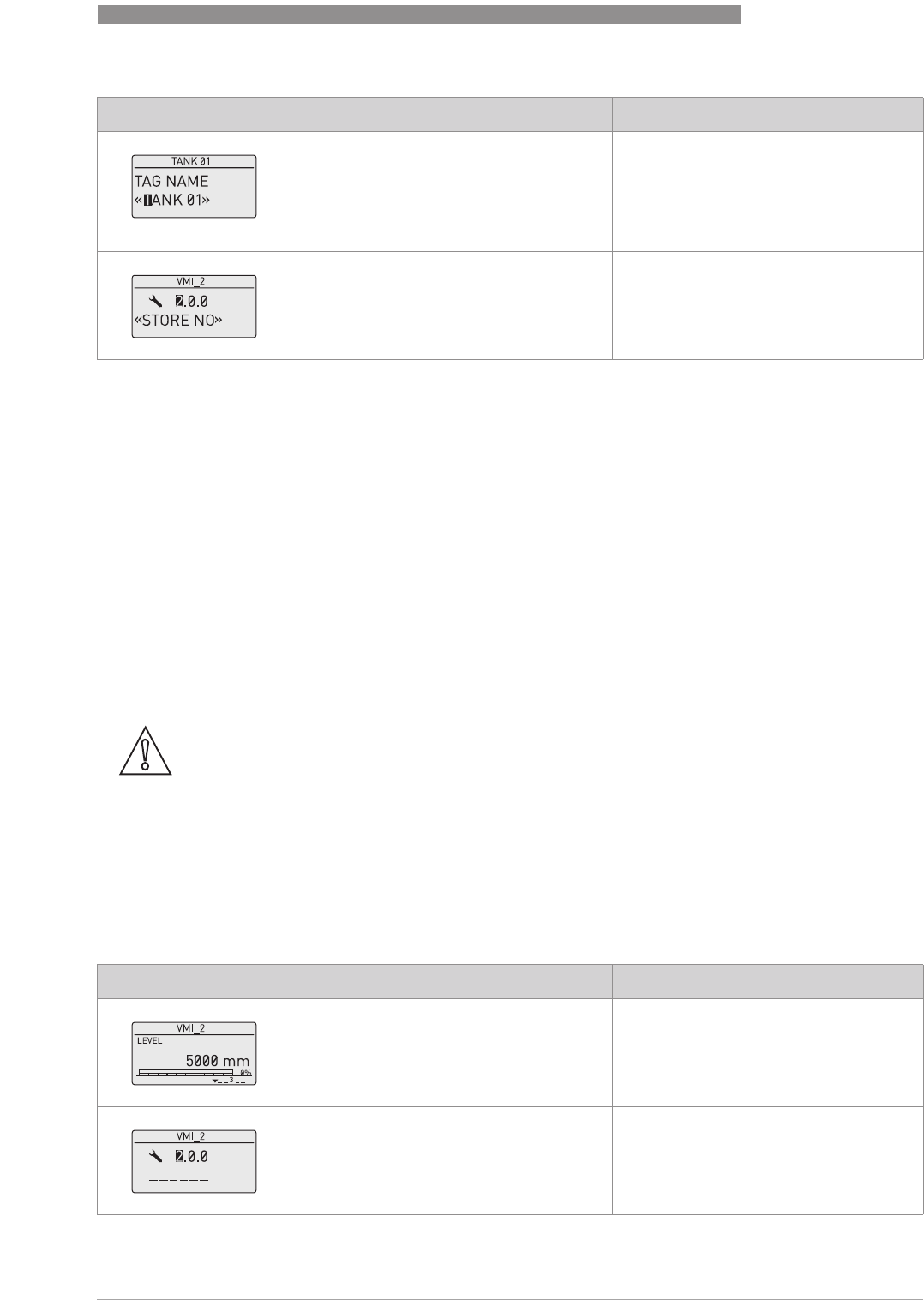

This is what you see when you select a menu item that has a value. The functions of the buttons
are given in the table that follows:
Function of buttons in menu items that have values
How to save settings changed in the supervisor menu (menu 2.0.0)
• When you have changed parameters in all the necessary menu items, push [^
^^
^] to accept the
new parameter.
• Push [^
^^
^] to go back to the "STORE" screen.
• The device will ask you to save or cancel your settings. Push [
] or [
] to select STORE YES
STORE YESSTORE YES
STORE YES or
STORE NO
STORE NOSTORE NO
STORE NO. Push [^
^^
^] to accept or reject the new settings.
iThe display goes back to Normal mode.
Values in menu items
Figure 6-3: Values in menu items
1 Menu item with values stored at this time (first screen)
2 Push [>
>>
>] again to change the values. A cursor shows on the first digit.
3 Menu item name
4 Cursor on the selected digit
Button Description Function
Right
•
Enter the menu item and see the value stored at this time.
•
Enter the menu item configuration level to change the value.
•
Move the cursor to the next digit on the right. If the cursor is on the
last digit, push [>
>>
>] again to go back to the first digit.
Enter /
Esc (Escape) Accept the value and go back to the sub-menu.
Down Decrease the digit value.
Up Increase the digit value.
6
OPERATION
76
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.3.5 Function description
1.0.0 Information (Info.) menu
2.0.0 Supervisor menu
Menu
No.
Function Function description Selection list or range of
values
Default
1.1.0 IDENT.
1.1.1 SERIAL NUM. The device serial number. Read only.
1.1.2 CONV.FIRM.VER The converter firmware version. Read only.
1.1.3 SEN.FIRM.VER The sensor firmware version. Read only.
1.1.4 HMI.FIRM.VER The HMI (device display screen)
firmware version. Read only.
1.2.0 OUTPUT I
1.2.1 SUMMARY I Push [>
>>
>] to read the setting at this time
for the output function (OUTPUT
FUNC.). Push [>
>>
>] again to read the
settings for the output range (RANGE
I), 4 mA setting (SCALE 4mA), 20 mA
setting (SCALE 20mA), and error delay
(ERROR DELAY).
Read only.
1.3.0 HISTORY
1.3.1 ERROR RECORD A log of device errors. Push [>
>>
>] to read
the errors. Push [
] or [
] to scroll up
or down the list. Each error is identified
by a code. Push [>
>>
>] again to show the
number of incidents and the time since
the last incident in days, hours,
minutes and seconds. For more data
about errors, refer to
Status and error
messages
on page 93.
Read only.
Menu
No.
Function Function description Selection list or range
of values
Default
2.1.0 COMMISSION.
2.1.1 PARAMETERS This starts a quick set-up procedure
applicable to most applications. The
supervisor can give the tank height (TANK
HEIGHT), type of tank (TANK TYPE), output
function (OUTPUT FUNC.), current output
range (RANGE I), 4 mA setting (SCALE 4mA),
20 mA setting (SCALE 20mA), error delay
(ERROR DELAY) and tag name (TAG NAME).
CAUTION!
CAUTION!CAUTION!
CAUTION!
Make sure that you do this procedure before
you use the device. The settings in this
procedure have an effect on the
performance of the device.
OPERATION
6
77
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.1.2 EMP.SPEC.REC. Fixed and moving objects in the tank cause
interference signals. Put them through this
filter to correctly measure the tank
contents. This menu item starts a quick set-
up procedure. We recommend that the tank
is empty or only filled to the minimum level
before you do the procedure. We also
recommend that if you installed the device
on a tank that has equipment with parts that
move (e.g. agitators), start the equipment.
Push "Yes" at the end the procedure and set
the STORE screen to "STORE YES" to use
the data. For more data, refer to
Empty
spectrum recording
on page 85. Refer also
to "How to make a filter to remove radar
signal interference" on page 92.
2.2.0 TESTS
2.2.1 SET OUTPUT After the selection of a parameter in this
menu item, this sets the current output to a
test value [mA]. The output will change to
the given value, independent of the
measured value. The current output will go
back to the measured value when the
display goes back to the menu level.
3.5, 4, 6, 8, 10, 12, 14, 16,
18, 20 or 22 mA 3.5 mA
2.2.2 DIAGNOSTIC This starts the hardware test. Push [>
>>
>] many
times to show:
•
D1, the time of operation
•
T1, temperature of the electronic
converter board
•
I1, loop current (internally measured
value)
•
I2, load current (NOTE: this data is not
available at this time)
•
V1, voltage 5.6 V. If the voltage is not
5.0<V1<5.7, speak to the supplier.
•
V2, voltage on capacitors. If the voltage is
not 3.2<V2<3.4, speak to the supplier.
•
V3, voltage 3.3 V. If the voltage is not
3.2<V3<3.4, speak to the supplier.
•
C1, reset counter (watchdog timer). If
C1>1, replace the signal converter.
If an NE 107 symbol and a status marker are
shown, refer to
Device status (markers)
on
page 93.
If you push [>
>>
>] again, the display goes back
to the menu level.
2.3.0 BASIC PARAM.
2.3.1 TANK HEIGHT The distance from the flange face / thread
stop of the tank connection down to the tank
bottom. If the tank has a dish-shaped or
conical bottom, the tank height is measured
to a point on the tank bottom directly below
the antenna. For more data about level
measurement, refer to
Level measurement
on page 90. For more data about distance
measurement, refer to
Distance
measurement
on page 89.
min: 0.5 m / 1.6 ft or 2.3.2
BLOCK. DIST. or 2.3.7
ANTENNA EXT.
max: 30 m / 98.4 ft
1
Menu
No.
Function Function description Selection list or range
of values
Default
6
OPERATION
78
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.3.2 BLOCK. DIST. Blocking distance. The distance from the
flange to the top limit of the measuring
range (a zone given by the user where it is
not possible to measure). We recommend a
blocking distance of 500 mm / 19.7¨ below
the process connection. We also
recommend that the limit of the measuring
range is not less than the blocking distance.
If it is possible that the tank contents will go
above the blocking distance, set 2.5.5
OVERF. ENAB. to "Yes". If the distance is
less than the blocking distance, the device
continues to display the blocking distance.
min: 100 mm / 3.9¨ or
2.3.7 ANTENNA.EXT
max: 2.3.1 TANK HEIGHT
500 mm / 19.7¨
2.3.3 TIME CONST. Using this function, the device processes
several measurement readings to filter out
disturbances. Increasing the time constant
will smoothen the integrated readings,
decreasing will roughen the readings.
s=seconds.
min-max: 1.00...100.00 s 5.00 s
2.3.4 STILLWELL EN. If the device is installed in a stilling well or
has a Wave-Guide antenna, set this menu
item to "Yes".
YES, NO NO
2.3.5 STILLWELL D. The inner diameter of the stilling well. If the
device is installed in a stilling well or has a
Wave-Guide antenna, enter the diameter.
The device will use this data if you set 2.3.4
STILLWELL EN. to "Yes". This menu item is
not shown if you set 2.3.4 STILLWELL EN. to
"No".
min-max:
22...999 mm / 0.9...39.3¨
1
2.3.6 STILLWELL H. The height of the stilling well. If the device is
installed in a stilling well or has a Wave-
Guide antenna, enter the height. The device
will use this data if you set 2.3.4 STILLWELL
EN. to "Yes". This menu item is not shown if
you set 2.3.4 STILLWELL EN. to "No".
min: 0.5 m / 1.6 ft
max: 30 m / 98.4 ft
1
2.3.7 ANTENNA.EXT Optional antenna extensions. These are
attached between the flange and the
antenna.
min: 0 mm / 0¨
max: 2000 mm / 78.7¨ or
2.3.1 TANK HEIGHT
1
2.3.8 ANTENNA.TYP Type of antenna. For more data, refer to
Technical data
on page 108. PP Horn, PTFE Horn,
Metal. Horn, Wave Stick,
Wave Guide
1
2.3.9 DIST.PIECE Optional distance piece between the
converter and the process connection. This
is for high-temperature applications more
than +150°C / +302°F. The distance piece is
120 mm / 4.7¨ long. For more data, refer to
Technical data
on page 108.
min: 0m/ 0ft
max: 30 m / 98.4 ft
1
2.3.10 TAG NAME The device has an identification code (tag
name). The supervisor can enter a
maximum of 8 numbers or letters.
1
Menu
No.
Function Function description Selection list or range
of values
Default
OPERATION
6
79
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en

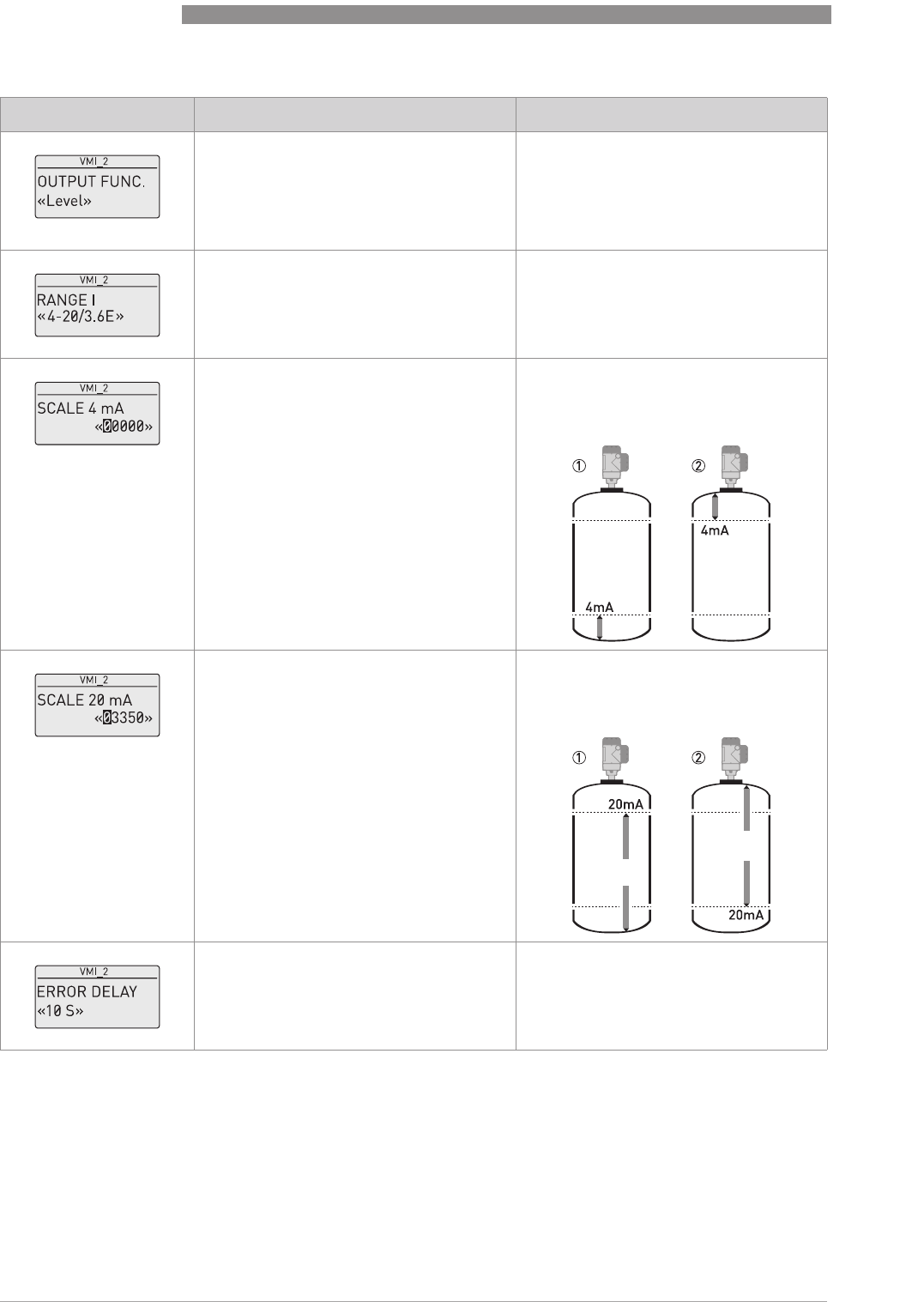

2.4.0 OUTPUT I
2.4.1 OUTPUT FUNC. The output function. Select an output
function to scale the current values in
relation to a given point (usually the device
process connection or the tank bottom). The
output current value is shown on a bar
graph in normal mode if the measurement
type is the same as the output function.
Conversion parameters are shown
(Conversion, Ullage conversion) if there is
level-volume, level-mass or level-flow rate
data in 2.8.1 INPUT TABLE.
Distance, Level,
Conversion, Ullage
conversion, Reflection
1
2.4.2 RANGE I This menu item sets the limits of the output
current range to 1 of the 2 available options:
standard limits (4...20 mA) or NAMUR
NE 43-compliant limits (3.8...20.5 mA). It
also tells the device what to do if an error
occurs. If you set RANGE I to 4-20/22E
4-20/22E4-20/22E
4-20/22E and
an error occurs (e.g. the tank is too full,
etc.), the device output current will change
to an error value of 22 mA. If you set RANGE
I to 4-20
4-204-20
4-20 and the device senses a
measurement error, the value will stop at
the last correct measurement.
4-20, 4-20/22E,
4-20/3.6E, 3.8-20.5/22E,
3.8-20.5/3.6E
4-20/3.6E 2
2.4.3 SCALE 4mA This gives a measurement value to 4 mA. min.-max: 3 1
2.4.4 SCALE 20mA This gives a measurement value to 20 mA. min.-max: 3 1
2.4.5 ERROR DELAY The time after which the current output
changes to an error value. The error value
shows that there is a measurement error.
mn=minutes and s=seconds.
0 s, 10 s, 20 s, 30 s, 1 mn,
2 mn, 5 mn,15 mn 0s 2
2.5.0 APPLICATION
2.5.1 TANK TYPE The conditions in which the device is used. If
the surface of the product is flat, select
"Storage". If the surface of the product is
disturbed, select "Process". If the surface of
the product is agitated with vortexes and
foam, select "Agitator".
Storage, Process,
Agitator Process
2.5.2 TRACKING VEL. Maximum tracking velocity. This value must
agree with the maximum rate of change of
the level of the liquid in the tank.
min-max:
0.01…10.0 m/min 0.5 m/min
2.5.3 Er PRODUCT For measurement in TBF mode only. The
device automatically calculates the level
based on the product ε
r
. If you select "TBF
Partial" or "TBF Full" in menu item 2.5.4
MEASUR.MODE, you can change the ε
r
value
manually to adjust readings.
min-max: 1.100 to 10.000 2.000
Menu
No.
Function Function description Selection list or range
of values
Default
6
OPERATION
80
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.5.4 MEASUR.MODE The device uses the dielectric constant (ε
r
)
of the tank contents to monitor level. In
direct mode (if the dielectric constant is
high), the level signal is a reflection on the
surface of the tank contents. If the dielectric
constant is low, the device uses TBF mode.
The device in TBF mode uses the radar
reflection on the bottom of the tank (the
signal goes through the tank contents). The
tank must have a flat bottom for the device
to operate correctly in TBF mode. This
menu item is set by default to "Direct" for
tank contents with an ε
r
>1.8. If ε
r
is very low
(<1.6), use "TBF Full". If ε
r
is low (ε
r
=
1.5...1.7), use "TBF Partial" mode. "TBF
Partial" is an automatic mode that lets the
device make a selection between "Direct
mode and "TBF" mode. If you use "TBF Full"
or "TBF Partial", enter the dielectric
constant in menu item 2.5.3 Er PRODUCT.
Refer also to "Measuring principle" on page
108.
Direct, TBF Partial,
TBF Full Direct
2.5.5 OVERF. ENAB. If this function is in operation, the device will
monitor the level even if it is in the blocking
distance. The reading shown on the display
stays fixed at the blocking distance if the
level is higher than the blocking distance.
The output will show that the tank is full. An
error is recorded by default.
If this function is not in operation, the
device looks for the largest signal between
the process connection and the tank bottom.
YES, NO NO
2.5.6 MULT.REF.EN. Multiple reflections will cause the device to
display smaller level readings. Installation
of the device on a manhole or at the centre
of a dome roof, and high dielectric products
(ε
r
> 5) can cause multiple reflections. A
very calm surface or a tank with a small
convex or flat roof can also cause multiple
reflections.
If this function is in operation, the device
looks for the first signal peak below the
process connection. This signal peak is then
used to measure the level of the tank
contents. If this function is not in operation,
the device looks for the largest signal below
the process connection.
YES, NO NO
2.5.7 EMP.SPEC.EN. The supervisor can start or stop the empty
spectrum filter. YES, NO NO
2.6.0 COMMUNICAT.
2.6.1 ADDRESS Any HART® address greater than 0 will
activate HART® multidrop mode. The
current output stays constant at 4 mA.
min.-max: 0…63 0
Menu
No.
Function Function description Selection list or range
of values
Default
OPERATION
6
81
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2.7.0 DISPLAY
2.7.1 LANGUAGE Data can be shown in any of the languages
stored in the device. 9 languages are available
in 3 packs: (1) English,
French, German and
Italian; (2) English,
French, Spanish and
Portuguese; (3) English,
Chinese (simplified),
Japanese and Russian
4
2.7.2 LENGTH UNIT The length unit shown in normal mode. m, cm, mm, in (inches), ft
(feet) m
2.7.3 CONV UNIT Conversion unit. The length, volume, mass
or flow rate conversion unit for the
conversion table and shown in normal
mode.
m3, L, gal (US gallons),
ImpG (Imperial gallons),
ft3, bbl (oil barrel), kg, t,
Ston, Lton, m, cm, mm,
in, ft, m3/h, ft3/h
L
2.7.4 PSWD YES/NO If it is necessary to protect your settings in
the supervisor menu with a password, set
this menu item to YES
YESYES
YES.
YES, NO YES
2.7.5 PASSWORD This changes the password for the
supervisor menu. Push the buttons up to 6
times in any order. This will be the new
password. To confirm the change, enter the
new password a second time. For more
data, refer to
Protection of the device
settings
on page 88.
[>
>>
>], [^
^^
^], [
],
[
], [>
>>
>] and [^
^^
^]
2.7.6 CONTRAST The contrast control for the display screen.
You can select a shade of grey between light
grey (level 20) and black (level 54).
min.-max: 20…54 36
2.8.0 CONV. TABLE
2.8.1 INPUT TABLE The device uses a conversion table
(strapping table) to convert measurements
to volume, mass and flow rate readings. The
readings are shown in normal mode. Give
the number of entries on the table (min. 2;
max. 30). Select an entry (01...30) and enter
the level and the related volume / mass /
flow rate value for that entry. Push [^
^^
^] to
confirm the entry values. Continue the
procedure until the device has data for all
the entries. For more data, refer to
How to
configure the device to measure volume or
mass
on page 90.
min. 2 entries
max. 30 entries
(level / volume, mass or
flow rate)
0 entries
2.8.2 DELETE TABLE This menu item erases the data in the
conversion table. YES, NO NO
Menu
No.
Function Function description Selection list or range
of values
Default
6
OPERATION
82
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
3. Service menu
4. Master menu
2.9.0 CONFIG/RESET
2.9.1 SAVE This menu item is not available. YES, NO NO
2.9.2 RECALL This menu item is not available. YES, NO NO
2.9.3 RESTART This menu item starts the device again. YES, NO NO
2.9.4 RESET FACT. If you set this menu item to "YES", the
device goes back to its initial settings (set by
the manufacturer in the factory).
YES, NO NO
1This value is given in the customer order data
2If the device has a SIL 2 qualification or a WHG approval, refer to the related technical document (safety manual (SIL2) or the WHG sup-
plementary instructions
3Units and range depend on the output function, length unit and volume unit selected
4If the device has the LCD display option, this depends on data given in the customer order
Menu
No.
Function Function description Selection list Default
3.0.0 SERVICE Advanced settings. The settings in this
menu are protected with a password.
Only approved personnel can change
the parameters in this menu. For more
data, speak or write to your local sales
office.
Menu
No.
Function Function description Selection list Default
4.0.0 MASTER Factory settings. The settings in this
menu are protected with a password.
Only approved personnel can change
the parameters in this menu. For more
data, speak or write to your local sales
office.
Menu
No.
Function Function description Selection list or range
of values
Default
OPERATION
6
83
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.4 Further information on device configuration
6.4.1 Quick Setup (Parameters)
Use this procedure to change the tank height, tank type, output function, output range and give
the top and bottom measuring limits. Values and parameters that can be changed are shown
between the «... » marks in the illustrations that follow. Push the keypad buttons in the correct
sequence:
Procedure
CAUTION!
Make sure that you do this procedure before you use the device. The settings in this procedure
have an effect on the performance of the device.
Screen Steps Description
•
[>
>>
>], [
] and [>
>>
>]. Default screen.
Enter configuration mode (2.0.0
SUPERVISOR).
•
[>
>>
>], [^
^^
^], [
], [
], [>
>>
>] and [^
^^
^]. Enter the password (the default password
is shown). If it is necessary to change the
password, refer to
Function description
on
page 76, menu item 2.7.5 PASSWORD.
•
2× [>
>>
>] Push this button to start the quick set-up
procedure.
•
[>
>>
>] to change the tank height (H).
•
[>
>>
>] to change the position of the cursor.
•
[
] to decrease the value or [
] to
increase the value.
•
[^
^^
^] to confirm.
The distance from the flange face / thread
stop of the tank connection down to the
tank bottom. If the tank has a dish-shaped
or conical bottom, the tank height is
measured to a point on the tank bottom
directly below the antenna.
•
[
] or [
] for the selection of the
conditions in which the device is used
(Storage, Process, Agitator).
•
[^
^^
^] to confirm.
If the surface of the product is flat, select
"Storage". If the surface of the product is
disturbed, select "Process". If the surface
of the product is agitated with vortexes and
foam, select "Agitator".
6
OPERATION
84
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
•
[
] or [
] for the selection of the
measurement name (Distance, Level,
Conversion, Ullage Conv. or Reflection).
•
[^
^^
^] to confirm.
The manufacturer sets the output function
to “Level” before delivery.
If it is necessary to measure volume, ullage
volume, mass or ullage mass (Conversion
or Ullage Conv.), refer to
How to configure
the device to measure volume or mass
on
page 90.
•
[
] or [
] for the selection of the current
output range (4-20 mA/3.6E, 4-20, 3.8-
20.5/3.6E, etc.).
•
[^
^^
^] to confirm.
•
[>
>>
>] to change Scale 4 mA.
•
[>
>>
>] to change the position of the cursor.
•
[
] to decrease the value or [
] to
increase the value.
•
[^
^^
^] to confirm.
Use this step to give the 4 mA output
setting (0% limit) in the tank. Refer to the
illustrations that follow. Illustration 1
shows the settings for level. Illustration 2
shows the settings for distance.
•
[>
>>
>] to change Scale 20 mA.
•
[>
>>
>] to change the position of the cursor.
•
[
] to decrease the value or [
] to
increase the value.
•
[^
^^
^] to confirm.
Use this step to give the 20 mA output
setting (100% limit) in the tank. Refer to the
illustrations that follow. Illustration 1
shows the settings for level. Illustration 2
shows the settings for distance.
•
[
] or [
] for the selection of the error
delay (0 s, 10 s, 20 s, 30 s, 1 mn, 2 mn,
5mn or 15mn).
•
[^
^^
^] to confirm.
The time after which the current output
changes to an error value. The error value
shows that there is a measurement error.
Screen Steps Description
OPERATION
6
85
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.4.2 Empty spectrum recording
The empty spectrum recording procedure is important for the performance of the device. We
recommend that the tank is empty or only filled to the minimum level before you do the
procedure.
Use this procedure (menu item 2.1.2 EMP.SPEC.REC.) if there are fixed and moving objects in the
tank that can cause parasitic signals. The device does a scan for objects that do not change their
vertical positions in the tank (heating tubes, agitators, fuel assemblies etc.) and records the
data. The device can then use this data to put the measurement signal through a filter (empty
spectrum).
When the empty spectrum filter is on (when menu item 2.3.12 EMP.SPEC.EN. is set to "on"), it
will ignore the parasitic signals. Because the device records the data from the procedure, it is
also not necessary to do the procedure again if you de-energize the device.
Before you do the empty spectrum recording procedure, install the device on the tank. For more
data about how to install the device, refer to
Installation
on page 21.
Values and parameters that can be changed are shown between the «... » marks in the
illustrations that follow. Push the keypad buttons in the correct sequence:
Procedure
•
[>
>>
>] to change the tag name.
•
[>
>>
>] to change the position of the cursor.
•
[
] to decrease the alphanumeric value
(A, B, ..., 1, 2, ...) or [
] to increase the
alphanumeric value.
•
[^
^^
^] to confirm.
The device has an identification code (tag
name). The supervisor can enter a
maximum of 8 numbers or letters.
•
2× [^
^^
^] to confirm.
•
[
] or [
] for the selection of the save
option (STORE NO or STORE YES).
•
[^
^^
^] to confirm.
Set to STORE YES to save and use the data.
Set to STORE NO to cancel the changes to
the device settings.
Screen Steps Description
CAUTION!
Make sure that the tank is empty or only filled to the minimum level.
Screen Steps Description
•
[>
>>
>], [
] and [>
>>
>]. Default screen.
Enter configuration mode (2.0.0
SUPERVISOR).
•
[>
>>
>], [^
^^
^], [
], [
], [>
>>
>] and [^
^^
^]. Enter the password (the default password
is shown). If it is necessary to change the
password refer to
Function description
on
page 76, menu item 2.7.5 PASSWORD.
6
OPERATION
86
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
•
[>
>>
>], [
] and [>
>>
>] Push these buttons to start the empty
spectrum recording procedure.
•
[>
>>
>] for the selection of YES or [
] for the
selection of NO.
Have you completely filled the tank?
Have you completely filled the tank?Have you completely filled the tank?
Have you completely filled the tank?
If the tank is full, it is not possible to
complete this procedure. The tank must be
partially filled or empty. Push [>
>>
>] to go back
to the start of the empty spectrum
recording procedure.
•
Push [>
>>
>] after you start equipment in the
tank with parts that move.
Please activate moving parts!
Please activate moving parts!Please activate moving parts!
Please activate moving parts!
If you installed the device on a tank that has
equipment with parts that move (e.g.
agitators), start the equipment.
CAUTION!
CAUTION!CAUTION!
CAUTION!
Make sure that you start all of the
equipment in the tank with parts that move,
before you continue to the subsequent step.
•
[>
>>
>] for the selection of "Partially filled" or
[
] for the selection of "Empty".
Is your tank partially filled or empty?
Is your tank partially filled or empty?Is your tank partially filled or empty?
Is your tank partially filled or empty?
If the tank is partially filled, the device will
scan for the first reflection in the tank.
Continue to the subsequent step. NOTE: If
you set this step to "Partially filled", but the
tank is empty, the device will show the
error message "Failure! Pulse Lost". Push
one of the keypad buttons to go back to the
start of the Snapshot procedure.
If the tank is empty, the scan will start
immediately. Ignore the subsequent step.
•
[>
>>
>] to change the measuring distance.
•
[>
>>
>] to change the position of the cursor.
•
[
] to decrease the value or [
] to
increase the value.
•
[^
^^
^] to confirm.
Measuring Distance
If the tank is partially filled, type in a
distance shorter than that between the
flange and the tank contents.
•
[
] or [
] to change the parameter
("Maximum" or "Average".
•
[^
^^
^] to confirm.
Type of empty spectrum
Type of empty spectrumType of empty spectrum
Type of empty spectrum
Use the average value for tanks which
contain fixed objects only. Use the
maximum value for tanks which contain
many objects or moving objects.
Recording in progress
Recording in progressRecording in progress
Recording in progress
Reading in progress
Reading in progressReading in progress
Reading in progress
The device does a scan for objects that do
not change their vertical positions in the
tank (heating tubes, agitators, fuel
assemblies etc.) and records the data.
•
Push [>
>>
>] to make a selection from the
available spectra.
•
[^
^^
^] to confirm.
This shows a set of spectra (signals found
in the tank). It also gives the amplitude and
location of each signal.
•
[>
>>
>] to set to "Yes". [
] to set to "No". Do you want to save the spectrum?
Do you want to save the spectrum?Do you want to save the spectrum?
Do you want to save the spectrum?
Set to "Yes" to use the data. Set to "No" to
erase the data.
Screen Steps Description
OPERATION
6
87
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.4.3 Test
Use this procedure to test the loop current. Values and parameters that can be changed are
shown between the «... » marks in the illustrations that follow. Push the keypad buttons in the
correct sequence:
Procedure
Screen Step Description
Default screen.
•
[>
>>
>], [
] and [>
>>
>].
•
Enter the password: [>
>>
>], [^
^^
^], [
], [
], [>
>>
>]
and [^
^^
^].
•
[^
^^
^]
•
[
].
•
[>
>>
>].
•
[>
>>
>].
•
[
] to decrease the value or [
] to
increase the value.
•
[^
^^
^] to confirm.
This step sets the loop current value. Make
a selection from 3.5, 4, 6, 8, 10, 12, 14, 16,
18, 20 or 22 mA.
•
[^
^^
^] 3 times to go back to the default
screen.
The loop current goes back to initial value.
Default screen.
6
OPERATION
88
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.4.4 Protection of the device settings
The menu item PASSWORD (2.7.5) lets you change the supervisor menu password.
How to change the supervisor menu password
• After you enter the supervisor menu, push 6 × [
], [>
>>
>] and 4 × [
] to go to the menu item
PASSWORD (2.7.5).
• Enter the new 6-character password (push the 4 buttons in any sequence).
• Enter the new 6-character password again.
iIf the second entry is the same as the first, the device will go back to the sub-menu list
(2.7).If the second entry is not the same as the first, the device will not go back to the sub-
menu list. Push [^
^^
^] to start the password sequence again and enter the new 6-character
password 2 times.
• Push [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iThe device will save the new password and go back to normal mode.
How to set the supervisor password to "on" or "off"
The supervisor password is set to "on" by default. If it is necessary to set this function to "off",
refer to
Function description
on page 76, Table 2: Supervisor menu, menu item PSWD YES/NO
(2.7.4).
6.4.5 HART® network configuration
The device uses HART® communication to send information to HART®-compatible equipment. It
can operate in either point-to-point or multidrop mode. The device will communicate in
multidrop mode if you change the address.
How to change from point-to-point to multidrop mode
• Enter the supervisor menu.
• Push [>
>>
>], 5 × [
] and [>
>>
>] to go to menu item ADDRESS (2.6.1).
• Push [>
>>
>] to change the value. Enter a value between 1 and 63 and push [^
^^
^] to confirm (refer to
the caution before this procedure).
• Push [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iThe output is set to multidrop mode. The current output is set to 4 mA. This value does not
change in multidrop mode.
INFORMATION!
Make a note of the password and keep it in a safe place. If you lose the password, please speak
or write to your supplier.
INFORMATION!
For more data, refer to Networks on page 61
.
CAUTION!
Make sure that the address for this device is different from others in the multidrop network.
OPERATION
6
89
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
How to change from multidrop to point-to-point mode
• Enter the supervisor menu.
• Push [>
>>
>], 5 × [
] and [>
>>
>] to go to menu item ADDRESS (2.6.1).
• Push [>
>>
>] to change the value. Enter the value 0 and push [^
^^
^] to confirm.
• Push [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iThe output is set to point-to-point mode. The current output changes to a range of 4...20 mA
or 3.8...20.5 mA (this range is set in menu item RANGE I (2.4.2)).
6.4.6 Distance measurement
The device displays distance measurements when the output function is set to "Distance".
Menu items related to distance measurement are:
•Output Function (2.4.1)
•Tank Height (2.3.1)
•Blocking Distance (2.3.2)
For more data about the menu items, refer to
Function description
on page 76, table 2.
Supervisor menu.
CAUTION!
If the distance for 4 mA is set in the blocking distance, the device will not be able to use the full
current output range.
Figure 6-4: Distance measurement
1 Tank Height (2.3.1)
2 Blocking Distance (2.3.2)
3 4mA Setting (2.4.3)
4 20 mA Setting (2.4.4)
5 Maximum effective measuring range
6 Non-measurement zone
6
OPERATION
90
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
6.4.7 Level measurement
The device displays level measurements when the output function is set to "Level".
Menu items related to level measurement are:
•Output Function (2.4.1)
•Tank Height (2.3.1)
•Blocking Distance (2.3.2)
For more data about the menu items, refer to
Function description
on page 76, table 2:
Supervisor menu.
6.4.8 How to configure the device to measure volume or mass
The device can be configured to measure volume or mass. You can set up a strapping table in the
conversion table (2.8.0 CONV. TAB) sub-menu. Each entry is a pair of data (level – volume, level –
mass or level – flow rate). The strapping table must have a minimum of 2 entries and a
maximum of 30. The reference point for the table is the bottom of the tank (as given in menu item
2.3.1 TANK HEIGHT).
CAUTION!
If the level for the 20 mA is set in the blocking distance, the device will not be able to use the full
current output range.
Figure 6-5: Level measurement
1 Tank Height (2.3.1)
2 Blocking Distance (2.3.2)
3 Maximum effective measuring range
4 20 mA Setting (2.4.4)
5 4mA Setting (2.4.3)
6 Non-measurement zone
CAUTION!
Enter the data in numerical sequence (strapping table entry number 01, 02 etc.).
OPERATION
6
91
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
How to prepare a strapping table (conversion table)
• Enter the supervisor menu.
• Push [>
>>
>], 6 × [
], [>
>>
>] and [
] to go to 2.7.2 LENGTH UNIT.
• Push [
] and [
] to find the length unit that you will use in the table.
• Push [^
^^
^] to go to the sub-menu level.
• Push [
] to go to 2.7.3 CONV UNIT (conversion unit)
• Push [
] and [
] to find the conversion unit that you will use in the table.
• Push [^
^^
^] to go to the sub-menu level and then [
] and [>
>>
>] to go to the menu item 2.8.1 INPUT
TAB
• Push [>
>>
>] to make the strapping table. Enter the table entry number (01).
• Enter the length value and push [^
^^
^].
• Enter the conversion value and push [^
^^
^].
• Push [>
>>
>] to enter the subsequent table entry number (02, 03, ..., 30).
• Repeat the last 3 steps to complete the table.
• Push [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iThe device will store the data for the strapping table and go back to normal mode.
The device will give more accurate volume readings if you give more conversion data in these
areas:
•Surfaces with curves.
•Sudden changes in the cross section.
Refer also to the illustration that follows:
Figure 6-6: A plot of points for a volume or mass table
1 Tank with reference points
2 Tank model with plotted points
6
OPERATION
92
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
How to delete a volume or mass table
• Enter the supervisor menu.
• Push 7 × [
], [>
>>
>], and [
] to go to 2.8.2 DELETE TABLE.
• Push [>
>>
>] and [
] to set the parameter to YES
YESYES
YES.
• Push [^
^^
^] to go back to the "STORE" screen.
• Push [
] or [
] to set the screen to STORE YES
STORE YESSTORE YES
STORE YES and push [^
^^
^].
iThe device will delete the data for the strapping table and go back to normal mode. The
"CONVERSION" and "ULLAGE CONV." data are not available in normal mode.
6.4.9 How to make a filter to remove radar signal interference
If the device measures level in a tank that contains obstructions (agitator, supports, heating
pipes etc.), these objects can cause radar signal interference (parasitic signals). You can use the
empty spectrum function (menu item 2.1.2) in the Commissioning menu to make a filter to
remove radar signal interference.
• After you enter the supervisor menu, push 2 × [>
>>
>] and [
] to go to the menu item
EMP.SPEC.REC. (2.1.2).
• Do you have a completely filled tank? Select Yes
YesYes
Yes or No
NoNo
No and then push [^
^^
^].
iIf you select Yes
YesYes
Yes, the device will not do the empty spectrum scan. Empty the tank and repeat
the procedure.
• Are all the moving parts switched on? Select Yes
YesYes
Yes or No
NoNo
No and then push [^
^^
^].
• Is your tank partially filled or completely empty? Select Partially filled
Partially filledPartially filled
Partially filled or Empty
EmptyEmpty
Empty and then push
[^
^^
^].
INFORMATION!
We recommend that you do an empty spectrum scan when the tank is empty and all the moving
parts (agitators etc.) are in operation..
Figure 6-7: How to make a filter to remove radar signal interference
1 Empty tank before the device uses the empty spectrum scan (with a graph of reflections shown)
2 Partially filled tank before the device uses the empty spectrum scan (with a graph of reflections shown)
3 Partially filled tank after the device uses the empty spectrum scan (with a graph of reflections shown)
4 Agitator blades location
5 Tank bottom signal
6 Agitator blades signals (interference signals) before the device does the empty spectrum scan
7 Bad quality (mixed) signals of the liquid and the agitator blades before the device does the empty spectrum scan
8 Reflected signal if the device uses the data from the empty spectrum scan. The device only uses the reflection on the
surface of the liquid to measure distance.
OPERATION
6
93
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
• Measured distance. If the tank is partially filled, enter the distance to the product surface -
300 mm / 12¨. The device must include the tank contents when it filters the signal
• Do you want to use the average value or the maximum value? Select Average
AverageAverage
Average or Maximum
MaximumMaximum
Maximum and
then push [^
^^
^].
iUse the maximum for tanks that have moving parts. Use the average value for tanks that do
not have moving parts. The device will do an empty spectrum scan and then show the
results on the signal screen.
• Make a selection from the available spectra to identify the correct level signal. Push [^
^^
^].
• Do you want to save the spectrum? Select Yes
YesYes
Yes or No
NoNo
No and then push [^
^^
^].
iIf you select Yes
YesYes
Yes, the device will use the empty spectrum scan results to make a filter to
remove radar signal interference.
6.5 Status and error messages
6.5.1 Device status (markers)
If the device senses a change in device status, the display screen will show 1 or more status
markers at the bottom right side of the display screen. The display screen will also show a
symbol that agrees with NAMUR Recommendation NE 107 (Self-Monitoring and Diagnosis of
Field Devices) and VDI/VDE 2650. This is shown at the top left side of the display screen. More
data is given if you use PACTware™ software with the appropriate DTM on a PC. Error codes and
data are shown on the device display screen and in the DTM.
Menu item 2.2.2 DIAGNOSTIC (Configuration mode / Supervisor menu) supplies more data. This
includes internal voltages, the loop current and the reset counter (watchdog timer). You can see
this data on the device display screen and in the DTM.
INFORMATION!
For more data on empty spectrum scans, refer to Function description on page 76
–
table 2:
Supervisor (menu item 2.1.2).
Figure 6-8: Status markers
1 Device status (NAMUR NE 107 symbols)
2 Symbol: Failure
3 Symbol: Function check
4 Symbol: Out of specification
5 Symbol: Maintenance
6 Status marker line (marker 3 is shown)
7 When the status marker is on, a number is shown
6
OPERATION
94
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Types of error message
If an "Out of specification" or a "Maintenance" status symbol is shown, refer to menu item 2.2.2
DIAGNOSTIC (Configuration mode / Supervisor menu) for more data.
NE 107 status Type of
error
Description
Failure Error If an error message is shown in ERROR RECORD (menu item 1.3.1), the current
output goes to the error signal value set in menu item RANGE I (menu item 2.4.2)
after the time set in ERROR DELAY (menu item 2.4.5). For more data about menu
items, refer to
Function description
on page 76.
Out of specification Warning If a warning message is shown, there is no effect on the current output value.
Maintenance
NE 107
symbol
shown
NE 107
Status
Description Status
marker
shown
Error code
(Type)
Possible errors
Failure The device does not operate
correctly. The fault message
stays on. The user cannot
remove the "Failure" message
from the Normal mode screen.
1ERR 101 (Error) Current Output Drift
3ERR 102 (Error) Temperature Out of Range
1ERR 103 (Error) Converter EEPROM
1ERR 103 (Error) Converter RAM
1ERR 103 (Error) Converter ROM
1ERR 104 (Error) Converter Voltage
1ERR 200 (Error) Internal Communication
2, 4 ERR 201 (Error) Overfill
2, 4 ERR 203 (Error) Peak Lost (Level Lost)
3ERR 204 (Error) Sensor no Signal
1ERR 206 (Error) Sensor Microwave
1ERR 207 (Error) Sensor EEPROM
1ERR 207 (Error) Sensor RAM
1ERR 207 (Error) Sensor ROM
1ERR 208 (Error) Sensor Voltage
1ERR 210 (Error) Sensor Not compatible
Function
check The device operates correctly,
but the measured value is
incorrect. This fault message is
only temporary. This symbol is
shown when the user configures
the device with the DTM or a
HART® Communicator.
— — —
Out of
specification It is possible that the measured
value is unstable if the operating
conditions do not agree with the
device specification.
4(Warning) Peak Lost
4(Warning) Overfill
3(Warning) Temperature out of range
Maintenance The device does not operate
correctly because of bad
environmental conditions (e.g.
build-up on the antenna). The
measured value is correct, but
maintenance is necessary a
short time after this symbol is
shown.
5(Warning) Empty Spectrum Invalid
4(Warning) Signal Weak
4(Warning) Signal Strong
4(Warning) Bad Measurement Quality
3(Warning) Temperature <-35°C/ -31°F
3(Warning) Temperature >+75°C / +167°F
OPERATION
6
95
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
For data on errors, error records and error codes, refer to
Error handling
on page 95.
6.5.2 Error handling
How to find an error record
• Push [>
>>
>] to enter configuration mode from normal mode.
• Push [>
>>
>], 2 × [
] and [>
>>
>] to go to menu item 1.3.1 ERROR RECORD.
• Push 2 × [>
>>
>] to look at the error list. Push [
] or [
] for the selection of an error.
iThe error record gives the number of times the error occurred and the time since the last
error message.
Description of errors and corrective actions
Figure 6-9: Error record data
1 Error code for the error
2 Number of times the error occurred
3 Time since the last error record (2 days, 18 hours, 16 minutes and 43 seconds shown in this example)
INFORMATION!
The time since the error occurred is measured in Days (D), Hours (H), Minutes(') and Seconds (").
It only includes the time when the device is energized. The error is saved in the memory of the
device when it is de-energized. The counter continues when the device is energized again.
Error
code
Error Message Status marker
shown
Cause Corrective action
Failure (NE 107 status signal)
ERR 100 Device reset 1The device detected an internal
error (watchdog timer issue). Record the data that is in menu
item 2.2.2 DIAGNOSTIC
(Configuration mode /
Supervisor menu). Speak to the
supplier.
ERR 101 Current Output Drift 1The current output is not
calibrated. Speak to the supplier to get the
calibration procedure.
1Hardware error. Replace the device.
6
OPERATION
96
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ERR 102 Temperature out of
range 3The ambient temperature is
outside the given range. This
can cause loss or corruption of
data.
Measure the ambient
temperature. De-energize the
device until the ambient
temperature is back in the given
range. If the temperature does
not stay in the correct range,
make sure that there is
insulation around the signal
converter. If this error occurs 2
times, replace the device.
ERR 103 Converter memory
failure 1The device's hardware is
defective. Replace the signal converter.
For more data, refer to
How to
turn or remove the signal
converter
on page 44.
ERR 104 Converter Voltage
failure 1The device's hardware is
defective. Replace the signal converter.
For more data, refer to
How to
turn or remove the signal
converter
on page 44.
ERR 200 Internal
Communication 1The device's hardware or
software is defective. The
converter cannot transmit
signals to or receive signals
from the antenna electronics.
De-energize the device. Make
sure that the signal cable
engages in the terminal and the
screw connection is tight.
Energize the device. If the
problem continues, replace the
signal converter. For more data,
refer to
How to turn or remove
the signal converter
on page 44.
ERR 201 Overfill 2The level is in the blocking
distance. There is a risk that the
product will overflow and/or
cover the antenna.
Use a different procedure to
measure the level in the tank.
Remove some of the product
until the level is below the
blocking distance.
If a viscous product touched the
antenna:
•
remove the device and clean
the antenna, or
•
If the device has a purging
option, use the purging
system to clean the antenna.
ERR 203 Peak Lost (Level
Lost) 2The signal peak is not found
within the measuring window
that filters the signals received
by the antenna. The
measurement is not correct.
The device will automatically
increase this window to find the
correct signal.
Do a check of the device, tank
and the process. Reconfigure
the device and record a new
empty spectrum. Follow the
instructions on page 92. If
necessary, speak to the
supplier.
ERR 204 Sensor no Signal 3The device's hardware is
defective. Replace the signal converter.
For more data, refer to
How to
turn or remove the signal
converter
on page 44.
ERR 206 Sensor Microwave
failure 1The device's hardware is
defective. Replace the signal converter.
For more data, refer to
How to
turn or remove the signal
converter
on page 44.
ERR 207 Sensor Memory
failure 1The device's hardware is
defective. Replace the signal converter.
For more data, refer to
How to
turn or remove the signal
converter
on page 44.
Error
code
Error Message Status marker
shown
Cause Corrective action
OPERATION
6
97
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ERR 208 Sensor Voltage
failure 3The device's hardware is
defective. Do a check of the power supply
at the device terminals. Make
sure that voltage values are in
the specified limits in menu
item 2.2.2 DIAGNOSTIC
(Configuration mode /
Supervisor menu). If the voltage
is correct, replace the signal
converter. For more data on
how to replace the signal
converter, refer to
How to turn
or remove the signal converter
on page 44.
ERR 210 Sensor Not
compatible 1The software version of the
sensor is not compatible with
the software version of the
signal converter.
Go to menu 1.1.0 IDENT. in
Configuration mode. Record the
version numbers of the device
software given in menu items
1.1.2, 1.1.3 and 1.1.4. Give this
data to the supplier.
1Defective wiring.
Out of specification (NE 107 status signal)
ERR 102 Temperature Out of
Range 3The ambient temperature is
outside the given range. This
can cause loss or corruption of
data.
Measure the ambient
temperature. De-energize the
device until the ambient
temperature is back in the given
range. If the temperature does
not stay in the correct range,
make sure that there is
insulation around the signal
converter. If this error occurs 2
times, replace the device.
ERR 201 Overfill 2The level is in the blocking
distance. There is a risk that the
product will overflow and/or
cover the device.
Remove some of the product
until the level is below the
blocking distance.
ERR 203 Peak Lost 2The signal peak is not found
within the measuring window
that filters the signals received
by the antenna. The
measurement is not correct.
The device will automatically
increase this window to find the
correct signal.
Do a check of the device, tank
and the process and make sure
that the data agrees with the
device configuration. If
necessary, record a new empty
spectrum. Follow the
instructions on page 92. If
necessary, speak to the
supplier.
Maintenance (NE 107 status signal)
—Empty Spectrum
Invalid 5The empty spectrum stored in
the device does not agree with
the installation. If you change
the device configuration (tank
height etc.), this message will
be shown. The recorded empty
spectrum will not be used by
the device while this error
message is shown. 1
Record a new empty spectrum.
Follow the instructions on page
92.
—Signal Weak 4The signal amplitude is less
than the average value. This can
occur if the liquid is agitated or
if there is foam in the tank. If
this error occurs frequently, the
device will possibly show the
"Peak Lost (Level Lost)" error
message. 1
If this error occurs frequently, it
is possible that you must install
the device in a stilling well or
use a different antenna type.
Error
code
Error Message Status marker
shown
Cause Corrective action
6
OPERATION
98
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
—Signal Strong 4This error can occur if there is a
large change in signal
amplitude. 1
No corrective action is
necessary.
—Bad Measurement
Quality 4The measurement is incorrect
and continues to be incorrect
after more than 10 s. This error
can occur if the tank contents
are immediately below the
antenna. 1
Record the process with the
PACTware™ software tool to
find the cause of the problem. If
necessary, speak to the
supplier.
—Temperature
<-35°C/ -31°F3The process connection or the
ambient temperature is less
than -35°C/ -31°F. This
temperature is near to the
minimum limit for device
operation. 1
Measure the ambient
temperature. De-energize the
device until the ambient
temperature is back in the given
range. If the temperature does
not stay in the correct range,
make sure that there is
insulation around the signal
converter.
—Temperature
>+75°C / +167°F3The ambient temperature is
more than +75°C / +167°F. This
temperature is near to the
maximum limit for device
operation. 1
Measure the ambient
temperature. De-energize the
device until the ambient
temperature is back in the given
range. If the temperature does
not stay in the correct range,
make sure that there is
insulation around the signal
converter.
1This error message does not have an effect on the current output signal
INFORMATION!
In 4.0.0 MASTER menu, the type of error shown for error codes 102, 201 and 203 can be changed
from "Error" to "Warning" (the NE 107 status signal changes from "Failure" to "Out of
specification"). The 4.0.0 MASTER menu is password locked. For more data, speak or write to the
supplier.
Error
code
Error Message Status marker
shown
Cause Corrective action
SERVICE
7
99
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
7.1 Periodic maintenance
No maintenance is necessary. If it is possible that there will be build-up on the antenna, clean
the antenna regularly. If your device has the purge option, refer to
How to clean horn antennas
under process conditions
on page 99.
7.2 How to clean horn antennas under process conditions
If it is possible that there will be build-up or condensation, purging options are available for
DN150 / 6¨ and DN200 / 8¨ Metallic Horn antennas. Purge the antenna at intervals to make sure
that the inner surface of the antenna stays clean and the device measures accurately. For more
data about dimensions, refer to
Dimensions and weights
on page 126 (Purging and
heating/cooling system options).
INFORMATION!
For more data about regular inspections and maintenance procedures for devices with Ex and
other approvals, refer to the related supplementary instructions.
WARNING!
Do not use bleach to clean the signal converter.
Purging system
Figure 7-1: Purging system
1 Purging system
2 Flange connection
3 Metallic Horn antenna
4 G¼ plug for the purging system
5 Seal
6 Warning label - see the illustration that follows
Warning label
Figure 7-2: Warning label (on the top face of the flange connection)
1 Text: Attention! Purge connection. Do not open during operation.
7
SERVICE
100
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
How to use the purge
7.3 Heating or cooling horn antennas under process conditions
A heating / cooling system option is available for DN150 / 6¨ and DN200 / 8¨ Metallic Horn
antennas. The outer surface of the antenna is sealed in a metal heating / cooling jacket. There is
an inlet and an outlet for the heating / cooling jacket on the top of the flange. For more data
about dimensions, refer to
Dimensions and weights
on page 126 (Purging and heating/cooling
system options).
It is also possible to use a purging system with the heating / cooling system. For more data, refer
to
How to clean horn antennas under process conditions
on page 99.
7.4 How to replace device components
7.4.1 Service warranty
WARNING!
Purge the antenna with a dry gas or liquid that is applicable to the process. Make sure that you
use the correct device option (a purging system that uses gas or a purging system that uses
liquid). For more data about device options, refer to Order code on page 146
.
For more data about how to use the purge, refer to the table that follows:
Process conditions How to use the purge
Purging with gas (device option)
Purging with gas (device option)Purging with gas (device option)
Purging with gas (device option)
The device is colder than other
elements in the process. It is
possible that there will be
condensation in the antenna.
Continuous use. Use gas (compressed air, nitrogen or another gas
that is applicable to the process) to remove condensation from the
antenna.
Purging with liquid (device option)
Purging with liquid (device option)Purging with liquid (device option)
Purging with liquid (device option)
There is a build-up or risk of
build-up in the antenna Purge at intervals. Use a liquid (hot water, solvent or another liquid
that is applicable to the process) to melt the liquid that has
crystallized on the antenna.
WARNING!
Make sure that the pressure in the heating / cooling system is not more than 6 bar / 87 psi.
Make sure that the flange temperature is not more than the maximum limit. For more data, refer
to Technical data on page 110
.
WARNING!
Only approved personnel can do an inspection of the device and repairs. If you find a problem,
send the device back to the supplier for inspection and/or repairs.
INFORMATION!
The converter housing (compact or remote version) can be detached from the process
connection assembly under process conditions. For more data, refer to How to turn or remove
the signal converter on page 44
.
SERVICE
7
101
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Servicing by the customer is limited by warranty to:
•The removal and installation of the device.
•Compact version:
Compact version:Compact version:
Compact version: The removal and installation of the signal converter (with the weather
protection, if this option is attached). For more data, refer to
How to turn or remove the signal
converter
on page 44.
•Remote (field) version:
Remote (field) version:Remote (field) version:
Remote (field) version: The removal and installation of the remote converter and/or the
antenna housing. For more data, refer to
How to turn or remove the signal converter
on page
44.
•Replacement of signal converters of other radar devices:
Replacement of signal converters of other radar devices:Replacement of signal converters of other radar devices:
Replacement of signal converters of other radar devices: The removal of BM 70 A, BM 700,
BM 702 or BM 702 A signal converters and installation of the OPTIWAVE 5200 signal
converter. For the procedure, refer to
Replacement of the BM 70x signal converter with the
OPTIWAVE 5200 signal converter
on page 101.
For more data on how to prepare the device before you send it back, refer to
Returning the
device to the manufacturer
on page 105.
7.4.2 Replacement of the BM 70x signal converter with the OPTIWAVE 5200 signal
converter
Equipment needed:
•5 mm Allen wrench (not supplied)
•Slotted-tip screwdriver (not supplied)
•Option for BM 70 A or BM 700:
Option for BM 70 A or BM 700:Option for BM 70 A or BM 700:
Option for BM 70 A or BM 700: wrench for housing cover
•Option for BM 70 A or BM 700:
Option for BM 70 A or BM 700:Option for BM 70 A or BM 700:
Option for BM 70 A or BM 700: yellow / blue magnet
•BM 70 A, BM 700, BM 702 or BM 702 A radar level meter
•OPTIWAVE 5200 signal converter (without process connection and antenna)
•Adaptor for the BM 70x process connection. You can send an order for this part only or for the
OPTIWAVE 5200 signal converter with the adaptor attached. For the order code, refer to
Order code
on page 146.
•Handbooks for all devices
Procedure 1: Record the offset value (BM 70 A, BM 700, BM 702 or BM 702 A radar
level meter)
1 BM 702 or BM 702 A:
BM 702 or BM 702 A:BM 702 or BM 702 A:
BM 702 or BM 702 A: Remove the 4 screws on the signal converter cover with a slotted-tip
screwdriver.
BM 70 A or BM 700:
BM 70 A or BM 700:BM 70 A or BM 700:
BM 70 A or BM 700: If you use the Hall effect sensors, it is unnecessary to remove the front
cover of the signal converter. Use the supplied magnet to "push" the buttons. If you do not have
the magnet, remove the cover with supplied wrench.
iFor more data about the display screen, keypad buttons and Hall effect sensors, refer to
the applicable handbook.
INFORMATION!
Complete the 5 procedures that follow in numerical sequence. These procedures are applicable
only to devices that have the Metallic Horn, Wave-Guide and Wave Stick antenna options.
To get the passwords for the BM70x and OPTIWAVE 5200 C Service menus, speak to the supplier.
CAUTION!
Make sure that you also record device configuration data. This data includes basic configuration
(tank height, blocking distance etc.), output, application, display and strapping table data. You
can find this data in the Supervisor menu.
7
SERVICE
102
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
2 Energize the device.
iThe device is in operation and in normal mode.
3 Push [^
^^
^] to go to the SERVICE menu.
iThe display screen shows the text "Code 2".
4 Give the password for the SERVICE menu. If you do not have the password, speak to the sup-
plier.
5 Push [>
>>
>], [
] and [>
>>
>] to go to menu item 4.2.1 Offset. Record the offset value.
6 Push 4 × [^
^^
^]. Push [
] or [
] for the selection of the save option (Store No, Store Yes or Re-
turn). Set to "Store No" to cancel the changes to the device settings.
7 Push [^
^^
^] to confirm.
iThe device is in normal mode.
8 De-energize the device.
9 Remove the electrical cables.
10 Attach the signal converter cover.
1 Remove the 4 socket head screws at the bottom of the signal converter with a 5 mm Allen
wrench. Keep the screws for the subsequent procedure.
2 Remove the signal converter from the process connection. Make sure that the gasket stays on
the flange connection.
INFORMATION!
If you cannot start the device, record the serial number on the device nameplate and contact the
supplier. The supplier will give you the offset value.
Procedure 2: How to remove the signal converter (BM 70 A, BM 700, BM 702 or
BM 702 A radar level meters)
Figure 7-3: Procedure 2: How to remove the signal converter (BM 70 A, BM 700, BM 702 or BM 702 A radar level
meters)
INFORMATION!
The BM 702 A radar level meter is used as an example in this procedure.
SERVICE
7
103
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
1 Make sure that the gasket is on the flange connection.
2 Put the adaptor on the process connection.
3 Attach and tighten the 4 socket head screws with a 5 mm Allen wrench.
4 Put the OPTIWAVE 5200 signal converter on the adaptor. Make sure that the adaptor fully en-
gages in the mating part (signal converter).
5 Tighten the socket set screw at the bottom of the signal converter with a 5 mm Allen wrench.
Procedure 3: How to attach the OPTIWAVE 5200 signal converter
Figure 7-4: Procedure 3: How to attach the OPTIWAVE 5200 signal converter
INFORMATION!
The adaptor for the BM 70x process connection is available as a spare part. Send an order for
this part only or for the OPTIWAVE 5200 signal converter with the adaptor attached. For the order
code, refer to Order code on page 146
.
7
SERVICE
104
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Procedure 4: How to set the correct offset value (OPTIWAVE 5200)
1 Energize the device.
iThe device is in operation and in normal mode. It will not measure correctly until the new
correction offset value is set in menu item 3.1.6 CORR.OFFSET.
2 Push [>
>>
>], 2 × [
] and [>
>>
>] to go to the SERVICE menu (3.0.0).
3 Give the password for the SERVICE menu. If you do not have the password, speak to the sup-
plier.
4 Push [>
>>
>] and 5 × [
] to go to menu item 3.1.6 CORR.OFFSET (correction offset).
5 Push [>
>>
>] to change the value. Enter the new correction offset value. For the applicable correc-
tion offset value, refer to the table that follows.
6 Push 4 × [>
>>
>]. Push [
] or [
] for the selection of the save option (STORE NO or STORE YES).
Set to "STORE YES" to save and use the data.
7 Push [^
^^
^] to confirm.
iThe device is in normal mode. The device uses the new correction offset value.
New correction offset values for the OPTIWAVE 5200
Procedure 5: Device configuration (OPTIWAVE 5200)
1 For the Quick Setup procedure, refer to
Quick Setup (Parameters)
on page 83. For more data
about device configuration, refer to
Operation
on page 69.
7.5 Spare parts availability
The manufacturer adheres to the basic principle that functionally adequate spare parts for each
device or each important accessory part will be kept available for a period of 3 years after
delivery of the last production run for the device.
This regulation only applies to spare parts which are subject to wear and tear under normal
operating conditions.
7.6 Availability of services
The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.
Device New correction offset value
BM 70 A, BM 700 BM 70x value - 148 mm 1
BM 702 BM 70x value + 24 mm 1
BM 702 A BM 70x value + 18 mm 1
1The BM 70x value is given in menu item 4.2.1 Offset. For more data, refer to Procedure 1 in this sub-section.
CAUTION!
You recorded device configuration data of the BM70x level meter before you attached the new
signal converter. Make sure that you enter this data in the supervisor menu of the
OPTIWAVE 5200.
INFORMATION!
For more precise information, please contact your local sales office.
SERVICE
7
105
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
7.7 Returning the device to the manufacturer
7.7.1 General information
This device has been carefully manufactured and tested. If installed and operated in accordance
with these operating instructions, it will rarely present any problems.
CAUTION!
Should you nevertheless need to return a device for inspection or repair, please pay strict
attention to the following points:
•
Due to statutory regulations on environmental protection and safeguarding the health and
safety of the personnel, the manufacturer may only handle, test and repair returned devices
that have been in contact with products without risk to personnel and environment.
•
This means that the manufacturer can only service this device if it is accompanied by the
following certificate (see next section) confirming that the device is safe to handle.
CAUTION!
If the device has been operated with toxic, caustic, radioactive, flammable or water-endangering
products, you are kindly requested:
•
to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from
such dangerous substances,
•
to enclose a certificate with the device confirming that is safe to handle and stating the
product used.
7
SERVICE
106
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
7.7.2 Form (for copying) to accompany a returned device
CAUTION!
To avoid any risk for our service personnel, this form has to be accessible from outside of the
packaging with the returned device.
Company: Address:
Department: Name:
Tel. no.: Fax no. and/or Email address:
Manufacturer's order no. or serial no.:
The device has been operated with the following medium:
This medium is: radioactive
water-hazardous
toxic
caustic
flammable
We checked that all cavities in the device are free from such substances.
We have flushed out and neutralized all cavities in the device.
We hereby confirm that there is no risk to persons or the environment through any residual media contained in the
device when it is returned.
Date: Signature:
Stamp:
SERVICE
7
107
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
7.8 Disposal
CAUTION!
Disposal must be carried out in accordance with legislation applicable in your country.
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
Separate collection of WEEE (Waste Electrical and Electronic Equipment) in the European Union:
According to the directive 2012/19/EU, the monitoring and control instruments marked with the
WEEE symbol and reaching their end-of-life must not be disposed of with other waste
must not be disposed of with other wastemust not be disposed of with other waste
must not be disposed of with other waste.
The user must dispose of the WEEE to a designated collection point for the recycling of WEEE or
send them back to our local organisation or authorised representative.
8
TECHNICAL DATA
108
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.1 Measuring principle
A radar signal is emitted via an antenna, reflected from the product surface and received after a
time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave).
The FMCW-radar transmits a high frequency signal whose frequency increases linearly during
the measurement phase (called the frequency sweep). The signal is emitted, reflected on the
measuring surface and received with a time delay, t. Delay time, t=2d/c, where d is the distance
to the product surface and c is the speed of light in the gas above the product.
For further signal processing the difference Δf is calculated from the actual transmitted
frequency and the received frequency. The difference is directly proportional to the distance. A
large frequency difference corresponds to a large distance and vice versa. The frequency
difference Δf is transformed via a Fourier transformation (FFT) into a frequency spectrum and
then the distance is calculated from the spectrum. The level results from the difference between
the tank height and the measured distance.
Figure 8-1: Measuring principle of FMCW radar
1 Transmitter
2 Mixer
3 Antenna
4 Distance to product surface, where change in frequency is proportional to distance
5 Differential time delay, Δt
6 Differential frequency, Δf
7 Frequency transmitted
8 Frequency received
9 Frequency
10 Time
TECHNICAL DATA
8
109
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Measurement modes
"Direct" mode
"Direct" mode"Direct" mode
"Direct" mode
If the dielectric constant of the liquid is high (ε
r
≥1.8), the level signal is a reflection on the
surface of the liquid.
"TBF Partial" mode
"TBF Partial" mode"TBF Partial" mode
"TBF Partial" mode
If the dielectric constant of the liquid is low (ε
r
<1.8, for long-distance measurement), you must
use "TBF Partial" mode to measure level correctly. "TBF Partial" is an automatic mode that lets
the device make a selection between "Direct" mode and "TBF" mode. If the device finds a large
radar reflection above the "tank bottom area" (the bottom 20% of the tank height), the device will
use "Direct" mode. If the device finds a large radar reflection in the "tank bottom area", the
device uses TBF mode. This mode can be used only in tanks with flat bottoms.
"TBF Full" mode
"TBF Full" mode"TBF Full" mode
"TBF Full" mode
TBF = Tank Bottom Following. If the dielectric constant of the liquid is very low (ε
r
<1.6), you
must use "TBF Full" mode to measure level correctly. The device uses the radar reflection on
the bottom of the tank (the signal goes through the liquid). This mode can be used only in tanks
with flat bottoms.
CAUTION!
"TBF FULL" AND "TBF PARTIAL" MODES
It is important to enter the correct dielectric constant value in menu item 2.5.3 Er Product. If this
value is incorrect, the device will not measure level accurately.
8
TECHNICAL DATA
110
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.2 Technical data
INFORMATION!
•
The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local sales office.
•
Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Downloadcenter).
Measuring system
Measuring principle 2-wire loop-powered level transmitter; FMCW radar
Frequency range X-band (8.5...10.6 GHz)
Radio frequency output power < 41.3 dBm (outside of the tank)
Application range Level measurement of liquids, pastes and slurries
Primary measured value Distance and reflection
Secondary measured value Level, volume, mass and flow rate
Design
Construction The measurement system consists of a measuring sensor (antenna) and a signal
converter
Compact (C) version: Measuring sensor (antenna) attached directly to a signal
converter
Remote (F) version: Measuring sensor (antenna) installed on a tank and connected
by a signal cable (max. length 100 m / 328 ft) to a signal converter
Options Integrated LCD display (-20..+60°C/ -4…+140°F); if the ambient temperature is not
in these limits, the display switches off automatically
High-temperature (HT) extension (if the process connection temperature is more
than +150°C / +302°F– Metallic Horn antenna only)
Straight antenna extensions
Max. extension length, PTFE Wave Horn antenna: 300 mm / 11.8¨;
Max. extension length, Metallic Horn antenna: 1000 mm / 39.4¨
S-bend antenna extension
– only for DN150/6¨and DN200/8¨ Metallic Horn antenna and Wave Guide antenna
options
L-bend (right angle) antenna extension
– only for DN150/6¨ and DN200/8¨ Metallic Horn antenna and Wave Guide antenna
options
Antenna purging system (2 device options: liquid or gas)
– only for DN150/6¨ and DN200/8¨ Metallic Horn antenna options
Heating / cooling system (with or without the antenna purging system)
– only for DN150/6¨ and DN200/8¨ Metallic Horn antenna options
Signal cable for remote housing version (refer to cable properties in "Electrical
connection: Remote device version")
Weather protection – for the compact version or the antenna housing of the remote
version
TECHNICAL DATA
8
111
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Max. measuring range PTFE and PP Wave Horn antennas:
PTFE and PP Wave Horn antennas:PTFE and PP Wave Horn antennas:
PTFE and PP Wave Horn antennas:
20 m / 65.6 ft
DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):
DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):
DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):
10 m / 32.8 ft
DN150 / DN200 Metallic Horn antennas:
DN150 / DN200 Metallic Horn antennas:DN150 / DN200 Metallic Horn antennas:
DN150 / DN200 Metallic Horn antennas:
30 m / 98.4 ft
Wave Guide antenna:
Wave Guide antenna:Wave Guide antenna:
Wave Guide antenna:
6m/ 19.7ft
Also depends on the dielectric constant of the product and the installation type.
Refer also to "Antenna selection".
Min. tank height 1m/ 3.3ft
Top dead zone Minimum value: Antenna length + antenna extension length + 100 mm / 3.9¨
Beam angle (½ angle) of antenna PP Wave Horn: 10°
PTFE Wave Horn: 10°
Metallic Horn DN65 / 2.5¨: 20°– used only in RC W5200 reference chamber
Metallic Horn DN80 / 3¨: 16°– used only in stilling wells
Metallic Horn DN100 / 4¨: 12°– used only in stilling wells
Metallic Horn DN150 / 6¨: 8°
Metallic Horn DN200 / 8¨: 6°
Wave Guide / stilling well: n/a – the radar signal is inside the tube.
Display and user interface
Display and user interfaceDisplay and user interface
Display and user interface
Display LCD display
128 × 64 pixels in 8-step greyscale with 4-button keypad
Interface languages 3 language pack options (the language is given in the customer order):
1 English, French, German and Italian
2 English, French, Spanish and Portuguese
3 English, Chinese (simplified), Japanese and Russian
Measuring accuracy
Resolution 1mm/ 0.04¨
Repeatability ±1mm/ ±0.04¨
Accuracy Standard: ±10 mm / ±0.4¨, when distance < 10 m / 33 ft;
±0.1% of measured distance, when distance > 10 m / 33 ft
Option: ±5mm/ ±0.2¨, when distance < 10 m / 33 ft;
±0.05% of measured distance, when distance > 10 m / 33 ft
Reference conditions acc. to EN 61298-1
Reference conditions acc. to EN 61298-1Reference conditions acc. to EN 61298-1
Reference conditions acc. to EN 61298-1
Temperature +15...+25°C / +59...+77°F
Pressure 1013 mbara ±50 mbar / 14.69 psia ±0.73 psi
Relative air humidity 60% ±15%
Target Metal plate in an anechoic chamber
8
TECHNICAL DATA
112
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Operating conditions
Temperature
TemperatureTemperature
Temperature
Ambient temperature -40…+80°C/ -40…+176°F
Integrated LCD display: -20...+60°C / -5...+140°F; if the ambient temperature is not
in these limits, the display switches off. The device continues to operate correctly.
Storage temperature -50…+85°C/ -58…+185°F (min. -40°C/ -40°F for devices with the integrated LCD
display option)
Process connection temperature
(higher temperature on request) PP Wave Horn antenna:
PP Wave Horn antenna:PP Wave Horn antenna:
PP Wave Horn antenna:
-20...+100°C / -4...+212°F
PTFE Wave Horn antenna:
PTFE Wave Horn antenna:PTFE Wave Horn antenna:
PTFE Wave Horn antenna:
-50...+150°C / -58...+302°F
Metallic Horn antenna / Wave Guide antenna:
Metallic Horn antenna / Wave Guide antenna:Metallic Horn antenna / Wave Guide antenna:
Metallic Horn antenna / Wave Guide antenna:
Standard: FKM/FPM (-40…+150°C/ -40…+302°F (+200 / +392°F with an HT
extension));
Options: Kalrez® 6375 (-20…+150°C/ -4…+302°F (+250°C / +482°F with an HT
extension)); PFA (-60°C…+130°C/ -76…+266°F); EPDM (-50...+130°C/ -
58...+266°F)The process connection temperature must agree with the temperature
limits of the gasket material.
Ex: see supplementary operating instructions or approval certificates 1
Pressure
PressurePressure
Pressure
Process pressure PP Wave Horn antenna:
PP Wave Horn antenna:PP Wave Horn antenna:
PP Wave Horn antenna:
-1…16 barg / -14.5…232 psig. For more data, refer to
Pressure ratings
on page
119.
PTFE Wave Horn antenna:
PTFE Wave Horn antenna:PTFE Wave Horn antenna:
PTFE Wave Horn antenna:
-1…40 barg / -14.5…580 psig. For more data, refer to
Pressure ratings
on page
119.
Metallic Horn antenna / Wave Guide antenna:
Metallic Horn antenna / Wave Guide antenna:Metallic Horn antenna / Wave Guide antenna:
Metallic Horn antenna / Wave Guide antenna:
Standard: -1…40 barg / -14.5…580 psig;
subject to the process connection used and the flange temperature. Higher
pressure on request.
Purging system (options for gas
or liquid) Max. 6 barg / 87 psig (higher pressure on request)
Heating / cooling system (option) Max. 6 barg / 87 psig (higher pressure on request)
Other conditions
Other conditionsOther conditions
Other conditions
Dielectric constant (ε
r
)Direct mode: ≥1.8
TBF mode: ≥1.1
Refer also to "Technical data: Antenna selection".
Ingress protection IEC 60529: IP66 / IP67
NEMA 250: NEMA type 4X (housing) and type 6P (antenna)
Maximum rate of change 10 m/min / 32.8 ft/min
Installation conditions
Process connection size The nominal diameter (DN) should be equal to or larger than the antenna diameter.
Process connection position Make sure that there are not any obstructions directly below the process
connection for the device. For more data, refer to
Installation
on page 21.
Dimensions and weights For dimensions and weights data, refer to
Dimensions and weights
on page 126.
Materials
Housing Standard: Polyester-coated aluminium
Option: Stainless steel (1.4404 / 316L)
TECHNICAL DATA
8
113
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Antenna options / Wetted
materials PTFE Wave Horn antenna with a PTFE flange cladding
PP Wave Horn antenna with a PP jacket/threaded process connection
Stainless steel (1.4404 / 316L) Metallic Horn antenna with a PTFE process seal and
an FKM/FPM, EPDM, Kalrez® 6375 or PFA O-ring gasket
Stainless steel (1.4404 / 316L) Wave Guide antennas with a PTFE process seal and
an FKM/FPM, EPDM, Kalrez® 6375 or PFA O-ring gasket
Feedthrough PP Wave Horn antenna: this is a single-piece antenna (the feedthrough is filled with
PP)
PTFE Wave Horn antenna: this is a single-piece antenna (the feedthrough is filled
with PTFE)
Metallic Horn and Wave Guide antennas: Dual process seal system – 1st seal: PTFE
with O-ring gasket, 2nd seal: Metaglas® with O-ring gasket 2
Cable gland Standard: none
Options: Plastic (Non-Ex: black, Ex i-approved: blue); nickel-plated brass; stainless
steel
Weather protection (Option) Stainless steel (1.4404 / 316L)
Process connections
Thread PP Wave Horn antenna: G 1½A...2A; 1½...2 NPT
Flange version
Flange versionFlange version
Flange version
EN PTFE Wave Horn antenna: DN50…200 in PN16, PN40
Metallic Horn and Wave Guide antennas: DN80…200 in PN16, PN40; others on
request
ASME PTFE Wave Horn antenna: 2¨…8¨ in 150 lb / 300 lb
Metallic Horn and Wave Guide antennas: 3¨…8¨ in 150 lb / 300 lb; others on request
DN65 Metallic Horn antenna: 2¨ 300 lb for installation on the RC W5200 reference
chamber
JIS PTFE Wave Horn antenna: 50...150A in 10K
Metallic Horn and Wave Guide antennas: 80…200A in 10K; others on request
Other Others on request
Electrical connections
Power supply Terminals output
Terminals output Terminals output
Terminals output – Non-Ex / Ex i:
Non-Ex / Ex i: Non-Ex / Ex i:
Non-Ex / Ex i:
11.5…30 VDC; min./max. value for an output of 22 mA at the terminal
Terminals output
Terminals output Terminals output
Terminals output – Ex d:
Ex d: Ex d:
Ex d:
13.5…36 VDC; min./max. value for an output of 22 mA at the terminal
Maximum current 22 mA
Current output load Non-Ex / Ex i:
Non-Ex / Ex i:Non-Ex / Ex i:
Non-Ex / Ex i: R
L
[Ω] ≤ ((U
ext
-11.5 V)/22 mA). For more data, refer to
Minimum
power supply voltage
on page 118.
Ex d:
Ex d:Ex d:
Ex d: R
L
[Ω] ≤ ((U
ext
-13.5 V)/22 mA). For more data, refer to
Minimum power supply
voltage
on page 118.
Cable entry Standard: M20×1.5; Option: ½NPT
Cable gland Standard: none
Options: M20×1.5 (cable diameter (non-Ex / Ex i: 6...7.5 mm / 0.24...0.30¨;
Ex d: 6...10 mm / 0.24...0.39¨)); others are available on request
Signal cable – remote version None for non-Ex devices (4-wire shielded cable of max. length 100 m / 328 ft to be
supplied by the customer). Supplied with all Ex-approved devices. For more data,
refer to
Remote device data
on page 53
Cable entry capacity (terminal) 0.5…2.5 mm²
8
TECHNICAL DATA
114
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Input and output
Current output / HART
Current output / HARTCurrent output / HART
Current output / HART®
Output signal 4…20 mA HART® or 3.8…20.5 mA acc. to NAMUR NE 43 3
Resolution ±3µA
Temperature drift Typically 50 ppm/K
Digital temperature drift Max. ±15 mm / 0.6¨ for the full temperature range
Error signal High: 22 mA; Low: 3.6 mA acc. to NAMUR NE 43; Hold (frozen value – not available if
the output agrees with NAMUR NE 43) 4
PROFIBUS PA
PROFIBUS PAPROFIBUS PA
PROFIBUS PA
Type PROFIBUS MBP interface that agrees with IEC 61158-2 with 31.25 kbit/s; voltage
mode (MBP = Manchester-Coded, Bus-Powered)
Function blocks 1 × Physical Block, 1 × Level Transducer Block, 4 × Analog Input Function Blocks
Device power supply 9...32 VDC – bus powered; no additional power supply required
Polarity sensitivity No
Basic current 15 mA
FOUNDATION
FOUNDATIONFOUNDATION
FOUNDATION™ fieldbus
fieldbus fieldbus
fieldbus
Physical layer FOUNDATION™ fieldbus protocol that agrees with IEC 61158-2 and FISCO model
Communication standard H1
ITK version 6.1
Function blocks 1 × Resource Block (RB), 3 × Transducer Blocks (TB), 3 × Analog Input Blocks (AI),
1 × Proportional Integral Derivative Block (PID)
Analog Input Block: 30 ms
Proportional Integral Derivative Block: 40 ms
Device power supply Not intrinsically safe: 9...32 VDC
Intrinsically safe: 9...24 VDC
Basic current 14 mA
Maximum error current FDE 20.5 mA (= basic current + error current = 14 mA + 6.5 mA)
Polarity sensitivity No
Minimum cycle time 250 ms
Output data Level, distance, ullage conversion, level conversion
Input data None
Link Active Scheduler Supported
Approvals and certification
CE This device fulfils the statutory requirements of the EC directives. The
manufacturer certifies successful testing of the product by applying the CE mark.
Vibration resistance EN 60068-2-64
Metallic Horn (without antenna extension options): 5 Hz to 100 Hz: 4g
Metallic Horn, PTFE or PP Wave Horn: 3.5 mm up to 8 Hz and 10 m/s²: 1g, 8.5 to
2000 Hz
TECHNICAL DATA
8
115
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Explosion protection
Explosion protectionExplosion protection
Explosion protection
ATEX (Ex ia or Ex d or Ex tb)
DEKRA 11ATEX0166 X Compact version
Compact versionCompact version
Compact version
II 1/2 G, 2 G Ex ia IIC T6...T2 Ga/Gb or Ex ia IIC T6...T2 Gb;
II 1/2 D, 2 D Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db;
II 1/2 G, 2 G Ex d ia IIC T6...T2 Ga/Gb or Ex d ia IIC T6...T2 Gb;
II 1/2 D, 2 D Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db
Remote version, transmitter
Remote version, transmitterRemote version, transmitter
Remote version, transmitter
II 2 G Ex ia [ia Ga] IIC T6...T4 Gb;
II 2 D Ex ia [ia Da] IIIC T90°C Db;
II 2 G Ex d ia [ia Ga] IIC T6...T4 Gb;
II 2 D Ex ia tb [ia Da] IIIC T90°C Db
Remote version, sensor
Remote version, sensorRemote version, sensor
Remote version, sensor
II 1/2 G Ex ia IIC T6...T2 Ga/Gb or II 2 G Ex ia IIC T6...T2 Gb;
II 1/2 D Ex ia IIIC T90°C Da/Db or II 2 D Ex ia IIIC T90°C Db;
II 1/2 G Ex ia IIC T6...T2 Gb or II 2 G Ex ia IIC T6...T2 Gb;
II 1/2 D Ex ia IIIC T90°C Db or II 2 D Ex ia IIIC T90°C Db
ATEX (Ex ic)
DEKRA 13ATEX0051 X Compact version
Compact versionCompact version
Compact version
II 3 G Ex ic IIC T6...T2 Gc;
II 3 D Ex ic IIIC T90°C Dc
Remote version, transmitter
Remote version, transmitterRemote version, transmitter
Remote version, transmitter
II 3 G Ex ic [ic] IIC T6...T4 Gc;
II 3 D Ex ic [ic] IIIC T90°C Dc
Remote version, sensor
Remote version, sensorRemote version, sensor
Remote version, sensor
II 3 G Ex ic IIC T6...T2 Gc;
II 3 D Ex ic IIIC T90°C Dc
IECEx
IECEx DEK 11.0060 X Compact version
Compact versionCompact version
Compact version
Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc;
Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc;
Ex d ia IIC T6...T2 or Ex d ia IIIC T6...T2 Gb;
Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db
Remote version, transmitter
Remote version, transmitterRemote version, transmitter
Remote version, transmitter
Ex ia [ia Ga] IIC T6…T4 Gb or Ex ic IIC T6…T4 Gc;
Ex ia [ia Da] IIIC T90°C Db or Ex ic [ic] IIIC T90°C Dc;
Ex d ia [ia Ga] IIC T6...T4 Gb;
Ex ia tb [ia Da] IIIC T90°C Db
Remote version, sensor
Remote version, sensorRemote version, sensor
Remote version, sensor
Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc;
Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc
8
TECHNICAL DATA
116
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
cFMus – Dual Seal-approved NEC 500 (Division ratings)
NEC 500 (Division ratings)NEC 500 (Division ratings)
NEC 500 (Division ratings)
XP-AIS / Cl. I / Div. 1 / Gr. ABCD / T6–T1;
DIP / Cl. II, III / Div. 1 / Gr. EFG / T6–T1;
IS / Cl. I, II, III / Div. 1 / Gr. ABCDEFG / T6–T1;
NI / Cl. I / Div. 2 / Gr. ABCD / T6–T1
NEC 505 (Zone ratings)
NEC 505 (Zone ratings)NEC 505 (Zone ratings)
NEC 505 (Zone ratings)
Cl. I / Zone 0 / AEx d [ia] / IIC / T6–T1;
Cl. I / Zone 0 / AEx ia / IIC / T6–T1;
Cl. I / Zone 2 / AEx nA / IIC / T6–T1;
Cl. I / Zone 2 / AEx ic / IIC / T6–T1 FISCO;
Zone 20 / AEx ia / IIIC / T90°C;
Zone 20 / AEx tb [ia] / IIIC / T90°C
Hazardous (Classified) Locations, indoor/outdoor Type 4X and 6P, IP66, Dual Seal
CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)
Cl. I, Zone 0, Ex d [ia], IIC, T6–T1;
Cl. I, Zone 0, Ex ia, IIC, T6–T1;
Cl. I, Zone 2, Ex nA, IIC, T6–T1;
Cl. I, Zone 2, Ex ic, IIC, T6–T1 FISCO
CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)
XP-AIS / Cl. I / Div. 1 / Gr. BCD / T6–T1;
DIP / Cl. II, III / Div. 1 / Gr. EFG / T6–T1;
IS/ Cl.I/ Div.1/ Gr.BCD/ T6–T1;
NI / Cl. I / Div. 2 / Gr. ABCD / T6–T1
NEPSI Ex ia IIC T2~T6 Gb or Ex ia IIC T2~T6 Ga/Gb DIP A20/A21 T
A
T90°C IP6X
Ex d ia IIC T2~T6 Gb or Ex d ia IIC T2~T6 Ga/Gb DIP A20/A21 T
A
T90°C IP6X
DNV / INMETRO
DNV 13.0142 Compact version
Compact versionCompact version
Compact version
Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc;
Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc;
Ex d ia IIC T6...T2 or Ex d ia IIIC T6...T2 Gb;
Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db
Remote version, transmitter
Remote version, transmitterRemote version, transmitter
Remote version, transmitter
Ex ia [ia Ga] IIC T6…T4 Gb or Ex ic IIC T6…T4 Gc;
Ex ia [ia Da] IIIC T90°C Db or Ex ic [ic] IIIC T90°C Dc;
Ex d ia [ia Ga] IIC T6...T4 Gb;
Ex ia tb [ia Da] IIIC T90°C Db
Remote version, sensor
Remote version, sensorRemote version, sensor
Remote version, sensor
Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc;
Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc
Other standards and approvals
Other standards and approvalsOther standards and approvals
Other standards and approvals
SIL
– only for 4...20 mA output Compact version: SIL 2 – certified according to all the requirements in EN 61508
(Full Assessment) and for high/low demand mode operation. HFT=0, SFF=94.1%
(for non-Ex / Ex i devices) or 91% (for Ex d devices), type B device
EMC Essential requirements of Electromagnetic Compatibility Directive 2014/30/EU in
conjunction with EN 61326-1 (2013)
SIL 2-approved devices agree with EN 61326-3-1 (2008) and EN 61326-3-2 (2008)
TECHNICAL DATA
8
117
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Radio approvals RED
REDRED
RED
Radio Equipment Directive 2014/53/EU in conjunction with ETSI EN 302 372
FCC Rules
FCC RulesFCC Rules
FCC Rules
Part 15
Industry Canada
Industry CanadaIndustry Canada
Industry Canada
License-exempt RSS-210
LVD Essential requirements of Low-Voltage Directive 2014/35/EU in conjunction with
EN 61010-1
NAMUR NAMUR NE 21 Electromagnetic Compatibility (EMC) of Industrial Process and
Laboratory Control Equipment
NAMUR NE 43 Standardization of the Signal Level for the Failure Information of
Digital Transmitters
NAMUR NE 53 Software and Hardware of Field Devices and Signal Processing
Devices with Digital Electronics
NAMUR NE 107 Self-Monitoring and Diagnosis of Field Devices
WHG
Z-65.16-546 In conformity with the German Federal Water Act, §9
CRN This certification is applicable for all Canadian provinces and territories. For more
data, refer to the website.
Construction code Metallic Horn and Wave Guide antennas: NACE MR0175 / ISO 15156; NACE MR0103
1If the process connection temperature is more than +150°C / +302°F and the device has Kalrez® 6375 or FKM/FPM gaskets, the device
will also have an high temperature extension between the converter and the process connection. Kalrez® is a registered trademark of
DuPont Performance Elastomers L.L.C.. The process connection temperature must agree with the temperature limits of the gasket
material.
2Metaglas® is a registered trademark of Herberts Industrieglas, GMBH & Co., KG
3HART® is a registered trademark of the HART Communication Foundation
4Only the 3.6 mA error signal is applicable to SIL-approved devices. Only the 22 mA error signal is applicable to WHG-approved devices.
8
TECHNICAL DATA
118
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.3 Minimum power supply voltage
Use these graphs to find the minimum power supply voltage for a given current output load.
Non-Ex and Hazardous Location approved (Ex i / IS) devices
Figure 8-2: Minimum power supply voltage for an output of 22 mA at the terminal (Non-Ex and Hazardous Location
approval (Ex i / IS))
X: Power supply U [VDC]
Y: Current output load R
L
[Ω]
Hazardous Location (Ex d / XP/NI) approved devices
Figure 8-3: Minimum power supply voltage for an output of 22 mA at the terminal (Hazardous Location approval (Ex d /
XP/NI))
X: Power supply U [VDC]
Y: Current output load R
L
[Ω]
TECHNICAL DATA
8
119
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.4 Pressure ratings
WARNING!
Make sure that the devices are used within their operating limits.
EN flanges: Metallic Horn, Wave Guide and PTFE Wave Horn antennas
Figure 8-4: Pressure / temperature rating (EN 1092-1), flange connections, in °C and barg
Figure 8-5: Pressure / temperature rating (EN 1092-1), flange connections, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Flange connection, PN16: Metallic Horn and Wave Guide antennas
6 Flange connection, PN40: Metallic Horn and Wave Guide antennas
7 Flange connection, PN40: Metallic Horn, Wave Guide and PTFE Wave Horn antennas
8 Flange connection, PN16: Metallic Horn, Wave Guide and PTFE Wave Horn antennas
-80 -60 -40-20 050
100 122 150 167 200 212 257 300 400 480 500
8
TECHNICAL DATA
120
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ISO threaded connections: PP Wave Horn antenna
Figure 8-6: Pressure / temperature rating (ISO 228), threaded connection, in °C and barg
Figure 8-7: Pressure / temperature rating (ISO 228-1), threaded connection, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Threaded connection, G (ISO 228-1): PP Wave Horn antenna
TECHNICAL DATA
8
121
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ASME flanges: Metallic Horn, Wave Guide and PTFE Wave Horn antennas
Figure 8-8: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °C and barg
Figure 8-9: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Flange connection, Class 150: Metallic Horn and Wave Guide antennas
6 Flange connection, Class 300: Metallic Horn and Wave Guide antennas
7 Flange connection, Class 300: Metallic Horn and Wave Guide and PTFE Wave Horn antennas
8 Flange connection, Class 150: Metallic Horn and Wave Guide and PTFE Wave Horn antennas
8
TECHNICAL DATA
122
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
INFORMATION!
CRN CERTIFICATION
There is a CRN certification option for devices with process connections that agree with ASME
standards. This certification is necessary for all devices that are installed on a pressure vessel
and used in Canada.
ASME flanges for CRN-approved devices: Metallic Horn, Wave Guide and PTFE Wave
Horn antennas
Figure 8-10: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °C and barg
Figure 8-11: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Flange connection, Class 150: Metallic Horn and Wave Guide antennas
6 Flange connection, Class 300: Metallic Horn and Wave Guide antennas
7 Flange connection, Class 300: Metallic Horn and Wave Guide and PTFE Wave Horn antennas
8 Flange connection, Class 150: Metallic Horn and Wave Guide and PTFE Wave Horn antennas
TECHNICAL DATA
8
123
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ASME threaded connections: PP Wave Horn antenna
Figure 8-12: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °C and barg
Figure 8-13: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Threaded connection, NPT (ASME B1.20.1): PP Wave Horn antenna
8
TECHNICAL DATA
124
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
INFORMATION!
CRN CERTIFICATION
There is a CRN certification option for devices with process connections that agree with ASME
standards. This certification is necessary for all devices that are installed on a pressure vessel
and used in Canada.
ASME threaded connections for CRN-approved devices: PP Wave Horn antenna
Figure 8-14: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °C and barg
Figure 8-15: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Threaded connection, NPT (ASME B1.20.1): PP Wave Horn antenna
TECHNICAL DATA
8
125
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.5 Antenna selection
The graphs below show which antenna to select for the application based on:
•D, the measuring range,
•ε
r
, is the dielectric constant of the product being measured

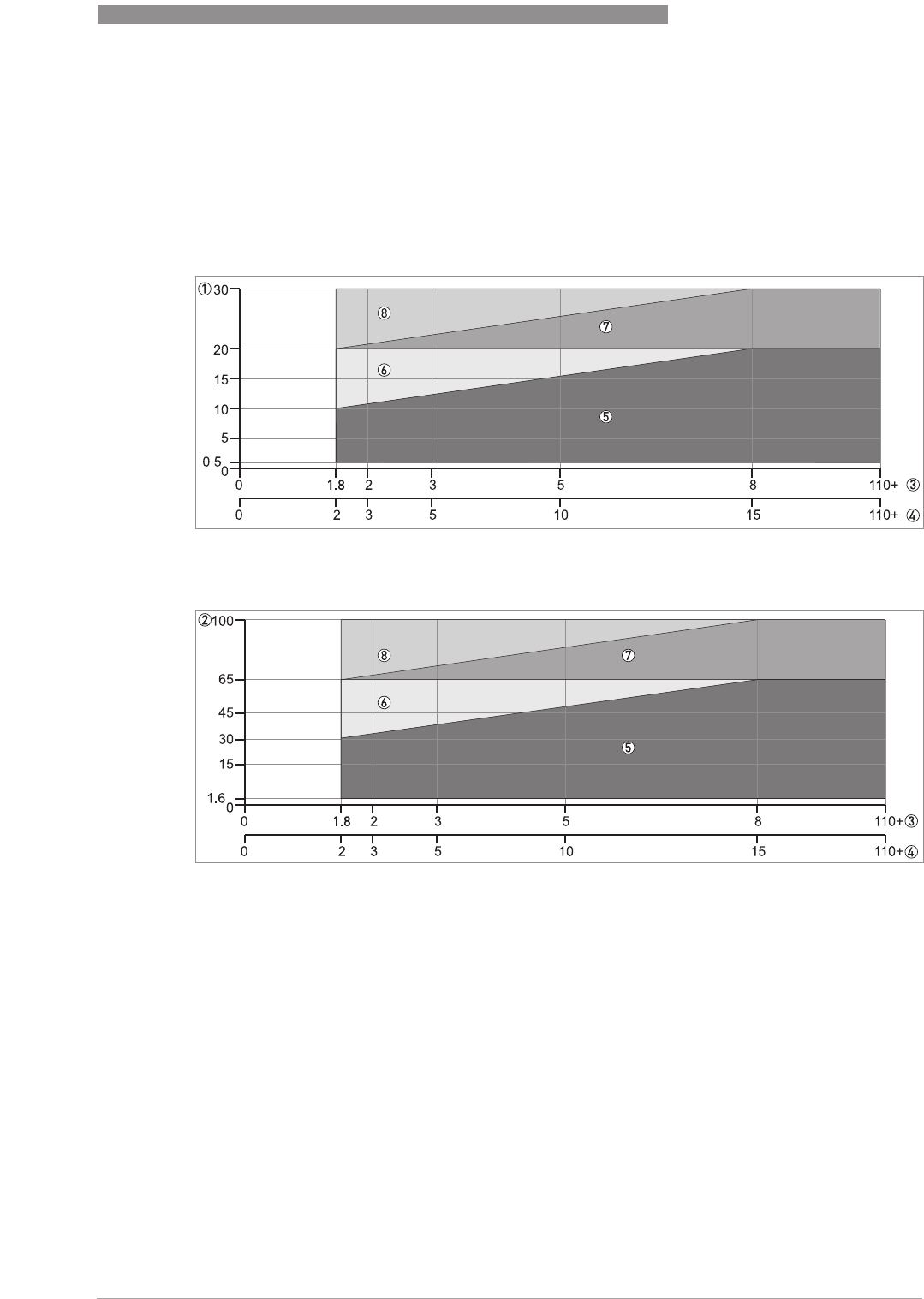

Figure 8-16: Selection of antenna (graph of distance in m against ε
r
)
Figure 8-17: Selection of antenna (graph of distance in ft against ε
r
)
1 Tank height / Measuring range [m]
2 Tank height / Measuring range [ft]
3 ε
r
for storage tanks with smooth product surface
4 ε
r
for process tanks without agitator or foam
5 All antennas:
– DN150 and DN200 Metallic Horn antenna with or without a stilling well* and PTFE and PP Wave Horn antennas
– DN65/2.5¨, DN80/3¨ and DN100/4¨ Metallic Horn antenna: only for use in a stilling well*. Maximum measuring range
is 10 m / 32.81 ft.
– Wave Guide antenna: maximum measuring range is 6 m / 19.68 ft
– DN80 and DN : maximum measuring range is 6 m / 19.68 ft
6 DN150 and DN200 Metallic Horn antennas with or without a stilling well* and PTFE and PP Wave Horn antennas
7 DN150/6¨ and DN200/8¨ Metallic Horn antenna with or without a stilling well*
8 DN200/8¨ Metallic Horn antenna with or without a stilling well*
* A stilling well is equivalent to the Wave Guide antenna option or a bypass chamber
8
TECHNICAL DATA
126
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
8.6 Dimensions and weights
Housing, process connection and antenna options
Housing, process connection and antenna optionsHousing, process connection and antenna options
Housing, process connection and antenna options
Figure 8-18: Housing, process connection and antenna options
1 Housing options.
Housing options.Housing options.
Housing options. From left to right: compact converter with horizontal housing, compact converter with vertical hous-
ing, and remote converter (top) and antenna housing (bottom)
2 Process connection options.
Process connection options.Process connection options.
Process connection options. From left to right: flange connection for PTFE Wave Horn antenna, threaded connection
for PP Wave Horn antenna, flange connection for Metallic Horn and Wave Guide antennas, flange connection with a
high-temperature (HT) extension for Metallic Horn and Wave Guide antennas, flange connection for DN65 Metallic
Horn antenna
3 Antenna options.
Antenna options.Antenna options.
Antenna options. From left to right: PTFE Wave Horn antenna, PP Wave Horn antenna, Metallic Horn antenna (with or
without an antenna extension option: straight, L-bend or S-bend extension), Wave Guide antenna, DN65 horn antenna
with 2¨ 300 lb RF (ASME B16.5) flange for RC W5200 reference chamber
INFORMATION!
All housing covers have bayonet connectors unless it is an explosion-proof (XP / Ex d-approved)
device. The terminal compartment cover for explosion-proof devices has a thread with a flame
path.
TECHNICAL DATA
8
127
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Housing options: Dimensions in mm and inches
Process connection and antenna options: Dimensions in mm
Process connection and antenna options: Dimensions in inches
Dimension
s
Compact – horizontal Compact – vertical Remote
Non-Ex or Ex i (Ex d) Non-Ex or Ex i (Ex d) Non-Ex or Ex i (Ex d)
[mm] [inches] [mm] [inches] [mm] [inches]
a
aa
a191 (258) 7.5 (10.2) 147 (210) 5.79 (8.27) 104 (104) 4.09 (4.09)
b
bb
b214 (214) 8.43 (8.43) 258 (258) 10.16 (10.16) 181 (181) 7.13 (7.13)
c
cc
c127 (127) 5.00 (5.00) 127 (127) 5.00 (5.00) 129 (129) 5.08 (5.08)
d
dd
d————195 (195) 7.68 (7.68)
e
ee
e————146 (209) 5.75 (8.23)
f
ff
f————100 (100) 3.94 (3.94)
g
gg
g————130 (130) 5.12 (5.12)
Dimensions
[mm]
PTFE
Wave Horn
PP Wave
Horn
Metallic Horn Wave
Guide
DN65 DN80 DN100 DN150 DN200
h
hh
h68 33 100 (220 for the HT extension) 1
k
kk
k— — — 100, 200, 300, 400, 500, 1000 2
m
mm
m296 3 322 86 112 148.5 223 335 1000...6000
Øp
ØpØp
Øp 43 43 65 80 100 140 200 30
1The HT extension is only for Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if the
process connection temperature is +150...+250°C.
2These are the length options for the straight antenna extension. For data about the dimensions of S-bend and L-bend extensions, refer
to the illustrations that follow.
3Other antenna lengths are available: 396, 496 or 596 mm. These options are for tanks with long nozzles.
Dimensions
[inches]
PTFE
Wave
Horn
PP Wave
Horn
Metallic Horn Wave
Guide
2.5¨3¨4¨6¨8¨
h
hh
h2.68 1.30 3.94 (8.66 for the HT extension) 1
k
kk
k— — — 3.94, 7.87, 11.81, 15.75, 19.68 or 39.37 2
m
mm
m11.65 3 12.68 3.39 4.41 5.85 8.78 13.19 39.4...236.2
Øp
ØpØp
Øp 1.69 1.69 2.56 3.15 3.94 5.51 7.87 1.18
1The HT extension is only for Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if the
process connection temperature is +302...+482°F.
2These are the length options for the straight antenna extension. For data about the dimensions of S-bend and L-bend extensions, refer
to the illustrations that follow.
3Other antenna lengths are available: 15.59¨, 19.53¨ or 23.46¨. These options are for tanks with long nozzles.
8
TECHNICAL DATA
128
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Special antenna extensions: Dimensions in mm
Special antenna extensions: Dimensions in inches
Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨
Metallic Horn antenna options only)
Figure 8-19: Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨ Metallic Horn antenna
options only)
1 L-bend (right angle) antenna extension
2 S-bend antenna extension
Dimensions
[mm]
Metallic Horn antenna
With L-bend (right angle) extension With S-bend extension
DN150 / 6¨DN200 / 8¨DN150 / 6¨DN200 / 8¨
k1
k1k1
k1 271 300
k2
k2k2
k2 271 322
m
mm
m494 606 545 657
Øp
ØpØp
Øp 140 200 140 200
Dimensions
[inches]
Metallic Horn antenna
With L-bend (right angle) extension With S-bend extension
DN150 / 6¨DN200 / 8¨DN150 / 6¨DN200 / 8¨
k1
k1k1
k1 10.67 11.81
k2
k2k2
k2 10.67 12.68
m
mm
m19.45 23.86 21.46 25.87
Øp
ØpØp
Øp 5.51 7.87 5.51 7.87
TECHNICAL DATA
8
129
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Purging system and heating/cooling system: Dimensions in mm
Purging system and heating/cooling system: Dimensions in inches
Purging and heating/cooling system options
Figure 8-20: Purging and heating/cooling system options
1 Flange connection with purging option
2 Flange connection with heating/cooling system option
3 G¼ threaded connection for purging system (the plug is supplied by the manufacturer)
4 G¼ threaded connection for the heating/cooling system outlet (the plug is supplied by the manufacturer)
5 G¼ threaded connection for the heating/cooling system inlet (the plug is supplied by the manufacturer)
Dimensions
[mm]
Metallic Horn antenna
Purging system Heating/cooling system
DN150 / 6¨DN200 / 8¨DN150 / 6¨DN200 / 8¨
m
mm
m223 351 202 360 1
Øp
ØpØp
Øp 140 200 139.7 195
q
qq
q34 34 53 70
1This is the standard length. Longer on request.
Dimensions
[inches]
Metallic Horn antenna
Purging system Heating/cooling system
DN150 / 6¨DN200 / 8¨DN150 / 6¨DN200 / 8¨
m
mm
m8.78 13.82 8.0 14.17 1
Øp
ØpØp
Øp 5.51 7.87 5.5 7.68
q
qq
q1.34 1.34 2.1 2.76
1This is the standard length. Longer on request.
INFORMATION!
All wetted parts (flange, antenna and heating/cooling jacket) of the heating/cooling system
option are made of 316L / 1.4404.
8
TECHNICAL DATA
130
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
Weather protection option (vertical signal converters – for the compact version only)

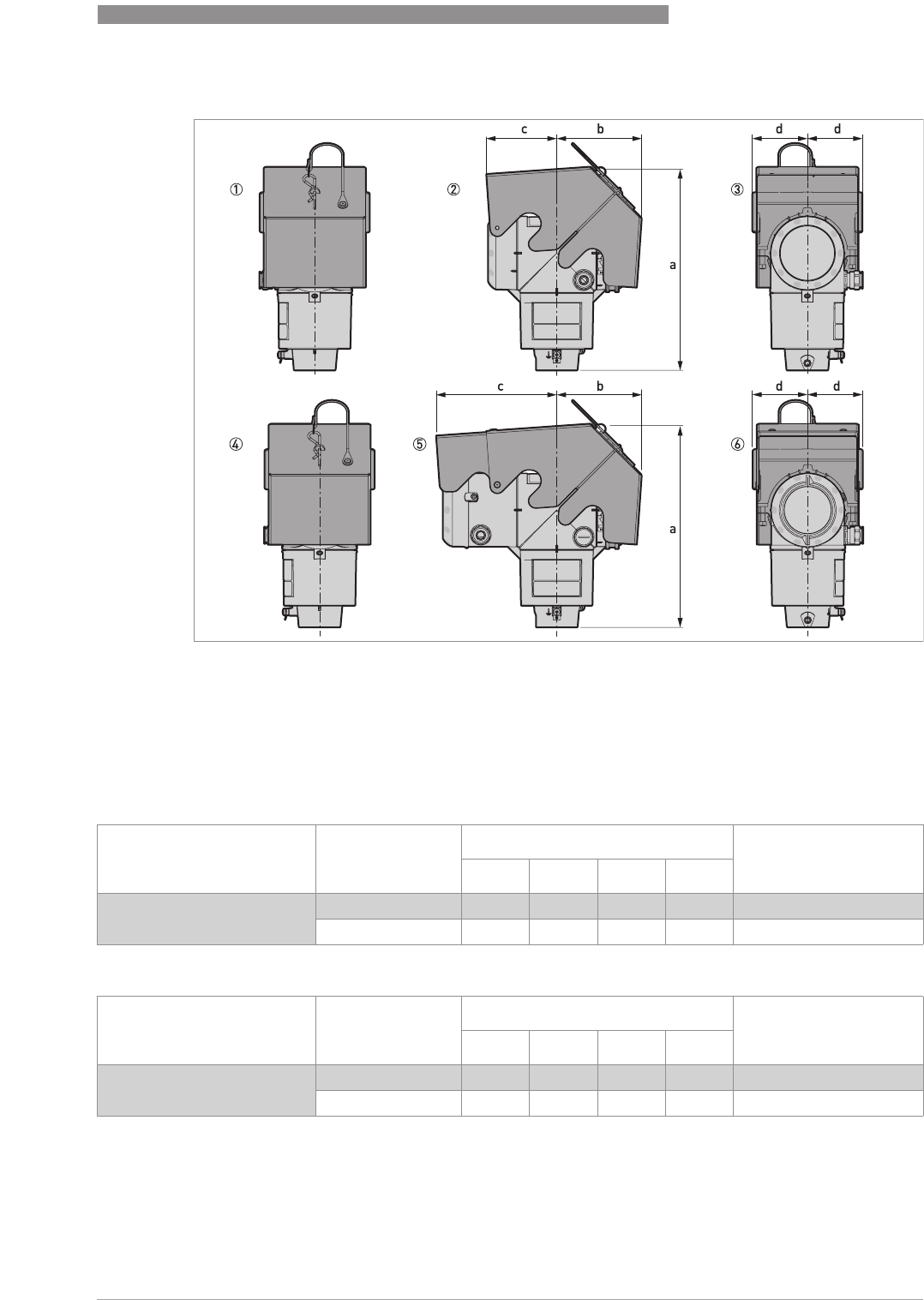

Figure 8-21: Weather protection option for vertical signal converter versions (compact version only)
1 Non-Ex / Ex i / IS: Rear view (with weather protection closed)
2 Non-Ex / Ex i / IS: Right side (with weather protection closed)
3 Non-Ex / Ex i / IS: Front view (with weather protection closed)
4 Ex d / XP: Rear view (with weather protection closed)
5 Ex d / XP: Right side (with weather protection closed)
6 Ex d / XP: Front view (with weather protection closed)
Weather protection Version Dimensions [mm] Weights [kg]
a b c d
Vertical signal converter Non-Ex / Ex i / IS 277 120 96 77 1.3
Ex d / XP 277 120 166 77 1.5
Weather protection Version Dimensions [mm] Weights [kg]
a b c d
Vertical signal converter Non-Ex / Ex i / IS 10.9 4.7 3.8 3.0 2.9
Ex d / XP 10.9 4.7 6.5 3.0 3.3
TECHNICAL DATA
8
131
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
Weather protection option (horizontal signal converters – for the compact version only)
Figure 8-22: Weather protection option for horizontal signal converter versions (compact version only)
1 Non-Ex / Ex i / IS: Front view (with weather protection closed)
2 Non-Ex / Ex i / IS: Left side (with weather protection closed)
3 Non-Ex / Ex i / IS: Rear view (with weather protection closed)
4 Ex d / XP: Front view (with weather protection closed)
5 Ex d / XP: Left side (with weather protection closed)
6 Ex d / XP: Rear view (with weather protection closed)
Weather protection Version Dimensions [mm] Weights [kg]
a b c d
Horizontal signal converter Non-Ex / Ex i / IS 279 120 96 77 1.3
Ex d / XP 279 120 166 77 1.5
Weather protection Version Dimensions [inches] Weights [lb]
a b c d
Horizontal signal converter Non-Ex / Ex i / IS 11.0 4.7 3.8 3.0 2.9
Ex d / XP 11.0 4.7 6.5 3.0 3.3
8
TECHNICAL DATA
132
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
Weather protection option (antenna housing – for the remote version only)
Figure 8-23: Weather protection option for the antenna housing (remote converter version only)
1 Front view (with weather protection closed)
2 Left side (with weather protection closed)
3 Rear view (with weather protection closed)
Weather protection Dimensions [mm] Weights [kg]
a b c d
Antenna housing 204 120 96 77 1.3
Weather protection Dimensions [inches] Weights [lb]
a b c d
Antenna housing 8.0 4.7 3.8 3.0 2.9
TECHNICAL DATA
8
133
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Converter and antenna housing weights
Antenna option weights
Type of housing Weights
Aluminium housing Stainless steel housing
[kg] [lb] [kg] [lb]
Non-Ex / intrinsically-safe (Ex i / IS)
Non-Ex / intrinsically-safe (Ex i / IS)Non-Ex / intrinsically-safe (Ex i / IS)
Non-Ex / intrinsically-safe (Ex i / IS)
Compact converter 3.0 6.6 6.6 14.6
Remote converter 1 2.5 5.5 5.9 13.0
Antenna housing 1 2.0 4.4 4.1 9.0
Explosion proof (Ex d / XP)
Explosion proof (Ex d / XP)Explosion proof (Ex d / XP)
Explosion proof (Ex d / XP)
Compact converter 3.2 7.1 7.5 16.5
Remote converter 1 2.9 6.40 7.1 15.65
Antenna housing 1 2.0 4.4 4.1 9.0
1The remote version of the device has a "remote converter" and an "antenna housing". For more data, refer to "Housing dimensions"
at the start of this section.
Antenna options Min./Max. weights
[kg] [lb]
Standard options, without converter
Standard options, without converterStandard options, without converter
Standard options, without converter
PTFE Wave Horn antenna with flange connection 3.7 8.2
PTFE Wave Horn antenna with flange connection, with 100 mm / 3.94¨ antenna extension 3.78 8.3
PTFE Wave Horn antenna with flange connection, with 200 mm / 7.87¨ antenna extension 3.86 8.5
PTFE Wave Horn antenna with flange connection, with 300 mm / 11.81¨ antenna extension 3.94 8.7
PP Wave Horn antenna with threaded connection 0.7 1.5
DN65 / 2.5¨ Metallic Horn antenna with flange connection – only for the RC W5200 reference
chamber
5.35 11.8
DN80 / 3¨ Metallic Horn antenna with flange connection, standard length 5.6...37.1 12.3...81.8
DN100 / 4¨ Metallic Horn antenna with flange connection, standard length 9.1...37.2 20.1...82
DN150 / 6¨ Metallic Horn antenna with flange connection, standard length 13.6...37.5 30...82.7
DN200 / 8¨ Metallic Horn antenna with flange connection, standard length 14.0..37.8 30.9...83.3
Wave Guide antenna with flange connection, 1...6 m / 3.28...19.68 ft 1.6...9.9 3.5...21.8
Antenna extension options
Antenna extension optionsAntenna extension options
Antenna extension options
Straight extension, length 100 mm / 3.94¨ 1 +0.76 +1.68
Straight extension, length 200 mm / 7.87¨ 1 +0.94 +2.07
Straight extension, length 300 mm / 11.81¨ 1 +1.12 +2.47
Straight extension, length 400 mm / 15.75¨ 1 +1.30 +2.87
Straight extension, length 500 mm / 19.69¨ 1 +1.48 +3.26
Straight extension, length 1000 mm / 39.37¨ 1 +2.38 +5.25
S-bend extension 1 +1.56 +3.44
L-bend (right-angle) extension 1 +1.48 +3.26
8
TECHNICAL DATA
134
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Other options
Other optionsOther options
Other options
HT extension 2 +0.98 +2.16
1This option is for Metallic Horn and Wave Guide antenna options
2This component is only for the Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if
the process connection temperature is +150...+250°C / +302...+482°F.
Antenna options Min./Max. weights
[kg] [lb]
DESCRIPTION OF HART INTERFACE
9
135
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.1 General description
The HART® Protocol is an open digital communication protocol for industry. It is free to use by
anyone. It is included in the software embedded in signal converters of HART-compatible
devices.
There are 2 classes of devices which support the HART® Protocol: operating devices and field
devices. There are 2 classes of operating devices (Master): PC-supported workstations (Primary
Master) and manual control units (Secondary Master). These can be used in control centres and
other locations. HART® field devices include sensors, converters and actuators. Field devices
include 2-wire and 4-wire devices, and also intrinsically-safe versions for use in hazardous
areas.
There are 2 primary operation modes for HART-compatible devices: point-to-point mode and
multi-drop mode.
If the device is used in point-to-point mode, the HART® Protocol uses the Bell 202 Frequency
Shift Keying (FSK) standard to put a digital signal on top of the 4...20 mA signal. The connected
device sends and receives digital signals that agree with the HART® Protocol, and sends analog
signals at the same time. Only 1 device can be connected to the signal cable.
If the device is used in multi-drop mode, the network only uses a digital signal that agrees with
the HART® Protocol. The loop current is set to 4 mA. You can connect a maximum of 63 devices
to the signal cable.
An FSK or HART® modem is included in field devices and manual control units. It is necessary to
have an external modem for PC-supported workstations. The external modem is connected to
the serial interface.
9.2 Software description
HART® identification codes and revision numbers
Manufacturer ID: 0x45
Device: 0xD0
Device Revision: 1
DD Revision 1
HART® Universal Revision: 6
FC 375/475 system SW.Rev.: ≥2.0
AMS version: ≥7.0
PDM version: ≥6.0
FDT version: 1.2
9
DESCRIPTION OF HART INTERFACE
136
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.3 Connection variants
The signal converter is a 2-wire device with 4...20 mA current output and HART® interface.
•Multi-Drop Mode is supported
Multi-Drop Mode is supportedMulti-Drop Mode is supported
Multi-Drop Mode is supported
In a Multi-Drop communication system, more than 1 device is connected to a common
transmission cable.
•Burst Mode is not supported
Burst Mode is not supportedBurst Mode is not supported
Burst Mode is not supported
There are two ways of using the HART® communication:
•as Point-to-Point connection and
•as Multi-Drop connection with 2-wire connection.
9.3.1 Point-to-Point connection – analogue / digital mode
Point-to-Point connection between the signal converter and the HART® Master.
The current output of the device is passive.
Also refer to
Point-to-point connection
on page 61.
9.3.2 Multi-Drop connection (2-wire connection)
Up to 63 devices may be installed in parallel (this signal converter and other HART® devices).
For an illustration of multi-drop networks, refer to
Multi-drop networks
on page 62.
For data on communication in multi-drop mode, refer to
HART
® network configuration on page
88.
9.4 HART® device variables
The HART® dynamic variables PV (Primary Variable), SV (Secondary Variable), TV (Third Variable)
and QV (Fourth Variable) can be assigned to any of the device variables.
The HART® dynamic variable PV is always connected to the HART® current output which is, for
example, assigned to level measurement.
HART® device variable Code Type
level 1linear
distance 2linear
conversion 3linear
ullage conversion 4linear
reflection 5linear
DESCRIPTION OF HART INTERFACE
9
137
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.5 Field Communicator 375/475 (FC 375/475)
The Field Communicator is a hand terminal from Emerson Process Management that is
designed to configure HART® and Foundation Fieldbus devices. Device Descriptions (DDs) are
used to integrate different devices into the Field Communicator.
9.5.1 Installation
System and software requirements for the Field Communicator
•System card that includes the "Easy Upgrade Option"
•Field Communicator Easy Upgrade Programming Utility
•HART
®
Device Description file
For more data, refer to the Field Communicator User’s Manual.
9.5.2 Operation
The Field Communicator and the device's local display use almost the same procedures to
operate the signal converter. The online help for each menu item refers to the function number
given to each menu item on the local device display. Protection of settings is the same as on the
device's local display.
The Field Communicator always saves a complete configuration for communication with AMS.
For more data, refer to
HART
® menu tree for Basic-DD on page 139.
9.6 Asset Management Solutions (AMS
®
)
The Asset Management Solutions Device Manager (AMS
®
) is a PC program from Emerson
Process Management which is designed to configure and manage HART
®
, PROFIBUS and
Foundation Fieldbus devices. Device Descriptions (DDs) are used to integrate different devices
into the AMS
®
.
9.6.1 Installation
Please read the README.TXT file in the Installation Kit.
If the Device Description has not been installed at this time, install the Installation Kit HART
®
AMS. This .EXE file is given on the DVD-ROM supplied with the device. You can also download the
file from our website.
CAUTION!
The Field Communicator cannot be used to correctly configure, operate or read data from the
device unless the Device Description (DD) file is installed.
INFORMATION!
The Field Communicator will not give you access to the service menu. A simulation is only
possible for current outputs.
9
DESCRIPTION OF HART INTERFACE
138
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
For installation data, refer to the "AMS Intelligent Device Manager Books Online" section "Basic
AMS Functionality > Device Configurations > Installing Device Types > Procedures > Install
device types from media".
9.6.2 Operation
9.6.3 Parameter for the basic configuration
Due to AMS requirements and conventions, there are differences when operating the signal
converter with AMS and operating using the local keyboard. The service menu parameters are
not supported and simulation is only possible for current outputs. The online help for each
parameter contains its function number as a reference to the local device display.
9.7 Field Device Tool / Device Type Manager (FDT / DTM)
A Field Device Tool Container (FDT Container) is a PC program used to configure HART
®
,
PROFIBUS and Foundation Fieldbus devices. To configure a device, an FDT container uses the
applicable Device Type Manager (DTM).
9.7.1 Installation
Before you operate the device, the Device Type Manager (Device DTM) must be installed in the
Field Device Tool Container. This .msi file is given on the DVD-ROM supplied with the device. You
can also download the file from our website. For installation and configuration data, refer to the
documentation that is supplied with the Device DTM on the DVD-ROM or in the "Downloads"
section of the website.
9.7.2 Operation
The DTM and the device's local display use almost the same procedures to operate the signal
converter. For more data, refer to
Operation
on page 69.
9.8 Process Device Manager (PDM)
The Process Device Manager (PDM) is a Siemens PC program designed to configure HART
®
and
PROFIBUS devices. Device Descriptions (DDs) are used to integrate different devices into the
PDM.
9.8.1 Installation
Install Device Description files supplied in the Device Install HART
®
PDM folder. This is
necessary for each type of field device that is used with SIMATIC PDM. This folder is available for
download from the website or on the DVD-ROM supplied with the device.
If you use PDM version 5.2, refer to PDM manual, section 11.1 - Install device / Integrate device
into SIMATIC PDM with Device Install.
If you use PDM version 6.0, refer to PDM manual, section 13 - Integrating devices.
INFORMATION!
For more data, refer to HART
®
menu tree for AMS on page 141
.
DESCRIPTION OF HART INTERFACE
9
139
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
For more data, refer to “readme.txt”. You can find this file in the Installation Kit.
9.8.2 Operation
There can be differences between the names of menus in the SIMATIC PDM software tool and
menus shown on the device display screen. Refer to the online help in SIMATIC PDM to find the
function number of each menu item. This function number agrees with the function number in
the device menus.
Use the same procedure for the protection of parameters in the supervisor menu.
9.9 HART
®
menu tree for Basic-DD
Abbreviations of the following tables:
•
Opt
Optional, depending on device version and configuration
•
Rd
Read only
9.9.1 Overview Basic-DD menu tree (positions in menu tree)
INFORMATION!
For more data, refer to HART
®
menu tree for PDM on page 143
.
1Measurements 1Measurements
2Output
2Configuration and Test 1Info. 1 Identification
2Output
2Supervisor 1Test
2 Basic Parameters
3Signal Out
4 Application
5Display
6Conversion Table
7 Reset
3Diag/Service 1 Status 1 Standard Status
2 Device-specific Status
4 Access Rights 1 Access level
2Method Login
3Method entry Code
5HART variables
9
DESCRIPTION OF HART INTERFACE
140
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.9.2 Basic-DD menu tree (details for settings)
1Measurements
1Measurements 1 Level value
Rd
/ 2 Distance value
Rd
/ 3 Volume value
Rd
/ 4 Ullage value
Rd
/ 5 Reflection
value
Rd
2 Inputs/Outputs 1PV
Rd
/ 2 PV Loop Current
Rd
/ 3 PV % rnge
Rd
2Configuration and Test
1Info. 1 Identification 1 Serial Number
Rd
/ 2 Converter Firmware Version
Rd
/ 3 Sensor
Firmware Version
Rd
/ 4 HMI Firmware Version
Rd
2Output 1Function I
Rd
/ 2 Output Range
Rd
/ 3 PV URV
Rd
/ 4 PV LRV
Rd
/
5 Output Error Delay
Rd
2Supervisor 1Test 1Test I
2 Basis Parameters 1 Tank Height / 2 Blocking Distance / 3 Time Constant / 4 Pipe
Enabled / 5 Pipe Diameter / 6 Pipe Height / 7 Antenna Extension /
8 Antenna Type / 9 Distance Piece / 15 Length Unit (HART) /
16 Volume Unit (HART)
3Signal Out 1 Function I / 2 PV LRV / 3 PV URV / 4 Output Range / 5 Output
Error Delay / 6 Current Ouput Calibration
Cust
4 Application 1Tank Type/ 2Tracking Velocity/ 3Epsilon R Product/
4Measuring Mode/ 5Overfill Detection/ 6Multiple Reflection/
7 Empty Spectrum / 8 Record Empty Spectrum
5Display 1 Language / 2 Display Length Unit / 3 Display Volume Unit
6Conversion Table 1 Input table / 2 Delete table
7Reset 1 Warm start / 2 Factory reset / 3 Reset Configuration Changed
flag
3Diag/Service
1Status 1 Standard status 1 Device status
Rd
/ 2 Write protect
Rd
2 Device-specific
status 1 Device failures 1 Error
Rd
/ 2 Error
Rd
/ 3 Error
Rd
2 Device warning maintenance
required 1Warning
Rd
3 Device warning out of
specification 1Warning
Rd
4Info 1Info
Rd
4Access Rights
1 Access Level (Access Not Granted)
2Method Login 1 No Access (Log Out) / 2 Supervisor (Normal User) / 3 Service
3Method Entry Code
5HART variables
1 Poll addr / 2 Tag / 3 Hardware rev
Rd
/ 4 Software rev
Rd
/ 5Descriptor/ 6Date/
7Message/ 8Manufacturer
Rd
/ 9 Model
Rd
/ Dev id
Rd
/ Universal id
Rd
/ Fld dev rev
Rd
/ Num
req preams
Rd
/ Num resp preams
Rd
/ Write protect
Rd
/ Production number
Rd
/ Final
asmbly num
Rd
/ PV is / SV is / TV is / QV is
DESCRIPTION OF HART INTERFACE
9
141
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.10 HART
®
menu tree for AMS
Abbreviations of the following tables:
•
Opt
Optional, depending on device version and configuration
•
Rd
Read only
9.10.1 Overview AMS menu tree (positions in menu tree)
Process variables Measurements
Analog Output
Device Diagnostics Overview
Fatal Errors (Failure)
Warnings (Maintenance required)
Warnings (Out of specifications)
Warnings (Function check)
Methods Access Right
Tests
Calibrate
Empty Spectrum
Conversion Table
Master reset
Configure / Setup Basic Setup Basic Parameters
Local Display
Application
Analog Output Output Functions
Output 1
Units
Device
HART ID
-
Conversion table
9
DESCRIPTION OF HART INTERFACE
142
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.10.2 AMS menu tree (details for settings)
Process Variables
Measurements Level
Rd
/ Distance
Rd
/ Volume/Mass/Flow
Rd
/ Ullage Volume/Mass/Flow
Rd
/
Reflection
Rd
Primary Output Function I / Loop current
Rd
/ PV Percent of Range
Rd
Device Diagnostics
Overview Primary variable out of limits / Non-primary variable out of limits / Primary
variable analog output saturated / Primary variable analog output fixed / Cold
Start / Configuration changed / Field device malfunction
Fatal Errors (Failure) Converter EEPROM error / Converter RAM error / Converter ROM error /
Sensor EEPROM error / Sensor RAM error / Sensor ROM error / Current
output drift / Sensor Microwave error / Converter Voltage error / Sensor
Voltage error / Internal Comm. error / Temperat. out of range / Sensor not
compatible / Sensor no signal / Sensor processing failure / Peak lost error /
Overfill error
Warnings (Maintenance
required)
Empty spectrum invalid / Signal weak / Signal strong / Bad Measurement
Quality / Temperature < -35°C / Temperature > +75°C
Warnings (Out of
specification)
Peak lost / Overfill / Temperature out of range
Warnings (Function check) Local operation on the device
Information Spectrum quality bad / Peak lost in tank bottom / Temperature out of range
for HMI
Methods
Acess right Log In/Log Out / Password Yes/No
Tests Test Output I
Calibrate D/A Trim
Empty Spectrum Empty Spec. Rec.
Conversion Table Input table / Delete table
Reset Restart Device / Reset Factory / Rst Conf. Chged flag
Configure / Setup
Basic Setup Basic Parameters Tank Height / Blocking Distance / Time Constant /
Stillwell Enabled / Stillwell Diameter / Stillwell
Height / Antenna Extension / Antenna Type /
Distance Piece / Tag
Local Display Display length unit / Display volume unit / Language
Application Tank Type / Tracking velocity / Epsilon R product /
Measuring Mode / Overfill Detection / Multiple
Reflection / Empty Spectrum On/Off
Analog Output Output Functions Function I / SV / TV / QV
Output 1 Output Range / Output Error Delay / LRV / URV
Units Length unit (HART) / Volume unit (HART) / Time constant
DESCRIPTION OF HART INTERFACE
9
143
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
9.11 HART
®
menu tree for PDM
Abbreviations of the following tables:
•
Opt
Optional, depending on device version and configuration
•
Rd
Read only
•
Cust
Custody lock protection
•
Loc
Local PDM, affects only PDM views
9.11.1 Overview PDM menu tree (positions in menu tree)
Overview: Menu Device
Overview: Menu View
Device Model / Manufacturer / Fld dev rev / Software rev / Write protect / Interface
option
Rd
/ Descriptor / Message / Date / Serial number / Converter firmware
number / Sensor Firmware number / HMI Firmware number
HART ID Tag / Polling address / Device ID
Universal revision / Fld dev rev Num / Num request
preams
Conversion table Number of points / Length unit
Rd
/ Conversion unit
Rd
/ Points (1...30 level-
conversion pairs)
Communication Path
Download To Device...
Upload To PG/PC...
Update Diagnosis Status
Configuration and Test
Access Rights
watch status
Measurements Level Value
Distance Value
Ullage Value
Reflection Value
Yt diagram
Diag / Service
Toolbar
Status Bar
Update
9
DESCRIPTION OF HART INTERFACE
144
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Overview: PDM parameters
9.11.2 PDM menu tree (details for settings)
Device Menu
Configuration and Test Info. Identification
Output
Supervisor Test
Basic Parameters
Signal Output
Application
Display
Conversion Table
Reset
Access rights
HART variables
Communication Path
Download To Device...
Upload To PG/PC...
Update Diagnosis Status
Configuration and Test
Info. Identification Serial Number
Rd
/ Converter Firmware
version
Rd
/ Sensor Firmware version
Rd
/ HMI
Firmware version
Rd
Output Function I
Rd
/ Output Range
Rd
/ PV URV
Rd
/ PV
LRV
Rd
/ Output Error Delay
Rd
Supervisor Test Test I
Basic Parameters Tank Height / Blocking Distance / Time Constant /
Pipe Enable / Pipe Diameter / Pipe Height /
Antenna Extension / Antenna Type / Distance
Piece / Length Unit (HART) / Conversion Unit
(HART)
Signal Output Function I / Output Range / PV URV / PV LRV /
Output Error Delay / Current Output Calibration 1
Application Tank Type / Tracking Velocity / Epsilon R product /
Measuring Mode / Overfill Detection / Multiple
Reflection / Empty Spectrum Recording / Empty
Spectrum On/Off
Display Language / Display Length Unit / Display
Conversion Unit
Conversion Table Input Table / Delete Table
Reset Warm start (function to restart the device) / Factory
Reset / Reset Configuration Changed Flag
DESCRIPTION OF HART INTERFACE
9
145
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
View Menu
Access rights
Access level
Rd
Method Login
Method Entry Code
HART Variables
1 Poll addr / 2 Tag / 3 Hardware rev
Rd
/ 4 Software rev
Rd
/ 5Descriptor/ 6Date/ 7Message/
8 Manufacturer
Rd
/ 9 Model
Rd
/ Dev id
Rd
/ Universal id
Rd
/ Fld dev rev
Rd
/ Num req preams
Rd
/ Num resp
preams
Rd
/ Write protect
Rd
/ Production number
Rd
/ Final asmbly num
Rd
/ PV is / SV is / TV is / QV is
1Current Output Calibration is available only if the service password is used
Measurements
Measurements Level Value / Distance Value / Volume Value / Ullage Value / Reflection Value
Output Level value / Loop current / % Range
Yt diagram
Diag / Service
Standard Status Device status PV Analog Channel Saturated / Configuration
changed
Device-specific status Device failures Sensor Microwave error / Current Output Drift /
Sensor ROM error / Sensor RAM error / Sensor
EEPROM error / Converter ROM error / Converter
RAM error / Converter EEPROM error
Sensor No Signal / Sensor Not Compatible /
Temperature Out of Range / Internal
Communication Error / Sensor Voltage Error /
Converter Voltage Error
Peak Lost Error / Overfill Error
Device Warning
(Maintenance
Required)
Empty Spectrum Invalid / Signal Weak / Signal
Strong / Bad Measurement Quality / Temperature
Below -35°C / Temperature Above +75°C
Device Warning (Out of
Specification) Overfill Warning / Peak Lost Warning /
Temperature Out of Range Warning
Info First Start / Spectrum Quality Bad / Peak Lost in
Tank Bottom / Temperature out of range for HMI
Toolbar
Status Bar
Update
10
APPENDIX
146
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
10.1 Order code
Make a selection from each column to get the full order code. The characters of the order code
highlighted in light grey describe the standard.
VF50 4OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications
OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applicationsOPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications
OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications
Converter version (Housing material
Converter version (Housing material Converter version (Housing material
Converter version (Housing material – protection category)
protection category) protection category)
protection category)
1OPTIWAVE 5200 C: Compact version (Aluminium – IP66/67)
2OPTIWAVE 5200 C: Compact version (Stainless steel – IP66/67)
3OPTIWAVE 5200 F: Remote version (converter & antenna housing: Aluminium – IP66/67)
4OPTIWAVE 5200 F: Remote version (converter & antenna housing: Stainless steel – IP66/67)
Approval
ApprovalApproval
Approval 1
0Without
1ATEX II 1/2 G Ex ia IIC T6 Ga/Gb + II 1/2 D Ex ia IIIC Da/Db
2ATEX II 1/2 G Ex d ia IIC T6 Ga/Gb + II 1/2 D Ex ia tb IIIC Da/Db
4ATEX II 3 G Ex ic IIC T6 Gc + II 3 D Ex ic IIIC Dc (Zone 2 & 22)
6IECEx Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db
7IECEx Ex d ia IIC T6 Ga/Gb + Ex ia tb IIIC Da/Db
8IECEx Ex ic IIC T6 Gc + Ex ic IIIC Dc (Zone 2 & 22)
AcFMus IS CL I/II/III DIV 1 GPS A-G + CL I zone 0/20 Ex ia IIC/IIIC T6
BcFMus XP-AIS/DIP CL I/II/III DIV 1 GPS A-G (A not for Canada) + CL I zone 0/20 Ex d[ia]/tb[ia] IIC/IIIC
T6 2
CcFMus NI CL I/II/III DIV 2 GPS A-G + CL I zone 2 Ex nA IIC T6
LNEPSI Ex ia IIC T6 Ga/Gb + DIP A20/A21 2
MNEPSI Ex d ia IIC T6 Ga/Gb + DIP A20/A21 2
RINMETRO Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db
SINMETRO Ex d ia IIC T6 Ga/Gb + Ex ia tb IIIC Da/Db
TINMETRO Ex ic IIC T6 Gc + Ex ic IIIC Dc (Zone 2 & 22)
Other approval
Other approvalOther approval
Other approval
0Without
1SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA output
4CRN (Canadian Registration Number)
5CRN + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA output
AWHG – must be supplied with a calibration certificate
BEAC Russia
CEAC Belarus
DEAC Russia + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA
output
EEAC Belarus + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA
output
KEAC Kazakhstan
LEAC Kazakhstan + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a
4…20 mA output
VF50
VF50VF50
VF50 4Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
APPENDIX
10
147
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Process seal
Process seal Process seal
Process seal – Temperature / Pressure / Material / Remarks (higher flange temperature and
Temperature / Pressure / Material / Remarks (higher flange temperature and Temperature / Pressure / Material / Remarks (higher flange temperature and
Temperature / Pressure / Material / Remarks (higher flange temperature and
process pressure on request)
process pressure on request)process pressure on request)
process pressure on request)
0Without
1-40...+150°C (-40…+302°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for
Metallic Horn and Wave Guide
5-50...+130°C (-58…+266°F) / -1...40 barg (-14.5…580 psig) / EPDM / Metaglas® for Metallic
Horn and Wave Guide
6-20...+150°C (-4…+302°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for
Metallic Horn and Wave Guide
A-60...+130°C (-76…+266°F) / -1...40 barg (-14.5…580 psig) / PFA / Metaglas® for Metallic
Horn and Wave Guide
D-40...+200°C (-40…+392°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for
Metallic Horn and Wave Guide with distance piece
K-20...+250°C (-4…+482°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for
Metallic Horn and Wave Guide with distance piece
R-20...+100°C (-4…+212°F) / -1...16 barg (-14.5…232 psig) / PP / for PP Wave Horn with G and
NPT threaded connections
T-50...+150°C (-58…+302°F) / -1...40 barg (-14.5…580 psig) / PTFE / for PTFE Wave Horn with
Type B1 (EN 1092-1) or Raised Face (ASME B16.5) flange facing
Antenna
AntennaAntenna
Antenna
0Without
1Metallic Horn (sheet metal) DN80 (3¨) L= 110 mm (4.33¨) / 316L 3
2Metallic Horn (sheet metal) DN100 (4¨) L= 148 mm (5.83¨) / 316L 3
3Metallic Horn (sheet metal) DN150 (6¨) L= 223 mm (8.78¨) / 316L
4Metallic Horn (sheet metal) DN 200 (8¨) L= 335 mm (13.19¨) / 316L
5Metallic Horn (machined) DN65 (2.5¨) L= 86 mm (3.38¨) for RC W5200 4
GWave Horn Ø43 mm (1.69¨) L= 322 mm (12.68¨)/ PP
HWave Horn Ø43 mm (1.69¨) L= 296 mm (11.65¨)/ PTFE
LMetallic Wave Guide Ø30 mm (1.18¨) ≤1 m (3.28 ft) / 316L
MMetallic Wave Guide Ø30 mm (1.18¨) ≤1.5 m (4.92 ft) / 316L
NMetallic Wave Guide Ø30 mm (1.18¨) ≤2 m (6.56 ft) / 316L
PMetallic Wave Guide Ø30 mm (1.2¨) ≤2.5 m (8.20 ft) / 316L
RMetallic Wave Guide Ø30 mm (1.18¨) ≤3 m (9.84 ft) / 316L
SMetallic Wave Guide Ø30 mm (1.18¨) ≤3.5 m (11.48 ft) / 316L
TMetallic Wave Guide Ø30 mm (1.18¨) ≤4 m (13.12 ft) / 316L
UMetallic Wave Guide Ø30 mm (1.18¨) ≤4.5 m (14.76 ft) / 316L
VMetallic Wave Guide Ø30 mm (1.18¨) ≤5 m (16.40 ft) / 316L
WMetallic Wave Guide Ø30 mm (1.18¨) ≤5.5 m (18.05 ft) / 316L
XMetallic Wave Guide Ø30 mm (1.18¨) ≤6 m (19.69 ft) / 316L
VF50
VF50VF50
VF50 4Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
10
APPENDIX
148
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Antenna extension
Antenna extensionAntenna extension
Antenna extension
0Without
6100 mm (3.94¨) L= 396 mm (15.59¨) / PTFE (for the PTFE Wave Horn antenna) 5
7200 mm (7.87¨) L= 496 mm (19.53¨) / PTFE (for the PTFE Wave Horn antenna) 5
8300 mm (11.81¨) L= 596 mm (23.47¨) / PTFE (for the PTFE Wave Horn antenna) 5
E100 mm (3.94¨) / 316L (for the Metallic Horn antenna) 5
F200 mm (7.87¨) / 316L (for the Metallic Horn antenna) 5
G300 mm (11.81¨) / 316L (for the Metallic Horn antenna) 5
H400 mm (15.75¨) / 316L (for the Metallic Horn antenna) 5
K500 mm (19.69¨) / 316L (for the Metallic Horn antenna) 5
R1000 mm (39.37¨) / 316L (for the Metallic Horn antenna) 5
WS-bend extension / 316L 5
XL-bend (right angle) extension / 316L 5
Process connection (size / pressure rating / flange face)
Process connection (size / pressure rating / flange face)Process connection (size / pressure rating / flange face)
Process connection (size / pressure rating / flange face)
000Without
Threaded – ISO 228
G P 0 G1½A– for the PP Wave Horn antenna 6
H P 0 G2A– for the PP Wave Horn antenna
Threaded – ASME B1.20.1
G A 0 1½NPT – for the PP Wave Horn antenna
H A 0 2NPT– for the PP Wave Horn antenna
EN / DIN flanges – EN 1092-1 7
H E 1 DN50 PN16 – Type B1 8
H G 1 DN50 PN40 – Type B1 8
L E 1 DN80 PN16 – Type B1
L G 1 DN80 PN40 – Type B1
M E 1 DN100 PN16 – Type B1
M G 1 DN100 PN40 – Type B1
P E 1 DN150 PN16 – Type B1
P G 1 DN150 PN40 – Type B1
R E 1 DN200 PN16 – Type B1
R G 1 DN200 PN40 – Type B1
ASME B16.5 / ANSI flanges 7
H 1 A 2¨ 150 lb RF 8
H 2 A 2¨ 300 lb RF 9
L 1 A 3¨ 150 lb RF
L 2 A 3¨ 300 lb RF
M 1 A 4¨ 150 lb RF
M 2 A 4¨ 300 lb RF
P 1 A 6¨ 150 lb RF
P 2 A 6¨ 300 lb RF
R 1 A 8¨ 150 lb RF
R 2 A 8¨ 300 lb RF
VF50
VF50VF50
VF50 4Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
APPENDIX
10
149
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
JIS B2220 flanges
H U P 10K 50A RF 8
L U P 10K 80A RF
M U P 10K 100A RF
PUP10K 150A RF
R U P 10K 200A RF
Alternative flange faces
2Type B2, EN 1092-1 (surface roughness must be specified in the order)
3Type C, EN 1092-1 (Tongue)
4Type D, EN 1092-1 (Groove)
5Type E, EN 1092-1 (Spigot)
6Type F, EN 1092-1 (Recess)
BFF, ASME B16.5 (Flat face)
Output
OutputOutput
Output
12-wire / 4...20 mA passive HART
A2-wire / FOUNDATION™ fieldbus
B2-wire / PROFIBUS PA
Cable entry / cable gland
Cable entry / cable glandCable entry / cable gland
Cable entry / cable gland
1M20×1.5 / Without
2M20×1.5 / Plastic
3M20×1.5 / Nickel-plated brass
4M20×1.5 / Stainless steel
A½NPT (nickel-plated brass) / Without
B½NPT (stainless steel) / Without
Housing
Housing Housing
Housing – Orientation / Display / Weather protection
Orientation / Display / Weather protection Orientation / Display / Weather protection
Orientation / Display / Weather protection
1Horizontal / Without / Without – for the compact version
2Horizontal / Display on side / Without – for the compact version
3Horizontal / Without / With – for the compact version
4Horizontal / Display on side / With – for the compact version
AVertical / Without / Without
BVertical / Display on top / Without
CVertical / Display on side / Without
(not available for Ex d ia and cFMus-approved devices)
DVertical / Without / With
EVertical / Display on top / With
FVertical / Display on side / With
(not available for Ex d ia and cFMus-approved devices)
VF50
VF50VF50
VF50 4Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
10
APPENDIX
150
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Display language
Display languageDisplay language
Display language
0Without (if no display)
1English
2German
3French
4Italian
5Spanish
6Portuguese
7Japanese
8Chinese (simplified)
ARussian
Version
VersionVersion
Version
0Standard orders and orders for solid applications in China
6Orders with FCC radio approval (FCC Part 15 and
RSS-210)
AOrders for liquid applications in China
0Options for the remote version (OPTIWAVE 52000 F)
Options for the remote version (OPTIWAVE 52000 F)Options for the remote version (OPTIWAVE 52000 F)
Options for the remote version (OPTIWAVE 52000 F)
0Without
6Signal cable 10 m (32.81 ft) / grey (non-Ex) or blue
(Ex)
7Signal cable 25m (82.02 ft) / grey (non-Ex) or blue
(Ex)
8Signal cable 50m (164.04 ft) / grey (non-Ex) or blue
(Ex
ASignal cable 75m (246.06 ft) / grey (non-Ex) or blue
(Ex)
BSignal cable 100m (328.08 ft) / grey (non-Ex) or
blue (Ex)
Adaptor for BM 70 A, BM 700 and BM 702 A
Adaptor for BM 70 A, BM 700 and BM 702 A Adaptor for BM 70 A, BM 700 and BM 702 A
Adaptor for BM 70 A, BM 700 and BM 702 A
process connections
process connectionsprocess connections
process connections
0Without
1For BM70x process connection
Calibration certificate
Calibration certificateCalibration certificate
Calibration certificate
0Without
1Calibration certificate ±5 mm 2 factory
default points for accuracy of ±5 mm (0.2¨)
TAG Number
TAG NumberTAG Number
TAG Number
0Without
2Tag No. stainless steel plate
(18 characters max.)
VF50
VF50VF50
VF50 4Order code (complete this code on the
Order code (complete this code on the Order code (complete this code on the
Order code (complete this code on the
pages that follow)
pages that follow)pages that follow)
pages that follow)
APPENDIX
10
151
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Other constructions
Other constructionsOther constructions
Other constructions
0Without
1NACE design
(MR0175 / MR0103 / ISO 15156)
3Heating / Cooling 10
5Purging with liquid 10
6Purging with liquid + Heating /
Cooling 10
APurging with gas 10
BPurging with gas + Heating / Cooling
10
VF50
VF50VF50
VF50 4 0 Order code
Order codeOrder code
Order code
1For more data, refer to the Technical data section (Approvals and certification)
2DIP= Dust Ignition Proof
3Only for a standpipe (bypass chamber or stilling well)
4The device is installed on top of a BM 26 A. The device must have a 2¨ 300 lb RF (ASME B16.5) flange without an antenna extension.
Refer to the BM 26 A technical data sheet to make a selection of options for the measuring chamber.
5For device dimensions, refer to the "Dimensions and weights" section
6Refer to the accessory list to attach a low-pressure stainless steel flanges to the threaded connection
7Other flange faces are available. Refer to your local supplier for more data. Flanges with the PTFE Wave Horn antenna option have a
slip on-type design with an anti-blowout feature.
8Minimum flange size for the PTFE Wave Horn antenna. This is not available for the Metallic Horn antenna.
9Minimum flange size for the PTFE Wave Horn antenna. This flange is also available with the DN65 Metallic Horn antenna for the
RC W5200 reference chamber.
10For DN150 and DN200 Metallic Horn antenna only
10
APPENDIX
152
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
10.2 Spare parts
We supply spare parts for this device. When you send an order for a mechanical spare part, use
the reference numbers in the table that follows. When you send an order for an electronic spare
part, refer to
Order code
on page 146 and use the VF50 order code.
Mechanical spare parts
XF50 4 0 0 0 OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process
OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process
OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process
applications
applicationsapplications
applications
Process seal
Process seal Process seal
Process seal – Temperature / Pressure / Material / Remarks (higher flange temperature and
Temperature / Pressure / Material / Remarks (higher flange temperature and Temperature / Pressure / Material / Remarks (higher flange temperature and
Temperature / Pressure / Material / Remarks (higher flange temperature and
process pressure on request)
process pressure on request)process pressure on request)
process pressure on request)
0Without
1-40...+150°C (-40…+302°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for
Metallic Horn and Wave Guide
5-50...+130°C (-58…+266°F) / -1...40 barg (-14.5…580 psig) / EPDM / Metaglas® for Metallic
Horn and Wave Guide
6-20...+150°C (-4…+302°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for
Metallic Horn and Wave Guide
A-60...+130°C (-76…+266°F) / -1...40 barg (-14.5…580 psig) / PFA / Metaglas® for Metallic
Horn and Wave Guide
D-40...+200°C (-40…+392°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for
Metallic Horn and Wave Guide with distance piece
K-20...+250°C (-4…+482°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for
Metallic Horn and Wave Guide with distance piece
R-20...+100°C (-4…+212°F) / -1...16 barg (-14.5…232 psig) / PP / for PP Wave Horn with G and
NPT threaded connections
T-50...+150°C (-58…+302°F) / -1...40 barg (-14.5…580 psig) / PTFE / for PTFE Wave Horn with
Type B1 (EN 1092-1) or Raised Face (ASME B16.5) flange facing
Antenna
AntennaAntenna
Antenna
0Without
1Metallic Horn (sheet metal) DN80 (3¨) L= 110 mm (4.33¨) / 316L 1
2Metallic Horn (sheet metal) DN100 (4¨) L= 148 mm (5.83¨) / 316L 1
3Metallic Horn (sheet metal) DN150 (6¨) L= 223 mm (8.78¨) / 316L
4Metallic Horn (sheet metal) DN 200 (8¨) L= 335 mm (13.19¨) / 316L
5Metallic Horn (machined) DN65 (2.5¨) L= 86 mm (3.38¨) for RC W5200 2
GWave Horn Ø43 mm (1.69¨) L= 322 mm (12.68¨)/ PP
HWave Horn Ø43 mm (1.69¨) L= 296 mm (11.65¨)/ PTFE
LMetallic Wave Guide Ø30 mm (1.18¨) ≤1 m (3.28 ft) / 316L
MMetallic Wave Guide Ø30 mm (1.18¨) ≤1.5 m (4.92 ft) / 316L
NMetallic Wave Guide Ø30 mm (1.18¨) ≤2 m (6.56 ft) / 316L
PMetallic Wave Guide Ø30 mm (1.2¨) ≤2.5 m (8.20 ft) / 316L
RMetallic Wave Guide Ø30 mm (1.18¨) ≤3 m (9.84 ft) / 316L
SMetallic Wave Guide Ø30 mm (1.18¨) ≤3.5 m (11.48 ft) / 316L
TMetallic Wave Guide Ø30 mm (1.18¨) ≤4 m (13.12 ft) / 316L
UMetallic Wave Guide Ø30 mm (1.18¨) ≤4.5 m (14.76 ft) / 316L
VMetallic Wave Guide Ø30 mm (1.18¨) ≤5 m (16.40 ft) / 316L
WMetallic Wave Guide Ø30 mm (1.18¨) ≤5.5 m (18.05 ft) / 316L
XMetallic Wave Guide Ø30 mm (1.18¨) ≤6 m (19.69 ft) / 316L
XF50
XF50XF50
XF50 4 0 0 0 Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
APPENDIX
10
153
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Antenna extension
Antenna extensionAntenna extension
Antenna extension
0Without
6100 mm (3.94¨) L= 396 mm (15.59¨) / PTFE (for the PTFE Wave Horn antenna) 3
7200 mm (7.87¨) L= 496 mm (19.53¨) / PTFE (for the PTFE Wave Horn antenna) 3
8300 mm (11.81¨) L= 596 mm (23.47¨) / PTFE (for the PTFE Wave Horn antenna) 3
E100 mm (3.94¨) / 316L (for the Metallic Horn antenna) 3
F200 mm (7.87¨) / 316L (for the Metallic Horn antenna) 3
G300 mm (11.81¨) / 316L (for the Metallic Horn antenna) 3
H400 mm (15.75¨) / 316L (for the Metallic Horn antenna) 3
K500 mm (19.69¨) / 316L (for the Metallic Horn antenna) 3
R1000 mm (39.37¨) / 316L (for the Metallic Horn antenna) 3
WS-bend extension / 316L 3
XL-bend (right angle) extension / 316L 3
YHT distance piece for the Metallic Horn or Wave Guide / 316L
Process connection (size / pressure rating / flange face)
Process connection (size / pressure rating / flange face)Process connection (size / pressure rating / flange face)
Process connection (size / pressure rating / flange face)
000Without
Threaded – ISO 228
G P 0 G1½A– for the PP Wave Horn antenna 4
H P 0 G2A– for the PP Wave Horn antenna
Threaded – ASME B1.20.1
G A 0 1½NPT – for the PP Wave Horn antenna
H A 0 2NPT– for the PP Wave Horn antenna
EN / DIN flanges – EN 1092-1 5
H E 1 DN50 PN16 – Type B1 6
H G 1 DN50 PN40 – Type B1 6
L E 1 DN80 PN16 – Type B1
L G 1 DN80 PN40 – Type B1
M E 1 DN100 PN16 – Type B1
M G 1 DN100 PN40 – Type B1
P E 1 DN150 PN16 – Type B1
P G 1 DN150 PN40 – Type B1
R E 1 DN200 PN16 – Type B1
R G 1 DN200 PN40 – Type B1
XF50
XF50XF50
XF50 4 0 0 0 Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)
Order code (complete this code on the pages that follow)
10
APPENDIX
154
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
ASME B16.5 / ANSI flanges 5
H 1 A 2¨ 150 lb RF 6
H 2 A 2¨ 300 lb RF 7
L 1 A 3¨ 150 lb RF
L 2 A 3¨ 300 lb RF
M 1 A 4¨ 150 lb RF
M 2 A 4¨ 300 lb RF
P 1 A 6¨ 150 lb RF
P 2 A 6¨ 300 lb RF
R 1 A 8¨ 150 lb RF
R 2 A 8¨ 300 lb RF
JIS B2220 flanges
H U P 10K 50A RF 6
L U P 10K 80A RF
M U P 10K 100A RF
PUP10K 150A RF
R U P 10K 200A RF
Alternative flange faces
0Without
2Type B2, EN 1092-1 (surface roughness must be specified in the order)
3Type C, EN 1092-1 (Tongue)
4Type D, EN 1092-1 (Groove)
5Type E, EN 1092-1 (Spigot)
6Type F, EN 1092-1 (Recess)
BFF, ASME B16.5 (Flat face)
0 0 0 0 Version
VersionVersion
Version
0Standard orders and orders for solid applications in China
6Orders with FCC radio approval (FCC Part 15 and
RSS-210)
AOrders for liquid applications in China
0 0 Adaptor for BM 70 A, BM 700 and BM 702 A
Adaptor for BM 70 A, BM 700 and BM 702 A Adaptor for BM 70 A, BM 700 and BM 702 A
Adaptor for BM 70 A, BM 700 and BM 702 A
process connections
process connectionsprocess connections
process connections
0Without
1For BM70x process connection
0TAG Number
TAG NumberTAG Number
TAG Number
0Without
1Tag No. stainless steel plate
(18 characters max.)
XF50
XF50XF50
XF50 4 0 0 0 0 0 0 0 0 0 0 Order code (complete this code on the
Order code (complete this code on the Order code (complete this code on the
Order code (complete this code on the
pages that follow)
pages that follow)pages that follow)
pages that follow)
APPENDIX
10
155
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Other constructions
Other constructionsOther constructions
Other constructions
0Without
1NACE design
(MR0175 / MR0103 / ISO 15156)
3Heating / Cooling 8
5Purging with liquid 8
6Purging with liquid + Heating /
Cooling 8
APurging with gas 8
BPurging with gas + Heating / Cooling
8
XF50
XF50XF50
XF50 4 0 0 0 0 0 0 0 Order code
Order codeOrder code
Order code
1Only for a standpipe (bypass chamber or stilling well)
2The device is installed on top of a BM 26 A. The device must have a 2¨ 300 lb RF (ASME B16.5) flange without an antenna extension.
Refer to the BM 26 A technical data sheet to make a selection of options for the measuring chamber.
3For device dimensions, refer to the "Dimensions and weights" section
4Refer to the accessory list to attach a low-pressure stainless steel flanges to the threaded connection
5Other flange faces are available. Refer to your local supplier for more data. Flanges with the PTFE Wave Horn antenna option have a
slip on-type design with an anti-blowout feature.
6Minimum flange size for the PTFE Wave Horn antenna. This is not available for the Metallic Horn antenna.
7Minimum flange size for the PTFE Wave Horn antenna. This flange is also available with the DN65 Metallic Horn antenna for the
RC W5200 reference chamber.
8For DN150 and DN200 Metallic Horn antenna only
10
APPENDIX
156
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Other spare parts
Figure 10-1: Other spare parts
1 Cover without LCD display
2 Cover for Ex d module
3 Cover with LCD display
4 Set of fasteners for housing (lock screw, gaskets)
5 Cable gland
6 Signal cable (Non-Ex: grey, Ex: blue)
DANGER!
Remote version: Make sure that replacement signal cables for Ex-approved devices are supplied
by the manufacturer. Use of this signal cable is mandatory.
Item Description Quantity Part reference
Housing
1Cover without LCD display (HMI), aluminium 1XF50010100
Cover without LCD display (HMI), stainless steel 1XF50011100
2Cover for Ex d module, aluminium 1 1XF50010200
Cover for Ex d module, stainless steel 1 1XF50011200
3Cover with LCD display (English / German / French / Italian),
aluminium 1XF50010300
Cover with LCD display (English / German / French / Italian),
stainless steel 1XF50011300
Cover with LCD display (English / Spanish / French / Portuguese),
aluminium 1XF50010400
Cover with LCD display (English / Spanish / French / Portuguese),
stainless steel 1XF50011400
Cover with LCD display (English / Russian / Chinese / Japanese),
aluminium 1XF50010500
Cover with LCD display (English / Russian / Chinese / Japanese),
stainless steel 1XF50011500
4Set of fasteners for housing (lock screw, gaskets) 1 screw, 10 gaskets XF50010900
APPENDIX
10
157
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Cable gland / cable entry
5Cable gland / M20×1.5, plastic; black, non-Ex 10 XF50030100
Cable gland / M20×1.5, plastic, blue, Ex i 10 XF50030200
Cable gland / M20×1.5, nickel-plated brass, Ex d 5XF50030300
Cable gland / M20×1.5, stainless steel, Ex d 2XF50030400
Cable gland / M20×1.5, nickel-plated brass, non-Ex / Ex i 5XF50030500
Cable gland / M20×1.5, stainless steel, non-Ex / Ex i 2XF50030600
Cable entry / ½NPT, nickel-plated brass, non-Ex / Ex i 5XF50030700
Cable entry / ½NPT, nickel-plated brass, Ex d 5XF50030800
Cable entry / ½NPT, nickel-plated brass, cFMus 5XF50030900
Cable entry / ½NPT, stainless steel, non-Ex / Ex i 2XF50031000
Cable entry / ½NPT, stainless steel, Ex d 2XF50031100
Cable entry / ½NPT, stainless steel, cFMus 2XF50031200
Options for remote version
6Signal cable 10 m / 32.8 ft (non-Ex: grey) 2 1XF50040100
Signal cable 25 m / 82 ft (non-Ex: grey) 2 1XF50040200
Signal cable 50 m / 164 ft (non-Ex: grey) 2 1XF50040300
Signal cable 75 m / 246 ft (non-Ex: grey) 2 1XF50040400
Signal cable 100 m / 328 ft (non-Ex: grey) 2 1XF50040500
Signal cable 10 m / 32.8 ft (Ex: blue) 3 1XF50040600
Signal cable 25 m / 82 ft (Ex: blue) 3 1XF50040700
Signal cable 50 m / 164 ft (Ex: blue) 3 1XF50040800
Signal cable 75 m / 246 ft (Ex: blue) 3 1XF50040900
Signal cable 100 m / 328 ft (Ex: blue) 3 1XF50041000
1Ex d-approved devices only
2For the remote version
3For the remote version. Make sure that replacement signal cables for Ex-approved devices are supplied by the manufacturer. Use of
this signal cable is mandatory.
Item Description Quantity Part reference
10
APPENDIX
158
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
10.3 Accessories
We supply accessories for this device. When you send orders for accessories, please give the
reference numbers that follow:
Figure 10-2: Accessories
1 HMI service tool
2 Viator RS232 / HART converter
3 Viator USB / HART converter
4 EMI/RFI shielding gasket
5 Weather protection, compact converter version – non-Ex or Ex i-approved
Weather protection, remote converter version – antenna housing
6 Weather protection, compact converter version – Ex d- or cFMus-approved devices
Item Description Quantity Part reference
1HMI service tool (English / German / French / Italian), aluminium 1 1XF50010600
HMI service tool (English / Spanish / French / Portuguese),
aluminium 1
1XF50010700
HMI service tool (English / Russian / Chinese / Japanese),
aluminium 1
1XF50010800
2Viator RS232 / HART converter 1XF50020600
3Viator USB / HART converter 1XF50020700
4EMI/RFI shielding gasket 1XF50050600
EMI/RFI shielding gasket (PTFE Wave Horn antenna) 1XF50050700
5Weather protection, compact converter version – non-Ex or Ex i-
approved devices 1XF50050800
Weather protection, remote converter version – antenna housing 1XF50051000
6Weather protection, compact converter version – Ex d- or cFMus-
approved devices 1XF50050900
—USB / 24 VDC power supply 1XF50020800
1If the device does not have the LCD display option, use this accessory to change the device configuration
APPENDIX
10
159
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
10.4 Glossary
D
E
F
H
I
L
M
Dead zone
Dead zoneDead zone
Dead zone Non-measurement zone.
Dielectric constant
Dielectric constantDielectric constant
Dielectric constant An electrical property of the product to be measured used in Radar
measurement. Also known as εr, DK and relative permittivity. Defines the
strength of the wave reflected back to the device's signal converter.
Distance
DistanceDistance
Distance The distance from the face of flange to the level (1 product) or the surface
of the top product (2 or more products). See the diagrams at the end of this
section.
DTM
DTMDTM
DTM Device Type Manager. A driver for use in the PACTware™ program. All data
and functions of the device are included in it.
Electromagnetic compatibility
Electromagnetic compatibilityElectromagnetic compatibility
Electromagnetic compatibility Defines how much a device influences or is influenced by other devices that
generate electromagnetic fields during operation. Refer to European
standard EN 61326-1 for further details.
FMCW
FMCWFMCW
FMCW Frequency-modulated continuous-wave radar technology. The signal is
continuously present, but the frequency is modulated, usually in
successive linear ramps over time (frequency sweeps).
Hazardous area
Hazardous areaHazardous area
Hazardous area An area with a potentially explosive atmosphere. Trained personnel can
install and use a device in this area. The device must be ordered with the
appropriate options. The device requires approvals (ATEX, IECEx, cFMus,
NEPSI etc.) related to site specifications. You can find more data about
hazardous areas in the Ex Manuals and Ex Certificates of Compliance.
Horn (cone) antenna
Horn (cone) antennaHorn (cone) antenna
Horn (cone) antenna A common antenna for most applications. It is used for the controlled
emission and collection of radar signals.
Interference signals
Interference signalsInterference signals
Interference signals False radar reflections.
Level
LevelLevel
Level Height from the bottom of the tank (user-defined) to the surface of the top
product (Tank height – distance). See the diagrams at the end of this
section.
Mass
MassMass
Mass Total mass of tank contents.
10
APPENDIX
160
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
O
P
R
S
T
U
V
W
Operators
OperatorsOperators
Operators Users who can choose how to display measurements. They cannot
configure the device in supervisor mode.
PACTware
PACTwarePACTware
PACTware™Software that operates and configures field devices from a remote
workstation. It is not necessary to use fieldbus software or programs
developed by the manufacturer.
Radar reflection
Radar reflectionRadar reflection
Radar reflection Signal reflected from the surface of the tank contents.
Signal converter
Signal converterSignal converter
Signal converter A set of electronic components in the device that send the measurement
signal through some signal filters. They identify and measure the level of
the tank contents.
Supervisor
SupervisorSupervisor
Supervisor Users who can configure the device in supervisor mode. They cannot
configure the device in service mode.
TBF
TBFTBF
TBF Tank Bottom Following (TBF) mode is an alternative measurement mode. It
allows the device to measure tank contents with low dielectric constants.
TBF mode uses the reflection of the tank bottom to indirectly measure the
level of the tank contents.
Ullage volume
Ullage volumeUllage volume
Ullage volume Unfilled volume. See the diagrams at the end of this section.
Volume
VolumeVolume
Volume Total volume of tank contents.
Wave-Guide antenna
Wave-Guide antennaWave-Guide antenna
Wave-Guide antenna An antenna that transmits the radar signal in tube of a constant diameter
to the measured product.
Waveguide
WaveguideWaveguide
Waveguide A PTFE component that is used to guide the emitted radar waves correctly
into the horn antenna.
Wave Horn antenna
Wave Horn antennaWave Horn antenna
Wave Horn antenna A plastic-coated horn antenna for corrosive liquids. Plastic coating options
include PTFE and PP.
APPENDIX
10
161
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
Figure 10-3: Measurement definitions: distance
1 Distance
2 Dead zone
3 Flange facing
4 Gas (Air)
5 Tank height
6 Ullage volume or mass
Figure 10-4: Measurement definitions: level
1 Level
2 Volume or mass
11
NOTES
162
OPTIWAVE 5200 C/F
www.krohne.com 07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
NOTES
11
163
OPTIWAVE 5200 C/F
www.krohne.com07/2016 - 4001904903 - MA OPTIWAVE 5200 R03 en
