1.3 Certification
The device meets the essential requirements of the EU Directives:
•Electromagnetic Compatibility (EMC) directive
•The safety part of the Low-Voltage directive
•For devices used in hazardous locations: ATEX directive
The manufacturer certifies successful testing of the product by applying the CE marking. For
more data about the EU Directives and European Standards related to this device, refer to the EU
Declaration of Conformity. You can find this documentation on the DVD-ROM supplied with the
device or it can be downloaded free of charge from the website (Download Center).
All devices are based on the CE marking and meet the requirements of NAMUR
Recommendations NE 21, NE 43, NE 53 and NE 107.
1.4 Radio approvals
1.4.1 European Union (EU)
This level transmitter is approved to be used outside metallic tanks. If you use the device in the
open air, read the device nameplate to make sure that the device can be used for your
application. Refer also to the table that follows:
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
CE marking
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic
tank etc.). You can use LPR devices for TLPR applications. The LPR devices meet the
requirements of the RED (Radio Equipment Directive) for use in the member countries of the EU.
For more data about the order code, <link>.
Antenna type Order code
PP / DN100 (4¨) Drop VFDGxxxxxxxxxxxxxAxxx...
SAFETY INSTRUCTIONS
1
9
OPTIWAVE 1400 C
www.krohne.com
07/2018 - 4007046301 - MA OPTIWAVE1400 R01 en
LPR (Level Probing Radar) devices
Use approved personnel to install the device. If the device is operated in the open air (outdoors),
it agrees with the RED (Radio Equipment Directive) if you obey these instructions:
•The antenna must always point downwards. The boresight direction of the antenna must be
vertical. No other angles are permitted.
•Install the device more than 4 km / 2.485 mi away from radio astronomy sites.
•If the device is 4...40 km / 2.485...24.855 mi away from radio astronomy sites, do not install the
device more than 15 m / 49.21 ft above the ground.

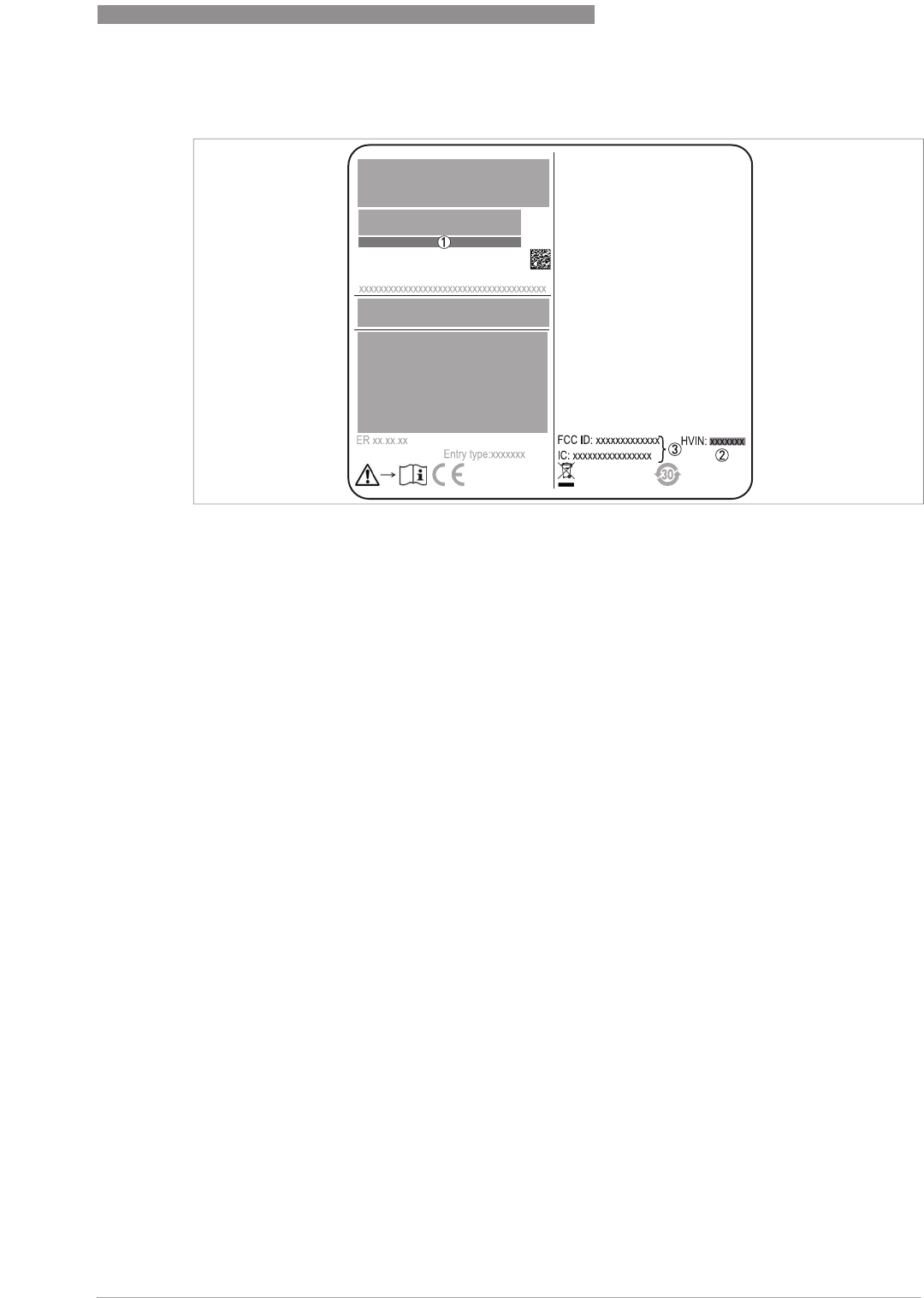

Figure 1-1: European Union: radio approval information on the nameplate
1 Type code (defined in order). For more data, <link>.
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24G = 24 GHz), the lo-
cation of the device (L=LPR) and the type of signal converter (compact (C))
LPR device: HVIN: 24G14-L-C
3 CE sign
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
CAUTION!
If it is necessary to install the device less than 4 km / 2.485 mi from radio astronomy sites, you
must get the approval of the national regulatory authority before installation (e.g. ANFR
(France), Bundesnetzagentur (Germany), Ofcom (United Kingdom) etc.).
1
SAFETY INSTRUCTIONS
10
OPTIWAVE 1400 C
www.krohne.com
07/2018 - 4007046301 - MA OPTIWAVE1400 R01 en
Radio quiet zones: locations of radio astronomy sites (stations) in Europe and northern Eurasia
Country Name of the station Location
Latitude, ϕLongitude, λ
Finland Metsähovi 60°13'04" N 24°23'37" E
Tuorla 60°24'56" N 22°26'31" E
France Plateau de Bure 44°38'01" N 05°54'26" E
Germany Effelsberg 50°31'32" N 06°53'00" E
Hungary Penc 47°47'22" N 19°16'53" E
Italy Medicina 44°31'14" N 11°38'49" E
Noto 36°52'34" N 14°59'21" E
Sardinia 39°29'50" N 09°14'40" E
Latvia Ventspils 57°33'12" N 21°51'17" E
Poland Kraków – Fort Skala 50°03'18" N 19°49'36" E
Russia Dmitrov 56°26'00" N 37°27'00" E
Kalyazin 57°13'22" N 37°54'01" E
Pushchino 54°49'00" N 37°40'00" E
Zelenchukskaya 43°49'53" N 41°35'32" E
Spain Yebes 40°31'27" N 03°05'22" W
Robledo 40°25'38" N 04°14'57" W
Switzerland Bleien 47°20’26" N 08°06’44" E
Sweden Onsala 57°23’45" N 11°55’35" E
UK Cambridge 52°09'59" N 00°02'20" E
Darnhall 53°09'22" N 02°32'03" W
Jodrell Bank 53°14'10" N 02°18'26" W
Knockin 52°47'24" N 02°59'45" W
Pickmere 53°17'18" N 02°26'38" W
SAFETY INSTRUCTIONS
1
11
OPTIWAVE 1400 C
www.krohne.com
07/2018 - 4007046301 - MA OPTIWAVE1400 R01 en
1.4.2 U.S.A. and Canada
This level transmitter is approved to be used outside metallic tanks:
INFORMATION!
LPR (Level Probing Radar)
LPR (Level Probing Radar)LPR (Level Probing Radar)
LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic
tank etc.).
For more data about the order code, <link>.
Antenna type Order code
PP / DN100 (4¨) Drop VFDGxxxxxxxxxxxxxAxxx...
LEGAL NOTICE!
FCC
FCCFCC
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference which may cause un-
desired operation.
Changes or modifications made to this equipment not expressly approved by the manufacturer
may void the FCC authorizations to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
1
SAFETY INSTRUCTIONS
12
OPTIWAVE 1400 C
www.krohne.com
07/2018 - 4007046301 - MA OPTIWAVE1400 R01 en
The Product Marketing Name (PMN) of this device is "Optiwave Water".
LEGAL NOTICE!
IC
ICIC
IC
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause un-
desired operation.
This device and the handbook complies with the requirements of RSS-Gen. Operation is subject
to the conditions that follow:
1. The installation of the LPR/TLPR device shall be done by trained installers, in strict compliance
with the manufacturer
’
s instructions.
2. The use of this device is on a "no-interference, no-protection" basis. That is, the user shall ac-
cept operations of high-powered radar in the same frequency band which may interfere with or
damage this device. However, devices found to interfere with primary licensing operations will
be required to be removed at the user
’
s expense.
3. The TLPR device shall be installed and operated in a completely enclosed container to prevent
RF emissions, which can otherwise interfere with aeronautical navigation.
4. LPR devices: Ensure a vertically downward orientation of the transmit antenna and an instal-
lation only at fixed locations.
5. The installer / user of this device shall ensure that it is at least 10 km from the Dominion Radio
Astrophysical Observatory (DRAO) near Penticton, British Columbia. The coordinates of the
DRAO are latitude 49
°
19'15" N and longitude 119
°
37'12" W. For devices not meeting this 10 km
separation (e.g. those in the Okanagan Valley, British Columbia) the installer / user must coor-
dinate with, and obtain the written concurrence of, the Director of the DRAO before the equip-
ment can be installed or operated. The Director of the DRAO may be contacted at 250-497-2300
(tel.) or 250-497-2355 (fax). Alternatively, the Manager, Regulatory Standards, Industry Canada,
may be contacted.
SAFETY INSTRUCTIONS
1
13
OPTIWAVE 1400 C
www.krohne.com
07/2018 - 4007046301 - MA OPTIWAVE1400 R01 en

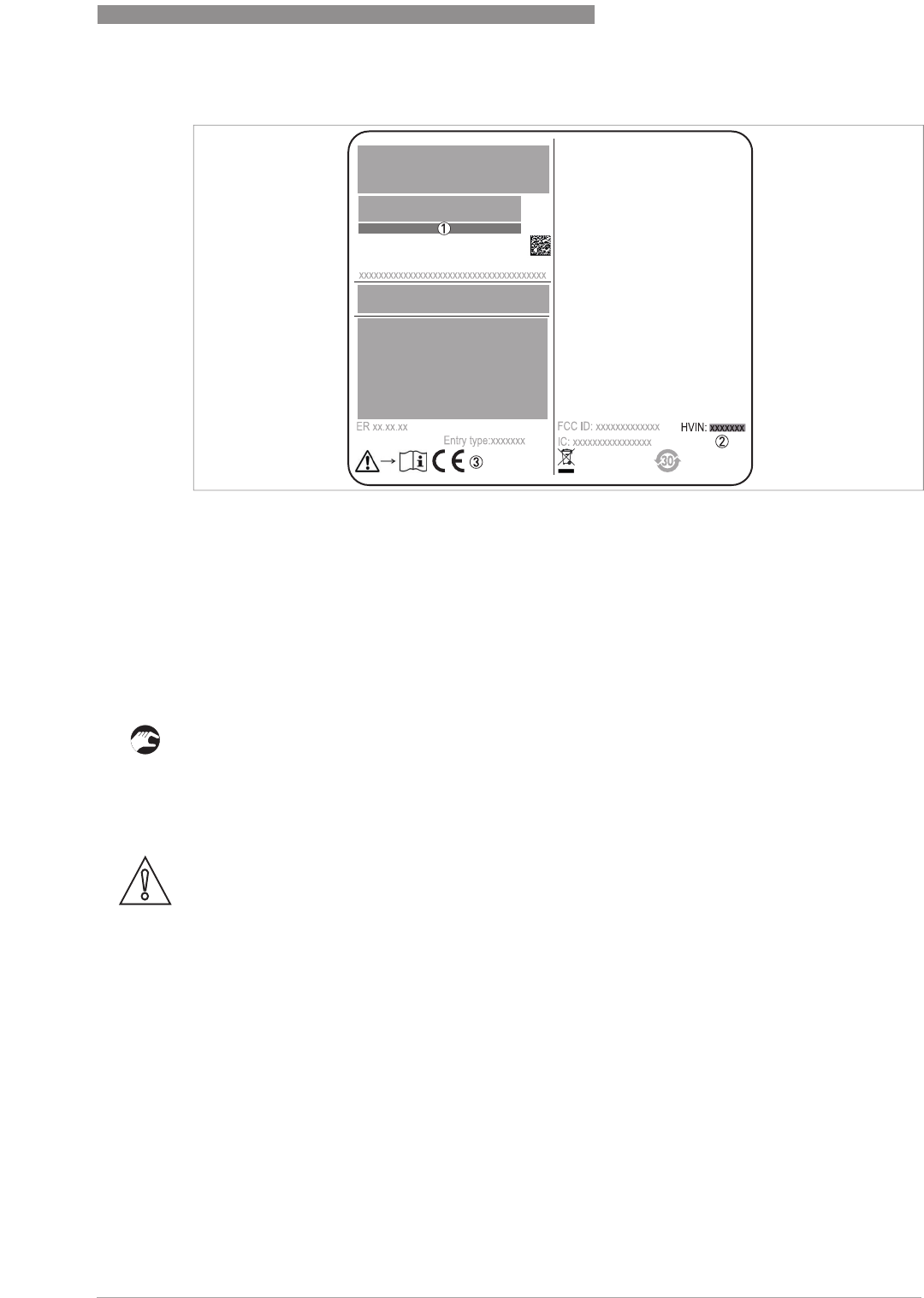

Figure 1-2: U.S.A. and Canada: radio approval information on the nameplate
1 Type code (defined in order). For more data, <link>.
2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24G = 24 GHz), the
location of the device (L=LPR) and the type of signal converter (compact (C))
LPR device: HVIN: 24G14-L-C
3 FCC ID and IC number
LPR device: FCC-ID: Q6BFMCW24G14L, IC number: 1991D-FMCW24G14L
S/N: xxxxxxxxxxxxxxxxxxx
Manufacturing date: YYYY-MM-DD
Tag No:
