KYE SYSTEMS GMZI7 Universal Remote Control User Manual SRC 2200 User menu
KYE Systems Corp Universal Remote Control SRC 2200 User menu
Users manual
Preface
About this manual
This manual is designed to make using the Remote-850 Universal Remote Control as
easy as possible. Information in this document has been carefully checked for
accuracy and is subject to change without notice.
Copyright
© Copyright 2007
This document is protected by the international copyright law. No part of this
publication may be reproduced by any means without the permission of KYE SYSTEMS
CORP.
The information provided from KYE SYSTEMS CORP. is believed to be accurate. Any
changes and enhancements to the product and to the information thereof will be
documented and issued as a new release to this manual.
Trademarks
Other product names mentioned in this manual are used for identification purposes only.
All trademarks and registered trademarks are the property of their respective
2
Table of Content
About the Remote-850 Universal Remote Control.............................................. 3
Safety Notices.............................................................................................. 4
Battery Usage......................................................................................... 4
Device Safety ......................................................................................... 4
Main Features.................................................................................................... 4
Appearance and Functions ................................................................................ 6
Remote-850 on-device Setup versus RemoteComm Setup................................. 7
Setting up the Remote-850 ............................................................................... 8
Installing the Batteries ................................................................................. 8
How to Start Using the Remote-850............................................................. 8
Guide on Major Setup Operations ................................................................ 9
Start Using the Remote-850 .................................................................. 9
Basic Operations.................................................................................. 10
Setup of the menu ............................................................................... 11
Setting Up the RF Dongle ........................................................................... 13
Code Setup................................................................................................ 14
Deleting Items ........................................................................................... 17
<PART I-1> Deleting Device/Key......................................................... 17
<PART I-2> Deleting Code .................................................................. 19
<PART II> Deleting Macro/Timer ......................................................... 20
Multifunctional Macro Key Setup ................................................................ 21
About Macro Keys................................................................................ 21
TYPE 1.- Adding a Macro Key............................................................... 22
TYPE 2.- Learning Macro Key Settings .................................................. 24
Macro Key Timer Settings..................................................................... 26
General Settings ........................................................................................ 29
3
About the Remote-850 Universal Remote Control
Designed with built-in pre-programmed codes and Infrared code learning, the
Remote-850 is an epoch-making IR/RF universal remote control. The Remote-850
incorporates remote control for 16 devices in one powerfully integrated
combination.
Using the simple interface, you can control all of your household devices such as
TVs, DVDs, VCDs, satellite dishes, and other devices through this single remote
control. Completely hassle-free, our user-friendly interface and intuitive setup get
you up and running in no time.
The Remote-850 provides you with an automatic backlight for low light situations,
as well as a mouse control function, and an LCD screen with editing function to
facilitate PC software settings for your convenience.
The Remote-850 firmware can also be upgraded periodically so that you have the
newest features. The Remote-850 lets you enjoy all your digital home
entertainment devices from the comfort of your chair, anytime you want!
Note: The Remote-850 can only be partially setup via the device itself. For
complete setup, install and use our proprietary software RemoteComm. Refer to
the function comparison chart on page 7 for the difference in set up methods.
Please read this guide thoroughly to learn more about the Remote-850.
Packing List
Your Remote-850 package includes the following items:
1. Remote-850 x 1
2. USB cable x 1
3. RF Dongle x 1
4. User manual x 1
5. Quick Start Guide x 1
6. CD for multi-language e-manual &RemoteComm Software x 1
7. Size AAA battery x 4
If anything is missing or appears damaged, contact your reseller.
Note:
We recommend that you use RemoteComm, the provided proprietary
software on your computer to configure all initial settings.
You are able to get the RemoteComm software and user manual of
RemoteComm from the CD.
4
Safety Notices
Heed the following safety notices regarding batteries and the device.
Battery Usage
• Use fresh alkaline batteries. To avoid any risk, don’t use different type batteries at
the same time.
• Ensure that you insert batteries with the +/- signs correctly place in the battery
compartment.
• Don’t expose the batteries to excessive fire or heat.
• Keep batteries out of reach of children.
• Weak batteries may result in some of the functions not working properly; when a
low battery sign appears, replace the weak batteries with fresh ones to ensure
that the device continues to work normally.
• To minimize the risk of leakage caused by batteries, take them out if the remote
control is not expected to be used for a long time (over 2 months). Replace the
batteries when you are going to start using the device again.
Device Safety
• Do not allow sharp objects to touch the LCD.
• Avoid placing heavy objects on the LCD.
• This device is not waterproof. Keep the device in a dry place.
• Do not expose this device to extreme temperatures, such as near a fire or
radiator.
• Avoid dropping this device and striking other objects with it.
• When the LCD gets dirty, clean it with a soft and dry cloth. Do not use harsh
chemicals.
• Do not put the device under direct sunlight
• The device must not be operated in environments at temperatures below 5°C
Main Features
1. 16-in-one LCD remote control with intelligent integration
2. IR/RF control
3. Web base remote code library
4. Infrared code learning
5. LCD keys with editing function
6. Macro command key and macro timer setting
7. Mouse control function
8. Built-in LCD automatic power-saving mode
9. Built-in calendar and clock
10. Built-in LED backlight
11. Multilingual display
12. Compatible with MCE systems by various manufacturers
13. Advanced function setup via PC link
14. Online upgrading service
5
Specification
Model Remote-850
Battery 1.5V 4 X AAA Alkaline Batteries (SUM-4)
Dimensions ( W x H x L) 56 x 26 x 210 mm
Weight (without batteries) 4.8 oz (135 g)
Keys 64 Keys (36 Hardkeys, 28 Softkeys)
Display LCD
LCD Screen (W x H) 39 x 24 mm
LCD Resolution (W x H) 128 x 80 pixels, 4 gray scale
Integrating Capability Control up to 16 devices
Learning Frequency 20KHz - 455KHz & Pulse up to 380 bits long
Learning Distance 2” to 4” / 5 cm up to 10cm
IR Operating Distance 8-10 meters
RF Transceiver 2.4GHz transceiver GFSK
RF Operating Distance 30 meters (open space)
Memory 2MB Flash memory
PC Interface USB 1.1
Backlight Blue LED
Power Consumption Operation Current: 150 mA (max)
LCD On Current: 1 mA
LCD Off Current: 60 µA
6
Appearance and Functions
1. IR/RF — transmits infrared codes or radio signals.
2. LCD screen — displays soft keys and setup implementation.
3. System function operating area —middle scroll key selects and confirm setup
items; left and right function keys provide dynamic display according to current
function.
4. Backlight key — illuminates LEDs.
5. Mouse function operating area – directly replaces mouse function, including
operation with left and right keys.
6. Intelligent learning eye — enables Remote-850 to learn infrared codes of other
devices.
7. USB port — enables you to link Remote-850 to a PC via USB cable and perform
advanced function setup.
7
Remote-850 on-device Setup versus RemoteComm Setup
Setup Items Remote-850 RemoteComm
Pre-code - √
Learning √ √
Activate
device Debug - √
Add key - √
Edit key - √
Key layout
Move key - √
Add Macro √ √
Timer Modify √ √
Macro Modify - √
Macro
Learning Macro √ √
Device & Key √ √
Code √ √
Delete
Macro √ √
Language - √
Date √ √
Time √ √
Beep √ √
Contrast √ √
LCD off √ √
Glow √ √
Motion √ √
Password
protection - √
Reset √ √
Setting
Welcome page - √
Info - √
Device data - √
File
management Backup - √
Upgrade - √
8
Setting up the Remote-850
This section explains how to set up the Remote-850, how to install the batteries, and
how to configure the remote control codes.
Installing the Batteries

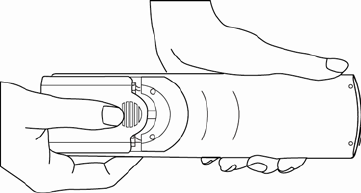

Four AAA size alkaline batteries are needed for the Remote-850. Ensure that you
insert the batteries with the correct polarity and the +/- signs of the batteries match
the +/- signs in the battery compartment. Close the battery compartment cover
before using the Remote-850.
How to Start Using the Remote-850
The Remote-850 is a smart integrative remote control, and paired with our
proprietary RemoteComm setup software, all settings can be done once and for
all easily and quickly.
There are two basic approaches that you can use to integrate Remote-850 with
your other home remote controls.
1 Download remote control codes from the Internet code database
The Remote-850 has thousands of pre-programmed code groups. Using the
Internet, you can automatically locate the codes that match your
household equipment.
2 Make use of the powerful learning feature.
With the Remote-850’s powerful learning capability, you’ll be able to quickly
install all your original remote control’s codes by pointing your remote
control’s transmitter at the Remote-850’s Intelligent Learning Eye.
9
Guide on Major Setup Operations
Start Using the Remote-850

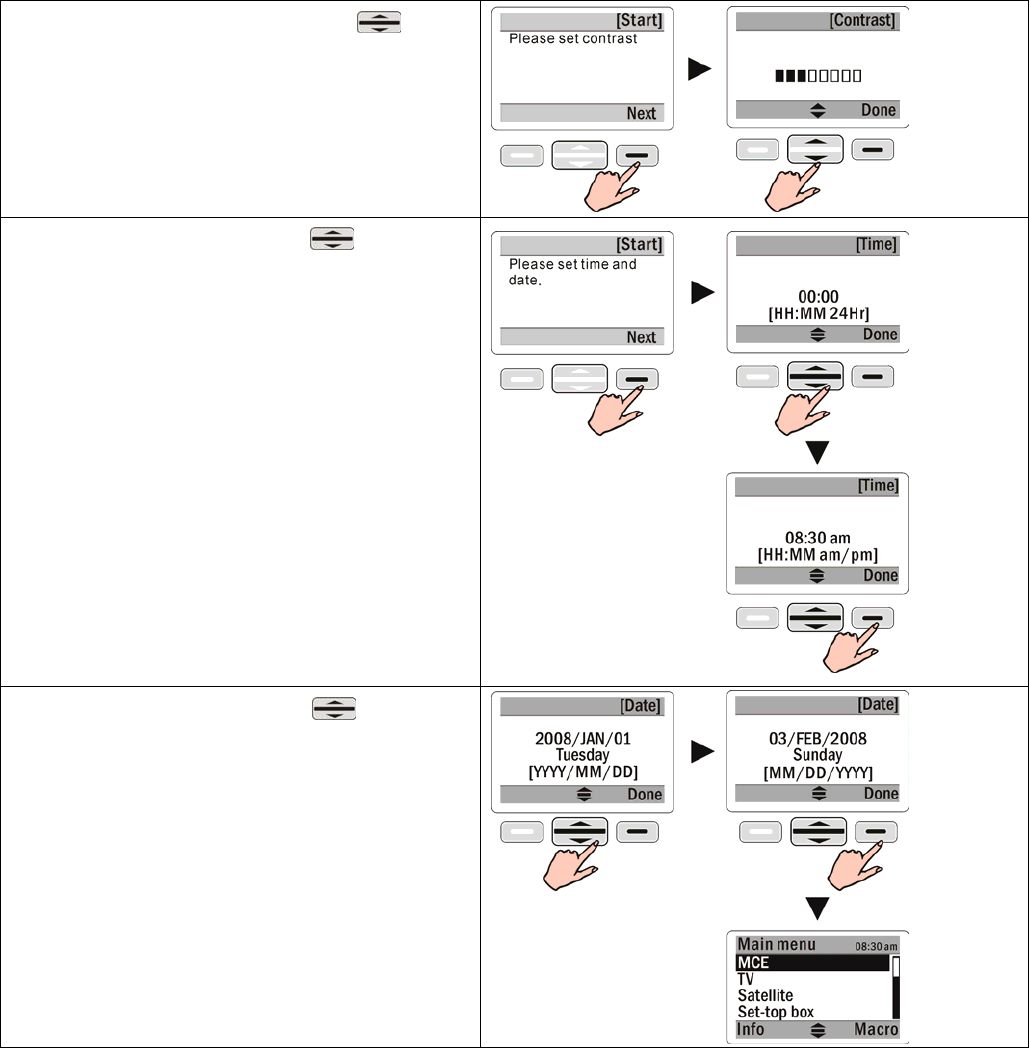

Basic set-up: LCD contrast /time/date
Main Manu->REMOTE SETUP->Setting->
Contrast: Use the scroll key to
adjust the display contrast. Press
[Done] to save your setting.
Time: Use the scroll key to
adjust the time in the format of 12
hrs or 24 hrs. Press [Done] to save
your setting.
Date: Use the scroll key to
adjust the date. Press [Done] to
save your setting .
10
Basic Operations
The system function operating area (Scroll key and [Shift keys] ) includes all
the general settings. Some functions will need to display a system reminder on
screen, which require user’s confirmation. The following sections describe major
operation functions and menus.
(1) The LCD is controlled by the scroll key .
Shift keys are placed on the left and right of
the scroll key, which will represent two symbols
at two sides on the screen bottom

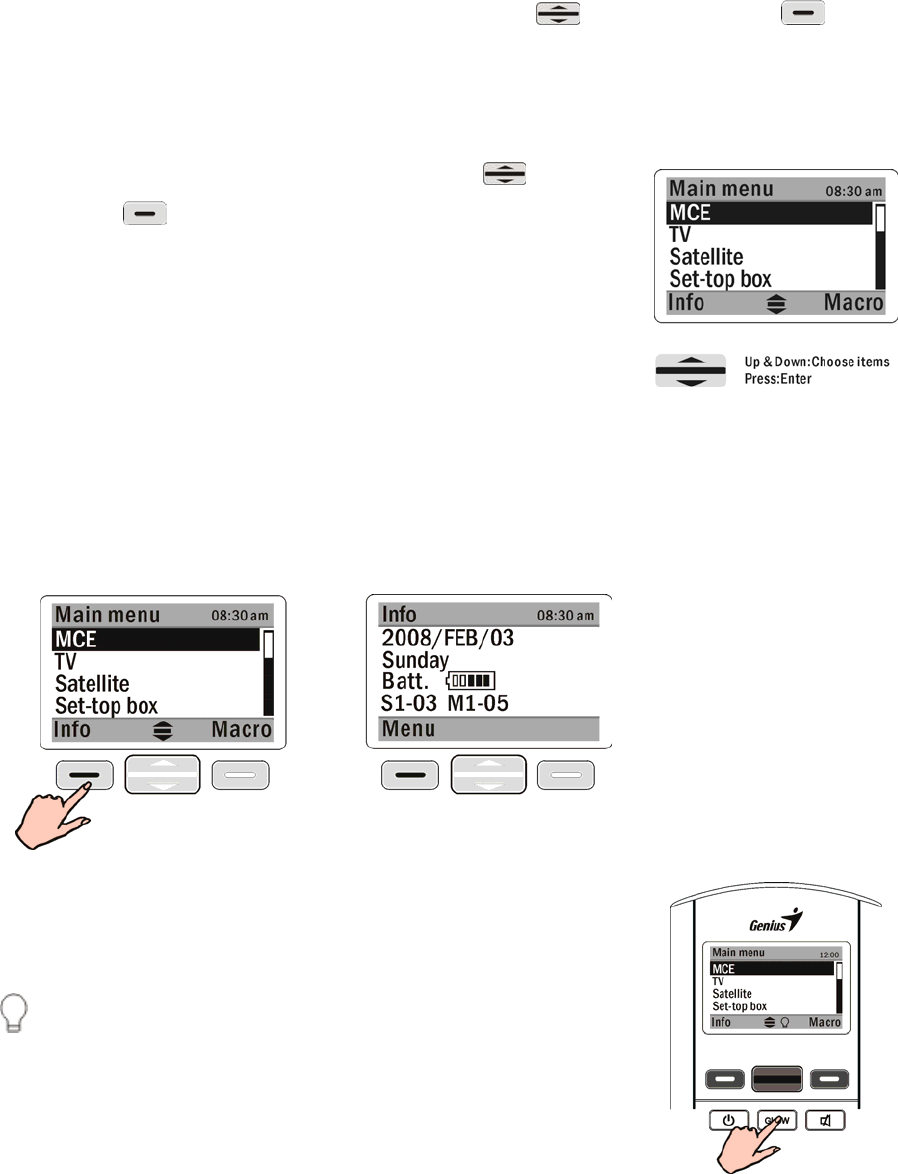

(2) Enter the Main Menu and press the button under INFO on the left to see
information about the date, battery capacity, and firmware version. Press
[MENU] to return to the main page.
(3) Press GLOW to activate the backlight. Press and
hold GLOW to switch the auto backlight feature
on and off. Once the backlight is activated,
is displayed on bottom of the screen. The
backlight stays on regardless of user’s operation.
(4) The Remote-850 has a built-in vibration sensor. When an outside vibration
is sensed, the remote control automatically returns to operating mode
from sleeping mode.
(5) If any key is pressed by mistake for more than 30 seconds, the
Remote-850 will automatically stop transmitting the code.
11
Setup of the menu

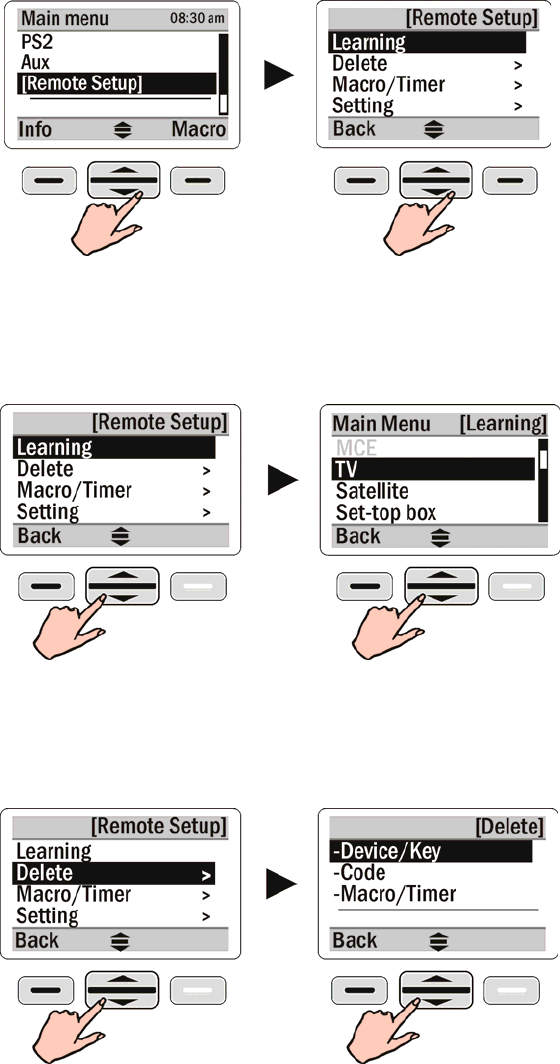

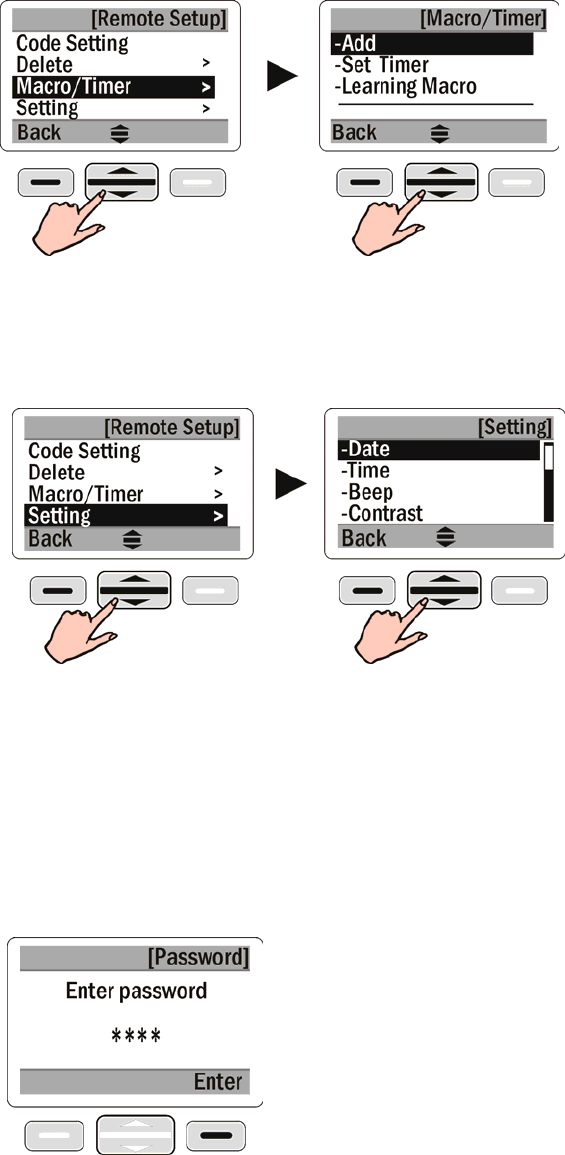

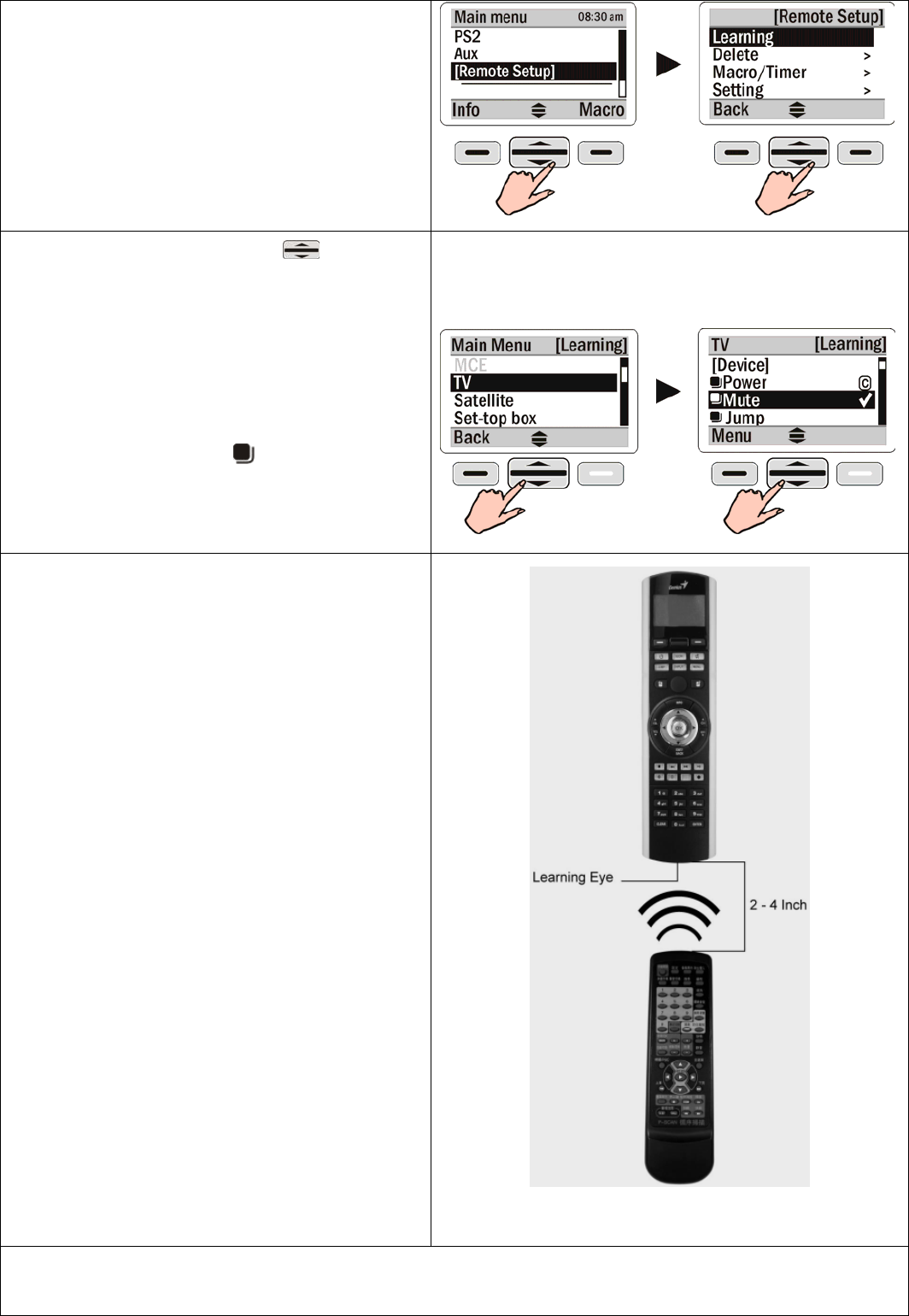

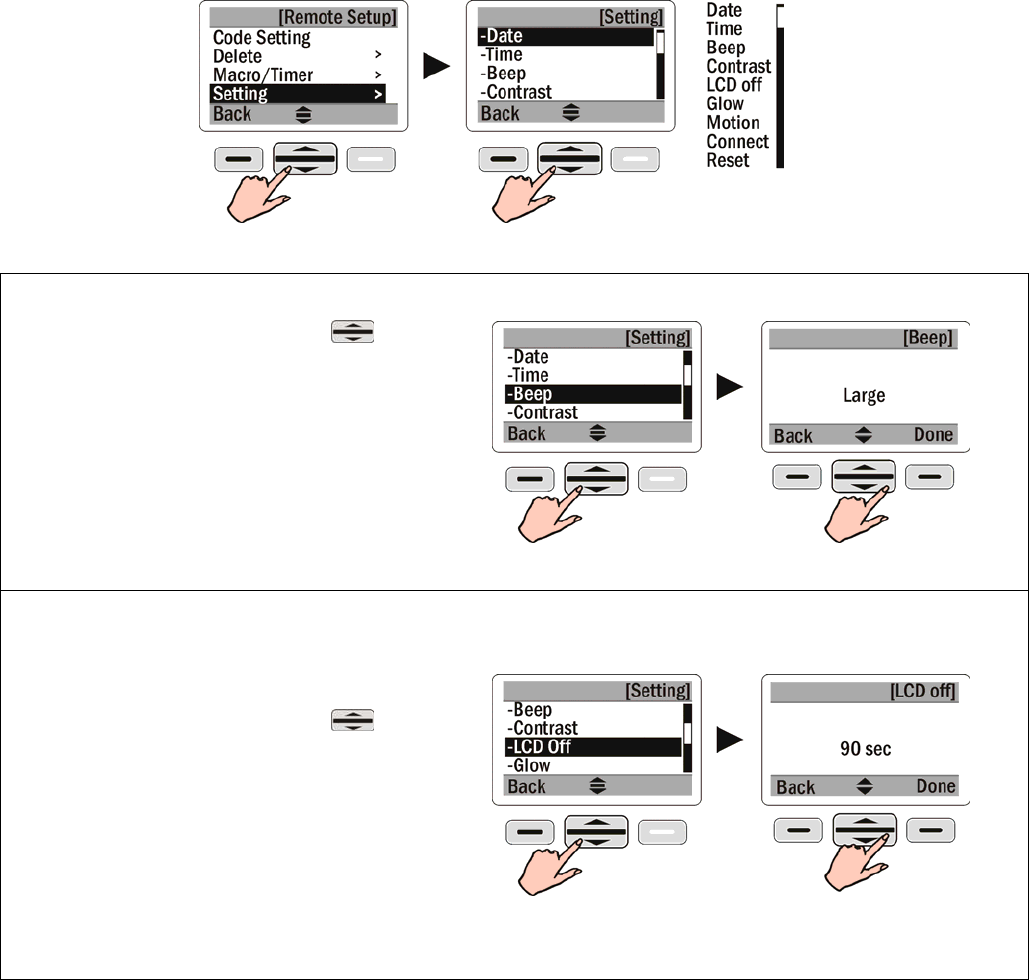

In the Main Menu, select “REMOTE SETUP” with the scroll key to enter Setup mode.
There are four options in Setup mode:「Learning」, 「Delete」, 「Macro/Timer」,
and 「Setting」.
(1) Learning: enables the Remote-850 to learn remote control codes from the
original remote control.
(2) Delete: including 「Delete Device/key」, 「Delete Code」, and 「Delete
Macro/Timer」.
12
(3) Macro/Timer: provides continuously functions setting, coupled with timer
function, can be set up the delay time between every pre-determined step;
besides, the Macro key is included in the Learning mode setup.

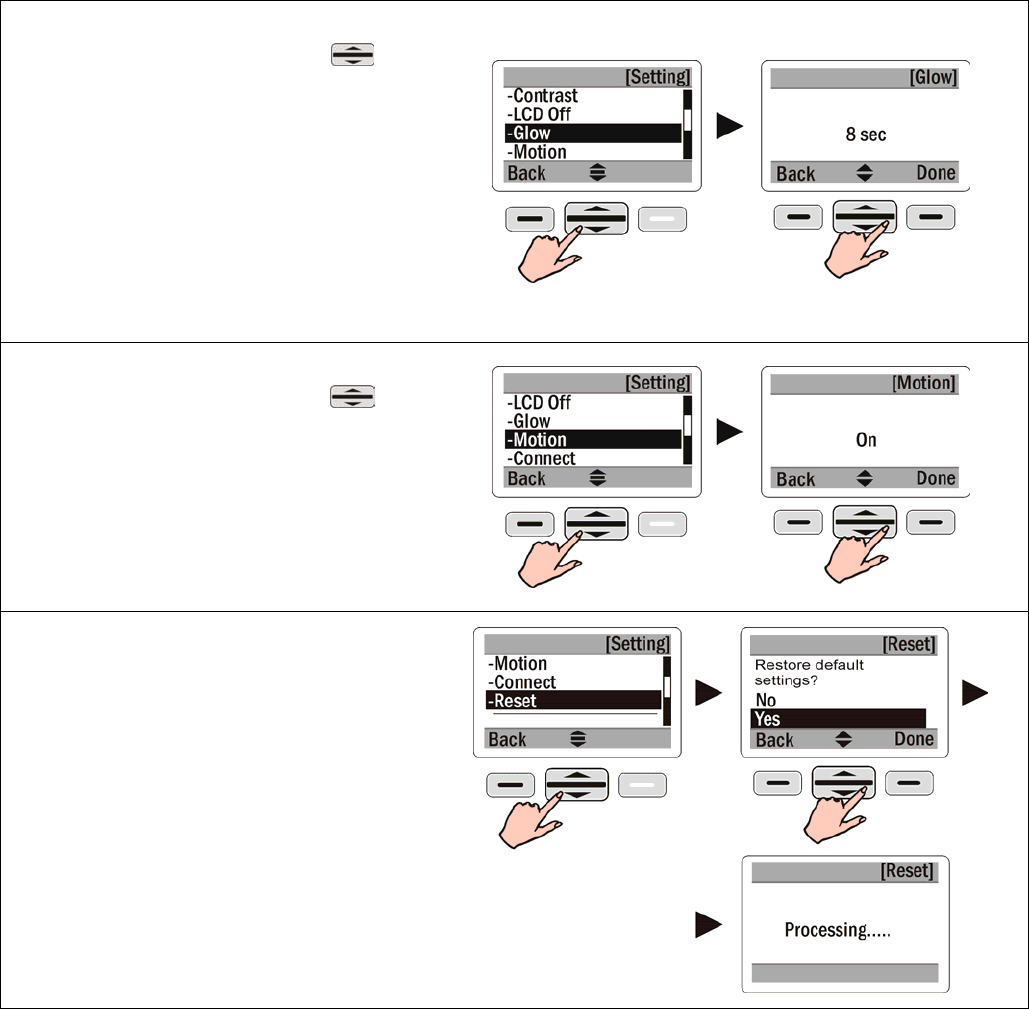

(4) Setting: enables you to set non-operational functions including the following:
「Date」, 「Time」, 「Beep」, 「Contrast」, 「LCD off」, 「Glow」, 「Motion」,
「Connect」, and 「Reset」.
(5) Password: for parent password protection setup
The Remote-850 features a Parental Guidance Password Lock, which enables
parents to control which periods that children can operate the TV…. . A
password is required to unlock the Remote-850 during other periods. Password
setup must be performed on the RemoteComm software. The default
password is “0000”.
13
Setting Up the RF Dongle

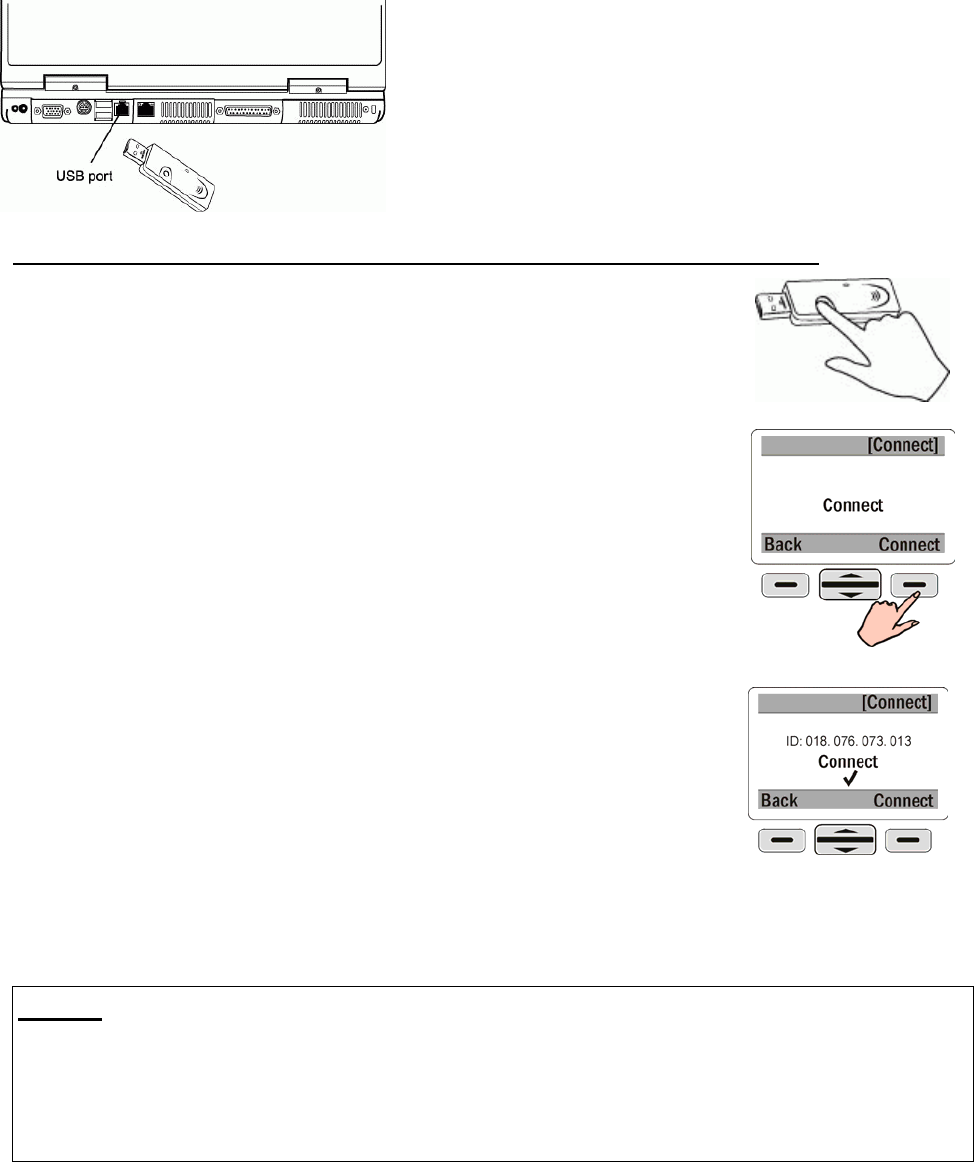

The RF dongle enables the Remote-850 to plug and play on your computer for
quick setup operation. By using it, you only need to plug in the RF dongle into
your USB port, the Remote-850 will be able to operate your MCE and control
mouse
If you are unable to link to your PC, follow the commands below
(1) Press the key on the RF dongle. The LED begins
flashing.
(2) On the Main Remote-850, press 〔REMOTE SETUP〕
Setting Connect to set up the connection
and begin matching codes.
(3) Connection is established when the screen
displays a check mark “√” & ID address, and the
RF dongle LED light remains off.
(4) Matching takes 10 seconds. If matching fails, an “2” will appear; repeat
steps (1) to (3)
(5) The remote control RF module can only be activated in MCE mode
Note:
◆ A ID Address will display on the remote control when matching is
complete.
◆ We recommend you to light up the LED of the RF Dongle after the Remote 850 is
ready to press〔Connent〕
14
Code Setup
This section explains how to use the Remote-850’s learning function to learn the
infrared codes of another remote control.
Read the following notes before proceeding to use the learning function.
Note 1:
The Remote-850's learning eye must be kept in
a straight line with the transmitter of the
original remote control in a distance of 2-4
inches (5-10cm).
Note 2:
During learning, please keep pressing each
learnt key of the original remote until a “√”
appears and two beeps are heard; then
release the key.
If an “X” mark appears, repeat the operation.
If desired, you can directly reassign codes to
keys with the learning function which will
cover the original codes automatically.
A key with mark means: This key had
code.
Note 3:
Except for the pre-setup
MCE/XBOX/PS2 device codes
for the Remote-850, other keys
for various devices can also use
the learning function.
15

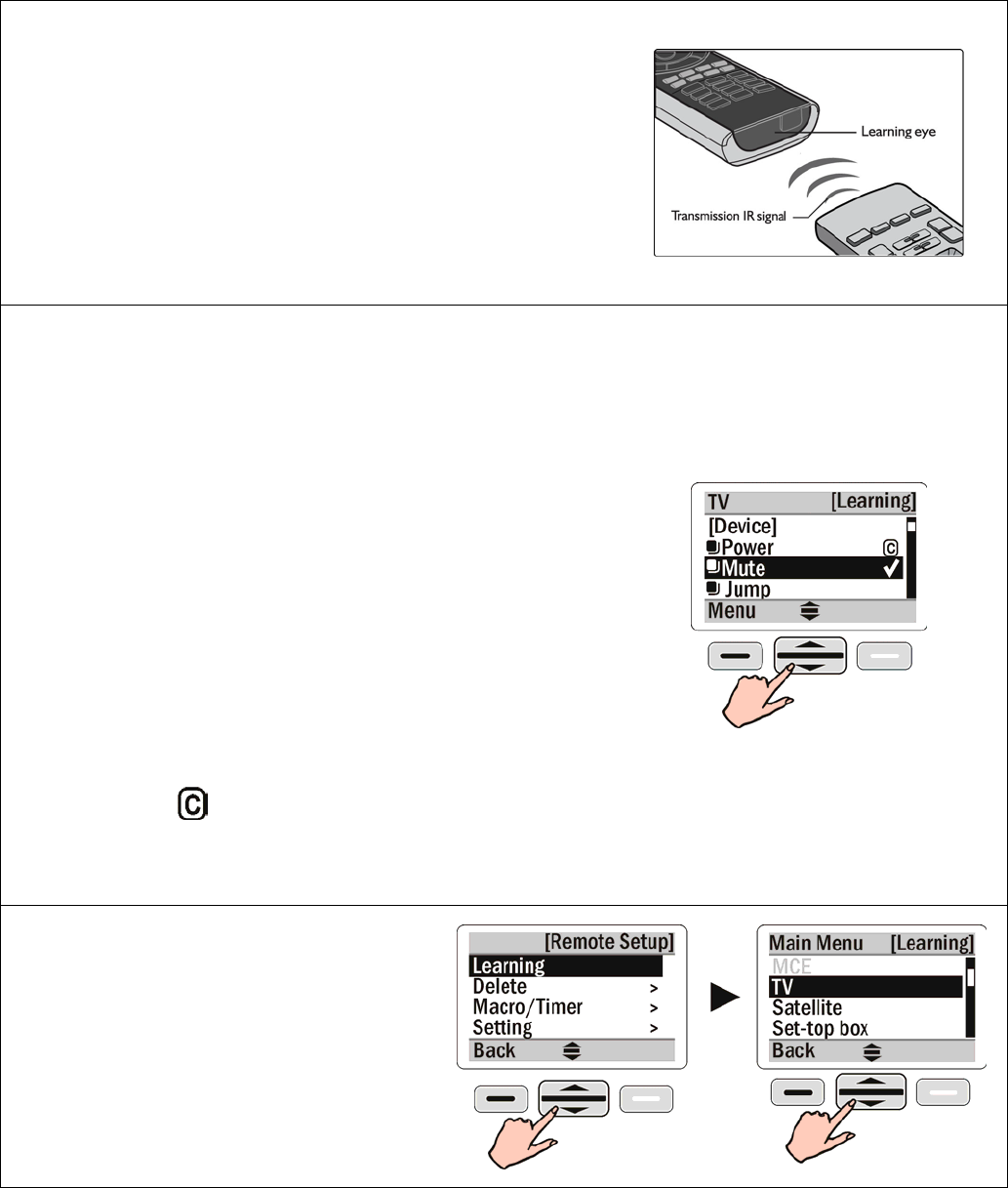

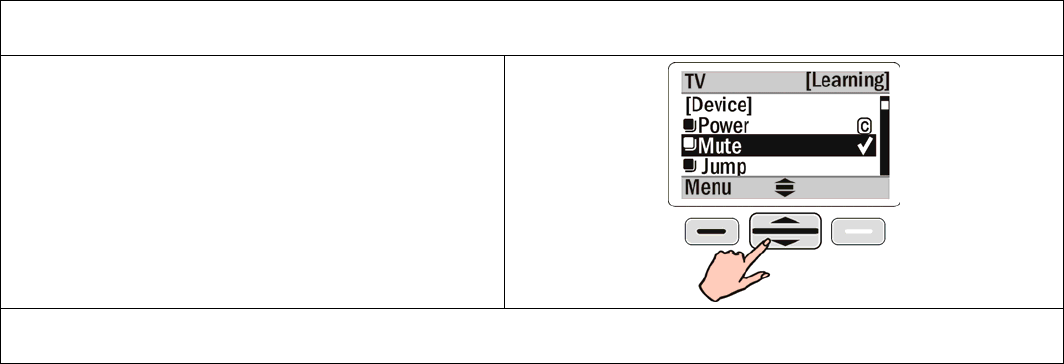

(1) Access the Setup menu and select
「Learning」 to begin learning
setup.
(2) Press the scroll key to select
the device you want to learn, then
enter the device to learn each
single key. Learning process for
both soft and hard keys will be
done and shown on the screen.
Note: A key with “ ” mark means:
it’s a hard key.
(3) Aim the transceiver of your original
remote control at the Learning Eye,
keep a distance of 2-4 inch. (5-10
cm)
(4) Follow the wizard which guides you
to learn the key one by one, or
directly select keys you want to
assign codes to.
(5) Press a corresponding key on
original remote until “√” appears
beside the learning key and two
beeps are heard; then release the
key.
(6) An “X” mark indicates that the learning has failed. Repeat step 5 until you see
the “√” symbol.
16
(7) Repeat steps (4) to (7) to continue learning codes for other keys.
(8) After you have finished assigning
codes with the learning function,
press [Menu] to exit.
(9) Repeat steps (2) to (8) if you want to learn codes for other devices
17
Deleting Items
<PART I>
In the Delete menu you will see that the Device/key and Code are separated in
content. The menu item Device/key represents the key itself. The menu item Code
represents the code loaded in the key. If you delete a key, the code of the key (if
any) will be deleted along with it. Deleting a code will remove the code but
preserve its key. MCE/XBOX/PS2 is a default by the manufacturer. Therefore, you
cannot delete this code/key.
<PART I-1> Deleting Device/Key
This section explains how to delete keys and codes.
(1) Access the Setup menu and select 「Delete」.
(2) Delete a group of devices or a single key
Select the option 「Device/Key」. You may choose to delete a group of
device or delete a single key in a device. Corresponding codes will be
deleted if the codes are loaded in the keys. All soft keys on the screen can
be deleted. If the key is a hard key, then the Key Deleting function is not
available.
Notes:
MCE/Xbox/PS2 options will always appear in gray and cannot be deleted
because they are default by the manufacturer.
To stop the delete procedure, press [BACK] to return to the setup page.
Delete a group of device
18
(1) Select a device you wish
to delete from the Main
Menu. Press [Delete] to
display a confirmation
page.
(2) Select “Yes” to remove
this device, and back to
Delete menu.
Delete a single key
(1) Press the scroll key to select the key you wish to delete from the
device.
(2) An “
2
“ appears on the right side of the key which means the key is
ready to be deleted.
(3) If you change your mind, just select the key again to cancel the
“
2
“ sign.
(4) Repeat steps (2) and (3) to select all key you want to delete.
(5) Press [Done] to confirm the deletion.
(6) To delete other device keys, repeat steps (1) to (5).
(7) Press [Back] to exit.
19

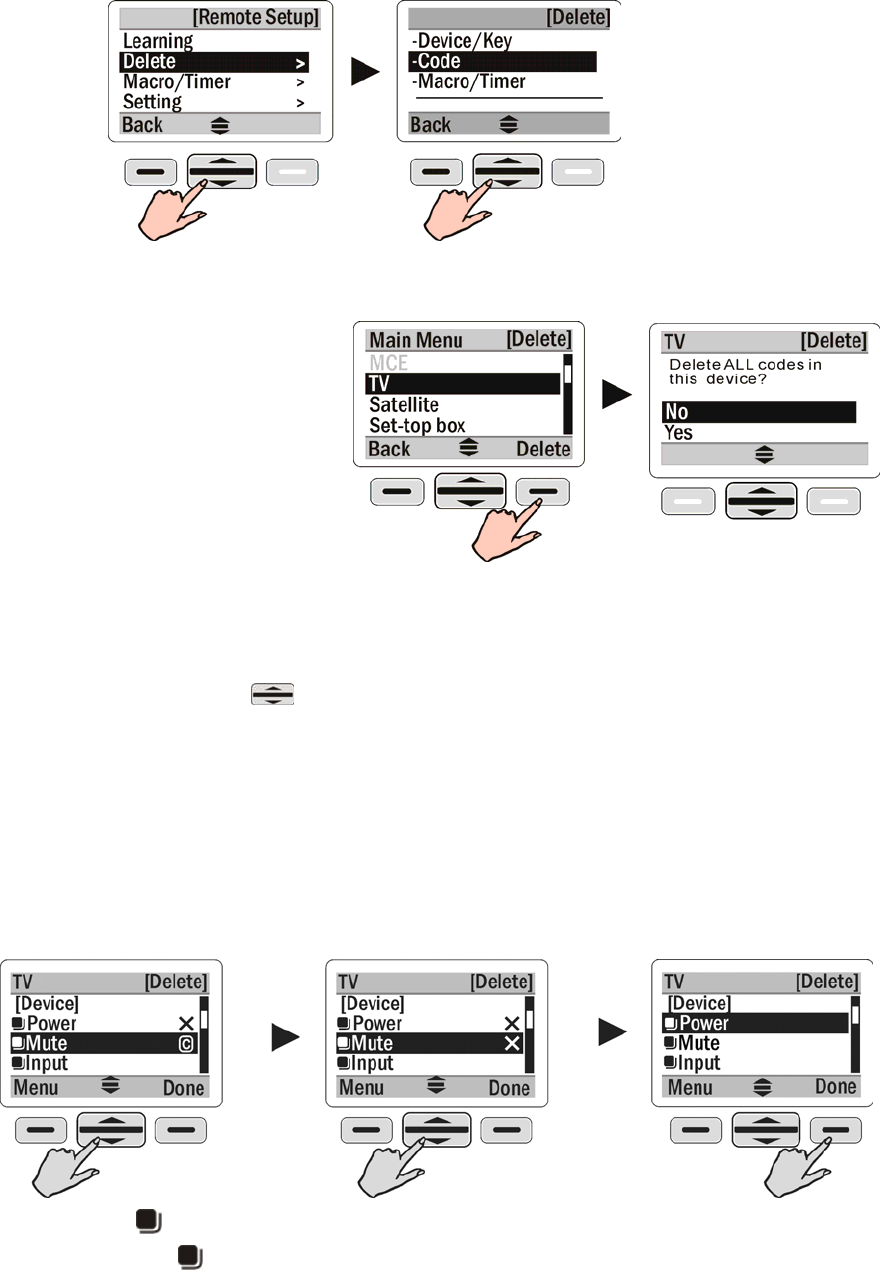

<PART I-2> Deleting Code
Select Delete and then select 「Code」. You may choose to delete all codes for a
group of device, or delete a single code for a single key.
Delete all codes for a device
(1) Select a device you wish
to delete from the Main
Menu.
(2) Press [Delete] to display a
confirmation page.
Select “Yes” to remove all
the codes for the device.
Delete a code for a single key
(1) Select the device you wish to delete from the Main Menu.
(2) Press the scroll key to select a key with the code to be deleted.
An “
2
“ appears on the right side of the key which means the code of
the key is ready to be deleted.
(3) If you change your mind, just select the key again to cancel the
“
2
“ sign.
(4) Repeat steps (2) and (3) to select all key codes you want to delete.
(5) Press [Done] to confirm the deletion.
A key with a“ ” mark: hard key
A key without a“ ” mark: soft keys
(6) To delete other device codes, repeat steps (1) to (5).
20
(7) Press [Back] to exit.

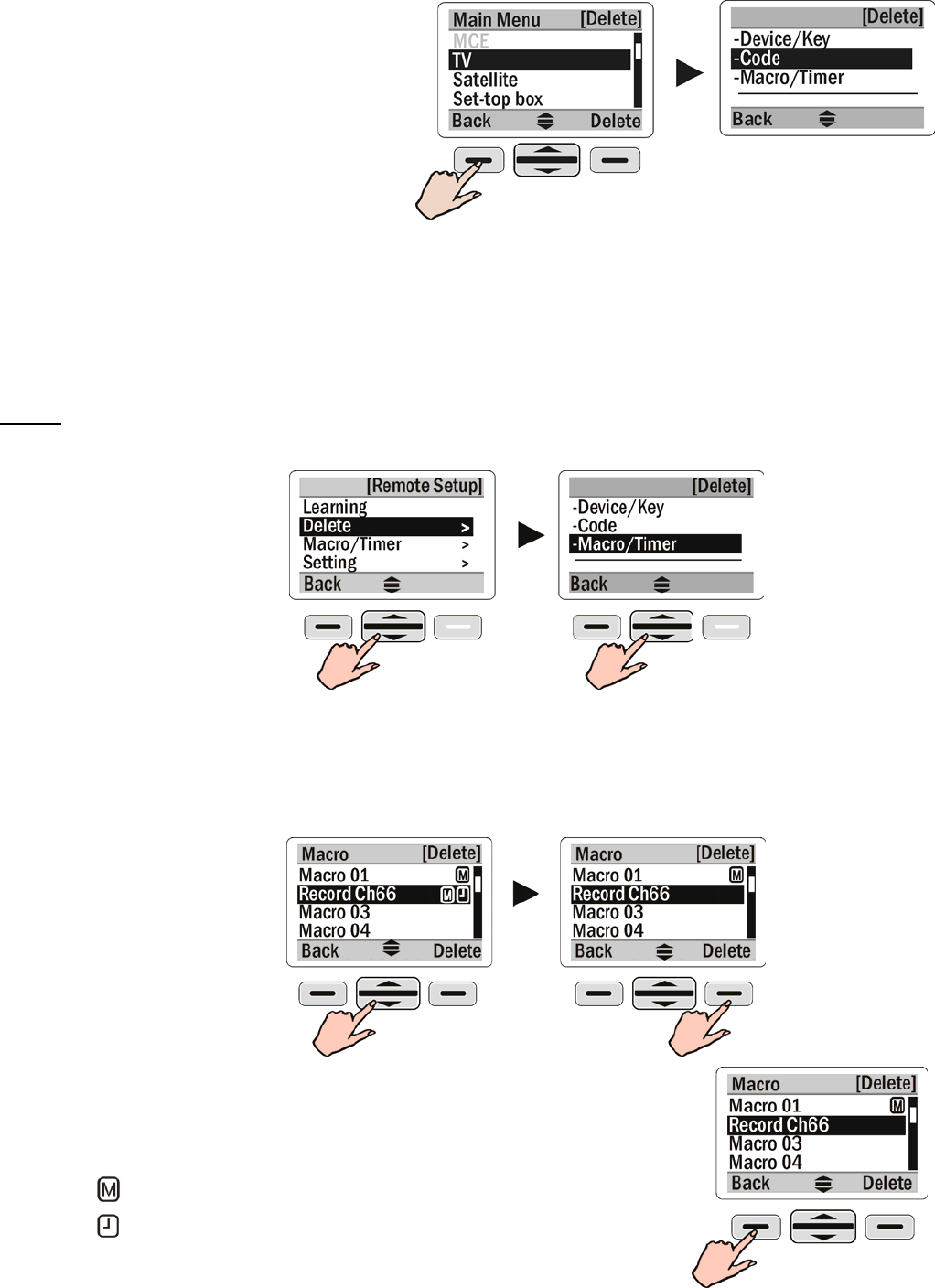

<PART II> Deleting Macro/Timer
Under Delete function, select the Macro/Timer.
Note: In this option you may delete Macro keys. If a Macro key includes a 「Timer」
setting, it will be removed as well.
(1) Select「Macro/Timer」
(2) Select unwanted “Macro/Timer” keys.
(3) Press [Delete] to delete the unwanted「Macro/Timer」keys
(5) To delete other “Macro/Timer” keys, repeat
steps (2) to (3).
(6) Press [Back] to exit
: indicates a macro is already in place
: indicates a timer is already in place
21
Multifunctional Macro Key Setup
This section describes how to set up Macro keys.
About Macro Keys

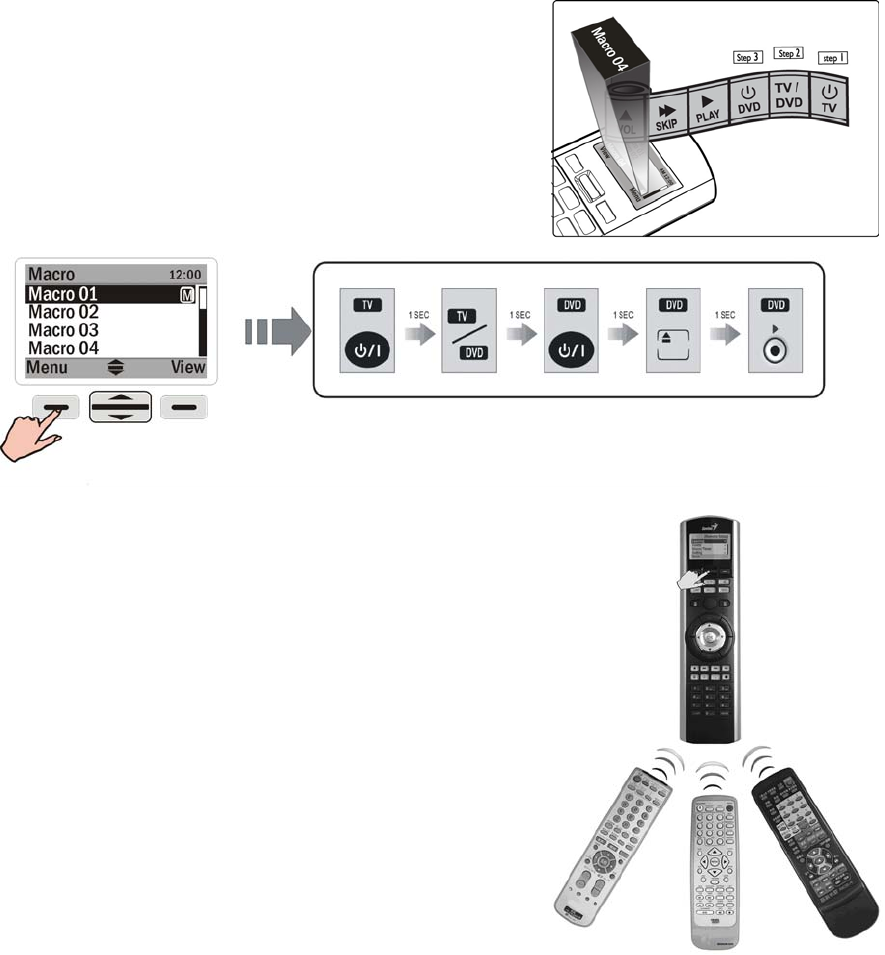

The Macro key function enables you to execute a series of commands with one
key. You can replace complex steps by utilizing Macro keys. There are two types of
Macro keys for the Remote-850. Their features are as follows:
TYPE 1. Remote-850 provides max. 32
Macro keys setting option for you. Every
Macro key can store up to 60 commands.
Delay time can be set between each
command
TYPE 2. The other kind of Macro functions,
“Learning Macro”, will not be set in default
Macro setting area like TYPE 1. Instead, it
will be assigned on any soft key. Every
“Learning Macro” stores up to 16
commands. No delay time can be set
between each command
After setting up a Macro key, all you have to do is to sit back and press one
button to turn on the TV, turn on the DVD player, and play a movie, for example.
Everything will be ready. In the next section you will learn how to set a Macro.
22
TYPE 1.- Adding a Macro Key
Note: ensure that all related codes of equipment to be used in the Macro have
been successfully loaded before Macro setup.

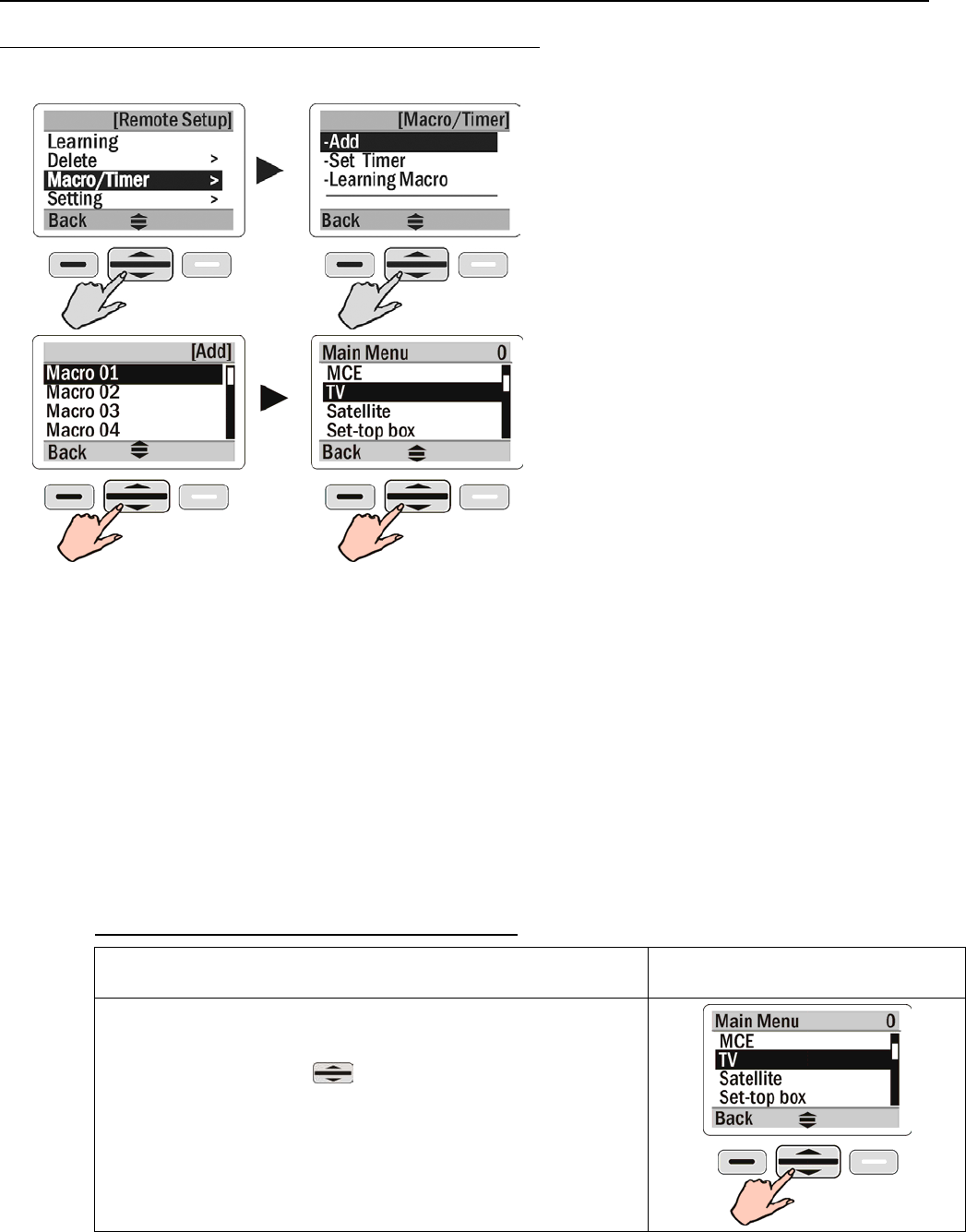

Access “REMOTE SETUP”, follow the steps to select the Macro key.
1. Examples: Store all DVD playing procedures into Macro 01 (Watch DVD)
Steps include:
(1) TV: Power on, Delay x
(2) TV: Input, Delay x
(3) DVD: Power on, Delay 2 sec
(4) DVD: OK , Delay x
Examples of Macro Setup Procedure

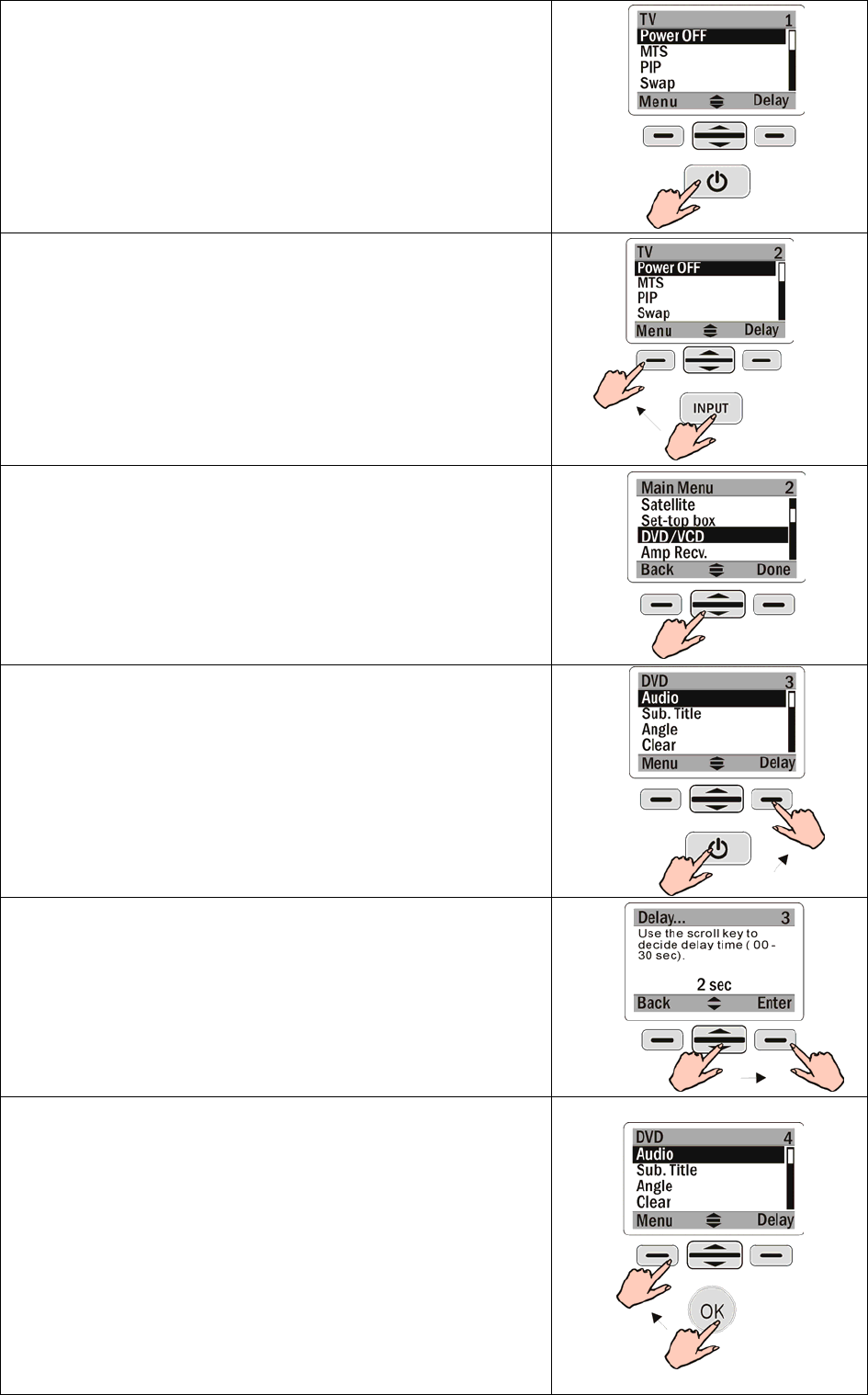

Setup procedure Setup Menu
Step 1:(TV power on)
Use the scroll key to select TV.
23
Step 2: (TV power on)
Select Power soft key in TV menu, or the TV
Power hard key.
Step 3: (TV input)
Select Input soft key in TV menu, or the Input
hard key, then return to the Main Menu and
select the DVD option.
Step 4: (DVD power on)
Select DVD from the Main Menu.
Step 5: (DVD power on & Delay 2 sec)
Select Power soft key in DVD menu, or the
Power hard key, then select [Delay] to set the
delay time.
Step 6: (DVD power on & delay 2 sec)
Select 2 seconds. When the prompt screen
appears, press [Enter] to confirm.
Step 7: (DVD OK)
Select OK soft key in DVD menu, or the OK
hard key, then select [Menu] to return to the
Main Menu
24
Step 8:
Macro setup can be completed by including
more than two commands. The [Done] option
appears in the lower right hand corner when
returning to the Menu.

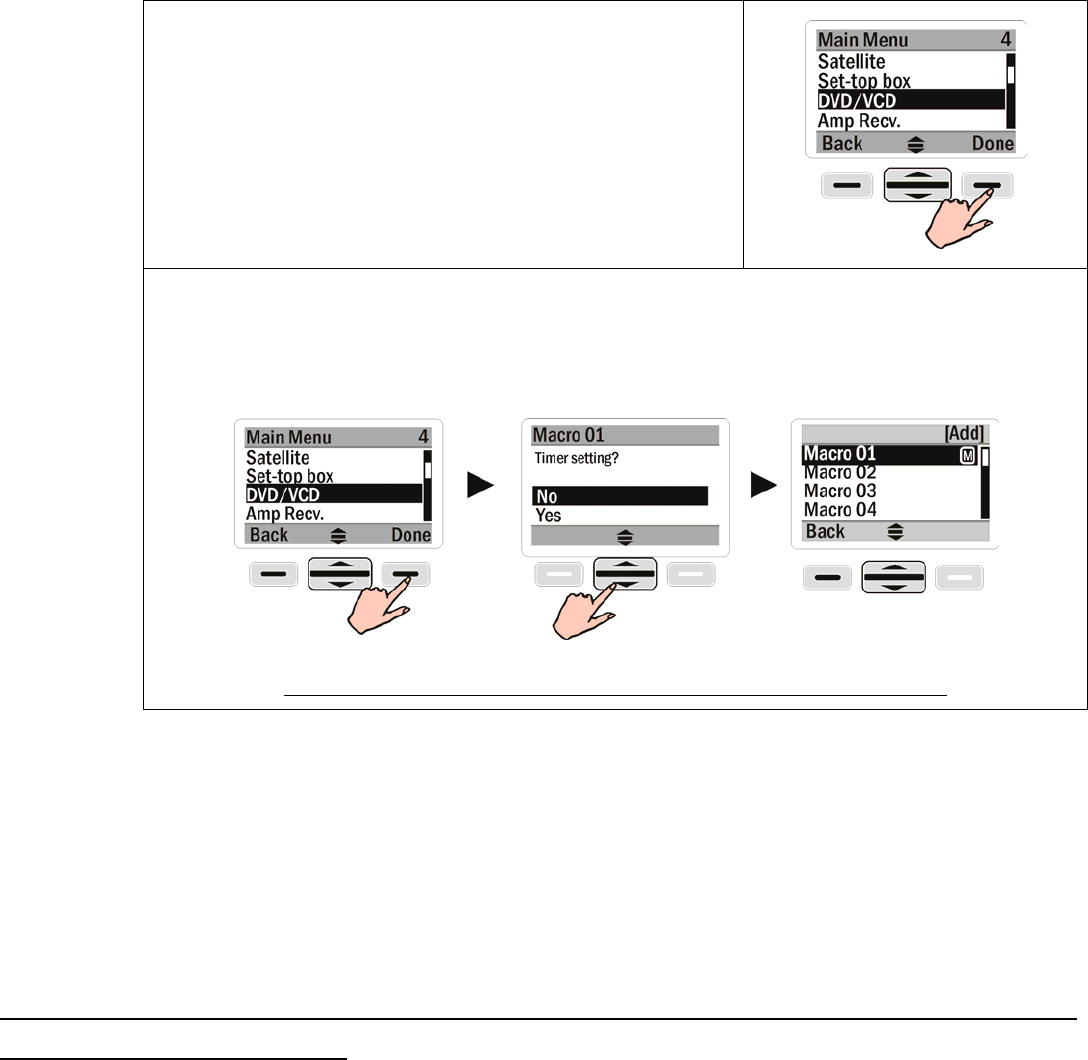

Step 9:

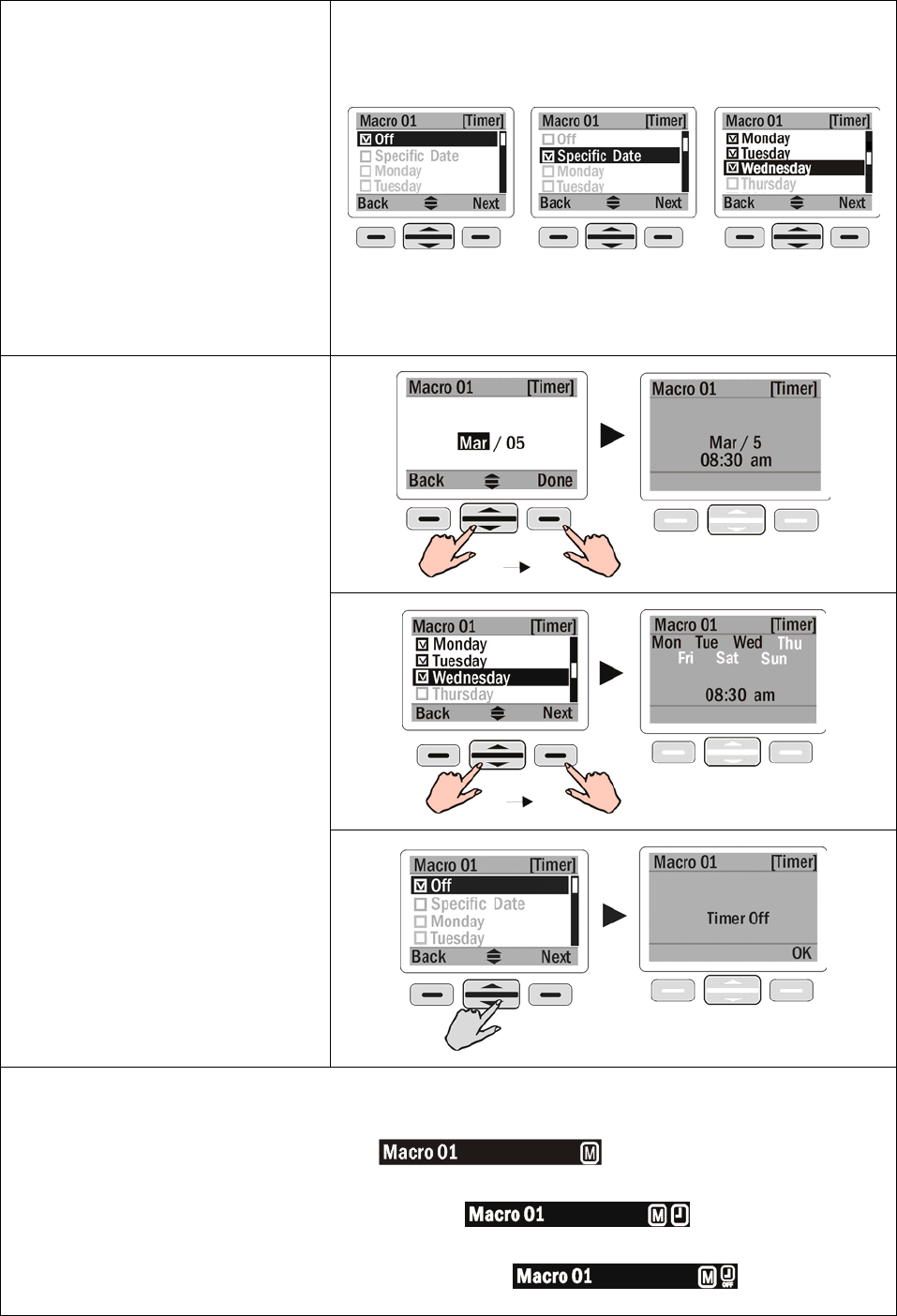

Press “Done” to save the settings and go to the timer setting page.
Select “No” to go back to Main Macro Menu if no Timer is required.
For Macro Timer setting procedure, please view P. 26

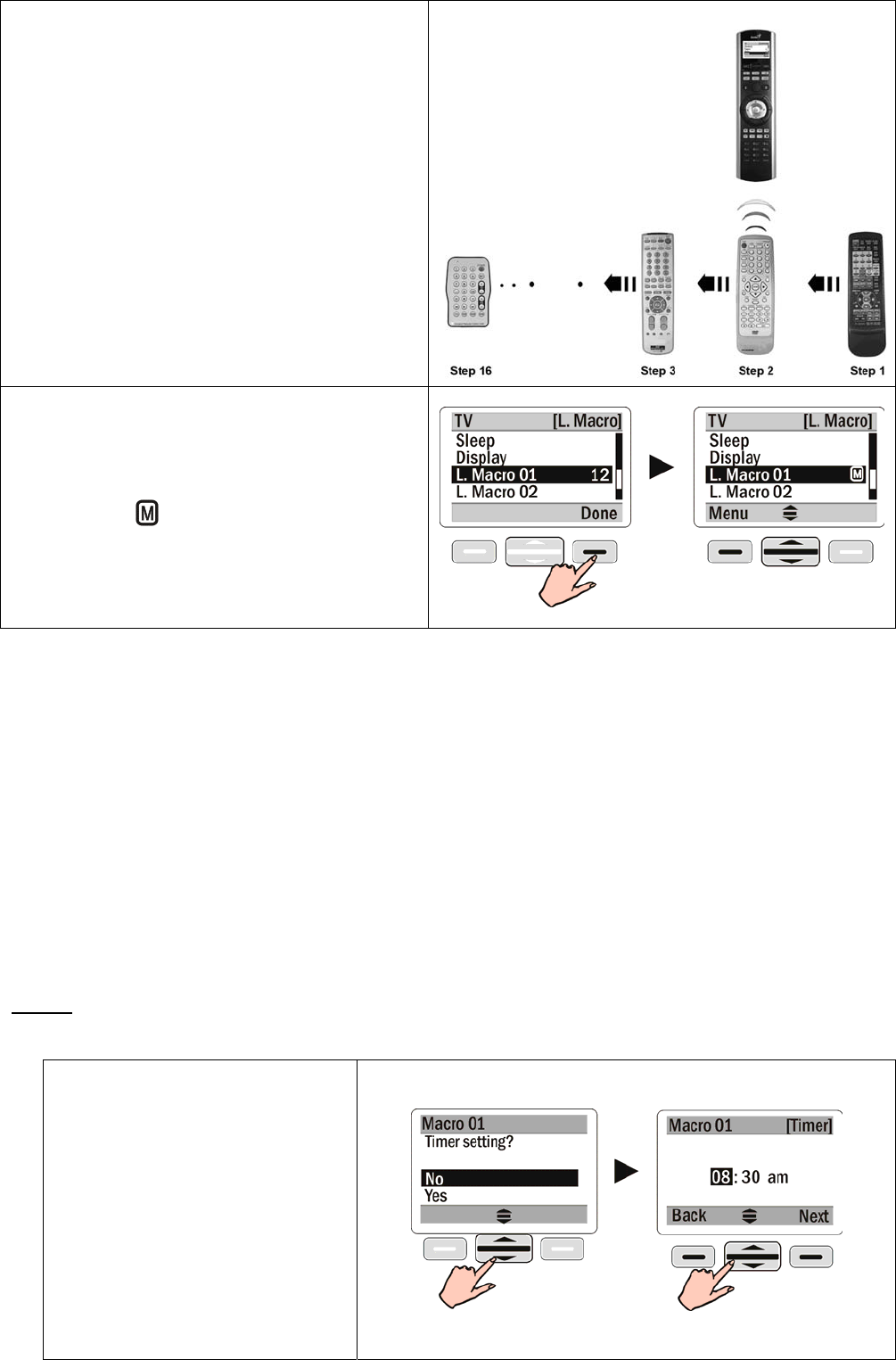

TYPE 2.- Learning Macro Key Settings
Prepare the original remote control for the equipment before using the Learning
Macro function. The Remote-850’s Learning Macro can only be stored in Soft keys.
Hard keys cannot execute macro functions. Each Learning Macro key can store up
to 16 commands.
There is no delay function available between different commands and no Timer
settings for Learning Macro.
Examples: Appoint “Macro 01” key under TV as Learning Macro key, then store all
procedures of watching DVD in the key.
Steps include:
1. Select L. Macro 01 under TV as the designated Learning Macro key.
2. Enter every original remote control code one by one
25
Step 1:
Go to the “Remote Setup” menu,
select 「Macro/Timer」, and then
select 「Learning Macro」.
Step 2:
Select TV device.
Step 3:
Assign “L. Macro 01” as the Learning
Macro key.
Note:
Only Soft key can be assigned as a Learning Macro key
We suggest you to create a new key as a Learning Macro key.
Ex. L. Macro 01.
You are able to add keys by using RemoteComm software
Step 4:
Keep 5-10cm distance away
between the original remote control
and Remote-850 and put them in a
line. During learning, please hold
pressing every learnt key of the
original remote to transmit IR code
to the Remote-850, until the number
on the right side is changed. Refer to
the Learning function chart on
page14.
26
Step 5:
Input all commands from every
remote control into the “Learning
Macro” in order. The default delay
time is 1 sec (unchangeable)
between two commands. It can
store up to 16 commands.
Step 6:
Press Done to save the setting.
After the Learning Macro setup
finishes, a sign appears next to
the appointed key.
Macro Key Timer Settings
Macro key timer settings provide you with customized transmission of Macro
commands on the specific time and date (in other words, it’s a scheduled
transmission function). Once a group of Macro is set, you can select the
Remote-850 to automatically send the scheduled time and date.
1. After the initial setting of a Macro is completed, you will be at the Timer
Setting page, where you can select whether to perform the Timer function
or not. Please select YES if you like this Macro has the Timer function.
Note: A Date and a Day of the week cannot be repeatedly set; only one
option is allowed to choose.
Step 1:
After saving the settings in
a macro, a prompt for
timer setting will be
displayed. Select “Yes” to
enter, then input the time.
Press NEXT to entry the
next step.
27
Step 2:
Select Date to set a
specified date.
If select “Specific Date”,
then set an exact date.
Otherwise select specified
weekday(s)
Note: This Macro will not
has timer function if you
select OFF
Step 3:
After setting a specific
date, press [Done] to save
the setting and then press
OK to return to the Macro
menu.
OR
After setting specified
weekday(s), press [Next]
to save the setting and
then press OK to return to
the Macro menu.
OR
Select “Off”, press [Next]
to save the setting and
then press OK to return to
the Macro menu.
Macros and Timers have the following three types of status:
• Macro is set, but timer is not.
• Macro is set, and timer is activated.
• Macro is set, but timer is NOT activated.
28

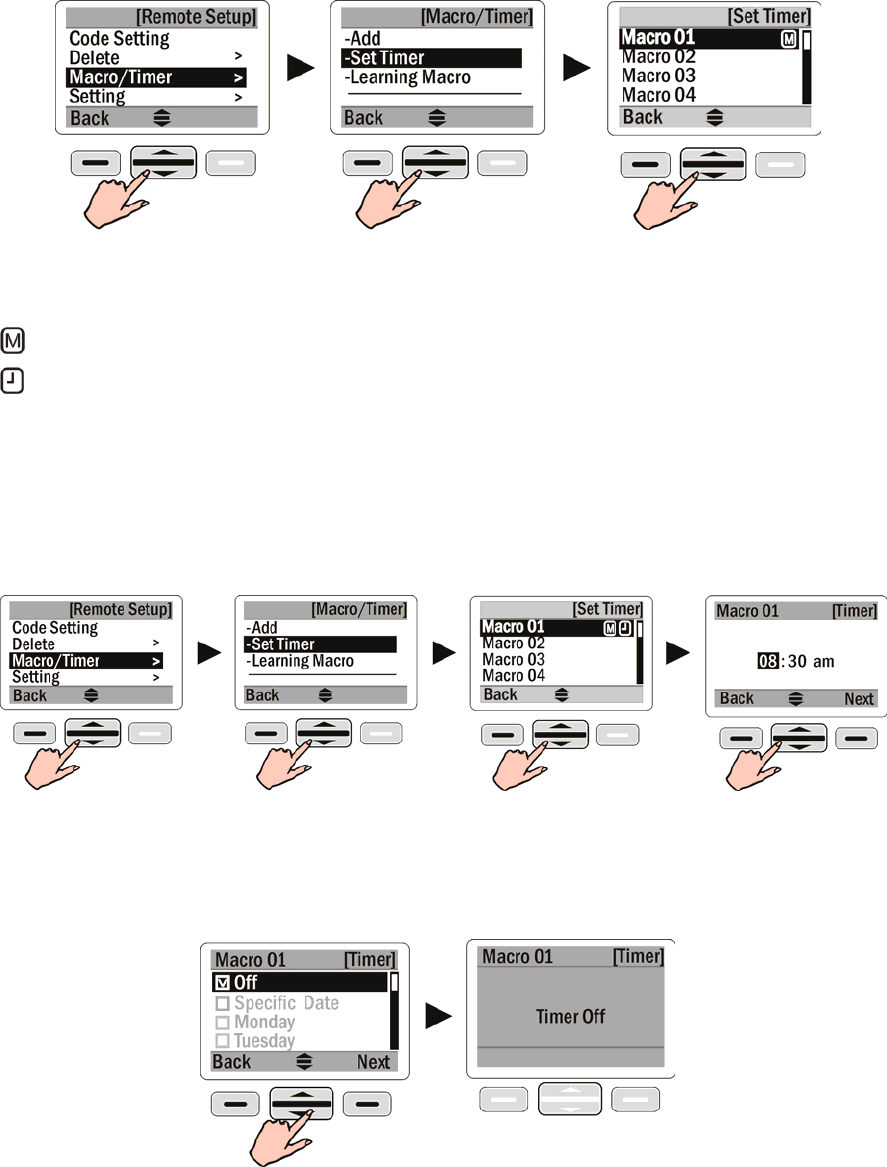

2. Add a Timer after the Macro is set.
Go to 「Macro/Timer」, then select「Set Timer」.
Path: Remote SetupMacro/Timer「Set Timer」
Select the Macro that requires a Timer, and set it according to above
steps.
: indicates a Macro is already set up.
: indicates a Timer is already activated.
3. Turn off the timer after the timer is set. Select the Macro which will not
need a Timer.
select “Off” on the top to disable the Timer function. Press Next to save
setting and then press OK to return to the Set timer page.
29
General Settings
The General Settings menu contains message and function options, including: Time,
Beep, Contrast, LCD off, Lit period, Motion, Connect, and Reset.
To access the General Settings menu, please select Settings from Remote Setup.
(See page 9 for the Date / Time /LCD contrast setup, and page 13 for the Connect
setup)
(1) Beep:
Use the scroll key to
adjust the beep volume to
one of the following settings:
Large (default), Middle,
Small, and Off.
Press [Done] to save your
setting.
(2) LCD off (The period before
LCD off, if stop using the
remote):
Use the scroll key to
adjust the LCD off time from
10 sec to 600 sec in 10 -
second intervals. The default
is 90 seconds.
Press [Done] to save your
setting.
30
(3) Glow:
Use the scroll key to
adjust the backlight on
timeout, from 0 (Off) to 60 sec
in one-second intervals. The
default value is 8 seconds.
Press [Done] to save your
setting.
(4) Motion:
Use the scroll key to
enable (On) or disable (Off)
the touch sensor function.
The default is On.
Press [Done] to save your
setting.
(5) Reset:
Select Reset to reset the
Remote-850 back to its
factory default configuration.
A confirmation message will
appear. Press “Yes” to
confirm the reset.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
