KYOCERA Document Solutions 2HS0108 Laser Printer with RFID User Manual
KYOCERA Document Solutions Inc. Laser Printer with RFID
user manual
Operation Guide
Please read the Operation Guide before using this machine. Keep it close to the machine for easy reference.
FS-1100
FS-1300D
This Operation Guide is for models FS-1100 and FS-1300D.
Included Guides
The following guides are included with this machine. Refer to the proper
guide based on your requirements.
Operation Guide (This Guide)
Describes how to load paper, print, replace toner, clean the printer, and
troubleshooting.
Installation Guide
Explains how to install this printer, as well as connecting cables and
loading paper.
Note This Operation Guide contains information that corresponds
to using both the inch and metric versions of these machines.
The inch versions of these machines are shown in the screens in
this guide. If you are using the metric version, use the messages
provided for the inch version as reference only. In the body text,
only the inch messages are given if these versions differ only in
capitalization. When there is even a slight difference in the
message, we have listed the information for the inch version
followed, in brackets, by the corresponding information for the
metric version.
i
Contents
1 Machine Parts ............................................................................. 1-1

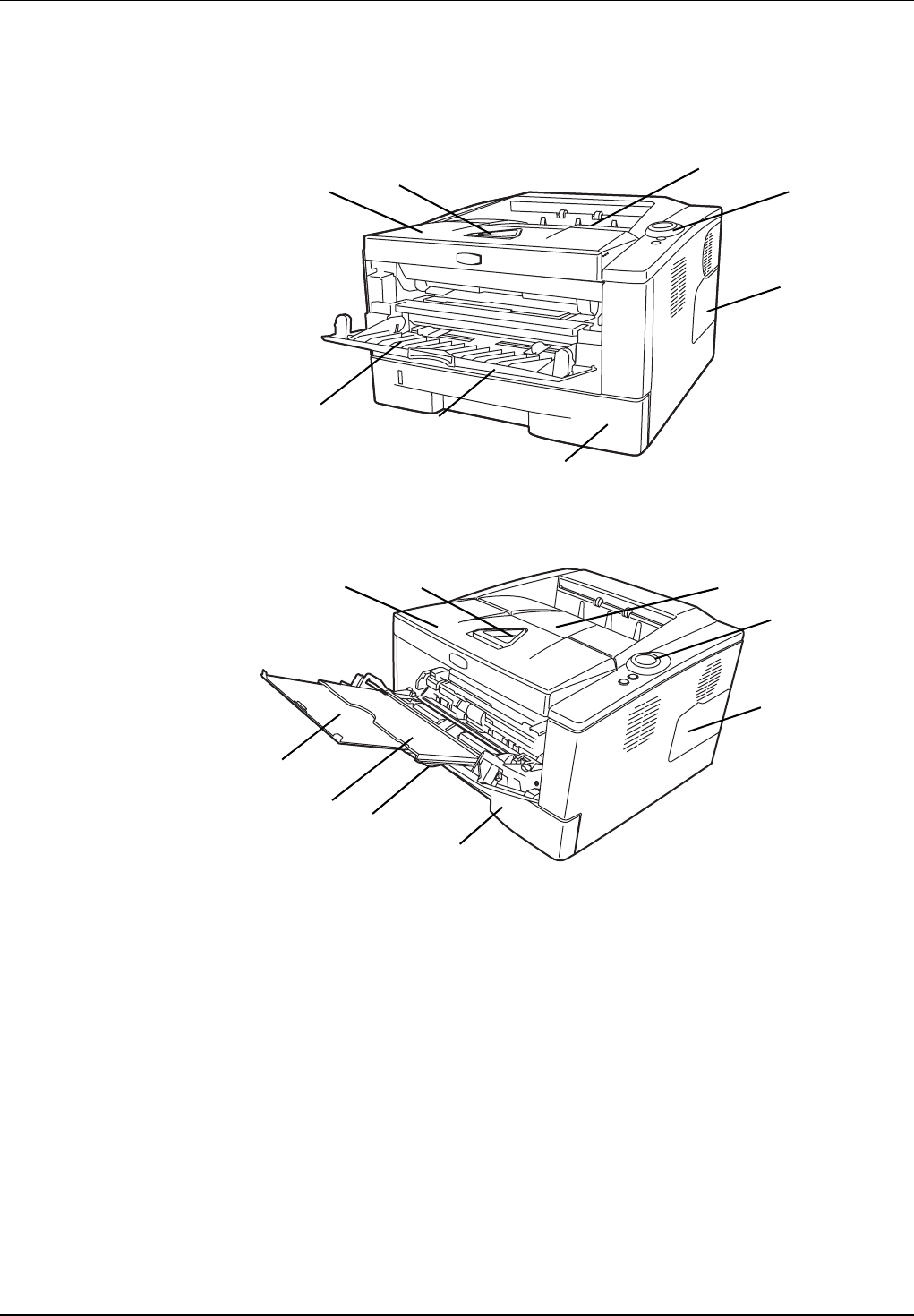

Components at the Front of the Printer .................................. 1-2

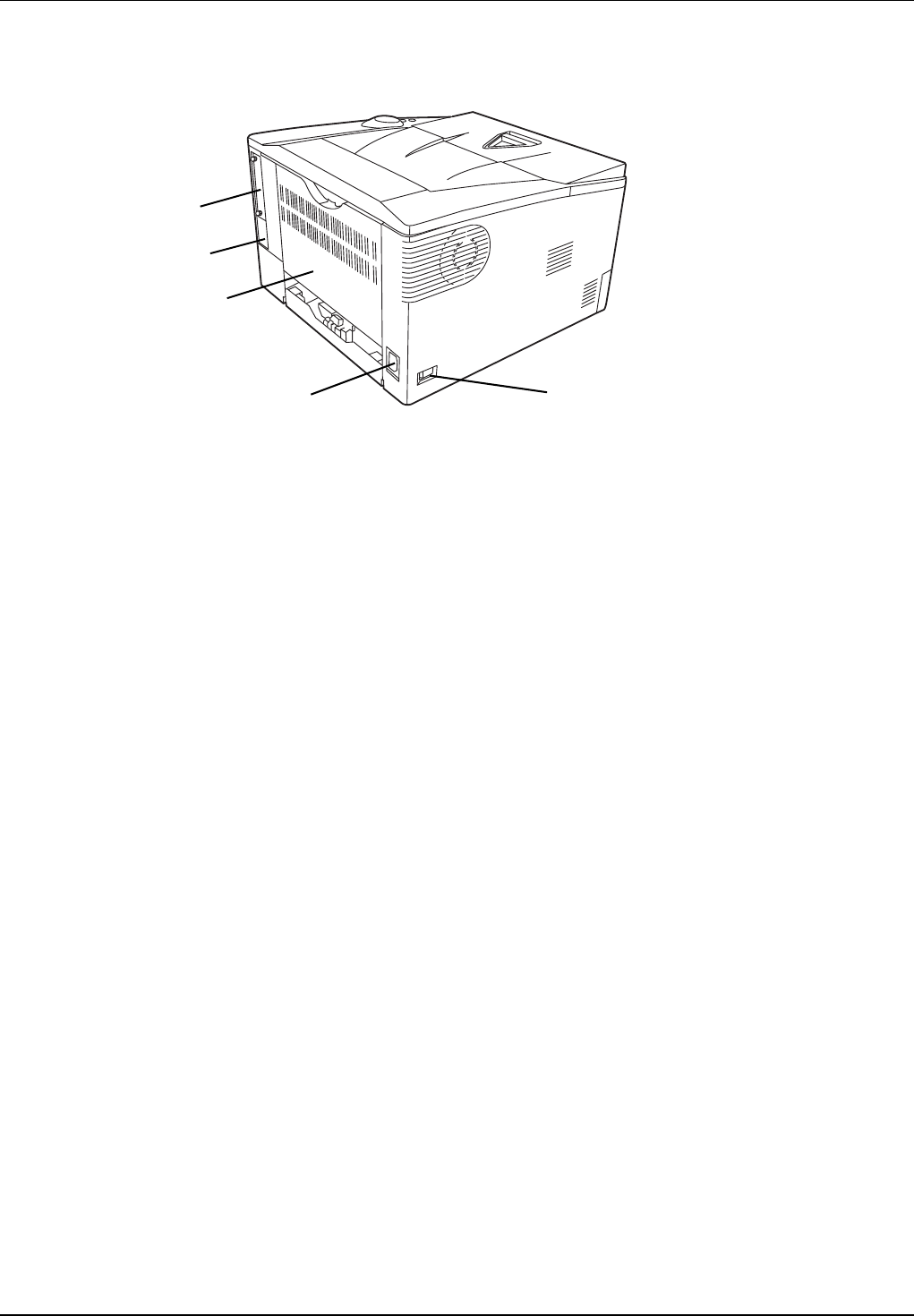

Components at the Rear of the Printer ..................................... 1-3

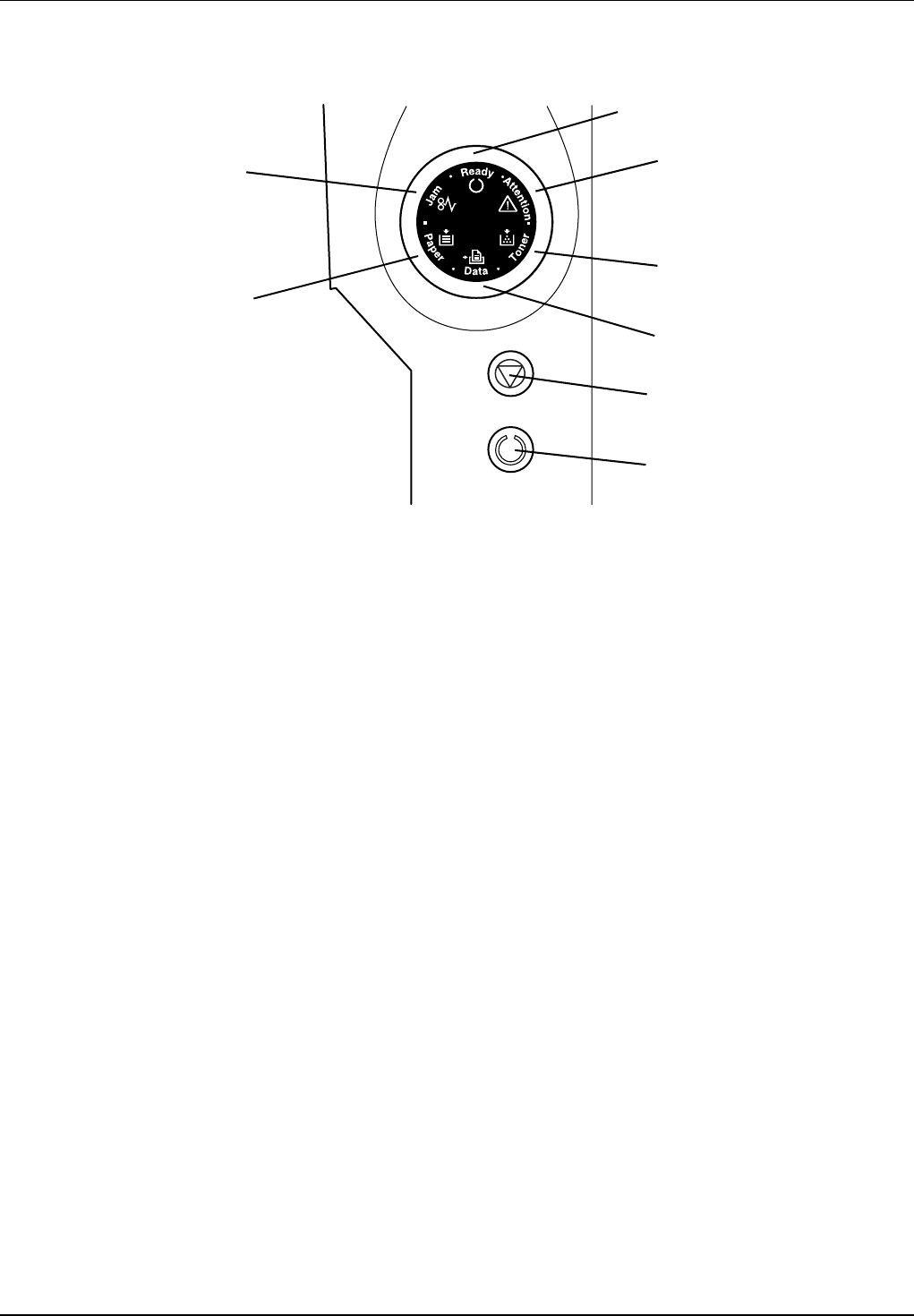

Operation Panel .......................................................................... 1-4

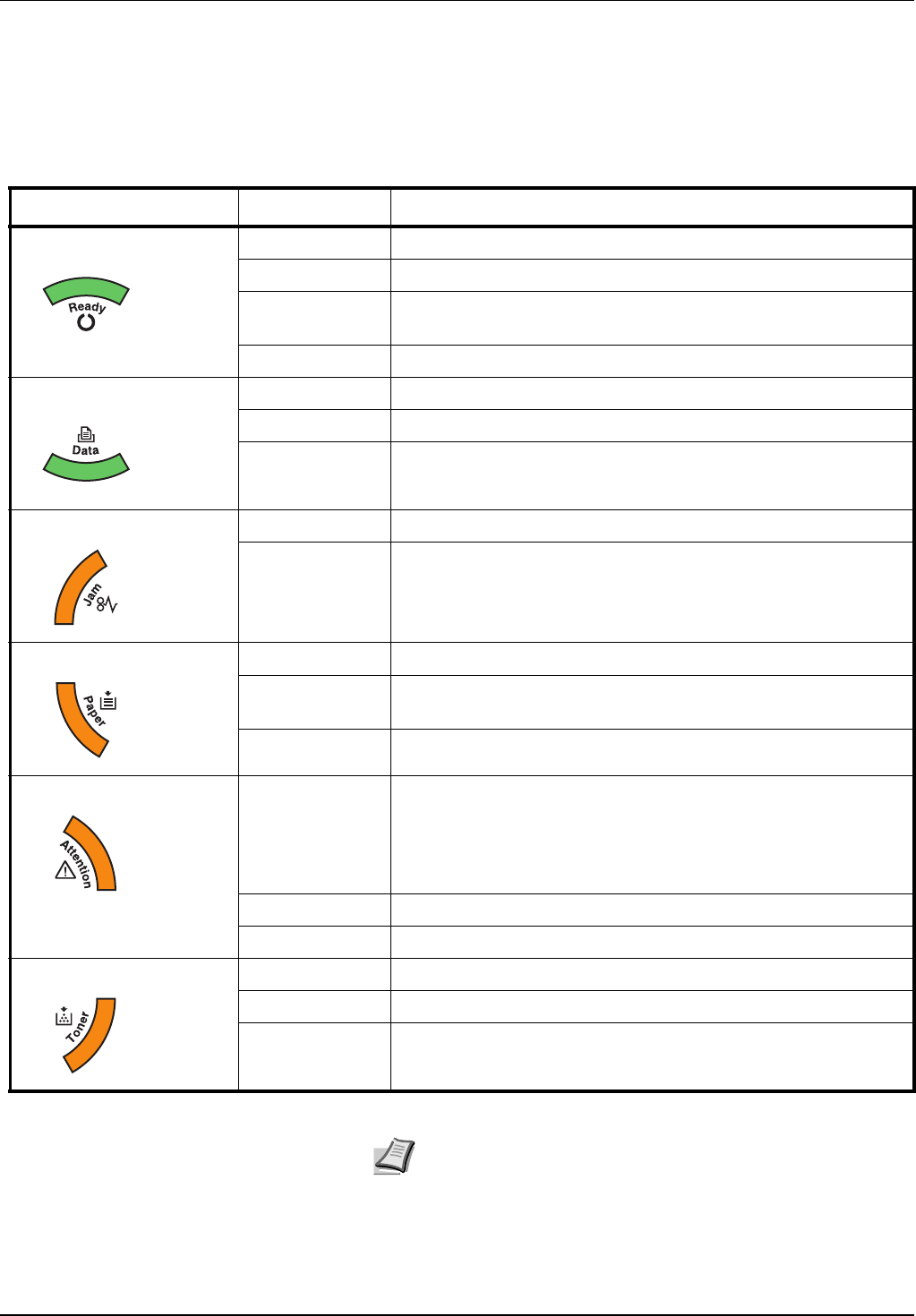

Indicators .................................................................................... 1-5
Keys ............................................................................................. 1-6
2 Loading Paper ............................................................................. 2-1
General Guidelines ..................................................................... 2-2
Selecting the Right Paper .......................................................... 2-4
Paper Type ................................................................................ 2-10
Preparing the Paper ................................................................. 2-11

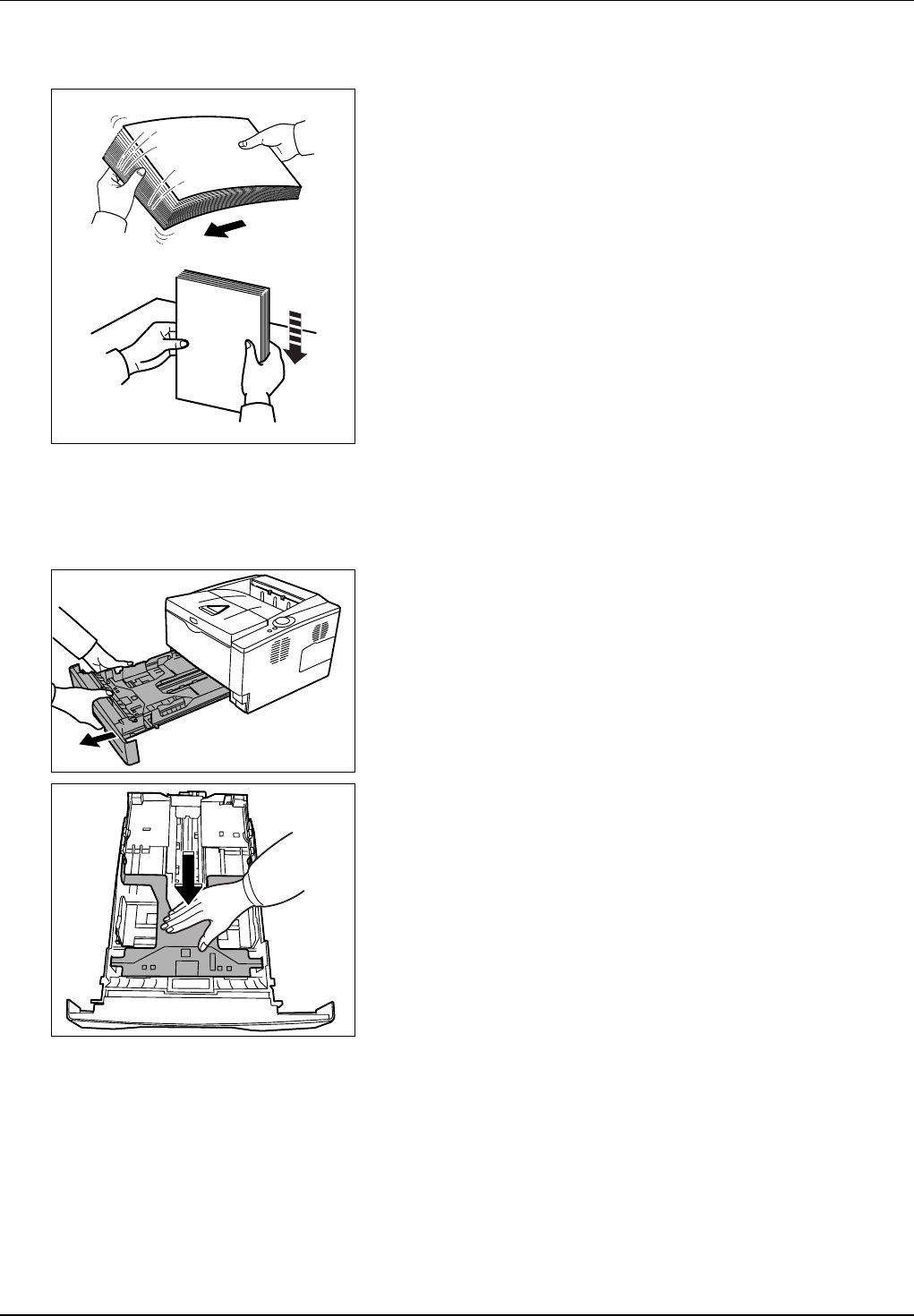

Loading Paper into Cassette ................................................... 2-11

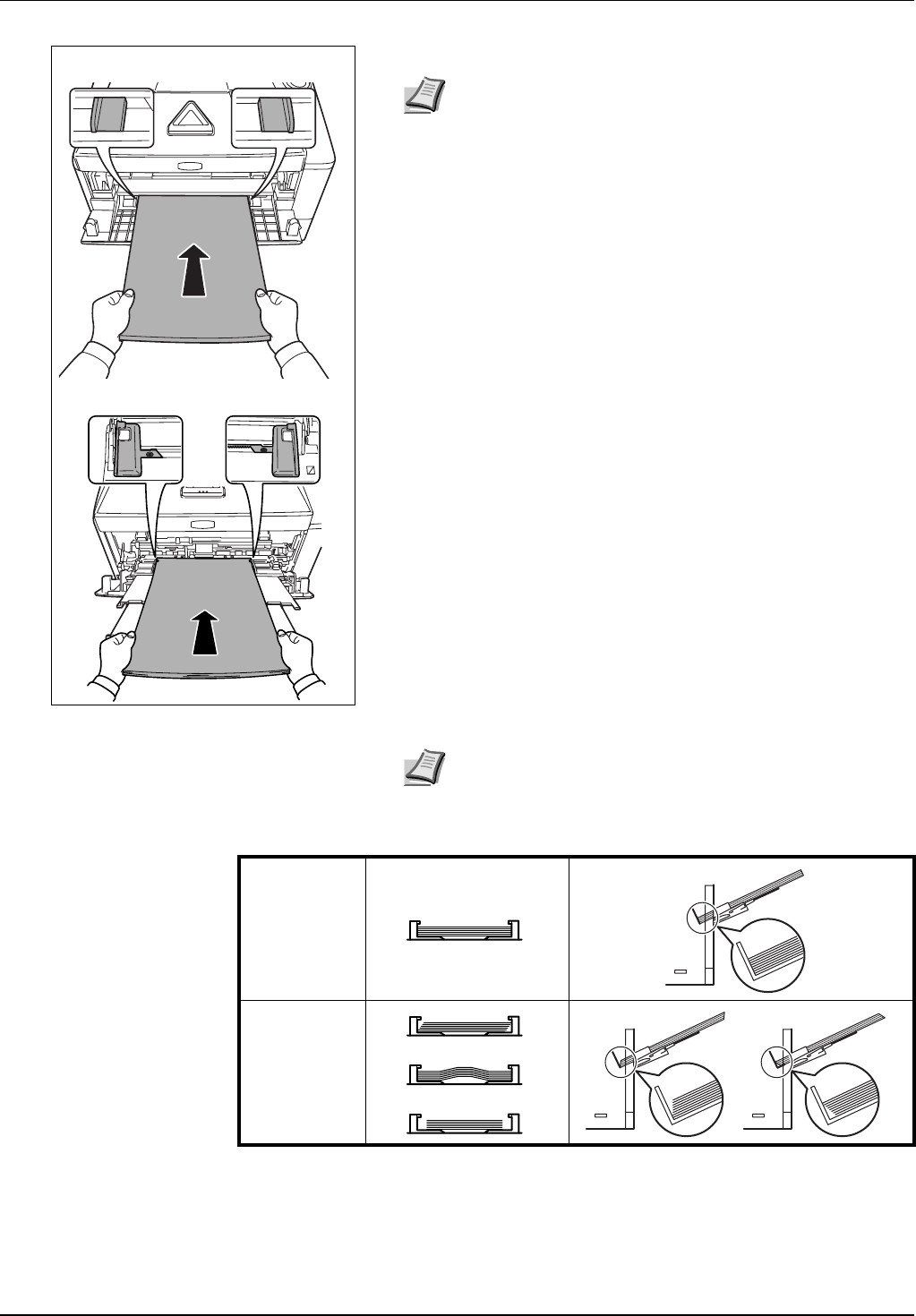

Loading Paper into MP (Multi-Purpose)Tray .......................... 2-14
3 Connecting and Printing ............................................................ 3-1

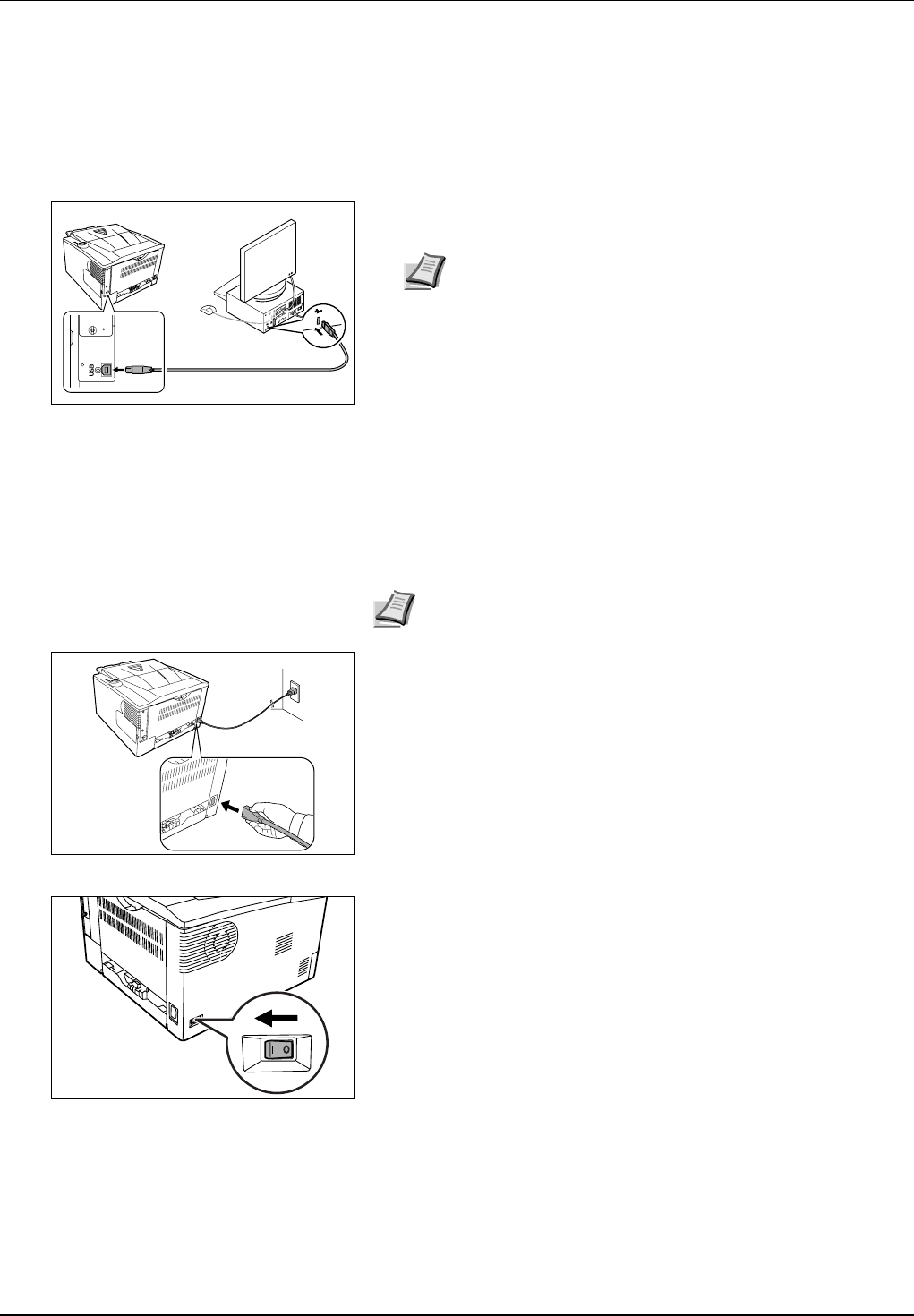

Connections ................................................................................ 3-2
Loading Software ....................................................................... 3-3

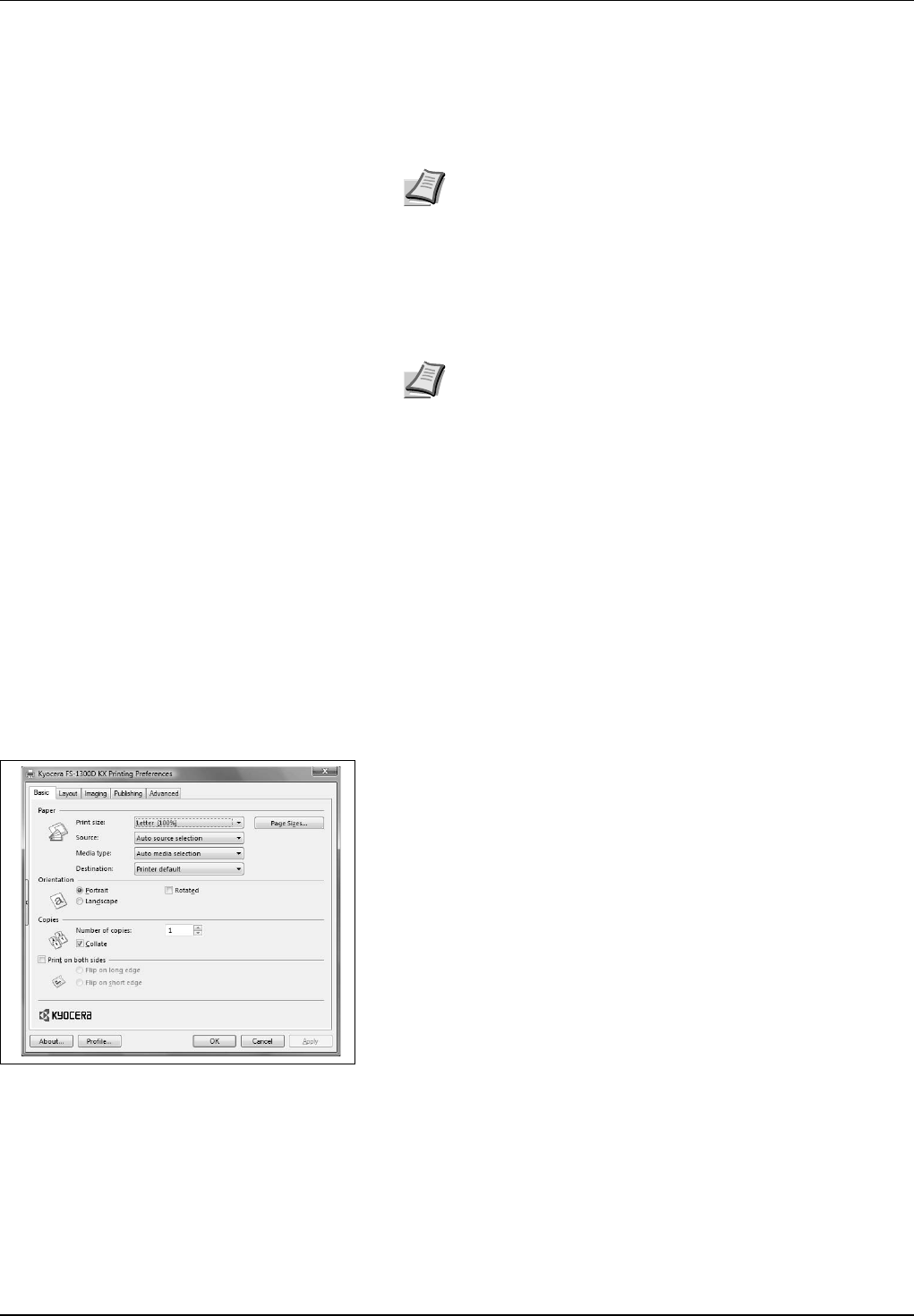

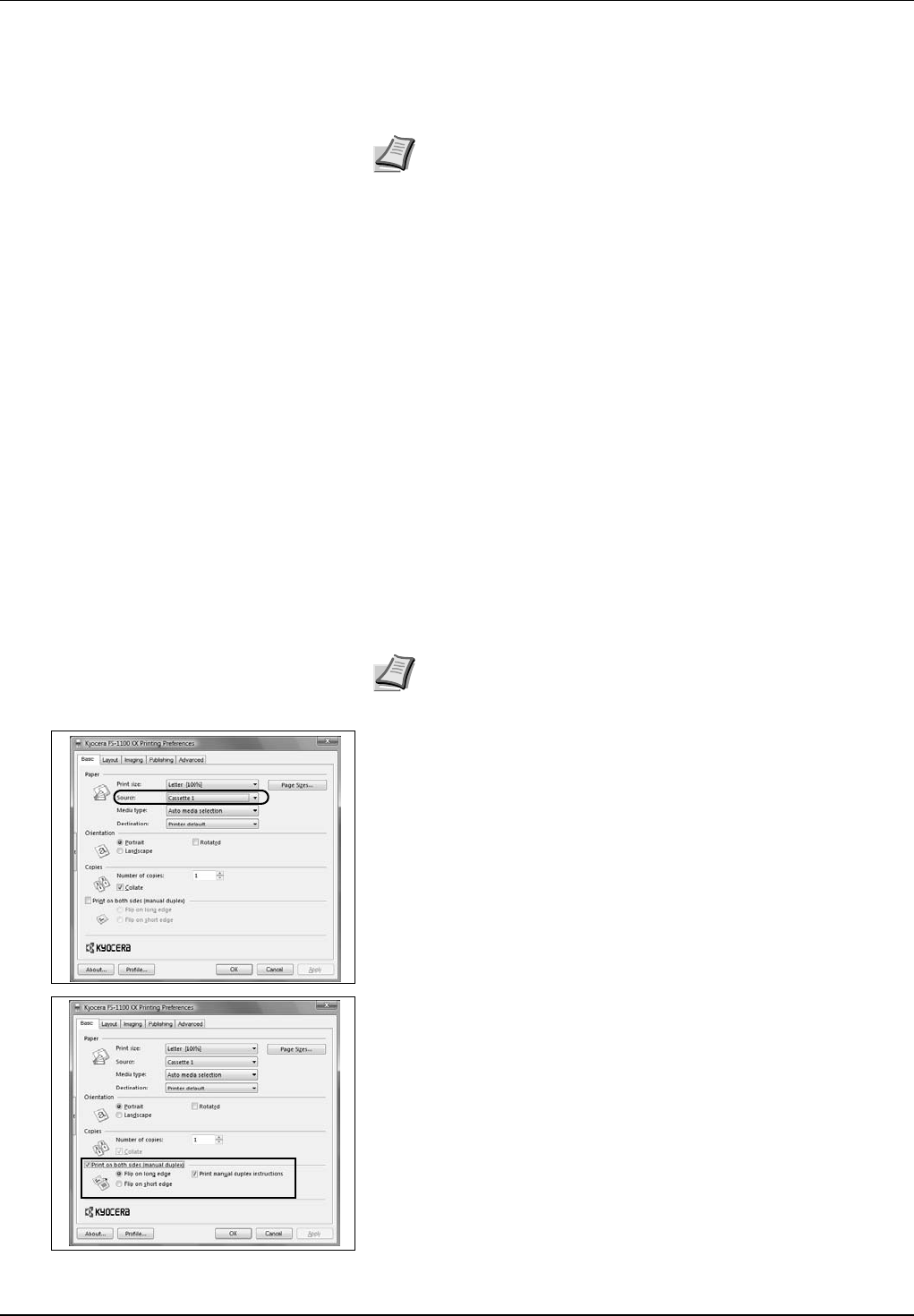

Printing ........................................................................................ 3-3

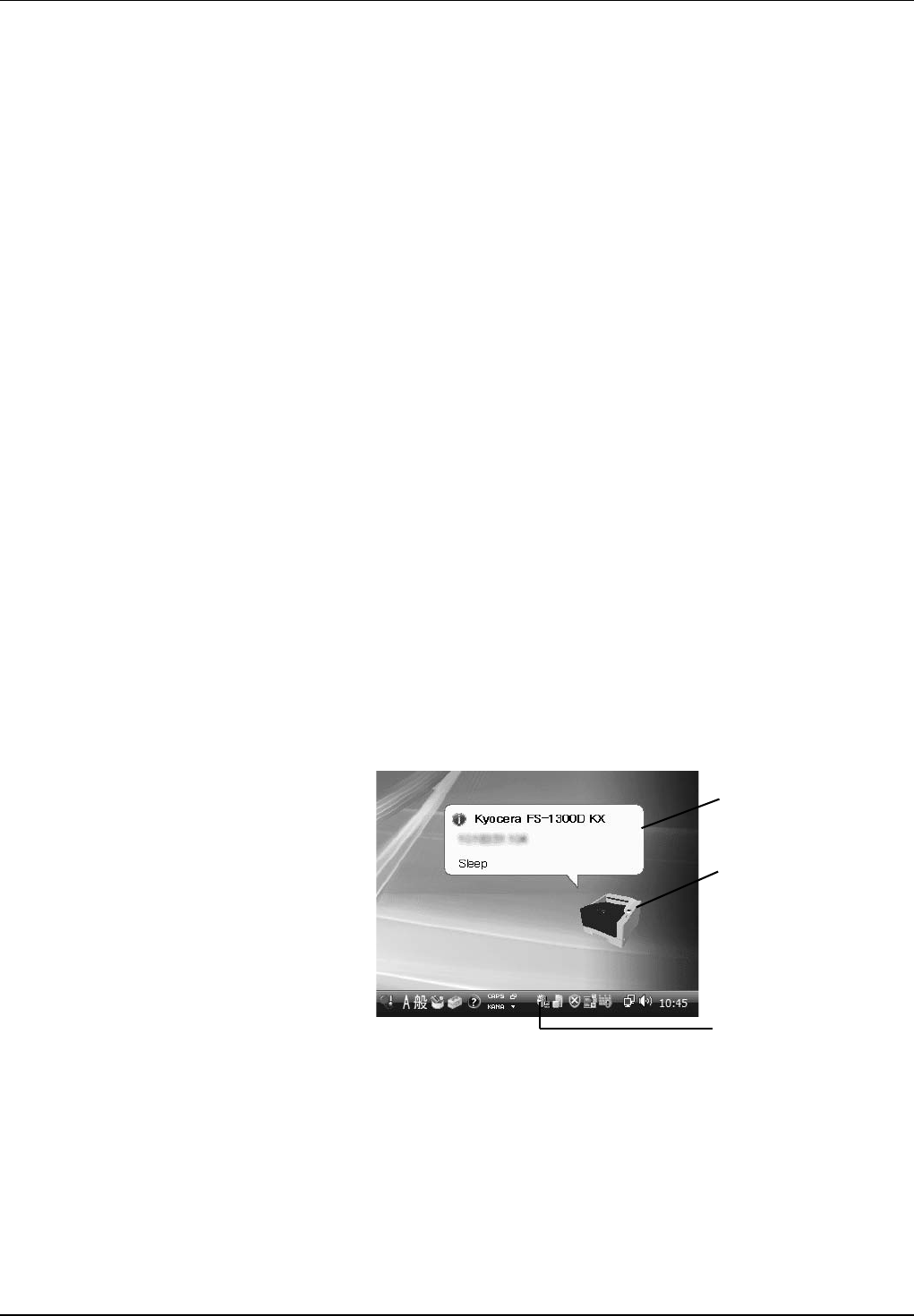

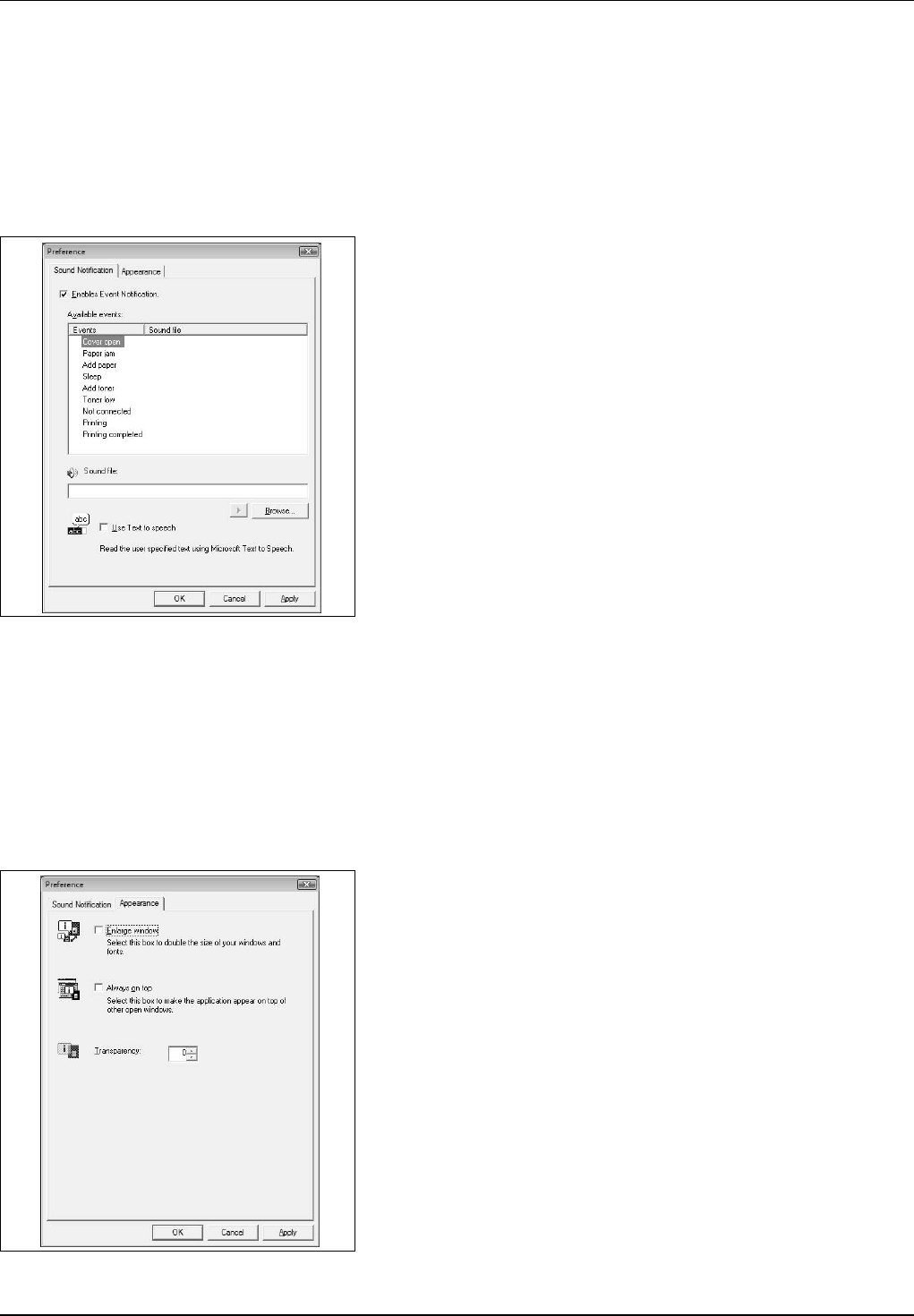

Status Monitor ............................................................................ 3-6

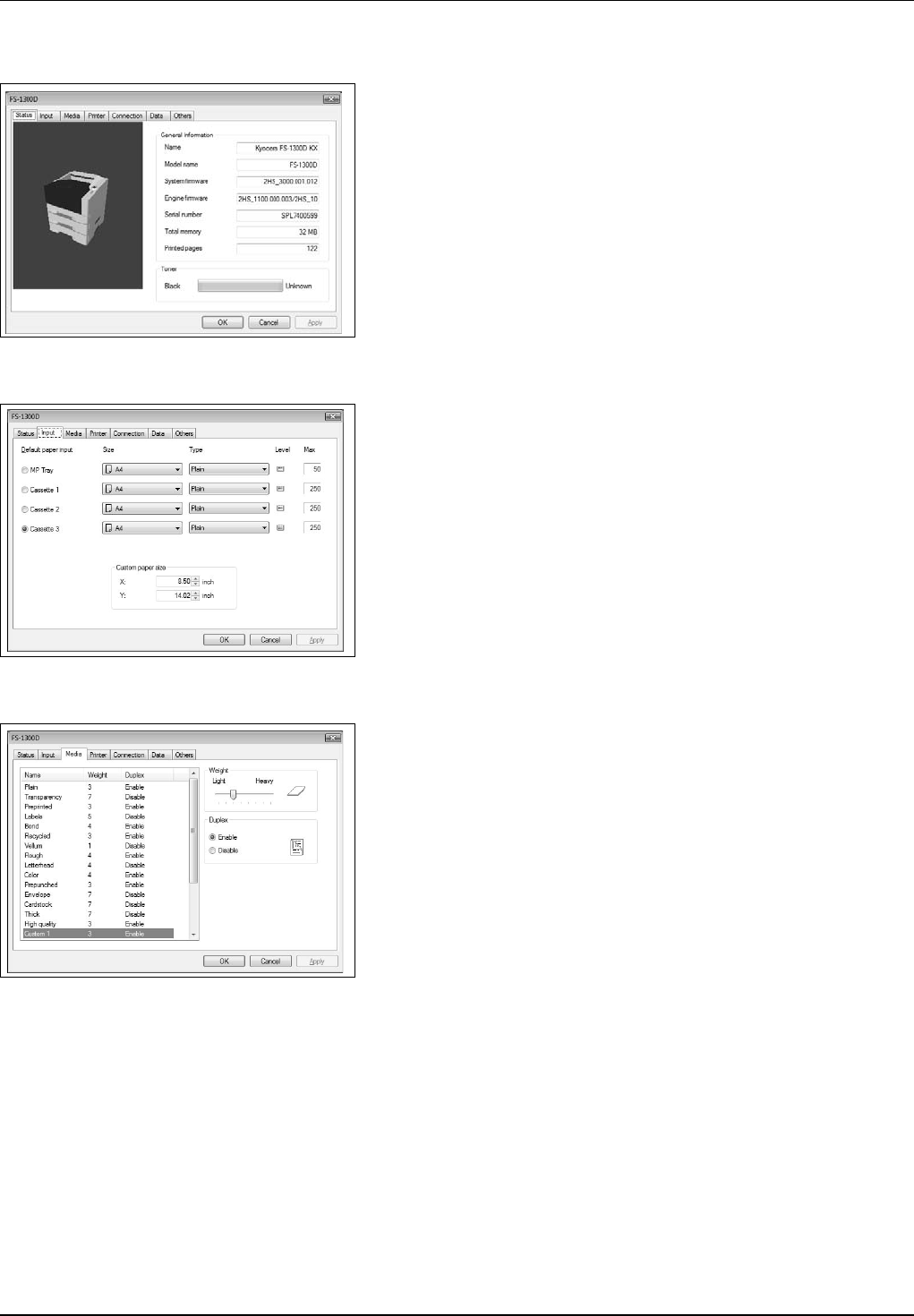

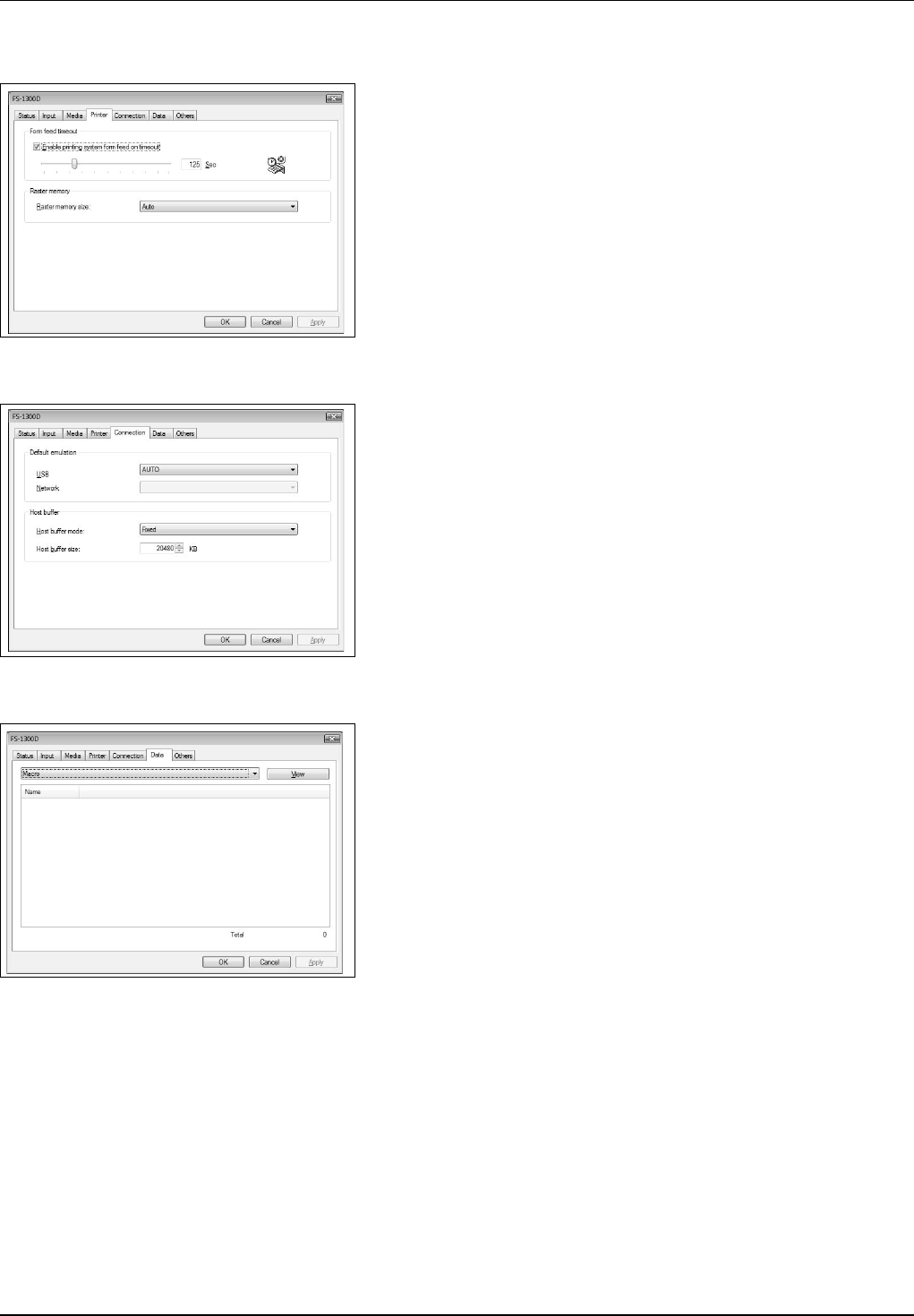

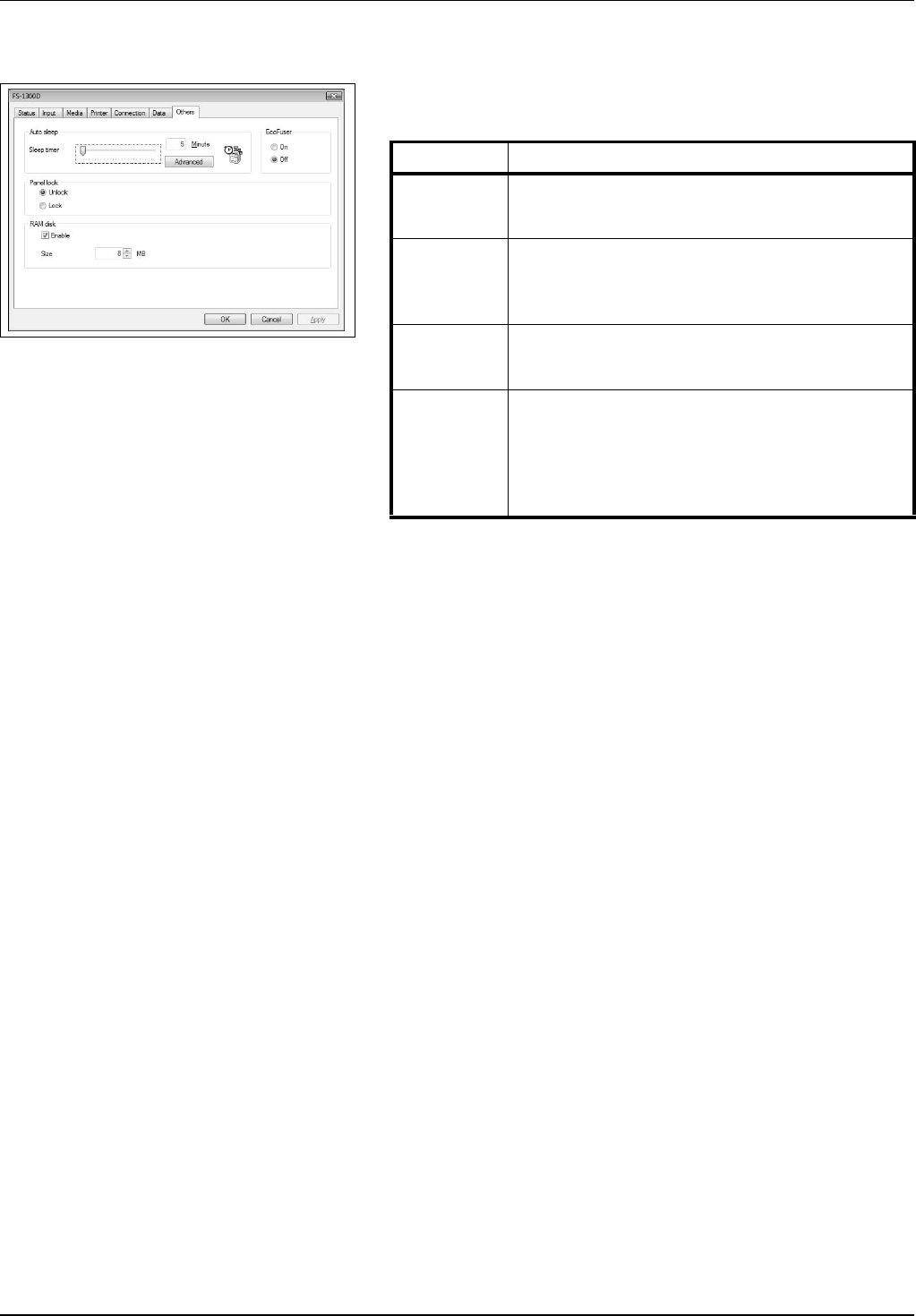

Configuration Tool ..................................................................... 3-9
Uninstalling Software ............................................................... 3-13
4 Maintenance ................................................................................ 4-1
General Information ................................................................... 4-2

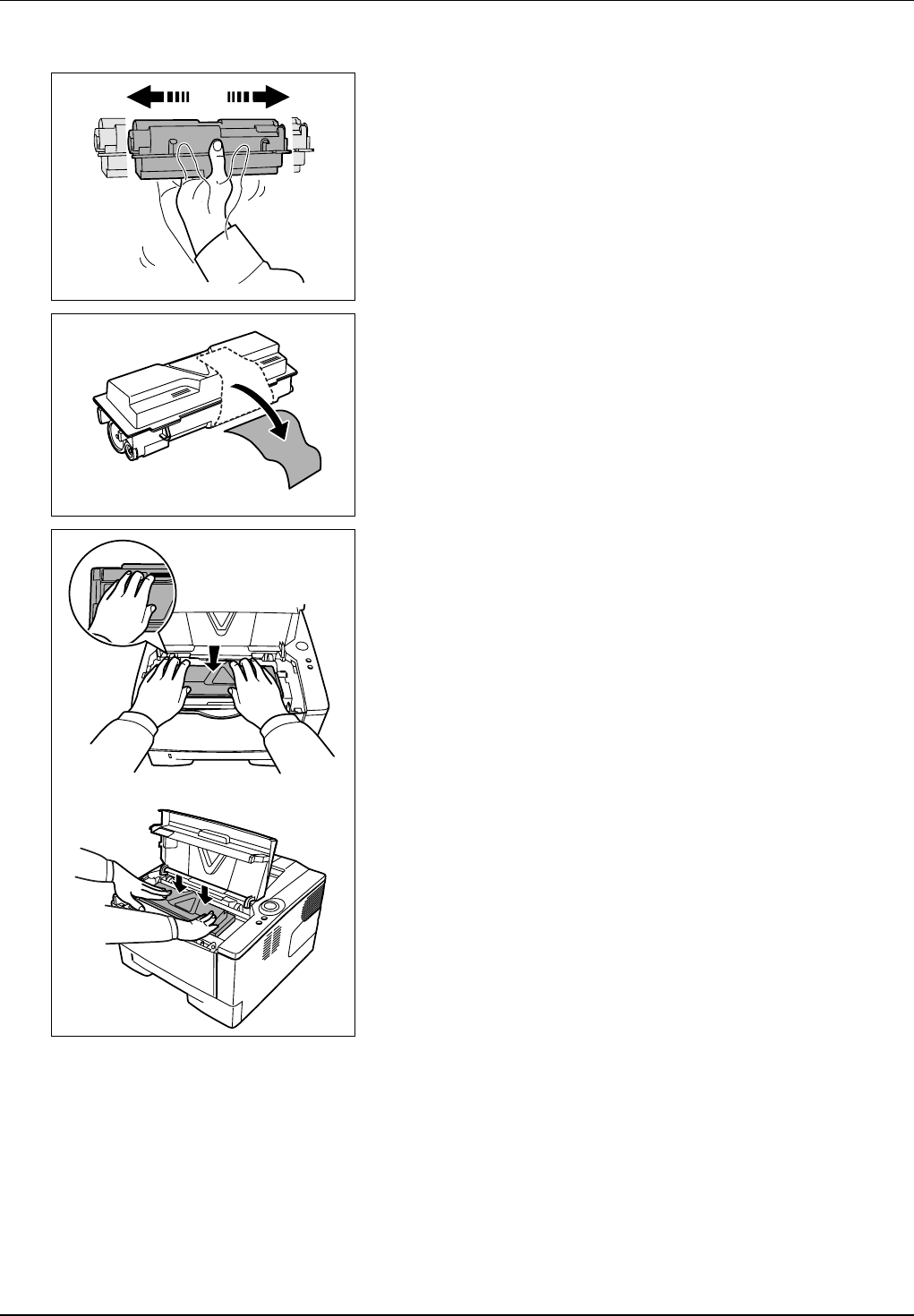

Toner Container Replacement .................................................. 4-2
Cleaning the Printer ................................................................... 4-6
Prolonged Non-Use and Moving the Printer ............................ 4-9
5 Troubleshooting ......................................................................... 5-1
General Guidelines ..................................................................... 5-2

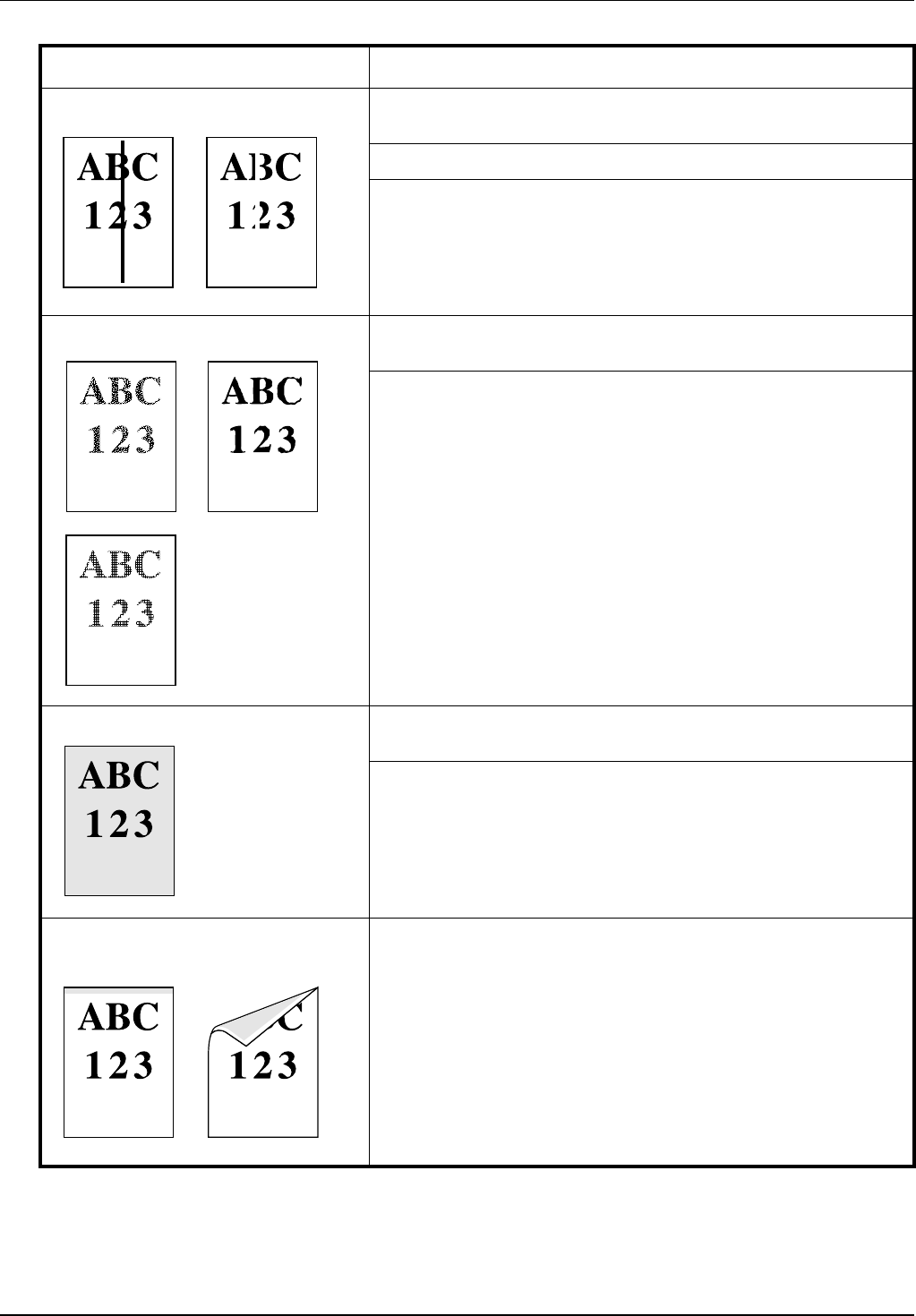

Print Quality Problems ............................................................... 5-3

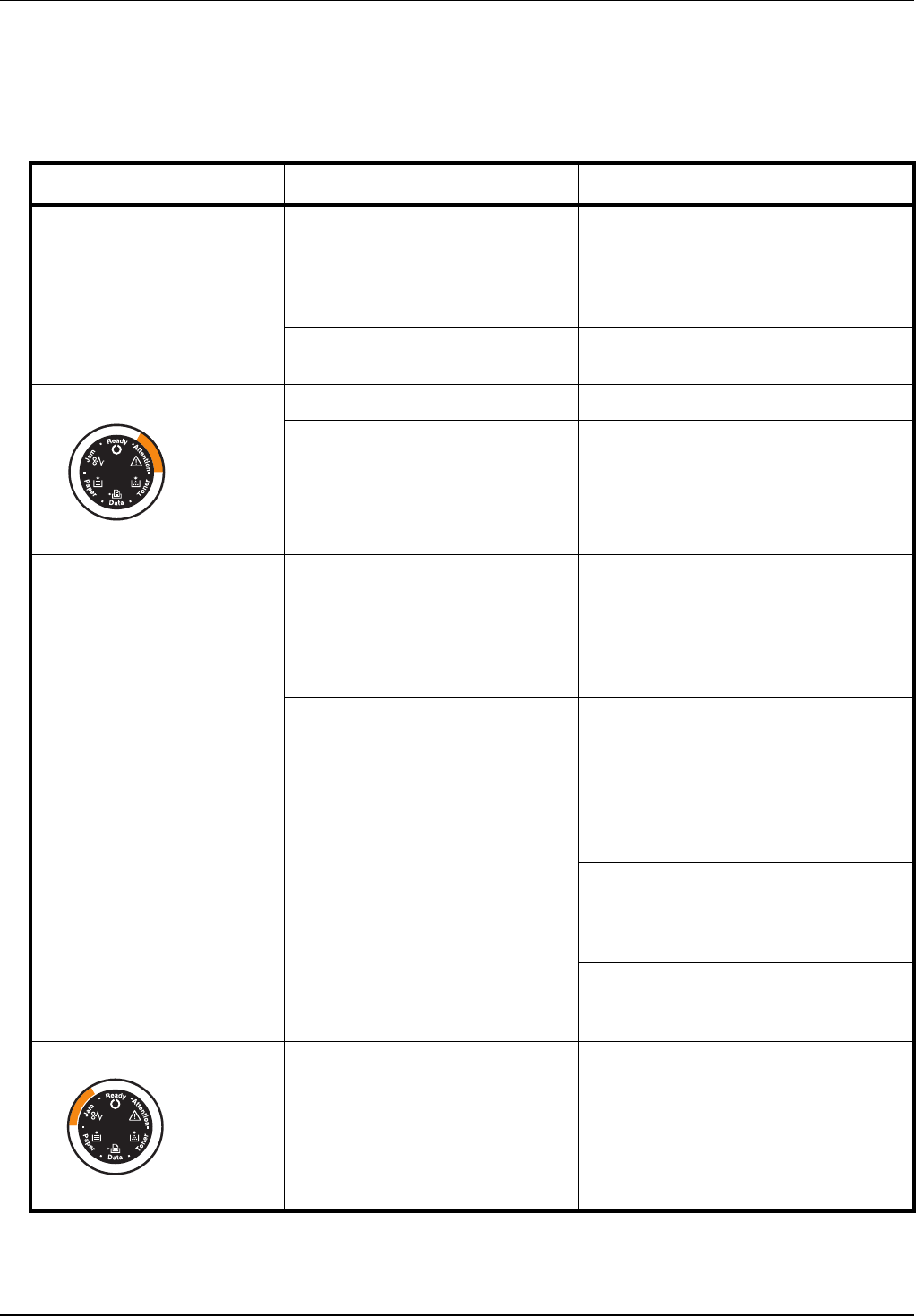

Understanding Indicators .......................................................... 5-6

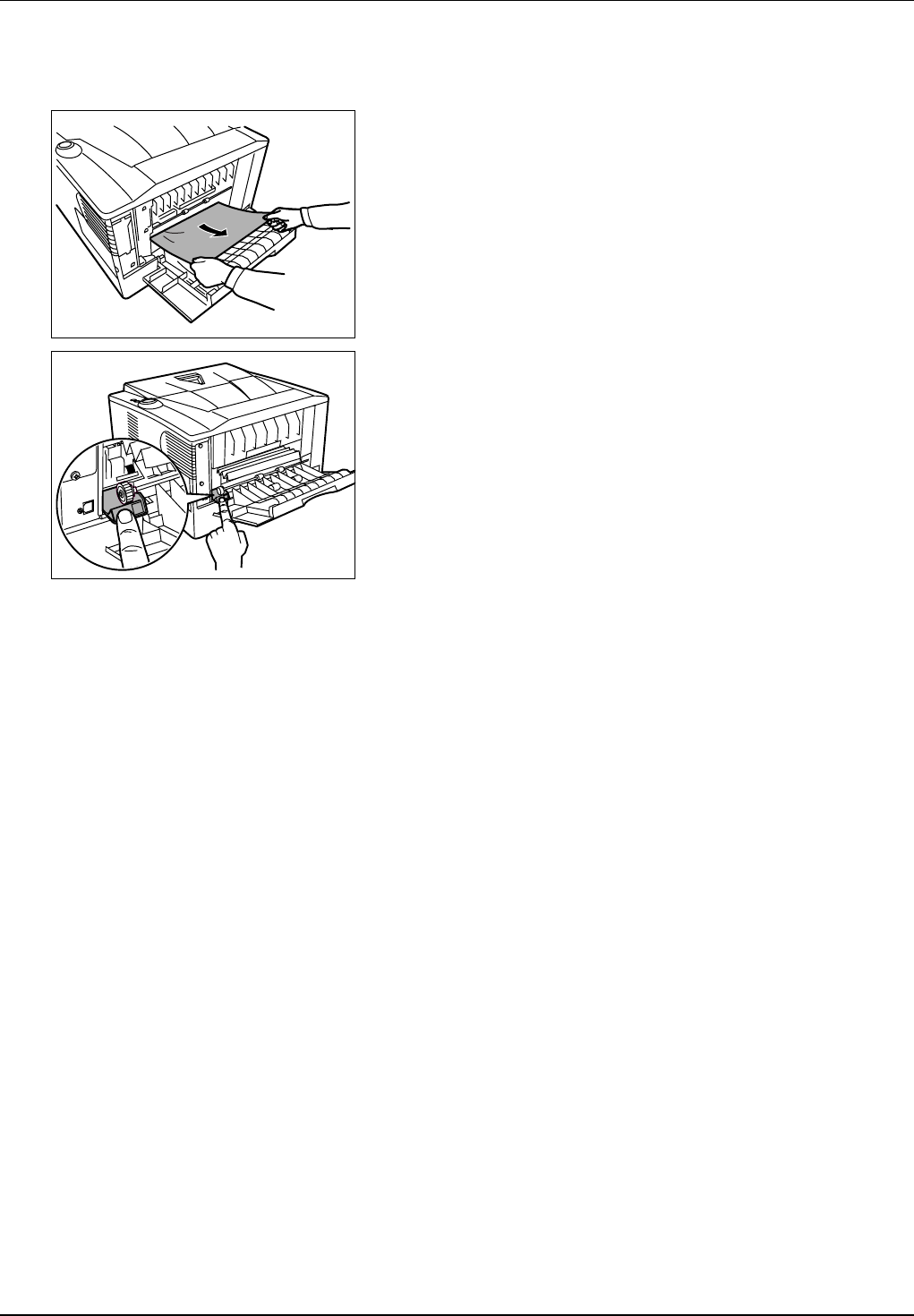

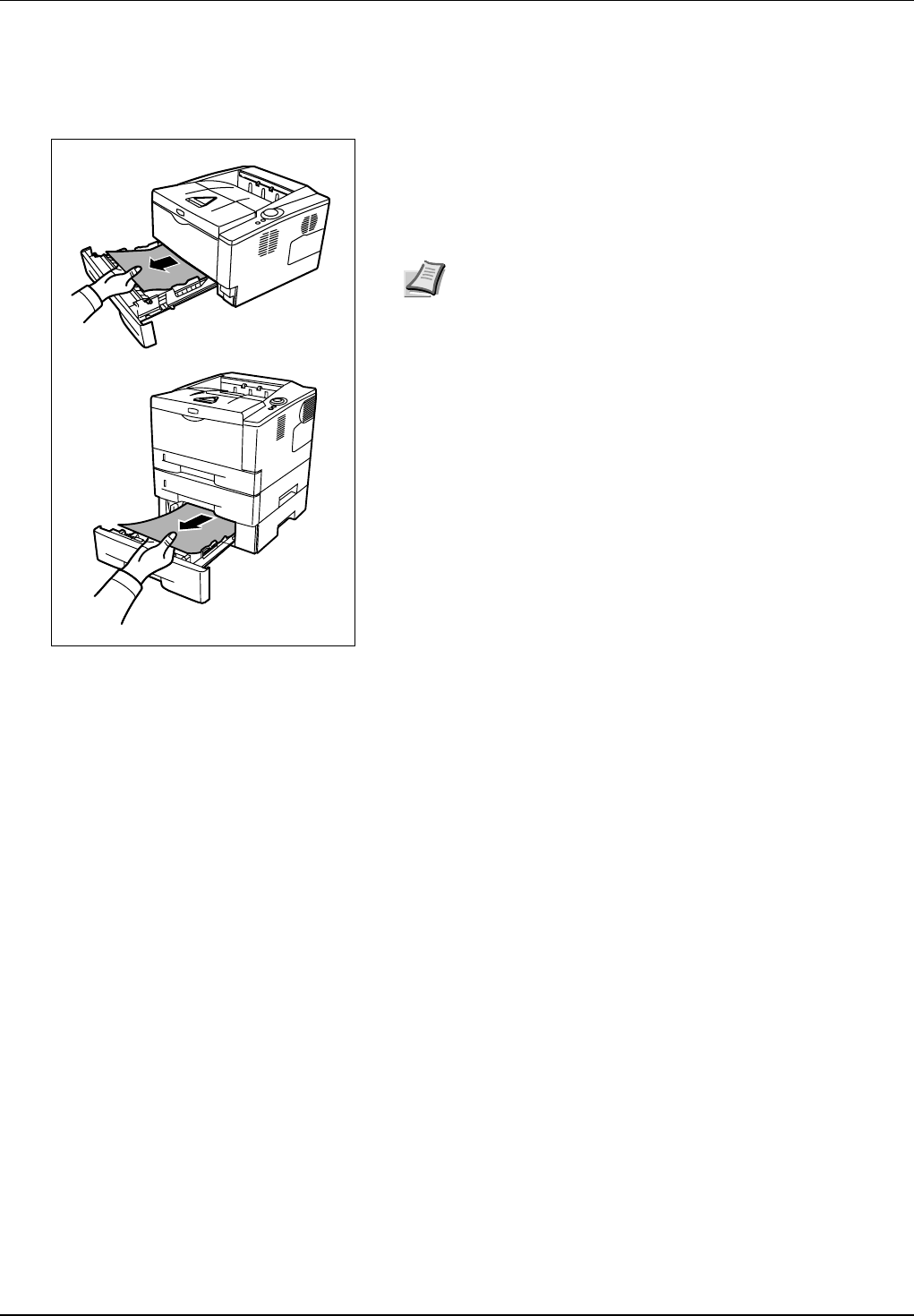

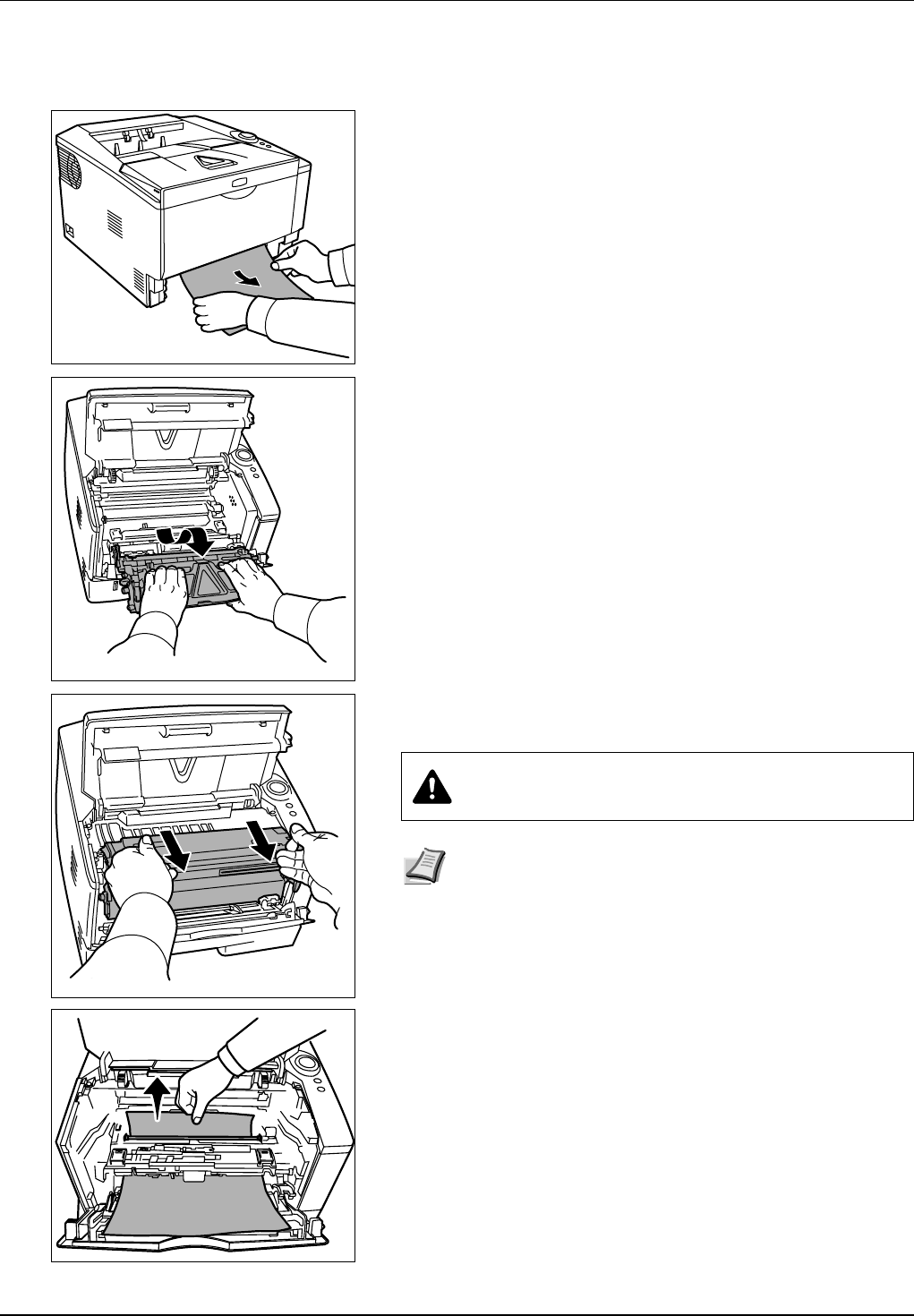

Cleaning Paper Jams ............................................................... 5-10

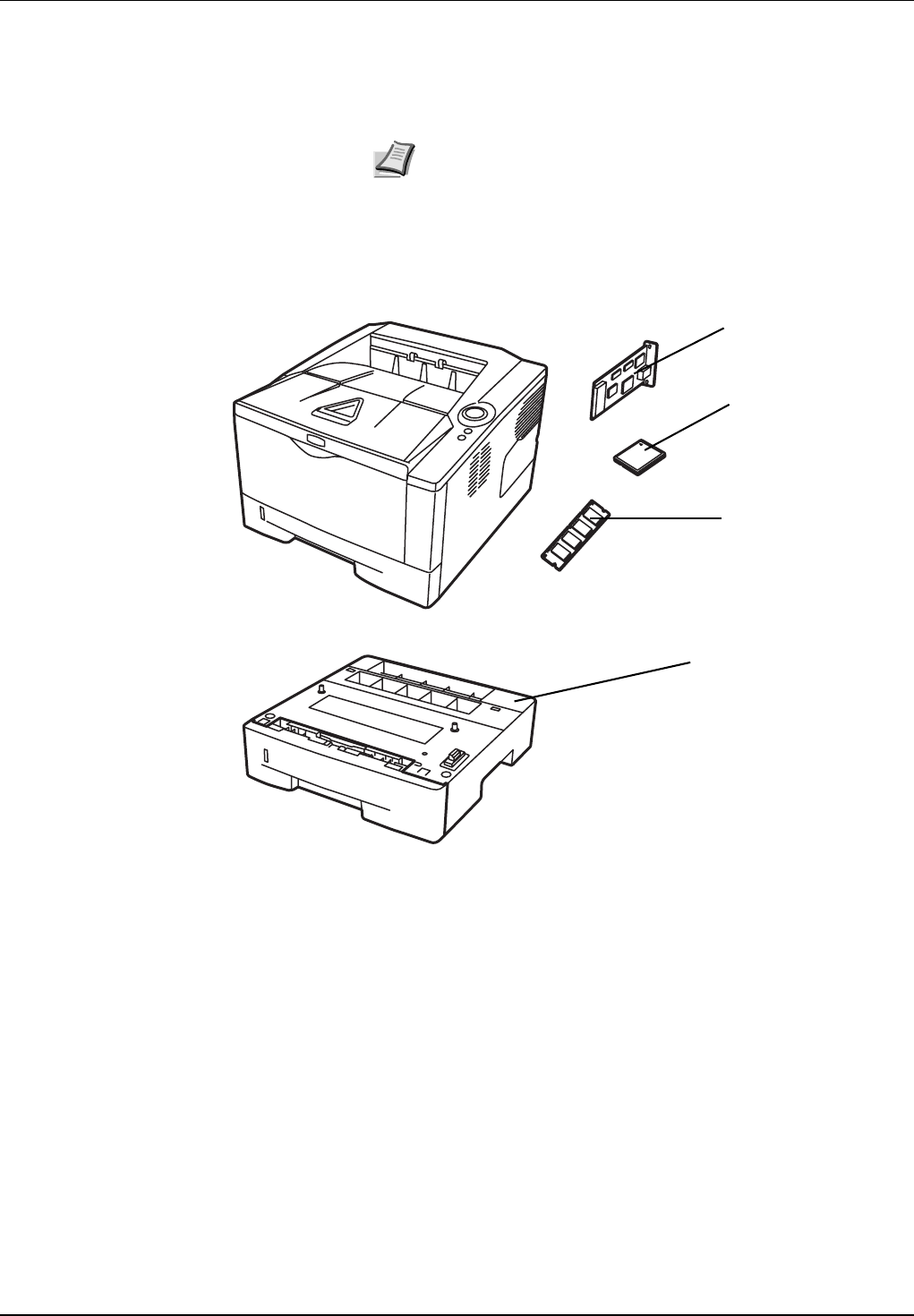

6 Option .......................................................................................... 6-1
General Information ................................................................... 6-2

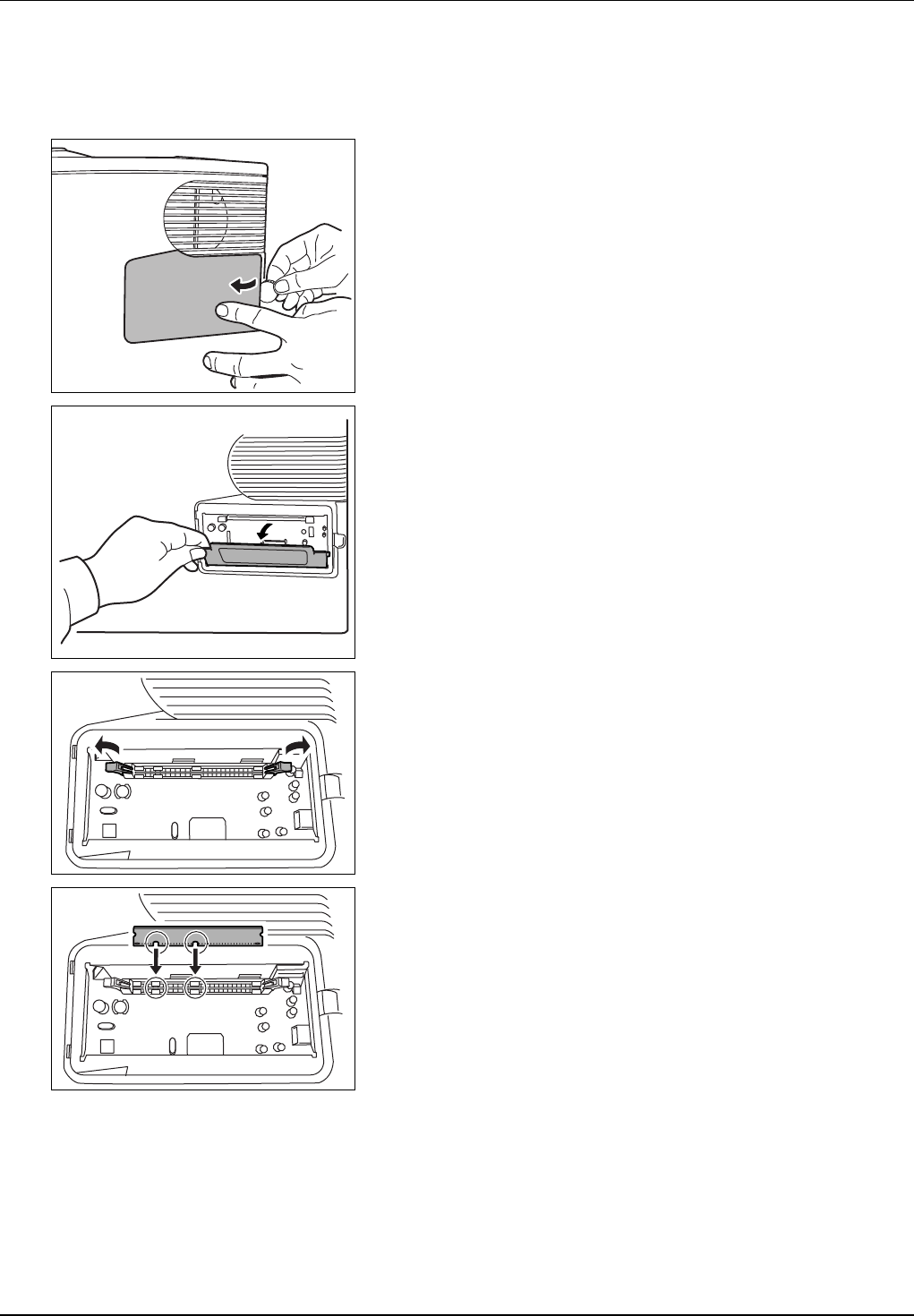

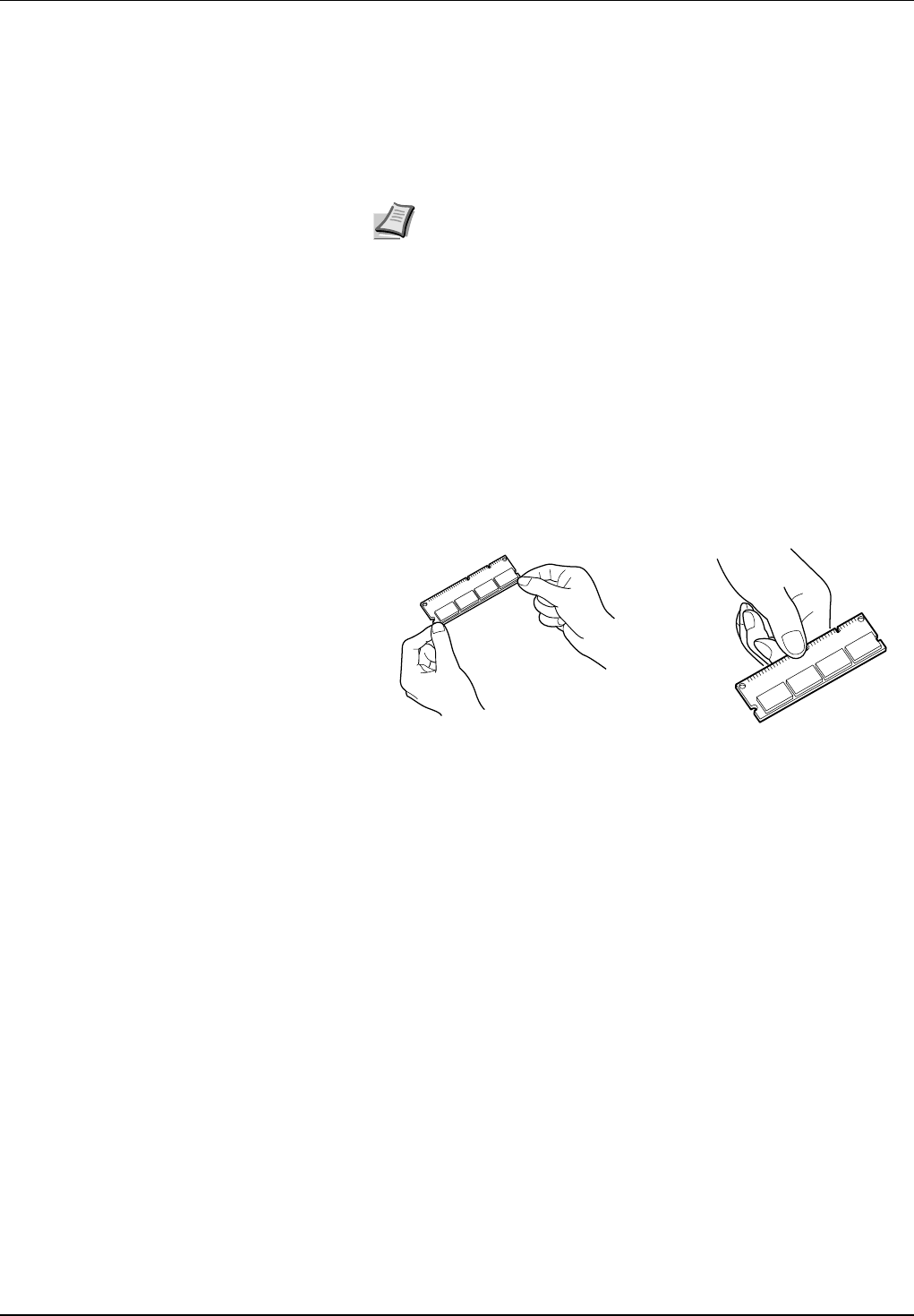

Expansion Memory Modules ..................................................... 6-3

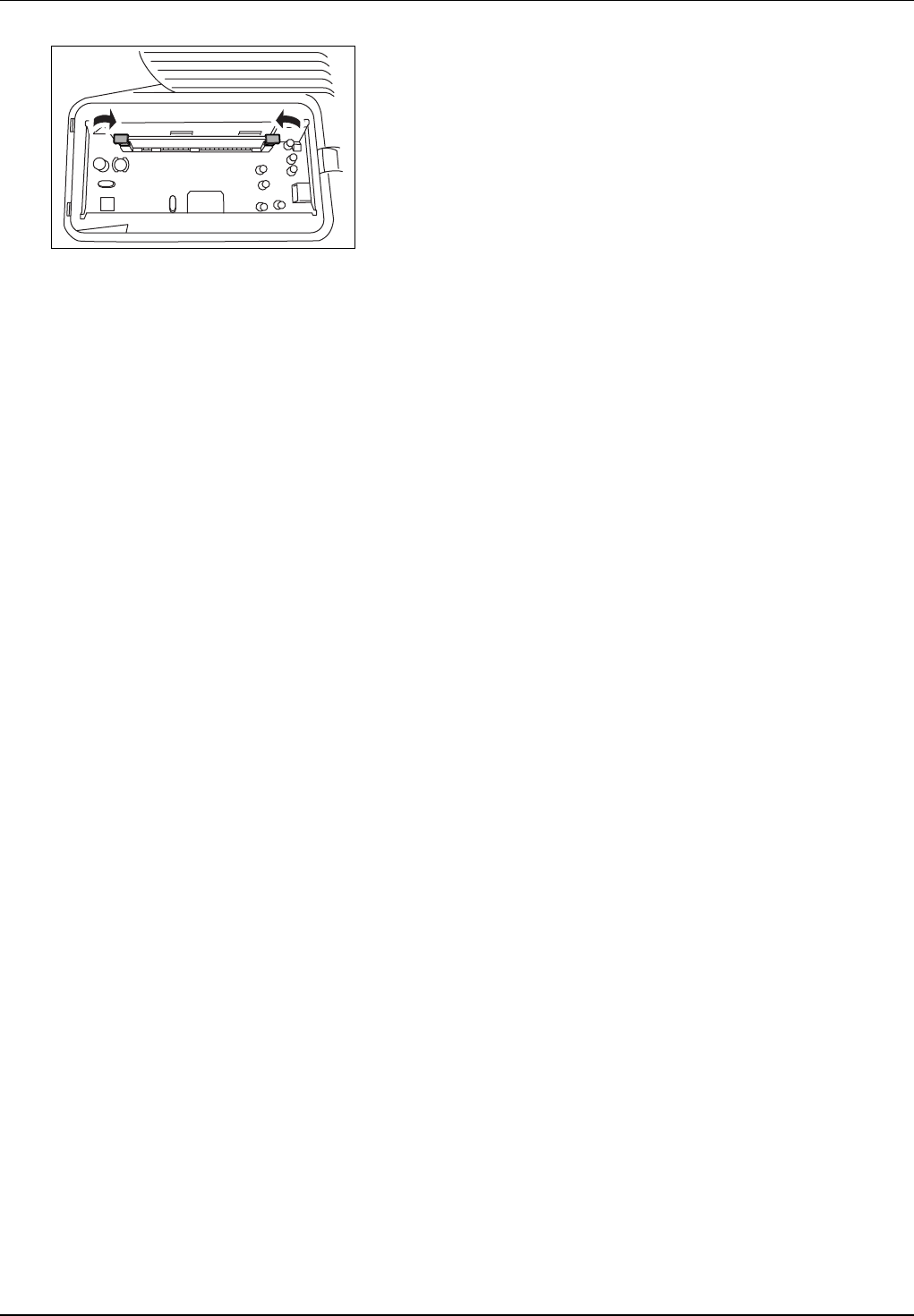

Removing a Memory Module ..................................................... 6-5

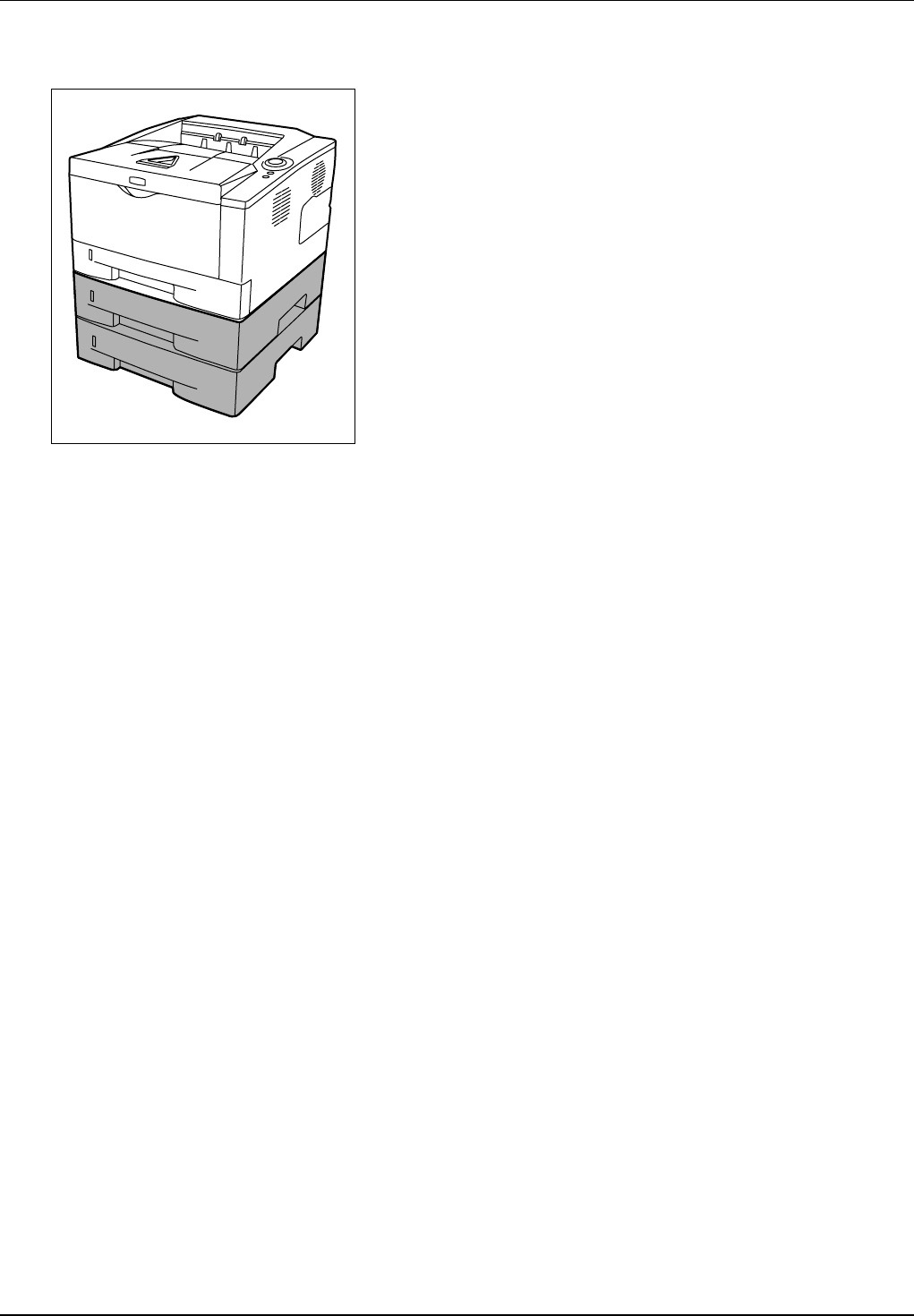

PF-100 Paper Feeder .................................................................. 6-6
Network Interface Card (IB-23) .................................................. 6-7
CompactFlash (CF) Card ........................................................... 6-8
7 Appendix ..................................................................................... 7-1
Specifications ............................................................................. 7-2
Environmental Standard Requirements ................................... 7-3
Index ....................................................................................Index-1
ii
iii
Legal and Safety
Information
Please read this information before using your machine. This chapter
provides information on the following topics:
Legal Information iv
License Agreements vi
Safety Information x
Symbols xv

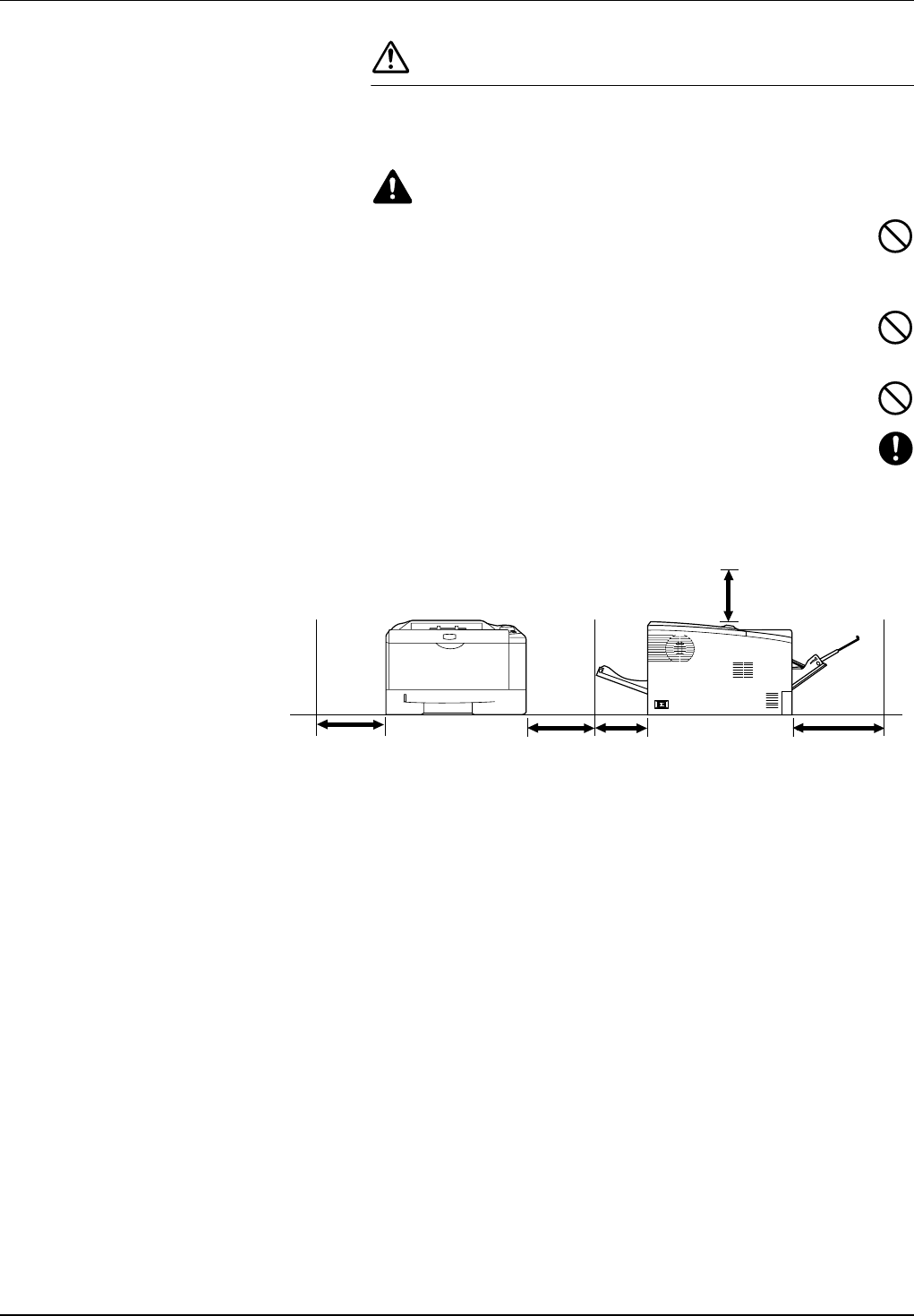

Installation Precautions xvi
Precautions for Use xviii
About the Operation Guide xx
Conventions in This Guide xxi
iv
Legal Information
Notice on Software
SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE
PRINTER'S EMULATION MODE. The printer is factory-set to emulate
the PCL. The emulation mode can be changed.
Notice
The information in this guide is subject to change without notification.
Additional pages may be inserted in future editions.
The user is asked to excuse any technical inaccuracies or typographical
errors in the present edition.No responsibility is assumed if accidents
occur while the user is following the instructions in this guide. No
responsibility is assumed for defects in the printer's firmware (contents of
its read-only memory).
This guide, and any copyrightable subject matter sold or provided with or
in connection with the sale of the page printer, are protected by
copyright. All rights are reserved. Copying or other reproduction of all or
part of this guide, or any copyrightable subject matter without the prior
written consent of Kyocera Mita Corporation is prohibited. Any copies
made of all or part of this guide, or any copyrightable subject must
contain the same copyright notice as the material from which the copying
is done.
Regarding Tradenames
PRESCRIBE is a registered trademark of Kyocera Corporation. KPDL is
trademark of Kyocera Corporation.Hewlett-Packard, PCL, and PJL are
registered trademarks of Hewlett-Packard Company. Centronics is a
trade name of Centronics Data Computer Inc. Adobe, Acrobat, Flash,
and PostScript are registered trademarks of Adobe Systems
Incorporated. Macintosh is a registered trademark of Apple Computer,
Inc. Microsoft, Windows, and Windows NT are registered trademarks of
Microsoft Corporation. Microsoft Windows Server is a trademark of
Microsoft Corporation. PowerPC is a trademark of International Business
Machines Corporation. CompactFlash is a trademark of SanDisk
Corporation. ENERGY STAR is a U.S. registered mark. All other brand
and product names are registered trademarks or trademarks of their
respective companies.
This product uses PeerlessPrintXL to provide the HP LaserJet
compatible PCL 6 language emulation. PeerlessPrintXL is a trademark
of Peerless Systems Corporation, 2381 Rosecrans Ave. El Segundo, CA
90245, U.S.A.
This product was developed using the Tornado™ Real Time Operating
System and Tools from Wind River Systems.
This product contains UFST™ and MicroTypeR from Monotype Imaging
Inc.
CAUTION NO LIABILITY IS ASSUMED FOR ANY
DAMAGE CAUSED BY IMPROPER INSTALLATION.
v
USB
This product has been certified by the USB Implementers Forum, Inc.
vi
License Agreements
IBM Program License Agreement
THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE
SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG TO
INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”).
THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER
WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF
YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS
LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF
THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL
REFUND. IF YOU DO NOT SO RETURN THE DEVICE WITHIN THE 14
DAYS, THEN YOU WILL BE ASSUMED TO HAVE AGREED TO THESE
TERMS AND CONDITIONS.
The Programs are licensed not sold. IBM, or the applicable IBM country
organization, grants you a license for the Programs only in the country
where you acquired the Programs. You obtain no rights other than those
granted you under this license.
The term “Programs” means the original and all whole or partial copies of
it, including modified copies or portions merged into other programs. IBM
retains title to the Programs. IBM owns, or has licensed from the owner,
copyrights in the Programs.
1. License
Under this license, you may use the Programs only with the device on
which they are installed and transfer possession of the Programs and
the device to another party.
If you transfer the Programs, you must transfer a copy of this license and
any other documentation to the other party. Your license is then
terminated. The other party agrees to these terms and conditions by its
first use of the Program.
You may not:
1. use, copy, modify, merge, or transfer copies of the Program except as
provided in this license;
2. reverse assemble or reverse compile the Program; or
3. sublicense, rent, lease, or assign the Program.
2. Limited Warranty
The Programs are provided “AS IS.”
THERE ARE NO OTHER WARRANTIES COVERING THE
PROGRAMS (OR CONDITIONS), EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow the exclusion of implied warranties, so
the above exclusion may not apply to you.
3. Limitation of Remedies
IBM's entire liability under this license is the following;
For any claim (including fundamental breach), in any form, related in any
way to this license, IBM's liability will be for actual damages only and will
be limited to the greater of:
vii
1. the equivalent of U.S. $25,000 in your local currency; or
2. IBM's then generally available license fee for the Program
This limitation will not apply to claims for bodily injury or damages to real
or tangible personal property for which IBM is legally liable.
IBM will not be liable for any lost profits, lost savings, or any incidental
damages or other economic consequential damages, even if IBM, or its
authorized supplier, has been advised of the possibility of such
damages. IBM will not be liable for any damages claimed by you based
on any third party claim. This limitation of remedies also applies to any
developer of Programs supplied to IBM. IBM's and the developer's
limitations of remedies are not cumulative. Such developer is an
intended beneficiary of this Section. Some jurisdictions do not allow
these limitations or exclusions, so they may not apply to you.
4. General
You may terminate your license at any time. IBM may terminate your
license if you fail to comply with the terms and conditions of this license.
In either event, you must destroy all your copies of the Program. You are
responsible for payment of any taxes, including personal property taxes,
resulting from this license. Neither party may bring an action, regardless
of form, more than two years after the cause of action arose. If you
acquired the Program in the United States, this license is governed by
the laws of the State of New York. If you acquired the Program in
Canada, this license is governed by the laws of the Province of Ontario.
Otherwise, this license is governed by the laws of the country in which
you acquired the Program.
Typeface Trademark Acknowledgement
All resident fonts in this printer are licensed from Monotype Imaging Inc.
Helvetica, Palatino and Times are registered trademarks of Linotype-Hell
AG. ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC
Zapf Dingbats are registered trademarks of International Typeface
Corporation.
Monotype Imaging License Agreement
1. ”Software” shall mean the digitally encoded, machine readable,
scalable outline data as encoded in a special format as well as the
UFST Software.
2. You agree to accept a non-exclusive license to use the Software to
reproduce and display weights, styles and versions of letters,
numerals, characters and symbols (“Typefaces”) solely for your own
customary business or personal purposes at the address stated on
the registration card you return to Monotype Imaging. Under the
terms of this License Agreement, you have the right to use the Fonts
on up to three printers. If you need to have access to the fonts on
more than three printers, you need to acquire a multi-user license
agreement which can be obtained from Monotype Imaging.
Monotype Imaging retains all rights, title and interest to the Software
and Typefaces and no rights are granted to you other than a License
to use the Software on the terms expressly set forth in this
Agreement.
viii
3. To protect proprietary rights of Monotype Imaging, you agree to
maintain the Software and other proprietary information concerning
the Typefaces in strict confidence and to establish reasonable
procedures regulating access to and use of the Software and
Typefaces.
4. You agree not to duplicate or copy the Software or Typefaces, except
that you may make one backup copy. You agree that any such copy
shall contain the same proprietary notices as those appearing on the
original.
5. This License shall continue until the last use of the Software and
Typefaces, unless sooner terminated. This License may be
terminated by Monotype Imaging if you fail to comply with the terms
of this License and such failure is not remedied within thirty (30) days
after notice from Monotype Imaging. When this License expires or is
terminated, you shall either return to Monotype Imaging or destroy all
copies of the Software and Typefaces and documentation as
requested.
6. You agree that you will not modify, alter, disassemble, decrypt,
reverse engineer or decompile the Software.
7. Monotype Imaging warrants that for ninety (90) days after delivery,
the Software will perform in accordance with Monotype Imaging-
published specifications, and the diskette will be free from defects in
material and workmanship. Monotype Imaging does not warrant that
the Software is free from all bugs, errors and omissions.
8. THE PARTIES AGREE THAT ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY, ARE EXCLUDED.
9. 9Your exclusive remedy and the sole liability of Monotype Imaging in
connection with the Software and Typefaces is repair or replacement
of defective parts, upon their return to Monotype Imaging.
10.10IN NO EVENT WILL MONOTYPE IMAGING BE LIABLE FOR
LOST PROFITS, LOST DATA, OR ANY OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR ANY DAMAGES CAUSED BY
ABUSE OR MISAPPLICATION OF THE SOFTWARE AND
TYPEFACES.
11. Massachusetts U.S.A. law governs this Agreement.
12.You shall not sublicense, sell, lease, or otherwise transfer the
Software and/or Typefaces without the prior written consent of
Monotype Imaging.
13.Use, duplication or disclosure by the Government is subject to
restrictions as set forth in the Rights in Technical Data and Computer
Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or
subparagraph (c)(1)(ii), as appropriate. Further use, duplication or
disclosure is subject to restrictions applicable to restricted rights
software as set forth in FAR 52.227-19 (c)(2).
14.YOU ACKNOWLEDGE THAT YOU HAVE READ THIS
AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND BY
ITS TERMS AND CONDITIONS. NEITHER PARTY SHALL BE
BOUND BY ANY STATEMENT OR REPRESENTATION NOT
CONTAINED IN THIS AGREEMENT. NO CHANGE IN THIS
AGREEMENT IS EFFECTIVE UNLESS WRITTEN AND SIGNED BY
PROPERLY AUTHORIZED REPRESENTATIVES OF EACH PARTY.
BY OPENING THIS DISKETTE PACKAGE, YOU AGREE TO
ACCEPT THE TERMS AND CONDITIONS OF THIS AGREEMENT.
ix
Compliance and Conformity
FCC Statement (for users in the United States and Canada)
This device complies with Part 15 of FCC Rules and RSS-Gen of IC
Rules. Operation is subject to the following two conditions; (1) this
device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation of the device.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Properly shielded grounded cables and connectors must be used for
connection to host computer and/or peripherals in order to meet FCC
emission limits.
Precautions for Use
Any modifications without prior permission of Kyocera may cause
harmful interference.
If any modifications or changes are made to this equipment without prior
permission of Kyocera, Kyocera as the manufacturer does not guarantee
the compliance with the FCC Rules. The use of equipment that does not
comply with the FCC Rules is prohibited.
x
Safety Information
Laser Safety
This printer is certified as a Class 1 laser product under the U.S.
Department of Health and Human Services (DHHS) Radiation
Performance Standard according to Radiation Control for Health and
Safety Act of 1968. This means that the printer does not produce
hazardous laser radiation. Since radiation emitted inside the printer is
completely confined within protective housings and external covers, the
laser beam cannot escape from the printer during any phase of user
operation.
Laser Notice
This printer is certified in the U.S. to conform to the requirements of
DHHS 21 CFR Subchapter for Class I (1) laser products, and elsewhere
is certified as a Class I laser product conforming to the requirements of
IEC 825.
Radio Frequency Transmitter
This machine contains a transmitter module. We, the manufacturer
(Kyocera Mita Corporation) hereby declare that this equipment (page
printer), model FS-1100 and FS-1300D are in compliance with the
essential requirements and other relevant provisions of Directive
1999/5/EC.
Radio Tag Technology
In some countries, the radio tag technology used in this equipment to
identify the toner container may be subject to authorization, and the use
of this equipment may consequently be restricted.
DANGER CLASS 3B LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION Use of controls or adjustments or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
xi

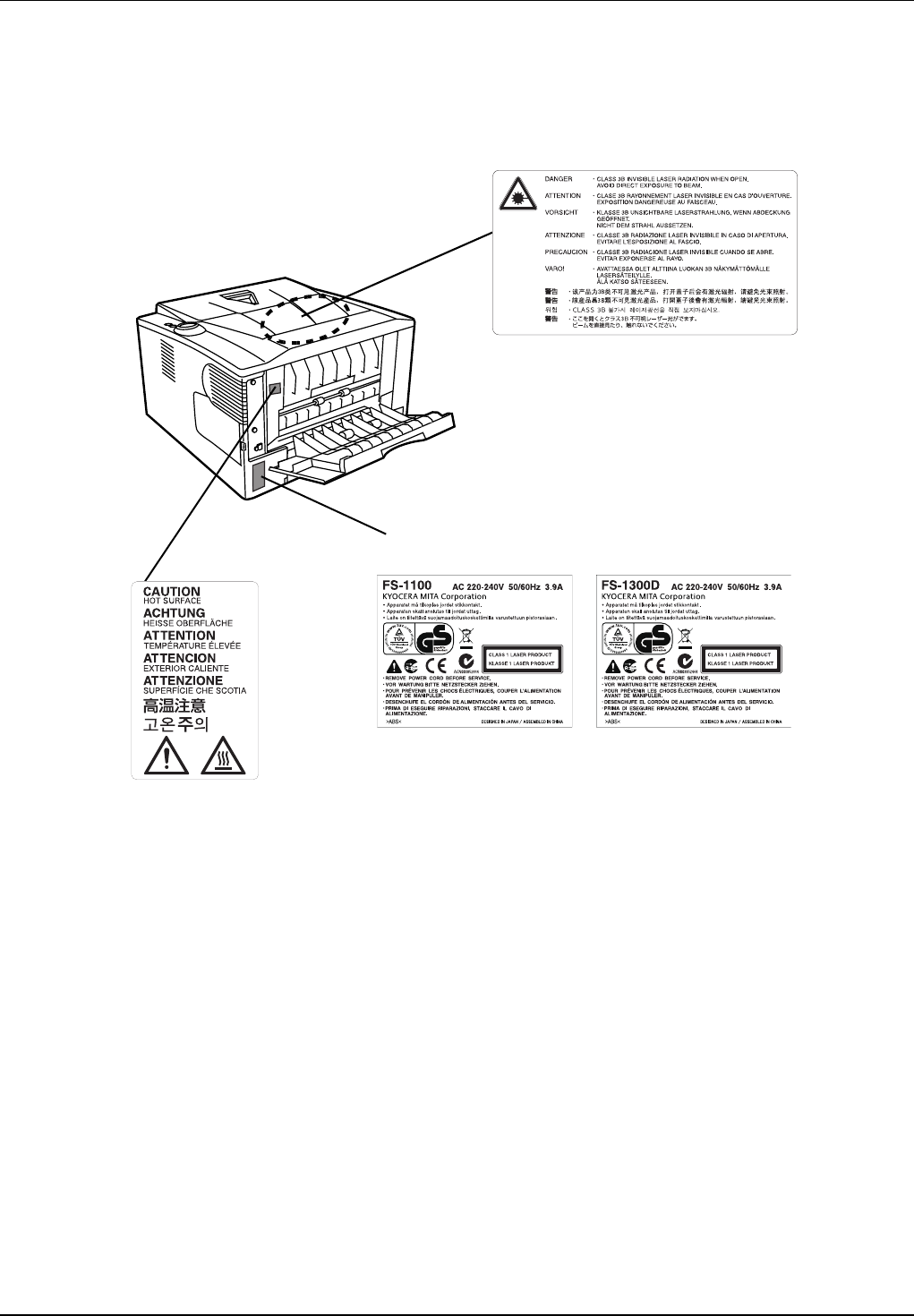

Caution Labels
The printer bears any of the following labels.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S.
Food and Drug Administration implemented regulations for laser
products on August 2, 1976. These regulations apply to laser products
manufactured after August 1, 1976. Compliance is mandatory for
products marketed in the United States. A label indicating compliance
with the CDRH regulations must be attached to laser products marketed
in the United States.
Ozone Concentration
These printers generate ozone gas (O3), which may concentrate in the
place of installation and cause an unpleasant smell. To minimize the
concentration of ozone gas to less than 0.1ppm, we recommend you not
to install the printer in a confined area where ventilation is blocked.
Laser inside the printer
(Laser radiation warning)
Laser inside the printer
(Laser radiation warning)
For Europe, Asia, and
other countries For U.S.A. and
Canada
xii
Declaration of Conformity for U.S.A.
Model name: Page Printer FS-1100 and FS-1300D
Trade name: Kyocera Mita
Responsible party: Kyocera Mita America, Inc.
Address: 225 Sand Road PO Box 40008 Fairfield, New Jersey 07004-
0008, U.S.A.
Telephone: (973) 808-8444
Fax: (973) 882-6000
Manufacturer: Kyocera Mita Corporation
Manufacturer’s address: 2-28, 1-Chome, Tamatsukuri, Chuo-ku, Osaka,
540-8585, Japan
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer and its merchandising companies retain the following
technical documentation in anticipation of the inspection that may be
conducted by the authorities concerned:
User’s instruction that conforms to the applicable specifications.
Technical drawings.
Descriptions of the procedures that guarantee the conformity.
Other technical information.
Kyocera Mita America Inc.
CE Marking Directive
Hereby, Kyocera Mita Corporation, declares that this page printer is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
According to Council Directive 89/336/EEC, 2006/95/EC, and 1999/5/EC
Manufacturer: Kyocera Mita Corporation
Manufacturer’s address: 2-28, 1-Chome, Tamatsukuri, Chuo-ku, Osaka,
540-8585, Japan
Declares that the product
Product name: Page Printer
Model number: FS-1100 and FS-1300D (as tested with enhancement
optional unit; Paper Feeder PF-100)
Conforms to the following product specifications:
EN 55 022:1998+A1:2000+A2:2003 Class B
EN 61 000-3-2:2000
EN 61 000-3-3:1995+A1:2001
EN 55 024:1998+A1:2001+A2:2003
EN 60 950-1:2001+A11
EN 60 825-1:1994+A1+A2
EN 300330-1
EN 300330-2
xiii
The manufacturer and its merchandising companies retain the following
technical documentation in anticipation of the inspection that may be
conducted by the authorities concerned:
User's instruction that conforms to the applicable specifications.
Technical drawings.
Descriptions of procedures that guarantee conformity.
Other technical information.
Declaration of Conformity (Australia)
Manufacturer: Kyocera Mita Corporation
Manufacturer’s address: 2-28, 1-Chome, Tamatsukuri, Chuo-ku, Osaka,
540-8585, Japan
declares that the product
Product name: Page Printer
Model name: FS-1100 and FS-1300D
Description of devices: This Page Printer Model FS-1100 and FS-1300D
are 28ppm; A4 size and utilizes plain paper; dry toner; etc. The printer
can be equipped with several optional enhancement units, such as a PF-
100 paper feeder.
conforms to the following product specifications:
AS/NZS 3548: 1995 (EN 55 022: 1998 Class B)
AS/NZS 4268: 2003
IEC60950-1:2001 (EN 60 950-1: 2001+A11)
The manufacturer and its merchandising companies retain the following
technical documentation in anticipation of the inspection that may be
conducted by the authorities concerned:
User’s instruction that conforms to the applicable specifications
Technical drawings
Descriptions of procedures that guarantee conformity
Other technical information
The manufacturer has been employed with ISO9001 scheme. JQA and
BS have attested the manufacturer.
Kyocera Mita Australia Pty., Ltd.
6-10 Talavera Road, North Ryde, NSW 2113, Australia
Telephone: +61 2-9888-9999
Fax: +61 2-9888-9588
Canadian Department of Communications
Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité aux normes du ministere
des Communications du Canada
Cet appareil numerique de la classe B est conforme a la norme NMB-
003 du Canada.
xiv
EN ISO 7779
Maschinenlärminformationsverordnung 3. GSGV, 18.01.1991: Der
höchste Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß EN
ISO 7779.
Disclaimer
Kyocera Mita will not be liable to customers or any other person or entity
for any loss or damage caused or alleged to be caused directly or
indirectly by equipment sold or furnished by us, including but not limited
to, any interruption of service, loss of business or anticipatory profits, or
consequential damages resulting from the use or operation of the
equipment or software.
Energy Saving Function
This printer comes equipped with a Sleep Mode where printer function
remains in a waiting state but power consumption is still reduced to a
minimum when there is no activity with the printer within a set amount of
time.
Sleep Mode
This printer automatically enters Sleep Mode when approximately 15
minutes have passed since the printer was last used. The amount of
time of no activity that must pass before Sleep Mode is activated may be
lengthened.
Duplex Printing
This printer includes duplex printing as a standard function. For example, by
printing two single-sided originals onto a single sheet of paper as a duplex
printing, it is possible to lower the amount of paper used.
Recycled Paper
This printer supports recycled paper which reduces the load on the
environment. Your sales or service representative can provide
information about recommended paper types.
Energy Star (ENERGY STAR®) Program
We have determined as a participating company in the International
Energy Star Program that this product is compliant with the standards
laid out in the International Energy Star Program.
xv
Symbols
The sections of this guide and parts of the machine marked with symbols
are safety warnings meant to protect the user, other individuals and
surrounding objects, and ensure correct and safe usage of the machine.
The symbols and their meanings are indicated below.
The following symbols indicate that the related section includes safety
warnings. Specific points of attention are indicated inside the symbol.
The following symbols indicate that the related section includes
information on prohibited actions. Specifics of the prohibited action are
indicated inside the symbol.
The following symbols indicate that the related section includes
information on actions which must be performed. Specifics of the
required action are indicated inside the symbol.
Please contact your service representative to order a replacement if the
safety warnings in this Operation Guide are illegible or if the guide itself
is missing. (fee required)
DANGER: Indicates that serious injury or even death will very
possibly result from insufficient attention to or incorrect
compliance with the related points.
WARNING: Indicates that serious injury or even death may
result from insufficient attention to or incorrect compliance with
the related points.
CAUTION: Indicates that personal injury or mechanical
damage may result from insufficient attention to or incorrect
compliance with the related points.
.... [General warning]
.... [Warning of danger of electrical shock]
.... [Warning of high temperature]
.... [Warning of prohibited action]
.... [Disassembly prohibited]
.... [Alert of required action]
.... [Remove the power plug from the outlet]
.... [Always connect the machine to an outlet with a ground
connection]
xvi
Installation Precautions
Environment
Caution
Avoid placing the machine on or in locations which are unstable
or not level. Such locations may cause the machine to fall down
or fall over. This type of situation presents a danger of personal
injury or damage to the machine.
Avoid locations with humidity or dust and dirt. If dust or dirt
become attached to the power plug, clean the plug to avoid the
danger of fire or electrical shock.
Avoid locations near radiators, heaters, or other heat sources, or
locations near flammable items, to avoid the danger of fire.
To keep the machine cool and facilitate changing of parts and
maintenance, allow access space as shown below. Leave
adequate space, especially around the rear cover, to allow air to
be properly ventilated out of the printer.
Other Precautions
Adverse environmental conditions may affect the safe operation and
performance of the machine. Install in an air-conditioned room
(recommended room temperature: around 23°C (73.4°F), humidity:
around 60% RH), and avoid the following locations when selecting a site
for the machine.
•Avoid locations near a window or with exposure to direct sunlight.
•Avoid locations with vibrations.
•Avoid locations with drastic temperature fluctuations.
•Avoid locations with direct exposure to hot or cold air.
•Avoid poorly ventilated locations.
During printing, some ozone is released, but the amount does not cause
any ill effect to one's health. If, however, the printer is used over a long
period of time in a poorly ventilated room or when printing an extremely
large number of copies, the smell may become unpleasant. To maintain
the appropriate environment for print work, it is suggested that the room
be properly ventilated.
11-13/16"
(300mm)
7-7/8"
(200mm)
11-13/16"
(300mm)
19-11/16"
(500mm)
7-7/8"
(200mm)
xvii
Power Supply/Grounding the Machine
Warning
Do not use a power supply with a voltage other than that
specified. Avoid multiple connections in the same outlet. These
types of situations present a danger of fire or electrical shock.
Plug the power cord securely into the outlet. If metallic objects
come in contact with the prongs on the plug, it may cause a fire or
electric shock.
Always connect the machine to an outlet with a ground
connection to avoid the danger of fire or electrical shock in case
of an electric short. If an earth connection is not possible, contact
your service representative.
Other precautions
Connect the power plug to the closest outlet possible to the machine.
The power supply cord is used as the main disconnect device. Ensure
that the socket/outlet is located/installed near the equipment and is
easily accessible.
Handling of plastic bags
Warning
Keep the plastic bags that are used with the machine away from
children. The plastic may cling to their nose and mouth causing
suffocation.
xviii
Precautions for Use
Cautions when using the machine
Warning
Do not place metallic objects or containers with water (flower
vases, flower pots, cups, etc.) on or near the machine. This
situation presents a danger of fire or electrical shock should they
fall inside.
Do not remove any of the covers from the machine as there is a
danger of electrical shock from high voltage parts inside the
machine.
Do not damage, break or attempt to repair the power cord. Do not
place heavy objects on the cord, pull it, bend it unnecessarily or
cause any other type of damage. These types of situations
present a danger of fire or electrical shock.
Never attempt to repair or disassemble the machine or its parts as
there is a danger of fire, electrical shock or damage to the laser. If
the laser beam escapes, there is a danger of it causing blindness.
If the machine becomes excessively hot, smoke appears from the
machine, there is an odd smell, or any other abnormal situation
occurs, there is a danger of fire or electrical shock. Turn the main
power switch off ({) immediately, be absolutely certain to remove the
power plug from the outlet and then contact your service representative.
If anything harmful (paper clips, water, other fluids, etc.) falls into
the machine, turn the main power switch off ({) immediately.
Next, be absolutely certain to remove the power plug from the
outlet to avoid the danger of fire or electrical shock. Then contact your
service representative.
Do not remove or connect the power plug with wet hands, as
there is a danger of electrical shock.
Always contact your service representative for maintenance or
repair of internal parts.
Caution
Do not pull the power cord when removing it from the outlet. If the
power cord is pulled, the wires may become broken and there is a
danger of fire or electrical shock. (Always grasp the power plug
when removing the power cord from the outlet.)
Always remove the power plug from the outlet when moving the
machine. If the power cord is damaged, there is a danger of fire or
electrical shock.
If the machine will not be used for a short period of time
(overnight, etc.), turn the power switch off (O). If it will not be used
for an extended period of time (vacations, etc.), remove the power
plug from the outlet for safety purposes during the time the machine is
not in use..
Always hold the designated parts only when lifting or moving the
machine.
For safety purposes, always remove the power plug from the
outlet when performing cleaning operations.
Introduction-xix
If dust accumulates within the machine, there is a danger of fire or
other trouble. It is therefore recommended that you consult with
your service representative in regard to cleaning of internal parts.
This is particularly effective if accomplished prior to seasons of
high humidity. Consult with your service representative in regard
to the cost of cleaning the internal parts of the machine.
Other precautions
Do not place heavy objects on the machine or cause other damage to
the machine.
Do not open the upper front cover, turn off the main power switch, or pull
out the power plug during printing.
When lifting or moving the machine, contact your service representative.
Do not touch electrical parts, such as connectors or printed circuit
boards. They could be damaged by static electricity.
Do not attempt to perform any operations not explained in this
handbook.
Use shielded interface cables.
Caution
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Cautions when Handling Consumables
Caution
Do not attempt to incinerate the Toner Container. Dangerous
sparks may cause burns.
Keep the Toner Container out of the reach of children.
If toner happens to spill from the Toner Container, avoid inhalation
and ingestion, as well as contact with your eyes and skin.
•If you do happen to inhale toner, move to a place with fresh
air and gargle thoroughly with a large amount of water. If coughing
develops, contact a physician.
•If you do happen to ingest toner, rinse your mouth out with water and
drink 1 or 2 cups of water to dilute the contents of your stomach. If
necessary, contact a physician.
•If you do happen to get toner in your eyes, flush them thoroughly
with water. If there is any remaining tenderness, contact a physician.
•If toner does happen to get on your skin, wash with soap and water.
Do not attempt to force open or destroy the Toner Container.
Other precautions
After use, always dispose of the Toner Container in accordance with
Federal, State and Local rules and regulations.
Store all consumables in a cool, dark location.
If the machine will not be used for an extended period of time, remove
the paper from the cassette, return it to its original package and reseal it.
Introduction-xx
About the Operation Guide
This Operation Guide contains the following chapters:
1Machine Parts
This chapter explains the names of parts.
2 Loading Paper
This chapter explains how to load paper into your printer.
3Printing
This chapter explains how to print from your PC.
4 Maintenance
This chapter explains how to replace the toner container and how to care
for your printer.
5 Troubleshooting
This chapter explains how to handle printer problems that may occur,
such as paper jams.
6 Options
This chapter explains the options for this printer.
7 Specifications
This chapter lists the printer's specifications.
Introduction-xxi
Conventions in This Guide
This manual uses the following conventions.
Convention Description Example
Italic
Typeface Used to emphasize a key
word, phrase or reference
to additional information.
Close the front cover.
Refer to Toner Container
Replacement on page 3-3.
Bold Used to denote operation
panel keys.
Press [GO].
To start printing, click OK.
Note Used to provide additional
or useful information about
a function or feature.
Note For
information about
storing the pin,
refer to step 10.
Important Used to provide important
information. IMPORTANT Ensure
paper is not folded,
curled, or damaged.
Caution Cautions are statements
that suggest mechanical
damage as a result of an
action.
CAUTION For safety,
always unplug the power
cord before cleaning the
machine.
Warning Used to alert users to the
possibility of personal
injury.
WARNING High voltage
is present in the charger
section.
Introduction-xxii
1-2 Machine Parts
Components at the Front of the Printer
1Top Cover
2Paper Stopper
3Top Tray
4Operation Panel
5Right Cover
6Paper Cassette
7Front Cover
8MP Tray
9Subtray
FS-1100
123
4
5
6
7
8
FS-1300D
9
1234
5
6
7
8
Machine Parts 1-3
Components at the Rear of the Printer
10 Optional Interface Slot Cover
11 USB Interface Connector
12 Rear Cover
13 Power Cord Connector
14 Power Switch
9
12
10
13
11
1-4 Machine Parts
Operation Panel
1 Ready Indicator
2 Attention Indicator
3 Toner Indicator
4Data Indicator
5 Paper Indicator
6 Jam Indicator
7 [Cancel] Key
8 [GO] Key
2
1
3
4
5
6
7
8
Machine Parts 1-5
Indicators
There are six indicators located on the top right of the printer. The
indicators are used to identify the status of the printer at any time. To
identify the printer status, check the indicators on the printer and then
refer to the table below.
Indicator Status Meaning
Ready (Green) Lit Indicates online status (printing is possible).
Fast Flashing Offline status. You cannot print, but the printer can receive data.
Slow Flashing The printer is in sleep mode. Printing resumes when the [GO] is
pressed.
Off The printer has stopped because an error occurred.
Data (Green) Lit The printer is processing data or is accessing to memory.
Fast Flashing The printer is receiving data.
Off The printer is not processing data.
Jam (Amber) Lit A paper jam has occurred or the cassette is not inserted properly.
Off The printer status is normal.
Paper (Amber) Lit The paper has run out when printing.
Fast Flashing The specified cassette or paper feeder has no paper at Ready
status. The cassette is not inserted properly.
Off The printer status is normal.
Attention (Amber) Lit An error has occurred because the printer cover is open, but
printing resumes when the [GO] is pressed.
While an optional feeder is installed and the feeder is selected as
a paper source, the paper cassette of the main unit (CASS1) is
not installed correctly.
Fast Flashing The warning status other than Jam, Toner, Paper, and Attention.
Off The printer status is normal.
Toner (Amber) Lit The printer has stopped because the toner is exhausted.
Fast Flashing The toner is running low.
Off The printer status is normal.
Note For other combinations of the six indicators, call for service.
Status Monitor (software bundled with the KX driver) will provide
more detailed information about the printer status.
1-6 Machine Parts
Keys
Refer to the following table for the name and description of the basic
functions of each key.
Key Status Operation Function
Cancel - Press for 1 second or more Cancels the data from the PC
GO At Ready Press momentarily Switches On-line/Off-line
Press for 3 to 10 seconds The printer is in sleep mode. Printing
resumes when the [GO] is pressed.
Press for 10 seconds or more The printer has stopped because an error
occurred.
At Error Press momentarily The printer is processing data or is
accessing to memory.
Paper Empty Press momentarily The printer status is normal.
2-2 Loading Paper
General Guidelines
The machine is designed to print on standard copier paper, but it can
also accept a variety of other types of paper within the limits specified
below.
Selection of the right paper is important. Using the wrong paper can
result in paper jams, curling, poor print quality, and paper waste, and in
extreme cases can damage the machine. The guidelines given below
will increase the productivity of your office by ensuring efficient, trouble-
free printing and reducing wear and tear on the machine.
Paper Availability
Most types of paper are compatible with a variety of machines. Paper
intended for xerographic copiers can also be used with the machine.
There are three general grades of paper: economy, standard, and
premium. The most significant difference between grades is the ease
with which they pass through the machine. This is affected by the
smoothness, size, and moisture content of the paper, and the way in
which the paper is cut. The higher the grade of paper you use, the less
risk there will be of paper jams and other problems, and the higher the
level of quality your printed output will reflect.
Differences between paper from different suppliers can also affect the
machine's performance. A high-quality printer cannot produce high-
quality results when the wrong paper is used. Low-priced paper is not
economical in the long run if it causes printing problems.
Paper in each grade is available in a range of basis weights (defined
later). The traditional standard weights are 60 to 120 g/m2 (16 to 31.9b).
Paper Specifications
The following table summarizes the basic paper specifications. Details
are given on the following pages:
Note The manufacturer assumes no liability for problems that
occur when paper not satisfying these requirements is used.
Item Specifications
Weight Cassette: 60 to 120 g/m² (16 to 31.9 lb/ream)
MP tray: 60 to 220 g/m² (16 to 58.5 lb/ream)
Thickness 0.086 to 0.110mm (3.4 to 4.3 mils)
Dimensional
Accuracy
±0.7 mm (±0.0276 inches)
Squareness of
Corners 90±0.2°
Moisture Content 4 to 6%
Direction of Grain Long grain
Pulp Content 80% or more
Loading Paper 2-3

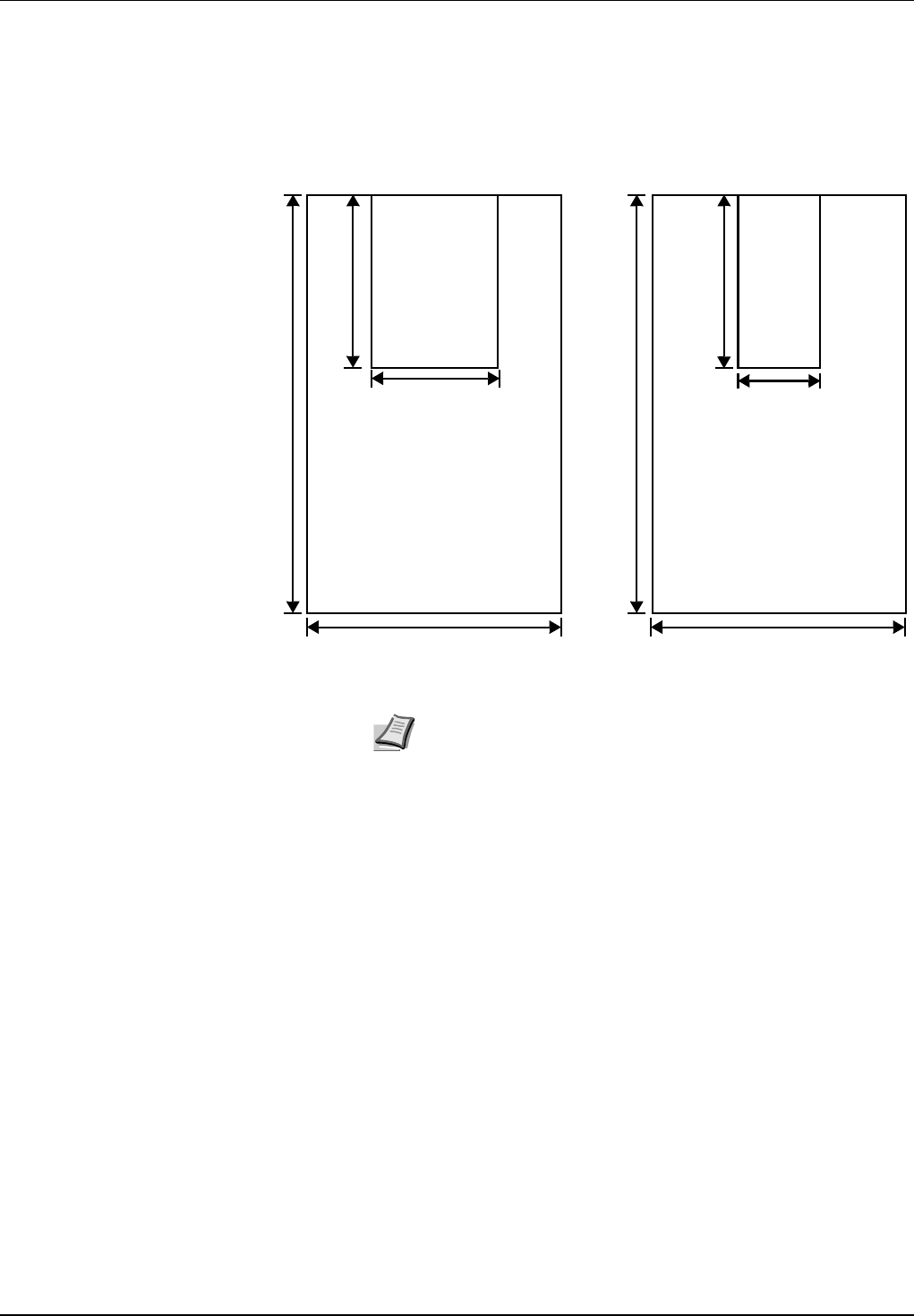

Minimum and Maximum Paper Sizes
The minimum and maximum paper sizes are as follows. For the paper
smaller than JIS B6, postcards, and envelopes, the MP tray must be
used.
105mm
(4-1/8 inches)
216mm (8-1/2 inches)
356mm (14 inches)
Minimum
Paper Size
Maximum
Paper Size
Paper cassette
70mm
(2-13/16 inches)
148mm (5-13/16 inches)
Minimum
Paper Size
Maximum
Paper Size
MP tray
216mm (8-1/2 inches)
148mm (5-13/16 inches)
356mm (14 inches)
Note The minimum paper size of the optional paper feeder (PF-
100) is 148 x 210 mm (5-13/16 x 8-5/16 inches).
2-4 Loading Paper
Selecting the Right Paper
This section describes the guidelines for selecting paper.
Condition
Avoid using paper that is bent at the edges, curled, dirty, torn,
embossed, or contaminated with lint, clay, or paper shreds.
Use of paper in these conditions can lead to illegible printing and paper
jams, and can shorten the life of the machine. In particular, avoid using
paper with a surface coating or other surface treatment. Paper should
have as smooth and even a surface as possible.
Composition
Do not use paper that has been coated or surface-treated and contains
plastic or carbon. The heat of fusing can cause such paper to give off
harmful fumes.
Bond paper should contain at least 80% pulp. Not more than 20% of the
total paper content should consist of cotton or other fibers.
Paper Sizes
Cassettes and the MP Tray are available for the paper sizes listed in the
table below. The dimensional tolerances are ±0.7mm for the length and
width. The angle at the corners must be 90° ±0.2°.
MP Tray:
Envelope Monarch, Envelope #10, Envelope #9, Envelope #6,
Envelope C5, Envelope DL, Legal, Letter-R, Statement, Oficio II,
Executive, ISO A4-R, ISO A5, ISO A6, Folio, ISO B5-R, JIS B5-R, JIS
B6, Hagaki, Ofuku-Hagaki, Youkei 2, Youkei 4, 16 kai, Custom (70 × 148
to 216 × 356mm (2-13/16 × 5-13/16 to 8-1/2 × 14 inches))
Cassette:
Legal, Letter-R, Statement, Oficio II, Executive, ISO A4-R, ISO A5, A6
(only for machine’s paper cassette), Folio, ISO B5-R, JIS B5-R,
Envelope C5, 16 kai, Custom (Paper Cassette: 105 × 148 to 216 ×
356mm (4-1/8 × 5-13/16 to 8-1/2 × 14 inches), Paper Feeder: 148 × 210
to 216 × 356mm (5-13/16 × 8-5/16 to 8-1/2 × 14 inches))
Smoothness
The paper should have a smooth, uncoated surface. Paper with a rough
or sandy surface can cause blank spaces in the printed output. Paper
that is too smooth can cause multiple feeding and fogging problems.
(Fogging is a gray background effect.)
Note If the length of custom paper is larger than 297mm, you can
load the standard-size paper from Folio to Letter.
Note If the length of custom paper is larger than 297mm, you can
load the standard-size paper from Folio to Legal.
Loading Paper 2-5
Basis weight
Basis weight is the weight of paper expressed in grams per square meter
(g/m²). Paper that is too heavy or too light may cause feed errors or
paper jams as well as premature wear of the product. Uneven weight of
paper, namely uneven paper thickness may cause multiple-sheet
feeding or print quality problems such as blurring because of poor toner
fusing.
The recommended basis weight is between 60 and 120g/m² (16 to 31.9
lib/ream) for the cassette and between 60 and 220g/m² (16 to 59
lib/ream) for the MP tray.
Paper Weight Equivalence Table
The paper weight is listed in pounds (lb) and metric grams per square
meter (g/m²). The shaded part indicates the standard weight.
Thickness
The paper used with the machine should be neither extremely thick nor
extremely thin. If you are having problems with paper jams, multiple
feeds, and faint printing, the paper you are using may be too thin. If you
are having problems with paper jams and blurred printing the paper may
be too thick. The correct thickness is 0.086 to 0.110mm (3.4 to 4.3 mils).
Moisture Content
Moisture content is defined as the percent ratio of moisture to the dry
mass of the paper. Moisture can affect the paper’s appearance, feed
ability, curl, electrostatic properties, and toner fusing characteristics.
U. S. Bond Weight (lb) Europe Metric Weight (g/m²)
16 60
17 64
20 75
21 80
22 81
24 90
27 100
28 105
32 120
34 128
36 135
39 148
42 157
43 163
47 176
53 199
2-6 Loading Paper
The moisture content of the paper varies with the relative humidity in the
room. When the relative humidity is high and the paper absorbs
moisture, the paper edges expand, becoming wavy in appearance.
When the relative humidity is low and the paper loses moisture, the
edges shrink and tighten, and print contrast may suffer.
Wavy or tight edges can cause jams and alignment anomalies. The
moisture content of the paper should be 4 to 6%.
To ensure correct moisture content, it is important to store the paper in a
controlled environment. Some tips on moisture control are:
•Store paper in a cool, dry location.
•Keep the paper in its wrapping as long as possible. Re-wrap paper
that is not in use.
•Store paper in its original carton. Place a pallet etc. under the carton
to separate it from the floor.
•After removing paper from storage, let it stand in the same room as
the machine for 48 hours before use.
•Avoid leaving paper where it is exposed to heat, sunlight, or damp.
Paper Grain
When paper is manufactured, it is cut into sheets with the grain running
parallel to the length (long grain) or parallel to the width (short grain).
Short grain paper can cause feeding problems in the machine. All paper
used in the machine should be long grain.
Other Paper Properties
Porosity: Indicates the density of paper fiber.
Stiffness: Limp paper may buckle in the machine, resulting in paper
jams.
Curl: Most paper naturally tends to curl one way if left unpacked. When
paper passes through the fixing unit, it curls upward a little. To produce
flat printouts, load the paper so that the upward pressure from the
machine can correct their curling.
Electrostatic discharge: During the printing process the paper is
electrostatically charged to attract the toner. The paper must be able to
release this charge so that printed sheets do not cling together in the
Output Tray.
Whiteness: The contrast of the printed page depends on the whiteness
of the paper. Whiter paper provides a sharper, brighter appearance.
Quality control: Uneven sheet size, corners that are not square, ragged
edges, welded (uncut) sheets, and crushed edges and corners can
cause the machine to malfunction in various ways. A quality paper
supplier should take considerable care to ensure that these problems do
not occur.
Packaging: Paper should be packed in a sturdy carton to protect it from
damage during transport. Quality paper obtained from a reputable
supplier is usually correctly packaged.
Loading Paper 2-7
Special Paper
The following types of special paper can be used:
•Thin paper (60 to 64 g/m²)
•Thick paper (90 to 220 g/m²)
•Colored paper
•Recycled paper
•Overhead projector transparencies
•Cardstock
•Coated paper
•Envelopes
•Labels
Use paper that is sold specifically for use with copiers or printers (heat-
fusing type). When using transparencies, labels, envelopes, cardstock,
coated, or thick paper, feed the paper from the MP Tray.
Since the composition and quality of special paper vary considerably,
special paper is more likely than white bond paper to give trouble during
printing. No liability will be assumed if moisture and so forth given off
during printing on special paper causes harm to the machine or operator.
Transparency
This printer is available for monochorome printing on transparencies.
Transparencies must be fed to the MP Tray. One transparency can be
loaded at a time.
Transparencies must be able to withstand the heat of fusing during the
printing process.
Transparencies must be placed on the MP tray with the long edge
towards the printer.
Labels
Labels must be fed to the MP Tray. One label can be loaded at a time.
The basic rule for printing on adhesive labels is that the adhesive must
never come into contact with any part of the machine. Adhesive paper
sticking to the drum or rollers will damage the machine.

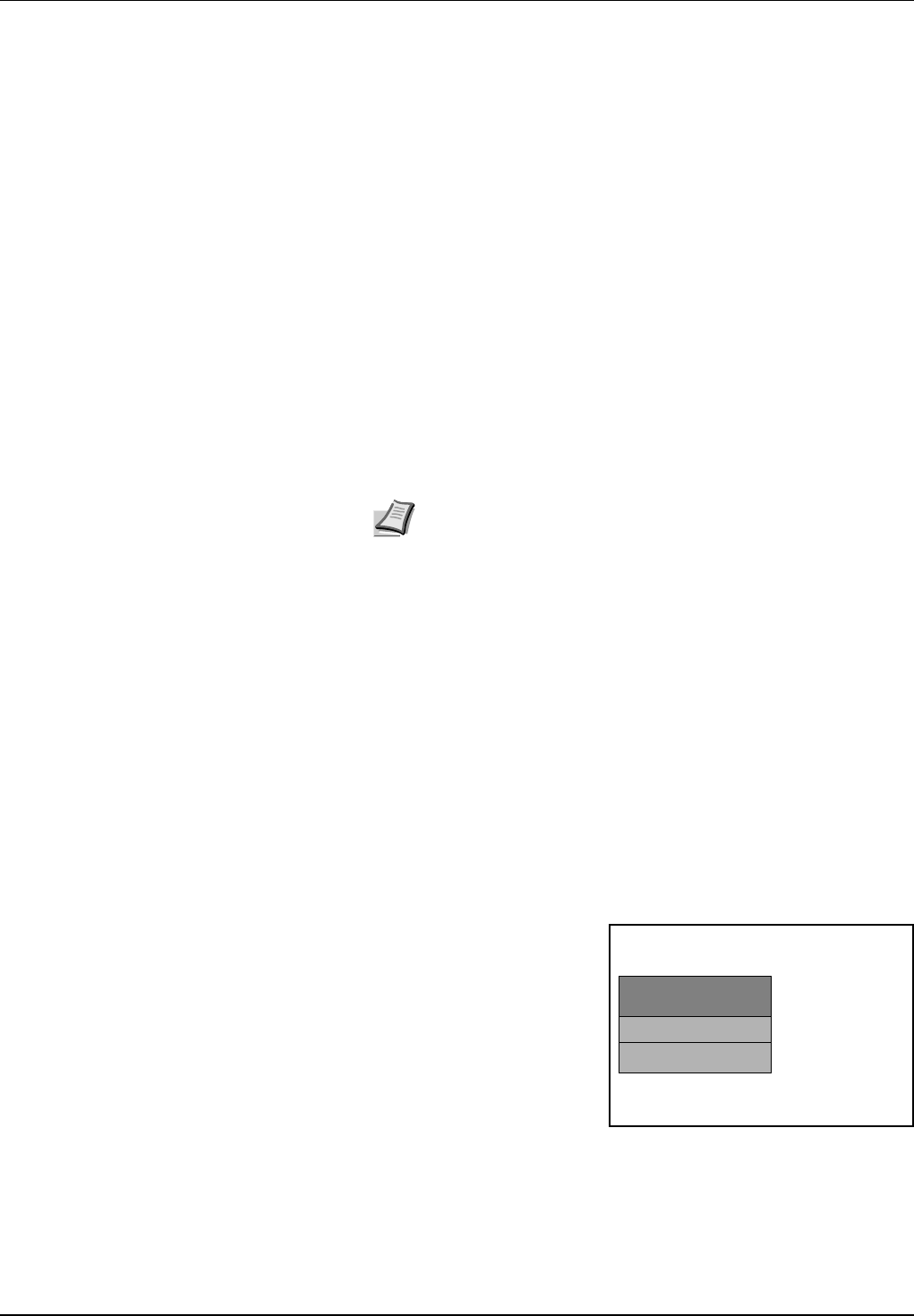

Label paper has a structure
comprising of three layers, as
shown in the diagram. The top
sheet is printed on. The
adhesive layer consists of
pressure-sensitive adhesives.
The carrier sheet (also called
the linear or backing sheet)
holds the labels until used.
Due to the complexity of its
composition, adhesive-
backed label paper is particularly likely to give printing problems.
Adhesive label paper must be entirely covered by its top sheet, with no
spaces between the individual labels. Labels with spaces in between are
liable to peel off, causing serious paper jam problems.
Note Before purchasing any type of special paper, test a sample
on the machine and check that printing quality is satisfactory.
Top sheet (white
bond paper)
Adhesive
Carrier sheet
2-8 Loading Paper

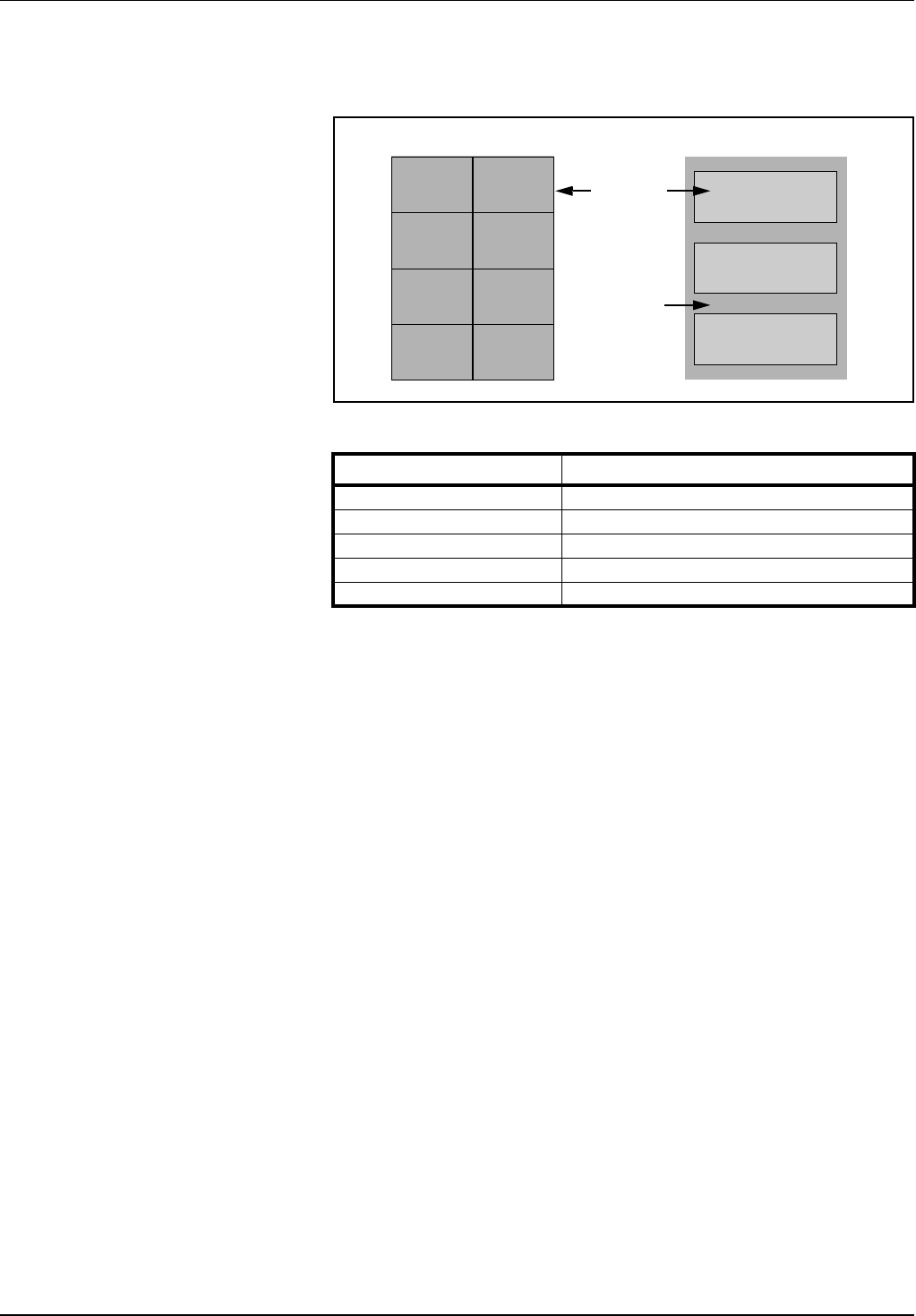

Some label paper is manufactured with an extra margin of top sheet
around the edge. Do not remove the extra top sheet from the carrier
sheet until after printing is finished.
The table below lists the specifications for adhesive label paper.
Postcards
Up to 10 postcards can be loaded at a time. Fan the stack of postcards
and align the edges before loading them in the MP tray. Make sure the
postcards you are going to set are not curled. Feeding curled postcards
may cause paper jams.
Some postcards have rough edges on the back (those are created when
the paper is cut). In this case, put the postcards on a flat place and rub
the edges with, for example, a ruler to smooth them.
Envelopes
Up to 5 envelopes can be loaded at a time. Envelopes should be fed in
the face-up position, right edge first.
Since the composition of an envelope is more complex than that of
ordinary paper, it is not always possible to ensure consistent printing
quality over the entire envelope surface.
Normally, envelopes have a diagonal grain direction. Refer to Paper
Grain on page 2-6. This direction can easily cause wrinkles and creases
when envelopes pass through the printer. Before purchasing envelopes,
make a test print to check whether the printer accepts the envelope.
•Do not use envelopes that have an encapsulated liquid adhesive.
•Avoid a long printing session for envelopes only. Extended envelope
printing can cause premature printer wear.
•If jams occur, try setting less envelopes on the MP tray.
•To avoid jams caused by curled envelopes, stack no more than 10
printed envelopes on the output tray.
Top sheet
UnacceptableAcceptable
Carrier sheet
Item Specification
Weight of top sheet 44 to 74g/m² (12 to 20 lb/ream)
Composite weight 104 to 151g/m² (28 to 40 lb/ream)
Thickness of top sheet 0.086 to 0.107mm (3.9 to 4.2 mils)
Composite thickness 0.115 to 0.145mm (4.5 to 5.7 mils)
Moisture content 4 to 6% (composite)
Loading Paper 2-9
Thick Paper
Fan the stack of paper and align the edges before loading them in the
MP tray. Some types of paper have rough edges on the back (those are
created when the paper is cut). In this case, put the paper on a flat place
and rub the edges once or twice with, for example, a ruler to smooth
them. Feeding rough edged paper may cause paper jams.
Colored Paper
Colored paper should satisfy the same conditions as white bond paper.
Refer to Paper Specifications on page 2-2. In addition, the pigments
used in the paper must be able to withstand the heat of fusing during the
printing process (up to 200°C or 392°F).
Preprinted Paper
Preprinted paper should satisfy the same conditions as white bond
paper. Refer to Paper Specifications on page 2-2.The preprinted ink
must be able to withstand the heat of fusing during the printing process,
and must not be affected by silicone oil.
Do not use paper with any kind of surface treatment, such as the type of
paper commonly used for calendars.
Recycled paper
Select recycled paper that meets the same specifications as the white
bond paper except for whiteness. Refer to Paper Specifications on
page 2-2.

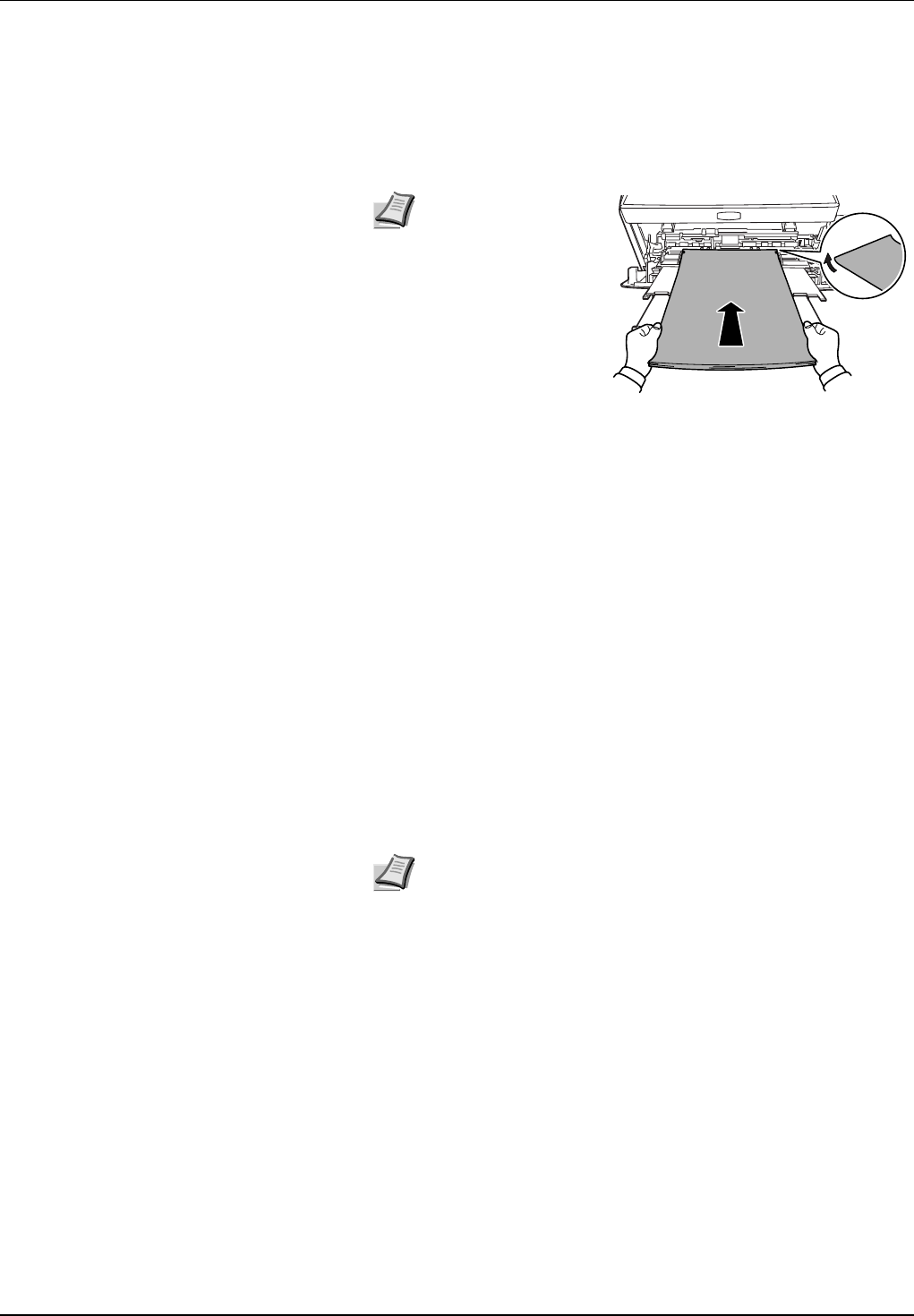

Note If the paper jams
even after you smooth it
out, load the paper in
the MP Tray with the
leading edge raised up
a few millimeters as
shown in the
illustration.
Note Before purchasing recycled paper, test a sample on the
machine and check that the printing quality is satisfactory.
2-10 Loading Paper
Paper Type
The printer is capable of printing under the optimum setting for the type
of paper being used.
A different paper type setting can be made for each paper source
including the MP tray. Not only can preset paper types be selected, but it
is also possible for you to define and select customized paper types.
Paper type can be changed using the printer driver and Configuration
Tool. The following types of paper can be used.
Paper Type
Paper source
MP tray Paper
Cassette
Paper Weight Duplex path
(MP tray available only
in Cassette mode)
Range Display in Status
Monitor
Plain Yes Yes 64 to 90g/m2Normal2 Yes
Transparency Yes No Transparency Extra Heavy No
Preprinted Yes Yes 75 to 90g/m2Normal2 Yes
Labels Yes No 105 to 135g/m2Heavy1 No
Bond Yes Yes 90 to 105g/m2Normal3 Yes
Recycled Yes Yes 75 to 90g/m2Normal2 Yes
Vellum Yes No Less than 64g/m2Light No
Rough Yes Yes 90 to 105g/m2Normal3 Yes
Letterhead Yes Yes 75 to 90g/m2Normal3 No
Color Yes Yes 75 to 90g/m2Normal3 Yes
Prepunched Yes Yes 75 to 90g/m2Normal2 Yes
Envelope Yes No 135 to 170g/m2Heavy3 No
Cardstock Yes No 135 to 170g/m2Heavy3 No
Thick Yes No 135 to 170g/m2Heavy3 No
High quality Yes Yes 75 to 90g/m2Normal2 Yes
Custom 1 (to 8)*Yes Yes 75 to 220g/m2Normal2 Yes
Yes: Can be stored No: Cannot be stored
*. This is a paper type defined and registered by the user. Up to eight types of user settings may be defined. User
can also enable or disable the duplex path when using Custom. For more information, refer to Status Monitor
on page 3-6.
Loading Paper 2-11
Preparing the Paper
After removing paper from the packaging, fan through the sheets to
separate them prior to loading.
If using paper that has been folded or is curled, straighten it prior to
loading. Failure to do so may result in a paper jam.

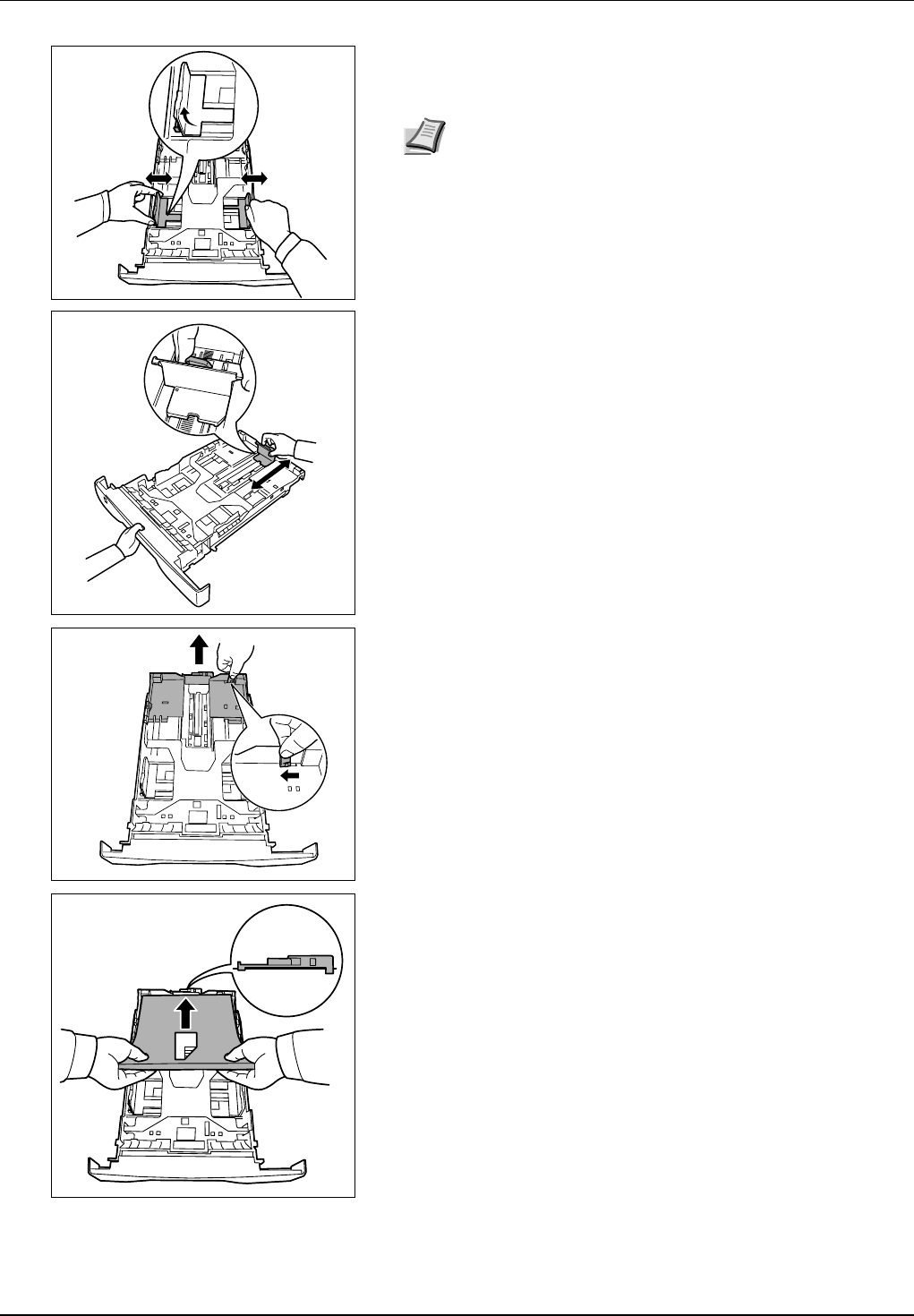

Loading Paper into Cassette
250 sheets of 11 × 8 1/2" or A4 paper (80 g/m²) may be loaded into the
Cassette.
1Pull the cassette completely out of the printer.
2Press the bottom plate down until it locks.
IMPORTANT Ensure paper is not stapled and clips are removed.
IMPORTANT When pulling the cassette out of the printer, ensure
it is supported and does not fall out.
2-12 Loading Paper
3Adjust the position of the width guides located on the left and right
sides of the cassette. Press the release button on the left guide and
slide the guides to the paper size required.
4Adjust the paper length guide to the paper size required.
If you are going to use paper that is longer than A4, pull out the
extension paper cassette by pushing the release lever one by one
and adjust it to the desired paper size.

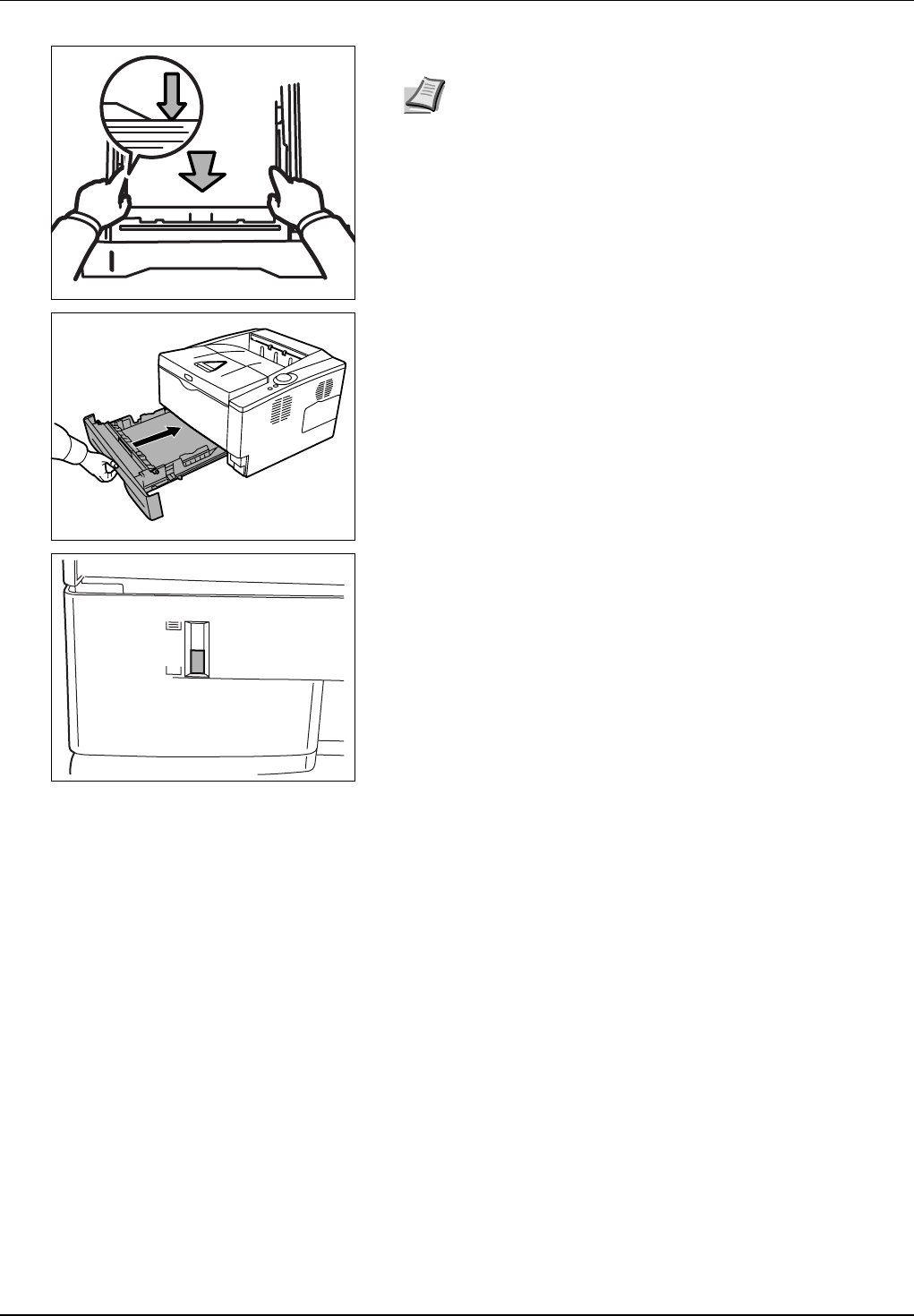

5Load the paper in the cassette. Ensure the side to be printed is
facing down and the paper is not folded, curled, or damaged.
Note Paper sizes are marked on the cassette.
Loading Paper 2-13
6Insert the paper cassette into the slot in the printer. Push it straight in
as far as it will go.
There is a paper gauge on the left side of the front of the paper
cassette to indicate the remaining paper supply. When paper is
exhausted, the pointer will go down to the level of (empty).
Note Do not load paper above the triangle mark located on
the width guide.
2-14 Loading Paper
Loading Paper into MP (Multi-Purpose)Tray
FS-1300D can load 50 sheets of 11 × 8 1/2" or A4 paper (80 g/m²) into
the MP Tray. On the other hand, FS-1100 can one sheet into the MP
Tray.

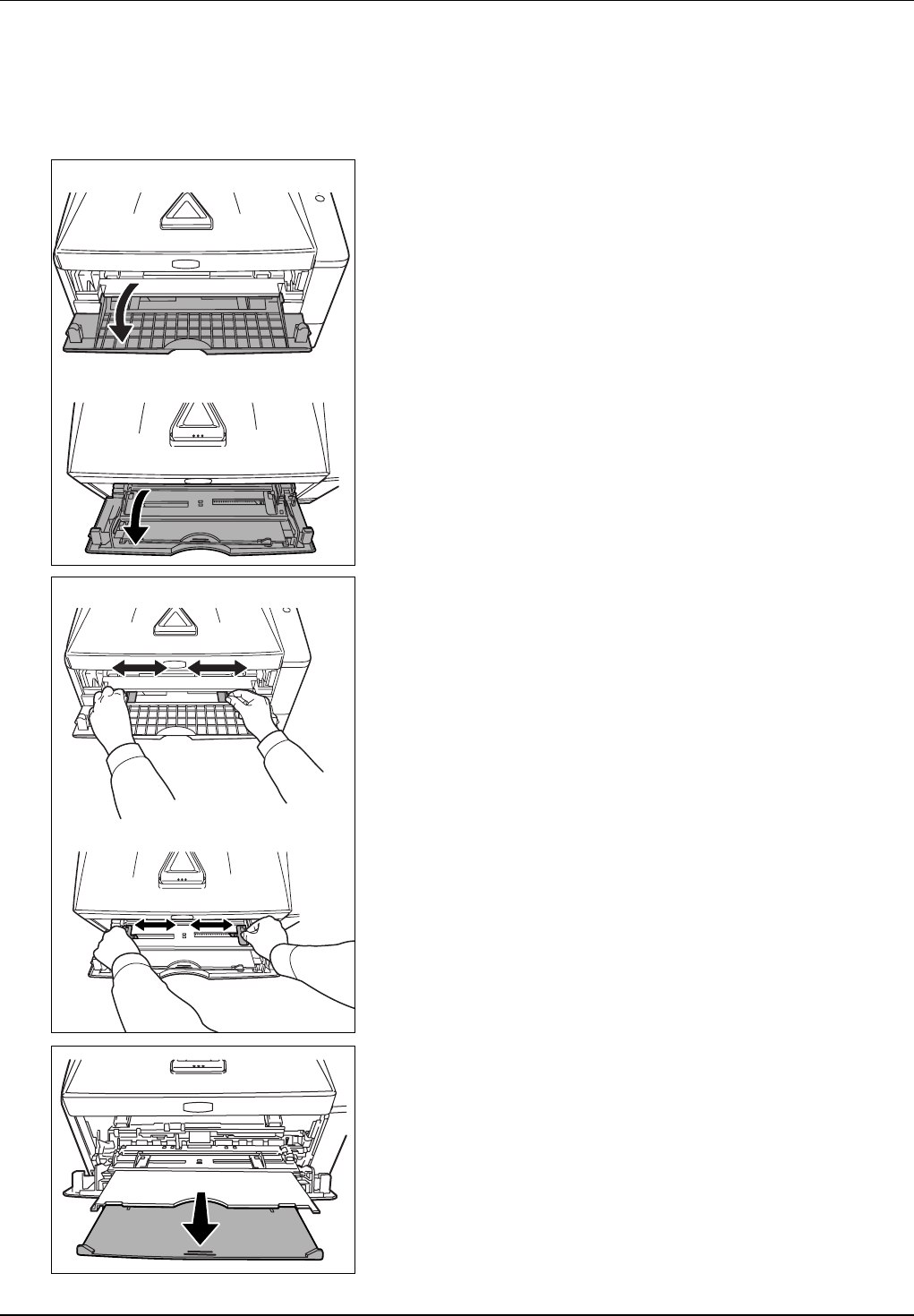

1Pull the MP tray towards you until it stops..
2Adjust the position of the paper guides on the MP tray. Standard
paper sizes are marked on the MP tray. For standard paper sizes,
slide the paper guides to the corresponding mark.
3Pull out the subtray (for FS-1300D).
FS-1300D
FS-1100
IMPORTANT When pulling the cassette out of the printer, ensure
it is supported and does not fall out.
FS-1300D
FS-1100
Loading Paper 2-15
4Align the paper with the paper guides and insert as far as it will go.
FS-1300D
FS-1100
Note Do not load more paper than exceeds the tab of the MP
tray (only for FS-1300D).
Note If the paper is considerably curled in one direction, for
example, if the paper is already printed on one side, try to roll
the paper in the opposite direction to counteract the curl.
Printed sheets will then come out flat (For FS-1300D only).
Correct
Incorrect
2-16 Loading Paper
When loading envelope, place with the envelope flap closed and
keep the printing side face-up. Insert envelope against the guide
with the flap on the front or left side until they stop.
5Specify the paper size and type for MP tray using Configuration Tool.
For more information, refer to Configuration Tool on page 3-9.
Correct
Correct
Incorrect
3-2 Connecting and Printing
Connections
This section explains how to start up the printer.
Connecting the USB Cable
Follow the steps as below for connecting the USB cable.
1Connect the USB cable (not included) to the USB Interface
Connector.
2Connect the other end of the USB cable to the computer's USB
interface connector.
Connecting the Power Cord
Install the printer close to an AC wall outlet. If an extension cord is used, the
total length of the power cord plus extension should be 5 meters (16 feet) or
less.
1Connect the power cord to the Power Cord Connector at the rear of
the printer.
2Connect the other end of the power cord to a power outlet.
3Press the Power Switch to On ( | ). The printer begins to warm up.
Note Use a USB cable with a rectangular Type A plug and a
square Type B plug. The USB cable should be shielded and
no longer than 5 meters (16 feet) long.
Note Ensure the printer's power switch is off. Only use the power
cord supplied with the printer.
IMPORTANT If you install the toner container and switch on the
power, after a moment the indicators light in anticlockwise
direction. When the printer is first switched on after toner
installation, there will be a delay of approximately 15 minutes
before the printer gets ready to print. Once the (Ready) indicator
lights, printer installation is complete.
Connecting and Printing 3-3
Loading Software
Ensure the printer is plugged in and connected to the computer's parallel
or USB port before installing software from the CD-ROM.
1Switch on the PC and activate Windows.
2Insert the CD-ROM (Software Library) into the CD-ROM drive.
3The installation program launches and the License Agreement
displays.
Select View License Agreement to read the information and select
Accept to proceed.
4Select Install KX Driver and follow the on-screen instructions to
complete the software installation.
5Once the installation is complete, the Printer Installed Successfully
dialog box displays.
Printing
This section explains the printing procedure from an application software.
You can specify the printing settings from each tab on KX Driver. KX Driver is
stored in the CD-ROM (Product Library). For more information, refer to the
KX Driver User Guide.
About KX Driver
KX Driver consists of the following tabs.
Basic
Use this tab to select the page size and orientation. The paper source is
also selected.
Layout
Use to select duplex or to create multiple pages on a single sheet of
paper. Also contains the scaling option.
Imaging
Select this tab to change the print quality, and the font or graphic
settings.
Publishing
Use to add covers or page inserts to your output. You can also produce a
set of transparencies with a blank or printed sheet interleaved using
Transparency Interleaving.
Advanced
Use to set up and add watermarks to your output. This tab incorporates
the PRESCRIBE commands into the document.
Note If the Welcome to the Found New Hardware Wizard
dialog box displays, select Cancel.
Note If the installation program fails to launch, use Windows
Explorer to access the CD-ROM and select Setup.exe.
3-4 Connecting and Printing
Printing from Application Software
The steps required to print a document created with an application are
explained below. You can select the printing paper size.
1Load the paper required into the paper cassette.
2From the application File menu, select Print. The Print dialog box
appears.
3Click the drop-down list of printer names. All the installed printers are
listed. Click the name of the printer.
4Use Number of copies to enter the number of copies required. Up to
999 copies can be printed.For Microsoft Word, we recommend that
you click Options and specify Use printer settings for the Default
tray.
5To start printing, click OK.
Manual Duplex (For FS-1100 only)
Use Manual Duplex if you require printing on both sides of the paper.
The even pages are printed first and then reloaded to print the odd
pages. An instruction sheet is available to assist with loading the sheets
in the correct orientation and order.
1Ensure Cassette 1 is selected as the Source in the Print Properties
dialog box.
2Select Print on Both Sides (Manual Duplex).
Select Gutter Settings on Layout tab and enter the value required for
each edge. Gutter width range is 5.00 to 25.4mm (0.20 to 1.00 inch).
Select Reduce Image to fit as required.
Select Print on both side (manual duplex), and use the Duplex
Details option to select Flip on Long Edge for binding on the long
edge or Flip on Short Edge for binding on the short edge. Select
Print manual duplex instructions to receive the reloading
instructions.
Note You can also select the various settings by clicking
Properties to open the Properties dialog box.
Note Ensure Print Instructions is selected to receive the
instruction sheet. Continue to use the sheet until you are familiar
with this feature.
Connecting and Printing 3-5
3Select OK to return to the Print dialog box and select OK to start
printing. A Manual Duplex instruction message box displays. The
even pages are printed including the instruction sheet.
4Remove all the even pages (including the instruction sheet) from the
output tray, fan through the sheets to separate them prior to loading.
5Load the even pages printed into the paper cassette with the
instruction sheet facing up and the arrows pointing toward the
printer.
6Select OK on the Manual Duplex instruction message box. All the
odd pages will be printed.
Note Nothing will be printed on the instruction sheet.
Note If the paper is considerably curled in one direction, roll the
paperin the opposite direction to counteract the curl. If this will not
cancel the curl satisfactorily, try to reduce the number of sheets
loaded in the paper cassette to the maximum of 100.
Long Edge Binding Short Edge Binding
3-6 Connecting and Printing
Status Monitor
The Status Monitor monitors the printer status and provides an ongoing
reporting function. It also allows you to specify and modify settings for
printers not included in the KX driver.
The Status Monitor is installed automatically during KX driver installation.
Accessing the Status Monitor
Use either of the methods listed below to launch the Status Monitor.
•Launch when printing starts:
When you specify a printer and start a print job, one Status Monitor
is launched for each printer name. If Status Monitor startup is
requested from multiple printers, Status Monitors are launched for
each printer that issues the request.
•Launch from the KX driver properties:
Right-click the Version Info button in the KX driver Properties dialog
box. Then click the Status Monitor button in the Version Info dialog
box to launch the Status Monitor.
Exiting the Status Monitor
Use either of the methods listed below to exit the Status Monitor.
•Exit manually:
Click the printer icon in the taskbar and select "Exit" in the menu to
exit the Status Monitor.
•Exit automatically:
The Status Monitor automatically shuts down after 30 minutes if it is
not being used.
Screen Overview
The screen overview of the Status Monitor is as follows.
Pop-up window
If an information notification event occurs, a pop-up window appears.
This window only appears when the 3D View is open on the desktop.
3D View
This shows the status of the monitored printer as a 3D image. You can
choose whether to show or hide the 3D view from the menu displayed
when you right-click the printer icon.
Pop-up window
3D View
Printer icon
Connecting and Printing 3-7
If an information notification event occurs, the 3D view and an alert
sound are used to notify you. For information on the sound notification
settings, refer to Status Monitor Settings on page 3-8.
Printer icon
The printer icon is displayed in the taskbar notification area when the
Status Monitor is running. When you position the cursor over the icon,
the printer name appears.
3-8 Connecting and Printing
Status Monitor Settings
The Status Monitor has two tabs to configure its settings. Use the Preference
option to set up the Status Monitor.
Sound Notification Tab
The Event Notification tab contains the following items.
Enable Event Notification
Select to enable or disable monitoring the events in Available events.
Sound file
A sound file can be selected if you require an audible notification. Click
Browse to search for the sound file.
Use Text to speech
Select this check box to enter text you would like to hear played for
events. Although a sound file is unnecessary, this function is applicable
for Windows XP.
To use this function, follow these steps.
1Select an event to use with the text to speech function in Available
events.
2Select Use Text to speech.
3Enter the text to be played in the Text to speech box.
4Click Play to confirm the text is spoken correctly.
Appearance Tab
The Appearance tab is contains the following items.
Enlarge window
Doubles the size of the Status Monitor window.
Always on top
Positions the Status Monitor in front of other active windows.
Transparency
Displays the Status Monitor as a transparent window.
Connecting and Printing 3-9
Configuration Tool
The Configuration Tool is a Status Monitor function that allows you to
check and/or change the settings for printers not included in the KX
driver.
When you install the KX driver, you can choose to install the
Configuration Tool as an optional function.
The Configuration Tool can be used for printers connected to the PC via
a USB cable. If a printer is connected via a network cable, the
COMMAND CENTER starts up.
For details about the Configuration Tool, refer to its help file.
Accessing the Configuration Tool
Follow these steps to display the Configuration Tool on the desktop.
1Right-click the printer icon in the Windows taskbar.
2Select "Configure the Printing System" from the menu. The
Configuration Tool window appears.
Exiting the Configuration Tool
Use either of the methods listed below to exit the Configuration Tool.
•Exit using the Close button:
Click the Close button in the top-right corner of the Configuration
Tool window.
•Exit using the [OK] or [Cancel] button:
Clicking [OK] exits the Configuration Tool after applying the modified
printer settings. Clicking [Cancel] exits the Configuration Tool without
applying the modified printer settings.
Note The contents of the Properties dialog box will vary
depending on the installed optional devices, and whether the
device is connected by a network interface or a local interface.
3-10 Connecting and Printing
Status Tab
The Status tab displays current information about the device, such as the
model name, system firmware, engine firmware, serial number, and
number of printed pages.
Input Tab
The Input tab displays information about the paper feeder attached to the
machine, such as the current paper level and the maximum paper
capacity.
This tab also enables you to customize the paper size and type of the
paper supply. If you selected Custom as the paper size for the MP Tray
in the KX driver, you can use this tab to set the width and height of the
custom paper.
Media Tab
The Media tab displays and lets you select the weight for each media
type. It also displays whether each media type is available for duplex
printing.
Connecting and Printing 3-11
Printer Tab
The Printer tab allows you to set print processing parameters that are not
available in the KX driver. As well as the printing density and form feed
timeout, you can change the memory size used for processing raster
data such as bitmap and JPEG files.
Connection Tab
You can use the Connection tab to set the emulation. You can also use
this tab to change the buffer memory size and buffer mode used on the
host for communication processing.
Data Tab
The Data tab fetches and lists the data used in other communication
processes, such as PRESCRIBE. Select a data type and click [View] to
fetch and display a list of the target data from the printer. The information
displayed includes the name, type and storage location.
3-12 Connecting and Printing
Others Tab
The Others tab enables you to configure the printer settings shown
below.
Item Description
Auto sleep Configures the amount of time when the printer
automatically enters Sleep Mode. Click [Advanced]
to turn Auto sleep on or off.
EcoFuser Enables or disables the EcoFuser. Select On to
reduce the power consumption to a minimum by
turning off the heater of the fixing unit at Sleep Mode.
The default setting is On.
Panel lock Locks or unlocks the operation panel. Locking the
operation panel disables key operations from the
panel.
RAM disk Enables or disables RAM disk mode. Enabling the
RAM disk allows you to use it as a temporary
storage area for data such as font files or the
contents of the receive buffer. You can also specify
the RAM disk format by clicking [Advanced] when
the RAM disk is enabled.
Connecting and Printing 3-13
Uninstalling Software
The CD-ROM lets you remove the printer software.
1Click Remove Software. The Uninstall Wizard appears.
2Select the software package to remove.
3Click Uninstall. Removal of the printer software starts.
4When removal is complete, click Finish.
3-14 Connecting and Printing
4-2 Maintenance
General Information
This chapter describes basic maintenance tasks you can perform for the
printer. You can replace the toner container according to the printer's
status:
Also, the internal parts need periodic cleaning.
Toner Container Replacement
The Toner indicator identifies the toner status at two stages of toner
usage.
•When the printer becomes low on toner, the toner indicator for the
indivisual colors flashes. Note the replacement is not always
necessary at this stage.
•If you ignore the above status and continue printing, the Toner
indicator lights up just before the toner is used up. The toner
container must then be replaced immediately.
In either case, replace the toner container.
Frequency of toner container replacement
Assuming an average toner coverage of 5% and EcoPrint mode turned
off, the toner container will need replacing approximately once every
7,200 pages.
Starter Toner Container
The toner container packed with the new printer is a starter toner
container. The starter toner container lasts an average of 3,600 pages.
Toner Kits
For best results, we recommend that you only use genuine Kyocera
Parts and Supplies.
A new toner kit contains the following items:
•Toner Container
•Plastic waste bag for old toner container
•Installation Guide
Note Information Collection on Memory Chips - The memory chip
attached to the toner container is designed to improve
convenience for the end user; to support the recycling operation of
empty toner containers; and to gather information to support new
product planning and development. The information gathered is
anonymous - it cannot be associated to any specific individual and
the data is intended to be used anonymously.
Note Do not remove the toner container from the carton until you
are ready to install it in the printer.
Maintenance 4-3
Replacing the Toner Container
This section explains how to replace the toner container.
1Open the top cover.
2Turn lock lever to the unlock position. Push lock lever to the position
marked arrow and pull out the toner container.
CAUTION Do not attempt to incinerate the Toner
Container. Dangerous sparks may cause burns.
IMPORTANT During toner container replacement, temporarily move
storage media and computer supplies (such as floppy disks) away
from the toner container. This is to avoid damaging media by the
magnetism of toner.
IMPORTANT Kyocera Mita Corporation is not liable against any
damages or problems arising from the use of toner containers other than
those designated as original Kyocera toner containers. For optimum
performance, it is also recommended to use only the Kyocera toner
containers which are specifically intended for use in your country or
region.
Note You do not have to turn printer power off before starting
the replacement. Any data that may be processing in the printer
will be deleted if you turn the printer power off.
Note Put the old toner container in the plastic bag (supplied
with the new toner kit) and discard it later according to the local
code or regulations for waste disposal.
4-4 Maintenance
3Take the new toner container out of the toner kit. Shake the new
toner container at least 5 times as shown in the figure in order to
distribute the toner evenly inside the container.
4Remove the label from the toner container.
5Install the new toner container in the printer. Push firmly on the top of
the container at the positions marked PUSH HERE, until you hear a
click.
Maintenance 4-5

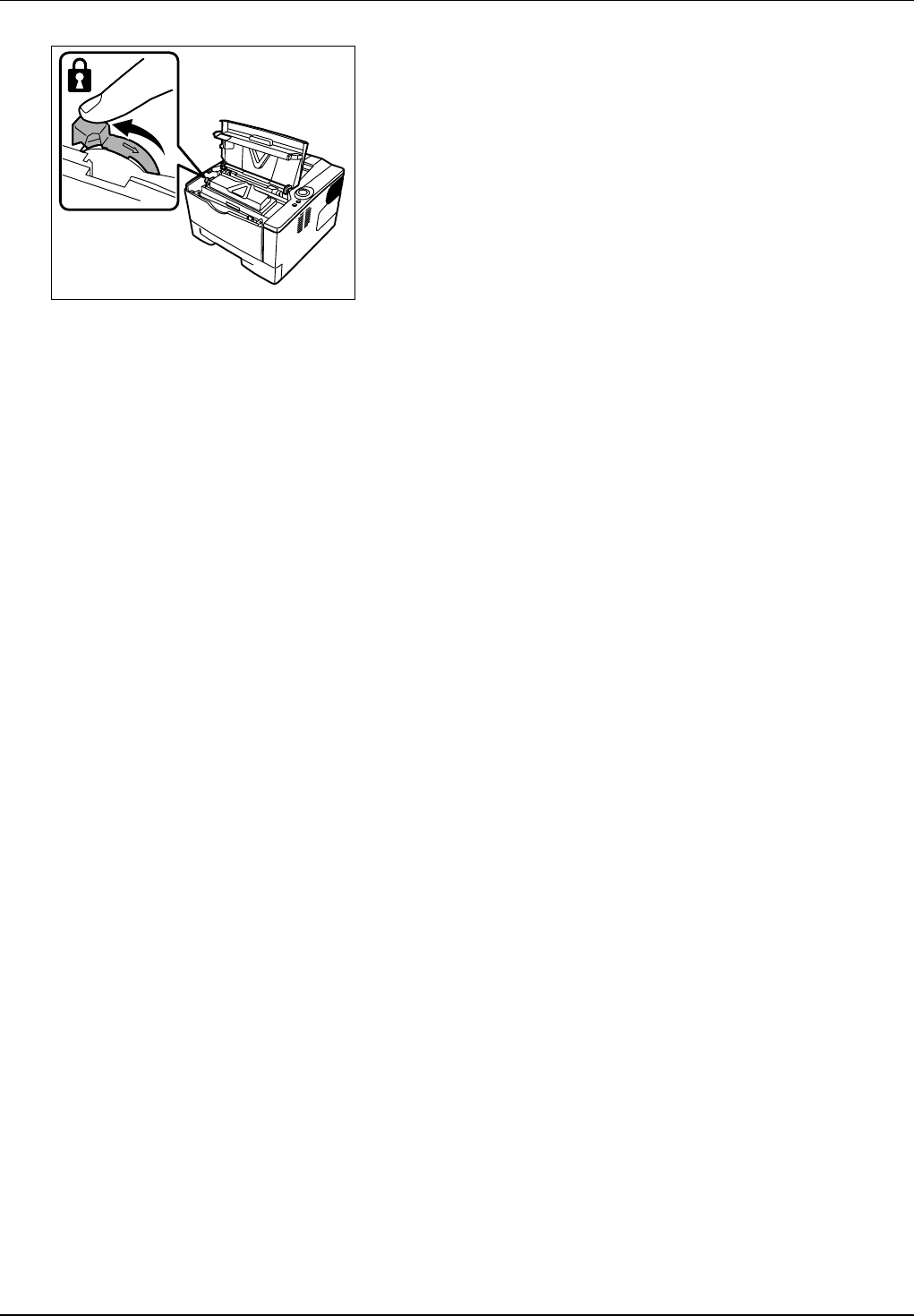

6Turn lock lever to the lock position.
7Close the top cover.
4-6 Maintenance
Cleaning the Printer
To avoid print quality problems, the interior of the printer must be
cleaned with every toner container replacement.

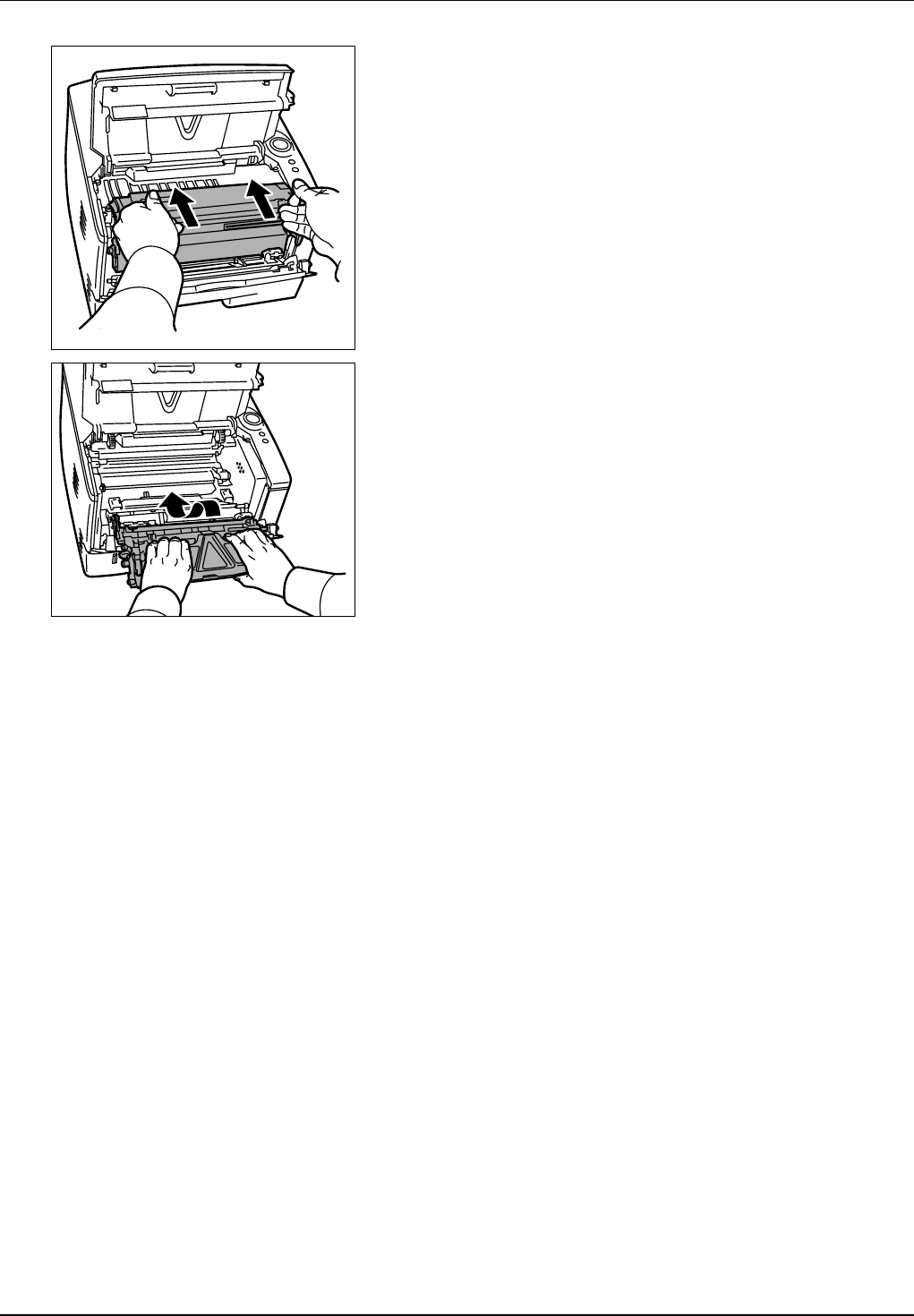

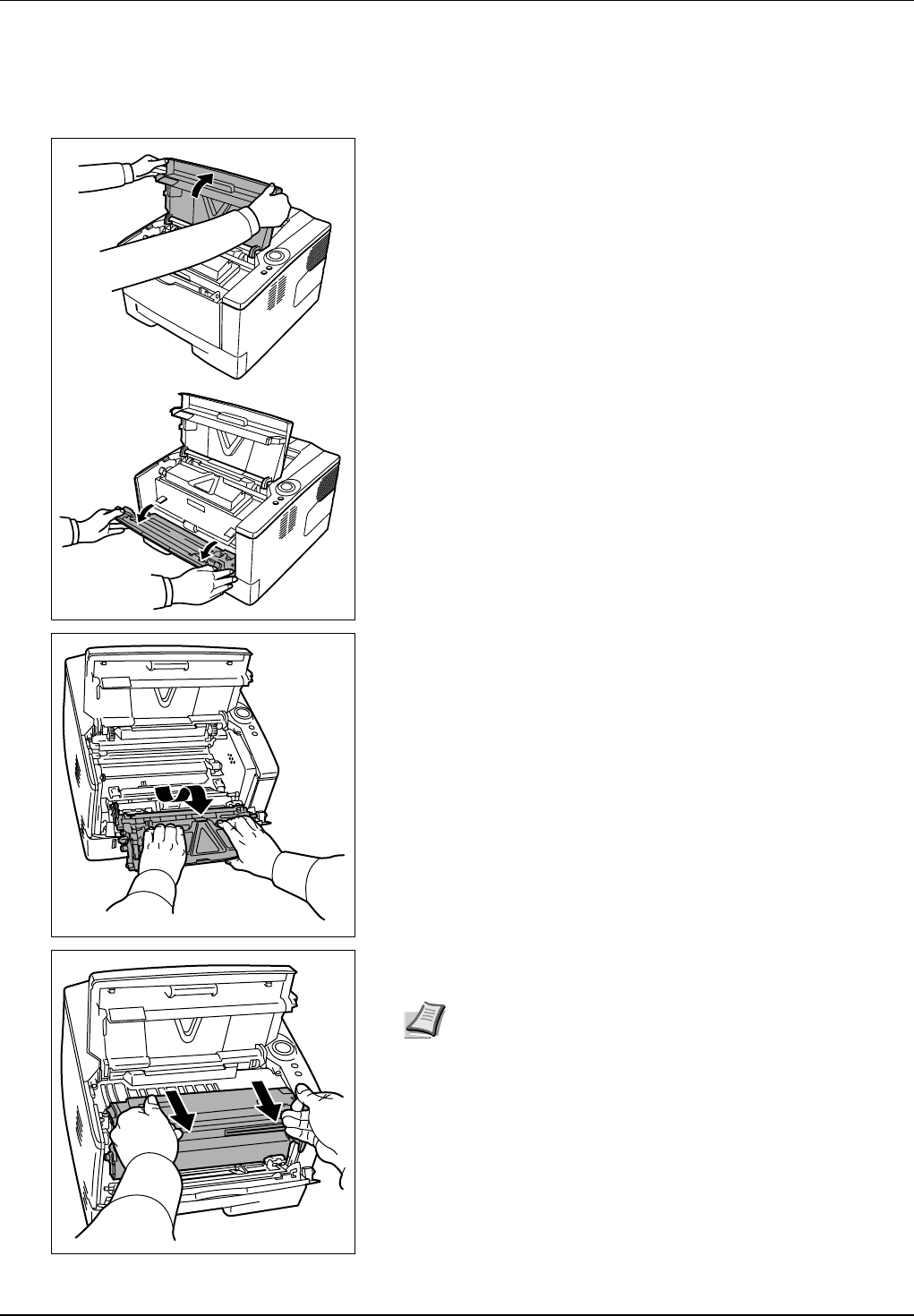

1Open the top cover and front cover.

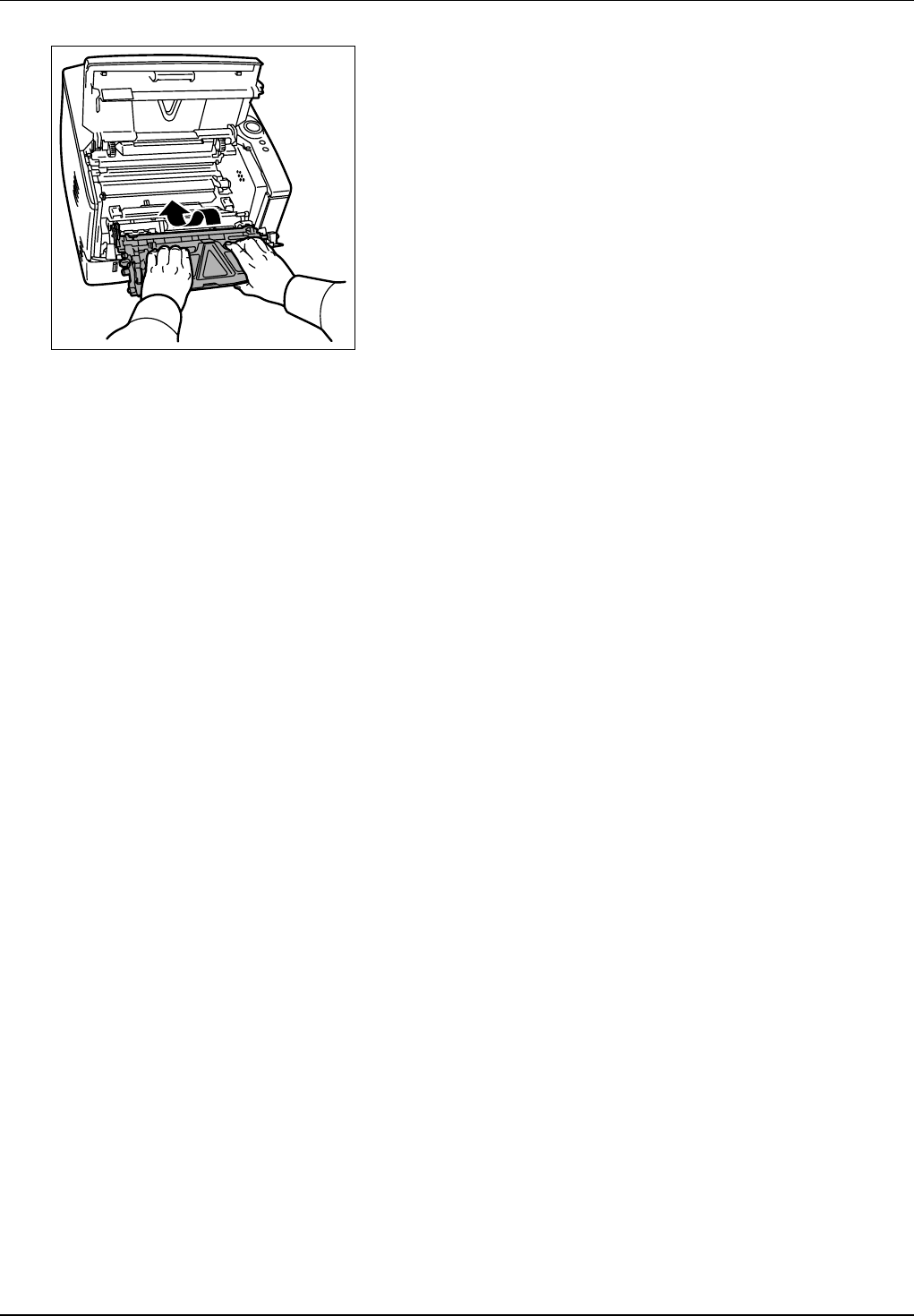

2Lift the process unit together with the toner container out of the
printer.
3Remove the drum unit from the printer by holding the green levers
with both hands.
Note The drum is sensitive to light. Never expose the process
unit to light for more than five minutes.
Maintenance 4-7

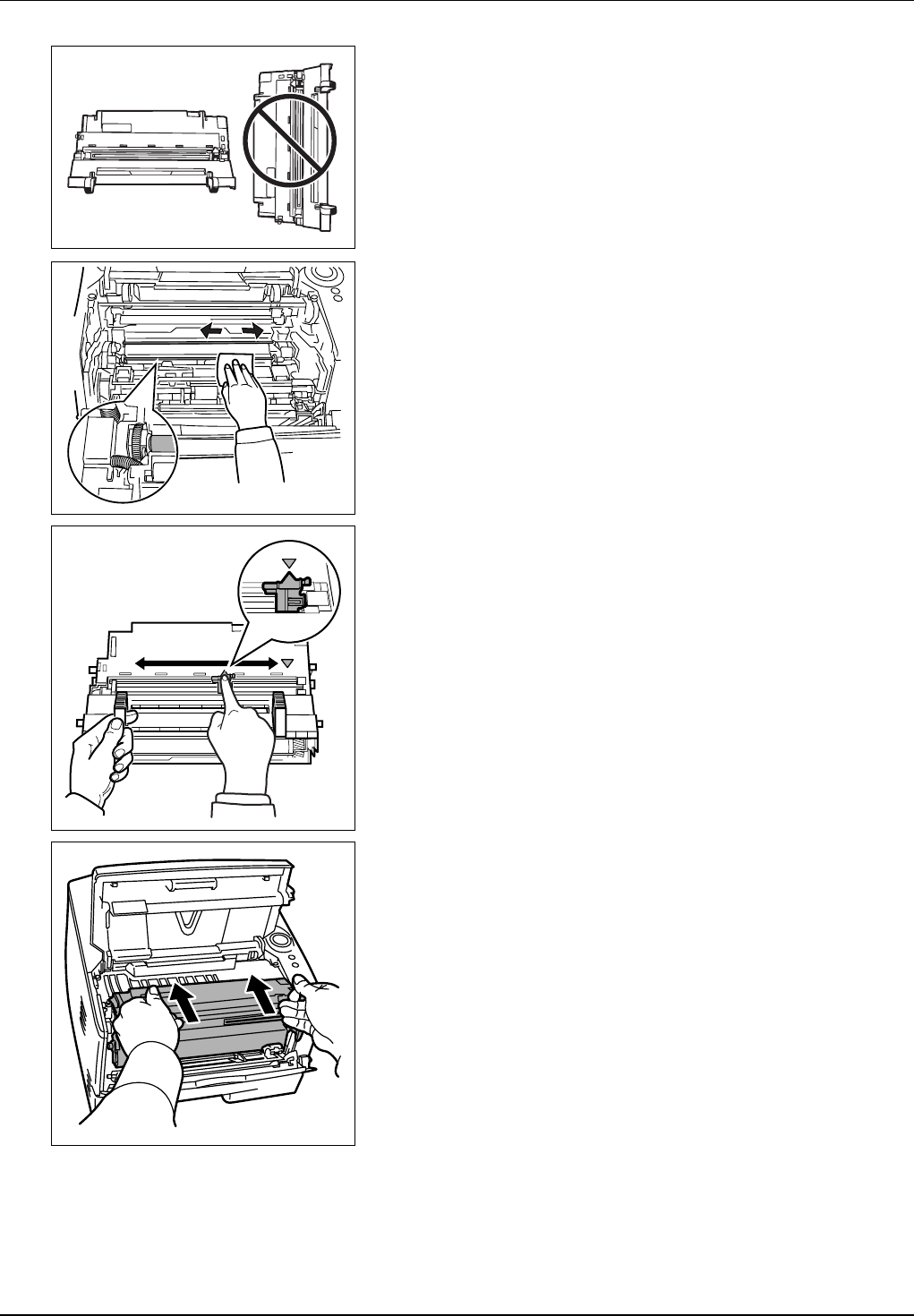

4Place the drum unit flat on a clean, level surface.
5Use a clean, lint free cloth to clean dust and dirt away from the metal
registration roller.
6Slide the charger cleaner (green) back and forth 2 or 3 times to clean
the charger wire, then return it to its original position (CLEANER
HOME POSITION ).
7When cleaning is complete, return the drum unit to the original
position.
IMPORTANT Do not place the drum unit on end.
IMPORTANT Take care not to touch the transfer roller (black)
during cleaning.
IMPORTANT After cleaning, make sure you restore the charger
cleaner to its home position.
4-8 Maintenance
8Return the process unit to its position, aligning the guides at both
ends with the slots in the printer. Then, close the front cover and top
cover.
Maintenance 4-9
Prolonged Non-Use and Moving the Printer
Prolonged Non-use
If you ever leave the printer unused for a long period of time, remove
thepower cord from the wall outlet.
We recommend you consult with your dealer about the additional actions
you should take to avoid possible damage that may occur when the
printer is used next time.
Moving the Printer
When you move the printer:
•Move it gently.
•Keep it as level as possible to avoid spilling toner inside the printer.
•Be sure to consult a service technician before attempting
longdistance transportation of the printer.
WARNING If you ship the printer, remove and pack the
process unit and drum unit in a plastic bag and ship them
separately from the printer.
4-10 Maintenance
5-2 Troubleshooting

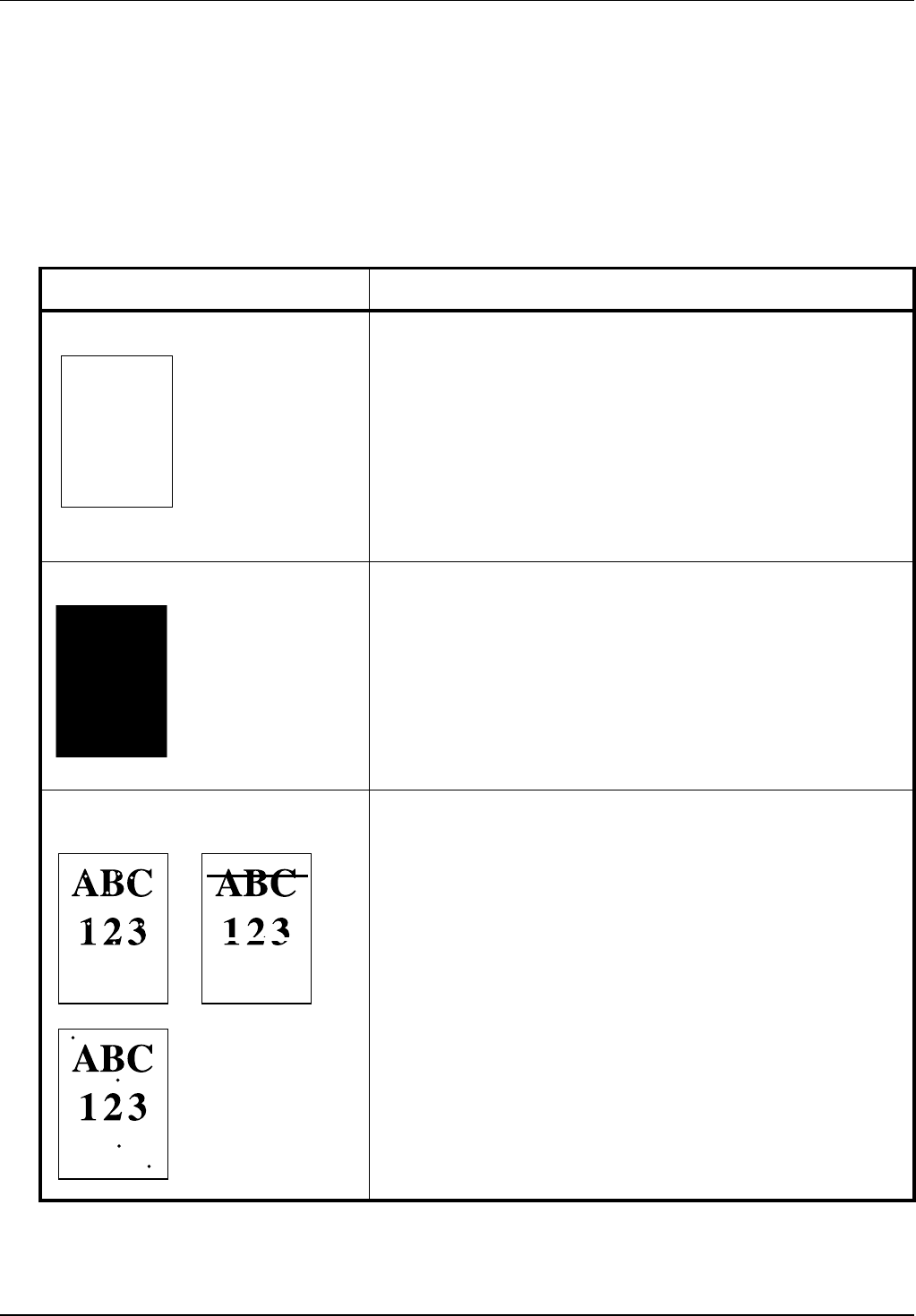

General Guidelines

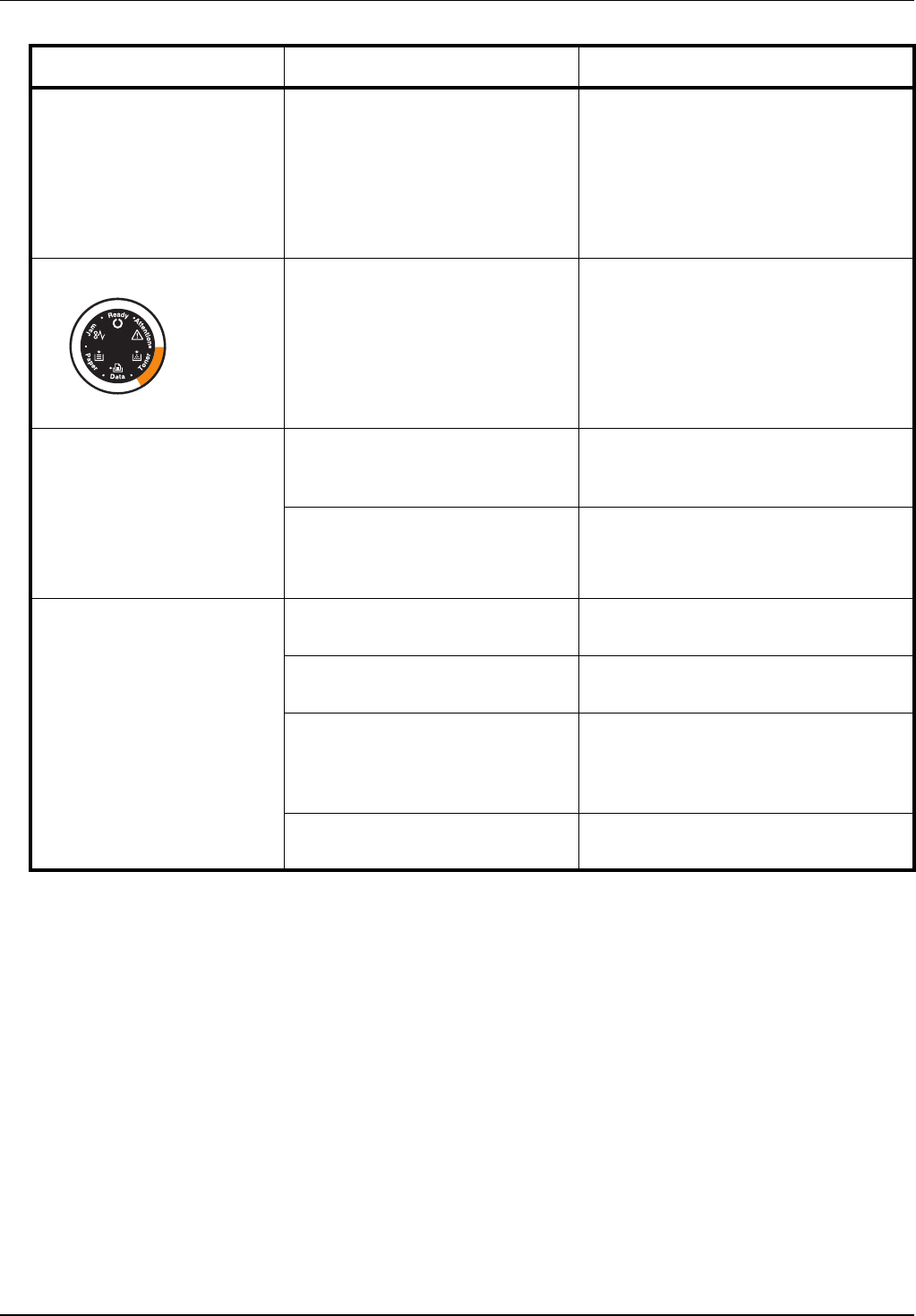

The table below provides basic solutions for problems you may
encounter with the printer. We suggest you consult this table to
troubleshoot the problems before calling for service repairs.
Tips
Printer problems may be solved easily by following the tips below. When
you have encountered a problem that cannot be solved following the
guidelines above, try the following:
•Restart the computer you are using to send print jobs to the printer.
•Obtain and use the latest version of the printer driver. The latest
versions of printer drivers and utilities are available at:
http://www.kyoceramita.com/download/.
•Make sure that the procedures for printing are correctly followed in
the application software. Consult the documentation supplied with
the application software.
Symptom Check Items Corrective Actions
The printer will not print
from the computer. Check the Ready indicator. Using the information on page 1-5, check if an error
has occurred and clear the error.
Check if a status page can be printed. If the status page was printed successfully, there
may be a problem with the connection to the
computer. Refer to the Installation Guide and check
the connection.
Check that the indicators display in a
recognized combination. Refer to
Indicators on page 1-5 for further
information.
Turn the power switch Off (O) and then On ( | )
again. Print the job again.
Print quality is poor. Refer to Print Quality Problems on page 5-3.
Paper is jammed. Refer to Cleaning Paper Jams on page 5-10.
The indicators are off and
the fan is not working. Check the power cord. Connect both ends of the power cord securely. Try
replacing the power cord. Refer to Installation Guide
for information.
Check the power switch is in the
On ( | ) position.
Refer to the Installation Guide for more information.
The printer prints a status
page but data from the
computer is not being
printed.
Check program files and application
software. Try printing another file or using another print
command. If the problem occurs with a specific file or
application, check the printer settings for that
application.
Check the interface cable. Connect both ends of the interface cable securely.
Try replacing the printer cable. Refer to the
Installation Guide for more information.
Troubleshooting 5-3
Print Quality Problems
The tables and diagrams in the following sections define print quality
problems and the corrective action you can conduct to solve the
problems. Some solutions may require cleaning or replacing parts of the
printer.
If the suggested corrective action will not solve the problem, call for
service.
Printed Results Corrective Action
Completely blank printoutt Check the toner container.
Open the front cover and check that the toner container is correctly
installed in the printer. Refer to Toner Container Replacement on
page 4-2.
Full single-color printout Contact your service technician.
Dropouts, horizontal streaks, stray
dots Clean the charger wire, refer to Cleaning the Printer on page 4-6.
5-4 Troubleshooting
Vertical streaks Check the toner container and if necessary replace. Refer to Toner
Container Replacement on page 4-2.
Clean the charger wire. Refer to Cleaning the Printer on page 4-6.
Check the charger cleaner is in its original position. Refer to
Cleaning the Printer on page 4-6.
Faint or blurred printing Check the toner container and if necessary replace. Refer to Toner
Container Replacement on page 4-2.
Clean the charger wire. Refer to Cleaning the Printer on page 4-6.
Gray background Check the toner container and if necessary replace. Refer to Toner
Container Replacement on page 4-2.
Check the process unit and drum unit are installed correctly. Refer to
Cleaning the Printer on page 4-6.
Dirt on the top edge or back of the
paper Clean the registration roller. Refer to Cleaning the Printer on
page 4-6.
Printed Results Corrective Action
Troubleshooting 5-5

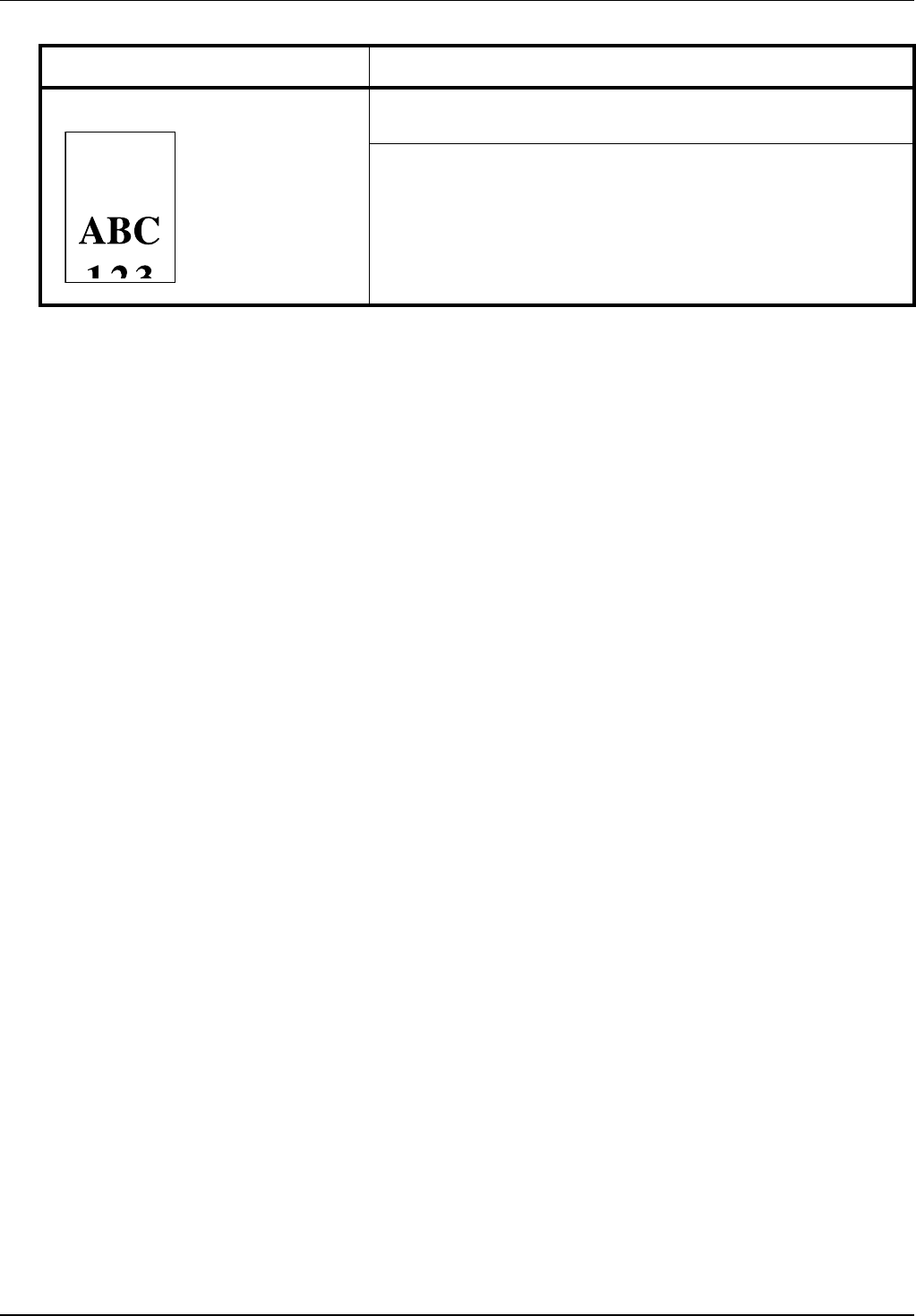

Printing incomplete or out of position Check that the printing settings are correct in the application software
and the printer driver.
Check whether the problem is being caused by a PRESCRIBE
command error. If the problem occurs only with a specific file or
program, the most likely cause is an error in a parameter to a
command or command syntax.
Printed Results Corrective Action
5-6 Troubleshooting
Understanding Indicators
The indicator displays generally fall into one of three categories: normal
operation, maintenance and errors (repairs).
Click the icon to play the animation of the indicator combinations.
Right-click an indicator, then select Playback and Play to play the
animation repeatedly.

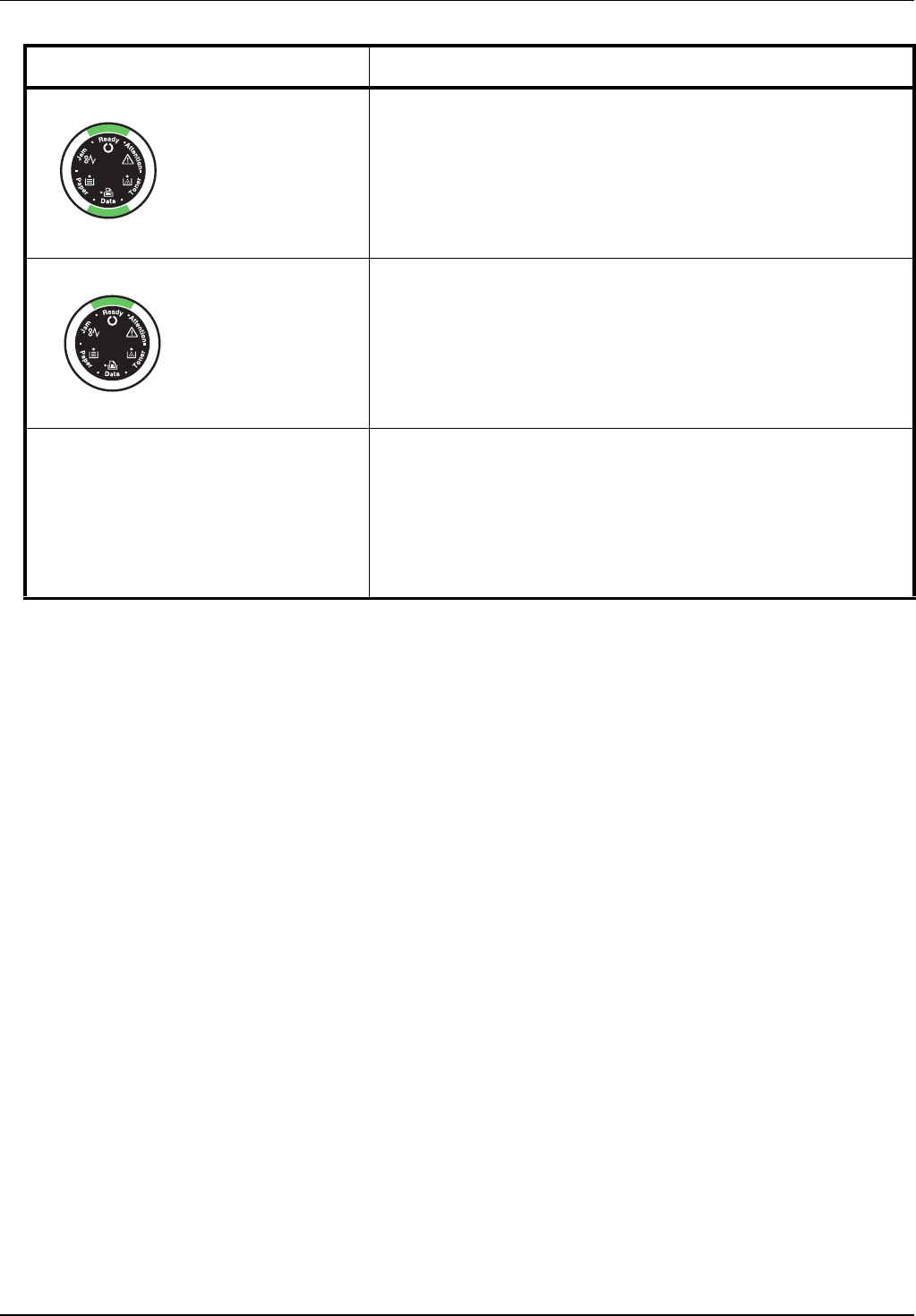

Normal Indication
The table below shows the indicator combinations when the printer
status is normal.
IMPORTANT To play the animation, you have to install Adobe Flash
Player and Adobe Reader (Version 6.01 or more) to your PC. If the
animation is not displayed, you should get the latest version from Adobe
site (http://www.adobe.com/downloads/).
Indicator Meaning
The printer is canceling data.
The printer is warning up.
The printer is adjusting the color.
The printer is having toner replaced.
The printer is receiving data.
Troubleshooting 5-7
The printer is receiving data.
Printing resumes when the [GO] is pressed.
The printer is printing the last page after waiting.
Printing is possible.
Offline status. You cannot print, but the printer can receive data.
The printer is in sleep mode. Printing resumes when the [GO] is
pressed.
Indicator Meaning
5-8 Troubleshooting
Maintenance Indication
The table below shows the indicator combinations when user
intervention is required. It is assumed that the printer is online and is
processing data.
Indicator Meaning Remedy
There is no paper in the cassette
or MP tray. The empty paper
source and required paper size
are shown in Status Monitor and
COMMAND CENTER.
Load paper into the paper source.
The cassette is not inserted
properly. Insert the cassette fully into the printer.
The front cover is open. Close the cover.
There is no cassette in the paper
feeder or the cassette is not
inserted properly.
Re-insert the cassette and then try
printing again.
The cassette does not contain the
paper specified by the printer
driver.
Load the size and type of paper shown
in Status Monitor and COMMAND
CENTER into the cassette (#[1 or 2])
and then restart printing. You can
change the paper source by pressing
the [GO].
The paper sizes do not match. If the paper size in the paper source
differs from the paper size and type
specified by the printer driver, you can
print by supplying paper from the MP
tray. Load the correct paper size and
type into the MP tray and press [GO] to
begin printing.
If you want to supply paper from a
source other than the MP tray, you can
change the paper source by pressing
[GO].
If the paper fed from the MP tray is a
different size from the specified paper
size, a paper jam will occur.
A paper jam occurred during
printing. Open the printer cover and remove the
jammed paper.
Troubleshooting 5-9
Error Indication
If the indicators light or flash repeatedly in manners not described
above for normal or maintenance indication, a service error has
probably occurred. Turn the printer off by the power switch, wait 5
seconds and then turn the printer on again. This may clear the error.
Even if the error is not cleared, contact your service technician.
The toner is running low. Have a new toner container ready.
The toner has run out. Replace with a new toner container.
After replacing the toner container,
clean the inside of the printer.
Unable to print with the specified
resolution due to insufficient
memory.
Add the expansion memory to the
printer.
CF card is not formatted. Format the CF card.
Specified file not found. Press [GO] to continue processing.
Press [Cancel] to cancel processing.
The current printing cannot be
continued. Press [GO] to continue processing.
Press [Cancel] to cancel processing.
Unable to print due to insufficient
memory. Install the optional extended memory in
the printer. Press [GO] to continue
processing. Press [Cancel] to cancel
processing.
Unable to print as the data is too
complicated. Press [GO] to continue processing.
Press [Cancel] to cancel processing.
Indicator Meaning Remedy
5-10 Troubleshooting
Cleaning Paper Jams
If paper jams in the paper transport system, or no paper sheets are fed
at all, the printer automatically goes offline, and the attention indicator
will flash rapidly. Status Monitor or COMMAND CENTER can indicate
the location of the paper jam (the component where the paper jam has
occurred). Remove the paper jam. After removing the paper jam, the
printer will resume printing.

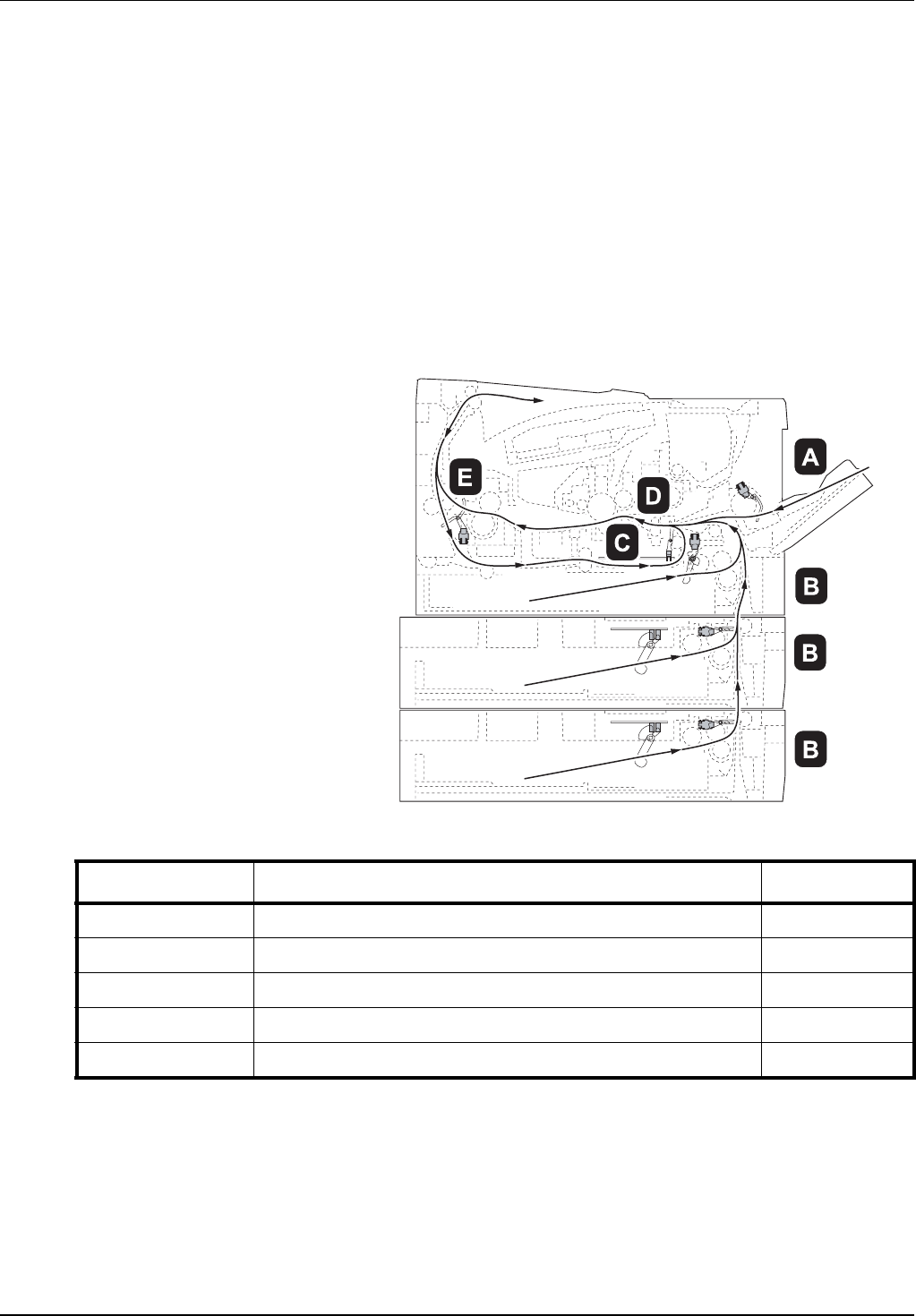

Possible Paper Jam Locations
The figure below shows the printer's paper paths including the optional
devices. The locations where paper jams might occur are also shown
here, with each location explained in the table below. Paper jams can
occur in more than one component on the paper paths.
Paper jam location Description Reference page
A Paper jam at the MP tray. page 5-11
B Paper jam at the paper cassette. The cassette number can be 1. page 5-12
C Paper jam inside the duplex section. page 5-13
D Paper jam inside the printer. page 5-14
E Paper jam at the rear cover. page 5-16
Troubleshooting 5-11
General considerations for clearing jams
Bear in mind the following considerations when attempting paper jam
removal:
•If paper jams occur frequently, try using a different type of paper,
replace the paper with paper from another ream, or flip the paper
stack over. The printer may have problems if paper jams recur after
the paper is replaced.
•Whether or not the jammed pages are reproduced normally after
printing is resumed, depends on the location of the paper jam.
MP Tray
1Remove the paper jammed at the MP tray.
2Reload the MP tray. Open and close the front cover to clear the error
and the printer warms up and resumes printing.
CAUTION When pulling the paper, pull it gently so as not
to tear it. Torn pieces of paper are difficult to remove and
may be easily overlooked, deterring the paper jam recovery.
IMPORTANT Do not try to remove paper that has already been
partially fed. Proceed to Inside the Printer on page 5-14.
5-12 Troubleshooting

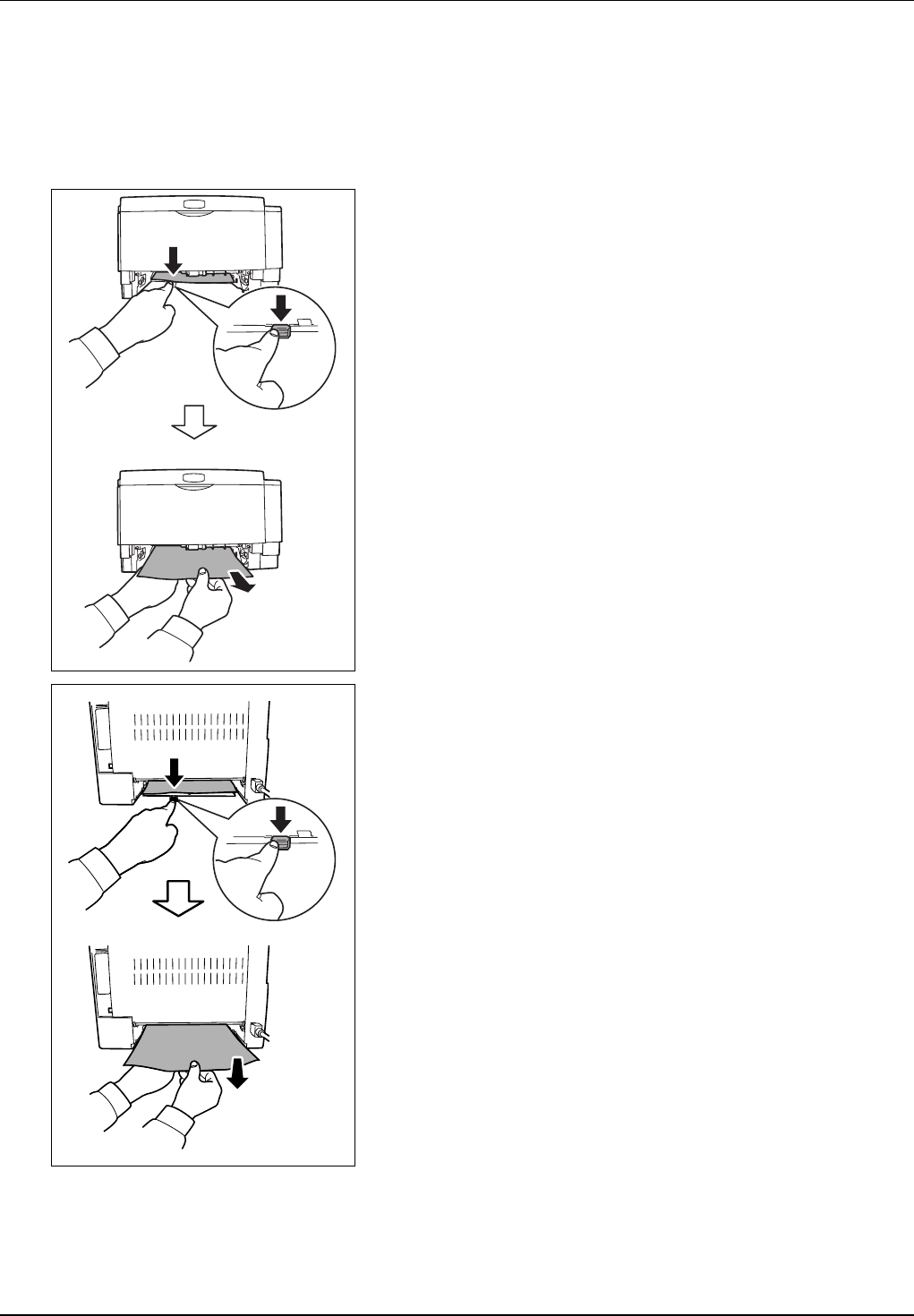

Paper Cassette/Paper Feeder
1Pull out the cassette or optional paper feeder.
2Remove any partially fed paper.
3Push the cassette back in securely. The printer warms up and
resumes printing.
IMPORTANT Do not try to remove paper that has already been
partially fed. Proceed to Inside the Printer on page 5-14.
Note Check to see if paper is loaded correctly. If not, reload
the paper.
Troubleshooting 5-13
Duplexer
Paper is jammed in the duplex section. Remove the jammed paper using
the procedure given below.
1Pull the paper cassette all the way out of the printer.
2Open the duplexer's cover in front of the printer and remove any
jammed paper.
Open the duplexer's cover at the rear of the printer and remove any
jammed paper.
3Open and close the printer's top cover to clear the error. The printer
then automatically warms up and resumes printing.
5-14 Troubleshooting
Inside the Printer
1Pull the paper cassette all the way out of the printer. Remove any
partially fed paper.
2Open the top cover and front cover, and lift the process unit together
with the toner container out of the printer.
3Remove the drum unit from the printer by holding the green levers
with both hands.
4If the jammed paper appears to be pinched by rollers, pull it along
the normal running direction of the paper.
CAUTION The fuser unit inside the printer is hot. Do not
touch it, as it may result in burn injury.
Note The drum is sensitive to light. Never expose the process
unit to light for more than five minutes.
Troubleshooting 5-15
5Return the drum unit to its position, aligning the guides at both ends
with the slots in the printer.
6Insert the process unit together with the toner container, back into
the machine. Close the top cover and the front cover. The printer
warms up and resumes printing.
5-16 Troubleshooting
Rear Cover
1If paper is not completely ejected into the output tray, open the rear
cover and remove the jammed paper by pulling it out.
If the paper is jammed inside the fuser unit, open the fuser cover
and remove the paper by pulling it out.
2Close the rear cover, and open and close the top cover to clear the
error. The printer warms up and resumes printing.
6-2 Option
General Information
The printers have the following options available to satisfy your printing
requirements.
For instructions on installing individual options, refer to the
documentation included with the option. Some options are explained in
the following sections.
Note Install the memory module before installing the optional
paper feeder (PF-100).
Expansion Memory
Module (DIMM
128/256/512 MB)
Paper Feeder PF-100
CF Card
Network Interface
Card IB-23
Option 6-3
Expansion Memory Modules
To expand the printer memory for more complex print jobs and faster
print speed, you can plug in optional memory module (dual in line
memory module) in the memory slot provided on the printer main
controller board. You can select additional memory module from 64, 128,
256 or 512MB. The maximum memory size is 576MB.
Precautions for handling the printer's main controller
board and memory module
To protect electronic parts, discharge static electricity from your body by
touching a water pipe (faucet) or other large metal object before handling
the memory module. Or, wear an antistatic wrist strap, if possible, when
you install the memory module.
Always hold the main controller board or a memory module by its edges
as shown below to avoid damaging electronic parts.
Note The expansion memory should only be installed by your
service technician. We shall not be liable for any damages caused
by improper installation of expansion memory.
Correct Incorrect
6-4 Option
Installing the Memory Module
1Turn off the printer and disconnect the power cord and printer cable.
2Remove the right cover with a coin.
3Remove the memory slot cover as shown in the figure.
4Push out the clamps on both ends of the memory socket.
5Remove the memory module from its package.
6Aligning the cutouts of the memory module with the matching keys of
the socket, carefully plug the memory module into the memory
socket until it clicks in place.
Option 6-5
7The memory module is secured to the memory socket with the
clamps.
8Reinstall the memory slot cover and the right cover.
Removing a Memory Module
To remove a memory module, remove three screws from the rear of the
printer, pull out the main controller board gently, then carefully push out
the two socket clamps. Ease the memory module out of the socket to
remove.
Testing the expanded memory
To verify that the memory module is working properly, test it by printing a
status page.
6-6 Option
PF-100 Paper Feeder
Holds approximately 250 sheets of A5 to A4/Letter and Legal size paper.
Up to one paper feeder can be attached to the bottom of the printer.
The PF-100 paper feeder allows you to add two more paper cassette to
the bottom of the printer for continuous feeding of a large volume of
paper. Each paper cassette can hold up to approximately 250 sheets of
ISO A4, ISO A5, JIS B5, Letter, or Legal size (80g/m2) paper. This feeder
is attached at the bottom of the printer as shown on the left.
Option 6-7
Network Interface Card (IB-23)
Along with the standard for the network interface on the printer, the
network interface card supports TCP/IP, IPX/SPX, NetBEUI and
AppleTalk protocols, so that the printer can be used on network
environments including Windows, Macintosh, UNIX, NetWare, etc.
The network interface card must be installed in the option interface slot
that is located at the back of the printer.

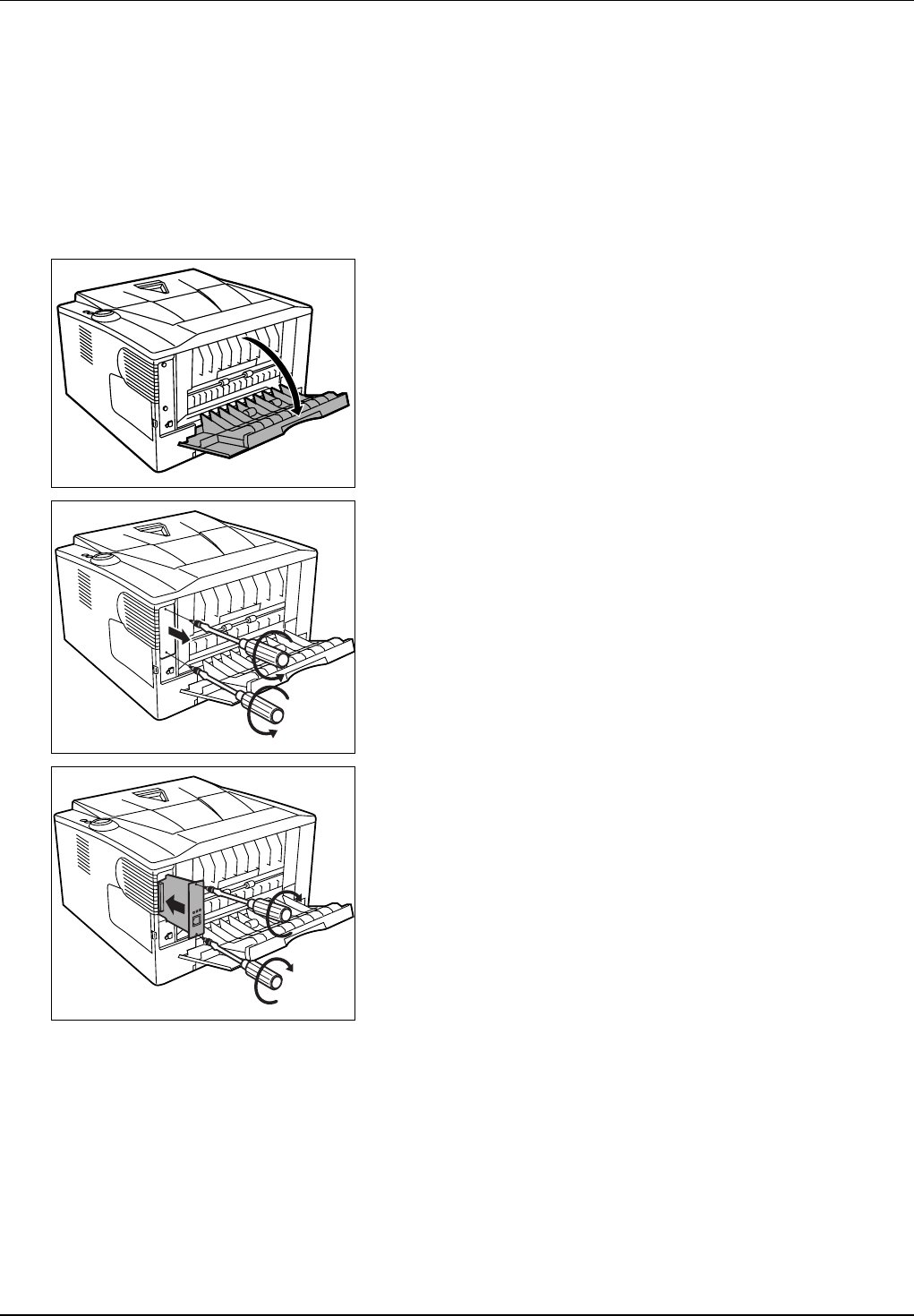

1Turn off the printer and disconnect the power cord and printer cable.
2Open the rear cover.
3Remove the option interface slot cover.
4Insert the Network Interface Card and secure it with the screws
removed in step 3.
5Close the rear cover, and connect the printer cable.
6Connect the power cord, and turn on the printer.
7Configure the network address from COMMAND CENTER. For
more information, refer to Operation Guide of the network card.
6-8 Option

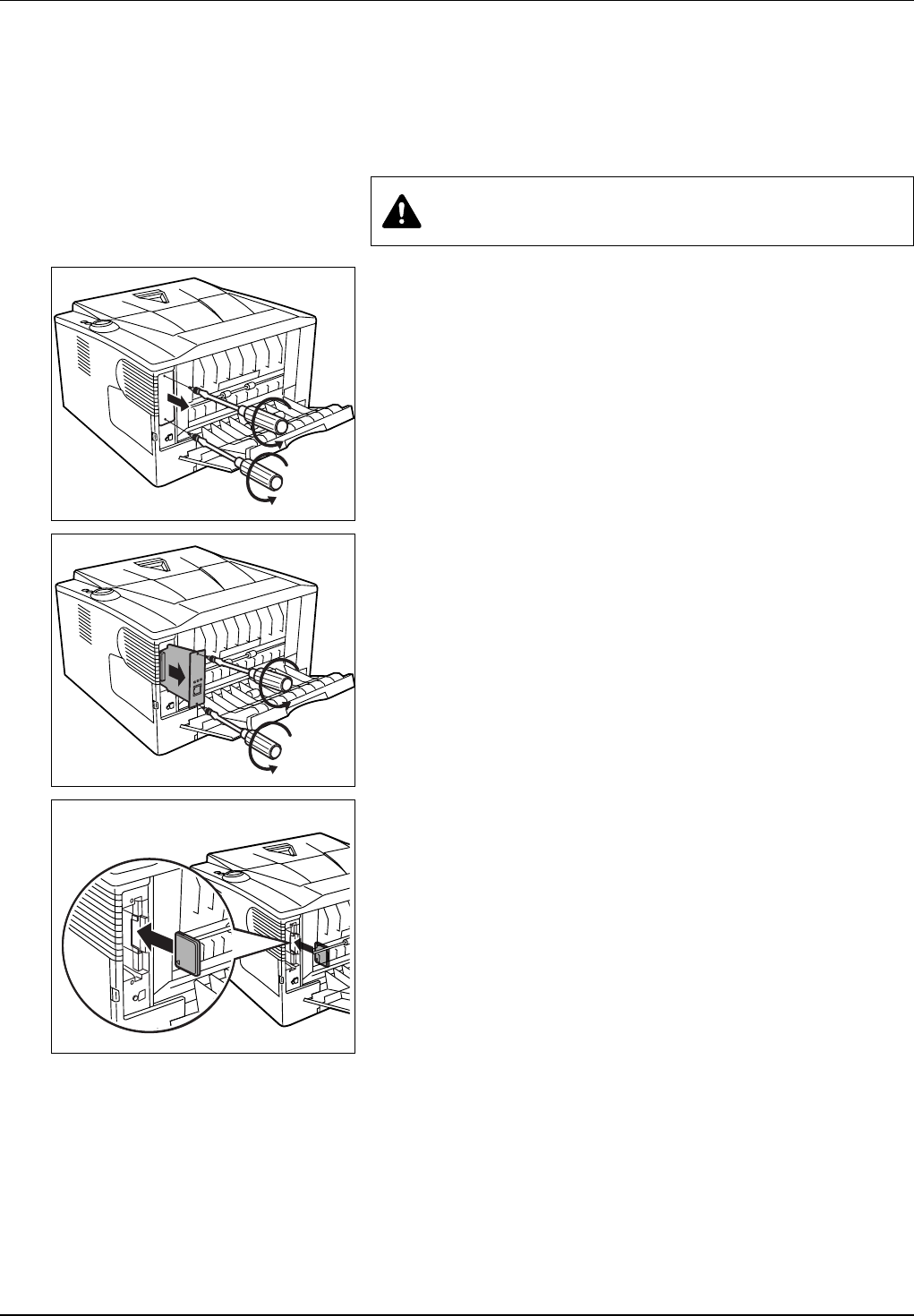

CompactFlash (CF) Card
The printer is equipped with a slot for a CF card with the maximum size
of 256MB. A CF card is useful for storing fonts, macros, and overlays.
1Turn off the printer and disconnect the power cord and printer cable.
2Remove the option interface slot cover.
When the Network Interface Card is installed, remove it.
3Insert the CF Card.
4Secure it with the screws removed in step 2.
5Connect the power cord and printer cable and turn on the printer.
CAUTION Before inserting a CF card in the printer, make
sure that the printer is switched off.
7-2 Appendix
Specifications
Note These specifications are subject to change without notice.
Item Description
FS-1100 FS-1300D
Type Desktop
Printing Method Electrophotography, laser scan
Paper Weight Cassette 60 to 120 g/m² 60 to 120 g/m² (Duplex: 60 to
105 g/m²)
MP Tray 60 to 220 g/m²
Paper Type Cassette Plain, Preprinted, Bond, Recycled, Rough, Letterhead, Color (Colour),
Prepunched, High Quality, Custom 1 to 8 (Duplex: Same as Simplex)
MP Tray Plain, Transparency, Preprinted, Labels, Bond, Recycled, Rough, Vellum,
Letterhead, Color (Colour), Prepunched, Envelope, Cardstock, Thick paper,
Coated, High Quality, Custom 1 to 8
Paper Size Cassette A4-R, JIS B5-R, A5, Follio, Legal, Letter-R, Oficio II, Statement, Executive, A6,
B6, ISO B5-R, Envelope C5, 16K, Custom 1 to 8 (148 x 210 to 216 x 356mm/4.1
x 8.3" to 8.5 x 14")
MP Tray A4-R, JIS B5-R, A5, Follio, Legal, Letter-R, Oficio II, Statement, Executive, A6,
B6, ISO B5-R, Envelope C5, Envelope #10, Envelope #9, Envelope #6-3/4,
Envelope Monarch, Envelope DL, Hagaki, Ofuku Hagaki, 16K, Yokei 2, Yokei 4,
Custom 1 to 8 (70 x 148 to 216 x 356mm/2.8 x 5.8" to 8.5 x 14")
Magnification ratio 25 to 400%, 1% increments
Printing Speed Simplex A4/Letter: 28 ppm/30 ppm
A5: 17 ppm
Duplex - A4/Letter: 14 ppm/15 ppm
First Print Time (A4, feed from
Cassette) 6 seconds or less
Warm-up Time
(22°C/71.6°F,
50%RH)
Power on 15 seconds or less
Sleep 10 seconds or less
Paper Capacity Cassette 1 250 sheets (80 g/m², 11 × 8 1/2"/A4 or smaller)
Cassette 2 250 sheets (80 g/m², 11 × 8 1/2"/A4 or smaller)
MP Tray 50 sheets (80 g/m², 11 × 8 1/2"/A4 or smaller)
Output Tray
Capacity
Simplex 250 sheets (80 g/m²)
Duplex - 200 sheets (80 g/m²)
Continuous printing 1 to 999 sheets
Resolution Fast 1200 mode, 600 dpi Fine 1200 mode
Monthly Duty Average 2,000 pages
Maximum 20,000 pages
Appendix 7-3
Environmental Standard Requirements
This machine conforms to the following environmental standard
requirements.
•Time for switching to Sleep mode (default): 15 minutes
•Duplex Printing: Standard Equipment
•Durable paper for feeding: Paper made of 100% recycled paper
NOTE: Contact your Dealer or Service Representative for recommended
paper types.
Operating
Environment
Temperature 10 to 32.5°C/50 to 90.5°F
Humidity 15 to 80 %
Altitude 2,500 m/8,202 ft maximum
Brightness 1,500 lux maximum
Controller PowerPC 405F5/360 MHz
Supported OS Windows 2000 Service Pack 2 or later, Windows Me, Windows XP, Windows
Server 2003, Apple Macintosh OS 9.x/OS X 10.x
Interface Standard Hi-Speed USB: 1
Option Network Interface Card: 1 (10BASE-T/100BASE-TX/1000BASE-T)
PDL PRESCRIBE
Memory Standard 32MB
Maximum 544MB
Dimension (W x D x H) 375 × 245 × 390 mm
23 13/16 × 25 3/8 × 29 5/16"
Weight (without toner container) 10 kg/215.6 lb
Power Source 1500 W
Power Consumption 120 V AC, 60 Hz, 12.0 A/220 to 240 V AC, 50 Hz, 7.2 A
Options Expanded memory, Paper Feeder
(250-sheet x 2), Network Interface
Card (IB-23)
Expanded memory, Paper Feeder
(250-sheet x 1), Network Interface
Card (IB-23)
Operating noise
(in accordance
with ISO7779
[Bystander
Position, sound
pressure level at
the front])
During printing LpA = 53dB (A)
During standby LpA = 30 dB (A)
During sleep
mode immeasurably low
Item Description
FS-1100 FS-1300D
7-4 Appendix
Index-1
Index
Numerics
3000 sheet document finisher ..........................................4-9
3000 sheet paper feeder ..................................................4-3
Loading paper ................................................2-11, 2-14
Adhesive label .................................................................2-7
Ǫ
Casette
paper size .................................................................2-4
Cassette
basis weight ..............................................................2-5
Cassette 1 ................................................................1-2
ÇÎ
Cleaning
Original platen, platen ...............................................5-2
Document processor ................................................5-3
Çø
Colored paper ..................................................................2-9
Conventions in this guide ..................................................xxi
Copy
Basic copying procedures ........................................3-2
D
DIMM ...............................................................................6-2
Document finisher ............................................................4-6
Document processor
Cleaning ...................................................................5-3
E
CFÉJÅ .............................................................................6-2
ÉÅÉÇÉäÉJÅ ....................................................................6-2
ÉlÉbÉgÉèÅ ......................................................................6-2
Energy Star program .........................................................xiv
Envelope ..........................................................................2-8
Environmental specifications ...........................................7-3
ÉyÅ ..................................................................................6-2
F
Front cover .......................................................................1-3
I
Installation precautions .................................................... xvi
J
Job separator ...................................................................4-9
L
Label ................................................................................2-7
Left cover 1 ......................................................................1-3
Left cover 2 ......................................................................1-3
Legal and safety information
Automatic 2-sided copy function ............................... xiv
Energy saving control function .................................. xiv
Energy Star program ................................................. xiv
Installation precautions ............................................. xvi
Paper recycling ......................................................... xiv
Precautions for use ..................................................xviii
M
Main power switch ...........................................................3-3
Maintenance ....................................................................5-1
MP tray .............................................................................1-2
basis weight ..............................................................2-5
minimum and maximum paper sizes ........................2-3
paper sizes ...............................................................2-4
paper type ...............................................................2-10
MP tray extension ............................................................1-2
N
Names
Body ..........................................................................1-2
Operation panel ........................................................1-4
Touch panel ...................................................... 1-5, 1-6
O
Operation panel ....................................................... 1-2, 1-4
Option
3000 sheet document finisher ...................................4-9
3000 sheet paper feeder ...........................................4-3
Document finisher .....................................................4-6
Job separator ............................................................4-9
Overview of optional equipment ...............................4-2
Paper feeder .............................................................4-2
Original platen ..................................................................1-2
Cleaning ....................................................................5-2
Original size indicator plates ............................................1-2
