KYUNGWOO SYSTECH A232 SMART KEY TAG User Manual 1

KYUNGWOO SYSTECH INC. SMART KEY TAG 1

Users Manual

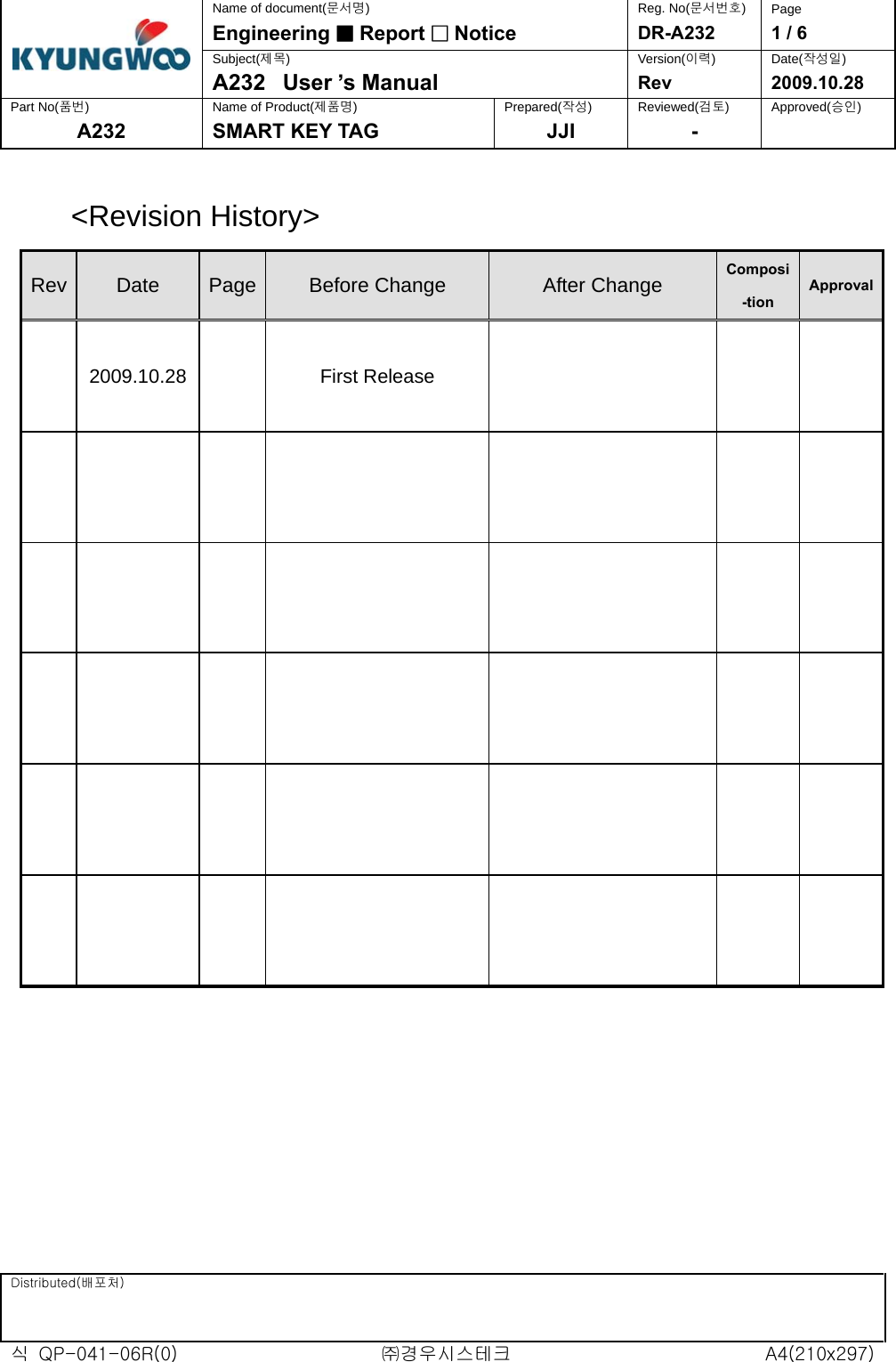

Distributed(배포처) 식 QP-041-06R(0) ㈜경우시스테크 A4(210x297) Name of document(문서명) Reg. No(문서번호) Page Engineering ■ Report □ Notice DR-A232 1 / 6 Subject(제목) Version(이력) Date(작성일) A232 User ’s Manual Rev 2009.10.28 Part No(품번) Name of Product(제품명) Prepared(작성) Reviewed(검토) Approved(승인) A232 SMART KEY TAG JJI - <Revision History> Rev Date Page Before Change After Change Composi-tion Approval 2009.10.28 First Release

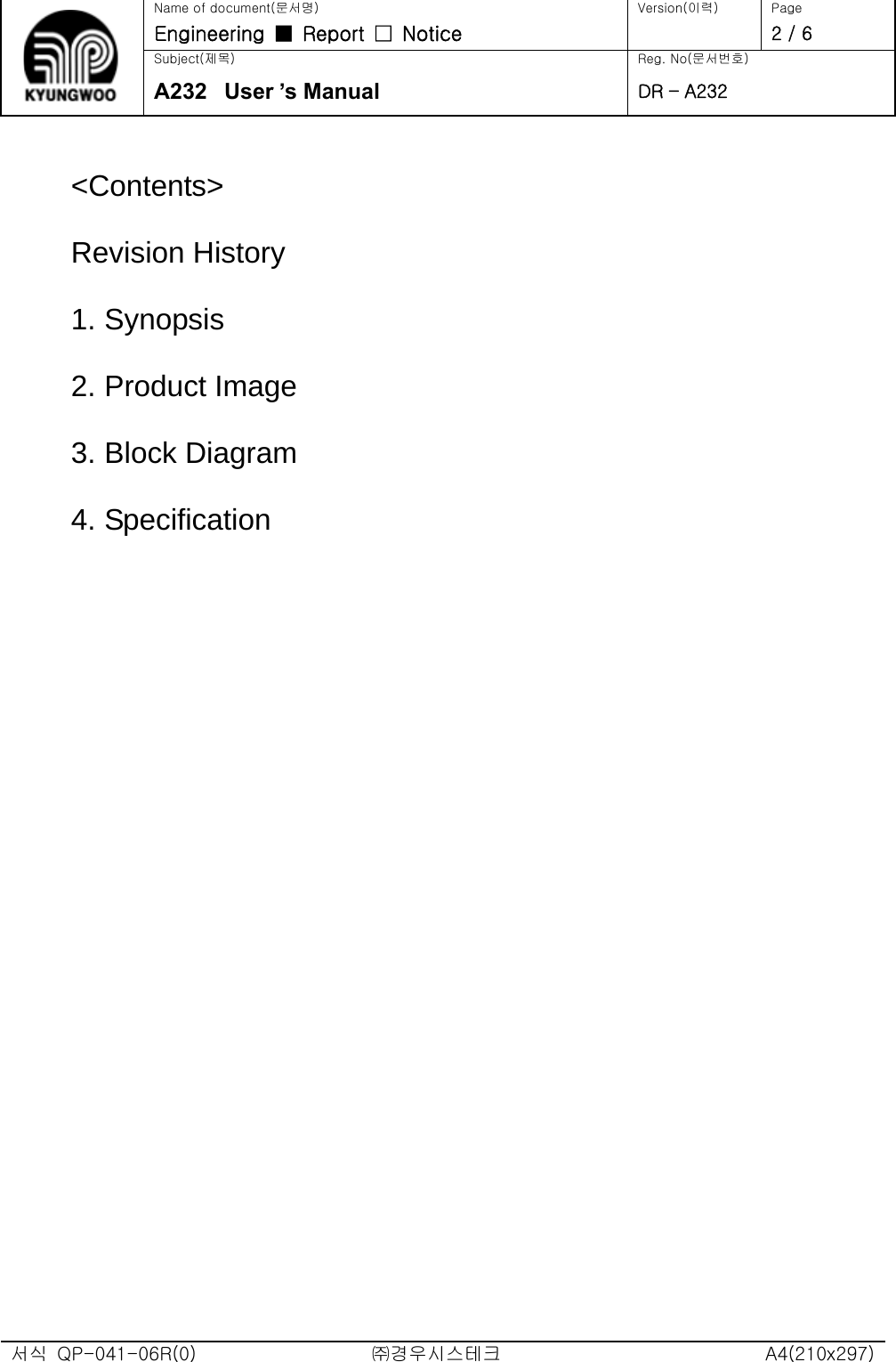

Name of document(문서명) Version(이력) Page Engineering ■ Report □ Notice 2 / 6 Subject(제목) Reg. No(문서번호) A232 User ’s Manual DR – A232 <Contents> Revision History 1. Synopsis 2. Product Image 3. Block Diagram 4. Specification 서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297)

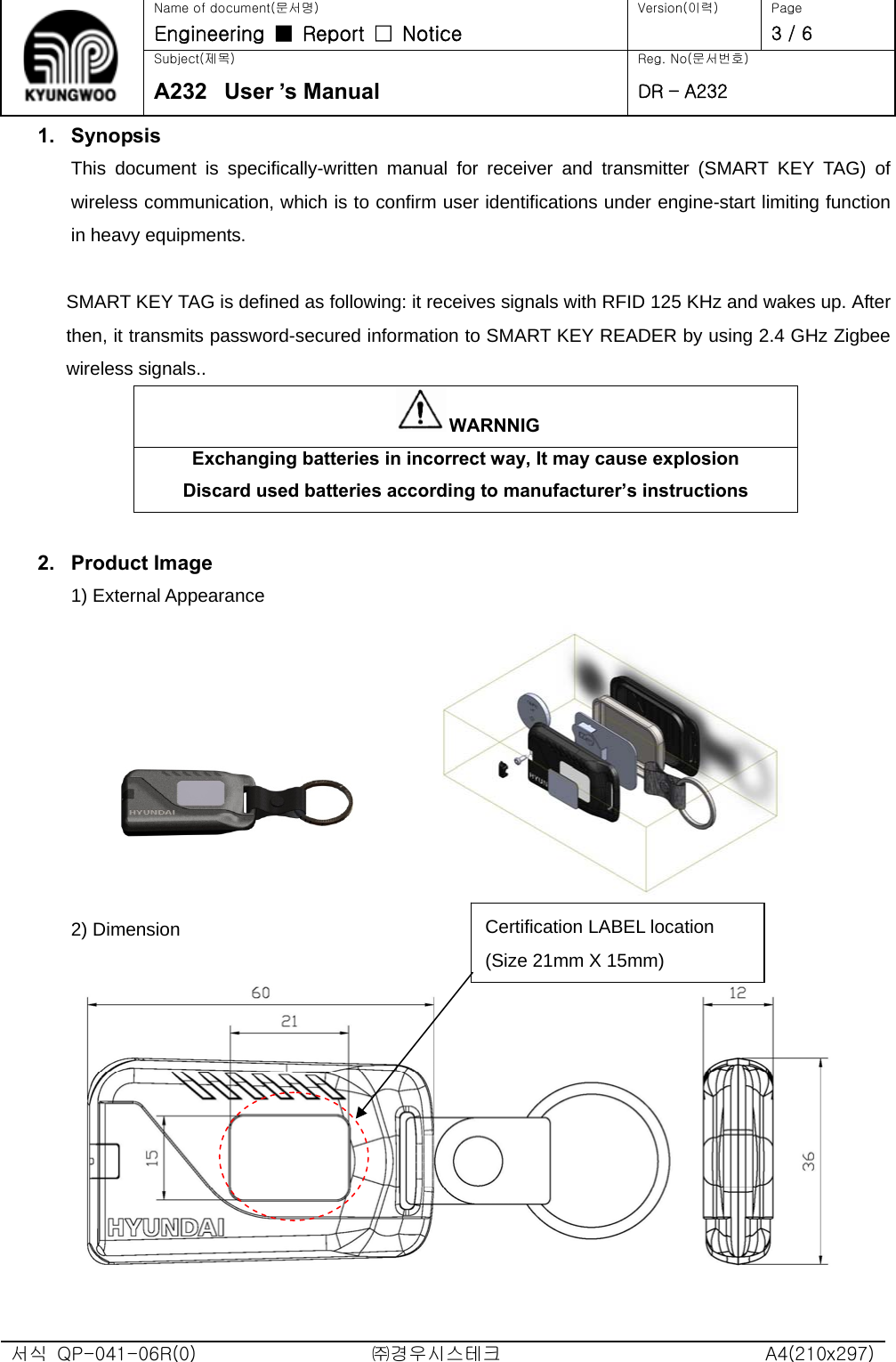

Name of document(문서명) Version(이력) Page Engineering ■ Report □ Notice 3 / 6 Subject(제목) Reg. No(문서번호) A232 User ’s Manual DR – A232 서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297) 1. Synopsis This document is specifically-written manual for receiver and transmitter (SMART KEY TAG) of wireless communication, which is to confirm user identifications under engine-start limiting function in heavy equipments. SMART KEY TAG is defined as following: it receives signals with RFID 125 KHz and wakes up. After then, it transmits password-secured information to SMART KEY READER by using 2.4 GHz Zigbee wireless signals.. WARNNIG Exchanging batteries in incorrect way, It may cause explosion Discard used batteries according to manufacturer’s instructions 2. Product Image 1) External Appearance 2) Dimension Certification LABEL location (Size 21mm X 15mm)
Name of document(문서명) Version(이력) Page Engineering ■ Report □ Notice 4 / 6 Subject(제목) Reg. No(문서번호) A232 User ’s Manual DR – A232 3. Block Diagram 4. Specification 4.1. Operating Specification -. Must wake up the remote control by providing electricity with RFID 125 KHz. -. Must be operating with CR2032 battery. -. Must be able to transfer password-secured signals. -. Must be able to use all 16 channels with Zigbee band of 2405 to 2480MHz. 4.2. Power Specification -. 3 V d.c. (CR 2032 Lithium Battery) -. Notice : Inserting opposite polarity of battery may cause explosion or damage to product (Please match battery polarity with battery holder) 4.3. General Specification -. Storage Temperature: -20℃ ~ 70℃ -. Operating Temperature: -10℃ ~ 60℃ -. Water-Proof Specification: IP54 (Living Water-Proof) -. Material of Device: PC (Flame Class: V2, Manufacturer : SABIC Innovative Plastics) 서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297)
서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297) Name of document(문서명) Version(이력) Page Engineering ■ Report □ Notice 5 / 6 Subject(제목) Reg. No(문서번호) A232 User ’s Manual DR – A232 -. PCB material object/part No. manufacturer/ trademark type/model technical data standard mark(s) of conformity1) SMK TAG B/D PCB WOOMYUNG ELEC CO SKD V-0 ; 105 °C UL 796 UL 4.4. RF Specification Item Specification Wireless Data Communication System Operating Frequency 2405 ~ 2480MHz (16 Channals) RF Power Under 10mW Modulation Method QQPSK Tested Temperature -20 ~ 50℃ FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

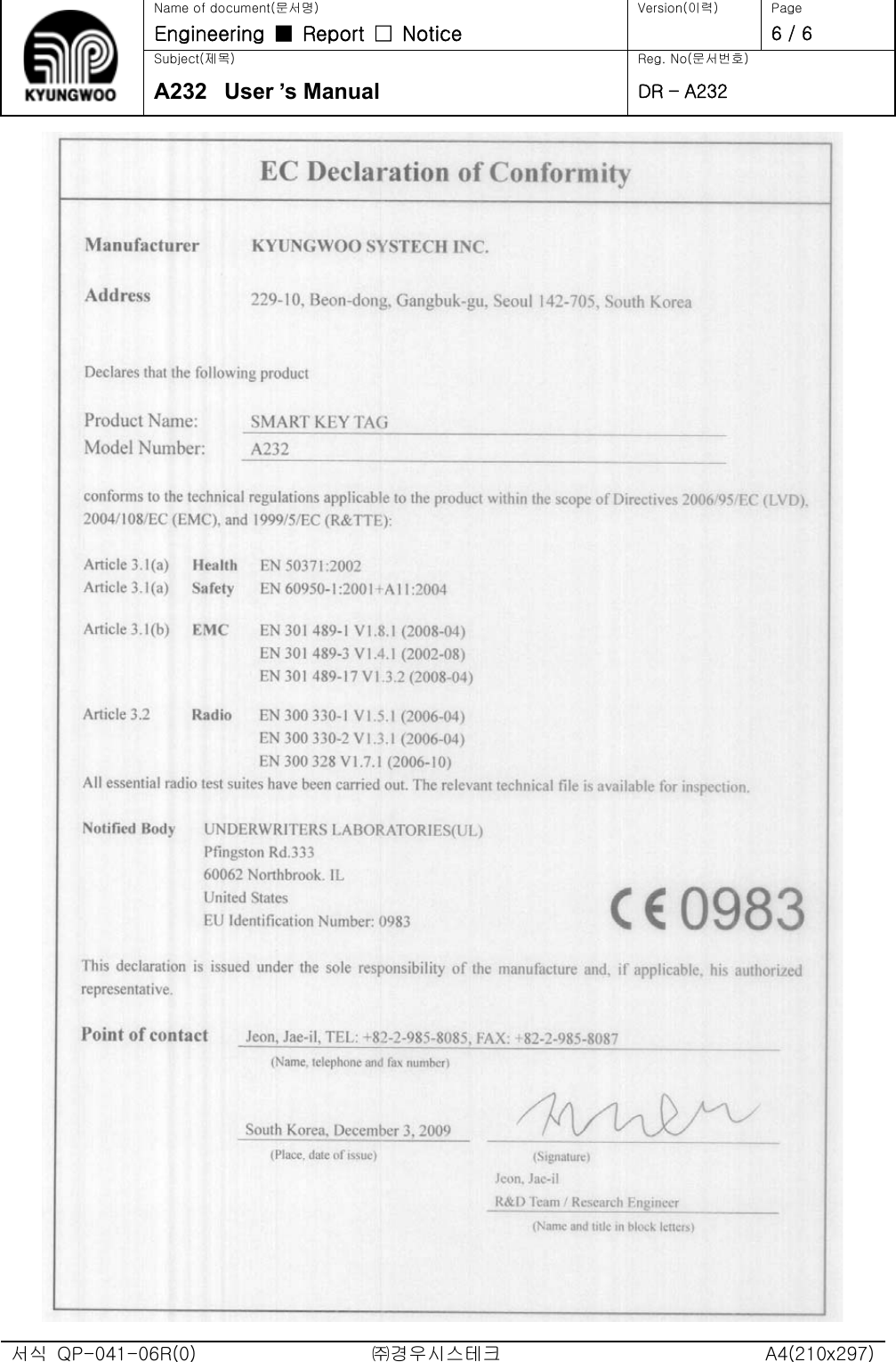

서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297) Name of document(문서명) Version(이력) Page Engineering ■ Report □ Notice 6 / 6 Subject(제목) Reg. No(문서번호) A232 User ’s Manual DR – A232
