1. Synopsis
This document is specifically-written manual for receiver and transmitter (SMART KEY TAG) of
wireless communication, which is to confirm user identifications under engine-start limiting function
in heavy equipments.
SMART KEY TAG is defined as following: it receives signals with RFID 125 KHz and wakes up. After
then, it transmits password-secured information to SMART KEY READER by using 2.4 GHz Zigbee
wireless signals..
WARNNIG
Exchanging batteries in incorrect way, It may cause explosion
Discard used batteries according to manufacturer’s instructions
2. Product Image

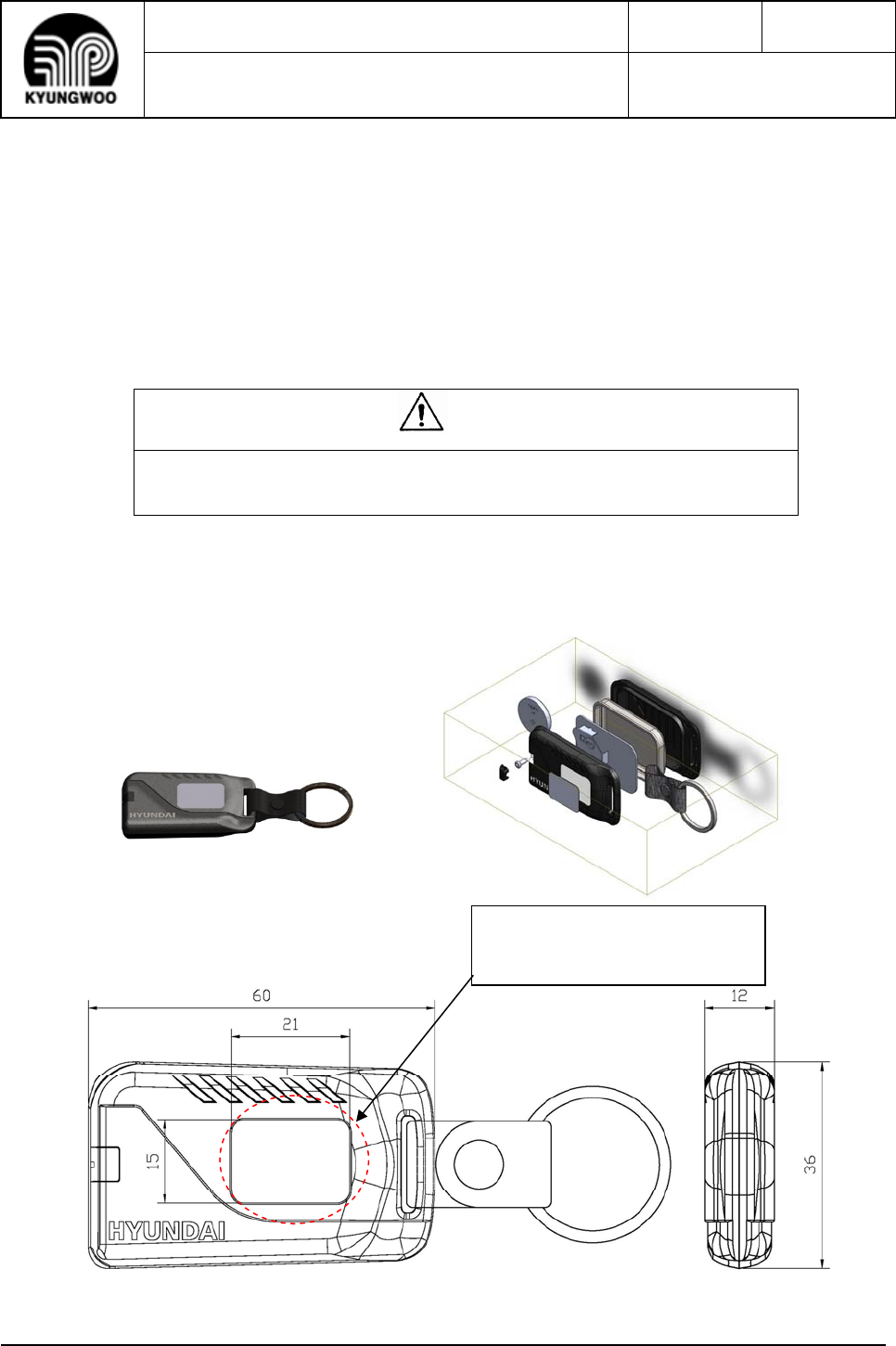

1) External Appearance
2) Dimension
Certification LABEL location
(Size 21mm X 15mm)
Name of document(문서명) Version(이력) Page
Engineering ■ Report □ Notice 4 / 6
Subject(제목) Reg. No(문서번호)
A232 User ’s Manual DR – A232

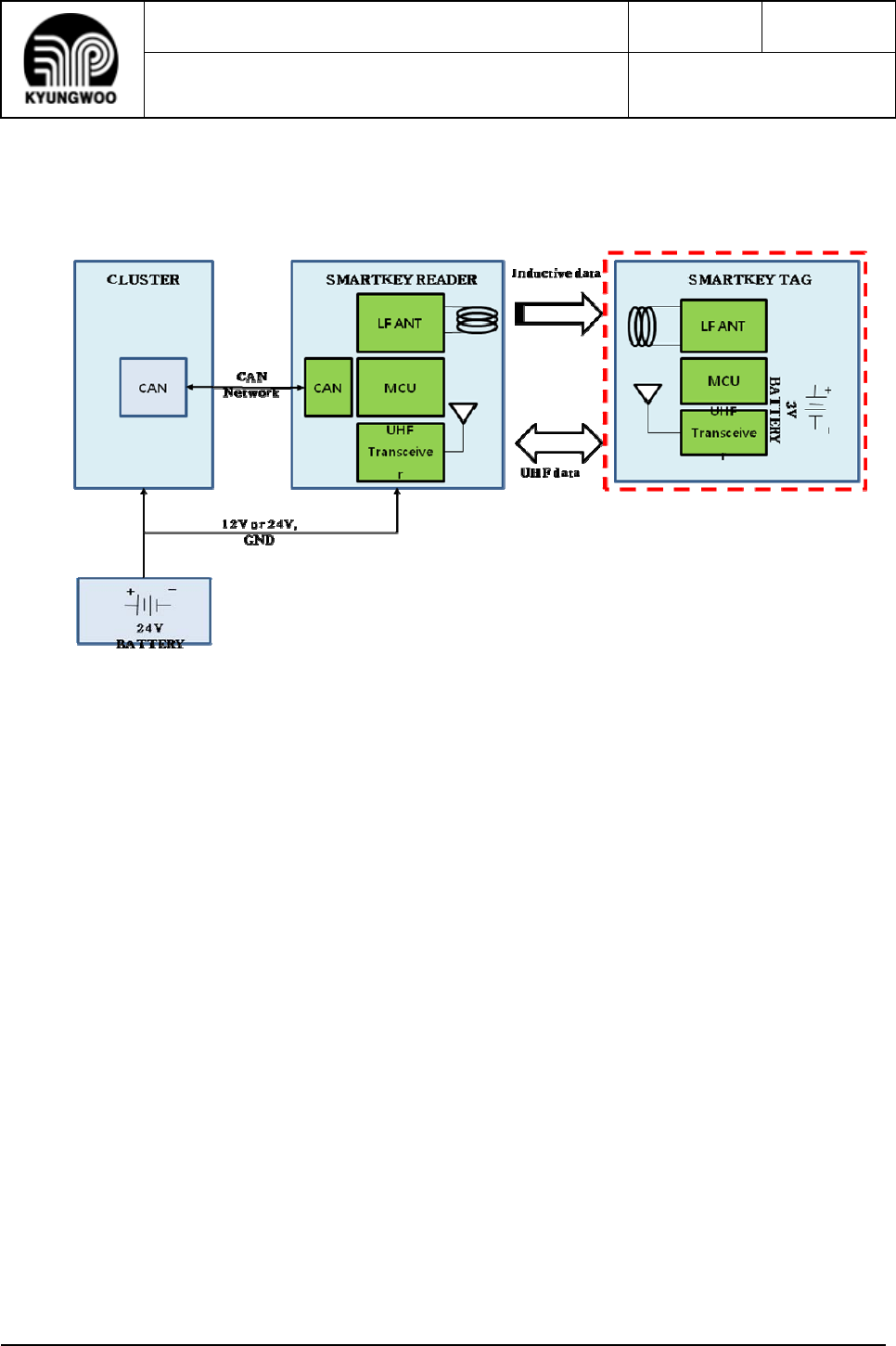

3. Block Diagram
4. Specification
4.1. Operating Specification
-. Must wake up the remote control by providing electricity with RFID 125 KHz.
-. Must be operating with CR2032 battery.
-. Must be able to transfer password-secured signals.
-. Must be able to use all 16 channels with Zigbee band of 2405 to 2480MHz.
4.2. Power Specification
-. 3 V d.c. (CR 2032 Lithium Battery)
-. Notice : Inserting opposite polarity of battery may cause explosion or damage to product
(Please match battery polarity with battery holder)
4.3. General Specification
-. Storage Temperature: -20℃ ~ 70℃
-. Operating Temperature: -10℃ ~ 60℃
-. Water-Proof Specification: IP54 (Living Water-Proof)
-. Material of Device: PC (Flame Class: V2, Manufacturer : SABIC Innovative Plastics)
서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297)
서식 QP-041-06R(0) ㈜경우시스테크 A4(210x297)
Name of document(문서명) Version(이력) Page
Engineering ■ Report □ Notice 5 / 6
Subject(제목) Reg. No(문서번호)
A232 User ’s Manual DR – A232
-. PCB material
object/part No.
manufacturer/
trademark
type/model technical data standard
mark(s) of
conformity1)
SMK TAG B/D
PCB
WOOMYUNG ELEC
CO SKD V-0 ; 105 °C UL 796 UL
4.4. RF Specification
Item Specification
Wireless Data
Communication
System
Operating Frequency 2405 ~ 2480MHz (16 Channals)
RF Power Under 10mW
Modulation Method QQPSK
Tested Temperature -20 ~ 50℃

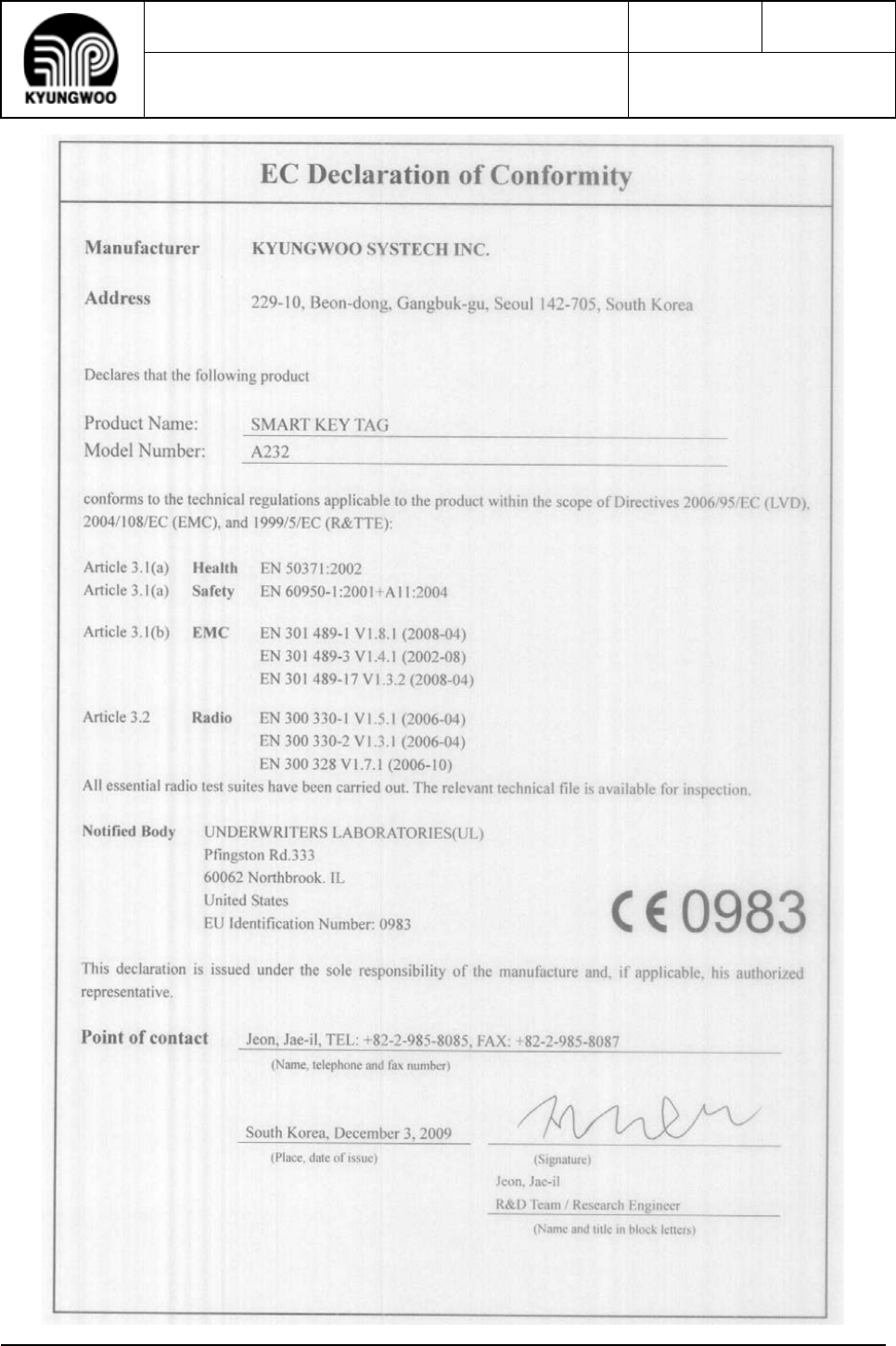

FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
To comply with RF exposure compliance requirements, the antenna used for this transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
