Kan Tsang New Technology Development 3089 Bluetooth Digital Clock Radio User Manual
Kan Tsang Technology Ltd Bluetooth Digital Clock Radio
User Manual

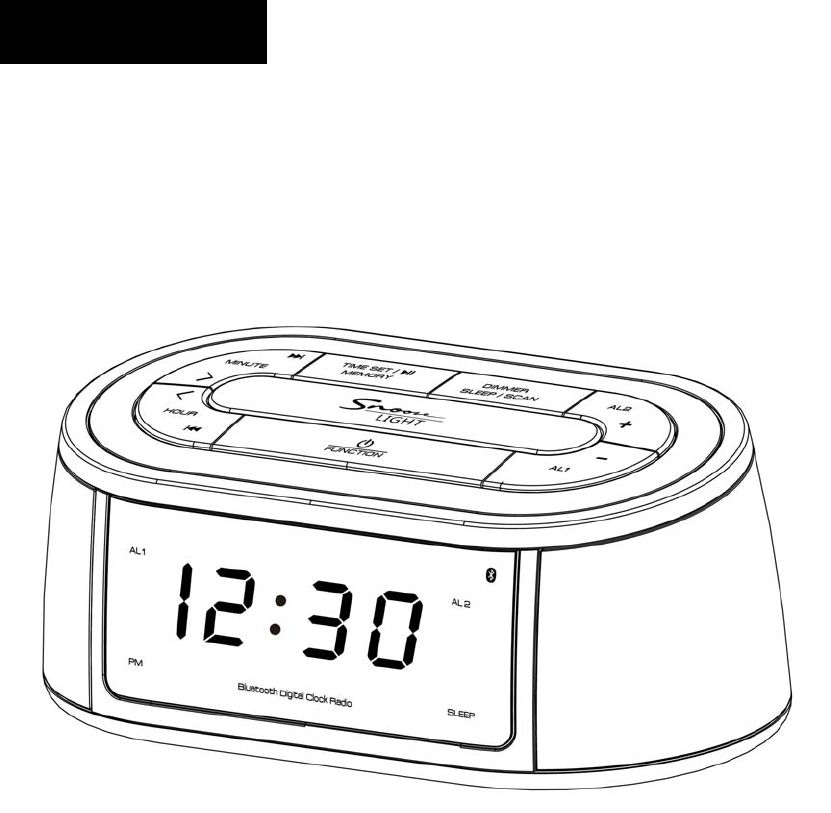

BRANDNAME
KT-3089BTUBTUBTU
DIGITAL DUALALARM FM CLOCK
RADIO WITH BLUETOOTH AND DUAL USB
CHARGING PORT
INSTRUCTION MANUAL
Thank you for buying Brandname’s product. Read this manual carefully to
get the best performance from this unit.
IMPORTANT
Read these instructions.
Heed all warnings.
Follow all instructions.
Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
clock radio.
Only use attachments/accessories specified by the manufacturer.
Unplug this clock radio during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the clock radio has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the clock radio, the clock radio has been expose to rain or moisture, does
not operate normally, or has been dropped.
This clock radio shall not be exposed to dripping or splashing.
Do not place any sources of danger on the clock radio (e.g. liquid filled
objects, lighted candles).
Attention should be drawn to the environmental aspects of battery disposal.
Don’t throw used batteries in dustbin. Please contact your retailer in order
to protect the environment.
Minimum distances around the apparatus for sufficient ventilations( exact
distance of e.g.5 cm should be mentioned);
The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
No naked flame sources such as lighted candles should be placed on the
apparatus;
The use of apparatus in tropical and /or moderate climates.
Attention for adaptor:
a. The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on apparatus.
b. To be completely disconnection the power input, the AC/DC adaptor of
apparatus shall be disconnected from the mains.
c. The AC/DC adaptor of apparatus should not be obstructed OR should be
easily accessed during intended use.
d. The marking information is located at the bottom of apparatus.
e. Battery shall not be exposed to excessive heat such as sunshine, fire or the
like.
Electrical products should not be disposal of with household waste. Please
recycle where facilities exist. Check with your Local Authority of retailer for
recycling device.
(Batteries pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.

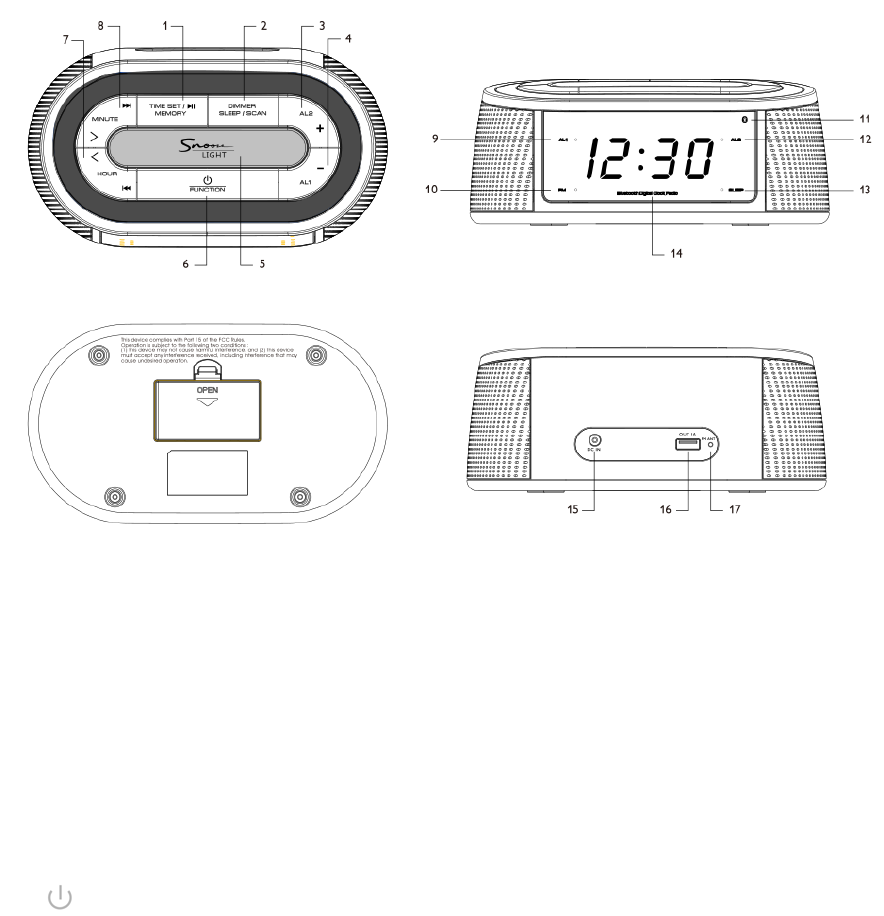

LOCATION OF CONTROL
1. TIME SET / MEMORY /PLAY/PAUSE 9. AL1 INDICATOR
2. DIMMER/ SLEEP/ SCAN 10. PM INDICATOR
3. VOLUME + / AL2 11. BLUE TOOTH INDICATOR
4. VOLUME - / AL1 12. AL2 INDICATOR
5. SNOOZE / NIGHT LIGHT 13. SLEEP INDICATOR
6. / FUNCTION 14. DIGITAL DISPLAY
7. TUNING DOWN / HOUR / SKIP BACKWARD 15. DC INPUT
8. TUNING UP / MINUTE / SKIP FORWARD 16. USB OUT 1A
17. FM ANTENNA WIRE
CONNECT POWER
CAUTION
Risk of product damage! Ensure that the power voltage corresponds to the
voltage printed on the back or underside of the clock radio.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from
the socket. Never pull the cord.
BOTTOM OF SET
Battery compartment for 1.5 volt (LR6, UM-3, AA) battery 2pcs. (not included) for temporary
time storage.
SET TIME
1. Press and hold TIME SET for two seconds.
2. Preset 24 shows 24 hour mode .
3. Press TUNING ＾﹀to select 24 or 12 hour mode .
4. Press TIME SET to confirm 24 or 12 hour mode .
[0:00] Hour digit is blink or [12:00] Hour digit is blink. .
5. Press TUNING ＾to set hour.
6. Press TUNING ﹀ to set minute .
7. Press TIME SET again to confirm setting or the setting will be confirmed automatically if no
button is used within 3 seconds.
LISTEN TO FM RADIO
For better reception, fully extend and adjust the position of the FM antenna
wire.
1. Press the / FUNCTION to turn on FM radio.
[FM frequency] is displayed and FM indicator is light up.
2. Press the SCAN/TUNING ＾﹀for two seconds.
The FM Tuner tunes to a station with strong reception automatically.
To search for a radio station manually :
Press the TUNING ﹀＾ repeatedly to tune to a radio station
STORE FM RADIO STATIONS
You can store up to 20 FM radio stations in preset channel automatically or
manually.
STORE FM RADIO STATIONS AUTOMATICALLY (AUTO SCAN)
1. Press the / FUNCTION to turn on FM radio.
2. Press the SCAN for two seconds.
The received stations are automatically stored to preset numbers.
STORE FM RADIO STATIONS MANUALLY.
1. Tune to an FM radio station.
2. Press the MEMORY TIME SET to activate the storing mode.
3. Press the TUNING ＾﹀ to select the preset number.
4. Press the MEMORY TIME SET again to store the radio station .
[P 01 ~ P 20] is preset station numbers.
If this position is occupied, the previous stored frequency will be
displayed ;
To remove a pre-stored FM radio station, store another station in its
place.
LISTEN TO A PRESET FM RADIO STATION
1.In FM mode, press MEMORY TIME SET to select a preset number.
2. Press the TUNING ＾﹀to select preset station .
Note
The digit display return to clock display if no buttons is pressed for 10 seconds
LISTEN TO BLUETOOTH WIRELESS MUSIC STEAMING
1. Press / FUNCTION to Bluetooth mode.
2. [bt] displays on the screen.
3. Bluetooth indicator flashes quickly to wait for Bluetooth enabled device /
smartphone to pair it.
4. On Bluetooth function at Bluetooth enable device / smartphone.
5. Scan KT-3088BTU as device name.
6. Select KT-3088BTU on device name list.
7. Bluetooth indicator flash slowly after pairing and connecting.
8. Playback music or multi-media audio source at the devices / smartphone.
9. Press Volume + / - or adjust volume level at the devices / smartphone to
desire level.
10.Press Backward skip to select previous song.
11. Press Forward skip to select next song.
12.Press Play/Pause to play or pause the song is being played back.
Note
The digit display returns to clock display if no buttons is pressed for 10
seconds
SET ALARM TIMER
Make sure that you have set the clock correctly.
You can set two separate alarm timers. For the alarm sound, you can select
the FM radio or the buzzer.
1. Press / SCAN to Clock mode.
2. Press and hold AL1/AL2 for two seconds.
[0:00] Hour digit is blink.
3. Press TUNING ＾ to set the alarm hour and TUNING ﹀to set the alarm
minute.
4. Press AL1/AL2 to confirm setting .
5. Press AL1/AL2 again to select a sound source: FM or BUZZER.
The current FM radio frequency is blink if FM radio source is selected
and AL1 / AL2 indicator is light up.
[bb] is blink if the buzzer sound is selected and AL1 / AL2 indicator is
light up.
Press AL1/AL2 to off alarm function and AL1/AL2 indicator is off.
Press TIME SET to confirm setting or the setting will be confirmed
automatically if no button is used within 3 seconds.
SNOOZE / NIGHT LIGHT ON/OFF
1. When alarm sounds, press SNOOZE to activate the snooze time 9 minutes.
The AL1 / AL2 indicator keeps blinking.
2. Press Snooze / Night Light button to on and off the Night Light except
during alarm sounds.
SET SLEEP TIMER
1. Press /SCANtoradiomode.
2. Press SNOOZE/DIMMER/SLEEP multi-function button repeatedly to select
the sleep timer period (in minutes).
When the sleep timer is activated, Sleep indicator is light on.
To deactivate the sleep timer, press SNOOZE/DIMMER/SLEEP multi-function
button repeatedly until back to radio frequency.
Sleep Timer period circle as follow :
120 > 90 > 60 > 45 >30>15>05
OFF
ADJUST VOLUME
While listening, press + VOLUME – to adjust volume.
ADJUST DISPLAY BRIGHTNESS
Press and hold DIMMER for 2 seconds repeatedly to select high or low brightness levels.
Plug the unit into the USB port on your computer or into a USB power adaptor (not
included) using the included USB cable.
BATTERY BACK-UP
(For Temporary Time Storage Only)
Install 2 x LR06, AA or EU-3 battery (not included) according to polarity shown inside the
battery compartment. In the event of a power interruption, your set will not work normally
from the mains supply but there is now the advantage that your clock will continue to work.
The clock display will not light up, as the clock time will be held in the memory. This also
enables you to move the set from place to place without re-setting the clock every time. The
battery back-up system is only meant to be used from short temporary power interruption.
For longer durations, the battery may become exhausted or there may be some deviation in
accuracy. When the battery is exhausted, it should be removed from the set to prevent
leakage. If you do not wish to take advantage of the battery back-up system, your set will
work normally without a battery. However, if disconnected from the mains, the clock figures
will flash when the mains are re-connected and you must re-set the clock as described in the
Electronic Clock Operation paragraph.
Attention should be drawn to the environmental aspects of battery disposal. Don’t throw used
batteries in dustbin. Please contact your retailer in order to protect the environment.
Attention should be drawn to the environmental aspects of battery disposal.
Electrical products should not be disposal of with household waste. Please recycle where
facilities exist. Check with your Local Authority of retailer for recycling device.
(Batteries pack or batteries installed) shall not be exposed to excessive heat such as sunshine,
fire or the like.
SPECIFICATION
Power Source : 100-240V ~50/60Hz
Tuner Range :FM 87.5-108.0MHz
USB Charging : DC 5V, 1A X 1
Power Consumption : 5W
Product information is subject to change without prior notice.
FCC Cautions:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
‧Reorient or relocate the receiving antenna.
‧Increase the separation between the equipment and receiver.
‧Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
‧Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
