Kanto Living 2YEKN001 BLUETOOTH SPEAKER User Manual

Kanto Distribution Inc. BLUETOOTH SPEAKER

User Manual

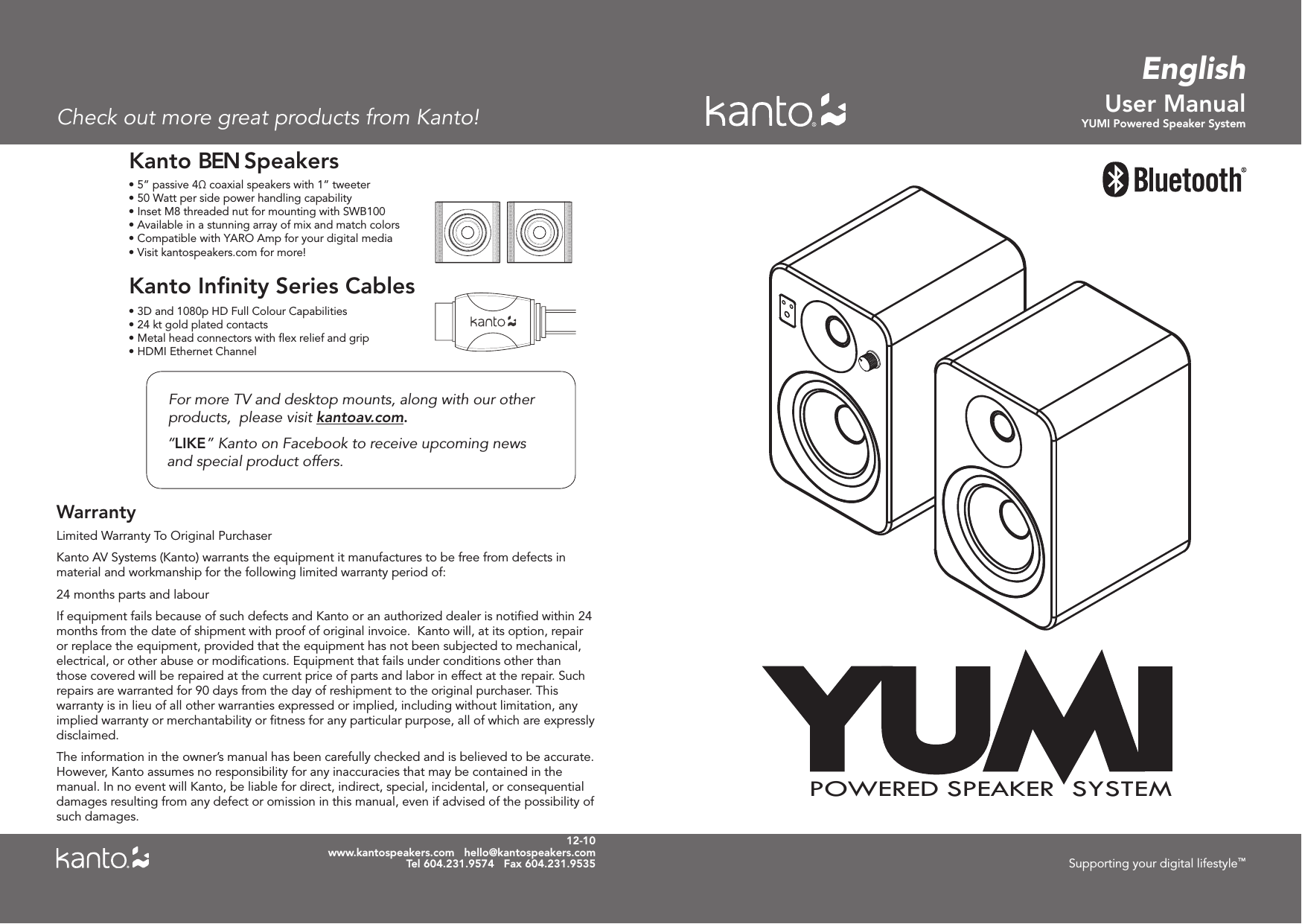

User ManualYUMI Powered Speaker Systemwww.kantospeakers.com hello@kantospeakers.comTel 604.231.9574 Fax 604.231.9535 Supporting your digital lifestyle™Limited Warranty To Original PurchaserKanto AV Systems (Kanto) warrants the equipment it manufactures to be free from defects in material and workmanship for the following limited warranty period of:24 months parts and labourIf equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice. Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the repair. Such repairs are warranted for 90 days from the day of reshipment to the original purchaser. This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all of which are expressly disclaimed. The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.WarrantyFor more TV and desktop mounts, along with our other products, please visit kantoav.com.“LIKE” Kanto on Facebook to receive upcoming news and special product offers.• 5” passive 4Ω coaxial speakers with 1” tweeter• 50 Watt per side power handling capability• Inset M8 threaded nut for mounting with SWB100• Available in a stunning array of mix and match colors• Compatible with YARO Amp for your digital media Kanto BEN Speakers• 3D and 1080p HD Full Colour Capabilities• 24 kt gold plated contacts• HDMI Ethernet ChannelKanto Infinity Series Cables• Metal head connectors with flex relief and grip• Visit kantospeakers.com for more! 12-10EnglishCheck out more great products from Kanto!YUMIPOWERED SPEAKER SYSTEM

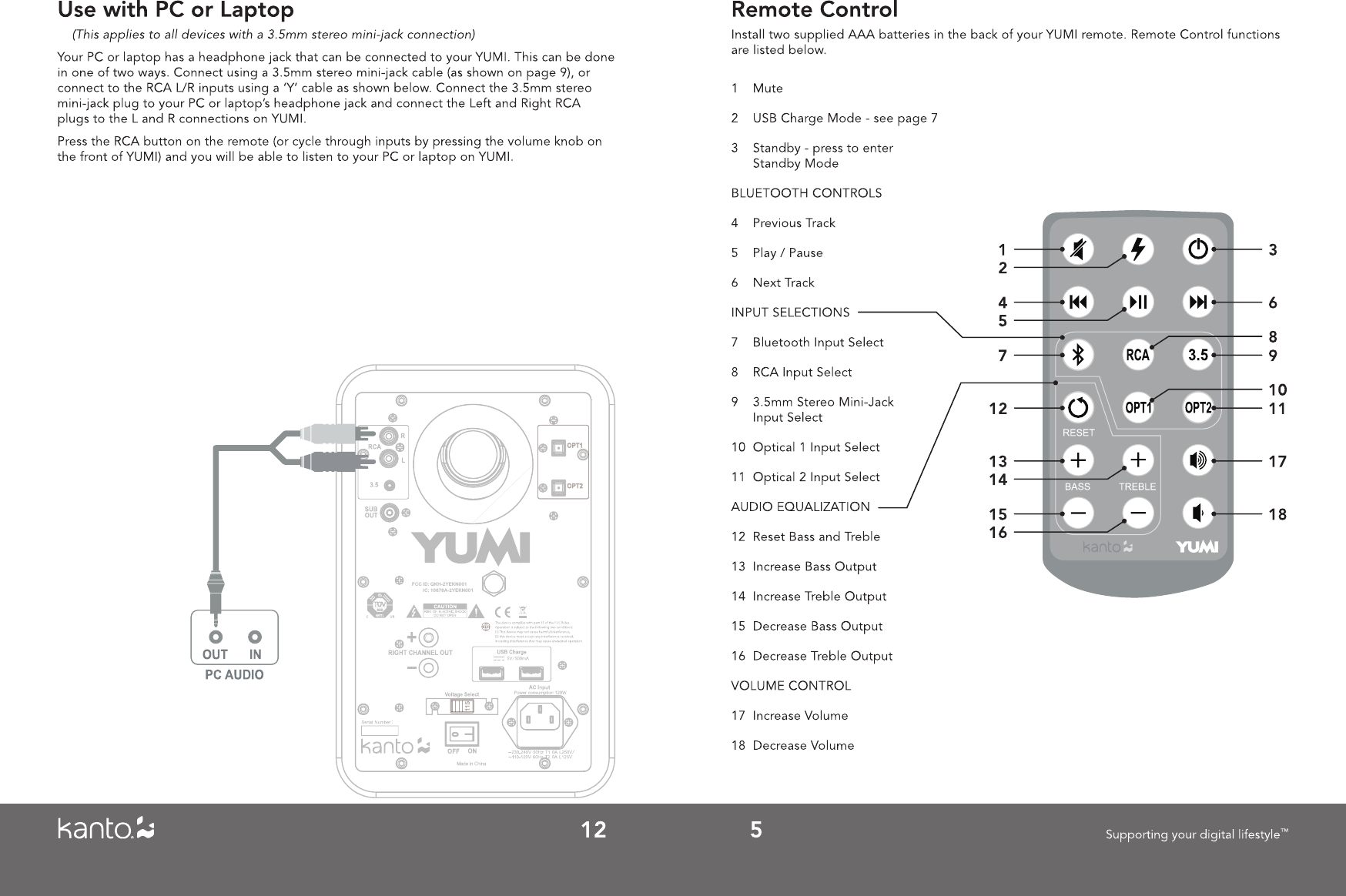

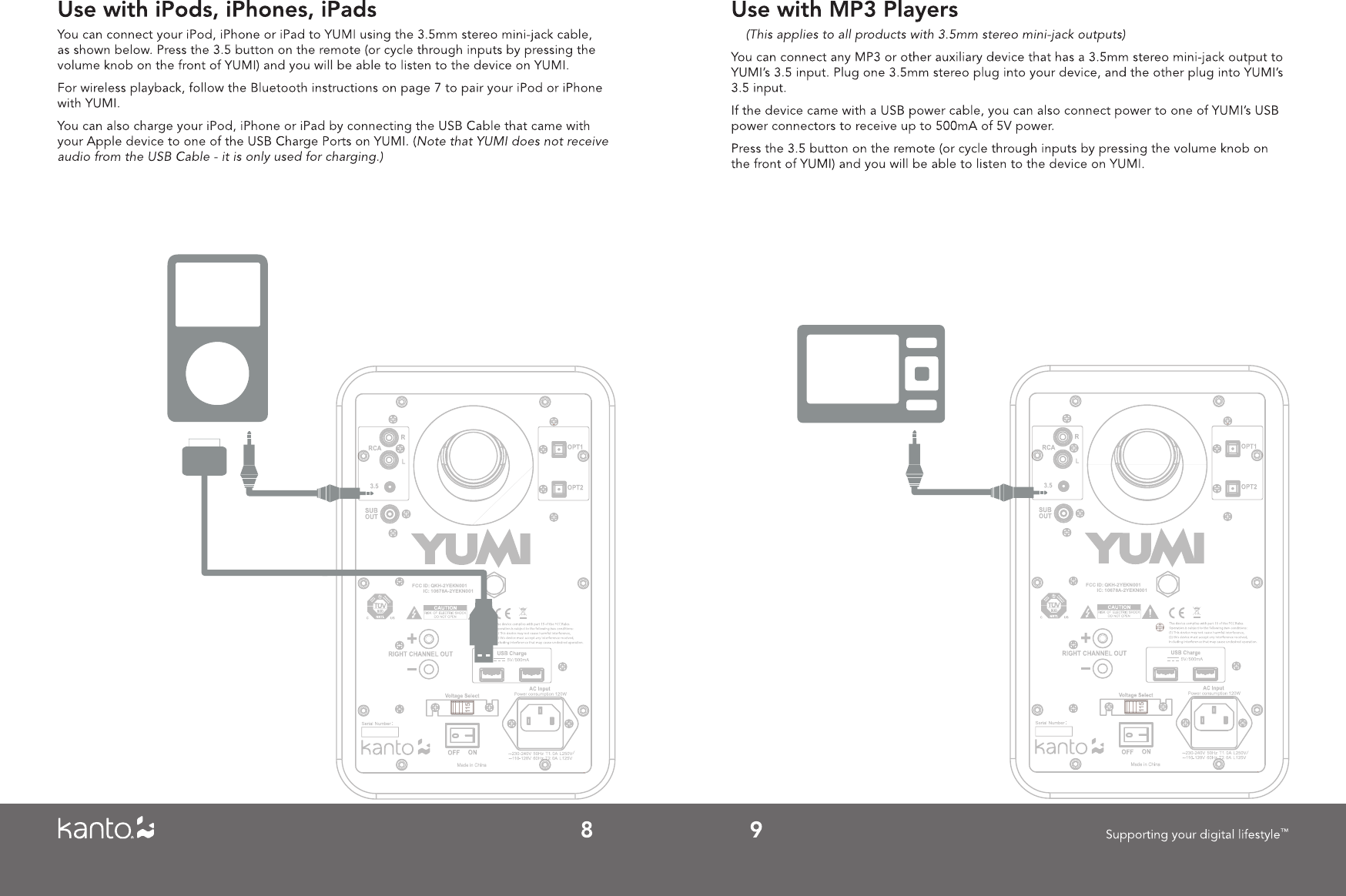

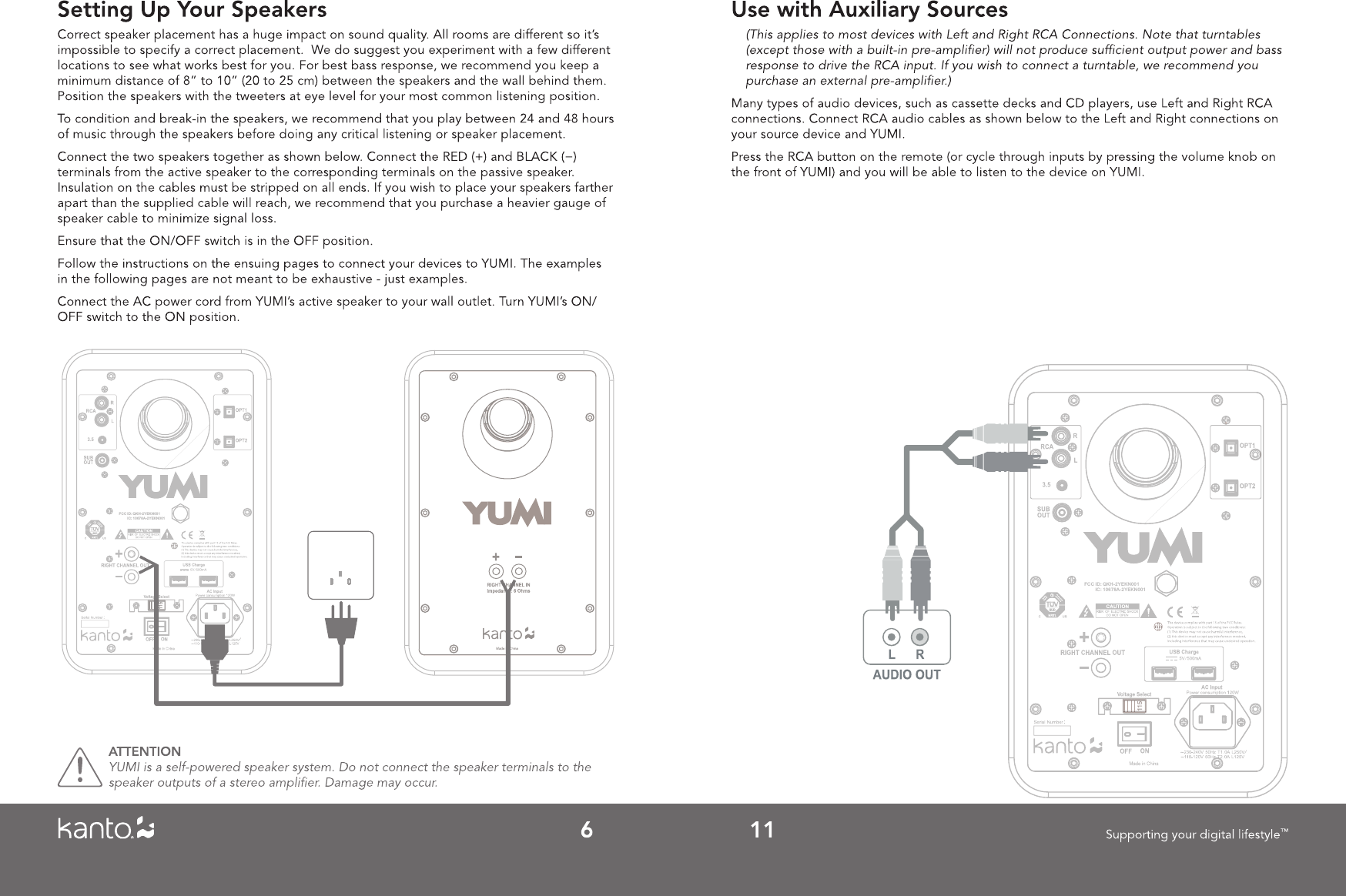

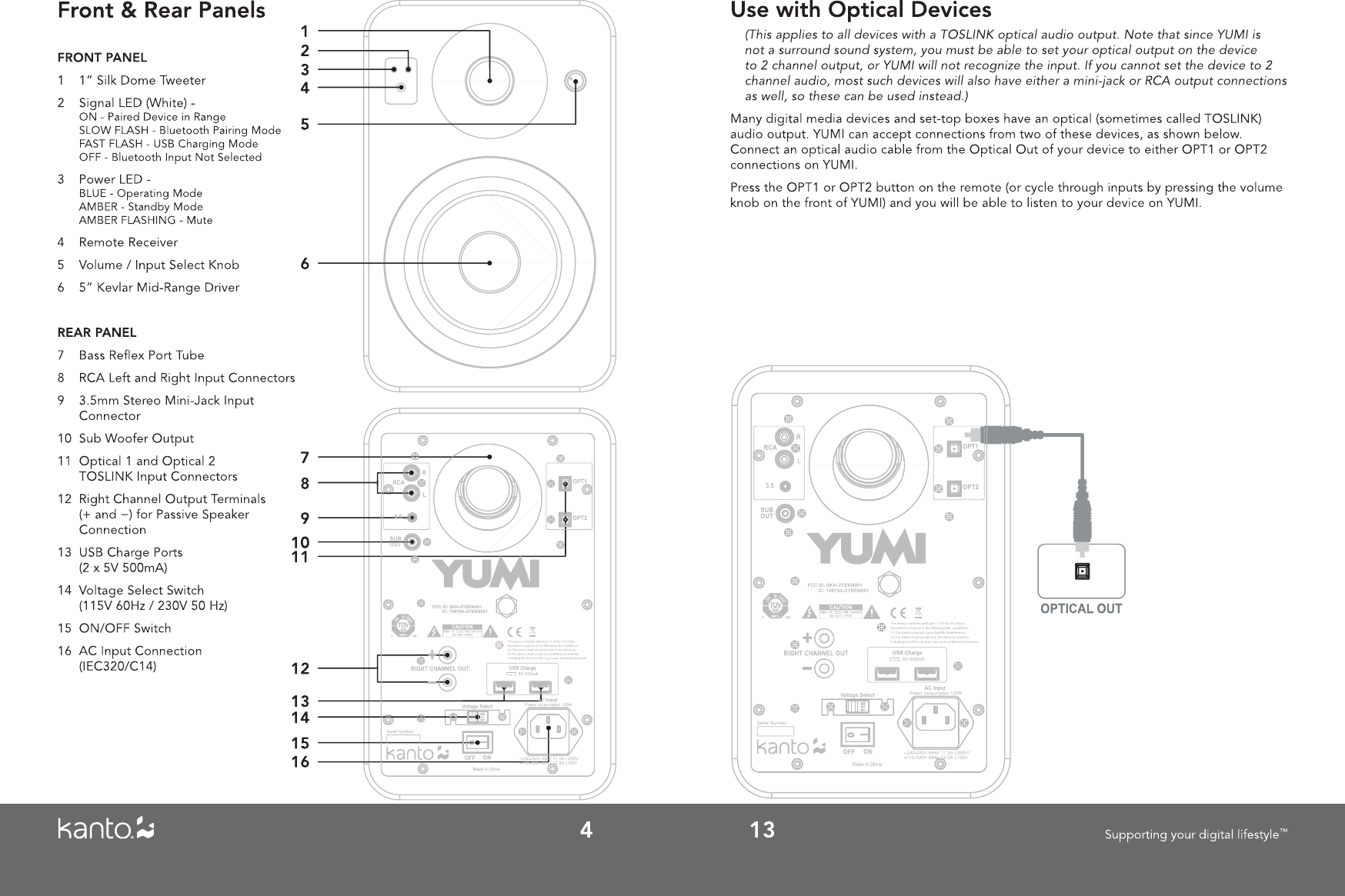

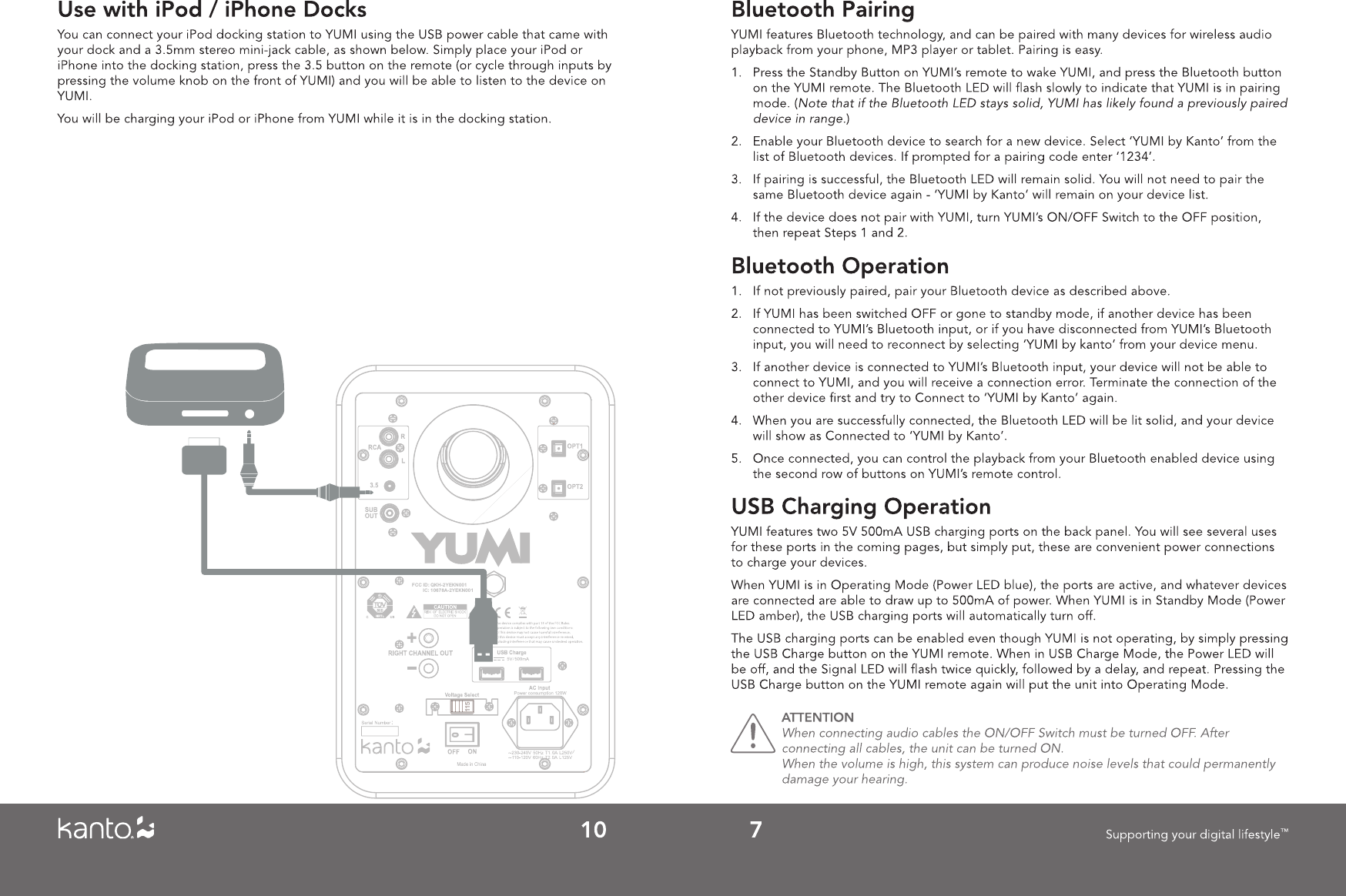

2 15 Supporting your digital lifestyle™Table of ContentsImportant Safety Precautions . . . . . . . 2Introduction / What’s in the Box? . . . . . 3Front & Rear Panels . . . . . . . . . . . . 4Remote Control . . . . . . . . . . . . . . 5Setting Up Your Speakers . . . . . . . . . 6Bluetooth® Pairing / Bluetooth Operation / USB Charging Operation . . . . . . . . . 7Use with iPods, iPhones, iPads . . . . . . 8Use with MP3 Players . . . . . . . . . . . 9Use with iPod / iPhone Docks . . . . . . . .10Use with Auxiliary Sources . . . . . . . . . .11Use with PC or Laptop . . . . . . . . . . . .12Use with Optical Devices . . . . . . . . . .13Connecting a Sub-Woofer . . . . . . . . . .14Specifications . . . . . . . . . . . . . . . . 15Other Kanto Products / Warranty . . . . . .16Important Safety Precautions• Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with a dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the plug provided does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power-supply cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.• Only use attachments / accessories specified by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, the apparatus does not operate normally, or the apparatus has been dropped.• Apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.• An appliance input coupler is used as the disconnect device - the disconnect device shall remain readily operable.• Batteries or battery packs shall not be exposed to excessive heat such as sunshine, fire or the like.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE BACK PANEL.NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.DANGEROUS VOLTAGE The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user of the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.ATTENTION The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.SpecificationsYUMI POWERED SPEAKER SYSTEM Tweeter 1 inch silk dome Woofer 5 inch Kevlar Nominal Impedance 6 Ohm Sensitivity 2.83V (/1W/1m) 87 dB Power Output 30 Watts RMS per channel Frequency Response 60 Hz - 20 kHz @ ± 3 dB Input Sensitivity 350 mV (Line RCA) Frequency Range 20 Hz - 20 kHz @ ± 6 dB Total Harmonic Distortion < 0.7% Crossover System 2-way Amplifier Type Class AB Inputs 1 x RCA L/R 1 x 3.5mm stereo mini-jack 2 x TOSLINK Optical 1 x Bluetooth Outputs 1 x Sub-Woofer 2 x USB Power (5V 500mA) Speaker Terminals Left and Right Binding Posts Remote Control Included Dimensions (each speaker) 6.9” x 8.1” x 10.7” (17.5 x 20.5 x 27.2 cm) Net Weight (active) 14.1 lbs (6.4 kg) Net Weight (passive) 9.3 lbs (4.2 kg) Gross Weight 26.7 lbs (12.1 kg) Input Voltage / Frequency 115V 60 Hz / 220V 50 Hz (manually switchable) Standby Power Consumption < 0.5WNOTICE: iPod, iPhone and iPad are trademarks of Apple Inc.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kanto Distribution Inc. is under license.FCC Warnings• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.Industry Canada Warnings• Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.• This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.IMPORTANT NOTE: Radiation Exposure Statement• This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm (8”) between the radiator and your body.
/FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01
/FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01 /FC C ID : QK H- 2 YE KN 00 1 IC : 10 67 8A - 2Y EK N0 01
/FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01
/FCC I D: QKH- 2YEKN 001 IC: 1 0678A -2YEK N001 /FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01
/FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01
/FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01 /FC C ID : QKH -2 Y EK N00 1 IC : 10 678 A- 2 YE KN0 01
