Kanto Living 2YEKN001 BLUETOOTH SPEAKER User Manual
Kanto Distribution Inc. BLUETOOTH SPEAKER
User Manual
User Manual
YUMI Powered Speaker System
www.kantospeakers.com hello@kantospeakers.com
Tel 604.231.9574 Fax 604.231.9535 Supporting your digital lifestyle™
Limited Warranty To Original Purchaser
Kanto AV Systems (Kanto) warrants the equipment it manufactures to be free from defects in
material and workmanship for the following limited warranty period of:
24 months parts and labour
If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24
months from the date of shipment with proof of original invoice. Kanto will, at its option, repair
or replace the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications. Equipment that fails under conditions other than
those covered will be repaired at the current price of parts and labor in effect at the repair. Such
repairs are warranted for 90 days from the day of reshipment to the original purchaser. This
warranty is in lieu of all other warranties expressed or implied, including without limitation, any
implied warranty or merchantability or fitness for any particular purpose, all of which are expressly
disclaimed.
The information in the owner’s manual has been carefully checked and is believed to be accurate.
However, Kanto assumes no responsibility for any inaccuracies that may be contained in the
manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential
damages resulting from any defect or omission in this manual, even if advised of the possibility of
such damages.
Warranty
For more TV and desktop mounts, along with our other
products, please visit kantoav.com.
“LIKE” Kanto on Facebook to receive upcoming news
and special product offers.
• 5” passive 4Ω coaxial speakers with 1” tweeter
• 50 Watt per side power handling capability
• Inset M8 threaded nut for mounting with SWB100
• Available in a stunning array of mix and match colors
• Compatible with YARO Amp for your digital media
Kanto BEN Speakers
• 3D and 1080p HD Full Colour Capabilities
• 24 kt gold plated contacts
• HDMI Ethernet Channel
Kanto Infinity Series Cables
• Metal head connectors with flex relief and grip
• Visit kantospeakers.com for more!
12-10
English
Check out more great products from Kanto!
YUMI
POWERED SPEAKER SYSTEM
2 15 Supporting your digital lifestyle™
Table of Contents
Important Safety Precautions . . . . . . . 2
Introduction / What’s in the Box? . . . . . 3

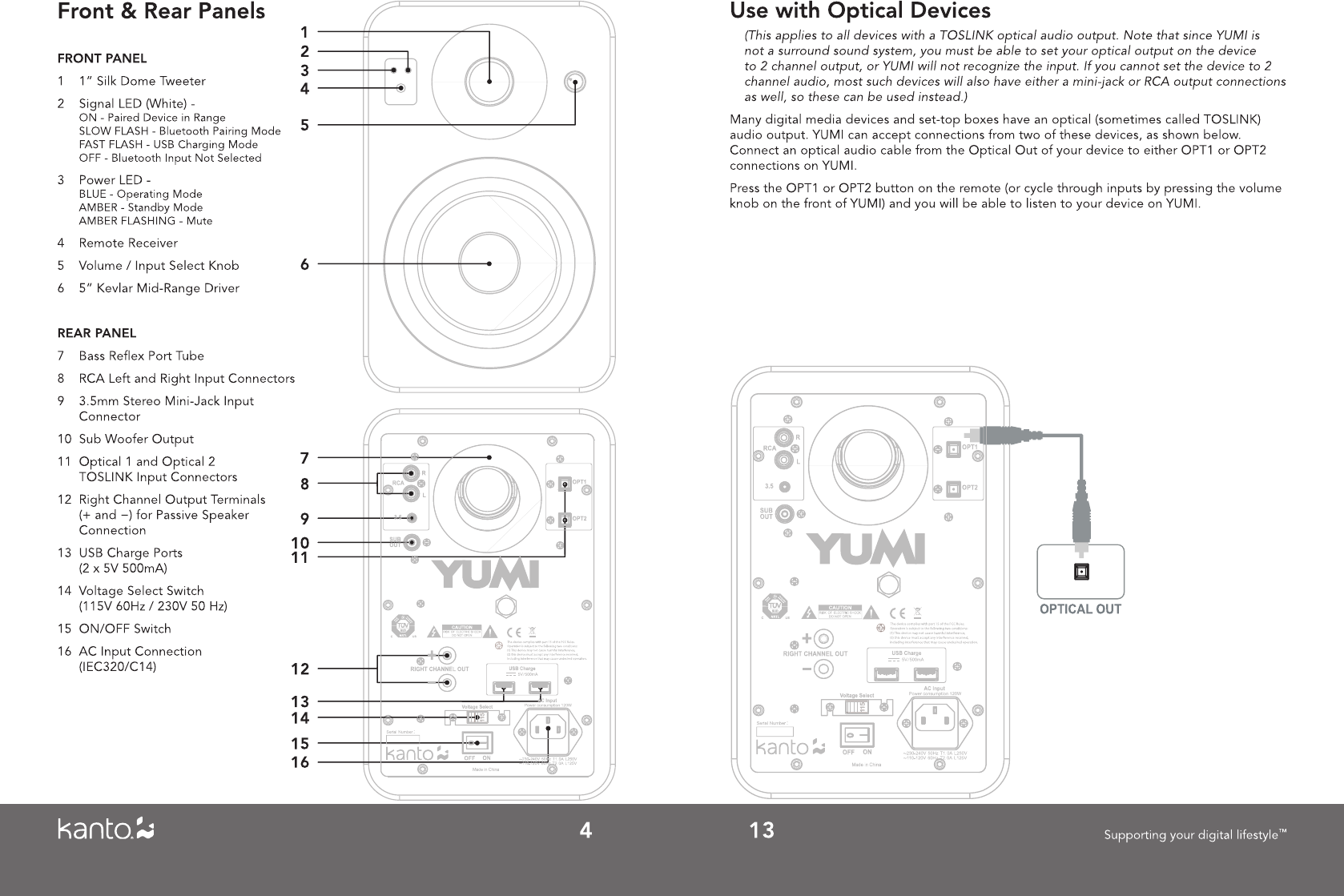

Front & Rear Panels . . . . . . . . . . . . 4

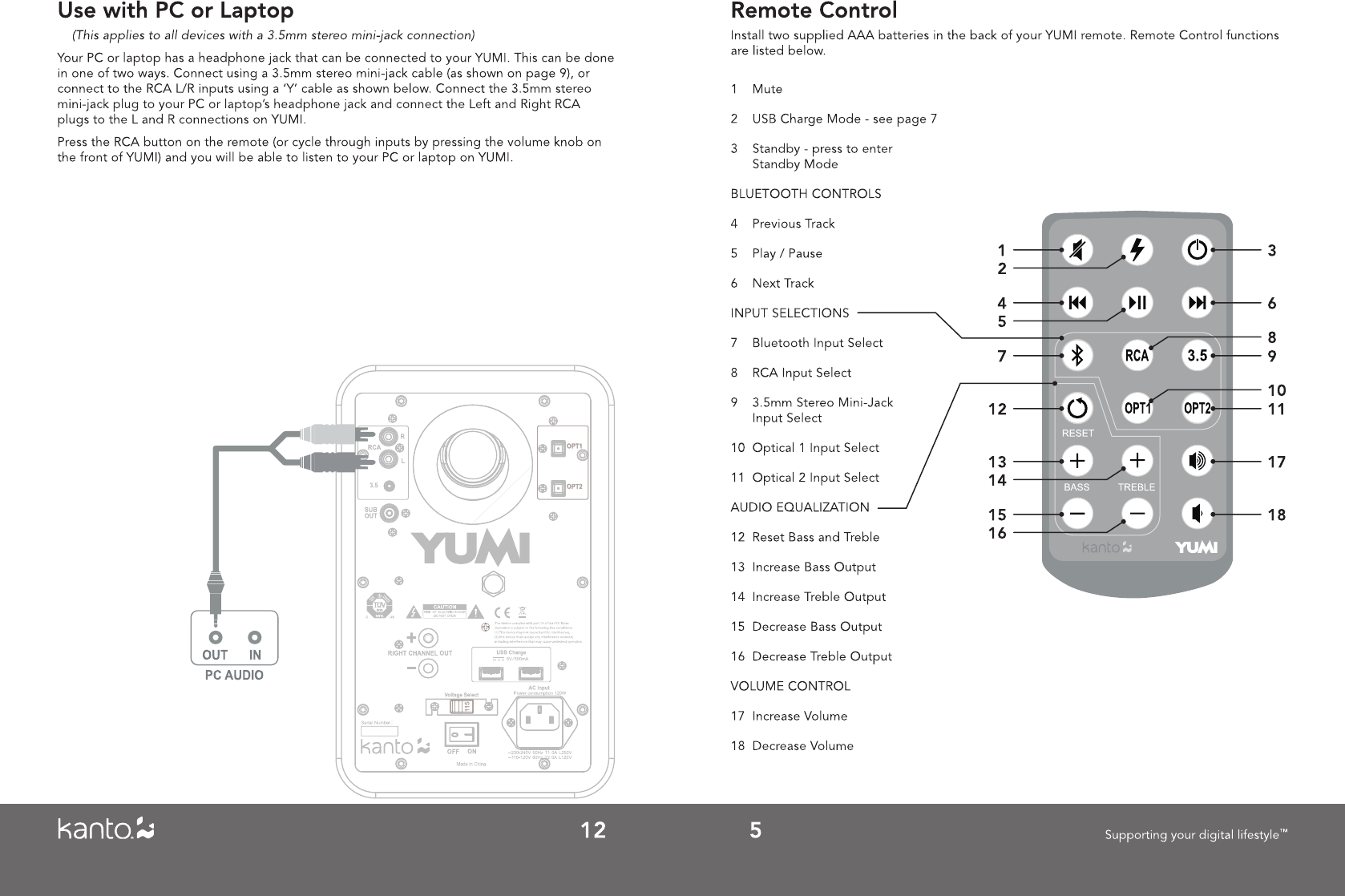

Remote Control . . . . . . . . . . . . . . 5

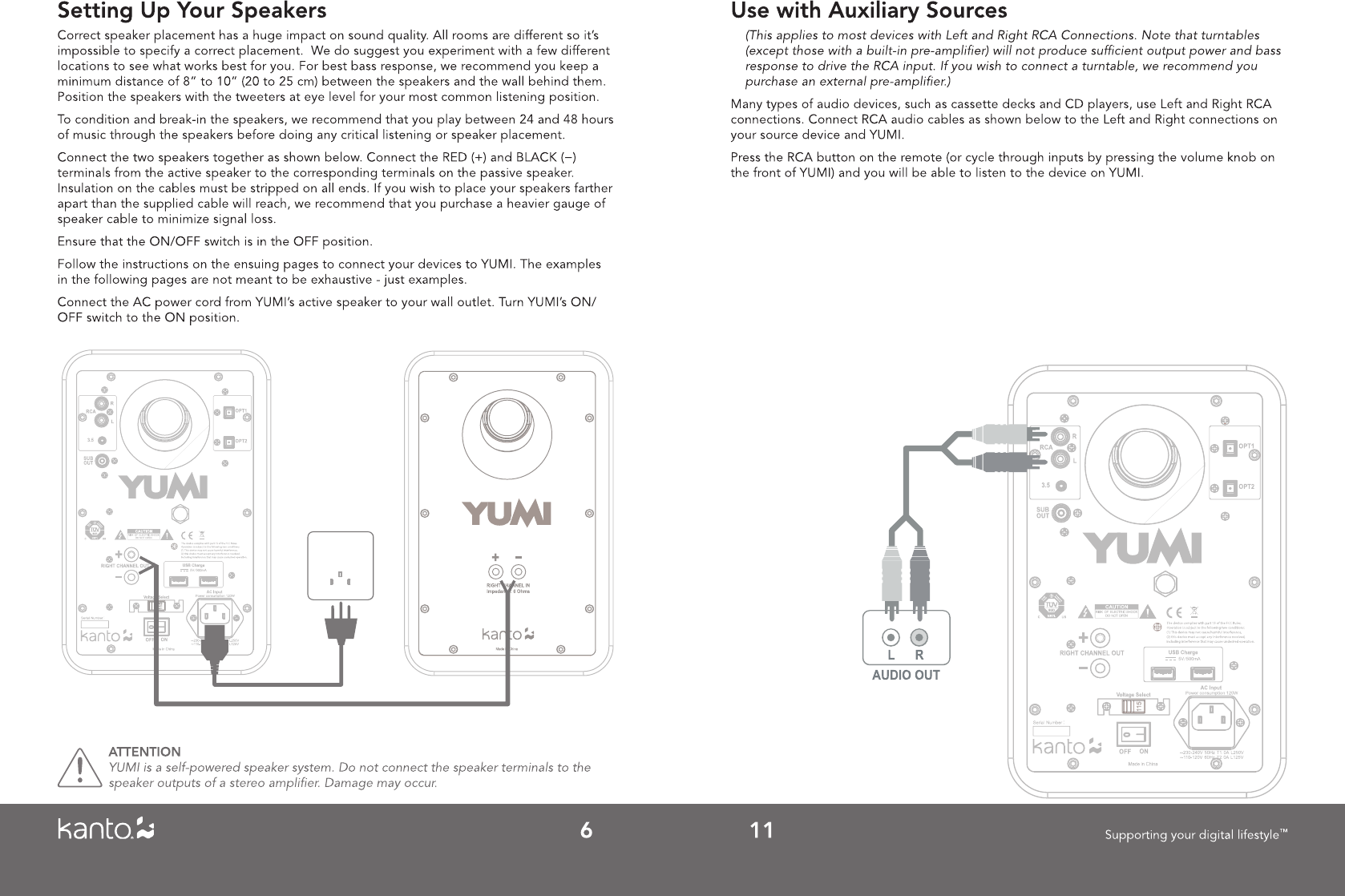

Setting Up Your Speakers . . . . . . . . . 6
Bluetooth® Pairing / Bluetooth Operation /
USB Charging Operation . . . . . . . . . 7

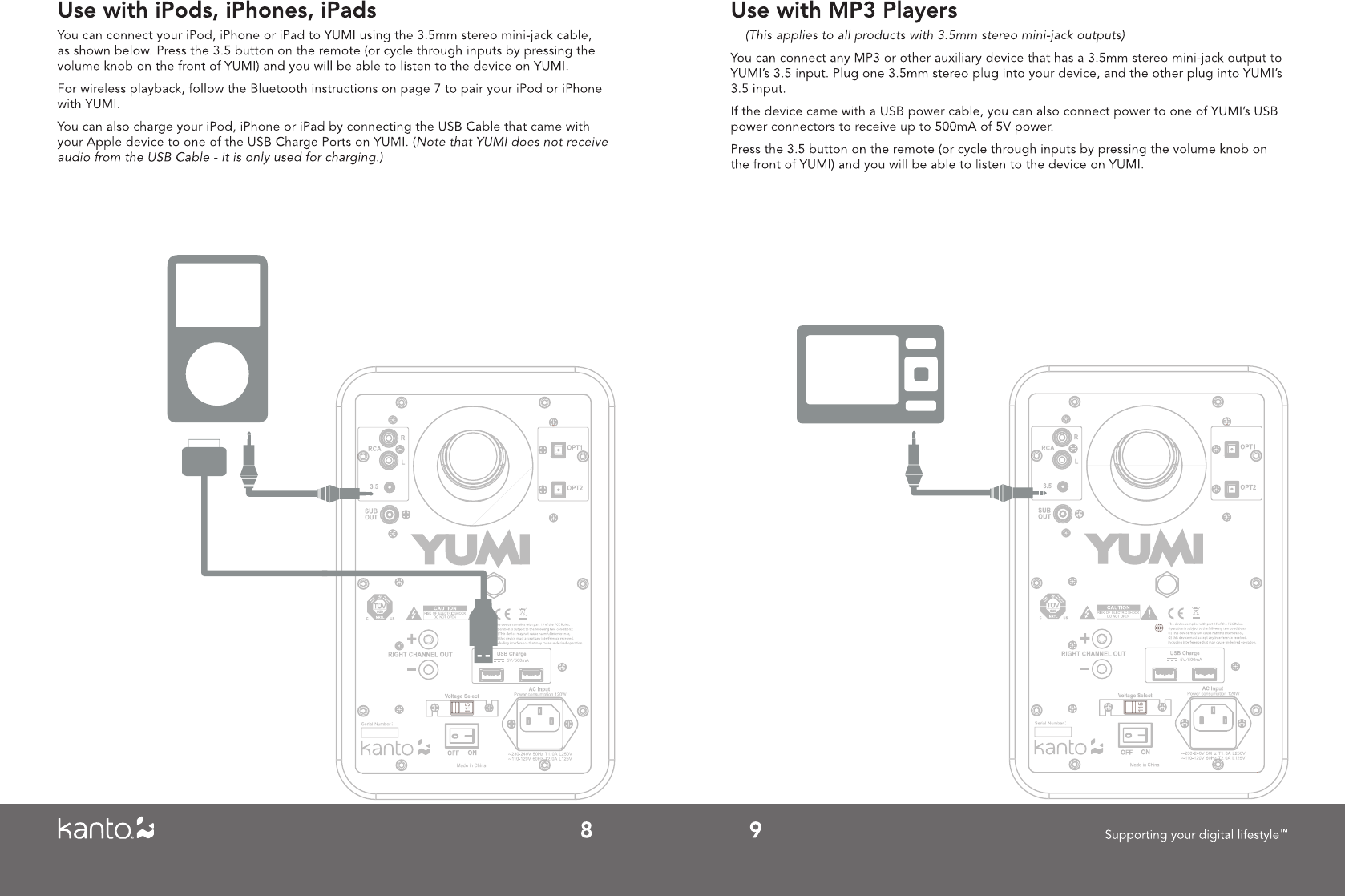

Use with iPods, iPhones, iPads . . . . . . 8
Use with MP3 Players . . . . . . . . . . . 9

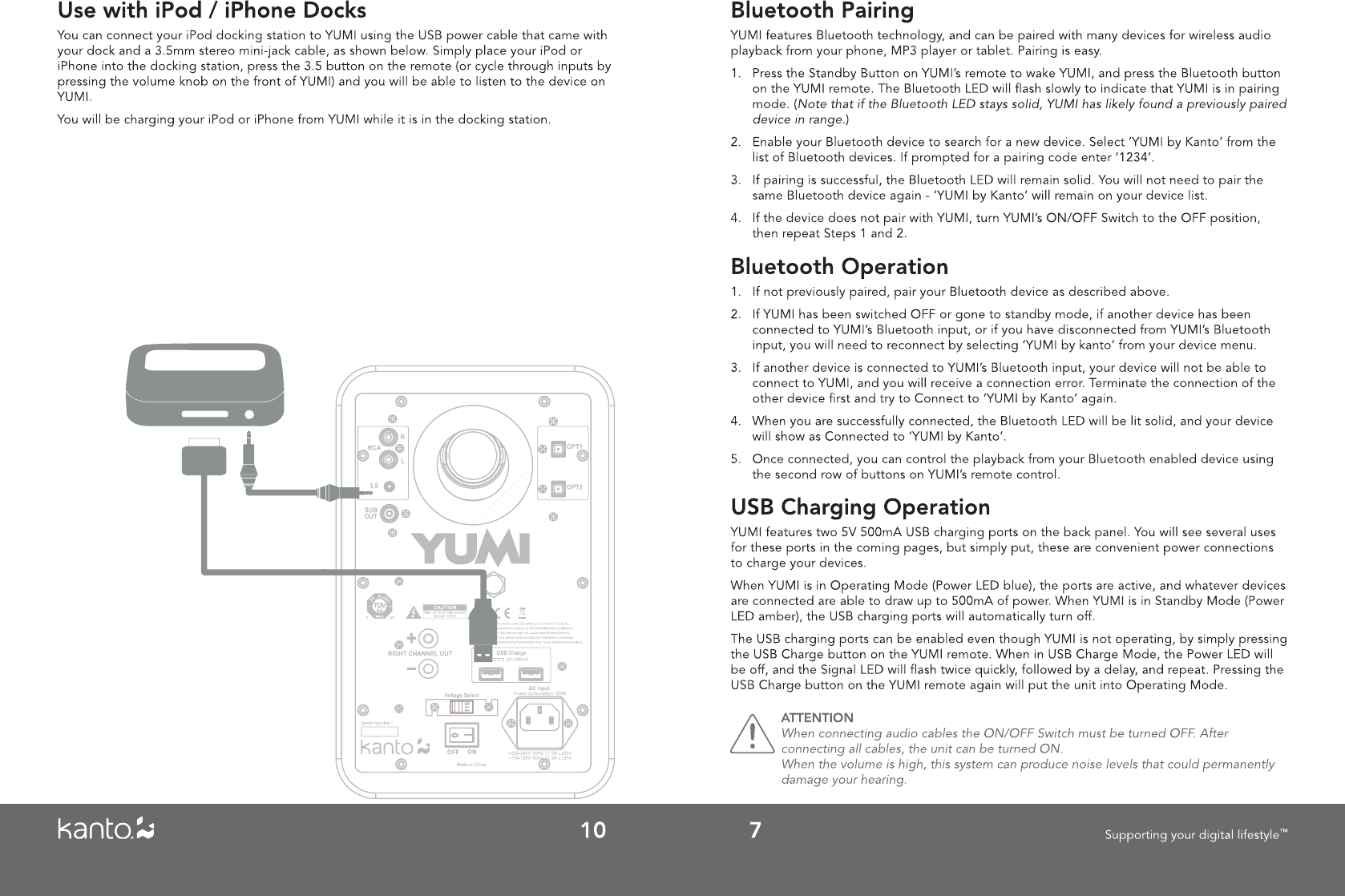

Use with iPod / iPhone Docks . . . . . . . .10
Use with Auxiliary Sources . . . . . . . . . .11
Use with PC or Laptop . . . . . . . . . . . .12
Use with Optical Devices . . . . . . . . . .13
Connecting a Sub-Woofer . . . . . . . . . .14
Specifications . . . . . . . . . . . . . . . . 15
Other Kanto Products / Warranty . . . . . .16
Important Safety Precautions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the plug provided
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power-supply cord from being walked on or
pinched, particularly at plugs, convenience receptacles and
the point where they exit from the apparatus.
• Only use attachments / accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, the
apparatus does not operate normally, or the apparatus has
been dropped.
• Apparatus shall be connected to a MAINS socket outlet with
a protective earthing connection.
• An appliance input coupler is used as the disconnect device
- the disconnect device shall remain readily operable.
• Batteries or battery packs shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE BACK PANEL.
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
DANGEROUS VOLTAGE
The lightning flash with arrowhead, within an
equilateral triangle, is intended to alert the user
of the presence of non-insulated “dangerous
voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a
risk of electric shock to persons.
ATTENTION
The exclamation point within an
equilateral triangle is intended to
alert the user of the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the apparatus.
Specifications
YUMI POWERED SPEAKER SYSTEM
Tweeter 1 inch silk dome
Woofer 5 inch Kevlar
Nominal Impedance 6 Ohm
Sensitivity 2.83V (/1W/1m) 87 dB
Power Output 30 Watts RMS per channel
Frequency Response 60 Hz - 20 kHz @ ± 3 dB
Input Sensitivity 350 mV (Line RCA)
Frequency Range 20 Hz - 20 kHz @ ± 6 dB
Total Harmonic Distortion < 0.7%
Crossover System 2-way
Amplifier Type Class AB
Inputs 1 x RCA L/R
1 x 3.5mm stereo mini-jack
2 x TOSLINK Optical
1 x Bluetooth
Outputs 1 x Sub-Woofer
2 x USB Power (5V 500mA)
Speaker Terminals Left and Right Binding Posts
Remote Control Included
Dimensions (each speaker) 6.9” x 8.1” x 10.7” (17.5 x 20.5 x 27.2 cm)
Net Weight (active) 14.1 lbs (6.4 kg)
Net Weight (passive) 9.3 lbs (4.2 kg)
Gross Weight 26.7 lbs (12.1 kg)
Input Voltage / Frequency 115V 60 Hz / 220V 50 Hz (manually switchable)
Standby Power Consumption < 0.5W
NOTICE: iPod, iPhone and iPad are trademarks of Apple Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Kanto Distribution Inc. is under license.
FCC Warnings
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
Industry Canada Warnings
• Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
• This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
IMPORTANT NOTE: Radiation Exposure Statement
• This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20cm (8”) between the radiator and your body.
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FC C ID : QK H- 2 YE KN 00 1
IC : 10 67 8A - 2Y EK N0 01
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FCC I D: QKH- 2YEKN 001
IC: 1 0678A -2YEK N001
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
/
FC C ID : QKH -2 Y EK N00 1
IC : 10 678 A- 2 YE KN0 01
