MOD190
MODULAR TRANSCEIVER
OEM INSTALLATION AND OPERATION MANUAL
NOTE: THIS MODULE IS LIMITED TO OEM INSTALLATION ONLY
DECEMBER 6, 2016
TH
MOD190 TRANSCEIVER
1
INDEX
DESCRIPTION ........................................................................... 2
OPERATION .............................................................................. 2
INSTALLATION ......................................................................... 4
BEFORE APPLYING POWER! ...................................................... 6
TROUBLESHOOTING ................................................................. 6
TRANSCEIVER PICTORIAL ........................................................ 8
SPECIFICATIONS ...................................................................... 9
INSTRUCTION TO THE USER ................................................... 10
INDUSTRY CANADA STATEMENTS ........................................... 12
MOD190 TRANSCEIVER
2
DESCRIPTION
The MOD190 is a frequency
hopping spread spectrum
transceiver module designed to
be compatible with US (FCC Part
15.247) and Canadian (RSS-247)
regulations for license free use
in the 900 MHz ISM band. The
MOD190 is designed for mobile
applications in accordance to
Part 2.1091(b).
The MOD190 transceiver is only
integrated into Kar-Tech remote
control products by Kar-Tech, at
Kar-Tech. There are no user
serviceable parts on the
MOD190 transceiver.
The MOD190 is not designed for
multiple antenna applications
and should not be used to
transmit simultaneously with
any other transmitter.
OPERATION
The MOD190 is a radio
transceiver module for the 900
MHz ISM bands. The transceiver
microcontroller includes a CPU,
GPI/O, a fully integrated
frequency synthesizer, a power
amplifier, a modulator and a
receiver unit. The MOD190
microcontroller serial port is
connected to the host via
protection circuits. The data is
sent through a serial port to RF
processor and then to RF circuit
to the antenna and the data
received from antenna is sent to
the serial port and to the host.
The microcontroller is
responsible for the control of the
entire communication. The
MOD190 transceiver contains a
DC regulator which generates a
constant 1.8 VDC for the digital
circuitry. The RF section runs on
the 3.3V supply.
MOD190 TRANSCEIVER
3
The MOD190 hops on 50 channel
frequencies that are selected in
a pseudo random order. An
example of the order is:
{48, 25, 17, 20, 41, 37, 36,
10, 15, 44, 30, 6, 42, 33,
5, 8, 28, 1, 23, 49, 16, 3,
19, 29, 21, 43, 31, 9, 18,
27, 22, 45, 13, 2, 32, 11,
14, 46, 12, 24, 4, 7, 38, 4
7, 35, 40, 50, 34, 39, 26}
where Channel 1 is 902.5 MHZ
and Channel 50 is 927.00 MHZ.
The dwell time of the hopping is
350ms. Each channel is used
equally on average.
The receivers are matched to
the transmitters to use the same
hopping channel sequence and
they hop channels in
synchronization with the
transmitter’s signals.
MOD190 TRANSCEIVER
4
INSTALLATION
1) Solder the MOD190
transceiver directly to the
host’s compatible connector.
2) Print and attach the label
as shown below:
3) Place a label on the outside
of the host enclosure in a
visible area. On the label,
include the following:
“Contains Transmitter
Module FCC ID: P4U-
MOD190” and “Contains
Transmitter Module IC:
4534A-MOD190”
4) Connect the appropriate
antenna. Either a ¼
wavelength wire, or a
RPSMA ¼ wavelength
antenna.
MOD190 TRANSCEIVER
5
Application Requirements:
A) Power the MOD190
Transceiver with 3.3VDC
nominal voltage, with
peak current draw of
750mA.
B) Do not remove the shield
on the MOD190.
C) If you use something other
than the ¼ wave
antenna or the wire
antenna, the unit needs
separate approval.
D) The antenna should be
mounted at least 20cm
from all persons, and
must not transmit
simultaneously with any
other antenna or
transmitter, except in
accordance with FCC
multi transmitter product
procedures.
E) The MOD190 is to be
installed only in mobile
applications. See Part
2.1091 for definitions of
mobile and fixed
applications.
F) Do not operate the
MOD190 without an
antenna.
G) Documentations: In the
host’s User Manual
include the following:
a. That there are no user
serviceable parts in
the radio modules.
They should not
remove or install radio
modules.
b. The “Instructions To
The User” section.
c. The “Industry Canada
Statement”.
d. Include in the manual,
“This device is granted
for use in Mobile only
configurations in
which the antennas
used for this
MOD190 TRANSCEIVER
6
transmitter must be
installed to provide a
separation distance of
at least 20cm from all
person and not be co-
located with any other
transmitters except in
accordance with FCC
and Industry Canada
multi-transmitter
product procedures.”
BEFORE APPLYING
POWER!
Check power and ground for
proper polarity.
Read the rest of this manual.
TROUBLESHOOTING
There are no user serviceable
parts in the MOD190 Transceiver.
Contact your KAR-TECH
representative for further
instructions or servicing.
PARTS LIST
PART NUMBER DESCRIPTION
021901A MOD190 RADIO TRANSCEIVER – WIRE
ANTENNA
021902A
MOD190 RADIO TRANSCEIVER – RPSMA
ANTENNA
There are no user-serviceable parts inside the transmitter or the
receiver. Return the units for service.
The information, specifications, and illustrations in this manual are those in effect at the time of
printing. We reserve the right to change specifications or design at any time without notice.
Part No. Antenna type Gain Remark
021901A WIRE ANTENNA 0.75dBi Integral antenna
021902A RPSMA ANTENNA 1.10dBi External antenna

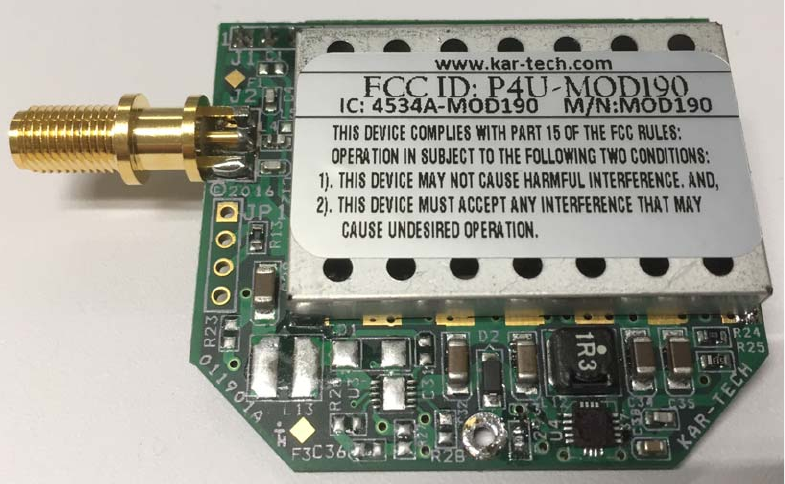

Photo with wire antenna Photo with RPSMA ANTENNA
Antenna type: External Antenna with reversed polarity non standard antenna port
MOD190 TRANSCEIVER
8

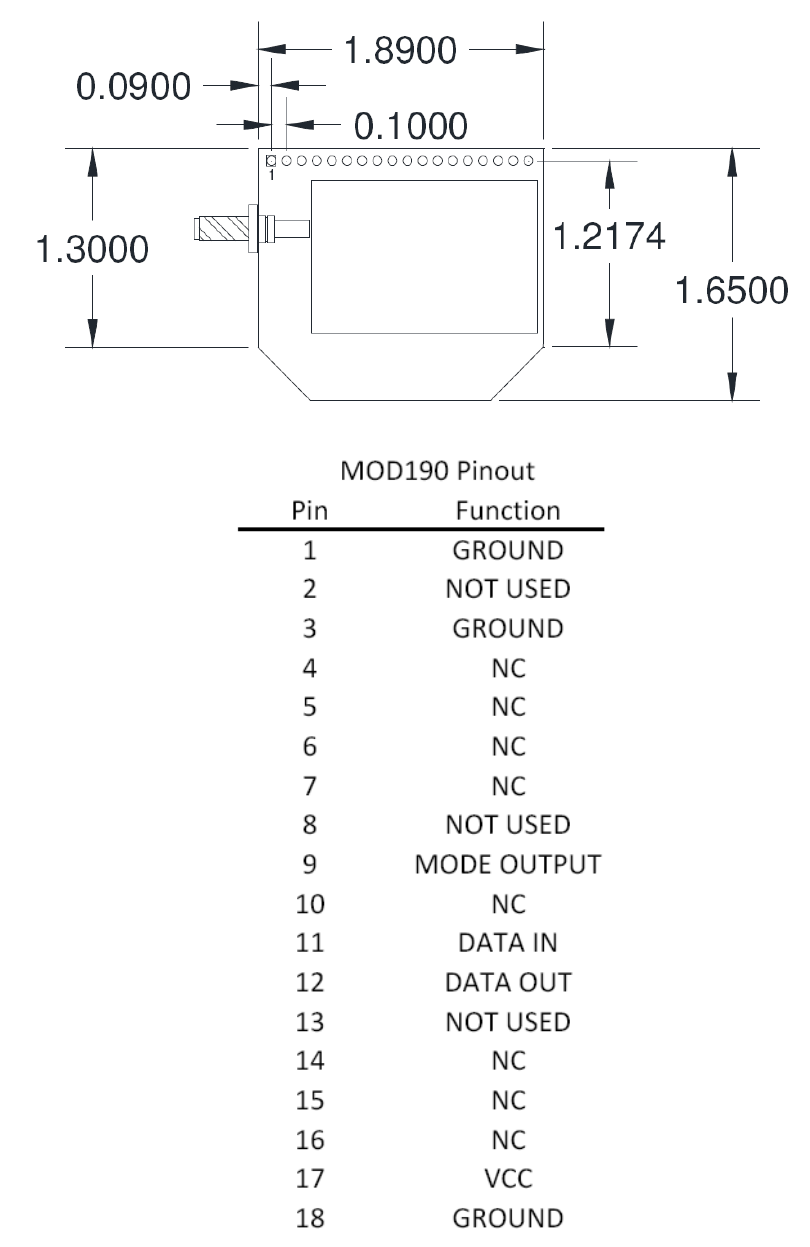

TRANSCEIVER PICTORIAL
MOD190 TRANSCEIVER
9
SPECIFICATIONS
Equipment Class ............................. Part 15 Spread Spectrum Transmitter
FCC ID:P4U-MOD190
IC:4534A-MOD190
TRANSCEIVER
Power supply ........................................................................... 3.3VDC
Operating temperature - Radio ....................................... -40˚C to +85˚C
Storage temperature .................................................. -40˚C to +100˚C
RF Frequency ................................................................ 902.5-927 MHz
RF Receive Sensitivity ............................................................. -126 dBm
MOD190 TRANSCEIVER
10
INSTRUCTION TO THE USER
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: 1) this device may not
cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix
devices only. This modular cannot be installed in any portable
device, for example, USB dongle like transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not
MOD190 TRANSCEIVER
11
be co-located or operating in conjunction with any other antenna
or transmitter. This modular must be installed and operated with
a minimum distance of 20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into
which the module is installed must also display a label referring to
the enclosed module. This exterior label can use wording such as
the following: “Contains Transmitter Module FCC ID:P4U-MOD190“
when the module is installed inside another device, the user
manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
The devices must be installed and used in strict accordance with
the manufacturer's instructions as described in the user
documentation that comes with the product
MOD190 TRANSCEIVER
12
INDUSTRY CANADA STATEMENTS
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope
rayonnée quivalente (p.i.r.e.) ne dépassepas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
MOD190 TRANSCEIVER
13
OEM Responsibilities to comply with FCC and Industry Canada
Regulations
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie
Canada . Son fonctionnement est soumis aux deux conditions
suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les
interférences qui peuvent causer un mauvais fonctionnement de
l'appareil.
IC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only.
This modular cannot be installed in any portable device, for example,
USB dongle like transmitters is forbidden.
This modular complies with IC RF radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter. This
modular must be installed and operated with a minimum distance of
20 cm between the radiator and user body. Cette modulaire doit être
installé et utilisé à une distance minimum de 20 cm entre le radiateur
et le corps de l'utilisateur.
If the IC number is not visible when the module is installed inside
another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module.
This exterior label can use wording such as the following:
“Contains IC: 4534A-MOD190”
when the module is installed inside another device, the user manual of
this device must contain below warning statements;
MOD190 TRANSCEIVER
14
1. This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
2. Cet appareil est conforme aux CNR exemptes de licence d'Industrie
Canada . Son fonctionnement est soumis aux deux conditions
suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les
interférences qui peuvent causer un mauvais fonctionnement de
l'appareil.
The devices must be installed and used in strict accordance with the
manufacturer's instructions as described in the user documentation
that comes with the product.
