KW5212H WLAN VDSL Router
WLANVDSLRouter UserManual
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2012
All rights reserved.
WLANVDSLRouter UserManual
Content
1 OVERVIEW................................................................................................................................1
1.1 FEATURES.............................................................................................................................1
1.2 PACKET CONTENTS.............................................................................................................3
1.3 SYSTEM REQUIREMENTS ....................................................................................................3
1.4 FACTORY DEFAULTS ...........................................................................................................4
1.5 WARNINGS AND CAUTIONS .................................................................................................4
2 HARDWARE DESCRIPTION....................................................................................................5
3HARDWARE INSTALLATION.................................................................................................7
4 PC CONFIGURATION GUIDE...............................................................................................8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP,7..................................................8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000 ......................................................................8
5 WEB-BASED MANAGEMENT GUIDE..................................................................................9
5.1LAN SETTING PAGE ..............................................................................................................9
5.2INTERNET ACCESS CONFIGURATION..................................................................................10
5.3WIRELESS SETTING ............................................................................................................31
5.4 PRINTER SERVER INSTALLATIONS ..........................................................................................36
APPENDIX: FREQUENT ASKED QUESTIONS....................................................................39
WLANVDSLRouter UserManual
1
1 Overview
Thank you for choosing our product. The product is a Wireless VDSL router
combining an VDSL modem, an 802.11n wireless router ,a 4-port switch and an USB
port in one unit, bringing high-speed wireless Internet connection to a home or office.
1.1 Features
1.1.1 Data Rate
Downstream data rate up to 100 Mbps
Upstream data rate up to 50Mbps
1.1.2 VDSL Compliant
ITU G.992.1 (G.DMT)
ITU G.993.2 (G.vdsl2) (Profile 8a, 8b, 8c, 8d, 12a,12b and 17a)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
1.1.3 Wireless
Fully IEEE 802.11n compatible.
Wireless data rate up to 300Mbps
Operating in the unlicensed 2.4 GHz ISM band
Multi-SSID
Supports 64/128 bits WEP security and user authentication
1.1.4 Network Protocol & Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
WLANVDSLRouter UserManual
2
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DNS Relay, DDNS
IGMP Proxy
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC – Support up to 16 PVCs
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
WLANVDSLRouter UserManual
3
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgradeable for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/98 SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
External Splitter x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
Antenna x 2
Base x 1
CD x 1
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
WLANVDSLRouter UserManual
4
Subscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: RFC 2516 LLC
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet.
WLANVDSLRouter UserManual
5
2 Hardware Description
Front Panel
LED Color Function
PWR Green On: Power on
Off: No power
LAN1,2,3,4 Green
On: LAN link established and active via LAN port
Blinking: DSL data activity occurs
Off: No LAN link via LAN port
WLAN Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over
WLAN
Off: The wireless function is off
DSL Green
On: DSL link established and active
Quick Blinking: DSL is trying to establish a
connection
Slow Blinking: No DSL link
INET Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru
this device
Off: ADSL connnetion is not present
WLANVDSLRouter UserManual
6
Rear panel
Side panel
WIFI button: Enable or disable wireless function.
Reset button: System reset or reset to factory defaults.
WPS button: A convenient way for WPS set.

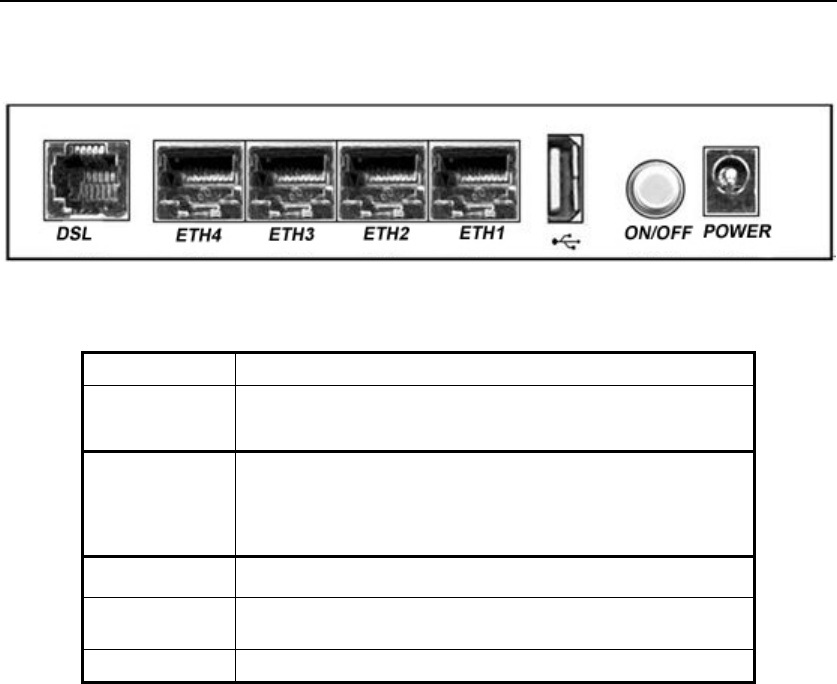

Port Function
DSL Connect the device to an DSL telephone jack or
splitter using a RJ-11 telephone cable
ETH1,2,3,4
Connect the device to your PC's Ethernet port,
or to the uplink port on your hub/switch, using a
RJ-45 cable
USB Connect the device to a printer
ON/OFF Switch it on or off
POWER Connect to the supplied power adapter
WLANVDSLRouter UserManual
7
3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.

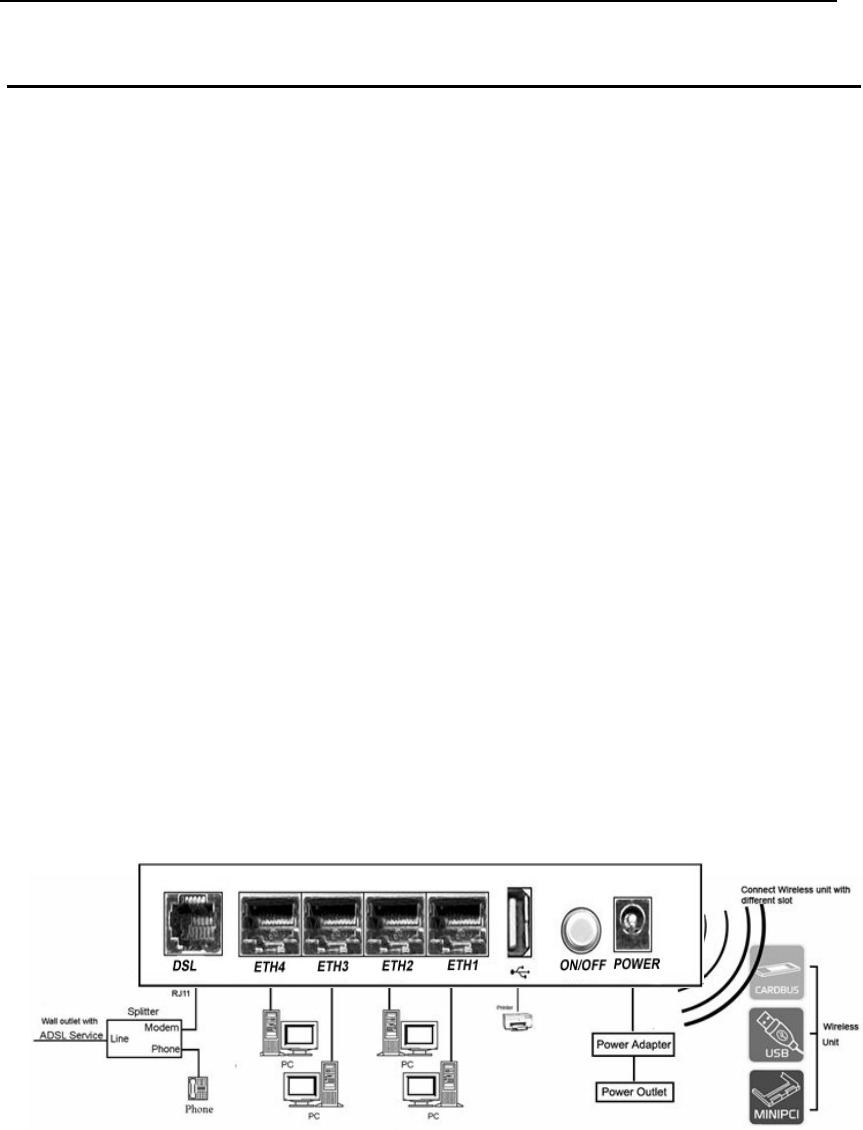

1. Using a telephone line to connect the DSL port of ROUTER to the MODEM
port of the splitter, and using a other telephone line connect your telephone
to the PHONE port of the splitter, then connect the wall phone jack to the
LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
MODEM: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this
from happening, a small external splitter must be connected to
each telephone.
WLANVDSLRouter UserManual
8
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP,7
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local
Area Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address
as 192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet
mask as 255.255.255.0 and the default gateway as 192.168.1.1. Then click
“OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
WLANVDSLRouter UserManual
9
5 Web-based Management Guide
In order to use the web-based management software it will be necessary to use
a computer that occupies the same subnet as the Router. The simplest way to
do this for many users will be to use DHCP server that is enabled by default on
the Router.

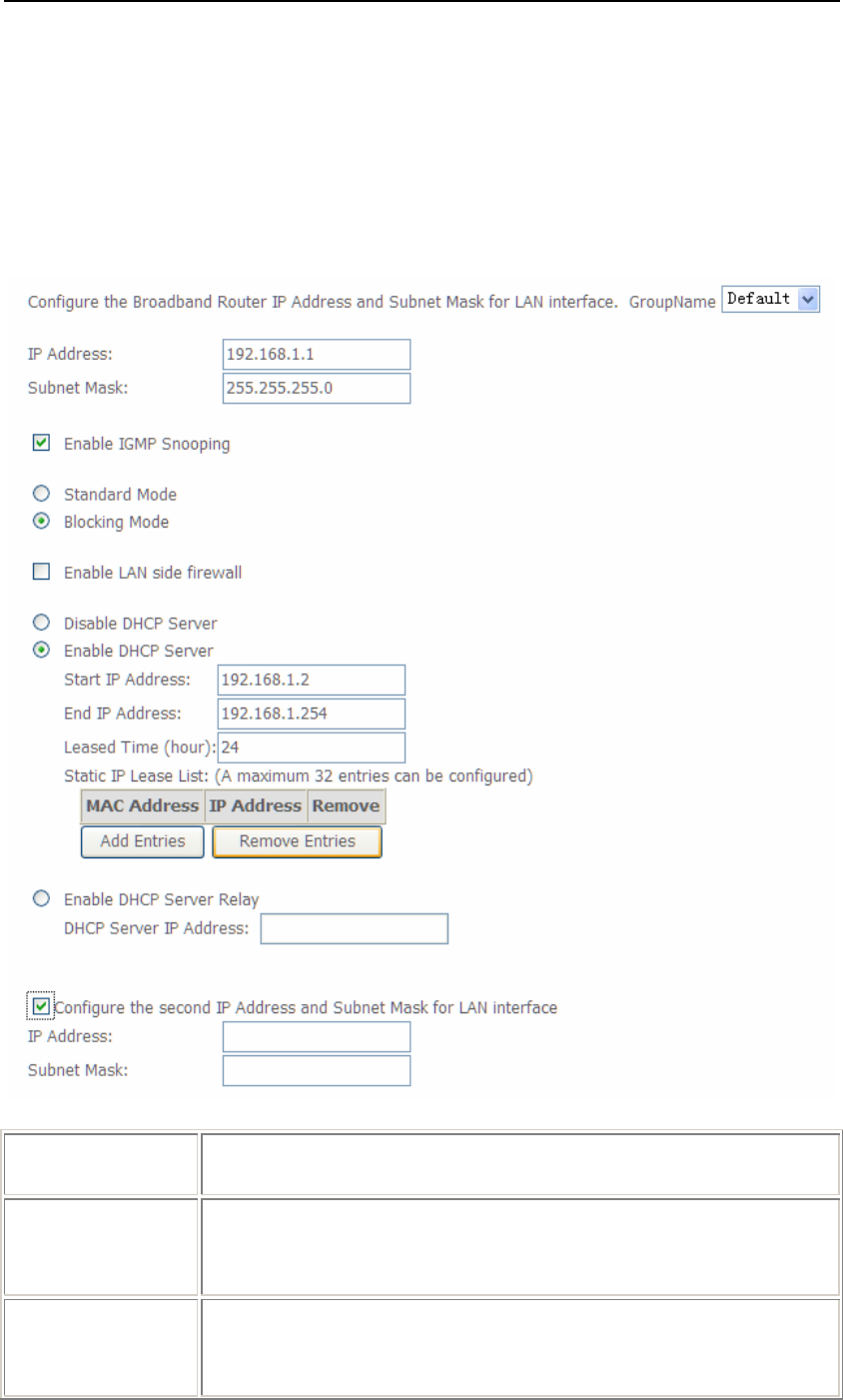

5.1 LAN setting page
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting pages.

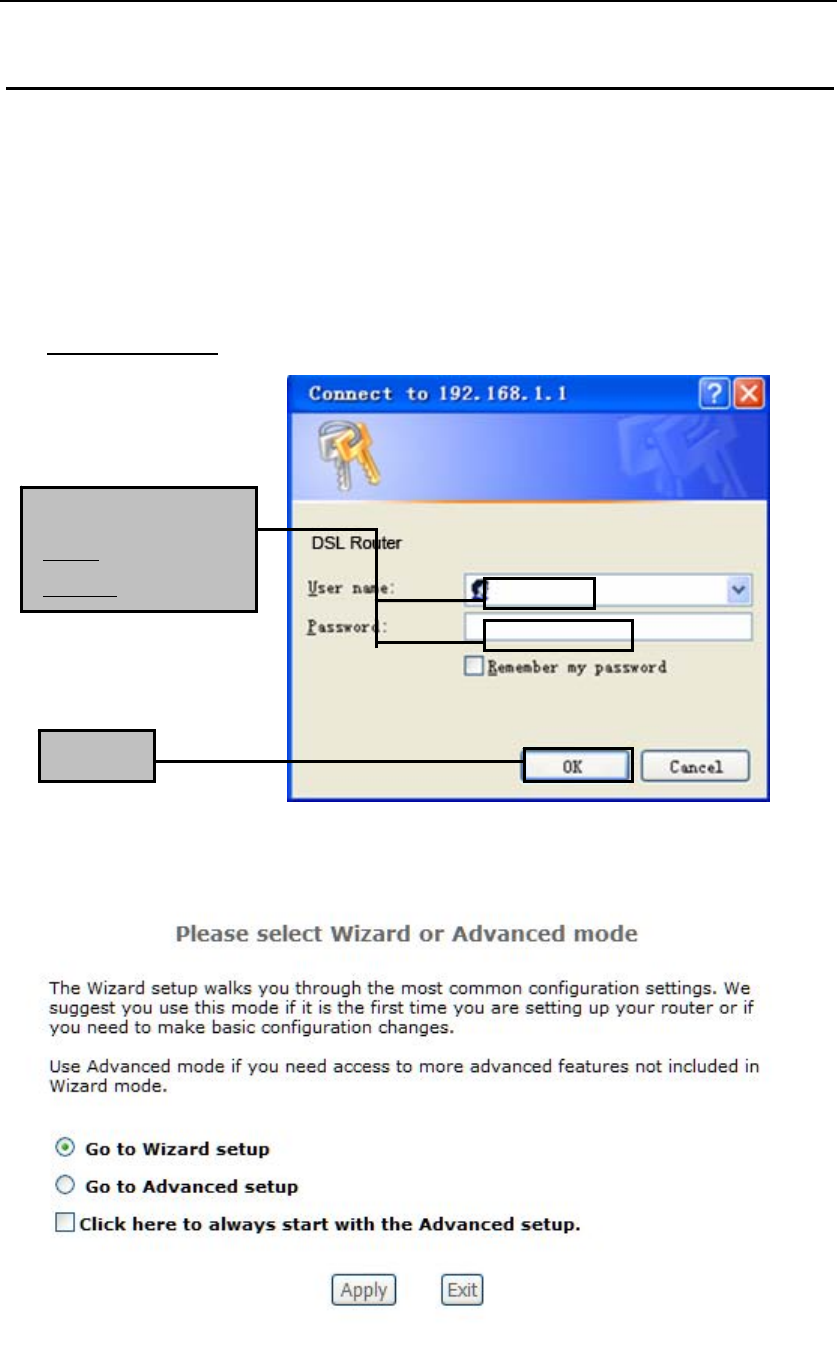

After log on ,you will see the following screen :
ClickOK
Enterusername
‘admin’andpassword
‘adslroot’
WLANVDSLRouter UserManual
10
We can select wizard setup or advanced setup mode to setup KW5212.the wizard
set up will guide us for a basic setting,and the advanced setup will guide us to home
page for more detailed setup.
5.2 Internet Access Configuration
5.2.1 ADSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click ATM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL ATM
interfaces.

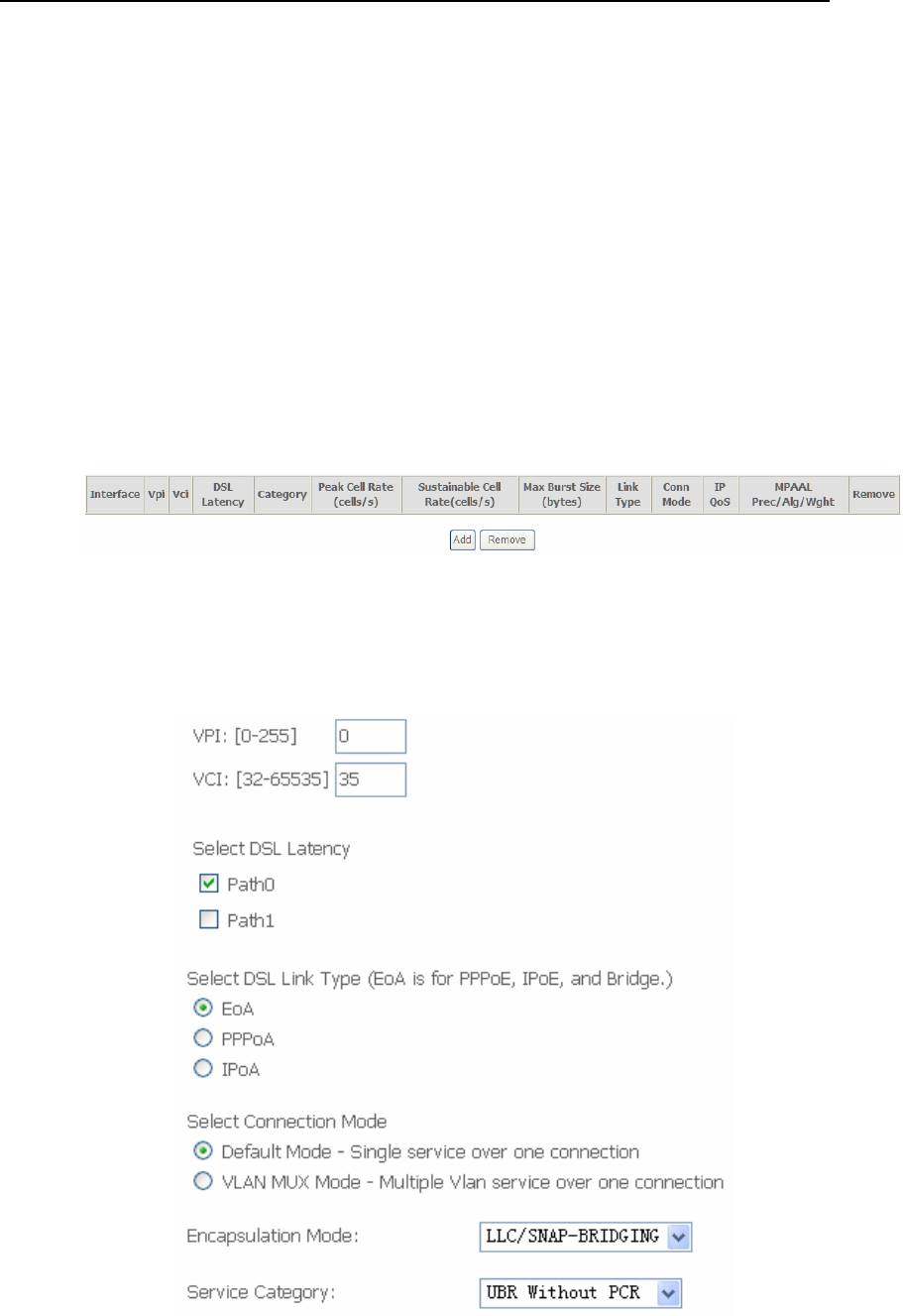

2. Click Add to configure PVC identifier, select DSL latency and select
connection mode according to your local occasion. After the configuration,
you need to click Apply/Save.
WLANVDSLRouter UserManual
11
3. Click WAN Service from the left menu.
4. Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.

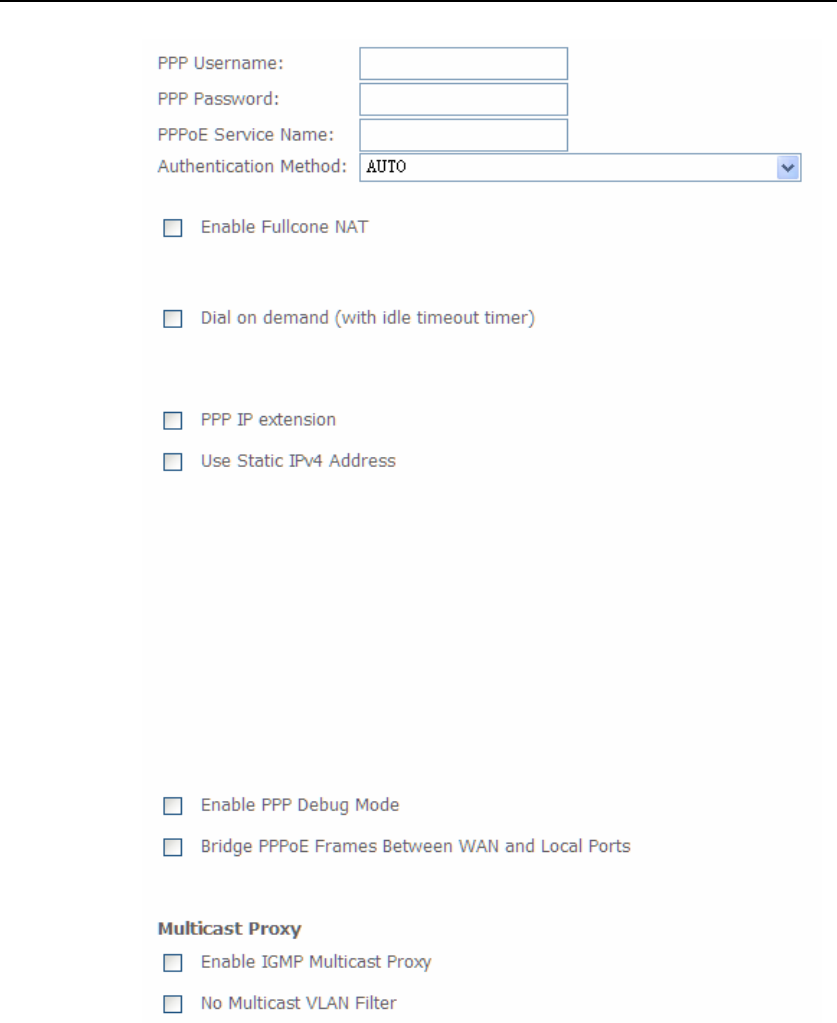

6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a
maximum of 32 characters in the password.
WLANVDSLRouter UserManual
12
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
WLANVDSLRouter UserManual
13
Enable Full Cone NAT: In full cone NAT, all requests from the same private IP
address and port are mapped to the same public source IP address and port.
Someone on the Internet only needs to know the mapping scheme in order to send
packets to a device behind the VDSL Device.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this
option and enter it in the IP Address field. If the ISP did not give you a static IP
address, clear the Use Static IP Address option. The ISP automatically assigns the
WAN connection an IP address when it connects.
Enable PPP Debug Mode: Select this to turn on the debug mode for the PPP
connection.
Bridge PPPoE Frames Between WAN and Local Ports: In addition to the VDSL
Device's built-in PPPoE client, you can enable this to pass PPPoE through in order to
allow LAN hosts to use PPPoE client software on their computers to connect to the
ISP via the VDSL Device. Each host can have a separate account and a public WAN
IP address. PPPoE pass through is an alternative to NAT for applications where NAT
is not appropriate. Disable PPPoE pass through if you do not need to allow hosts on
the LAN to use PPPoE client software on their computers to connect to the ISP.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
WLANVDSLRouter UserManual
14
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.

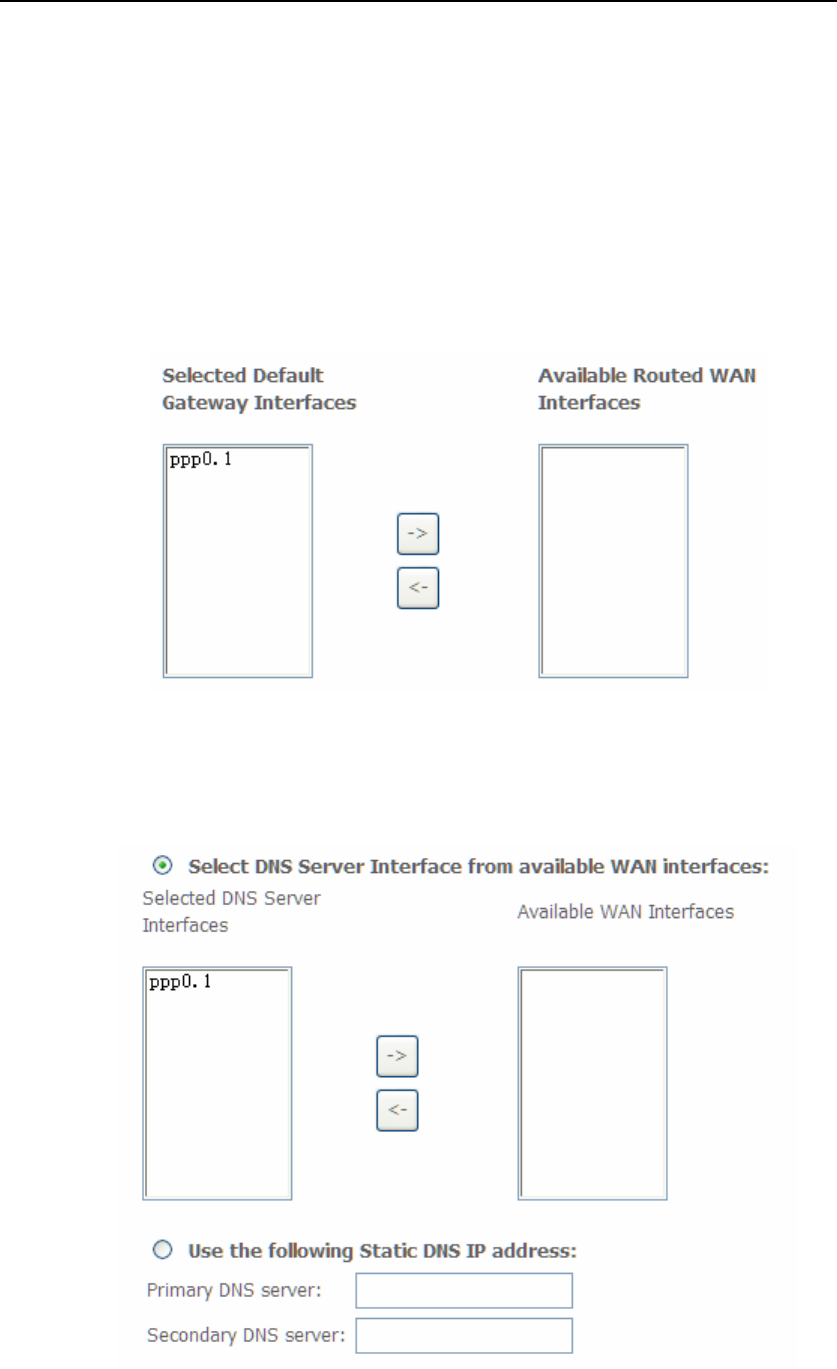

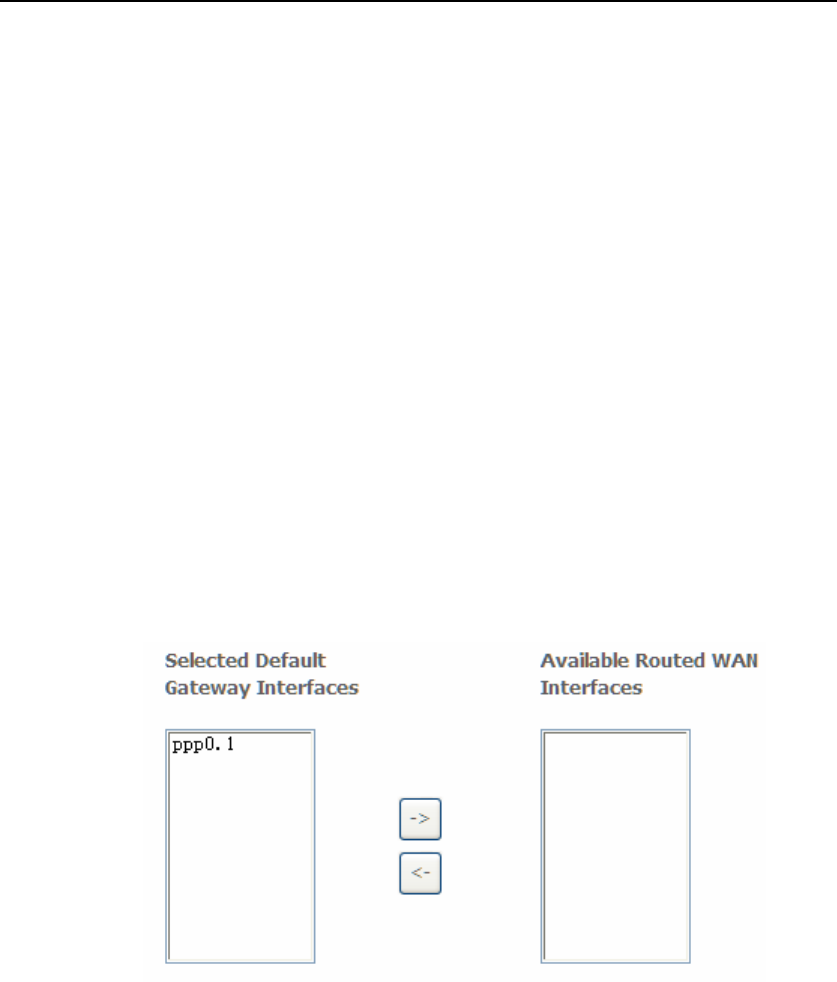

7. Select a preferred wan interface as the system default gateway.

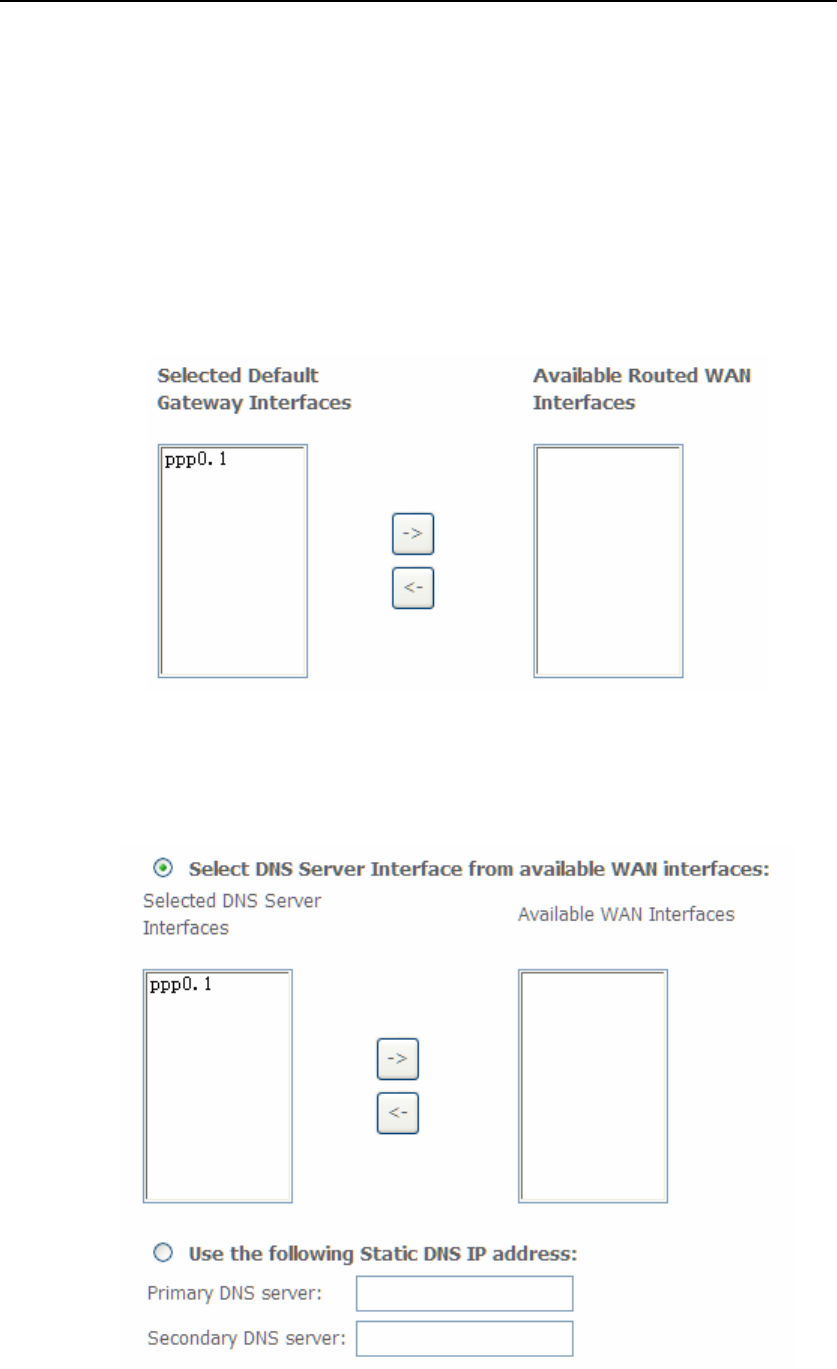

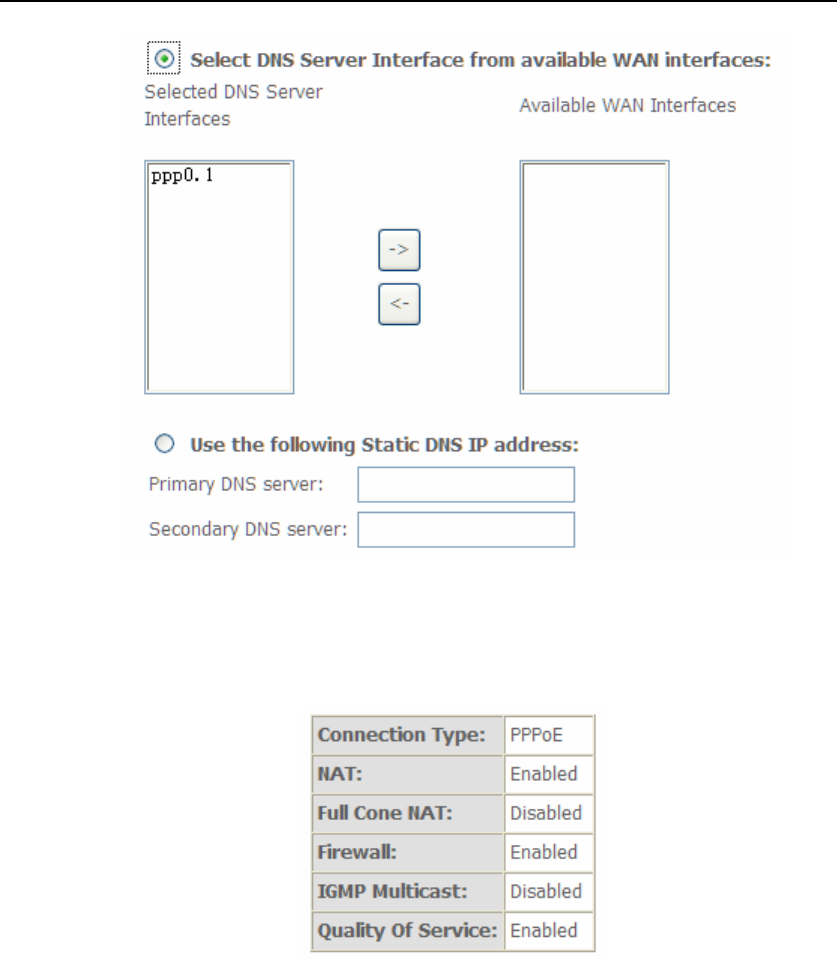

8. Get DNS server information from the selected WAN interface or enter static DNS
server IP addresses. If only a single PVC with IPoA or static MER protocol is
configured, you must enter static DNS server IP addresses.
WLANVDSLRouter UserManual
15

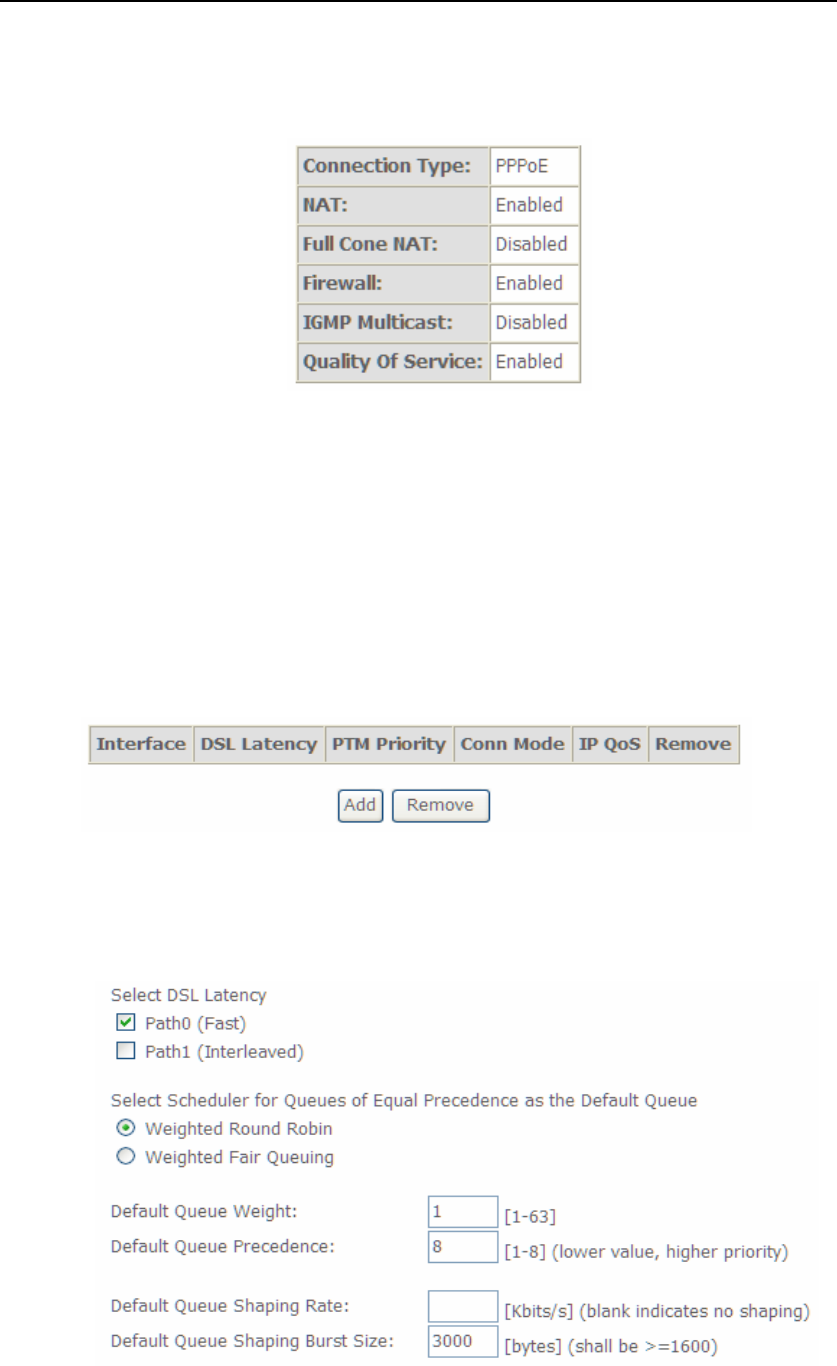

9. Make sure that the settings below match the settings provided by your ISP. Click
on the Apply/Save button to save your configurations.
5.2.2 VDSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click PTM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL PTM
interfaces.
2.Click Add to configure PTM Priority, select DSL latency and select connection
mode according to your local occasion. After the configuration, you need to click
Apply/Save.
WLANVDSLRouter UserManual
16
3. Click WAN Service from the left menu.
4.Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.
6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a maximum
of 32 characters in the password.
WLANVDSLRouter UserManual
17
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
Enable Full Cone NAT: In full cone NAT, all requests from the same private IP
address and port are mapped to the same public source IP address and port.
WLANVDSLRouter UserManual
18
Someone on the Internet only needs to know the mapping scheme in order to send
packets to a device behind the VDSL Device.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this
option and enter it in the IP Address field. If the ISP did not give you a static IP
address, clear the Use Static IP Address option. The ISP automatically assigns the
WAN connection an IP address when it connects.
Enable PPP Debug Mode: Select this to turn on the debug mode for the PPP
connection.
Bridge PPPoE Frames Between WAN and Local Ports: In addition to the VDSL
Device's built-in PPPoE client, you can enable this to pass PPPoE through in order to
allow LAN hosts to use PPPoE client software on their computers to connect to the
ISP via the VDSL Device. Each host can have a separate account and a public WAN
IP address. PPPoE pass through is an alternative to NAT for applications where NAT
is not appropriate. Disable PPPoE pass through if you do not need to allow hosts on
the LAN to use PPPoE client software on their computers to connect to the ISP.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
WLANVDSLRouter UserManual
19
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.
7. Select a preferred wan interface as the system default gateway.
8. Get DNS server information from the selected WAN interface or enter static
DNS server IP addresses. If only a single PVC with IPoA or static MER
protocol is configured, you must enter static DNS server IP addresses.
WLANVDSLRouter UserManual
20
9. Make sure that the settings below match the settings provided by your ISP.
Click on the Apply/Save button to save your configurations.
5.2.3 Router Mode Setup
1. From Advanced Setup, click Layer2 Interface and select ETH Interface.
Before you configure ETH WAN interface, you’d better remove all PVC
settings from ATM interface.

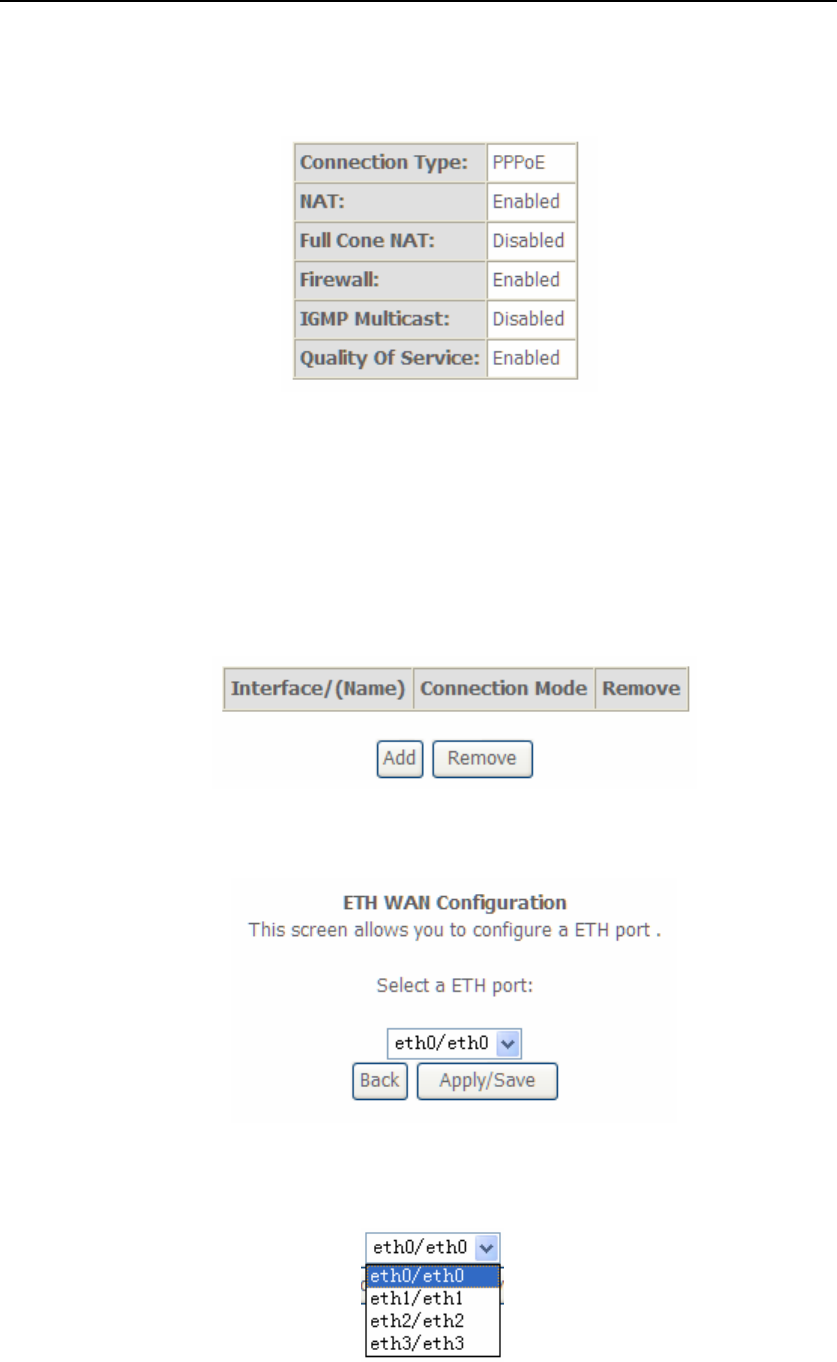

2. Click Add and you’ll see the following screen.
3. Select a ETH port as you will. You can select ENET1, ENET2, ENET3 or
ENET4 port as the WAN interface and Default mode as connection mode.
4. Click Apply/Save and you’ll see the following screen.
WLANVDSLRouter UserManual
21
5. From Advanced Setup, click WAN Service to configure a WAN service over
the interface you selected.
6. Click Add and you’ll see the following screen.

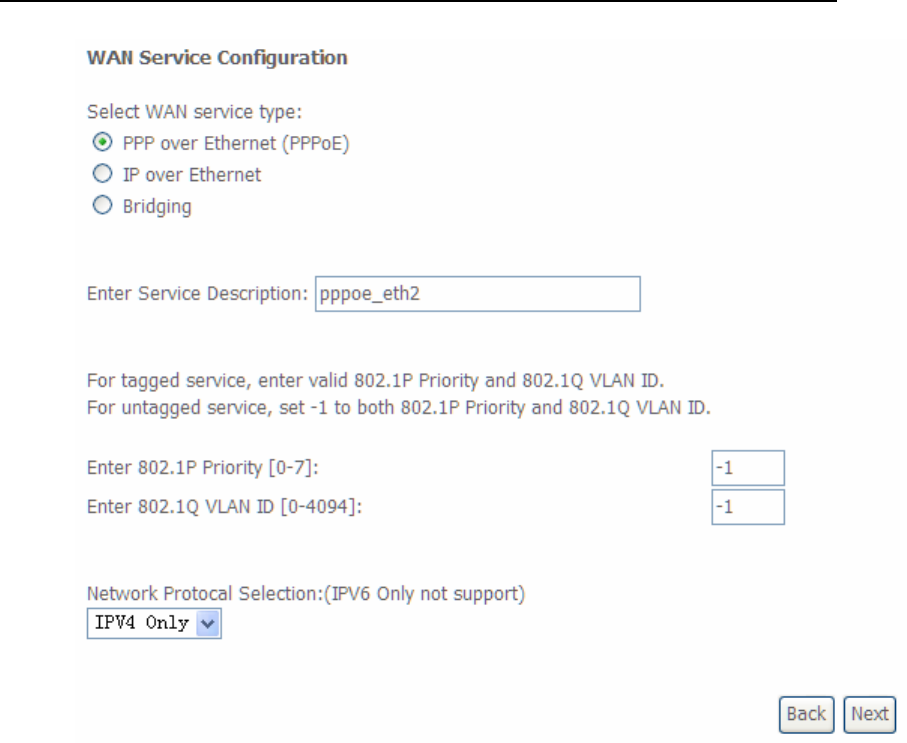

7. Click Next and you’ll see the following screen. Select PPPoE as WAN service
type for example. Click Next.
WLANVDSLRouter UserManual
22

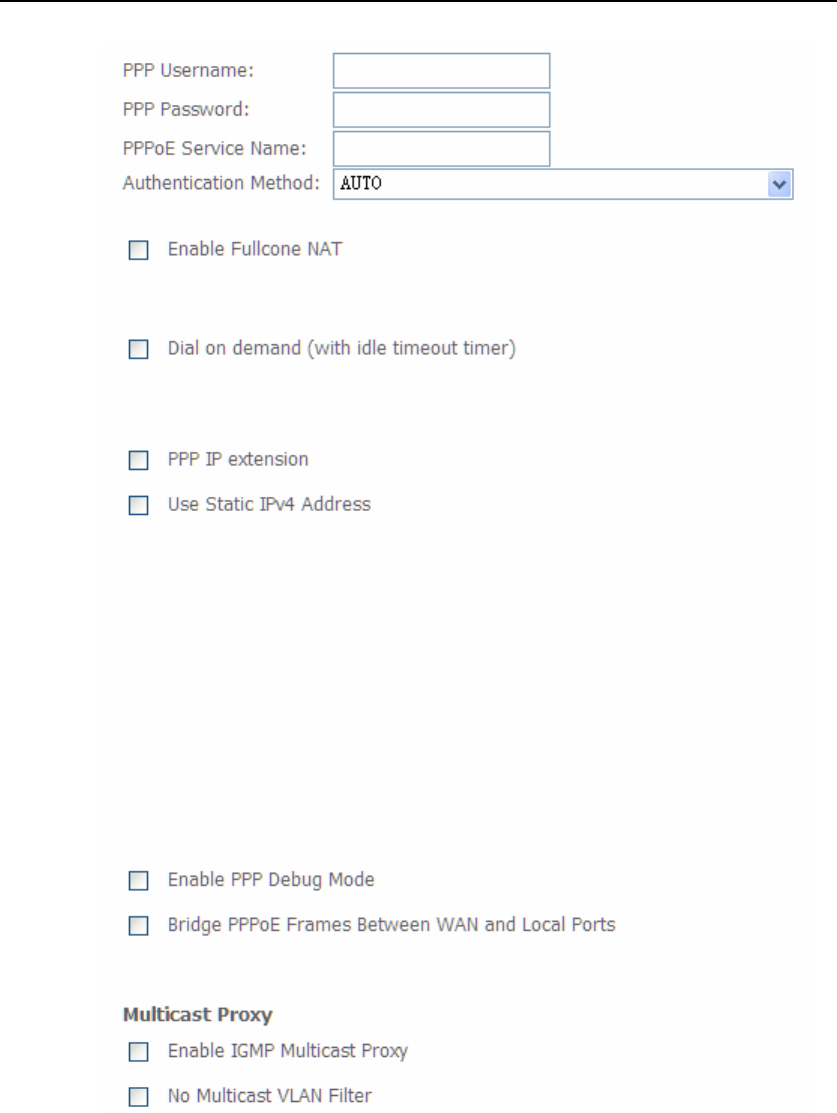

8. Enter the user name and password that your ISP has provided to you. Click
Next.
WLANVDSLRouter UserManual
23
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
WLANVDSLRouter UserManual
24
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
Enable Full Cone NAT: In full cone NAT, all requests from the same private IP
address and port are mapped to the same public source IP address and port.
Someone on the Internet only needs to know the mapping scheme in order to send
packets to a device behind the VDSL Device.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this
option and enter it in the IP Address field. If the ISP did not give you a static IP
address, clear the Use Static IP Address option. The ISP automatically assigns the
WAN connection an IP address when it connects.
Enable PPP Debug Mode: Select this to turn on the debug mode for the PPP
connection.
Bridge PPPoE Frames Between WAN and Local Ports: In addition to the VDSL
Device's built-in PPPoE client, you can enable this to pass PPPoE through in order to
allow LAN hosts to use PPPoE client software on their computers to connect to the
ISP via the VDSL Device. Each host can have a separate account and a public WAN
IP address. PPPoE pass through is an alternative to NAT for applications where NAT
is not appropriate. Disable PPPoE pass through if you do not need to allow hosts on
the LAN to use PPPoE client software on their computers to connect to the ISP.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it is
forwarded to the computer's LAN interface through DHCP. Only one
system on the LAN can be connected to the remote, since the DHCP
WLANVDSLRouter UserManual
25
server within the ADSL gateway has only a single IP address to
assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.
9. Select WAN interface as the system default gateway. Click Next.
10. Get DNS server information from the selected WAN interface or enter static
DNS server IP addresses. Click Next.
WLANVDSLRouter UserManual
26
11. Make sure that the settings below match the settings provided by your ISP.
Click on the Apply/Save button to save your configurations and reboot the
ADSL router.
WLANVDSLRouter UserManual
27
5.2.4 LAN Settings
From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN
interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol)
to control the assignment of IP addresses on your local network (LAN
only).KW5212 support IPv4 /IPv6 dual stack.
5.2.4.1 IPv4 LAN Settings
Item Description
IP address This is the IP address that other devices on your local network
will use to connect to the modem.
Subnet mask This defines the size of your network. The default is
255.255.255.0.
WLANVDSLRouter UserManual
28
Enable IGMP
snooping
IGMP Snooping is a method that actually “snoops” or inspects
IGMP traffic on a switch. When enabled, the switch will watch for
IGMP messages passed between a host and a router, and will
add the necessary ports to its multicast table, ensuring that only
the ports that require a given multicast stream actually receive it.
Disable / Enable
DHCP server
The DHCP server assigns an IP addresses from a pre-set pool of
addresses upon request from DHCP client (e.g. your computer).
Do not disable the DHCP server unless you wish to let another
device handle IP address issuance on the local network.
Start / end IP
address
This is the beginning and ending range for the DHCP server
addresses.
Lease time The amount of time before the IP address is refreshed by the
DHCP server.
Enable DHCP
server relay
If NAT is disabled and the PVC is the IPoA or static MER type,
this item allows you to inform the router of another DHCP server
on your LAN. To do this, disable the DHCP server on the
gateway. Then input the IP address of the current DHCP server.
Click Apply and restart the gateway.
Configure the
second IP
address and...
Use this feature to create a public network on your local LAN,
accessible from the Internet. By assigning an address to this
interface and then statically setting your LAN clients to the same
network, the LAN clients are accessible from the public network
(e.g. FTP or HTTP servers).
WLANVDSLRouter UserManual
29

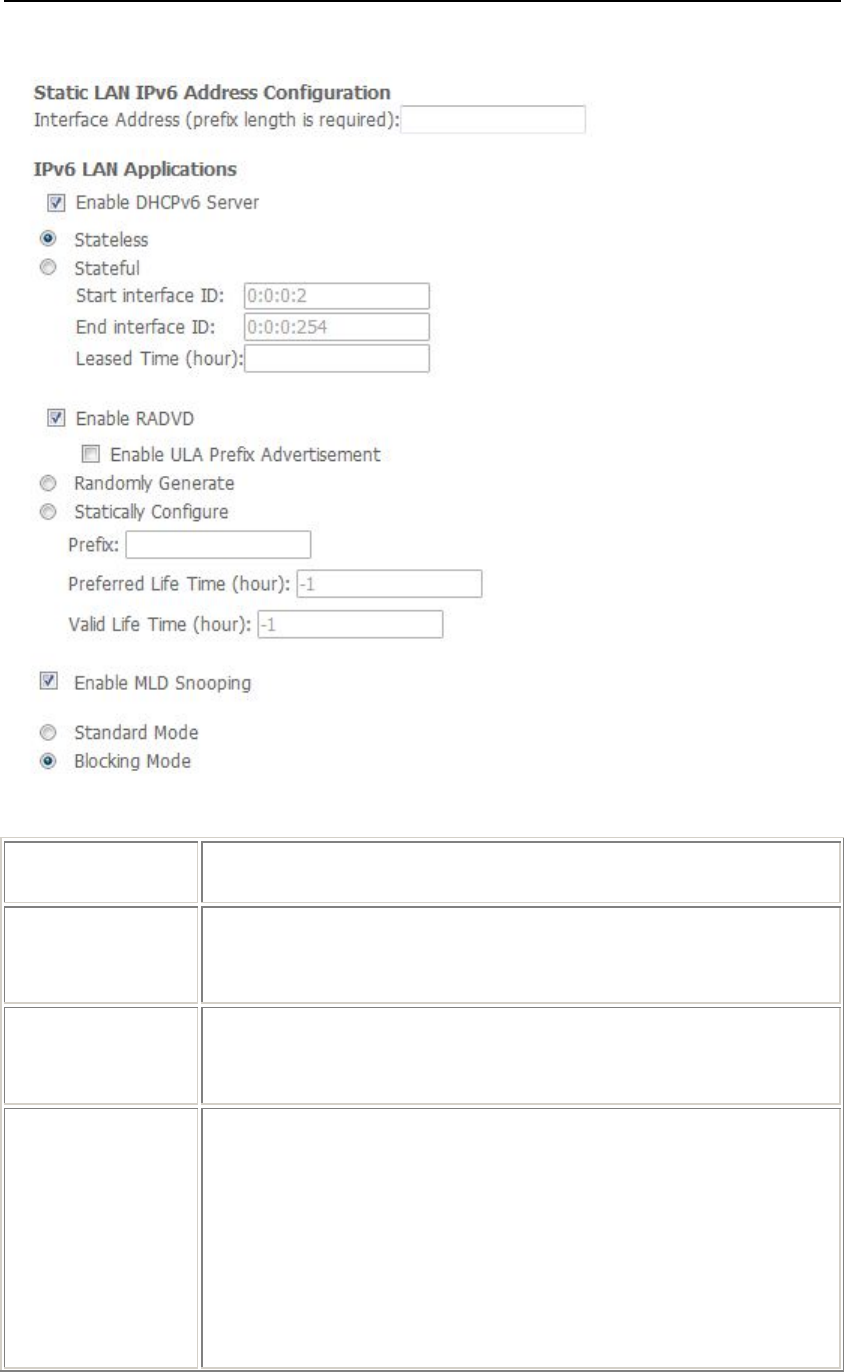

5.2.4.2 IPv6 LAN Settings
Item Description
IPv6 address This is the IP address that other devices on your local network
will use to connect to the modem.
Subnet mask This defines the size of your network. The default is
255.255.255.0.
Enable IGMP
snooping
IGMP Snooping is a method that actually “snoops” or inspects
IGMP traffic on a switch. When enabled, the switch will watch for
IGMP messages passed between a host and a router, and will
add the necessary ports to its multicast table, ensuring that only
the ports that require a given multicast stream actually receive it.
Use standard mode to flood unknown multicast traffic.
WLANVDSLRouter UserManual
30
Use blocking mode to discard unknown multicast traffic.
Disable / Enable
DHCP server
The DHCP server assigns an IP addresses from a pre-set pool of
addresses upon request from DHCP client (e.g. your computer).
Do not disable the DHCP server unless you wish to let another
device handle IP address issuance on the local network.
Start / end IP
address
This is the beginning and ending range for the DHCP server
addresses.
Leased time The amount of time before the IP address is refreshed by the
DHCP server.
Configure the
second IP
address and...
Select this option to let the device use a second IP address on
the LAN interface. You can also use this second IP address to
access the device for management. Enter the LAN IP address of
your device in dotted decimal notation, for example, 10.0.0.1.
Type the subnet mask.
Note: If you want to cancel all modification that you do on the Router, please
select from “ManagementSettingRestore Default Settings” to restore
factory default settings.
WLANVDSLRouter UserManual
31
5.3 Wireless setting
5.3.1 Basic

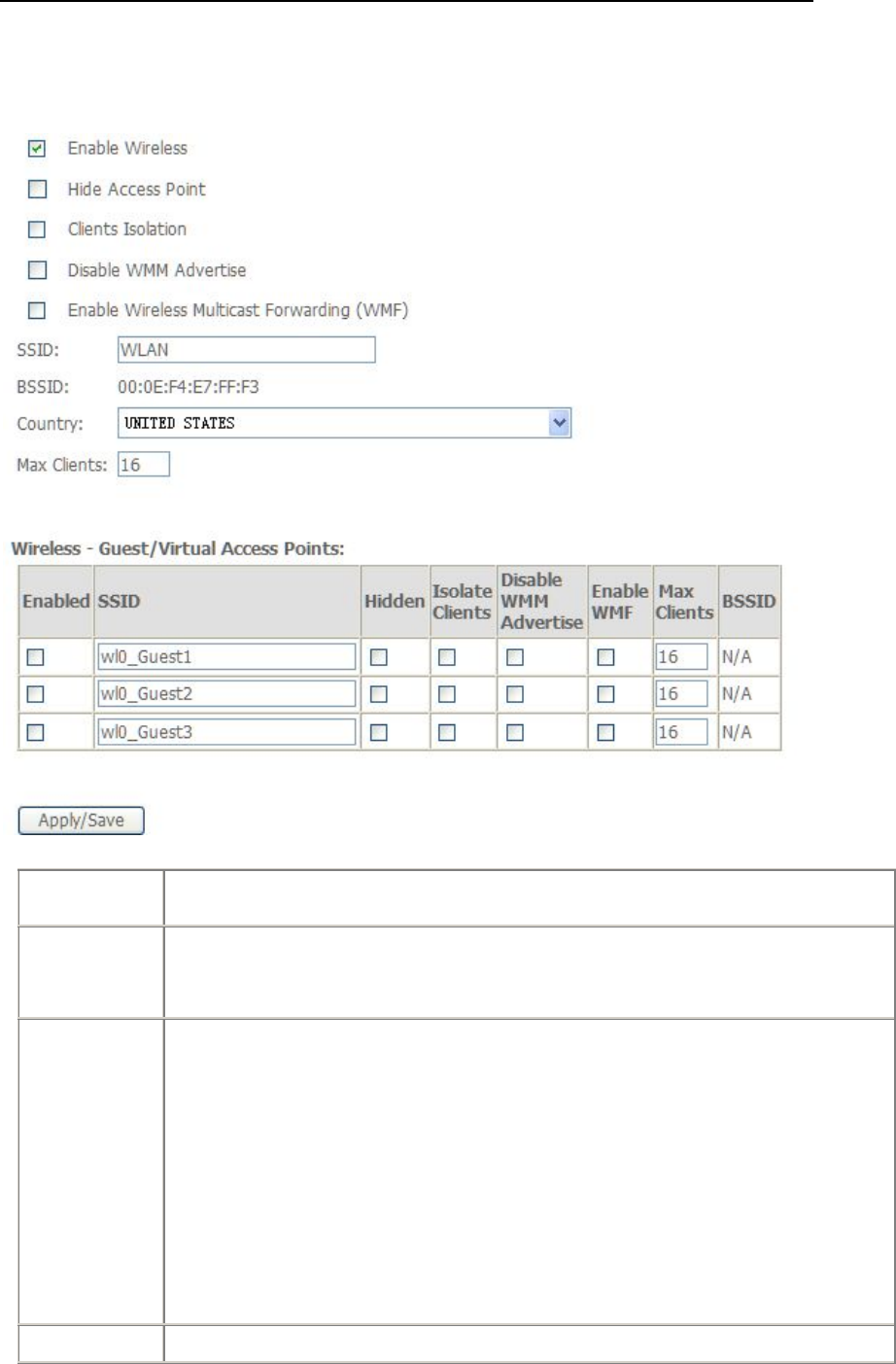

Option Description
Enable
wireless
A checkbox that enables or disables the wireless LAN interfaces. The default
is to enable wireless communications.
Hide Access
Point
Select Hide Access Point to protect the ADSL route access point from
detection by wireless active scans. If you do not want the access point to be
automatically detected by a wireless station, this checkbox should be
deselected.
The station will not discover this access point. To connect a station to the
access point, the station must manually add this access point name in it's
wireless configuration.
In Windows XP, go to the Network>Properties function to view all of the
available access points. You can also use other software programs such as
NetStumbler to view available access points.
Clients Enable this item if you don’t want your wireless clients to communicate with
WLANVDSLRouter UserManual
32
isolation each other.
Network
name (SSID)
Enter a name for user’s wireless network here. SSID stands for Service Set
Identifier. This name must be between 1 and 32 characters long. The default
name WLAN
All wireless clients must either detect the gateway or be configured with the
correct SSID to access the Internet.
BSSID
Displays the gateway's wireless MAC address. (User may need this address
if user is using WDS or multiple gateways.) Click Apply to save changes.
Country Drop-down menu that allows selection of specific channel.

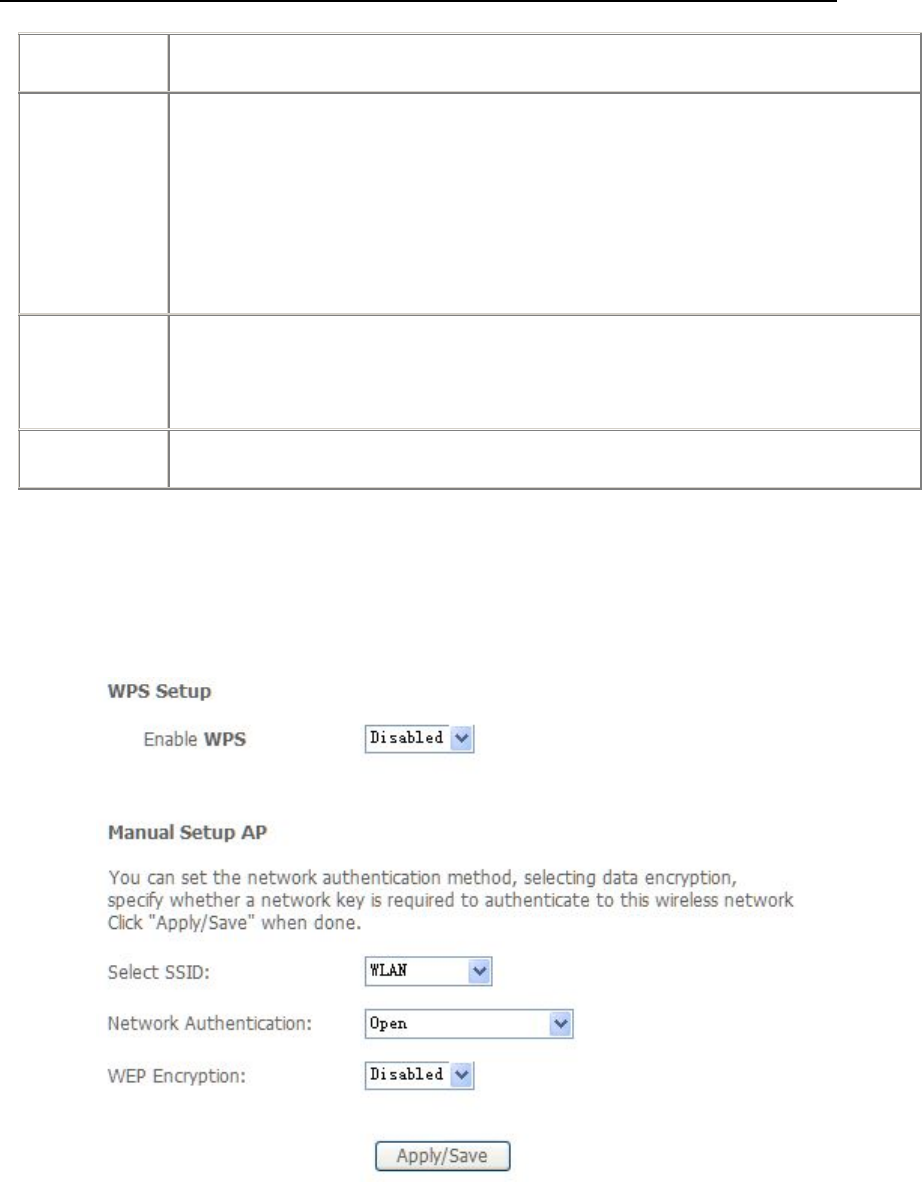

5.3.2 Security
This page allows you to configure security features of the wireless LAN interface.
You may set up configuration manually or through WiFi Protected Setup(WPS)

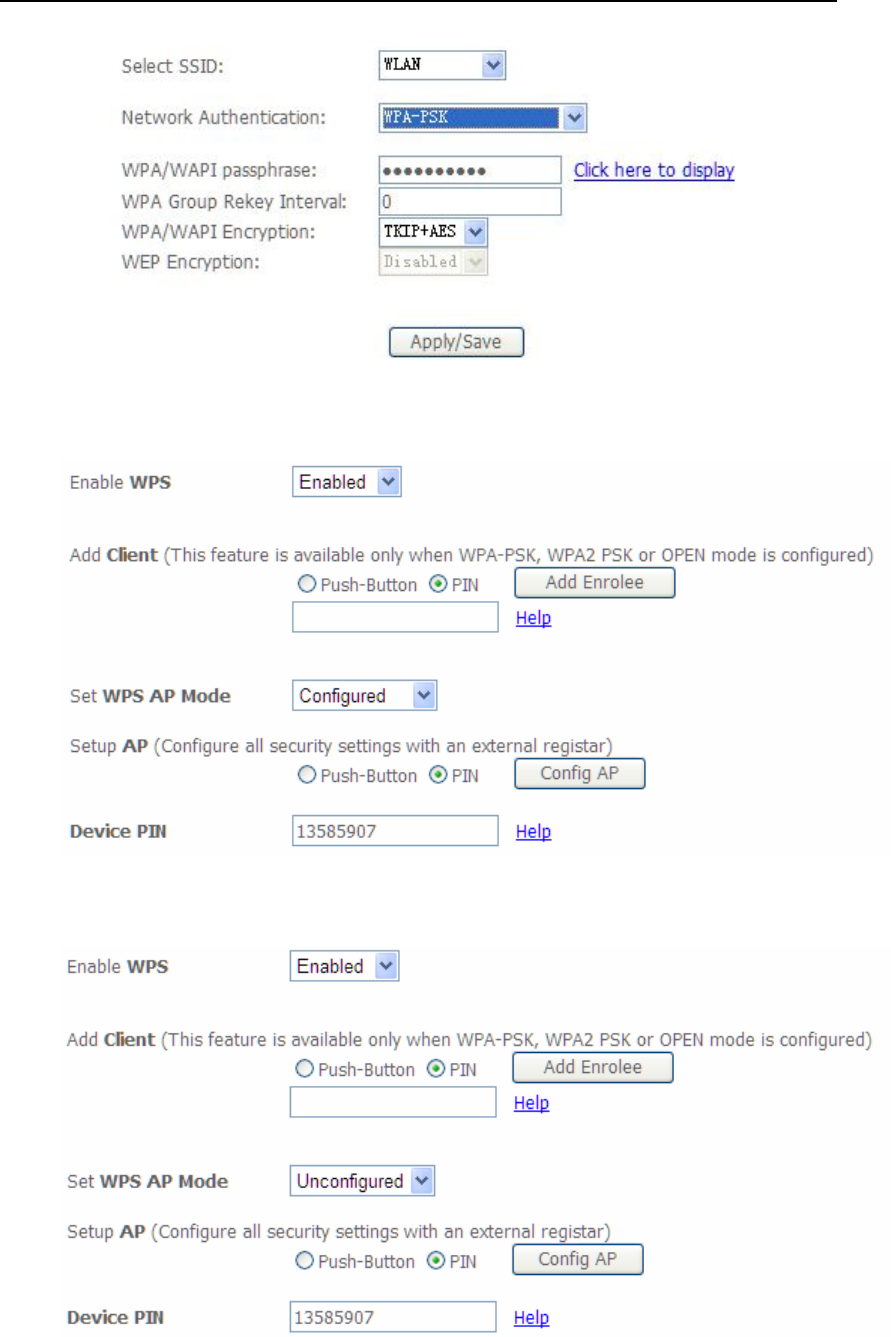

1.Click Security of Wireless item and you’ll see the following page.
2.Configure WPA Pre-shared key as below and click Apply/Save.
WLANVDSLRouter UserManual
33
3.Enable WPS as below.
4.Set WPS AP mode as unconfigured and click Config AP.
5. Set WPS AP mode as configured and click Save/Apply.
WLANVDSLRouter UserManual
34
6. Now you can use a wireless adaptor with WPS function and the WPS button to
connect KW5212 to access the Internet.

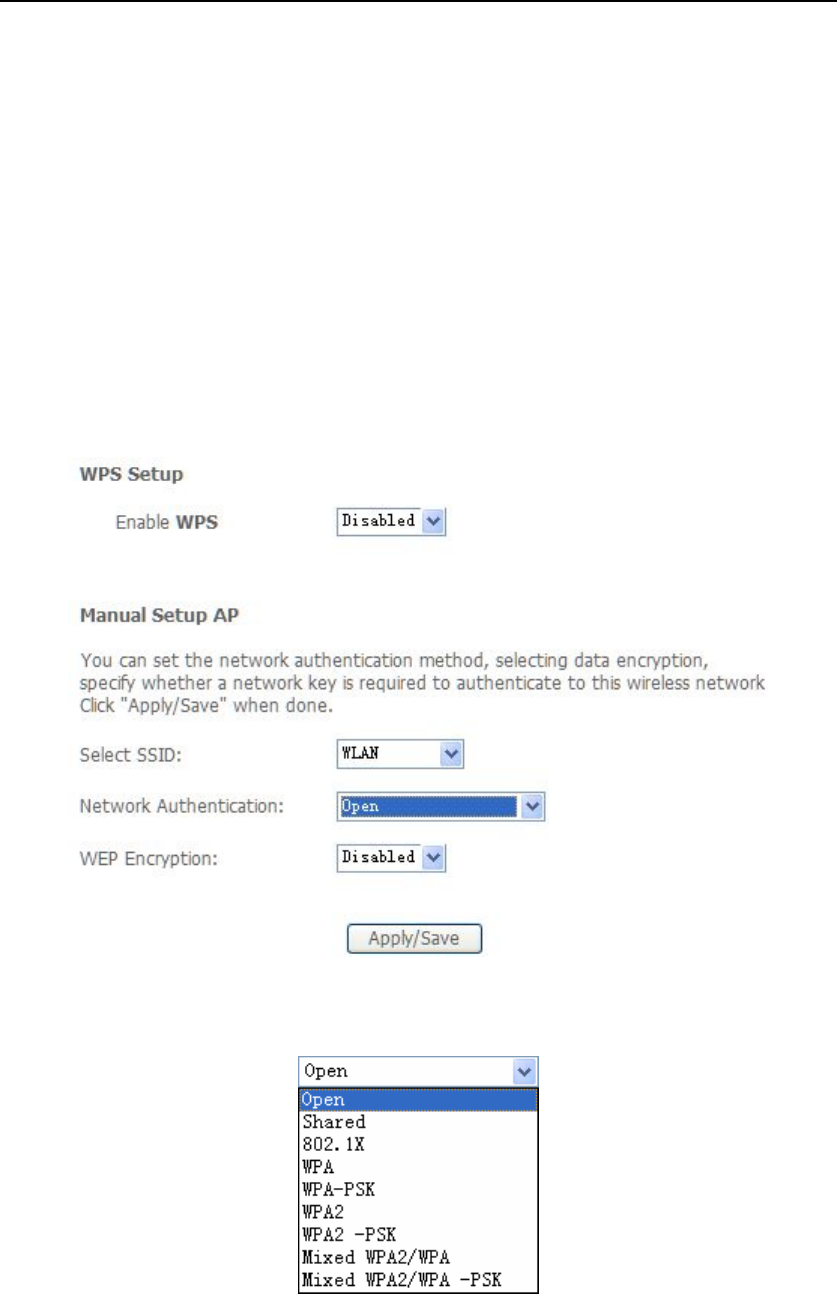

7. To configure security features for the Wireless interface, please open Security
item from Wireless menu. This web page offers nine authentication protocols for user
to secure user’s data while connecting to networks. There are four selections
including Open, Shared, 802.1X,WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed
WPA-WPA2, Mixed WPA-WPA2-PSK. Different item leads different web page
settings. Please read the following information carefully.
The wireless security page allows user to configure the security features of user’s
wireless network.
There are several security methods to choose from, depending on user’s needs and
the capabilities of user’s wireless machines.
WEP open and WEP shared —WEP is an encryption scheme that is used
to protect user’s wireless data communications. WEP uses a combination
WLANVDSLRouter UserManual
35
of 64-bit keys or 128-bit keys to provide access control to user’s network
and encryption security for every data transmission. To decode a data
transmission, each wireless client on the network must use an identical
64-bit or 128-bit key. WEP is an older wireless encryption method that is
not as hard to break as the more-recent WPA.
802.1x — In 802.1x (also known as RADIUS), a separate machine called an
authentication server receives a user ID and password. It grants or denies
access based on whether the ID and password match any entries in its
account list. User can optionally enable WEP encryption with this option.
Because it requires a separate machine acting as the authentication server,
802.1x is most often used in business environments.
WPA — WPA is a more recent encryption method that addresses many of
the weaknesses in WEP. Any client capable of WPA encryption should use
it instead of WEP.
WPA (PSK) — This is WPA encryption combined with a pre-shared key
(PSK), which is a text string known only to the gateway and authorized
wireless clients. The gateway rejects the login if the client's PSK does not
match.
WPA2 — WPA2 is a more advanced encryption method than WPA. Because
it is a more recent standard, some of user’s wireless devices might not be
able to use it.
WPA2 (PSK) — This option uses WPA2 with a pre-shared key.
WPA2 and WPA — This option supports WPA2/WPA encryption for devices
capable of one or the other standard. The gateway automatically detects
whether a particular device can use WPA2 or WPA.
WPA2 AND WPA (PSK) — This has WPA2 or WPA encryption based on
client abilities, as well as a pre-shared key.
After making changes, click Apply to save.
WLANVDSLRouter UserManual
36
5.4 Printer Server Installations

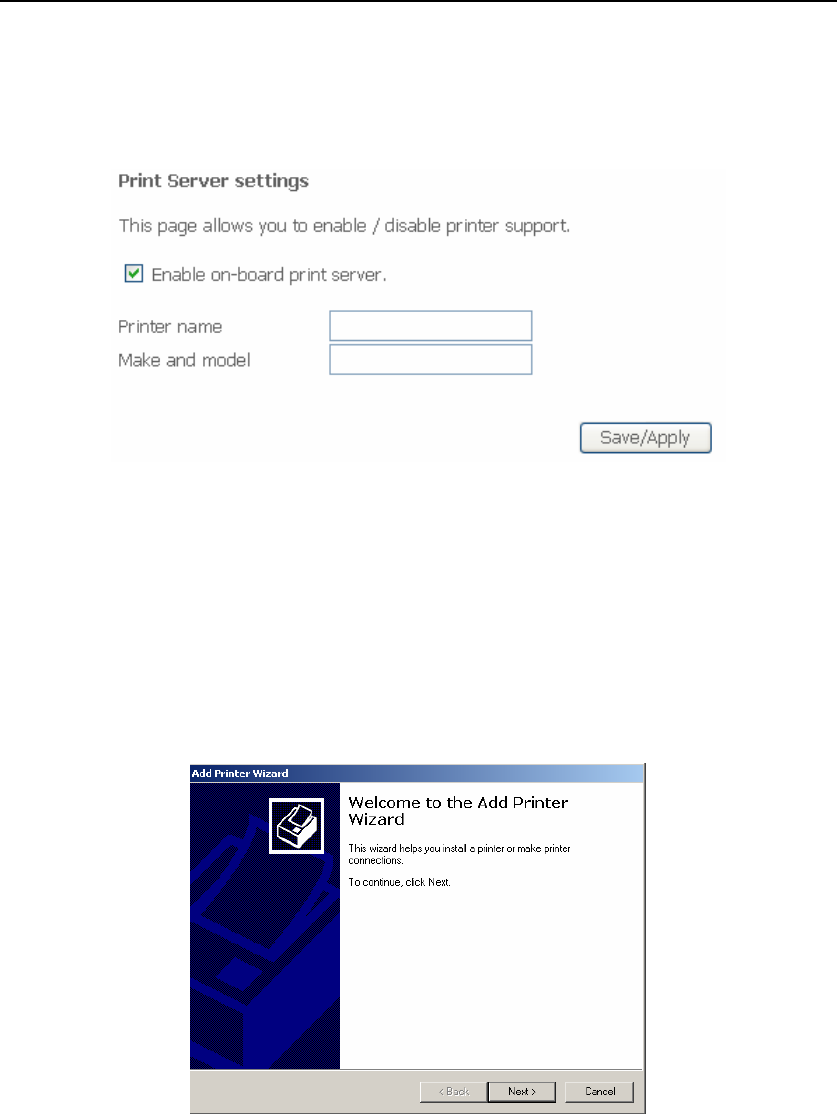

1. Click “Advanced setupPrint Server” and then Check “Enable on-board printer
server” and key in “Printer name”, “Make and model” .
2. Click on Add a printer from Control Panel of the Windows computer and click
“Next”.

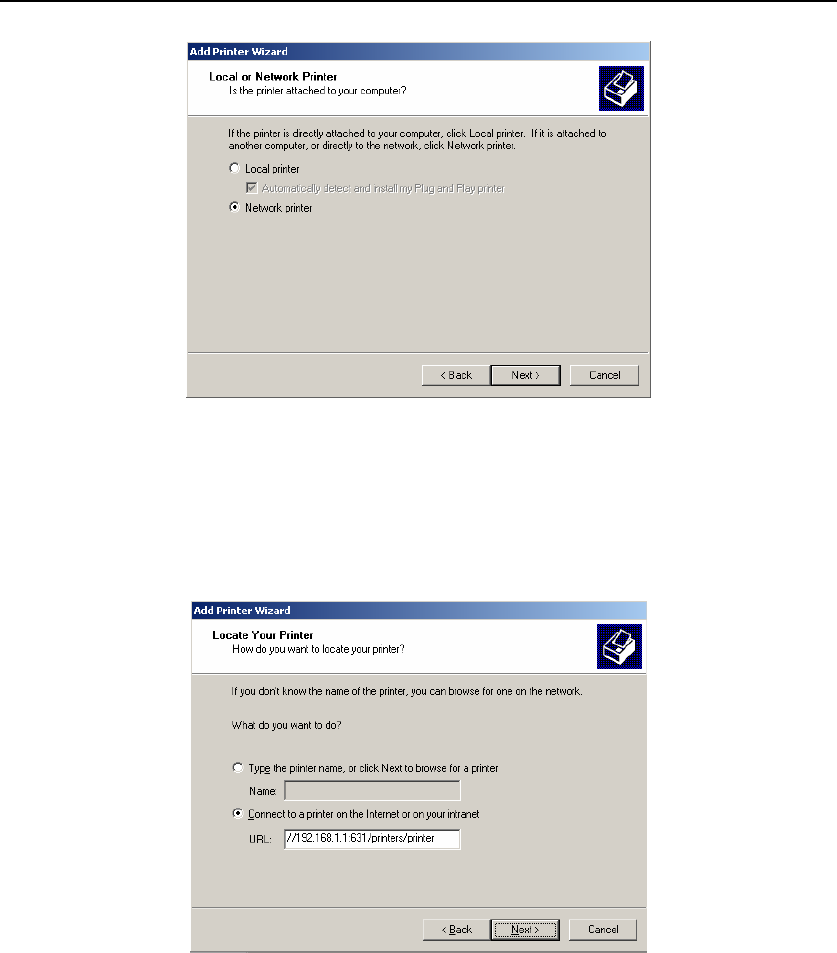

3. Select “Network Printer” and click “Next”.
WLANVDSLRouter UserManual
37
4. Select Connect to a printer on the Internet, type
“http://192.168.1.1:631/printers/printer” and click “Next”. The printer name
“Printer” must be the same name entered in the ADSL router “print server
setting” as in step 1.

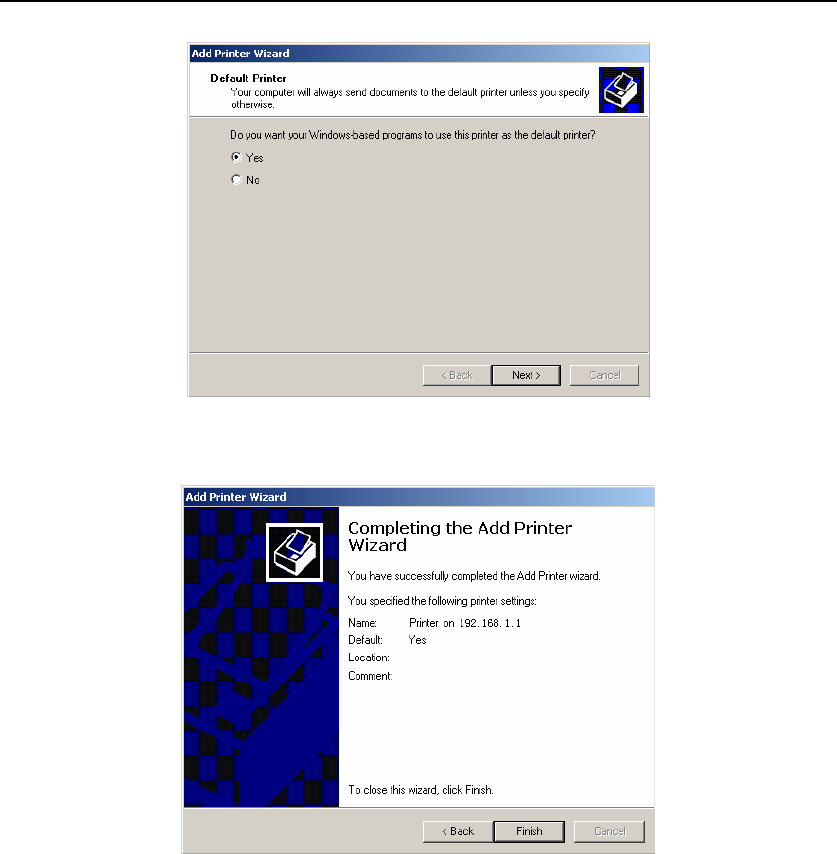

5. Select driver file directory on CD-ROM or in your hard disk and click “OK”.
6. Choose “Yes” or “No” for default printer setting and click “Next”.
WLANVDSLRouter UserManual
38
7. Click “Finish”.
WLANVDSLRouter UserManual
39
Appendix: Frequent Asked Questions
Q: None of the LEDs are on when you power on the ADSL router?
A: Please make sure what you use is the power adaptor attached with the ADSL
router package and checks the connection between the AC power and ADSL
router.
Q: DSL LED does not turn on after connect telephone line?
A: Please make sure what you use is the standard telephone line (as attached with
the package), make sure the line is connected correctly and check whether there
is poor contact at each interface. Wait for 30 seconds to allow the ADSL router
establishes connection with you ADSL operator.
Q: DSL LED is in the circulation of slow-flashing and fast-flashing after connecting
telephone line?
A: This situation means the ADSL router is in the status of failing to establish
connection with Central Office. Please check carefully and confirm whether the
ADSL router has been installed correctly.
Q: LAN LED does not turn on after connect Ethernet cable?
A: Please make sure Ethernet cable is connected hub/PC and ADSL router correctly.
Then please make sure the PC/hub have been power on.
Please make sure that you use parallel network cable to connect UpLink port of
hub, or use parallel network cable to connect PC. If connect normal port of hub
(not UpLink port), you must use cross-cable. Please make sure that your network
cables meet the networking requirements above.
Q: PC cannot access the Router?
A: Please make sure that all devices communicating with the device must use the
same channel (and use the same SSID). Otherwise your PC will not find the
wireless Router.
Q: PC cannot access the Internet?
A: First check whether PC can ping the interface Ethernet IP address of this product
successfully (default value is 192.168.1.1) by using ping application. If ping
application fails, please check the connection of Ethernet cable and check
whether the states of LEDs are in gear.
If the PC uses private IP address that is set manually (non-registered legal IP
address), please check:
1. Whether IP address of the PC gateway is legal IP address. Otherwise please
use the right gateway, or set the PC to Obtain an IP address automatically.
2. Please confirm the validity of DNS server appointed to the PC with ADSL
operator. Otherwise please use the right DNS, or set the PC to Obtain an IP
address automatically.
3. Please make sure you have set the NAT rules and convert private IP address
to legal IP address. IP address range of the PC that you specify should meet
the setting range in NAT rules.
4. Central Office equipment may have problem.
5. The country or the wireless network type you selected is wrong.
WLANVDSLRouter UserManual
40
Q: PC cannot browse Internet web page?
A: Please make sure DNS server appointed to the PC is correct. You can use ping
application program to test whether the PC can connect to the DNS server of the
ADSL operator.
Q: Initialization of the PVC connection failed?
A: Be sure that cable is connected properly from the DSL port to the wall jack. The
DSL LED on the front panel of the ADSL router should be on. Check that your
VPI, VCI, type of encapsulation and type of multiplexing setting are the same as
what you collected from your service provider, Re-configure ADSL router and
reboot it. If you still cannot work it out, you may need to verify these variables with
the service provider.
If the cause is not given above, please contact your local service
provider!
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20 cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the
ACTA. On the bottom of this equipment is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
2. A plug and jack used to connect this equipment to the premises wiring and telephone network
must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. See installation instructions for
details.
3.
telephone company will notify you in advance that temporary discontinuance of service may
be required. But if advance notice isn't practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
4. The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
5.
warranty information, Service can be facilitated through our office at:
Kaito Electronics,Inc.
5185 Cliffwood Dr. Montclair CA 91763
Tel: 909 628 6088 ,Fax: 909 628 7999
If the equipment is causing harm to the telephone network, the telephone company may
request that you disconnect the equipment until the problem is resolved.
6. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do
not alternate or repair any parts of device except specified. For repair procedures, follow the
instructions outlined under the limited warranty.
7. Connection to party line service is subject to state tariffs. Contact the state public utility
commission, public service commission or corporation commission for information.
8. If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this [equipment ID:DL] does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone company or a
qualified installer.
9. If the telephone company requests information on what equipment is connected to their lines,
inform them of:
a) The ringer equivalence number [01B]
b) The USOC jack required [RJ11C]
Facility Interface Codes (“FIC”) [METALLIC ]
Service Order Codes (“SOC”) [9.0Y]
c)
10. The REN is used to determine the number of devices that may be connected to a telephone
line. Excessive RENs on a telephone line may result in the devices not ringing in response to
an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To
If trouble is experienced with this equipment [US: U5IDL01BKW5212], for repair or
If this equipment [US:U5IDL01BKW5212] causes harm to the telephone network, the
The FCC Registration Number[US:U5IDL01BKW5212]
be certain of the number of devices that may be connected to a line, as determined by the total
RENs, contact the local telephone company. The REN for this product is part of the product
identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point. For this product the FCC Registration number is
[US: U5IDL01BKW5212] indicates the REN would be 01B.
