California Arch User Guide

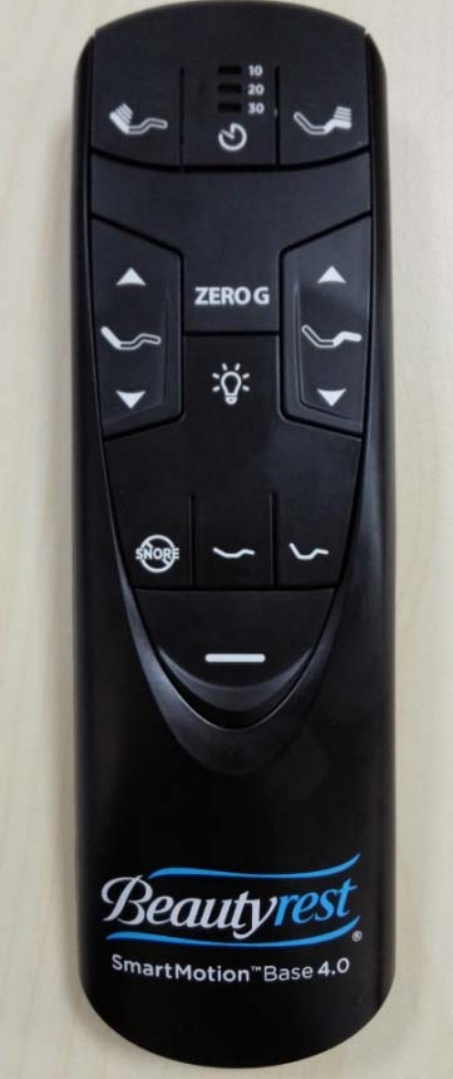

1.Appearance
![](/img.php?id=2812293&img=bg2.png)
2.Specification
1. Part Number: JLDK.33.01.02;
2. Working Voltage:3.0-5.0V;
3. Working Current:21.8mA @4.5V;
4. Operation Temperature:-20~55℃;
5. Storage temperature:-25~75℃;
6. RF Frequency Range:2.4~2.4835GHz;
7. RF Modulation:GFSK;
8. RF Transmitted Power: 0 dBm;
9. Housing Material: ABS;
3.Interface Description
P1HEADMASSAGE
P2TIMER
P3FOOTMASSAGE
P4HEADUP
P5ZEROG
P6FOOTUP
P7HEADDOWN
P8LIGHT
P9FOOTDOWN
P10MEMORYI
P11MEMORYII
P12MEMORYIII
P13FLAT
1. P1(HEADMASSAGE):Turns head massage on and cycles trough all massage levels form
lowest to highest. Turns head massage off if highest massage level was selected before
button was pressed.
2. P2(TIMER):Sets massage timeout. Cycles trough a timeout of 10, 20 and 30 minutes,
starting with 10 minutes. Massage is turned off if massage timeout was set to 30 minutes
before button was pressed.
3. P3(FOOTMASSAGE):Turns foot massage on and cycles trough all massage levels form
lowest to highest. Turns foot massage off if highest massage level was selected before
button was pressed.
4. P4(HEADUP):Press this key, the head actuator out, release to stop it.
5. P5(ZEROG): Actuators are moved into ZERO G position automatically. The movement
starts when the key is released. Click any key to stop it.
6. P6(FOOTUP):Press this key, the foot actuator out, release to stop it.
7. P7(HEADDOWN):Press this key, the head actuator in, release to stop it.
8. P8(LIGHT):Toggles on or off the floor light.
9. P9(FOOTDOWN):Press this key, the foot actuator in, release to stop it.
10. P10(MEMORYI):Actuators are moved into MEMORY I position automatically. The
movement starts when the key is released. Click any key to stop it. If the key is pressed for
more than 5 seconds the current position will be stored on this key.
11. P11(MEMORYII):Actuators are moved into MEMORYII position automatically. The
movement starts when the key is released. Click any key to stop it. If the key is pressed for
more than 5 seconds the current position will be stored on this key.
12. P12(MEMORYIII):Actuators are moved into MEMORYIII position automatically. The
movement starts when the key is released. Click any key to stop it. If the key is pressed for
more than 5 seconds the current position will be stored on this key.
13. P13(FLAT):Actuators are moved intoFLAT automatically. The movement starts when the
key is released. Click any key to stop it.
14. P13&P5(FLAT&ZEROG):Memory positions( I II III ) can be restored by pressing Zero-G
and All-Flat for 5 seconds.
15. P4&P6&P7&P9(HEADUP&HEADDOWN&FOOTUP&FOOTDOWN):Press P4,P6,P7,P9
simultaneously, the control box will enter self-test mode;
4.Operation Instructions
Pairing: There is a white key under the battery cover. Press this key for more than 1
second, the remote will enter pairing mode and a LED besides the pairing key will be
flashing. Release this key to stop pairing .After the pairing is successful, LED will stop
flashing.
![](/img.php?id=2812293&img=bg4.png)

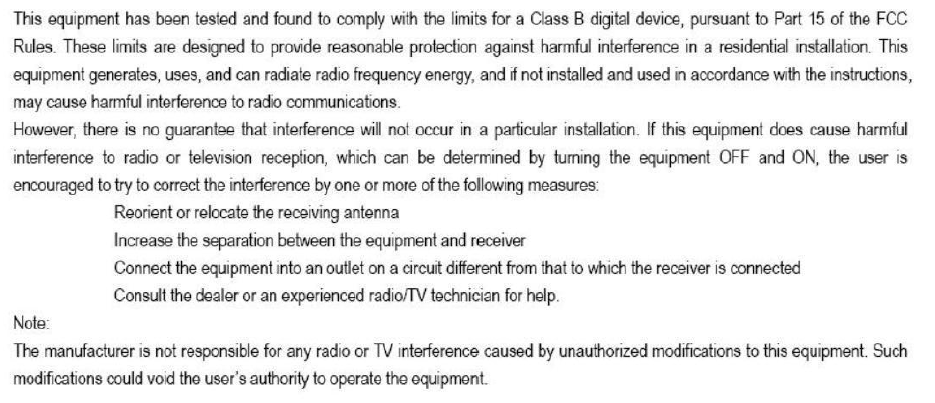

5.Fcc warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
