Use & Care Guide

Manual de Uso yCuidado

English /Espafiol

Models/Moclelos: 795.5182 _

Kenmore Elite

@

_$_®s

P/N MFL63720605

Sears Brands Management Corporation

Hoffman Estates, iL 60179 U.S.A.

www. kenl_ore.¢om

www.sear s.cot_

Sears Canada inc.

Toronto, Ontario, Canada MSB 2C3

www.sears.ca

®

Warranty .............................................................................3

Protection Agreements ..............................................4

Important Safety instructions ................................5

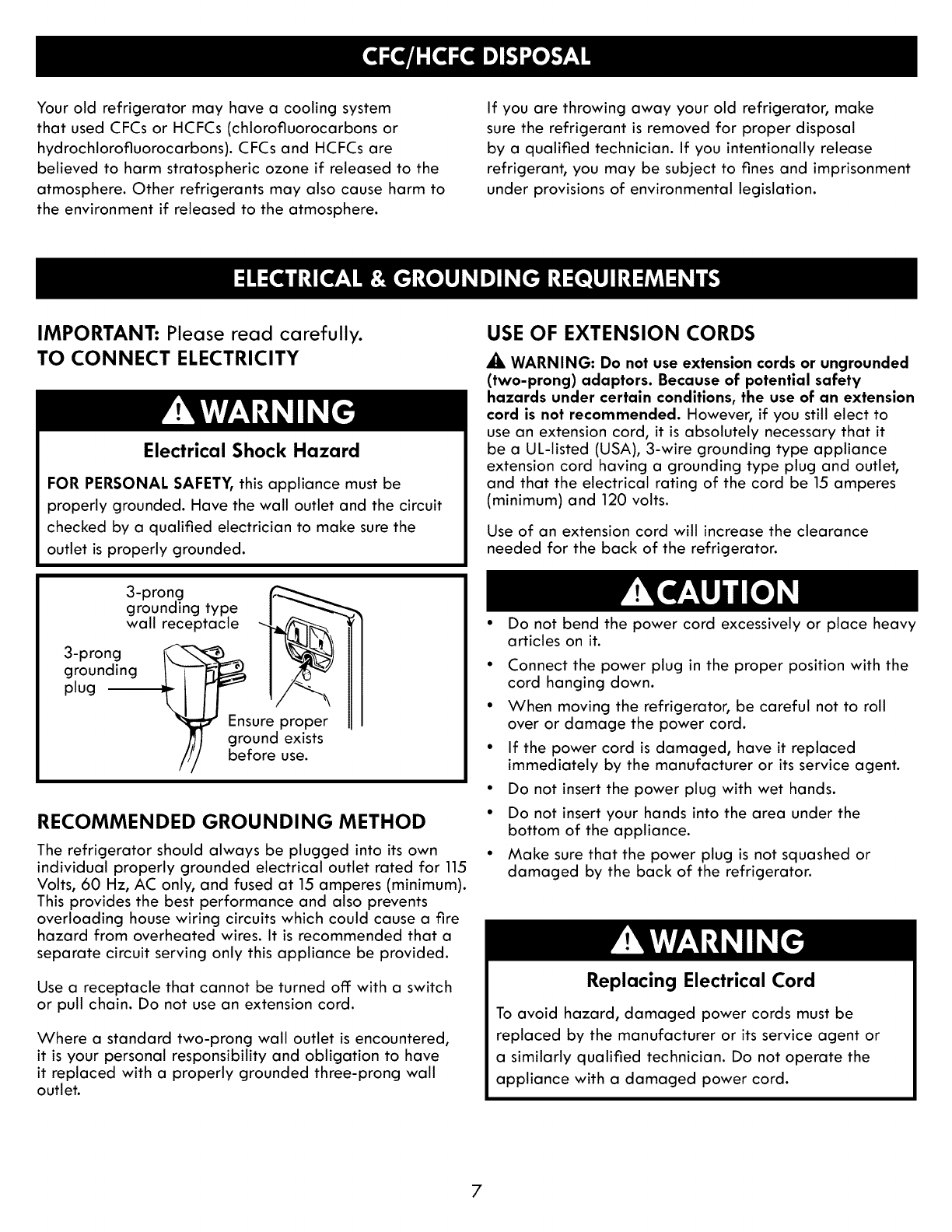

Electrical & Grounding Requirements ..............7

Parts and Features .......................................................8

Refrigerator Installation .............................. 9-14

Unpacking Your Refrigerator .......................... 9

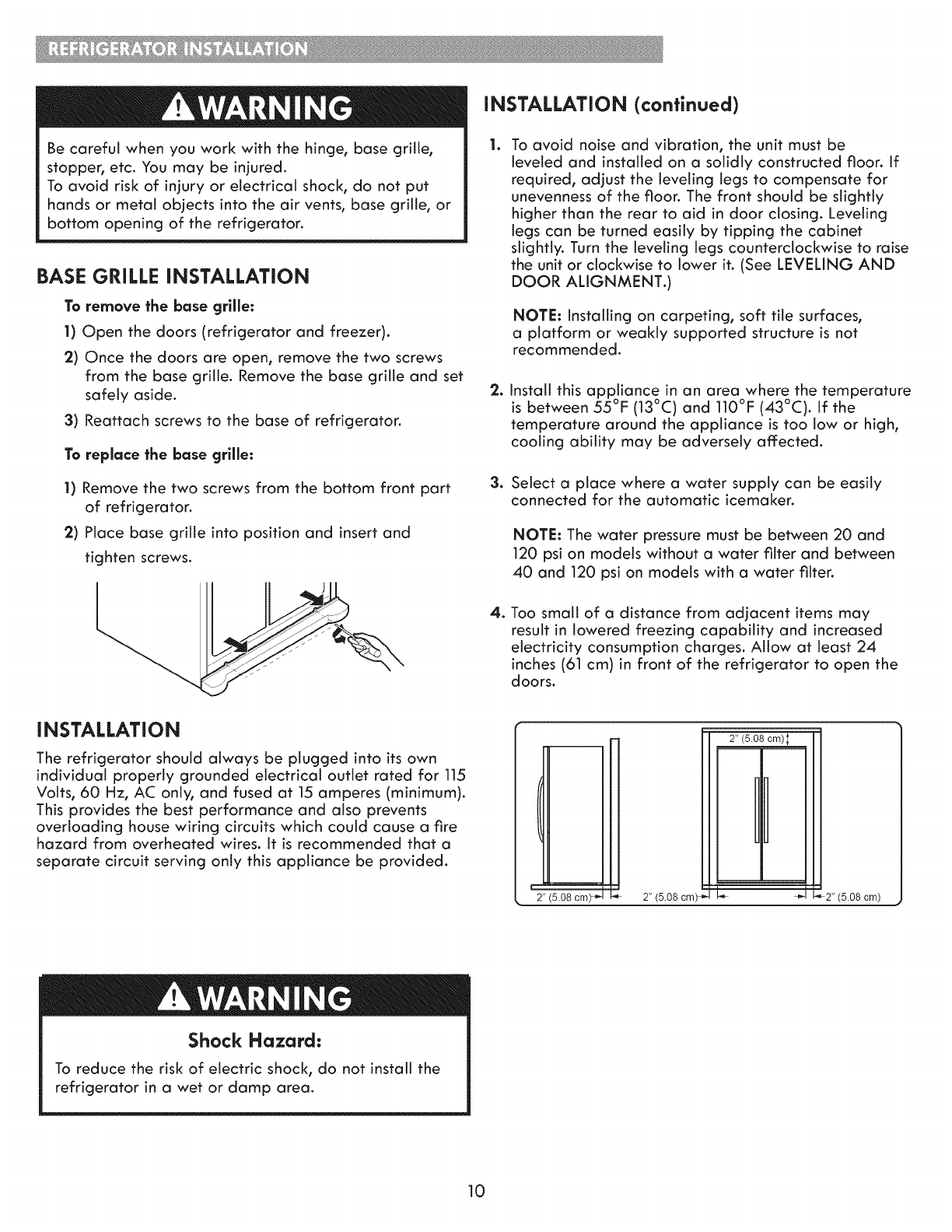

Installation ....................................................................10

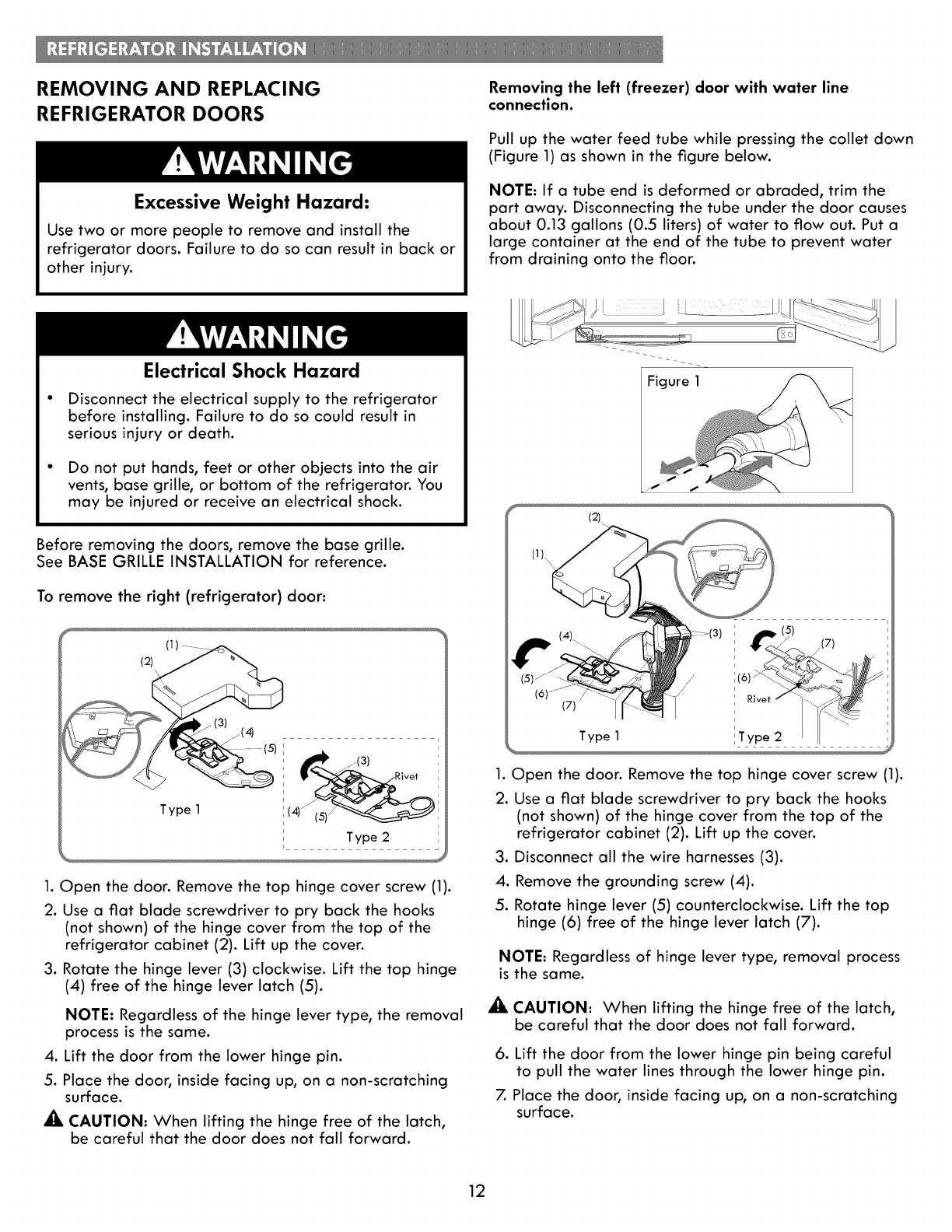

Removing/Replacing Your Refrigerator and

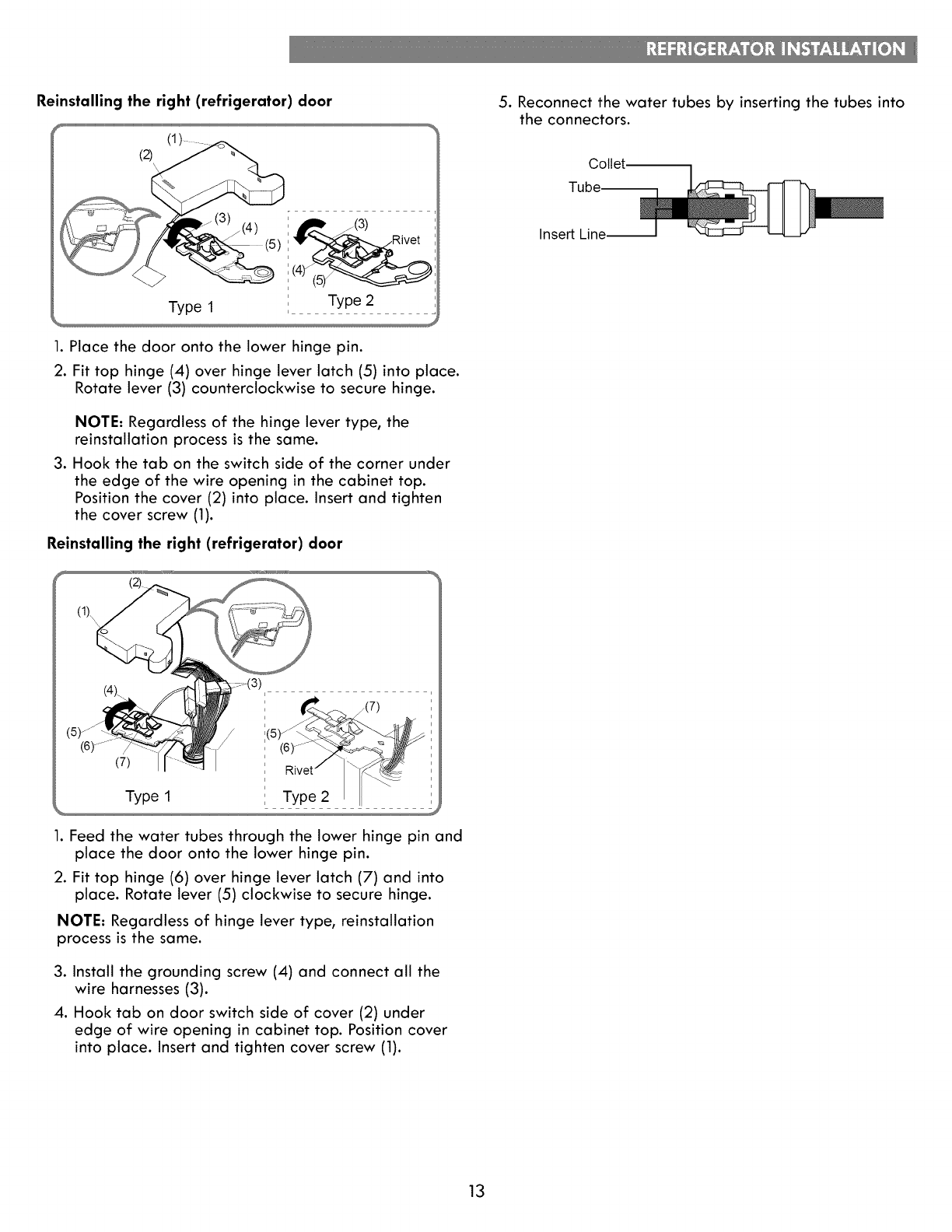

Freezer Handles and Doors ...........................11-13

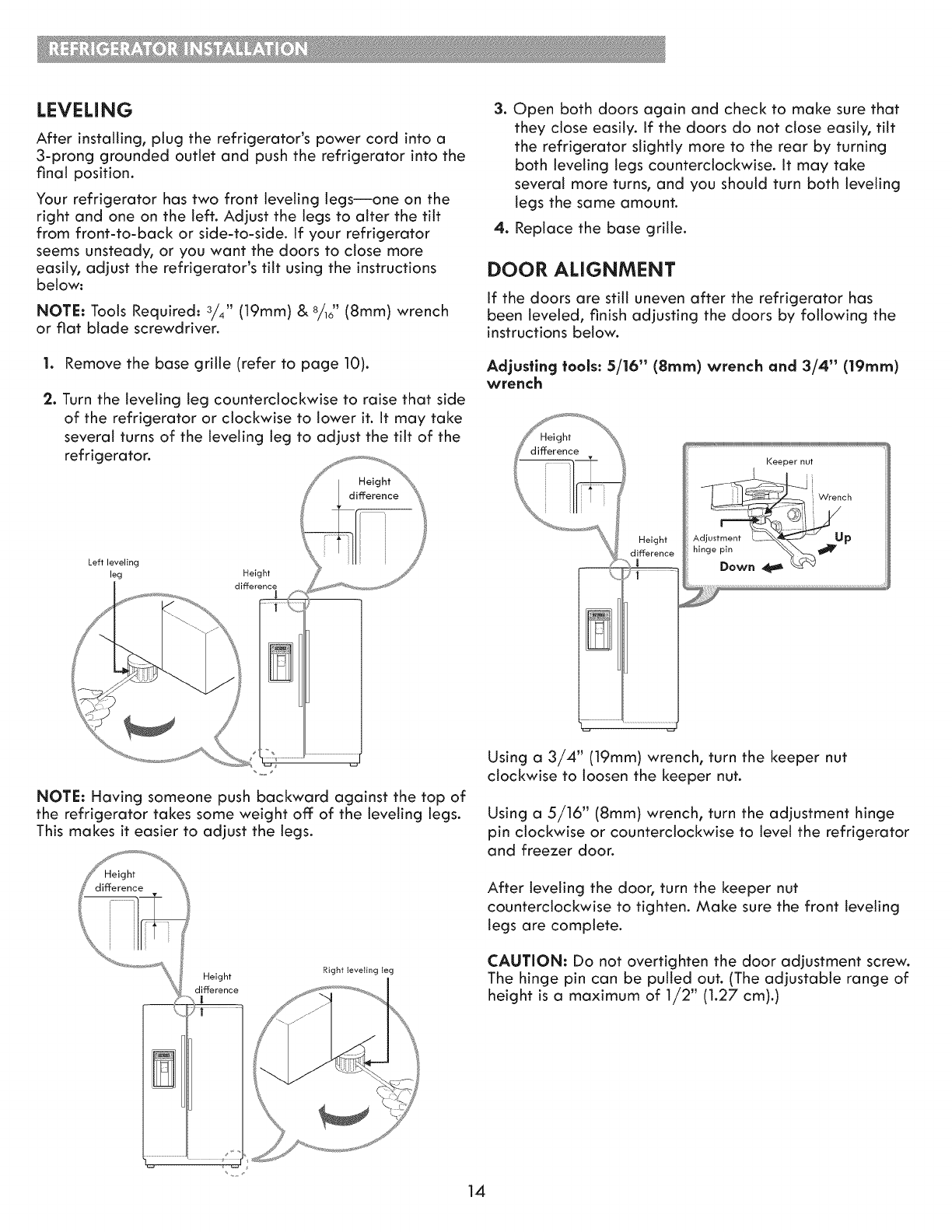

Leveling and Door Alignment ...................... 14

Using Your Refrigerator .................................. 15

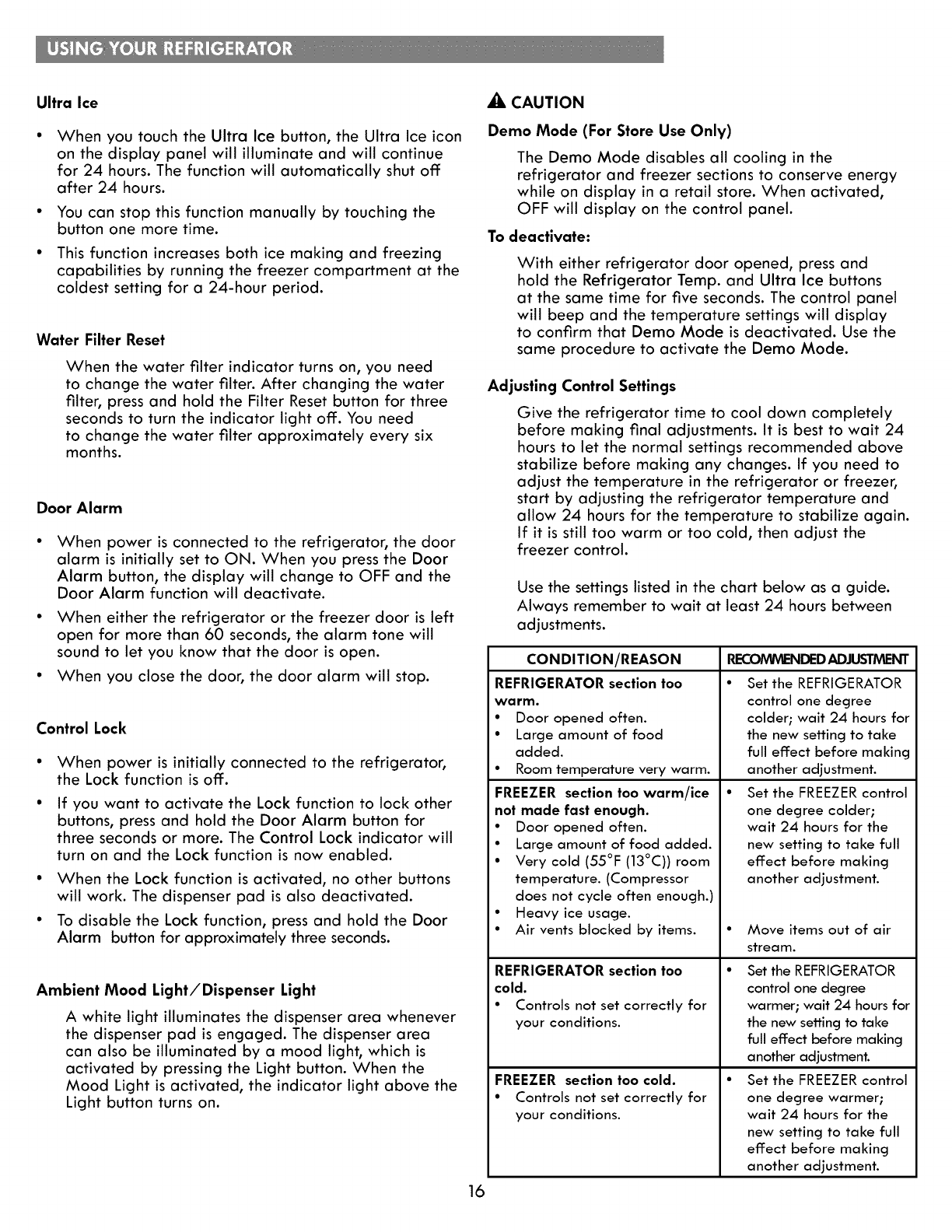

Setting the Controls ....................................... 15

Control Panel Features ............................................15

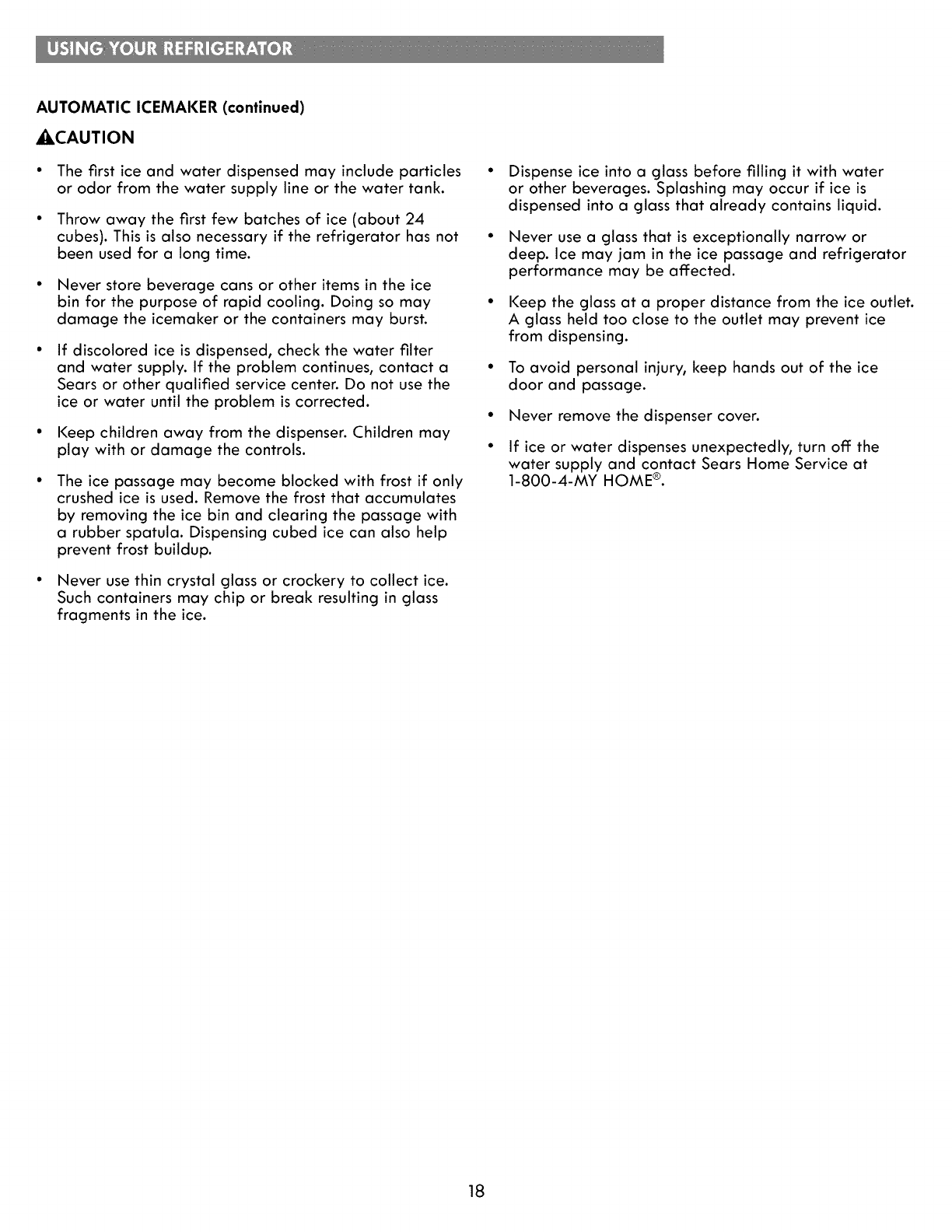

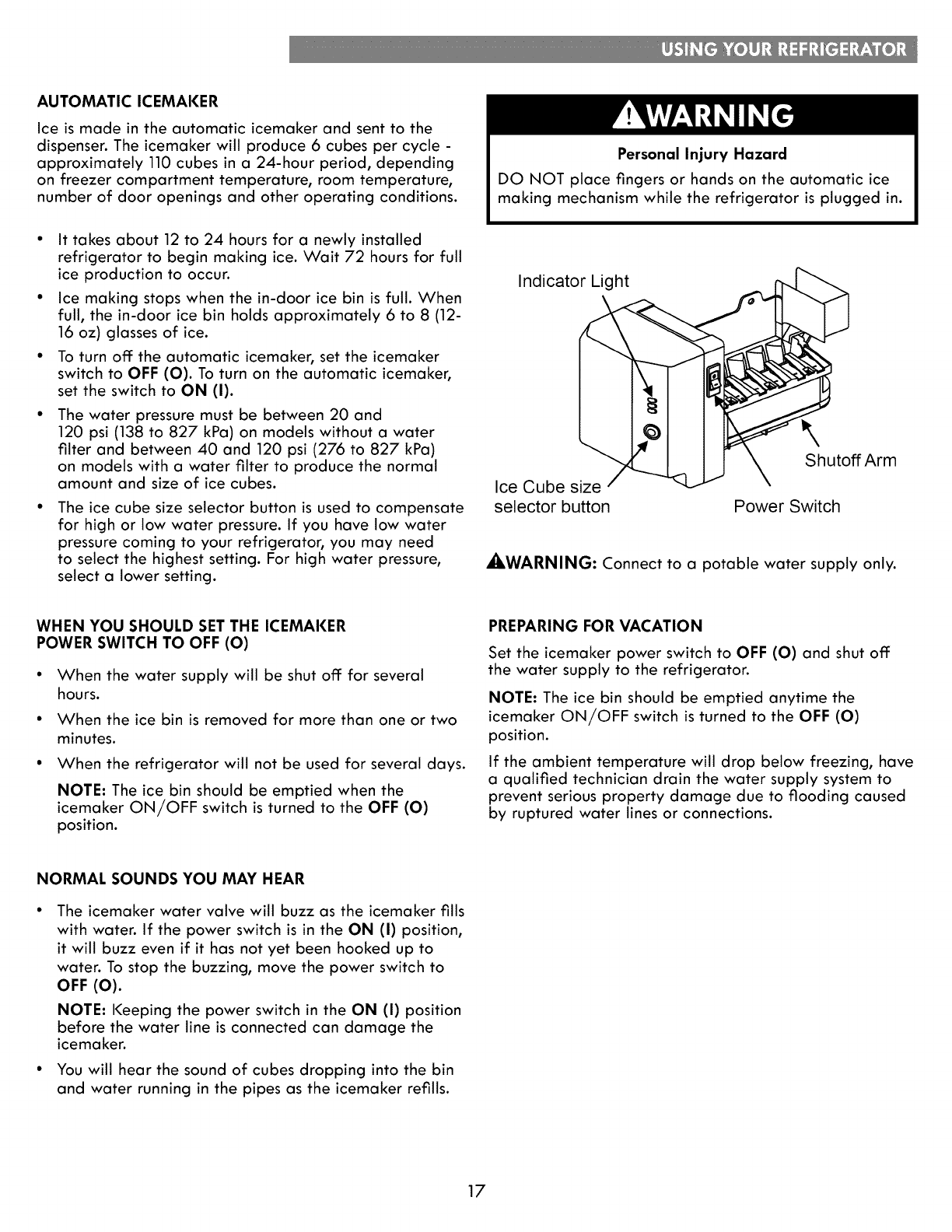

Automatic Icemaker ...................................... 17

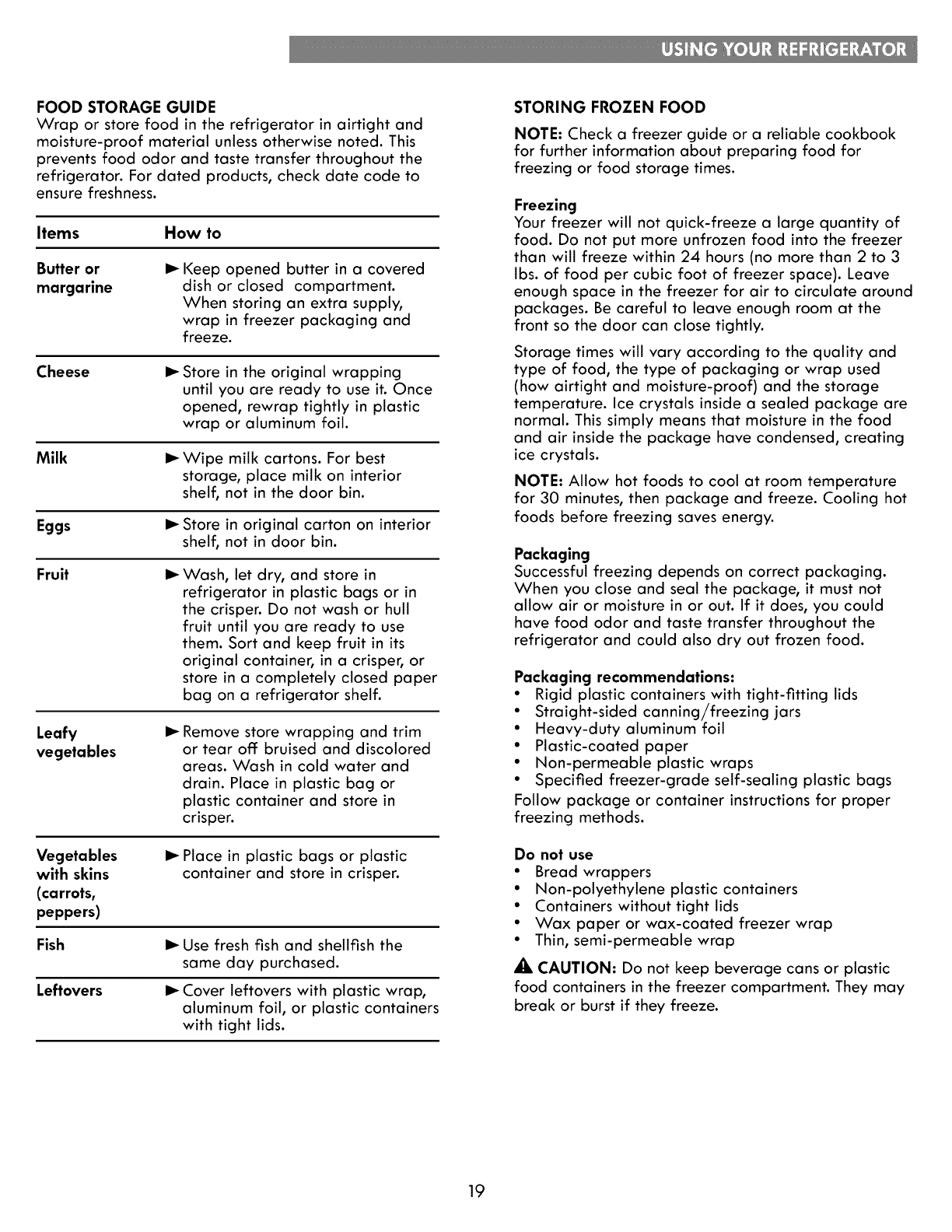

Food Storage Guide ..................................... 19

Refrigerator Section

Water and Ice Dispenser ............................. 20

Door Bin and Support .................................. 20

Snack Pan....................................................... 20

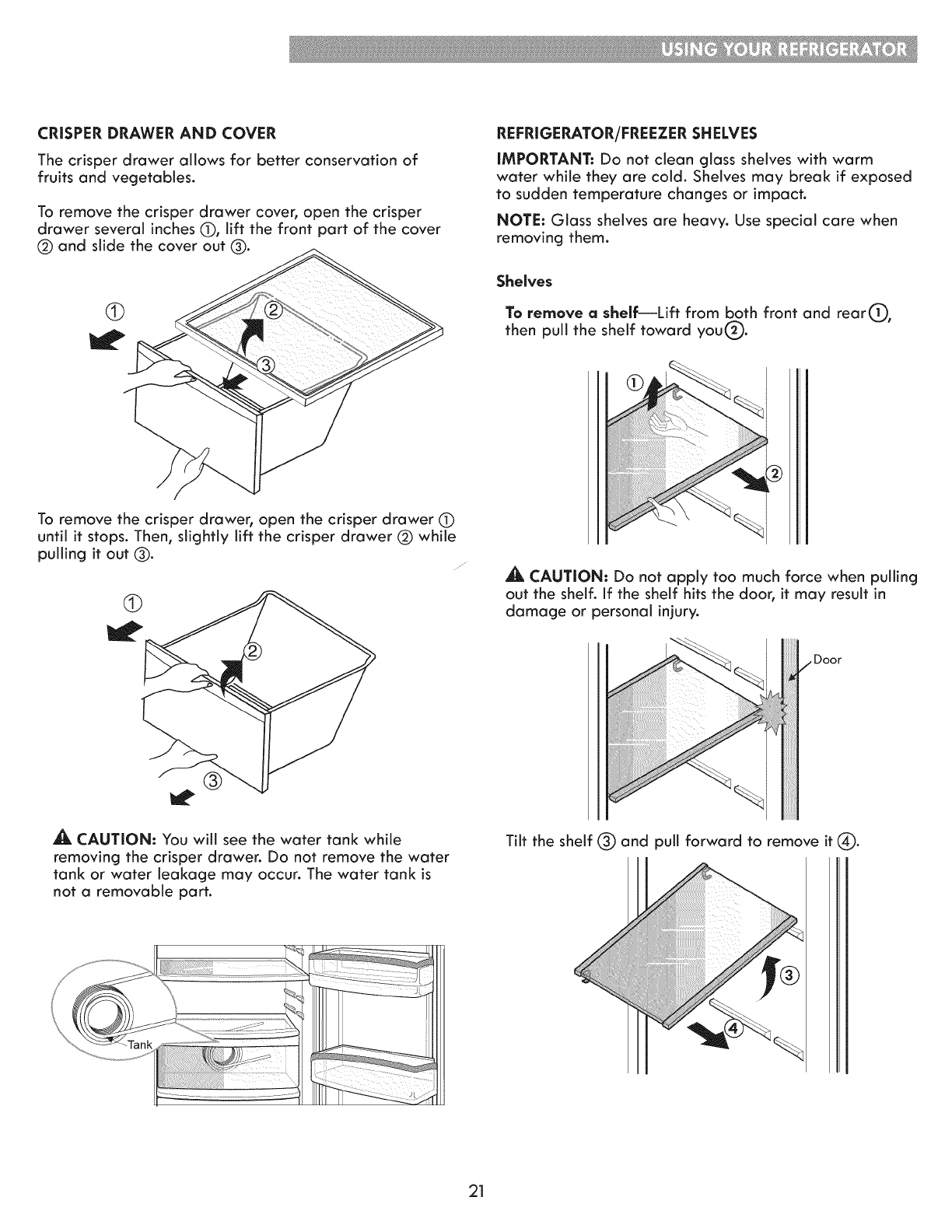

Crisper Drawer and Cover ............................ 21

Refrigerator/Freezer Shelves ..............................21

Freezer Section

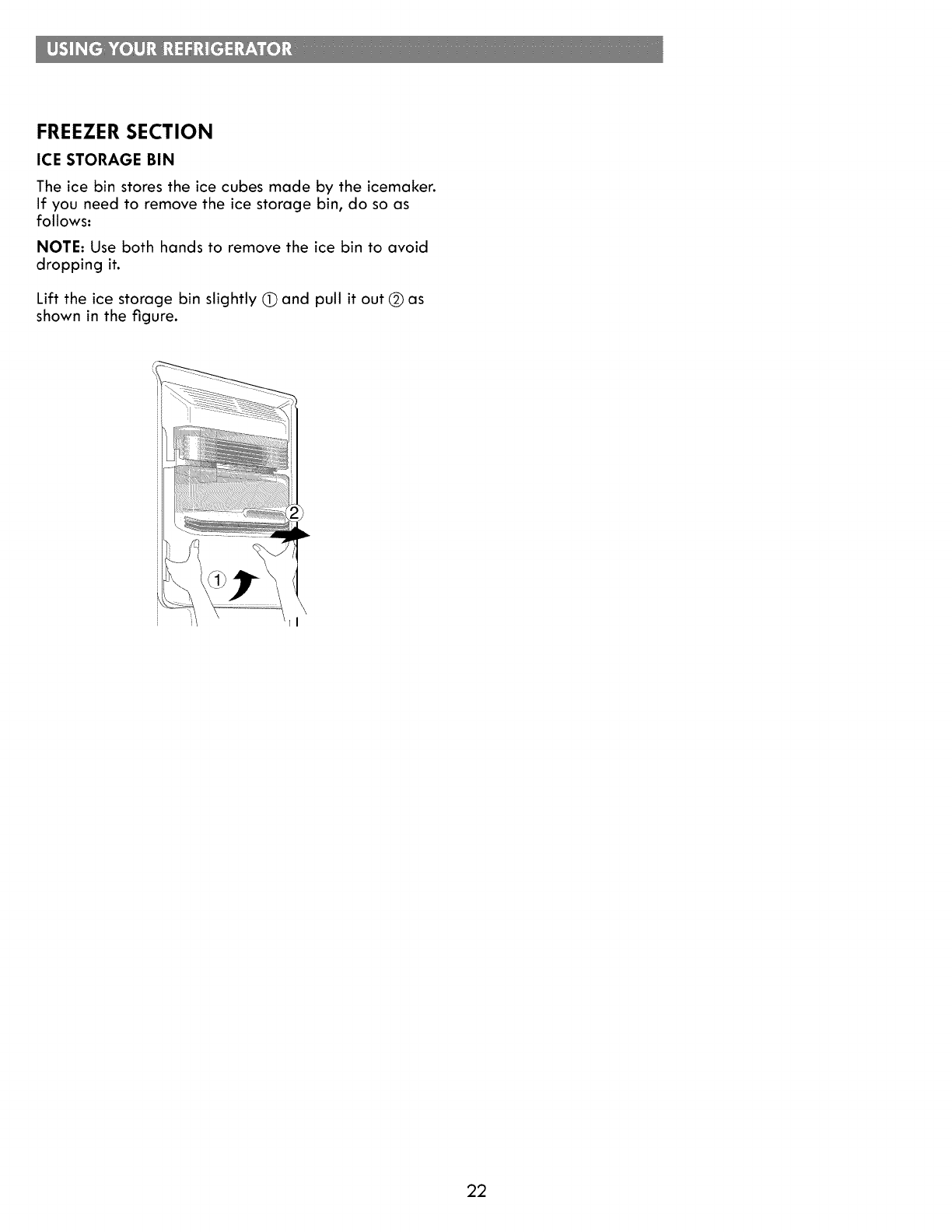

Ice Storage Bin .............................................. 22

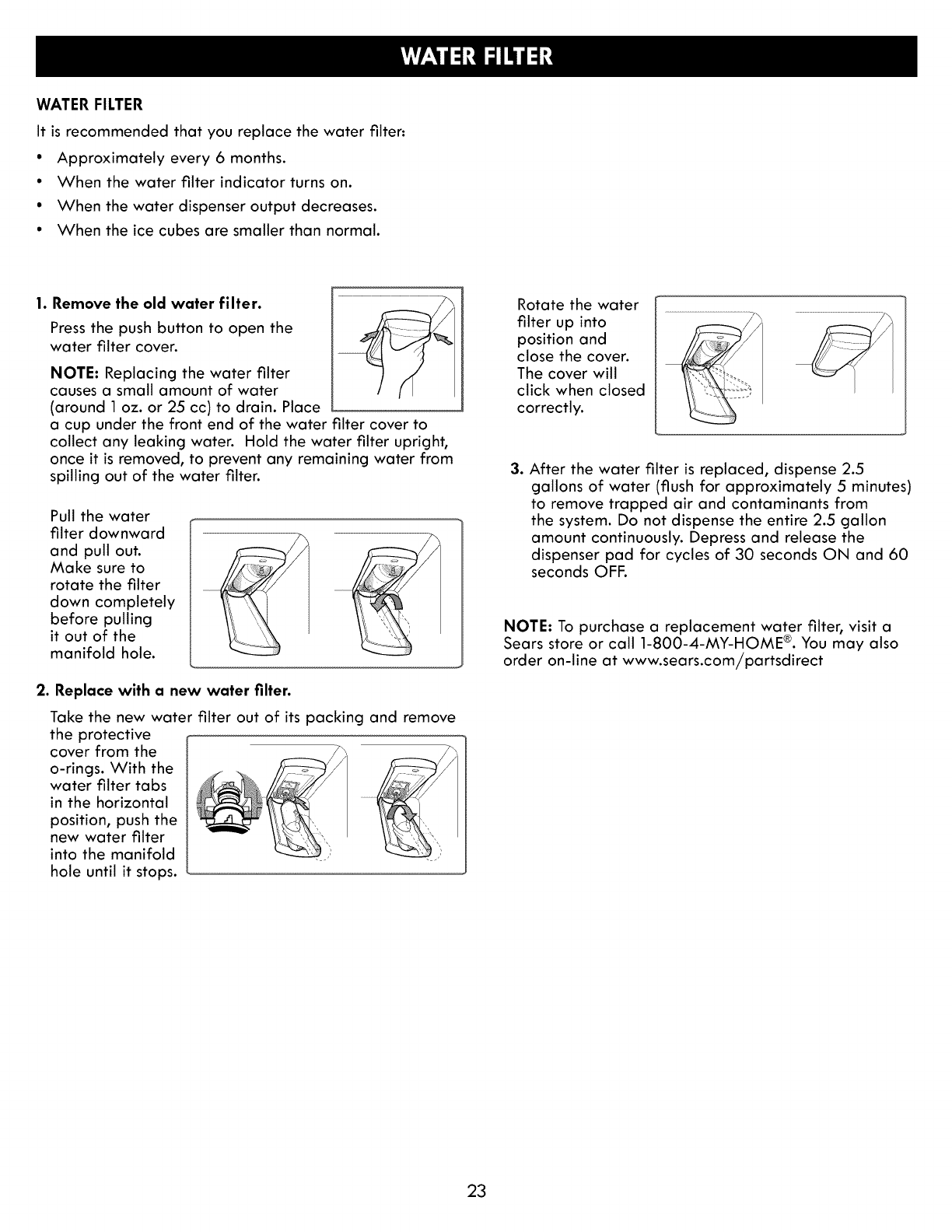

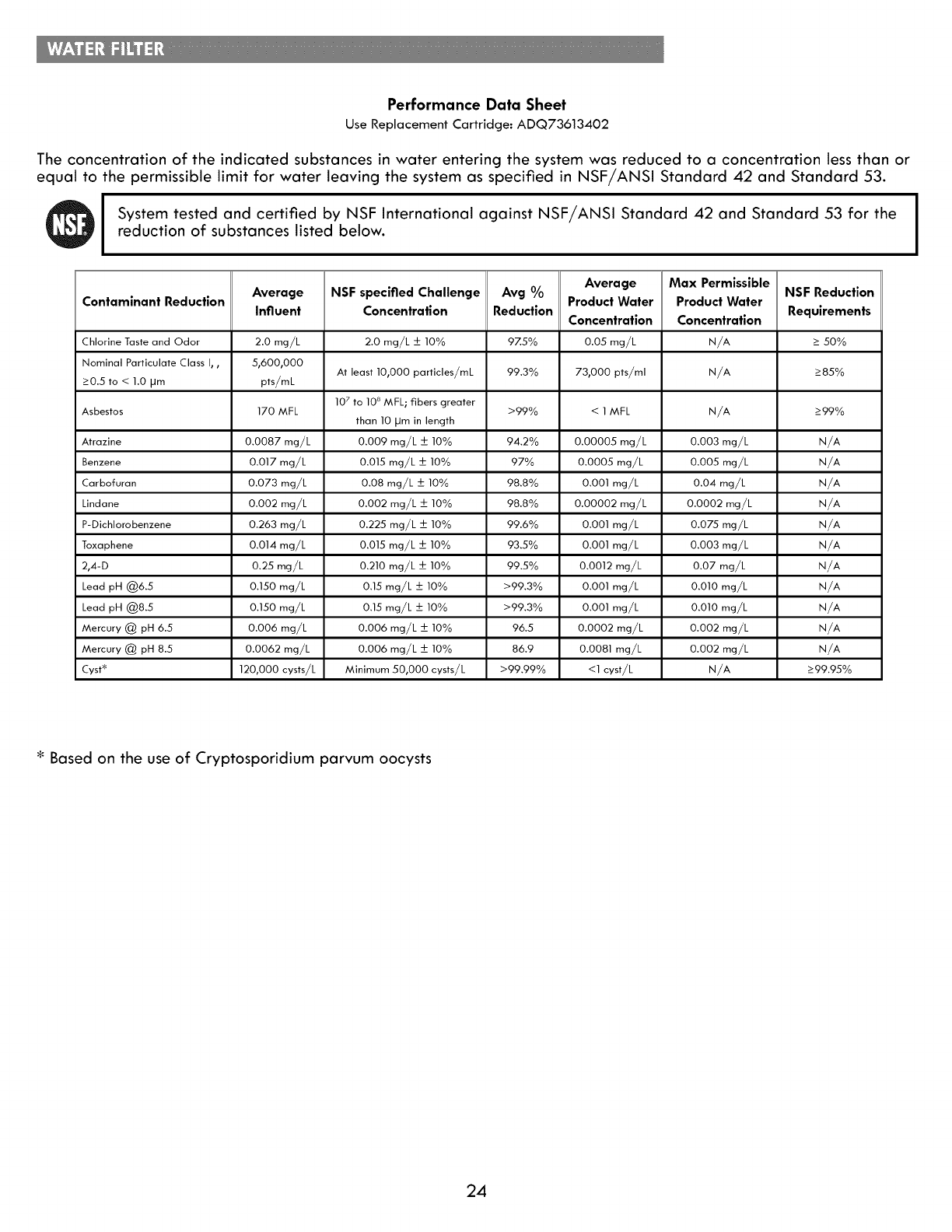

Water Filter ..................................................... 23

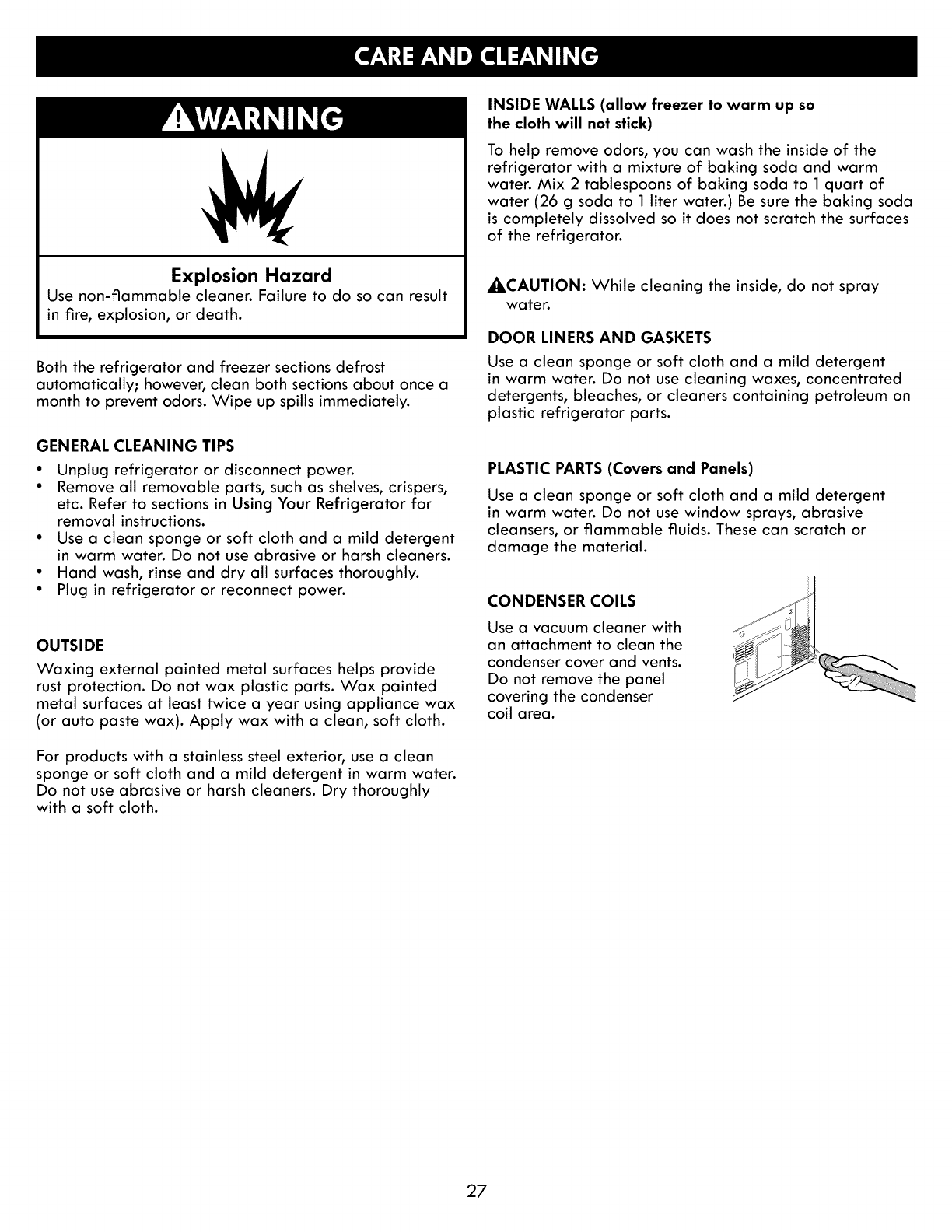

Care And Cleaning ......................................... 27

General Cleaning Tips ................................ 27

Outside ........................................................... 27

Inside Walls ................................................... 27

Door Liner And Gaskets ............................... 27

Plastic Parts.................................................... 27

Condenser Coils ............................................. 27

LED Light Replacement ................................ 28

Power Interruptions ....................................... 28

When You Go On Vacation ........................ 28

When You Move ............................................ 28

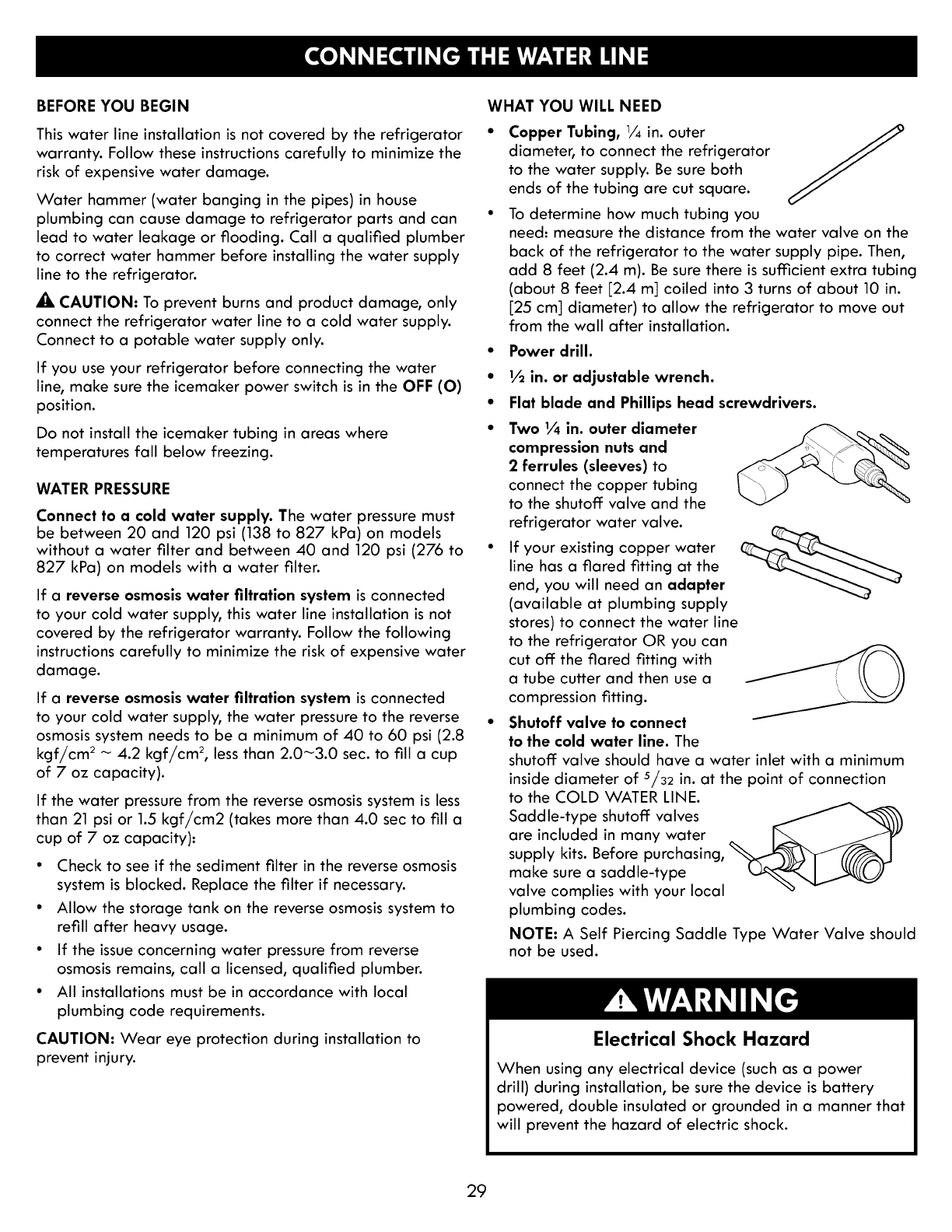

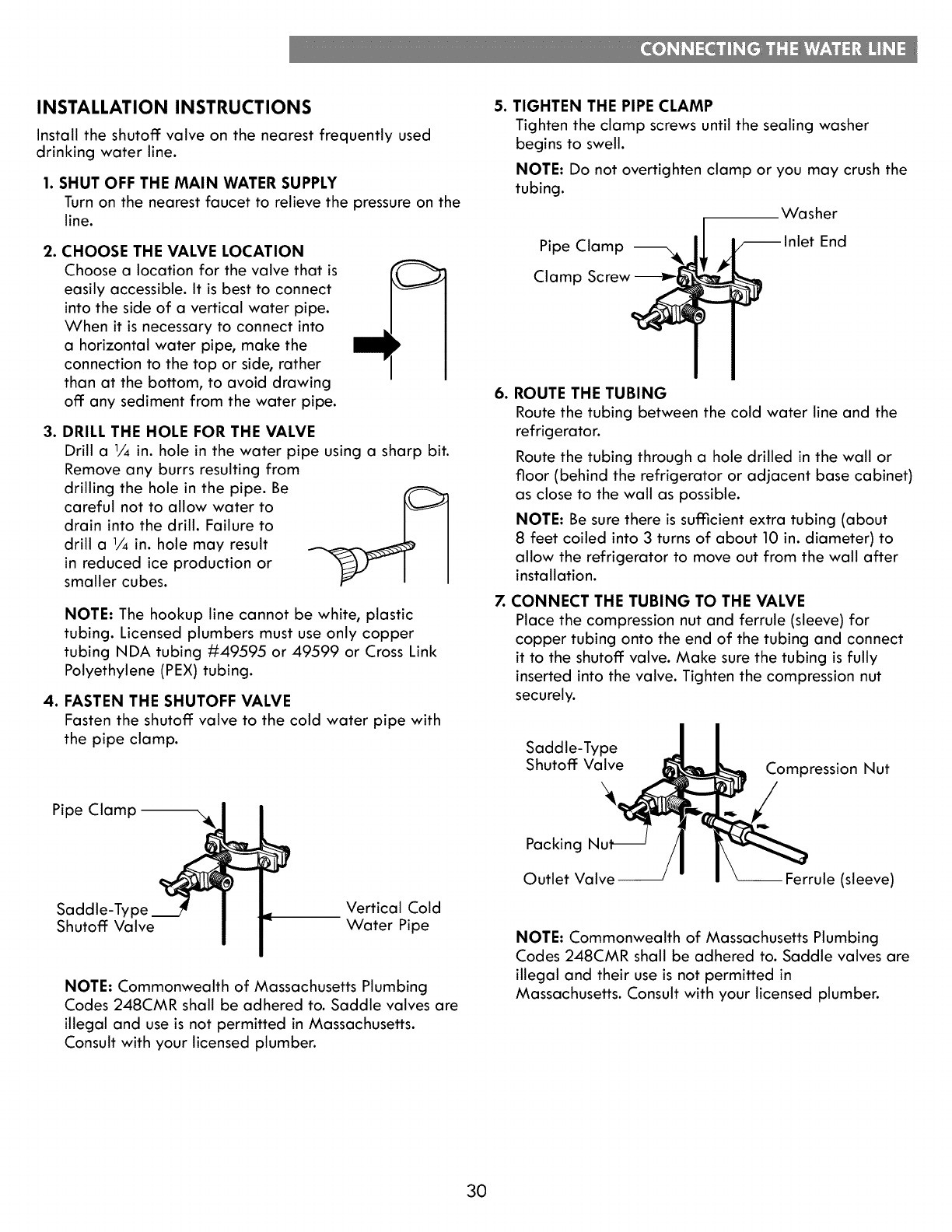

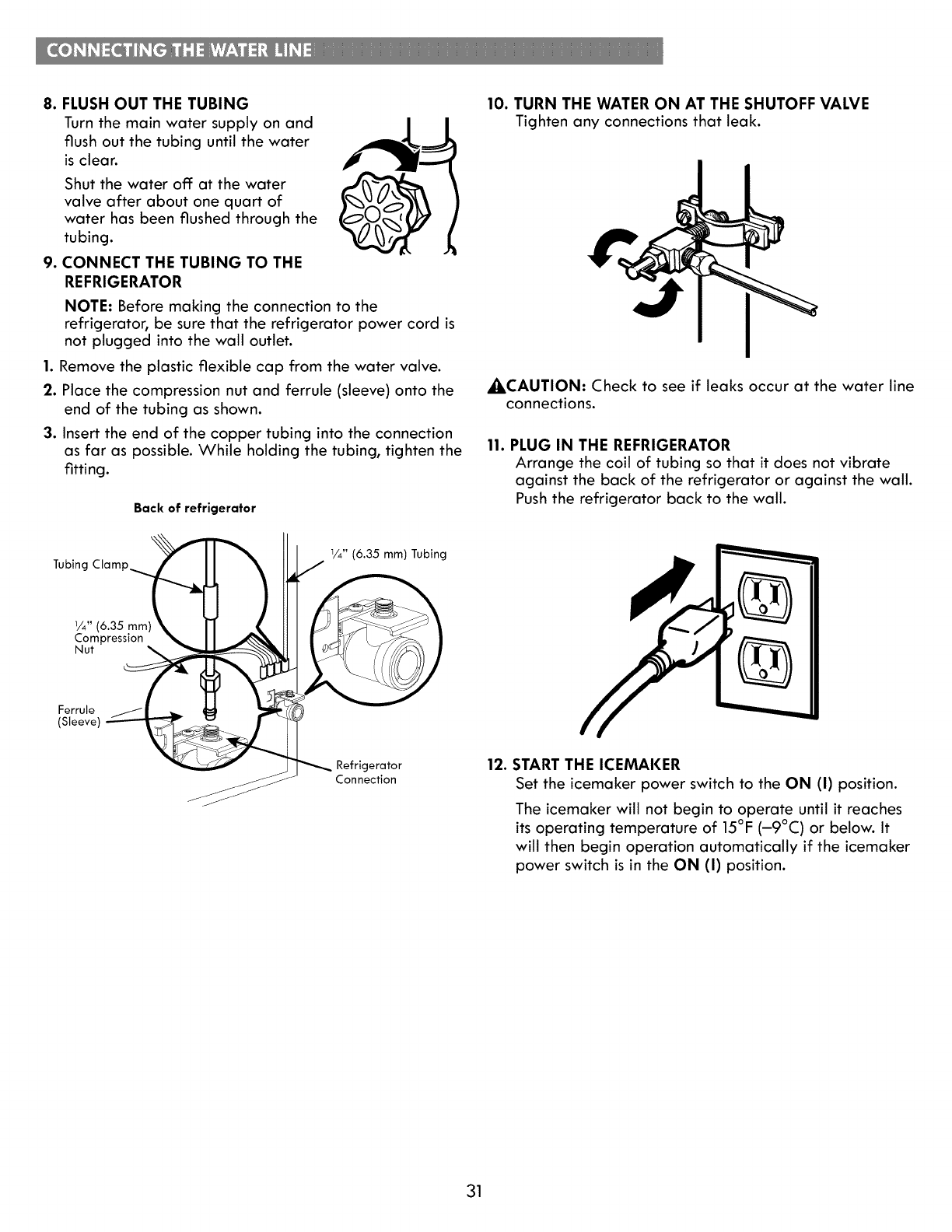

Connecting the Water Line ............................ 29

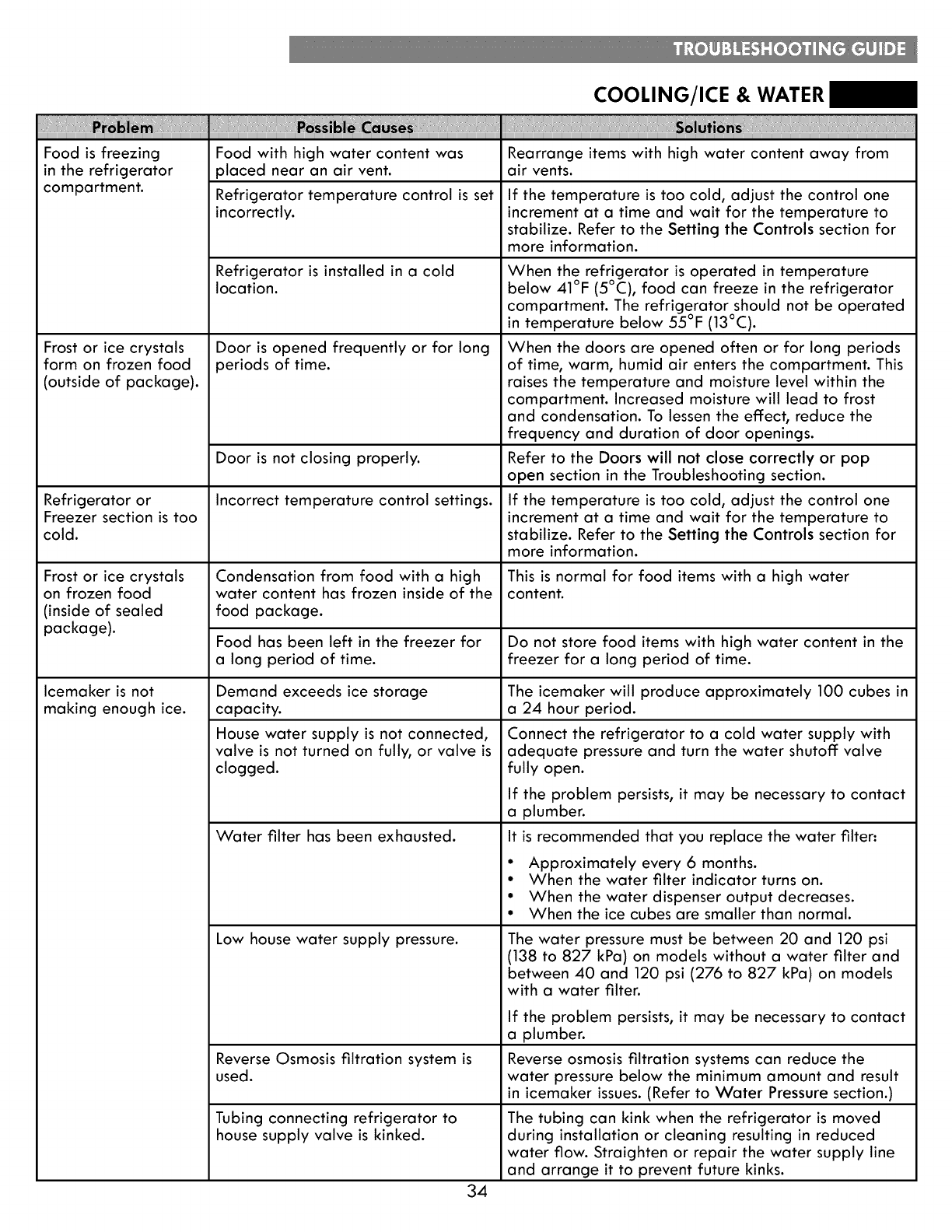

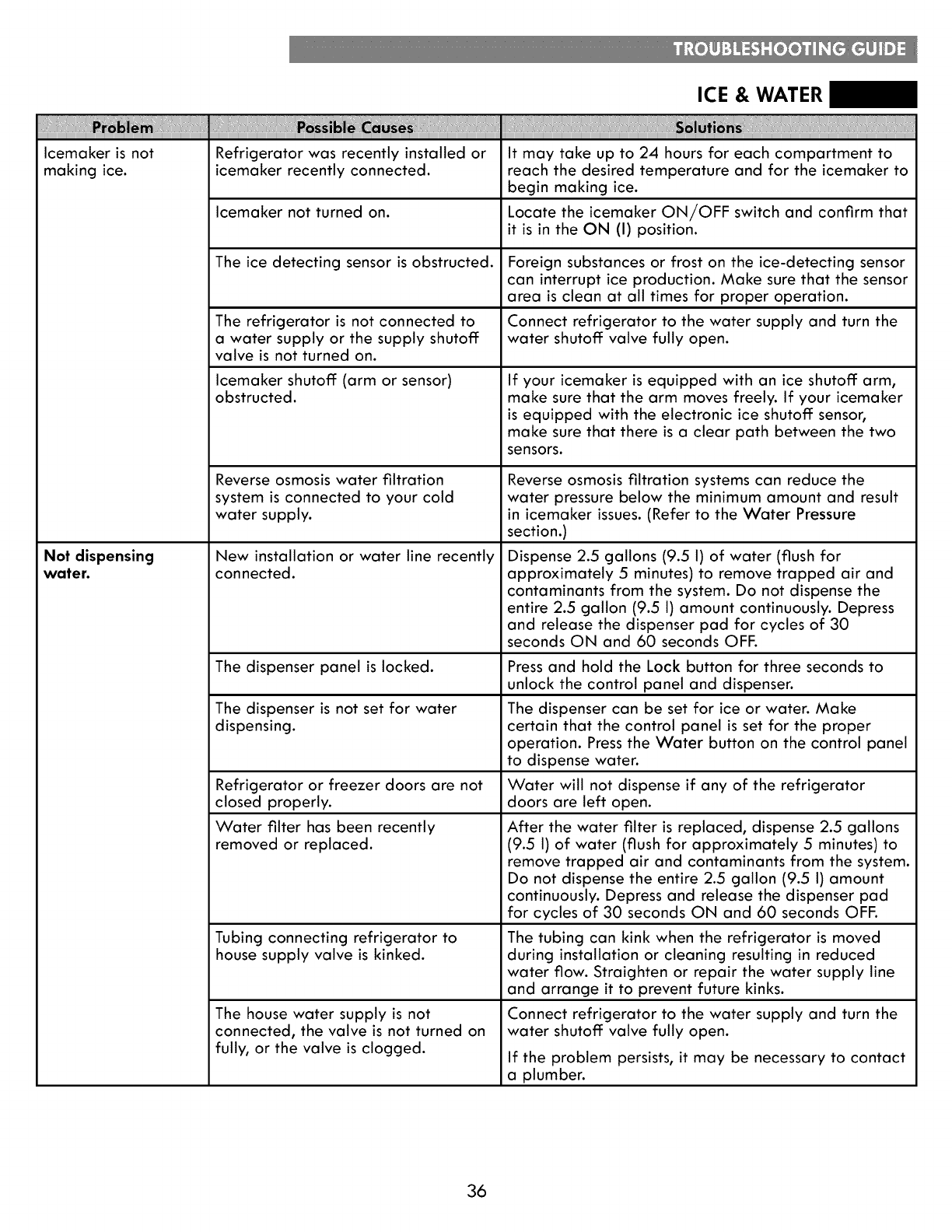

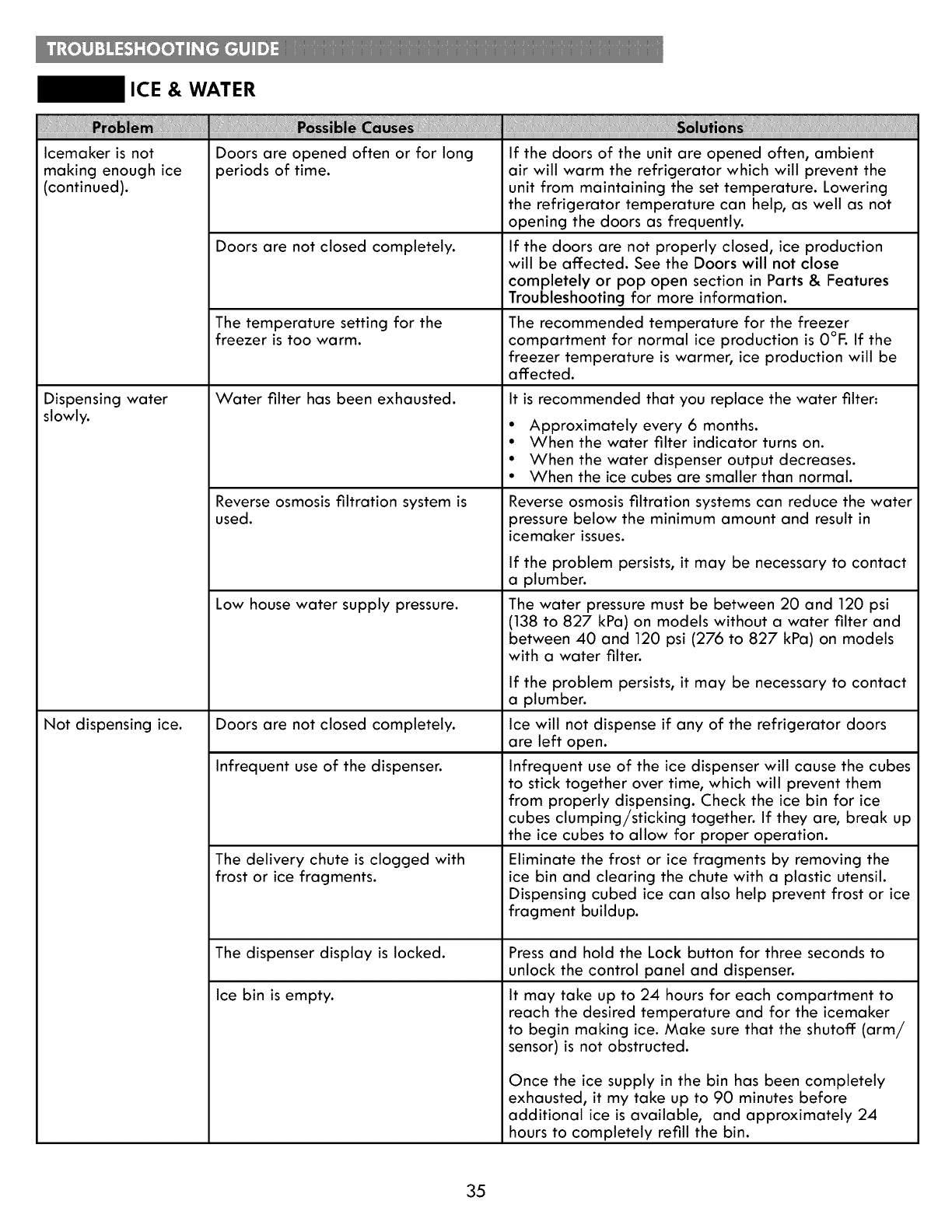

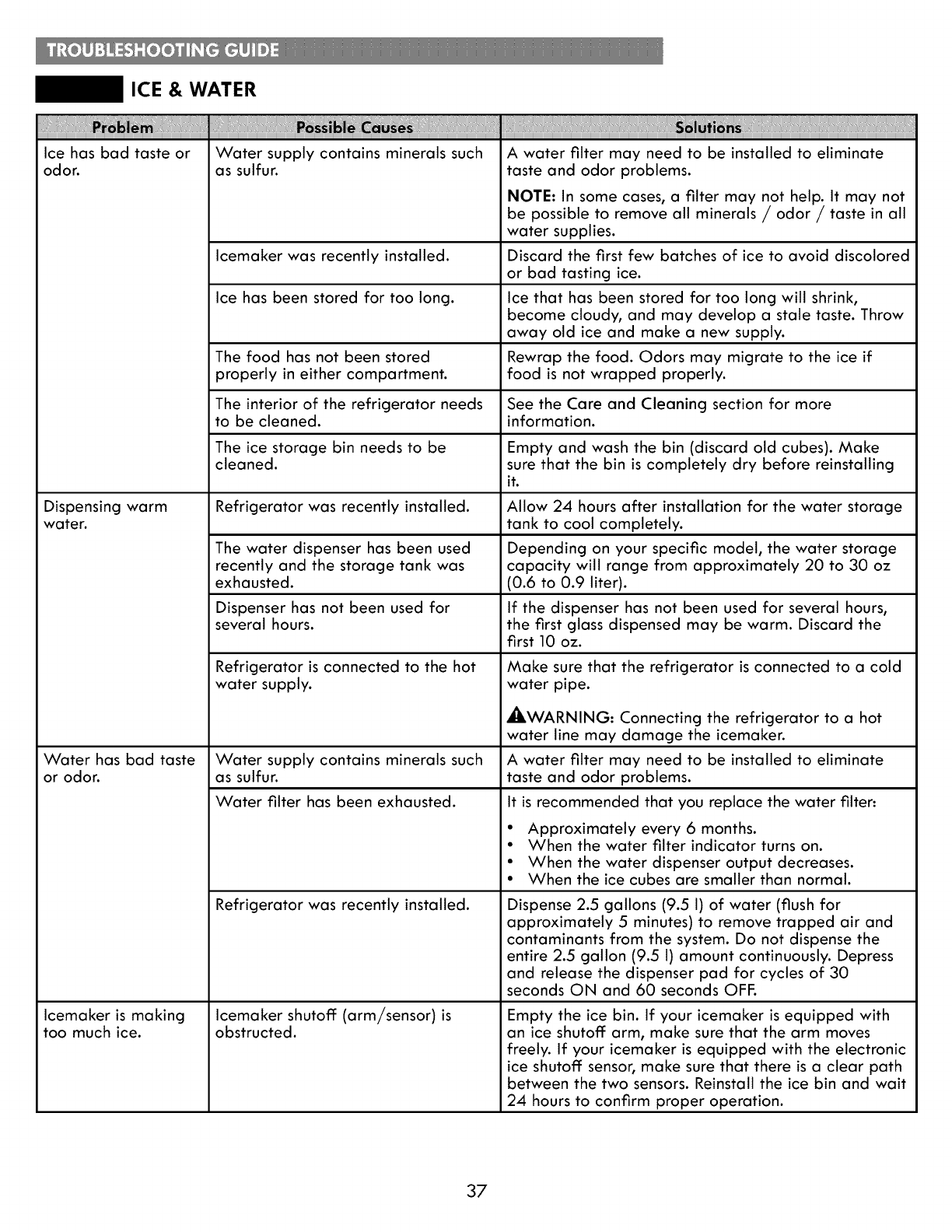

Troubleshooting Guide .................................... 32

Kenmore Connect System TM. ............................ 40

Service

I_ llliII Ii

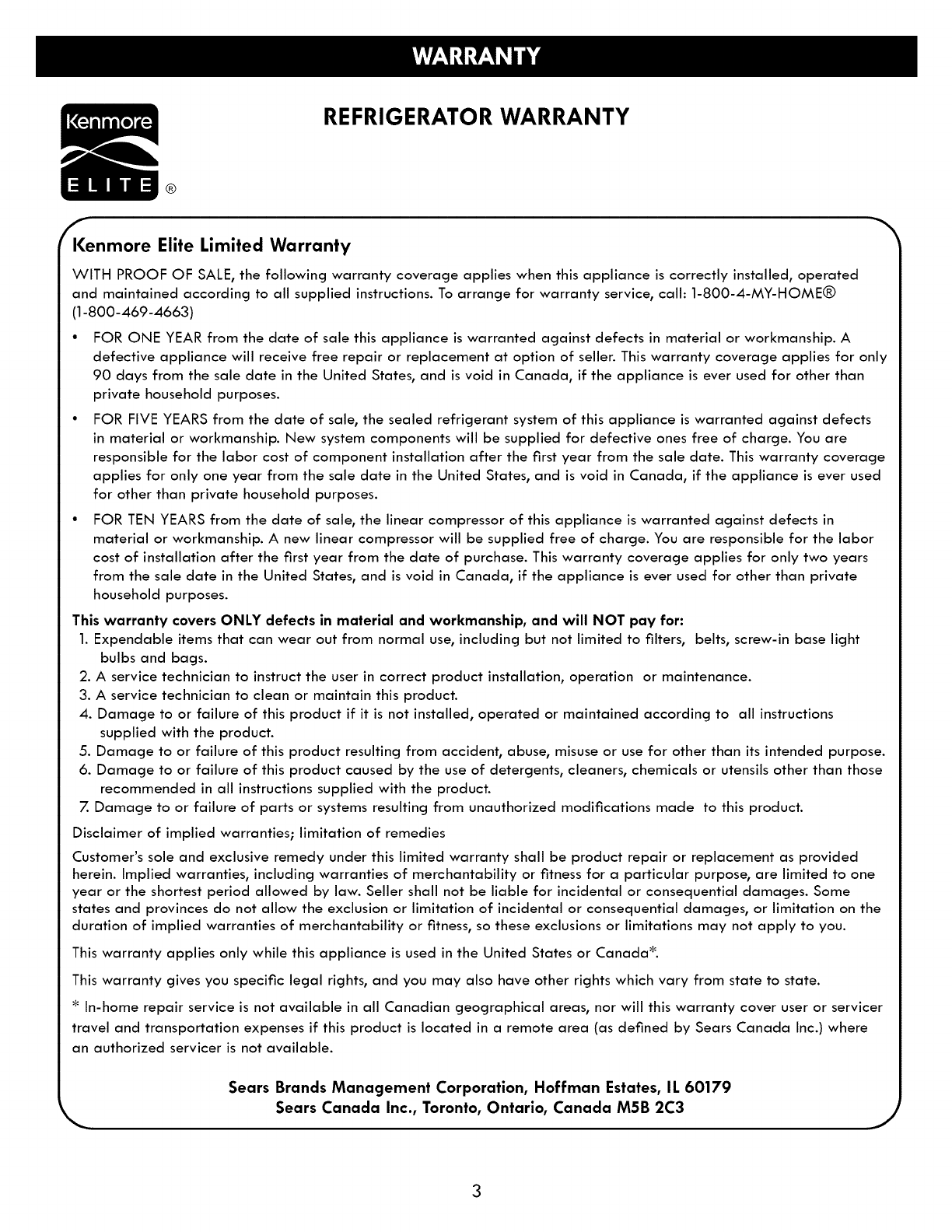

REFRIGERATOR WARRANTY

®

I_(enmore Elite Limited Warranty

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated

and maintained according to all supplied instructions. To arrange for warranty service, call: 1-800-4-MY-HOME®

(1-800-469-4663)

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A

defective appliance will receive free repair or replacement at option of seller. This warranty coverage applies for only

90 days from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than

private household purposes.

FOR FIVE YEARS from the date of sale, the sealed refrigerant system of this appliance is warranted against defects

in material or workmanship. New system components will be supplied for defective ones free of charge. You are

responsible for the labor cost of component installation after the first year from the sale date. This warranty coverage

applies for only one year from the sale date in the United States, and is void in Canada, if the appliance is ever used

for other than private household purposes.

FOR TEN YEARS from the date of sale, the linear compressor of this appliance is warranted against defects in

material or workmanship. A new linear compressor will be supplied free of charge. You are responsible for the labor

cost of installation after the first year from the date of purchase. This warranty coverage applies for only two years

from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private

household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, screw-in base light

bulbs and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions

supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those

recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided

herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one

year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some

states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the

duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada*.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer

travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where

an authorized servicer is not available.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore Elite ® product is designed and manufactured

for years of dependable operation. But like all products,

it may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend

the life of your new product. Here's what the

Agreement* includes:

Parts and labor needed to help keep products

operating properly under normal use, not just defects.

Our coverage goes well beyond the product warranty.

No deductibles, no functional failure excluded from

coverage-- real protection.

• Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

•Unlimited service calls and nationwide service, as

often as you want us,whenever you want us.

• "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within

twelve months.

•Product replacement if your covered product can't be

fixed.

•Annual Preventive Maintenance Check at your request

-no extra charge.

•Fast help by phone - we call it Rapid Resolution

- phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

Power surge protection against electrical damage due

to power fluctuations.

$250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

•Rental reimbursement if repair of your covered

product takes longer than promised.

•25°/o discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call

is all that it takes to schedule service. You can call at

any time day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund or a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information in the

U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these

items of information available whenever you contact Sears concerning your product.

Model No.

Serial No.

Date of Purchase

Save these instructions and attach your sales receipt for future reference.

4

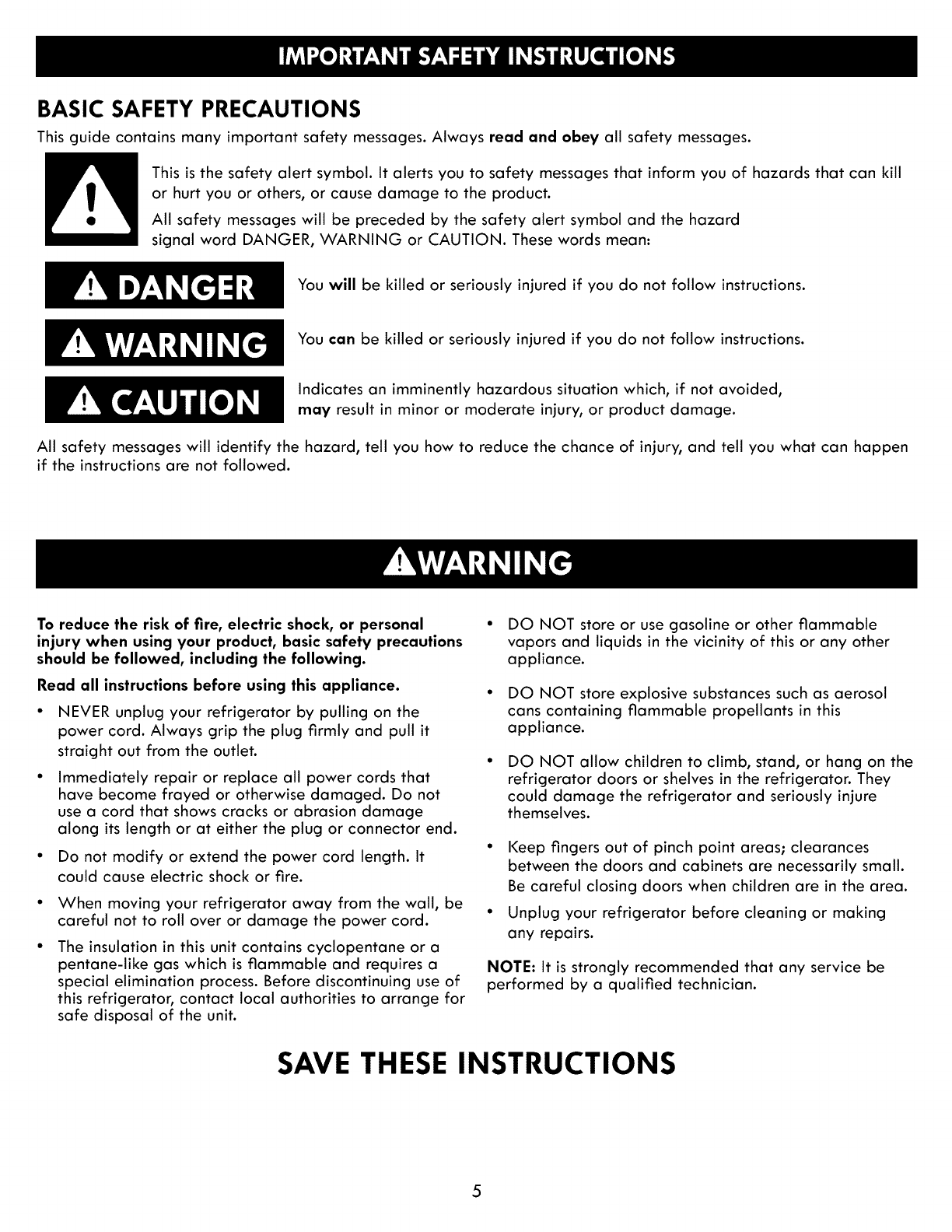

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen

if the instructions are not followed.

To reduce the risk of fire, electric shock, or personal

injury when using your product, basic safety precautions

should be followed, including the following.

Read all instructions before using this appliance.

•NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

Immediately repair or replace all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either the plug or connector end.

• Do not modify or extend the power cord length. It

could cause electric shock or fire.

When moving your refrigerator away from the wall, be

careful not to roll over or damage the power cord.

The insulation in this unit contains cyclopentane or a

pentane-like gas which is flammable and requires a

special elimination process. Before discontinuing use of

this refrigerator, contact local authorities to arrange for

safe disposal of the unit.

• DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

• DO NOT store explosive substances such as aerosol

cans containing flammable propellants in this

appliance.

DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themselves.

• Keep fingers out of pinch point areas; clearances

between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making

any repairs.

NOTE: It is strongly recommended that any service be

performed by a qualified technician.

SAVE THESE INSTRUCTIONS

5

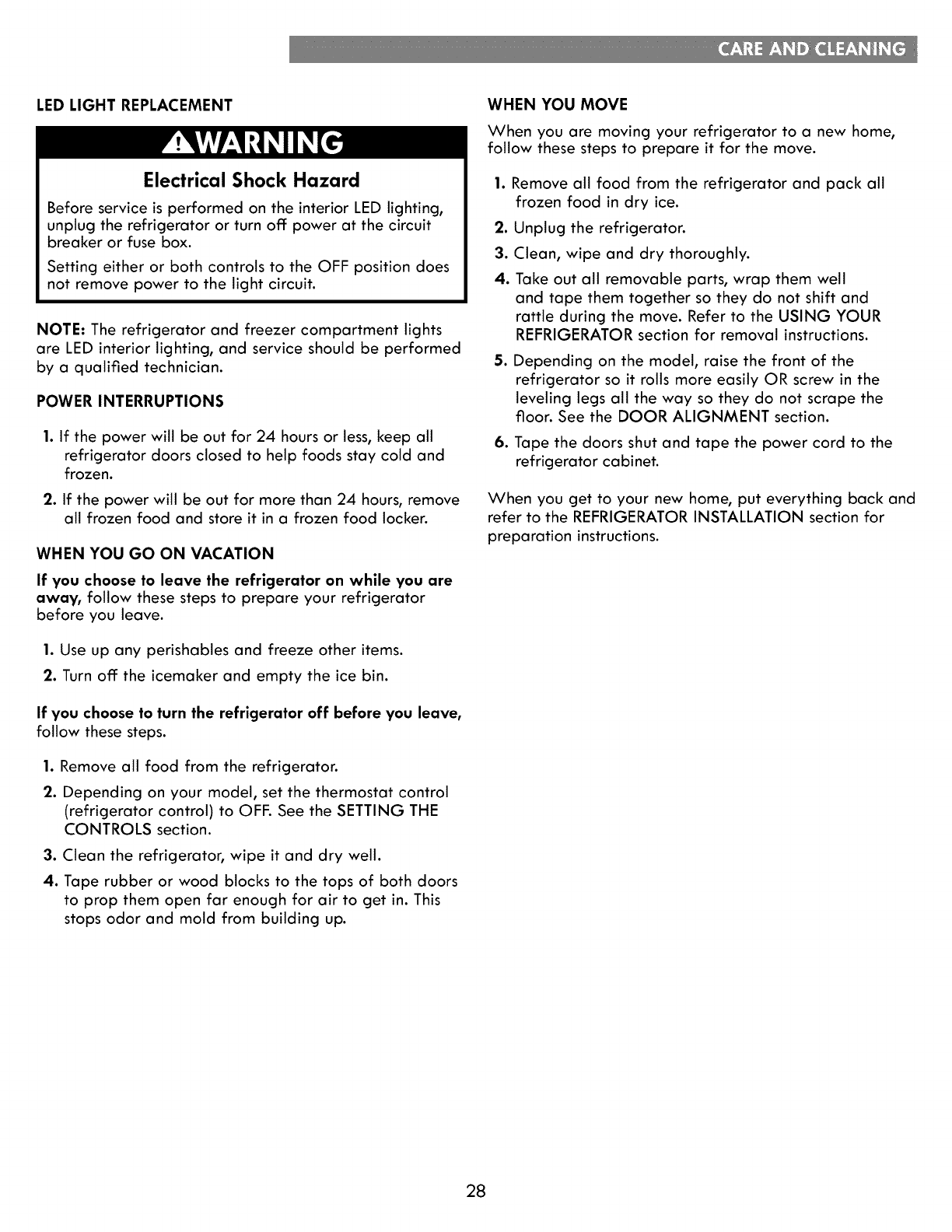

•Before service is performed on the interior LED lighting,

unplug the refrigerator or turn off power at the circuit

breaker or fuse box.

NOTE: The refrigerator and freezer compartment

lights are LED interior lighting, and service should be

performed by a qualified technician.

WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit.

When you are finished, reconnect the refrigerator to

the electrical source and reset the controls (Thermostat,

Refrigerator Control, and or Freezer Control, depending

on the model) to the desired setting.

This refrigerator must be properly installed in

accordance with the Attention Installer Instructions that

were taped to the front of the refrigerator.

After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

DO NOT touch the automatic ice making mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold--below 4°C.

...Thawed ground meats, poultry or fish that have any

off-odor or off-color should not be refrozen and should

not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable,

dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the

eating quality of foods, particularly fruits, vegetables

and prepared foods. The eating quality of red meats

is affected less than that of many other foods. Use

refrozen foods as soon as possible to save as much of

their quality as you can.

WARNING: This product contains chemicals known to

the State of California to cause cancer and birth defects

or other reproductive harm. Wash hands after handling.

SAVE THESE INSTRUCTIONS

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

Junked or abandoned refrigerators are dangerous, even

if they are sitting for only a few days. If you are getting

rid of your old refrigerator, please follow the instructions

at right to help prevent accidents (child entrapment and

suffocation).

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER:

• Take off the doors.

Leave the shelves in place so that

children may not easily climb inside.

6

Your old refrigerator may have a cooling system

that used CFCs or HCFCs (chlorofluorocarbons or

hydrochlorofluorocarbons). CFCs and HCFCs are

believed to harm stratospheric ozone if released to the

atmosphere. Other refrigerants may also cause harm to

the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make

sure the refrigerant is removed for proper disposal

by a qualified technician. If you intentionally release

refrigerant, you may be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit

checked by a qualified electrician to make sure the

outlet is properly grounded.

3-prong

grounding type I

wall receptacle -__

3-prong _

grounding t"T"'_ I

VF

Ensure proper

#_ ground exists

/// before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for 115

Volts, 60 Hz, AC only, and fused at 15 amperes (minimum).

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly grounded three-prong wall

outlet.

USE OF EXTENSION CORDS

WARNING: Do not use extension cords or ungrounded

(two-prong) adaptors. Because of potential safety

hazards under certain conditions, the use of an extension

cord is not recommended. However, if you still elect to

use an extension cord, it is absolutely necessary that it

be aUL-listed (USA), 3-wire grounding type appliance

extension cord having a grounding type plug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Do not bend the power cord excessively or place heavy

articles on it.

• Connect the power plug in the proper position with the

cord hanging down.

• When moving the refrigerator, be careful not to roll

over or damage the power cord.

• If the power cord is damaged, have it replaced

immediately by the manufacturer or its service agent.

• Do not insert the power plug with wet hands.

• Do not insert your hands into the area under the

bottom of the appliance.

• Make sure that the power plug is not squashed or

damaged by the back of the refrigerator.

Replacing Electrical Cord

To avoid hazard, damaged power cords must be

replaced by the manufacturer or its service agent or

a similarly qualified technician. Do not operate the

appliance with a damaged power cord.

7

i

I

I

I

I

i

i

i

i

i

I

i

i

I

i

I

I

i

I

I

I

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below may not match your model.

0 Automatic Icemaker

Freezer Shelves

Freezer Light (LED}

Freezer Door Bins

O Pullout Drawer

O Base Grille

Refrigerator Light (LED)

Q Dairy Bin

O Can Rack

Water Filter

Refrigerator Shelf

Snack Pan

_) Adjustable Door Bins

Fixed Door Bin

Crisper Drawer

8

Excessive Weight Hazard:

Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or

the Tech Sheet that is located under the front of the

refrigerator, behind the base grille.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard:

Keep flammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do so

can result in fire, explosion, or death.

NOTE:

This appliance is intended to be used in household and

similar applications such as:

•staff kitchen areas in shops, offices and other working

environments

• farm houses and by clients in hotels, motels and other

residential environments

• bed and breakfast environments

• catering and similar non-retail applications.

This product is not to be used for special purposes such

as the storage of medicine or test materials, or for use

on ships, etc.

9

Be careful when you work with the hinge, base grille,

stopper, etc. You may be injured.

To avoid risk of injury or electrical shock, do not put

hands or metal objects into the air vents, base grille, or

bottom opening of the refrigerator.

BASE GRILLE INSTALLATION

To remove the base grllle:

1) Open the doors (refrigerator and freezer).

2) Once the doors are open, remove the two screws

from the base grille. Remove the base grille and set

safely aside.

Reattach screws to the base of refrigerator.

3)

To

1)

2)

replace the base grllle:

Remove the two screws from the bottom front part

of refrigerator.

Place base grille into position and insert and

tighten screws.

INSTALLATION

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for 115

Volts, 60 Hz, AC only, and fused at 15 amperes (minimum).

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

INSTALLATION (continued)

lo To avoid noise and vibration, the unit must be

leveled and installed on asolidly constructed floor, if

required, adjust the leveling legs to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

legs can be turned easily by tipping the cabinet

slightly. Turn the leveling tegs counterclockwise to raise

the unit or clockwise to lower it. (See LEVELING AND

DOOR ALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces,

a platform or weakly supported structure is not

recommended.

2o

3o

o

install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

Select a place where a water supply can be easily

connected for the automatic icemaken

NOTE: The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter.

Too small of a distance from adjacent items may

result in lowered freezing capability and increased

electricity consumption charges. Allow at least 24

inches (61 cm) in front of the refrigerator to open the

doors.

[{

2" (5.08 cm)_ ÷ 2" (5.08 crn)_-

2" (5.08 cm) I

2" (5.08 cm)

Shock Hazard:

To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

10

NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through a

narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR

DOOR HANDLE

NOTE: Handle appearance may vary from the

illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a 3/32 in. (2.5 mm)

Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4 in. (6.4

mm) Allen wrench.

Mounting

fasteners _ --.

Set screw

Allen wrench

HOW TO REPLACE REFRIGERATOR

DOOR HANDLE

NOTE: Handle appearance may vary from the

illustrations on this page.

Replacing Refrigerator Door Handle

Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/32 in (2.5 cm) Allen wrench.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

1/4in. (6.4 mm) Allen wrench.

Mounting

Fasteners

/

k"t

11

REMOVING AND REPLACING

REFRIGERATOR DOORS

Excessive Weight Hazard:

Use two or more people to remove and install the

refrigerator doors. Failure to do so can result in back or

other injury.

Removing the left (freezer) door with water line

connection.

Pull up the water feed tube while pressing the collet down

(Figure 1) as shown in the figure below.

NOTE: If a tube end is deformed or abraded, trim the

part away. Disconnecting the tube under the door causes

about 0.13 gallons (0.5 liters) of water to flow out. Put a

large container at the end of the tube to prevent water

from draining onto the floor.

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator

before installing. Failure to do so could result in

serious injury or death.

Do not put hands, feet or other objects into the air

vents, base grille, or bottom of the refrigerator. You

may be injured or receive an electrical shock.

Before removing the doors, remove the base grille.

See BASE GRILLE INSTALLATION for reference.

To remove the right (refrigerator) door:

(2)

Type 1 (4)" (5)H_

Type 2

1. Open the door. Remove the top hinge cover screw (1).

2. Use a fiat blade screwdriver to pry back the hooks

(not shown) of the hinge cover from the top of the

refrigerator cabinet (2). Lift up the cover.

3. Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

NOTE: Regardless of the hinge lever type, the removal

process is the same.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a non-scratching

surface.

_, CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

Figure 1

(1)\

(2)

1. Open the door. Remove the top hinge cover screw (1).

2. Use a fiat blade screwdriver to pry back the hooks

(not shown) of the hinge cover from the top of the

refrigerator cabinet (2). Lift up the cover.

3. Disconnect all the wire harnesses (3).

4. Remove the grounding screw (4).

5. Rotate hinge lever (5) counterclockwise. Lift the top

hinge (6) free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal process

is the same.

_, CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

6. Lift the door from the lower hinge pin being careful

to pull the water lines through the lower hinge pin.

7. Place the door, inside facing up, on a non-scratching

surface.

12

Reinstalling the right (refrigerator) door

f

(2)

Type 1

1. Place the door onto the lower hinge pin.

2. Fit top hinge (4) over hinge lever latch (5) into place.

Rotate lever (3) counterclockwise to secure hinge.

.

NOTE: Regardless of the hinge lever type, the

reinstallation process is the same.

Hook the tab on the switch side of the corner under

the edge of the wire opening in the cabinet top.

Position the cover (2) into place. Insert and tighten

the cover screw (1).

Reinstalling the right (refrigerator) door

5. Reconnect the water tubes by inserting the tubes into

the connectors.

Collet

Insert Line

(1)\

(4). i

_7) _J_

(7) Rivet" T__ _

Type 1 Type 2

1. Feed the water tubes through the lower hinge pin and

place the door onto the lower hinge pin.

2. Fit top hinge (6) over hinge lever latch (7) and into

place. Rotate lever (5) clockwise to secure hinge.

NOTE. Regardless of hinge lever type, reinstallation

process is the same.

3. Install the grounding screw (4) and connect all the

wire harnesses (3).

4. Hook tab on door switch side of cover (2) under

edge of wire opening in cabinet top. Position cover

into place. Insert and tighten cover screw (1).

13

LEVELING

After installing, plug the refrigerator's power cord into a

3-prong grounded outlet and push the refrigerator into the

final position.

Your refrigerator has two front leveling legs--one on the

right and one on the left. Adjust the legs to alter the tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady, or you want the doors to close more

easily, adjust the refrigerator's tilt using the instructions

below:

NOTE: Tools Required: 3/4" (19mm) & 8/1_"(8mm) wrench

or fiat blade screwdriver.

1. Remove the base grille (refer to page 10).

2. Turn the leveling leg counterclockwise to raise that side

of the refrigerator or clockwise to lower it. It may take

several turns of the leveling leg to adjust the tilt of the

refrigerator.

Left leveling

leg Height

difference

NOTE: Having someone push backward against the top of

the refrigerator takes some weight off of the leveling legs.

This makes it easier to adjust the legs.

Height

difference

J

Right leveling leg

14

3. Open both doors again and check to make sure that

they close easily. If the doors do not close easily, tilt

the refrigerator slightly more to the rear by turning

both leveling legs counterclockwise. It may take

several more turns, and you should turn both leveling

legs the same amount.

4. Replace the base grille.

DOOR ALIGNMENT

if the doors are still uneven after the refrigerator has

been leveled, finish adjusting the doors by following the

instructions below.

Adjusting tools: 5/16" (Smm) wrench and 3/4" (19ram)

wrench

/_ Height %_

f difference

'_%÷_, ill ;

\Height

difference

-

Keeper nut

i Wrench

Adj_p

hinge pln _'x _"

Down _ _

Using a 3/4" (19mm) wrench, turn the keeper nut

clockwise to loosen the keeper nut.

Using a 5/16" (8mm) wrench, turn the adjustment hinge

pin clockwise or counterclockwise to level the refrigerator

and freezer door.

After leveling the door, turn the keeper nut

counterclockwise to tighten. Make sure the front leveling

legs are complete.

CAUTION: Do not overtighten the door adjustment screw.

The hinge pin can be pulled out. (The adjustable range of

height is a maximum of 1/2" (1.27 cm).)

SETTING THE CONTROLS

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

colder the setting, the longer the compressor will run to

keep the temperature colder. The freezer control adjusts

the cold air flow from the freezer to the refrigerator.

Setting the freezer control to a lower temperature keeps

more cold air in the freezer compartment to make it

colder.

CONTROL PANEL FEATURES

AIRFLOW

Cold air circulates from the freezer to the fresh food

section and back again through air vents in the wall

dividing the two sections. Be sure not to block vents while

packing your refrigerator. Doing so will restrict airflow

and may cause the refrigerator temperature to become

too warm or cause interior moisture buildup. (See air flow

diagram below.)

iMPORTANT;

Because air circulates between both sections, any odors

formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors.

To prevent odor transfer and dried out food, wrap or

cover foods tightly. (See the Food Storage Guide section

for details.)

NOTE: If you close the refrigerator door, you may see the

freezer door open and close again due to pressure from

internal air flow.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off dust

accumulated during shipping.

2. install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold air

in the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

Temperalure

The Refrigerator Temp Control ranges from 30°F to

46°F (]°C to 8°C). Press the Refrigerator Temp button

to cycle through the available temperature settings one

increment at a time. The recommended temperature for

the refrigerator compartment is 37°F (3°C).

The Freezer Temp Control range is from -6°F to 8°F

(=21°C to -13°C). Press the Freezer Temp button to

cycle through the available temperature settings one

increment at a time. The recommended temperature for

the freezer compartment is 0°F (-18°C).

NOTE: When changing control settings, wait 24 hours

before making additional adjustments. The controls are set

correctly when milk or juice is as cold as you would like

and when ice cream is firm. If the temperature in either

compartment is too cold or too warm, change the setting

one increment at a time. Wait 24 hours for the change to

stabilize before adjusting again.

Temperature Mode Switch Function (°F <->°C)

if you want to convert °F to °C or vice versa, press and

hold the Freezer Temp. and Refrigerator Temp. buttons at

the same time for approximately five seconds.

Ice & Water Dispenser

Select Water, Crushed ice or Cubed ice by pressing the

ICE & WATER button to the selection desired. The Water,

Crushed Ice or Cubed Ice icon will light up to indicate the

selection.

Selecting this icon indicates that cubed ice

will be dispensed when the dispenser pad is

activated.

Selecting this icon indicates that water will be

dispensed when the dispenser pad is activated.

15

Selecting this icon indicates that crushed ice

will be dispensed when the dispenser pad is

activated.

To dispense water or ice, gently push your cup against

the dispenser pad.

NOTE: Hold your cup in place for a couple of seconds

after dispensing ice or water so the last few drops go in

your cup instead of on the floor.

Ultra Ice _CAUTION

When you touch the Ultra Ice button, the Ultra Ice icon

on the display panel will illuminate and will continue

for 24 hours. The function will automatically shut off:

after 24 hours.

You can stop this function manually by touching the

button one more time.

This function increases both ice making and freezing

capabilities by running the freezer compartment at the

coldest setting for a 24-hour period.

Water Filter Reset

When the water filter indicator turns on, you need

to change the water filter. After changing the water

filter, press and hold the Filter Reset button for three

seconds to turn the indicator light off:. You need

to change the water filter approximately every six

months.

Door Alarm

When power is connected to the refrigerator, the door

alarm is initially set to ON. When you press the Door

Alarm button, the display will change to OFF and the

Door Alarm function will deactivate.

When either the refrigerator or the freezer door is left

open for more than 60 seconds, the alarm tone will

sound to let you know that the door is open.

When you close the door, the door alarm will stop.

Control Lock

When power is initially connected to the refrigerator,

the Lock function is off:.

If you want to activate the Lock function to lock other

buttons, press and hold the Door Alarm button for

three seconds or more. The Control Lock indicator will

turn on and the Lock function is now enabled.

When the Lock function is activated, no other buttons

will work. The dispenser pad is also deactivated.

To disable the Lock function, press and hold the Door

Alarm button for approximately three seconds.

Ambient Mood Light/Dispenser Light

A white light illuminates the dispenser area whenever

the dispenser pad is engaged. The dispenser area

can also be illuminated by a mood light, which is

activated by pressing the Light button. When the

Mood Light is activated, the indicator light above the

Light button turns on.

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the

refrigerator and freezer sections to conserve energy

while on display in a retail store. When activated,

OFF will display on the control panel.

To deactivate:

With either refrigerator door opened, press and

hold the Refrigerator Temp. and Ultra Ice buttons

at the same time for five seconds. The control panel

will beep and the temperature settings will display

to confirm that Demo Mode is deactivated. Use the

same procedure to activate the Demo Mode.

Adjusting Control Settings

Give the refrigerator time to cool down completely

before making final adjustments. It is best to wait 24

hours to let the normal settings recommended above

stabilize before making any changes. If you need to

adjust the temperature in the refrigerator or freezer,

start by adjusting the refrigerator temperature and

allow 24 hours for the temperature to stabilize again.

If it is still too warm or too cold, then adjust the

freezer control.

16

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/REASON

REFRIGERATORsection too

warm.

•Door opened often.

• Large amount of food

added.

• Room temperature very warm.

FREEZER section too warm/ice

not made fast enough.

• Door opened often.

• Large amount of food added.

• Very cold (55°F (13°C)) room

temperature. (Compressor

does not cycle often enough.)

• Heavy ice usage.

• Air vents blocked by items.

REFRIGERATOR section too

cold.

• Controls not set correctly for

your conditions.

FREEZER section too cold.

• Controls not set correctly for

your conditions.

I_-CO/_¢ENI_D ADJUSTMi:I_I"

• Set the REFRIGERATOR

control one degree

colder; wait 24 hours for

the new setting to take

full efl:ect before making

another adjustment.

Set the FREEZER control

one degree colder;

wait 24 hours for the

new setting to take full

efl:ect before making

another adjustment.

• Move items out of air

stream.

• Set the REFRIGERATOR

control one degree

warmer; wait 24 hours for

the new setting to take

full efl:ect before making

another adjustment.

• Set the FREEZER control

one degree warmer;

wait 24 hours for the

new setting to take full

efl:ect before making

another adjustment.

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the

dispenser. The icemaker will produce 6cubes per cycle -

approximately 110 cubes in a 24-hour period, depending

on freezer compartment temperature, room temperature,

number of door openings and other operating conditions.

Personal Injury Hazard

DO NOT place fingers or hands on the automatic ice

making mechanism while the refrigerator is plugged in.

It takes about 12 to 24 hours for a newly installed

refrigerator to begin making ice. Wait 72 hours for full

ice production to occur.

Ice making stops when the in-door ice bin is full. When

full, the in-door ice bin holds approximately 6to 8 (12-

16 oz) glasses of ice.

To turn off: the automatic icemaker, set the icemaker

switch to OFF (O). To turn on the automatic icemaker,

set the switch to ON (I).

The water pressure must be between 20 and

120 psi (138 to 827 kPa) on models without a water

filter and between 40 and 120 psi (276 to 827 kPa)

on models with a water filter to produce the normal

amount and size of ice cubes.

The ice cube size selector button is used to compensate

for high or low water pressure. If you have low water

pressure coming to your refrigerator, you may need

to select the highest setting. For high water pressure,

select a lower setting.

Indicator Light

Ice Cube size

selector button

\

Shutoff Arm

Power Switch

_,WARNING: Connect to a potable water supply only.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

•When the water supply will be shut off: for several

hours.

• When the ice bin is removed for more than one or two

minutes.

• When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the

icemaker ON/OFF switch is turned to the OFF (O)

position.

PREPARING FOR VACATION

Set the icemaker power switch to OFF (O) and shut off:

the water supply to the refrigerator.

NOTE: The ice bin should be emptied anytime the

icemaker ON/OFF switch is turned to the OFF (O)

position.

If the ambient temperature will drop below freezing, have

a qualified technician drain the water supply system to

prevent serious property damage due to flooding caused

by ruptured water lines or connections.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the ON (I) position,

it will buzz even if it has not yet been hooked up to

water. To stop the buzzing, move the power switch to

OFF (O).

NOTE: Keeping the power switch in the ON (I) position

before the water line is connected can damage the

icemaker.

You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

17

AUTOMATIC ICEMAI(ER (continued)

_LCAUTION

•The first ice and water dispensed may include particles

or odor from the water supply line or the water tank.

• Throw away the first few batches of ice (about 24

cubes). This is also necessary if the refrigerator has not

been used for a long time.

• Never store beverage cans or other items in the ice

bin for the purpose of rapid cooling. Doing so may

damage the icemaker or the containers may burst.

If discolored ice is dispensed, check the water filter

and water supply. If the problem continues, contact a

Sears or other qualified service center. Do not use the

ice or water until the problem is corrected.

• Keep children away from the dispenser. Children may

play with or damage the controls.

The ice passage may become blocked with frost if only

crushed ice is used. Remove the frost that accumulates

by removing the ice bin and clearing the passage with

a rubber spatula. Dispensing cubed ice can also help

prevent frost buildup.

• Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass

fragments in the ice.

Dispense ice into a glass before filling it with water

or other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

Never use a glass that is exceptionally narrow or

deep. Ice may jam in the ice passage and refrigerator

performance may be affected.

Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice

from dispensing.

To avoid personal injury, keep hands out of the ice

door and passage.

Never remove the dispenser cover.

If ice or water dispenses unexpectedly, turn off the

water supply and contact Sears Home Service at

1-800-4-MY HOME*.

18

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to

Butter or

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese I_ Store in the original wrapping

until you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk I_ Wipe milk cartons. For best

storage, place milk on interior

shelf, not in the door bin.

Eggs I_ Store in original carton on interior

shelf, not in door bin.

Fruit I_ Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

fruit until you are ready to use

them. Sort and keep fruit in its

original container, in a crisper, or

store in a completely closed paper

bag on a refrigerator shelf.

Leafy

vegetables

Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables

with skins

(carrots,

peppers)

Place in plastic bags or plastic

container and store in crisper.

Fish

Leftovers

I_ Use fresh fish and shellfish the

same day purchased.

I_ Cover leftovers with plastic wrap,

aluminum foil, or plastic containers

with tight lids.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook

for further information about preparing food for

freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of

food. Do not put more unfrozen food into the freezer

than will freeze within 24 hours (no more than 2 to 3

Ibs. of food per cubic foot of freezer space). Leave

enough space in the freezer for air to circulate around

packages. Be careful to leave enough room at the

front so the door can close tightly.

Storage times will vary according to the quality and

type of food, the type of packaging or wrap used

(how airtight and moisture-proof) and the storage

temperature. Ice crystals inside a sealed package are

normal. This simply means that moisture in the food

and air inside the package have condensed, creating

ice crystals.

NOTE: Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze. Cooling hot

foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging.

When you close and seal the package, it must not

allow air or moisture in or out. If it does, you could

have food odor and taste transfer throughout the

refrigerator and could also dry out frozen food.

Packaging recommendations:

•Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do nat use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

_, CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may

break or burst if they freeze.

19

REFRIGERATOR SECTION

WATER AND iCE DISPENSER

To dispense cold water, push on the dispenser switch

with a glass.

DOOR BIN AND SUPPORT

Your refrigerator and freezer feature bins which can

easily be arranged for packaged products.

Holding both sides, lift the door bin 0 and pull it out (_).

Some dripping may occur after dispensing. Hold your

cup beneath the dispenser for a few seconds after

dispensing to catch all of the drops.

SNACK PAN

To remove the snack pan cover, slightly pull out the

snack pan O. Lift the front part of the snack pan cover

and pull out (_).

,_, WARNING: Do not put your

Fingers up the ice chute opening.

Doing so can result in severe injury.

A, CAUTION: Do not dispense ice

intofine china or crystal glasses.

China or crystal can break.

@

NOTE: The dispenser is equipped with a light that

turns on when the dispenser pad is engaged.

2O

CRISPER DRAWER AND COVER

The crisper drawer allows for better conservation of

fruits and vegetables.

To remove the crisper drawer cover, open the crisper

drawer several inches O, lift the front part of the cover

@ and slide the cover out (_).

®

REFRIGERATOR/FREEZER SHELVES

IMPORTANT: Do not clean glass shelves with warm

water while they are cold. Shelves may break if exposed

to sudden temperature changes or impact.

NOTE: Glass shelves are heavy. Use special care when

removing them.

Shelves

To remove a shelf--Lift from both front and rearC) ,

then pull the shelf toward youC).

To remove the crisper drawer, open the crisper drawer (i)

until it stops. Then, slightly lift the crisper drawer (_) while

pulling it out (_).

CAUTION: Do not apply too much force when pulling

out the shelf. If the shelf hits the door, it may result in

damage or personal injury.

ACAUTION: You will see the water tank while

removing the crisper drawer. Do not remove the water

tank or water leakage may occur. The water tank is

not a removable part.

%

Tilt the shelf (_) and pull forward to remove it (_.

21

FREEZER SECTION

ICE STORAGE BIN

The ice bin stores the ice cubes made by the icemaker.

If you need to remove the ice storage bin, do so as

follows:

NOTE: Use both hands to remove the ice bin to avoid

dropping it,

Lift the ice storage bin slightly (_) and pull it out C_)as

shown in the figure,

22

WATER FILTER

It is recommended that you replace the water filter:

• Approximately every 6months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

1. Remove the old water filter.

Press the push button to open the

water filter coven

NOTE: Replacing the water filter

causes a small amount of water

(around 1 oz. or 25 cc) to drain. Place

a cup under the front end of the water filter cover to

collect any leaking water. Hold the water filter upright,

once it is removed, to prevent any remaining water from

spilling out of the water filter.

Pull the water

filter downward

and pull out.

Make sure to

rotate the filter

down completely

before pulling

it out of the

manifold hole.

2. Replace with a new water filter.

Take the new water filter out of its packing and remove

the protective

cover from the

o-rings. With the

water filter tabs

in the horizontal

position, push the

new water filter

into the manifold .)

hole until it stops.

Rotate the water

filter up into

position and

close the cover.

The cover will

click when closed

correctly.

3. After the water filter is replaced, dispense 2.5

gallons of water (flush for approximately 5minutes)

to remove trapped air and contaminants from

the system. Do not dispense the entire 2.5 gallon

amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

NOTE: To purchase a replacement water filter, visit a

Sears store or call 1-800-4-MY-HOME ®. You may also

order on-line at www.sears.com/partsdirect

23

Performance Data Sheet

Use Replacement Cartridge: ADQ73613402

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or

equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.

ISystem tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the

reduction of substances listed below.

Average Max Permissible NSF Reduction

Contaminant Reduction Average NSF specified Challenge Avg %Product Water Product Water

Influent Concentration Reduction Concentration Concentration Requirements

CHorine Taste and Odor 2.0 mg/L 2.0 mg/L _+ 10% 97.5% 0.05 mg/L N/A _>50%

Nominal Particulate Oass I,, 5,600,000 At least 10,000 partides/mL 99.3% 73,000 pts/ml N/A _>85%

_>0.5to < 1.0 pm pts/mL

107 to 108 MFL; fibers greater

Asbestos 170 MFL >99% < 1MFL N/A _>99%

than 10 pm in length

Atrazine 0.0087 mg/L 0.009 mg/L _+10% 94.2% 0.00005 mg/L 0.003 mg/L N/A

Benzene 0.017 mg/L 0.015 mg/L _+10% 97% 0.0005 mg/L 0.005 mg/L N/A

Carbofuran 0.073 mg/L 0.08 mg/L _+10% 98.8% 0.001 mg/L 0.04 mg/L N/A

Lindane 0.002 mg/L 0.002 mg/L _+10% 98.8% 0.00002 mg/L 0.0002 mg/L N/A

P-DicWorobenzene 0.263 mg/L 0.225 mg/L _+ 10% 99.6% 0.001 mg/L 0.075 mg/L N/A

Toxaphene 0.014 mg/L 0.015 mg/L _+10% 93.5% 0.001 mg/L 0.003 mg/L N/A

2,4-D 0.25 mg/L 0.210 mg/L _+10% 99.5% 0.0012 mg/L 0.07 mg/L N/A

Lead pH _6.5 0.150 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A

Lead pH 68.5 0.150 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A

M ..... y @ pH 6.5 0.006 mg/L 0.006 mg/L _+10% 96.5 0.0002 mg/L 0.002 mg/L N/A

M ..... y @ pH 8.5 0.0062 mg/L 0.006 mg/L _+10% 86.9 0.0081 mg/L 0.002 mg/L N/A

Cyst _" 120,000 cysts/L Minimum 50,000 cysts/L >99.99% <1 cyst/L N/A _>99.95%

I

Based on the use of Cryptosporidium parvum oocysts

24

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 Ipm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

Capacity 200 gallons (757 liters)

California Department of Public Health Certification 14-3015.

For conditions of use, health claims certified by California

Department of Public Health and replacement parts, see

Performance Data Sheet.

It is essential that the manufacturer's recommended

installation, maintenance and water filter replacement

requirements be carried out for the product to perform as

advertised.

NOTE: While the testing was performed under standard

laboratory conditions, actual performance may vary.

Replacement Cartridge: ADQ73613402

To purchase a replacement filter, visit your local Sears

store or call 1-800-4-MY-HOME ®. Visit us on the web at

www.sears.com

Product distributed in the United States by Sears Brands

Management Corporation, Haft:man Estates, I L 60179.

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

© 2009 3M Company. All rights reserved.

To reduce the risk associated with choking: Do not

allow children under 3 years of age to have access to

small parts during the installation of this product.

To reduce the risk associated with ingestion

of contaminants: Do not use with water that is

microbiologically unsafe or of unknown quality without

adequate disinfection before and after the system.

Systems certified for cyst reduction may be used on

disinfected water that may contain filterable cysts. EPA

Establishment Number 070595-MEX-O01

To reduce the risk associated with property damage

due to water leakage:

Read and follow the Water Filter instructions before

installation and use of this system.

Installation and use MUST comply with all state and

local plumbing codes.

Do nat install if water pressure exceeds 120 psi (827

kPa). Contact a plumbing professional if you are

uncertain of how to check your water pressure.

Do not install where water hammer conditions may

occur. If water hammer conditions exist, you must

install a water hammer arrester. Contact a plumbing

professional if you are uncertain of how to check for

this condition.

• Do nat install on hot water supply lines.

The maximum operating water temperature of this

water filter system is 100°F (38°C).

• Protect water filter from freezing. Do not operate

refrigerator in ambient conditions below 55°F. Drain

water filter when storing unit in temperatures below

40°F (4.4°C).

The disposable water filter must be replaced every

six months, at the rated capacity, or if a noticeable

reduction in fiow rate occurs.

Do not install systems in areas where ambient

temperatures may go above 110°F (43.3°C).

Where a backflow prevention device is installed on

a water system, a device for controlling pressure due

to thermal expansion must be installed.

Ensure all tubing and fittings are secure and free

from leaks.

25

State of California

Department of Public Health

Water Treatment Device

Certificate Number

09- 2019

Date Issued: December !5, 2009

Manufacturer: Sears Roebuck and:Co.

The water treatment d_

116830 ,,for the

Microbiolo

Cysts

and Turbidity

Organic Contaminants

2,4-D Redu_ti'on

Atrazine

Benzene

Carbofuran

Lindane

ng

rant to Section

ii !

...../,!!!iiiiii_'_'!i_'_, _

p-Dichlorobenzene

Toxaphene

Ratea Service Capacity: 200 gal :_; Rat_Servil Flowi 0.5 gpm

26

Explosion Hazard

Use non-flammable cleaner. Failure to do so can result

in fire, explosion, or death.

Both the refrigerator and freezer sections defrost

automatically; however, clean both sections about once a

month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves, crispers,

etc. Refer to sections in Using Your Refrigerator for

removal instructions.

• Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide

rust protection. Do not wax plastic parts. Wax painted

metal surfaces at least twice a year using appliance wax

(or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow freezer to warm up so

the cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm

water. Mix 2 tablespoons of baking soda to 1 quart of

water (26 g soda to 1 liter water.) Be sure the baking soda

is completely dissolved so it does not scratch the surfaces

of the refrigerator.

_CAUTION: While cleaning the inside, do not spray

water.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use cleaning waxes, concentrated

detergents, bleaches, or cleaners containing petroleum on

plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use window sprays, abrasive

cleansers, or flammable fluids. These can scratch or

damage the material.

CONDENSER COILS

Use a vacuum cleaner with

an attachment to clean the

condenser cover and vents.

Do not remove the panel

covering the condenser

coil area.

27

LED LIGHT REPLACEMENT

Electrical Shock Hazard

Before service is performed on the interior LED lighting,

unplug the refrigerator or turn off power at the circuit

breaker or fuse box.

Setting either or both controls to the OFF position does

not remove power to the light circuit.

NOTE: The refrigerator and freezer compartment lights

are LED interior lighting, and service should be performed

by a qualified technician.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and

frozen.

2. If the power will be out for more than 24 hours, remove

all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are

away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Turn off the icemaker and empty the ice bin.

If you choose to turn the refrigerator off before you leave,

follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the SETTING THE

CONTROLS section.

3. Clean the refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This

stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well

and tape them together so they do not shift and

rattle during the move. Refer to the USING YOUR

REFRIGERATOR section for removal instructions.

oDepending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they do not scrape the

floor. See the DOOR ALIGNMENT section.

6. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and

refer to the REFRIGERATOR INSTALLATION section for

preparation instructions.

28

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator

warranty. Follow these instructions carefully to minimize the

risk of expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and can

lead to water leakage or flooding. Call a qualified plumber

to correct water hammer before installing the water supply

line to the refrigerator.

CAUTION: To prevent burns and product damage, only

connect the refrigerator water line to a cold water supply.

Connect to a potable water supply only.

WHAT YOU WILL NEED

•Copper Tubing, 1/4 in. outer

diameter, to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

•To determine how much tubing you

need: measure the distance from the water valve on the

back of the refrigerator to the water supply pipe. Then,

add 8 feet (2.4 m). Be sure there is sufficient extra tubing

(about 8 feet [2.4 m] coiled into 3 turns of about 10 in.

[25 cm] diameter) to allow the refrigerator to move out

from the wall after installation.

•Power drill.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the OFF (O)

position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

WATER PRESSURE

Connect to a cold water supply. The water pressuremust

be between 20 and 120 psi(138to 827 kPa) on models

withouta water filterand between 40 and 120 psi(276 to

827 kPa) on models with a water filter.

Ifareverse osmosis water filtration system is connected

to your cold water supply, this water line installation is not

covered by the refrigerator warranty. Follow the following

instructions carefully to minimize the risk of expensive water

damage.

Ifareverse osmosis water filtration system is connected

to your cold water supply, the water pressure to the reverse

osmosis system needs to be aminimum of 40 to 60 psi (2.8

kgf/cm 2 - 4.2 kgf/cm 2, less than 2.0-3.0 sec. to fill acup

of 7oz capacity).

If the water pressure from the reverse osmosis system is less

than 21 psi or 1.5 kgf/cm2 (takes more than 4.0 sec to fill a

cup of 7oz capacity):

• Check to see if the sediment filter in the reverse osmosis

system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

• If the issue concerning water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

• All installations must be in accordance with local

plumbing code requirements.

CAUTION: Wear eye protection during installation to

prevent injury.

1½in. or adjustable wrench.

Flat blade and Phillips head screwdrivers.

Two ¼in. outer diameter

compression nuts and

2 ferrules (sleeves) to

connect the copper tubing

to the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an adapter

(available at plumbing supply

stores) to connect the water line

to the refrigerator OR you can

cut off the flared fitting with

a tube cutter and then use a

compression fitting.

Shutoff valve to connect

to the cold water line. The

shutoff valve should have a water inlet with a minimum

inside diameter of 5/32 in. at the point of connection

to the COLD WATER LINE.

Saddle-type shutoff valves _ _--_-_

are included in many water _ I_

supply kits. Before purchasing, __("_

make sure a saddle-type _k,,,,_--_<,_l_,p_kL_J

valve complies with your local ._ v

plumbing codes.

NOTE: A Self Piercing Saddle Type Water Valve should

not be used.

Electrical Shock Hazard

When using any electrical device (such as a power

drill) during installation, be sure the device is battery

powered, double insulated or grounded in a manner that

will prevent the hazard of electric shock.

29

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the

line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is

easily accessible. It is best to connect

into the side of a vertical water pipe.

When it is necessary to connect into

a horizontal water pipe, make the

connection to the top or side, rather

than at the bottom, to avoid drawing

off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4 in. hole in the water pipe using a sharp bit.

Remove any burrs resulting from

drilling the hole in the pipe. Be

careful not to allow water to

drain into the drill. Failure to

drill a 1/4 in. hole may result

in reduced ice production or

smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper

tubing NDA tubing #49595 or 49599 or Cross Link

Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp-

Saddle-Ty_

Shutoff Valve

Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten clamp or you may crush the

tubing.

Washer

Pipe Clamp _k

Clamp Screw_

Inlet End

r E

o

7.

ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10 in. diameter) to

allow the refrigerator to move out from the wall after

installation.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for

copper tubing onto the end of the tubing and connect

it to the shutoff valve. Make sure the tubing is fully

inserted into the valve. Tighten the compression nut

securely.

Saddle-Type

Shutoff Valve _,

Packing Nu_

Outlet Valve--

h

_I ompression Nut

./

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegal and their use is not permitted in

Massachusetts. Consult with your licensed plumber.

3O

8. FLUSH OUT THE TUBING

Turn the main water supply on and

flush out the tubing until the water

is clear.

Shut the water off: at the water

valve after about one quart of

water has been flushed through the

tubing.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection to the

refrigerator, be sure that the refrigerator power cord is

not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

3. Insert the end of the copper tubing into the connection

as far as possible. While holding the tubing, tighten the

fitting.

Back of refrigerator

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

_CAUTION: Check to see if leaks occur at the water line

connections.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

Tubing

1/4" (6.35 mm]

Compression

Nut

Ferrule

(Sleeve)

¼" (6.35 mm) Tubing

Refrigerator

Connection 12. START THE ICEMAI(ER

Set the icemaker power switch to the ON (I) position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9°C) or below. It

will then begin operation automatically if the icemaker

power switch is in the ON (I) position.

31

COOLING

Before conducting troubleshooting, make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 Ipm)

Water Supply Potable Water

Water Pressure 40-120 psi (276 - 827 kPa)

Water Temperature 33°F - IO0°F (0.6°C - 38°C)

115 Volts, 60 Hz, AC only, and fused

Electrical Ratings at 15 amperes (minimum).

iiiil!liiiii!!ili iilllii! il iii i!

Refrigerator and The power supply cord is unplugged. Firmly plug the cord into a live outlet with the proper

Freezer section are

not cooling. Refrigerator is set to demo mode. The

display shows the word "OFF."

Refrigerator is in the defrost cycle.

Refrigerator was recently installed.

Refrigerator was recently relocated.

Cooling System runs Refrigerator is replacing an older

too much. model.

Refrigerator was recently plugged in

or power restored.

Door opened often or a large amount

of food /hot food was added.

Doors are not closed completely.

Refrigerator is installed in a hot

location.

Condenser /back cover is clogged.

voltage.

Demo Mode allows the lights and control display to

work normally while disabling cooling to save energy

while on the showroom floor. Refer to the Setting the

Controls section for instructions on how to disable

Demo Mode.

During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes and

confirm the proper temperature has been restored

once the defrost cycle has completed.

It may take up to 24 hours for each compartment to

reach the desired temperature.

If the refrigerator was stored for a long period of time

or moved on its side, it is necessary for the refrigerator

to lay upright for 24 hours before connecting it to

power.

Modern refrigerators require more operating time but

use less energy due to more efficient technology.

The refrigerator will take up to 24 hours to cool

completely.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer in

order to cool the refrigerator back down. In order to

conserve energy, try to get everything you need out of

the refrigerator at once, keep food organized so it is

easy to find, and close the door as soon as the food is

removed. (Refer to the Food Storage Guide.)

Firmly push the doors shut. If they will not shut all the

way, see the Doors will not close completely or pop

open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions.

At normal room temperatures (70°F/110°C) expect

your compressor to run about 40°,/o to 80°,/o of the

time. Under warmer conditions, expect it to run even

more often. The refrigerator should not be operated

above 110°F (43°C).

Use a vacuum cleaner with an attachment to clean the

condenser cover and vents. Do not remove the panel

covering the condenser coil area.

32

COOLING

! ! ii ! !!!

Refrigerator or Refrigerator was recently installed. It may take up to 24 hours for each compartment to

Freezer section is too

warm. Air vents are blocked.

Interior moisture

buildup.

Doors are opened often or for long

periods of time.

Unit is installed in a hot location.

A large amount of food or hot food

was added to either compartment.

Doors not closed correctly.

Temperature control is not set

correctly.

Defrost cycle has recently completed.

Doors are opened often or for long

periods of time.

Doors not closed correctly.

Weather is humid.

Defrost cycle recently completed.

Food is not packaged correctly.

reach the desired temperature.

Rearrange items to allow air to flow throughout the

compartment. Refer to the Airflow diagram in the

Using Your Refrigerator section.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within

the compartment. To lessen the effect, reduce the

frequency and duration of door openings.

The refrigerator should not be operated in

temperatures above 110°F (43°C).

Adding food warms the compartment requiring the

cooling system to run. Allowing hot food to cool to

room temperature before putting it in the refrigerator

will reduce this effect.

See the Doors will not close correctly or pop open

section in Parts & Features Troubleshooting.

If the temperature is too warm, adjust the control one

increment at a time and wait for the temperature to

stabilize. Refer to the Setting the Controls section for

more information.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation may

form on the back wall. Wait 30 minutes and confirm

the proper temperature has been restored once the

defrost cycle has completed.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within

the compartment. To lessen the effect, reduce the

frequency and duration of door openings.

See the Doors will not close correctly section in the

Troubleshooting section.

Humid weather allows additional moisture to enter the

compartments when the doors are opened leading to

condensation or frost. Maintaining a reasonable level

of humidity in the home will help to control the amount

of moisture that can enter the compartments.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation may

form on the back wall. Wait 30 minutes and confirm

that the proper temperature has been restored once

the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation within

each compartment. Wipe all containers dry and store

food in sealed packaging to prevent condensation and

frost.

33

COOLING/ICE & WATER

Food is freezing Food with high water content was Rearrange items with high water content away from

in the refrigerator placed near an air vent. air vents.

compartment. Refrigerator temperature control is set If the temperature is too cold, adjust the control one

incorrectly, increment at a time and wait for the temperature to

stabilize. Refer to the Setting the Controls section for

more information.

Refrigerator is installed in a cold When the refrigerator is operated in temperature

location, below 41°F (5°C), food can freeze in the refrigerator

compartment. The refrigerator should not be operated

in temperature below 55°F (13°C).

Frost or ice crystals

form on frozen food

(outside of package).

Door is opened frequently or for long

periods of time. When the doors are opened often or for long periods

of time, warm, humid air enters the compartment. This

raises the temperature and moisture level within the

compartment. Increased moisture will lead to frost

and condensation. To lessen the effect, reduce the

frequency and duration of door openings.

Door is not closing properly. Refer to the Doors will not close correctly or pop

open section in the Troubleshooting section.

Refrigerator or Incorrect temperature control settings. If the temperature is too cold, adjust the control one

Freezer section is too increment at a time and wait for the temperature to

cold. stabilize. Refer to the Setting the Controls section for

more information.

Frost or ice crystals Condensation from food with a high This is normal for food items with a high water

on frozen food water content has frozen inside of the content.

(inside of sealed food package.

package). Food has been left in the freezer for Do not store food items with high water content in the

a long period of time. freezer for a long period of time.

Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 100 cubes in

making enough ice. capacity, a 24 hour period.

House water supply is not connected,

valve is not turned on fully, or valve is

clogged.

Water filter has been exhausted.

Low house water supply pressure.

Reverse Osmosis filtration system is

used.

34

Tubing connecting refrigerator to

house supply valve is kinked.

Connect the refrigerator to a cold water supply with

adequate pressure and turn the water shutoff valve

fully open.

If the problem persists, it may be necessary to contact

a plumber.

It is recommended that you replace the water filter:

• Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

The water pressure must be between 20 and 120 psi

(138 to 827 kPa) on models without a water filter and

between 40 and 120 psi (276 to 827 kPa) on models

with a water filter.

If the problem persists, it may be necessary to contact

a plumber.

Reverse osmosis filtration systems can reduce the

water pressure below the minimum amount and result

in icemaker issues. (Refer to Water Pressure section.)

The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced

water flow. Straighten or repair the water supply line

and arrange it to prevent future kinks.

ICE & WATER

Icemaker is not

making enough ice

(continued).

Doors are opened often or for long If the doors of the unit are opened often, ambient

periods of time. air will warm the refrigerator which will prevent the

Doors are not closed completely.

The temperature setting for the

freezer is too warm.

Water filter has been exhausted.

Reverse osmosis filtration system is

used.

Low house water supply pressure.

Dispensing water

slowly.

Not dispensing ice. Doors are not closed completely.

Infrequent use of the dispenser.

The delivery chute is clogged with

frost or ice fragments.

The dispenser display is locked.

Ice bin is empty.

unit from maintaining the set temperature. Lowering

the refrigerator temperature can help, as well as not

opening the doors as frequently.

If the doors are not properly closed, ice production

will be affected. See the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is O°F. If the

freezer temperature is warmer, ice production will be

affected.

It is recommended that you replace the water filter:

• Approximately every 6months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the water

pressure below the minimum amount and result in

icemaker issues.

If the problem persists, it may be necessary to contact

a plumber.

The water pressure must be between 20 and 120 psi

(138 to 827 kPa) on models without a water filter and

between 40 and 120 psi (276 to 827 kPa) on models

with a water filter.

If the problem persists, it may be necessary to contact

a plumber.

Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the ice dispenser will cause the cubes

to stick together over time, which will prevent them

from properly dispensing. Check the ice bin for ice

cubes clumping/sticking together. If they are, break up

the ice cubes to allow for proper operation.

Eliminate the frost or ice fragments by removing the

ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or ice

fragment buildup.

Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker

to begin making ice. Make sure that the shutoff (arm/

sensor) is not obstructed.

Once the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24

hours to completely refill the bin.

35

ICE & WATER

s

Icemaker is not Refrigerator was recently installed or It may take up to 24 hours for each compartment to

making ice. icemaker recently connected, reach the desired temperature and for the icemaker to

Not dispensing

water.

Icemaker not turned on.

The ice detecting sensor is obstructed.

The refrigerator is not connected to

a water supply or the supply shutoff

valve is not turned on.

Icemaker shutoff (arm or sensor)

obstructed.

Reverse osmosis water filtration

system is connected to your cold

water supply.

New installation or water line recently

connected.

The dispenser panel is locked.

The dispenser is not set for water

dispensing.

Refrigerator or freezer doors are not

closed properly.

Water filter has been recently

removed or replaced.

Tubing connecting refrigerator to

house supply valve is kinked.

The house water supply is not

connected, the valve is not turned on

fully, or the valve is clogged.

begin making ice.

Locate the icemaker ON/OFF switch and confirm that

it is in the ON (I) position.

Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure that the sensor

area is clean at all times for proper operation.

Connect refrigerator to the water supply and turn the

water shutoff valve fully open.

If your icemaker is equipped with an ice shutoff arm,

make sure that the arm moves freely. If your icemaker

is equipped with the electronic ice shutoff sensor,

make sure that there is a clear path between the two

sensors.

Reverse osmosis filtration systems can reduce the

water pressure below the minimum amount and result

in icemaker issues. (Refer to the Water Pressure

section.)

Dispense 2.5 gallons (9.5 I) of water (flush for

approximately 5minutes) to remove trapped air and

contaminants from the system. Do not dispense the

entire 2.5 gallon (9.5 I) amount continuously. Depress

and release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

The dispenser can be set for ice or water. Make

certain that the control panel is set for the proper

operation. Press the Water button on the control panel

to dispense water.

Water will not dispense if any of the refrigerator

doors are left open.

After the water filter is replaced, dispense 2.5 gallons

(9.5 I) of water (flush for approximately 5 minutes) to

remove trapped air and contaminants from the system.

Do not dispense the entire 2.5 gallon (9.5 I) amount

continuously. Depress and release the dispenser pad

for cycles of 30 seconds ON and 60 seconds OFF.

The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced

water flow. Straighten or repair the water supply line

and arrange it to prevent future kinks.

Connect refrigerator to the water supply and turn the

water shutoff valve fully open.

If the problem persists, it may be necessary to contact

a plumber.

36

ICE & WATER

! ! ii ! !!!

Ice has bad taste or Water supply contains minerals such A water filter may need to be installed to eliminate

odor. as sulfur, taste and odor problems.

Icemaker was recently installed.

Ice has been stored for too long.

The food has not been stored

properly in either compartment.

The interior of the refrigerator needs

to be cleaned.

The ice storage bin needs to be

cleaned.

Dispensing warm Refrigerator was recently installed.

water.

The water dispenser has been used

recently and the storage tank was

exhausted.

Dispenser has not been used for

several hours.

Refrigerator is connected to the hot

water supply.

Water has bad taste Water supply contains minerals such

or odor. as sulfur.

Water filter has been exhausted.

Refrigerator was recently installed.

Icemaker shutoff: (arm/sensor) is

obstructed.

Icemaker is making

too much ice.

NOTE: In some cases, a filter may not help. It may not

be possible to remove all minerals / odor / taste in all

water supplies.

Discard the first few batches of ice to avoid discolored

or bad tasting ice.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste. Throw

away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

See the Care and Cleaning section for more

information.

Empty and wash the bin (discard old cubes). Make

sure that the bin is completely dry before reinstalling

it.

Allow 24 hours after installation for the water storage

tank to cool completely.

Depending on your specific model, the water storage

capacity will range from approximately 20 to 30 oz

(0.6 to 0.9 liter).

If the dispenser has not been used for several hours,

the first glass dispensed may be warm. Discard the

first 10 oz.

Make sure that the refrigerator is connected to a cold

water pipe.

_WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker.

A water filter may need to be installed to eliminate

taste and odor problems.

It is recommended that you replace the water filter:

• Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Dispense 2.5 gallons (9.5 I) of water (flush for

approximately 5 minutes) to remove trapped air and

contaminants from the system. Do not dispense the

entire 2.5 gallon (9.5 I) amount continuously. Depress

and release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

Empty the ice bin. If your icemaker is equipped with

an ice shutoff: arm, make sure that the arm moves

freely. If your icemaker is equipped with the electronic

ice shutoff: sensor, make sure that there is a clear path

between the two sensors. Reinstall the ice bin and wait

24 hours to confirm proper operation.

37

NOISE

iiiil!liiiii!,!,iJ iiiii!!i !ili iilii!!l,,:,,,iil iili iiiiiiliiii iiii i iiii, !i!iii

Clicking The defrost control will click when Normal Operation

Dripping

Pulsating or High-

Pitched Sound

Rattling Normal Operation

Floor is weak or uneven or leveling legs need to be

adjusted. See the Door Alignment section.

Normal Operation

Whooshing Normal Operation

Normal Operation

Gurgling Normal Operation

Popping Normal Operation

Sizzling Normal Operation

Vibrating To eliminate the noise, make sure that the sides and

back cannot vibrate against any wall or cabinet.

Normal Operation

Normal Operation

the automatic defrost cycle begins

and ends. The thermostat control (or

refrigerator control on some models)

will also click when cycling on and

off:.

Rattling noises may come from the

flow of refrigerant, the water line on

the back of the unit, or items stored

on top of or around the refrigerator.

Refrigerator is not resting solidly on

the floor.

Refrigerator with linear compressor

was jarred while running.

Evaporator fan motor is circulating

air through the refrigerator and

freezer compartments.

Air is being forced over the condenser

by the condenser fan.

Refrigerant flowing through the

cooling system.

Contraction and expansion of the

inside walls due to changes in

temperature.

Water dripping on the defrost heater

during a defrost cycle.

If the side or back of the refrigerator

is touching a cabinet or wall, some of

the normal vibrations may make an

audible sound.

Water running into the drain pan

during the defrost cycle.

Your refrigerator is designed to run

more efficiently to keep your food

items at the desired temperature. The

high efficiency compressor may cause

your new refrigerator to run longer

than your old one, but it is still more

energy efficient than previous models.

While the refrigerator is running, it is

normal to hear a pulsating or high-

pitched sound.

38

PARTS AND FEATURES

! ! ii ! !!!

Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door

correctly or pop open. shelves.

open. Ice bin, crisper cover, pans, shelves, Push bins all the way in and put crisper cover, pans,

door bins, or baskets are out of shelves and baskets into their correct positions. See the

position. Using Your Refrigerator section for more information.

The doors were removed during Remove and replace the doors according to the

product installation and not properly Removing and Replacing Refrigerator Handles and

replaced. Doors section.

Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation

section to level refrigerator.

Doors are difficult to The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.

open. Rub a thin coat of appliance polish or kitchen wax on

the gaskets after cleaning.

Door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create a

vacuum. If the door is hard to open, wait one minute

to allow the air pressure to equalize, then see if it

opens more easily.

Refrigerator wobbles Leveling legs are not adjusted Refer to the Leveling and Door Alignment section.

or seems unstable, properly.

Floor is not level. It may be necessary to add shims under the leveling

legs or rollers to complete installation.

Lights do not work. A light bulb has burned out.

NOTE: The refrigerator compartment

lamp is LED interior lighting, and

service should be performed by a

qualified technician. (This statement

only applies for certain models.)

A light bulb is loose in the socket.

Replace with an appliance bulb of the same wattage,

size and shape (available at your local hardware

store). Refer to the Light Bulb Replacement section.

Unplug the refrigerator or turn off: power at the circuit

breaker or fuse box. Gently remove the bulb and

reinsert. Reconnect power and reset the refrigerator

control. Refer to the Light Bulb Replacement section

for instructions on removing your light bulb.

39

Kenmore Connect TM (on some models)

Should you experience any problems with your

refrigerator, it has the capability of transmitting data

via your telephone to the Kenmore Connect TM Team.

This gives you the capability of speaking directly to

our trained specialists. The specialist records the data

transmitted from your machine and uses it to analyze the

issue, providing a fast and effective diagnosis.

If you experience problems with your refrigerator, call

1-800-4-MY-HOME ®. Only use the J<enmore Connect TM

System feature when instructed to do so by the J<enmore

Connect TM Team. The transmission sounds that you will

hear are normal and sound similar to a fax machine.

I(enmore Connect TM cannot be activated unless your

refrigerator is connected to power. If your refrigerator

is unable to turn on, then troubleshooting must be done

without using Kenmore Connect TM.

Using Kenmore Connect TM

First, call 1-800-4-MY-HOME ® (1-800-469-4663).

If the number of the phone you are using is on file and

is associated with your refrigerator, you witl be quickly

relayed to a Kenmore Connect TM Team agent. Only use

the Kenmore Connect TM feature when instructed to do so

by the Kenmore Connect TM Team agent.

1. Lock the display. To lock the display, press and hold

the Door Alarm button for three seconds. (if the

display has been locked for over three minutes, you

must deactivate the lock and then reactivate it.)

3. Hold the mouthpiece of your phone in front of the

speaker that is located on the right hinge of the

refrigerator door, when instructed to do so by the call

center.

4. Press and hold the Freezer Temp button for three

seconds while continuing to hold your phone to the

speaker.

2. Open the right refrigerator door.

o

o

After you hear three beeps, release the Freezer Temp

button.

Keep the phone in place until the tone transmission has

finished. The display will count down the time. Once

the countdown is over and the tones have stopped,

resume your conversation with the specialist, who will

then be able to assist you in using the information

transmitted for analysis.

NOTE:

* For best results, do not move the phone while the tones are being transmitted.

* If the call center agent is not able to get an accurate recording of the data, you may be asked to

try again.

* Call quality differences by region may affect the Kenmore Connect TM function.

* For best results, use Kenmore Connect TM with a tandtine phone.

* Bad call quality may result in poor data transmission from your phone to the machine, which could

cause Kenmore Connect TM to malfunction.

4O

Your Home

For troubleshooting, product manuals and expert advice:

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

www.sears.com

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

TM

® Registered Trademark /Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /rM Marca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises

MCMarque de commerce /MDMarque d6pos6e de Sears Brands, LLC
