Owner's Manual and

Installation Instructions

240-Volt

COMPACT

ELECTRIC DRYERS

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

PART NO. 3406896 PRINTED iN U.S.A.

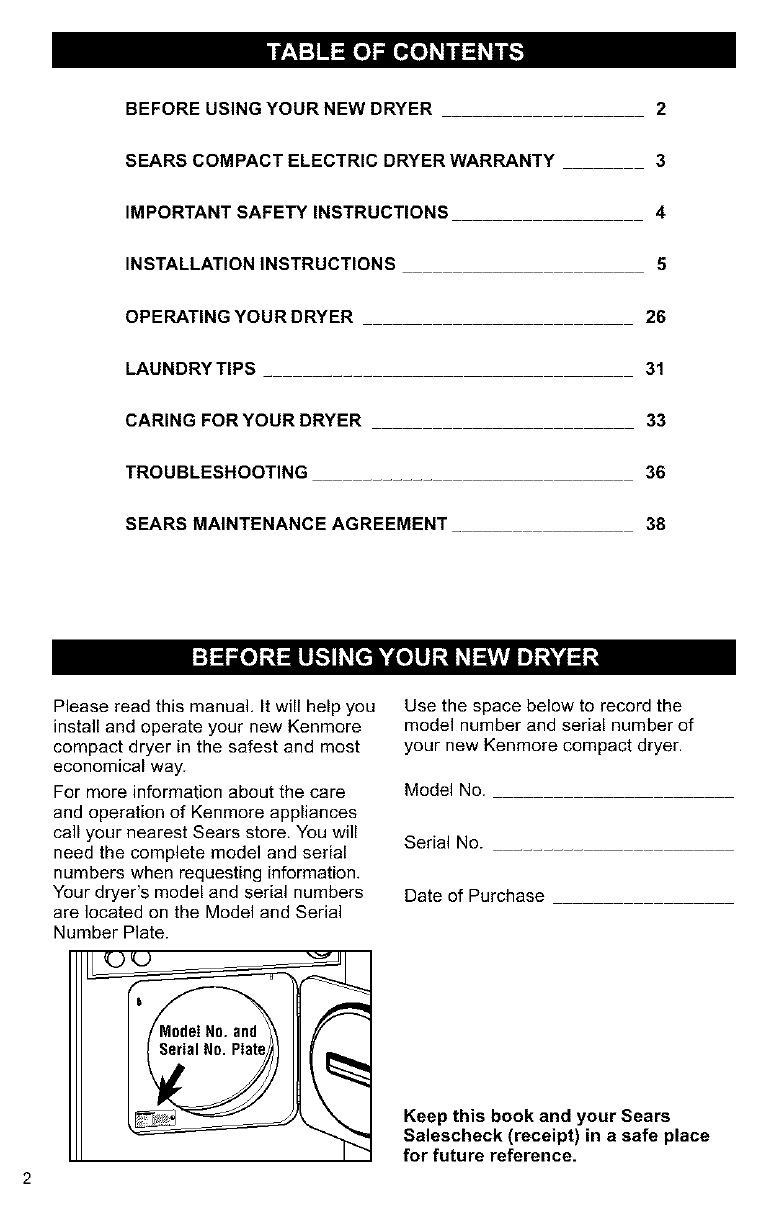

BEFORE USING YOUR NEW DRYER 2

SEARS COMPACT ELECTRIC DRYER WARRANTY 3

IMPORTANT SAFETY INSTRUCTIONS 4

INSTALLATION INSTRUCTIONS

OPERATING YOUR DRYER 26

LAUNDRY TIPS 31

CARING FOR YOUR DRYER 33

TROUBLESHOOTING 36

SEARS MAINTENANCE AGREEMENT 38

Please read this manual, It will help you

install and operate your new Kenmore

compact dryer in the safest and most

economical way.

For more information about the care

and operation of Kenmore appliances

call your nearest Sears store, You will

need the complete model and serial

numbers when requesting information,

Your dryer's model and serial numbers

are located on the Model and Serial

Number Plate.

Use the space below to record the

model number and serial number of

your new Kenmore compact dryer.

Model No.

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt) in asafe place

for future reference,

OneYearWarrantyon

MechanicalandElectricalParts

For one year from the date of purchase,

if this dryer is installed and operated

according to the instructions in this

manual, Sears will repair or replace

any of its mechanical or electrical

parts if they are defective in material

or workmanship.

NOTE: Exhausting your dryer with

plastic product may void this warranty.

Pages 21-24 of this manual describe

the complete exhaust requirements

for this dryer.

Warranty Service

Warranty service is available by

contacting your nearest Sears

Service Center in the United States.

This warranty applies only while this

dryer is used in the United States.

This warranty gives you specific legal

rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Dept.

817WA, Hoffman Estates, IL 60179.

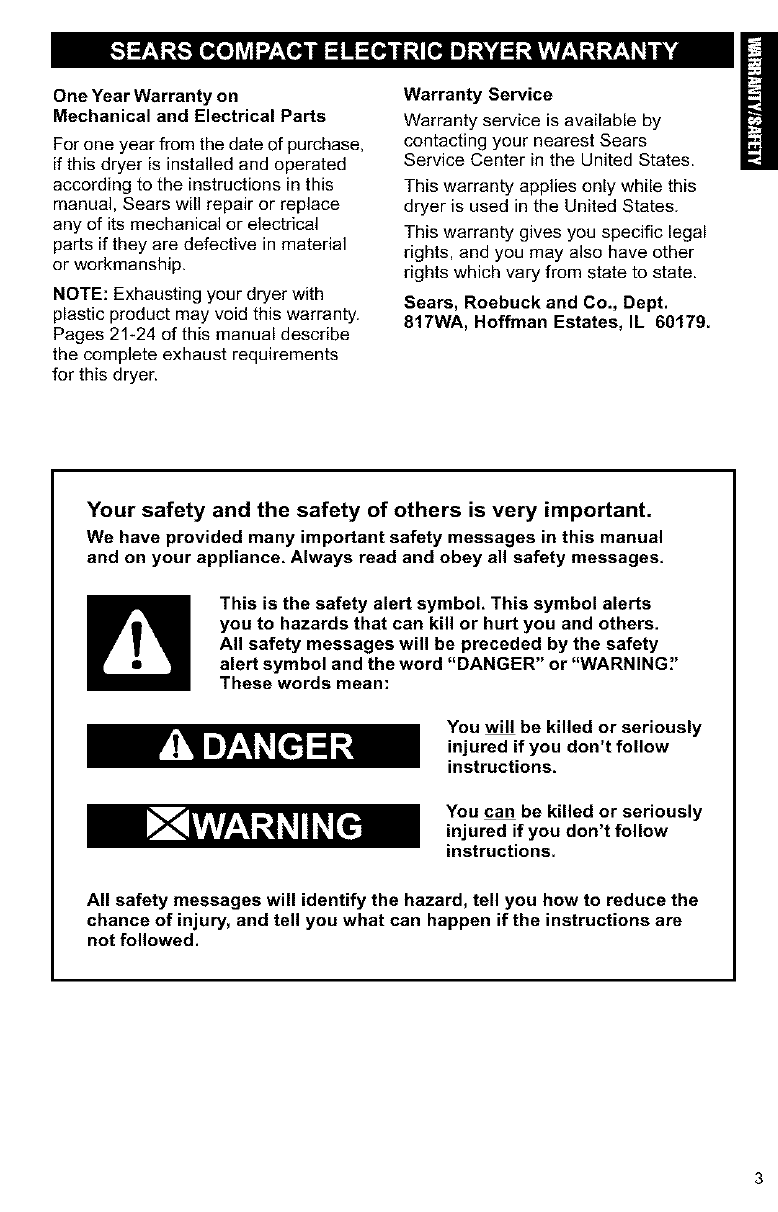

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual

and on your appliance, Always read and obey all safety messages,

This is the safety alert symbol, This symbol alerts

you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety

alert symbol and the word "DANGER" or "WARNING,"

These words mean:

You will be killed or seriously

injured if you don't follow

instructions,

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are

not followed.

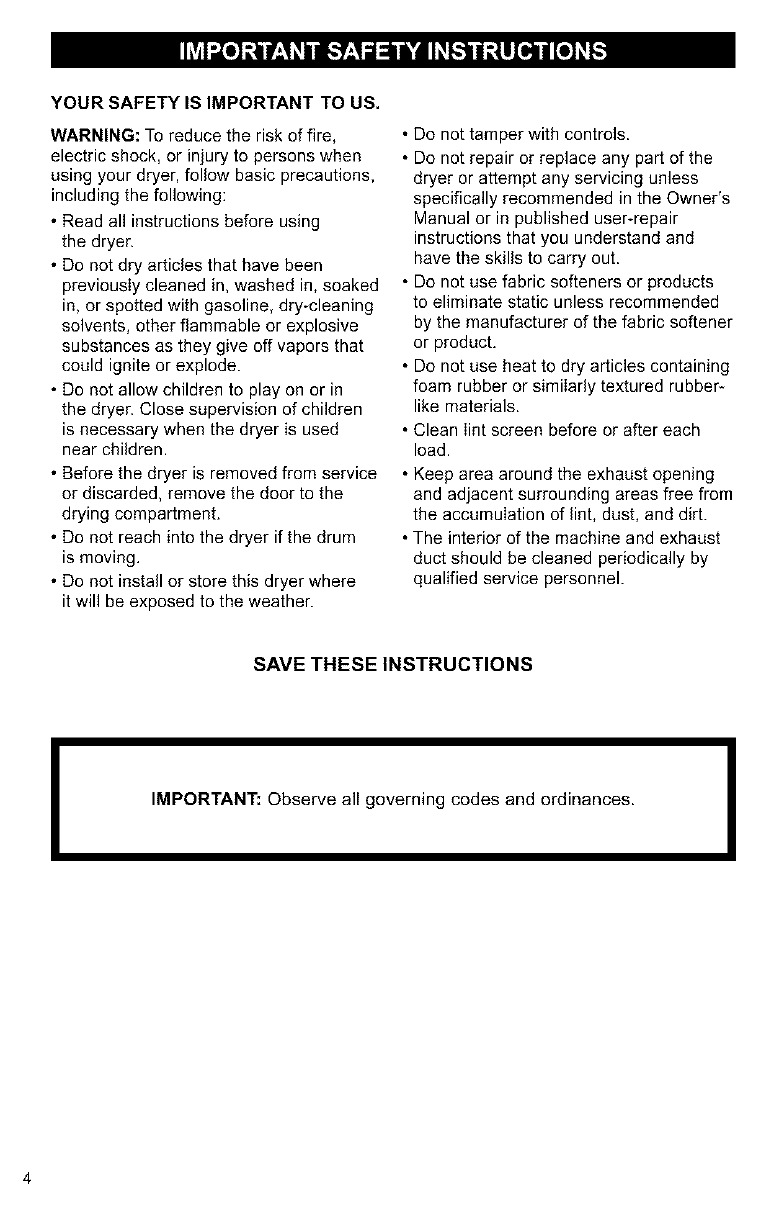

YOUR SAFETY IS IMPORTANT TO US.

WARNING: To reduce the risk of fire,

electric shock, or injury to persons when

using your dryer, follow basic precautions,

including the following:

•Read all instructions before using

the dryer.

• Do not dry articles that have been

previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning

solvents, other flammable or explosive

substances as they give off vapors that

could ignite or explode.

• Do not allow children to play on or in

the dryer. Close supervision of children

is necessary when the dryer is used

near children.

• Before the dryer is removed from service

or discarded, remove the door to the

drying compartment.

• Do not reach into the dryer if the drum

is moving.

• Do not install or store this dryer where

it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the

dryer or attempt any servicing unless

specifically recommended in the Owner's

Manual or in published user-repair

instructions that you understand and

have the skills to carry out.

• Do nat use fabric softeners or products

to eliminate static unless recommended

by the manufacturer of the fabric softener

or product.

• Do nat use heat to dry articles containing

foam rubber or similariy textured rubber-

like materials.

• Clean Iint screen before or after each

load,

• Keep area around the exhaust opening

and adjacent surrounding areas free from

the accumulation of tint, dust, and dirt.

• The interior of the machine and exhaust

duct should be cleaned periodically by

qualified service personnel.

SAVE THESE INSTRUCTIONS

IIMPORTANT: Observe all governing codes and ordinances. I

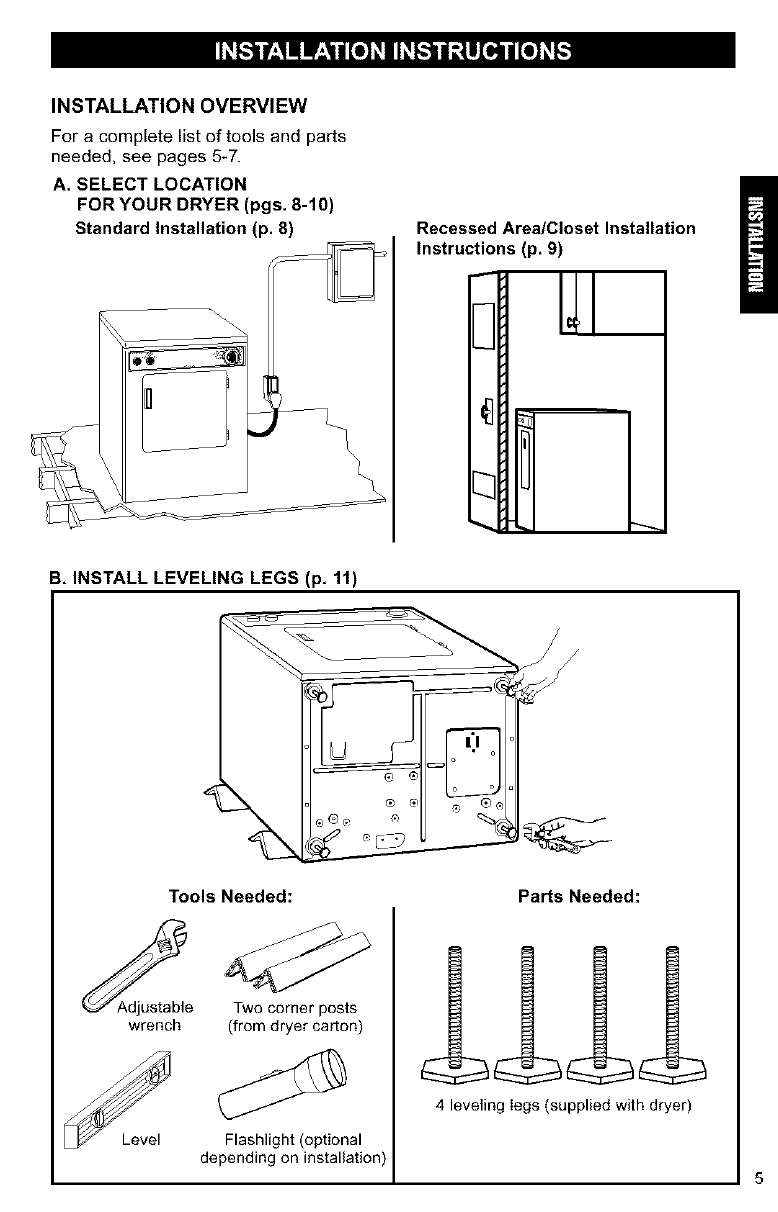

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 5-7.

A, SELECT LOCATION

FOR YOUR DRYER (pgs. 8-10)

Standard Installation (p. 8) Recessed Area/Closet Installation

Instructions (p. 9)

B, INSTALL LEVELING LEGS (p, 11)

Tools Needed: PaNs Needed:

Jstable

wrench Two corner posts

(from dryer carton)

Flashlight (optional

depending on installation)

4 leveling legs (supplied with dryer)

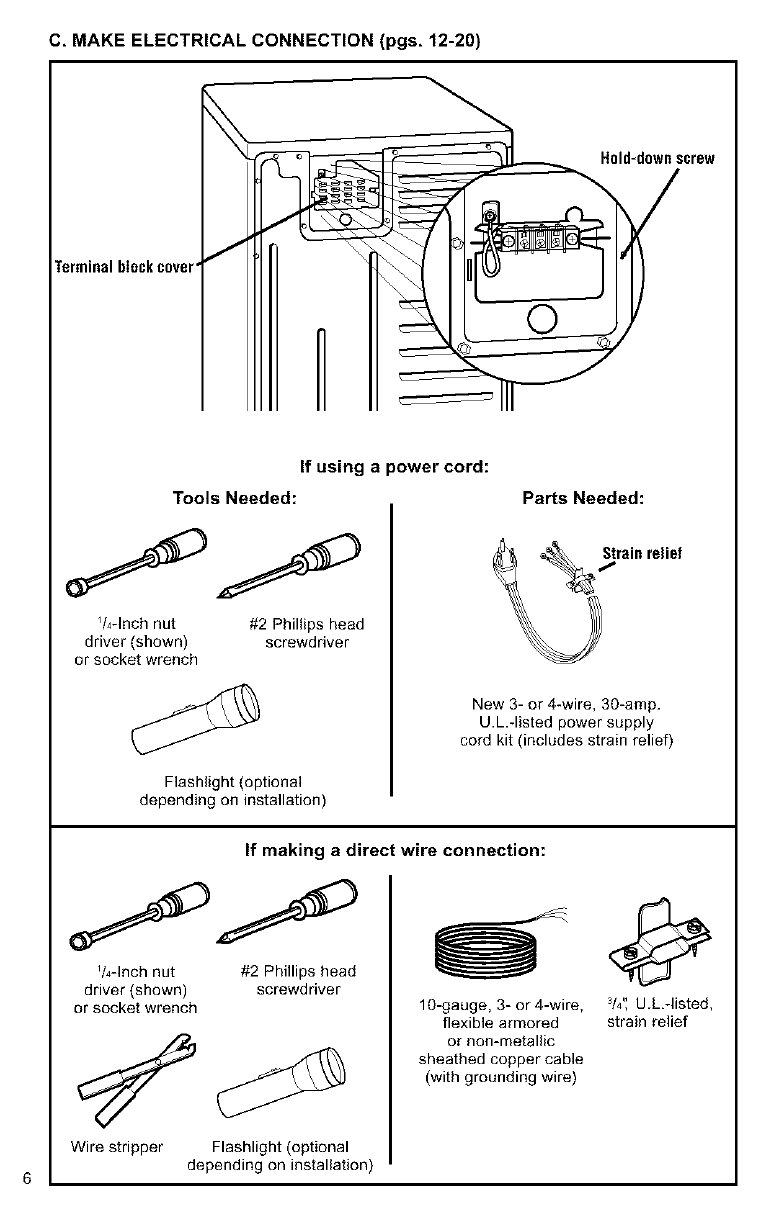

C, MAKE ELECTRICAL CONNECTION (pgs, 12-20)

Hold-downscrew

Terminalblockcover

If using a power cord:

Tools Needed: Parts Needed:

V4-1nch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Flashlight {optional

depending on installation)

New 3- or 4-wire, 30-amp.

U.L.-listed power supply

cord kit (includes strain relief)

If making a direct wire connection:

V4-1nch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Wire stripper Flashlight (optional

depending on installation)

10-gauge, 3- or 4-wire, 314':U.h-listed,

flexible armored strain relief

or non-metallic

sheathed copper cable

(with grounding wire)

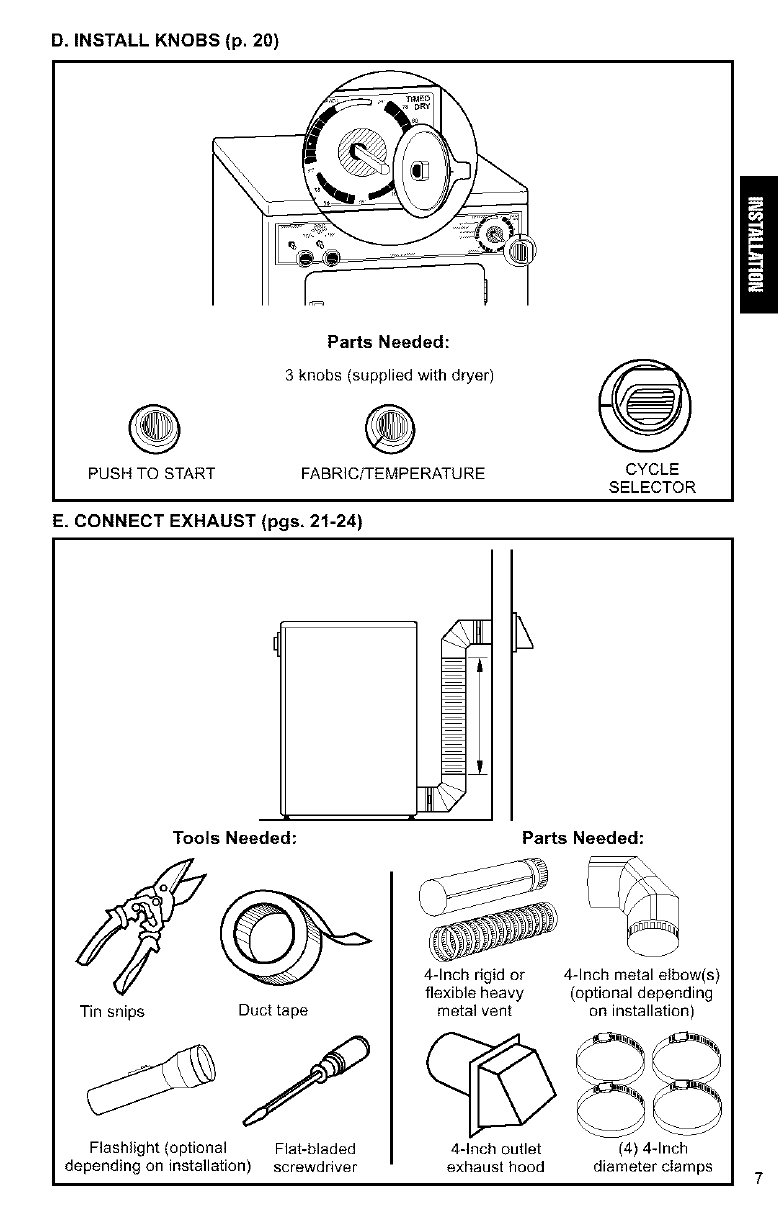

D, INSTALL KNOBS (p. 20)

PUSH TO START

PaNs Needed:

3 knobs(supplied with d_er)

FABRIC/TEMPERATURE

CYCLE

SELECTOR

E, CONNECT EXHAUST (pgs, 21-24)

i •

Tools Needed:

Tin snips

Flashlight {optional

depending on installation)

Duct tape

Flat-bladed

screwdriver

PaNs Needed:

4-Inch rigid or

flexible heavy

metal vent

4-Inch metal elbow(s)

(optional depending

on installation)

4-Inch outlet (4) 4-Inch

exhaust hood diameter damps 7

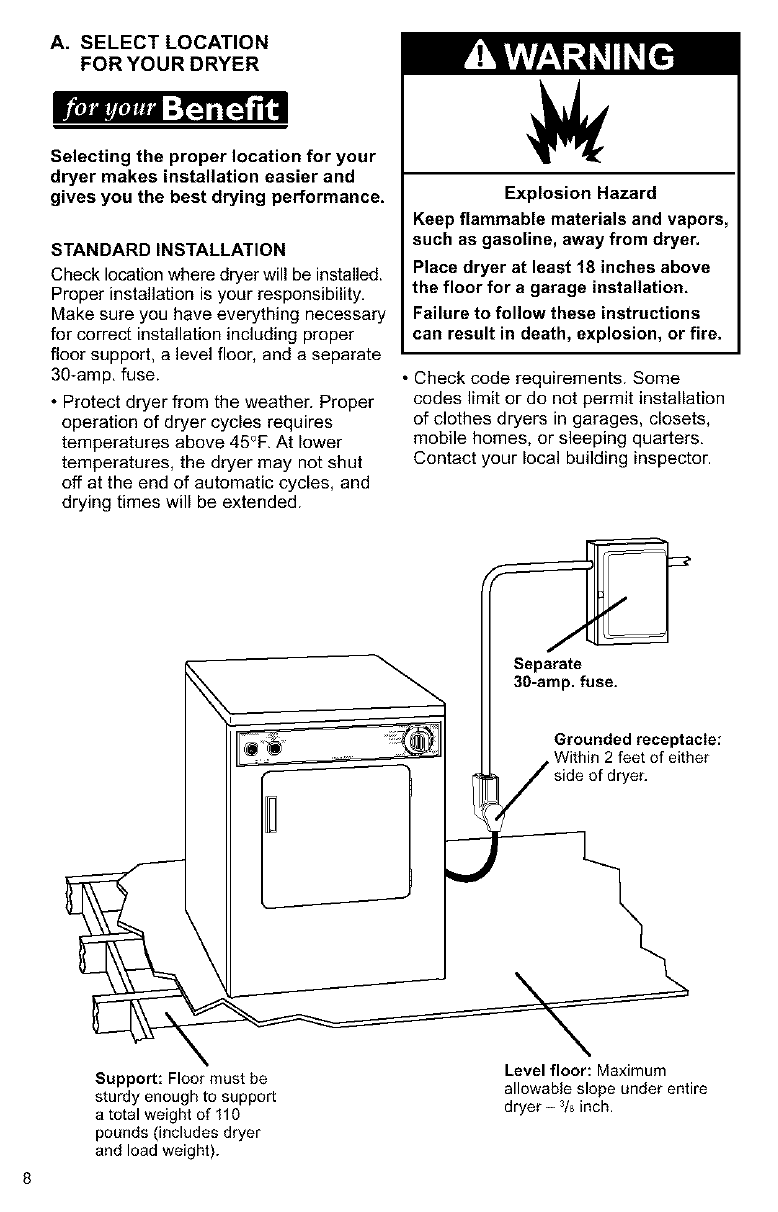

A. SELECT LOCATION

FOR YOUR DRYER

Selecting the proper location for your

dryer makes installation easier and

gives you the best drying performance,

STANDARD INSTALLATION

Check location where dryer will be installed.

Proper installation is your responsibility.

Make sure you have everything necessary

for correct installation including proper

floor support, a level floor, and a separate

3g-amp. fuse.

• Protect dryer from the weather. Proper

operation of dryer cycles requires

temperatures above 45°F, At lower

temperatures, the dryer may not shut

off at the end of automatic cycles, and

drying times will be extended.

Explosion Hazard

Keep flammable materials and vapors,

such as gasoline, away from dryer.

Place dryer at least 18 inches above

the floor for a garage installation.

Failure to follow these instructions

can result in death, explosion, or fire.

•Check code requirements. Some

codes limit or do not permit installation

of clothes dryers in garages, closets,

mobile homes, or sleeping quarters.

Contact your local building inspector.

_- _ Separate

\ 30.ompf_

OroonOe0recep,ac,e:

' '_ /Withinf 2 _;ee'°f either

Support: Floor must be Level floor: Maximum

sturdy enough to support allowable slope under entire

a total weight of 110 dryer - 3/_inch.

pounds (includes dryer

and lead weight).

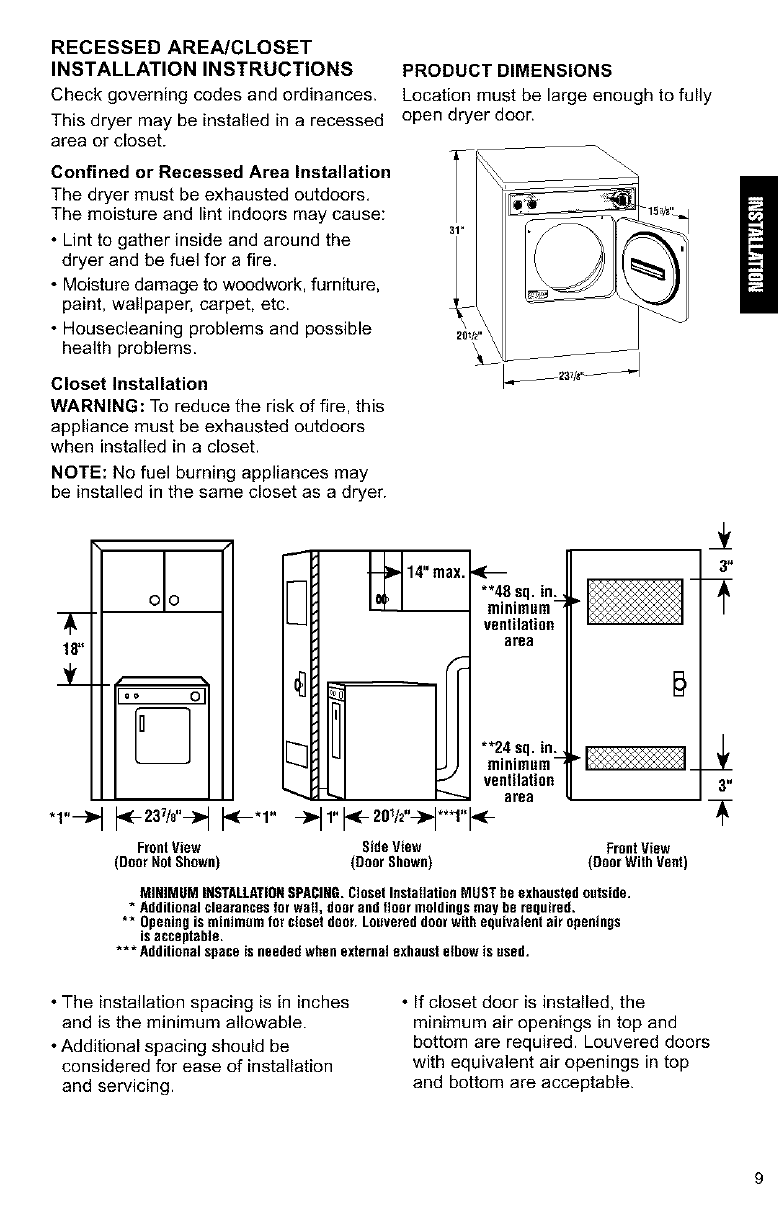

RECESSED AREA/CLOSET

INSTALLATION INSTRUCTIONS PRODUCT DIMENSIONS

Check governing codes and ordinances. Location must be large enough to fully

This dryer may be installed in arecessed open dryer door.

area or closet.

Confined or Recessed Area Installation

The dryer must be exhausted outdoors,

The moisture and lint indoors may cause:

• Lint to gather inside and around the

dryer and be fuel for afire.

• Moisture damage to woodwork, furniture,

paint, wallpaper, carpet, etc.

• Housecleaning problems and possible

health problems.

Closet Installation

WARNING: To reduce the risk of fire, this

appliance must be exhausted outdoors

when installed in a closet.

NOTE: No fuel burning appliances may

be installed in the same closet as a dryer.

201/2"

18"

"1"4

olo

FrontView

(DoorNotShown)

**48 sq. in.,

minimum_

-- ventilation

area

_" **24 sq. in.,

"--- minimum_

ventilatien

area

t,,

SideView

(DoorShown)

FrontView

(Door WithVent)

MINIMUMINSTALLATIONSPACING,ClosetInstallationMUSTbeexhaustedoutside.

* Additionalclearancesforwall, doorand floormoldingsmaybe required.

** Openingis minimumfor closetdoor.Louvereddoorwith equivalentair openings

is acceptable,

** *Additionalspaceisneededwhenexternalexhaustelbowis used.

• The installation spacing is in inches

and is the minimum allowable.

• Additional spacing should be

considered for ease of installation

and servicing.

• If closet door is installed, the

minimum air openings in top and

bottom are required. Louvered doors

with equivalent air openings in top

and bottom are acceptable.

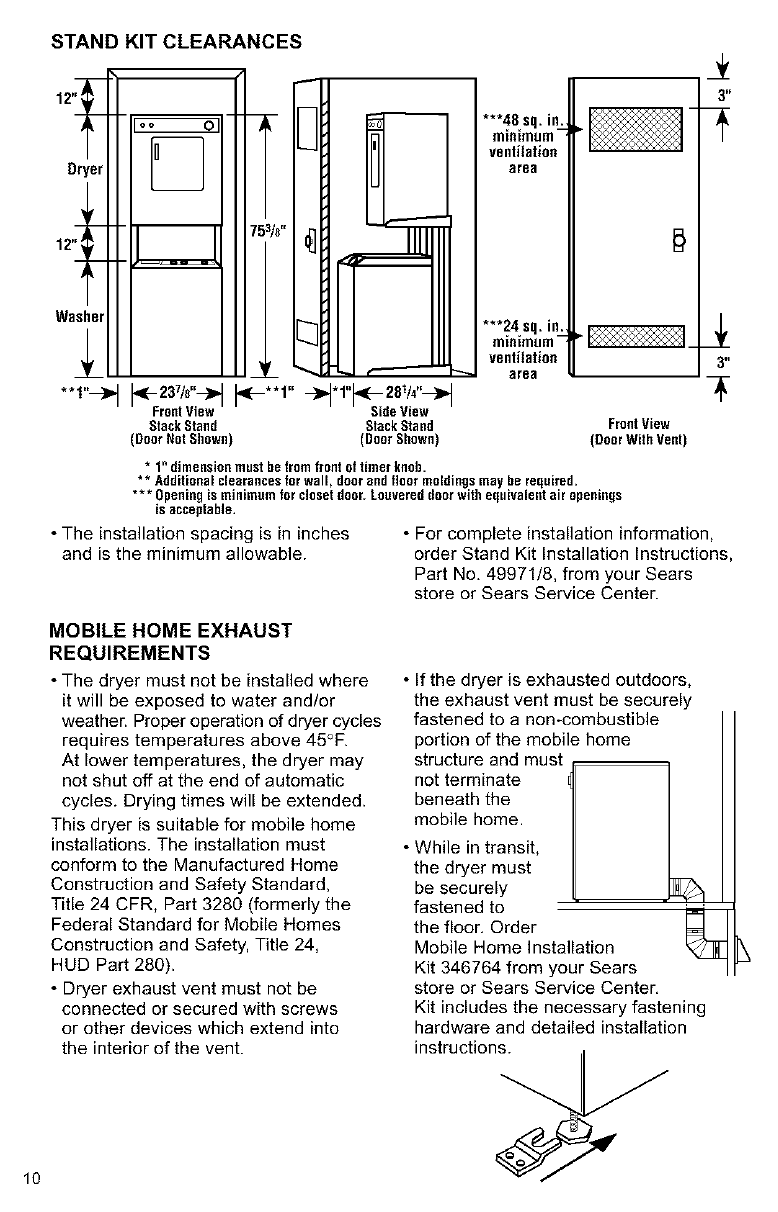

STAND KIT CLEARANCES

12,, E-Iiiiiiii

*'1"÷ FrontView Side View

StackStand StackStand

(Door Dot Shown) (Door Shown)

FrontView

(DoorWithVent)

* 1"dimensionmustbefromfront oftimerknoh.

** Additionalclearancesforwall, doorandDoormoldingsmayberequired.

*** Openingis minimumforclosetdoor.Louvereddoorwithequivalentair openings

is acceptable.

• The installation spacing is in inches • For complete installation information,

and is the minimum allowable, order Stand Kit Installation Instructions,

Part No, 49971/8, from your Sears

store or Sears Service Center.

MOBILE HOME EXHAUST

REQUIREMENTS

• The dryer must not be installed where

it will be exposed to water and/or

weather. Proper operation of dryer cycles

requires temperatures above 45°F.

At lower temperatures, the dryer may

not shut off at the end of automatic

cycles. Drying times will be extended.

This dryer is suitable for mobile home

installations. The installation must

conform to the Manufactured Home

Construction and Safety Standard,

Title 24 CFR, Part 3280 (formerly the

Federal Standard for Mobile Homes

Construction and Safety, Title 24,

HUD Part 280).

• Dryer exhaust vent must not be

connected or secured with screws

or other devices which extend into

the interior of the vent.

• If the dryer is exhausted outdoors,

the exhaust vent must be securely

fastened to a non-combustible

portion of the mobile home

structure and must _

not terminate

beneath the

mobile home.

• While in transit,

the dryer must

be securely [,_

fastened to

the floor. Order

Mobile Home Installation

Kit 346764 from your Sears

store or Sears Service Center,

Kit includes the necessary fastening

hardware and detailed installation

instructions.

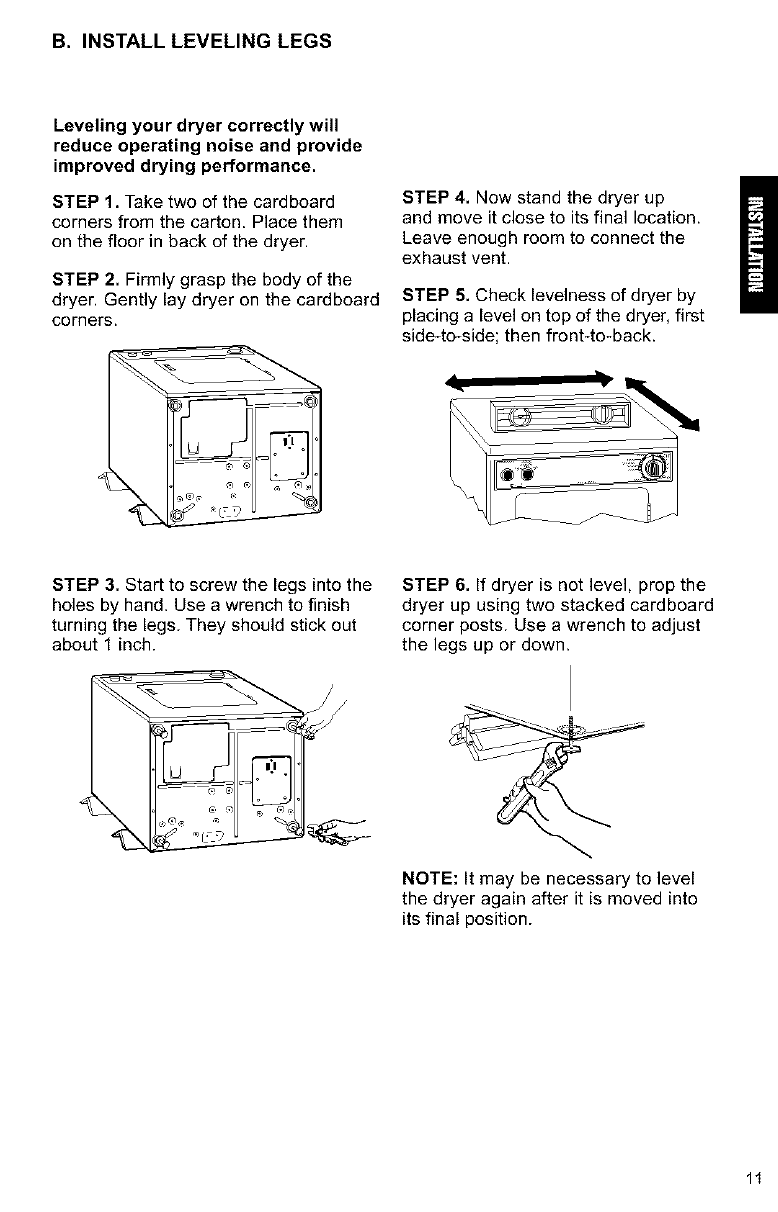

B. INSTALL LEVELING LEGS

Leveling your dryer correctly will

reduce operating noise and provide

improved drying performance.

STEP 1. Take two of the cardboard

corners from the carton. Place them

on the floor in back of the dryer.

STEP 2. Firmly grasp the body of the

dryer. Gently lay dryer on the cardboard

corners.

STEP 4. Now stand the dryer up

and move it close to its final location.

Leave enough room to connect the

exhaust vent.

STEP 5. Check levelness of dryer by

placing a level on top of the dryer, first

side4o-side; then front4o-back.

STEP 3. Start to screw the legs into the

holes by hand. Use a wrench to finish

turning the legs. They should stick out

about 1 inch.

STEP 6. if dryer is not level, prop the

dryer up using two stacked cardboard

corner posts. Use a wrench to adjust

the legs up or down.

NOTE: it may be necessary to level

the dryer again after it is moved into

its final position.

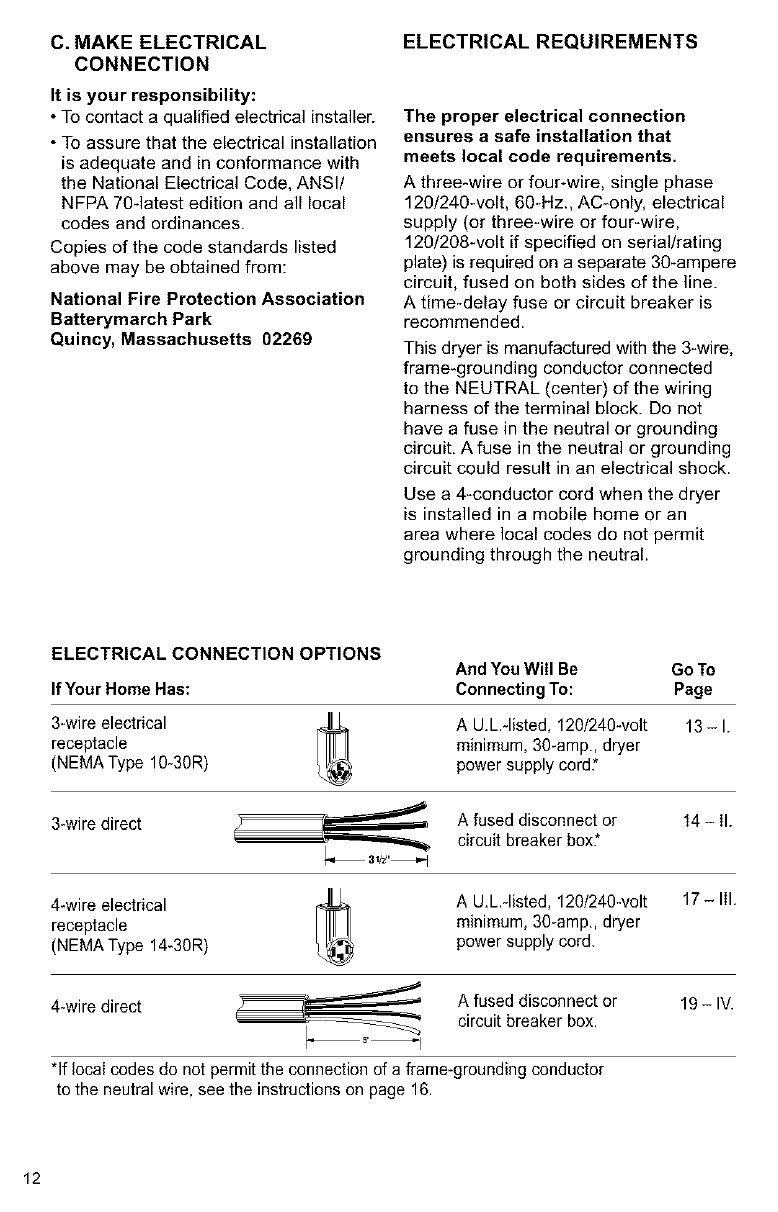

C. MAKE ELECTRICAL

CONNECTION

It is your responsibility:

• To contact a qualified electrical installer.

• To assure that the electrical installation

is adequate and in conformance with

the National Electrical Code, ANSll

NFPA 70-latest edition and all local

codes and ordinances.

Copies of the code standards listed

above may be obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

ELECTRICAL REQUIREMENTS

The proper electrical connection

ensures asafe installation that

meets local code requirements.

A three-wire or four-wire, single phase

120/240-volt 60-Hz., AC-only, electrical

supply (or three-wire or four-wire,

120/208-volt if specified on serial/rating

plate) is required on a separate 30-ampere

circuit, fused on both sides of the line.

A time-delay fuse or circuit breaker is

recommended.

This dryer is manufactured with the 3-wire,

frame-grounding conductor connected

to the NEUTRAL (center) of the wiring

harness of the terminal block. Do not

have afuse in the neutral or grounding

circuit. A fuse in the neutral or grounding

circuit could result in an electrical shock.

Use a 4-conductor cord when the dryer

is installed in a mobile home or an

area where local codes do not permit

grounding through the neutral.

ELECTRICAL CONNECTION OPTIONS And You Will Be Go To

If Your Home Has: Connecting To: Page

3-wire electrical A U.L.-listed, 120/240-volt 13 -I.

receptacle minimum, 30-amp., dryer

(NEMA Type 10-30R) power supply cordt

3-wire direct A fused disconnect or 14 - II.

circuit breaker boxt

4-wire electrical A U.L.-listed, 120/240-volt 17- III.

receptacle minimum, 30-amp., dryer

(NEMA Type 14-30R) power supply cord.

4-wire direct A fused disconnect or 19- IV.

circuit breaker box.

*If local codes do not permit the connection of a frame-grounding conductor

to the neutral wire, see the instructions on page 16.

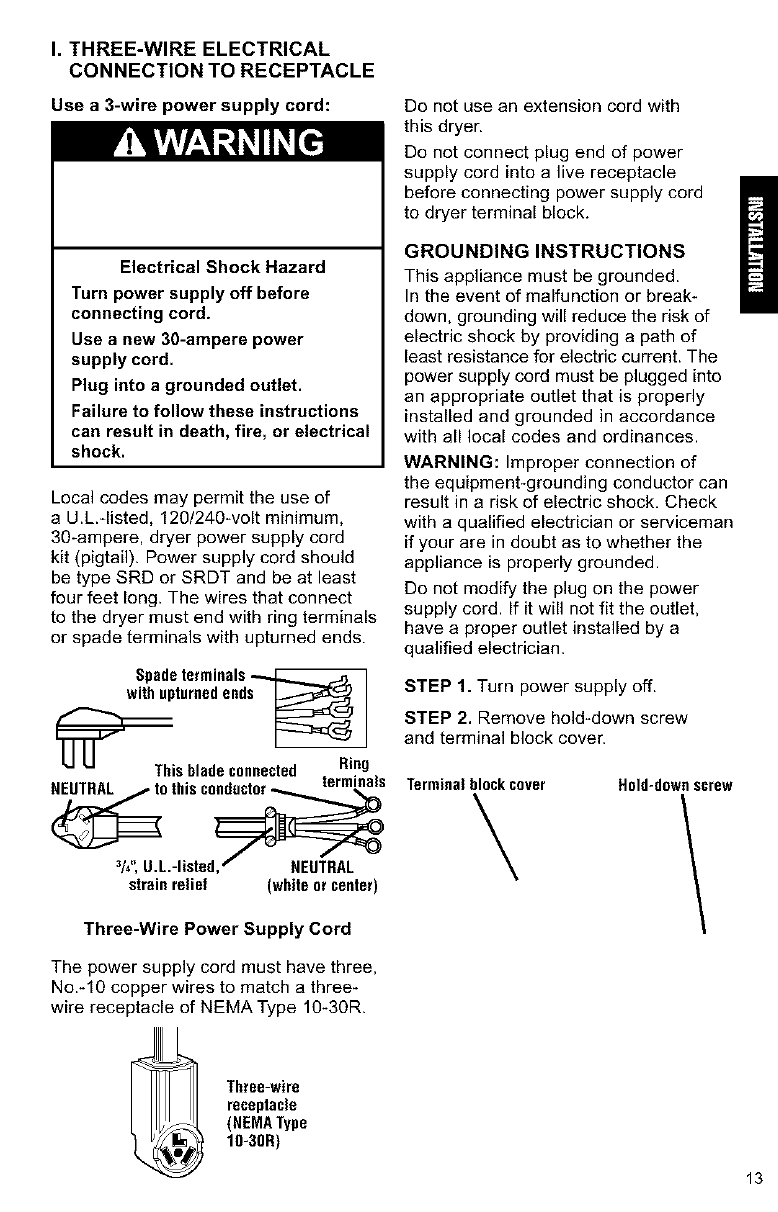

I. THREE-WIRE ELECTRICAL

CONNECTION TO RECEPTACLE

Use a 3-wire power supply cord:

Electrical Shock Hazard

Turn power supply off before

connecting cord.

Use a new 30-ampere power

supply cord.

Plug into a grounded outlet.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Local codes may permit the use of

a U.L.-listed, 120/240-volt minimum,

30-ampere, dryer power supply cord

kit (pigtail). Power supply cord should

be type SRD or SRDT and be at least

four feet long. The wires that connect

to the dryer must end with ring terminals

or spade terminals with upturned ends.

Spadeterminals_.__ ,.j_

withupturnedends

Thisbladeconnected Ring

strainrelief (whiteorcenter)

Three-Wire Power Supply Cord

The power supply cord must have three,

No.-10 copper wires to match a three-

wire receptacle of NEMA Type 10-30R.

Do not use an extension cord with

this dryer.

Do not connect plug end of power

supply cord into a live receptacle

before connecting power supply cord

to dryer terminal block,

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or break-

down, grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current. The

power supply cord must be plugged into

an appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock, Check

with a qualified electrician or serviceman

if your are in doubt as to whether the

appliance is properly grounded.

Do not modify the plug on the power

supply cord. If it will not fit the outlet,

have a proper outlet installed by a

qualified electrician.

STEP 1. Turn power supply off.

STEP 2. Remove hold-down screw

and terminal block cover.

Terminalblockcover Hold-downscrew

\ /

Three-wire

receptacle

(NEMAType

10-30R)

STEP 3. Attach a 3/4-inch, U.L.qisted,

strain relief to the hole below terminal

block opening, Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the power supply

cord through the strain relief.

STEP 4. Loosen or remove terminal block

screws. Connect the neutral wire (white

or center) of power supply cord under

the center screw of the terminal block.

STEP 5. Connect the other two wires

to outer terminal block screws. Tighten

all terminal block screws firmly.

Externalground

connector

Neutral

groundingwire

(green/yellow)

Centersilver-colored

terminalblockscrew

Neutral

wire

(white)

3II

/4, U.L.-listed,

strainrelief

3-Wire Connection with

Frame-Grounding Conductor

STEP 6. Tighten the strain relief screws.

STEP 7. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

If local codes do not permit the

connection of a frame-grounding

conductor to the neutral wire, see

the instructions on page 16.

Otherwise, proceed with Knob

Installation. See "INSTALL KNOBS"

on page 20.

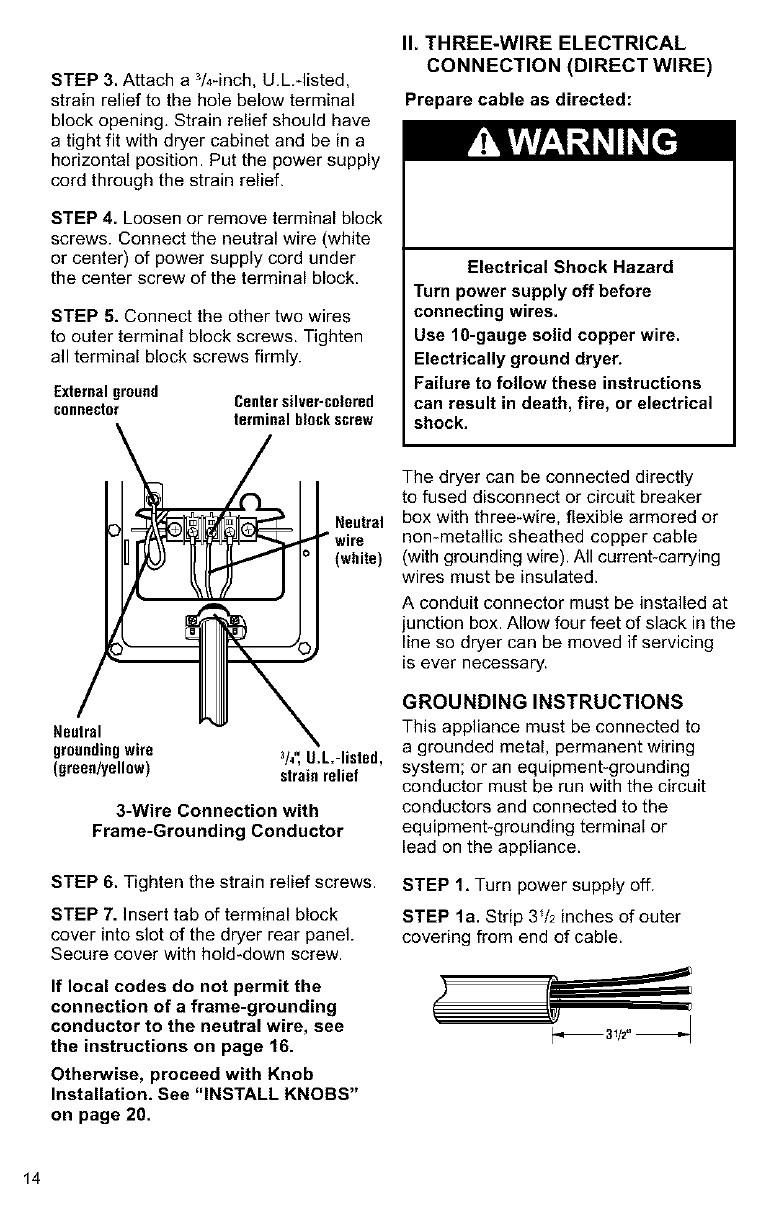

II. THREE-WIRE ELECTRICAL

CONNECTION (DIRECT WIRE)

Prepare cable as directed:

Electrical Shock Hazard

Turn power supply off before

connecting wires.

Use 10-gauge solid copper wire.

Electrically ground dryer.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

The dryer can be connected directly

to fused disconnect or circuit breaker

box with three-wire, flexible armored or

non-metallic sheathed copper cable

(with grounding wire). All current-carrying

wires must be insulated.

A conduit connector must be installed at

junction box. Allow four feet of slack in the

line so dryer can be moved if servicing

is ever necessary.

GROUNDING INSTRUCTIONS

This appliance must be connected to

a grounded metal, permanent wiring

system; or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment_grounding terminal or

lead on the appliance.

STEP 1, Turn power supply off.

STEP la. Strip 3Vz inches of outer

covering from end of cable.

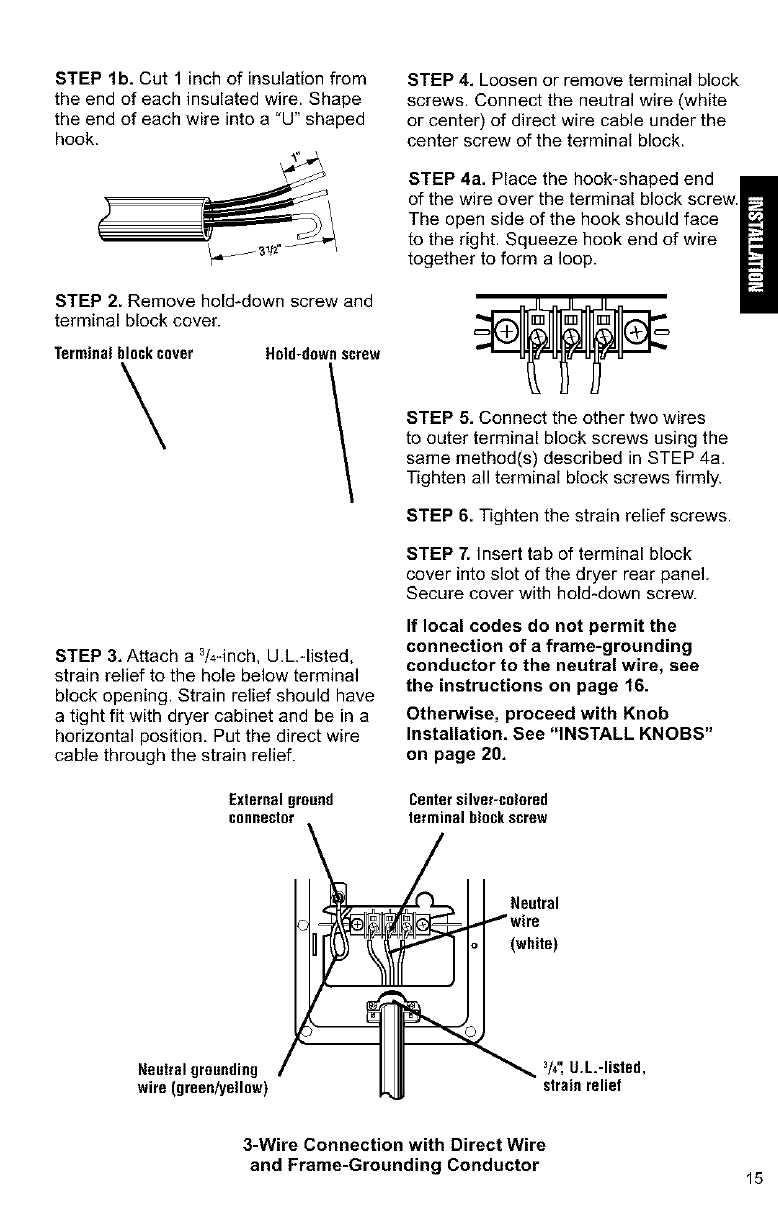

STEP lb. Cut 1 inch of insulation from

the end of each insulated wire. Shape

the end of each wire into a "U" shaped

hook.

STEP 2. Remove hold-down screw and

terminal block cover.

Terminalblockcover Hold-downscrew

\ /

STEP 3. Attach a 3/4-inch, U,L,-listed,

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the direct wire

cable through the strain relief.

Externalgroond

connector

STEP 4. Loosen or remove terminal block

screws. Connect the neutral wire (white

or center) of direct wire cable under the

center screw of the terminal block.

STEP 4a. Place the hook-shaped end

of the wire over the terminal

The open side of the hook should face

to the right. Squeeze hook end of wire

together to form a loop.

STEP 5. Connect the other two wires

to outer terminal block screws using the

same method(s) described in STEP 4a.

Tighten all terminal block screws firmly.

STEP 6. Tighten the strain relief screws.

STEP 7. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

If local codes do not permit the

connection of a frame-grounding

conductor to the neutral wire, see

the instructions on page 16.

Otherwise, proceed with Knob

Installation. See "INSTALL KNOBS"

on page 20.

Centersilver-colored

terminal block screw

Neutral grounding

wire (green/yellow)

Neutral

"wire

(white)

_3/4'_ U.L.-listed,

strainrelief

3-Wire Connection with Direct Wire

and Frame-Grounding Conductor 15

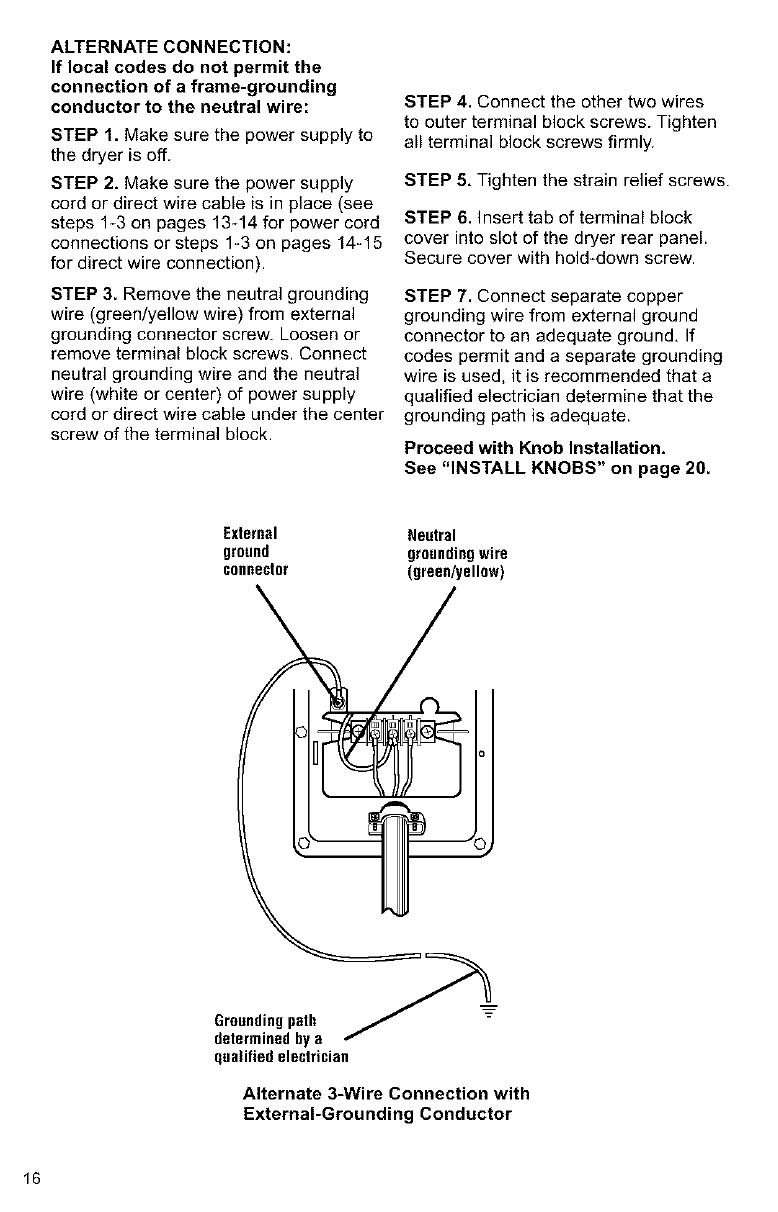

ALTERNATE CONNECTION:

If local codes do not permit the

connection of a frame-grounding

conductor to the neutral wire:

STEP 1. Make sure the power supply to

the dryer is off.

STEP 2. Make sure the power supply

cord or direct wire cable is in place (see

steps 1-3 on pages 13-14 for power cord

connections or steps 1-3 on pages 14-15

for direct wire connection).

STEP 3. Remove the neutral grounding

wire (green/yellow wire) from external

grounding connector screw. Loosen or

remove terminal block screws. Connect

neutral grounding wire and the neutral

wire (white or center) of power supply

cord or direct wire cable under the center

screw of the terminal block.

STEP 4. Connect the other two wires

to outer terminal block screws. Tighten

all terminal block screws firmly.

STEP 5, Tighten the strain relief screws.

STEP 6. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

STEP 7. Connect separate copper

grounding wire from external ground

connector to an adequate ground, If

codes permit and a separate grounding

wire is used, it is recommended that a

qualified electrician determine that the

grounding path is adequate.

Proceed with Knob Installation.

See "INSTALL KNOBS" on page 20.

External Neutral

ground grounding wire

connector (green/yellow)

Grounding path

determined by a

qualified electrician

Alternate 3-Wire Connection with

External-Grounding Conductor

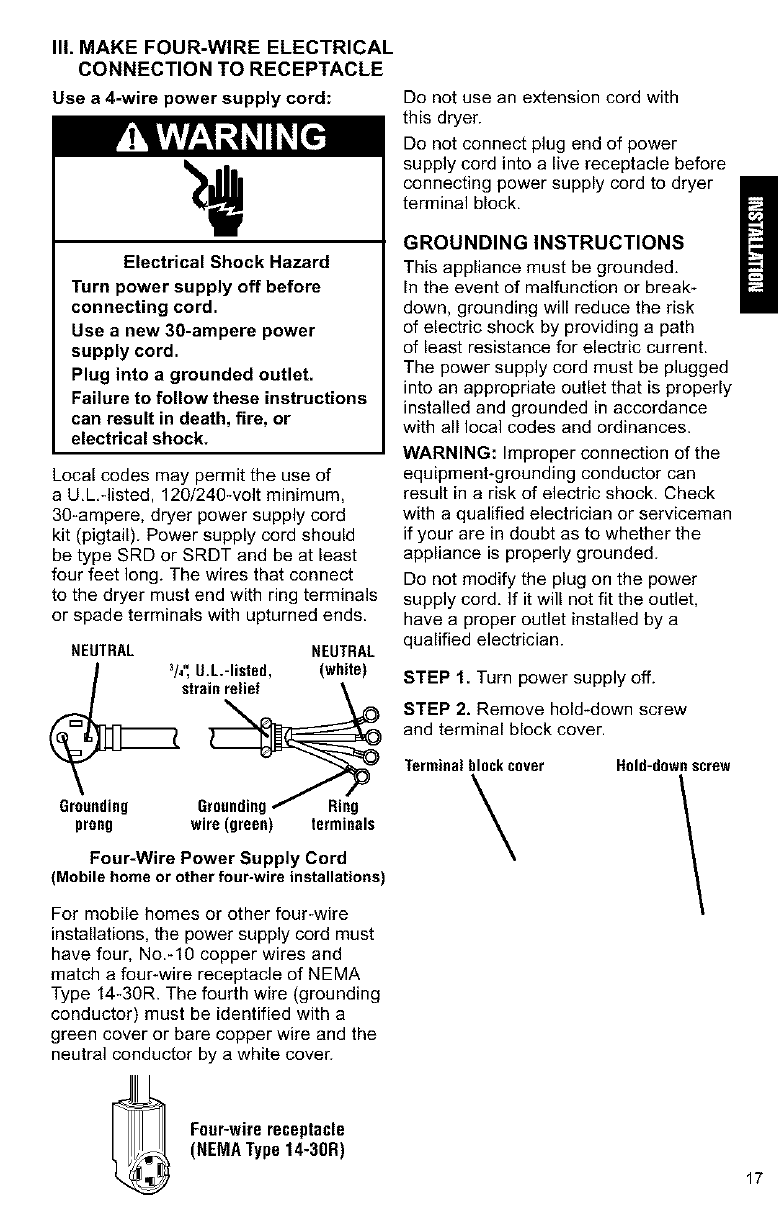

III. MAKE FOUR-WIRE ELECTRICAL

CONNECTION TO RECEPTACLE

Use a 4-wire power supply cord:

Electrical Shock Hazard

Turn power supply off before

connecting cord.

Use a new 30-ampere power

supply cord.

Plug into a grounded outlet.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

Local codes may permit the use of

a U.L.-listed, 120/240-volt minimum,

30-ampere, dryer power supply cord

kit (pigtail). Power supply cord should

be type SRD or SRDT and be at least

four feet long. The wires that connect

to the dryer must end with ring terminals

or spade terminals with upturned ends.

NEUTRAL NEUTRAL

_/4",U.L.-listed, (white)

strainGrelie_

prong wire(green) terminals

Four-Wire Power Supply Cord

(Mobile homeor other four-wire installations)

For mobile homes or other four-wire

installations, the power supply cord must

have four, No.-10 copper wires and

match a four-wire receptacle of NEMA

Type 14-30R. The fourth wire (grounding

conductor) must be identified with a

green cover or bare copper wire and the

neutral conductor by a white cover.

Do not use an extension cord with

this dryer.

Do not connect plug end of power

supply cord into a live receptacle before

connecting power supply cord to dryer

terminal block.

GROUNDING INSTRUCTIONS

This appliance must be grounded.

in the event of malfunction or break-

down, grounding will reduce the risk

of electric shock by providing a path

of least resistance for electric current.

The power supply cord must be plugged

into an appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can

result in a risk of electric shock, Check

with aqualified electrician or serviceman

if your are in doubt as to whether the

appliance is properly grounded.

Do not modify the plug on the power

supply cord, If it will not fit the outlet,

have a proper outlet installed by a

qualified electrician.

STEP 1. Turn power supply off.

STEP 2. Remove hold-down screw

and terminal block cover.

Terminalblockcover Hold-downscrew

\ /

Four-wire receptacle

(NEMAType 14-30R)

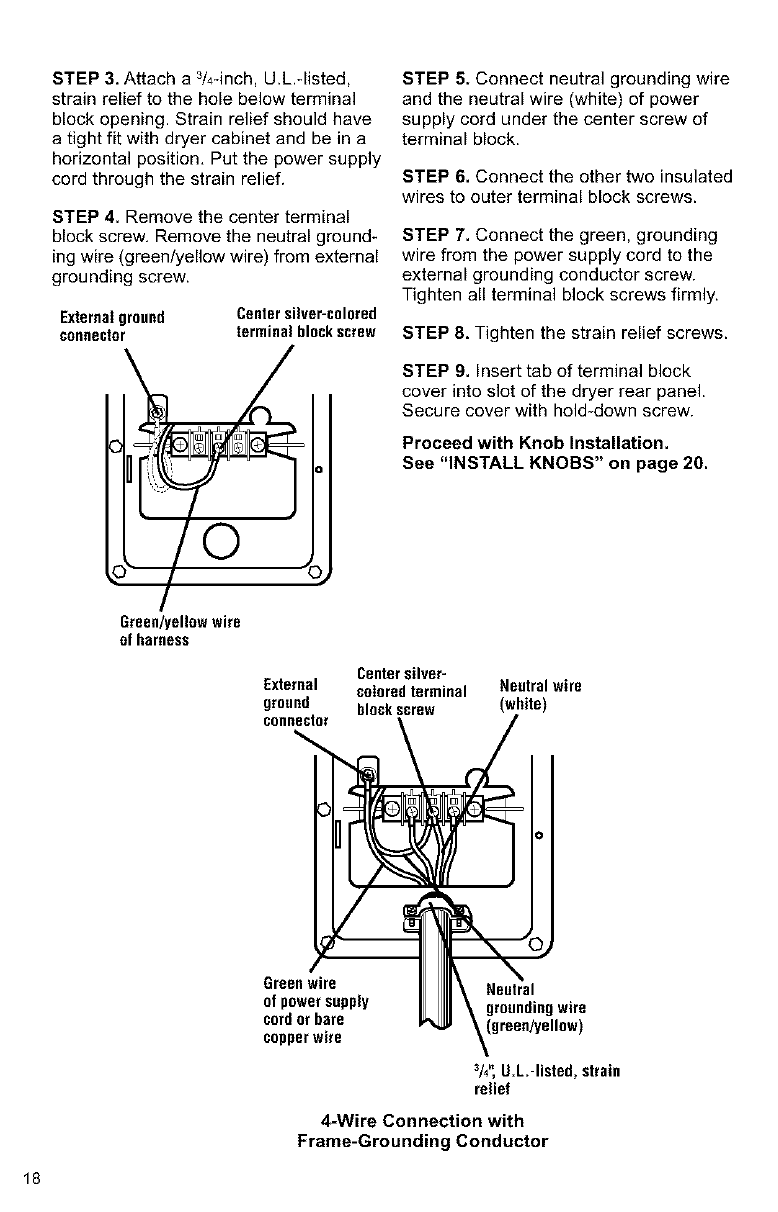

STEP 3. Attach a 3/4-inch, U,L,-listed,

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position, Put the power supply

cord through the strain relief,

STEP 4. Remove the center terminal

block screw, Remove the neutral ground-

ing wire (green/yellow wire) from external

grounding screw.

Externalground

connector

Center silver-colored

terminal block screw

STEP & Connect neutral grounding wire

and the neutral wire (white) of power

supply cord under the center screw of

terminal block.

STEP 6. Connect the other two insulated

wires to outer terminal block screws.

STEP 7. Connect the green, grounding

wire from the power supply cord to the

external grounding conductor screw.

Tighten all terminal block screws firmly.

STEP 8, Tighten the strain relief screws.

STEP 9. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

Proceed with Knob Installation.

See "INSTALL KNOBS" on page 20.

Green/yellowwire

of harness

Centersilver-

External colored terminal Neutral wire

ground block screw (white)

coeeeutor

Green wire Neutral

ofpowersupply groundingwire

cord or bare

copper wire

3/4_U.L-listed, strain

relief

4-Wire Connection with

Frame-Grounding Conductor

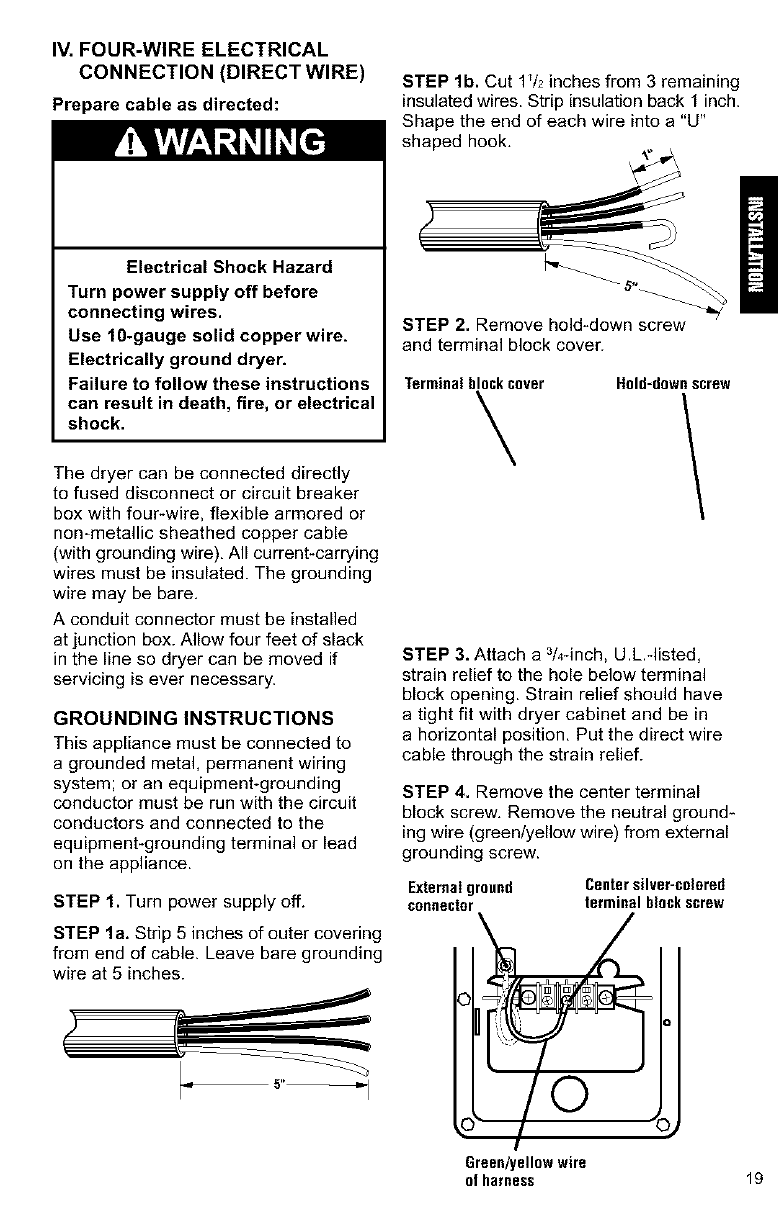

IV. FOUR-WIRE ELECTRICAL

CONNECTION (DIRECT WIRE)

Prepare cable as directed:

Electrical Shock Hazard

Turn power supply off before

connecting wires.

Use 10-gauge solid copper wire.

Electrically ground dryer.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

The dryer can be connected directly

to fused disconnect or circuit breaker

box with four-wire, flexible armored or

nommetallic sheathed copper cable

(with grounding wire), All current-carrying

wires must be insulated. The grounding

wire may be bare.

A conduit connector must be installed

at junction box. Allow four feet of slack

in the line so dryer can be moved if

servicing is ever necessary.

GROUNDING INSTRUCTIONS

This appliance must be connected to

a grounded metal, permanent wiring

system; or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the appliance.

STEP 1. Turn power supply off.

STEP la. Strip 5 inches of outer covering

from end of cable. Leave bare grounding

wire at 5 inches.

STEP lb. Cut l_/z inches from 3 remaining

insulated wires. Strip insulation back 1 inch.

Shape the end of each wire into a "U"

shaped hook.

STEP 2. Remove hold-down screw

and terminal block cover.

Terminalblockcover Hold-downscrew

STEP 3. Attach a 3/4-inch, U.L.qisted,

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in

a horizontal position, Put the direct wire

cable through the strain relief.

STEP 4. Remove the center terminal

block screw, Remove the neutral ground*

ing wire (green/yellow wire) from external

grounding screw.

External ground

connector

Center silver-colored

terminal block screw

Green/yellowwire

of harness 19

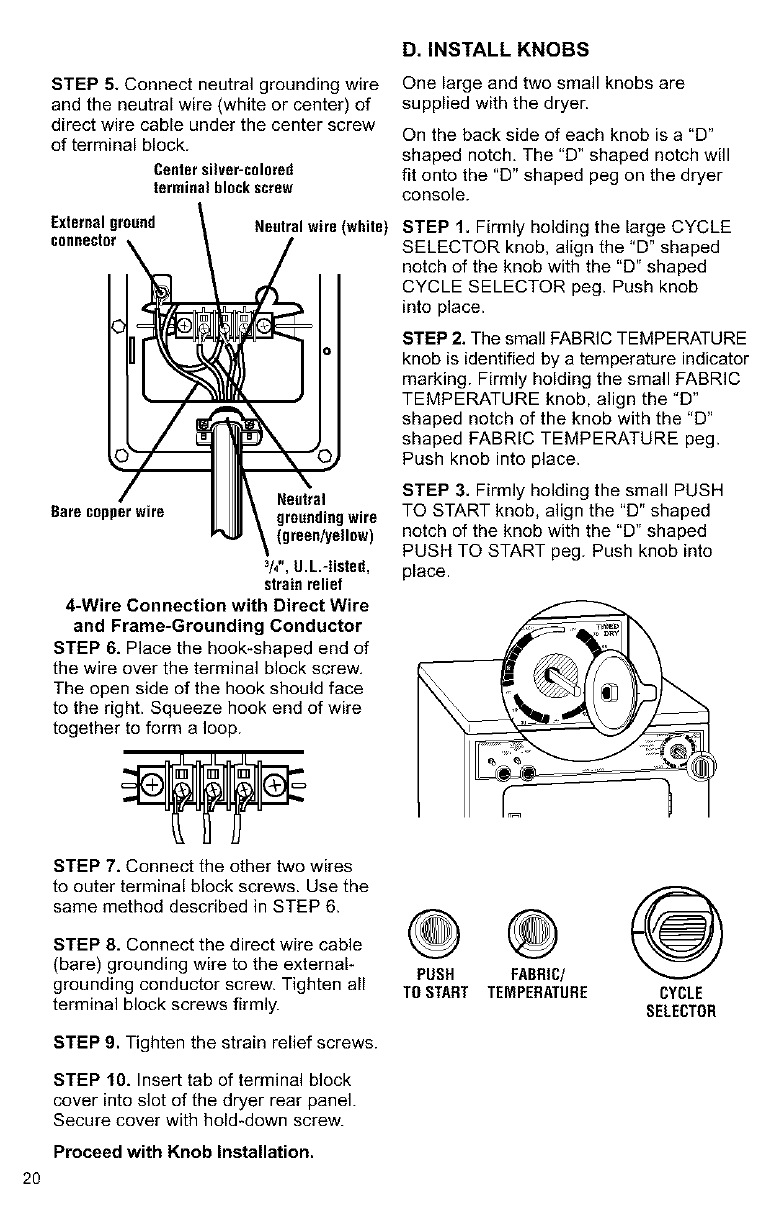

STEP & Connect neutral grounding wire

and the neutral wire (white or center) of

direct wire cable under the center screw

of terminal block.

Centersilver-colored

terminal block screw

Externalground

connector

Bare copperwire

Neutralwire(white)

L "

Neutral

groundingwire

(green/yellow)

3/4",&L-listed,

strainrelief

4-Wire Connection with Direct Wire

and Frame-Grounding Conductor

STEP 6. Place the hook-shaped end of

the wire over the terminal block screw,

The open side of the hook should face

to the right. Squeeze hook end of wire

together to form a loop.

STEP 7. Connect the other two wires

to outer terminal block screws. Use the

same method described in STEP 6.

STEP 8. Connect the direct wire cable

(bare) grounding wire to the external-

grounding conductor screw. Tighten all

terminal block screws firmly.

STEP 9. Tighten the strain relief screws.

STEP 10. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

D. INSTALL KNOBS

One large and two small knobs are

supplied with the dryer.

On the back side of each knob is a "D"

shaped notch, The "D" shaped notch will

fit onto the "D" shaped peg on the dryer

console.

STEP 1. Firmly holding the large CYCLE

SELECTOR knob, align the "D" shaped

notch of the knob with the "D" shaped

CYCLE SELECTOR peg. Push knob

into place.

STEP 2. The small FABRIC TEMPERATURE

knob is identified by a temperature indicator

marking. Firmly holding the small FABRIC

TEMPERATURE knob, align the "D"

shaped notch of the knob with the "D"

shaped FABRIC TEMPERATURE peg.

Push knob into place.

STEP 3. Firmly holding the small PUSH

TO START knob, align the "D" shaped

notch of the knob with the "D" shaped

PUSH TO START peg. Push knob into

place.

PUSH FABRIC/

TO START TEMPERATURE @

CYCLE

SELECTOR

Proceed with Knob Installation.

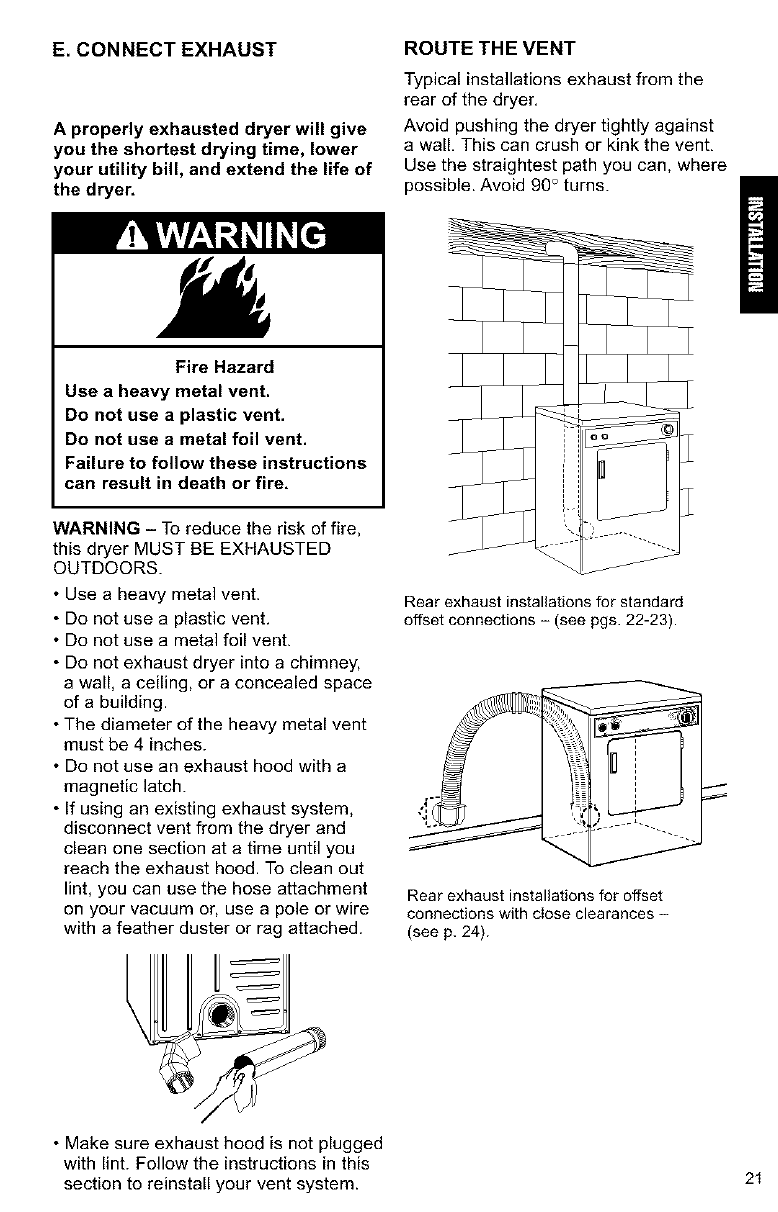

E. CONNECTEXHAUST

A properly exhausted dryer will give

you the shortest drying time, lower

your utility bill, and extend the life of

the dryer,

ROUTE THE VENT

Typical installations exhaust from the

rear of the dryer.

Avoid pushing the dryer tightly against

a wall. This can crush or kink the vent.

Use the straightest path you can, where

possible. Avoid 90° turns.

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use ametal foil vent.

Failure to follow these instructions

can result in death or fire,

WARNING - To reduce the risk of fire,

this dryer MUST BE EXHAUSTED

OUTDOORS.

• Use aheavy metal vent.

• Do not use a plastic vent.

• Do not use a metal foil vent.

• Do not exhaust dryer into achimney,

a wall, aceiling, or aconcealed space

of abuilding.

• The diameter of the heavy metal vent

must be 4 inches.

• Do not use an exhaust hood with a

magnetic latch.

• If using an existing exhaust system,

disconnect vent from the dryer and

clean one section at atime until you

reach the exhaust hood. To clean out

lint, you can use the hose attachment

on your vacuum or, use a pole or wire

with afeather duster or rag attached.

Rear exhaust installations for standard

offset connections - (see pgs. 22-23).

Rear exhaust installations for offset

connections with cIose clearances -

(see p. 24).

• Make sure exhaust hood is not plugged

with lint. Follow the instructions in this

section to reinstall your vent system. 21

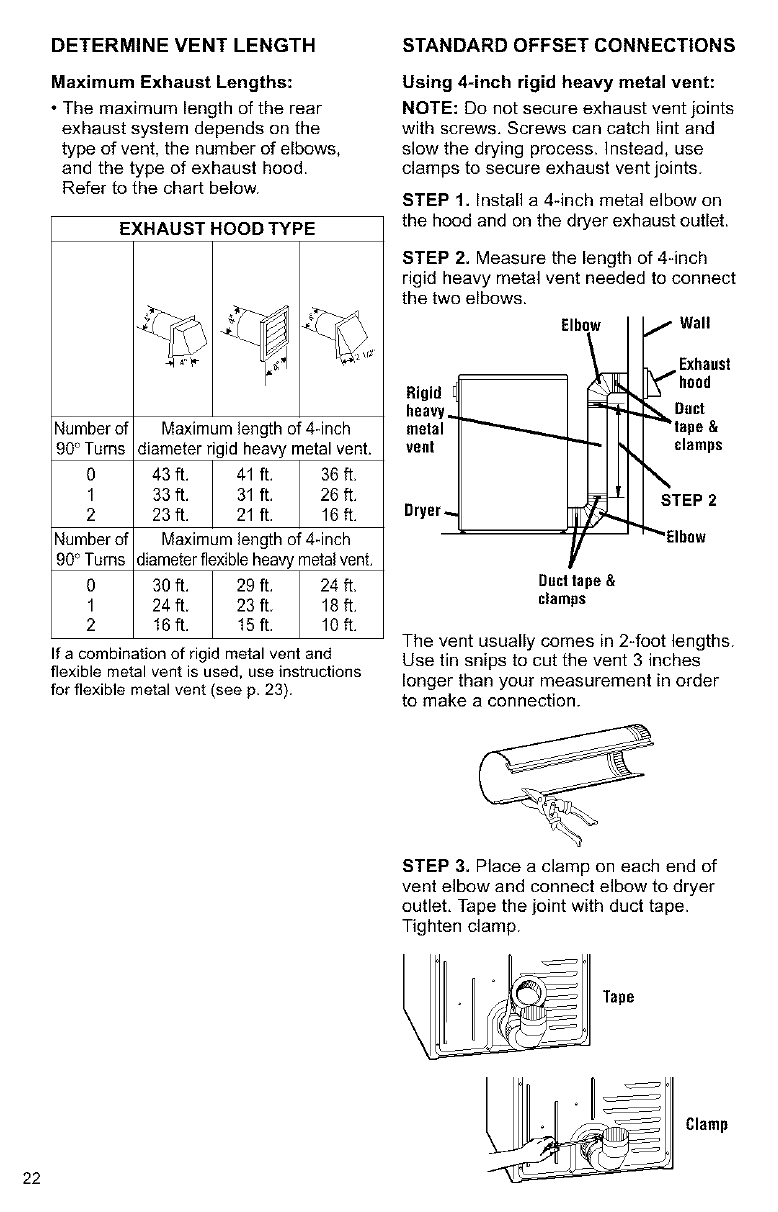

DETERMINE VENT LENGTH

Maximum Exhaust Lengths:

•The maximum length of the rear

exhaust system depends on the

type of vent, the number of elbows,

and the type of exhaust hood.

Refer to the chart below.

EXHAUST HOOD TYPE

Number of

90° Turns

Number of

90° Turns

Maximum length of 4-inch

diameter rigid heavy metal vent,

43 ft. 41 ft. 36 fl,

33 ft. 31 ft. 26 ft.

23ft. 21ft. 16ft.

Maximum length of 4-inch

diameterflexibleheavy metalvent.

30 ft. 29 ft. 24 ft.

24ft. 23ft. 18ft.

16ft. 15ft. 10ft.

If a combination of rigid metal vent and

flexible metal vent is used, use instructions

for flexible metal vent (see p. 23).

STANDARD OFFSET CONNECTIONS

Using 4-inch rigid heavy metal vent:

NOTE: Do not secure exhaust vent joints

with screws, Screws can catch lint and

slow the drying process. Instead, use

clamps to secure exhaust vent joints.

STEP 1. Install a 4-inch metal elbow on

the hood and on the dryer exhaust outlet.

STEP 2. Measure the length of 4-inch

rigid heavy metal vent needed to connect

the two elbows.

Elbow

heaw J_,...._

Dryer_,_

/Wall

xb0 as'

_Duct

tape&

clamps

\STEP 2

"_"Elbow

Ducttape&

clamps

The vent usually comes in 2-foot lengths.

Use tin snips to cut the vent 3 inches

longer than your measurement in order

to make a connection.

STEP 3. Place a clamp on each end of

vent elbow and connect elbow to dryer

outlet, Tape the joint with duct tape.

Tighten clamp.

Tape

Clamp

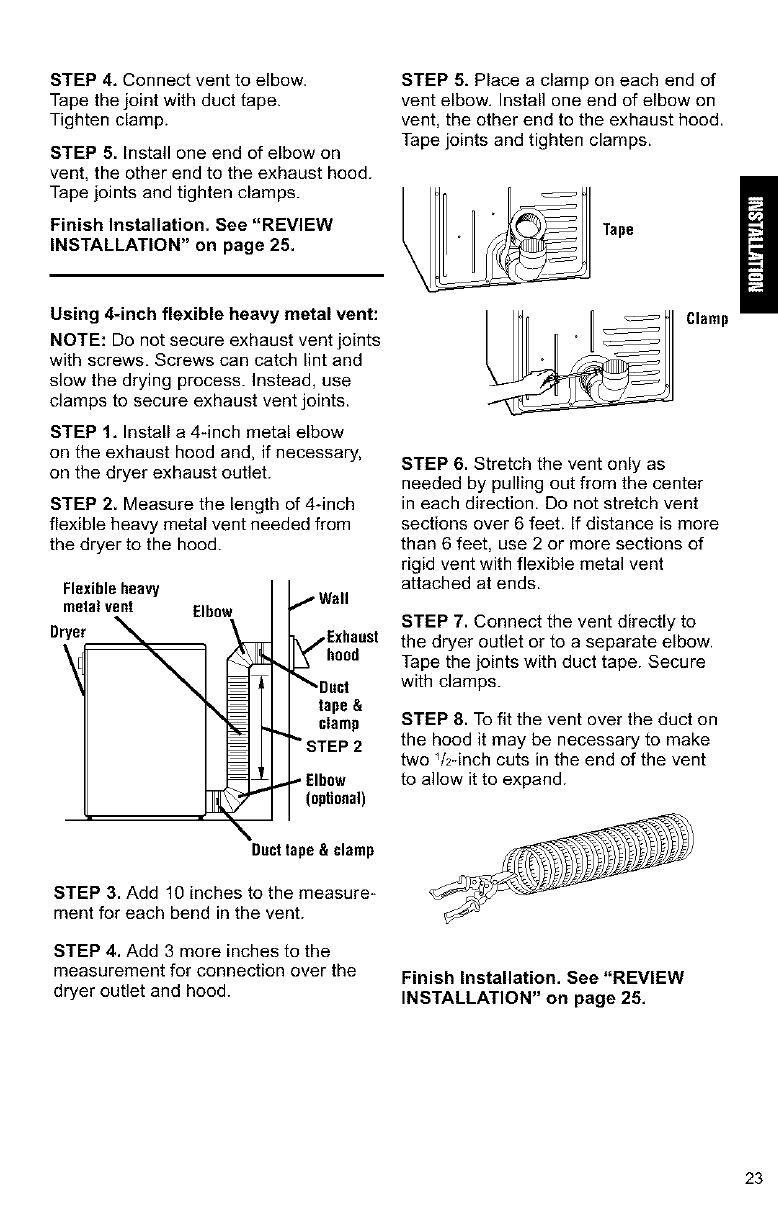

STEP 4. Connect vent to elbow.

Tape the joint with duct tape.

Tighten clamp.

STEP 5. Install one end of elbow on

vent, the other end to the exhaust hood.

Tape joints and tighten clamps.

Finish Installation. See "REVIEW

INSTALLATION" on page 25.

STEP 5. Place a clamp on each end of

vent elbow. Install one end of elbow on

vent, the other end to the exhaust hood.

Tape joints and tighten clamps.

Tape

Using 4-inch flexible heavy metal vent:

NOTE: Do not secure exhaust vent joints

with screws. Screws can catch lint and

slow the drying process. Instead, use

clamps to secure exhaust vent joints.

STEP 1. Install a 4-inch metal elbow

on the exhaust hood and, if necessary,

on the dryer exhaust outlet.

STEP 2. Measure the length of 4-inch

flexible heavy metal vent needed from

the dryer to the hood.

Flexibleheavy

metalvent Elbow

,.'Wall

Exhaust

hood

_Dact

tape &

clamp

"STEP 2

- Elbow

(optional)

\Ducttape& clamp

STEP 3. Add 10 inches to the measure_

ment for each bend in the vent.

STEP 4. Add 3 more inches to the

measurement for connection over the

dryer outlet and hood.

Clamp

STEP 6. Stretch the vent only as

needed by pulling out from the center

in each direction. Do not stretch vent

sections over 6 feet. If distance is more

than 6 feet, use 2 or more sections of

rigid vent with flexible metal vent

attached at ends.

STEP 7. Connect the vent directly to

the dryer outlet or to a separate elbow.

Tape the joints with duct tape. Secure

with clamps.

STEP 8. To fit the vent over the duct on

the hood it may be necessary to make

two V2-inch cuts in the end of the vent

to allow it to expand.

Finish Installation. See "REVIEW

INSTALLATION" on page 25,

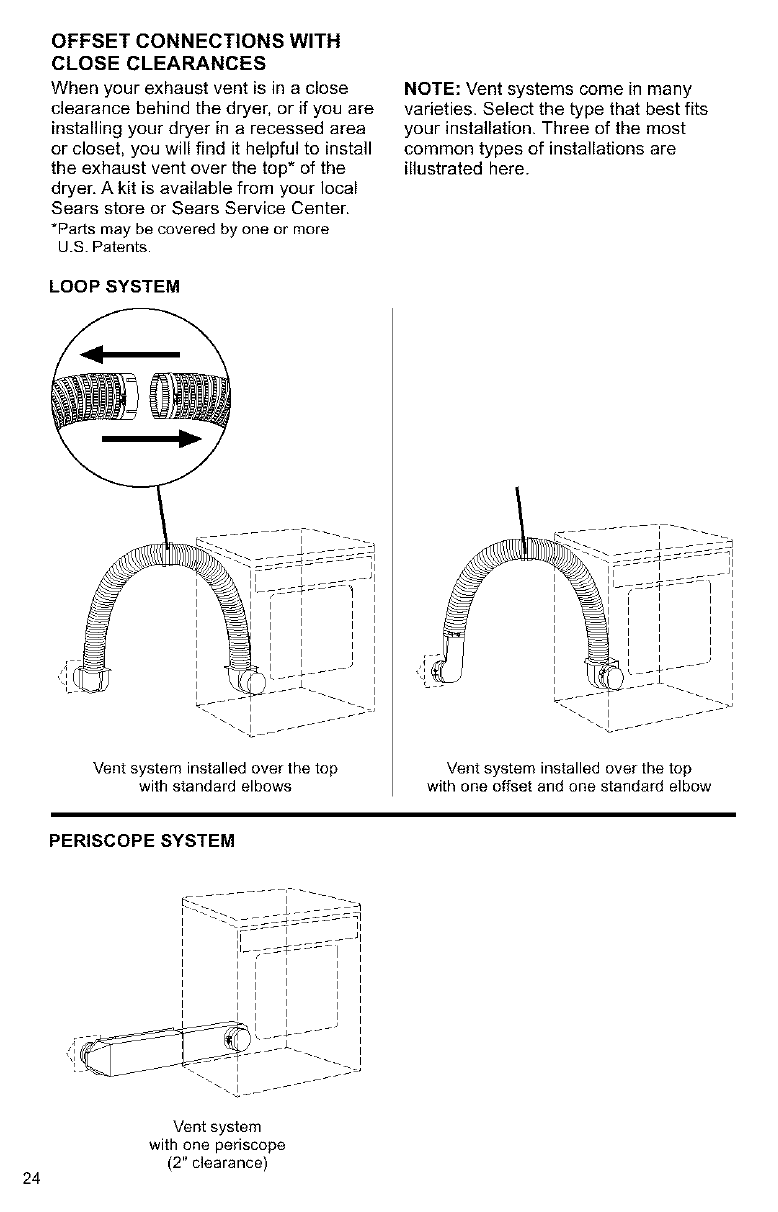

OFFSET CONNECTIONS WITH

CLOSE CLEARANCES

When your exhaust vent is in a close

clearance behind the dryer, or if you are

installing your dryer in a recessed area

or closet, you will find it helpful to install

the exhaust vent over the top* of the

dryer, A kit is available from your local

Sears store or Sears Service Center.

*Parts may becovered by one or more

U.S. Patents.

LOOP SYSTEM

NOTE: Vent systems come in many

varieties. Select the type that best fits

your installation. Three of the most

common types of installations are

illustrated here.

I•

Vent system installed over the top

with standard elbows Vent system installed over the top

with one offset and one standard elbow

PERISCOPE SYSTEM

Vent system

with one periscope

(2" clearance)

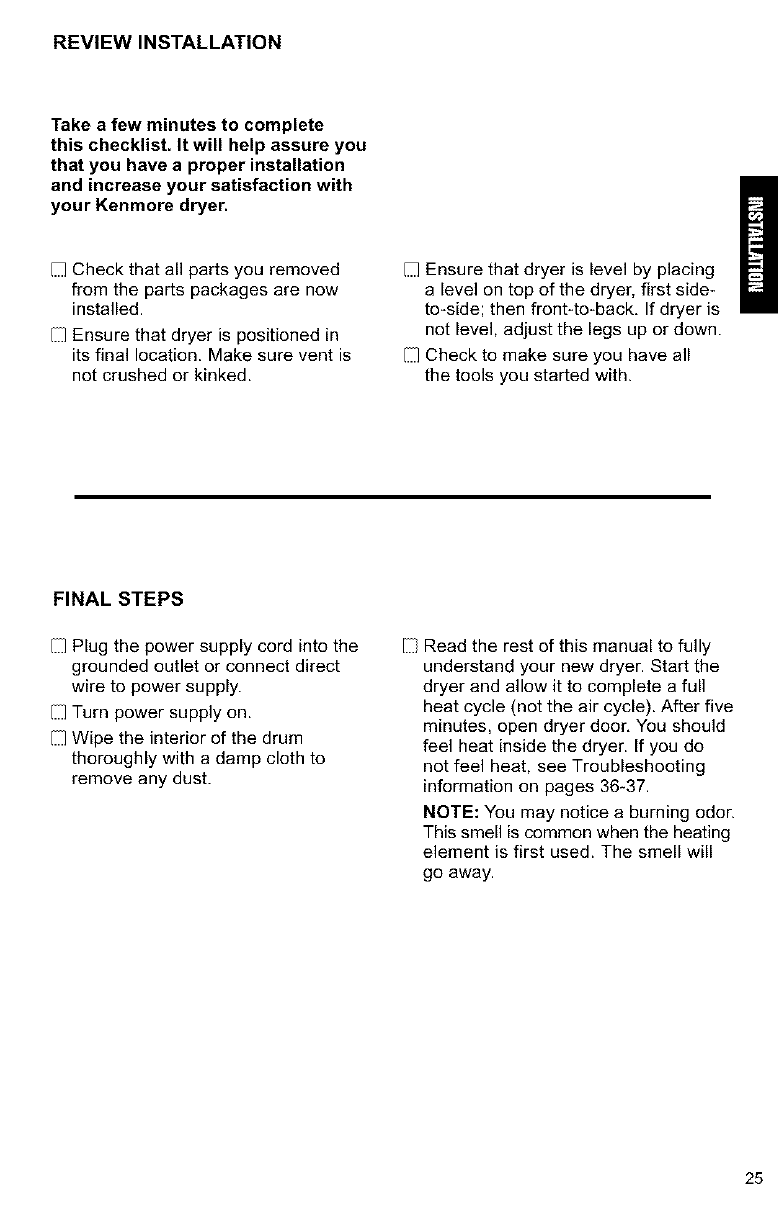

REVIEW INSTALLATION

Take a few minutes to complete

this checklist. It will help assure you

that you have a proper installation

and increase your satisfaction with

your Kenmore dryer.

[ Check that all parts you removed

from the parts packages are now

installed.

[ Ensure that dryer is positioned in

its final location. Make sure vent is

not crushed or kinked.

[ Ensure that dryer is level by placing

a level on top of the dryer, first side-

to-side; then front-to-back, If dryer is

not level, adjust the legs up or down.

[ Check to make sure you have all

the tools you started with.

FINAL STEPS

[ Plug the power supply cord into the

grounded outlet or connect direct

wire to power supply.

[ Turn power supply on.

[ Wipe the interior of the drum

thoroughly with a damp cloth to

remove any dust.

V Read the rest of this manual to fully

understand your new dryer. Start the

dryer and allow it to complete a full

heat cycle (not the air cycle). After five

minutes, open dryer door, You should

feel heat inside the dryer. If you do

not feel heat, see Troubleshooting

information on pages 36-37.

NOTE: You may notice a burning odor.

This smell is common when the heating

element is first used. The smell will

go away.

STARTING YOUR DRYER

Explosion Hazard

Keep flammable materials and

vapors, such as gasoline, away

from dryer.

Do not dry anything that has ever

had anything flammable on it (even

after washing).

Failure to follow these instructions

can result in death, explosion,

or fire.

Fire Hazard

No washer can completely

remove oil.

Do not dry anything that has ever

had any type of oil on it (including

cooking oils).

Items containing foam, rubber,

or plastic must be dried on a

clothesline or by using an air cycle.

Failure to follow these instructions

can result in death or fire.

To get the best drying results, you must

operate your dryer properly. This section

gives you this important information.

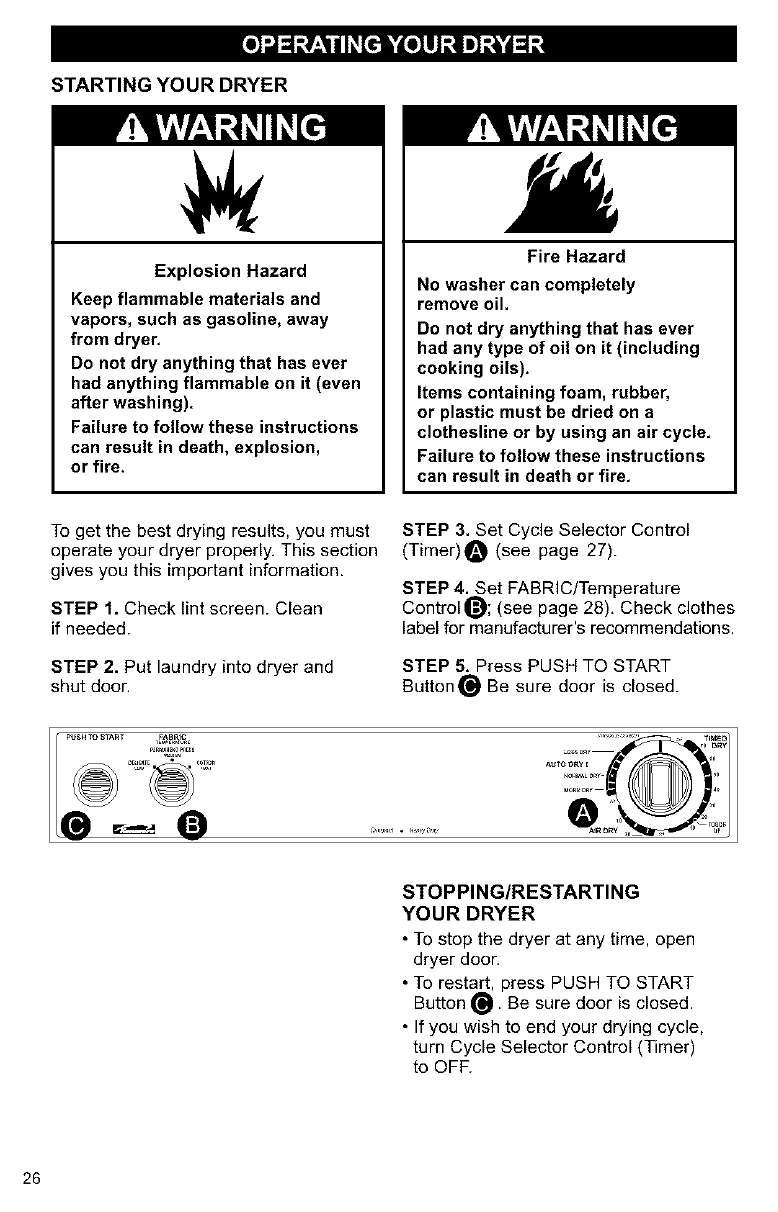

STEP 1. Check lint screen. Clean

if needed.

STEP 2. Put laundry into dryer and

shut door.

STEP 3. Set Cycle Selector Control

(Timer)O (see page 27).

STEP 4. Set FABRiC/Temperature

Control _; (see page 28), Check clothes

label for manufacturer's recommendations.

STEP 5, Press PUSH TO START

Button_ Be sure door is closed.

STOPPING/RESTARTING

YOUR DRYER

•To stop the dryer at any time, open

dryer door.

• To restart, press PUSH TO START

Button _. Be sure door is closed.

• If you wish to end your drying cycle,

turn Cycle Selector Control (Timer)

to OFR

CYCLE DESCRIPTION

The AUTO DRY Cycle saves you time

by providing the best drying results

in the shortest time. This can help

you save money on utility bills and

reduce the risk of fabric damage,

AUTO DRY CYCLE

Use this cycle for most loads, Drying

time varies according to type of fabric,

size of load, and dryness setting.

• Set the Cycle Selector Control (Timer)

to NORMAL DRY(*) which is good for

most fabrics.

• At the end of the cycle, feel the dried

clothes. If they are damp, select MORE

DRY the next time you do a similar load.

If they are overdried, select LESS DRY

the next time you do a similar load,

• Dryness is determined by thermostats

that react to the amount of moisture

in the air exhausted from the dryer.

Moist air indicates clothes are still

damp, dry air indicates that moisture

has been removed.

• The End-of-Cycle Signal sounds once

the cycle is completed.

TIMED DRY CYCLE

Use this cycle to get up to 70 minutes

of heated drying time,

• The heating cycle is followed by a 10-

minute (approx.) COOL DOWN period.

• The End-of-Cycle Signal sounds once

the cycle is completed.

TOUCH UP CYCLE

Use this cycle to smooth synthetic and

permanent press clothes that are clean

but wrinkled from being crowded in a

closet or suitcase.

• This setting provides about 15 minutes

of heated tumbling followed by a 10-

minute (approx.) COOL DOWN period.

• Remove clothes immediately when

tumbling stops.

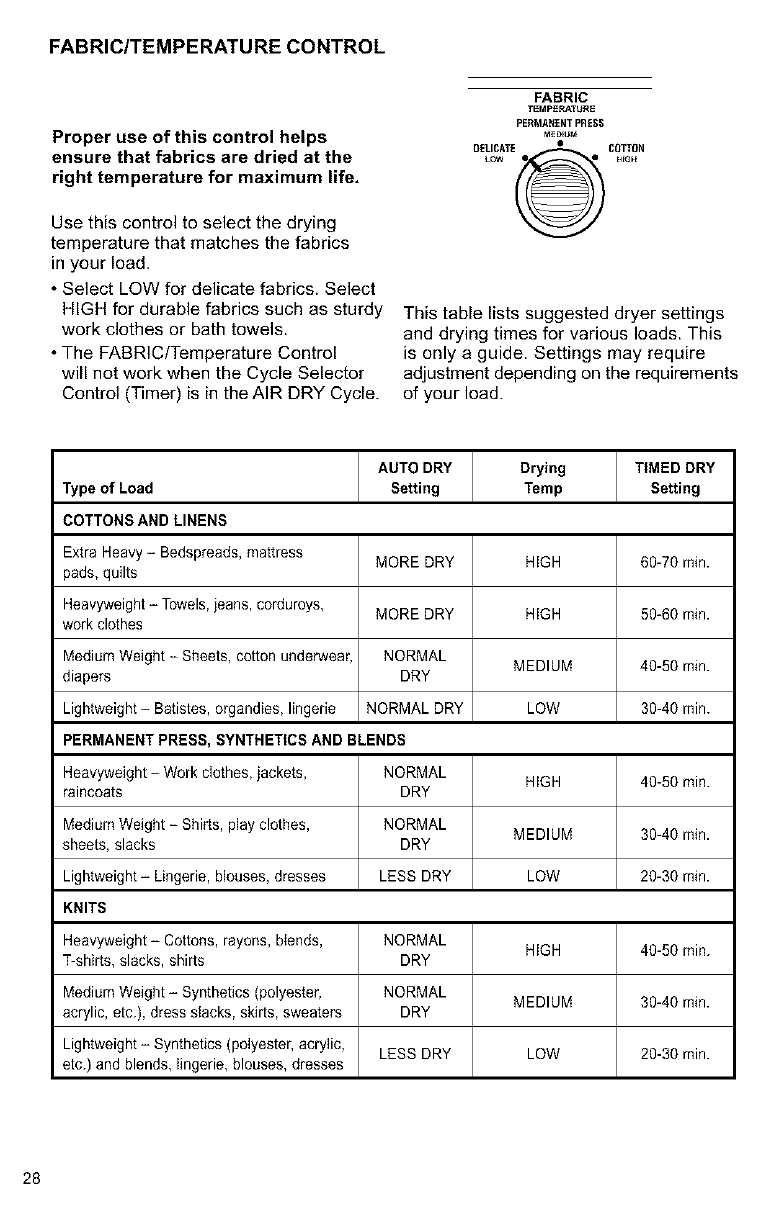

FABRIC/TEMPERATURE CONTROL

Proper use of this control helps

ensure that fabrics are dried at the

right temperature for maximum life,

Use this control to select the drying

temperature that matches the fabrics

in your load.

• Select LOW for delicate fabrics. Select

HIGH for durable fabrics such as sturdy

work clothes or bath towels.

• The FABRiC/Temperature Control

will not work when the Cycle Selector

Control (Timer) is in the AIR DRY Cycle.

FABRIC

TEMPERATURE

PERMANENTPRESS

ME_Ut_

DELICATE COTTON

L°W _HF_

This table lists suggested dryer settings

and drying times for various loads. This

is only a guide. Settings may require

adjustment depending on the requirements

of your load.

AUTO DRY Drying TIMED DRY

Type of Load Setting Temp Setting

COTTONS AND LINENS

Extra Heavy - Bedspreads, mattress MORE DRY HIGH 60-70 mill.

pads, quilts

Heavyweight - Towels, jeans, corduroys, MORE DRY HIGH 50-60 rain.

work clothes

Medium Weight - Sheets, cotton underwear, NORMAL MEDIUM 40-50 rain.

diapers DRY

Lightweight- Batistes, organdies, lingerie NORMAL DRY LOW 30-40 rain.

PERMANENT PRESS, SYNTHETICS AND BLENDS

Heavyweight - Work clothes, jackets, NORMAL HIGH 40-50 rain.

raincoats DRY

Medium Weight - Shirts, play clothes, NORMAL MEDIUM 30-40 rain.

sheets, slacks DRY

Lightweight- Lingerie, blouses, dresses LESS DRY LOW 20-30 rain.

KNITS

Heavyweight - Cottons, rayons, blends, NORMAL HIGH 40-50 rain.

T-shirts, slacks, shirts DRY

Medium Weight - Synthetics (polyester, NORMAL MEDIUM 30-40 rain.

acrylic, etc.), dress slacks, skirts, sweaters DRY

Lightweight - Synthetics (polyester, acrylic, LESS DRY LOW 20-30 rain.

etc.) and blends, lingerie, blouses, dresses

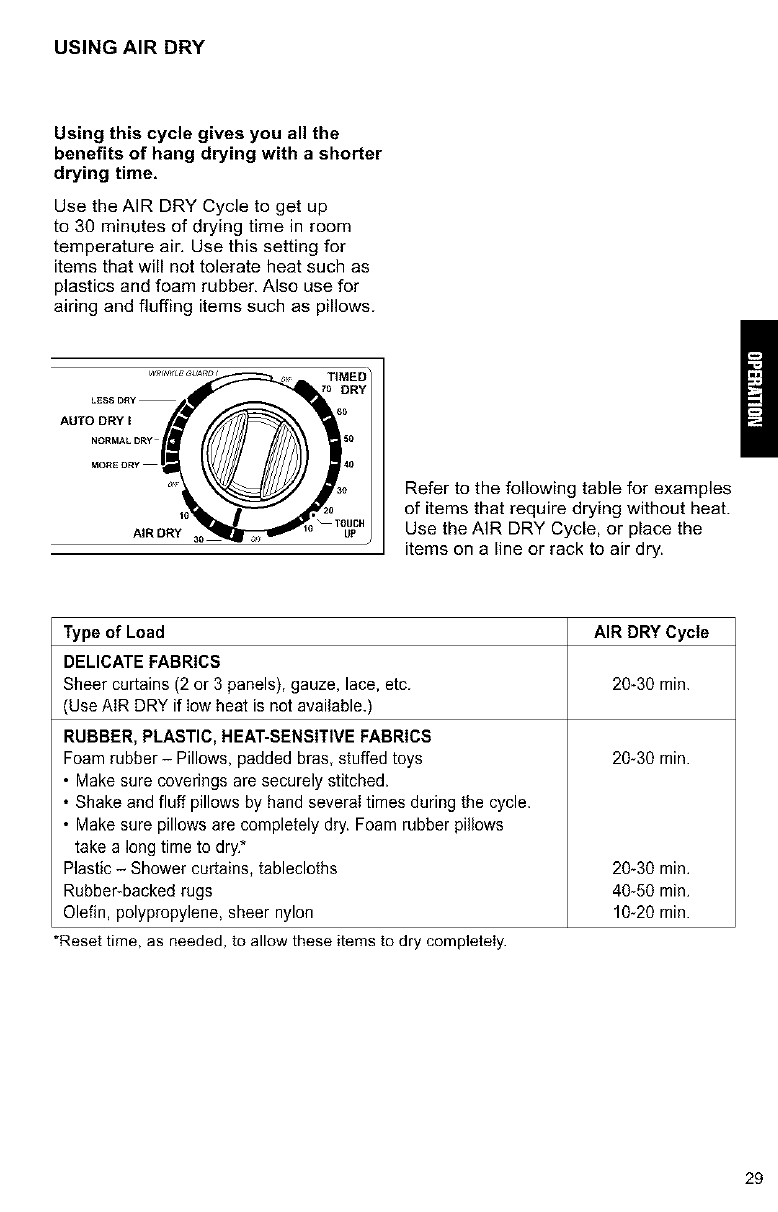

USING AIR DRY

Using this cycle gives you all the

benefits of hang drying with a shorter

drying time,

Use the AIR DRY Cycle to get up

to 30 minutes of drying time in room

temperature air, Use this setting for

items that will not tolerate heat such as

plastics and foam rubber, Also use for

airing and fluffing items such as pillows.

Refer to the following table for examples

of items that require drying without heat.

Use the AIR DRY Cycle, or place the

items on a line or rack to air dry,

Type of Load

DELICATE FABRICS

Sheer curtains (2 or 3 panels), gauze, lace, etc.

(Use AIR DRY if low heat is not available.)

RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS

Foam rubber - Pillows, padded bras, stuffed toys

• Make sure coverings are securely stitched.

• Shake and fluff pillows by hand several times during the cycle.

• Make sure pillows are completely dry, Foam rubber pillows

take a long time to dry.*

Plastic - Shower curtains, tablecloths

Rubber-backed rugs

Olefin, polyprepylene, sheer nylon

*Reset time, as needed, to allow these items to dry completely.

AIR DRY Cycle

20-30 min.

40-50 min.

10-20 min.

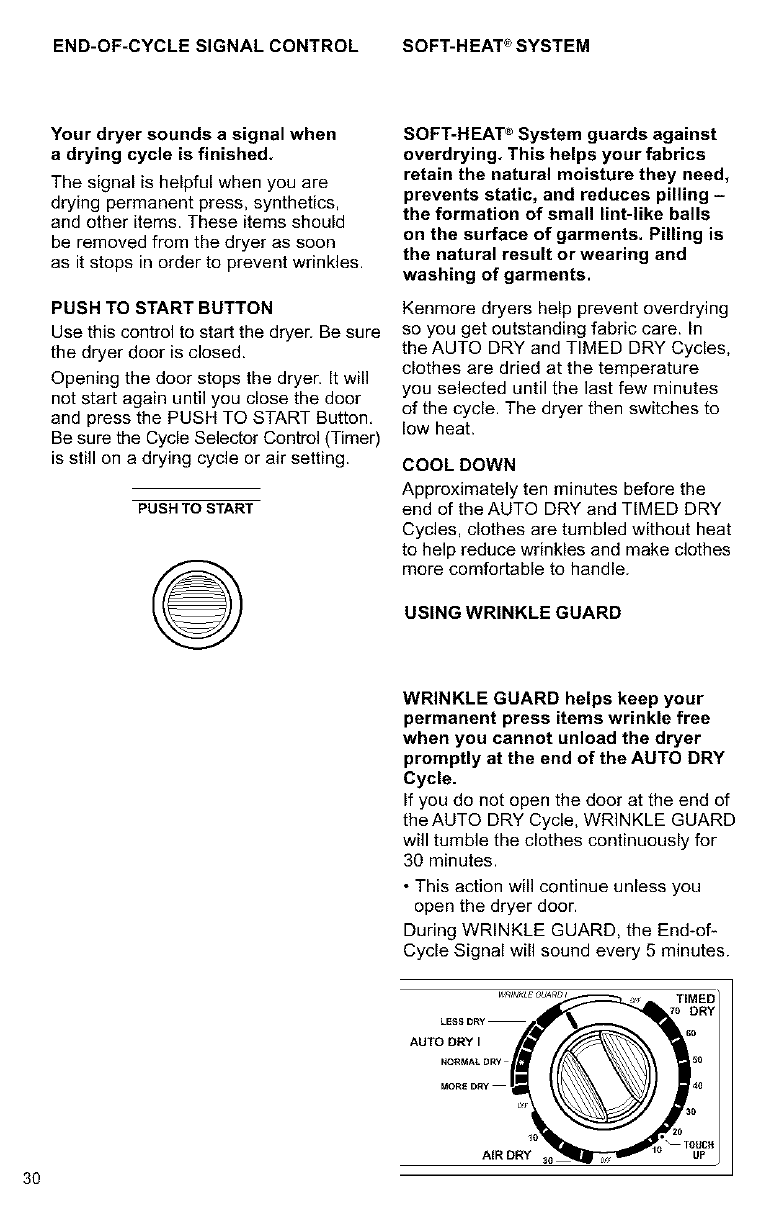

END-OF-CYCLE SIGNAL CONTROL SOFT-HEAT ®SYSTEM

Your dryer sounds a signal when

a drying cycle is finished.

The signal is helpful when you are

drying permanent press, synthetics,

and other items. These items should

be removed from the dryer as soon

as it stops in order to prevent wrinkles.

PUSH TO START BUTTON

Use this control to start the dryer. Be sure

the dryer door is closed.

Opening the door stops the dryer. It will

not start again until you close the door

and press the PUSH TO START Sutton,

Be sure the Cycle Selector Control (Timer)

is still on adrying cycle or air setting.

PUSH TO START

SOFT-HEAT ®System guards against

overdrying. This helps your fabrics

retain the natural moisture they need,

prevents static, and reduces pilling -

the formation of small lint-like balls

on the surface of garments. Pilling is

the natural result or wearing and

washing of garments.

Kenmore dryers help prevent overdrying

so you get outstanding fabric care. In

the AUTO DRY and TIMED DRY Cycles,

clothes are dried at the temperature

you selected until the last few minutes

of the cycle. The dryer then switches to

low heat.

COOLDOWN

Approximately ten minutes before the

end of the AUTO DRY and TIMED DRY

Cycles, clothes are tumbled without heat

to help reduce wrinkles and make clothes

more comfortable to handle.

USING WRINKLE GUARD

WRINKLE GUARD helps keep your

permanent press items wrinkle free

when you cannot unload the dryer

promptly at the end of the AUTO DRY

Cycle.

If you do not open the door at the end of

the AUTO DRY Cycle, WRINKLE GUARD

will tumble the clothes continuously for

30 minutes.

• This action will continue unless you

open the dryer door.

During WRINKLE GUARD, the End-of-

Cycle Signal will sound every 5 minutes.

Follow these recommendations to

help save on utility bills and prolong

the life of your garments.

PREPARING CLOTHES

FOR DRYING

• Refer to your Washer Owner's Manual

for proper washing techniques and

additional laundry tips.

• See page 4 of this book for Important

Safety Instructions.

SORTING CLOTHES

•Separate dark colors from light colors;

colorfast from non-colorfast, Items

properly sorted by color for washing

are usually properly sorted for drying.

• Separate heavy fabrics (denim,

towels) from light fabrics (synthetics,

permanent press).

• Separate lint givers (towels, chenille)

from lint takers (corduroy, synthetics,

permanent press). When possible,

turn lint takers inside out.

CHOOSINGLOADSIZES

• Mix large items with smaller items.

Load the dryer by the amount of space

items take up, net by their weight. Do

not overload the dryer, Overcrowding

causes uneven drying and wrinkling,

and can cause items to wear out faster

(because of pilling),

• You may need to rearrange large items

(sheets, blankets, tablecloths) during a

cycle to reduce bailing or rolling up.

• For better tumbling action, when drying

only a few small items, add one or two

lint-free towels. This also prevents

small lightweight items from blocking

airflow.

COMPACT DRYERS

Heavy Work

Clothes

3workshirts

2 pairs pants

Towels

9 bath towels

-- OF-

6 bath towels

3 hand towels

6 wash cloths

PermaneRt Press

6 shirts

-or-

2 double sheets

2 pillowcases

-or-

2 singie sheets

2 pillowcases

Knits

2 slacks

2 shirts

-or-

3 dresses

Mixed

Load

1 pair slacks

2 pillowcases

2 shirts

1 T-shirt

Delicates

1 camisole

2 slips

2 panties

2 bras

1 nightie

1 half-slip

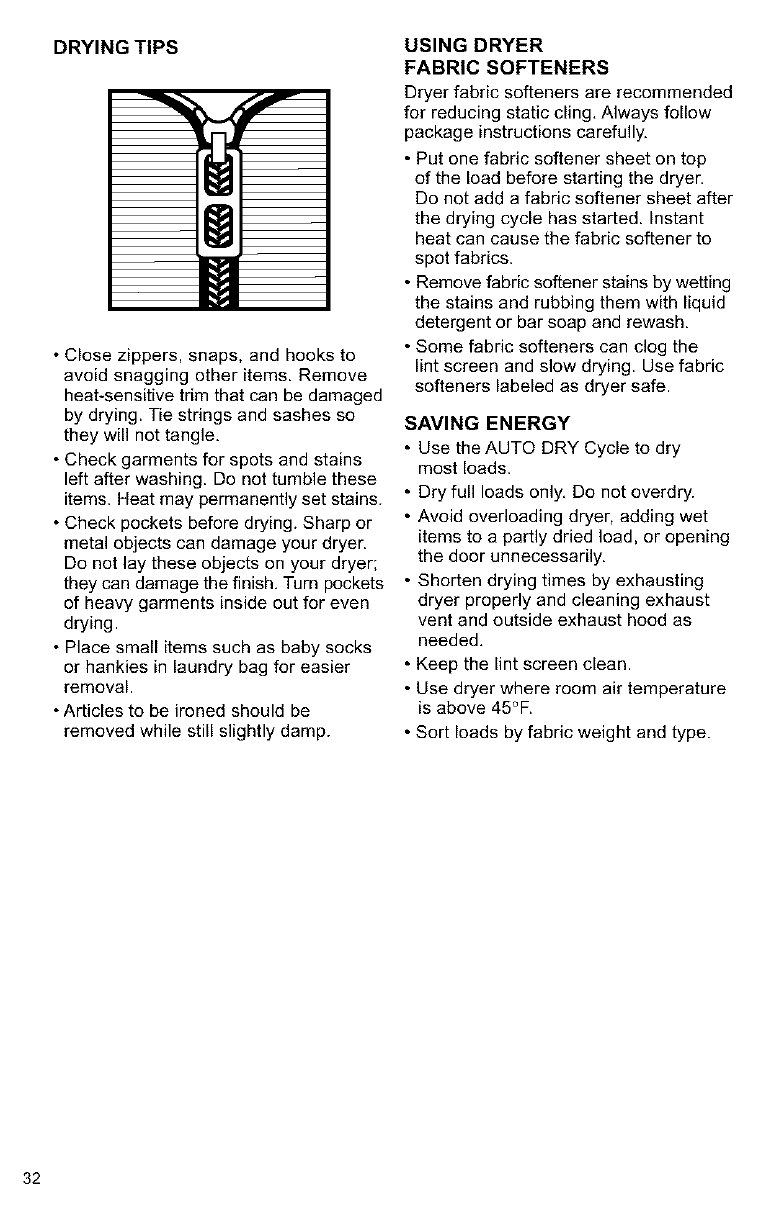

DRYING TIPS

• Close zippers, snaps, and hooks to

avoid snagging other items. Remove

heat-sensitive trim that can be damaged

by drying. Tie strings and sashes so

they will not tangle.

• Check garments for spots and stains

left after washing. Do not tumble these

items. Heat may permanently set stains.

• Check pockets before drying. Sharp or

metal objects can damage your dryer.

Do not lay these objects on your dryer;

they can damage the finish. Turn pockets

of heavy garments inside out for even

drying.

• Place small items such as baby socks

or hankies in laundry bag for easier

removal.

• Articles to be ironed should be

removed while still slightly damp.

USING DRYER

FABRIC SOFTENERS

Dryer fabric softeners are recommended

for reducing static cling. Always follow

package instructions carefully.

• Put one fabric softener sheet on top

of the load before starting the dryer.

Do not add a fabric softener sheet after

the drying cycle has started. Instant

heat can cause the fabric softener to

spot fabrics.

• Remove fabric softener stains by wetting

the stains and rubbing them with liquid

detergent or bar soap and rewash.

• Some fabric softeners can clog the

lint screen and slow drying. Use fabric

softeners labeled as dryer safe.

SAVING ENERGY

• Use the AUTO DRY Cycle to dry

most loads.

• Dry full loads only. Do not overdry.

• Avoid overloading dryer, adding wet

items to a partly dried load, or opening

the door unnecessarily.

• Shorten drying times by exhausting

dryer properly and cleaning exhaust

vent and outside exhaust hood as

needed.

• Keep the lint screen clean.

• Use dryer where room air temperature

is above 45°F.

• Sort loads by fabric weight and type.

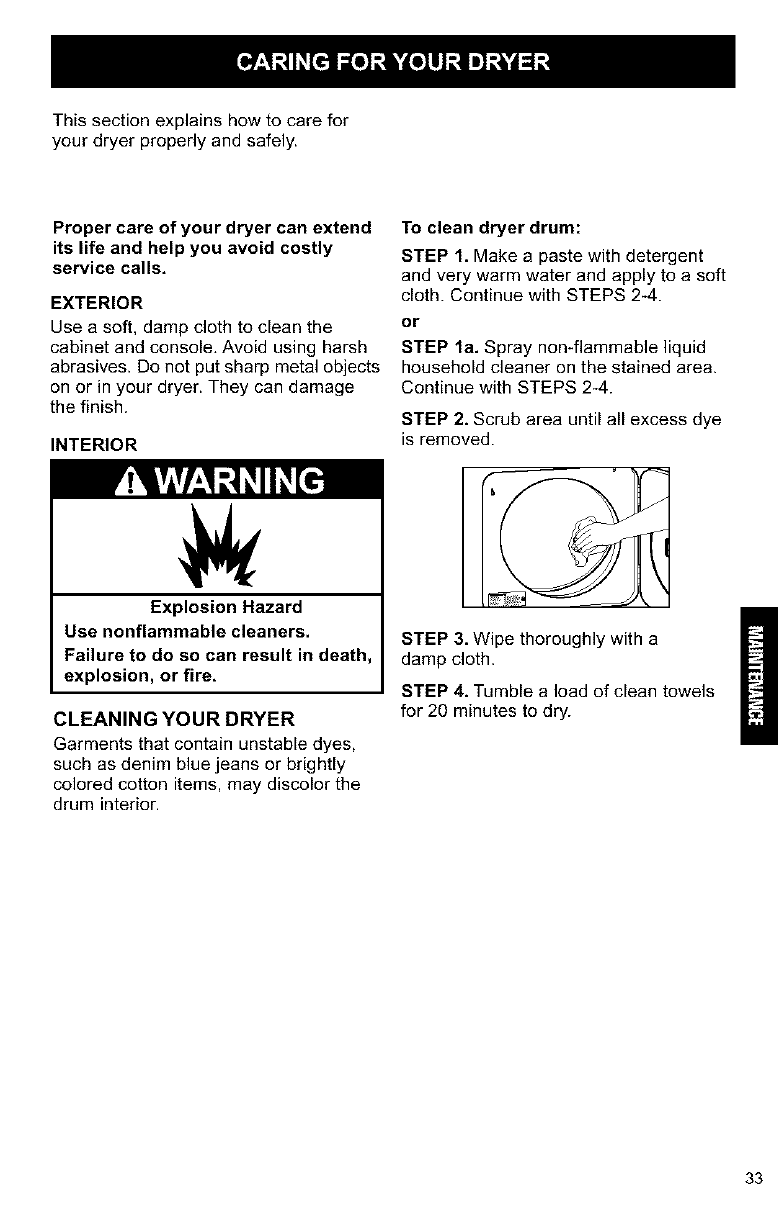

This section explains how to care for

your dryer properly and safely,

Proper care of your dryer can extend

its life and help you avoid costly

service calls.

EXTERIOR

Use a soft, damp cloth to clean the

cabinet and console. Avoid using harsh

abrasives. Do not put sharp metal objects

on or in your dryer. They can damage

the finish.

INTERIOR

To clean dryer drum:

STEP 1. Make a paste with detergent

and very warm water and apply to a soft

cloth. Continue with STEPS 2-4.

STEP la. Spray non-flammable liquid

household cleaner on the stained area.

Continue with STEPS 2-4.

STEP 2. Scrub area until all excess dye

is removed.

Explosion Hazard

Use nonflammable cleaners.

Failure to do so can result in death,

explosion, or fire.

CLEANING YOUR DRYER

Garments that contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

drum interior.

STEP 3. Wipe thoroughly with a

damp cloth.

STEP 4. Tumble a load of clean towels

for 20 minutes to dry.

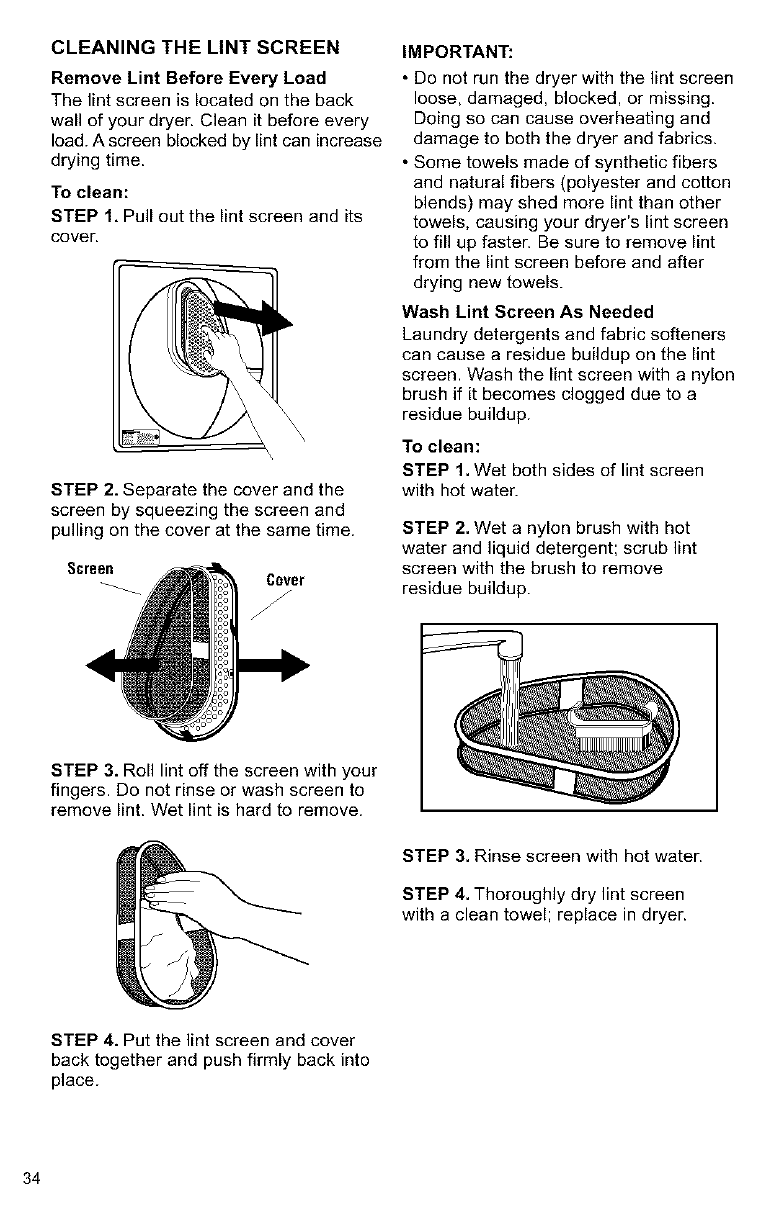

CLEANING THE LINT SCREEN

Remove Lint Before Every Load

The lint screen is located on the back

wall of your dryer. Clean it before every

load. A screen blocked by lint can increase

drying time.

To clean:

STEP 1. Pull out the lint screen and its

cover.

STEP 2. Separate the cover and the

screen by squeezing the screen and

pulling on the cover at the same time.

Screen Cover

IMPORTANT:

• Do not run the dryer with the lint screen

loose, damaged, blocked, or missing.

Doing so can cause overheating and

damage to both the dryer and fabrics.

• Some towels made of synthetic fibers

and natural fibers (polyester and cotton

blends) may shed more lint than other

towels, causing your dryer's lint screen

to fill up faster. Be sure to remove lint

from the lint screen before and after

drying new towels.

Wash Lint Screen As Needed

Laundry detergents and fabric softeners

can cause a residue buildup on the lint

screen. Wash the lint screen with a nylon

brush if it becomes clogged due to a

residue buildup.

To clean:

STEP 1. Wet both sides of lint screen

with hot water.

STEP 2. Wet a nylon brush with hot

water and liquid detergent; scrub lint

screen with the brush to remove

residue buildup.

STEP 3. Roll lint off the screen with your

fingers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

STEP 4. Put the lint screen and cover

back together and push firmly back into

place.

STEP 3, Rinse screen with hot water.

STEP 4. Thoroughly dry lint screen

with a clean towel; replace in dryer.

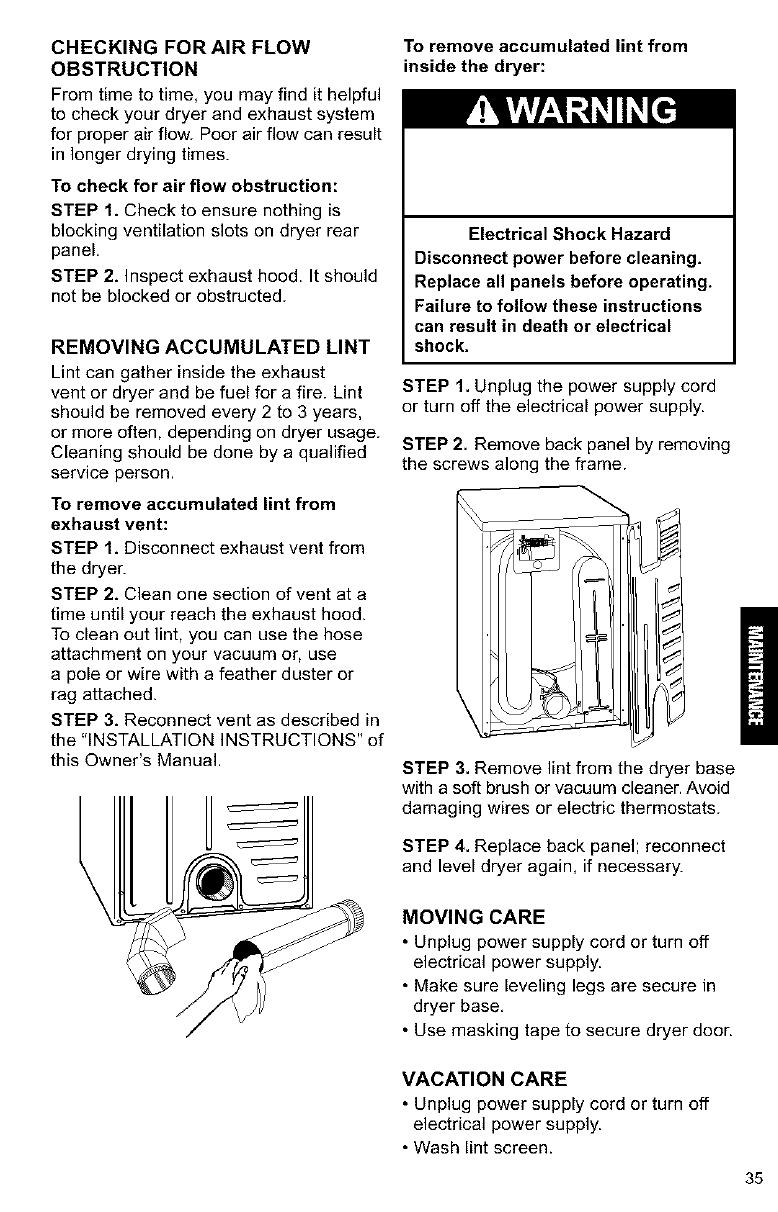

CHECKING FOR AIR FLOW

OBSTRUCTION

From time to time, you may find it helpful

to check your dryer and exhaust system

for proper air flow. Poor air flow can result

in longer drying times.

To check for air flow obstruction:

STEP 1. Check to ensure nothing is

blocking ventilation slots on dryer rear

panel.

STEP 2. Inspect exhaust hood. It should

not be blocked or obstructed.

REMOVING ACCUMULATED LINT

Lint can gather inside the exhaust

vent or dryer and be fuel for a fire. Lint

should be removed every 2 to 3 years,

or more often, depending on dryer usage.

Cleaning should be done by a qualified

service person.

To remove accumulated lint from

exhaust vent:

STEP 1. Disconnect exhaust vent from

the dryer.

STEP 2. Clean one section of vent at a

time until your reach the exhaust hood.

To clean out lint, you can use the hose

attachment on your vacuum or, use

a pole or wire with a feather duster or

rag attached.

STEP 3. Reconnect vent as described in

the "INSTALLATION INSTRUCTIONS" of

this Owner's Manual.

To remove accumulated lint from

inside the dryer:

Electrical Shock Hazard

Disconnect power before cleaning.

Replace all panels before operating.

Failure to follow these instructions

can result in death or electrical

shock,

STEP 1. Unplug the power supply cord

or turn off the electrical power supply.

STEP 2. Remove back panel by removing

the screws along the frame.

STEP 3. Remove lint from the dryer base

with a soft brush or vacuum cleaner. Avoid

damaging wires or electric thermostats.

STEP 4. Replace back panel; reconnect

and level dryer again, if necessary.

MOVING CARE

• Unplug power supply cord or turn off

electrical power supply.

• Make sure leveling legs are secure in

dryer base.

• Use masking tape to secure dryer door.

VACATION CARE

• Unplug power supply cord or turn off

electrical power supply.

• Wash lint screen.

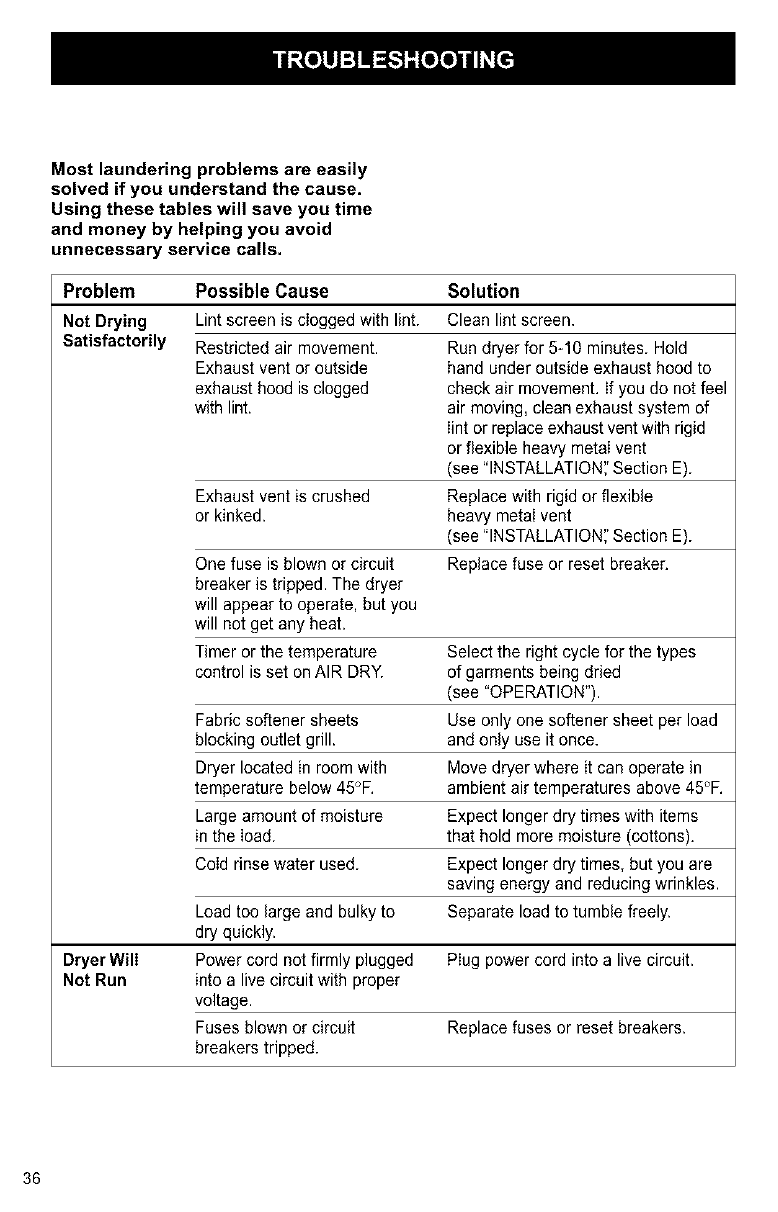

Most laundering problems are easily

solved if you understand the cause.

Using these tables will save you time

and money by helping you avoid

unnecessary service calls.

Problem Possible Cause Solution

Not Drying Lint screen is clogged with lint. Clean lint screen.

Satisfactorily Restricted air movement, Run dryer for 5_10minutes. Hold

Exhaust vent or outside hand under outside exhaust hood to

exhaust hood isclogged check air movement, If you do not feel

with lint. air moving, clean exhaust system of

lint or replace exhaust vent with rigid

or flexible heavy metaI vent

(see "INSTALLATION','Section E).

Exhaust vent is crushed Replace with rigid or flexible

or kinked, heavy metal vent

(see "INSTALLATION','Section E).

One fuse is blown or circuit Replace fuse or reset breaker.

breaker is tripped. The dryer

will appear to operate, but you

will not get any heat.

Timer or the temperature Select the right cycle for the types

control is set on AIR DRY. of garments being dried

(see "OPERATION").

Fabric softener sheets Use only one softener sheet per load

blocking outlet grill, and only use it once.

Dryer located in room with Move dryer where it can operate in

temperature below 45°F, ambient air temperatures above 45°F,

Large amount of moisture Expect longer dry times with items

in the load. that hold more moisture (cottons).

Cold rinse water used. Expect longer dry times, but you are

saving energy and reducing wrinkles.

Load toe large and bulky to Separate load to tumble freely.

dry quickly.

Dryer Will Power cord not firmly plugged Plug power cord into a live circuit.

Not Run into a live circuit with proper

voltage.

Fuses blown or circuit Replace fuses or reset breakers.

breakers tripped.

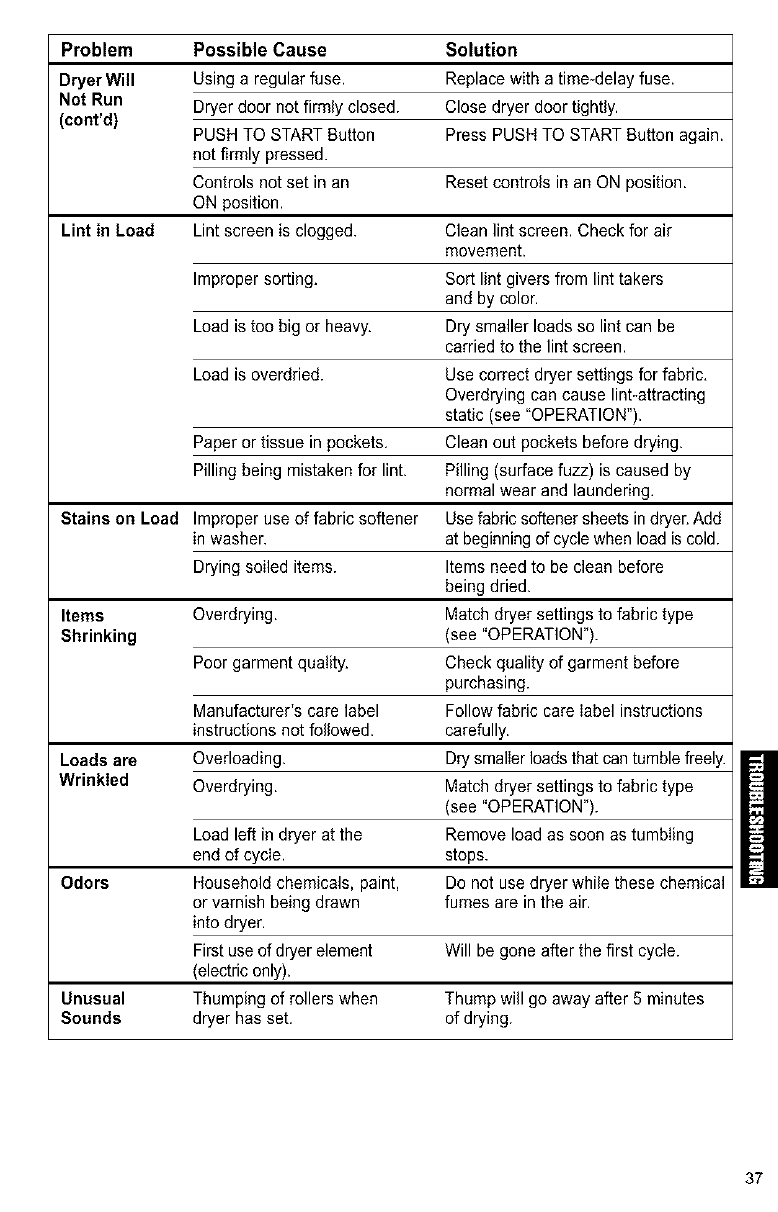

Problem Possible Cause Solution

Dryer Will Using a regular fuse. Replace with a time-delay fuse.

Not Run Dryer door not firmly closed. Close dryer door tightly.

(cont'd) PUSH TO START Button Press PUSH TO START Button again.

not firmly pressed.

Controls not set in an Reset controls in an ON position.

ON position.

Lint in Load Lint screen is clogged. Clean lint screen. Check for air

movement.

Improper sorting. Sort lint givers from lint takers

and by color.

Load is too big or heavy. Dry smaller loads so lint can be

carried to the lint screen.

Load is overdried. Use correct dryer settings for fabric.

Overdrying can cause lint-attracting

static (see "OPERATION").

Paper or tissue in pockets. Clean out pockets before drying.

Pilling being mistaken for lint. Pilling (surface fuzz) is caused by

normal wear and laundering.

Stains on Load Improper use of fabric softener Use fabric softener sheets in dryer. Add

in washer, at beginning of cycle when load is cold.

Drying soiled items. Items need to be clean before

being dried.

Items Overdrying. Match dryer settings to fabric type

Shrinking (see "OPERATION").

Poor garment quality. Check quality of garment before

purchasing.

Manufacturer's care label Follow fabric care label instructions

instructions not followed, carefully.

Loads are Overloading. Dry smaller loads that can tumble freely.

Wrinkled Overdrying. Match dryer settings to fabric type

(see "OPERATION").

Remove load as soon as tumbling

stops.

Do not use dryer while these chemical

fumes are in the air.

Load left in dryer at the

end of cycle.

Odors Household chemicals, paint,

or varnish being drawn

into dryer.

First useof dryer element Will be gone after the first cycle.

(electric only).

Unusual Thumping of rollers when Thump will go away after 5 minutes

Sounds dryer has set. of drying.

KENMORE DRYERS

"We Service What We Sell" is our

assurance that you can depend on Sears

for service. Your Kenmore Electric Dryer

has added value when you consider that

Sears has service units nationwide, staffed

with professional technicians specifically

trained on all appliances Sears sells. They

have the knowledge and skills, tools, parts,

and equipment to ensure our pledge to

you that "We Service What We Sell'.'

Sears Maintenance Agreement

Maintain the value of your Electric Dryer

with a Sears Maintenance Agreement,

Kenmore Electric Dryers are designed,

manufactured, and tested for years of

dependable operation, Yet any appliance

may require service from time to time,

The Sears Maintenance Agreement offers

you an outstanding service program for

your Kenmore Electric Dryer.

The Sears Maintenance Agreement

•Is your way to buy tomorrow's

service at today's prices.

• Eliminates repair bills resulting

from normal use.

•Allows for as many service calls

as required.

• Provides an annual Preventive

Maintenance Check at your request

to keep your Electric Dryer in proper

running condition.

For more information,

call 1-800-827-6655,

Forthe repair or replacement partsyou

need delivered directly to yourhome

Call 7 am - 7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

For in-home major brandrepair service

Call 24 hours a day,7 days a week

1-800-4-REPAIR

(1-800-473-7247)

Forthe location of a Sears Partsand

Repair Centerin yourarea

Call 24 hours a day,7 days a week

1-800-488-1222

For informationon purchasinga Sears

MaintenanceAgreement orto inquire

aboutan existingAgreement

Call 9 am - 5 pm, Monday - Saturday

1-800-827-6655

When requestingservice or ordering

parts, always givethe following

information:

•ProductName •Part Name

•Model Number •Part Number

SEARS

America'sRepairSpecialists

Kenmore 11082182200 User Manual COMPACT ELECTRIC DRYER Manuals And Guides L0305400

KENMORE Residential Dryer Manual L0305400 KENMORE Residential Dryer Owner's Manual, KENMORE Residential Dryer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
