SEARS
OWNERS
MANUAL
HOME
CLEANING
SYSTEM
MODEL NO.
175.8579280
CAUTION:
Read Instructions
and Rules for
Safe Operation
Carefully
For household
use only.
Future
Save this
Manual for
Reference
HOME
nnlolP
CLEANING SYSTEM
. INTRODUCTION
•ASSEMBLY
• OPERATION
, MAINTENANCE
• REPAIR PARTS
SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicaqo, IL 60684
5553282
(1289)
PRINTED IN U.S.A.

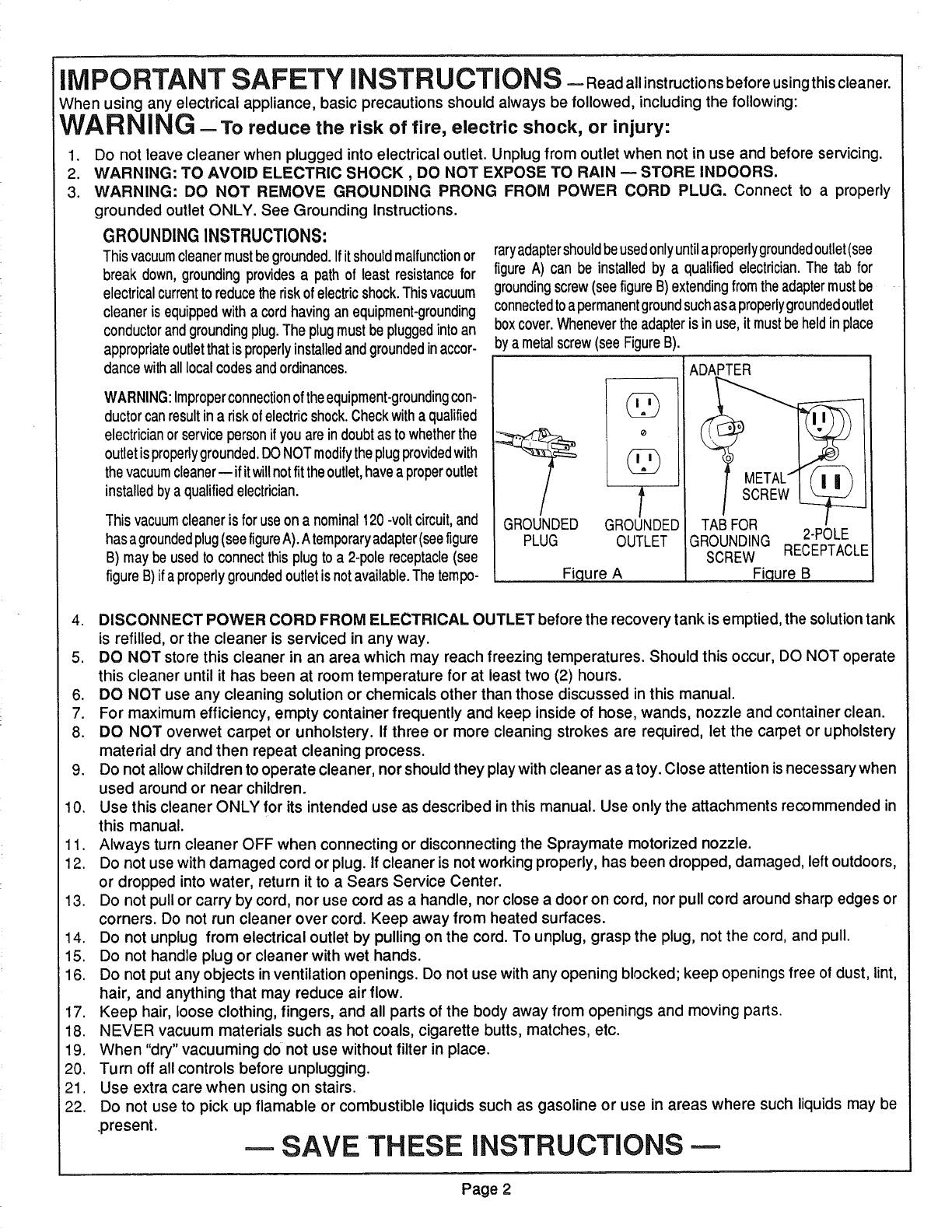

IMPORTANT SAFETY iNSTRUCTiONS--Readallinstructionsbeforeusingthiscleaner.
When using any electrical appliance, basic precautions should always be followed, including the following:
WARNING -To reduce the risk of fire, electric shock, or injury:
1. Do not leave cleaner when plugged into electrical outlet. Unplug from outlet when not in use and before servicing.
2. WARNING: TO AVOID ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN n STORE INDOORS.
3. WARNING: DO NOT REMOVE GROUNDING PRONG FROM POWER CORD PLUG. Connect to a properly
grounded outlet ONLY. See Grounding Instructions.
GROUNDING INSTRUCTIONS:
Thisvacuumcleanermustbegrounded.Ifitshouldmalfunctionor
breakdown,groundingprovidesa pathof least resistancefor
electricalcurrenttoreducetheriskofelectricshock.Thisvacuum
cleanerisequippedwitha cordhavinganequipment-greunding
conductorandgroundingplug.Theplugmustbe pluggedintoan
appropriateoutletthatis properlyinstalledandgroundedinaccor-
dancewithalllocalcodesandordinances.
WARNING:Improperconnectionof theequipment-groundingcon-
ductorcanresultin a risk ofelectric shock.Checkwith aqualified
electricianor servicepersonif you arein doubtas to whetherthe
outletisproperlygrounded.DONOTmodifythe plugprovidedwith
the vacuumcleaner-- if it willnotfit theoutlet,havea properoutlet
installedbya qualifiedelectrician.
This vacuumcleaneris for useona nominal120-voltcircuit,and
hasagroundedplug(seefigureA).Atemporaryadapter(seefigure
B) may beused to connectthis plug to a 2-polereceptacle(see
figure B)ifa properlygroundedoutletis not available.Thetempo-
raryadaptershouldbeusedonlyuntilaproperlygroundedoutlet(see
figure A) can be installed by a qualified electrician.The tab for
groundingscrew(seefigure B)extendingfromtheadaptermustbe
connectedto apermanentgroundsuchasaproperlygroundedoutlet
boxcover.Wheneverthe adapteris in use,it mustbeheldin place
by a metalscrew(see FigureB).
GROUNDED
PLUG
o
t
GROUNDED
OUTLET
Fiqure A
ADAPTER
GROUNDING 2-POLE
SCREW RECEPTACLE
Fiqure B
4. DISCONNECT POWER CORD FROM ELECTRICAL OUTLET before the recovery tank is emptied, the solution tank
is refilled, or the cleaner is serviced in any way.
5. DO NOT store this cleaner in an area which may reach freezing temperatures. Should this occur, DO NOT operate
this cleaner until it has been at room temperature for at least two (2) hours.
6. DO NOT use any cleaning solution or chemicals other than those discussed in this manual.
7. For maximum efficiency, empty container frequently and keep inside of hose, wands, nozzle and container clean.
8. DO NOT overwet carpet or unholstery. If three or more cleaning strokes are required, let the carpet or upholstery
material dry and then repeat cleaning process.
9. Do not allow children to operate cleaner, nor should they play with cleaner as atoy. Close attention is necessary when
used around or near children.
10. Use this cleaner ONLY for its intended use as described in this manual. Use only the attachments recommended in
this manual.
11. Always turn cleaner OFF when connecting or disconnecting the Spraymate motorized nozzle.
12. Do not use with damaged cord or plug. If cleaner is not working properly, has been dropped, damaged, left outdoors,
or dropped into water, return it to a Sears Service Center.
13. Do not pull or carry by cord, nor use cord as a handle, nor close a door on cord, nor pull cord around sharp edges or
corners. Do not run cleaner over cord. Keep away from heated surfaces.
14. Do not unplug from electrical outlet by pulling on the cord. To unplug, grasp the plug, not the cord, and pull.
15. Do not handle plug or cleaner with wet hands.
16. Do not put any objects inventilation openings. Do not use with any opening blocked; keep openings free of dust, lint,
hair, and anything that may reduce air flow.
17. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
18. NEVER vacuum materials such as hot coals, cigarette butts, matches, etc.
19. When "dry" vacuuming do not use without filter in place.
20. Turn off all controls before unplugging.
21. Use extra care when using on stairs.
22. Do not use to pick up flamable or combustible liquids such as gasoline or use in areas where such liquids may be
.present. mSAVE THESE iNSTRUCTiONS
Page 2
TABLE OF CONTENTS
Warranty ............................ .......................................... page 3
Safety Instructions ....................................................... page 2
Introduction .................................................................. page 3
Assembly ..................................................................... page 4
Operation .................................................................. page 5-8

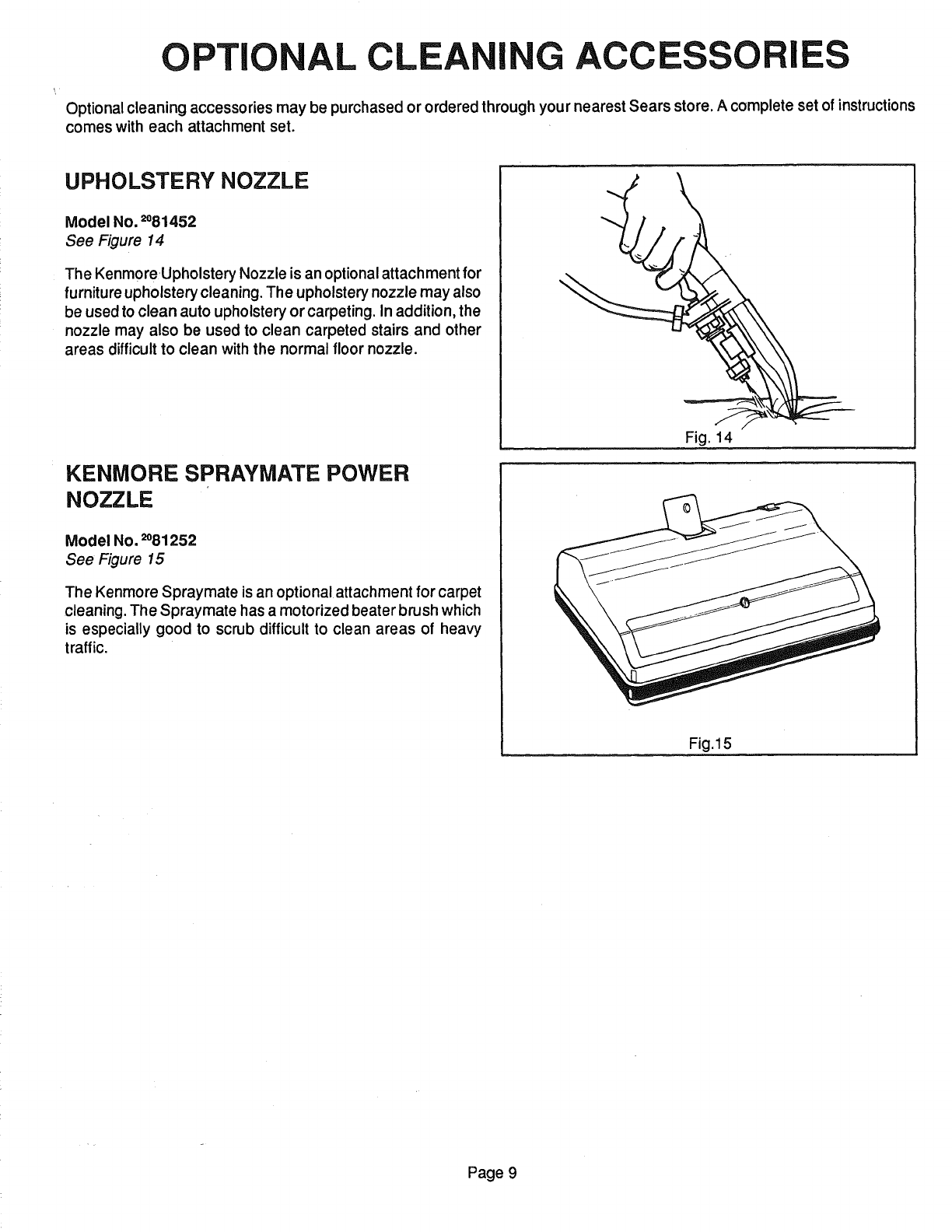

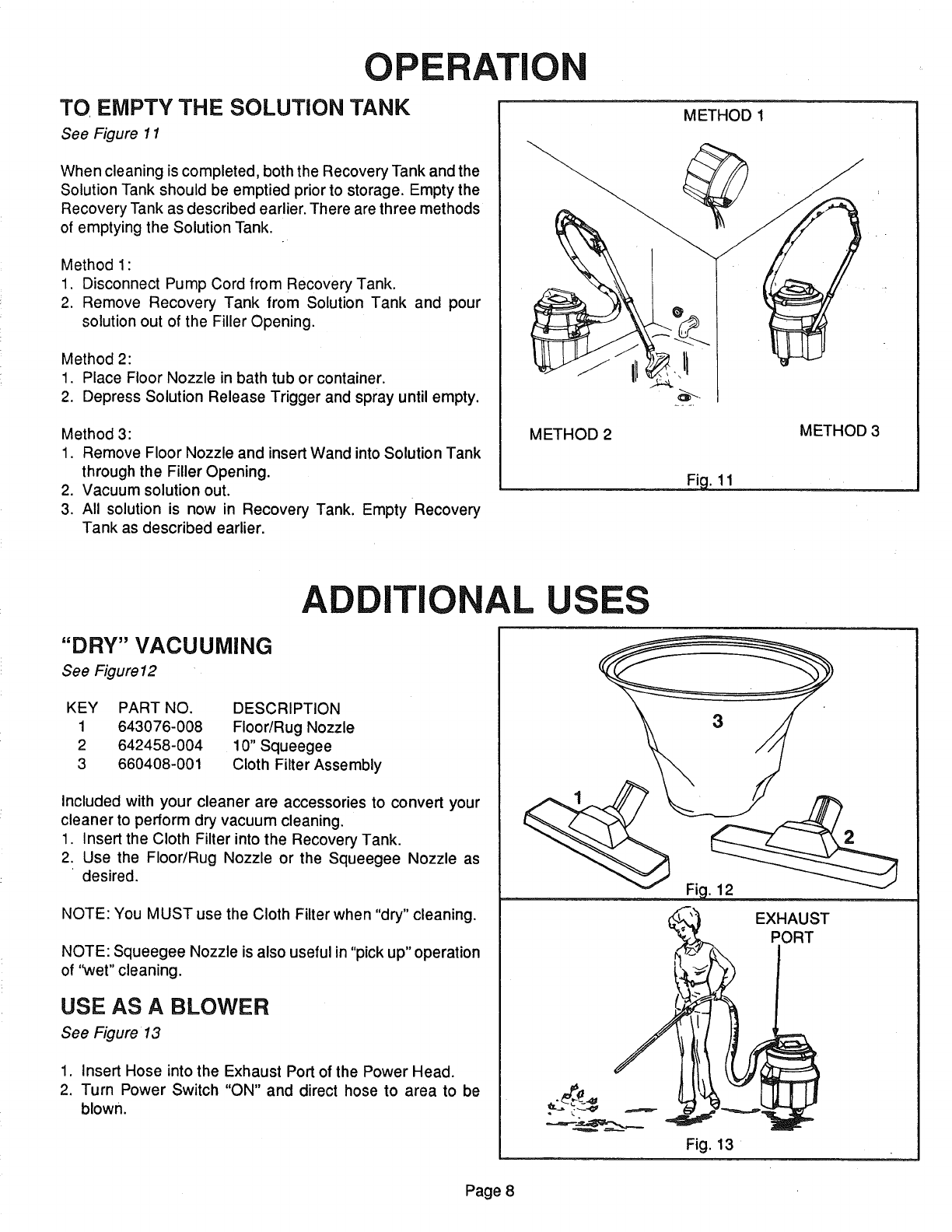

Additional Uses /Optional Accessories .................... page 8-9
Trouble Shooting Chart .............................................. page 10

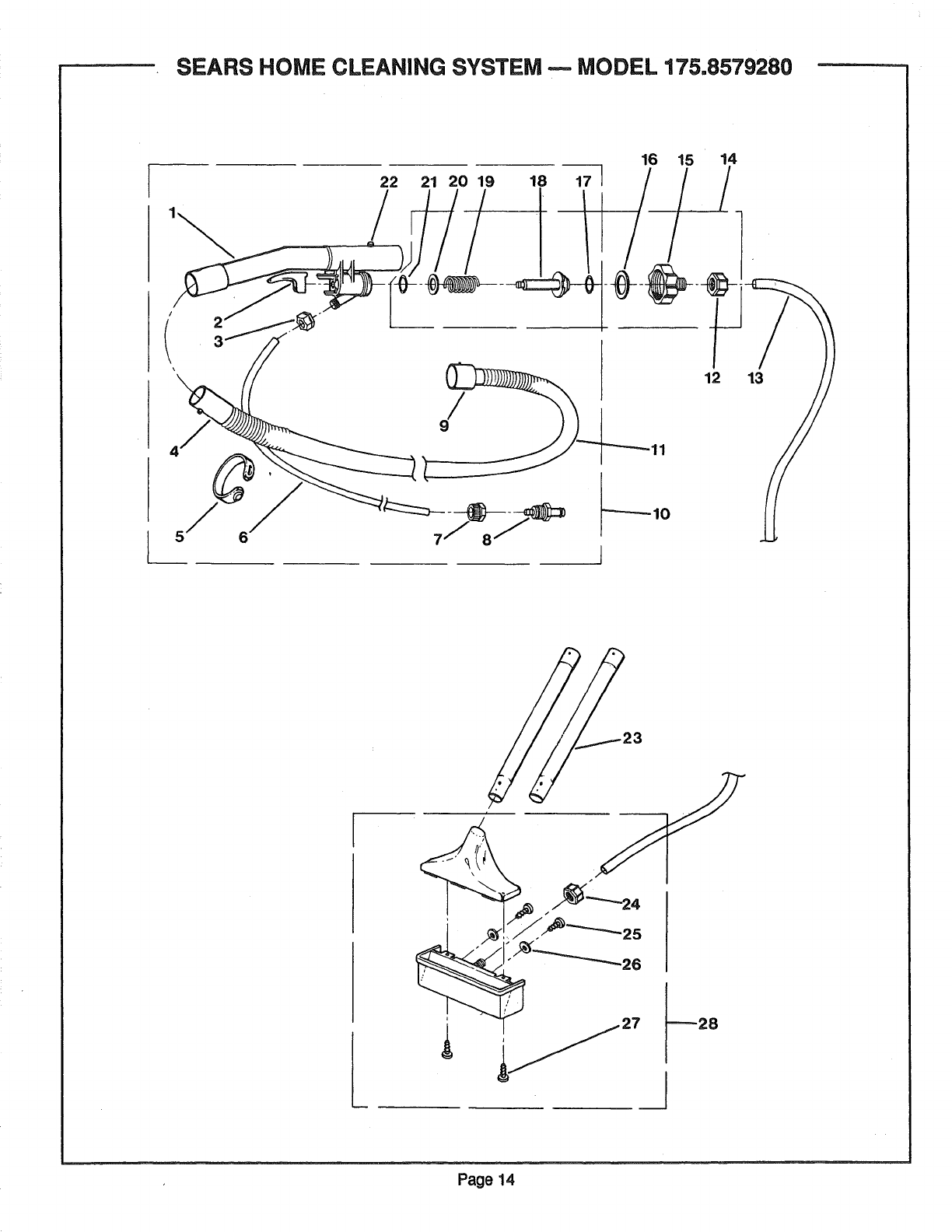

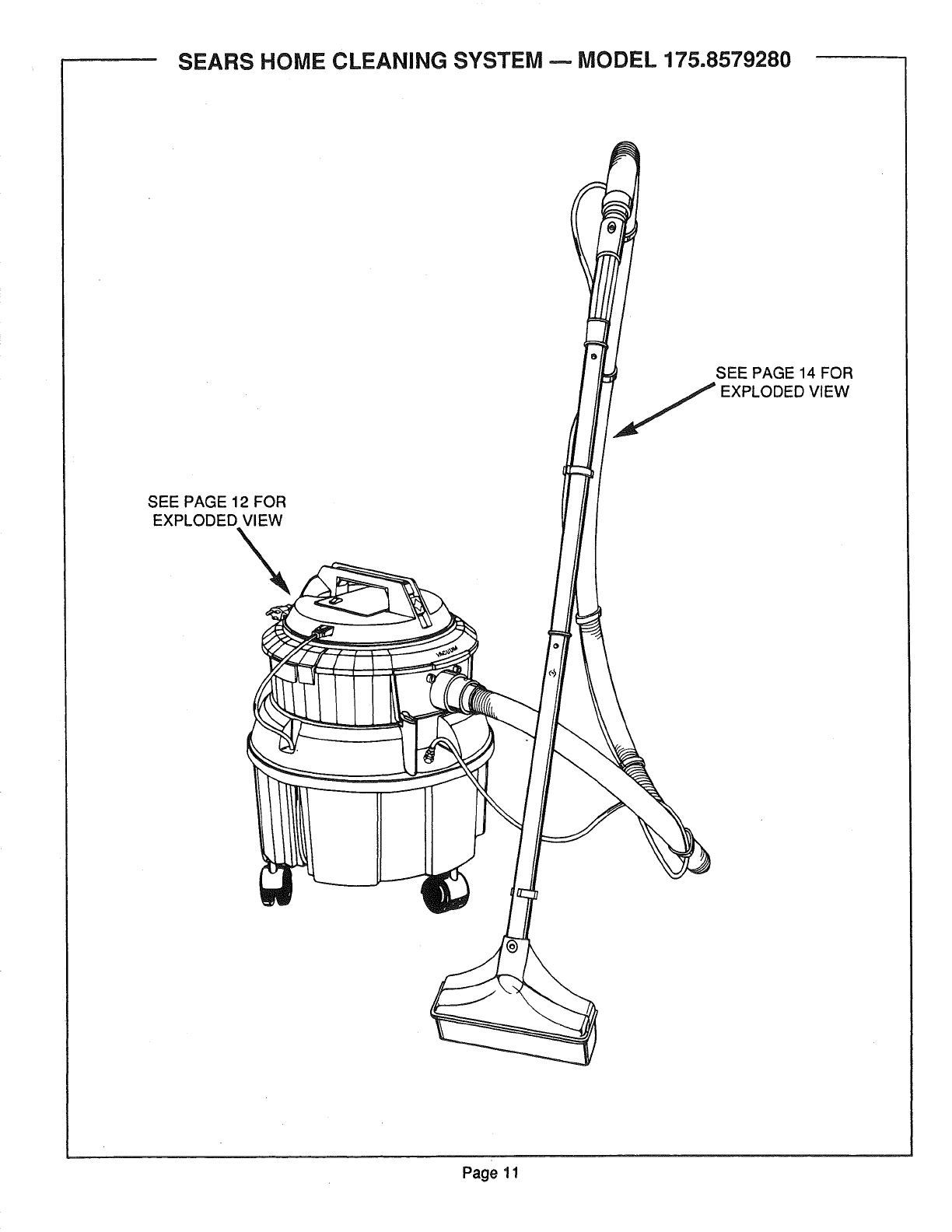

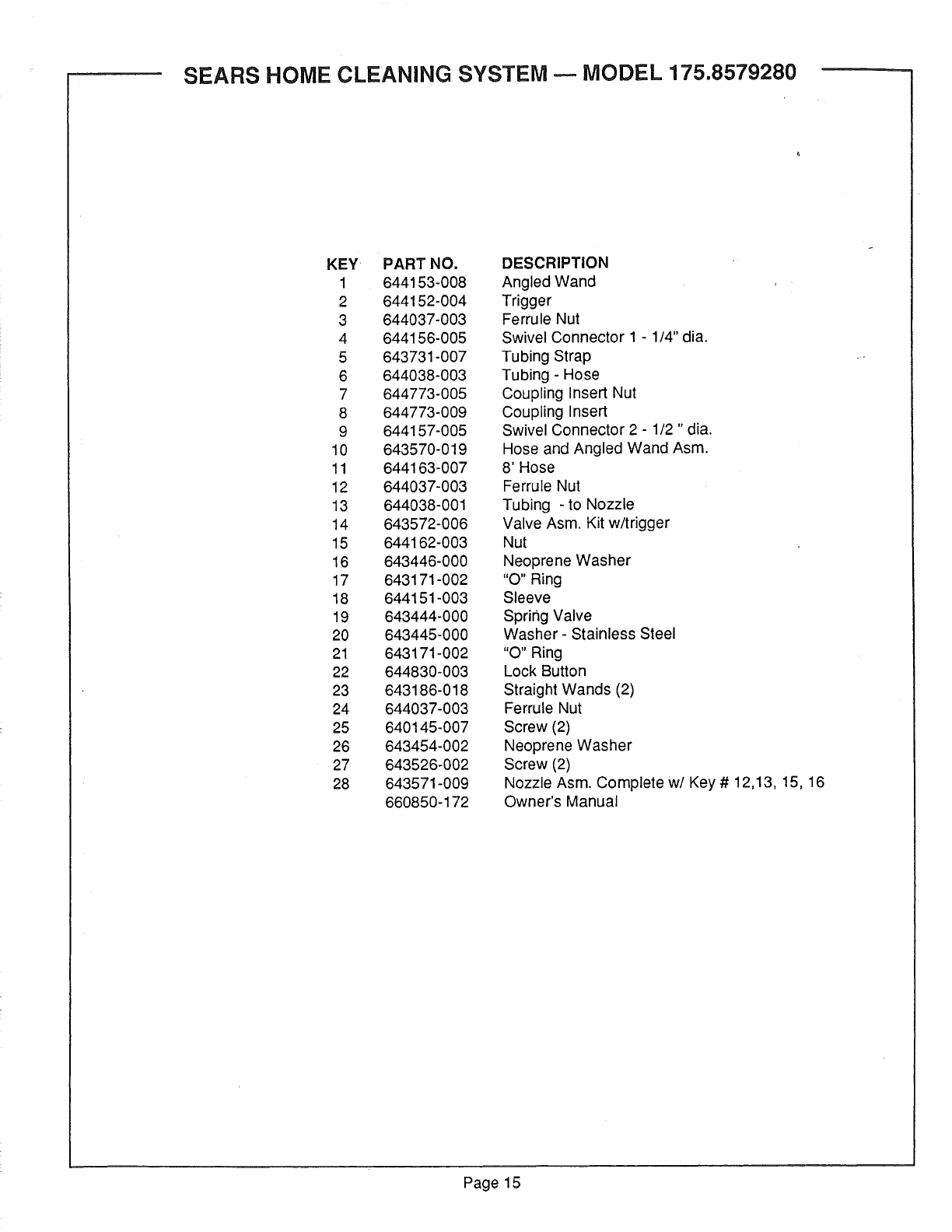

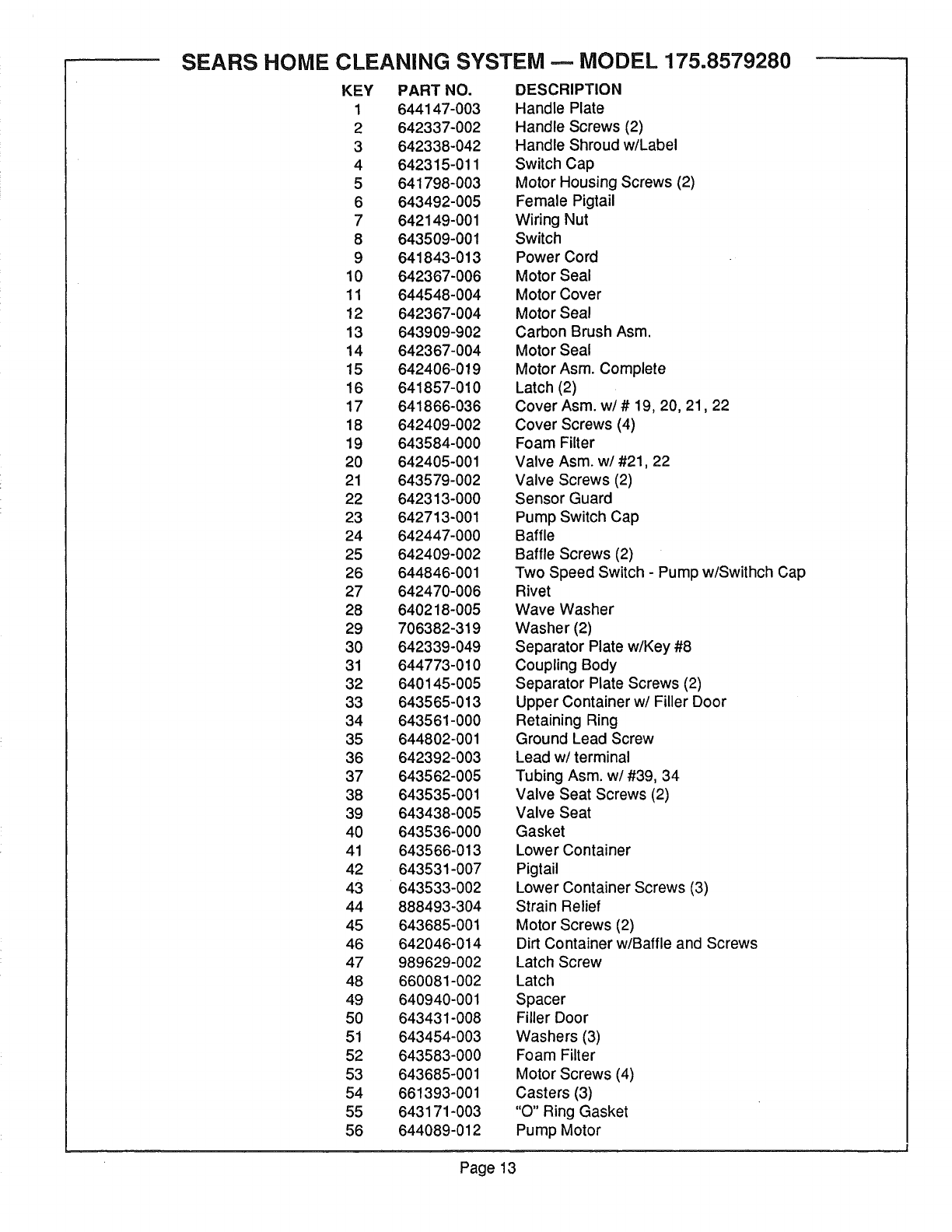

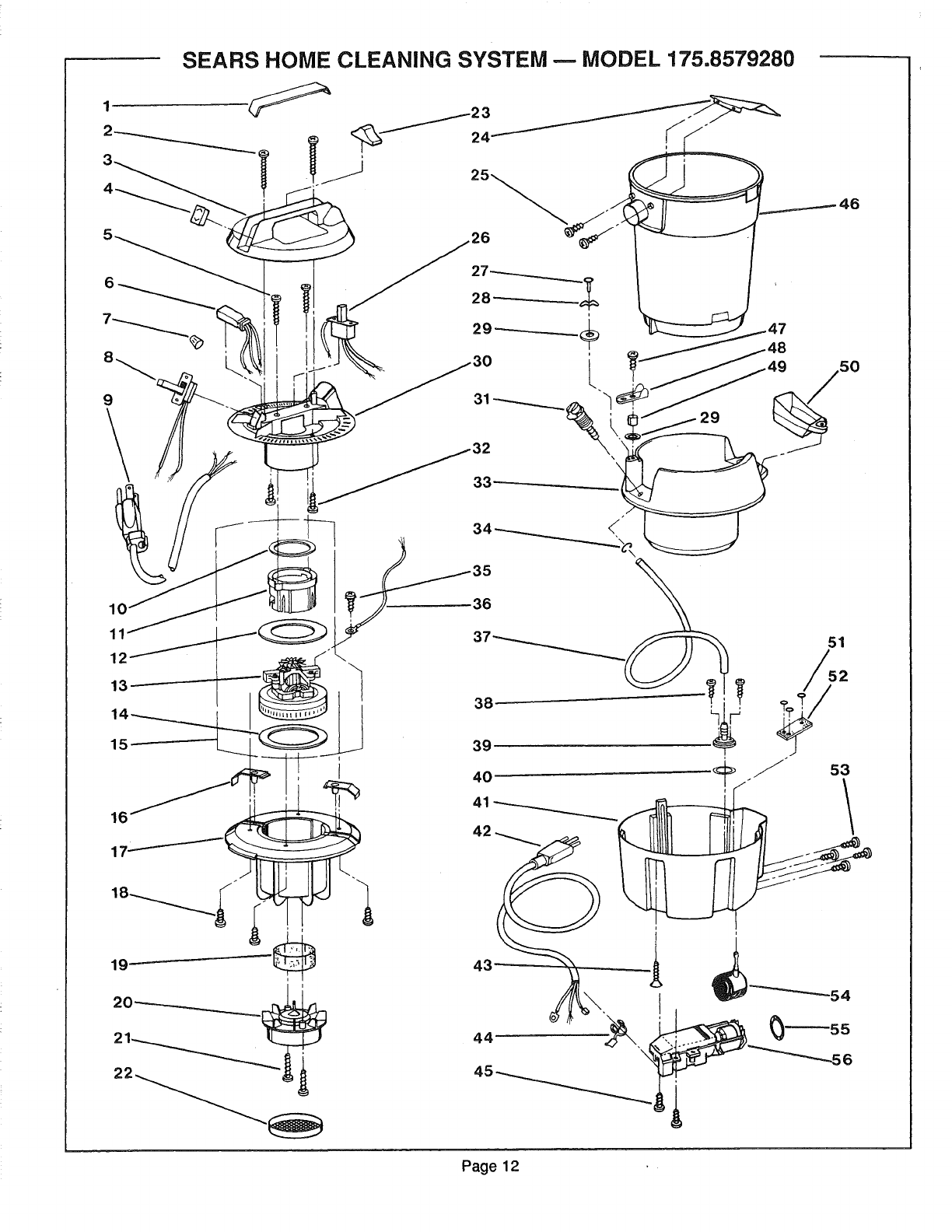

Exploded Views and Parts Lists .......................... page 11-15
Ordering Parts ............................................................ page 16
FULL ONE YEAR WARRANTY
When used for private household purposes, if within one year from the date of purchase, this vacuum cleaner fails due to a
defect in material or workmanship, RETURN IT TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE
UNITED STATES, and Sears will repair it, free of charge.
If this vacuum cleaner is used for commercial or rental purposes, the above warranty coverage applies for only 90 days from
the date of purchase.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
SEARS, ROEBUCK AND CO., D/731CR-W, SEARS TOWER, CHICAGO, IL 60684

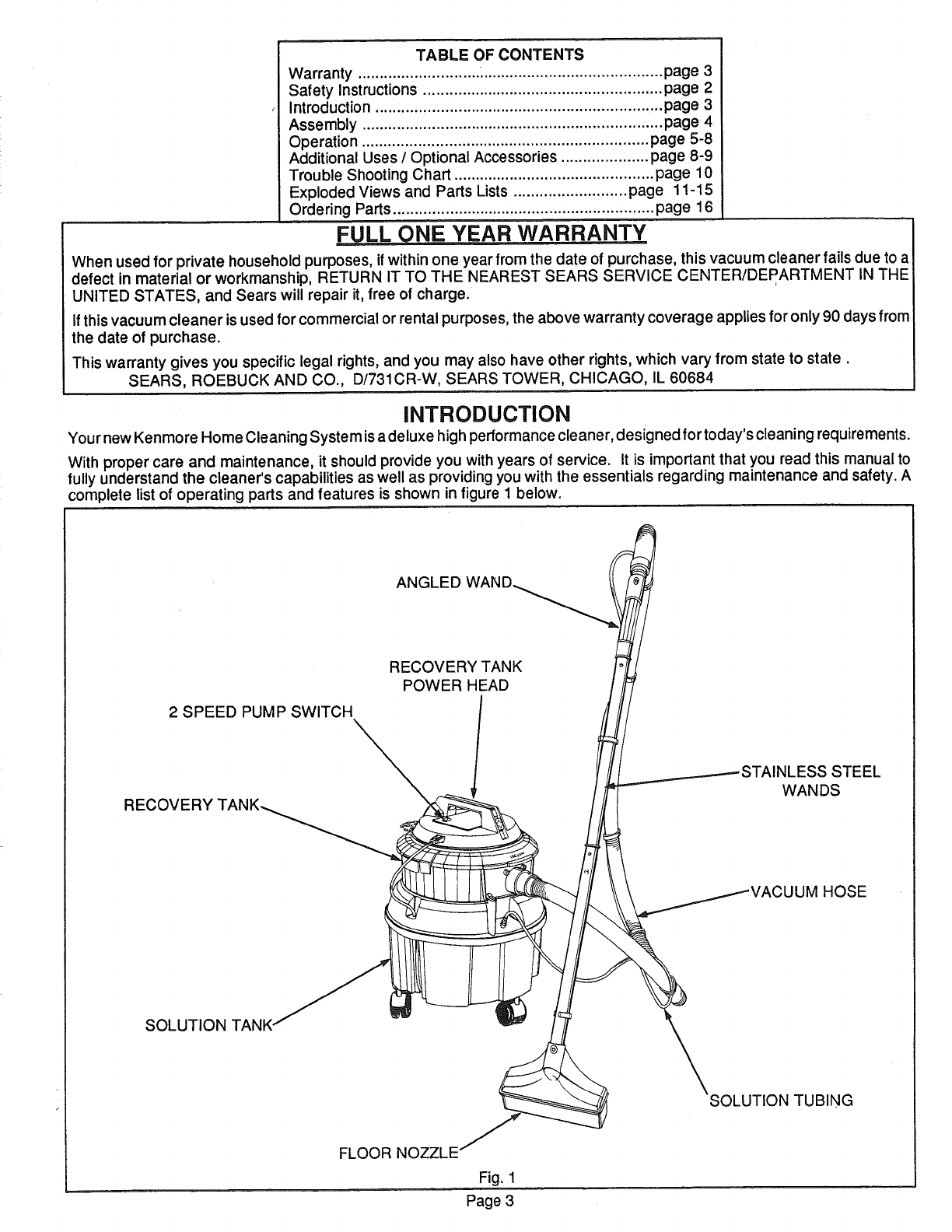

INTRODUCTION
Your new Kenmore Home Cleaning System isa deluxe highperformance cleaner, designed for today's cleaning requirements.
With proper care and maintenance, it should provide you with years of service. It is important that you read this manual to
fully understand the cleaner's capabilities as well as providing you with the essentials regarding maintenance and safety. A
complete list of operating parts and features is shown in figure 1 below.
2 SPEED PUMP SWITCH
ANGLED WAND
RECOVERY TANK
POWER HEAD
STEEL
WANDS
HOSE
SOLUTION
SOLUTION TUBING
FLOOR NOZZL
Fig. 1
Page 3

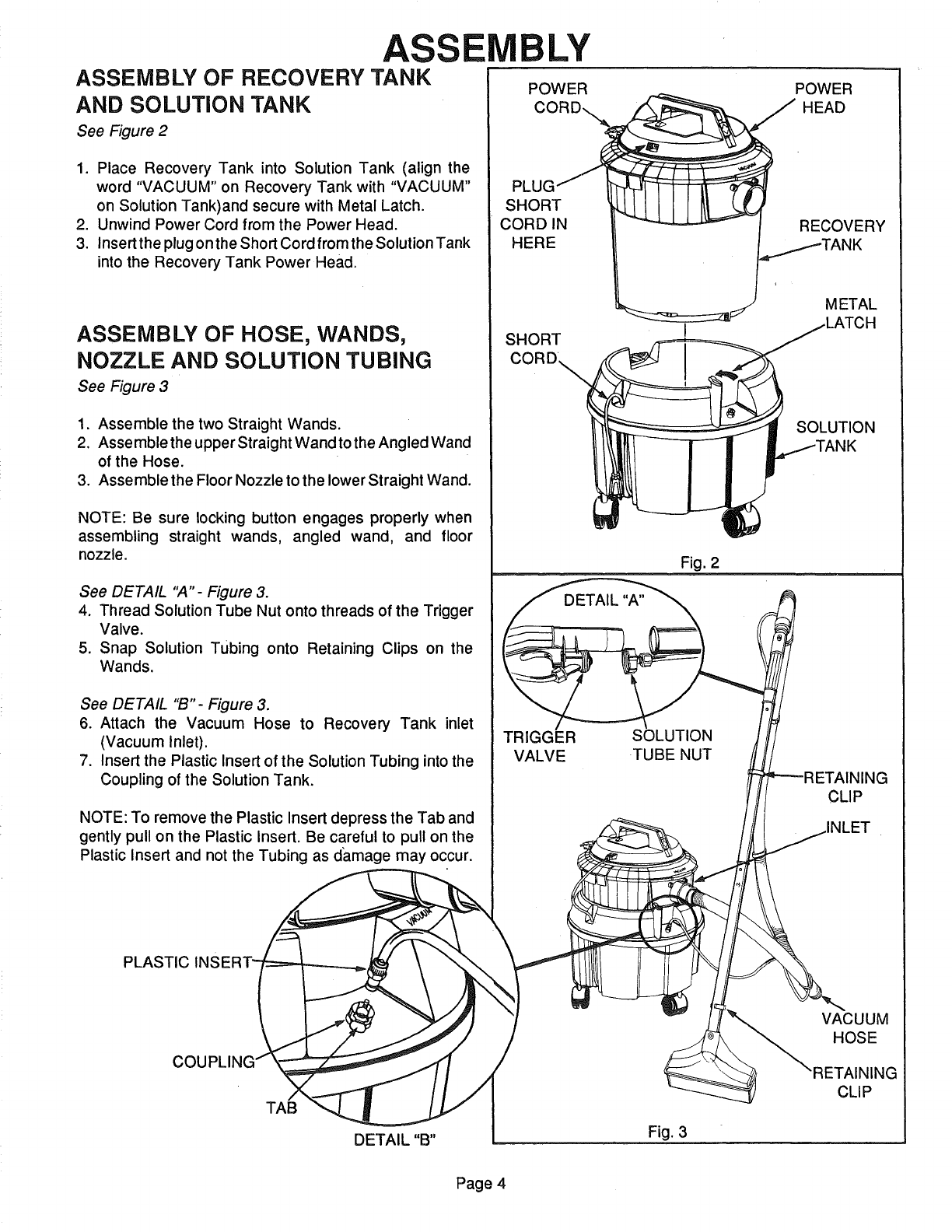

ASS
ASSEMBLY OF RECOVERY TANK
AND SOLUTION TANK
See Figure 2
1. Place Recovery Tank into Solution Tank (align the
word "VACUUM" on Recovery Tank with "VACUUM"
on Solution Tank)and secure with Metal Latch.
2. Unwind Power Cord from the Power Head.
3. Insert the plug on the Short Cord from the Solution Tank
into the Recovery Tank Power Head.
ASSEMBLY OF HOSE, WANDS,
NOZZLE AND SOLUTION TUBING
See Figure 3
1. Assemble the two Straight Wands.
2. Assemble the upper Straight Wand to the Angled Wand
of the Hose.
3. Assemble the Floor Nozzle to the lower Straight Wand.
NOTE: Be sure locking button engages properly when
assembling straight wands, angled wand, and floor
nozzle.
See DETAIL "A"- Figure 3.
4. Thread Solution Tube Nut onto threads of the Trigger
Valve.
5. Snap Solution Tubing onto Retaining Clips on the
Wands.
See DETAIL "B'- Figure 3.
6. Attach the Vacuum Hose to Recovery Tank inlet
(Vacuum Inlet).
7. Insert the Plastic Insert of the Solution Tubing into the
Coupling of the Solution Tank.
NOTE: To remove the Plastic Insert depress the Tab and
gently pull on the Plastic Insert. Be careful to pull on the
Plastic Insert and not the Tubing as da.mage may occur.
PLASTIC INSERT-
COUPLING
DETAIL "B"
LY
POWER POWER
HEAD
SHORT
CORDIN
HERE RECOVERY
SHORT
METAL
SOLUTION
DETAIL "A"
TRIGGER
VALVE
Fig. 2
SOLUTION
TUBE NUT
CLIP
3
Fig. 3
VACUUM
_ HOSE
Page 4
PO
CARPET PREPARATION
For best results prepare carpet for cleaning as follows:
1. Vacuum carpet to remove loose dirt before using Cleaner.
2. To remove stains and ground in dirt present in heavy traffic
areas of the carpet, spray or rub Sears Heavy Traffic Pre-
Treatment (82833) into carpet before using Cleaner. Follow
directions on the bottle.

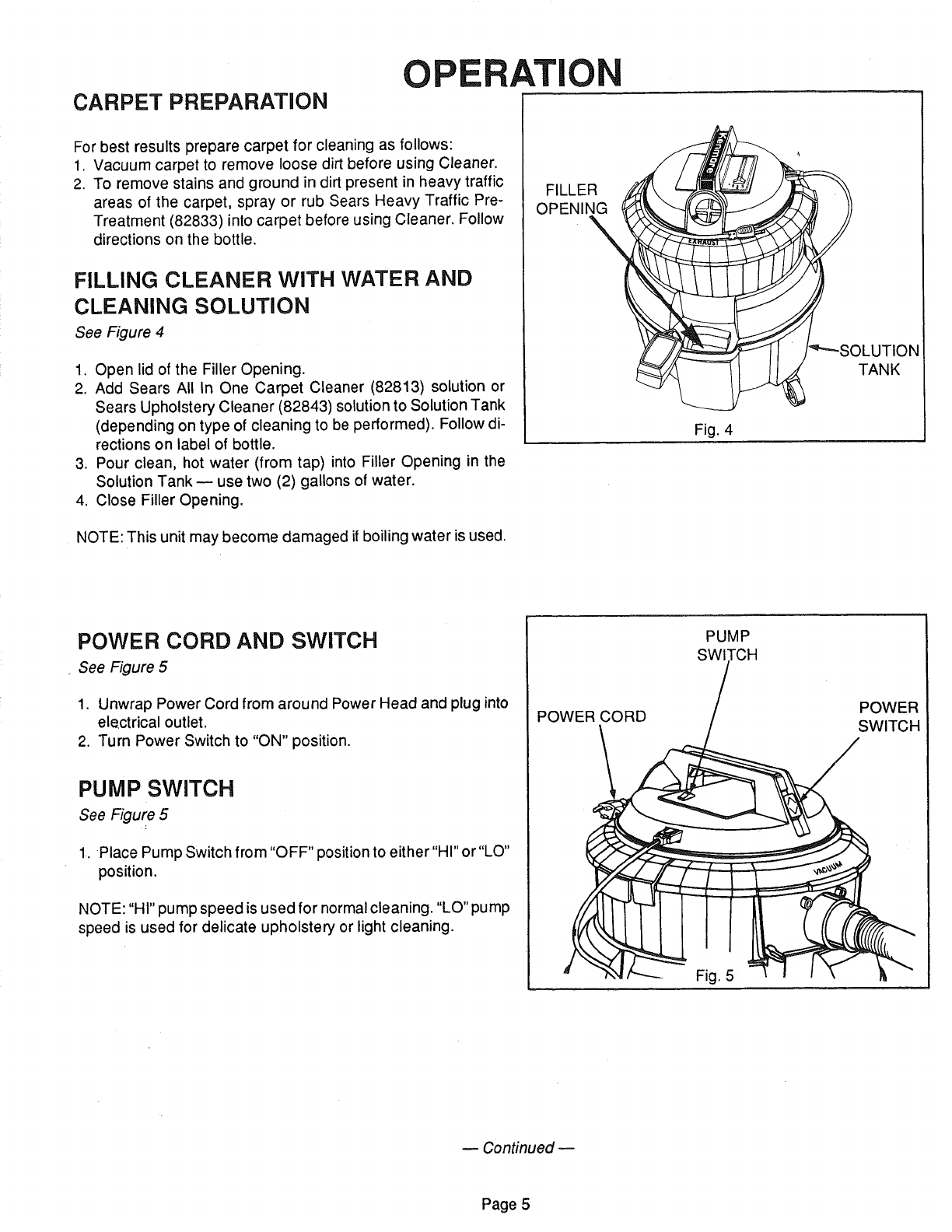

FILLING CLEANER WITH WATER AND
CLEANING SOLUTION
See Figure 4
1. Open lid of the Filler Opening.
2. Add Sears All In One Carpet Cleaner (82813) solution or
Sears Upholstery Cleaner (82843) solution to Solution Tank
(depending on type of cleaning to be performed). Follow di-
rections on label of bottle.
3. Pour clean, hot water (from tap) into Filler Opening in the
Solution Tank -- use two (2) gallons of water.
4. Close Filler Opening.
NOTE: This unit may become damaged if boiling water is used.
FILLER
OPENING
Fig. 4
JTION
TANK
POWER CORD AND SWITCH
See Figure 5
1. Unwrap Power Cord from around Power Head and plug into
electrical outlet.
2. Turn Power Switch to "ON" position.
PUMP SWITCH
See Figure 5
1. Place Pump Switch from "OFF" position to either "HI" or "LO"
position.
NOTE: "HI" pump speed is used for normal cleaning. "LO" pump
speed is used for delicate upholstery or light cleaning.
POWER CORD
PUMP
SWI
Fig. 5
POWER
SWITCH
--Continued--
Page 5
OP
TEST FOR SOLUTION SPRAY
See Figure 6
1. Hold Floor Nozzle above floor level.
2. Pull Solution Release Trigger on Angled Wand.
3. Obsewe Floor Nozzle to make sure cleaning solution
is being sprayed evenly from two points. (see
DETAIL "A" )
NOTE: If solution is not being sprayed from both points,
refer to Trouble Shooting Chart.
CLEANING THE CARPET
See Figures 7 & 8
Solution Dispensing Stroke:
1. Start at a corner (recommended).
2. Place Floor Nozzle so Suction Inlets are flush with
carpet.
3. While exerting light pressure down on Floor Nozzle,
depress Solution Release trigger and slowly pull
Floor Nozzle towards you.
NOTE: Do not ovenNet. If three or more cleaning strokes
are required, let dry and then repeat cleaning proc-
ess.
Solution Recovery Stroke:
1. Release Solution Release Trigger.
2. Lift Floor Nozzle off carpet.
3. Return Floor Nozzle to point where you dispensed
cleaning solution and pull across carpet, recovering
dirty solution.
RATIO
RELEASE
TRIGGER
/
DETAIL
_PRAYS OF
SOLUTION
Fig. 6
SLOWLY PULL
TOWARDS YOU
SUCTION INLETS
Fig. 7
LIFT,
SET FORWARD,
PULL BACK ACROSS CARPET
I
Fig. 8
Page 6
OP
WHEN TO EMPTY RECOVERY TANK
See Figure 9
During normal operation, your cleaner may stop recovering
solution from your carpet. When this occurs there are three
check points to alert you:
1. An increase in motor noise.
2. No solution visibly being recovered by the floor nozzle.
3. No air coming from the exhaust port of your cleaner.
When this occurs:
1. The Recovery Tank is full and the Float Valve in the
Recovery Tank has been activated. The Recovery Tank
should be emptied.
or w
2. The Recovery Tank has foam in the Tank and the Float
Valve has been activated.
NOTE: If cleaner is accidently turned over while in operation,
the float may activate and shut off the suction. If this occurs,
set the cleaner upright. Turn Power Switch "OFF" and let
motor come to a complete stop. Then turn switch back on and
continue cleaning.
TO EMPTY RECOVERY TANK
See Figure 10
1. Turn Power Switch "OFF" and Disconnect Power Cord
from Electrical Outlet,
2. Disconnect Short Cord located between Solution Tank and
Recovery Tank.
3. Disconnect Vacuum Hose by depressing the Lock Button
and remove.
4. Push Tab inward on Plastic Coupling and remove Plastic
Insert and Tubing. (See DETAIL "A" )
5. Lift Latches on Power Head.
6. Lift power Head, by Handle, and remove from Recovery
Tank.
7. Rotate Metal Latch on the Solution Tank and lift Recovery
Tank from the Solution Tank.
8. Empty Recovery Tank.
9. Reassemble cleaner and resume cleaning.
ATIO
EXHAUST RECOVERY
PORT TANK
Fig. 9
METAL _CK BUTTON
,ATOH VA o
TA_ TUBING
DETAIL "A"
RECOVERY HEAD
TANK_ HANDLE
S
CORD
LATCH
Fig. 10
SOLUTION
TANK
Page 7
OPERATION
TO, EMPTY THE SOLUTION TANK
See Figure 11
When cleaning is completed, both the Recovery Tank and the
Solution Tank should be emptied prior to storage. Empty the
Recovery Tank as described earlier. There are three methods
of emptying the Solution Tank.
Method 1:
1. Disconnect Pump Cord from Recovery Tank.
2. Remove Recovery Tank from Solution Tank and pour
solution out of the Filler Opening.
Method 2"
1. Place Floor Nozzle in bath tub or container.
2. Depress Solution Release Trigger and spray until empty.
Method 3:
1. Remove Floor Nozzle and insert Wand into Solution Tank
through the Filler Opening.
2. Vacuum solution out.
3. All solution is now in Recovery Tank. Empty Recovery
Tank as described earlier.
METHOD 1
METHOD 2
Fig. 11
METHOD 3
ADDITIONAL U
"DRY" VACUUMING
See Figure 12
KEY PART NO. DESCRIPTION
1 643076-008 Floor/Rug Nozzle
2 642458-004 10" Squeegee
3 660408-001 Cloth Filter Assembly
Included with your cleaner are accessories to convert your
cleaner to perform dry vacuum cleaning.
1. Insert the Cloth Filter into the Recovery Tank.
2. Use the Floor/Rug Nozzle or the Squeegee Nozzle as
desired.
NOTE: You MUST use the Cloth Filter when "dry" cleaning.
NOTE: Squeegee Nozzle is also useful in "pick up" operation
of "wet" cleaning.
USE AS A BLOWER
See Figure 13
1. Insert Hose into the Exhaust Port of the Power Head.
2. Turn Power Switch "ON" and direct hose to area to be
blown.
Fi#. 12
EXHAUST
PORT
Fig. 13
Page 8
OPTIO AL CLEAN ACCESSORIES
Optional cleaning accessories may be purchased or ordered through your nearest Sears store. A complete set of instructions
comes with each attachment set.
UPHOLSTERY NOZZLE
Model No. =081452
See Figure 14
The KenmoreUpholstery Nozzle is an optional attachment for
furniture upholstery cleaning. The upholstery nozzle may also
be used to clean auto upholstery or carpeting. In addition, the
nozzle may also be used to clean carpeted stairs and other
areas difficult to clean with the normal floor nozzle.
KENMORE SPRAYMATE POWER
NOZZLE
Model No. =°81252
See Figure 15
The Kenmore Spraymate is an optional attachment for carpet
cleaning. The Spraymate has a motorized beater brush which
is especially good to scrub difficult to clean areas of heavy
traffic.
Fig. 14
Fig.15
Page 9
T
PROBLEM
OU LE SHOOTI G CHART
POSSIBLE SOLUTIONS*
1. Neither vacuum motor nor pump
motor runs.
2. Vacuum motor runs, but there is no
spray at the nozzle.
.
.
Spray from the floor nozzle comes
out of one side of the nozzle only.
Motor runs but cleanerdoes not pick
up solution from carpet (no exhaust
from top of cleaner).
5. Spray connections leak.
1. Be sure power switch is in "ON" position.
2. Be sure power cord is plugged in securely.
3. Check wall electrical outlet (by plugging in a known
working electrical appliance).
1. Be sure Electrical Cord from Power Head to Solution
Tank is securely plugged into receptacle on the Power
Head.
2. Check that Solution Tank is full.
3. Be sure Pump Switch is in the "HI" or "LO" position.
4. Nozzle Ports may be clogged. See illustration below to
unclog.
1. Unclog the Nozzle Port. See illustration below.
o
2.
o
Recovery Tank is full of dirty water and must be emptied.
Check for clogged hose or nozzle. Clogs could result from
picking up material such as carpet strings, shoe laces,
etc.
Disassemble nut at leaking connection. Be sure washer
is properly seated. Reassemble and tighten securely.
* Ifthe "Possible Solutions" to "Problems" listed in the chart do not correct the problem, take your cleaner to a Sears
Service Center for professional serice. Repairs not listed in this chart require professional and specific
knowledge of this model cleaner and could result in safety hazards and personal injury if not made by a
qualified Sears Service Technician.
TO UNCLOG NOZZLE PORT
See Figure 16.
1. Remove Access Screws
2. Clean out ports (2) with a small pin.
3. Reassemble.
NOTE: Do not let pin point touch any part of
the spray pad surface or spray pad will not
spray solution properly.
ACCESS SCREWS
SPRAY PAD SURFACE
Fig. 16
SMALL PIN
SPRAY PAD
SURFACE
Page 10
SEARS HOME CLEANING SYSTEM --MODEL 175.8579280
!
SEE PAGE 14 FOR
EXPLODED VIEW
SEE PAGE 12 FOR
EXPLODED VIEW
Page 11
SEARS HOME CLEANING SYSTEM -- MODEL 175.8579280
6
9
46
33
Page 12
SEARS HOME CLEANING SYSTEM -- MODEL 175.8579280
KEY PART NO. DESCRIPTION
1644147-003 Handle Plate
2 642337-002 Handle Screws (2)
3 642338-042 Handle Shroud w/Label
4 642315-011 Switch Cap
5 641798-003 Motor Housing Screws (2)
6 643492-005 Female Pigtail
7 642149-001 Wiring Nut
8 643509-001 Switch
9 641843-013 Power Cord
10 642367-006 Motor Seal
11 644548-004 Motor Cover
12 642367-004 Motor Seal
13 643909-902 Carbon Brush Asm.
14 642367-004 Motor Seal
15 642406-019 Motor Asm. Complete
16 641857-010 Latch (2)
17 641866-036 Cover Asm. w/# 19, 20, 21,22
18 642409-002 Cover Screws (4)
19 643584-000 Foam Filter
20 642405-001 Valve Asm. w/#21,22
21 643579-002 Valve Screws (2)
22 642313-000 Sensor Guard
23 642713-001 Pump Switch Cap
24 642447-000 Baffle
25 642409-002 Baffle Screws (2)
26 644846-001 Two Speed Switch - Pump w/Swithch Cap
27 642470-006 Rivet
28 640218-005 Wave Washer
29 706382-319 Washer (2)
30 642339-049 Separator Plate w/Key #8
31 644773-010 Coupling Body
32 640145-005 Separator Plate Screws (2)
33 643565-013 Upper Container w/Filler Door
34 643561-000 Retaining Ring
35 644802-001 Ground Lead Screw
36 642392-003 Lead w/terminal
37 643562-005 Tubing Asm. w/#39, 34
38 643535-001 Valve Seat Screws (2)
39 643438-005 Valve Seat
40 643536-000 Gasket
41 643566-013 Lower Container
42 643531-007 Pigtail
43 643533-002 Lower Container Screws (3)
44 888493-304 Strain Relief
45 643685-001 Motor Screws (2)
46 642046-014 Dirt Container w/Baffle and Screws
47 989629-002 Latch Screw
48 660081-002 Latch
49 640940-001 Spacer
50 643431-008 Filler Door
51 643454-003 Washers (3)
52 643583-000 Foam Filter
53 643685-001 Motor Screws (4)
54 661393-001 Casters (3)
55 643171-003 "O" Ring Gasket
56 644089-012 Pump Motor
Page 13
SEARS HOME CLEANING SYSTEM -- MODEL 175,8579280
22 21 20 19 18 17
16 15 14
12 13
"_=---10
_28
Page 14
SEARS HOME CLEANING SYSTEM -- MODEL 175.8579280
KEY PART NO. DESCRIPTION
1 644153-008 Angled Wand
2 644152-004 Trigger
3 644037-003 Ferrule Nut
4 644156-005 Swivel Connector 1 - 1/4" dia.
5 643731-007 Tubing Strap
6 644038-003 Tubing - Hose
7 644773-005 Coupling Insert Nut
8 644773-009 Coupling Insert
9 644157-005 Swivel Connector 2 - 1/2 "dia.
10 643570-019 Hose and Angled Wand Asm.
11 644163-007 8' Hose
12 644037-003 Ferrule Nut
13 644038-001 Tubing - to Nozzle
14 643572-006 Valve Asm. Kit w/trigger
15 644162-003 Nut
16 643446-000 Neoprene Washer
17 643171-002 "O" Ring
18 644151-003 Sleeve
19 643444-000 Sprirlg Valve
20 643445-000 Washer - Stainless Steel
21 643171-002 "O" Ring
22 644830-003 Lock Button
23 643186-018 Straight Wands (2)
24 644037-003 Ferrule Nut
25 640145-007 Screw (2)
26 643454-002 Neoprene Washer
27 643526-002 Screw (2)
28 643571-009 Nozzle Asm. Complete w/Key # 12,13, 15, 16
660850-172 Owner's Manual
Page 15

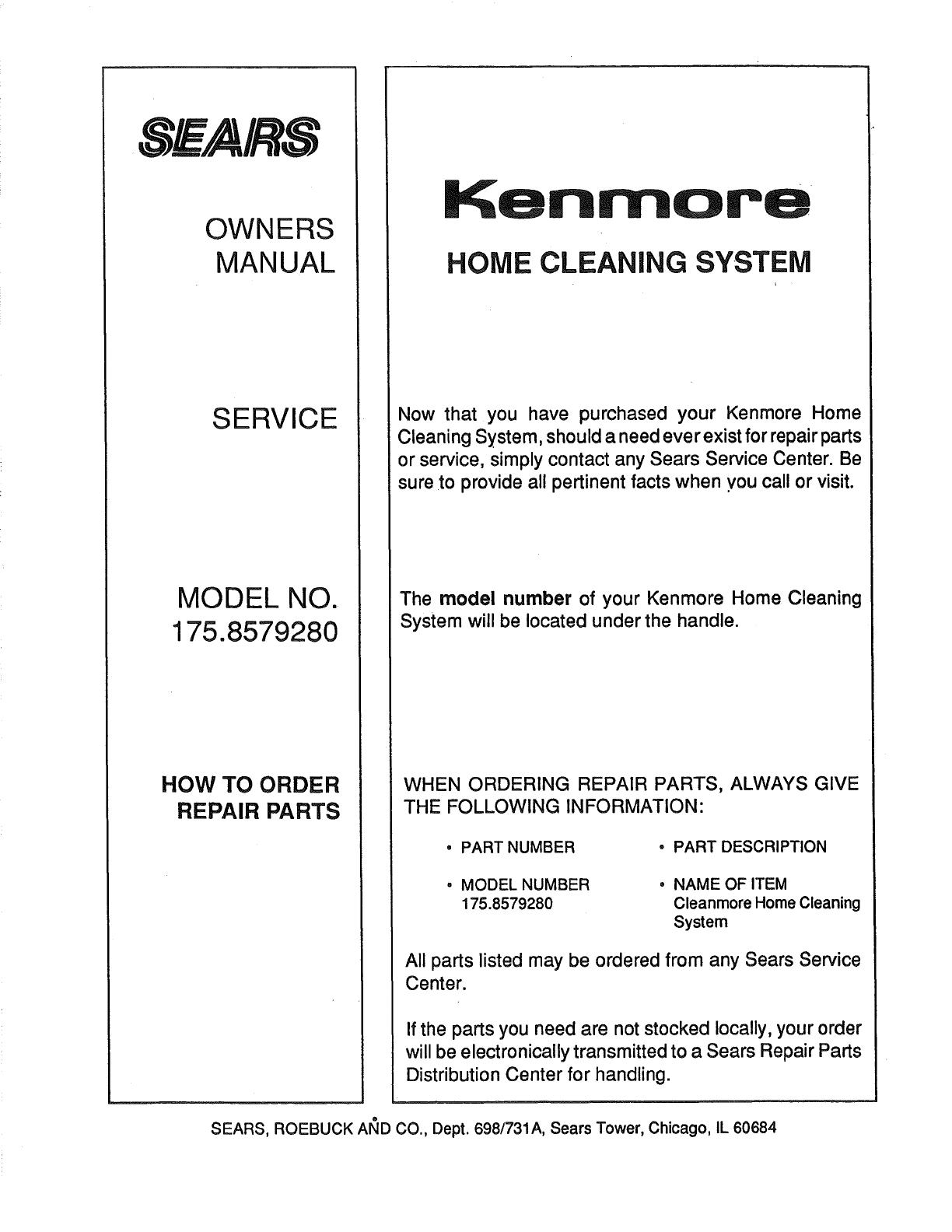

SEARS
OWNERS
MANUAL
SERVICE
MODEL NO.
175.8579280
HOW TO ORDER
REPAIR PARTS
K nfnor
HOME CLEANING SYSTEM
Now that you have purchased your Kenmore Home
Cleaning System, should aneed ever exist for repair parts
or service, simply contact any Sears Service Center. Be
sure to provide all pertinent facts when you call or visit.
The model number of your Kenmore Home Cleaning
System will be located under the handle.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE
THE FOLLOWING INFORMATION:
. PART NUMBER • PART DESCRIPTION
• MODEL NUMBER
175.8579280
°NAME OF ITEM
Cleanmore Home Cleaning
System
All parts listed may be ordered from any Sears Service
Center.
If the parts you need are not stocked locally, your order
will be electronically transmitted to a Sears Repair Parts
Distribution Center for handling.
SEARS, ROEBUCK AnD CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684

Navigation menu
