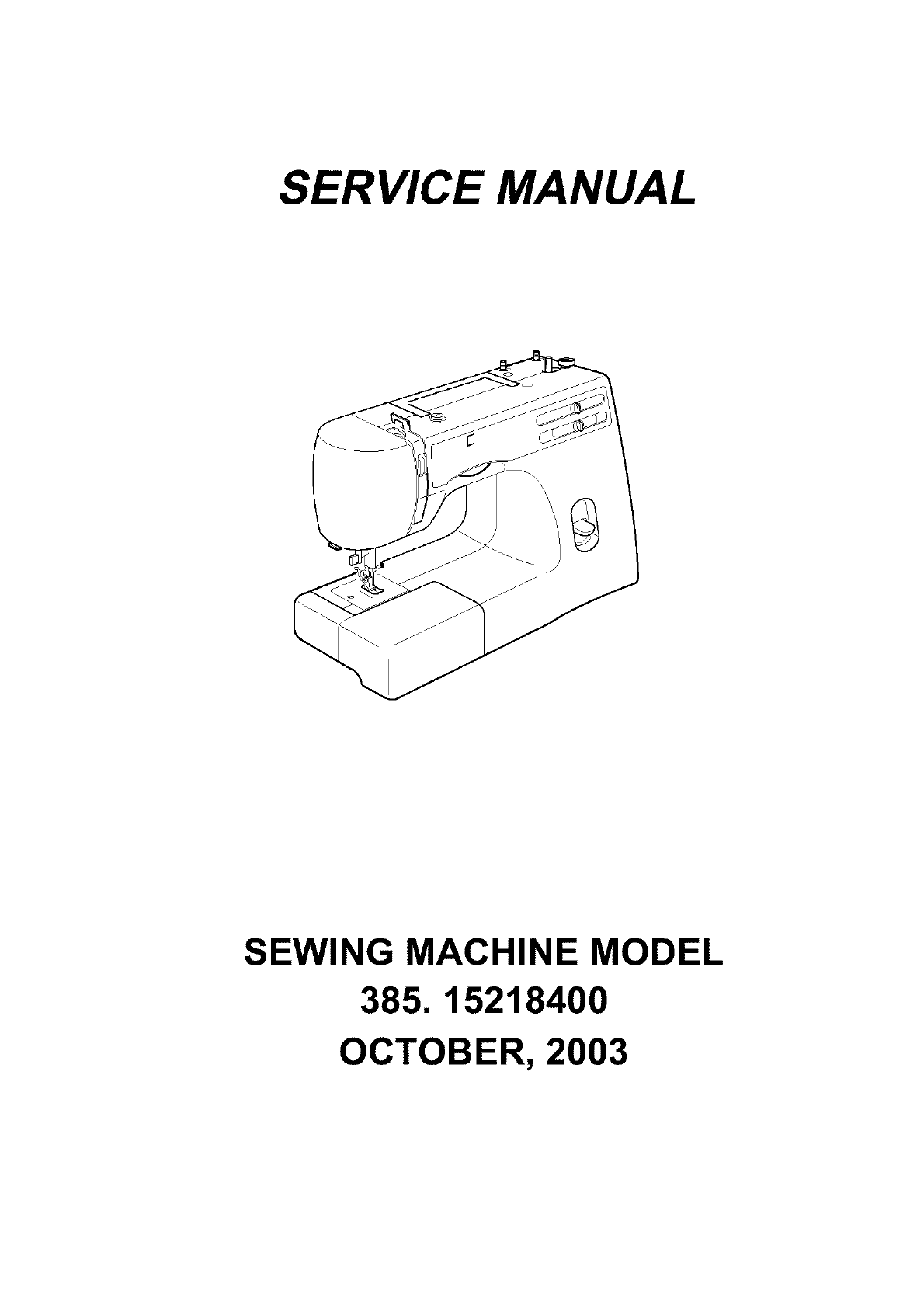

SERVICE MANUAL

SEWING MACHINE MODEL

385. 15218400

OCTOBER, 2003

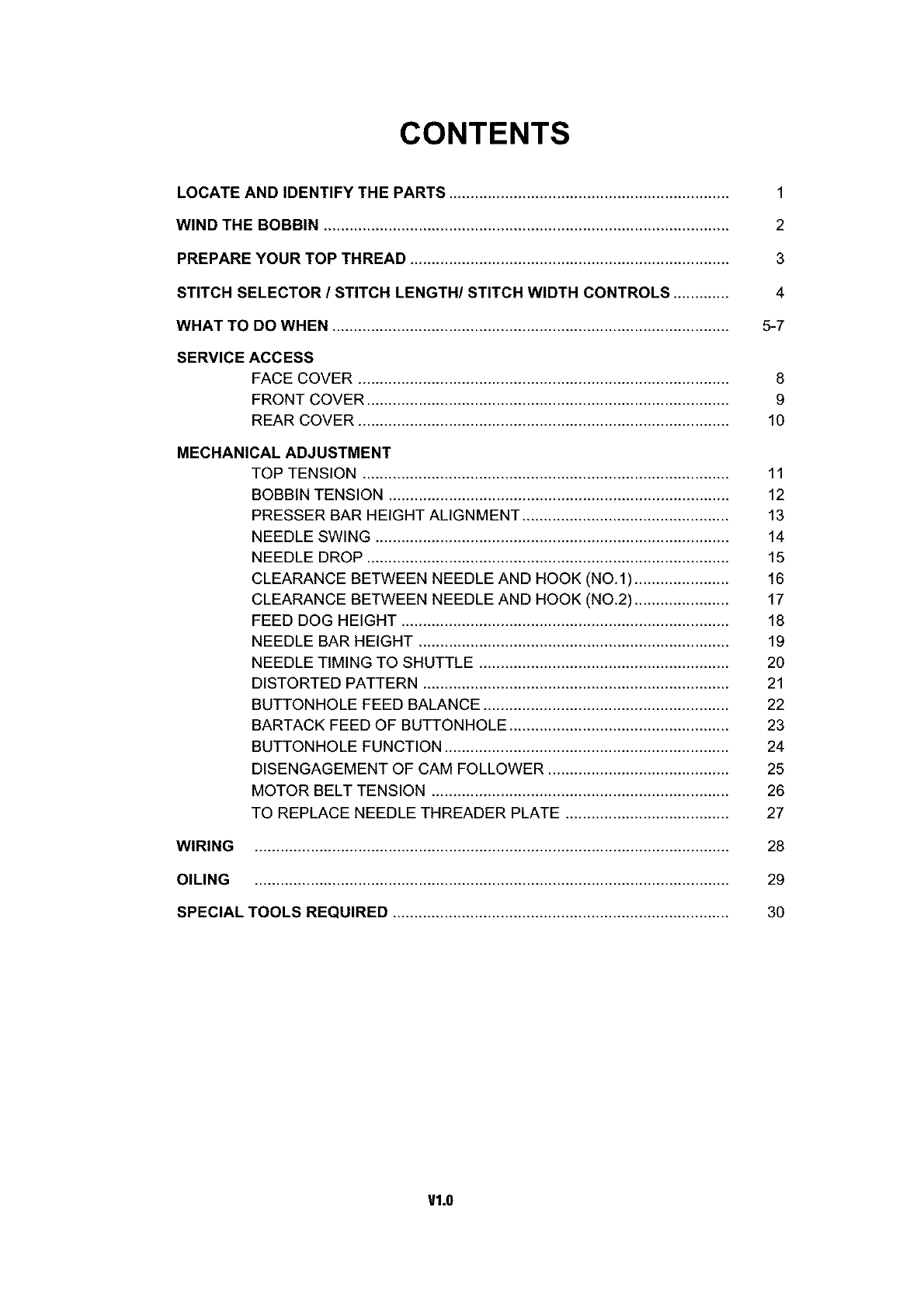

CONTENTS

LOCATE AND IDENTIFY THE PARTS .................................................................

WIND THE BOBBIN ..............................................................................................

PREPARE YOUR TOP THREAD ..........................................................................

STITCH SELECTOR /STITCH LENGTH/STITCH WIDTH CONTROLS .............

WHAT TO DO WHEN ............................................................................................

SERVICEACCESS

FACECOVER ......................................................................................

FRONT COVER ....................................................................................

REAR COVER ......................................................................................

MECHANICAL ADJUSTMENT

TOP TENSION .....................................................................................

BOBBIN TENSION ...............................................................................

PRESSER BAR HEIGHT ALIGNMENT ................................................

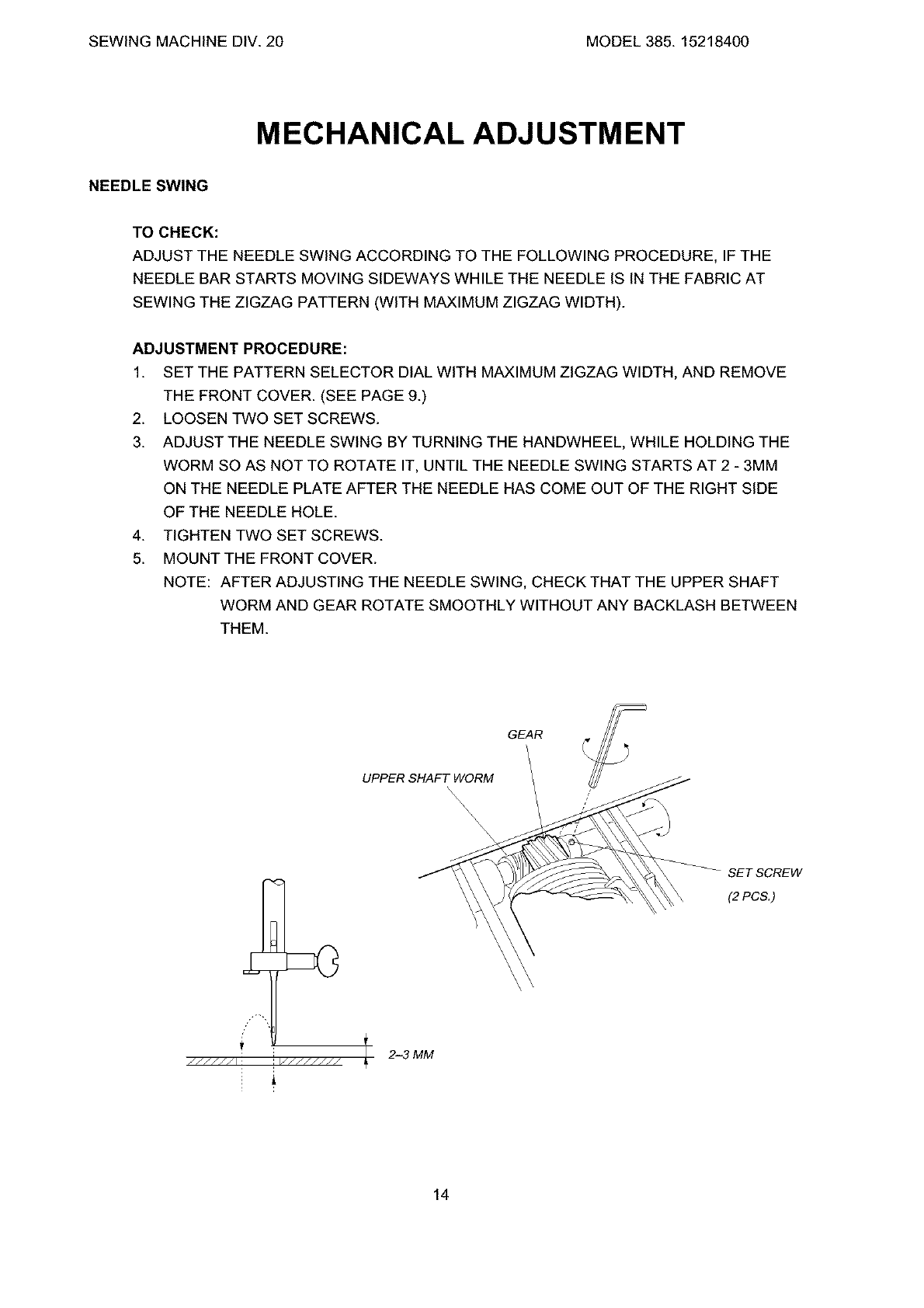

NEEDLE SWING ..................................................................................

NEEDLE DROP ....................................................................................

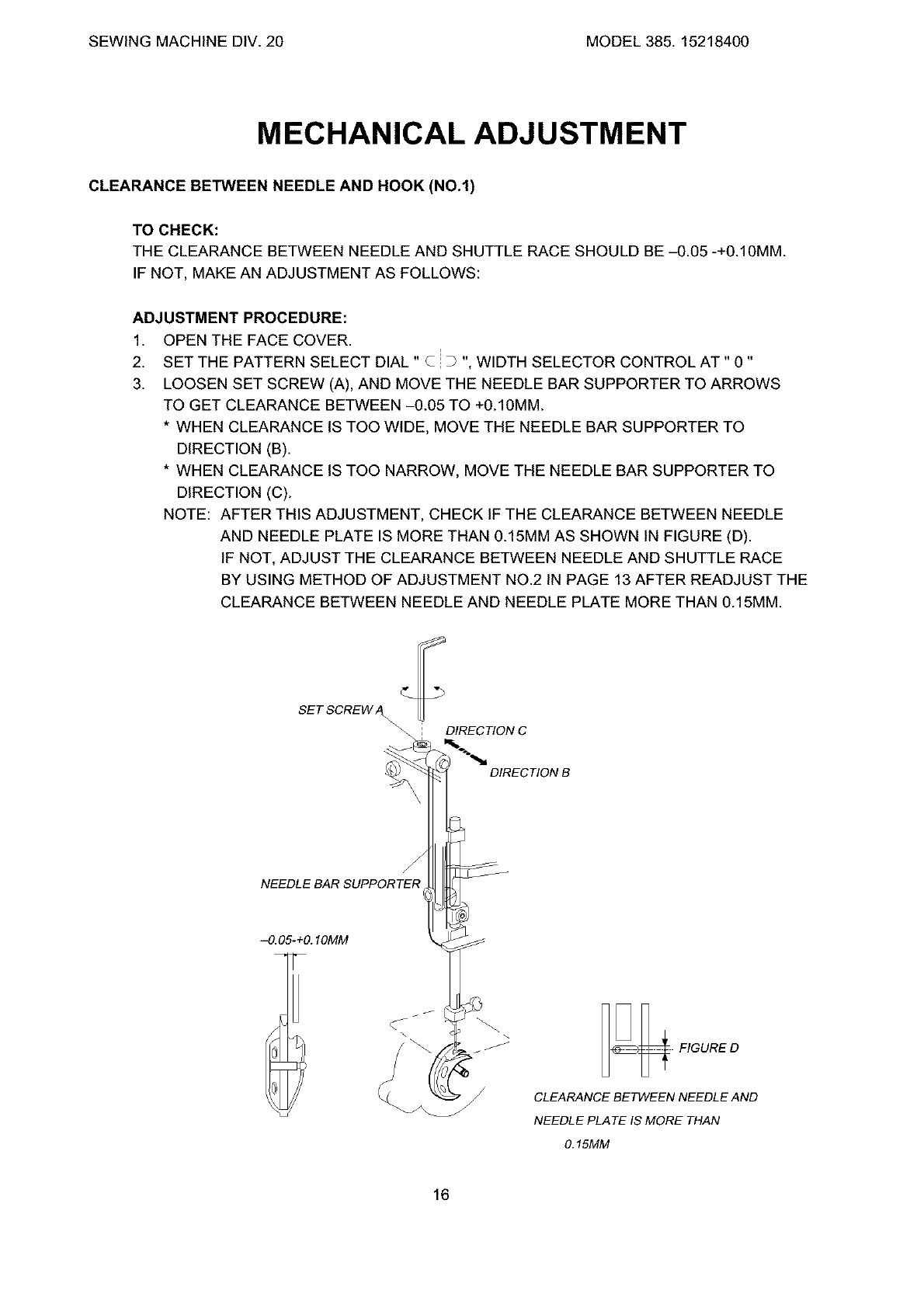

CLEARANCE BETWEEN NEEDLE AND HOOK (NO.l) ......................

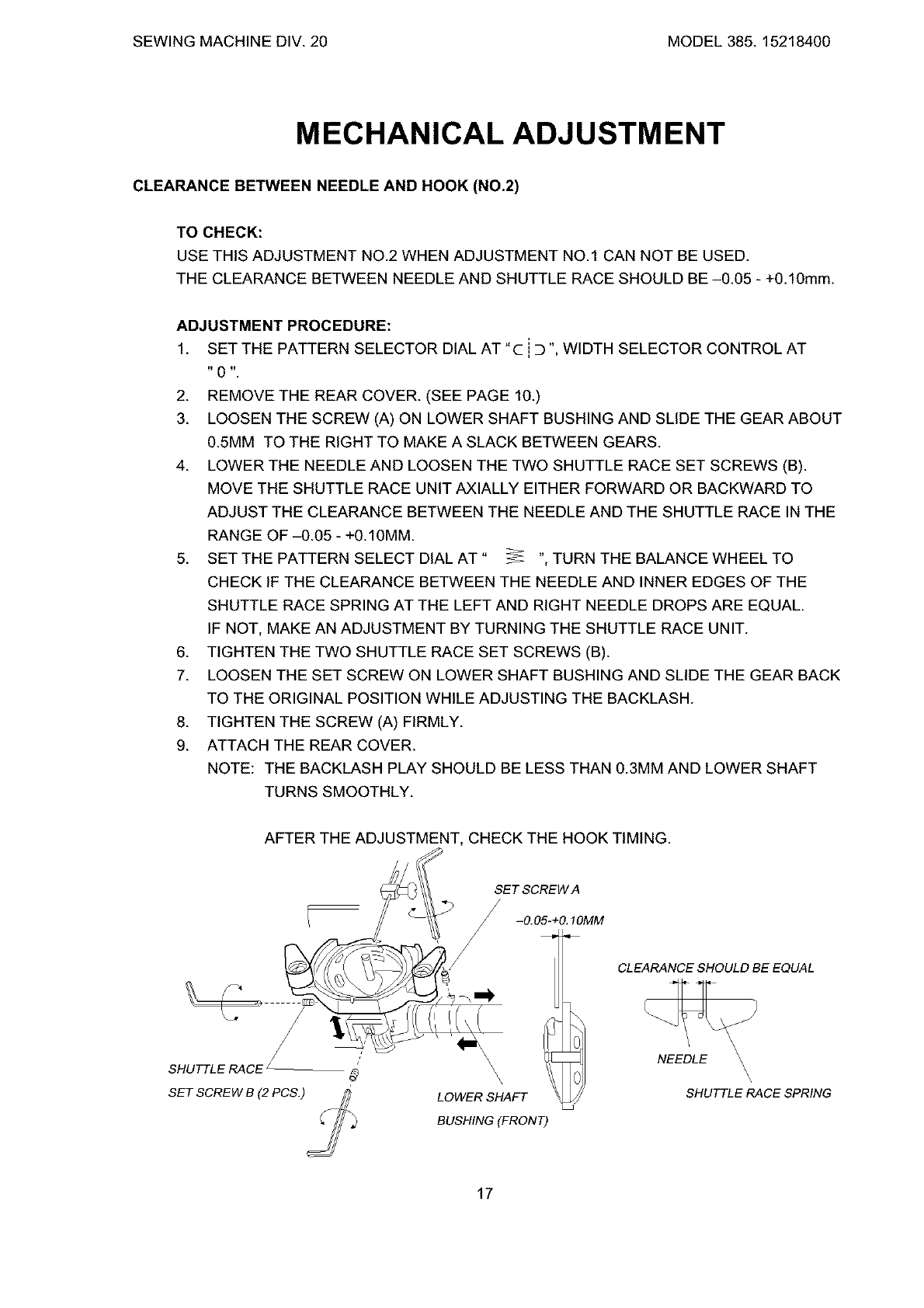

CLEARANCE BETWEEN NEEDLE AND HOOK (NO.2) ......................

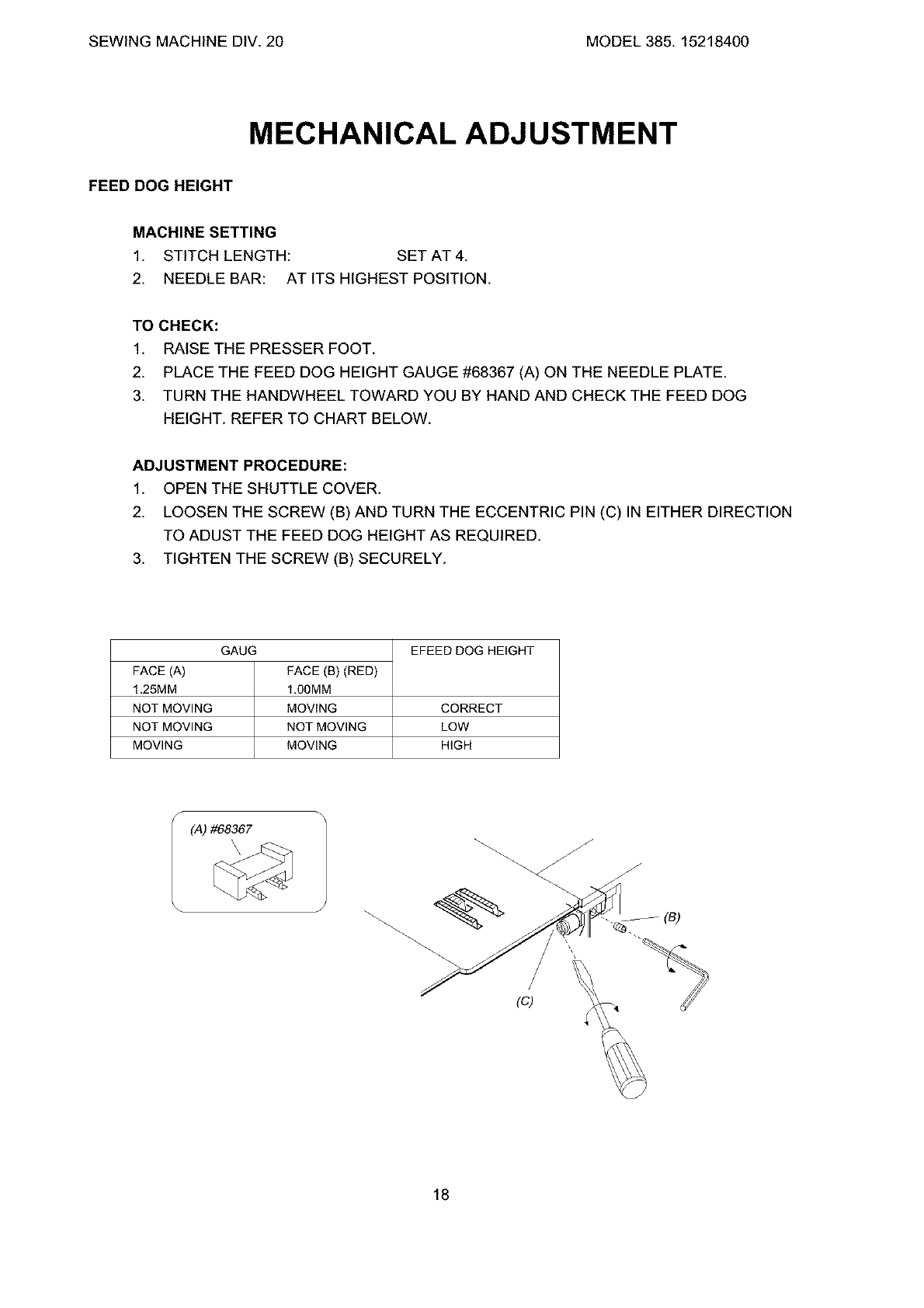

FEED DOG HEIGHT ............................................................................

NEEDLE BAR HEIGHT ........................................................................

NEEDLE TIMING TO SHUTTLE ..........................................................

DISTORTED PATTERN .......................................................................

BUTTONHOLE FEED BALANCE .........................................................

BARTACK FEED OF BUTTONHOLE ...................................................

BUTTONHOLE FUNCTION ..................................................................

DISENGAGEMENT OF CAM FOLLOWER ..........................................

MOTOR BELT TENSION .....................................................................

TO REPLACE NEEDLE THREADER PLATE ......................................

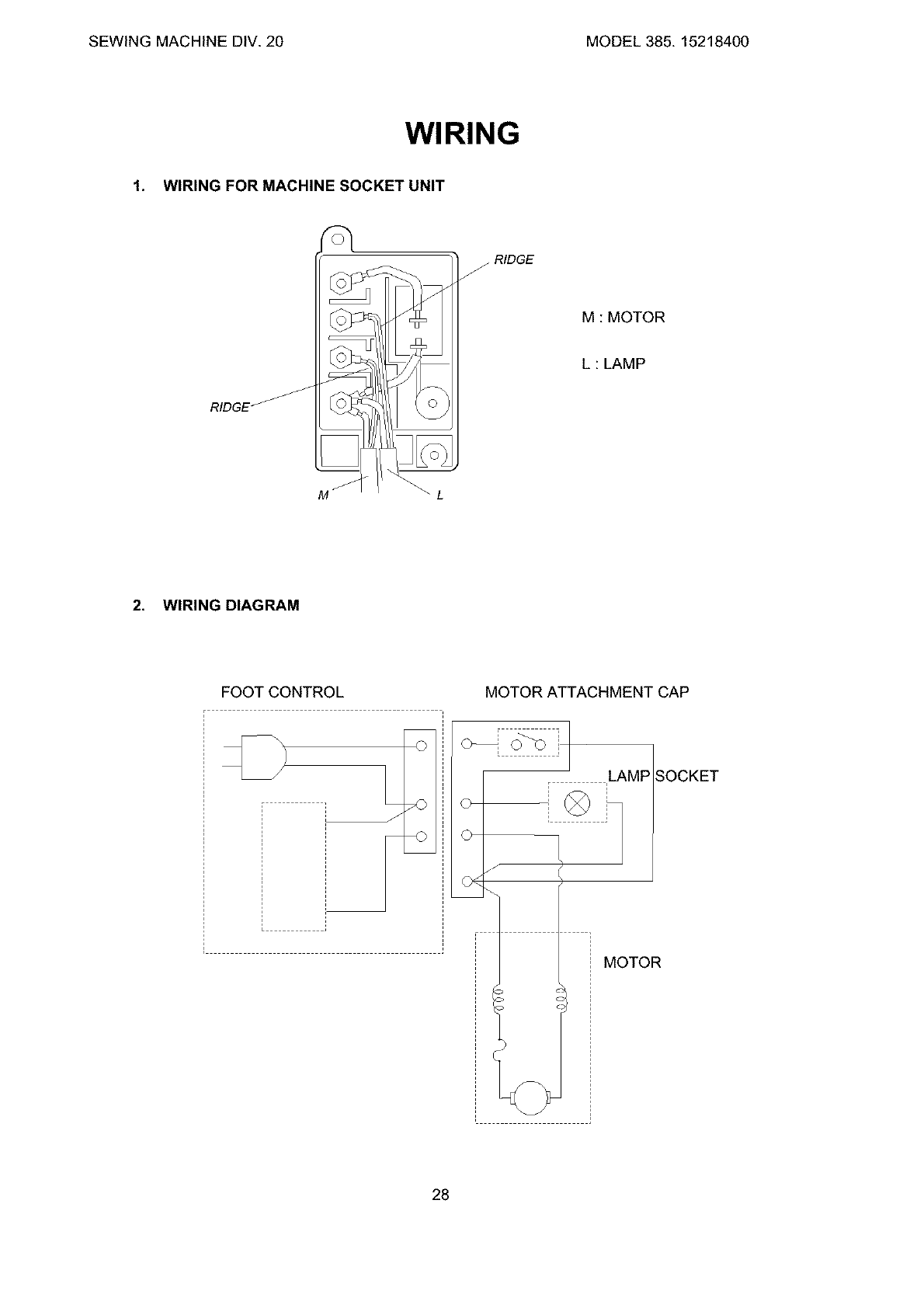

WIRING ..............................................................................................................

OILING ..............................................................................................................

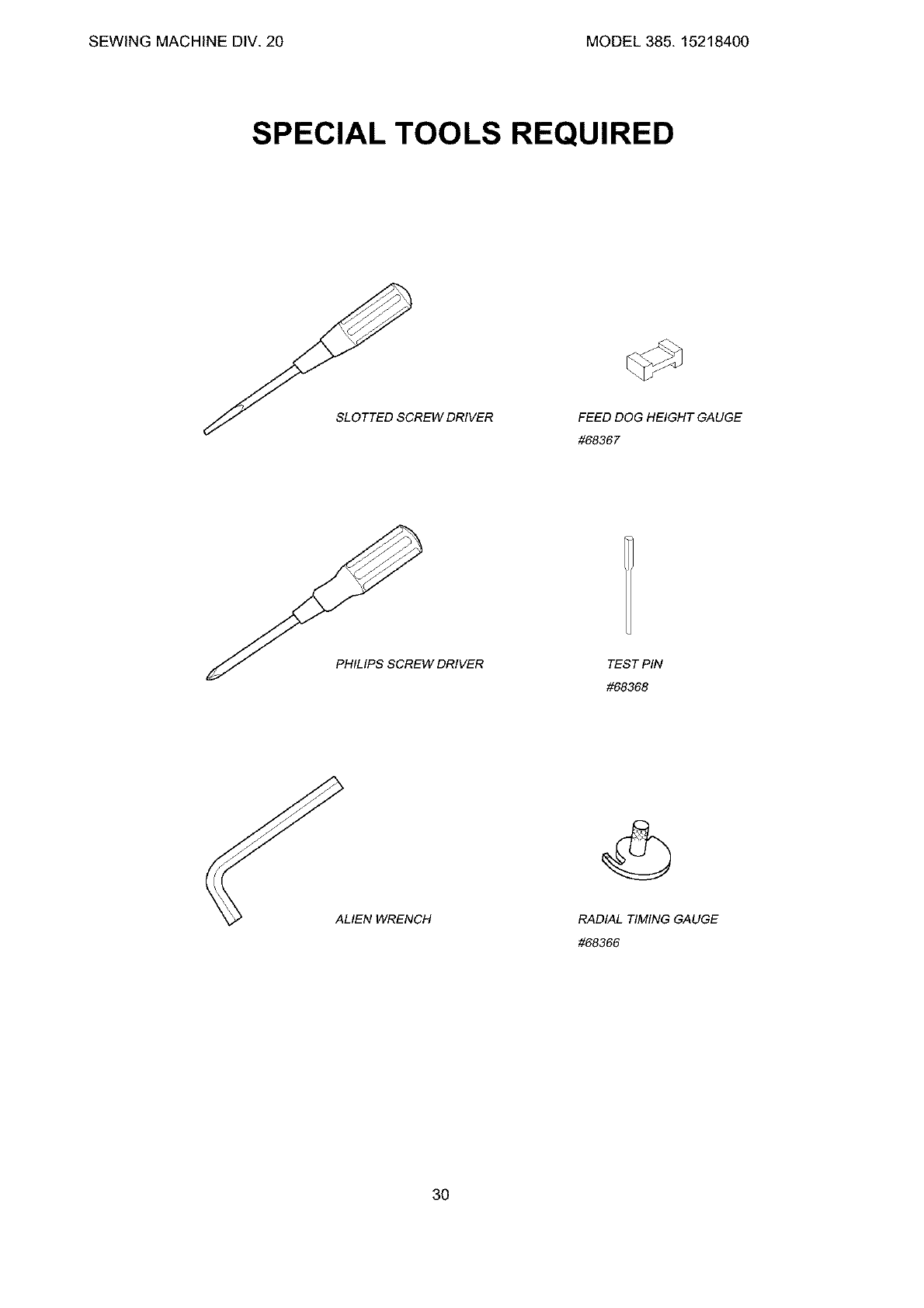

SPECIAL TOOLS REQUIRED ..............................................................................

5-7

Vl.0

SEWING MACHINE DIV.20 MODEL 385. 15218400

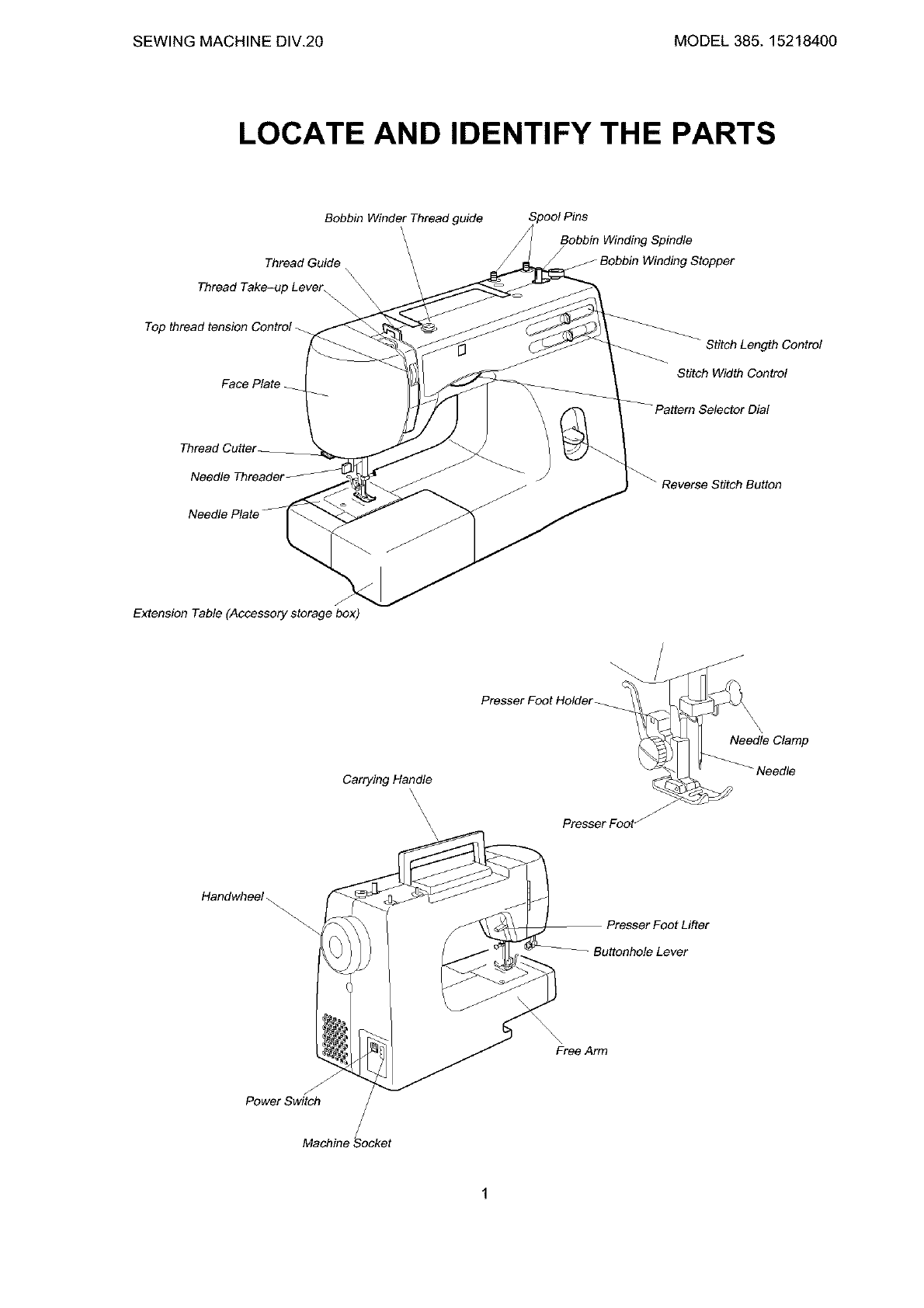

LOCATE AND IDENTIFY THE PARTS

Bobbin Winder Thread guide

Thread Guide

Thread Take-up Lever.

Spool Pins

Bobbin Winding Spindle

JBobbin Winding Stopper

Top thread tension Control _.

Face Plate

Stitch Length Control

Stitch Width Control

_rDial

Thread Cutter__

Needle Threader

Extension Table (Accessory storage box)

Presser Foot Holder_

Carrying Handle

\\\\\

Presser Footj

Needle Clamp

Needle

Handwheel \

Buttonhole Lever

Power Switch /

Machine _ocket

Free Arm

SEWING MACHINE DIV.20 MODEL 385. 15218400

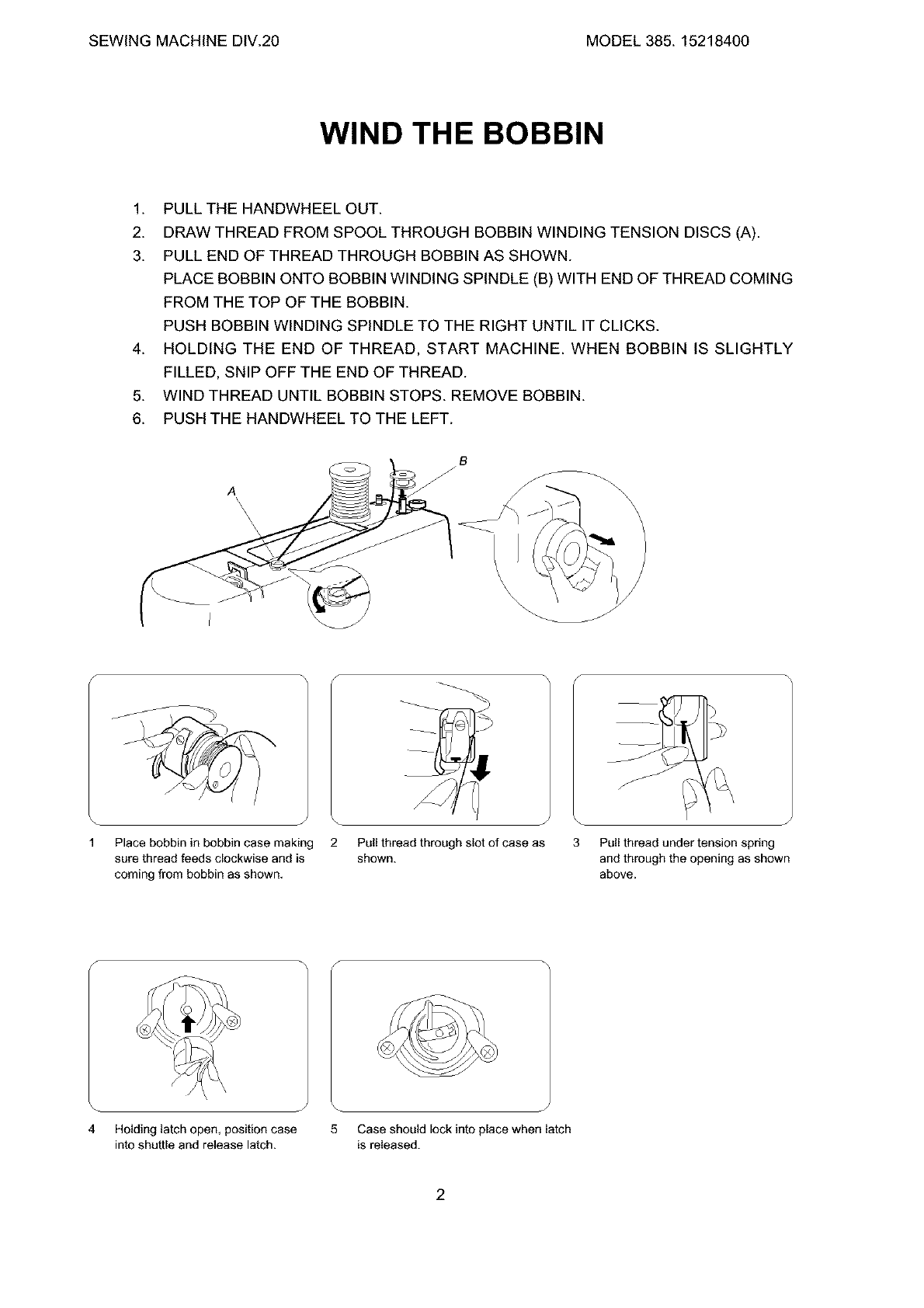

WIND THE BOBBIN

1. PULL THE HANDWHEEL OUT.

2. DRAW THREAD FROM SPOOL THROUGH BOBBIN WINDING TENSION DISCS (A).

3. PULL END OF THREAD THROUGH BOBBIN AS SHOWN.

PLACE BOBBIN ONTO BOBBIN WINDING SPINDLE (B) WITH END OF THREAD COMING

FROM THE TOP OF THE BOBBIN.

PUSH BOBBIN WINDING SPINDLE TO THE RIGHT UNTIL IT CLICKS.

4. HOLDING THE END OF THREAD, START MACHINE. WHEN BOBBIN IS SLIGHTLY

FILLED, SNIP OFF THE END OF THREAD.

5. WIND THREAD UNTIL BOBBIN STOPS. REMOVE BOBBIN.

6. PUSH THE HANDWHEEL TO THE LEFT.

A, \\\\\

Place bobbin in bobbin case making 2

sure thread feeds clockwise and is

coming from bobbin as shown.

Pull thread through slot of case as

shown.

' S

3 Pull thread under tension spring

and through the opening as shown

above.

Holding latch open, position case

into shuttle and release latch.

5 Case should lock into place when latch

is released.

SEWINGMACHINEDIV.20 MODEL385.15218400

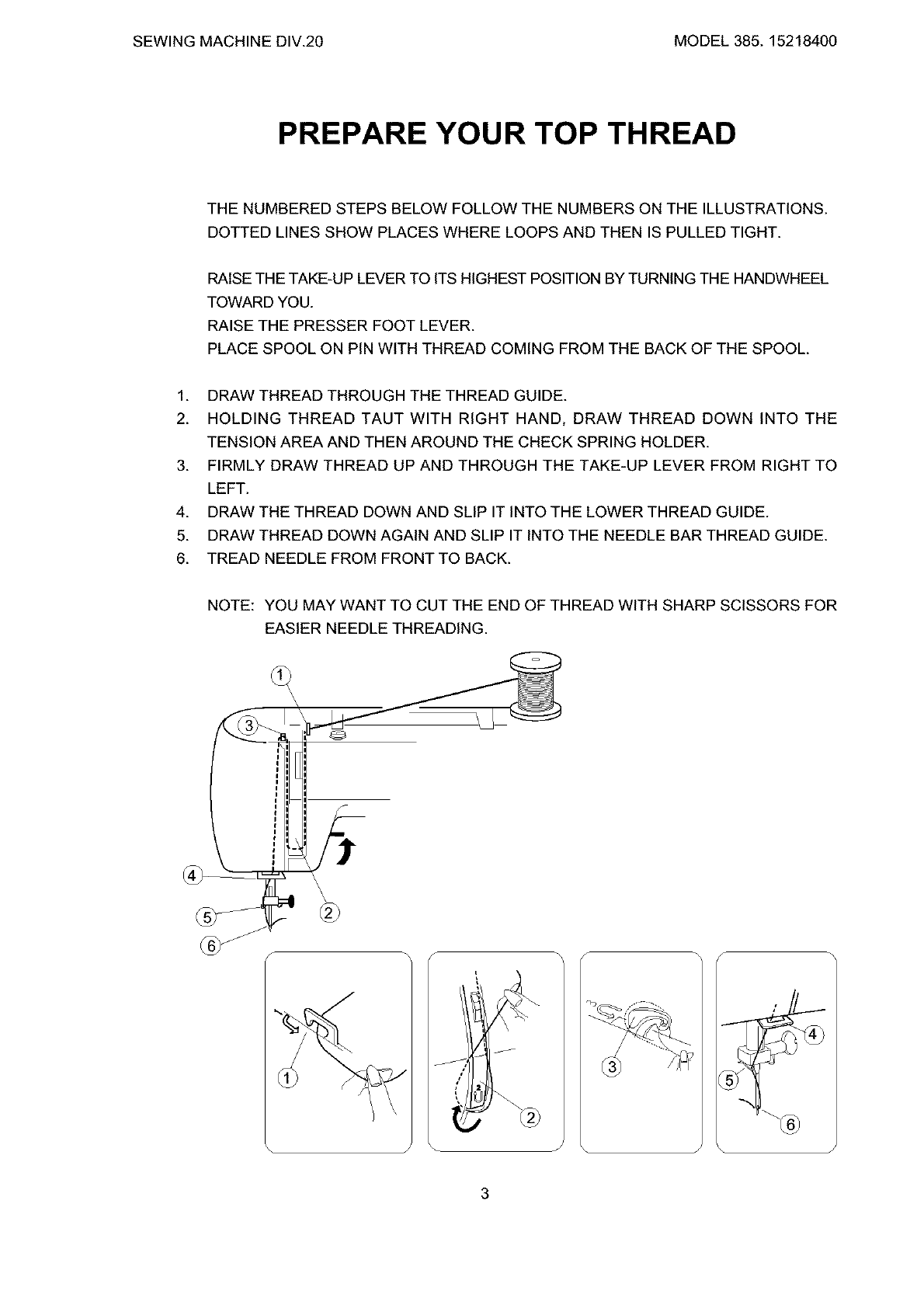

PREPARE YOUR TOP THREAD

THE NUMBERED STEPS BELOW FOLLOW THE NUMBERS ON THE ILLUSTRATIONS.

DOTTED LINES SHOW PLACES WHERE LOOPS AND THEN IS PULLED TIGHT.

RAISE THE TAKE-UP LEVER TO ITS HIGHEST POSITION BY TURNING THE HANDWHEEL

TOWARD YOU.

RAISE THE PRESSER FOOT LEVER.

PLACE SPOOL ON PIN WITH THREAD COMING FROM THE BACK OF THE SPOOL.

1. DRAW THREAD THROUGH THE THREAD GUIDE.

2. HOLDING THREAD TAUT WITH RIGHT HAND, DRAW THREAD DOWN INTO THE

TENSION AREA AND THEN AROUND THE CHECK SPRING HOLDER.

3. FIRMLY DRAW THREAD UP AND THROUGH THE TAKE-UP LEVER FROM RIGHT TO

LEFT.

4. DRAW THE THREAD DOWN AND SLIP IT INTO THE LOWER THREAD GUIDE.

5. DRAW THREAD DOWN AGAIN AND SLIP IT INTO THE NEEDLE BAR THREAD GUIDE.

6. TREAD NEEDLE FROM FRONT TO BACK.

NOTE: YOU MAY WANT TO CUT THE END OF THREAD WITH SHARP SCISSORS FOR

EASIER NEEDLE THREADING.

SEWING MACHINE DIV.20 MODEL 385. 15218400

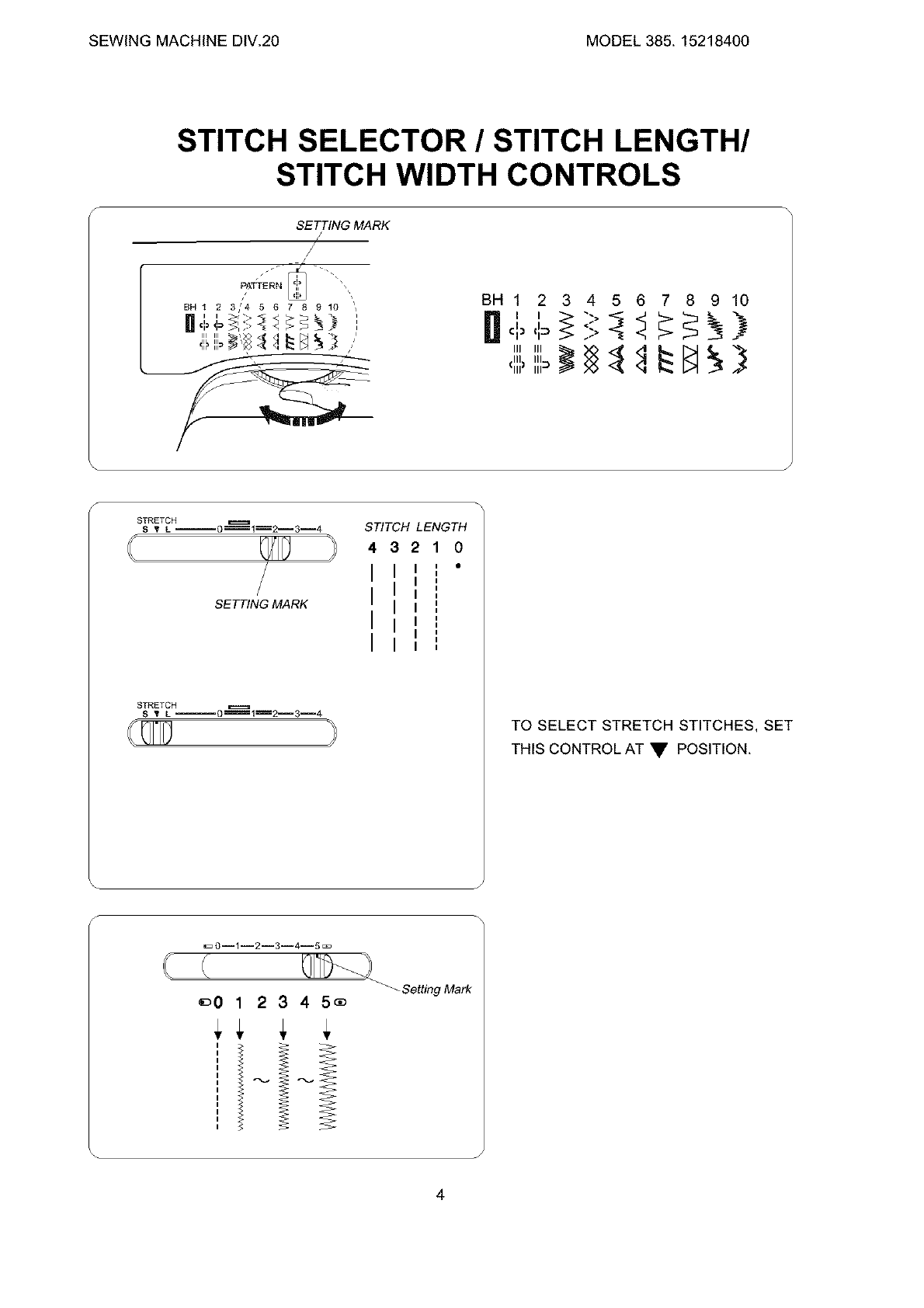

STITCH SELECTOR /STITCH LENGTH/

STITCH WIDTH CONTROLS

SETTING MARK

PATTERN_'_ _ "

i I

BH t 3/4 5 6 7 8 9 10 '_ BH12345678910

STRETCH _=_

8V L 10_1_2_3--4

SETTING MARK

S_TCH LENGTH

420

STRETCH _=_

S V L10_1_2_314 TO SELECT STRETCH STITCHES, SET

THIS CONTROLATVPOSITION.

_0--1--2--3--4--5_

_0 1 2345_ _Setting Mark

SEWINGMACHINEDIV.20 MODEL385.15218400

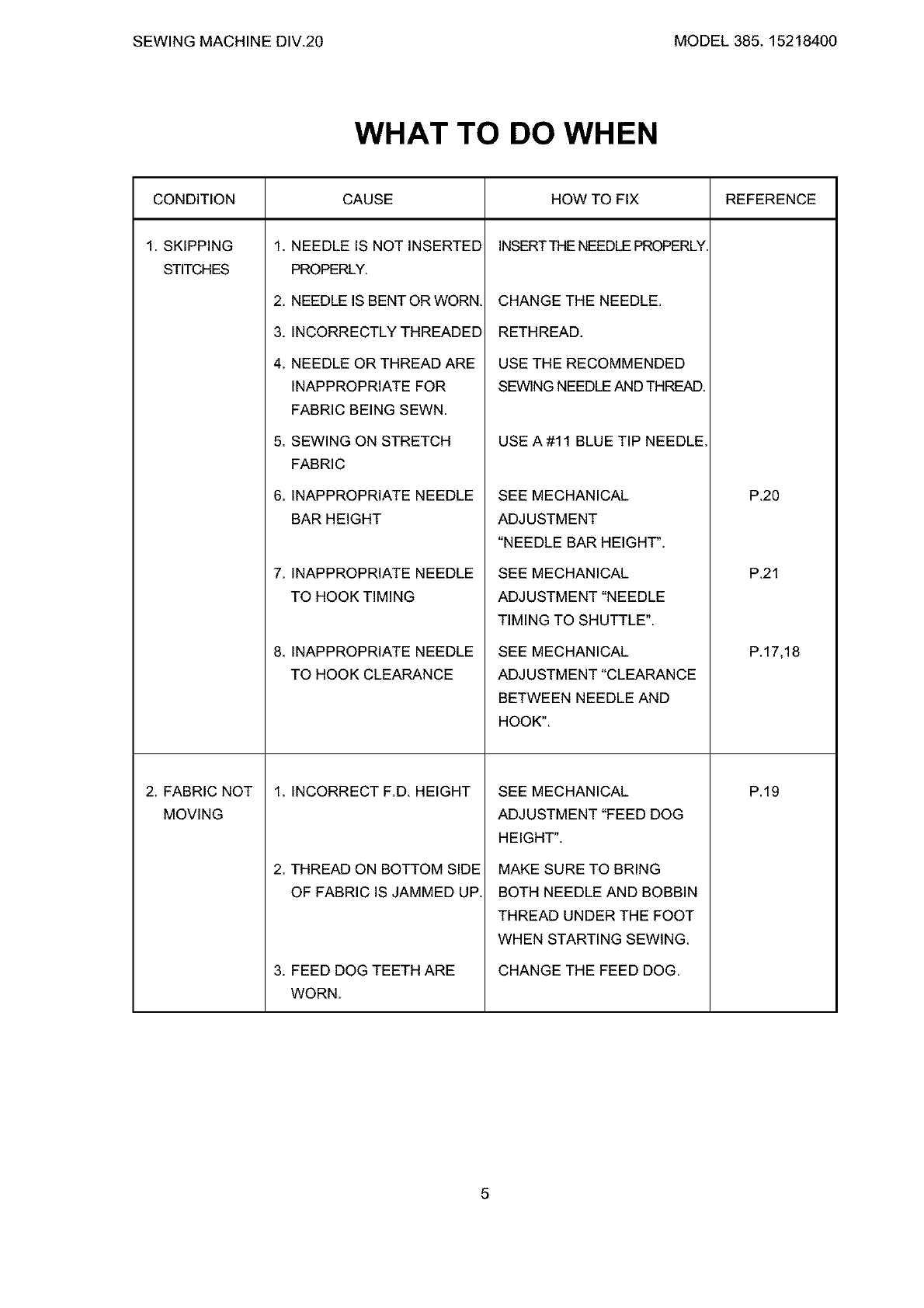

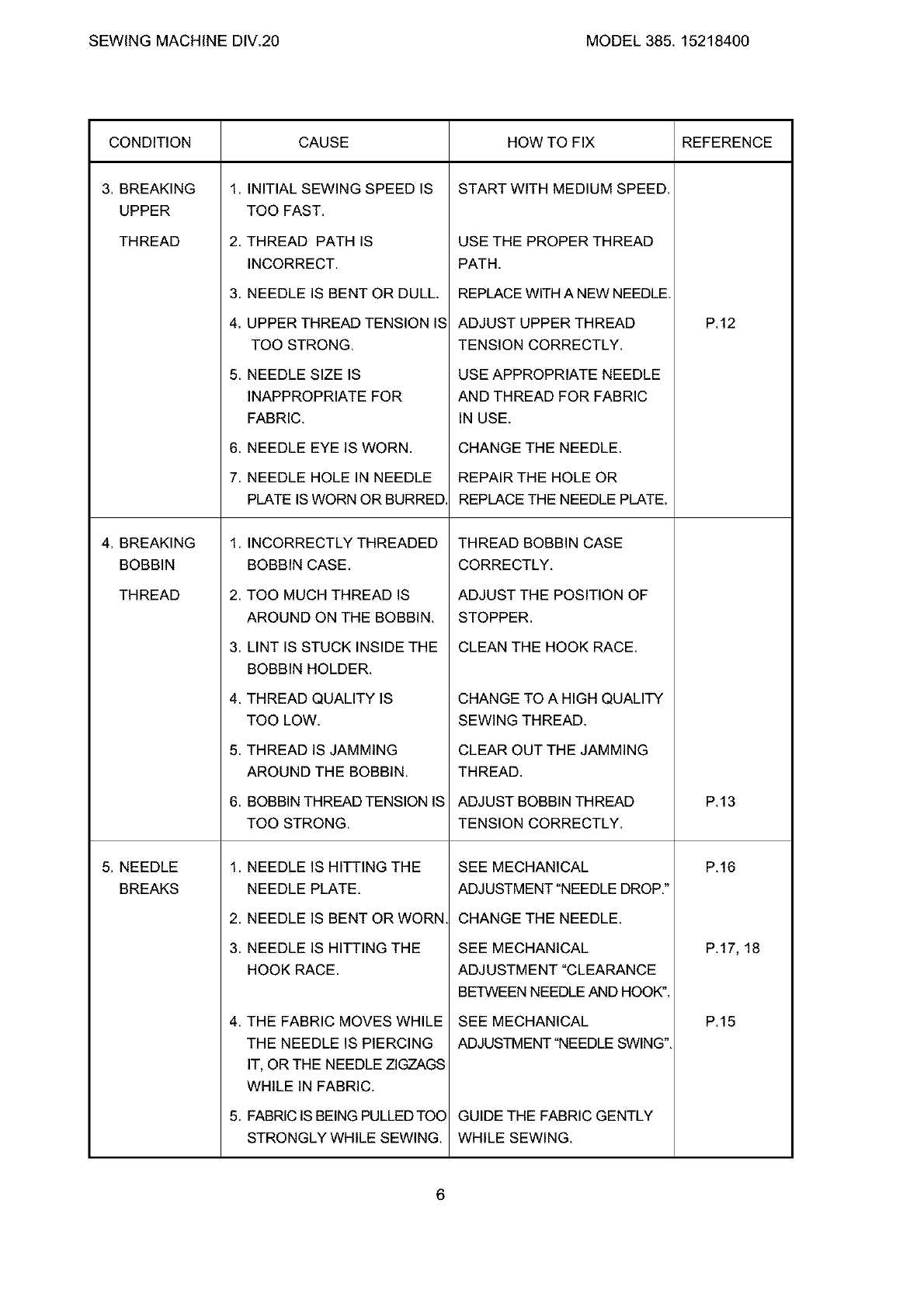

WHAT TO DO WHEN

CONDITION CAUSE HOW TO FIX REFERENCE

1. SKIPPING

STITCHES

2. FABRIC NOT

MOVING

1. NEEDLE IS NOT INSERTED

PROPERLY.

2. NEEDLE IS BENT OR WORN.

3. INCORRECTLY THREADED

4. NEEDLE OR THREAD ARE

INAPPROPRIATE FOR

FABRIC BEING SEWN.

5. SEWING ON STRETCH

FABRIC

6. INAPPROPRIATE NEEDLE

BAR HEIGHT

7. INAPPROPRIATE NEEDLE

TO HOOK TIMING

8. INAPPROPRIATE NEEDLE

TO HOOK CLEARANCE

1. INCORRECT F.D. HEIGHT

2. THREAD ON BOTTOM SIDE

OF FABRIC IS JAMMED UP.

3. FEED DOG TEETH ARE

WORN,

INSERT THE NEEDLE PROPERLY.

CHANGE THE NEEDLE,

RETHREAD.

USE THE RECOMMENDED

SEWING NEEDLE AND THREAD.

USE A#11 BLUE TIP NEEDLE,

SEE MECHANICAL

ADJUSTMENT

"NEEDLE BAR HEIGHT".

SEE MECHANICAL

ADJUSTMENT "NEEDLE

TIMING TO SHUTTLE".

SEE MECHANICAL

ADJUSTMENT"CLEARANCE

BETWEEN NEEDLE AND

HOOK".

SEE MECHANICAL

ADJUSTMENT "FEED DOG

HEIGHT".

MAKE SURE TO BRING

BOTH NEEDLE AND BOBBIN

THREAD UNDER THE FOOT

WHEN STARTING SEWING.

CHANGE THE FEED DOG.

P.20

P.21

P.17,18

P.19

SEWING MACHINE DIV.20 MODEL 385. 15218400

CONDITION

&BREAKING

UPPER

THREAD

4. BREAKING

BOBBIN

THREAD

5. NEEDLE

BREAKS

CAUSE REFERENCE

1. INITIAL SEWING SPEED IS

TOO FAST.

2. THREAD PATH IS

INCORRECT.

3. NEEDLE IS BENT OR DULL,

4. UPPER THREAD TENSION IS

TOO STRONG.

5. NEEDLE SIZE IS

INAPPROPRIATE FOR

FABRIC.

6. NEEDLE EYE IS WORN,

7. NEEDLE HOLE IN NEEDLE

PLATE IS WORN OR BURRED,

INCORRECTLY THREADED

BOBBIN CASE,

TOO MUCH THREADIS

AROUND ON THEBOBBIN.

LINT IS STUCK INSIDE THE

BOBBIN HOLDER,

THREAD QUALITYIS

TOO LOW.

THREADISJAMMING

AROUNDTHEBOBBIN.

BOBBINTHREADTENSIONIS

TOO STRONG.

1. NEEDLE IS HITTING THE

NEEDLE PLATE.

2. NEEDLE IS BENT OR WORN.

3. NEEDLE IS HITTING THE

HOOK RACE.

THE FABRIC MOVES WHILE

THE NEEDLE IS PIERCING

IT, OR THE NEEDLE ZIGZAGS

WHILE IN FABRIC.

FABRIC IS BEING PULLED TOO

STRONGLY WHILE SEWING.

HOW TO FIX

START WITH MEDIUM SPEED.

USE THE PROPER THREAD

PATH.

REPLACE WITH A NEW NEEDLE.

ADJUST UPPER THREAD

TENSION CORRECTLY,

USE APPROPRIATE NEEDLE

AND THREAD FOR FABRIC

IN USE.

CHANGE THE NEEDLE.

REPAIR THE HOLE OR

REPLACE THE NEEDLE PLATE.

THREAD BOBBIN CASE

CORRECTLY.

ADJUST THE POSITION OF

STOPPER,

CLEAN THE HOOK RACE.

CHANGETO A HIGH QUALITY

SEWING THREAD.

CLEAR OUTTHEJAMMING

THREAD,

ADJUST BOBBIN THREAD

TENSION CORRECTLY,

SEE MECHANICAL

ADJUSTMENT"NEEDLEDROP."

CHANGETHENEEDLE.

SEE MECHANICAL

ADJUSTMENT "CLEARANCE

BETWEEN NEEDLE AND HOOK".

SEE MECHANICAL

ADJUSTMENT "NEEDLE SWING".

GUIDE THE FABRIC GENTLY

WHILE SEWING.

P.12

P.13

P.16

P.17, 18

P.15

SEWINGMACHINEDIV.20 MODEL385.15218400

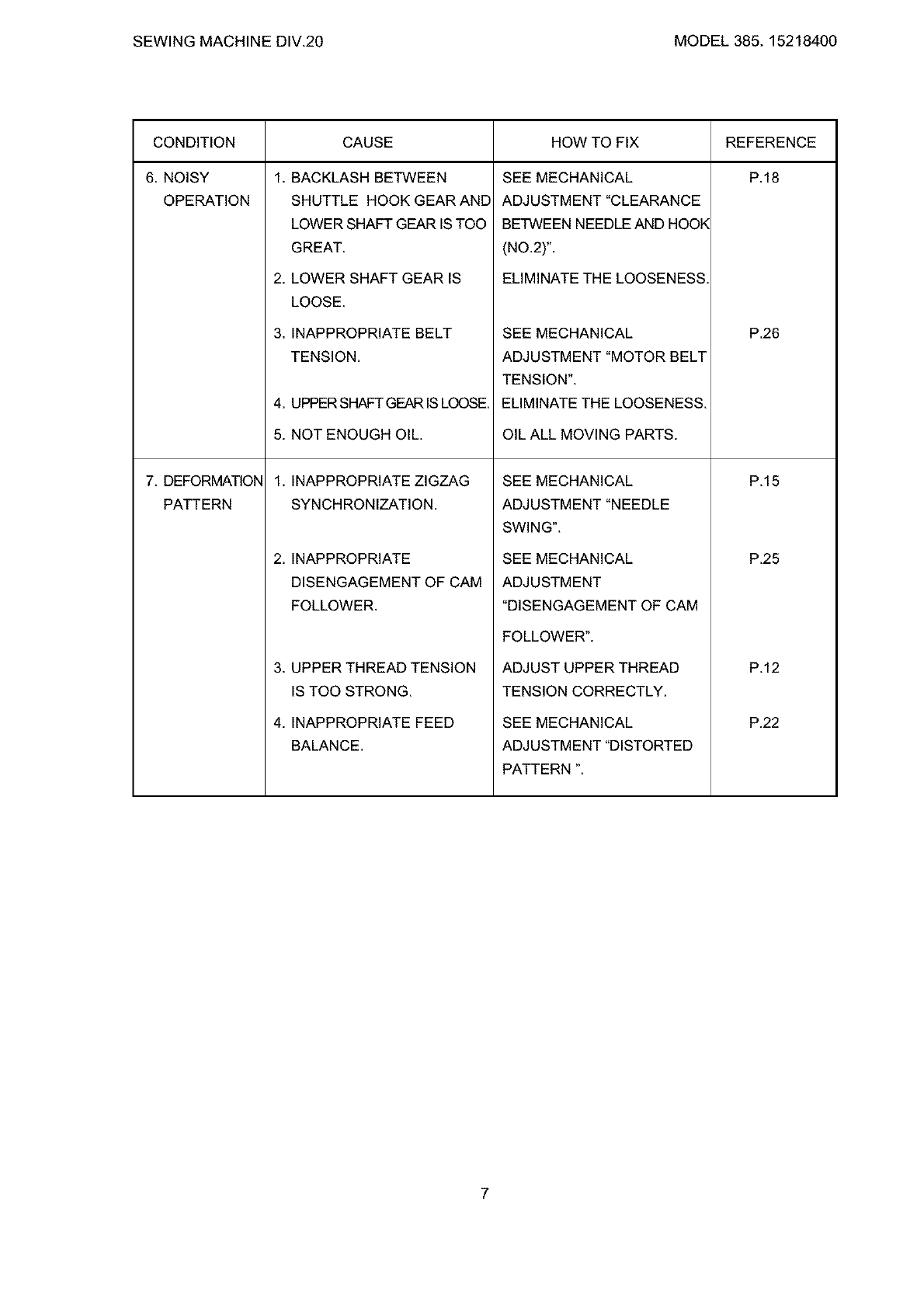

CONDITION

6. NOISY

OPERATION

7. DEFORMATION

PATTERN

CAUSE HOW TO FIX REFERENCE

P.181. BACKLASH BETWEEN

SHUTTLE HOOK GEAR AND

LOWERSHAFTGEARISTOO

GREAT.

2. LOWER SHAFT GEARIS

LOOSE.

&INAPPROPRIATE BELT

TENSION.

4. UPPERSHAFTGEARISLOOSE.

5. NOT ENOUGH OIL.

1. INAPPROPRIATE ZIGZAG

SYNCHRONIZATION.

2. INAPPROPRIATE

DISENGAGEMENT OFCAM

FOLLOWER.

3. UPPERTHREADTENSlON

IS TOO STRONG.

4. INAPPROPRIATE FEED

BALANCE.

SEE MECHANICAL

ADJUSTMENT "CLEARANCE

BETWEEN NEEDLE AND HOOt_

(NO.2)".

ELIMINATE THE LOOSENESS

SEE MECHANICAL

ADJUSTMENT"MOTOR BELT

TENSION".

ELIMINATETHELOOSENESS.

OIL ALL MOVING PARTS,

SEE MECHANICAL

ADJUSTMENT"NEEDLE

SWING".

SEE MECHANICAL

ADJUSTMENT

"DISENGAGEMENT OFCAM

FOLLOWER".

ADJUST UPPER THREAD

TENSION CORRECTLY,

SEE MECHANICAL

ADJUSTMENT"DISTORTED

PATTERN".

P.26

P.15

P.25

P.12

P.22

SEWINGMACHINEDIV.20 MODEL385.15218400

SERVICE ACCESS

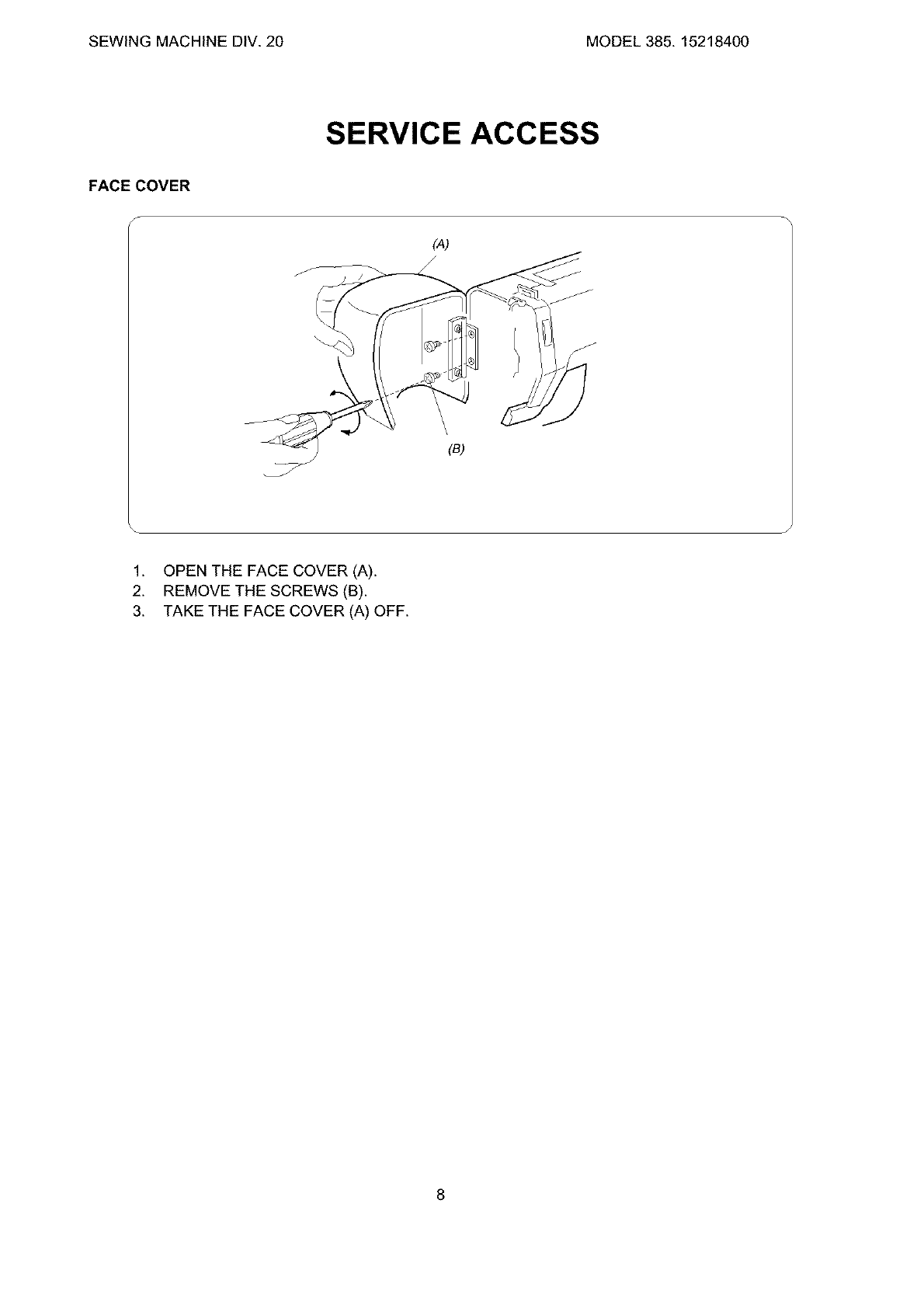

FACE COVER

(B)

1. OPEN THE FACE COVER (A).

2. REMOVE THE SCREWS (B).

3. TAKE THE FACE COVER (A) OFF.

SEWING MACHINE DIV. 20 MODEL 385. 15218400

SERVICE ACCESS

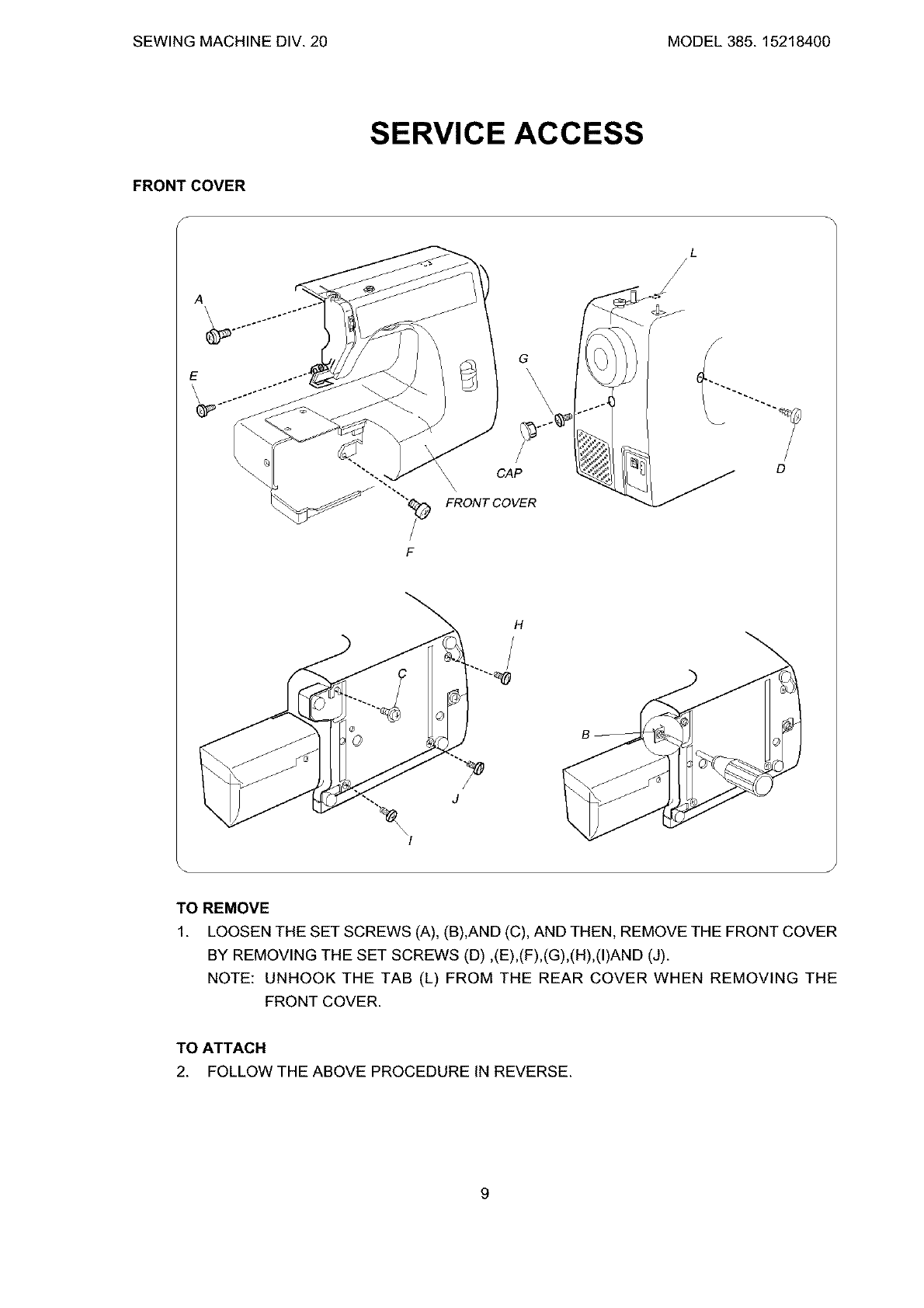

FRONT COVER

CAP

FRONT COVER

TO REMOVE

1. LOOSEN THE SET SCREWS (A), (B),AND (C), AND THEN, REMOVE THE FRONT COVER

BY REMOVING THE SET SCREWS (D) ,(E),(F),(G),(H),(I)AND (J).

NOTE: UNHOOK THE TAB (L) FROM THE REAR COVER WHEN REMOVING THE

FRONT COVER.

TO ATTACH

2. FOLLOW THE ABOVE PROCEDURE IN REVERSE.

SEWING MACHINE DIV. 20 MODEL 385. 15218400

SERVICE ACCESS

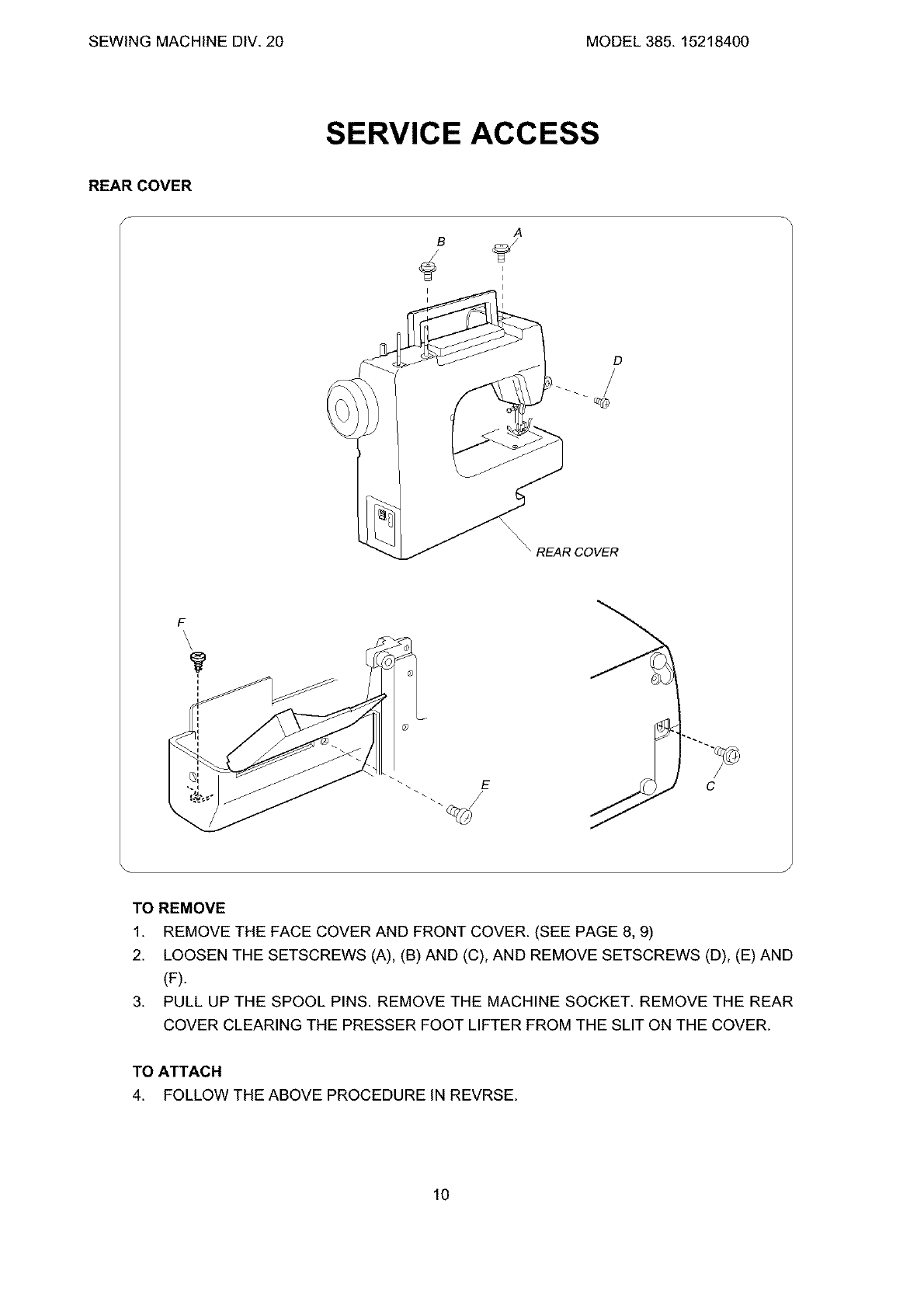

REAR COVER

F\\

TO REMOVE

1. REMOVE THE FACE COVER AND FRONT COVER. (SEE PAGE 8, 9)

2. LOOSEN THE SETSCREWS (A), (B) AND (C), AND REMOVE SETSCREWS (D), (E) AND

(F).

3. PULL UP THE SPOOL PINS. REMOVE THE MACHINE SOCKET. REMOVE THE REAR

COVER CLEARING THE PRESSER FOOT LIFTER FROM THE SLIT ON THE COVER.

TO ATTACH

4. FOLLOW THE ABOVE PROCEDURE IN REVRSE.

SEWING MACHINE DIV. 20 MODEL 385. 15218400

MECHANICAL ADJUSTMENT

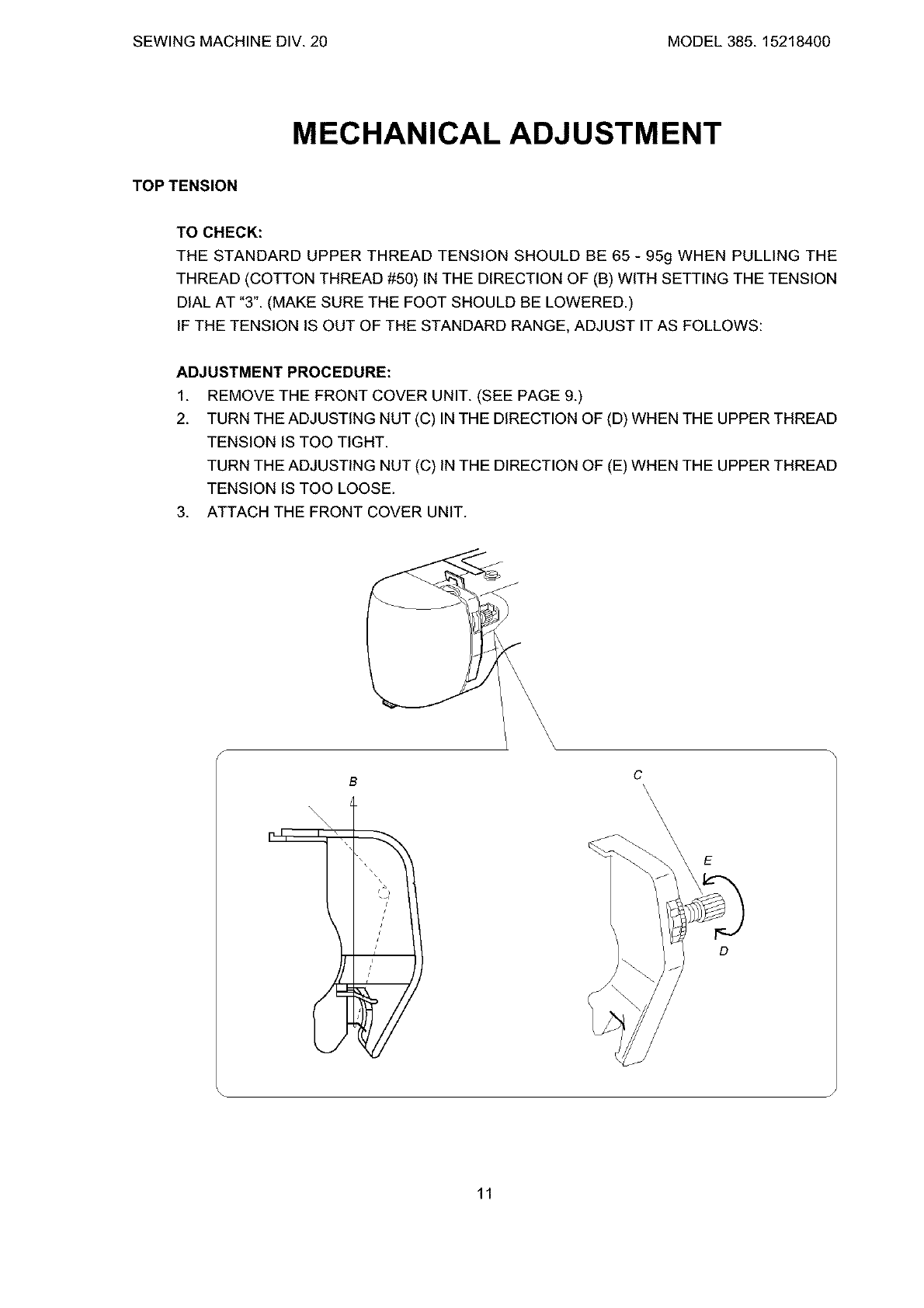

TOP TENSION

TO CHECK:

THE STANDARD UPPER THREAD TENSION SHOULD BE 65 - 95g WHEN PULLING THE

THREAD (COTTON THREAD #50) IN THE DIRECTION OF (B) WITH SETTING THE TENSION

DIAL AT "3". (MAKE SURE THE FOOT SHOULD BE LOWERED.)

IF THE TENSION IS OUT OF THE STANDARD RANGE, ADJUST IT AS FOLLOWS:

ADJUSTMENT PROCEDURE:

1. REMOVE THE FRONT COVER UNIT. (SEE PAGE 9.)

2. TURN THE ADJUSTING NUT (C) IN THE DIRECTION OF (D) WHEN THE UPPER THREAD

TENSION IS TOO TIGHT.

TURN THE ADJUSTING NUT (C) IN THE DIRECTION OF (E) WHEN THE UPPER THREAD

TENSION IS TOO LOOSE.

3. ATTACH THE FRONT COVER UNIT.

\\\

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

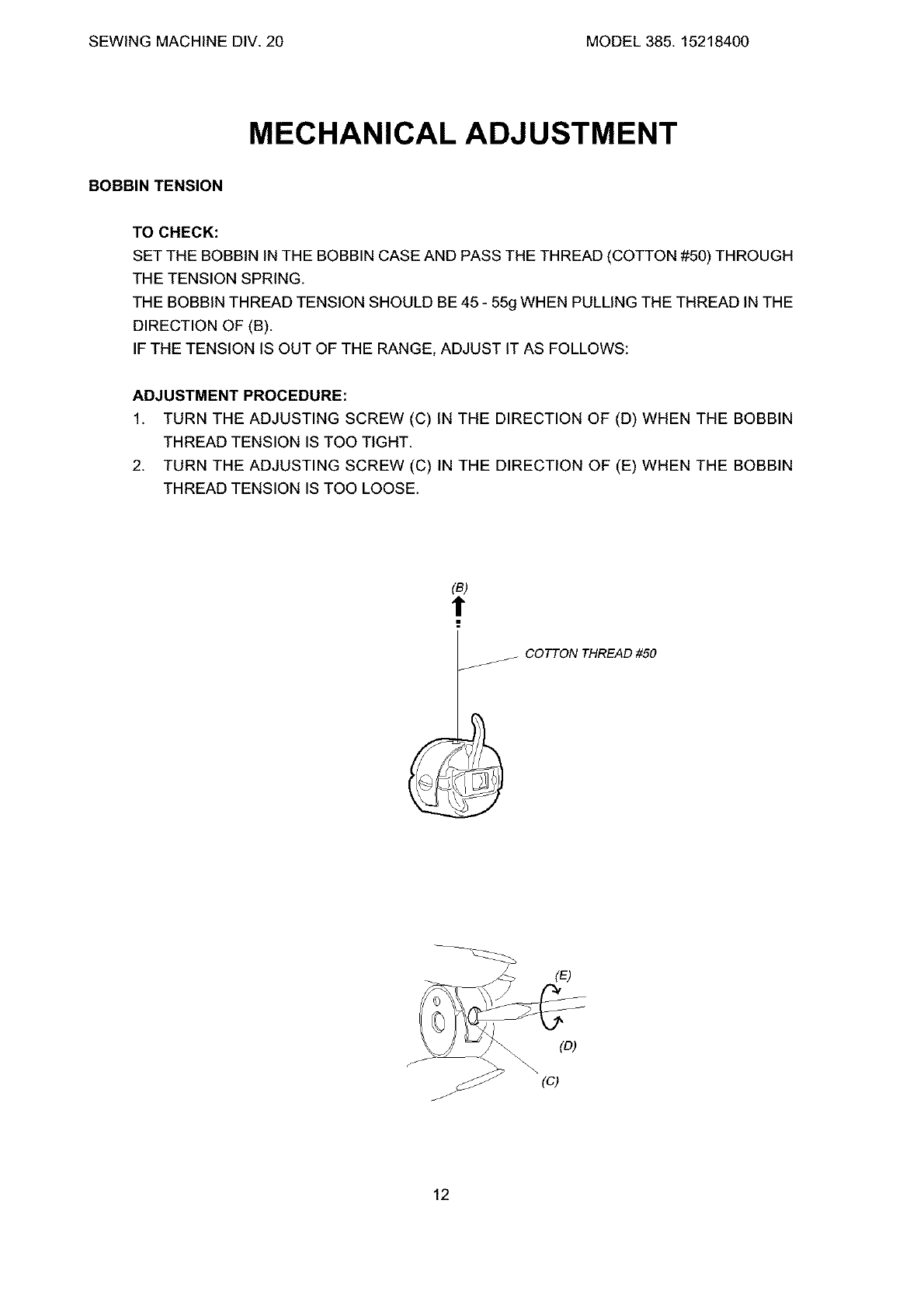

BOBBIN TENSION

TO CHECK:

SET THE BOBBIN IN THE BOBBIN CASE AND PASS THE THREAD (COTTON #50) THROUGH

THE TENSION SPRING.

THE BOBBIN THREAD TENSION SHOULD BE 45 - 55g WHEN PULLING THE THREAD IN THE

DIRECTION OF (B).

IF THE TENSION IS OUT OF THE RANGE, ADJUST IT AS FOLLOWS:

ADJUSTMENT PROCEDURE:

1. TURN THE ADJUSTING SCREW (C) IN THE DIRECTION OF (D) WHEN THE BOBBIN

THREAD TENSION IS TOO TIGHT.

2. TURN THE ADJUSTING SCREW (C) IN THE DIRECTION OF (E) WHEN THE BOBBIN

THREAD TENSION IS TOO LOOSE.

(B)

COTTON THREAD #50

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

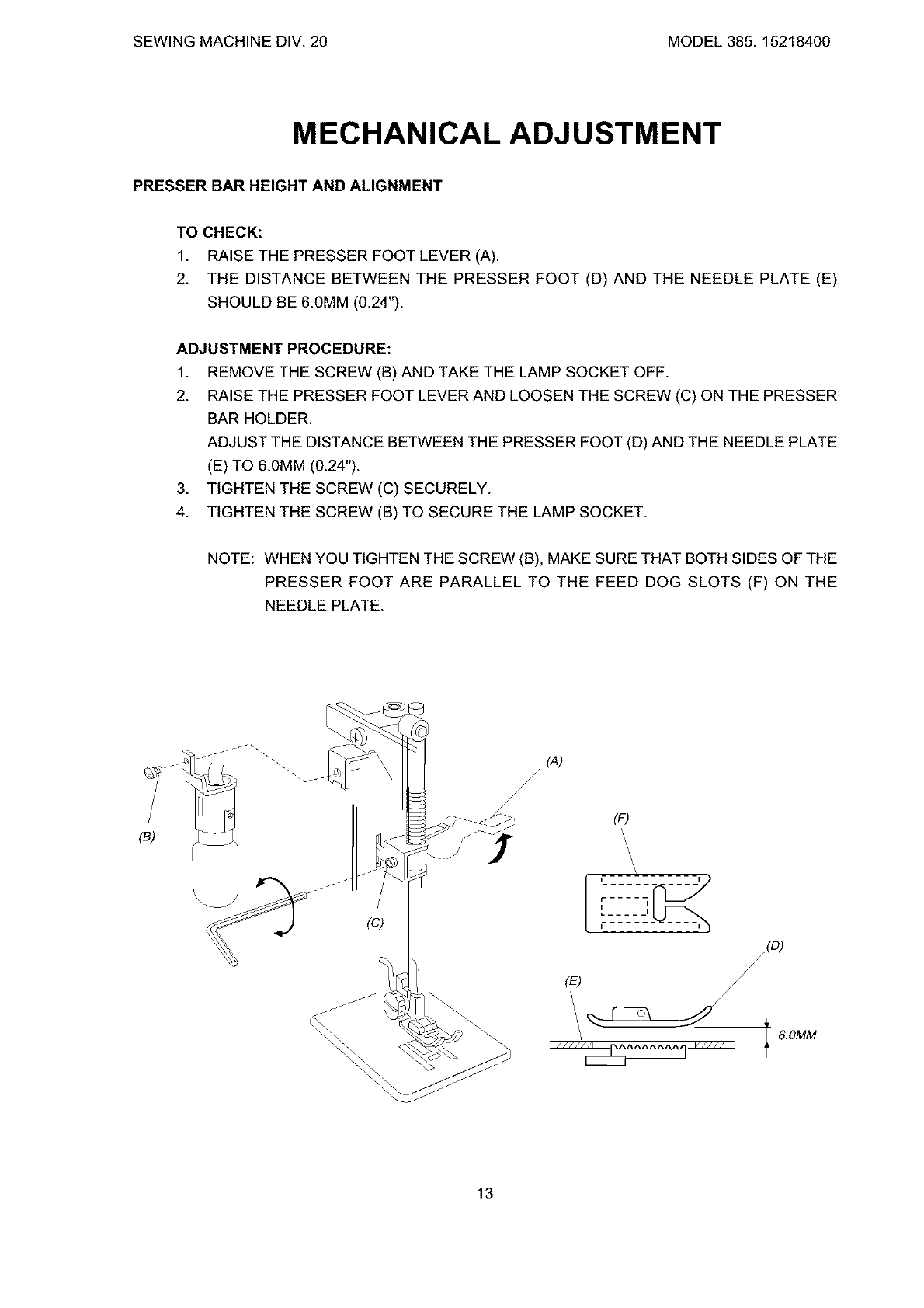

PRESSER BAR HEIGHT AND ALIGNMENT

TO CHECK:

1. RAISE THE PRESSER FOOT LEVER (A).

2. THE DISTANCE BETWEEN THE PRESSER FOOT (D) AND THE NEEDLE PLATE (E)

SHOULD BE 6.0MM (0.24").

ADJUSTMENT PROCEDURE:

1. REMOVE THE SCREW (B) AND TAKE THE LAMP SOCKET OFF.

2. RAISE THE PRESSER FOOT LEVER AND LOOSEN THE SCREW (C) ON THE PRESSER

BAR HOLDER.

ADJUST THE DISTANCE BETWEEN THE PRESSER FOOT (D) AND THE NEEDLE PLATE

(E) TO 6.0MM (0.24").

3. TIGHTEN THE SCREW (C) SECURELY.

4. TIGHTEN THE SCREW (B) TO SECURE THE LAMP SOCKET.

NOTE: WHENYOU TIGHTEN THE SCREW (B), MAKE SURETHAT BOTH SIDES OFTHE

PRESSER FOOT ARE PARALLEL TO THE FEED DOG SLOTS (F) ON THE

NEEDLE PLATE.

.... ""-. (A)

ri S,_, (F)

i(O)

6.OMM

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

NEEDLE SWING

TO CHECK:

ADJUST THE NEEDLE SWING ACCORDING TO THE FOLLOWING PROCEDURE, IF THE

NEEDLE BAR STARTS MOVING SIDEWAYS WHILE THE NEEDLE IS IN THE FABRIC AT

SEWING THE ZIGZAG PATTERN (WITH MAXIMUM ZIGZAG WIDTH).

ADJUSTMENT PROCEDURE:

1. SET THE PATTERN SELECTOR DIAL WITH MAXIMUM ZIGZAG WIDTH, AND REMOVE

THE FRONT COVER. (SEE PAGE 9.)

2. LOOSEN TWO SET SCREWS.

3. ADJUST THE NEEDLE SWING BY TURNING THE HANDWHEEL, WHILE HOLDING THE

WORM SO AS NOT TO ROTATE IT, UNTIL THE NEEDLE SWING STARTS AT 2 - 3MM

ON THE NEEDLE PLATE AFTER THE NEEDLE HAS COME OUT OF THE RIGHT SIDE

OF THE NEEDLE HOLE.

4. TIGHTEN TWO SET SCREWS.

5. MOUNT THE FRONT COVER.

NOTE: AFTER ADJUSTING THE NEEDLE SWING, CHECK THAT THE UPPER SHAFT

WORM AND GEAR ROTATE SMOOTHLY WITHOUT ANY BACKLASH BETWEEN

THEM.

UPPER SHAFT WORM

GEAR

I2-3 MM

SETSCREW

_PCS.)

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

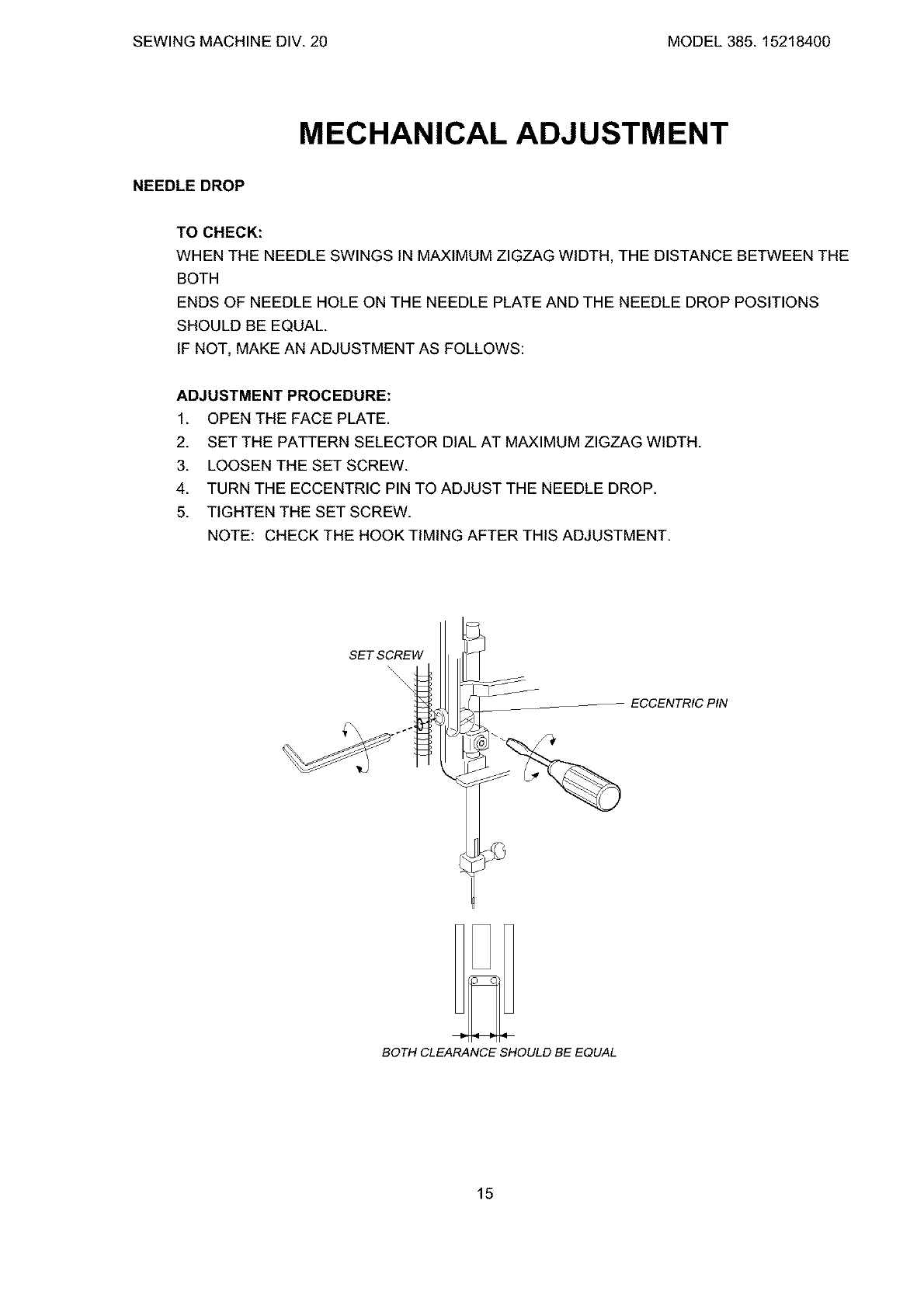

NEEDLE DROP

TO CHECK:

WHEN THE NEEDLE SWINGSIN MAXIMUM ZIGZAG WIDTH, THE DISTANCE BETWEEN THE

BOTH

ENDS OF NEEDLE HOLE ON THE NEEDLE PLATE AND THE NEEDLE DROP POSITIONS

SHOULD BE EQUAL.

IF NOT, MAKE AN ADJUSTMENT AS FOLLOWS:

ADJUSTMENTPROCEDURE:

1. OPEN THE FACE PLATE.

2. SET THE PATTERN SELECTOR DIAL AT MAXIMUM ZIGZAG WIDTH.

3. LOOSEN THE SET SCREW.

4. TURN THE ECCENTRIC PIN TO ADJUST THE NEEDLE DROP.

5. TIGHTEN THE SET SCREW.

NOTE: CHECK THE HOOK TIMING AFTER THIS ADJUSTMENT.

SET SCREW

ECCENTRIC PIN

BOTH CLEARANCE SHOULD BE EQUAL

SEWING MACHINE DIV. 20 MODEL 385. 15218400

MECHANICAL ADJUSTMENT

CLEARANCE BETWEEN NEEDLE AND HOOK (NO.l)

TO CHECK:

THE CLEARANCE BETWEEN NEEDLE AND SHUTTLE RACE SHOULD BE -0.05 -+0.10MM.

IF NOT, MAKE AN ADJUSTMENT AS FOLLOWS:

ADJUSTMENT PROCEDURE:

1. OPEN THE FACE COVER. i

2. SET THE PATTERN SELECT DIAL " C i 3 ", WIDTH SELECTOR CONTROL AT" 0"

3. LOOSEN SET SCREW (A), AND MOVE THE NEEDLE BAR SUPPORTER TO ARROWS

TO GET CLEARANCE BETWEEN -0.05 TO +0.10MM.

* WHEN CLEARANCE IS TOO WIDE, MOVE THE NEEDLE BAR SUPPORTER TO

DIRECTION (B).

* WHEN CLEARANCE IS TOO NARROW, MOVE THE NEEDLE BAR SUPPORTER TO

DIRECTION (C).

NOTE: AFTER THIS ADJUSTMENT, CHECK IF THE CLEARANCE BETWEEN NEEDLE

AND NEEDLE PLATE IS MORE THAN 0.15MM AS SHOWN IN FIGURE (D).

IF NOT, ADJUST THE CLEARANCE BETWEEN NEEDLE AND SHUTTLE RACE

BY USING METHOD OF ADJUSTMENT NO.2 IN PAGE 13 AFTER READJUST THE

CLEARANCE BETWEEN NEEDLE AND NEEDLE PLATE MORE THAN 0.15MM.

SETSCREW_

DIRECTION B

NEEDLE BAR SUPPORTER

-0.05-+0. IOMM

CLEARANCE BETWEEN NEEDLE AND

NEEDLE PLATE IS MORE THAN

O.15MM

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

CLEARANCE BETWEEN NEEDLE AND HOOK (NO.2)

TO CHECK:

USE THIS ADJUSTMENT NO.2 WHEN ADJUSTMENT NO.1 CAN NOT BE USED.

THE CLEARANCE BETWEEN NEEDLE AND SHUTTLE RACE SHOULD BE -0.05 - +0.10mm.

ADJUSTMENT PROCEDURE:

1. SET THE PATTERN SELECTOR DIAL AT "C i _ ", WIDTH SELECTOR CONTROL AT

2. REMOVE THE REAR COVER. (SEE PAGE 10.)

3. LOOSEN THE SCREW (A) ON LOWER SHAFT BUSHING AND SLIDE THE GEAR ABOUT

0.5MM TO THE RIGHT TO MAKE A SLACK BETWEEN GEARS.

4. LOWER THE NEEDLE AND LOOSEN THE TWO SHUTTLE RACE SET SCREWS (B).

MOVE THE SHUTTLE RACE UNIT AXIALLY EITHER FORWARD OR BACKWARD TO

ADJUST THE CLEARANCE BETWEEN THE NEEDLE AND THE SHUTTLE RACE IN THE

RANGE OF -0.05 - +0.10MM.

5. SET THE PATTERN SELECT DIAL AT" _ ", TURN THE BALANCE WHEEL TO

CHECK IF THE CLEARANCE BETWEEN THE NEEDLE AND INNER EDGES OF THE

SHUTTLE RACE SPRING AT THE LEFT AND RIGHT NEEDLE DROPS ARE EQUAL.

IF NOT, MAKE AN ADJUSTMENT BY TURNING THE SHUTTLE RACE UNIT.

6. TIGHTEN THE TWO SHUTTLE RACE SET SCREWS (B).

7. LOOSEN THE SET SCREW ON LOWER SHAFT BUSHING AND SLIDE THE GEAR BACK

TO THE ORIGINAL POSITION WHILE ADJUSTING THE BACKLASH.

8. TIGHTEN THE SCREW (A) FIRMLY.

9. ATTACH THE REAR COVER.

NOTE: THE BACKLASH PLAY SHOULD BE LESS THAN 0.3MM AND LOWER SHAFT

TURNS SMOOTHLY.

AFTER THE ADJUSTMENT, CHECK THE HOOK TIMING.

SET SCREW B (2 PCS.)

BUSHING (FRONT)

CLEARANCE SHOULD BE EQUAL

SHUTTLE RACE SPRING

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

FEED DOG HEIGHT

MACHINE SETTING

1. STITCH LENGTH: SET AT 4.

2. NEEDLE BAR: AT ITS HIGHEST POSITION.

TO CHECK:

1. RAISE THE PRESSER FOOT.

2. PLACE THE FEED DOG HEIGHT GAUGE #68367 (A) ON THE NEEDLE PLATE.

3. TURN THE HANDWHEEL TOWARD YOU BY HAND AND CHECK THE FEED DOG

HEIGHT. REFER TO CHART BELOW.

ADJUSTMENT PROCEDURE:

1. OPEN THE SHUTTLE COVER.

2. LOOSEN THE SCREW (B) AND TURN THE ECCENTRIC PIN (C) IN EITHER DIRECTION

TO ADUST THE FEED DOG HEIGHT AS REQUIRED.

3. TIGHTEN THE SCREW (B) SECURELY.

FACE (A)

1.25MM

NOT MOVING

MOVING

GAUG

FACE (B) (RED)

1.00MM

MOVING

NOT MOVING

MOVING

EFEED DOG HEIGHT

CORRECT

LOW

HIGH

(A) #68367

(c)

SEWING MACHINE DIV. 20 MODEL 385. 15218400

MECHANICAL ADJUSTMENT

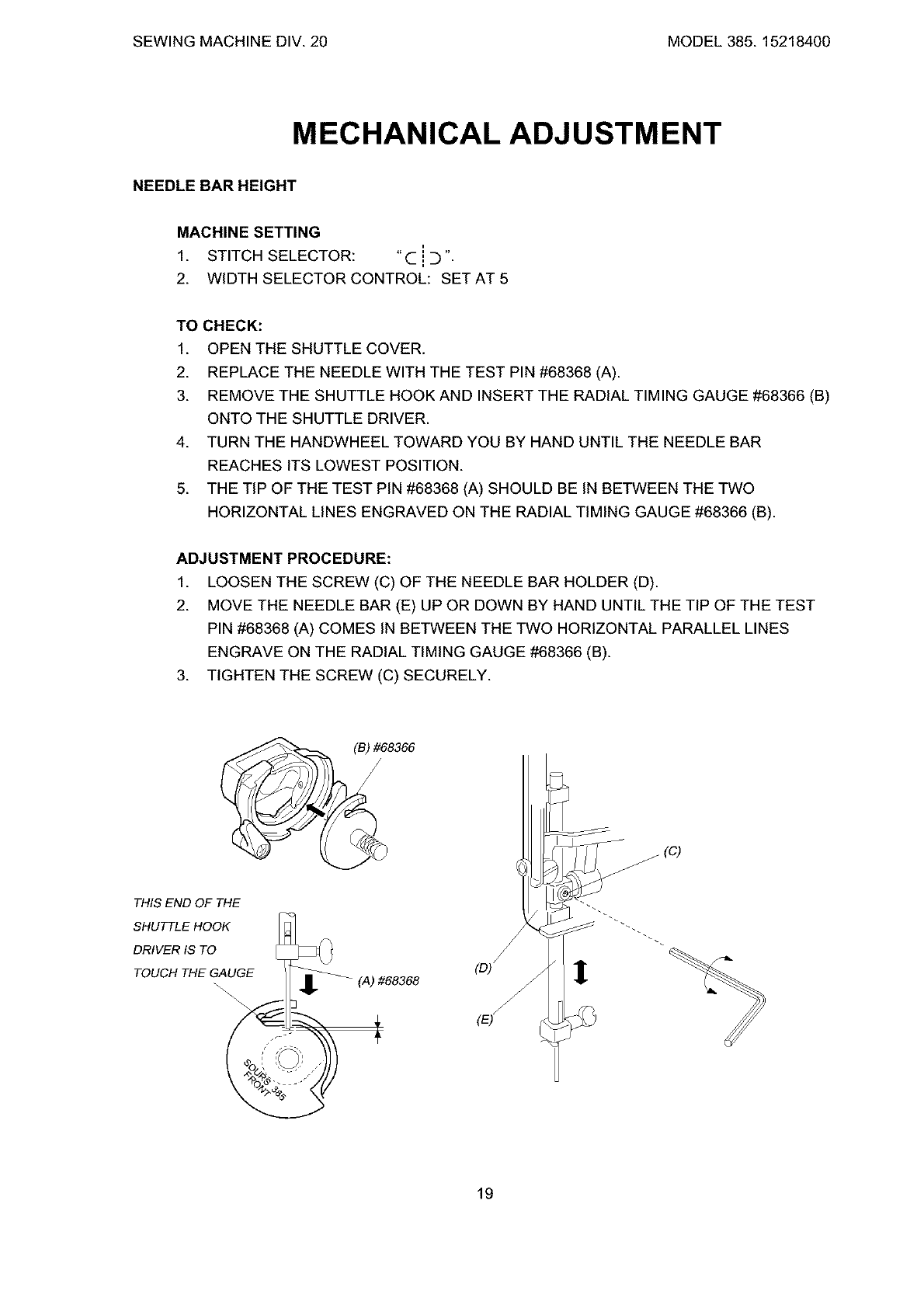

NEEDLE BAR HEIGHT

MACHINE SETTING

1. STITCH SELECTOR: "C i Z)".

2. WIDTH SELECTOR CONTROL: SETAT 5

TO CHECK:

1. OPEN THE SHUTTLE COVER.

2. REPLACE THE NEEDLE WITH THE TEST PIN #68368 (A).

3. REMOVE THE SHUTTLE HOOK AND INSERT THE RADIAL TIMING GAUGE #68366 (B)

ONTO THE SHUTTLE DRIVER.

4. TURN THE HANDWHEEL TOWARD YOU BY HAND UNTIL THE NEEDLE BAR

REACHES ITS LOWEST POSITION.

5. THE TIP OF THE TEST PIN #68368 (A) SHOULD BE IN BETWEEN THE TWO

HORIZONTAL LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).

ADJUSTMENT PROCEDURE:

1. LOOSEN THE SCREW (C) OF THE NEEDLE BAR HOLDER (D).

2. MOVE THE NEEDLE BAR (E) UP OR DOWN BY HAND UNTIL THE TIP OF THE TEST

PIN #68368 (A) COMES IN BETWEEN THE TWO HORIZONTAL PARALLEL LINES

ENGRAVE ON THE RADIAL TIMING GAUGE #68366 (B).

3. TIGHTEN THE SCREW (C) SECURELY.

(B)#68366

THIS END OF THE

SHUTTLE HOOK

DRIVER IS TO

TOUCH THE GAUGE (A)#68368 l!

SEWING MACHINE DIV. 20 MODEL 385 15218400

MECHANICAL ADJUSTMENT

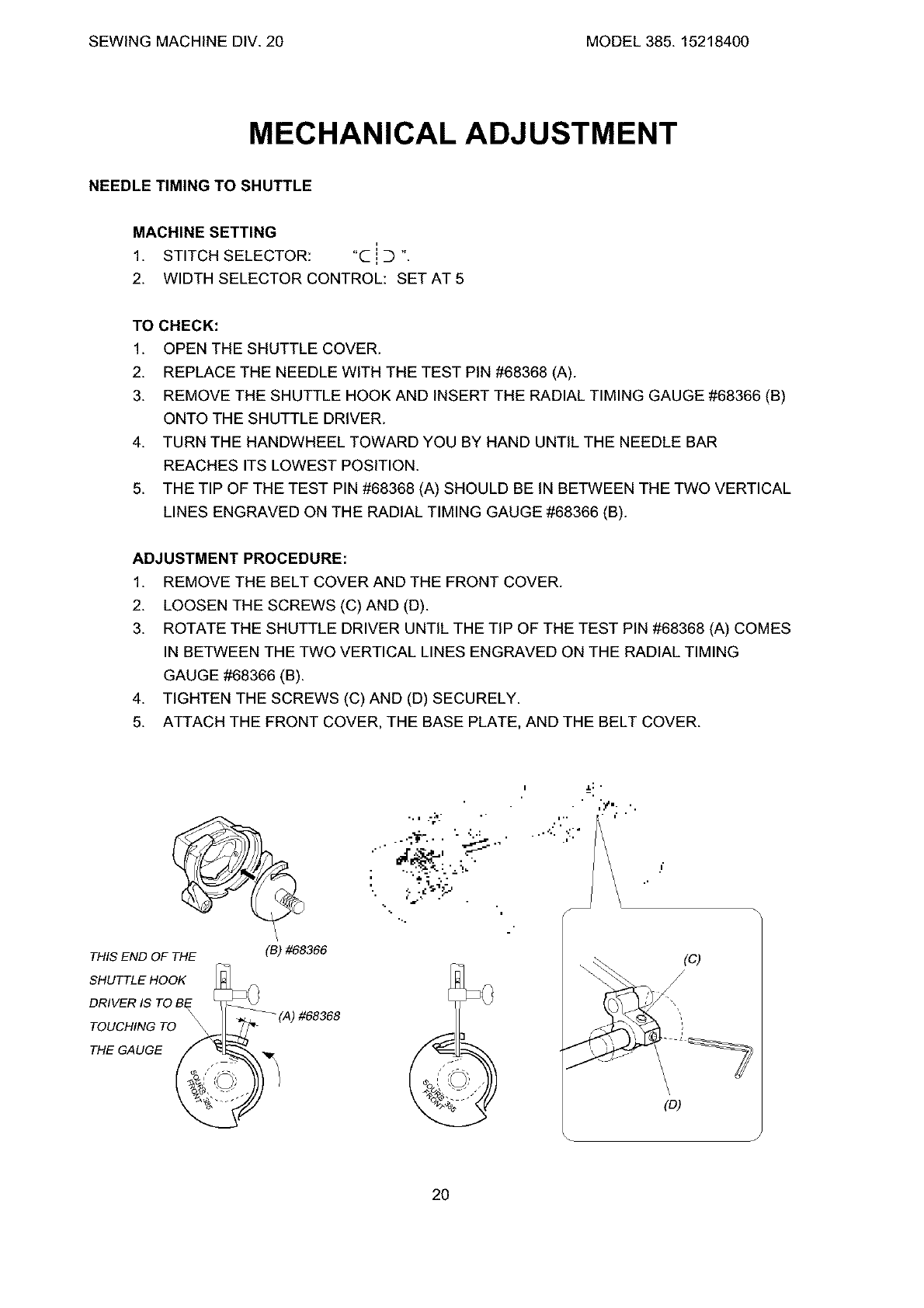

NEEDLE TIMING TO SHUTTLE

MACHINE SETTING i

1STITCH SELECTOR: "C : D

2 WIDTH SELECTOR CONTROL: SET AT 5

TO CHECK:

1 OPEN THE SHUTTLE COVER.

2 REPLACE THE NEEDLE WITH THE TEST PIN #68368 (A).

3 REMOVE THE SHUTTLE HOOK AND INSERT THE RADIAL TIMING GAUGE #68366 (B)

ONTO THE SHUTTLE DRIVER.

4 TURN THE HANDWHEEL TOWARD YOU BY HAND UNTIL THE NEEDLE BAR

REACHES ITS LOWEST POSITION.

5 THE TIP OF THE TEST PIN #68368 (A) SHOULD BE IN BETWEEN THE TWO VERTICAL

LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).

ADJUSTMENT PROCEDURE:

1REMOVE THE BELT COVER AND THE FRONT COVER.

2. LOOSEN THE SCREWS (C) AND (D).

3 ROTATE THE SHUTTLE DRIVER UNTIL THE TIP OF THE TEST PIN #68368 (A) COMES

IN BETWEEN THE TWO VERTICAL LINES ENGRAVED ON THE RADIAL TIMING

GAUGE #68366 (B).

4. TIGHTEN THE SCREWS (C) AND (D) SECURELY.

5 ATTACH THE FRONT COVER, THE BASE PLATE, AND THE BELT COVER.

THIS END OF THE (B) #68366

SHUTTLE HOOK _)

THE GAUGE _,_

•, = .-_."

<-"

Cd, .

iJ.: •

i_ I. ..

.• _.-,

.1..

(c)

(O)

SEWING MACHINE DIV. 20 MODEL 385. 15218400

MECHANICAL ADJUSTMENT

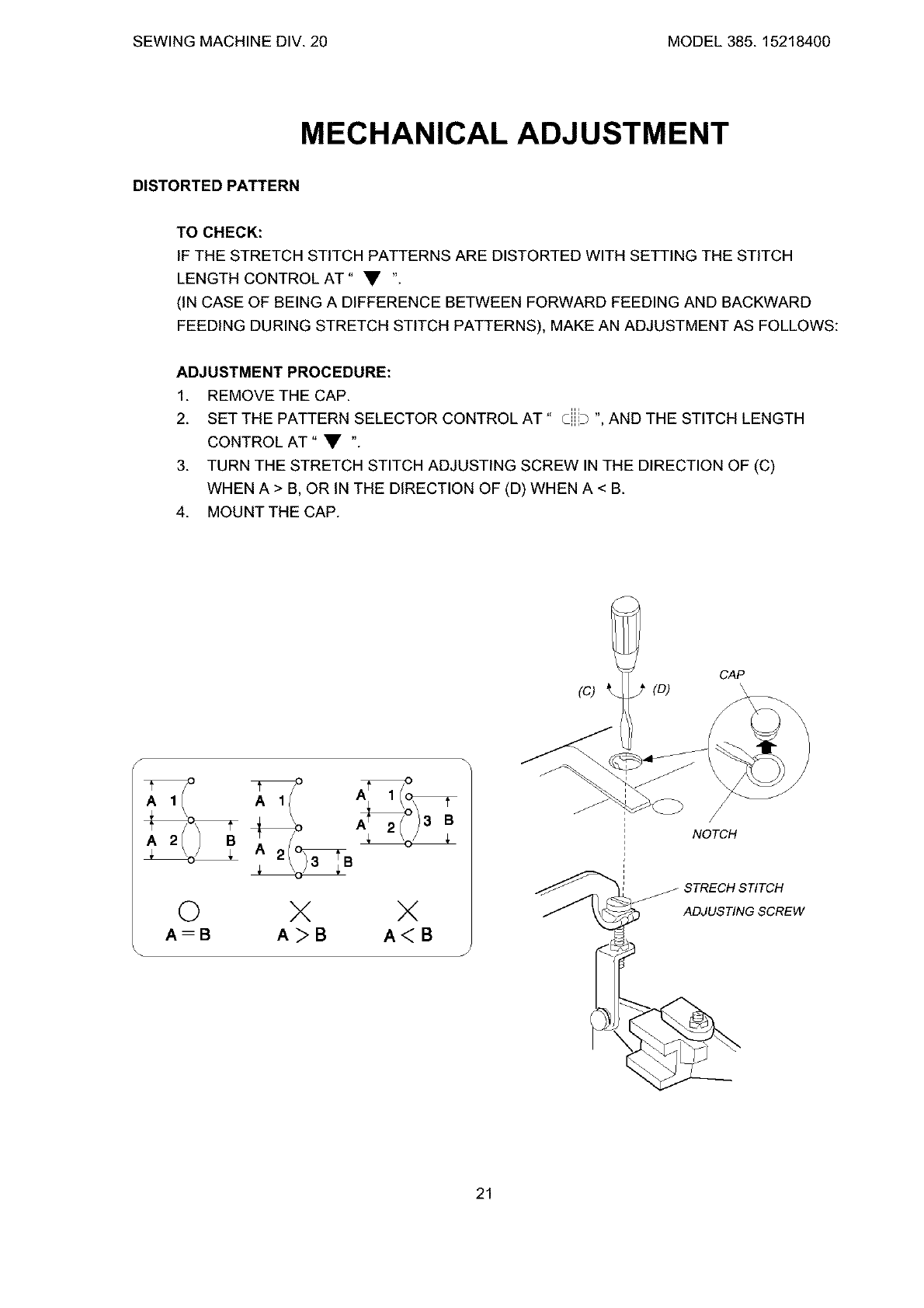

DISTORTED PATTERN

TO CHECK:

IF THE STRETCH STITCH PATTERNS ARE DISTORTED WITH SETTING THE STITCH

LENGTH CONTROL AT" • "

(IN CASE OF BEING A DIFFERENCE BETWEEN FORWARD FEEDING AND BACKWARD

FEEDING DURING STRETCH STITCH PATTERNS), MAKE AN ADJUSTMENT AS FOLLOWS:

ADJUSTMENT PROCEDURE:

1. REMOVE THE CAP.

2. SET THE PATTERN SELECTOR CONTROL AT" ciiiD ", AND THE STITCH LENGTH

CONTROL AT" • ".

3. TURN THE STRETCH STITCH ADJUSTING SCREW IN THE DIRECTION OF (C)

WHEN A > B, OR IN THE DIRECTION OF (D) WHEN A < B.

4. MOUNT THE CAP.

CAP

0 X X

A=B A>B A<B

NOTCH

JSTRECH STITCH

ADJUSTING SCREW

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

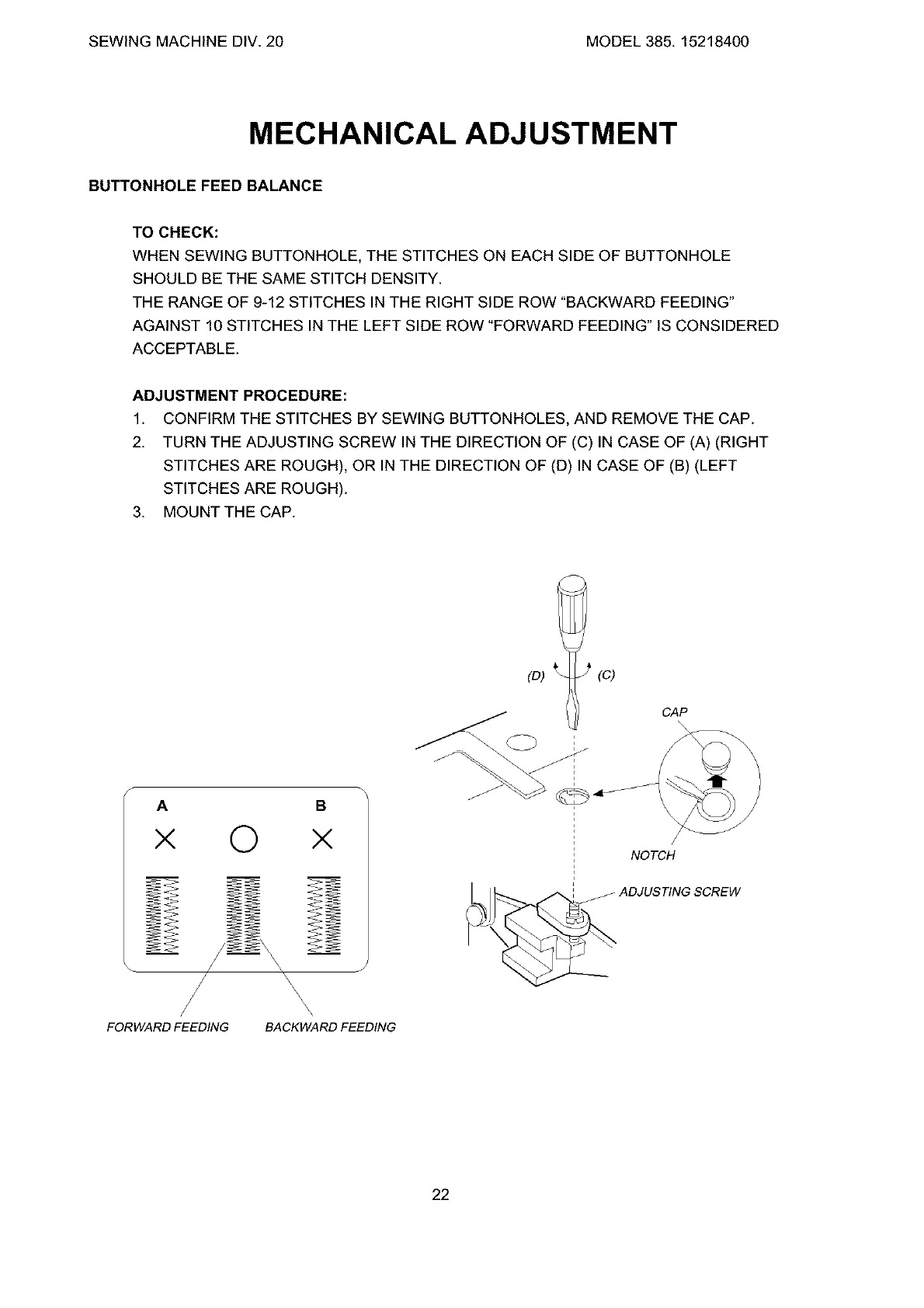

BUTTONHOLE FEED BALANCE

TO CHECK:

WHEN SEWING BUTTONHOLE, THE STITCHES ON EACH SIDE OF BUTTONHOLE

SHOULD BE THE SAME STITCH DENSITY.

THE RANGE OF 9-12 STITCHES IN THE RIGHT SIDE ROW "BACKWARD FEEDING"

AGAINST 10 STITCHES IN THE LEFT SIDE ROW "FORWARD FEEDING" IS CONSIDERED

ACCEPTABLE.

ADJUSTMENT PROCEDURE:

1. CONFIRM THE STITCHES BY SEWING BUTTONHOLES, AND REMOVE THE CAP.

2. TURN THE ADJUSTING SCREW IN THE DIRECTION OF (C) IN CASE OF (A) (RIGHT

STITCHES ARE ROUGH), OR IN THE DIRECTION OF (D) IN CASE OF (B) (LEFT

STITCHES ARE ROUGH).

3. MOUNT THE CAP.

A B

x 0 x

FORWARD FEEDING

/\J

\\ \\\\\

BACKWARD FEEDING

CAP

NOTCH

JADJUSTING SCREW

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

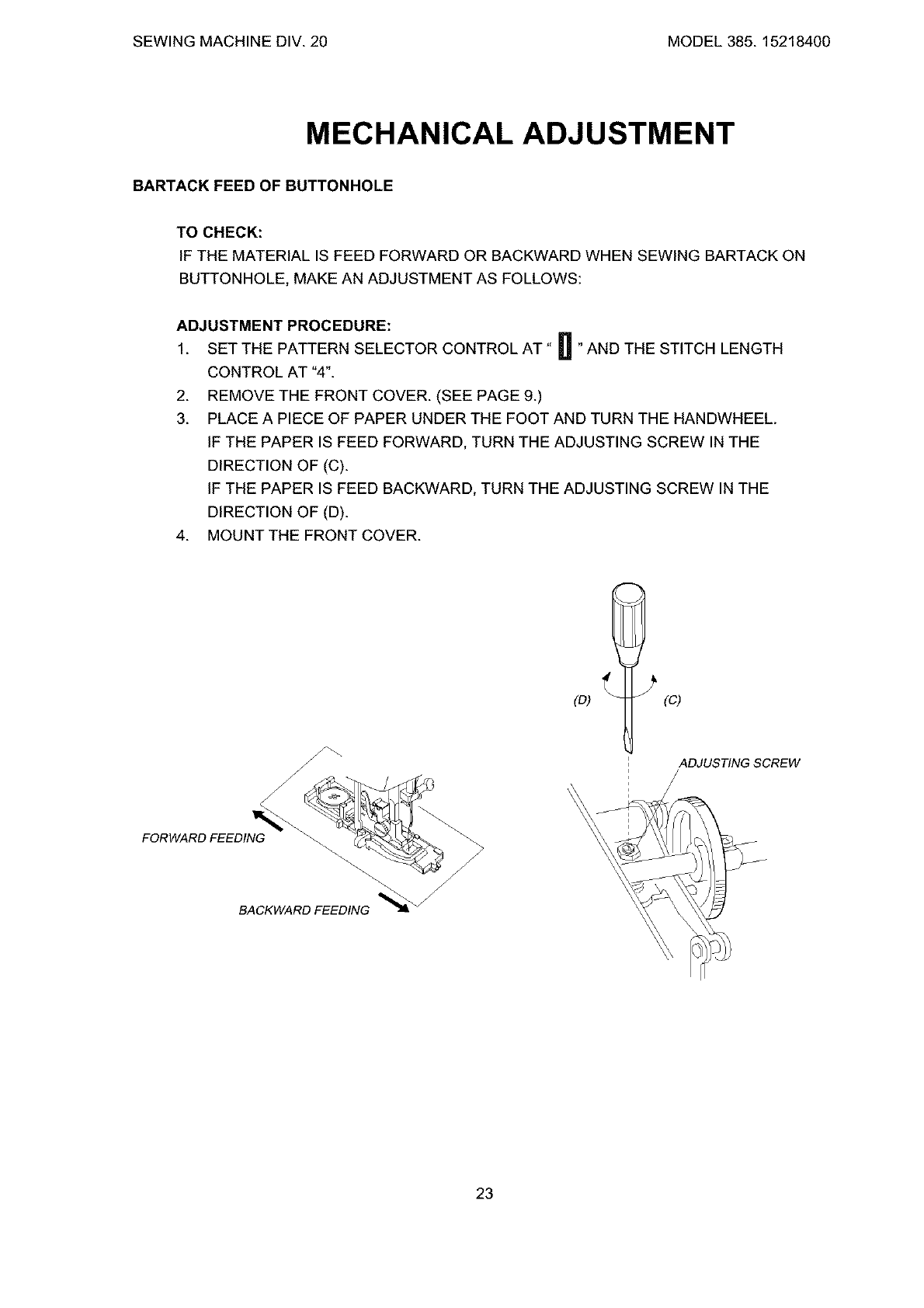

BARTACKFEED OFBUTTONHOLE

TO CHECK:

IF THE MATERIAL IS FEED FORWARD OR BACKWARD WHEN SEWING BARTACK ON

BUTTONHOLE, MAKE AN ADJUSTMENT AS FOLLOWS:

ADJUSTMENTPROCEDURE:

1. SETTHEPATTERNSELECTORCONTROLAT" B "AND THE STITCH LENGTH

CONTROL AT "4".

2. REMOVE THE FRONT COVER. (SEE PAGE 9.)

3. PLACE A PIECE OF PAPER UNDER THE FOOT AND TURN THE HANDWHEEL.

IF THE PAPER IS FEED FORWARD, TURN THE ADJUSTING SCREW IN THE

DIRECTION OF (C).

IF THE PAPER IS FEED BACKWARD, TURN THE ADJUSTING SCREW IN THE

DIRECTION OF (D).

4. MOUNT THE FRONT COVER.

FORWARD FEEDING

BACKWARD FEEDING '_

/, (c)

ADJUSTING SCREW

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

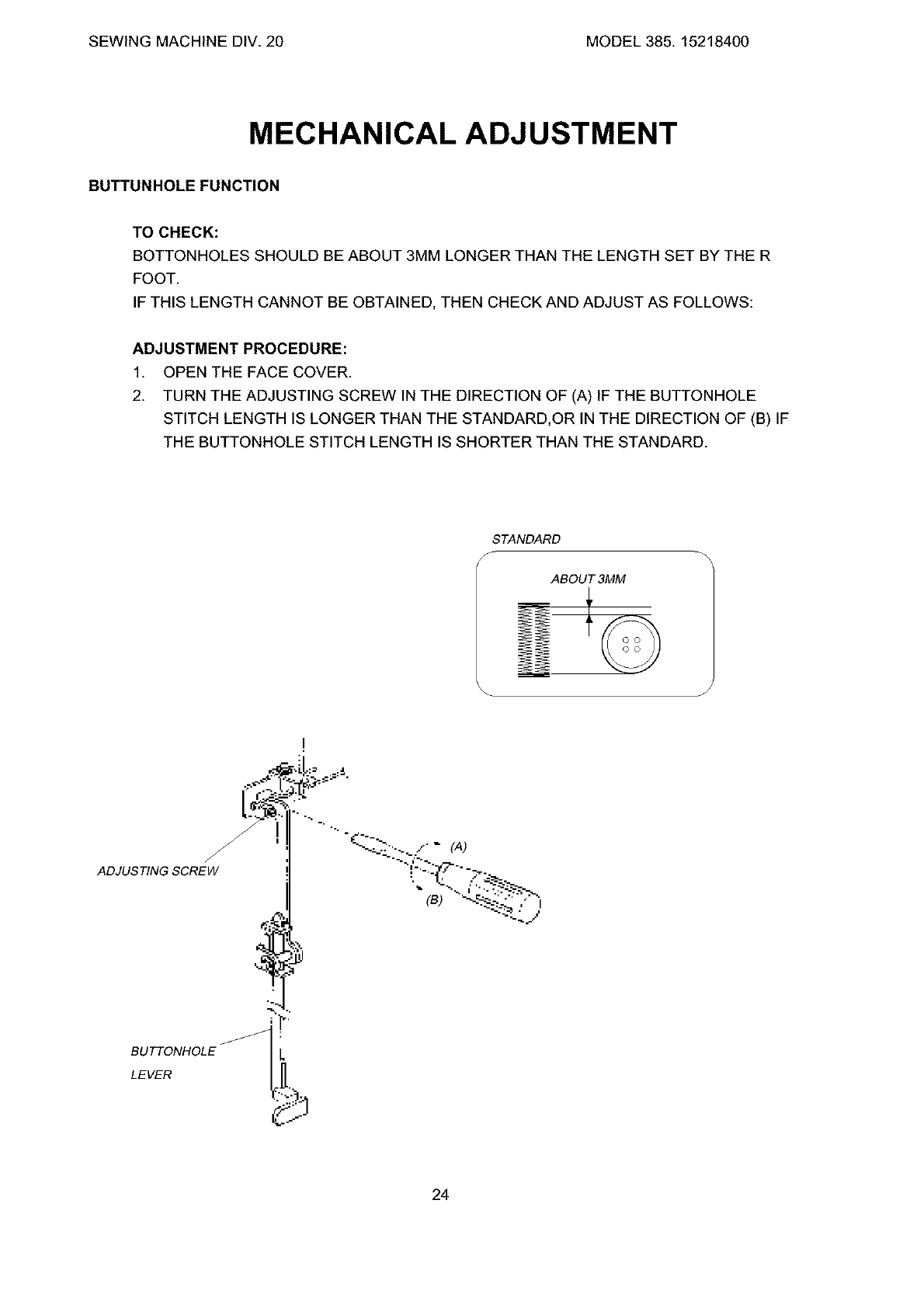

BUTTUNHOLE FUNCTION

TO CHECK:

BOTTONHOLES SHOULD BE ABOUT 3MM LONGER THAN THE LENGTH SET BY THE R

FOOT.

IF THIS LENGTH CANNOT BE OBTAINED, THEN CHECK AND ADJUST AS FOLLOWS:

ADJUSTMENT PROCEDURE:

1. OPEN THE FACE COVER.

2. TURN THE ADJUSTING SCREW IN THE DIRECTION OF (A) IF THE BUTTONHOLE

STITCH LENGTH IS LONGER THAN THE STANDARD,OR IN THE DIRECTION OF (B) IF

THE BUTTONHOLE STITCH LENGTH IS SHORTER THAN THE STANDARD.

STANDARD

ABOUT3MM

ADJUSTING SCRE_

BUTTONHOLE __

LEVER

': _: ==.,.¢:_.

q:_..&...,._..-_A_

"I "- 7""....__

"" ".-. , "'. ".::'_.?&'4"-_.

_B_--._._..,

-4:_.j

SEWINGMACHINEDIV.20 MODEL385.15218400

MECHANICAL ADJUSTMENT

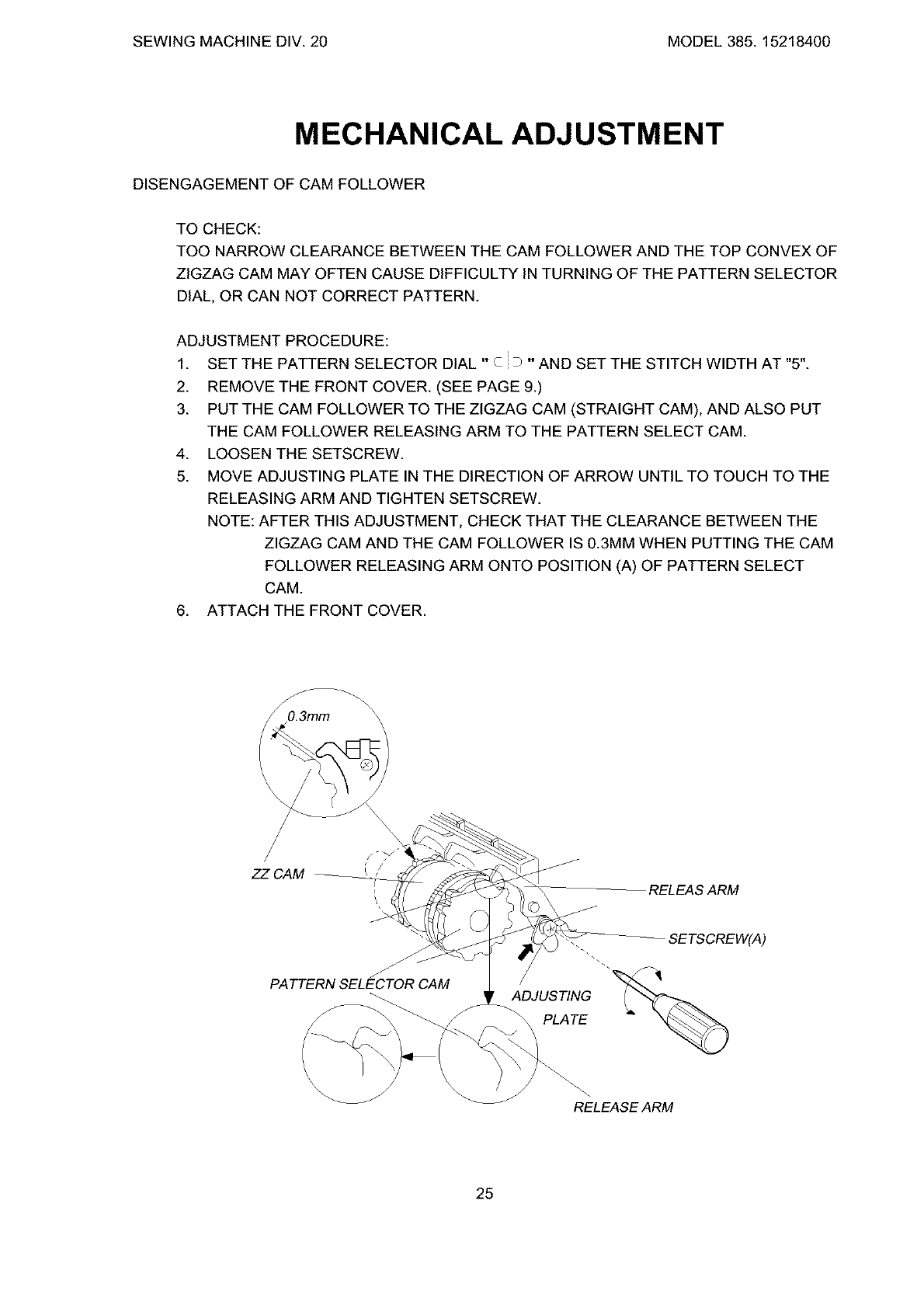

DISENGAGEMENT OF CAM FOLLOWER

TO CHECK:

TOO NARROW CLEARANCE BETWEEN THE CAM FOLLOWER AND THE TOP CONVEX OF

ZIGZAG CAM MAY OFTEN CAUSE DIFFICULTY IN TURNING OF THE PATTERN SELECTOR

DIAL, OR CAN NOT CORRECT PATTERN.

ADJUSTMENT PROCEDURE:

1. SET THE PATTERN SELECTOR DIAL " • i • "AND SET THE STITCH WIDTH AT "5".

2. REMOVE THE FRONT COVER. (SEE PAGE 9.)

3. PUT THE CAM FOLLOWER TO THE ZIGZAG CAM (STRAIGHT CAM), AND ALSO PUT

THE CAM FOLLOWER RELEASING ARM TO THE PATTERN SELECT CAM.

4. LOOSEN THE SETSCREW.

5. MOVE ADJUSTING PLATE IN THE DIRECTION OF ARROW UNTIL TO TOUCH TO THE

RELEASING ARM AND TIGHTEN SETSCREW.

NOTE: AFTER THIS ADJUSTMENT, CHECK THAT THE CLEARANCE BETWEEN THE

ZIGZAG CAM AND THE CAM FOLLOWER IS 0.3MM WHEN PUTTING THE CAM

FOLLOWER RELEASING ARM ONTO POSITION (A) OF PATTERN SELECT

CAM.

6. ATTACH THE FRONT COVER.

ZZ CAM

PATTERN SELECTOR CAM

_.. ADJUSTING

PLATE

-RELEAS ARM

SETSCREW(A)

RELEASE ARM

SEWING MACHINE DIV. 20 MODEL 385. 15218400

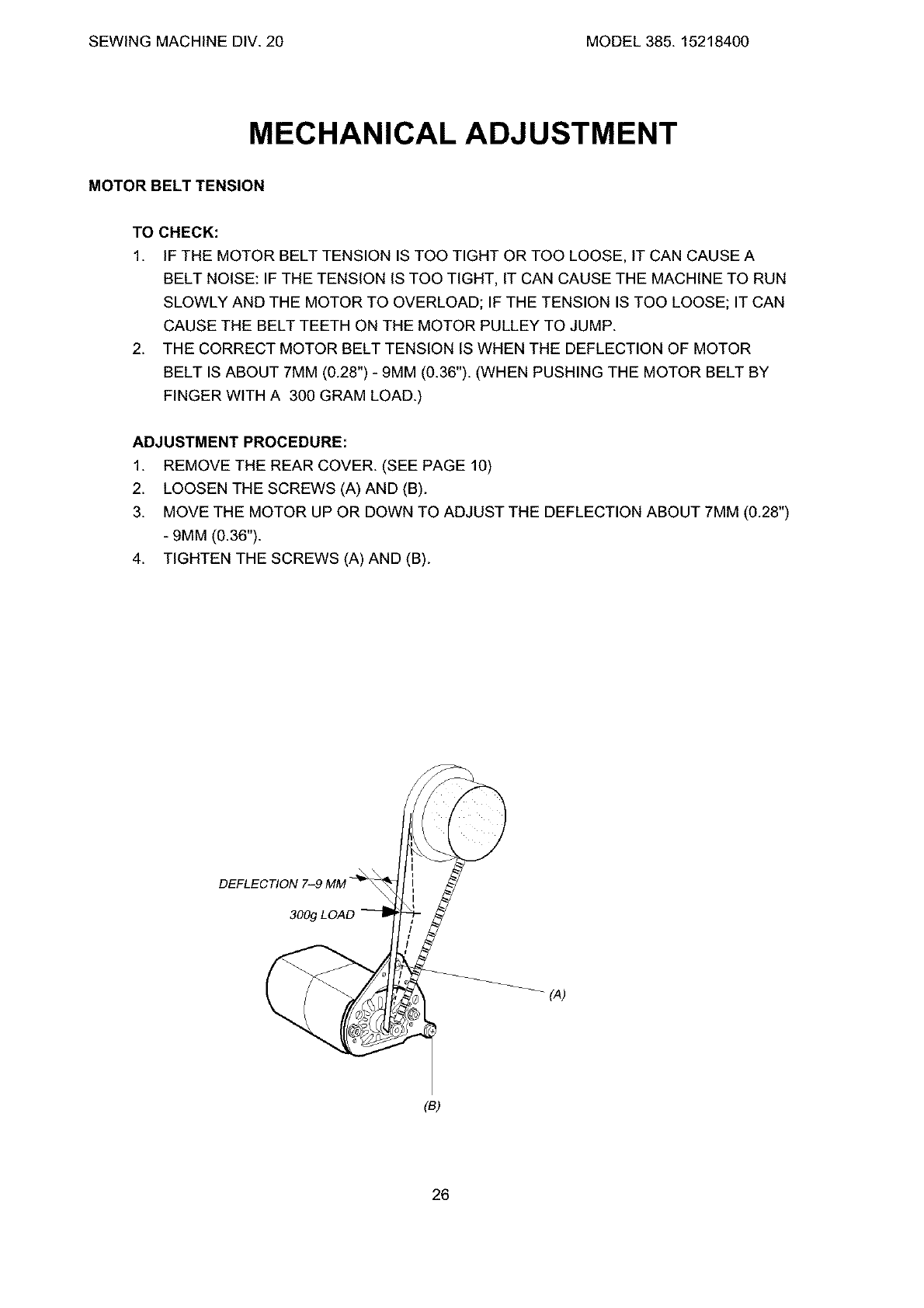

MECHANICAL ADJUSTMENT

MOTOR BELT TENSION

TO CHECK:

1. IF THE MOTOR BELT TENSION IS TOO TIGHT OR TOO LOOSE, IT CAN CAUSE A

BELT NOISE: IF THE TENSION IS TOO TIGHT, IT CAN CAUSE THE MACHINE TO RUN

SLOWLY AND THE MOTOR TO OVERLOAD; IF THE TENSION IS TOO LOOSE; IT CAN

CAUSE THE BELT TEETH ON THE MOTOR PULLEY TO JUMP.

2. THE CORRECT MOTOR BELT TENSION IS WHEN THE DEFLECTION OF MOTOR

BELT IS ABOUT 7MM (0.28") - 9MM (0.36"). (WHEN PUSHING THE MOTOR BELT BY

FINGER WITH A 300 GRAM LOAD.)

ADJUSTMENT PROCEDURE:

1. REMOVE THE REAR COVER. (SEE PAGE 10)

2. LOOSEN THE SCREWS (A) AND (B).

3. MOVE THE MOTOR UP OR DOWN TO ADJUST THE DEFLECTION ABOUT 7MM (0.28")

- 9MM (0.36").

4. TIGHTEN THE SCREWS (A) AND (B).

300g

(B)

SEWINGMACHINEDIV.20 MODEL385.15218400

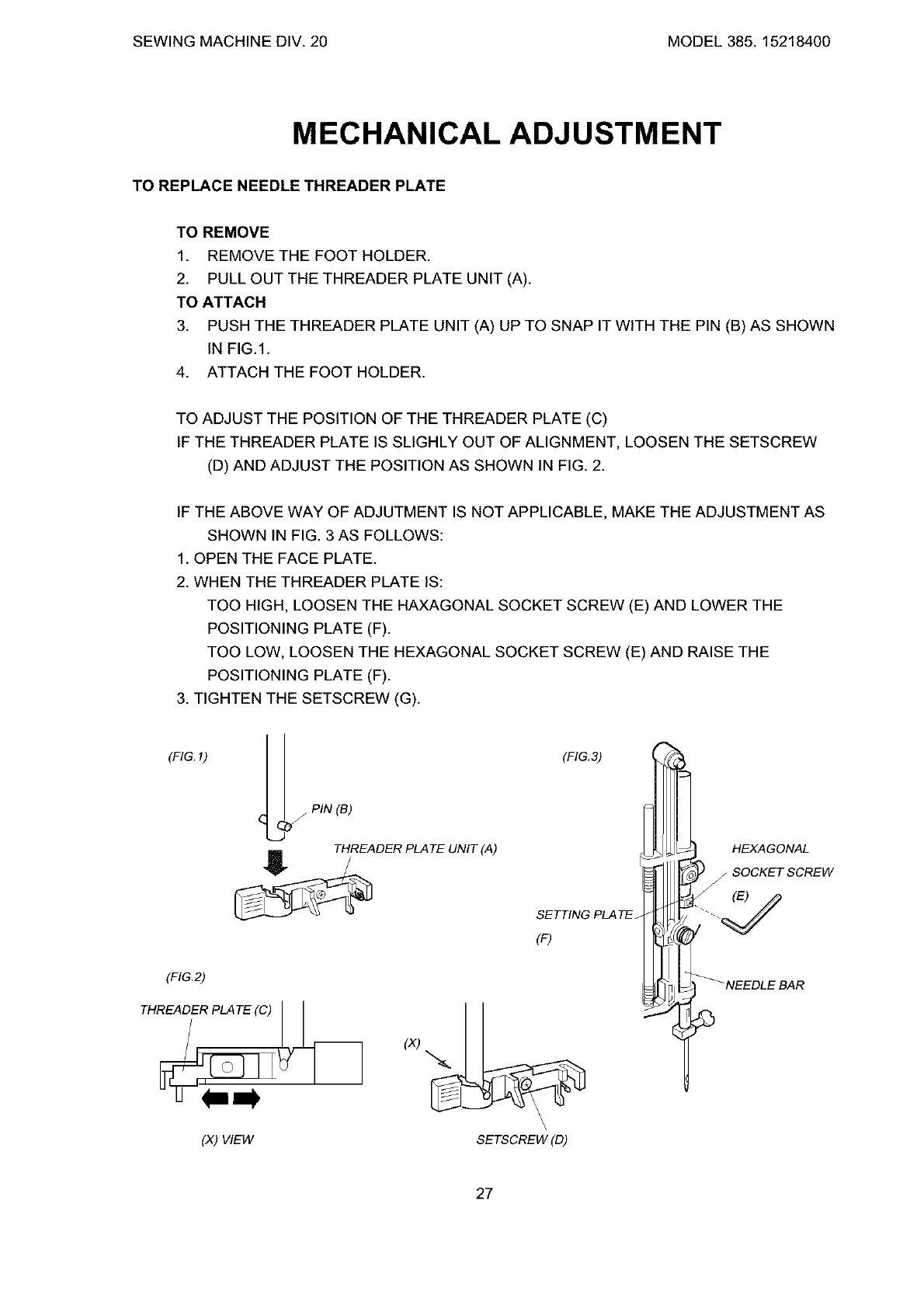

MECHANICAL ADJUSTMENT

TO REPLACE NEEDLE THREADER PLATE

TO REMOVE

1. REMOVE THE FOOT HOLDER.

2. PULL OUT THE THREADER PLATE UNIT (A).

TO ATTACH

3. PUSH THE THREADER PLATE UNIT (A) UP TO SNAP IT WITH THE PIN (B) AS SHOWN

IN FIG.1.

4. ATTACH THE FOOT HOLDER.

TO ADJUST THE POSITION OF THE THREADER PLATE (C)

IF THE THREADER PLATE IS SLIGHLY OUT OF ALIGNMENT, LOOSEN THE SETSCREW

(D) AND ADJUST THE POSITION AS SHOWN IN FIG. 2.

IF THE ABOVE WAY OF ADJUTMENT IS NOT APPLICABLE, MAKE THE ADJUSTMENT AS

SHOWN IN FIG. 3 AS FOLLOWS:

1. OPEN THE FACE PLATE.

2. WHEN THE THREADER PLATE IS:

TOO HIGH, LOOSEN THE HAXAGONAL SOCKET SCREW (E) AND LOWER THE

POSITIONING PLATE (F).

TOO LOW, LOOSEN THE HEXAGONAL SOCKET SCREW (E) AND RAISE THE

POSITIONING PLATE (F).

3. TIGHTEN THE SETSCREW (G).

(FIG, 1) II (FIG,3)

C_(_ PIN (B)

_ADER SETTING PLA TE_

PLATE UNIT (A)

(F)

(FIG.2)

TNREADER PLATE (C) I__; _I (x)

(X) VIEW SETSCREW (D)

HEXAGONAL

SOCKET SCREW

SEWINGMACHINEDIV.20 MODEL385.15218400

WIRING

1. WIRING FOR MACHINE SOCKET UNIT

RIDGE _

M_L

/ RIDGE

M : MOTOR

L : LAMP

2. WIRING DIAGRAM

FOOTCONTROL

7C_

MOTOR ATTACHMENTCAP

L J

LAMP SOCKET

MOTOR

SEWING MACHINE DIV. 20 MODEL 385. 15218400

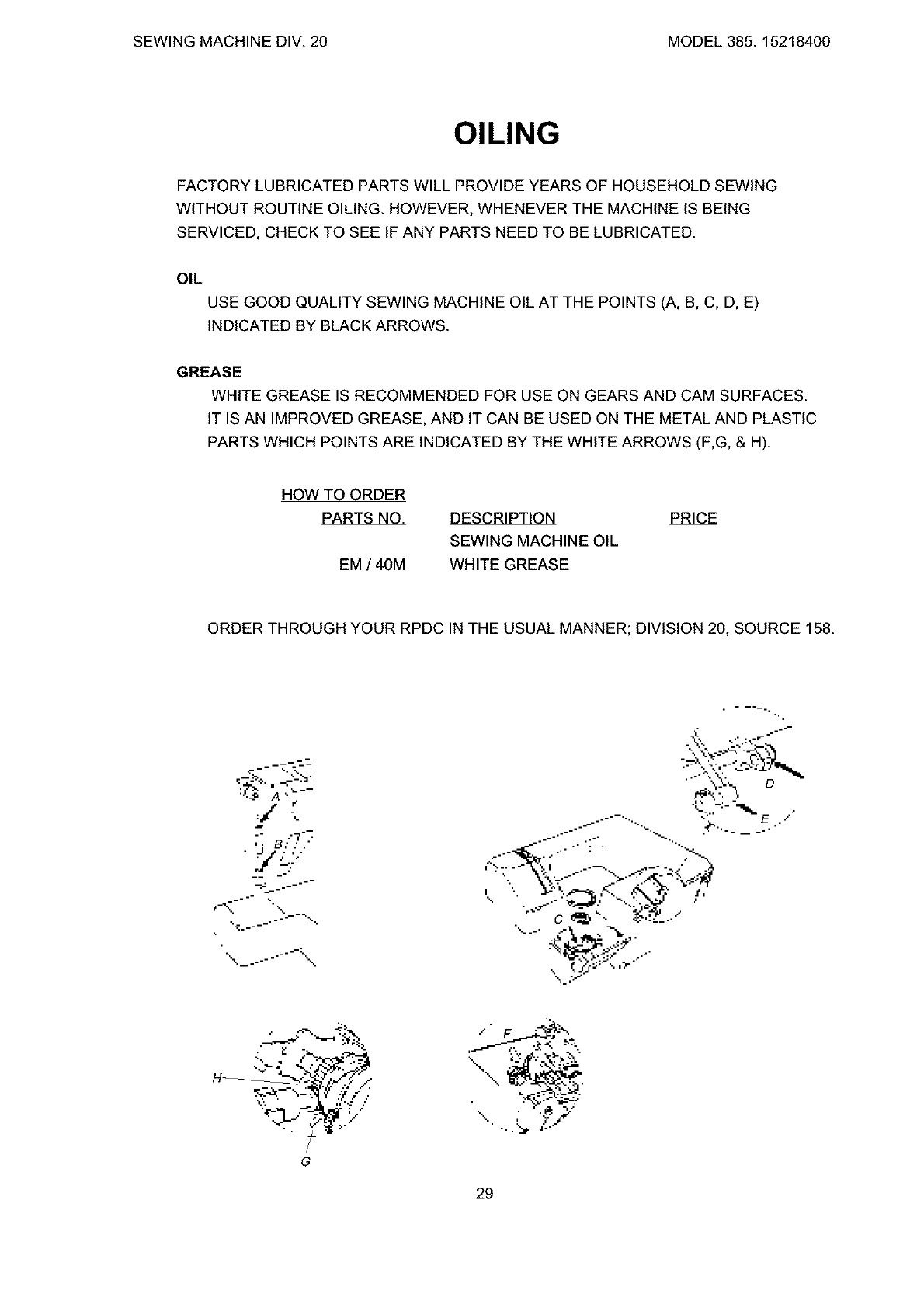

OILING

FACTORY LUBRICATED PARTS WILL PROVIDE YEARS OF HOUSEHOLD SEWING

WITHOUT ROUTINE OILING. HOWEVER, WHENEVER THE MACHINE IS BEING

SERVICED, CHECK TO SEE IF ANY PARTS NEED TO BE LUBRICATED.

OIL

USE GOOD QUALITY SEWING MACHINE OIL AT THE POINTS (A, B, C, D, E)

INDICATED BY BLACK ARROWS.

GREASE

WHITE GREASE IS RECOMMENDED FOR USE ON GEARS AND CAM SURFACES.

IT IS AN IMPROVED GREASE, AND IT CAN BE USED ON THE METAL AND PLASTIC

PARTS WHICH POINTS ARE INDICATED BY THE WHITE ARROWS (F,G, & H).

HOW TO ORDER

PART_ DESCRIPTION

SEWING MACHINE OIL

WHITE GREASEEM /40M

ORDER THROUGH YOUR RPDC IN THE USUAL MANNER; DIVISION 20, SOURCE 158.

_ - -- _.--. %=-

,_+, __'-':_"

"'_ A"

:j r

#--_,-" "" %_.

.-=

\ .......... \

• "t "., .__l_,,._.__"

._-_" _;_

"2Y

"_"1_,_-_/

:_, _-"_., ,_._-"_.:_,_,._j.=__"

SEWING MACHINE DIV. 20 MODEL 385. 15218400

SPECIAL TOOLS REQUIRED

_REW DRIVER

FEED DOG HEIGHT GAUGE

#68367

_W DRIVER

TEST PIN

#68368

ALIEN WRENCH RADIAL TIMING GAUGE

#68366

Kenmore 38515218400 User Manual SEWING MACHINE Manuals And Guides L0311086

KENMORE Mechanical Sewing Manual L0311086 KENMORE Mechanical Sewing Owner's Manual, KENMORE Mechanical Sewing installation guides

385 kenmore-385.15218400-sewing-machine-instruction-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
