AssemblyInstructions/Useand Care Manual

LiquidPropaneGasGrill

Kenrnore Model No. 415.16237

This Grill is For

Outdoor UseOnly

*Read this manual before cooking on

grill. Failure to follow all

manufacturer's instructions could

result in fire or explosion which could

cause property damage, personal

injury or death.

* Combustion by=products produced

when using this product contain

chemicals known to the State of

California to cause cancer, birth

defects, or other reproductive harm.

__ m

*Read and follow all Safety

Statements, Assembly Instructions

and Use & Care Directions before

attempting to assemble and cook.

* Some parts may contain sharp edges,

especially as noted in these

instructions. Wear protective gloves

if necessary.

•Parts

•Assembly

• Safety Rules

•Use and Care

•Troubleshooting

• Espa5oi, p. 36

Assembly Questions?

Call 1=800=241 =7548

Parts Ordering:

Call 1=800=4=MY=HOME ®

To Installer/Assembler: Leave

these instructions with

consumer.

To Consumer: Keep this

manual for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

if you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. if odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

1. Do not store or use gasoline or other

flammable liquids or vapors in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not

be stored in the vicinity of this or any other

appliance.

Call Grill Service Center For Help And Parts

If you have questions or need assistance during assembly,

please call 1-800-241-7548. Youwill be speaking to a

representative of the grill manufacturer and not a Sears

employee. To order new parts call Sears at 1-800-4-MY-HOME®.

Product Record

IMPORTANT:Fill out the product record informationbelow.

Model Number

Serial Number

See ratinglabelongrillfor serialnumber.

Date Purchased

Safety Symbols

The symbols and boxes shown below explain what each heading

means. Read and follow all of the messages found throughout

the manual.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING: Be alert to the possibility of serious bodily injury if

the instructions are not followed. Be sure to read and carefully

follow all of the messages.

c,o.

CAUTION: Indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

Installation Safety Precautions

• Use grill, as purchased, only with LP (propane) gas and the

regulator/valve assembly supplied.

• Grill installation must conform with local codes, or in their

absence of local codes, with either the National Fuel Gas

Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane

Installation Code, CSA B149.1, or Propane Storage and

Handling Code, B149.2, as applicable.

, All electrical accessories (such as rotisserie) must be

electrically grounded in accordance with local codes, or

National Electrical Code,ANSI/NFPA 70. Keep any electrical

cords and/or fuel supply hoses away from any hot surfaces.

, Grill is not for use in or on recreational vehicles and/or boats.

, This grill is safety certified for use in the United States only. Do

not modify for use in any other location. Modification will result

in a safety hazard.

__ m

D cAuT,o.

For residential use only. Do not use for commercial

cooking,

2 " 463264407

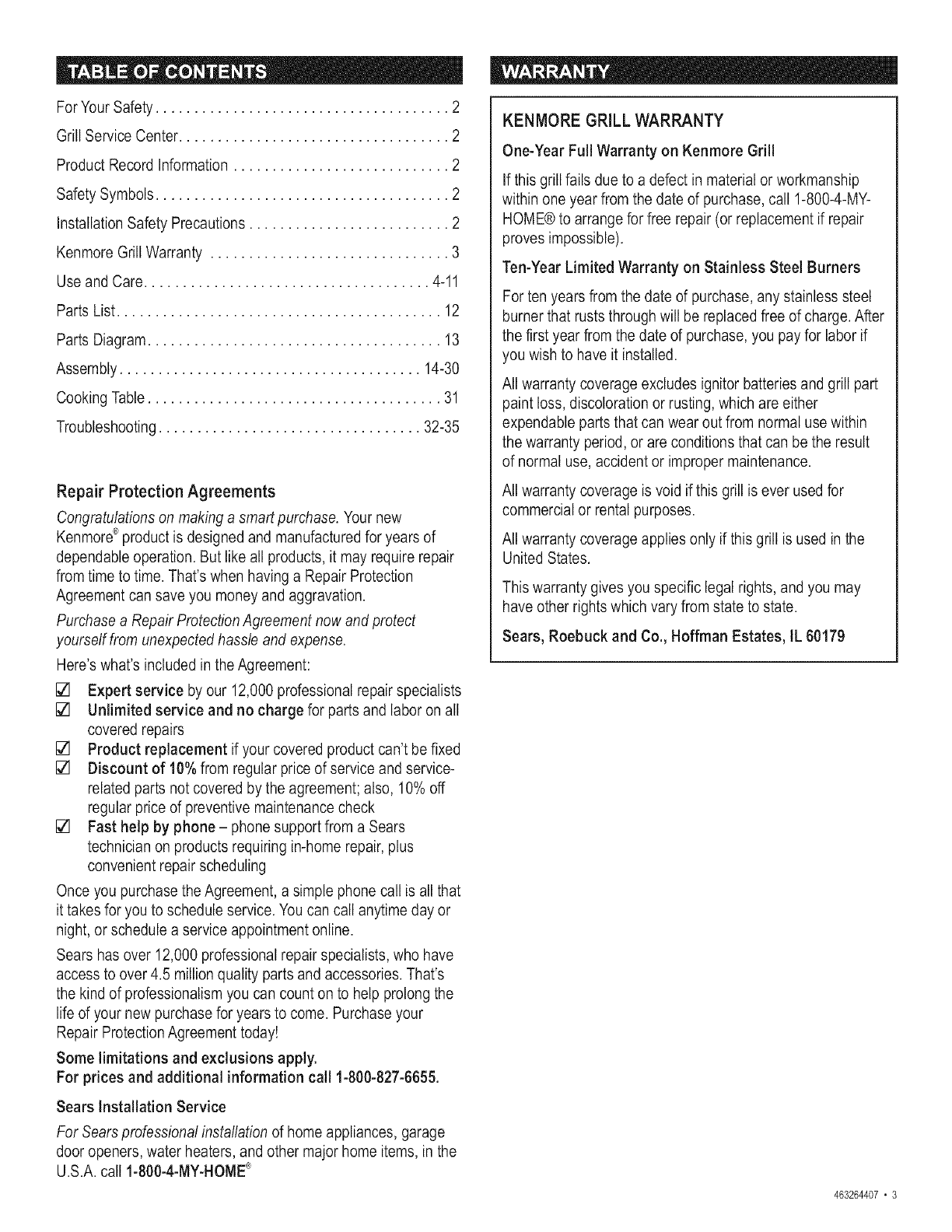

For Your Safety ...................................... 2

Grill Service Center................................... 2

Product Record Information ............................ 2

Safety Symbols ...................................... 2

Installation Safety Precautions .......................... 2

Kenmore Grill Warranty ............................... 3

Use and Care ..................................... 4-11

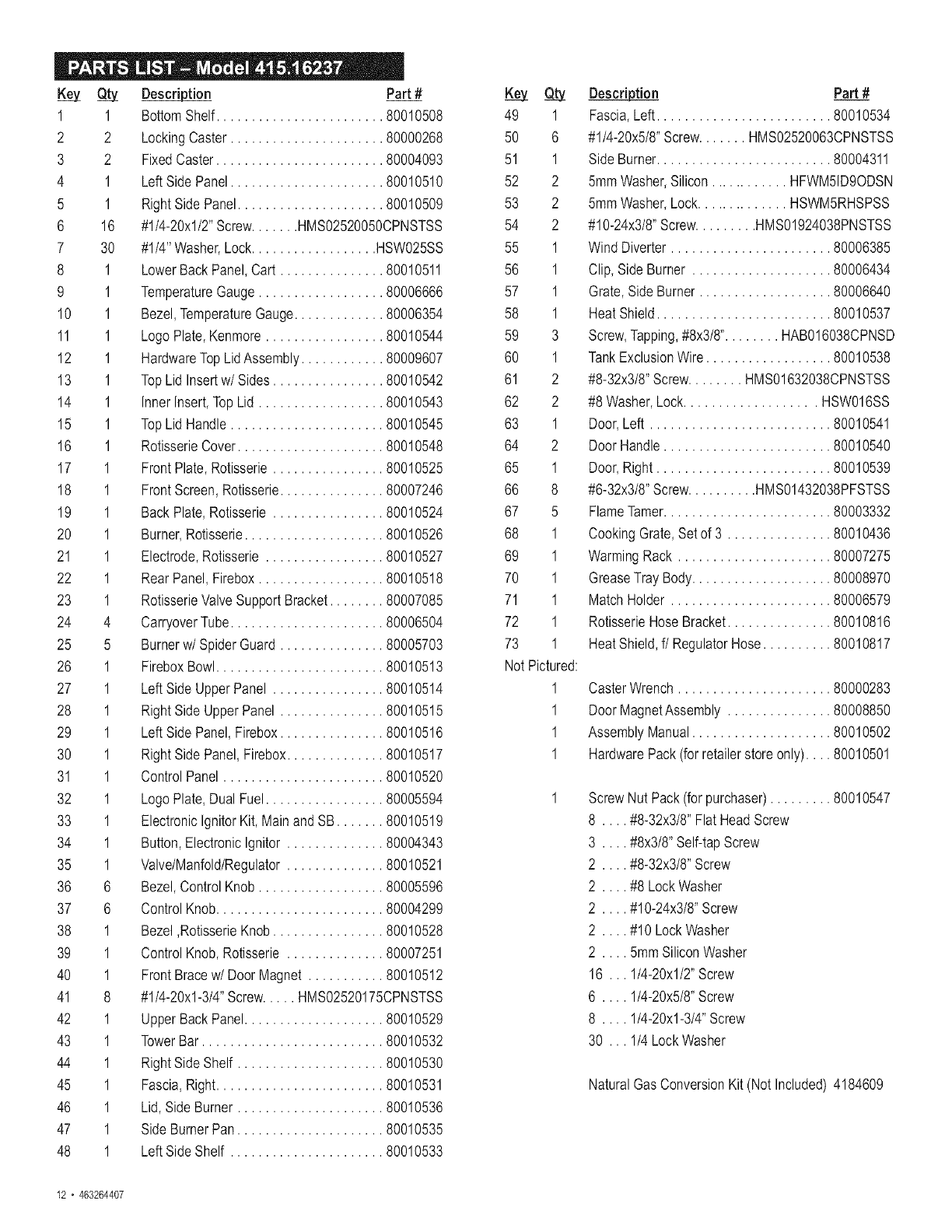

Parts List.......................................... 12

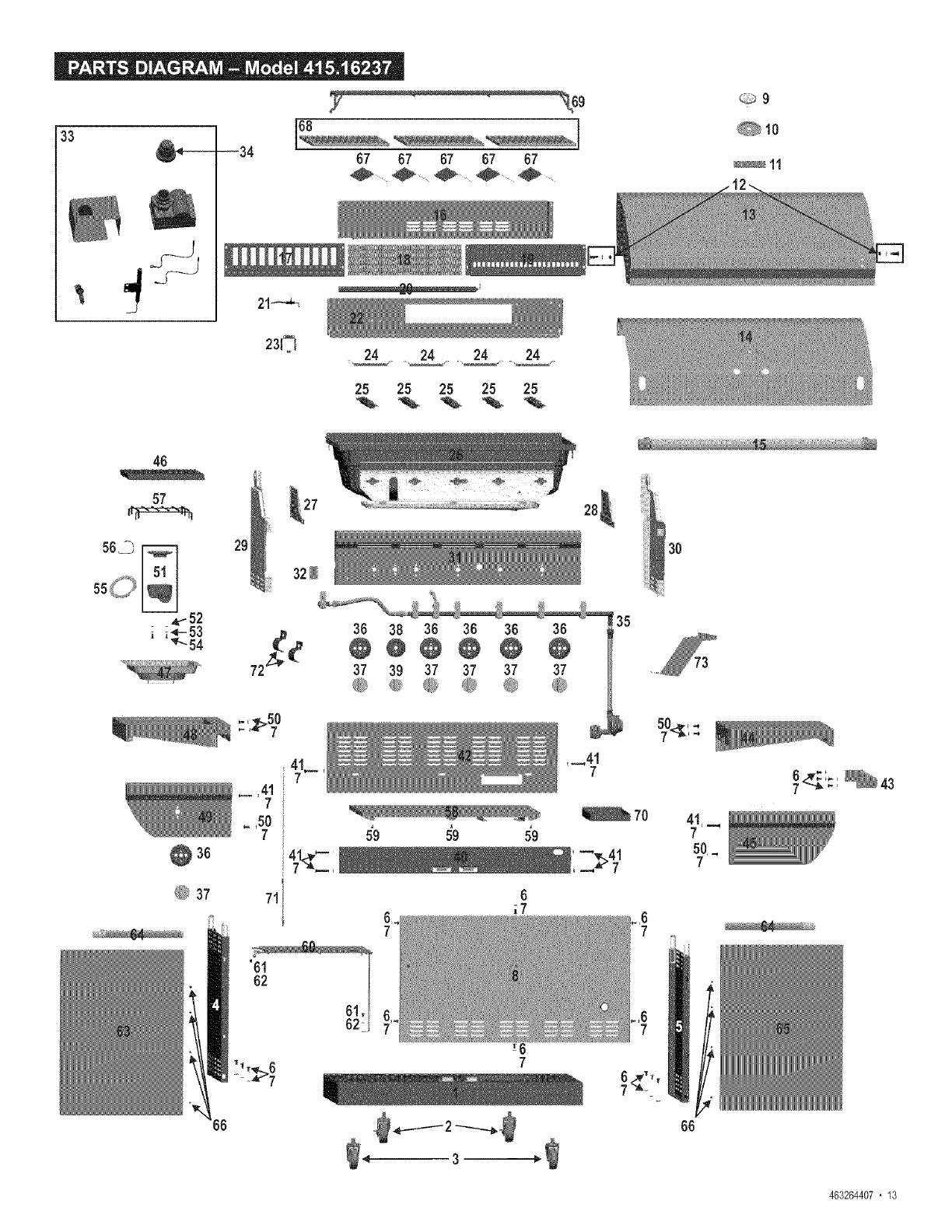

Parts Diagram...................................... 13

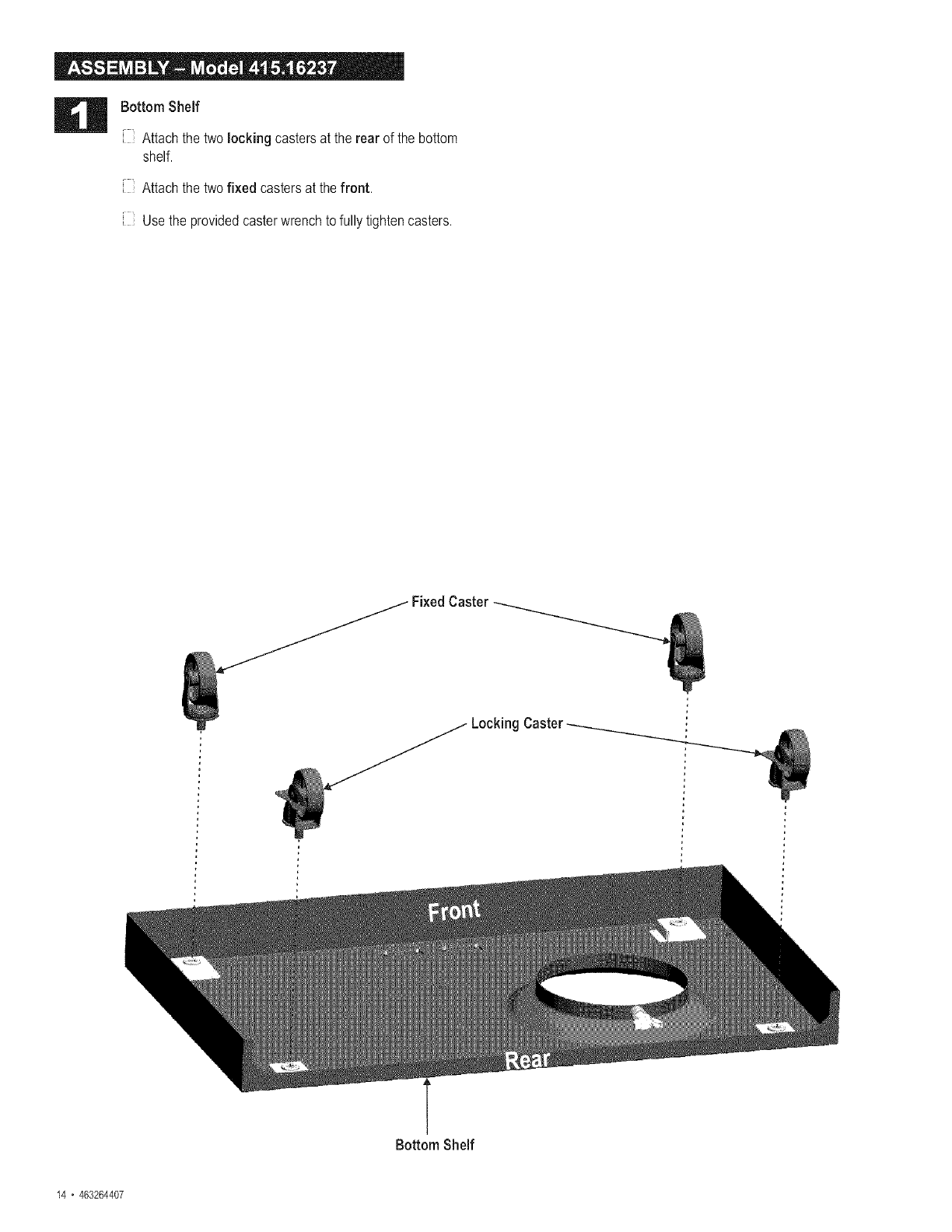

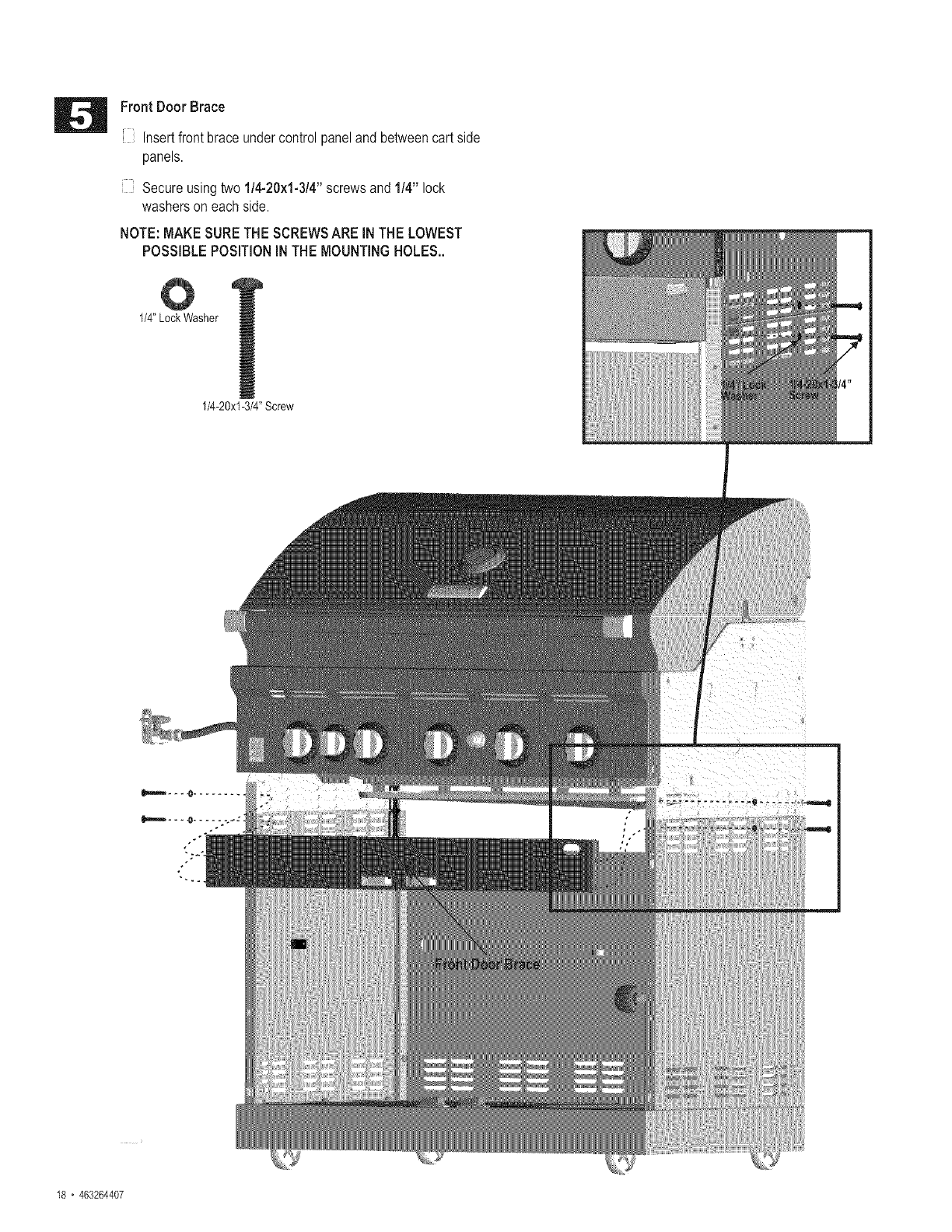

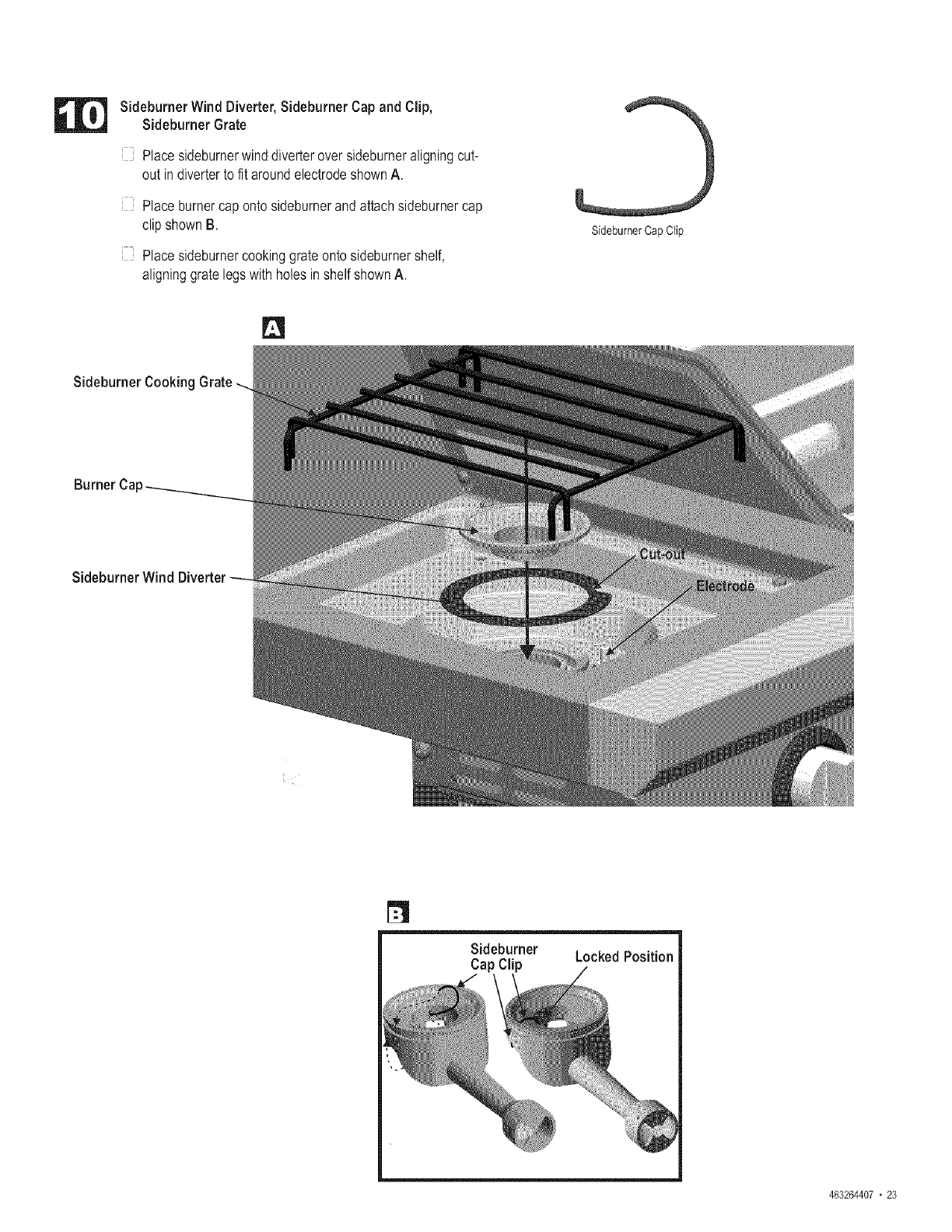

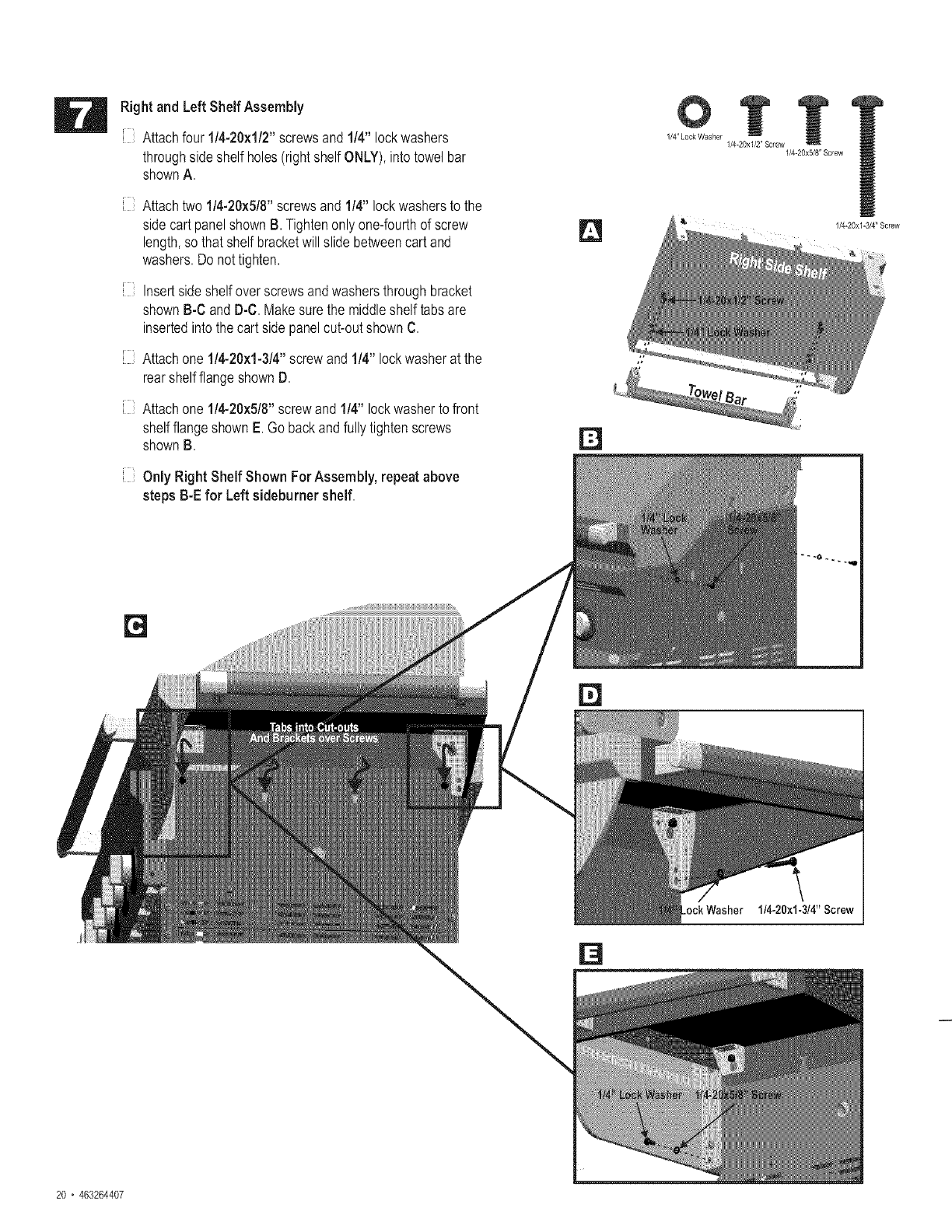

Assembly ....................................... 14-30

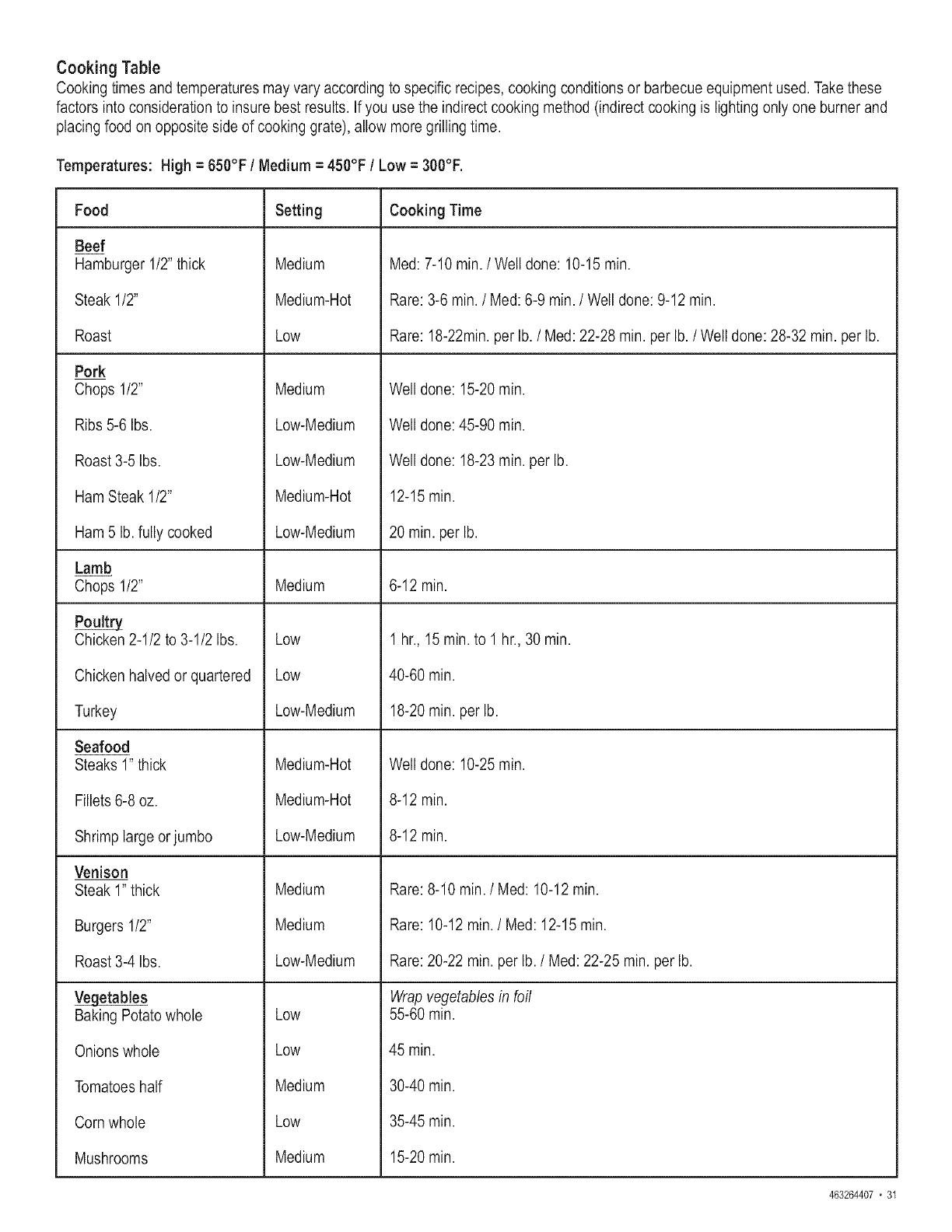

Cooking Table ...................................... 31

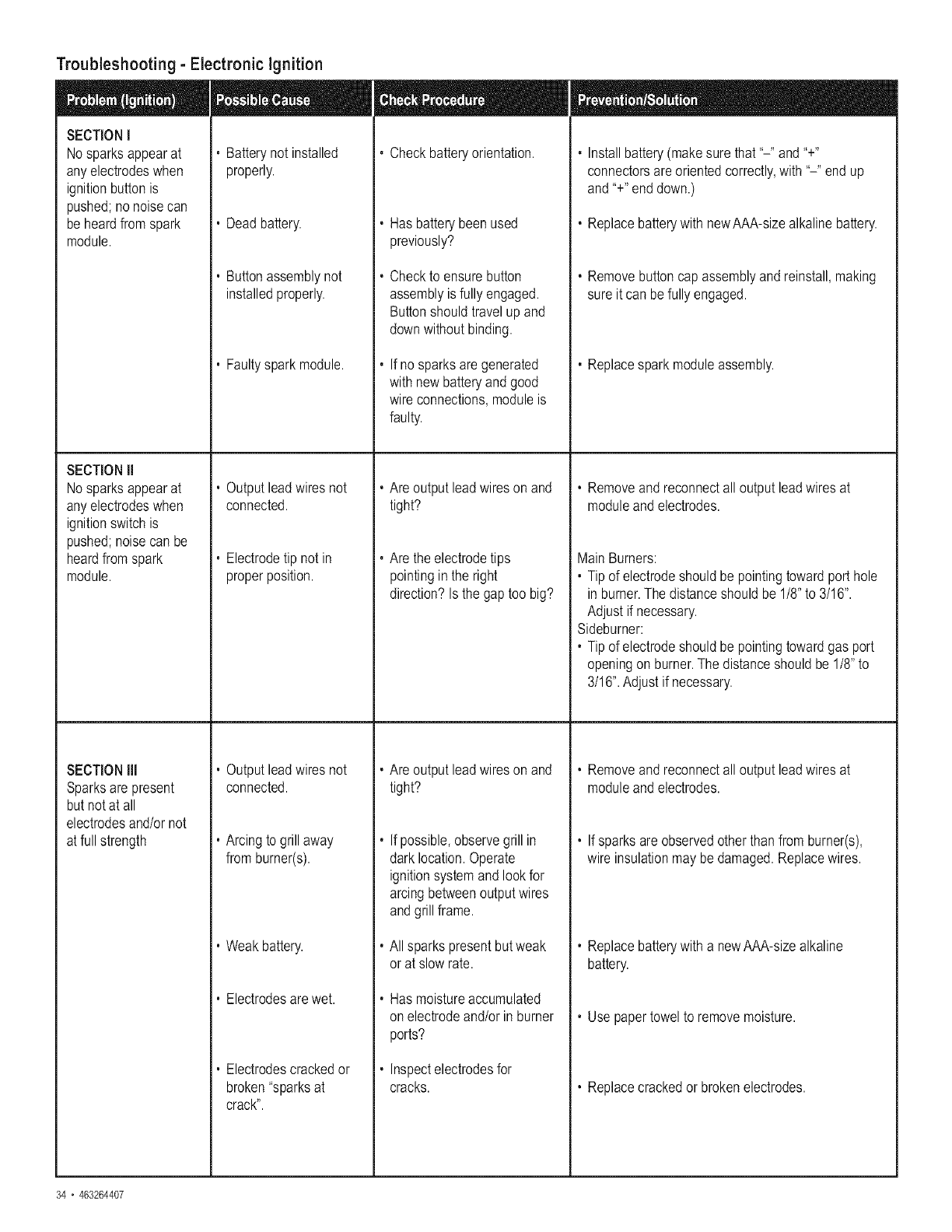

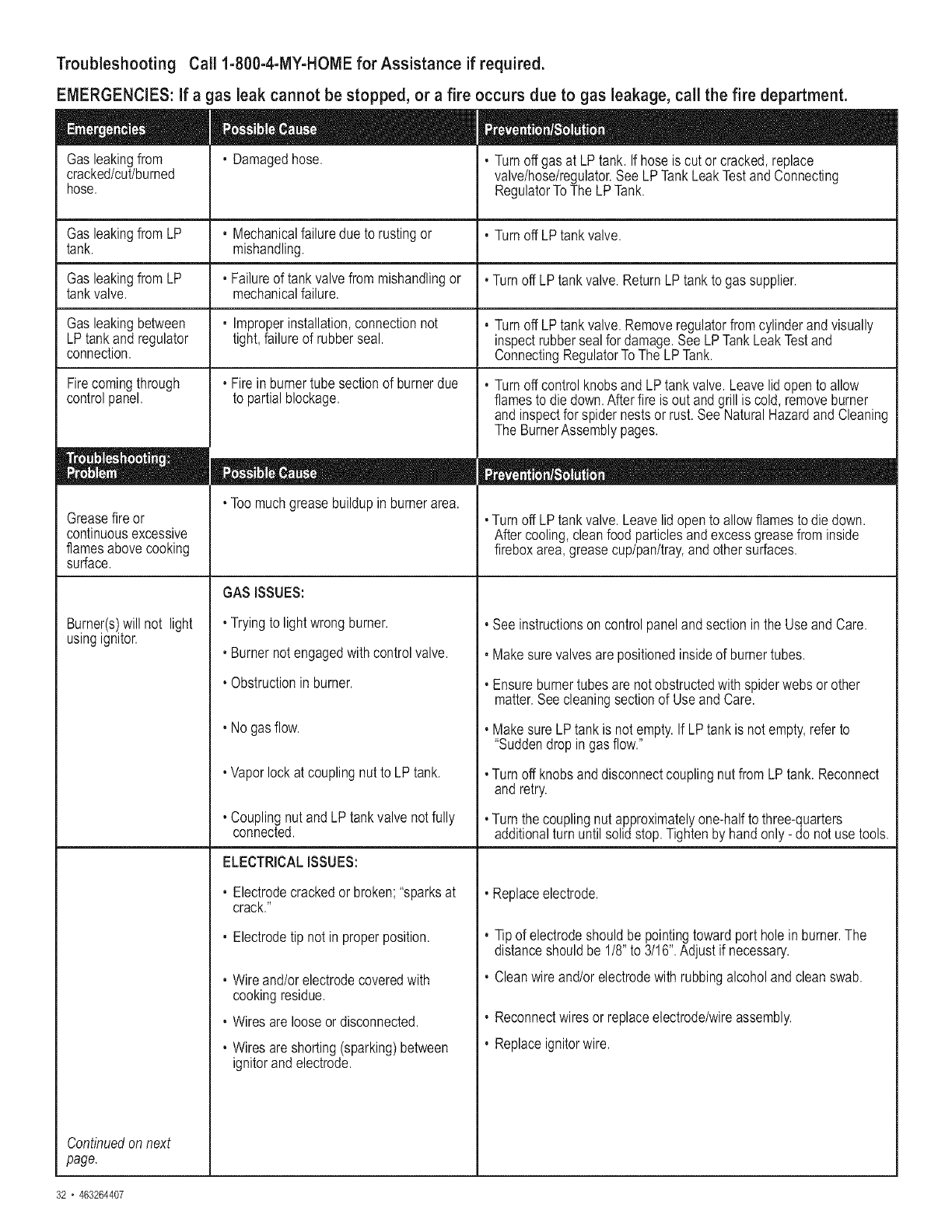

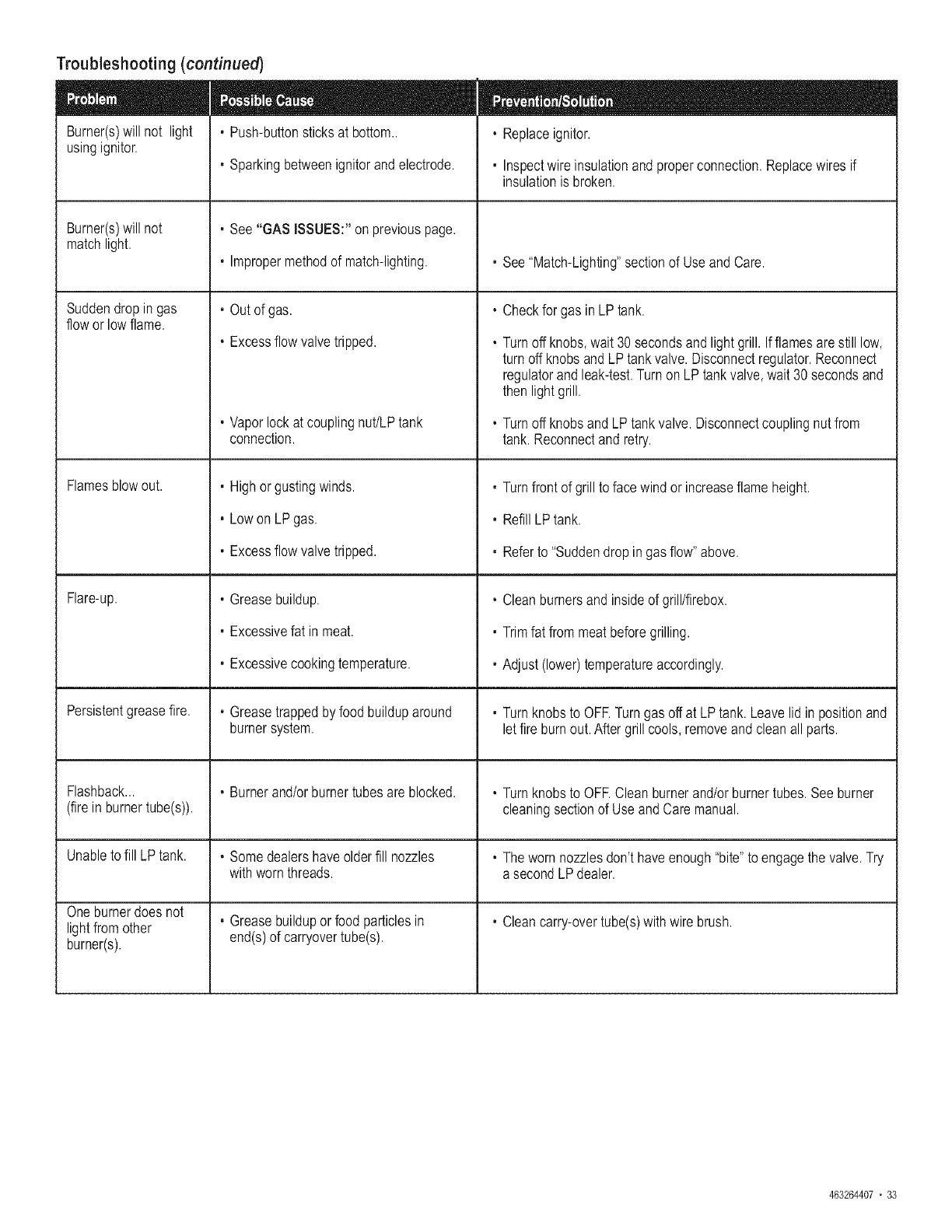

Troubleshooting .................................. 32-35

Repair Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore®product is designed and manufactured for years of

dependable operation. But like all products, it may require repair

from time to time. That's when having a Repair Protection

Agreement can save you money and aggravation.

Purchase a Repair Protection Agreement now and protect

yourself from unexpected hassle and expense.

Here's what's included in the Agreement:

[] Expert service by our 12,000 professional repair specialists

[] Unlimited service and no charge for parts and labor on all

covered repairs

[] Product replacement if your covered product can't be fixed

[] Discount of 10%from regular price of service and service-

related parts not covered by the agreement; also, 10% off

regular price of preventive maintenance check

[] Fast help by phone- phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

Once you purchase the Agreement, a simple phone call is all that

it takes for you to schedule service. You can call anytime day or

night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have

access to over 4.5 million quality parts and accessories. That's

the kind of professionalism you can count on to help prolong the

life of your new purchase for years to come. Purchase your

Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call 1-800-827-6655.

Sears installation Service

For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME®

KENMORE GRILL WARRANTY

One-Year Full Warranty on Kenmore Grill

If this grill fails due to a defect in material or workmanship

within one year from the date of purchase, call 1-800-4-MY-

HOME® to arrange for free repair (or replacement if repair

proves impossible).

Ten-Year Limited Warranty on Stainless Steel Burners

For ten years from the date of purchase, any stainless steel

burner that rusts through will be replaced free of charge. After

the first year from the date of purchase, you pay for labor if

you wish to have it installed.

All warranty coverage excludes ignitor batteries and grill part

paint loss, discoloration or rusting, which are either

expendable parts that can wear out from normal use within

the warranty period, or are conditions that can be the result

of normal use, accident or improper maintenance.

All warranty coverage is void if this grill is ever used for

commercial or rental purposes.

All warranty coverage applies only if this grill is used in the

United States.

This warranty gives you specific legal rights, and you may

have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

463264407 •3

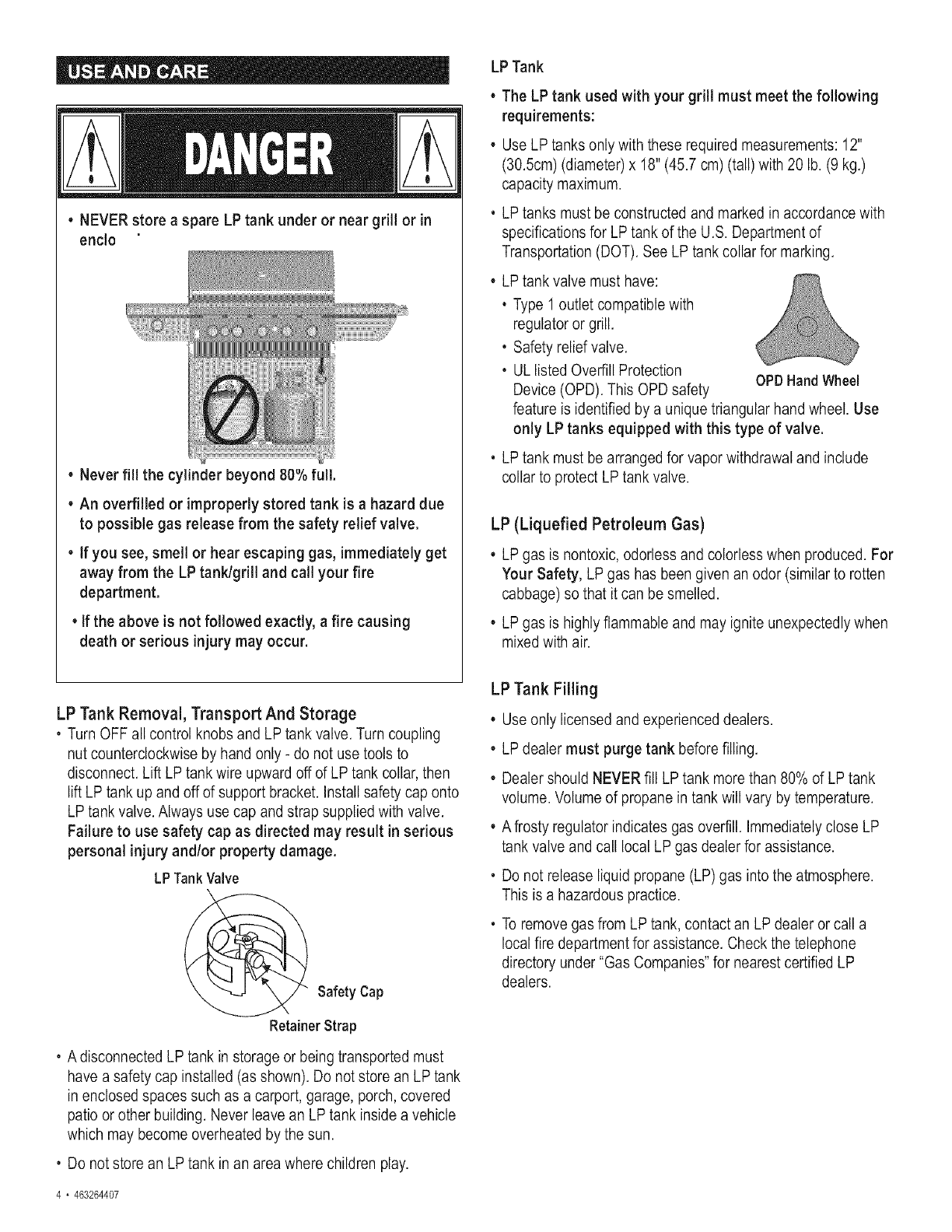

•NEVER store a spare LP tank under or near grill or in

encle

• Never fill the cylinder beyond 80% full.

• An overfilled or improperly stored tank is a hazard due

to possible gas release from the safety relief valve.

•if you see, smell or hear escaping gas, immediately get

away from the LP tank/grill and call your fire

department.

•if the above is not followed exactly, a fire causing

death or serious injury may occur.

LP Tank

The LP tank used with your grill must meet the following

requirements:

Use LP tanks only with these required measurements: 12"

(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)

capacity maximum.

LP tanks must be constructed and marked in accordance with

specifications for LP tank of the U.S. Department of

Transportation (DOT). See LP tank collar for marking.

• LP tank valve must have:

, Type 1 outlet compatible with

regulator or grill.

, Safety relief valve.

, UL listed Overfill Protection OPDHand Wheel

Device (OPD). This OPD safety

feature is identified by a unique triangular hand wheel. Use

only LP tanks equipped with this type of valve.

. LP tank must be arranged for vapor withdrawal and include

collar to protect LP tank valve.

LP (Liquefied Petroleum Gas)

* LP gas is nontoxic, odorless and colorless when produced. For

Your Safety, LP gas has been given an odor (similar to rotten

cabbage) so that it can be smelled.

, LP gas is highly flammable and may ignite unexpectedly when

mixed with air.

LP Tank Removal, Transport And Storage

,Turn OFF all control knobs and LP tank valve. Turn coupling

nut counterclockwise by hand only - do not use tools to

disconnect. Lift LP tank wire upward off of LP tank collar, then

lift LP tank up and off of support bracket, install safety cap onto

LP tank valve. Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious

personal injury and/or property damage.

LPTankValve

Safety Cap

RetainerStrap

,A disconnected LP tank in storage or being transported must

have a safety cap installed (as shown). Do not store an LP tank

in enclosed spaces such as a carport, garage, porch, covered

patio or other building. Never leave an LP tank inside a vehicle

which may become overheated by the sun.

,Do not store an LP tank in an area where children play.

LP Tank Filling

•Useonly licensed and experienced dealers.

•LP dealer must purge tank before filling.

• Dealer should NEVERfill LP tank more than 80% of LP tank

volume. Volume of propane in tank will vary by temperature.

• A frosty regulator indicates gas overfill. Immediately close LP

tank valve and call local LP gas dealer for assistance.

, Do not release liquid propane (LP) gas into the atmosphere.

This is a hazardous practice.

, To remove gas from LP tank, contact an LP dealer or call a

local fire department for assistance. Check the telephone

directory under "Gas Companies" for nearest certified LP

dealers.

4 " 463264407

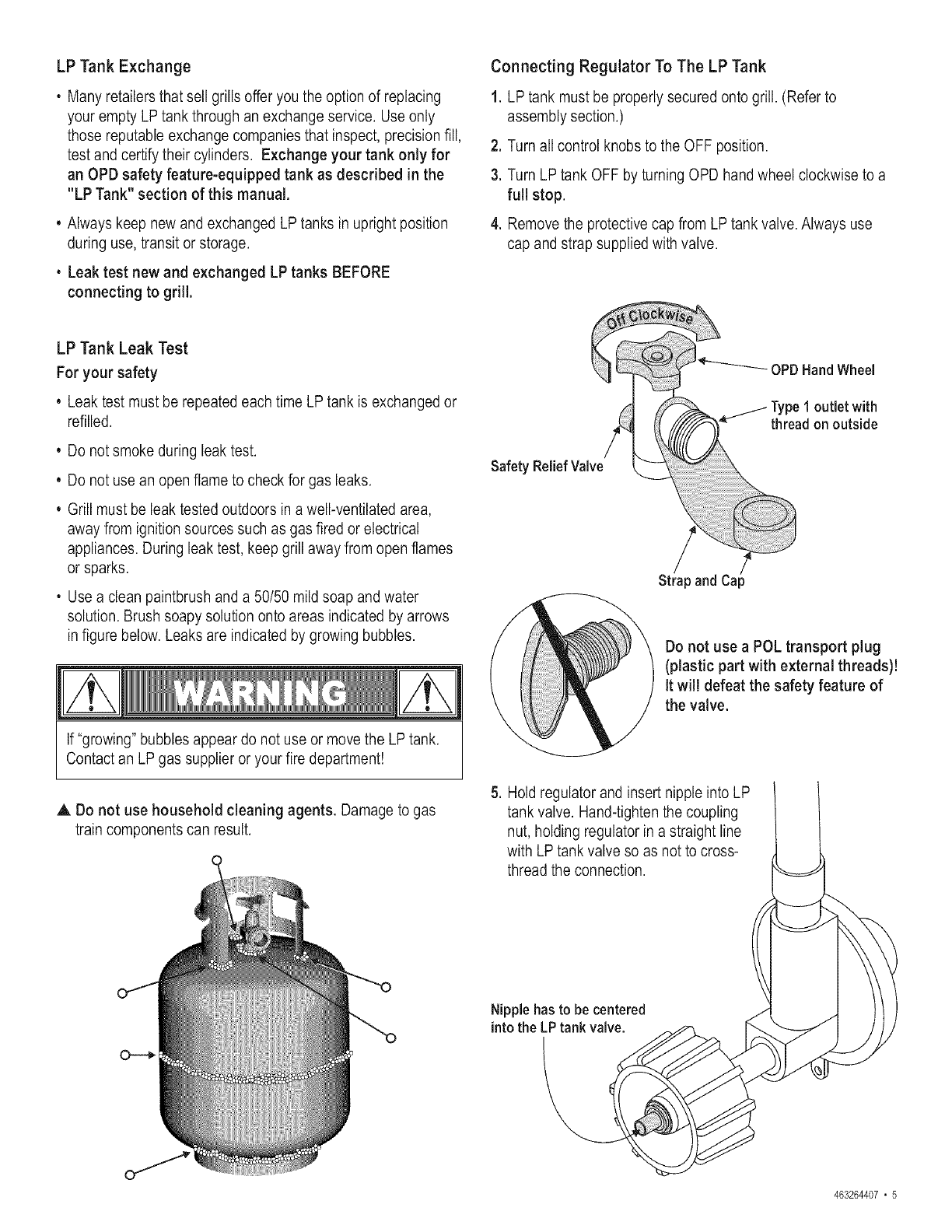

LP Tank Exchange

o Many retailers that sell grills offer you the option of replacing

your empty LPtank through an exchange service. Useonly

those reputable exchange companies that inspect, precision fill,

test and certify their cylinders. Exchange your tank only for

an OPB safety feature-equipped tank as described in the

"LP Tank" section of this manual.

Always keep new and exchanged LP tanks in upright position

during use, transit or storage.

, Leak test new and exchanged LP tanks BEFORE

connecting to grill,

Connecting Regulator To The LP Tank

1. LP tank must be properly secured onto grill. (Refer to

assembly section.)

2. Turn all control knobs to the OFF position.

3. Turn LP tank OFF by turning OPD hand wheel clockwise to a

full stop.

4. Remove the protective cap from LP tank valve. Always use

cap and strap supplied with valve.

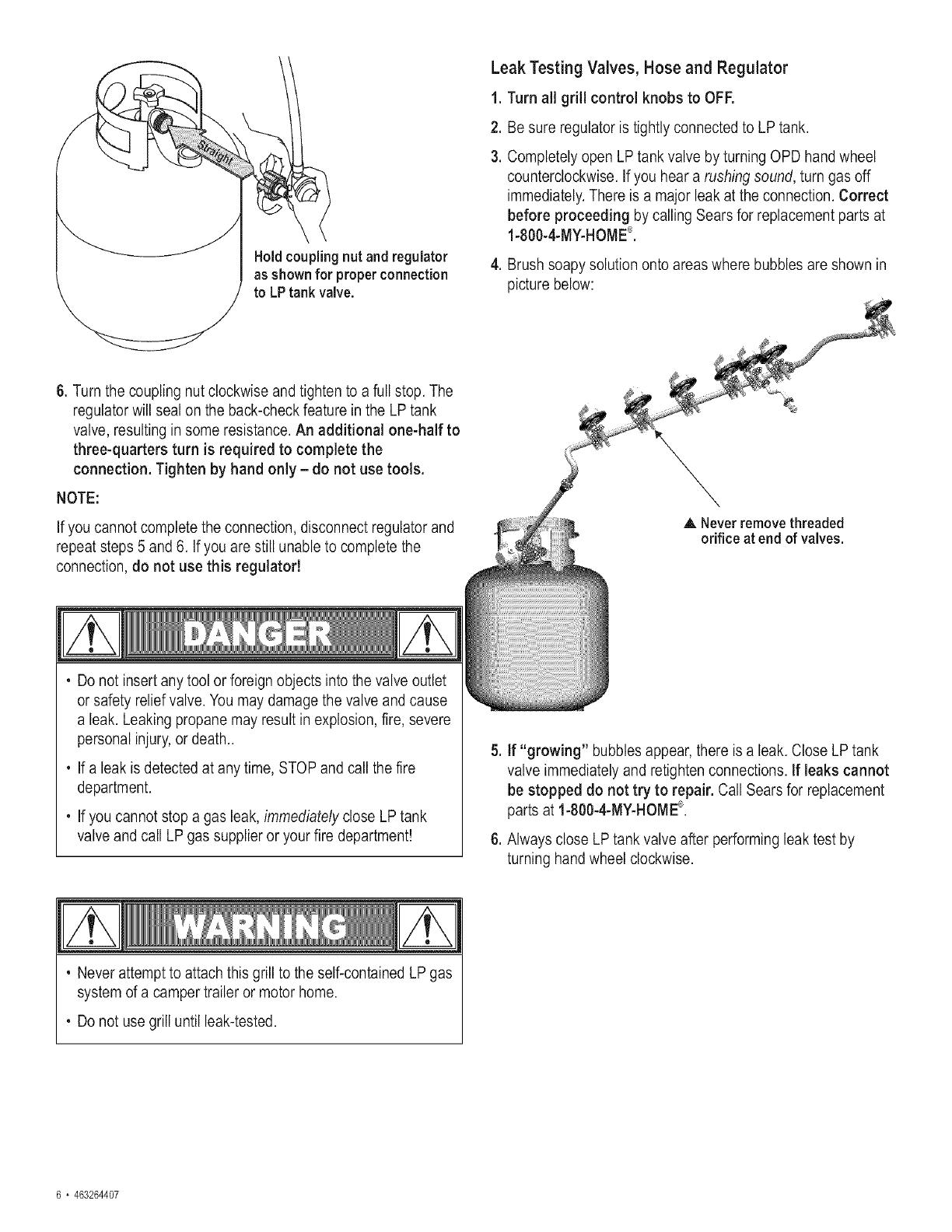

LP Tank Leak Test

For your safety

•Leak test must be repeated each time LP tank is exchanged or

refilled.

Do not smoke during leak test.

• Do not use an open flame to check for gas leaks.

Grill must be leak tested outdoors in a well-ventilated area,

away from ignition sources such as gas fired or electrical

appliances. During leak test, keep grill away from open flames

or sparks.

, Usea clean paintbrush and a 50/50 mild soap and water

solution. Brush soapy solution onto areas indicated by arrows

in figure below. Leaks are indicated by growing bubbles.

If "growing" bubbles appear do not use or move the LP tank.

Contact an LP gas supplier or your fire department!

A Do not use household cleaning agents. Damage to gas

train components can result.

Do not use a POL transport plug

(plastic part with external threads)!

it will defeat the safety feature of

the valve.

5. Hold regulator and insert nipple into LP

tank valve. Hand-tighten the coupling

nut, holding regulator in a straight line

with LPtank valve so as not to cross-

thread the connection.

Nipple has to be centered

intothe LPtank valve.

463264407 •5

Hold coupling nutand regulator

as shown for properconnection

to LPtank valve.

Leak Testing Valves, Hoseand Regulator

1. Turnall grill control knobs to OFE

Be sure regulator is tightly connected to LP tank.

Completely open LP tank valve by turning OPD hand wheel

counterclockwise. If you hear a rushing sound, turn gas off

immediately. There is a major leak at the connection. Correct

before proceeding by calling Sears for replacement parts at

1-800-4-MY-HOME®.

4. Brush soapy solution onto areas where bubbles are shown in

picture below:

6. Turn the coupling nut clockwise and tighten to a full stop. The

regulator will seal on the back-check feature in the LP tank

valve, resulting in some resistance. An additional one-half to

three-quarters turn is required to complete the

connection. Tighten by hand only - do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and

repeat steps 5 and 6. If you are still unable to complete the

connection, do not use this regulator!

A Neverremove threaded

orifice at end of valves.

, Do not insert any tool or foreign objects into the valve outlet

or safety relief valve. You may damage the valve and cause

a leak. Leaking propane may result in explosion, fire, severe

personal injury,or death..

, If a leak is detected at any time, STOP and call the fire

department.

, If you cannot stop a gas leak, immediately close LP tank

valve and call LP gas supplier or your fire department!

5. ff "growing" bubbles appear, there is a leak. Close LP tank

valve immediately and retighten connections. If leaks cannot

be stopped do not try to repair, Call Sears for replacement

parts at 1-800-4-MY-HOME®.

6. Always close LPtank valve after performing leak test by

turning hand wheel clockwise.

, Never attempt to attach this grill to the self-contained LP gas

system of a camper trailer or motor home.

, Do not use grill until leak-tested.

6 " 463264407

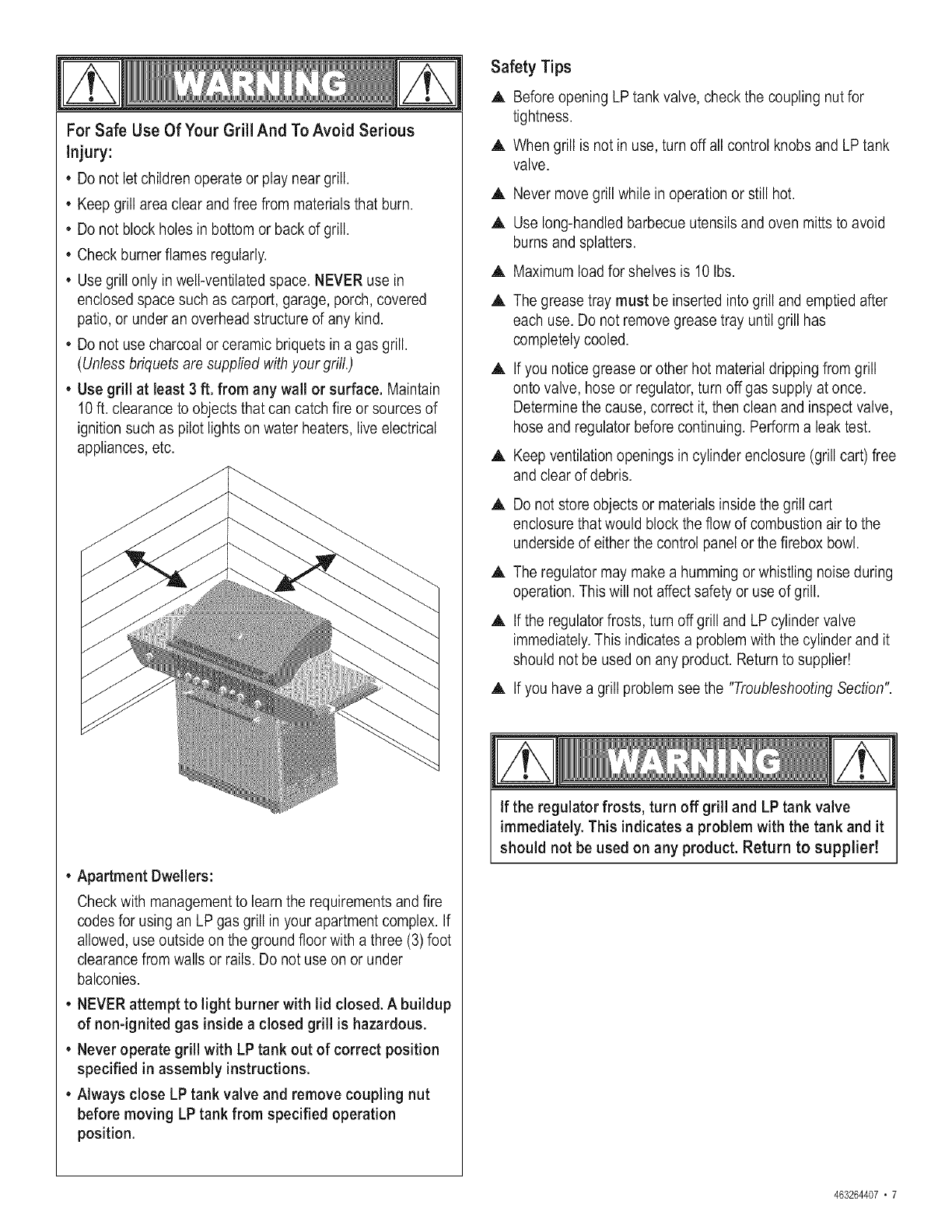

For Safe Use Of Your Grill And To Avoid Serious

injury:

•Do not let children operate or play near grill.

• Keep grill area clear and free from materials that burn.

• Do not block holes in bottom or back of grill.

• Check burnerflames regularly.

• Use grill only in well-ventilated space. NEVER use in

enclosed space such as carport, garage, porch, covered

patio, or under an overhead structure of any kind.

• Do not use charcoal or ceramic briquets in a gas grill.

(Unless briquets are supplied with your grill.)

•Use grill at least 3ft. from any wall or surface. Maintain

10ft. clearance to objects that can catch fire or sources of

ignition such as pilot lights on water heaters, live electrical

appliances, etc.

Apartment Dwellers:

Check with management to learn the requirements and fire

codes for using an LP gas grill in your apartment complex. If

allowed, use outside on the ground floor with a three (3) foot

clearance from walls or rails. Do not use on or under

balconies.

• NEVER attempt to light burner with lid closed. A buildup

of non-ignited gas inside aclosed grill is hazardous.

• Never operate grill with LP tank out of correct position

specified in assembly instructions,

• Always close LP tank valve and remove coupling nut

before moving LP tank from specified operation

position.

Safety Tips

,A. Before opening LP tank valve, check the coupling nut for

tightness.

A When grill is not in use, turn offall control knobs and LP tank

valve.

A Never move grill while in operation or still hot.

A Use long-handled barbecue utensils and oven mitts to avoid

burns and splatters.

A Maximum load for shelves is 10 Ibs.

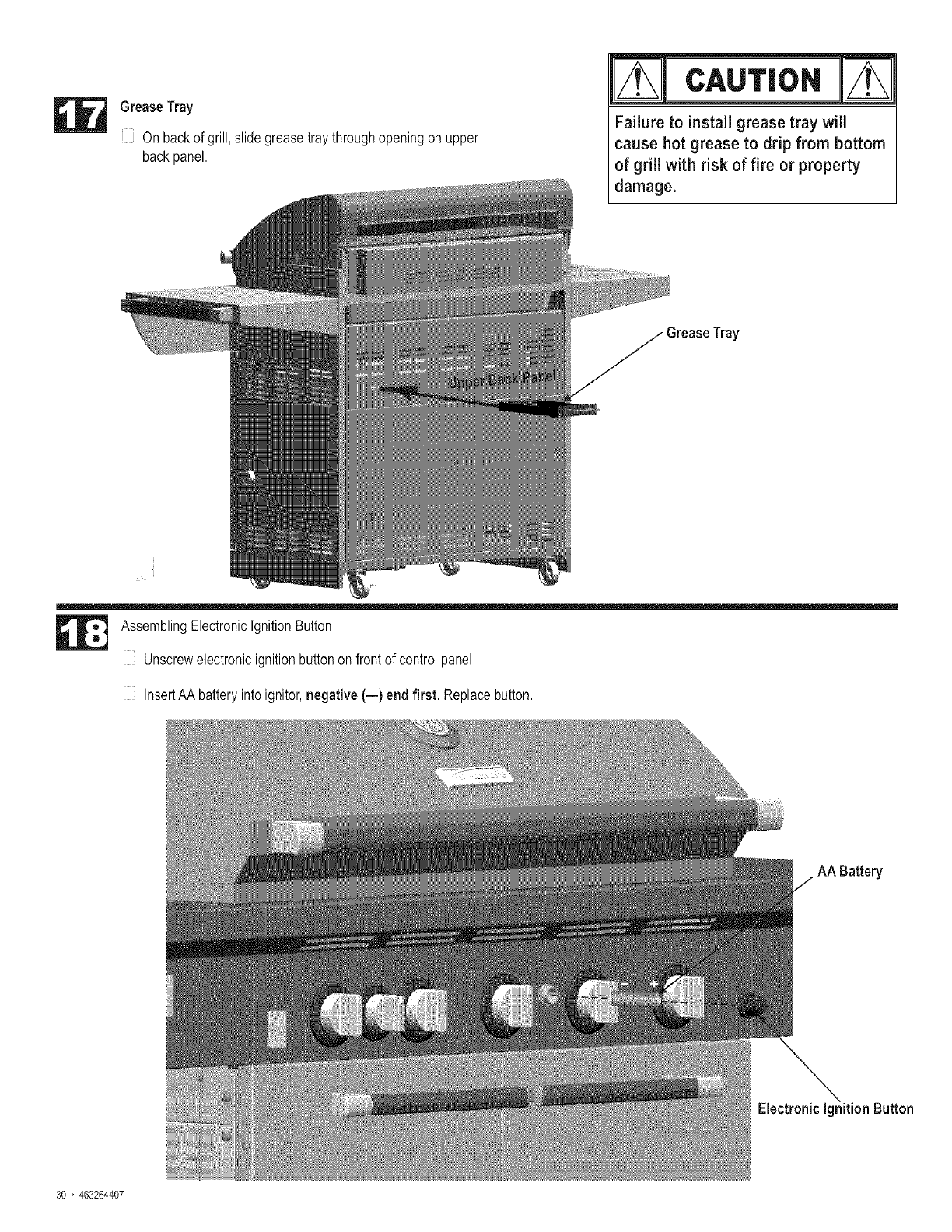

A The grease tray must be inserted into grill and emptied after

each use. Do not remove grease tray until grill has

completely cooled.

,A. If you notice grease or other hot material dripping from grill

onto valve, hose or regulator, turn off gas supply at once.

Determine the cause, correct it, then clean and inspect valve,

hose and regulator before continuing. Perform a leak test.

,A. Keep ventilation openings in cylinder enclosure (grill cart) free

and clear of debris.

A Do not store objects or materials inside the grill cart

enclosure that would block the flow of combustion air to the

underside of either the control panel or the firebox bowl.

,A. The regulator may make a humming or whistling noise during

operation. This will not affect safety or use of grill.

A If the regulator frosts, turn off grill and LP cylinder valve

immediately.This indicates a problem with the cylinder and it

should not be used on any product. Return to supplier!

,A. If you have a grill problem see the "Troubleshooting Section".

_fthe regulator frosts, turn off grill and LP tank valve

immediately. This indicates a problem with the tank and it

should not be used on any product, Return to supplier!

463264407 • 7

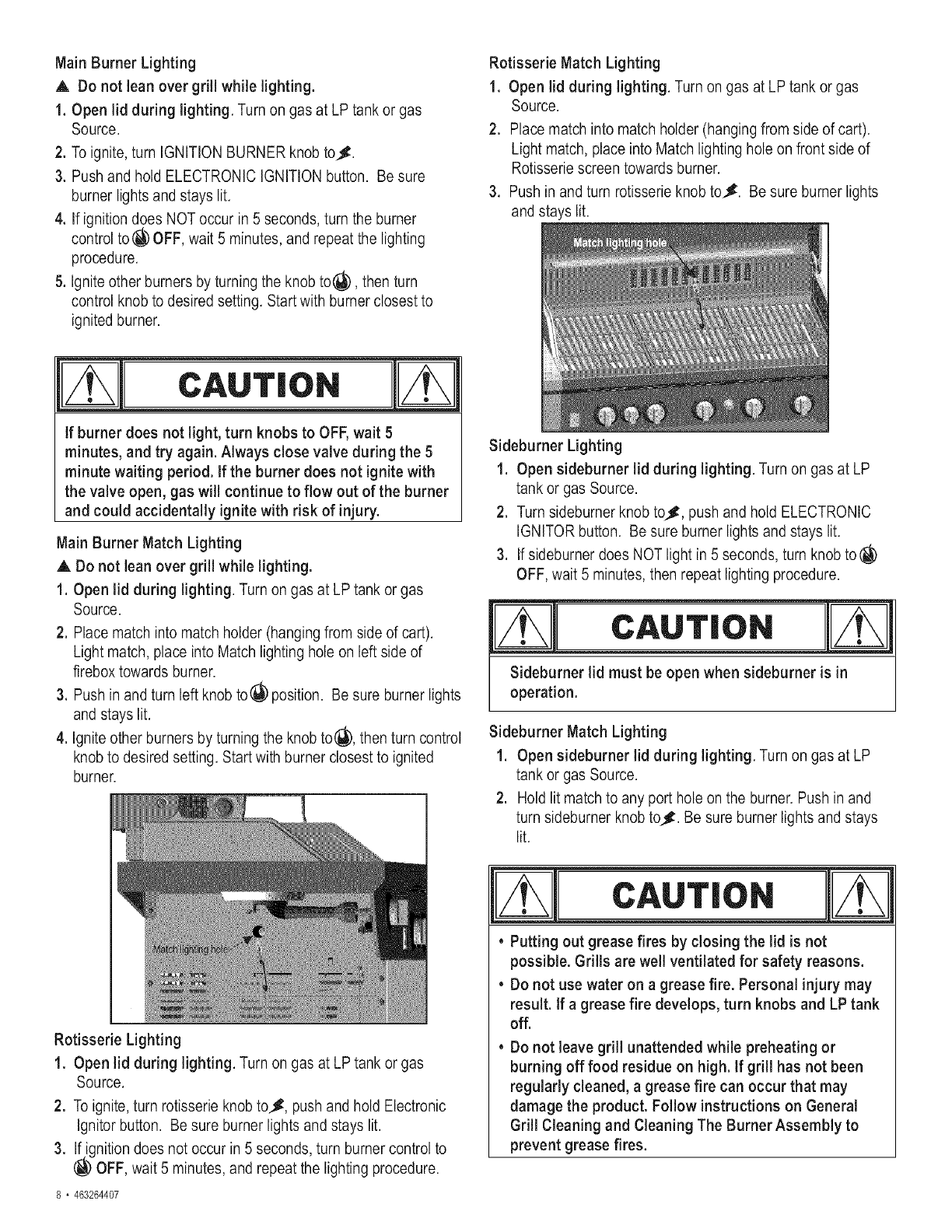

Main Burner Lighting

,L Do not lean over grill while lighting.

1. Open lid during lighting. Turn on gas at LP tank or gas

Source.

2. To ignite, turn IGNITION BURNER knob to_.

3. Push and hold ELECTRONIC IGNITION button. Be sure

burner lights and stays lit.

4. If ignition does NOT occur in 5 seconds, turn the burner

control to (_ OFF, wait 5 minutes, and repeat the lighting

procedure.

5. Igniteother burners by turning the knob to(_, then turn

control knob to desired setting. Start with burner closest to

ignited burner.

Rotisserie Match Lighting

1. Open lid during lighting. Turn on gas at LP tank or gas

Source.

2. Place match into match holder (hanging from side of cart).

Light match, place into Match lighting hole on front side of

Rotisserie screen towards burner.

3. Push in and turn rotisserie knob to_. Be sure burner lights

and stays lit.

mcA,.,-,-,,:,,,,

if burner does not light, turn knobs to OFF,wait 5

minutes, and try again. Always close valve during the 5

minute waiting period. If the burner does not ignite with

the valve open, gas will continue to flow out of the burner

and could accidentally ignite with risk of injury.

Main Burner Match Lighting

,& Do not lean over grill while lighting.

1. Open lid during lighting. Turn on gas at LP tank or gas

Source.

2. Place match into match holder (hanging from side of cart).

Light match, place into Match lighting hole on left side of

firebox towards burner.

3. Push in and turn left knob to(_ position. Be sure burner lights

and stays lit.

4. Ignite other burners by turning the knob to_), then turn control

knob to desired setting. Start with burner closest to ignited

burner.

Rotisserie Lighting

1. Open lid during lighting. Turn on gas at LP tank or gas

Source.

2. To ignite, turn rotisserie knob to_, push and hold Electronic

Ignitor button. Be sure burner lights and stays lit.

3. If ignition does not occur in 5 seconds, turn burner control to

(_ OFF, wait 5 minutes, and repeat the lighting procedure.

8 " 463264407

Sideburner Lighting

1. Open sideburner lid during lighting. Turn on gas at LP

tank or gas Source.

2. Turn sideburner knob to_, push and hold ELECTRONIC

IGNITOR button. Be sure burner lights and stays lit.

3. If sideburner does NOT light in 5 seconds, turn knob to (_

OFF, wait 5 minutes, then repeat lighting procedure.

CAUTIO. /L

Sideburner lid must be open when sideburner is in

operation.

Sideburner Match Lighting

1. Open sideburner lid during lighting. Turn on gas at LP

tank or gas Source.

2. Hold lit match to any port hole on the burner. Push in and

turn sideburner knob to_. Be sure burner lights and stays

lit.

CAUTIO.

* Putting out grease fires by closing the lid is not

possible. Grills are well ventilated for safety reasons.

,Do not use water on a grease fire. Personal injury may

result, if agrease fire develops, turn knobs and LP tank

off.

, Do not leave grill unattended while preheating or

burning off food residue on high. if grill has not been

regularly cleaned, a grease fire can occur that may

damage the product. Follow instructions on General

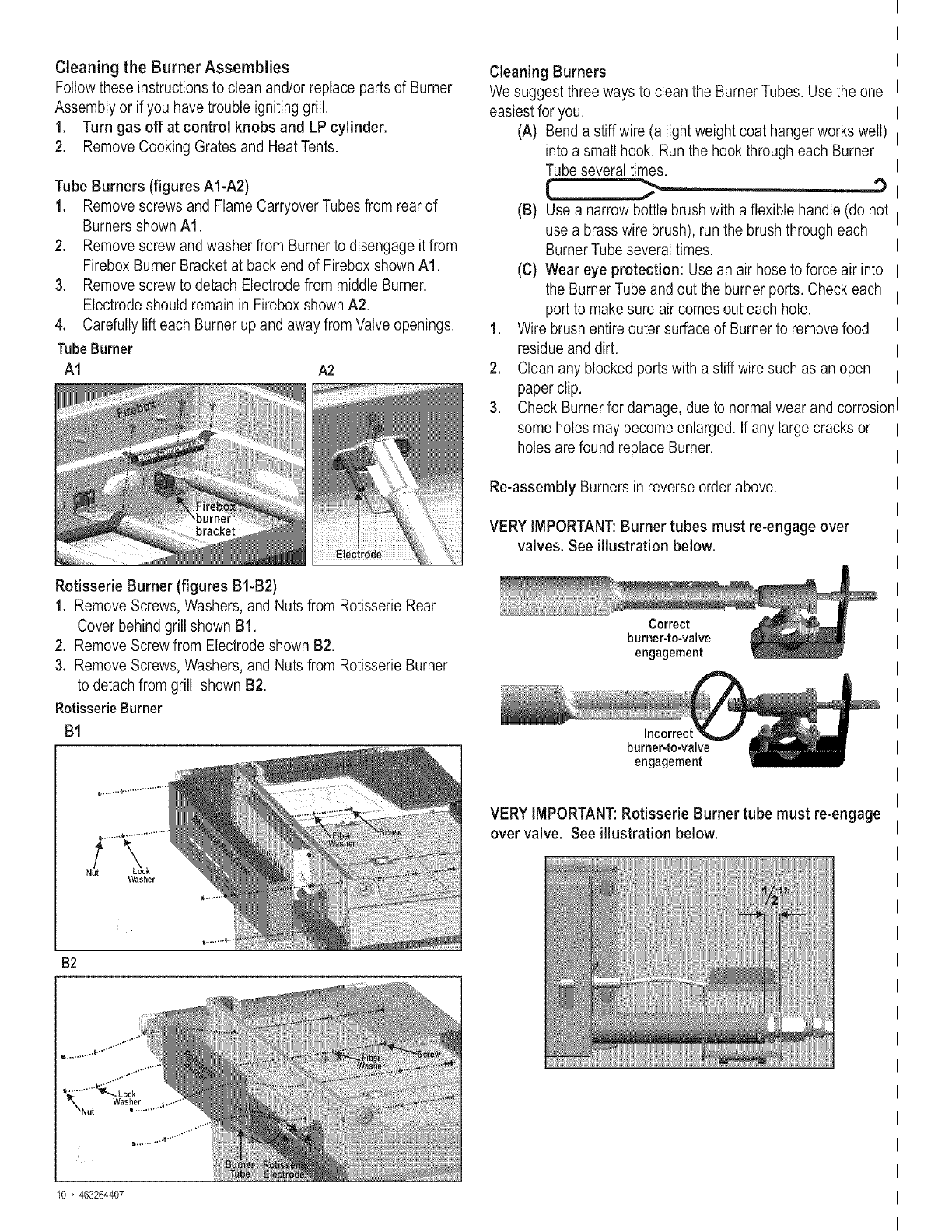

Grill Cleaning and Cleaning The Burner Assembly to

prevent grease fires.

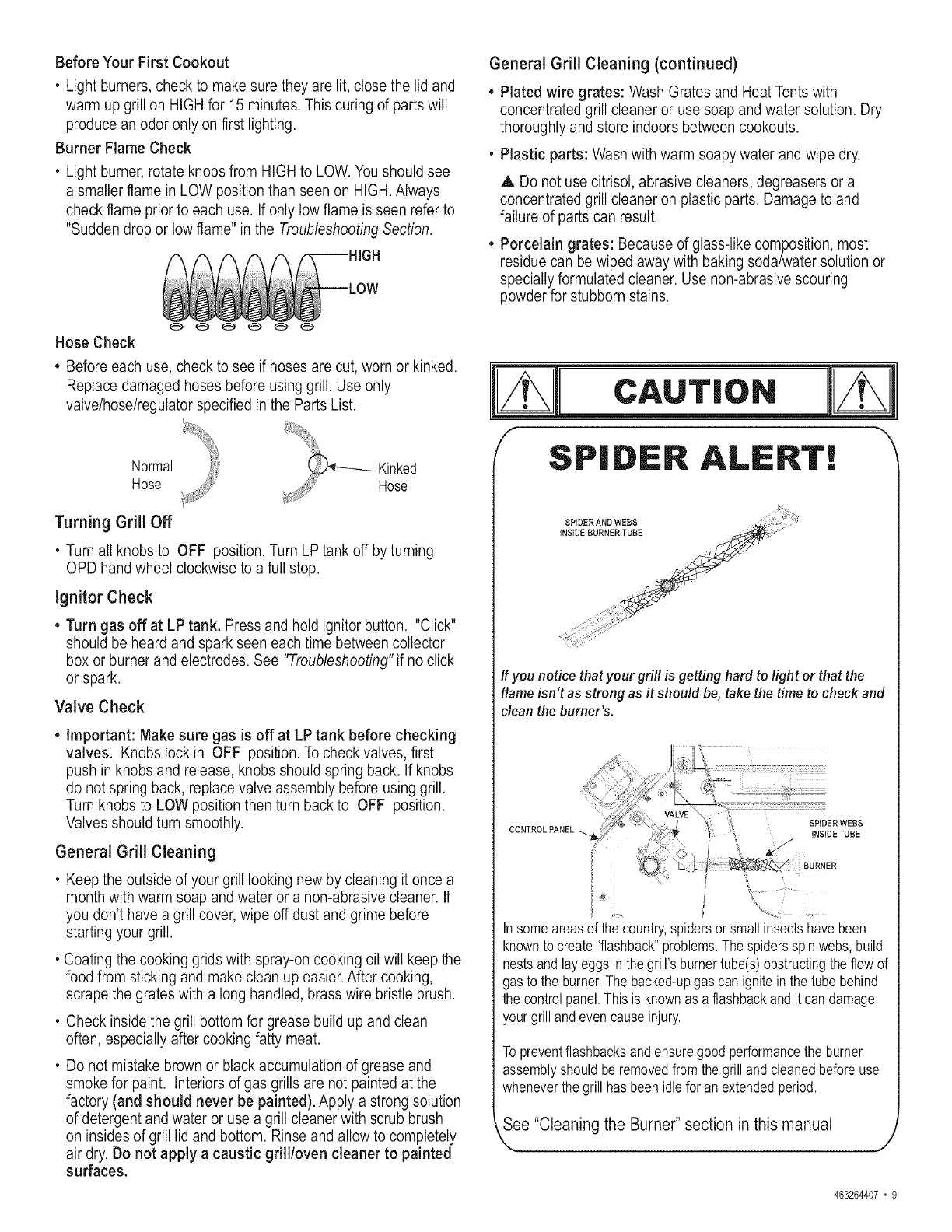

BeforeYourFirstCookout

oLight burners, check to make sure they are lit, close the lid and

warm up grill on HIGH for 15 minutes. This curing of parts will

produce an odor only on first lighting.

Burner Flame Check

,Light burner, rotate knobs from HIGH to LOW. Youshould see

a smaller flame in LOW position than seen on HIGH. Always

check flame prior to each use. If only low flame is seen refer to

"Sudden drop or low flame" in the Troubleshooting Section.

Hose Check

• Before each use, check to see if hoses are cut, worn or kinked.

Replace damaged hoses before using grill. Use only

valve/hose/regulator specified in the Parts List.

Normal

Hose

Turning Grill Off

, Turn all knobs to OFF position. Turn LP tank off by turning

OPD handwheel clockwise to a full stop.

Ignitor Check

• Turn gas off at LP tank, Press and hold ignitor button. "Click"

should be heard and spark seen each time between collector

box or burner and electrodes. See "Troubleshooting" if no click

or spark.

Valve Check

•important: Make sure gas is off at LP tank before checking

valves. Knobs lock in OFF position. To check valves, first

push in knobs and release, knobs should spring back. If knobs

do not spring back, replace valve assembly before using grill.

Turn knobs to LOW position then turn back to OFF position.

Valves should turn smoothly.

General Grill Cleaning

o Keep the outside of your grill looking new by cleaning it once a

month with warm soap and water or a non-abrasive cleaner. If

you don't have a grill cover, wipe off dust and grime before

starting your grill.

oCoating the cooking grids with spray-on cooking oil will keep the

food from sticking and make clean up easier.After cooking,

scrape the grates with a long handled, brass wire bristle brush.

o Check inside the grill bottom for grease build up and clean

often, especially after cooking fatty meat.

, Do not mistake brown or black accumulation of grease and

smoke for paint. Interiors of gas grills are not painted at the

factory (and should never be painted). Apply a strong solution

of detergent and water or use a grill cleaner with scrub brush

on insides of grill lid and bottom. Rinse and allow to completely

air dry. Do not apply a caustic grill/oven cleaner to painted

surfaces.

General Grill Cleaning (continued)

• Plated wire grates: Wash Grates and HeatTents with

concentrated grill cleaner or use soap and water solution. Dry

thoroughly and store indoors between cookouts.

, Plastic parts: Wash with warm soapy water and wipe dry.

A Do not use citrisol, abrasive cleaners, degreasers or a

concentrated grill cleaner on plastic parts. Damage to and

failure of parts can result.

Porcelain grates: Because of glass-like composition, most

residue can be wiped away with baking soda/water solution or

specially formulated cleaner. Use non-abrasive scouring

powder for stubborn stains.

CAUTION l[ 11

/SPIDER ALERT!

If you notice that your grill is getting hard to light or that the

flame isn't as strong as it should be, take the time to check and

clean the burner's.

SPIDERWEBS

CONTROLPANEL INSIDE TUBE

I BURNER

i :

Insomeareasofthecountry,spidersorsmallinsectshavebeen

knowntocreate"flashback"problems.The spidersspinwebs,build

nestsandlayeggsin thegrill's burnertube(s)obstructingtheflowof

gasto the burner.Thebacked-upgas can igniteinthe tubebehind

thecontrolpanel.This is knownas aflashbackandit can damage

yourgrillandevencauseinjury.

Topreventflashbacksandensuregoodperformancethe burner

assemblyshouldbe removedfromthe grillandcleanedbeforeuse

wheneverthe grillhas beenidlefor anextendedperiod.

See "Cleaning the Burner" section in this manual

463264407 •9

Cleaning the Burner Assemblies

Followthese instructions to clean and/or replace parts of Burner

Assembly or if you have trouble igniting grill.

1. Turn gas off at control knobs and LP cylinder,

2. Remove Cooking Grates and Heat Tents.

Tube Burner

Tube Burners (figures A1-A2)

1. Remove screws and Flame Carryover Tubes from rear of

Burners shown A1.

Remove screw and washer from Burner to disengage it from

Firebox Burner Bracket at back end of Firebox shown A1.

Remove screw to detach Electrode from middle Burner.

Electrode should remain in Firebox shown A2.

Carefully lift each Burner up and away from Valve openings.

Rotisserie Burner (figures B1-B2)

Cleaning Burners

We suggest three ways to clean the Burner Tubes. Use the one

easiest for you.

(A) Bend a stiff wire (a light weight coat hanger works well)

into a small hook. Run the hook through each Burner

Tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not

use a brass wire brush), run the brush through each

Burner Tube several times.

the Burner Tube and out the burner ports. Check each

port to make sure air comes out each hole.

1. Wire brush entire outer surface of Burner to remove food

residue and dirt.

2. Clean any blocked ports with a stiff wire such as an open

paper clip.

3. Check Burner for damage, due to normal wear and corrosion l

some holes may become enlarged. Ifany large cracks or

holes are found replace Burner.

Re-assembly Burners in reverse order above.

VERY iMPORTANT:Burner tubes must re-engage over

valves. See illustration below.

1. Remove Screws, Washers, and Nuts from Rotisserie Rear

Cover behind grill shown B1.

2. Remove Screw from Electrode shown B2.

3. Remove Screws, Washers, and Nuts from Rotisserie Burner

to detach from grill shown B2.

Rotisserie Burner

Washer

Correct

burner-to-valve

engagement

Incorrect

burner-to-valve

engagement

VERY IMPORTANT: Rotisserie Burner tube must re-engage

over valve. See illustration below.

"Nut Washer

10 • 463264407

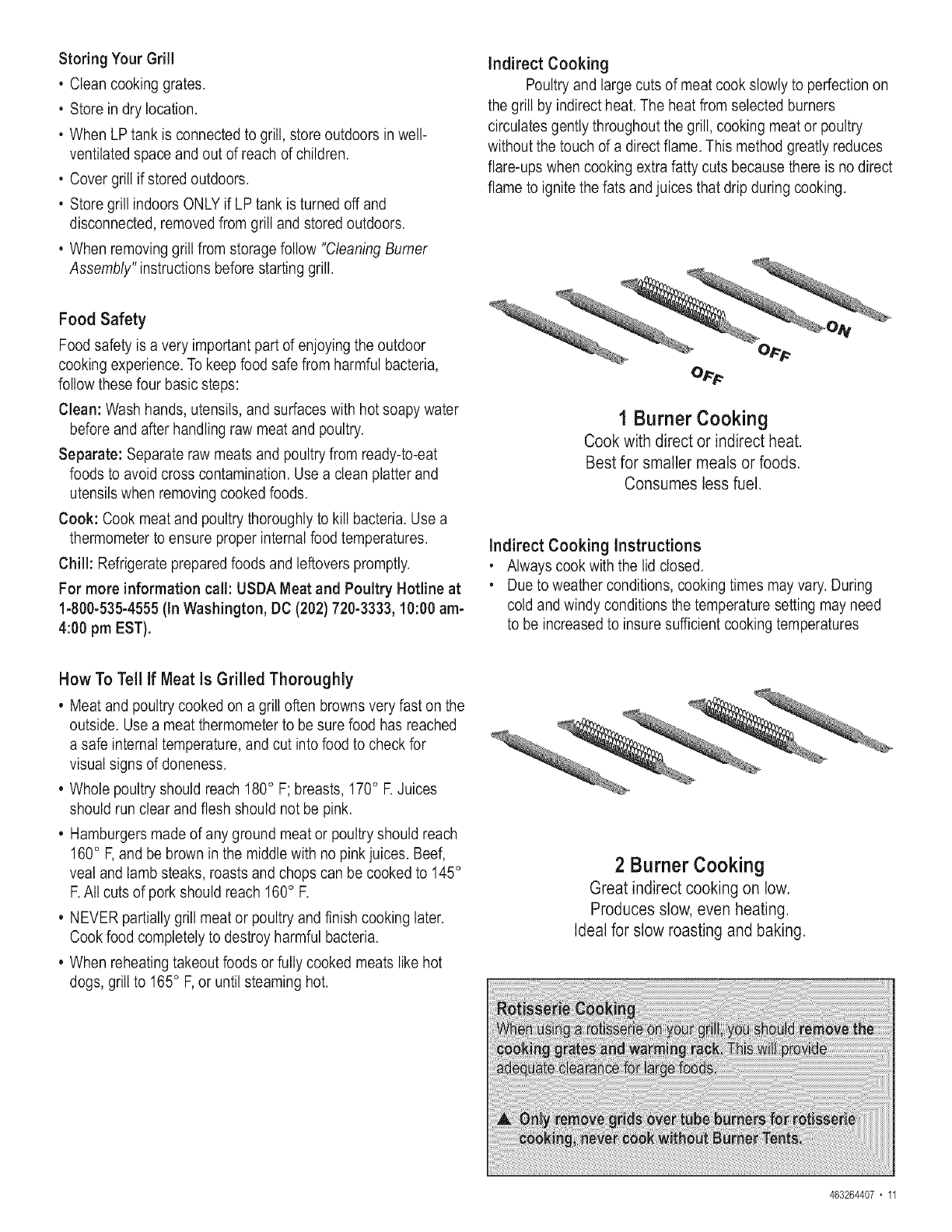

Storing Your Grill

, Clean cooking grates.

, Store in dry location.

, When LP tank is connected to grill, store outdoors in well-

ventilated space and out of reach of children.

, Cover grill if stored outdoors.

, Store grill indoors ONLY if LP tank is turned off and

disconnected, removed from grill and stored outdoors.

, When removing grill from storage follow "Cleaning Burner

Assembly" instructions before starting grill.

Indirect Cooking

Poultry and large cuts of meat cook slowly to perfection on

the grill by indirect heat. The heat from selected burners

circulates gently throughout the grill, cooking meat or poultry

without the touch of a direct flame. This method greatly reduces

flare-ups when cooking extra fatty cuts because there is no direct

flame to ignite the fats and juices that drip during cooking.

Food Safety

Food safety is a very important part of enjoying the outdoor

cooking experience. To keep food safe from harmful bacteria,

follow these four basic steps:

Clean: Wash hands, utensils, and surfaces with hot soapy water

before and after handling raw meat and poultry.

Separate: Separate raw meats and poultry from ready-to-eat

foods to avoid cross contamination. Use a clean platter and

utensils when removing cooked foods.

Cook: Cook meat and poultry thoroughly to kill bacteria. Use a

thermometer to ensure proper internal food temperatures.

Chill: Refrigerate prepared foods and leftovers promptly.

For more information call: USDA Meat and Poultry Hotline at

1-800-535-4555 (In Washington, DC (202) 720-3333, 10:00 am-

4:00 pm EST).

1 Burner Cooking

Cook with direct or indirect heat.

Best for smaller meals or foods.

Consumes less fuel.

Indirect Cooking Instructions

, Always cook with the lid closed.

,Due to weather conditions, cooking times may vary. During

cold and windy conditions the temperature setting may need

to be increased to insure sufficient cooking temperatures

How To Tell If Meat is Grilled Thoroughly

•Meat and poultry cooked on a grill often browns very fast on the

outside. Use a meat thermometer to be sure food has reached

a safe internal temperature, and cut into food to check for

visual signs of doneness.

•Whole poultry should reach 180° F; breasts, 170° R Juices

should run clear and flesh should not be pink.

•Hamburgers made of any ground meat or poultry should reach

160° F,and be brown in the middle with no pink juices. Beef,

veal and lamb steaks, roasts and chops can be cooked to 145°

F.All cuts of pork should reach 160° F.

•NEVER partially grill meat or poultry and finish cooking later.

Cook food completely to destroy harmful bacteria.

•When reheating takeout foods or fully cooked meats like hot

dogs, grill to 165° F,or until steaming hot.

2 Burner Cooking

Great indirect cooking on low.

Produces slow, even heating.

Ideal for slow roasting and baking.

463264407 •11

1 1

2 2

3 2

4 1

5 1

6 16

7 3O

8 1

9 1

10 1

11 1

12 1

13 1

14 1

15 1

16 1

17 1

18 1

19 1

20 1

21 1

22 1

23 1

24 4

25 5

26 1

27 1

28 1

29 1

30 1

31 1

32 1

33 1

34 1

35 1

36 6

37 6

38 1

39 1

4O 1

41 8

42 1

43 1

44 1

45 1

46 1

47 1

48 1

12 " 463264407

Description Part #

BottomShelf........................ 80010508

LockingCaster...................... 80000268

FixedCaster........................ 80004093

LeftSidePanel...................... 80010510

RightSidePanel..................... 80010509

#1/4-20xl/2"Screw....... HMS02520050CPNSTSS

#1/4"Washer,Lock.................. HSW025SS

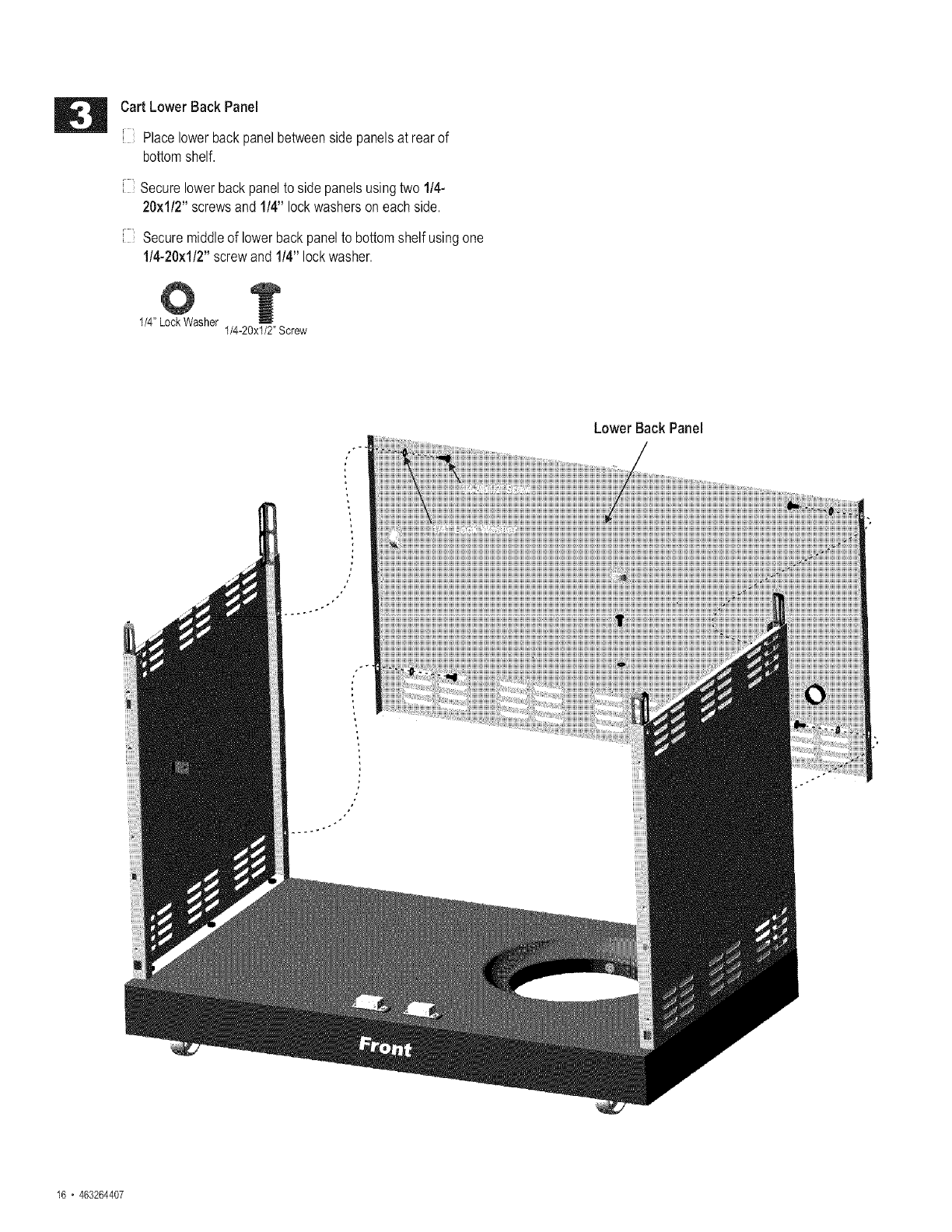

LowerBackPanel,Cart ............... 80010511

TemperatureGauge.................. 80006666

Bezel,TemperatureGauge............. 80006354

LogoPlate,Kenmore................. 80010544

HardwareTopLidAssembly............ 80009607

TopLid Insertw/Sides ................ 80010542

InnerInsert,TopLid .................. 80010543

TopLidHandle...................... 80010545

RotisserieCover..................... 80010548

FrontPlate,Rotisserie................ 80010525

FrontScreen,Rotisserie............... 80007246

BackPlate,Rotisserie................ 80010524

Burner,Rotisserie.................... 80010526

Electrode,Rotisserie................. 80010527

RearPanel,Firebox.................. 80010518

RotisserieValveSupportBracket........ 80007085

CarryoverTube...................... 80006504

Burnerw/Spider Guard............... 80005703

FireboxBowl........................ 80010513

LeftSideUpperPanel ................ 80010514

RightSideUpperPanel ............... 80010515

LeftSidePanel,Firebox............... 80010516

RightSidePanel,Firebox.............. 80010517

ControlPanel ....................... 80010520

LogoPlate,Dual Fuel................. 80005594

ElectronicIgnitorKit,MainandSB....... 80010519

Button,ElectronicIgnitor .............. 80004343

Valve/Manfold/Regulator.............. 80010521

Bezel,ControlKnob.................. 80005596

ControlKnob........................ 80004299

Bezel,RotisserieKnob................ 80010528

ControlKnob,Rotisserie.............. 80007251

FrontBracew/Door Magnet ........... 80010512

#1/4-20xl-3/4"Screw..... HMS02520175CPNSTSS

UpperBackPanel.................... 80010529

TowerBar.......................... 80010532

RightSideShelf ..................... 80010530

Fascia,Right........................ 80010531

Lid,SideBurner..................... 80010536

SideBurnerPan..................... 80010535

LeftSideShelf ...................... 80010533

49 1

50 6

51 1

52 2

53 2

54 2

55 1

56 1

57 1

58 1

59 3

60 1

61 2

62 2

63 1

64 2

65 1

66 8

67 5

68 1

69 1

70 1

71 1

72 1

73 1

NotPictured:

Description Part #

Fascia,Left......................... 80010534

#1/4-20x5/8"Screw....... HMS02520063CPNSTSS

SideBurner......................... 80004311

5mmWasher,Silicon............ HFWM51D9ODSN

5mmWasher,Lock.............. HSWM5RHSPSS

#10-24x3/8"Screw......... HMS01924038PNSTSS

WindDiverter....................... 80006385

Clip,SideBurner .................... 80006434

Grate,SideBurner................... 80006640

HeatShield......................... 80010537

Screw,Tapping,#8x3/8"........ HAB016038CPNSD

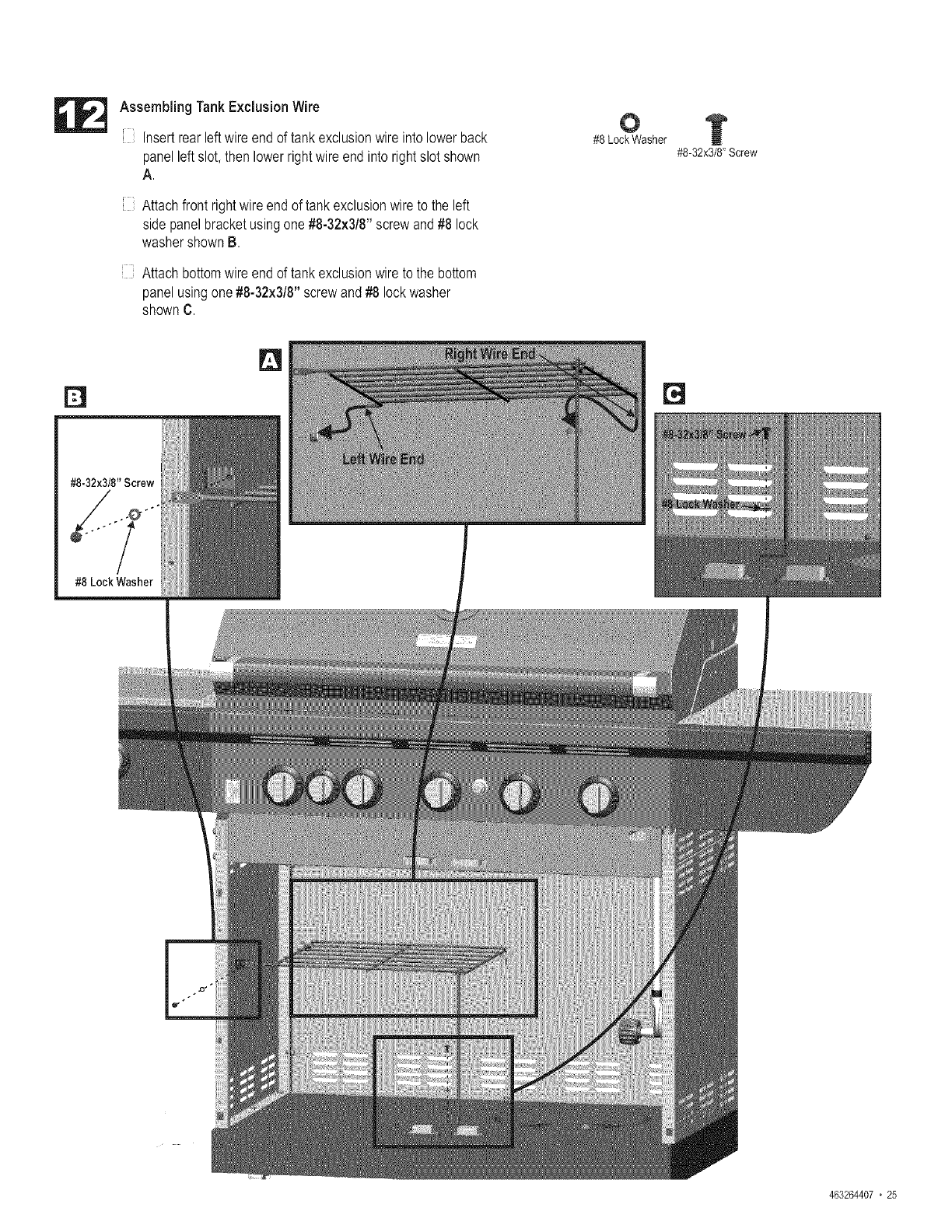

TankExclusionWire.................. 80010538

#8-32x3/8"Screw........ HMS01632038CPNSTSS

#8 Washer,Lock................... HSW016SS

Door,Left .......................... 80010541

DoorHandle........................ 80010540

Door,Right......................... 80010539

#6-32x3/8"Screw.......... HMS01432038PFSTSS

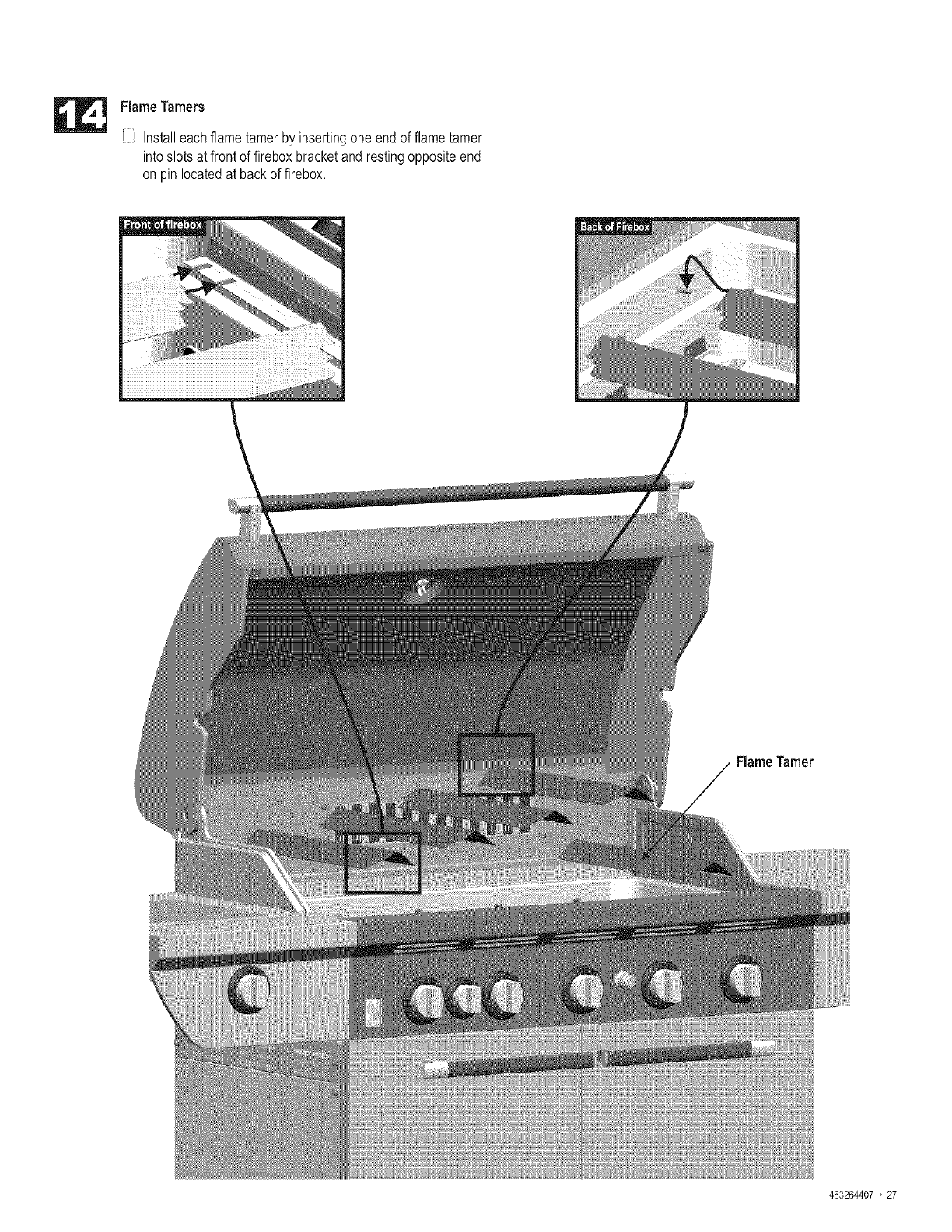

FlameTamer........................ 80003332

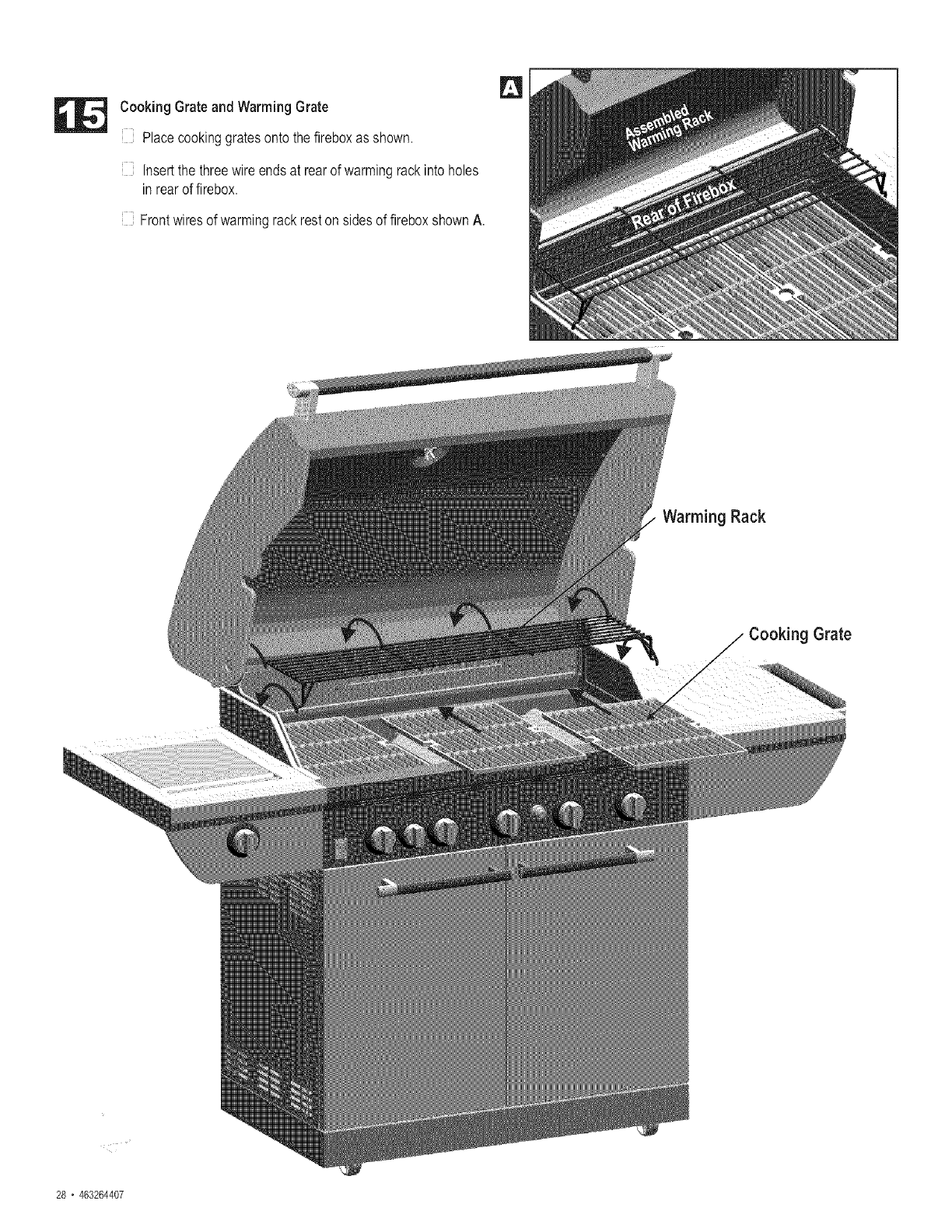

CookingGrate,Set of 3 ............... 80010436

WarmingRack ...................... 80007275

GreaseTrayBody.................... 80008970

MatchHolder ....................... 80006579

RotisserieHoseBracket............... 80010816

HeatShield,f/Regulator Hose.......... 80010817

CasterWrench...................... 80000283

DoorMagnetAssembly............... 80008850

AssemblyManual.................... 80010502

HardwarePack(for retailerstoreonly).... 80010501

ScrewNutPack(forpurchaser)......... 80010547

8 . . #8-32x3/8"FlatHeadScrew

3 . . #8x3/8"Self-tapScrew

2 . . #8-32x3/8"Screw

2 . .#8 LockWasher

2 . . #10-24x3/8"Screw

2 .... #10 LockWasher

2 .... 5mmSiliconWasher

16 ... 1/4-20xl/2"Screw

6 .... 1/4-20x5/8"Screw

8 .... 1/4-20xl-3/4"Screw

30 ... 1/4 LockWasher

NaturalGasConversionKit (NotIncluded)4184609

33 --34 67 67 67 67 67

24 24 _24 24

25 25 25 25 25

56j_

i i4-53

_"-54

32_

36 38 36 36 36 36

@0@@ @ @

37 39 37 37 37 37

5'9 _9

r 3

50.

463264407 " 13

Bottom Shelf

Attachthe twolocking castersat the rear of the bottom

shelf.

Attachthe twofixed castersat thefront.

Usethe }rovidedcasterwrenchto fullytightencasters.

Fixed Caster

Bottom Shelf

14 • 463264407

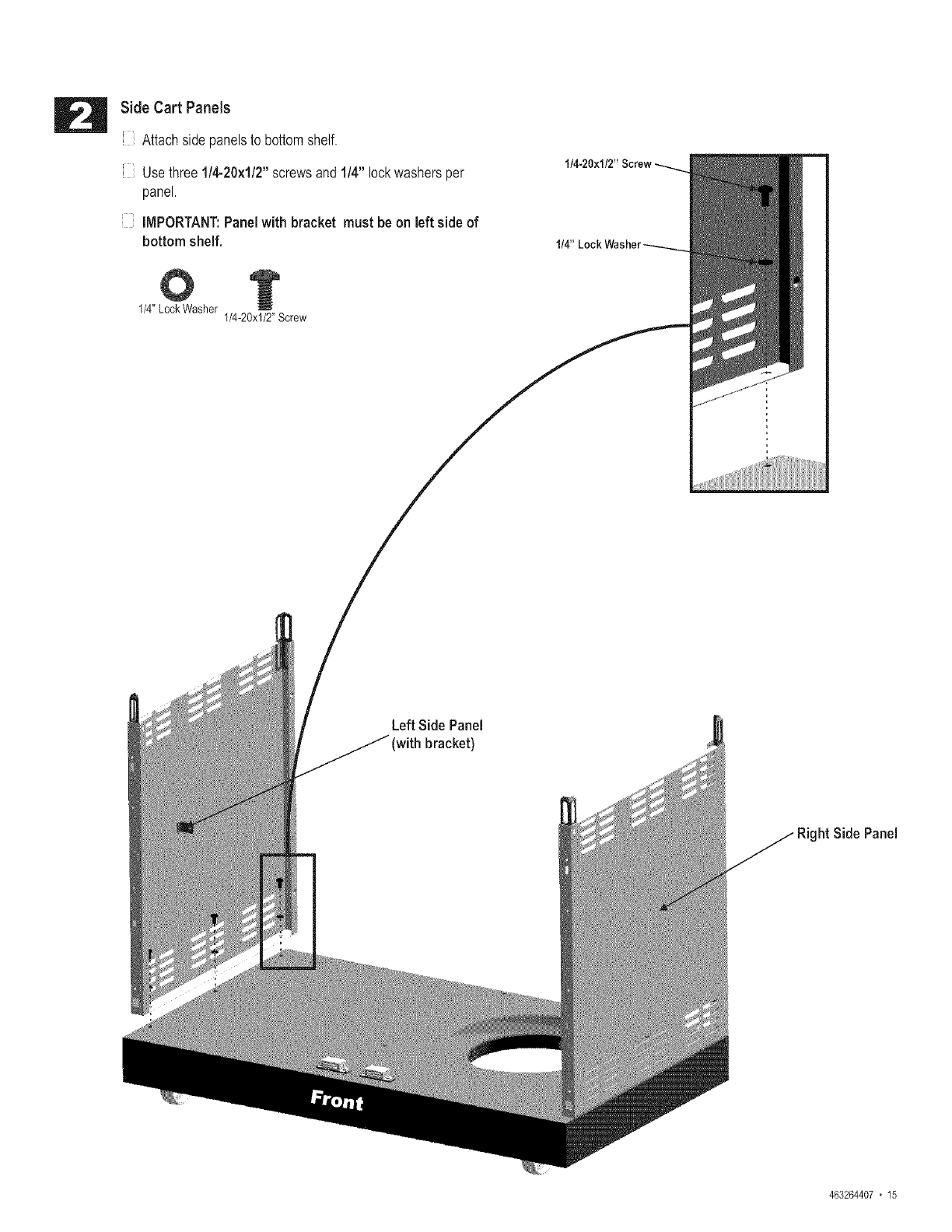

Side Cart Panels

Attachsidepanelsto bottomshelf.

Usethree1/4-20x1/2"screwsand1/4" lockwashersper

panel.

IMPORTANT:Panelwith bracket must be on left side of

bottom shelf, 1/4"

1/4"LockWasher 1/4-20x1/2"Screw

LeftSide Panel

ht Side Panel

463264407 • 15

Cart LowerBack Panel

Placelowerbackpanelbetweenside panelsat rearof

bottomshelf.

Securelowerbackpanelto sidepanelsusingtwo !/4-

20x1/2" screwsand 1/4" lockwashersoneach side.

Securemiddleof lowerbackpanelto bottomshelfusingone

1/4-20x1/2"screwand 1/4"lockwasher.

1/4"LockWasher 1/4-20x1/2"Screw

Lower Back Panel

16 •463264407

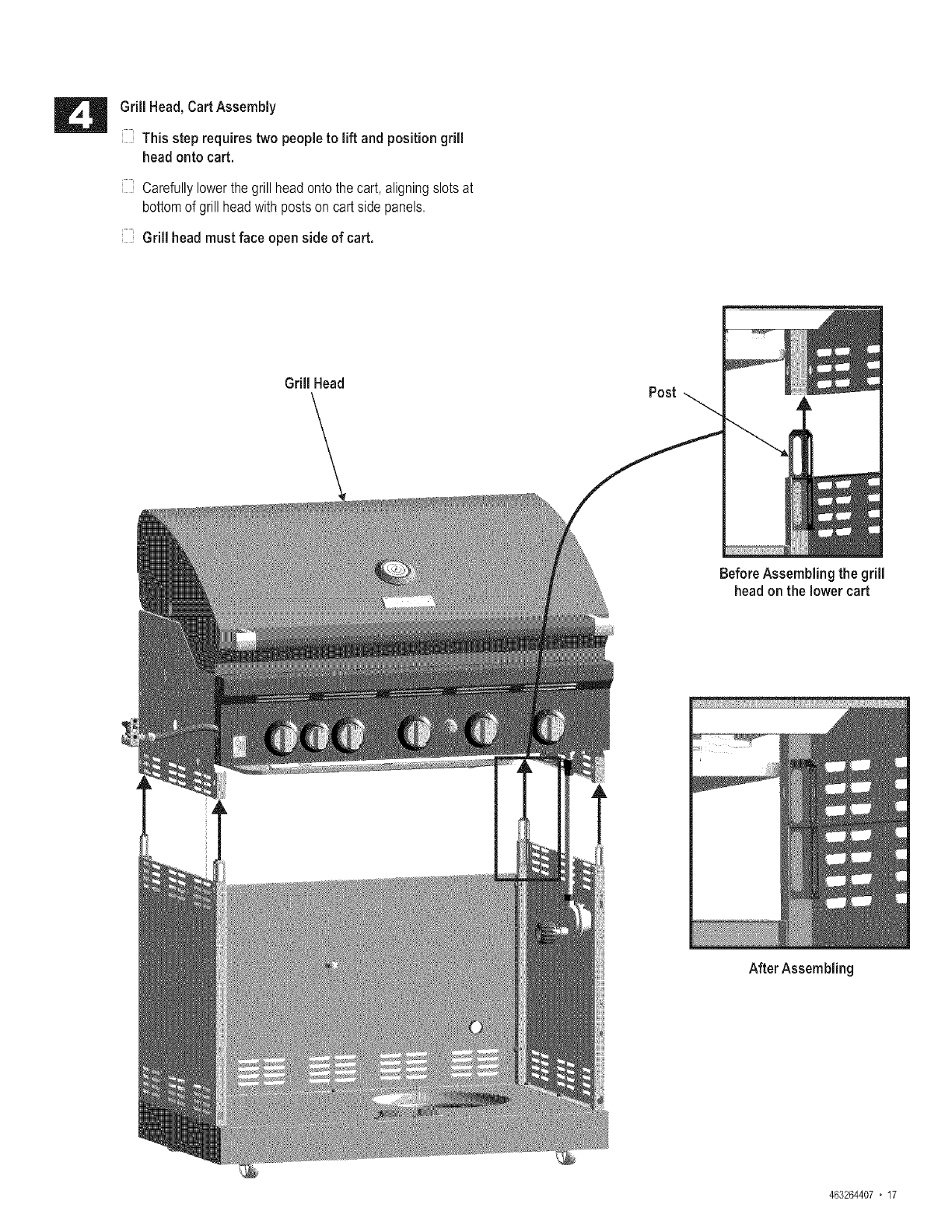

Grill Head,CartAssembly

This step requires two peopleto lift and position grill

head onto cart.

Carefullylowerthegrill headontothe cart,aligningslotsat

bottomof grillheadwithpostsoncartside panels.

Grill head must face open sideof cart.

Grill Head Post

BeforeAssembling the grill

headon the lowercart

After Assembling

463264407 •17

FrontDoor Brace

Insertfrontbraceundercontrolpanelandbetweencartside

panels.

Secureusingtwo 1/4-20xl-3/4" screwsand1/4" lock

washersoneach side.

NOTE:MAKESURETHESCREWSARE IN THELOWEST

POSSIBLEPOSiTiONiNTHEMOUNTINGHOLES..

1/4"LockWasher

1/4-20xl-3/4"Screw

18 • 463264407

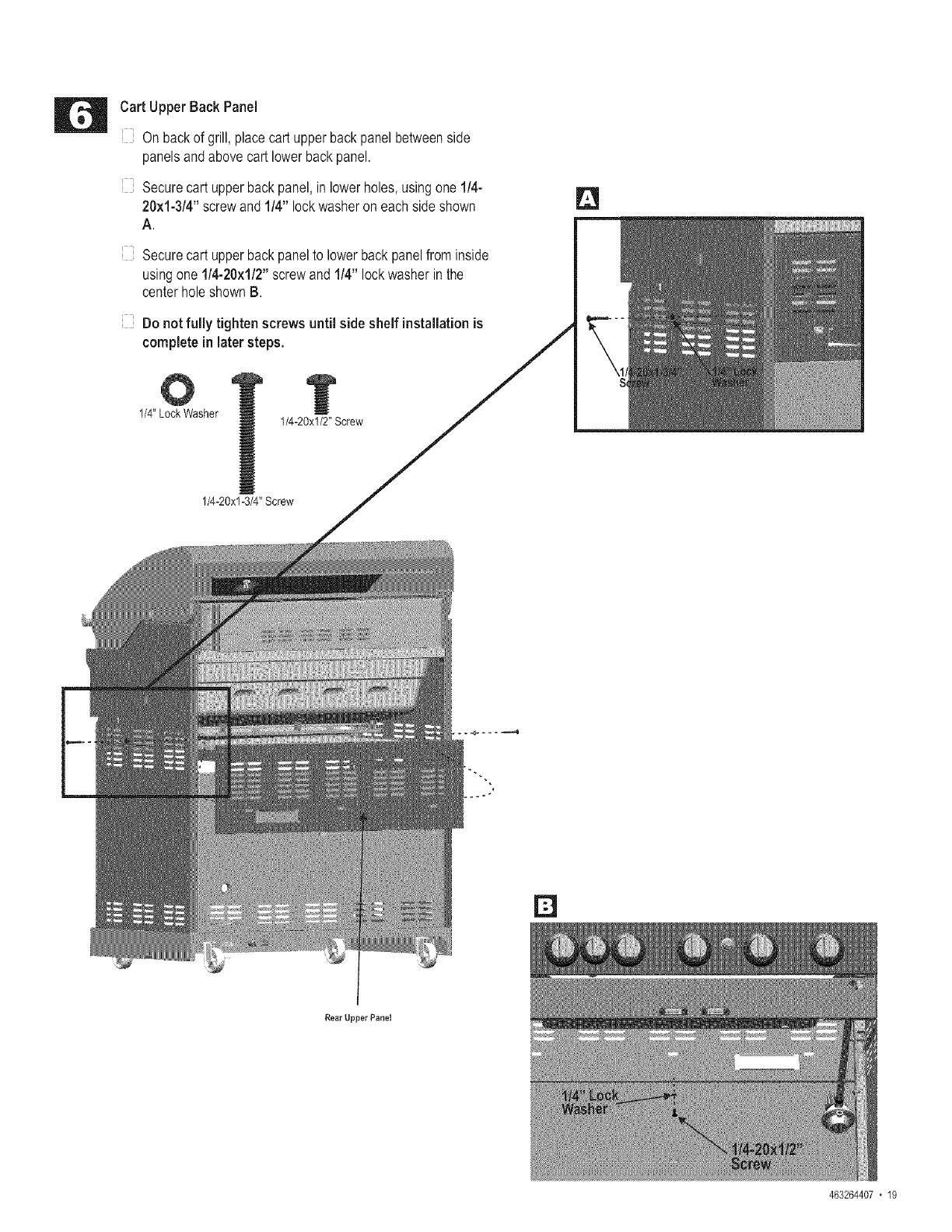

Cart Upper Back Panel

On backof grill, placecartupperbackpanelbetweenside

panelsandabovecartlowerbackpanel.

Securecart upperbackpanel,in lowerholes,usingone 1/4-

20xl-3/4" screwand1/4" lockwasheroneachside shown

Securecart upperbackpanelto lowerbackpanelfrominside

usingone1/4-20x1/2"screwand 1/4" lockwasherinthe

centerholeshownB.

Do not fully tighten screws until side shelf installationis

complete inlater steps,

l/4"LockWasher 1/4-20x1/2"Screw

1/4-20xl-3/4"Screw

RearUpperPanel

463264407 •19

Right andLeftShelf Assembly

Attachfour 1/4-20x1/2"screwsand1/4" lockwashers

throughside shelfholes(rightshelfONLY),into towelbar

shownA.

Attachtwo1/4-20x5/8"screwsand 1/4" lockwashersto the

side cartpanelshownB. Tightenonlyone-fourthof screw

length,so thatshelfbracketwillslide betweencartand

washers.Donot tighten.

Insertsideshelfoverscrewsandwashersthroughbracket

shownB-CandD-C.Makesurethe middleshelftabsare

insertedintothe cartside panelcut-outshownC.

Attachone1/4-20x!-3/4" screwand 1/4" lockwasherat the

rearshelfflangeshownD.

Attachone1/4-20x5/8"screwand1/4" lockwasherto front

shelfflangeshownE. Gobackandfullytightenscrews

shownB.

Only Right Shelf Shown ForAssembly, repeatabove

steps B-Efor Left sideburner shelf.

r--4

1/4" Lock Washer

1/4-20xl/2"Screw

1/4-20xS/8"Screw

1/4-20x14/4" Screw

1/4-20xl-3/4" Screw

20 • 463264407

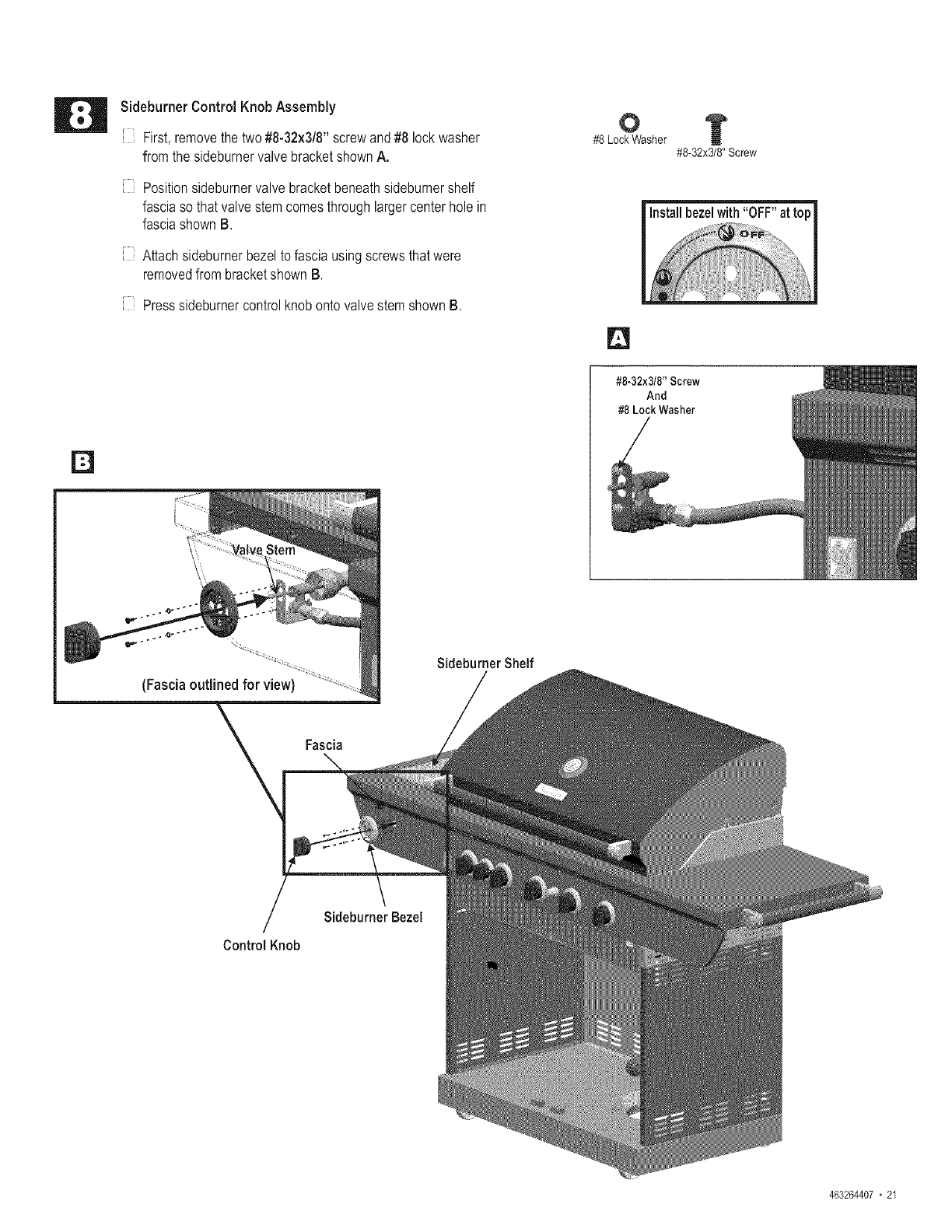

SideburnerControl Knob Assembly

First,removethe two#8-32x3/8"screwand#8 lockwasher

fromthe sidebumervalvebracketshownA.

Positionsideburnervalvebracketbeneathsideburnershelf

fasciaso thatvalvestemcomesthroughlargercenterholein

fasciashownB.

Attachsideburnerbezeltofascia usingscrewsthatwere

removedfrombracketshownB.

PresssideburnercontrolknobontovalvestemshownB.

#8 LockWasher

#8-32x3/8"Screw

#8-32x318"Screw

And

#8 Lock Washer

(Fasciaoutlined for view)

Sideburner Shelf

Fascia

Sideburner Bezel

Control Knob

463264407 •21

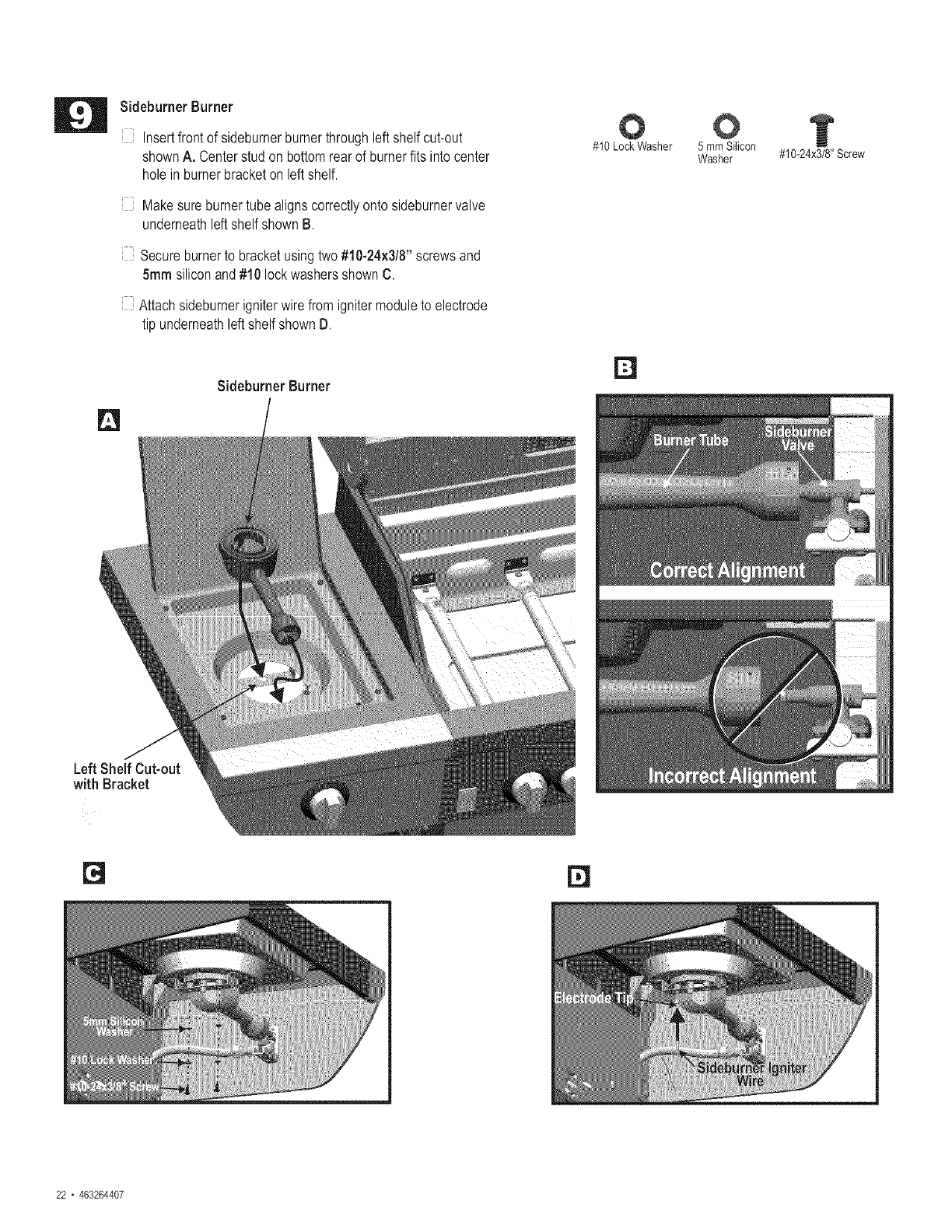

SideburnerBurner

Insertfrontof sidebumerburnerthroughleftshelfcut-out

shownA. Centerstudon bottomrearof burnerfits intocenter

holein burnerbracketonleftshelf.

Makesureburnertubealignscorrectlyontosideburnervalve

underneathleftshelfshownB.

Secureburnerto bracketusingtwo#10-24x3/8"screwsand

5ram siliconand#10 lockwashersshownC.

Attachsideburnerigniterwirefrom ignitermoduleto electrode

tip underneathleftshelfshownD.

Sideburner Burner

#10 Lock Washer

[]

5 mm Silicon

Washer #10-24x3/8"Screw

Left Shelf Cut-out

with Bracket

[] []

22 • 463264407

SideburnerWindDiverter,SideburnerCap and Clip,

Sideburner Grate

Placesideburnerwinddiverteroversideburneraligningcut-

out in divertertofit aroundelectrodeshownA.

Placeburnercap ontosideburnerandattachsideburnercap

clip shownB.

Placesideburnercookinggrateontosideburnershelf,

aligninggratelegswithholesinshelfshownA.

SidebumerCapClip

Sideburner Cookinc

Burner C_

SideburnerWind Diverter

463264407 • 23

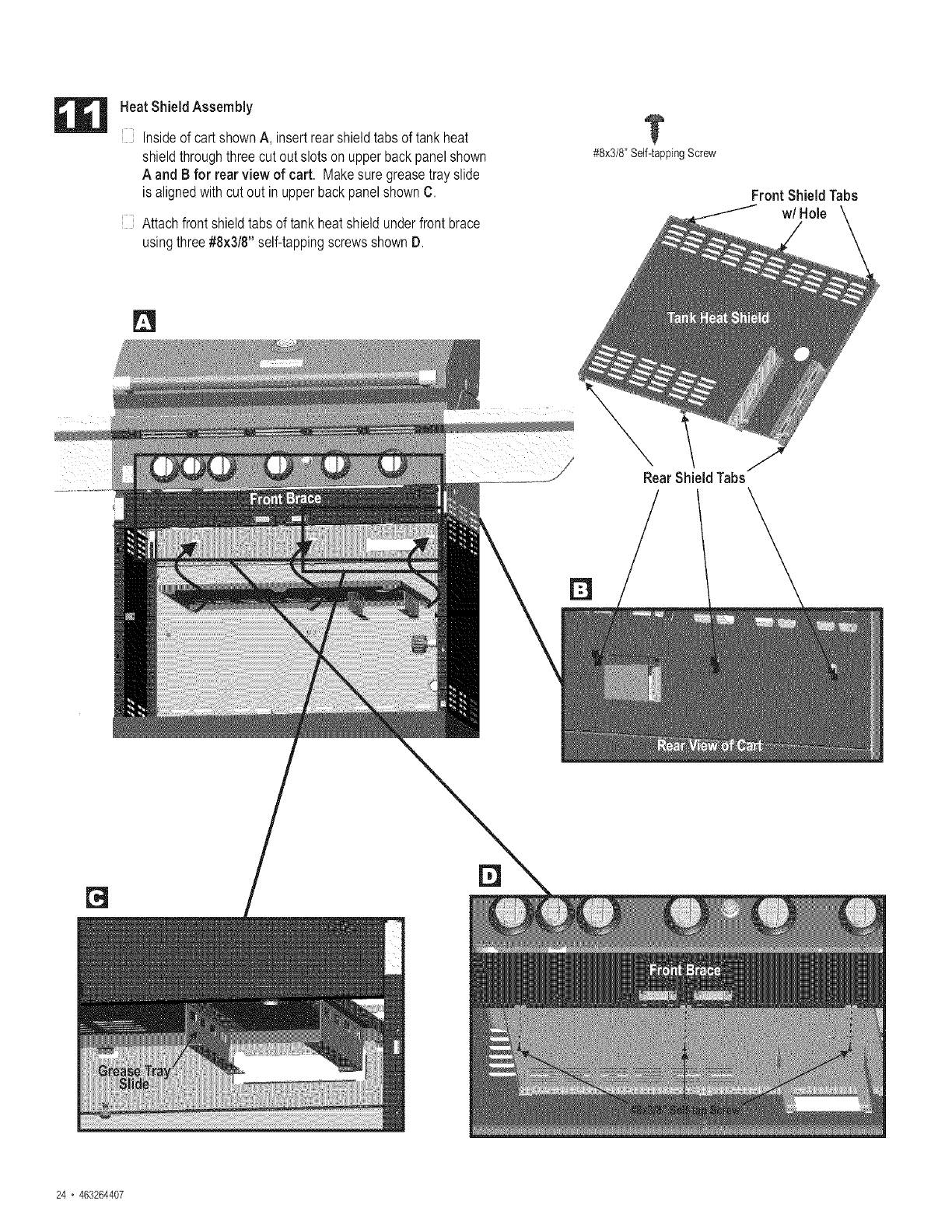

HeatShieldAssembly

Insideof cartshownA, insertrearshieldtabsof tankheat

shieldthroughthreecutout slotson upperbackpanelshown

A and B for rearview of cart. Makesure greasetrayslide

is alignedwithcutout in upperbackpanelshownC.

Attachfrontshieldtabsof tankheatshieldunderfrontbrace

usingthree#8x3/8"self-tappingscrewsshownD.

#8x3/8"Self-tappingScrew

RearShield Tabs

Front ShieldTabs

w/Hole

24 •463264407

Assembling TankExclusion Wire

Insertrearleftwireendof tankexclusionwireinto lowerback

panelleftslot,then lowerrightwire endintorightslot shown

Attachfront rightwire endof tankexclusionwire to the left

side panelbracketusingone#8-32x3/8"screwand#8 lock

washershownB.

Attachbottomwireendof tankexclusionwireto the bottom

panelusingone#8-32x3/8"screwand#8 lockwasher

shownC.

#8 LockWasher

#8-32x3/8"Screw

463264407 •25

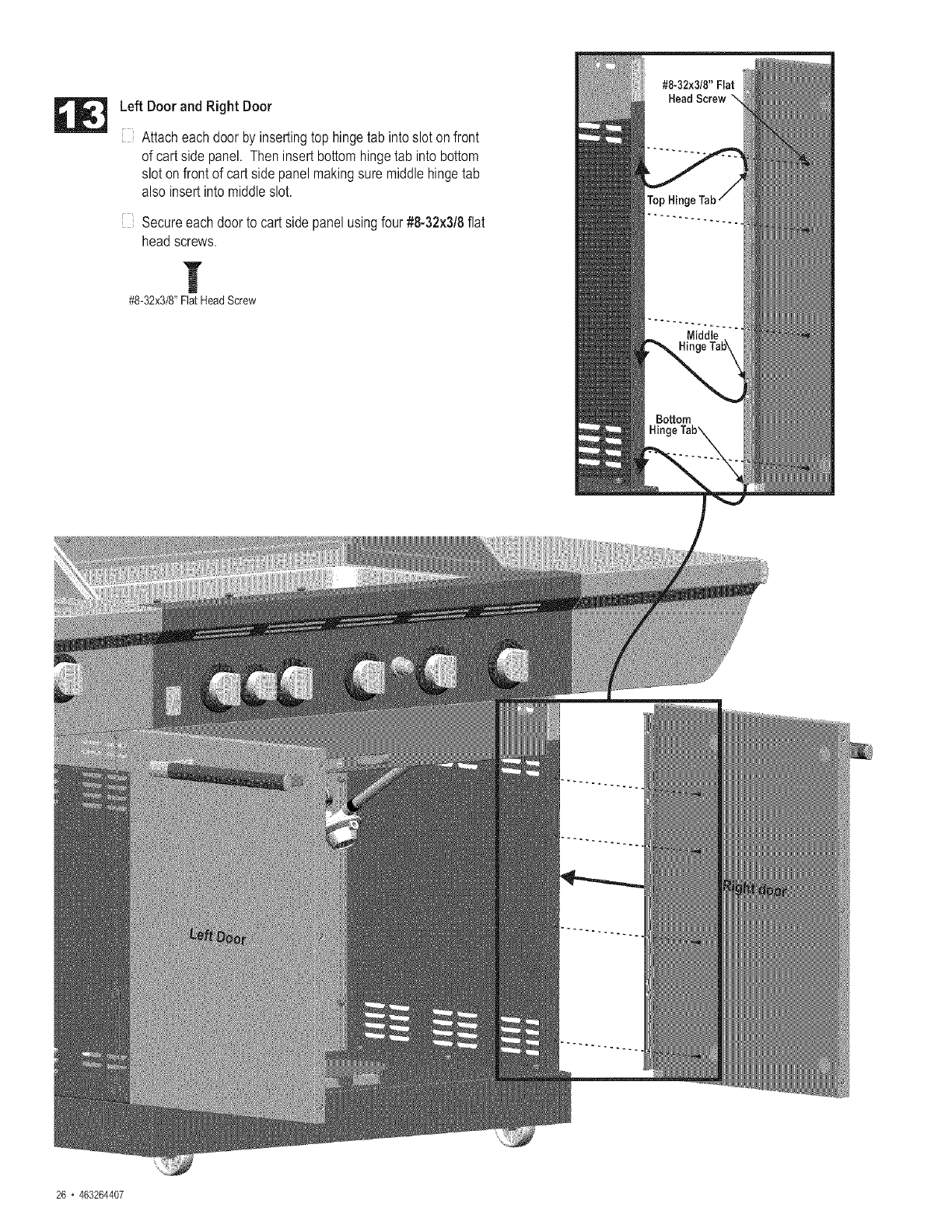

LeftDoor and Right Door

Attacheach doorby insertingtop hingetab intoslot onfront

of cartside panel. Theninsertbottomhingetab into bottom

slotonfrontof cartside panelmakingsuremiddlehingetab

also insertintomiddleslot.

Secureeachdoorto cartside panelusingfour #8-32x3/8flat

headscrews.

#8-32x3/8"Fiat HeadScrew

#8-32x318"Flat

Head

Middle

Bottom

26 •463264407

FlameTamers

Installeachflametamerby insertingoneendof flametamer

intoslotsat frontof fireboxbracketandrestingoppositeend

on pinlocatedat backof firebox.

FlameTamer

463264407 •27

Cooking Grateand Warming Grate

Placecookinggratesonto thefireboxas shown.

Insertthe threewire endsat rearof warmingrackinto holes

in rearoffirebox.

Frontwiresof warmingrackreston sidesof fireboxshownA.

Warming Rack

g Grate

28 • 463264407

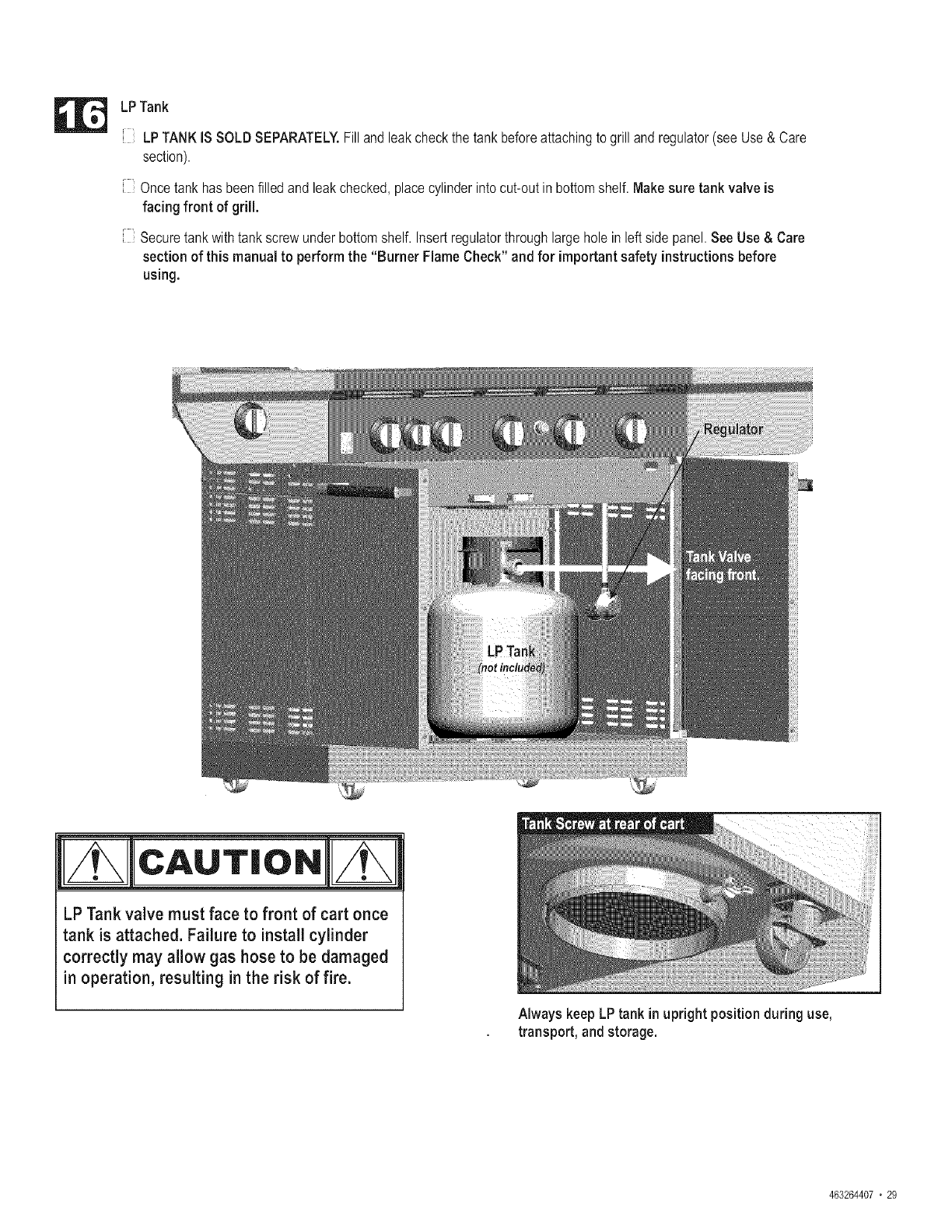

LPTank

LPTANKISSOLDSEPARATELY.Fillandleakcheckthe tankbeforeattachingtogrill andregulator(see Use& Care

section).

Oncetankhasbeenfilledand leakchecked,placecylinderintocut-outin bottomshelf.Makesure tank valve is

facing front of grill.

Securetankwithtankscrewunderbottomshelf.Insertregulatorthroughlargeholeinleftside panel.SeeUse& Care

section of this manual to perform the "Burner FlameCheck" and for importantsafety instructionsbefore

using.

/t,, CAUTioN/L

LPTank valve must face to front of cart once

tank is attached. Failure to install cylinder

correctly may allow gas hose to be damaged

in operation, resulting inthe risk of fire.

Always keep LPtank in upright position during use,

transport, and storage.

463264407 •29

GreaseTray

On backof grill,slide greasetraythroughopeningonupper

backpanel.

II l cAuT,o.

Failure to install grease tray will

cause hot grease to drip from bottom

of grill with risk of fire or property

damage.

AssemblingElectronicIgnitionButton

Unscrewelectronicignitionbuttononfrontof controlpanel.

InsertAAbatteryintoignitor,negative (--} endfirst. Replacebutton.

AA Battery

Electronic ignitionButton

30 • 463264407

Cooking Table

Cooking times and temperatures may vary according to specific recipes, cooking conditions or barbecue equipment used. Takethese

factors into consideration to insure best results. If you use the indirect cooking method (indirect cooking is lighting only one burner and

placing food on opposite side of cooking grate), allow more grilling time.

Temperatures: High = 650°F /Medium = 450°F /Low =300°R

Food

Beef

Hamburger 112"thick

Steak 112"

Roast

Pork

Chops 112"

Ribs 5-6 Ibs.

Roast 3-5 Ibs.

Ham Steak 112"

Ham 5 lb. fully cooked

Lamb

Chops 112"

Poultry

Chicken 2-1/2 to 3-1/2 Ibs.

Chicken halved or quartered

Turkey

Seafood

Steaks 1" thick

Fillets 6-8 oz.

Shrimp large or jumbo

Venison

Steak 1" thick

Burgers 1/2"

Roast 3-4 Ibs.

Vegetables

Baking Potato whole

Onions whole

Tomatoeshalf

Corn whole

Mushrooms

Setting Cooking Time

Medium

Medium-Hot

Low

Medium

Low-Medium

Medium-Hot

Low-Medium

Medium

Low

Low-Medium

Medium-Hot

Low-Medium

Medium

Low-Medium

Low

Medium

Low

Medium

Med: 7-10 min./Well done: 10-15 min.

Rare: 3-6 min. /Med: 6-9 min./Well done: 9-12 min.

Rare: 18-22min. per lb. /Med: 22-28 min. per lb. /Well done: 28-32 min. per lb.

Well done: 15-20 min.

Well done: 45-90 min.

Well done: 18-23 min. per lb.

12-15 min.

20 min. per lb.

6-12 min.

1 hr., 15 min. to 1 hr., 30 min.

40-60 min.

18-20 min. per lb.

Well done: 10-25 min.

8-12 min.

Rare: 8-10 min./Med: 10-12 min.

Rare: 10-12 min./Med: 12-15 min.

Rare: 20-22 min. per lb./Med: 22-25 min. per lb.

Wrap vegetables in foil

55-60 min.

45 min.

30-40 min.

35-45 min.

15-20 min.

463264407 • 31

Troubleshooting Call 1-800-4-MY-HOMEfor Assistance if required.

EMERGENCIES: if a gas leak cannot be stopped, or afire occurs due to gas leakage, call the fire department.

. Damagedhose. . Turnoffgas at LPtank. Ifhoseis cut orcracked,replaceGasleakingfrom

cracked/cut/burned valve/hose/regulator.SeeLPTankLeakTestandConnecting

hose. RegulatorToThe LPTank.

GasleakingfromLP . Mechanicalfailuredueto rustingor . Turnoff LPtankvalve.

tank. mishandling.

GasleakingfromLP . Failureof tankvalvefrom mishandlingor . TurnoffLPtankvalve.ReturnLPtanktogassupplier.

tankvalve, mechanicalfailure.

Gasleakingbetween . Improperinstallation,connectionnot . Turnoff LPtankvalve.Removeregulatorfromcylinderandvisually

LPtankandregulator tight,failureof rubberseal. inspectrubbersealfor damage.SeeLPTankLeakTestand

connection. ConnectingRegulatorToTheLPTank.

Firecomingthrough

controlpanel. . Fire inburnertubesectionof burnerdue

to partialblockage.

. Toomuchgreasebuildupin burnerarea.

GASISSUES:

. Tryingto lightwrongburner.

. Burnernotengagedwithcontrolvalve.

Greasefire or

continuousexcessive

flamesabovecooking

surface.

Burner(s)will not light

usingignitor.

Continuedonnext

page.

. Obstructionin burner.

. No gasflow.

. Vaporlockat couplingnut to LPtank.

. CouplingnutandLPtankvalvenotfully

connected.

ELECTRICALISSUES:

. Electrodecrackedor broken;"sparksat

crack."

. Electrodetip not in properposition.

. Wireand/orelectrodecoveredwith

cookingresidue.

. Wiresarelooseordisconnected.

. Wiresareshorting(sparking)between

ignitorandelectrode.

. Turnoffcontrolknobsand LPtankvalve.Leavelidopento allow

flamesto diedown.Afterfire is out andgrillis cold,removeburner

and inspectfor spidernestsor rust.SeeNaturalHazardandCleaning

The BurnerAssemblypages.

. TurnoffLPtankvalve.Leavelidopento allowflamesto diedown.

Aftercooling,cleanfood particlesandexcessgreasefrom inside

fireboxarea,greasecup/pan/tray,andothersurfaces.

. Seeinstructionson controlpanelandsectioninthe UseandCare.

. Makesure valvesarepositionedinsideof burnertubes.

. Ensureburnertubesarenotobstructedwithspiderwebsorother

matter.Seecleaningsectionof Useand Care.

. Makesure LPtankis notempty.If LPtankis notempty,referto

"Suddendropingasflow."

. TurnoffknobsanddisconnectcouplingnutfromLPtank.Reconnect

and retry.

. Turnthecouplingnut approximatelyone-halfto three-quarters

additionalturnuntil solidstop.Tightenby handonly- do notusetools.

.Replaceelectrode.

. Tip of electrodeshouldbepointingtowardport holein burner.The

distanceshouldbe 1/8"to 3/16".Adjustif necessary.

. Cleanwireand/orelectrodewithrubbingalcoholandcleanswab.

. Reconnectwiresor replaceelectrode/wireassembly.

. Replaceignitorwire.

32 • 463264407

Burner(s)will not light

usingignitor.

Troubleshooting(continued)

,Push-buttonsticksat bottom..

Burner(s)will not

matchlight.

Suddendropingas

flowor lowflame.

Flamesblowout.

Flare-up.

Persistentgreasefire.

Flashback...

(firein burnertube(s)).

Unabletofill LPtank.

Oneburnerdoesnot

lightfromother

burner(s).

, Sparkingbetweenignitorandelectrode.

, See "GAS ISSUES:"onpreviouspage.

, Impropermethodof match-lighting.

, Outof gas.

, Excessflowvalvetripped.

, Vaporlockat couplingnut/LPtank

connection.

, Highorgustingwinds.

, LowonLPgas.

, Excessflowvalvetripped.

, Greasebuildup.

, Excessivefat in meat.

, Excessivecookingtemperature.

, Greasetrappedbyfood builduparound

burnersystem.

, Burnerand/orburnertubesareblocked.

, Somedealershaveolderfill nozzles

withwornthreads.

, Greasebuildupor foodparticlesin

end(s)of carryovertube(s).

, Replaceignitor.

, Inspectwireinsulationandproperconnection.Replacewiresif

insulationis broken.

, See"Match-Lighting"sectionof UseandCare.

, Checkfor gas inLPtank.

, Turnoff knobs,wait30secondsandlight grill.Ifflamesarestilllow,

turnoff knobsand LPtankvalve.Disconnectregulator.Reconnect

regulatorandleak-test.Turnon LPtankvalve,wait30 secondsand

thenlightgrill.

, Turnoff knobsandLPtankvalve.Disconnectcouplingnutfrom

tank.Reconnectandretry.

, Turnfrontof grillto facewindor increaseflameheight.

, RefillLPtank.

, Referto "Suddendropin gasflow"above.

, Cleanburnersand insideof grill/firebox.

, Trimfat frommeatbeforegrilling.

, Adjust(lower)temperatureaccordingly.

, Turnknobsto OFF.Turngas offat LPtank. Leavelid in positionand

letfire burnout.Aftergrillcools,removeandcleanall parts.

, Turnknobsto OFF.Cleanburnerand/orburnertubes.See burner

cleaningsectionof UseandCare manual.

, Thewornnozzlesdon'thaveenough"bite"to engagethe valve.Try

asecondLPdealer.

, Cleancarry-overtube(s)withwire brush.

463264407 • 33

Troubleshooting- Electronic ignition

SECTIONI

Nosparksappearat ,Batterynot installed

any electrodeswhen properly.

ignitionbuttonis

pushed;nonoisecan

beheardfromspark . Deadbattery.

module.

SECTIONII

Nosparksappearat

any electrodeswhen

ignitionswitchis

pushed;noisecan be

heardfromspark

module.

SECTIONIII

Sparksarepresent

butnotat all

electrodesand/ornot

at full strength

. Buttonassemblynot

installedproperly.

. Faultysparkmodule.

. Outputleadwiresnot

connected.

. Electrodetip not in

properposition.

. Checkbatteryorientation.

. Outputleadwiresnot

connected.

. Arcingto grillaway

fromburner(s).

. Weakbattery.

. Electrodesarewet.

. Electrodescrackedor

broken"sparksat

crack".

. Hasbatterybeenused

previously?

. Checkto ensurebutton

assemblyis fullyengaged.

Buttonshouldtravelupand

downwithoutbinding.

. Ifnosparksaregenerated

withnewbatteryand good

wireconnections,moduleis

faulty.

. Areoutputleadwireson and

tight?

. Arethe electrodetips

pointingin the right

direction?Isthe gaptoo big?

. Areoutputleadwireson and

tight?

. Ifpossible,observegrillin

darklocation.Operate

ignitionsystemandlookfor

arcingbetweenoutputwires

andgrillframe.

. Allsparkspresentbutweak

or at slowrate.

. Hasmoistureaccumulated

onelectrodeand/orin burner

ports?

. Inspectelectrodesfor

cracks.

. Installbattery(makesure that"-" and"+"

connectorsare orientedcorrectly,with"-" endup

and"+"enddown.)

.Replacebatterywith newAAA-sizealkalinebattery.

. Removebuttoncap assemblyandreinstall,making

sureit canbefullyengaged.

. Replacesparkmoduleassembly.

. Removeandreconnectall outputleadwiresat

moduleandelectrodes.

MainBurners:

. Tip of electrodeshouldbe pointingtowardporthole

in burner.The distanceshouldbe 1/8"to 3/16".

Adjustif necessary.

Sideburner:

. Tip of electrodeshouldbe pointingtowardgas port

openingon burner.Thedistanceshouldbe1/8"to

3/16".Adjustif necessary.

.Removeandreconnectall outputleadwiresat

moduleandelectrodes.

.Ifsparksare observedotherthanfrom burner(s),

wire insulationmaybe damaged.Replacewires.

. Replacebatterywith a newAAA-sizealkaline

battery.

. Usepapertowelto removemoisture.

. Replacecrackedor brokenelectrodes.

34 •463264407

Your Home

Forrepair-in yourhome-ofall majorbrand appliances,

lawn and garden equipment, or heating and cooling systems,

nomatterwhomadeit, nomatterwhosoidifl

Forthe replacement parts, accessories and

owner'smanualsthatyouneedtodo-it-yourself.

ForSears professional installation of home appliances

anditemslikegaragedooropenersandwaterheaters.

1-800-4-MY-HOME ® (1-8oo-469-4663)

Ca,,an time, a o nioht( .S.A.andCanada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in itemslike vacuums, lawn equipment,

iiiiiii:!!:!!:!!:!!:!!:!!:!!:!!:!!:!!:!!:!!:!!:!!i

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

and electronics, call or go on-line for the location of your nearest _,_

iiiiiiiiiiiiiiiiiii

1-800-488-1222 iiiiiiiiiiiiiiiiiii

HHHHHHHH_

Call anytime, day or night (U.S.A. only) iiiiiiiiiiiiiiiiiii

www.soors.com iiiiiiiiiiiiiiiiiii

................................................. iiiiiiiiiiiiiiiiiii

To purchase a protection agreement (U.S.A.) iiiiiiiiiiiiiiiiiii

ormaintenanceagreement(Canada) onaproductservicedbySears: iiiiiiiiiii

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada) iiiiiiiiiiiiiiiiiii

.................... iiiiiiiiiiiiiiiiiii

Para pedirservicio de reparaci6n Au Canada pour service en francais: iiiiiiiiiiiiiiiiiii

adomicilio, yparaordenarpiezas: 1-800"LE-FOYERMC iiiiiiiiiiiiiiiiiii

1-888-SU-HOGAR ® (1-800-533-6937) iiiiiiiiiiiiiiiiiii

(1-888-784-6427) www.sears.ca

® Registered Trademark /_MTrademark /sMService Mark of Sears Brands, LLC

® Mama Registrada /_MMarca de Fabrica /Marca de Servicio de Sears Brands, LLC

463264407 •35

Kenmore 41516237 User Manual GAS GRILL Manuals And Guides L0703044

KENMORE Grill, Gas Manual L0703044 KENMORE Grill, Gas Owner's Manual, KENMORE Grill, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
