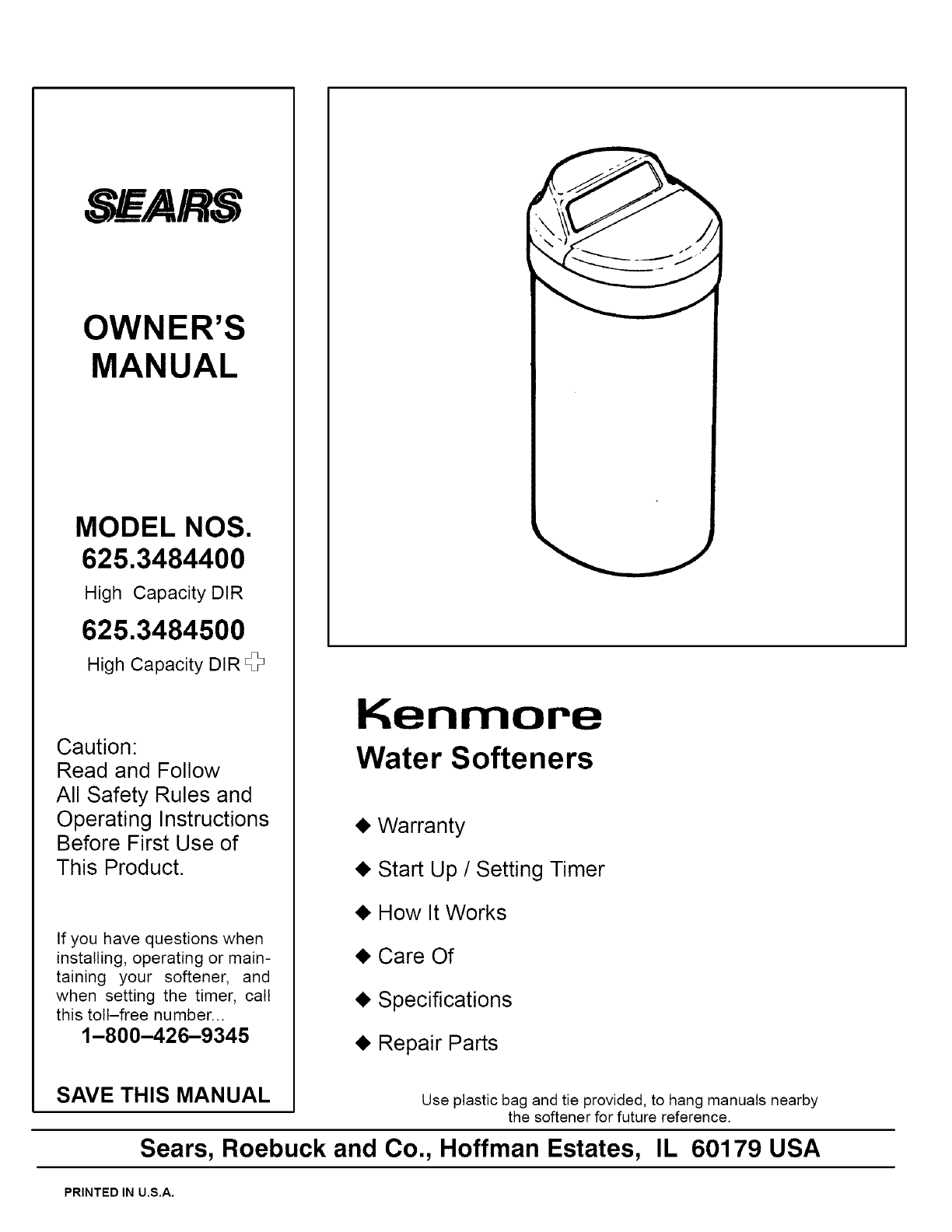

_ARS

OWNER'S

MANUAL

MODEL NOS.

625.3484400

High Capacity DIR

625.3484500

High Capacity DIR

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

If you have questions when

installing, operating or main-

taining your softener, and

when setting the timer, call

this toll-free number...

1-800-426-9345

SAVE THIS MANUAL

Kenrnor'e

Water Softeners

Warranty

Start Up /Setting Timer

How It Works

Care Of

Specifications

Repair Parts

Use plastic bag and tie provided, to hang manuals nearby

the softener for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

PRINTED IN U.S.A.

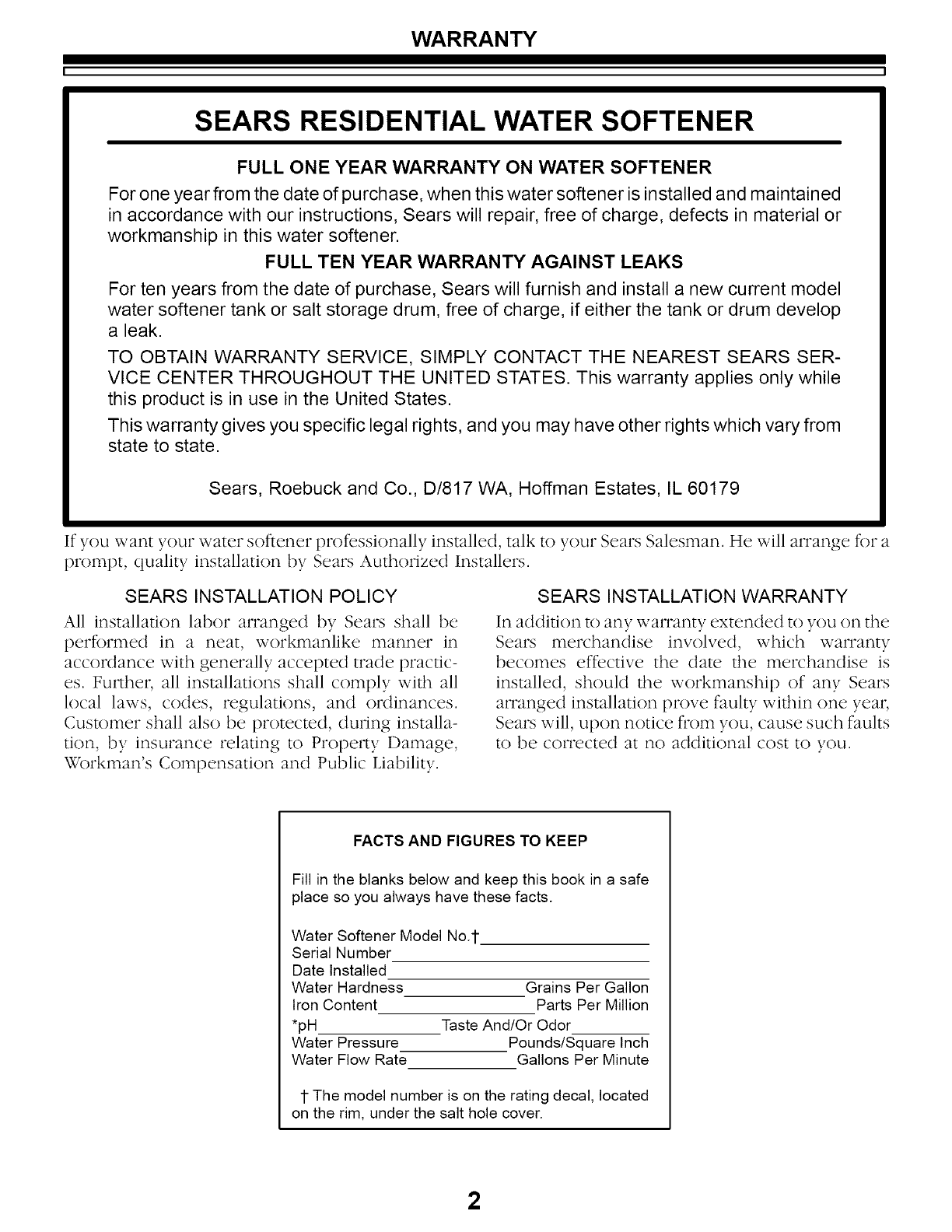

WARRANTY

SEARS RESIDENTIAL WATER SOFTENER

FULL ONE YEAR WARRANTY ON WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and maintained

in accordance with our instructions, Sears will repair, free of charge, defects in material or

workmanship in this water softener.

FULL TEN YEAR WARRANTY AGAINST LEAKS

For ten years from the date of purchase, Sears will furnish and install a new current model

water softener tank or salt storage drum, free of charge, if either the tank or drum develop

a leak.

TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SER-

VICE CENTER THROUGHOUT THE UNITED STATES. This warranty applies only while

this product is in use in the United States.

This warranty gives you specific legal rights, and you may have other rights which vary from

state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a

prompt, quality installation by Sears Authorized Installers.

SEARS INSTALLATION POLICY

All installation labor arranged by Sears shall be

perfbrmed in a neat, workmanlike manner in

accordance with generally accepted trade practic-

es. Ful_her, all installations shall comply with all

local laws, codes, regulations, and ordinances.

Customer shall also be protected, during installa-

tion, by insurance relating to Property Damage,

Workman's Compensation and Public Liability.

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on the

Sears merchandise involved, which warranty

becomes effective the date the merchandise is

installed, should the workmanship of any Sears

arranged installation prove faulty within one year,

Sears will, upon notice from you, cause such faults

to be corrected at no additional cost to you.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe

place so you always have these facts.

Water Softener Model No.l-

Serial Number

Date Installed

Water Hardness

Iron Content

*pH

Water Pressure

Water Flow Rate

Grains Per Gallon

Parts Per Million

Taste And/Or Odor

Pounds/Square Inch

Gallons Per Minute

1-The model number is on the rating decal, located

on the rim, under the salt hole cover.

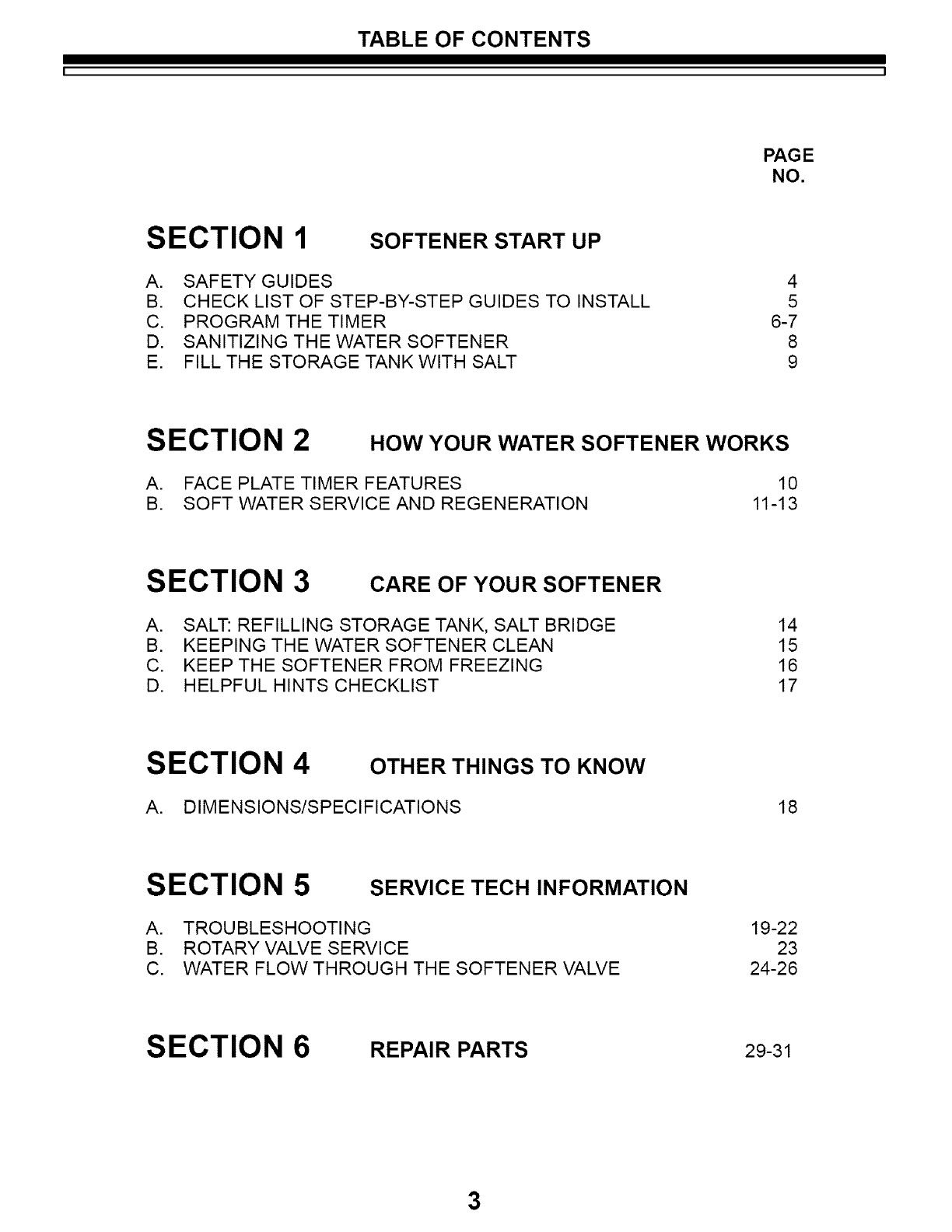

TABLE OF CONTENTS

I 1

PAGE

NO.

SECTION 1SOFTENER START UP

A. SAFETY GUIDES

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

C. PROGRAM THE TIMER

D. SANITIZING THE WATER SOFTENER

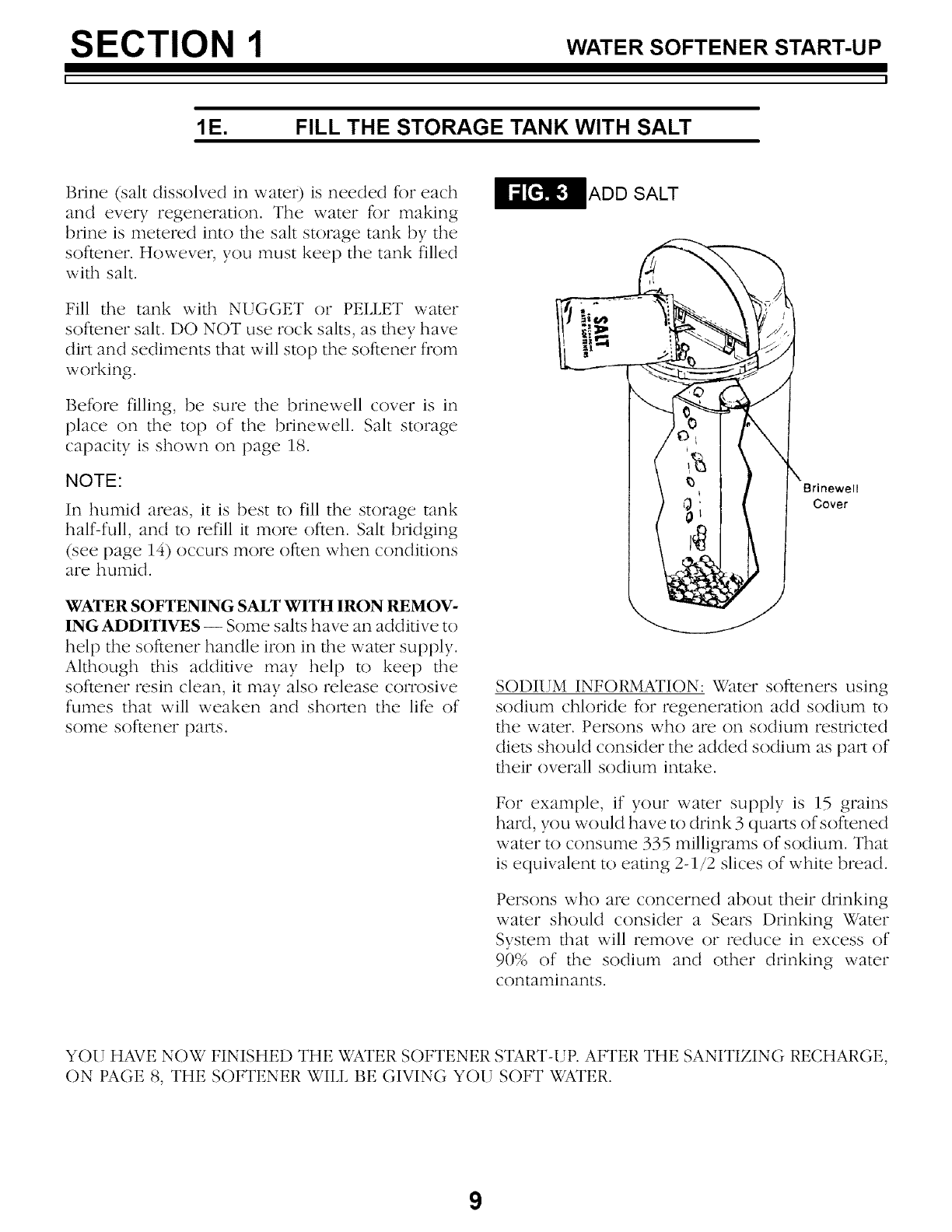

E. FILL THE STORAGE TANK WITH SALT

6-7

SECTION 2 HOW YOUR WATER SOFTENER WORKS

A. FACE PLATE TIMER FEATURES 10

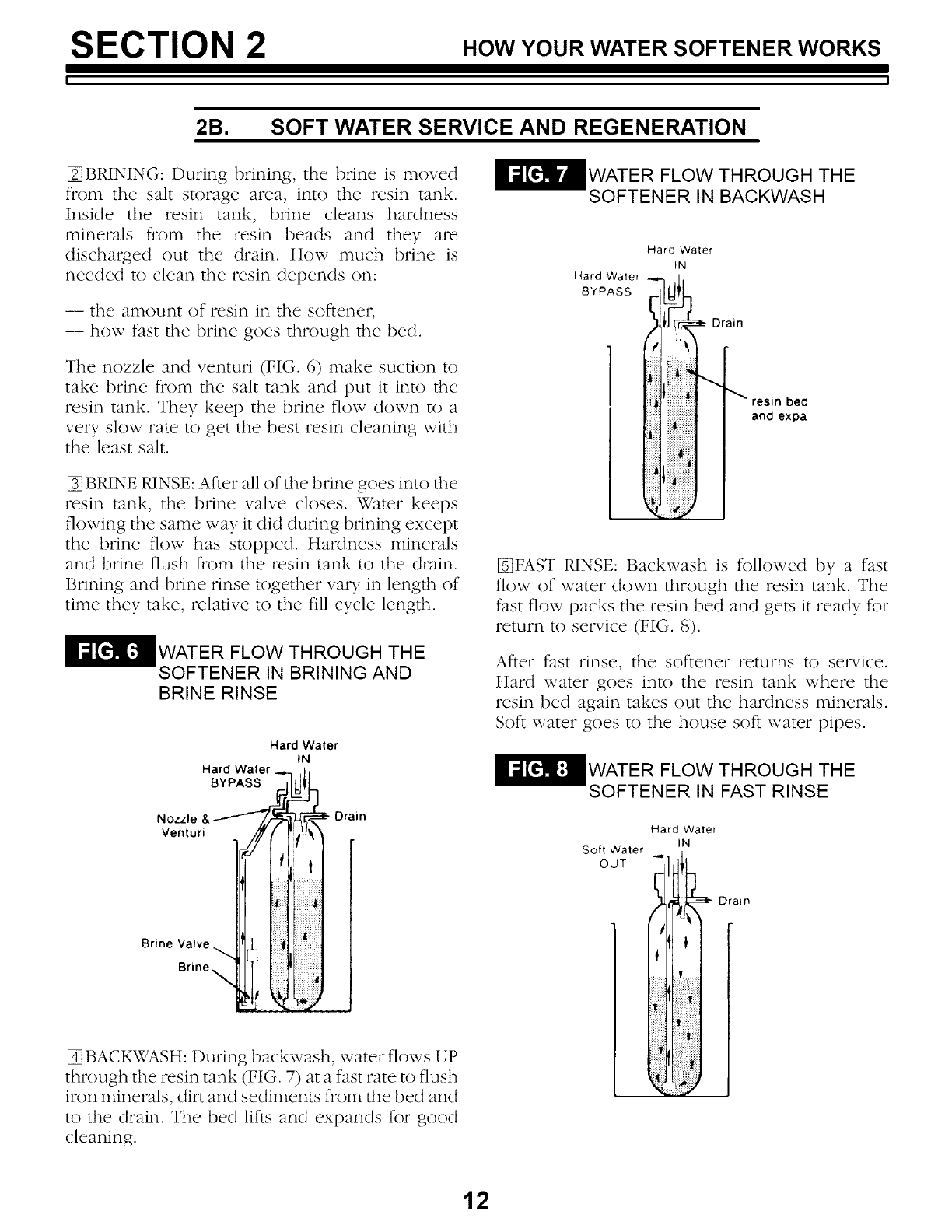

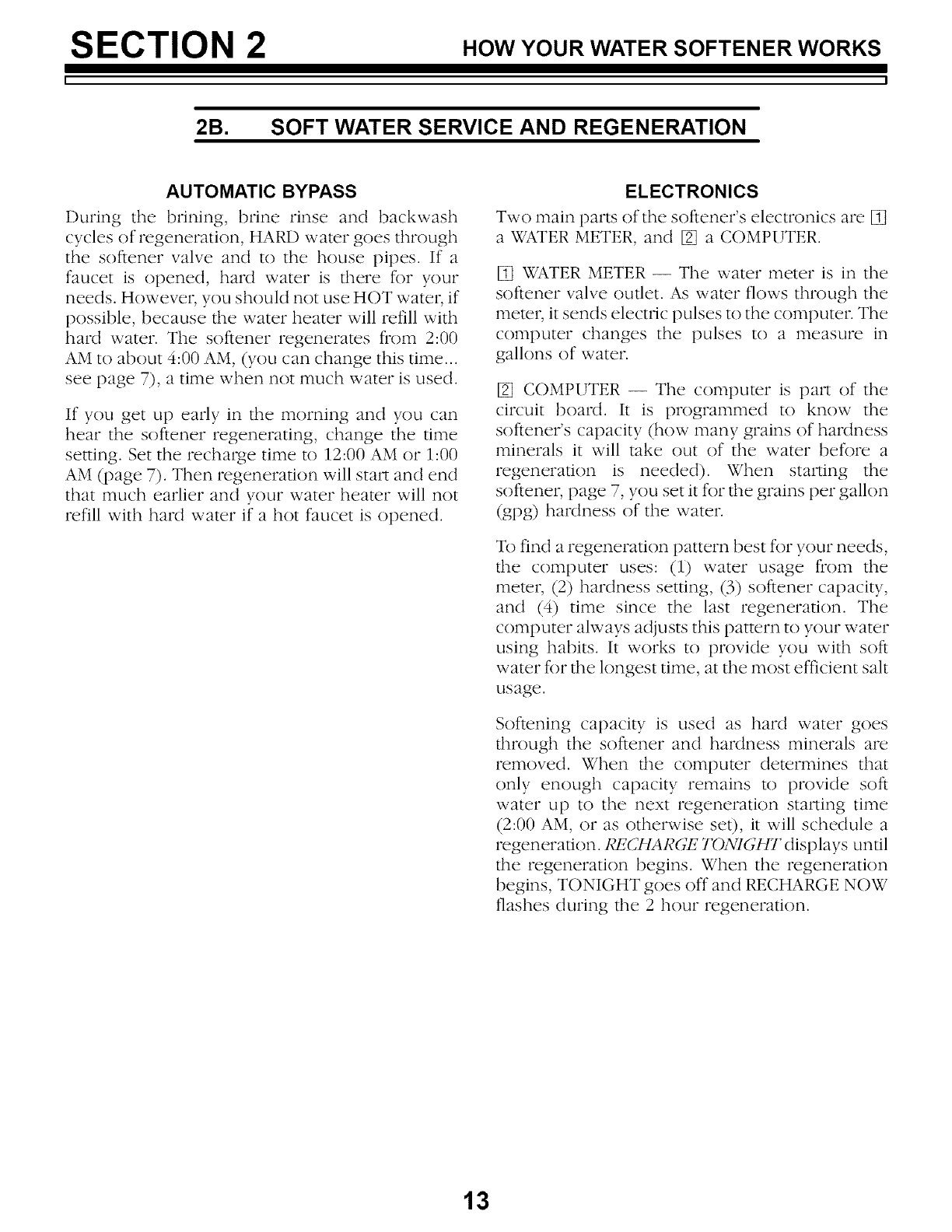

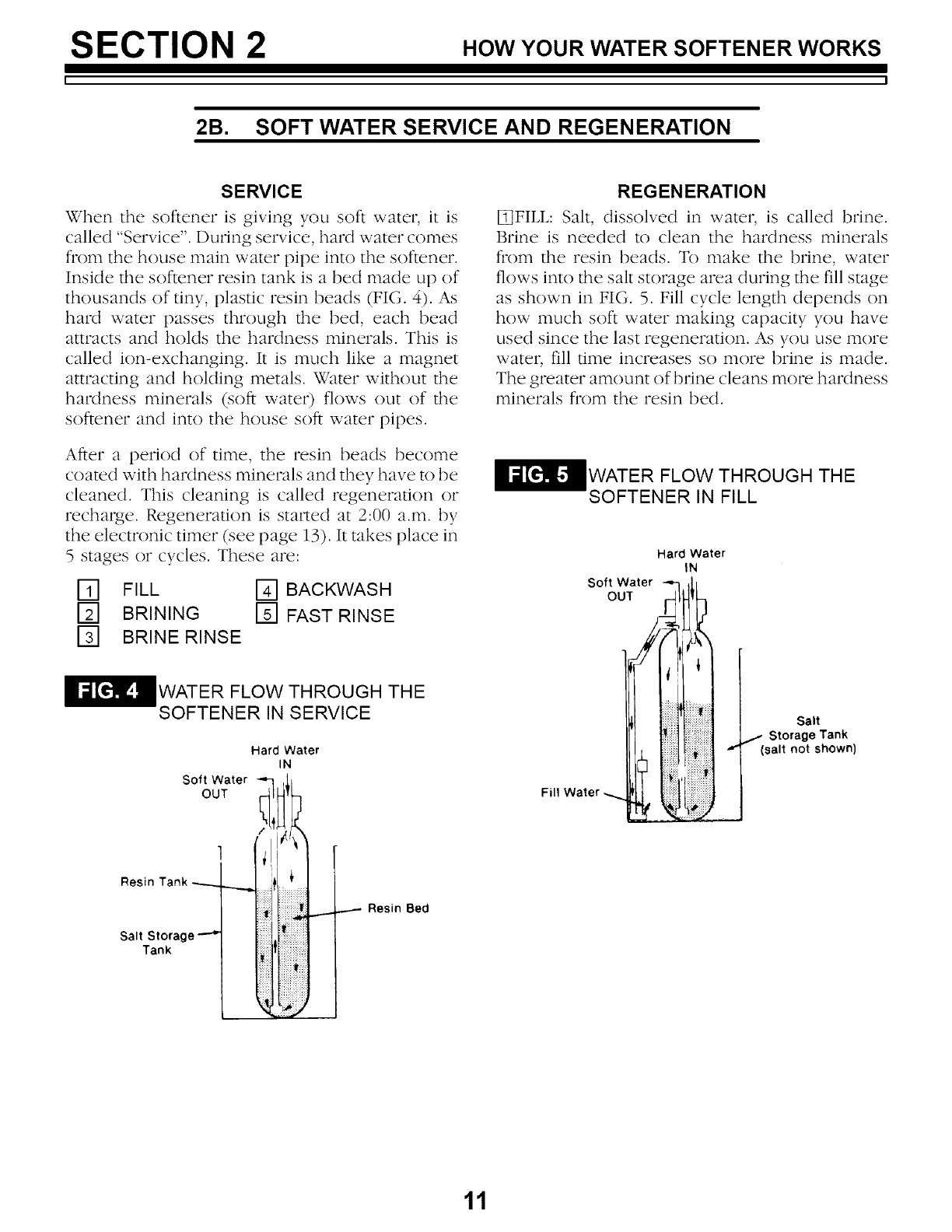

B. SOFT WATER SERVICE AND REGENERATION 11-13

SECTION 3CARE OF YOUR SOFTENER

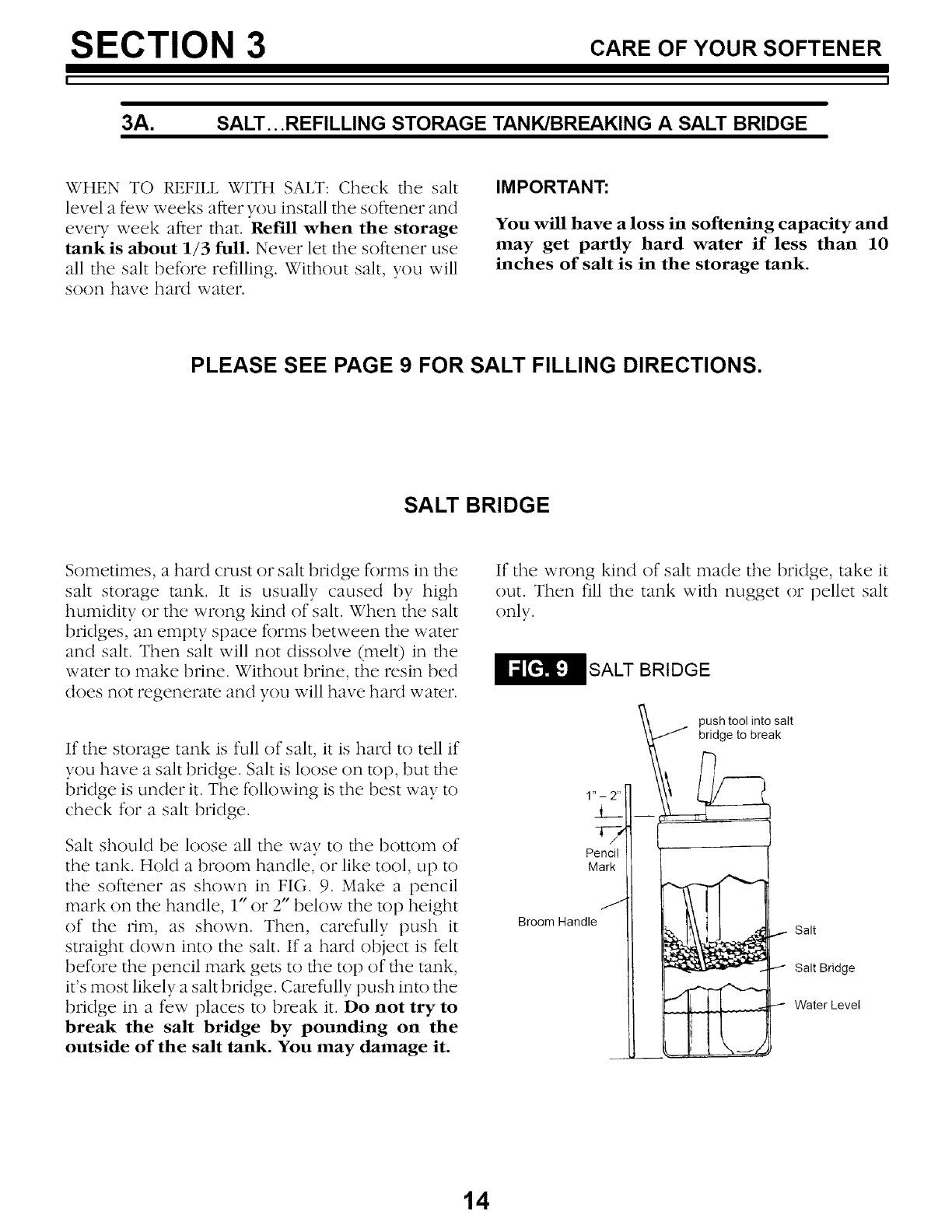

A. SALT: REFILLING STORAGE TANK, SALT BRIDGE

B. KEEPING THE WATER SOFTENER CLEAN

C. KEEP THE SOFTENER FROM FREEZING

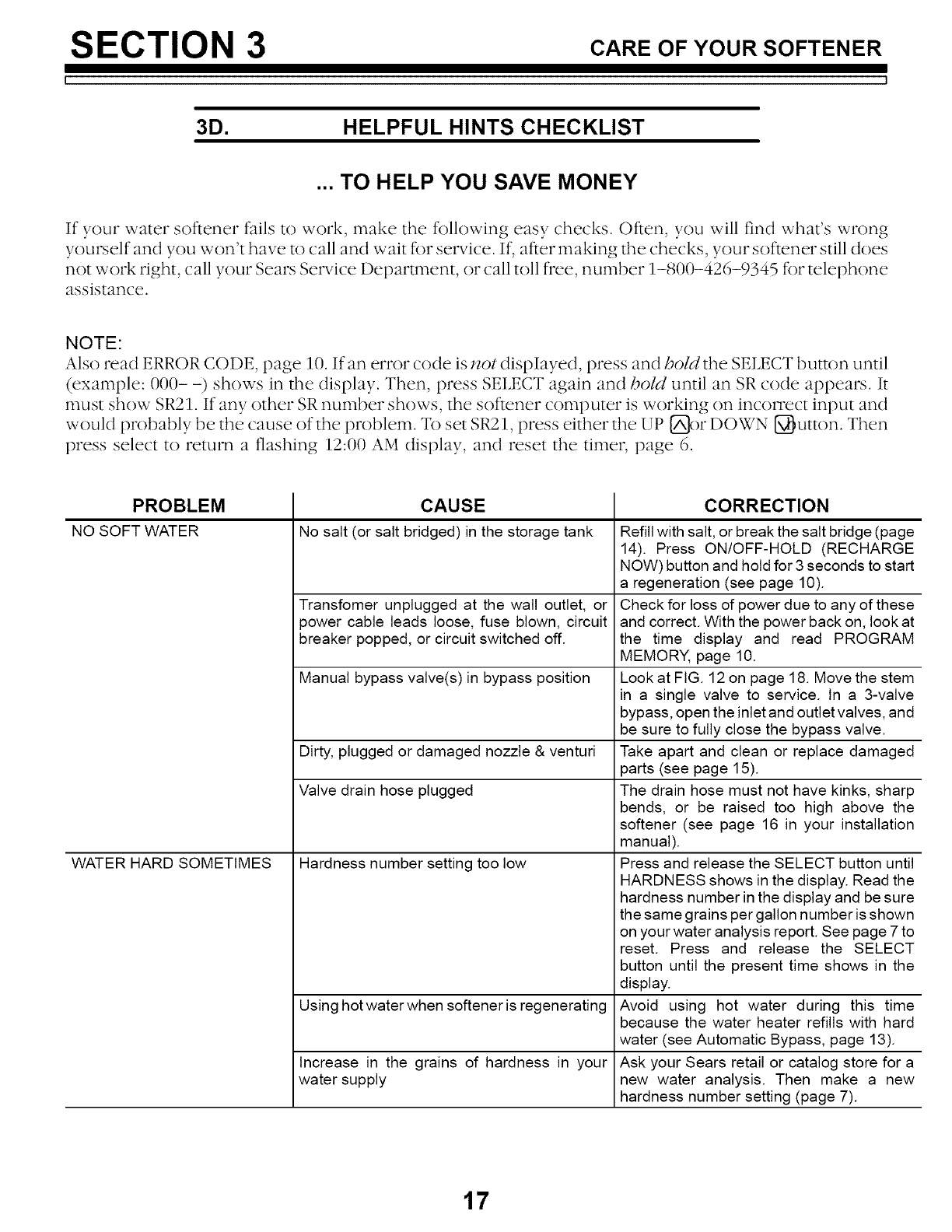

D. HELPFUL HINTS CHECKLIST

SECTION 4 OTHER THINGS TO KNOW

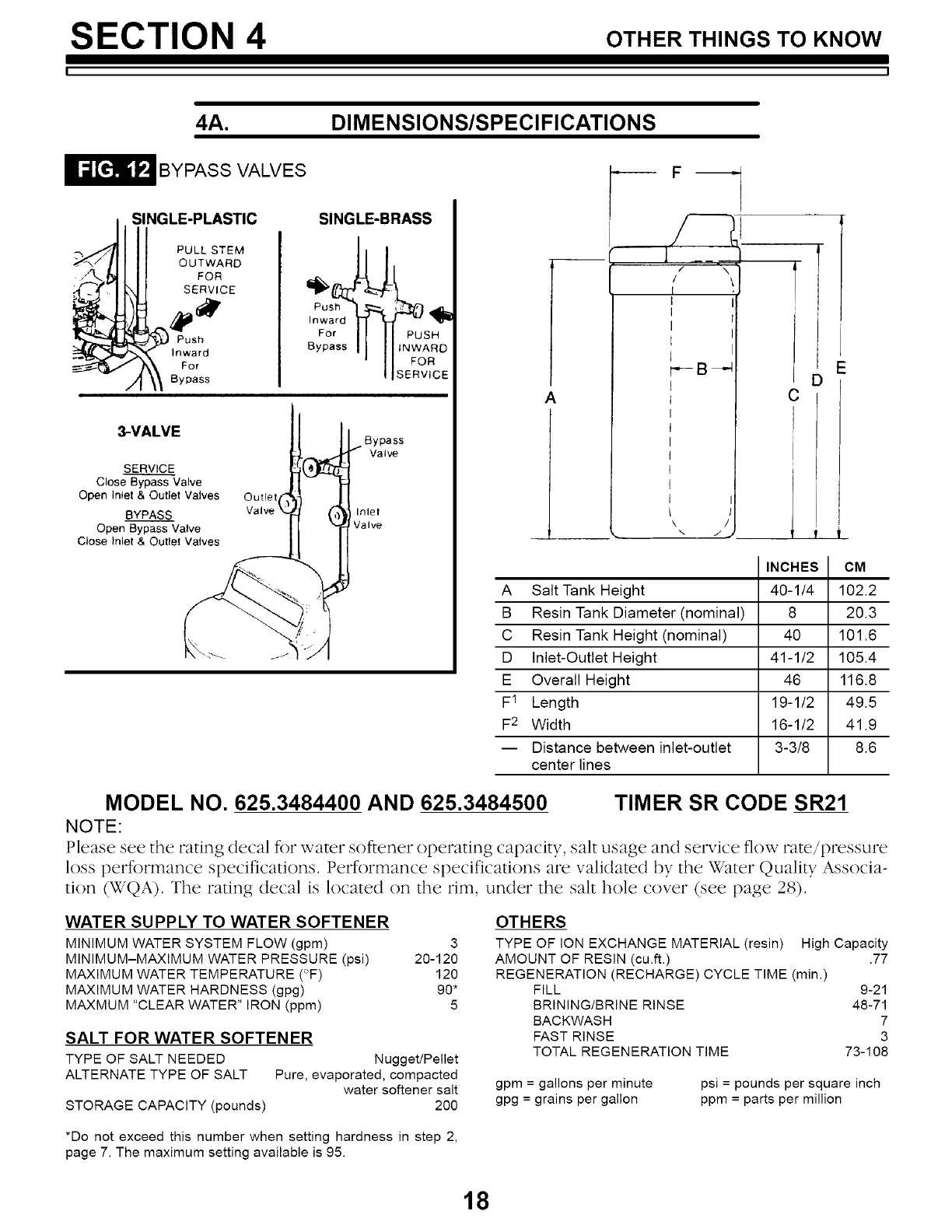

A. DIMENSIONS/SPECIFICATIONS 18

SECTION 5 SERVICE TECH INFORMATION

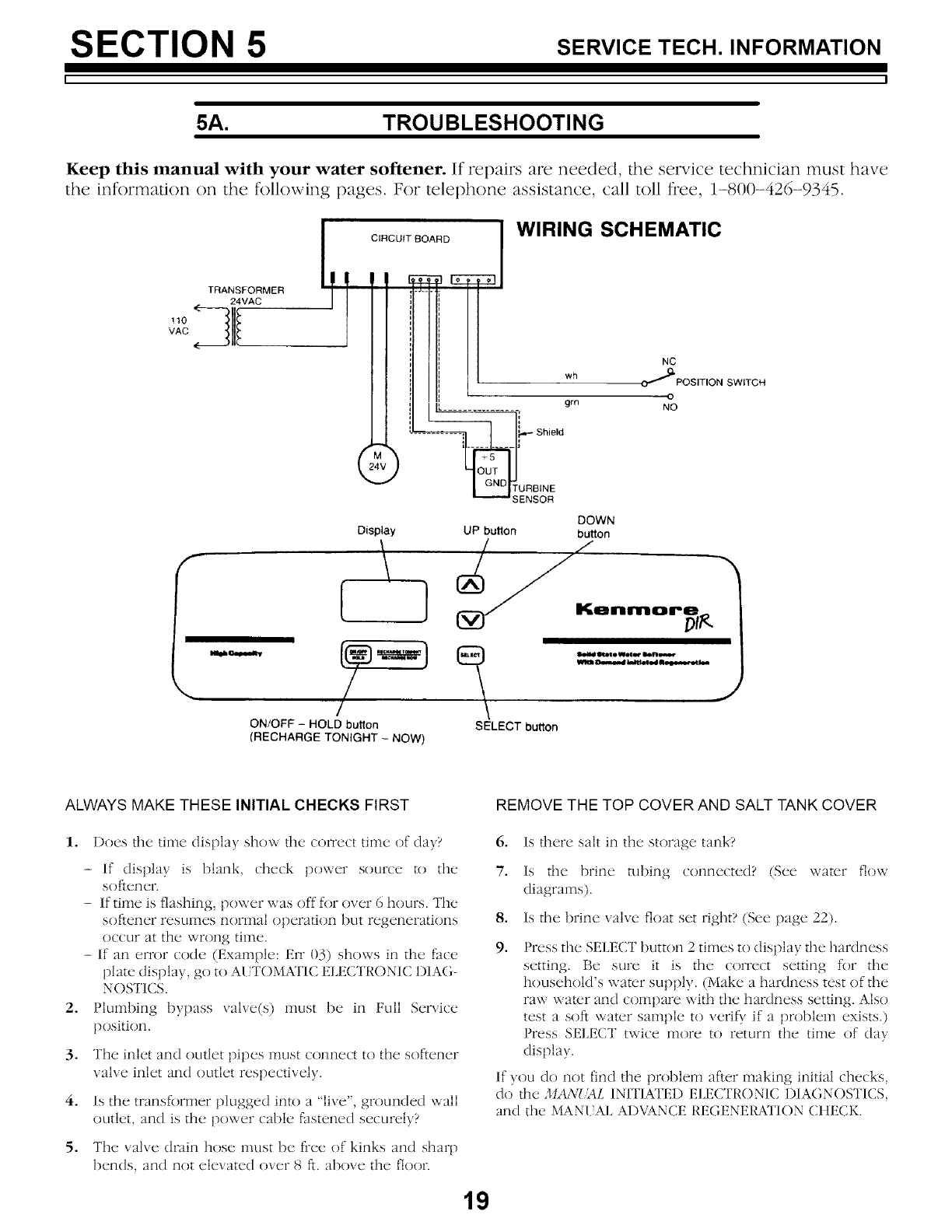

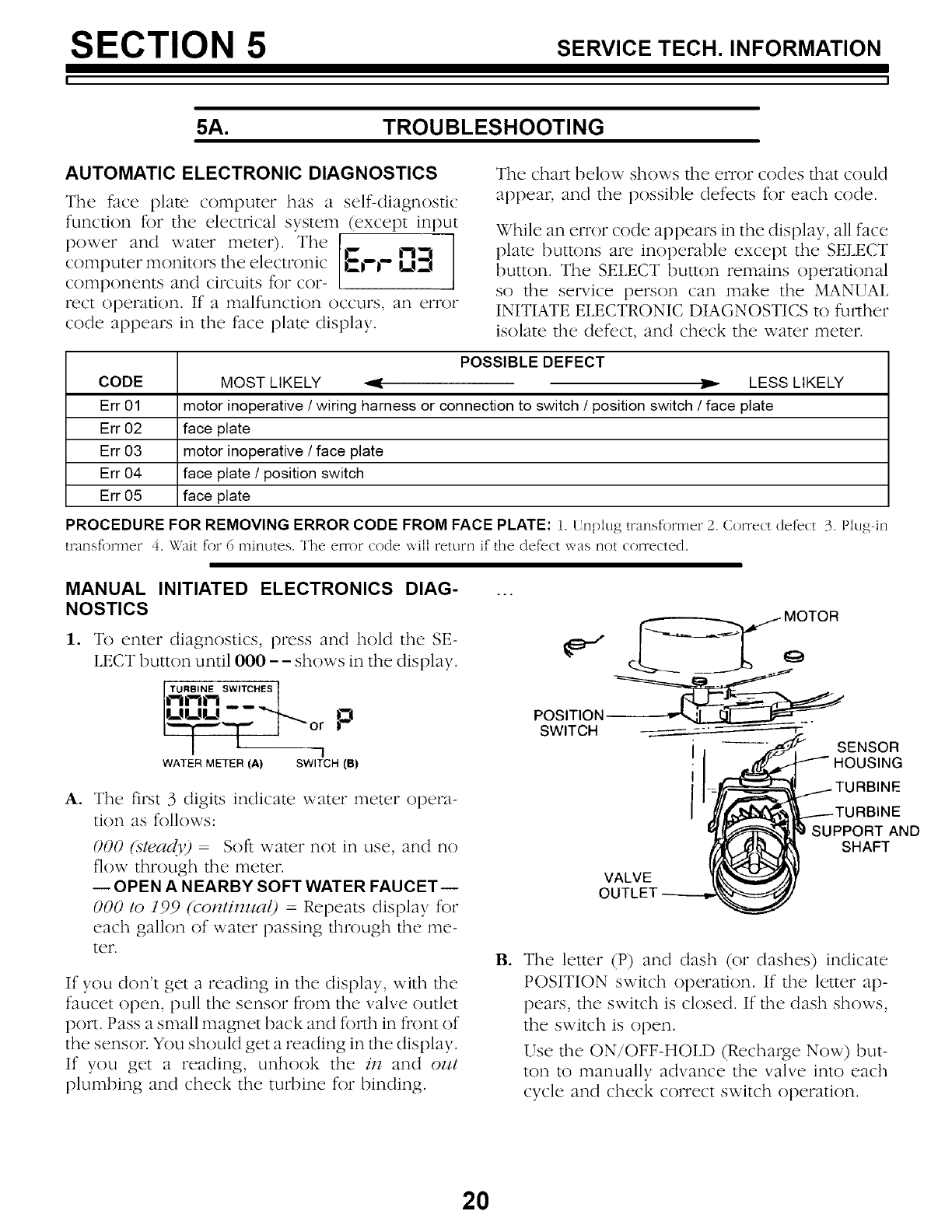

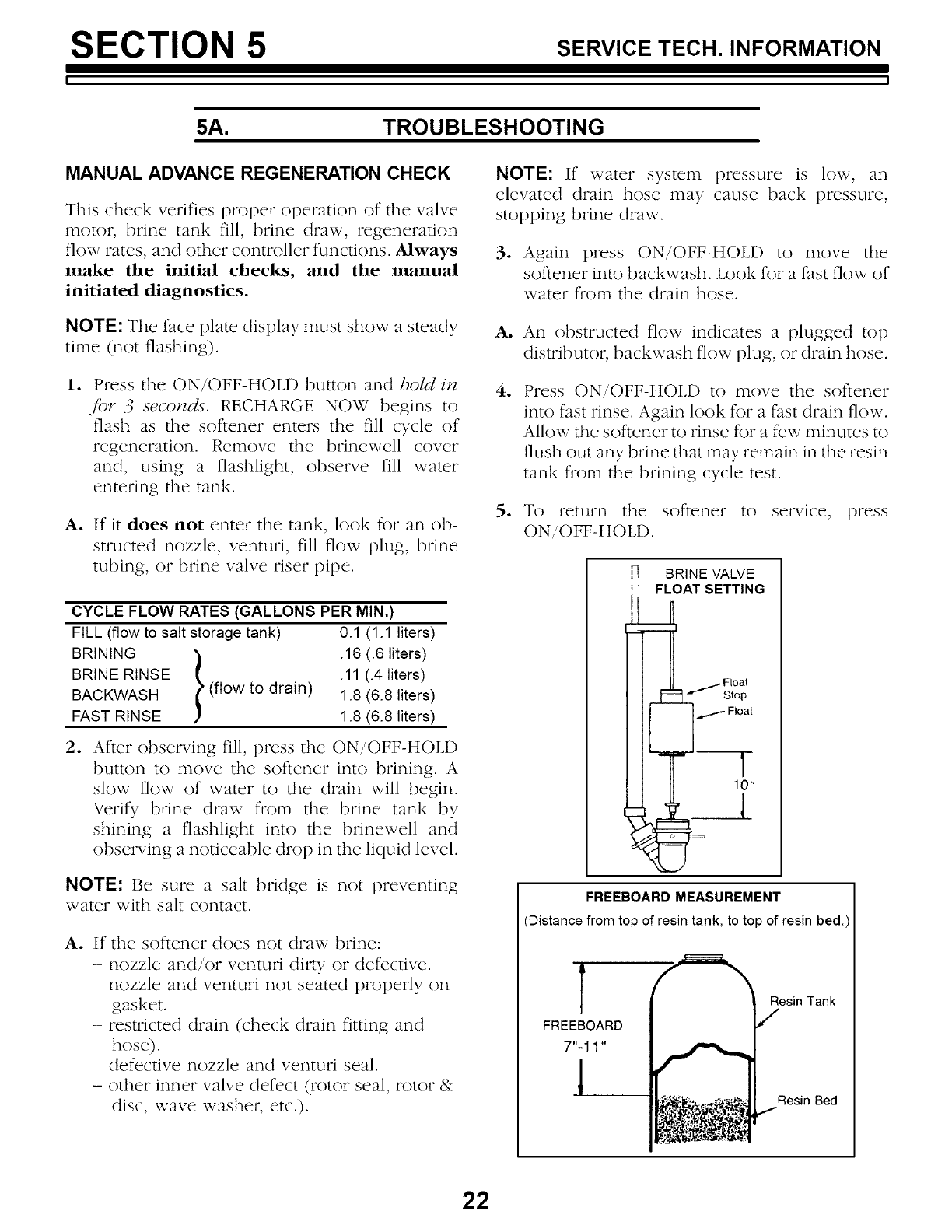

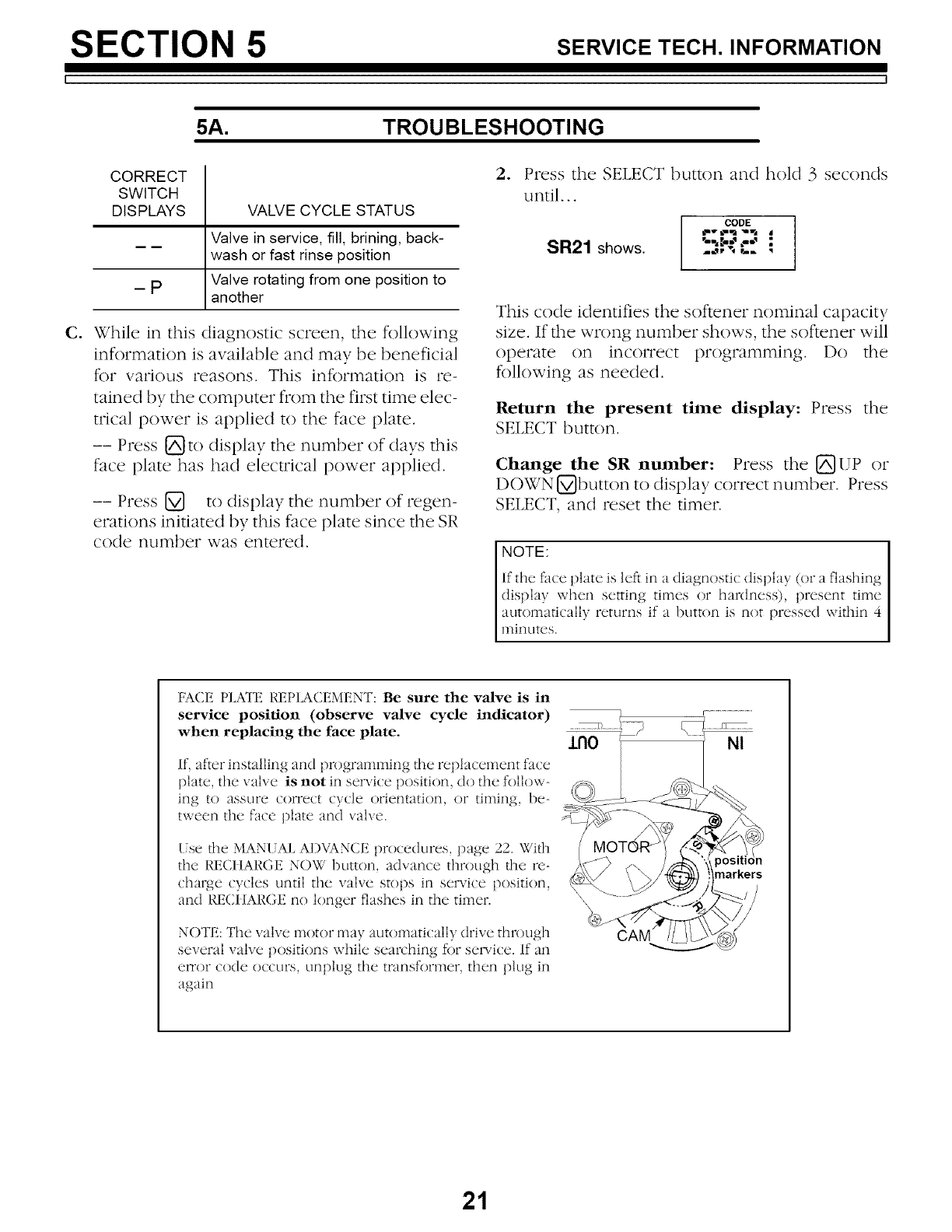

A. TROUBLESHOOTING

B. ROTARY VALVE SERVICE

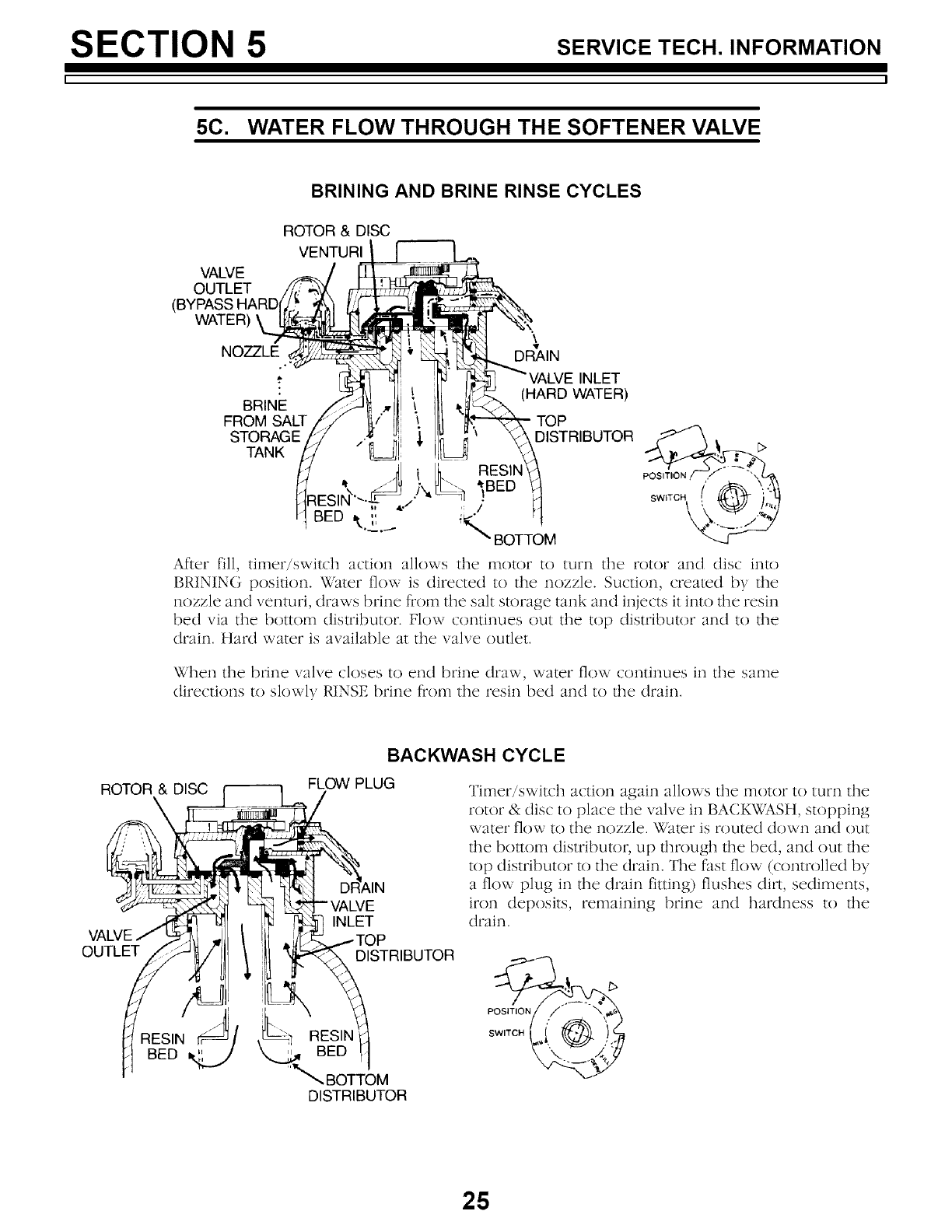

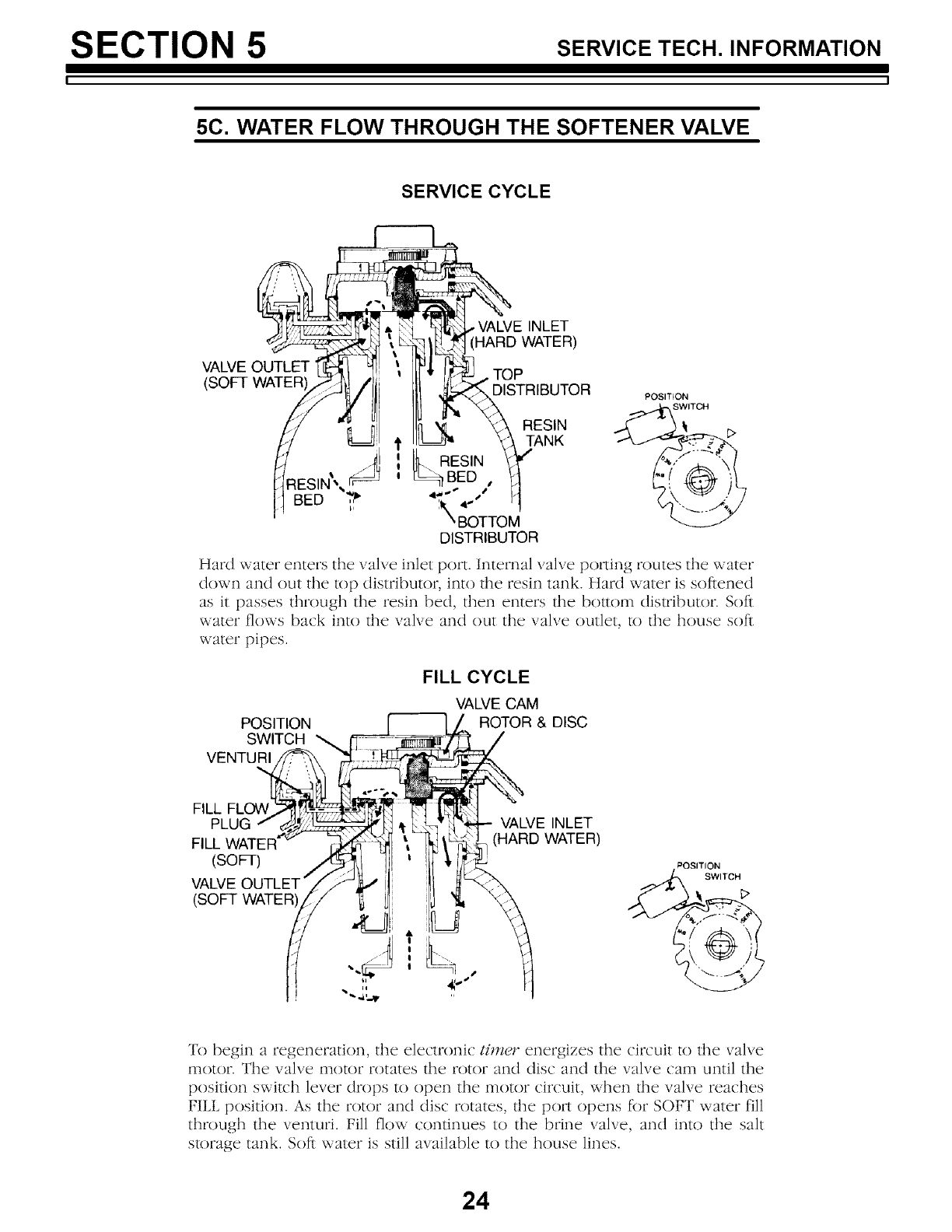

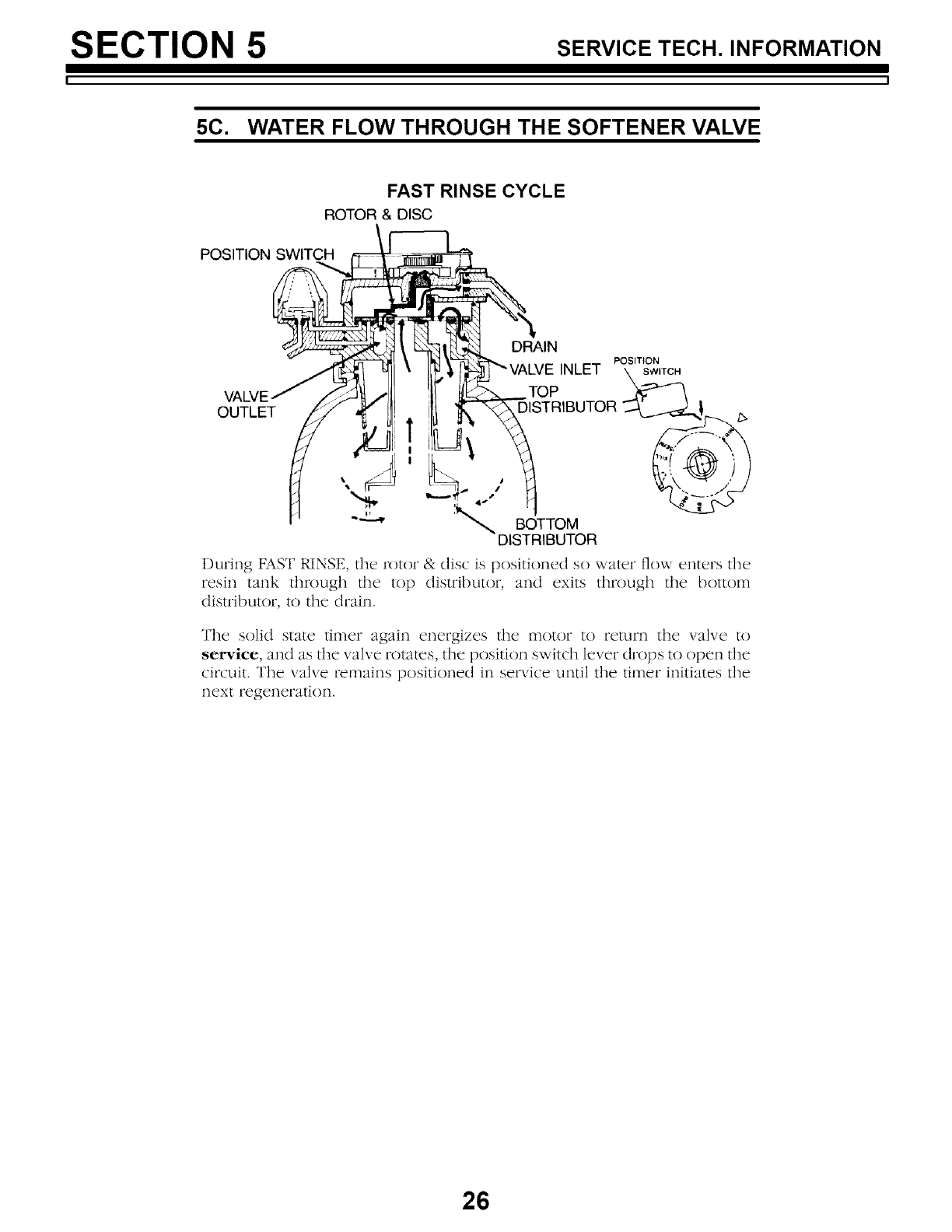

C. WATER FLOW THROUGH THE SOFTENER VALVE

19-22

24-26

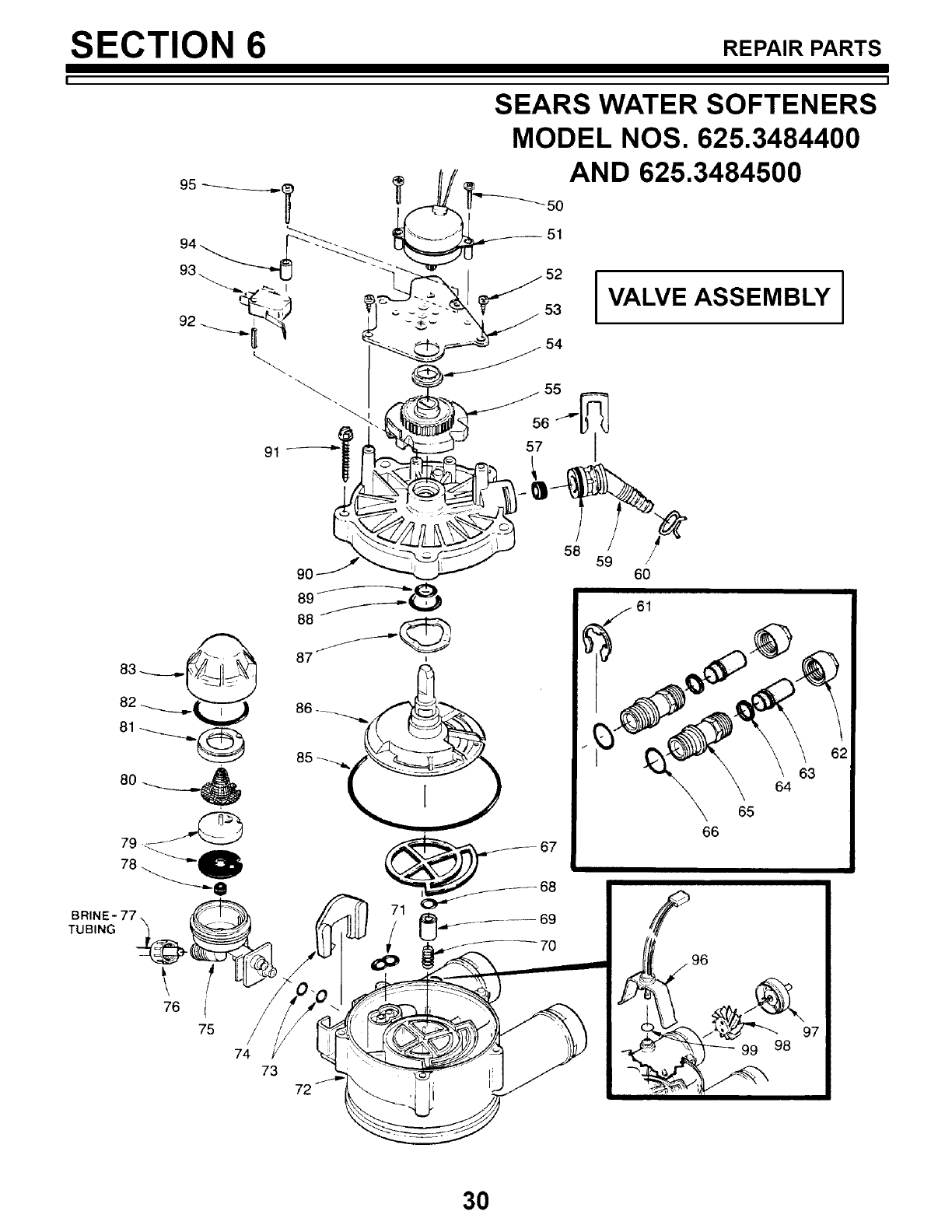

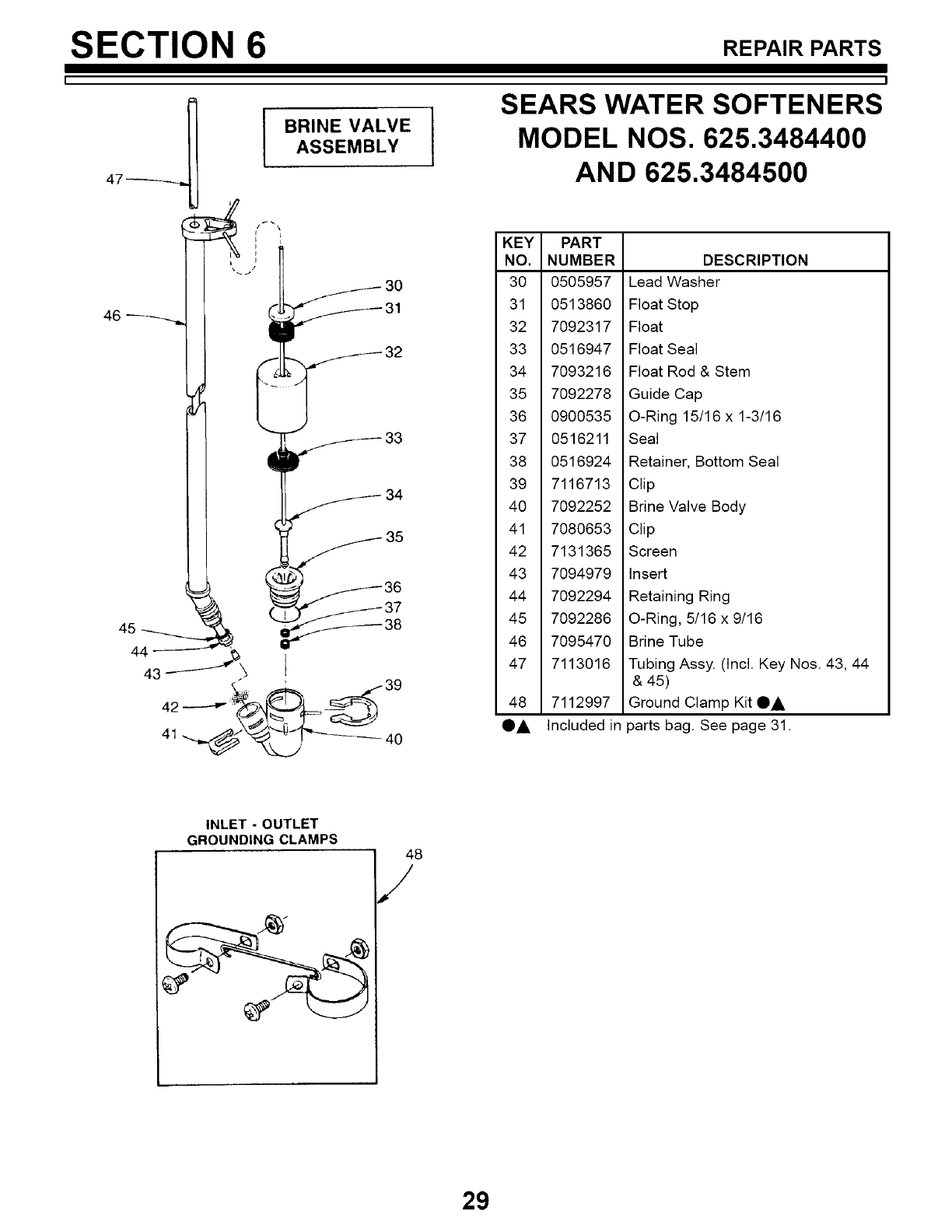

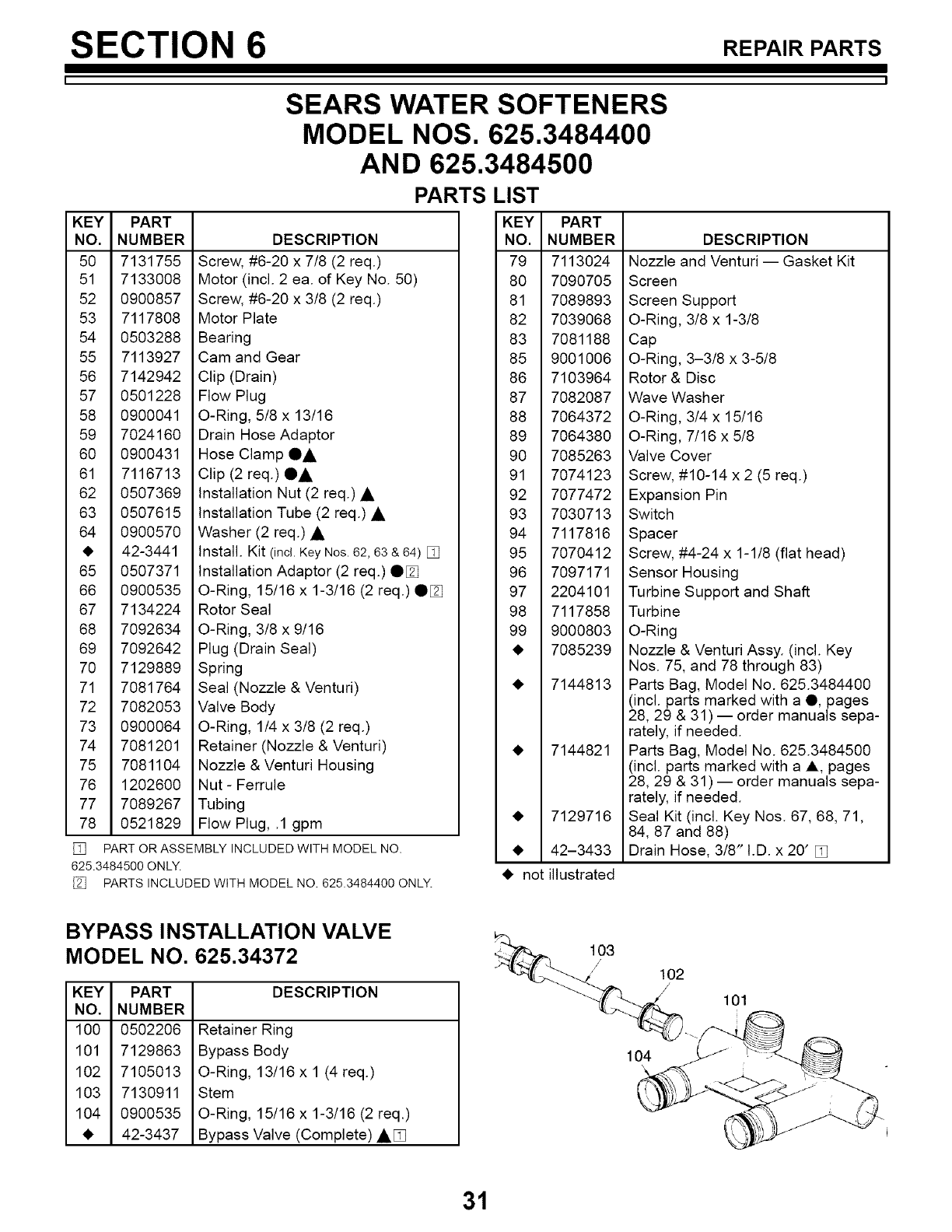

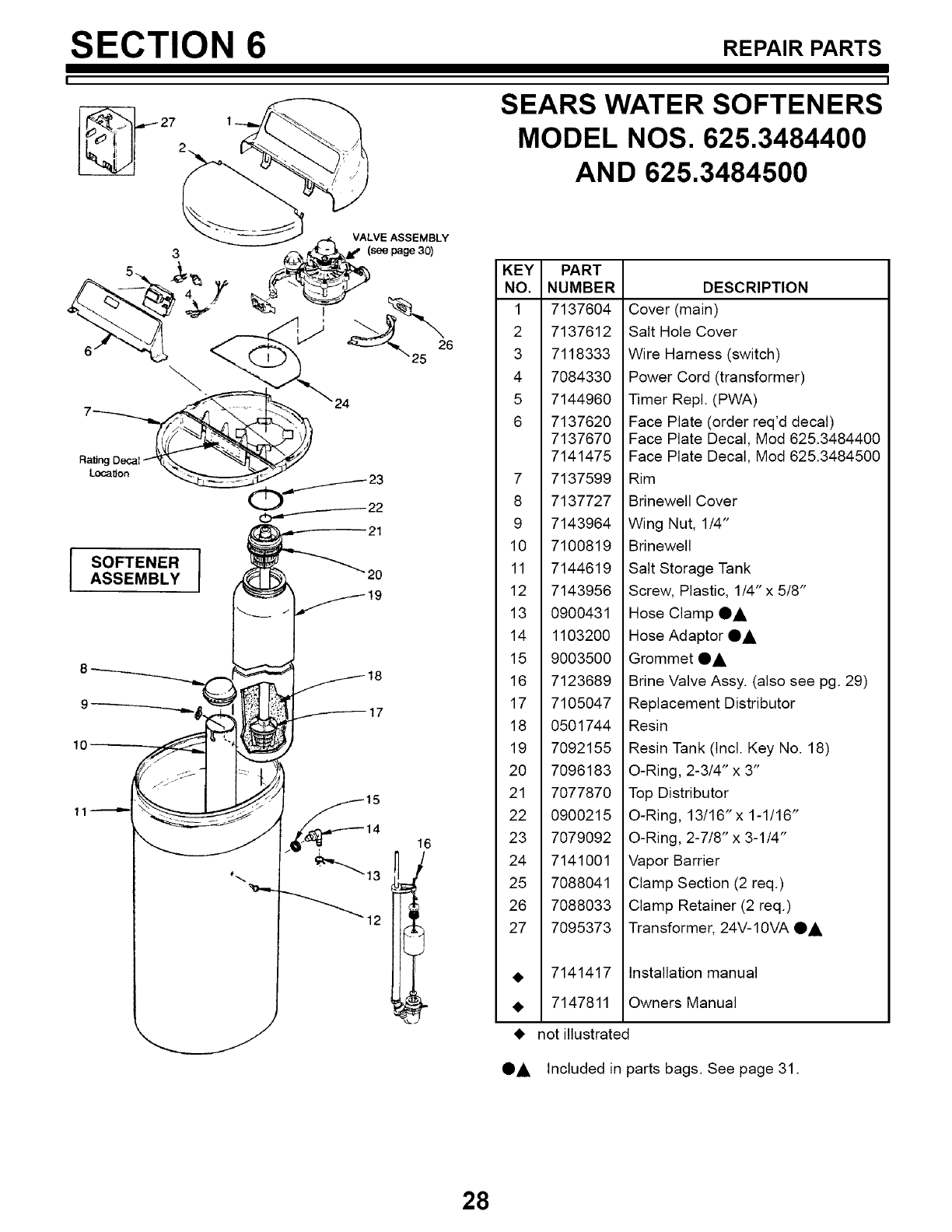

SECTION 6 REPAIR PARTS 29-31

SECTION 1 WATER SOFTENER START-UP

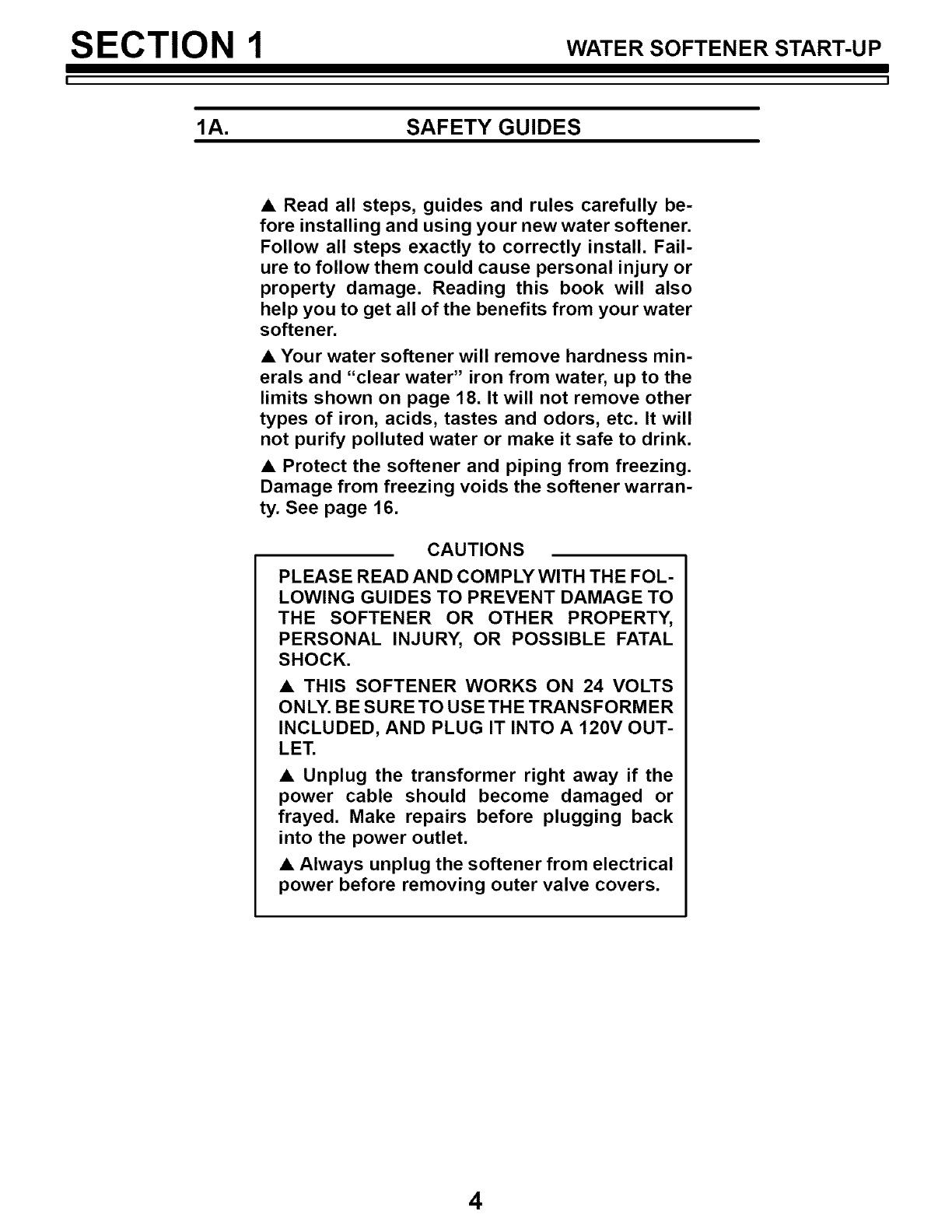

1A. SAFETY GUIDES

•Read all steps, guides and rules carefully be-

fore installing and using your new water softener.

Follow all steps exactly to correctly install. Fail-

ure to follow them could cause personal injury or

property damage. Reading this book will also

help you to get all of the benefits from your water

softener.

•Your water softener will remove hardness min-

erals and "clear water" iron from water, up to the

limits shown on page 18. It will not remove other

types of iron, acids, tastes and odors, etc. It will

not purify polluted water or make it safe to drink.

•Protect the softener and piping from freezing.

Damage from freezing voids the softener warran-

ty. See page 16.

CAUTIONS

PLEASE READ AND COMPLY WITH THE FOL-

LOWING GUIDES TO PREVENT DAMAGE TO

THE SOFTENER OR OTHER PROPERTY,

PERSONAL INJURY, OR POSSIBLE FATAL

SHOCK.

•THIS SOFTENER WORKS ON 24 VOLTS

ONLY. BE SURE TO USE THE TRANSFORMER

INCLUDED, AND PLUG IT INTO A 120V OUT-

LET.

•Unplug the transformer right away if the

power cable should become damaged or

frayed. Make repairs before plugging back

into the power outlet.

•Always unplug the softener from electrical

power before removing outer valve covers.

SECTION 1 WATER SOFTENER START-UP

I I

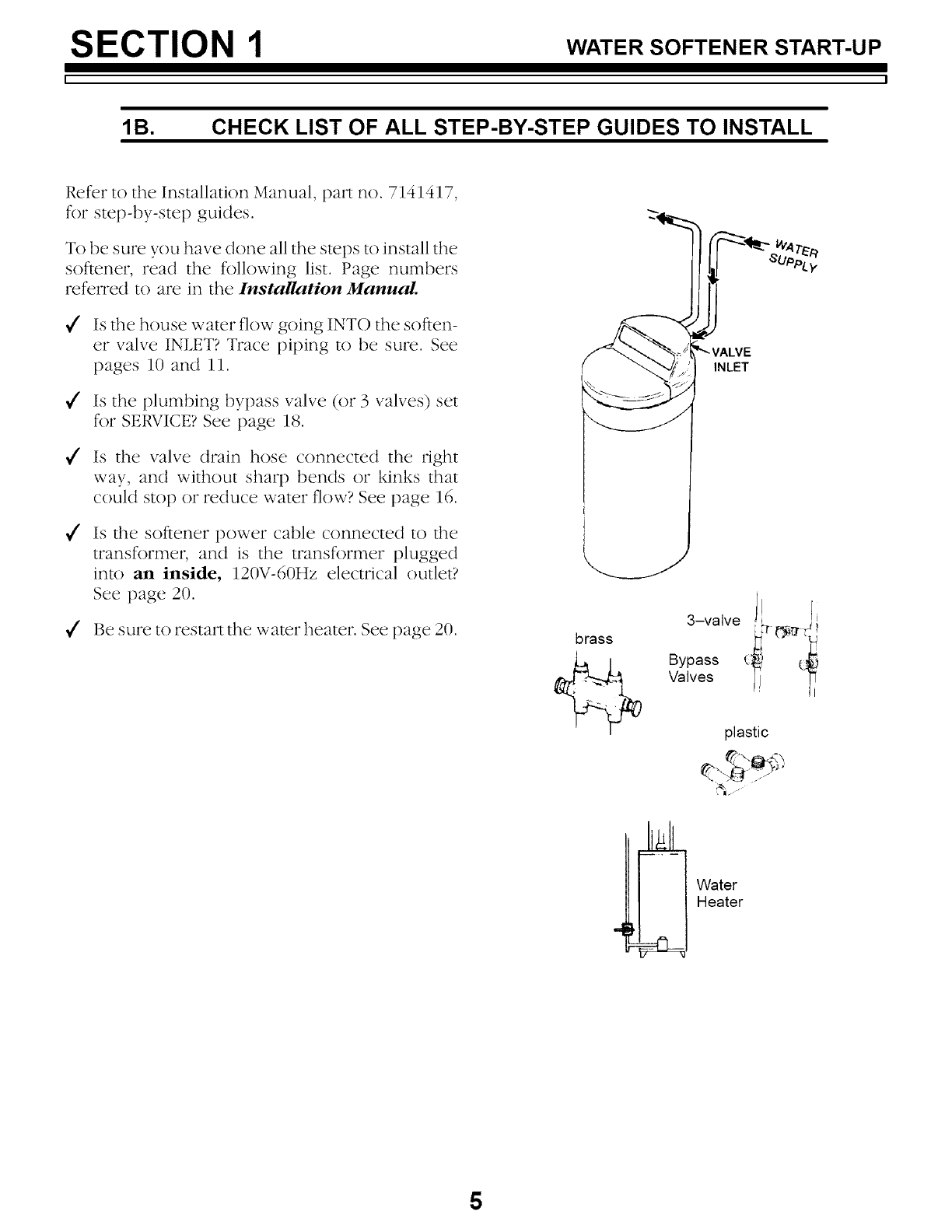

lB. CHECK LIST OF ALL STEP-BY-STEP GUIDES TO INSTALL

Refer to the Installation Manual, pmx no. 7141417,

for step-by-step guides.

To be sure you have done all the steps to install the

softener, read the following list. Page numbers

referred to are in the Installation Manual.

_/' Is the house water flow going INTO the soften-

er valve INLET? Trace piping to be sure. See

pages 10 and 11.

_/' Is the plumbing bypass valve (or 3 valves) set

for SERVICE? See page 18.

_/' Is the valve drain hose connected the right

way, and without sharp bends or kinks that

could stop or reduce water flow? See page 16.

_/' Is the softener power cable connected to the

transformer, and is the transformer plugged

into an inside, 120V-60Hz electrical outlet?

See page 20.

_/' Be sure to restart the water heater. See page 20.

brass

INLET

I j

3-valve J _[

Bypass (_' _

Valves Ii

plastic

_(i\g_,.<A

Water

Heater

SECTION 1 WATER SOFTENER START-UP

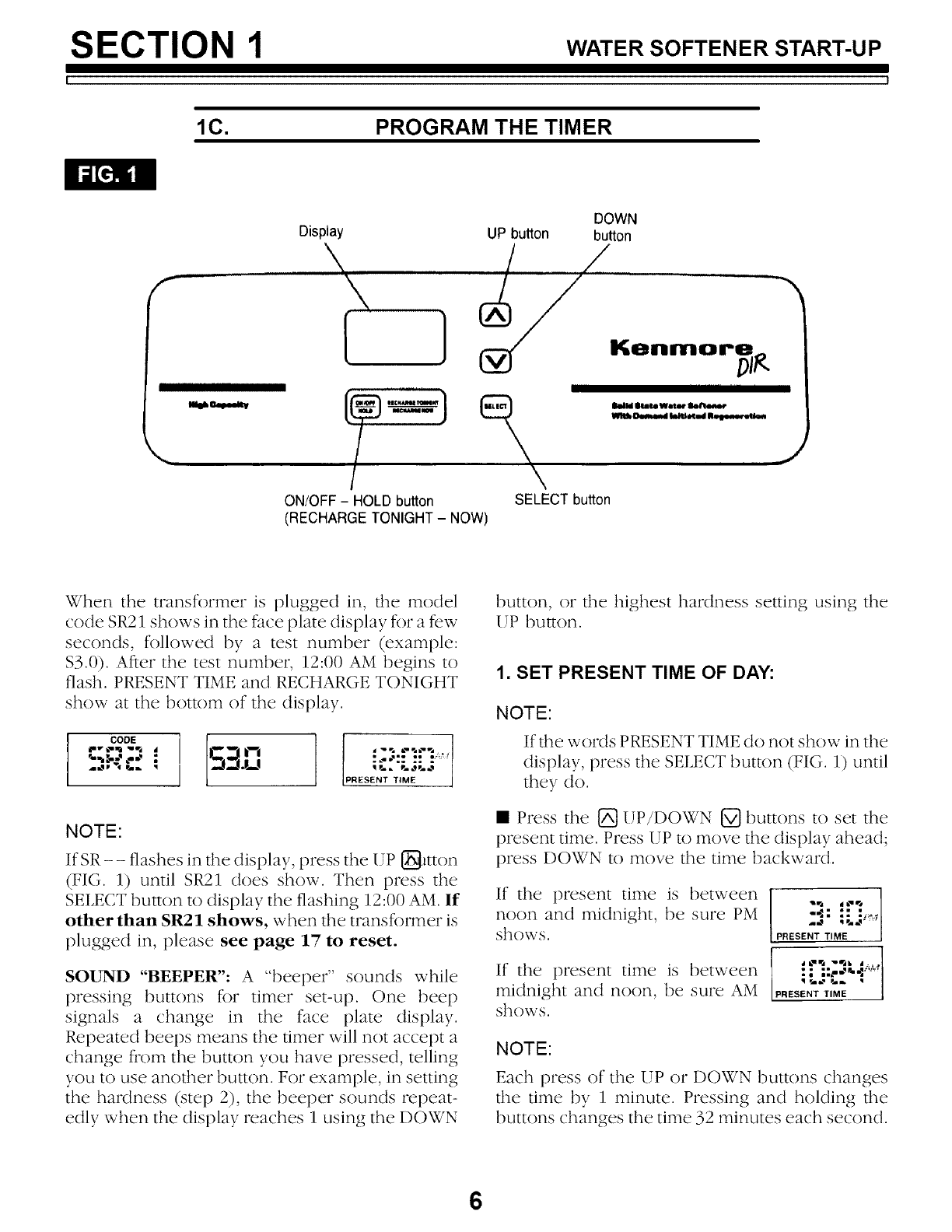

lC. PROGRAM THE TIMER

Display

t 1

,, ,,,,,,,,,,,,

ON/OFF - HOLD button

DOWN

UP button button

IIIII I

SELECT button

(RECHARGETONIGHT- NOW)

When the transformer is plugged in, the model

code SR21 shows in the face plate display for a few

seconds, followed by a test number (example:

$3.0). After the test number, 12:00 AM begins to

flash. PRESENT TIME and RECHARGE TONIGHT

show at the bottom of the display.

ICODE 530

IPRESENT TIME

NOTE:

IfSR- - flashes in the display, press the UP {_tton

(FIG. 1) until SR21 does show. Then press the

SELECT button to display the flashing 12:00 AM. If

other than SR21 shows, when the transformer is

plugged in, please see page 1"7 to reset.

SOUND "BEEPER": A "beeper" sounds while

pressing buttons for timer set-up. One beep

signals a change in the face plate display.

Repeated beeps means the timer will not accept a

change from the button you have pressed, telling

you to use another button. For example, in setting

the hardness (step 2), the beeper sounds repeat-

edly when the display reaches 1 using the DOWN

button, or the highest hardness setting using the

UP button.

1. SET PRESENT TIME OF DAY:

NOTE:

If the words PRESENT TIME do not show in the

display, press the SELECT button (FIG. 1) until

they do.

• Press the [] UP/DOWN [] buttons to set the

present time. Press UP to move the display ahead;

press DOWN to move the time backward.

If the present time is between

noon and midnight, be sure PM ..,-_:i,,._....

st] O VV" S. PRESENT TIME

If" the present time is between PRESENT:;':_'_TIME......

midnight and noon,be sure AM ''=" "" '

shows.

NOTE:

Each press of the UP or DOWN buttons changes

the time by 1 minute. Pressing and holding the

buttons changes the time 32 minutes each second.

SECTION 1 WATER SOFTENER START-UP

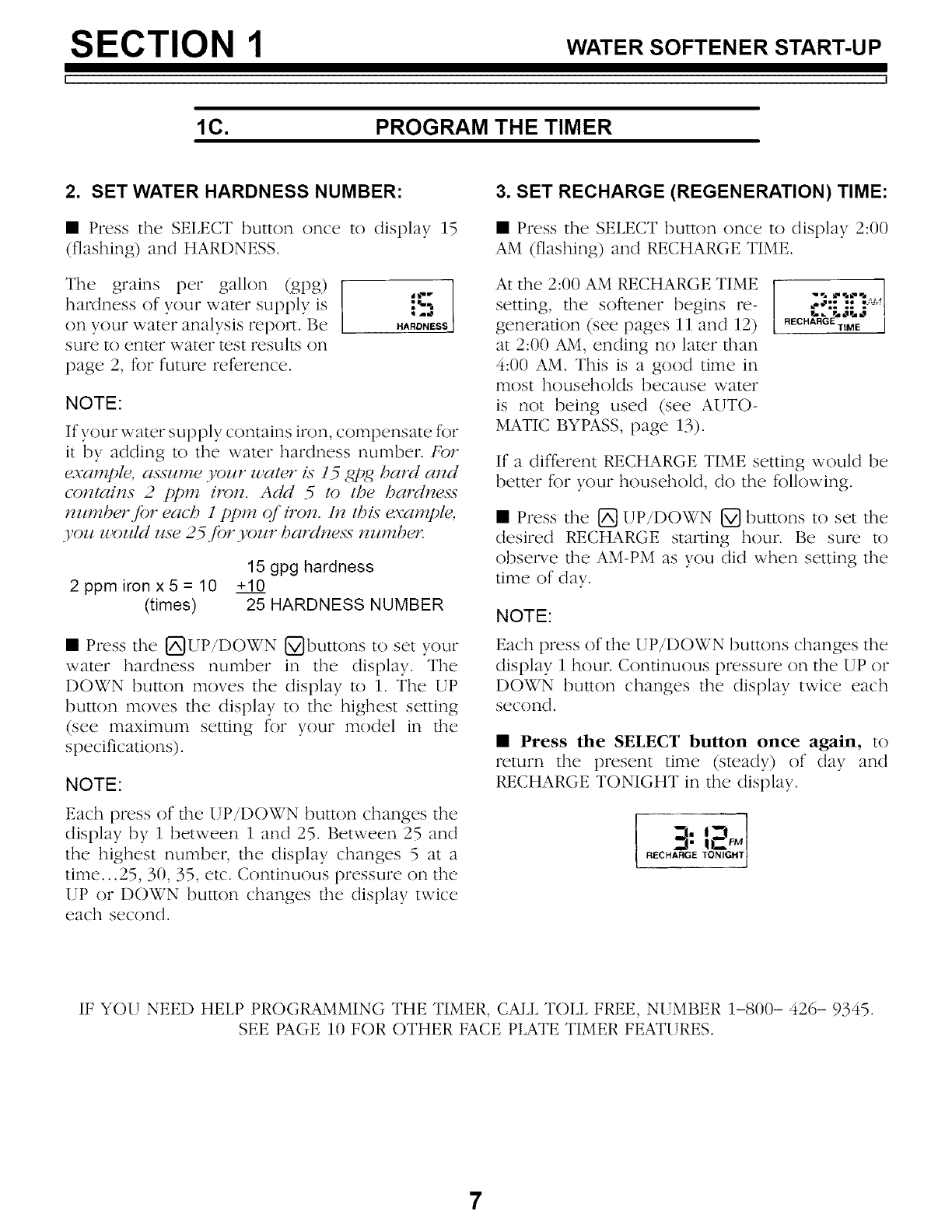

lC. PROGRAM THE TIMER

2. SET WATER HARDNESS NUMBER:

• Press the SELECT button once to display 15

(flashing) and HARDNESS.

The grains per gallon (gpg)

hardness of your water supply is

on your water analysis report. Be

sure to enter water test results on

page 2, for future reference.

Id_ r

HARDNESS

NOTE:

If your water supply contains iron, compensate for

it by adding to the water hardness number. Fol"

example, assume your mater is 15 gpg hard al_d

contains 2 ppm iron. Add 5 to the hardness

number fi)r each 1 ppm o/'h>l_. In this example,

you u:ould use 25 for rour hardness numbe_:

15 gpg hardness

2 ppm iron x5 = 10 +10

(times) 25 HARDNESS NUMBER

• Press the {_UP/DOWN {_buttons to set your

water hardness number in the display. The

DOWN button moves the display to 1. The UP

button moves the display to the highest setting

(see maximum setting for your model in the

specifications).

NOTE:

Each press of the UP/DOWN button changes the

display by 1 between 1 and 25. Between 25 and

the highest number, the display changes 5 at a

time...25, 30, 35, etc. Continuous pressure on the

UP or DOWN button changes the display twice

each second.

3. SET RECHARGE (REGENERATION) TIME:

• Press the SELECT button once to display 2:00

AM (flashing) and RECHARGE TIME.

At the 2:00 AM RECHARGE TIME

setting, the softener begins re-

generation (see pages 11 and 12)

at 2:00 AiM, ending no later than

4:00 AM. This is a good time in

most households because water

is not being used (see AI_TO-

MATIC BYPASS, page 13).

_r. l.qedu_ql ""1

=l ill e-"

RECHARGE TIME j

If a different RECHARGE TIME setting would be

better ti)r your household, do the fi)llowing.

• Press the [] UP/DOWN {_ buttons tO set the

desired RECHARGE starting hour. Be sure to

observe the AM-PM as you did when setting the

time of day.

NOTE:

Each press of the UP/DOWN buttons changes the

display 1 hour. Continuous pressure on the UP or

DOWN button changes the display twice each

second.

• Press the SELECT button once again, to

return the present time (steady) of day and

RECHARGE TONIGHT in the display.

_.i__ !

7..J" | ),_, PM

RECHARGE TONIGHT

IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE, NUMBER 1-800- 426- 9345.

SEE PAGE 10 FOR OTHER FACE PLATE TIMER FEATURES.

SECTION 1 WATER SOFTENER START-UP

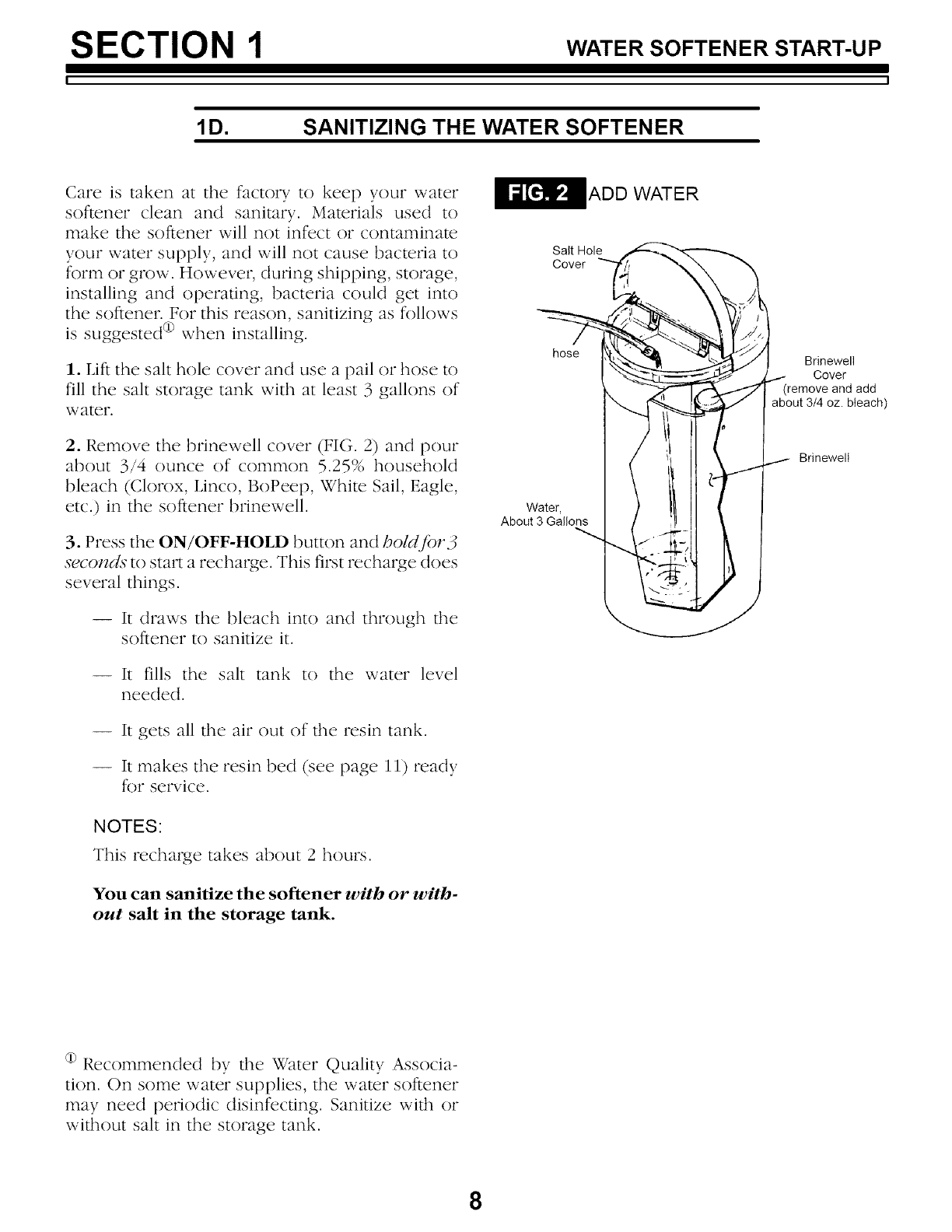

1D. SANITIZING THE WATER SOFTENER

Care is taken at the factory tO keel) your water

softener clean and sanitary. Materials used to

make the softener will not infect or contaminate

your water supply, and will not cause bacteria to

form or grow. However, during shipping, storage,

installing and operating, bacteria could get into

the softener. For this reason, sanitizing as follows

is suggested q) when installing.

1. Lift the salt hole cover and use a pail or hose to

fill the salt storage tank with at least 3 gallons of

water.

2. Remove the brinewell cover (FIG. 2) and pour

about 3/4 ounce of common 5.25% household

bleach (Clorox, Linco, BoPeep, White Sail, Eagle,

etc.) in the softener brinewen.

3. Press the ON/OFF-HOLD button and holdjbr3

seconds to start a recharge. This first recharge does

several things.

-- It draws the bleach into and through the

softener to sanitize it.

--It fills the salt tank to the water level

needed.

-- It gets all the air out of the resin tank.

-- It makes the resin bed (see page 11) ready

for service.

NOTES:

This recharge takes about 2 hours.

You can sanitize the softener with or with-

out salt in the storage tank.

ADD WATER

Salt Hole

Cover

hose

Water,

About 3 Gallons

Brinewell

Cover

remove and add

about 3/4 oz. bleach)

BrinewelI

q) Recommended by the Water Quality Associa-

tion. On some water supplies, the water softener

may need periodic disinfecting. Sanitize with or

without salt in the storage tank.

SECTION 1 WATER SOFTENER START-UP

1E. FILL THE STORAGE TANK WITH SALT

Brine (salt dissolved in wate 0 is needed fbr each

and every regeneration. The water for making

brine is metered into the salt storage tank by the

softener. However, you must keep the tank filled

with salt.

Fill the tank with NUGGET or PELLET water

softener salt. DO NOT use rock salts, as they have

dirt and sediments that will stop the softener from

working.

Before filling, be sure the brinewell cover is in

place on the top of the brinewen. Salt storage

capacity is shown on page 18.

NOTE:

In humid areas, it is best to fill the storage tank

half-full, and to refill it more often. Salt bridging

(see page 14) occurs i-ilorc often when conditions

are humid.

WATER SOFTENING SALT WITH IRON REMOV-

ING ADDITIVES -- Some salts have an additive to

hel I) the softener handle iron in the water supply.

Although this additive may help to keep the

softener resin clean, it may also release corrosive

fumes that will weaken and shorten the life of

some softener parts.

ADD SALT

Brinewell

Cover

SODIUM INFORMATION: Water softeners using

sodium chloride for regeneration add sodium to

the water. Persons who are on sodium restricted

diets should consider the added sodium as part of

their overan sodium intake.

For example, if your water supply is 15 grains

hard, you would have to drink 3 quarts of softened

water to consume 335 milligrams of sodium. That

is equivalent to eating 2-1/2 slices of white bread.

Persons who arc concerned about their drinking

water should consider a Sears Drinking Water

System that will remove or reduce in excess of

90% of the sodium and other drinking water

contaminants.

YOU HAVE NOW FINISHED THE WATER SOFTENER START-UP. AFTER THE SANITIZING RECHARGE,

ON PAGE 8, THE SOFTENER WILL BE GIVING YOI_ SOFT WATER.

SECTION 2 HOW YOUR WATER SOFTENER WORKS

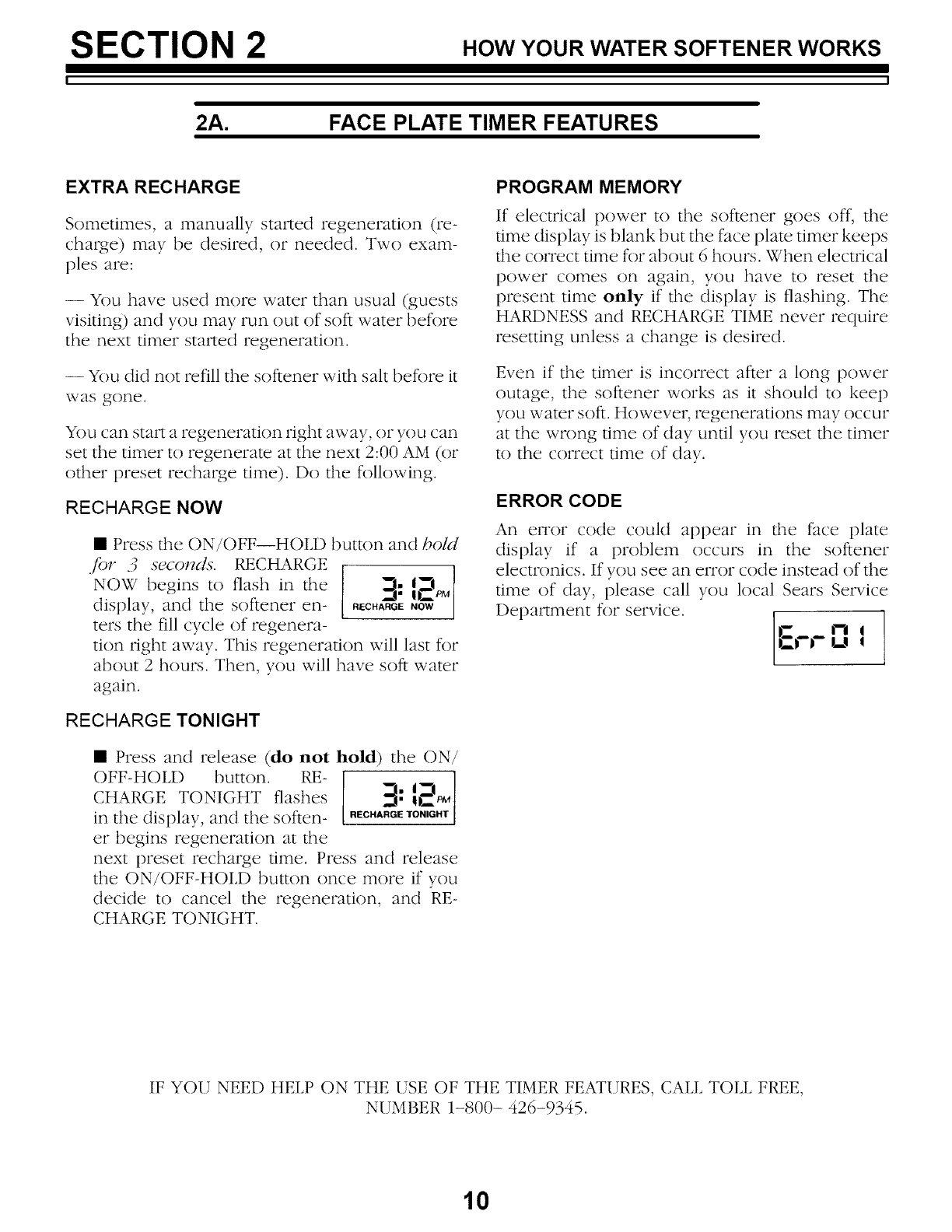

2A. FACE PLATE TIMER FEATURES

EXTRA RECHARGE

Sometimes, a manually stmxed regeneration (re-

charge) may be desired, o1" needed. Two exam-

pies arc:

-- You have used more water than usual (guests

visiting) and you may run out of soft water before

the next timer started regeneration.

-- You did not refill the softener with salt before it

was gone.

You can start a regeneration right away, or you can

set the timer to regenerate at the next 2:00 AM (or

other preset recharge time). Do the following.

RECHARGENOW

• Press the ON/OFF--HOLD button and bold

j'or .3 secol_ds. RECHARGE l

NOW begins tO flash in the 31 !_m ldisplay, and the softener en- "ECUARGE

ters the fill cycle of regenera-

tion right away. This regeneration will last for

about 2 hours. Then, you will have soft water

again.

RECHARGETONIGHT

• Press and release (do not hold) the ON/

OFF-HOLD button. RE- ]

CHARGE TONIGHT flashes _._'"j_-q!_pMt/

in the display, and the soften- RECHARGEI"ONIGItTJ

er begins regeneration at the

next preset recharge time. Press and release

the ON/OFF-HOLD button once more if you

decide to cancel the regeneration, and RE-

CHARGE TONIGHT.

PROGRAM MEMORY

If electrical power to the softener goes off, the

time display is blank but the face plate timer keeps

the correct time for about 6 hours. When electrical

power comes on again, you have to reset the

present time only if the display is flashing. The

HARDNESS and RECHARGE TIME never require

resetting unless a change is desired.

Even if the timer is incorrect after a long power

outage, the softener works as it should to keel)

you water soft. However, regenerations may occur

at the wrong time of day until you reset the timer

to the correct time of day.

ERROR CODE

An error code could appear in the face plate

display if a problem occurs in the softener

electronics. If you see an error code instead of the

time of day, please call you local Sears Service

Department for service.

IF YOU NEED HELP ON THE USE OF THE TIMER FEATURES, CALL TOLL FREE,

NUMBER 1-800- 426-9345.

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFTWATER SERVICE AND REGENERATION

SERVICE

When the softener is giving you soft water, it is

called "Service". During service, hard water comes

from the house main water pipe into the softener.

Inside the softener resin tank is a bed made up of

thousands of tiny, plastic resin beads (FIG. 4). As

hard water passes through the bed, each bead

attracts and holds the hardness minerals. This is

called ion-exchanging. It is much like a magnet

attracting and holding metals. Water without the

hardness minerals (soft water) flows out of the

softener and into the house soft water pipes.

After a period of time, the resin beads become

coated with hardness minerals and they have to be

cleaned. This cleaning is called regeneration or

recharge. Regeneration is started at 2:00 a.m. by

the electronic timer (see page 13). It takes place in

5 stages or cycles. These are:

[] FILL [] BACKWASH

[] BRINING [] FAST RINSE

[] BRINE RINSE

WATER FLOW THROUGH THE

SOFTENER IN SERVICE

Hard Water

Soft Water

OUT

Resin

Salt Storage

Tank

..-.-- Resin Bed

REGENERATION

E]FILL: Salt, dissolved in water, is called brine.

Brine is needed to clean the hardness minerals

from the resin beads. To make the brine, water

flows into the salt storage area during the fill stage

as shown in FIG. 5. Fill cycle length depends on

how much soft water making capacity you have

used since the last regeneration. As you use more

watec fill time increases so more brine is made.

The greater amount of brine cleans more hardness

minerals from the resin bed.

WATER FLOW THROUGH THE

SOFTENER IN FILL

Hard Water

Salt

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFT WATER SERVICE AND REGENERATION

[_BRINING: During brining, the brine is moved

from the salt storage area, into the resin tank.

Inside the resin tank, brine cleans hardness

minerals from the resin beads and they are

discharged out the drain. How much brine is

needed to clean the resin depends on:

-- the amount of resin in the softener,

-- how fast the brine goes through the bed.

The nozzle and venturi (FIG. 6) make suction to

take brine fi'om the salt tank and put it into the

resin tank. They keel) the brine flow down to a

very slow rate to get the best resin cleaning with

the least salt.

[] BRINE RINSE:After all of the brine goes into the

resin tank, the brine valve closes. Water keeps

flowing the same way it did during brining except

the brine flow has stopped. Hardness minerals

and brine flush from the resin tank to the drain.

Brining and brine rinse together vary in length of

time they take, relative to the fill cycle length.

WATER FLOW THROUGH THE

SOFTENER IN BRINING AND

BRINE RINSE

Hard Water

Hard Water.

Nozzle Drain

Venturi

Brine Valve

Brine

[] BACKWASH: During backwash, water flows I_P

through the resin tank (FIG. 7) at a fast rate to flush

iron minerals, dirt and sediments from the bed and

to the drain. The bed lifts and expands fbr good

cleaning.

WATER FLOW THROUGH THE

SOFTENER IN BACKWASH

Hard Water

BYPASS

Drain

bed

and expa

_FAST RINSE: Backwash is followed by a fast

flow of water down through the resin tank. The

fast flow packs the resin bed and gets it ready for

return to service (FIG. 8).

After fast rinse, the softener returns to service.

Hard water goes into the resin tank where the

resin bed again takes out the hardness minerals.

Soft water goes to the house soft water pipes.

WATER FLOW THROUGH THE

SOFTENER IN FAST RINSE

Hard Water

Soft Wafer

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFT WATER SERVICE AND REGENERATION

AUTOMATIC BYPASS

During the brining, brine rinse and backwash

cycles of regeneration, HARD water goes through

the softener valve and to the house pipes. If a

faucet is opened, hard water is there fbr your

needs. However, you should not use HOT water, if

possible, because the water heater will refill with

hard water. The softener regenerates from 2:00

AM to about 4:00 AM, (you can change this time...

see page 7), a time when not much water is used.

If you get up early in the morning and you can

hear the softener regenerating, change the time

setting. Set the recharge time to 12:00 AM or 1:00

AM (page 7). Then regeneration will start and end

that much earlier and your water heater will not

refill with hard water if a hot faucet is opened.

ELECTRONICS

Two main parts of the softener's electronics are []

a WATER METER, and [] a COMPUTER.

[] WATER METER -- The water meter is in the

softener valve outlet. As water flows through the

meter, it sends electric pulses to the computer. The

computer changes the pulses to a measure in

gallons of water.

[] COMPUTER -- The computer is pml of the

circuit board. It is programmed to know the

softener's capacity (how many grains of hardness

minerals it will take out of the water before a

regeneration is needed). When starting the

softener, page 7, you set it for the grains per gallon

(gpg) hardness of the water.

To find a regeneration pattern best for your needs,

the computer uses: (1) water usage from the

meter, (2) hardness setting, (3) softener capacity,

and (4) time since the last regeneration. The

computer always adjusts this pattern to your water

using habits. It works to provide you with soft

water fbr the longest time, at the most efficient salt

usage.

Softening capacity is used as hard water goes

through the softener and hardness minerals are

removed. When the computer determines that

only enough capacity remains to provide soft

water up to the next regeneration starting time

(2:00 AM, or as otherwise set), it will schedule a

regeneration. RECI_IARGETONIGI_ITdisplays until

the regeneration begins. When the regeneration

begins, TONIGHT goes off and RECHARGE NOW

flashes during the 2 hour regeneration.

SECTION 3 CARE OF YOUR SOFTENER

I ]

3A. SALT...REFILLING STORAGE TANK/BREAKING ASALT BRIDGE

WHEN TO REFILL WITH SALT: Check the salt

level a few weeks after you install the softener and

every week after that. Refill when the storage

tank is about 1/3 full. Never let the softener use

all the salt beff)re refilling. Without salt, you will

soon have hard water.

IMPORTANT:

You will have a loss in softening capacity and

may get partly hard water if less than 10

inches of salt is in the storage tank.

PLEASE SEE PAGE 9 FOR SALT FILLING DIRECTIONS.

SALT BRIDGE

Sometimes, a hard crust or salt bridge forms in the

salt storage tank. It is usually caused by high

humidity or the wrong kind of salt. When the salt

bridges, an empty space forms between the water

and salt. Then salt will not dissolve (melt) in the

water to make brine. Without brine, the resin bed

does not regenerate and you will have hard water.

If the storage tank is full of salt, it is hard to tell if

you have a salt bridge. Salt is loose on top, but the

bridge is under it. The following is the best way to

check for a salt bridge.

Salt should be loose all the way to the bottom of

the tank. Hold a broom handle, or like tool, up to

the softener as shown in FIG. 9. Make a pencil

mark on the handle, 1" or 2" below the top height

of the rim, as shown. Then, carefully push it

straight down into the salt. If a hard object is felt

before the pencil mark gets to the top of the tank,

it's most likely a salt bridge. Carefully push into the

bridge in a few places to break it. Do not try to

break the salt bridge by pounding on the

outside of the salt tank. You may damage it.

If the wrong kind of salt made the bridge, take it

out. Then fill the tank with nugget or pellet salt

only.

SALT BRIDGE

push tool into salt

bridge to break

Broom Handle Salt

Salt Bridge

__ _ _ _ Water Level

SECTION 3 CARE OF YOUR SOFTENER

3B. KEEPING THE WATER SOFTENER CLEAN

COVERS

To keep your new Sears water softener looking

nice, apply a coat of paste wax and repeat once a

year. When dusty, wipe it with a damp cloth to

keep it sparkling.

NOTE:

Never use cleaners having ammonia or abrasives.

They may scratch and dull the surface.

NOZZLE AND VENTURI

A clean nozzle and venturi (FIG. 10) is a must for

the softener to work right. This small unit moves

brine fi'om the salt storage tank to the resin tank

during regeneration. If it becomes plugged with

sand, silt, dirt, etc., the softener will not work and

you will get haM water.

To get to the nozzle and venturi, remove the

softener top cover. Be sure the softener is in

service cycle (no water pressure at nozzle and

venturi). Then, holding the housing tightly with 1

hand, turn the cap off. DO NOT LOSE THE IARGE

O-RING SEAL. Lift out the screen support and

screen, then the nozzle and venturi. Wash and

rinse the parts in warm water until clean. If

needed, use a sman brush to remove iron or dirt.

Also check and clean the gasket.

Carefully replace all l)m_s in the correct order.

Lubricate the o-ring seal with silicone grease or

Vaseline and place in position. Install and tighten

the cap, by hand only. Do not over-tighten and

break the cap or housing.

CLEANING THE NOZZLE & VEN-

TURI

Cap __

O-Ring _ I(_

Screen __

Support

Screen

Nozzle & _O

Venluri

Gasket

*Flow Plug

(HVDC) _

Nozz. & Vent.

Housing

*INSTALL WITH

NUMBERED SIDE UP

CONCAVE SIDE DOWN.

IRON FROM THE RESIN BED

Your water softener takes hardness minerals

(calcium and magnesium) out of the water. Also, it

can control some "clear water" iron. See maximum

allowed in the specifications on page 18. With

clear water iron, water from a faucet is clear when

first put into a glass. After 15 to 30 minutes, the

water begins to cloud or turn rust colored. A water

softener WILL NOT remove any iron which makes

the water cloudy or rusty as it comes from the

faucet (called red water iron). To take red water

iron out of water, or over the maximum of clear

water iron, an iron filter or other equipment is

needed. Your local Sears store has trained people

to help you with iron water problems.

If your water supply has clear water iron, even

though less than the maxinmm allowed, regular

resin bed cleaning is needed. Sears has resin bed

cleaner, Stock No. 42-34426 for this. Clean the bed

at least every 6 months. If iron shows up in the soft

water before 6 months, clean more often. Printed

instructions are on the resin bed cleaner bottle.

IF YOU HAVE QUESTIONS ABOUT CLEANING AND MAINTAINING YOUR SOFTENER, CALL TOLL

FREE, NUMBER 1-800-426-9345.

SECTION 3 CARE OF YOUR SOFTENER

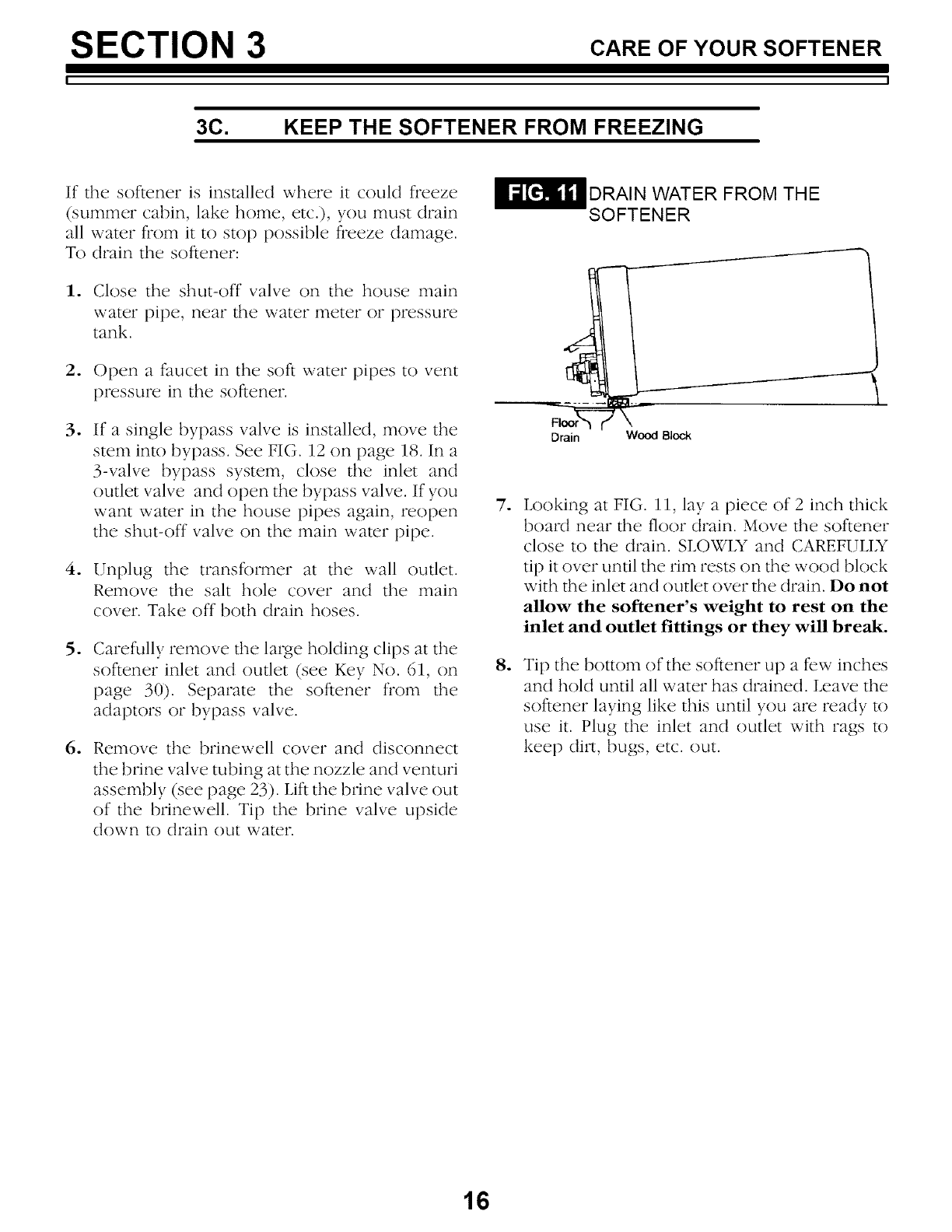

3C. KEEP THE SOFTENER FROM FREEZING

If the softener is installed where it could freeze

(summer cabin, lake home, etc.), you must drain

all water from it to stop possible freeze damage.

To drain the softener:

1. Close the shut-off valve on the house main

water pipe, near the water meter or pressure

tank.

2. Open a faucet in the soft water pipes to vent

pressure in the softener.

If a single bypass valve is installed, move the

stem into bypass. See FIG. 12 on page 18. In a

3-valve bypass system, close the inlet and

outlet valve and open the bypass valve. If you

want water in the house pipes again, reopen

the shut-off valve on the main water pipe.

Unplug the transformer at the wall outlet.

Remove the salt hole cover and the main

cover. Take off both drain hoses.

Carefully remove the large holding clips at the

softener inlet and outlet (see Key No. 61, on

page 30). Separate the softener from the

adaptors or bypass valve.

Remove the brinewen cover and disconnect

the brine valve tubing at the nozzle and venturi

assembly (see page 23). Lift the brine valve out

of the brinewell. Tip the brine valve upside

down to drain out water.

DRAIN WATER FROM THE

SOFTENER

Drain Wood Block

Looking at FIG. 11, lay a piece of 2 inch thick

board near the floor drain. Move the softener

close to the drain. SLOWIX and CAREFULIX

tip it over until the rim rests on the wood block

with the inlet and outlet over the drain. Do not

allow the softener's weight to rest on the

inlet and outlet fittings or they will break.

Tip the bottom of the softener up a few inches

and hold until all water has drained. Leave the

softener laying like this until you are ready to

use it. Plug the inlet and outlet with rags to

keep dim bugs, etc. out.

SECTION 3 CARE OF YOUR SOFTENER

3D. HELPFUL HINTS CHECKLIST

... TO HELP YOU SAVE MONEY

If your water softener fails tO work, make the following easy checks. Often, you will find what's wrong

yourself and you won't have to call and wait for service. If, after making the checks, your softener still does

not work right, call your Sears Service Department, or call toll free, number 1-800-426-9345 for telephone

assistance.

NOTE:

Also read ERROR CODE, page 10. If an error code is trot dispIayed, press and bold the SELECT button until

(example: 000- -) shows in the display. Then, press SELECT again and bold until an SR code appears. It

must show SR21. If any other SR number shows, the softener computer is working on incorrect input and

would probably be the cause of the problem. To set SR21, press either the UP {_)r DOWN {_utton. Then

press select to return a flashing 12:00 AM display, and reset the timer, page 6.

PROBLEM

NO SOFT WATER

WATER HARD SOMETIMES

CAUSE

No salt (or salt bridged) in the storage tank

Transfomer unplugged at the wall outlet, or

3ower cable leads loose, fuse blown, circuit

breaker popped, or circuit switched off.

Manual bypass valve(s) in bypass position

Dirty, plugged or damaged nozzle & venturi

Valve drain hose plugged

Hardness number setting too low

Using hot water when softener is regenerating

Increase in the grains of hardness in your

water supply

CORRECTION

Refill with salt, or break the salt bridge (page

14). Press ON/OFF-HOLD (RECHARGE

NOW) button and hold for 3 seconds to start

a regeneration (see page 10).

Check for loss of power due to any of these

and correct. With the power back on, look at

the time display and read PROGRAM

MEMORY, page 10.

Look at FIG. 12 on page 18. Move the stem

in a single valve to service. In a 3-valve

bypass, open the inlet and outlet valves, and

be sure to fully close the bypass valve.

Take apart and clean or replace damaged

parts (see page 15).

The drain hose must not have kinks, sharp

bends, or be raised too high above the

softener (see page 16 in your installation

manual).

Press and release the SELECT button until

HARDNESS shows in the display. Read the

hardness number in the display and be sure

the same grains per gallon number is shown

on your water analysis report. See page 7 to

reset. Press and release the SELECT

button until the present time shows in the

display.

Avoid using hot water during this time

because the water heater refills with hard

water (see Automatic Bypass, page 13).

Ask your Sears retail or catalog store for a

new water analysis. Then make a new

hardness number setting (page 7).

SECTION 4 OTHERTH,NGSTOKNOW

! !

4A. DIMENSIONS/SPECIFICATIONS

BYPASS VALVES

• z/t..

SINGLE-PLASTIC

PULL STEM

OUTWARD

FOR

SERVICE

Push

Inward

\_ For

/_ Bypass

SINGLE-BRASS

Bypo,,'1 o

ISERVICE

3-VALVE

SERVICE

Close Bypass Valve

Open Inlet & Outlet Valves

BYPASS

Open Bypass Valve

Close Inlet & Outlet Valves

Outlet

Bypass

Valve

Inlet

Valve

/----- \

-_-B_

/•

[

INCHES CM

A Salt Tank Height 40-1/4 102.2

B Resin Tank Diameter (nominal) 8 20.3

C Resin Tank Height (nominal) 40 101.6

D Inlet-Outlet Height 41-1/2 105.4

E Overall Height 46 116.8

F 1 Length 19-1/2 49.5

F2 Width 16-1/2 41.9

-- Distance between inlet-outlet 3-3/8 8.6

center lines

MODEL NO. 625.3484400 AND 625.3484500 TIMER SR CODE SR21

NOTE:

Please see the rating decal f_r water softener operating capacity, salt usage and service flow rate/pressure

loss perfbrmance specifications. Performance specifications are validated by the Water Quality Associa-

tion (WQA). The rating decal is located on the rim, under the salt hole cover (see page 28).

WATER SUPPLY TO WATER SOFTENER

MINIMUM WATER SYSTEM FLOW (gpm) 3

MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120

MAXIMUM WATER TEMPERATURE (°F) 120

MAXIMUM WATER HARDNESS (gpg) 90*

MAXMUM "CLEAR WATER" IRON (ppm) 5

SALT FOR WATER SOFTENER

TYPE OF SALT NEEDED Nugget/Pellet

ALTERNATE TYPE OF SALT Pure, evaporated, compacted

water softener salt

STORAGE CAPACITY (pounds) 200

OTHERS

TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity

AMOUNT OF RESIN (cu.ft.) .77

REGENERATION (RECHARGE) CYCLE TIME (min.)

FILL 9-21

BRINING/BRINE RINSE 48-71

BACKWASH 7

FAST RINSE 3

TOTAL REGENERATION TIME 73-108

gpm =gallons per minute

gpg = grains per gallon

psi = pounds per square inch

ppm = parts per million

*Do not exceed this number when setting hardness in step 2,

page 7. The maximum setting available is 95.

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

Keep this manual with your water softener. If repairs are needed, the service technician must have

the information on the following pages. For telephone assistance, call toll free, 1-800-426-9345.

TRANSFORMER

24VAC

VAC

WIRING SCHEMATIC

O'_ POSITION SWITCH

Display

{ }

ON/OFF - HOLD button

(RECHARGE TONIGHT - NOW)

DOWN

UP button button

Kenmor_

SELECT button

k_kte_ kn_

Wl_Dmmm4__

ALWAYS MAKE THESE INITIAL CHECKS FIRST

1. I)oes the tilne (lisl?lay show the Colwect time of day?

- If display is [)lank, check power source to the

softener.

- If time is flashing, power was offfor over 6 hours. The

softener resurnes normal operation but regenerations

occur at the wrong tirne.

- If an error code (Example: En 03) shows in the time

plate display, go to A[ TOMATIC ELECTRONIC I)IAG-

NOSTICS.

Plumbing bypass valve(s) must be in Full Service

position.

The inlet an(] outlet pipes InLIStCoilnec[ tO tile softener

valve inlet and outlet respectively.

IS tile transforlller plugged into a "live", grounded wall

outlet, and is the po\\er cable fastened securely?

The xalve (]rain hose InklSt De free ()f kinks and sharp

bends, and not elevated over 8 ft. above the floor.

REMOVE THE TOP COVER AND SALT TANK COVER

6. Is there salt in the storage tank?

7. Is the brine tubing connected? (See water flo\_

diagrams).

8. Is the brine xalve float set right? (See page 22).

°Press the SELEC£ button 2 times to display fl:e hardness

setting. Be sure it is the correct setting for the

household's water supply. (Make a hardness test of the

raw water and compare with the hardness setting. Also

test a soft water sample to verify if a problem exists.)

Press SELE(71' twice more to return the time of day

display.

If you do not find the problem after inaking initial checks,

do tile M)U\q :2,tLINITIATEI) ELECIt\O: ,IC I)IAGNOSTICS,

and the MAN[ AL AI)VANCE REGENERATION CItECK.

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

AUTOMATIC ELECTRONIC DIAGNOSTICS

The face plate computer has a self-diagnostic

function f_)r the electrical system (except input

power and water n__ete O. The __-__ n_

computer monitors the electronic _=_ j Wz-!

components and circuits f_)r cor-

rect operation. If a malfunction occurs, an error

code appears in the face plate display.

The chm_ below shows the error codes that couM

appear, and the possible defects for each code.

While an error code appears in the display, all face

plate buttons arc inoperable except the SELECT

button. The SELECT button remains operational

so the service person can make the MANUAL

INITIATE ELECTRONIC DIAGNOSTICS to further

isolate the defect, and check the water meter.

CODE

Err 01

Err 02

Err 03

Err 04

Err 05

POSSIBLE DEFECT

MOST LIKELY -._" D, LESS LIKELY

motor inoperative /wiring harness or connection to switch /position switch /face plate

face plate

motor inoperative /face plate

face plate /position switch

face plate

PROCEDURE FOR REMOVING ERROR CODE FROM FACE PLATE: 1. ( nplug transformer 2. Correct defect 3. Plug-in

transformer 4. _,ait for 6 minutes. The error code will return if the defect was not corrected.

MANUAL INITIATED ELECTRONICS DIAG-

NOSTICS

°To enter diagnostics, press and hold the SE-

LECT button until 000 - - shows in the display.

UUU _p

-T--T,-or

WATER METER (A) SWITCH (B)

A° The first 3 digits indicate water meter opera-

tion as follows:

000 (sleady) Soft water not in use, and no

flow through the meter.

--OPEN A NEARBY SOFT WATER FAUCET--

000 to 199 (contil_ual) = R_:peats display for

each gallon of water passing through the me-

ter.

If you don't get a reading in the display, with the

faucet open, pull the sensor from the valve outlet

port. Pass a small magnet back and forth in fi'ont of

the sensor. You should get a reading in the display.

If you get a reading, unhook the h_ and oul

plumbing and check the turbine for binding.

B°

POSITION

SWITCH

VALVE

SENSOR

RBINE

SUPPORT AND

SHAFT

The letter (P) and dash (or dashes) indicate

POSITION switch operation. If the letter ap-

pears, the switch is closed. If the dash shows,

the switch is open.

Use the ON/OFF-HOLD (Recharge Now) but-

ton to manually advance the valve into each

cycle and check correct switch operation.

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

C°

CORRECT

SWITCH

DISPLAYS VALVE CYCLE STATUS

Valve in service, fill, brining, back-

wash or fast rinse position

_pValve rotating from one position to

another

While in this diagnostic screen, the following

iMormation is available and may be beneficial

for various reasons. This information is re-

tained by the computer from the first time elec-

trical power is applied to the face plate.

-- Press {_to display the number of days this

face plate has had electrical power applied.

-- Press [] tO display the number of regen-

erations initiated by this face plate since the SR

code number was entered.

°Press the SELECT button and hold 3 seconds

until...

SR21 shows. CODE

This code identifies the softener nominal capacity

size. If the wrong number shows, the softener will

operate on incorrect programming. Do the

following as needed.

Return the present time display: Press the

SELECT button.

Change the SR number: Press the [_UP or

DOWN []button to display correct number. Press

SELECT, and reset the timer.

NOTE:

If the face plate is left in a diagnostic display (or a flashing

disl)lay when setting tilnes or hardness), present time

automatically returns if a button is not pressed within q

[minutes.

FACE PLATE REPLACEMENT: Be sure the valve is in

service position (observe valve cycle indicator)

when replacing tile lace plate.

If, after installing and programming the replacement face

plate, the valve is not in service position, do the follow-

ing to assure correct cycle orientation, or timing, be-

tween the face plate and valve.

Use the MAN[ AL ADVANCE procedures, page 22. With

the RECttARGE NOW button, advance through the re-

charge cycles until the valve stops in service position,

and RECItARGE no longer flashes in the timer.

NOTE: The valve motor may automatically drive through

several valve positions while searching for service. If an

elror code occurs, unplug the transformer, then plug in

again

CAM

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

MANUAL ADVANCE REGENERATION CHECK

This check verifies l)roper operation of the valve

motor, brine tank fill, brine draw, regeneration

flow rates, and other controller functions. Always

make the initial checks, and the manual

initiated diagnostics.

NOTE: The fa_e plate display must show a steady

time (not flashing).

1. Press the ON/OFF-HOLD button and bold in

jor3 secc)l_ds. RECHARGE NOW begins to

flash as the softener enters the fill cycle of

regeneration. Remove the brinewell cover

and, using a flashlight, observe fill water

entering the tank.

A. If it does not enter the tank, look for an ob-

structed nozzle, venturi, fill flow plug, brine

tubing, or brine valve riser pipe.

CYCLE FLOW RATES (GALLONS PER MIN.)

FILL (flow to salt storage tank)

BRINING }

BRINE RINSE

BACKWASH (flow to drain)

FAST RINSE

0.1 (1.1 liters)

.16 (.6 liters)

.11 (.4 liters)

1.8 (6.8 liters)

2. After observing fill, press the ON/OFF-HOLD

button to move the softener into brining. A

slow flow of water tO the drain will begin.

Verify brine draw from the brine tank by

shining a flashlight into the brinewell and

observing a noticeable drop in the liquid level.

NOTE: Be sure a salt bridge is not preventing

water with salt contact.

A. If the softener does not draw brine:

- nozzle and/or venturi dilty or defective.

- nozzle and venturi not seated properly on

gasket.

- restricted drain (check drain fitting and

hose).

- defective nozzle and venturi seal.

- other inner valve defect (rotor seal, rotor &

disc, wave washer, etc.).

NOTE: If water system pressure is low, an

elevated drain hose may cause back pressure,

stopping brine draw.

3. Again press ON/OFF-HOLD to move the

softener into backwash. Look for a fast flow of

water from the drain hose.

An obstructed flow indicates a plugged top

distributor, backwash flow plug, or drain hose.

Press ON/OFF-HOLD to move the softener

into fast rinse. Again look for a fast drain flow.

Allow the softener to rinse for a few minutes to

flush out any brine that may remain in the resin

tank from the brining cycle test.

5. To return the softener to service, press

ON/OFF-HOLD.

BRINE VALVE

" FLOAT SETTING

Stop

Float

10"

FREEBOARD MEASUREMENT

Distance from top of resin tank, to top of resin bed.

FREEBOARD

7"-11"

Resin Tank

Resin Bed

SECTION 5 SERVICE TECH. INFORMATION

5B. ROTARY VALVE SERVICE

Before working on the valve, turn off the water

supply and disconnect from electrical power.

TO RELIEVE PRESSURE:

- 3 VAINE BYPASS: Close the inlet valve and open

a soft water faucet. Then close the outlet valve and

open the bypass valve.

- SEARS SPECIAL BYPASS: Slide the bypass valve

stem to bypass position. Loosen the 3 hex head

screws (see A in drawing) towaM the backside of

the valve to allow pressure water to bleed out.

Catch the water with a rag.

DISASSEMBLY

To remove a pal1 or group of palts, refer to the

valve drawing. A common screwdriver or nut

driver, Phillips screwdriver and pliers are the only

tools needed to completely disassemble.

SERVICING THE VALVE

Inspect all o-rings, seals and gaskets for wear or

defects.

Inspect the bottom surface of the rotor and disc for

scratches, chips or wear.

NOTE: If replacement is needed, be sure to use

the current replacement part.

ASSEMBLY

Be sure all pm_s are in place and in the proper

position. Lubricate ALLo-rings and seals with FDA

approved silicone grease. To install the rotor seal,

first place the seal into the valve groove, rounded

side down (see cross-section). Apply a light

coating of silicone grease to the seal's crossing

ribs. Then, carefully center the wear strip on the

seal, and push it downward onto the seal.

Install the nozzle and venturi seal and drain seal.

Assemble 2 o-rings and the wave washer onto the

rotor and disc. Then center the rotor and disc, in

the valve body, on the rotor seal.

Lower the cover onto the valve body and rotor

shaft. Then install the cover holding screws.

BEFORE TIGHTENING THE SCREWS, INSTALL

THE VALVE CAM AND GEAR. THEN TURN THE

ROTOR (CLOCKWISE ONLY) TO SERVICE POSI-

TION. Tighten the screws using a criss-cross

pattern. If a torque wrench is available, torque to

30-40 inch pounds.

valve0am

.\. &gear

flow plug (backwash

SEE NOZZLE

ASSEMBLY SERVICE,

SECTION 3

and fast rinse flow

rate control)

rotor & disc

rotor seal

drain seal

nozzle &

venturi seal

Lubricate the gear on the motor, and the valve cam

gear with Molykote grease, or other high quality

gear lubricant.

Be sure to orient switch as shown, with lever

toward the cam.

SECTION 5 SERVICE TECH. INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

SERVICE CYCLE

INLET

WATER)

VALVE OUTLET TOP

(SOFT DISTRIBUTOR

RESIN

TANK

ILRESIN

:IESIN\ _ BED ,,

BED "?" 4_ _ .S I

_ BOTTOM

DISTRIBUTOR

POSITION

SWITCH

Hard water enters the valve inlet port. Internal valve potting routes the water

down and out the lop distributor, into lhe resin tank. Hard water is softened

as it passes through the resin bed, then enters lhe bouom dislributor. Sofl

water flows back into the valve and out the valve outlet, k) the house soft

water pipes.

POSITION

SWITCH

VENTURI

FILL CYCLE

VALVE CAM

ROTOR & DISC

FILL FLOW

PLUG

FILL WATER

(SOFT)

VALVE OUTLET"

(SOFT WATER

VALVE INLET

(HARD WATER)

POSITION

__SWITCH

To begin a regeneration, the electronic limc_r energizes the circuit 1o the valve

motor. The valve motor rotates d?e rotor and disc and the valve can? until the

position swik'h lever drops to ()pet? the motor circuit, when ll?e valve reaches

FILL position. As the rotor and dis(: rotates, lhe po_l opens for SOFT water fill

through the venturi. Fill flow continues to the brine valve, and into the salt

slorage tank. Soft water is still available to the house lines.

SECTION 5 SERVICE TECH. INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

BRINING AND BRINE RINSE CYCLES

ROTOR & DISC

VENTURI

VALVE

OUTLET

(BYPASS

WATER)

NOZZLE \

DRAIN

BRINE

FROM SALT

STORAGE

TANK

INLET

(HARD WATER)

TOP

DISTRIBUTOR _. D

POSITION

Afterfill,timeriswilchaction allows dam motor to turn dam rotor and disc into

BRINING position. Water flow is directed to the nozzle. Suction, crealed by the

nozzle and vemuri, draws brine from the salt slorage tank and injects it into the resin

bed via the bottom distributor. Flow continues out the top distribulor and to llle

drain. Hard water is available at the valve outlet.

When the brine valve closes to end brine dra_ _, water flow continues in the same

directions to slowl 3 RINSE brine from the resin bed and to the drain.

ROTOR & DISC

BACKWASH CYCLE

FLOW PLUG

_VE

INLET

Timeriswilch action again allows the motor to turn the

rotor & dis(: to place the valve in BACK_gtSH, stopping

water flow to the nozzle. Wmcr is routed down and out

file b(mom distribulor, up fl?rough the bed, and out file

lop distributor lo the drain. The fast flow (controlled by

a flow plug in lhe drain fitting) flushes dirt, sediments,

iron deposits, remaining brine and hardness to the

drain.

DISTRIBUTOR

SECTION 5 SERVICE TECH. INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

FAST RINSE CYCLE

ROTOR & DISC

POSITION SWITCH

OUTLET

DRAIN

POSITION

TopINLET __

DISTRIBUTOR

: "_. BOTTOM

DISTRIBUTOR

During FAST RINSE, tile rotor & disc is positioned st) water flow enters tile

resin tank through the top distributor, and exits through the bottom

distributor, t() the drain.

The solid state timer again energizes the motor to relurn the valve to

service, and as the valve rotalcs, the position switch lever drops to open the

circuit. The valve remains positioned in service until the timer initiates the

next regeneralion.

SECTION 5 SERVICE TECH. INFORMATION

L .I

NOTES

SECTION 6 REPAIRPARTS

I ]

27 1_

VALVE ASSEMBLY

3 (see page30)

Y _ 26

RatJnc

LocaSon

SOFTENER

ASSEMBLY "2o

SEARS WATER SOFTENERS

MODEL NOS. 625.3484400

AND 625.3484500

KEY PART

NO. NUMBER

1 7137604

2 7137612

3 7118333

4 7084330

5 7144960

6 7137620

7137670

7141475

7 7137599

8 7137727

9 7143964

10 7100819

11 7144619

12 7143956

13 0900431

14 1103200

15 9003500

16 7123689

17 7105047

18 0501744

19 7092155

20 7096183

21 7077870

22 0900215

23 7079092

24 7141001

25 7088041

26 7088033

27 7095373

• 7141417

• 7147811

DESCRIPTION

Cover (main)

Salt Hole Cover

Wire Harness (switch)

Power Cord (transformer)

Timer Repl. (PWA)

Face Plate (order req'd decal)

Face Plate Decal, Mod 625.3484400

Face Plate Decal, Mod 625.3484500

Rim

Brinewell Cover

Wing Nut, 1/4"

Brinewell

Salt Storage Tank

Screw, Plastic, 1/4" x 5/8"

Hose Clamp O,&

Hose Adaptor O,&

Grommet O,&

Brine Valve Assy. (also see pg. 29)

Replacement Distributor

Resin

Resin Tank (Incl. Key No. 18)

O-Ring, 2-3/4" x 3"

Top Distributor

O-Ring, 13/16" x 1-1/16"

O-Ring, 2-7/8" x 3-1/4"

Vapor Barrier

Clamp Section (2 req.)

Clamp Retainer (2 req.)

Transformer, 24V- 10VA O,&

Installation manual

Owners Manual

not illustrated

O,A Included in parts bags. See page 31.

SECTION 6 REPAIRPARTS

I I

BRINE VALVE

ASSEMBLY

SEARS WATER SOFTENERS

MODEL NOS. 625.3484400

AND 625.3484500

KEY PART

NO. NUMBER

30 0505957

31 0513860

32 7092317

33 0516947

34 7093216

35 7092278

36 0900535

37 0516211

38 0516924

39 7116713

40 7092252

41 7080653

42 7131365

43 7094979

44 7092294

45 7092286

46 7095470

47 7113016

48 7112997

OA Included in

DESCRIPTION

Lead Washer

Float Stop

Float

Float Seal

Float Rod & Stem

Guide Cap

O-Ring 15/16 x 1-3/16

Seal

Retainer, Bottom Seal

Clip

Brine Valve Body

Clip

Screen

Insert

Retaining Ring

O-Ring, 5/16 x 9/16

Brine Tube

Tubing Assy. (Incl. Key Nos. 43, 44

& 45)

Ground Clamp Kit OA

parts bag. See page 31.

INLET - OUTLET

GROUNDING CLAMPS 48

SECTION 6 REPAIRPARTS

SEARS WATER SOFTENERS

MODEL NOS. 625.3484400

AND 625.3484500

iVA,VEASSEMO,yI

BRINE- 77

TUBING _

75 /

74 73

58 59 /

SECTION 6 REPAIRPARTS

I I

KEY PART

NO. NUMBER

50 7131755

51 7133008

52 0900857

53 7117808

54 0503288

55 7113927

56 7142942

57 0501228

58 0900041

59 7024160

60 0900431

61 7116713

62 0507369

63 0507615

64 0900570

• 42-3441

65 0507371

66 0900535

67 7134224

68 7092634

69 7092642

70 7129889

71 7081764

72 7082053

73 0900064

74 7081201

75 7081104

76 1202600

77 7089267

78 0521829

SEARS WATER SOFTENERS

MODEL NOS. 625.3484400

AND 625.3484500

PARTS LIST

DESCRIPTION

Screw, #6-20 x 7/8 (2 req.)

Motor (incl. 2 ea. of Key No. 50)

Screw, #6-20 x 3/8 (2 req.)

Motor Plate

Bearing

Cam and Gear

Clip (Drain)

Flow Plug

O-Ring, 5/8 x 13/16

Drain Hose Adaptor

Hose Clamp O•

Clip (2 req.) O•

Installation Nut (2 req.) •

Installation Tube (2 req.) •

Washer (2 req.) •

Install. Kit (incl. Key Nos. 62, 63 & 64)

Installation Adaptor (2 req.) O_

O-Ring, 15/16 x 1-3/16 (2 req.) O_

Rotor Seal

O-Ring, 3/8 x 9/16

Plug (Drain Seal)

Spring

Seal (Nozzle & Venturi)

Valve Body

O-Ring, 1/4 x 3/8 (2 req.)

Retainer (Nozzle & Venturi)

Nozzle & Venturi Housing

Nut - Ferrule

Tubing

Flow Plug, .1 gpm

PART OR ASSEMBLY INCLUDED WITH MODEL NO.

625.3484500 ONLY.

[_ PARTS INCLUDED WITH MODEL NO. 625.3484400 ONLY.

KEY PART

NO. NUMBER

79 7113024

80 7090705

81 7089893

82 7039068

83 7081188

85 9001006

86 7103964

87 7082087

88 7064372

89 7064380

90 7085263

91 7074123

92 7077472

93 7030713

94 7117816

95 7070412

96 7097171

97 2204101

98 7117858

99 9000803

• 7085239

• 7144813

• 7144821

• 7129716

• 42-3433

DESCRIPTION

Nozzle and Venturi -- Gasket Kit

Screen

Screen Support

O-Ring, 3/8 x 1-3/8

Cap

O-Ring, 3-3/8 x 3-5/8

Rotor & Disc

Wave Washer

O-Ring, 3/4 x 15/16

O-Ring, 7/16 x 5/8

Valve Cover

Screw, #10-14 x 2 (5 req.)

Expansion Pin

Switch

Spacer

Screw, #4-24 x 1-1/8 (flat head)

Sensor Housing

Turbine Support and Shaft

Turbine

O-Ring

Nozzle & Venturi Assy. (incl. Key

Nos. 75, and 78 through 83)

Parts Bag, Model No. 625.3484400

(incl. parts marked with a O, pages

28, 29 & 31 ) -- order manuals sepa-

rately, if needed.

Parts Bag, Model No. 625.3484500

(incl. parts marked with a A, pages

28, 29 & 31 ) -- order manuals sepa-

rately, if needed.

Seal Kit (incl. Key Nos. 67, 68, 71,

84, 87 and 88)

Drain Hose, 3/8" I.D. x 20' [_

• not illustrated

BYPASS INSTALLATION VALVE

MODEL NO. 625.34372

KEY PART

NO. NUMBER

100 0502206

101 7129863

102 7105013

103 7130911

104 0900535

• 42-3437

DESCRIPTION

Retainer Ring

Bypass Body

O-Ring, 13/16 x 1 (4 req.)

Stem

O-Ring, 15/16 x 1-3/16 (2 req.)

Bypass Valve (Complete) •[_

103

102

104

101

_ARS

OWNERS

MANUAL

MODEL NOS.

625.3484400

625.3484500

To Call

Toll Free

For Service:

1-800-4-RE PAl R

(1-800-473-7247)

For Parts:

1-800-FON-PARTS

(1-800-366-7278)

Kenmore

WATER SOFTENER

The model number of your water softener is found

on the rating decal. This decal is on the rim, under

the salt hole cover.

All repair parts are available for immediate pur-

chase or special order when you visit your near-

est Sears Service Center, or the Service Depart-

ment at most Sears Stores. To request service or

order parts by phone, call the toll free numbers

listed to the left.

When requesting service or ordering repair parts,

always provide the following information:

Product Type

Model Number

_, Part Number

_, Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

7147811 ( R.7/95 )

_ARS

OWNERS

MANUAL

MODEL NO.

625.34

The model number of

your water softener is

found on the rating de-

cal. This decal is on the

rim, under the salt cover.

When requesting service

or ordering parts, always

provide the following in-

formation:

_I, Product Type

_I, Model Number

_I, Part Number

_I, Part Description

WATER SOFTENER

For the repair or replacement parts you need

Call 7 am - 7 pm, 7 days a week

1 - 800 - 366 - PART

(1 - 800 - 366 - 7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1 - 800 - 4 - REPAIR

(1 - 800 - 473 - 7247)

For the location of a

Sears Repair Service Center in your area

Call 24 hours a day, 7 days a week

1 - 800 - 488 - 1222

For information on purchasing a Sears

Maintenance Agreement, or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday - Saturday

1 - 800 - 827 - 6655

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Kenmore 6253484400 User Manual WATER SOFTENER Manuals And Guides LR708188

KENMORE Water softener Manual LR708188 KENMORE Water softener Owner's Manual, KENMORE Water softener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
