OWNER'S

MANUAL

MODEL NOS.

UltraSoft 275

625.388270

UltraSoft 280

625.388280

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

If you have questions when

installing, operating or main-

taining your softener, and

when setting the timer, call

this toll-free number...

1-800-426-9345

(M - F, 7 am - 8 pm, CST)

For repair or replacement

parts, call this toll-free num-

ber...

1-800-366-7278

See back cover for other

Sears service numbers.

www.Ken moreWater.com

SAVE THIS MANUAL

Water Softeners

with Deluxe Valve

4, Warranty

4, Start Up /Setting Timer

4, How It Works

4, Care Of

4, Specifications

4, Repair Parts I Systems Tested and Certified by NSF International I

against NSF/ANSl Standard 44 for softener performance.

Use the plastic bag and tie provided, to hang manuals

nearby the softener for future reference,

IRoebuck and 3333 Hoffman IL 60179 USA I

Sears, Co., Beverly Road, Estates,

PRINTED IN U.S.A. 7276547 (Rev. B 7/14/05)

WARRANTY

SEARS RESIDENTIAL WATER SOFTENER

FULL ONE YEAR WARRANTY ON WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and

maintained in accordance with our instructions, Sears will repair, free of charge,

defects in material or workmanship in this water softener.

FULL TEN YEAR WARRANTY AGAINST LEAKS

For ten years from the date of purchase, Sears will furnish and install a new current

model water softener tank or salt storage drum, free of charge, if either the tank

or drum develop a leak.

TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS

SERVICE CENTER THROUGHOUT THE UNITED STATES. This warranty ap-

plies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may have other rights which

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a

prompt, quality installation by Sears Authorized Installers.

SEARS INSTALLATION POLICY

All installation labor arranged by Sears shall be per-

formed in a neat, workmanlike manner in accor-

dance with generally accepted trade practices. Fur-

ther, all installations shall comply with all local

laws, codes, regulations, and ordinances. Custom-

ers shall also be protected, during installation, by in-

surance relating to Property Damage, Workman's

Compensation and Public Liability.

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on the

Sears merchandise involved, which warranty be-

comes effective the date the merchandise is

installed, should the workmanship of any Sears ar-

ranged installation prove faulty within one year,

Sears will, upon notice from you, cause such faults

to be corrected at no additional cost to you.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe place so you always have

these facts.

Water Softener Model No.t

Serial Number

Date Installed

Water Hardness Grains Per Gallon

Iron Content Parts Per Million

pH 'Ihste And/Or Odor

Water Pressure Pounds/Square Inch

Water Flow Rate Gallons Per Minute

± The model number is on the rating decal, located on the rim, under the salt hole cover.

salt hole cover

rating

decal

Iii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iiTABLE OF CONTENTS

,JJJJ JJJ_J_J_J_J,

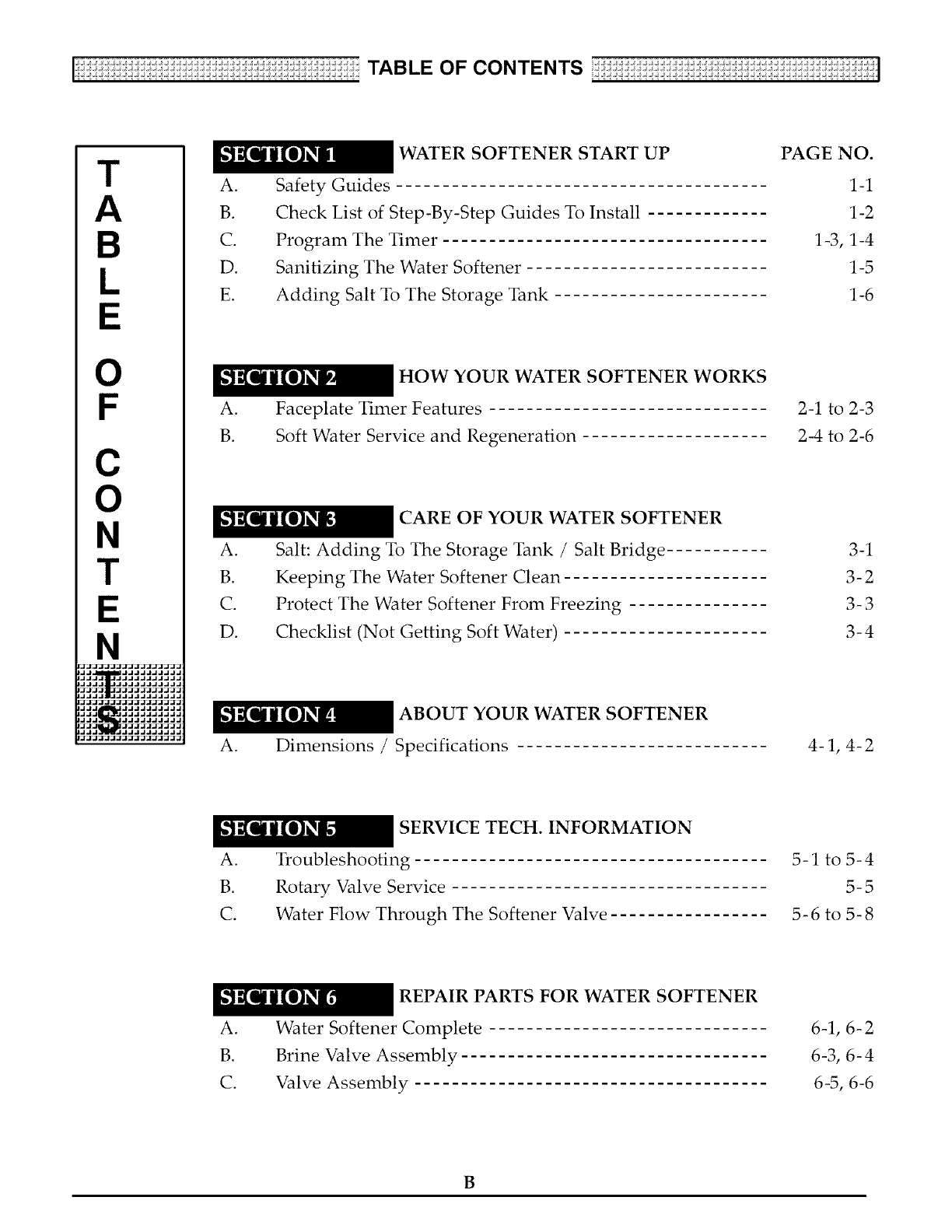

WATER SOFTENER START UP

Safety Guides

Check List of Step-By-Step Guides To Install

Program The Timer

Sanitizing The Water Softener

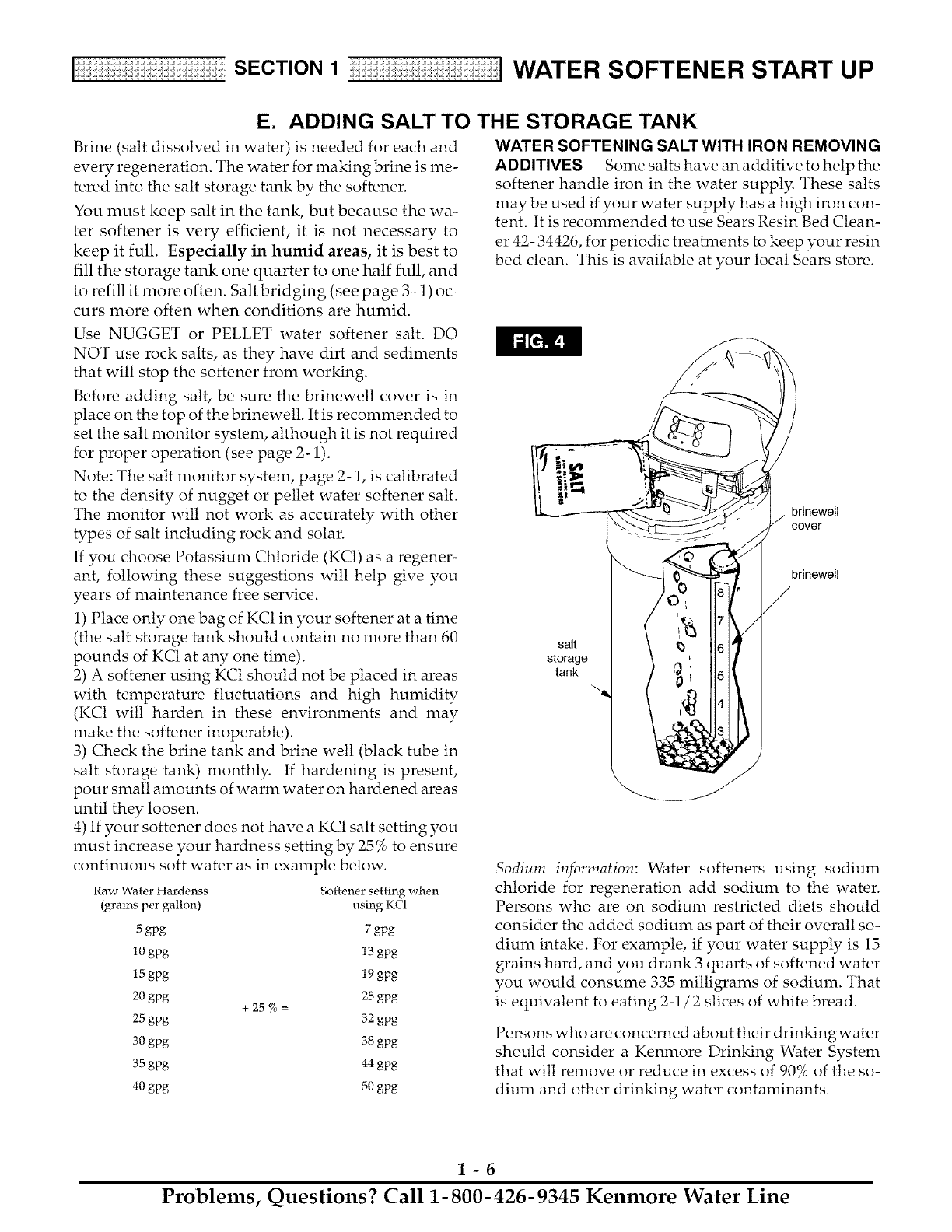

Adding Salt To The Storage Tank

HOW YOUR WATER SOFTENER WORKS

Faceplate Timer Features

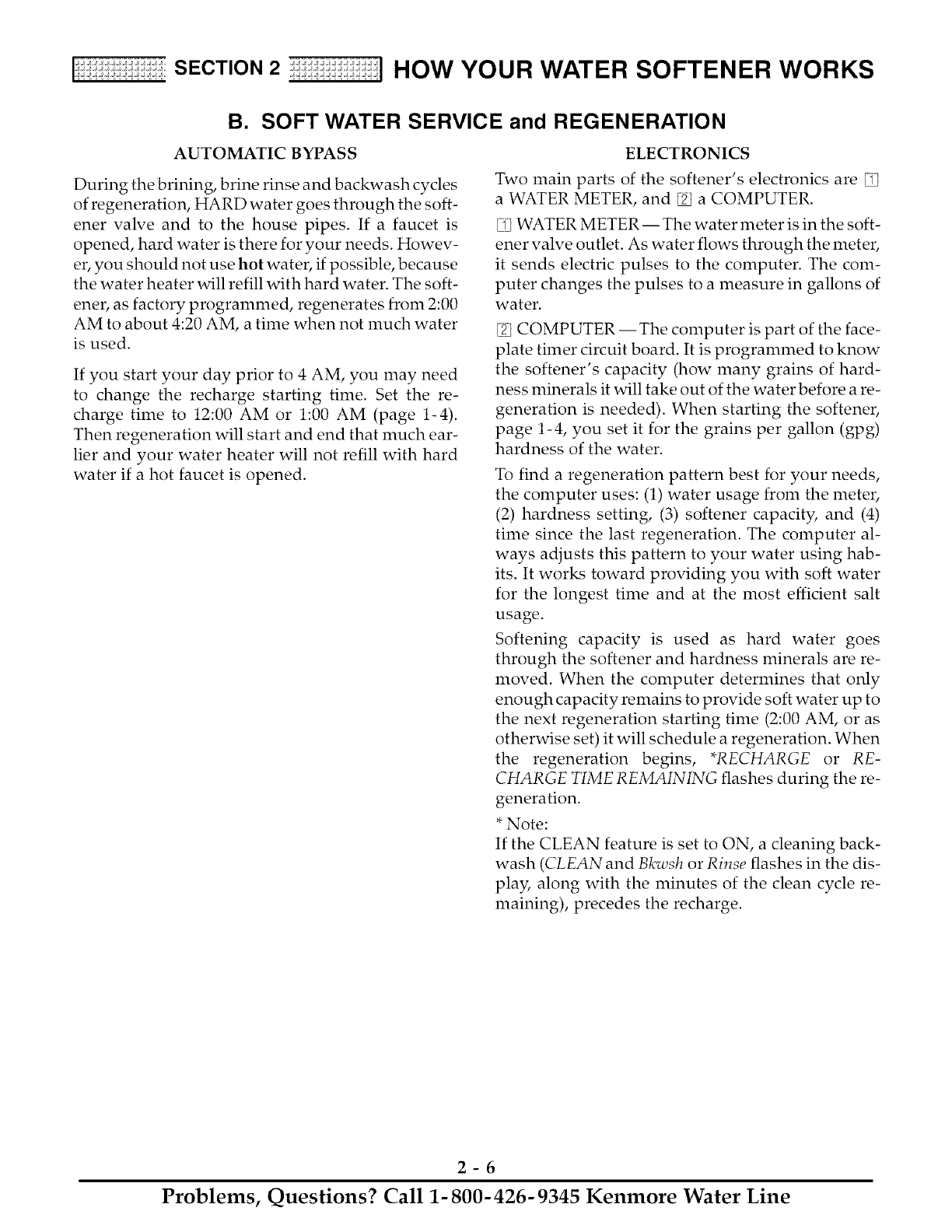

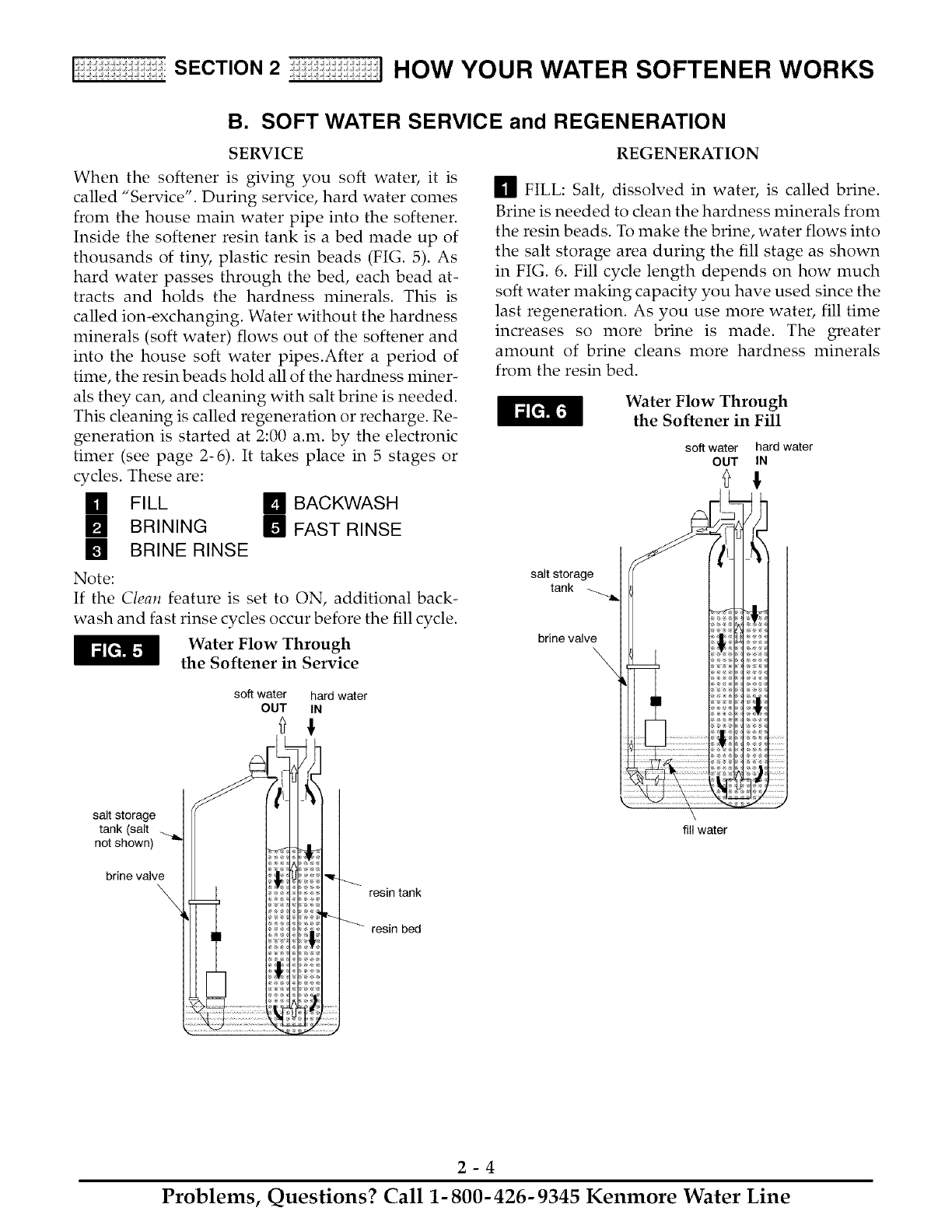

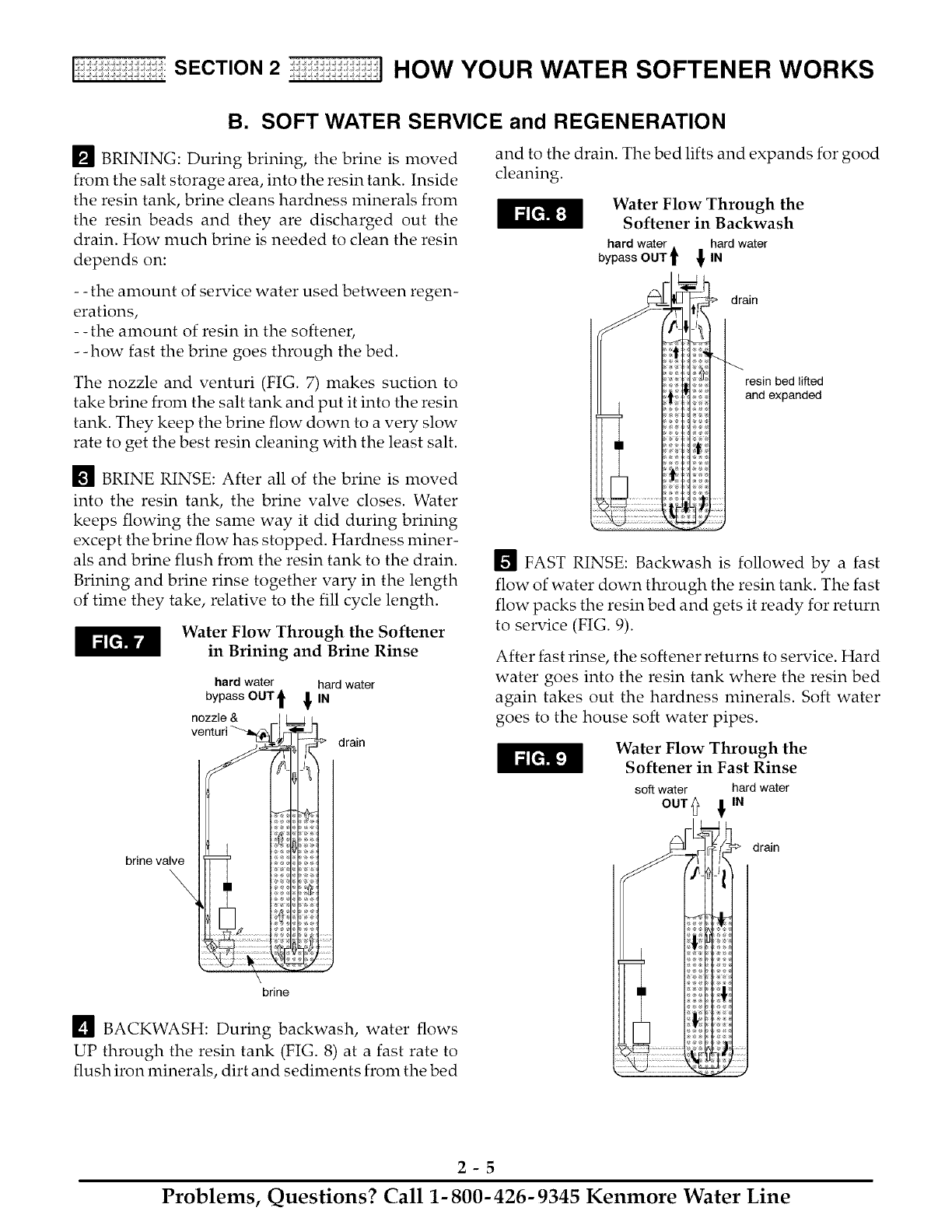

Soft Water Service and Regeneration

CARE OF YOUR WATER SOFTENER

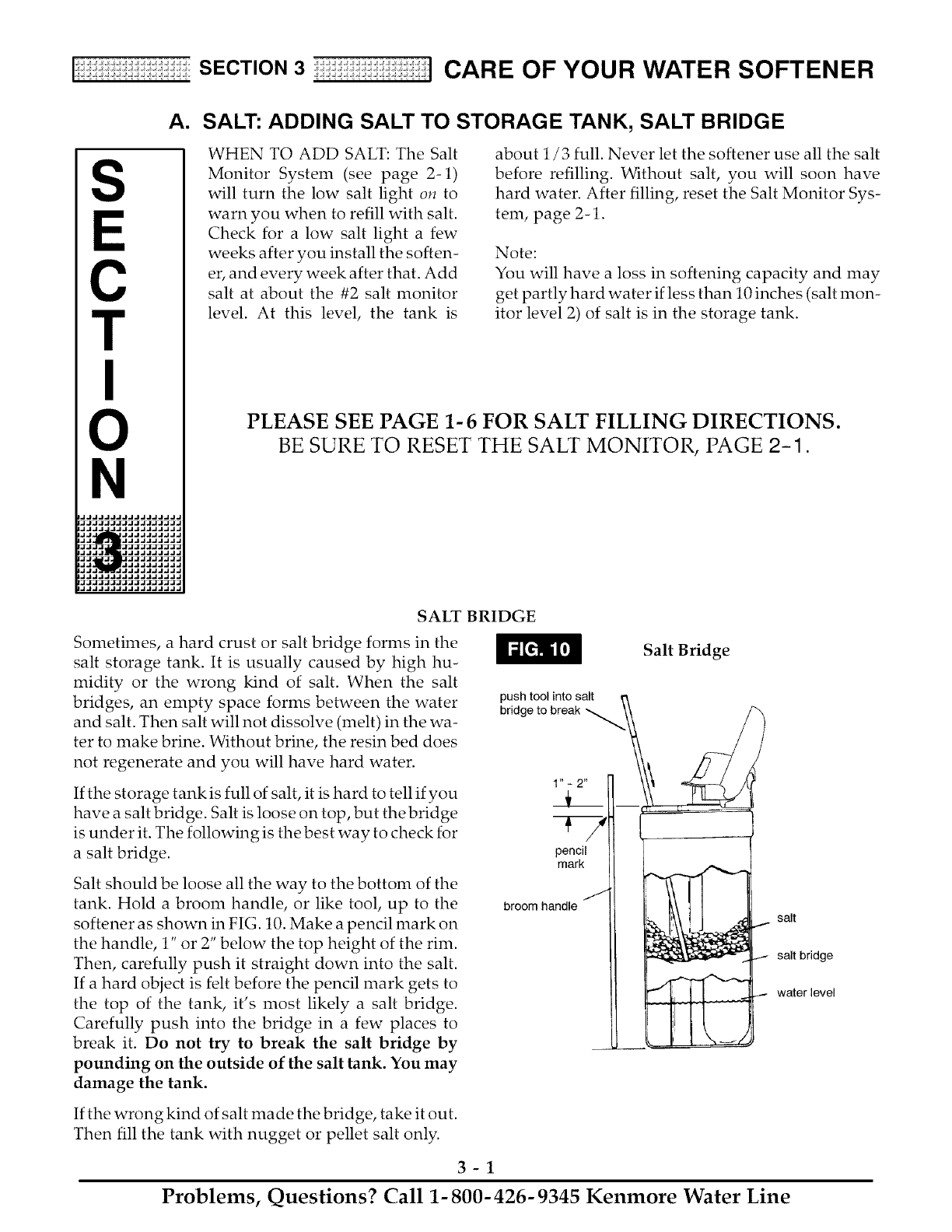

Salt: Adding To The Storage Tank /Salt Bridge ...........

Keeping The Water Softener Clean

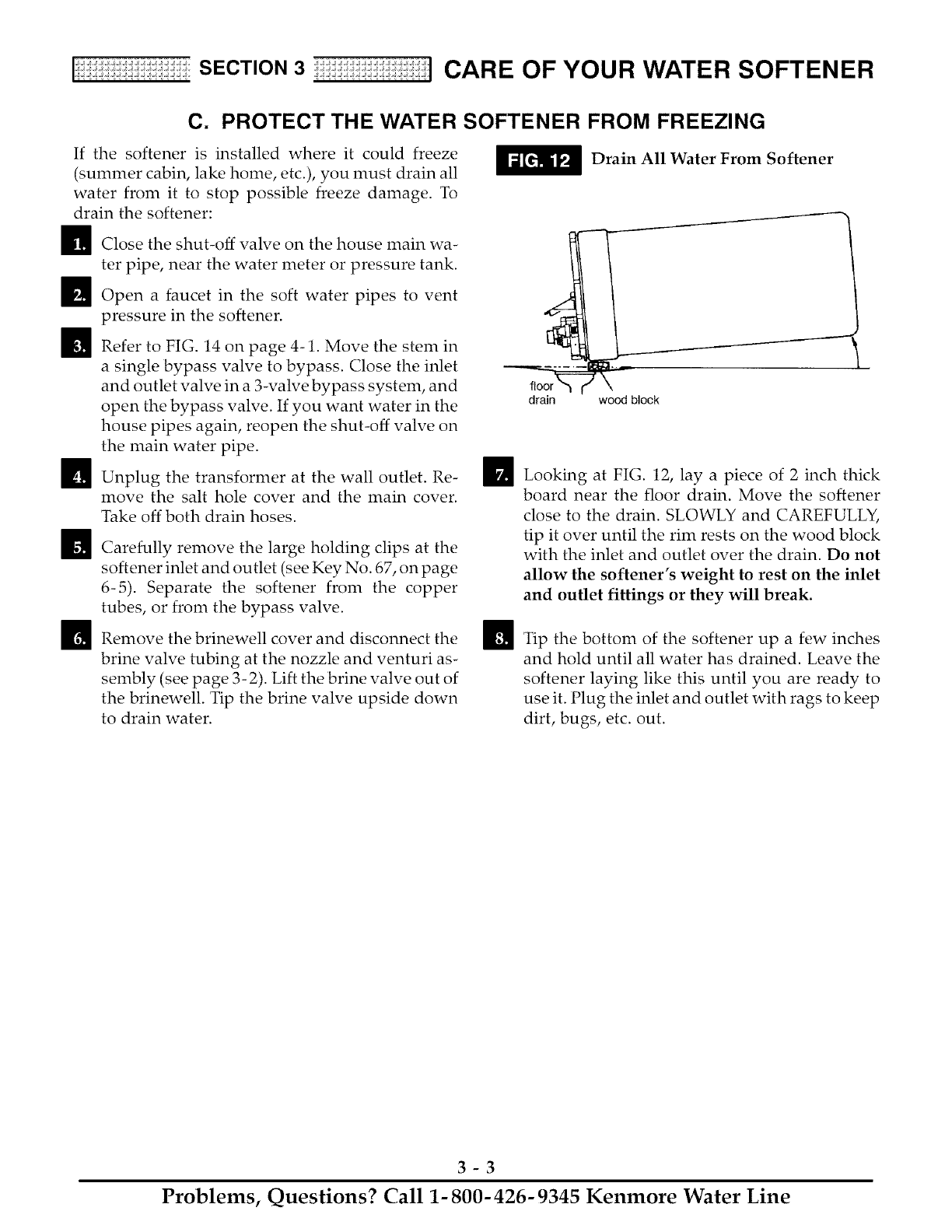

Protect The Water Softener From Freezing

Checklist (Not Getting Soft Water)

ABOUT YOUR WATER SOFTENER

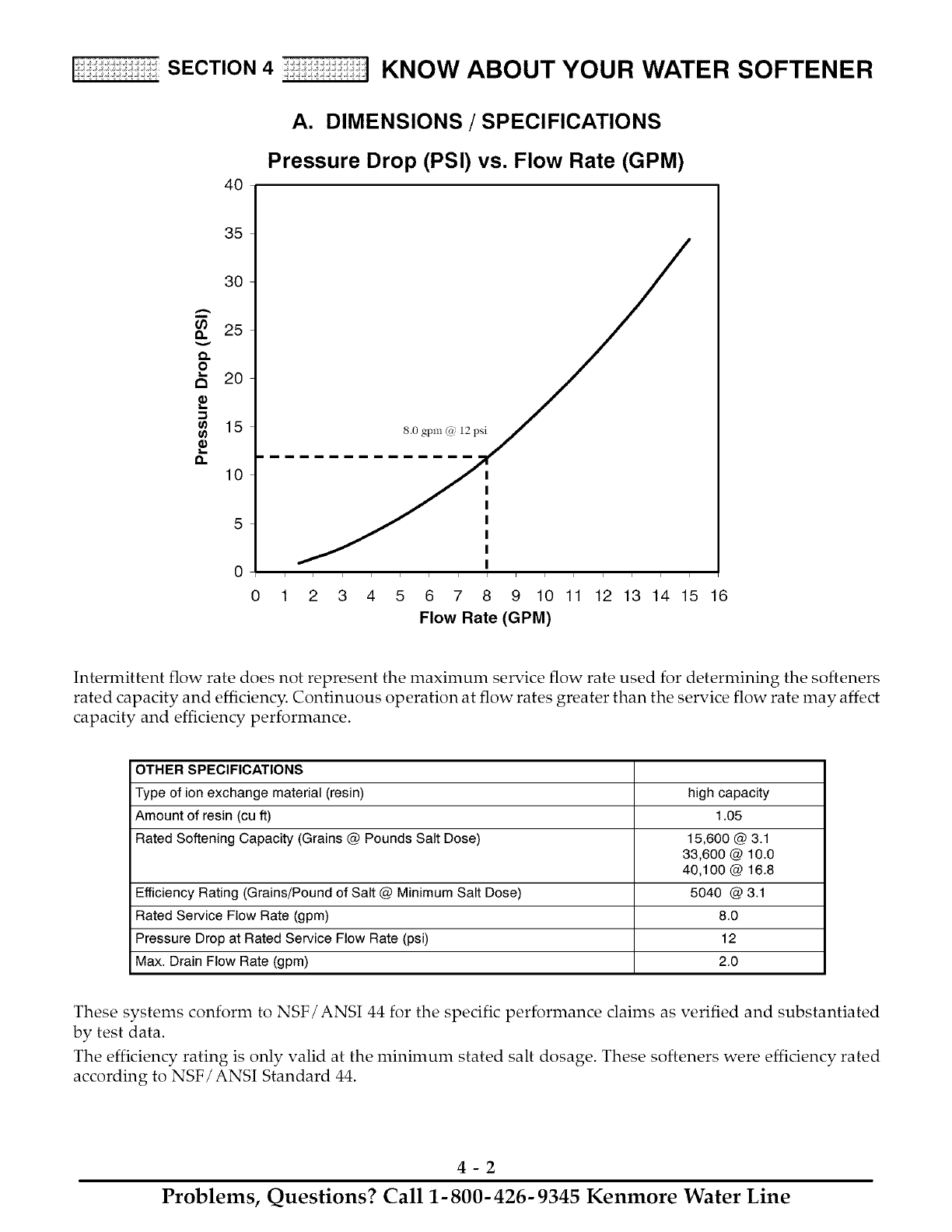

Dimensions /Specifications

PAGE NO.

1-1

1-2

1-3, 1-4

1-5

1-6

2-1 to 2-3

2-4 to 2-6

3-1

3-2

3-3

3-4

4-1,4-2

SERVICE TECH. INFORMATION

Troubleshooting ....

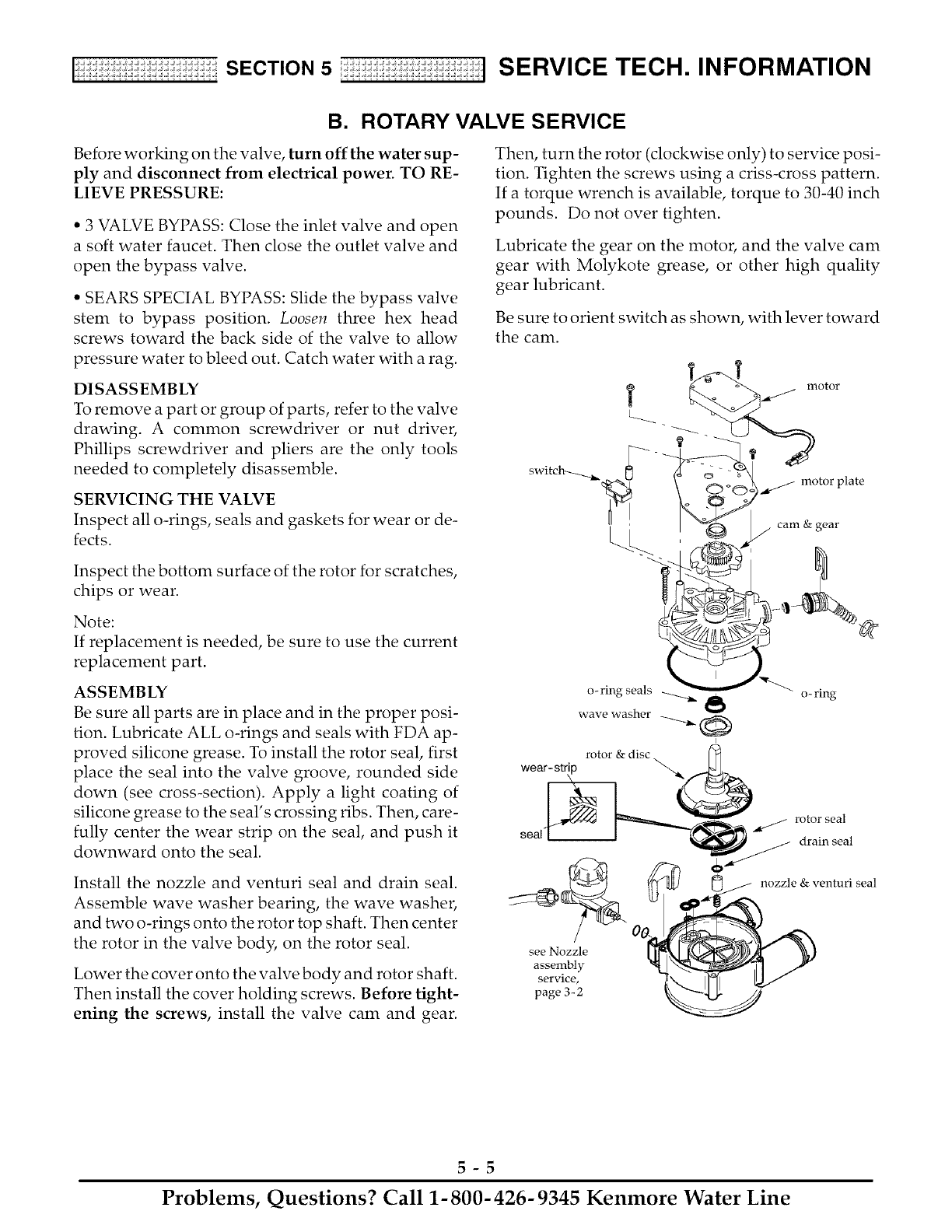

Rotary Valve Service

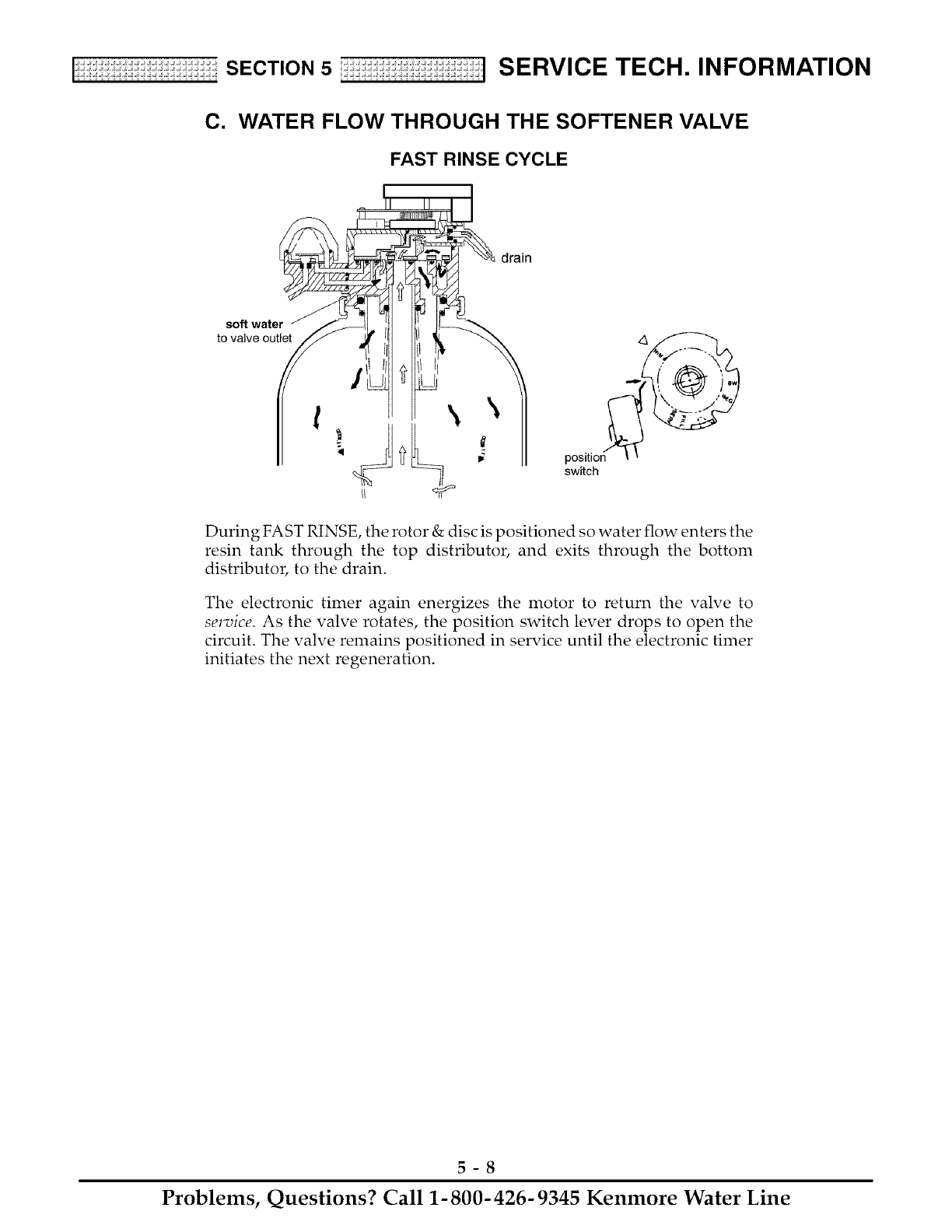

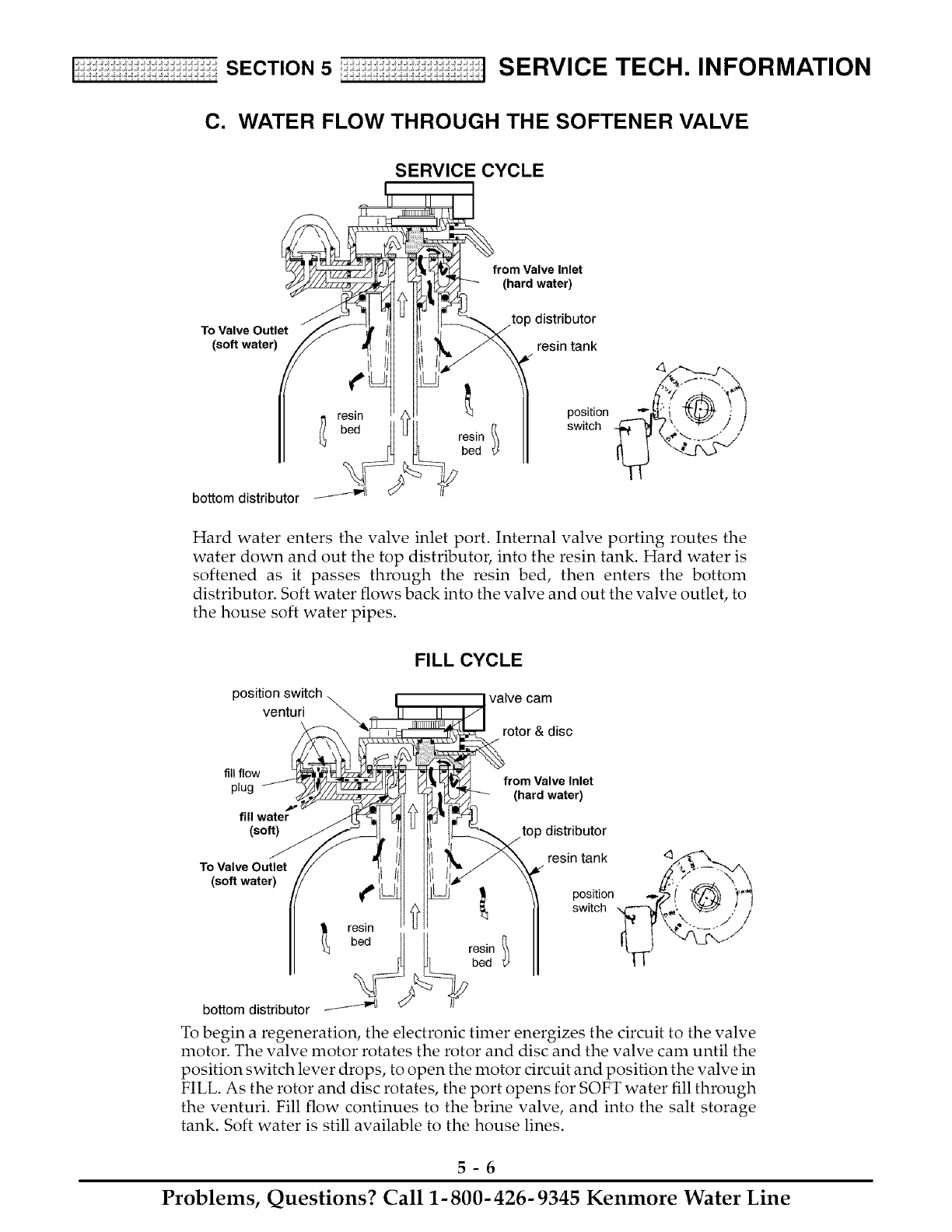

Water Flow Through The Softener Valve-

5-1 to 5-4

5-5

5-6 to 5-8

REPAIR PARTS FOR WATER SOFTENER

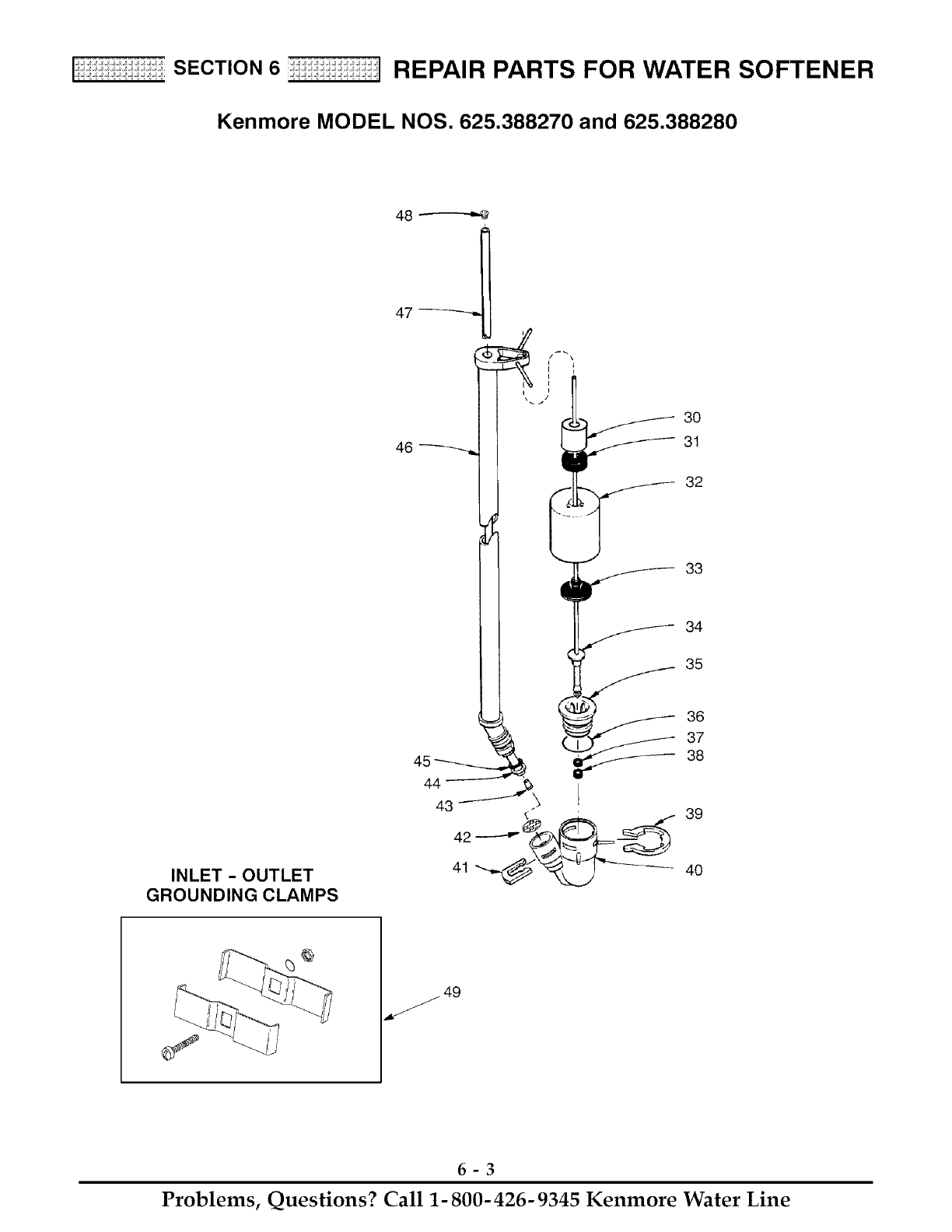

Water Softener Complete

Brine Valve Assembly ....

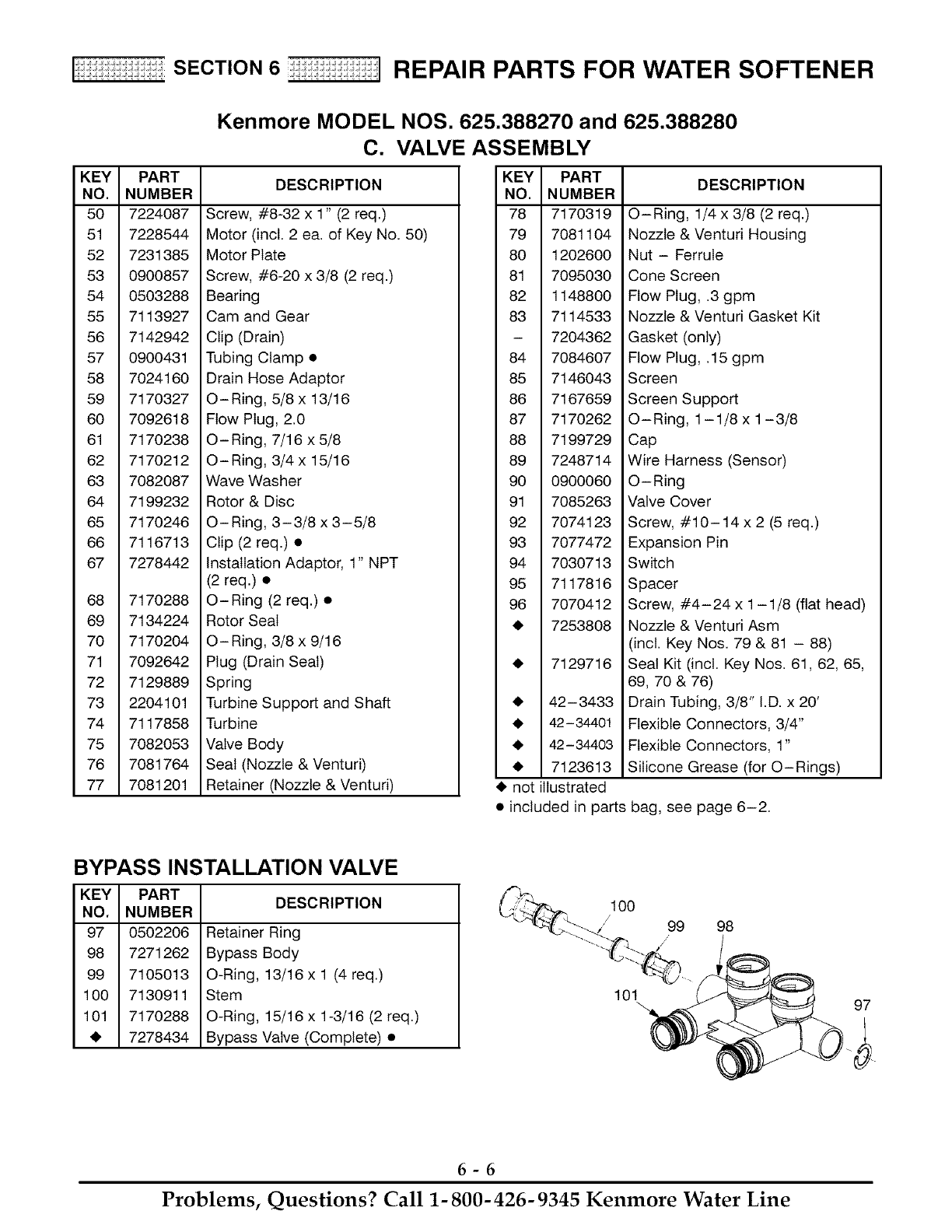

Valve Assembly

6-1, 6-2

6-3, 6-4

6-5, 6-6

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

,JJJJJJJJJJJJJJJJ.

,JJJJ JJJJJJJJJJ.

'JJ_i JJJJJJJJJ"

,JJJJ JJJJJJJJJJ.

_dJ JdJdJdJdJ.

,JJJJJJJJJJJJJJJJ.

A. SAFETY GUIDES

•Read all steps, guides and rules carefully before

installing and using your new water softener. Follow

all steps exactly to correctly install. Failure to follow

them could cause personal injury or property damage.

Reading this book will also help you to get all of the

benefits from your water softener.

•Your water softener will remove hardness minerals

and "clear water" iron* from water, up to the limits

shown on page 4-1. It will not remove other types of

iron, acids, tastes and odors, etc. It will not purify pol-

luted water or make it safe to drink.

•Protect the softener and piping from freezing. Dam-

age from freezing voids the softener warranty. See

page 3-3.

CAUTIONS

PLEASE READ AND COMPLY WITH THE FOLLOWING

GUIDES TO PREVENT DAMAGE TO THE SOFTENER

OR OTHER PROPERTY, PERSONAL INJURY, OR POS-

SIBLE FATAL SHOCK.

•THIS SOFTENER WORKS ON 24 VOLTS ONLY. BE

SURE TO USE ONLY THE TRANSFORMER INCLUDED,

AND PLUG IT INTO A NOMINAL 120V, 60 CYCLE

HOUSEHOLD OUTLET THAT IS GROUNDED AND

PROPERLY PROTECTED BY AN OVERCURRENT DE-

VICE SUCH AS A CIRCUIT BREAKER OR FUSE. IF

TRANSFORMER IS REPLACED, USE ONLY THE AU-

THORIZED SERVICE, CLASS II, 24 VOLT, 10 VA

TRANSFORMER.

•Unplug the transformer right away if the power

cable should become damaged or frayed. Make re-

pairs, or replace transformer, before plugging back

into the power outlet.

•Always unplug the softener from electrical power

before removing outer valve covers.

•This system is not intended to be used for treating

water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after

the system,

* The capacity to reduce clear water iron is substantiated

by WQA test data.

1-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

To be sure you have done all the steps to install the

softener, read the following list. Refer to the Installa-

tion Manual, part no. 7258997, for step-by-step

guides.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the house water flow going INTO the softener

valve INLET? Trace piping to be sure. See pages

2-4 and 2-5.

Is the plumbing bypass valve (or 3 valves) set for

SERVICE? Bypass valve(s) should always re-

main in soft water service position. Position in

"bypass" only if needed for softener repairs. See

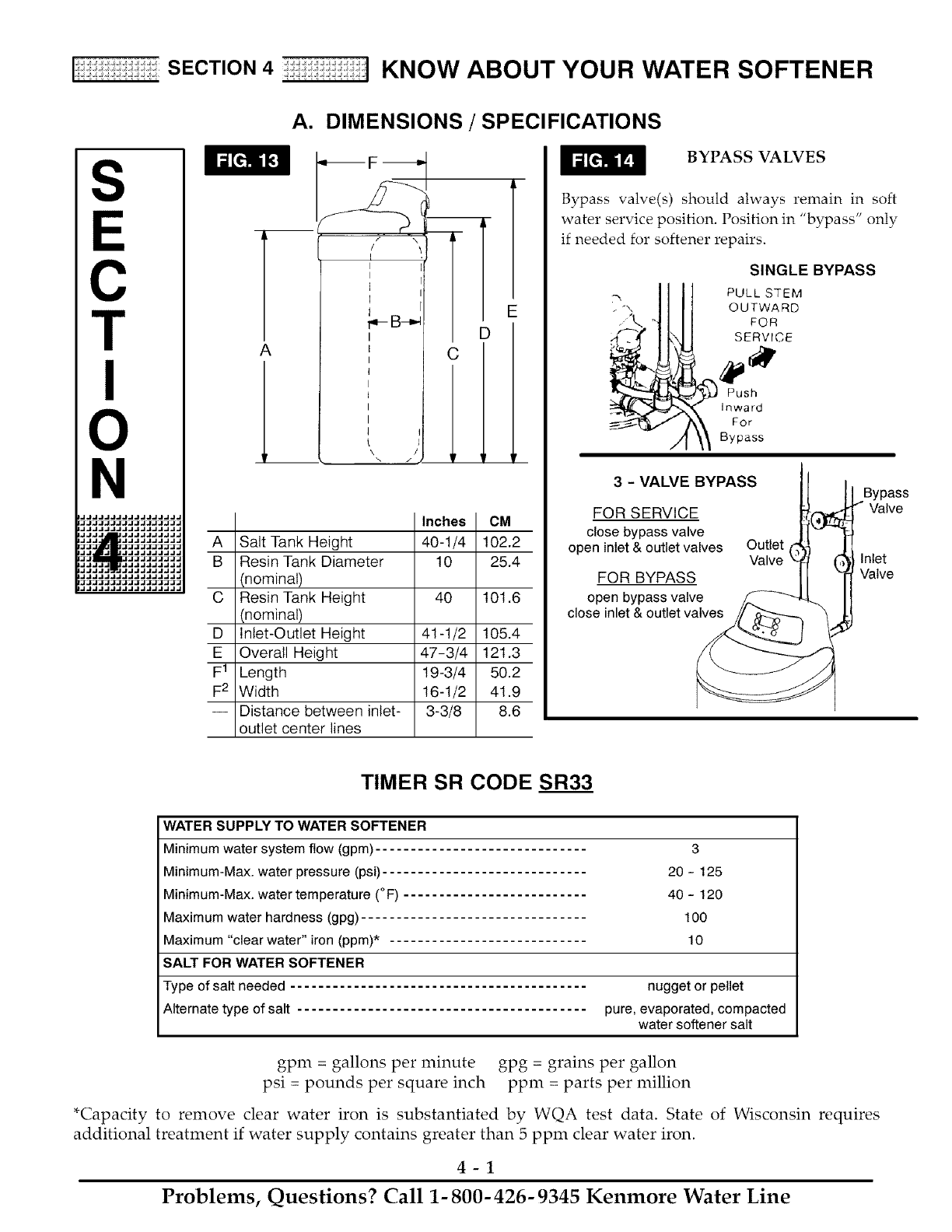

FIG. 14, page 4-1 of this manual.

Is the valve drain hose connected the right way,

and without sharp bends or kinks that could

stop or reduce water flow? See page 3-5 in the

installation manual.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the transformer plugged into an inside, al-

ways live, grounded, 120V-60Hz electrical out-

let? See pages 3-8 and 3-9 in the installation

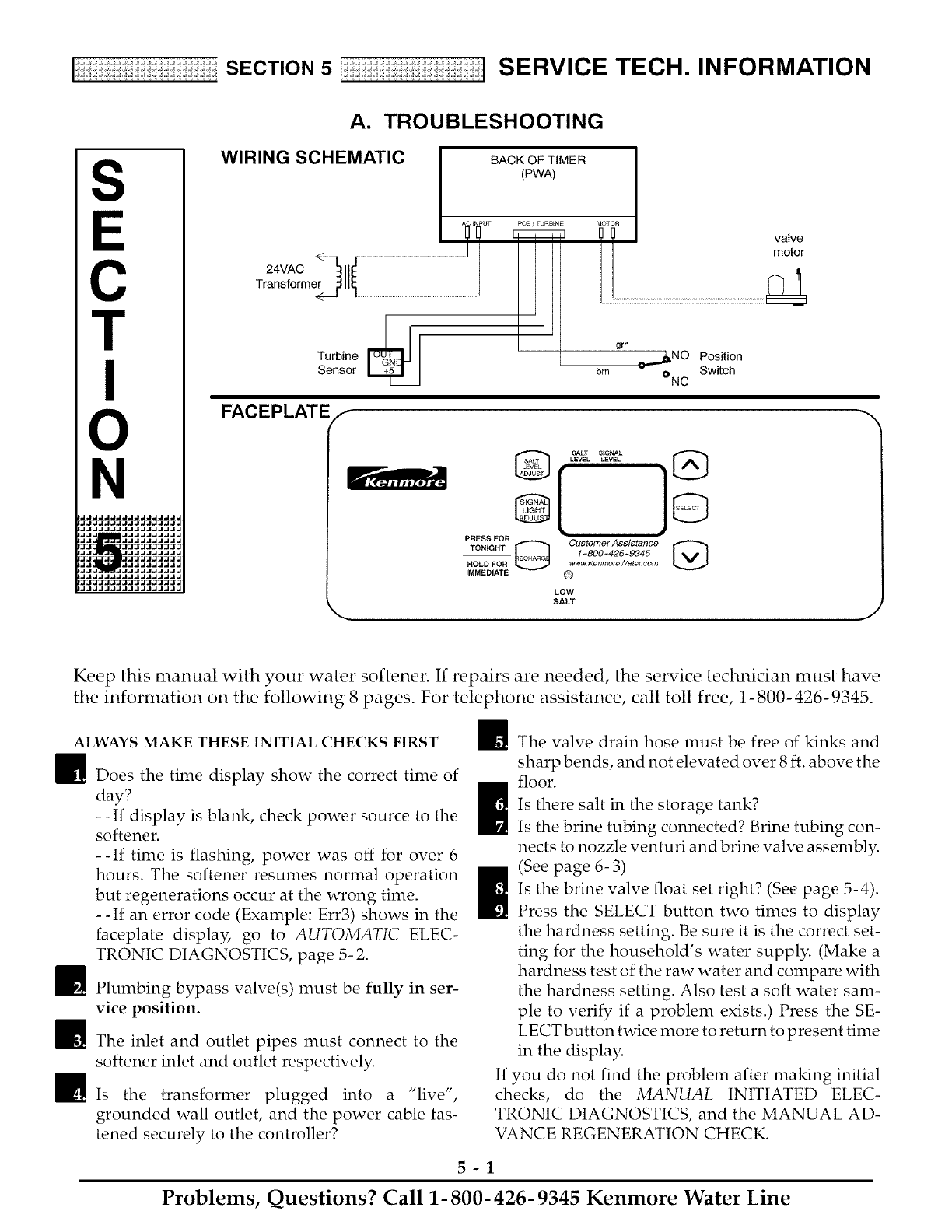

manual, and the wiring schematic on page 5-1 of

this manual.

_-" Be sure to restart the water heater. See page 3- 9.

INLET

3va,veJf, J

l__Bypass Valve(s)

California Efficiency Requirement

Your Kenmore Water Softener has a "High Effi-

ciency" feature with an "ON" or "OFF" setting.

This softener setting is shipped in the "OFF"

position, which utilizes the maximum rated ca-

pacity while most often achieving maximum salt

efficiencies. When installing this unit in the State

of California, you MUST turn this setting to the

"ON" position which may initiate more frequent

recharges, however it will operate at 4000 grains

per pound of salt or higher.

If you wish to turn the Salt Efficiency feature

"ON" (_ icon will show in display), follow the

instructions in the Faceplate Timer Features, Sec-

tion 2 of this manual.

NOTE: Codes in the state of Massachusetts require installation

by a licensed plumber. For installation, use plumbing code

248- CMR of the Commonwealth of Massachusetts,

1-2

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

C. PROGRAM THE TIMER

salt level adjust UP button

signal light adjust SELECT button

....diii

t.EVEL LEVEL •

P ss oR cus omerAss nce

TONIGHT 1-800-426-9345 [_

HOLD FOR www.KenmoreWatercom

IMMEDIATE

LOW

SALT

RECHARGE button DOWN button

When the transformer is plugged in, a model code,

and a test number (example: J]0) show in the face

plate display for 4 seconds. Then, J2:O0 AM and

PRESENT TIME begin to flash.

! I1-1

U fU

II"-I,1--| I--I AMI

II_-,LILI /

PRESENT TIME I

Notes:

If SR - - or .... shows in the display, press the

UP[] orDOWN[_ button until SR33 shows in the

display. Then, press the SELECT button to set, and

change to the flashing PRESENT TIME display.

To check the model code, unplug the transformer at

the wall outlet and plug in again, if other than this

code shows, see page 5-3 to reset.

SOUND "BEEPER": A "beeper" sounds while

pressing buttons for timer set-up. One beep signals

a change in the face plate display. Repeated beeps

mean the timer will not accept a change from the

button you have pressed, telling you to use another

button. For example, while setting the hardness

(step 2), the beeper sounds repeatedly when the dis-

play reaches 1 using the DOWN button, or the high-

est hardness setting using the UP button.

_SET PRESENT TIME OF DAY

If the words PRESENT TIME do not show in the dis-

play, press the SELECT button (FIG. 2) until they do,

or see the previous notes.

• Press the UP or DOWN buttons to set the present

time. Press UP to move the display ahead; press

DOWN to move the time backward.

If the present time is between

noon and midnight, be sure PM

shows.

If the present time is between

midnight and noon, be sure AM

shows.

I_I,I-"I"1PM

'DO I

PRESENT TIME

I h-II -AM

I I,_-I1_-I I

PRESENT TIME

Each press of the UP or DOWN buttons changes

the time by 1 minute. Holding the buttons in

changes the time 32 minutes each second.

1-3

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

C. PROGRAM THE TIMER

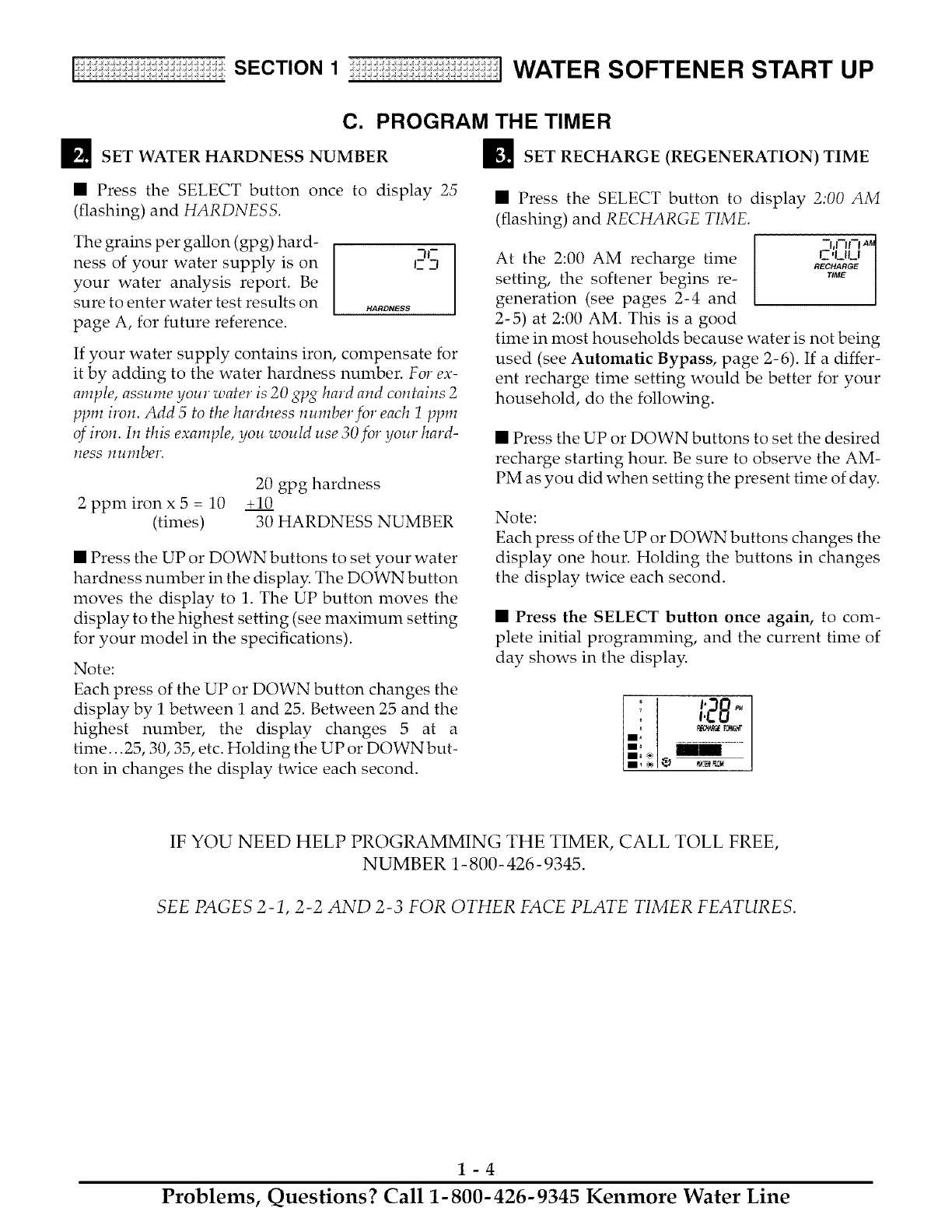

SET WATER HARDNESS NUMBER E! SET RECHARGE (REGENERATION) TIME

• Press the SELECT button once to display 25

(flashing) and HARDNESS.

The grains per gallon (gpg) hard-

ness of your water supply is on

your water analysis report. Be

sure to enter water test results on

page A, for future reference.

123

HARDNESS

If your water supply contains iron, compensate for

it by adding to the water hardness number. For ex-

ample, assume your water is 20 gpg hard and contains 2

ppm iron. Add 5 to the hardness number for each 1 ppm

of iron. In this example, you would use 30for your hard-

hess numbel:

20 gpg hardness

2 ppmironx 5 = 10 +10

(times) 30 HARDNESS NUMBER

• Press the UP or DOWN buttons to set your water

hardness number in the display. The DOWN button

moves the display to 1. The UP button moves the

display to the highest setting (see maximum setting

for your model in the specifications).

Note:

Each press of the UP or DOWN button changes the

display by 1 between 1 and 25. Between 25 and the

highest number, the display changes 5 at a

time...25, 30, 35, etc. Holding the UP or DOWNbut-

ton in changes the display twice each second.

• Press the SELECT button to display 2:00 AM

(flashing) and RECHARGE TIME.

At the 2:00 AM recharge time

setting, the softener begins re-

generation (see pages 2-4 and

2-5) at 2:00 AM. This is a good

nFI Ad

C'UU |

RECTIHA_GE I

time in most households because water is not being

used (see Automatic Bypass, page 2-6). If a differ-

ent recharge time setting would be better for your

household, do the following.

• Press the UP or DOWN buttons to set the desired

recharge starting hour. Be sure to observe the AM-

PM as you did when setting the present time of day.

Note:

Each press of the UP or DOWN buttons changes the

display one hour. Holding the buttons in changes

the display twice each second.

•Press the SELECT button once again, to com-

plete initial programming, and the current time of

day shows in the display.

=° _

IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE,

NUMBER 1- 800- 426- 9345.

SEE PAGES 2-1, 2-2 AND 2-3 FOR OTHER FACE PLATE TIMER FEATURES.

1-4

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

D. SANITIZE THE

Care is taken at the factory to keep your water soft-

ener clean and sanitary. Materials used to make the

softener will not infect or contaminate your water

supply, and will not cause bacteria to form or grow.

However, during shipping, storage, installing and

operating, bacteria could get into the softener. For

this reason, sanitizing as follows is suggested (i9

when installing.

_The first time you sanitize your softener, be sure

to do all steps in the installation manual, and on

pages 1-2, 1-3 and 1-4 of this manual first.

Note: Be certain the bypass valve is pulled out

to "service" position.

_Lift the salt hole cover and use a pail to fill the

salt storage tank with up to 3 gallons of water.

_1 Remove the brinewell cover (FIG. 3) and pour

about 3/4 ounce, or 1 to 2 tablespoons, of com-

mon 5.25%, unscented, household bleach (Clo-

fox, Linco, BoPeep, White Sail, Eagle, etc.) in the

softener brinewell. Replace the brinewell cover.

D Press the RECHARGE button and holdfor 3 se-

conds to start a recharge. This first recharge does

several things.

• It draws the bleach into and through the softener

to sanitize it.

• It fills the salt tank to the water level needed.

• It gets all the air out of the resin tank.

• It prepares the resin bed (see page 2-4) for ser-

vice and flushes residual chlorine from the soften-

er.

Notes:

This recharge takes about 2-1/2 or 2- 3/4 hours, de-

pending on the salt type setting (page 1-4).

You can sanitize the softener with or without salt

in the storage tank.

WATER SOFTENER

water,

about 3 gallons

brinewelI cover

(remove and add

about 3/4 oz.

bleach)

brinewell

Recommended by the Water Quality Association, On some

water supplies, the water softener may need periodic

disinfecting.

1-5

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

Brine (salt dissolved in water) is needed for each and

every regeneration. The water for making brine is me-

tered into the salt storage tank by the softener.

You must keep salt in the tank, but because the wa-

ter softener is very efficient, it is not necessary to

keep it full. Especially in humid areas, it is best to

fill the storage tank one quarter to one half full, and

to refill it more often. Salt bridging (see page 3-1) oc-

curs more often when conditions are humid.

ADDING SALT TO THE STORAGE TANK

WATER SOFTENING SALT WITH IRON REMOVING

ADDITIVES -- Some salts have an additive to help the

softener handle iron in the water supply. These salts

may be used if your water supply has a high iron con-

tent. It is recommended to use Sears Resin Bed Clean-

er 42- 34426, for periodic treatments to keep your resin

bed clean. This is available at your local Sears store.

Use NUGGET or PELLET water softener salt. DO

NOT use rock salts, as they have dirt and sediments

that will stop the softener from working.

Before adding salt, be sure the brinewell cover is in

place on the top of the bfinewelt. It is recommended to

set the salt monitor system, although it is not required

for proper operation (see page 2-1).

Note: The salt monitor system, page 2-1, is calibrated

to the density of nugget or pellet water softener salt.

The monitor will not work as accurately with other

types of salt including rock and solar.

If you choose Potassium Chloride (KC1) as a regener-

ant, following these suggestions will help give you

years of maintenance free service.

1) Place only one bag of KC1 in your softener at a time

(the salt storage tank should contain no more than 60

pounds of KC1 at any one time).

2) A softener using KC1 should not be placed in areas

with temperature fluctuations and high humidity

(KC1 will harden in these environments and may

make the softener inoperable).

3) Check the brine tank and brine well (black tube in

salt storage tank) monthly. If hardening is present,

pour small amounts of warm water on hardened areas

until they loosen.

4) If your softener does not have a KC1 salt setting you

must increase your hardness setting by 25% to ensure

continuous soft water as in example below.

Raw Water Hardenss

(grains per gallon)

Softener setting when

using KC1

5 gpg 7 gpg

50 gpg 13 gpg

55 gpg 19 gpg

20 gpg 25 gpg

+ 25 % =

25gpg 32gpg

30 gpg 38 gpg

35gpg 44 gpg

40 gpg 50 gpg

Sodium information: Water softeners using sodium

chloride for regeneration add sodium to the water.

Persons who are on sodium restricted diets should

consider the added sodium as part of their overall so-

dium intake. For example, if your water supply is 15

grains hard, and you drank 3 quarts of softened water

you would consume 335 milligrams of sodium. That

is equivalent to eating 2-1/2 slices of white bread.

Persons who are concerned about their drinking water

should consider a Kenmore Drinking Water System

that will remove or reduce in excess of 90% of the so-

dium and other drinking water contaminants.

1-6

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _;_ !! _;_ SECTION 2 _i:!!! _;_ !! _;_i] HOW YOUR WATER SOFTENER WORKS

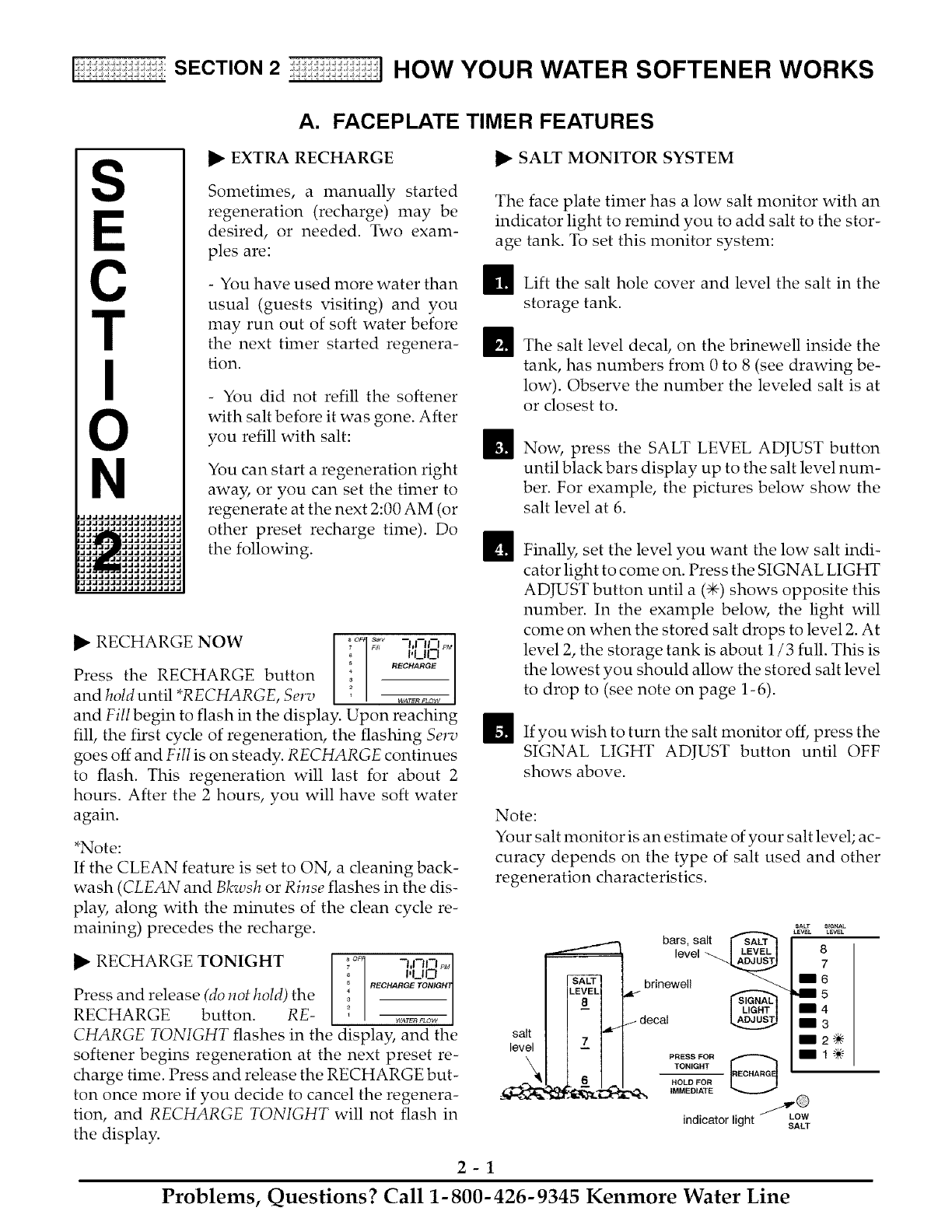

A. FACEPLATE TIMER FEATURES

,JJJJJJJJJJJJJJJJ.

,JJJJ JJJJJJJJJJ.

,JJ_JJJJJdJJJ.

,JJ JJJJJJJJJ.

,JJJ JJJJJJJJJ.

,JJ JJJJJJJJJ.

,JJJJJJJJJJJJJJJJ.

EXTRA RECHARGE

Sometimes, a manually started

regeneration (recharge) may be

desired, or needed. Two exam-

ples are:

- You have used more water than

usual (guests visiting) and you

may run out of soft water before

the next timer started regenera-

tion.

- You did not refill the softener

with salt before it was gone. After

you refill with salt:

You can start a regeneration right

away, or you can set the timer to

regenerate at the next 2:00 AM (or

other preset recharge time). Do

the following.

I1_ RECHARGE NOW [i°_] _7 -_nn_'_'L0

Press the RECHARGE button _,_G_

and hold until *RECHARGE, Serv ..........

and Fill begin to flash in the display. Upon reaching

fill, the first cycle of regeneration, the flashing Serv

goes off and Fill is on steady. RECHARGE continues

to flash. This regeneration will last for about 2

hours. After the 2 hours, you will have soft water

again.

*Note:

If the CLEAN feature is set to ON, a cleaning back-

wash (CLEAN and Bkwsh or Rinse flashes in the dis-

play, along with the minutes of the clean cycle re-

maining) precedes the recharge.

I1_ RECHARGE TONIGHT ;°'_ -u-nq _

HjO

Press and release (do not hold) the _o,_G_ _O_,_,T

RECHARGE button. RE- WATER FLOW

CHARGE TONIGHT flashes in the display, and the

softener begins regeneration at the next preset re-

charge time. Press and release the RECHARGE but-

ton once more if you decide to cancel the regenera-

tion, and RECHARGE TONIGHT will not flash in

the display.

I1_ SALT MONITOR SYSTEM

The face plate timer has a low salt monitor with an

indicator light to remind you to add salt to the stor-

age tank. To set this monitor system:

_1_ Lift the salt hole cover and level the salt in the

storage tank.

mThe salt level decal on the brinewell inside the

tank, has numbers from 0 to 8 (see drawing be-

low). Observe the number the leveled salt is at

or closest to.

mNow, press the SALT LEVEL ADJUST button

until black bars display up to the salt level num-

ber. For example, the pictures below show the

salt level at 6.

E!Finally, set the level you want the low salt indi-

cator light to come on. Press the SIGNAL LIGHT

ADJUST button until a (÷) shows opposite this

number. In the example below, the light will

come on when the stored salt drops to level 2. At

level 2, the storage tank is about 1/3 full. This is

the lowest you should allow the stored salt level

to drop to (see note on page 1-6).

_If you wish to turn the salt monitor off, press the

SIGNAL LIGHT ADJUST button until OFF

shows above.

Note:

Your salt monitor is an estimate of your salt level; ac-

curacy depends on the type of salt used and other

regeneration characteristics.

salt

level

bars, salt

level

8 ,

7 ,

brinewell

decal

_N PRESS FOR

TONIGHT

HOLD FOR

IMMEDIATE

indicator light s_°w

2-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :;:_!! :;:_ SECTION 2:i:!!! :;:_!! :;:_i] HOW YOUR WATER SOFTENER WORKS

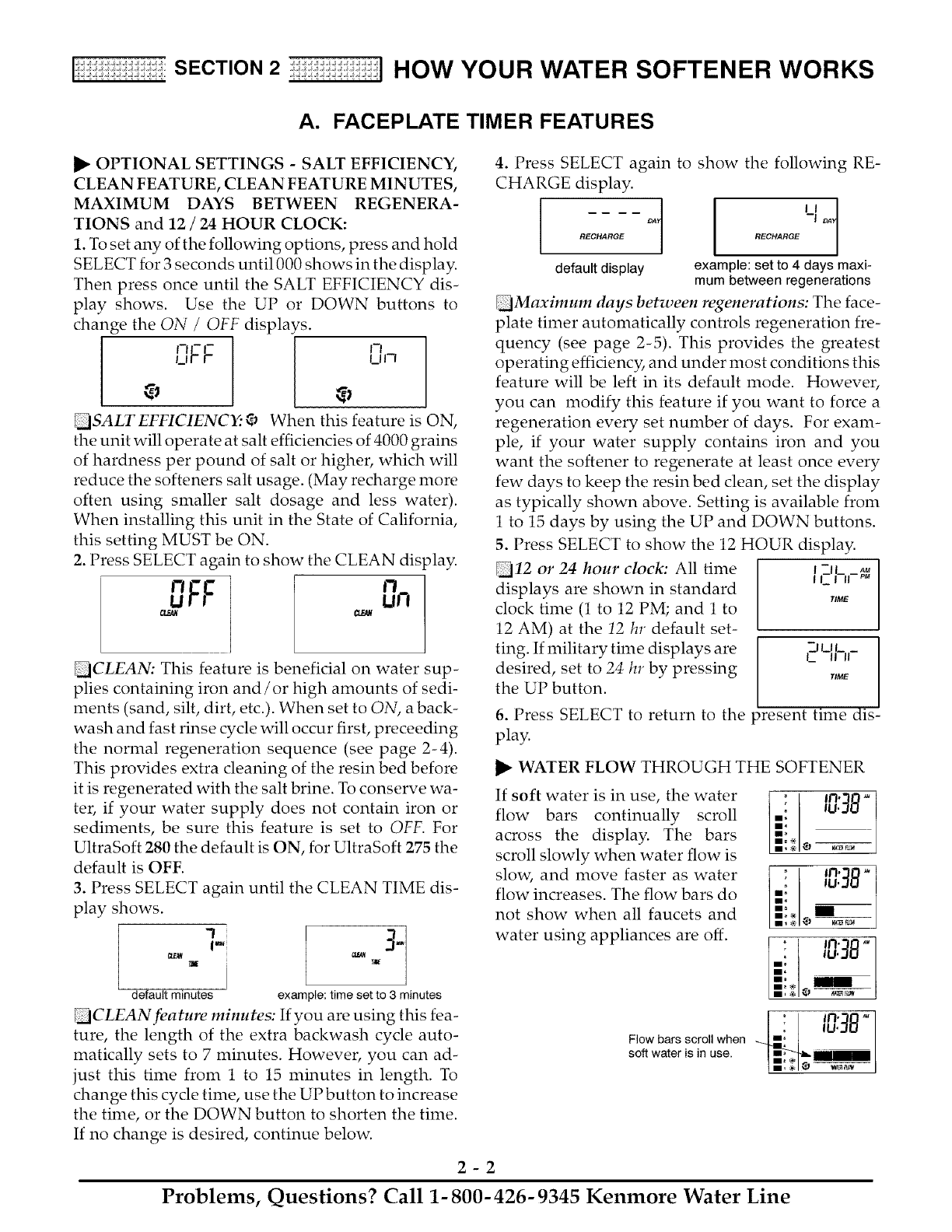

A. FACEPLATE TIMER FEATURES

OPTIONAL SETTINGS - SALT EFFICIENCY,

CLEAN FEATURE, CLEAN FEATURE MINUTES,

MAXIMUM DAYS BETWEEN REGENERA-

TIONS and 12 /24 HOUR CLOCK:

1. To set any of the following options, press and hold

SELECT for 3 seconds until 000 shows in the display.

Then press once until the SALT EFFICIENCY dis-

play shows. Use the UP or DOWN buttons to

change the ON / OFF displays.

I I

U I- F I_1I-1

[]SALT EFFICIENCY: _,_ When this feature is ON,

the unit will operate at salt efficiencies of 4000 grains

of hardness per pound of salt or higher, which will

reduce the softeners salt usage. (May recharge more

often using smaller salt dosage and less water).

When installing this unit in the State of California,

this setting MUST be ON.

2. Press SELECT again to show the CLEAN display.

DFF PJn

[]CLEAN: This feature is beneficial on water sup-

plies containing iron and/or high amounts of sedi-

ments (sand, silt, dirt, etc.). When set to ON, a back-

wash and fast rinse cycle will occur first, preceeding

the normal regeneration sequence (see page 2-4).

This provides extra cleaning of the resin bed before

it is regenerated with the salt brine. To conserve wa-

ter, if your water supply does not contain iron or

sediments, be sure this feature is set to OFF. For

UltraSoft 280 the default is ON, for UltraSoft 275 the

default is OFF.

3. Press SELECT again until the CLEAN TIME dis-

play shows.

1,- [3"

default minutes example: time set to 3 minutes

[CLEAN feature minutes: If you are using this fea-

ture, the length of the extra backwash cycle auto-

matically sets to 7 minutes. However, you can ad-

just this time from 1 to 15 minutes in length. To

change this cycle time, use the UP button to increase

the time, or the DOWN button to shorten the time.

If no change is desired, continue below.

4. Press SELECT again to show the following RE-

CHARGE display. ot i R c ARo :'°At

default display example: set to 4 days maxi-

mum between regenerations

[]Maximum days between iKgenerations: The face-

plate timer automatically controls regeneration fre-

quency (see page 2-5). This provides the greatest

operating efficiency, and under most conditions this

feature will be left in its default mode. However,

you can modify this feature if you want to force a

regeneration every set number of days. For exam-

ple, if your water supply contains iron and you

want the softener to regenerate at least once every

few days to keep the resin bed clean, set the display

as typically shown above. Setting is available from

1 to 15 days by using the UP and DOWN buttons.

5. Press SELECT to show the 12 HOUR display.

[12 or 24 hour clock: All time J-aC _

displays are shown in standard Ir I ,-pM

clock time (1 to 12 PM; and 1 to T,M_

12 AM) at the 12 hr default set- .Ziu i_ _

ting. If military time displays are L IJ .

desired, set to 24 hr by pressing

the UP button. T_M_

6. Press SELECT to return to the present time dis-

play.

WATER FLOW THROUGH THE SOFTENER

If soft water is in use, the water

flow bars continually scroll

across the display. The bars

scroll slowly when water flow is

slow, and move faster as water

flow increases. The flow bars do

not show when all faucets and

water using appliances are off.

Flow bars scroll when _'_ I ID:_8 "

2-2

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _,i_ !! _,i_ SECTION 2 :i !! _,i_ !! _,i_i] HOW YOUR WATER SOFTENER WORKS

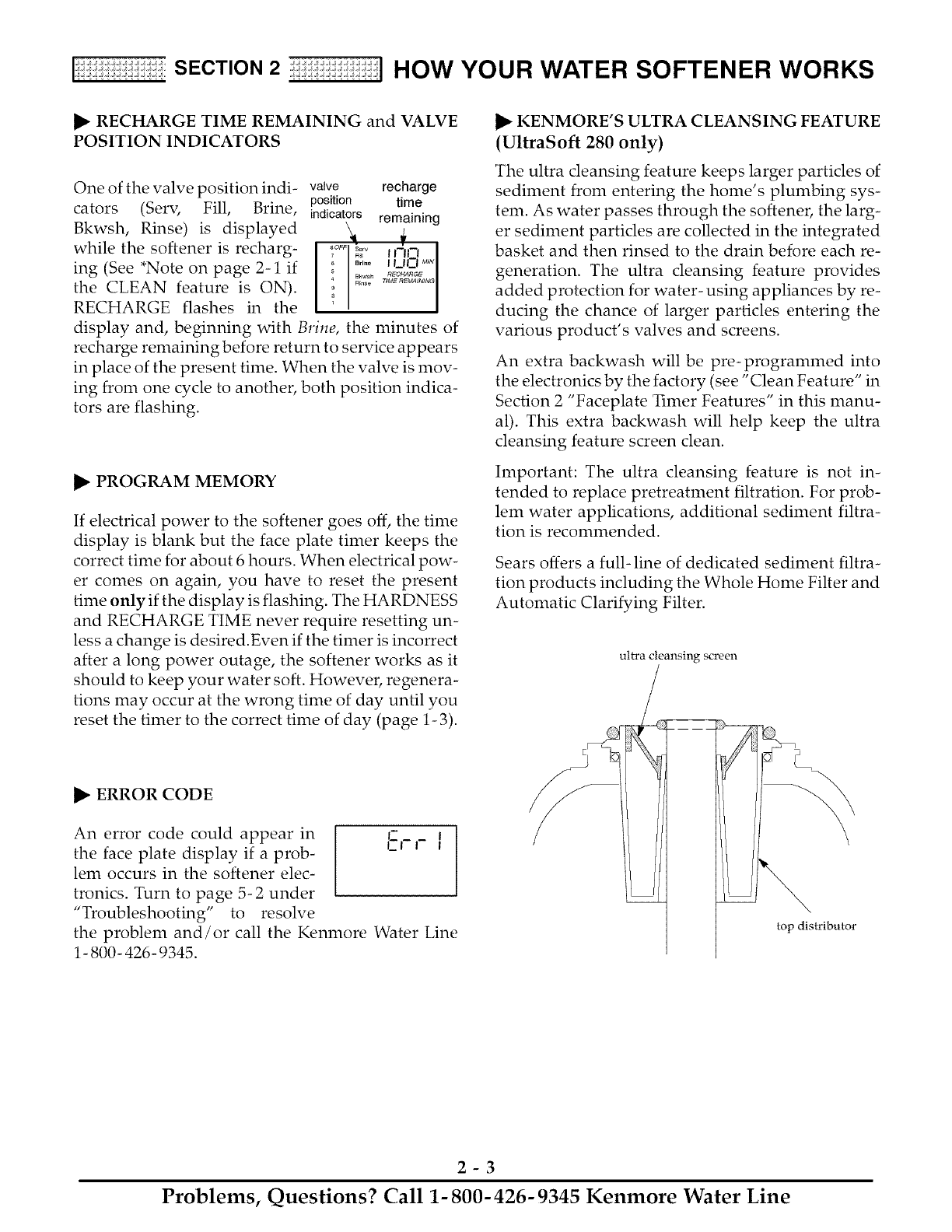

RECHARGE TIME REMAINING and VALVE

POSITION INDICATORS

One of the valve position indi-

cators (Serv, Fill, Brine,

Bkwsh, Rinse) is displayed

while the softener is recharg-

ing (See *Note on page 2-1 if

the CLEAN feature is ON).

RECHARGE flashes in the

valve recharge

position time

indicators remaining

I i I

,oy,:, TNi

TIME REMAININ_._ I

display and, beginning with Brine, the minutes of

recharge remaining before return to service appears

in place of the present time. When the valve is mov-

ing from one cycle to another, both position indica-

tors are flashing.

PROGRAM MEMORY

If electrical power to the softener goes off, the time

display is blank but the face plate timer keeps the

correct time for about 6 hours. When electrical pow-

er comes on again, you have to reset the present

time only if the display is flashing. The HARDNESS

and RECHARGE TIME never require resetting un-

less a change is desired.Even if the timer is incorrect

after a long power outage, the softener works as it

should to keep your water soft. However, regenera-

tions may occur at the wrong time of day until you

reset the timer to the correct time of day (page 1-3).

ERROR CODE

An error code could appear in C_ _

I_1 I

the face plate display if a prob-

lem occurs in the softener elec-

tronics. Turn to page 5-2 under

"Troubleshooting" to resolve

the problem and/or call the Kenmore Water Line

1- 800- 426- 9345.

KENMORE'S ULTRA CLEANSING FEATURE

(UltraSoft 280 only)

The ultra cleansing feature keeps larger particles of

sediment from entering the home's plumbing sys-

tem. As water passes through the softener, the larg-

er sediment particles are collected in the integrated

basket and then rinsed to the drain before each re-

generation. The ultra cleansing feature provides

added protection for water-using appliances by re-

ducing the chance of larger particles entering the

various product's valves and screens.

An extra backwash will be pre-programmed into

the electronics by the factory (see "Clean Feature" in

Section 2 "Faceplate Timer Features" in this manu-

al). This extra backwash will help keep the ultra

cleansing feature screen clean.

Important: The ultra cleansing feature is not in-

tended to replace pretreatment filtration. For prob-

lem water applications, additional sediment filtra-

tion is recommended.

Sears offers a full- line of dedicated sediment filtra-

tion products including the Whole Home Filter and

Automatic Clarifying Filter.

ultra cleansing screen

top distributor

2-3

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_ SECTION 2_i:!!! :i:_!! :i _i] HOW YOUR WATER SOFTENER WORKS

B. SOFT WATER SERVICE and REGENERATION

SERVICE

When the softener is giving you soft water, it is

called "Service". During service, hard water comes

from the house main water pipe into the softener.

Inside the softener resin tank is a bed made up of

thousands of tiny, plastic resin beads (FIG. 5). As

hard water passes through the bed, each bead at-

tracts and holds the hardness minerals. This is

called ion-exchanging. Water without the hardness

minerals (soft water) flows out of the softener and

into the house soft water pipes.After a period of

time, the resin beads hold all of the hardness miner-

als they can, and cleaning with salt brine is needed.

This cleaning is called regeneration or recharge. Re-

generation is started at 2:00 a.m. by the electronic

timer (see page 2-6). It takes place in 5 stages or

cycles. These are:

[] FILL [] BACKWASH

[] BRINING [] FAST RINSE

[] BRINE RINSE

Note:

If the Clean feature is set to ON, additional back-

wash and fast rinse cycles occur before the fill cycle.

Water Flow Through

the Softener in Service

soft water hard water

OUT IN

salt storage

tank (salt

not shown)

brine valve

\resin tank

resin bed

REGENERATION

[] FILL: Salt, dissolved in water, is called brine.

Brine is needed to dean the hardness minerals from

the resin beads. To make the brine, water flows into

the salt storage area during the fill stage as shown

in FIG. 6. Fill cycle length depends on how much

soft water making capacity you have used since the

last regeneration. As you use more water, fill time

increases so more brine is made. The greater

amount of brine cleans more hardness minerals

from the resin bed.

Water Flow Through

the Softener in Fill

soft water hard water

OUT IN

salt storage

tank

brine valve

fill water

2-4

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_ SECTION 2:i:!!! :i:_!! :i :_i] HOW YOUR WATER SOFTENER WORKS

B. SOFT WATER SERVICE and REGENERATION

[] BRINING: During brining, the brine is moved

from the salt storage area, into the resin tank. Inside

the resin tank, brine cleans hardness minerals from

the resin beads and they are discharged out the

drain. How much brine is needed to clean the resin

depends on:

- - the amount of service water used between regen-

erations,

- -the amount of resin in the softener,

--how fast the brine goes through the bed.

The nozzle and venturi (FIG. 7) makes suction to

take brine from the salt tank and put it into the resin

tank. They keep the brine flow down to a very slow

rate to get the best resin cleaning with the least salt.

[] BRINE RINSE: After all of the brine is moved

into the resin tank, the brine valve closes. Water

keeps flowing the same way it did during brining

except the brine flow has stopped. Hardness miner-

als and brine flush from the resin tank to the drain.

Brining and brine rinse together vary in the length

of time they take, relative to the fill cycle length.

Water Flow Through the Softener

in Brining and Brine Rinse

hard water hard water

bypass OUT t !IN

brine valve

drain

brine

_]1 BACKWASH: During backwash, water flows

UP through the resin tank (FIG. 8) at a fast rate to

flush iron minerals, dirt and sediments from the bed

and to the drain. The bed lifts and expands for good

cleaning.

Water Flow Through the

Softener in Backwash

hard water hard water

bypass OUT tfIN

drain

resin bed lifted

and expanded

[] FAST RINSE: Backwash is followed by a fast

flow of water down through the resin tank. The fast

flow packs the resin bed and gets it ready for return

to service (FIG. 9).

After fast rinse, the softener returns to service. Hard

water goes into the resin tank where the resin bed

again takes out the hardness minerals. Soft water

goes to the house soft water pipes.

Water Flow Through the

Softener in Fast Rinse

soft water hard water

°°'0 !'"

drain

2-5

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _,i_ !! _,i_ SECTION 2_i_!!! _i_ !! _i_ I HOW YOUR WATER SOFTENER WORKS

B. SOFT WATER SERVICE and REGENERATION

AUTOMATIC BYPASS

During the brining, brine rinse and backwash cycles

of regeneration, HARD water goes through the soft-

ener valve and to the house pipes. If a faucet is

opened, hard water is there for your needs. Howev-

er, you should not use hot water, if possible, because

the water heater will refill with hard water. The soft-

ener, as factory programmed, regenerates from 2:00

AM to about 4:20 AM, a time when not much water

is used.

If you start your day prior to 4 AM, you may need

to change the recharge starting time. Set the re-

charge time to 12:00 AM or 1:00 AM (page 1-4).

Then regeneration will start and end that much ear-

lier and your water heater will not refill with hard

water if a hot faucet is opened.

ELECTRONICS

Two main parts of the softener's electronics are

a WATER METER, and _ a COMPUTER.

WATER METER-- The water meter is in the soft-

ener valve outlet. As water flows through the meter,

it sends electric pulses to the computer. The com-

puter changes the pulses to a measure in gallons of

water.

COMPUTER--The computer is part of the face-

plate timer circuit board. It is programmed to know

the softener's capacity (how many grains of hard-

ness minerals it will take out of the water before a re-

generation is needed). When starting the softener,

page 1-4, you set it for the grains per gallon (gpg)

hardness of the water.

To find a regeneration pattern best for your needs,

the computer uses: (1) water usage from the meter,

(2) hardness setting, (3) softener capacity, and (4)

time since the last regeneration. The computer al-

ways adjusts this pattern to your water using hab-

its. It works toward providing you with soft water

for the longest time and at the most efficient salt

usage.

Softening capacity is used as hard water goes

through the softener and hardness minerals are re-

moved. When the computer determines that only

enough capacity remains to provide soft water up to

the next regeneration starting time (2:00 AM, or as

otherwise set) it will schedule a regeneration. When

the regeneration begins, *RECHARGE or RE-

CHARGE TIME REMAINING flashes during the re-

generation.

* Note:

If the CLEAN feature is set to ON, a cleaning back-

wash (CLEAN and Blczvsh or Rinse flashes in the dis-

play, along with the minutes of the clean cycle re-

maining), precedes the recharge.

2-6

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_!! :i:_!! :i SECTION 3CARE OF YOUR WATER SOFTENER

A. SALT: ADDING SALT TO STORAGE TANK, SALT BRIDGE

,JJJJJJJJJJJJJJJJ.

,JJJJ JJJJJJJJJJJ.

'dJ_dJdJdJdJ.

,JJ JJJJJJJJJ.

,JJJJ JJJJJJJJJ.

,JJ JJJJJJJJJ.

_dJ dJdJdJdJ.

,JJJJJJJJJJJJJJJJ.

WHEN TO ADD SALT: The Salt

Monitor System (see page 2-1)

will turn the low salt light on to

warn you when to refill with salt.

Check for a low salt light a few

weeks after you install the soften-

er, and every week after that. Add

salt at about the #2 salt monitor

level. At this level, the tank is

about 1/3 full. Never let the softener use all the salt

before refilling. Without salt, you will soon have

hard water. After filling, reset the Salt Monitor Sys-

tem, page 2-1.

Note:

You will have a loss in softening capacity and may

get partly hard water if less than 10 inches (salt mon-

itor level 2) of salt is in the storage tank.

PLEASE SEE PAGE 1-6 FOR SALT FILLING DIRECTIONS.

BE SURE TO RESET THE SALT MONITOR, PAGE 2-1.

SALT BRIDGE

Sometimes, a hard crust or salt bridge forms in the

salt storage tank. It is usually caused by high hu-

midity or the wrong kind of salt. When the salt

bridges, an empty space forms between the water

and salt. Then salt will not dissolve (melt) in the wa-

ter to make brine. Without brine, the resin bed does

not regenerate and you will have hard water.

If the storage tank is full of salt, it is hard to tell if you

have a salt bridge. Salt is loose on top, but the bridge

is under it. The following is the best way to check for

a salt bridge.

Salt should be loose all the way to the bottom of the

tank. Hold a broom handle, or like tool, up to the

softener as shown in FIG. 10. Make a pencil mark on

the handle, 1" or 2" below the top height of the rim.

Then, carefully push it straight down into the salt.

If a hard object is felt before the pencil mark gets to

the top of the tank, it's most likely a salt bridge.

Carefully push into the bridge in a few places to

break it. Do not try to break the salt bridge by

pounding on the outside of the salt tank. You may

damage the tank.

push tool into salt

bridge to break _ \\

1" _ 2 '_

pencil

mark

broom handle

Salt Bridge

salt

_-- salt bridge

water level

If the wrong kind of salt made the bridge, take it out.

Then fill the tank with nugget or pellet salt only.

3-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :;:_!! :;:_!! :; SECTION 3CARE OF YOUR WATER SOFTENER

B. KEEPING THE WATER SOFTENER CLEAN

NOZZLE & VENTURI

A clean nozzle and venturi (FIG. 11) is a must for the

softener to work right. This small unit moves brine

from the salt storage tank to the resin tank during re-

generation. If it becomes plugged with sand, silt,

dirt, etc., the softener will not work and you will get

hard water.

To get to the nozzle and venturi, remove the softener

top cover. Be sure the softener is in service cycle (no

water pressure at nozzle and venturi).

1) Turn off the cap from the nozzle and venturi hous-

ing.

2) Lift out the screen support and screen, do not lose

the Im_e o-ring seal.

3) Then the nozzle and venturi. Wash and rinse the

parts in warm water until clean. If needed, use a

small brush to remove iron or dirt. Also check and

clean the gasket, flow plugs and screens.

Carefully replace all parts in the correct order. Lu-

bricate the o-ring seal with silicone grease or Vase-

line and place in position. Install and tighten the

cap, by hand only. Do not overtighten, which

may break the cap or housing.

Cleaning Nozzle & Venturi

Cap _

O-ring Seal _.._._

Screen Support _

Screen _........_ _

"°zze2vC --

tered directly over the small

holes in the nozzle & venturi

housing.

*Flow Plug

(HVDC)

Nozzle & Venturi

Housing

*Flow Plug

Screen

*Install with numbered side up concave

side down. Be sure the largest flow plug is

located in the nozzle & venturi housing.

IRON FROM RESIN BED

Your water softener takes hardness minerals (cal-

cium and magnesium) out of the water. It can also

control some "clear water" iron. See maximum al-

lowed in the specifications on page 4-1. With clear

water iron, water from a faucet is clear when first

put into a glass. After 15 to 30 minutes, the water be-

gins to cloud or turn rust colored. A water softener

WILL NOT remove any iron which makes the water

cloudy or rusty as it comes from the faucet (called

red water iron). To take red water iron out of water,

or over the maximum of clear water iron, an iron fil-

ter or other equipment is needed. Your local Sears

store has trained people to help you with iron water

problems.

If your water supply has clear water iron, even

though less than the maximum allowed, regular

resin bed cleaning is needed. Your local Sears store

has resin bed cleaner, Item No. 42-34426 for this.

Clean the bed at least every 6 months. If iron shows

up in the soft water before 6 months, clean more

often. Printed instructions are on the resin bed

cleaner bottle.

3-2

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :i:_ !! :i:_ !! :i SECTION 3CARE OF YOUR WATER SOFTENER

C. PROTECT THE WATER

If the softener is installed where it could freeze

(summer cabin, lake home, etc.), you must drain all

water from it to stop possible freeze damage. To

drain the softener:

_[I Close the shut-off valve on the house main wa-

ter pipe, near the water meter or pressure tank.

_! Open a faucet in the soft water pipes to vent

pressure in the softener.

_ Refer to FIG. 14 on page 4-1. Move the stem in

a single bypass valve to bypass. Close the inlet

and outlet valve in a 3-valve bypass system, and

open the bypass valve. If you want water in the

house pipes again, reopen the shut-off valve on

the main water pipe.

_ Unplug the transformer at the wall outlet. Re-

move the salt hole cover and the main cover.

Take off both drain hoses.

_Carefully remove the large holding clips at the

softener inlet and outlet (see Key No. 67, on page

6-5). Separate the softener from the copper

tubes, or from the bypass valve.

SOFTENER FROM FREEZING

Drain All Water From Softener

_€_ Remove the brinewell cover and disconnect the

drain wood block

brine valve tubing at the nozzle and venturi as-

sembly (see page 3-2). Lift the brine valve out of

the brinewell. Tip the brine valve upside down

to drain water.

Looking at FIG. 12, lay a piece of 2 inch thick

board near the floor drain. Move the softener

close to the drain. SLOWLY and CAREFULLY,

tip it over until the rim rests on the wood block

with the inlet and outlet over the drain. Do not

allow the softener's weight to rest on the inlet

and outlet fittings or they will break.

Tip the bottom of the softener up a few inches

and hold until all water has drained. Leave the

softener laying like this until you are ready to

use it. Plug the inlet and outlet with rags to keep

dirt, bugs, etc. out.

3-3

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! :;:_!! :;:_!! :; SECTION 3CARE OF YOUR WATER SOFTENER

D. CHECKLIST ... TO HELP YOU SAVE MONEY

If your water softener fails to work, make the following easy checks. Often, you will find what's wrong your-

self and you won't have to call and wait for service. If you do not find anything wrong, while making the

checks, and your softener still does not work, call your Sears Service Department.

Note:

1. Also read ERROR CODE, page 2-3.

2. If an error code is not displayed, press and hold the SELECT button until the display changes. Then, press

the SELECT button again and hold until a flashing SR code appears. It must show SR33. If any other number

shows, the face plate computer is working on incorrect input and would probably be the cause of the problem.

To set SR33, press either the UPI2_ or DOWN[_ button. When correct model code shows, press SELECT to

return a flashing 12:00 AM display. Reset the present time, hmdness numbe_, etc., pages 1-3 and 1-4.

PROBLEM CAUSE CORRECTION

No soft water No salt (or salt bridged) in the storage tank

Transformer unplugged at the wall outlet,

or power cable leads loose from the

electronic board, fuse blown, circuit

breaker popped, or circuit switched off.

Manual bypass valve(s) in bypass position

Dirty, plugged or damaged nozzle &

venturi

Valve drain hose plugged or restricted

Water hard sometimes Hardness number setting too low

Using hot water when softener is

regenerating

Increase in the grains of hardness in your

water supply

Brine tank flooded Restricted drain line

Plugged or dirty nozzle & venturi

Valve-rotor disc & seals

Add salt, or break the salt bridge (page 3-1).

Press ON/OFF-HOLD (RECHARGE NOW)

button and hold for 3 seconds to start a

regeneration (see page 2-1).

Check for loss of power due to any of these

and correct. With the power back on, look at

the time display and read PROGRAM

MEMORY, page 2-3.

Look at FIG.14 on page 4-1. Move the stem in

a single valve to service. In a 3-valve bypass,

open the inlet and outlet valves, and be sure to

fully close the bypass valve.

Take apart and clean or replace damaged

parts (see page 3-2).

The drain hose must not have kinks, sharp

bends, or be raised too high above the

softener (see page 16 in your installation

manual).

Press and release the SELECT button until

HARDNESS shows in the display. Read the

hardness number in the display and be sure

the same grains per gallon number is shown

on your water analysis report. See page 1-4 to

reset. Press and release the SELECT button

until the present time shows in the display.

Avoid using hot water during this time because

the water heater refills with hard water (see

Automatic Bypass, page 2-6).

Ask your Sears retail store for a new water

analysis. Then make a new hardness number

setting (page 1-4).

Check for kinks, bends or obstructions (see

page 16 in your installation manual).

Take apart and clean or replace damaged

parts (see page 3-2).

Check for scratches or grooves, replace if

needed.

3-4

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _;_ !! _;_ SECTION 4KNOW ABOUT YOUR WATER SOFTENER

,JJJJJJJJJJJJJJJJ.

'JJJ_JJJJJJJJ-

,JJ JJJJJJJJJ.

,JJJJJ JJJJJJJJJ.

_dJ dJd_d_d_.

,JJJJJJJJJJJJJJJJ.

A. DIMENSIONS /SPECIFICATIONS

Salt Tank Height 40-1/4 102.2

Resin Tank Diameter 10 25.4

(nominal)

Resin Tank Height 40 101.6

(nominal)

Inlet-Outlet Height 41-1/2 105.4

Overall Height 47-3/4 121.3

Length 19-3/4 50.2

Width 16-1/2 41.9

Distance between inlet- 3-3/8 8.6

outlet center lines

BYPASS VALVES

Bypass valve(s) should always remain in soft

water service position. Position in "bypass" only

if needed for softener repairs.

SINGLE BYPASS

P_LLS, EM

OUTWARD

FOR

SERVICE

Push

Inward

For

Bypass

3-VALVE BYPASS

FOR SERVICE

close bypass valve

open inlet & outlet valves Outlet

Valve

FOR BYPASS

open bypass valve

close inlet & outlet valve_,__ _

Bypass

_, / Valve

_ Inlet

Valve

TIMER SR CODE SR33

WATER SUPPLY TO WATER SOFTENER

Minimum water system flow (gpm)

Minimum-Max. water pressure (psi)

Minimum-Max. water temperature (°F)

Maximum water hardness (gpg)

Maximum "clear water" iron (ppm)*

SALT FOR WATER SOFTENER

Type of salt needed

Alternate type of salt

20 - 125

40 - 120

100

nugget or pellet

pure, evaporated, compacted

water softener salt

gpm = gallons per minute gpg = grains per gallon

psi = pounds per square inch ppm = parts per million

*Capacity to remove clear water iron is substantiated by WQA test data. State of Wisconsin requires

additional treatment if water supply contains greater than 5 ppm clear water iron.

4-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _;_ !! _;_ SECTION 4KNOW ABOUT YOUR WATER SOFTENER

A. DIMENSIONS /SPECIFICATIONS

Pressure Drop (PSI) vs. Flow Rate (GPM)

8.0 gpm (_) 12 psi

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Flow Rate (GPM)

Intermittent flow rate does not represent the maximum service flow rate used for determining the softeners

rated capacity and efficiency. Continuous operation at flow rates greater than the service flow rate may affect

capacity and efficiency performance.

OTHER SPECIFICATIONS

Type of ion exchange material (resin) high capacity

Amount of resin (cu ft) 1.05

Rated Softening Capacity (Grains @ Pounds Salt Dose) 15,600 @ 3.1

33,600 @ 10.0

40,100@ 16.8

Efficiency Rating (Grains/Pound of Salt @ Minimum Salt Dose) 5040 @ 3.1

Rated Service Flow Rate (gpm) 8,0

Pressure Drop at Rated Service Flow Rate (psi) 12

Max. Drain Flow Rate (gpm) 2,0

These systems conform to NSF/ANSI 44 for the specific performance claims as verified and substantiated

by test data.

The efficiency rating is only valid at the minimum stated salt dosage. These softeners were efficiency rated

according to NSF/ANSI Standard 44.

4-2

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii :i i,:i i i,:i i i,:i i SECTION 5 SERVICE TECH. INFORMATION

,JJJJJJJJJJJJJJJJ.

,JJ JJJJJJJJ.

,JJ JJJJJJJJJ.

_dJ dJdJdJdJ.

,JJJJJJJJJJJJJJJJ.

A. TROUBLESHOOTING

WIRING SCHEMATIC

Transformej II1_

Turbine

Sensor

BACK OF TIMER |

grn

_.I_NO Position

bm Switch

°NC

FACEPLATE f

P. ss o. CusOmerAs , , nce@

TONIGHT 1-800 -426-9345

HOLD FOR ww_KenmoleWatencotn

IMMEDIATE

LOW

SALT

valve

motor

Keep this manual with your water softener. If repairs are needed, the service technician must have

the information on the following 8 pages. For telephone assistance, call toll free, 1-800-426-9345.

ALWAYS MAKE THESE INITIAL CHECKS FIRST _'_ The valve drain hose must be free of kinks and

_Does the time display show the correct time of

day?

--If display is blank, check power source to the

softener.

--If time is flashing, power was off for over 6

hours. The softener resumes normal operation

but regenerations occur at the wrong time.

--If an error code (Example: Err3) shows in the

faceplate display, go to AUTOMATIC ELEC-

TRONIC DIAGNOSTICS, page 5-2.

_1_ Plumbing bypass valve(s) must be fully in ser-

vice position.

_The inlet and outlet pipes must connect to the

softener inlet and outlet respectively.

_Is the transformer plugged into a "live",

grounded wall outlet, and the power cable fas-

tened securely to the controller?

sharp bends, and not elevated over 8 ft. above the

floor.

Is there salt in the storage tank?

Is the brine tubing connected? Brine tubing con-

nects to nozzle venturi and brine valve assembly.

(See page 6- 3)

Is the brine valve float set right? (See page 5-4).

Press the SELECT button two times to display

the hardness setting. Be sure it is the correct set-

ting for the household's water supply. (Make a

hardness test of the raw water and compare with

the hardness setting. Also test a soft water sam-

ple to verify if a problem exists.) Press the SE-

LECT button twice more to return to present time

in the display.

If you do not find the problem after making initial

checks, do the MANUAL INITIATED ELEC-

TRONIC DIAGNOSTICS, and the MANUAL AD-

VANCE REGENERATION CHECK.

5-1

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii:ii,:iii,:iii,:ii SECTION 5 SERVICE TECH. INFORMATION

A. TROUBLESHOOTING

AUTOMATIC ELECTRONIC DIAGNOSTICS

The faceplate timer (PWA) com- I_lll--_ I

puter has a self-diagnostic func-

tion for the electrical system, ex-

cept for input power and water

meter. The computer monitors electronic compo-

nents and circuits for correct operation. Ifa malfunc-

tion occurs, an error code appears in the faceplate

display.

CODE

Err1, Err&

Err4

Err5

The chart below shows the error codes that could

appear, and the possible defects for each code.

While an error code appears in the display, all face

plate buttons are inoperable except the SELECT but-

ton. SELECT remains operational so the service per-

son can make the MANUAL INITIATED ELEC-

TRONIC DIAGNOSTICS (below) to further isolate

the defect, and check the water meter.

POSSIBLE DEFECT

MOST LIKELY _..--' _,. LESS LIKELY

motor inoperative /wiring harness or connection to switch /position switch /valve defect causing

hiqh torque

faceplate timer (PWA)

PROCEDURE FOR REMOVING ERROR CODE FROM FACEPLATE: 1. Unplug transformer from outlet 2. Correct

defect 3. Plug in transformer 4. Wait for 8 minutes. The error code will return if the defect was not corrected.

MANUAL INITIATED ELECTRONICS

DIAGNOSTICS

_l_To enter diagnostics, press the SELECT button

and hold for three seconds.

You will see the following display, showing valve

cycle position, position switch status (open or

closed), and turbine operation.

valve position indicator

indicator (open)

turbine count (water

flowing) _.

;....... /¢-._q [

! 1''U

turbine count (no

water flowing)

TURBINE OPERATION: If no water is flowing

through the softener, the turbine indicator displays

three zeros. When water is flowing, the flow bar

scrolls across the display, and a 000 to 199 count re-

peats for each gallon of water passing through the

turbine. To check for positive operation of the tur-

bine if zeros are shown, open a nearby soft water

faucet and observe the turbine count and flow bar.

If you don't get a reading in the display, with faucet

open, pull the sensor from the valve outlet port.

Pass a small magnet back and forth in front of the

sensor. You should get a reading in the display. If

you get a reading, unhook the in and out plumbing

and check the turbine for binding.

POSITION

SWITCH

SENSOR

VALVE

OUTLET

RBINE

SUPPORT AND

SHAFT

POSITION SWITCH STATUS: With the valve in ser-

vice, or any of the recharge cycles, the switch indica-

tor will show open .-,x... While the valve is rotating

from one position to another, the indicator will

show the switch closed -,'-. A defect is probable if

indications vary from this pattern.

5-2

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

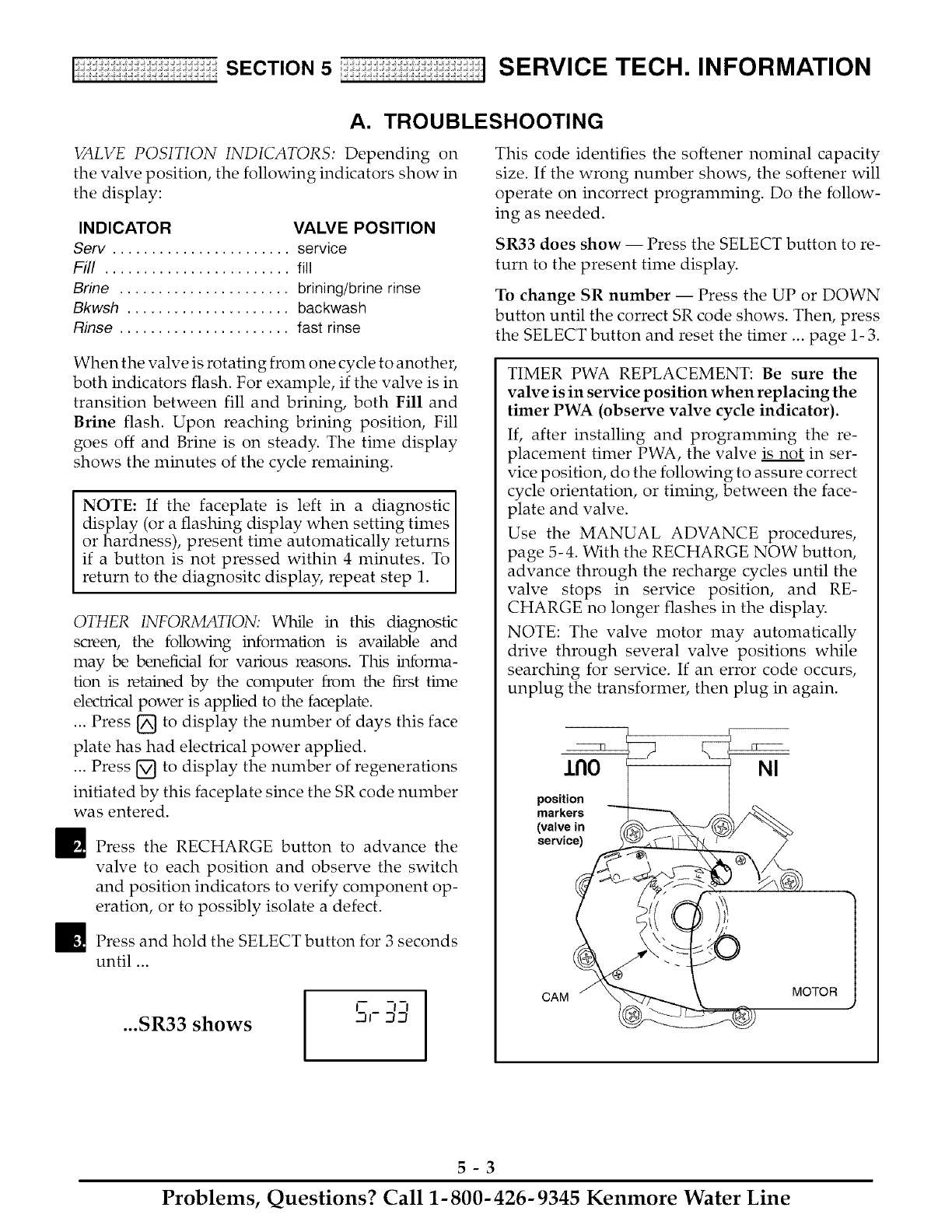

[ii:ii,:iii,:iii,:ii SECTION 5 SERVICE TECH. INFORMATION

A. TROUBLESHOOTING

VALVE POSITION INDICATORS: Depending on

the valve position, the following indicators show in

the display:

INDICATOR VALVE POSITION

Serv ....................... service

Fill ........................ fill

Brine ...................... brining/brine rinse

Bkwsh ..................... backwash

Rinse ...................... fast rinse

When the valve is rotating from one cycle to another,

both indicators flash. For example, if the valve is in

transition between fill and brining, both Fill and

Brine flash. Upon reaching brining position, Fill

goes off and Brine is on steady. The time display

shows the minutes of the cycle remaining.

NOTE: If the faceplate is left in a diagnostic I

display (or a flashing display when setting times I

or hardness), present time automatically returns I

if a button is not pressed within 4 minutes. To I

return to the diagnositc display, repeat step 1. I

OTHER INFORMATION: While in this diagnostic

screen, the following information is available and

may be beneficial for various reasoRs. This informa-

tion is retained by the computer from the first time

ek-_rical power is applied to the faceplate.

... Press [] to display the number of days this face

plate has had electrical power applied.

... Press [] to display the number of regenerations

initiated by this faceplate since the SR code number

was entered.

ImPress the RECHARGE button to advance the

valve to each position and observe the switch

and position indicators to verify component op-

eration, or to possibly isolate a defect.

ImPress and hold the SELECT button for 3 seconds

until ... Iidd

...SR33 shows

This code identifies the softener nominal capacity

size. If the wrong number shows, the softener will

operate on incorrect programming. Do the follow-

ing as needed.

SR33 does show -- Press the SELECT button to re-

turn to the present time display.

To change SR number -- Press the UP or DOWN

button until the correct SR code shows. Then, press

the SELECT button and reset the timer ... page 1- 3.

TIMER PWA REPLACEMENT: Be sure the

valve is in service position when replacing the

timer PWA (observe valve cycle indicator).

IL after installing and programming the re-

placement timer PWA, the valve is not in ser-

vice position, do the following to assure correct

cycle orientation, or timing, between the face-

plate and valve.

Use the MANUAL ADVANCE procedures,

page 5-4. With the RECHARGE NOW button,

advance through the recharge cycles until the

valve stops in service position, and RE-

CHARGE no longer flashes in the display.

NOTE: The valve motor may automatically

drive through several valve positions while

searching for service. If an error code occurs,

unplug the transformer, then plug in again.

.i.no NI

position

markers

(valve in

service)

CAM

5-3

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii:ii,:iii,:iii,:ii SECTION 5 SERVICE TECH. INFORMATION

A. TROUBLESHOOTING

MANUAL ADVANCE REGENERATION CHECK

This check verifies proper operation of the valve

motor, brine tank fill, brine draw, regeneration flow

rates, and other controller functions. Always make

the initial checks, and the manual initiated diag-

nostics.

Notes:

The faceplate display must show a steady time (not

flashing). If an error code shows, first press the SE-

LECT button to enter the diagnostic display.

_ Press the RECHARGE button and hold in for 3

seconds. *RECHARGE and Fill begin to flash (or

clean backwash begins, if set) as the softener en-

ters the fill cycle of regeneration. When FILL is on

steady, remove the brinewell cover and, using a

flashlight, observe fill water entering the tank.

*Note:

If the CLEAN feature is set to ON, a cleaning back-

wash (CLEAN and Bkzosh or Rinse flashes in the dis-

play, along with the minutes of the clean cycle re-

maining), precedes the recharge.

a. If water does not enter the tank, look for an ob-

structed nozzle, venturi, fill flow plug, brine tubing,

or brine valve riser pipe.

CYCLE FLOW RATES (GALLONS PER MIN.)

FILL (flow to salt storage tank) 0.3 (1.1 liters)

BRINING '_ .22 (.83 liters)

BRINE RINSE I (flow .15 (.57 liters)

MAX. BACKWASH drain) 2.0 (7.6 liters)

MAX. FAST RINSE 2.0 (7.6 liters)

_ After observing fill, press the RECHARGE but-

ton to move the softener into brining. A slow

flow of water to the drain will begin. Verify brine

draw from the brine tank by shining a flashlight

into the brinewell and observing a noticeable

drop in the liquid level.

Note:

Be sure a salt bridge is not preventing water with

salt contact.

a. If the softener does not draw brine ...

...nozzle and/or venturi dirty or defective. See page

3-2

...nozzle and venturi not seated properly on gasket.

See page 3-2

...restricted drain (check drain fitting and hose).

...defective nozzle and venturi seal. See page 3-2

...other inner valve defect (rotor seal, rotor & disc,

wave washer, etc.).

Note: If water system pressure is low, an elevated

drain hose may cause back pressure, stopping brine

draw.

_1_ Again press RECHARGE to move the softener

into backwash. Look for a fast flow of water from

the drain hose.

a. An obstructed flow indicates a plugged top dis-

tributor, backwash flow plug, or drain hose.

_ Press RECHARGE to move the softener into fast

rinse. Again look for a fast drain flow. Allow the

softener to rinse for a few minutes to flush out

any brine that may remain in the resin tank from

the brining cycle test.

_To return the softener to service, press RE-

CHARGE.

BRINE VALVE

,' FLOAT SETTING

5-4

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii _ii_i i i_i i i_i i SECTION 5 SERVICE TECH. INFORMATION

B. ROTARY VALVE SERVICE

Before working on the valve, turn off the water sup-

ply and disconnect from electrical power. TO RE-

LIEVE PRESSURE:

•3 VALVE BYPASS: Close the inlet valve and open

a soft water faucet. Then close the outlet valve and

open the bypass valve.

• SEARS SPECIAL BYPASS: Slide the bypass valve

stem to bypass position. Loosen three hex head

screws toward the back side of the valve to allow

pressure water to bleed out. Catch water with a rag.

DISASSEMBLY

To remove a part or group of parts, refer to the valve

drawing. A common screwdriver or nut driver,

Phillips screwdriver and pliers are the only tools

needed to completely disassemble.

SERVICING THE VALVE

Inspect all o-rings, seals and gaskets for wear or de-

fects.

Inspect the bottom surface of the rotor for scratches,

chips or wear.

Then, turn the rotor (clockwise only) to service posi-

tion. Tighten the screws using a criss-cross pattern.

If a torque wrench is available, torque to 30-40 inch

pounds. Do not over tighten.

Lubricate the gear on the motor, and the valve cam

gear with Molykote grease, or other high quality

gear lubricant.

Be sure to orient switch as shown, with lever toward

the cam.

. __otor

motor plate

Note:

If replacement is needed, be sure to use the current

replacement part.

ASSEMBLY

Be sure all parts are in place and in the proper posi-

tion. Lubricate ALL o-rings and seals with FDA ap-

proved silicone grease. To install the rotor seal, first

place the seal into the valve groove, rounded side

down (see cross-section). Apply a light coating of

silicone grease to the seal's crossing ribs. Then, care-

fully center the wear strip on the seal, and push it

downward onto the seal.

Install the nozzle and venturi seal and drain seal.

Assemble wave washer bearing, the wave washer,

and two o-rings onto the rotor top shaft. Then center

the rotor in the valve body, on the rotor seal.

Lower the cover onto the valve body and rotor shaft.

Then install the cover holding screws. Before tight-

ening the screws, install the valve cam and gear.

wear- stri

seal

o-ring seals _

wave washer

rotor & disc -....

see Nozzle

assembly

service,

page 3- 2

o- ring

rotor seal

drain seal

nozzle & venturi seal

5-5

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii:ii,:iii,:iii,:ii SECTION 5 SERVICE TECH. INFORMATION

C. WATER FLOW THROUGH THE SOFTENER VALVE

SERVICE CYCLE

from Valve Inlet

(hard water)

To Valve Outlet

(soft water)

resin

I bed

bottom distributor __-_/

distributor

resin tank

position

switch

Hard water enters the valve inlet port. Internal valve porting routes the

water down and out the top distributor, into the resin tank. Hard water is

softened as it passes through the resin bed, then enters the bottom

distributor. Soft water flows back into the valve and out the valve outlet, to

the house soft water pipes.

FILL CYCLE

position switch valve cam

venturi

rotor &disc

fill flow from Valve Inlet

plug (hard water)

fill water

(soft) top distributor

To Valve Outlet

(soft water) ¢

resin

bed

bottom distributor ___41

resin

bed

resin tank __

position -- 7"1

switch

To begin a regeneration, the electronic timer energizes the circuit to the valve

motor. The valve motor rotates the rotor and disc and the valve cam until the

position switch lever drops, to open the motor circuit and position the valve in

FILL. As the rotor and disc rotates, the port opens for SOFT water fill through

the venturi. Fill flow continues to the brine valve, and into the salt storage

tank. Soft water is still available to the house lines.

5-6

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii:ii,:iii,:iii,:ii SECTION 5 SERVICE TECH. INFORMATION

C. WATER FLOW THROUGH THE SOFTENER VALVE

BRINING AND BRINE RINSE CYCLES

venturi

nozzle from Valve Inlet

brine from sal_ • (hard water)

storage tank

water

to valve outlet

After fill, timer/switch action allows the motor to turn the rotor and disc into

BRINING position. Water flow is directed to the nozzle. Suction, created by the

nozzle and venturi, draws brine from the salt storage tank and injects it into the

resin bed via the bottom distributor. Flow continues out the top distributor and to

the drain. Hard water is available at the valve outlet.

When the brine valve closes to end brine draw, water flow continues in the same

directions to slowly RINSE brine from the resin bed and to the drain.

bypass

water

to valve out-

let

BACKWASH CYCLE

flow plug

drain

Timer/switch action again allows the motor to turn

the rotor & disc to place the valve in BACKWASH,

stopping water flow to the nozzle. Water is routed

down and out the bottom distributor, up through the

bed, and out the top distributor to the drain. The fast

flow (controlled by a flow plug in the drain fitting)

flushes dirt, sediments, iron deposits, remaining brine

and hardness to the drain.

I I sPOwtffci_n

5-7

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[ii _ii_i i i_i i i_i i SECTION 5 SERVICE TECH. INFORMATION

C. WATER FLOW THROUGH THE SOFTENER VALVE

FAST RINSE CYCLE

drain

soft water

to valve outlet

t\ \

positio_ _

switch

During FAST RINSE, the rotor & disc is positioned so water flow enters the

resin tank through the top distributor, and exits through the bottom

distributor, to the drain.

The electronic timer again energizes the motor to return the valve to

service. As the valve rotates, the position switch lever drops to open the

circuit. The valve remains positioned in service until the electronic timer

initiates the next regeneration.

5-8

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

SECTION6 REPAIR PARTS FOR WATER SOFTENER

,JJJJJJJJJJJJJJJJ.

,JJJJ JJJJJJJJJJ.

'dJd_dJdJdJdJ.

,JJ JJJJJJJJJ.

,JJ JJJJJJJJ.

,JJ JJJJJJJJJ.

_dJ dJdJdJdJ.

,JJJJJJJJJJJJJJJJ.

Kenmore MODEL NOS. 625.388270 and 625.388280

Rating

Decal Location

O S 25

6-1

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

SECTION6 REPAIR PARTS FOR WATER SOFTENER

Kenmore MODEL NOS. 625.388270 and 625.388280

KEY

NO.

2 7230020

3 7229998

-7264566

4 7252373

5 7268625

6 7230038

- 7268081

- 7264443

7 7231571

8 7265025

9 7219888

10 7082150

11 7003847

12 7100819

13 7137913

14 7257307

15 7232250

16 0900431

17 1103200

18 9003500

19 7116488

20 7105047

21 0502272

22 7235478

23 7170270

24 7077870

25 7170254

26 7170296

27 7141001

28 7176292

29 7088033

• 3442699

• 7144821

A. WATER SOFTENER COMPLETE

PART DESCRIPTION

NUMBER

7258997

7276547

Cover Lock (req'd for ship. only)

Rim Insert (req'd for shipping only)

Cover (main)

Salt Hole Cover (order following decal)

Instruction Decal

Transformer, 24V-1OVA •

Timer Rept. (PWA)

Faceptate (order following decal)

Faceptate Decal, UItraSoft 275

Faceptate Decal, UItraSoft 280

Rim

Ultra Cleansing Screen, UItraSoft 280 only

BrineweII Cover

Wing Nut, 1/4"

O-Ring

Brinewell

Decal, Salt Level

Salt Storage Tank

Plastic Screw, 1/4" x 5/8"

Tube Clamp •

Tube Adaptor •

Grommet •

Brine Valve Asm. (also see pages 6-3, 6-4)

Replacement Distributor

Resin

Resin Tank (incl. Key No. 21)

O-Ring, 2-3/4" x 3"

Top Distributor

O-Ring, 13/16" x 1-1/16"

O-Ring, 2-7/8" x 3-1/4"

Vapor Barrier

Clamp Section (2 req.)

Clamp Retainer (2 req.)

Resin Bed Cleaner

Parts Bag, (includes parts marked with a •,

pages 6-2, 6-4 & 6-6) - order manuals

separtateIy if needed.

Installation Manual

Owners Manual

• not illustrated.

Aligns with top of brineweII.

• included in parts bag.

6-2

Problems, Questions? Call 1-800-426-9345 Kenmore Water Line

[i!i !! _;_!! _;_ SECTION 6REPAIR PARTS FOR WATER SOFTENER

Kenmore MODEL NOS. 625.388270 and 625.388280

INLET -OUTLET

GROUNDING CLAMPS

6-3

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _i_ !! _i_ SECTION 6REPAIR PARTS FOR WATER SOFTENER

Kenmore MODEL NOS. 625.388270 and 625.388280

B. BRINE VALVE ASSEMBLY

KEY PART

NO. NUMBER

30 7168647

31 0513860

32 7097202

33 0516947

34 7093216

35 7092278

36 7170288

37 0516211

38 0516924

39 1205500

40 7092252

41 7080653

42 7131365

43 7094979

44 7092294

45 7176161

46 7095470

47 7113016

48 7171349

49 7248706

DESCRIPTION

Ceramic Weight

Float Stop

Float (includes Key No. 33)

Float Seal

Float Rod & Stem

Guide Cap

O-Ring 15/16 x 1-3/16

Seal

Retainer, Bottom Seal

Clip

Brine Valve Body

Clip

Screen

Insert

Retaining Ring

O-Ring, 5/16 x 9/16

Brine Tube

Tubing Assy. (includes Key Nos. 43, 44 & 45)

Cone Screen

Grounding Kit •

• included in parts bag, see page 6-2.

6-4

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _;:_!! _;:_ SECTION 6REPAIR PARTS FOR WATER SOFTENER

Kenmore MODEL NOS. 625.388270 and 625.388280

53 5O

60 59

wear-strip

seal O_

crOSSvT;ection

6-5

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i !! _i_ !! _i_ SECTION 6REPAIR PARTS FOR WATER SOFTENER

KEY PART

NO. NUMBER

50 7224087

51 7228544

52 7231385

53 0900857

54 0503288

55 7113927

56 7142942

57 0900431

58 7024160

59 7170327

60 7092618

61 7170238

62 7170212

63 7082087

64 7199232

65 7170246

66 7116713

67 7278442

68 7170288

69 7134224

70 7170204

71 7092642

72 7129889

73 2204101

74 7117858

75 7082053

76 7081764

77 7081201

Kenmore MODEL NOS. 625.388270 and 625.388280

C. VALVE ASSEMBLY

DESCRIPTION

Screw, #8-32 x 1" (2 req.)

Motor (incl. 2 ea. of Key No. 50)

Motor Plate

Screw, #6-20 x 3/8 (2 req.)

Bearing

Cam and Gear

Clip (Drain)

Tubing Clamp •

Drain Hose Adaptor

O-Ring, 5/8 x 13/16

Flow Plug, 2.0

O-Ring, 7/16 x 5/8

O-Ring, 3/4 x 15/16

Wave Washer

Rotor & Disc

O-Ring, 3-3/8 x 3-5/8

Clip (2 req.) •

Installation Adaptor, 1" NPT

(2 req.) •

O-Ring (2 req.) •

Rotor Seal

O-Ring, 3/8 x 9/16

Plug (Drain Seal)

Spring

Turbine Support and Shaft

Turbine

Valve Body

Seal (Nozzle & Venturi)

Retainer (Nozzle & Venturi)

KEY PART

NO. NUMBER

78 7170319

79 7081104

80 1202600

81 7095030

82 1148800

83 7114533

- 7204362

84 7084607

85 7146043

86 7167659

87 7170262

88 7199729

89 7248714

90 0900060

91 7085263

92 7074123

93 7077472

94 7030713

95 7117816

96 7070412

• 7253808

• 7129716

• 42-3433

• 42-34401

• 42-34403

• 7123613

• not illustrated

• included in parts

DESCRIPTION

O-Ring, 1/4 x 3/8 (2 req.)

Nozzle & Venturi Housing

Nut - Ferrule

Cone Screen

Flow Plug, .3 gpm

Nozzle & Venturi Gasket Kit

Gasket (only)

Flow Plug, .15 gpm

Screen

Screen Support

O-Ring, 1-1/8 x 1-3/8

Cap

Wire Harness (Sensor)

O-Ring

Valve Cover

Screw, #10-14 x 2 (5 req.)

Expansion Pin

Switch

Spacer

Screw, #4-24 x 1-1/8 (flat head)

Nozzle & Venturi Asm

(incl. Key Nos. 79 & 81 - 88)

Seal Kit (incl. Key Nos. 61, 62, 65,

69, 70 & 76)

Drain Tubing, 3/8" I.D. x 20'

Flexible Connectors, 3/4"

Flexible Connectors, 1"

Silicone Grease (for O-Rings)

bag, see page 6-2.

BYPASS INSTALLATION VALVE

DESCRIPTION

KEY PART

NO. NUMBER

97 0502206

98 7271262

99 7105013

100 7130911

101 7170288

• 7278434

Retainer Ring

Bypass Body

O-Ring, 13/16 x 1 (4 req.)

Stem

O-Ring, 15/16 x 1-3/16 (2 req.)

Bypass Valve (Complete) •

100

/99 98

101 97

6-6

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

OWNER'S

MANUAL

MODEL NOS.

UltraSoft 275

625.388270

UltraSoft 280

625.388280

The model number of

your water softener is

found on the rating decal.

This decal is on the rim,

under the salt cover.

When requesting service

or ordering parts, always

provide the following in-

formation:

• Product Type

• Model Number

• Part Number

• Part Description

www.KenmoreWater.com

Water Softeners

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

°om°.erw.omadei,,°omo,tor.._o°o,d.:

For the replacement parts, accessories and

owner's manuals that you need to doqt-yourseif.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

iiiiiiiiiiiii

1-800-4-MY-HOME ® (1-800-469-4663)

Ca!{anytime,day or night (U.S.A. and Canada)

www.sears,com vc_rw,sears.ca

ourHome

For repair of carry-in items like vacuums, lawn equipment,

ande_eotrooios,coilo,goon-,hefor_hoIocatiooofyou,noarost

Sears Pa_ & Repair Center.

............. CC:

1-800-488-1

Ca,a_yt_mo,doyoro_g,tfU.S.A,o_y)

www,sea_.com

TO purchase a protection agreement (USA)

or maintenance agreement (Canada)on a product serviced by Sears

1-800-8:27-6655 (US,A.) 1-800-361-6665 (Canada)

Para pedi_ servicio de reparaci6n Au Canada pour service en frangais:

a domicilio,y paraordenarpiezas: 1.800.LE.FOYER!_,:

1-888-SU-HOGAR _'_ (%800=533.6937)

(%888 _784_27 },ma,_y_afs ca .....

¢2 Sea_ Roebuck _r_d Ce

I Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. I

Kenmore 625388280 User Manual WATER SOFTENER Manuals And Guides L0522373

KENMORE Water softener Manual L0522373 KENMORE Water softener Owner's Manual, KENMORE Water softener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
