Self-Cleaning Gas Range
Cocina de gas de auto limpieza
Models, Modelos 665.75801
665.758O8
665.75812
665.75814
Super Capacity with ULTPJ_BAKE TM System
Capacidad extra con el Sistema ULTPJ_BAKE TM
8272751A Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

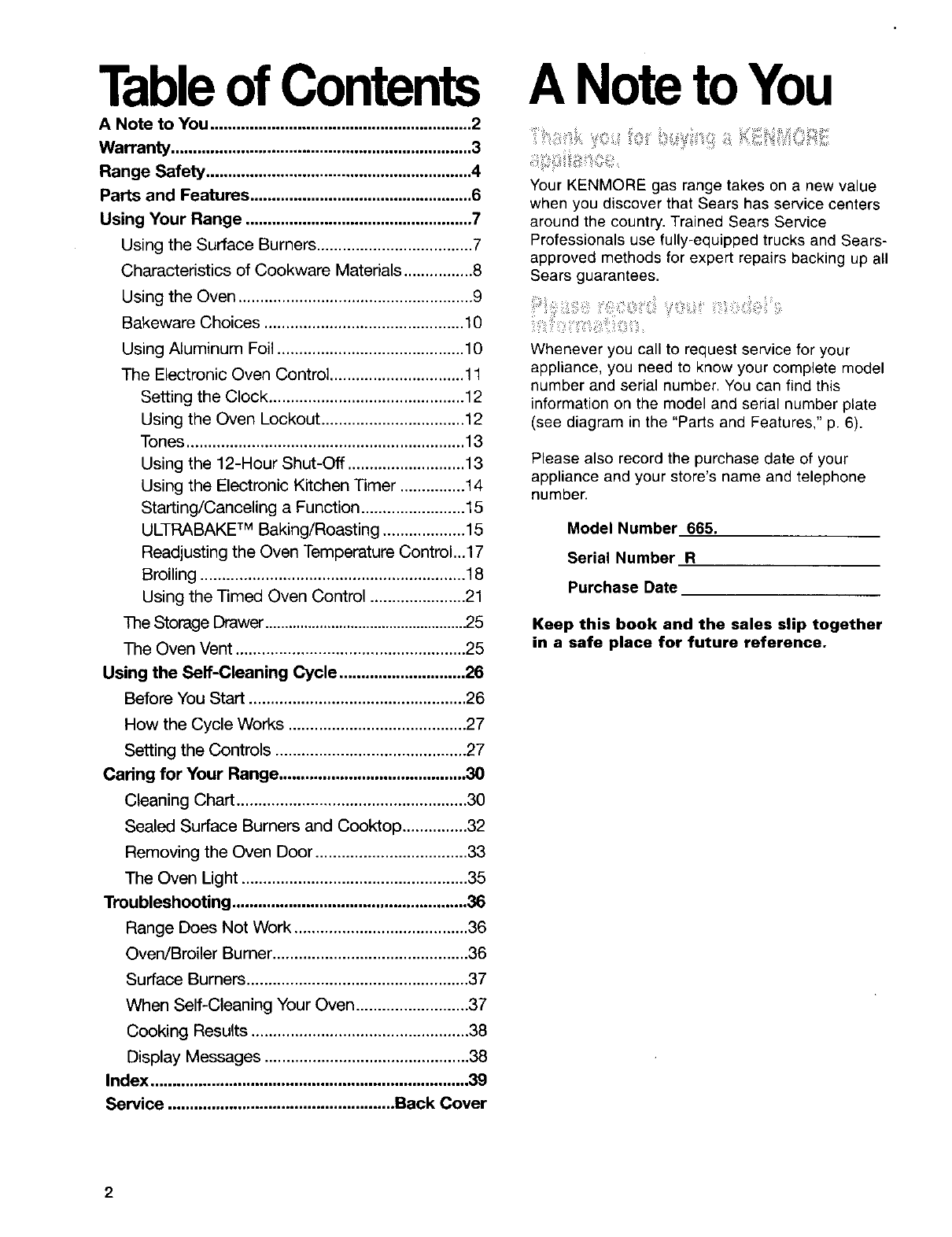

TableofContents
A Note to You ............................................................ 2
Warranty ..................................................................... 3
Range Safety ............................................................. 4
Parts and Features ................................................... 6
Using Your Range .................................................... 7

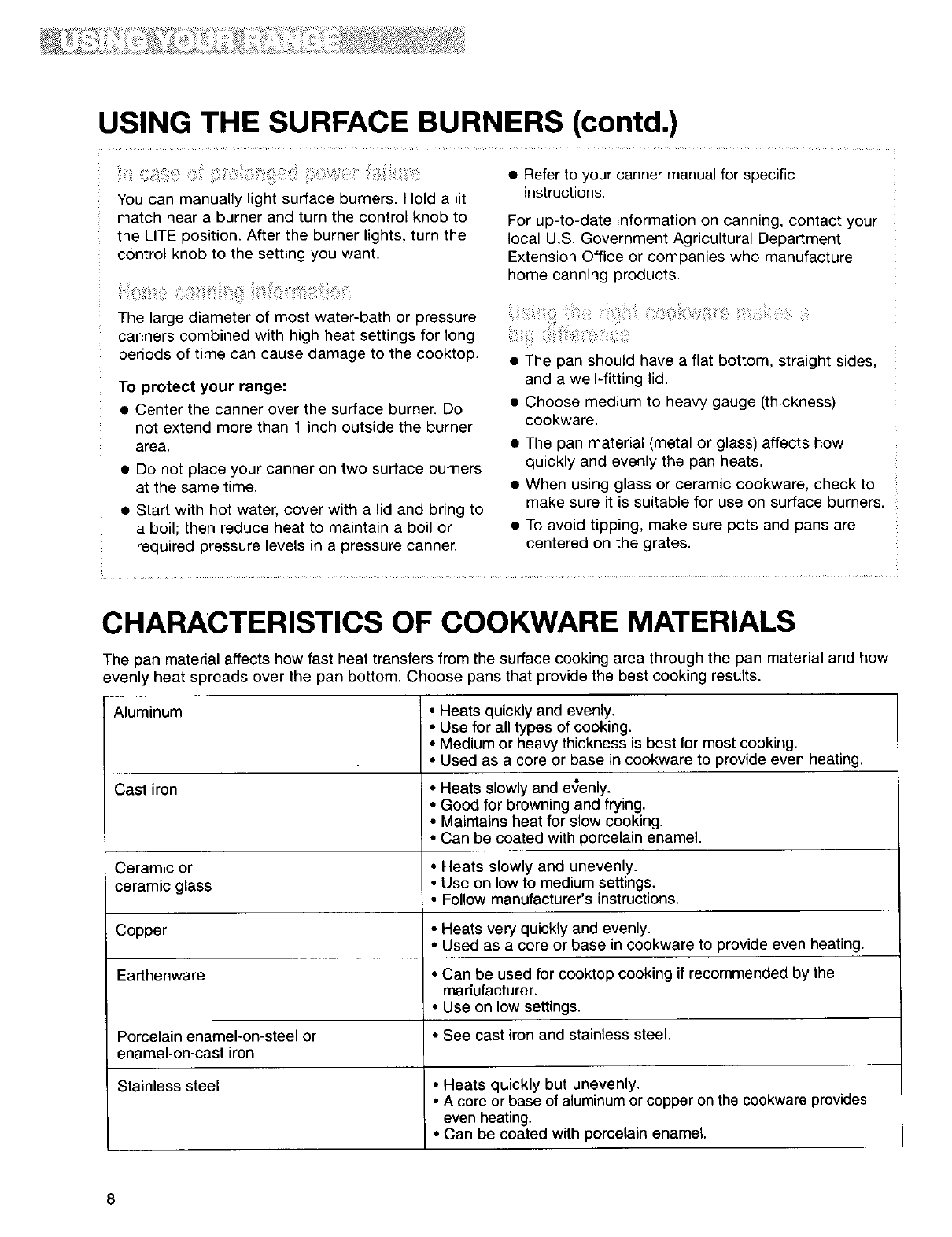

Using the Surface Burners .................................... 7
Characteristics of Cookware Materials ................ 8
Using the Oven ...................................................... 9

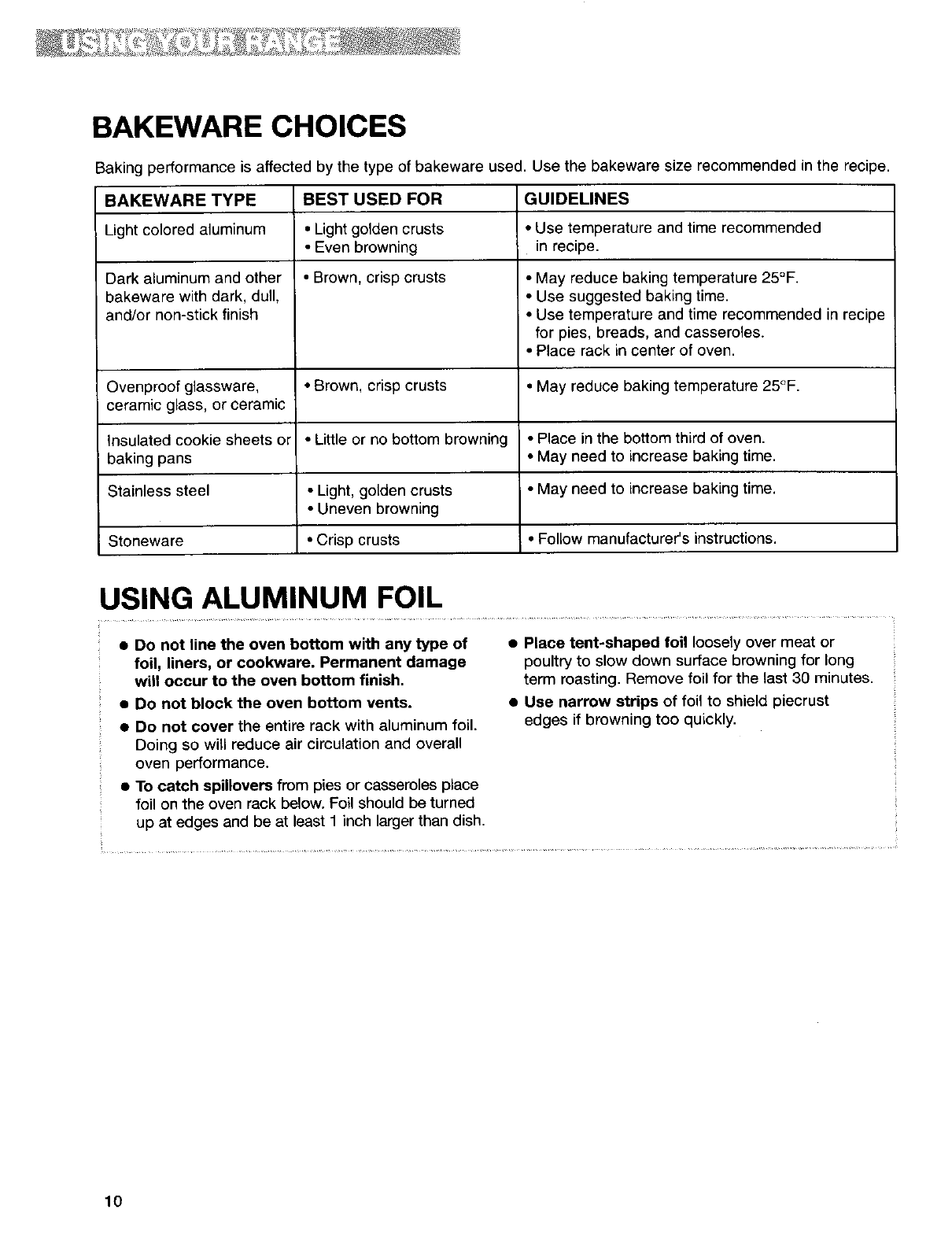

Bakeware Choices .............................................. 10
Using Aluminum Foil ........................................... 10
The Electronic Oven Control ............................... 11

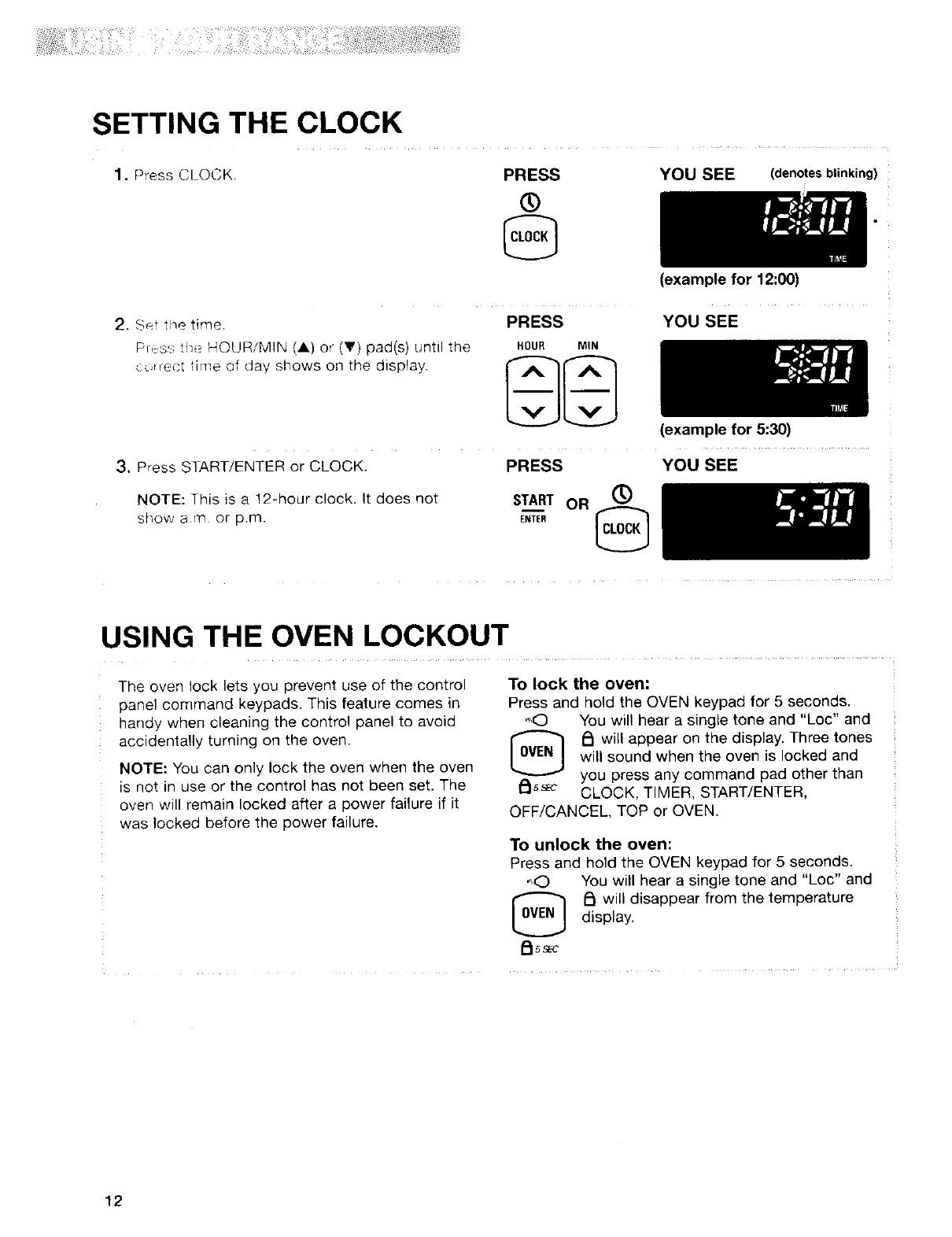

Setting the Clock ............................................. 12
Using the Oven Lockout ................................. 12

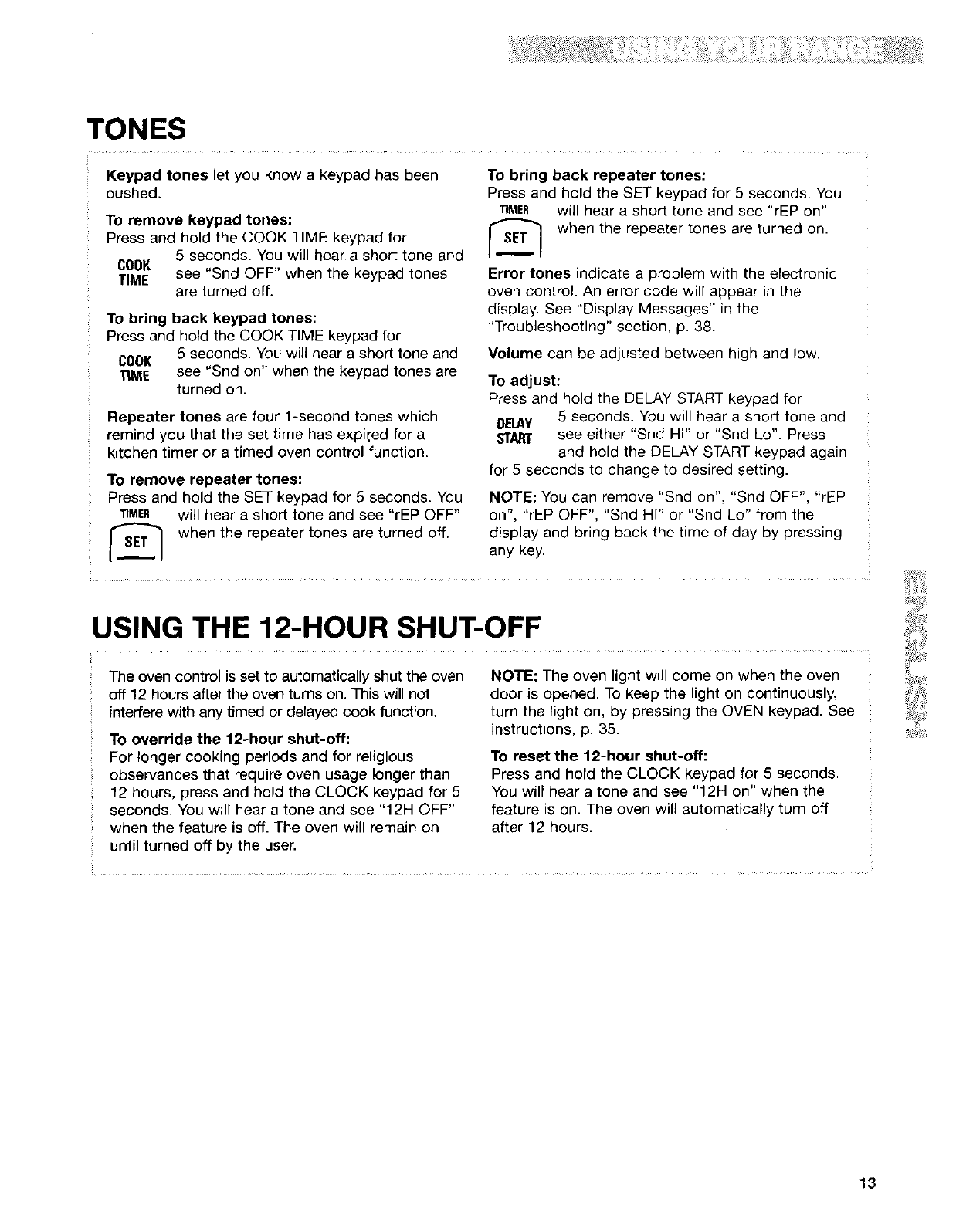

Tones ................................................................ 13
Using the 12-Hour Shut-Off ........................... 13

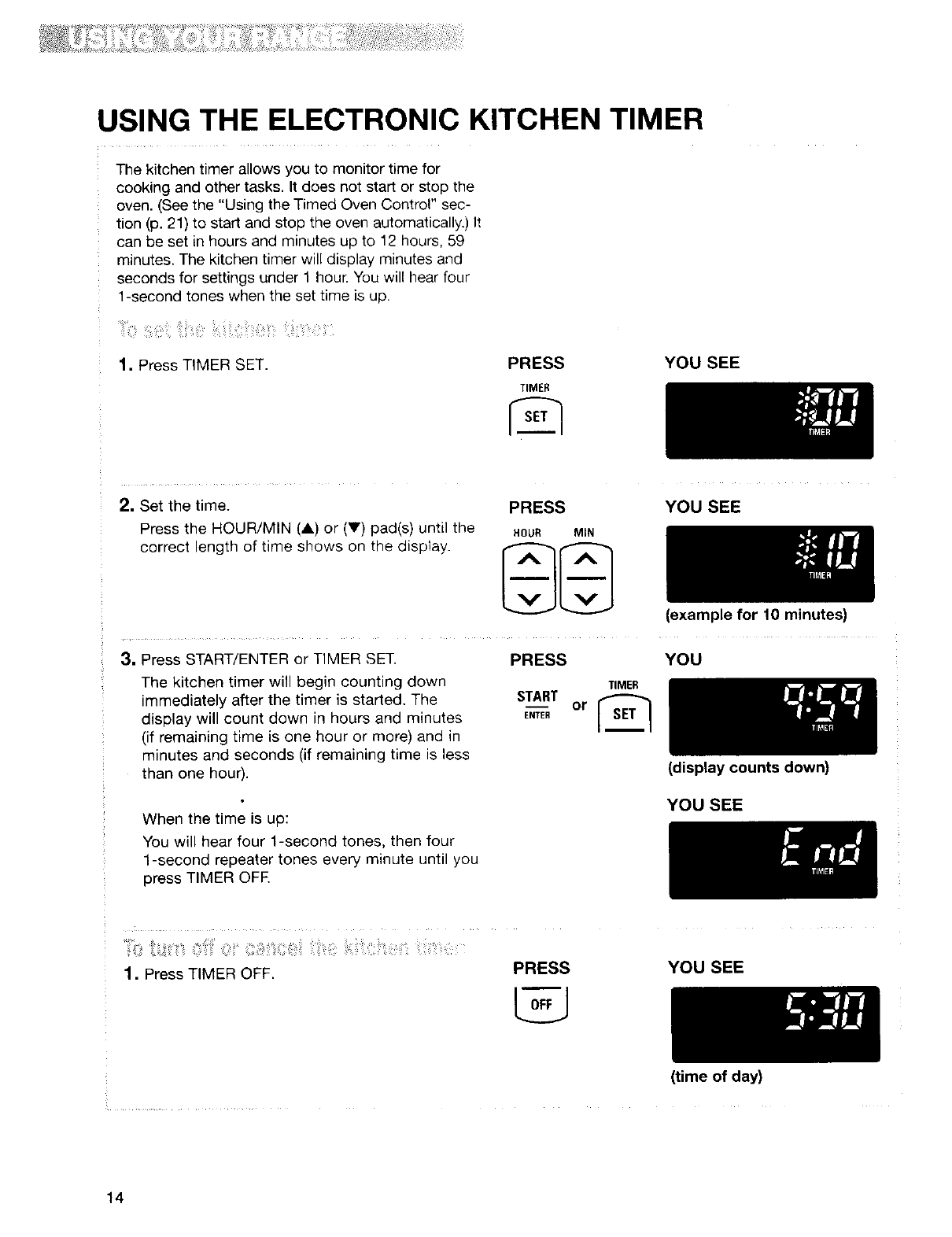

Using the Electronic Kitchen Timer ............... 14

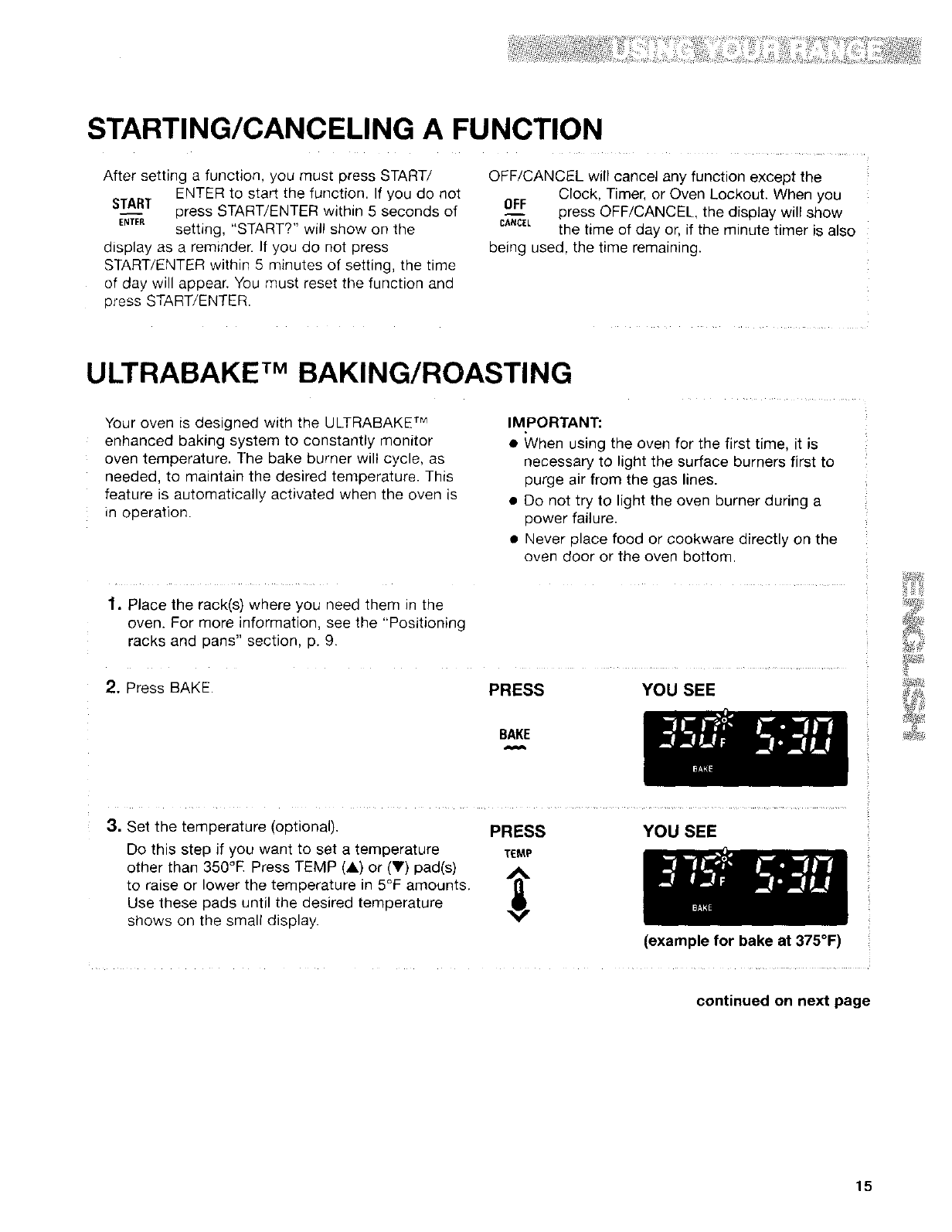

Starting/Canceling a Function ........................ 15
ULTRABAKE TM Baking/Roasting ................... 15
Readjusting the Oven Temperature Control...17

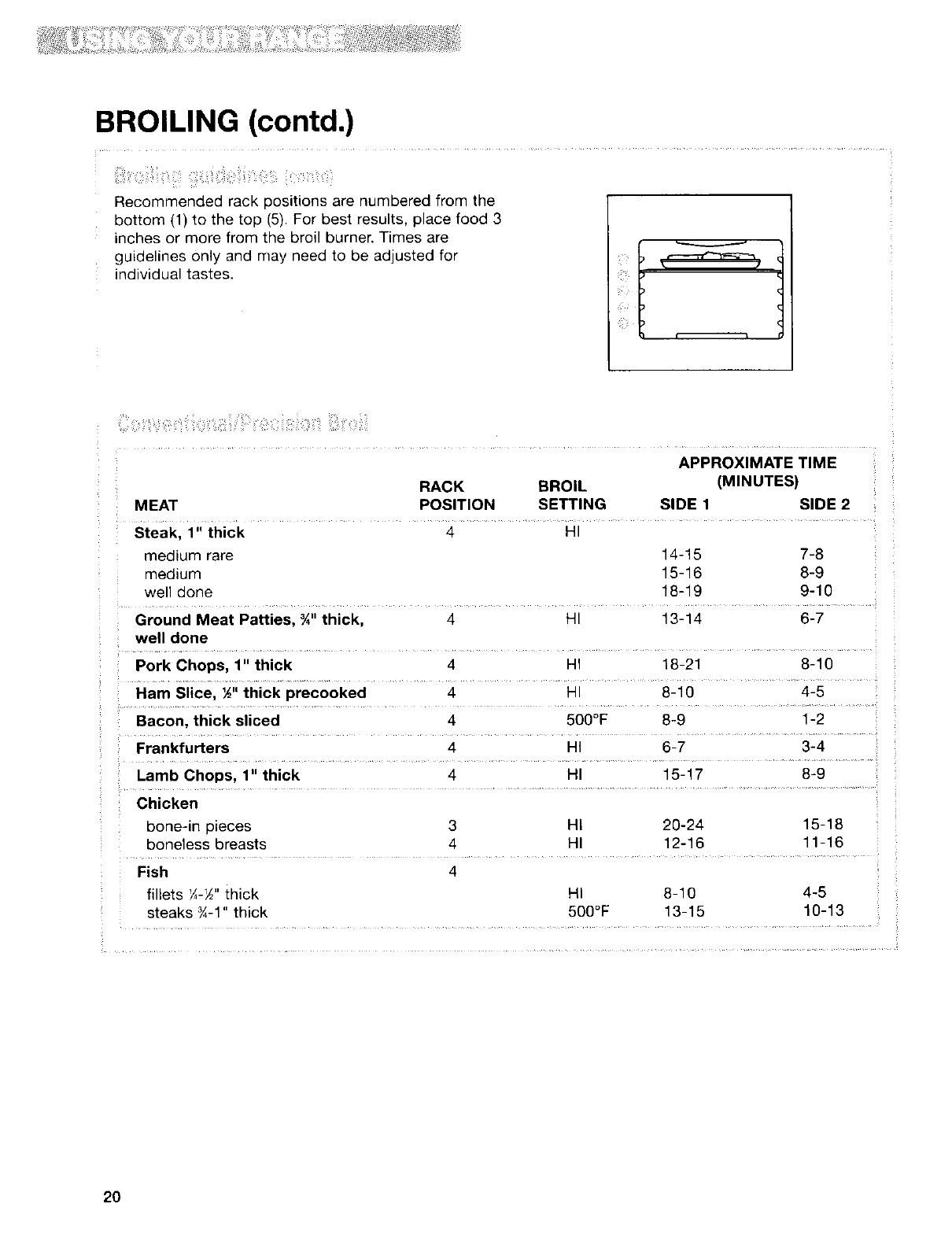

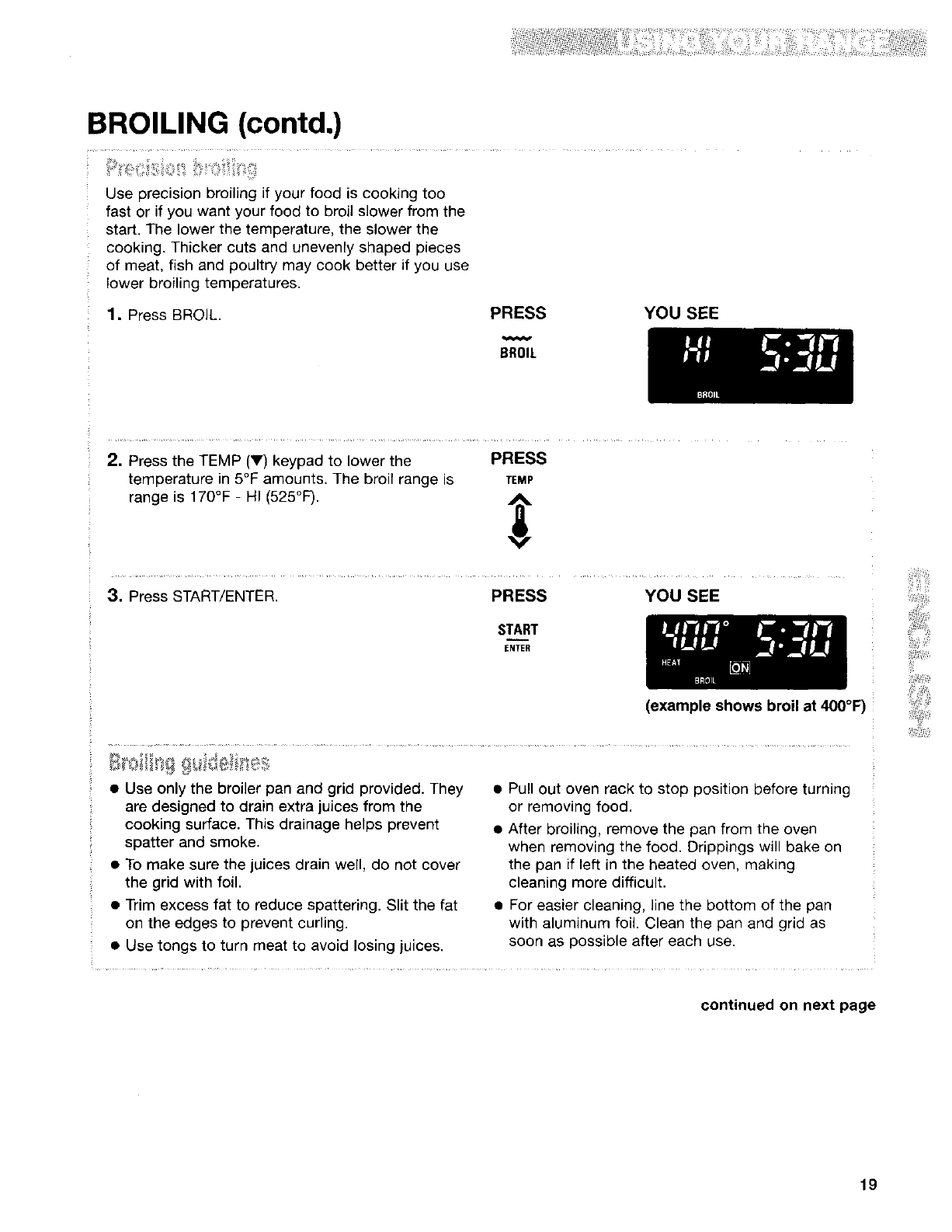

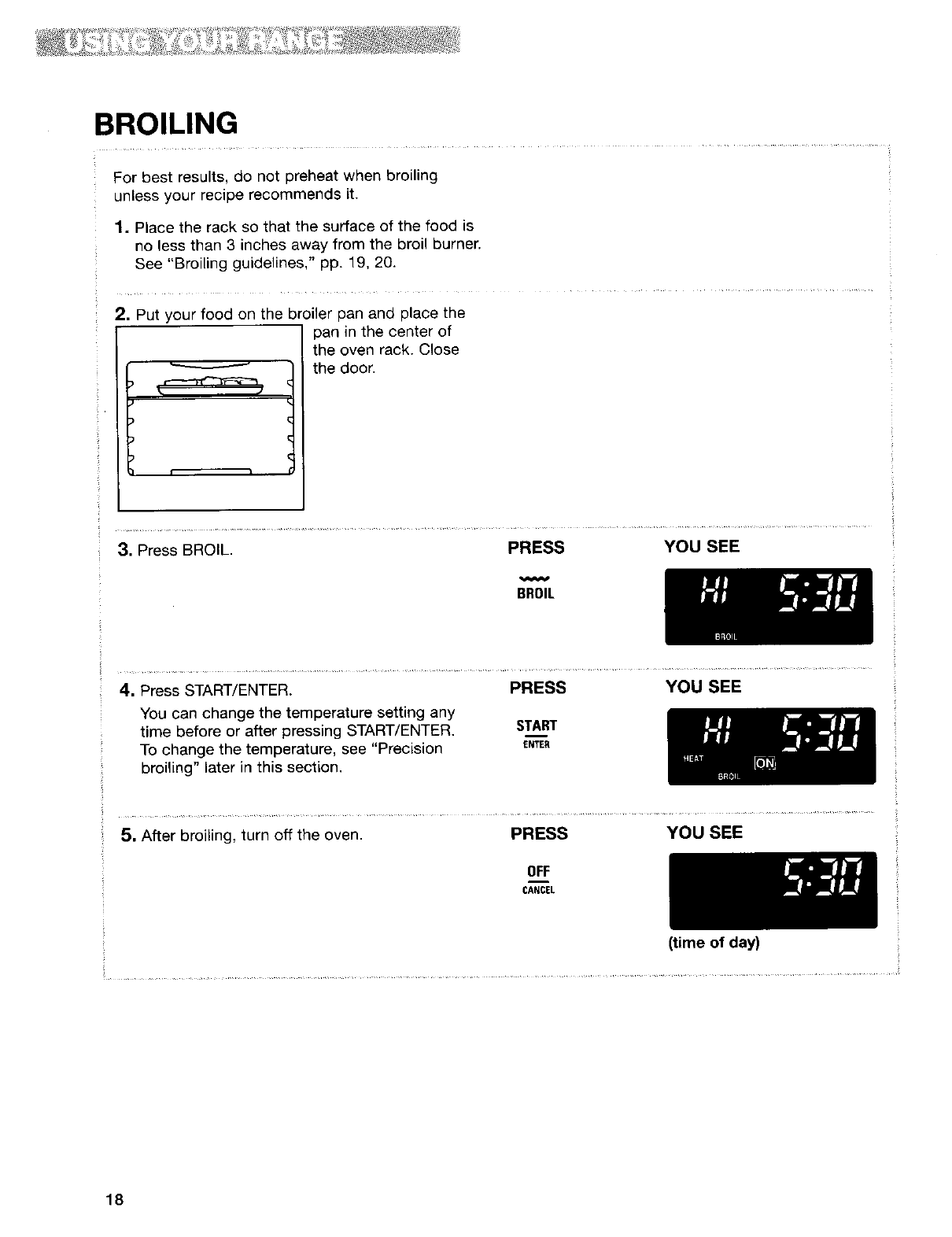

Broiling ............................................................. 18

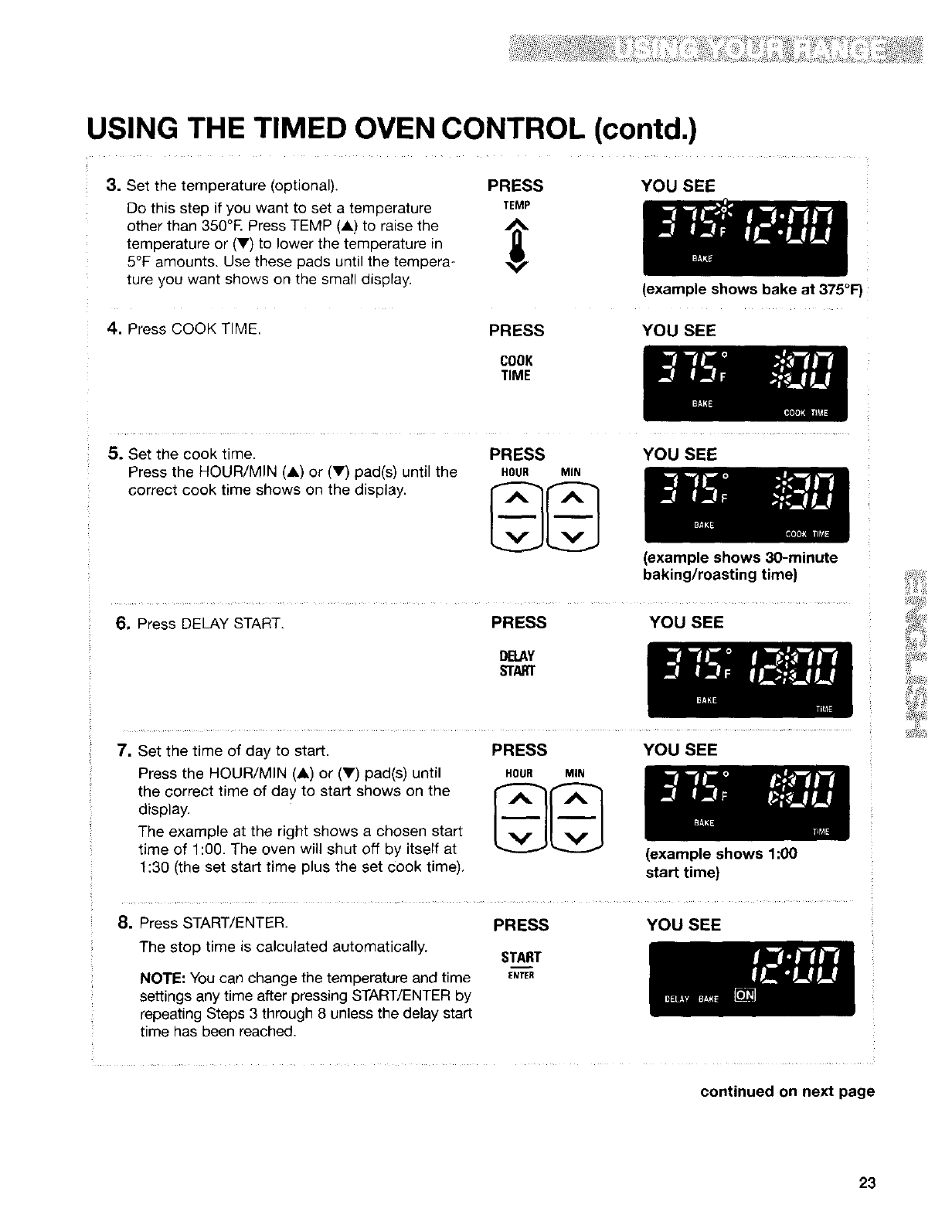

Using the Timed Oven Control ...................... 21
The Storage Drawer ....................................................25
The Oven Vent ..................................................... 25

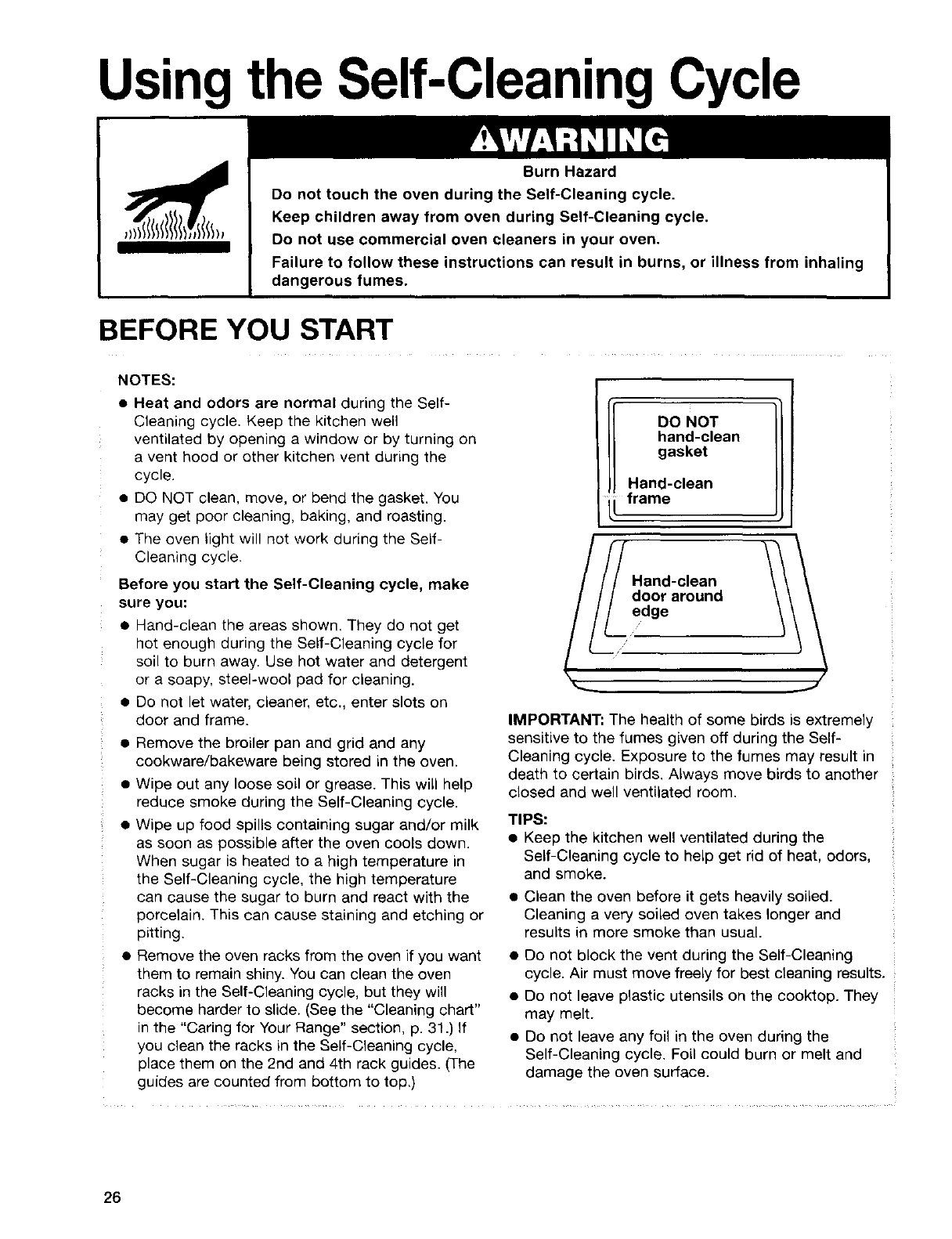

Using the Self-Cleaning Cycle ............................. 26
Before You Start .................................................. 26
How the Cycle Works ......................................... 27
Setting the Controls ............................................ 27

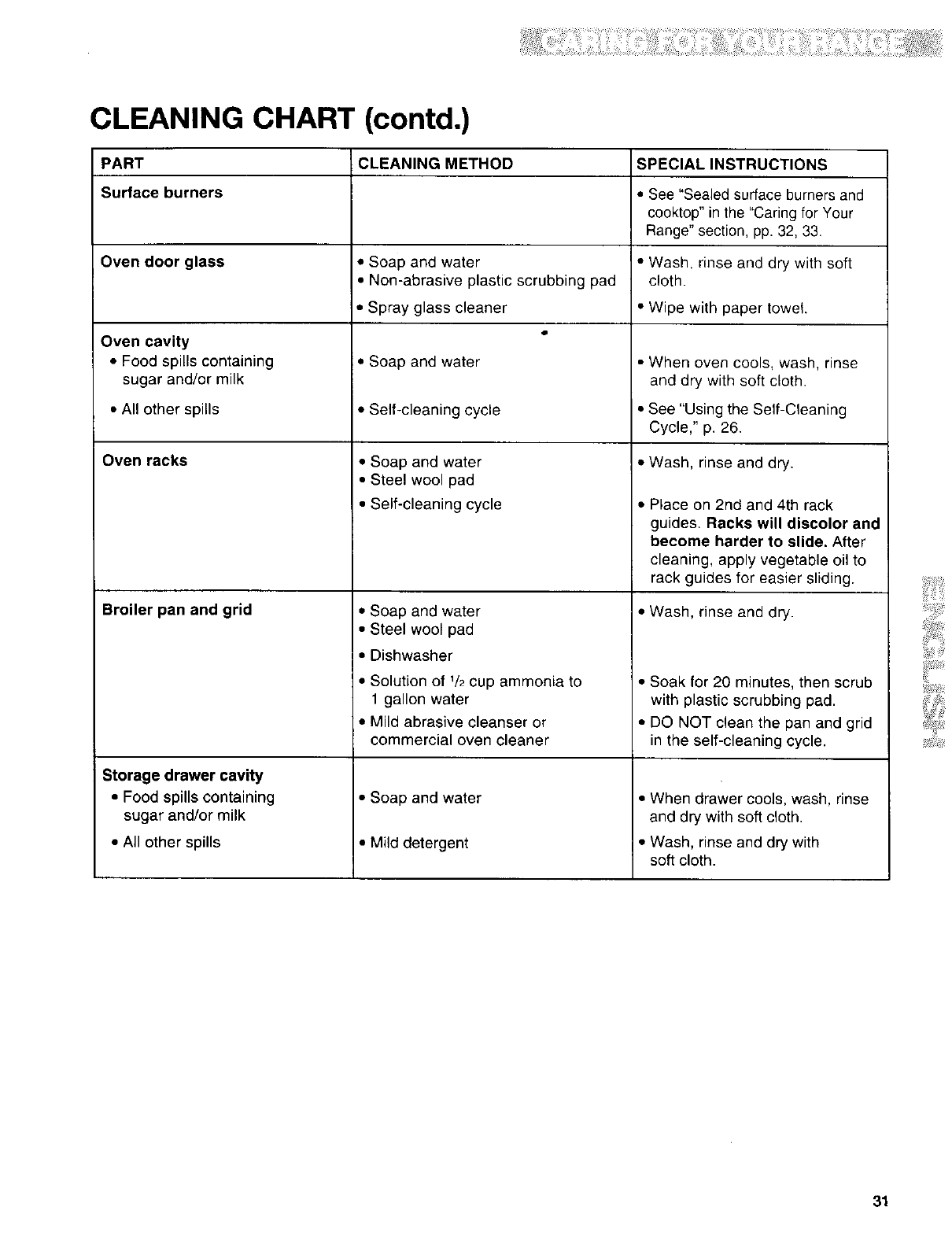

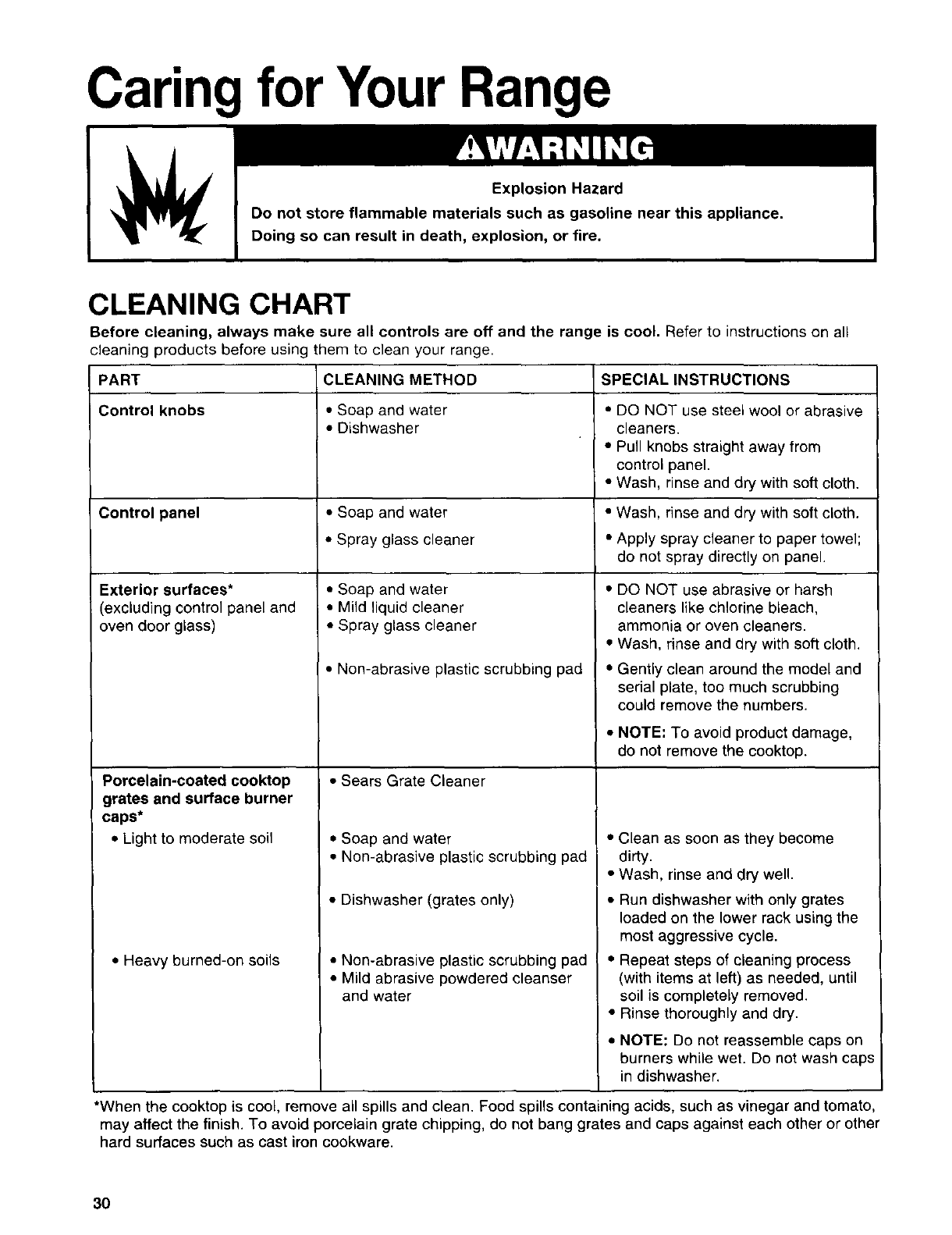

Caring for Your Range ........................................... 30
Cleaning Chart ..................................................... 30

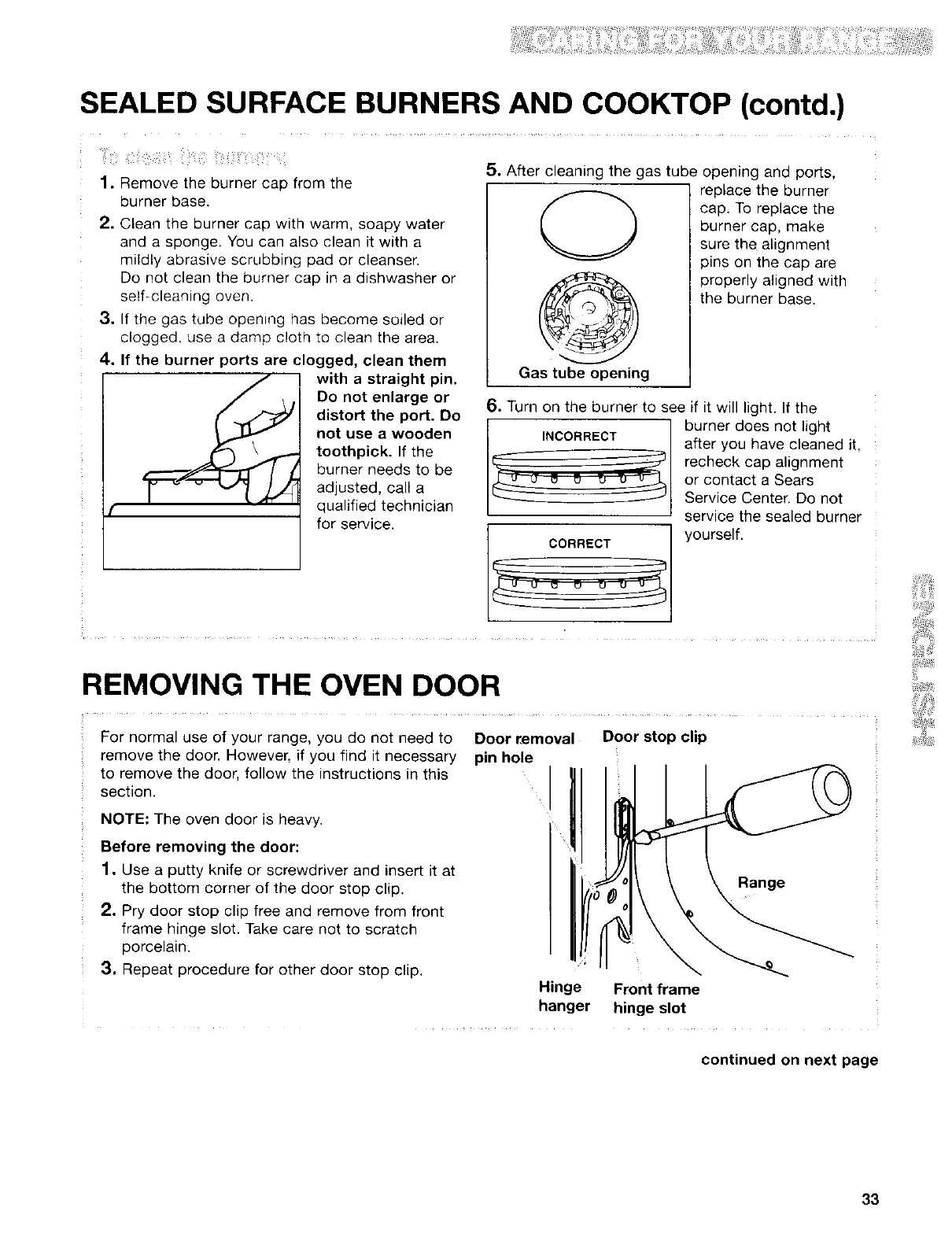

Sealed Surface Burners and Cooktop ............... 32

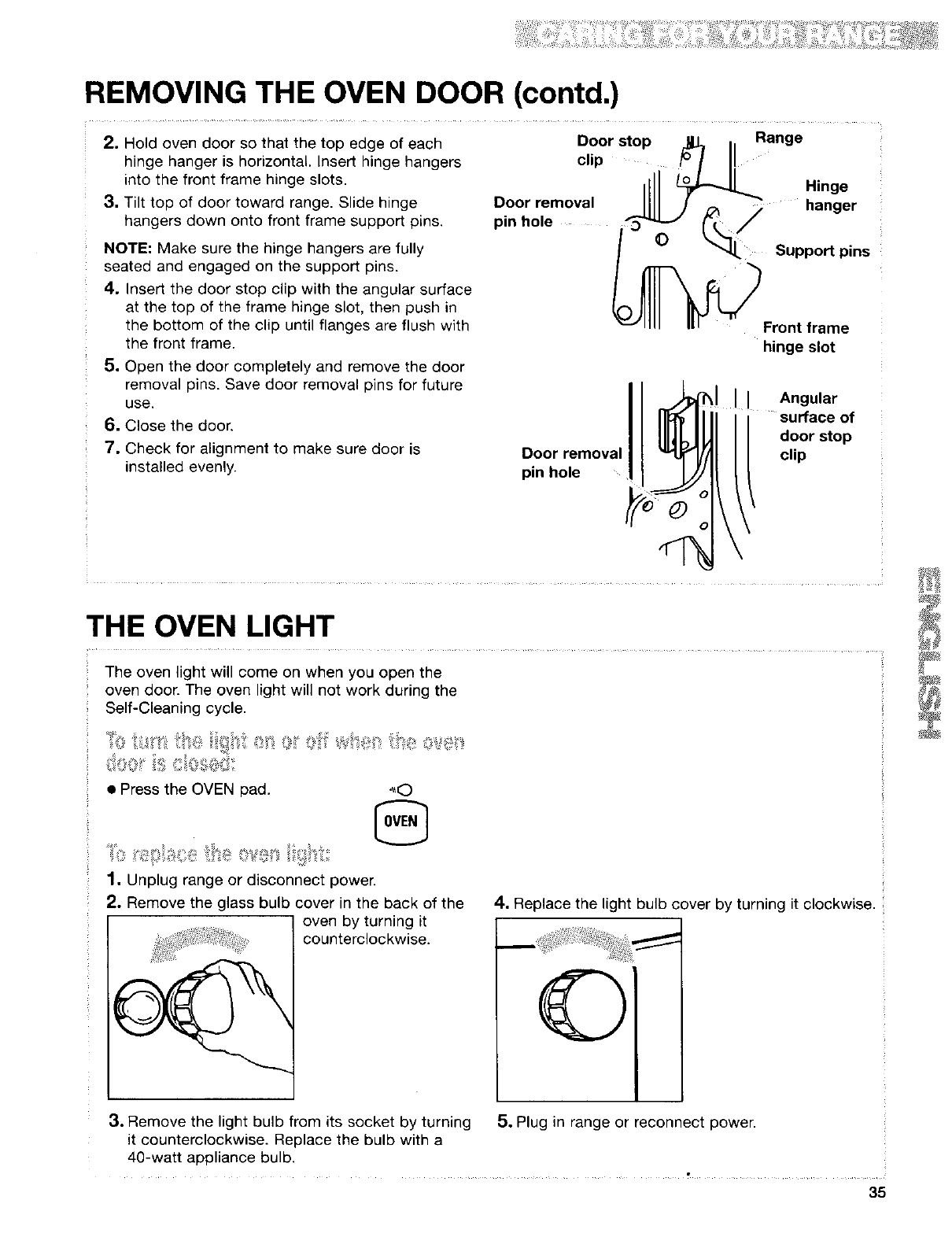

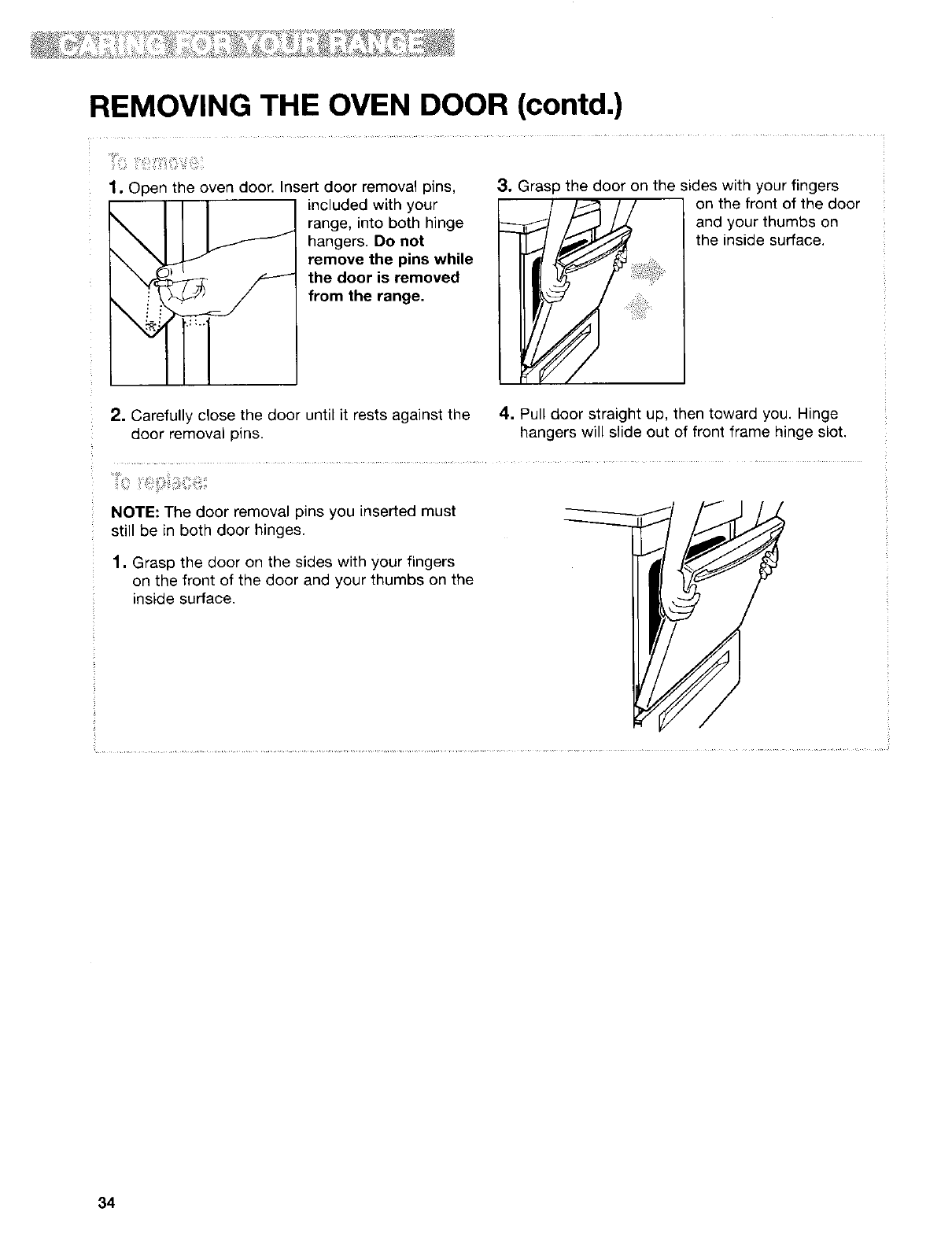

Removing the Oven Door ................................... 33
The Oven Light .................................................... 35

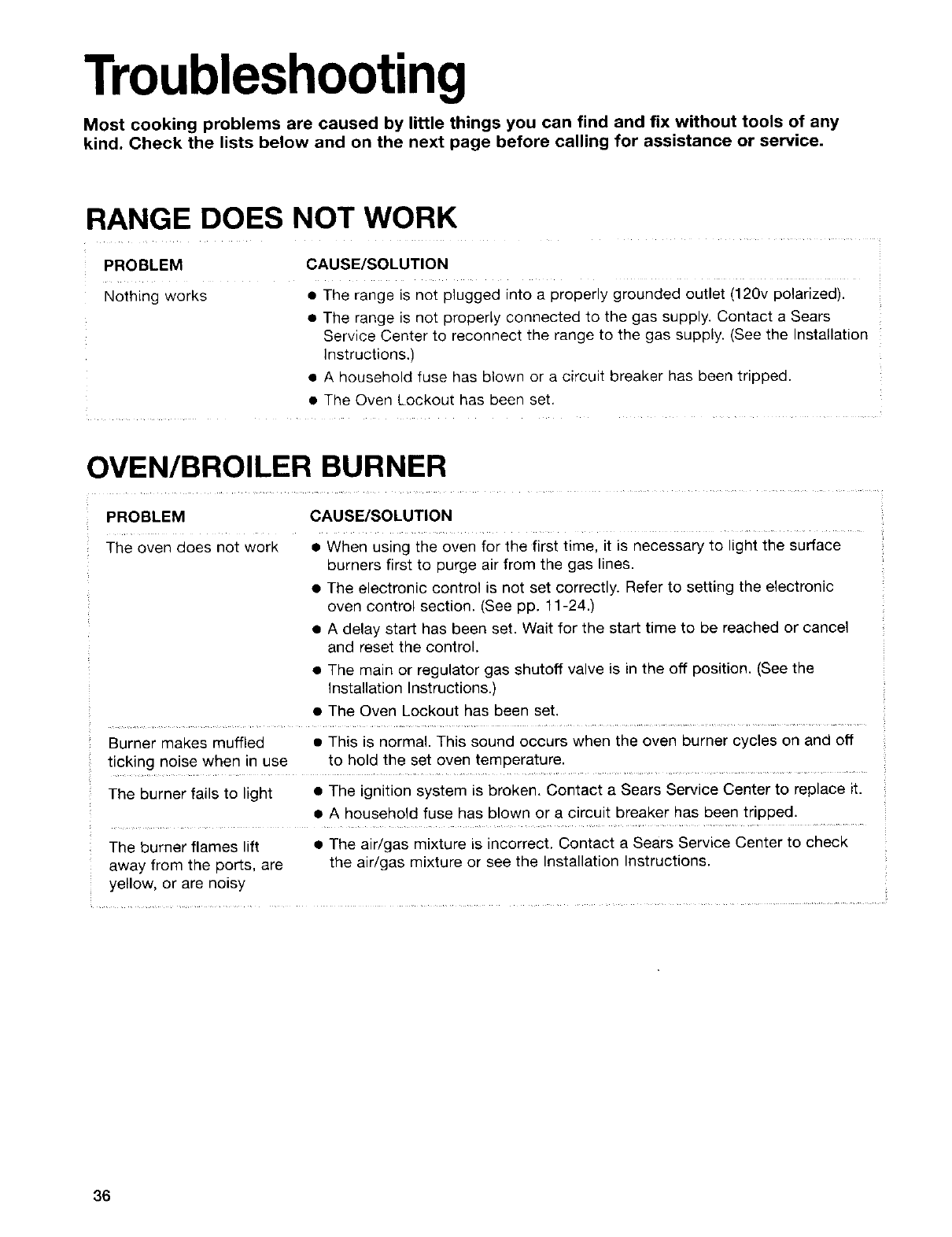

Troubleshooting ...................................................... 36
Range Does Not Work ........................................ 36
Oven/Broiler Burner ............................................. 36
Surface Burners ................................................... 37
When Self-Cleaning Your Oven .......................... 37
Cooking Results .................................................. 38
Display Messages ............................................... 38

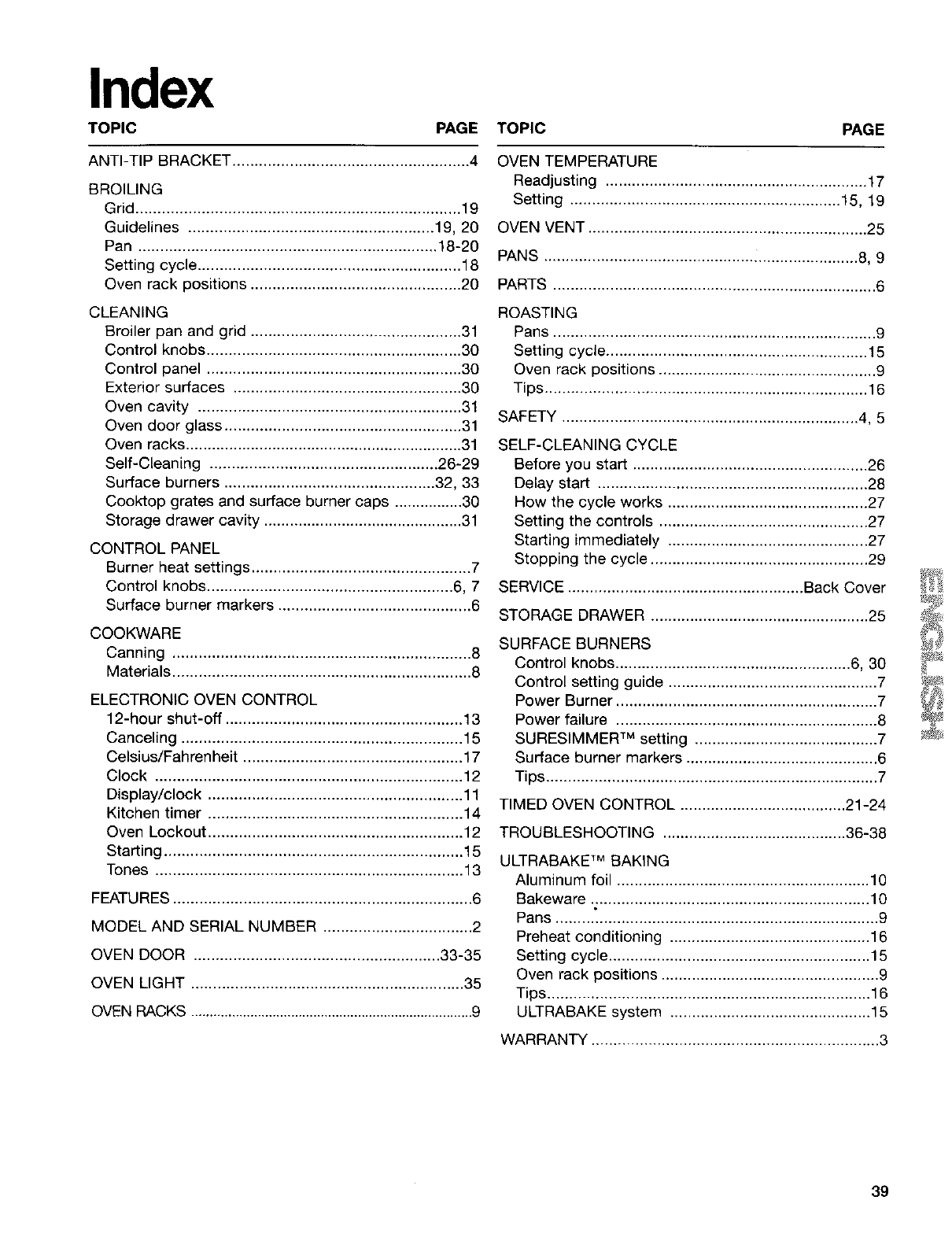

Index ......................................................................... 39
Service .................................................... Back Cover
A NotetoYou
Your KENMORE gas range takes on a new value
when you discover that Sears has service centers
around the country. Trained Sears Service
Professionals use fully-equipped trucks and Sears-
approved methods for expert repairs backing up all
Sears guarantees.
Whenever you call to request service for your
appliance, you need to know your complete model
number and serial number. You can find this
information on the model and serial number plate
(see diagram in the "Parts and Features," p. 6).
Please also record the purchase date of your
appliance and your store's name and telephone
number.
Model Number 665.
Serial Number R
Purchase Date
Keep this book and the sales slip together
in a safe place for future reference.
Free-StandingRangeWarranty
FULLONEYEARWARRANTYONALLPARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in
material or workmanship, Sears will repair or replace it, at our option, free of charge.
If this product is subjected to other than private family use, the above warranty is effective for only
90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN
THE UNITED STATES.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
Sears Roebuck and Co. Dept. 817WA Hoffman Estates, IL 60179
ToFurtherAddToTheValueOfYourRange,Buya SearsMaintenanceAgreement,
Years of Ownership Coverage . 1st Year 2nd Year 3rdYear
1. Replacement of Defective Parts W MA MA
2. Annual Preventive Maintenance MA MA MA
Check at Your Request
W = Warranty MA = Maintenance Agreement
Your Kenrnore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service
program, affordably priced.
The table above shows the additional benefits a Sears Maintenance Agreement provides beyond the Sears Warranty.
Contact your Sears Sales Associate or call 1-800-827-6655 to purchase a Sears Maintenance Agreement.
iw...,.o,,then,o ma,on,n,hssoo,,o,owe,exact. ,reorI
explosion may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
= Do not touch any electrical switch.
=Do not use any phone in your building.
= Immediately call your gas supplier from aneighbor's phone. Follow the gas
suppUer's instructions.
= If you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer, service
agency or the gas supplier,

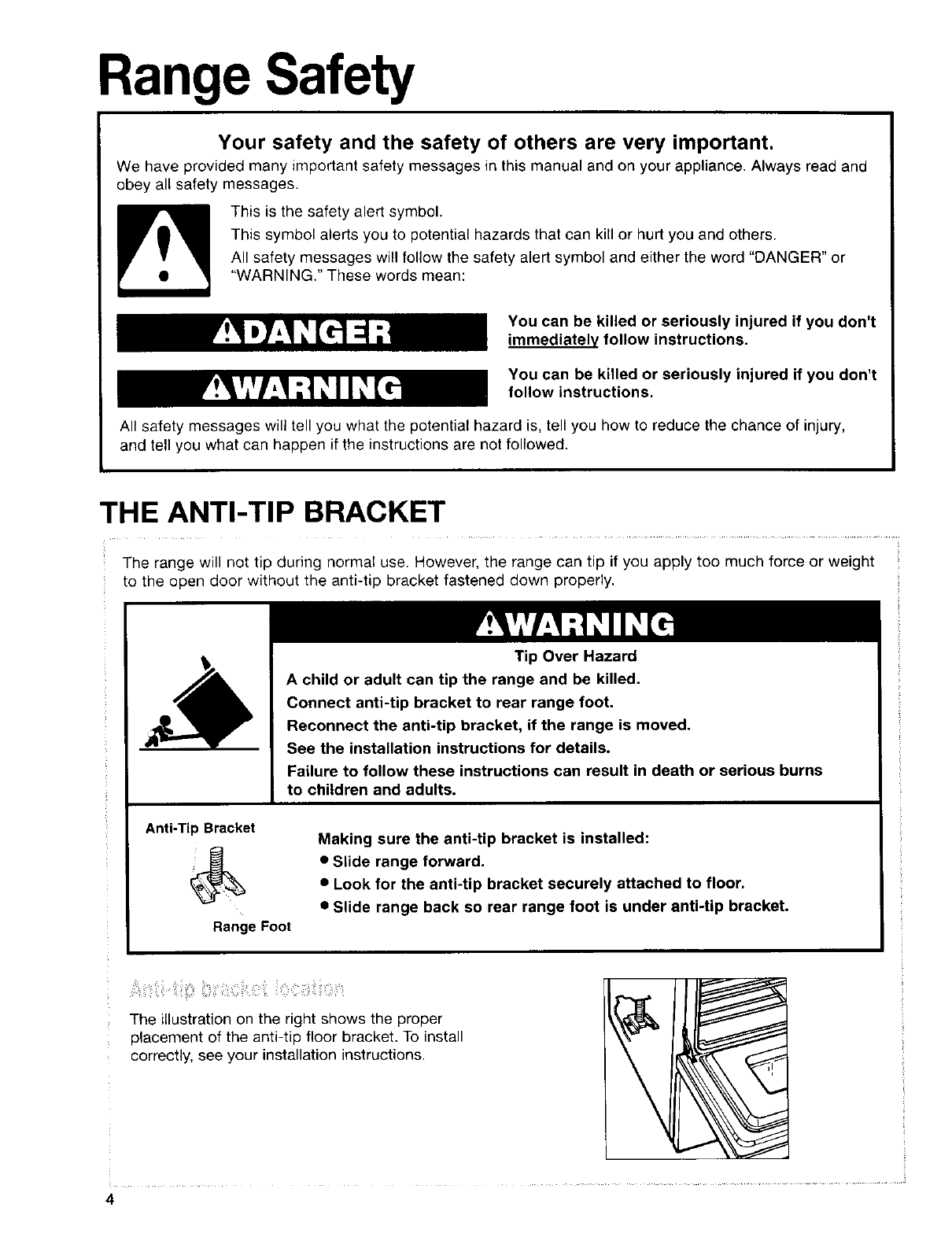

Range Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Anti-Tip Bracket
Range Foot
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
The illustration on the right shows the proper
placement of the anti-tip floor bracket. To install
correctly, see your installation instructions.
4

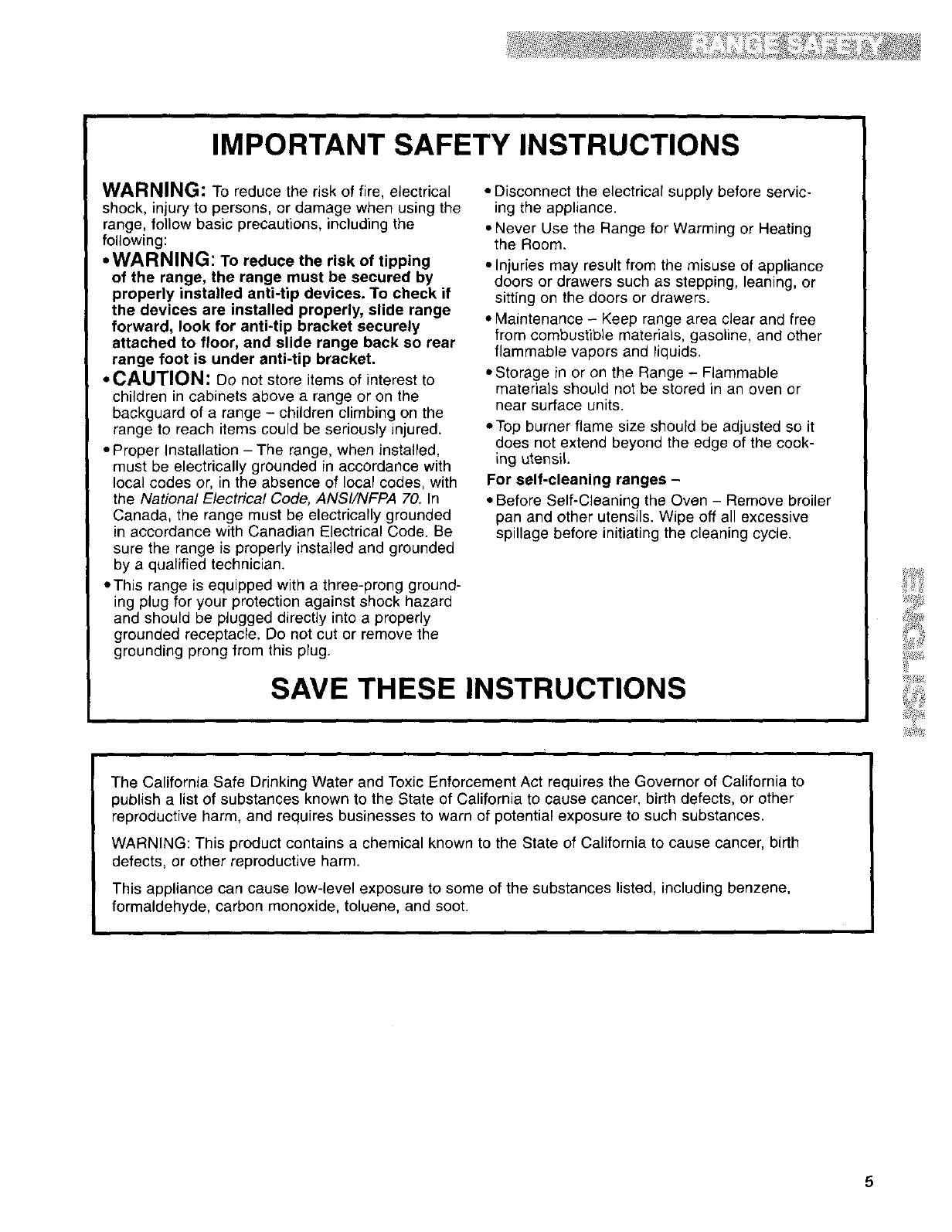

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING: To reduce the risk of tipping
of the range, the range must be secured by
properly installed anti-tip devices. To check if
the devices are installed properly, slide range
forward, look for anti-tip bracket securely
attached to floor, and slide range back so rear
range foot is under anti-tip bracket.
• CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
• Proper Installation - The range, when instalred,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. In
Canada, the range must be electrically grounded
in accordance with Canadian Electrical Code. Be
sure the range is properly installed and grounded
by a qualified technician.
• This range is equipped with a three-prong ground-
ing plug for your protection against shock hazard
and should be plugged directly into a properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.
• Disconnect the electrical supply before servic-
ing the appliance.
• Never Use the Range far Warming or Heating
the Room.
• Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
• Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
• Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Top burner flame size should be adjusted so it
does not extend beyond the edge of the cook-
ing utensil
For self-cleaning ranges -
• Before Self-Cleaning the Oven - Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene,
formaldehyde, carbon monoxide, toluene, and soot.
5
Parts and Features
Oven vent
(p. 25)
Sealed surface burners
(pp. 7, 8, 32, 33)
Cooktop grates
(p. 30) I
Power Burner
(p. 7)
Anti-tip bracket
(p. 4)
Door stop clip
(pp. 33-35) ....
Model and
serial number
plate
(behind left side
of storage drawer) \
Storage drawer
(p. 25)
Electronic oven
control
(pp. 11-24)
SURESIMMER TM
burner
(p. 7)
Power Burner
(Models 665.75812,
665.75814)
" (p. 7)
Control panel
(pp. 6, 30)
Automatic oven
..... light switch
(p. 35)
Gasket
(p. 26)
Oven racks
(p. 9)
CONTROL PANEL
I
OO @
Left rear
control knob
oo
.o D
Pus_ TOTURN
Left front control knob
(Power Burner)
(p. 7)
Surface burner marker
(shows which burner
you are setting)
Right front control knob
(Power Burner on models
665.75812, 665.75814)
oe RSAR
OO
Right rear control knob
(SURESIMMER setting)
(p. 7)
(p. 7)
ELECTRONIC OVEN CONTROL
ULTRABAKE TMelectronic display (p. 11)
6
¢0oK 0BAy
els_
G o--
UsingYourRange
USING THE SURFACE BURNERS
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking,
Failure to follow these instructions can
result in death or fire.
i¸ _,_ ....._ _ _ _
Your range comes with electric ignitors that light
the burners each time you turn the control knobs
to LITE.
•Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
• Push in the control knob and turn it counter-
clockwise to the LITE
position. The clicking
sound is the ignitor
sparking. Make sure
the burner has lit.
• Stop the clicking
sound after the burner
lights by turning the
control knob anywhere
between HI and LO.
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LITE is the one that will ignite.
IREMEMBER: When range is in use or during I
I
the Self-Cleaning cycle, the entire cooktop area I
may become hot.
Use the following chart as a guide.
LITE •To light the burner.
Power Burner • To provide highest heat
(left front burner) setting.
(right front burner on
models 665.75812,
665.75814)
HI •To start food cooking.
•To bring liquid to a boil.
Mid-range • To hold aboil.
(between HI and •To fry chicken or pancakes.
LO) •To cook gravy, pudding, or
icing.
• To cook large amounts of
vegetables.
LO • To keep food warm.
•To simmer.
:SURESlMMER TM •To provide lowest
setting simmer/heat setting.
(right rear burner) •To melt chocolate or butter.
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
_;. _ _ ii _ "¸ _ !
The left front burner is designed to give ultra-high
power when it is fully on. It can be used to rapidly
bring liquid to a boil and to cook large quantities of
food. On models 665.75812 and 665.75814 both
front burners are Power Burners.
The right rear SURESIMMER burner is designed for
low temperature cooking. It allows accurate simmer
control at the lowest setting.
•To help shorten your cooking time, use the least
amount of liquid possible.
•Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
USING THE SURFACE BURNERS (contd.)
_ .........._'_ _i!i_i¸ _i!_'_!:_iiii_'i_i;i?!!!_iiii_i_i_!_ _ _
ii_! _!ii.!_ ¸ _ _. _ i!_ _i_!! _ _
You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LITE position. After the burner lights, turn the
control knob to the setting you want.
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
•Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner
area.
• Do not place your canner on two surface burners
at the same time.
• Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
• Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who manufacture
home canning products.
•The pan should have a flat bottom, straight sides,
and a well-fitting lid.
• Choose medium to heavy gauge (thickness)
cookware.
• The pan material (metal or glass) affects how
quickly and evenly the pan heats.
• When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
• To avoid tipping, make sure pots and pans are
centered on the grates.
CHARACTERISTICS OF COOKWARE MATERIALS
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and e,_enly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or • Heats slowly and unevenly.
ceramic glass • Use on low to medium settings.
• Follow manufacturer's instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware •Can be used for cooktop cooking if recommended by the
marfufacturer.
• Use on low settings.
Porcelain enamel-on-steel or • See cast iron and stainless steel.
enamel-on-cast iron
Stainless steel • Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
8

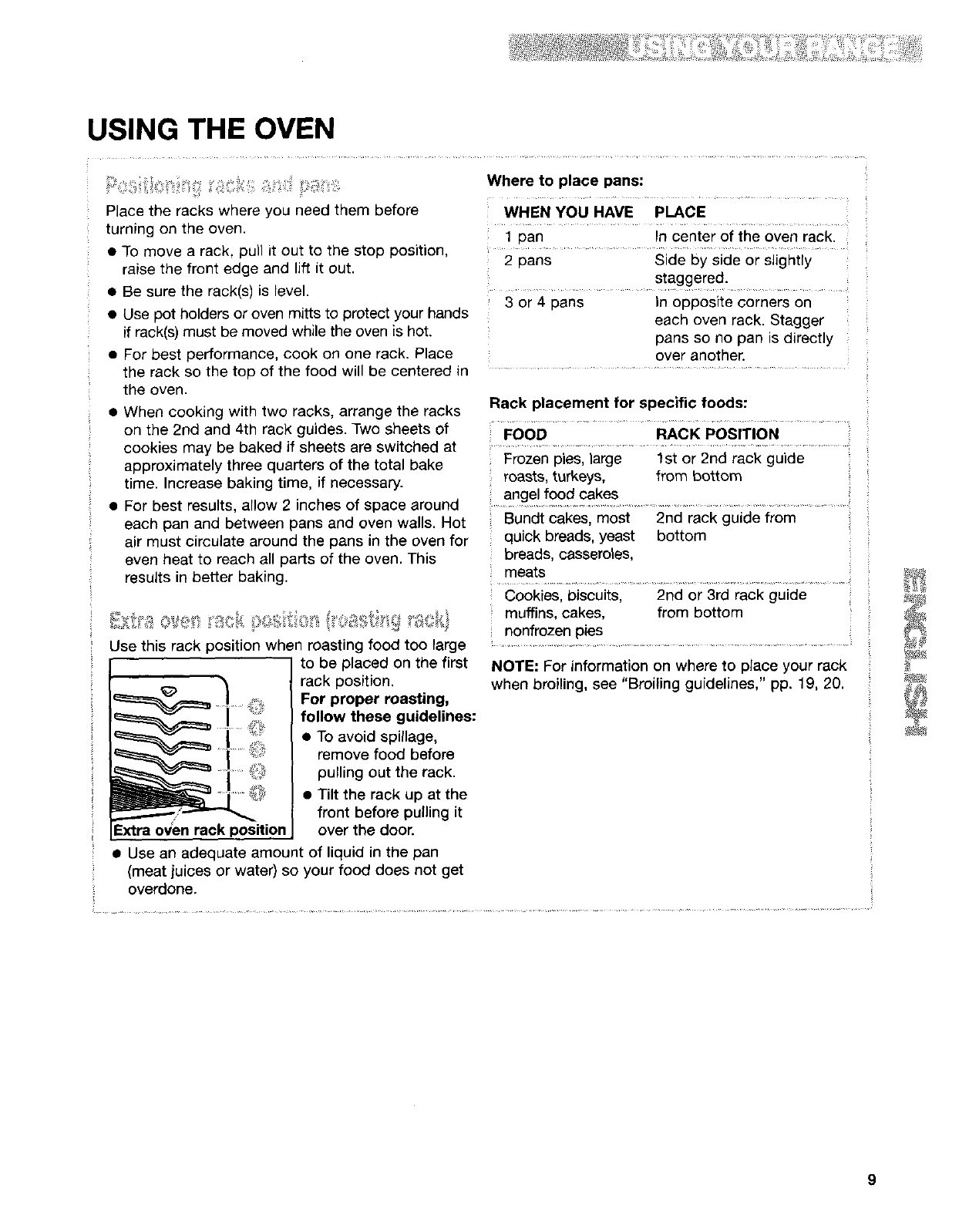

USING THE OVEN
Place the racks where you need them before
turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
•Be sure the rack(s) is level.
•Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
• When cooking with two racks, arrange the racks
on the 2rid and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake
time. Increase baking time, if necessary.
• For best results, allow 2 inches of space around
each pan and between pans and oven walls. Hot
air must circulate around the pans in the oven for
even heat to reach all parts of the oven. This
results in better baking.
Where to place pans:
WHEN YOU HAVE PLACE
1 pan In center of the oven rack.
2 pans Side by side or slightly
staggered.
3 or 4 pans In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
Rack placement for specific foods:
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack guide
roasts, turkeys, from bottom
angel food cakes
Bundt cakes, most 2nd rack guide from
quick breads, yeast bottom
breads, casseroles,
meats
Cookies, biscuits, 2nd or 3rd rack guide
muffins, cakes, from bottom
nonfrozen pies
Use this rack position when roasting food too large ....................................................................................................
to be placed on the first NOTE: For information on where to place your rack
rack position, when broiling, see "Broiling guidelines," pp. 19, 20.
For proper roasting,
follow these guidelines:
• To avoid spillage,
remove food before
pulling out the rack.
• Tilt the rack up at the
front before pulling it
oven rack position over the door.
•Use an adequate amount of liquid in the pan
(meat juices or water) so your food does not get
overdone,
9
BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light colored aluminum
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
Ovenproof glassware,
ceramic glass, or ceramic
BEST USED FOR
°Light golden crusts
•Even browning
•Brown, crisp crusts
GUIDELINES
• Brown, crisp crusts
• Little or no bottom browning
• Light, golden crusts
• Uneven browning
• Crisp crusts
• Use temperature and time recommended
in recipe.
• May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
• May reduce baking temperature 25°F.
insulated cookie sheets or •Place in the bottom third of oven.
baking pans •May need to increase baking time.
Stainless steel •May need to increase baking time.
Stoneware •Follow manufacturer's instructions.
USING ALUMINUM FOIL
• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage
will occur to the oven bottom finish.
• Do not block the oven bottom vents.
• Do not cover the entire rack with aluminum foil.
Doing so will reduce air circulation and overall
oven performance.
•To catch spillovers from pies or casseroles place
foil on the oven rack below. Foil should be turned
up at edges and be at least 1 inch larger than dish.
• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term roasting. Remove foil for the last 30 minutes.
• Use narrow strips of foil to shield piecrust
edges if browning too quickly.
10

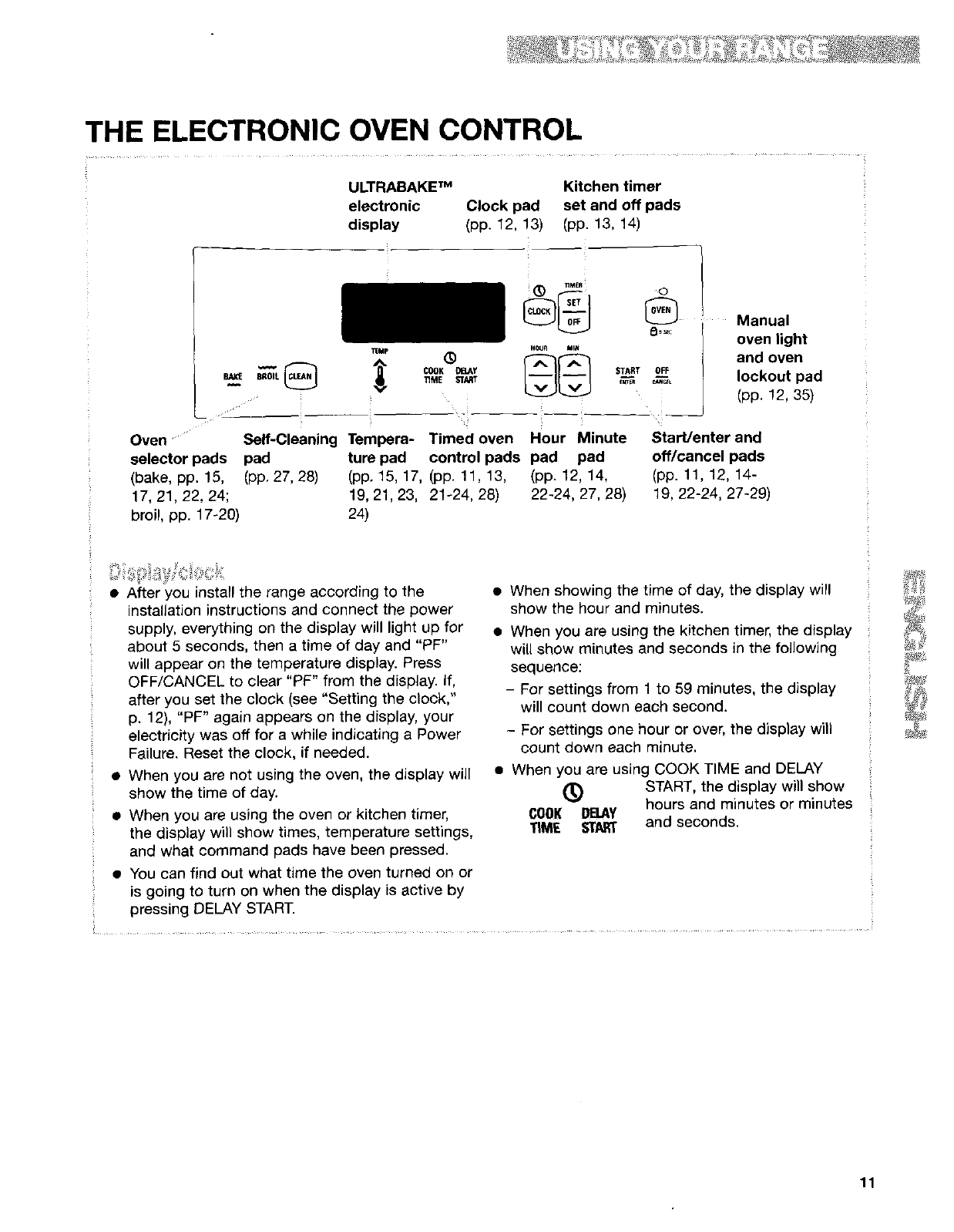

THE ELECTRONIC OVEN CONTROL
ULTRABAKE TM Kitchen timer
electronic Clock pad set and off pads
display (pp. 12, 13) (pp. 13, 14)
!(T) riMERi
SET
_ _ COOK OOAY
BROIL TiME START
,;
i
Oven Self-Cleaning Tempera- Timed oven Hour Minute
selector pads pad ture pad control pads pad pad
(bake, pp. 15, (pp. 27, 28) (pp. 15, 17, (pp. 11, 13, (pp. 12, 14,
17, 21, 22, 24; 19, 21,23, 21-24, 28) 22-24, 27, 28)
O
broil, pp. 17-20) 24)
HOUR MIi_
_START OFF
Manual
oven light
and oven
lockout pad
(pp. 12, 35)
StarUenter and
off/cancel pads
(pp. 11, 12, 14-
19, 22-24, 27-29)
•After you install the range according to the
installation instructions and connect the power
supply, everything on the display will light up for
about 5 seconds, then a time of day and "PF"
will appear on the temperature display. Press
OFF/CANCEL to clear "PF" from the display. If,
after you set the clock (see "Setting the clock,"
p. 12), "PF" again appears on the display, your
electricity was off for a while indicating a Power
Failure. Reset the clock, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or kitchen timer,
the display will show times, temperature settings,
and what command pads have been pressed.
• You can find out what time the oven turned on or
is going to turn on when the display is active by
pressing DELAY START.
• When showing the time of day, the display will
show the hour and minutes.
• When you are using the kitchen timer, the display
will show minutes and seconds in the following
sequence:
-For settings from 1 to 59 minutes, the display _s
will count down each second.
-For settings one hour or over, the display will
count down each minute.
• When you are using COOK TIME and DELAY
(_ START, the display will show
hours and minutes or minutes
COOK DELAY
TIME START and seconds.
11
SETTING THE CLOCK
1. Press CLOCK. PRESS
(9
YOU SEE (denotes blinking)
2. Se the time
Pl_!s the HOUR/MIN (A) or (V) pad(s) until the
_:(,_ect time of day shows oil the display
3. Press START/ENTER or CLOCK.
NOTE: This is a !2-hour clock. It does not
showa.m or pro.
PRESS
HOUR MIN
PRESS
STARTOR ®
ENTER
(example for 12:00)
YOU SEE
(example for 5:30)
YOU SEE
USING THE OVEN LOCKOUT
The oven lock lets you prevent use of the control
panel command keypads. This feature comes in
handy when cleaning the control panel to avoid
accidentally turning on the oven.
NOTE: You can only lock the oven when the oven
is not in use or the control has not been set. The
oven will remain locked after a power failure if it
was locked before the power failure.
To lock the oven:
Press and hold the OVEN keypad for 5 seconds.
....O You will hear a single tone and "Loc" and
_ will appear on the display. Three tones
will sound when the oven is locked and
you press any command pad other than
Fl_s_ CLOCK, TIMER, START/ENTER,
OFF/CANCEL, TOP or OVEN.
To unlock the oven:
Press and hold the OVEN keypad for 5 seconds.
",,C) You will hear a single tone and "Loc" and
[_ f_ will disappear from the temperature
display.
1_ss_
12
TONES
Keypad tones let you know a keypad has been
pushed.
To remove keypad tones:
Press and hold the COOK TIME keypad for
5 seconds. You will hear a short tone and
COOK
TIME see "8nd OFF" when the keypad tones
are turned off.
TO bring back keypad tones:
Press and hold the COOK TIME keypad for
COOK 5 seconds. You will hear a short tone and
TIME see "Snd on" when the keypad tones are
turned on.
Repeater tones are four 1-second tones which
remind you that the set time has expit'ed for a
kitchen timer or a timed oven control function.
To remove repeater tones:
Press and hold the SET keypad for 5 seconds. You
TIMER will hear a short tone and see "rEP OFF"
--_ when the repeater tones are turned off.
To bring back repeater tones:
Press and hold the SET keypad for 5 seconds. You
TIMER will hear a short tone and see "rEP on"
r_ when the repeater tones are turned on.
Error tones indicate a problem with the electronic
oven control. An error code will appear in the
display. See "Display Messages" in the
"Troubleshooting" section, p. 38.
Volume can be adjusted between high and low.
To adjust:
Press and hold the DELAY START keypad for
DELAY 5 seconds. You will hear a short tone and
START see either "Snd HI" or "Snd Lo". Press
and hold the DELAY START keypad again
for 5 seconds to change to desired setting.
NOTE: You can remove "Snd on", "Snd OFF", "rEP
on", "rEP OFF", "Snd HI" or "Snd Lo" from the
display and bring back the time of day by pressing
any key.
USING THE 12-HOUR SHUT-OFF
The oven control is set to automatically shut the oven
off 12 hours after the oven turns on. This will not
interfere with any timed or delayed cook function.
To override the 12°hour shut-off:
For tonger cooking periods and for religious
observances that require oven usage longer than
12 hours, press and hold the CLOCK keypad for 5
seconds. You will hear a tone and see "12H OFF"
when the feature is off. The oven will remain on
until turned off by the user.
NOTE: The oven light will come on when the oven
door is opened. To keep the light on continuously,
turn the light on, by pressing the OVEN keypad. See
instructions, p. 35.
To reset the 12-hour shut-off:
Press and hold the CLOCK keypad for 5 seconds.
You will hear a tone and see "12H on" when the
feature is on. The oven will automatically turn off
after 12 hours.
13
USING THE ELECTRONIC KITCHEN TIMER
The kitchen timer allows you to monitor time for
cooking and other tasks. It does not start or stop the
oven. (See the "Using the Timed Oven Control" sec-
tion (p. 21) to start and stop the oven automatically.) It
can be set in hours and minutes up to 12 hours, 59
minutes. The kitchen timer will display minutes and
seconds for settings under 1 hour. You will hear four
1-second tones when the set time is up.
1. Press TIMER SET. PRESS
TIMER
YOU SEE
2. Set the time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct length of time shows on the display.
PRESS
HOUR MIN
3. Press START/ENTER or TIMER SET. PRESS
The kitchen timer will begin counting down
immediately after the timer is started. The
display will count down in hours and minutes
(if remaining time is one hour or more) and in
minutes and seconds (if remaining time is less
than one hour).
TIMER
START__or _
ENTER
When the time is up:
You will hear four 1-second tones, then four
1-second repeater tones every minute until you
press TIMER OFE
YOU SEE
(example for 10 minutes)
YOU
(display counts down)
YOU SEE
1. Press TIMER OFF. PRESS YOU SEE
(time of day)
14
STARTING/CANCELING A FUNCTION
After setting a function, you must press START/
ENTER to start the function. If you do not
START__ press START/ENTER within 5 seconds of
ENTER setting, "START?" will show on the
display as a reminder. If you do not press
START/ENTER within 5 minutes of setting, the time
of day will appear. You must reset the function and
press START/ENTER.
OFF/CANCEL will cancel any function except the
Clock, Timer, or Oven Lockout. When you
__0FF press OFF/CANCEL the display will show
CANCELthe time of day or, if the minute timer is also
being used, the time remaining.
ULTRABAKE TMBAKING/ROASTING
Your oven is designed with the ULTRABAKE TM
enhanced baking system to constantly monitor
oven temperature. The bake burner will cycle, as
needed, to maintain the desired temperature. This
feature is automatically activated when the oven is
in operation.
IMPORTANT:
•When using the oven for the first time, it is
necessary to light the surface burners first to
purge air from the gas lines.
•Do not try to light the oven burner during a
power failure.
•Never place food or cookware directly on the
oven door or the oven bottom.
1. Place the rack(s) where you need them in the
oven. For more information, see the "Positioning
racks and pans" section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
3. Set the temperature (optional). PRESS
Do this step if you want to set a temperature TEMP
other than 350°R Press TEMP (,&) or (V) pad(s) _.
to raise or lower the temperature in 5°F amounts.
Use these pads until the desired temperature
shows on the small display.
YOU SEE
(example for bake at 375°F)
continued on next page
15
ULTRABAKE TM BAKING/ROASTING (contd.)

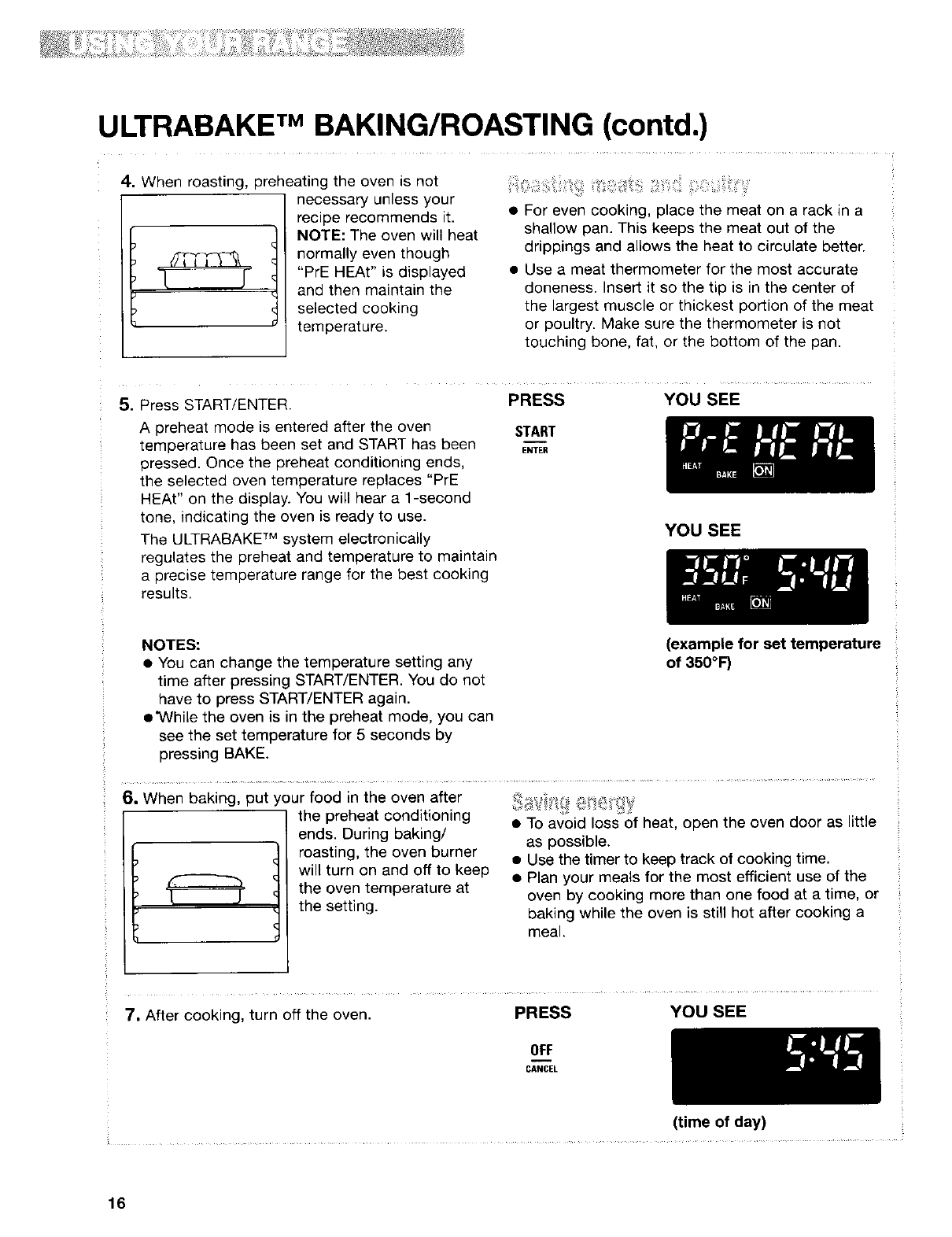

4. When roasting, preheating the oven is not
necessary unless your
recipe recommends it.
NOTE: The oven will heat
normally even though
"PrE HEAt" is displayed
and then maintain the
selected cooking
temperature.
•For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
•Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the meat
or poultry. Make sure the thermometer is not
touching bone, fat, or the bottom of the pan.
5. Press START/ENTER. PRESS YOU SEE
A preheat mode is entered after the oven
temperature has been set and START has been
pressed. Once the preheat conditioning ends,
the selected oven temperature replaces "PrE
HEAt" on the display. You will hear a 1-second
tone, indicating the oven is ready to use.
The ULTRABAKF M system electronically
regulates the preheat and temperature to maintain
a precise temperature range for the best cooking
results.
START
ENTER
YOU SEE
NOTES:
•You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
e'While the oven is in the preheat mode, you can
see the set temperature for 5 seconds by
pressing BAKE.
(example for set temperature
of 350°1=)
6. When baking, put your food in the oven after
the preheat conditioning
ends. During baking/
roasting, the oven burner
will turn on and off to keep
the oven temperature at
the setting.
• To avoid loss of heat, open the oven door as little
as possible.
• Use the timer to keep track of cooking time.
•Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven. PRESS YOU SEE
OFF
CANCEL
(time of day)
16
READJUSTING THE OVEN TEMPERATURE CONTROL
(OPTIONAL)
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook
faster or slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the temperature calibration
by following the steps below.
1. Press and hold BAKE for 5 seconds.
The display will show the current temperature
calibration, for example "0," if you have not
already adjusted the temperature.
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.
PRESS YOU SEE
BAKE
2. Set the new offset temperature. PRESS
Press TEMP (A) or (V) pad(s) to raise or lower
the temperature in 1O°F amounts, You can set
the temperature change to as low as -30°F or as
high as +30°E A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
temperature setting.
TEMP
(factory setting of "0")
YOU SEE
(example when making oven
10°F warmer)
PRESS YOU SEE
3. Enter the adjustment.
.NOTE: You must press START/ENTER after START
adjusting the calibration or your changes will not ENTE"_
be made.
(time of day)
ADJUST BY
results you want. You can figure out cooking results
by the amount of browning, moistness, and rising
times for baked foods.
TO COOK FOOD _.
The chart at the right tells you how much to adjust
the temperature calibration to get the cooking A little more
Moderately more
Much more
A little less
Moderately less
Much less
THIS NUMBER
OF DEGREES
(FAHRENHEIT)
+10
+20
+30
-i0
-20
-30
Press and hold BROIL for 5 seconds. You will hear a
short tone and the temperatures displayed will
BROIl. switch to °C. To switch back to °F, repeat the
instructions above. Whenever you switch, "°C"
or "°F" will be displayed until another key is pressed.
17
BROILING
For best results, do not preheat when broiling
unless your recipe recommends it.
1. Place the rack so that the surface of the food is
no less than 3 inches away from the broil burner.
See "Broiling guidelines," pp. 19, 20.
2. Put your food on the broiler pan and place the
v
\ •
pan in the center of
the oven rack. Close
the door.
3. Press BROIL. PRESS YOU SEE
BROIL
4, Press START/ENTER. PRESS YOU SEE
You can change the temperature setting any
time before or after pressing START/ENTER.
To change the temperature, see "Precision
broiling" later in this section.
START
ENTER
5, After broiling, turn off the oven. PRESS YOU SEE
OFF
CANCEL
(time of day)
18
BROILING (contd.)
Use precision broiling if your food is cooking too
fast or if you want your food to broil slower from the
start. The lower the temperature, the slower the
cooking. Thicker cuts and unevenly shaped pieces
of meat, fish and poultry may cook better if you use
lower broiling temperatures.
1. Press BRQIL. PRESS
BROIL
YOU SEE
2. Press the TEMP (V) keypad to lower the PRESS
temperature in 5°F amounts, The broil range is TEMP
range is 170°F - HI (525°F).
3. Press START/ENTER. PRESS YOU SEE
START
ENTER
(example shows broil at 400°F)
B 4Iir gguide!is s
• Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
• Pull out oven rack to stop position before turning
or removing food.
• After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making
cleaning more difficult.
• For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
continued on next page
19
BROILING (contd.)
ilii}iii¸¸¸¸¸¸;iii_!i!:ii_iiii!_iiiii_i!!C!i_iii!!ii_ili_i<!i!i!_i __ ill
Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food 3
inches or more from the broil burner. Times are
guidelines 0nly and may need to be adjusted for
individual tastes.
MEAT
APPROXIMATE TIME
RACK BROIL (MINUTES)
POSITION SETTING SIDE 1 SIDE 2
Steak, 1" thick 4 HI
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-10
Ground Meat Patties, ¾" thick, 4 HI 13-14 6-7
well done
Pork Chops, 1" thick 4 HI 18-21 8-10
Ham Slice, ½" thick precooked 4 HI 8-10 4-5
Bacon, thick sliced 4 500°F 8-9 1-2
Frankfurters 4 HI 6-7 3-4
Lamb Chops, 1" thick 4 HI 15-17 8-9
Chicken
bone-in pieces 3 HI 20-24 15-18
boneless breasts 4 HI 12-16 11-16
Fish 4
fillets ¼-½"thick HI 8-10 4-5
steaks ¾-1" thick 500°F 13-15 10-13
2O

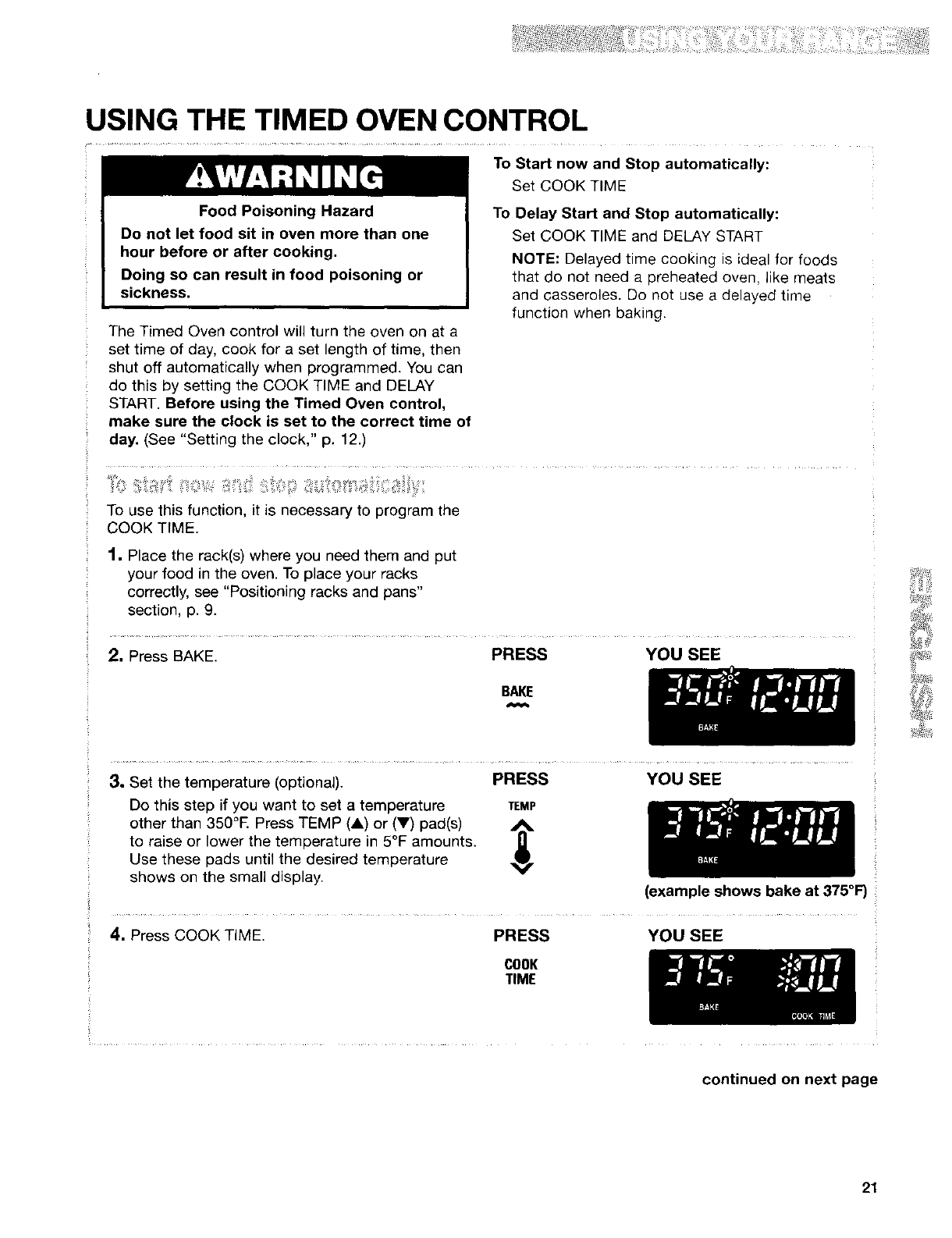

USING THE TIMED OVEN CONTROL
Food Poisoning Hazard
Do not let food sit in oven more than one
hour before or after cooking.
Doing so can result in food poisoning or
sickness.
The Timed Oven control will turn the oven on at a
set time of day, cook for a set length of time, then
shut off automatically when programmed. You can
do this by setting the COOK TIME and DELAY
START. Before using the Timed Oven control,
make sure the clock is set to the correct time of
day. (See "Setting the clock," p. 12.)
To Start now and Stop automatically:
Set COOK TIME
To Delay Start and Stop automatically:
Set COOK TIME and DELAY START
NOTE: Delayed time cooking is ideal for foods
that do not need a preheated oven, like meats
and casseroles. Do not use a delayed time
function when baking.
, _ _ ', ,;/:. , _,, ,._•,
To use this function, it is necessary to program the
COOK TIME.
1. Place the rack(s) where you need them and put
your food in the oven. To place your racks
correctly, see "Positioning racks and pans"
section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
3. Set the temperature (optional). PRESS
Do this step if you want to set atemperature TEMP
other than 350°E Press TEMP (&) or (V) pad(s)
to raise or lower the temperature in 5°F amounts.
Use these pads until the desired temperature
shows on the small display.
YOU SEE
(example shows bake at 375°F)
4. Press COOK TIME. PRESS YOU SEE
COOK
TIME
continued on next page
21
USING THE TIMED OVEN CONTROL (contd.)

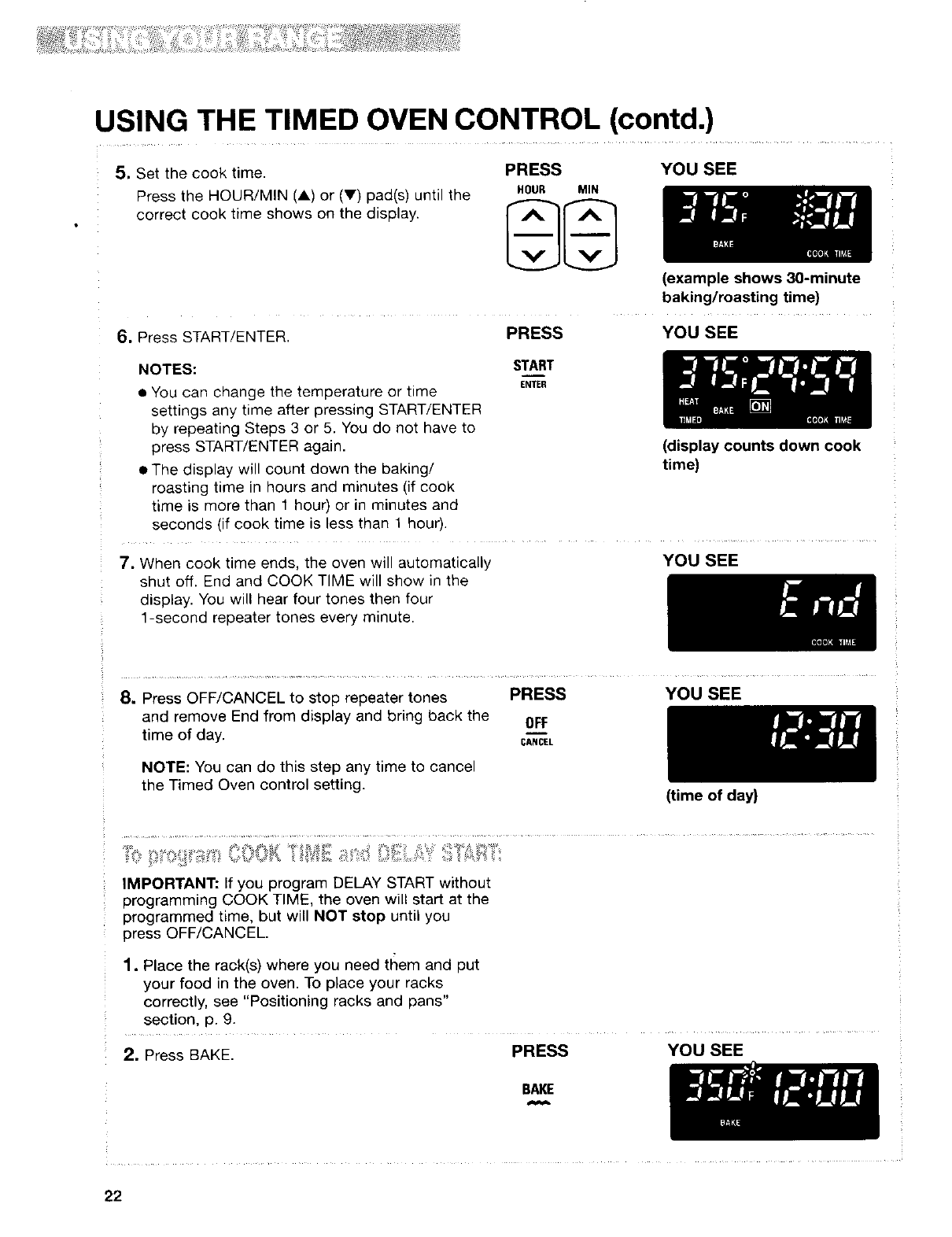

5. Set the cook time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct cook time shows on the display.
PRESS
HOUR MIN
YOU SEE
(example shows 30-minute
baking/roasting time)
6. Press START/ENTER. PRESS YOU SEE
NOTES: START
ENTER
• You can change the temperature or time
settings any time after pressing START/ENTER
by repeating Steps 3 or 5. You do not have to
press START/ENTER again.
eThe display will count down the baking/
roasting time in hours and minutes (if cook
time is more than 1 hour) or in minutes and
seconds (if cook time is less than 1 hour).
(display counts down cook
time)
7. When cook time ends, the oven will automatically
shut off. End and COOK TIME will show in the
display. You will hear four tones then four
1-second repeater tones every minute.
YOU SEE
8. Press OFF/CANCEL to stop repeater tones PRESS
and remove End from display and bring back the OFF
time of day. CANC--_L
YOU SEE
NOTE: You can do this step any time to cancel
the Timed Oven control setting. (time of day)
IMPORTANT: If you program DELAY START without
programming COOK TIME, the oven wilt start at the
programmed time, but will NOT stop until you
press OFF/CANCEL.
1. Place the rack(s) where you need tl_em and put
your food in the oven. To place your racks
correctly, see "Positioning racks and pans"
section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
22
USING THE TIMED OVEN CONTROL (contd.)
3. Set the temperature (optional).
Do this step if you want to set a temperature
other than 350°E Press TEMP (A) to raise the ,_
temperature or (V) to lower the temperature in
5°F amounts. Use these pads until the tempera-
ture you want shows on the small display.
4. Press COOK TIME.
PRESS YOU SEE
TEMP
PRESS
(example shows bake at 375°F)
YOU SEE
COOK
TIME
5. Set the cook time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct cook time shows on the display.
PRESS
HOUR MIN
YOU SEE
(example shows 30-minute
baking/roasting time)
6. Press DELAY START. PRESS YOU SEE
DELAY
START
7, Set the time of day to start.
Press the HOUR/MIN (A) or (Y) pad(s) until
the correct time of day to start shows on the
display.
The example at the right shows a chosen start
time of 1:00. The oven will shut off by itself at
1:30 (the set start time plus the set cook time),
PRESS
HOUR MIN
YOU SEE
(example shows 1:00
start time)
8. Press START/ENTER. PRESS YOU SEE
The stop time is calculated automatically.
NOTE: You can change the temperature and time
settings any time after pressing START/ENTER by
repeating Steps 3 through 8 unless the delay start
time has been reached.
START
ENTER
continued on next page
23
USING THE TIMED OVEN CONTROL (contd.)

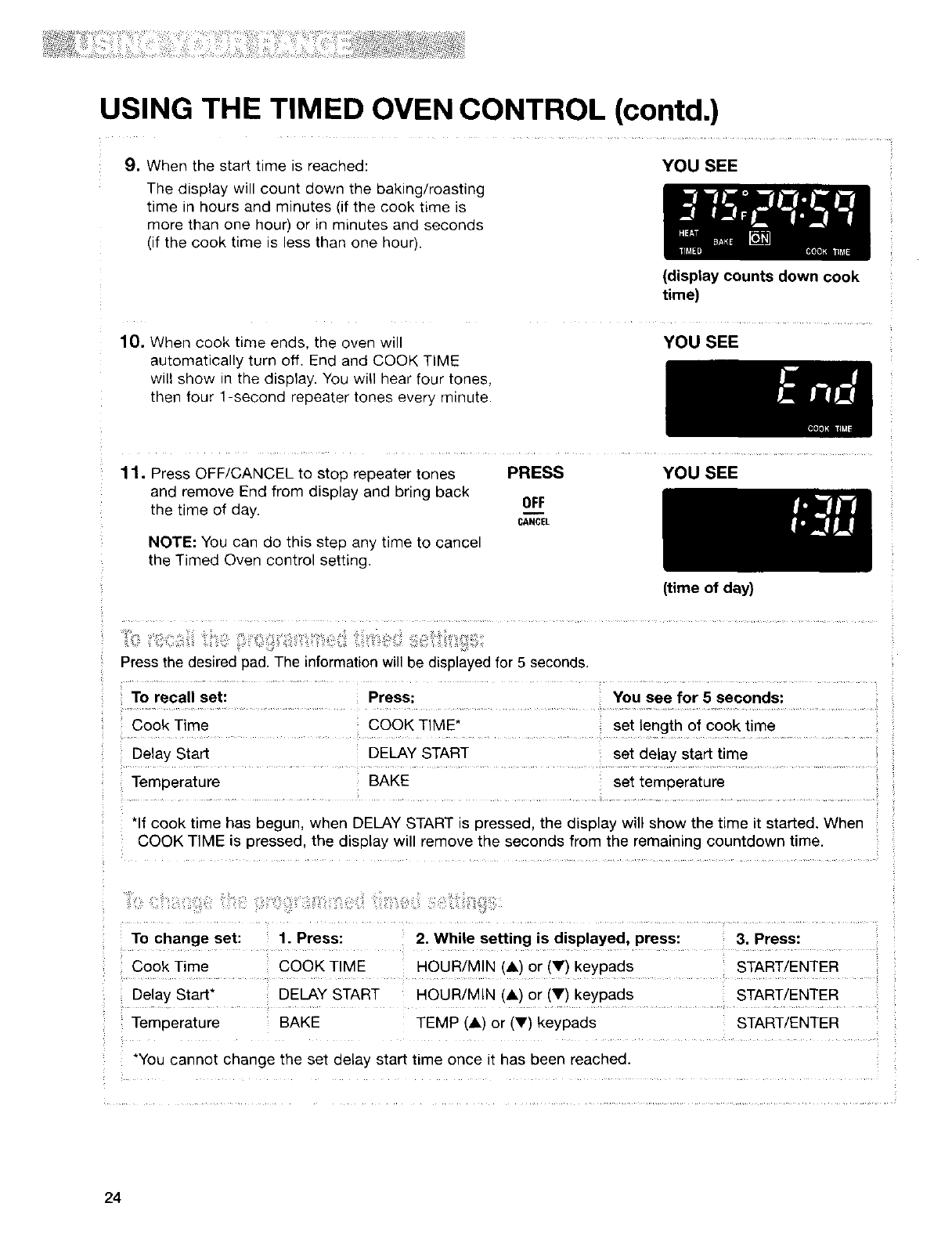

9. When the start time is reached:
The display will count down the baking/roasting
time in hours and minutes (if the cook time is
more than one hour) or in minutes and seconds
(if the cook time is less than one hour).
YOU SEE
(display counts down cook
time)
10. When cook time ends, the oven will
automatically turn off. End and COOK TIME
will show in the display. You will hear four tones,
then four 1-second repeater tones every minute.
YOU SEE
11. Press OFF/CANCEL to stop repeater tones PRESS
and remove End from display and bring back
the time of day. OF__F
CANCEL
YOU SEE
[]
NOTE: You can do this step any time to cancel
the Timed Oven control setting.
(time of day)
, :
Press the desired pad. The information will be displayed for 5 seconds.
To recall set: Press: You see for 5 seconds: ;;
Cook Time COOK TIME* set length of cook time ;
Delay Start DELAY START set delay start time
Temperature BAKE set temperature
*If cook time has begun, when DELAY START is pressed, the display will show the time it started, When
COOK TIME is pressed, the display will remove the seconds from the remaining countdown time.
To change set: 1. Press: 2, While setting is displayed, press: 3_ press: ......
. Cook Time COOK TIME HOUR/MIN (A) or (Y) keypads START/ENTER
Delay Start* DELAY START HOUR/MIN (A) or (Y) keypads START/ENTER
Temperature BAKE TEMP (A) or (V) keypads START/ENTER
*You cannot change the set delay start time once it has been reached.
24
THE STORAGE DRAWER
Use the storage drawer to store cookware. You can remove the drawer to make it easier to clean under the
range and to check for installation of the anti-tip bracket, Use care when handling the drawer,
_i:_
1. Empty drawer of any pots and pans before
removing drawer. Pull drawer straight out to
the first stop. Lift front and pull out to the
second stop.
2. Lift back slightly and slide drawer all the way out.
rail
1. Position the drawer rollers under the rollers on the
range. At the same time, fit the drawer guide rails
on top of the rollers on the range.
2. Lift drawer front enough to clear second stop and
slide drawer closed,
1. Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
Lower slide rail Drawer
(inside drawer slide rail
opening) Upper drawer
guides
(on inside walls) Lower
drawer guide
1. Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2. Lift the front of the drawer and push it in until the
metal stops on the drawer slide rails clear the
upper drawer guides. Then slide the drawer closed.
2. Lift the back of the drawer slightly and slide it all
the way out.
THE OVEN VENT
Hot air and moisture escape from the oven through
a vent that is near the middle of the backguard. The
vent lets air circulate properly. Be careful not to
block the vent, or you will get poor baking/roasting
results.
NOTE: Never store plastics, paper, or other items
that could melt or burn near the oven vent, or any
of the surface burners.
Oven vent
25
Usingthe Self-Cleaning Cycle
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
BEFORE YOU START
NOTES:
• Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well
ventilated by opening a window or by turning on
a vent hood or other kitchen vent during the
cycle.
• DO NOT clean, move, or bend the gasket. You
may get poor cleaning, baking, and roasting.
• The oven light will not work during the Self-
Cleaning cycle.
Before you start the Self-Cleaning cycle, make
sure you:
•Hand-clean the areas shown, They do not get
hot enough during the Self-Cleaning cycle for
soil to burn away. Use hot water and detergent
or a soapy, steel-wool pad for cleaning.
• Do not let water, cleaner, etc., enter slots on
door and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
• Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
• Wipe up food spills containing sugar and/or milk
as soon as possible after the oven cools down.
When sugar is heated to a high temperature in
the Self-Cleaning cycle, the high temperature
can cause the sugar to burn and react with the
porcelain. This can cause staining and etching or
pitting.
• Remove the oven racks from the oven if you want
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See the "Cleaning chart"
in the "Caring for Your Range" section, p. 31.) If
you clean the racks in the Self-Cleaning cycle,
place them on the 2nd and 4th rack guides. (The
guides are counted from bottom to top,)
OO NOT
hand-clean
gasket
Hand-clean
frame
Hand-clean
door around
edge
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the Self-
Cleaning cycle. Exposure to the fumes may result in
death to certain birds. Always move birds to another
closed and well ventilated room.
TIPS:
•Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat, odors,
and smoke.
Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in more smoke than usual.
• Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
• Do not leave plastic utensils on the cooktop. They
may melt.
• Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
26

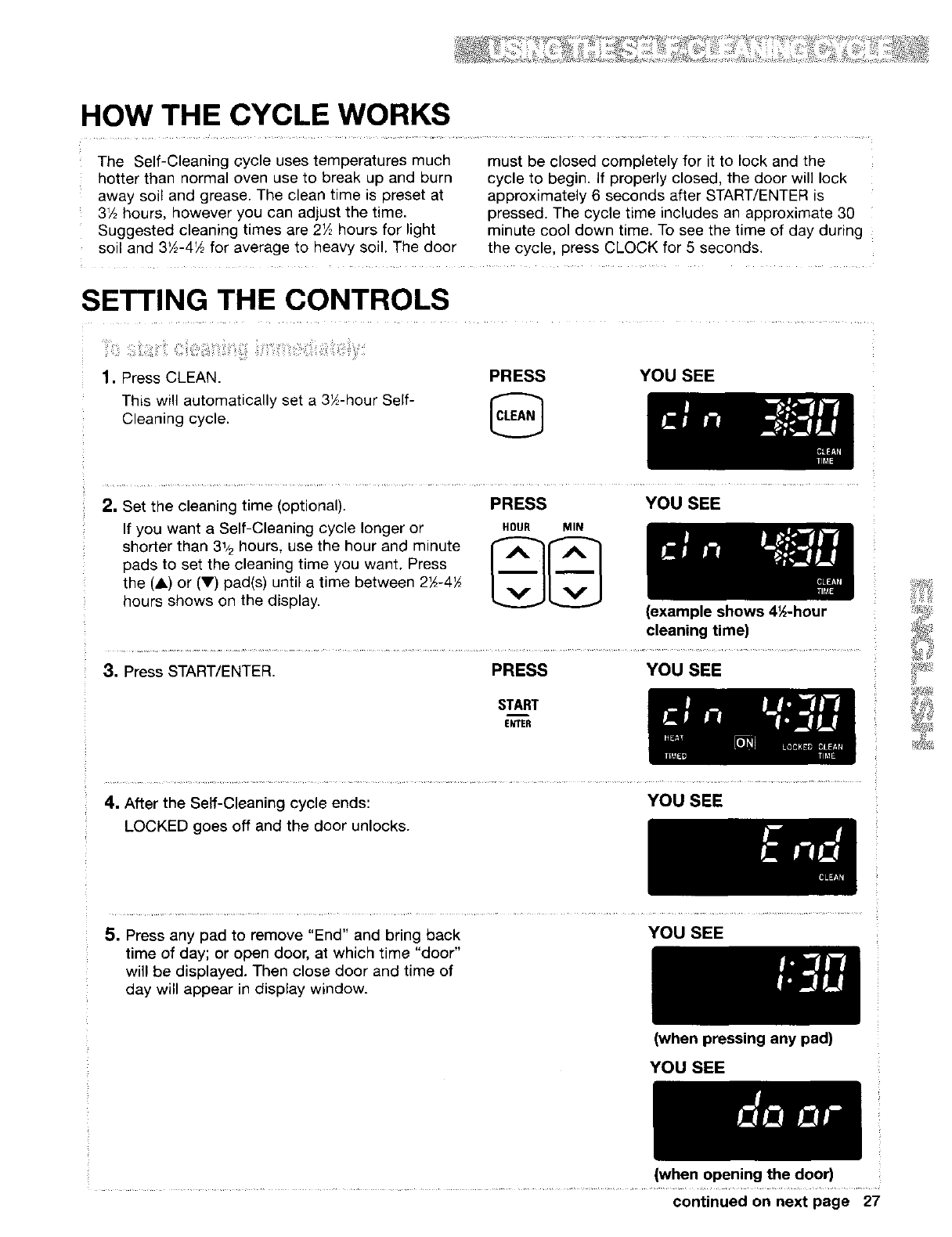

HOW THE CYCLE WORKS
The Self-Cleaning cycle uses temperatures much
hotter than normal oven use to break up and burn
away soil and grease. The clean time is preset at
3_½hours, however you can adjust the time.
Suggested cleaning times are 2½ hours for light
soil and 3V2-4½for average to heavy soil. The door
must be closed completely for it to lock and the
cycle to begin. If properly closed, the door will lock
approximately 6 seconds after START/ENTER is
pressed. The cycle time includes an approximate 30
minute cool down time. To see the time of day during
the cycle, press CLOCK for 5 seconds.
SETTING THE CONTROLS
1. Press CLEAN.
This will automatically set a 3_-hour Self-
Cleaning cycle.
PRESS YOU SEE
2. Set the cleaning time (optional). PRESS
If you want a Self-Cleaning cycle longer or ,0UR M_N
shorter than 31/2hours, use the hour and minute i_1"_
pads to set the cleaning time you want. Press ©%
the (A) or (V) pad(s) until a time between 2_-4_
hours shows on the display.
YOU SEE
(example shows 4½-hour
cleaning time)
3. Press START/ENTER. PRESS YOU SEE
START
ENTER
4. After the Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
5. Press any pad to remove "End" and bring back
time of day; or open door, at which time "door"
will be displayed. Then close door and time of
day will appear in display window.
YOU SEE
(when pressing any pad)
YOU SEE
(when opening the door)
continued on next page 27
SETTING THE CONTROLS (contd.)
6. After the oven is cool, wipe off any residue or ash
with a damp cloth or sponge.
If needed, touch up spots
with a mild abrasive cleanser
or cleaning sponge.
NOTE: Make sure the clock is set to the correct
time of day, (See "Setting the clock" in the "Using
Your Range" section, p. 12.)
1. Press CLEAN.
This will automatically set a 3'/_-hour Self-
Cleaning cycle.
PRESS YOU SEE
2. Set the cleaning time (optional). PRESS
If you want a Self-Cleaning cycle longer or HOUR MIN
shorter than 3_,,2hours, use the HOUR and MIN I'_-A-'_II'_-'_I
pads to set the cleaning time you want. Press
the (&) or (V) pad(s) until a time between 2_-4_
hours shows on the display.
YOU SEE
(example shows 4½-hour
cleaning time)
3. Press DELAY START. PRESS YOU SEE
BELAY
START
4. Set the start time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct time of day to start the Self-Cleaning
cycle shows on the display.
PRESS
HOUR MIN
YOU SEE
(example for 12:30 start time)
5. Press START/ENTER. PRESS YOU SEE
START
E_ER
28
: iii iiii!iiiiii ii! iiii!iiiiii!ii!;!i !iiiiiii!i¸¸ ?
SETTING THE CONTROLS (contd.)
:6. Once Delay Start time has been reached, the
oven begins the Self=Cleaning cycle.
YOU SEE
7. After the Self-Cleaning cycle ends:
LOCKED goes off and the door unlocks.
YOU SEE
8. Press any pad to remove "End" and bring back
time of day; or open door, at which time "door"
will be displayed. Then close door and time of
day will appear in display window.
YOU SEE
(when pressing any pad)
YOU SEE
9. After the oven cools to room temperature, wipe
__ off any residue or ash with
a damp cloth or sponge.
If needed, touch up spots
with a mild abrasive cleanser
or cleaning sponge.
(when opening the door)
Press OFF/CANCEL. PRESS
OFF
CANCEL
YOU SEE
If the oven temperature is too high for you to
immediately open the door when you press
OFF/CANCEL, "cln," ON, "cool," and LOCKED will
appear on the display until the oven cools; then
"End" will appear and the door will unlock.
29
Caringfor YourRange
CLEANING CHART
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Control knobs • Soap and water •DO NOT use steel wool or abrasive
• Dishwasher cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft cloth.
Control panel • Soap and water • Wash, rinse and dry with soft cloth.
• Spray glass cleaner • Apply spray cleaner to paper towel;
do not spray directly on panel.
Exterior surfaces*
(excLudingcontrol panel and
oven door glass)
Porcelain-coated cooktop
grates and surface burner
caps*
• Light to moderate soit
• Heavy burned-on soils
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic scrubbing pad
• Sears Grate Cleaner
• Soap and water
• Non-abrasive plastic scrubbing pad
• Dishwasher (grates only)
• Non-abrasive plastic scrubbing pad
• Mild abrasive powdered cleanser
and water
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft cloth.
• Gently clean around the model and
serial plate, too much scrubbing
could remove the numbers.
•NOTE; To avoid product damage,
do not remove the cooktop.
• Clean as soon as they become
dirty.
• Wash, rinse and dry well.
• Run dishwasher with only grates
loaded on the lower rack usLng the
most aggressive cycle.
• Repeat steps of cleaning process
(with items at left) as needed, until
soil is completely removed.
• Rinse thoroughly and dry.
•NOTE: Do not reassemble caps on
burners while wet. Do not wash caps
in dishwasher.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish. To avoid porcelain grate chipping, do not bang grates and caps against each other or other
hard surfaces such as cast iron cookware.
30
CLEANING CHART (contd.)
PART
Surface burners
Oven door glass
Oven cavity
• Food spills containing
sugar and/or milk
•All other spills
Oven racks
Broiler pan and grid
Storage drawer cavity
• Food spills containing
sugar and/or milk
• All other spills
CLEANING METHOD
• Soap and water
• Non-abrasive plastic scrubbing pad
• Spray glass cleaner
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of V2cup ammonia to
1 gallon water
• Mild abrasive cleanser or
commercial oven cleaner
• Soap and water
• Mild detergent
SPECIAL INSTRUCTIONS
• See "Sealed surface burners and
cooktop" in the "Caring for Your
Range" section, pp. 32, 33.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth.
• See "Using the Self-Cleaning
Cycle," p. 26.
• Wash, rinse and dry.
• Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid
in the self-cleaning cycle.
• When drawer cools, wash, rinse
and dry with soft cloth.
• Wash, rinse and dry with
soft cloth.
31

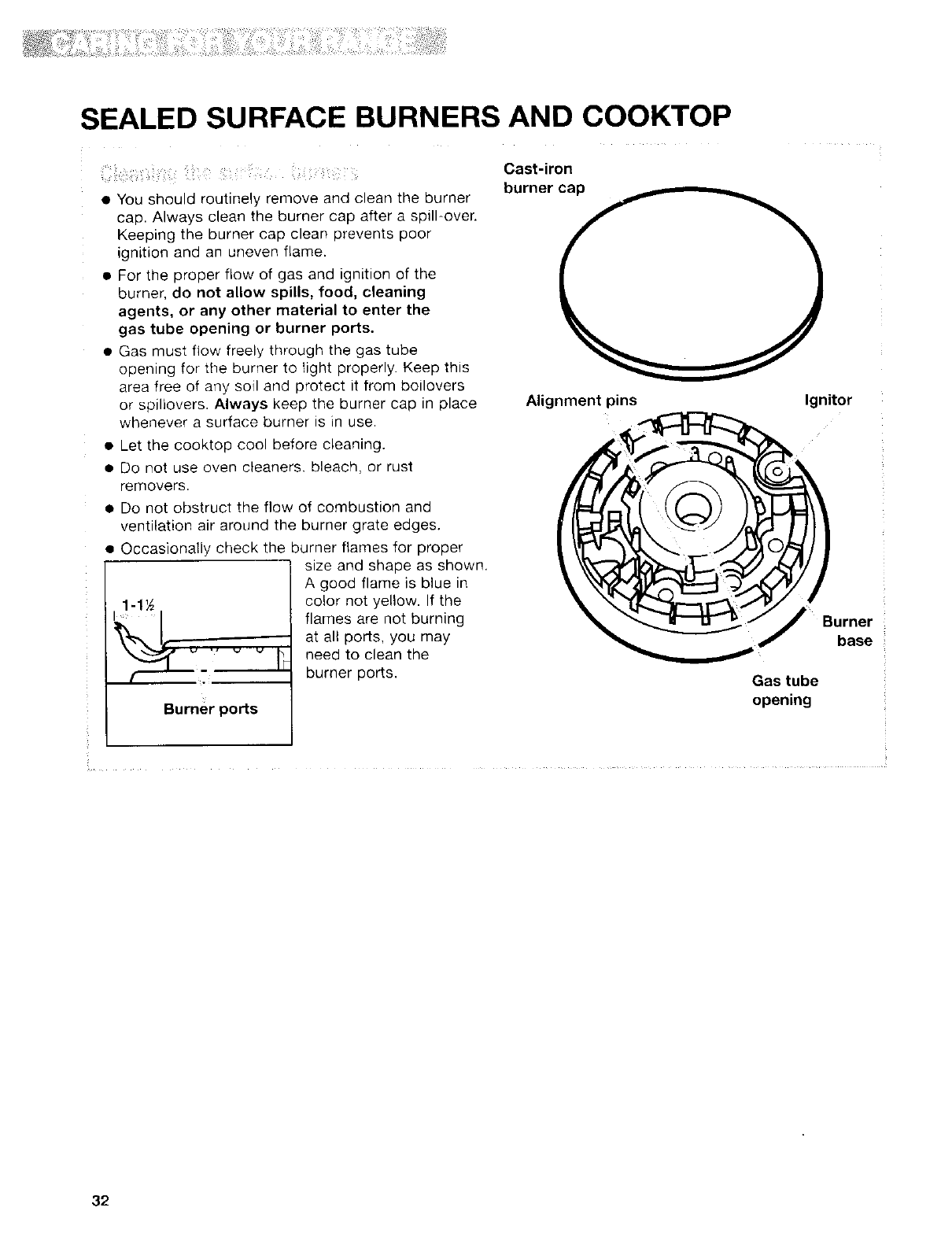

SEALED SURFACE BURNERS AND COOKTOP
•You should routinely remove and clean the burner
cap. Always clean the burner cap after a spill-over.
Keeping the burner cap clean prevents poor
ignition and an uneven flame.
•For the proper flow of gas and ignition of the
burner, do not allow spills, food, cleaning
agents, or any other material to enter the
gas tube opening or burner ports.
• Gas must flow freely through the gas tube
opening for the burner to tight properly. Keep this
area free of any soil and protect it from boilovers
or spillovers. Always keep the burner cap in place
whenever a surface burner is in use.
• Let the cooktop cool before cleaning.
• Do not use oven cleaners, bleach, or rust
removers.
Burner ports
• Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Occasionally check the burner flames for proper
size and shape as shown.
A good flame is blue in
color not yellow. If the
flames are not burning
at all ports, you may
need to clean the
burner ports.
Cast-iron
burner cap
Alignment pins Ignitor
Gas tube
opening
32
SEALED SURFACE BURNERS AND COOKTOP (contd.)
1. Remove the burner cap from the
burner base.
2. Clean the burner cap with warm, soapy water
and a sponge. You can also clean it with a
mildly abrasive scrubbing pad or cleanser.
Do not clean the burner cap in a dishwasher or
self-cleaning oven.
3, If the gas tube opening has become soiled or
clogged, use a damp cloth to clean the area.
4. If the burner ports are clogged, clean them
with astraight pin.
Do not enlarge or
distort the port. Do
not use a wooden
toothpick. If the
burner needs to be
adjusted, call a
qualified technician
for service.
5. After cleaning the gas tube opening and ports,
C)
Gas tube opening
replace the burner
cap. To replace the
burner cap, make
sure the alignment
pins on the cap are
properly aligned with
the burner base.
6. Turn on the burner to see if it will light. If the
burner does not light
after you have cleaned it,
recheck cap alignment
or contact a Sears
Service Center. Do not
service the sealed burner
yourself.
REMOVING THE OVEN DOOR
For normal use of your range, you do not need to Door removal
remove the door. However, if you find it necessary pin hole
to remove the door, follow the instructions in this I
section. I
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door stop clip
Range
Hinge Front frame
hanger hinge slot
continued on next page
33
REMOVING THE OVEN DOOR (contd.)
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not
remove the pins while
the door is removed
from the range.
3, Grasp the door on the sides with your fingers
on the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the
door removal pins.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.
NOTE: The door removal pins you inserted must
still be in both door hinges.
1, Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
34
REMOVING THE OVEN DOOR (contd.)
2. Hold oven door so that the top edge of each
hinge hanger is horizontal, Insert hinge hangers
into the front frame hinge slots.
3. Tilt top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully
seated and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use,
6. Close the door.
7. Check for alignment to make sure door is
installed evenly.
Door stop Range
clip
Hinge
Door removal _ /hanger
pin hole /,,_O _[L/ Support pins
/D/Ill
_1111 III Front frame
hinge slot
Door removal I
pin hole
I I Angular
surface of
door stop
clip
THE OVEN LIGHT
The oven light will come on when you open the
oven door. The oven light will not work during the
Self-Cleaning cycle.
•Press the OVEN pad. ",0
1. Unplug range or disconnect power.
2. Remove the glass bulb cover in the back of the
l oven by turning it
counterclockwise.
4. Replace the light bulb cover by turning it clockwise.
3. Remove the light bulb from its socket by turning 5. Plug in range or reconnect power.
it counterclockwise. Replace the bulb with a
40-watt appliance bulb.
35
Troubleshooting
Most cooking problems are caused by little things you can find and fix without tools of any
kind. Check the lists below and on the next page before calling for assistance or service.
RANGE DOES NOT WORK
PROBLEM CAUSE/SOLUTION
Nothing works • The range is not plugged into a properly grounded outlet (120v polarized).
• The range is not properly connected to the gas supply. Contact a Sears
Service Center to reconnect the range to the gas supply. (See the Installation
Instructions,)
• A household fuse has blown or a circuit breaker has been tripped.
• The Oven Lockout has been set,
OVEN/BROILER BURNER
PROBLEM CAUSE/SOLUTION i
The oven does not work • When using the oven for the first time, it is necessary to light the surface
burners first to purge air from the gas lines.
• The electronic control is not set correctly. Refer to setting the electronic
oven control section. (See pp. 11-24.)
• A delay start has been set. Wait for the start time to be reached or cancel
and reset the control.
• The main or regulator gas shutoff valve is in the off position, (See the
Installation Instructions.)
• The Oven Lockout has been set.
Burner makes muffled • This is normal. This sound occurs when the oven burner cycles on and off
ticking noise when in use to hold the set oven temperature.
The burner fails to light • The ignition system is broken. Contact a Sears Service Center to replace it.
• A household fuse has blown or a circuit breaker has been tripped.
The burner flames lift • The air/gas mixture is incorrect. Contact a Sears Service Center to check
away from the ports, are the air/gas mixture or see the Installation Instructions.
yellow, or are noisy
36
iiii ¸¸ i i ! !i ¸ Li:i
SURFACE BURNERS
PROBLEM CAUSE/SOLUTION
The burner fails to light •The control knob is not set correctly Push in the control knobs before turning
them. Make sure the control knob is turned Io tile LITE position. (See p. 7.)
• A household fuse has blown or a c_rcH_t breaker has been tripped,
• The burner ports may be cloggeo _,ie_n them with a straight pin (See p. 33.)
The burner flames are • The burner ports may be clof_ged r_l_ ,4,7them with a straight pin. (See p. 33,)
uneven • The burner caps m,ay _;ot be po_ t;,_z_: prope_Fy (See p 33.)
The burner flames lift off • The burner needs cleaning iq,e_ ,,:> :::' :_3 ',
the ports, are yellow, or • The burner may be dama!_ed Cor/trtct _ Sears Set vice Center to check
are noisy when turned off the burner,
• If propane gas is being used. the ran;3e may _7_',e bee_7 converted
improperly. Contact a Sears Service Center
The burner makes a • The burner is wet from washing iet 1 dry.
popping noise when on
WHEN SELF-CLEANING YOUR OVEN
PROBLEM CAUSE/SOLUTION
The Self-Cleaning Cycle eSTART/ENTER haS not been pressed.
will not work • A delay start has been set. Wait for the start time to be reached or cancel
and reset the control.
• The door is not closed al! the way.
37
COOKING RESULTS
PROBLEM CAUSE/SOLUTION
Cookware not level • Level the range. (See the Installation Instructions.)
on cooktop • Use cookware with a flat bottom.
(Check to see if liquids
are level in cookware)
Excessive heat on cooktop • Choose cookware the same size or slightly larger than the burner flame.
in areas around cookware
The oven temperature • Adjust the oven temperature control. (See "Readjusting the oven
seems too low or too high temperature control," p. 17.)
Slow baking or roasting • Increase baking or roasting time.
• Increase temperature 25°F.
• Preheat to selected temperature before placing food in oven when
preheating is recommended.
• Choose bakeware that will allow 2 inches of air space around all sides.
• Open oven door to check food when timer signals shortest time suggested
in recipe.
• Oven peeking can make cooking times longer.
Baked items too brown • Preheat oven to selected temperature before placing food in oven.
on bottom • Choose bakeware that will allow 2 inches of air space around all sides.
• Position rack higher in oven.
• Decrease oven temperature 15° to 25°F.
Unevenly baked items • Level the range.
• Bake in center of oven with 2 inches of space around each pan.
• Check to make sure batter is level in pan.
Crust edge browns • Shield edge with foil.
before pie is done
DISPLAY MESSAGES
PROBLEM CAUSE/SOLUTION
The display is showing • There has been a power failure. Press OFF/CANCEL to clear the display,
"PF" then reset the clock. (See p. 12.)
"F" followed by a • Press OFF/CANCEL to clear the display. If an "F" code appears again, call
number shows on for service.
the display
"EO F5" appears on
the display (The oven
door will not close
because the self-clean
latch mechanism
interferes.)
• Press OFF/CANCEL to clear display.
• Depress and hold the door switch plunger (located on the oven front
frame). Latch mechanism will unlock in about 6 seconds.
38
Index
TOPIC PAGE TOPIC PAGE
ANTI-TIP BRACKET ...................................................... 4
BROILING
Grid .......................................................................... 19
Guidelines ........................................................ 19, 20
Pan .................................................................... 18-20
Setting cycle ............................................................ 18
Oven rack positions ................................................ 20
CLEANING
Broiler pan and grid ................................................ 31
Control knobs .......................................................... 30
Control panel .......................................................... 30
Exterior surfaces .................................................... 30
Oven cavity ............................................................ 31
Oven door glass ...................................................... 31
Oven racks ................................................................ 31
Self-Cleaning .................................................... 26-29
Surface burners ................................................ 32, 33
Cooktop grates and surface burner caps ................ 30
Storage drawer cavity .............................................. 31
CONTROL PANEL
Burner heat settings .................................................. 7
Control knobs ........................................................ 6, 7
Surface burner markers ............................................ 6
COOKWARE
Canning .................................................................... 8
Materials .................................................................... 8
ELECTRONIC OVEN CONTROL
12-hour shut-off ...................................................... 13
Canceling ................................................................ 15
Celsius/Fahrenheit .................................................. 17
Clock ...................................................................... 12
Display/clock .......................................................... 11
Kitchen timer .......................................................... 14
Oven Lockout .......................................................... 12
Starting .................................................................... 15
Tones ...................................................................... 13
FEATURES .................................................................... 6
MODEL AND SERIAL NUMBER .................................. 2
OVEN DOOR ........................................................ 33-35
OVEN LIGHT .............................................................. 35
OVEN RACKS ............................................................................9
OVEN TEMPERATURE
Readjusting ............................................................ 17
Setting .............................................................. 15, 19
OVEN VENT ................................................................ 25
PANS ........................................................................ 8, 9
PARTS .......................................................................... 6
ROASTING
Pans .......................................................................... 9
Setting cycle ............................................................ 15
Oven rack positions .................................................. 9
Tips .......................................................................... 16
SAFETY .................................................................... 4,5
SELF-CLEANING CYCLE
Before you start ...................................................... 26
Delay start .............................................................. 28
How the cycle works .............................................. 27
Setting the controls ................................................ 27
Starting immediately .............................................. 27
Stopping the cycle .................................................. 29
SERVICE ...................................................... Back Cover
STORAGE DRAWER .................................................. 25
SURFACE BURNERS
Control knobs ...................................................... 6, 30
Control setting guide ................................................ 7
Power Burner ............................................................ 7
Power failure ............................................................ 8
SURESIMMER TM setting .......................................... 7
Surface burner markers ............................................ 6
Tips ............................................................................ 7
TIMED OVEN CONTROL ...................................... 21-24
TROUBLESHOOTING .......................................... 36-38
ULTRABAKE TM BAKING
Aluminum foil .......................................................... 10
Bakeware ................................................................ 10
Pans ......... _................................................................ 9
Preheat conditioning .............................................. 16
Setting cycle ............................................................ 15
Oven rack positions .................................................. 9
Tips .......................................................................... 16
ULTRABAKE system .............................................. 15
WARRANTY .................................................................. 3
39
40
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOMEsMAnytime, day or night
(!-8004694663)
wl_v.seafs._
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center
!-800488-1222 Anytime, day or night
www,sears.conl
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirect_!
!-800-366-PART 6_m.-11pmCST,
(! -800-366-7278) 7 days a week
www.sears.mm/ixmL_limL't
To purchase or inquire about a Sears Service Agreement:
i-800-82 7-6655
7a.m.- 5 p.m. CST,Mon.-Sat.
y paraordenar piezascon entrega adomicilio:
1-88__ _
(1-888-784-6427)
Parapedir serviciode reparaci6nadomicilio, Au Canadapour serviceen franr,ais:
1-877-LE-IFOYIB__
(1-877-533-6937)
SEARS !
HomeCentralJ
8272751 A 1/00
©Sears, Roebuck and Co. ®Registered Trademark/TM Trademark of Seers, Roebuck and Co. Printed in the U.S.A.
®Mama Registrada/TM marca de f&bdca de Sears, Roebuck and Co. Impreso en !:E.UU.
