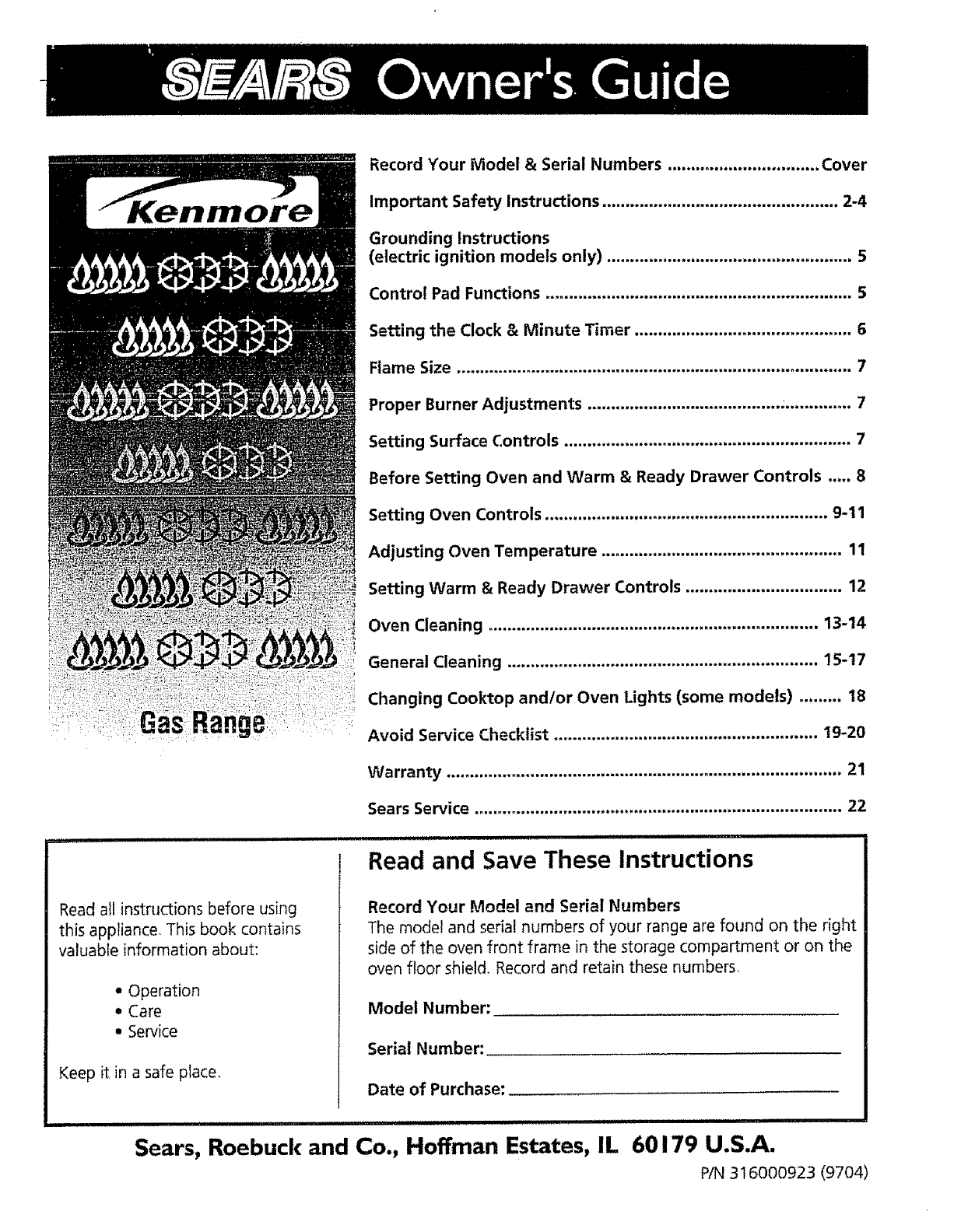

Record Your Model & Serial Numbers ................................ Cover
Important Safety Instructions .................................................. 2-4
Grounding Instructions
(electric ignition models only) .................................................... 5
Control Pad Functions ................................................................. 5
Setting the Clock & Minute Timer .............................................. 6
Flame Size .................................................................................... 7
Proper Burner Adjustments ......................................... ;.............. 7
Setting Surface Controls ............................................................. 7
Before Setting Oven and Warm & Ready Drawer Controls ..... 8

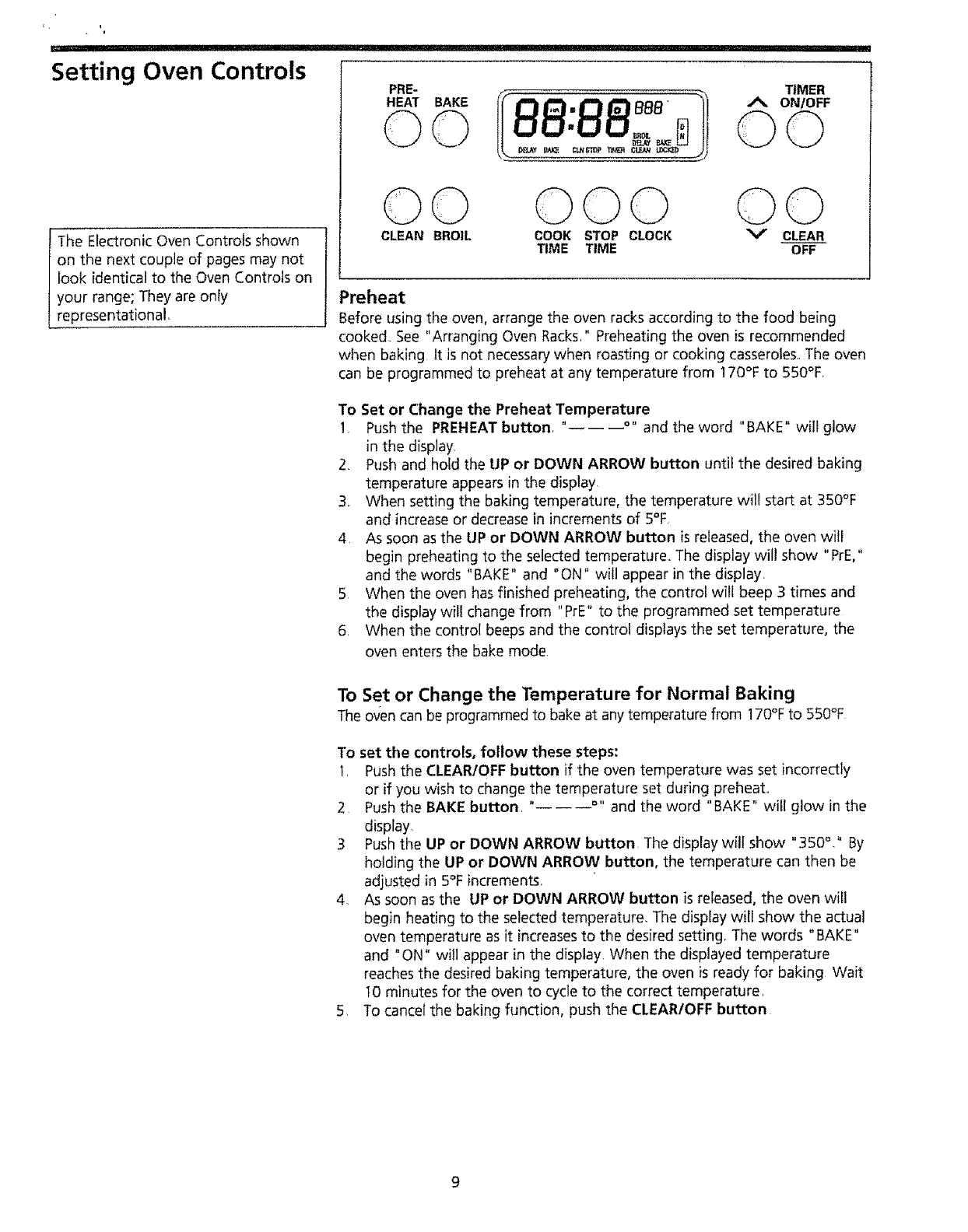

Setting Oven Controls ............................................................ 9-11
Adjusting Oven Temperature ................................................... 11
Setting Warm & Ready Drawer Controls ................................. 12
Oven Cleaning ...................................................................... 13-14
General Cleaning .................................................................. 15-17
Changing Cooktop and/or Oven Lights (some models) ......... 18

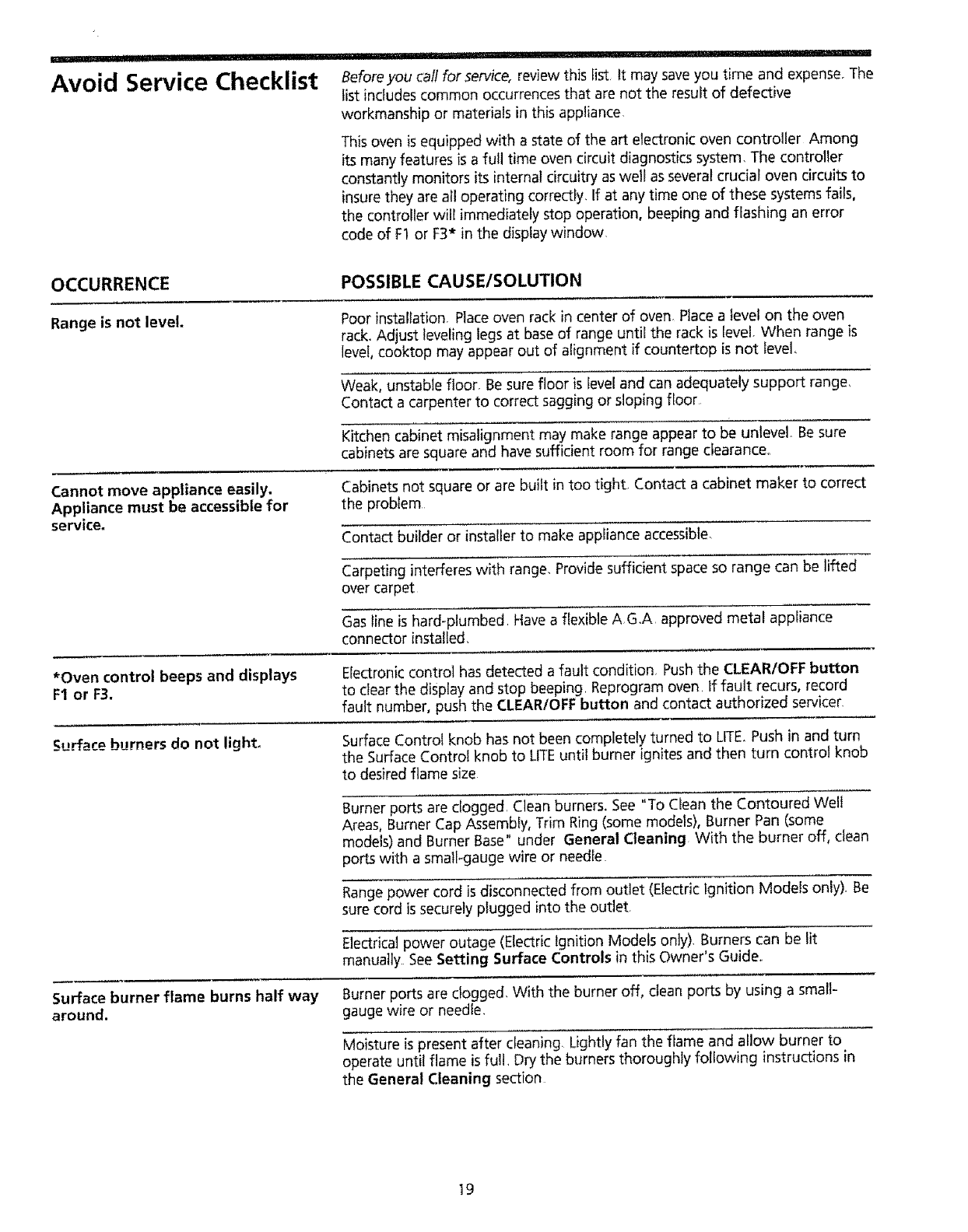

Avoid Service Checklist ........................................................ 19-20
Warranty .................................................................................... 21
Sears Service .............................................................................. 22
I I IIIII I I III II IIIIIIIIIIIll I IIIIII
Read and Save These Instructions
Record Your Model and Serial Numbers
The model and serial numbers of your range are found on the right
side of the oven front frame in the storage compartment or on the
oven floor shield. Record and retain these numbers.,
Model Number:
Serial Number:
Date of Purchase:,
i , i iiiiiii1,1111111111 , , iiiiiiiiiiiiiiiii i,ii II iiiiiiii , i iiii iiii
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
P/N 316000923 (9704)
Read al! instructions before using
this appliance. This book contains
valuable information about:
•Operation
•Care
• Service
Keep it in a safe place.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this •
appliance. Save these instructions for future
reference.
This guide contains important safety symbols and °
instructions, Please pay special attention to these symbols
and follow aJlinstructionsgiven° Here is a brief explanation
of the use of these symbols
_This symbol will help alert you to situations
that may cause serious bodily harm, death or property
damage.
_This symbol will help alert you to situations
that may cause bodily injury or property damage.
If the information in this
manual is not followed exactly, a fire or
explosion may result caus!ng property
damage, personal injury or death.
FOR YOUR SAFETY:
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS"
oDo not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
•Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
e If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by aqualified installer,
servicer or the gas supplier.
Remove all tape and packaging wrap before using
the range. Destroy the carton and plastic bags after
unpacking the range° Never allow children to play with
the packaging material
Proper Installation--Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Gas Code
ANS! Z223.1--1atest edition, or in Canada CAN/CGA
B149.1, and CANfCGA B149.2, and the National
Electrical Code ANSIINFPA No. 70--latest edition, or
in Canada CSA Standard C22_1, Canadian Electrical
Code, Part 1, and local code requirements. Instalf only
per installation instructionsprovided in the literature
package for this ranger
Ask your dealer to recommend a qualified technician and
an authorized repair service_ Know how to disconnect the
electrical power to the range at the circuit breaker or fuse
box in case of an emergency
A
• All ranges can tip.
• injury to persons could result.
oInstall anti-tip device packed with
range.
• See Installation Instructions°
_]_To reduce the risk of tipping of the
range, the range must be secured by properly
installed anti-tip bracket(s) provided with the
range. To check if the bracket(s) is installed
properly, remove the *lower panel or storage
drawer and verify that the anti-tip bracket(s) is
engaged. Refer to the Installation Instructions for
proper anti-tip bracket(s) installation,
*Note: On Warm & Ready Drawer models, ametal
plate at the base of the drawer prevents you from
seeing if the brackets are engaged. On these
models, pull forward on center back of appliance to
ensure bracket(s) are engaged°
_Stepping, leaning or sitting on the doors
or drawers of this range can result in serious injuries
and may also cause damage to the range° Do not allow
children to climb or play around the range The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury_.
Do not store items of interest to children
in the cabinets above or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
IMPORTANT SAFETY INSTRUCTIONS I
_Do not use the oven or Warm & Ready
Drawer for storage.
Do not store items of interest to children
in the cabinets above a range or on the backguard of a
range, Children climbing on the range to reach items
could be seriously injured.
• Storage in or on Appliance--Flammable materials
should not be stored in the oven, near surface
burners, in the storage drawer (if equipped) or in the
Warm 8=Ready Drawer (if equipped). This includes
paper, plastic and cloth items, such as cookbooks,
piasticware and towels, as well as flammable liquids. Do
not store explosives, such as aerosol cans on or near the
range Flammable materials may explode and result in fire
or property damage
• Do not leave children alone, Children should not be
left alone or unattended in the area where an
appliance is in use. They should never be allowed to sit
or stand on any part of the appliance.
• Do not touch surface burners, areas near these
burners, oven burner, interior surfaces of the oven
or Warm & Ready Drawer. Areas near surface burners
may become hot enough to cause burns During and after
use, do not touch, or let clothing or other flammab!e
materials touch these areas until they have had sufficient
time to cool Among these areas are the cooktop,
surfaces facing the cooktop, the oven vent openings and
surfaces near these openings, oven door, Warm & Ready
Drawer and window
• Wear Proper Apparel--Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces,
Never use your appliance for warming or
heating the room.
•Do Not Use Water or Flour on Grease Fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
•When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot
• Use Only Dry Potholders--Moist or damp pothotders
on hot surfaces may result in burns from steam, Do
not let the pothotders touch the flame or burners, Do not
use atowel or other bulky cloth instead of a pothotder,,
•Do Not Heat Unopened Food Containers--Build-up
of pressure may cause the container to burst and
result in injury,
•Remove the oven door from any unused range if it is
to be stored or discarded.
_Cold temperatures can damage the
electronic control. When using the appliance for the first
time, or when the appliance has not been used for an
extended period of time, be certain the unit has been in
temperatures above 32°F for at least 3 hours before turning
on the power to the appliance,
•IMPORTANT--Do not attempt to operate the oven
during a power failure, if the power fails, always
turn the oven off. if the oven is not turned off and the
power resumes, the oven will begin to operate again,
Food left unattended could catch fire or spoil
Important Instructions for Using Your
Cooktop
• Know which knob controls each surface heating
unit.
• Use Proper Flame Size--Adjust flame size so it does not
extend beyond the edge of the utensil, The use of under-
sized utensils will expose aportion of the burner flame to
direct contact and may result in ignition of clothing,
Proper relationship of utensil to flame will also improve
efficiency.
• Utensil Handles Should Be Turned Inward and
Should Not Extend Over Adjacent Surface Burners--
To reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional contact with
the utensil, the handle of the utensil should be positioned
so that it is turned inward, and does not extend over
adjacent surface burners
- Never Leave Surface Burners Unattended at High
Settings--Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt
• Protective Liners--Do not use aluminum foil to line
surface burner pans, the oven bottom or any other
part of the range Only use aluminum foil as
recommended for baking if used as a cover placed on the
food Any other use of protective liners or aluminum foil
may interfere with heat and air distribution, and
combustion. Damage to the range or personal injury may
result.
• Glazed Cooking Utensils---Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without breaking
due to the sudden change in temperature° Check the
manufacturer's recommendations for rangetop use,
•Do Not Use Decorative Surface Burner Covers. If a
burner is accidentally turned on, the decorative cover will
become hot and possibly melt. You will not be able to see
that the burner is on Burns wil! occur if the hot covers are
touched. Damage may also be done to the cooktop or
burners because the covers may cause overheating. Air
will be blocked from the burner and cause combustion
problems
........................ iiii
IMPORTANT SAFETY INSTRUCTIONS
Important Instructions for Using Your Oven/
Warm & Ready Drawer
•Use Care When Opening the Oven Door or Warm
& Ready Drawer--Stand to the side of the range
when opening the door of a hot oven/Warm & Ready
Drawer Let hot air or steam escape before you remove
or replace food in the oven/Warm & Ready Drawer,
• Keep Oven Vent Ducts Unobstructed. The oven is
vented below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns AIso, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite+
• Placement of Oven/Warm & Ready Drawer Racks.
Always place racks in desired location while oven/
Warm & Ready Drawer is cool if rack must be moved
while oven is hot, use extreme caution Use pothoiders
and grasp the rack with both hands to reposition Do
not let potholders contact the oven burner flame or
interior of the oven/Warm & Ready Drawer Remove alt
utensils from the rack before removing rack
+Do not use the broiler pan without its insert. The
broiler pan and grid allow dripping fat to drain and be
kept away from the high heat of the broiler+
• Do not cover the broiler grid or Warm & Ready
Drawer with aluminum foil. Exposedfat and grease
could ignite
+ Do not touch a hot light bulb (some models) with
a damp cloth. Doing so could cause the bulb to break
Disconnect the range or turn off the power to the
range before removing and replacing the light bulb
Important Instructions for Cleaning Your
Range
• Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention
to the area underneath each surface burner+ Exhaust
fan ventilation hoods and grease filters should be kept
clean Do not allow grease to accumulate Greasy
deposits in the fan could catch fire+ Refer to the hood
manufacturer's instructionsfor cleaning
• Kitchen cleaners/aerosols--Always follow the
ma_ufacturer's recommended directions for use Be aware
that excessresidue from cleaners and aerosols may ignite
causing damage and/or injury
Self-Cleaning Ovens:
° Clean in the self-cleaning cycle only the parts of
the oven listed in this owner's guide. Before self-
cleaning the oven, remove the broiler pan and any
utensils stored in the oven,
•Do not clean the oven door gasket. The door gasket
is essential for a good seal. Care should be taken not to
rub, damage or move the gasket
+ Do not use oven cleaners. No oven cleaner or oven
liner protective coating of any kind shouid be used in or
around any part of the oven+
SAVE THESE
i ................. II III1'111'11
Grounding Instructions
(electric ignition models only)
_i'_Wz_lL_lh_l_IAvoidfire hazard or
electrical shock Do not use an adaptor
_lug, an extension cord, or remove
grounding prong from electrical power
cord Failure to follow this warning can
cause serious injury, fire or death,
Grounding lyre
waft _ecep{acte
IROt undOl'
Power sup¢¥
cord wilb 3,prong
grounding pt_g
....... ,,,, ,,,,,,,, ,,, ,,,,,i,
Control Pad Functions
.................... I lll III
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
_'!'_IWal_,!_ll_[€lThis appliance is equipped with a 3 prong grounding plug for
your protection against shock hazard and should be plugged directly into a
properly grounded receptacle DO NOT cut or remove the grounding prong
from this plug,
For personal safety, the oven must be properly grounded For maximum safety,
the power cord must be plugged into a t20V--60 Hz outlet that is correctly
polarized and properly groundedr If a 2-prong walt receptacle is the only
available outlet, it is the personal responsibility of the consumer to have it
replaced with a properly grounded 3-prong wall receptacle installed by a
qualified electrician
Do not under any circumstances cut or remove the third round ground-
ing prong from the power cord plug_ See the Installation Instructions
I_ackagedwith this oven for complete installation and grounding
instructions. Do not operate the oven using a 2-prong adapter or an
extension cord.
Read the instructions carefully before using the oven. For satisfactory use of yo'ur oven. become familiar with the
various functions of the oven as described below
BAKE BUTTON-- UP and DOWN ARROW BUTTONS-- Used along with the TIMER ONIOFF
Used to enter the function buttons to select oven tern )erature, cooking time, stop BUTTON-- Used
normal baking mode time (when programming an automatic stop time), time of day, to set or cancel the
x_ clean time and minute timer _ minute timer. The
temperature \ ...................... V\ /minute timer does
PR_ -- = = = \\\A TIMER // n r sto
PREHEAT--.... HEAT_ BAKE _ _=_ =_ _, _° / ON/OFF /ot start: o p
Usedtose ectVJ t! I \\_J
the preheat _ "_ _ "_"_" _ _ _" /\/CLEAR/OFF BUTTON
temperature _ /II -- Used to cancel any
_ _ _ _ _ /_-'_/ function previously
II:a.__ /))_ _/ )_/ )_, ...) _ _ )t.-/) entered except the
t-BU_.I_ON _'') /x..j _ -..._._ "L:__" "-'I" time of day and
CLEA/_ BROIL / COOK /STOP CLOCK "--.. V CLEAR m........
Used to select --7 -- // :I'JIv]E/_riMi= - -_ OF--"-€-- C Inule _:imer, rush tne
the ......./,. /_'_ ,LEARIOFF button
•//_to stop cooking
self cleamn /
" g /COOK TIME STOP TIME BUTTON -- Used with the CLOCK 4_
cycle /BUTTON -- Used BAKE, COOK TIME, and CLEAN BUTTON
BROIL //to enter the length buttons to program a delayed Used to set the
BUTTON _ of the baking time self-cleaning cycle stop time time of day
Used to select
the broil
function
The oven can be programmed to:
• Bake normally
*Time bake with automatic on and off times
, Broil
- Self-clean
.Preheat
For asilent control panel:
When choosing a function, a beep will be heard each time a button is pushed If desired, the controls can be programmed
for silent operation Push and hold the STOP TIME button After 7 seconds, the control will beep once, This will block the
controls from sounding when a button is pushed To return the sound, push and hold the STOP TIME button again for
7 seconds until 1 beep is heard
r_....., ...............................................
Setting the Clock and
Minute Timer PRE-
HEAT BAKE
©© TIMER
AON/OFF
©©
©© ©
CLEAN BROIL COOK
TIME STOP
TIME
© ©©
CLOCK VCLEAR
OFF
To Set the Clock
When the range is first plugged in, or when the power supply to the range has
been interrupted, the display wilt flash
1 Push the CLOCK button. The word "TIME" will appear in the display.
2 Push and hold the UP or DOWN ARROW button until the correct time of
day appears in the display. The word "TIME" will disappear after 6 seconds
and the clock will start. Or, yo u may push the CLEAR/OFF button and the
word "TIME" will disappear and the clock will start
To Set the Minute Timer
1. Push in the TIMER ON/OFF button. ° :00" and the word "TIMER" wilt
glow in the display..
2. Push and hold the UP ARROW button until the desired time appears in
the display As soon as the UP ARROW button is released, the time will
begin to count down in the display_The word "TIMER" will continue to
glow.
3 When the set time has run out, the timer will beep 3 times_ It will then
continue to beep once every 10 seconds for 5 minutes (or until the TIMER
ONIOFF button is pushed).
When settingthe minute timer The time will appear in the
for: display and increase in:
5 seconds to 2 minutes 5 second increments
2 minutes to I0 minutes t0 second increments
10 minutes to t hour I minute increments
1 hour to 9 hours and 55 minutes 5 minute increments
Note: The minute timer does not start or stop cooking and is not active during
self-clean, it serves as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used independently during any of
the bake or broil functions The timer can be set for any amount of time from
5 seconds to 9 hours and 55 minutes
To Change the Minute Timer while it is in use:
Push and hold the UP or DOWN ARROW button to increase or decrease the
time
To Cancel the Minute Timer before the set time has run out:
Push and hold the DOWN ARROW button until ":00" appears in the display
Or you may cancei the minute timer by pushing the TIMER ON/OFF button,
' I
Flame Size
'1'' I lll
Never extend the flame beyond the
outer edge of the utensil A higher
flame simply wastes heat and energy,
and increases your risk of being burned
by the flame,.
RIGHT
m r
For most cooking, start on the highest control setting and then turn to a
lower one to complete the process, Use the chart below as a guide for
determining proper flame size for various types of cooking The size and type of
utensil used and the amount of food being cooked will influence the setting
needed for cooking
For deep fat frying, use a thermometer and adjust the surface control knob
accordingfy, If the fat is too cool, the food will absorb the fat and be greasy, If
the fat is too hot, the food will brown so quickty that the center will be
undercooked Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cook properly
*Flame Size Type of Cooking
High Flame(6-HI) Start most foods; bring water to a boil; pan broiling
Medium Flame (3_5) Maintain a slow boil; thicken sauces, gravies; steam
Low Flame (LO-2) Keep foods cooking; poach; stew
*These settings are based on using medium-weight aluminum pans with lids.
Settings may vary when using other types of pans=
Ull
Proper Burner
Adjustments
The color of the flame is the key to proper burner adjustment A good flame is
clear, blue and hardly visible in a well-lighted room Each cone of flame should
be steady and sharply defined Adjust or clean burner if flame is yellow-orange
To clean burner, see instructions under General Cleaning
ulllur i u ii
Setting Surface
Controls
i uuu i uullluu i lUU uuluul i ii iiii u
Each burner lights automatically from an electric ignitor each time a control
knob is turned to the LITEposition,
To operate the surface burner:
1. Place cooking utensii on burner,
2 Push in and turn the Surface Control knob to Life Note: All electronic
ignitors will dick at the same time, However, only the burner you are
turning on will ignite
3 Visually check that the burner has lit
4 A_er the burner lights, turn the control knob to the desired flame size The
control knobs do not have to be set at a particular mark. Use the guides
and adjust the flame as needed DO NOT cook with the Surface Contro!
knob in the Life position (The electronic ignitor will continue to click if left
in the LITEposition )
in the event of an electrical power outage, the surface burners can be lit
manually To light a surface burner, hold a lit match to the burner head, then
slowly turn the Surface Control knob to Life Use caution when lighting
surface burners manually
_Do not place plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when it is in
use. These items could melt or ignite Potholders, towels or wood spoons
could catch fire if placed too close to a flame
Before Setting Oven
and Warm & Ready
Drawer Controls
Oven Vent Location
The oven vent is located below the
backguard When the oven is on,
warm air is released through the vents.
This venting is necessary for proper air
circulation in the oven and good
baking results
OVEN VENT
Arranging Oven Racks
Always arrange oven racks when the oven is cool (Prior to operating
the oven). Always use oven mitts when using the oven,
Removing & Replacing Oven
Racks
To remove, pull the rack forward
until it stops. Lift up front of rack
and slide out To replace, fit the
rack onto the guides on the oven
walls. Tilt the front of the rack
upward and slide the rack back into
)lace.
Arranging Oven Racks with
5 Rack Positions
To bake on 1 rack, place the rack
on position 3or 4. To bake on 2
racks, place the racks on positions 2
and 4_
! st Rack Position
nd Rack Position
3rd Rack Position
th Rack Position
th Rack Position
6th Rack Position
(for roastinglarge
food itemsonly)
Arranging Warm & Ready Drawer Rack Positions
Set the Warm & Ready Drawer rack in the vertical position as shown below.
The rack can be used in 2 ways:
=fn the upright position to allow low profile food items to be placed both
under and on top of the rack (for example, rolls or biscuits on top of the rack
and a casserole dish under).
in the downward position to allow you to place light weight food items
and empty dishware (for example, rolls or pastries and dinner plates),.
Upright Position Downward Position
8
Setting Oven Controls
The Electronic Oven Controls shown
[ on the next couple of pages may not
/ look identical to the Oven Controls on
t your range; They are only
l representational
PRE- TIMER
BA.E .
DEZtCt_CU_DP Ta_R Z_Et_ _
©© ©©© ©©
CLEAN BROIL COOK BTOP CLOCK YCLEAR
TIME TIME OFF
Preheat
Before using the oven, arrange the oven racks according to the food being
cooked. See "Arranging Oven Racks," Preheating the oven is recommended
when baking It is not necessarywhen roasting or cooking casseroles..The oven
can be programmed to preheat at any temperature from 170°F to 550°F.
To Set or Change the Preheat Temperature
1. Push the PREHEAT button, "°" and the word "BAKE" will glow
in the display
2. Push and hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display
3. When setting the baking temperature, the temperature will start at 350°F
and increaseor decrease in increments of 5°F,
4 As soon as the UP or DOWN ARROW button is released, the oven will
begin preheating to the selected temperature.. The display will show "PrE,"
and the words "BAKE" and "ON" will appear in the display.
5 When the oven has finished preheating, the control will beep 3 times and
the displaywil! change from "PrE" to the programmed set temperature
6. When the control beeps and the control displays the set temperature, the
oven enters the bake mode.
To Set or Change the Temperature for Normal Baking
The ov:encan be programmed to bake at any temperature from 170°F to 550°F
To set the controls, follow these steps:
1. Pushthe CLEAR/OFF button if the oven temperature was set incorrectly
or if you wish to change the temperature set during preheat..
2 Push the BAKE button '.... and the word "BAKE" will glow in the
display,
3 Push the UP or DOWN ARROW button The display will show "350°, _ By
holding the UP or DOWN ARROW button, the temperature can then be
adjusted in 5°F increments.
4, As soon as the UP or DOWN ARROW button is released, the oven will
begin heating to the selected temperature, The display will show the actual
oven temperature as it increases to the desired setting The words "BAKE"
and "ON" will appear in the display. When the displayed temperature
reaches the desired baking temperature, the oven is ready for baking Wait
t0 minutes for the oven to cycle to the correct temperature.
5, To cancel the baking function, push the CLEARIOFF button
L !/ "II IIII'llllll
Setting Oven Controls
(continued)
Use caution when using
the automatic timer Use the
automatic timer when cooking cured
or frozen meats and most fruits and
vegetables, Foods that can easily spoil
such as milk, eggs, fish, meat or
poultry, should be chilled in the
refrigerator first Even when chilled,
they should not stand in the oven for
more than I hour before cooking
begins, and should be removed
promptly when cooking is completed,
PRE-
HEAT BAKE
O0 88:882 TIMER
_% ON/OFF
O0
OO OOO OO
CLEAN BROIL COOK STOP CLOCK _" CLEAR
TIME TIME OFF
To Set the Automatic Timer (Timed Bake Feature)
The BAKE TIME and STOP TIME buttons control the Time Bake operation.
The automatic timer will turn the oven on and off at the times you select in
advance. The oven can be programmed to start immediately and shut off
automatically or to begin baking at a later time with an automatic shutoff
To Program the Oven to Begin Baking Immediately and To Shut Off
Automatically:
!, Be sure that the clock shows the correct time of day
2, Place the food in the oven
3 Push the COOK TIME button " : " and the words "BAKE TIME"
will glow in the display window.
4 Push and hold the UP or DOWN ARROW button until the desired baking
time appears in the display The baking time can be set for any amount of
time from 5 minutes to 11 hours and 59 minutes'. When setting the baking
time, the time will appear in the display and increase in 5 minute
increments.
5 Push the BAKE button ..... and the word "BAKE" will glow in the
display
6 Push and hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display
Once the Controls are Set:
a, The oven will come on and begin heating to the selected baking
temperature,,
b The words "BAKE" and "ON" will appear in the display
c The main display will show the oven baking time and wilt count down by
minutes until it reaches ":00,"
When the Set COOK TIME Runs Out:
a: ":00" will appear in the display window and the oven will shut off
automatically,
b The control will beep 3 times
c The control will then continue to beep once every 10 seconds for 5 minutes
or until the CLEAR/OFF button is pushed,
To Program Oven for aDelayed Start Time and to Shut-Off
Automatically
Follow steps t-4 above, THEN:
5. After the bake time has been set, " °" will appear in the display
and the word "BAKE" will flash. The display will flash and beep once until
the oven temperature has been set.
6. Push the STOP TIME button The time when baking will stop, will appear
in the display window The words "BAKE STOPTIME" will glow in the
display.
7 Push and hold the UP or DOWN ARROW button until the time that you
want cooking to be completed appears in the display.
8. Push the BAKE button. '.... will appear, and the word "BAKE"
will glow in the display:
9 Push and hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display
10 If the baking temperature is not set, the control will beep " o,, will
flash and the word "BAKE" will appear in the display
10
J
i
Setting Oven Controls
(continued)
Rack Food
_osition
1 Rare Steaks
2 Ham slices, fish, medium
steaks, hamburgers and
chops
3 Well-done foods such as
chicken and lobster
The broiler pan and its grid allow
dripping grease to drain and be kept
away from the high heat of the broiler,
DO NOT use the pan without its grid,
DO NOT cover the grid with foil The
exposed grease could ignite.
HEAT BAKE _ON/OFF
©© ©
O0 ©00 O0
CLEAN BROIL COOK STOP CLOCK _s" CLEAR
TIME TIME OFF
Broil
1, Arrange oven rack while oven is still cool. Position the rack as suggested in
the broiling chart in the side column,
2, Push the BROIL button° "" and the word "BROIL" will appear in
the display,
3. Push and hold the UP or DOWN ARROW button until the desired broil
setting level appears in the display. The broiling temperature can be set at
2 different levels--HI or LO, Most foods can be broiled at the HI broil
setting, Select the LO broil setting to avoid excess browning or drying of
foods that should be cooked to the well-done stage°
4 Placethe grid on the broiler pan, then place the food on the cool broiler
grid Be sure the grid is in place with slots down so grease wilt drain into
the pan. DO NOT use the broiler pan without the grid or cover the
grid with aluminum foil, The exposed fat could ignite,
5. Placethe pan on the oven rack. Leave the oven door closed when
broiling,
6. Broil on one side until food is browned; turn and cook on the second side°
Season and serve. Note: Always pull the rack out to the stop position
before turning or removing food°
7. When broiling is finished, push the CLEARIOFF button.
_Should an oven fire occur, leave the oven door closed and turn
off the oven. If the fire continues, throw baking soda on the fire or use a fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive,
Adjusting Oven
Temperature
Note: The adjustments made will not
change the self-cleaning temperature
The temperature in the oven has been set at the factory. When first using the
oven, be sure to follow recipe times and temperatures, tf you think the oven is
too hot or too coot, the temperature in the oven can be adjusted, Before
adjusting, test a recipe by using a temperature setting that is higher or lower
than the recommended temperature., The baking results should help you to
decide how much of an adjustment is needed
To Adjust Oven Temperature:
1 Pushthe BAKE button°
2_ Set the temperature to 550°F by pushing and holding the UP ARROW
button_
3. Within 2 seconds, push and hold the BAKE button until the special 2 digit
display appears. Releasethe BAKE button. The display now indicates the
amount of degrees offset between the original factory temperature setting
and the current temperature setting.. If the oven control has the original
factory calibration, the display will read "0&"
4. The temperature can now be adjusted up or down 35°F, in 5°F steps, by
pushing and holding the UP or DOWN ARROW button. Adjust until the
.desired amount of offset appears in the display_
5 When you have made the desired adjustment, push the CLEAR/OFF button
to go back to the time of day display_When adjusting oven temperature, a
minus sign (-) will appear before the number to indicate that the oven will
be cooler by the displayed amount of degrees.
Setting Warm & Ready
Drawer Controls
Use the Warm & Ready Drawer to
keep hot foods hot such as:
vegetables, gravies, meats, casseroles,
biscuits and rolls, pastries and heated
dinner plates.
To Operate the Warm & Ready Drawer
Your range is equipped with a Warm & Ready Drawer The purpose of the
Warm & Ready Drawer is to keep hot cooked foods at serving temperature
Always start with hot food It is not recommended to heat cold food in the
Warm & Ready Drawer
All food placed in the Warm & Ready Drawer should be covered with a lid or
aluminum foil to maintain quality Do not use plastic wrap to cover food,
Plastic may melt onto the drawer and be very difficult to clean.
ON
OOFF
H!
LO 6
5
1
MED
Warm & Ready Drawer Control Knob
The Warm & Ready Drawer is equipped
with a catch which may require extra
force when opening or closing the
drawer.
Warm & Ready Drawer
Recommended Food Settings
Chart
Food Item Setting
Roasts(Beef, Pork, Lamb) MED
Pork Chops HI
Bacon HI
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza HI
Biscuits MED
Rolls, soft LO
Rolls, hard MED
Pastries MED
Empty Dinner Plates LO
Use only dishware, utensils and cookware recommended for oven use in the
Warm & Ready Drawer
_Always use potholders or oven mitts when removing food from
the Warm & Ready Drawer as cookware and plates will be hot.
Indicator Light
The indicator light is located above the Warm & Ready Drawer Control Knob. it
turns on when the control is set, and stays on until the control is turned off
The Warm & Ready Drawer is inoperable during the self-clean cycle The
indicator light will not come on during the self<lean cycle°
To Set the Thermostat Control
The thermostat control is used to select the temperature of the Warm & Ready
Drawer.. it is located on the control panel, To set the thermostat, push in and
turn the knob to the desired setting. The temperatures are approximate, and
are designated by HI, MED and LO However, the control can be set at any
position between HI and LO for different levels of heating.
I, Select the temperature setting,
2, For best results, preheat the drawer before adding food An empty drawer
wiIi preheat in approximately 15 minutes
3, When done, turn the thermostat control to OFF
Temperature Selection
Refer to the chart in the side column for recommended settings_ If a particular
food is not listed, start with the medium setting If more crispness is desired,
remove the lid or aluminum foi!
Most foods can be kept at serving temperatures by using the medium setting
When a combination of foods are to be kept warm (for instance, a meat with
2 vegetables and rolls), use the HI setting
Refrain from opening the Warm & Ready Drawer while in use to eliminate toss
of heat from the drawer
12
+,
................... I'1111 I
Oven Cleaning
_During the self<leaning
cycle, the outside of the range can
become very hot to the touch DO
NOT leave small children unattended
near the appliance.
DO NOT line the oven
walls, racks, bottom or any other
part of the range with aluminum
foil+ Doing so will destroy heat
distribution, produce poor baking
results and cause permanent
damage to the oven interior
(aluminum foil will melt to the
interior surface of the oven)+
DOOR GASKET
HAND
CLEAN FRAME
PRE-
HEAT BAKE
©0
©©
CLEAN BROIL 0 ©
COOK STOP CLOCK
TIME TIME
TIMER
iN, ON/OFF
©©
©©
VCLEAR
OFF
Self-Cleaning Oven
A self+cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soil completely or reduce it to a fine powdered
ash you can wipe away with a damp cloth
1 Adhere to the following cleaning precautions:
* Allow the oven to coot before precleaning,
Wear rubber g}oves when precleaning and while wiping up the residue
after the self-dean cycle +
* DO NOT use oven cleaners or oven protective coatings in or around any
part of the self-cleaning oven
o DO NOT clean the oven door gasket The woven material of the oven
door gasket is essential for a good seal Care should be taken not to rub,
damage or remove the gasket.
, DO NOT use any cleaning materials on the oven door gasket Doing so
could cause damage+
2 Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
3 Oven racks may be left in the oven or may be removed. If they go through
the clean cycle their color wiil turn slightly blue and the finish wil! be dull.
After the cycle is complete and the oven has cooled, rub the sides of the
racks with wax paper or a cloth containing a small amount of baby oil or
salad oi} (this wilt make the racks glide easier into the rack position)
4 Remove any excessspillovers in the oven cavity before starting the self-
cleaning cycle, To clean, use hot, soapy waterand a cloth Large spillovers
can cause heavy smoke or fire when subjected to high temperatures DO
NOT allow food spillswith a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as
they may cause a dull spot even after cleaning
5 Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom, These
areas heat sufficiently to burn soil on Clean with soap and water
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessaryto stop or interrupt a self+cleaning cycle due to excessive
smoke or fire:
1+ Push the CLEAR!OFFbutton+
2 Once the oven has cooled down for 1 HOUR and the word "LOCKED"
shown in the display has gone out, then the oven door can be opened.
_!_1_lifk_l DO NOT force the oven door open. This can damage the auto-
matic door locking system Use caution when opening the door after the self-
cleaning cycle is completed. The oven may still be VERY HOT.
t3
Oven Cleaning
(continued) PRE-
HEAT BAKE
©© 88_" /_ ON/OFF
©© ©©© ©©
CLEAN BROIL COOK STOP CLOCK VCLEAR
TIME TIME OFF
Use care when opening
the oven door after the self-cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot air
or steam to escape,
DO NOT force the oven
door Open, This can damage the
automatic door locking system, Use
caution when opening the door after
the self-cleaning cycle is completed.
The oven may still be VERY HOT.
To Start the Self-Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils, a 3 hour cycle for
average soils, and a 4 hour cycle for heavy soils (to assure satisfactory
results)
To Set the Controls for the Self-Cleaning Cycle To Start Immediately and
Shut Off Automatically:
1 Be sure the clock shows the correct time of day
2, Push the CLEAN bu_on., "CLN TIME" will appear in the display,
3, Push and hold the UP or DOWN ARROW button until "3 HR:O0" appears
in the display, Set the cleaning time based on the amount of soil you
have--light, medium or heavy *See above,,
4, As soon as the controls are set, the motor driven lock will begin to close
automatically and the "LOCKED" indicator light will be displayed (It takes
about 15 seconds for the lock to close)
5 The "Clean" light will come on. The "Oven" light will come on and cycle
with the oven burner units,
Note: ]f the self-cleaning cycle is cancelled while at a high temperature, make
sure the word "LOCKED" is not in the display and the oven has cooled down
for at least ONE HOUR before trying to open the oven door
To Set the Controls for the Self-Cleaning Cycle To Start at a Delayed
Time and Shut off Automatically:
Follow steps 1-3 above, THEN:
4 Push the STOP TIME button,, The time of day that the self-cleaning cycle
ends wilt appear in the display, The words "CLN STOPTIME" will glow in
the display
5. Push and hold the UP or DOWN ARROW button until the time of day
that you want the cleaning to be completed appears in the display,
6 The control will calculate backward from the set stop time to determine
when the self-cleaning cycle should begin, The words "DELAY" and "CLN
STOPTIME" will glow in the display,
7 The self-cleaning cycle will come on automatically at the calculated time
At that time, the word "DELAY" will go out and "ON" will appear
When the Self-Clean Cycle is Completed:
I The time of day wilt appear in the display window and the word
"LOCKED" may remain in the display,
2, Once the oven has cooled down for ONE HOUR and the word "LOCKED"
shown in the display has gone out, then the oven door can be opened
14
'11'Ill '111"!1111'
General Cleaning
I " '"iiii'i'""iii'i'i
Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned off and
the range is cool. Remove spi!lovers and heavy soiling as soon as possible°
Regular cleanings will reduce the number of major cleanings later.
Surfaces How to Clean
Aluminum (Trim Pieces) &Usehot, soapy water and a cloth Dry with a clean cloth_
Vinyl
Glass, Painted and Plastic For general cleaning, use hot, soapy water and a cloth For more difficult soils and built-
Control Knobs, Body Parts, and up grease, apply a liquid detergent directly onto the soil. Leaveon soil for 30 to 60
Decorative Trim Pieces minutes. Rinsewith a damp cloth and dry. DO NOT use abrasive cleaners on any of
these materials; they can scratch
Control Panel
Porcelain Enamel
Burner Grates, Cooktop,
Broiler Pan and Insert, Door
Liner, Warm & Ready Drawer
(some models)
Stainless Steel, Chrome
Decorative Trim, Drip Pans
Oven Racks
Sealed Burner Units
Burner Cap, Trim Ring (some
models), Burner Pans(some
models), and Burner Base
Oven Door
Before cleaning the control panel, turn all controlsto OFFand remove the control
knobs. To remove, pull each knob straight off the shaft Clean using hot, soapy water
and a cloth.. Be sure to squeeze excesswater from the cloth before wiping the panel
(especially when wiping around the controls) Excesswater in or around the controls
may causedamage to the appliance To replace knobs after cleaning, line up the flat
sides of both the knob and the shaft; then push the knob into place.
Clean in the dishwasher and dry upon removal If soils are not removed, follow the
cooktop cleaning instructions below,
Gentle scouring with a soapy scouring pad wil! remove most spots Rinse with a t :1
solution of clean water and ammonia ffnecessary, cover difficult spots with an
ammonia-soaked paper towef for 30 to 40 minutes Rinsewith clean water and a damp
cloth, and then scrub with a soap-filled scouring pad Rinseand wipe dry with a clean
cloth Remove all cleaners or the porcelain may become damaged during future
heating. DO NOT use spray oven cleaners on the rangetop
Clean with hot, soapy water and a dishcloth. Rinsewith clean water and a cloth. Cover
stubborn spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse
Cleaners made especially for stainless steel are recommended. Be sure to rinse the
cleaners as bluish stains may occur during heating and cannot be removed.
Oven racks may be removed or left in the oven during the self-clean cycle for cleaning,
See "Removing and Replacing Oven Racks" under Before Setting Oven Controls if
removed, clean by using a mild, abrasive cleaner, following manufacturer's instructions,
Rinsewith clean water and dry
If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and the
finish will be dull After the self<lean cycle is complete, and the oven has cooled, rub
the sides of the racks with wax paper or a cloth containing a small amount of baby oil
or salad oil (this wilt make the racks glide easier into the rack positions).
The holes in the burners of your range must be kept clean at all times for proper
ignition and a complete, even flame Clean the burner holes routinely with a small
gauge wire or needle and especially after bad spillovers which could clog these holes
To remove, clean and replace sealed burner units, follow the instructions under
General Cleaning, DO NOT put burner units in the dishwasher.
To clean oven door, wash with hot, soapy water and a dean cloth DO NOT immerse
the door in water DO NOT clean the oven door gasket The oven gasket is made of a
woven material which is essential for a good seal Care should be taken not to rub,
damage or remove the gasket
15
IU_
General Cleaning
(continued)
To Clean the Cooktop
The cooktop is designed to make cleaning easier Becausethe four burners are
sealed, cleanups are easy when spillovers are cleaned up immediately
Unlike the standard gas range, this
cooktop is not removable. Do not
attempt to remove or lift the cooktop.
Note: The burner cap assembly refers
I to all parts of the sealed burner unit
/(burner cap, burner pan (some models),
[trim ring (some models), locating tab,
L_burnerbase and electrode).
To clean, wipe with a clean, damp cloth and wipe dry.
To Clean the Contoured Well Areas, Burner Cap Assembly,
Trim Ring (some models), Burner Pan (some models) and
Burner Base
The contoured well areas, burner cap assembiy, trim ring (some models), burner
pan (some models) and burner base should be routinely cleaned Keeping the
burner ports clean will prevent improper ignition and an uneven flame See
instructions below
Electrode_ l°ts
Trim Ring (some models)
or Burner Pan (some models)
_Use caution when
replacing the burner cap so the
eiectrode is not damaged This may
cause a delayed ignition or prevent the
burner from igniting
_Any additions, changes
or conversions required in order for
this appliance to satisfactorily meet the
application needs must be made by
a Sears Sales Center,
To Clean the Contoured Well Areas
The contoured well is a recessed area located around each burner unit. If a spill
occurs in one of the four well areas, blot up spill with an absorbent cloth Rinse
with a clean, damp cloth and wipe dry
To Remove the Burner Cap Assembly
The burner cap assembly parts differ per model, Your assembly will consist of
one of the following combinations: burner cap and trim ring; burner cap and
burner pan; or burner cap, trim ring and burner pan° Remove in the following
order: (Ist) burner cap, (2rid) trim ring and (3rd) burner pan° Do not operate
the burners without the burner cap assembly in place.
To Clean the Burner Cap, Burner Pan (some models) and Trim Ring (some
models)
Use a soap-filled scouringpad or a mild abrasive cleanser to clean burner caps,
trim rings and burner pans..
To Clean the Burner Base and Gas Opening
The ports (or slots) around the burner base must be routinely cleaned Use a
small-gauge wire or needle to clean small slots or holes Use care to prevent
damage to the electrode if a cleaning cloth should catch the electrode, it could
break or damage the electrode, tf the electrode is damaged or broken, the
surface burner will not light..
For proper flow of gas and ignition of the burner--Do not allow spills, food,
cleaning agents or any other material to enter the gas opening, Gas must
flow freely through the small hole in the brass orifice for the burners to light
properly, If the orifice gas opening becomes soiled or clogged, use a small-
gauge wire or needle to clean ALWAYS keep the burner cap assembly in place
whenever a surface burner is in use
To Replace the Burner Cap Assembly
Make sure the burner cap assembly is thoroughly dry before placing back on the
burner,
I. Lower burner pan (some models) into place around the burner base.
2 Replace trim ring (some models),
3 Find the locating tabs on the burner cap and place in the locating slots in
the burner base Make sure each burner cap is properly aligned and level.
4_ Turn the burner on to determine if it will light. If the burner does not light
after cleaning, contact an authorized servicer Do not service the sealed
burner yourself.
16
•General Cleaning
(Continued)
_The door is heavy, For
safe, temporary storage, lay the door
flat,
Figure 2
Lift doorstraight off 2 door hinges
II I I II'll'l '"'""'"'" " '"' '"' ..............
To Remove and Replace Oven Door
To Remove Oven Door
I Open the door to the quarter-open position_Grasp the door firmly on both
sides and lift up and off the hinges, To clean oven door, see the cleaning
chart on page 15
To Replace Oven Door
I. Besure the hinge arms are in the quarter-open position, Be careful if pulling
the hinges open by han& The hinges may snap back against the oven frame
and could pinch fingers
2,, Hold the door at the sides near the top, insert the hinge arms into slots at
the bottom of the door_
3,. Hinge arms must go into the range slots evenly. The hinge arms should be
insertedinto the bottom corners of the door as far as they can go,
4if the door is not in line with the oven frame, remove it and repeat the
above steps,
To Remove and Replace Warm & Ready Drawer
To Remove Warm & Ready Drawer:
1. I_:_l_:_Turn power off before removing the Warm & Ready Drawer,
2 Open the drawer to the fully opened position,
3 Locate the latches on both sides of the Warm &Ready Drawer, The left
latch is visible However, the right side is not and is located inside the
drawer glides,
4 Pull up on the left glide latch while inserting a screwdriver over the right
latch and pushing down.,
5, Pull the drawer away from the range
6 To clean Warm & Ready Drawer, see "Porcelain Enamel" in the cleaning
chart on page 15,
To Replace Warm & Ready Drawer:
1 Align the glide latches on both sides of the drawer with the slots on the
drawer,
2 Push the drawer back into the range,
[T_viv_'_[l_lt#t_lElectrical Shock Hazard can occur and result in
serious injury or death, Disconnect appliance from electric power
before cleaning and servicing the Warm & Ready Drawer,
17
r
Changing Cooktop and/
or Oven Lights
(some models)
_Be sure the range is
unplugged and all parts are COOL
before replacing the surface or oven
lights, Wear a leather-faced glove for
protection against possible broken
glass,
To Change the Cooktop Light (somemodels)
Your model wilt either have a canopy cover that lifts up or 2 Phillips® Head
screws that secure the light cover. Before changing the cooktop light, be
sure to turn the power off at the main source or unplug the range.
For models with a canopy cover that lifts up, follow these instructions:
t_ Grasp the front edge of the canopy cover as illustrated in the side column.
Pull forward and lift the cover up and off toward rear of range.
2o Remove bulb/tube by rolling up and out. Install the new bulb by sliding
down into place and rolling toward front of range_
3, Align front edge of light cover with inside lip of end cap Lower rear of
cover into place and snap down
4. Turn power back on at the main source (or plug the range back in)o
For models with 2 Phillips® Head screws that secure the light cover,
follow these instructions;
I Turn power off at the main source or unplug the range,
2 Remove Phillips® Head screws (2) that secure the light cover and then lift
the light cover off.
3. Remove bulb by rolling back and up, Install the new bulb by sliding down
and rolling forward into place.
4Re-install light cover and secure with Phillips® Head screws (2),
To Change the Oven Light (some models)
On some models, the oven light automatically turns on when the door is
opened, Some models have a switch located on the control panel to turn on the
light, The oven light is located at the rear of the oven and is covered with a
glass shield held by a wire holder The glass shield must be in place whenever
the oven is in use.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range,
2 Presswire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb
4. Replace glass shield over bulb and snap wire holder into place.,
t8
I IIII I II '11 I '
Avoid Service Checklist Before you call for service, review this list It may saveyou time and expense, The
fist includes common occurrences that are not the result of defective
workmanship or materials in this appliance
This oven is equipped with a state of the art electronic oven controller Among
its many features is a full time oven circuit diagnostics system, The controller
constantly monitors its internal circuitry as well as several crucial oven circuits to
insure they are all operating correctly, If at any time one of these systems fails,
the controller will immediately stop operation, beeping and flashing an error
code of F1 or F3* in the display window,
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation, Place oven rack in center of oven, Place alevel on the oven
rack, Adjust leveling legs at base of range until the rack is level. When range is
level, cooktop may appear out of alignment if countertop is not level,
Weak, unstable floor, Be sure floor is level and can adequately support range,
Contact a carpenter to correct sagging or sloping floor
Kitchen cabinet misatignment may make range appear to be unlevel, Be sure
cabinets are square and have sufficient room for range clearance°
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tight Contact a cabinet maker to correct
the problem
Contact builder or installer to make appliance accessible,
Carpeting interferes with range, Provide sufficient space so range can be lifted
over carpet
Gas fine is hard-plumbed Have a flexible A,G,A approved metal appliance
connector installed,
*Oven control beeps and displays
F1 or F3. Electronic control has detected a fault condition Push the CLEARIOFF button
to clear the display and stop beeping, Reprogram oven If fault recurs, record
fault number, push the CLEARIOFF button and contact authorized servicer.
Surface burners do not light° Surface Control knob has not been completely turned to LtTE. Push in and turn
the Surface Control knob to LITEuntil burner ignites and then turn control knob
to desired flame size
Burner ports are clogged Ctean burners, See "To Clean the Contoured Well
Areas, Burner Cap Assembly, Trim Ring (some models), Burner Pan (some
models) and Burner Base" under General Cleaning, With the burner off, clean
ports with a small-gauge wire or needle
Range power cord is disconnected from outlet (Electric Ignition Models only). Be
sure cord is securely plugged into the outlet,
Electrical power outage (Electric Ignition Models only). Burners can be lit
manually See Setting Surface Controls in this Owner's Guide,
Surface burner flame burns half way Burner ports are clogged, With the burner off, clean ports by using a small-
around, gauge wire or needle,
Moisture is present after cleaning. Lightly fan the flame and allow burner to
operate until flame is full, Dry the burners thoroughly following instructions in
the General Cleaning section
19
Surfaceburner flame is orange. Dust particles in main tine_Altow the burner to operate a few minutes until
flame turns bluer
In coastal areas, a slightly orange flame is unavoidable due to salt air
Oven does not operate. Besure the electronic oven controls are set correctly for the desired function
SeeSetting Oven Controls in this Owner's Guide or Entire Appliance Does
Not Operate (see below),
Be sure regulator gas valve is "ON", See Installation Instructions,
Entire appliance does not operate. Make sure electricalcord/plug is plugged tightly into outlet, (Electric ignition
models only,)
Service wiring not complete, Contact servicer or dealer.
Electrical power outage (electric ignition models only). Check house lights to be
sure. Call your locaI electric company for service. Surface burners can be lit
manually See Setting Surface Controls in this Owner's Guide.
Be sure gas supply is turned on,
Oven andtor Cooktop lights (some
models) do not work. Burned-out or loose bulb, See Changing Cooktop and/or Oven Lights
(some models) section in this Owner's Guide to replace or tighten the bulb,.
Oven smokes excessively during
broiling. Oven door is open Door should be closed during broiling,,
Meat too close to broil burner. Reposition the rack to provide more clearance
between the meat and the broiler,
Meat not properly prepared. Remove excessfat from meat, Slash remaining
fatty edges to prevent curling, but do not cut into the lean,
Broiler pan used without grid or grid covered with foil. DO NOT use the broiler
pan without grid or cover grid with foil,
Oven needs to be cleaned Grease has built up on oven surfaces_ Regular
cleaning is necessarywhen broiling frequently, Old grease or food spatters
cause excessive smoking.
Poor baking results. Many factors affect baking results, If baked food items are too dark on top or
bottom, allow the oven to preheat to set temperatures before placing food in
oven. Make sure the proper rack position is used when baking, Set temperature
25°F lower than recommended If food is not done after the recommended
time, increase the set temperature 25°F.
Self-Cleaning cycle does not work. Controls are not set properly Follow instructionsunder Oven Cleaning,
Self-cleaning cycle was interrupted Stop time must be set 2 to 4 hours past the
start time, Follow steps under "Stopping or Interrupting a Self-Clean Cycle"
under Oven Cleaning.
Soil is not completely removed, Failure to clean bottom front, top of oven or door areas outside oven seal,
These areas are not in the self-cleaning area, but get hot enough to burn on
residue. Clean these areas before starting the self-clean cycle..Burned-on
residue may be cleaned with a stiff nylon brush and water or a nylon scrubber.
Be careful not to damage the oven gasket.
Excessivespiltovers in oven, Set self<lean cycle for a longer cleaning time.
Flames inside oven or smoking from
vent. Excessivespillovers in oven.,This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom Wipe up excessivespiNovers before
starting the self-clean cycle, If flames or excessive smoke are present, stop the
self<lean cycle and follow the steps under "Stopping or interrupting the
Self-Clean Cycle" in the Oven Cleaning section
2O
Range Warranty
Full One Year Warranty On The Functioning Of All Parts
Except Glass Parts
if, within one year from the date of installation, any part, other than a glass part, fails to function
properly due to a defect in materiaFor workmanship, Searswill repair or replace it, free of charge
Full 30-Day Warranty On Glass Parts And Finish Of Porcelain, Painted Or
Bright Metal Finished Parts
If, within 30 days from the date of installation, any g!ass part or the finish on any porcelain enamel,
painted or bright metal part is defective in material or workmanship, Searswill replace the part,
free of charge
Full 90-Day Warranty On Mechanical Adjustments
For 90 days from the date of installation, Searswi!l provide, free of charge, any mechanical
adjustments necessary for proper operation of the range, except for normal maintenance
If the range is subjected to other than private family use, the above warranty coverage is effective
for only 90 days.
Warranty Service Is Available By Contacting The Nearest Sears Service
Center/Department in the United States
This warranty applies only while this product is in use in the United States This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state,
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
To Add To The Value Of Your Range, Buy A Sears Maintenance Agreement.
Kenmore Rangesare designed, manufactured
and tested for yearsof dependable operation
Yet, any modern appliance may require service
from time to time, The SearsWarranty plus the
Sears Maintenance Agreement provides
protection from unexpected repair bills and
assuresyou of enjoying maximum range
efficiency
Here's a comparative warranty and
Maintenance Agreement chart showing you
the benefits of a Sears Range Maintenance
Agreement
Contact your SearsSalesAssociate or Local
SearsServiceCenter Today and purchase a
SearsMaintentance Agreement
Years of Ownership Coverage
1Replacement of Defective
Parts other than Porcelain
or Glass
2
3
4
Mechanical Adjustment
Porcelain and Glass Parts
Annual Preventive
Maintenance Check at your
request
1st Year
W
90 Days
W
30 Days
W
MA
2nd Year
MA
MA
MA
MA
W--Warranty
3rd Year
MA
MA
I A
MA
MA--Maintenance Agreement
For information on purchasing a Sears Maintenance Agreement or to inquire about an
existing Agreement, call 9 a.m. -5 p.m., Monday - Saturday, 1-800-827-6655
America's Best Selling Appliance Brand
Printed in the United States
_1_ III II I'1'1 II '1 III '11 I1'11)1111111 I ..........................
Fortherepairorreplacementpartsyouneed
Call7 am-7 pm 7 daysaweek
1-800-366-PART
(1-800-366-7278)
Forin-homemajorbrandrepairservice
Call24 hoursa day,7 daysa week
1.8OO-4-REPAIR
(1-800-473-7247)
Forthe locationofa
SearsRepairServiceCenterinyourarea
Call24 hoursa day,7 daysa week
!mmmmmNmm
mmm_imm
Forinformation onpurchasinga Sears
MaintenanceAgreementorto inquire
aboutanexmtmgAgreement
call 9 am- 5 pm,Monday-Saturday
1-800-827-6655
America's Repair Specialists
22

Navigation menu
