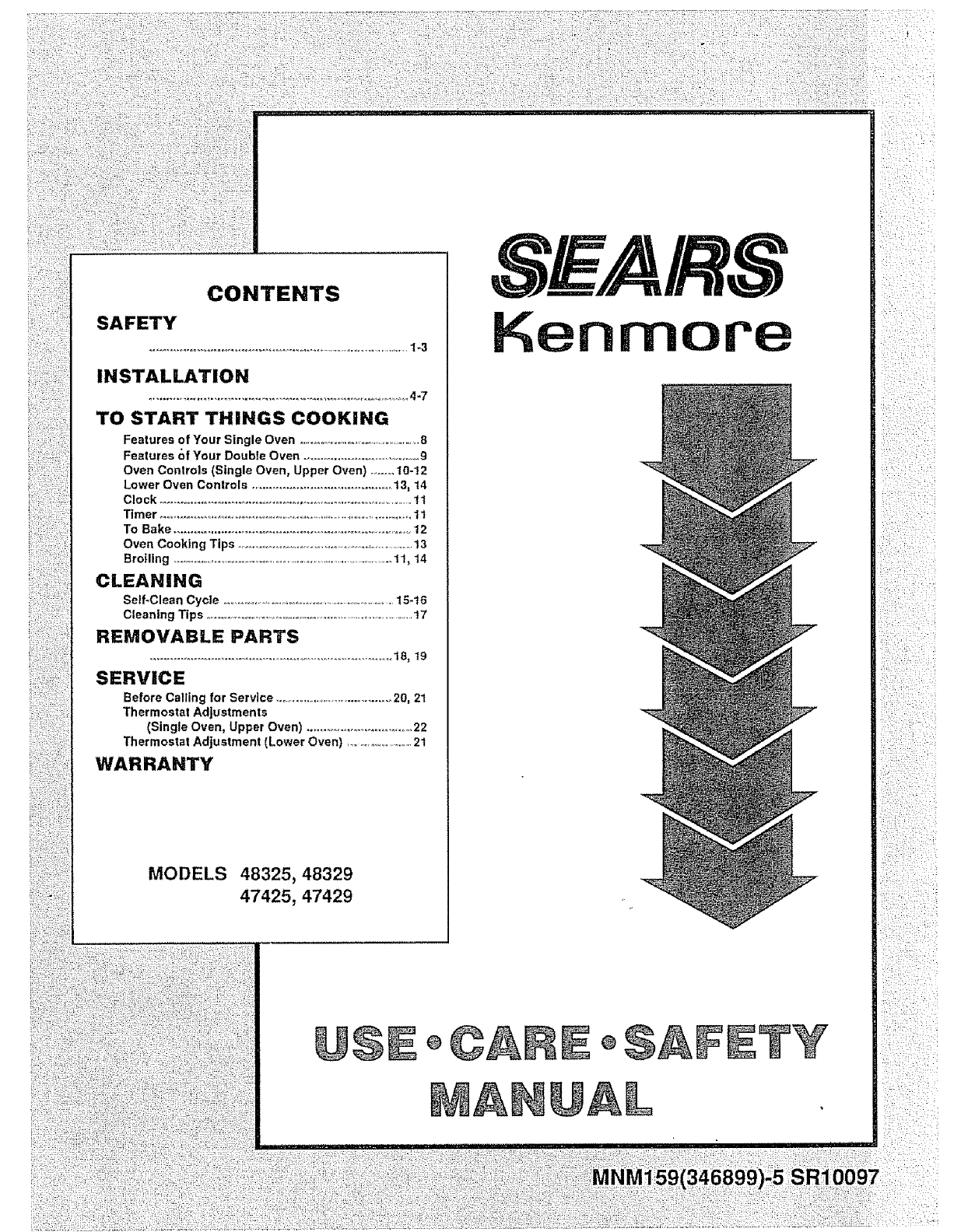

CONTENTS

SAFETY

MODELS 48325, 48329

47425, 47429

@

S_/E,AIRS

Kenm

SAVE THESE iNSTRUCTiONS

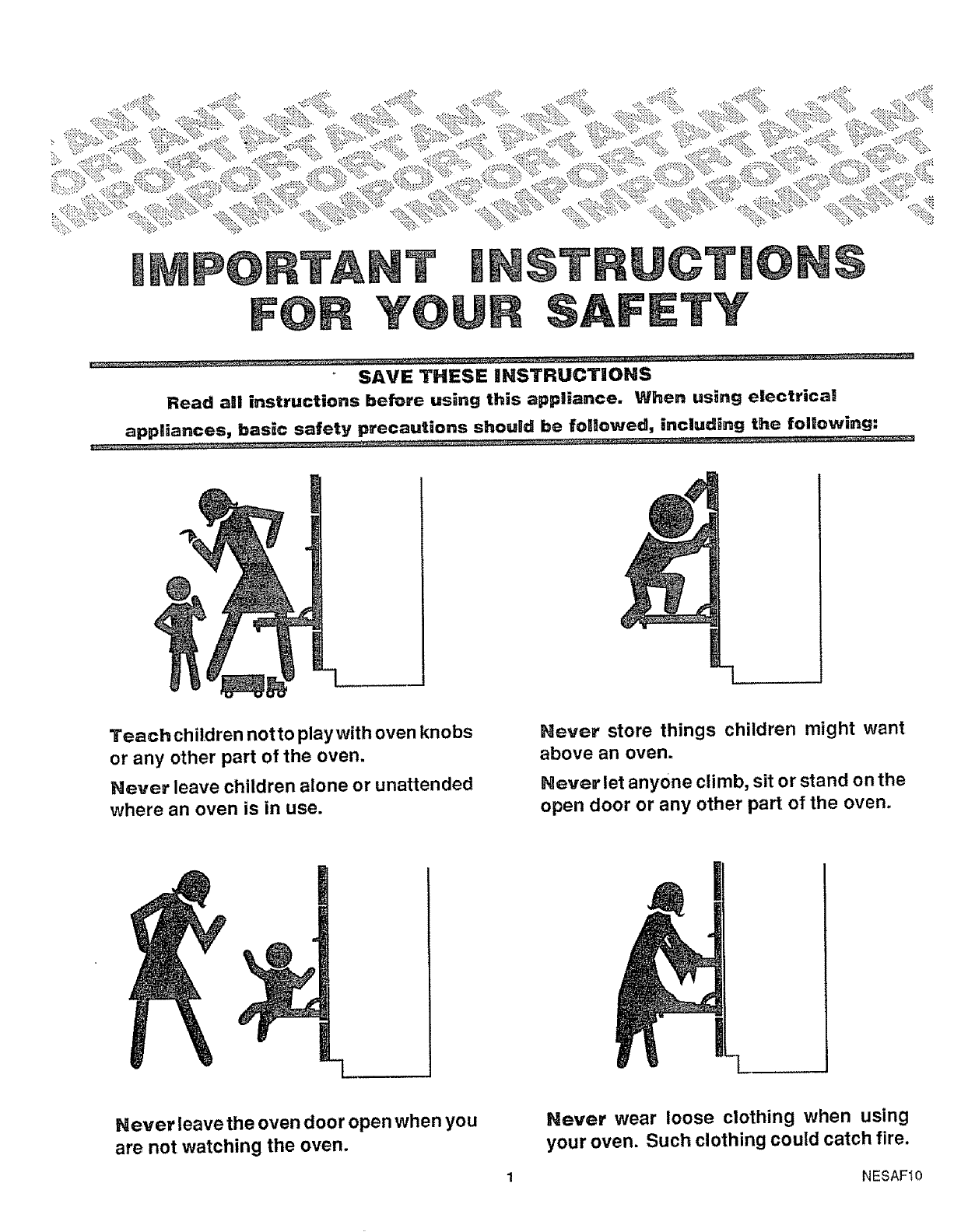

Read all instructions before using this appliance. When using electrical

appNances, basic safety precautions shougd be followed, includJ.g the following:

Teach children notto playwith oven knobs

or any other part of the oven.

Never leave children alone or unattended

where an oven is in use.

Never store things children might want

above an oven.

Never let anyone climb, sit or stand onthe

open door or any other part of the oven.

Never leave the oven door open when you

are not watching the oven.

Never wear loose clothing when using

your oven. Such clothing could catch fire.

1 NESAF'_O

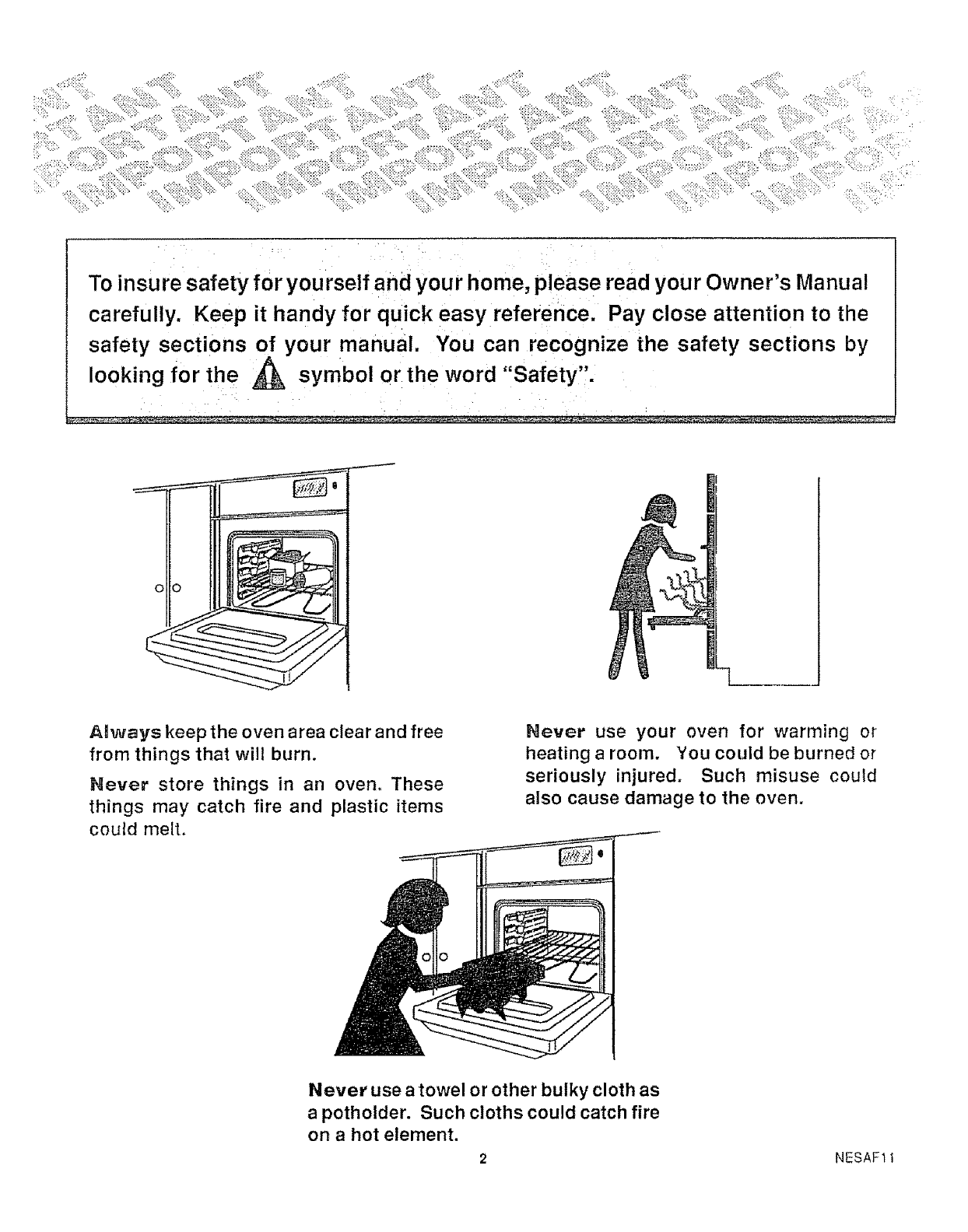

To insure safety for yourself and your home, please read your Owner's Manual

carefully. Keep it handy for quick easy reference. Pay close attention to the

safety sections of your manual. You can recognize the safety sections by

looking for the _ symbol or the word "Safety".

Amways keep the oven area clear and free

from things that will burn.

Never store things in an oven. These

things may catch fire and plastic items

could melt.

Never use your oven for warming or

heating a room. You could be burned or

seriously injured. Such misuse could

also cause damage to the oven.

Never use a towel or other bulky cloth as

a potholder. Such cloths could catch fire

on a hot element.

2 NESAF11

SAFETY U©T

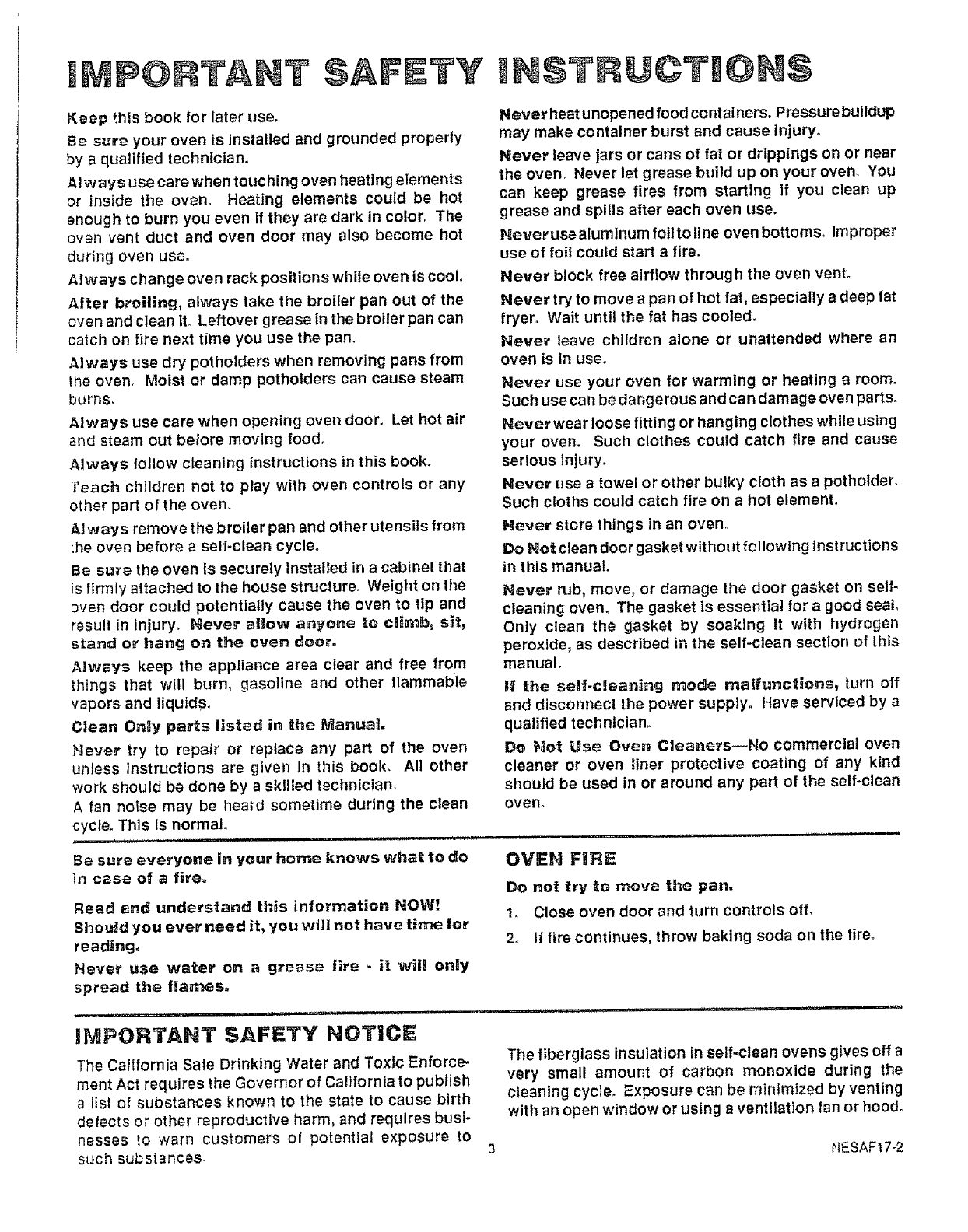

Keep this book for later use.

Be sure your oven is installed and grounded properly

by a qualified technician.

Always use care when touching oven heating elements

or inside the oven. Heating elements could be hot

enough to burn you even if they are dark in color, The

oven vent duct and oven door may also become hot

during oven use.

Always change oven rack positions while oven is cool,

After broiilng, always take the broiler pan out of the

oven and clean it. Leftover grease in the broiler pan can

catch on fire next time you use the pan.

Always use dry potholders when removing pans from

_he oven, Moist or damp pothotders can cause steam

burns,

Always use care when opening oven door. Let hot air

and steam out bolero moving food.

Always follow cleaning instructions in this book.

|'each children not to play with oven controls or any

other part of the oven.

._]ways remove the broiler pan and other utensils from

Lhe oven before a self-clean cycle.

Be sure the oven is securely installed in a cabinet that

is firmly attached to the house structure. Weight on the

oven door could potentially cause the oven to tip and

result in injury. Never altlow anyone to climb_ sit,

stand or hang on the oven door.

Always keep the appliance area clear and free from

lhings that will burn, gasoline and other flammable

vapors and liquids.

Clean Only parts listed in the Manual

Never try to repair or replace any part of the oven

unless instructions are given In this book. All other

work should be done by askilled technician,

Aian noise may be heard sometime during the clean

cyc}e. This is normal.

iii HIH ......................... .I nn IHI I I_ _'111

Never heat unopened food containers. Pressure buildup

may make container burst and cause injury.

Never leave jars or cans of fat or drippings on or near

the oven. Never let grease build up on your oven. You

can keep grease fires from starting if you clean up

grease and spills after each oven use.

Neverusealumlnum foilto line oven bottoms, improper

use of foil could start a fire,

Never block free airflow through the oven vent,

Never try to move a pan of hot fat, especially a deep fat

fryer. Wait until the fat has cooled.

Never" leave children alone or unattended where an

oven ts in use.

Never use your oven for warming or heating a room.

Such use can be dangerous and can damage oven parts,

Never wear loose fitting or hanging clothes while using

your oven. Such clothes could catch fire and cause

serious injury.

Never use a towel or other bulky cloth as a potholder,

Such cloths could catch fire on a hot element,

Never store things in an oven°

Do Not clean door gasket without following instructions

in this manual,

Never rub, move, or damage the door gasket on self-

cleaning oven. The gasket is essential for a good seat.

Only clean the gasket by soaking it with hydrogen

peroxide, as described in the self-clean section of this

manual.

Iff the se/f.ctean_ng mode malfunctions, turn off

and disconnect the power supply° Have serviced by a

qualified techntcian_

Do Not Use Oven Cfeaners_No commercial oven

cleaner or oven liner protective coating of any kind

should be used in or around any part of the self-clean

oven.

Be sure eve_'yone in your home knows what to do

in case of afire,

Read and understand this information NOW]

Should you ever need it, you wilt not have time for

reading,

Never use water on a grease fire. it wi_! on_y

spread the flames.

OVEN FiRE

Do not try to move the pan,

1. Close oven door and turn controls off,

2. If fire continues, throw baking soda on the fire°

in,,,tl _ i i_ .... i,ul "11.................................

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforce-

ment Act requires the Governor of California to publish

alist of substances known to the state to cause birth

defects or other reproductive harm, and requires busi-

nesses _o warn customers of potential exposure to

such substances

The fiberglass insulation {nself-clean ovens gives off a

very small amount of carbon monoxide during the

cleaning cycle. Exposure can be mlnlmfzed by venting

with an open window or using a ventilation fan or hood,

NESAF17-2

INSTALLATION

Note to installer .Be sure to leave these

instructions with the Consumer.

Important - Save for local electrical inspector's

use.

I

Note to Consumer- Keep these instructions with

your Use • Care • Safety Manual for future

reference.

TOOL LIST

3/32" Drill Bit

Electric or Hand Drill

Flat Bladed and Phillips Screwdriver

Pencil

Ruler or Tape Measure and Straightedge

Hand Saw or Saber Saw

LOCATION

Cabinet space must be provided to enclose the re-

cessed part of your built-in oven° SINGLE OVEN IN-

STALLATION-See Figure tfor all necessary dimen-

Electrical Code, ANSI/NFPA No. 70-Latest Edition. You

can get a copy by writing:

National Fire Protection Association

Battery March Park

Quincy, MA 02269

You must use a three-wire, single-phase A.C. 208Y/120

Volt or 120/240 Volt, 60 Hertz electrical system. If you

connect to aluminum wiring, properly installed connec-

tions approved for use with aluminum wiring must be

used.

ELECTRICAL CONNECTION

slons. DOUBLE OVEN INSTALLATION--See Figure 2

for all necessary dimensions. It is best to make atem-

plate to insure accurate cutting.

Place the bottom of the template on a level base line,

above the floor. See Dimension Ein Fig. 1 (Single Oven)

on page 5, or Fig. 2 (Double Oven) on page 6.

Be sure the oven is securely installed to a cabi-

net that is firmly attached to the house struc.

ture. Weight on the oven door could potentially

cause the oven to tip and result in injury. Hever

allow anyone to climb, sit, stand, or hang on the

oven door.

1o De-energize oven branch circuit°

2_ With oven tn front of cabinet opening, connect flexible

power cable to t he ju nctlon box In such a manner t hat

it will ban g down in anatural loop against the left side

of the back wall when the oven Is installed. Do not

shorten this flexible power cable° The flexible conduit

connector must be securely attached to the junction

box and the flexible conduit must be secu rely attached

to the connector. I1 the flexible conduit will not fit

within the connector do not Install the oven until a

connector o! the proper size is obtained°

• When connecting to a 3-conductor branch circuit, if

local codes permit, connect the white and bare ground

connector leads of the oven to the branch circuI[

neutral (white or gray in color), the oven red lead to

the branch circuit red lead and the oven black lead to

the branch circuit black lead in accordancewith local

codes.

SPECIAL GROUNDING

INSTRUCTIONS

CAUTION: The electrica! power

to the oven supply line mus_ be

shu_ off while line connections

are being made. Failure to do so

could result in serious injury or

death.

ELECTRICAL REQUIREMENTS

This appliance must be supplied with the proper voltage

and frequency, and connected to an individual, properly

grounded branch circuit, protected by acircuit breaker

or fuse, having amperage as noted on rating plate.

(Rating plate Is located on oven frame.)

We recommend you have the electrical wiring and hookup

of your oven done by aqualilted electrician. After

installation, have the etectrlcian show you wl]ere your

math range disconnect Is located.

Check with your local utilities for electrical codes which

apply in your area, Failure to wire your oven according

to governing codes could result in ahazardous condl-

tion. If there are no local codes, your range must be

wired and fused to meet the requirements of the National

•When connecting to a4-conductor branch circuit;

•When Installing oven in amobile home;

•When local codes do not permit grounding through

neutrah

1. Attach the appliance grounding lead (green or bare

copper) tothe residence grounding conductor (green

or bare) in accordance with local codes. If the

residence grounding conductor is aluminum, see

"WARNING" note on page &

2o Connect the oven neutral (white) lead to the branch

circuit neutral (white or gray) in accordance with

toca[ codes.

5, Connect the oven red lead to the branch circuit red

lead and the oven black lead to the branch circuit

black lead in accordance with local codes. If the reel.

dence red and black leads are aluminum conductors,

see "WARNING" note on page 5 NEINS26-2

NOTETOELECTR]CI.,_N;The3powerleads supplied with this appliance are UoL. recognized for connection

to larger gauge household wiring, The Insulation of these 3 leads is rated at temperatures much higher than the

temperature rating of household wiring. The current carrying capacity of the conductor is governed by the

temperature rating of the insulation around the wire, rather than the wire gauge alone,

WARNING:

IMPROPER CONNECTION OF ALUM_NU_ HOUSE WIRING TO COPPER LEADS

CAN RESULT iN AN ELECTRICAL HAZARD OR FIRE. USE ONLY CONNECTORS

DESIGNED FOR JOINING COPPER TO ALUMIHUM AND FOLLOW THE

MANUFACTURER'S RECOMMENDED PROCEDURE CLOSELY.

FOR ALL INSTALLATIONS

The oven may be supported by either asolid

bottom or two runners. The solid bottom or two

runners should be level with the bottom edge of

the cutout opening.

* if a solid bottom is used instead of the runners,

a6" x 10" rectangle must be cut out of the bottom

(see Fig. 2) in order to provide enough cooling air

flew during self-clean operation.

H,,,,ll H,,,,,I =ill 1,, HI UnU = ,t "

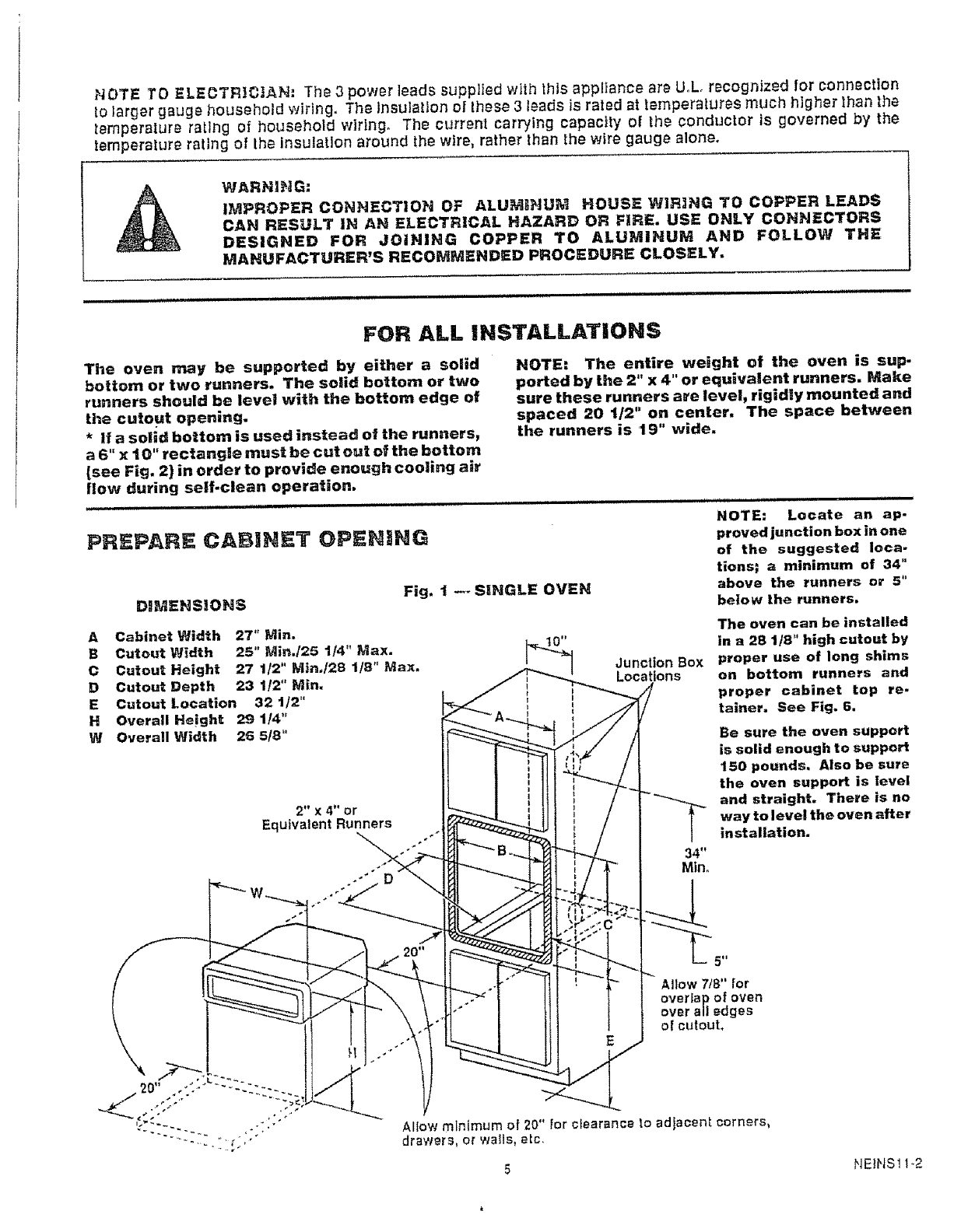

PREPARE CABINET OPENING

DIMENSIONS

NOTE: The entire weight of the oven is sup.

ported by the 2" x 4" or equivalent runners. Make

sure these runners are level, rigidly mounted and

spaced 20 112" on center. The space between

the runners is 19" wide.

Fig. t _SINGLE OVEN

Junction Box

Locations

A Cabinet Width 27" Min.

B Cutout Width 25" Min./25 1/4" Max.

CCutout Height 27 1/2" M_n,/28 1/8" Max,

D Cutout Depth 23 1/2" Min.

E Cutout ]Location 32 1/2"

H Overall He!ght 29 1/4"

WOverall Width 2S 5/8"

2" X 4" or

Equivalent Runners

34"

Mine

n =lluHl,i =,,,ul

NOTE: Locate an ap-

proved junction box in one

ef the suggested loca-

tions; aminimum of 34"

above the runners er 5"

below the runners.

The even can be installed

in a28 1/8" high cutout by

proper use of long shims

en bottom runners and

proper cabinet top re.

tainer. See Fig. 6.

Be sure the oven support

is solid enough to support

150 pounds. Aise be _ure

the even support is level

and straight. There is no

way to level the oven after

installation.

5 tj

Allow 7/8" for

overlap of oVen

over all edges

of cutout,

Allow mlntmurn of 20" }'or clearance to adjacent corners,

drawers, or wails, etc,

NEIHS! 1-2

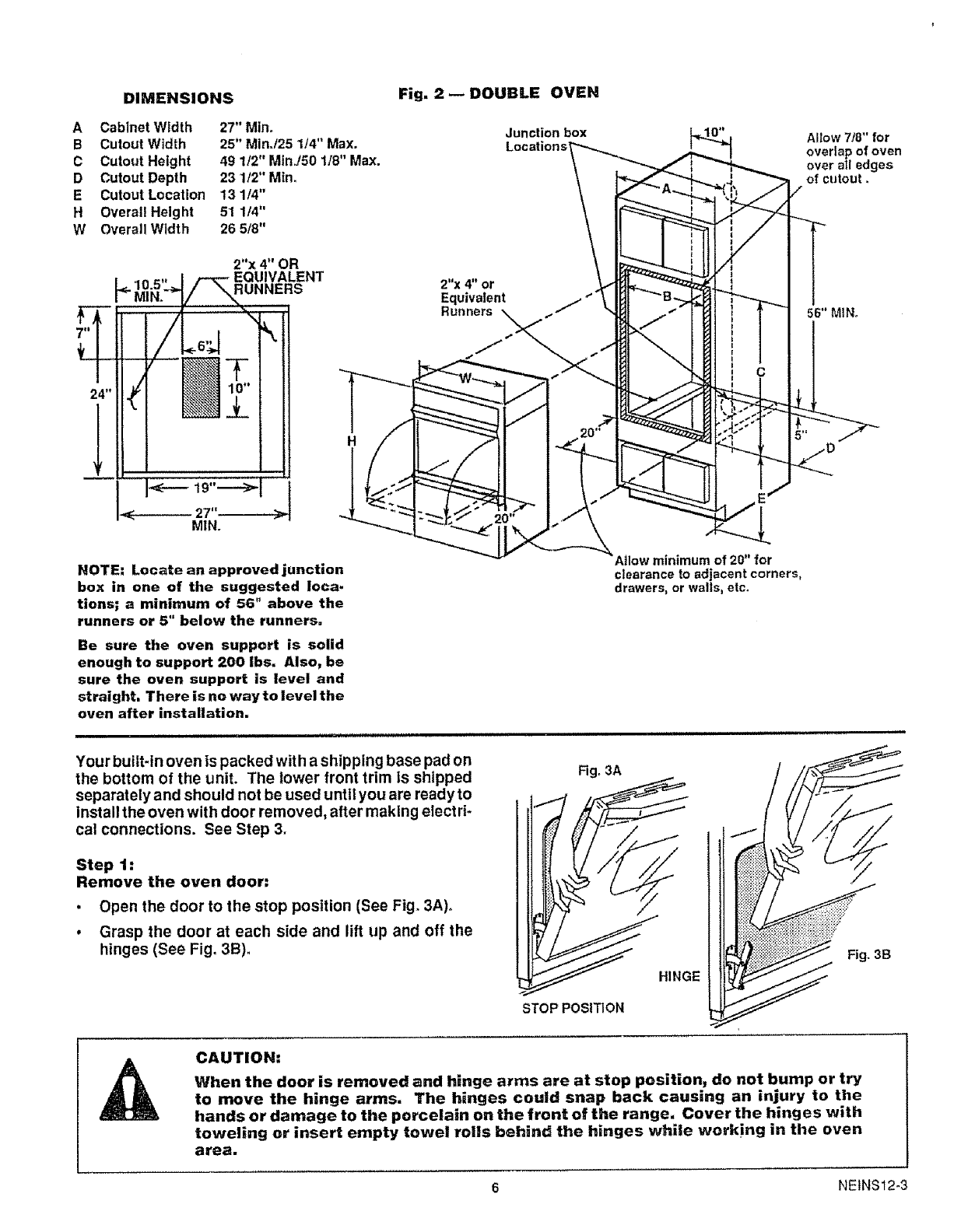

DIMENSIONS Fig. 2 -- DOUBLE OVEN

A Cabinet Width 27" Mira

B Cutout Width 25" MinJ25 114" Max.

C Cutout Height 49 1/2" MtnJ50 1/8" Max.

D Cutout Depth 23 1t2" Min.

E Cutout Location 13 1/4"

H Overall Height 51 114"

W Overall Width 26 5/8"

Junction box Allow 7t8" for

overlap of oven

over all edges

of cutout.

24"

J

2"x 4" OR

'0 5" _EQUIVALENT

-r-- T

27"--------_

MIN.

H

2"X 4" or

Equivalent

Runners 56" MINo

NOTE: Locate an approved junction

box in one of the suggested Iota.

lions; aminimum of 56" above the

runners or 5" below the runners=

Be sure the oven support is solid

enough to support 200 lbs, Also, he

sure the oven support is level and

straight. There is no way to level the

oven after installation.

Allow minimum of 20" for

clearance to adjacent corners,

drawers, or walls, etc.

Your built-in oven is packed with a shipping base pad on

the bottom of the unit. The lower front trim Is shipped

separately and should not be used until you are ready to

Install the oven with door removed, after making electri-

cal connections. See Step 3.

Step 1:

Remove the oven door:

• Open the door to the stop position (See Fig. 3A).

• Grasp the door at each side and lift up and off the

hinges (See Fig, 3B)_

Fig, 3A

STOP POSITION

HINGE

Fig. 3B

CAUTION:

When the door is removed and hinge arms are at stop position, do not bump or try

to move the hinge arms. The hinges could snap back causing an injury to the

hands or damage to the porcelain on the front of the range. Cover the hinges with

toweling or insert empty towel rolls behind the hinges while working in the oven

area.

6 NEtNS12-3

Step 2=

Remove top trim by removing 3 top screws (See Fig. 4),

TOP

TRIM

Step 5:

Mount the oven with the screws supplied

Replace oven door and top trim. After rightening the two

outer top trim screws, back them out 1/4 turn. DO NOT

OVER TIGHTEN THESE SCREWS°

NOTE= 3 screw covers are provided to cover

these screws,

To replace the oven door:

1. Hold the door over the hinges with the slots at the

bottom ed ge of the door lined up with the hinges. The

hinge arms must still be in the stop position.

2. Slide the door down onto the hinges as far as it will

go and close the door.

Fig. 4

Step 3:

Slide oven°314 way into the cabinet cutout°

Attach lower end caps and trim to front frame with 3

screws provided (See Fig. 5).

NOTE= End caps snap into side trim

CAP Fig°5/

CAP

Step 4:

The bottom of the trim provides

an opening for cooling air to enter

the cabinet. This opening should

never be blocked.

HINGE

Slide oven all the way into the cabinet cutout,

Drill 3/32" pilot holes for two #8 screws through the

mounting holes in top cover. The two screws must

be 1/4" rain, from the top of the cutout, (See Fig

6). Use dry wall screws if cabinet ls particulate board.

518"

MIN.,

Fig° 6

Cabinet Top Retainer required

for cutout heights approaching

Maximum on Single Ovens_ NEINS13

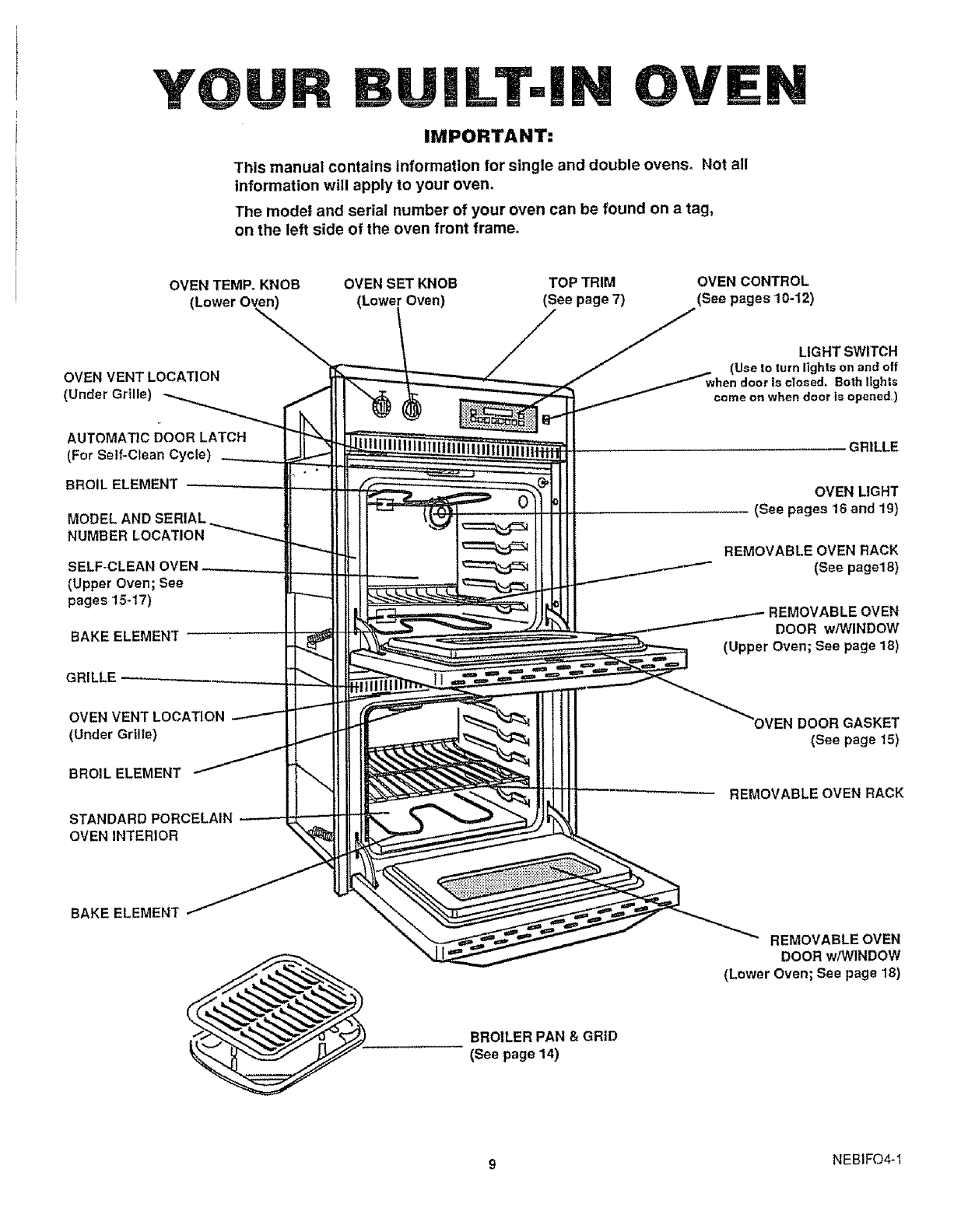

YOUR BUILT-IN OVEN

IMPORTANT:

This manual contains information for single and double ovens, Not all

information will apply to your oven,

The model and serial number of your oven can be found on atag,

on the left side of the oven front frame.

TOP TRIM (See page 7)

OVEN VENT_

AUTOMATIC DOOR LATCH

([orSelf-Cteantng Cycle)

NAME/NUMBER

PLATE LOCATION

(2)REMOVABLE

OVEN RACKS

(one shown)

SELF-CLEANING

OVEN FINISH

(See pages 15-17)

OVEN CONTROL

(Seepages10-12)

LIG HT SWITCH

Use to turn Ilght on and

off when door is etosed.

Light comes on when

door Is opened,,)

, GRILLE

BROIL ELEMENT

- OVEN LIGHT

(See pages 16 &19)

BAKE ELEMENT

OVEN DOOR GASKET

(See page 15) REMOVABLE OVEN DOOR

_WlNDOW(Seepage18)

BROILER PAN & GRID

(See page 14)

8 NEBIFO3

IMPORTANT:

This manual contains information for single and double ovens. Not all

information will apply to your oven.

The model and serial number of your oven can be found on a tag,

on the left side of the oven front frame.

OVEN TEMP. KNOB

(Lower Oven)

OVEN SET KNOB

(Lower Oven)

TOP TRIM

(See page 7)

OVEN CONTROL

(See pages 10-12)

OVEN VENT LOCATION

(Under Grille)

AUTOMATIC DOOR LATCH

(For Self-Clean Cycle)

BROIL ELEMENT

MODEL AND SERIAL

NUMBER LOCATION

SELF+CLEAN OVEN

(Upper Oven; See

pages '15+17)

BAKE ELEMENT

GRILLE

OVEN VENT LOCATION

(Under Grille)

BROIL ELEMENT

STANDARD PORCELAIN

OVEN INTERIOR

LIGHT SWITCH

(Use to turn lights on and off

,door Is closed. Both lights

come on when door is opened,)

GRILLE

OVEN LIGHT

(See pages 16 and 19)

REMOVABLE OVEN RACK

(See page18)

REMOVABLE OVEN

DOOR w/WINDOW

(UpperOven;Seepage18)

DOOR GASKET

(Seepage15)

REMOVABLE OVEN RACK

BAKE ELEMENT

REMOVABLE OVEN

DOOR w/WINDOW

(Lower Oven; See page 18)

BROILER PAN & GRID

(See page 14)

9NEBIFO4-1

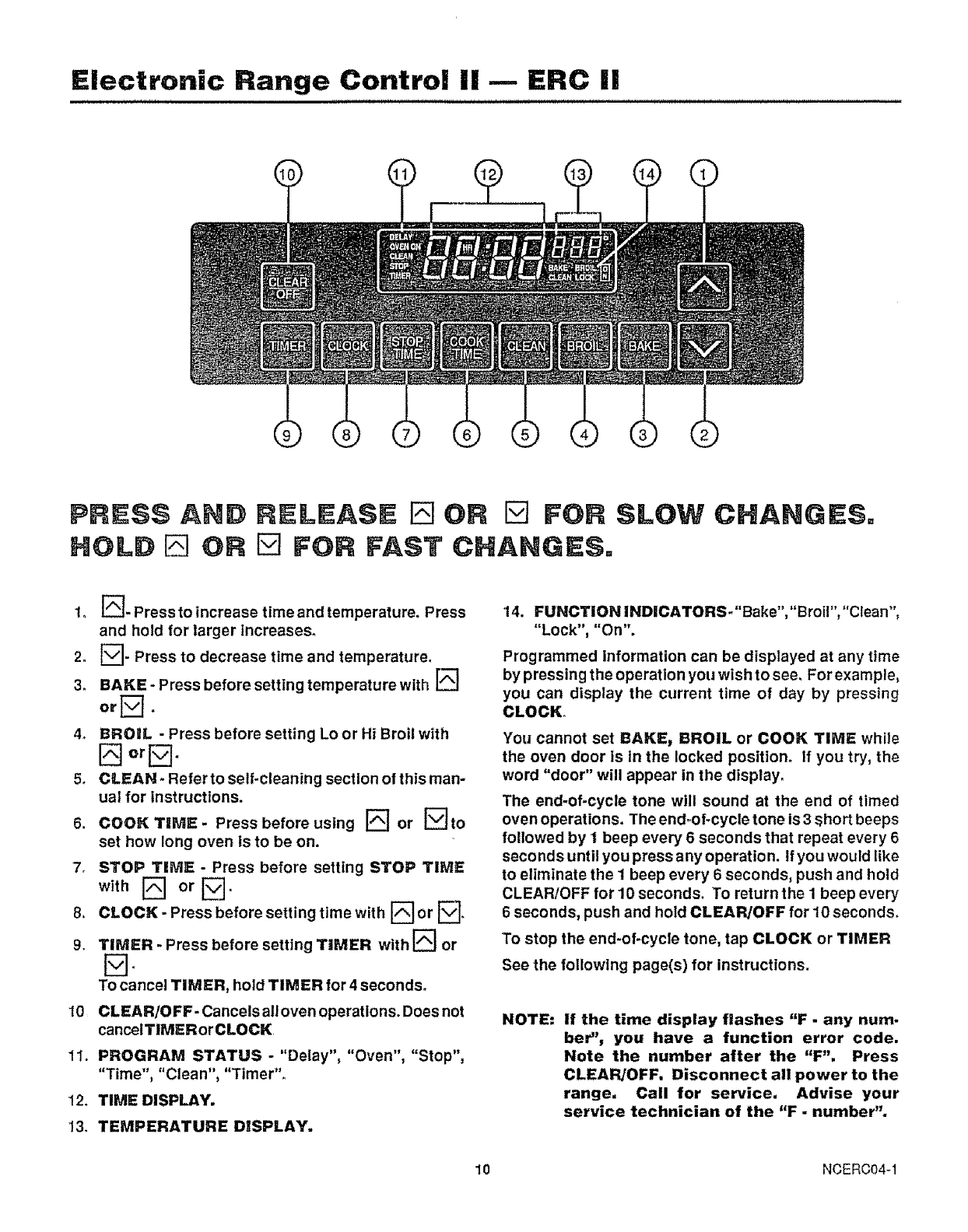

Electronic Range Control I! -- ERC il

= ill= = =

PRESS AHD RELEASE [] OR [] FOR SLOW CHAHGE$°

HOLD DOR [] FOR FAST CHANGES.

1, _- Press to increase time and temperature. Press

and hold for larger increases,

2. _--]- Press to decrease time and temperature,

3. BAKE- Press before setting temperature with

OrF_ •

4o BROIL - Press before setting Lo or Hi Broil with

[]orN.

5. CLEAN- Refer to self-cleaning section of this man-

ual for instructions.

6. COOK TIME- Press before using [_ or _to

m

set how long oven is to be on.

7r STOP TIME - Press before setting STOP TIME

with Nor I_"

8. CLOCK -Press before setting time with [_ or --'v___Jo

9, TIMER - Press before setting TIMER with _or

To cancel TIMER, hold TIMER for 4 seconds.

10 CLEAR/OFF- Cancels alloven operations. Does not

cancelTiMERor CLOCK

11. PROGRAM STATUS- "Delay", "Oven", "Stop",

"Time", "Clean", "Timer'L

12. TIME DISPLAY.

13o TEMPERATURE DISPLAY.

14. FUNCTION iNDICATORS-"Bake","Broil","Clean",

"Lock", "On".

Programmed information can be displayed at any time

by pressing the operation you wish to see. For example,

you can display the current time of day by pressing

CLOCK

You cannot set BAKE, BROIL or COOK TIME while

the oven door is in the locked position° If you try, the

word "door" will appear in the display.

The end-of-cycle tone will sound at the end of timed

oven operations. The end-of-cycle tone is 3 ._hortbeeps

followed by I beep every 6 seconds that repeat every 6

seconds until you press any operation. If you would like

to eliminate the 1 beep every 6 seconds, push and hold

CLEAR/OFF for 10 seconds. To return the 1 beep every

6seconds, push and hold CLEAR/OFF for 10 seconds.

To stop the end-of-cycle tone, tap CLOCK or TIMER

See the following page(s) for instructions.

NOTE: If the time display flashes "F. any num-

ber", you have afunction error code.

Note the number after the "F". Press

CLEAR/OFF. Disconnect all power to the

range. Call for service. Advise your

service technician of the "F. number".

10 NCERC04-1

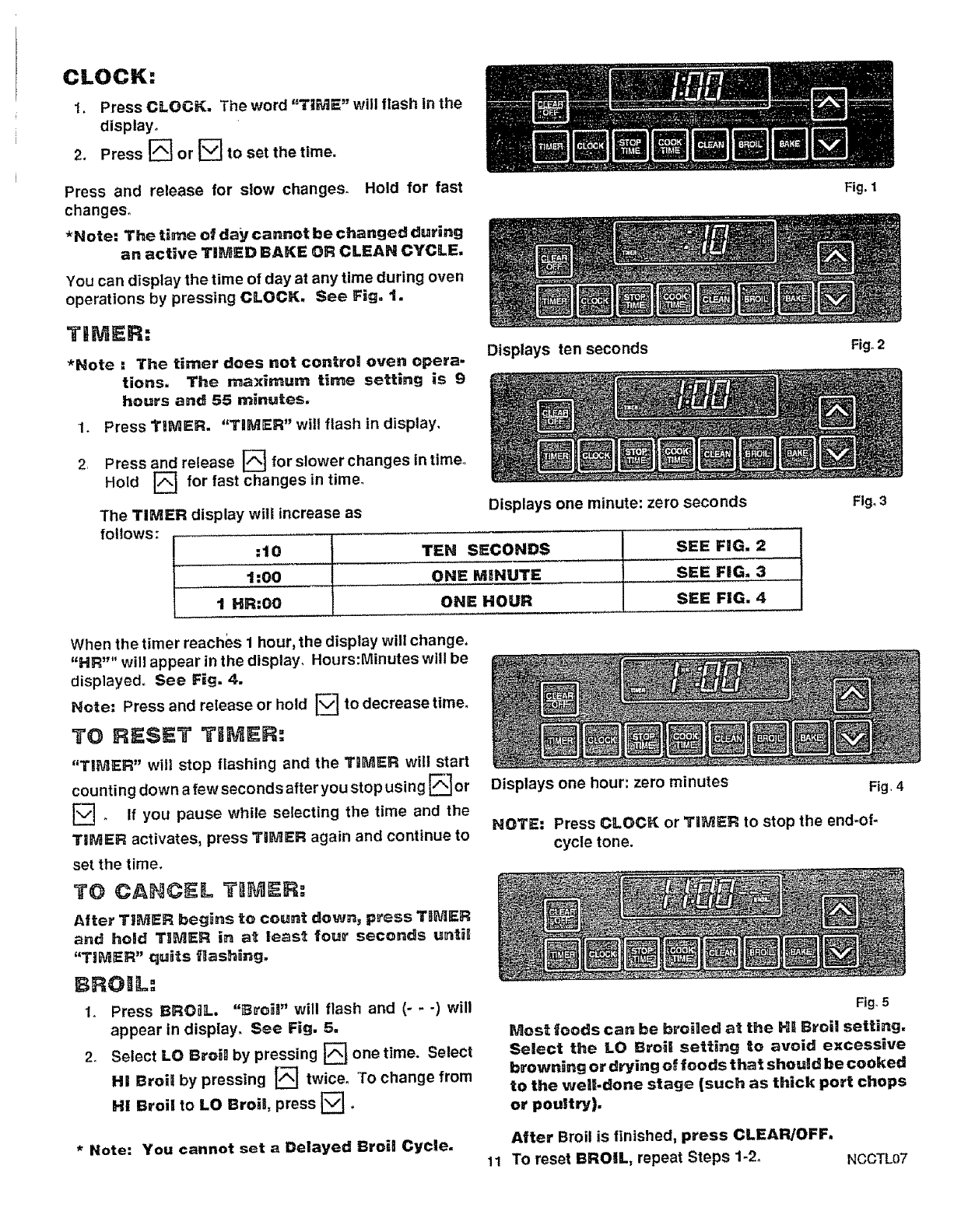

CLOCK:

1. Press CLOCK. The word "TIME" will flash in the

display°

2, Press _or _to set the time,

Press and release for slow changes. Hold for fast

changes

*Note: The time of day cannot be changed during

an active TIMED BAKE OR CLEAN CYCLE,

You can display the time of day at any time during oven

operations by pressing CLOCK. See Fig. t,

TIMER:

*Note : The timer does not control oven opera.

tions. The maximum time setting is 9

hours and 55 minutes,

1 Press TIMER. "TIMER" will flash in display.

Displays ten seconds

Press and release _'_ for slower changes in time°

Hold [_ for fast changes in time

The TIMER display will increase as

follows:

-10

1:00

t HR:00

Displays one minute: zero seconds

TEN SECONDS SEE FiG. 2

ONE MINUTE SEE FIG. 3

ONE HOUR SEE FIG. 4

Fig. 1

Fig_2

Fig, 3

When the timer reaches I hour, the display will change.

"HR"" will appear in the display Hours:Minutes will be

displayed See Fig. 4.

Note: Press and release or hold _] to decrease time.

TO RESET TIIM_R:

"TIMER" will stop flashing and the TIMER will start

counting down a few seconds after you stop using [_]or

Et o if you pause while selecting the time and the

TIMER activates, press TIMER again and continue to

set the time,

TO CAHC_L Tfi!_ER:

After TIMER begins to count down_ press TBMER

and hold TIMER in at least four seconds until

"TIMER" qui_s flashing,

BROIIL:

1° Press BROIL. "Broil" will flash and (- - -) will

appear in display. See Fig. 5.

2 Select LO Broil by pressing [_ one time. Select

HI Broil by pressing _-] twice. To change from

HI Broil to LO Broil, press [].

Displays one hour: zero minutes Fig 4

NOTE- Press CLOCK or TIMER to stop the end-of-

cycle tone

Fig.5

Most foods can be broiled a_ the H! Broil setting,

Select the LO Broil setting to avoid excessive

browning or drying of foods tha_ should be cooked

to the well-done stage (such as thick port chops

or poultry).

*Note: You cannot set aDelayed Broil Cycle. After Broil is finished, press CLEAR/OFF.

11 TO reset BROIL, repeat Steps 1-2. NCCTL07

f

h

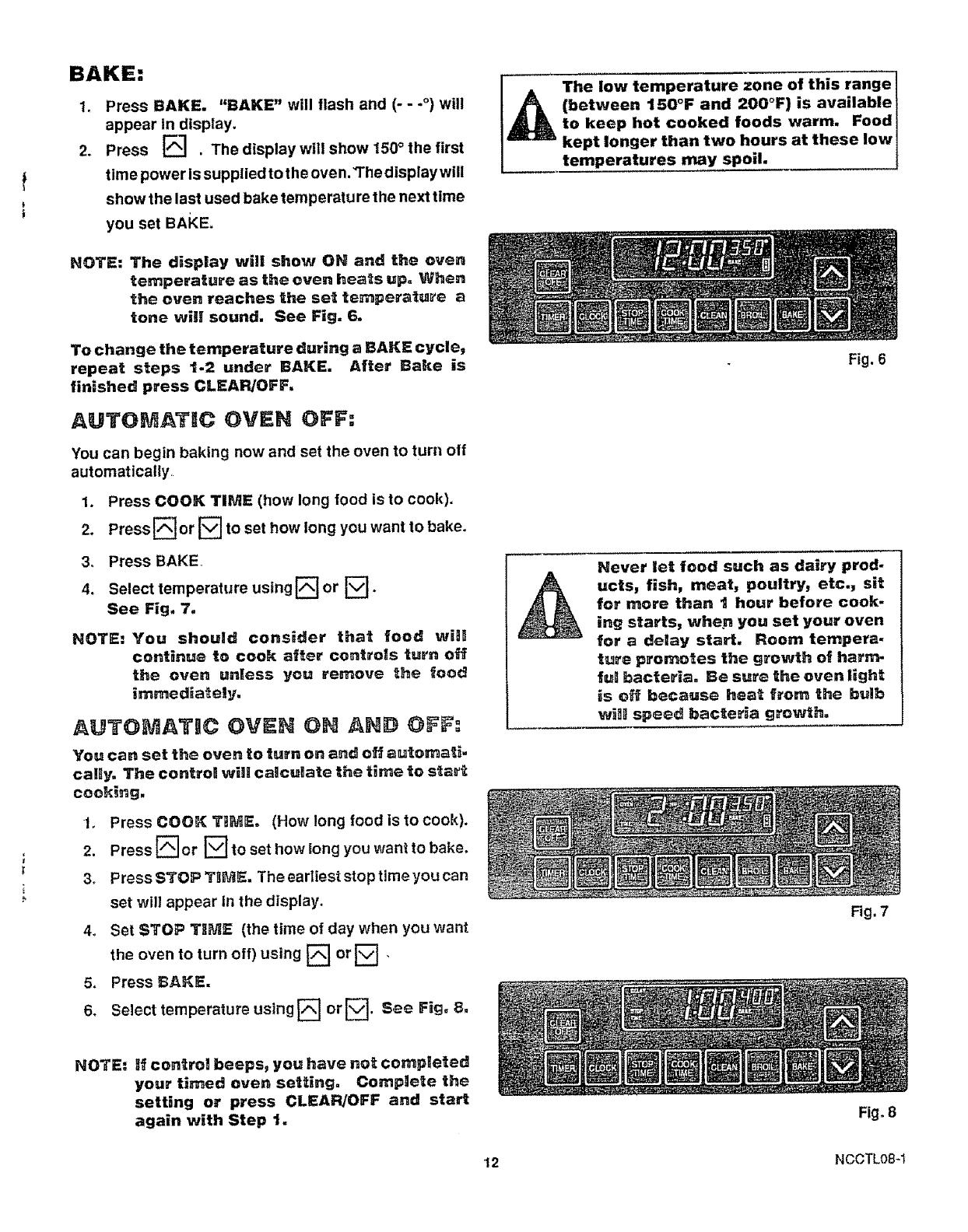

BAKE:

1. Press BAKE. "BAKE" will flash and (- - -°) will

appear In display.

2. Press [] . The display will show 150° the first

time power is supplied to the oven.'The display will

show the last used bake temperatu re the next time

you set BAKE.

NOTE: The display will show ON and the oven

temperature as the oven heats up. When

the oven reaches the set temperature a

tone will sound. See Fig. 6.

To change the temperature during a BAKE cycle_

repeat steps 1.2 under BARE. After Bake is

finished press CLEAR/OFF.

AUTOMATIC OVEH OFF:

You can begin baking now and set the oven to turn off

automatically,

1. Press COOK TIME (how long food is to cook),

2, Pressr_or [] to set how long you want to bake.

3, Press BAKE.

4. Select temperature using _or [_.

See Fig, 7,

NOTE: You should consider that food will

continue to cook after controls turn off

the oven unless you remove the hoed

immediately,

AUTOMATIC OVEN ON AHD OFF:

You can set the oven to turn on and off automati.

caHy= The control will calculate the time to start

cooking.

t. Press COOR TIME. (How long food is to cook).

2. Press _-]or r_ to set how long you want to bake.

3o Press STOP T_E. The earliest stop time you can

set will appear tn the display.

4, Set STOP TnME (the time of day when you want

the oven to turn off) using _ or _,

5. Press E;AKE,

6. Select temperature using_] or_]. See Fig, 8,

The low temperature zone of this range I

_ between 150°F and 200°F} is available 1

to keep hot cooked foods warm, Food I

kept longer than two hours at these low

temperatures may spoil,

Fig. 6

Never let food such as dairy prod-

ucts, fish, meat, poultryj etc._ sit

for more than 1hour before cook-

ing starts, when you set your oven

for adelay start. Room tempera-

ture promotes the growth of harm-

fu_ bacteria, Be sure the oven light

_s off because heat from the bulb

wilg speed bacteria growth=

NOTE: if centre! beeps, you have not completed

your timed oven setting, Complete the

setting or press CLEAR/OFF and start

again with Step 1.

Fig. 7

Fig. 8

12 NCCTL08-1

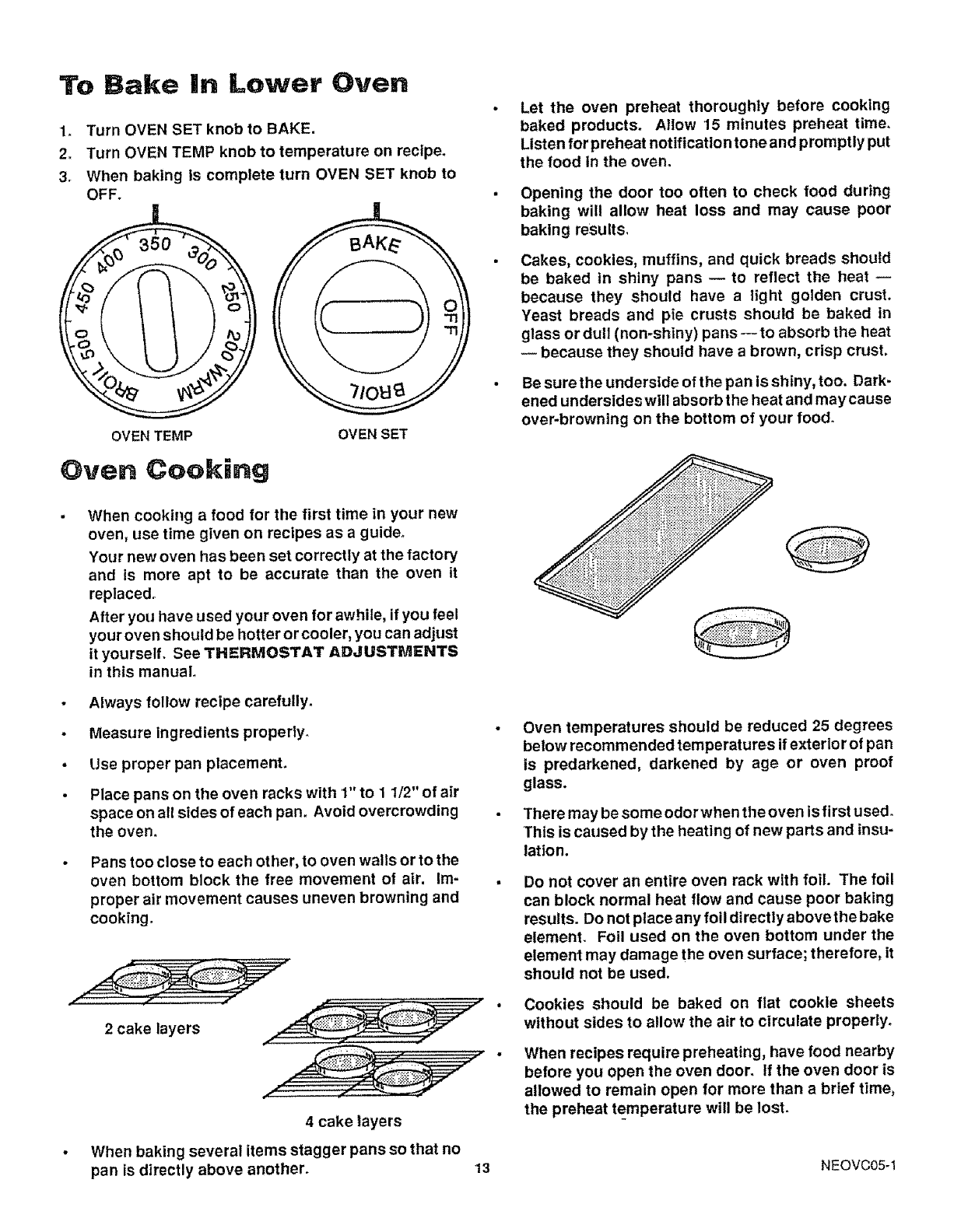

To Bake in Lower Oven

.

2.

3. OFF.

Turn OVEN SET knob to BAKE.

Turn OVEN TEMP knob to temperature on recipe.

When baking is complete turn OVEN SET knob to

OVEN TEMP

Oven Cooking

OVEN SET

Let the oven preheat thoroughly before cooking

baked products. Allow 15 minutes preheat time.

Listen for preheat notification tone and promptly put

the food In the oven.

Opening the door too often to check food during

baking will allow heat loss and may cause poor

baking results,

Cakes, cookies, muffins, and quick breads should

be baked in shiny pans -- to reflect the heat

because they should have alight golden crust.

Yeast breads and pie crusts should be baked in

glass or dull (non-shiny) pans -- to absorb the heat

because they should have a brown, crisp crust.

Be sure the underside of the pan is shiny, too. Dark-

ened undersides will absorb the heat and may cause

over-browning on the bottom of your food.

e

When cooking a food for the first time in your new

oven, use time given on recipes as a guider

Your new oven has been set correctly at the factory

and is more apt to be accurate than the oven it

repiacedo

After you have used your oven for awhile, if you feel

your oven should be hotter or cooler, you can adjust

it yourself. See THERMOSTAT ADJUSTMENTS

in this manual.

Always follow recipe carefully.

Measure ingredients properly.

Use proper pan placement.

Place pans on the oven racks with 1" to 1 1/2" of air

space on all sides of each pan. Avoid overcrowding

the oven.

Pans too close to each other, to oven walls or to the

oven bottom block the free movement of air, Im-

proper air movement causes uneven browning and

cooking.

2 cake layers

4 cake layers

When baking several items stagger pans so that no

pan is directly above another. 13

Oven temperatures should be reduced 25 degrees

below recommended temperatures if exterlo r of pan

is predarkened, darkened by age or oven proof

glass.

There may be some odor when the oven is first used.

This is caused by the heating of new parts and insu-

lation.

Do not cover an entire oven rack with foil. The foil

can block normal heat flow and cause poor baking

results. Do not place any foil directly abovethe bake

element. Foil used on the oven bottom under the

element may damage the oven surface; therefore, it

should not be used.

Cookies should be baked on flat cookie sheets

without sides to allow the air to circulate properly°

When recipes require preheating, have food nearby

before you open the oven door. If the oven door is

allowed to remain open for more than a brief time,

the preheat temperature will be lost.

NEOVC05-1

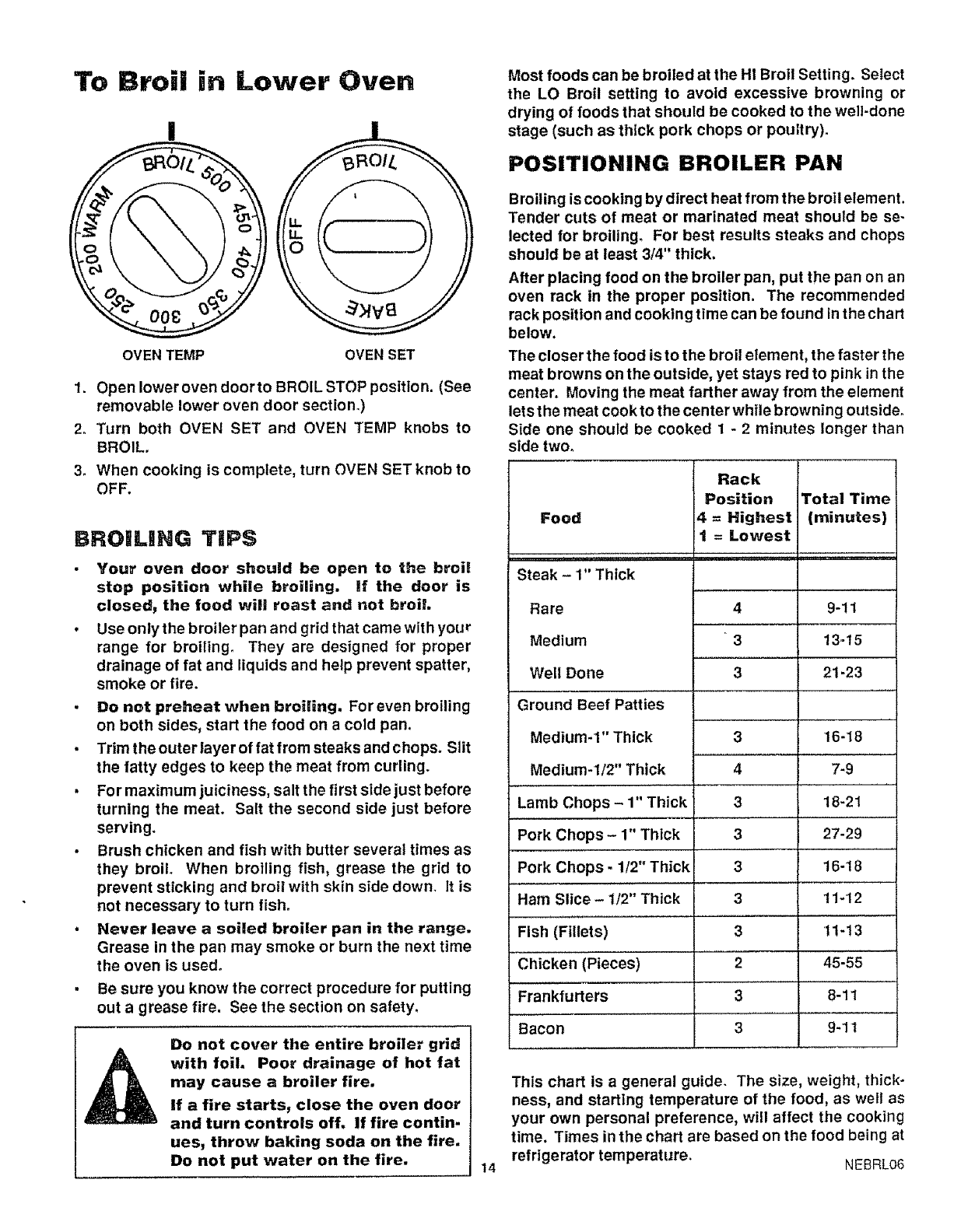

To Broil in Lower Ore.

OVEN TEMP OVEN SET

t

1. Open Ioweroven doorto BROIL STOP position. (See

removable lower oven door section,)

2, Turn both OVEN SET and OVEN TEMP knobs to

BROIL.

3. When cooking is complete, turn OVEN SET knob to

OFF.

BROiLiNG TiPS

Your oven door should be open to the broil

stop position while broiling, if the door is

closed, the food will roast and not broil.

• Useonlythebroilerpanandgridthatcamewithyour

range for broiling. They are designed for proper

drainage of fat and liquids and help prevent spatter,

smoke or fire.

. Do not preheat whe. broiling. Foreven broiling

on both sides, start the food on a cold pan,

• Trim the outer layer of fat from steaks and chops, Slit

the fatty edges to keep the meat from curling.

•For maximum juiciness, salt the first side just before

turning the meat. Salt the second side just before

serving.

•Brush chicken and fish with butter several times as

they broil When broiling fish, grease the grid to

prevent sticking and broil with skin side down, It is

not necessary to turn fish.

• Never leave a soiled broiler pan in the range.

Grease in the pan may smoke or burn the next time

the oven is used,

•Be sure you know the correct procedure for putting

out a grease fire. See the section on safety,

Do not cover the entire broiler grid

with foil. Poor drainage of hot fat

may cause a broiler fire.

If a fire starts, close the oven door

and turn controls off. If fire contin-

ues, throw baking soda on the fire.

Do not put water on the fire• 14

Most foods can be broiled at the HI Broil Setting, Select

the LO Broil setting to avoid excessive browning or

drying of foods that should be cooked to the well-done

stage (such as thick pork chops or poultry).

POSITIONING BROILER PAN

Broiling is cooking by direct heat from the broil element.

Tender cuts of meat or marinated meat should be se-

lected for broiling. For best results steaks and chops

should be at least 3/4" thick.

After placing food on the broiler pan, put the pan on an

oven rack in the proper position. The recommended

rack position and cooking time can be found inthe chart

below.

The closer the food is to the broil element, the faster the

meat browns on the outside, yet stays red to pink in the

center. Moving the meat farther away from the element

lets the meat cook to the center while browning outside°

Side one should be cooked 1 - 2 minutes longer than

side two.

Food

Steak - 1" Thick

Rare

Medium

Well Done

Ground Beef Patties

Medium-1" Thick

Medium-I/2" Thick

Lamb Chops - 1" Thick

Pork Chops - 1" Thick

Pork Chops -1/2" Thick

Ham Slice - t/2" Thick

Fish (Fillets)

Chicken (Pieces)

Frankfurters

4

3

3

Rack

Position Total Time

4 = Highest (minutes)

I = Lowest

9-11

13_15

21-23

16q8

7-9

3

4

3

3

3

3

3

2

3

3

18-21

27-29

16-18

11-12

11-13

45-55

8-11

Bacon 9-11

This chart is a general guide. The size, weight, thick-

ness, and starting temperature of the food, as well as

your own personal preference, will affect the cooking

time. Times in the chart are based on the food being at

refrigerator temperature. NEBRL06

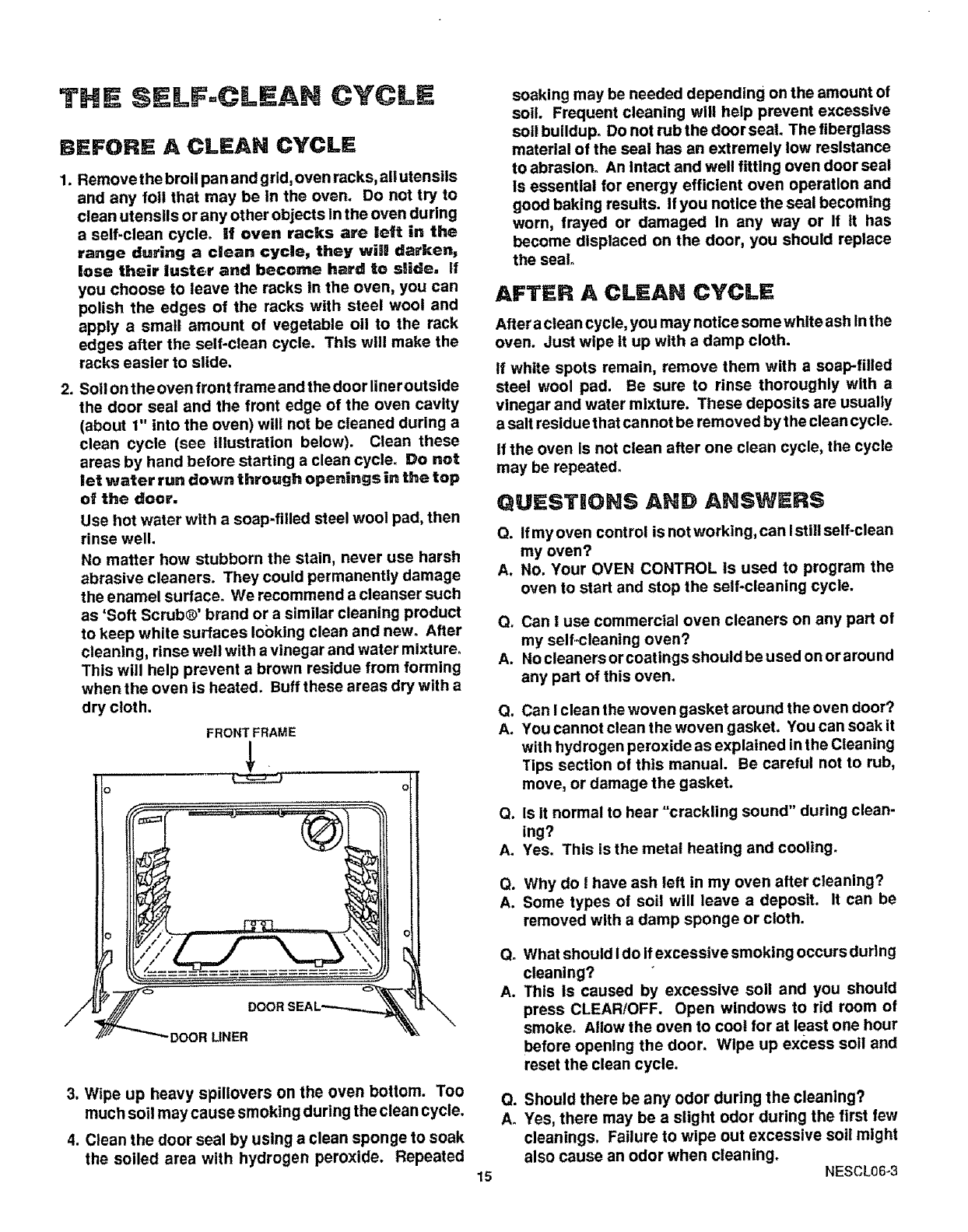

THE $ LF=CL AN CYCLE

BEFORK ACLEAN CYCLH

1. Remove the broil pan and grid, oven racks, all utensils

and any foil that may be in the oven. Do not try to

clean utensils or any other objects In the oven during

a self-clean cycle° if oven racks are left in the

range during a clean cycle, they wiSUdarken,

lose their luster and become hard to sSide, if

you choose to leave the racks in the oven, you can

polish the edges of the racks with steel wool and

apply a small amount of vegetable oil to the rack

edges after the self-clean cycle. This will make the

racks easier to slide.

2. Soil on theoven front frame and the door liner outside

the door seal and the front edge of the oven cavity

(about 1" into the oven) will not be cleaned during a

clean cycle (see illustration below). Clean these

areas by hand before starting a clean cycle_ Do not

let water run down through openings in the top

of the door,

Use hot water with a soap-filled steel wool pad, then

rinse well.

No matter how stubborn the stain, never use harsh

abrasive cleaners. They could permanently damage

the enamel surface° We recommend a cleanser such

as 'Soft Scrub®' brand or a similar cleaning product

to keep white surfaces Iooklng clean and new° After

cleaning, rinse well with a vinegar and water mixture.

This will help prevent a brown residue from forming

when the oven is heated. Buff these areas dry with a

dry cloth.

FRONT FRAME

&

_DOORSEAL",---_

"° _"_" DOOR LINER

3, Wipe up heavy spillovers on the oven bottom. Too

much soil may cause smoking during the clean cycle.

4. Clean the door seal by using a clean sponge to soak

the soiled area with hydrogen peroxide. Repeated

soaking may be needed depending on the amount of

soil. Frequent cleaning will help prevent excessive

soil buildup. Do not rub the door seal The fiberglass

material of the seal has an extremely low resistance

to abrasion° An Intact and well fitting oven door seal

ls essential for energy efficient oven operation and

good baking results. If you notice the seal becoming

worn, frayed or damaged In any way or If tt has

become displaced on the door, you should replace

the seal.

AFTER ACLEAN CYCLE

Aftera clean cycle, you may notice some white ash Inthe

oven. Just wipe tt up with a damp cloth.

If white spots remain, remove them with a soap-filled

steel wool pad. Be sure to rinse thoroughly with a

vinegar and water mixture. These deposits are usually

a salt residue that cannot be removed by the clean cycle.

If the oven Is not clean after one clean cycle, the cycle

may be repeated_

QUESTIONS AND ANSWFR$

Q. Ifmyoven control isnotworking,canlstillself=clean

my oven?

A. No. Your OVEN CONTROL is used to program the

oven to start and stop the self-cleaning cycle.

Q. Can !use commercial oven cleaners on any part of

my selfocleaning oven?

A. No cleaners or coatings should be used on or around

any part of this oven.

Q.

A. Can I clean the woven gasket around the oven door?

You cannot clean the woven gasket. You can soak it

with hydrogen peroxide as explained in the Cleaning

Tips section of this manual Be careful not to rub,

move, or damage the gasket.

Q. Is it normal to hear "crackling sound" during clean-

lng?

A. Yes. This is the metal heating and cooling.

Q. Why do I have ash left in my oven after cleaning?

A. Some types of soil will leave a deposit. It can be

removed with a damp sponge or cloth.

a_

A.

What should I do if excessive smoking occurs during

cleaning?

This Is caused by excessive soll and you should

press CLEAR/OFF. Open windows to rid room of

smoke. Allow the oven to cool for at least one hour

before opening the door. Wipe up excess soil and

reset the clean cycle,

15

O.

A_ Should there be any odor during the cleaning?

Yes, there may be a slight odor during the first few

cleanings. Failure to wipe out excessive soll might

also cause an odor when cleaning. NESCL06o3

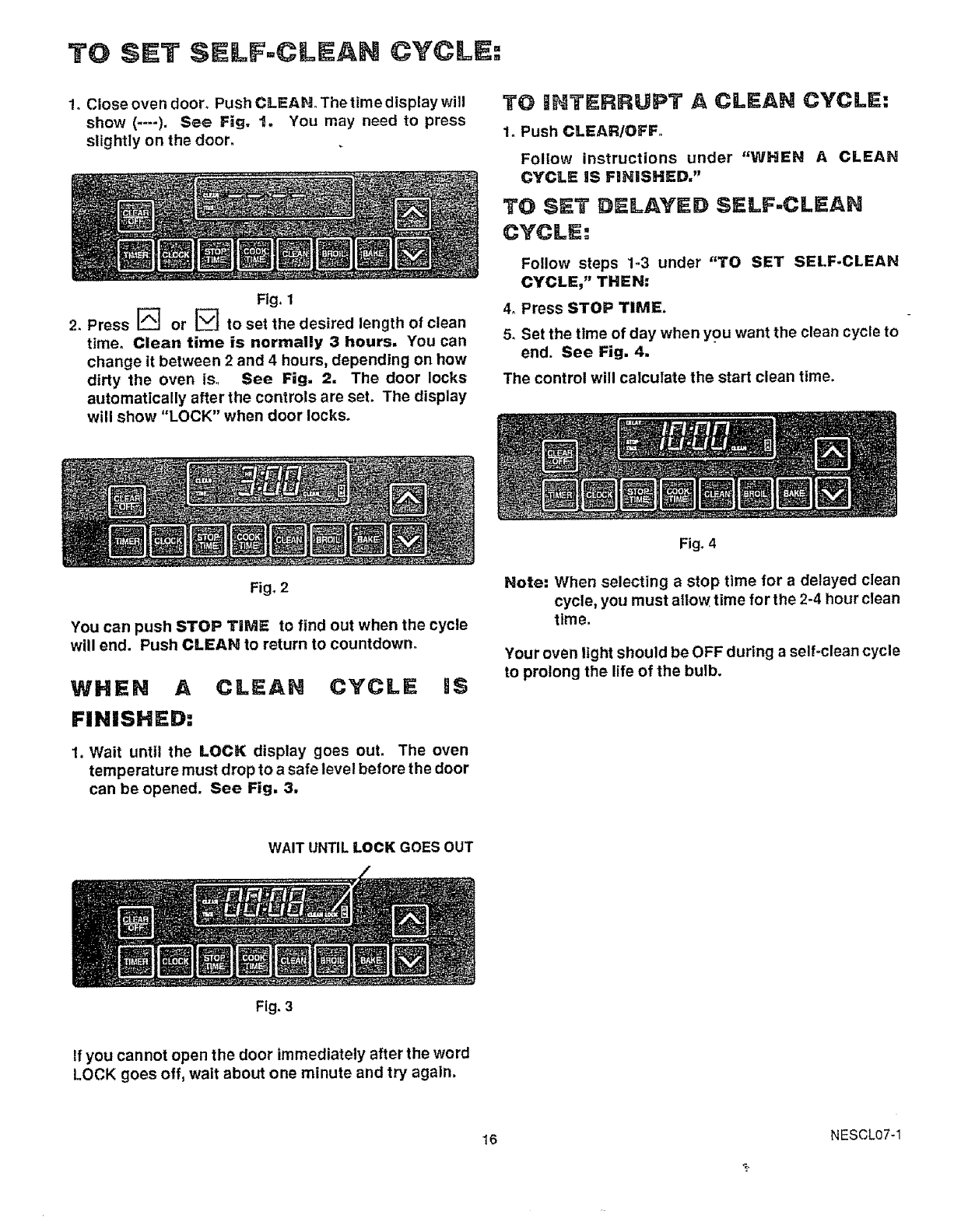

TO SET SELF.CLEAH CYCLE:

1. Close oven door. Push CLEAN. The time display will

show (*---). See Fig. t, You may need to press

slightly on the door.

Fig. 1

2. Press or L_ to set the desired length of clean

time. Clean time is normally 3 hours, You can

change it between 2 and 4 hours, depending on how

dirty the oven is. See Fig. 2, The door locks

automatically after the controls are set. The display

will show "LOCK" when door locks.

TO tF,ITERRUPT A CLEAN CYCLE:

1. Push CLEARIOFF.

Follow instructions under "WHEN ACLEAN

CYCLE IS FiNiSHED."

TO SET DELAYED SELF.CLEAN

CYCLE:

Follow steps 1-3 under "TO SET SELF.CLEAN

CYCLE," THEN:

4, Press STOP TIME,

5. Set the time of day when you want the clean cycle to

end. See Fig, 4.

The control will calculate the start clean time.

Fig. 2

You can push STOP TiME to find out when the cycle

will end. Push CLEAN to return to countdown.

WHEN A CLEAN CYCLIE mS

FINISHED:

1. Wait until the LOCK display goes out. The oven

temperature must drop to a safe level before the door

can be opened. See Fig. 3,

Fig. 4

Note; When selecting astop time for adelayed clean

cycle, you must allow time for the 2-4 hour clean

tlme.

Your oven light should be OFF during aself-clean cycle

to prolong the life of the bulb.

WAIT UNTIL LOCK GOES OUT

Fig. 3

If you cannot open the door immediately after the word

LOCK goes off, wait about one minute and try again.

16 NESCL07-1

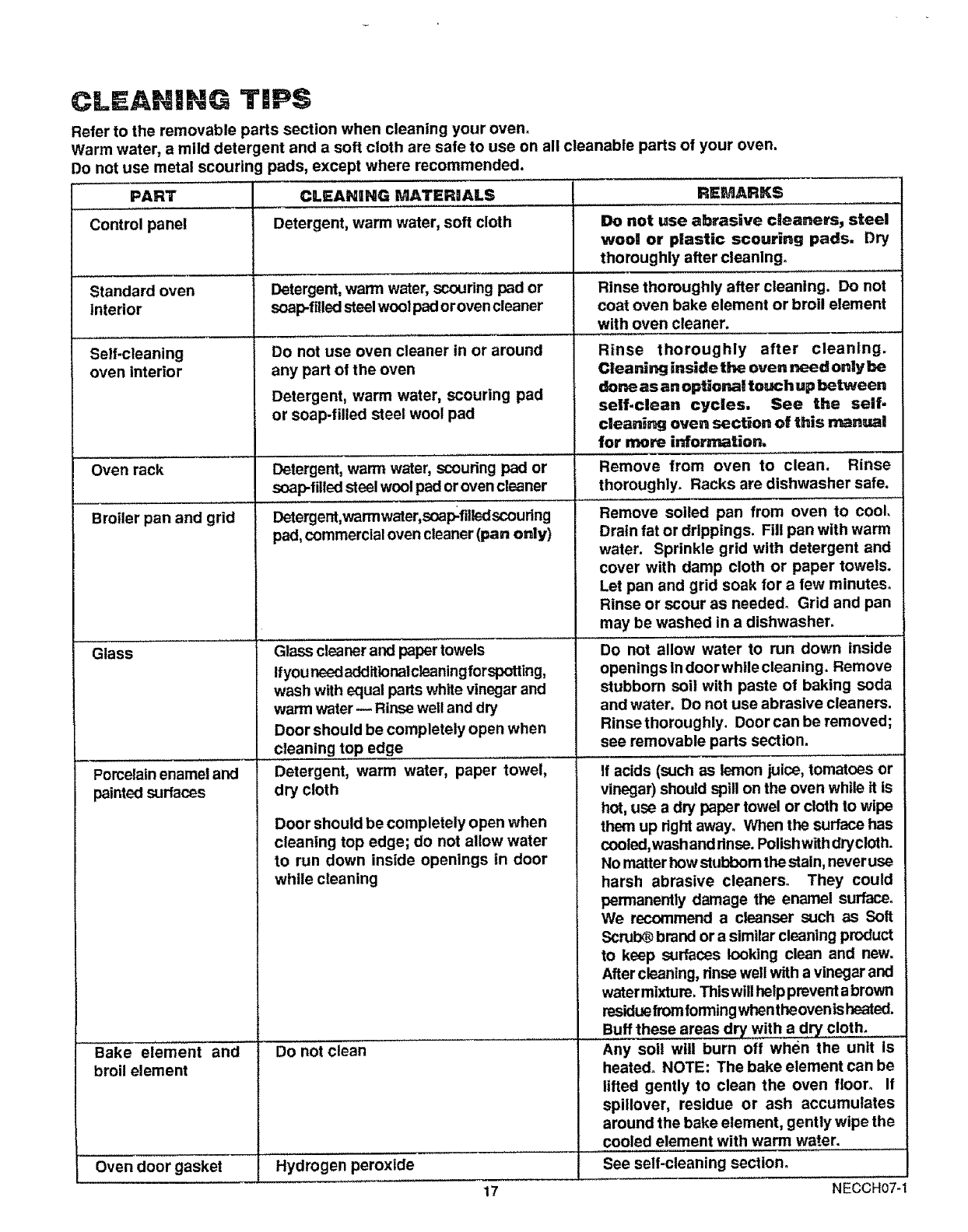

CLEANING TraPS

Refer to the removable parts section when cleaning your oven°

Warm water, a mild detergent and a soft cloth are safe to use on all cleanable parts of your oven.

Do not use metal scouring pads, except where recommended.

PART CLEANING MATERIALS REMARKS

Control panel Detergent, warm water, soft cloth Elmnot use abrasive cleaners, steel

wool or plastic scouring pads. Dry

thoroughly after cleaning°

Standard oven

interior

Detergent, warm water, scouring pad or

soap-filledsteel wool padoroven cleaner

Self-cleaning

oven interior

Oven rack

Broiler pan and grid

Glass

Pomelaln enamel and

painted surfaces

Bake element and

broil element

Oven doorgasket

Do not use oven cleaner in or around

any part of the oven

Detergent, warm water, scouring pad

or soap-filled steel wool pad

Detergent, warm water, sceuring pad or

soap-filled steel wool pad oroven cleaner

Detergent,warmwater,soap_fiiledscoudng

pad, commercial oven cleaner (pan only)

Glass cleaner and paper towels

Ifyour_ additlonaicleaning forspotting,

wash with equal parts white vinegar and

warm water wRinse well and dry

Door should be completely open when

cleaning top edge

Detergent, warm water, paper towel,

dry cloth

Door should be completely open when

cleaning top edge; do not allow water

to run down Inside openings in door

while cleaning

Do not clean

Hydrogen peroxide

Rinse thoroughly after cleaning. Do not

coat oven bake element or broil element

with oven cleaner.

Rinse thoroughly after cleaning.

Cleaning inside the over= need onIybe

done as an eptiona! touch up between

self.clean cycles, See the self-

cleaning even section of this manual

for more information,

Remove from oven to clean. Rinse

thoroughly. Racks are dishwasher safe.

Remove soiled pan from oven to cool.

Drain fat or drippings. Fill pan with warm

water. Sprinkle grid with detergent and

cover with damp cloth or paper towels.

Let pan and grid soak for a few minutes.

Rinse or scour as needed. Grid and pan

may be washed in a dishwasher.

Do not allow water to run down inside

openings In doorwhllecleanlng. Remove

stubborn soil with paste of baking soda

and water. Do not use abrasive cleaners.

Rinse thoroughly. Door can be removed;

see removable parts section.

If acids (such as lemon juice, tomatoes or

vinegar) should spill on the oven while it is

hot, use a dry paper towel or cloth to wipe

them up right away_ When the surface has

cooled,wash and rinse. Polishwith drycloth.

No matter how stul0bom the stain, never use

harsh abrasive cleaners° They could

permanently damage the enamel surface.

We recommend a cleanser such as Soft

Scrul:_ brand or a similar cleaning product

to keep surfaces looking clean and new.

After cleaning, rinse well with a vinegar and

water mixture, Thiswill help prevent abrown

residuefromforming whentheovenls heated.

Buff these areas dry with a d_ cloth.

Any sell will burn off when the unit Is

heated° NOTE: The bake element can be

lifted gently to clean the oven floor° If

spillover, residue or ash accumulates

around the bake element, gently wipe the

cooled element with warm water.

See self-cleaning section,

t7 NECCH07-1

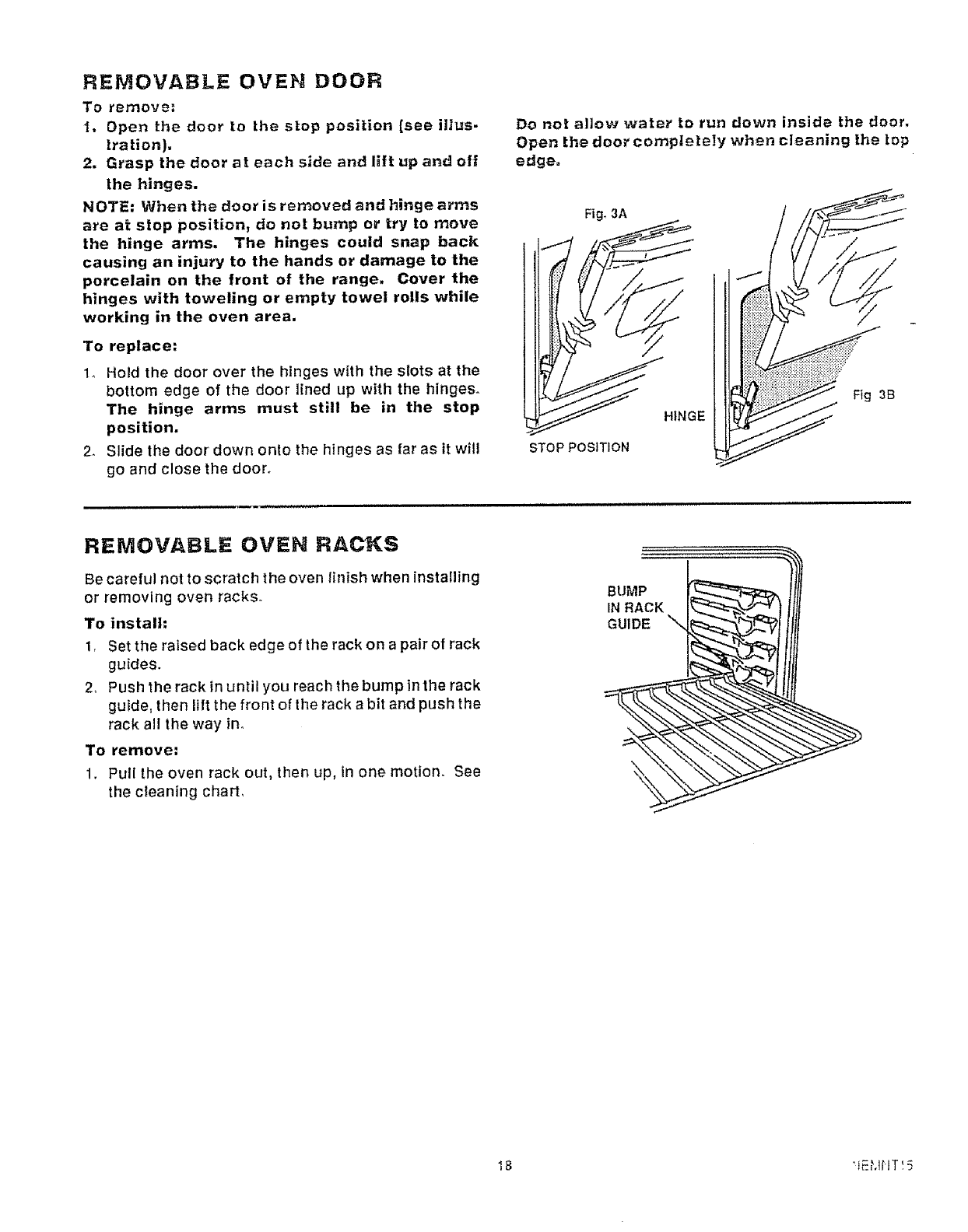

REMOVABLE OVEN DOOR

TO Yemove:

I. Open the door to the stop posiUon [see i!lus-

tration),

2. Grasp the door at each side and lift up and off

the hinges.

NOTE= When the door is removed and hinge arms

are at stop position_ do not bump or try to move

the hinge arms. The hinges could snap back

causing an injuw to the hands or damage to the

porcelain on the front of the range. Cover the

hinges with toweling or empty towel rolls while

working in the oven area.

To replace-"

1_ Hold the door over the hinges with the slots at the

bottom edge of the door lined up with the hinges.

The hinge arms must still be in the stop

position.

2_ Slide the door down onto the hinges as far as it wil!

go and close the door.

Do not allow water to run down inside the door.

Open the dog;' completely when cleaning the _op

edge.

STOP POSITION

HINGE

Fig 3B

REMOVABLE OVEH RACKS

Be careful not to scratch the oven linish when installing

or removing oven racks°

To install:

1, Set the raised back edge of the rack on a pair of rack

guides.

2, Push the rack in until you reach the bump in the rack

guide, then lilt the front of lhe rack a bit and push the

rack al! the way ino

To remove:

1. Pull the oven rack out, then up, in one motion. See

the cleaning chart,

BUMP

IN RACK

GUIDE

18 'IE,_,UITt 5

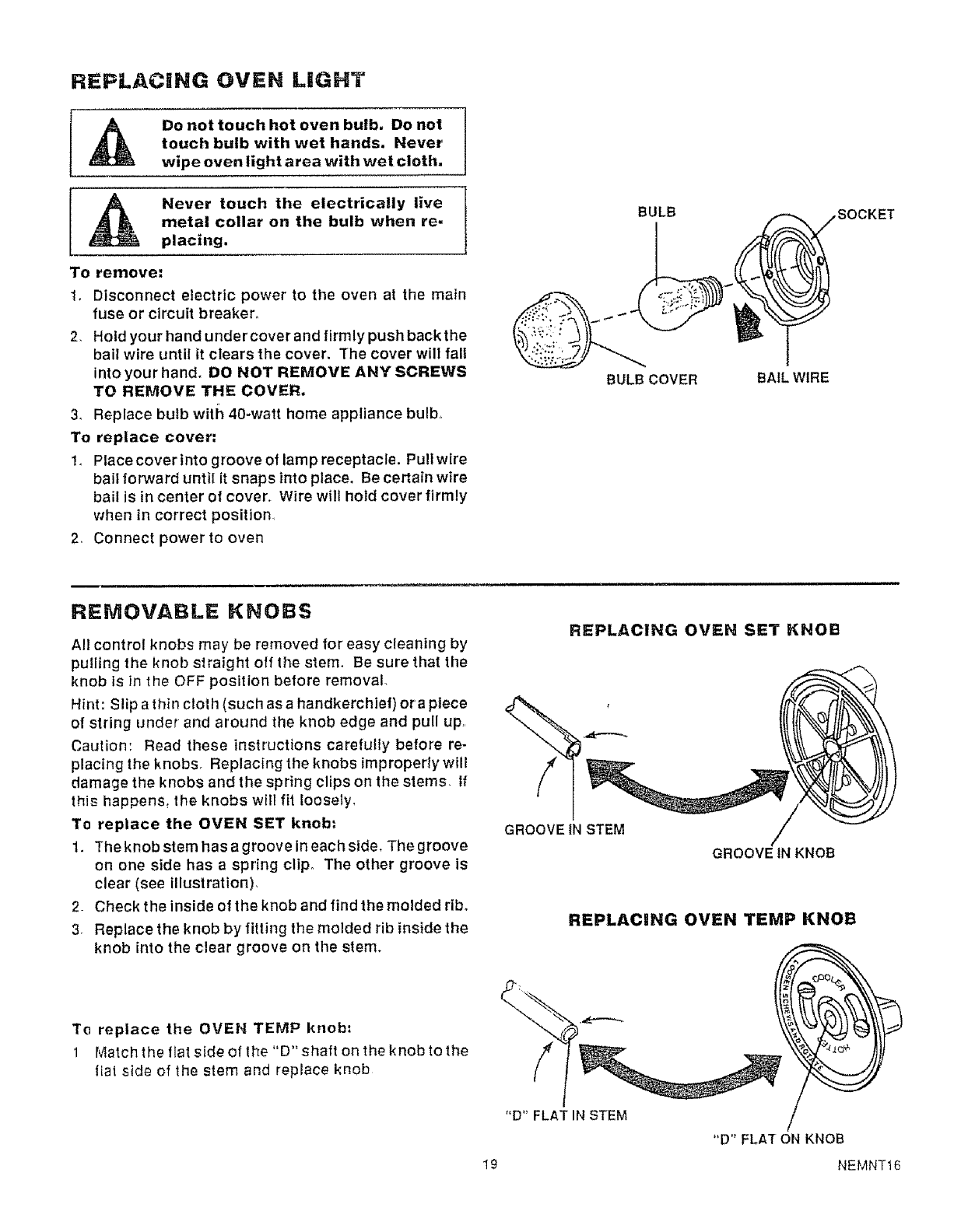

REPLACING OVEN LIGHT

Do not touch hot oven bulb, Do not

touch bulb with wet hands, Never

wipe oven light area with wet cloth.

Never touch the electrically live

metal collar on the bulb when re.

placing.

To remove:

1. Disconnect electric power to the oven at the main

fuse or circuit breaker.

2 Hold your hand undercover and firmly push back the

bail wire until it clears the cover. The cover will fall

into your hand, DO NOT REMOVE ANY SCREWS

TO REMOVE THE COVER,

3. Replace bulb witi_ 40-watt home appliance bulb,,

To replace cover:

!4 Place cover into groove of lamp receptacle. Pull wire

bail forward until it snaps into place. Be certain wire

bail is in center of cover. Wire will hold cover firmly

when in correct position

2 Connect power to oven

BULB

BULB COVER BAIL WIRE

REMOVABLE KNOBS

All control knobs may be removed for easy cleaning by

pulling the knob straight off the stem. Be sure that the

knob is in the OFF position before removal-

Hint: Slip a thin cloth (such as a handkerchief) era piece

of string under and around the knob edge and pull up,,

Caution: Read these instructions carefully before re-

placing the knobs. Replacing the knobs improperly will

damage the knobs and the spring clips on the stems. If

this happens, the knobs will fit loosely,

To replace the OVEN SET knob:

1. The knob stem has a groove in each side, The groove

on one side has a spring clipo The other groove is

clear (see illustration),

2- Check the inside of the knob and find the molded rib,

3. Replace the knob by fitting the molded rib inside the

knob into the clear groove on the stem.

To replace the OVEN TEMP knob:

1 Match the fiat side of the "D" shaft on the knob to the

fiat side of the stem and replace knob

REPLACING OVEN SET KNOB

f

GROOVEIN STEM /

GROOVE IN KNOB

REPLACING OVEN TEMP KNOB

"D" FLAT IN STEM /

"D"FLATON KNOB

lg NEMNT16

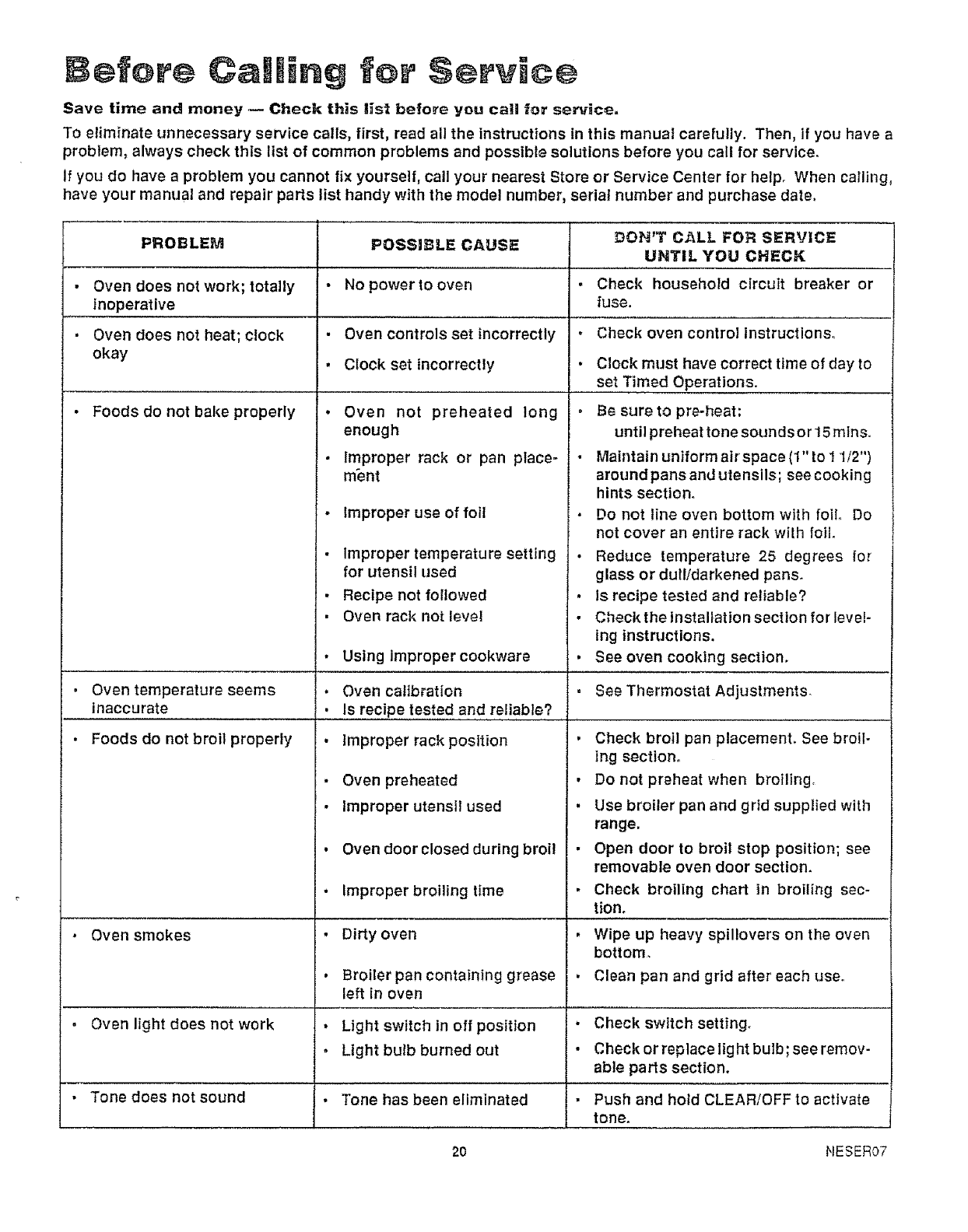

Before Calling for Servi e

Save time and money -- Check this l_st before you call for service.

To eliminate unnecessary service calls, first, read all the instructions in this manual carefully. Then, if you have a

problem, always check this list of common problems and possible solutions before you call for service.

If you do have a problem you cannot fix yourself, call your nearest Store or Service Center for help. When calling,

have your manual and repair parts list handy with the model number, serial number and purchase date.

PROBLEM POSSIBLE CAUSE DON'T CALL FOR SERVICE

UNTIL YOU CHECK

Oven does not work; totally • No power to oven •Check household circuit breaker or

inoperative fuse.

•Oven does not heat; clock Oven controls set incorrectly • Check oven control instructions°

okay • Clock set incorrectly • Clock must have correct time of day to

_+ . set Timed Operations.

•Foods do not bake properly • ,Oven not preheated long

enough

Improper rack or pan place-

rn'ent

• Improper use of foil

•Improper temperature setting

for utensil used

•Recipe not followed

• Oven rack not level

• Using improper cookware

Be sure to pre-heat:

until preheat tone sounds o r15minso

• Maintain uniform airspace (1" to I 1/2")

around pans and utensils; see cooking

hints section.

Do not line oven bottom with foilo Do

not cover an entire rack with foil.

• Reduce temperature 25 degrees for

glass or dull/darkened pans.

• Is recipe tested and reliable?

• Check the installation section for level-

ing instructions.

,See oven cooking section.

, Oven temperature seems

inaccurate

• Foods do not broil properly

• Oven smokes

Oven light does not work

• Tone does not sound

•Oven calibration See Thermostat Adjustments.

, Is recipetes!ed and reliable? ....

• Improper rack position • Check broil pan placement. See broil-

• Oven preheated

• Improper utensil used

• Oven door closed during broil

• Improper broiling time

• Dirty oven

, Broiler pan containing grease

left in oven

• Light switch in off position

• Light bulb burned out

• Tone has been eliminated

lng section°

•Do not preheat when broiling+

,Use broiler pan and grid supplied with

range.

• Open door to broil stop position; see

removable oven door section.

• Check broiling chart in broiling sec-

tion.

• Wipe up heavy spil!overs on the oven

bottom.

, Clean pan and grid after each use.

=

Check switch setting.

Check or replace lig ht bulb; see remov-

able parts section.

Push and hold CLEAR/OFF to activate

tone.

20 NESER07

ng for Service

POSSIBLE CAUSE

•Controls not set properly

•Clean cycle interrupted

Before Call

PROBLEM

,Oven does not clean or poor

cleaning results

•Oven door will not open

• "Door" appears on display

•Oven too dirty

•Possible range function prob-

lem

(Co.t.)

DON'T CALL FOR SERVICE

UNTIL YOU CHECK

............. ]

•Check self-clean instructions°

•Heavily soiled ovens require a 31/2

hour clean cycle.

• Heavy spitlovers should be removed

before setting clean cycle. Repeat clean

cycle.

Clean cycle not complete Oven must cool before lock tempera-

ture (approximately 30 minutes alter

clean cycle is complete).

•Cancel and wait until oven cools. Then,

resume normal operation by resetting

the control,. If function error occurs

again, call for service.

•Oven door not closed after

self-clean cycle selected

° Close door'

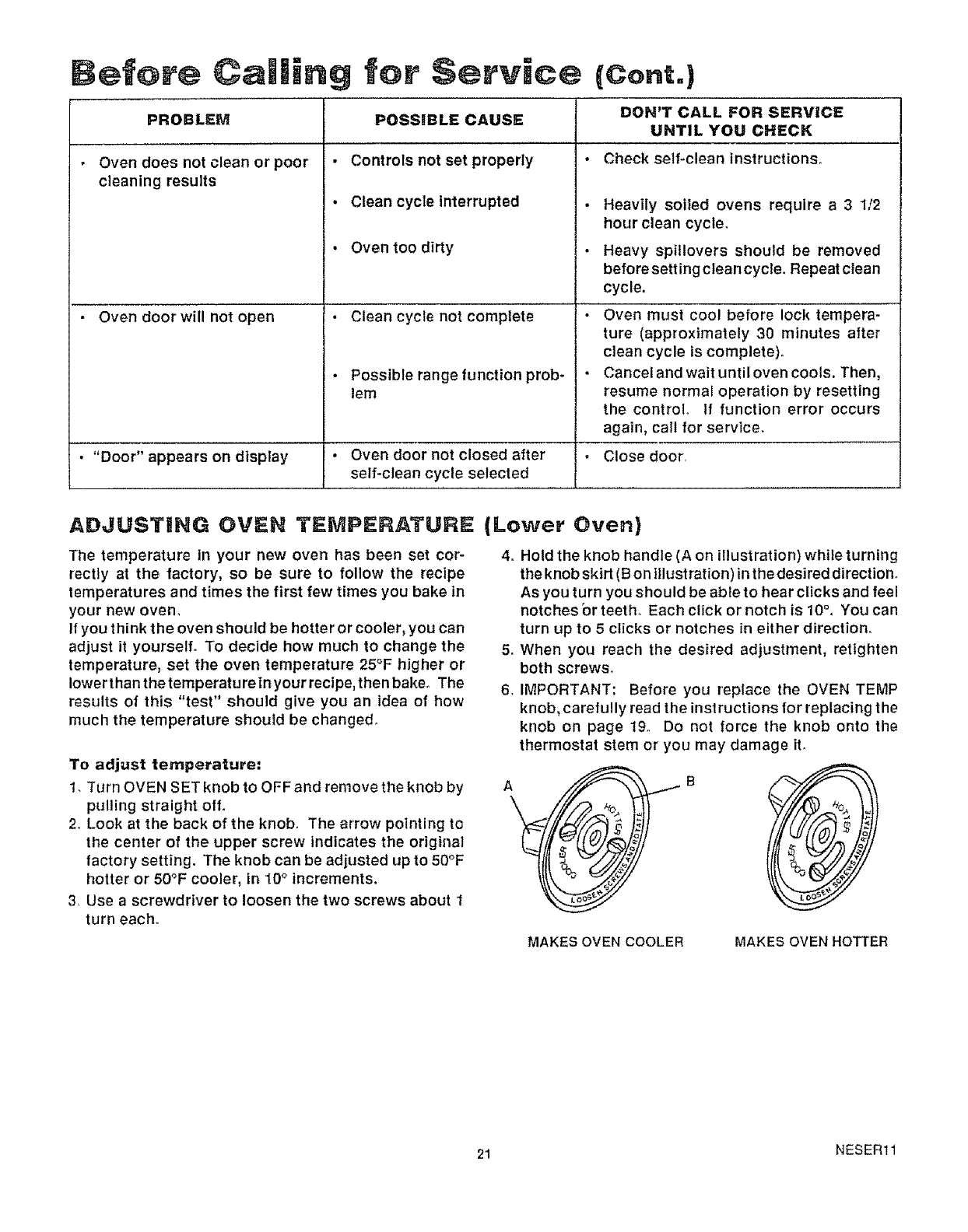

ADJUSTING OVEN TEMPERATURE (Lower Oven)

The temperature in your new oven has been set cor-

rectly at the factory, so be sure to follow the recipe

temperatures and times the first few times you bake in

your new oven,

If you think the oven should be hotter or cooler, you can

adjust it yourself° To decide how much to change the

temperature, set the oven temperature 25°F higher or

Iowerthan the temperature in your recipe, then bake. The

results of this "test" should give you an idea of how

much the temperature should be changed_

To adjust temperature=

1 Turn OVEN SET knob to OFF and remove the knob by

pulling straight of L

2o Look at the back of the knob. The arrow pointing to

the center o! the upper screw indicates the original

factory setting. The knob can be adjusted up to 50°F

hotter or 50°F cooler, in 10° increments.

3. Use a screwdriver to loosen the two screws about t

turn each_

4o Hold the knob handle (A on illustration) while turning

the knob skirt (B on illustration) in the desired direction°

As you turn you should be able to hear clicks and feel

notches or teeth_ Each click or notch is 10°o You can

turn up to 5 clicks or notches in either direction.

5. When you reach the desired adjustment, retighten

both screws.

6. IMPORTANT: Before you replace the OVEN TEMP

knob, careiully read the instructions for replacing the

knob on page 19. Do not force the knob onto the

thermostat stem or you may damage iL

MAKES OVEN COOLER MAKES OVEN HOTTER

21 NESER11

ADJUSTING OVEN TEMPERATURE (Upper Oven)

The temperature inyou r new oven has been set correctly

at the facto ry, so be sure to follow the recipe temperatures

and cooking times the first few times you bake in your

oven.

If you think the oven should be hotter or cooler, you can

adjust the oven temperature yourself. To decide how

much to change the temperature, set the oven

temperature 25°F higher or lower than the temperature

in your recipe, then bake. The results of this "test"

should give you an' idea of how much the temperature

should be changed.

To adjust temperature follow these instructions:

1. Push BAKE.

2. Select a temperature between 500°F and 550°F by

pressing L_ •See Fig. 1.

4. The temperature can be adjusted upto +35°F hotter

or-35°F cooler. Use [] or _;] to select the

temperature adjustment you want. See Fig. 3. The

temperature you select is the new preset oven display.

Step 4:

SET BETWEEN -35°F

AND +35°F

PRESET OVEN

DISPLAY

Fig° 3

3. IMMEDIATELY, press BAKE again and hold for about

4 seconds. This display will show"ON" and "BAKE"

will flash in the display.

S_ep 1:

PRESS

Step 3:

IMMEDIATELY,

PRESS AND

HOLD

Step 2:

SET BETWEEN

50O°FAND 550°F

NOTE: This adjustment will not affect Broil or

Clean temperatures, it will be remembered

when power is removed.

Adjusting the thermostat of one oven will not

affect baking performance in the other oven.

Each oven must be adjusted separately.

5_ When you have made the adjustmeni, push CLOCK

to return the display to the time of day. Llseyou r oven

as you would normally.

Step 5: L_

The adjustment you have made to the oven temperature

will be remembered by the control and will automatically

adjust the oven temperature.

Fig. 1

Continue to hold BAKE until the display changes to

show the preset oven temperature adjustment,

See Fig. 2.

PRESET OVEN DISPLAY

Fig. 2

22 NESER19

f

Dear Customer:

Our constant efforts are di-

rected toward making sure

your new Kenmore Oven

will arrive at your home in

perfect condition and will

give you proper perform-

ance. As part of these ef-

forts, we feel it is our re-

sponsibility to provide you

with this warranty for your

range_

r,j,i, j i ii ill i.illll.lll i IIIH,II.

, ,,, ,,, ,,,,, ._ _ "%

FULL ONE YEAR WARRANTY ON THE FUNCTIONING OF ALL

PARTS EXCEPT GLASS PARTS

If, within one year from the date of Installation, any part, other than aglass

part, fails to function properly due to adefect In material or workmanship,

Sears will repair or replace It, free of charge.

FULL 30.DAY WARRANTY ON GLASS PARTS AND FINISH OF PORCE.

LAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS

If, within 30 days from the date of installation, any glass part or the finish

on any porcelain enamel, painted or bright metal part Is defective in

material or workmanship, Sears will replace the part, free of charge.

FULL 90-DAY WARRANTY ON MECHANICAL ADJUSTMENTS

For 90 days from the date of Installation, Sears will provlde, free of charge,

any mechanical adjustments necessary for proper operation of the ran ge,

except for normal maintenance.

If the range is subjected to other than private family use, the above

warranty coverage is effective for only 90 days.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST

SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

SEARS, ROEBUCK and CO.

Dept. 731 CR-W

Sears Tower

Chicago, IL 60684

,,J _., ,J

_' %. ............

iIIIHH IHlll WE SEBVICE WHAT WE SELL

"We Service What We Sell" is our assurance to you that you can depend on Sears for service because Sears

service is nationwide.

Your Kenmore Oven has added value when you consider that Sears has a service unit near you staffed by

Sears trained technicians.., professional technicians specifically trained on Sears appliances, having the

parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We Sell!"

TO FURTHER ADD TO THE VALUE OF YOUR RANGE, BUY ASEARS MAINTENANCE AGREEMENT,

Kenmore Ovens are designed, manufactured and

tested for years of dependable operation. Yet, any

modern appliance may require service from time

to time. The Sears warranty plus the Sears Main-

tenance Agreement provides protection from un-

expected repair bills and assures you of enjoying

maximum range efficiency.

Here's a comparative warranty and Maintenance

Agreement chart showing you the benefits of a

Sears Range Maintenance Agreement.

Years of OwnershtpCoverage is! Year 2nd Yoar 3rd Year

, ,,,,..............

Roplacom_nt of Dolactiw

1Parts other than Porcelain W MA MA

or Grass , ,,, •,,,

90 DAYS

2.00 .l a A j e,m0., W MA MA

30 DAYS

3 Po0oe a|.andGla oPart W MA MA

Annual Praventtvo Ma|nten-

4 ancoChock,tyourrequost MA MA MA

W - Wnrrnnly MA - M_ntenanc_ Agreernont

CONTACT YOUR SEARS SALESPERSON OR LOCAL SEARS SERVICE CEN-

TER TODAY AND PURCHASE A SEARS MAINTENANCE AGREEMENT.

® A erica's Best Selling Appliance Brand

Sold by SEARS, ROEBUCK AND CO,, Chicago, IL 60684
