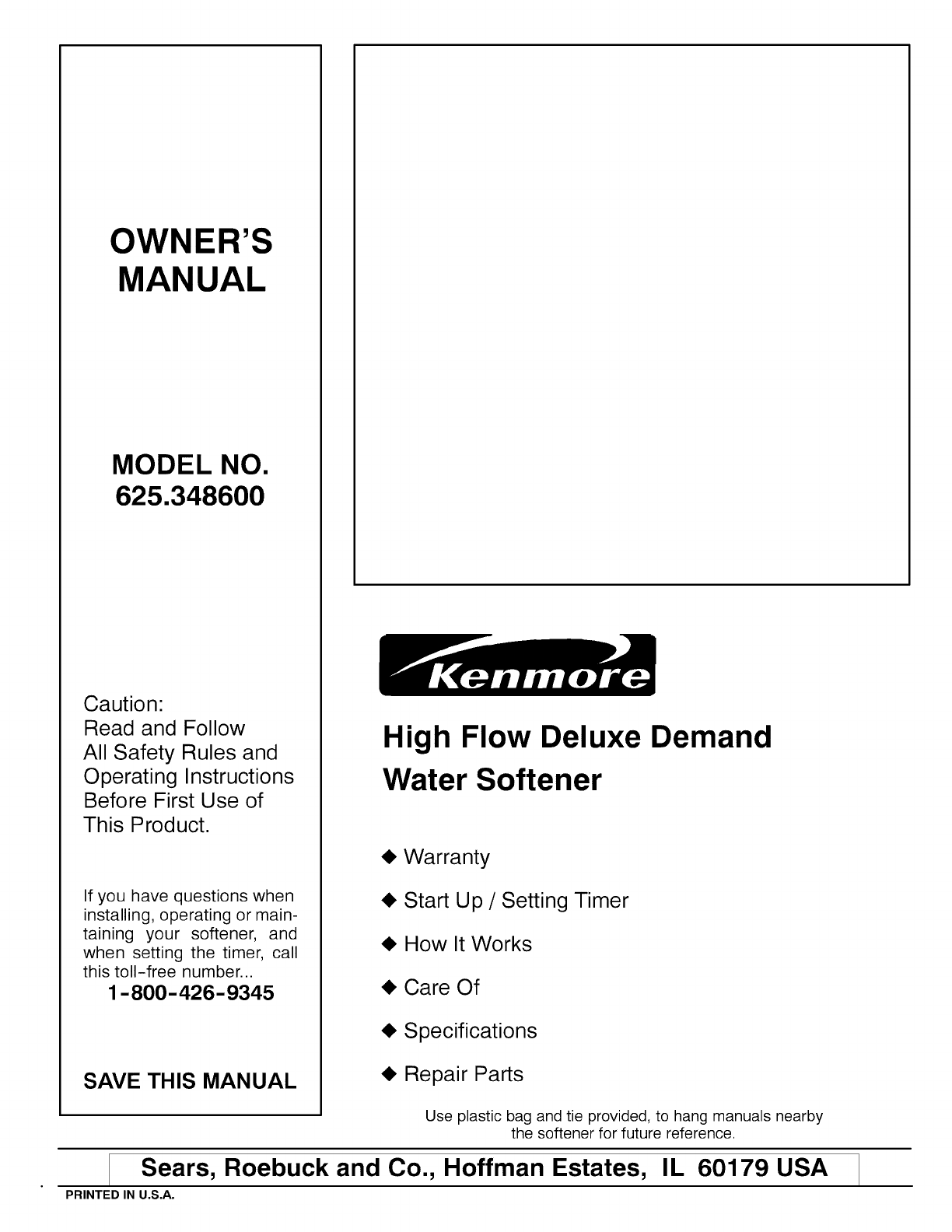

OWNER'S

MANUAL

MODEL NO.

625.348600

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

If you have questions when

installing, operating or main-

taining your softener, and

when setting the timer, call

this toll-free number...

1-800-426-9345

SAVE THIS MANUAL

High Flow Deluxe Demand

Water Softener

• Warranty

• Start Up /Setting Timer

• How It Works

• Care Of

• Specifications

• Repair Parts

Use plastic bag and tie provided, to hang manuals nearby

the softener for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

PRINTED IN U.S.A.

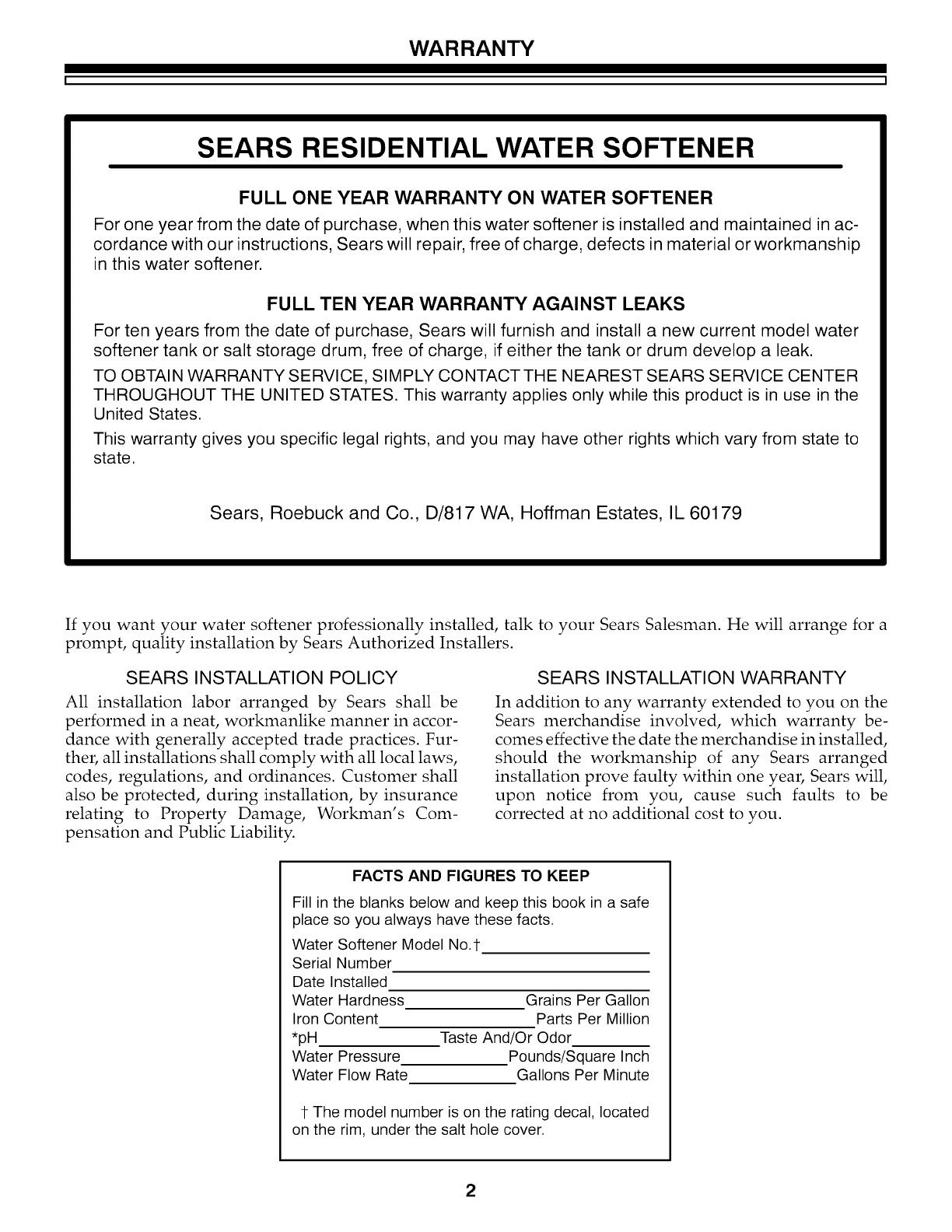

WARRANTY

I I

SEARS RESIDENTIAL WATER SOFTENER

FULL ONE YEAR WARRANTY ON WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and maintained in ac-

cordance with our instructions, Sears will repair, free of charge, defects in material or workmanship

in this water softener.

FULL TEN YEAR WARRANTY AGAINST LEAKS

For ten years from the date of purchase, Sears will furnish and install a new current model water

softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.

TO OBTAI N WAR RANTY SE RVl CE, S lM PLY CO NTACT TH E N EAREST SEARS SE RVl CE CE NTE R

THROUGHOUT THE UNITED STATES. This warranty applies only while this product is in use in the

United States.

This warranty gives you specific legal rights, and you may have other rights which vary from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a

prompt, quality installation by Sears Authorized Installers.

SEARS INSTALLATION POLICY

All installation labor arranged by Sears shall be

performed in a neat, workmanlike manner in accor-

dance with generally accepted trade practices. Fur-

ther, all installations shall comply with all local laws,

codes, regulations, and ordinances. Customer shall

also be protected, during installation, by insurance

relating to Property Damage, Workman's Com-

pensation and Public Liability.

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on the

Sears merchandise involved, which warranty be-

comes effective the date the merchandise in installed,

should the workmanship of any Sears arranged

installation prove faulty within one year, Sears will,

upon notice from you, cause such faults to be

corrected at no additional cost to you.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe

place so you always have these facts.

Water Softener Model No.t

Serial Number

Date Installed

Water Hardness

Iron Content

*pH

Water Pressure

Water Flow Rate

Grains Per Gallon

Parts Per Million

Taste And/Or Odor

Pounds/Square Inch

Gallons Per Minute

i The model number is on the rating decal, located

on the rim, under the salt hole cover.

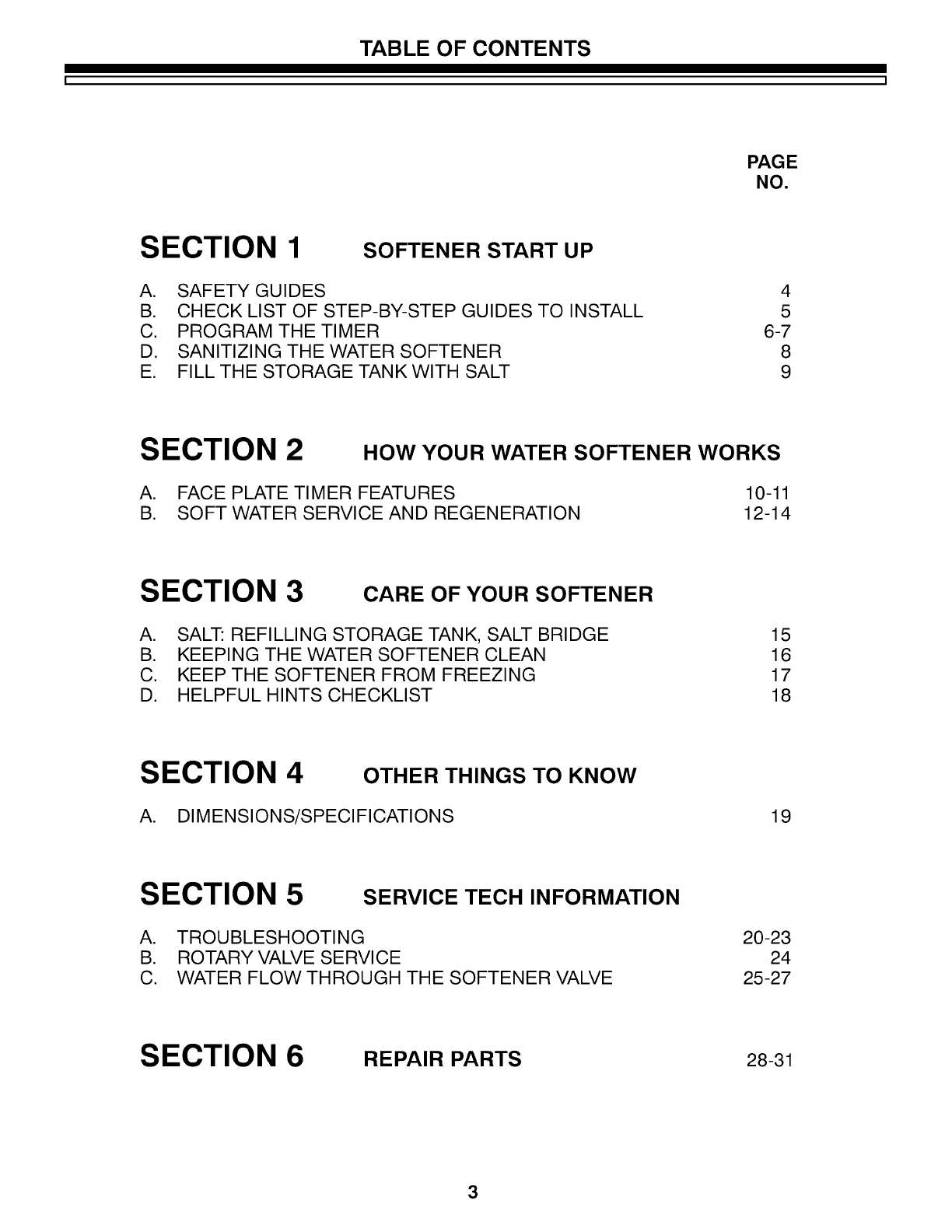

TABLE OF CONTENTS

PAGE

NO.

SECTION 1 SOFTENER START UP

A. SAFETY GUIDES

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

C. PROGRAM THE TIMER

D. SANITIZING THE WATER SOFTENER

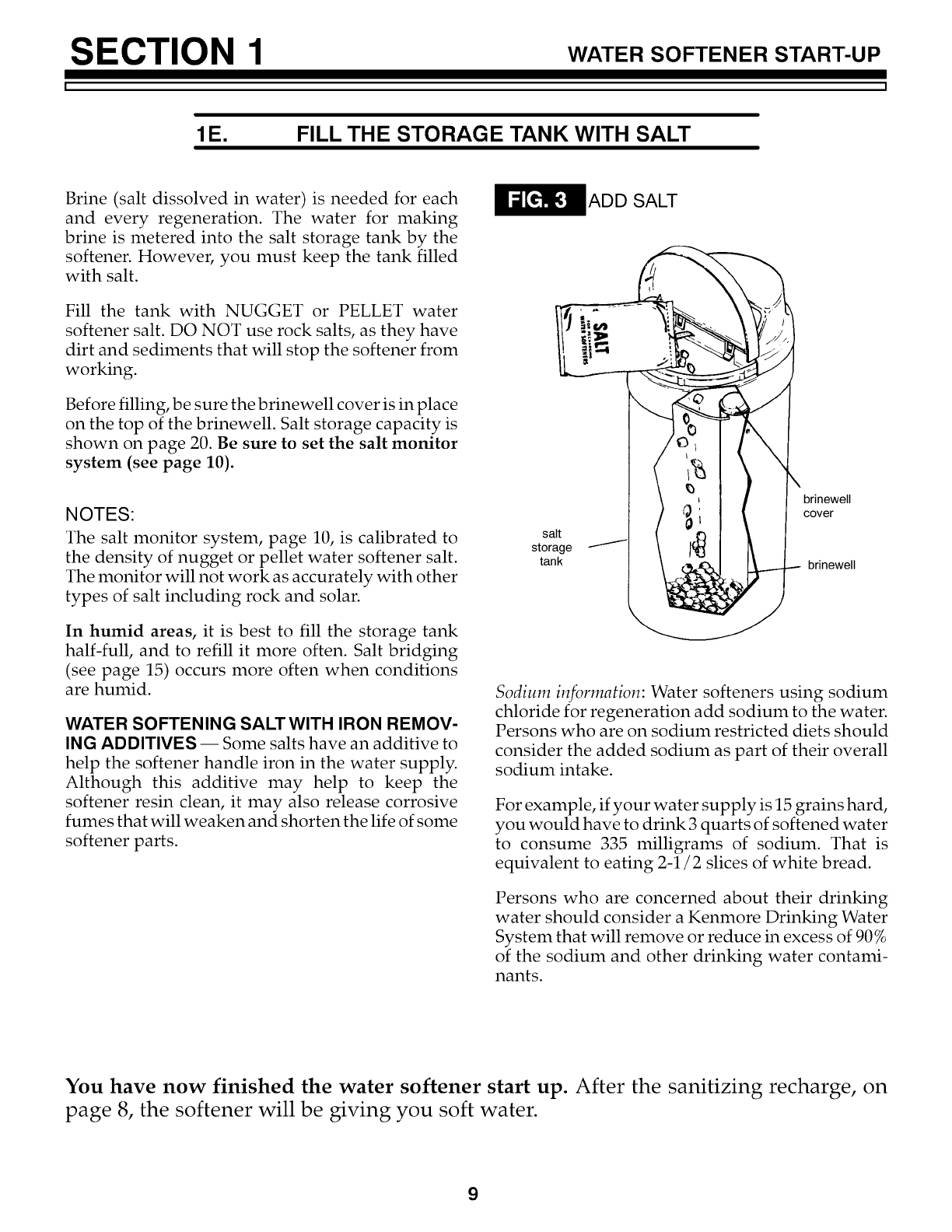

E. FILL THE STORAGE TANK WITH SALT

6-7

SECTION 2 HOW YOUR WATER SOFTENER WORKS

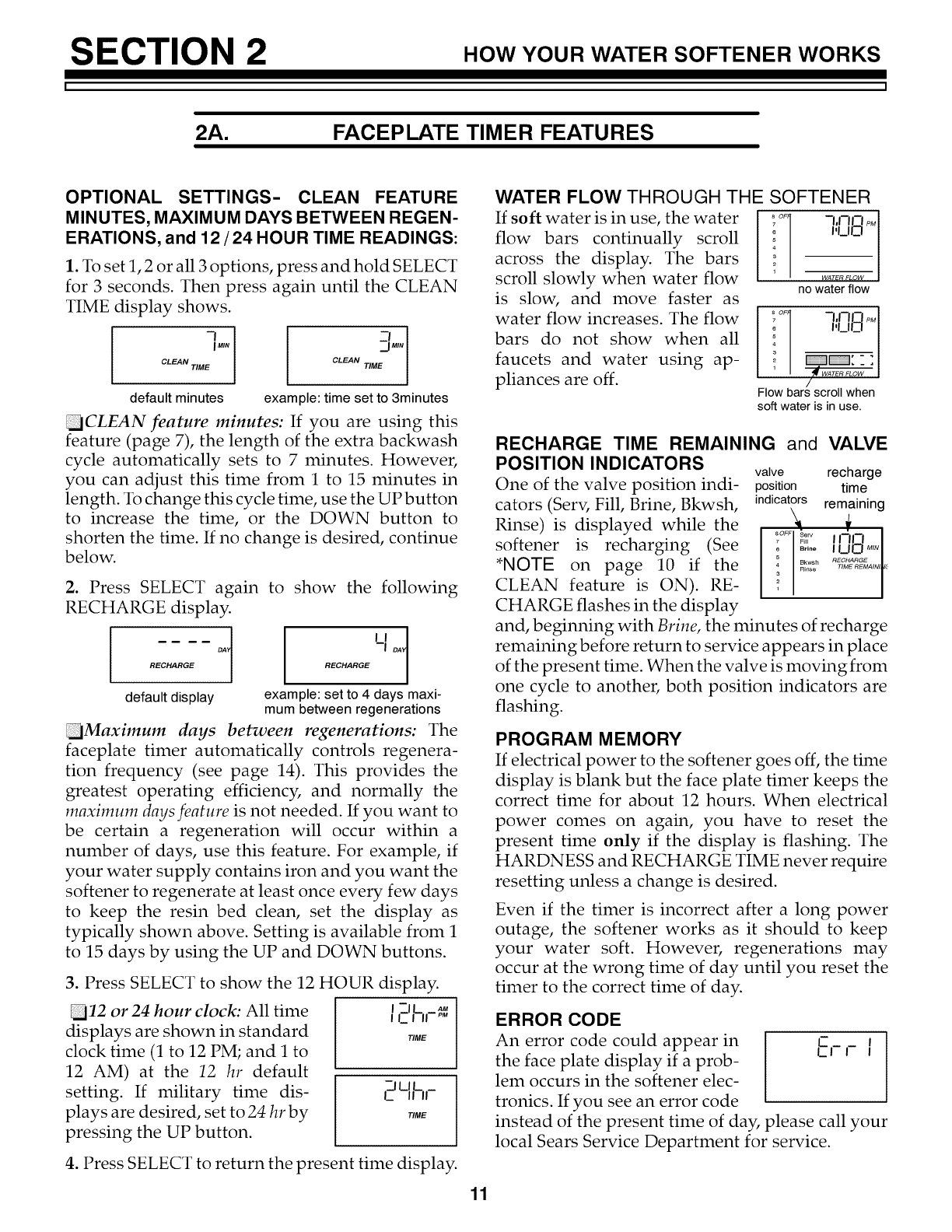

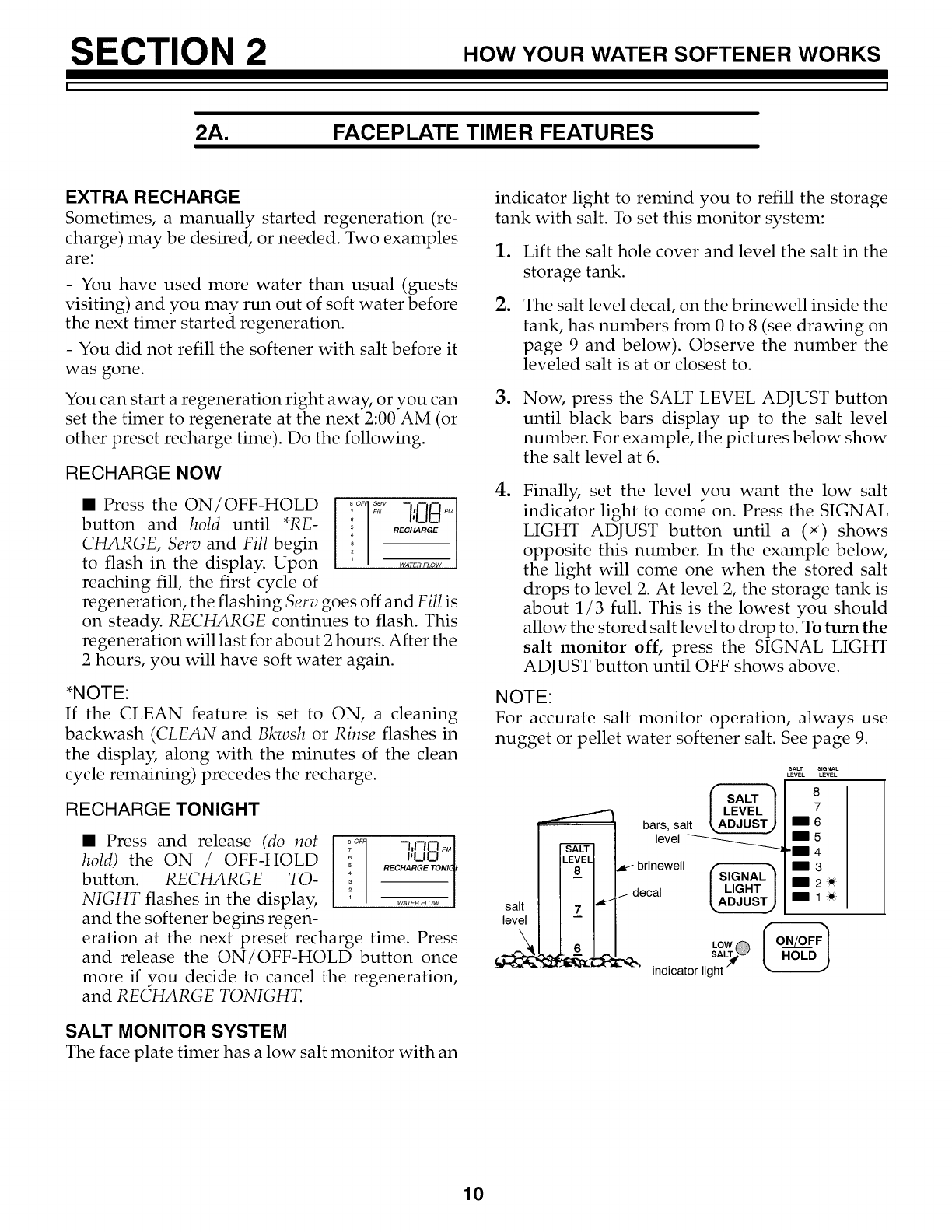

A. FACE PLATE TIMER FEATURES 10-11

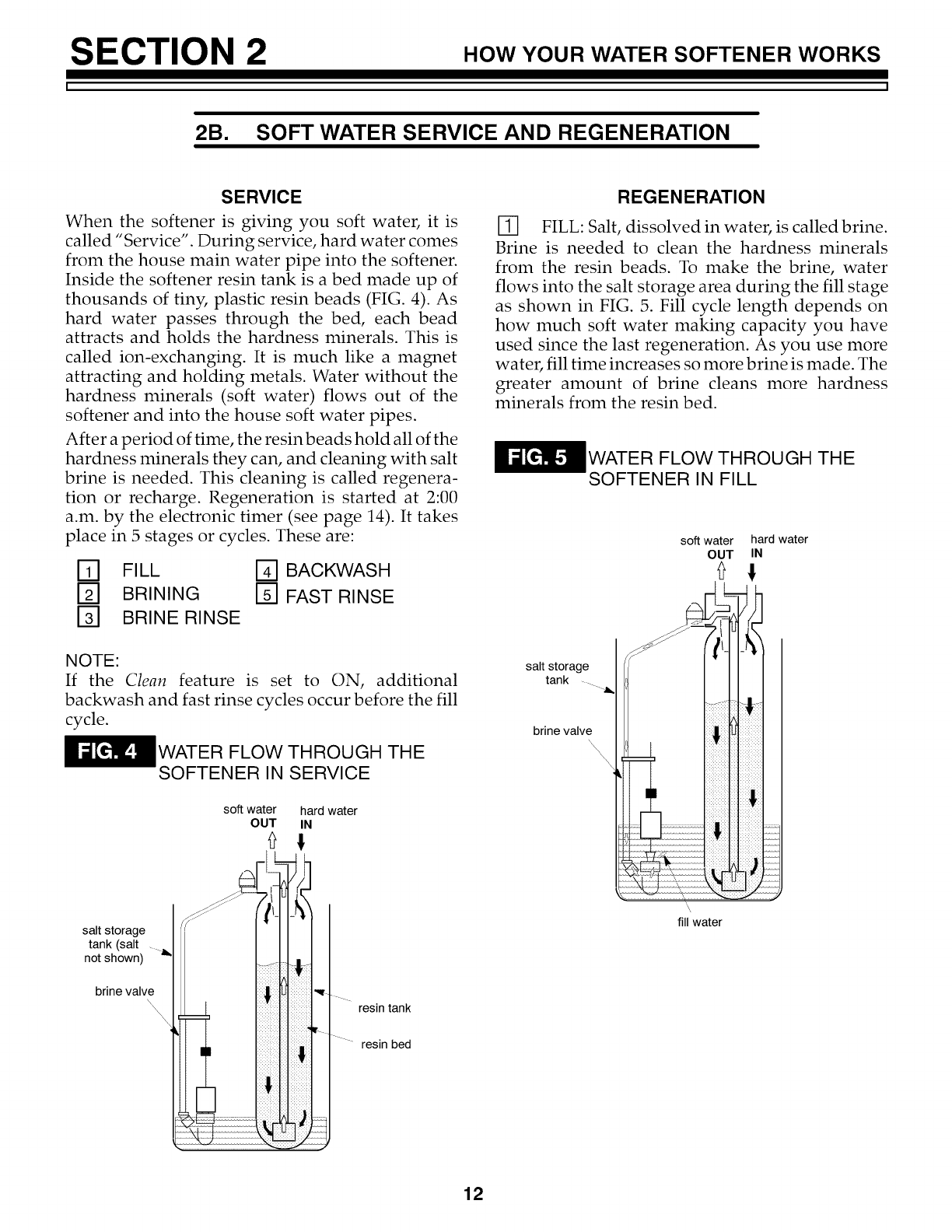

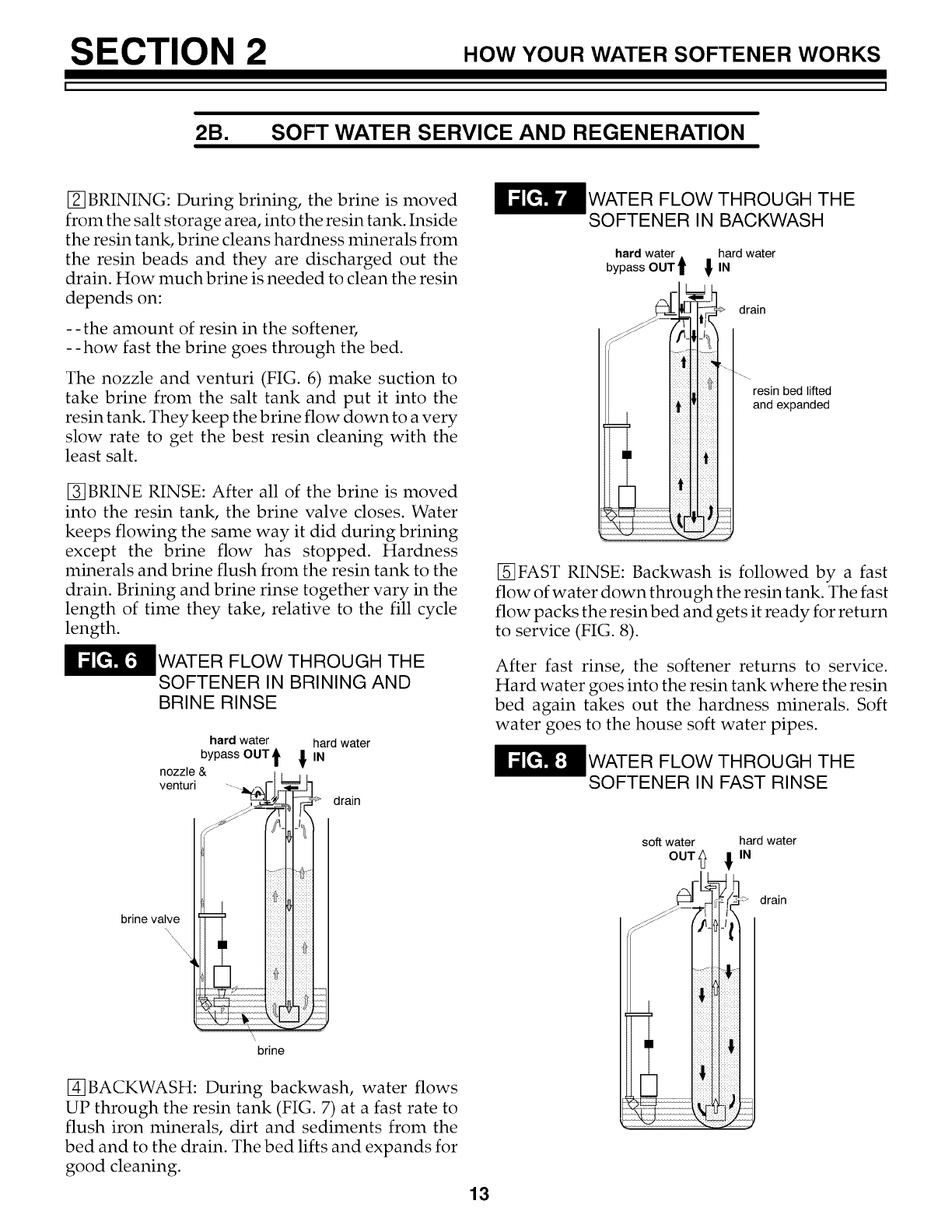

B. SOFT WATER SERVICE AND REGENERATION 12-14

SECTION 3 CARE OF YOUR SOFTENER

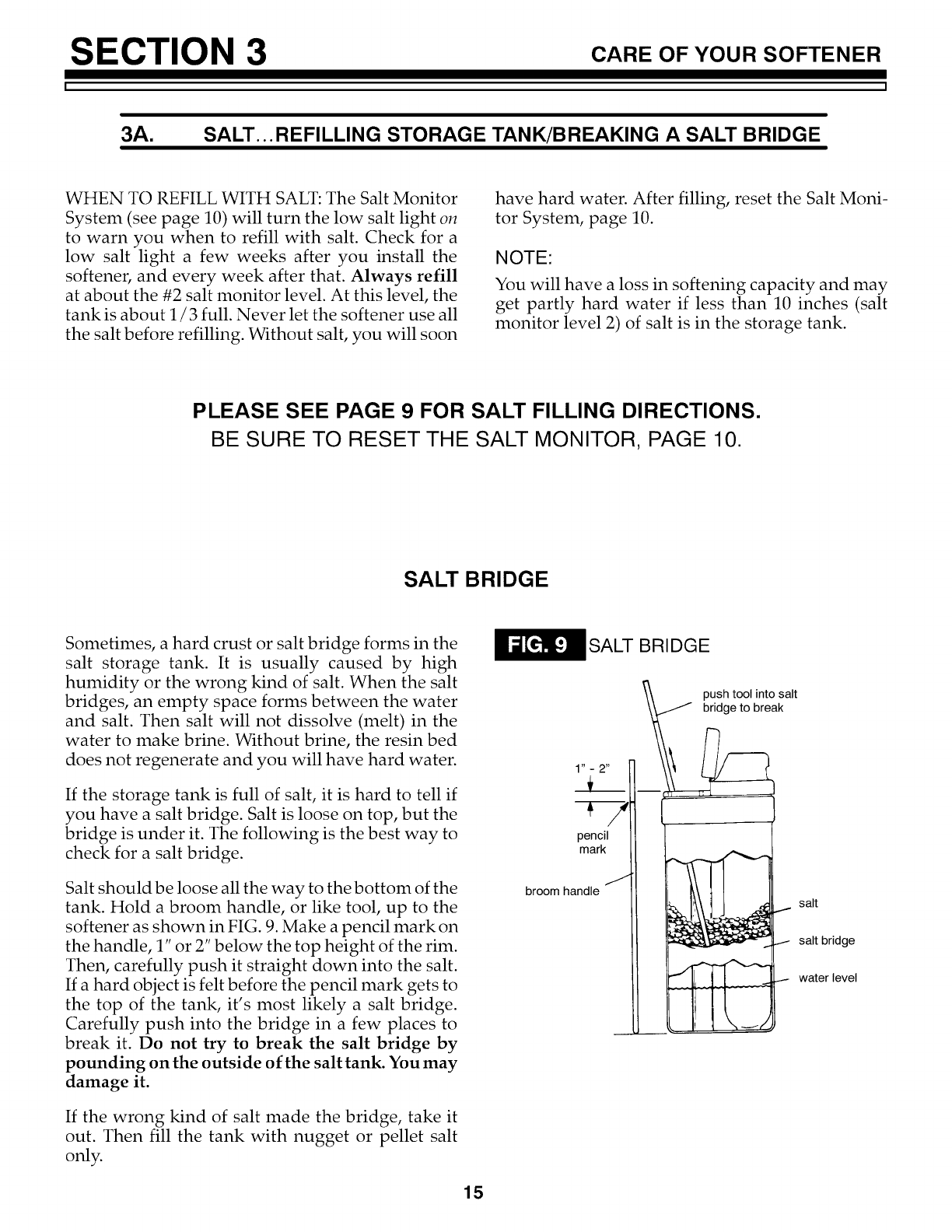

A. SALT: REFILLING STORAGE TANK, SALT BRIDGE

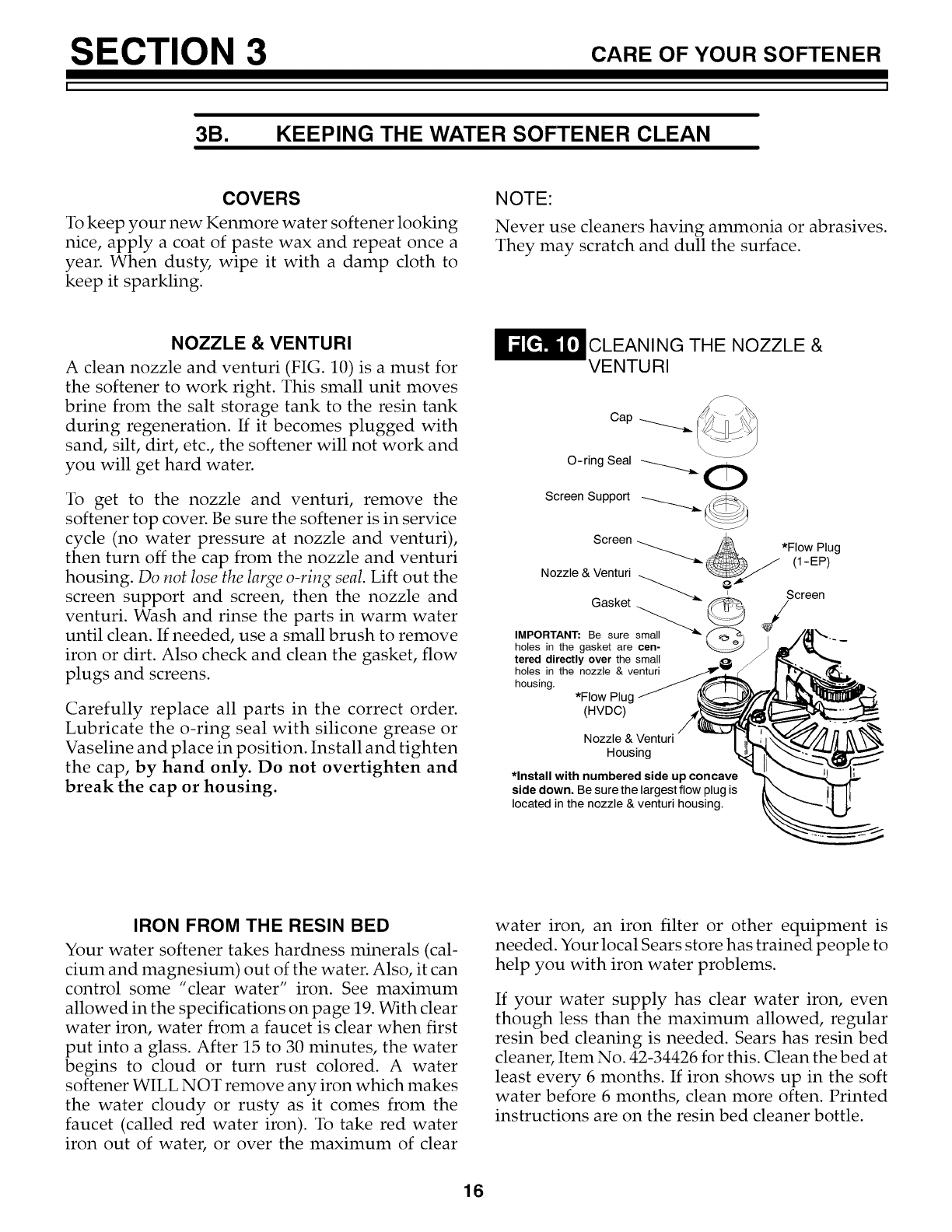

B. KEEPING THE WATER SOFTENER CLEAN

C. KEEP THE SOFTENER FROM FREEZING

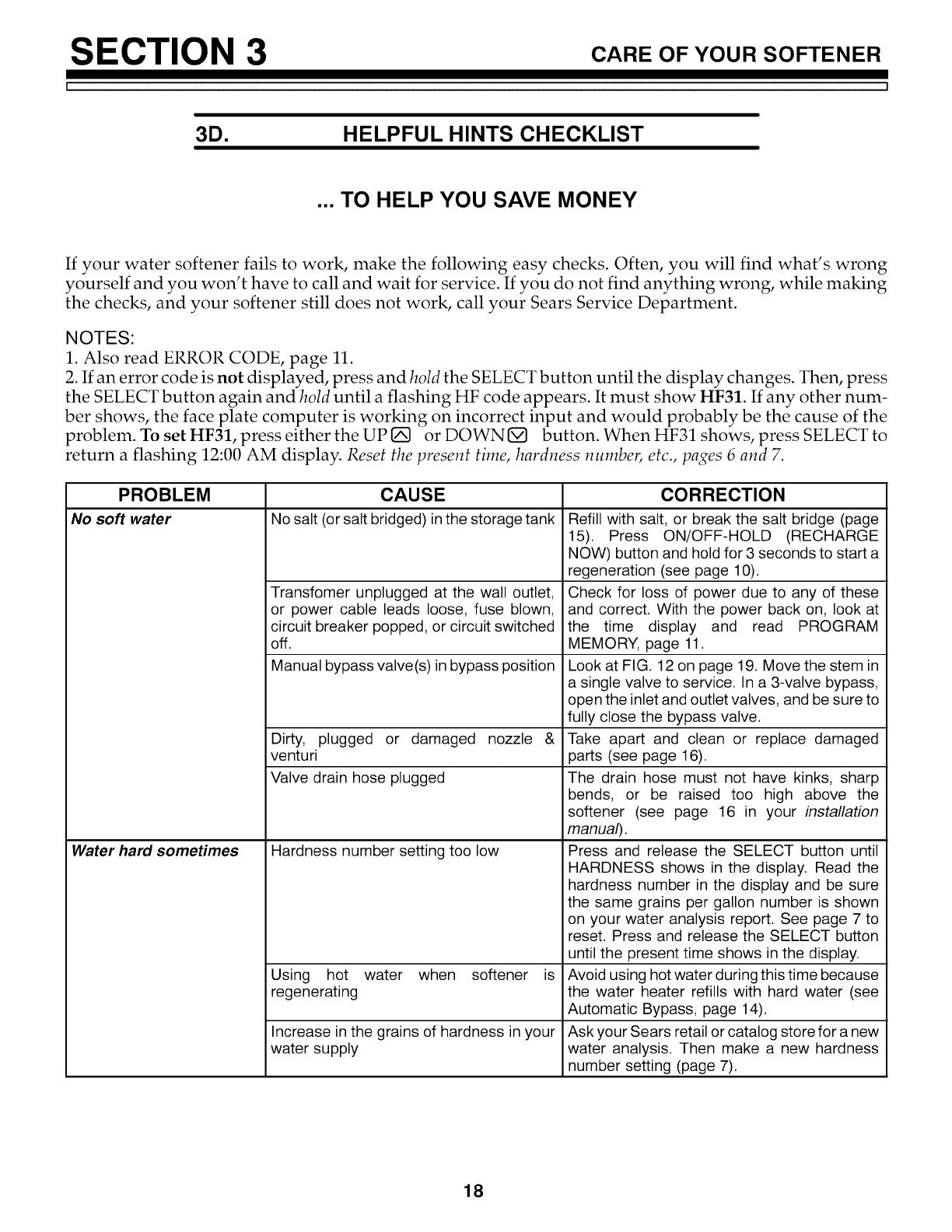

D. HELPFUL HINTS CHECKLIST

SECTION 4 OTHER THINGS TO KNOW

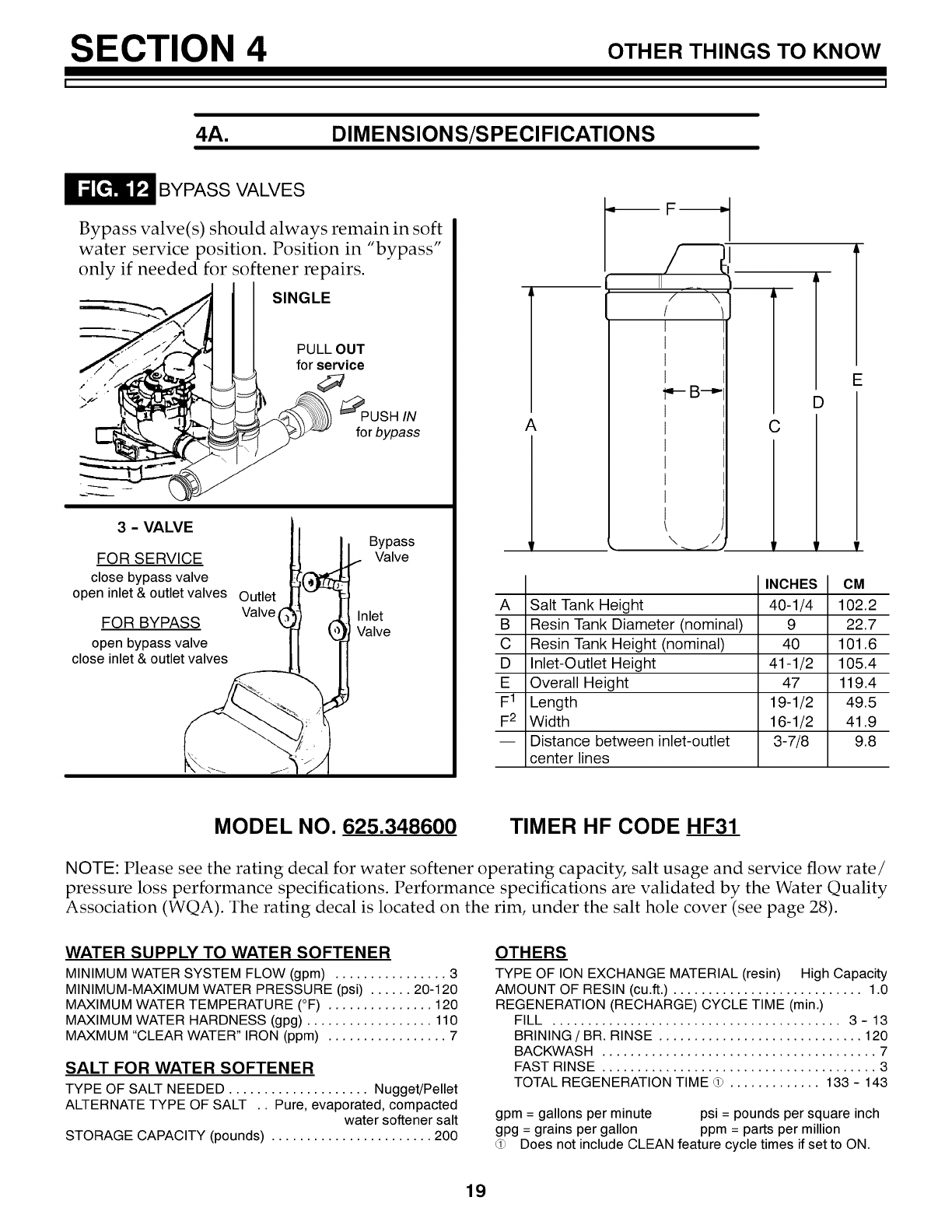

A. DIMENSIONS/SPECIFICATIONS 19

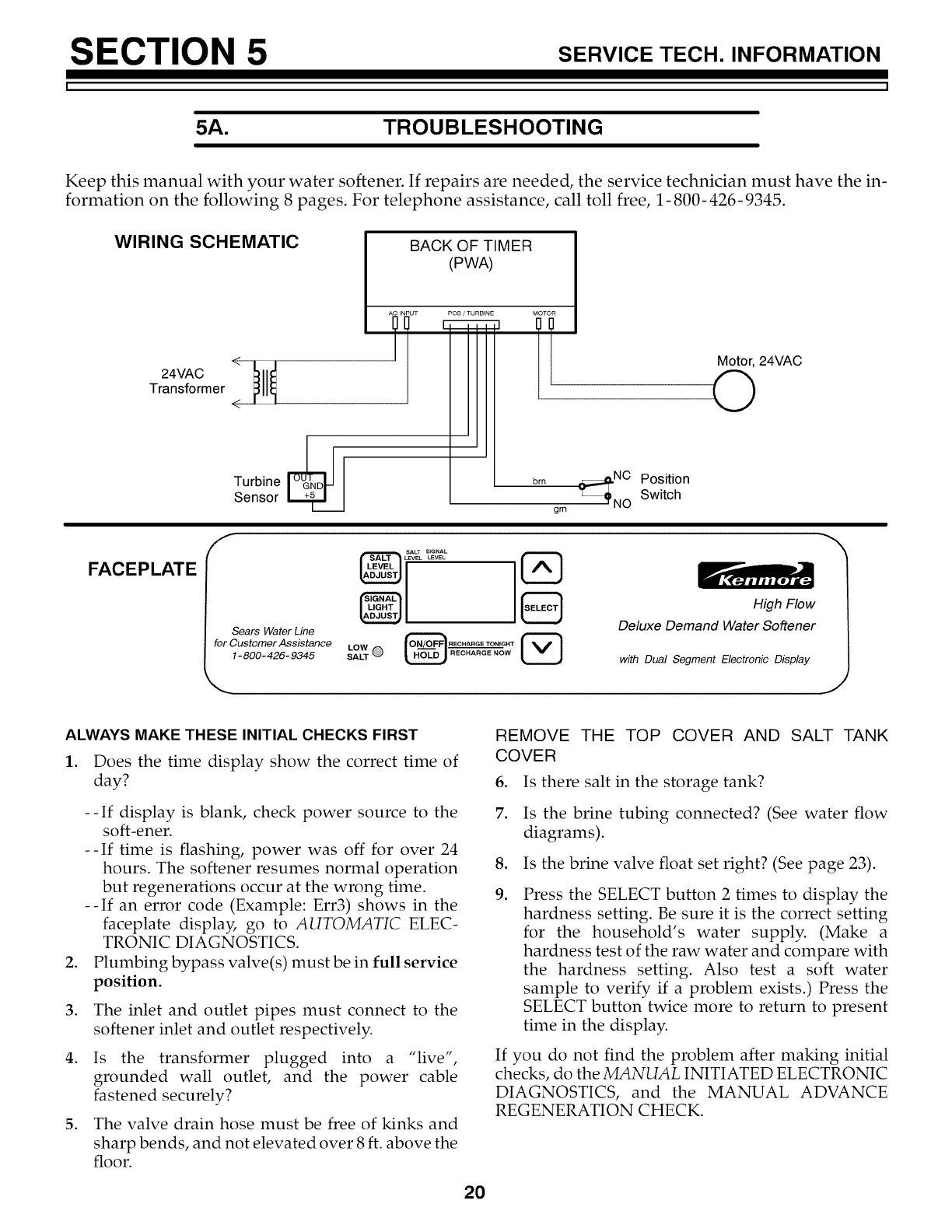

SECTION 5 SERVICE TECH INFORMATION

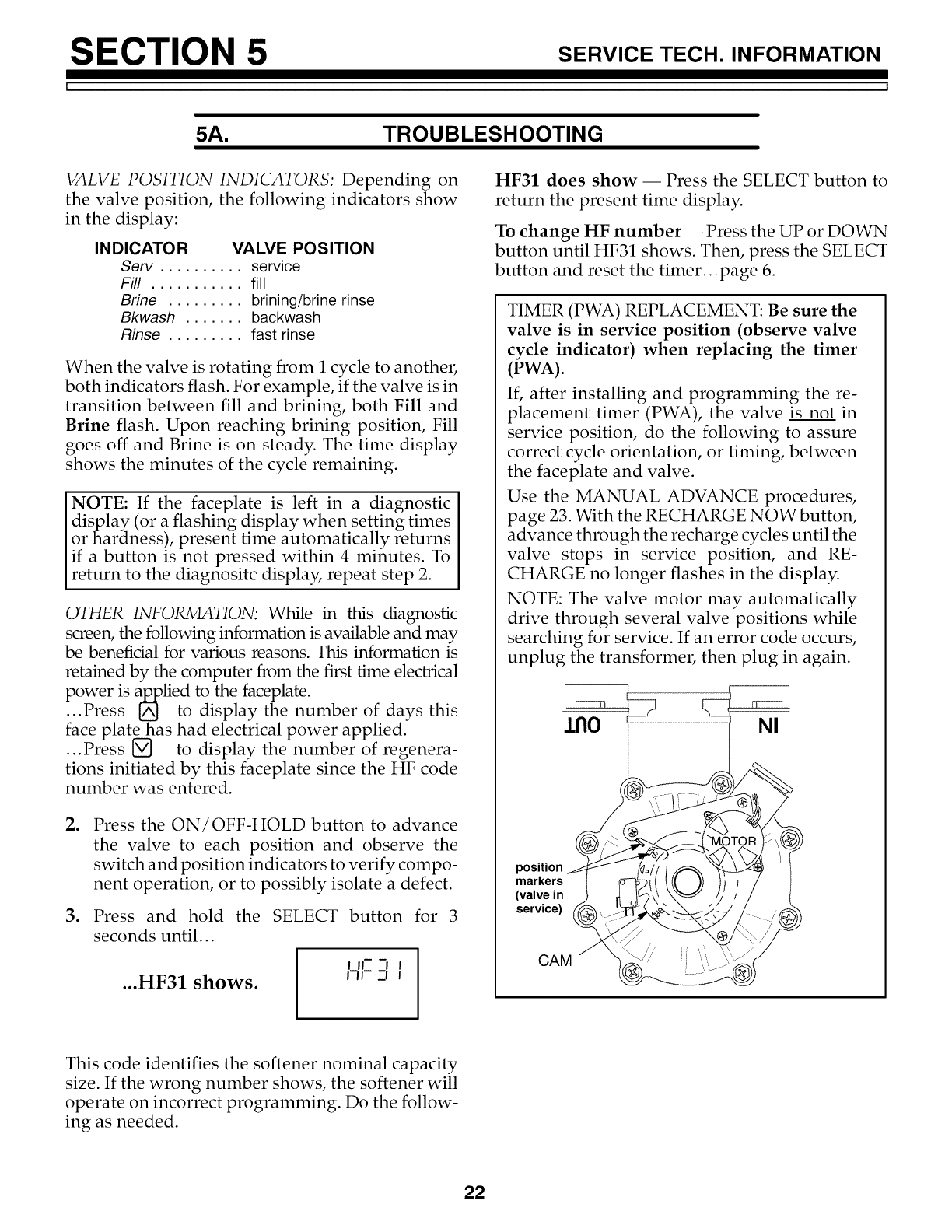

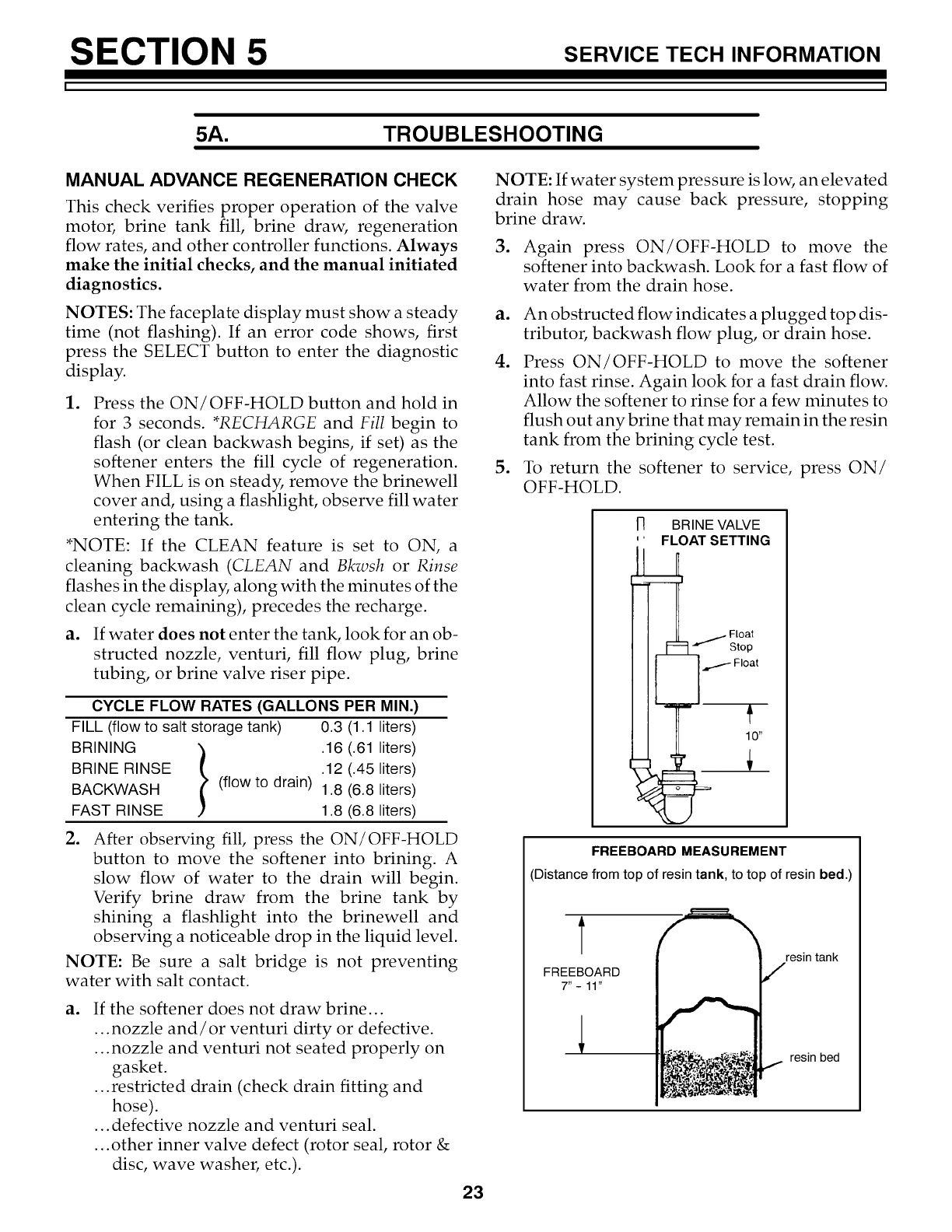

A. TROUBLESHOOTING

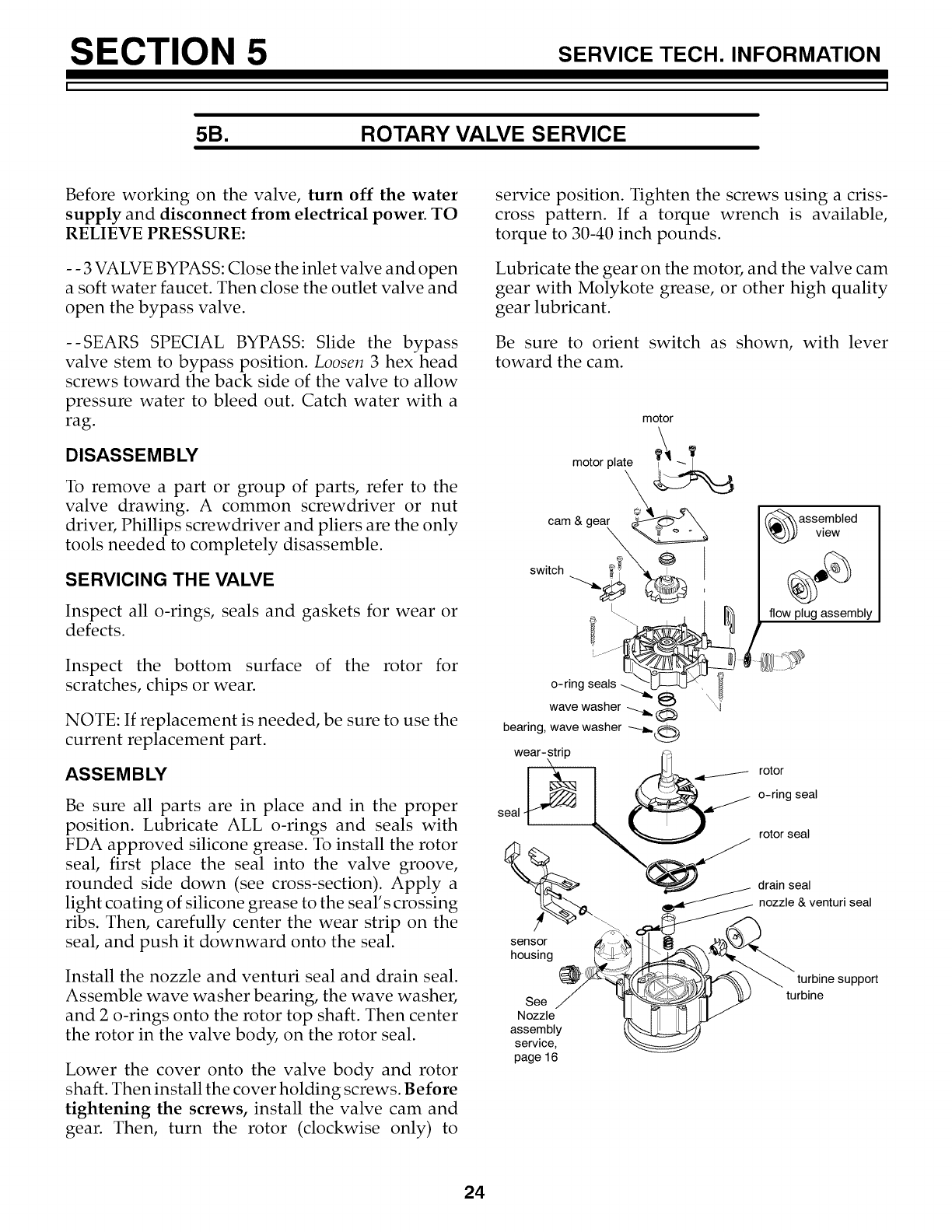

B. ROTARY VALVE SERVICE

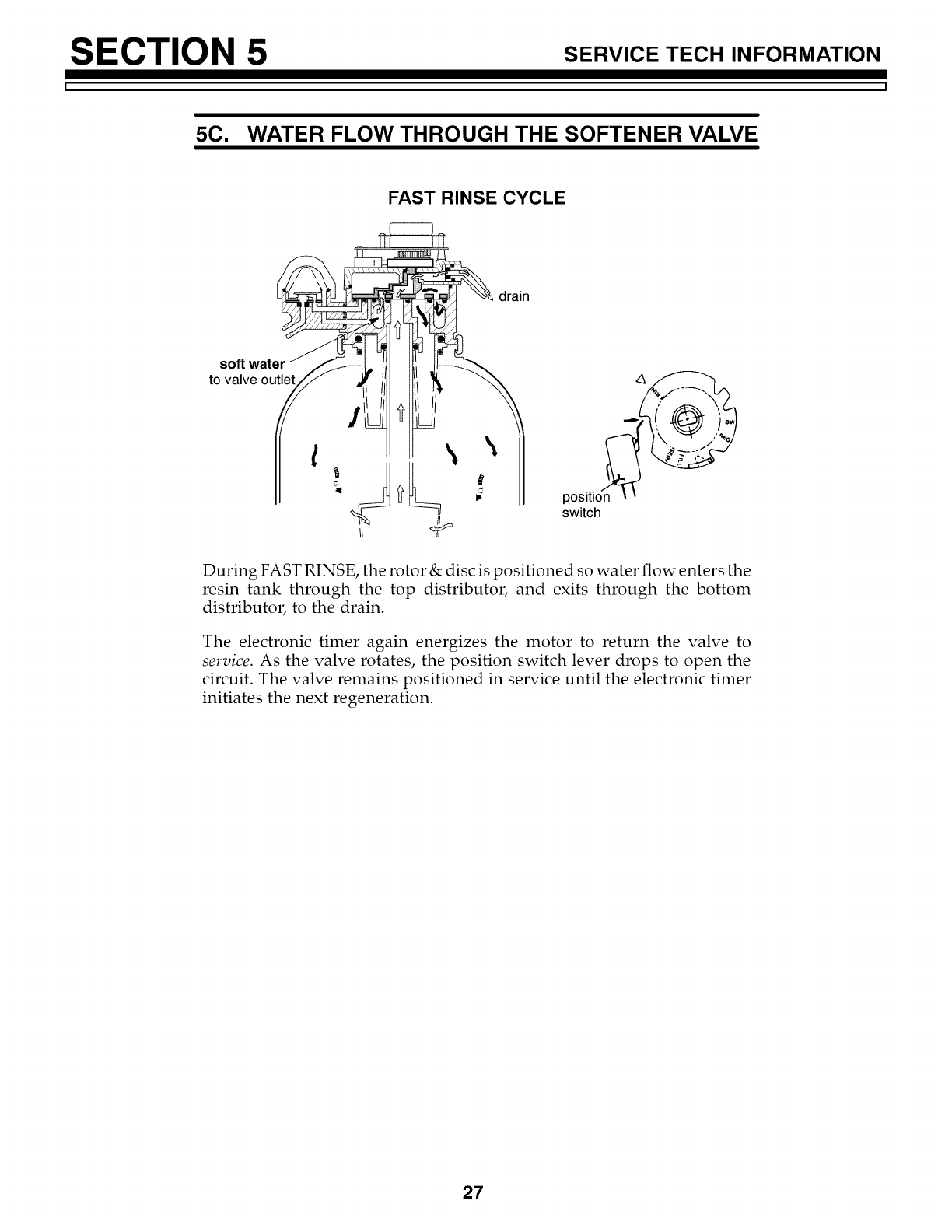

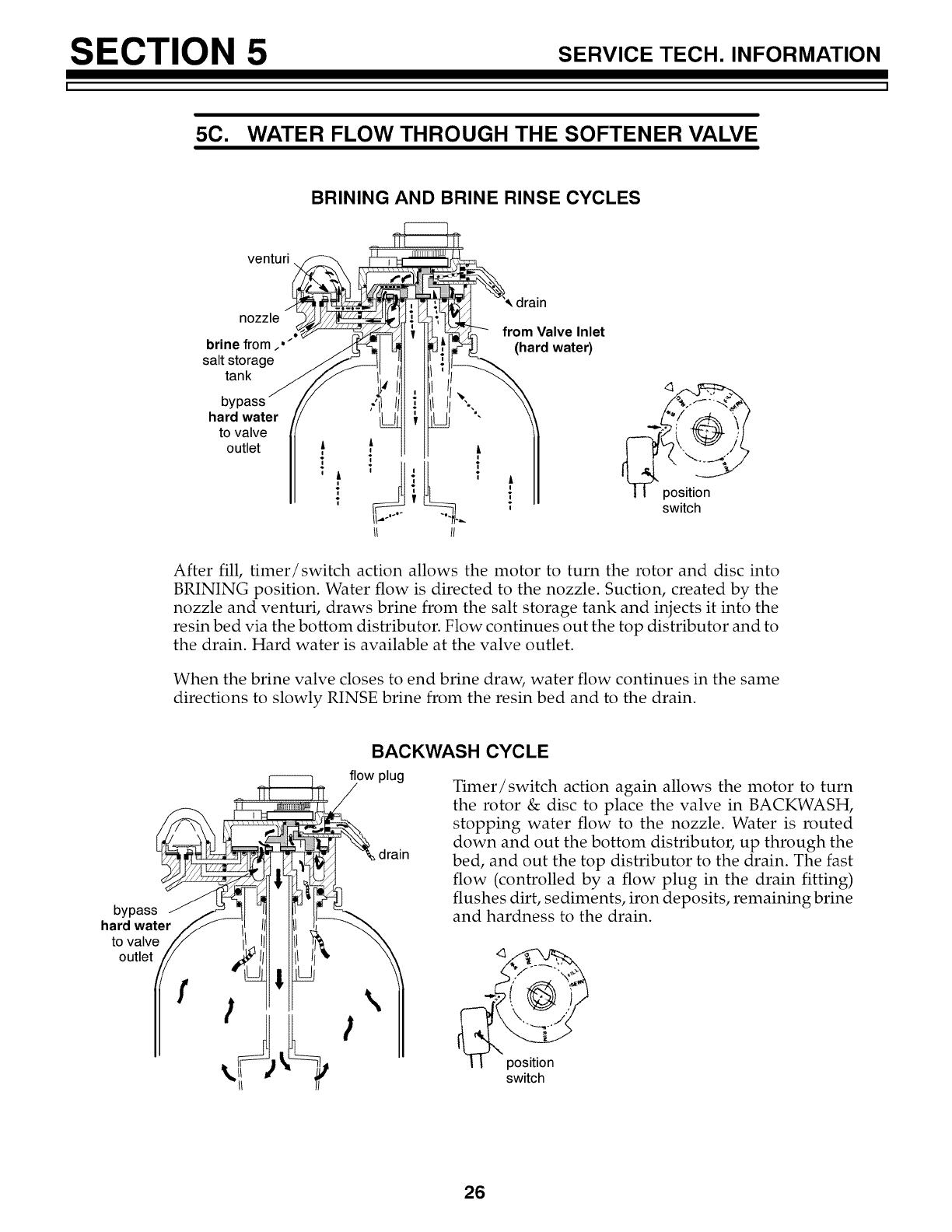

C. WATER FLOW THROUGH THE SOFTENER VALVE

20-23

25-27

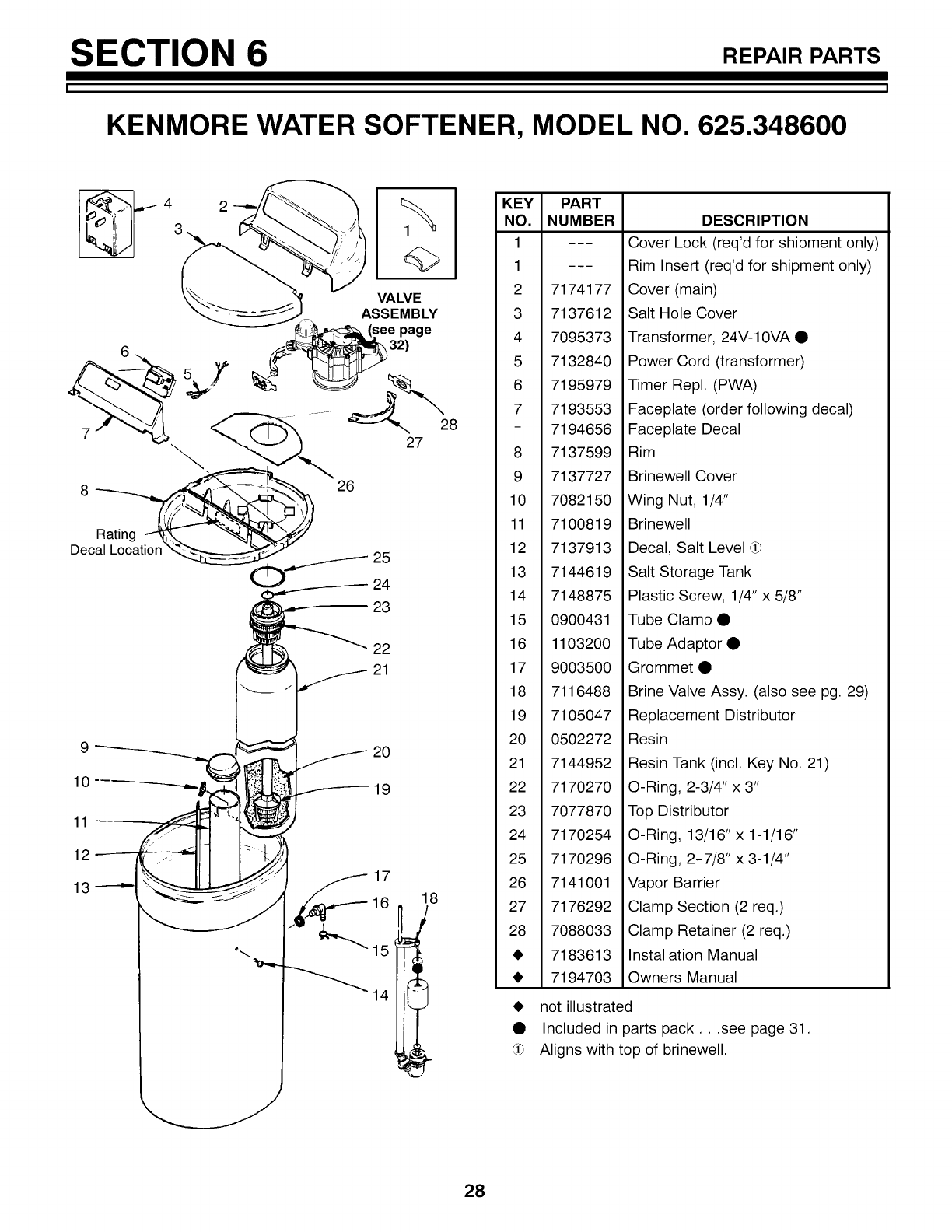

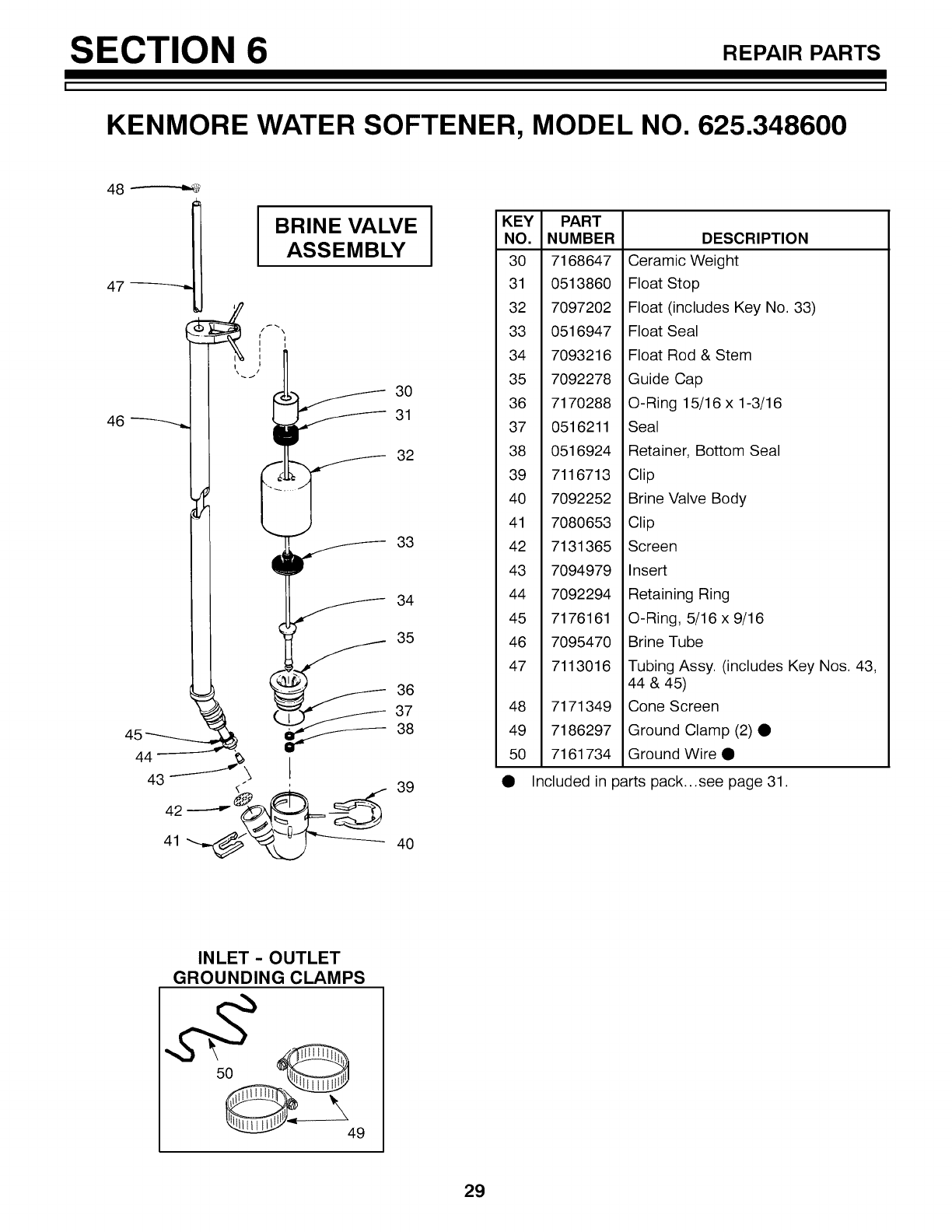

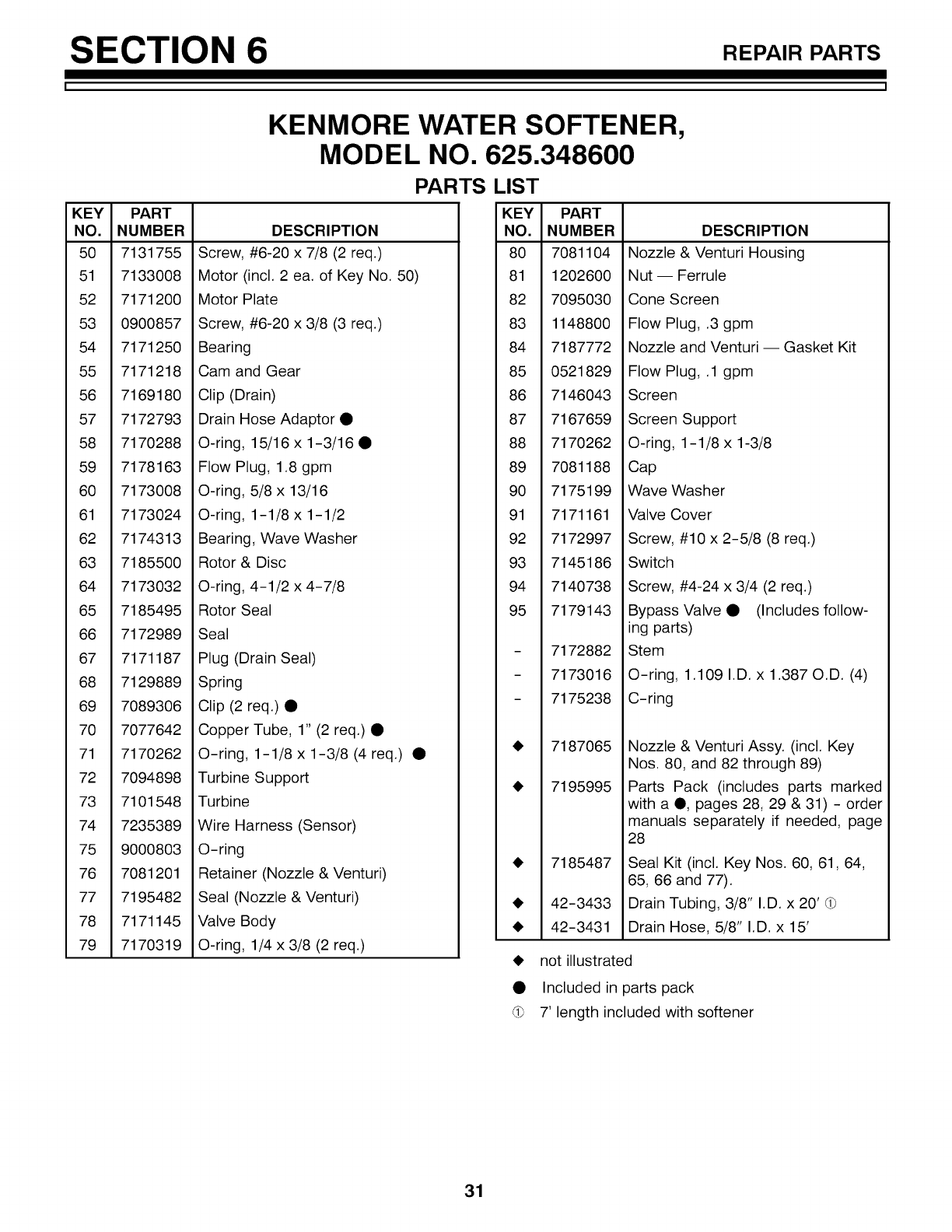

SECTION 6 REPAIR PARTS 28-31

SECTION 1 WATER SOFTENER START-UP

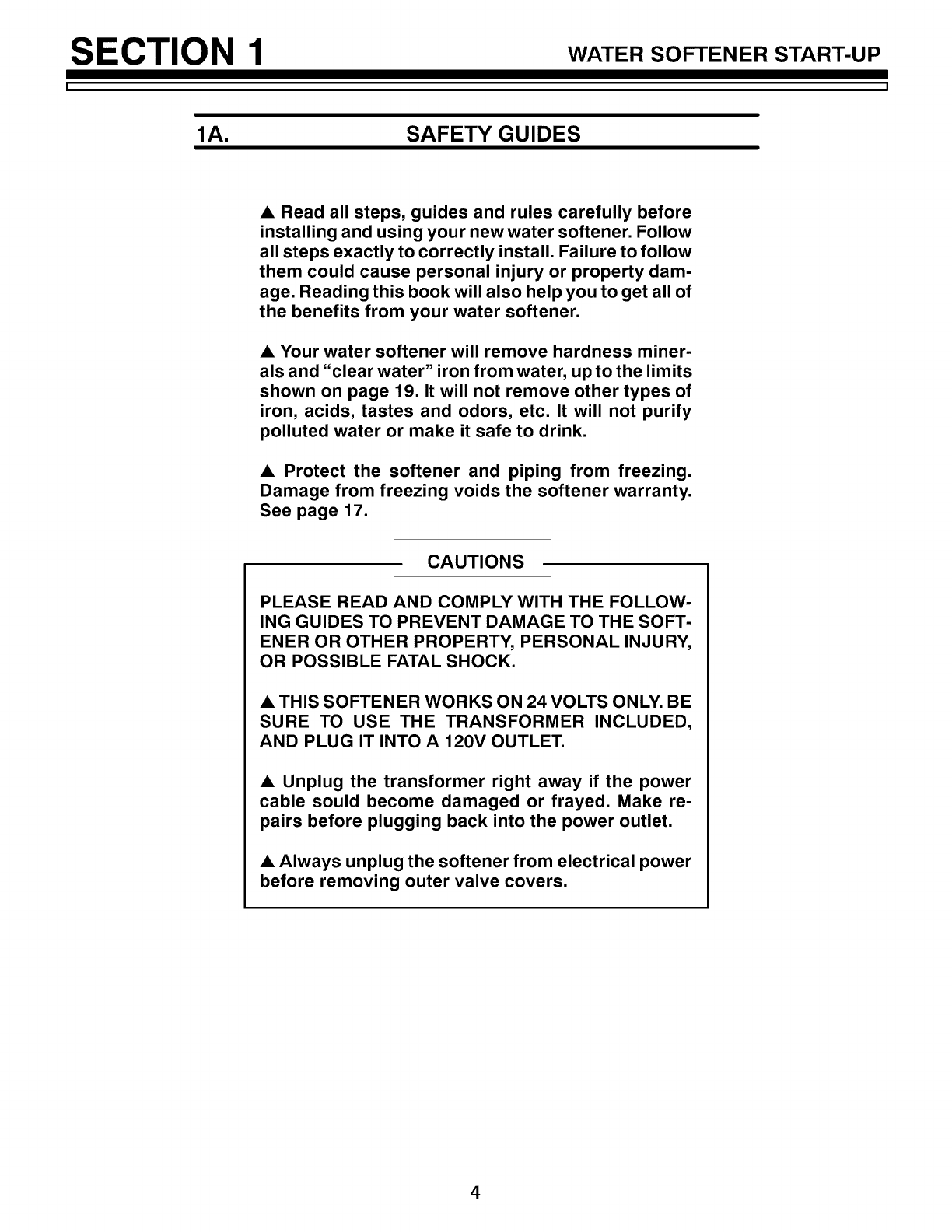

1A. SAFETY GUIDES

•Read all steps, guides and rules carefully before

installing and using your new water softener. Follow

all steps exactly to correctly install. Failure to follow

them could cause personal injury or property dam-

age. Reading this book will also help you to get all of

the benefits from your water softener.

•Your water softener will remove hardness miner-

als and "clear water" iron from water, up to the limits

shown on page 19. It will not remove other types of

iron, acids, tastes and odors, etc. It will not purify

polluted water or make it safe to drink.

•Protect the softener and piping from freezing.

Damage from freezing voids the softener warranty.

See page 17.

CAUTIONS

PLEASE READ AND COMPLY WITH THE FOLLOW-

ING GUIDES TO PREVENT DAMAGE TO THE SOFT-

ENER OR OTHER PROPERTY, PERSONAL INJURY,

OR POSSIBLE FATAL SHOCK.

•THIS SOFTENER WORKS ON 24 VOLTS ONLY. BE

SURE TO USE THE TRANSFORMER INCLUDED,

AND PLUG IT INTO A 120V OUTLET.

•Unplug the transformer right away if the power

cable sould become damaged or frayed. Make re-

pairs before plugging back into the power outlet.

•Always unplug the softener from electrical power

before removing outer valve covers.

SECTION 1 WATER SOFTENER START-UP

I I

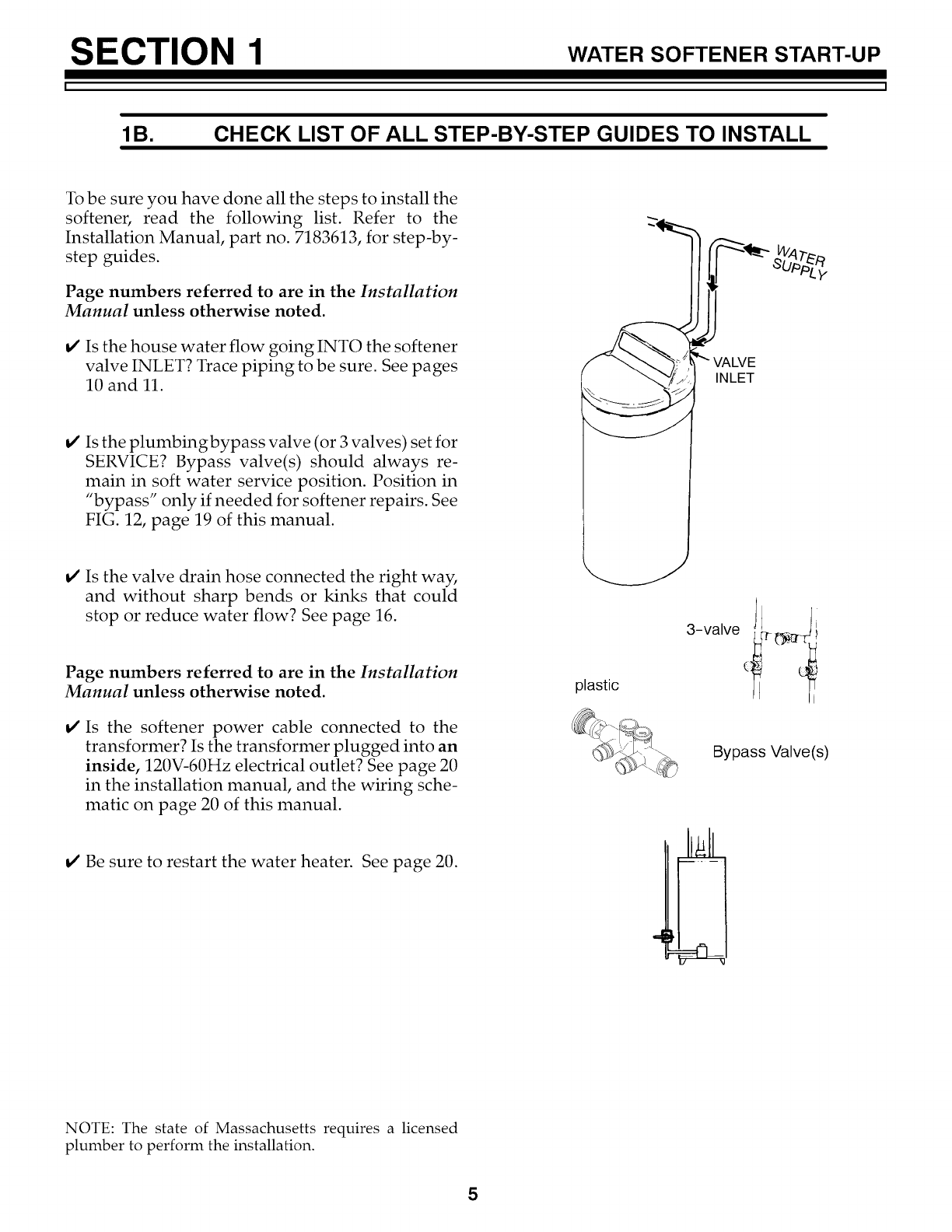

1B. CHECK LIST OF ALL STEP-BY-STEP GUIDES TO INSTALL

To be sure you have done all the steps to install the

softener, read the following list. Refer to the

Installation Manual, part no. 7183613, for step-by-

step guides.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the house water flow going INTO the softener

valve INLET? Trace piping to be sure. See pages

10 and 11.

Is the plumbingbypass valve (or 3 valves) set for

SERVICE? Bypass valve(s) should always re-

main in soft water service position. Position in

"bypass" only if needed for softener repairs. See

FIG. 12, page 19 of this manual.

Is the valve drain hose connected the right way,

and without sharp bends or kinks that could

stop or reduce water flow? See page 16.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the softener power cable connected to the

transformer? Is the transformer plugged into an

inside, 120V-60Hz electrical outlet? See page 20

in the installation manual, and the wiring sche-

matic on page 20 of this manual.

Be sure to restart the water heater. See page 20.

- DZg

3-valve _ ___, !

plastic _'_ _

Bypass Valve(s)

NOTE: The state of Massachusetts requires a licensed

plumber to perform the installation.

SECTION 1 WATER SOFTENER START-UP

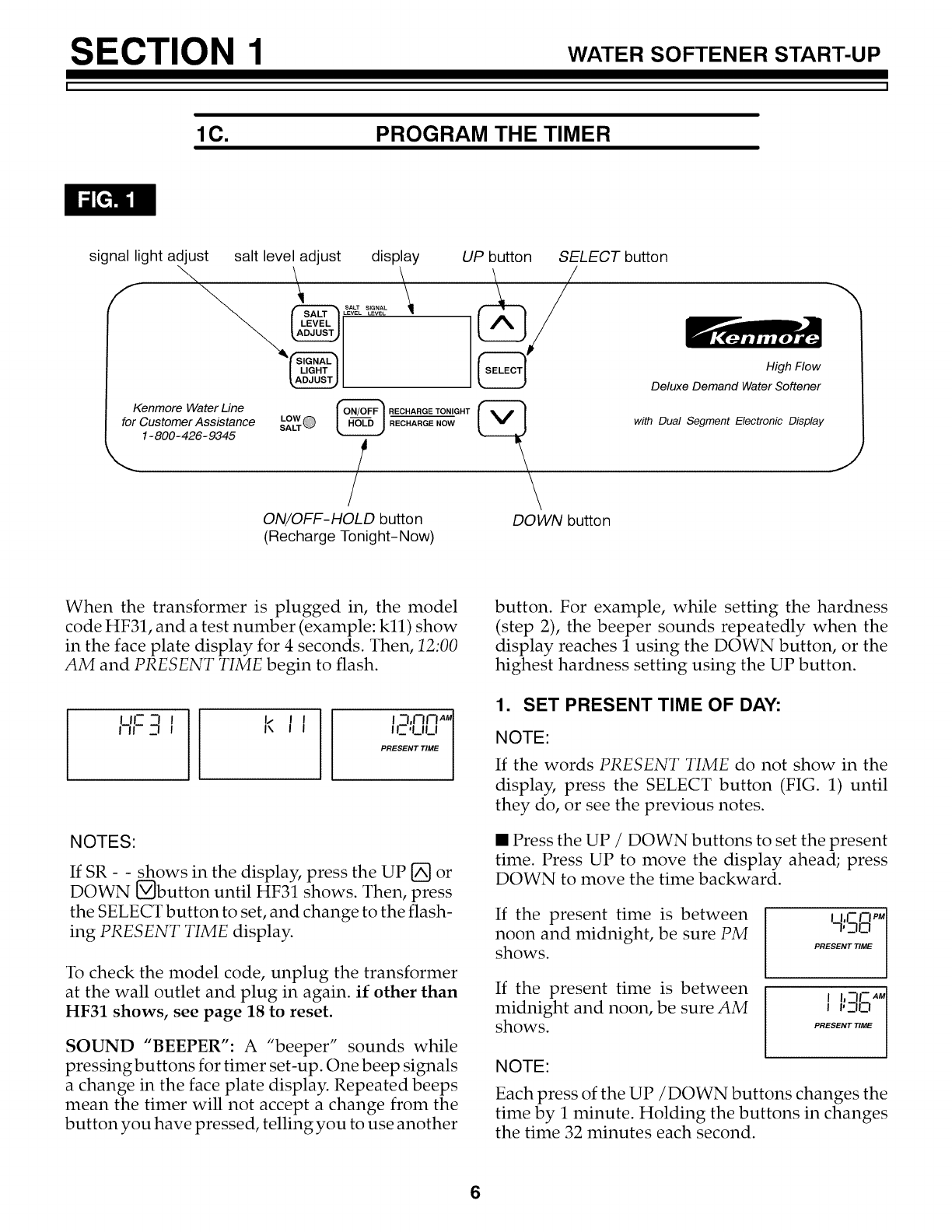

1C. PROGRAM THE TIMER

signal light adjust

salt level adjust

Kenmore Water Line

for Customer Assistance

1-800-426-9345

display

_RECHARGE TONIGHT

LOW RECHARGE NOW

SALT /

ON/OFF-HOLD button

(Recharge Tonight-Now)

UP button SELECT button

DOWN button

High Flow

Deluxe Demand Water Softener

with Dual Segment Electronic Display

When the transformer is plugged in, the model

code HF31, and a test number (example: k11) show

in the face plate display for 4 seconds. Then, 12:00

AM and PRESENT TIME begin to flash.

,, II I -I,NN _=

IC'LILI

PRESENT TIME

NOTES:

If SR - - shows in the display, press the UP [] or

DOWN [_button until HF31 shows. Then, press

the SELECT button to set, and change to the flash-

ing PRESENT TIME display.

To check the model code, unplug the transformer

at the wall outlet and plug in again, if other than

HF31 shows, see page 18 to reset.

SOUND "BEEPER": A "beeper" sounds while

pressing buttons for timer set-up. One beep signals

a change in the face plate display. Repeated beeps

mean the timer will not accept a change from the

button you have pressed, telling you to use another

button. For example, while setting the hardness

(step 2), the beeper sounds repeatedly when the

display reaches I using the DOWN button, or the

highest hardness setting using the UP button.

1. SET PRESENT TIME OF DAY:

NOTE:

If the words PRESENT TIME do not show in the

display, press the SELECT button (FIG. 1) until

they do, or see the previous notes.

• Press the UP /DOWN buttons to set the present

time. Press UP to move the display ahead; press

DOWN to move the time backward.

If the present time is between

noon and midnight, be sure PM

shows.

II,C r'[ PM

q,_-II_-I

PRESENT TIME

Ih-I_ _M

i i,_70

PRESENT TIME

If the present time is between

midnight and noon, be sure AM

shows.

NOTE:

Each press of the UP/DOWN buttons changes the

time by i minute. Holding the buttons in changes

the time 32 minutes each second.

SECTION 1 WATER SOFTENER START-UP

1C. PROGRAM THE TIMER

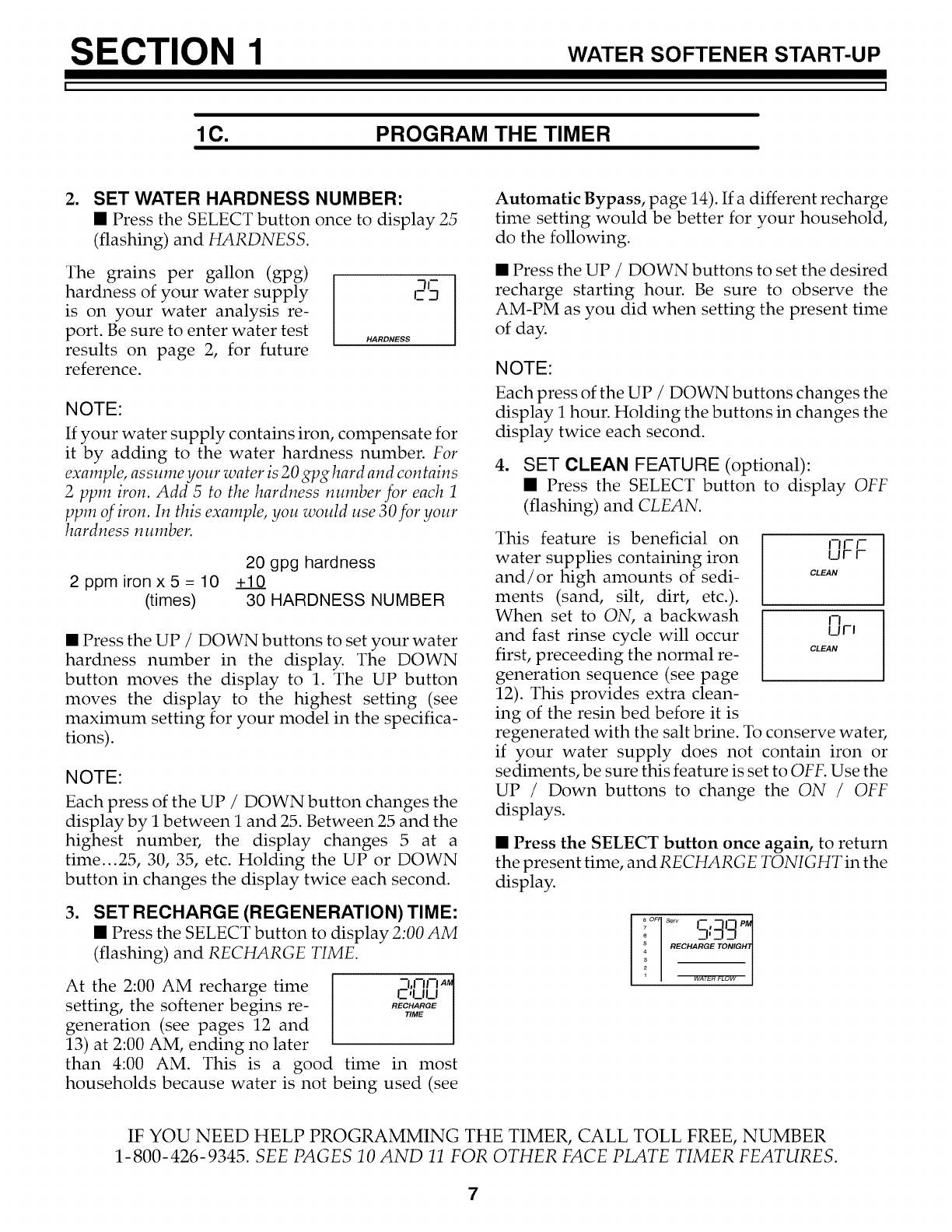

2. SET WATER HARDNESS

•Press the SELECT button

(flashing) and HARDNESS.

The grains per gallon (gpg)

hardness of your water supply

is on your water analysis re-

port. Be sure to enter water test

results on page 2, for future

reference.

NUMBER:

once to display 25

HARDNESS

NOTE:

If your water supply contains iron, compensate for

it by adding to the water hardness number. For

example, ass ume your water is 20 gpg hard and con tains

2ppm iron. Add 5 to the hardness number for each 1

ppm of iron. In this example, you would use 30for your

hardness n umber.

20 gpg hardness

2ppmironx5=10 +10

(times) 30 HARDNESS NUMBER

• Press the UP /DOWN buttons to set your water

hardness number in the display. The DOWN

button moves the display to 1. The UP button

moves the display to the highest setting (see

maximum setting for your model in the specifica-

tions).

NOTE:

Each press of the UP /DOWN button changes the

display by I between I and 25. Between 25 and the

highest number, the display changes 5 at a

time...25, 30, 35, etc. Holding the UP or DOWN

button in changes the display twice each second.

3. SET RECHARGE (REGENERATION) TIME:

• Press the SELECT button to display 2:00 AM

(flashing) and RECHARGE TIME.

At the 2:00 AM recharge time q,nnA_

I_-'UU

setting, the softener begins re- RECHAROE

TIME

generation (see pages 12 and

13) at 2:00 AM, ending no later

than 4:00 AM. This is a good time in most

households because water is not being used (see

Automatic Bypass, page 14). If a different recharge

time setting would be better for your household,

do the following.

• Press the UP /DOWN buttons to set the desired

recharge starting hour. Be sure to observe the

AM-PM as you did when setting the present time

of day.

NOTE:

Each press of the UP /DOWN buttons changes the

display i hour. Holding the buttons in changes the

display twice each second.

4. SET CLEAN FEATURE (optional):

• Press the SELECT button to display OFF

(flashing) and CLEAN.

This feature is beneficial on nrr

water supplies containing iron ur r-

and/or high amounts of sedi- CLEAN

ments (sand, silt, dirt, etc.).

When set to ON, a backwash n I

and fast rinse cycle will occur Ur-

CLEAN

first, preceeding the normal re-

generation sequence (see page

12). This provides extra clean-

ing of the resin bed before it is

regenerated with the salt brine. To conserve water,

if your water supply does not contain iron or

sediments, be sure this feature is set to OFF. Use the

UP /Down buttons to change the ON / OFF

displays.

• Press the SELECT button once again, to return

the present time, and RECHARGE TONIGHT in the

display.

5 RECHARGE TO_iGR?

4WAI_HPLOW

IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE, NUMBER

1-800-426-9345. SEE PAGES 10 AND 11 FOR OTHER FACE PLATE TIMER FEATURES.

SECTION 1 WATER SOFTENER START-UP

1D. SANITIZING THE WATER SOFTENER

Care is taken at the factory to keep your water

softener clean and sanitary. Materials used to make

the softener will not infect or contaminate your

water supply, and will not cause bacteria to form or

grow. However, during shipping, storage, instal-

ling and operating, bacteria could get into the

softener. For this reason, sanitizing as follows is

suggested _ when installing.

1. The first time you sanitize your softener, be

sure to do all steps in the installation manual,

and on pages 5, 6 and 7 of this manual first.

2. Lift the salt hole cover and use a pail or hose to

fill the salt storage tank with at least 3 gallons of

water.

°Remove the brinewell cover (FIG. 3) and pour

about 3/4 ounce, or 1 to 2 tablespoons, of

common 5.25% household bleach (Clorox, Lin-

co, BoPeep, White Sail, Eagle, etc.) in the

softener brinewell.

,Press the ON/OFF-HOLD button and hold for 3

seconds to start a recharge. This first recharge

does several things.

-- It draws the bleach into and through the

softener to sanitize it.

-- It fills the salt tank to the water level need-

ed.

-- It gets all the air out of the resin tank.

-- It prepares the resin bed (see page 12) for

service.

ADD WATER

salt hole

cover

hose

water,

about 3 gallon_.,.

brinewelI

cover

(remove and add

about3/4 oz. bIeach)

brinewelI

NOTES:

This recharge takes about 2-1/2 or 2-3/4 hours,

depending on the salt type setting (page 7).

You can sanitize the softener with or without

salt in the storage tank.

Recommended by the Water Quality Association. On

some water supplies, the water softener may need pe-

riodic disinfecting.

SECTION 1 WATER SOFTENER START-UP

1E. FILL THE STORAGE TANK WITH SALT

Brine (salt dissolved in water) is needed for each

and every regeneration. The water for making

brine is metered into the salt storage tank by the

softener. However, you must keep the tank filled

with salt.

Fill the tank with NUGGET or PELLET water

softener salt. DO NOT use rock salts, as they have

dirt and sediments that will stop the softener from

working.

Before filling, be sure the brinewell cover is in place

on the top of the brinewell. Salt storage capacity is

shown on page 20. Be sure to set the salt monitor

system (see page 10).

NOTES:

The salt monitor system, page 10, is calibrated to

the density of nugget or pellet water softener salt.

The monitor will not work as accurately with other

types of salt including rock and solar.

In humid areas, it is best to fill the storage tank

half-full, and to refill it more often. Salt bridging

(see page 15) occurs more often when conditions

are humid.

WATER SOFTENING SALT WITH IRON REMOV-

ING ADDITIVES -- Some salts have an additive to

help the softener handle iron in the water supply.

Although this additive may help to keep the

softener resin clean, it may also release corrosive

fumes that will weaken and shorten the life of some

softener parts.

ADD SALT

salt

storage

tank

brinewelI

cover

brinewelI

Sodium information: Water softeners using sodium

chloride for regeneration add sodium to the water.

Persons who are on sodium restricted diets should

consider the added sodium as part of their overall

sodium intake.

For example, if your water supply is 15 grains hard,

you would have to drink 3 quarts of softened water

to consume 335 milligrams of sodium. That is

equivalent to eating 2-1/2 slices of white bread.

Persons who are concerned about their drinking

water should consider a Kenmore Drinking Water

System that will remove or reduce in excess of 90%

of the sodium and other drinking water contami-

nants.

You have now finished the water softener start up. After the sanitizing recharge, on

page 8, the softener will be giving you soft water.

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2A. FACEPLATE TIMER FEATURES

EXTRA RECHARGE

Sometimes, a manually started regeneration (re-

charge) may be desired, or needed. Two examples

are:

You have used more water than usual (guests

visiting) and you may run out of soft water before

the next timer started regeneration.

- You did not refill the softener with salt before it

was gone.

You can start a regeneration right away, or you can

set the timer to regenerate at the next 2:00 AM (or

other preset recharge time). Do the following.

RECHARGENOW

• Press the ON/ OFF-HOLD [ ii°_l_ -w,rlr'wPM

button and hold until *RE- 7 .... REI'c,_--d_

CHARGE, Serv and Fill begin

to flash in the display. Upon .........

reaching fill, the first cycle of

regeneration, the flashing Serv goes off and Fill is

on steady. RECHARGE continues to flash. This

regeneration will last for about 2 hours. After the

2 hours, you will have soft water again.

*NOTE:

If the CLEAN feature is set to ON, a cleaning

backwash (CLEAN and Bkwsh or Rinse flashes in

the display, along with the minutes of the clean

cycle remaining) precedes the recharge.

RECHARGETONIGHT

• Press and release (do not :o_1 q,,-nnP.

hold) the ON /OFF-HOLD ii ] REC._'_ON,,

button. RECHARGE TO-

NIGHT flashes in the display, .........

and the softener begins regen-

eration at the next preset recharge time. Press

and release the ON/OFF-HOLD button once

more if you decide to cancel the regeneration,

and RECHARGE TONIGHT.

SALT MONITOR SYSTEM

The face plate timer has a low salt monitor with an

indicator light to remind you to refill the storage

tank with salt. To set this monitor system:

1. Lift the salt hole cover and level the salt in the

storage tank.

oThe salt level decal, on the brinewell inside the

tank, has numbers from 0 to 8 (see drawing on

page 9 and below). Observe the number the

leveled salt is at or closest to.

oNow, press the SALT LEVEL ADJUST button

until black bars display up to the salt level

number. For example, the pictures below show

the salt level at 6.

oFinally, set the level you want the low salt

indicator light to come on. Press the SIGNAL

LIGHT ADJUST button until a (÷) shows

opposite this number. In the example below,

the light will come one when the stored salt

drops to level 2. At level 2, the storage tank is

about 1/3 full. This is the lowest you should

allow the stored salt level to drop to. To turn the

salt monitor off, press the SIGNAL LIGHT

ADJUST button until OFF shows above.

NOTE:

For accurate salt monitor operation, always use

nugget or pellet water softener salt. See page 9.

salt

level

i bars, salt

level

brinewelI

LOW

SAL_

indicator light

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2A. FACEPLATE TIMER FEATURES

OPTIONAL SETTINGS- CLEAN FEATURE

MINUTES, MAXIMUM DAYS BETWEEN REGEN-

ERATIONS, and 12 /24 HOUR TIME READINGS:

1. To set 1,2 or all 3 options, press and hold SELECT

for 3 seconds. Then press again until the CLEAN

TIME display shows.

-I MIN

CLEAN TIME

default minutes

ICLEAN 3 MIN

TIME

example: time set to 3minutes

_CLEAN feature minutes: If you are using this

feature (page 7), the length of the extra backwash

cycle automatically sets to 7 minutes. However,

you can adjust this time from 1 to 15 minutes in

length. To change this cycle time, use the UP button

to increase the time, or the DOWN button to

shorten the time. If no change is desired, continue

below.

2. Press SELECT again to show the following

RECHARGE display.

default display example: set to 4 days maxi-

mum between regenerations

_Maximum days between regenerations: The

faceplate timer automatically controls regenera-

tion frequency (see page 14). This provides the

greatest operating efficiency, and normally the

maximum days feature is not needed. If you want to

be certain a regeneration will occur within a

number of days, use this feature. For example, if

your water supply contains iron and you want the

softener to regenerate at least once every few days

to keep the resin bed clean, set the display as

typically shown above. Setting is available from 1

to 15 days by using the UP and DOWN buttons.

3. Press SELECT to show the 12 HOUR display.

_12 or 24 hour clock: All time

displays are shown in standard

clock time (1 to 12 PM; and I to

12 AM) at the 12 hr default

setting. If military time dis-

plays are desired, set to 24 hr by

pressing the UP button.

I _WhF _;

TIME

2clhc

TIME

4. Press SELECT to return the present time display.

WATER FLOW THROUGH THE SOFTENER

If soft water is in use, the water

flow bars continually scroll

across the display. The bars

scroll slowly when water flow

is slow, and move faster as

water flow increases. The flow

bars do not show when all

faucets and water using ap-

pliances are off.

IOFIq,N 13_

I'uO

WATER FLOW

no water flow

i°F] -I,I-II-IpM

I'UI]

#_ WATER FLOW

Flow bars scroll when

soft water is in use.

RECHARGE TIME REMAINING and VALVE

POSITION INDICATORS valve recharge

One of the valve position indi- position time

indicators

cators (Serv, Fill, Brine, Bkwsh, remaining

Rinse) is displayed while the _oF_

softener is recharging (See i _,i I1-11-1 i,UO M,-]

*NOTE on page 10 if the RET'_g_EgA"'_

CLEAN feature is ON). RE-

CHARGE flashes in the display

and, beginning with Brine, the minutes of recharge

remaining before return to service appears in place

of the present time. When the valve is moving from

one cycle to another, both position indicators are

flashing.

PROGRAM MEMORY

If electrical power to the softener goes off, the time

display is blank but the face plate timer keeps the

correct time for about 12 hours. When electrical

power comes on again, you have to reset the

present time only if the display is flashing. The

HARDNESS and RECHARGE TIME never require

resetting unless a change is desired.

Even if the timer is incorrect after a long power

outage, the softener works as it should to keep

your water soft. However, regenerations may

occur at the wrong time of day until you reset the

timer to the correct time of day.

ERROR CODE

An error code could appear in _-F F I

the face plate display if a prob-

lem occurs in the softener elec-

tronics. If you see an error code

instead of the present time of day, please call your

local Sears Service Department for service.

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFT WATER SERVICE AND REGENERATION

SERVICE

When the softener is giving you soft water, it is

called "Service". During service, hard water comes

from the house main water pipe into the softener.

Inside the softener resin tank is a bed made up of

thousands of tiny, plastic resin beads (FIG. 4). As

hard water passes through the bed, each bead

attracts and holds the hardness minerals. This is

called ion-exchanging. It is much like a magnet

attracting and holding metals. Water without the

hardness minerals (soft water) flows out of the

softener and into the house soft water pipes.

After a period of time, the resin beads hold all of the

hardness minerals they can, and cleaning with salt

brine is needed. This cleaning is called regenera-

tion or recharge. Regeneration is started at 2:00

a.m. by the electronic timer (see page 14). It takes

place in 5 stages or cycles. These are:

FT] FILL

[] BRINING

F] BRINE RINSE

r-_ BACKWASH

r_ FAST RINSE

NOTE:

If the Clean feature is set to ON, additional

backwash and fast rinse cycles occur before the fill

cycle.

WATER FLOW THROUGH THE

SOFTENER IN SERVICE

salt storage

tank (salt .

not shown) _'

brine valve

soft water

OUT IN

hard water

resin tank

resin bed

REGENERATION

[] FILL: Salt, dissolved in water, is called brine.

Brine is needed to clean the hardness minerals

from the resin beads. To make the brine, water

flows into the salt storage area during the fill stage

as shown in FIG. 5. Fill cycle length depends on

how much soft water making capacity you have

used since the last regeneration. As you use more

water, fill time increases so more brine is made. The

greater amount of brine cleans more hardness

minerals from the resin bed.

WATER FLOW THROUGH THE

SOFTENER IN FILL

salt storage

tank -... -j

brine valve

\\\\\\

soft water hard water

OUT IN

fillwater

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFT WATER SERVICE AND REGENERATION

[-2]BRINING: During brining, the brine is moved

from the salt storage area, into the resin tank. Inside

the resin tank, brine cleans hardness minerals from

the resin beads and they are discharged out the

drain. How much brine is needed to clean the resin

depends on:

- -the amount of resin in the softener,

--how fast the brine goes through the bed.

The nozzle and venturi (FIG. 6) make suction to

take brine from the salt tank and put it into the

resin tank. They keep the brine flow down to a very

slow rate to get the best resin cleaning with the

least salt.

[3]BRINE RINSE: After all of the brine is moved

into the resin tank, the brine valve closes. Water

keeps flowing the same way it did during brining

except the brine flow has stopped. Hardness

minerals and brine flush from the resin tank to the

drain. Brining and brine rinse together vary in the

length of time they take, relative to the fill cycle

length.

WATER FLOW THROUGH THE

SOFTENER IN BRINING AND

BRINE RINSE

hard water hard water

bypass OUTt I IN

drain

WATER FLOW THROUGH THE

SOFTENER IN BACKWASH

hard water, hard water

bypass OUTt ! IN

drain

resin bed lifted

and expanded

[-_FAST RINSE: Backwash is followed by a fast

flow of water down through the resin tank. The fast

flow packs the resin bed and gets it ready for return

to service (FIG. 8).

After fast rinse, the softener returns to service.

Hard water goes into the resin tank where the resin

bed again takes out the hardness minerals. Soft

water goes to the house soft water pipes.

WATER FLOW THROUGH THE

SOFTENER IN FAST RINSE

brine

[4]BACKWASH: During backwash, water flows

UP through the resin tank (FIG. 7) at a fast rate to

flush iron minerals, dirt and sediments from the

bed and to the drain. The bed lifts and expands for

good cleaning.

soft water hard water

OOT ! '"

drain

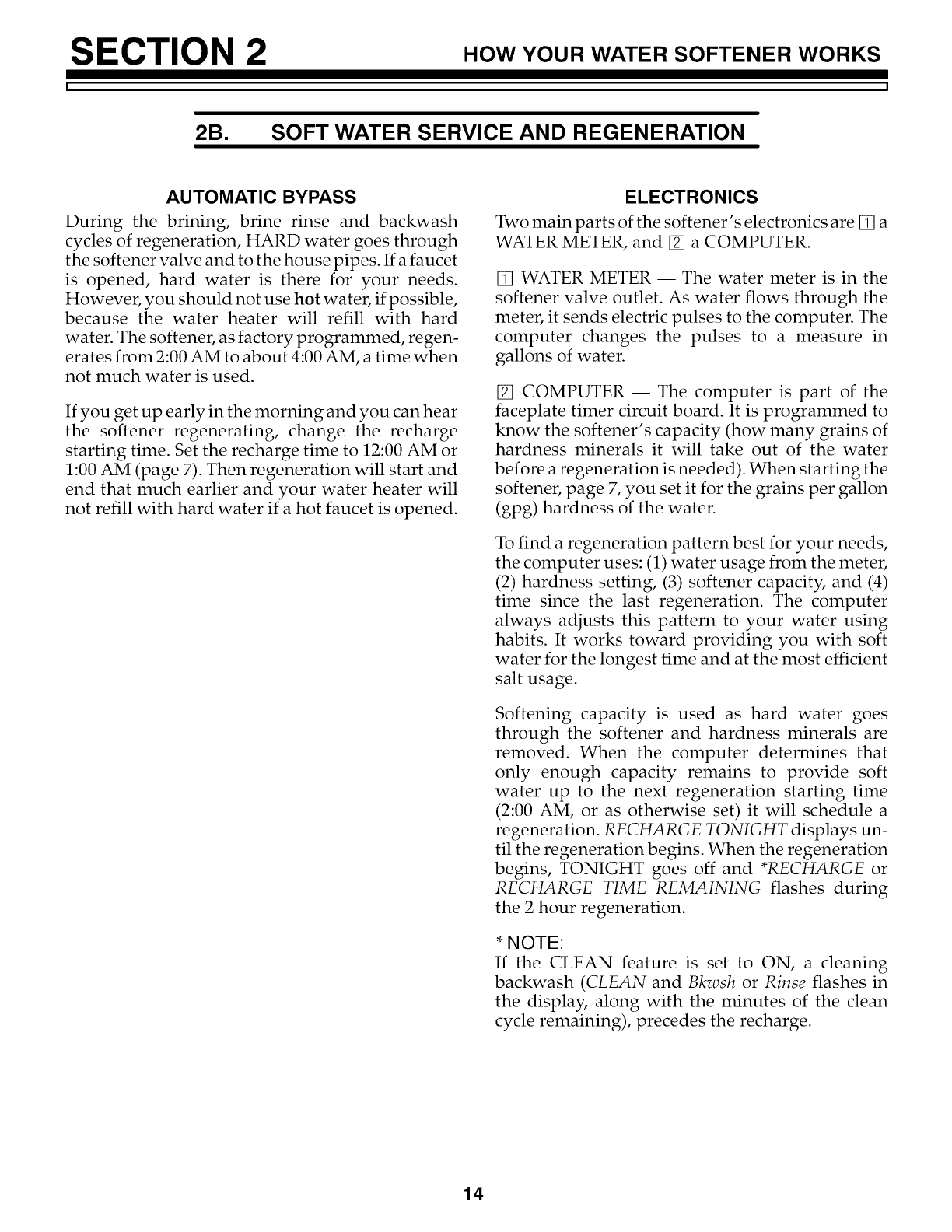

SECTION 2 HOW YOUR WATER SOFTENER WORKS

2B. SOFT WATER SERVICE AND REGENERATION

AUTOMATIC BYPASS

During the brining, brine rinse and backwash

cycles of regeneration, HARD water goes through

the softener valve and to the house pipes. If a faucet

is opened, hard water is there for your needs.

However, you should not use hot water, if possible,

because the water heater will refill with hard

water. The softener, as factory programmed, regen-

erates from 2:00 AM to about 4:00 AM, a time when

not much water is used.

If you get up early in the morning and you can hear

the softener regenerating, change the recharge

starting time. Set the recharge time to 12:00 AM or

1:00 AM (page 7). Then regeneration will start and

end that much earlier and your water heater will

not refill with hard water if a hot faucet is opened.

ELECTRONICS

Two main parts of the softener's electronics are [] a

WATER METER, and [] a COMPUTER.

[] WATER METER -- The water meter is in the

softener valve outlet. As water flows through the

meter, it sends electric pulses to the computer. The

computer changes the pulses to a measure in

gallons of water.

[] COMPUTER -- The computer is part of the

faceplate timer circuit board. It is programmed to

know the softener's capacity (how many grains of

hardness minerals it will take out of the water

before a regeneration is needed). When starting the

softener, page 7, you set it for the grains per gallon

(gpg) hardness of the water.

To find a regeneration pattern best for your needs,

the computer uses: (1) water usage from the meter,

(2) hardness setting, (3) softener capacity, and (4)

time since the last regeneration. The computer

always adjusts this pattern to your water using

habits. It works toward providing you with soft

water for the longest time and at the most efficient

salt usage.

Softening capacity is used as hard water goes

through the softener and hardness minerals are

removed. When the computer determines that

only enough capacity remains to provide soft

water up to the next regeneration starting time

(2:00 AM, or as otherwise set) it will schedule a

regeneration. RECHARGE TONIGHT displays un-

til the regeneration begins. When the regeneration

begins, TONIGHT goes off and *RECHARGE or

RECHARGE TIME REMAINING flashes during

the 2 hour regeneration.

* NOTE:

If the CLEAN feature is set to ON, a cleaning

backwash (CLEAN and Bkwsh or Rinse flashes in

the display, along with the minutes of the clean

cycle remaining), precedes the recharge.

SECTION 3 cAREOF'tOURSO .ER

I I

3A. SALT...REFILLING STORAGE TANK/BREAKING A SALT BRIDGE

WHEN TO REFILL WITH SALT: The Salt Monitor

System (see page 10) will turn the low salt light on

to warn you when to refill with salt. Check for a

low salt light a few weeks after you install the

softener, and every week after that. Always refill

at about the #2 salt monitor level. At this level, the

tank is about 1/3 full. Never let the softener use all

the salt before refilling. Without salt, you will soon

have hard water. After filling, reset the Salt Moni-

tor System, page 10.

NOTE:

You will have a loss in softening capacity and may

get partly hard water if less than 10 inches (salt

monitor level 2) of salt is in the storage tank.

PLEASE SEE PAGE 9 FOR SALT FILLING DIRECTIONS.

BE SURE TO RESET THE SALT MONITOR, PAGE 10.

SALT BRIDGE

Sometimes, a hard crust or salt bridge forms in the

salt storage tank. It is usually caused by high

humidity or the wrong kind of salt. When the salt

bridges, an empty space forms between the water

and salt. Then salt will not dissolve (melt) in the

water to make brine. Without brine, the resin bed

does not regenerate and you will have hard water.

If the storage tank is full of salt, it is hard to tell if

you have a salt bridge. Salt is loose on top, but the

bridge is under it. The following is the best way to

check for a salt bridge.

Salt should be loose all the way to the bottom of the

tank. Hold a broom handle, or like tool, up to the

softener as shown in FIG. 9. Make a pencil mark on

the handle, 1" or 2" below the top height of the rim.

Then, carefully push it straight down into the salt.

If a hard object is felt before the pencil mark gets to

the top of the tank, it's most likely a salt bridge.

Carefully push into the bridge in a few places to

break it. Do not try to break the salt bridge by

pounding on the outside of the salt tank. You may

damage it.

If the wrong kind of salt made the bridge, take it

out. Then fill the tank with nugget or pellet salt

only.

SALT BRIDGE

push tool into salt

bridge to break

pencil

mark

broom handle salt

salt bridge

water level

SECTION 3 CARE OF YOUR SOFTENER

3B. KEEPING THE WATER SOFTENER CLEAN

COVERS

To keep your new Kenmore water softener looking

nice, apply a coat of paste wax and repeat once a

year. When dusty, wipe it with a damp cloth to

keep it sparkling.

NOTE:

Never use cleaners having ammonia or abrasives.

They may scratch and dull the surface.

NOZZLE & VENTURI

A clean nozzle and venturi (FIG. 10) is a must for

the softener to work right. This small unit moves

brine from the salt storage tank to the resin tank

during regeneration. If it becomes plugged with

sand, silt, dirt, etc., the softener will not work and

you will get hard water.

To get to the nozzle and venturi, remove the

softener top cover. Be sure the softener is in service

cycle (no water pressure at nozzle and venturi),

then turn off the cap from the nozzle and venturi

housing. Do not lose the large o-ring seal. Lift out the

screen support and screen, then the nozzle and

venturi. Wash and rinse the parts in warm water

until clean. If needed, use a small brush to remove

iron or dirt. Also check and clean the gasket, flow

plugs and screens.

Carefully replace all parts in the correct order.

Lubricate the o-ring seal with silicone grease or

Vaseline and place in position. Install and tighten

the cap, by hand only. Do not overtighten and

break the cap or housing.

CLEANING THE NOZZLE &

VENTURI

Cap -.____

O-ring Seal _.___

Screen Support

Screen

+_/*Flow Plug

_'_ (1-EP)

Nozzle & Venturi

Gasket _ _ ScreenIMPORTANT: Be sure _ _. _

holes in the gasket are cen-

tered directly over the small

holes in the nozzle & venturi

housing,

*Flow Plug

(HVDC)

Nozzle & Venturi

Housing

*Install with numbered side up concave

side down. Be sure the largest flow plug is

located in the nozzle & venturi housing.

IRON FROM THE RESIN BED

Your water softener takes hardness minerals (cal-

cium and magnesium) out of the water. Also, it can

control some "clear water" iron. See maximum

allowed in the specifications on page 19. With clear

water iron, water from a faucet is clear when first

put into a glass. After 15 to 30 minutes, the water

begins to cloud or turn rust colored. A water

softener WILL NOT remove any iron which makes

the water cloudy or rusty as it comes from the

faucet (called red water iron). To take red water

iron out of water, or over the maximum of clear

water iron, an iron filter or other equipment is

needed. Your local Sears store has trained people to

help you with iron water problems.

If your water supply has clear water iron, even

though less than the maximum allowed, regular

resin bed cleaning is needed. Sears has resin bed

cleaner, Item No. 42-34426 for this. Clean the bed at

least every 6 months. If iron shows up in the soft

water before 6 months, clean more often. Printed

instructions are on the resin bed cleaner bottle.

SECTION 3 cAREoFYourso .ER

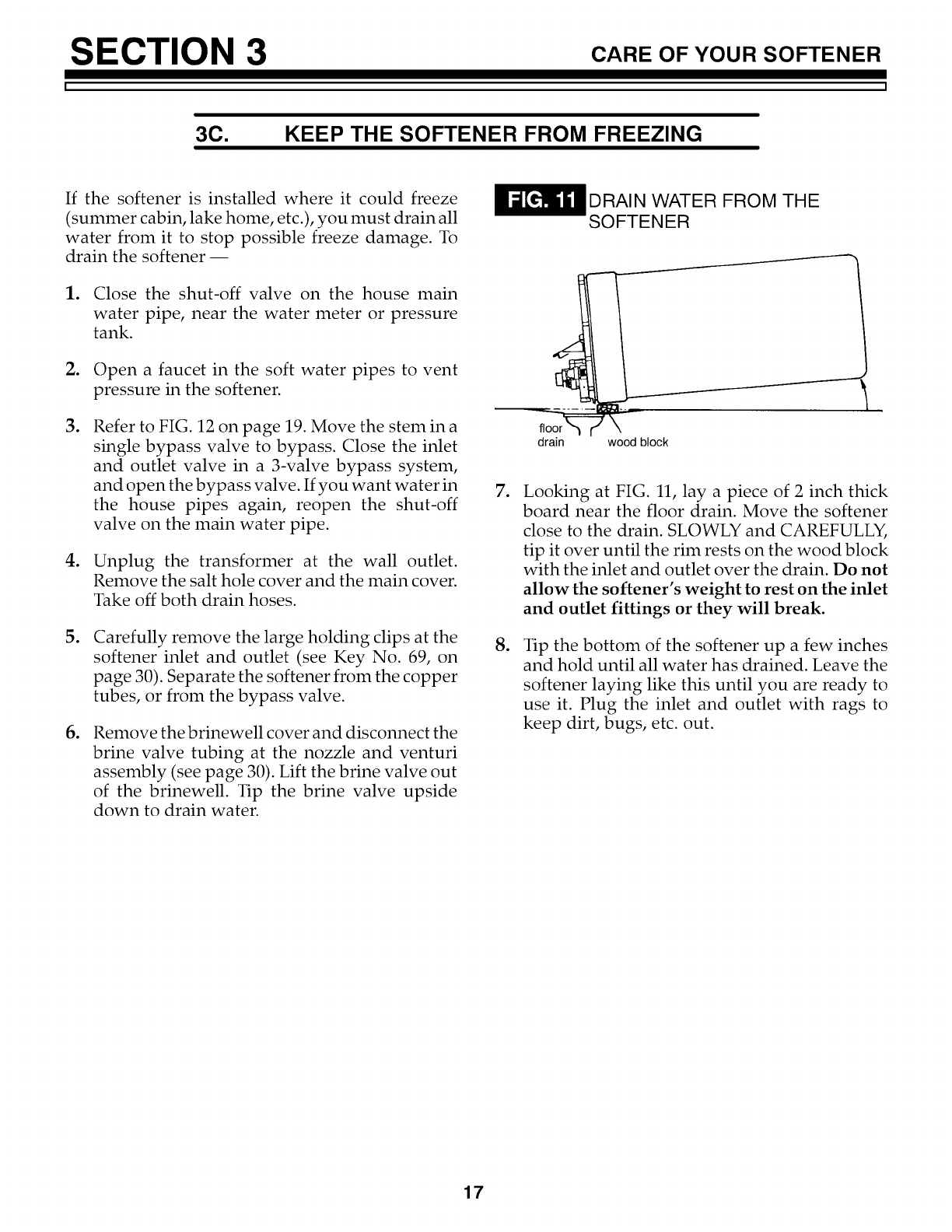

30. KEEP THE SOFTENER FROM FREEZING

If the softener is installed where it could freeze

(summer cabin, lake home, etc.), you must drain all

water from it to stop possible freeze damage. To

drain the softener --

1. Close the shut-off valve on the house main

water pipe, near the water meter or pressure

tank.

Open a faucet in the soft water pipes to vent

pressure in the softener.

Refer to FIG. 12 on page 19. Move the stem in a

single bypass valve to bypass. Close the inlet

and outlet valve in a 3-valve bypass system,

and open the bypass valve. If you want water in

the house pipes again, reopen the shut-off

valve on the main water pipe.

Unplug the transformer at the wall outlet.

Remove the salt hole cover and the main cover.

Take off both drain hoses.

Carefully remove the large holding clips at the

softener inlet and outlet (see Key No. 69, on

page 30). Separate the softener from the copper

tubes, or from the bypass valve.

Remove the brinewell cover and disconnect the

brine valve tubing at the nozzle and venturi

assembly (see page 30). Lift the brine valve out

of the brinewell. Tip the brine valve upside

down to drain water.

DRAIN WATER FROM THE

SOFTENER

drain wood block

Looking at FIG. 11, lay a piece of 2 inch thick

board near the floor drain. Move the softener

close to the drain. SLOWLY and CAREFULLY,

tip it over until the rim rests on the wood block

with the inlet and outlet over the drain. Do not

allow the softener's weight to rest on the inlet

and outlet fittings or they will break.

Tip the bottom of the softener up a few inches

and hold until all water has drained. Leave the

softener laying like this until you are ready to

use it. Plug the inlet and outlet with rags to

keep dirt, bugs, etc. out.

SECTION 3 CARE OF YOUR SOFTENER

3D. HELPFUL HINTS CHECKLIST

... TO HELP YOU SAVE MONEY

If your water softener fails to work make the following easy checks. Often, you will find what's wrong

yourself and you won't have to call and wait for service. If you do not find anything wrong, while making

the checks, and your softener still does not work, call your Sears Service Department.

NOTES:

1. Also read ERROR CODE, page 11.

2. If an error code is not displayed, press and hold the SELECT button until the display changes. Then, press

the SELECT button again and hold until a flashing HF code appears. It must show HF31. If any other num-

ber shows, the face plate computer is working on incorrect input and would probably be the cause of the

problem. To set HF31, press either the UP [] or DOWN[] button. When HF31 shows, press SELECT to

return a flashing 12:00 AM display. Reset the present time, hardness number, etc., pages 6 and 7.

PROBLEM

No soft water

Water hard sometimes

CAUSE

No salt (or salt bridged) inthe storage tank

Transfomer unplugged at the wall outlet,

or power cable leads loose, fuse blown,

circuit breaker popped, or circuit switched

off.

Manual bypass valve(s) in bypass position

Dirty, plugged or damaged nozzle &

venturi

Valve drain hose plugged

Hardness number setting too low

Using hot water when softener is

regenerating

Increase in the grains of hardness in your

water supply

CORRECTION

Refill with salt, or break the salt bridge (page

15). Press ON/OFF-HOLD (RECHARGE

NOW) button and hold for 3 seconds to start a

regeneration (see page 10).

Check for loss of power due to any of these

and correct. With the power back on, look at

the time display and read PROGRAM

MEMORY, page 11.

Look at FIG. 12 on page 19. Move the stem in

a single valve to service. In a 3-valve bypass,

open the inlet and outlet valves, and be sure to

fully close the bypass valve.

Take apart and clean or replace damaged

parts (see page 16).

The drain hose must not have kinks, sharp

bends, or be raised too high above the

softener (see page 16 in your installation

manual).

Press and release the SELECT button until

HARDNESS shows in the display. Read the

hardness number in the display and be sure

the same grains per gallon number is shown

on your water analysis report. See page 7 to

reset. Press and release the SELECT button

until the present time shows in the display.

Avoid using hot water during this time because

the water heater refills with hard water (see

Automatic Bypass, page 14).

Ask your Sears retail or catalog store for a new

water analysis. Then make a new hardness

number setting (page 7).

SECTION 4 OTHER THINGS TO KNOW

I I

4A. DIMENSIONS/SPECIFICATIONS

BYPASS VALVES

Bypass valve(s) should always remain in soft

water service position. Position in "bypass"

only if needed for softener repairs.

SINGLE

PULL OUT

for service

_PUSH IN

for bypass

3 - VALVE

FOR SERVICE

close bypass valve

open inlet & outlet valves

FOR BYPASS

open bypass valve

close inlet & outlet valves

Outlet

Valve

Bypass

Valve

B--_

-,_, ,r/

INCHES CM

A Salt Tank Height 40-1/4 102.2

B Resin Tank Diameter (nominal) 9 22.7

C Resin Tank Height (nominal) 40 101.6

D Inlet-Outlet Height 41-1/2 105.4

E Overall Height 47 119.4

F1 Length 19-1/2 49.5

F2 Width 16-1/2 41.9

-- Distance between inlet-outlet 3-7/8 9.8

center lines

MODEL NO. 625.348600 TIMER HF CODE HF31

NOTE: Please see the rating decal for water softener operating capacity, salt usage and service flow rate/

pressure loss performance specifications. Performance specifications are validated by the Water Quality

Association (WQA). The rating decal is located on the rim, under the salt hole cover (see page 28).

WATER SUPPLY TO WATER SOFTENER

MINIMUM WATER SYSTEM FLOW (gpm) ................ 3

MINIMUM-MAXIMUM WATER PRESSURE (psi) ...... 20-120

MAXIMUM WATER TEMPERATURE (°F) ............... 120

MAXIMUM WATER HARDNESS (gpg) .................. 110

MAXMUM "CLEAR WATER" IRON (ppm) ................. 7

SALT FOR WATER SOFTENER

TYPE OF SALT NEEDED .................... Nugget/Pellet

ALTERNATE TYPE OF SALT .. Pure, evaporated, compacted

water softener salt

STORAGE CAPACITY (pounds) ....................... 200

OTHERS

TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity

AMOUNT OF RESIN (cu.ft.) ........................... 1.0

REGENERATION (RECHARGE) CYCLE TIME (min.)

FILL ......................................... 3 - 13

BRINING /BR. RINSE ............................. 120

BACKWASH ....................................... 7

FAST RINSE ....................................... 3

TOTAL REGENERATION TIME _ ............. 133 - 143

gpm = gallons per minute psi = pounds per square inch

gpg = grains per gallon ppm = parts per million

Does not include CLEAN feature cycle times if set to ON.

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

Keep this manual with your water softener. If repairs are needed, the service technician must have the in-

formation on the following 8 pages. For telephone assistance, call toll free, 1-800-426-9345.

WIRING SCHEMATIC

Transformer <

Turbine E_

Sensor

BACK OF TIMER

(PWA)

brn _7 NC Position

NO Switch

grn

FACEPLATE

Sears Water Line

for Customer Assistance

1-800- 426- 9345

High Flow

Deluxe Demand Water Softener

with Dual Segment Electronic Display

ALWAYS MAKE THESE INITIAL CHECKS FIRST

1. Does the time display show the correct time of

day?

--If display is blank, check power source to the

soft-ener.

--If time is flashing, power was off for over 24

hours. The softener resumes normal operation

but regenerations occur at the wrong time.

--If an error code (Example: Err3) shows in the

faceplate display; go to AUTOMATIC ELEC-

TRONIC DIAGNOSTICS.

Plumbing bypass valve(s) must be in full service

position.

The inlet and outlet pipes must connect to the

softener inlet and outlet respectively.

Is the transformer plugged into a "live",

grounded wall outlet, and the power cable

fastened securely?

The valve drain hose must be free of kinks and

sharp bends, and not elevated over 8 ft. above the

floor.

REMOVE THE TOP COVER AND SALT TANK

COVER

6. Is there salt in the storage tank?

7. Is the brine tubing connected? (See water flow

diagrams).

8. Is the brine valve float set right? (See page 23).

.Press the SELECT button 2 times to display the

hardness setting. Be sure it is the correct setting

for the household's water supply. (Make a

hardness test of the raw water and compare with

the hardness setting. Also test a soft water

sample to verify if a problem exists.) Press the

SELECT button twice more to return to present

time in the display.

If you do not find the problem after making initial

checks, do the MANUAL INITIATED ELECTRONIC

DIAGNOSTICS, and the MANUAL ADVANCE

REGENERATION CHECK.

SECTION 5 SERVICE TECH INFORMATION

5A. TROUBLESHOOTING

AUTOMATIC ELECTRONIC DIAGNOSTICS

The faceplate timer (PWA) computer has a self-

diagnostic function for the electrical system, ex-

cept for input power and water

meter. The computer monitors

the electronic components and __1-I- ]

circuits for correct operation. If

a malfunction occurs, an error

code appears in the faceplate

display.

The chart below shows the error codes that could

appear, and the possible defects for each code.

While an error code appears in the display, all face

plate buttons are inoperable except the SELECT

button. SELECT remains operational so the service

person can make the MANUAL INITIATED ELEC-

TRONIC DIAGNOSTICS (below) to further isolate

the defect, and check the water meter.

CODE

Err1

Err3

Err4

Err5

POSSIBLE DEFECT

MOST LIKELY LESS LIKELY

motor inoperative /wiring harness or connection to switch /position switch /faceplate timer (PWA)

motor /faceplate timer (PWA) See faceplate timer (PWA) replacement

timer (PWA) /position switch on page 22.

faceplate timer (PWA)

PROCEDURE FOR REMOVING ERROR CODE FROM FACEPLATE: 1. Unplug transformer 2. Correct

defect 3. Plug in transformer 4. Wait for 6 minutes. The error code will return if the defect was not corrected.

MANUAL INITIATED ELECTRONICS

DIAGNOSTICS

1. To enter diagnostics, press the SELECT button

and hold for 3 seconds.

You will see the following display, showing valve

cycle position, position switch status (open or

closed), and turbine operation.

valve position indicator

....... N NN

position switch

indicator (open)

turbine count (wa-

ter flowing)

;....... l_qo

i 1''U

turbine count (no

water flowing)

TURBINE OPERATION: If no water is flowing

through the softener, the turbine indicator displays

3 zeros. When water is flowing, the flow bar scrolls

across the display, and a 000 to 140 count repeats

for each gallon of water passing through the

turbine. To check for positive operation of the

turbine if zeros are shown, open a nearby soft

water faucet and observe the turbine count and

flow bar.

If you don't get a reading in the display, with facuet

open, pull the sensor from the valve outlet port.

Pass a small magnet back and forth in front of the

sensor. You should get a reading in the display. If

you get a reading, unhookthe in and out plumbing

and check the turbine for binding.

POSITION

SWITCH

MOTOR

SENSOR

HOUSING

JRBINE

TURBINE

SHAFT

VALVE

POSITION SWITCH STATUS: With the valve in

service, or any of the recharge cycles, the switch

indicator will show open --M. While the valve is

rotating from 1 position to another, the indicator

will show the switch closed -,-,-. A defect is

probable if indications vary from this pattern.

SECTION 5 SERVICE TECH. INFORMATION

5A. TROUBLESHOOTING

VALVE POSITION INDICATORS: Depending on

the valve position, the following indicators show

in the display:

INDICATOR VALVE POSITION

Serv .......... service

Fill ........... fill

Brine ......... brining/brine rinse

Bkwash ....... backwash

Rinse ......... fast rinse

When the valve is rotating from i cycle to another,

both indicators flash. For example, if the valve is in

transition between fill and brining, both Fill and

Brine flash. Upon reaching brining position, Fill

goes off and Brine is on steady. The time display

shows the minutes of the cycle remaining.

NOTE: If the faceplate is left in a diagnostic

display (or a flashing display when setting times

or hardness), present time automatically returns

if a button is not pressed within 4 minutes. To

return to the diagnositc display, repeat step 2.

OTHER INFORMATION: While in this diagnostic

screen, the following information is available and may

be beneficial for various reasons. This information is

retained by the computer from the first time electrical

power is applied to the faceplate.

...Press [] to display the number of days this

face plate has had electrical power applied.

...Press [] to display the number of regenera-

tions initiated by this faceplate since the HF code

number was entered.

1Press the ON/OFF-HOLD button to advance

the valve to each position and observe the

switch and position indicators to verify compo-

nent operation, or to possibly isolate a defect.

3. Press and hold the SELECT button for 3

seconds until...

...HF31 shows.

HF31 does show -- Press the SELECT button to

return the present time display.

To change HF number-- Press the UP or DOWN

button until HF31 shows. Then, press the SELECT

button and reset the timer.., page 6.

TIMER (PWA) REPLACEMENT: Be sure the

valve is in service position (observe valve

cycle indicator) when replacing the timer

(PWA).

If, after installing and programming the re-

placement timer (PWA), the valve is not in

service position, do the following to assure

correct cycle orientation, or timing, between

the faceplate and valve.

Use the MANUAL ADVANCE procedures,

page 23. With the RECHARGE NOW button,

advance through the recharge cycles until the

valve stops in service position, and RE-

CHARGE no longer flashes in the display.

NOTE: The valve motor may automatically

drive through several valve positions while

searching for service. If an error code occurs,

unplug the transformer, then plug in again.

position

markers

(valve in

service)

CAM

This code identifies the softener nominal capacity

size. If the wrong number shows, the softener will

operate on incorrect programming. Do the follow-

ing as needed.

SECTION 5 SERVICE TECH INFORMATION

5A. TROUBLESHOOTING

MANUAL ADVANCE REGENERATION CHECK

This check verifies proper operation of the valve

motor, brine tank fill, brine draw, regeneration

flow rates, and other controller functions. Always

make the initial checks, and the manual initiated

diagnostics.

NOTES: The faceplate display must show a steady

time (not flashing). If an error code shows, first

press the SELECT button to enter the diagnostic

display.

1. Press the ON/OFF-HOLD button and hold in

for 3 seconds. *RECHARGE and Fill begin to

flash (or clean backwash begins, if set) as the

softener enters the fill cycle of regeneration.

When FILL is on steady, remove the brinewell

cover and, using a flashlight, observe fill water

entering the tank.

*NOTE: If the CLEAN feature is set to ON, a

cleaning backwash (CLEAN and Bkwsh or Rinse

flashes in the display, along with the minutes of the

clean cycle remaining), precedes the recharge.

a. If water does not enter the tank, look for an ob-

structed nozzle, venturi, fill flow plug, brine

tubing, or brine valve riser pipe.

CYCLE FLOW RATES (GALLONS PER MIN.)

FILL (flow to salt storage tank) 0.3 (1.1 liters)

BRINING '_ .16 (.61 liters)

BRINE RINSE I .12 (.45 liters)

BACKWASH (flow to drain) 1.8 (6.8 liters)

FAST RINSE 1.8 (6.8 liters)

2. After observing fill, press the ON/OFF-HOLD

button to move the softener into brining. A

slow flow of water to the drain will begin.

Verify brine draw from the brine tank by

shining a flashlight into the brinewell and

observing a noticeable drop in the liquid level.

NOTE: Be sure a salt bridge is not preventing

water with salt contact.

at If the softener does not draw brine...

... nozzle and/or venturi dirty or defective.

...nozzle and venturi not seated properly on

gasket.

...restricted drain (check drain fitting and

hose).

... defective nozzle and venturi seal.

...other inner valve defect (rotor seal, rotor &

disc, wave washer, etc.).

NOTE: If water system pressure is low, an elevated

drain hose may cause back pressure, stopping

brine draw.

3. Again press ON/OFF-HOLD to move the

softener into backwash. Look for a fast flow of

water from the drain hose.

An obstructed flow indicates a plugged top dis-

tributor, backwash flow plug, or drain hose.

Press ON/OFF-HOLD to move the softener

into fast rinse. Again look for a fast drain flow.

Allow the softener to rinse for a few minutes to

flush out any brine that may remain in the resin

tank from the brining cycle test.

To return the softener to service, press ON/

OFF-HOLD.

V__/Float

IJz:q"- stop

II I.,....,_ Float

0,,

FREEBOARD MEASUREMENT

(Distance from top of resin tank, to top of resin bed.)

FREEBOARD

7"-11"

resin tank

resin bed

SECTION 5 SERVICE TECH. INFORMATION

5B. ROTARY VALVE SERVICE

Before working on the valve, turn off the water

supply and disconnect from electrical power. TO

RELIEVE PRESSURE:

- - 3 VALVE BYPASS: Close the inlet valve and open

a soft water faucet. Then close the outlet valve and

open the bypass valve.

--SEARS SPECIAL BYPASS: Slide the bypass

valve stem to bypass position. Loosen 3 hex head

screws toward the back side of the valve to allow

pressure water to bleed out. Catch water with a

rag.

DISASSEMBLY

To remove a part or group of parts, refer to the

valve drawing. A common screwdriver or nut

driver, Phillips screwdriver and pliers are the only

tools needed to completely disassemble.

SERVICING THE VALVE

Inspect all o-rings, seals and gaskets for wear or

defects.

Inspect the bottom surface of the rotor for

scratches, chips or wear.

NOTE: If replacement is needed, be sure to use the

current replacement part.

ASSEMBLY

Be sure all parts are in place and in the proper

position. Lubricate ALL o-rings and seals with

FDA approved silicone grease. To install the rotor

seal, first place the seal into the valve groove,

rounded side down (see cross-section). Apply a

light coating of silicone grease to the seal's crossing

ribs. Then, carefully center the wear strip on the

seal, and push it downward onto the seal.

Install the nozzle and venturi seal and drain seal.

Assemble wave washer bearing, the wave washer,

and 2 o-rings onto the rotor top shaft. Then center

the rotor in the valve body, on the rotor seal.

Lower the cover onto the valve body and rotor

shaft. Then install the cover holding screws. Before

tightening the screws, install the valve cam and

gear. Then, turn the rotor (clockwise only) to

service position. Tighten the screws using a criss-

cross pattern. If a torque wrench is available,

torque to 30-40 inch pounds.

Lubricate the gear on the motor, and the valve cam

gear with Molykote grease, or other high quality

gear lubricant.

Be sure to orient switch as shown, with lever

toward the cam.

motor

motor plate

(_assembled

view

rotor seal

_''O-. drain seal

_/ nozzle & venturi seal

sensor -i!

housing " "

_ _._ turbine support

See _ turbine

Nozzle

assembly

service,

page 16

SECTION 5 SERVICE TECH INFORMATION

5C .. WATER FLOW THROUGH THE SOFTENER VALVE

SERVICE CYCLE

To Valve Outlet

(soft water)

bottom distributor

from Valve Inlet

water)

distributor

resin tank

position ,..__

Hard water enters the valve inlet port. Internal valve porting routes the

water down and out the top distributor, into the resin tank. Hard water is

softened as it passes through the resin bed, then enters the bottom

distributor. Soft water flows back into the valve and out the valve outlet, to

the house soft water pipes.

FILL CYCLE

position switch valve cam

venturi

rotor & disc

fill flow from Valve Inlet

plug (hard water)

fill water

(soft) top distributor

To Valve Outlet

(soft water)

bottom distributor

To begin a regeneration, the electronic timer energizes the circuit to the valve

motor. The valve motor rotates the rotor and disc and the valve cam until the

position switch lever drops, to open the motor circuit and position the valve in

FILL. As the rotor and disc rotates, the port opens for SOFT water fill through

the venturi. Fill flow continues to the brine valve, and into the salt storage

tank. Soft water is still available to the house lines.

SECTION 5 SERVICE TECH. INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

BRINING AND BRINE RINSE CYCLES

venturi

nozzle

brine from _,_

salt storage

tank

bypass

hard water

to valve

outlet

from Valve Inlet

(hard water)

position

switch

After fill, timer/switch action allows the motor to turn the rotor and disc into

BRINING position. Water flow is directed to the nozzle. Suction, created by the

nozzle and venturi, draws brine from the salt storage tank and injects it into the

resin bed via the bottom distributor. Flow continues out the top distributor and to

the drain. Hard water is available at the valve outlet.

When the brine valve closes to end brine draw, water flow continues in the same

directions to slowly RINSE brine from the resin bed and to the drain.

BACKWASH CYCLE

bypass

hard water

to valve

flow plug

drain

Timer/switch action again allows the motor to turn

the rotor & disc to place the valve in BACKWASH,

stopping water flow to the nozzle. Water is routed

down and out the bottom distributor, up through the

bed, and out the top distributor to the drain. The fast

flow (controlled by a flow plug in the drain fitting)

flushes dirt, sediments, iron deposits, remaining brine

and hardness to the drain.

SECTION 5 SERVICE TECH INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

FAST RINSE CYCLE

drain

soft

to valve outlet

During FAST RINSE, the rotor & disc is positioned so water flow enters the

resin tank through the top distributor, and exits through the bottom

distributor, to the drain.

The electronic timer again energizes the motor to return the valve to

service. As the valve rotates, the position switch lever drops to open the

circuit. The valve remains positioned in service until the electronic timer

initiates the next regeneration.

SECTION 6 REPAIRPARTS

KENMORE WATER SOFTENER, MODEL NO. 625.348600

16 18

KEY PART

NO. NUMBER

2 7174177

3 7137612

4 7095373

5 7132840

6 7195979

7 7193553

- 7194656

8 7137599

9 7137727

10 7082150

11 7100819

12 7137913

13 7144619

14 7148875

15 0900431

16 1103200

17 9003500

18 7116488

19 7105047

20 0502272

21 7144952

22 7170270

23 7077870

24 7170254

25 7170296

26 7141001

27 7176292

28 7088033

,I_ 7183613

,I_ 7194703

DESCRIPTION

Cover Lock (req'd for shipment only)

Rim Insert (req'd for shipment only)

Cover (main)

Salt Hole Cover

Transformer, 24V-10VA •

Power Cord (transformer)

Timer Repl. (PWA)

Faceplate (order following decal)

Faceplate Decal

Rim

Brinewell Cover

Wing Nut, 1/4"

Brinewell

Decal, Salt Level

Salt Storage Tank

Plastic Screw, 1/4" x 5/8"

Tube Clamp •

Tube Adaptor •

Grommet •

Brine Valve Assy. (also see pg. 29)

Replacement Distributor

Resin

Resin Tank (incl. Key No. 21)

O-Ring, 2-3/4" x 3"

Top Distributor

O-Ring, 13/16" x 1-1/16"

O-Ring, 2-7/8" x 3-1/4"

Vapor Barrier

Clamp Section (2 req.)

Clamp Retainer (2 req.)

Installation Manual

Owners Manual

not illustrated

Included in parts pack...see page 31.

Aligns with top of brinewell.

SECTION 6 REPAIRPARTS

KENMORE WATER SOFTENER, MODEL NO. 625.348600

BRINE VALVE

ASSEMBLY

KEY PART

NO. NUMBER

30 7168647

31 0513860

32 7097202

33 0516947

34 7093216

35 7092278

36 7170288

37 0516211

38 0516924

39 7116713

40 7092252

41 7080653

42 7131365

43 7094979

44 7092294

45 7176161

46 7095470

47 7113016

48 7171349

49 7186297

50 7161734

DESCRIPTION

Ceramic Weight

Float Stop

Float (includes Key No. 33)

Float Seal

Float Rod & Stem

Guide Cap

O-Ring 15/16 x 1-3/16

Seal

Retainer, Bottom Seal

Clip

Brine Valve Body

Clip

Screen

Insert

Retaining Ring

O-Ring, 5/16 x 9/16

Brine Tube

Tubing Assy. (includes Key Nos. 43,

44 & 45)

Cone Screen

Ground Clamp (2) •

Ground Wire •

Included in parts pack...see page 31.

INLET- OUTLET

GROUNDING CLAMPS

\49

SECTION 6 REPAIRPARTS

I I

KENMORE WATER SOFTENER, MODEL NO. 625.348600

90 -_

wear-strip

seal 'k

cress-section

view

0 67

\57

SECTION 6 REPAIRPARTS

I I

KEY PART

NO. NUMBER

50 7131755

51 7133008

52 7171200

53 0900857

54 7171250

55 7171218

56 7169180

57 7172793

58 7170288

59 7178163

60 7173008

61 7173024

62 7174313

63 7185500

64 7173032

65 7185495

66 7172989

67 7171187

68 7129889

69 7089306

70 7077642

71 7170262

72 7094898

73 7101548

74 7235389

75 9000803

76 7081201

77 7195482

78 7171145

79 7170319

KENMORE WATER SOFTENER,

MODEL NO. 625.348600

DESCRIPTION

Screw, #6-20 x 7/8 (2 req.)

Motor (incl. 2 ea. of Key No. 50)

Motor Plate

Screw, #6-20 x 3/8 (3 req.)

Bearing

Cam and Gear

Clip (Drain)

Drain Hose Adaptor •

O-ring, 15/16 x 1-3/16 •

Flow Plug, 1.8 gpm

O-ring, 5/8 x 13/16

O-ring, 1-1/8 x 1-1/2

Bearing, Wave Washer

Rotor & Disc

O-ring, 4-1/2 x 4-7/8

Rotor Seal

Seal

Plug (Drain Seal)

Spring

Clip (2 req.) •

Copper Tube, 1" (2 req.) •

O-ring, 1-1/8 x 1-3/8 (4 req.) •

Turbine Support

Turbine

Wire Harness (Sensor)

O-ring

Retainer (Nozzle & Venturi)

Seal (Nozzle & Venturi)

Valve Body

O-ring, 1/4 x 3/8 (2 req.)

PARTS LIST

KEY

NO.

PART

NUMBER

7081104

1202600

7O95O3O

1148800

7187772

0521829

7146043

7167659

7170262

7081188

7175199

7171161

7172997

7145186

7140738

7179143

7172882

7173016

7175238

7187065

7195995

7185487

42-3433

42-3431

DESCRIPTION

Nozzle & Venturi Housing

Nut -- Ferrule

Cone Screen

Flow Plug, .3 gpm

Nozzle and Venturi -- Gasket Kit

Flow Plug, .1 gpm

Screen

Screen Support

O-ring, 1-1/8 x 1-3/8

Cap

Wave Washer

Valve Cover

Screw, #10 x 2-5/8 (8 req.)

Switch

Screw, #4-24 x 3/4 (2 req.)

Bypass Valve • (Includes follow-

ing parts)

Stem

O-ring, 1.109 I.D. x 1.387 O.D (4)

C-ring

Nozzle & Venturi Assy. (incl. Key

Nos. 80, and 82 through 89)

Parts Pack (includes parts marked

with a O, pages 28, 29 & 31) - order

manuals separately if needed, page

Seal Kit (incl. Key Nos. 60, 61, 64,

65, 66 and 77).

Drain Tubing, 3/8" I.D. x 20' d_

Drain Hose, 5/8" I.D. x 15'

not illustrated

• Included in parts pack

dh 7' length included with softener

OWNER'S

MANUAL

MODEL NO.

625.348600

The model number of

your water softener is

found on the rating de-

cal. This decal is on the

rim, under the salt cover.

High Flow Deluxe Demand

Water Softener

For the repair or replacement parts you

need delivered directly to your home

Call 7 am - 7 pm, 7 days a week

1-800 -366 -PART

(1 - 800 - 366 - 7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-800 -4-REPAIR

(1 - 800 - 473 - 7247)

For the location of a

Call 24 hours a day, 7 days a week

1-800 -488 -1222

Sears Parts and Repair Center in your area

When requesting service

or ordering parts, always

provide the following in-

formation:

i Product Type

i Model Number

Part Number

Part Description

For information on purchasing a Sears

Maintenance Agreement, or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday - Saturday

1-800 -827 -6655

SEARS

11;t_'.Yt;t.V-t,i_:,j_.l

America's Repair Speciah'sts

llllll

SEARS

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

7194703 (Rev. B 05/30/01 )

Kenmore 625 3486 Users Manual

625348600 625348600 KENMORE Water softener - Manuals and Guides L0907178 View the owners manual for your KENMORE Water softener #625348600. Home:Plumbing Parts:Kenmore Parts:Kenmore Water softener Manual

KENMORE Water softener Manual L0907178 KENMORE Water softener Owner's Manual, KENMORE Water softener installation guides

625.3486 to the manual 38b0fdf4-7eaa-4b3d-b1c6-9f1513e21106

Navigation menu

Versions of this User Manual:

Views

Navigation
