Use & Care Guide

Manual de Uso y Cuidado

Guide d'Utilisation et d'Entretien

English /Espa_ol /Fran_ais

ModeJs/ModeJos/Mod_Jes: 795.5107% 795.5108 _

Kenmore Eli?co

@

P sse

P/N MFL63729001

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kemoracorn

www.sears.com

Sears Canada inc.

Toronto, Ontario, Canada M5B 2B8

www.sears.ca

TM

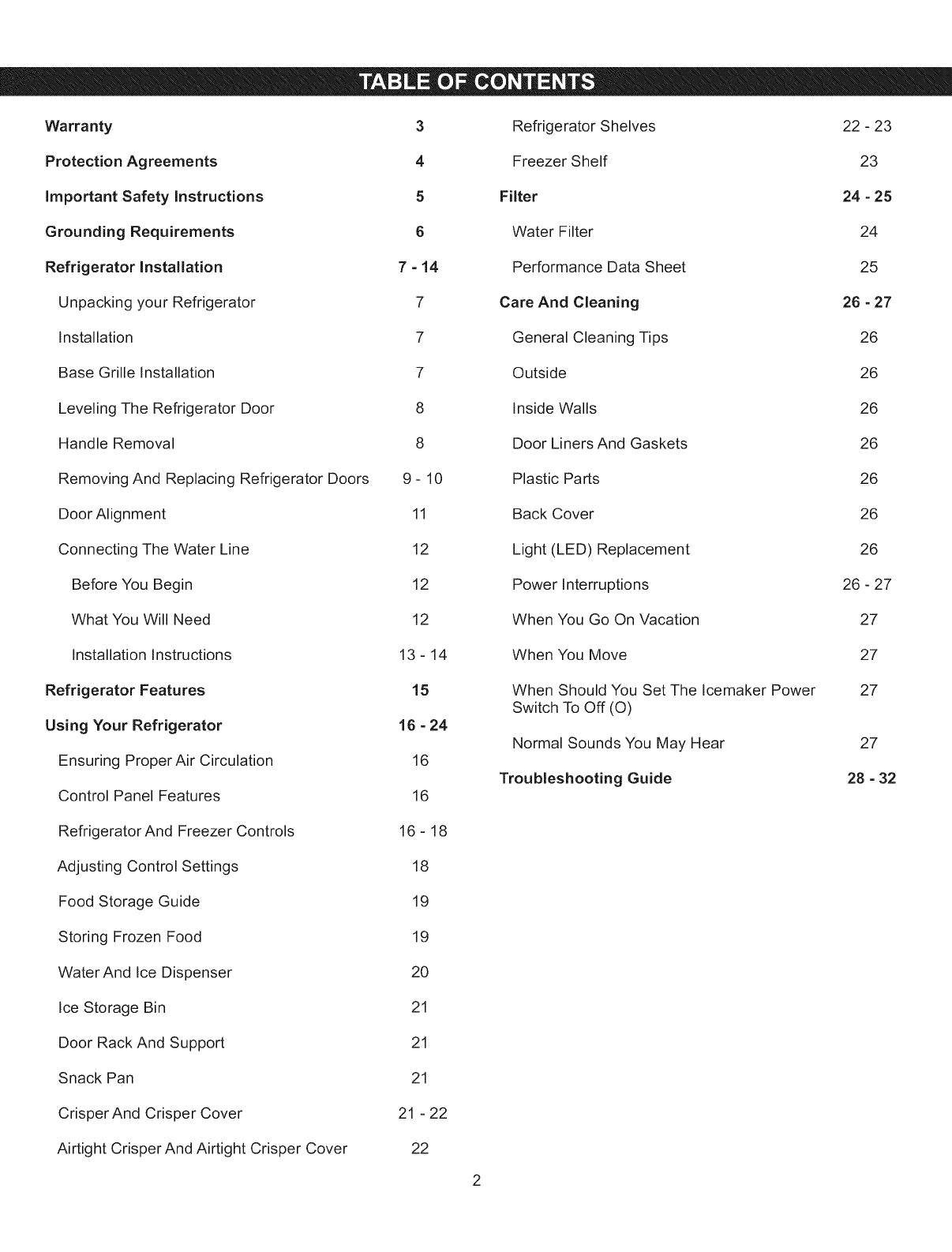

Warranty 3

Protection Agreements 4

important Safety instructions 5

Grounding Requirements 6

Refrigerator installation 7-14

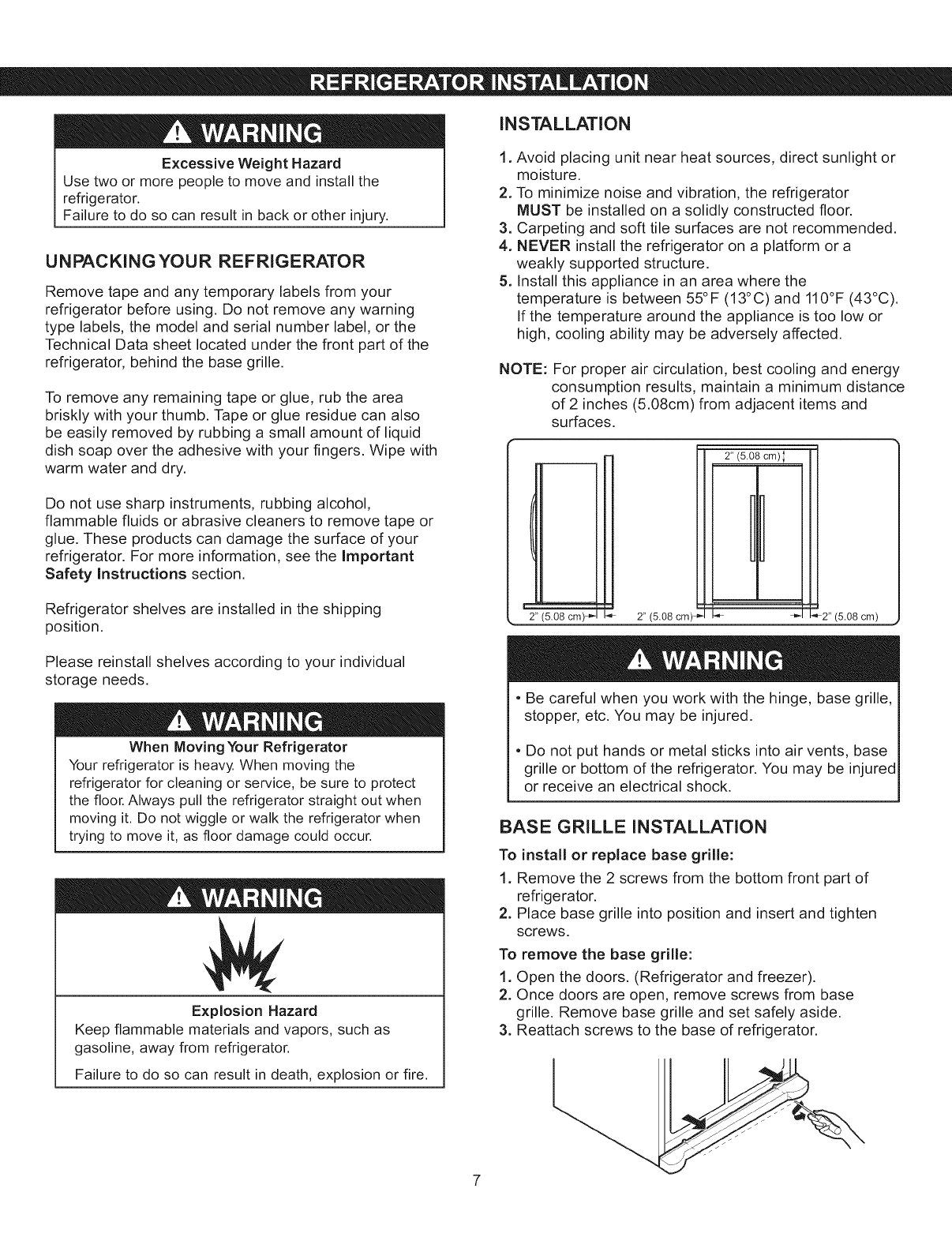

Unpacking your Refrigerator 7

installation 7

Base Grille installation 7

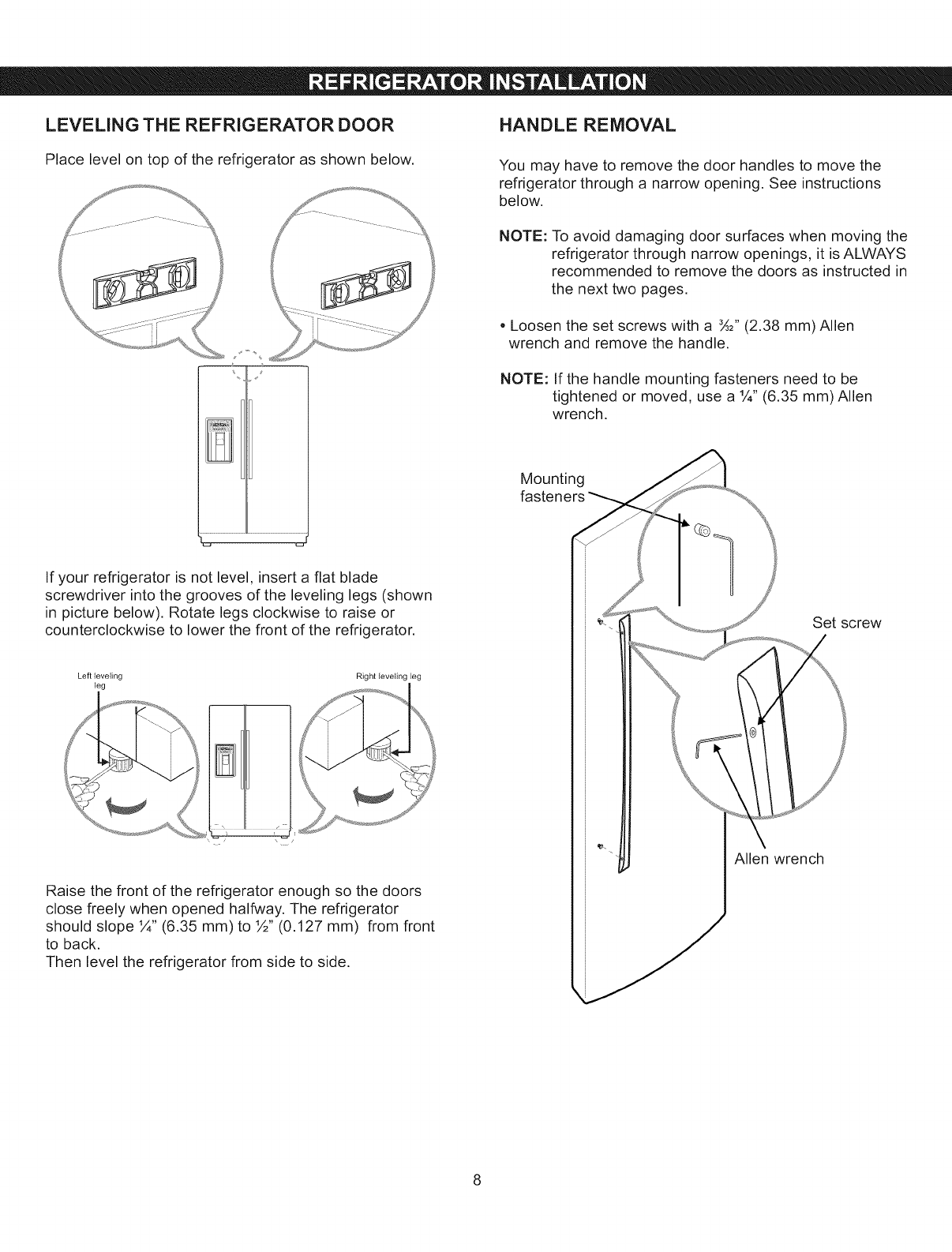

Leveling The Refrigerator Door 8

Handle Removal 8

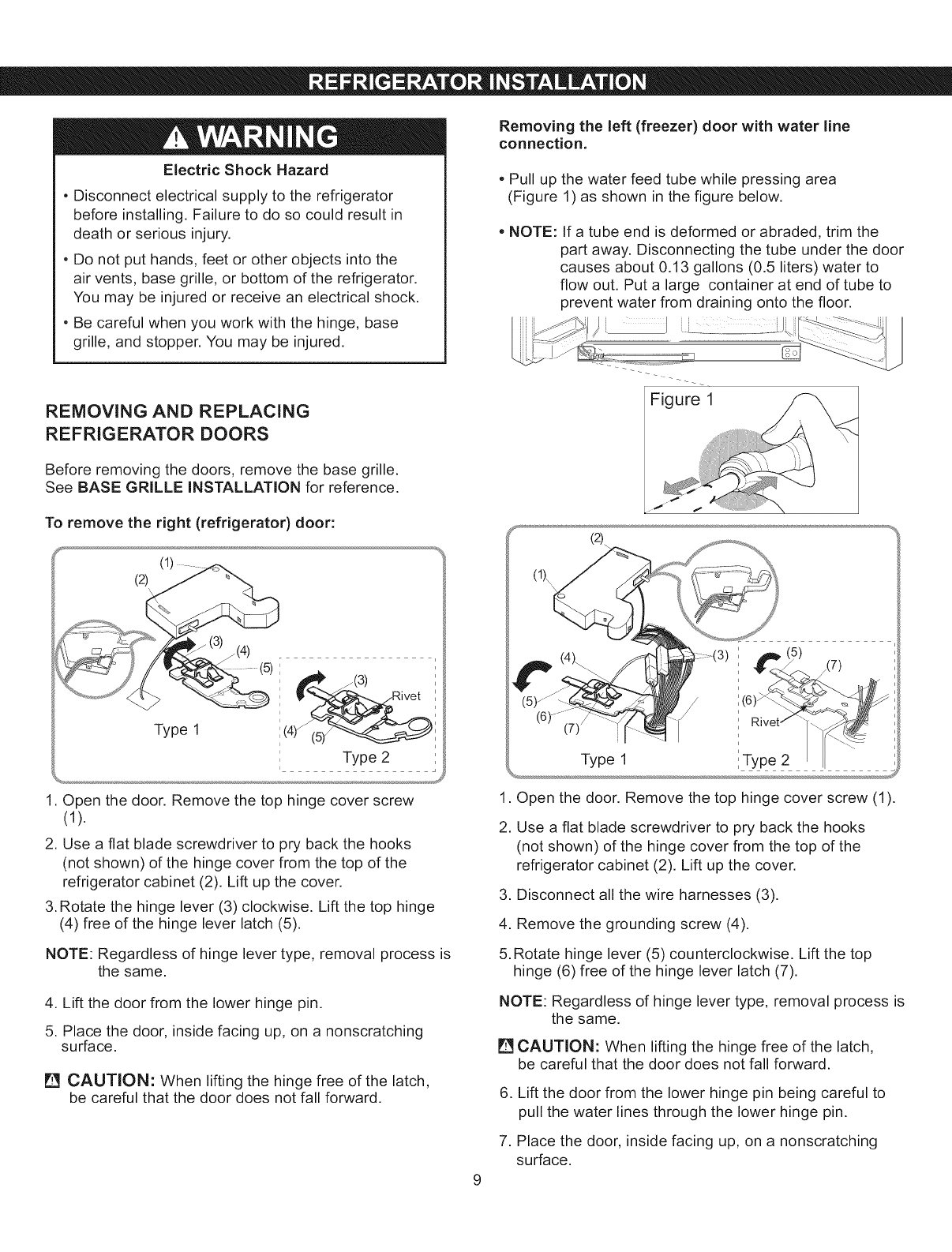

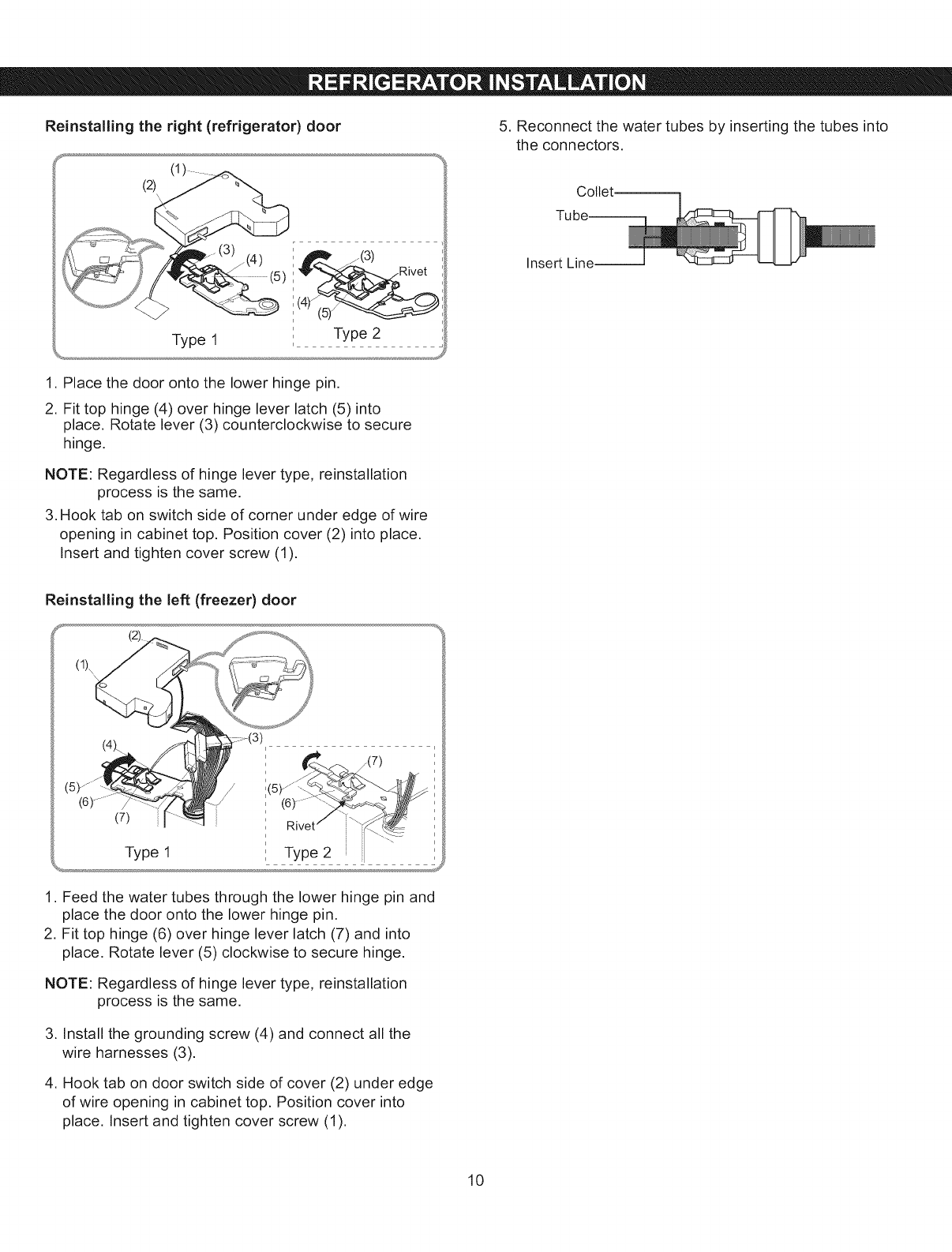

Removing And Replacing Refrigerator Doors 9 -10

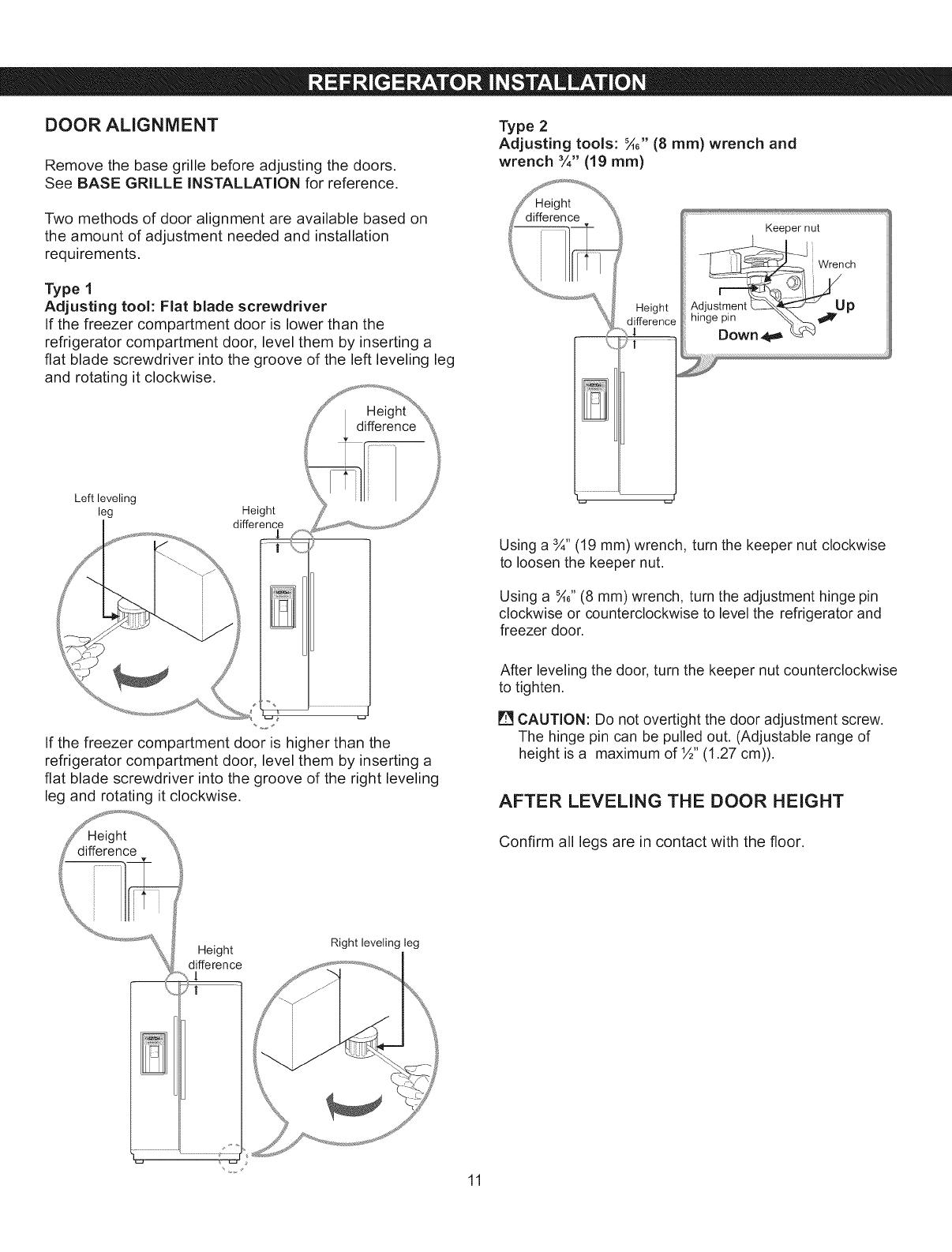

Door Alignment 11

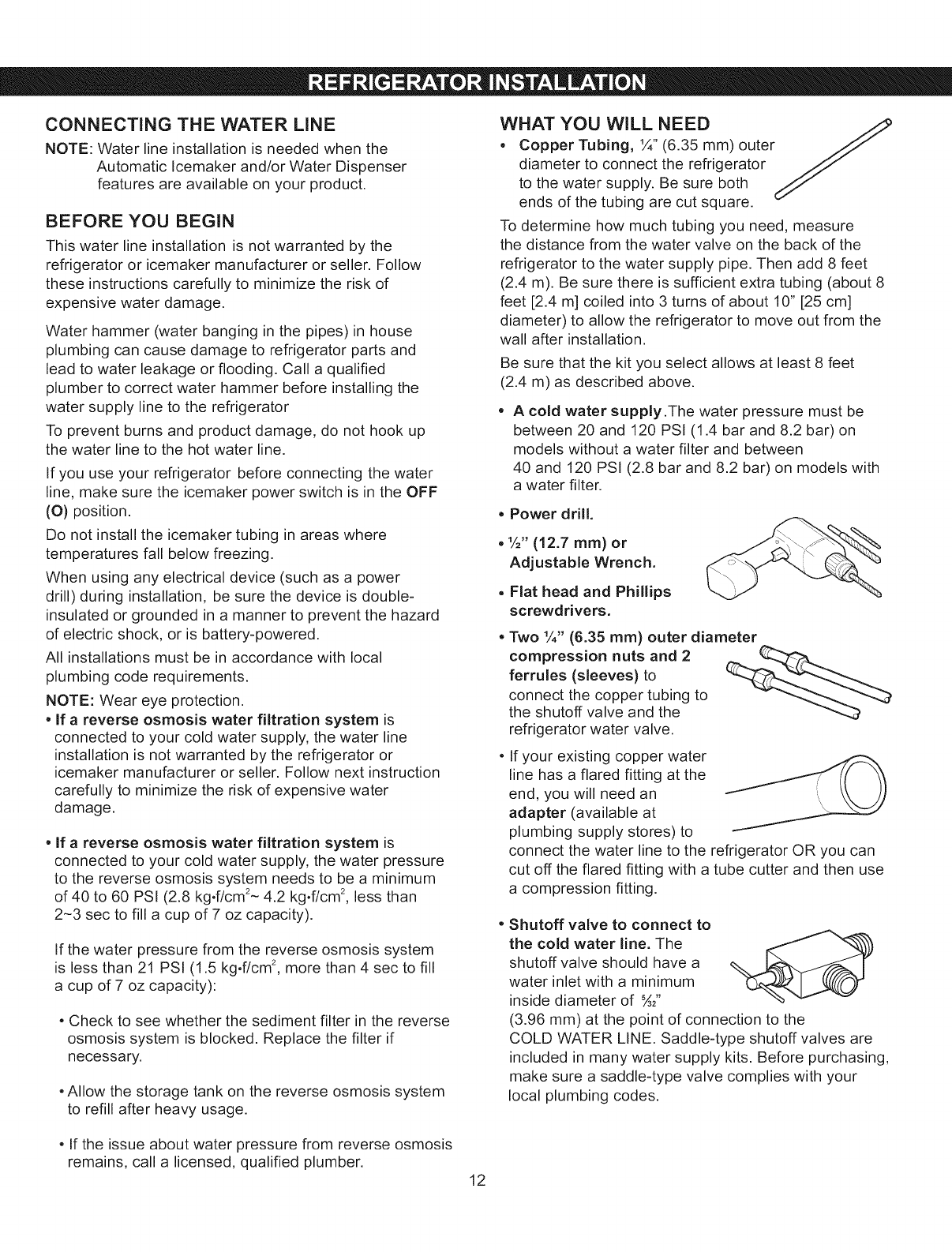

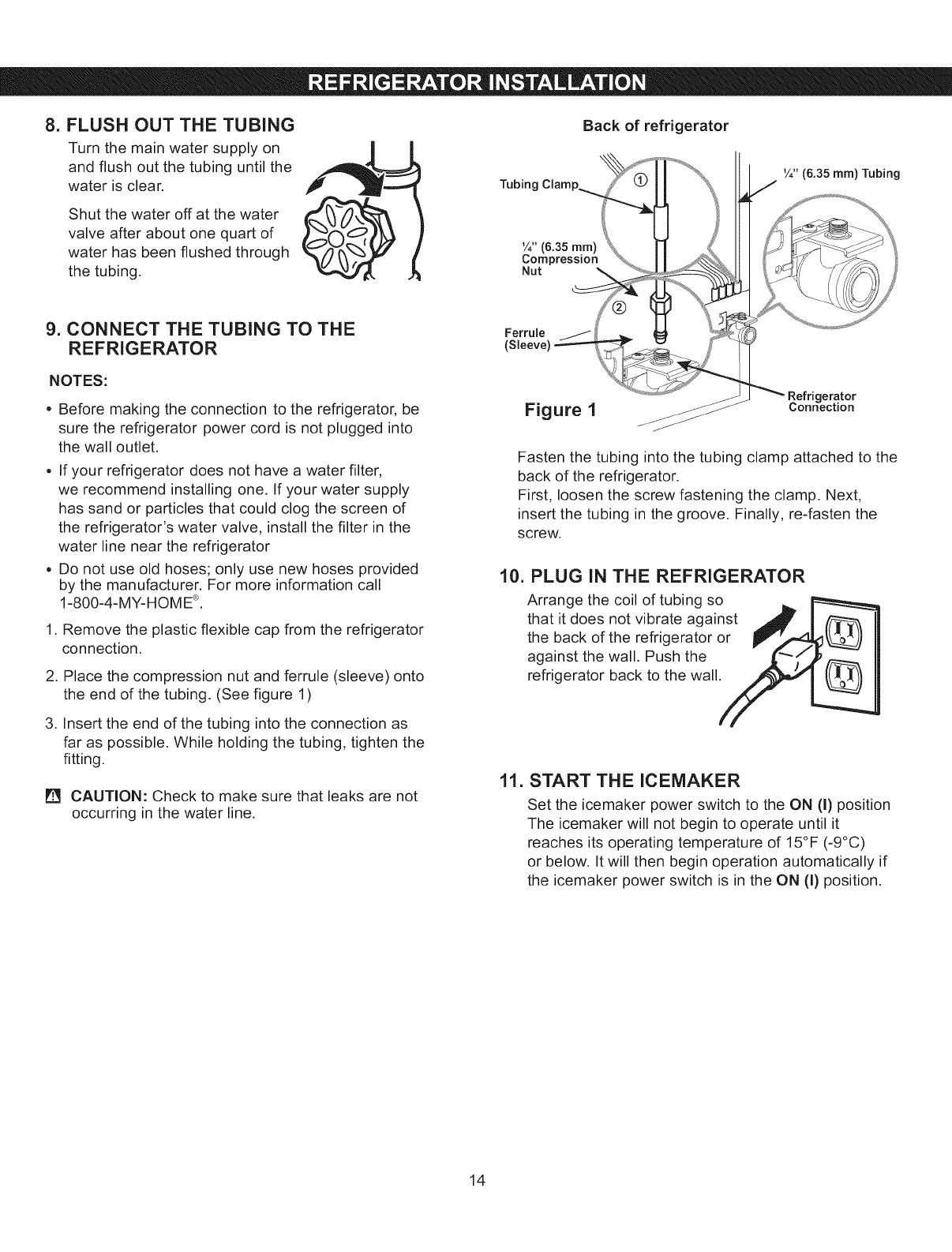

Connecting The Water Line 12

Before You Begin 12

What You Will Need 12

installation instructions 13 -14

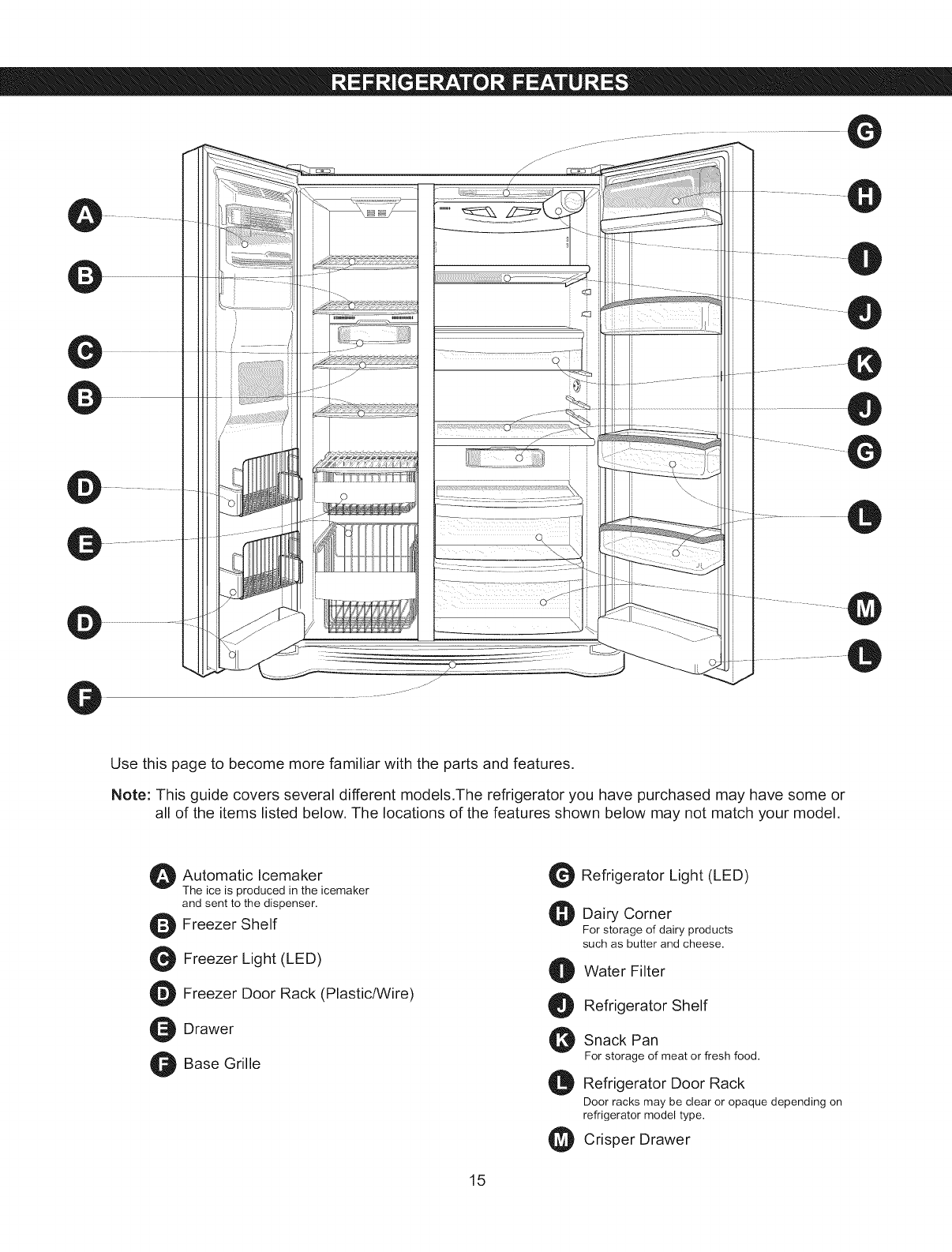

Refrigerator Features 15

Using Your Refrigerator 16 =24

Ensuring Proper Air Circulation 16

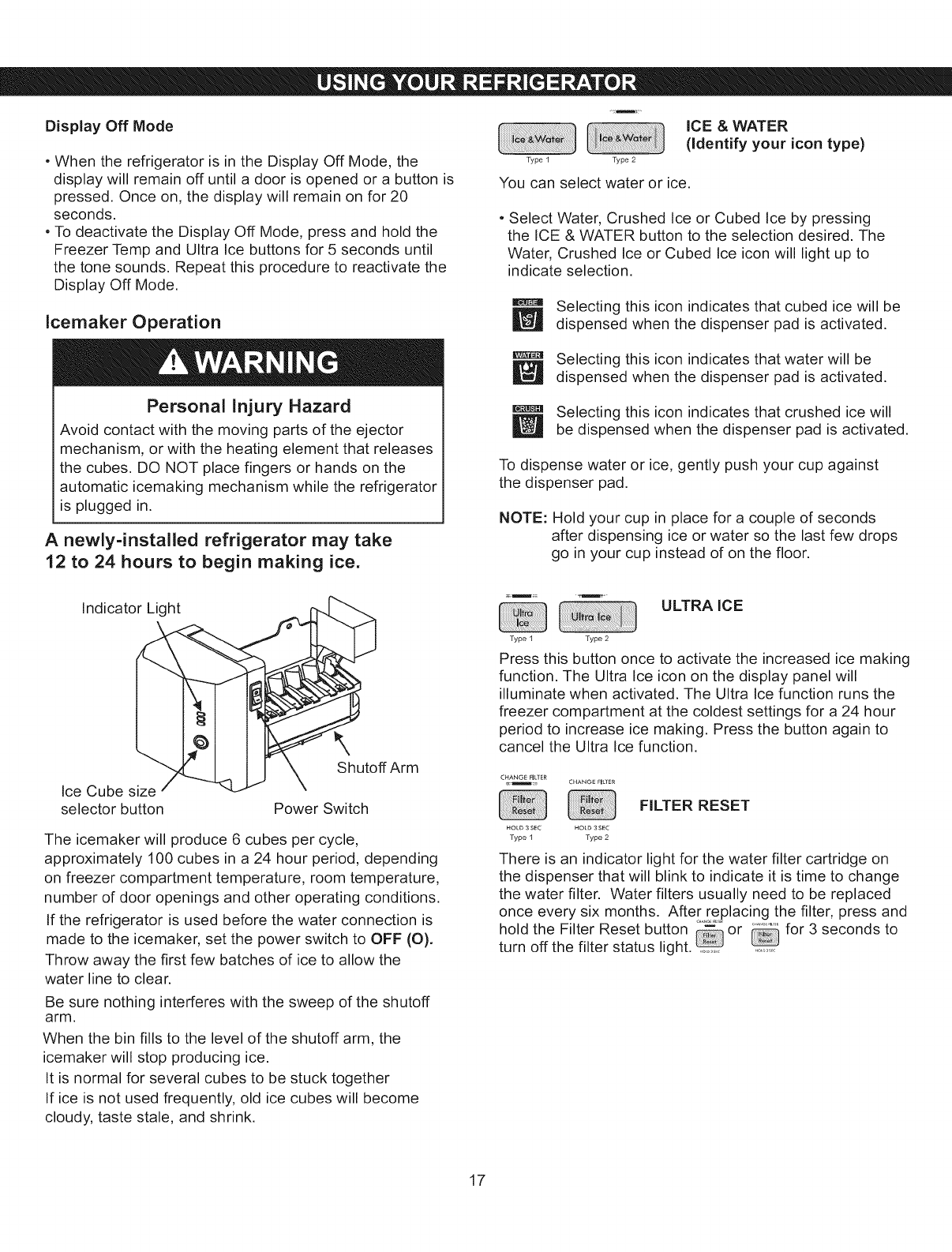

Control Panel Features 16

Refrigerator And Freezer Controls 16 - 18

Adjusting Control Settings 18

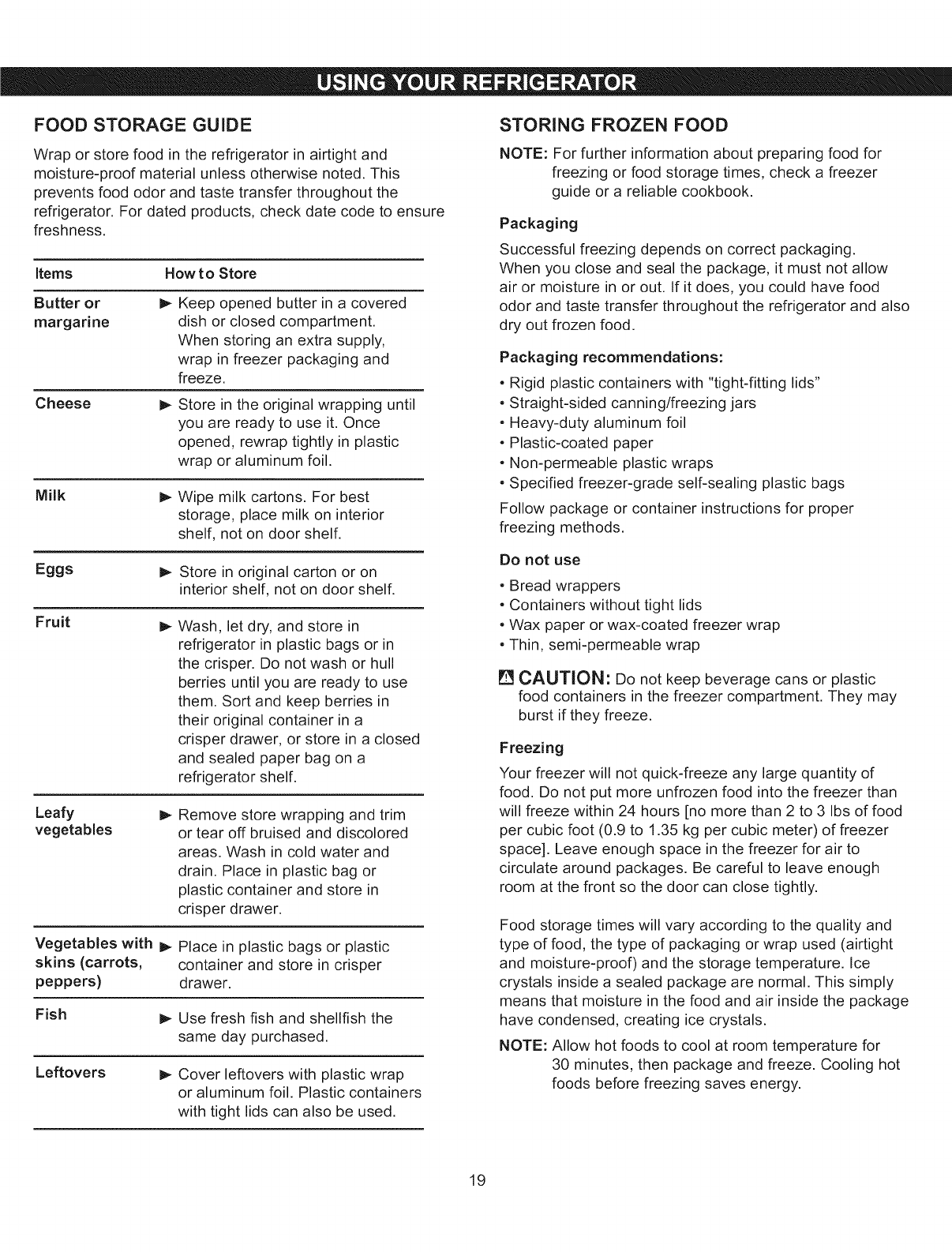

Food Storage Guide 19

Storing Frozen Food 19

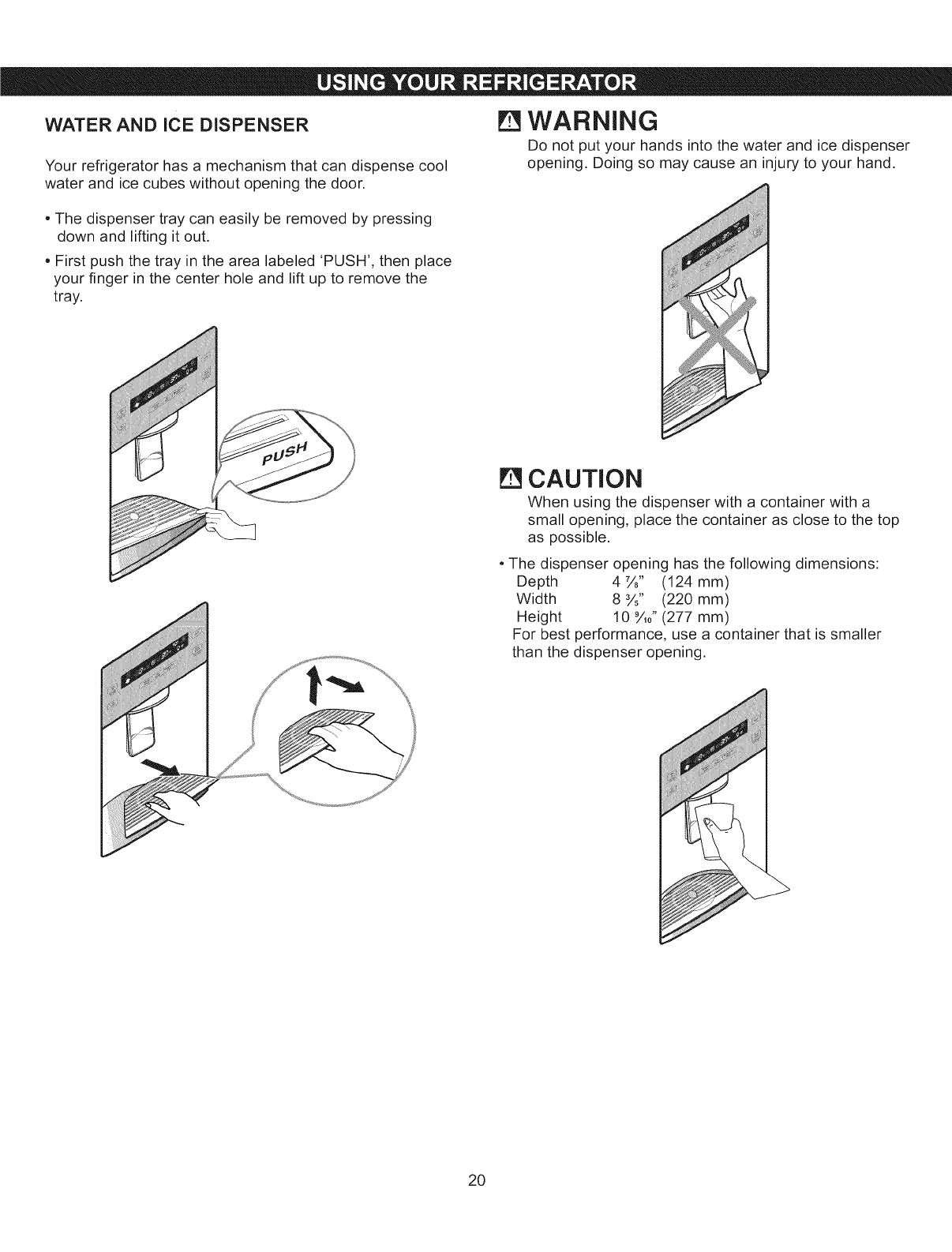

Water And ice Dispenser 20

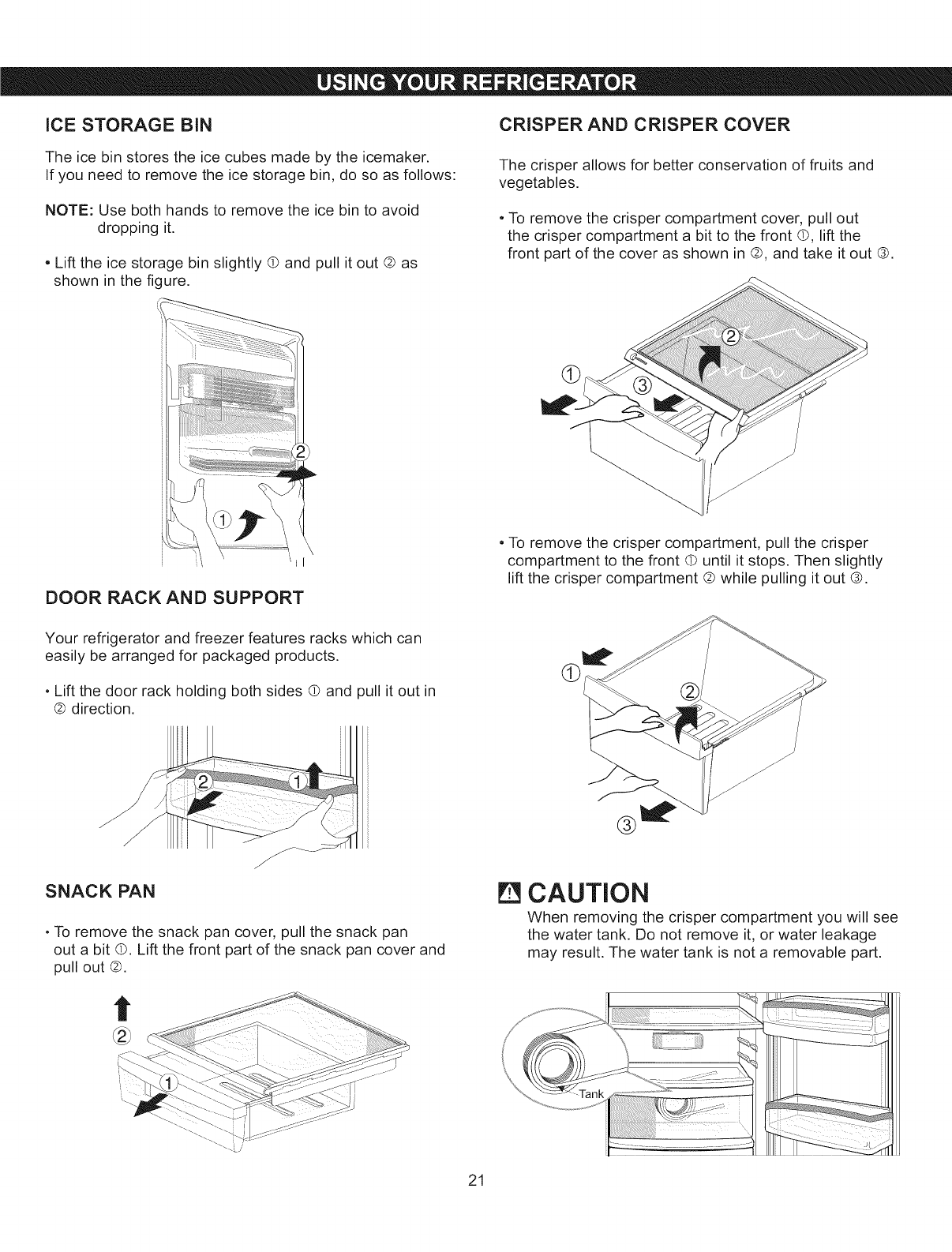

ice Storage Bin 21

Door Rack And Support 21

Snack Pan 21

Crisper And Crisper Cover 21 -22

Airtight Crisper And Airtight Crisper Cover 22

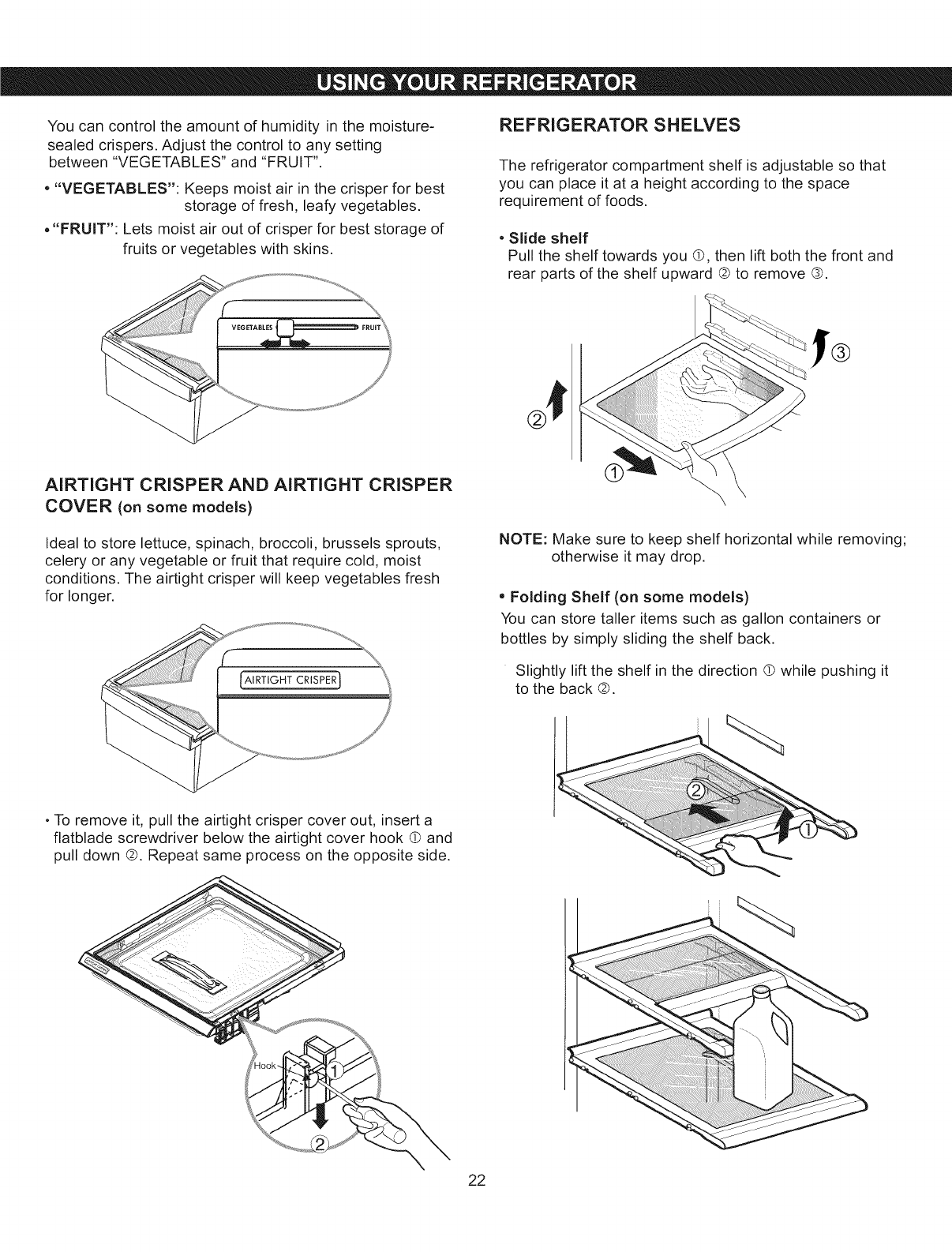

Refrigerator Shelves 22 -23

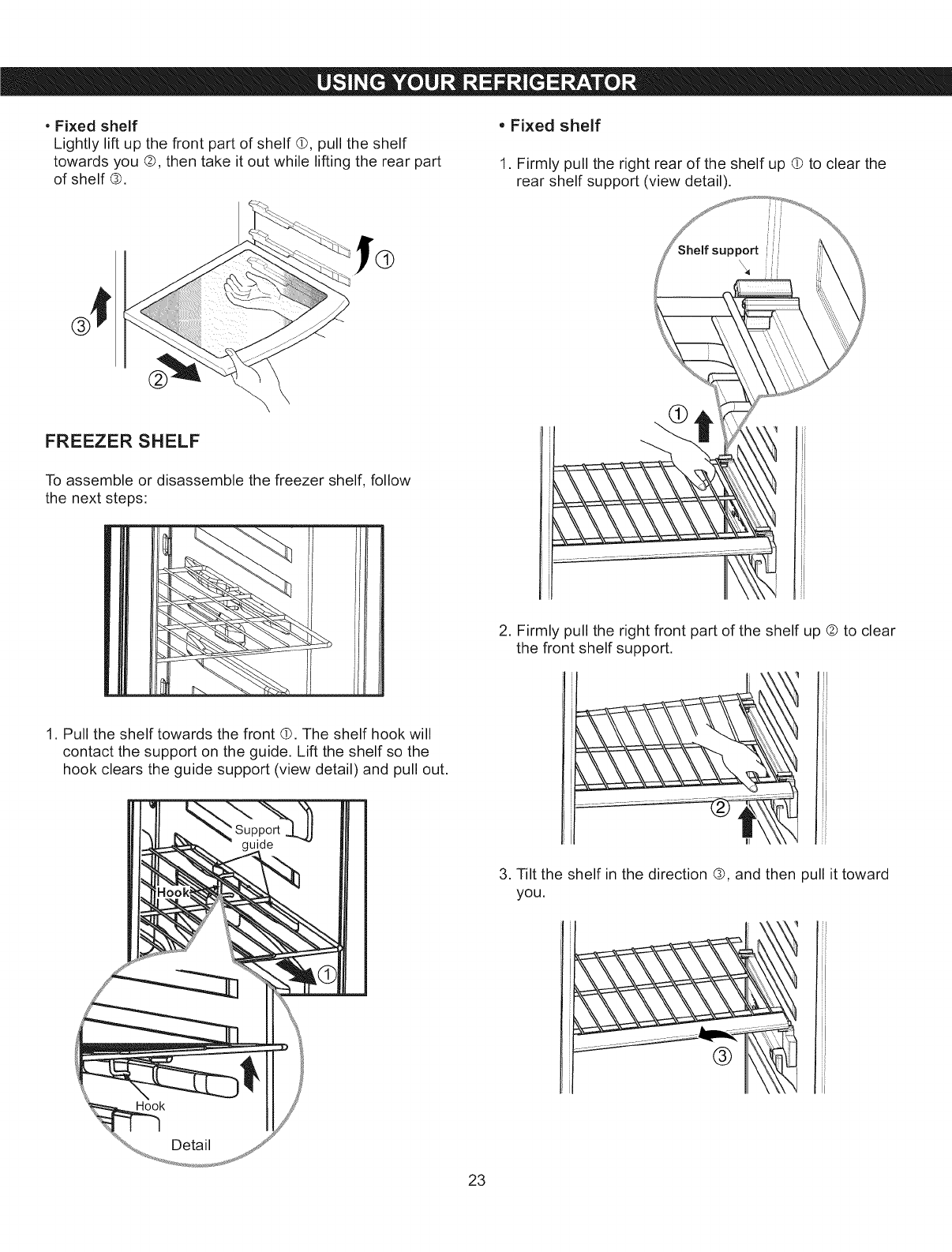

Freezer Shelf 23

Filter 24 =25

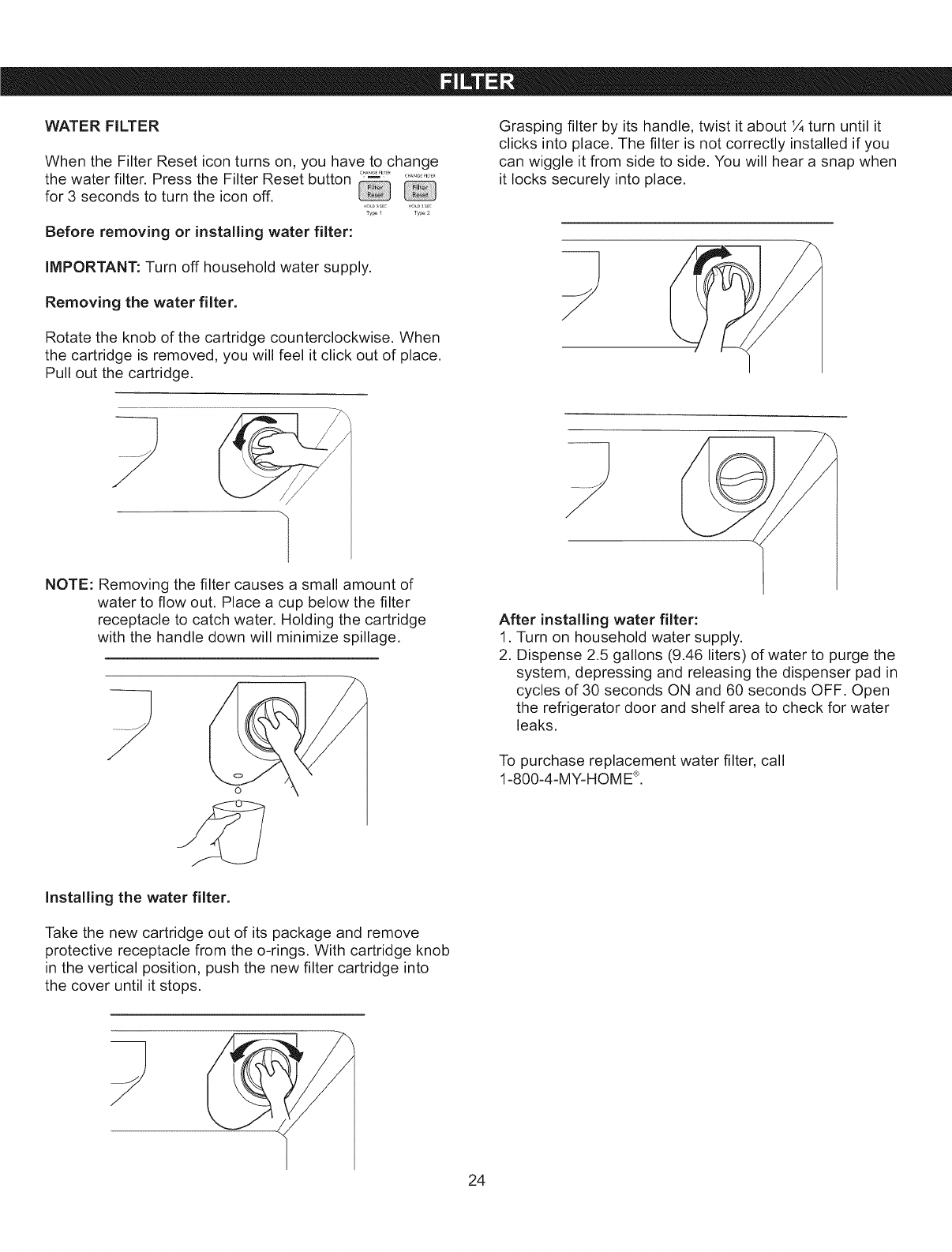

Water Filter 24

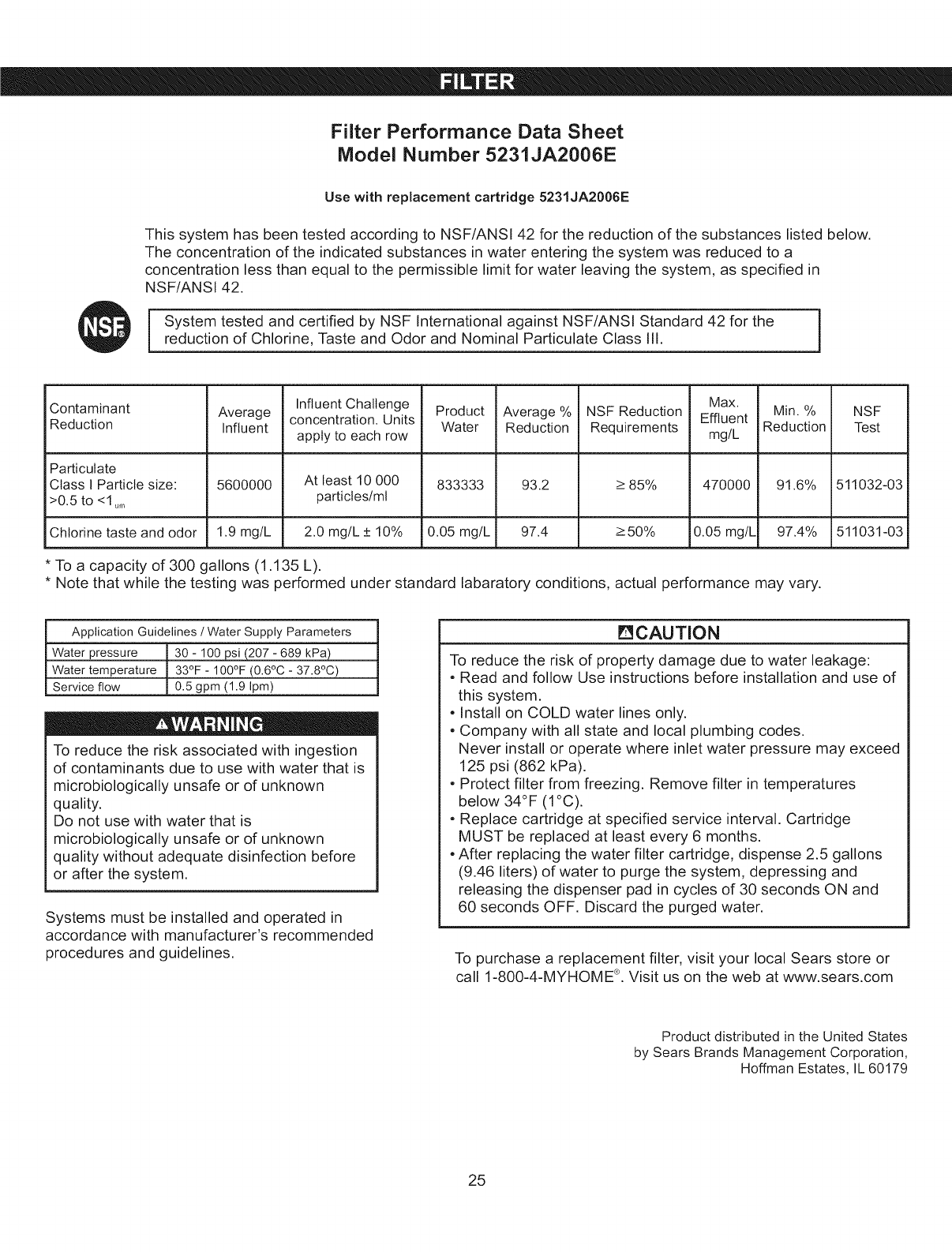

Performance Data Sheet 25

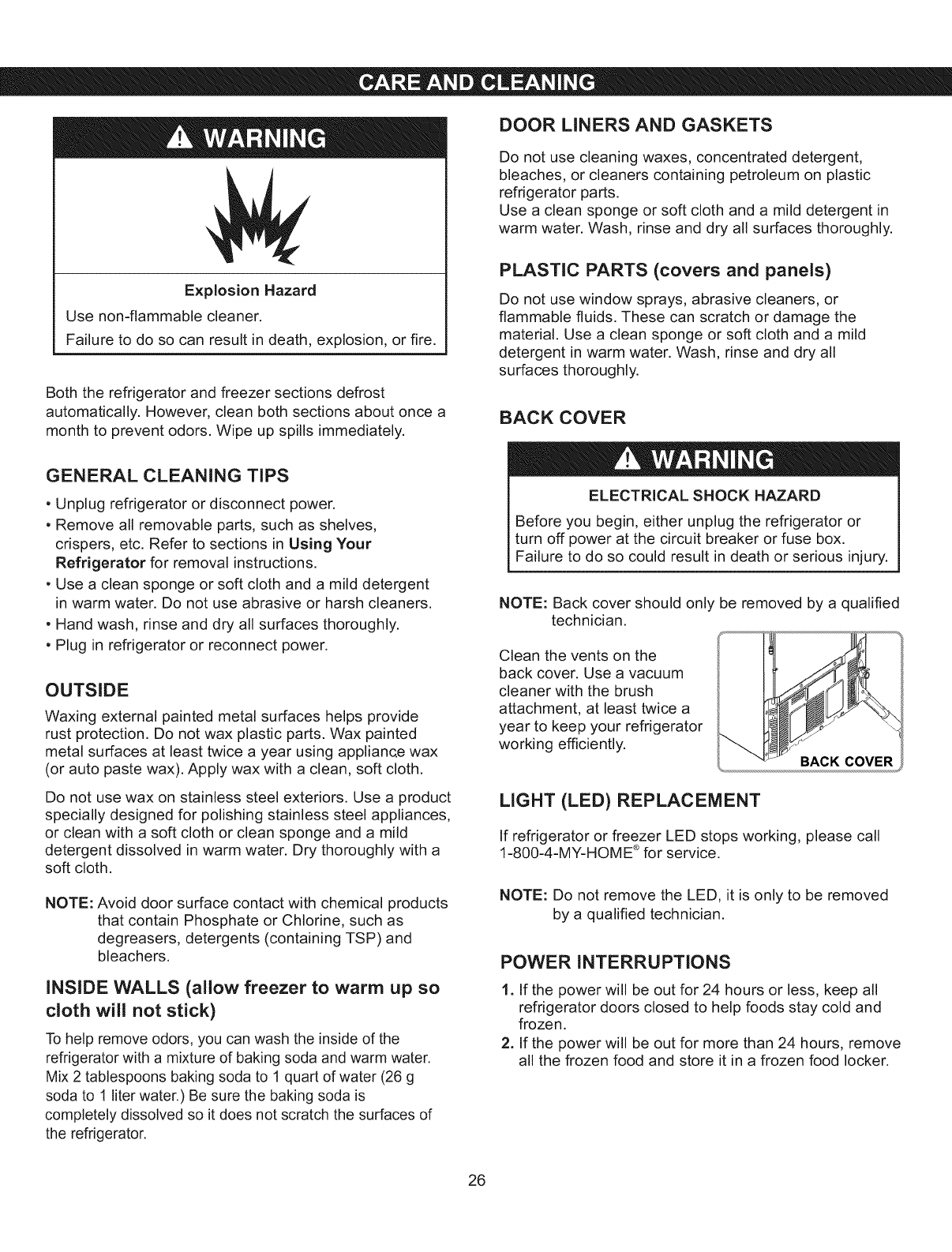

Care And Cleaning 26 =27

General Cleaning Tips 26

Outside 26

Inside Walls 26

Door Liners And Gaskets 26

Plastic Parts 26

Back Cover 26

Light (LED) Replacement 26

Power Interruptions 26 -27

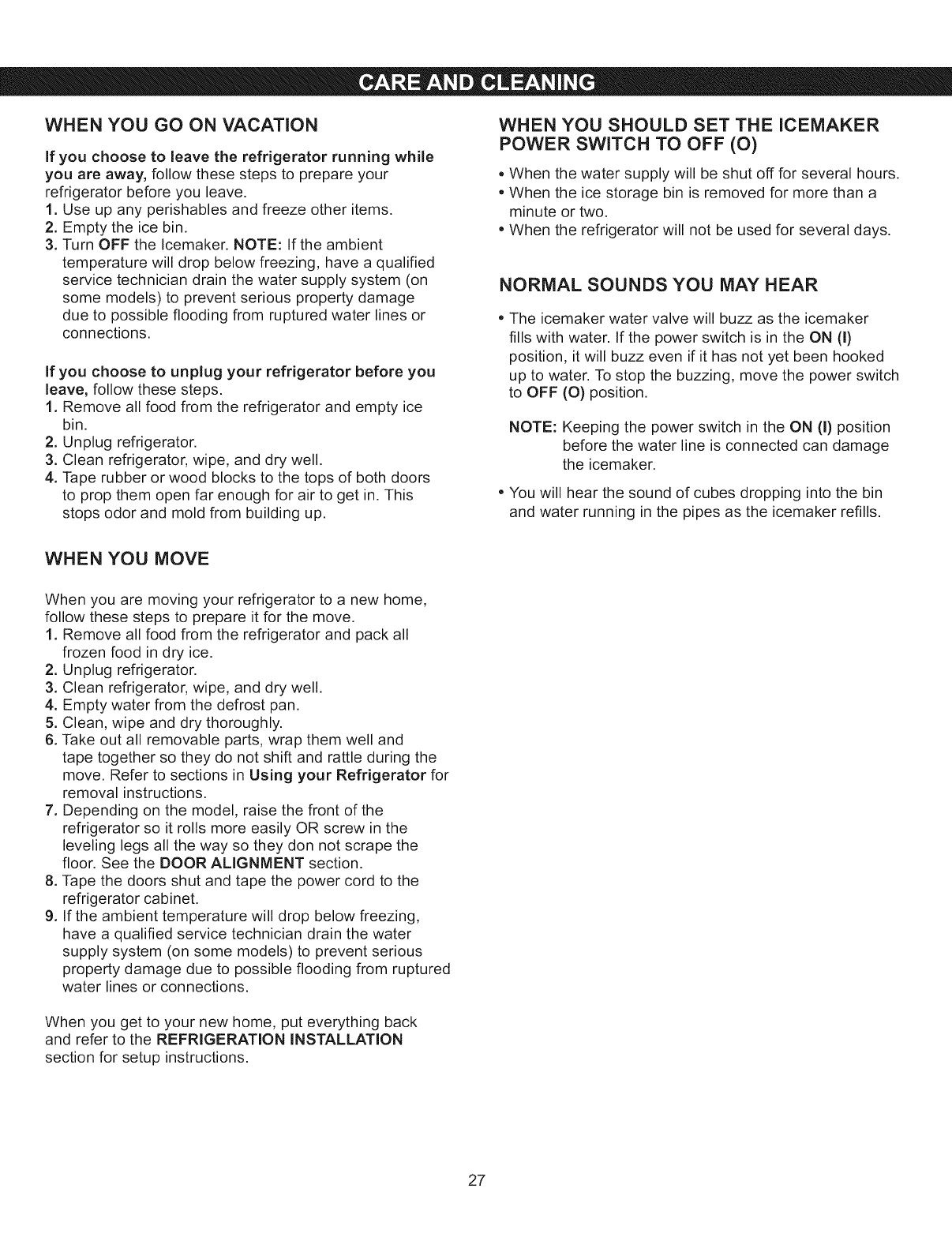

When You Go On Vacation 27

When You Move 27

When Should You Set The Icemaker Power 27

Switch To Off (O)

Normal Sounds You May Hear 27

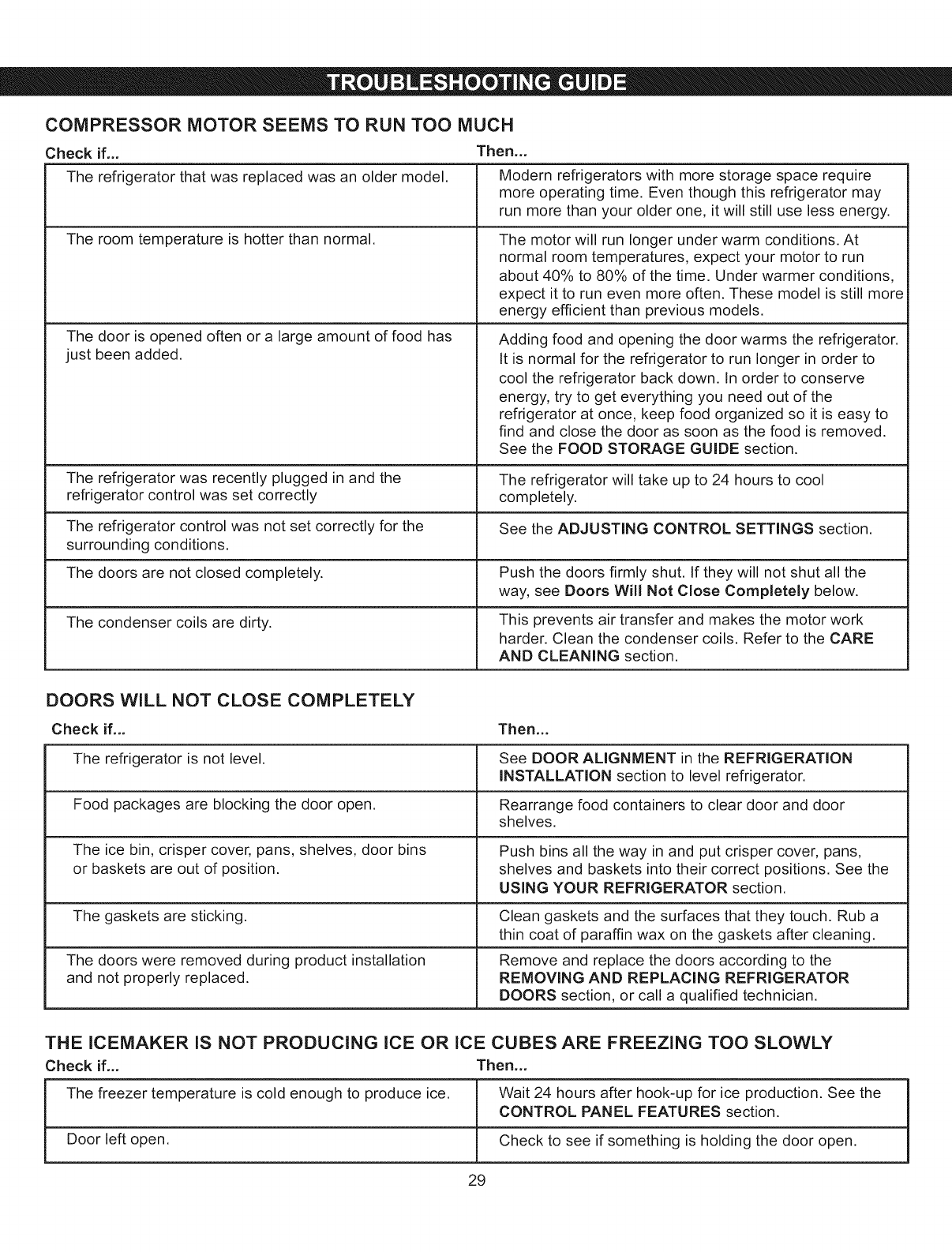

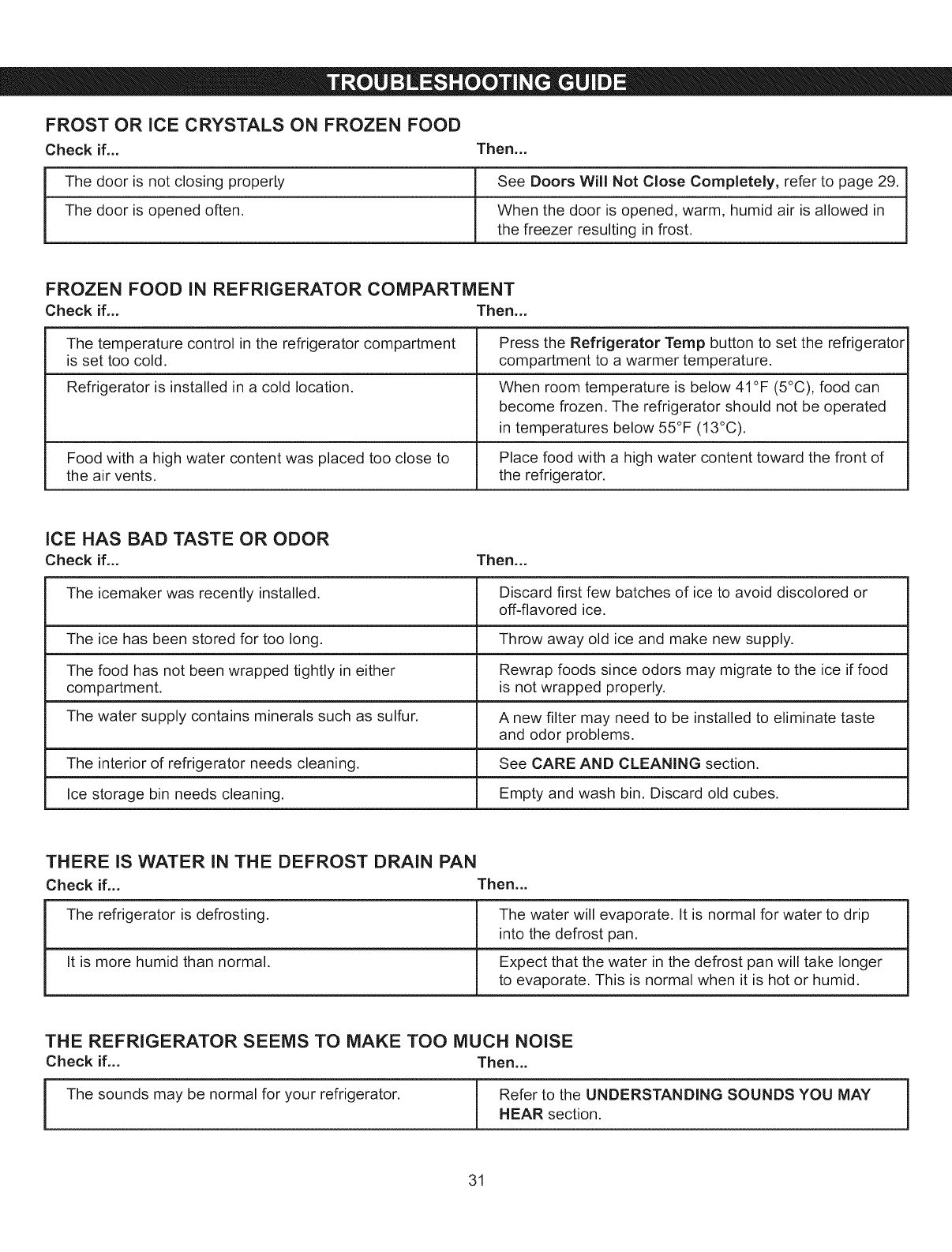

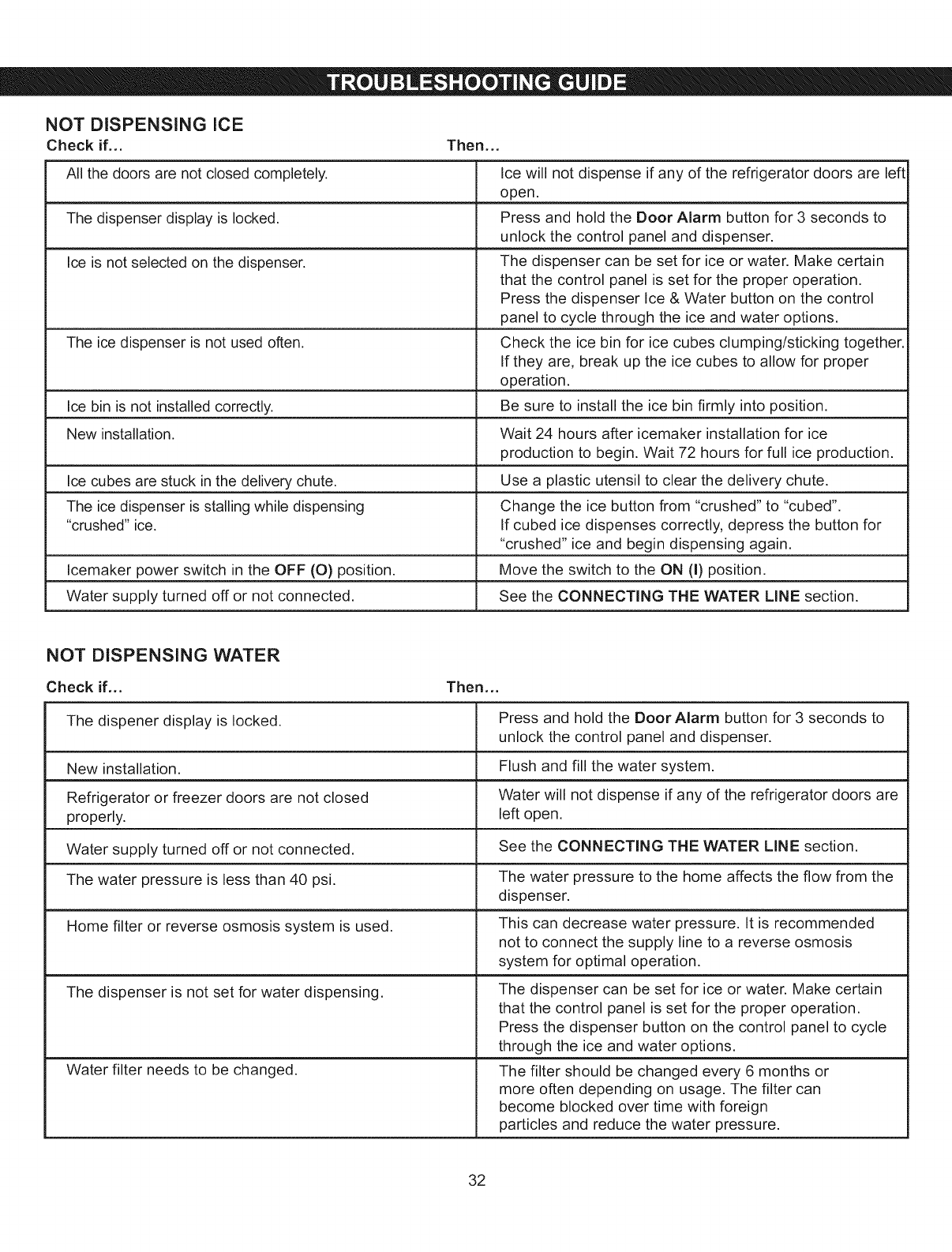

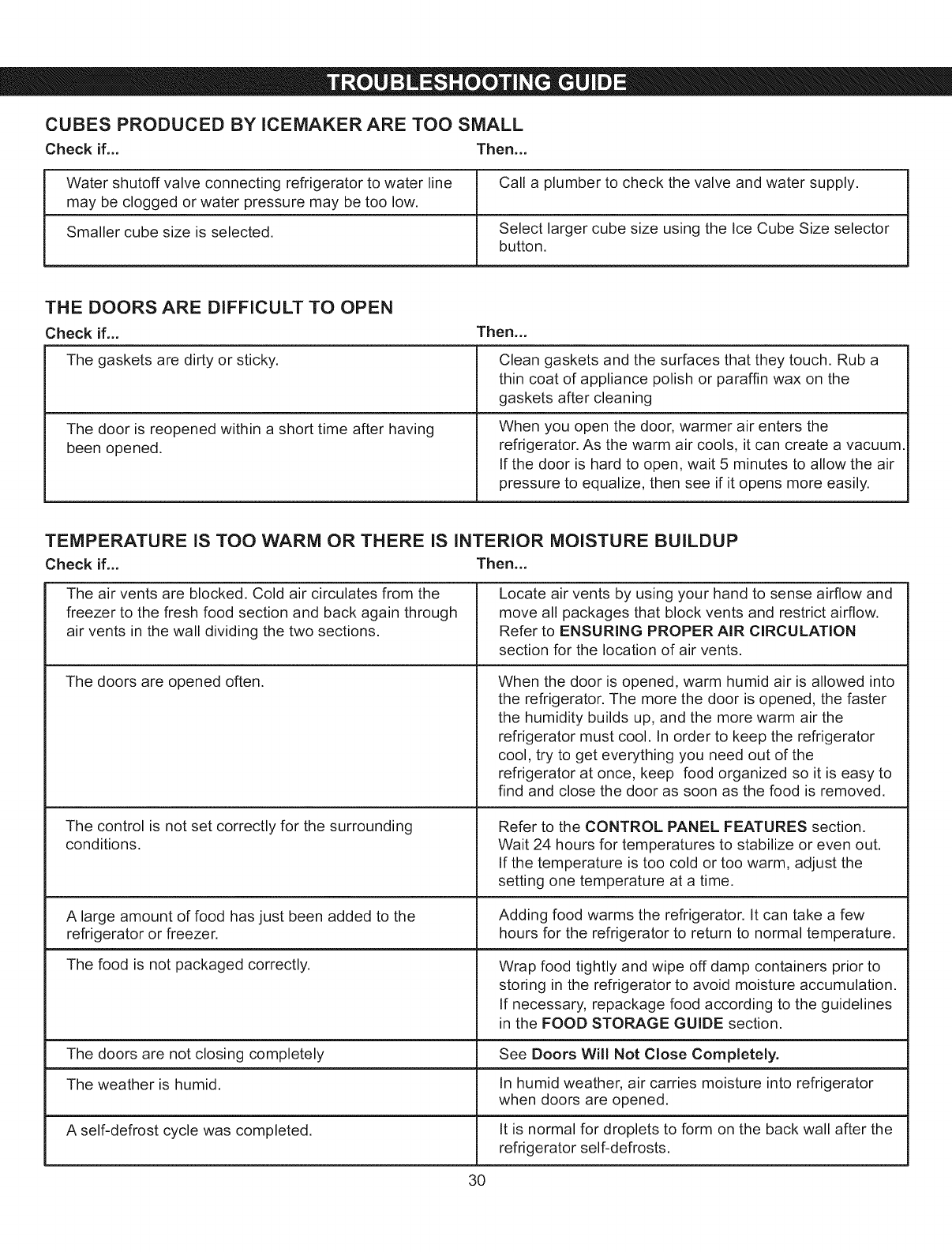

Troubleshooting Guide 28 =32

SIDE=BY=SIDE REFRIGERATOR

TM

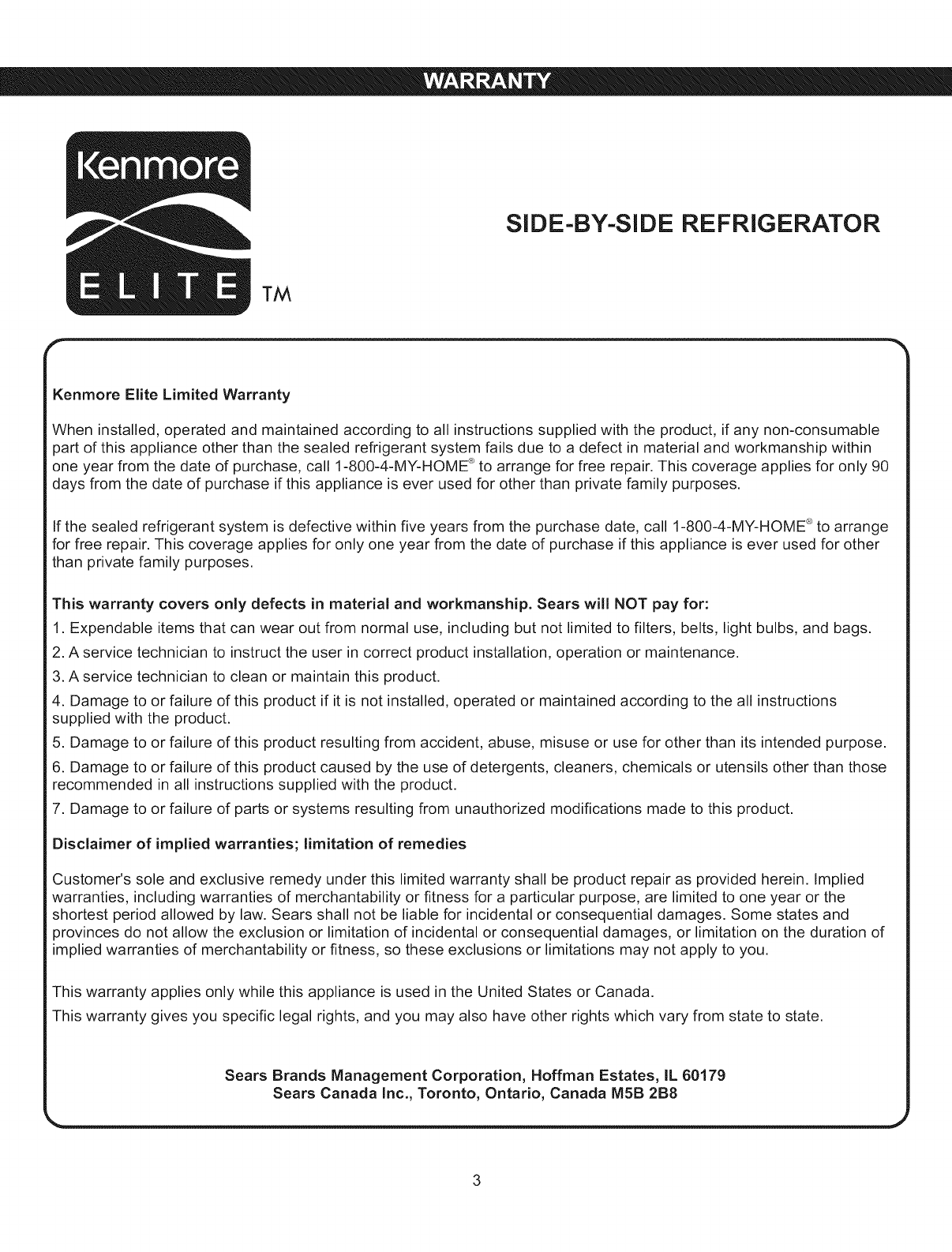

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if any non=consumable

3art of this appliance other than the sealed refrigerant system fails due to a defect in material and workmanship within

one year from the date of purchase, call 1=800=4=MY-HOME®to arrange for free repair. This coverage applies for only 90

days from the date of purchase if this appliance is ever used for other than private family purposes.

If the sealed refrigerant system is defective within five years from the purchase date, call 1=800-4=MY-HOME ®to arrange

for free repair. This coverage applies for only one year from the date of purchase if this appliance is ever used for other

than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions

supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those

recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of

implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

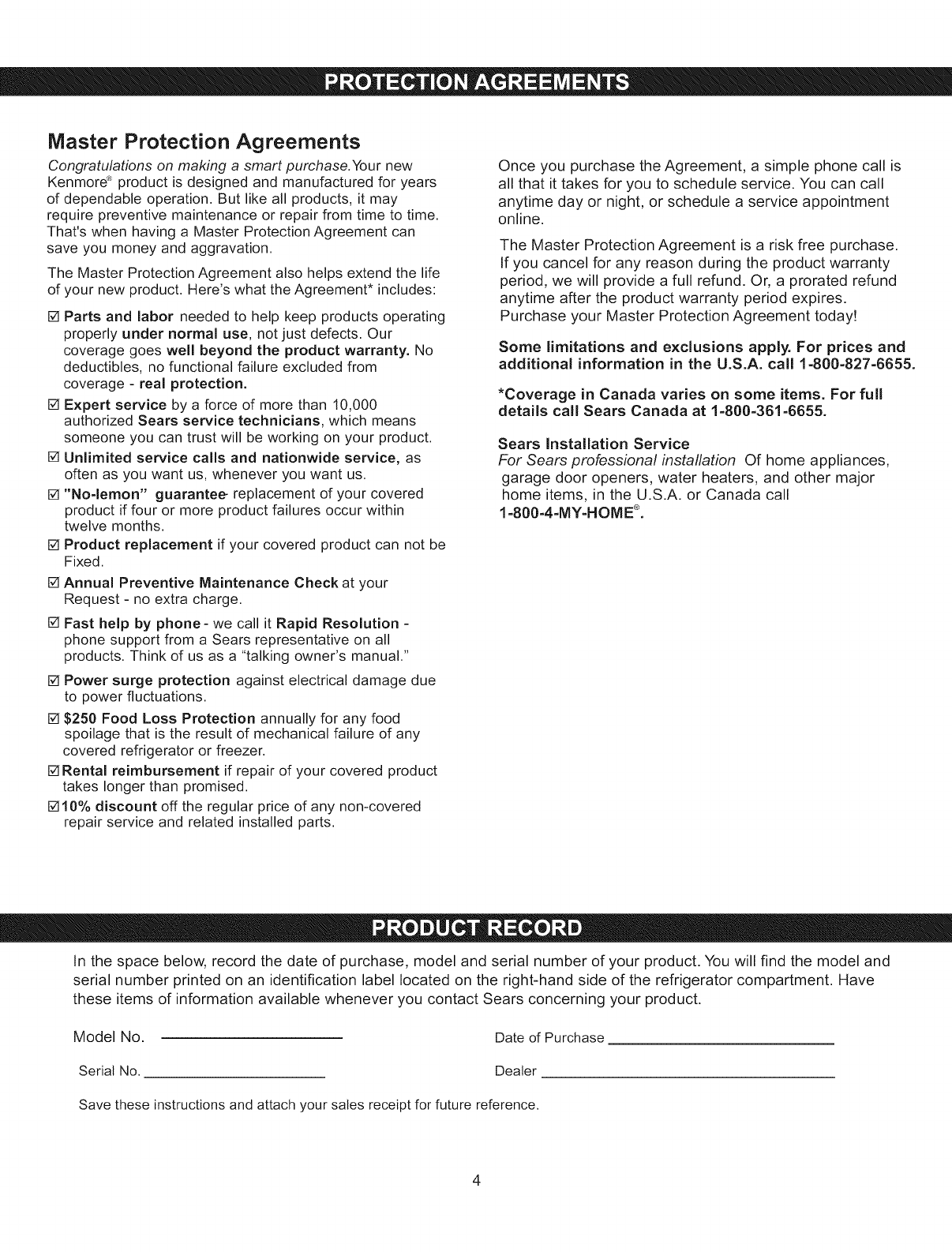

Master Protection Agreements

Congratulations on making a smart purchase.Your new

Kenmore _ product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

The Master Protection Agreement also helps extend the life

of your new product. Here's what the Agreement* includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our

coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from

coverage - real protection.

[] Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

[] Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

[] "No-lemon" guarantee replacement of your covered

product if four or more product failures occur within

twelve months.

[] Product replacement if your covered product can not be

Fixed.

[] Annual Preventive Maintenance Check at your

Request - no extra charge.

[] Fast help by phone- we call it Rapid Resolution -

phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due

to power fluctuations.

[] $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

[]Rental reimbursement if repair of your covered product

takes longer than promised.

[]10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is

all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund. Or, a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827=6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800=361-6655.

Sears Installation Service

For Sears professional instaflation Of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Save these instructions and attach your sales receiptfor future reference.

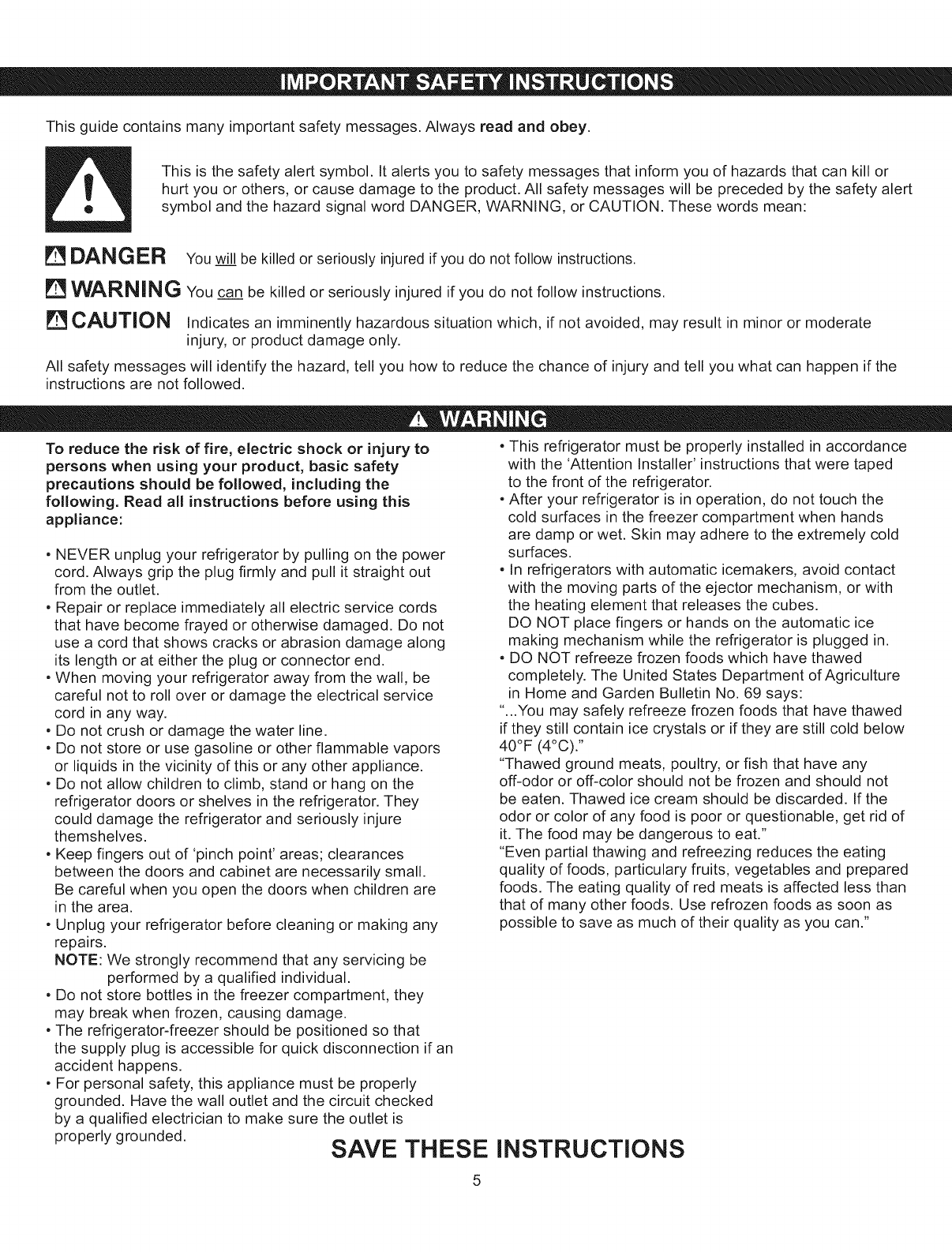

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobey.

Thisisthesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyouofhazardsthatcankillor

hurtyouorothers,orcausedamagetotheproduct.Allsafetymessageswillbeprecededbythesafetyalert

symbolandthehazardsignalwordDANGER,WARNING,orCAUTION.Thesewordsmean:

DANGER You wil___/ibe killed or seriously injured if you do not follow instructions.

WAR, N_NG You can be killed or seriously injured if you do not follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate

injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the

instructions are not followed.

To reduce the risk of fire, electric shock or injury to

persons when using your product, basic safety

precautions should be followed, including the

following. Read all instructions before using this

appliance:

•NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out

from the outlet.

•Repair or replace immediately all electric service cords

that have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage along

its length or at either the plug or connector end.

•When moving your refrigerator away from the wall, be

careful not to roll over or damage the electrical service

cord in any way.

•Do not crush or damage the water line.

•Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

•Do not allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themshelves.

•Keep fingers out of 'pinch point' areas; clearances

between the doors and cabinet are necessarily small.

Be careful when you open the doors when children are

in the area.

•Unplug your refrigerator before cleaning or making any

repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

•Do not store bottles in the freezer compartment, they

may break when frozen, causing damage.

•The refrigerator-freezer should be positioned so that

the supply plug is accessible for quick disconnection if an

accident happens.

•For personal safety, this appliance must be properly

grounded. Have the wall outlet and the circuit checked

by a qualified electrician to make sure the outlet is

properly grounded. SAVE THESE

•This refrigerator must be properly installed in accordance

with the 'Attention Installer' instructions that were taped

to the front of the refrigerator.

•After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

•In refrigerators with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with

the heating element that releases the cubes.

DO NOT place fingers or hands on the automatic ice

making mechanism while the refrigerator is plugged in.

•DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture

in Home and Garden Bulletin No. 69 says:

"...You may safely refreeze frozen foods that have thawed

if they still contain ice crystals or if they are still cold below

40°F (4°C). ''

"Thawed ground meats, poultry, or fish that have any

off-odor or off-color should not be frozen and should not

be eaten. Thawed ice cream should be discarded. If the

odor or color of any food is poor or questionable, get rid of

it. The food may be dangerous to eat."

"Even partial thawing and refreezing reduces the eating

quality of foods, particulary fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can."

INSTRUCTIONS

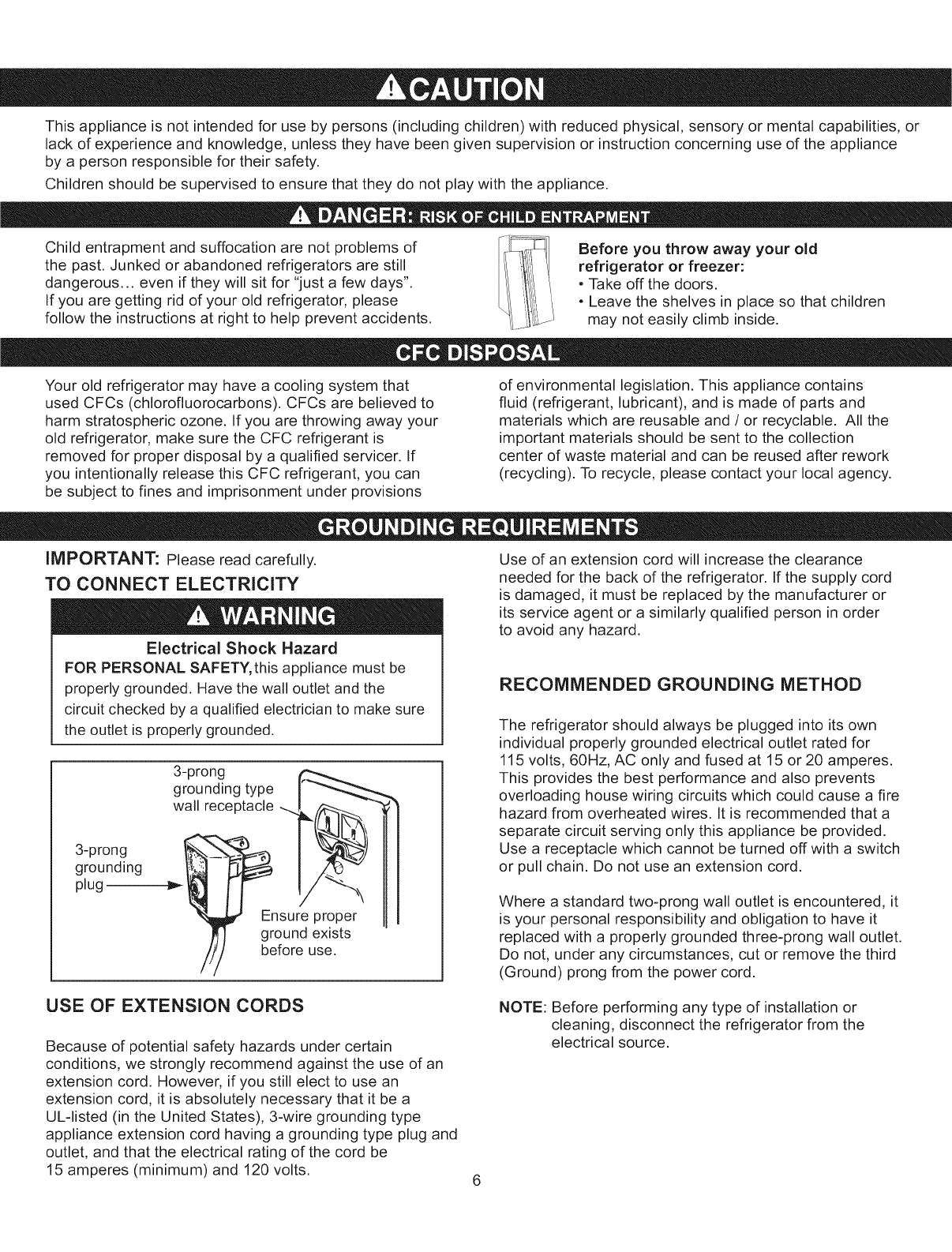

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous.., even if they will sit for "just a few days".

If you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent accidents.

Before you throw away your old

refrigerator or freezer:

•Take off the doors.

•Leave the shelves in place so that children

may not easily climb inside.

Your old refrigerator may have a cooling system that

used CFCs (chlorofluorocarbons). CFCs are believed to

harm stratospheric ozone. If you are throwing away your

old refrigerator, make sure the CFC refrigerant is

removed for proper disposal by a qualified servicer. If

you intentionally release this CFC refrigerant, you can

be subject to fines and imprisonment under provisions

of environmental legislation. This appliance contains

fluid (refrigerant, lubricant), and is made of parts and

materials which are reusable and /or recyclable. All the

important materials should be sent to the collection

center of waste material and can be reused after rework

(recycling). To recycle, please contact your local agency.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

Use of an extension cord will increase the clearance

3-prong

grounding

plug

3-prong

grounding type

wall receptacle --_..,

sure proper

_} ground exists

// before use.

needed for the back of the refrigerator. If the supply cord

is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order

to avoid any hazard.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 volts, 60Hz, AC only and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it

is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the third

(Ground) prong from the power cord.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of an

extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (in the United States), 3-wire grounding type

appliance extension cord having a grounding type plug and

outlet, and that the electrical rating of the cord be

15 amperes (minimum) and 120 volts.

NOTE: Before performing any type of installation or

cleaning, disconnect the refrigerator from the

electrical source.

Excessive Weight Hazard

Use two or more people to move and install the

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning

type labels, the model and serial number label, or the

Technical Data sheet located under the front part of the

refrigerator, behind the base grille.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also

be easily removed by rubbing a small amount of liquid

dish soap over the adhesive with your fingers. Wipe with

warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids or abrasive cleaners to remove tape or

glue. These products can damage the surface of your

refrigerator. For more information, see the Important

Safety Instructions section.

Refrigerator shelves are installed in the shipping

position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. Avoid placing unit near heat sources, direct sunlight or

moisture.

2. To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

3. Carpeting and soft tile surfaces are not recommended.

4. NEVER install the refrigerator on a platform or a

weakly supported structure.

5. Install this appliance in an area where the

temperature is between 55°F (13°C)and 110°F (43°C).

If the temperature around the appliance is too low or

high, cooling ability may be adversely affected.

NOTE: For proper air circulation, best cooling and energy

consumption results, maintain a minimum distance

of 2 inches (5.08cm) from adjacent items and

surfaces.

2" (5.08 cm) 4" "_ 2" (5.08 cm) _" ÷ _" "_-2" (5.08 cm)

2" (5.08 cm)_

• Be careful when you work with the hinge, base grille,

stopper, etc. You may be injured.

• Do not put hands or metal sticks into air vents, base

grille or bottom of the refrigerator. You may be injured

or receive an electrical shock.

BASE GRILLE INSTALLATION

To install or replace base grille:

1. Remove the 2 screws from the bottom front part of

refrigerator.

2. Place base grille into position and insert and tighten

screws.

To remove the base grille:

1. Open the doors. (Refrigerator and freezer).

2. Once doors are open, remove screws from base

grille. Remove base grille and set safely aside.

3. Reattach screws to the base of refrigerator.

LEVELING THE REFRIGERATOR DOOR HANDLE REMOVAL

Place level on top of the refrigerator as shown below. You may have to remove the door handles to move the

refrigerator through a narrow opening. See instructions

below.

NOTE: To avoid damaging door surfaces when moving the

refrigerator through narrow openings, it is ALWAYS

recommended to remove the doors as instructed in

the next two pages.

* Loosen the set screws with a _2" (2.38 mm) Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be

tightened or moved, use a 1/4"(6.35 mm) Allen

wrench.

Mounting

fasteners

If your refrigerator is not level, insert a flat blade

screwdriver into the grooves of the leveling legs (shown

in picture below). Rotate legs clockwise to raise or

counterclockwise to lower the front of the refrigerator. Set screw

Left leveling Right leveling leg

leg

Raise the front of the refrigerator enough so the doors

close freely when opened halfway. The refrigerator

should slope 1/4"(6.35 mm) to ½" (0.127 mm) from front

to back.

Then level the refrigerator from side to side.

Allen wrench

ElectricShockHazard

• Disconnectelectricalsupplytotherefrigerator

beforeinstalling.Failuretodosocouldresultin

deathorseriousinjury.

• Donotputhands,feetorotherobjectsintothe

airvents,basegrille,orbottomoftherefrigerator.

Youmaybeinjuredorreceiveanelectricalshock.

• Becarefulwhenyouworkwiththehinge,base

grille,andstopper.Youmaybeinjured.

REMOVING AND REPLACING

REFRIGERATOR DOORS

Before removing the doors, remove the base grille.

See BASE GRILLE INSTALLATION for reference.

Removing the left (freezer) door with water line

connection.

•Pull up the water feed tube while pressing area

(Figure 1) as shown in the figure below.

•NOTE: If a tube end is deformed or abraded, trim the

part away. Disconnecting the tube under the door

causes about 0.13 gallons (0.5 liters) water to

flow out. Put a large container at end of tube to

prevent water from draining onto the floor.

Figure 1

To remove the right (refrigerator) door:

S

.........../2 _q

i

z(3)

i

Type 1 i(4)/

i

i Type2 j

1. Open the door. Remove the top hinge cover screw

(1).

2. Use a flat blade screwdriver to pry back the hooks

(not shown) of the hinge cover from the top of the

refrigerator cabinet (2). Lift up the cover.

3.Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

NOTE: Regardless of hinge lever type, removal process is

the same.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a nonscratching

surface.

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

(1)\

(2)

(5) _7)

,_<._'\ /(7)

Rivet/ "1\.._

,Type 2

1. Open the door. Remove the top hinge cover screw (1).

2. Use a flat blade screwdriver to pry back the hooks

(not shown) of the hinge cover from the top of the

refrigerator cabinet (2). Lift up the cover.

3. Disconnect all the wire harnesses (3).

4. Remove the grounding screw (4).

5. Rotate hinge lever (5) counterclockwise. Lift the top

hinge (6) free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal process is

the same.

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

6. Lift the door from the lower hinge pin being careful to

pull the water lines through the lower hinge pin.

7. Place the door, inside facing up, on a nonscratching

surface.

Reinstallingtheright(refrigerator)door 5.Reconnectthewatertubesbyinsertingthetubesinto

theconnectors.

Type1 Type2

1.Placethedoorontothelowerhingepin.

2. Fittophinge(4)overhingeleverlatch(5)into

place.Rotatelever(3)counterclockwisetosecure

hinge.

NOTE:Regardlessofhingelevertype,reinstallation

processisthesame.

3.Hooktabonswitchsideofcornerunderedgeofwire

openingincabinettop.Positioncover(2)intoplace.

Insertandtightencoverscrew(1).

Reinstallingtheleft(freezer)door

S'

(1)\

(4).

1. Feed the water tubes through the lower hinge pin and

place the door onto the lower hinge pin.

2. Fit top hinge (6) over hinge lever latch (7) and into

place. Rotate lever (5) clockwise to secure hinge.

NOTE: Regardless of hinge lever type, reinstallation

process is the same.

3. Install the grounding screw (4) and connect all the

wire harnesses (3).

4. Hook tab on door switch side of cover (2) under edge

of wire opening in cabinet top. Position cover into

place. Insert and tighten cover screw (1).

10

DOOR ALIGNMENT

Remove the base grille before adjusting the doors.

See BASE GRILLE INSTALLATION for reference.

Type 2

Adjusting tools: %6" (8 mm) wrench and

wrench 3/4"(19 ram)

Two methods of door alignment are available based on

the amount of adjustment needed and installation

requirements.

Type 1

Adjusting tooh Fiat blade screwdriver

If the freezer compartment door is lower than the

refrigerator compartment door, level them by inserting a

flat blade screwdriver into the groove of the left leveling leg

and rotating it clockwise.

Left leveling

leg Height

difference

Height

difference

Keeper nut

t Wrench

hinge pin "_ !_'

Down_ _'__

Using a ¾" (19 mm) wrench, turn the keeper nut clockwise

to loosen the keeper nut.

Using a %6"(8 mm) wrench, turn the adjustment hinge pin

clockwise or counterclockwise to level the refrigerator and

freezer door.

After leveling the door, turn the keeper nut counterclockwise

to tighten.

If the freezer compartment door is higher than the

refrigerator compartment door, level them by inserting a

flat blade screwdriver into the groove of the right leveling

leg and rotating it clockwise.

CAUTION: Do not overtight the door adjustment screw.

The hinge pin can be pulled out. (Adjustable range of

height is a maximum of ½" (1.27 cm)).

AFTER LEVELING THE DOOR HEIGHT

Height

difference

_._

Right leveling leg

Confirm all legs are in contact with the floor.

11

CONNECTING THE WATER LINE

NOTE: Water line installation is needed when the

Automatic Icemaker and/or Water Dispenser

features are available on your product.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer or seller. Follow

these instructions carefully to minimize the risk of

expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and

lead to water leakage or flooding. Call a qualified

plumber to correct water hammer before installing the

water supply line to the refrigerator

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the OFF

(O) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local

plumbing code requirements.

NOTE: Wear eye protection.

•If a reverse osmosis water filtration system is

connected to your cold water supply, the water line

installation is not warranted by the refrigerator or

icemaker manufacturer or seller. Follow next instruction

carefully to minimize the risk of expensive water

damage.

•If a reverse osmosis water filtration system is

connected to your cold water supply, the water pressure

to the reverse osmosis system needs to be a minimum

of 40 to 60 PSI (2.8 kg.f/cm 2- 4.2 kg.f/cm 2,less than

2-3 sec to fill a cup of 7 oz capacity).

If the water pressure from the reverse osmosis system

is less than 21 PSI (1.5 kg.f/cm _, more than 4 sec to fill

a cup of 7 oz capacity):

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if

necessary.

• Allow the storage tank on the reverse osmosis system

to refill after heavy usage.

WHAT YOU WILL NEED

•Copper Tubing, 1/4"(6.35 mm) outer

diameter to connect the refrigerator ///

to the water supply. Be sure both ///

ends of the tubing are cut square.

To determine how much tubing you need, measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8

feet [2.4 m] coiled into 3 turns of about 10" [25 cm]

diameter) to allow the refrigerator to move out from the

wall after installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

• A cold water supply.The water pressure must be

between 20 and 120 PSI (1.4 bar and 8.2 bar) on

models without a water filter and between

40 and 120 PSI (2.8 bar and 8.2 bar) on models with

a water filter.

•Power drill.

•1/2"(12.7 ram) or

Adjustable Wrench.

• Flat head and Phillips

screwdrivers.

• Two 1/4"(6.35 mm) outer diameter

compression nuts and 2

ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

• If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

,Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of %2"

(3.96 mm) at the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your

local plumbing codes.

•If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber. 12

iNSTALLATiON iNSTRUCTiONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that

is easily accessible. It is best to connect

into the side of a vertical water pipe.

When it is necessary to connect into a

horizontal water pipe, make the

connection to the top or side, rather

than at the bottom, to avoid drawing

off any sediment from the water pipe.

=DRILL THE HOLE FOR THE VALVE

Drill a 1¼,(6.35 mm) hole in thewater _

pipe using a sharp bit.

Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a

1¼"(6.35 mm) hole may result in reduced ice

production or smaller cubes.

NOTE: Licensed plumbers must use only cooper tubing

NDA tubing #49595 or 49499 or Cross Link

Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

Saddle-Type --J

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle

valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed

plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

Pipe Ctamp _ L_ IWnlethErnd

Clamp Screw!_ _

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base

cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing [about

8 feet (2.4 m) coiled into 3 turns of about

10" (254 mm) diameter] to allow the refrigerator to

move out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing

is fully inserted into the valve. Tighten the

compression nut securely.

Saddle-Type

Shutoff Va_e_

Packing

Nut

Outlet

Valve

Compression

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle

valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed

plumber.

13

=FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water _ _'_ ),4

valve after about one quart of

water has been flushed through

the tubing.

Back of refrigerator

Tubing

1/4"(6,35 mm)

Compression

Nut

W' (6.35 mm) Tubing

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTES:

Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

• If your refrigerator does not have a water filter,

we recommend installing one. If your water supply

has sand or particles that could clog the screen of

the refrigerator's water valve, install the filter in the

water line near the refrigerator

•Do not use old hoses; only use new hoses provided

by the manufacturer. For more information call

1-800-4-MY-HOME ®.

1. Remove the plastic flexible cap from the refrigerator

connection.

,

,

Place the compression nut and ferrule (sleeve) onto

the end of the tubing. (See figure 1)

Insert the end of the tubing into the connection as

far as possible. While holding the tubing, tighten the

fitting.

CAUTION: Check to make sure that leaks are not

occurring in the water line.

Ferrule

Figure 1 Refrigerator

Connection

Fasten the tubing into the tubing clamp attached to the

back of the refrigerator.

First, loosen the screw fastening the clamp. Next,

insert the tubing in the groove. Finally, re-fasten the

screw,

10. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so

that it does not vibrate against

the back of the refrigerator or

against the wall. Push the

refrigerator back to the wall.

11. START THE ICEiVIAKER

Set the icemaker power switch to the ON (I) position

The icemaker will not begin to operate until it

reaches its operating temperature of 15°F (-9°C)

or below. It will then begin operation automatically if

the icemaker power switch is in the ON (I) position,

14

/

d

Use this page to become more familiar with the parts and features.

Note: This guide covers several different models.The refrigerator you have purchased may have some or

all of the items listed below, The locations of the features shown below may not match your model,

Automatic Icemaker

The ice is produced in the icemaker

and sent to the dispenser.

O Freezer Shelf

G Freezer Light (LED)

O Freezer Door Rack (Plastic/Wire)

O Drawer

O Base Grille

@

@

0

@

@

@

@

Refrigerator Light (LED)

Dairy Corner

For storage of dairy products

such as butter and cheese,

Water Filter

Refrigerator Shelf

Snack Pan

For storage of meat or fresh food.

Refrigerator Door Rack

Door racks may be clear or opaque depending on

refrigerator model type.

Crisper Drawer

15

ENSURING PROPER AiR CiRCULATiON PRIOR TO USE

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections.

o Cool air enters the freezer though the vents located at

the top of the compartment and exits through the vents

located behind the freezer drawers.

o Cool air from the freezer section enters the fresh food

section through vents located at the top of the

compartment. The air moves down throughout the

compartment and exits through the vents located behind

the crisper drawers.

1. Clean your refrigerator thoroughly and wipe off dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold air in

the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

CONTROL PANEL FEATURES

(identify your Control type)

Press the button for the desired function to review and

select other settings.

Type 1

Type 2

"Do not block any of these vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

iMPORTANT:

Because air circulates between both sections, any odors

formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors.

To prevent odor transfer and dried out food, wrap or cover

foods tightly. (See the Food Storage Guide section for

details.)

NOTE: If you

close the

refrigerator door,

you may see the

freezer door

open and close

again due to

pressure from

internal air flow.

REFRIGERATOR AND FREEZER CONTROLS

It is recommended to mantain the temperature of 37°F

(3°C) in the refrigerator compartment and 0°F (-18°C)in

the freezer compartment. To adjust temperatures press,

for refrigerator compartment the Refrigerator Temp graphic

and for freezer compartment the Freezer Temp graphic.

The lower the number, the colder the compartment will be.

NOTE: The refrigerator temperature can be modified from

33°F to 46°F (0°C to 8°C). The freezer

temperature can be modified from -6°F to 8°F

(-21°C to -13°C).

To change temperature unit from Fahrenheit to Celsius

or from Celsius to Fahrenheit press and hold Refrigerator

Temp and Freezer Temp buttons.

16

DisplayOffMode

• When the refrigerator is in the Display Off Mode, the

display will remain off until a door is opened or a button is

pressed. Once on, the display will remain on for 20

seconds.

• To deactivate the Display Off Mode, press and hold the

Freezer Temp and Ultra Ice buttons for 5 seconds until

the tone sounds. Repeat this procedure to reactivate the

Display Off Mode.

Icemaker Operation

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

Anewly=installed refrigerator may take

12 to 24 hours to begin making ice.

Type 1 Type 2

iCE &WATER

(identify your icon type)

You can select water or ice.

•Select Water, Crushed Ice or Cubed Ice by pressing

the ICE & WATER button to the selection desired. The

Water, Crushed Ice or Cubed Ice icon will light up to

indicate selection.

=_ Selecting this icon indicates that cubed ice will be

dispensed when the dispenser pad is activated.

Selecting this icon indicates that water will be

dispensed when the dispenser pad is activated.

Selecting this icon indicates that crushed ice will

be dispensed when the dispenser pad is activated.

To dispense water or ice, gently push your cup against

the dispenser pad.

NOTE: Hold your cup in place for a couple of seconds

after dispensing ice or water so the last few drops

go in your cup instead of on the floor.

Indicator Light

Type 1 Type 2

ULTRA iCE

Ice Cube size

selector button

Shutoff Arm

Power Switch

The icemaker will produce 6 cubes per cycle,

approximately 100 cubes in a 24 hour period, depending

on freezer compartment temperature, room temperature,

number of door openings and other operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to OFF (O),

Throw away the first few batches of ice to allow the

water line to clear.

Be sure nothing interferes with the sweep of the shutoff

arm.

When the bin fills to the level of the shutoff arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

Press this button once to activate the increased ice making

function. The Ultra Ice icon on the display panel will

illuminate when activated. The Ultra Ice function runs the

freezer compartment at the coldest settings for a 24 hour

period to increase ice making. Press the button again to

cancel the Ultra Ice function.

FILTER RESET

HOLD 3SEC HOLD 3SEC

Type 1 Type 2

There is an indicator light for the water filter cartridge on

the dispenser that will blink to indicate it is time to change

the water filter. Water filters usually need to be replaced

once every six months. After,_[eplacing the filter, press and

hold the Filter Reset button _ or _ for 3 seconds to

turn off the filter status light ................

17

DOOR ALARM

_ CONTROL LOCK

CONTROL LOCK HOLD 3 SEC

HOLD 3 SEC

Type 1 Type 2

When either the refrigerator or freezer door is left open for

more than 1 minute, an alarm will sound to let you know

the door is open. The alarm will repeat every 30 seconds

until all doors are completely closed. The door alarm

function can be deactivated by pressing the Door Alarm

button.

CONTROL LOCK

This model is equipped with a control lock function that

disables the temperature controls and dispenser pad. To

activate the Control Lock, press and hold the Door Alarm

button for 3 seconds until the Control Lock indicator turns

on. Repeat this procedure to disable the Control Lock.

NOTE: When the Control Lock is enabled, the dispenser

pad and all other buttons are disabled.

Type 1 Type 2

DISPENSER LIGHT

These models are equipped with a light that illuminates the

dispenser area whenever the dispenser pad is engaged.

Type 1

This model is equipped with a Mood Lamp that illuminates

the dispenser area. m

The Mood Lamp can be turned on by pressing the

button.

When the Dispenser Light is enabled, an indicator located

above the Dispenser Light button will illuminate.

Type 2

This model is equipped with a Mood lamp that illuminates

the dispenser area. The Mood lamp can be turned on,

off or set in Auto function by pressing the button.

When Auto function is set, brightness of

the room will be detected by the Light

Sensor to turn on when dark and off

when bright.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely

before making final adjustments. It is best to wait 24

hours before doing this. The initial settings mentioned in

CONTROL PANEL FEATURES section should be

correct for normal household refrigerator use.

The refrigerator control functions as the thermostat for

the entire appliance (refrigerator and freezer sections).

The colder the setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator and allow 24

hours for the temperature to stabilize. If it is too warm or

too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/REASON :

II REFRIGERATOR section too

warm

- Door opened often

- Large amount of food added

- Room temperature very warm

II FREEZER section too

warm/ice not made fast enough

- Door opened often

- Large amount of food added

-Very cold [below 55°F (13°C)]

room temperature.

(Compressor does not cycle

often enough).

- Heavy ice usage

-Air vents blocked by items

II REFRIGERATOR section too

cold

-Controls not set correctly for

your conditions

II FREEZER section too cold

-Controls not set correctly for

your conditions

RECOMMENDED

ADJUSTMENT :

Set the Refrigerator

control one degree

colder; wait 24 hours

for the new setting to

take full effect before

making another

adjustment.

Set the Freezer control

one degree colder;

wait 24 hours for the

new setting to take full

effect before making

another adjustment.

Move items out of

airstream

Set the Refrigerator

control one degree

warmer; wait 24 hours

for the new setting to

take full effect before

making another

adjustment.

Set the Freezer control

one degree warmer;

wait 24 hours for the

new setting to take full

effect before making

another adjustment.

18

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to ensure

freshness.

items How t o Store

Butter or I_

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk _- Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs Store in original carton or on

interior shelf, not on door shelf.

Fruit Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper drawer, or store in a closed

and sealed paper bag on a

refrigerator shelf.

Leafy

vegetables Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper drawer.

Vegetables with I_ Place in plastic bags or plastic

skins (carrots, container and store in crisper

peppers) drawer.

Fish _ Use fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil. Plastic containers

with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer

guide or a reliable cookbook.

Packaging

Successful freezing depends on correct packaging.

When you close and seal the package, it must not allow

air or moisture in or out. If it does, you could have food

odor and taste transfer throughout the refrigerator and also

dry out frozen food.

Packaging recommendations:

•Rigid plastic containers with "tight=fitting lids"

•Straight-sided canning/freezing jars

•Heavy=duty aluminum foil

•Plastic-coated paper

•Non=permeable plastic wraps

•Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Containers without tight lids

•Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may

burst if they freeze.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours [no more than 2 to 3 Ibs of food

per cubic foot (0.9 to 1.35 kg per cubic meter) of freezer

space]. Leave enough space in the freezer for air to

circulate around packages. Be careful to leave enough

room at the front so the door can close tightly.

Food storage times will vary according to the quality and

type of food, the type of packaging or wrap used (airtight

and moisture-proof) and the storage temperature. Ice

crystals inside a sealed package are normal. This simply

means that moisture in the food and air inside the package

have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot

foods before freezing saves energy.

19

WATER AND ICE DISPENSER

Your refrigerator has a mechanism that can dispense cool

water and ice cubes without opening the door.

WARNING

Do not put your hands into the water and ice dispenser

opening. Doing so may cause an injury to your hand.

•The dispenser tray can easily be removed by pressing

down and lifting it out.

•First push the tray in the area labeled 'PUSH', then place

your finger in the center hole and lift up to remove the

tray.

CAUTION

When using the dispenser with a container with a

small opening, place the container as close to the top

as possible.

• The dispenser opening has the following dimensions:

Depth 4 Vs" (124 mm)

Width 8 Vs" (220 mm)

Height 10 Yl0"(277 mm)

For best performance, use a container that is smaller

than the dispenser opening.

2O

iCE STORAGE BiN CRISPER AND CRISPER COVER

The ice bin stores the ice cubes made by the icemaker.

If you need to remove the ice storage bin, do so as follows:

NOTE: Use both hands to remove the ice bin to avoid

dropping it.

• Lift the ice storage bin slightly @ and pull it out ® as

shown in the figure.

The crisper allows for better conservation of fruits and

vegetables.

• To remove the crisper compartment cover, pull out

the crisper compartment a bit to the front @, lift the

front part of the cover as shown in ®, and take it out @.

DOOR RACK AND SUPPORT

• To remove the crisper compartment, pull the crisper

compartment to the front (b until it stops. Then slightly

lift the crisper compartment ® while pulling it out @.

Your refrigerator and freezer features racks which can

easily be arranged for packaged products.

• Lift the door rack holding both sides (b and pull it out in

® direction.

SNACKPAN

• To remove the snack pan cover, pull the snack pan

out a bit @. Lift the front part of the snack pan cover and

pull out ®.

i

@

CAUTION

When removing the crisper compartment you will see

the water tank. Do not remove it, or water leakage

may result. The water tank is not a removable part.

21

Youcancontroltheamountof humidityinthemoisture-

sealedcrispers.Adjustthecontrolto anysetting

between"VEGETABLES"and"FRUIT".

•"VEGETABLES": Keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

• "FRUIT": Lets moist air out of crisper for best storage of

fruits or vegetables with skins.

REFRIGERATOR SHELVES

The refrigerator compartment shelf is adjustable so that

you can place it at a height according to the space

requirement of foods.

• Slide shelf

Pull the shelf towards you @, then lift both the front and

rear parts of the shelf upward ® to remove @.

AIRTIGHT CRISPER AND AIRTIGHT CRISPER

COVER (on some models)

Ideal to store lettuce, spinach, broccoli, brussels sprouts,

celery or any vegetable or fruit that require cold, moist

conditions. The airtight crisper will keep vegetables fresh

for longer.

®

NOTE: Make sure to keep shelf horizontal while removing;

otherwise it may drop.

• Folding Shelf (on some models)

You can store taller items such as gallon containers or

bottles by simply sliding the shelf back.

Slightly lift the shelf in the direction @ while pushing it

to the back ®.

•To remove it, pull the airtight crisper cover out, insert a

flatblade screwdriver below the airtight cover hook @ and

pull down ®. Repeat same process on the opposite side.

22

•Fixed shelf • Fixed shelf

Lightly lift up the front part of shelf @, pull the shelf

towards you @, then take it out while lifting the rear part 1. Firmly pull the right rear of the shelf up @ to clear the

of shelf @. rear shelf support (view detail).

@

FREEZER SHELF

To assemble or disassemble the freezer shelf, follow

the next steps:

J

1. Pull the shelf towards the front d). The shelf hook will

contact the support on the guide. Lift the shelf so the

hook clears the guide support (view detail) and pull out.

B

2. Firmly pull the right front part of the shelf up ® to clear

the front shelf support.

3. Tilt the shelf in the direction ®, and then pull it toward

you.

23

WATERFILTER

WhentheFilterReseticonturnson,youhavetochange

thewaterfilter.PresstheFilterResetbutton:,A_,_ _..........

for3secondstoturntheiconoff.

Type 1 Type 2

Before removing or installing water filter:

iMPORTANT: Turn off household water supply.

Removing the water filter.

Rotate the knob of the cartridge counterclockwise. When

the cartridge is removed, you will feel it click out of place.

Pull out the cartridge.

Grasping filter by its handle, twist it about 1/4turn until it

clicks into place. The filter is not correctly installed if you

can wiggle it from side to side. You will hear a snap when

it locks securely into place.

NOTE: Removing the filter causes a small amount of

water to flow out. Place a cup below the filter

receptacle to catch water. Holding the cartridge

with the handle down will minimize spillage. After installing water filter:

1. Turn on household water supply.

2. Dispense 2.5 gallons (9.46 liters) of water to purge the

system, depressing and releasing the dispenser pad in

cycles of 30 seconds ON and 60 seconds OFF. Open

the refrigerator door and shelf area to check for water

leaks.

To purchase replacement water filter, call

1-800-4-MY-HOME ®.

installing the water filter.

Take the new cartridge out of its package and remove

protective receptacle from the o-rings. With cartridge knob

in the vertical position, push the new filter cartridge into

the cover until it stops.

24

Filter Performance Data Sheet

Nlodel Number 5231JA2006E

Use with replacement cartridge 5231JA2006E

This system has been tested according to NSF/ANSI 42 for the reduction of the substances listed below.

The concentration of the indicated substances in water entering the system was reduced to a

concentration less than equal to the permissible limit for water leaving the system, as specified in

NSF/ANSl 42.

I ystem tested and certified by NSF International against NSF/ANSI Standard 42 for the

reduction of Chlorine, Taste and Odor and Nominal Particulate Class III.

Max.

Influent Challenge Product Average % NSF Reduction Effluent Min. % NSF

Contaminant Average concentration. Units Water Reduction Requirements Reduction Test

Reduction Influent apply to each row mg/L

Particulate

Class I Particle size: 5600000 At least 10 000 833333 93.2 > 85% 470000 91.6% 511032-03

>0.5 to <1 ,m particles/ml

Chlorine taste and odor 1.9 mg/L 2.0 mg/L + 10% 0.05 mg/L 97.4 >50% 0.05 mg/L 97.4% 511031-03

To a capacity of 300 gallons (1.135 L).

* Note that while the testing was performed under standard labaratory conditions, actual performance may vary.

Application Guidelines /Water Supply Parameters

Water pressure 30 - 100 psi !207 - 689 kPa)

Water temperature 33°F - 100°F (0.6°C - 37.8°C)

Service flow 0.5 gpm (1.9 Ipm)

To reduce the risk associated with ingestion

of contaminants due to use with water that is

microbiologically unsafe or of unknown

quality.

Do not use with water that is

microbiologically unsafe or of unknown

quality without adequate disinfection before

or after the system.

Systems must be installed and operated in

accordance with manufacturer's recommended

procedures and guidelines.

_3CAUTION

To reduce the risk of property damage due to water leakage:

• Read and follow Use instructions before installation and use of

this system.

• Install on COLD water lines only.

• Company with all state and local plumbing codes.

Never install or operate where inlet water pressure may exceed

125 psi (862 kPa).

• Protect filter from freezing. Remove filter in temperatures

below 34°F (1°C).

• Replace cartridge at specified service interval. Cartridge

MUST be replaced at least every 6 months.

• After replacing the water filter cartridge, dispense 2.5 gallons

(9.46 liters) of water to purge the system, depressing and

releasing the dispenser pad in cycles of 30 seconds ON and

60 seconds OFF. Discard the purged water.

To purchase a replacement filter, visit your local Sears store or

call 1-800-4-MYHOME ®.Visit us on the web at www.sears.com

Product distributed in the United States

by Sears Brands Management Corporation,

Hoffman Estates, IL 60179

25

ExplosionHazard

Usenon-flammablecleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once a

month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

oUnplug refrigerator or disconnect power.

oRemove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

oUse a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

oHand wash, rinse and dry all surfaces thoroughly.

oPlug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide

rust protection. Do not wax plastic parts. Wax painted

metal surfaces at least twice a year using appliance wax

(or auto paste wax). Apply wax with a clean, soft cloth.

Do not use wax on stainless steel exteriors. Use a product

specially designed for polishing stainless steel appliances,

or clean with a soft cloth or clean sponge and a mild

detergent dissolved in warm water. Dry thoroughly with a

soft cloth.

NOTE: Avoid door surface contact with chemical products

that contain Phosphate or Chlorine, such as

degreasers, detergents (containing TSP) and

bleachers.

INSIDE WALLS (allow freezer to warm up so

cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so it does not scratch the surfaces of

the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergent,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

Use a clean sponge or soft cloth and a mild detergent in

warm water. Wash, rinse and dry all surfaces thoroughly.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleaners, or

flammable fluids. These can scratch or damage the

material. Use a clean sponge or soft cloth and a mild

detergent in warm water. Wash, rinse and dry all

surfaces thoroughly.

BACK COVER

ELECTRICAL SHOCK HAZARD

Before you begin, either unplug the refrigerator or

turn off power at the circuit breaker or fuse box.

Failure to do so could result in death or serious injury.

NOTE: Back cover should only be removed by a qualified

technician.

Clean the vents on the

back cover. Use a vacuum

cleaner with the brush

attachment, at least twice a

year to keep your refrigerator

working efficiently.

LIGHT (LED) REPLACEMENT

If refrigerator or freezer LED stops working, please call

1-800-4-MY-HOME ®for service.

NOTE: Do not remove the LED, it is only to be removed

by a qualified technician.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and

frozen.

2. If the power will be out for more than 24 hours, remove

all the frozen food and store it in a frozen food locker.

26

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator running while

you are away, follow these steps to prepare your

refrigerator before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

3. Turn OFF the Icemaker. NOTE: If the ambient

temperature will drop below freezing, have a qualified

service technician drain the water supply system (on

some models) to prevent serious property damage

due to possible flooding from ruptured water lines or

connections.

If you choose to unplug your refrigerator before you

leave, follow these steps.

1. Remove all food from the refrigerator and empty ice

bin.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This

stops odor and mold from building up.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

•When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve will buzz as the icemaker

fills with water. If the power switch is in the ON (I)

position, it will buzz even if it has not yet been hooked

up to water. To stop the buzzing, move the power switch

to OFF (O) position.

NOTE: Keeping the power switch in the ON (I) position

before the water line is connected can damage

the icemaker.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6. Take out all removable parts, wrap them well and

tape together so they do not shift and rattle during the

move. Refer to sections in Using your Refrigerator for

removal instructions.

7. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don not scrape the

floor. See the DOOR ALIGNMENT section.

8. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

9. If the ambient temperature will drop below freezing,

have a qualified service technician drain the water

supply system (on some models) to prevent serious

property damage due to possible flooding from ruptured

water lines or connections.

When you get to your new home, put everything back

and refer to the REFRIGERATION INSTALLATION

section for setup instructions.

27

UNDERSTANDING SOUNDS YOU MAY

HEAR

Your new refrigerator may make sounds that your old

one did not make. Because the sounds are new to you,

you might be concerned about them. Most of the new

sounds are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following list describes the kinds of

sounds and what may be making them.

The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant,

the water line, or items stored on top of the refrigerator

Your refrigerator is designed to run more efficiently to

keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, but it is still

more energy efficient than previous models. While

running you may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause

a popping noise.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the

defrost cycle.

REFRIGERATOR DOES NOT OPERATE

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

A household fuse has blown or circuit breaker tripped. Replace the fuse or reset the circuit breaker.

Check that the house circuit is not overloaded.

Refrigerator is in the defrost cycle.

Display shows the word OFF. (Identify your control type).

Wait about 30 minutes for defrost cycle to end.

The refrigerator control has been put into the store Demo

(Demonstration) Mode.

The Demo Mode disables the cooling system, but the

compartment lights continue to turn on and the control

panel also displays normally.

To disable Demo Mode open refrigerator door, then press

Ultra Ice and Refrigerator Temp buttons at the same time

for 5 seconds. When Demo Mode is deactivated, your

temperature setting will be displayed.

VIBRATION OR RATTLING NOISE

Check if...

The refrigerator is not resting solidly on

the floor.

Then,,,

Floor is weak or uneven or leveling legs need adjusting.

See DOOR ALIGNMENT section.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

LED light failure. Do not remove the LED light, it is only to be removed by a

qualified technician.

28

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if...

The refrigerator that was replaced was an older model.

The room temperature is hotter than normal.

The door is opened often or a large amount of food has

just been added.

Then...

Modern refrigerators with more storage space require

more operating time. Even though this refrigerator may

run more than your older one, it will still use less energy.

The motor will run longer under warm conditions. At

normal room temperatures, expect your motor to run

about 40% to 80% of the time. Under warmer conditions,

expect it to run even more often. These model is still more

energy efficient than previous models.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to

cool the refrigerator back down. In order to conserve

energy, try to get everything you need out of the

refrigerator at once, keep food organized so it is easy to

find and close the door as soon as the food is removed.

See the FOOD STORAGE GUIDE section.

The refrigerator was recently plugged in and the The refrigerator will take up to 24 hours to cool

refrigerator control was set correctly completely.

The refrigerator control was not set correctly for the See the ADJUSTING CONTROL SETTINGS section.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the

way, see Doors Will Not Close Completely below.

The condenser coils are dirty. This prevents air transfer and makes the motor work

harder. Clean the condenser coils. Refer to the CARE

AND CLEANING section.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See DOOR ALIGNMENT in the REFRIGERATION

INSTALLATION section to level refrigerator.

Food packages are blocking the door open. Rearrange food containers to clear door and door

shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans,

or baskets are out of position, shelves and baskets into their correct positions. See the

USING YOUR REFRIGERATOR section.

The gaskets are sticking. Clean gaskets and the surfaces that they touch. Rub a

thin coat of paraffin wax on the gaskets after cleaning.

The doors were removed during product installation Remove and replace the doors according to the

and not properly replaced. REMOVING AND REPLACING REFRIGERATOR

DOORS section, or call a qualified technician.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce ice. Wait 24 hours after hook-up for ice production. See the

CONTROL PANEL FEATURES section.

Door left open. Check to see if something is holding the door open.

29

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if...

Water shutoff valve connecting refrigerator to water line

may be clogged or water pressure may be too low.

Smaller cube size is selected,

Then...

Call a plumber to check the valve and water supply.

Select larger cube size using the Ice Cube Size selector

button.

THE DOORS ARE DIFFICULT TO OPEN

Check if...

The gaskets are dirty or sticky,

The door is reopened within a short time after having

been opened.

Then...

Clean gaskets and the surfaces that they touch. Rub a

thin coat of appliance polish or paraffin wax on the

gaskets after cleaning

When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create a vacuum.

If the door is hard to open, wait 5 minutes to allow the air

pressure to equalize, then see if it opens more easily.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates from the

freezer to the fresh food section and back again through

air vents in the wall dividing the two sections.

The doors are opened often.

The control is not set correctly for the surrounding

conditions.

Locate air vents by using your hand to sense airflow and

move all packages that block vents and restrict airflow.

Refer to ENSURING PROPER AIR CIRCULATION

section for the location of air vents.

When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster

the humidity builds up, and the more warm air the

refrigerator must cool. In order to keep the refrigerator

cool, try to get everything you need out of the

refrigerator at once, keep food organized so it is easy to

find and close the door as soon as the food is removed.

Refer to the CONTROL PANEL FEATURES section.

Wait 24 hours for temperatures to stabilize or even out.

If the temperature is too cold or too warm, adjust the

setting one temperature at a time.

A large amount of food has just been added to the Adding food warms the refrigerator. It can take a few

refrigerator or freezer, hours for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation.

If necessary, repackage food according to the guidelines

in the FOOD STORAGE GUmDE section.

The doors are not closing completely See Doors Will Not Close Completely.

The weather is humid. In humid weather, air carries moisture into refrigerator

when doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

30

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if...

The door is not closing properly

The door is opened often.

Then...

See Doors Will Not Close Completely, refer to page 29.

When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

FROZEN FOOD IN REFRIGERATOR COMPARTMENT

Check if... Then...

The temperature control in the refrigerator compartment Press the Refrigerator Temp button to set the refrigerator

is set too cold. compartment to a warmer temperature.

Refrigerator is installed in a cold location. When room temperature is below 41°F (5°C), food can

become frozen. The refrigerator should not be operated

in temperatures below 55°F (13°C).

Food with a high water content was placed too close to Place food with a high water content toward the front of

the air vents, the refrigerator.

iCE HAS BAD TASTE OR ODOR

Check if... Then...

The icemaker was recently installed, Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long, Throw away old ice and make new supply,

The food has not been wrapped tightly in either Rewrap foods since odors may migrate to the ice if food

compartment, is not wrapped properly,

The water supply contains minerals such as sulfur, A new filter may need to be installed to eliminate taste

and odor problems,

The interior of refrigerator needs cleaning, See CARE AND CLEANING section,

Ice storage bin needs cleaning, Empty and wash bin. Discard old cubes,

THERE iS WATER iN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting.

It is more humid than normal.

The water will evaporate. It is normal for water to drip

into the defrost pan.

Expect that the water in the defrost pan will take longer

to evaporate, This is normal when it is hot or humid,

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

I he sounds may be normal for your refrigerator, Refer to the UNDERSTANDING SOUNDS YOU MAYHEAR section,

31

NOT DiSPENSiNG iCE

Check if... Then...

All the doors are not closed completely. Ice will not dispense if any of the refrigerator doors are left

open,

The dispenser display is locked. Press and hold the Door Alarm button for 3 seconds to

unlock the control panel and dispenser,

Ice is not selected on the dispenser. The dispenser can be set for ice or water. Make certain

that the control panel is set for the proper operation.

Press the dispenser Ice & Water button on the control

panel to cycle through the ice and water options,

The ice dispenser is not used often. Check the ice bin for ice cubes clumping/sticking together,

If they are, break up the ice cubes to allow for proper

operation.

Ice bin is not installed correctly. Be sure to install the ice bin firmly into position,

New installation. Wait 24 hours after icemaker installation for ice

production to begin, Wait 72 hours for full ice production,

Ice cubes are stuck in the delivery chute. Use a plastic utensil to clear the delivery chute,

The ice dispenser is stalling while dispensing Change the ice button from "crushed" to "cubed".

"crushed" ice. If cubed ice dispenses correctly, depress the button for

"crushed" ice and begin dispensing again,

Icemaker power switch in the OFF (O) position, Move the switch to the ON (I) position,

Water supply turned off or not connected, See the CONNECTmNG THE WATER MNE section,

NOT DiSPENSiNG WATER

Check if... Then...

The dispener display is locked, Press and hold the Door Alarm button for 3 seconds to

unlock the control panel and dispenser,

New installation, Flush and fill the water system,

Refrigerator or freezer doors are not closed Water will not dispense if any of the refrigerator doors are

properly, left open,

Water supply turned off or not connected, See the CONNECTmNG THE WATER MNE section,

The water pressure is less than 40 psi. The water pressure to the home affects the flow from the

dispenser,

Home filter or reverse osmosis system is used. This can decrease water pressure. It is recommended

not to connect the supply line to a reverse osmosis

system for optimal operation,

The dispenser is not set for water dispensing, The dispenser can be set for ice or water. Make certain

that the control panel is set for the proper operation.

Press the dispenser button on the control panel to cycle

through the ice and water options,

Water filter needs to be changed, The filter should be changed every 6 months or

more often depending on usage. The filter can

become blocked over time with foreign

particles and reduce the water pressure,

32

Your Home

For troubleshooting, product manuals and expert advice:

yli

managem fe

www.managemylife.com

.................. For repair - in your home - of all major brand appliances,

lawn and garden equipment, orheating and cooling systems,

nomatterwhomadeit, nomatterwhosold it!

For the replacement parts, accessories and

owner'smanualsthatyou needtodo-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-s00-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

o,.,,.Ho,11,,

For,epai,ofcaw-initemslikevac,.,,.,ms,lawne_,.,ip_ent,

and electronics, call anytime for the location of your nearest

Sears Parts& RepairService Center

1"800"488"1222 <U.S.A.> 1"800"469"4663 <Canada> iiiiiiiii

To purchase a protection agreement on a product serviced by Sears:

1 =800"827-6655 (U.S.A.) t-800=361=6665 (Canada)

TM

® Registered Trademark /Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros paises

Mc Marque de commerce /MDMarque deposde de Sears Brands, LLC
