Kente Science and Technology K10 Android Tablet PC User Manual

Shenzhen Kente Science&Technology; Co.,Ltd. Android Tablet PC

User Manual

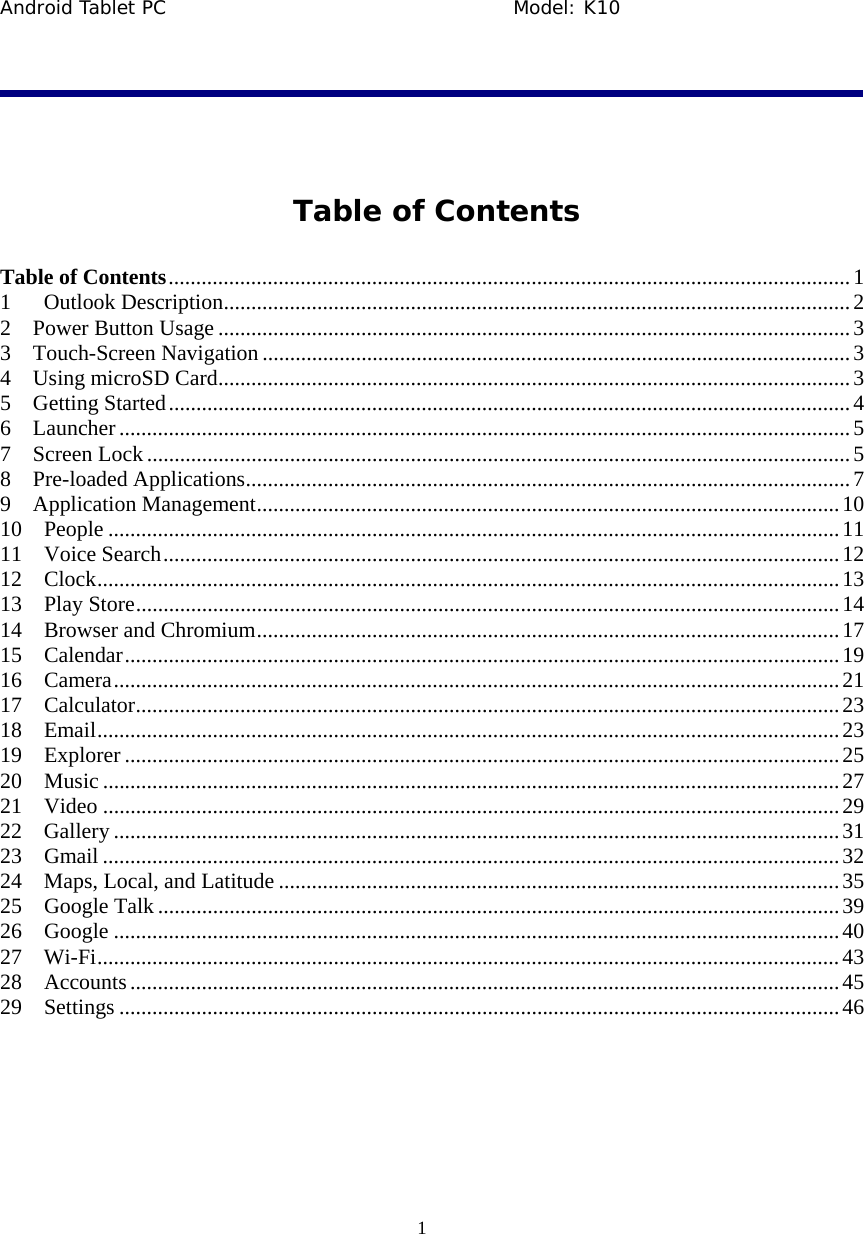

Android Tablet PC Model: K10 1 Table of Contents Table of Contents ............................................................................................................................ 1 1 Outlook Description .................................................................................................................. 2 2 Power Button Usage ................................................................................................................... 3 3 Touch-Screen Navigation ........................................................................................................... 3 4 Using microSD Card ................................................................................................................... 3 5 Getting Started ............................................................................................................................ 4 6 Launcher ..................................................................................................................................... 5 7 Screen Lock ................................................................................................................................ 5 8 Pre-loaded Applications .............................................................................................................. 7 9 Application Management .......................................................................................................... 10 10 People ..................................................................................................................................... 11 11 Voice Search ........................................................................................................................... 12 12 Clock ....................................................................................................................................... 13 13 Play Store ................................................................................................................................ 14 14 Browser and Chromium .......................................................................................................... 17 15 Calendar .................................................................................................................................. 19 16 Camera .................................................................................................................................... 21 17 Calculator ................................................................................................................................ 23 18 Email ....................................................................................................................................... 23 19 Explorer .................................................................................................................................. 25 20 Music ...................................................................................................................................... 27 21 Video ...................................................................................................................................... 29 22 Gallery .................................................................................................................................... 31 23 Gmail ...................................................................................................................................... 32 24 Maps, Local, and Latitude ...................................................................................................... 35 25 Google Talk ............................................................................................................................ 39 26 Google .................................................................................................................................... 40 27 Wi-Fi ....................................................................................................................................... 43 28 Accounts ................................................................................................................................. 45 29 Settings ................................................................................................................................... 46

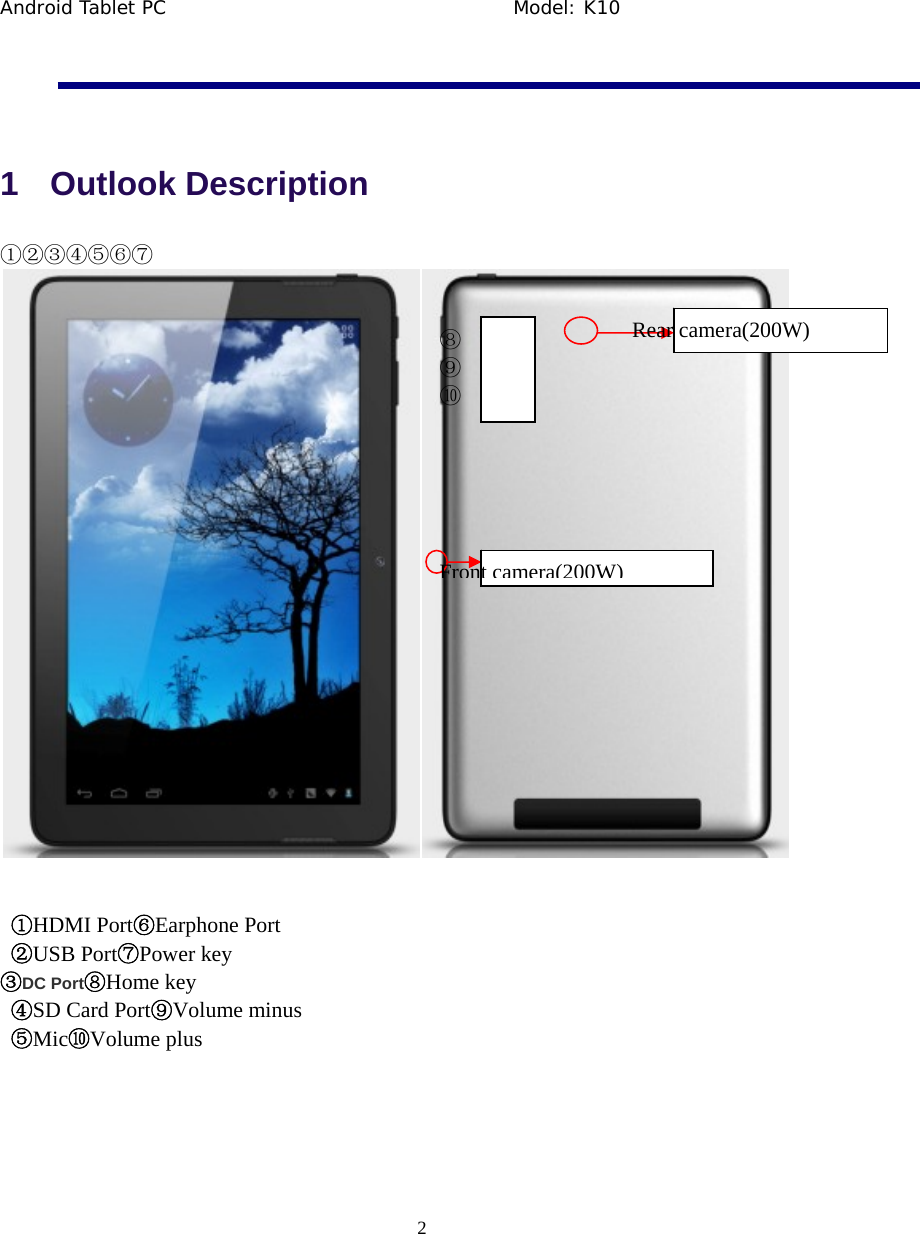

Android Tablet PC Model: K10 2 1 Outlook Description ①②③④⑤⑥⑦ ①HDMI Port⑥Earphone Port ②USB Port⑦Power key ③DC Port⑧Home key ④SD Card Port⑨Volume minus ⑤Mic⑩Volume plus Rear camera(200W) ⑧⑨⑩Front camera(200W)

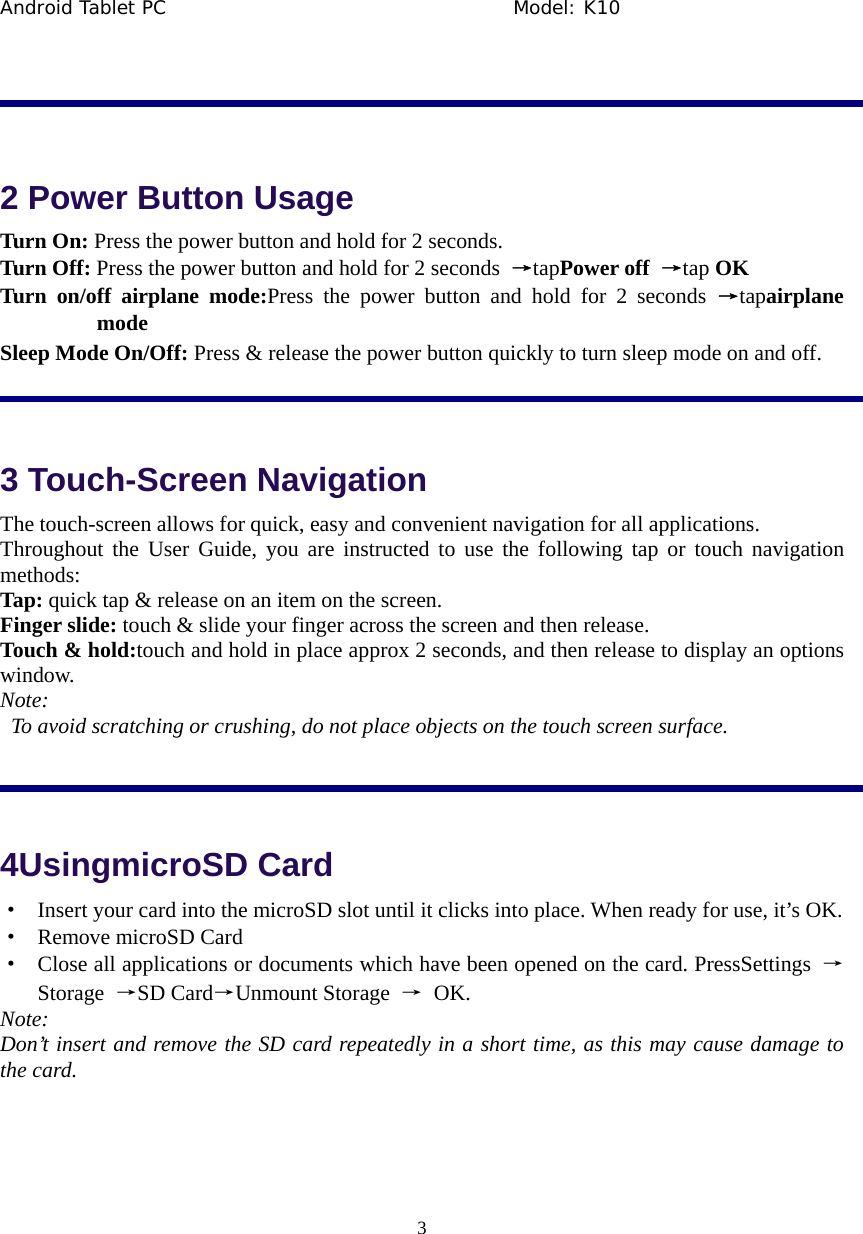

Android Tablet PC Model: K10 3 2 Power Button Usage Turn On: Press the power button and hold for 2 seconds. Turn Off: Press the power button and hold for 2 seconds →tapPower off →tap OK Turn on/off airplane mode:Press the power button and hold for 2 seconds →tapairplane mode Sleep Mode On/Off: Press & release the power button quickly to turn sleep mode on and off. 3 Touch-Screen Navigation The touch-screen allows for quick, easy and convenient navigation for all applications. Throughout the User Guide, you are instructed to use the following tap or touch navigation methods: Tap: quick tap & release on an item on the screen. Finger slide: touch & slide your finger across the screen and then release. Touch & hold:touch and hold in place approx 2 seconds, and then release to display an options window. Note: To avoid scratching or crushing, do not place objects on the touch screen surface. 4UsingmicroSD Card · Insert your card into the microSD slot until it clicks into place. When ready for use, it’s OK. · Remove microSD Card · Close all applications or documents which have been opened on the card. PressSettings → Storage →SD Card→Unmount Storage → OK. Note: Don’t insert and remove the SD card repeatedly in a short time, as this may cause damage to the card.

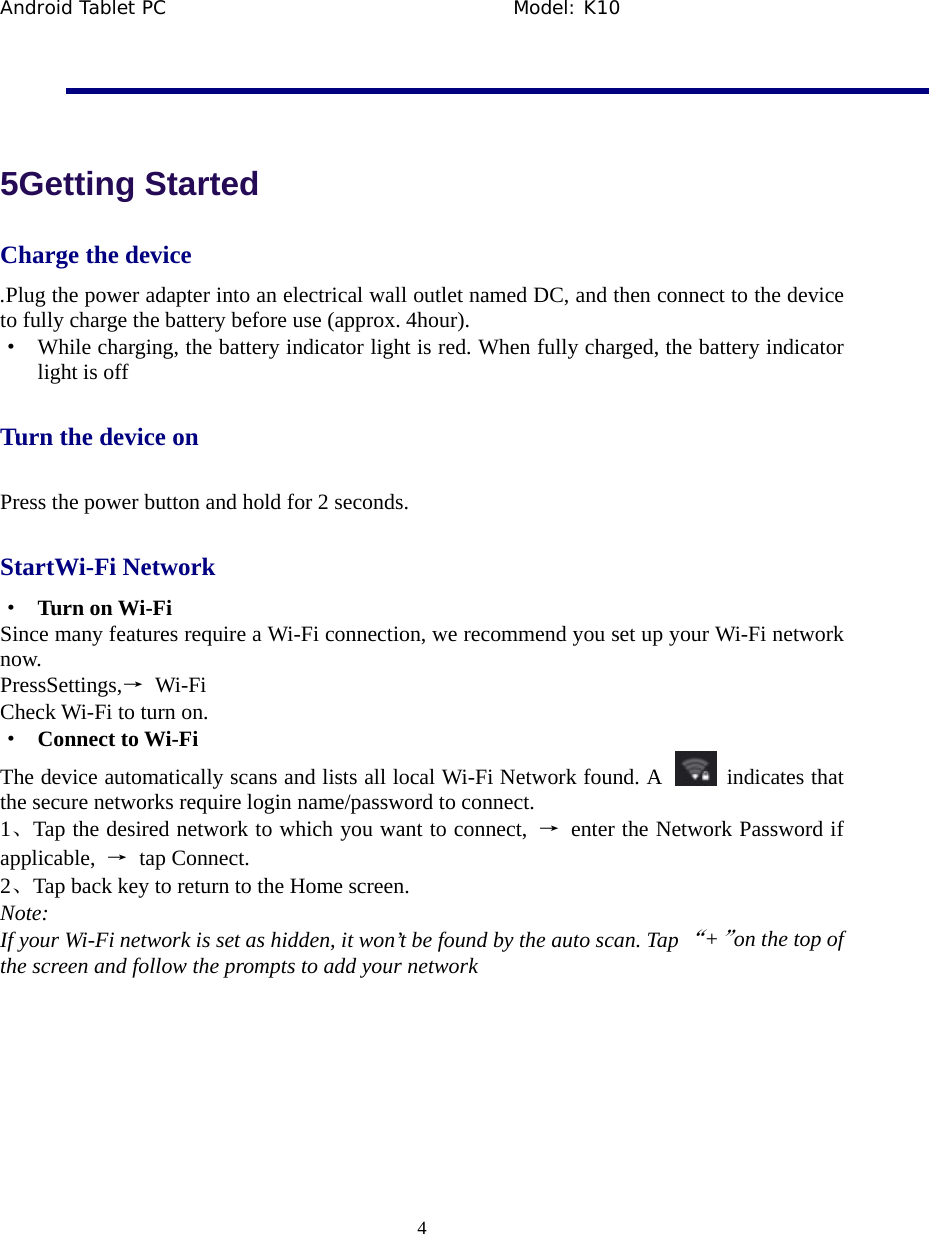

Android Tablet PC Model: K10 4 5Getting Started Charge the device .Plug the power adapter into an electrical wall outlet named DC, and then connect to the device to fully charge the battery before use (approx. 4hour). · While charging, the battery indicator light is red. When fully charged, the battery indicator light is off Turn the device on Press the power button and hold for 2 seconds. StartWi-Fi Network · Turn on Wi-Fi Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi network now. PressSettings,→ Wi-Fi Check Wi-Fi to turn on. · Connect to Wi-Fi The device automatically scans and lists all local Wi-Fi Network found. A indicates that the secure networks require login name/password to connect. 1、Tap the desired network to which you want to connect, → enter the Network Password if applicable, → tap Connect. 2、Tap back key to return to the Home screen. Note: If your Wi-Fi network is set as hidden, it won’t be found by the auto scan. Tap “+”on the top of the screen and follow the prompts to add your network

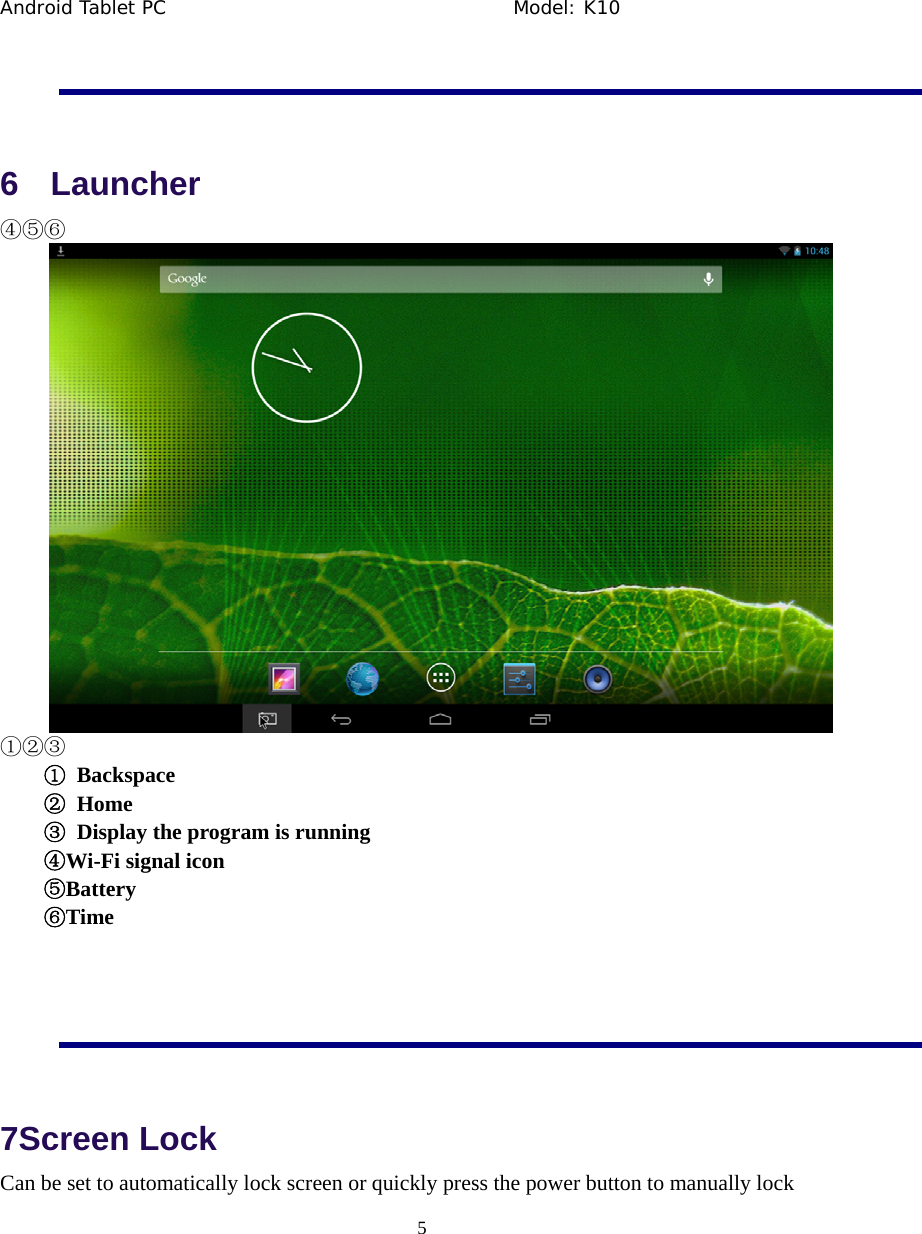

Android Tablet PC Model: K10 5 6 Launcher ④⑤⑥ ①②③ ① Backspace ② Home ③ Display the program is running ④Wi-Fi signal icon ⑤Battery ⑥Time 7Screen Lock Can be set to automatically lock screen or quickly press the power button to manually lock

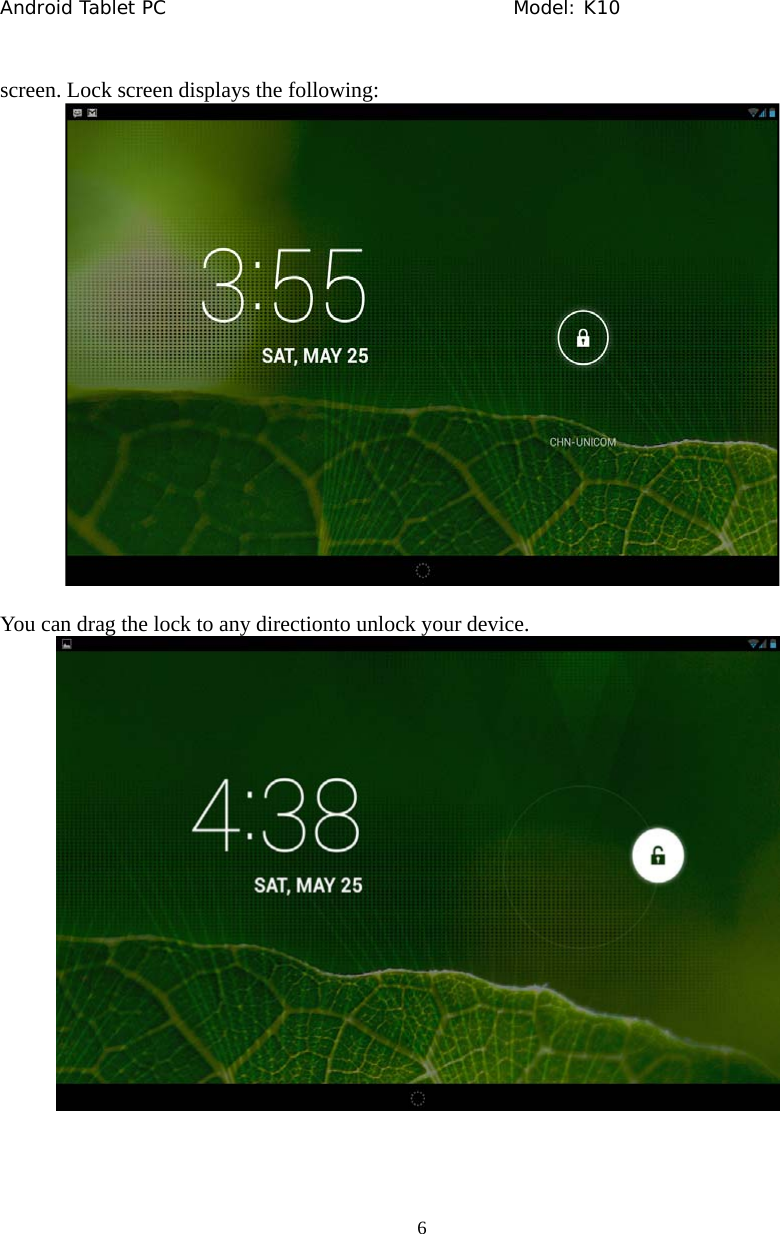

Android Tablet PC Model: K10 6 screen. Lock screen displays the following: You can drag the lock to any directionto unlock your device.

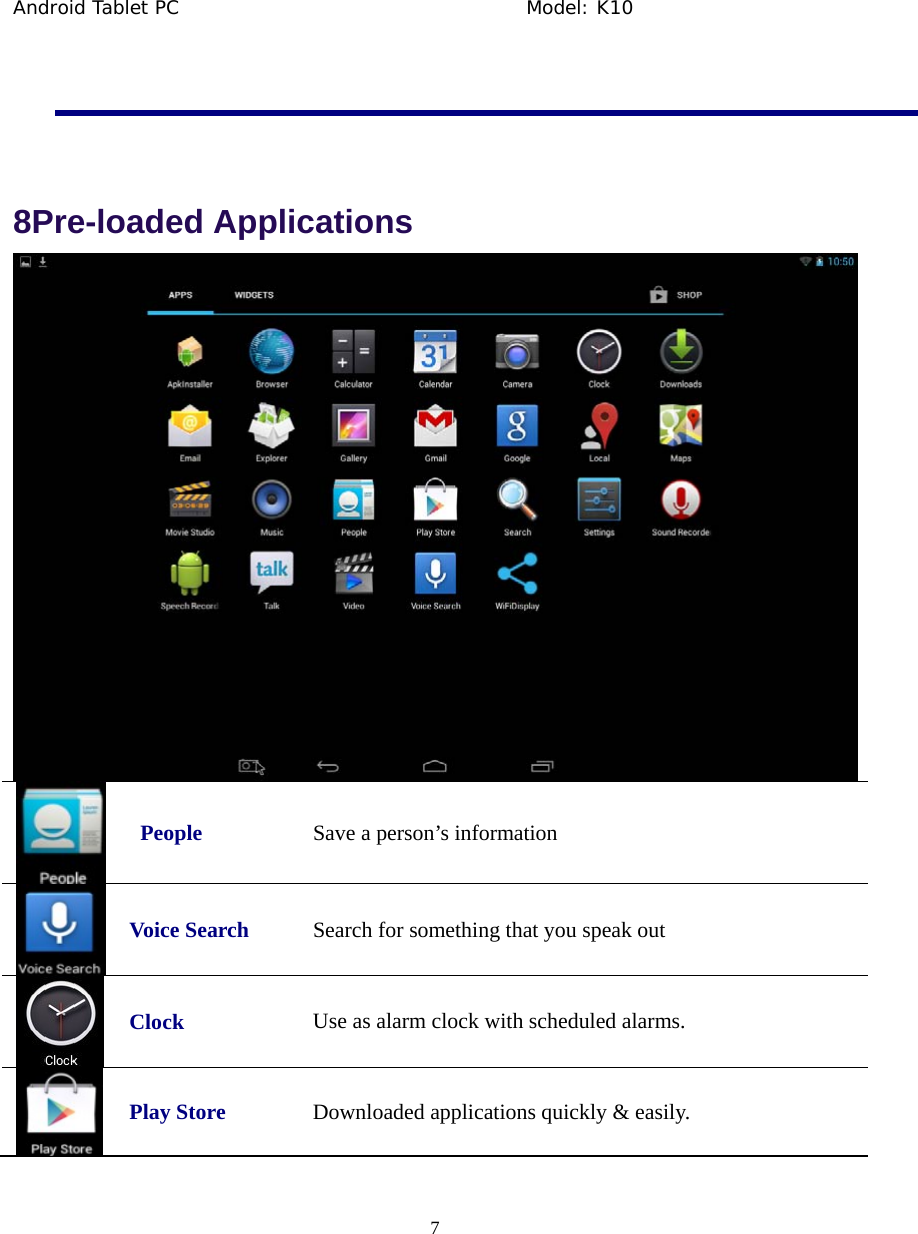

Android Tablet PC Model: K10 7 8Pre-loaded Applications People Save a person’s information Voice Search Search for something that you speak out Clock Use as alarm clock with scheduled alarms. Play Store Downloaded applications quickly & easily.

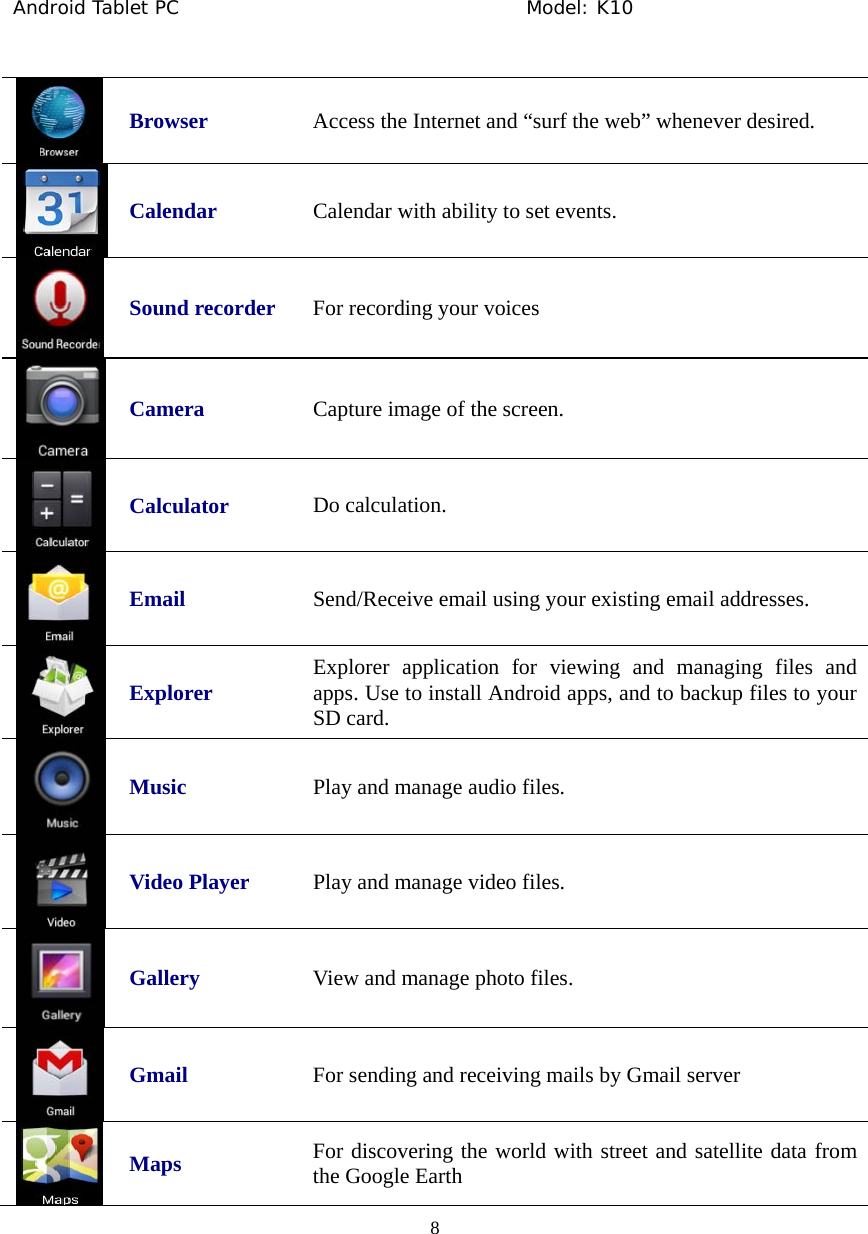

Android Tablet PC Model: K10 8 Browser Access the Internet and “surf the web” whenever desired. Calendar Calendar with ability to set events. Sound recorder For recording your voices Camera Capture image of the screen. Calculator Do calculation. Email Send/Receive email using your existing email addresses. Explorer Explorer application for viewing and managing files and apps. Use to install Android apps, and to backup files to your SD card. Music Play and manage audio files. Video Player Play and manage video files. Gallery View and manage photo files. Gmail For sending and receiving mails by Gmail server Maps For discovering the world with street and satellite data from the Google Earth

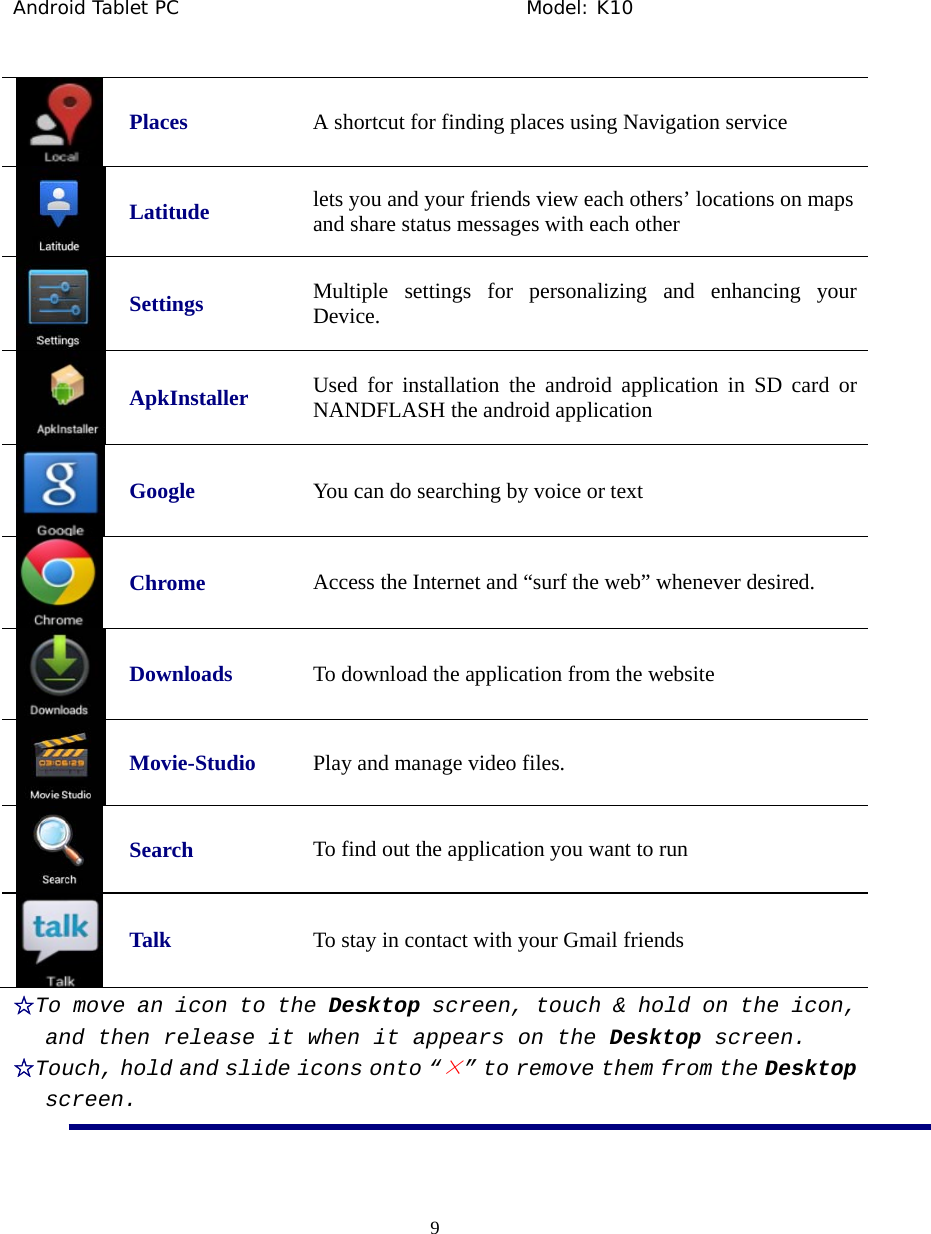

Android Tablet PC Model: K10 9 Places A shortcut for finding places using Navigation service Latitude lets you and your friends view each others’ locations on maps and share status messages with each other Settings Multiple settings for personalizing and enhancing your Device. ApkInstaller Used for installation the android application in SD card or NANDFLASH the android application Google You can do searching by voice or text Chrome Access the Internet and “surf the web” whenever desired. Downloads To download the application from the website Movie-Studio Play and manage video files. Search To find out the application you want to run Talk To stay in contact with your Gmail friends ☆To move an icon to the Desktop screen, touch & hold on the icon, and then release it when it appears on the Desktop screen. ☆Touch, hold and slide icons onto “×” to remove them from the Desktop screen.

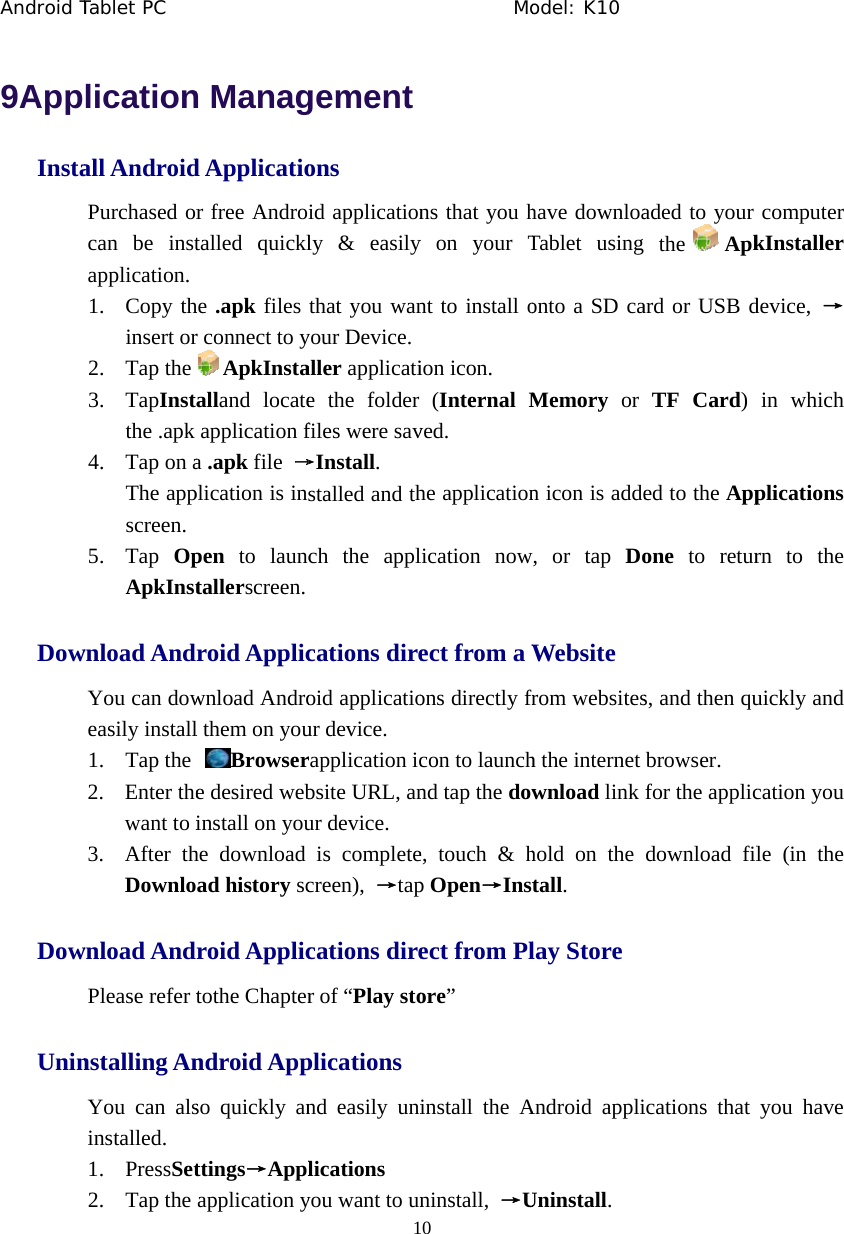

Android T 9AppInstaDowDowUninTablet PC licationall AndroidPurchased orcan be instapplication. 1. Copy thinsert or2. Tap the3. TapInstthe .apk 4. Tap on aThe appscreen. 5. Tap OpApkInstwnload AndYou can doweasily install1. Tap the 2. Enter thewant to i3. After thDownlownload AndPlease refer tnstalling AnYou can alsinstalled. 1. PressSet2. Tap the n Managd Applicatior free Androtalled quickl he .apk files r connect to yApkInstaalland locateapplication fa .apk file →plication is in pen to launctallerscreen. roid Applicwnload Androl them on youBrowsere desired webinstall on youhe download ad history scroid Applictothe Chapterndroid Appso quickly anttings→Applapplication y 1gementons id applicationly & easilythat you wanyour Device. aller applicatie the folderfiles were sav→Install. stalled and thch the appl cations direoid applicatiour device. rapplication icbsite URL, anur device. is completecreen), →tapcations direr of “Play stoplicationsnd easily unilications you want to un Mo0 ns that you hy on your Tnt to install o ion icon. (Internal Mved. he applicationlication nowect from a Wons directly frcon to launchnd tap the dowe, touch & hp Open→Instect from Plore” install the Aninstall, →Uodel: K10 have downloaTablet using onto a SD caMemory or n icon is adde, or tap DoWebsite from websitesh the internet wnload link hold on the tall. lay Store Android appliUninstall. aded to your the Apkard or USB dTF Card) ed to the Appone to returs, and then qubrowser. for the applicdownload filications that computer kInstaller device, →in which plications rn to the uickly and cation you le (in the you have

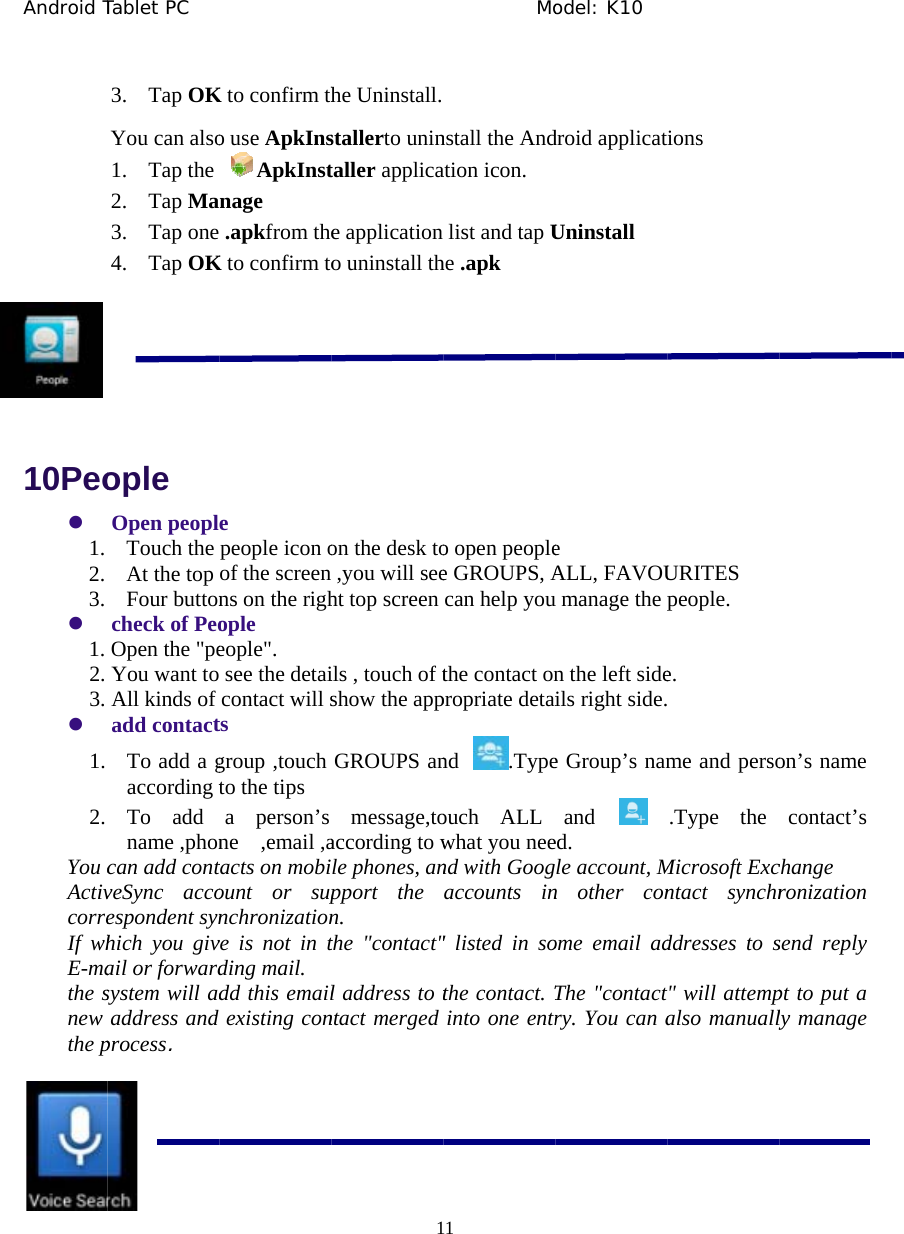

Android T 10Peoz 1. 2. 3. z 1. 2. 3. z 1. 2. You cActivcorreIf whE-mathe snew the p Tablet PC 3. Tap OKYou can also1. Tap the 2. Tap Ma3. Tap one 4. Tap OKople Open peoplTouch the At the top Four buttoncheck of PeoOpen the "peYou want to All kinds of add contactTo add a gaccording tTo add name ,phoncan add contveSync accoespondent synhich you givail or forwardsystem will adaddress and process. K to confirm tho use ApkInsApkInstnage .apkfrom theK to confirm toe people icon oof the screen ns on the righople eople". see the detaicontact will sts group ,touch to the tips a person’s ne ,email ,atacts on mobiount or supnchronizationve is not in tding mail. dd this emailexisting con 1he Uninstall.stallerto unintaller applicae application o uninstall thon the desk to,you will seeht top screen ils , touch of tshow the appGROUPS anmessage,toaccording to wle phones, anpport the n. the "contact"l address to tntact merged Mo1 nstall the Andation icon. list and tap Uhe .apk o open peoplee GROUPS, Acan help youthe contact onpropriate detaind .Typeouch ALL what you neend with Googaccounts in" listed in sothe contact. Tinto one entrodel: K10 droid applicatUninstall e ALL, FAVOUu manage the pn the left sideils right side.e Group’s namand ed. gle account, Mn other conome email adThe "contactry. You can aions URITES people. e. me and perso.Type the Microsoft Excntact synchrddresses to s" will attempalso manuallyon’s name contact’s change ronization send reply pt to put a ly manage

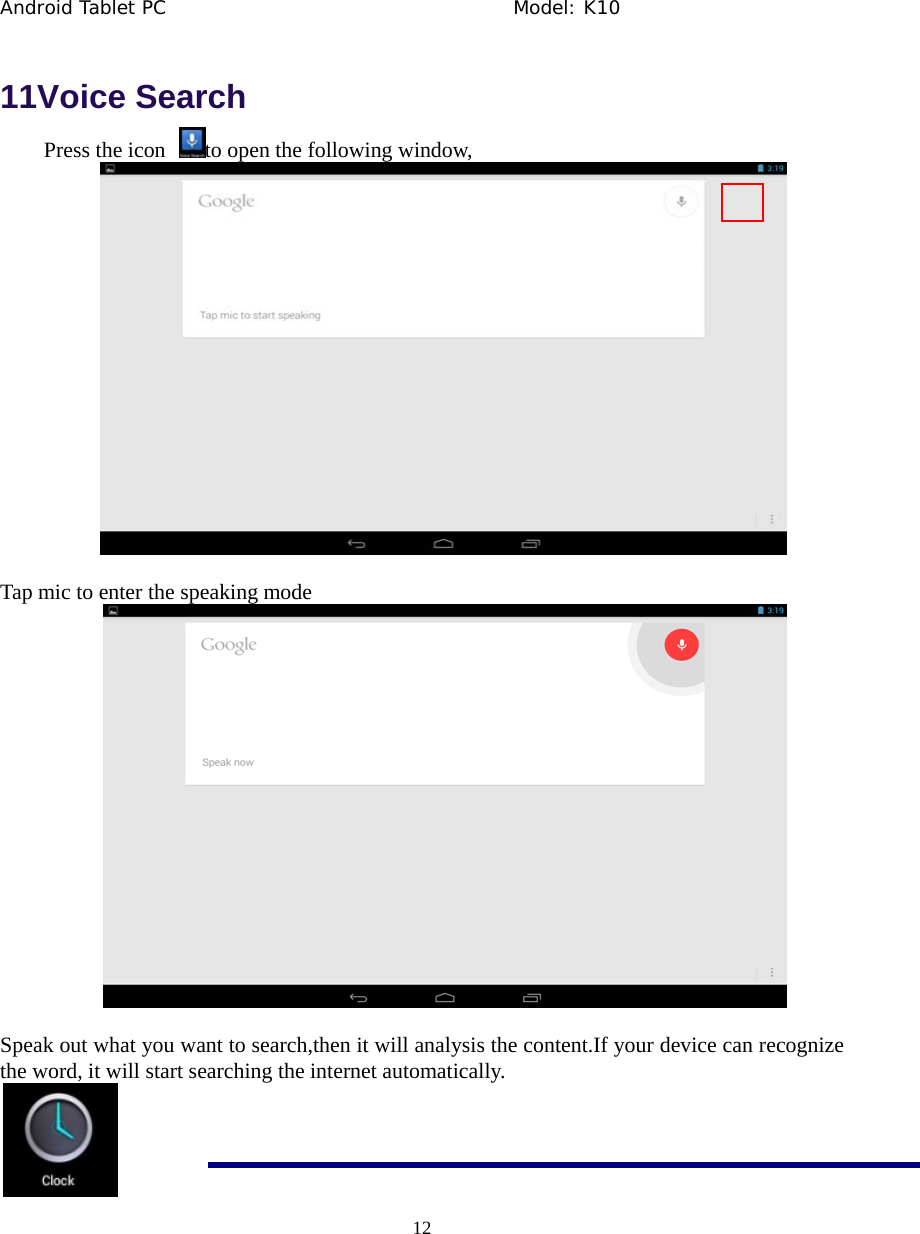

Android Tablet PC Model: K10 12 11Voice Search Press the icon to open the following window, Tap mic to enter the speaking mode Speak out what you want to search,then it will analysis the content.If your device can recognize the word, it will start searching the internet automatically.

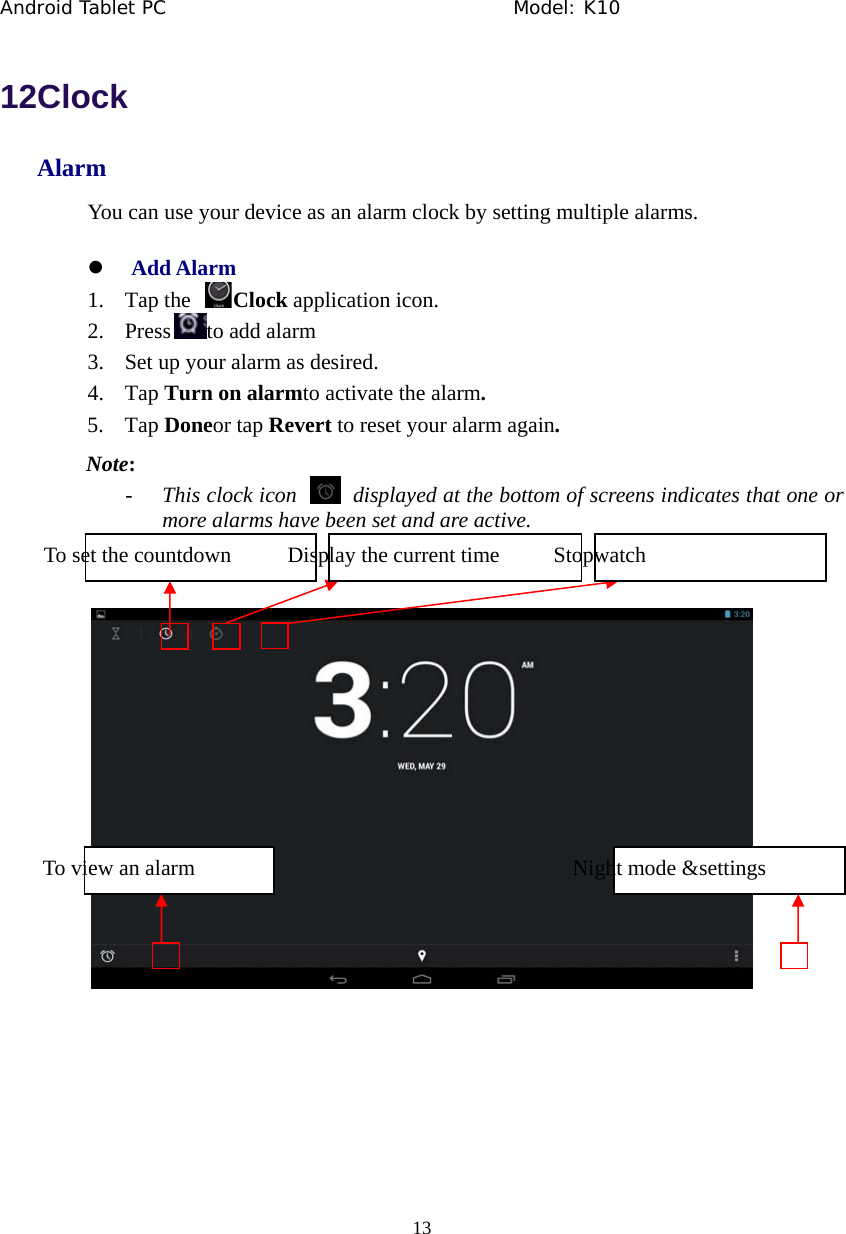

Android Tablet PC Model: K10 13 12Clock Alarm You can use your device as an alarm clock by setting multiple alarms. z Add Alarm 1. Tap the Clock application icon. 2. Press to add alarm 3. Set up your alarm as desired. 4. Tap Turn on alarmto activate the alarm. 5. Tap Doneor tap Revert to reset your alarm again. Note: - This clock icon displayed at the bottom of screens indicates that one or more alarms have been set and are active. To set the countdown Display the current time Stopwatch To view an alarm Night mode &settings

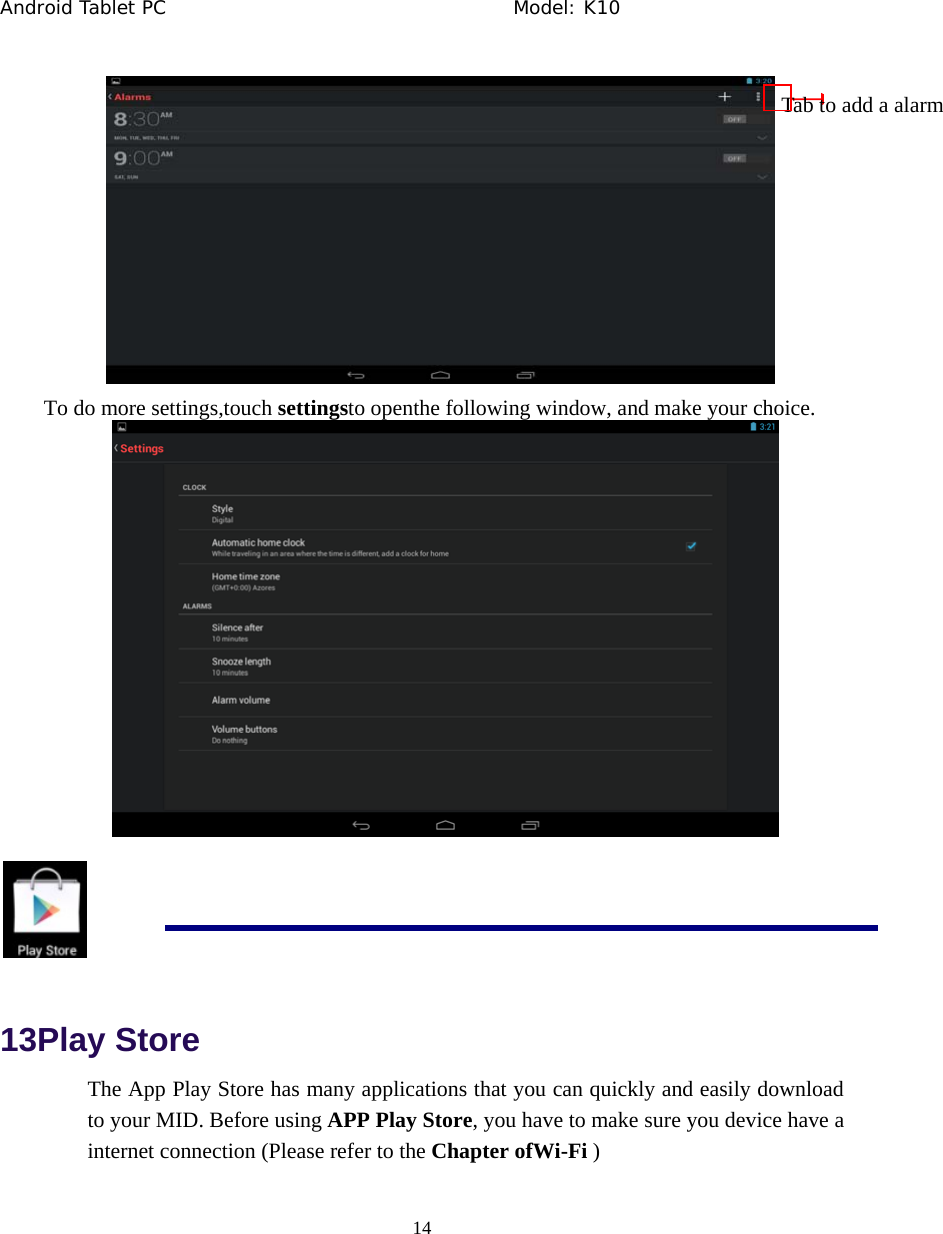

Android Tablet PC Model: K10 14 To do more settings,touch settingsto openthe following window, and make your choice. 13Play Store The App Play Store has many applications that you can quickly and easily download to your MID. Before using APP Play Store, you have to make sure you device have a internet connection (Please refer to the Chapter ofWi-Fi ) Tab to add a alarm

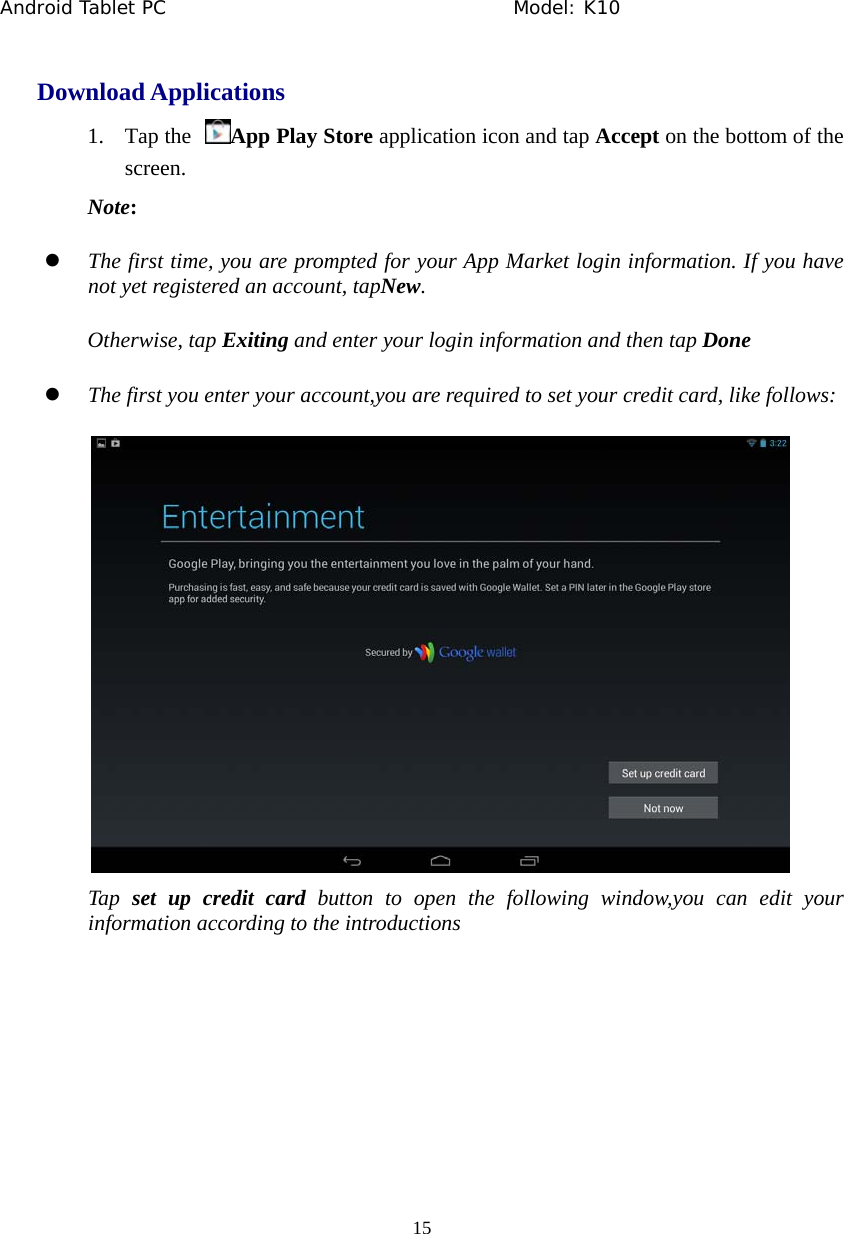

Android Tablet PC Model: K10 15 Download Applications 1. Tap the App Play Store application icon and tap Accept on the bottom of the screen. Note: z The first time, you are prompted for your App Market login information. If you have not yet registered an account, tapNew. Otherwise, tap Exiting and enter your login information and then tap Done z The first you enter your account,you are required to set your credit card, like follows: Tap set up credit card button to open the following window,you can edit your information according to the introductions

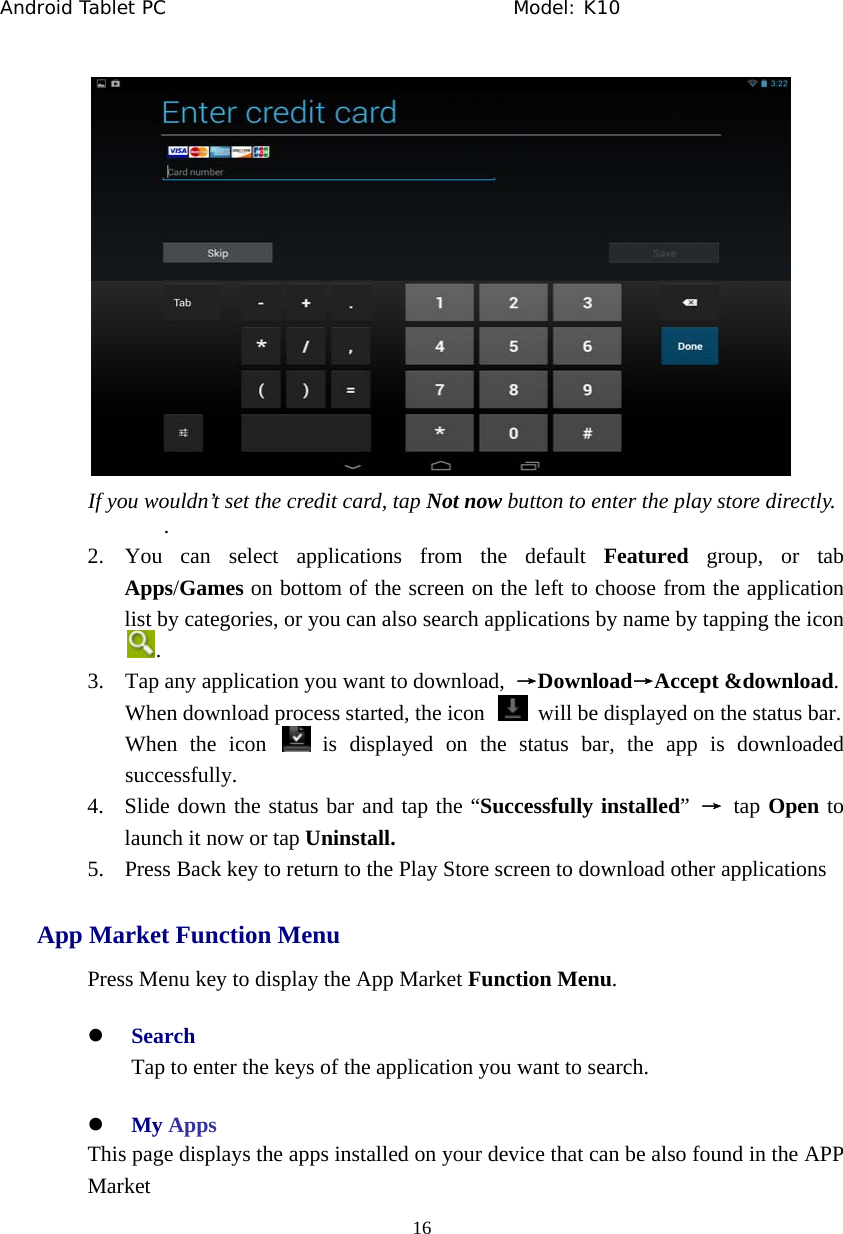

Android Tablet PC Model: K10 16 If you wouldn’t set the credit card, tap Not now button to enter the play store directly. . 2. You can select applications from the default Featured group, or tab Apps/Games on bottom of the screen on the left to choose from the application list by categories, or you can also search applications by name by tapping the icon . 3. Tap any application you want to download, →Download→Accept &download. When download process started, the icon will be displayed on the status bar. When the icon is displayed on the status bar, the app is downloaded successfully. 4. Slide down the status bar and tap the “Successfully installed” → tap Open to launch it now or tap Uninstall. 5. Press Back key to return to the Play Store screen to download other applications App Market Function Menu Press Menu key to display the App Market Function Menu. z Search Tap to enter the keys of the application you want to search. z My Apps This page displays the apps installed on your device that can be also found in the APP Market

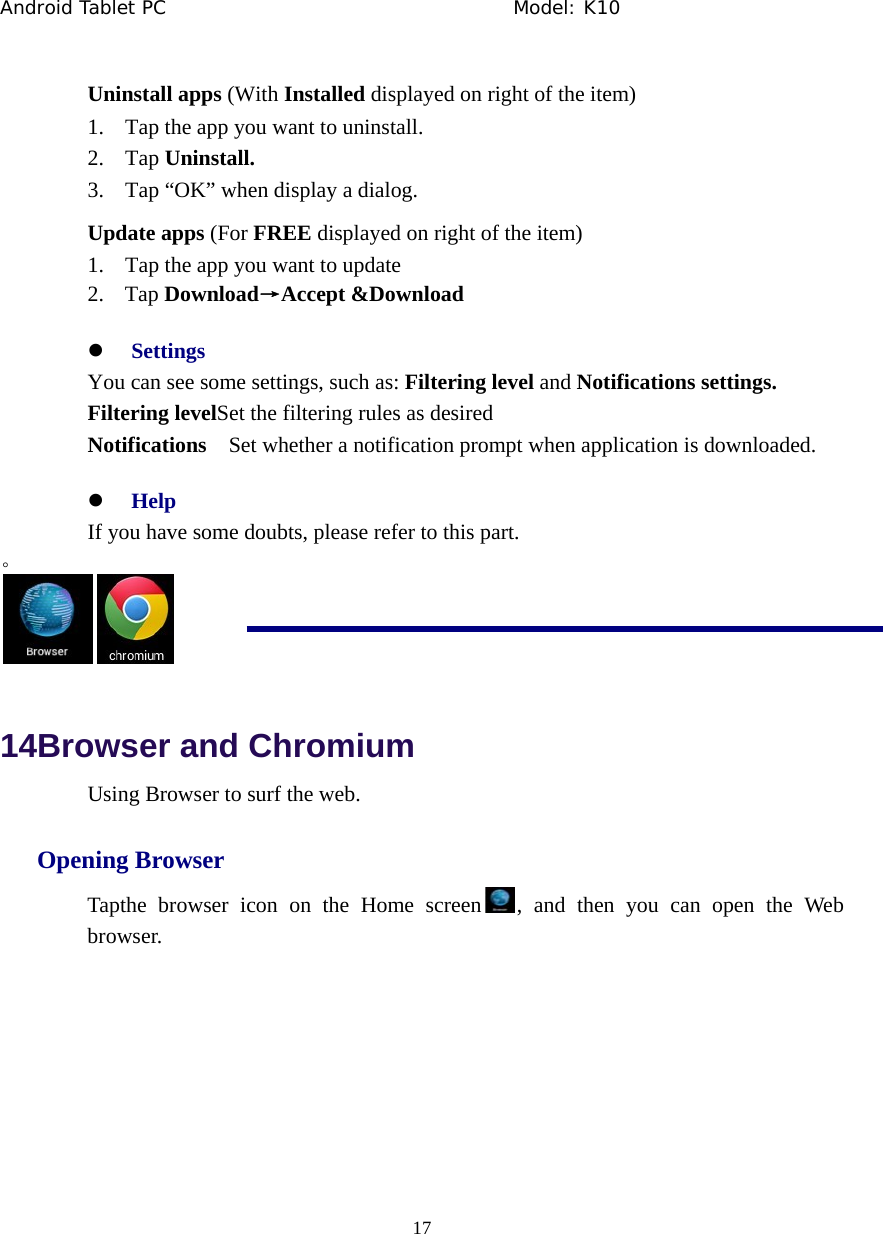

Android Tablet PC Model: K10 17 Uninstall apps (With Installed displayed on right of the item) 1. Tap the app you want to uninstall. 2. Tap Uninstall. 3. Tap “OK” when display a dialog. Update apps (For FREE displayed on right of the item) 1. Tap the app you want to update 2. Tap Download→Accept &Download z Settings You can see some settings, such as: Filtering level and Notifications settings. Filtering levelSet the filtering rules as desired Notifications Set whether a notification prompt when application is downloaded. z Help If you have some doubts, please refer to this part. 。 14Browser and Chromium Using Browser to surf the web. Opening Browser Tapthe browser icon on the Home screen , and then you can open the Web browser.

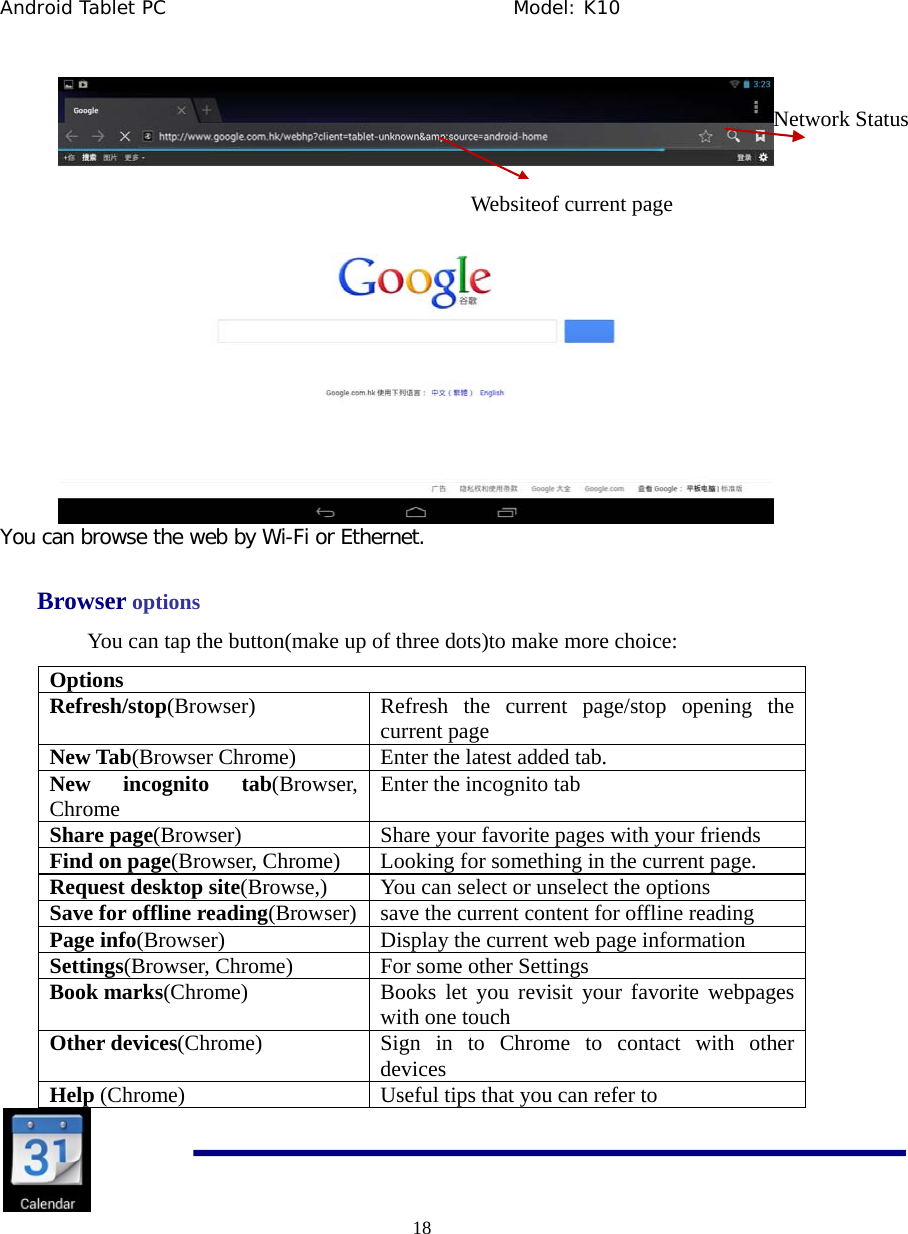

Android Tablet PC Model: K10 18 You can browse the web by Wi-Fi or Ethernet. Browser options You can tap the button(make up of three dots)to make more choice: Options Refresh/stop(Browser) Refresh the current page/stop opening the current page New Tab(Browser Chrome) Enter the latest added tab. New incognito tab(Browser, Chrome Enter the incognito tab Share page(Browser) Share your favorite pages with your friends Find on page(Browser, Chrome) Looking for something in the current page. Request desktop site(Browse,) You can select or unselect the options Save for offline reading(Browser) save the current content for offline reading Page info(Browser) Display the current web page information Settings(Browser, Chrome) For some other Settings Book marks(Chrome) Books let you revisit your favorite webpages with one touch Other devices(Chrome) Sign in to Chrome to contact with other devices Help (Chrome) Useful tips that you can refer to Websiteof current page Network Status

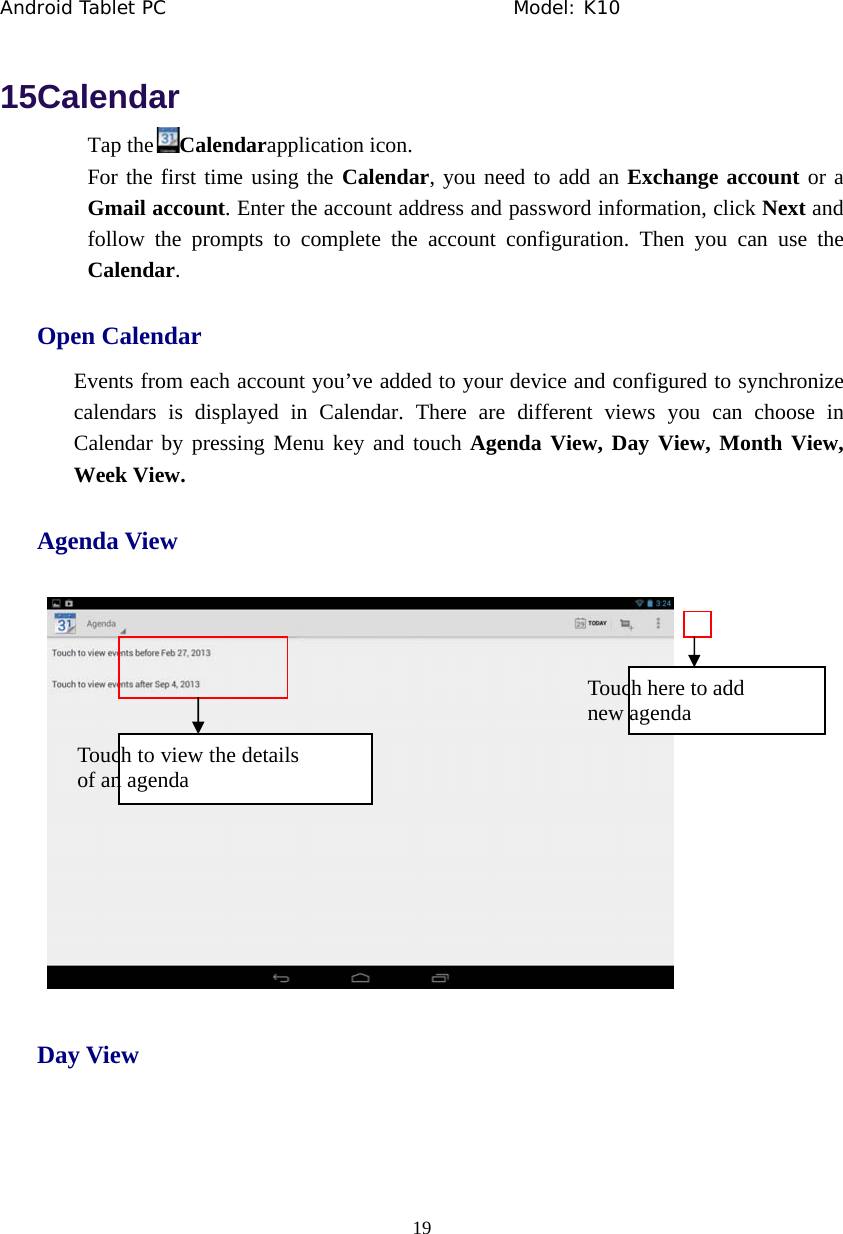

Android Tablet PC Model: K10 19 15Calendar Tap the Calendarapplication icon. For the first time using the Calendar, you need to add an Exchange account or a Gmail account. Enter the account address and password information, click Next and follow the prompts to complete the account configuration. Then you can use the Calendar. Open Calendar Events from each account you’ve added to your device and configured to synchronize calendars is displayed in Calendar. There are different views you can choose in Calendar by pressing Menu key and touch Agenda View, Day View, Month View, Week View. Agenda View Day View Touch here to add new agenda Touch to view the details of an agenda

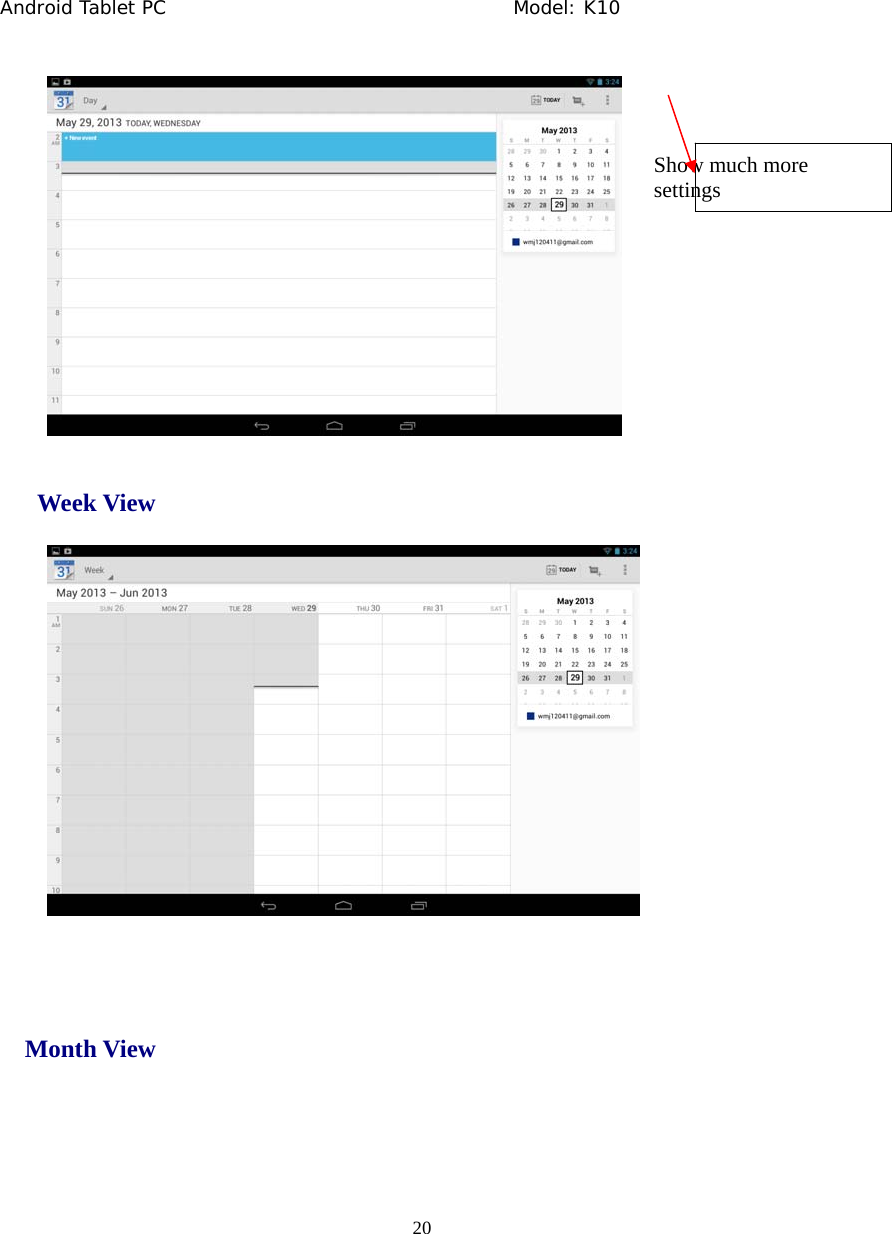

Android Tablet PC Model: K10 20 Week View Month View Show much more settings

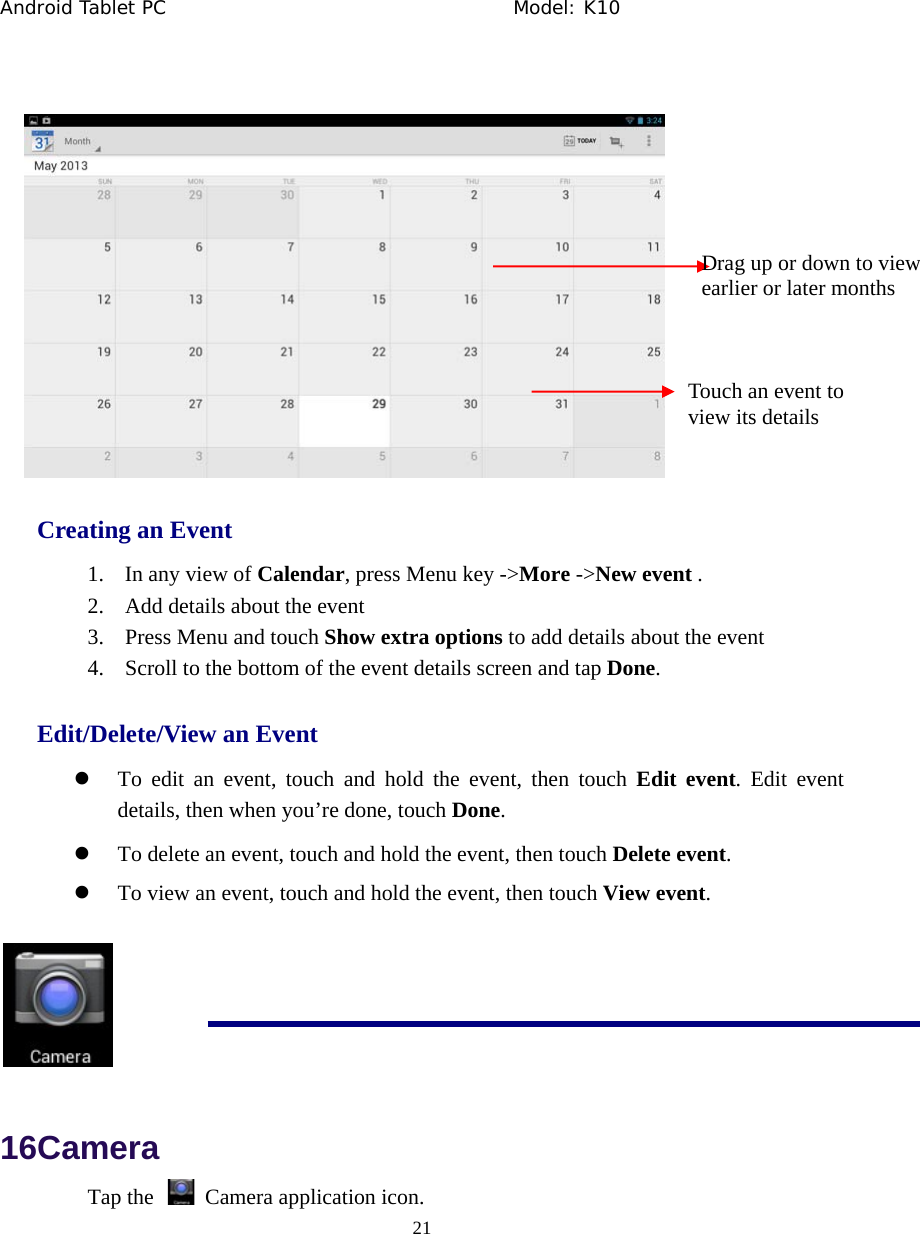

Android Tablet PC Model: K10 21 Creating an Event 1. In any view of Calendar, press Menu key ->More ->New event . 2. Add details about the event 3. Press Menu and touch Show extra options to add details about the event 4. Scroll to the bottom of the event details screen and tap Done. Edit/Delete/View an Event z To edit an event, touch and hold the event, then touch Edit event. Edit event details, then when you’re done, touch Done. z To delete an event, touch and hold the event, then touch Delete event. z To view an event, touch and hold the event, then touch View event. 16Camera Tap the Camera application icon. Drag up or down to view earlier or later months Touch an event to view its details

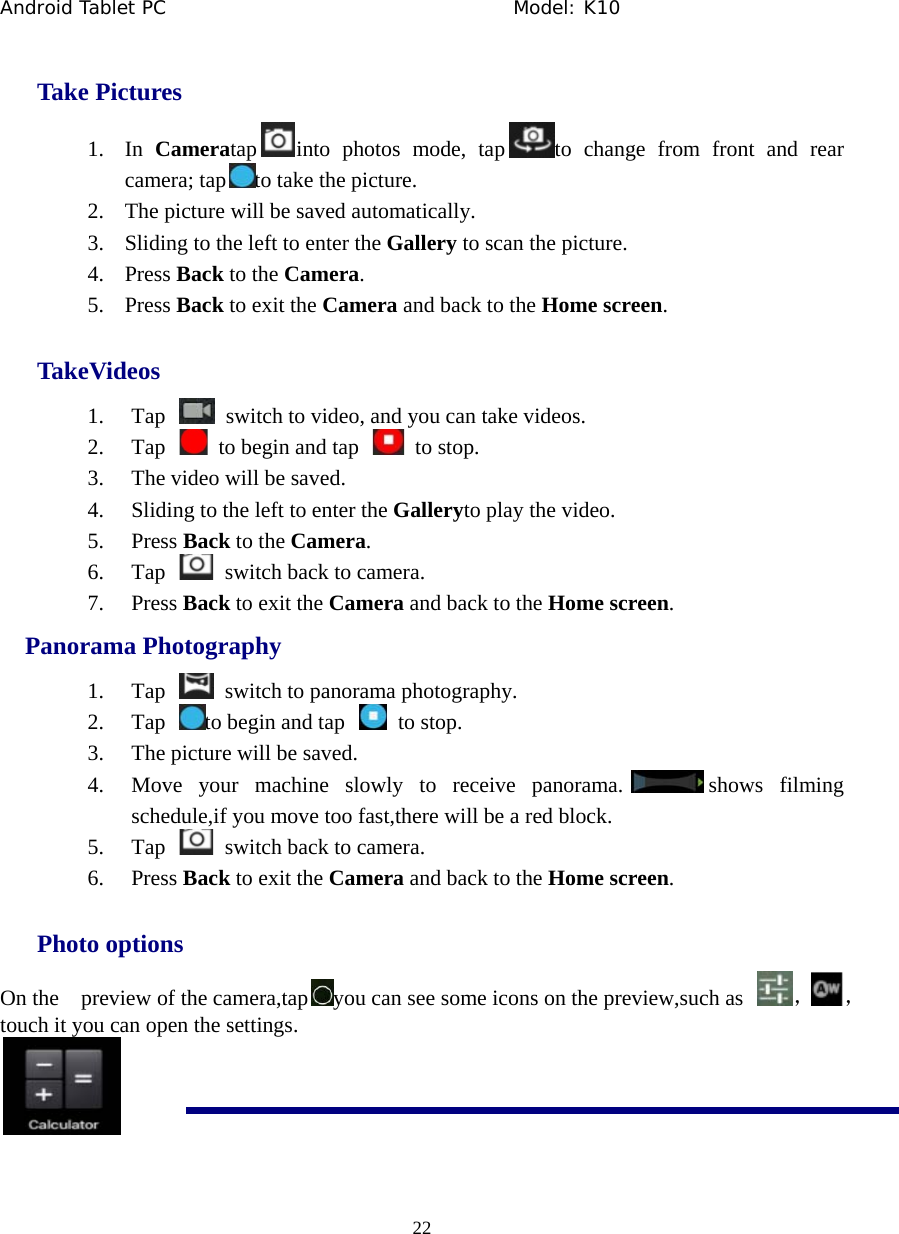

Android Tablet PC Model: K10 22 Take Pictures 1. In Cameratap into photos mode, tap to change from front and rear camera; tap to take the picture. 2. The picture will be saved automatically. 3. Sliding to the left to enter the Gallery to scan the picture. 4. Press Back to the Camera. 5. Press Back to exit the Camera and back to the Home screen. TakeVideos 1. Tap switch to video, and you can take videos. 2. Tap to begin and tap to stop. 3. The video will be saved. 4. Sliding to the left to enter the Galleryto play the video. 5. Press Back to the Camera. 6. Tap switch back to camera. 7. Press Back to exit the Camera and back to the Home screen. Panorama Photography 1. Tap switch to panorama photography. 2. Tap to begin and tap to stop. 3. The picture will be saved. 4. Move your machine slowly to receive panorama. shows filming schedule,if you move too fast,there will be a red block. 5. Tap switch back to camera. 6. Press Back to exit the Camera and back to the Home screen. Photo options On the preview of the camera,tap you can see some icons on the preview,such as ，， touch it you can open the settings.
Android Tablet PC Model: K10 23 17Calculator 1. Tap the Calculator application icon on home screen to launch it. 2. Tap the numbers and sign of operation to do the calculation. 3. Tap CLEAR to clear the result one by one, tap and hold CLEAR to clear all. 18Email POP3 and SMTP accounts are supported. Add Email accounts You can enter one or more personal email addresses that you would like to access through your Tablet. 1. Tap the Email application icon. 2. On the Your Accounts screen, tap Next. 3. Tap in the Email address entry field, →enter your email address. 4. Tap in the Password entry field, →enter your email password. tap and hold to clear alldata.

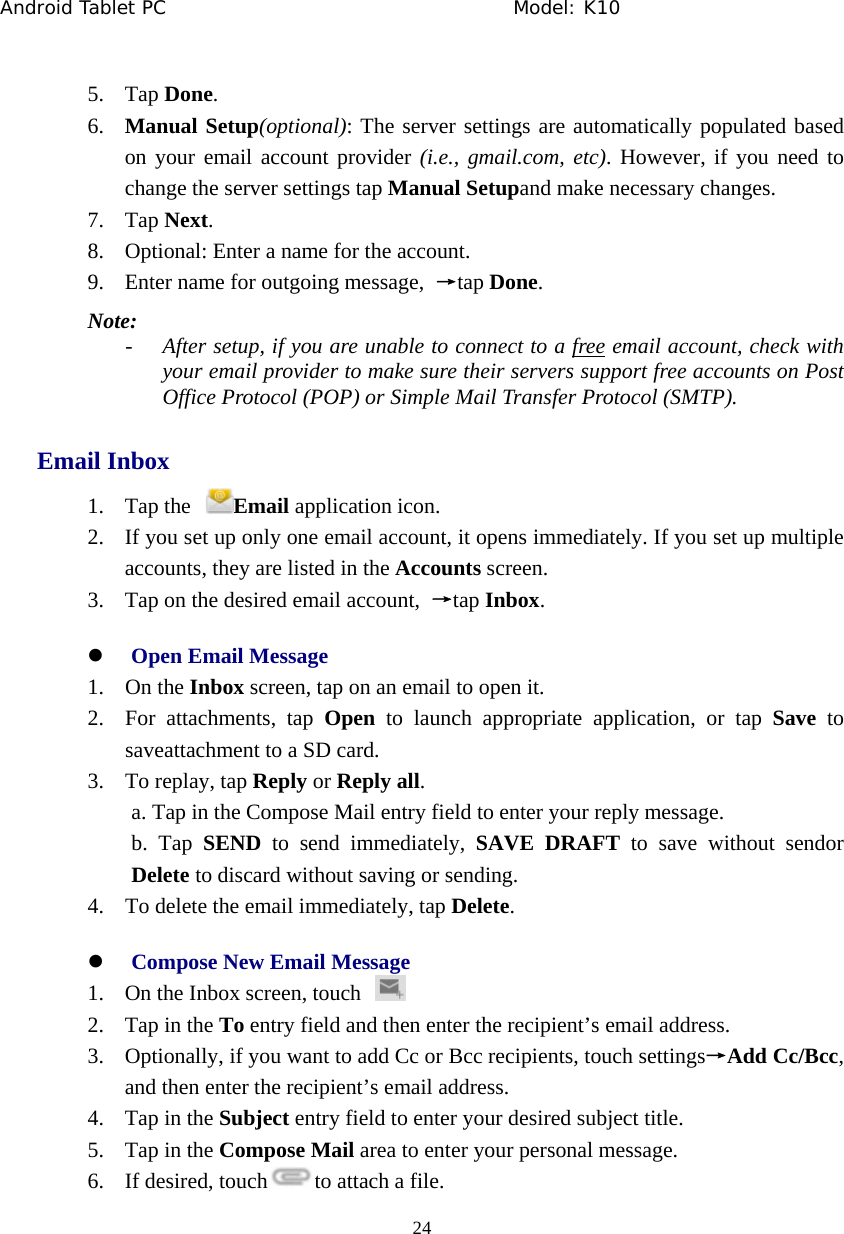

Android Tablet PC Model: K10 24 5. Tap Done. 6. Manual Setup(optional): The server settings are automatically populated based on your email account provider (i.e., gmail.com, etc). However, if you need to change the server settings tap Manual Setupand make necessary changes. 7. Tap Next. 8. Optional: Enter a name for the account. 9. Enter name for outgoing message, →tap Done. Note: - After setup, if you are unable to connect to a free email account, check with your email provider to make sure their servers support free accounts on Post Office Protocol (POP) or Simple Mail Transfer Protocol (SMTP). Email Inbox 1. Tap the Email application icon. 2. If you set up only one email account, it opens immediately. If you set up multiple accounts, they are listed in the Accounts screen. 3. Tap on the desired email account, →tap Inbox. z Open Email Message 1. On the Inbox screen, tap on an email to open it. 2. For attachments, tap Open to launch appropriate application, or tap Save to saveattachment to a SD card. 3. To replay, tap Reply or Reply all. a. Tap in the Compose Mail entry field to enter your reply message. b. Tap SEND to send immediately, SAVE DRAFT to save without sendor Delete to discard without saving or sending. 4. To delete the email immediately, tap Delete. z Compose New Email Message 1. On the Inbox screen, touch 2. Tap in the To entry field and then enter the recipient’s email address. 3. Optionally, if you want to add Cc or Bcc recipients, touch settings→Add Cc/Bcc, and then enter the recipient’s email address. 4. Tap in the Subject entry field to enter your desired subject title. 5. Tap in the Compose Mail area to enter your personal message. 6. If desired, touch to attach a file.

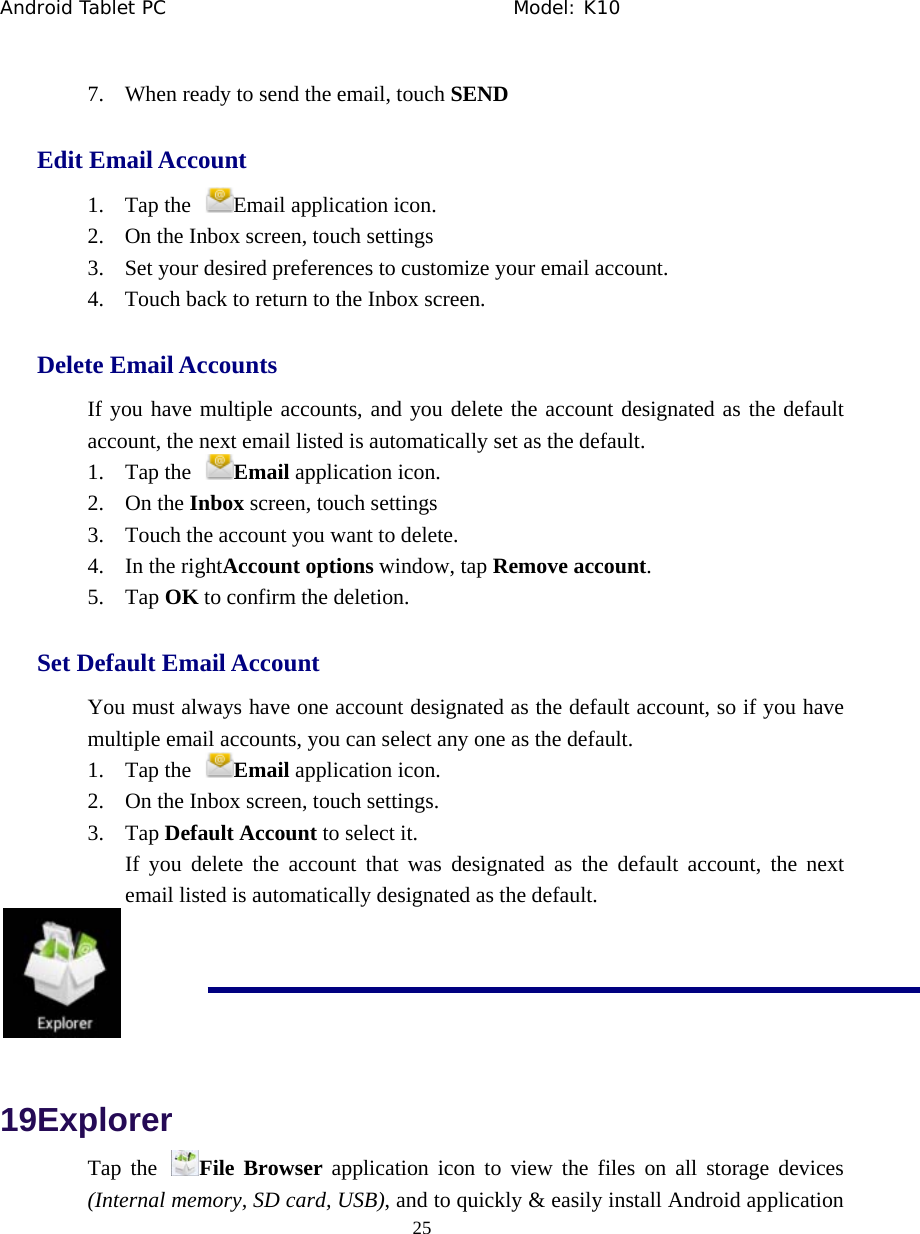

Android Tablet PC Model: K10 25 7. When ready to send the email, touch SEND Edit Email Account 1. Tap the Email application icon. 2. On the Inbox screen, touch settings 3. Set your desired preferences to customize your email account. 4. Touch back to return to the Inbox screen. Delete Email Accounts If you have multiple accounts, and you delete the account designated as the default account, the next email listed is automatically set as the default. 1. Tap the Email application icon. 2. On the Inbox screen, touch settings 3. Touch the account you want to delete. 4. In the rightAccount options window, tap Remove account. 5. Tap OK to confirm the deletion. Set Default Email Account You must always have one account designated as the default account, so if you have multiple email accounts, you can select any one as the default. 1. Tap the Email application icon. 2. On the Inbox screen, touch settings. 3. Tap Default Account to select it. If you delete the account that was designated as the default account, the next email listed is automatically designated as the default. 19Explorer Tap the File Browser application icon to view the files on all storage devices (Internal memory, SD card, USB), and to quickly & easily install Android application

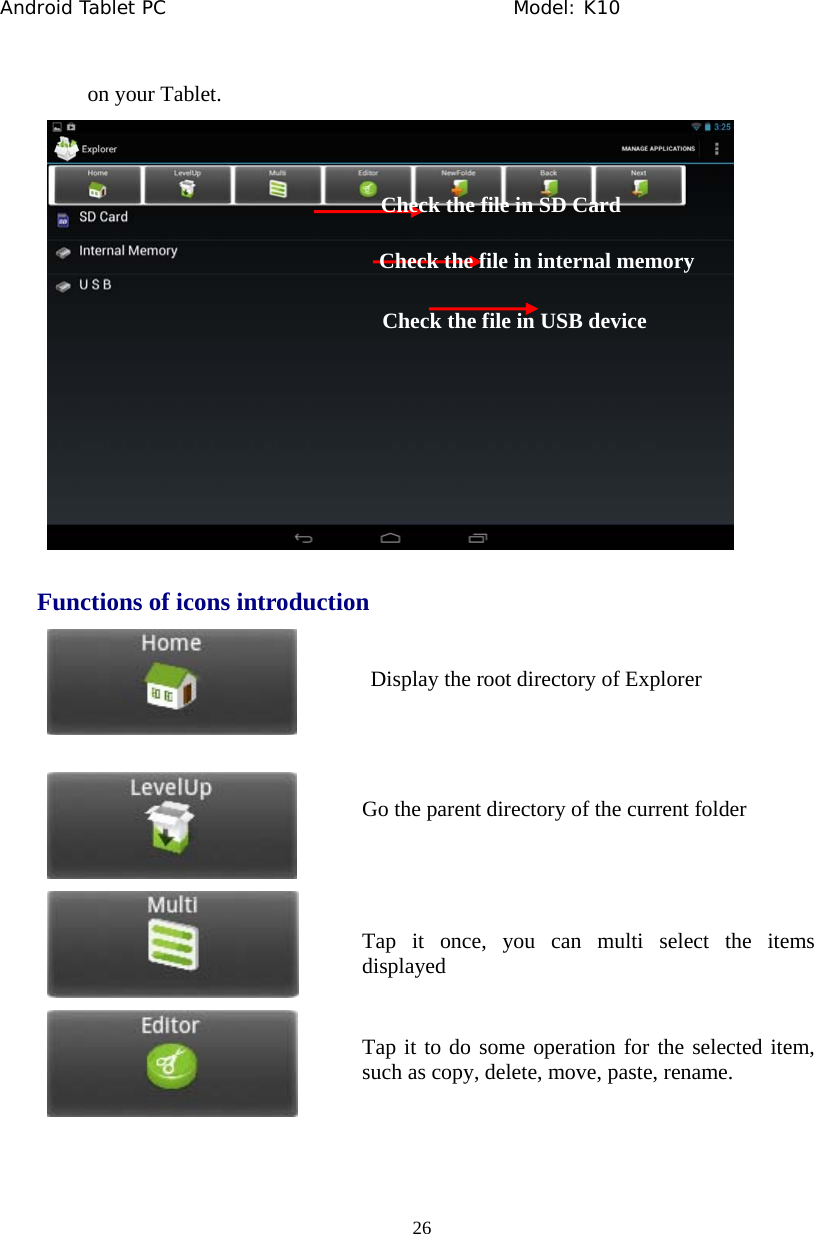

Android Tablet PC Model: K10 26 on your Tablet. Functions of icons introduction Check the file in SD Card Check the file in internal memory Check the file in USB device Display the root directory of Explorer Go the parent directory of the current folder Tap it once, you can multi select the items displayed Tap it to do some operation for the selected item, such as copy, delete, move, paste, rename.

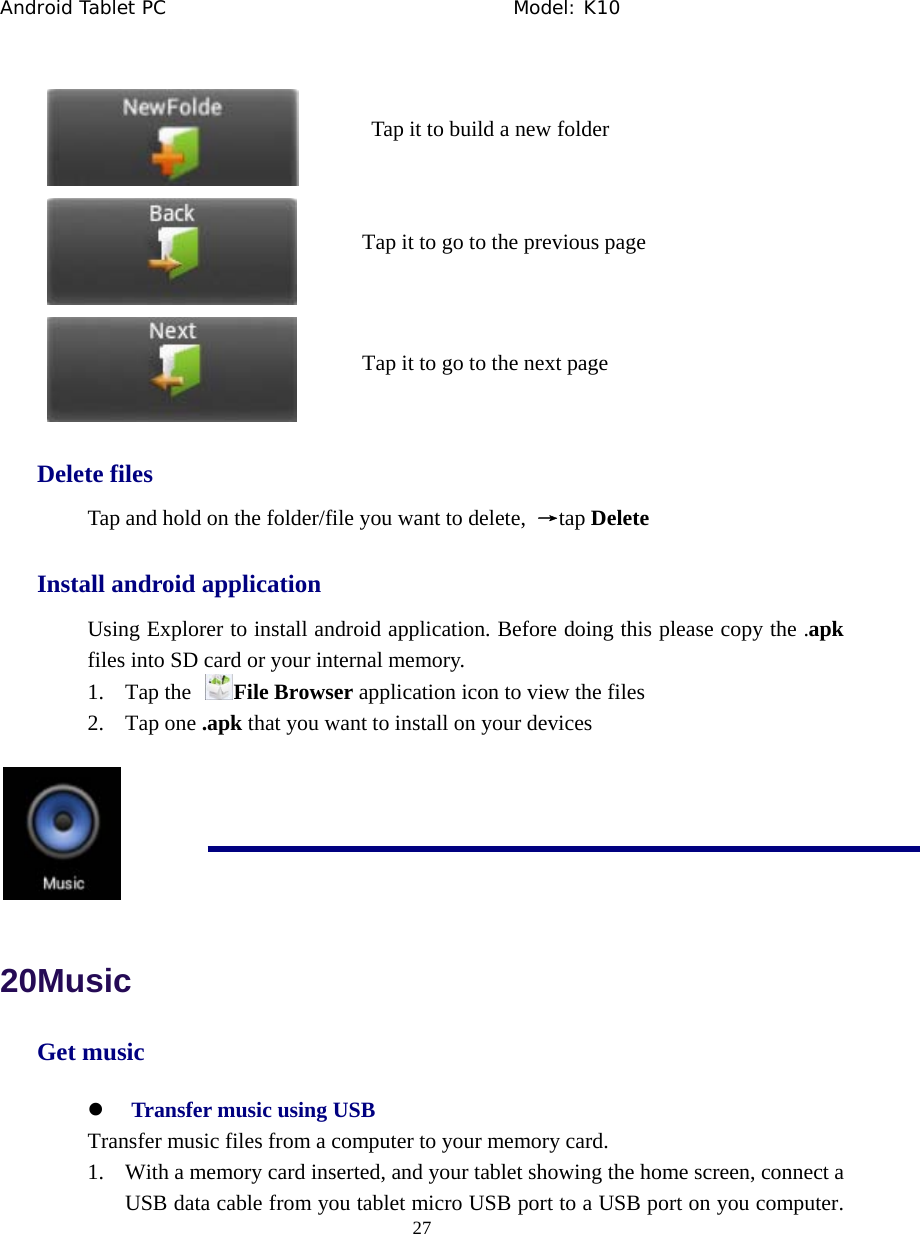

Android Tablet PC Model: K10 27 Delete files Tap and hold on the folder/file you want to delete, →tap Delete Install android application Using Explorer to install android application. Before doing this please copy the .apk files into SD card or your internal memory. 1. Tap the File Browser application icon to view the files 2. Tap one .apk that you want to install on your devices 20Music Get music z Transfer music using USB Transfer music files from a computer to your memory card. 1. With a memory card inserted, and your tablet showing the home screen, connect a USB data cable from you tablet micro USB port to a USB port on you computer. Tap it to go to the previous pageTap it to go to the next page Tap it to build a new folder

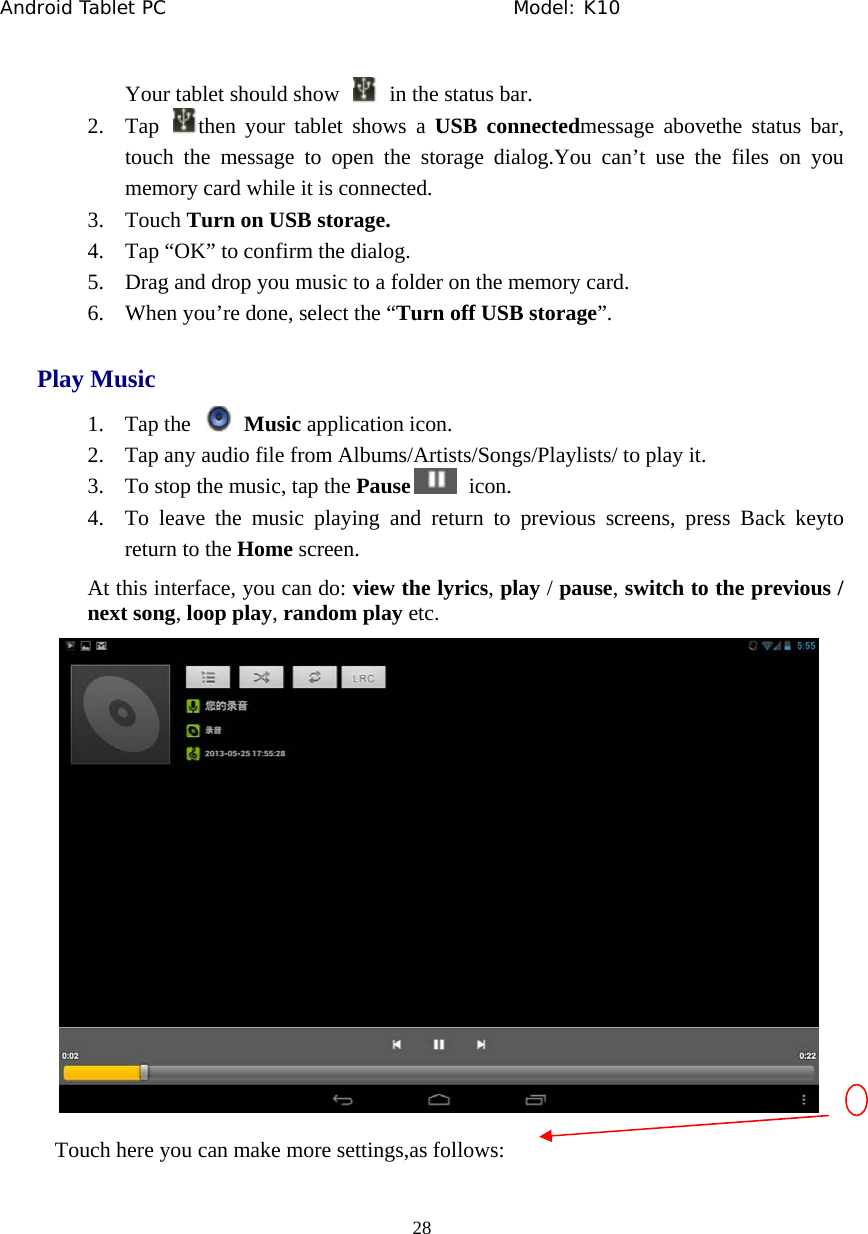

Android Tablet PC Model: K10 28 Your tablet should show in the status bar. 2. Tap then your tablet shows a USB connectedmessage abovethe status bar, touch the message to open the storage dialog.You can’t use the files on you memory card while it is connected. 3. Touch Turn on USB storage. 4. Tap “OK” to confirm the dialog. 5. Drag and drop you music to a folder on the memory card. 6. When you’re done, select the “Turn off USB storage”. Play Music 1. Tap the Music application icon. 2. Tap any audio file from Albums/Artists/Songs/Playlists/ to play it. 3. To stop the music, tap the Pause icon. 4. To leave the music playing and return to previous screens, press Back keyto return to the Home screen. At this interface, you can do: view the lyrics, play / pause, switch to the previous / next song, loop play, random play etc. Touch here you can make more settings,as follows:

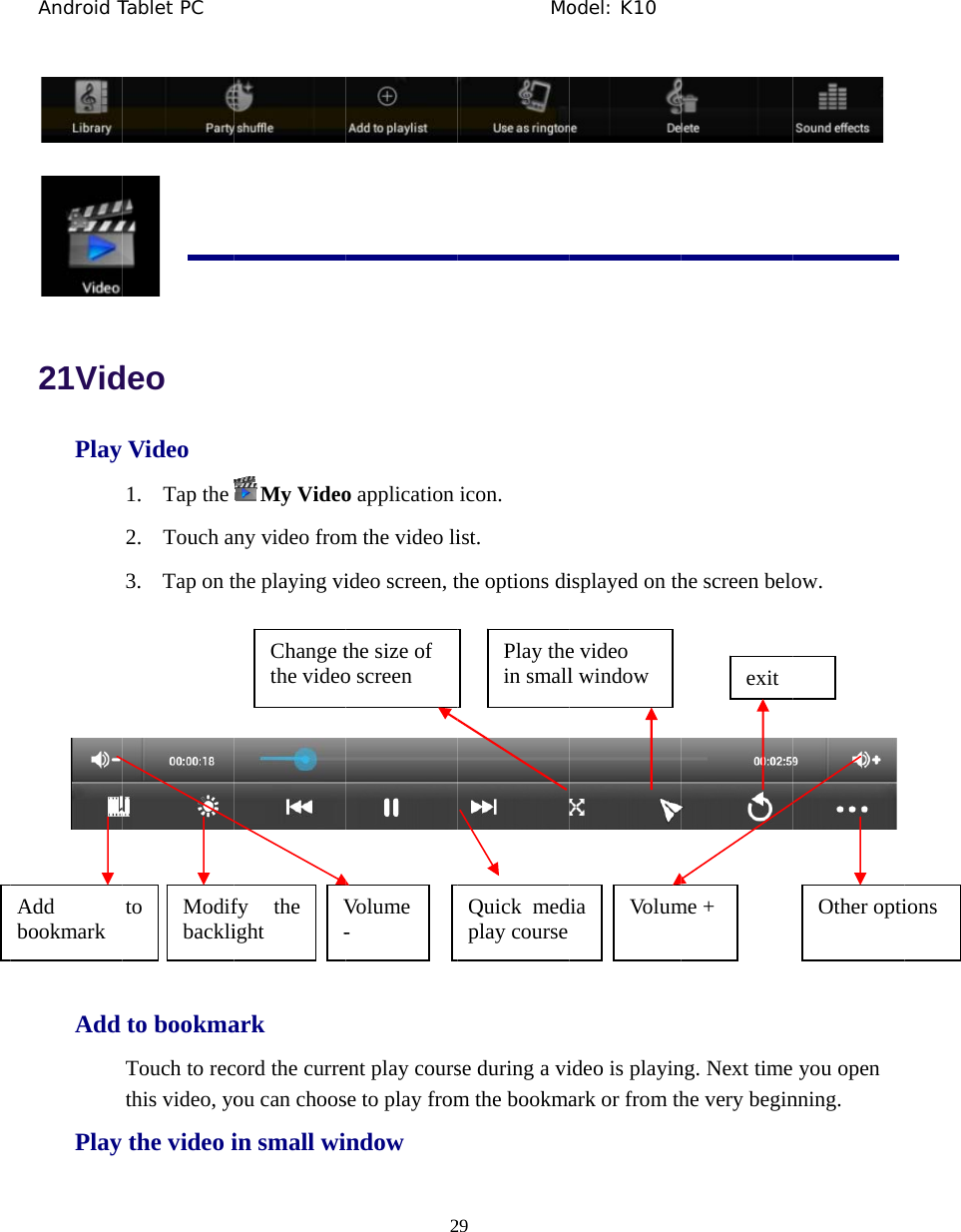

Android T 21VidPlay Add Play Add bookmark Tablet PC deo Video 1. Tap the2. Touch a3. Tap on t to bookmaTouch to recthis video, yothe video ito Modifbackli My Videony video fromthe playing viark cord the curreou can choosin small wify the ight V-Change tthe video 2o application m the video liideo screen, tent play coursse to play fromndow Volume - the size of o screen Mo29 icon. ist. the options dise during a vim the bookmaQuick medplay coursePlay thein smallodel: K10 isplayed on thideo is playinark or from thVolumdia e video l window he screen belong. Next timehe very beginme + exit ow. you open nning. Other opti ions

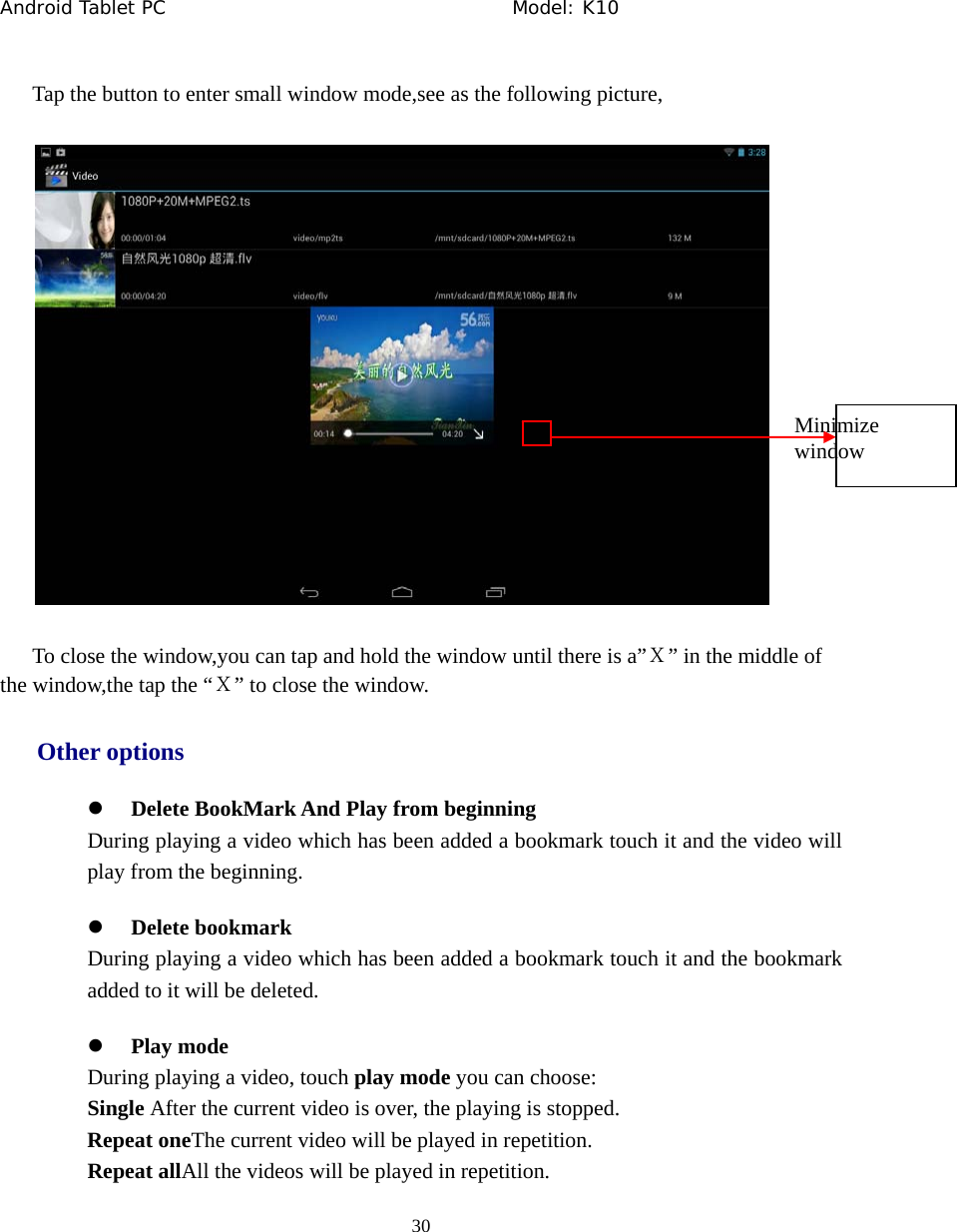

Android Tablet PC Model: K10 30 Tap the button to enter small window mode,see as the following picture, To close the window,you can tap and hold the window until there is a”Ｘ” in the middle of the window,the tap the “Ｘ” to close the window. Other options z Delete BookMark And Play from beginning During playing a video which has been added a bookmark touch it and the video will play from the beginning. z Delete bookmark During playing a video which has been added a bookmark touch it and the bookmark added to it will be deleted. z Play mode During playing a video, touch play mode you can choose: Single After the current video is over, the playing is stopped. Repeat oneThe current video will be played in repetition. Repeat allAll the videos will be played in repetition. Minimize window

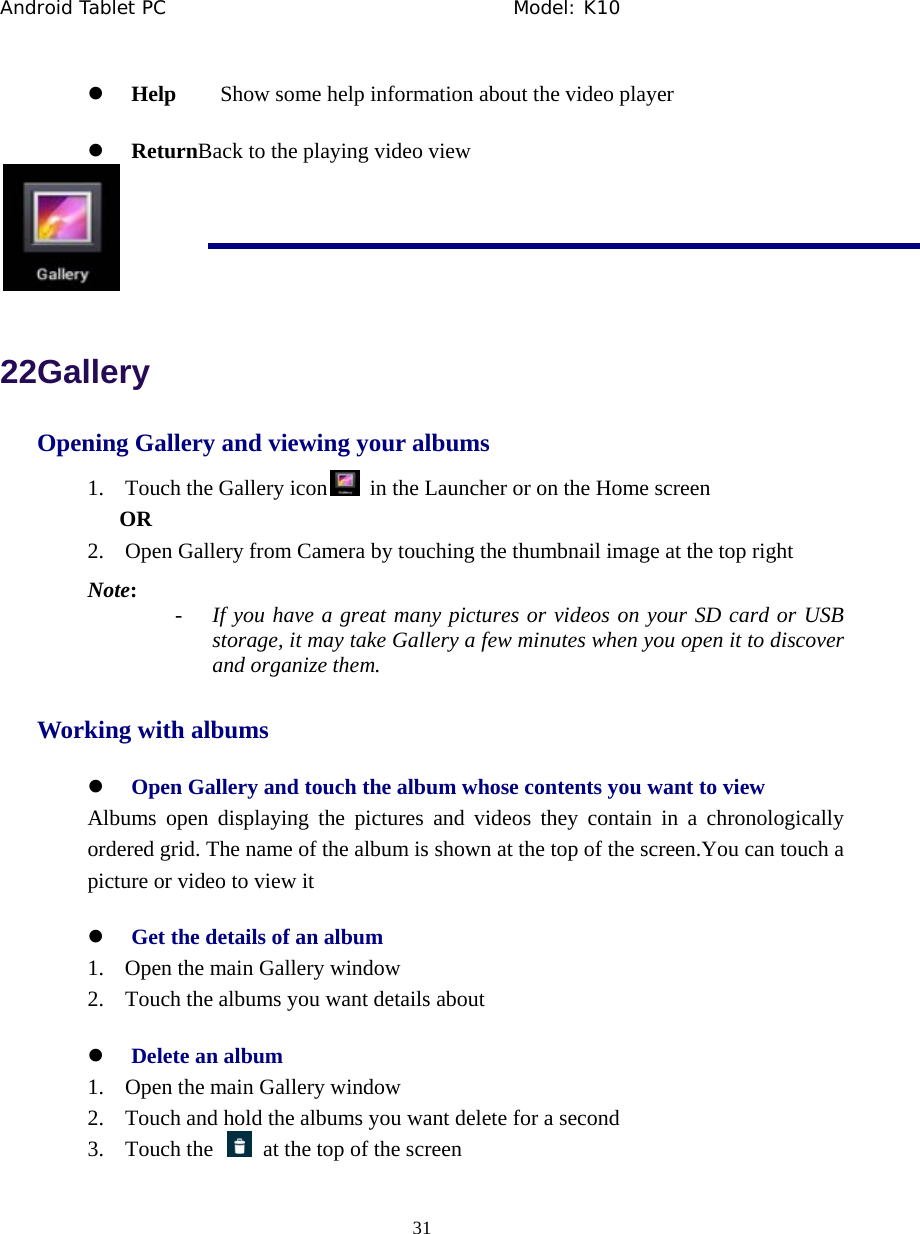

Android Tablet PC Model: K10 31 z Help Show some help information about the video player z ReturnBack to the playing video view 22Gallery Opening Gallery and viewing your albums 1. Touch the Gallery icon in the Launcher or on the Home screen OR 2. Open Gallery from Camera by touching the thumbnail image at the top right Note: - If you have a great many pictures or videos on your SD card or USB storage, it may take Gallery a few minutes when you open it to discover and organize them. Working with albums z Open Gallery and touch the album whose contents you want to view Albums open displaying the pictures and videos they contain in a chronologically ordered grid. The name of the album is shown at the top of the screen.You can touch a picture or video to view it z Get the details of an album 1. Open the main Gallery window 2. Touch the albums you want details about z Delete an album 1. Open the main Gallery window 2. Touch and hold the albums you want delete for a second 3. Touch the at the top of the screen

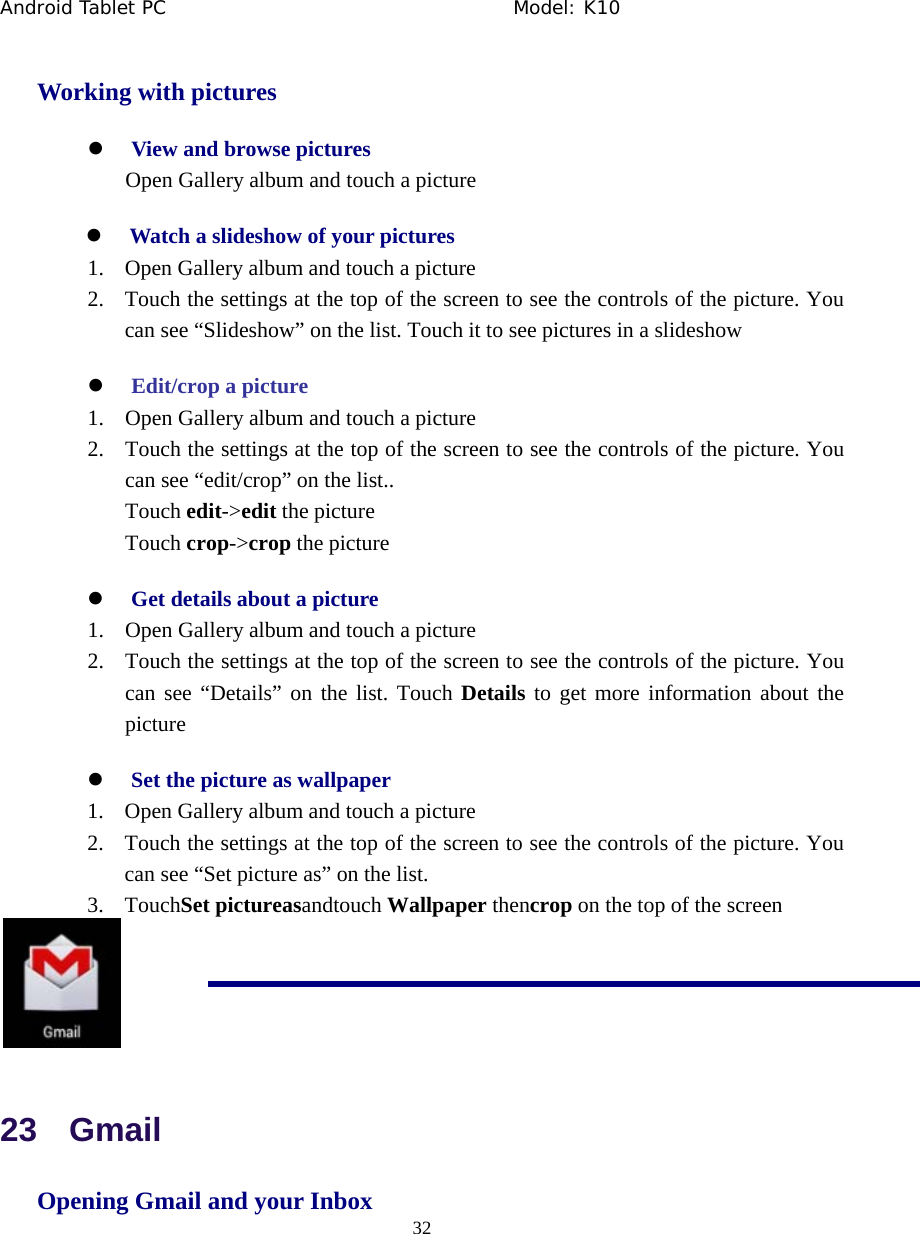

Android Tablet PC Model: K10 32 Working with pictures z View and browse pictures Open Gallery album and touch a picture z Watch a slideshow of your pictures 1. Open Gallery album and touch a picture 2. Touch the settings at the top of the screen to see the controls of the picture. You can see “Slideshow” on the list. Touch it to see pictures in a slideshow z Edit/crop a picture 1. Open Gallery album and touch a picture 2. Touch the settings at the top of the screen to see the controls of the picture. You can see “edit/crop” on the list.. Touch edit->edit the picture Touch crop->crop the picture z Get details about a picture 1. Open Gallery album and touch a picture 2. Touch the settings at the top of the screen to see the controls of the picture. You can see “Details” on the list. Touch Details to get more information about the picture z Set the picture as wallpaper 1. Open Gallery album and touch a picture 2. Touch the settings at the top of the screen to see the controls of the picture. You can see “Set picture as” on the list. 3. TouchSet pictureasandtouch Wallpaper thencrop on the top of the screen 23 Gmail Opening Gmail and your Inbox

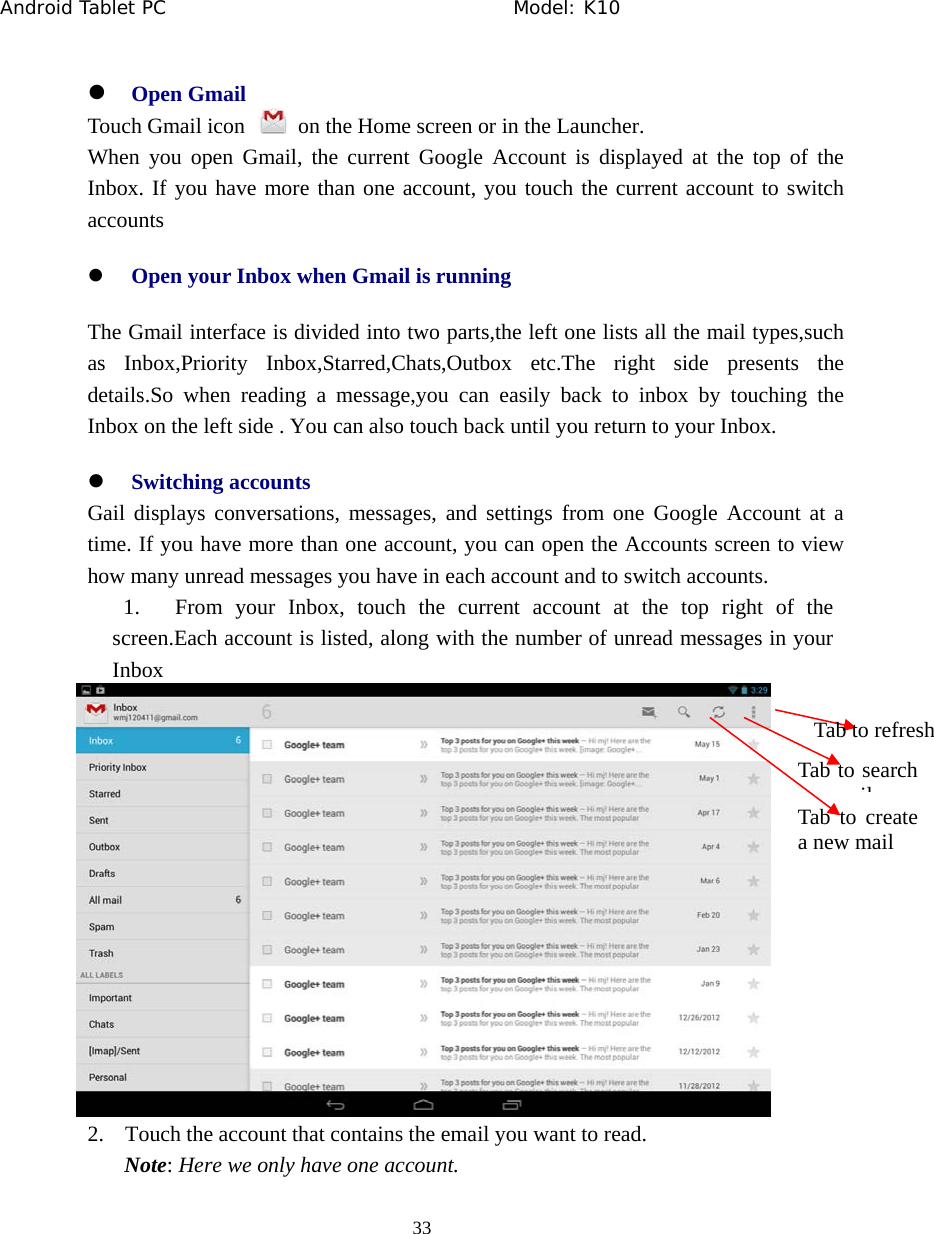

Android Tablet PC Model: K10 33 z Open Gmail Touch Gmail icon on the Home screen or in the Launcher. When you open Gmail, the current Google Account is displayed at the top of the Inbox. If you have more than one account, you touch the current account to switch accounts z Open your Inbox when Gmail is running The Gmail interface is divided into two parts,the left one lists all the mail types,such as Inbox,Priority Inbox,Starred,Chats,Outbox etc.The right side presents the details.So when reading a message,you can easily back to inbox by touching the Inbox on the left side . You can also touch back until you return to your Inbox. z Switching accounts Gail displays conversations, messages, and settings from one Google Account at a time. If you have more than one account, you can open the Accounts screen to view how many unread messages you have in each account and to switch accounts. 1. From your Inbox, touch the current account at the top right of the screen.Each account is listed, along with the number of unread messages in your Inbox 2. Touch the account that contains the email you want to read. Note: Here we only have one account. Tab to create a new mail Tab to search ilTab to refresh

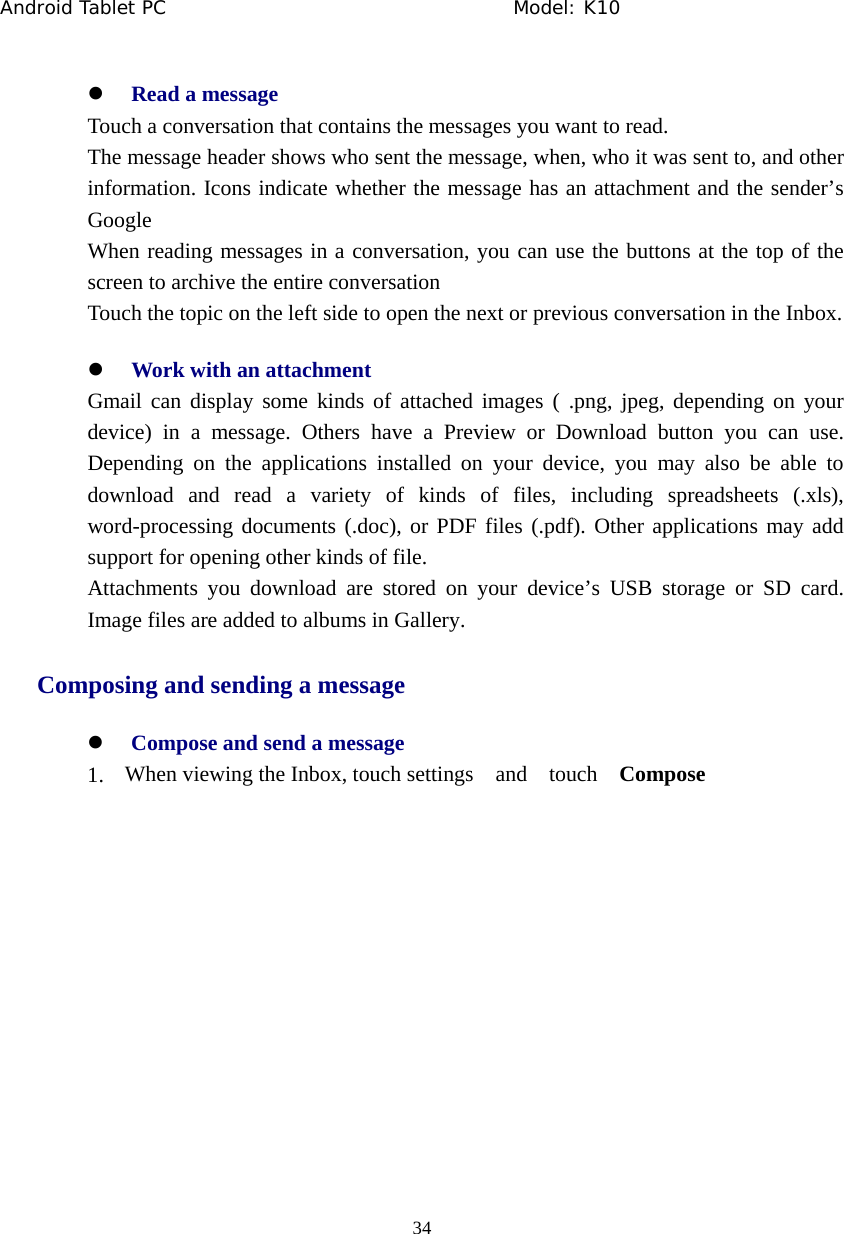

Android Tablet PC Model: K10 34 z Read a message Touch a conversation that contains the messages you want to read. The message header shows who sent the message, when, who it was sent to, and other information. Icons indicate whether the message has an attachment and the sender’s Google When reading messages in a conversation, you can use the buttons at the top of the screen to archive the entire conversation Touch the topic on the left side to open the next or previous conversation in the Inbox. z Work with an attachment Gmail can display some kinds of attached images ( .png, jpeg, depending on your device) in a message. Others have a Preview or Download button you can use. Depending on the applications installed on your device, you may also be able to download and read a variety of kinds of files, including spreadsheets (.xls), word-processing documents (.doc), or PDF files (.pdf). Other applications may add support for opening other kinds of file. Attachments you download are stored on your device’s USB storage or SD card. Image files are added to albums in Gallery. Composing and sending a message z Compose and send a message 1. When viewing the Inbox, touch settings and touch Compose

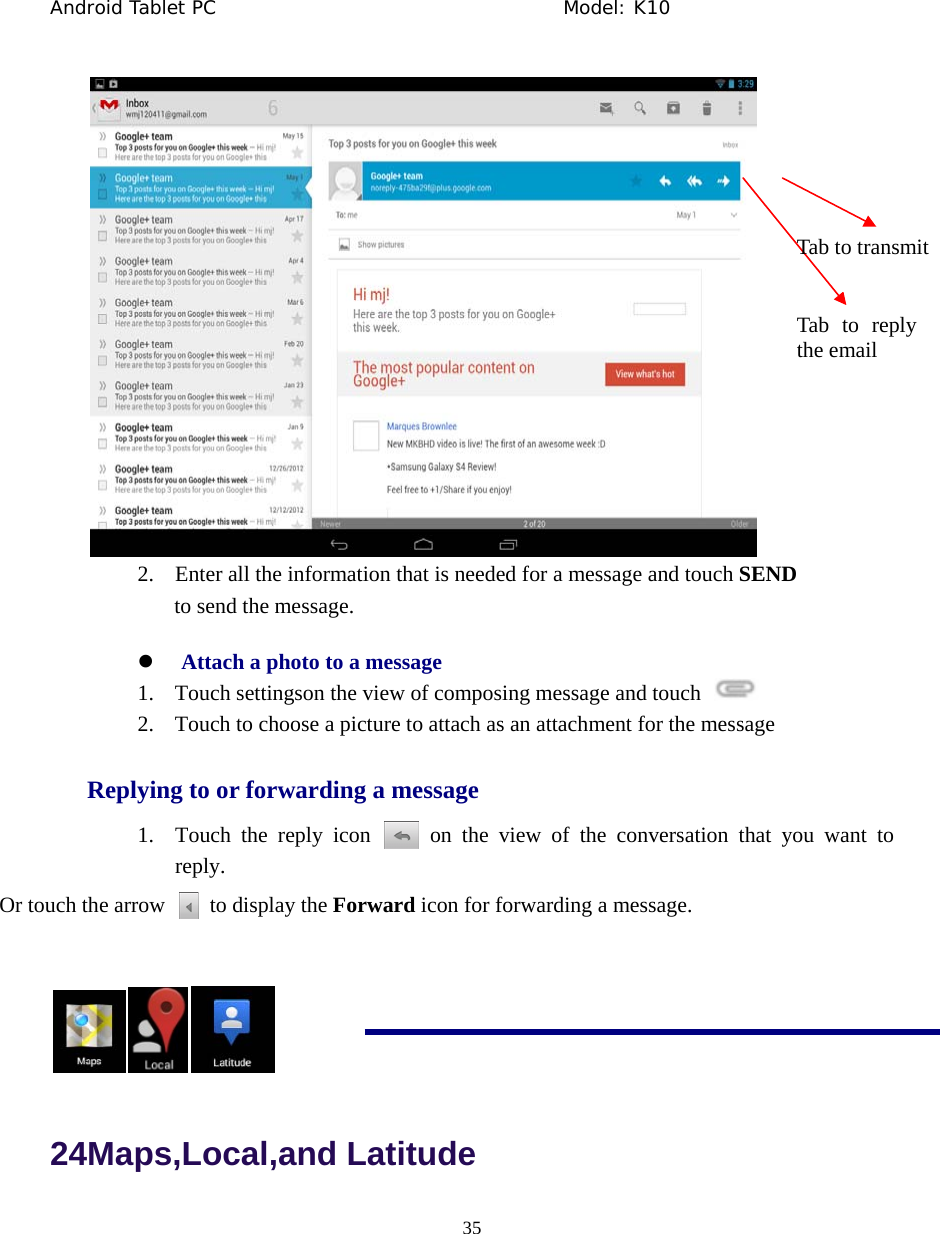

Android Tablet PC Model: K10 35 2. Enter all the information that is needed for a message and touch SEND to send the message. z Attach a photo to a message 1. Touch settingson the view of composing message and touch 2. Touch to choose a picture to attach as an attachment for the message Replying to or forwarding a message 1. Touch the reply icon on the view of the conversation that you want to reply. Or touch the arrow to display the Forward icon for forwarding a message. 24Maps,Local,and Latitude Tab to reply the email Tab to transmit

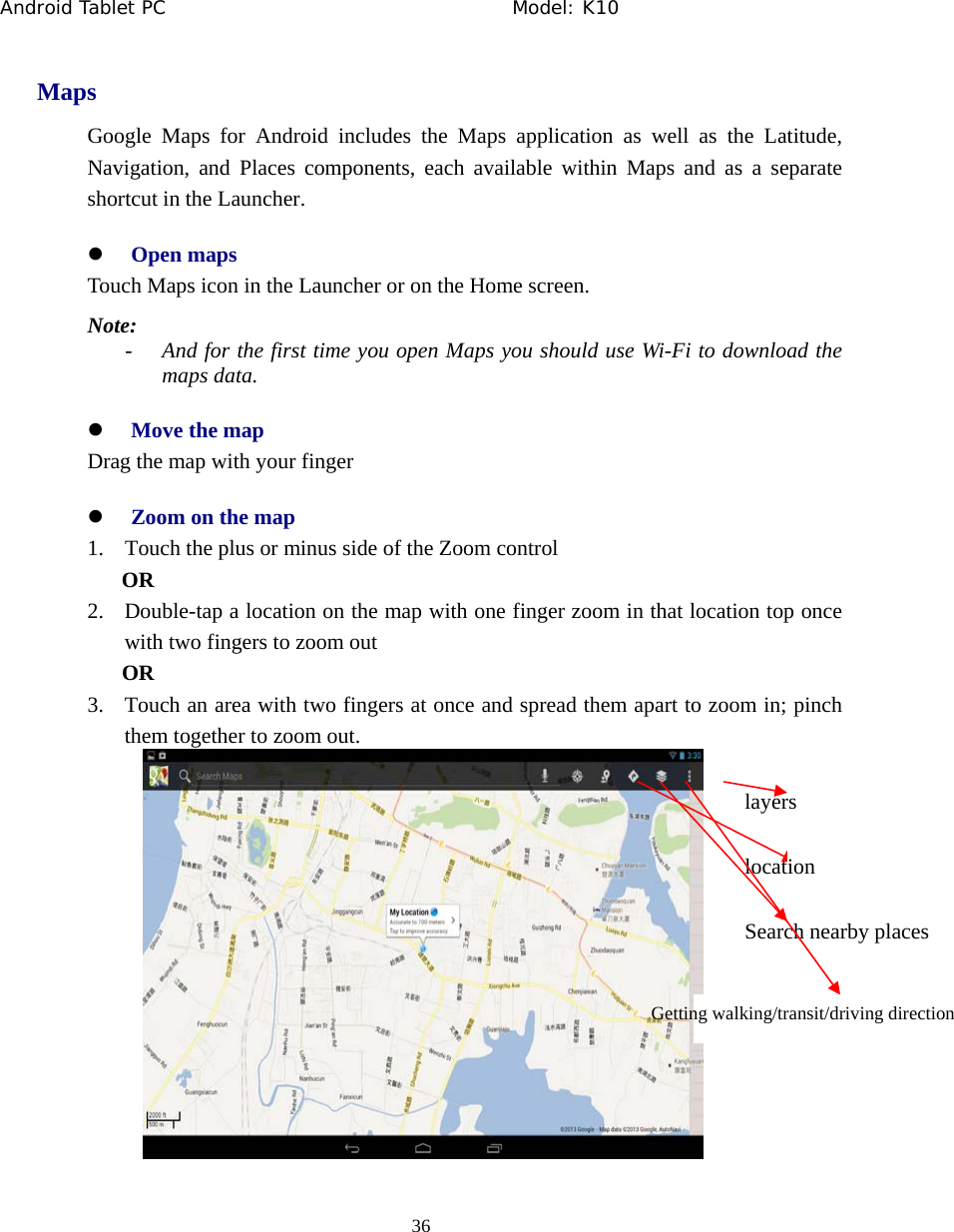

Android Tablet PC Model: K10 36 Maps Google Maps for Android includes the Maps application as well as the Latitude, Navigation, and Places components, each available within Maps and as a separate shortcut in the Launcher. z Open maps Touch Maps icon in the Launcher or on the Home screen. Note: - And for the first time you open Maps you should use Wi-Fi to download the maps data. z Move the map Drag the map with your finger z Zoom on the map 1. Touch the plus or minus side of the Zoom control OR 2. Double-tap a location on the map with one finger zoom in that location top once with two fingers to zoom out OR 3. Touch an area with two fingers at once and spread them apart to zoom in; pinch them together to zoom out. location Search nearby places Getting walking/transit/driving direction layers

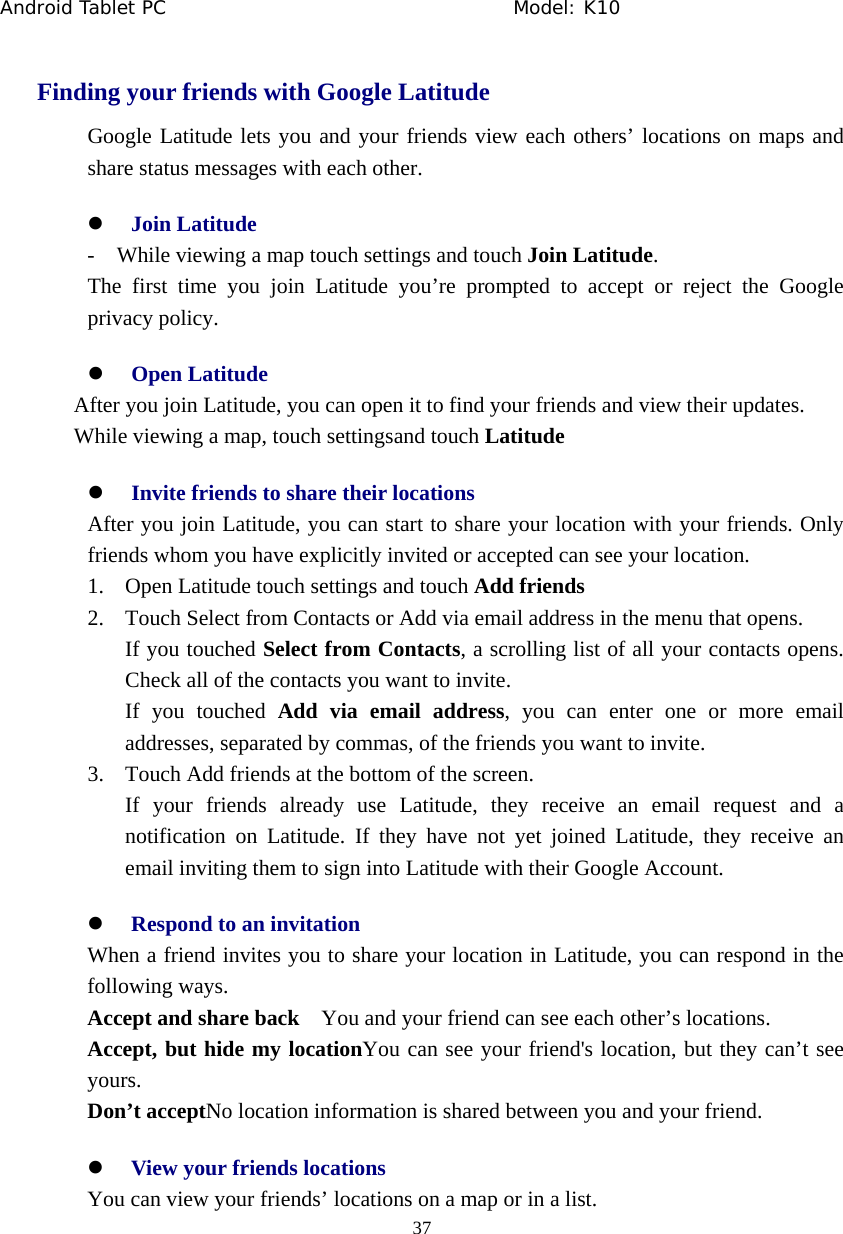

Android Tablet PC Model: K10 37 Finding your friends with Google Latitude Google Latitude lets you and your friends view each others’ locations on maps and share status messages with each other. z Join Latitude - While viewing a map touch settings and touch Join Latitude. The first time you join Latitude you’re prompted to accept or reject the Google privacy policy. z Open Latitude After you join Latitude, you can open it to find your friends and view their updates. While viewing a map, touch settingsand touch Latitude z Invite friends to share their locations After you join Latitude, you can start to share your location with your friends. Only friends whom you have explicitly invited or accepted can see your location. 1. Open Latitude touch settings and touch Add friends 2. Touch Select from Contacts or Add via email address in the menu that opens. If you touched Select from Contacts, a scrolling list of all your contacts opens. Check all of the contacts you want to invite. If you touched Add via email address, you can enter one or more email addresses, separated by commas, of the friends you want to invite. 3. Touch Add friends at the bottom of the screen. If your friends already use Latitude, they receive an email request and a notification on Latitude. If they have not yet joined Latitude, they receive an email inviting them to sign into Latitude with their Google Account. z Respond to an invitation When a friend invites you to share your location in Latitude, you can respond in the following ways. Accept and share back You and your friend can see each other’s locations. Accept, but hide my locationYou can see your friend's location, but they can’t see yours. Don’t acceptNo location information is shared between you and your friend. z View your friends locations You can view your friends’ locations on a map or in a list.

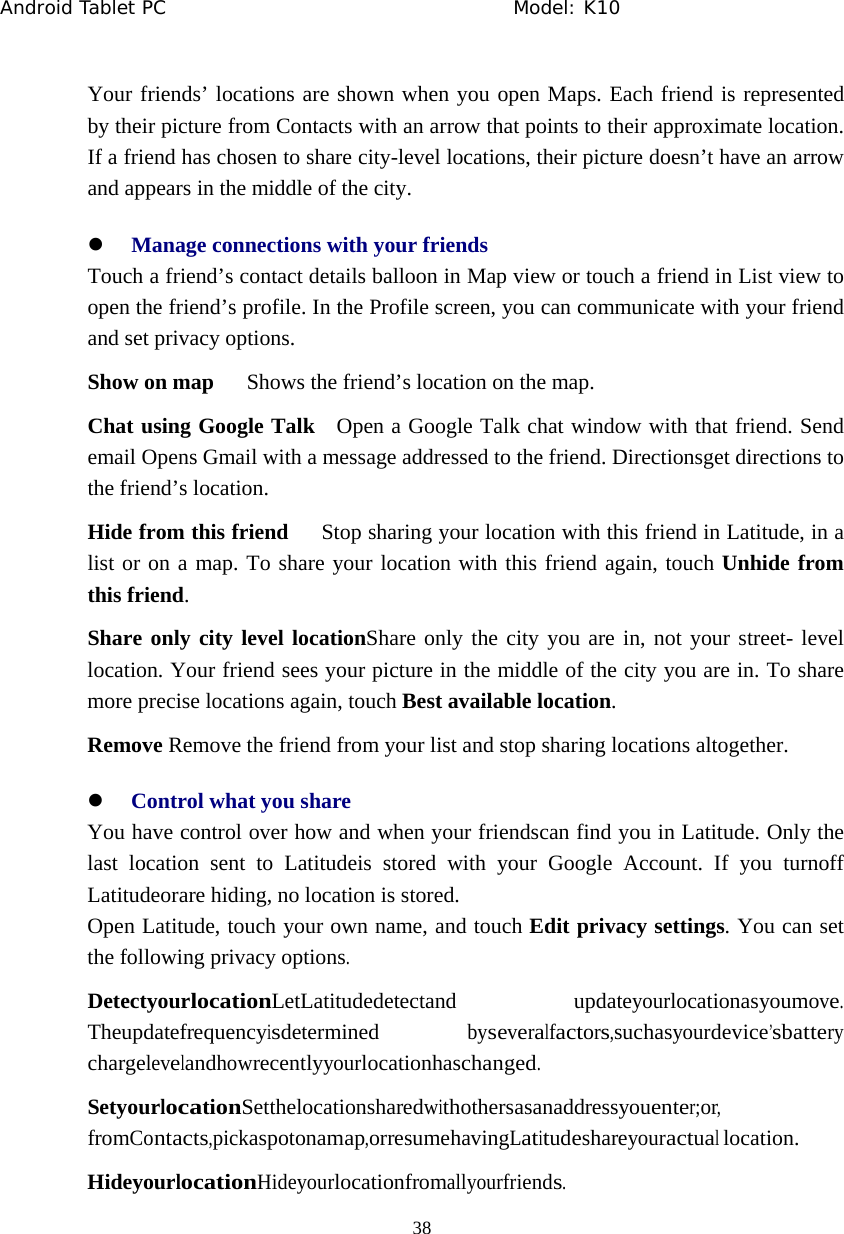

Android Tablet PC Model: K10 38 Your friends’ locations are shown when you open Maps. Each friend is represented by their picture from Contacts with an arrow that points to their approximate location. If a friend has chosen to share city-level locations, their picture doesn’t have an arrow and appears in the middle of the city. z Manage connections with your friends Touch a friend’s contact details balloon in Map view or touch a friend in List view to open the friend’s profile. In the Profile screen, you can communicate with your friend and set privacy options. Show on map Shows the friend’s location on the map. Chat using Google Talk Open a Google Talk chat window with that friend. Send email Opens Gmail with a message addressed to the friend. Directionsget directions to the friend’s location. Hide from this friend Stop sharing your location with this friend in Latitude, in a list or on a map. To share your location with this friend again, touch Unhide from this friend. Share only city level locationShare only the city you are in, not your street- level location. Your friend sees your picture in the middle of the city you are in. To share more precise locations again, touch Best available location. Remove Remove the friend from your list and stop sharing locations altogether. z Control what you share You have control over how and when your friendscan find you in Latitude. Only the last location sent to Latitudeis stored with your Google Account. If you turnoff Latitudeorare hiding, no location is stored. Open Latitude, touch your own name, and touch Edit privacy settings. You can set the following privacy options. DetectyourlocationLetLatitudedetectand updateyourlocationasyoumove. Theupdatefrequencyisdetermined byseveralfactors,suchasyourdevice’sbattery chargelevelandhowrecentlyyourlocationhaschanged. SetyourlocationSetthelocationsharedwithothersasanaddressyouenter;or, fromContacts,pickaspotonamap,orresumehavingLatitudeshareyouractual location. HideyourlocationHideyourlocationfromallyourfriends.

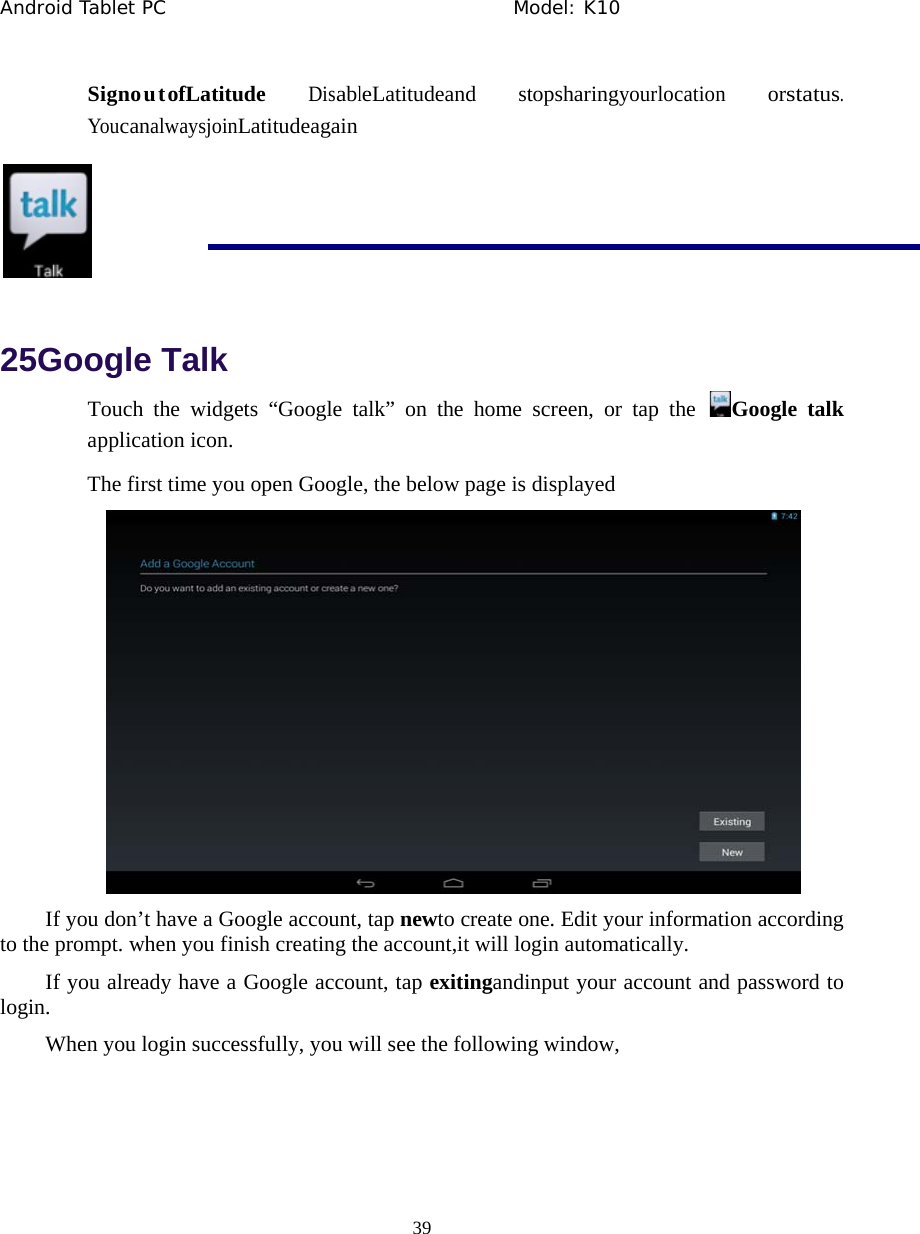

Android Tablet PC Model: K10 39 SignoutofLatitude DisableLatitudeand stopsharingyourlocation orstatus. YoucanalwaysjoinLatitudeagain 25Google Talk Touch the widgets “Google talk” on the home screen, or tap the Google talk application icon. The first time you open Google, the below page is displayed If you don’t have a Google account, tap newto create one. Edit your information according to the prompt. when you finish creating the account,it will login automatically. If you already have a Google account, tap exitingandinput your account and password to login. When you login successfully, you will see the following window,

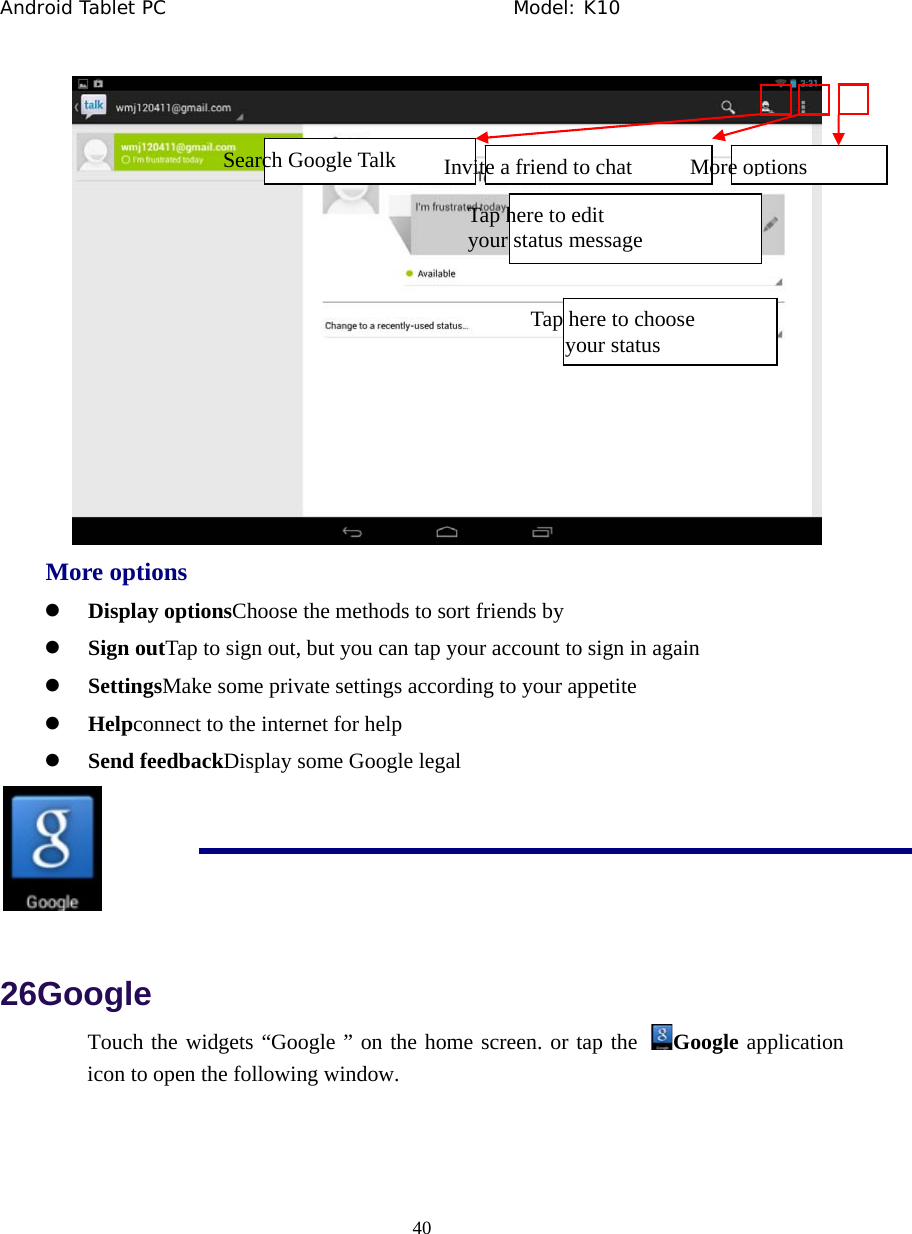

Android Tablet PC Model: K10 40 More options z Display optionsChoose the methods to sort friends by z Sign outTap to sign out, but you can tap your account to sign in again z SettingsMake some private settings according to your appetite z Helpconnect to the internet for help z Send feedbackDisplay some Google legal 26Google Touch the widgets “Google ” on the home screen. or tap the Google application icon to open the following window. Tap here to edit your status message Tap here to choose your statusSearch Google Talk Invite a friend to chat More options

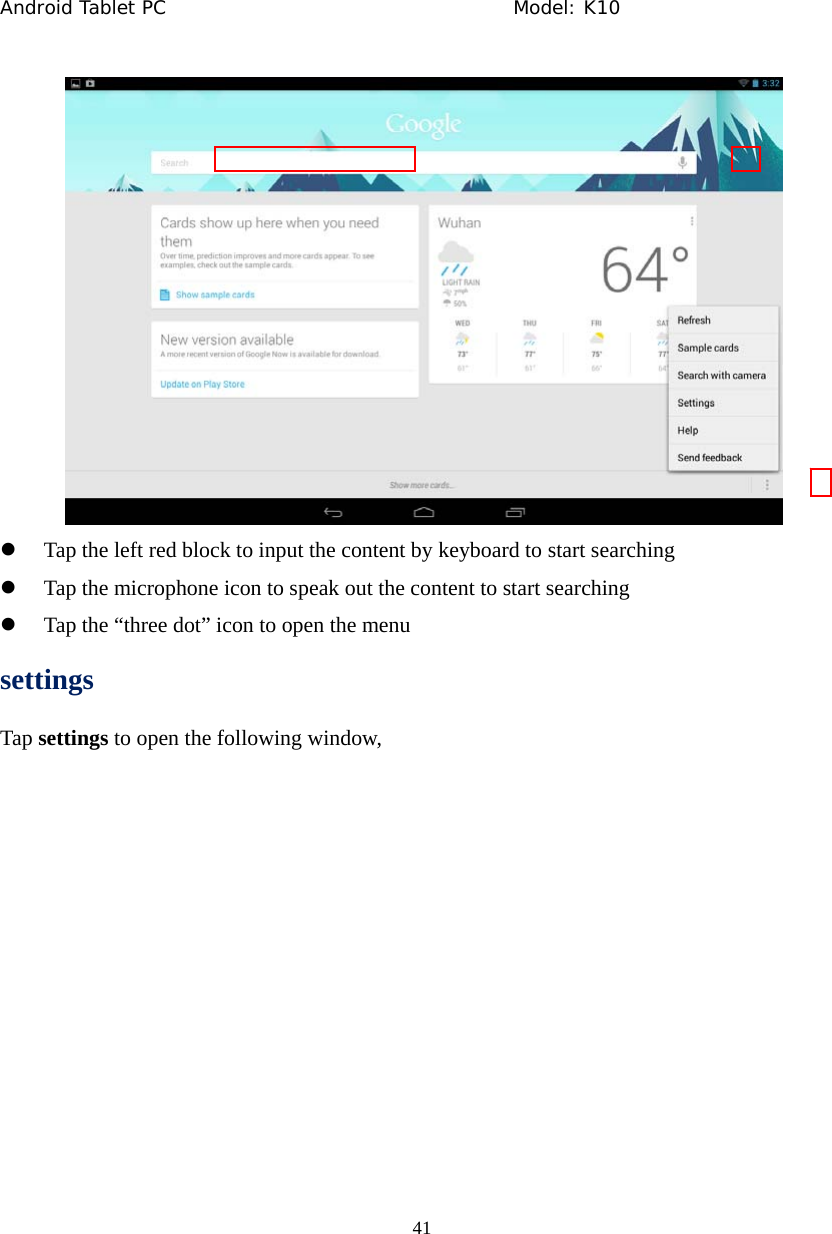

Android Tablet PC Model: K10 41 z Tap the left red block to input the content by keyboard to start searching z Tap the microphone icon to speak out the content to start searching z Tap the “three dot” icon to open the menu settings Tap settings to open the following window,

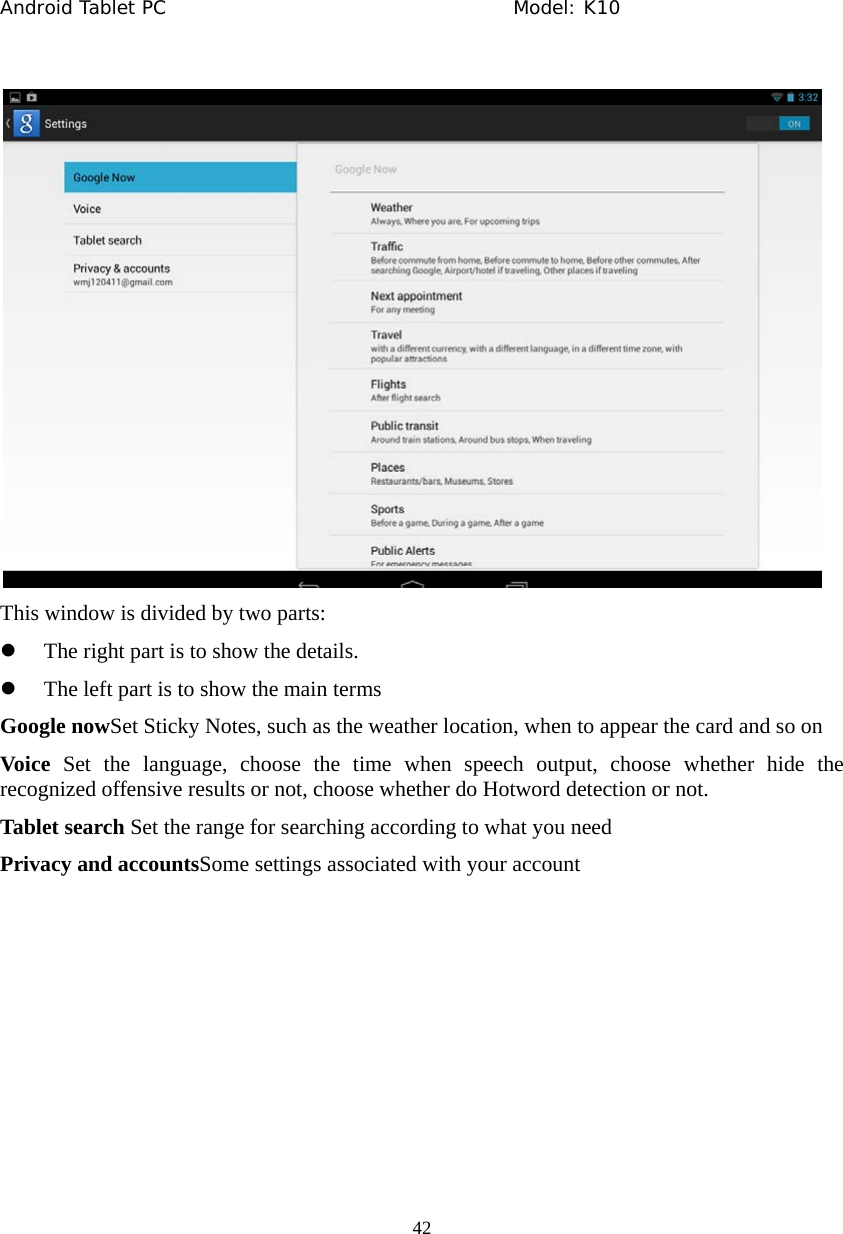

Android Tablet PC Model: K10 42 This window is divided by two parts: z The right part is to show the details. z The left part is to show the main terms Google nowSet Sticky Notes, such as the weather location, when to appear the card and so on Voice Set the language, choose the time when speech output, choose whether hide the recognized offensive results or not, choose whether do Hotword detection or not. Tablet search Set the range for searching according to what you need Privacy and accountsSome settings associated with your account

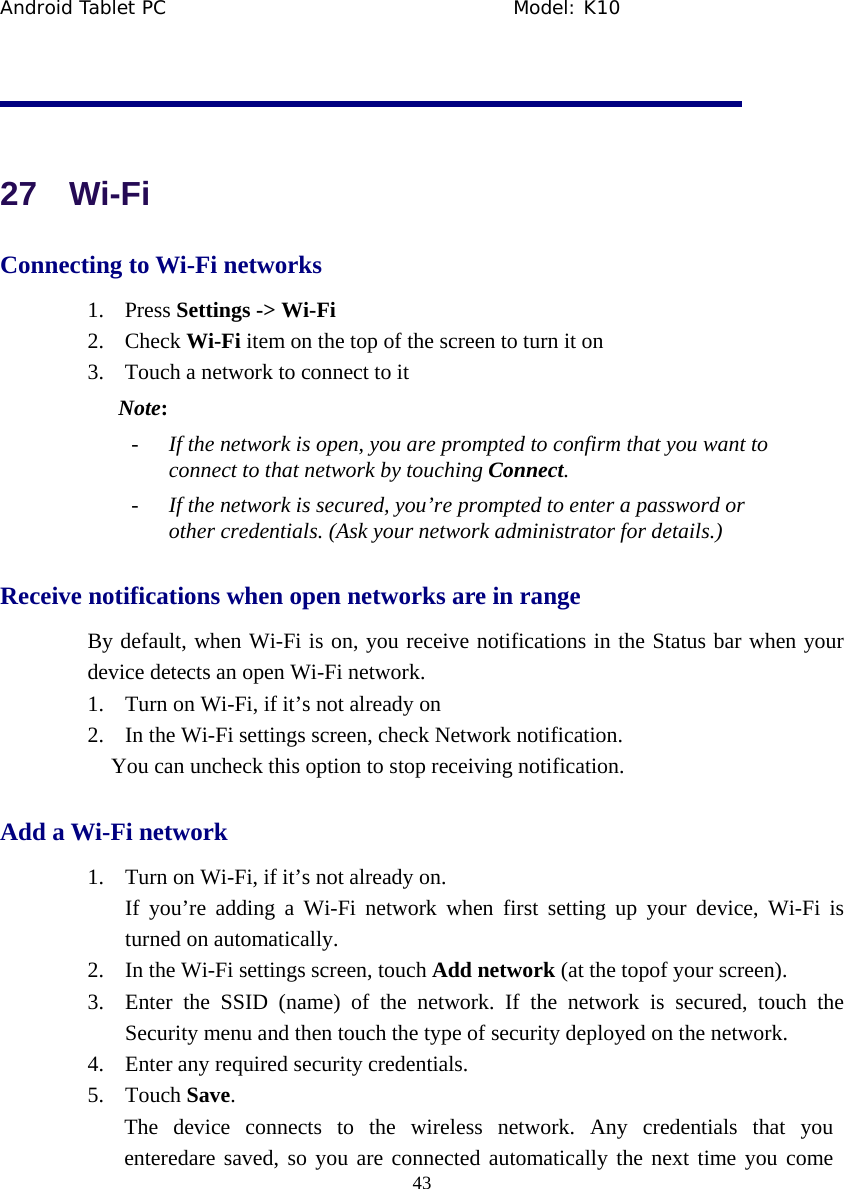

Android Tablet PC Model: K10 43 27 Wi-Fi Connecting to Wi-Fi networks 1. Press Settings -> Wi-Fi 2. Check Wi-Fi item on the top of the screen to turn it on 3. Touch a network to connect to it Note: - If the network is open, you are prompted to confirm that you want to connect to that network by touching Connect. - If the network is secured, you’re prompted to enter a password or other credentials. (Ask your network administrator for details.) Receive notifications when open networks are in range By default, when Wi-Fi is on, you receive notifications in the Status bar when your device detects an open Wi-Fi network. 1. Turn on Wi-Fi, if it’s not already on 2. In the Wi-Fi settings screen, check Network notification. You can uncheck this option to stop receiving notification. Add a Wi-Fi network 1. Turn on Wi-Fi, if it’s not already on. If you’re adding a Wi-Fi network when first setting up your device, Wi-Fi is turned on automatically. 2. In the Wi-Fi settings screen, touch Add network (at the topof your screen). 3. Enter the SSID (name) of the network. If the network is secured, touch the Security menu and then touch the type of security deployed on the network. 4. Enter any required security credentials. 5. Touch Save. The device connects to the wireless network. Any credentials that you enteredare saved, so you are connected automatically the next time you come

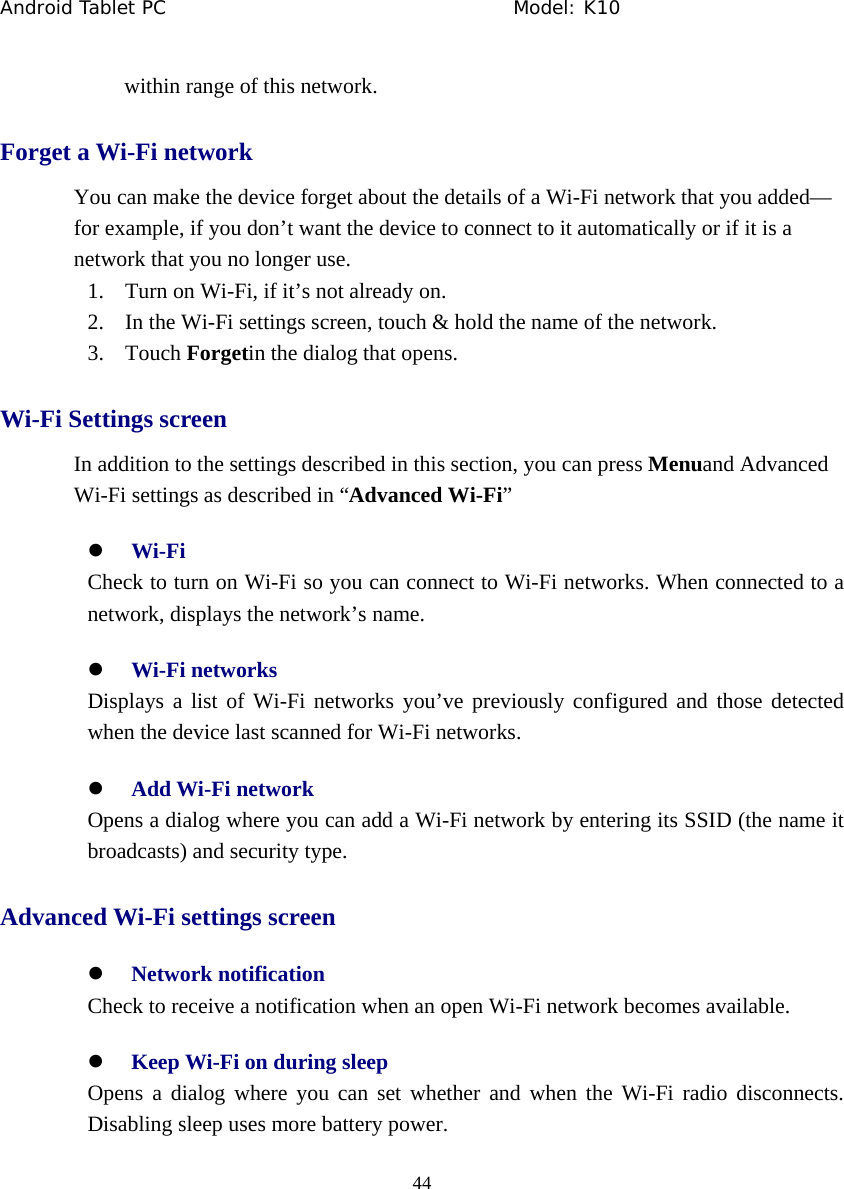

Android Tablet PC Model: K10 44 within range of this network. Forget a Wi-Fi network You can make the device forget about the details of a Wi-Fi network that you added— for example, if you don’t want the device to connect to it automatically or if it is a network that you no longer use. 1. Turn on Wi-Fi, if it’s not already on. 2. In the Wi-Fi settings screen, touch & hold the name of the network. 3. Touch Forgetin the dialog that opens. Wi-Fi Settings screen In addition to the settings described in this section, you can press Menuand Advanced Wi-Fi settings as described in “Advanced Wi-Fi” z Wi-Fi Check to turn on Wi-Fi so you can connect to Wi-Fi networks. When connected to a network, displays the network’s name. z Wi-Fi networks Displays a list of Wi-Fi networks you’ve previously configured and those detected when the device last scanned for Wi-Fi networks. z Add Wi-Fi network Opens a dialog where you can add a Wi-Fi network by entering its SSID (the name it broadcasts) and security type. Advanced Wi-Fi settings screen z Network notification Check to receive a notification when an open Wi-Fi network becomes available. z Keep Wi-Fi on during sleep Opens a dialog where you can set whether and when the Wi-Fi radio disconnects. Disabling sleep uses more battery power.

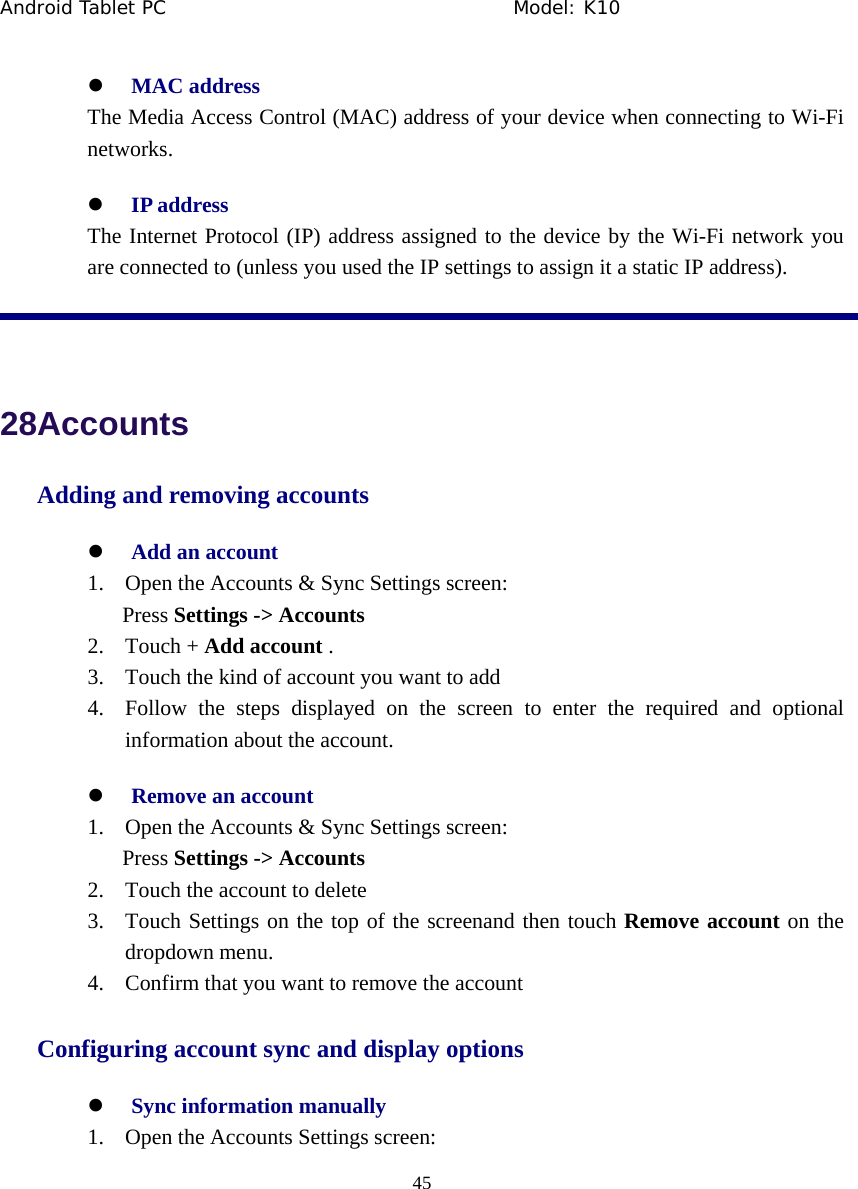

Android Tablet PC Model: K10 45 z MAC address The Media Access Control (MAC) address of your device when connecting to Wi-Fi networks. z IP address The Internet Protocol (IP) address assigned to the device by the Wi-Fi network you are connected to (unless you used the IP settings to assign it a static IP address). 28Accounts Adding and removing accounts z Add an account 1. Open the Accounts & Sync Settings screen: Press Settings -> Accounts 2. Touch + Add account . 3. Touch the kind of account you want to add 4. Follow the steps displayed on the screen to enter the required and optional information about the account. z Remove an account 1. Open the Accounts & Sync Settings screen: Press Settings -> Accounts 2. Touch the account to delete 3. Touch Settings on the top of the screenand then touch Remove account on the dropdown menu. 4. Confirm that you want to remove the account Configuring account sync and display options z Sync information manually 1. Open the Accounts Settings screen:

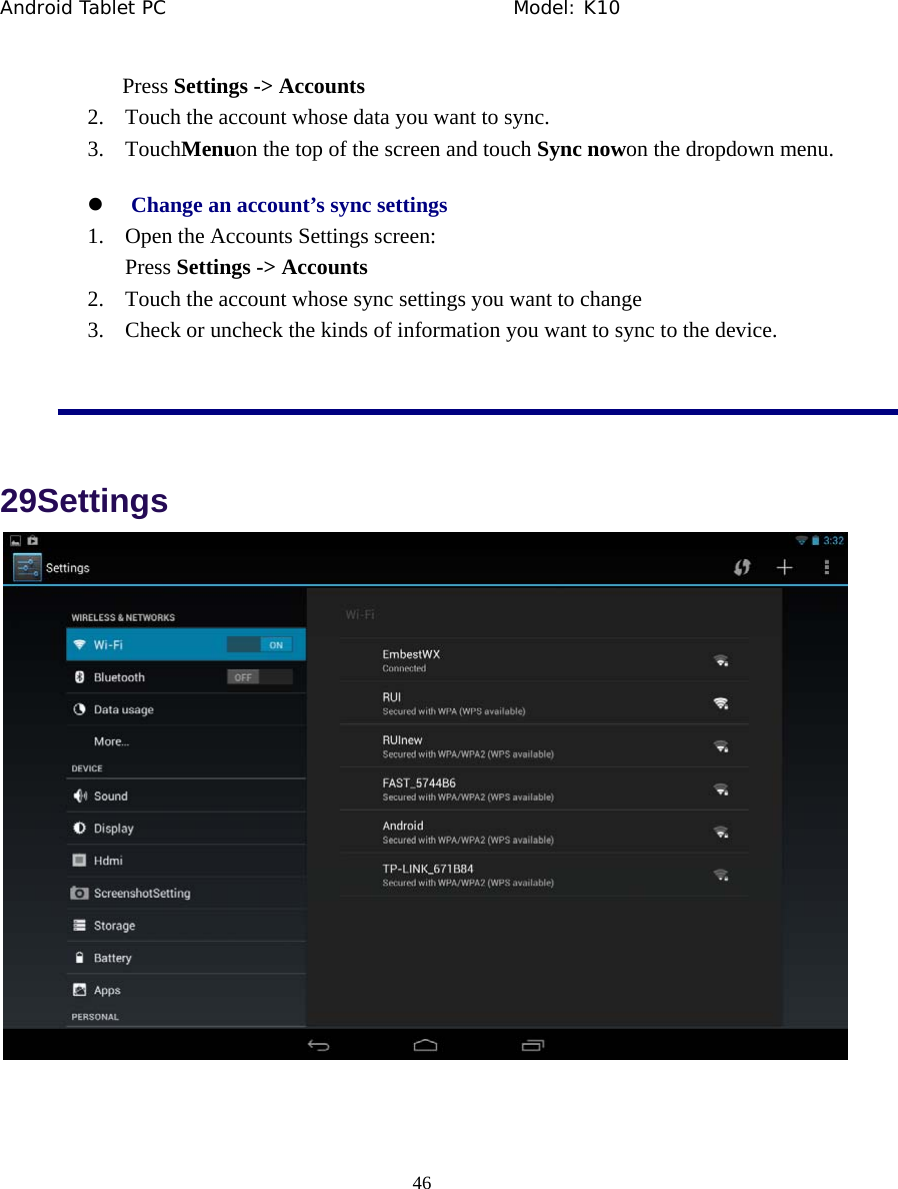

Android Tablet PC Model: K10 46 Press Settings -> Accounts 2. Touch the account whose data you want to sync. 3. TouchMenuon the top of the screen and touch Sync nowon the dropdown menu. z Change an account’s sync settings 1. Open the Accounts Settings screen: Press Settings -> Accounts 2. Touch the account whose sync settings you want to change 3. Check or uncheck the kinds of information you want to sync to the device. 29Settings

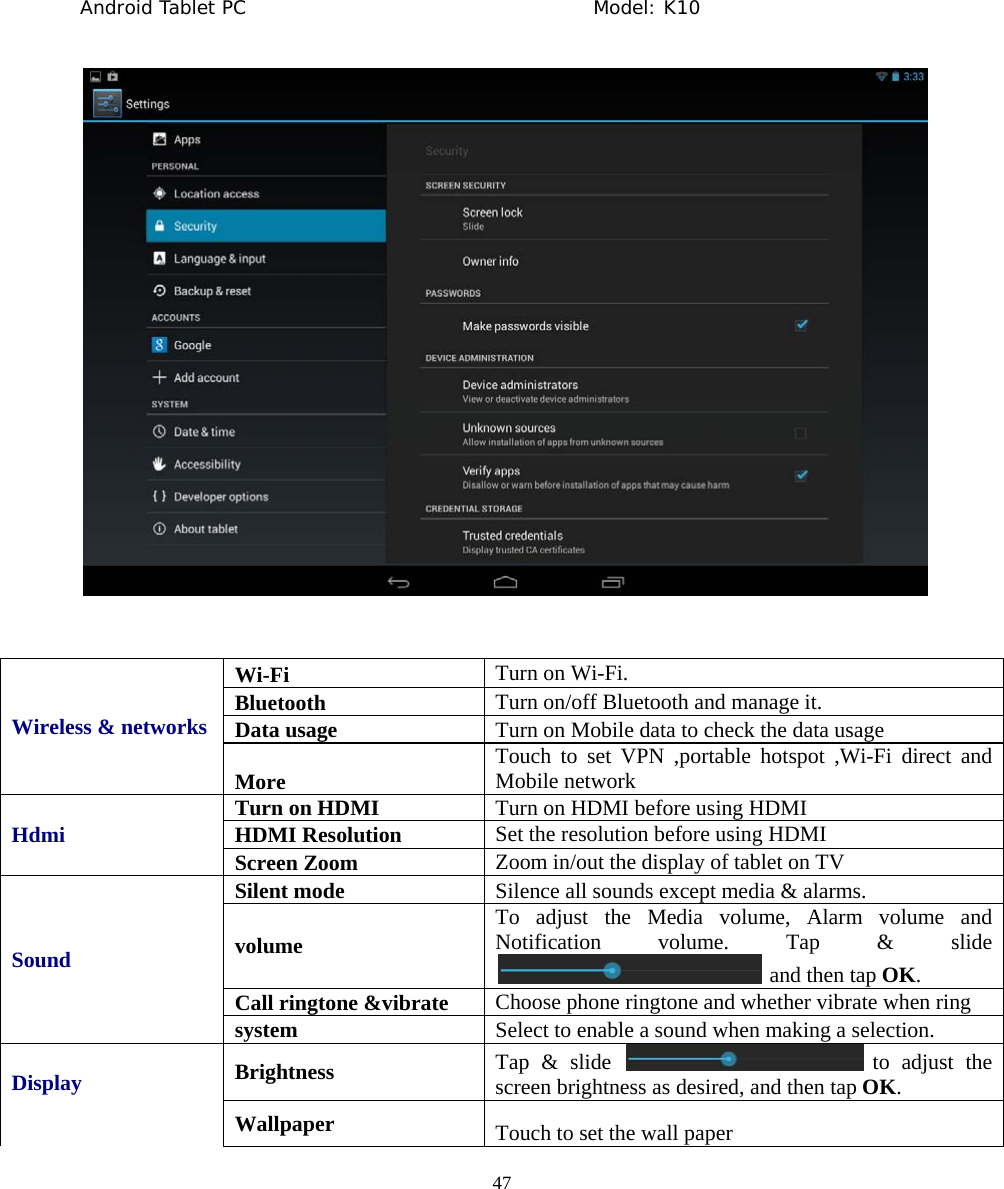

Android Tablet PC Model: K10 47 Wireless & networks Wi-Fi Turn on Wi-Fi. Bluetooth Turn on/off Bluetooth and manage it. Data usage Turn on Mobile data to check the data usage More Touch to set VPN ,portable hotspot ,Wi-Fi direct and Mobile network Hdmi Turn on HDMI Turn on HDMI before using HDMI HDMI Resolution Set the resolution before using HDMI Screen Zoom Zoom in/out the display of tablet on TV Sound Silent mode Silence all sounds except media & alarms. volume To adjust the Media volume, Alarm volume and Notification volume. Tap & slide and then tap OK. Call ringtone &vibrate Choose phone ringtone and whether vibrate when ring system Select to enable a sound when making a selection. Display Brightness Tap & slide to adjust the screen brightness as desired, and then tap OK. Wallpaper Touch to set the wall paper

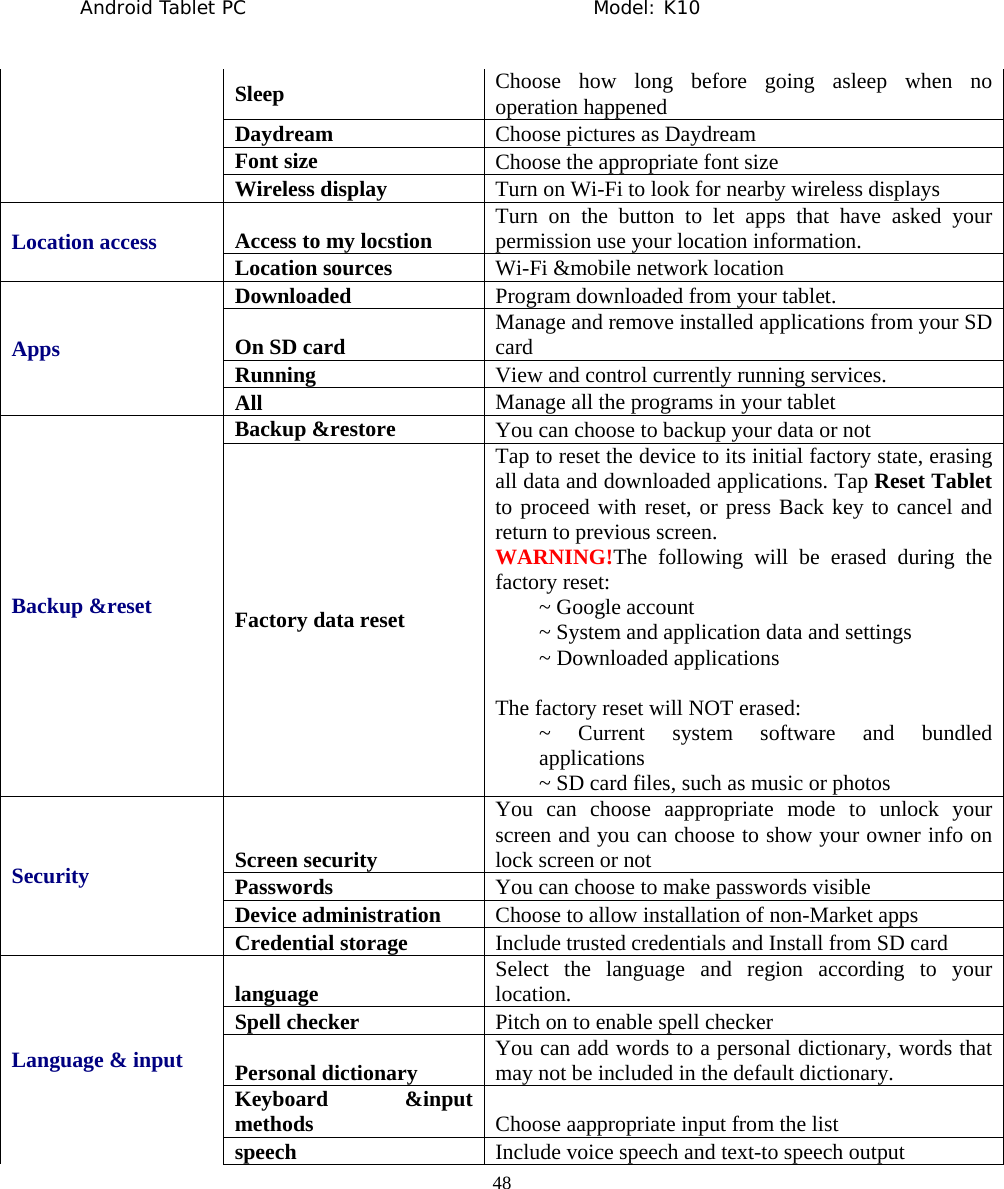

Android Tablet PC Model: K10 48 Sleep Choose how long before going asleep when no operation happened Daydream Choose pictures as Daydream Font size Choose the appropriate font size Wireless display Turn on Wi-Fi to look for nearby wireless displays Location access Access to my locstion Turn on the button to let apps that have asked your permission use your location information. Location sources Wi-Fi &mobile network location Apps Downloaded Program downloaded from your tablet. On SD card Manage and remove installed applications from your SD card Running View and control currently running services. All Manage all the programs in your tablet Backup &reset Backup &restore You can choose to backup your data or not Factory data reset Tap to reset the device to its initial factory state, erasing all data and downloaded applications. Tap Reset Tablet to proceed with reset, or press Back key to cancel and return to previous screen. WARNING!The following will be erased during the factory reset: ~ Google account ~ System and application data and settings ~ Downloaded applications The factory reset will NOT erased: ~ Current system software and bundled applications ~ SD card files, such as music or photos Security Screen security You can choose aappropriate mode to unlock your screen and you can choose to show your owner info on lock screen or not Passwords You can choose to make passwords visible Device administration Choose to allow installation of non-Market apps Credential storage Include trusted credentials and Install from SD card Language & input language Select the language and region according to your location. Spell checker Pitch on to enable spell checker Personal dictionary You can add words to a personal dictionary, words that may not be included in the default dictionary. Keyboard &input methods Choose aappropriate input from the list speech Include voice speech and text-to speech output

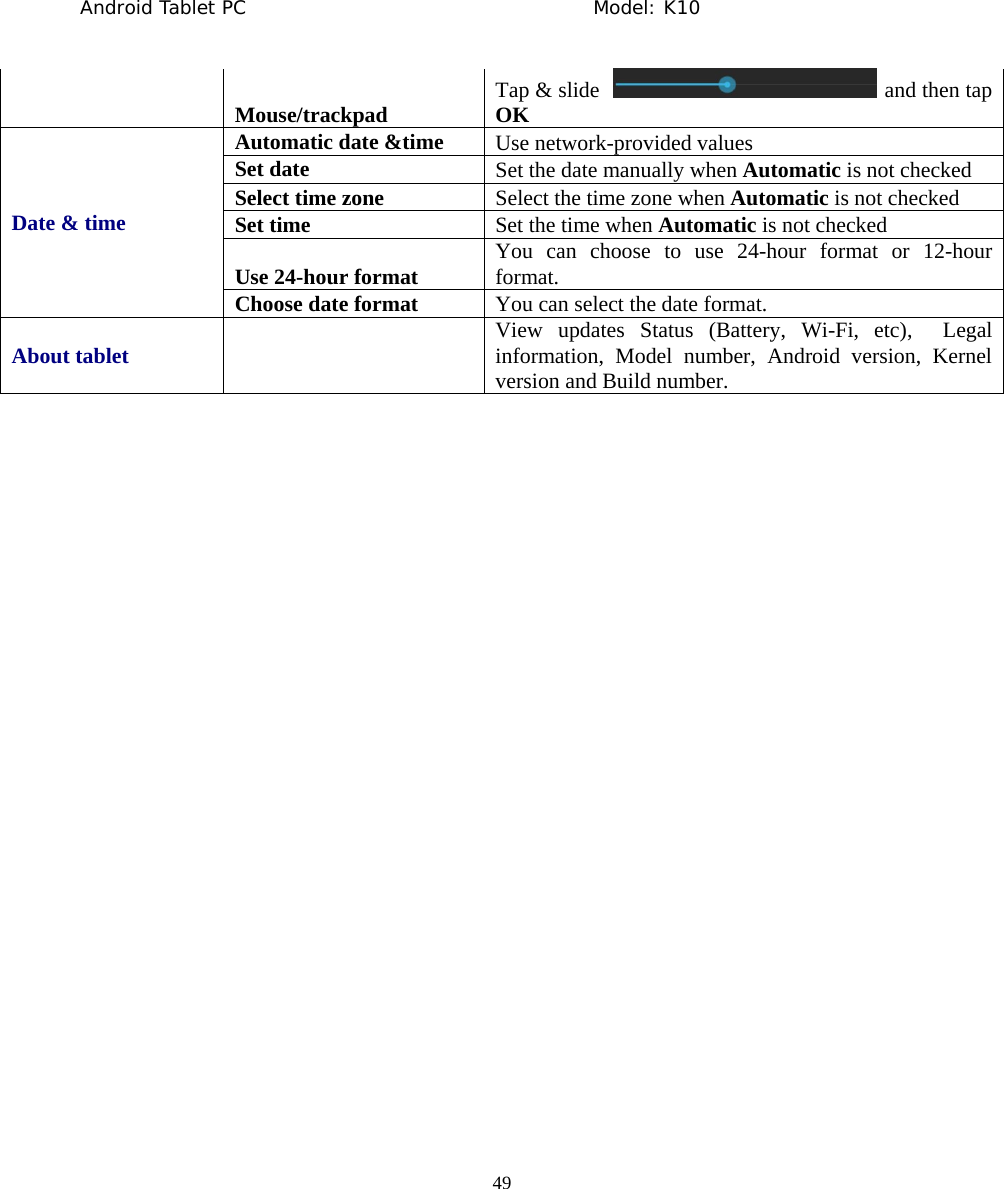

Android Tablet PC Model: K10 49 Mouse/trackpad Tap & slide and then tap OKDate & time Automatic date &time Use network-provided values Set date Set the date manually when Automatic is not checked Select time zone Select the time zone when Automatic is not checked Set time Set the time when Automatic is not checked Use 24-hour format You can choose to use 24-hour format or 12-hour format. Choose date format You can select the date format. About tablet View updates Status (Battery, Wi-Fi, etc), Legal information, Model number, Android version, Kernel version and Build number.

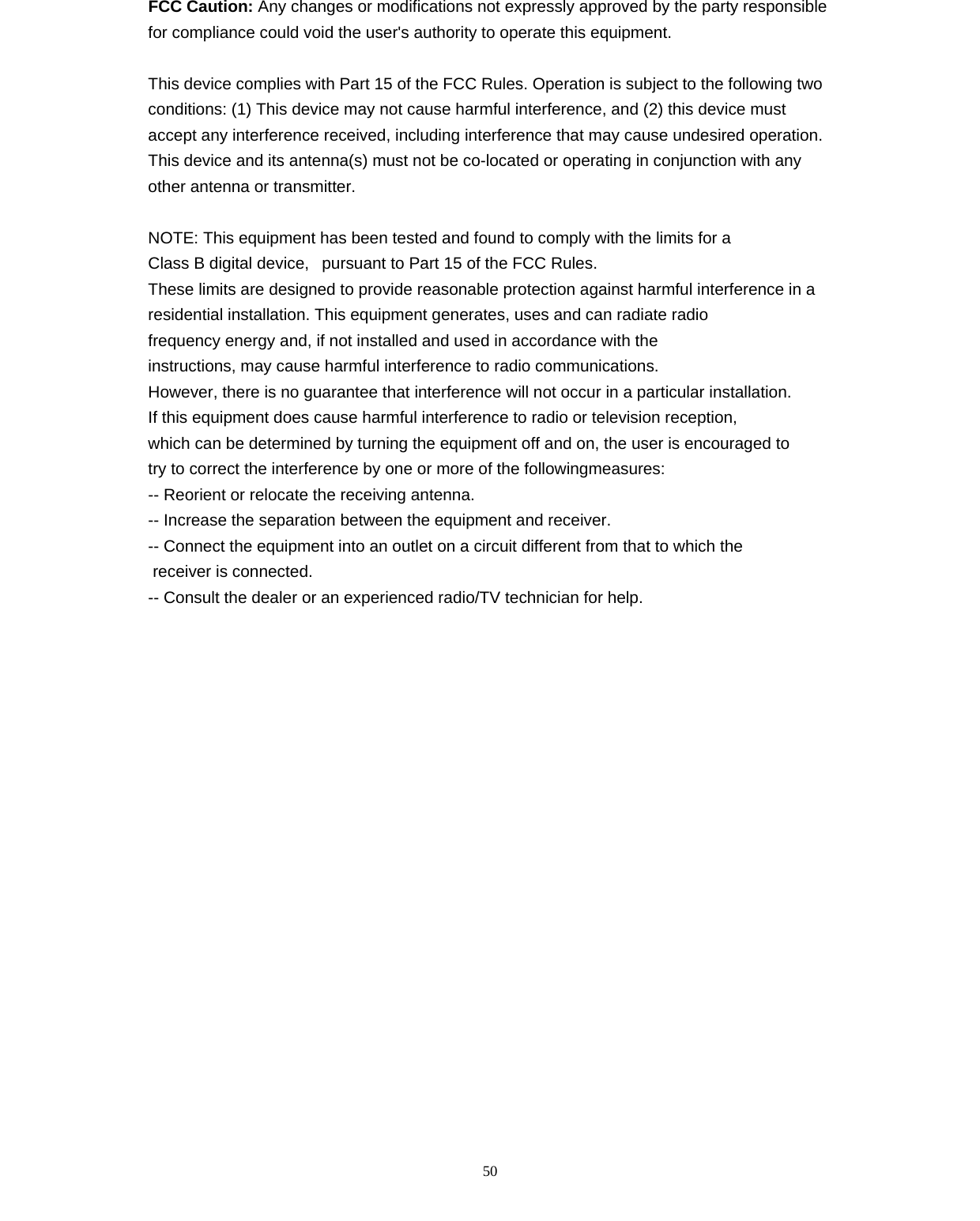

50FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
