USER MANUAL

DVR-7000 Viaccess

Digital Satellite Receiver

Printedonrecycledpaper

Issue: dvr7000hddvcs_b_1a_us

We encourage you to express your thoughts on this user manual.

Please send your comments to:

EchoStar International Corporation

Technical Publications Department

Schuilenburglaan 5a

7604 BJ Almelo

The Netherlands

Preface

Digital Satellite Receiver Page I

PREFACE

1. DEAR CUSTOMER

Thank you for purchasing an EchoStar satellite receiver. This receiver is of the latest

generation for which it is possible to upgrade the software to keep up with the newest

developments. Please read this user manual carefully, to be able to safely install, use and

maintain the receiver for maximum performance. Keep this user manual next to your receiver

for future reference.

Please make a note of the serial number in the space below. This helps to trace and identify

thereceiverincaseoftheft.Alsoquestionstoourhelpdeskcanbeansweredmoreaccurate

if you can provide the details as mentioned on the serial number plate. You find the serial

number plate at the rear panel of the receiver.

2. INTENDED USE

This user manual is intended for anyone who uses an EchoStar satellite receiver. It can be

used by both first-time and experienced users of satellite receivers who want to install, use

and maintain their receiver.

This user manual is applicable for the EchoStar DVR-7000 Viaccess Digital Satellite

Receiver and the related accessories. This user manual is divided into separate sections and

chapters. For easy access to the information, a clear table of content and an index are

provided.

3. WARRANTY

COMMON INTERFACE-MODULES AND SMART CARDS

For pay-services, please only use Common Interface (CI) modules and the related smart

cards which are approved by the service provider of the encrypted program you want to

receive. Only this will enable the receiver to work properly.

Anomalies can occur when unapproved CI-modules and/or smart cards are used. EchoStar

can not and will not accept any responsibility for the performance of such CI-modules and/or

smart cards. If you use unapproved CI-modules and/or smart cards, EchoStar is no longer

able to provide any assistance or support. Use of unapproved CI-modules and/or smart cards

will void any warranty claim. If you have any doubt which CI-modules are approved, please

ask your service provider for assistance.

4. DISCLAIMER

SATELLITE RECEIVER

EchoStar International Corporation has to the best of her abilities, everything done to supply

you with a satellite receiver built to the most up-to-date software and hardware. EchoStar

International Corporation makes no warranties with respect to the reception of the channels

provided by the broadcast service providers and specifically disclaims any implied warranties

of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change

or modify the hard- and software of the satellite receiver without the obligation to notify or

warrant any person or organization of such change. Therefore, please visit our website, on a

regular basis, for the latest information available.

Type: ...............................................................................................................

S/N: ..................................................................................................................

Software Version: ...........................................................................................

Preface

Page II EchoStar DVR-7000 Viaccess

SOFTWARE DOWNLOADS

EchoStar International Corporation will to the best abilities, do everything possible to supply

you with software updates to keep your receiver as up-to-date as technically possible.

EchoStar International Corporation makes no warranties with respect to the use of the

supplied software downloads and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change

or modify the software that can be used by your satellite receiver without the obligation to

notify or warrant any person or organization of such change. Therefore, please visit our

website, on a regular basis, for the latest software available.

USER MANUAL

EchoStar International Corporation has to the best of her abilities, everything done to supply

you with the most up-to-date information. EchoStar International Corporation makes no

warranties with respect to the information provided by this user manual and specifically

disclaims any implied warranties of merchantability or fitness for any particular purpose. The

information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to revise, change or translate this user

manual without the obligation to notify any person or organization of such change. Therefore,

please visit our website, on a regular basis, for the latest information available.

5. COPYRIGHT AND TRADEMARKS

has been provided pursuant to an agreement containing restrictions on its use. This user

manual is also covered by Federal Copyright Law.

No part of this user manual may be copied, distributed, transmitted, stored in a retrieval

system or translated into any human or computer language, in any form or by any other

means, electronically, mechanically, magnetically, manually or otherwise or disclosure to third

parties without the express written permission of EchoStar International Corporation.

EchoStar International Corporation is possibly in the possession of patents, requests for

patent approval, trademarks, copyrights and other intellectual property with respect to the

contents within this user manual. The submission of this user manual does not imply you

have got any license or other legal right for the use of the here above mentioned without the

express written permission of EchoStar International Corporation.

■EchoStar, EchoNAV ©and Quality has a Name

are registered trademarks of EchoStar International Corporation;

■DVB, Digital Video Broadcasting

is a registered trademark of the The Digital Video Broadcasting Project (1991 to 1996)

which is an industry-led consortium of over 300 broadcasters, manufacturers, network

operators, software developers, regulatory bodies and others in over 35 countries

committed to designing global standards for the delivery of digital television and data

services.

■Dolby Digital

Dolby, Dolby Digital, AC-3 and Dolby Pro Logic are registered trademarks of the Dolby

Laboratories Licensing Corporation;

■Viaccess®

Viaccess is a registered trademark of VIACCESS SA, a France Telecom Group company

that delivers end-to-end solutions for digital pay-TV services and multimedia applications,

built around our DVB MPEG-2 compatible VIACCESS® Conditional Access System, and

interactively engines such as OpenTV.

■All other trademarks are the property of their respective owners or companies.

Preface

Digital Satellite Receiver Page III

TABLE OF CONTENTS

Preface

1 DEAR CUSTOMER I

2 INTENDED USE I

3 WARRANTY I

4DISCLAIMER I

5 COPYRIGHT AND TRADEMARKS II

Safety Information

1 GENERAL SAFETY 1-1

2 ELECTRICAL SAFETY 1-1

3 WARNINGS, CAUTIONS AND NOTES 1-2

4 SYMBOLS USED ON THE RECEIVER 1-2

Preparation

1 STORAGE AND TRANSPORT 2-1

2 TO UNPACK YOUR RECEIVER 2-1

3 THE CONTENTS OF THE BOX 2-1

4 THE DISPOSAL OF YOUR PACKING MATERIALS 2-1

5 TO SETUP YOUR PERIPHERAL EQUIPMENT 2-2

6 TO SETUP THE RECEIVER 2-2

Installation

1 CONNECT YOUR EQUIPMENT 3-1

2 CONNECT A DISH 3-2

3 TO SETUP YOUR RECEIVER FOR THE FIRST TIME 3-4

Familiarization

1 THE RECEIVER 4-1

2 THE ECHONAV INSTALLATION MENU 4-4

3 THE ECHONAV MODE AND SELECTION MENUS 4-14

4 THE ELECTRONIC PROGRAM GUIDE (EPG) 4-16

5 THE INFOBANNER AND POP-UP MENUS 4-18

Operation

1 TO NAVIGATE THROUGH THE MENUS 5-1

2 USE THE FAVORITE LISTS 5-7

3 TO USE THE ELECTRONIC PROGRAM GUIDE (EPG) 5-10

4 TO USE THE DVR 5-14

5 TO USE THE MP3 PLAYER 5-18

6 TO SET THE USER PREFERENCES 5-19

Maintenance

1 HARDWARE MAINTENANCE 6-1

2 SOFTWARE MAINTENANCE 6-1

3 END OF LIFE DISPOSAL 6-7

Preface

Page IV EchoStar DVR-7000 Viaccess

Troubleshooting

1 GENERAL 7-1

2 EPG RELATED 7-1

3 TV AND RADIO RELATED 7-2

4 REMOTE CONTROL UNIT (RCU) RELATED 7-3

5DVRRELATED 7-3

6 MP3 PLAYER RELATED 7-4

7 INSTALLATION RELATED 7-4

Glossary

1 LIST OF USED ABBREVIATIONS 8-1

2 EXPLANATION OF USED TERMINOLOGY 8-2

3 EXPLANATION OF THE SEARCH MODES 8-4

Index

Appendix 1

1 LNB CONFIGURATION MATRIX A1-1

2 LNBF CONFIGURATION MATRIX A1-1

3 USER DEFINED LNB(F) MATRIX A1-1

Appendix 2

1 INTRODUCTION A2-1

2 THE BATTERIES A2-1

3 THE KEYS A2-1

4 PROGRAM THE TV, VCR AND AUX KEY A2-3

5 SPECIAL SETUP FUNCTIONS A2-4

6 SPECIAL FUNCTIONS A2-5

7 TROUBLESHOOTING A2-7

8 EQUIPMENT CODES A2-8

Safety Information

Section 1

Digital Satellite Receiver Page 1 - 1

SAFETY INFORM ATION

1. GENERAL SAFETY

Read this manual carefully and make sure you understand the instructions given. For your

safety, know what the reaction upon each action will be. Do not perform any actions which are

not described in this manual, failing to do so might result in an uncontrolled behavior of the

receiver or even in a hazardous situation for persons and/or equipment.

Disconnect the receiver from the mains before you start any maintenance or installation

procedures. Do not use alcohol or ammonia based liquids to clean the receiver. If required,

clean with a soft lint-free cloth slightly made damp with a mild soap solution.

Consult an authorized service technician if the receiver does not operate normally when the

instructions in this user manual are strictly followed. Do not to attempt to open the receiver, as

youwillbeexposedtoashockhazard.

Do not put any objects on top of the receiver which could fall through the ventilation slots or

which could cover them and prevent proper cooling of the components inside.

Do not put any (foreign) objects into the ventilation or CI-slots. This can cause fire or an

electrical shock by shorting the internal components.

Make sure that nothing rests on the receivers cables and that the cables are not located

where they can cause injury to persons and pets (e.g to stumble over, eat the cable).

Do not install the receiver:

■in a closed or poorly ventilated cabinet;

■directly on top of or under another equipment;

■on a surface which will obstruct the ventilation slots.

Do not expose the receiver and it’s accessories:

■to rain or excessive moisture to avoid the risk of shock or permanent damage to your

receiver;

■to direct sunlight, heaters, stoves or any other heat generating equipment;

■to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■to excessive vibration.

To help avoid possible damage to the receiver’s electronics:

■wait 5 seconds after you switched off the receiver before you move the receiver or discon-

nect any equipment;

■do not touch the components or pins on the CI-module or the smart card and hold the

CI-module and the smart card by it’s edges.

2. ELECTRICAL SAFETY

When using or connecting electrical equipment always observe the safety regulations

applicable in your country to reduce the risk of fire, electrical shock, and personal injury.

Read and comply at least with the given safety instructions.

■Always make sure that the electrical power supply corresponds with the voltage on the

electrical identification plate at the rear of the receiver next to the electrical cord.

■Your receiver is double insulated and complies with the EN 50144; therefore no additional

earth wire is required, though the use of an earth leak switch and/or over voltage protec-

tion switch is recommended.

■Only use an approved extension (convenience) lead suitable for the electrical power con-

sumption of the installed equipment.

Section 1

Safety Information

Page 1 - 2 EchoStar DVR-7000 Viaccess

3. WARNINGS, CAUTIONS AND NOTES

Throughout this user manual, there may be blocks of text indicated by symbols and printed in

a different way then the surrounding text. These blocks of text ask the attention of the reader

to avoid hazardous situations. The hazard levels are indicated as:

4. SYMBOLS USED ON THE RECEIVER

The next paragraphs explain the meaning of the symbols, present on the receiver.

4.1. SYMBOLS ON THE FRONT PANEL

4.2. SYMBOLS ON THE REAR PANEL

WARNING

THIS INDICATES A HAZARDOUS SITUATION WHICH,IF NOT AVOIDED,COULD RESULT IN

(SERIOUS)INJURY.

CAUTION

This indicates a situation which, if not avoided, could damage the equipment or

other properties.

NOTE

This indicates additional information to the user to make the user aware of possible

problems and information of any importance to help the user to understand, to use

and to maintain the installation.

The Dolby Digital logo.

This logo tells you that this receiver is compliant with the Dolby Digital

standard.

The Digital Video Broadcasting logo.

This logo tells you that this receiver is compliant with the DVB standards as

registered under registration number 2365.

The Digital Recording logo.

This logo tells you that this receiver has a hard disk drive which gives you the

capability to record TV and radio programs digitally.

The MP3 logo.

This logo tells you that this receiver has a MP3 player inside.

The Viaccess logo.

This logo tells you that this receiver has an embedded Viaccess smart card

reader. The required smart card has to be obtained from a service provider

who scrambles the programs according the Viaccess encryption method.

The caution ‘risk of electrical shock - do not open’ symbol

This symbol tells you that you are not allowed to open the receiver. Only

authorized (service) technicians are allowed to open the box.

The CE mark.

This mark tells you that the receiver is following the provisions of Council

Directive 89/336/EEC on the approximation of the laws of the Member States

relating to the electromagnetic compatibility and the provisions of Council

Directive 73/23/EEC and 93/68/EEC on the approximation of the laws of the

Member States relating to low voltage and electrical safety.

The double insulation symbol.

This symbol tells you that the receiver is electrically safe within the normal

use of the receiver as stated in the safety chapter.

Preparation

Section 2

Digital Satellite Receiver Page 2 - 1

PREPARATION

1. STORAGE AND TRANSPORT

The receiver and it’s accessories are delivered in a protective packaging. This packaging is

designed to protect against excessive shocks and not against ingress of moisture.

1.1. STORAGE

If necessary:

■store the receiver in it’s original protective packaging;

■in a room with the ambient conditions as stated in the technical specifications.

1.2. TRANSPORT

Pack the receiver preferably in the original packaging or in an equally protective packaging.

This is to help avoid possible damage to the receiver’s electronics.

2. TO UNPACK YOUR RECEIVER

When you unpack the contents of the box, confirm that all the parts are included. Refer to

Chapter 3. The contents of the box.

Unpack the contents of the box carefully. Electronic equipment as satellite receivers are

easily damaged when you handle it roughly. Examine all parts for damage that may have

occurred during shipment. If you find any damage, stop to unpack the box and call the retail

seller where you bought the receiver.

To help avoid possible damage to the receiver’s electronics, allow the receiver to adapt to the

ambient temperature and humidity level. This to avoid condensation caused by a sudden

change in temperature (e.g from a hot car into a cool room).

3. THE CONTENTS OF THE BOX

The box contains:

■A receiver;

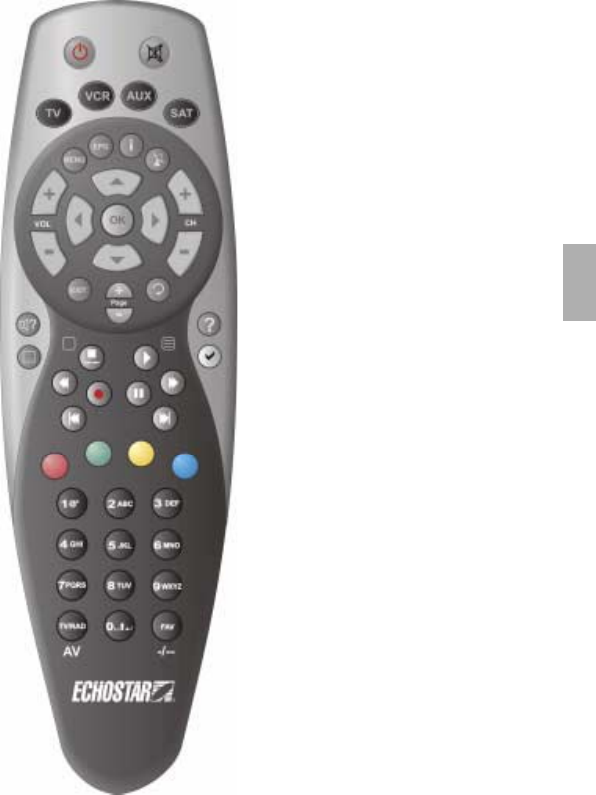

■A remote control unit;

■A pair of batteries (for the remote control unit);

■A loop through cable;

■A set of documentation.

4. THE DISPOSAL OF YOUR PACKING MATERIALS

Most of the packaging materials can be recycled. Please discard these materials in an

environmental safe manner

DANGER

KEEP AWAY THE PLASTIC PACKAGING FROM CHILDREN.THE PLASTIC PACKAGING MAY

CLING TO NOSE AND MOUTH AND PREVENT BREATHING.

CAUTION

It is recommended to keep the packaging materials for a period of time. In case of

warranty claims, we can request to return the receiver in the original packaging to

protect the electronics and hard disk drive. Failing to do so might void the warranty.

ENVIRONMENTAL REMARK

Dispose the packaging in an environmental safe manner. Please inform yourself

on local regulations with respect to the disposal of reusable materials.

Section 2

Preparation

Page 2 - 2 EchoStar DVR-7000 Viaccess

5. TO SETUP YOUR PERIPHERAL EQUIPMENT

Please refer to the user manuals of your terrestrial antenna, dish, TV, video recorder and/or

audio equipment to make sure this equipment is properly installed and configured before you

install the receiver.

EchoStar recommends that you follow at least the following instructions:

5.1. THE TERRESTRIAL ANTENNA

1. Make sure:

■The terrestrial antenna is in good condition and well aligned for the best reception

(avoid corroded contacts);

■The UHF coaxial cable is in a good condition (no excessive bends or damaged

insulation);

■The UHF coaxial cable connections are well shielded (metal connectors).

2. If necessary, do any work.

5.2. THE DISH

1. Make sure:

■The outdoor components of the dish are good condition;

■The dish is well aligned for the best reception;

■The dish is connected with the correct RF coaxial cable (75 Ohm) and connectors;

■The cables from the dish are in a good condition (no excessive bends or damaged

insulation).

2. If necessary, do any work.

5.3. THE TV, VIDEO RECORDER AND AUDIO EQUIPMENT

1. Make sure:

■Safe access to the connections is available;

■The equipment is switched off;

■It is safe to remove and install the cables.

2. If necessary, do any work.

6. TO SETUP THE RECEIVER

You can install the receiver safely in a convenient location if you adhere to the warning:

WARNING

DO NOT INSTALL THE RECEIVER:

■in a closed or poorly ventilated cabinet;

■directly on top of or under another equipment;

■on a surface which will obstruct the ventilation slots.

DO NOT EXPOSE THE RECEIVER AND IT’S ACCESSORIES:

■to rain or excessive moisture to avoid the risk of shock or permanent damage to

your receiver;

■to direct sunlight, heaters, stoves or any other heat generating equipment;

■to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■to excessive vibration.

Installation

Section 3

Digital Satellite Receiver Page 3 - 1

INSTALLATION

1. CONNECT YOUR EQUIPMENT

It is possible to connect the different equipment with the use of UHF coaxial cables,

SCART cables, and/or so called audio/video cables with RCA connectors.

CONNECTION WITH UHF COAXIAL CABLES

1. On the TV, find the UHF-coaxial cable that is connected to the terrestrial antenna or cable

network.

2. Remove the UHF-coaxial cable from the TV and make sure the cable condition is OK.

3. On the rear panel of the receiver find the TV OUT connector.

4. Install an UHF-coaxial cable between the TV OUT connector (receiver) and the antenna

connector (TV).

5. On the rear panel of the receiver find the ANT IN connector.

6. Install the UHF-connector (terrestrial antenna) to the ANT IN connector (receiver).

CONNECTION WITH SCART CABLES

1. On the TV find the SCART cable that is connected to the VCR.

2. Remove the SCART connector that is connected to the VCR from the TV.

3. On the rear panel of the receiver find the DECODER,TV and VCR SCART connectors.

4. Install a full featured SCART cable between the decoder and the DECODER SCART

connector (receiver).

5. Install a full featured SCART cable between the VCR and the VIDEO SCART connector

(receiver).

6. Install a full featured SCART cable between the TV SCART connector (receiver) and the

SCART connector on the TV (old SCART connection to the VCR).

CONNECTION WITH AUDIO/VIDEO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the VIDEO, AUDIO L and AUDIO R connectors.

2. Install an audio/video cable between:

a. the VIDEO connector of the receiver and TV (yellow);

b. the AUDIO L connector of the receiver and TV (white);

c. the AUDIO R connector of the receiver and TV (red).

CONNECTION WITH DOLBY DIGITAL AUDIO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the S/PDIF connector.

2. Install an audio/video cable (black) between:

a. the S/PDIF connector (receiver) and Dolby Digital connection of the Dolby digital

compatible installation.

CONNECTION WITH SERIAL CABLE (0-MODEM CABLE)

1. On the rear panel of the receiver find the SERIAL PORT connector.

2. Install a serial cable between the SERIAL PORT connector (receiver) and the serial port

connection of the PC.

CONNECTION WITH USB CABLE

1. On the rear panel of the receiver find the USB connector.

2. Install a serial cable between the USB connector (receiver) and the USB connection of

the PC.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

ANDSWITCHEDOFF

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

TASK.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS)INJURY OR DAMAGE

TO EQUIPMENT.

Section 3

Installation

Page 3 - 2 EchoStar DVR-7000 Viaccess

2. CONNECT A DISH

It is possible to connect the different dish configurations with the use of RF coaxial cables.

Only the most common configurations are discussed. If in doubt, please ask the EchoStar

service department for advice.

1. On the dish installation, connect a RF cable (for detailed instructions, refer to the

manufacturer’s instructions).

2. On the rear panel of the receiver find the LNB IN (digital), the IF OUT and the

LNB IN ANALOG connectors.

FIXED DISH INSTALLATION WITH LNB(F)

3. Install the F-connector (dish) to the LNB IN connector (receiver).

4. Install the delivered loop through cable between the IF OUT connector (receiver) to the

LNB IN ANALOG connector (receiver).

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

ANDSWITCHEDOFF

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

TASK.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS)INJURY OR DAMAGE

TO EQUIPMENT.

CAUTION

Tighten the cable connectors only by hand. Do not use any tools. You will damage

the connector pins if you overtighten the connector. This will result in loss of signal

quality, or even total loss of reception.

Installation

Section 3

Digital Satellite Receiver Page 3 - 3

FIXED DISH INSTALLATION WITH DISEQCSWITCH

3. Install the F-connector (DiSEqC switch) to the LNB IN connector (receiver).

4. Install the delivered loop through cable between the IF OUT connector (receiver) to the

LNB IN ANALOG connector (receiver).

MOTORIZED DISH INSTALLATION WITH LNB(F)

1. On the dish installation (for detailed instructions refer to the manufacturer’s instructions):

a. connect a RF cable;

b. connect the power and sensor cables;

c. if present, set the East and West limit switches to prevent dish damage.

2. On the rear panel of the receiver find:

a. the LNB IN (digital), the IF OUT and the LNB IN ANALOG, connectors;

b. the M.PULSE,theGND,theM1 and the M2 connectors.

3. Install the F-connector (dish) to the LNB IN connector (receiver).

4. Install the delivered loop through cable between the IF OUT connector (receiver) to the

LNB IN ANALOG connector (receiver).

5. On the rear panel of the receiver find the M.PULSE,theGND,theM1 and M2 connectors.

6. First install the motor sensor cables to the M.PULSE and GND connector (receiver).

7. Install the motor power cable to the M1 and M2 connectors (receiver).

DISH INSTALLATION WITH FERRITE FEED

1. On the dish installation, connect the ferrite cables (for detailed instructions refer to the

manufacturer’s instructions).

2. On the rear panel of the receiver find the Ferrite + and the Ferrite - connectors.

3. Install the ferrite power cable to the Ferrite + and Ferrite - connectors (receiver).

DISH INSTALLATION WITH POLAROTOR

1. On the dish installation, connect the polarotor cables (for detailed instructions refer to the

manufacturer’s instructions).

2. On the rear panel of the receiver find the +5V,theGND and the SKEW connectors.

3. Install the polarotor power cable to the +5Vand GND connectors (receiver).

4. Install the polarotor skew cable to the SKEW connector (receiver).

CAUTION

It is possible that the GND connector is already occupied by the motor sensor

cable. If you need to connect the GND for the polarotor as well, please use the

appropriate connection materials to connect both cables. Failing to do so can

cause damage to the equipment.

Section 3

Installation

Page 3 - 4 EchoStar DVR-7000 Viaccess

3. TO SETUP YOUR RECEIVER FOR THE FIRST TIME

This procedures will guide you step-by-step through the initial setup of the receiver. After you

have finished the initial installation, these pages are accessible through the icons in the menu

bar which is in the initial setup not shown.

NOTE

Unless otherwise specified; This note explains the way you can navigate through

the pages of the EchoNAV initial setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  arrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of

selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1. Switch on the TV.

2. On the receiver, press the on/standby button.

■The receiver display shows:

-firstamovingdot;

-thenitshows----

■The TV shows the first page.

3. Make the required selections.

4. Read the available help text for information.

5. Go to the Continue field.

6. On the RCU, press the OK key to advance.

7. Make the required selections.

8. Read the available help text for information.

Note that only the white fields are selectable,

other fields show reference information.

9. Go to the Continue field.

10. On the RCU, press the OK key to advance.

11. Make the required selections.

12. Read the available help text for information.

13. Go to the Continue field.

14. On the RCU, press the OK key to advance.

Installation

Section 3

Digital Satellite Receiver Page 3 - 5

FOR FIXED AND DISEQC1..4SWITCH INSTALLATIONS

NOTE

The receiver needs the correct local time to collect and show the EPG (Electronic

Program Guide). An incorrectly entered local time will result in no EPG information.

15. Make the required selections.

16. Read the available help text for information.

17. On the RCU, use thekeys to select.

18. Go to the Press OK to set the time.

Note that the local time is shown correctly.

19. On the RCU, press the OK key to advance.

20. Go to the Continue field.

21. On the RCU, press the OK key to advance.

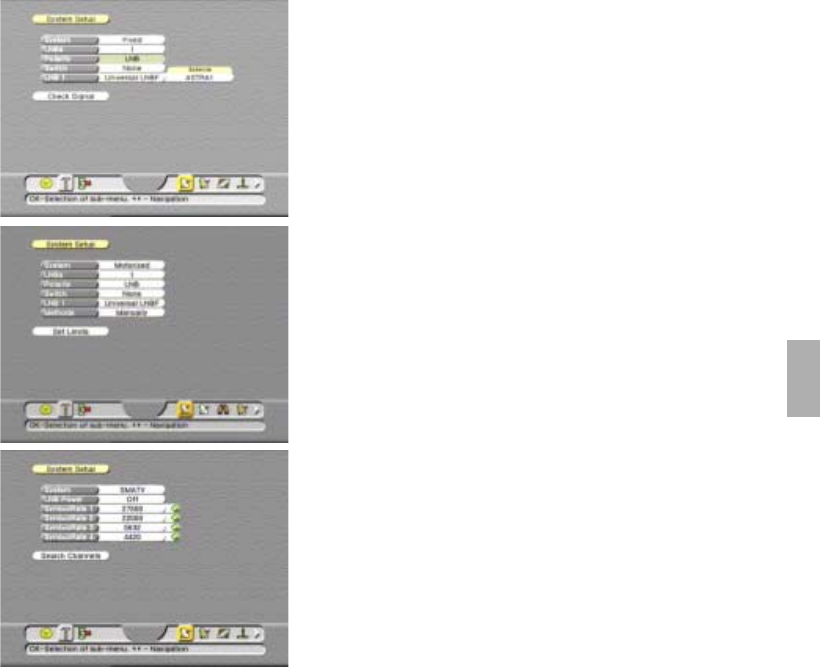

NOTE

From the next step onwards, the procedure is divided in different configurations.

The configurations are; Fixed, Motorized and SMATV.

■Fixed means set up either a single dish, multiple dishes with DiSEqC switch;

■Motorized means set up a moveable dish (motor/actuator by positioner);

■SMATV means set up for television distribution (cable network in buildings).

22. Make the required selections.

23. Read the available help text for information.

Note that only the white fields are selectable,

other fields show reference information.

24. Go to the Check Signal field.

25. On the RCU, press the OK key to advance.

26. Wait for the Checking Configuration to complete.

27. Make the required selections.

28. Read the available help text for information.

29. If the red dot in the transponder field stays:

a. select another transponder;

b. go to the check signal field;

c. on the RCU, press the OK key.

30. Go to the Search Channels field.

31. On the RCU, press the OK key to advance.

Section 3

Installation

Page 3 - 6 EchoStar DVR-7000 Viaccess

FOR MOTORIZED INSTALLATIONS -AUTOSAT

32. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

33. On the RCU, press the OK key. to end the initial

setup procedure.

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to

do so might cause damage to your motorized dish installation or other properties.

22. Make the required selections.

23. Read the available help text for information.

Note that only the white fields are selectable,

other fields show reference information.

24. Go to the Autosat field.

25. On the RCU, press the OK key to advance.

26. On the RCU:

a. press thekey to set the East limit;

b. at the motor error, press thekey once;

c. press the OK key.

27. On the RCU, press the OK key.

28. Select a Eastern satellite which you can receive.

29. When in the location field:

a. press and hold thekey and watch the signal

indicator for an indication;

b. in the signal indicator, make sure a network

name is shown;

c. press thekey to select another transponder

for signal verification;

d. use thekeytofinetuneforthebestsignal

level and quality;

e. press thekey to select the location bar;

f. press the OK key, note that the saved position

of the satellite is shown.

30. Repeat the procedure for the middle and

Western Satellite.

31.SettheWestlimit(key), refer to step 26.

32. Go to the Autosat field.

33. On the RCU, press the OK key to advance.

Installation

Section 3

Digital Satellite Receiver Page 3 - 7

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

34. Make the required selections.

35. Read the available help text for information.

36. Go to the Search Channels field.

37. On the RCU, press the OK key to advance.

38. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

39. On the RCU, press the OK key. to end the initial

setup procedure.

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to

do so might cause damage to your motorized dish installation or other properties.

22. Make the required selections.

23. Read the available help text for information.

Note that only the white fields are selectable,

other fields show reference information.

24. Go to the Set Limits field.

25. On the RCU, press the OK key to advance.

26. On the RCU:

a. press thekey to set the East limit;

b. at the motor error, press thekey once;

c. press the OK key.

27. On the RCU:

a. press thekey to set the West limit;

b. at the motor error, press thekey once;

c. press the OK key.

28. Go to the Program Satellites field.

29. On the RCU, press the OK key to advance.

Section 3

Installation

Page 3 - 8 EchoStar DVR-7000 Viaccess

FOR SMATV INSTALLATIONS

30. Make the required selections.

31. Read the available help text for information.

32. Go to the Search Channels field.

33. On the RCU, press the OK key to advance.

34. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

35. On the RCU, press the OK key. to end the initial

setup procedure.

22. Make the required selections.

After the initial installation it is possible to add

more symbol rates. Refer to section Maintenance

for detailed instructions.

23. Read the available help text for information.

24. Go to the Check Signal field.

25. On the RCU, press the OK key to advance.

26. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

27. On the RCU, press the OK key to end the initial

setup procedure.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 1

FAMILIARIZATION

1. THE RECEIVER

The digital satellite receiver has 2 Common Interface slots. The front panel gives you the

control over the basic functions. The rear panel gives you various connections to connect the

audio and video equipment as well as a terrestrial and dish antenna. Ventilation slots in the

housing are provided for cooling of the internal electronics.

The software of the receiver contains the EchoNAV user interface with on-screen help, which

gives you easy control over the features of the receiver. The software contains also a large

database of pre-programmed satellites and transponders which are used for a quick

installation. For initial installation, the software guides you through the required setup menu to

allow for an easy and reliable installation setup of the receiver.

FEATURE HIGHLIGHTS

■Multilingual Advanced User Interface (12+ languages);

■Embedded Viaccess 1.1;

■40 Gbyte Low Noise Audio/Video Hard Disk Drive;

■Digital Audio/Video Recording with Slow Motion, Pause, FF, Rew;

■PauseLiveVideo;

■MP3 Player, 500 Songs (typical.)/USB Port;

■6 Week EPG (SavedonHardDisk);

■5,700 Channels, 100 Satellites, 1,300 Transponders;

■8 Favorite Lists for each Mode (TV,Radio,DVR,MP3);

■Powerful Channel Sorting and Grouping;

■Multiple Scan Modes (incl. Update Scan);

■Digital Audio Output (Dolby Digital Compatible);

■Integrated High Power Positioner (36 Volt, 5 Amp.);

■Software Updates via Internet/Satellite (OTA).

1.1. THE RECEIVER FRONT PANEL

The front panel has:

■The display,

to show the clock or the actual status of the receiver;

■The key,

to switch the receiver to on or stand-by;

■The MENU key,

to get access to the EchoNAV installation menu;

■The OK key,

to get access to the EchoNAV mode and selection menu;

■The arrow keys,

to navigate left, up, right and down through the selectable options;

■The access door,

to access the different slots for the CI-modules and smart cards.

Section 4

Familiarization

Page 4 - 2 EchoStar DVR-7000 Viaccess

1.2. THE RECEIVER REAR PANEL

The rear panel gives you various connections to connect the audio and video equipment as

well as a terrestrial and dish antennas. Depending on the installation setup, you may not use

all connectors, but they are provided for any desired setup in future.

The available connectors on the rear panel are:

■The LNB IN connector (F-type),

for the connection of a dish to the

receiver, to receive the digital

broadcasts;

■The VCR connector (SCART), for the

connectionofaVCRwiththeuseofa

fully-featured SCART-cable;

■The IF OUT DIGITAL connector (F-

type), for the connection of a loop

through cable;

■The DECODER connector (SCART),

for the connection of a decoder with the

use of a fully-featured SCART-cable;

■The LNB IN ANALOG connector (F-

type), for the connection of a dish to the

receiver, to receive the analog

broadcasts;

■The TV connector (SCART),

for the connection of a TV with the use of

a fully-featured SCART-cable;

■The S/PDIF connector (RCA),

for the connection of Dolby Digital (AC-3)

compatible audio equipment;

■The 0/12V connector (RCA),

for the connection of a remote switch;

■The VIDEO connector (RCA),

for the connection to the composite

video input of the TV (monitor);

■The FERRITE + connector (spring-clip),

for the connection to the + terminal of a

magnetic polarotor (Ferrite);

■The AUDIO L connector (RCA),

for the connection of the left audio input

channel of a stereo set;

■The FERRITE - connector (spring-clip),

for the connection to the - terminal of a

magnetic polarotor (Ferrite);

■The AUDIO R connector (RCA),

for the connection of the right audio input

channel of a stereo set;

■The M1 connector (spring-clip),

for the line 1 connection of a motor or

actuator (for motorized/actuated dishes);

■The ANT IN connector (IEC),

for the connection of an terrestrial TV

antenna;

■The M2 connector (spring-clip),

for the line 2 connection of a motor or

actuator (for motorized/actuated dishes);

■The TV OUT connector (IEC),

for the connection to the antenna

connector of a TV or a VCR;

■The M.PULSE connector (spring-clip),

for the connection of the feedback

sensor (for motorized/actuated dishes);

■The SERIAL PORT connector (sub-D),

for the connection to the serial

communication port of a PC;

■The +5V connector (spring-clip),

for the connection of the power terminal

of a polarotor;

■The USB connector (slave USB),

for the connection to an operational USB

port of a PC;

■The GND connector (spring-clip),

for the connection of the ground terminal

of the feedback sensor and the

polarotor;

■The SKEW connector (spring-clip),

for the connection of the skew terminal

of a polarotor;

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 3

1.3. THE REMOTE CONTROL UNIT (RCU)

The EchoStar Quattro is a programmable RCU that also can control your TV, VCR, DVD

and/or Audio set. The EchoStar Quattro requires two AA/R6 alkaline batteries to operate.

■ON/STANDBY

To switch to standby or on.

■VCR

To control the VCR.

■TV

To control the TV.

■EPG

To view the EPG.

■MENU

To go to the installation menu.

■VOL+

To increase the volume.

■VOL-

To decrease the volume.

■ARROW CLUSTER

To scroll left, up, right or down.

■EXIT

To leave a menu or feature.

■PAGE+

To go one page up.

■PAGE -

To go one page down.

■ALT AUDIO

To choose a language.

■ALT SUBTITLE

To choose a subtitle.

■STOP

To stop the recording or play

back of an event;

To return to actual time in the

EPG window

■REWIND

To go to the beginning of an

recorded event fastly.

■RECORD (press twice)

To record a live program.

■SKIP BACKWARD

Not used for Sat-mode.

■GREEN

To select a (favorites) list.

■RED

To go to another mode.

■NUMBER KEYS

To enter numerical settings;

To type in a channel number.

■TV/RAD

To switch to TV or Radio

mode.

■MUTE

To blank out the volume.

■AUX

To control the Audio Set or

DVD.

■SAT

To control the receiver.

■i

To view the InfoBanner;

To view detailed EPG

information.

■Satellite Dish

To select another satellite.

■CH+

To go one channel up.

■CH-

To go one channel down.

■OK

To go to the (favorites) lists;

To make a menu selection;

To pull down a selection menu.

■PREVIOUS

To go to the previous channel;

To access special features.

■?

Not used for Sat-mode.

■V(white)

To edit a list

■PLAY

To play back a recorded event.

■FAST FORWARD

To go to the end of an

recorded event fastly.

■PAUSE

To pause the playback of an

event;

To pause a live program.

■SKIP FORWARD

Not used for Sat-mode.

■YELLOW

To group a list;

To select an EPG timer.

■BLUE

To so rt a l i s t ;

To zoom in/out the time slot of

the EPG view window.

■FAV

To go to the favorite list of the

actual mode.

Section 4

Familiarization

Page 4 - 4 EchoStar DVR-7000 Viaccess

1.4. THE ECHONAV USER INTERFACE

The EchoNAV user interface is designed to give you easy control over the receiver. The

EchoNAV user interface has four main features that give access to the different functions.

The four main features are:

■The EchoNAV installation menu,

that helps you to setup the receiver and access the parental lock settings;

■The EchoNAV user menu,

that helps you to control the daily operation and selection of the favorites;

■The EchoNAV EPG menu,

that helps you to control the different timers and to view the available EPG;

■The EchoNAV InfoBanner,

that helps you to view the available information about the actual mode.

The EchoNAV user interface has various ways to navigate through the menus and functions.

Some of the keys on the remote control unit give direct access to functions. The most

important keys are identified as EPG, colored keys, MENU, OK and record (press twice).

Other keys are multi-functional which means that their function changes dependent of the

mode that you are in.

2. THE ECHONAV INSTALLATION MENU

The EchoNAV installation menu has different main menus that give you access to the

different sub menus. The main menus are:

■The guided initial setup menu which is only accessible after the first time you switch the

receiver on and after every manually initiated factory reset;

■The User Preferences menu, the installation setup menu and the CI menu are accessible

at any time.

NAVIGATION

A highlighted button shows you which (main/sub) menu is selected. The MENU key lets you

change between the main and sub menu where thekeys let you make a selection in the

selected (main/sub) menu. The OK key brings you into the related page, where you can make

a choice from the available options.

NOTE

Unless otherwise specified; this note explains the way you can navigate through

the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable

items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are..

NOTE

Once in a page, at any time:

■you can use the MENU key to reverse from a menu page to the sub menu bar;

■you can easily leave with the EXIT key.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 5

■The button, that gives you access to the User Preferences menu.

■The button, that gives you access to the installation setup menu.

■The button, that gives you access to the Conditional Access menu.

2.1. THE USER PREFERENCES MENU

■The button, that gives you access to the User Profile page.

■The button, that gives you access to the Languages page.

■The button, that gives you access to the Parental Lock page.

■The button, that gives you access to the Local Time page.

■The button, that gives you access to the TV System page.

The main menus are divided in sub menus, selection

pages and option fields. The main menu buttons are

shown at the right hand side of the menu bar. The

different sub menu buttons are shown on the left hand

side of the menu bar.

The selection pages with the option fields are

accessible after you have selected a sub menu.

Every menu, sub menu and selection page has one or

more help lines to assist you.

The main menus are accessible with:

This main menu has different sub menus that give

access to the pages where you can customize the

factory settings.

The user preferences menu always comes in view with

the User Profile sub menu. In the menu bar the

sub menus are shown at the right side. The available

sub menus are shown as icons which become a

highlighted button after selection.

The sub menus are accessible with:

Section 4

Familiarization

Page 4 - 6 EchoStar DVR-7000 Viaccess

2.1.1. USER PROFILE PAGE

This menu page allows you to customize the user profile, you can customize:

2.1.2. LANGUAGES PAGE

This menu page allows you to customize the language settings, you can customize

2.1.3. PARENTAL LOCK PAGE

The parental lock menu is initial accessible with the factory default PIN code 0000. For future

use, you are requested to change the PIN code to your own personal code.

This sub menu contains two menu pages. These menu pages are:

TO CHANGE THE PARENTAL LOCK SETTINGS

This menu page allows you to customize the parental lock settings, you can customize:

■Aspect ratio

To set the screen size of the TV.

■Banner time out

To set the view time for the InfoBanner.

■Dolby Digital

To tell the receiver that it is connected to a Dolby

Digital amplifier or not.

■Backgrounds

To select the standard or a personal background.

■Menu Language

To set the language you want to use in the menus.

■Main audio language

To set language for programs with bi-lingual audio.

■2nd audio language

To set language for programs with bi-lingual audio.

■Subtitling language

To set language for bi-lingual subtitled programs.

■2nd subtitling language

To set language for bi-lingual subtitled programs.

■Receiver Lock

To lock the receiver completely for unauthorized

users.

■Installation Lock

To lock the installation menu for unauthorized

users.

■Channel lock

To lock or unlock all locked selections at once.

■Master hide

To hide or unhide all hidden selections at once.

■Change PIN Code

To access the change PIN code page.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 7

TO CHANGE THE PIN CODE

This menu page allows you to change the PIN code, you can change:

2.1.4. LOCAL TIME PAGE

This menu page allows you to customize the local time settings. For the correct operation of

the EPG and the timers, it is necessary to set the local time correctly. You can customize:

2.1.5. TV SYSTEM PAGE

This menu page allows you to customize the TV settings used for the receiver, you can

customize:

■Old password

To type in the factory default or personal PIN code.

■New password

To type in your new PIN code (numbers only).

■Verify password

To type in your New password again. Now the

receivers verifies the new password to make sure

that you typed in the new password correctly.

■Selected time zone

To set the time zone where you are.

■Year

To set the actual year.

■Month

To set the actual month.

■Date

To set the actual date.

■Day

To set the actual day.

■Hour

To set the actual time in hours.

■Minute

To set the actual time in minutes.

■Press OK to set the time

To confirm the settings you made.

■Channel

To select the (UHF) TV channel to which the

receiver is connected.

■CH Frequency

To view the frequency that corresponds with the

selected channel. You can not set this option.

■System

To set the video format supported by your TV.

Section 4

Familiarization

Page 4 - 8 EchoStar DVR-7000 Viaccess

2.2. THE INSTALLATION SETUP MENU

■The button, that gives you access to the System Setup page (for Fixed dish).

■The button, that gives you access to the System Setup page (for motorized dish).

■The button, that gives you access to the Program Satellites page (for motorized dish).

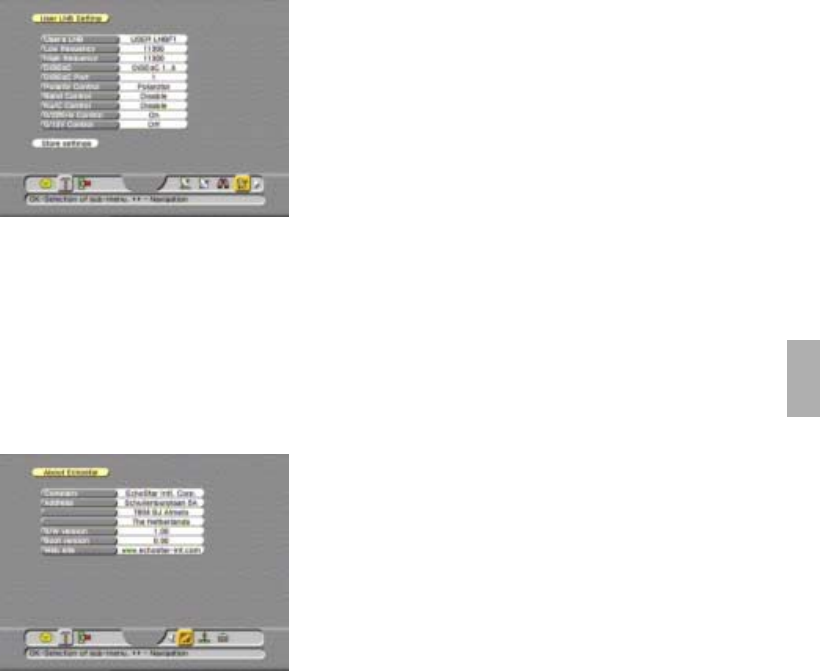

■The button, that gives you access to the User LNB Setting page.

■The button, that gives you access to the About EchoStar information page.

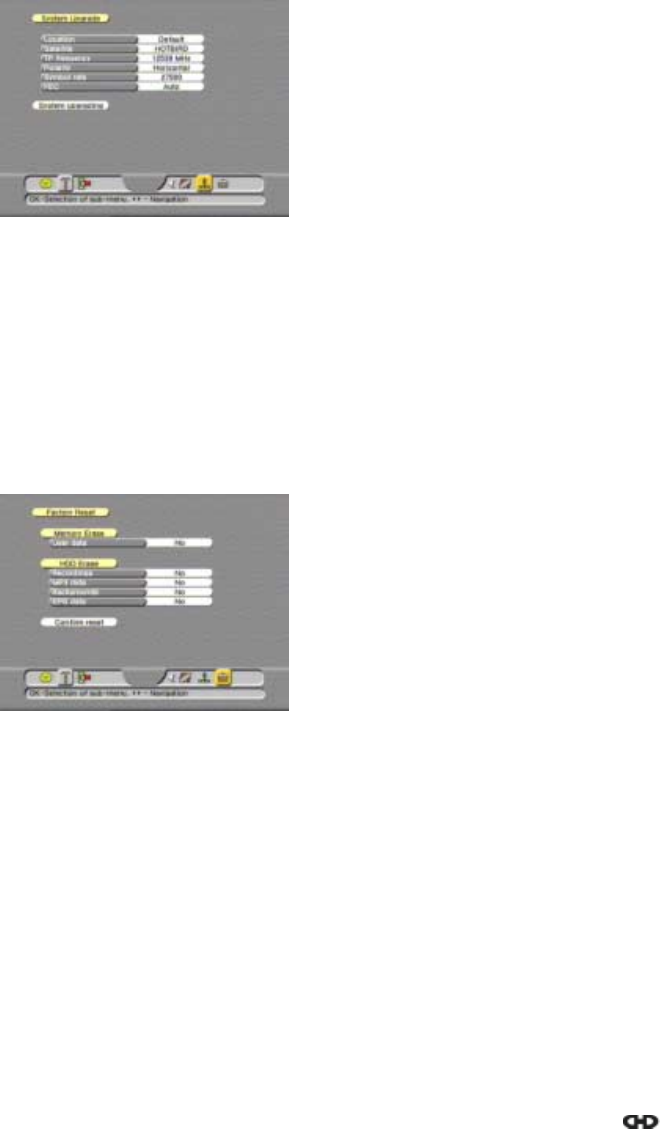

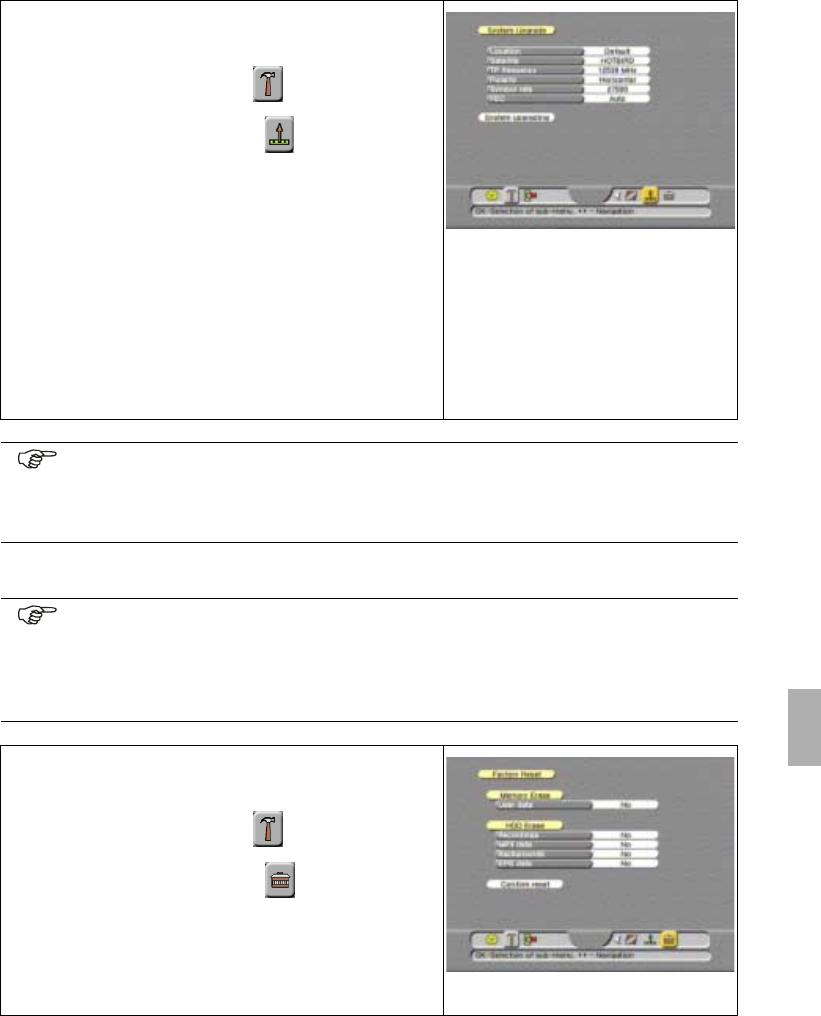

■The button, that gives you access to the System Upgrade page.

■The button, that gives you access to the Factory Reset page.

SIGNAL AND EL-WL INDICATOR

In some menus the signal indicator is shown to help you to find a satellite and fine tune for the

best signal level and quality.

In some menus (motorized only), an EL-WL indicator is shown to show you what the East and

West limits are that you have set for the dish installation, also the position of the searched

satellites is shown.

This main menu has different sub menus that give

access to the pages where you can customize the

settings to match your personal requirements.

Note that the sub menus are dynamic which means

that they change with the selections you make.

The installation setup menu always comes in view with

the system setup sub menu. In the menu bar the

sub menus are shown at the right side. The available

sub menus are shown as icons which become a

highlighted button after selection. The sub menus are

accessible with:

■The signal indicator

The top bar shows the signal level to indicate that

you receive a signal.

The bottom bar shows the quality of the signal

(signal-to-noise ratio) to indicate that you have a

lock onto the selected transponder.

The bottom text gives the satellite and network

information to which the lock is established.

■The EL-WL indicator (motorized only)

EL and WL show you the calculated East and West

Limits. The Indication in the EL-WL indicator show

you the calculated position of the searched

satellites. Note that this indicator can also show in

the TV or Radio mode as part of the InfoBanner.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 9

2.2.1. SYSTEM SETUP MENU

This sub menu allows you to customize the system setup to match your installation. Note that

the menu page is dynamic which means that it changes with the selections you make. You

can customize:

■System

To set the dish type you use.

■LNBs

To set the amount of LNBs you have installed.

■Polarity

To set the device that controls the signal polarity.

■Switch

To set the switch type which you use to control the

dish installation (if used).

■LNB1

To set the LNB type(s) you use.

■Method (motorized only)

To set the scan method;

AutoSat (automatically calculate the satellite

positions from reference positions)

Manual (enter the satellites by manual search).

■AutoSat (motorized, AutoSat only)

To confirm the selections you made and advance

to the AutoSat setup page (AutoSat only)

■Set Limits (motorized, manual only)

To confirm the selections you made and advance

to the Set Limits page.

■Satellite (fixed only)

To set the satellite you want to scan for the LNB.

■Check Signal (fixed only)

To confirm the selections you made and advance

to the Check Signal page.

■LNB Power (SMATV only)

To select the distribution type (cable=Off, IF=On).

■Symbol Rate 1-4 (SMATV only)

To set the symbol rate you want to scan.

■Search Channels (SMATV only)

To confirm the selections you made and advance

to the Search Channels page.

Section 4

Familiarization

Page 4 - 10 EchoStar DVR-7000 Viaccess

2.2.2. FIXED DISH SETUP

This sub menu allows you to customize the system setup to add an additional fixed dish into

your motorized configuration. Note that the menu page is dynamic which means that it

changes with the selections you make. You can customize:

2.2.3. PROGRAM SATELLITES

This sub menu allows you to customize the system setup to add an additional satellite into

your receiver. Note that the menu page is dynamic which means that it changes with the

selections you make. You can customize and view:

■LNBs

To set the amount of LNBs you have installed.

■Polarity

To set the device that controls the signal polarity.

■Switch

To set the switch type which you use to control the

dish installation.

■LNB1

To set the LNB type(s) you use.

■Satellite

To set the satellite you want to scan for the LNB.

■Check Signal

To confirm the selections you made and advance

to the Check Signal page.

■Satellite

To set the satellite you want to scan for the LNB.

■Search mode

To set a specific search mode (All, FTA, IF, TP,

network or update).

■Longitude

To view the satellite location on the Clarke Belt.

■Transponder

To select a transponder of the selected satellite.

■Skew

To adjust the Horizontal/Vertical setting (only for

polarotor).

■Location

To move the dish for best signal level and quality.

■Satellite offset

To compensate for a dish offset caused by ambient

conditions.

NOTE

The satellite offset will affect all satellite positions,

this means that all scanned positions will change

which might result in total loss of signal for all

satellites.

■Search Channels

To confirm the selections you made and advance

to the Search Channels page.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 11

2.2.4. USER LNB SETTING

This sub menu allows you to program a LNB that is not listed in the LNB selection list. Note

that the menu page is dynamic which means that it changes with the selections you make.

You can customize:

2.2.5. ABOUT ECHOSTAR

The About EchoStar menu gives all the where-to-contact-Information about EchoStar and the

status information about the receiver. You can view:

■User’s LNB

To select the first or second user defined LNB.

■Low Frequency

To enter the low frequency of the user LNB.

■High Frequency

To enter the high frequency of the user LNB.

■Polarity Control

To select the device that controls the polarity.

■Band Control

To set the control signal for high or low band

selection.

■Ku/C Control

To set the control signal for the Ku/C LNB.

■Store settings

To confirm the selection and save the settings.

■Company

This field shows the full name of EchoStar.

■Address

This field shows the address of EchoStar.

■S/W version

This field shows the current software version

loaded into the receiver.

■Boot version

This field shows the current boot version loaded

into the receiver.

■Web site

This field shows the EchoStar web site where you

can find the latest user and software information.

Section 4

Familiarization

Page 4 - 12 EchoStar DVR-7000 Viaccess

2.2.6. SYSTEM UPGRADE PAGE

This menu page allows you to upgrade the receiver’s software. EchoStar provides software

updates Over-The-Air (OTA) which means that you can upgrade your system via the satellite.

If you are not able to receive the satellite/transponder, you always can upgrade the software

through the SERIAL PORT (RS232) at the rear of the receiver and the downloaded software

from the EchoStar website.

2.2.7. FACTORY RESET

The Factory Reset menu gives you the possibility to reset the receiver to the initial factory

settings. The memory erase option restores the factory settings over your personal settings.

All customized data like parental lock and favorites will be replaced with the factory settings.

■Location

To select the default or user defined satellite where

you want to download from.

■Satellite

To set the satellite where you want to download

from.

■TP frequency

To set the transponder where you want to

download from.

■Polarity

To set the correct polarity for the transponder.

■Symbol rate

To set the correct symbol rate for the transponder.

■FEC

To set the correct Forward Error Correction for the

transponder

■Memory Erase - User Data

To instruct the receiver to delete all personal

settings and replace them with the factory settings,

the PIN code is reset to the factory default 0000.

■HDD Erase - Recordings

To instruct the receiver to delete (only) all TV and

Radio recordings from the hard disk.

■HDD Erase - MP3 Songs

To instruct the receiver to delete (only) all

MP3 songs from the hard disk.

■HDD Erase - Backgrounds

To instruct the receiver to delete (only) all the

personal backgrounds from the hard disk.

■HDD Erase - EPG Data

To instruct the receiver to delete (only) all

scheduled EPG data from the hard disk.

■Confirm Reset

With this field you can confirm the selections made

and execute the selected procedure.

After the memory erase procedure is finished, you

are taken to the initial setup procedure.

(for detailed instructions, please refer to section 4).

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 13

2.3. THE CI INFORMATION MENU

The button, that gives you access to the CI-module 1 information page;

The button, that gives you access to the CI-module 2 information page;

The button, that gives you access to the Viaccess smart card reader information page.

2.3.1. CI-MODULES

The CI-modules sub menu gives all the Information about the CI-module and related smart

card that is inserted. Note that the menu is dynamic which means that it changes with the

type of CI-module and related smart card inserted. The menus for slots 1, 2 and 3 are almost

identical, therefore only an example for slot 1 is shown. You can view:

CONDITIONAL ACCESS INFORMATION

This main menu has different sub menus that give

access to the pages where you can view the

CI-module and smart card settings.

Note that the sub menus are dynamic which means

that they change with the selections you make.

The conditional access information menu always

comesinviewwiththesystemsetupsubmenu.Inthe

menu bar the sub menus are shown at the right side.

The available sub menus are shown as icons which

become a highlighted button after selection. The sub

menus are accessible with:

■Module

Gives information about which CI-module and

related smart card is inserted in the selected

CI-slot.

■Viaccess Embedded (smart card reader only)

Gives information about which Viaccess

compatible smart card is inserted in the Viaccess

smart card reader.

■As an example;

this page shows the additional information that is

available from the inserted CI-module and

smart card.

■Note that this page can show differently for other

CI-modules and smart cards.

■EchoStar has no control over the information

provided by the related service provider, therefor

no specific information is given.

Section 4

Familiarization

Page 4 - 14 EchoStar DVR-7000 Viaccess

3. THE ECHONAV MODE AND SELECTION MENUS

3.1. INTRODUCTION

3.2. MODE

The Mode bar gives access to the different receiver modes. The receiver modes are:

3.3. LIST

The Lists are available in the all modes. Some of the lists are factory defined and other lists

(Favorite lists) are user defined. Favorite lists are lists of your favorite items that are created

and maintained by you. In every mode you can setup a number of favorite lists. The lists

available are (mode dependent):

The mode and selection menu gives access to the

current list, related features and on-screen help lines.

After you have entered the mode and selection menu

you can manipulate the lists through:

■The Mode bar (red);

■The List bar (green);

■The Edit bar (white);

■The Group bar (yellow);

■The Sort bar (blue).

■TV

To switch the receiver in the TV mode and to

access the list of TV channels.

■Radio

To switch the receiver in the Radio mode and to

access the list of Radio channels.

■DVR

To switch the receiver in the DVR mode and to

access the list of DVR events.

■MP3

To switch the receiver in the MP3 mode and to

access the list of MP3 songs.

■Lists

To switch the receiver in the Lists mode and to

access the favorite lists.

■All Channels

To access the list of scanned TV channels

available on the scanned satellites.

■Current Sat

To access the list of all scanned TV channels

available on the current selected satellite.

■Favorites

To access to your own favorite lists. You can

rename the favorites to something meaningful to

yourself,e.g.Film,Sport,Kids.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 15

3.4. EDIT

The Edit options are available in the all modes. The Edit option gives you the possibility to

customize the different lists. The availability of the Edit options is mode dependent, the

available options are:

3.5. GROUP

The Group options are available in the all modes. The Group option allows you to group the

lists in different ways. The availability of the Group options is mode dependent, the available

options are:

■None

No edit option is selected.

■Move

To enter the move channel function.

■Add

To enter the add channel function.

■Rename

To enter the rename channel function.

■Volume

To enter the set volume offset function.

■Lock

To enter the lock channel function.

■Delete

To enter the delete channel function.

■Edit PID

To enter the edit PID function.

■Add PID

To enter the add PID function.

■Edit TP

To enter the edit TP function.

■Add TP

To enter the add TP function.

■Add SAT

To enter the add SAT function.

■None

No group option is selected.

■Per Satellite

To group the list per satellite.

■Per Network

To group the list per network.

■Per Transponder

To group the list per transponder.

(MP3 mode only)

■None

No group option is selected.

■Per Genre

To group the list per genre.

■Per Artist

To group the list per artist.

■Per Album

To group the list per album.

Section 4

Familiarization

Page 4 - 16 EchoStar DVR-7000 Viaccess

3.6. SORT

The Sort options are available in all modes. The Sort options allow you to sort the lists in

different ways. The availability of the Sort options is mode dependent, the available options

are:

4. THE ELECTRONIC PROGRAM GUIDE (EPG)

■None

No sort option is selected.

■AtoZ

Sorts a list alphabetically.

■ZtoA

Sorts a list alphabetically, in reverse order.

■Character

Shows list with entered character only.

■Word

Shows a list that contains the selected word only.

■Scrambled

Shows a list of encrypted channels only.

■FTA

Shows a list of Free-To-Air channels only.

■Locked

Shows a list of locked channels only.

Most digital channels transmit program data as an

EPG. Digital channels that transmit EPG offer you

program information in advance for a certain period of

time. Dependent of the service provider, EPG is

offeredindifferentways.

After you have entered the EPG, you can select the

different EPG options, these are:

■Mode, to select the TV or Radio mode to show.

■List, to select the list in all channels, current

satellite or personal favorite.

■Date, to access the EPG calendar.

■Timers, to select and set the VCR or Reserved

timer.

■Zoom, to expand or shrink the EPG window as a

function of the time slot.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 17

4.1. THE TIMERS

The event timers are a kind of alarm clock. An event

timer reminds you when a timed program or recording

starts. You can set the next timers:

■DVR timer, to automatically record a program onto

the hard disk.

■VCR timer, to automatically switch over to the

timed program before it really starts. This allows

you to record a program on a video tape (video

recorder);

■Reserved timer, to automatically switch over to the

timed program before it really starts or when the

receiver is in standby, to switch on the receiver.

If a timer is set on a program that is shown in the EPG,

the relevant data is already shown in the timer. You

can change the settings as follows:

■Date, to set the start date for the timer;

■Start time, to set the start time in hours/minutes;

■Stop time, to set stop time in hours/minutes;

■Period, to set the timer once or repeat for every

occurrence;

■Favoritelist,toselectalistwheretosavethe

recording (none saves into the all files list).

■Parental lock, to lock or hide the recording

automatically.

■Status, to set (active) or delete (inactive) the timer.

■Store settings, to program the timer.

Timers are shown in the EPG window as clocks.

In the List-Timers page, it is possible to get a list of the

timers that are set. In this page you also can change or

delete a set timer.

You can view an overview of all the timers that are set

if you select the timers list.

Section 4

Familiarization

Page 4 - 18 EchoStar DVR-7000 Viaccess

5. THE INFOBANNER AND POP-UP MENUS

5.1. THE TV INFOBANNER

The TV InfoBanner shows the information related to the actual channel.

The information shown is (some information only if provided by the service provider).

■The channel information bar, to show the (favorites) list number and the channel name;

■The satellite information dish, to show the name of the selected satellite;

■The program information bar, to show the start time, duration indicator and program name;

■The i-button, to indicate that there is detailed program information available;

■The additional information bar, to show the additional service icons. These icons show

only if the additional service is available. The icons are:

- the icon for teletext;

- the icon for alternate audio;

- the icon for alternate subtitling;

- the icon for Dolby Digital audio;

- the icon for Favorite channel;

- the icon for Parental rating information.

■The digital clock, to show the actual local time;

■The next program information bar, to show the information of the next program.

■If the volume +/- key is pressed, the volume button is shown (see the radio InfoBanner).

■If the mute key is pressed, the volume button is shown with a red indicator.

5.2. THE RADIO INFOBANNER

The radio InfoBanner shows the information related to the actual channel. The radio

InfoBanner can show the same information as discussed with the TV InfoBanner.

Familiarization

Section 4

Digital Satellite Receiver Page 4 - 19

5.3. THE DVR INFOBANNER

The DVR InfoBanner shows the information related to the actual recording. The information

shown is (some information only if provided during the recording by the service provider).

■The recording information bar, to show the name of the recording;

■The jog shuttle, to show the actual status of the DVR (rewind, reverse slow motion, pause,

play, fast forward and record);

■The progress information bar, to show the start time and duration indicator;

■The i-button, to indicate that there is detailed program information available;

■The speed indicator to show the (re)wind and slow motion speed;

■The menu bar, to show the special functions. The special functions are:

- the button, to mark a scene with an index marker;

- the button, to repeat the recording continuously;

- the button, to repeat all the recordings from the selected (favorite) list;

- the button, to mark and repeat a scene continuously;

- the button, to capture an image as a personal background.

5.4. THE MP3 INFOBANNER

The MP3 InfoBanner shows the information related to the actual MP3 song.

■The song information bar, to show the name of the recording;

■The jog shuttle, to show the actual status of the MP3 player (rewind, pause, play and

fast forward);

■The progress information bar, to show the start time and duration indicator;

■The i-button, to indicate that there is detailed information available;

■The bass and treble indicators and the control button (alt audio key);

■The menu bar, to show the special functions. The special functions are:

- the button, to repeat the list in a random order;

- the button, to repeat the song continuously;

- the button, to repeat all the songs from the selected (favorite) list;

- the button, to mark and repeat a song fragment continuously;

Section 4

Familiarization

Page 4 - 20 EchoStar DVR-7000 Viaccess

5.5. POP-UP MENUS

Some pop-up menus are used to show that the receiver is busy to execute a task. Other pop-

up menus require interaction with the user, you have to confirm or deny a earlier given

command to complete the task

5.5.1. ALT AUDIO

5.5.2. SUBTITLE

5.5.3. SATELLITE LIST

If transmitted, you can set per channel your alternate

audio. You can call up the pop-up menu with the

alternative audio key on the remote control unit.

You can navigate up and down between the audio

languages or left and right for bi-lingual programs.

For the radio channels, you can navigate up and down

between the different radio stations within the selected

channel.

If transmitted, you can set per channel your subtitling

You can call up the pop-up menu with the subtitle key

on the remote control unit.

You can navigate up and down between the

languages.

This pop-up menu gives you the possibility to choose

directly from the available satellites. You can call up

thepop-upmenuwiththesatellitekeyontheremote

control unit.

Operation

Section 5

Digital Satellite Receiver Page 5 - 1

OPERATION

1. TO NAVIGATE THROUGH THE MENUS

1.1. TO SELECT A MODE

1.2. TO SELECT A CHANNEL

NOTE

Unless otherwise specified; this note explains the way you can navigate through

the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable

items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

NOTE

In the following procedures, we assume that you have switched on the TV and the

receiver is in the TV mode.

1. On the RCU, press the OK key;

2. Press the RED key and make the selection.

3. Read the available help text for information.

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Select a channel, either:

a. use the keys;

b. use the page + / - keys;

c. use the numbered keys.

NOTE

Normally, you only can view a scrambled channel with the applicable CI-module

and/or smart card inserted in a CI-slot or Viaccess smart card reader.

Section 5

Operation

Page 5 - 2 EchoStar DVR-7000 Viaccess

1.3. TO SELECT A LIST

1.4. TO GROUP A LIST

1.5. TO SORT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. On the RCU press the GREEN key.

5. Select the required list.

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. On the RCU press the YELLOW key.

5. Select the required group option.

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. On the RCU press the BLUE key.

5. Select the required sort option.

Note that only for the Character and Word option

a keyboard appears.

6. When the keyboard appears:

a. use the arrow keys to navigate;

b. press OK to accept the character;

c. select the button to get lower case

characters and numbers;

d. select the button

e. on the RCU, press the OK key to confirm.

Operation

Section 5

Digital Satellite Receiver Page 5 - 3

1.6. TO EDIT A LIST

1.6.1. TO MOVE A CHANNEL

1. On the RCU, press the OK key.

2. Select the required list.

3. Read the available help text for information.

4. On the RCU press the WHITE key.

5. Select the required edit option.

NOTE

Some EDIT options are not always available.

If an option is not presented, select Group - None and Sort - None

1. In the Edit menu, select the Move option.

2. Read the available help text for information.

3. Go to the channel you want to move.

4. On the RCU, press the OK key.

Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the

OK key again.

6. Move the channel, either:

a. use the keys;

b. use the page + / - keys;

7. On the RCU, press the OK key to confirm.

8. Either:

a. press the WHITE key to end the session, or

b. select the next channel you want to move.

Section 5

Operation

Page 5 - 4 EchoStar DVR-7000 Viaccess

1.6.2. TO LOCK A CHANNEL

CAUTION

You can only lock a channel or favorite if you have set the parental lock and the

PIN-code correctly. We recommend, in the parental lock menu, that you check if

the lock option is set correctly.

NOTE

After you have set a lock onto a channel, the installation and the EDIT menu are

automatically locked with an installation lock to prevent unauthorized access.

Now you can only access these functions if you know the correct PIN-code.

1. In the Edit menu, select the LOCK option.

2. Read the available help text for information.

3. Go to the channel you want to lock.

4. On the RCU, press the OK key.

Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the

OK key again.

6. Either:

a. press the WHITE key to confirm the lock and

end the session, or

b. select the next channel you want to lock.

7. You can temporarily unlock all channels:

a. On the RCU, press the MENU key;

b. Select the Parental Lock menu;

c. Enter the correct PIN-code as requested;

d. Set the channel lock to Off.

8. You can restore all the locks on the channels:

a. On the RCU, press the MENU key;

b. Select the Parental Lock menu;

c. Enter the correct PIN-code as requested;

d. Set the channel lock to On.

Operation

Section 5

Digital Satellite Receiver Page 5 - 5

1.6.3. TO DELETE A CHANNEL

1.6.4. TO SET THE CHANNEL VOLUME OFFSET

1.6.5. TO RENAME A CHANNEL OR RECORDING

1. In the Edit menu, select the DELETE option.

2. Read the available help text for information.

3. Go to the channel you want to delete.

4. On the RCU, press the OK key.

Note a red bullet appears behind the selection

and the cursor advances to the next channel.

5. If you want to undo the selection, press the

OK key again.

6. Either:

a. press the WHITE key to confirm the deletion

and end the session, or

b. select the next channel you want to delete.

1. In the Edit menu, select the VOLUME option.

2. Read the available help text for information.

3. Go to the channel you want to edit.

4. On the RCU, use the  keys to set the

volume.

5. Either:

a. Press the WHITE key to end the session, or

b. select the next channel you want to edit.

1. In the Edit menu, select the RENAME option.

2. Go to the item you want to rename.

3. On the RCU, press the OK key.

Section 5

Operation

Page 5 - 6 EchoStar DVR-7000 Viaccess

1.6.6. TO HIDE A CHANNEL

4. When the keyboard appears:

a. use the arrow keys to navigate;

b. press OK to accept the character;

c. select the button to get lower case

characters and numbers;

d. select the button

e. on the RCU, press the OK key to confirm.

5. Either:

a. Press the WHITE key to end the session, or

b. select the next channel you want to rename.

CAUTION

You can only hide a channel if you have set the parental lock and the PIN-code

correctly. We recommend that you check if the hide option is set correctly.

NOTE

After you have set a hide onto a channel, the installation and the EDIT menu are

automatically locked with an installation lock to prevent unauthorized access.

Now you can only access these functions if you know the correct PIN-code.

1. Make the hide function available for edit:

a. On the RCU, press the MENU key;

b. Select the Parental Lock menu

c. Enter the correct PIN-code as requested;

2. Set the Master Hide to Off.

3. On the RCU:

a. press the MENU key;

b. press the EXIT key.

Operation

Section 5

Digital Satellite Receiver Page 5 - 7

2. USE THE FAVORITE LISTS

Navigation and use of the favorite lists are the same as for the all channels and current

satellite list as described before. The main difference is that you can setup and organize the

favorite lists as required. EchoStar has already pre-named the favorite lists to help you getting

started. It is however possible to change the name of the favorite list to something that is

meaningful to you.

For adding channels quickly, you can use the group and sort option first to limit the amount of

channels where you want to choose from. As an example, now it is possible to add all sport

related channels in one step to the Sports TV favorite list.

Note that for each mode, a separate number of favorite lists is available.

1. In the Edit menu, select the HIDE option.

2. Read the available help text for information.

3. Go to the channel you want to hide.

4. On the RCU, press the OK key.

Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the

OK key again.

6. Either:

a. press the WHITE key to confirm the hide and

end the session, or

b. select the next channel you want to hide.

7. Make the hide function active

a. On the RCU, press the MENU key;

b. Select the Parental Lock menu

c. Enter the correct PIN-code as requested;

8. Set the Master Hide to On.

9. On the RCU:

a. press the MENU key;

b. press the EXIT key.

10. You can temporarily unhide all channels:

a. On the RCU, press the MENU key;

b. Select the Parental Lock menu

c. Enter the correct PIN-code as requested;

d. Set the Master Hide to Off.

11. You can restore all the hides on the channels:

a. In the parental lock menu, set the Master Hide

to On.

Section 5

Operation

Page 5 - 8 EchoStar DVR-7000 Viaccess

2.1. ADD A CHANNEL TO A FAVORITE LIST

2.2. ADD A GROUP OF CHANNELS TO A FAVORITE LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group and sort the all channels list to locate the

required channel quickly.

5. On the RCU press the GREEN key.

6. Select the favorite list to which you want to add a

channel.

7. On the RCU press the WHITE key.

8. Select the add option.

9. Go to the channel you want to add.

10. On the RCU, press the OK key.

Note a red bullet appears behind the selection

and the cursor advances to the next channel.

11. If you want to undo the selection, press the

OK key again.

12. Press the WHITE key to end the session.

NOTE

As an example, this procedure details the instructions on how to add a group of

channels to a favorite list.

In this example we add a complete network to the My TV Channels favorite list

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group the channels as required.

5. Select the favorite list to which you want to add

the group of channels.

6. On the RCU press the WHITE key.

7. Select the add option.

8. Go to the network you want to add.

9. On the RCU, press the OK key.

Note a red bullet appears behind the selection

and the cursor advances to the next item.

10. If you want to undo the selection, select again

and press the OK key.

Operation

Section 5

Digital Satellite Receiver Page 5 - 9

2.3. RENAME A FAVORITE LIST

11. Press the WHITE key to end the session.

12. If only the network bar is show, press the i-key to

expand the selection.

13. Select a channel.

14. On the RCU, press the OK key to view the

selected channel.

Note that in the left bar of the InfoBanner, a heart

symbol appeared to indicate that this channel is a

favorite channel.

1. On the RCU, press the OK key;

2. Press the RED key and select Lists.

3. Press the GREEN key and select the category.

4. Read the available help text for information.

5. In the Edit bar, select the RENAME option.

6. Go to the favorite list you want to rename.

7. On the RCU, press the OK key.

8. When the keyboard appears:

a. use the arrow keys to navigate;

b. press OK to accept the character;

c. select the button to get lower case

characters and numbers;

d. select the button

e. on the RCU, press the OK key to confirm.

Section 5

Operation

Page 5 - 10 EchoStar DVR-7000 Viaccess

3. TO USE THE ELECTRONIC PROGRAM GUIDE (EPG)

9. Either:

a. press the WHITE key to end the session, or

b. select the next favorite list you want to

rename.

NOTE

The EPG information is not always available. Sometimes the service provider (who

sends the EPG information) supplies only the program name, the now/next infor-

mation or sometimes nothing at all. EchoStar has no influence on this matter.

Make sure the local time is set otherwise you can not view EPG information

because it needs the correct time (Refer to the Local Time menu).

1. Use the EPG key to access the main EPG menu.

2. Allow the receiver to collect the EPG information

for the selected channel.

3. Read the available help text for information.

4. Use the  keys to select a channel.

5. Use the  keys to select the programs.

6. Usethe keytoreturntoactualtimeinthe

EPG window.

7. Use the i-key to shift between detailed program

information and the main EPG menu.

8. Use the OK key to view the selected channel.

Operation

Section 5

Digital Satellite Receiver Page 5 - 11

3.1. TO SET A TIMER

CAUTION

Note that the VCR timer does not start or program your video recorder (VCR). You

have to set the timer of your VCR also to the same time as on the receiver. Please

refer to the user’s guide of your VCR how to record from a satellite receiver. On

quite a lot of VCRs you have to select the so called external channel (E1)

1. On the RCU, press the EPG key.

2. If EPG data is available, select a program in the

future (right of the red line in the EPG window);

3. If no EPG data is available, select the correct

channel.

4. Read the available help text for information.

5. On the RCU press the YELLOW key.

6. Select the required timer.

7. When the timer appears, if necessary:

8. Change the date:

a. use thekey, to go to the Date;

b. read the available help text for information;

c. press the OK key to change the date;

d. in the calendar, select the required date;

e. press the OK key to return to the timer.

NOTE

Be aware that the shown EPG start/stop time might

not be the same as the actual start/stop times,

because of last minute program changes.

9. Change the start time:

a. use thekey, to go to the Start Time;

b. read the available help text for information;

c. press thekeys to set the hours;

d. press the OK key to go to the minutes;

e. press thekeys to set the minutes.

10. Change the stop time:

a. use thekey, to go to the Stop Time;

b. read the available help text for information;

c. press thekeys to set the hours;

d. press the OK key to go to the minutes;

e. press thekeys to set the minutes.

Section 5

Operation

Page 5 - 12 EchoStar DVR-7000 Viaccess

11. Change the repetition rate:

a. use thekey, to go to the Period;

b. read the available help text for information;

c. press thekeys to set the repetition.

12. Save the recording in a specific (favorite) list:

a. use thekey, to go to the Favorite List;

b. read the available help text for information;

c. press thekeys to set the (favorite) list.

13. Save the recording as locked or hidden

a. use thekey, to go to the Parental Lock;

b. read the available help text for information;

c. press thekeys to select Lock or Hide;

d. press the OK key to activate the setting.

Note that a red bullet appears in selection.

14. Change the status:

a. use thekey, to go to the Status;

b. read the available help text for information;

c. press thekeys to set the status;

15. Save the timer:

a. use thekey, to go to the Store Settings;

b. read the available help text for information;

c. press the OK key to confirm the settings.

16. Note the clock that appeared in your program.

17. Do not forget to program also your VCR if you

have set a VCR timer.

NOTE

You cannot set a (EPG-based) timer in the past or on

a program that has already begun.

If the timer screen does not disappear, you have set

a timer in the past or for a running program. Revise

either date, start or stop time to a time in the future.

18. For a program that has already begun:

a. set the timer as usual and change the

start time to 00:00;

b. use the key, to go to the Store Settings;

c. press the OK key to confirm the settings.

19. Note that:

a. the DVR InfoBanner momentarily appears

with a red blinking indicator;

b. the display on the receiver shows Hdd.

Operation

Section 5

Digital Satellite Receiver Page 5 - 13

3.2. DELETE A TIMER

3.3. USE THE INFOBANNER RELATED FUNCTIONS

3.4. TO SELECT THE ALTERNATE AUDIO

1. On the RCU:

a. press the EPG key;

b. press the GREEN key;

c. select from the list: Timers;

d. press the OK key.

2. Select the applicable timer and press the OK key.

3. Change the status:

a. use the key, to go to the status;

b. read the available help text for information;

c. press thekey to set the status to inactive.

4. Delete the timer:

a. use the key, to go to the Store Settings;

b. read the available help text for information;

c. press the OK key to confirm the deletion.

1. On the RCU, press the i-key.

2. If available, allow the receiver to collect the

EPG information for the selected channel.

3. If the i-button in the InfoBanner is shown,

use the i-key on the RCU to shift between the

detailed program information and the InfoBanner.

4. On the RCU, press the EXIT key to remove the

InfoBanner from the screen (only in TV-mode).

1. On the InfoBanner, find the alt audio symbol.

2. On the RCU, press the key.

3. In the Alt. Audio pop-up menu, select the

required alternate audio.

Note that alternate audio information is provided

by the service provider.

4. On the RCU, press the key.

Section 5

Operation

Page 5 - 14 EchoStar DVR-7000 Viaccess

3.5. TO SELECT THE SUBTITLE LANGUAGE

3.6. TO SELECT ANOTHER SATELLITE

4. TO USE THE DVR

4.1. PLAY BACK A RECORDING

1. On the InfoBanner, find the subtitle symbol.

2. On the RCU, press the key.

3. In the subtitle pop-up menu, select the required

subtitle language.

Note that subtitle information is provided by the

service provider.

4. On the RCU, press the key.

1. On the RCU, press the key.

2. In the Satellites List pop-up menu, select the

required satellite.

3. On the RCU, press the OK key.

Note that the dish moves towards the selected

satellite.

1. On the RCU, press the OK key.

2. Select the DVR mode.

3. Read the available help text for information.

4. Select a recording, either:

a. use the keys;

b. use the page + / - keys;

5. On the RCU, press the OK key to playback the

recording.

6. On the RCU:

a. press the key for play;

b. press the key for fast forward;

c. press the key for rewind;

d. press the key for pause;

e. press the key to stop.

Operation

Section 5

Digital Satellite Receiver Page 5 - 15

4.2. USE THE INDEX MARKER

4.3. PLAY BACK THE INDEX MARKER

7. For forward slow motion, on the RCU:

a. press the key for pause;

b. press the key for slow motion;

8. For reverse slow motion, on the RCU:

a. press the key for pause;

b. press the key for reverse slow motion.

1. Play back a recording.

2. On the RCU:

a. press the i-key to show the InfoBanner;

b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to mark.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. On the RCU:

a. press the MENU key to leave the menu;

b. press the EXIT key to remove the InfoBanner.

1. Select the DVR mode.

2. Select the event with the index marker.

3. On the RCU, press the i-key to expand.

4. Select the index that you want to play back.

5. On the RCU, press the OK key to playback the

index.

Section 5

Operation

Page 5 - 16 EchoStar DVR-7000 Viaccess

4.4. USE THE A-B MARKER

4.5. CAPTURE A PERSONAL BACKGROUND

1. Play back a recording.

2. On the RCU:

a. press the i-key to show the InfoBanner;

b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to repeat.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. Wait for the end of the scene you want to repeat.

7. On the RCU, press the OK key.

8. Wait for the popup to disappear.

9. Note that the marked scene repeats

continuously.

10. On the RCU, press the OK key to cancel the

marker.

11. Wait for the popup to disappear.

12. On the RCU:

a. press the MENU key to leave the menu;

b. press the EXIT key to remove the InfoBanner.

1. Play back a recording.

2. On the RCU:

a. press the i-key to show the InfoBanner

b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to capture.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. On the RCU:

a. press the MENU key to leave the menu;

b. press the EXIT key to remove the InfoBanner.

Operation

Section 5

Digital Satellite Receiver Page 5 - 17

4.6. INSTALL A PERSONAL BACKGROUND

4.7. USE LIVE PAUSE

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and select Background menu.

3. Read the available help text for information.

4. Select the personal background.

5. On the RCU:

a. press the MENU key to leave the menu;

b. press the EXIT key to return to live video.

1. In the TV mode, select a channel to view.

2. On the RCU, press the key:

a. the DVR InfoBanner appears with a yellow

pause and a red blinking indicator (recording);

b. the live video freezes;

c. the display on the receiver shows Hdd.

3. On the RCU, press the key:

a. the live video is continued from the pause;

b. the DVR InfoBanner disappears;

c. the display on the receiver shows Hdd.

4. On the RCU: press the key to fast forward a

time frame (to catch up with the real live video).

5. On the RCU, press the key to abort pause.

Section 5

Operation

Page 5 - 18 EchoStar DVR-7000 Viaccess

5. TO USE THE MP3 PLAYER

5.1. PLAY BACK A SONG

NOTE

Thekeys have a different function in the various selections:

■normal play mode: key, previous song - key, next song;

■detailed information: key, previous song - key, next song;

■play mode menu: key, previous mode - key, next mode;

1. On the RCU, press the OK key.

2. Select the MP3 mode.

3. Read the available help text for information.

4. Select a song, either:

a. use the keys;

b. use the page + / - keys;

5. On the RCU, press the OK key to play back the

song.

6. On the RCU:

a. press the key for play;

b. press the key for fast forward;

c. press the key for rewind;

d. press the key for pause;

e. press the key to stop;

f. press the i-key for detailed information.

7. For bass and treble setting, on the RCU:

a. press the key for the bass control button;

b. press thekeys to change the setting;

c. press the key for the treble control button;

d. press thekeys to change the setting;

e. press the key to confirm the setting.

8. For the different play modes, on the RCU:

a. press the MENU key to access the menu;

b. press thekey to select a play mode;

c. press the OK key, to activate the selection;

d. press the OK key, to cancel the selection;

e. press the MENU key to leave the menu.

Operation

Section 5

Digital Satellite Receiver Page 5 - 19

5.2. USE THE A-B MARKER

6. TO SET THE USER PREFERENCES

6.1. TO CHANGE THE USER PROFILE

1. Play back a song.

2. On the RCU:

a. press the MENU key to activate the menu;

b. use thekeys to select the button.

3. Wait for the fragment that you want to repeat.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. Wait for the end of the fragment you want to

repeat.

7. On the RCU, press the OK key.

8. Wait for the popup to disappear.

9. Note that the marked fragment repeats

continuously.

10. On the RCU, press the OK key to cancel the

marker.

11. Wait for the popup to disappear.

12. On the RCU, press the MENU key to leave the

menu.

13. Note that none of the buttons is highlighted.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

Section 5

Operation

Page 5 - 20 EchoStar DVR-7000 Viaccess

6.2. TO CHANGE THE LANGUAGE

6.3. TO SET THE PARENTAL LOCK

6.4. TO CHANGE THE PIN CODE

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

NOTE

This procedure does not lock a specific channel or favorite. After you made the

parental control settings, you must lock the required channels or favorites manu-

ally. For a detailed procedure, please refer to the paragraph To lock a channel.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Enter the correct PIN-code as requested

3. Press the OK key and make the selections.

4. Read the available help text for information.

5. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

1. Select the parental Lock menu

2. Enter the correct PIN-code as requested

3. Select the Change PIN Code bar.

4. On the RCU, press the OK key.

5. Read the available help text for information.

6. In the Change PIN-Code menu, make the

required selections. Now you will return to the

parental lock menu.

7. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

Operation

Section 5

Digital Satellite Receiver Page 5 - 21

6.5. TO SET THE LOCAL DATE AND TIME

6.6. TO SET THE TV SYSTEM

NOTE

Make sure the local time is set correctly otherwise you can not view and use the

EPG information because the EPG and the related timers need the correct time.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU:

a. press the MENU key to save the settings;

b. press the EXIT key to leave the menu.

Section 5

Operation

Page 5 - 22 EchoStar DVR-7000 Viaccess

Maintenance

Section 6

Digital Satellite Receiver Page 6 - 1

MAINTENANCE

1. HARDWARE MAINTENANCE

1. Switch the receiver to stand-by and on the display make sure the clock shows.

2. Remove the mains plug from the power supply socket.

3. Wait at least five seconds, to help avoid possible damage to the receiver’s electronics.

4. Use a dry, soft and clean lint-free cleaning cloth to clean the receiver.

5. Other cleaning agents can cause damage to the outside surface.

a. Make a dry, soft and clean lint-free cleaning cloth a little damp.

b. Carefully wipe the surface and make sure that no moisture gets into the receiver.

c. Let the receiver dry on the air.

6. Install the receiver and make sure all connections on the rear panel are made correctly

(For more detailed instructions, please refer to the section Installation).

7. Connect the mains plug to the power supply socket.

8. Set the local time, for detailed instructions please refer to the section Operation.

2. SOFTWARE MAINTENANCE

2.1. TO CHANGE THE SETUP OF THE RECEIVER

WARNING

RISK OF ELECTRICAL SHOCK.

REMOVE THE MAINS PLUG FROM THE POWER SUPPLY SOCKET BEFORE YOU CLEAN THE

RECEIVER.MAKE SURE,IF USED,CLEANING AGENTS CANNOT GET IN THE RECEIVER.

NOTE

Make sure the local time is set correctly otherwise you can not view and use the

EPG information because the EPG and the related timers need the correct time.

NOTE

Unless otherwise specified; This note explains the way you can navigate through

the maintenance pages of the EchoNAV setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use thearrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of

selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the or menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Check Signal field.

5. On the RCU, press the OK key.

Section 6

Maintenance

Page 6 - 2 EchoStar DVR-7000 Viaccess

2.2. TO CHANGE THE USER LNB SETTINGS

2.3. ABOUT ECHOSTAR - RECEIVER INFORMATION

6. Wait for the Check Signal page to appear.

7. In the Check Signal menu make the required

selections for transponder and search mode.

8. Read the available help text for information.

9. If the red dot in the transponder field stays:

a. select another transponder;

b. go to the check signal field;

c. on the RCU, press the OK key.

10. Go to the Search Channels field.

11. On the RCU, press the OK key.

12. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

13. On the RCU, press the OK key.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Store Settings field.

5. On the RCU:

a. press the OK key to save the settings;

b. press the EXIT key to leave the menu.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. In the About EchoStar information menu you can

look up the factory and receiver information.

3. Read the available help text for information.

Maintenance

Section 6

Digital Satellite Receiver Page 6 - 3

2.4. TO DO A SOFTWARE UPDATE FROM THE SATELLITE

2.5. TO DO A FACTORY RESET

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the System Upgrading field.

5. On the RCU, press the OK key.

6. Wait for the system upgrade to complete.

WARNING

DO NOT PRESS ANY KEYS DURING THE SESSION,THIS

CAN INTERRUPT THE SOFTWARE UPGRADE SEQUENCE

WHICH CAN DAMAGE THE RECEIVER PERMANENTLY.

■The receiver display shows:

- ota (check for new software)

- d1...d100 (downloading)

- P1...P100 (upgrading)

- done (update memory)

- C.... (channel indication)

NOTE

EchoStar offers on a regular basis software updates via the satellite and the

EchoStar website. If you have trouble to get a download with the latest software

version, please ask your retail seller or dealer for assistance.

NOTE

Be sure if you select Memory Erase because all your personal settings will be

deleted and replaced with the factory settings. Some of the personal settings that

will be deleted are Parental Lock, Favorite lists and System setup. Memory erase

resets the receiver as if the receiver comes just out of the box.

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Confirm Reset field.

5. On the RCU, press the OK key.

Section 6

Maintenance

Page 6 - 4 EchoStar DVR-7000 Viaccess

2.6. TO GET CONDITIONAL ACCESS INFORMATION

2.7. TO ADD A SATELLITE

1. On the RCU, press:

a. the MENU key;

b. the key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

1. On the RCU, press:

a. the OK key;

b. Select Mode = TV

c. Select List = All Channels

d. Select Group = None

e. Select Sort = None

f. Select Edit = Add SAT

2. On the RCU, press the OK key.

3. Use the on-screen keyboard to enter the name of

the satellite.

4. When the keyboard appears:

a. use the arrow keys to navigate;

b. press OK to accept the character;

c. select the button to get lower case

characters and numbers;

d. select the button

e. on the RCU, press the OK key to confirm.

5. On the RCU, use the numeric keys to enter the

Position.

6. Select the Location.

7. On the RCU, press the white key.

Maintenance

Section 6

Digital Satellite Receiver Page 6 - 5

2.8. TO ADD A TRANSPONDER

8. Enter the required settings.

9. Read the available help text for information.

10. Go to the continue field.

11. On the RCU, press the OK key to advance.

12. Make the required selections, it is advised to

selectthesearchmodeasTP.

13. Read the available help text for information.

14. Monitor the signal indicator and make sure that

you have sufficient signal strength and quality.

15. After you found the location, press the OK key to

confirm the position.

16. Go to the Search Channels field.

17. On the RCU, press the OK key to advance.

18. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

19. On the RCU:

a. press the OK key to end the procedure;

b. press the EXIT key to return to live video.

1. Select a channel of the satellite to which you

want to add a transponder.

2. On the RCU, press:

a. the OK key;

b. Select Mode = TV

c. Select List = All Channels

d. Select Group = None

e. Select Sort = None

f. Select Edit = Add TP

3. On the RCU, press the OK key.

Section 6

Maintenance

Page 6 - 6 EchoStar DVR-7000 Viaccess

2.9. TO ADD A PID

4. On the RCU, press the OK key again to advance.

5. Enter the required settings.

6. Read the available help text for information.

7. Monitor the signal indicator and make sure that

you have sufficient signal strength and quality.

8. Go to the Search Channels field.

9. On the RCU, press the OK key to advance.

10. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

11. On the RCU:

a. press the OK key to advance;

b. press the white key to end the procedure;

c. press the EXIT key to return to live video.

1. Select a channel of the transponder to which you

want to add a PID.

2. On the RCU, press:

a. the OK key;

b. Select Mode = TV

c. Select List = All Channels

d. Select Group = None

e. Select Sort = None

f. Select Edit = Add PID

3. On the RCU, press the OK key.

4. Select the applicable transponder.

5. On the RCU, press the OK key.

Maintenance

Section 6

Digital Satellite Receiver Page 6 - 7

3. END OF LIFE DISPOSAL

Your receiver and related accessories contain materials which can be recycled and reused.

Specialized companies can recycle your equipment to increase the amount of reusable

materials and to minimize the amount of materials to be disposed of.

Please inform yourself on local regulations on disposal of your equipment.

6. Enter the required settings.

7. Read the available help text for information.

8. Monitor the signal indicator and make sure that

you have sufficient signal strength and quality.

9. Go to the Store Settings field.

10. On the RCU:

a. press the OK key to store the settings;

b. press the white key to end the procedure;

c. press the EXIT key to return to live video.

Section 6

Maintenance

Page 6 - 8 EchoStar DVR-7000 Viaccess

Troubleshooting

Section 7

Digital Satellite Receiver Page 7 - 1

TROUBLESHOOTING

1. GENERAL

2. EPG RELATED

Problem Possible cause What to do?

1. Nothing appears on the

receiver display.

■Main power cable is

damaged or not

connected.

■Check the main power

cord and insert it in the

(wall socket).

■General domestic power

failure

■Check the domestic

power supply and insert a

new fuse.

2. The display shows a

flashing--:--

■The back-up battery of

the clock might be empty.

■Contact your dealer.

3. You have forgotten the

personal PIN-code.

■Contact your dealer.

Problem Possible cause What to do?

1. The EPG is empty. ■Youhaveselectedan

empty (favorites) list.

■Select another (favorites)

list.

■The selected program

supports no EPG.

■There is no solution for

this, the data is supplied

by the service provider

and beyond control.

■The local time is not

correct.

■In the Local Time menu,

set the correct time.

■The selected program is

an analog channel.

(InfoBanner shows no

i button)

■Select a digital channel

because analog channels

do not support EPG

information.

2. The EPG shows (little)

grey balloons without

text.

■The time scale of the

EPG is to big.

■Use the zoom function

(blue key) to reduce the

time scale until the

information can be read.

■Select the grey balloon

andontheRCU,press

the i-key to view and read

the information.

Section 7

Troubleshooting

Page 7 - 2 EchoStar DVR-7000 Viaccess

3. TV AND RADIO RELATED

Problem Possible cause What to do?

1. No picture or sound in the

TV or radio mode.

■Receiver is in standby. ■Switch the receiver on.

■Cable related problems. ■Check the cable

connections and do any

necessary work.

■Dish/LNB related

problems.

■Make sure the dish and

LNB are correctly

adjusted. Do any

necessary work.

2. Bad picture or noisy

sound in the TV or radio

mode.

■Bad reception of the

signal.

■Make sure the dish and

LNB are clean and

correctly adjusted. Do

any necessary work.

■Signal interference with

UHF-installation.

■Check the UHF settings.

Make sure you use the

correct channel. Please

refertotheTV/radiouser

guide.

3. The TV shows a

No Signal message.

■Bad reception of the

signal.

■Make sure the channel

selected transmits.

■Make sure the correct

dish or LNB is selected.

■Make sure the dish and

LNB are clean and

correctly adjusted. Do

any necessary work.

4. There is no Dolby digital

(AC-3)soundtomyother

equipment.

■The equipment is

connected to the receiver

with a RCA or SCART-

cable only.

■Connect the

S/P DIF connector of the

receiver to the Dolby

digital input of the

receiving equipment.

5. I cannot view or listen to a

scrambled channel.

■The CI-module/smart

card is not valid.

■Insert, for this service, a

valid CI-module/smart

card.

■The CI-module/smart

card is not (correctly)

inserted.

■Insert the CI-module/

smart card correctly.

6. I cannot find a channel

which should be there.

■The group or sort option

is set.

■Set the group and sort

mode to none.

■Youareinthewronglist. ■Check the all channels

list and select the correct

(favorite) list.

■The channel is hidden. ■Unhide the channel.

7. The TV shows a popup: ■You have selected an

empty (favorite) list.

■Press the WHITE key

Select the add option.

■Press the GREEN key

Select the Current Sat or

All Channels list.

Troubleshooting

Section 7

Digital Satellite Receiver Page 7 - 3

4. REMOTE CONTROL UNIT (RCU) RELATED

5. DVR RELATED

Problem Possible cause What to do?

1. Receiver does not

respond to the RCU.

■Batteries are empty. ■Insert new batteries.

■The RCU is set to another

mode (TV, VCR, AUX).

■On the RCU, press the

SAT key.

■The receiver code is not

programmed correctly.

■Program the SAT mode

with code 0222, see the

appendix for instructions.

2. Receiver does some-

times not respond to the

RCU.

■Direct sun light from

behind the receiver.

■Close the sun blinds or

get closer to the receiver.

■Youdonotaim

sufficiently at the receiver.

■Aim at the receiver

display.

■install a RCU extender.

■Batteries are almost

empty.

■Insert new batteries.

Problem Possible cause What to do?

1. I can not record a TV or

radio broadcast onto the

hard disk drive.

■Youhavepressedthe

record key once.

■Press the record key

twice, EchoStar has build

inasafetytoprevent

unwanted recording.

■Youhaveselectedan

analog station.

■Analog broadcasts

cannot be recorded onto

the digital DVR, Please

record the broadcast with

a VCR.

2. The programmed channel

is not recorded com-

pletely.

■Local time setting is not

correctly set.

■Check the Local Time

setting and reset as

necessary.

■The EPG data does not

reflect the actual start or

stop time.

■This data is supplied by

the service provider and

beyond control. You can

set the timer 5 minutes

earlier/later than shown.

3. Live pause seems not to

work.

■Youhaveselectedan

analog station.

■Live pause records the

program temporarily onto

DVR. Analog broadcasts

cannot be recorded onto

the digital DVR.

■Youhavepressedthe

record key.

■Press the pause key

once.

4. I cannot access the spe-

cial functions menu.

■The InfoBanner is not in

view.

■Use the i-key to show the

InfoBanner and press the

MENU key.

■You d id not press the

MENU key.

■Press the MENU key.

Section 7

Troubleshooting

Page 7 - 4 EchoStar DVR-7000 Viaccess

6. MP3 PLAYER RELATED

7. INSTALLATION RELATED

5. The detailed information

window shows

NO INFORMATION

■You have made a

recording from a program

that did not offer detailed

information.

■Thereisnosolutionfor

this, the data is supplied

by the service provider

and beyond control.

6. I cannot find a recording

which should be there.

■The group or sort option

is set.

■Set the group and sort

mode to none.

■Youareinthewronglist. ■Check the all Files list

and select the correct

(favorite) list.

■The recording is hidden. ■Unhide the recording.

Problem Possible cause What to do?

1. I cannot access the spe-

cial functions menu.

■You d id not press the

MENU key.

■Press the MENU key.

2. The detailed information

window shows data that

is not complete.

■The detailed information

is not available in the

MP3-tag.

The MP3-tag is part of the

MP3 file and contains the

detailed information.

■When already on the

DVR, you cannot access

this information. During

downloading, use the

MP3 loader to change or

complete the MP3-tag.

3. I cannot go to another

song with thekeys.

■Youareinthespecial

functions menu

■Press the MENU key and

try again.

Problem Possible cause What to do?

1. My television does not

receive any signal from

the receiver (UHF only)

■You did not select the

correct audio/video

channel on your TV.

■Refer to the user manual

of the TV for instructions.

■On the receiver, In the TV

system menu select the

correct channel and PAL

setting.

■Use another method to

connect the receiver.

2. My television does not

receive any signal from

the receiver

■You did not select the

correct A/V channel on

your TV.

■Select the correct A/V

channel on your TV.

■Youdidnotuseacorrect

SCART cable.

■Use only a full featured

SCART cable that is

correctly shielded.

3. My television shows black

areas on the left and right

of the screen.

■You did not select the

correct aspect ratio for

your TV.

■On the receiver, in the

user profile menu select

the correct aspect ratio.

4. In a motorized

installation, the dish turns

to the West while I select

Set East Limit.

■The motor turns the other

way around because the

cable is not installed

correctly.

■At the receiver, change

the cable connections to

M1 and M2.

Problem Possible cause What to do?

Troubleshooting

Section 7

Digital Satellite Receiver Page 7 - 5

5. In a motorized

installation, I cannot

select a specific satellite.

■The required satellite is

located outside the

selected East or West

limit.

■If physically possible,

mind dish damage, revise

the limit setting.

■Select another satellite.

6. In a motorized

installation, the positioner

reacts unpredictable

which results in incorrect

positioning of the dish.

■The cables used are

worn, damaged or

corroded.

■Inspect the cable for

possible damage and

install new cable as

required.

■The cable is incorrectly

finished or not sufficiently

shielded.

■Use sufficiently shielded

and correctly finished

cables.

7. During (initial) setup of

the receiver, no channels

are found.

■You did not select the

correct LNB(F).

■On the receiver, in the

installation setup menu

select the correct LNB(F).

■When installed, you have

selected the incorrect

switch type or port.

■On the receiver, in the

installation setup menu

make the correct

selections.

■You have selected the

incorrect satellite to

search channels on.

■On the receiver, in the

installation setup menu

select the correct

satellite.

■You have selected the

incorrect search method.

■At an initial setup, always

choose the option All.

8. The signal indicator

shows one indicator

(only signal strength).

■Youhaveselectedan

analog transponder

■Select another (digital)

transponder.

Problem Possible cause What to do?

Section 7

Troubleshooting

Page 7 - 6 EchoStar DVR-7000 Viaccess

Glossary

Section 8

Digital Satellite Receiver Page 8 - 1

GLOSSARY

1. LIST OF USED ABBREVIATIONS

A/V Audio/Video MCPC Multiple Channel Per Carrier

AC Alternating Current MHz MegaHertz

ANT ANTenna (terrestial) min minute

ATA Advanced Technology Attachement min. minimum

ºC Celcius mm millimeter

CAM Conditional Access Module MPEG Moving Picture Experts Group

CD Compact Disc NTSC National Television Standards

Committee

CE Conformite European NVOD Near Video OnDemand

CH CHannel OSD On-Screen Display

CI Common Interface OSG OnScreen Graphics

D2MAC Digital Multiplexed Analog

Component version 2

OTA Over The Air

DAC Digital Analog Converter PAL B/G Phase Alternating Line B/G

dB deciBell PAL D/K Phase Alternating Line D/K

dBm deciBell milliwatts PCMCIA Personal Computer Memory Card

Industry Association

DC Direct Current PCR Program Clock Reference

DiSEqC Digital Satellite Equipment Control PID Packet IDentification

DMA Direct Memory Access PIN Personal Identification Number

DVB Digital Video Broadcasting PWM Pulse Width Modulation

DVR Digital Video Recorder QPSK Quadrature Phase Shift Key

EL East Limit RCA Connector type, also Cinch connector

EPG Electronic Program Guide RCU Remote Control Unit

ºF Fahrenheit RF Radio Frequency

FTA Free-To-Air RND RaNDom

Gb Gigabit S/PDIF Sony/Philips Digital Interface

GB GigaByte SAT SATellite

GND GrouND SCART Connector type, also Euro connector

GUI Graphical User Interface SCPC Single Channel Per Carrier

H-H Horizon-to-Horizon SMATV Satellite Master Antenna TV

HW HardWare STB Set Top Box (the satellite receiver)

IDE Intelligent Drive Equipment SW Software

IEC International Electrotechnic

Committee

TP TransPonder

IF Intermediate Frequency TV TeleVision

IRD Integrated Receicer Decoder (the

satellite receiver)

µs micro second

ISO International Standards Organisation UHF Ultra High Frequency

kg kilogram VVolt

kHz kiloHertzVCR Video ReCorder

kW kiloWatt Ver. Version

LNB Low Noise Block down converter Vp-p Voltspeak-peak

LNBF LNB with Feedhorn Vrms Voltsrootmeansquare

max. maximum WWatt

MB MegaByte WL West Limit

Mbps Megabits per second WxHxD Width x Height x Depth

Section 8

Glossary

Page 8 - 2 EchoStar DVR-7000 Viaccess

2. EXPLANATION OF USED TERMINOLOGY

C-band A frequency range (3.70-4.20 GHz) used for satellite

broadcasts.

CCITT An European committee of the international

Telecommunications Union and makes recommendations for

the distribution of telephone and data distribution.

Clarke Belt The Clarke Belt is a dedicated satellite orbit in which satellites

remain in a fixed position relative to the Earth’s surface.

CI-module/CAM Both names are used for these modules. These modules are

PCMCIAcardswithaslotinwhichyoucaninsertasmart

card.

Common Interface (CI) A DVB standard which defines the software and hardware

requirements for condition access systems.

Conditional Access A system which is used by service providers to control the

subscriber’s access to certain services, programs and events

like Pay TV.

DBS band A signal frequency range (11.70-12.40ghz) intended for direct

TV broadcast by satellite channels.

Decoder A unit that is connected to a satellite receiver in order to

unscramble a picture that is protected by encryption.

Digital Audio Broadcasting Standard which describes the method of transmitting digital

audio.

DiSEqC A standard through which it is possible to let a DiSEqC

compatible receiver send a signal over the RF cable to a

switchingdevicetoswitchbetweendifferentLNBsordishes.

The DiSEqC uses the 22 kHz signal to control the switching

device.

DVB A broadcast standard for digital radio and television, using

MPEG-2 compression. DVB is being supported by all

European manufacturers and broadcasters.

EPG A electronic program guide that comes with the broadcast of a

particular satellite, Note that every station fills the EPG

differently or not, so differences in the EPG are not

necessarily receiver errors.

FEC Is an invisible part of a broadcast.which makes sure that

possible errors in the reception of the satellite signal are

corrected.

Feedhorn A part of the dish which collects the signals from the dish. The

signal is then fed to the LNB(F).

Ferrite A remote controlled device that determines the polarity of the

signal which is fed to the LNB. The ferrite is more or less an

electro-magnetic polarizer.

Fixed Dish A dish antenna that is pointed at one particular satellite.

Free-To-Air broadcast An unscrambled broadcast which you can view without

additional payments to a service provider.

Frequency band A frequency band is a range of frequencies which are dedicate

to a certain usage. In the satellite area, commonly known

bands are the C-band and the Ku-band.

High Definition Television A digital television format, which combines high-resolution

video and theater like sound to create a movie theater quality

TV viewing experience.

Horizontal In the satellite industry, horizontal is used to indicate the

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as H.

KU-band A frequency range (10.70-18.00 GHz) used by most European

TV satellites.

LNB A device behind the feedhorn which processes the signal into

a format which is understood by the receiver for further

processing

LNBF A LNB with an integrated Feedhorn. So the LNBF comes as

one single unit.

Glossary

Section 8

Digital Satellite Receiver Page 8 - 3

MPEG The Moving Picture Experts group is founded by the ISO to

provide a basis for the coding and compression of moving

pictures. MPEG has now become a standard method for the

digital transmission of video and sound using less bandwidth

than the analog transmission method.

Near Video-On-Demand Multi channel system broadcasting many copies of a film with

staggered start times so a complete film is always available to

a viewer with a short waiting period.

Network With respect to the receiver, a network (also known as a

bouquet) is a set of programs that is offered by a single

service provider.

NTSC USA video standard with image format 4:3, 625 lines, 60 Hz

and4MHzbandwidthwithatotalof6MHzvideochannel

width.

PAL European video standard with image format 4:3, 625 lines,

50 Hz and 4 MHz bandwidth with a total of 8 MHz video

channel width.

PID MPEG-2 transmits the audio and video information in so-

called packages. At the beginning of each package is an

identifier (PID) present which tells the receiver what to do with

the received information. Satellite receivers use normally four

types of PID, these are VPID (video PID), APID (audio PID),

Program Clock Reference (PCR PID) and data PID (EPG

information).

Parentallock Afeaturewhichisintroducedtogiveyouthepossibilityto

‘lock’ or ‘hide’ several functions of the receiver to prevent

unauthorized persons (children) to view broadcasts that are

not suitable for them. The use of the parental lock requires a

PIN-code. With this PIN-code you can change or unlock the

locked or hided recordings and channels.

Pay-Per-Channel With this feature, the viewer has to pay a certain price per

month (or other period) to receive all programs of a certain

channel.

Pay-Per-View Conditional access service where the user is able to buy one

particular program from a particular service provider.

Pay TV With Pay TV, the consumer has to pay for certain programs or

services.

PIN-code The PIN-code or Personal Identification Number is necessary

to make use of the parental lock feature. The PIN code has

four digits which can be set personally.

Polarization Broadcasts are done in a particular frequency band. To make

maximum use of a frequency band and bring you the

maximum number of programs, the broadcasts are polarized

in different ways to fit as much as possible programs into one

frequency band.

Polarizer A remote controlled device that determines the polarity of the

signal which is fed to the LNB.

Polarmount A motorized dish antenna mount which enables a dish to point

at every ‘visible’ satellite on the Clarke Belt.

Receiver Unit which takes signals from a dish and converts them so

they can appear on radio and TV.

RS232 connection A RS232 connection allows you to connect equipment to the

receiver which supports the RS232 protocol.

Satellite A broadcast station, for satellite radio and TV, positioned on

theClarkeBelt.

SCART cable A SCART cable is also known as ‘Peritel’ cable and is

commonly used in Europe to connect the audio and video

equipment. A fully furnished SCART cable has 21 wires which

is at both sides finished with a 21-pin connector.

Service provider A service provider is a company or organization that collects

and offers you a number of programs and services. Some are

free of charge and others you have to pay for.

Section 8

Glossary

Page 8 - 4 EchoStar DVR-7000 Viaccess

Smart Card A card that contains a ‘smart’ code and is used to de-scramble

encrypted broadcasts when placed in a decoder or receiver

with a built-in decoder.

SMATV A satellite master antenna TV system is a system which

shares the reception resources and is intended for the

distribution of TV and radio signals to the user in one ore more

buildings.

Stream The signal which is received from the transponder which

contains the together with the video signal, additional

information that the receiver needs in order to process the

received signal correctly.

Symbol rate Invisible information which tells the receiver at which speed

(rate) the transponder sends the digital information (symbols).

Thereceivermustbeabletohandlethesymbolrateto

process the signal correctly into a correct image.

Transponder Equipment inside a satellite responsible for receiving a single

uplinked channel and rebroadcasting it back to Earth.

Vertical In the satellite industry, vertical is used to indicate the direction

in which the received signal is polarized. Normally you will find

that it is abbreviated as V.

3. EXPLANATION OF THE SEARCH MODES

In the various menu pages you can make a selection from various search modes. The search

mode gives the possibility to scan a satellite or transponder in a particular manner. The

search modes are identified as:

All In this mode the built-in database is used to select the available transponders.

The digital and analog channels that belong to these transponders are

searched for and added to the all channel list.

FTA In this mode the built-in database is used to only search for the available

FTA channels which are then added to the all channel list. In the real world it

seems that the service providers do not always accurately code their channels

with a scrambled or FTA code. For this reason you may find that some

searched channels are scrambled. Also there is a possibility that scrambled

channels are coded as FTA. These channels will then be missed out because

of the erroneous code.

Network In this mode the built-in database or information from the received stream is

used to search for the transponders that are included with the currently

received network. The digital channels that belong to this network are

searched for and added to the all channel list.

TP In this mode the built-in database or information from the received stream is

used to search for or scan in the selected transponder. The digital and/or

analog channels that belong to this transponder only are searched for or

scanned in and added to the all channel list.

Digital In this mode the built-in database is used to search for the available digital

channels. The digital channels are then added to the all channel list. The digital

channels are shown as white channel names for easy recognition.

Analog In this mode the built-in database is used to add the analog channels to the all

channel list. The analog channels are shown as black channel names for easy

recognition.

Digital IF In this mode the currently received satellite is scanned for digital channels. The

digital channels, within the tuner bandwidth and selected symbol rates are

scanned in and added to the all channel list.

Analog IF In this mode the currently received satellite is scanned for analog channels.

The analog channels within the tuner bandwidth are scanned in and added to

the all channel list.

Update In this mode the built-in database is used to search for the available digital

channels. Then all new channels are added to the all channel list.

None Transponders on the selected satellite are not searched for.

Index

Section 9

Digital Satellite Receiver Page 9 - 1

INDEX

a-b repeat ...............................4-19,5-16,5-19

about echostar page .................................... 6-2

add a channel to a favorite list ..................... 5-8

add pid ....................................................... 4-15

add pid ......................................................... 6-6

add sat ....................................................... 4-15

add satellite ................................................. 6-4

add tp ........................................................ 4-15

add transponder .......................................... 6-5

alternate audio ........................4-18,4-20,5-13

alternate subtitling ..................................... 4-18

analog .......................................................... 7-3

autosat ..................................................3-6,4-9

backgrounds ................................................ 4-6

bad picture ................................................... 7-2

bass control ............................................... 5-18

blue key ....................................................... 5-2

capture background ..........................4-19,5-16

caution ......................................................... 1-2

ce mark ........................................................ 1-2

change the language ................................. 5-20

change the pin code .................................. 5-20

change the user profile .............................. 5-19

check signal ............................................... 4-10

check signal menu ....................................... 6-2

ci-module ...............................................1-I,7-2

cleaning ....................................................... 6-1

clock .................................................4-17,5-12

conditional access information .................... 6-4

conditional access menu ....................4-5,4-13

connections ................................................. 4-2

decoder ....................................................... 3-1

delete ......................................................... 4-15

delete a channel .......................................... 5-5

delete a timer ............................................. 5-13

detailed program information ............5-10,5-13

disposal ....................................................... 6-7

dolby digital ............................................... 4-18

dvb ............................................................... 1-II

dvr timer ...........................................4-17,5-11

echonav user interface ................................ 4-4

edit ............................................................. 4-15

edit a list ...................................................... 5-3

edit pid ....................................................... 4-15

edit tp ......................................................... 4-15

el-wl indicator ...............................................4-8

epg .................................... 3-5,4-16,5-10,7-1

erase - backgrounds ..................................4-12

erase - epg data ................................. 4-12,6-3

erase - mp3 songs ............................. 4-12,6-3

erase - recordings .............................. 4-12,6-3

factory reset ....................................... 4-12,6-3

fast forward ...................................... 4-19,5-14

favorite .......................................................4-18

favorite lists ..................................................5-7

features ........................................................4-1

ferrite .............................................3-3,4-2,8-2

fixed dish setup ..........................................4-10

fixed installations .........................................3-5

fta ...............................................................4-16

green key .....................................................5-2

group ..........................................................4-15

group a list ...................................................5-2

hard disk drive .............................................7-3

hdd erase ........................................... 4-12,6-3

hide a channel .............................................5-6

hide a timed recording ...............................5-12

i-button ............................................. 4-18,4-19

i-key ...........................................................5-10

index marker .................................... 4-19,5-15

indicator .......................................................4-8

infobanner ........................................ 4-18,5-13

install the receiver ........................................1-1

installation setup menu ................................4-5

ird .................................................................8-1

keyboard .............................................. 5-2,6-4

language .......................................... 5-14,5-20

languages page ...........................................4-6

list ...................................................... 4-14,5-3

live pause .....................................................7-3

live pause ...................................................5-17

local time page .............................................4-7

lock ............................................................4-15

lock a channel ..............................................5-4

lock a timed recording ................................5-12

master hide ..................................................5-6

memory erase .................................... 4-12,6-3

mode ..........................................................4-14

Section 9

Index

Page 9 - 2 EchoStar DVR-7000 Viaccess

move ......................................................... 4-15

move a channel ........................................... 5-3

mp3 player ................................................ 5-18

navigation ..................................... 3-4,5-1,6-1

no information ............................................. 7-4

no picture .................................................... 7-2

no signal ...................................................... 7-2

no sound ..................................................... 7-2

note ............................................................. 6-3

ota ......................................................4-12,6-3

parental lock page ....................................... 4-6

parental lock settings .................................. 4-6

parental rating information ........................ 4-18

pause ...............................................4-19,5-14

pid ......................................................4-15,6-6

pin code ................................................4-7,5-6

play ............................................................ 4-19

play back ................................................... 5-14

polarotor ...................................................... 3-3

polarotor .............................................4-2,4-10

program satellites ...................................... 4-10

quattro ......................................................... 4-3

rcu ............................................................... 8-1

receiver information ..................................... 6-2

record .................................................4-19,7-3

red bullet ..................................................... 5-5

red key ........................................................ 5-1

remote control unit ...................................... 4-3

rename ...................................................... 4-15

rename a channel ....................................... 5-5

rename a favorite list ................................... 5-9

repeat continuously ................................... 4-19

repeat list ................................................... 4-19

reserved timer ........................................... 4-17

rewind ...............................................4-19,5-14

safety ........................................................... 1-1

satellite ........................................................ 6-4

satellites list ............................................... 5-14

scrambled .................................................. 4-16

search channels page ..........................3-5,6-2

search mode ............................................... 6-2

search modes .............................................. 8-4

select a channel .......................................... 5-1

select a list .................................................. 5-2

select a mode .............................................. 5-1

select a recording ...................................... 5-14

select the alternate audio .......................... 5-13

select the subtitle language .......................5-14

set a timer .................................................. 5-11

set the channel volume ................................ 5-5

set the local date and time .........................5-21

set the tv system ........................................ 5-21

setup after memory erase ............................ 3-4

signal ................................................. 4-8,4-10

signal indicator ............................................. 4-8

slow motion ...................................... 4-19,5-15

smart card information ....................... 4-13,6-4

smatv ........................................................... 3-8

software update ........................................... 6-3

software version ........................................ 4-11

sort ............................................................. 4-16

sort a list ...................................................... 5-2

start time .................................................... 5-11

stb ................................................................ 8-1

stop time .................................................... 5-11

subtitling .......................................... 4-20,5-14

symbols ....................................................... 1-2

system setup menu ............................. 4-9,6-1

teletext ....................................................... 4-18

timers ......................................4-17,5-11,5-13

transponder ....................................... 4-15,6-5

treble control .............................................. 5-18

tv system page ............................................ 4-7

usb ....................................................... 3-1,4-2

use the epg ................................................ 5-10

use the infobanner ..................................... 5-13

user lnb settings ................................ 4-11,6-2

user preferences menu ................................ 4-5

user profile page .......................................... 4-6

vcr timer ........................................... 4-17,5-11

volume ....................................................... 4-15

volume button ............................................ 4-18

warning ........................................................ 1-2

white key ...................................................... 5-3

yellow key .......................................... 5-2,5-11

zoom .......................................................... 4-16

LNB(F) Configuration matrix

Appendix 1

Digital Satellite Receiver Page A1 - 1

APPENDIX 1

1. LNB CONFIGURATION MATRIX

In the installation menu, the different LNBs are already pre-programmed to save you a lot of

configuring routines.

2. LNBF CONFIGURATION MATRIX

In the installation menu, the different LNBFs are already pre-programmed to save you a lot of

configuring routines.

3. USER DEFINED LNB(F) MATRIX

In the User LNB setting menu, you can define your own LNB(F). You can use the list below to

note the settings.

LNB TYPE LO Frequency LO Selection 13/18V 0/22kHz

HVHV

Standard 10,000 13/18V 18 18 0 0

Enhanced 9,750 13/18V 18 18 0 0

Quattro 9,750 13V 13 13 0 0

10,750 18V 18 18 0 0

C-Band 5,150 13/18V 18 18 0 0

DBS 10,750 18V 18 18 0 0

TELECOM 11,475 18V 18 18 0 0

LNBF TYPE LO Frequency LO Selection 13/18V 0/22kHz

HVHV

Standard 10,000 13/18V 18 13 0 0

Enhanced 9,750 13/18V 18 13 0 0

Universal 9,750 0 kHz 18 13 0 0

10,600 22 kHz 18 13 22 22

Quattro 9,750 0 kHz 18 13 0 0

10,750 22 kHz 18 13 22 22

C-Band 5,150 13/18V 18 13 0 0

C-Band SS 5,150 13V 18 13 0 0

5,750 18V 18 13 0 0

User LNB(F) LO Frequency LO Selection 13/18V 0/22kHz

HVHV

User ........ 1 ... ...,... ... ... ... .../... ... ... ... ... ... ... ... ... ... ...

User ........ 2 ... ...,... ... ... ... .../... ... ... ... ... ... ... ... ... ... ...

Appendix 1

LNB(F) Configuration matrix

Page A1 - 2 EchoStar DVR-7000 Viaccess

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 1

APPENDIX 2

1. INTRODUCTION

This appendix gives the information necessary for the use of the Quattro with other

equipment than the EchoStar receiver. This appendix also contains a code reference list

which gives the program code for most of the know TV, video and audio equipment.

The Quattro is and infra red (IR) type programmable remote control unit (RCU) that is able to

control most functions (basic) of your TV, VCR, DVD and Audio equipment connected to the

receiver. You can program the RCU with a code to which your equipment responds. If the

code is not available in the supplied code list, the built-in intelligence assists you to find the

applicable code.

For future use it is recommended that you make a note of the equipment codes and the serial

number in the fields below: The RCU is already pre-programmed for the EchoStar receiver

with code 0222.

TVkey:____

VCRkey:____

AUXkey:____

SATkey:____

SerialNumber:__-___-__

2. THE BATTERIES

The RCU is powered by two 1.5 Volt Alkaline batteries type AA/LR6. We recommend that you

do not use rechargeable batteries. At battery change, the RCU keeps the programmed

information for a maximum of 15 minutes.

1. Remove the battery cover.

2. Find the battery + and - marks.

3. Insert the batteries accordingly the + and - marks.

4. Install the battery cover.

5. Press the SAT key once, Make sure the key lights up to indicate that it is ready for use.

3. THE KEYS

If the RCU is programmed with the correct equipment code, the keys should control the same

(basic) functions as the keys on the original remote control unit of that equipment.

The functionality of the SAT mode is discussed in the user’s guide of the satellite receiver.

The Power key

This key controls the On-OFF-STANDBY function.

TheMutekey

To blank out the volume.

Mode keys (TV, VCR, AUX, SAT)

These keys are programmable to take control over the television, video

recorder, DVD-player, audio sets and the satellite receiver.

MENU key

This key activates the available on-screen menu for the selected

equipment.

EPG key

If the function is available, this key activates the program function for

VCR and DVD equipment.

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 2 EchoStar DVR-7000 Viaccess

ikey

If the function is available, this key activates the display/information

function for TV, VCR and DVD equipment.

Satellite list key

Thiskeyisnotused.

Volume +/- keys

This key is used to control the volume level for the selected equipment.

CH +/- keys

This key is used to move one channel up or down for the selected

equipment.

Arrow cluster

To scroll left, up, right or down.

OK key

While in a menu, this key is mainly used to confirm a selection.

Page +/- keys

If the function is available, this key activates the tracking +/- function for

VCR and surround center +/- for audio equipment (AUX).

Recall key

This key brings back the last selection.

If the function is available, this key activates the random function (AUX).

Transport keys

These keys operate the transport function of your VCR, DVD and DVR.

To prevent accidental recording, the RECORD key is pressed twice to

start the recording.

Subtitle key

If the function is available, this key gives subtitles in DVD mode and may

also function in TV mode as white fast text key or menu key.

Audio language key

If the function is available, this key selects audio language choice for your

DVD player and stereo/mono or audio language for your television.

Bookmark key

This key is dedicated for use in the SAT mode, for detailed information

refer to the user’s guide of your satellite receiver.

?key

If the function is available, this key activates the ? function for teletext and

for some TVs it activates the 16:9 mode.

Red, Green, Yellow, Blue and White key

If the function is available, this key activates the fast text functions (fast

navigation in teletext). For some equipment the key activates the

menu function. For detailed information of the fast text functions,

please refer to the applicable user’s guide.

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 3

4. PROGRAM THE TV, VCR AND AUX KEY

You can program the mode keys (TV, VCR, AUX) with only one device per key.

■The TV key is used to setup the RCU to control your basic TV functions;

■The VCR key is used to setup the RCU to control your basic VCR or DVD functions;

■The AUX key is used to setup the RCU to control your amplifier, tuner or miscellaneous

audio equipment.

You can program the SAT mode keys to control a number of satellite receivers. The RCU is

default programmed to control the EchoStar satellite receiver that came in the same box.

4.1. SETUP WITH USE OF THE EQUIPMENT CODE LIST

1. Find your brand in the equipment code list.

2. Switch your TV to on and make sure a broadcast is seen.

3. On the RCU, press the TV key continuously until the indicator stays on.

4. Release the TV key and make sure the indicator blinks continuously.

5. Use the numerical keys to enter the first code that is listed behind your brand name.

6. Monitor the TV key and note that the indicator blinks three times.

7. Aim the RCU at your TV and press the on/standby key and make sure the TV switches

off.

8. Now the RCU is programmed to control your TV.

9. If there is no response aim and press again. If there is no response, the first code is not

valid for your TV. Repeat the previous steps with the next code given.

10. If the TV does not respond at the last code, continue with the next procedure

Numerical keys

The Numerical keys (0-9, TV/RAD, FAV) activates the same functions as

available on your original remote control unit, such as direct access

program selection.

TV/RAD key

If the function is available, this key operates as the AV key for TV and as

TV/VCR for VCR.

FAV key

If your original remote control unit uses one/two number keys (usually

marked as -/--, 10 or 20), press this key as usual.

Teletext keys

If the function is available, some transport keys control the main teletext

functions. You find the teletext functions under the given keys:

teletext off; press the stop key

teletext on; press the play key

teletext mix; press the rewind key

teletext hold; press the pause key

teletext expand; press the record key

NOTE

Some codes are quite similar. If your device does not respond or does not function

properly with one of the codes, try another code listed under your brand.

NOTE

The procedures to set the RCU for the TV, VCR, DVD and Audio equipment is

identical, therefor only the procedure to setup the TV is given.

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 4 EchoStar DVR-7000 Viaccess

4.2. SETUP WITH USE OF THE SEARCH CODE FEATURE

1. Switch your TV to on and make sure a broadcast is seen.

2. On the RCU, press the TV key continuously until the indicator stays on.

3. Release the TV key and make sure the indicator blinks continuously.

4. On the RCU, press the on/standby key and make sure the indicator of the TV key stays

on.

5. Press the up key once and see if the TV switches off.

Make sure you wait at least 2 seconds to allow the TV to respond.

6. If the TV does not switch off, repeat step 5 until the TV switches off.

7. After the TV switched off, press the OK key to store the code.

8. On the RCU, press the on/off key. See that the TV key blinks once and the TV switches

on.

9. Now your are ready to read-out the code from the memory for future use.

4.3. READ OUT THE EQUIPMENT CODE

1. Switch your TV to on and make sure a broadcast is seen.

2. On the RCU, press the TV key continuously until the indicator stays on.

3. Release the TV key and make sure the indicator blinks continuously.

4. Use the numerical keys to enter code 990.

5. Monitor the TV key and note that the indicator goes off and stays off.

6. Press the numerical key 1 and count the blinks for the first number.

7. Press the numerical key 2 and count the blinks for the second number.

8. Press the numerical key 3 and count the blinks for the third number.

9. Press the numerical key 4 and count the blinks for the fourth number.

10. Write the code, with a permanent pen, in the boxes in the battery cover and this manual.

11. Now the RCU is programmed to control your TV.

5. SPECIAL SETUP FUNCTIONS

It is possible to control a second TV or VCR with your RCU. One of the other mode keys (TV,

VCR, AUX) must be sacrificed in this case. It is not possible to sacrifice the SAT key.

It is also possible to control another (up to 16) EchoStar receivers that use the equipment

code 0222. This is done with use of the address feature in the SAT mode.

NOTE

■A completed search is indicated by eight blinks.

■If the original remote control unit for the VCR, DVD or audio device does not

have a on/off key: before you continue insert a tape or disk before you

continue;

■For some codes the play or Volume + key might work.

NOTE

You can read out the code from the RCU, just blink back the code. It is handy for

future reference. Remember you only can blink back the code after the RCU

operates your device.

NOTE

The amount of blinks gives you the first number, no blinks indicate a 0.

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 5

5.1. SETUP A SECOND TV OR VCR

1. On the RCU, press the TV key continuously until the indicator stays on.

2. Release the TV key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 992.

4. Monitor the TV key and note that the indicator goes on and off and finally stays on.

5. Press the VCR key once and note that the indicator goes on and off and finally stays off.

6. Now the VCR key is assigned as a TV key.

7. Setup the VCR key to control your second TV, refer to chapter 4 for detailed instructions.

5.2. UNDO THE SETUP OF A SECOND TV OR VCR

1. On the RCU, press the VCR key continuously until the indicator stays on.

2. Release the VCR key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 992.

4. Monitor the VCR key and note that the indicator goes on and off and finally stays on.

5. Press the VCR key once and note that the indicator goes on and off and finally stays off.

6. Now the VCR key is assigned as a VCR key.

7. Setup the VCR key to control your VCR, refer to chapter 4 for detailed instructions.

6. SPECIAL FUNCTIONS

6.1. VOLUME LOCK (PUNCH THROUGH)

The RCU allows you to select the device that you want to control the volume of,

independently from any other mode. As an example, if you are in the SAT mode, you can stay

in the SAT mode and adjust the volume of the TV directly with the volume +/- key.

1. On the RCU, press the TV key continuously until the indicator stays on.

2. Release the TV key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 993.

4. Press the TV key once.

5. Monitor the TV key and note that the indicator blinks three times.

6. Now the volume control is locked to the TV except for the AUX mode.

6.2. RESET VOLUME LOCK (PUNCH THROUGH)

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 993.

4. Press the Volume + key once and note that the indicator blinks four times.

5. Now the volume control is unlocked to control the device that belongs to that key.

NOTE

The procedure to assign a second TV or VCR is identical, therefor only the

procedure to assign the second TV is given.

NOTE

The procedure to undo an assignment for the TV or VCR is identical, therefor only

the procedure to undo the assignment of the VCR key as a second TV is given.

NOTE

The procedures to set the volume lock for the TV, VCR, DVD and Audio equipment

is identical, therefor only the procedure to set the volume lock for the TV is given.

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 6 EchoStar DVR-7000 Viaccess

6.3. REAL-TIME MACROS

This feature allows you to program a macro on any key. With a macro you can assign a chain

of key strokes to any key on the RCU, also on a mode key. The macros are recorded and

played real-time, which means the actual time between key strokes will also be recorded.

6.3.1. DEFINE A MACRO

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 995and note that the indicator stays on.

4. Choose and press the key which you want to assign for the macro. This can be any key,

but after the recording it’s original function is lost.

5. Immediately program the macro as required, after the final key stroke press the SAT key

for three seconds to close the macro. Note that the indicator blinks three times.

6. Now the macro is recorded successfully and ready for use.

6.3.2. PLAY BACK A MACRO

If a macro is recorded under any key, not being a mode key, press the key and the macro

plays back, for a macro under a mode key you have to press the key twice within two

seconds.

6.3.3. DELETE A MACRO

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 995and note that the indicator stays on.

4. Choose and press the key for the macro that you want to delete.

5. Press the SAT key for three seconds to delete the macro. Note that the indicator blinks

three times.

6. Now the macro is deleted successfully and the original key function is restored.

6.4. FACTORY RESET

You can do either a functional reset which means that all personal programs as volume lock

and real-time macros are lost. All equipment codes will remain.

A full factory reset is done if you want to delete all personal programming as well as the

equipment codes. This procedure will return the factory settings which you can customize

later.

6.4.1. FUNCTIONAL RESET

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Keep the SAT key pressed.

3. Use the numerical keys to enter code 980and note that the indicator blinks four times.

4. Now the RCU is programmed with the factory settings and ready for reprogramming.

NOTE

■You have to complete the macro within a maximum of 8 key strokes.

■If a mode key is used within a macro then all keys pressed after this mode key

will follow that mode until another mode key is pressed.

■Nested macros are not possible, in other words you cannot start another macro

within a macro.

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 7

6.4.2. FULL FACTORY RESET

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Keep the SAT key pressed.

3. Use the numerical keys to enter code 981and note that the indicator blinks four times.

4. Now the RCU is programmed with the factory settings and ready for reprogramming.

7. TROUBLESHOOTING

Problem Possible cause What to do?

1. Device does not respond

to the RCU.

■You did not select the

correct code for the

device.

■Try all the codes listed for

your brand.

■Try the search method.

2. One of the mode keys

blinks twice when a key is

pressed but the device

does not respond.

■Batteries are empty. ■Insert new batteries.

3. Device does sometimes

not respond to the RCU.

■Direct sun light from

behind the device.

■Close the sun blinds or

get closer to the device.

■Youdonotaim

sufficiently at the device.

■Aim at the device’s

display.

■install a RCU extender.

■Batteries are almost

empty.

■Insert new batteries.

4. Your device code is not

listed.

■The device code was not

know at the time this

manual was created.

■Try the search method.

5. The RCU does not exe-

cute the commands prop-

erly.

■Some codes are quite

similar, maybe you have

chosen the wrong code.

■Try another code listed

for your brand.

■Try the search method.

6. Volume control does not

respond as expected.

■Volume is locked to

another device.

■Undo the volume lock

(punch through) function.

7. Video does not record. ■You pressed the record

key once.

■Press the record key

twice to start. The RCU

has a safety feature to

avoid a start of an

unwanted recording.

8. The RCU gives still prob-

lems.

■Your customized settings

are corrupted.

■Do an operational reset.

■Do a factory reset.

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 8 EchoStar DVR-7000 Viaccess

8. EQUIPMENT CODES

8.1. ECHOSTAR SATELLITE RECEIVERS

AD2000 IP 0453

AD3000 series 0222

D2500 IP 0511

DSB1100 1086

DSB2000 0853

DSB9800 0871

DVR-7000 series 0222

IR700 0312

LT7500 0465

LT80+ 0688

LT8700 0454

SR1500 0218

SR200 I.P 0713

SR4500 0100

SR5500 0170

8.2. ECHOSTAR KEY ASSIGNMENTS

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

------

1 1 1 1 1 1

222222

3 3 3 3 3 3

444444

5 5 5 5 5 5

666666

7 7 7 7 7 7

888888

9 9 9 9 9 9

000000

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 9

TONE-

Radio guide

select

A/V TV/SAT-TV

or sat. select

X- Favorite

IRD

FAVORITE RADIO/SAT-

Radio or

FCH, fav list

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

Channel up

IRD

Cursor up

IRD

Channel up

IRD

Ch up IRD Ch up IRD Channel up

IRD

Channel

DOWN IRD

Cursor down

IRD

Channel

DOWN IRD

Ch down

IRD

Ch down

IRD

Channel

DOWN IRD

Volume up

IRD

Cursor left

IRD

Volume up

IRD

Vol- IRD Volume up

IRD

Volume up

IRD

Volume

down IRD

Cursor right

IRD

Volume

down IRD

Vol+ IRD Volume

down IRD

Volume

down IRD

->EXIT- IRD RECALL

SAT

ERASE RECALL

EPG- EPG Guide

SERV- Info

subscription

STORE ENTER- Ok

IRD

CLAMP

Menu-

Navigator

IRD

Menu-

Navigator

IRD

MENU Menu-

Navigator

IRD

FORMAT-

format

SETUP -

Setup menu

IRD

Up cursor

IRD

Cursor up

IRD

Ch up IRD VIDEO

FINE- up

TUNING- up

IRD

Down cursor

IRD

Cursor down

IRD

Ch DOWN

IRD

VIDEO

FINE- down

TUNING-

down IRD

Left cursor

IRD

Cursor left

IRD

Left cursor

IRD

Tuning < SKEW- down

Right cursor

IRD

Cursor right

IRD

Right cursor

IRD

Tuning > SKEW- up

OK- IRD OK- IRD SELECT-

store

settings

STORE-

store IRD

ENTER-

store

selection

INFO- Info

prog IRD

Info- Info

IRD

CANCEL-

cancel

VIDEO

DEVIA

VIEW

E- Function

key

ESC-

Escape, exit

IRD

VIEW CANCEL-

cancel IRD

POSITION

A- Function

key

=== - MAC

teletekst

WEST- move

dish west

B- Function

key

SAT-

8.2. ECHOSTAR KEY ASSIGNMENTS (CONTINUED)

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 10 EchoStar DVR-7000 Viaccess

C- Function

key

<| |> -

enlarge

screen

STOP- stop

moving dish

D- Function

key

=?= -

subtitiling

select

EAST- move

dish east

subtitling --- subtitling

on/off

P.LOCK- set

change p.

Lock

AUDIO DE-

EMPH

P. L O C K - s e t

change p.

Lock

+- Add. Info,

subtitling

TUNE AUDIO-

audio menu

BANDWITH AUDIO

TV/SAT

Select TV or

DBS

Ext PPV VIDEO-

video menu

POLARITY

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select SAT

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select TV

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select VCR

mode

Select AUX

mode

Select AUX

mode

Select AUX

mode

Select AUX

mode

Select AUX

mode

Select AUX

mode

1 1 1 1 1 1

222222

3 3 3 3 3 3

444444

5 5 5 5 5 5

666666

7 7 7 7 7 7

888888

9 9 9 9 9 9

000000

TV/Radio

select

TV/Radio

select

RADIO -TV/

Radio select

Favorite Favorite FAV/MAIN-

Favorite or

main list

FAV,

CANCEL

FAV,

CANCEL

8.2. ECHOSTAR KEY ASSIGNMENTS (CONTINUED)

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 11

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

MUTE-

Volume Mute

IRD

Channel up

IRD

Channel up

IRD

Channel +

IRD

Channel up

IRD

TUNING- up

IRD

Channel up

IRD

Channel

DOWN IRD

Channel

DOWN IRD

Channel -

IRD

Channel

DOWN IRD

TUNING-

down IRD

Channel

DOWN IRD

Volume up

IRD

Volume up

IRD

Volume +

IRD

Volume up

IRD

Volume up

IRD

Volume up

IRD

Volume

down IRD

Volume

down IRD

Volume -

IRD

Volume

down IRD

Volume

down IRD

Volume

down IRD

TV/DBS-

Select TV or

DBS

TV- Select

TV or Sat

TES -

Internal sync

toggle

Guide - IRD Guide - IRD

SAT-List of

satellites

SAT-List of

satellites

INDEX-

system info

MASK SCAN - dish

par.

MASK

Menu-

Navigator

IRD

Menu-

Navigator

IRD

ENTER

SATELLITE

Menu-

Navigator

IRD

ENTER

SATELLITE

Channel up

IRD

Channel up

IRD

Up cursor

IRD

TUNING- up

IRD

Channel

DOWN IRD

Channel

DOWN IRD

Down cursor

IRD

TUNING-

down IRD

Volume

down IRD

Volume

down IRD

Left cursor

IRD

<- TUNING <- TUNING <- TUNING

Volume up

IRD

Volume up

IRD

Right cursor

IRD

-> TUNING -> TUNING -> TUNING

OK/Store

IRD

OK/Store

IRD

STORE- IRD STORE-

store

settings

ENTER-

store

selection

STORE-

store

settings

Info IRD Info IRD EXTRA

FEATURES

EXTRA

FEATURES

Exit IRD Exit IRD CANCEL -

Cancel IRD

WEST- move

dish west

DOWN/

CANCEL -

Pos. control

TUNING

SELECT

SAT/STORE-

Pos. control

TUNING

SELECT

FSS/DBS SKEW- skew

setting

FSS/DBS

EAST- move

dish east

AUDIO

BANDWITH

UP/ERASE -

Pos. control

AUDIO

BANDWITH

DIG/ANA-

Digital

analog

toggle IRD

TIMER- set

timer

AUDIO DE-

EMPH

BRF/TEF AUDIO

DE-EMPH

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 12 EchoStar DVR-7000 Viaccess

Speaker ALT- Audio

language

toggle

LOCK- set

change par.

Lock

STEREO AUDIO-

audio

parameters

STEREO

UHF-Select

TV or DBS

BACK-

Background

toggle

MIX-

Background

toggle

FORMAT VIDEO-

video menu

FORMAT

8.3. AMPLIFIERS

Arcam 0641 Pioneer 0013, 0300

Bush 0421 Sansui 0321

Cyrus 0683 Sherwood 0711

Denon 0272 Sony 0689

Goodmans 0421, 0847 Tevion 1129

JBL 0668, 1177 Videologic 1095

Kenwood 0772 Yamaha 0354

Philips 0641

8.4. MISCELLENEOUS AUDIO

Goodmans 0841 Uher 0841

Sanyo 0871, 0882 Videologic 1179

8.5. RECEIVERS

Aiwa 0121, 1405, 1188 Okano 0440

Akai 0115, 0440 Onkyo 0135

Arcam 0642 Panasonic 0763

Audiolab 1189 Philips 0642, 1089, 1189, 1269,

1289

Bang & Olufsen 0799 Phonotrend 0502

Denon 1104, 1160 Pioneer 0289, 1107, 1143

Fine Arts 1189 RCA 1254, 1123

Fisher 0360 Sanyo 0219, 0360

Goodmans 0440 Sharp 0262

Grundig 0219, 1131, 1189, 1192 Sherwood 0491, 0502, 0653, 1050

Harman/Kardon 0110 Sony 1058, 1158, 1258

JVC 0074, 0464 Te c h n ic s 0208, 1135, 1308, 1309,

1518

Kenwood 1027, 1313, 1569, 1570 Thomson 1254

Marantz 0219, 0412, 1089, 1189 Thorens 1189

Memorex 1024 Venturer 1033

Micromega 1189 Wharfedale 0440

Mitsubishi 0440 Yamaha 0176, 0712, 1276

Myryad 1189

8.6. TELEVISIONS

AGB 0516 M Electronic 0009, 0037, 0057, 0104,

0105, 0109, 0163, 0217,

0346, 0374, 0480

ASA 0087, 0104 MTC 0349, 0512

Acura 0009 Magnadyne 0087, 0102, 0247, 0516

Admiral 0087, 0163 Magnafon 0102, 0516

Adyson 0032, 0217 Magnum 0648

Aiwa 0701 Manesth 0217, 0235, 0264

Akai 0208, 0361, 0516, 0602,

0708

Marantz 0037, 0556

Akito 0272 Marelli 0087

Akura 0218, 0264, 0358, 0493 Mark 0037

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 13

Alba 0009, 0036, 0037, 0211,

0218, 0235, 0371, 0581,

0668

Matsui 0009, 0011, 0035, 0036,

0037, 0072, 0177, 0208,

0211, 0217, 0235, 0272,

0294, 0354, 0355, 0371,

0443, 0487, 0516, 0579

Allorgan 0294 McMichael 0043

Amplivision 0217, 0400 Mediator 0012, 0037

Amstrad 0009, 0037, 0171, 0177,

0354, 0371, 0412, 0433,

0516

Medion 0668

Anitech 0009 Memorex 0009, 1037

Arc En Ciel 0501, 0568 Memphis 0337

Arcam 0216, 0217 Metz 0087, 0275, 0367, 0388,

0447

Asuka 0218 Minerva 0070, 0237, 0487

Atlantic 0206 Minoka 0412

Audiosonic 0037, 0109 Mitsubishi 0033, 0036, 0087, 0108,

0237, 0354, 0512, 0691

Autovox 0087, 0206, 0237, 0336 Mivar 0216, 0290, 0291, 0292,

0516, 0609

BPL 0282 Multitech 0009, 0102, 0216

BSR 0294 Myryad 0556

BTC 0218 NEC 0170, 0704

Bang & Olufsen 0087, 0565 NEI 0037, 0337

Barco 0380 National 0237

Basic Line 0009, 0218 Neckermann 0037, 0087, 0191, 0349,

0505, 0556

Baur 0010, 0037, 0349, 0361,

0505, 0512 Nesco 0179

Beko 0370, 0486, 0714, 0715 Nikkai 0032, 0035, 0037, 0072,

0216, 0218, 0264, 0337

Beon 0037 Nobliko 0102

Bestar 0626 Nogamatic 0501, 0568

Binatone 0217 Nokia 0361, 0473, 0480, 0548,

0606, 0631

Blaupunkt 0191, 0195, 0200, 0327,

0328

Nordmende 0109, 0196, 0198, 0501,

0560, 0568

Blue Sky 0218, 0668, 1037 Oceanic 0163, 0361

Blue Star 0282 Onwa 0433

Bondstec 0247 Orion 0037, 0177, 0235, 0294,

0355, 0364, 0443, 0516,

0655

Boots 0217 Osaki 0032, 0072, 0217, 0218,

0264, 0412, 0493

Brandt 0109, 0196, 0198, 0335 Oso 0218

Brandt Electronic 0501, 0568 Osume 0032, 0072, 0157

Brionvega 0087 Otto Versand 0010, 0036, 0037, 0191,

0217, 0349, 0505, 0512,

0556

Britannia 0216 Palladium 0370, 0418

Bruns 0087 Panama 0217, 0264

Bush 0009, 0036, 0037, 0211,

0218, 0272, 0282, 0294,

0349, 0355, 0371, 0374,

0519, 0581, 0668

Panasonic 0126, 0163, 0214, 0226,

0237, 0250, 0274, 0367,

0650

CGE 0074, 0084, 0247 Pathe Cinema 0216, 0238

CS Electronics 0216 Pathe Marconi 0196, 0198, 0501, 0568

CTC 0247 Pausa 0009

Carrefour 0036 Phase 0032

Cascade 0009 Philco 0074, 0084, 0087, 0247

Cathay 0037 Philips 0012, 0037, 0043, 0087,

0193, 0374, 0556

Centurion 0037 Phoenix 0087

8.6. TELEVISIONS (CONTINUED)

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 14 EchoStar DVR-7000 Viaccess

Century 0087 Phonola 0012, 0037, 0087

Cimline 0009 Pioneer 0109, 0163, 0166

Clarivox 0037 Prandoni Prince 0516

Clatronic 0247, 0370 Profex 0009, 0361

Condor 0370 Protech 0009, 0037, 0102, 0217,

0247, 0264, 0337, 0418,

0668

Contec 0009, 0036, 0216 Pye 0012

Continental Edison 0196, 0198, 0399, 0501,

0568 Quelle 0010, 0011, 0037, 0070,

0074, 0084, 0104, 0200,

0327, 0328, 0361, 0505,

0512

Crosley 0074, 0084, 0087 Questa 0036

Crown 0009, 0037, 0370, 0418,

0579

R-Line 0037

Cybertron 0218 RBM 0070

Daewoo 0009, 0037, 0374, 0499 RFT 0087, 0428

Dainichi 0218 Radiola 0012, 0037

Dansai 0037 Radiomarelli 0087, 0516

Dayton 0009 Rank Arena 0036

De Graaf 0208, 0548 Rediffusion 0361

Decca 0037, 0072, 0272, 0516 Revox 0037

Denon 0145 Rex 0163, 0206, 0259, 0264

Dixi 0009, 0037 Roadstar 0009, 0218, 0264, 0418

Dual 0336, 0519 Runco 0603

Dual Tec 0217 SBR 0012, 0037, 0043, 0193

Dumont 0070, 0087 SEG 0036, 0217, 0264, 0668

Elbe 0259 SEI 0010, 0087, 0102, 0177,

0294, 0516

Elin 037, 0548 Saba 0087, 0109, 0163, 0196,

0198, 0335, 0501, 0568

Elite 0218 Saccs 0238

Elta 0009 Sagem 0610

Emerson 0087, 0361 Saisho 0009, 0011, 0033, 0177,

0211, 0235, 0264, 0354,

0516

Erres 0012, 0037 Salora 0163, 0194, 0349, 0356,

0359, 0361, 0548

Europhon 0516 Sambers 0102, 0516

Expert 0206 Samsung 0009, 0037, 0060, 0217,

0264, 0290, 0370, 0556,

0587

Ferguson 0037, 0073, 0109, 0190,

0193, 0238, 0324, 0335,

0560

Sandra 0216

Fidelity 0193, 0216, 0361 Sanyo 0011, 0036, 0045, 0072,

0104, 0157, 0208, 0339

Finlandia 0208, 0346, 0359 Schaub Lorenz 0361

Finlux 0037, 0070, 0072, 0087,

0104, 0105, 0179, 0346,

0411, 0516

Schneider 0037, 0057, 0218, 0247,

0303, 0336, 0371, 0394,

0668

Firstline 0009, 0216, 0217, 0247,

0294, 0668

Seleco 0163, 0206, 0259, 0411

Fisher 0104, 0208, 0217, 0303,

0370, 0555

Sentra 0035

Flint 0455 Sharp 0036, 0093, 1093, 1193

Forgestone 0193 Shorai 0294

Formenti 0037, 0087 Siarem 0087, 0102, 0516

Frontech 0163, 0247, 0264, 0448 Siemens 0037, 0157, 0191, 0195,

0200, 0327, 0328

Fujitsu 0072, 0206, 0683 Silver 0036

Funai 0179, 0264, 0294, 0303 Singer 0087

8.6. TELEVISIONS (CONTINUED)

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 15

GEC 0037, 0043, 0072, 0217,

0516

Sinudyne 0010, 0087, 0102, 0177,

0235, 0294, 0516

GPM 0218 Skantic 0356

Geloso 0009 Solavox 0032, 0163

Genexxa 0163, 0218 Sonitron 0208

GoldStar 0037, 0109, 0217, 0290,

0377

Sonoko 0009, 0037

Goodmans 0036, 0037, 0072, 0179,

0217, 0235, 0364, 0371,

0374, 0499, 0624

Sonolor 0163, 0208

Gorenje 0370 Sontec 0037

Graetz 0163, 0361 Sony 0010, 0011, 0036, 0505,

1505, 1651

Granada 0037, 0045, 0072, 0208,

0217, 0339, 0359, 0516

Soundwave 0037, 0418

Grandin 0282, 0610 Standard 0009, 0217, 0218

Grundig 0070, 0191, 0195, 0237,

0487, 0556, 0587 Stern 0163, 0206, 0259

HCM 0009, 0282, 0412 Sunkai 0294, 0355

Hanseatic 0037, 0361, 0428, 0556 Susumu 0218

Hantarex 0516 Sysline 0037

Hifivox 0501, 0568 T + A 0447

Hinari 0009, 0036, 0037, 0179,

0218 Tan dy 0072, 0163, 0217, 0218,

0276

Hisawa 0282, 0400, 0455 Tashiko 0036, 0043, 0217, 0359

Hitachi 0032, 0036, 0043, 0044,

0105, 0109, 0145, 0163,

0196, 0198, 0217, 0225,

0349, 0356, 0441, 0481,

0548, 0563, 0578

Tatung 0037, 0072, 0217, 0516

Huanyu 0216, 0374 Tec 0217, 0247

Hypson 0037, 0264, 0282 Technic s 0250, 0650

ICE 0217, 0264, 0371 Technol Ace 0179

ICeS 0218 Teleavia 0501, 0568

ITS 0371 Telefunken 0074, 0084, 0101, 0109,

0262, 0335, 0471, 0498,

0501, 0568, 0625

ITT 0163, 0361, 0548 Teletec h 0009

Imperial 0074, 0084, 0247, 0370,

0418 Teleton 0036, 0206, 0217, 0349

Indesit 0237 Ten sai 0218, 0294

Indiana 0037 Texet 0216, 0218

Ingelen 0163 Thomson 0109, 0196, 0198, 0237,

0349, 0399, 0501, 0568

Inno Hit 0072, 0516 Thorn 0035, 0037, 0072, 0074,

0084, 0104, 0190, 0192,

0193, 0361, 0499, 0505,

0512

Interfunk 0037, 0163, 0247, 0361,

0501, 0512, 0568 Tom ashi 0282

Intervision 0037, 0102, 0217, 0264,

0377, 0654 Toshiba 0035, 0036, 0070, 0243,

0508, 1508

Isukai 0218 Triumph 0177, 0243, 0516

JVC 0036, 0053, 0094, 0190,

0192, 0371, 0606, 0643,

0653

Uher 0206, 0303

Kaisui 0009, 0216, 0217, 0218,

0282 Ultra 0192

Kapsch 0163, 0206 Ultravox 0102

Karcher 0610 Universum 0037, 0104, 0105, 0264,

0346, 0370, 0492

Kathrein 0556 Vestel 0037

Kendo 0037, 0235 Videosat 0247

Kingsley 0216 Videotechnic 0217

8.6. TELEVISIONS (CONTINUED)

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 16 EchoStar DVR-7000 Viaccess

Kneissel 0259, 0435 Voxson 0087, 0163

Korpel 0037 Waltham 0217, 0356

Korting 0087 Watson 0037

Koyoda 0009 Watt Radio 0102

Leyco 037, 0072, 0264, 0294 Wega 0036, 0087

Liesenk & Tter 0037 White Westinghouse 0037, 0216

Lloytron 0032 Yok o 0037, 0217, 0264

Loewe 0087, 0512 Zanussi 0206

Luma 0206

Luxor 0194, 0237, 0349, 0356,

0361

8.7. VIDEO RECORDERS

ASA 0037, 0081 NEC 0038, 0041, 0067

Aiwa 0000, 0307, 0348, 0352 Neckermann 0081

Akai 0041, 0106, 0315 Nesco 0072

Akiba 0072 Nokia 0041, 0046, 0104, 0106,

0240

Akura 0271 Nordmende 0041, 0320, 0321, 0384,

0494

Alba 0020, 0072, 0278, 0293,

0315, 0333, 0334, 0352,

0554

Oceanic 0000, 0041

Ambassador 0020, 0554 Okano 0315, 0348

Amstrad 0000, 0278, 0325, 0332 Orion 0004, 0333, 0334, 0343,

0348, 0352

Anitech 0072 Osaki 0000, 0037, 0072

Asuka 0037 Otto Versand 0081

Baird 0000, 0041, 0104, 0107 Palladium 0006, 0037, 0041, 0072

Bang & Olufsen 0013, 0499 Panasonic 0162, 0226, 0227, 0454,

0459, 1162

Basic Line 0020, 0072, 0278, 0554 Pathe Marconi 0041

Blaupunkt 0003, 0006, 0034, 0154,

0162, 0195, 0226, 0227 Pentax 0042

Blue Sky 0278 Perdio 0000

Brandt 0320, 0321, 0493 Philco 0038

Brandt Electronic 0041 Philips 0081, 0146, 0384

Bush 0072, 0278, 0293, 0333,

0334, 0352 Phonola 0081

CGE 0000 Pioneer 0067, 0081

Catron 0020, 0554 Portland 0020, 0554

Cimline 0072 Profex 0322

Clatronic 0020, 0554 Profitronic 0240

Combitech 0352 Proline 0000, 0293

Condor 0020, 0554 Pye 0081

Crown 0020, 0072, 0278, 0554 Quartz 0046

Cyrus 0081 Quelle 0081

Daewoo 0020, 0278, 0554 Radiola 0081

Dansai 0072 Rex 0041, 0384

De Graaf 0042, 0166 Roadstar 0037, 0072, 0240, 0278

Decca 0000, 0081 SBR 0081, 0146

Denon 0042 SEG 0240, 0322

Dual 0041 SEI 0004, 0081

Dumont 0000, 0081, 0104 Saba 0041, 0206, 0207, 0320,

0321, 0384, 0494, 0530

ESC 0240, 0278 Saisho 0004

Elbe 0038 Salora 0043, 0046, 0106

Elcatech 0072 Samsung 0240, 0432

8.6. TELEVISIONS (CONTINUED)

EchoStar Quattro, Programmable Remote Control Unit

Appendix 2

Digital Satellite Receiver Page A2 - 17

Ferguson 0041, 0107, 0320, 0321,

0493

Sansui 0041, 0067, 0271

Fidelity 0000 Sanyo 0046, 0104

Finlandia 0081, 0104 Saville 0352

Finlux 0000, 0042, 0081, 0104 Schaub Lorenz 0000, 0041, 0104

Firstline 0037, 0043, 0045, 0072 Schneider 0000, 0072, 0081

Fisher 0046, 0047, 0054, 0104 Seleco 0041

Frontech 0020, 0554 Sentra 0020, 0554

Funai 0000 Sharp 0048, 0062

GEC 0081 Shintom 0072, 0104

General 0020, 0554 Shorai 0004

GoldHand 0072 Siemens 0003, 0006, 0037, 0054,

0081, 0104, 0146, 0195

GoldStar 0037 Silva 0037

Goodmans 000, 0020, 0037, 0062,

0072, 0278, 0343, 0554,

0637

Singer 0045

Graetz 0041, 0104, 0240 Sinudyne 0004, 0081

Granada 0046, 0081, 0104 Solavox 0020, 0554

Grandin 0000, 0037, 0072 Sonolor 0046, 0062

Grundig 0003, 0006, 0007, 0072,

0081, 0195, 0207, 0226,

0293, 0347, 0349

Sontec 0037

HCM 0072, 0293 Sony 0011, 0032, 0033, 0034,

1032

Hanseatic 0037 Sunkai 0348

Hinari 0004, 0072, 0240, 0293,

0352

Sunstar 0000

Hitachi 0000, 0004, 0041, 0042,

0166, 0240, 0544

Suntronic 0000

Hypson 0072 Tash i ko 0000

ITT 0041, 0046, 0104, 0106,

0240, 0384 Tatung 0000, 0041, 0081

ITV 0020, 0037, 0278 Tec 0020, 0554

Imperial 0000 Technics 0162, 0226

Ingersol 0004 Teleavia 0041, 0493

Interfunk 0081 Telefunken 0041, 0320, 0321, 0384,

0493, 0494, 0529, 0580

JVC 0008, 0041, 0067, 0206,

0207, 0384 Te n os a l 0072

Kaisui 0072 Tensai 0000, 0322

Kendo 0106 Thomson 0041, 0320, 0384, 0493,

0494, 0528

Kenwood 0041 Thorn 0041, 0104

Korpel 0072 Tosh ib a 0041, 0043, 0045, 0081,

0384

Lenco 0278 Towada 0322

Leyco 0072 Uher 0240

Loewe 0004, 0006, 0037, 0081,

0162, 0454, 1162 Universum 0000, 0006, 0037, 0081,

0106, 0195, 0240, 0325

Logik 0004, 0240 Yamishi 0072

Luxor 0043, 0046, 0048, 0062,

0104, 0106

Yokan 0 07 2

MElectronic 0000, 0038 Yoko 0020, 0240, 0554

Manesth 0045, 0072 Thorn 0041, 0104

Marantz 0003, 0006, 0062, 0081,

0146 Tosh i ba 0041, 0043, 0045, 0081,

0384

Matsui 0004, 0348, 0352 Towada 0322

Memorex 0000, 0037, 0046, 0104 Uher 0240

Memphis 0072 Universum 0000, 0006, 0037, 0081,

0106, 0195, 0240, 0325

8.7. VIDEO RECORDERS (CONTINUED)

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

Page A2 - 18 EchoStar DVR-7000 Viaccess

Metz 0003, 0006, 0037, 0162,

0195, 0227, 0347, 0454,

0459, 1162

Yamishi 0072

Minerva 0006, 0195 Yokan 0072

Mitsubishi 0043, 0067, 0075, 0081,

0608

Yoko 0020, 0240, 0554

Multitech 0000, 0072

Murphy 0000

Myryad 0081

8.8. DVD

Akai 0611 Samsung 0573

Bush 0690 Sharp 0630

Denon 0490 Sony 0533

JMB 0695 Technics 0490

JVC 0558 Thomson 0551

Kenwood 0490, 0534 Tos h i b a 0503

Oritron 0651 Wharfedale 0686

Panasonic 0490, 0703 Yamaha 0668

Philips 0539 Yamakawa 0665

Pioneer 0525, 0571

Proline 0652

8.7. VIDEO RECORDERS (CONTINUED)

Kenwood DVR 7000 Dvr7000hddvcs_b_1a_us User Manual To The 9ab5d476 7286 4adf B12d 17d8d9213d81

Navigation menu

Versions of this User Manual:

Views

Navigation
