Z828MP

B64-2089-00 (EW)

CD-RECEIVER

INSTRUCTION MANUAL

— 2 —

English

Contents

Safety precautions ........................3

Handling Compact discs................6

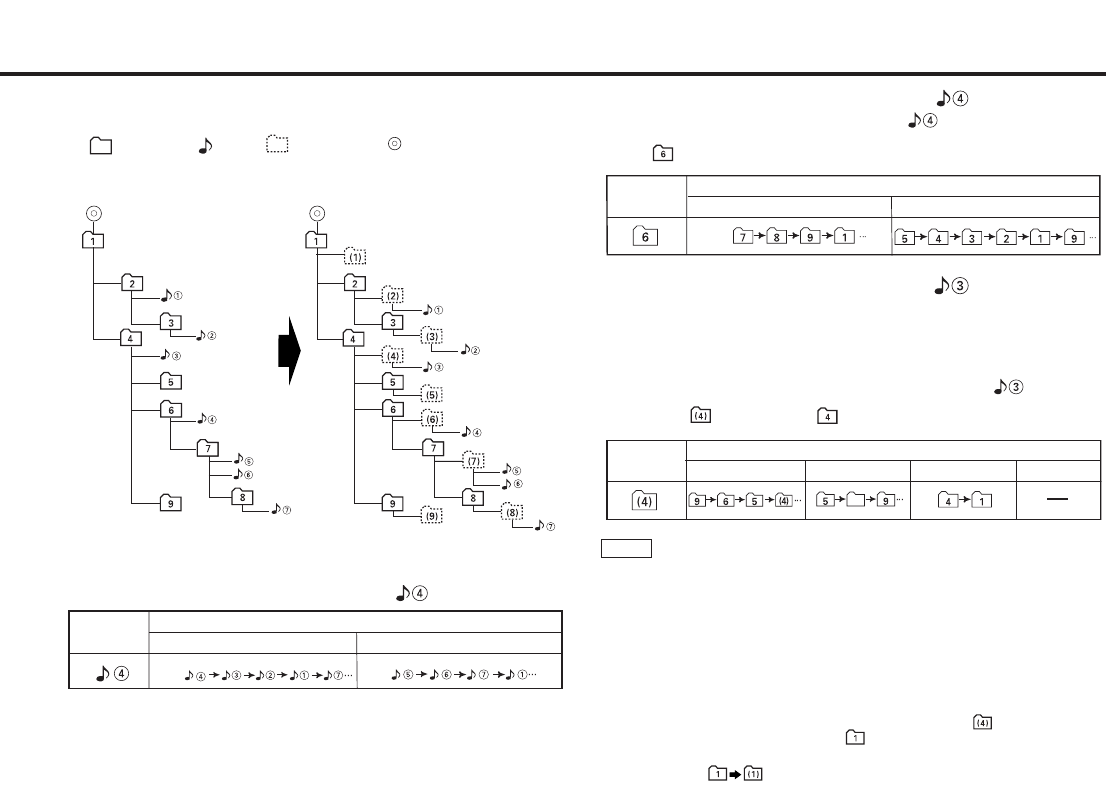

Notes on playing MP3 files ...........8

General features

Power ........................................................10

Volume.......................................................10

Attenuator..................................................11

Switching Modes.......................................11

Loudness ...................................................11

Switching Display Mode............................12

Switching the Upper Part Display..............12

Switching the Lower Part Display .............14

Switching Full-Screen Display....................15

TEL Mute...................................................15

Switching Display during the

Standby mode.......................................16

Theft Deterrent Faceplate .........................16

System Q ..................................................16

Speaker & Woofer setting .........................17

Non-Fading Output....................................17

Dual Zone System.....................................18

Audio control features

Audio Control Setting ................................19

Bass Centre Frequency ............................19

Bass Level .................................................19

Bass Quality Factor ...................................19

Bass Extend ..............................................19

Middle Centre Frequency .........................20

Middle Level..............................................20

Middle Quality Factor................................20

Treble Centre Frequency ..........................20

Treble Level ...............................................20

Balance Level ............................................20

Fader Level................................................20

Non-Fading Level.......................................20

High-pass Filter Frequency

for Front Output ....................................21

High-pass Filter Frequency

for Rear Output .....................................21

Low-pass Filter Frequency

for Non-Fading Output ..........................21

Phase for Non-Fading Output ...................21

Volume Offset ...........................................21

Tuner features

Tuning........................................................22

Station Preset Memory.............................22

Direct Access Tuning.................................23

Preset station seek

with Programme service name.............23

RDS features

RDS (Radio Data System) .........................24

Enhanced Other Network .........................24

Alarm.........................................................24

Traffic Information Function.......................25

Presetting Volume for Traffic

Information/News..................................25

Programme Type (PTY) Function ...............26

Changing Language for

Programme Type(PTY) Function ............27

Radio Text Scroll ........................................27

CD/External disc control features

Playing CDs...............................................28

Playing Other Disc mode ..........................29

Fast Forwarding and Reversing

Disc Play................................................29

Track Search ..............................................30

Disc Search ...............................................30

Track / Disc Repeat....................................30

Track Scan .................................................30

Random Play .............................................31

Magazine Random Play.............................31

Text Scroll..................................................32

Presetting Disc Names (DNPS).................32

Disc Name Preset Play (DNPP).................33

MP3 player features

Playing MP3 Files......................................34

File Search.................................................35

Folder Search ............................................35

Fast Forwarding and Reversing

MP3 Play...............................................36

Folder Select .............................................36

File / Folder Repeat ...................................37

Random Play .............................................37

Name Scroll for MP3.................................37

Menu settings

Menu System............................................38

Code Security Function.............................39

Touch Sensor Tone ....................................40

Manual Time Adjustment ..........................40

Calendar Adjustment.................................40

Calendar Mode..........................................40

Automatic Time Adjustment......................41

Disabled System Indicator (DSI)................41

Icon/Spectrum analyzer Select..................41

Font Select ................................................41

Dimmer .....................................................41

System Q ..................................................42

Switching preout .......................................42

Built-in Amp Mute Control ........................42

Switching Dual Zone System Output........42

External Amp Control................................42

News Bulletin Function

with PTY News Timeout Setting...........42

Local Seek Function ..................................43

Selecting Tuning Mode..............................43

Auto Memory Entry ..................................43

AF (Alternative Frequency ) Function ........44

Restricting RDS Region

(Region Restrict Function).....................44

Auto TP Seek Function ..............................44

Monaural Reception..................................44

Reading the MP3 ID3 tag .........................44

Text Scroll ................................................45

Power OFF Timer ......................................45

Built-in AUX Control ..................................45

Basic Operations

of remote control ..................46

Installation

Accessories...............................................49

Installation Procedure................................49

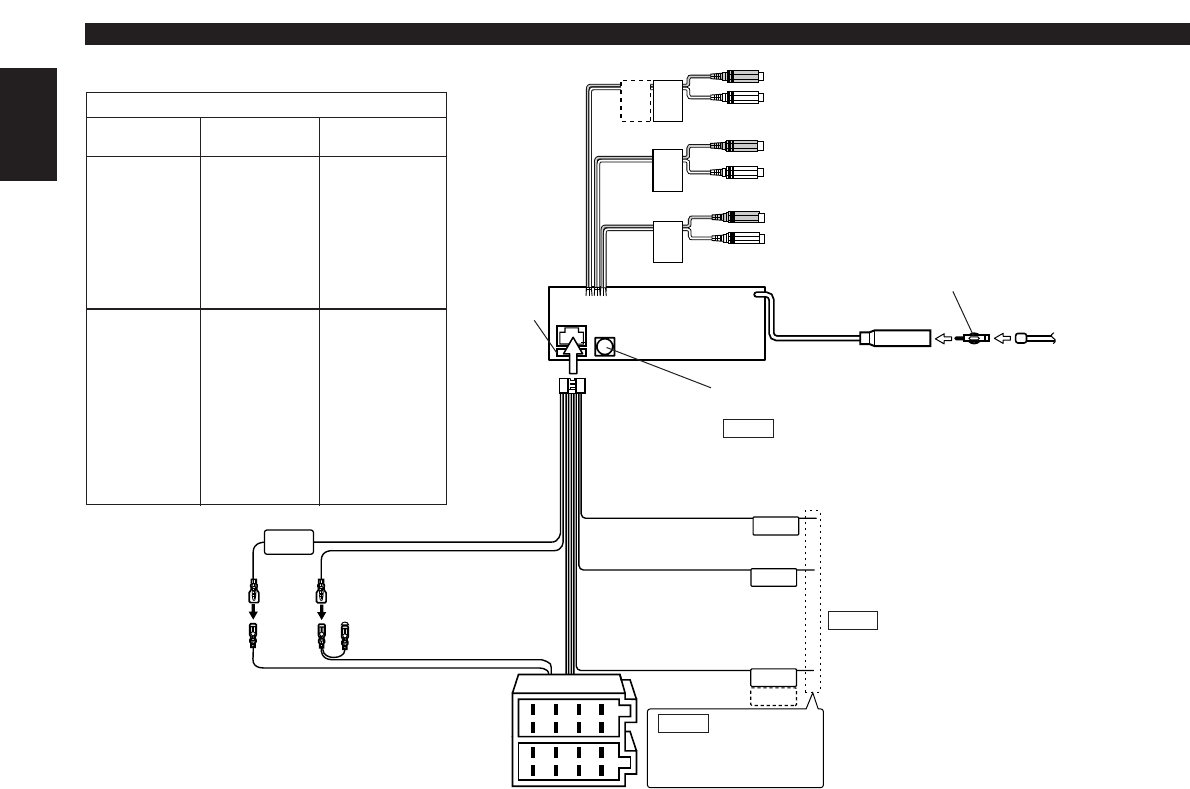

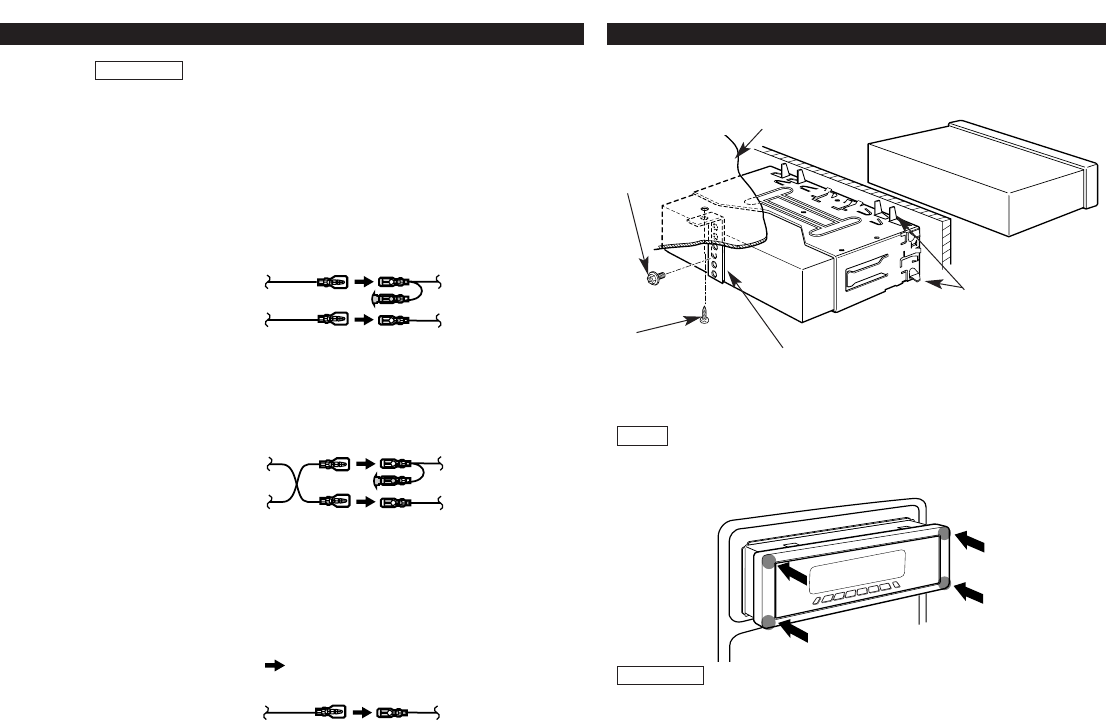

Connecting Cables to Terminals ................50

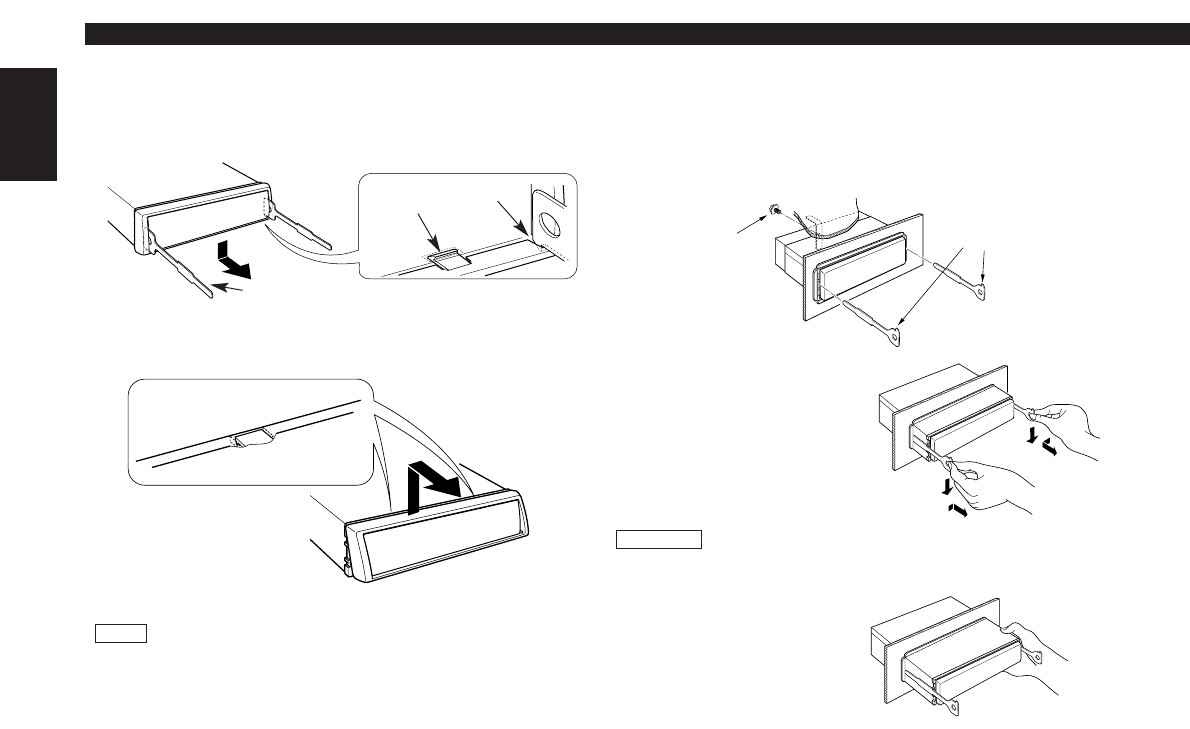

Installation .................................................51

Troubleshooting Guide ................54

Specifications..............................59

— 3 —

To prevent injury and/or fire, take the

following precautions:

• Insert the unit all the way until it is fully

locked in place. Otherwise it may fly out of

place during collisions and other jolts.

• When extending the ignition, battery or

ground cables, make sure to use

automotive-grade cables or other cables

with an area of 0.75mm2(AWG18) or more

to prevent cable deterioration and damage

to the cable coating.

• To prevent short circuits, never put or leave

any metallic objects (e.g., coins or metal

tools) inside the unit.

• If the unit starts to emit smoke or strange

smells, turn off the power immediately and

consult your Kenwood dealer.

• Make sure not to get your fingers caught

between the faceplate and the unit.

• Be careful not to drop the unit or subject it

to strong shock.

The unit may break or crack because it

contains glass parts.

2WARNING

To prevent damage to the machine,

take the following precautions:

• Make sure to ground the unit to a negative

12V DC power supply.

• Do not open the top or bottom covers of

the unit.

• Do not install the unit in a spot exposed to

direct sunlight or excessive heat or

humidity. Also avoid places with too much

dust or the possibility of water splashing.

• Do not subject the faceplate to excessive

shock, as it is a piece of precision

equipment.

• When replacing a fuse, only use a new one

with the prescribed rating. Using a fuse

with the wrong rating may cause your unit

to malfunction.

• To prevent short circuits when replacing a

fuse, first disconnect the wiring harness.

• Do not place any object between the

faceplate and the unit.

• During installation, do not use any screws

except for the ones provided. The use of

improper screws might result in damage to

the main unit.

• Do not apply excessive force to the open

faceplate or place objects on it. Doing so

will cause damage or breakdown.

2CAUTION

IMPORTANT INFORMATION

About the disc changer to be

connected:

To connect a disc changer having the "O-N"

switch to this unit, set the "O-N" switch to

"N".

When you connect a model with no "O-N"

switch, the converter cord CA-DS100

available as an option may be required. For

details, consult your Kenwood dealer.

If a model with no "O-N" switch is connected,

some unavailable functions and information

that cannot be displayed are generated, such

as the DNPS, DNPP, Magazine random play,

and CD Text display.

Note that none of the KDC-C100, KDC-C302,

C205, C705, and non-Kenwood CD changers

can be connected.

You can damage both your unit and

the CD changer if you connect them

incorrectly.

Do Not Load 8-cm (3-in.) CDs in the

CD slot

If you try to load an 8-cm CD with its adapter

into the unit, the adapter might separate

from the CD and damage the unit.

2CAUTION

Safety precautions

— 4 —

English

• If you experience problems during

installation, consult your Kenwood dealer.

• If the unit fails to operate properly, press

the Reset button. The unit returns to factory

settings when the Reset button is pressed.

If the unit still fails to operate properly after

the Reset button has been pressed,

contact your local KENWOOD dealer for

assistance.

• Press the reset button if the CD auto

changer is first controlled and operates

incorrectly. The original operating condition

will return.

• We strongly recommend the use of the

Code Security function (page 39) to prevent

theft.

NOTE • The illustrations of the display and the

panel appearing in this manual are

examples used to explain more clearly how

the controls are used. Therefore, what

appears on the display in the illustrations

may differ from what appears on the

display on the actual equipment, and some

of the illustrations on the display may

represent something impossible in actual

operation.

• The functions that can be used and the

information that can be displayed will differ

depending on the external disc players

being connected.

Safety precautions

Reset button

— 5 —

Cleaning the Faceplate Terminals

If the terminals on the unit or faceplate get

dirty, wipe them with a dry, soft cloth.

Cleaning the Unit

If the faceplate of this unit is stained, wipe it

with a dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the

stain off with a cloth moistened with neutral

cleaner, then wipe neutral detergent off.

Applying spray cleaner directly to the unit

may affect its mechanical parts. Wiping the

faceplate with a hard cloth or using a volatile

liquid such as thinner or alcohol may scratch

the surface or erases characters.

Cleaning the CD Slot

As dust can accumulate in the CD slot, clean

it occasionally. Your CDs can get scratched if

you put them in a dusty CD slot.

2CAUTION

The marking of products using lasers

(Except for some areas)

The label is attached to the chassis/case and

says that the component uses laser beams

that have been classified as Class 1. It means

that the unit is utilizing laser beams that are

of a weaker class. There is no danger of

hazardous radiation outside the unit.

Lens Fogging

Right after you turn on the car heater in cold

weather, dew or condensation may form on

the lens in the CD player of the unit. Called

lens fogging, CDs may be impossible to play.

In such a situation, remove the disc and wait

for the condensation to evaporate. If the unit

still does not operate normally after a whilst,

consult your Kenwood dealer.

CLASS 1

LASER PRODUCT

— 6 —

English

Handling Compact discs

Playing a CD that is dirty, scratched

or warped can cause the sound to

skip and the unit to operate

incorrectly, resulting in worsened

sound quality.Take the following

precautions to prevent your CDs from

getting scratched or damaged.

Handling CDs

• Do not touch the recorded side of the CD

(i.e., the side opposite the label) when

holding it.

•The reflective film on a CD-R or a CD-RW is

more fragile than that on an ordinary music

CD, and may peel off if scratched. Fingerprints

on a CD-R or CD-RW are also more likely to

cause skipping when the disc is played. For

these reasons, handle the disc very carefully.

Detailed handling instructions will appear on

the CD-R or CD-RW package: read this

information carefully before using the disc.

• Do not stick tape on either side of the CD.

Storing CDs

• Do not store CDs in areas exposed to

direct sunlight – such as a car seat or

above the fascia panel (dashboard) – or

other hot places.

A CD-R or CD-RW is more susceptible

than a music CD to damage from high

temperatures and humidity, and in some

cases, may become unusable if left in the

car for long periods of time.

• Remove CDs from the unit when not

listening to them for a whilst, and put

them back in their cases. Do not stack CDs

that have been removed from their cases

or prop them against something.

Cleaning CDs

If a CD has become dirty, wipe it off gently

using a commercially available cleaning cloth

or a soft cotton cloth, starting from the

centre of the disc and moving outward. Do

not clean CDs with conventional record

cleaners, anti- static formulas, or chemicals

such as paint thinner or benzene.

Checking New CDs for Burrs

When playing a new CD for the first time,

check that there are not any burrs stuck to

the perimeter of the disc or in the central

hole. CDs with burrs stuck on them may not

load properly or may skip whilst playing.

Remove burrs using a ballpoint pen or a

similar utensil.

Tape

Burrs

— 7 —

Do Not Load CD Accessories in Slot

Do not use commercially available CD

accessories that can be loaded into the CD

slot, such as stabilisers, protective sheets,

or CD cleaning discs, since they can cause

the unit to malfunction.

Removing the CD

Only remove the CD from the machine in a

horizontal direction. You may damage the

surface of the CD if you try pulling it down

as it ejects.

Do Not Use Special Shape CDs

• Be sure to use round shape CDs only for

this unit and do not use any special shape

CDs. Use of special shape CDs may cause

the unit to malfunction.

• Be sure to use CDs with disc mark

only for this unit.

• CD-Rs and CD-RWs which have not

undergone finalization processing cannot

be played. (For more information on

finalization processing, refer to the manual

for your CD-R/CD-RW writing software or

CD-R/CD-RW recorder.) Additionally,

depending on the recording status, it may

prove impossible to play certain CDs

recorded on CD-R or CD-RW.

Do Not Use CDs with Sticker on the

Labelled Side

Do not use the CD with the label sticker

stuck on it.

Using such a CD may cause the CD to be

deformed and the sticker to peel off,

resulting in malfunction of the unit.

— 8 —

English

Notes on playing MP3 files

This unit can play MP3 files. Note, however, that the MP3 file

recording media and formats acceptable are limited. When writing

MP3 files, pay attention to the following restrictions.

Acceptable media

The MP3 file recording media acceptable to this unit are CD-ROM,

CD-R, and CD-RW.

Acceptable medium formats

The medium formats acceptable to this unit are ISO 9660 Level 1 and

Level 2 excluding the extended formats. When reading an MP3 file

written in a format other than ISO 9660 Level 1 or Level 2, the unit

may fail to play the file normally or display the file or folder name

correctly.

The major specifications of ISO 9660 Level 1 and Level 2 are as follows:

• Maximum number of directory levels: 8

• Maximum number of files and folders per directory level:

253 (files and folders in total)

• Characters available to file and folder names:

A - Z, 0 - 9, _(underscore)

• Maximum number of characters in file names :

Level 1: 12 (including a separator "." and a 3-character extension)

Level 2: 31 (including a separator "." and a 3-character extension)

Settings for your MP3 encoder and CD writer

When you use your MP3 encoder to compress audio data to an MP3

file, set the transfer bit rate of the encoder to fixed 128 kbps.

When you use your CD writer to record MP3 files up to the

maximum disc capacity, disable additional writing. For recording on

an empty disk up to the maximum

capacity at once, check Disc at Once.

Entering ID3 tag

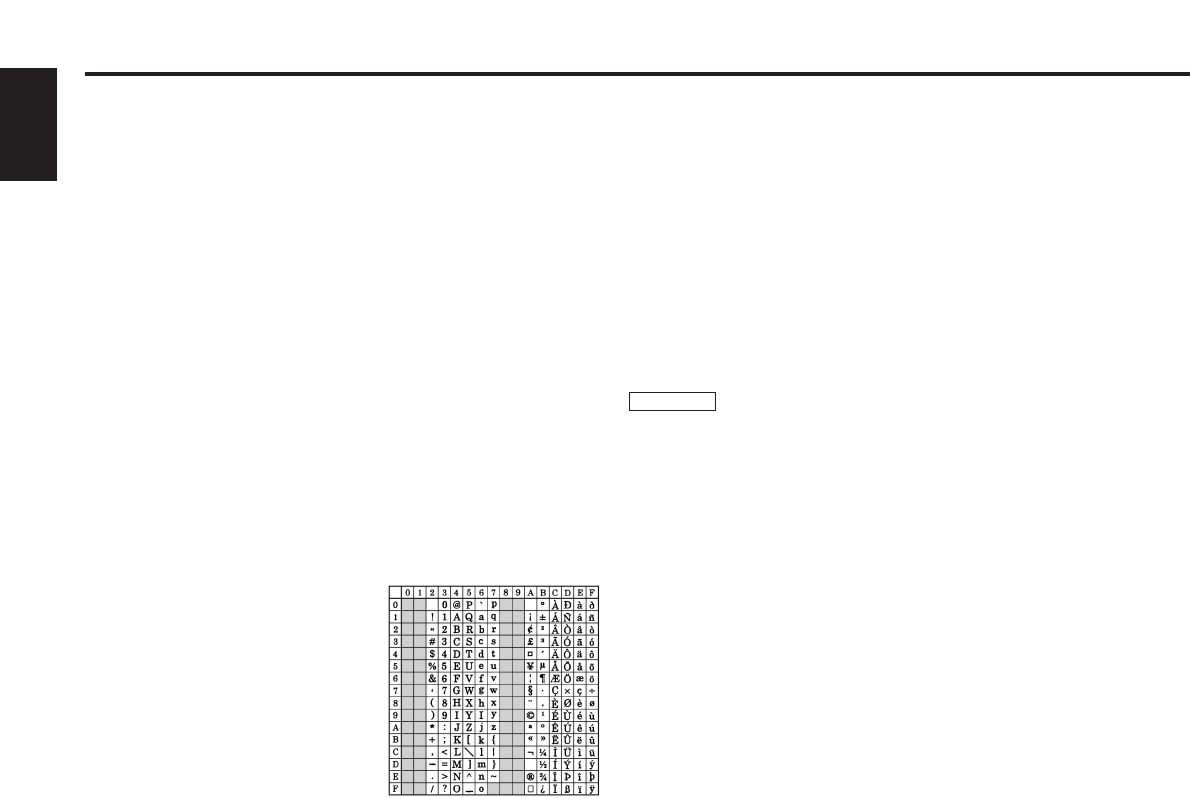

Displayable ID3 tag is ID3 version 1 and

1.1; the character code is ASCII (see

List of Codes).The ID3 tag versions 1

and 1.1 have the following size

restrictions:

• Album name: 30 bytes or less

• Artist name: 30 bytes or less

• Song title: 30 bytes or less

Entering file and folder names

When entering file and folder names, use the alphanumeric

characters described above only. If you use any other character for

entry, the file and folder names are not displayed correctly. They may

neither be displayed correctly depending on the CD writer used.

The unit recognizes and plays only those MP3 files which have the

MP3 file name extension (.MP3). MP3 files should therefore be

saved with the MP3 extension.

Writing files into a medium

When a medium containing MP3 data is loaded, the unit checks all

the files on the medium. If the medium contains a lot of folders or

non-MP3 files, therefore, it takes a long time until the unit starts

playing MP3 files.

In addition, it may take time for the unit to move to the next MP3 file

or a file search or folder search may not be performed smoothly.

You should not write non-MP3 files or unneeded folders along with

MP3 files on the medium.

When playing MP3 files on a medium which also contains non-MP3

files or folders, observe the following precautions. Loading such a

medium may produce loud noise to break the speakers.

• Do no attempt to play a medium containing a non-MP3 file with the

MP3 extension.

The unit mistakes non-MP3 files for MP3 files as long as they have

the MP3 extension.

• Do not attempt to play a medium containing non MP3 file.

MP3 file playing order

When selected for play, folder search, file search, or for folder select,

files and folders are accessed in the order in which they were written

by the CD writer.

Because of this, the order in which they are to be recorded does not

match the order in which they are played. You may be able to set the

order in which MP3 files are to be played by writing them onto a

medium such as a CD-R with their file names beginning with play

sequence numbers such as "01" to "99", depending on your CD writer.

2CAUTION

— 9 —

For example, a medium with the following folder/file hierarchy is

subject to folder search, file search, or folder select as shown below.

When a file search is executed with file being played ...

When a folder search is executed with file being played ...

When a folder search is executed with file currently being

played, the unit selects folders as shown below, starting with

folder .

When folder select is selected with file being played

to move from folder to folder ...

During folder select, a virtual folder is created one hierarchical level

below each folder. The hierarchy is displayed as if the MP3 file

recorded in each folder were placed in that virtual folder.

When the unit enters the folder select mode with file being

played, it selects folders as shown below, starting

with folder (virtual folder ).

• Each virtual folder is displayed with the original folder name

bounded by parentheses " ( ) ". For example, the virtual folder below

the folder named " 4 " is displayed with a name of " (4) ". The folder

name of each virtual folder is displayed with up to 30 characters (in

the ISO 9660 Level 2 format) or 8 characters (in the ISO 9660 Level

1 format).

• The FM button is disabled in a folder because it has no subordinate

hierarchical level below. Immediately after entering the folder select

mode as in the above example, therefore, the FM button cannot be

used as there is no hierarchical level below folder .

Once you have moved to folder using the

folder select function, for example, you can use the FM button to

select folder one level below.

NOTE

Current

album number

4 Button ¢ Button AM Button FM Button

Operation of the button

Current

album number

AM ButtonFM Button

Operation of the button

Current

track number

Beginning of

4 Button ¢ Button

Operation of the button

track

Folder Virtual folder

Level 2

Level 1

Example of a medium's folder/file hierarchy

(For a file search or folder search

)

Medium's virtual folder/file hierarchy

Level 3Level 4Level 5

Level 2

Level 1 Level 3 Level 4 Level 5

File Root

for a folder select

Increasing Volume:

Press the ubutton to turn up the volume.

Decreasing Volume:

Press the dbutton to turn down the volume.

Volume

Turning on the power:

Press the SRC button.

Turn the power on before carrying out the following procedures.

Turning off the power:

Hold down the PWR OFF button for one second or more.

The status of the Code Security Function (page 39) is displayed

whenever the power is switched on.

"CODE ON" : Security Code has been registered

"CODE OFF" : Security Code has not been registered

NOTE

Power

General features

— 10 —

English

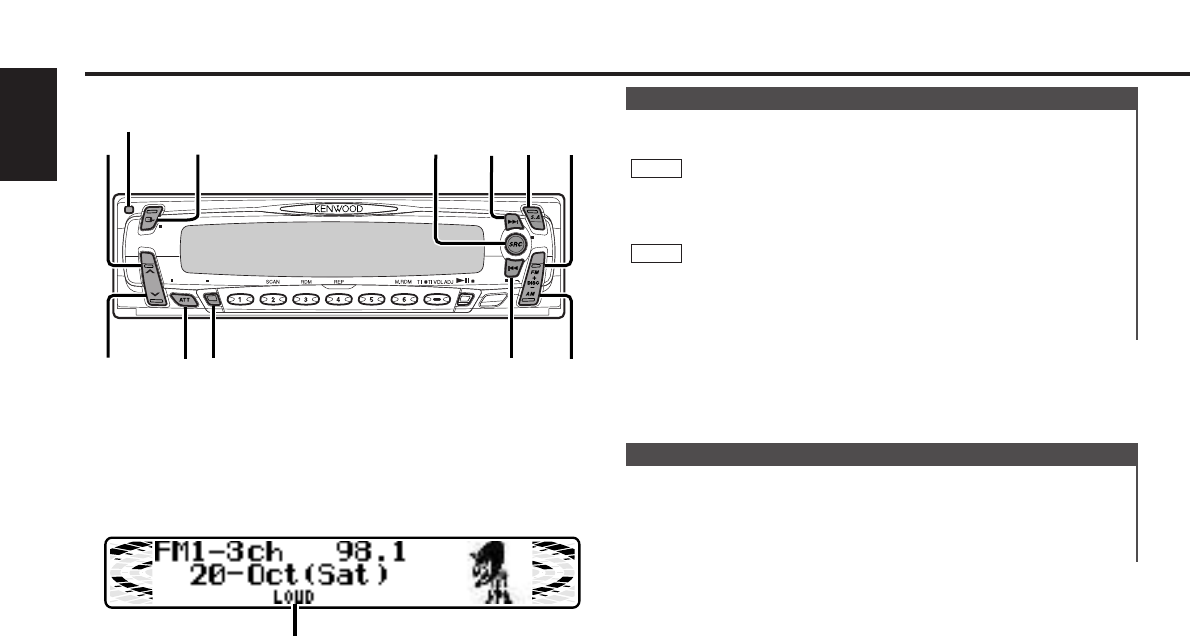

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

¢

DISP

QSRC/

PWR OFF

ATT/

LOUD

S.A/

2ZONE FM

AM/

LOUD indicator

Release button

Description about this indicator for these features can be displayed

by setting the Lower Part Display (page 14) to

"... + Function indicator".

This function amplifies low and high tones when the volume is

turned down.

The LOUD indicator lights up, when the loudness function is

on.

Turning Loudness On/Off:

Hold down the LOUD button for one second or more to switch

the loudness on and off.

Loudness

• The mode switches to the next mode from any mode which

cannot be used.

• The external disc control mode will differ depending on the unit

that is connected.

• You cannot use the AUX input function of the optional switching

adapter KCA-S210A if this unit is connected with the KCA-

S210A.

• If you have selected Standby mode, the timer function that

turns the power off automatically will be activated.

To find out how to set the time on the timer, and how to cancel

the timer function, refer to the section on the Power OFF Timer

function under Menu settings (page 45).

The Power OFF Timer function is enabled only after the security

code (page 39) is set up.

Selecting AUX-name display

Holding down the DISP button for two seconds or more during

the AUX mode, AUX-name display is blinked for AUX-name

selection mode.

Pressing 4or ¢button during this mode allows you to select

"TV", "VIDEO", "GAME" , "PORTABLE" , "DVD", or "AUX" in the AUX

mode.

The AUX-name selection mode can be exited by pressing the

DISP button or doing nothing for 10 seconds.

NOTE

Switching Modes:

Each time you press the SRC button, the mode switches as

follows:

Selecting the standby mode:

Press the SRC button repeatedly to select to "ALL OFF".

When "ALL OFF" is displayed, the standby mode is turned on.

The standby mode turns all functions off although leaving the

unit’s power on. Use this mode when you want to have the

display illuminated but do not want to listen to anything.

▼

Tuner mode

▼

CD/MP3 mode

▼

External disc control mode 1

▼

External disc control mode 2 / AUX mode

TV(AUX)

▼

Standby mode

Switching Modes

This function allows you to turn down the volume quickly.

Turning Attenuator On/Off:

Press the ATT button to switch the attenuator on and off.

When the attenuator is off, the volume returns to the original

level.

Turning the volume up, or turning it all the way down deactivates

the attenuator function.

NOTE

Attenuator

— 11 —

This function switches the type of information on the upper

part display when the display mode is "Display Type A" or

"Display Type B" .

Press the S.A button to enter the display control mode.

Each time you press the 4or ¢button, the upper part

display changes as follows:

In Tuner mode:

Displaying Frequencies:

Hold down the DISP button for one second or more.

The frequency for the RDS station will be displayed for five

seconds instead of the station name.

If the RDS station currently tuned to is transmitting no text

whilst the Radio Text Display mode is turned on, "NO TEXT"

will appear in the display. Whilst awaiting reception, "Waiting"

will be displayed.

To prevent accidents, drivers should not look at the display

whilst driving.

2WARNING

NOTE

Band display

Programme Service name(only during RDS station reception)/

Radio text (only during RDS station reception)

Band display + Station frequency

Switching the Upper Part Display

• You can switch the Icon/Spectrum analyzer.

See "Icon/Spectrum analyzer Select" in the menu setting (page

41).

• You cannot switch into the "Display Type C" during the standby

mode.

You can select the display mode of this unit.

Changing the Display Mode:

Each time you press the DISP button, the display mode

switches as follows:

• You can switch display information between the upper part

display, lower part display, and full screen display. For further

information, see "Switching the Upper Part Display" (page 12),

"Switching the Lower Part Display" (page 14), "Switching Full-

Screen Display" (page 15) respectively.

NOTE

"Display Type A"

Divide the display into the upper and lower parts

to separately provide different information.

"Display Type C"

Use the entire display to provide a single type

of information.

"Display Type B"

The display will turn on by using only the upper part

of the display and clock.

The upper part display

The lower part display

The Icon/

Spectrum

analyzer

The upper part display

Clock

The full screen display

Switching Display Mode

General features

— 12 —

English

• In the AUX mode, the Upper Part Display comes up with the

AUX-name only, providing no cycle-through displays.

Press the S.A button to end the display control mode.

• For display mode selection, see "Switching display mode" (page

12).

• The same items cannot be selected for both the upper part and

the lower part.

NOTE

In CD/External disc control mode:

In MP3 mode:

• You can give names to discs through the presetting disc

name function (page 32).

Note that depending on the unit, display may not be

possible.

• If you try to display the name of a disc that does not have

one, "NO NAME" is displayed instead.

• When there is an attempt to display the title of a disc for

which the disc title/track title has not been recorded, "NO

TEXT" is displayed for CD and "NO TITLE" is displayed for

MD.

• Depending on the type of characters of the CD Text, some

characters may not be displayable.

• If you don't turn the "Reading the MP3 ID tag" on, the ID3

tag will not be displayed.

See "Reading the MP3 ID3 tag" in the menu setting (page

44).

NOTE

Disc name (DNPS)(only when being preset)

Track Time

Folder name

ID3 tag album name

ID3 tag album name + ID3 tag artist name

Disc name (DNPS)(only when being preset)

Track Time

Disc Title (Units featuring CD text/MD only)

Track Title (Units featuring CD text/MD only)

— 13 —

In MP3 mode:

In AUX mode:

• You can give names to discs through the presetting disc

name function (page 32).

Note that depending on the unit, display may not be

possible.

• If you try to display the name of a disc that does not have

one, "NO NAME" is displayed instead.

• When there is an attempt to display the title of a disc for

which the disc title/track title has not been recorded, "NO

TEXT" is displayed for CD and "NO TITLE" is displayed for MD.

• Depending on the type of characters of the CD Text, some

characters may not be displayable.

• If you don't turn the "Reading the MP3 ID tag" on, the ID3

tag will not be displayed. See "Reading the MP3 ID3 tag" in

the menu setting (page 44).

Press the S.A button to end the display control mode.3

NOTE

Date + Function indicator

Spectrum Analyzer

Spectrum Analyzer + Clock

Date + Function indicator

File name + Function indicator

Spectrum Analyzer

Spectrum Analyzer + Clock

ID3 tag song title + Function indicator

Disc name (DNPS) (only when being preset) + Function indicator

This function switches the type of information on the lower

part display when the display mode is "Display Type A".

Press the S.A button to enter the display control mode.

Each time you press the FM or AM button, the lower part

display changes as follows:

In Tuner mode:

If the RDS station currently tuned to is transmitting no text

whilst the Radio Text Display mode is turned on, "NO TEXT"

will appear in the display. Whilst awaiting reception, "Waiting"

will be displayed.

To prevent accidents, drivers should not look at the display

whilst driving.

In CD/External disc control mode:

Spectrum Analyzer

Spectrum Analyzer + Clock

Date + Function indicator

Disc Title (Units featuring CD text/MD only) + Function indicator

Track Title (Units featuring CD text/MD only) + Function indicator

Disc name (DNPS) (only when being preset) + Function indicator

2WARNING

NOTE

Date + Function indicator

Spectrum Analyzer

Spectrum Analyzer + Clock

Radio text (only during RDS station reception) + Function indicator

Switching the Lower Part Display

General features

— 14 —

English

This function switches the type of information on the display

when the display mode is "Display Type C".

Each time you press the S.A button, the full screen display

changes as follows:

• For display mode selection, see "Switching display mode" (page

12).

• You can switch the Icon/Spectrum analyzer.

See "Icon/Spectrum analyzer Select" in the menu setting (page

41).

NOTE

Spectrum Analyzer 1 + Icon/Spectrum analyzer

Spectrum Analyzer 2 + Icon/Spectrum analyzer

Spectrum Analyzer 3 + Icon/Spectrum analyzer

Spectrum Analyzer 4 + Icon/Spectrum analyzer

Demonstration

Graphic 1

Graphic 2

Switching Full-Screen Display

• For display mode selection, see "Switching display mode" (page

12).

• If the display mode is set to "Display Type B", you can turn on or

turn off the clock.

• The same items cannot be selected for both the upper part and

the lower part.

NOTE

— 15 —

Shut down the audio system temporarily whenever an

incoming call is received.

The function will not work if a cable is not connected to the car

phone.

When the telephone rings:

When a call is received, "CALL" is displayed and all the unit

functions are temporarily interrupted.

Restoring Original Unit Source During Phone Call:

Press the SRC button.

"CALL" disappears from the display, and the volume of the

original source is restored gradually.

Turning TEL Mute Function Off After Phone Call:

Hang the phone up.

"CALL" disappears from the display.

The original source (i.e., the one used before the phone call) is

returned to automatically, and the volume restored gradually.

NOTE

TEL Mute

You can recall the best audio setting preset for different types

of the music.

System Q

• Do not apply excessive force to the faceplate bracket without

attaching the faceplate. Doing so will cause the faceplate

bracket to be deformed.

• Do not touch the connector on the faceplate bracket after

removing the faceplate. Touching the connector may cause

damage to the unit.

• The faceplate is a precision piece of equipment and can be

damaged by shocks or jolts. For that reason, keep the faceplate

in its special storage case whilst detached.

• Do not expose the faceplate or its storage case to direct

sunlight or excessive heat or humidity. Also avoid places with

too much dust or the possibility of water splashing.

Reattaching the Faceplate:

Hold the faceplate so that the control panel faces the front

toward you and set the left side of the faceplate in the

faceplate bracket.

Do not set the right side of the faceplate in the faceplate bracket

first, when reattaching the faceplate. Doing so may cause the

connector on the faceplate bracket to malfunction.

Press the right side of the faceplate until it locks.

2CAUTION

NOTE

2CAUTION

The faceplate of the unit can be detached and taken with you,

helping to deter theft.

Removing the Faceplate:

Press the release button and drop open the faceplate.

Holding the centre part of the faceplate, pull it out.

Push upward the back of the faceplate bracket until it locks.3

Theft Deterrent Faceplate

This function switches the type of information on the display

in standby mode.

Press the SRC button repeatedly to select the standby mode.

"ALL OFF" is displayed when the standby mode is selected.

Each time you press the S.A button, the display changes as

follows:

"ALL OFF" + Function indicator

Demonstration

(This is not available with the display mode set

to "Display Type B")

Date + Clock + Function indicator

Switching Display during the Standby mode

General features

— 16 —

English

You can turn the non-fading output on and off whilst the

preout is switched to the non-fading preout.

Turning non-fading output On/Off :

Hold down the NF button for one second or more to set the

function ON or OFF.

"NF ON" is displayed when the non-fading output is set ON.

Non-Fading Output

• In speaker setting mode

Press either the 4or ¢button to select the type of

speaker. The setting switches as follows.

Off ("Speaker Setting OFF") / For 6x9/6 in. speaker ("Speaker

Setting 6*9/6 inch") /

For 5/4 in. speaker ("Speaker Setting 5/4 inch") /

For the OEM speaker ("Speaker Setting O.E.M.")

• In woofer setting mode

Press either the 4or ¢button to select the type of Sub

woofer. The setting switches as follows.

"Woofer OFF" / "12in typeA" / "10in typeA" / "12in typeB" /

"10in typeB" / "12in typeC" / "10in typeC" / "8inch" / "12in

typeD" / "10in typeD"

Press the Q button to end the speaker setting mode and

woofer setting mode.

• Speaker setting allows for tuning of bass, middle and treble.

• Woofer setting allows for tuning of high-pass filter frequency,

low-pass filter frequency and non-fading level.

NOTE

Speaker setting mode

Woofer setting mode

Speaker setting allows the System Q settings to be fine-tuned

according to the type of speakers.

Woofer setting allows for Network configuration according to

the type of subwoofers.

Press the SRC button repeatedly to select the standby mode.

"ALL OFF" is displayed when the standby mode is selected.

Press the Q button to enter the speaker setting mode.

Each time you press the FM/AM button, the mode switches as

follows:

Speaker & Woofer setting

Switching the Preset Sound Setting:

Each time you press the Q button, the preset sound setting

switches as follows:

The System Q function changes the values of the following

sound quality parameters:

Bass centre frequency, bass level, bass quality factor, bass

extend, middle centre frequency, middle level, middle quality

factor, treble centre frequency, treble level non-fading level, high-

pass filter frequency for front output, high-pass filter frequency

for rear output, and low-pass filter frequency for non-fading

output.

Their setting values are different depending on the setting of the

speaker and woofer setting mode.

NOTE

Flat (Default setting)

Easy

Rock

Jazz

Pops

Top 40

Scan of Flat – Easy

User memory*

*User memory:

The unit returns to the state

adjusted the last time with

the audio control setting feature.

— 17 —

Audio control features

The following operation allows separate sound sources to

control the output of the front and rear speakers.

The Dual zone system can only be switched on when the

source is set to the TV(AUX) mode.

Dual Zone System On/Off:

Press the 2ZONE button for at least one second to switch the

Dual Zone System on and off.

"Zone 2 ON" is displayed when Dual Zone System is turned on.

• You can select the speaker output, either front or rear, for the

AUX input and the unit’s tuner or audio source.

For details refer to "Switching Dual Zone System Output" (page

42) for the menu settings.

• The Bass, Middle, Treble and Loudness adjustments do not

affect the TV(AUX) channel.

• When you set the Dual zone system to on whilst the non-fading

preout is switched on, the sound of the non-fading preout does

not be outputted.

• If the Attenuator function is turned on while the Dual Zone

System is enabled, the Attenuator is not applied to the TV(AUX)

source.

• The Dual Zone System function operates on the AUX source of

this unit only.

NOTE

Dual Zone System

General features

— 18 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

¢

AUD FM

Setting value

Selecting mode

Switch the Bass Extend mode on/off.

Display and setting:

"Bass EXT" : ON / OFF (When the bass extend mode is set to

on, low frequency response is extended by 20%.)

Bass Extend

Adjust the Bass quality factor.

Display and setting:

"Bass Q" : 1.00 / 1.25 / 1.50 / 2.00

Bass Quality Factor

Adjust the bass level.

Display and setting:

"Bass" : - 8 – + 8

Bass Level

Adjust the centre frequency of the bass.

Display and setting:

"Bass FRQ" : 60 / 70 / 80 / 100 (Only when the bass quality

factor is set to 1.00, 1.25 or 1.50) / 150 (Only

when the bass quality factor is set to 2.00) Hz.

Bass Centre Frequency

Adjust various parameters of sound quality.

Hold down the AUD button for one second or more to enter

the control mode.

Selecting mode

Press either the FM or AM button.

Each time the button is pressed, the adjustment mode will

change.

Please refer to the following for the contents of the adjustment

modes.

Source tone memory

Each source (CD, TV(AUX), FM, AM, and disc changer) has its own

memory in which to store the bass, middle, treble and N-F level

settings.

The settings made for a particular source are then recalled

automatically whenever you use that source (e.g., FM mode uses

the tone settings made for FM, AM for AM, etc.).

Adjust each mode

Press the 4/¢button.

Please refer to the following for the adjusting values.

Press the AUD button to end the control mode.

• Determining the parameters in the audio control setting will

clear all the adjustments made in the System Q and they are

replaced with the values made in the audio control setting.

• The following parameters can be set when the System Q

function on the menu settings is ON.

Bass centre frequency, bass quality factor, bass extend, middle

centre frequency, middle quality factor, and treble centre

frequency.

NOTE

Audio Control Setting

— 19 —

Adjust the Non-fading output level.

Display and setting:

"NF Level" : - 15 – + 15

• This mode is available only when the non-fading output function

is set to on.

• Not available during the Dual zone system is on.

NOTE

Non-Fading Level

Adjust the fader level.

Display and setting:

"Fader" : Rear 15 – Front 15

Fader Level

Adjust the balance level.

Display and setting:

"Balance" : Left 15 – Right 15

Balance Level

Adjust the treble level.

Display and setting:

"TRE" : - 8 – + 8

Treble Level

Adjust the centre frequency of the treble.

Display and setting:

"TRE FRQ" : 10.0 / 12.5 / 15.0 / 17.5 kHz

Treble Centre Frequency

Adjust the middle quality factor.

Display and setting:

"Middle Q" : 1.0 / 2.0

Middle Quality Factor

Adjust the middle level.

Display and setting:

"MID" : - 8 – + 8

Middle Level

Adjust the centre frequency of the middle.

Display and setting:

"MID FRQ" : 0.5 / 1.0 / 1.5 / 2.0 kHz.

Middle Centre Frequency

Audio control features

— 20 —

English

Set the sound level of the each source selected by adjusting

the level difference between the basic sound level and the

required level.

Display and setting:

"Volume Offset" : - 8 – ± 0

Volume Offset

Adjust the phase for Non-Fading output.

Display and setting:

"NF Phase" : Normal (0°) / Reverse (180°)

• This mode is available only when the non-fading output function

is set to on.

• Not available during the Dual zone system is on.

NOTE

Phase for Non-Fading Output

Adjust the frequency of the Low-pass filter for Non-Fading

output.

Display and setting:

"LPF NF" : 50 Hz / 80 Hz / 120 Hz / Through

• This mode is available only when the non-fading output function

is set to on.

• Not available during the Dual zone system is on.

NOTE

Low-pass Filter Frequency for Non-Fading Output

Adjust the frequency of the High-pass filter for rear output.

Display and setting:

"HPF Rear" : Through / 40Hz / 60Hz / 80Hz / 100Hz / 120Hz /

150Hz / 180Hz / 220Hz

You can separately set the high-pass filter for front and rear

output, including preouts. The high-pass filter does not affect the

non-fading preout.

NOTE

High-pass Filter Frequency for Rear Output

Adjust the frequency of the High-pass filter for front output.

Display and setting:

"HPF Front" : Through / 40Hz / 60Hz / 80Hz / 100Hz / 120Hz /

150Hz / 180Hz / 220Hz

You can separately set the high-pass filter for front and rear

output, including preouts. The high-pass filter does not affect the

non-fading preout.

NOTE

High-pass Filter Frequency for Front Output

— 21 —

Store the frequency of the station currently being listened to.

You can then recall that station with a single touch of a button.

Station Preset Memory

Press the SRC button repeatedly until the tuner mode is

obtained. "TUNER" is displayed only when the tuner mode is

selected.

Press either the FM or AM button to select the band.

Each time you press the FM button, the band switches

between the FM1, FM2 and FM3.

Press the AM button to select the MW and LW bands.

• Auto Seek Tuning (Auto1)

Press the ¢button to seek increasing frequencies.

Press the 4button to seek decreasing frequencies.

• Preset station seek tuning (Auto2)

Press the ¢button to move to the next preset station (i.e.,

the one with the next highest number), and the 4button to

move to the last preset station (i.e., the one with the next

lowest number).

If the frequencies stored at the preset numbers receive

stations which were not originally memorized when travelling

long distances, the preset number is not displayed. In such

cases, pressing the 4/¢button to use preset station

seek will receive channel 1.

• Manual Tuning (Manual)

Press the ¢button to increase the frequency by one step.

Press the 4button to decrease the frequency by one step.

• The ST indicator lights up when stereo broadcasts are being

received.

• Please see the menu settings about selecting tuning mode.

(page 43)

NOTE

Tuning

Tuner features

— 22 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

¢

SRC FM

#1-6

ST indicator

Preset station number

Band display Frequency

Description about this indicator for these features can be displayed

by setting the Lower Part Display (page 14) to

"... + Function indicator."

Select the band/station that you want to have stored.

Hold down the button (#1-6) that you want to use for the

station, for two seconds or more.

The button number blinks once in the display to indicate that

the data has been stored.

Recalling a Preset Station:

Press the preset station button (#1-6) for the desired station.

The number of the recalled station is displayed.

You can store 6 stations in each of the FM1, FM2, FM3, and AM

(MW and LW) bands.

NOTE

— 23 —

When you know the frequency of the station that you want to

listen to, you can input it directly for quick access.

Select the band by pressing the FM or AM button.

Press the DIRECT button.

"----" is displayed for 10 seconds.

If you make no input in the 10-second period, direct access tuning

is automatically cancelled.

Enter the frequency of the desired station.

If you want to listen to an FM station at 92.1 MHz, for

example, press 0, 9, 2, and 1.

If you want to listen to an AM station at 810 kHz, for example,

press 0, 8, 1, and 0.

• You cannot enter frequencies above or below what a band can

receive.

• FM frequencies can only be input in 0.1 MHz steps, and not

0.01MHz steps.

Cancelling Direct Access Tuning:

Press the DIRECT button again.

NOTE

Direct Access Tuning

(

Function of remote control)

You can search for the preset station with Programme Service

name.

Press the DNPP button on the remote control.

"SNPP" will be displayed once the seek mode is entered.

The names of the stations preset in the band currently listened

to are displayed for 5 seconds each.

The display band switches in the following order:

Each time you press the ¢button, the station display

switches in the forward direction.

Each time you press the 4button, the station display

switches in the reverse direction.

Stations which have no names will be displayed as

frequencies.

Changing the Displayed Band

Pressing the FM button switches between the FM1, FM2, FM3

and AM displays, in that order.

Pressing the AM button switches between the displays in the

reverse direction.

Once the name is displayed for the station you want to listen

Press the OK button.

Reception starts of the displayed station, and the seek mode

ends.

Cancelling mode during input:

Press the DNPP button.

The seek mode is cancelled.

NOTE

=FM1 Ô FM2 Ô FM3 Ô AM +

Preset station seek with Programme service

name

(Function of Remote Control)

When an emergency transmission (announcing disasters, etc.)

is sent, all current functions are interrupted to allow the

warning to be received.

Alarm

Stations that offer <Enhanced Other Network> also transmit

information about other RDS stations that have traffic

information. When you are tuned to a station that is not

transmitting traffic information, but another RDS station starts

transmitting a traffic bulletin, the tuner automatically switches

to the other station for the duration of the bulletin.

Enhanced Other Network

RDS is a digital information system that lets you receive

signals besides those of regular radio programmes, such as

network information being transmitted from radio stations.

When listening to an RDS station (ie, a station with RDS

capability), the programme service name of the station is

displayed along with the frequency, advising you quickly

which station is being received.

RDS (Radio Data System) stations also transmit frequency data

for the same station. When you are making long trips, this

function automatically switches to the particular frequency

with the best reception for the particular network of stations

that you want to listen to. The data is automatically stored,

allowing you to switch quickly to another RDS stations,

broadcasting the same programme, that has better reception.

These include stations stored in the station preset memory

that you often listen to.

RDS (Radio Data System)

RDS features

— 24 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

¢ FM

TI/

TI VOL ADJ

DISP #1-6

Description about this indicator for these features can be displayed

by setting the Lower Part Display (page 14) to

"... + Function indicator."

TI indicator

Programme Service name

Radio text

Preset the volume level to be used for traffic information and

news broadcasts.

Tune into the station for which you want to set the volume.

Adjust the volume to the desired level.

Hold down the TI VOL ADJ button for two seconds or more.

The volume level blinks once in the display to indicate that the

data has been stored.

Future traffic information/news broadcasts are heard at the

preset level.

• The volume cannot be lowered by this function during tuner

reception. The volume is only set when it is louder than the

listening volume of the tuner.

• You can arrange only to listen to traffic information or news

bulletins with at preset volume with the volume set at

minimum.

NOTE

Presetting Volume for Traffic Information/News

— 25 —

You can listen to traffic information. If you are listening to

tapes or discs, they will continue playing until a traffic bulletin

is broadcast.

Turning TI function On/Off:

Press the TI button to turn the function on and off.

When the function is on, the TI indicator is turned on.

When none is being received, the TI indicator will blink on and

off. When a traffic information station is being received, the TI

indicator will turn on.

When a traffic bulletin begins to be broadcast, "Traffic Info" will

be displayed, and reception will begin at the preset volume.

If you are listening to a tape or disc when a traffic bulletin

begins, they will automatically be turned off. When the bulletin

ends or poor reception is experienced, the tape or disc will

begin playing again.

Pressing the TI button whilst in the MW/LW band automatically

switches reception to the FM band. However, the MW/LW band

is not returned to when the TI button is pressed again.

Switching to a Different Traffic Information Station:

Use the 4/ ¢buttons to make an auto seek of the TI

stations in a certain band.

• When you are listening to a tape or disc, you cannot change to

another TI station.

• When the auto TP seek function is turned on and reception

starts to weaken, the tuner automatically seeks traffic

information stations with better reception.

• If you are tuned to a station that is not a traffic information

station itself but which provides <Enhanced Other Network>

services, you can still have traffic information received.

• Holding down the TI button for one second or more when the TI

function is on in the disc mode results in a change to the

programme service name or frequency display of the traffic

information station for five seconds.

NOTE

Traffic Information Function

24. Jazz Music (Jazz Music)

25. Country Music (Country Music)

26. National Music (National Music)

27. Oldies Music (Oldies Music)

28. Folk Music (Folk Music)

29. Documentary (Documentary)

(

Speech

.....1~9,16~23, 29,

Music

.....10~15, 24~28)

• You can select the type of programme directly by pressing a

preset button. The buttons are factory-set to the following

type of programmes:

Music

Speech

3. News

4. Other Music 5. Serious Classical 6. Varied

Changing the Preset Button Settings for Programme Type

After selecting the type of programme to be stored in a certain

preset button, hold down that button for two seconds or more.

The previously stored data for that button are erased and the new

programme type is stored.

Seeking the selected programme type

Press the 4or ¢button to make a seek of frequencies

with your selected type of programme.

The display blinks and the seek starts.

If your selected type of programme is found, the name of the

station is displayed and the station is tuned into.

"PTY Found" is displayed for about 30 seconds.

If you make no key input in 30 seconds, the PTY selection

mode will turn off automatically.

If no programme can be found, "NO PTY" is displayed.

If you want to select another type of programme, repeat steps 2

and 3 above.

Switching to Other Stations with the Same Type of Programme:

When "PTY Found" is displayed, perform auto seek tuning.

The tuner scans for another station with the same type of

programme.

Cancelling Programme Type Function During Its Operation:

Press the 38(PTY) button.

NOTE

Conduct auto seek tuning only on those stations with selected

kinds of programmes.

Press the 38(PTY) button.

"PTY Select" is displayed, and the Programme Type Selection

(PTY) Mode entered.

If you make no key input in 30 seconds, the mode will

automatically turn off.

You cannot use this function whilst the traffic bulletin is received.

Select the type of programme to be received

• Press either the FM or AM button repeatedly until the type of

programme you want to listen to.

The selection includes:

Speech (All Speech)

Music (All Music)

1. News (News)

2. Current Affairs (Current Affairs)

3. Information (Information)

4. Sports (Sport)

5. Education (Education)

6. Drama (Drama)

7. Culture (Cultures)

8. Science (Science)

9. Varied (Varied Speech)

10. Pop Music (Pop Music)

11. Rock Music (Rock Music)

12. Easy Listening Music (Easy Listening M)

13. Light Classical (Light Classic M)

14. Serious Classical (Serious Classics)

15. Other Music (Other Music)

16. Weather (Weather & Metr)

17. Finance (Finance)

18. Children’s programmes (Children's Prog)

19. Social Affairs (Social Affairs)

20. Religion (Religion)

21. Phone In (Phone In)

22. Travel (Travel & Touring)

23. Leisure (Leisure & Hobby)

NOTE

Programme Type (PTY) Function

RDS features

— 26 —

English

in one scrolling display of the text.

To scroll automatically:

Display the radio text referring to the "Switching the Upper Part

Display" (page 12) or "Switching the Lower Part Display" (page

14).

The text will be displayed in one scrolling display.

Holding down the DISP button for one second or more with

radio text displayed on the upper part display scrolls the text

once.

• Please see the menu settings (page 45) about switching

between manual scrolling and automatic scrolling.

• You can scroll text when "Display Type A" or "Display Type B" has

been selected by the switching display mode function.

For display mode selection, see "Switching display mode" (page

12).

NOTE

This function permits the text to be scrolled and the entire text

to be displayed. The scrolling method differs depending on the

setting of scrolling in the menu.

To scroll manually:

Display the radio text in upper part display, referring to

"Switching the Upper Part Display" (page 12).

Holding down the DISP button for one second or more results2

Radio Text Scroll

Changing the display language to another language.

Press the 38(PTY) button.

"PTY Select" is displayed, and the Programme Type Selection

(PTY) Mode entered.

Enter the Changing Language Mode

Press the DISP button to enter the changing language mode.

Changing the Display Language

Press the FM or AM button.

Each time the button is pressed, the display language will

change as follows:

Press the DISP button to end the changing language mode.

English

Dutch

French

Swedish

Norwegian

Portuguese

German

Spanish

Changing Language for Programme Type(PTY)

Function

— 27 —

Playing CDs:

A press of the release button causes the faceplate to drop to

the front, thereby exposing the CD slot.

Holding the CD with the labeled side facing up, insert it in the

slot. The CD will start playing.

Push back the faceplate with your hand until it locks.

The IN indicator will light when a CD has been inserted.

When inserting a CD, make sure the CD has been completely

drawn in before pushing back the faceplate. Failing to do so

might scratch the CD.

Playing CDs Already Inserted:

Press the SRC button repeatedly until the CD mode is

obtained.

"CD" is displayed when the CD mode has been selected.

The CD will start playing.

Pausing and Restarting CD Play:

Press the 38 button to make the disc pause.

Press the same button again to start play again.

Eject:

Press the release button and drop open the faceplate.

Press the 0button located near the CD slot.

The CD stops playing and ejects from the slot.

Push back the faceplate with your hand until it locks.

• Do not attempt to insert a CD into the slot if another one is

already there.

2CAUTION

Playing CDs

CD/External disc control features

— 28 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

DISP/

NAME.S

SRC DISC+

DISC-

SCAN

RDM

REP M.RDM

¢

Track number Track time

Disc title/Track title/DNPS

IN indicator

Disc number

Release button

Description about this indicator for these features can be displayed

by setting the Lower Part Display (page 14) to

"... + Function indicator".

Fast Forwarding Disc Play:

Hold down on the ¢button.

Release your finger to play the disc at that point.

Reversing Disc Play:

Hold down on the 4button.

Release your finger to play the disc at the point.

You cannot use reverse play between tracks depending on the

model being connected. Instead, the reverse play function is

cancelled when it reaches the beginning of a track, at which point

normal play automatically resumes.

NOTE

Fast Forwarding and Reversing Disc Play

When one disc has finished playing its last track, the next disc in

the changer starts playing. When the last disc in the changer has

finished, the player returns to the first disc and starts playing it.

NOTE

This function permits the connection of optional players and

the playing of discs other than the loaded CD (in the current

unit).

Playing Discs:

Press the SRC button repeatedly to select the external disc

control mode.

The disc will start playing.

The external disc control mode will differ, depending on the unit

that is connected.

Mode Display Examples

• "CD2"...when a CD player is connected

• "CD-CH"/"MD-CH"/"DISC"...when a disc changer is connected

• "CD-CH1"/"MD-CH1"/"DISC1", "CD-CH2"/"MD-CH2"/"DISC2"

...when two disc changers are connected

Pausing and Restarting Disc Play:

Press the 38 button to make the disc pause.

Press the same button again to start play again.

NOTE

Playing Other Disc mode

• The unit can only play 12-cm (5-inch) CDs. If you insert an 8-cm

(3-inch) CD, it will get stuck inside and can cause the unit to

malfunction.

• When the faceplate has been dropped open, it might interfere

with the gear lever or something else. If this happens, pay

attention to safety and move the gear lever or take an

appropriate action, then operate the unit.

• Do not apply excessive force to the open faceplate or place

objects on it. Doing so will cause damage or breakdown.

• Do not use the unit with the faceplate in the open condition.

Doing so will cause breakdown.

When you load a CD and eject it right away, the next time you try

to insert the CD may not load. In such a situation, take the CD

out for a moment and then reinsert it.

NOTE

— 29 —

Successively play the beginning of each track on a disc until

you find the track that you want to listen to.

Track Scan

Repeat playing the current track or disc.

Turning Repeat Play Function On/Off:

Press the REP button to switch the repeat play function on and

off as follows :

"Track Repeat ON"/"Repeat ON" is displayed and the track

number blinks in the display when track repeat is on.

"Disc Repeat ON" is displayed and the disc number blinks in

the display when disc repeat is on.

Repeat play is cancelled when you eject the disc.

NOTE

▼

Track Repeat ON

▼

Disc Repeat ON (Function of disc changers)

▼

Repeat OFF

Track / Disc Repeat

Each time the button is pressed, the displayed disc number

increases by one.

Play starts at the beginning of the displayed disc.

"Load" is displayed when discs are being exchanged on the disc

changer.

NOTE

Search forwards or backwards through the discs in a disc

changer until you reach the one that you want to listen to.

Making a Reverse Disc Search:

Press the DISC–button to display the desired disc number.

Each time the button is pressed, the displayed disc number

decreases by one.

Play starts at the beginning of the displayed disc.

Making a Forward Disc Search:

Press the DISC+button to display the desired disc number.

Disc Search

(

Function of disc changers)

Search forwards or backwards through the tracks on the disc

until you reach the one that you want to listen to.

Making a Reverse Track Search:

Press the 4button to display the desired track number.

Press once to search back to the beginning of the current track,

twice to search back to the beginning of the previous track,

and so forth.

Play starts at the beginning of the displayed track number.

(For disc changers)

Pressing the 4button whilst listening to track 1 only searches

back to the beginning of that track. The reverse search is not

"recycled" to the last track on the disc.

Making a Forward Track Search:

Press the ¢button to display the desired track number.

Press once to fast forward to the next track, twice to fast

forward to the track after that, and so forth.

Play starts at the beginning of the displayed track number.

(For disc changers)

You cannot make a forward track search when listening to the

last track on a disc.

NOTE

Track Search

CD/External disc control features

— 30 —

English

Play the tracks on all the discs in the disc changer in random

order.

Press the M.RDM button to switch the magazine random play

function on and off.

"M.Random ON" is displayed when magazine random play is

turned on.

The display of the disc and track numbers change continuously

as the next track is being selected.

When the disc/track has been selected, play starts.

The selected disc/track number blinks in the display as it is

being played.

To change the track being heard, press the ¢button.

Another disc/track is selected and played.

• Magazine random play is cancelled when you eject the disc.

• The time needed for random selection depends on the number

of discs loaded in the disc magazine.

NOTE

Magazine Random Play

(

Function of disc changers)

Play all the tracks on the current disc in random order.

Press the RDM button to switch the random play function on

and off.

"Random ON" is displayed when random play is turned on.

The display of the track number changes continuously as the

next track is being selected.

When the track has been selected, play starts.

The selected track number blinks in the display as it is being

played.

(For disc changers)

When all the tracks on a certain disc have been played using the

random play function, the next disc on the changer starts playing

(with the random play function still turned on).

To change the track being heard, press the ¢button.

Another track is selected and played.

Random play is cancelled when you eject the disc.

NOTE

Random Play

Starting the Track Scan:

Press the SCAN button. "Scan ON" is displayed and the first 10

seconds of each track are played, and the tracks are played in

order.

The track number currently being heard blinks in the display.

Stopping to Listen to the Track Being Scanned:

Press the 38 or SCAN button again to stop the scan and keep

on listening to a track normally.

The track scan function is cancelled when you eject the disc.

NOTE

— 31 —

• The Disc Name Preset function cannot be used during the

Magazine random play as well as while a disc title or track title

is displayed in the upper part display.

• The Disc Name Preset function cannot be used while folder

name or ID3 tag(Artist, Album) is displayed in the upper part

display.

Press the NAME.S button for at least two seconds.

"NAME SET" is displayed and the disc name preset mode is

entered.

The cursor blinks in the position where character input can be

made.

Press either the 4or ¢button to move the cursor to the

desired position.

The 4button moves the cursor to the left, and the ¢

button to the right.

You can also move the cursor left or right by pressing the 4

or ¢buttons, respectively, on the remote control.

Each press of the 38 button results in the type of characters

that are to be entered changing between alphabet and

numerals/symbols.

Press the DISC+or DISC–button to display the desired

character.

Characters that can be displayed are as follows.

Direct Alphabet Input

(Function of remote control with number/letter entry buttons)

You can directly input letters using the number/letter entry

buttons on the remote control.

Example: Use the following table to enter the name "DANCE".

NOTE

Alphabet (upper case): A ~ Z

Alphabet (lower case): a ~ z

Numerals and symbols: 0~9 @ ” ‘ ` % & * + - = , . / \ < > [ ]

Special characters: á à é è í ì ó ò ú ù Ñ Ç ® ß ‹ ﬂ

â ä ê ë î ï ô ö û ü ñ ç © Æ › ﬁ

Store the names of discs to be displayed when played.

Play the disc whose name you want to preset.

• This function is not available for disc changers that do not

feature the Disc Name Preset function.

NOTE

Presetting Disc Names (DNPS)

This function permits the text to be scrolled and the entire text

to be displayed. The scrolling method differs depending on the

setting of scrolling in the menu.

To scroll manually:

Display the disc or track title in the upper part display, referring

to "Switching the Upper Part Display" (page 12).

Holding down the DISP button for one second or more results

in one scrolling display of the titles.

To scroll automatically:

Display the disc or track title referring to the "Switching the

Upper Part Display" (page 12) or "Switching the Lower Part

Display" (page 14).

The titles will be displayed in one scrolling display.

Holding down the DISP button for one second or more results

in one scrolling display of the titles.

• Please see the menu settings (page 45) about switching

between manual scrolling and automatic scrolling.

• You can scroll text when "Display Type A" or "Display Type B" has

been selected by the switching display mode function.

For display mode selection, see "Switching display mode" (page

12).

• You cannot use the text scroll function during magazine random

play.

NOTE

Text Scroll

CD/External disc control features

— 32 —

English

Continue steps 3 and 4 until all the characters are chosen for

the name.

You can enter up to 12 characters for each name.

Press either the NAME.S button on the main unit or the OK

button on the remote control.

The disc name is stored and the disc name preset mode is

cancelled.

If you make no entry in a 10-second period, the name will be

stored with the characters input so far.

• You cannot store the names of the discs in the MDs.

• The number of discs whose names can be stored will differ

depending on the disc changer that is connected. Please see

your disc changer manual for details.

Up to 30 CDs can be registered with this unit.

• Discs are identified by their total length and number of tracks. If

another disc happens to have the same specifications as one

that you have already stored a name for, the name will be

displayed for it, too.

• If you want to change the name of a disc, repeat steps 1 and 2

to display the name, and then repeat steps 3 and 4 to input the

changes.

• Pressing the reset button erases the disc names stored in this

unit, but does not erase the names stored in a disc changer.

• MP3 recorded media allows you to register a single media

name only. Registration for each CD as it is available with the

CD cannot be achieved.

NOTE

Button to press # Times pressed

Character

#3 1

1#2

#6 2

#2 3

#3 2

“D”

“A”

“N”

“C”

“E”

— 33 —

If you have preset the name of a disc that you want to listen to

in the disc changer, you can look for it by name and start

playing it.

Press the DNPP button on the remote control.

"DNPP" will appear in the display, and the disc name preset

play mode is entered.

The names of all the discs in the disc changer will appear

successively in the display for five seconds each.

Discs whose names have not been preset will appear as "NO

NAME" in the display.

• This function can only be used in disc changers that were

manufactured or sold as of 1997. Also note that some units

cannot provide a display unless the disc name preset has been

made by the unit that is playing.

• Discs in the disc changer that have never been played before

will appear as "NO ACCESS" when the disc names are

displayed. When you cannot identify a disc because of the "NO

ACCESS" display after inserting a disc magazine, try playing it to

display the disc name.

Also note that "NO DISC" will be displayed when a disc has not

been loaded.

Rapid display (forward / reverse):

Press the DISC+or DISC–button.

Pressing the DISC+button will rapidly display the preset

names/disc titles in order.

Pressing the DISC–button will rapidly display the preset

names/disc titles in reverse order.

When the name appears for the disc you want to play

Press the OK button.

The disc whose name is displayed will be recalled, and the disc

name preset play (DNPP) mode will end.

To cancell DNPP mode:

Press the DNPP button.

The disc name preset play (DNPP) mode will be cancelled.

NOTE

Disc Name Preset Play (DNPP)

(Function of Remote Control)

Play:

A press of the release button causes the faceplate to drop to

the front, thereby exposing the CD slot.

Holding the media with the labeled side facing up, insert it in

the slot. The media will start playing.

Push back the faceplate with your hand until it locks.

The IN indicator will light when a media has been inserted.

When inserting a media, make sure the media has been

completely drawn in before pushing back the faceplate. Failing to

do so might scratch the media.

Playing Media Already Inserted:

Press the SRC button repeatedly to select the CD mode.

"CD" is displayed when the CD mode has been selected.

The media will start playing.

Pausing and Restarting Media Play:

Press the 38 button to make the media pause.

Press the same button again to start play again.

Eject:

Press the release button and drop open the faceplate.

Press the 0button located near the CD slot.

The media stops playing and ejects from the slot.

Push back the faceplate with your hand until it locks.

• Do not attempt to insert a media into the slot if another one is

already there.

2CAUTION

Playing MP3 Files

MP3 player features

— 34 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

DISP

SRC FM

#2 #3/

RDM REP

¢

IN indicator

Track time

Release button

file number

file name/

ID3 tag song title/

DNPS

Description about this indicator for these features can be displayed

by setting the Lower Part Display (page 14) to

"... + Function indicator".

Search forward or backward through the folders on the media.

Making a Backward Folder Search:

Press the AM button.

Pressing the button moves back to the previous folder. The unit

plays the medium starts at the beginning of the selected

folder.

If the selected folder contains no MP3 file, the unit

automatically plays the file nearest to that folder in the MP3

file playing order.

Making a Forward Folder Search:

Press the FM button.

Pressing the button moves to the next folder. The unit plays the

medium starts at the beginning of the selected folder.

If the selected folder contains no MP3 file, the unit

automatically plays the file nearest to that folder in the MP3

file playing order.

It may take time for the folder search depending on the number

of files and the state of the folder hierarchy.

NOTE

Folder Search

It may take time for the file search depending on the number of

files and the state of the folder hierarchy.

NOTE

— 35 —

Search forward or backward through the files on the media

until you reach the one that you want to listen to.

Making a Backward File Search:

Press the 4button to display the desired file number.

Press once to search back to the beginning of the current file,

twice to search back to the beginning of the previous file, and

so forth.

Play starts at the beginning of the displayed file number.

Making a Forward File Search:

Press the ¢button to display the desired file number.

Press once to fast forward to the next file, twice to fast

forward to the file after that, and so forth.

Play starts at the beginning of the displayed file number.

File Search

• When the faceplate has been dropped open, it might interfere

with the gear lever or something else. If this happens, pay

attention to safety and move the gear lever or take an

appropriate action, then operate the unit.

• Do not apply excessive force to the open faceplate or place

objects on it. Doing so will cause damage or breakdown.

• Do not use the unit with the faceplate in the open condition.

Doing so will cause breakdown.

• When you load a media and eject it right away, the next time

you try to insert the media may not load. In such a situation,

take the media out for a moment and then reinsert it.

• The MP3 media that this unit can play are CD-ROM, CD-R, and

CD-RW.

The medium formats must be ISO 9660 Level 1 or Level 2. The

methods and precautions to be followed for writing MP3 files

are covered in "Notes on playing MP3 files" (page 8). Check that

section before creating your MP3 media.

• It takes time for the unit to check each medium to see if it

contains any MP3 file before it starts playing the medium.

NOTE

The unit cannot enter the folder select mode if the loaded

medium contains no folder recorded.

Selecting the desired folder

• You can move from folder to folder at the same hierarchical

level:

Press the ¢button to move to the next folder at the same

hierarchical level.

Press the 4button to move to the previous folder at the

same hierarchical level.

• You can select the hierarchical level of the folder:

Press the FM button to move down one level in the folder

hierarchy.

Press the AM button to move up one level in the folder

hierarchy.

• You can return to the first hierarchical level (Root Jump):

Press the #3 button to return to the folder at the top

hierarchical level on the medium currently being played.

The methods for moving to other folders in the folder select

mode are different from those in the folder search mode.

See "Notes on playing MP3 files" (page 8) for details.

NOTE

Displays the current folder name.

Displays the hierarchical level

of the current folder.

Displays the number in the folder

belonging to the currently selected folder.

You can use this function to select the folder containing the

sound file you want be played.

Enter the Folder Select Mode

Pressing the #2 button enters the folder select mode.

The display reads as shown below.

Folder Select

MP3 player features

— 36 —

English

Fast Forwarding MP3 Play:

Hold down on the ¢button.

Release your finger to play the MP3 at that point.

Reversing MP3 Play:

Hold down on the 4button.

Release your finger to play the MP3 at the point.

• If you reach the beginning of the file with the fast reverse, the

player enters the pause state. If you release the button, the

music begins to play.

• During the fast forwarding and reversing process, audible tone

and time code display are disabled.

• Time code may be different between the states before and after

the fast forwarding and reversing operations.

• The time code for the first few seconds on pressing the button

may be unchanged.

• The time code variation may be large if a file is encoded in

variable bit rate (VBR).

NOTE

Fast Forwarding and Reversing MP3 Play

This function permits the folder/file name and ID3 tag(Song

title, Artist, Album) to be scrolled and the entire name to be

displayed. The scrolling method differs depending on the

setting of scrolling in the menu.

To scroll manually:

Display the folder name or ID3 tag (artist name, album name)

in the upper part display, referring to "Switching the Upper Part

Display" (page 12).

Pressing the DISP button for at least one second results in one

scrolling display of the names.

To scroll automatically:

Display the folder/file name or ID3 tag (song title, artist name,

album name), referring to "Switching the Upper Part Display"

(page 12) or "Switching the Lower Part Display" (page 14).

The display of the name will be scrolled repeatedly.

Pressing the DISP button for at least one second results in one

scrolling display of the names.

• Please see the menu settings (page 45) about switching

between manual scrolling and automatic scrolling.

• You can scroll the names when "Display Type A" or "Display Type

B" has been selected by the switching display mode function.

For display mode selection, see "Switching display mode" (page

12).

NOTE

Name Scroll for MP3

Play all the files on the current folder in random order.

Press the RDM button to switch random play on and off.

"Random ON" is displayed when random play is turned on.

When the file has been selected, play will begin.

Random Play

— 37 —

Repeat playing the file or the folder currently being listened to.

Turning Repeat Play On/Off:

Press the REP button to switch repeat file/folder play on and

off as follows:

"File Repeat ON" is displayed when file repeat is on.

"Folder Repeat ON" is displayed when folder repeat is on.

Repeat play is cancelled when you eject the media.

NOTE

▼

File Repeat ON

▼

Folder Repeat ON

▼

File/Folder Repeat OFF

File / Folder Repeat

To change the file being heard, press the ¢button.

Another file will be selected and played.

Random play is cancelled when you eject the media.

NOTE

When you have found a desired folder

Press either the #2 or 38 button.

This ends the folder select mode and starts playing the first

MP3 file in the selected folder.

• If the folder selected after leaving the folder select mode

contains no MP3 file, the unit plays the MP3 file nearest to that

folder in the MP3 file playing order.

• During the folder select mode, no audible sound is produced.

NOTE

You can set the defaults for additional functions in the menu

mode. Make a setting for each function, referring to the

following operations.

Enter the menu mode

Hold down the MENU button for one second or more.

"MENU" is displayed when the menu mode is entered.

The function that you can adjust is indicated with the current

settings displayed.

Selecting function to set

Press the FM button to search through the functions until you

see the one you want to adjust in the display.

Press the AM button to search through the functions backward.

Function items change in the order of features that follow in

the menu system.

Example: If you want to switch the setting of the touch sensor

tone function from on to off, first search through the

functions until you see "Beep ON" in the display.

Changing setting for currently displayed function

Press either the 4or ¢button.

The setting will change for each function.

Example: The setting of the touch sensor tone will switch from

on to off, and "Beep OFF" is displayed.

Ending the menu mode

Press the MENU button.

Make sure to end the menu mode when finished.

If you fail to end the menu mode, several functions may not

operate properly, including the Traffic Information function, the

News Bulletin function with PTY news timeout setting, and the

Alarm function.

NOTE

Menu System

Menu settings

— 38 —

English

LOUD

AUD

DISP NAME.S MENU NF

2ZONE

DAB

PWR

OFF

¢

DISP

SRC

#1-6

Menu display

NEWS indicator RDS indicator

"RE-ENTER" will appear in the display for one second, asking

you to enter the code once again for confirmation. When

"CODE" appears in the display, you can start inputting the code.

Press the Preset button and input the security code again.

Hold down the DISP button again for three seconds or more.

"APPROVED" will appear in the display, with the code security

function turning on. From this point on, if the unit is

disconnected from the battery, the security code must be

entered the first time that the unit's power is turned on.

"ENTER" and "CODE" will appear in the display, asking you to

input the code.

If you input an incorrect security code, the code setting mode will

be cancelled automatically. Follow the steps from 3 to 7 above

again.

If you press the RESET button or remove the battery:

The first time you turn the unit on again, "CODE" will appear in

the display, asking you to input the security code.

Repeat steps 6 and 7 above, and input the security code.

You can start operating the unit again when "APPROVED"

appears in the display.

If you enter the wrong code, "Waiting" is displayed and you

cannot make further input of the code for a fixed interval (see

table below), which grows longer each time you enter the wrong

code.

When "CODE" is displayed, you can make input again.

The number of wrong inputs is displayed.

Number of wrong

inputs

Interval until next input

is allowed

2 5 minutes

3 1 hour

4 24 hours

NOTE

After a security code has been registered, power cannot be

restored if the battery is disconnected from the unit unless the

code is first input.

All the steps in this procedure (1 through 7) must be completed

before the code security function can be turned on. However,

once the procedure is finished, it need not be repeated.

Once the code security function has been activated, "Security"

disappears from the MENU system. Note that it will no longer be

possible to cancell this function afterwards.

Press the SRC button repeatedly to select the standby mode.

"ALL OFF" is displayed when the standby mode is selected.

Hold down the MENU button for one second or more.

"MENU" is displayed first and then "Security" is displayed.

Hold down either the 4or ¢button for one second or

more.

"ENTER" will appear in the display for one second, indicating

the code setting mode has been entered. When "CODE"

appears in the display, you can start inputting the code.

Press the preset button and enter your security code.

Use the security code shown on your Car Audio Passport.

Example: Enter "3510" as your code, pressing the buttons as

follows:

Hold down the DISP button for three seconds or more.

The security code will be set.

Step Button to press # Times

pressed Display

1#1 4

6#2

#3 2

4#4 1

“3”

“5”

“1”

“0”

NOTE

Code Security Function <In Standby mode>

— 39 —

You can set the date formats of the calendar function.

Display and setting:

Select the display "Date Mode" during the selecting function in

the menu system.

Press the 4and ¢button to select the date format you

want to show in the display.

The sample of the date format for today is displayed.

Calendar Mode

Adjust the date for the unit so that you can use the calendar

function.

Display and setting:

Select the display "Date Adjust" during the selecting function in

the menu system.

Hold down either the 4or ¢button for one second or

more to enter the Calendar adjustment mode.

The date display will blink.

Selecting the item (day, month, or year) to adjust

Press the 4or ¢button.

The item blinking in the display can be adjusted.

Adjusting the date

Press the FM or AM button.

The item of the date blinking in the display will change.

Press the MENU button to end the Calendar Adjustment mode.5

Calendar Adjustment

Adjust the time manually.

This adjustment is available only when the automatic time

adjustment is set to off. (page 41)

Display and setting:

Select the display "Clock Adjust" during the selecting function

in the menu system.

Hold down either the 4or ¢button for one second or

more to enter the Manual time adjustment mode.

The time display will blink.

• Adjusting the hours

Press the FM button to advance the hours, or press the AM

button to make the hours go back.

• Adjusting the minutes

Press the ¢button to advance the minutes, or press the

4button to make the minutes go back.

Press the MENU button to end the Manual Time Adjustment

mode.

Exiting the Manual Time Adjustment mode would start the

clock counting.

NOTE

Manual Time Adjustment

This function produces a beep sound that accompanies button

operation. It can be switched on or off.

Display and setting:

"Beep ON" : Beep setting is on. (Default setting)

"Beep OFF" : Beep setting is off.

The beep sound is not output from the preout jacks.

NOTE

Touch Sensor Tone

Menu settings

— 40 —

English

You can dim the display.

The dimmer function is not available for units if the dimmer cable

is not connected.

Display and setting:

"Dimmer ON" : The dimmer setting is on. (Default setting)

"Dimmer OFF" : The dimmer setting is off.

NOTE

Dimmer

You can change the font used on the display.

Display and setting:

Select the display "Font Select" during the selecting function in

the menu system.

Pressing the 4or ¢button switches the font on the

display.

Font Select

Select the display "Icon/Speana Select" during the selecting

function in the menu system.

Pressing the 4or ¢button switches the Icon/Spectrum

analyzer.

This function permits switching of the spectrum analyzer

display.

Display and setting:

Icon/Spectrum analyzer Select

A red indicator blinks on the unit after the faceplate is

removed, warning potential thieves.

Display and setting:

"DSI ON" : The disabled system indicator is on. (Default setting)

"DSI OFF" : The disabled system indicator is off.

Disabled System Indicator (DSI)

With automatic time adjustment, you can set the clock time

automatically according to time data sent from RDS stations

(after receiving RDS signals for several minutes). You can also

set the time manually if the automatic time adjustment

function is turned off.

Display and setting:

"SYNC ON" : Automatic time adjustment (Default setting)

"SYNC OFF" : Manual time adjustment

Adjusting Time Automatically:

Tune into an RDS station for 3 or 4 minutes.

The time adjusts automatically to the correct local time.

The time is not adjusted when the RDS station you are tuned to

is not transmitting a time signal. Choose another RDS station in

such a case.

NOTE

Automatic Time Adjustment

— 41 —

Adjust the bass boost level of the external amplifier using the

main unit.

Display and setting:

"AMP Bass Flat" : Bass boost level is flat. (Default setting)

"AMP Bass +6" : Bass boost level is low (+6dB).

"AMP Bass +12" : Bass boost level is high (+12dB).

As of December 2000, the power amplifiers controllable by the

main unit are as follows:

KAC-X501F/PS501F/X401M/PS401M/X301T/PS301T/X201T/PS201T

NOTE

External Amp Control

You can select the speaker output, either front or rear, for the

TV(AUX) source.

Display and setting:

"Zone 2 Rear" : Output from the rear speaker (Default setting)

"Zone 2 Front" : Output from the front speaker

Not available during the Dual zone system is on.

NOTE

Switching Dual Zone System Output

Toggles on or off the mute control on the built-in amplifier.

Turning on this control enhances the preout quality.

Display and setting:

"Builtin AMP Mute ON" : Built-in Amp Mute is ON.

"Builtin AMP Mute OFF" : Built-in Amp Mute is OFF. (Default

setting)

Built-in Amp Mute Control <In Standby mode>

When this system is set to on, the System Q factors (Bass

centre frequency, Bass quality factor, Bass extend, Middle

centre frequency, Middle quality factor, and Treble centre

frequency) appear during the audio control mode.

Display and setting:

"System Q ON" : The System Q factors appear and can be

adjusted. (Default setting)

"System Q OFF" : The System Q factors do not appear.

System Q

Menu settings

— 42 —

English

Switch the preout between the rear and non-fading. When you

switch to non-fading, you can adjust the volume separately.

Display and setting:

"SWPRE Rear" : Rear preout (Default setting)

"SWPRE N-Fad" : Non-fading preout

You cannot use the high-pass filter with non-fading preout.

NOTE

Switching preout

You can arrange to have news bulletins interrupt your current

listening source, including other radio stations. When the

News Bulletin function is on, the PTY News Timeout setting

allows you to set the interval during which further news

interruption cannot take place. You can adjust the PTY news

interruption period from 10 to 90 minutes for each journey.

News Bulletin Function with PTY News Timeout

Setting

You can automatically store all the receivable frequencies in

the band currently being listened to, and then recall them with

the touch of a button later. This function is especially useful

when you are travelling and do not know what stations are

available. Up to 6 frequencies can be stored this way.

Display and setting:

Select the display "Auto-Memory" during the selecting function

in the menu system.

Hold down either the 4or ¢button for two seconds or

more to start auto memory function.

The numbers of the preset station buttons showed in order.

When all the stations in a certain band are stored in the preset

memory, the auto memory entry stops. The tuner then plays

the last station received.

• When the AF function is turned on whilst auto memory entry

takes place, only RDS stations (i.e., stations with RDS

capability) are stored. RDS stations that have been preset for

FM1 cannot also be preset in FM2 or FM3.

• When the local seek function is turned whilst auto memory

entry takes place, stations with poor reception are not stored.

• When the Traffic Information function is on, only the local traffic

information station frequency will be stored.

Cancelling Auto Memory Entry During Its Operation:

Press the 4/ ¢button whilst auto memory entry is taking

place to stop the process.

Recalling a Preset Station:

Press the preset station button (#1-6) for the desired station.

The number of the recalled station is displayed.

NOTE

Auto Memory Entry <In Tuner mode>

You can choose from three tuning modes: auto seek, preset

station seek, and manual.

Display and setting:

"Seek Mode Auto1" : Auto seek tuning mode (Default setting)

"Seek Mode Auto2" : Preset station seek tuning mode

"Seek Mode Manual" : Manual tuning mode

Selecting Tuning Mode <In Tuner mode>

With the local seek function turned on, auto seek tuning skips

stations with relatively poor reception.

Display and setting:

"Local.S ON" : The local seek function is on.

"Local.S OFF" : The local seek function is off. (Default setting)

Local Seek Function <In Tuner mode>

— 43 —

Display and setting:

"News OFF" (Default setting), "News 00min" – "News 90min"

(min= minutes)

: When you select the news interruption timeout interval, the

News function turns on and the NEWS indicator lights up.

When a news bulletin is received, "NEWS" will be displayed

and reception will begin at the preset volume.

• If you choose the "20

min

" setting, further news bulletins will not

be received for 20 minutes once the first news bulletin is

received.

• This function is only available if the desired station sends PTY-

code for news bulletin or belongs to <Enhanced Other

Network>-Network sending PTY-code for news bulletin.

• If you turn on the news bulletin function in the MW/LW band,

the band is switched automatically to the FM band.

However, the MW/LW band is not returned to when you turn off

the function.

NOTE

ID3 tag information in the MP3 file is configured for use.

Display and setting:

"ID Read ON" : ID3 tag is read. (Default setting)

"ID Read OFF" : ID3 tag is not read.

• If you switch this setting during the play of MP3, the track is

replayed from the beginning.

NOTE

Reading the MP3 ID3 tag <in MP3 mode>

When poor stereo reception is experienced, this function will

reduce noise and improve listening conditions.

Display and setting:

"MONO ON" : The monaural reception is on.

"MONO OFF" : The monaural reception is off. (Default setting)

Monaural Reception

When the TI function is on and poor reception conditions are

experienced when listening to a traffic information station,

another traffic information station with better reception will be

searched for automatically. This function is on, when unit is

first powered on.

Display and setting:

"ATPS ON" : The Auto TP Seek Function is on.

If the traffic information station you are tuned to

experiences poor reception, this function

automatically seeks another TP station. (Default

setting)

"ATPS OFF" : The Auto TP Seek Function is off.

Auto TP Seek Function

You can choose whether or not to restrict the RDS channels,

received with the AF function for a particular network, to a

specific region. When the Region Restrict Function is on, the

region is restricted.

Display and setting:

"Regional ON" : The Region Restrict Function is on. (Default

setting)

"Regional OFF" : The Region Restrict Function is off.

Sometimes stations in the same network broadcast different

programmes or use different programme service names.

NOTE

Restricting RDS Region (Region Restrict Function)

When poor reception is experienced, automatically switch to

another frequency broadcasting the same programme in the

same RDS network with better reception.

The RDS indicator lights up when the AF function is turned on.

Display and setting:

"AF ON" : The AF function is on. (Default setting)

"AF OFF" : The AF function is off.

When no other stations with stronger reception are available for

the same programme in the RDS network, you may hear the

incoming broadcast in bits and snatches. Turn off the AF function

in such a case.

NOTE

AF (Alternative Frequency) Function

Menu settings

— 44 —

English

The "Built-in AUX Control" determines whether you include the

TV(AUX) factor in the cycle-through items in the "Switching

Modes" (page 11) function.

Display and setting:

"Builtin AUX ON" : The TV(AUX) factor apears. (Default setting)

"Builtin AUX OFF" : The TV(AUX) factor does not apear.

Not available during the Dual zone system is on.

NOTE

Built-in AUX Control

Set the time for the OFF Timer function activated when you

selected Standby mode.

If the predefined time elapses, this unit's power is

automatically turned off.

Display and setting:

"OFF – – – –" : Power OFF Timer function is cancelled.

"OFF 20min" : Unit's power goes OFF after 20 minutes.

(Default setting)

"OFF 40min" : Unit's power goes OFF after 40 minutes.

"OFF 60min" : Unit's power goes OFF after 60 minutes.

The Power OFF Timer function is enabled only after the security

code (page 39) is set up.

NOTE

Power OFF Timer

This function permits the CD text, MD title, folder/file name

and ID3 tag(Song title, Artist, Album) to be scrolled and the

entire text to be displayed. Switching between manual

scrolling and automatic scrolling is permitted.

Display and setting:

"Scroll Auto" : Automatic scrolling

"Scroll Manual" : Manual scrolling (Default setting)

Text Scroll

• If you turn the ID3 tag read ON, beginning of the play is delayed

for reading process of each tag for the tune.

— 45 —

• VOL buttons

Press the 5button to turn the volume up.

Press the ∞button to turn the volume down.

• SRC button

Each time you press the SRC button, the mode switches as

follows:

Basic operations

Do not set the remote control on hot places such as above the

dashboard.

Loading and Replacing the Batteries:

Use one lithium battery (CR2025).

Remove the case following the instructions as illustrated.

Insert the batteries with the +and –poles aligned properly,

following the illustration inside the case.

Store unused batteries out of the reach of children. Contact a

doctor immediately if the battery is accidentally swallowed.

2WARNING

1Keep on slide

Pull out

2CAUTION

Basic Operations of remote control

— 46 —

English

•4/¢buttons

Press the 4button to make decreasing seeks (using the

preset tuning mode).

Press the ¢button to make increasing seeks (using the preset

tuning mode).

• AM/FM buttons

Press the AM button to select the MW and LW bands.

Press the FM button to select and switch between FM1, FM2,

and FM3 bands.

• DIRECT/OK button

During Preset station seek with programme service name mode,

selects station.

Enters and cancells the Direct access tuning mode.

• DNPP button

Enters and cancells the Preset station seek with programme

service name mode.

•38 button

Enters and cancells the Programme Type Selection (PTY) mode.

• Number/letter entry buttons

Press buttons #1-6 to recall preset stations.

Use to enter frequency of the desired station during Direct

access tuning mode.

Tuner features

• The mode switches to the next mode from any mode which

cannot be used.

• The external disc control mode will differ depending on the unit

that is connected.

• You cannot use the AUX input function of the optional switching

adapter KCA-S210A if this unit is connected with the KCA-

S210A.

• If you have selected Standby mode, the timer function that

turns the power off automatically will be activated.

To find out how to set the time on the timer, and how to cancel

the timer function, refer to the section on the Power OFF Timer

function under Menu settings (page 45).

The Power OFF Timer function is enabled only after the security

code (page 39) is set up.

• ATT button

Turns down the volume quickly. To return the volume to its

original level, press the button again. Turning the volume up, or

turning it all the way down deactivates the attenuator function.

NOTE

▼

Tuner mode

▼

CD/MP3 mode

▼

External disc control mode 1

▼

External disc control mode 2 / AUX mode

TV(AUX)

▼

Standby mode

— 47 —

•4/¢buttons

Press the 4button to search through the tracks and files

backward.

Press the ¢button to search through the tracks and files

forward.

Used to move the cursor whilst entering disc name.

• DISC buttons

(for disc changers and media containing MP3 files)

Press the DISC–button to search through the discs and folders

backward.

Press the DISC+button to search through the discs and folders

forward.

Selects numbers and symbols whilst entering disc name.

•38 button

When a disc is playing, this button pauses the play.

Press the same button again to start play again.

Selects the type of characters at the time of entering the disc

name.

• OK button

During disc name input, stores the already input data in memory

and ends the input mode.

Selects disc during the disc name preset play mode.

• DNPP button (for disc changers)

Enters and cancells the Disc Name Preset Play mode.

• Number / letter entry buttons

Used to specify the track (disc) number used in direct track (disc)

searches.

Use to enter letters during disc name preset.

CD/MP3/External disc control features

Basic Operations of remote control

— 48 —

English

— 49 —— 49 —

The use of any accessories except for those provided might

result in damage to the unit. Make sure only to use the

accessories shipped with the unit, as shown above.

2CAUTION

Installation Procedure

Accessories

1. To prevent short circuits, remove the key from the ignition and

disconnect the - terminal of the battery.

2. Make the proper input and output cable connections for each

unit.

3. Connect the cable on the wiring harness.

4. Take Connector B on the wiring harness and connect it to the

speaker connector in your vehicle.

5. Take Connector A on the wiring harness and connect it to the

external power connector on your vehicle.

• If your car is not prepared for this special connection-system,

consult your KENWOOD dealer.

• Only use antenna conversion adapters (ISO-JASO) when the

antenna cord has an ISO plug.

• Make sure that all cable connections are securely made by

inserting jacks until they lock completely.

• If your vehicle's ignition does not have an ACC position, or if

the ignition cable is connected to a power source with constant

voltage such as a battery cable, the power will not be linked

with the ignition (i.e., it will not turn on and off along with the

ignition). If you want to link the unit's power with the ignition,

connect the ignition cable to a power source that can be turned

on and off with the ignition key.

• If the fuse blows, first make sure that the cables have not

caused a short circuit, then replace the old fuse with one with

the same rating.

• Do not let unconnected cables or terminals touch metal on the

car or anything else conducting electricity. To prevent short

circuits, also do not remove the caps on the ends of the

unconnected cables or the terminals.

• Connect the speaker cables correctly to the terminals to which

they correspond. The unit may receive damage or fail to work if

you share the -cables and/or ground them to any metal part

in the car.

• After the unit is installed, check whether the brake lamps,

indicators, wipers, etc. on the car are working properly.

• Insulate unconnected cables with vinyl tape or other similar

material.

• Some disc changers need conversion cables for connection.

See the section on "Safety Precautions" for details.

• If the console has a lid, make sure to install the unit so that the

faceplate does not hit the lid when closing and opening.

• Mount the unit so that the mounting angle is 30° or less.

2CAUTION

External view ......... Number of items

6. Connect the wiring harness connector to the unit.

7. Install the unit in your car.

8. Reconnect the -terminal of the battery.

9. Press the reset button.

..........................1

..........................2

..........................1

English

— 50 —

Connecting Cables to Terminals

TEL MUTE

EXT.

CONT.

P.CONT

ANT.

CONT.

NON

FADING

FRONT AUX IN

REAR

Front left output (White)

Front right output (Red)

Rear right output/

Non-fading right output (Red)

Rear left output/

Non-fading left output (White)

Connector Function Guide

Pin Numbers for

ISO Connectors

Cable Colour Functions

External Power

Connector

A–4

A–5

A–6

A–7

A–8

Speaker

Connector

B–1

B–2

B–3

B–4

B–5

B–6

B–7

B–8

Yellow

Blue/White

Orange/White

Red

Black

Purple

Purple/Black

Gray

Gray/Black

White

White/Black

Green

Green/Black

Battery

Power Control

Dimmer

Ignition (ACC)

Earth (Ground)

Connection

Rear Right (+)

Rear Right (–)

Front Right (+)

Front Right (–)

Front Left (+)

Front Left (–)

Rear Left (+)

Rear Left (–)

Battery cable (Yellow)

Ignition cable (Red)

FM/AM antenna input Antenna Cord (ISO)

Antenna Conversion Adaptor (ISO–JASO) (Accessory3)

Wiring harness

(Accessory1)

If no connections are

made, do not let the cable

come out from the tab.

NOTE

Connect to the terminal that is grounded

when either the telephone rings or during

conversation.

Power control/ Motor antenna

control cable (Blue/White) Connect either to the power control terminal

when using the optional power amplifier, or to

the antenna control terminal in the vehicle.

A–7 Pin (Red)

A–4 Pin (Yellow)

Connector B

Fuse(10A)

Connector A

TEL mute cable (Brown)

To connect the KENWOOD navigation

system, consult your navigation manual.

NOTE

External amplifier control cable

(Pink / Black) To "EXT.AMP.CONT." terminal of the amplifier

having the external amp control function.

To KENWOOD disc changer/ DAB control input

KPA-SD100/KPA-HD100/KPA-SS100

To connect these leads, refer to the relevant

instruction manuals.

NOTE

AUX left input (White)

AUX right input (Red)

— 51 —

Make sure that the unit is installed securely in place. If the unit

is unstable, it may malfunction (eg, the sound may skip).

NOTE

Bend the tabs of the

mounting sleeve with

a screwdriver or

similar utensil and

attach it in place.

Metal mounting

strap

(commercially

available)

Self-tapping

screw

(commercially

available)

Firewall or metal support

Screw (M4X8)

(commercially

available)

Installation

■

Installation

To attach this unit, make sure the front of the control panel faces

you and fit it into the mounting sleeve by pressing the four corners

of the hard rubber frame at the same time.

Do not apply strong pressure to other sections than the corners;

otherwise troubles such as the impossibility of opening or closing

the panel may result.

2CAUTION

Connecting the ISO Connector (see p.50)

The pin arrangement for the ISO connectors depends on the

type of vehicle you drive. Make sure to make the proper

connections to prevent damage to the unit.

The default connection for the wiring harness is described in 1

below. If the ISO connector pins are set as described in 2or 3,

make the connection as illustrated.

2WARNING

Unit Vehicle

Ignition cable (Red)

Battery cable (Yellow)

A–7 Pin (Red)

A–4 Pin (Yellow)

Unit Vehicle

Ignition cable (Red)

Battery cable (Yellow)

A–7 Pin (Red)

A–4 Pin (Yellow)

Unit Vehicle

Ignition cable (Red)

Battery cable (Yellow) A–4 Pin (Yellow)

1(Default setting) The A-7 pin (red) of the vehicle's ISO

connector is linked with the ignition, and the A-4 pin (yellow)

is connected to the constant power supply.

2The A-7 pin (red) of the vehicle's ISO connector is connected

to the constant power supply, and the A-4 pin (yellow) is

linked to the ignition.

3The A-7 pin (red) of the vehicle's ISO connector is not

connected to anything, whilst the A-4 pin (yellow) is connected

to the constant power supply (or both the A-7 (red) and A-4

(yellow) pins are connected to the constant power supply).

Connect to a power source that can be

turned on and off with the ignition key.

English

— 52 —

Installation

Removing the hard rubber frame

■

When the lower level is removed, remove the upper two

locations.

The frame can be removed from the top side in the same

manner.

NOTE

Catch

Lock

Engage the catch pins on the removal tool and remove the

two locks on the lower level.

Lower the frame and pull it forward as shown in the figure.

Removing the Unit

■

Lower the removal tool

toward the bottom, and pull

out the unit halfway whilst

pressing towards the

inside.

Pull the unit all the way out

with your hands, being

careful not to drop it.

Be careful to avoid injury from the catch pins on the removal tool.

2CAUTION

Refer to the section “Removing the hard rubber frame” and

then remove the hard rubber frame.

Remove the screw (M4´8) on the back panel.

Insert the two removal tools deeply into the slots on each

side, as shown.

Accessory2Removal tool

Screw (M4X8)

(commercially

available)

— 53 —

Accessory4

Screwing the Faceplate on the Unit

■

Never insert the provided screw (M2 ´3 mm) in any other

screw hole than the one specified. If you screw it in another

hole, it will contact and may cause damage to the mechanical

parts inside the unit.

2CAUTION

If you want to fasten the faceplate to the main unit so that it

does not fall off, screw in the provided screw (M2 ´3 mm) in

the hole shown below.

English

— 54 —

What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring.

Before calling service, first check the following table for possible problems.

Troubleshooting Guide

SOLUTIONPOSSIBLE CAUSEPROBLEM

Nothing happens when the

buttons are pressed. The computer chip in the unit is not functioning normally. Press the reset button on the unit (see page 4).

The antenna control cable is not connected. Connect the cable correctly, referring to the section on

"Connecting Cables to Terminals".

Radio reception is poor. The car antenna is not extended. Pull out the antenna all the way.

The power does not turn on. The fuse has blown. After checking for short circuits in the cables, replace the

fuse with one having the same rating.

No ACC position on vehicle ignition. Connect the same cable to the ignition as the battery cable.

If you have selected Standby

mode, the power will go OFF

automatically.

The Power Off Timer function has been activated. If you do not want the power to go OFF automatically,

cancel the Power Off Timer function.

The TEL mute function does

not work. The TEL mute cable is not connected properly. Connect the cable correctly, referring to the section on

"Connecting Cables to Terminals".

The TEL mute function turns on

even though the TEL mute

cable is not connected.

The TEL mute cable is touching a metal part of the car. Pull the TEL mute cable away from the metal part of the

car.

The memory is erased when

the ignition is turned off. The battery cable has not been connected to the proper

terminal. Connect the cable correctly, referring to the section on

"Connecting Cables to Terminals".

The ignition and battery cable are incorrectly connected. Connect the cable correctly, referring to the section on

"Connecting Cables to Terminals".

Free switching of the sound

quality. The system Q function is set on Scan mode. Refer to the “System Q” page and switch it to a function

other than Scan mode. (see p. 16).

Audio control setting cannot be

achieved. The system Q function is set on Scan mode. Refer to the “System Q” page and switch it to a function

other than Scan mode.(see p. 16).

TV (AUX) cannot be selected. "Built-in AUX Control" is turned off. Refer to the "Built-in AUX Control" in the menu setting

(page 45) and turn on the "Built-in AUX Control" .

— 55 —

A CD ejects as soon as it is

loaded. The CD is upside-down. Load the CD with the labelled side up.

The CD is quite dirty. Clean the CD, referring to the section on "Cleaning CDs"

(see page 6).

The sound skips on a CD. The CD is scratched or dirty. Clean the CD, referring to the section on "Cleaning CDs"

(see page 6).

The specified track does not

play. Random play has been selected. Turn off the random play function.

SOLUTIONPOSSIBLE CAUSEPROBLEM

A speaker cable may be pinched by a screw in the car. Check the speaker wiring.

No sound can be heard, or the

volume is low. The fader and/or balance settings are set all the way to

one side. Reset the fader and/or balance settings.

The input/output cables or wiring harness are connected

incorrectly. Reconnect the input/output cables and/or the wiring

harness correctly. See the section on "Connecting Cables

to Terminals".

The sound quality is poor or

distorted. The speakers are not wired correctly. Reconnect the speaker cables so that each output

terminal is connected to a different speaker.

The Attenuator function is turned on. Turn off the Attenuator function.

Can’t remove disc. The cause is that more than 10 minutes has elapsed

since the vehicle ACC switch was turned OFF. The disc can only be removed within 10 minutes of the

ACC switch being turned OFF. If more than 10 minutes

has elapsed, turn the ACC switch ON again and press

the Eject button.

"Built-in Amp Mute Control" is turned on. Refer to the "Built-in Amp Mute Control" in the menu

setting (page 42) and turn off the "Built-in Amp Mute

Control" .

English

— 56 —

CD/MP3/External disc control mode

SOLUTIONPOSSIBLE CAUSEPROBLEM

The computer chip in the unit is not functioning normally. Press the reset button on the unit (see page 4).

The disc control mode cannot

be selected. No cable has been connected to the disc changer input

terminal on the unit. Connect the cable to the disc changer input terminal on

the unit.

The specified disc does not

play, but another one plays

instead.

The specified CD is very dirty. Clean the CD.

The CD is upside-down. Load the CD with the labelled side up.

The disc is loaded in a different slot from that specified. Eject the disc magazine and check the number for the

specified disc.

The disc is severely scratched. Try another disc instead.

The sound skips. Something is touching the disc changer. Remove whatever is touching it.

The CD is scratched or dirty. If skipping happens at the same place when the car is

stopped, something is wrong with the CD. Clean the CD.

The display shows that the

changer is being played, but no

sound can be heard.

The specified track does not

play. Random play or magazine random play has been

selected.

Turn off the random play or magazine random play

function.

Track repeat, disc repeat, track

scan, random play, and

magazine random play start by

themselves.

The setting is not cancelled. The settings for these functions remain on until the

setting to off or the disc ejected, even if the power is

turned off or the source changed.

Troubleshooting Guide

If the following situations, consult your nearest service centre:

• Even though the disc changer is connected, the Disc Changer Mode is not on, with "AUX" showing in the display during the Changer Mode.

• Even though no device (CA-C1AX, KDC-CPS87, KDC-CX87, KDC-CPS85, KDC-CX85, KDC-CPS82 or KDC-CX82) is connected, the AUX Mode is entered when

switching modes.

Cannot play CD-R or CD-RW. Finalization processing is not being conducted for CD-

R/CD-RW. Conduct finalization processing with CD recorder.

A non-compatible CD changer is being used to play the

CD-R/CD-RW. Use a CD changer compatible with CD-R/CD-RW to play.

— 57 —

SOLUTION

POSSIBLE CAUSEPROBLEM

Noise or no sound generated

when an MP3 file is played. The file has the MP3 file name extension while it is not

an MP3 file. Do not use the ".MP3" extension in non-MP3 files.

Takes time before the unit

starts playing MP3 files. The medium contains many folders, files, and hierarchical

levels. The unit checks all files on the loaded medium first. If

the medium has many files recorded, it may take a long

time for the unit before it starts playing MP3 files.

Cannot play an MP3 file. Not conforming to ISO 9660 Level 1/2. Use a medium conforming to ISO 9660 Level 1/2.

The MP3 file has no or invalid file name extension. Add the ".MP3" extension to the MP3 file name.

The media is scratched or dirty. Clean the media, referring to the section on "Cleaning

CDs" (see p.6).

Fails to play MP3 files in the

intended order. The MP3 files were not written by the CD writer in the

order in which you wanted them to be played. Depending on the CD writer, you may be able to set the

order in which MP3 files are to be played by writing

them onto a medium with their file names beginning

with play sequence numbers such as "01" to "99".

The sound skips when an MP3

file is being played. The media is scratched or dirty. Clean the media, referring to the section on "Cleaning

CDs" (see p.6).

English

— 58 —

Troubleshooting Guide

The following messages are displayed when certain problems are occurring in your system.Take the

recommended actions.

Nothing has been recorded on the MD.

Blank Disc

No disc magazine has been loaded in the changer. The disc magazine is not completely loaded.

]Load the disc magazine properly.

No CD in the unit.

]Insert the CD.

Eject

No tracks are recorded on the MD, although it has a title.

No Tr Disc

The unit is malfunctioning for some reason.

]Press the reset button on the unit. If the "E- 77", code does not disappear, consult your nearest service centre.

E-77

Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason.

]Check the disc magazine. And then, press the reset button on the unit.

If the "Mecha Error" code does not disappear, consult your nearest service center.

Mecha Error

The protective circuit in the unit activates when the temperature inside the automatic disc changer exceeds 60°C (140°F),

stopping all operation.

]Cool down the unit by opening the windows or turning on the air conditioner. As the temperature falls below 60°C (140°F),

the disc starts playing again.

Hold Error

No disc has been loaded in the disc magazine.

]Load a disc into the disc magazine.

The CD is very dirty. The CD is upside-down. The CD is scratched a lot.

]Clean the CD and load it correctly.

TOC Error

No disc has been loaded in the disc magazine.

]Load a disc into the disc magazine.

No Disc

The faceplate of the slave unit being connected to this unit has been removed.

]Replace it.

NO PANEL

If this indicator blinks, the CD player is malfunctioning.

]Eject the CD and try inseting it again.

If the CD cannot be ejected, press the eject button and hold it in until the CD is ejected.

— 59 —

FM tuner section

Frequency range (50 kHz space) ...............87.5 MHz – 108.0 MHz

Usable sensitivity (S/N = 26dB) .................................0.7 µV/75 ½

Quieting Sensitivity (S/N = 46dB) ..............................1.6 µV/75 ½

Frequency response (±3.0 dB) ..............................30 Hz – 15 kHz

Signal to Noise ratio (MONO)..............................................65 dB

Selectivity (DIN) (±400 kHz) .............................................³80 dB

Stereo separation (1 kHz) ....................................................35 dB

MW tuner section

Frequency range (9 kHz space)......................531 kHz – 1611 kHz

Usable sensitivity (S/N = 20dB) ...........................................25 µV

LW tuner section

Frequency range..............................................153 kHz – 281 kHz

Usable sensitivity (S/N = 20dB) ...........................................45 µV

CD player section

Laser diode ....................................................GaAlAs (l=780 nm)

Digital filter (D/A)......................................8 Times Over Sampling

D/A Converter ...............................................................8 level DS

Spindle speed (CD-DA) .................................500 – 200 rpm (CLV)

(MP3) ..................................1000 – 400 rpm (CLV)

Wow & Flutter ........................................Below Measurable Limit

Frequency response (±1 dB) .................................10 Hz – 20 kHz

Total harmonic distortion (1 kHz) ......................................0.01 %

Signal to Noise ratio (1 kHz) ................................................96 dB

Dynamic range ....................................................................95 dB

Channel separation..............................................................90 dB

MP3 decode...................Compliant with MPEG-1.0 Audio Layer-3

Audio section

Maximum output power .................................................47 W ´4

Full Bandwidth Power (DIN 45324, +B=14.4V) ...............22 W ´4

Tone action

Bass :...........................................................100 Hz ±10 dB

Middle :..........................................................1 kHz ±10 dB

Treble : .........................................................10 kHz ±10 dB

Preout level / Load (during disc play)....................1800 mV/10 k½

Preout impedance.............................................................²600 ½

General

Operating voltage (11 – 16V allowable)................................14.4 V

Current consumption.............................................................10 A

Installation Size (W x H x D) ..........................182 ´53 ´156 mm

Weight.................................................................................1.8 kg

Specifications

Specifications subject to change without notice.

Kenwood Z828Mp Users Manual Z828 (EN)

Z828MP to the manual 577eeb7b-40f5-4ba7-8fbf-f152fce49b35

Navigation menu

Versions of this User Manual:

Views

Navigation
