KeyTrak OBD1 Wireless remote vehicle inventory transmitter User Manual ActiveLot OBD Module

User Manual

ActiveLot OBD Module User’s Guide

Overview

The ActiveLot OBD Module gathers information from the vehicle along with the GPS location

and transmits it back to the ActiveLot system. While the vehicle is running, it will transmit

once every five seconds. While the vehicle is off, it will initiate a transmission cycle once

every hour.

For help with installation procedures, or if you have any questions, contact:

KeyTrak Support

1-800-541-5033

FCC Warnings

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

ActiveLot OBD Module User’s Guide

Procedure

WARNING! Do not insert or remove the OBD module from the vehicle’s OBD-II port

while the vehicle is running.

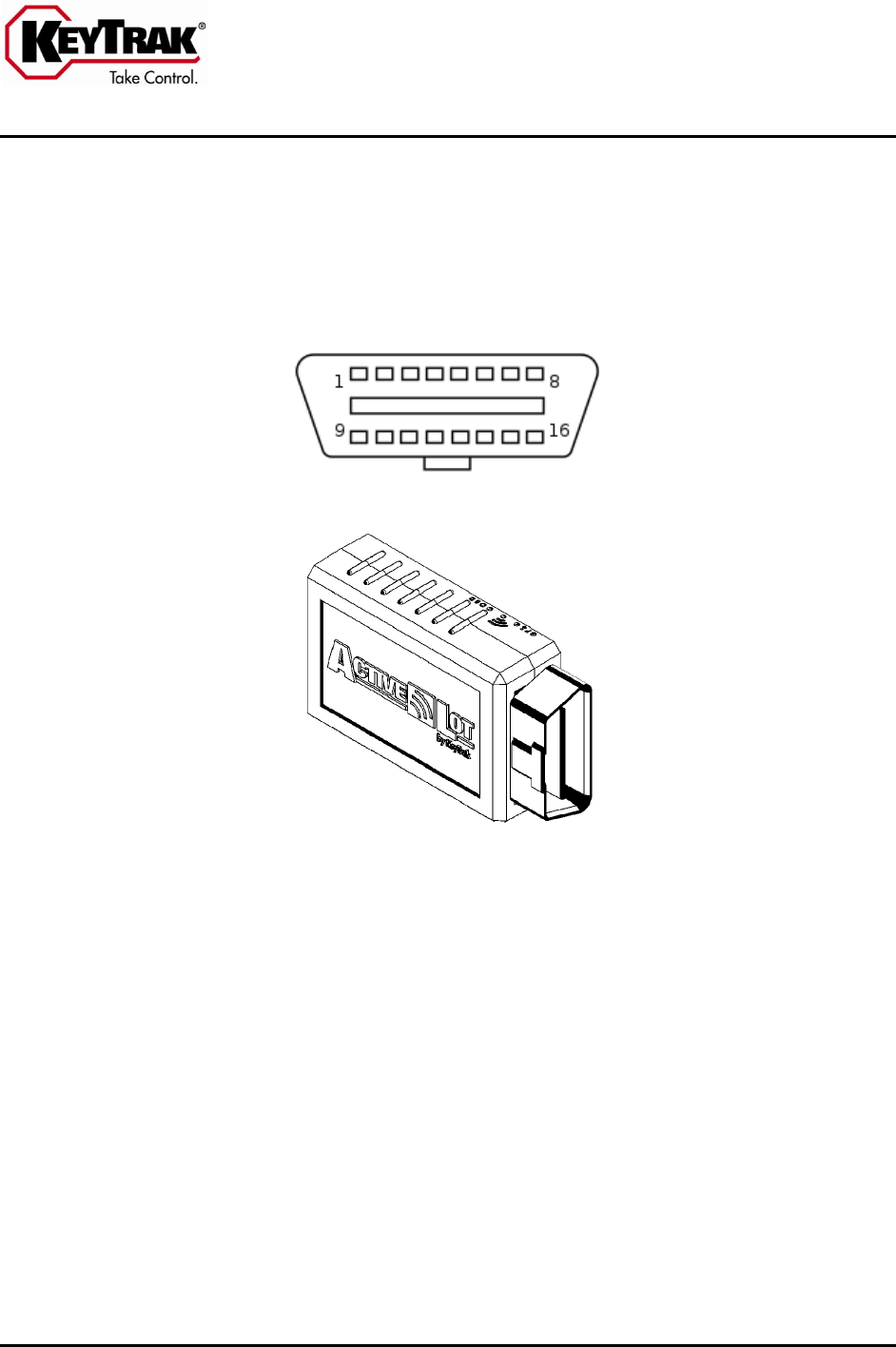

1. Locate your vehicle’s 16-pin OBD-II port.

2. Insert the OBD module into the OBD-II port on your vehicle.

3. Start the vehicle. This is required to pull the VIN (vehicle identification number) from the

vehicle’s computer system.

4. You can verify the unit is transmitting using the ActiveLot iOS app, the Web app, or the

KeyTrak application.

NOTE: A couple of minutes after installation, the OBD module will acquire the

necessary GPS satellite information to provide an accurate location.
