Owner’s Manual

Read all precautions and instruc-

tions in this manual before using

this equipment.

215-00010

09/04

Table of Contents

2

Important Safety Information 3

Before You Start 4

Assembly 5-40

Weight Ratios 41

Weight Stack Sticker Placement 42

Cable View 43

Top View 44

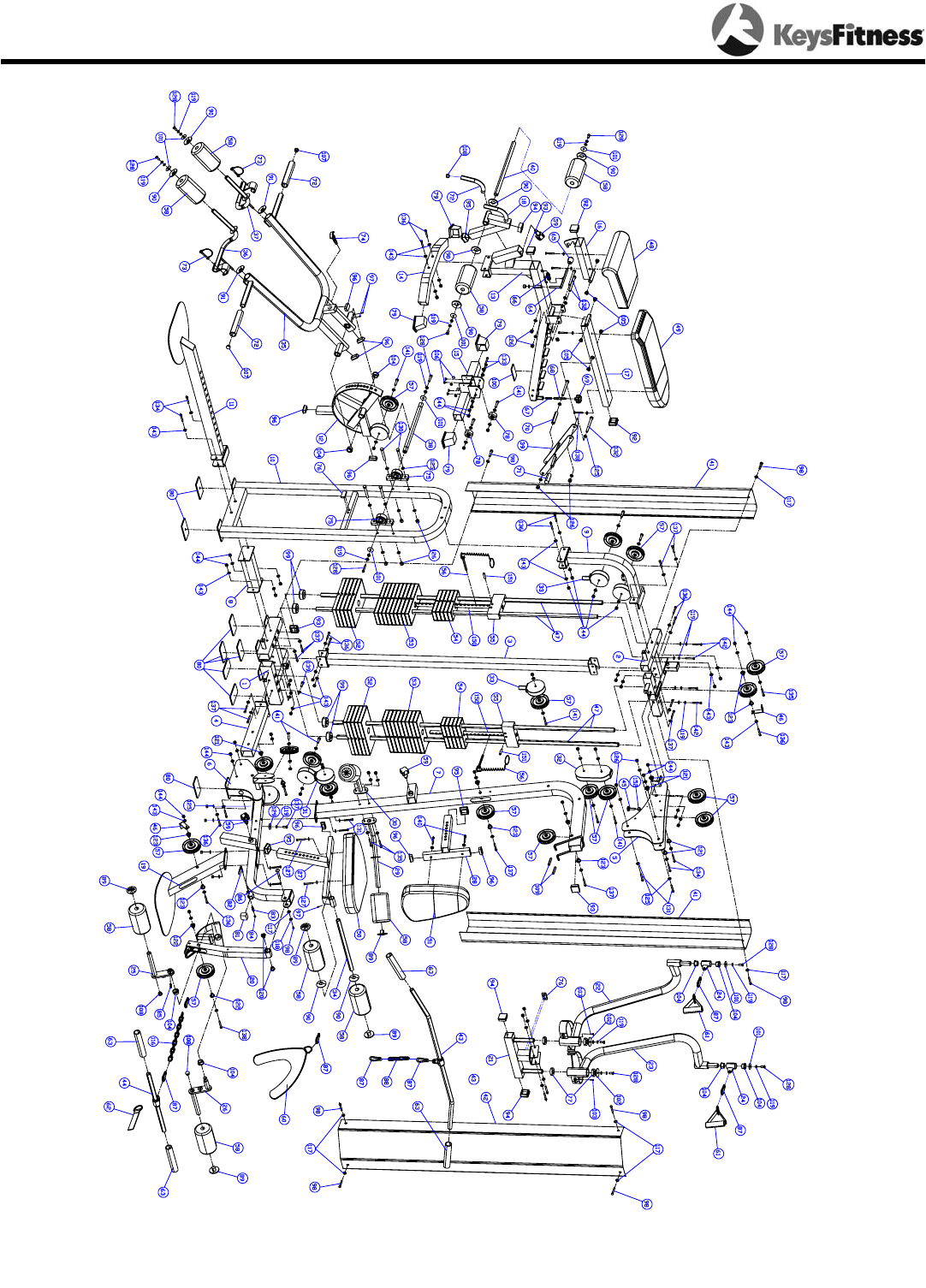

Exploded View 45

Parts List 46

Warranty Information 47

Important Safety Information

3

THANK YOU for making this Power System unit a part of your exercise pro-

gram. Keys Fitness and our Power System Series assures the very best in value,

appearance, durability and biomechanics.

This manual will guide you through the assembly process. If at any time you are

having trouble with the assembly or use of this product, then please contact us at

our Keys Fitness Help-line. We have trained service technicians on site to take

care of you, our valued customer.

REGISTRATION CARD

To avoid unnecessary delays in warranty parts and to insure that a permanent

record of your purchase is on file with our company, be sure to send in the war-

ranty registration card or register on-line at www.keysfitness.com within 10 days

of purchase.

POWER SYSTEM SERIES

QUESTIONS?

CALL

1-888-340-0482

Monday-Friday

8:30-5:30 Central Time

When calling please have the following product information available:

• Product Series

• Model #

• PO # (located on the front of the manual)

• Part Number

• Part Description

Before You Start

4

Prior to assembly, remove components from the box and verify that all the listed parts were supplied.

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

SAFETY INFORMATION WARNING!

Before using this unit or starting any exercise program, consult your physician.

This is especially important for persons over the age of 35 and/or persons with

pre-existing health problems. Keys Fitness Products LP assumes no responsibili-

ty for personal injury or property damage sustained by or through the use of this

product.

It is the owner’s responsibility to ensure that all users of this unit have read the

Owner’s Manual and are familiar with safety information and precautions.

SAFETY PRECAUTIONS

• This Power System unit should only be used on a level surface and is intended

for indoor use only. Keys Fitness recommends an equipment mat be placed

under the unit to protect the floor or carpet and for easier cleaning.

• Wear comfortable, good-quality walking or running shoes and appropriate

clothing. Do not use this unit with bare feet, sandals, socks or stockings!

• Always examine your unit before using to ensure all parts are in working order.

• Do not leave children unsupervised near or on the unit.

• Service to your Power System unit should only be performed by an authorized

service representative, unless authorized and/or instructed by a Keys Fitness

technician. Failure to follow these instructions will void the warranty.

Assembly

5

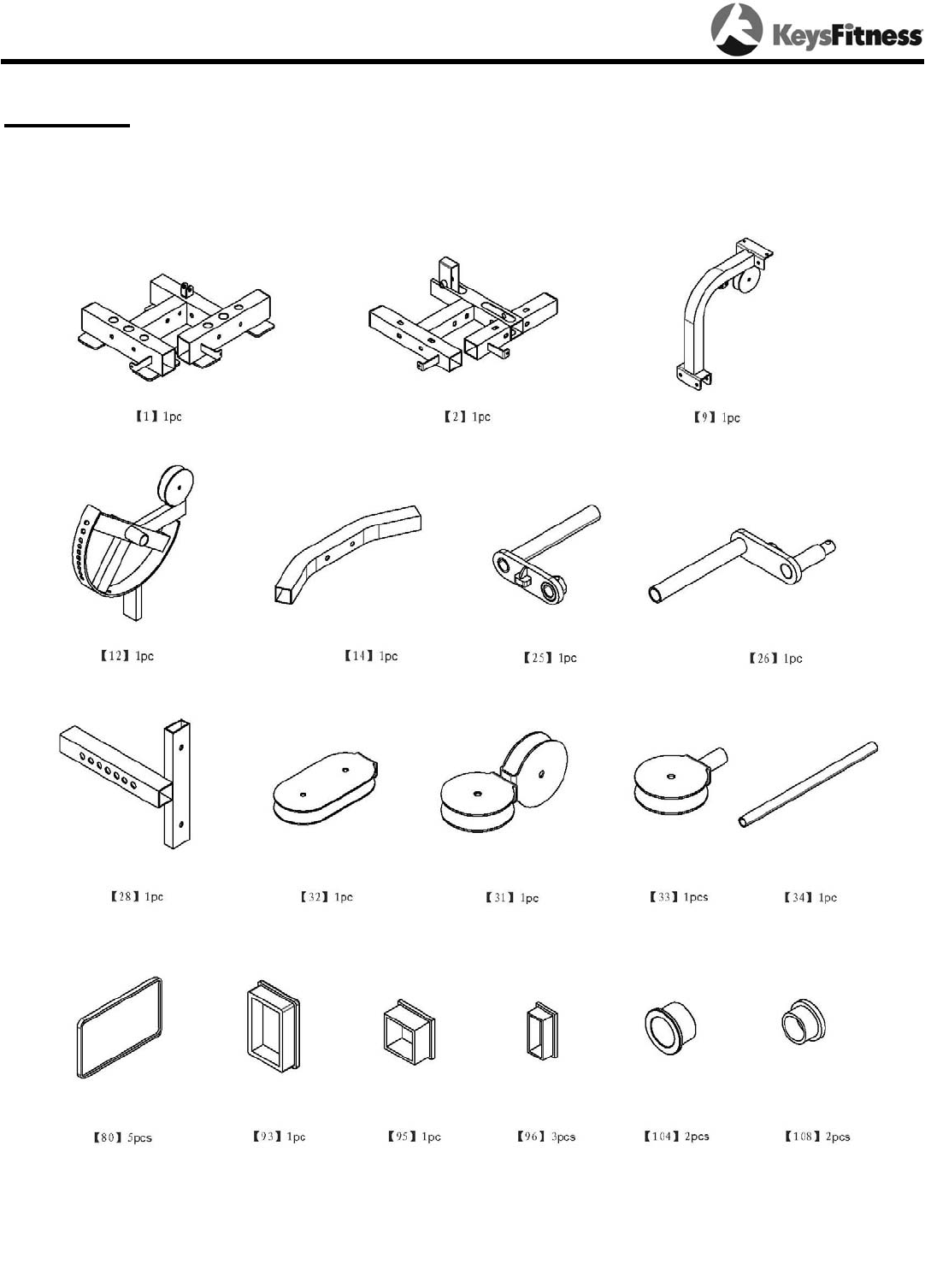

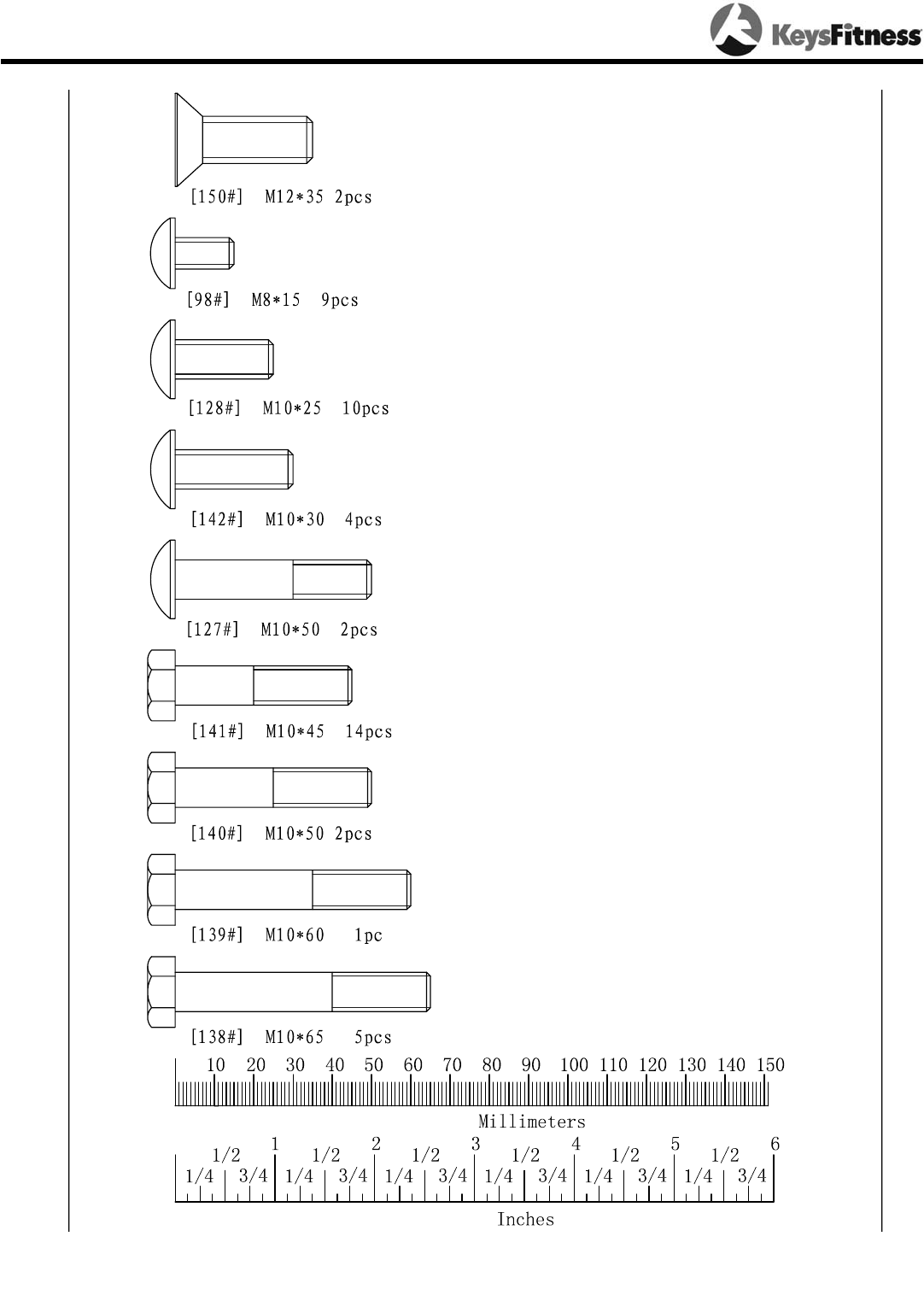

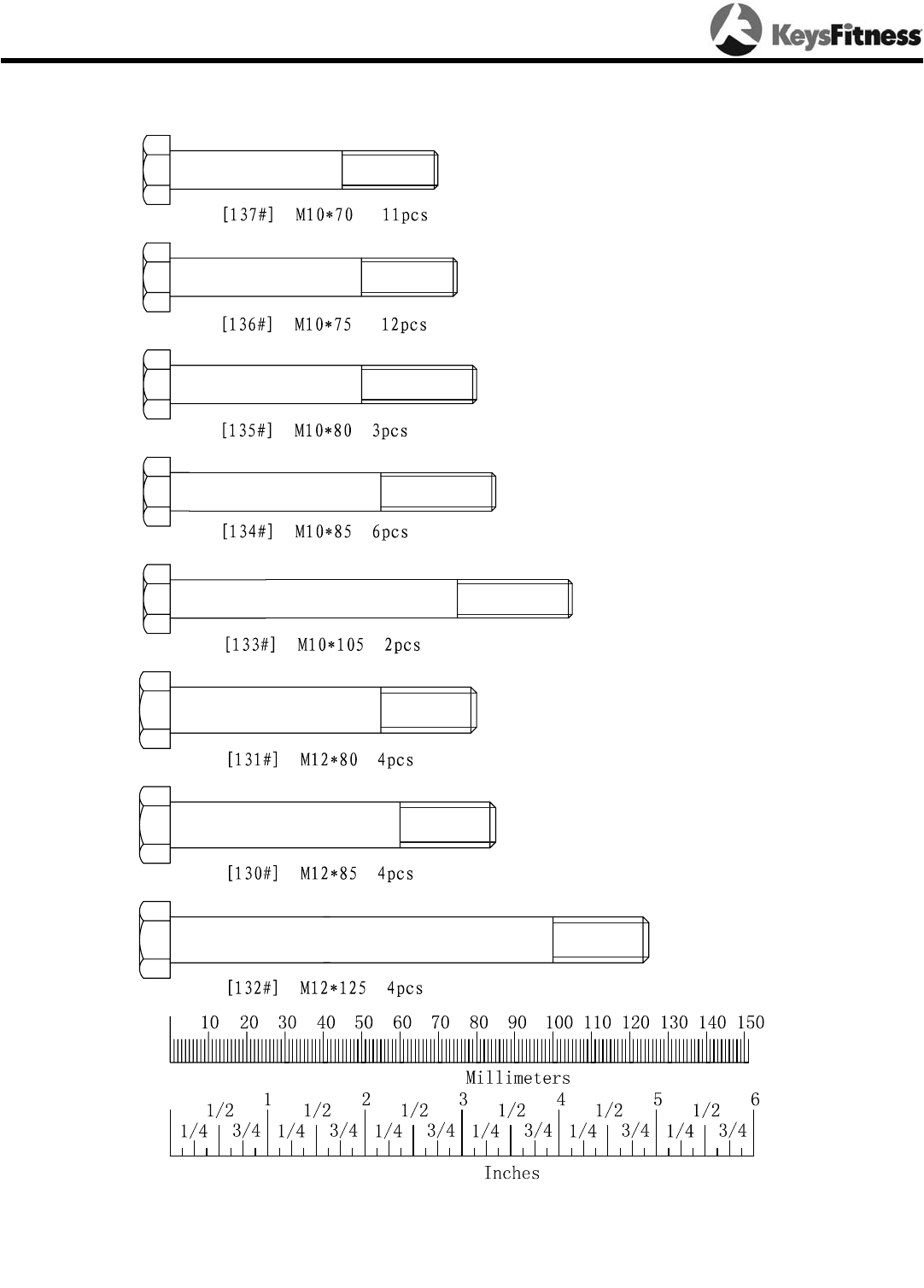

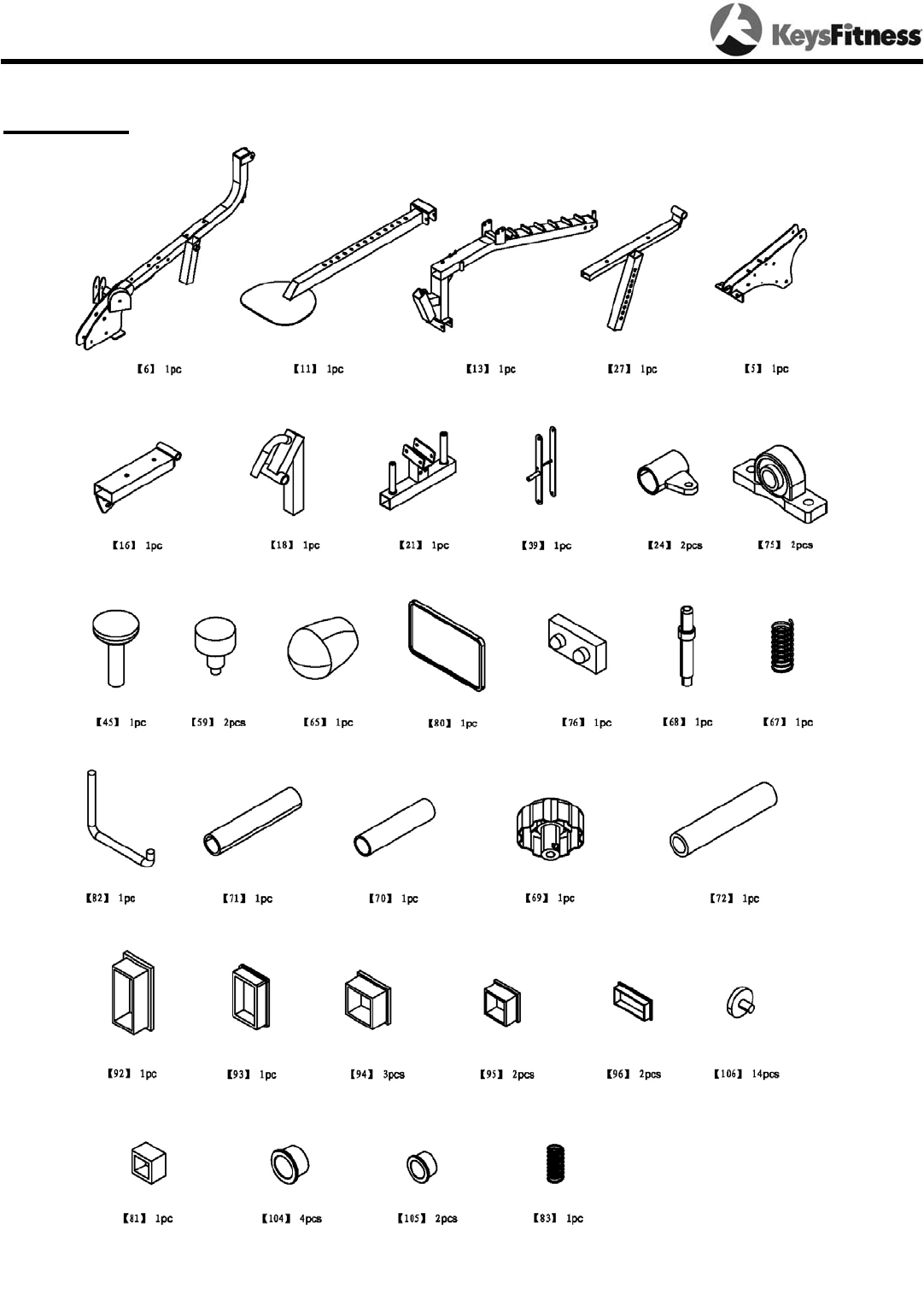

Box 1

Assembly

6

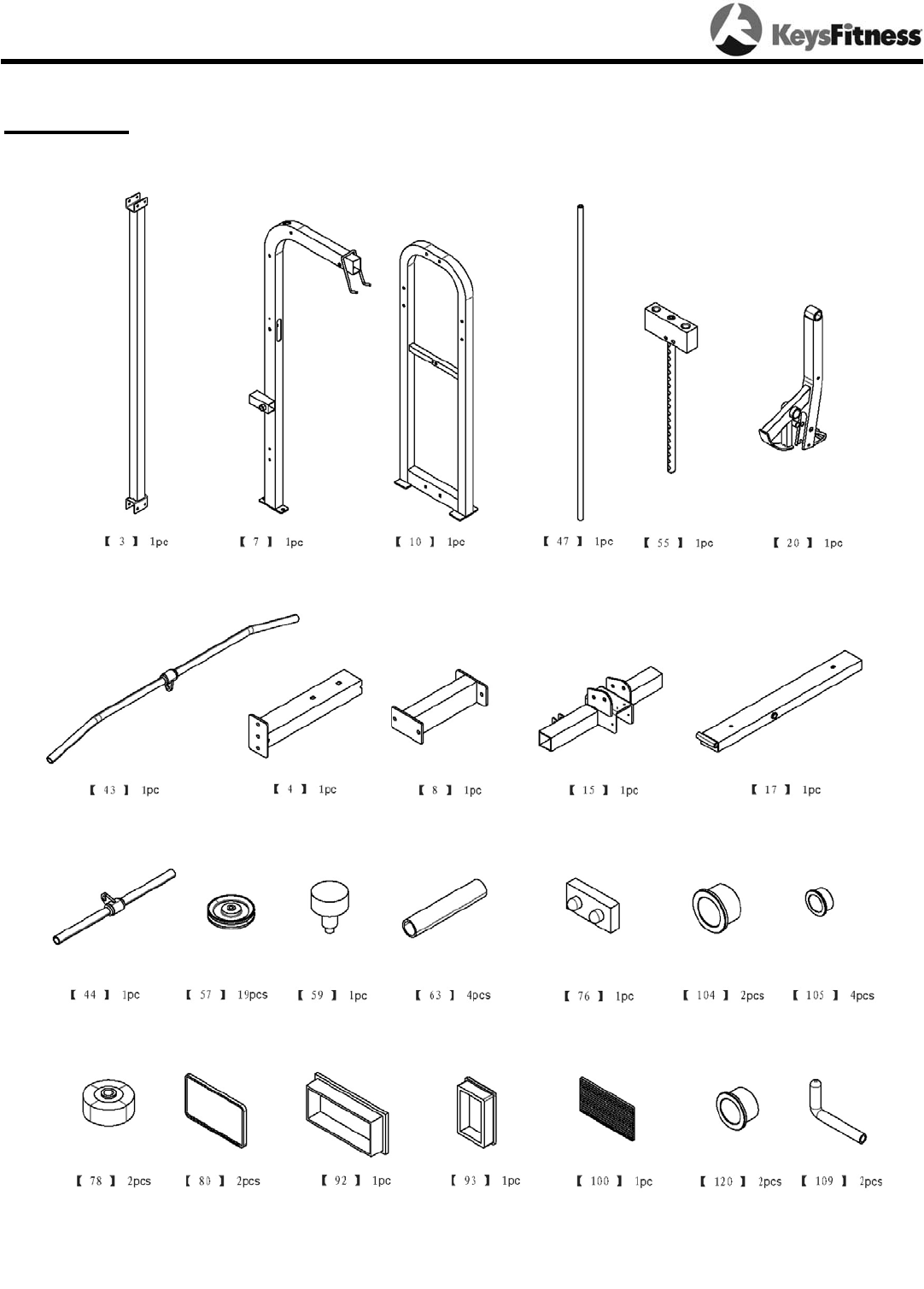

Box 2

Assembly

7

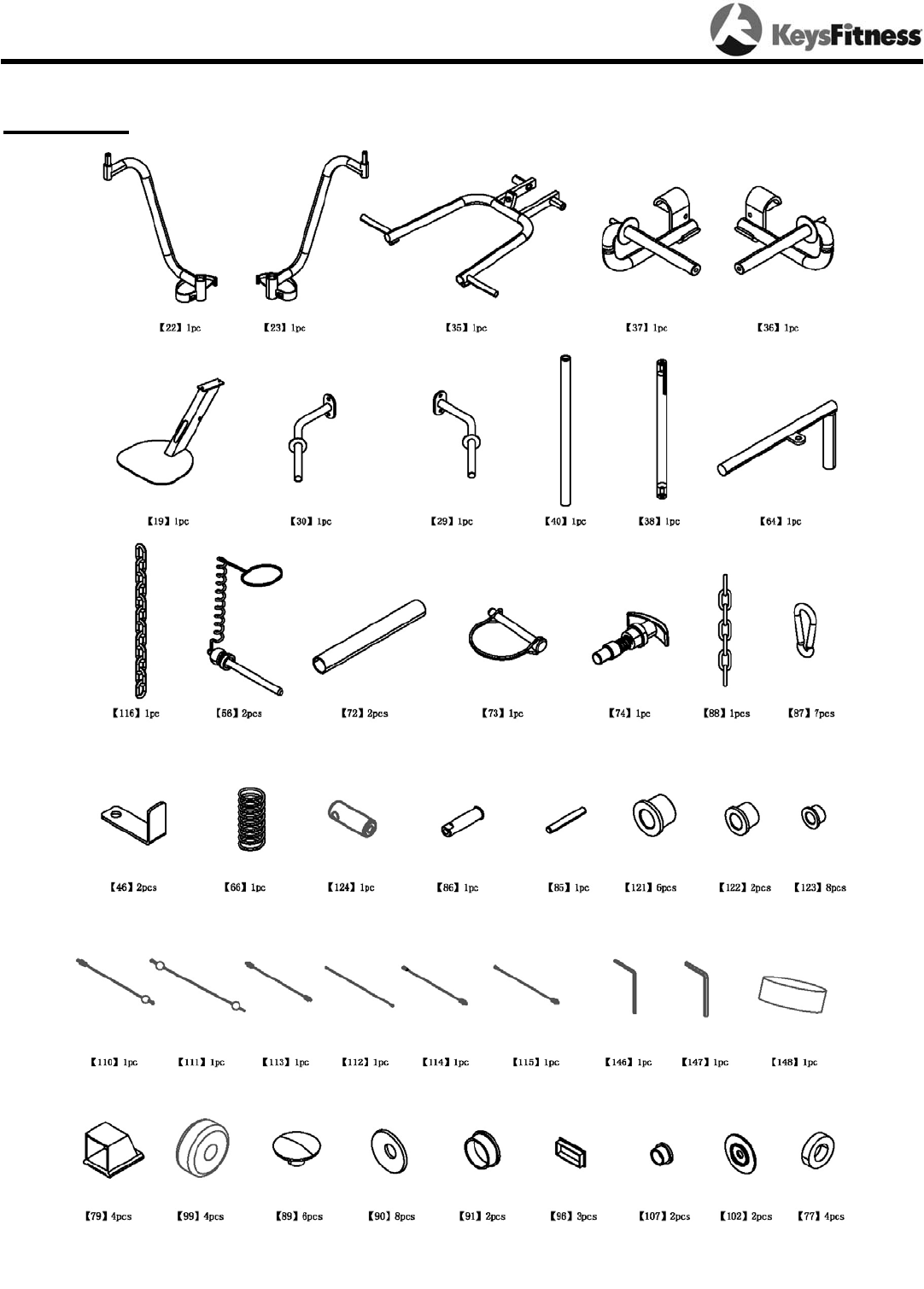

Box 3

Assembly

8

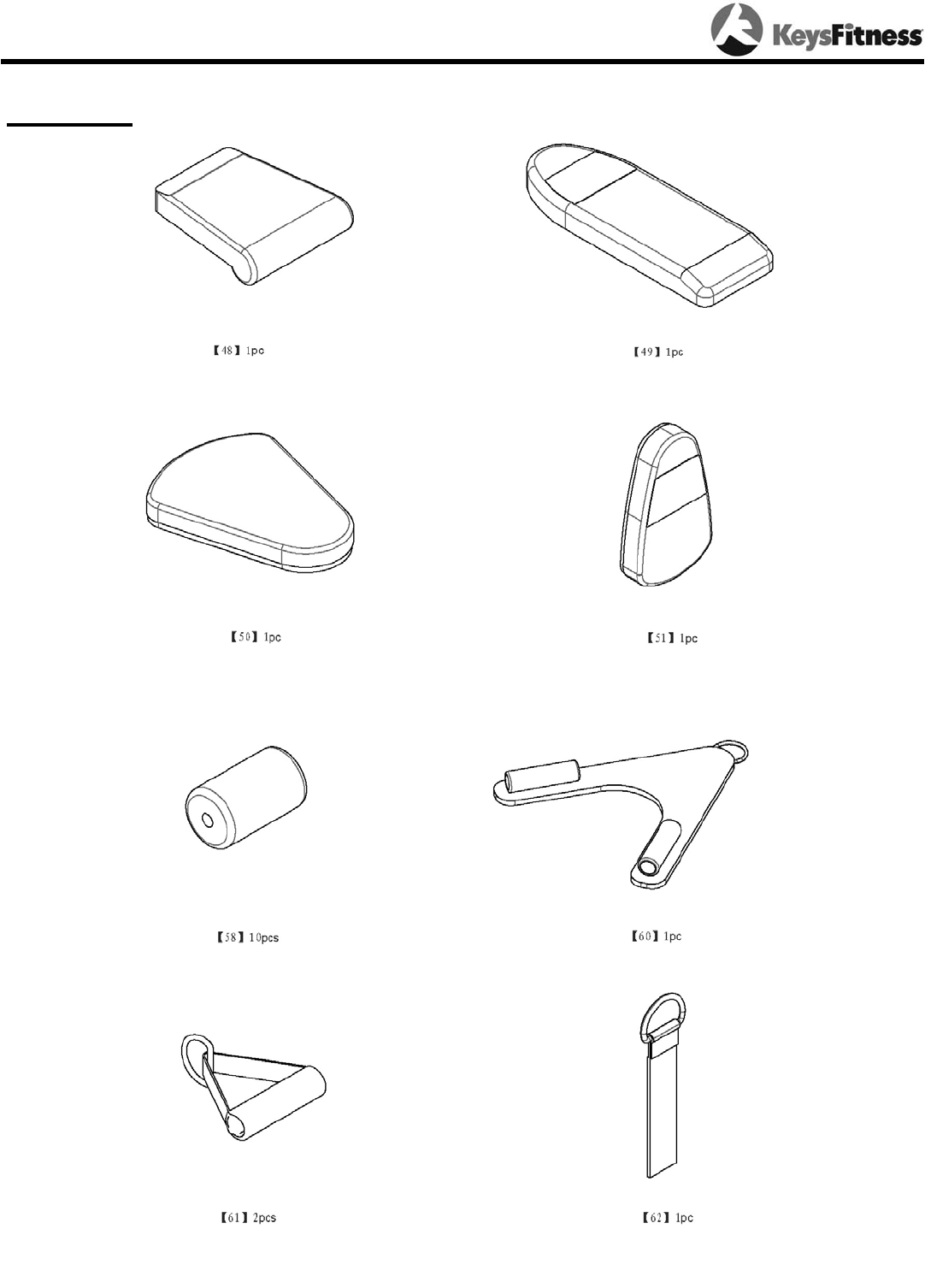

Box 4

Assembly

9

Box 5

Assembly

10

Box 6

Assembly

11

Box 7 Box 8

Box 10

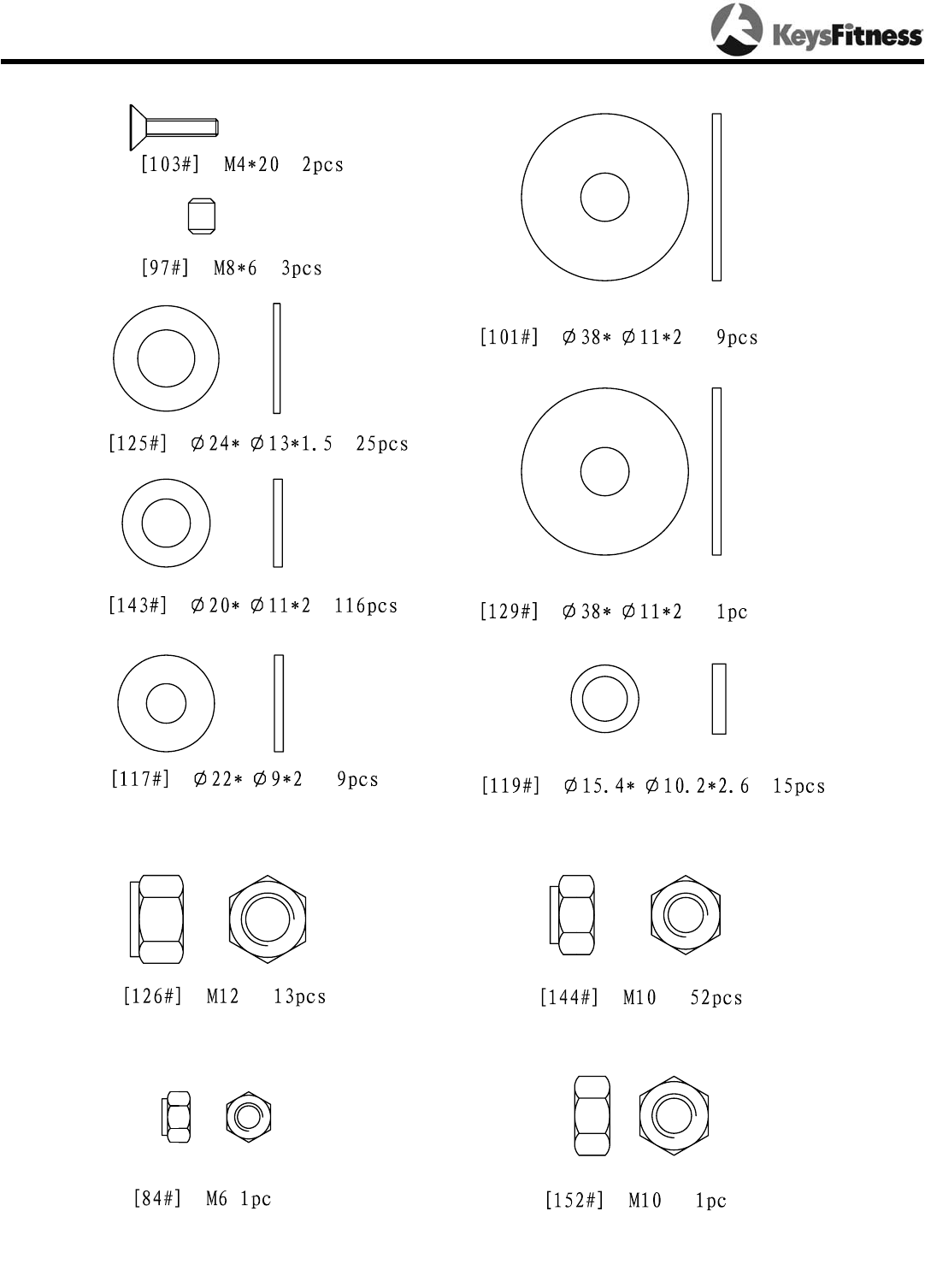

Box 12

Box 9

Box 11

Assembly

12

Assembly

13

Assembly

14

Step 1

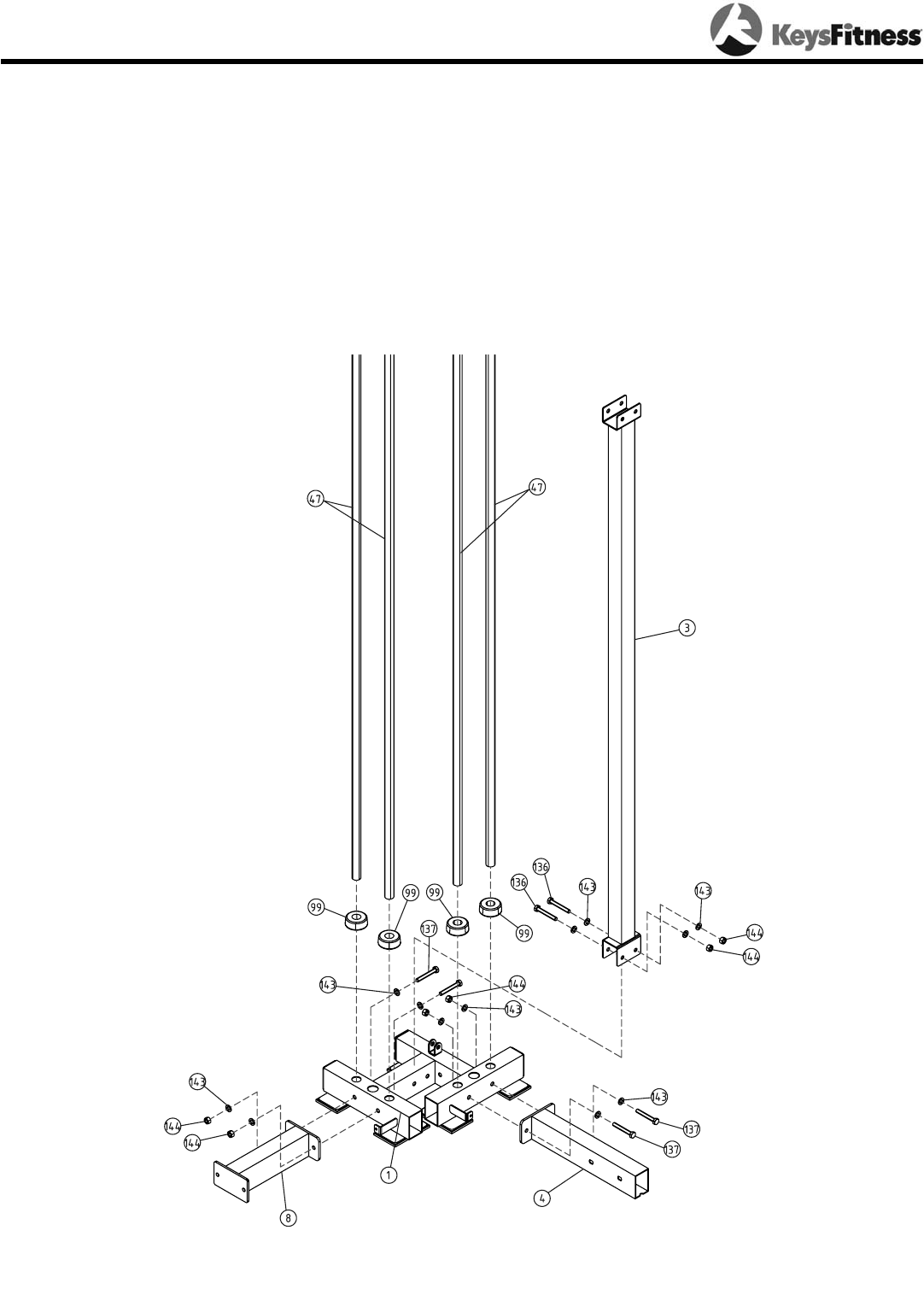

Attach Right Base Frame (4) to Rear Frame (1) using two Nuts (144), four Washers (143),

and two Bolts (137).

Attach Left Base Frame (8) to Rear Frame (1) using two Nuts (144), four Washers (143), and

two Bolts (137).

Insert Guide Rods (47) into Rear Frame (1). Next, slide Weight Stack Bumpers (99) onto

Guide Rods (47).

Attach Rear Upright (3) to Rear Frame (1) using two Nuts (144), four Washers (143), and

two Bolts (136).

Assembly

15

Figure 1

Assembly

16

Step 2

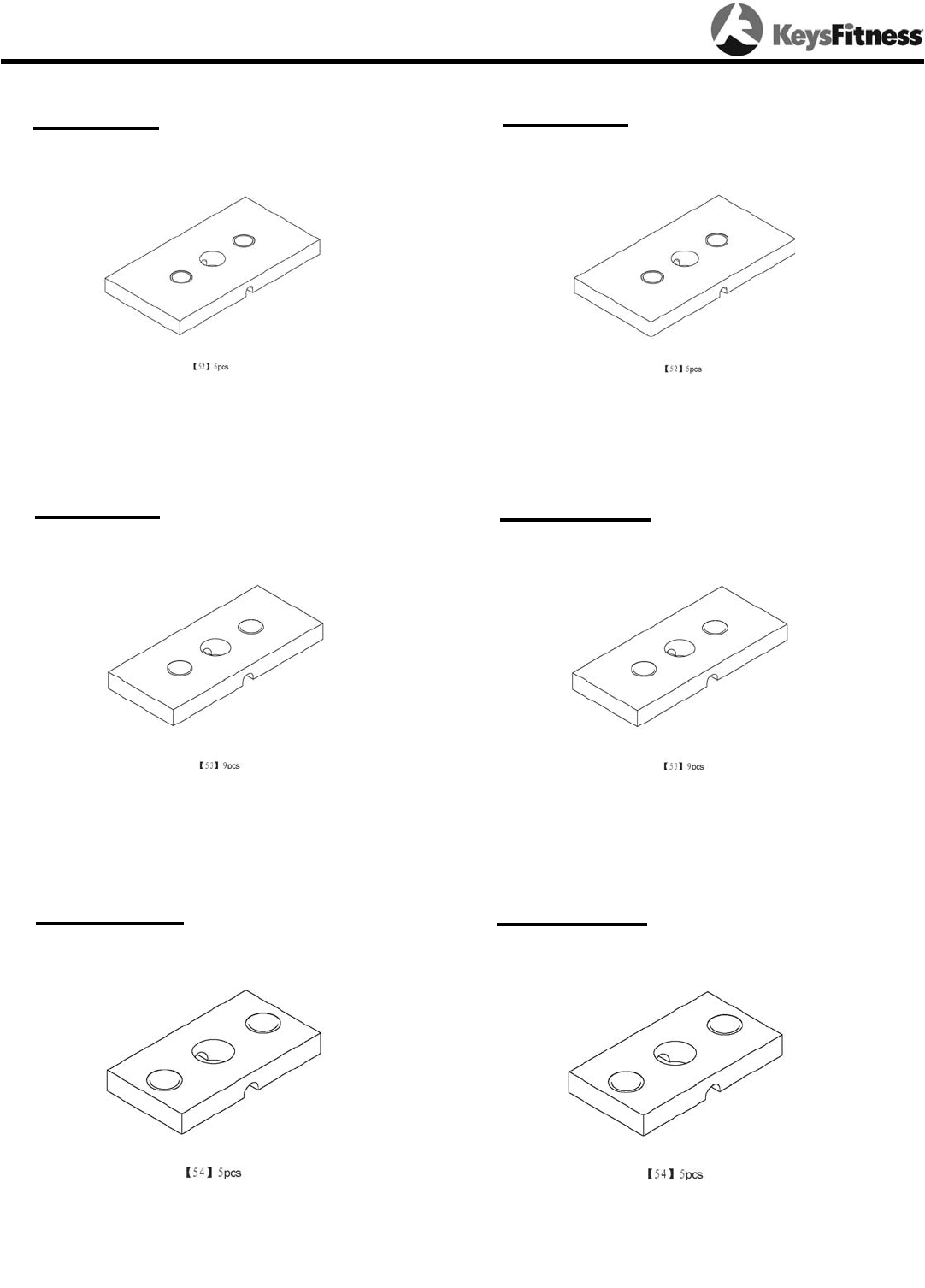

Slide the weight plates down the Guide Rods (47) in this order - five 15lb Plates (52), nine 10lb Plates (53),

five 5lb Plates (54), and the Top Plate (55). Note: Number of weight plates may vary depending on your spe-

cific configuration.

Attach Up Frame (2) to all four Guide Rods (47) and secure to Rear Upright (3) using two Nuts (144), four

Washers (143), and two Bolts (136).

Figure 2

Assembly

17

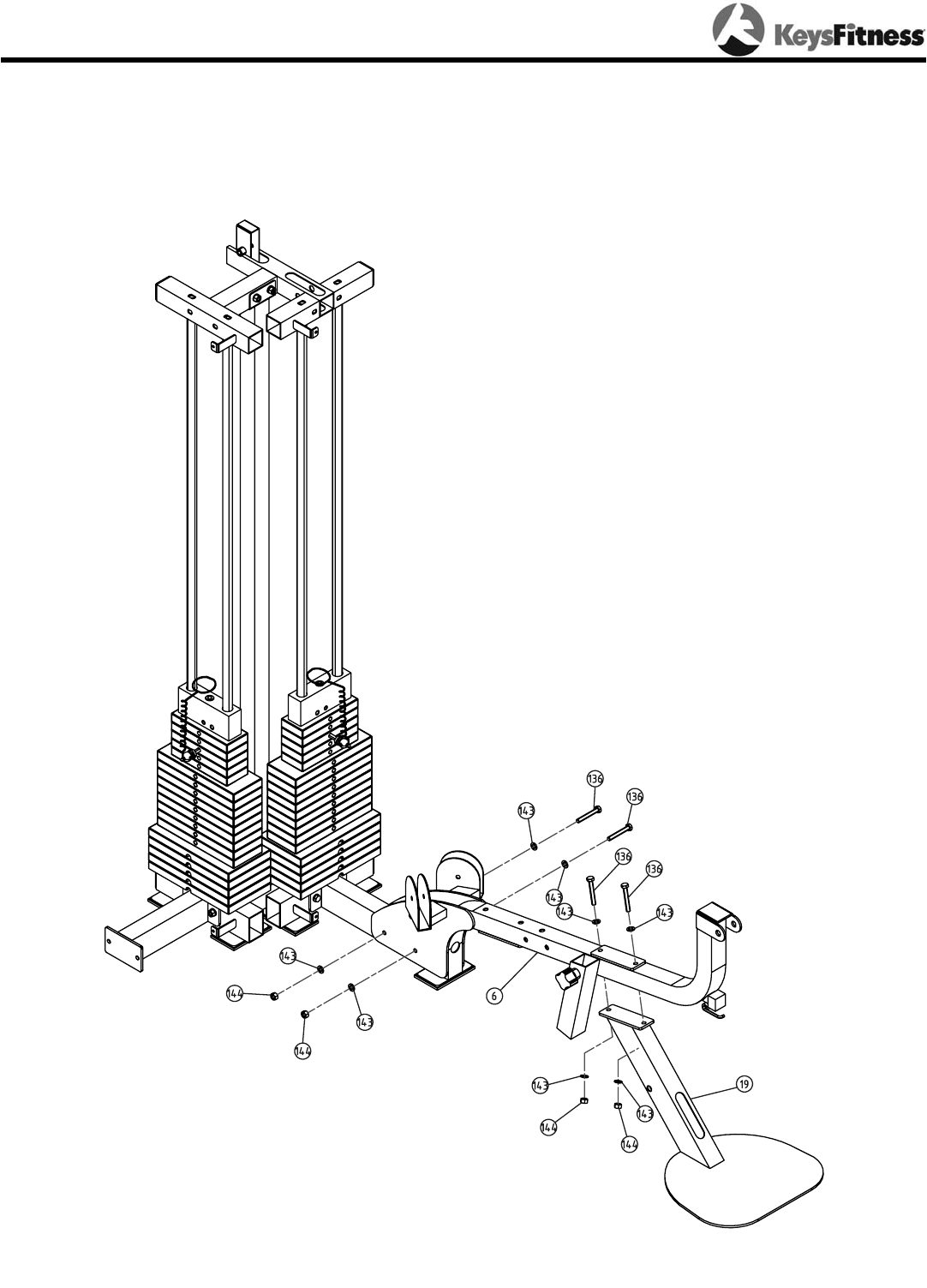

Step 3

Attach Front Upright (19) to Seat Pad Support Receptacle (6) using two Nuts (144), four Washers (143), and

two Bolts (136).

Attach Seat Pad Support Receptacle (6) to Base Frame assembly using two Nuts (144), four Washers (143),

and two Bolts (136).

Figure 3

Step 4

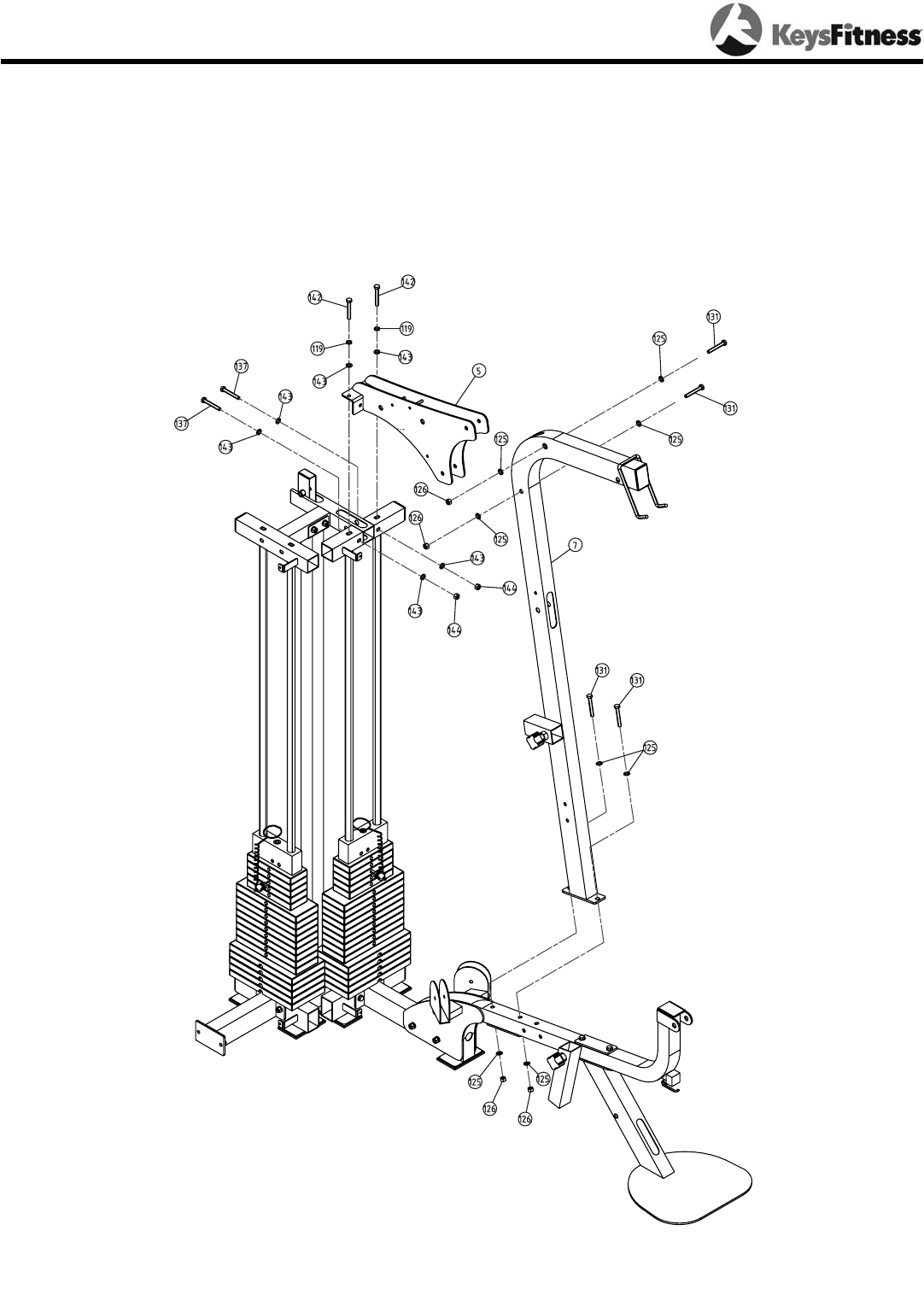

Attach Main Upright (7) to Seat Pad Support Receptacle (6) using two Nuts (126), four Washers (125), and

two Bolts (131).

Attach Right Top Frame (5) to Up Frame assembly using two Nuts (144), four Washers (143), and two Bolts

(137). Next, use two Washers (143), two Spring Washers (119), and two Allen Bolts (142) to connect Right

Top Frame (5).

Assembly

18

Figure 4

Step 5

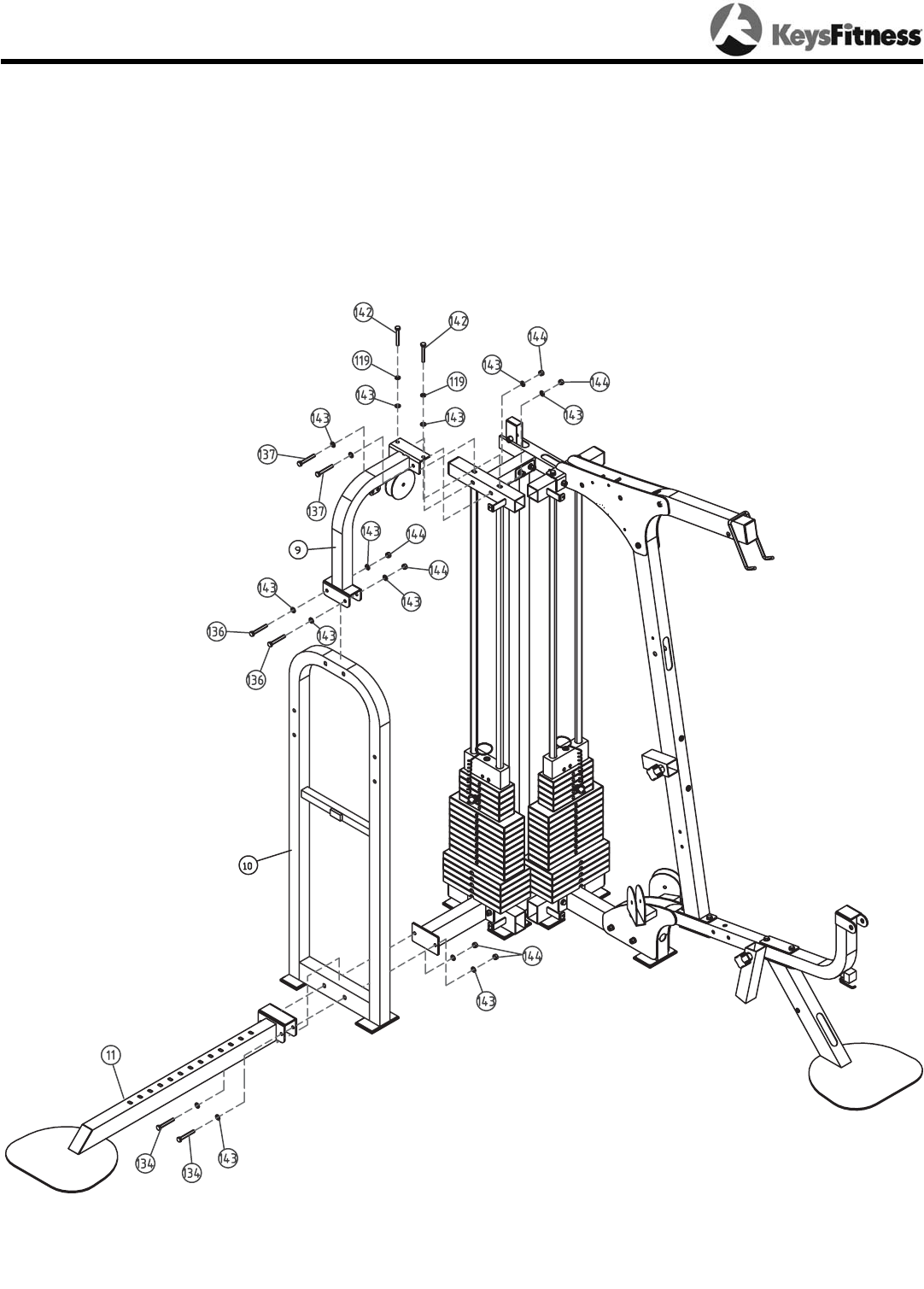

Slide Press Station Base Frame (11) over Press Arm Support (10). Next, attach both pieces to Base Frame

using two Nuts (144), four Washers (143), and two Bolts (134).

Install Left Top Frame (9) over Press Arm Support (10) and Top Frame assembly. Secure top section using

two Nuts (144), four Washers (143), and two Bolts (137). Next, Secure lower section using two Nuts (144),

four Washers (143), and two Bolts (136). Secure top of Guide Rods (47) using two Washers (143), two Spring

Washers (119), and two Allen Bolts (142).

Assembly

19

Figure 5

Assembly

20

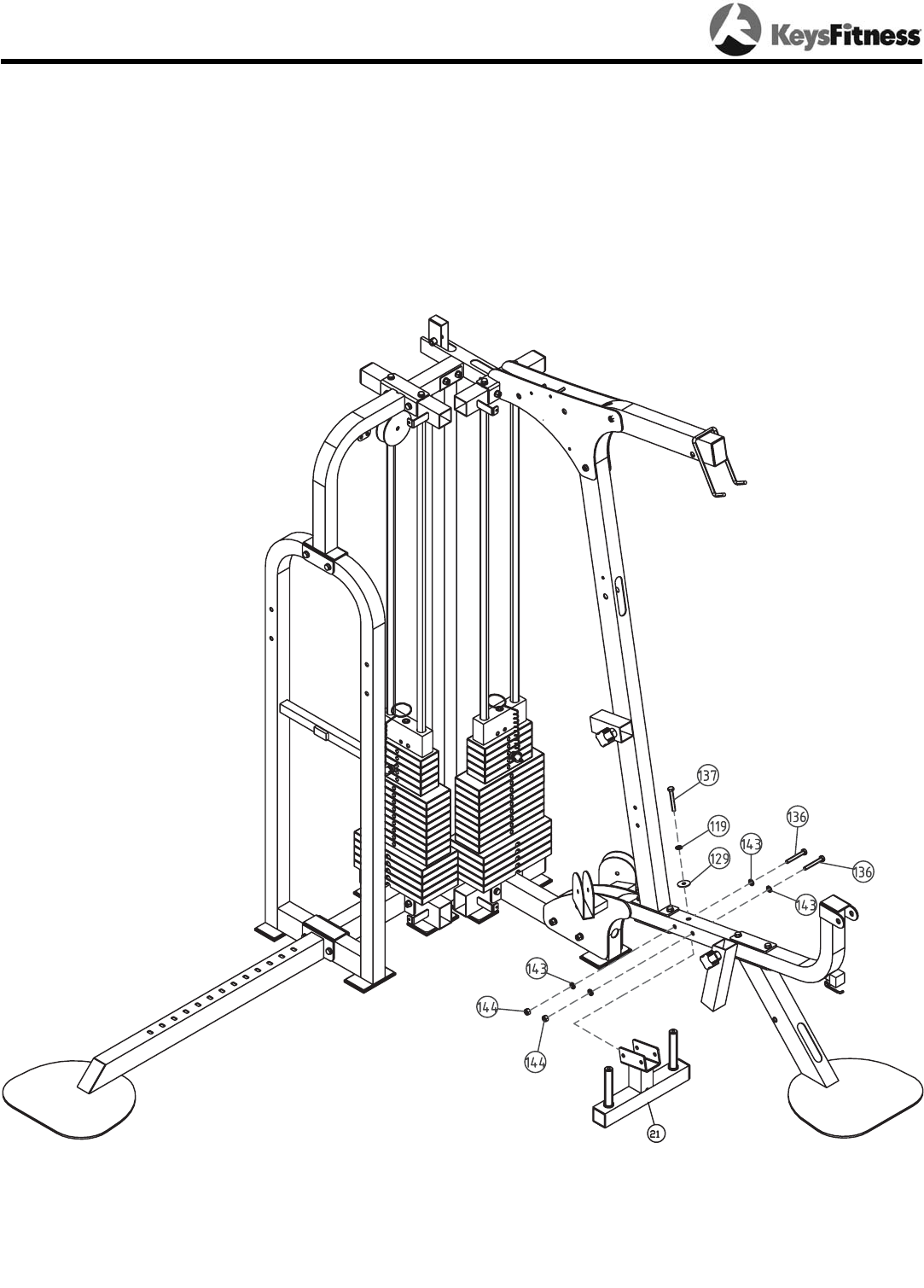

Step 6

Attach Pec Dec Mount (21) onto Seat Pad Support Receptacle (6) using two Nuts (144), four Washers (143),

and two Bolts (136). Secure in place with one Washer (129), one Spring Washer (119), and one Bolt (137).

Figure 6

Assembly

21

Step 7

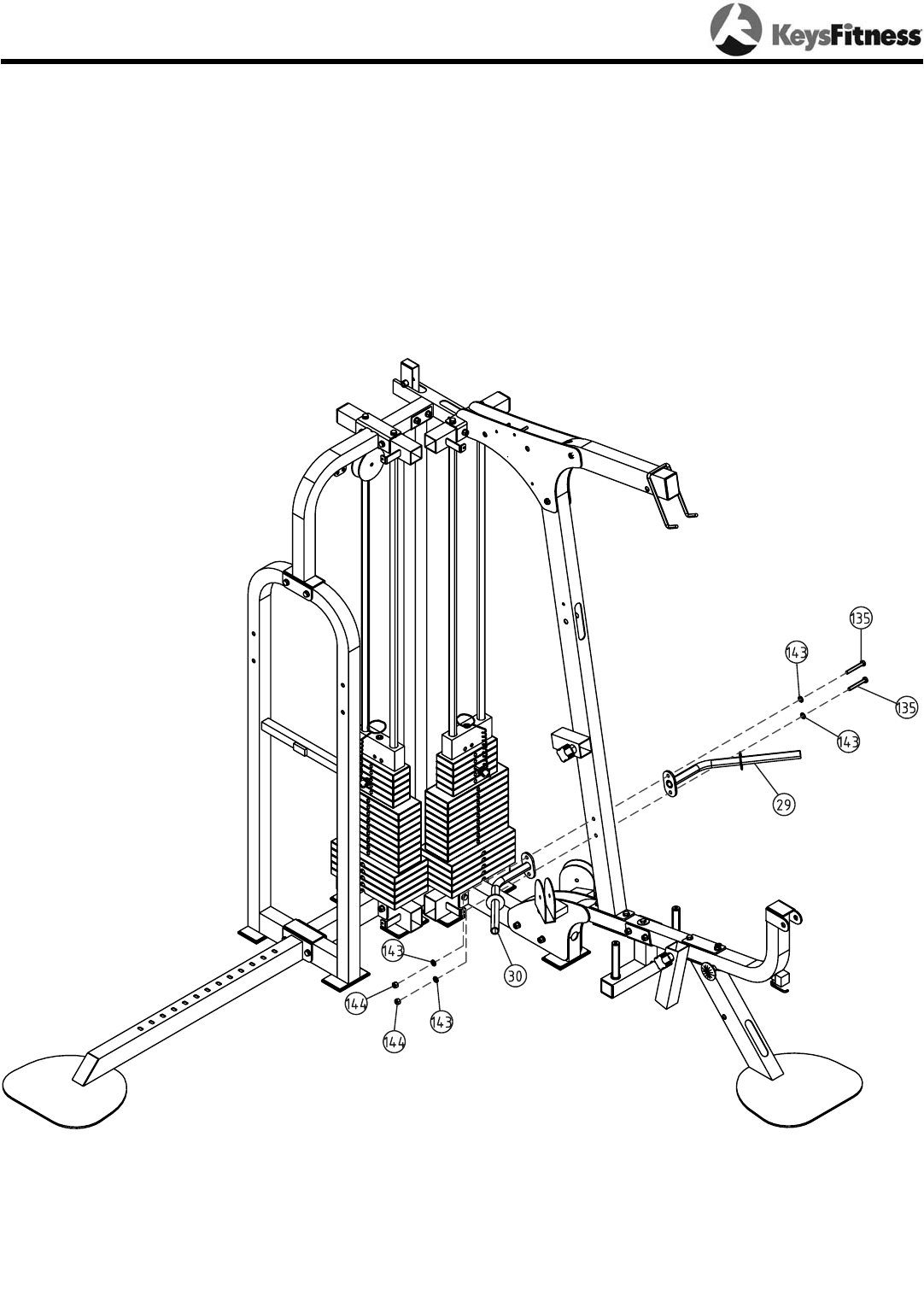

Attach Right and Left Leg Hold Leg Frames (29 & 30) using two Nuts (144), four Washers (143), and two

Bolts (135).

Figure 7

Assembly

22

Step 8

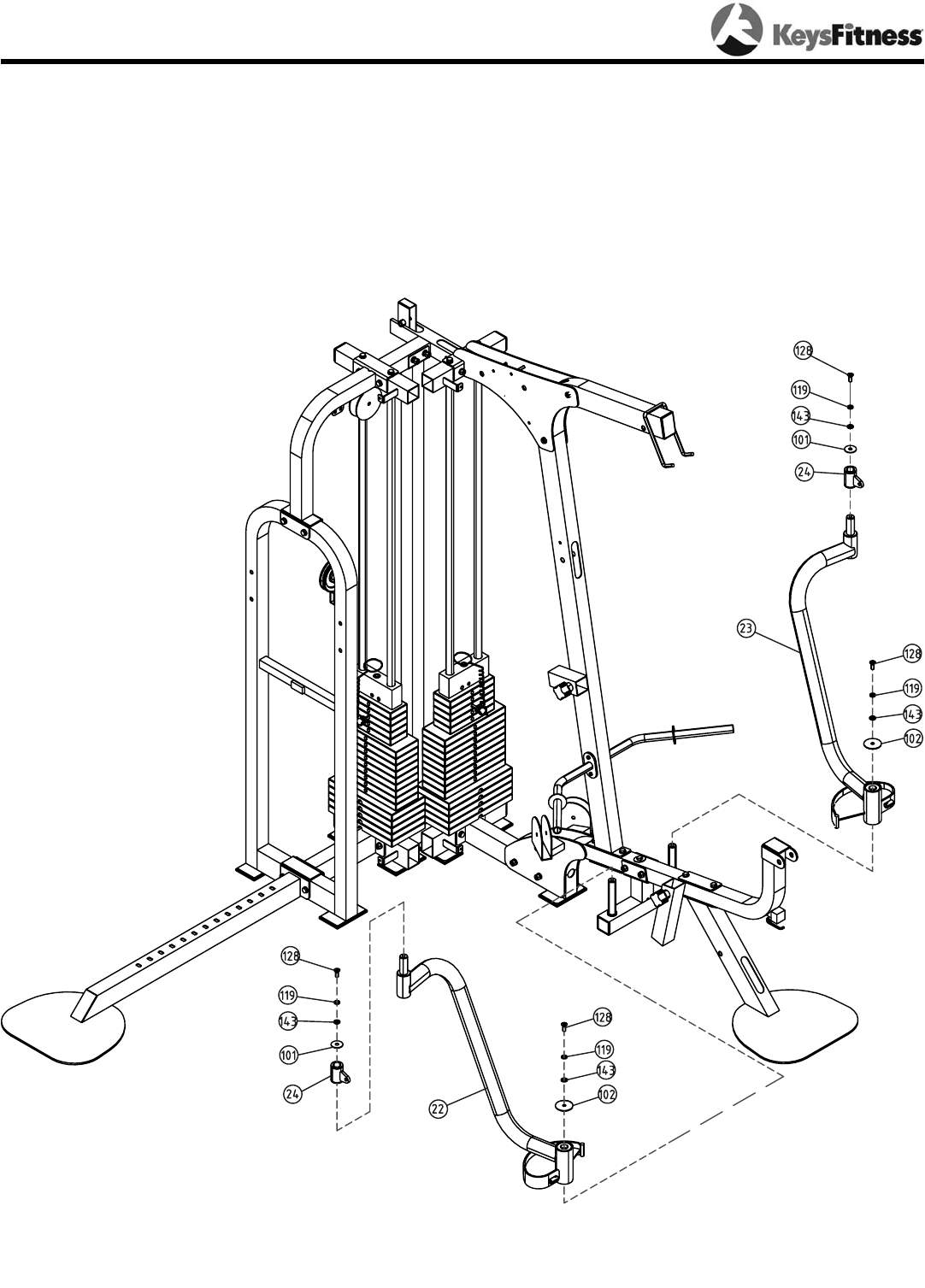

Slide the Right Pec Dec Arm (22) on to the shaft of the Pec Dec Mount (21). Secure the arm in place using

one Big Washer (102), one Washer (143), one Spring Washer (119), and one Allen Bolt (128).

Slide Pec Dec Handle Bar (24) onto the top of the Right Pec Dec Arm (22) and secure using one Chrome

Washer (101), one Washer (143), one Spring Washer (119), and one Allen Bolt (128).

Repeat this step to complete the Left Pec Dec assembly.

Figure 8

Assembly

23

Step 9

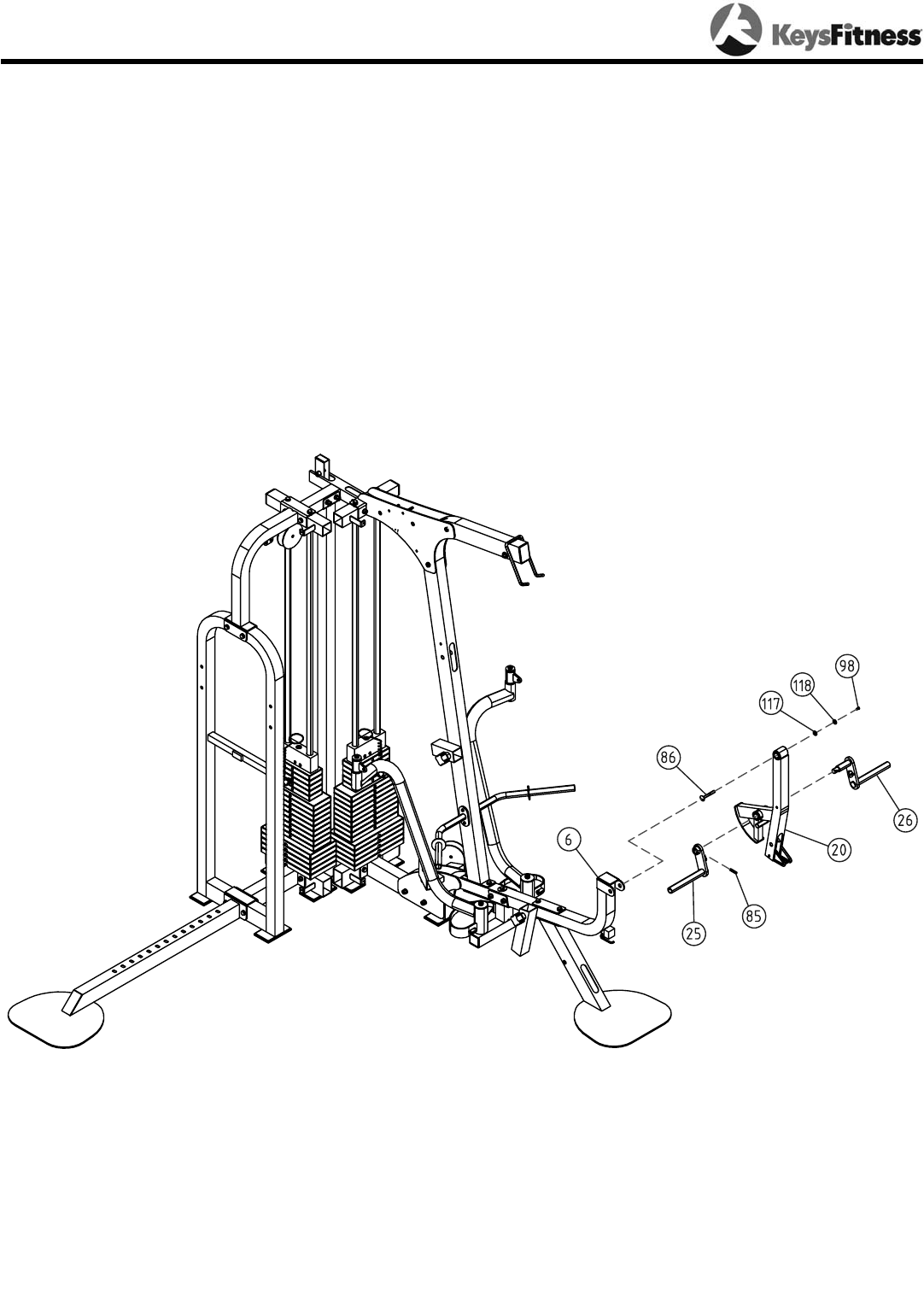

Attach Leg Extension Lever (20) to Seat Pad Support Receptacle (6) and secure using Shaft (86), one

Washer (117), one Spring Washer (118), and one Allen Bolt (98).

Slide Foam Frame w/ Shaft (26) through the Leg Extension Lever (20) and attach Foam Frame w/o Shaft

(25) to the other side. Insert Slip Tension Pin (85) through the hole where the two foam frames meet.

Note: You may need to use a rubber mallet to install Slip Tension Pin (85).

Figure 9

Assembly

24

Step 10

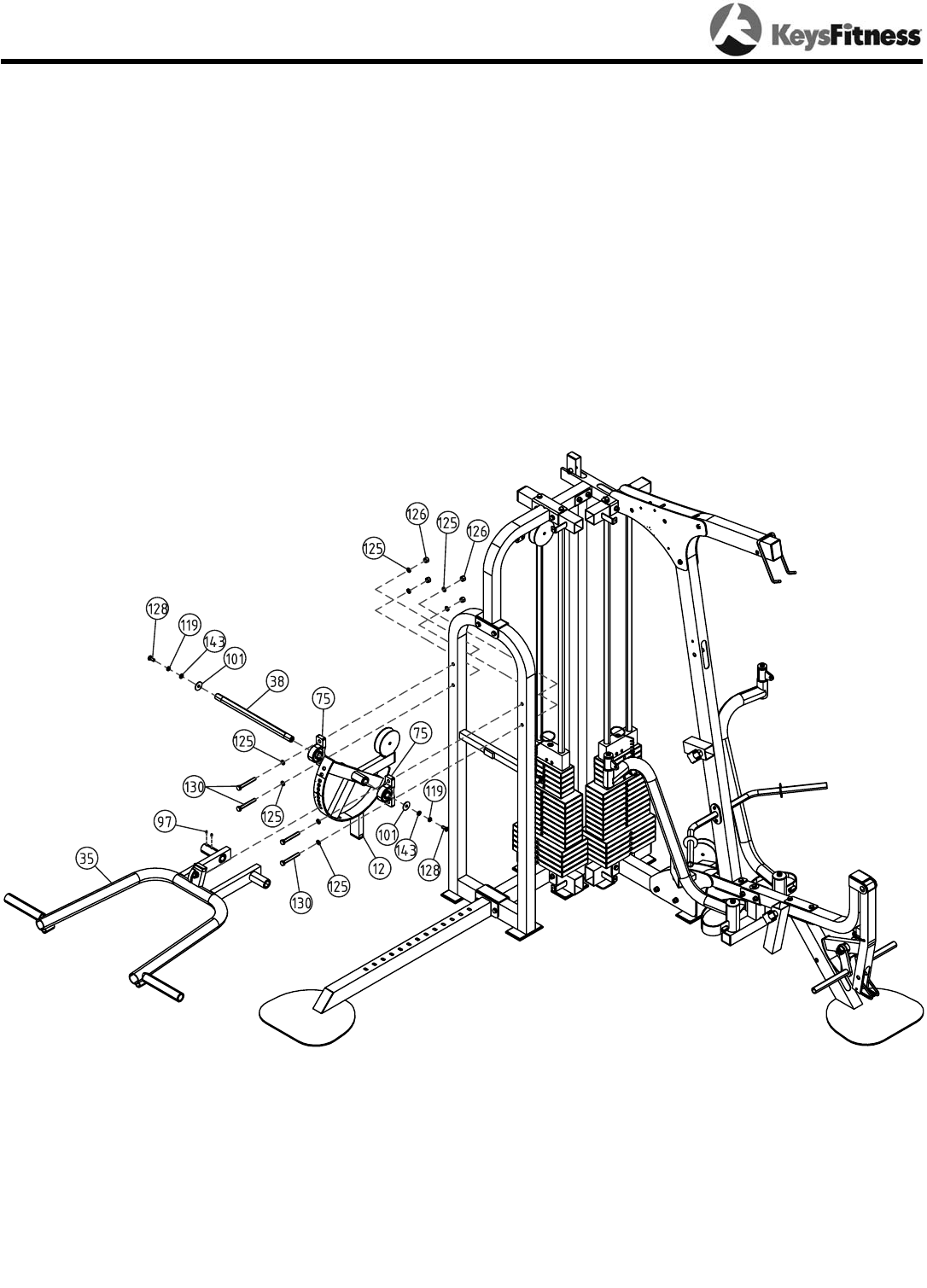

Align Press Arm (35) and Chest Press Cam (12) while inserting Press Station Shaft (38). Slide Pillow Block

Bearing (75) onto each side of Press Station Shaft (38) and secure the assembly using two Chrome Washers

(101), two Washers (143), two Spring Washers (119), and two Allen Bolts (128).

Attach the entire assembly to Press Arm Support (10) using four Nuts (126), eight Washers (125), and four

Bolts (130).

Figure 10

Assembly

25

Step 11

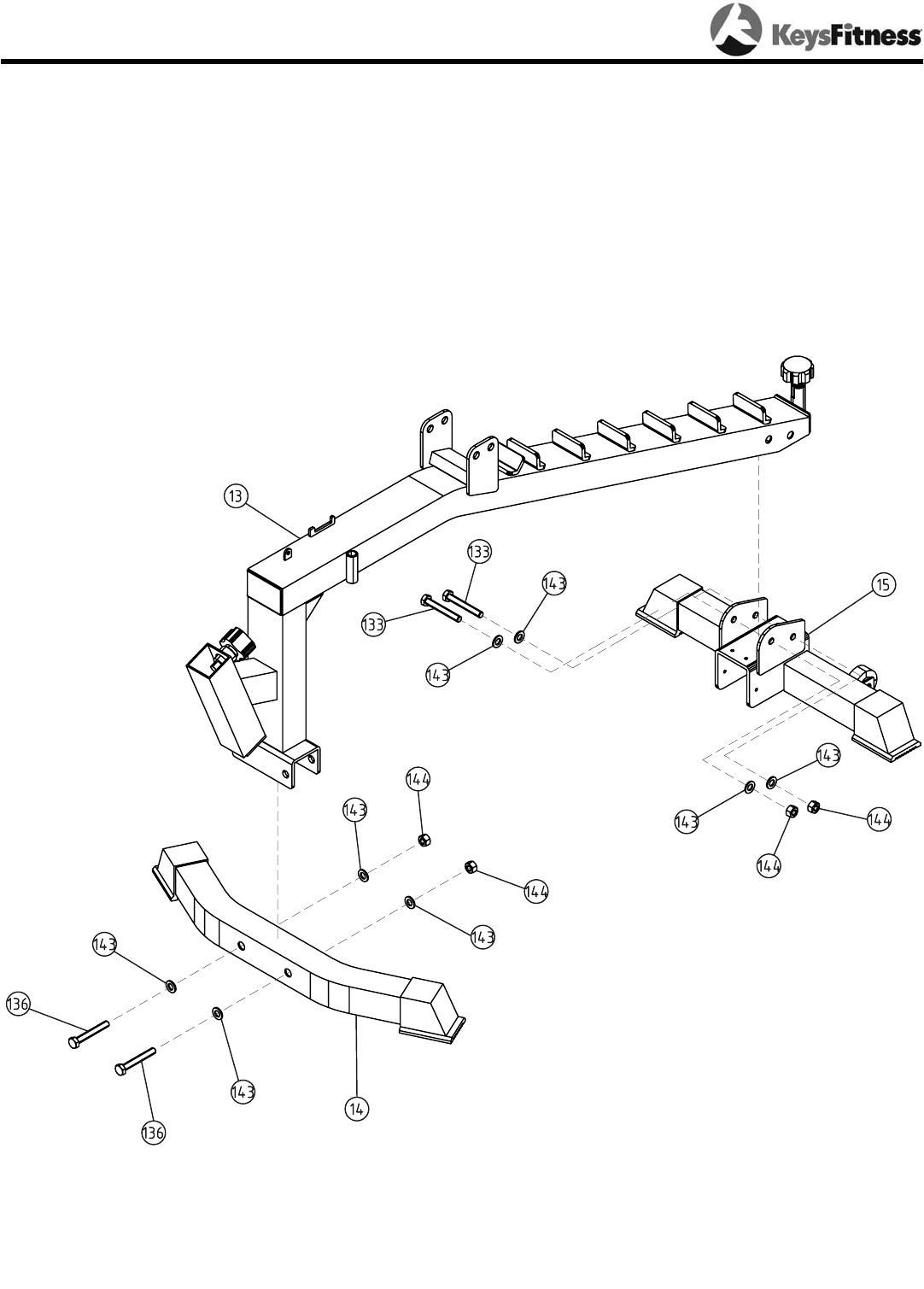

Insert Bench Rear Frame (15) onto Bench Main Frame (13) and secure using two Nuts (144), four Washers

(143), and two Bolts (133).

Attach Bench Front Frame (14) on to Bench Main Frame (13) using two Nuts (144), four Washers (143), and

two Bolts (136).

Figure 11

Assembly

26

Step 12

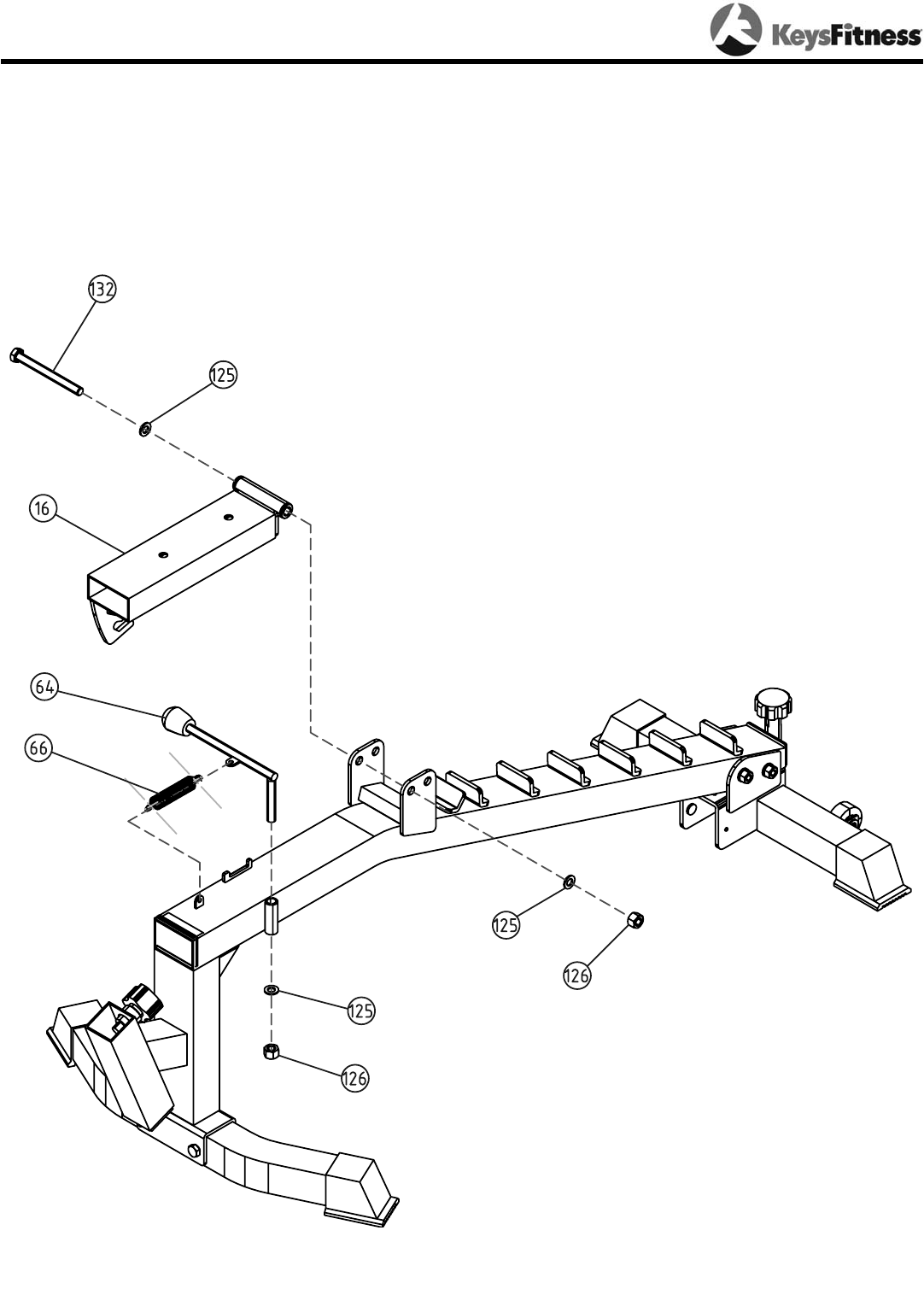

Attach Bench Seat Pad Support (16) to Bench Main Frame (13) using one Nut (126), one Washer (125), and

one Bolt (132).

Insert Bench Seat Pad Adjustment Bar (64) into Bench Main Frame (13) and secure using one Washer (125)

and one Nut (126). Attach Spring (66) to Bench Main Frame (13) and Bench Seat Pad Adjustment Bar (64).

Note: Make sure adjustment bar is installed into adjustable slots on Bench Seat Pad Support.

Figure 12

Assembly

27

Step 13

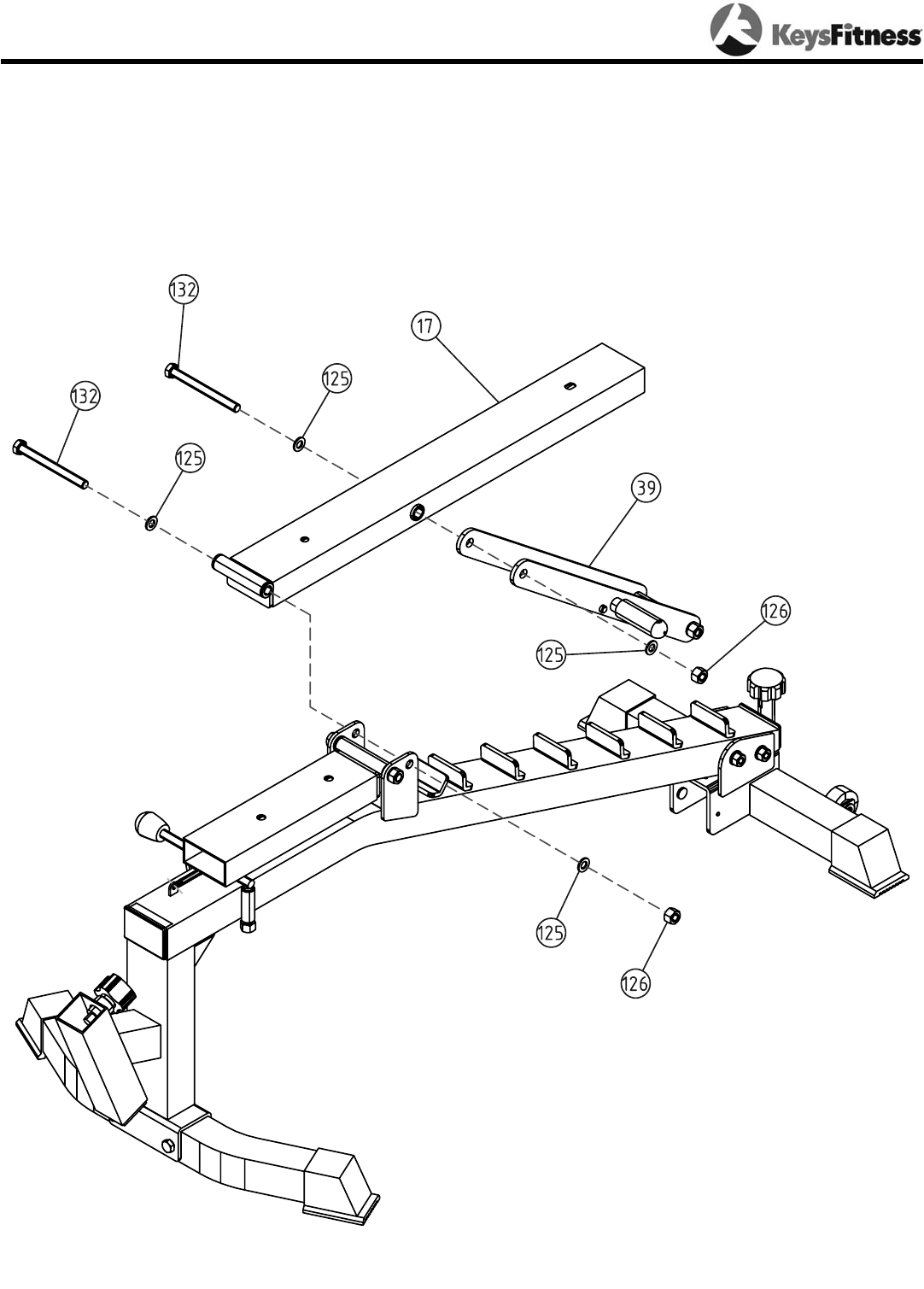

Attach Bench Back Pad Support (17) to Bench Main Frame (13) using one Nut (126), two Washers (125),

and one Bolt (132).

Attach Bench Back Pad Adjustment Frame (39) to Bench Back Pad Support (17) using one Nut (126), to

Washers (125), and one Bolt (132).

Figure 13

Assembly

28

Step 14

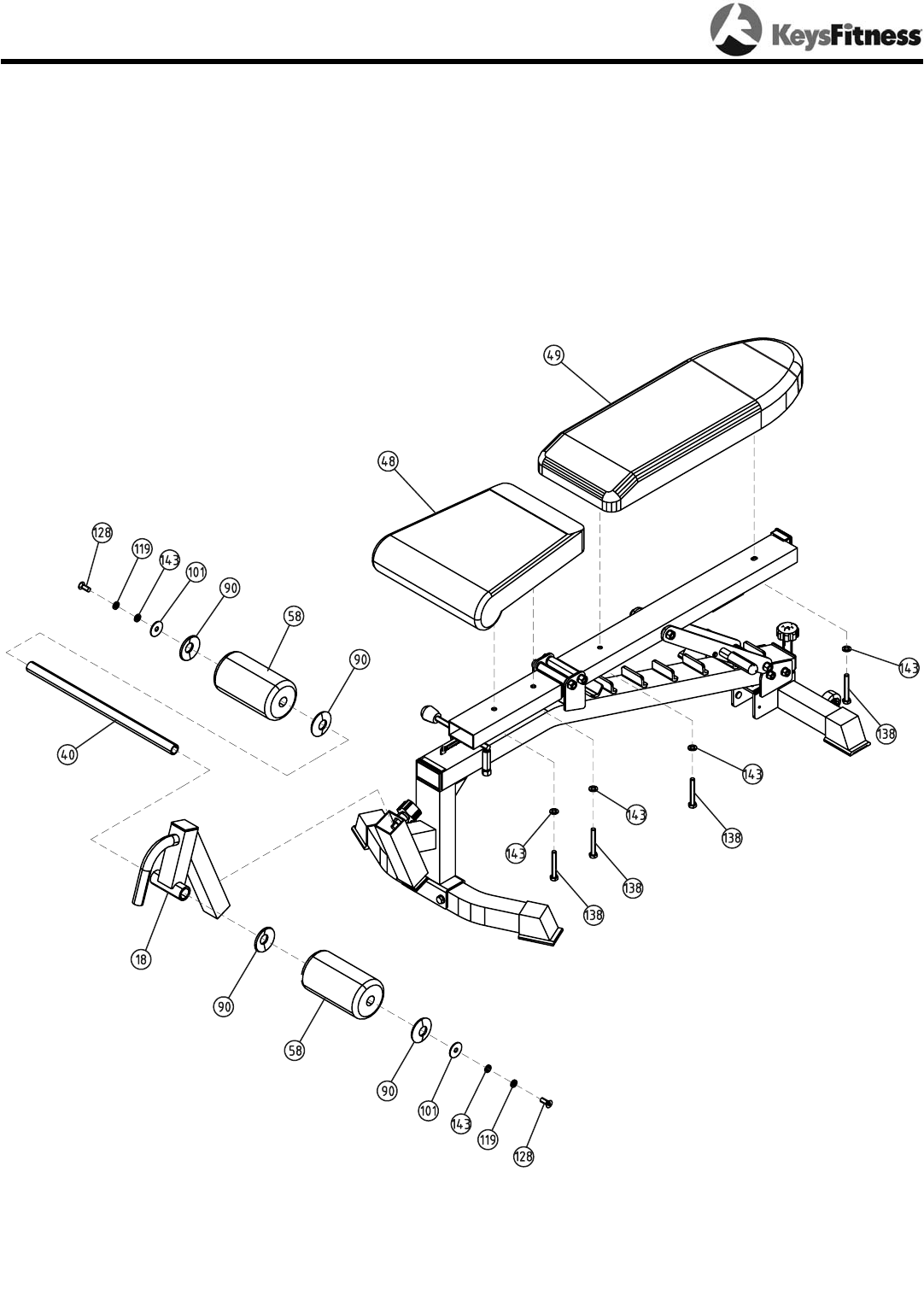

Attach Bench Seat Pad (48) and Bench Back Pad (49) using four Washers (143) and four Bolts (138).

Insert Foam Shaft (40) into Foam Adjustable Bracket (18). Next, attach Upholstered Roller Pads (58) using

the following hardware: four Plastic Washers (90), two Chrome Washers (101), two Washers (143), two

Spring Washers (119), and two Allen Bolts (128). See Figure 14 for details.

Figure 14

Assembly

29

Step 15

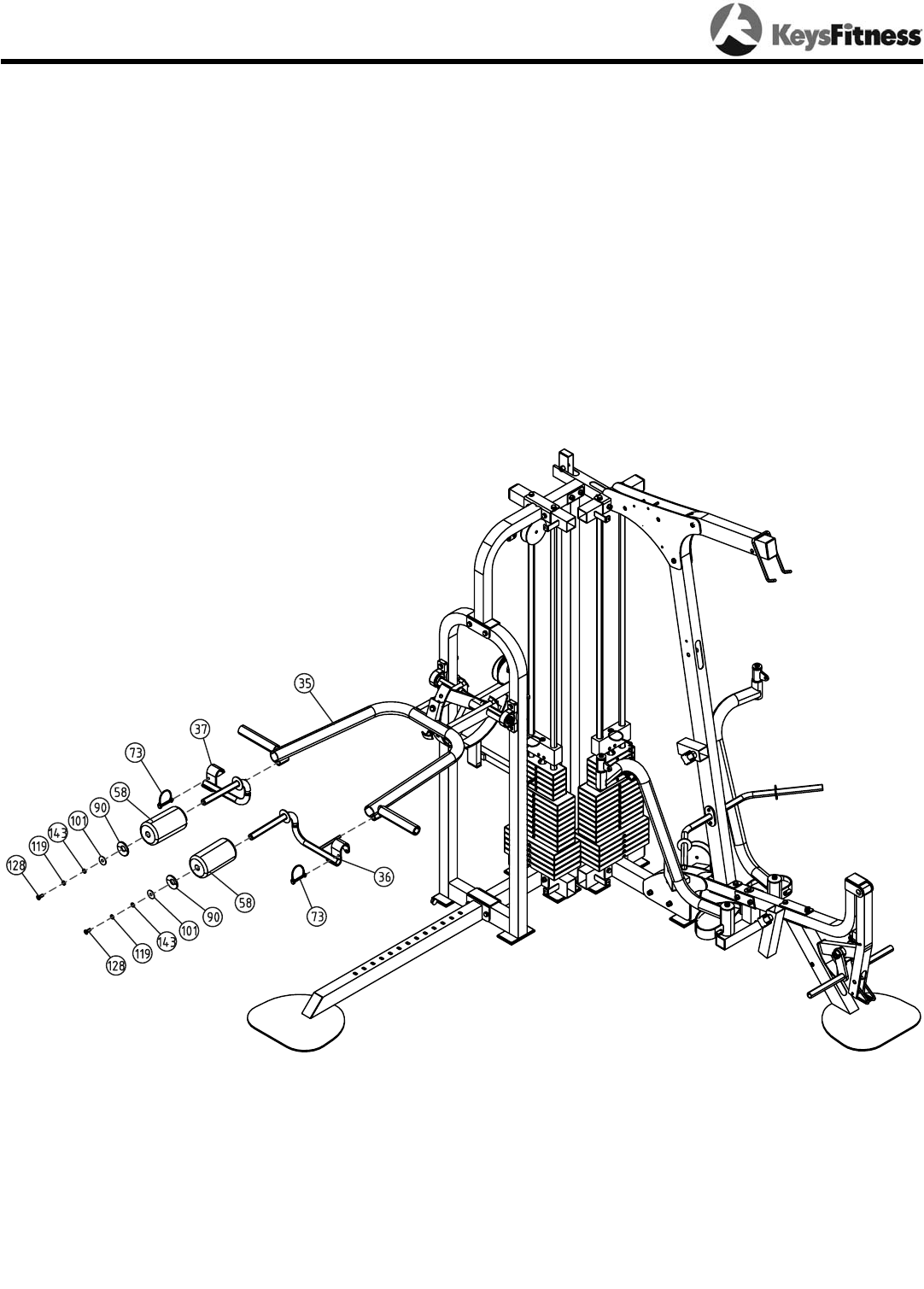

Attach Left and Right Squat Arms (36 &37) to the Press Arm Assembly (35) using two Safety Pins (73).

Next, slide Upholstered Roller Pad (58) onto each Squat Arm (36 & 37) and secure using two Plastic

Washers (90), two Chrome Washers (101), two Washers (143), two Spring Washers (119), and two Allen Bolts

(128).

Figure 15

Assembly

30

Step 16

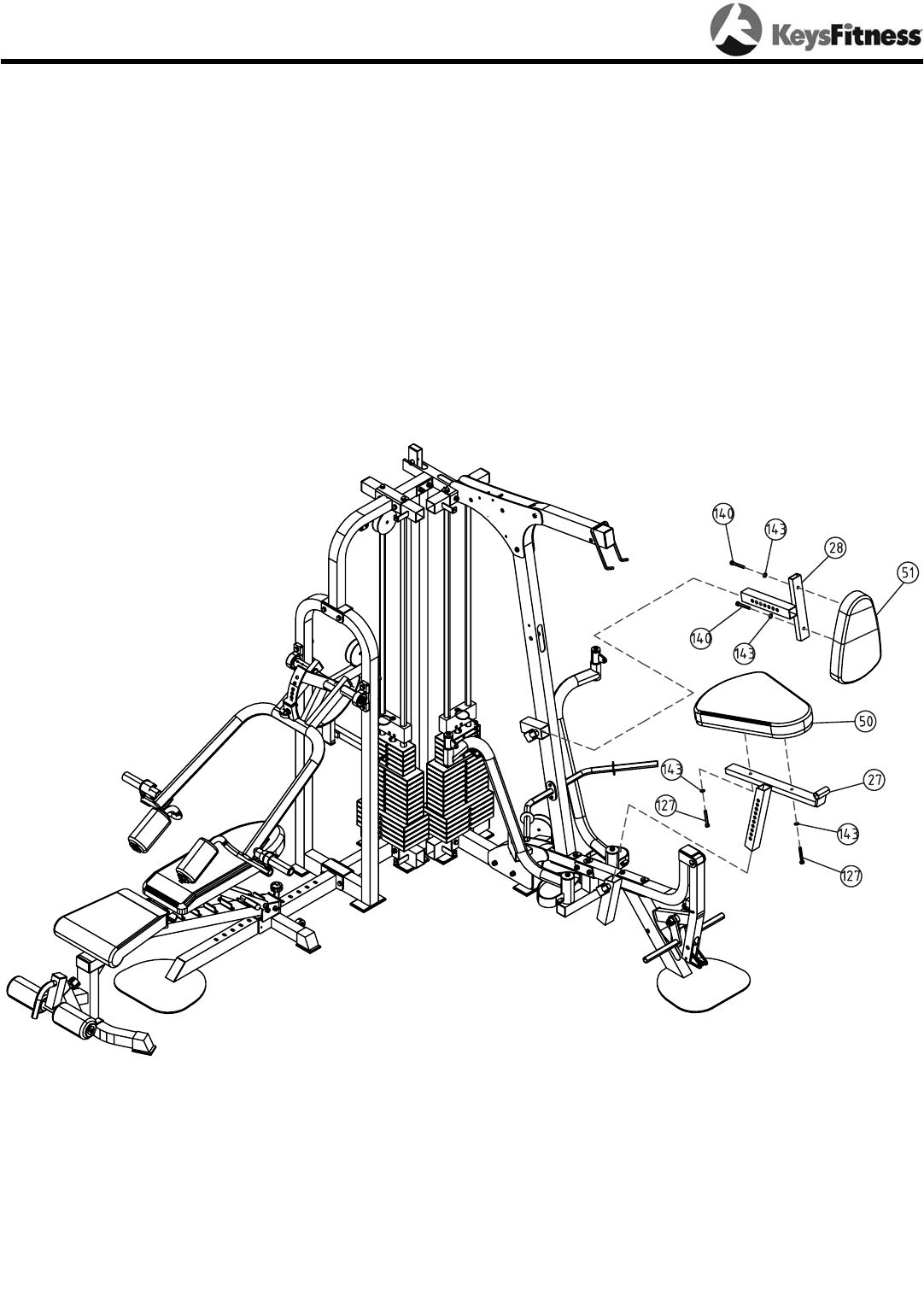

Attach Back Pad (51) to Back Pad Adjustment Bracket (28) using two Washers (143) and two Bolts (140).

Attach Seat Pad (50) to Seat Pad Support (27) using two Washers (143) and two Allen Bolts (127).

Slide both assemblies into receptacles as shown in Figure 16.

Figure 16

Assembly

31

Step 17

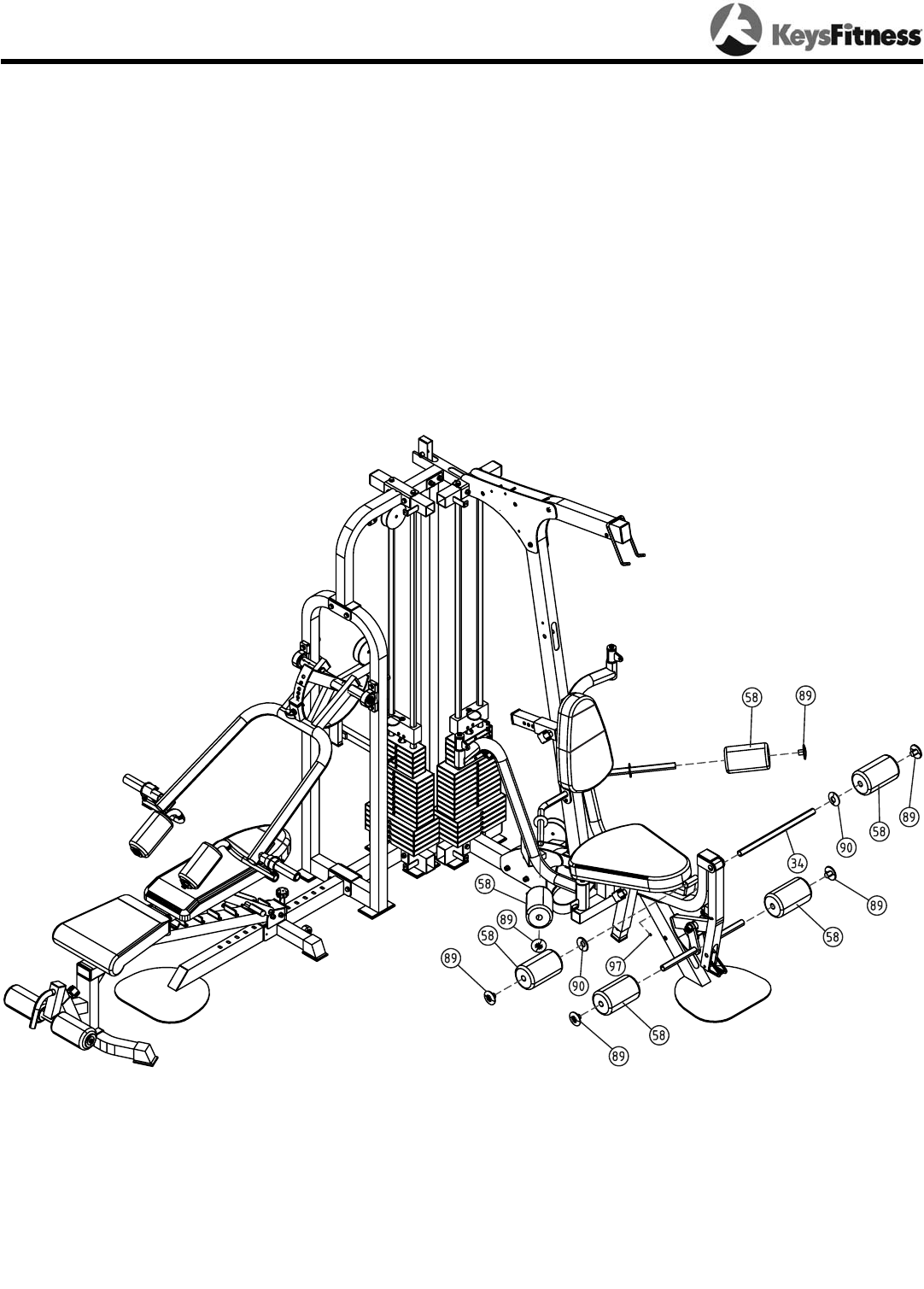

Slide two Upholstered Roller Pads (58) onto Foam Frames (25 & 26) and secure using two Big Plugs (89).

Slide the Long Foam Tube (34) through the hole in Seat Pad Support (27). Next, slide two Plastic Washers

(90), two Upholstered Roller Pads (58), and two Big Plugs (89) onto each end of Long Foam Tube (34).

Next, slide two Upholstered Roller Pads (58) onto each side of Leg Hold Frames (29 & 30) and secure using

two Big Plugs (89).

Figure 17

Assembly

32

Step 18

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

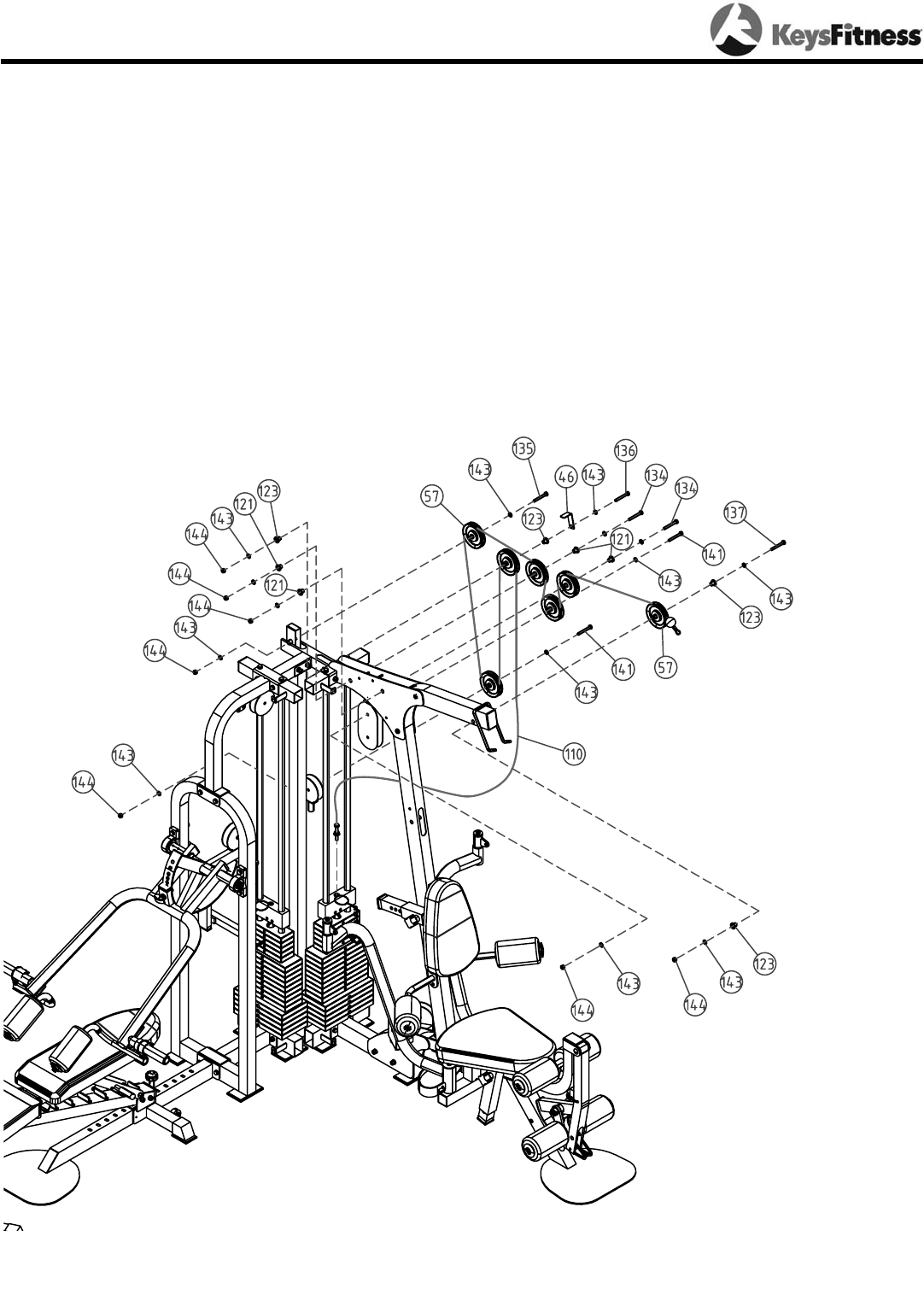

Install Lat Cable (110) as detailed in Figure 18. Follow dotted lines to identify exact

location of pulleys. See Page 43 “Cable View” for more detail.

Start by threading cable end into Top Plate (55).

You will need the following for installation:

Pulley (57) - Qty. 7

Cable (110) - Qty. 1

Nut (144) - Qty. 7

Long Pulley Spacer (123) - Qty. 4

Longer Pulley Spacer (121) - Qty. 4

Cable Retainer Bracket (46) - Qty. 1

Figure 18

Bolt (134) - Qty. 2

Bolt (135) - Qty. 1

Bolt (136) - Qty. 1

Bolt (137) - Qty. 1

Bolt (141) - Qty. 2

Assembly

33

Step 19

Note: This step is only used if you do not have the Leg Press 2 attachment. Use the Cable Adapter (124) in

place of the pulley.

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

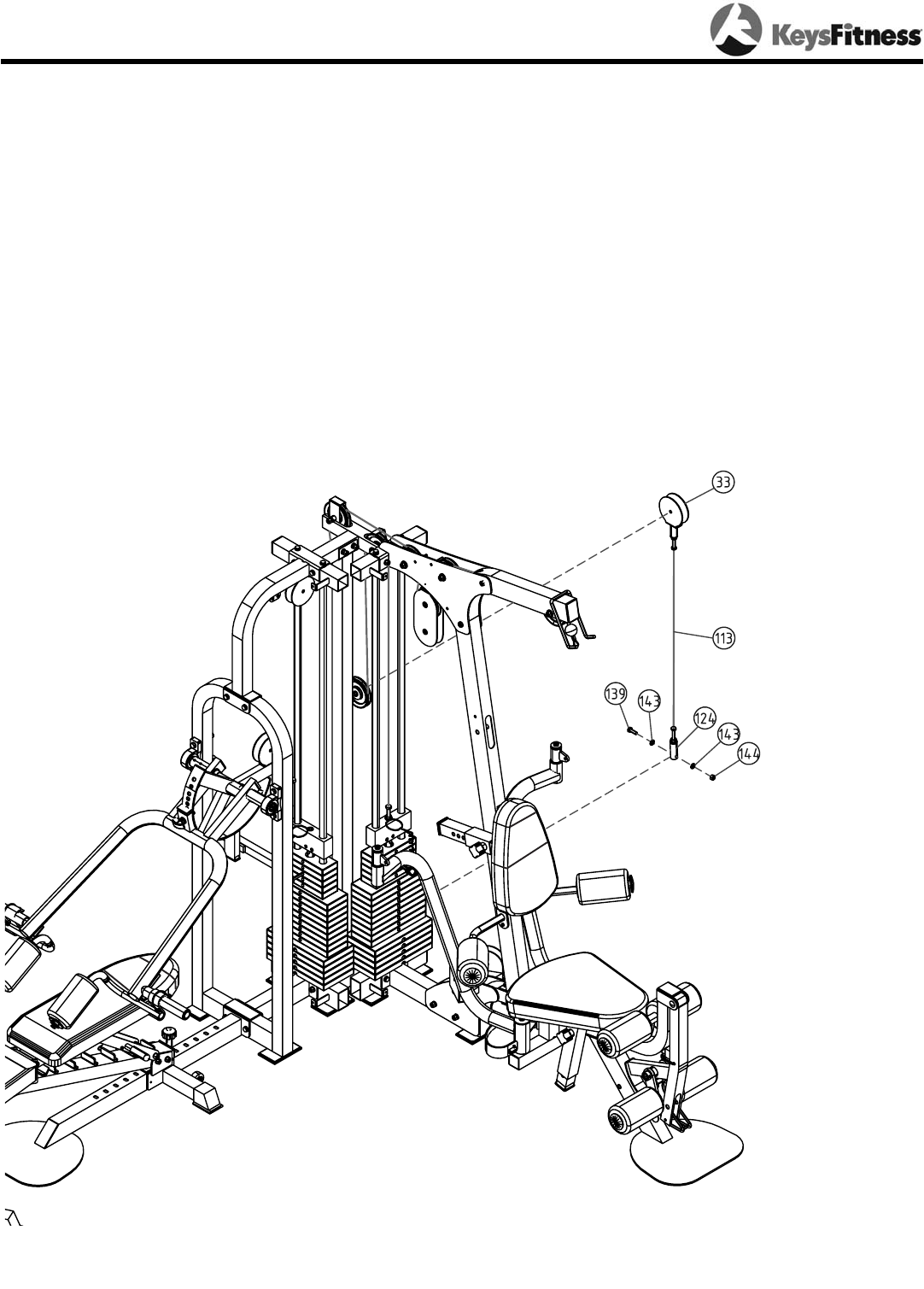

Install Leg Press Cable Substitute (113) as detailed in Figure 19. Follow dotted lines to identify exact

location of pulleys.

You will need the following for installation:

Cable Adapter (124) - Qty. 1

Cable (113) - Qty. 1

Bolt (139) - Qty. 1

Washers (143) - Qty. 2

Nylon Locknut (143) - Qty. 1

Figure 19

Assembly

34

Step 20

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

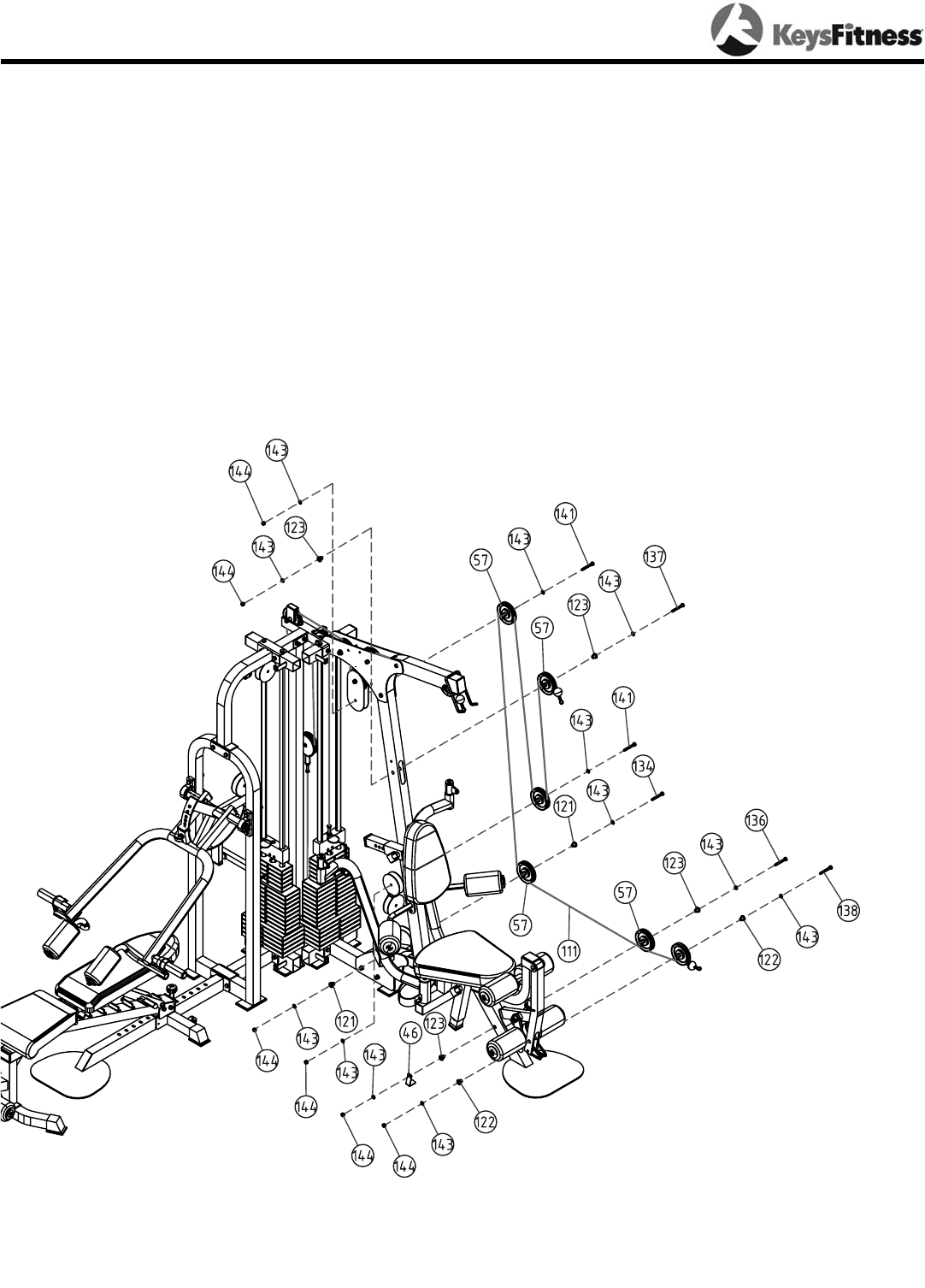

Install Low Row Cable (111) as detailed in Figure 20. Follow dotted lines to identify exact location

of pulleys. See Page 43 “Cable View” for more detail.

Start by installing cable under the pulley at Leg Extension location.

You will need the following for installation:

Pulley (57) - Qty. 6

Cable (111) - Qty. 1

Nut (144) - Qty. 6

Long Pulley Spacer (123) - Qty. 4

Longer Pulley Spacer (121) - Qty. 2

Short Pulley Spacer (122) - Qty. 2

Cable Retainer Bracket (46) - Qty. 1

Figure 20

Bolt (134) - Qty. 1

Bolt (136) - Qty. 1

Bolt (137) - Qty 1

Bolt (138) - Qty. 1

Bolt (141) - Qty. 2

Washer (143) - Qty. 12

Assembly

35

Step 21

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

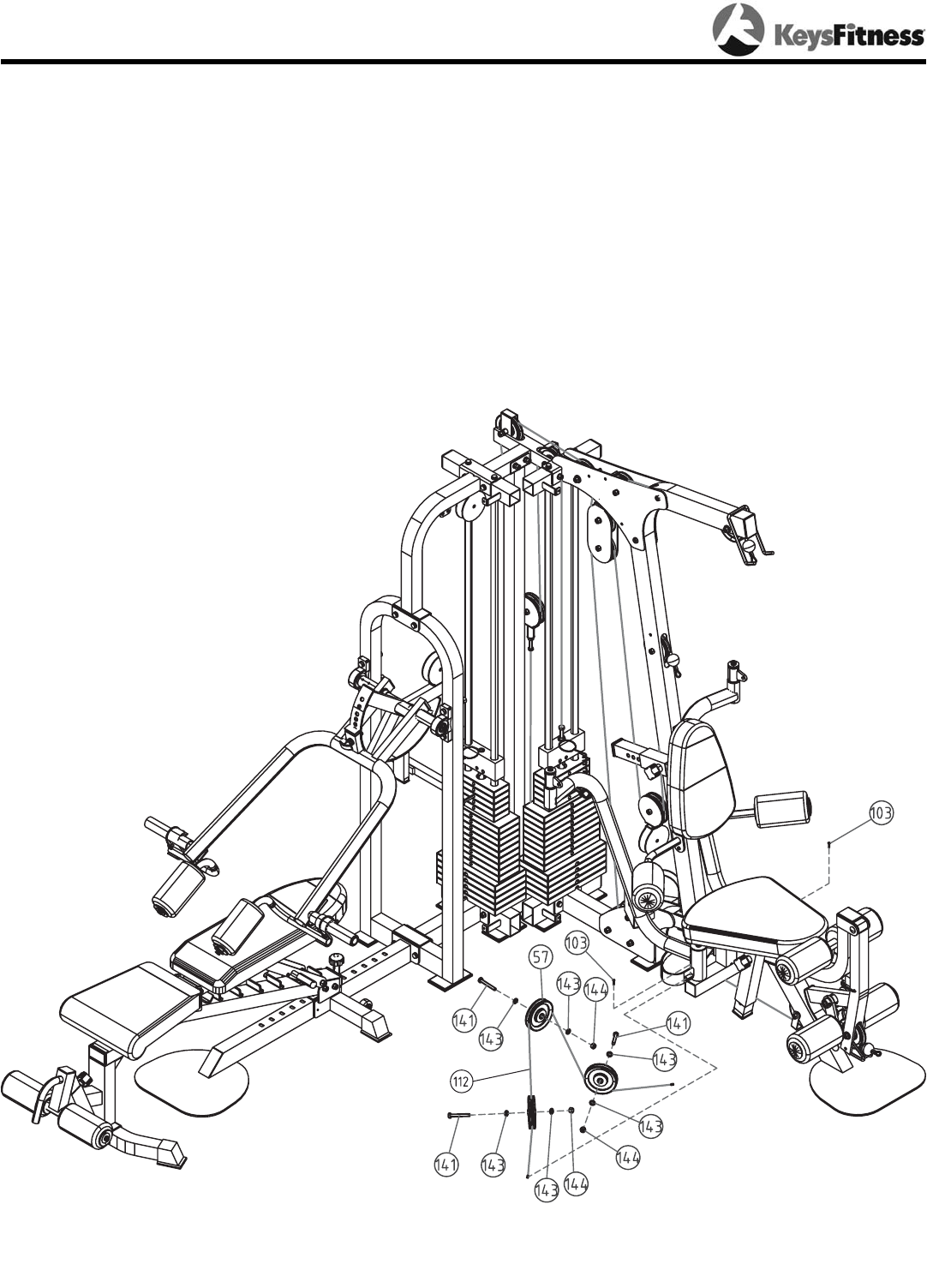

Install Pec Dec Cable (112) as detailed in Figure 21. Follow dotted lines to identify exact location

of pulleys.

See Page 43 “Cable View” for more detail.

You will need the following for installation:

Cable (112) - Qty. 1

Pulley (57) - Qty. 3

Bolt (141) - Qty. 3

Washers (143) - Qty. 6

Nut (144) - Qty. 3

Philips Screw (103) - Qty. 2

Figure 21

Assembly

36

Step 22

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

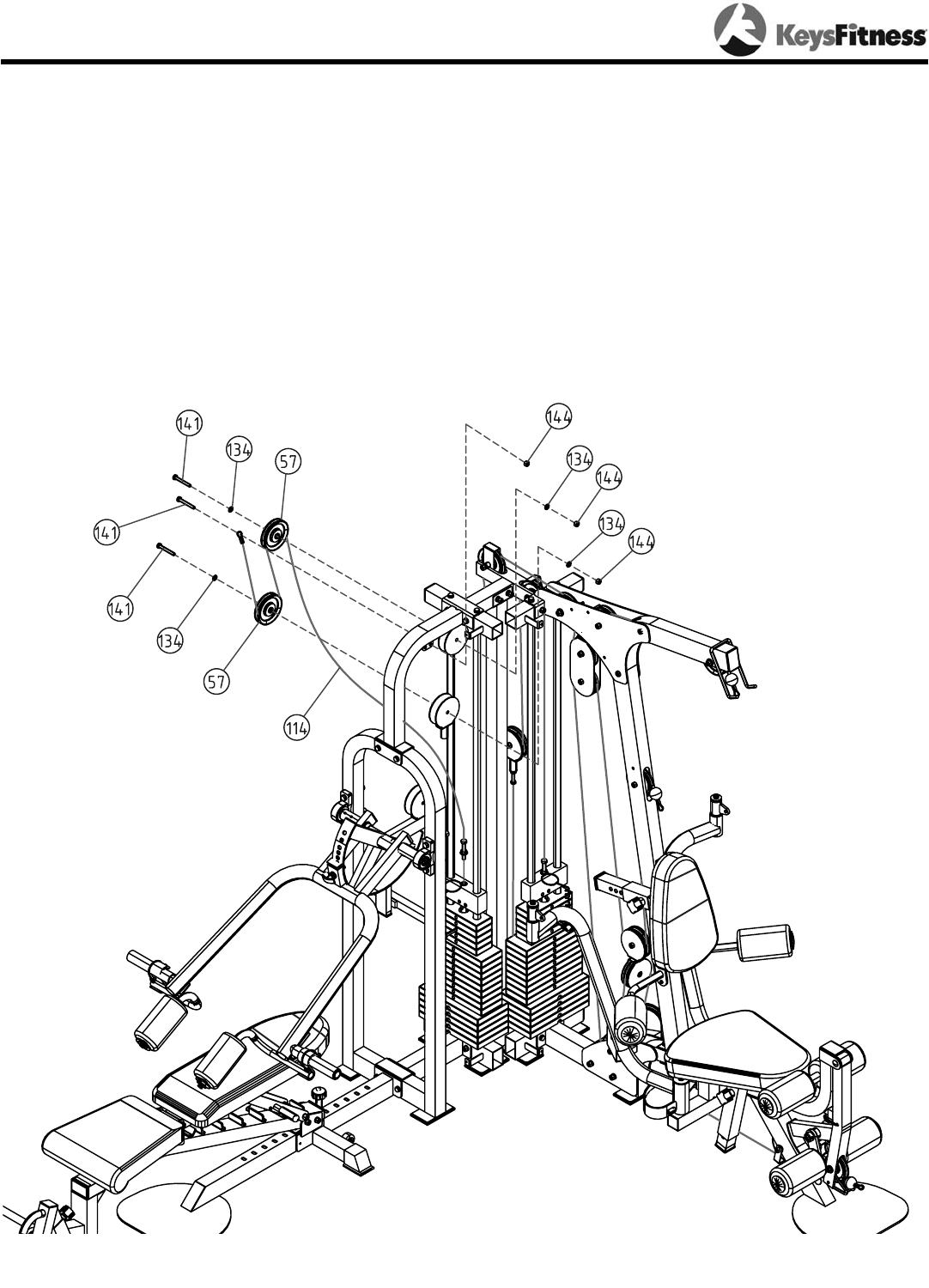

Install Long Chest Cable (114) as detailed in Figure 22. Follow dotted lines to identify exact location

of pulleys. See Page 43 “Cable View” for more detail.

Start by installing cable into the “Press Station” weight stack.

You will need the following for installation:

Pulley (57) - Qty. 2

Cable (114) - Qty. 1

Nut (144) - Qty. 3

Washer (134) - Qty. 4

Bolt (141) - Qty. 3

Figure 22

Assembly

37

Step 23

Note: Stretch all cables out completely and make sure all twisting is removed before installing.

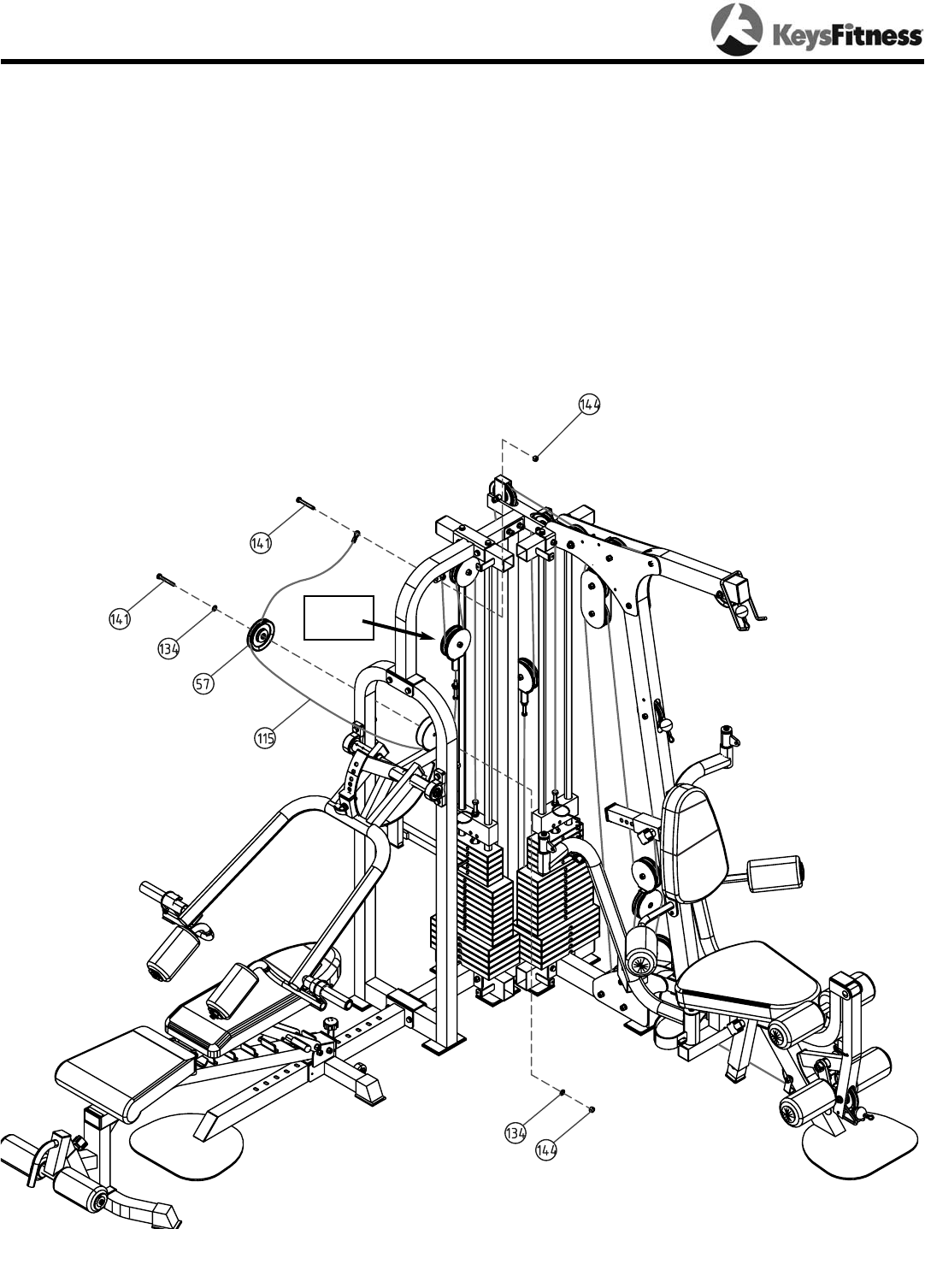

Install Short Chest Cable (115) as detailed in Figure 23. Follow dotted lines to identify exact location

of pulleys. See Page 43 “Cable View” for more detail.

Start by threading the cable into the floating pulley bracket.

You will need the following for installation:

Pulley (57) - Qty. 1

Cable (115) - Qty. 1

Nut (144) - Qty. 2

Washer (134) - Qty. 2

Bolt (141) - Qty. 2

Figure 23

Floating

Pulley

Assembly

38

Step 24

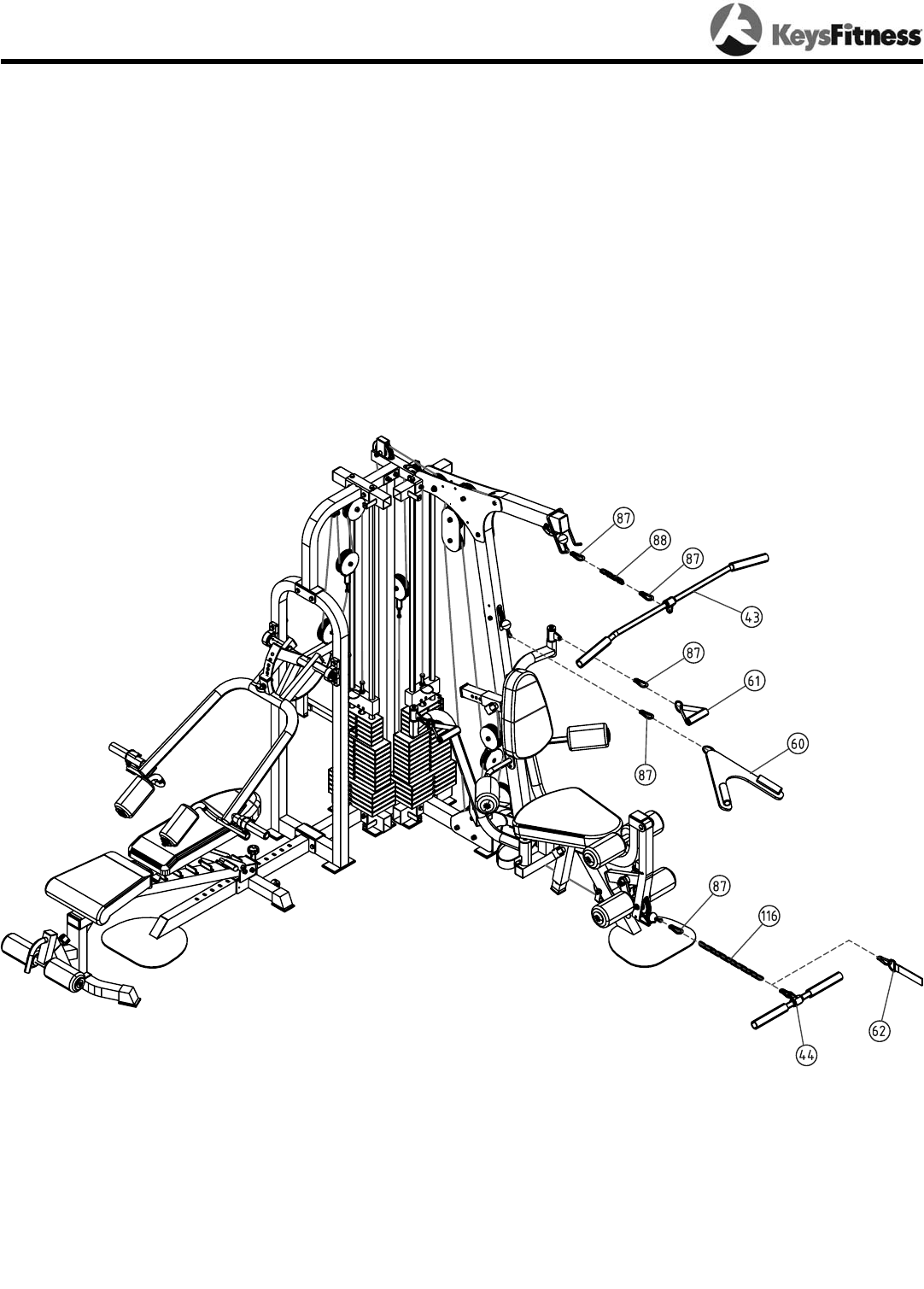

Connect Long Lat Bar (43) to the Lat Cable (110) using two Gear Hooks (87) and Short Chain (88).

Connect Ab Strap (60) or Lat Strap (61) to Low Row Cable (111) using one Gear Hook (87).

Connect Short Lat Bar (44) or Ankle Strap (62) to Low Row Cable (111) using two Gear Hooks (87) and

Long Chain (116).

Figure 24

Assembly

39

Step 25

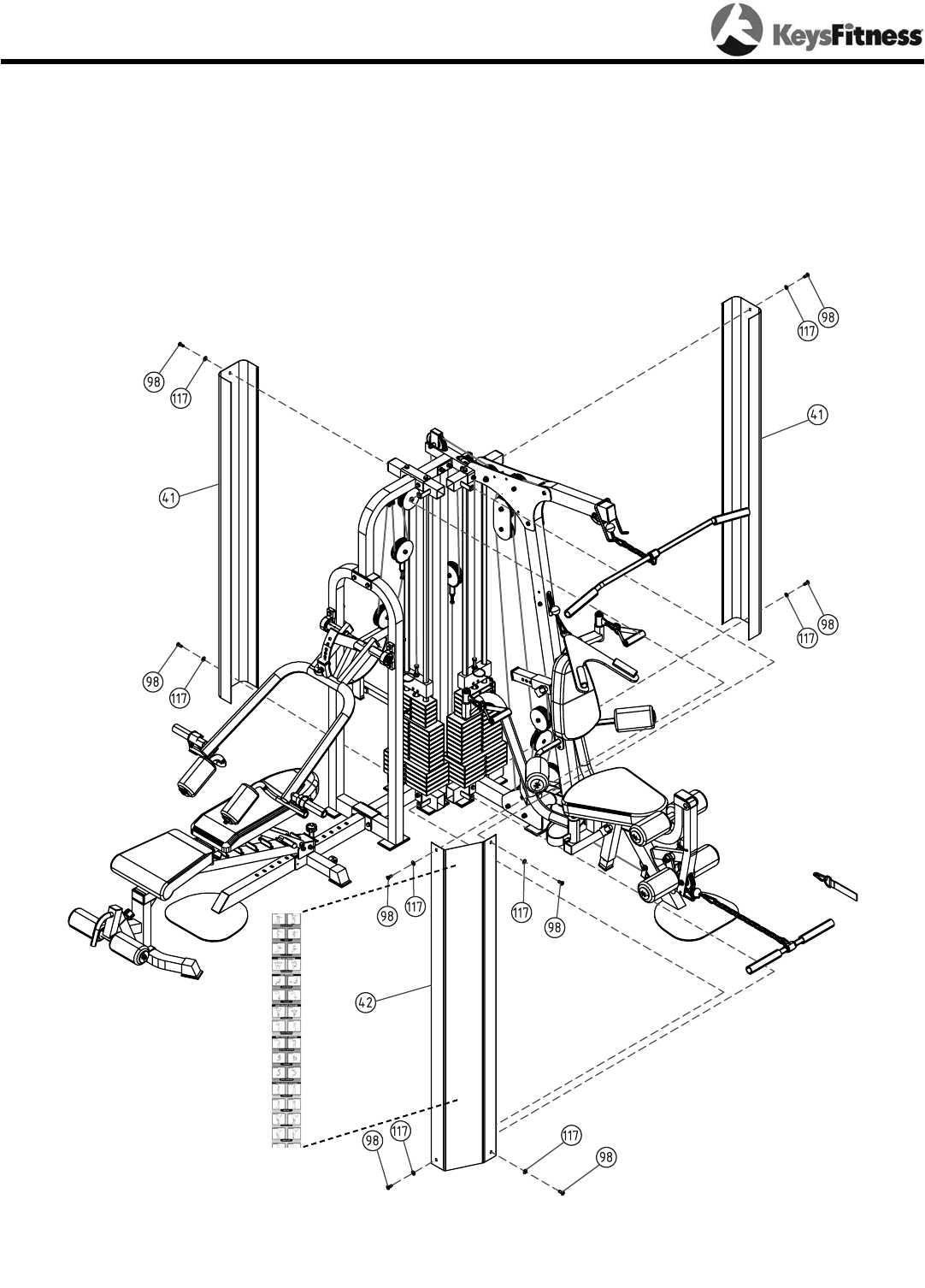

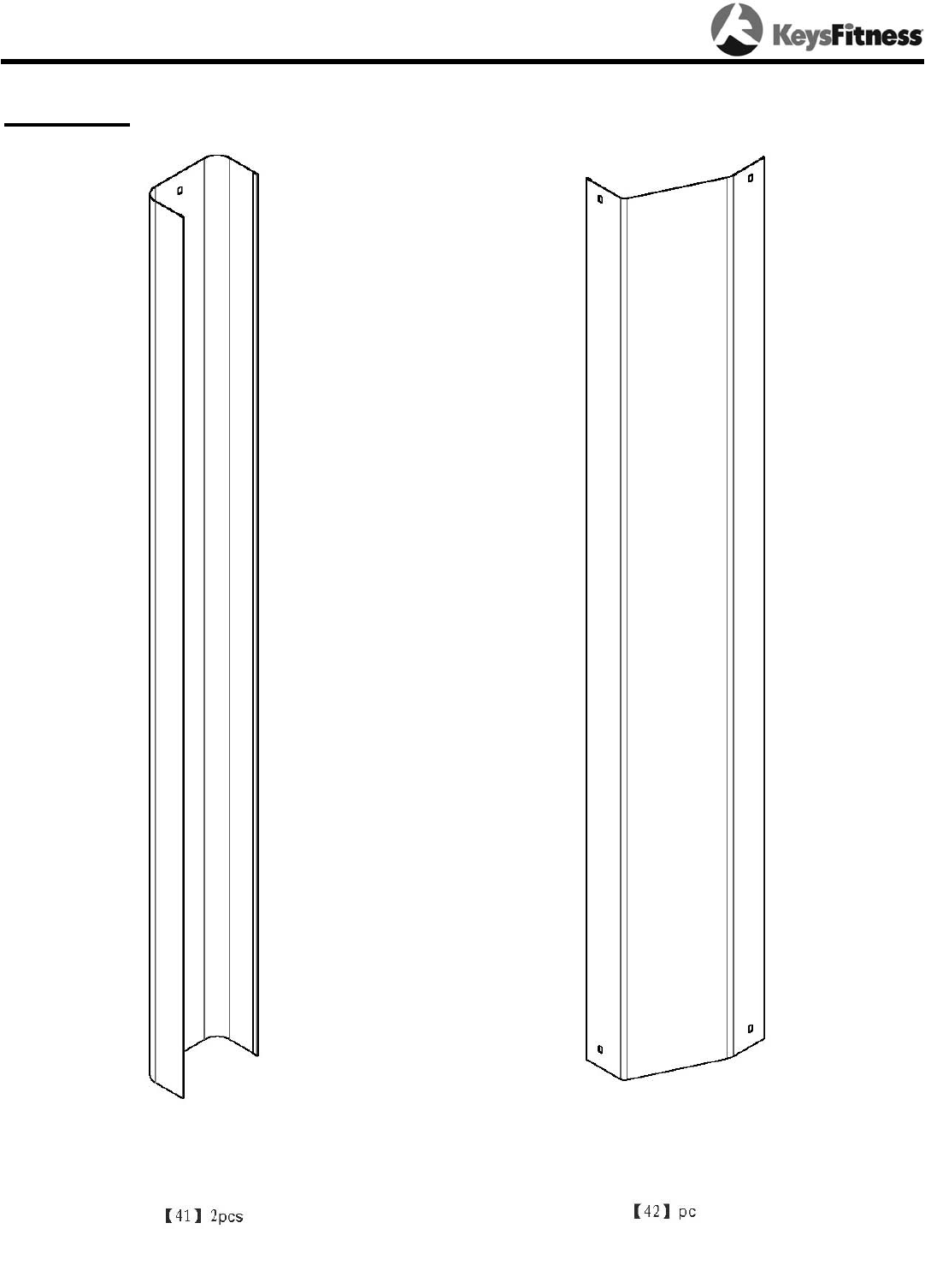

Install Weight Shrouds (41) to the left and right side of the weight stacks using four Washers (117) and four

Allen Bolts (98).

Install Weight Shroud (42) to the center of both weight stacks and secure using four Washers (117) and four

Allen Bolts (98).

Locate placard inside packing material and place on the center Weight Shroud (42).

Figure 25a

Figure 25

Figure 25a

Note: Tighten all hardware securely.

Assembly

40

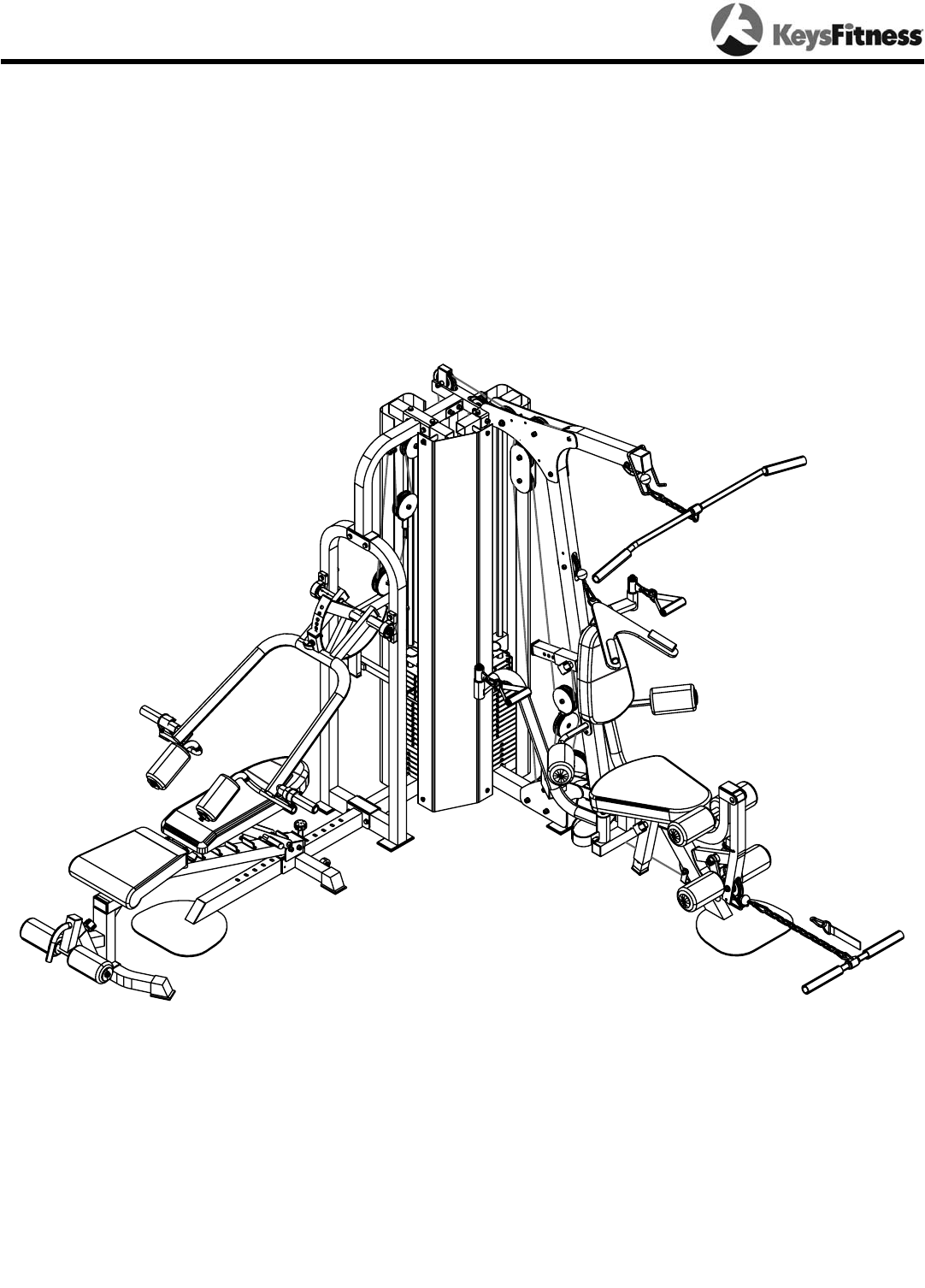

Congratulations!

You have completed the assembly of your new KPS-2050.

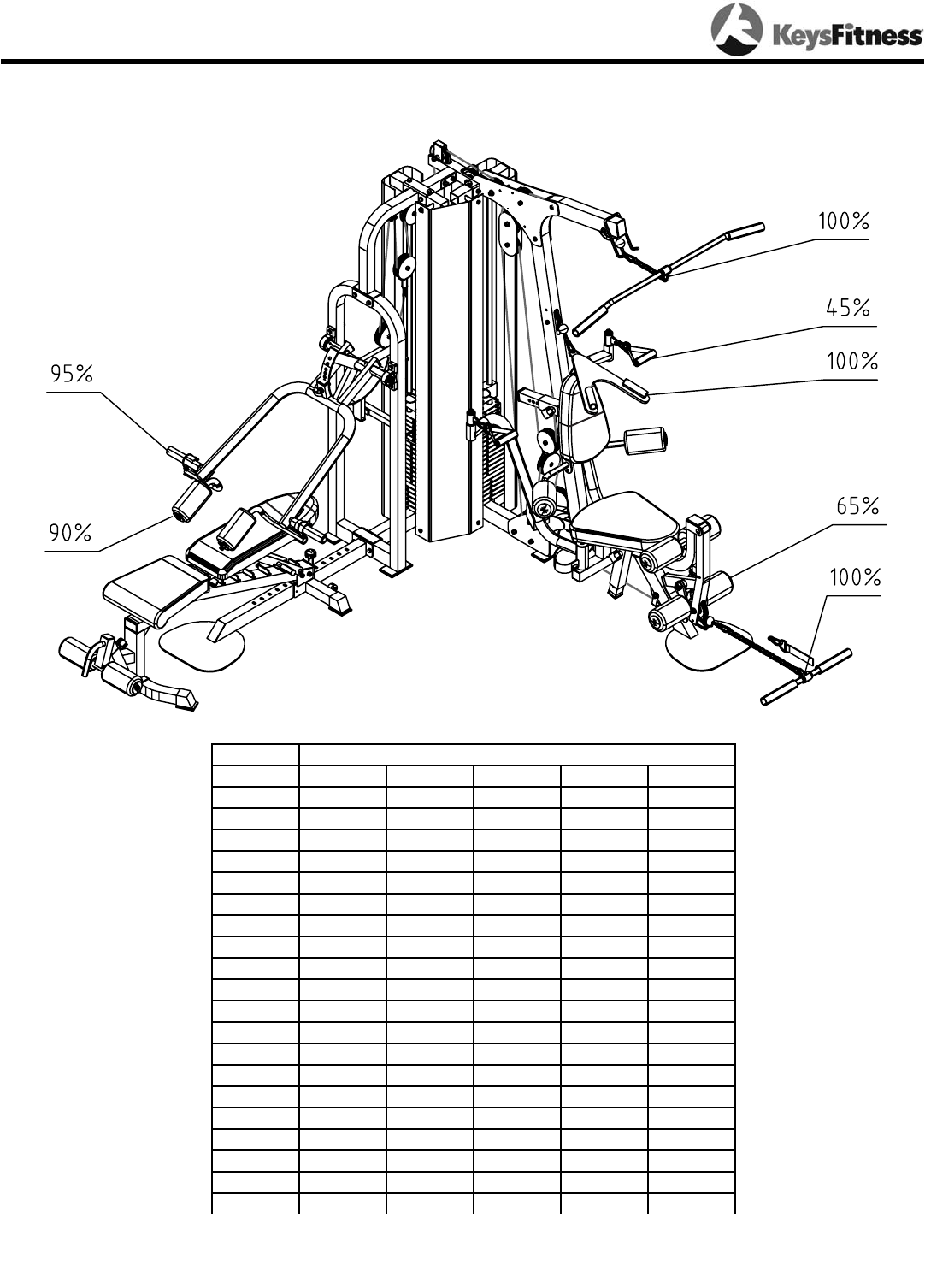

Weight Ratios

41

KPS-2050

Wei

g

ht(lbs

)

100% 95% 90% 65% 45%

10 10 9.5 9 6.5 4.5

15 15 14.25 13.5 9.75 6.75

20 20 19 18 13 9

25 25 23.75 22.5 16.25 11.25

30 30 28.5 27 19.5 13.5

35 35 33.25 31.5 22.75 15.75

45 45 42.75 40.5 29.25 20.25

55 55 52.25 49.5 35.75 24.75

65 65 61.75 58.5 42.25 29.25

75 75 71.25 67.5 48.75 33.75

85 85 80.75 76.5 55.25 38.25

95 95 90.25 85.5 61.75 42.75

105 105 99.75 94.5 68.25 47.25

115 115 109.25 103.5 74.75 51.75

125 125 118.75 112.5 81.25 56.25

140 140 133 126 91 63

155 155 147.25 139.5 100.75 69.75

170 170 161.5 153 110.5 76.5

185 185 175.75 166.5 120.25 83.25

200 200 190 180 130 90

Weight Ratios

Weight Stack Sticker Placement

42

10 10

15

20

20

25

30

40

50

60

70

80

90

100

30

35

45

55

65

75

85

95

105

115

115

125

140

155

170

130

145

160

175

190

205

220

235

250

185

200

200 LB Stack 250 LB Stack

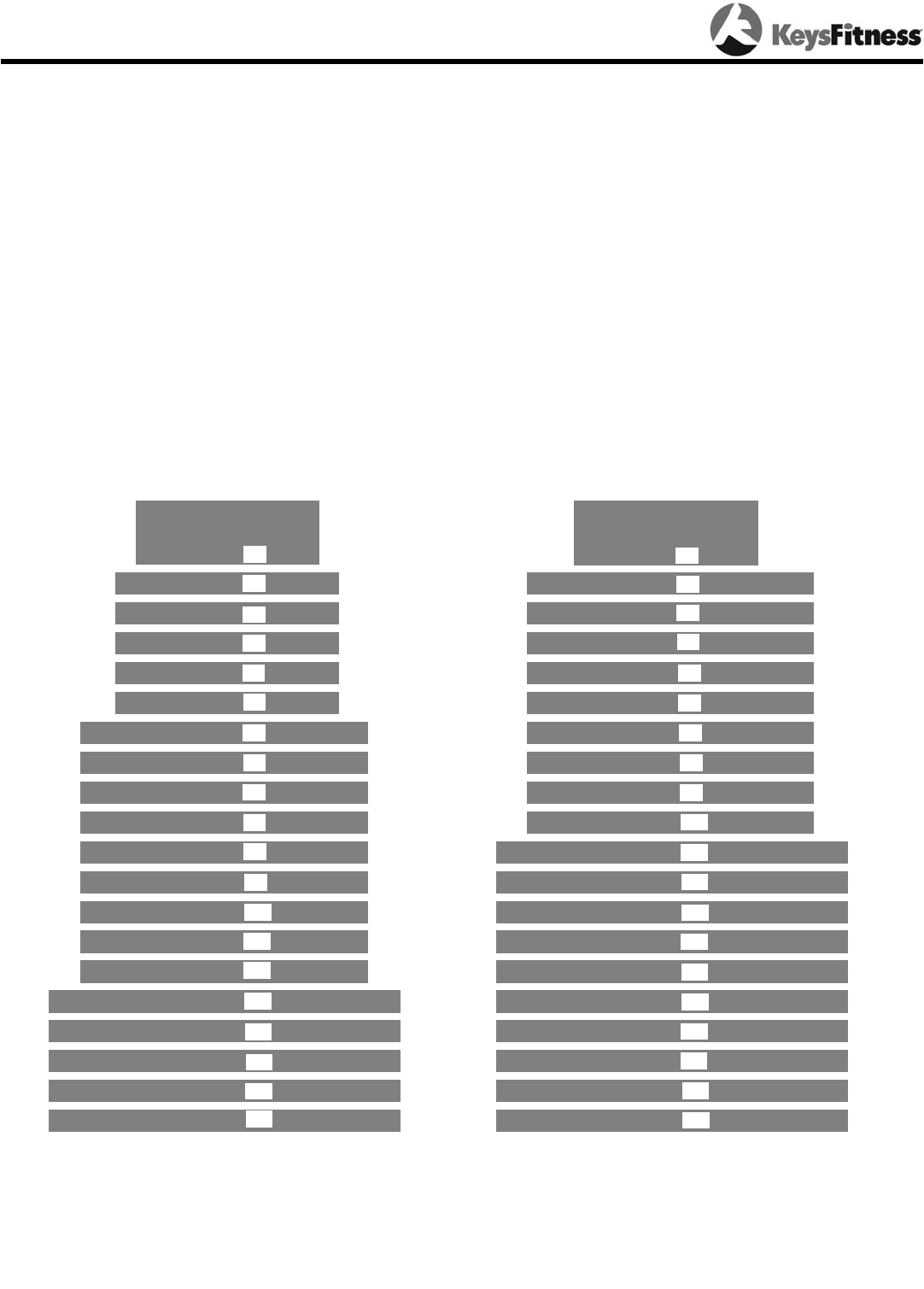

Your new POWER SYSTEM unit can be purchased with either a 200 LB or 250 LB weight

stack. Depending on which weight stack you have purchased will determine which weight

stack sticker numbers will be used.

The weight stack images below show which weight stack sticker numbers are to be used on

your weight stack. Please note that these stickers should not be put on until the entire unit has

been assembled and all bolts and nuts have been tightened.

Cable View

43

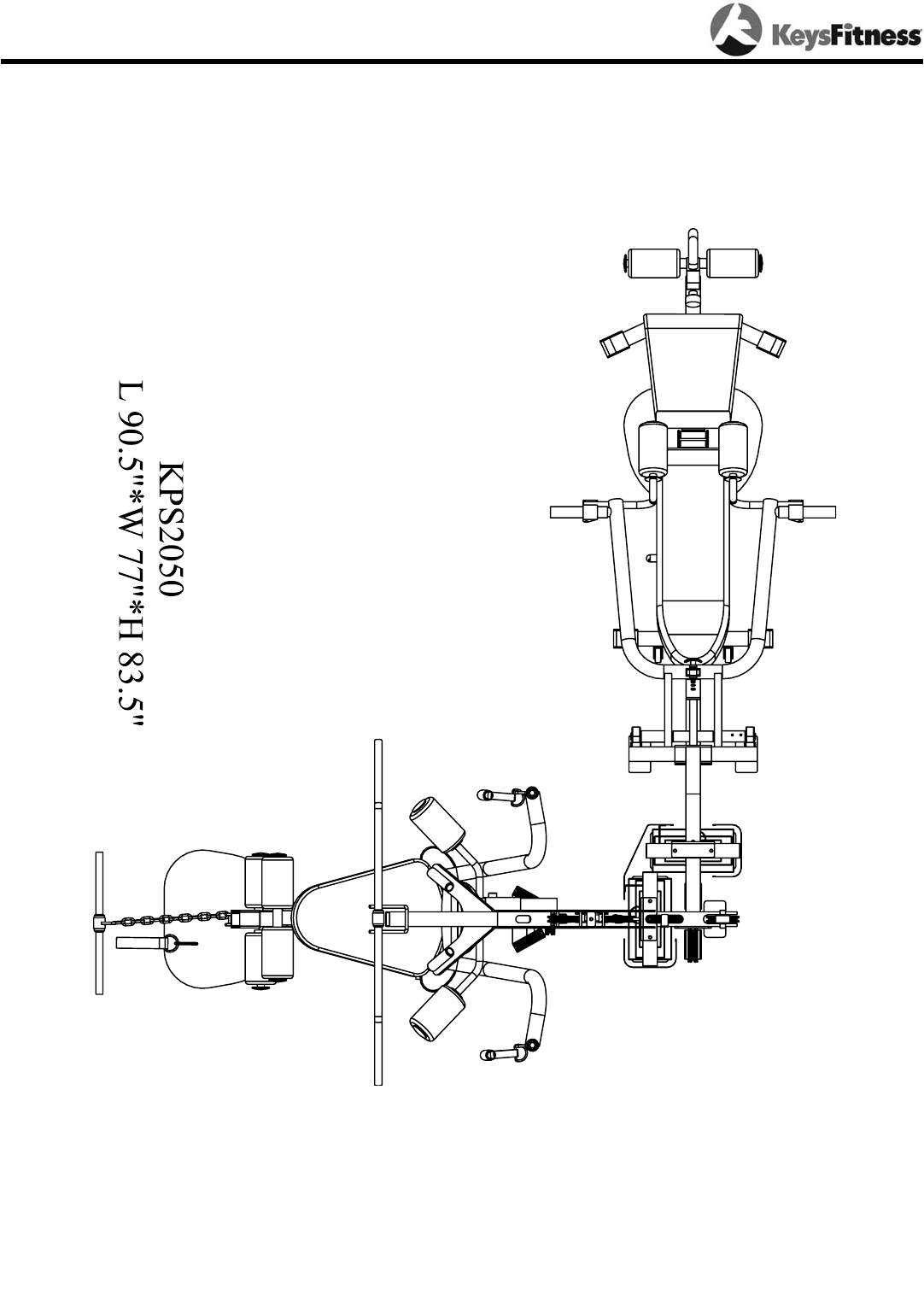

Top View

44

Exploded View

45

REF# KEYS PART# DESCRIPTION QTY. REF# KEYS PART# DESCRIPTION QTY.

1 223-00258 Rear Fram

e

1 77 202-00024 Bearing ID25 4

2 223-00259 Up Fram

e

1 78 206-00150 Caster Blac

k

2

3 223-00260 Rear Uprigh

t

1 79 206-00151 Plastic End Cap w/Groove 4

4 223-00261 Right Base Fram

e

1 80 206-00061 Base Pad 8

5 223-00262 Right Top Frame 1 81 206-00099 End Cap Bumper 1

6 223-00263 Seat Pad Support Receptacle 1 82 202-00140 "U" Shape Pi

n

1

7 223-00264 Main Upright 1 83 202-00155 Spring ij1*ij8*35 1

8 219-00265 Left Base Fram

e

1 84 202-00142 Nut M6 1

9 223-00266 Left Top Frame 1 85 202-00146 Slip Tension Pin 1

10 223-00267 Press Arm Suppor

t

1 86 230-00022 Shaft For Leg Extensio

n

1

11 223-00268 Press Station Base Fram

e

1 87 210-00098 Gear Hoo

k

7

12 223-00269 Chest Press Cam 1 88 229-00037 Short Chain 1

13 223-00270 Bench Main Fram

e

1 89 206-00141 Big Plug ij25.4 6

14 223-00271 Bench Front Fram

e

1 90 206-00134 Plastic Washe

r

8

15 223-00272 Bench Rear Fram

e

1 91 206-00005 Plug ij50 2

16 219-00285 Bench Seat Pad Support 1 92 206-00006 Plug40*80 2

17 223-00273 Bench Back Pad Support 1 93 206-00001 Plug76.2*50.8 3

18 219-00286 Foam Adjustable Bracke

t

1 94 206-00140 Plug50.8 3

19 223-00248 Front Uprigh

t

1 95 206-00020 Plug44.5 3

20 223-00244 Leg Extension Leve

r

1 96 206-00139 Plug50*25 8

21 223-00241 Pec Dec mount 1 97 202-00143 Screw M8*6 3

22 223-00243 Right Pec Dec Ar

m

1 98 202-00017 Allen Bolt M8*15 9

23 223-00242 Left Pec Dec Ar

m

1 99 206-00026 Weight Stack Bumpe

r

4

24 219-00272 Pec Dec Handle Ba

r

2 100 206-00153 Rubber Mat 1

25 219-00266 Foam Frame w/o Shaf

t

1 101 202-00129 Chrome Wash ij38*ij11*

2

9

26 219-00265 Foam Frame w/Shaf

t

1 102 202-00145 Big Washer ij56.5*ij10.5*5 2

27 223-00274 Seat Pad Support 1 103 202-00102 Philip Screw M4*20 2

28 219-00287 Back Pad ADJ. Bracke

t

1 104 202-00016 Bronze Bushing ID25.4 8

29 219-00270 Right Leg Hold Leg Fram

e

1 105 202-00023 Bronze Bushing ID12.2 6

30 219-00271 Left Leg Hold Leg Fram

e

1 106 206-00154 Button Pad 14

31 219-00274 Pulley Bracket Bloc

k

1 107 206-00102 Plug ij32 2

32 219-00275 Pulley Bracket 1 108 206-00004 Plug ij25 2

33 219-00273 Pulley Bracket w/Shaf

t

2 109 206-00136 Rubber Stopper 2

34 219-00031 Long Foam Tub

e

1 110 229-00053 Lat Cabl

e

1

35 223-00021 Press Ar

m

1 111 229-00054 Low Row/Abdominal Cabl

e

1

36 223-00011 Right Squat Ar

m

1 112 229-00050 Pec Dec Cable 1

37 223-00010 Left Squat Ar

m

1 113 229-00049 Leg Press Substitute Cable 1

38 230-00021 Press Station Shaft 1 114 229-00055 Long Chest Cable 1

39 219-00034 Bench Back Pad Adj. Fram

e

1 115 229-00056 Short Chest Cable 1

40 219-00288 Foam Shaf

t

1 116 229-00057 Long Chai

n

1

41 223-00275 Weight Shroud

A

2 117 202-00158 Washer ij9*ij22*

2

9

42 223-00276 Weight Shroud B 1 118 202-00134 Spring Washer 8 1

43 223-00092 Long Lat Ba

r

1 119 202-00100 Spring Washer 10 15

44 219-00136 Short Lat Ba

r

1 120 202-00141 Bronze Bushing ID16 2

45 210-00097 Adjustable Stopper 1 121 202-00140 Longer Pulley Space

r

6

46 219-00281 Cable Retainer Bracke

t

2 122 202-00025 Short Pulley Space

r

2

47 223-00247 Guide Ro

d

4 123 202-00071 Long Pulley Space

r

8

48 228-00087 Bench Seat Pad 1 124 210-00093 Cable Adapto

r

1

49 228-00086 Bench Back Pa

d

1 125 202-00127 Washer ij13*ij24*1.5 25

50 228-00084 Seat Pad 1 126 202-00092 Nut M12 13

51 228-00085 Back Pa

d

1 127 202-00125 Allen Bolt M10*50 2

52 219-00277 15LB Plate 10 128 202-00087 Allen Bolt M10*25 10

53 219-00278 10LB Plate 18 129 202-00130 Washer ij38*ij11*2 1

54 219-00279 5LB Plate 10 130 202-00077 Bolt M12*85 4

55 223-00031 Top Plate 2 131 202-00126 Bolt M12*80 4

56 210-00002 Weight Pin 2 132 202-00175 Bolt M12*125 4

57 219-00006 Pulle

y

19 133 202-00079 Bolt M10*105 2

58 228-00077 Upholstered Roller Pad 100*22*180 10 134 202-00080 Bolt M10*85 6

59 210-00029 Pop Pin (Locking) 2 135 202-00082 Bolt M10*80 3

60 210-00099 Ab Strap 1 136 202-00081 Bolt M10*75 12

61 210-00061 Lat Stra

p

2 137 202-00083 Bolt M10*70 11

62 210-00059 Ankle Strap 1 138 202-00084 Bolt M10*65 5

63 206-00103 Grip 4 139 202-00159 Bolt M10*60 1

64 210-00100 Bench Seat Pad Adj. Ba

r

1 140 202-00085 Bolt M10*50 2

65 206-00147 Nylon Handbal

l

1 141 202-00086 Bolt M10*45 14

66 202-00156 Spring ij1.5*ij13*43 1 142 202-00160 Allen Bolt M10*30 4

67 202-00149 Spring ij1*ij13*38 1 143 202-00128 Washer ij11*ij20*2 116

68 202-00157 Pin Shaft 1 144 202-00091 Nut M10 52

69 206-00146 Pin Knob 1 145 214-00001 Decal Weight Numbe

r

2

70 206-00148 Nylon Space

r

1 146 202-00132 Hex Key

6

1

71 206-00111 Grip 1 147 202-00133 Hex Key

4

1

72 206-00053 Handle Grip 3 148 210-00094 Lube 1

73 210-00001 Safety Pi

n

2 150 219-00276 Selector Ro

d

2

74 210-00030 Pop Pin 1 151 202-00121 Screw Bolt M12*35 2

75 202-00030 Pillow black Bearing 2 152 202-00129 Hex Nut M10 1

76 206-00143 Pec Dec Stop Bumpe

r

2

KPS-2050 Parts List

Parts List

46

Warranty Information

KEYS FITNESS PRODUCTS, L.P.

POWER SYSTEM SERIES

LIFETIME WARRANTY

This Warranty applies in the United States and Canada to products manufactured or distributed by

Keys Fitness Products, LP (“Keys”) under the KEYS brand name. The warranty period to the original

purchaser is lifetime of the original purchaser.

Keys warrants that the Product you have purchased for non-commercial, personal, family, or house-

hold use from Keys or from an authorized Keys reseller is free from defects in materials or workmanship under normal use dur-

ing the warranty period. Your sales receipt, showing the date of purchase of the Product, is your proof of purchase. This war-

ranty only extends to you, the original purchaser. It is not transferable to anyone who subsequently purchases the Product from

you. It excludes expendable parts (wear items). Wear items pertain to components that might need to be replaced due to nor-

mal wear and tear. These items vary per product but will include grips, chains, cables, pads, upholstery, pulleys, bearings, etc.

Please contact a Keys customer service representative for specifics on wear items. This Warranty becomes VALID ONLY if the

product is purchased through a Keys Fitness authorized dealer unless otherwise authorized by Keys Fitness in writing and

must be assembled / installed according to the instructions included with the Product.

In a light institutional setting, Keys will extend a one year warranty to the the original purchaser.

During the warranty period Keys will repair or replace (at Keys' option) the product if it becomes defective, malfunctions, or oth-

erwise fails to conform with this Warranty under normal use. In repairing the Product, Keys may replace defective parts, or at

the option of Keys, serviceable used parts that are equivalent to new parts in performance. All exchanged parts and Products

replaced under this warranty will become the property of Keys. Keys reserves the right to change manufacturers of any part to

cover any existing warranty.

This warranty DOES NOT COVER shipping charges, export taxes, custom duties and taxes, or any other charges associated

with transportation of the parts or Product. To obtain warranty service, you must contact a Keys authorized retailer, service

technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned

to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other

charges associated with transportation of the parts or Product. In addition, you are responsible for insuring any parts or

Product shipped or returned. You assume the risk of loss during shipment. You must present Keys with proof-of-purchase doc-

uments (including the date of purchase). Any evidence of alteration, erasing or forgery of proof-of-purchase documents will be

cause to void this Warranty.

This Warranty does not extend to any product not purchased from Keys or from an authorized Keys reseller. This Limited

Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, misuse, or

abuse; (b) by the use of parts not manufactured or sold by Keys; (c) by modification of the Product or normal wear and tear;

(d) operation on incorrect power supplies; or (e) as a result of service by anyone other than Keys, or an authorized Keys war-

ranty service provider. Product on which the serial number has been defaced or removed is not eligible for warranty service.

Should any Product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the

repair will be made if requested by you upon Keys' receipt of payment or acceptable arrangements for payment.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, KEYS MAKES NO OTHER WARRANTIES, EXPRESSED OR

IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE. KEYS EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED

WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. NEITHER

KEYS NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT

APPLY TO YOU. This Limited Warranty gives you specific legal rights and you may also have other rights that may vary from

state to state. This is the only express warranty applicable to Keys-branded products. Keys neither assumes nor authorizes

anyone to assume for it any other express warranty.

PLEASE SEND IN THE INCLUDED WARRANTY CARD OR REGISTER ON-LINE AT www.keysfitness.com WITHIN

TEN (10) DAYS OF PURCHASE TO REGISTER YOUR UNIT WITH KEYS FITNESS PRODUCTS, LP.

MAIL WARRANTY CARD TO: KEYS FITNESS PRODUCTS, PO BOX 551239, DALLAS, TX 75355

47

Customer Service

1.888.340.0482

Keys Fitness

4009 Distribution Drive

Suite 250

Garland, TX 75041

www.keysfitness.com
