Ki Ryung Electronics Co., Ltd. FM Modulator For Sirius Satellite Receiver Streamer Car Install Guide
User Manual
2003 JVC
Car Docking Kit Installation Guide KS-K6001 or KS-K6002
C
2KS-K6001 & KS-K6002 Installation Guide
Box Contents
3
Safety Precautions
Warning
Take the following precautions to prevent traffic
accidents and avoid personal injury:
• Installation must be performed according to this
installation manual. JVC PnP is not responsible
for issues arising from installations not performed
according to the procedures in this manual.
• Do not install the unit where it may obstruct your
view through the windshield or of your vehicle’s
indicator displays.
• Do not install the unit where it may hinder the
function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning
properly in the event of an accident.
• The installation and use suggestions contained
in this manual are subject to any restrictions or
limitations that may be imposed by applicable
law—the purchaser should check applicable law
for any restrictions or limitations before installing
and/or operating this unit.
• Failure to follow these safety instructions and
warnings may result in a serious accident.
Caution
Take the following precautions to keep the unit in
proper working order:
• Be sure the unit is connected to a 12V DC power
supply with a negative ground connection.
• Do not install the unit where it will be exposed to
high levels of humidity, moisture, or dust.
• When replacing a fuse, use only a new one with
the proper rating. Using a fuse with the wrong
rating may cause the unit to malfunction.
• To prevent a short circuit when replacing a fuse,
first unplug the cigarette lighter adapter from the
cigarette lighter.
• When drilling holes to mount the unit, make sure
not to damage wiring or other systems on the
other side.
For the latest information about this and other JVC products, visit the JVC Web site at:
www.jvc.com. If anything is missing or damaged, or if your KS-K6001 or KS-K6002 fails to
operate, notify your shipper immediately. JVC recommends that you keep the original packaging in
case you need to ship your KS-K6001 or KS-K6002 in the future.
KS-K6001 & KS-K6002 Installation Guide
1 x Cassette Adaptor
(only in KS-K6001) (only in KS-K6001)
1 x Suction Cup Mount

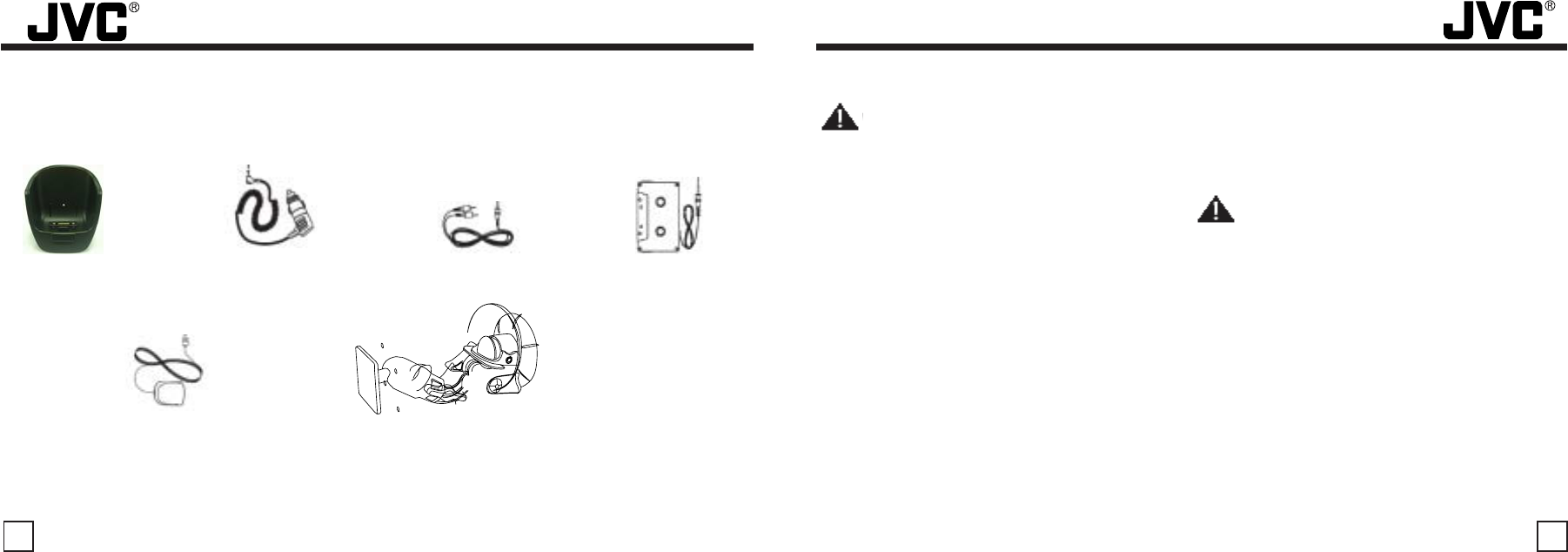

After you unpack your KS-K6001 or KS-K6002, make sure everything here is included:
1 x Car Dock 1 x Cigarette Power Adaptor 1 x Audio Cable
1 x Antenna
Car Docking Kit Installation Guide for KS-K6001 or KS-K6002 Kit (sold seperately)
Note: Do not put JVC in the docking station until you have completed the installation.

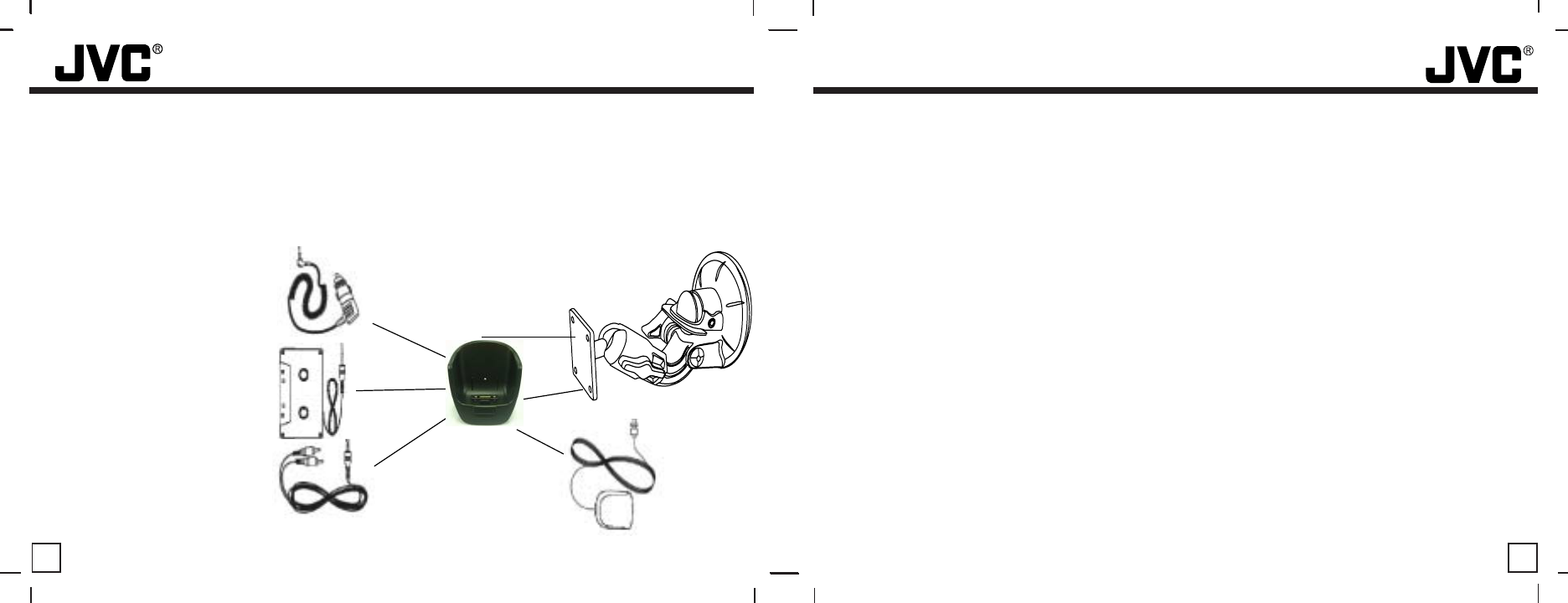

KS-K6001 Contents:
• Installation Guide.
• Car docking cradle
.Ciarette lighter power supply.
• Suction Cup Mount.
• Magnetic roof-mount SIRIUS
antenna.
• Cassette adapter
• RCA cable
1. Determine where you want to
mount JVC PnP.
• Do not install JVC PnP where
it may obstruct your view through
the windshield or your view of
your vehicle’s indicator displays.
• Do not install JVC PnP where
it will hinder your access to the
vehicle’s controls.
• Do not install JVC PnP where
it may hinder the function of
safety devices such as an
airbag. Doing so may prevent
the air-bag from functioning
properly in the event of an
accident.
• Find a location that provides
good visibility of and access to
JVC PnP’s front panel.
• The JVC strongly
recommends that you mount
JVC PnP in a location where the
base can be attached with the
provided screws or on the
windshield with the provided
suction-cup mount.
2. You can bend the leaves on
the base to conform to curved
mounting surfaces.
3. Peel the covering away from
the adhesive on the bottom of
the base and adhere it to the
mounting surface. Use the
provided screws to securely
attach the base to the surface.
• If using screws, be sure that
you do not damage wiring or
other systems on the other side
of the mounting surface.
4. Using the provided screws,
assemble the docking station
Installation in a Vehicle (continued)
cradle to the base or to the
suction cup mount.
5. Plug the cigarette lighter
adapter into the back of the cradle.
Don’t plug the adapter into the
cigarette lighter until the
installation is completed.
6A. Plug the cassette adapter into
the back of the cradle (KS-K6002
kit only). For the KS-K6001 kit,
tune your radio to one of four FM
stations on the side of the vehicle
dock
6B. If your car stereo has an aux
input, plug the supplied audio
cable into the back of the cradle
instead of the cassette adapter.
Plug the audio cable’s white (L
ch,) and red (R ch.) connectors
into your car stereo.
45
KS-K6002 Contents:
• Installation Guide.
• Car docking cradle w/ FM.
• Suction Cup Mount.
• Magnetic roof-mount SIRIUS
antenna.
• Cigarette lighter power supply.
Note: The SIR-STRVK1 Kit doesn’t come with the shown cassette
adapter because it has a wireless FM Transmitter.
KS-K6001 & KS-K6002 Installation Guide KS-K6001 & KS-K6002 Installation Guide

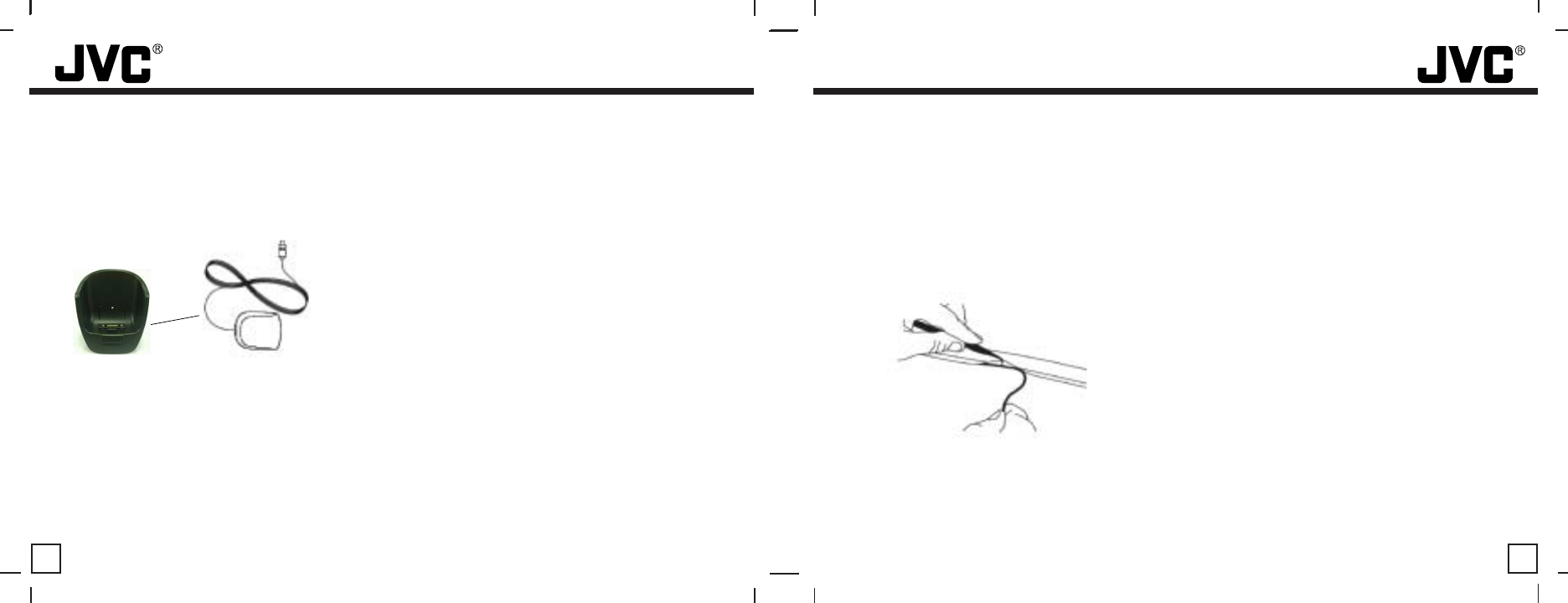

Installation in a Vehicle: Running the Antenna Cable
2. Route the cable from the antenna to the
vehicle’s interior by tucking it underneath the
rubber molding around rear window, as shown
below.
• For SUVs, minivans & 5-door vehicles, bring the
cable into the vehicle under the rubber molding for
the tailgate, and continue under the interior trim.
4. From the trunk, route the cable around the
passenger compartment and to the back of the
cradle.
• Do not pull the wire across sharp edges that could
damage it.
• Keep the wire away from areas where it could
become tangled in driver’s and passenger’s feet.
5. Plug the antenna into the back of cradle where it
says “ANT”.
6. Plug the cigarette lighter adapter into the cigarette
lighter. JVC RECOMMENDS
UNPLUGGING THE CIGARETTE LIGHTER
ADAPTER AFTER YOU TURN THE VEHICLE’S
IGNITION OFF.
6 7
Installation in a Vehicle: Mounting the Antenna
1. Turn JVC PnP’s power off and remove it from
the cradle; unplug the cigarette lighter adapter
from the cigarette lighter; unplug the antenna from
the cradle.
3. Route the cable from the lowest point of the
rear window into the trunk. Take advantage of any
existing cable channels or wiring conduits.
KS-K6001 &Ks-K6002 Installation Guide KS-K6001 &KS-K6002 Installation Guide
1. Temporarily plug the antenna into the
“1-Sat/Terr (Main)” connector on the
back of the cradle until it is firmly
seated.
2. Find an antenna location on a metal
surface of your vehicle at least 12" x
12", and at least 6" from a window. If
you use the included antenna mount
, install the mount
on the upper portion of your side-view
mirror bracket.
• Best reception is achieved with the antenna mounted on the
roof or trunk for convertibles.
• If the vehicle has a roof rack or skid ribs, it may be necessary
to mount the antenna off-center.
3. The antenna’s powerful magnet will secure it to the metal
surface. Before routing the antenna cable, confirm that the
antenna is mounted in a good location:
4. Temporarily plug the cigarette lighter adapter into the
cigarette lighter.
5. Slide JVC PnP all the way into the cradle so that the
connector at the bottom of the unit makes proper contact in the
cradle. Press and hold the POWER button to turn JVC PnP on.
6. If your JVC PnP has been properly connected and the
antenna is receiving the SIRIUS signal you will hear audio. If
you do not hear audio, the display will read “Antenna Error”.
Reorient the antenna until you hear audio. (See Antenna
Signal, on page 27 to use the ANTENNA SIGNAL screen to aim
the antenna.)
• Make sure the vehicle is not in garage, or somewhere the
satellite signal could be blocked.
8KS-K6001 &Ks-K6002 Installation Guide KS-K6001 &KS-K6002 Installation Guide 9
6. Sirius Program Listening Options
The Shuttle and Cradle provide an audio output
signal in three manners:
1. When using K6001 or K6002 cradle, the audio signal
can be routed through an audio cable which is
applied to the auxiliary inputs of a radio or
entertainment system.
2. When using the K6002 cradle, the audio signal can
be transmitted to a car radio on one of four
selectable FM frequencies. The audio signal can
then be played through your car radio when the
car radio is tuned to one of these frequencies.
3. Some listeners prefer to use a hard-wired FM
transmitter. In this instance, when using the K6002
cradle, an optional FM Switching Box assembly
(Part No. 112C3159) is available and provides a
hard-wired FM output when connected to the FM OUT
connector on the left side of the cradle; the other end
of the switching box plugs into the antenna jack of your
radio. By using this assembly, and selecting the
appropriate FM output frequency (88.1MHz, 88.3MHz,
88.5MHz or 88.7MHz) with the slide switch, the Sirius
signal received at the SAT (MAIN) or TERR. cradle
antenna input can be played through your car radio
when tuned to one of these frequencies.
FM FREQUENCY
SELECT SLIDE
SWITCH:
88.1 MHz
88.3 MHz
88.5 MHz
88.7 MHz
3
FCC Warning
Warning
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in this
User Guide. The user could lose the authority to
operate this equipment if an unauthorized
change or modification is made.
Interconnect Diagram FM Option
TO AUXILIARY AUDIO
INPUT OF RADIO OR
ENTERTAINMENT SYSTEM
FM FREQUENCY SELECTION SWITCH.
SELECT 1 OF 4 AVAILABLE FREQUENCIES
AND SET YOUR EXISTING CAR RADIO TO
THE SAME FREQUENCY.
TO VEHICLE
+12 VDC POWER
RECEPTACLE
VEHICLE
RADIO
ANTENNA
DC POWER
ADAPTER
VEHICLE
FM RADIO
NOTE:
1. THE FM TRANSMITTER OPTION MUST
BE SET TO ”FM ON” IN THE SHUTTLE
USER MENU. (REFER TO THE OWNER’S
MANUAL, PUBLICATION NO.128-6812.)
2. WHEN THE FM TRANSMITTER IS TO
BE USED, DO NOT CONNECT THE
AUDIO CABLE TO THE AUDIO OUT
CONNECTOR OF THE SHUTTLE.
SHUTTLE CRADLE
KS-K6002 ONLY
**TERRESTRIAL ANTENNA CONNECTION FOR USE WITH OPTIONAL 2 CONNECTOR ANTENNA CONFIGURATION
SHUTTLE
ANTENNA
OR
**
10
