Brief Operation Manual for
USE Transportable Navigation
1. Mode Selection
Please press screen button which you want to select.

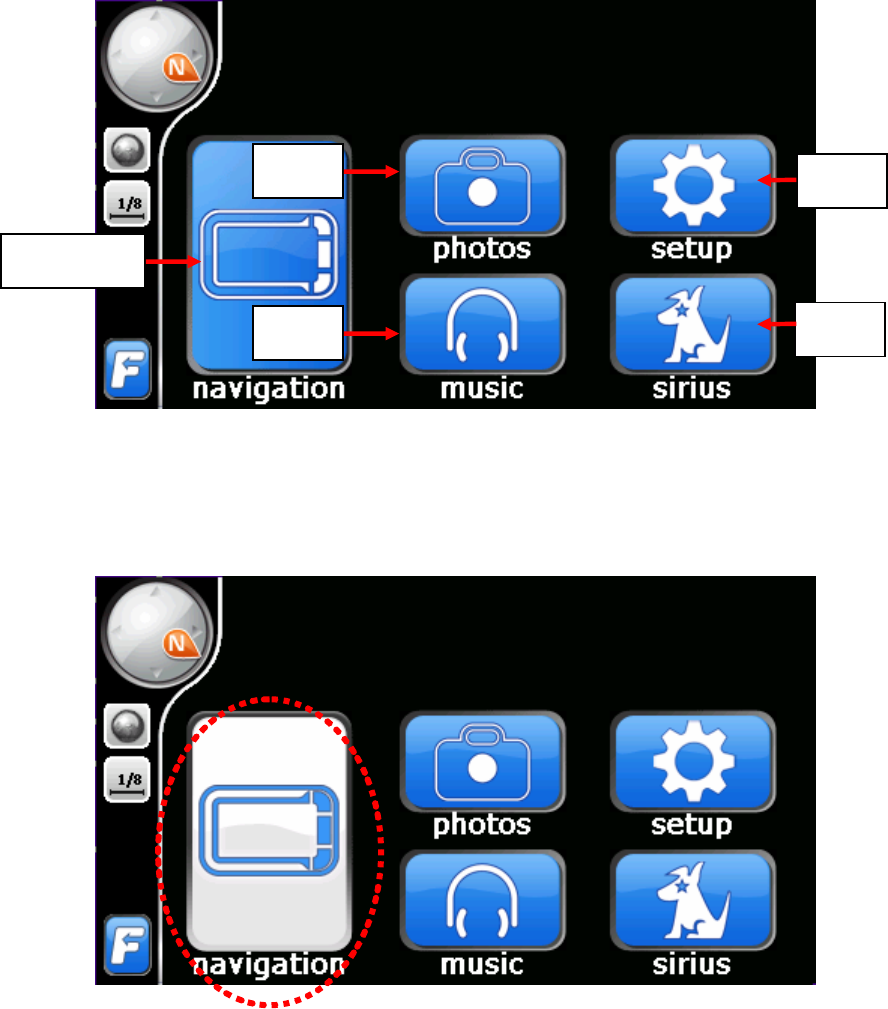

2. Navi Mode
Please press ‘navigation’ button.
Navigation
Music
Setup
Sirius

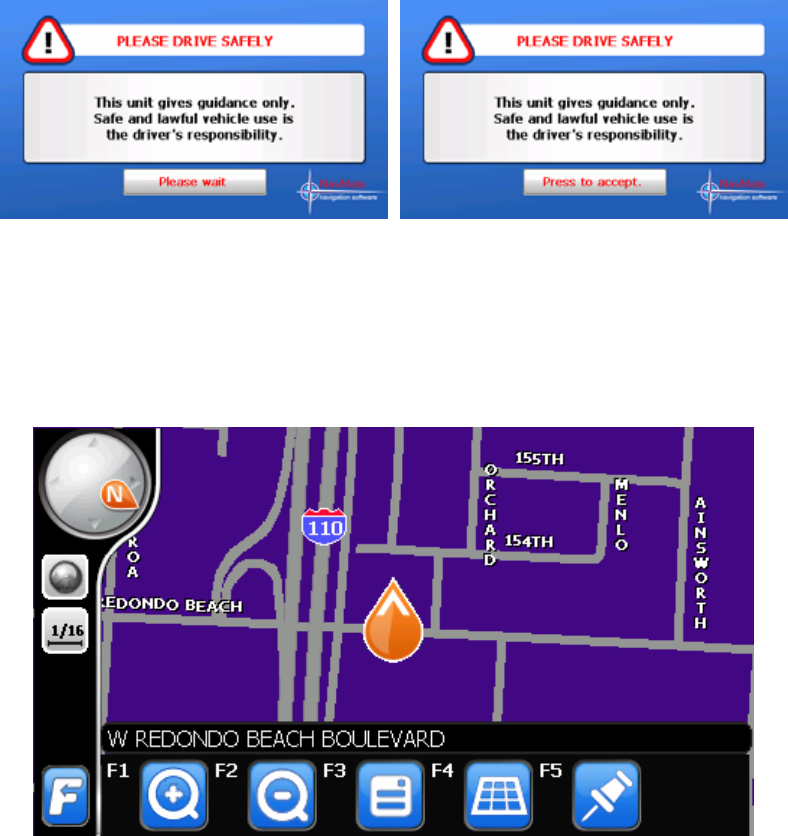

2.1 Warning
Please wait till displaying ‘Press to accept’.
And touch the screen.
2.2 Navigation Mode
2.3 Mini Music Mode

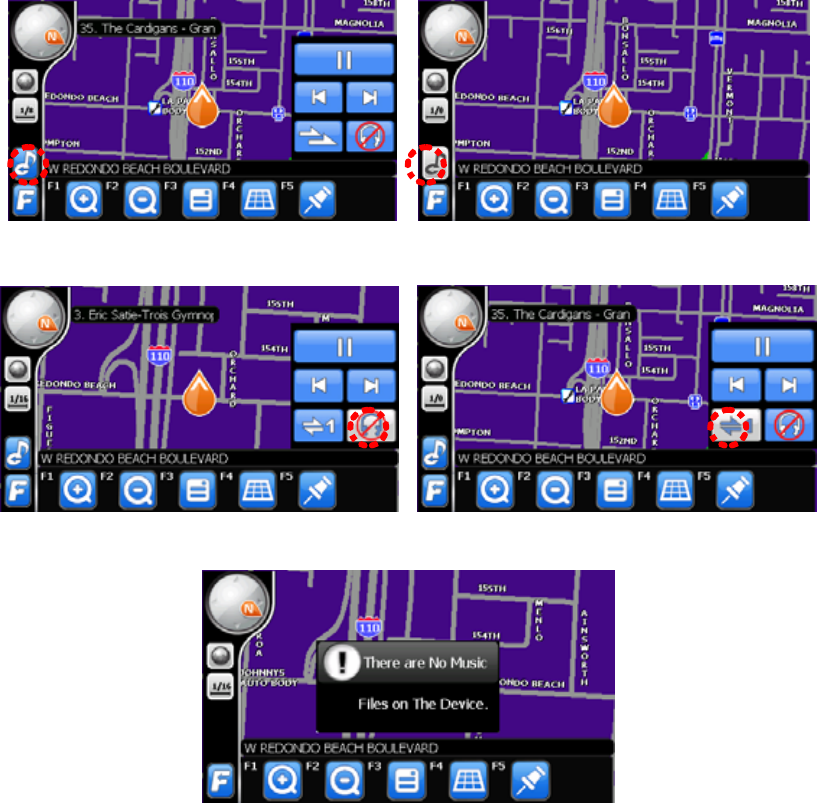

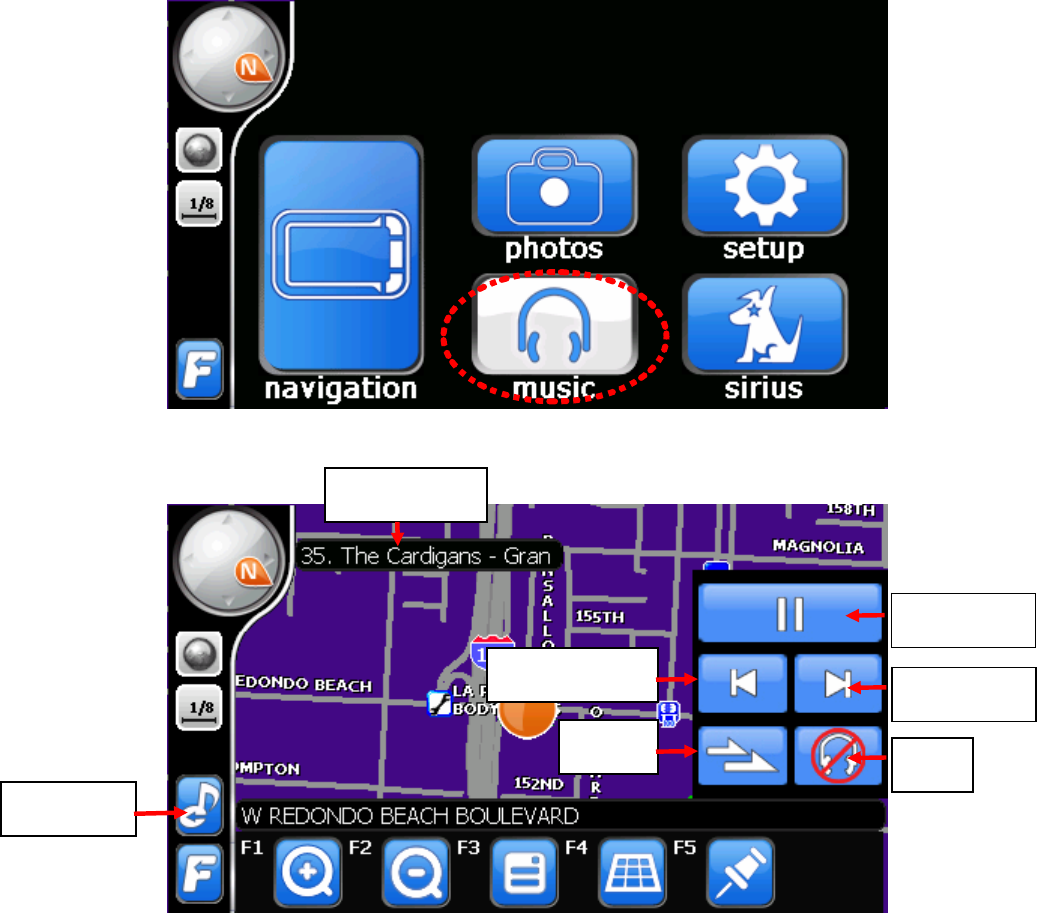

Please press ‘music’ button on the navigation mode.
‘PDT Window’ Shows up the Mp3 tag Information every 3seconds.
– File name, Title, Artist and Album.
If you turn off Mini Music Mode, press Stop Button. It returns Navi Mode.
But if you want to hear Mp3, press Show/Hide. It makes just disappear Mp3 player & PDT.
Play/Pause
Next Title
Stop
Show/Hide
Previous Title
Repeat
PDT Window
Mini Music Show / Hide
Stop Mini Music Mode Repeat Mode Selection
No File Error Message (It returns Navi Mode.)
If you want go to the Music Mode(Not Mini Music Mode),
You have to go to the other mode. – Ex) Photo, Setup
2.4 Mini Sirius Mode

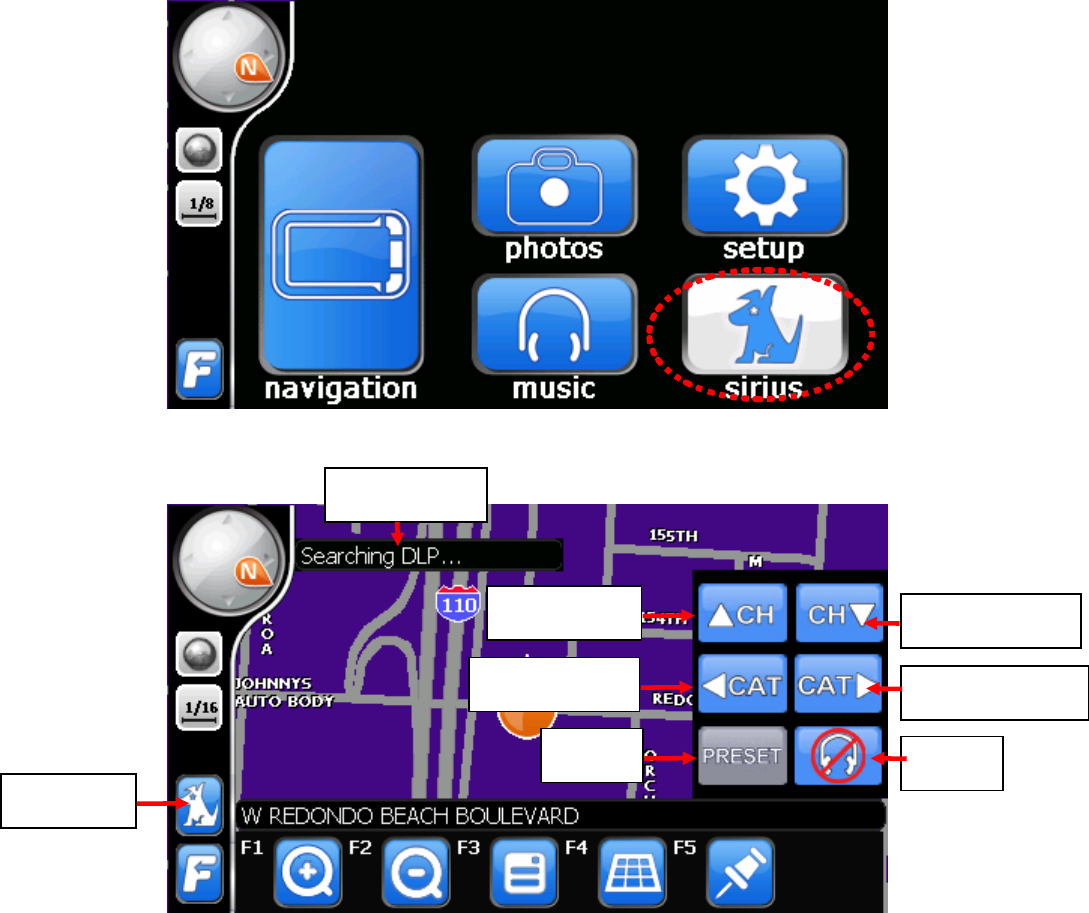

Please press ‘sirius’ button on the navigation mode.
‘PDT Window’ Shows up the Sirius Information.
- Channel Num, Channel Name, Song Title and Artist.
If you turn off Mini Sirius Mode, press Stop Button. It returns Navi Mode.
Show/Hide
Channel Up
Category Left
Preset
Channel Down
Category Right
Stop
PDT Window

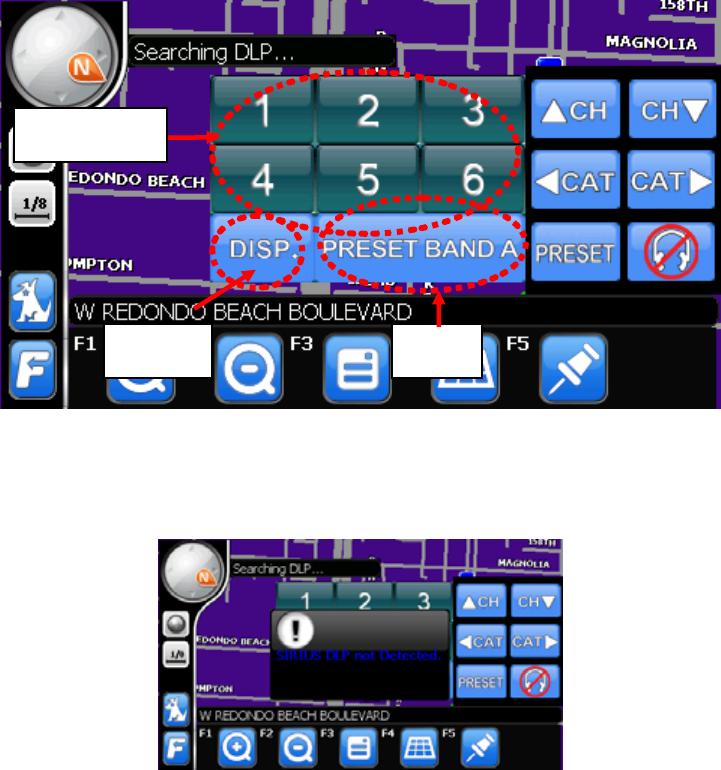

‘Display’ changes the PDT Window Information.
‘PRESET BAND X’ has already the saved preset Information from Sirius Mode.
If the device couldn’t check Sirius Information, you can see this message.
3. Photo Mode
Preset Num
BandDisplay

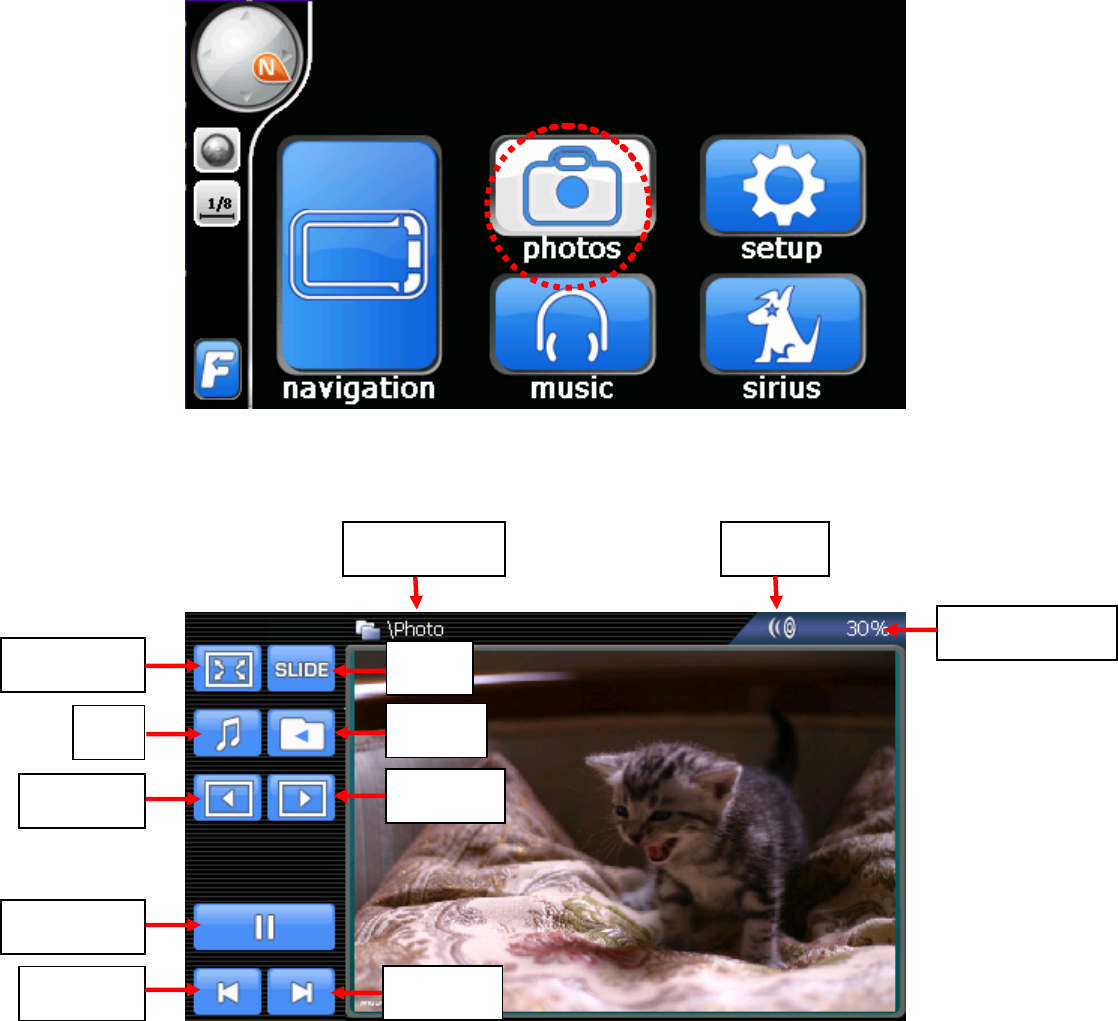

Please press ‘photo’ button on the main menu.
It’s able to support the 5 kinds of data type. – jpg, gif, bmp, png, ico.
3.1 Thumbnail Mode
Full Screen
Mp3
Current Path
Prev Pic
Speaker
Current Volume
Slide
Folder
Next Pic
Play/Pause
Prev Title Prev Pic

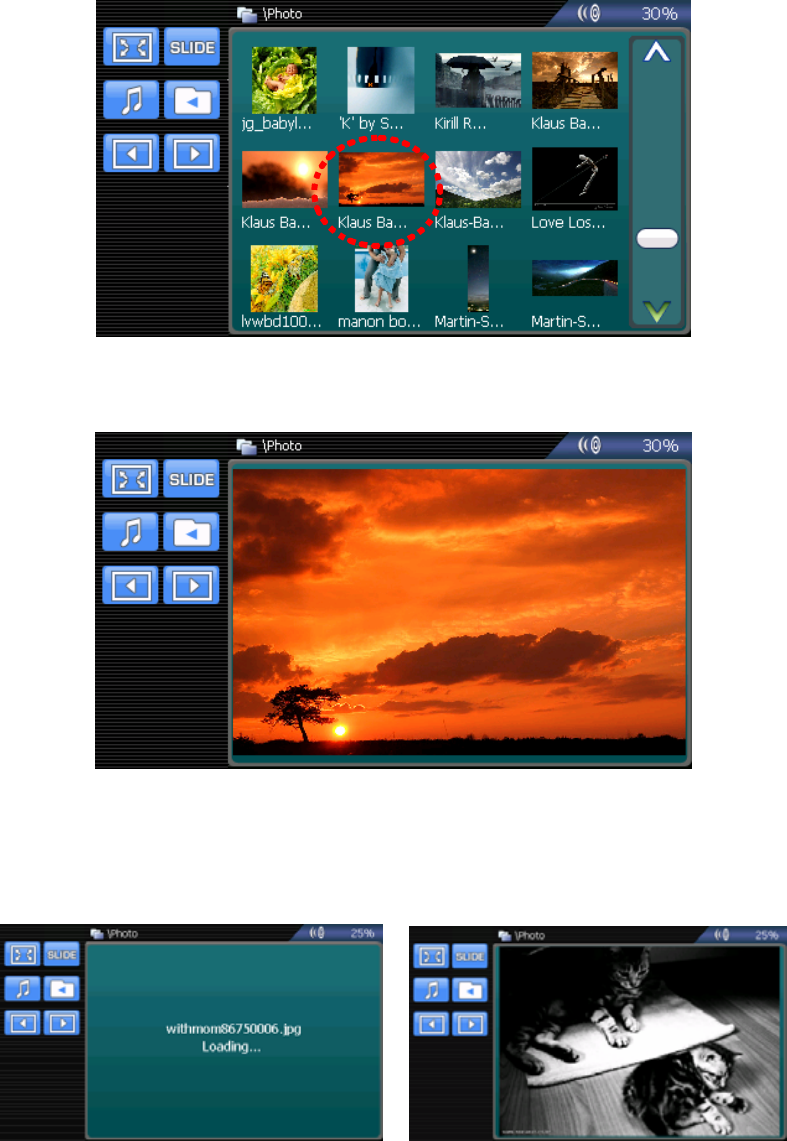

This is the first screen when you choose the folder.
If you touch the pic, you can see it on the normal screen.
3.1 Normal Mode
Left screen is the loading screen shot. The first line shows up the current file name.

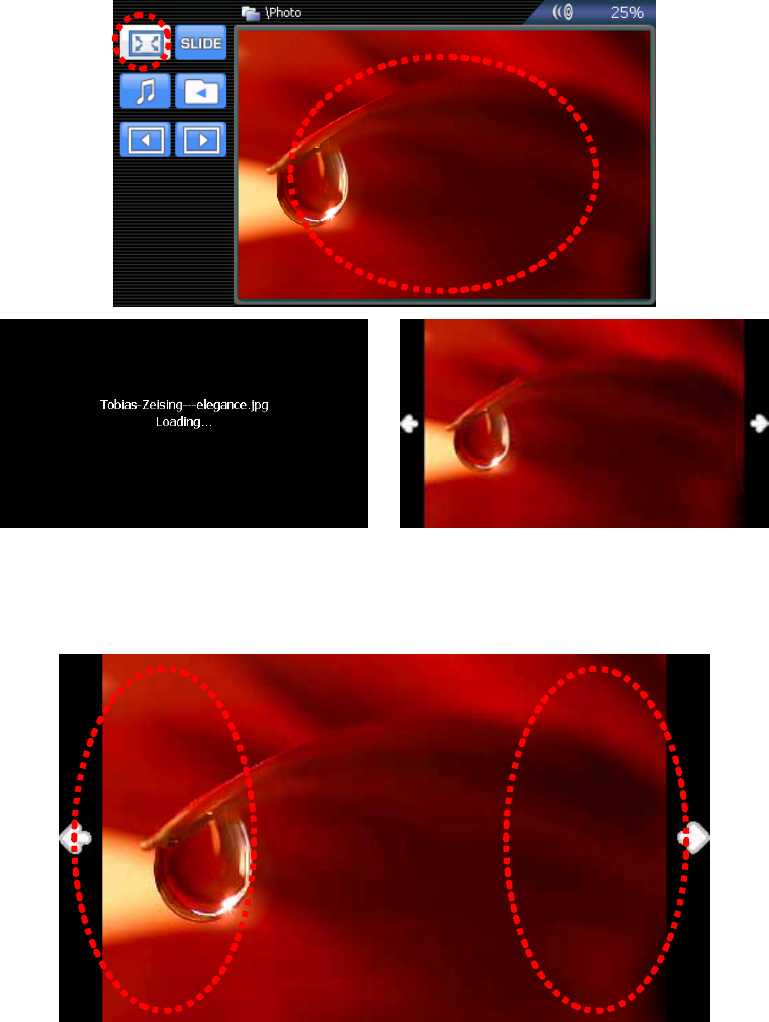

3.2 Full Screen Button
Press full screen button or touch the pic on the normal mode.
You can see the full size pic.

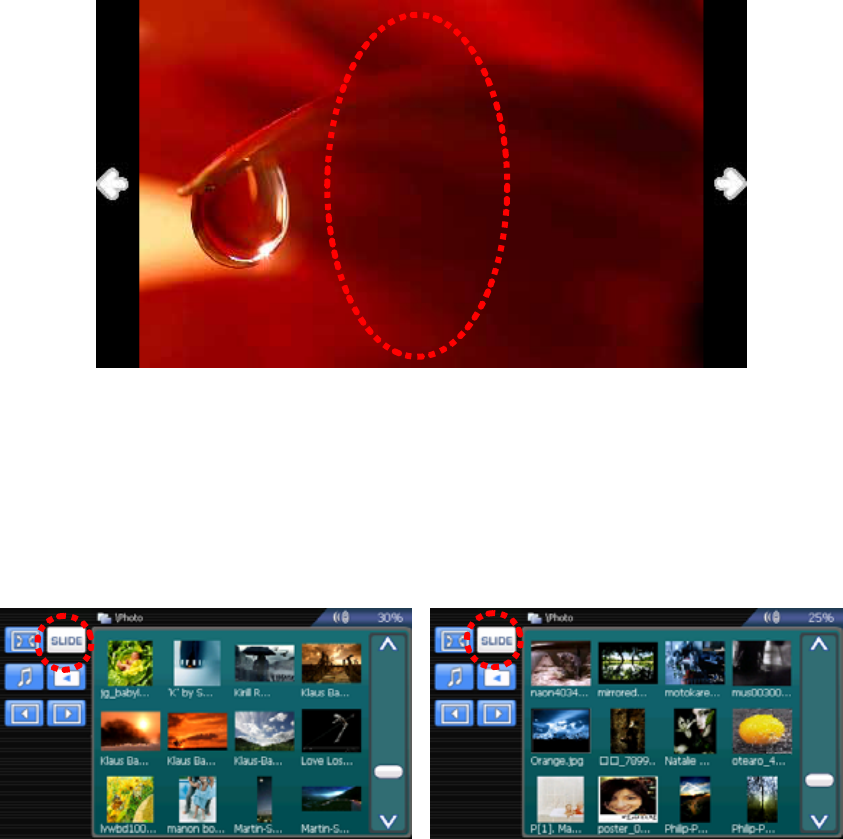

You are able to move previous or next pic with touching the left or right field.
If you touch the middle field, you are able to return on the normal mode.

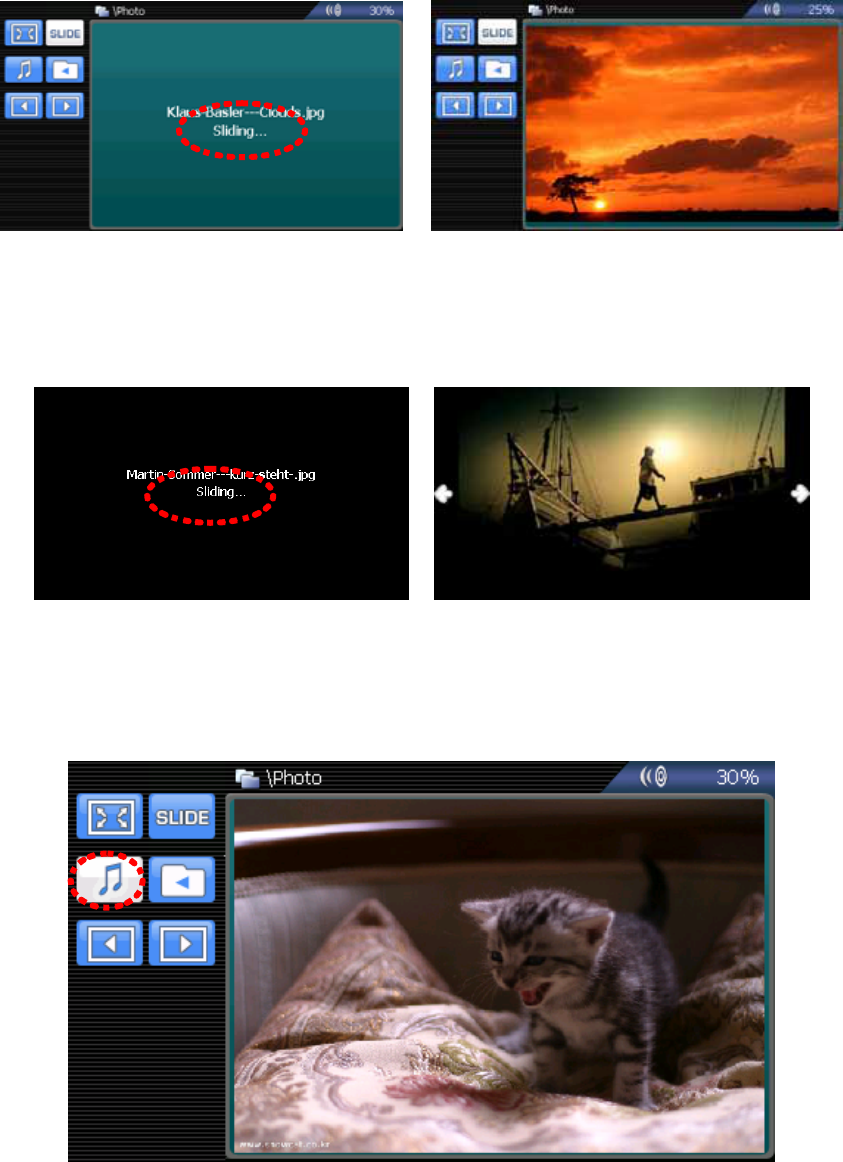

3.3 Slide Button
3.3.1 Thumbnail Mode in Slide
It’s able to operate on the thumbnail mode. It operates every 6 seconds.
The pressed button shows up on the slide mode.
If you want to stop the slide mode, touch the slide button one more time.
3.3.2 Normal Mode in Slide
You can see the ‘Sliding…’ instead of ‘Loading…’ on the slide mode.
3.3.3 Full Screen Mode in Slide
You can see the same message on the full screen mode.
3.4 Mp3 Button
Please press Mp3 button.
Play Mode Pause Mode
Previous Title Next Title

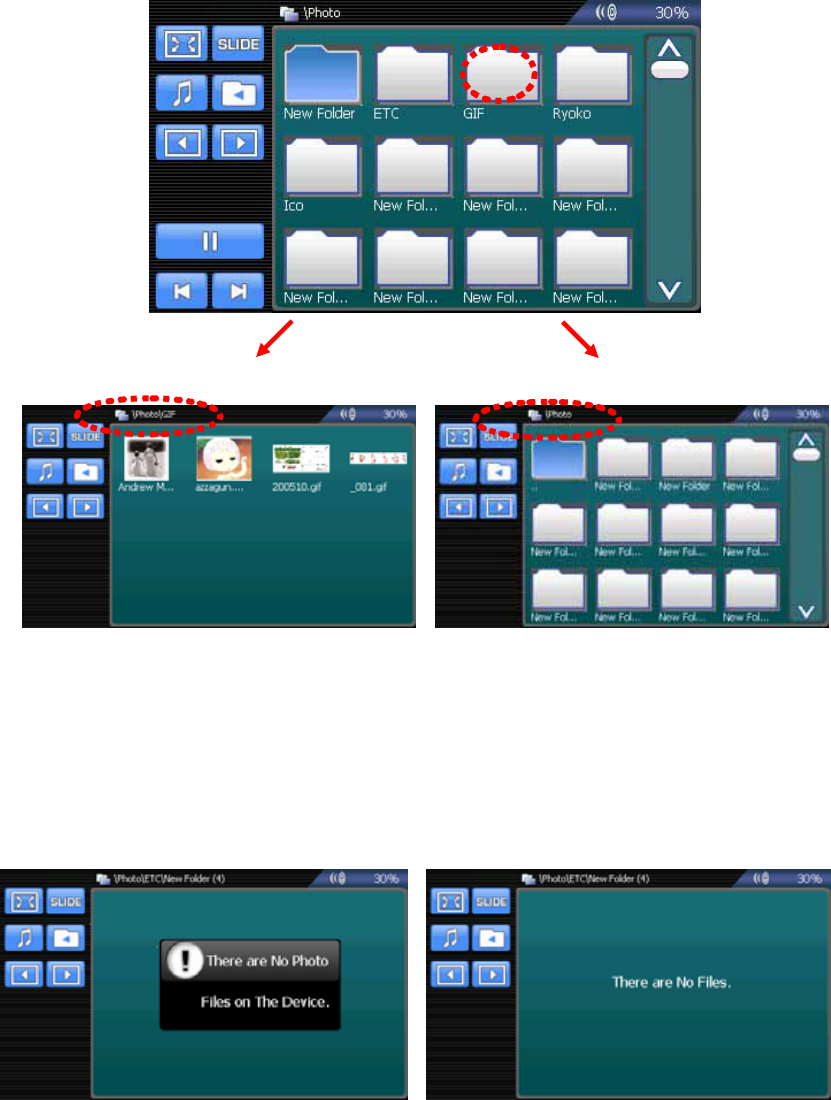

3.5 Folder Button
Please press Folder button.
If there is no Sub folder, If there are any Sub folders
You can see the pics on thumbnail mode You can see the Sub folders.
in this folder and changed folder path. If you want to choose the current folder,
press the folder button one more time.
If you want to go to upper layer again,
press the ‘..’ folder.
If there is no file in the current folder, you can see this message.

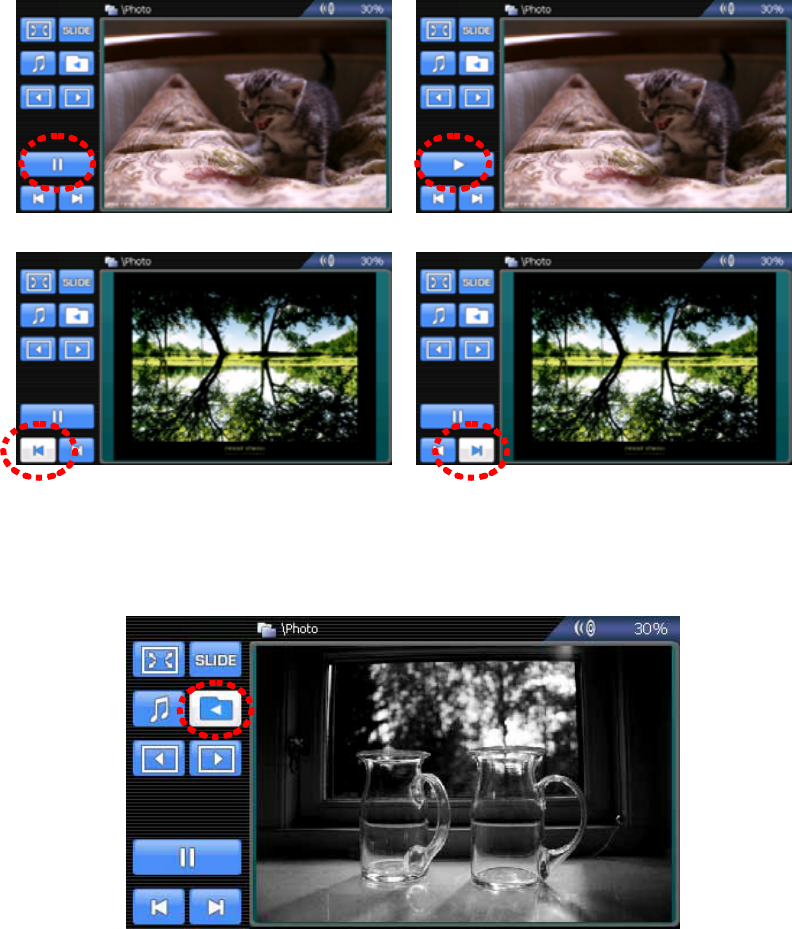

3.6 Previous & Next Pic Button
4. Music Mode

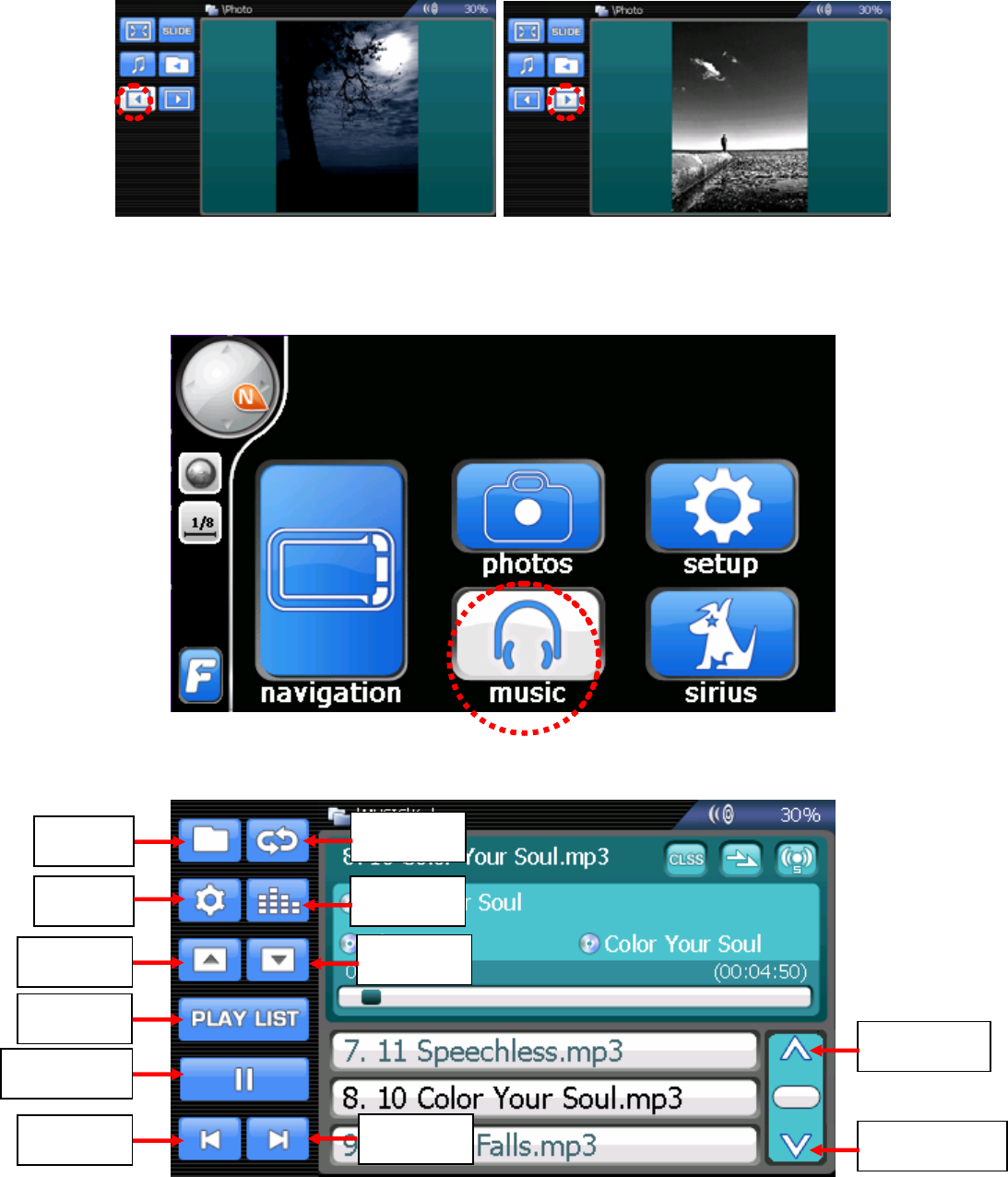

Please press ‘music’ button on the main menu.
Folder
Setup
Page Up
Play List
Play/Pause
Prev Title Prev Title
Page Up
Page Up
Equalizer
Scroll Up
Scroll Down

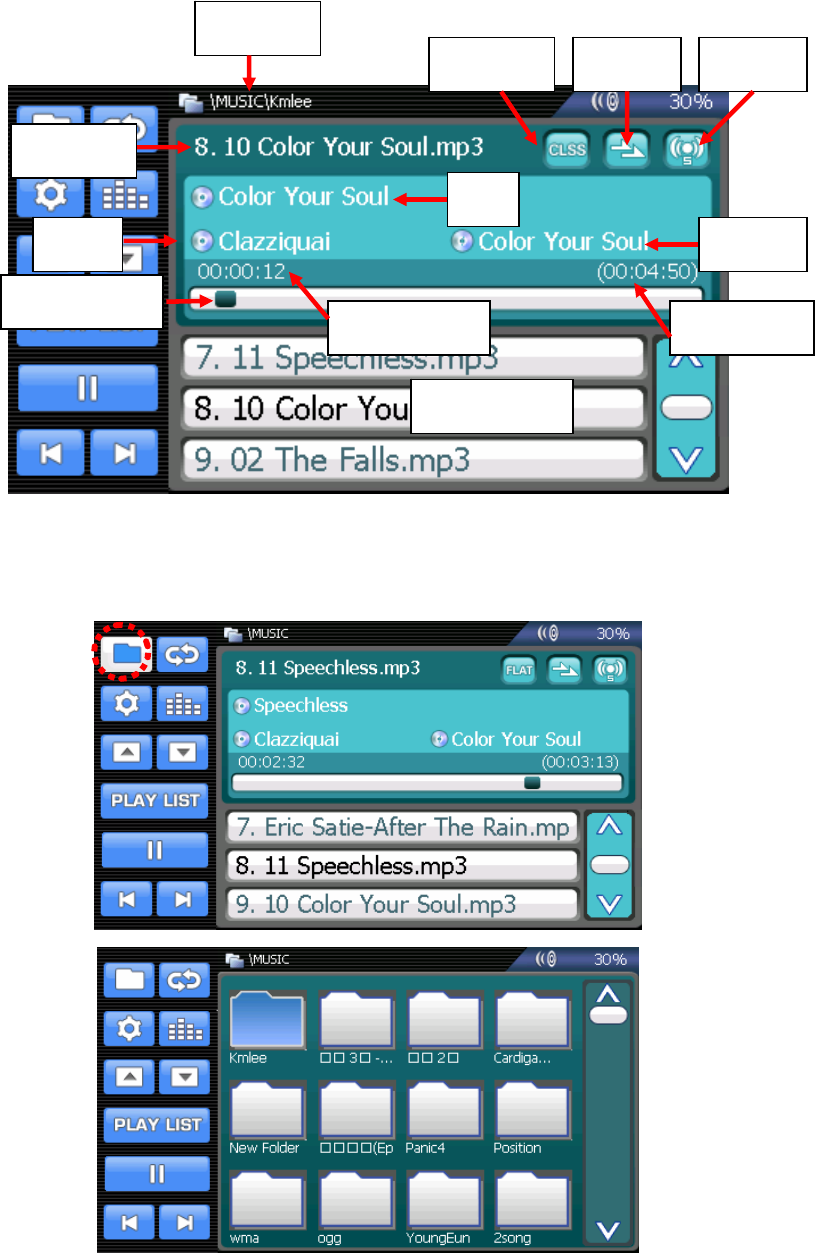

4.1 Folder Button
Music List
Play Gage
Title
Album Artist
File Name
File Path
Equalizer Repeat Stereo
Total Time Current Time
The function of Folder Button is same on Photo mode.
If there is no file on the current folder, you can see this message.
4.2 Repeat Button
Repeat Normal Repeat One
Repeat Folder Repeat Random

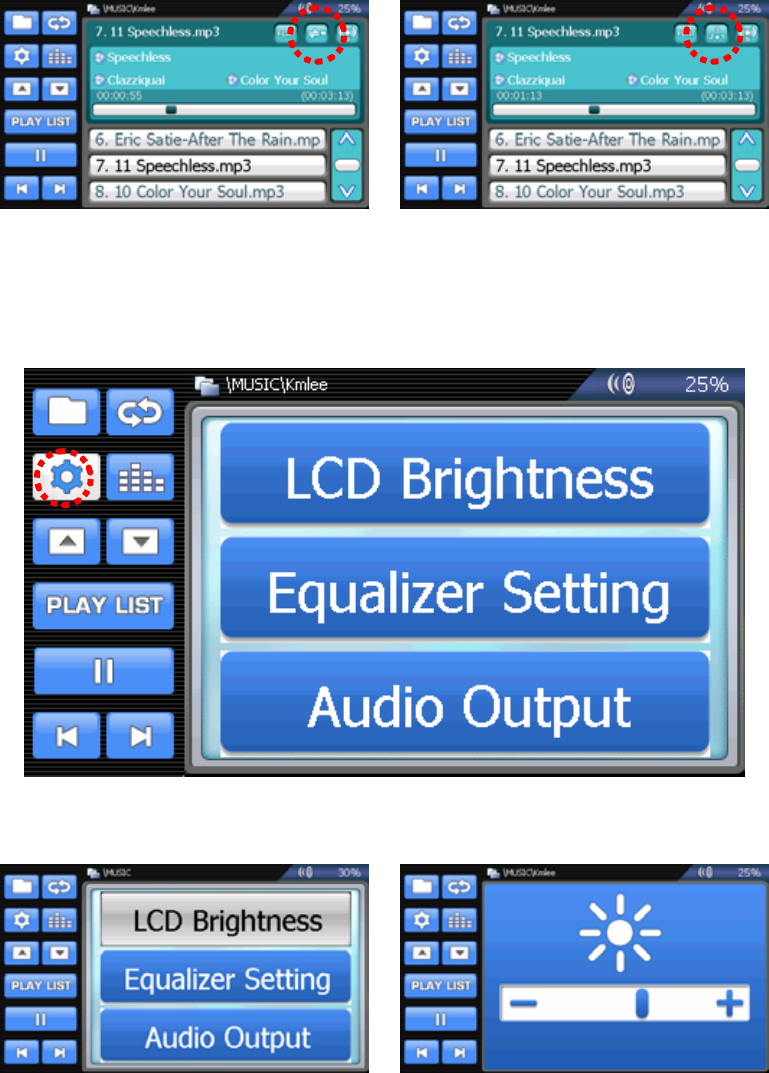

4.3 Music Setup Button
If you need the more detail accounts, refer to Setup Mode.
Selection Setup Brightness
Setup Equalizer Setup FMT

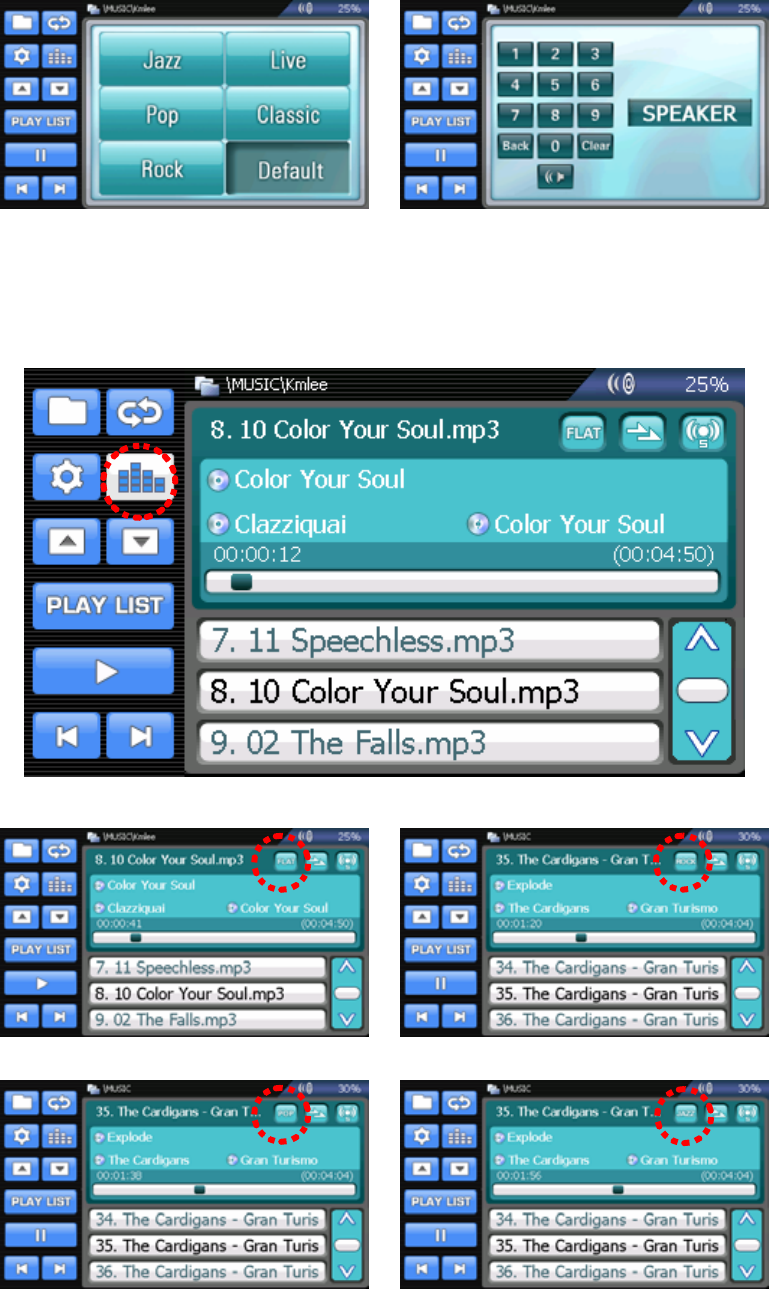

4.4 Equalizer Button
Equalizer Flat Mode Equalizer Rock Mode
Equalizer Pop Mode Equalizer Jazz Mode
Equalizer Classic Mode Equalizer Live Mode
4.5 Page Up & Down Button
If you press theses buttons, you can move the list Up & Down.
Page Up Page Down
4.6 Playlist Button
When the Play List Show up,
the function of Page Up & Down, Scroll Up & Down are same.

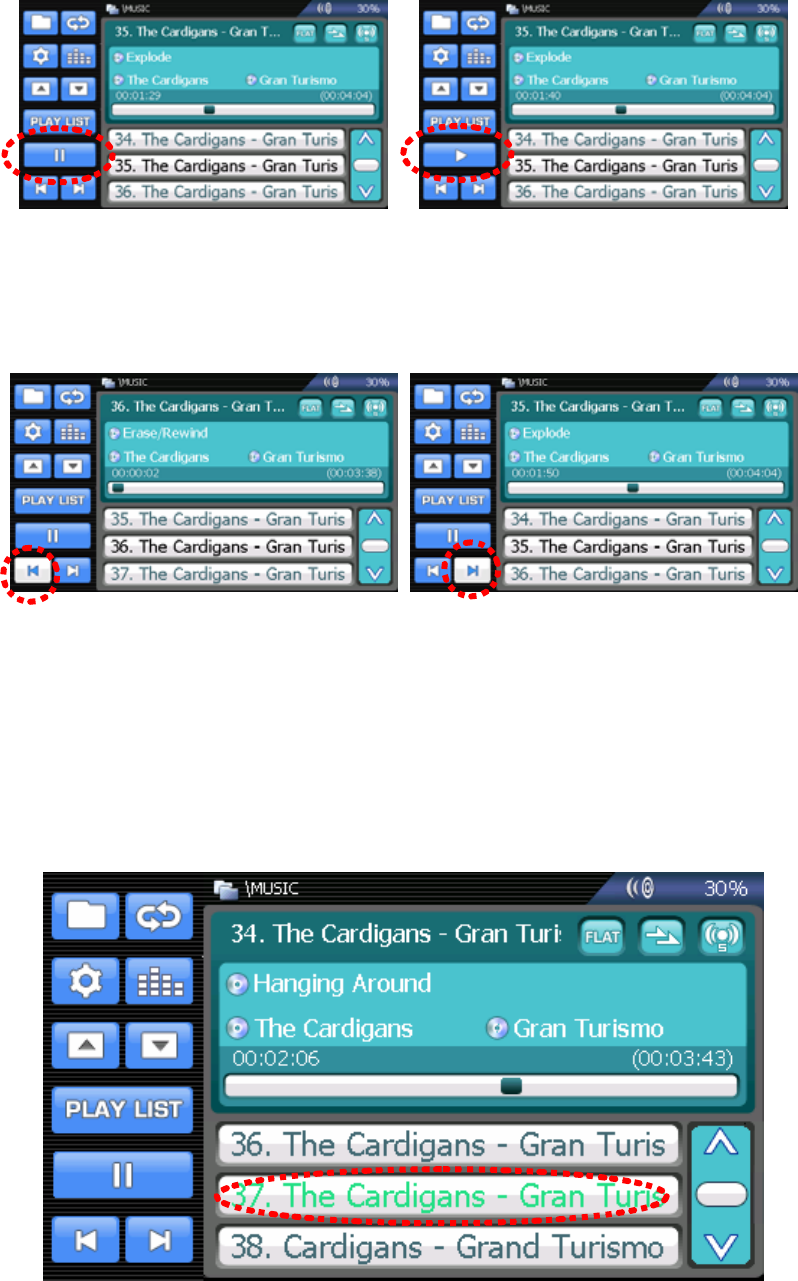

4.6 Play / Pause Button
Music Play Music Pause
4.7 Previous / Next Button
Previous Button Next Button
If you press the previous button less than 5 seconds, it goes to the previous title.
But it’s not more than 5 seconds, it returns the beginning of the current title.

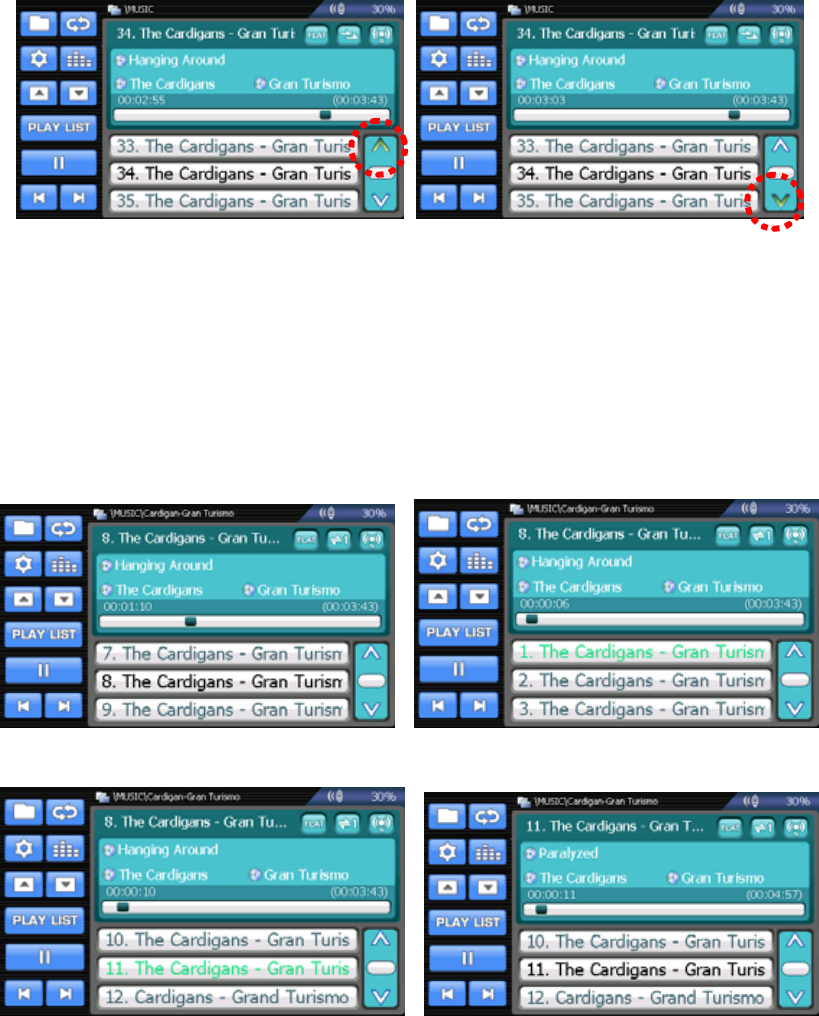

4.8 Music List
Music List Cursor – Green Text
You can check your position from the green text
with RMC Move or Touch the Scroll button.
Music List Scroll Up Button Music List Scroll Down Button
4.9 RMC Move
If you know what you want song’s Index, you can find easily with RMC.
Ex) The index num of the playing title is 8. If you want to here Index Num 11, press the
RMC num 1, 1 and Enter.
Press RMC num 1 Press RMC num 1
Press Enter Play Index 11
If you are over than the last Index, the list cursor will be last index.
It’s able to move from 1 to 99.

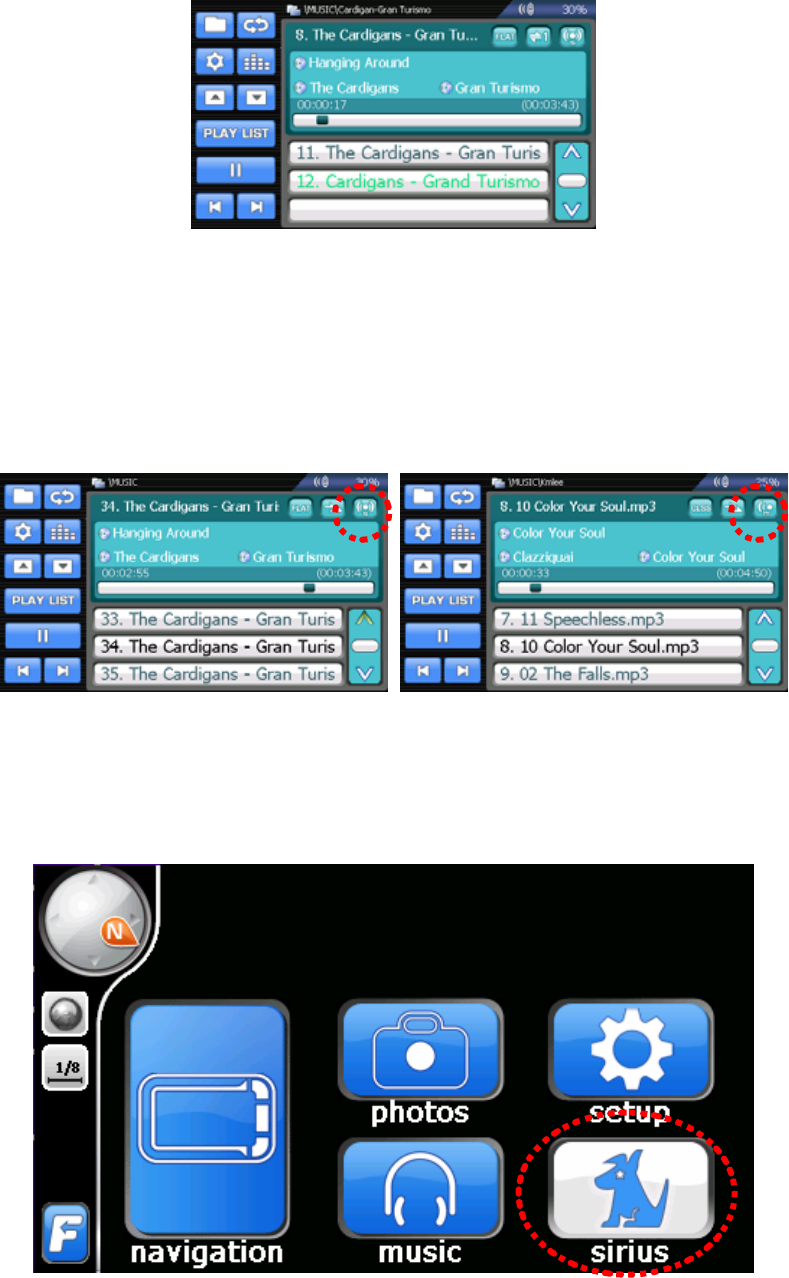

4.10 Stereo / Mono
These show up the effect of the current file.
Stereo Mode Mono Mode
5. Sirius Mode
Please press ‘sirius’ button.

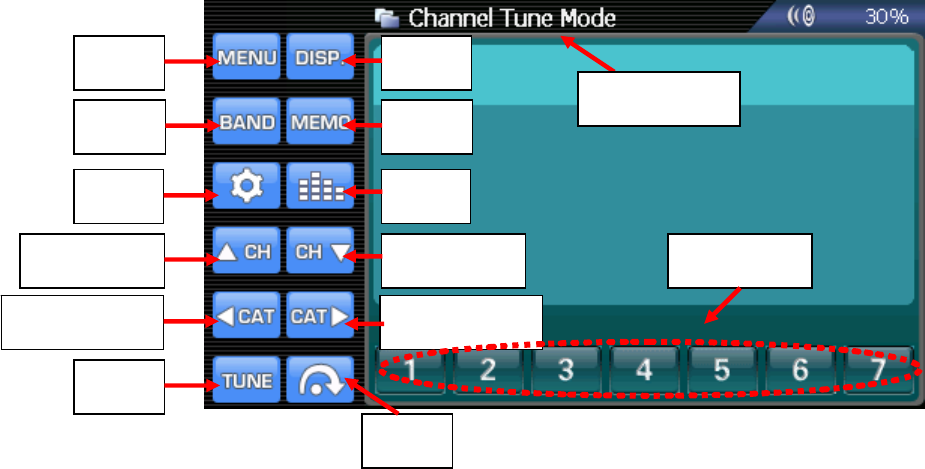

Menu Button : Enter the User’s Setting Menu
▲ CH : Channel Up ▼ CH : Channel Down
◀ CAT : Category Move ▶ CAT : Category Move
TUNE : Makes a direct tuning dialogue and confirms input to tune
[1]~[7] : Jump to a preset channel
Press and hold [1]~[7] : Presets a current channel to the pressed number
BAND : Changes a preset band among A, B or C
Press and hold BAND : Enters the preset tuning mode
DISP : Toggle the LCD display
Press and hold : Enter the channel list mode
MEMO : Memorize the artist name and song title of the xurrent channel
Press and hold MEMO : Enters the memo recall list mode
Menu
Band
Setup
Channel Up
Category Left
Tune
Menu
Band
Setup
Channel Up
Category Left
Jump
Preset Num
Current Mode
If you need the more detail accounts, refer to Setup Mode.

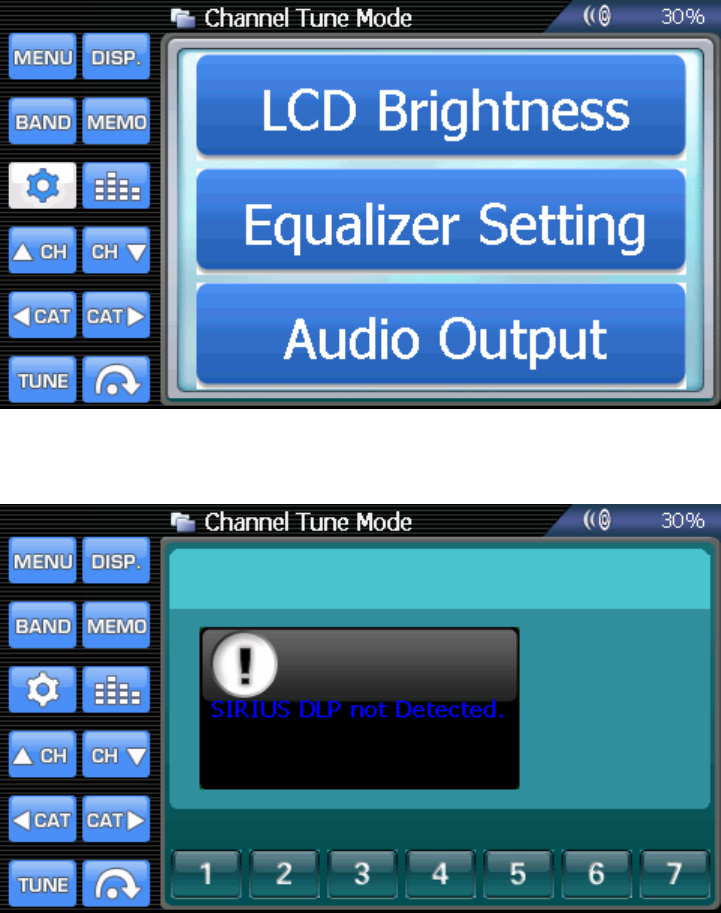

If the device couldn’t check Sirius Information, you can see this message.
6. Setup Mode

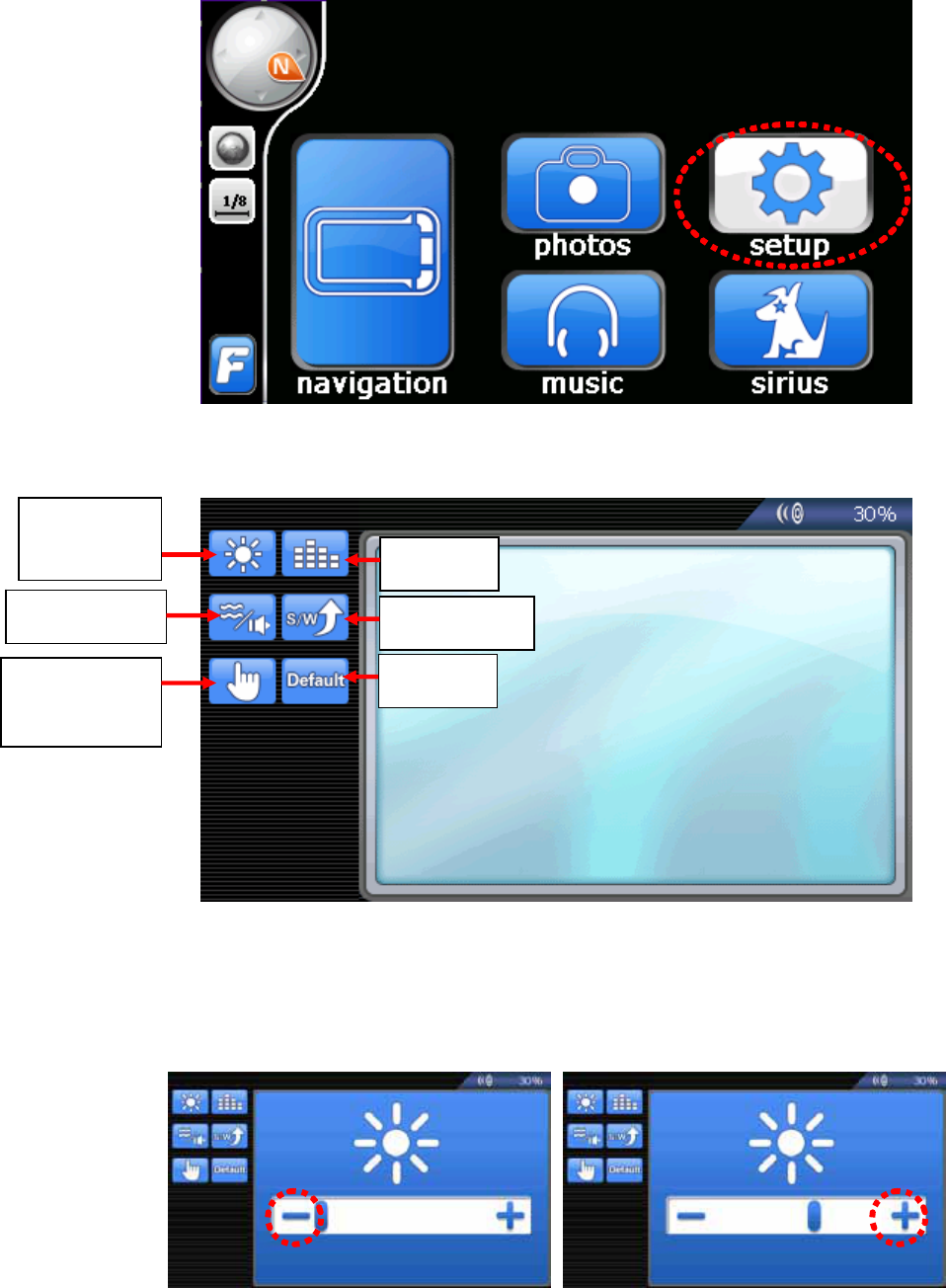

Please press ‘setup’ button.
6.1 Brightness Button
You can control the LCD Brightness with [+] & [-] Button.
LCD
Brightness
FMT Setting
Touch
Correction
Equalizer
S/W Upgrade
Default
Minus Button Plus Button
6.2 Equalizer Button
Select equalizer setting.
6.3 FMT Setting Button

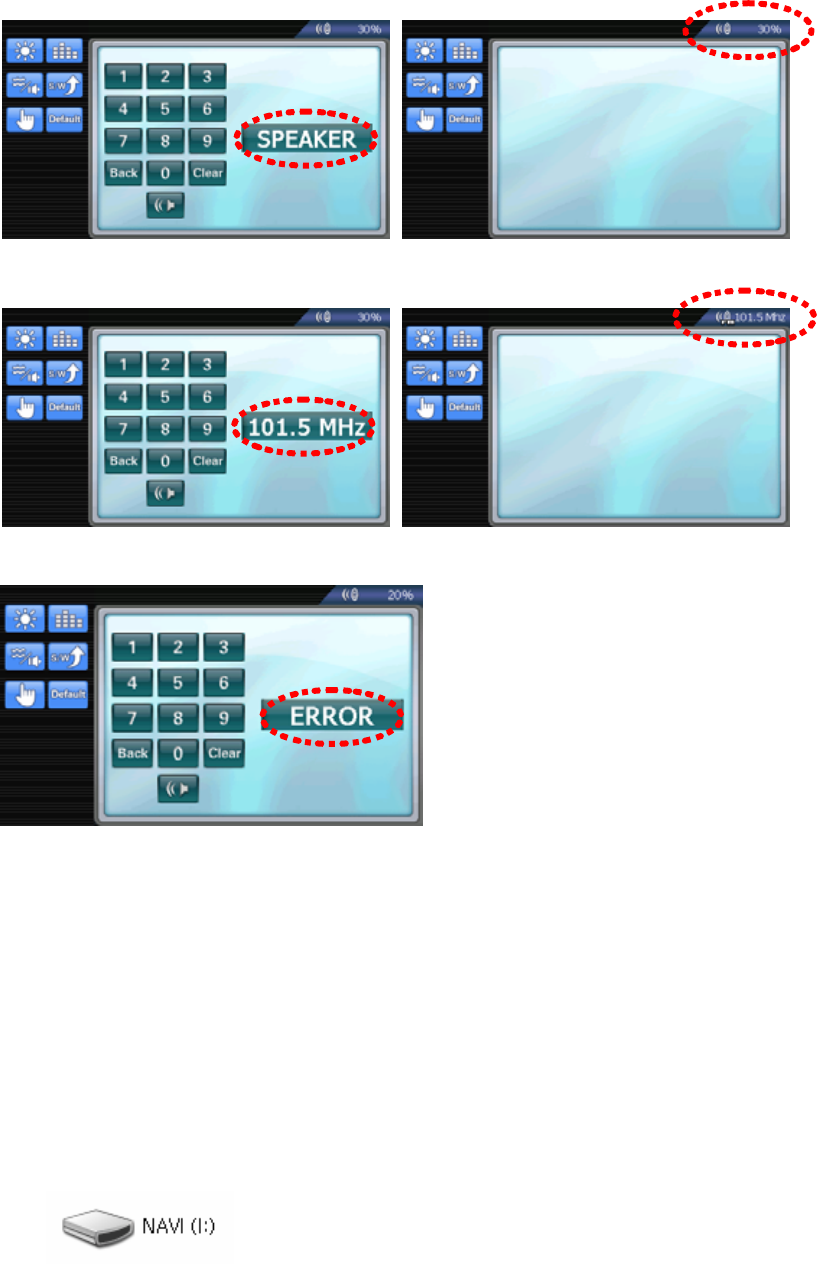

You can set the FM Frequency from 88.1 MHz to 107.9 MHz.
If you finished the FMT Setting, wait for 2 seconds or touch the setting zone.
It will be done.

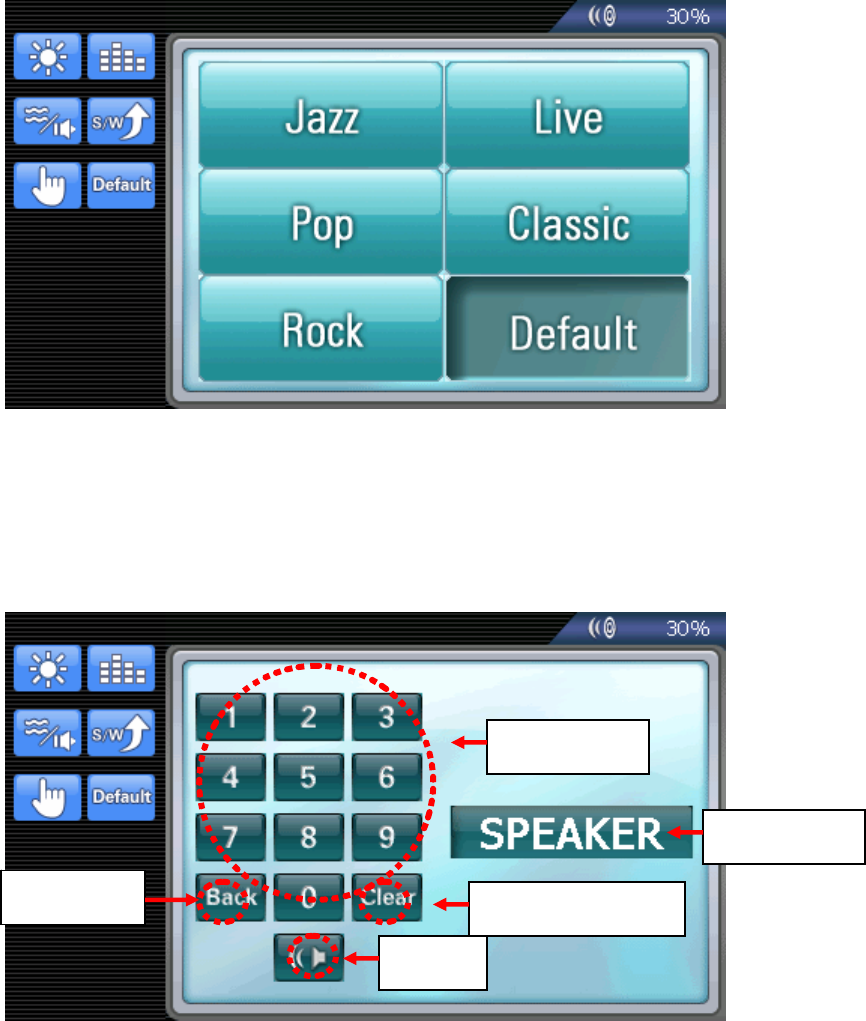

Num Key Pad
Setting Zone Clear
Speaker
Back Space
Setting Zone
Speaker Mode Setting Volume 30%
FMT Setting FM 101.5 MHz
Error Message

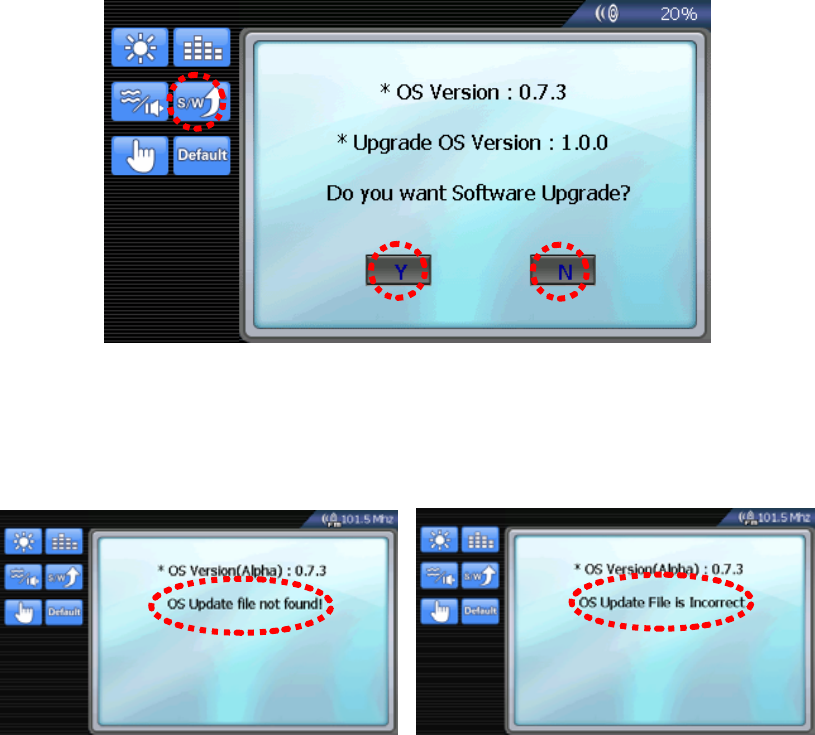

6.4 Software Upgrade Button
If you want to upgrade device, follow below accounts.
1. Turn on the device.
2. Set Setup Mode.
3. Connect the device and your computer thru USB cable.
4. After several second later, NAVI will be recognized removable HDD as follow.
5. Copy ‘Image.bin’ to root of ‘\NAVI’
6. Disconnect NAVI with PC, and restart NAVI.
7. Press S/W Upgrade Button in Setup mode. It takes several seconds.
The first line shows up the current device version.
The second line shows up the upgrade file version.
If you press ‘Y’, It will be done. If you press ‘N’, It will stop.
There is no Upgrade file on this device. Maybe, the file name is correct, but file has
some problems.
You need a new upgrade file.

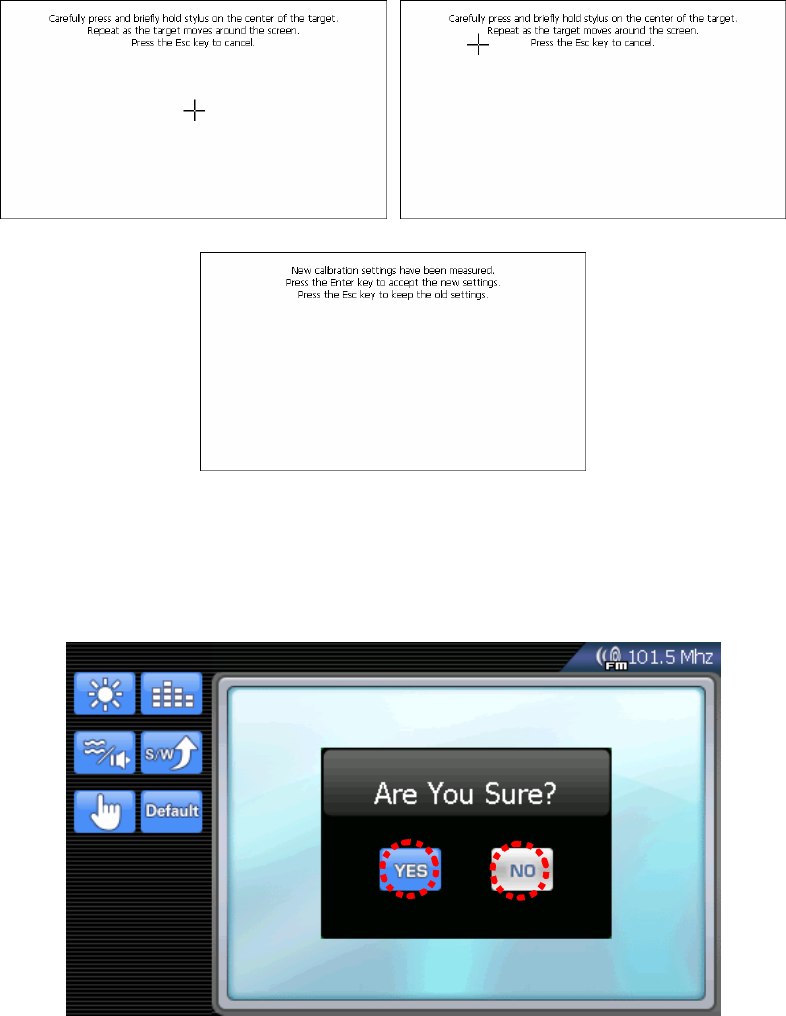

6.5 Touch Correction Button
If you need the correction of the touch screen,
follow the cross and touch the intersection.
6.6 Default Button

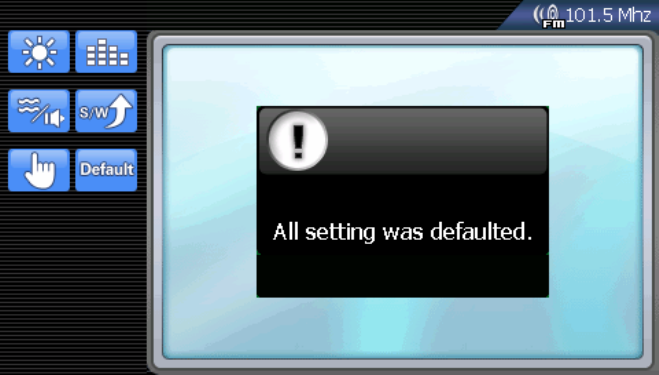

If you need the system default, press the default and ‘YES’.
