TM0081 Page 1 of 51 Issue 1.01

VEGA LT

INSTALLATION

AND

COMMISSIONING

MANUAL

TM0081

PROPRIETARY RIGHTS NOTICE

The information contained in this manual is the property of Kidde Fire Protection Services Limited and may not

be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or

otherwise, nor stored in any retrieval system of any nature without the express written authority of Kidde Fire

Protection Services Limited.

© Copyright 2003 Kidde Fire Protection Services Ltd

Back

Exit

TM0081 Page 2 of 51 Issue 1.01

TABLE OF CONTENTS

1. INTRODUCTION ........................................................................................................................................4

1.1 DESCRIPTION ...........................................................................................................................................4

1.2 ABOUT THIS MANUAL ..............................................................................................................................5

1.3 SYSTEM DESIGN ......................................................................................................................................5

1.4 ELECTRICAL SAFETY...............................................................................................................................5

2. GLOSSARY OF TERMS AND ABBREVIATIONS......................................................................................6

3. INSTALLATION ..........................................................................................................................................7

3.1 SYSTEM SCHEMATIC ...............................................................................................................................7

3.2 APPROVED CABLES.................................................................................................................................8

3.3 INTERNAL CABLE ROUTING....................................................................................................................8

3.4 ENCLOSURE MOUNTING .........................................................................................................................9

3.5 EXTERNAL CONNECTIONS ...................................................................................................................10

3.5.1 Mains Wiring .............................................................................................................................................10

3.5.2 Detection Loop Wiring...............................................................................................................................10

3.5.3 Sounder Circuit Wiring ..............................................................................................................................12

3.5.4 Auxiliary Output Wiring .............................................................................................................................12

3.5.6 Auxiliary Input Wiring ................................................................................................................................13

3.5.7 Battery Installation ....................................................................................................................................14

3.5.8 Network and Repeater Cable Wiring ........................................................................................................14

4. ACCESS CONTROL LEVELS..................................................................................................................15

4.1 ACCESS INHIBIT KEYSWITCH...............................................................................................................15

5. CONTROLS AND INDICATION ...............................................................................................................16

5.1 PANEL DISPLAY ......................................................................................................................................16

5.2 CONTROL BUTTON FUNCTIONS ..........................................................................................................16

5.3 STATUS WINDOW INDICATION .............................................................................................................17

5.4 LIQUID CRYSTAL DISPLAY LAYOUT.....................................................................................................17

6. OPERATION.............................................................................................................................................18

6.1 STATUS NORMAL ...................................................................................................................................18

6.2 GAINING ACCESS TO LEVEL 2 OR 3 ....................................................................................................18

6.2 FIRE CONDITION.....................................................................................................................................18

6.3 RESETTING THE SYSTEM AFTER A FIRE CONDITION ......................................................................20

6.4 FAULT CONDITIONS ...............................................................................................................................20

6.4.1 System Faults ...........................................................................................................................................20

6.4.2 Zone Fault Conditions...............................................................................................................................21

6.4.3 Group Fault Conditions .............................................................................................................................22

7. PRIORITY ALARM STRUCTURE ............................................................................................................23

8. FIRE & PLANT ZONE INDICATIONS ......................................................................................................23

9. MENU STRUCTURE ................................................................................................................................23

9.1 MAIN MENU .............................................................................................................................................23

9.2 ISOLATE \ DE-ISOLATE MENU...............................................................................................................24

9.3 LIST MENU...............................................................................................................................................25

9.4 SET MENU ...............................................................................................................................................26

9.5 TEST MENU .............................................................................................................................................27

10. COMMISSIONING ....................................................................................................................................28

10.1 SYSTEM CHECKS ...................................................................................................................................28

10.2 INITIAL POWER UP .................................................................................................................................28

10.3 POWERING DOWN .................................................................................................................................29

10.4 CONNECTING THE DETECTION LOOP.................................................................................................29

10.5 ADDING OR REMOVING LOOP DEVICES .............................................................................................29

10.5.1 Power Down..............................................................................................................................................29

10.5.2 Processor Restart .....................................................................................................................................30

10.5.3 Auto Learn ................................................................................................................................................30

10.6 CONNECTING SOUNDER CIRCUITS.....................................................................................................30

11. PROGRAMMING STANDARD & CUSTOM FEATURES.........................................................................31

11.1 PANEL SET-UP ........................................................................................................................................31

11.2 ZONE FIRE INFORMATION ....................................................................................................................32

11.3 LOOP DEVICE INFORMATION ...............................................................................................................32

11.4 PANEL FUNCTIONS (STANDARD OR BLC OUTPUTS) ........................................................................34

11.5 OUTPUT GROUP INFORMATION...........................................................................................................34

11.5.1 Fire Output ................................................................................................................................................35

11.5.2 Isolate Output Group.................................................................................................................................35

TM0081 Page 3 of 51 Issue 1.01

11.6 SET ACTIVATIONS ..................................................................................................................................35

11.6.1 Common Alarm Installations .....................................................................................................................35

11.6.2 Zone by Zone Alarm Installations .............................................................................................................36

11.6.3 Activation Styles........................................................................................................................................37

11.6.4 Zone and Output Group Timers................................................................................................................37

11.6.5 Single Device to Output Group Programming ..........................................................................................38

11.6.6 Plant Alarm to Output Group Programming..............................................................................................38

11.7 REPEATER INFORMATION ....................................................................................................................39

11.8 MOTHERBOARD INFORMATION ...........................................................................................................39

11.9 PRIORITY HEADER TEXT.......................................................................................................................39

11.10 CUSTOM DEVICE TEXT..........................................................................................................................39

11.11 PLANT ALARM INFORMATION...............................................................................................................40

11.12 NETWORK INFORMATION .....................................................................................................................40

12 PLUG IN OPTIONS – INSTALLATION AND COMMISSIONING.............................................................41

12.1 VEGA LOOP CARD - Part Number 44782-K074 .....................................................................................41

12.2 REPEATER CARD - Part Number 44782-K076.......................................................................................42

12.3 PRINTER ASSEMBLY- Part Number VR0053.........................................................................................43

12.4 VEGANET NETWORK CARD - Part Number VN2107 ............................................................................44

12.5 CZN NETWORK CARD - Part Number VN2108 ......................................................................................46

13 MAINTENANCE........................................................................................................................................47

13.1 ROUTINE MAINTENANCE.......................................................................................................................47

13.2 TEST MODE .............................................................................................................................................47

14. PANEL AND LOOP DEVICE FAULT CODES..........................................................................................48

15. FAULT DIAGNOSIS..................................................................................................................................49

16. RECOMMENDED SPARES LIST.............................................................................................................50

17. TECHNICAL SPECIFICATION.................................................................................................................51

TM0081 Page 4 of 51 Issue 1.01

1. INTRODUCTION

This manual covers the Vega LT2000 and LT2001 Control Panel. The Vega LT fire control panel provides

analogue addressable detection of fire and is compatible with devices manufactured by Apollo and Hochiki.

Designed to comply with EN54: parts 2 & 4, the Vega LT provides a single detection loop and can cover 16

zones. The panel is mains powered and also has space for two 12 amp-hour standby batteries (not supplied) A

range of optional equipment is available to enhance the panel’s standard, fixed format configuration.

The Vega LT2000 provides support for Apollo series 90,95, Discovery and Explorer detectors and the Vega

LT2001 supports the Hochiki ESP range of detectors. Both versions of control panel provide the following key

features: -

! Single detection loop

! Two conventional programmable sounder circuits

! Two auxiliary volt free programmable relay contacts

! Fault volt free relay contact

! Four auxiliary input connections

! Membrane control fascia

! 8 system status indications

! 16 zone indications

! 8 line – 40 character liquid crystal display

! Integral 2.5 amp power supply unit

! Battery back-up facility

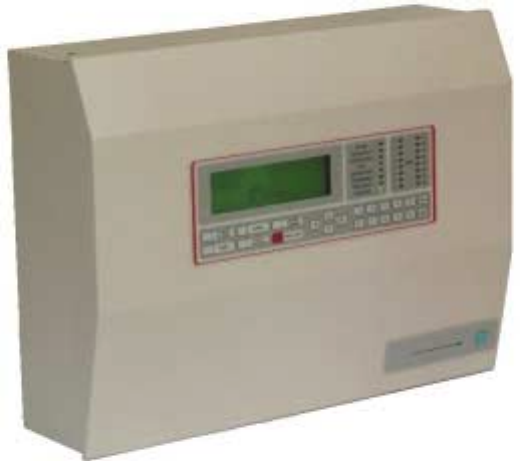

Figure 1: Vega LT Fire Control Panel

1.1 DESCRIPTION

The Vega LT consists of a backbox with 20 mm knockouts for cable entry and has a hinged, removable door

which is retained with a locking screw and incorporates the panel display membrane. The panel display has 16

zonal windows, status windows, user control and a liquid crystal display. The backbox has a keyhole locating

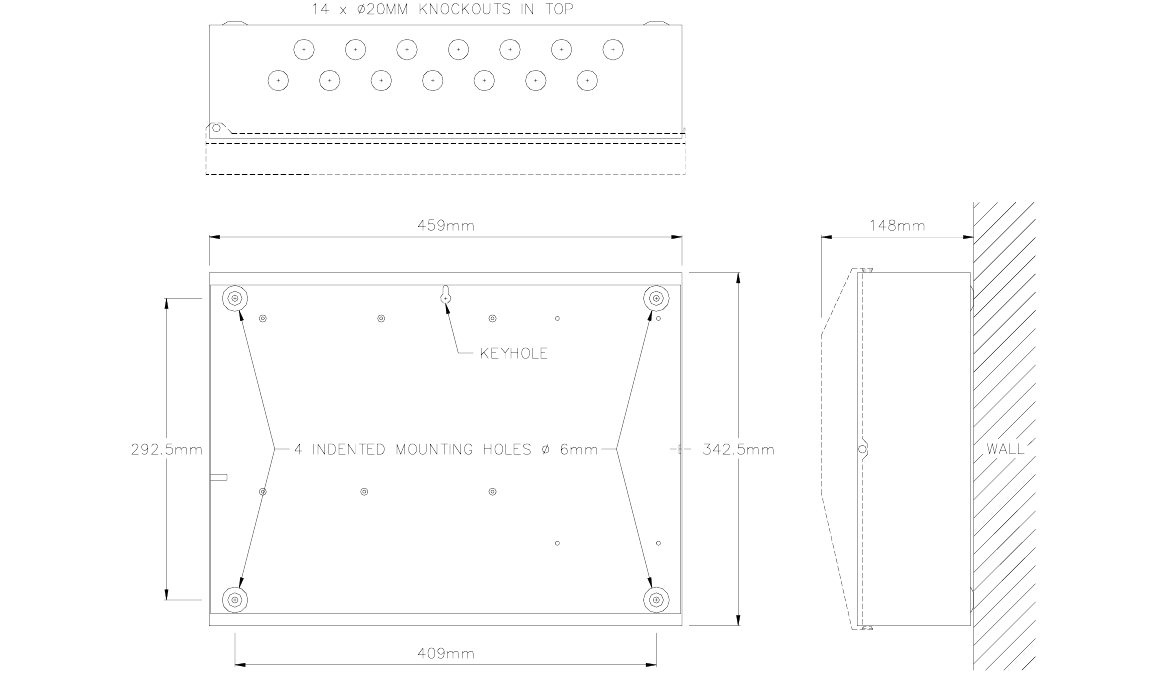

hole for positioning and can be secured through the four 4 mm indented holes located near each corner. Refer

to Figure 1.

A range of optional add-ons can be supplied separately and installed during commissioning to enhance the

systems capabilities. These options include: -

! Loop card – to extend the panel to a maximum of two detection loops.

! Repeater driver card – enables the Vega LT to communicate with VR3000 repeater panel(s)

! Event printer – 24 character, thermal type. VR0053.

! Network interface – provides communication to VegaNET graphics display system. VN2107.

! Network interface – provides communication to Common Zone Network CZN System. VN2108.

TM0081 Page 5 of 51 Issue 1.01

1.2 ABOUT THIS MANUAL

This installation manual details how to install and commission the Vega LT fire control panel and range of

optional equipment. It has been carefully checked for accuracy and is presumed to be correct. The

manufacturer assumes no responsibility for inaccuracies and reserves the right to modify the contents without

notice.

1.3 SYSTEM DESIGN

The design of the fire detection and alarm system should be in accordance with BS 5839 part 1 Fire detection

and fire alarm systems for buildings -“Code of practice for system design, installation, commissioning and

maintenance” and may be supplemented with customer’s specific installation requirements. The fire alarm

system design is beyond the scope of this document. It is therefore assumed that a basic knowledge of general

fire alarm system practices, components and their use is understood.

We recommend that a suitably qualified and competent person is consulted in connection with the design of the

fire alarm system and that the system is commissioned and services in accordance with the laid down

specification and national standards.

The Fire Officer responsible for the property should be contacted at an early stage to discuss of any site-specific

requirements.

1.4 ELECTRICAL SAFETY

Before handling any part of the control panel, ensure that adequate precautions are taken against damage to

the sensitive electronic components located within the control panel. Operators and engineers should discharge

themselves of any personal electro-static charge by momentarily touching a convenient earthed object.

Static charges are collected on adjacent conductors and are delivered in the form of sparks passing between

the conductors through insulating space or material. The sweat layer on the human skin is a sufficient medium

to store induced static charges and deliver them to any receptive conductor such as an electronic component or

printed circuit board. Following these guidelines can reduce static discharges:

! Always use conductive or anti-static containers for transportation and storage.

! Wear an earth wrist strap whilst handling devices, ensuring a good earth connection is maintained.

! Never subject a static sensitive device to sliding movement over any surface and avoid any direct

contact with the pins.

! Avoid placing sensitive devices onto plastic or vinyl surfaces.

! Minimise the handling of sensitive devices and printed circuit boards.

All static sensitive devices are marked accordingly, but it is good engineering practice to treat all components

and boards with the same degree of protection.

WARNING:

The static handling procedures must be adhered to and extreme caution must be exercised when

working inside the control panel due to the presence of mains voltage 230 V AC. Failure to do so may

invalidate product warranty.

TM0081 Page 6 of 51 Issue 1.01

2. GLOSSARY OF TERMS AND ABBREVIATIONS

Abbreviation Translation Description

MCP Main Control Processor Part number 44782-K071, the MCP card is located on the

back of the outer door and is responsible for controlling the

LCD Display, event printer, LED indications, reading in the

control button key actions, VIPER upload \ download

software. The card is also responsible for communicating

with BLC loop processor cards, repeater output ports and

network cards.

BLC Basic Loop Controller There are two types of BLC cards, the master and slave.

MBLC Master Basic Loop Controller Part number 44782-K073, the MBLC card is responsible for

communicating externally with detection loops 1 and 2. The

card also provides 2 monitored sounder circuits, 2 auxiliary

VFCO contacts & a failsafe fault VFCO contact. The MBLC

card also provides connections to the repeater and network

interface cards.

SBLC Slave Basic Loop Controller Not applicable on Vega LT

CCT Circuit Reference to loop or sounder monitored circuitry.

SND Sounder

VFCO Voltage Free Change Over Also known as dry contact

PCB Printed Circuit Board

BGU Break Glass Unit Also known as Manual Call Point

EMC Electro Magnetic Compatibility

EOL End of Line EOL monitoring device used on sounder circuits

LED Light Emitting Diode

PSU Power Supply Unit

LCD Liquid Crystal Display

SLA Sealed Lead Acid Type of battery used within fire control panels

Cause & Effect Operation of programmable outputs and functions as a

result of an event being registered.

I/O Input / Output

PC Personal Computer

mA Milli amp

BS British Standard

EN European Norm

Ah Amperes Hour

dB (A) Decibel

IP Ingress Protection

m!Milli ohm

K!Kilo ohm

Comms Communications Communications abbreviated to fit display

Config Configuration Configuration abbreviated to fit display

TM0081 Page 7 of 51 Issue 1.01

3. INSTALLATION

Installation of the fire detection and alarm system must comply with the current editions of:

! The IEE wiring regulations.

! The British Standard for Fire Detection and Alarm Systems for buildings BS 5839: part 1

! Local country legislation if outside of the United Kingdom.

Take care not to install the cables in the proximity of high voltage cables or in areas likely to induce electrical

interference. Junction boxes should be avoided, but if they have to be installed then they must be clearly

labelled "FIRE ALARM".

Special attention should be made in the selection of loop wiring conductor size to ensure that the voltage drop

does not prevent devices operating within their specification even under minimum supply and maximum load

conditions. Consideration should also be given for future expansion of the system.

It is not permissible to run more than one detection loop in single cable, but a four-core cable can be used for

the feed and return of an individual loop. However, to increase the integrity of the loop it is recommended that

the feed and return cable pairs use different paths around the building.

It is not permissible to run any other circuits in the same cable as a detection loop, i.e. sounder circuits, power

supplies, plant shut downs etc, as the induction capacities of the cable can cause corruption of loop information

and/or inter-loop "cross talk".

3.1 SYSTEM SCHEMATIC - Figure 2

Figure 2: System Schematic Diagram

The control panel has a number of internal 2.5mm terminals for connection to the external field cables.

TM0081 Page 8 of 51 Issue 1.01

3.2 APPROVED CABLES

To comply with EMC (Electro Magnetic Compatibility) regulations and to reduce the risk of electrical interference

in the system wiring, it is recommended that screened cables be used throughout the installation. Reference to

BS 5839 part 1, states there is two categories of cable,

! Category 1: required to operate for prolonged periods during a fire condition

! Category 2: not required to operate for prolonged periods during a fire condition

Cables complying to BS 6387 categories C,W, Z can be used for both categories 1 and 2, Cables deemed

suitable as Category 1 can be used as category 2, but not visa versa. The following commonly available

screened cables have been approved for use on sounder and detection circuits:

! Pirelli FP200 Gold™

! MICC (Pyro™)

! Firetuff™

! Firecel™

Connection to the Kidde network and repeater panels should be made using Beldon 9729, UL2493 or MICC.

Satisfactory operation of the system with inferior cable types cannot be guaranteed especially when not wired in

accordance with to the appropriate regulations, i.e. loop wiring run in proximity to high voltage (AC mains and

above) cabling.

3.3 INTERNAL CABLE ROUTING

It is important that the following procedures on internal cable routing and cable terminations inside the control

panel are adhered to fully. These procedures have been established to ensure the control panel complies with

the European Directive on Electromagnetic Compatibility (89/336/EEC).

The external cables must be kept to an absolute minimum length from the cable entering the enclosure to the

terminating position on the relevant printed circuit board. Special attention should be made to ensure that cables

do not cross over other cables where possible, as this may generate interference/electrical noise.

The detection loop and sounder circuit cabling is classed as Low Voltage and should be segregated from mains

voltages. The pre-formed knockouts shown in figure 3 must be carefully removed, where required, using a flat

broad-bladed screwdriver and hammer. Use of excessive force should not be required and may damage the

enclosure around the knockout. The surrounding paint must be carefully removed to permit metal to metal

contact between the enclosure and cable gland.

Figure 3: Knockouts and Cable Routing

TM0081 Page 9 of 51 Issue 1.01

Care must be taken to ensure metal filings or swarf does not fall onto the printed circuit boards. An adequate

number of pre-formed knockouts have been provided on the top of the enclosure so there should be no

requirement to drill any additional holes. Ensure that if a knockout is removed and unused, that the hole is filled

with a good quality cable gland that is securely blanked off.

3.4 ENCLOSURE MOUNTING

The control panel should be installed within the building to be protected at a prominent location and at a height

where it can be easily accessed during an emergency. The control panel should ideally be located in the

entrance, foyer or hallway of the building at eye level. The panel should not be positioned where conditions may

affect its performance. Areas prone to salt air, moisture, high humidity, physical abuse, and extreme

temperatures should be avoided.

Remove the control panel from its packing and unlock the door using the Allen Key provided.

Note, A spare parts bag is not provided with this control panel. Battery leads and End of Line resistors are

factory fitted to the associated output terminals. A spare sounder fuse is provided. Refer figure 2 for location.

Hold the panel to the wall at the desired mounting height and mark the position of the top centre keyhole. The

enclosure fixing positions are shown in figure 4. The keyhole is provided on the backbox to allow the panel to be

hooked onto the wall whilst the remaining four screws are located, marked and drilled accordingly. Secure the

panel to the wall using suitable fixings such that adequate support is provided.

Figure 4: Enclosure Fixing Positions

TM0081 Page 10 of 51 Issue 1.01

3.5 EXTERNAL CONNECTIONS

3.5.1 Mains Wiring

The Vega LT control panel receives power from either a 230V, 50Hz or 120V, 60Hz power supply. The mains

supply cable must take the shortest route possible from entering the enclosure to the mains supply terminals.

Refer figure 5. The cable must maintain an air gap of 50mm minimum between it and any other conductors.

The mains supply requirement for the fire alarm panel is fixed wiring, using three core cable (no less than

0.75mm² and no more than 2.5mm²) or a suitable three conductor system and should be fed from an isolating

switched fused spur rated at 5amp. The fused spur isolator cover should be red and marked: FIRE ALARM –

DO NOT SWITCH OFF. The fused spur isolator must be fed from a dedicated switch or protective device at the

local mains supply distribution board.

The incoming power feed cable Earth (Green or Green/Yellow) wire should be connected to the terminal block

earth connection – Left hand terminal. The Neutral (Blue) wire should be connected to the middle terminal

marked (N) and the Live (Brown) wire connected to the right hand terminal marked (L). Refer to Figure 5.

Figure 5: Mains Supply Input

3.5.2 Detection Loop Wiring

The external detection circuit wiring should be wired to form a loop to allow the system to maintain a degree of

integrity and still function even if a section of cable becomes open circuit. It is also recommended during the

system design that short circuit isolators are fitted to the detection loop, so that in the event of an external short

circuit no more than 32 addressable devices will be lost. Refer to Figure 6.

Figure 6: Typical Loop Wiring

TM0081 Page 11 of 51 Issue 1.01

The detection loop connections are made on the Loop card terminals marked LOOP. The loop card has built in

isolators so it is not required to fit additional isolators directly on the loop output. Additional short circuit isolators

should be fitted at the boundaries of each fire zone.

Reference should be made to the detector manufacturer’s data sheets and installation guides supplied with the

detector or module for information on terminal connection etc. Ensure that the devices connected to the

detection loop wiring are correctly orientated for positive and negative connections.

The detection loop cable must be stripped in accordance with the manufacturer's guidelines. The cable must be

secured to the enclosure using metal compression glands and metal locking nuts in conjunction with a metal

shake proof washer to ensure that the cable metal sheath is bonded to the enclosure. Refer to figure 7.

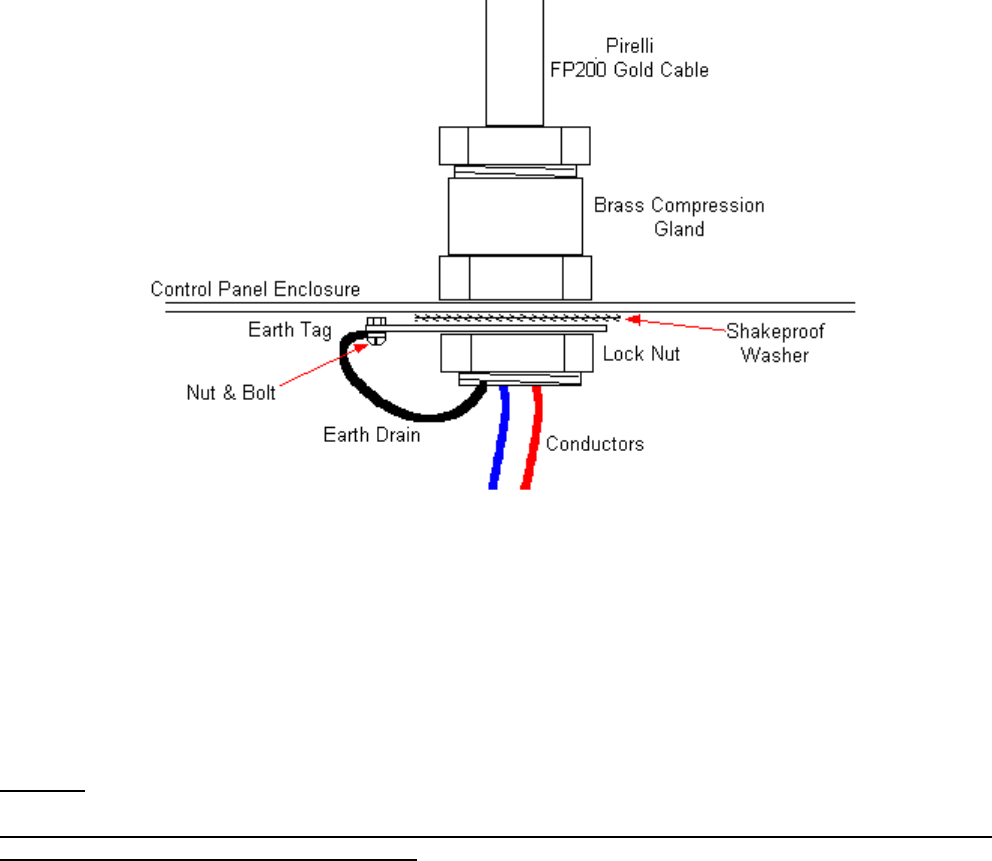

Figure 7: Loop and Sounder Circuit Compression Gland Details

When all bases are connected but before any devices are installed and with loop isolators linked out, the

following tests should be carried out: -

! Loop short-circuit. Using an ohmmeter, check for short-circuit between +ve and -ve feeds.

! Loop open-circuit. Check continuity of the +ve and -ve leads. +ve to +ve and –ve to –ve.

! Loop short to earth. Check using an ohmmeter between the +ve and -ve leads and an earth connection.

Warning.

Do not undertake high voltage insulation testing on external wiring after loop devices are installed as

this could seriously damage the equipment.

TM0081 Page 12 of 51 Issue 1.01

3.5.3 Sounder Circuit Wiring

Two programmable conventional sounder circuits are available on the control panel. Each circuit is rated at

1amp however it is recommended that the maximum total load shared between both circuits should not exceed

1amp. Each sounder circuit is monitored for open and short circuits. An end of line (EOL) 10 K" resistor 0.5W

minimum should be fitted after the last sounder attached to the circuit to allow the wiring to be monitored.

All sounders must be polarised, as non-polarised sounders will signal a fault condition on the control panel.

Refer to figure 8. Each sounder therefore must have an integral blocking diode that prevents the sounder from

using power during normal monitoring. The polarity of the sounder output voltage is reversed when the sounder

circuit is operated allowing the sounders devices to operate.

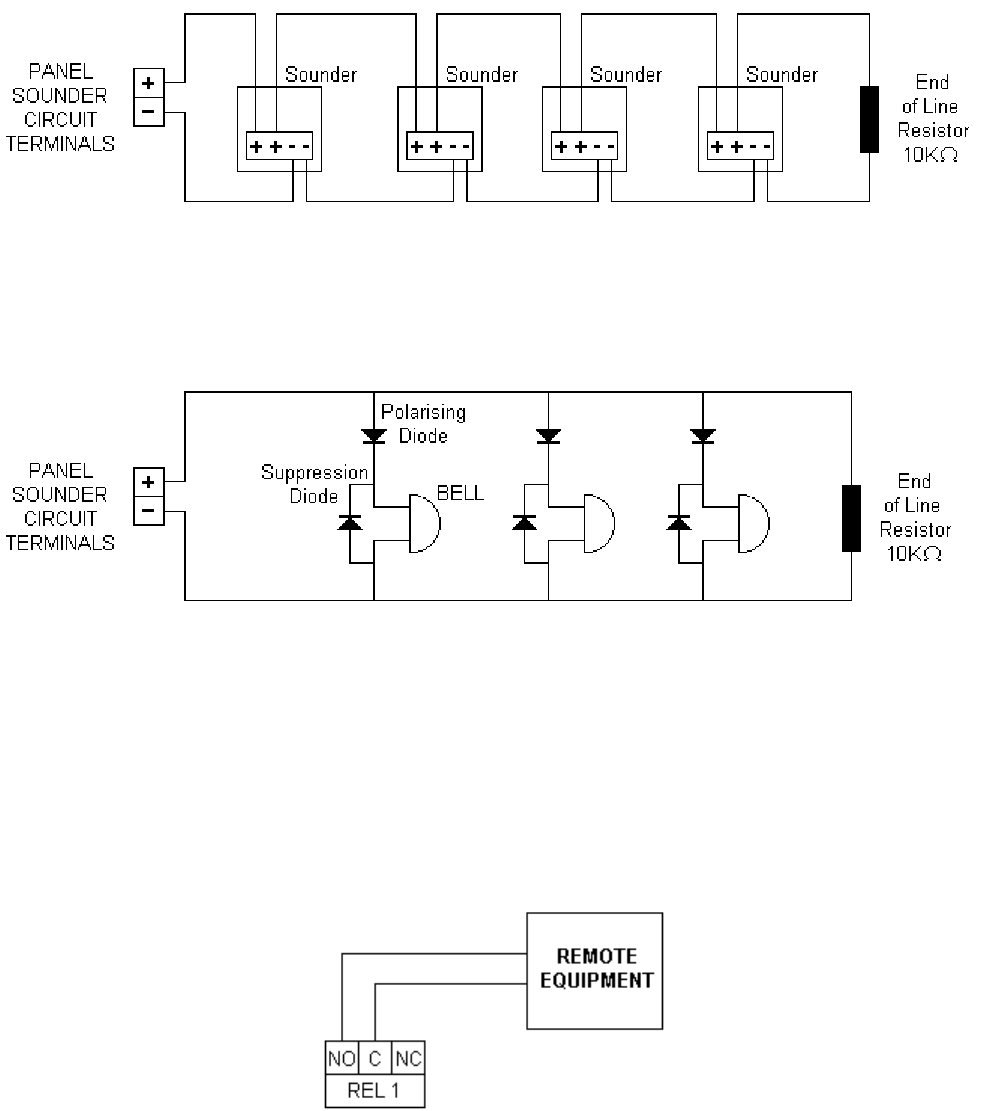

Figure 8: Typical Polarised Sounder Circuit Wiring

Should non polarised alarm devices such as mechanical bells be connected to the system, then a diode will

have to be placed in line with the device to prevent faults occurring and to enable fault monitoring. A

suppression diode will also be required across the device. Refer to Figure 9.

Figure 9: Typical Bell Circuit Wiring

The sounder circuit cable must be stripped in accordance with the manufacturer's guidelines and must be

secured to the enclosure using metal compression glands as shown in figure 7.

3.5.4 Auxiliary Output Wiring

Auxiliary Fire Output

Two voltage free (dry contact) changeover contacts are provided which operate during any fire condition and

can be used for driving local fire fighting equipment such as sprinkler systems, door release systems and roller

shutter doors etc. Refer to Figure 10.

Figure 10: Typical Auxiliary Fire Output Wiring

TM0081 Page 13 of 51 Issue 1.01

Auxiliary Fault output

A single voltage free changeover contact is provided and operates on any panel fault condition. This output is

failsafe and is normally energised. When a fault occurs, the output turns off to ensure failsafe operation, or

should the system suffer a failure to all power supplies. Refer to Figure 11.

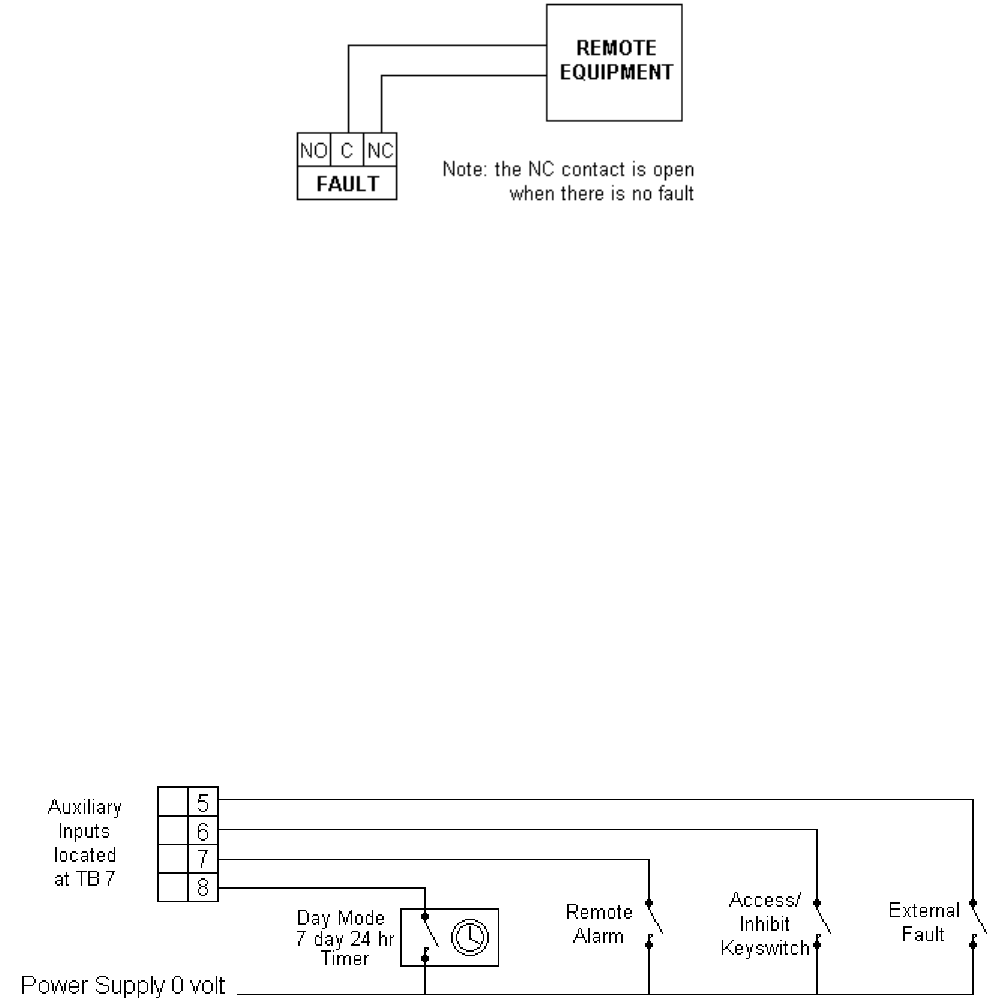

Figure 11: Typical Auxiliary Fault Output Wiring

External cables connected to the auxiliary contacts should be secured to the enclosure using metal

compression glands as shown in figure7.

3.5.6 Auxiliary Input Wiring

Four non-latching input connections are available on the fire alarm panel. The inputs are located on the loop

processor card, part number 44782-K073 at terminal block TB7. Applying a 0-volt connection to the terminal

activates the inputs. Refer to Figure 12. The inputs are provided at the following terminal numbers: -

1 External Fault Input

2 Level 2-access/inhibit override

3 Programmable Input A

4 Programmable Input B

The programmable input settings are:

! Remote Alarm (Class Change): operates the sounders continuously (default setting for input A) or

! Day Mode: initiates pre programmed day mode settings (default setting for input B) or

! Isolate Outputs: inhibits the operation of pre-programmed isolation group setting

Figure 12: Typical Auxiliary Input Wiring

Cables connected directly to the auxiliary inputs should not be taken external to the control panel. Interposing

relays located within interface enclosures and mounted directly adjacent to the control panel should be used.

TM0081 Page 14 of 51 Issue 1.01

3.5.7 Battery Installation

To provide an emergency battery back up facility in the event of mains failure for the system, two new fully

charged 12 volt sealed lead acid batteries are required. The batteries should be connected in series using the

battery leads connected to the power supply unit and should be located in the bottom left hand corner of the

control panel enclosure. The enclosure has space for 2x 12 Ah SLA batteries. The capacity of the batteries used

will depend upon the required stand-by time and the system configuration. For battery sizes greater than 12 Ah

these should be installed in a separate enclosure suitable for fire protection equipment using appropriate metal

gland fixings and cables.

Before installing the batteries carry out the following procedures:

! Check the batteries for transit damage.

! Check the battery open circuit terminal voltage.

! Record the installation date.

The +ve of one battery is connected to the red battery lead and the –ve of the second battery is connected to

the black battery lead. The –ve of the first battery is connected to the +ve of the second battery using the battery

link supplied. Refer to Figure 13.

Figure 13: Internal Battery Connections

CAUTION:

Do not connect the batteries to the power supply unit leads at this stage.

The control panel power supply unit has a thermistor, which monitors the temperature of the batteries and

automatically adjusts the charging current accordingly. This should be placed as close as possible to the first

battery.

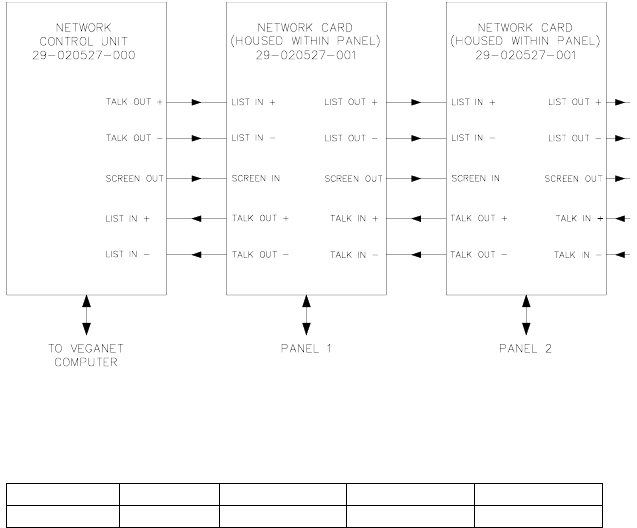

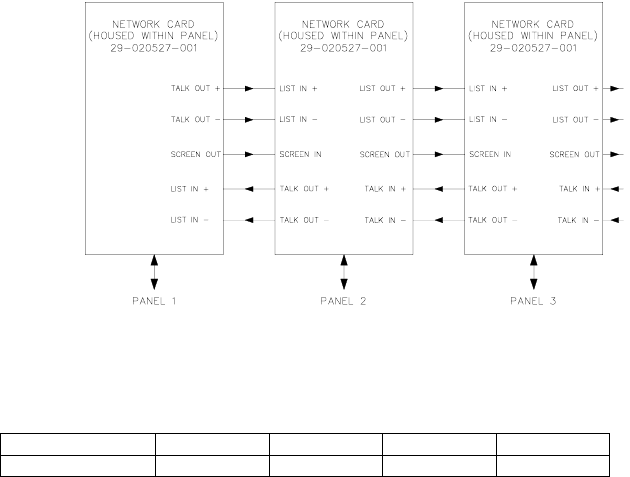

3.5.8 Network and Repeater Cable Wiring (Optional)

When connecting to optional network and repeater wiring, the outer insulating sheath of the cable must be

removed using a proprietary cable stripper. This will expose a number of cable pairs, which will be individually

wrapped in a protective sheath. This sheath must be folded back over the remaining outer insulating sheath and

the metallic compression gland to ensure that the protective metallic sheath has a permanent bonding to the

enclosure. The compression gland must be secured to the enclosure using a metal locking nut in conjunction

with a metal shake proof washer.

TM0081 Page 15 of 51 Issue 1.01

4. ACCESS CONTROL LEVELS

The Vega LT has four levels of system control. Refer to Table 1. The control panel will indicate the true status

condition of the installation during all four levels using the membrane display panels. Pass codes are entered on

the numeric keypad. Each operation of the keypad operates an internal buzzer and updates the liquid crystal

display to confirm entry.

Access

Level

Operating

Level

Default Pass

Code

Comments

1Normal

operation

N/A Control buttons inhibited. During an alarm condition certain

control buttons are functional.

2 User 7179 All control buttons are functional with restricted menu

access. System configuration inhibited.

3 Engineer &

Installer

7134 All control buttons are functional, All menu levels become

available and system configuration is possible.

4Kidde

Engineer

N/A As level 3 with option to clear panel memory back to factory

default setting.

Table 1: Access Levels

The operation of the control panel is dependent upon the selected pass code, as certain keys only operate in

specific access levels. Table 2 details the control keys and the access levels they are allowed to operate in.

Control Button Access Level 1 Access Levels 2&3

Numeric Keys ""

Cancel (←)""

Enter (↵)""

Arrow Keys ""

Silence Buzzer ""

Scroll ""

Delay Override ""

Silence Alarms - "

Reset - "

Evacuate - "

Table 2: Control buttons

4.1 ACCESS INHIBIT KEYSWITCH

An input terminal (TB7) labelled input 6 is positioned on Master Basic Loop Controller MBLC card (refer to

Figure 12 for wiring information) which when shorted to 0-volts, via a switch, causes the control panel to enter

into access level 2. Only by removal of the 0-volt input to the terminal will the access level be terminated.

TM0081 Page 16 of 51 Issue 1.01

5. CONTROLS AND INDICATION

5.1 PANEL DISPLAY

The Vega LT front panel display is divided into four discrete sections containing the control buttons, zone

windows, status windows and liquid crystal display (LCD). Refer to Figure 14.

Figure 14: Front Panel Display

5.2 CONTROL BUTTON FUNCTIONS

The control buttons located on the panel front perform a number of operations. Refer to Table 3.

Control Button Function

Numeric Keys Allows the user to enter numbers 0 – 9.

Cancel (←

←←

←)Allows the user to answer No, quit menu display options or terminate access levels 2 & 3

completely.

Enter (↵

↵↵

↵)Allows the user to answer Yes, enter menu display options, and confirm input for numeric

information.

Arrow Keys Allows the user to scroll through menu display options, active alarm messages and view

priority pending alarm messages. Also used during programming of the control panel.

Silence Buzzer Silences the internal buzzer for any fire or fault alarm condition.

Scroll Press to display the next alarm message at the current event level.

Delay Override Overrides any pre-programmed delays and immediately operates the outputs.

Silence Alarms Press to turn off All sounder circuits

Reset Press to cancel All fire & fault alarm conditions and reset the system back to normal.

Evacuate Press to turn on All sounder circuits and evacuate the building.

Table 3: Control Button Functions

TM0081 Page 17 of 51 Issue 1.01

5.3 STATUS WINDOW INDICATION

The status windows located on the front of the control panel provide the user with system indications. Refer to

Table 4.

Indicator Colour Function

Fire Red Pulses when the panel detects a new fire condition, continuous when the user

has silenced the alarms.

Fire Output Red Pulses during any fire condition when pre-programmed outputs assigned to Fire

Alarm Routing equipment operate, continuous when alarms are silenced.

Common Fault Yellow Pulses when the panel detects an internal or external fault condition.

Test Yellow Pulses when system in test mode. Operates in conjunction with zone indications.

System Fault Yellow Constant when main processor card is reset or a system fault has occurred.

Disablement Yellow Constant to indicate the user has isolated some part of the system, zone or

individual input or output device.

Fire Output Yellow Pulses to indicate a fault condition on output(s) assigned to Fire Alarm Routing

equipment.

Power On Green On when power supply is present, mains or battery.

Table 4: System Status Indications

5.4 LIQUID CRYSTAL DISPLAY LAYOUT

The liquid crystal display (LCD) provides graphical information to the user and is back lit to provide enhanced

viewing under low ambient lighting conditions. The LCD provides 8 lines of 40 characters with information

presented to the user in pre-defined locations depending upon the type of alarm, or user prompt. The display is

generally divided into five discrete areas. Refer to Figure 15.

Area 1 (line 1 & 2) is reserved for the priority alarm header text and is located in the top left-hand corner of the

display. Consisting of a maximum of 12 double height characters, the header text defines the type of active

alarm or status condition.

Area 2 (line 1 top right hand corner) is used to display date & time, current access level and low priority system

status information.

Area 3 (line 3) is used to display the total number of active alarms, by zone within the indicated priority queue

and to indicate to the user that further alarms may be present in lower priority queues.

Area 4 (lines 4,5 & 6) is used to display zone, group or system specific alarm information. For example, during a

priority one fire alarm condition, the first zone in a fire condition is displayed on line 4, the second zone line 5

and the fourth or last zone line 6. During a priority four, fault alarm condition line 4 is reserved for system faults,

line 5 zone faults and line 6 group faults.

Area 5 (line 7 & 8) is used for additional information relating to alarms shown on lines 4,5 & 6. To view the

additional alarm information press enter (↵) button.

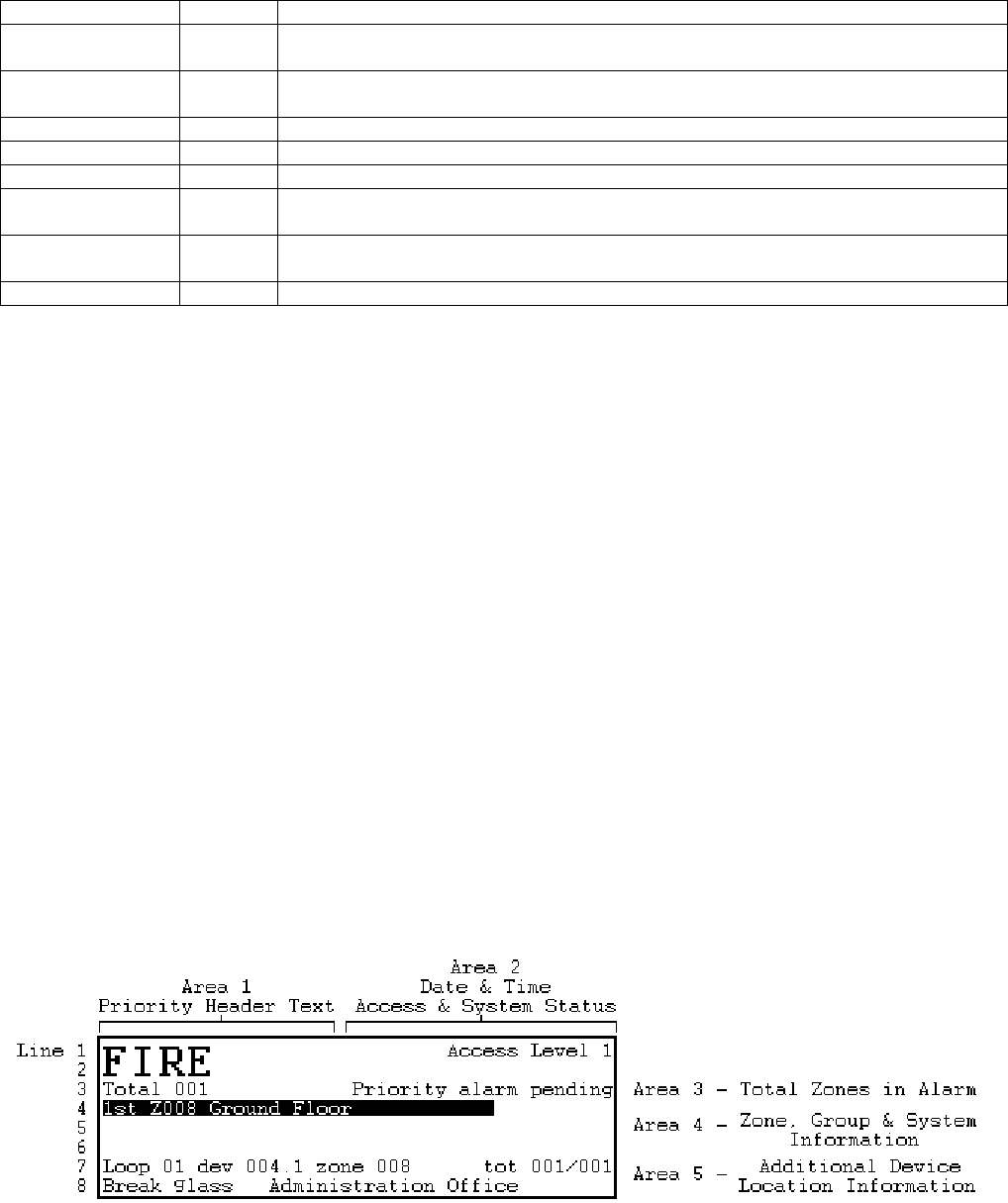

Figure 15: Display layout

TM0081 Page 18 of 51 Issue 1.01

6. OPERATION

6.1 STATUS NORMAL

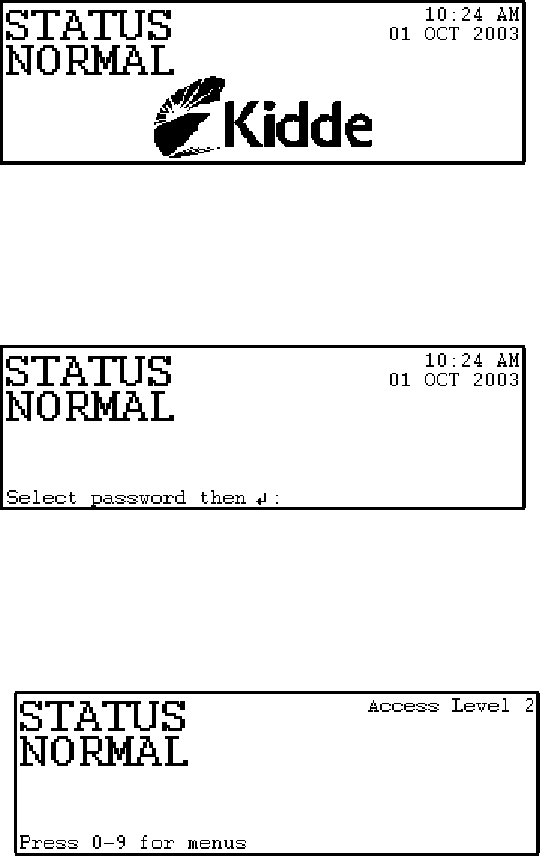

Under normal operation conditions, the green POWER ON light is on. The remaining status and zone window

lights are off and the LCD status is as shown below.

Figure 16: Display – Status Normal Condition

6.2 GAINING ACCESS TO LEVEL 2 OR 3

To gain access to level 2 or 3 control buttons or menus from Status Normal condition, press any numeric button.

The display will them update as shown in Figure 17.

Figure 17: - Pass Code Request

Enter the four-digit pass code (7179) and press the enter (↵) button. A pop up message will appear to confirm

that the correct pass code has been accepted or not. Should an incorrect pass code be entered, repeat the

procedure. Once the correct pass code is entered the display will then update and the control buttons become

active. Access level status will be indicated on the display top right line. Refer to Figure 18.

Figure 18: Pass Code Accepted

If there is no activity of the panel control buttons for a 5-minute period, the Access Level automatically reverts

back to normal access level 1.

6.2 FIRE CONDITION

When a fire is detected:

! The relevant red zone alarm light flashes

! The red ALARM light flashes

! The alarm sounder circuits are activated (unless delays are programmed)

! An audible buzzer on the panel sounds

! The event printer prints out the full alarm details (when installed)

! The display updates providing the user with the alarm header text, total number of alarms, zone

number and 24 character zone location text. Refer to Figure 19.

TM0081 Page 19 of 51 Issue 1.01

Figure 19: Fire Condition – Zone information

! To view additional device information, press enter (↵) button.

! The display updates providing additional device specific information, device loop, zone and address

numbers, total number of active devices within the zone, device type and 24 characters of device

specific location text. Refer to Figure 20.

Figure 20: Fire Condition – Zone & Device Information

Should additional fire conditions be detected within the same zone, then the total fire counter will increase and

the event printer prints out the full alarm details (when installed). The total number of active zones counter will

remain as one. Refer to Figure 21. The scroll button is used to view the additional device within the zone in

alarm.

Figure 21: Multiple Fire Conditions – Same Zone

Should a second zone fire condition be detected,

! The relevant red zone alarm light flashes

! The red ALARM light flashes

! The alarm sounders circuits are activated (unless already active or delays are programmed)

! An audible buzzer on the panel sounds

! The event printer prints out the full alarm details (when installed)

! The display updates providing the user with the alarm header text, total number of alarms, zone

number and 24 character zone location text. Refer to Figure 22.

Figure 22: Multiple Fire Conditions – Different Zones

Note, The highlighted zone location text indicates to the user which zone the device specific information relates

to. Using the navigation arrow keys in conjunction with the scroll button, the user can browse through the

various alarms present on the display.

TM0081 Page 20 of 51 Issue 1.01

6.3 RESETTING THE SYSTEM AFTER A FIRE CONDITION

To silence and reset the system after a genuine fire condition within the building and to switch off the internal

audible buzzer:

! Press the SILENCE BUZZER button (the audible buzzer stops, the zone light(s) and ALARM light

continue flashing. The audible alarm circuits continue to sound unless programmed off)

When the fire condition has been rectified, to reset the system:

! Enter access level 2 using the appropriate pass code – default 7179.

! The display will confirm access has been granted.

! Press the SILENCE ALARMS button (the audible alarms stop). The red zone alarm light(s) and the

ALARM light stay on (If another zone alarm condition occurs, the new red zone alarm light and the

ALARM lights, the buzzer and audible alarms sound and the original red zone alarm stays on).

Note: if a second device within the original zone occurs, then the original zone light will begin to

flash again.

! When all zone fire conditions have been rectified, press the RESET button. Press the cancel (←)

button. The panel reverts to access level 1.

Note: It is not possible to reset the panel until the SILENCE ALARMS button has been pressed.

If the fire condition still exists, the panel will revert to the alarm condition. To reset the panel it may be necessary

to clear smoke or heat from the detectors and to replace the glass in the manual fire call point.

6.4 FAULT CONDITIONS

When a fault occurs on a critical part of the fire alarm system, the panel responds by activating, in pulsed mode,

the internal audible buzzer and operating the COMMON FAULT light. The LCD display is updated with specific

information relating to the fault and the panels fault relay output is de-activated. Faults indicated on the LCD

display are categorised as System Faults, Zone Faults and Group Faults. Repairing any particular fault

condition will automatically clear the fault from the panel. If the panel is reset when faults are present, the faults

will reappear after a short period of time.

6.4.1 System Faults

System status faults generally relate to control circuits and monitoring inputs wired directly inside the control

panel. The types of system status faults are:

! Earth faults

! Loop faults

! Repeater comms faults

! MBLC \ SBLC comms faults

! Power Supply fault

! External fault

! Log on fault

! Config fault

! Interrupt fault

If a system fault occurs on one of the circuits inside the control panel:

! The yellow COMMON FAULT light flashes

! An audible buzzer on the panel sounds intermittently

! The event printer prints out the full alarm details (when installed and fully enabled)

! The display updates providing the user with the alarm header text, total number of alarms, system

fault indication and total number of system faults present. Refer to Figure 23.

TM0081 Page 21 of 51 Issue 1.01

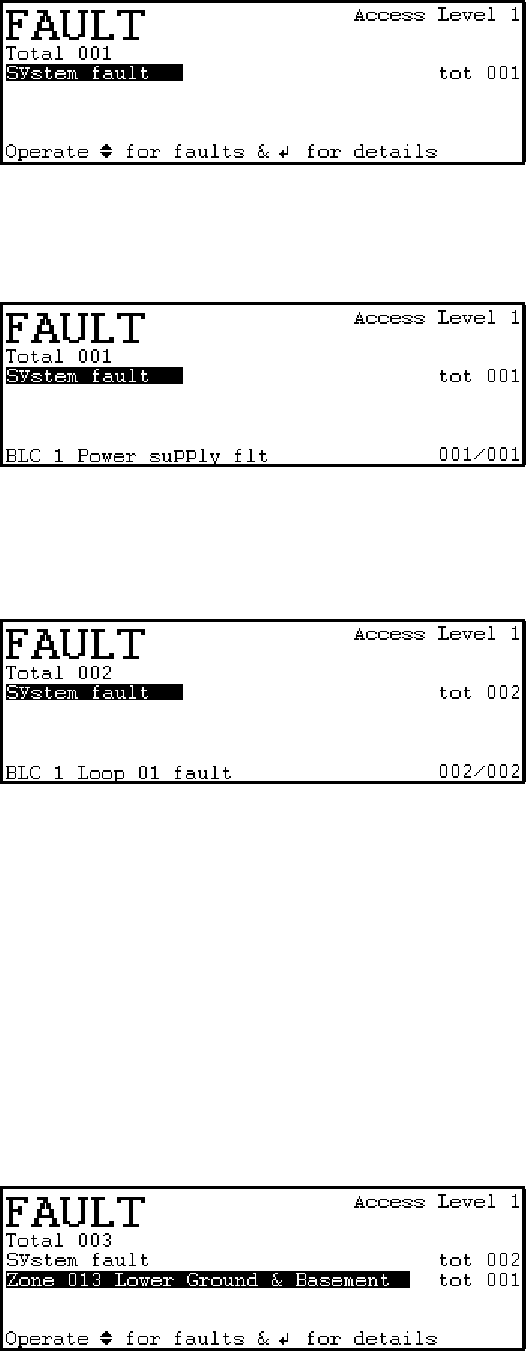

Figure 23: System Fault

! To review additional system fault information, press enter (↵) button.

! The display updates providing additional system fault specific information. Refer to Figure 24.

Figure 24: System fault – Power Supply Fault

Should additional system faults be detected, then the total number of faults counter will increase. The total

number of active system faults will also increase. To view the new system fault information, press the enter (↵)

button followed by the scroll button. Refer to Figure 25.

Figure 25: System Fault Number 2 – Loop 01 Fault

6.4.2 Zone Fault Conditions

Zone faults generally relate to detection loop input type devices such as smoke detectors, heat detectors, break

glass units and the input channel of the input \ output module. These types of devices are programmed during

commissioning to geographical zone numbers located within the installation.

If a zone fault occurs, generally as a result of a faulty loop device:

! The yellow COMMON FAULT light flashes

! An audible buzzer on the panel sounds intermittently

! The event printer prints out the full fault alarm details (when installed and fully enabled)

! The display updates providing the user with the alarm header text, total number of alarms within the

fault priority queue, zone fault information and total number of zone faults present. Refer to Figure

26.

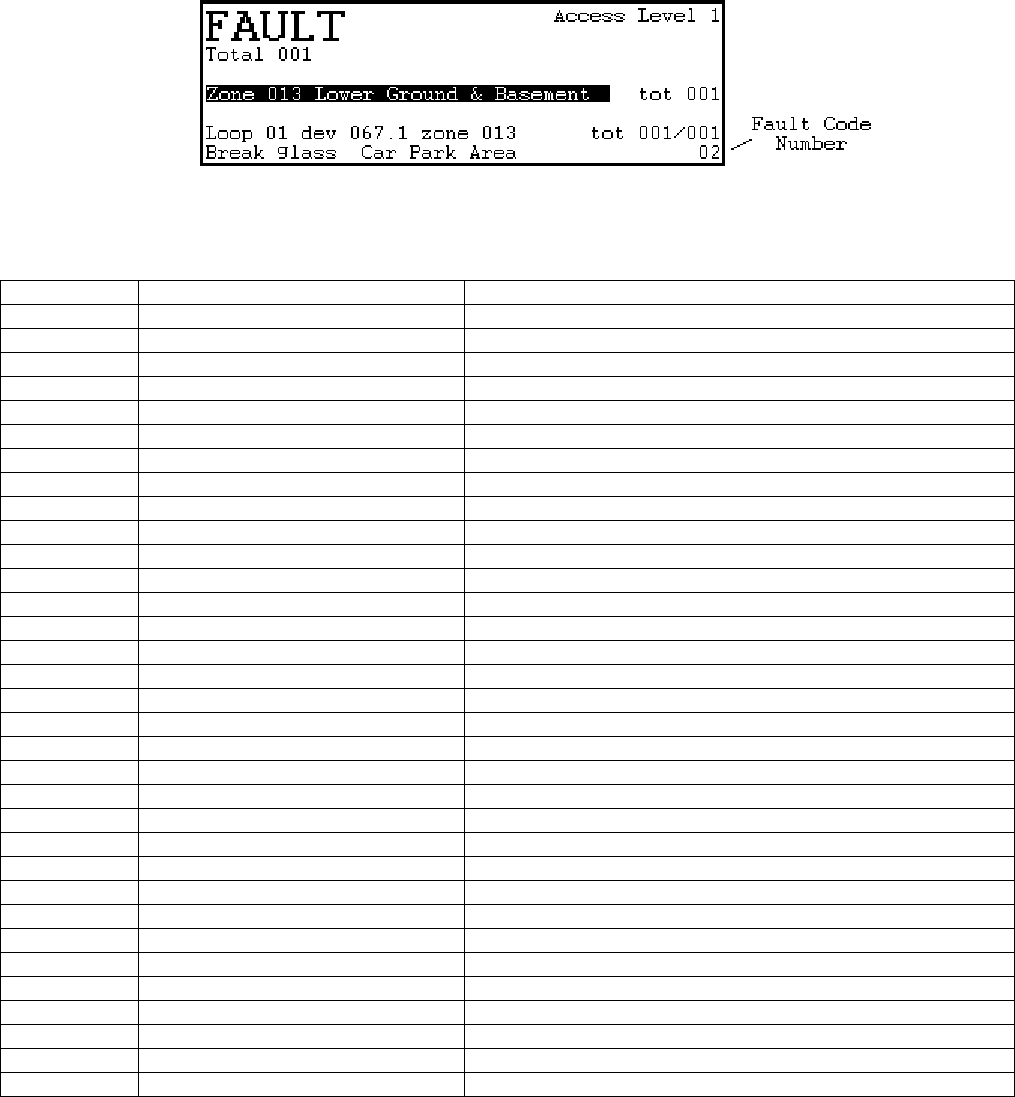

Figure 26: Zone Fault Condition

Note: Figure 26 shows an example of multiple faults – Total number of priority 4 fault conditions is 3, 2 x system

faults and 1 x zone fault.

TM0081 Page 22 of 51 Issue 1.01

! To review additional zone fault information, press enter (↵) button.

! The display updates providing additional zone fault specific information. Refer to Figure 27.

Figure 27: Zone Fault Condition – Zone & Device information

6.4.3 Group Fault Conditions

Group faults relate to detection loop output modules such as sounder circuit controllers, loop powered sounders

and the output channel of the input \ output modules. These types of devices are assigned during

commissioning to output group numbers, which are then programmed into cause & effect strategies. Output

groups then operate during a zone priority 1 fire condition ringing sounders, bells and operating shutdown etc.

Note: Input devices (Smokes, Break Glass, Input modules) are assigned to Zones while output devices

(Sounder modules, Output modules & Loop sounders) are assigned to output groups.

If a group fault occurs, generally as a result of a faulty loop device:

! The yellow COMMON FAULT light flashes

! An audible buzzer on the panel sounds intermittently

! The event printer prints out the full fault alarm details (when installed and fully enabled)

! The display updates providing the user with the alarm header text, total number of alarms within

the fault priority queue, group fault information and total number of group faults present. Refer

to Figure 28.

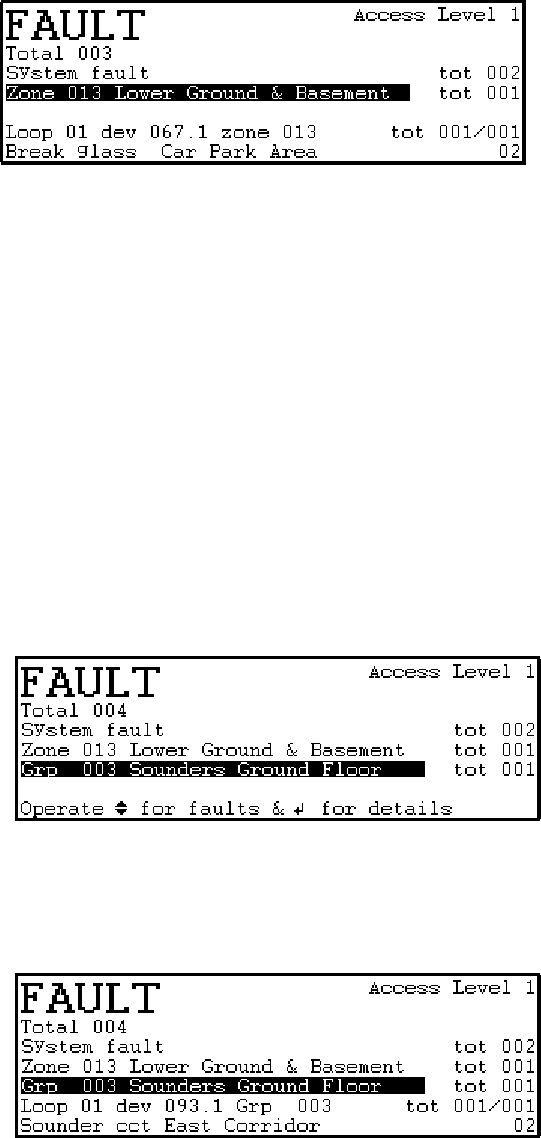

Figure 28: Group Fault Condition

! To review additional zone fault information, press enter (↵) button.

! The display updates providing additional group fault specific information. Refer to Figure 29.

Figure 29: Group Fault Condition – Group & device Information

TM0081 Page 23 of 51 Issue 1.01

7. PRIORITY ALARM STRUCTURE

The Vega control panel has 10 priority alarm queues which will determine how the panel will respond to an

alarm condition. The default settings for loop detectors and panel associated fault conditions are set

accordingly:

! Fire condition Priority 1

! Pre-alarm condition Priority 3

! Fault condition Priority 4

Using the priority structure in conjunction with the header text, systems can be customised to enable alarms of a

more critical nature to override those of lesser importance. The header text is used to differentiate the type of

alarm on the display while the priority queue number will determine what parameters are available to be used.

Refer to Table 5.

Alarm Handling Indication

Priority

Level

Header

Text Latching Non

Latching

LCD

Display

Status

LED

Zone or

Plant

Buzzer Printer

Output

Control

0Evacuate Yes No Yes Alarm Zone On Yes Program

1Fire Yes No Yes Alarm Zone On Yes Program

2Alert Optional Optional Yes None Zone On Yes Program

3Pre-alarm No Yes Yes Pre-alarm Zone Pulsed Yes No

4Fault No Yes Yes Fault Zone Pulsed Yes No

5Unassigned Optional Optional Yes None Z or P Pulsed Yes Program

6Unassigned Optional Optional Yes None Z or P Pulsed Yes Program

7N/A No Yes No None Plant No Yes Program

8N/A No Yes No None Plant No No Program

9N/A No Yes No None Plant No No Program

Table 5: Priority Alarm Structure

8. FIRE & PLANT ZONE INDICATIONS

The control panel has the facility to display a maximum of 16 Fire zone alarms using both the LCD display and

the 16 LED zone indications. A further 104 zones can be configured which are indicated on LCD display only

therefore providing a maximum of 120 fire zones.

Plant zones can be described as non-fire related zones and although there are no LED indications available

plant zones can still be configured for use within the control panel. Each individual input device can be assigned

to a fire zone or plant zone.

9. MENU STRUCTURE

9.1 MAIN MENU

Access to the top-level menu structure can be performed at Access Level 2 or greater. This can be achieved

during an alarm condition or from the Status Normal condition by entering the appropriate pass code followed by

the operation of a numeric button 0 to 9. Refer to Figure 30.

Figure 30: Display – Level 3 Main Menu

TM0081 Page 24 of 51 Issue 1.01

9.2 ISOLATE \ DE-ISOLATE MENU

The isolate menu list Table 6 provides the user dependent upon Access level with the following options.

ISOLATE – Menu Functions

Sub-Menu 1 Sub- Menu 2 Access

Level 2

Access

Level 3

Function

Zones ""Enter fire zone number to be isolated and confirm isolation

using enter (↵) button from list of zones presented. To de-

isolate, select isolated (flashing) zone from list and press

enter (↵) button to de-isolate.

Loop devices Single device ""Enter loop & device parameters and confirm isolation using

enter (↵) button from the list of devices presented. To de-

isolate, select isolated (flashing) device from the list and

confirm de-isolation using enter (↵) button.

Isolate range ""Enter range of device parameters and confirm isolation

using enter (↵) button.

De-Isolate range ""Enter range of device parameters and confirm de-isolation

using enter (↵) button.

Output groups Single groups ""Enter output group number and confirm isolation using enter

(↵) button from the list of output groups presented. To de-

isolate the output group, select isolated (flashing) group

from the list and confirm de-isolation using enter (↵) button.

Isolate Range Enter range of output group numbers and confirm isolation

using enter (↵) button.

De-Isolate Range ""Enter range of device numbers and confirm de-isolation

using enter (↵) button.

Panel functions BLC outputs ""Select from the list the MBLC output to be isolated and

confirm isolation using enter (↵) button. To de-isolate, select

(flashing) output to be de-isolated and press enter (↵)

button.

Motherboard - - N\A

Plant ""Enter plant zone number to be isolated and confirm isolation

using enter (↵) button from list of zones presented. To de-

isolate, select isolated (flashing) zone from list and press

enter (↵) button to de-isolate.

Local Buzzer - "

Table 6: Isolation \ De-isolation Menu

TM0081 Page 25 of 51 Issue 1.01

9.3 LIST MENU

The List menu Table 7 provides the user dependent upon Access level with the following options. When the

event printer is installed within the control panel, the user will also have the option to view or print the requested

listing.

LIST – Menu Functions

Sub-Menu 1 Sub- Menu 2 Access

Level 2

Access

Level 3

Function

Zones All Zones ""View text message allocated to each fire zone.

Zone Information ""View fire zone parameters (T1, T2, BGU override & double

knock) and devices assigned to the zone.

Loop devices Single loop ""View all devices connected to the specified loop. Provides

device type, text message & zone allocation.

Device range ""View range of devices attached to specified loop. Provides

device type, text message & zone allocation.

Forward scan - "

Reverse scan - "

View devices in one direction only. Used to identify break or

open circuit on loop detection cable.

Analogue values - "View additional analogue threshold values, current & fire

levels for each individual device attached to specified loop.

Single device value - "View a specified device information including type, text

message & threshold values.

Loop current - "Determine the amount of current used by the detection loop.

Loop integrity - "View the number of scans against errors reported by the

detection loop since the last panel reset.

Output groups All groups ""View text message allocated to specified range of output

groups.

Group information ""View output group parameters (T3, T4, Evacuate, silence &

activation control) and devices assigned to the group.

Panel functions BLC outputs ""View MBLC Sounder & Relay output location text

messages.

Motherboard - - N\A

Plant All plants ""View text message assigned to the plant zones (when

installed).

Plant information ""View devices assigned to plant zones (when installed).

Isolations Zones ""View complete isolated fire zones.

Loop devices ""View single devices that are currently isolated.

Output groups ""View isolated output groups.

Panel functions ""View isolated MBLC sounder and or relay outputs.

Plant ""View isolated plant zones.

Event log All events ""View all events occurring on the panel in date \ time order.

Range (date) - "View events for the specified date.

Priority event - "View events by priority (1 = Fire events)

Engineer info Panel setup - "Review the setup configuration for the control panel.

Activations - "Review the cause & effect strategy for a specified Fire zone,

Device, plant Zone or Output group.

Fault codes - "View the list of engineers fault codes.

Logon faults - "View new devices that have not currently been accepted

onto the system. Adding or removing devices from the

detection loop will produce a logon fault.

Config faults - "Download configuration device faults. Devices that do not

match the VIPER upload download site file.

Loop quantity - "View the total number of devices present on each detection

loop.

Database - "Not applicable

Check EOC indexs - "Not applicable

Table 7: List Menu

TM0081 Page 26 of 51 Issue 1.01

9.4 SET MENU

The Set menu Table 8 provides the user dependent upon Access level with the following options.

SET – Menu Functions

Sub-Menu 1 Sub- Menu 2 Access

Level 2

Access

Level 3

Function

Time & Date ""Enter revised Time, select AM or PM, 12 hr or 24 hr format

and enter Day/Month/Year and press enter (↵) button to

confirm.

Printer Status Printer type ""Confirms the type of printer currently installed. Standard Dot

Matrix or Thermal type. Note: Vega LT uses Thermal only.

Printer status ""Confirms the current status of the printer – enabled or

disabled.

Select type ""Select type of printer installed – Standard or Thermal and

press enter (↵) button to confirm selection.

Select status ""Controls the operation of the printer – Select Enable or

Disable and press enter (↵) button to confirm. Note: When

the printer is installed correctly and disabled status is set,

the printer will automatically print priority 0 & 1 events.

Activate day

mode

Day mode status ""Confirms the current day mode status – active or inactive.

Select status ""Controls the operation for day mode – Select Activate or

Deactivate and press enter (↵) button to confirm.

Standard features - "

Custom features - "Refer to Programming section of this manual.

Clear memory Zone info - "To clear Fire Zone info - press enter (↵) button to confirm.

Plant info - "To clear Plant Zone info - press enter (↵) button to confirm.

Group info - "To clear Output Group info - press enter (↵) button to

confirm.

Device info - "To clear loop device info - press enter (↵) button to confirm.

BLC outputs - "To clear MBLC info - press enter (↵) button to confirm.

Activations - "To clear Activations info - press enter (↵) button to confirm.

Motherboard info - "N/A

User passwords Change level 2 - "Enter new level 2 pass code ####, Re-enter new level 2

code #### and press enter (↵) button to confirm.

Change level 3 - "Enter new level 3 new pass code ####, Re-enter new level

3 pass code #### and press enter (↵) button to confirm.

Loop config Accept logon

count

-"An option is provided to view new devices added or

removed from the specified detection loop. Select ‘Yes’ and

press enter (↵) button to confirm devices accepted.

Accept config

count

-"Download configuration device faults. Devices that do not

match the VIPER upload download site file are flagged as a

config fault and are listed.

Autolearn - "Enables the user to automatically re learn devices for the

specified loop number.

Table 8: Set Menu

TM0081 Page 27 of 51 Issue 1.01

9.5 TEST MENU

The Test menu Table 9 provides the user dependent upon Access level with the following options.

Sub-Menu 1 Access

Level 2

Access

Level 3

Function

Panel Test ""Press enter (↵) button to initiate a panel LED, LCD display & Buzzer test and MCP

software version installed.

Device Test - "Enter the device parameters to be tested and press enter (↵) button to confirm.

Automatic detectors pulse the base alarm LED during the test.

Output group test - "Enter the output group number to be operated and press enter (↵) button. WARNING,

ensure that output groups programmed to operate release units are isolated locally.

Press silence alarms button to de-activate the output group and reset to select a new

group to be tested or cancel to return to menus.

Alarm simulation - "Enter the device parameters to be tested and press enter (↵) button. WARNING,

Output Groups will operate, ensure that groups programmed to operate release units

are isolated locally. Press silence buzzer, silence alarms & reset buttons to return to

status normal.

Key test - "Press enter (↵) button to initiate test and operate fascia key buttons as required. To

exit test option, press the cancel (←) button.

Test mode - "Select activate & press enter (↵) button. Enter zone number to be tested & press enter

(↵) button. To quit zone test mode, select de-activate & press enter (↵) button.

Table 9: Test Menu

TM0081 Page 28 of 51 Issue 1.01

10. COMMISSIONING

The total system should be tested in accordance with the commissioning requirements of the relevant standards

or national codes. Commissioning is to be carried out only after successfully completing the installation of the

systems as per the installation instructions.

10.1 SYSTEM CHECKS

Check that the system has been installed to the project requirements as defined by the “As Fitted Drawings” and

if appropriate, instruct the installer to carry out changes to the system. Using a multimeter, check to ensure that

the mains supply is NOT present and take the precautionary steps to avoid accidental application of the supply.

10.2 INITIAL POWER UP

Disconnect any cables connected to terminals located within the control panel such as loop, sounder and

auxiliary circuits. Ensure that all external wiring is clearly identified and using a multimeter, check that the cables

are free from fault conditions such as earth, short-circuit and open circuits.

Connect insulated wire links to the loop terminals, +ve to +ve and –ve to –ve and fit end-of-line 10K resistors to

all sounder output terminals.

Before powering up the panel, carry out these preliminary checks:

! Check for any visible signs of damage that may have been caused during the installation.

! Verify that all installation instructions have been adhered to.

! Physically check that all PCBs are secured in their mountings

! Check all ribbon cables are secured and correctly connected.

! Check all temporary cable terminations are secured.

! All damage and/or faults must be rectified before proceeding.

CAUTION:

Always apply mains power first. Do not power up using battery first as this may damage critical

components.

Apply the mains supply from the remote source. Using a multimeter check that the supply is present at the on-

board mains terminals (110 or 230 Vac) and check that the panel performs the following:

1. The POWER ON status light comes on.

2. The SYSTEM FAULT status light comes on.

3. The internal buzzer operates in a constant mode.

4. The LCD display updates and confirms operation of system diagnostics and verification routines in

progress.

5. The fault relay de-energises.

After a short period of time the panel performs the following:

1. The COMMON FAULT status light flashes.

2. The PSU FAULT status light flashes.

3. The display updates and confirms a FAULT – ‘BLC 1 power supply flt’ is present.

The SYSTEM FAULT status light can be reset by the operation of SW2 marked RESET located within the

control panel on the MCP card, part number 44782-K071.The internal buzzer can be silenced by operation of

the SILENCE BUZZER button located on the front of the panel.

Connect the batteries to the power supply unit as detailed in the previous section and check that the panel

reverts to normal condition and the POWER ON status light is on and the display reads STATUS NORMAL.

Note: the panel display may indicate a SYSTEM FAULT - ‘BLC 1 Loop 01 logon flt’ condition as devices that

were previously logged onto the panel during its last power up are no longer attached. The fault can be cleared

using the ‘accept logon count’ menu option located at Set→Loop config→Accept logon count. (Refer to

Table 8) Select ‘Yes’ to accept revised logon count. This will remove the previous devices logged onto the panel

from its memory. No other faults should be present at this stage and if faults exist they will require clearing

before continuing.

TM0081 Page 29 of 51 Issue 1.01

10.3 POWERING DOWN

To switch the control panel off always disconnect the batteries first followed by the mains ac supply.

10.4 CONNECTING THE DETECTION LOOP

With the control panel switched off to prevent accidental damage. Use an Ohmmeter to re-check the external

detection loop wiring to the control panel.

! Check for continuity of the feed and return of the +ve and -ve legs of each detection loop.

! Check that the +ve and -ve legs of each loop has a reading greater than 20M ohm with respect to the

panel earth stud.

Remove the wire links from the loop 1 terminals on the terminal board and insert the loop connections observing

the polarity (+ and -).

Power up the control panel (refer 10.2) remembering to apply the mains ac supply first.

The system will perform a number of calibration diagnostic routines, which can be viewed on the display. Each

detector address is checked to determine the device type. If more than one device is located at the same

address, or the type code is invalid a fault will be indicated on the display after the logging on process has

finished. Do not press any panel buttons during the logging on process. Upon completion check the following:

! The panel will indicate a SYSTEM FAULT - ‘BLC 1 Loop 01 logon flt’ due to the newly added

device(s). Clear the fault using the ‘accept logon count’ menu option located at Set→Loop

config→Accept logon count. (Refer to Table 8) Select ‘Yes’ to accept revised logon count.

! Check that the panel reverts to normal condition and the POWER ON status light is on and the display

reads STATUS NORMAL.

! Check no other faults are present at this stage and if faults exist on the detection loop they will require

clearing before continuing.

! Check that all devices attached to the detection loop are being monitored by the control panel. Use the

list loop device menu option to view the device attached. (Refer to Table 7)

! Check the loop listings against installation drawings or programming sheets etc.

Repeat the above procedure for further detection loops to be connected to the control panel.

10.5 ADDING OR REMOVING LOOP DEVICES

Detection loop devices can be added or removed from the control panels memory using one of the following

procedures. The procedure used depends mainly upon the criteria for the work involved when adding or

removing the device(s) from the system.

Note: The detector manufacturers recommend that devices should be powered up for a minimum of 5 minutes

to enable optimum operational temperatures to be reached and calibration routines completed before the control

panel takes the returned data as valid information.

10.5.1 Power Down

Where the installation loop cabling has to be broken or disconnected at the device base, and to reduce noise

induced within the signalling loop cable, which may cause unwanted false alarms, the preferred method is to

power down the control panel using the following procedure:

! Power down the control panel before work commences – remember batteries first followed by mains.

! Make the modifications to the detection loop cabling as required.

! Fit or remove any new devices and bases.

! Power up the control panel – mains first.

! Wait until the panel has re-calibrated the loop count.

! Accept the revised logon count as described in the previous section. (Refer to Table 8)

This procedure is also recommended when adding or removing break glass call points or interface modules to

the detection loop.

TM0081 Page 30 of 51 Issue 1.01

10.5.2 Processor Restart

Where detector bases have been installed without the detector head and the detection loop wiring integrity is

maintained, a processor restart can be applied to add or remove devices from the system. This procedure

negates the requirement to power down the control panel and can also be used when changing device types.

The control panel will display appropriate fault conditions as the devices are added or removed from the

detection loop wiring. To apply a processor restart the internal buttons MUST be operated in the following order.

! Fit, remove or change the device(s) located in the detector base(s).

! Press the processor restart button (SW1) located on the MBLC card, part number 44782-K073.

! Press the processor restart button (SW1) followed by the processor Reset button (SW2) located on the

MCP card, part number 44782-K071.

! Wait until the panel has re-calibrated the loop count.

! Accept the revised logon count as described in the previous section. (Refer to Table 8)

Note: A processor restart will request all detection loops to begin logging the attached detectors.

10.5.3 Auto Learn

The auto learn facility is available through the Set menu structure (Refer Table 8) and saves considerable time

when installing a system as it allows the user to specify the loop to be logged. It is recommended that the auto

learn option is only used where detector bases are pre-installed without the detector head and the detection

loop wiring integrity is maintained.

! Fit, remove or change the device(s) located in the detector base(s).

! Select the Auto Learn menu option Set→Loop config→Autolearn. (Refer to Table 8)

! Enter the loop to be re-learned.

! Wait until the panel has re-calibrated the loop count.

! Accept the revised logon count as described in the previous section. (Refer to Table 8)

10.6 CONNECTING SOUNDER CIRCUITS

With the control panel switched off to prevent accidental damage. Use an Ohmmeter to re-check the external

sounder circuit wiring to the control panel.

! Transfer the end-of line resistor to the last device on each sounder circuit output.

! From within the panel, check that all sounder circuits have a 10K resistance between the cable pairs

and that each cable has a reading greater than 20M ohm with respect to the panel earth stud.

Connect the sounder circuit cable to the sounder circuit terminals and power up the control panel.

For each sounder circuit carry out the following procedures:

! Ensure that no sounder outputs are energised. Apply a short-circuit condition to one of the sounder

circuits and ensure that the COMMON FAULT and the SOUNDER FAULT status light comes on, a

SYSTEM FAULT is indicated on the LCD display and the internal buzzer operates pulsed.

! Clear the fault condition and check that the panel reverts to the normal operating condition i.e. the

POWER ON status light is on and the display reads STATUS NORMAL.

! Apply an open circuit condition to a sounder circuit and ensure that the COMMON FAULT and the

SOUNDER FAULT status light comes on, a SYSTEM FAULT is indicated on the LCD display and the

internal buzzer operates pulsed. Clear the fault condition and check that the panel reverts to normal

operation.

To check the operation of the sounder circuits enter the password and press the manual EVACUATE button

located on the panel Front Panel Display. The audibility level of the sounders should be checked to ensure that

they conform to relevant standard or national codes and to the customer’s satisfaction. Check that ALL sounder

devices are operating correctly. Press SILENCE BUZZER, SILENCE ALARM and RESET buttons to return the

system to STATUS NORMAL.

The system should now be clear of fault conditions and ready to configure site-specific zone & device text

messages and cause & effect strategy programming to complete the installation.

TM0081 Page 31 of 51 Issue 1.01

11. PROGRAMMING STANDARD & CUSTOM FEATURES

Site specific information can be configured on the control panel using two methods, directly through the panel

menu options using the key buttons or using a computer running the upload download software application,

VIPER. Information within the control panel is stored in a number of modules, which have been designed to help

programming of the panel.

Unless stated, the module descriptions located within the control panel menu structure are identical to the

VIPER application and contain the same configurable options and setting parameters.

The top-level menu options, available in both the panel and VIPER are STANDARD FEATURES and CUSTOM

FEATURES.

11.1 PANEL SET-UP

Panel Set-up options define the way in which the panel is configured, such as the number of loops, zones and

hardware settings. The options are generally presented as a series of questions with a list of answers to select.

On VIPER a ‘site file’ is created containing all the relevant panel settings, messages and cause / effect strategy

which is then down loaded to the control panel during the commissioning stage.

! Using the panel menu, panel setup is located at Set → Standard features → Panel setup.

! Using the VIPER software, panel set-up is located at Edit →Standard features →Panel setup.

The following Table 10 details the options available:

STANDARD FEATURES – PANEL SETUP

Option Function

Company message Allows a 2 x 24-character company name or text message to be shown on the LCD display during STATUS

NORMAL conditions and replaces the default Kidde logo.

Install logo Set to ‘Yes’ to view the Kidde logo during STATUS NORMAL conditions. Set to ‘No’ to view the 2 x 24

character text message.

Date program last

changed

This option is automatically updated by the control panel or VIPER and indicates when the programming was

last altered.

Loop quantity Determines the number of loop cards installed in the panel and is automatically updated during power up by

the control panel. In VIPER this option is manually adjusted to define the number of loops required by the site

file.

Protocol Defines the type of detection protocol to be used, Apollo or Hochiki ESP. The control panel MCP card

automatically identifies the BLC card loop software protocol and updates the setting during power up. On

VIPER this option is manually adjusted to enable the correct device library (Apollo or ESP) to be loaded.

Install printer Set to ‘Yes’ to install the main panel event printer.

Fire zones Defines the number of fire zones used within the panel menu structure and the number of LED display cards

installed within the panel enclosure. Range available – 24 (default), 56, 88 and 120. Note: zone indications on

the Vega LT are fixed at 16.

Plant zones Set to ‘Yes’ to install the 64-non fire related plant zones, allows access to the panel menu structure for plant

zones. Note: on Vega LT it is not possible to install the optional 64 yellow zone LED indication card.

Install repeater Set to ‘Yes’ when installing the repeater output driver card, part number 44782-K076.

Day mode stop Determines the automatic stop time during day mode operation. The user manually enables Day mode

operation, the pre-programmed detection is then adjusted automatically. Day mode operation will automatically

revert to normal operation at the pre-defined time.

Pre silence delay Inhibits the operation of the silence alarms button during an alarm condition for the pre-defined time period. A

message ‘Silence inhibited for xx seconds’ appears while the timer counts down. This is a panel only

selectable option and is not available from VIPER.

Recal time Automatic device calibration and panel system checks are performed at the pre-defined time. A fault condition

is indicated when devices fall outside normal operating thresholds or a system check fails.

LCD backlight on Set to ‘Yes’ to permanently switch on the LCD back light display. This is a panel only selectable option and is

not available from VIPER.

Active repeater Defines the number of active repeaters to be attached to the main control panel. Each active type repeater

panel has a unique address, which is polled by the main panel.

Repeater printer Set to ‘Yes’ if one or more repeater panels have event printers fitted to enable additional commands specific to

printers to be transmitted.

Auto. Alarm text Set to ‘Yes’ to automatically display the device specific information during a fire condition. The user is not

required to press the enter button (↵) to view the bottom two lines of information on the display.

Latching faults Faults displayed on the control panel are generally all non-latching. After the fault condition is corrected, the

system will revert back to Status Normal. Set to ‘Yes’ to make all faults latching.

Serial port 1 Used to interface the control panel with third party equipment such as Pager, BMS systems or with the Kidde

networks, VegaNET or CZN. This option depends upon the software version installed within the MCP card,

which provides the interface to Data Output, VegaNET, & CZN System. Refer VegaNET & CZN manual for

further details.

TM0081 Page 32 of 51 Issue 1.01

MBLC input 7 This input can be programmed to perform one of the following functions:-

! Remote alarm (default) – operates output groups that are programmed to respond to manual evacuate.

! Day Mode – initiates day mode without using panel menu structure.

! Isolate Group Range – isolates specified output groups.

This is a panel only selectable option and is not available from VIPER.

MBLC input 8 This input can be programmed to perform one of the following functions:-

! Day Mode (default) – initiates day mode without using panel menu structure.

! Remote alarm – operates output groups that are programmed to respond to manual evacuate.

! Isolate Group Range – isolates specified output groups.

This is a panel only selectable option and is not available from VIPER.

Mb-01 to Mb-16 Not available on Vega LT

Table 10: Standard Features – Panel Set-up

11.2 ZONE FIRE INFORMATION

The system can be divided into 16 zones with each zone containing one or more loop devices. The zone

information options allow the user to define the zone specific parameters and are available from the following

locations:

! Using the panel menu, zone fire info is located at Set → Standard features → Zone fire info followed

by the required zone number.

! Using the VIPER software, Zone Information is located at Edit →Standard features → Zone

information.

The following Table 11 details the options available:

STANDARD FEATURES – ZONE INFORMATION

Option Function

Text message Zone text, a 24-character text message, used to describe the location of the zone within the installation or

building.

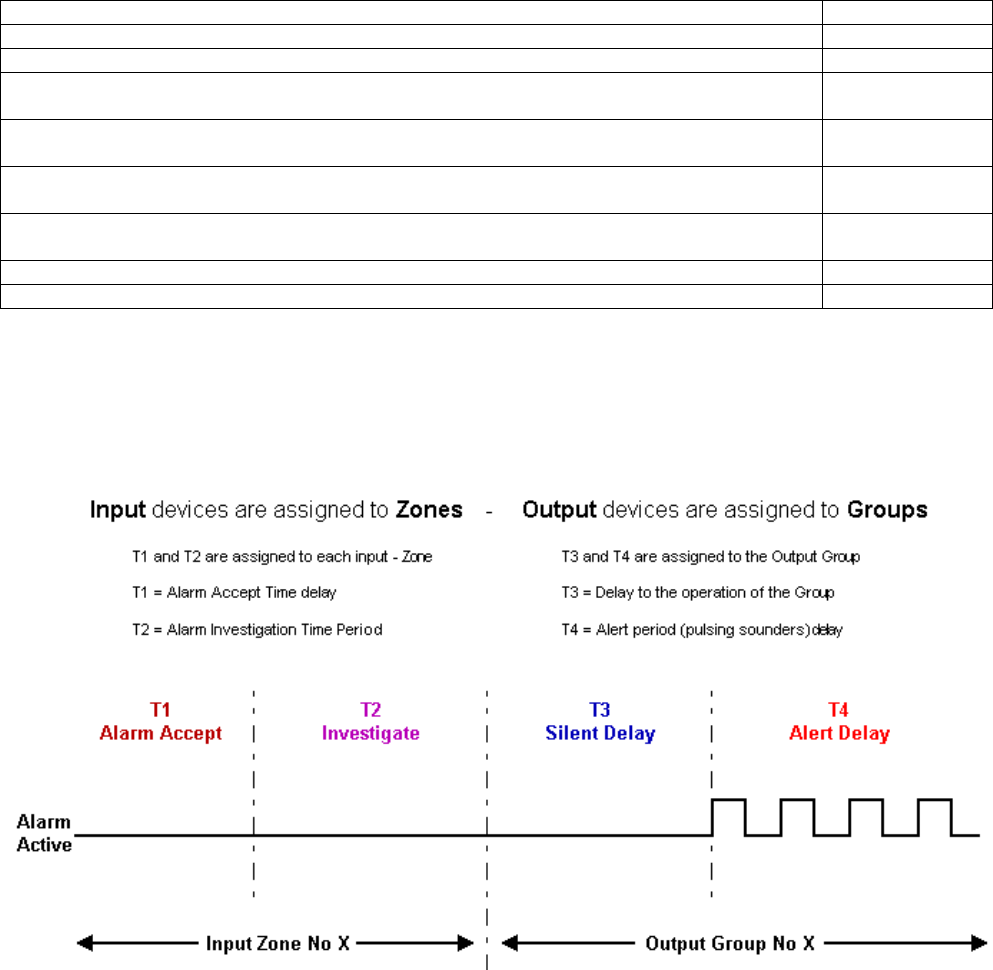

T1

Acknowledge delay

A delay timer attributed to each individual zone which can be set to a maximum of 60 seconds. During an

alarm condition, the integral buzzer will sound, the panel will indicate the location of the alarm condition and a

timer located to the right of the zone LCD display text will begin counting down. If the alarm is not

acknowledged by pressing the ‘Silence Buzzer’ button on the control panel within the time period a full alarm

will be generated and output groups will operate. Pressing ‘Silence Buzzer’ will initiate the T2 investigation

timer.

T2

Investigation delay

A second delay timer attributed to each individual zone which can be set to a maximum of 600 seconds. The

investigation timer will begin counting down upon operation of the ‘Silence Buzzer’ providing a further delay to

the operation of output groups. The integral buzzer will remain silent and the panel LCD display will indicate the

alarm condition with the T2 timer counting down.

BGU Override Applicable to each individual zone. Break Glass devices generally override any T1 & T2 settings to enable a

full alarm to be generated and output groups to operate. Set to ‘No’ to allow break glass devices to utilise the

T1 & T2 settings therefore delaying the operation of output groups.

Double knock

override

Applicable to each individual zone. Set to ‘Yes’ to enable any two devices within the same zone to

automatically override T1& T2 settings during a fire condition.

Table 11: Standard Features – Zone Information

11.3 LOOP DEVICE INFORMATION

The loop device information options allow the user to define the specific loop device parameters. There are two

main categories of loop devices, input devices and output devices.

Input devices such as Ionisation, Optical, Heat, Flame Detector, Beam Detector, Break Glass Units and the

Input channel of the Input Output module are generally assigned to fire ZONES. Plant zones can also be used

to indicate non fire related events.

Output devices such as Loop Sounder, Sounder Circuit Controller Relay Units and the Output channel of the

Input Output modules are assigned to OUTPUT GROUPS.

Loop Device Information can be programmed from the following locations:

! Using the panel menu, Loop device info is located at Set → Standard features → Loop device info

→ followed by the required loop and device number.

! Using the VIPER software, Loop Device Information is located at Edit →Standard features → Loop

Device information.

TM0081 Page 33 of 51 Issue 1.01

Note: not all parameters apply to each type of input or output type device.

The following Table 12 details the options available:

STANDARD FEATURES – LOOP DEVICE INFORMATION

Option Function

Device type Determines the type of device logged onto the panel for the specified loop address. Using VIPER this can be

altered when changing the device type on the loop.

Text message Device text, a 24-character text message, used to describe a precise location for the device within the

allocated zone number. Note: Zone & Device text messages together describe the location of the event within

the installation or building.

Zone number Assigns the input type devices to the appropriate zone number, in the range 1 to 120. The Vega LT has 16

LED indications on the panel fascia. Each zone may contain one or more devices. Devices default to zone 000.

Normal sensitivity During Status Normal the individual detector’s (smoke or heat) alarm sensitivity levels can be altered for pre-

alarm and alarm conditions. The options for selection depend upon type of device installed.

Apollo XP95 options are

! Standard - Pre-alarm level = 45 & Alarm level = 55

! Low - Pre-alarm level = 55 & Alarm level = 65

! High - Pre-alarm level = 35 & Alarm level = 45

Apollo Discovery has 5 mode settings. Refer detector user guides.

Hochiki ESP Smoke detectors are automatically compensated by the control panel and are calibrated daily.

! Standard - Pre-alarm level = 85% of alarm level & Alarm level = 160 to 241.

! Low - Pre-alarm level = 85% of alarm level & Alarm level = + 20 % of standard fire level.

! High - Pre-alarm level = 85% of alarm level & Alarm level = - 20% of standard fire level.

Hochiki ESP Heat detectors are

! Standard - Pre-alarm level = 85% of alarm level & Alarm level = 160

! Low - Pre-alarm level = 85% of alarm level & Alarm level = 192

! High - Pre-alarm level = 85% of alarm level & Alarm level = 152

Day mode

sensitivity

During Day Mode operation alarm sensitivity levels are automatically adjusted to the pre-programmed settings

and apply to most input type devices. The options for selection depend upon type of device installed.

Apollo XP95 options are

! Standard - Pre-alarm level = 45, Alarm level = 55 & Isolate device.

! Low - Pre-alarm level = 55, Alarm level = 65 & Isolate device.

! High - Pre-alarm level = 35, Alarm level = 45 & Isolate device.

Apollo Discovery has 5 mode settings & Isolate device. Refer detector user guides for mode settings.

Hochiki ESP options are

! Standard - Pre-alarm level = 85% of alarm level & Alarm level = 160 to 241& Isolate.

! Low - Pre-alarm level = 85% of alarm level & Alarm level = + 20 % of standard fire level & Isolate.

! High - Pre-alarm level = 85% of alarm level & Alarm level = - 20% of standard fire level & Isolate.

Note: the panel will not allow the pre-alarm sensitivity to be higher than the fire alarm

Group number Assign output type devices or modules to the appropriate output group number. Range 1 to 500. Note: Output

Groups 501 to 512 are reserved for special functions and should not be used for general cause \ effect

programming. Each output group may contain one or more devices or modules. Devices default to group 000.

Priority level Determines the alarm condition priority level. Fire detection, smoke, BGU & heat devices should remain

unaltered at default setting 1 unless specific installation requirements are necessary. Input modules can be

assigned to lower priority levels for signalling plant indication etc as required.

Latching alarm Determines whether the alarm condition (fire) is latched or not. Latching alarms require the user to silence and

reset the system after an alarm condition has occurred. Non-latching alarms apply to input modules and BGU

type devices and will automatically return to status normal after the alarm device returns to normal condition.

Program by Program by Zone or Device option. The preferred and simplest method of programming the control panel is by

zone to output group programming. Where special cause / effect strategies are required, single device to

output programming can be achieved by setting this option. The device remains linked to the associated zone

number as geographical within the building this is where it is located and will operate the panel displays

accordingly, however, within the panel programming it is treated by exception and will operate its own output

groups. The device programming option can only be set using VIPER.

Custom text Default text describing the individual detector or interface type can be altered to 1 of 50 pre-programmed (12

character max) custom text messages. Custom type messages are entered from the custom features menu.

Example, default text – ‘Input dev’ can be changed to read ‘Shop Unit’

Flash LED Set to ‘No’ to turn off flashing base LED indication on Apollo Discovery and Hochiki multi-sensor detectors only.

BGU flag Set to ‘Yes’ to turn on the priority interrupt flag setting (Apollo only) on certain interface modules. Default

setting for Break Glass Units. The option can only be configured at the control panel.

Table 12: Standard Features – Loop Device Information

TM0081 Page 34 of 51 Issue 1.01

11.4 PANEL FUNCTIONS (STANDARD OR BLC OUTPUTS)

The panel functions option defines parameters for the basic loop controller BLC sounder and relay outputs.

Panel functions can be programmed from the following locations:

! Using the panel menu, BLC outputs is located at Set → Standard features → BLC Outputs →

followed by the required output to be programmed.

! Using the VIPER software, Panel Functions (Std Outputs) is located at Edit →Standard features →

Panel functions (STD outputs)

The following Table 13 details the options available:

STANDARD FEATURES – PANEL FUNCTIONS

Option Function

Location \ type Describes the type of BLC monitored circuit or relay output located within the control panel.

Custom type Default text describing the individual output type and can be changed to 1 of 50 pre-programmed (12 character

max) custom text messages. Custom type messages are entered from the custom features menu.

Text message A 24-character text message can be entered to describe the use of the individual output circuit. Example

MBLC01 Scct1 = Sounders Ground Floor, MBLC01 VFCO1 = Fire Brigade Link

Group Number Default set at CMN (common alarm) operating on any fire condition. To configure as programmable, set BLC

output circuits and relay contacts to an output group number. Range 1 to 500. Note: Output Groups 501 to 512

are reserved for special functions and should not be used for general cause \ effect programming. Each output

group may contain one or more devices or modules. Devices default to group 000.

Manual Sound Associated to the common alarm operation. Set to ‘Yes’ to allow the output circuit to operate when the control

panels ‘Evacuate’ button is pressed.

Clear Associated to the common alarm operation. Determines whether the output will switch off when the panels

‘Silence Alarm’ button or ‘Reset’ button is pressed.

Table 13: Standard Features – Panel Functions

11.5 OUTPUT GROUP INFORMATION

The output group information option defines parameters for the software programmable output groups. There

are 512 programmable output groups available to create a site-specific cause / effect evacuation strategy.

Output Groups 501 to 512 are reserved for special functions and should not be used for standard programming.

Panel functions can be programmed from the following locations:

! Using the panel menu, Output group info is located at Set → Standard features → Output group

info → followed by the required output group number to be programmed.

! Using the VIPER software, Output Group Information is located at Edit →Standard features →

Output Group Information.

The following Table 14 details the options available:

STANDARD FEATURES – OUTPUT GROUP INFORMATION

Option Function

Text message A 24-character text message should be entered to describe the location within the building for the output

sounders & modules that are associated to the individual output group. Example Group 1 = Sounders Ground

Floor, Group 2 = Sounders Second Floor, etc

Group action Output groups can be assigned to one of the following command actions, Programmable (Program), Common,

Silence or Reset.

! Set to Program to specify which fire zones to be specified to operate the output group.

! Set to ‘Common’ to operate outputs associated to the group during any fire condition raised on the control

panel.

! Set to ‘Reset’ operates output(s) associated to output group for approximate time delay period specified in

T3 after operation of panel ‘Reset’ button by the user.

! Set to ‘Silence’ operates output(s) associated to output group for approximate time delay period specified

in T3 after operation of panel ‘Silence Alarm’ button by the user.

Manual sound Set to ‘Yes’ to allow the output group to operate when the control panels ‘Evacuate’ button is pressed.

Clear Determines whether the output group will switch off its associated output modules when the panels ‘Silence

Alarm’ button or ‘Reset’ button is pressed.

T3

Delay

Determines the Delay time period to the operation of output modules associated to the output group. Each

individual group has a delay time available from 000 to 600 seconds.

T4

Alert delay

Determines the Alert delay time period where sounders and output modules will provide a pulsing output

condition for the specified time period before switching to constant alarm condition. Each individual group has

an alert timer available from 00 to 60 minutes or select INF for infinite continuous pulsing until the system is

silenced or reset.

TM0081 Page 35 of 51 Issue 1.01

BGU Override T3 Set to ‘Yes’ to enable activation of a break glass unit to override any T3 timer.

BGU Override T4 Set to ‘Yes’ to enable activation of a break glass unit to override any T4 timer.

Table 14: Standard Features – Output Group Information

11.5.1 Fire Output

Output Group 512 is reserved for signalling to Fire Output routing equipment. The Fire Output display light turns

on during any fire condition when one or more output type device, loop or panel derived has been assigned to

output group 512. The Fire Output turns off when the panel is Reset. The output does not operate if the class

change input is activated.

11.5.2 Isolate Output Group

Output Group 511 is reserved for signalling the panel isolate status condition to a remote system such as a

BMS or Pager system using an output type module. Output group 511 will activate its associated loop or panel

derived outputs when any part of the system is isolated at access level 2 or 3. The output group will only de-

activate when all isolations are removed from the system.

11.6 SET ACTIVATIONS

The control panel can be programmed to perform a number of different cause and effect strategies to meet the

system design and installation requirements. In order to perform the evacuation programming, output modules

and sounders connected to the detection loop together with panel output circuits located on the BLC cards, are

attributed to Output Groups. Programming is achieved through the panel software by linking the output groups

to either fire zones, plant zones, or by exception, single loop devices. Output groups can also be linked to other

output groups to perform phased evacuations where the expiry of delay timers T3 & T4 trigger other groups to

start operating.

The most basic evacuation procedure is a common alarm system, where a more complex cause & effect

strategy is required; the preferred and simple method of programming the control panel is using the zone to

output group.

The following examples describe some possible cause & effect strategies,

11.6.1 Common Alarm Installations

To create a common alarm evacuation & shutdown cause & effect strategy for sounder and relay modules,

Using Loop Device Information, Table 12 and Panel Functions, Table 13 assign all sounder circuits, panel or

loop, to Output Group 1.

Using Loop Device Information set the Group 1 attributes as follows: -

! Enter appropriate text = e.g. Common Sounders

! Action = common

! Manual Sound = Yes

! Clear = Silence

Using Loop Device Information, Table 12 and Panel Functions, Table 13 assign all relay modules or outputs,

panel or loop, to Output Group 2.

Using Loop Device Information set the Group 2 attributes as follows: -

! Enter appropriate text = e.g. Plant Shutdowns

! Action = Common

! Manual Sound = No

! Clear = Reset

Note: relay modules & contacts, after a fire condition generally de-activate with a panel reset and do not operate

when the manual Evacuation button is pressed.

No further programming should be necessary.

TM0081 Page 36 of 51 Issue 1.01

11.6.2 Zone by Zone Alarm Installations

To create a geographical zone evacuation & shutdown cause / effect strategy,

Using Loop Device Information, Table 12 and Panel Functions, Table 13 assign all sounder circuits located in

zone 1, panel or loop, to Output Group 1.

Assign Zone 2 sounders to Output Group 2

Repeat until all sounders are allocated to a separate Output Group.

Using Loop Device Information set the Group 1 attributes as follows: -

! Enter appropriate text = e.g. Sounders Zone One or Sounders Ground Floor

! Action = Program

! Manual Sound = Yes

! Clear = Silence

Using Loop Device Information, Table 12 and Panel Functions, Table 13 assign all relay modules or outputs

located in Zone 1, panel or loop, to the next available Output Group.

Assign Zone 2 relay modules to next available Output Group.

Repeat until all relay modules are allocated to a separate Output Group.

Using Loop Device Information set the Group attributes as follows: -

! Enter appropriate text = e.g. Plant Shutdowns Zone One

! Action = program

! Manual Sound = No

! Clear = Reset

Activations can be programmed from the following locations:

! Using the panel menu, Activations is located at Set → Standard features → Activations → Zone

followed by the required zone number to be programmed.

! Using the VIPER software, Set Activations is located at Edit →Standard features → Set Activations

→ Zone to Output Groups.

Using the control panel, assign zone 1 to operate sounder output group 1 using the programming style ‘Evac’

Assign zone 2 to operate sounder output group 2. Repeat for the remainder of the sounder groups followed by

the relay module output groups.

Using VIPER software, assign zone 1 to evacuate output group 1 using the evacuation style symbol, capital ‘E’

as shown in Figure 31 and repeat for the remaining zones.

Figure 31: Example VIPER – Set Activations – Zones to Output Groups

TM0081 Page 37 of 51 Issue 1.01

11.6.3 Activation Styles

Activation styles are used to determine how the output groups respond during an alarm condition. There are

eight different activation styles to select from when programming zones to output groups as shown in Table 15.

Activation Style VIPER Symbol

Evacuate – Outputs operate in constant mode & timers are overridden. E

Alert – Outputs operate in pulsed (alert) mode and include any T3 & T4 settings. A

1st device output groups operate in Alert mode, 2nd device within the same zone output

groups operate in Evacuate mode and include any T3 & T4 settings.

1

1st device output groups remain Silent, 2nd device within the same zone output group

operate in Evacuate mode and include any T3 & T4 settings.

2

1st device 1st zone output groups operate in Alert mode, 2nd device 2nd zone (different

zone) output groups operate in Evacuate mode and include any T3 & T4 settings.

3

1st device 1st zone output groups remain silent, 2nd device 2nd zone (different zone) output

groups operate in evacuate mode and include any T3 & T4 settings.

4

Infinite Alert with T3 ignored. 5

Infinite Alert including T3. 6

Table 15: Activation Styles

11.6.4 Zone and Output Group Timers

Timers are attributed to Zones and Output Group to enable more complex evacuation cause and effect

strategies to be performed as shown in Figure 32.

Figure 32: Zone and Output Group Timers

TM0081 Page 38 of 51 Issue 1.01

The various timers when used in conjunction with the fire zones and output groups can create a number of

different cause & effect strategies. The example shown in Figure 33 provides the following: -

Zone of origin to provide Alarm Accept (T1) delay of 1 minute

Investigation (T2) time of 3 minutes

Adjacent Zones delayed for a further 2 minutes (T3)

Adjacent Zones to Alert (pulsing) for further 2 minutes (T4)

Constant alarm to follow upon completion of the Alert delay

Note: Operation of a Break Glass or the Delay Override button will override T2.

Figure 33: Zone to Group Timers

11.6.5 Single Device to Output Group Programming

Single Device to Output Group programming effectively removes the device from the zone voting allowing the

activation of the individual device to trigger different output groups. To programme Single Device to Output

Groups the device must first be removed from its zone voting, set the Program by option to Device using

VIPER. Refer Table 12.

Activations can be programmed from the following locations:

! Using the panel menu, Activations is located at Set → Standard features → Activations → Device

followed by the required device address number to be programmed.

! Using the VIPER software, Set Activations is located at Edit →Standard features → Set Activations

→ Device to Output Groups.

Select the output group number to be programmed, style of activation and enter the device address parameters

to activate the output group.

11.6.6 Plant Alarm to Output Group Programming

Output Groups can also be programmed to respond to the activation non-fire related devices assigned to Plant

Alarm zones.

Plant Alarms can be programmed from the following locations:

! Using the panel menu, Activations is located at Set → Standard features → Activations → Plant

followed by the required device address number to be programmed.

! Using the VIPER software, Set Activations is located at Edit →Standard features → Set Activations

→ Plant Alarms to Output Groups.

TM0081 Page 39 of 51 Issue 1.01

11.7 REPEATER INFORMATION

The Repeater information option defines parameters for the active style repeater panels attached to the system.

The active style repeaters are fully monitored by the main control panel and have a unique address switch. The

repeater panel has an integral power supply unit, a monitored sounder circuit output and a voltage free relay

contact output. A 24-character text message, used to describe the location of the repeater within the installation,

can be programmed at the main panel. The output circuits located within the repeater panel can also be

associated to the output groups, which will then operate as programmed within the cause & effect strategy.

Repeater Information can be programmed from the following locations:

! Using the panel menu, Repeater info is located at Set → Standard features → repeater info →

followed by the required output group number to be programmed.

! Using the VIPER software, Repeater Information is located at Edit →Standard features → Repeater

Information.

11.8 MOTHERBOARD INFORMATION

Not applicable to Vega LT control panel.

11.9 PRIORITY HEADER TEXT

Header text is used to describe the type of alarm that has activated on the control panel and is associated to the

alarm priority level. The header text can be customised to suite the installation requirements.

Priority Header Text can be programmed from the following locations:

! Using the panel menu, Header text is located at Set → Custom features → Header text → followed

by the required priority level to be programmed.

! Using the VIPER software, Priority and Header Text is located at Edit →Custom features → Priority

and Header Text.

The following Table 16 details the options available:

CUSTOM FEATURES – PRIORITY AND HEADER TEXT

Priority Text

Priority 0 EVACUATE

Priority 1 FIRE

Priority 2 ALERT

Priority 3 PRE-ALARM

Priority 4 FAULT

Priority 5 UNASSIGNED

Priority 6 UNASSIGNED

Priority 7 UNASSIGNED

Priority 8 UNASSIGNED

Priority 9 UNASSIGNED

Table 16: Priority Header Text

11.10 CUSTOM DEVICE TEXT

The device text is used to describe the type or model of device located on the detection loop and can be

customised to suite the installation requirements. For example to change the description of the input output

module to read Shop Unit.

Custom Device Text can be programmed from the following locations:

! Using the panel menu, Custom text is located at Set → Custom features → Custom text → followed

by the required text message number to be programmed.

! Using the VIPER software, Custom Device Text is located at Edit →Custom features → Custom

Device Text.

A maximum of 50 custom device text messages can be stored within the control panel memory for allocation to

the loop devices.

TM0081 Page 40 of 51 Issue 1.01

11.11 PLANT ALARM INFORMATION

The system can accommodate up to 64 non fire related Plant Alarm zones with each zone containing one or

more loop input type devices. The plant alarm information options allow the user to define the zone specific text

descriptor and are available from the following locations:

! Using the panel menu, Plant alarm info is located at Set → Custom features → Plant alarm info

followed by the required zone number.

! Using the VIPER software, Plant Alarm Information is located at Edit →Custom features → Plant

Alarm information.

The following Table 17 details the options available:

STANDARD FEATURES – ZONE INFORMATION

Option Function

Text message Plant Zone text, a 24-character text message, used to describe the location of the Plant Zone within the

installation or building.

T1

Acknowledge delay

Not applicable to Plant Zones

T2

Investigation delay

Not applicable to Plant Zones

BGU Override Not applicable to Plant Zones

Double knock

override

Not applicable to Plant Zones

Table 17: Custom Features – Plant Alarm Information

11.12 NETWORK INFORMATION

Refer to Plug in Options section of this manual.

TM0081 Page 41 of 51 Issue 1.01

12 PLUG IN OPTIONS – INSTALLATION AND COMMISSIONING

12.1 VEGA LOOP CARD - Part Number 44782-K074

Installation

1. Ensure that the control panel is powered down. Disconnect the stand-by battery and mains supply.

2. Install the 44782-K074 card into the next available fixing plug located on the BLC motherboard card as

shown in Figure 34.

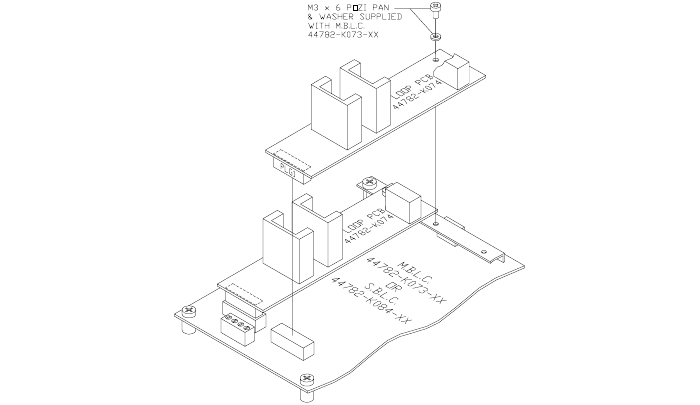

Figure 34: Loop Card Installation

3. Secure the card to the earth retaining bar using the single M3 fixing screw.

4. Ensure the loop card plug is fully inserted into the motherboard socket.

5. Connect the external detection loop cables to the terminals located on the new loop card as shown in

the Figure 6.

6. Power up the system. Apply mains supply first followed by the stand-by battery.

Set-up

1. Using the panel menu structure, locate the option ‘Loop quantity’. This can be found from the top-level

menu under:

Set → Standard features → Panel setup. Refer Table 10.

2. Increase the Loop quantity count.

3. Using the panel menu structure, locate the option Autolearn. This can be found from the top-level menu

under:

Set→ Loop config→ Autolearn. Refer Table 8.

4. Enter the loop number to Autolearn the new detection loop.

5. Upon completion of the loop Autolearn process, the panel will indicate a ‘logon fault’

6. Using the panel menu structure, locate the option ‘Accept logon count’. This can be found from the top-

level menu under:

Set→Loop config→ Accept logon count. Refer Table 8.

7. Check - the correct number of detectors attached to the new loop is recorded at the control panel. This

can be found using the panel menu structure; locate the option Single loop. This can be found from the

top-level menu under:

List→Loop devices→Single loop. Refer Table 7.

Using VIPER

1. The control panel is now ready to receive site-specific data.

2. Using the upload \ download software application, VIPER, download from the control panel to computer,

the site file information.

3. Using the computer, enter all relevant detector location text, zone information and assign any required

cause and effect evacuation strategy.

4. Save the site file information before uploading to the control panel.

TM0081 Page 42 of 51 Issue 1.01

12.2 REPEATER CARD - Part Number 44782-K076

Installation

1. Ensure that the control panel is powered down. Disconnect the stand-by battery and then the mains

supply.

2. Install the 44782-K076 card into the plug located on the motherboard card as shown in Figure 35.

Figure 35: Repeater Card Installation

3. Secure the card to the earth retaining bar using the single M3 fixing screw.

4. Ensure the repeater card plug is fully inserted into the motherboard socket.

5. Connect the external transmission cables to the terminals located on the repeater card as shown in

Figure 36 and 37.

Figure 36: Repeater Panel External Wiring - option 1

Figure 37: Repeater Panel External Wiring – option 2

6. Set the switches located within each unit as shown on the diagrams above.

7. Power up the system. Apply mains supply first followed by the stand-by battery.

TM0081 Page 43 of 51 Issue 1.01

Set-up

1. Using the panel menu structure, locate the option Install repeater. This can be found from the top-level

menu under:

Set → Standard features → Panel setup. Refer table 10.

2. Change the option to ‘Yes‘.

3. The main panel monitors active repeater panels attached to the system. The number of active repeater

panels has to be defined in the panel setup and is specified using the panel menu structure. Locate the

option Active repeaters. This can be found from the top-level menu under:

Set → Standard features → Panel setup. Refer table 10.

4. Enter the total number of active repeaters attached to the system.

Note, all passive repeaters attached to the main panel should be addressed at ‘0’. Active repeater

panels should be addressed in order from 1 to F. The address switch, SW 2 is located within the

repeater panel on card number 44782-K077-00.

12.3 PRINTER ASSEMBLY- Part Number VR0053

Installation

1. Ensure that the control panel is powered down. Disconnect the stand-by battery and then the mains

supply.

2. Open the panel outer door and remove the printer blanking plate from the outer door.

3. Install the VR0053 printer assembly as shown in Figure 38 using the fixings provided:

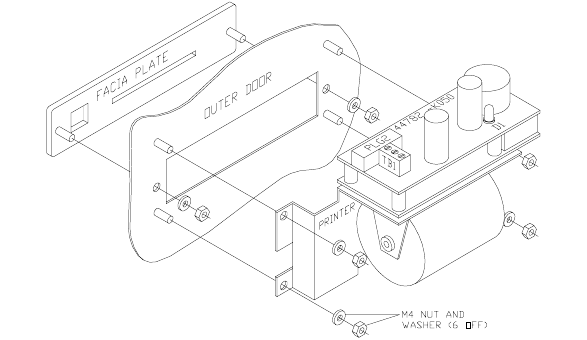

Figure 38: Printer Installation

4. Using the 16-way ribbon cable supplied, connect printer interface card 44782-K050 PLG 2 to the MCP

card 44782-K071 card PLG 6.

5. Using the cable supplied, connect the printer interface card supply terminals TB 1 marked 24V, 0v direct

to the 2.5A power supply output terminals.

6. Power up the system. Apply mains supply first followed by the stand-by battery.

7. Ensure that the Power On indicator LED D1 located on the printer interface card is illuminated.

8. Press the ‘paper feed’ button located on the fascia plate to ensure that the paper is running free within

the printer mechanism.

Set-up

1. Using the panel menu structure, locate the option Install printer. This can be found from the top-level

menu under:

Set → Standard features → Panel setup. Refer table 10.

2. Change the option to ‘Yes‘.

3. Locate the option Enable printer. This can be found from the top-level menu under:

Set → Printer status.

4. Change the available options to read:

! Printer Type = Thermal

! Printer status = Enabled

5. The printer will confirm that it is fully operational by printing ‘Printer installed’.

TM0081 Page 44 of 51 Issue 1.01

Paper Replacement

1. Open the panel outer door to gain access to the printer assembly.

2. Remove the paper pivot bar by unscrewing the knurled thumbscrew and withdrawing the paper pivot

bar.

3. Remove any old paper and the cardboard roller from the paper pivot bar and discard.

4. Locate the paper roll in the paper holder and insert the first 20-mm (approx.) of paper by hand in the slot

provided in the back of the printer assembly. Note, the paper is loaded the opposite way to the way it is

rolled and is automatically detected by the printer and fed through to the opposite side of the

mechanism.

5. Fasten paper pivot bar in position with the knurled thumbscrew.

6. Close the panel outer door and secure.

7. The event printer is now ready for use.

12.4 VEGANET NETWORK CARD - Part Number VN2107

Installation

1. Ensure that the control panel is powered down. Disconnect the stand-by battery and mains then the

supply.

2. Install the 29-020527-001 card using the fixings supplied above the MBLC card as shown in Figure 39.

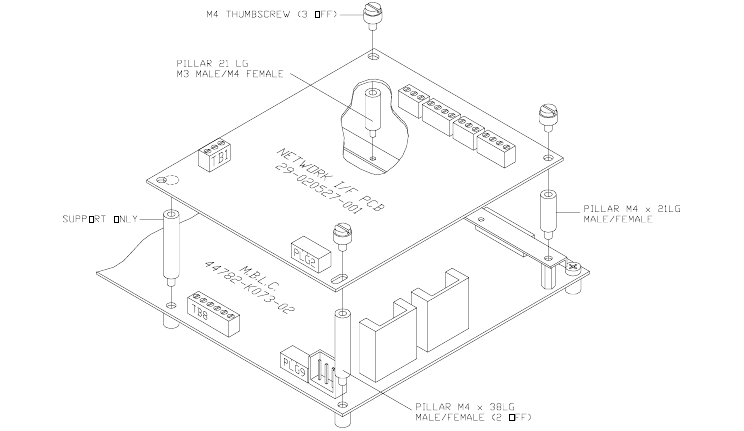

Figure 39: Network Interface Card Installation

3. Using the 10-way ribbon cable supplied with the network card, connect PLG 2 to the MBLC card PLG 9.

4. Connect the supply cables (5v, 0v) located at TB1 on the network card to the supply output terminals

located on the MBLC card at TB 8.

5. Connect the external network transmission cables to other panels located on the network as shown in

Figure 40.

TM0081 Page 45 of 51 Issue 1.01

Figure 40: VegaNET Network External Wiring

6. Set the panel address switches, SW 1 & SW 2 located on the network card as shown on Table 18.

Panel 1 Panel 2 Panel 3 Panel 32

SW1,SW2 1,0 2,0 3,0 0,2

Table 18: Panel Address Settings

7. Ensure that the following software EPROMS are installed in the MCP and Network cards:

! 44782-K071 IC 9 = P28185-1xx

! 29-020527-001 IC 9 = P01180-1xx

8. Power up the system. Apply mains supply first followed by the stand-by battery.

Set-up

1. Using the panel menu structure, locate the option Serial Port 1. This can be found from the top-level

menu under:

Set → Standard features → Panel setup. Refer table 10.

2. Change the option to ‘MARS/VDS Network‘.

TM0081 Page 46 of 51 Issue 1.01

12.5 CZN NETWORK CARD - Part Number VN2108

Installation

1. Ensure that the control panel is powered down. Disconnect the stand-by battery and mains then the

supply.

2. Install the 29-020527-001 card using the fixings supplied above the MBLC motherboard card as shown

in Figure 39.

3. Using the 10-way ribbon cable supplied with the network card, connect PLG 2 to the MBLC card PLG 9.

4. Connect the supply cables (5v, 0v) located at TB1 on the network card to the supply output terminals

located on the MBLC card at TB 8.

5. Connect the external network transmission cables to other panels located on the network as shown in

Figure 41.

Figure 41: CZN System VegaNET Network External Wiring

6. Set the panel address switches, SW 1 & SW 2 located on the network card as shown in Table 19..

Panel 1 Panel 2 Panel 3 Panel 32

SW1,SW2 1,0 2,0 3,0 0,2

Table 19: Network Card Address Settings

7. Ensure that the following software EPROMS are installed in the MCP and Network cards:

! 44782-K071 IC 9 = P28175-1xx

! 29-020527-001 IC 9 = P01160-1xx

8. Power up the system. Apply mains supply first followed by the stand-by battery.

Set-up

1. Using the panel menu structure, locate the option Serial Port 1. This can be found from the top-level

menu under:

Set → Standard features → Panel setup. Refer table 10.

2. Change the option to ‘CZN System‘.

TM0081 Page 47 of 51 Issue 1.01

13 MAINTENANCE

Maintenance of equipment external to the control panel will be detailed in the appropriate manufacturer’s

literature.

At weekly intervals a different fire detector or manual call point of the system should be tested to ensure that the

system is capable of operating under alarm conditions. Operation of the alarm sounders should be checked,

which also provides a regular reminder to those occupying the premises that there is a fire alarm system with a

particular sound. The test should be performed at a regular time to avoid confusion between a test and a

genuine fire condition.

To test the panel lights, audible buzzer and the verify the software installed within the control panel,

1. Enter Level 2 or 3.

2. From the Test menu select Test → Panel Test

3. Press the enter button (↵).

Make sure that all panel lights come on for five seconds and then go off and the audible buzzer sounds for five

seconds and then stops. The LCD display will perform a self-check and display the panel software serial

number. Check that the panel reverts to Level 1.

The back up batteries are maintenance free but should be replaced every 4-5 years.

The components of the control panel are designed to last for 15 years. All printed circuit boards are self-

monitoring and therefore should only be replaced as required.

13.1 ROUTINE MAINTENANCE

Routine maintenance should be carried out in accordance with BS 5839 Pt 1 section 6 or the relevant national

standard and any work necessary should be performed.

All performance checks undertaken should be recorded in a system logbook.

As a minimum, the following performance checks must be undertaken on each maintenance visit.

WARNING:

The static handling procedures must be adhered to and extreme caution must be exercised when

working inside the control panel due to the presence of mains voltage 230 V AC.

1. Remove dust and dirt from the panel exterior using a soft brush or a lint cloth. A solvent, which is

harmless to the finishes of metal and plastic, may be applied to more stubborn stains.

2. Examine the exterior of the enclosure for any signs of damage or loose cable glands and rectify any

faults found.

3. Remove any dust or dirt from the interior of the control panel using a soft brush or a vacuum cleaner.

4. Examine the printed circuit boards for signs of over-heating or damaged tracks. Replace any defective

items.

5. Examine the battery terminals for security and for signs of corrosion and replace or repair as required.

Refer to 3.5.7.

13.2 TEST MODE

To facilitate tests on the fire detection system the control panel can be set to operate in Test Mode using the

Test menu option. Refer to Table 9. When a detector or manual call point is triggered within the zone selected

for test, the programmed output groups are suppressed. The zone under test will be indicated on the LCD and

the test light will flash. The Zone light will operate momentarily during the activation of the loop device and will

automatically reset. Test mode is de-activated using the Test menu option.

TM0081 Page 48 of 51 Issue 1.01

14. PANEL AND LOOP DEVICE FAULT CODES

Fault codes Table 20 are used to provide engineer’s with additional information regarding the type of fault

generated by the control panel and are indicated on the LCD display in the bottom right hand corner. Refer to

Figure 42.

Figure 42: Fault Codes

Fault Code Description Further explanation

00 No Error Not applicable on Vega LT

01 Test Failed Electronic device test has failed. Refer Table 9

02 Device Missing Device removed from detection loop

03 Memory Failure Not supported on Vega LT

04 Type Changed Device type located on detection loop has altered

05 Contamination Fault Dirty detector

06 Local PSU Fault Fault on PSU connected to loop I/O modules

07 Loop O/P Short Circuit Fault on monitored output of loop module

08 Loop O/P Open Circuit Fault on monitored output of loop module

09 Loop I/P Short Circuit Fault on monitored input of loop module

10 Loop I/P Open Circuit Fault on monitored input of loop module

11 Power Failure Fault on supply connected to loop I/O modules

12 Device Low Level Low analogue value returned from loop device

13 Device High Level Not supported on Vega LT

14 Sub-Address Fault Not applicable on Vega LT

15 Address Fault ESP only – Head removed from addressable master base

16 Unspecified Error Not supported on Vega LT

17 Illegal Type Unrecognised device on detection loop

18 Sounder Short Circuit Fault on monitored output

19 Sounder Open Circuit Fault on monitored output

20 Motherboard Output Short Circuit Not applicable on Vega LT

21 Motherboard Output Open Circuit Not applicable on Vega LT

22 Motherboard Input Short Circuit Not applicable on Vega LT

23 Repeater Sounder Fault Active repeater panels only

24 Motherboard Input Open Circuit Not applicable on Vega LT

25 Remote PSU AC Fault Not applicable on Vega LT

26 Remote PSU Battery Fault Not applicable on Vega LT

27 Remote PSU Charger Fault Not applicable on Vega LT

28 Drift Flag Set Discovery device correct operating limits

29 Invalid Approval Code Not applicable on Vega LT

30 Invalid Site Address Not applicable on Vega LT

31 Sensitivity Mismatch Discovery mode setting does not match panel configuration

32 Discovery Write Failure Panel unable to configure device – Faulty device

Table 20: Fault Codes

TM0081 Page 49 of 51 Issue 1.01

15. FAULT DIAGNOSIS

Main Panel Messages

Message Possible Cause Action

Fail Safe Alarm The MBLC card has detected a fire alarm

condition but is unable to transmit the alarm

data to the MCP card. The MBLC operates a

hardwired fail safe line connected to the MCP

to indicate the Fail Safe Alarm.

Note: Under fail safe operation the MBLC

directly operates its own sounder and relay

outputs.

Reset the system.

If problem persists contact Technical Help

Line for further information.

Logon fault Device(s) found or lost on the loop(s) that

does not match the previously stored device

database. New devices added or removed

during commissioning. Faulty device, bad

loop connection or faulty loop card.

Replace faulty device or loop card. Check

external loop wiring. Check loop

configuration against as fitted installation

drawings. Refer section 10.4 and 10.5.

Config fault The actual devices attached to the detection

loop and logged onto the control panel do not

match the uploaded VIPER site file. OR

Operator has incorrectly changed a device

type in the Viper site file OR has added a

device that has not been logged onto the

detection loop.

Check the Viper site file against the control

panel loop listing. The device types in Viper

should match the actual devices attached to

the detection loop.

BLC * re-init,

Repeater * re-init,

The MBLC or Repeater panel at the address

* indicated has transmitted a message to the

MCP indicating that it is waiting to be

initialised.

The processor-reset button on the MBLC or

Repeater panel has been pressed.

The software on that MBLC or Repeater

panel has dropped out of program.

Switch off the control panel or repeater

panel and check connections to internal

circuit boards.

Repeater *

comms failure

The Repeater panel at that address *

indicated is not replying to messages from

the main panel.

Faulty communications device or faulty board

located within the panel.

Check communication cable wiring.

Check Repeater panel address switch

settings.

Replace faulty boards.

Repeater

Sounder fault

The Repeater panel has reported a sounder

short or open circuit fault on its external

wiring.

Note: The panel also reports a repeater

sounder fault during communications fault

with the Repeater panel.

Check sounder circuit wiring.

Check communication cable wiring.

Alarm during

autolearn re-learn

loop

During the autolearn process an alarm

occurred on a different detection loop. The

autolearn process was halted and did not

complete successfully.

Re-learn the specified detection loop.

Interrupt Fault –

Apollo only

The device alarm interrupt flag has been

raised on a detection loop, which has not

been maintained for enough consecutive

scans to generate an alarm condition. If this

occurs 5 times on the same loop by any

device within a 24 hour period the Interrupt

Fault is raised. Possible cause noise induced

on detection loop.

Check for faulty device located on the

detection loop.

Check loop cabling for induced noise.

If problem persists contact Technical Help

Line for further information.

Sync fault –

Apollo only

Faulty MBLC card Replace MBLC card.

TM0081 Page 50 of 51 Issue 1.01

Bad loop Count The quantity of loop cards located within the

control panel is different to that specified

within the panel set up option.

Faulty BLC or Loop card. OR

BLC Communications failure. OR

New BLC recently installed.

Replace faulty boards.

Check panel set-up (refer section 11.1) and

log the detection loop (refer section 10.4 &

10.5)

Device

Unregistered

A device has been reported by the MBLC

card, which does not appear in the panel

memory.

Device added to system without power down

or auto-learn.

Faulty device – possible device answering to

address that is not connected to the loop.

Check detection loop wiring against as

fitted system drawings.

Locate and replace faulty device.

Loop fault Open or short circuit on loop. Wiring problem,

Faulty loop card or device.

Check detection loop wiring. Replace faulty

loop card or device.

Double Address

fault

2 or more devices on a loop with the same

address. Wrongly addressed devices. Faulty

Device responding to wrong address.

Check detection loop wiring against as

fitted system drawings. Note: Base LEDs

operate on Apollo double addressed

devices.

Table 21: Panel Fault Diagnosis

Repeater Panel Messages

Message Cause Action

Polling Failure –

type 2 repeater

only

The repeater panel has failed to

communicate with main control panel.

Main panel is not addressing the repeater

panel correctly.

Repeater wrongly addressed or noise

induced on communication wiring.

Active repeaters not installed in panel set

up.

Check external wiring for induced noise.

Check Repeater panel address switch

settings.

Check panel set-up.

Repeater Off-line

– type 1 and 2

The repeater panel is not receiving data

from the main control panel.

Communication cable-wiring fault.

Faulty communications device or Faulty

board.

Repeaters not installed in panel set up

Check external wiring.

Check panel set-up.

Replace faulty cards.

Table 22: Repeater Panel Fault Diagnosis

16. RECOMMENDED SPARES LIST

Description Part Number

Box Assembly 43782-K143

Membrane Fascia 39155-K049

Master Control Processor (MCP) 44782-K071-03

Master Basic Loop Controller (MBLC) 44782-K073-02

Loop Card 44782-K074

LED Indication Card 44782-K170

Power Supply Unit 2.5 amp 28730-K002

Graphic LCD Display 43782-K141

Logo Plate (Blank) 50-100079-205

Harness MCP – MBLC 43682-K032

Harness MCP – MBLC 43682-K037

Table 23: Recommended Spares List

TM0081 Page 51 of 51 Issue 1.01

17. TECHNICAL SPECIFICATION

Model number LT 2000 LT 2001

Protocol Apollo Hochiki

Number of detection loops 1 1

Loop circuit load (maximum) 250mA 250mA

Devices supported S90, XP95, Discovery, Explorer ESP

Number of zone LED indications 16

Number of status LED indications 8

Number of Sounder circuits 2 - programmable

Sounder circuit (shared load) 1 A at 24V dc nominal

End of line unit 10 K ohms resistor

Number of auxiliary relays 2 x NC,C,NO volt free contacts - programmable

Auxiliary relay contact rating 1A at 24V dc

Design standard EN54 part 2 & 4

Panel dimensions (mm) 460mm (W) x 342mm (H) x 148mm (D)

Weight (no batteries) 8Kg

Knock outs 14 Top

Colour and finish Ash grey semi-gloss light textured

IP rating 30 (indoor use)

Operating temperature & humidity -5ºC to 40ºC. Max relative 93%

Emission BS EN50081-1:1992:part 1 Residential, Commercial and Light industry

Class B limits

Immunity BS EN50130-4: 1995: part 4 alarm systems: Electromagnetic compatibility

Product family standard: immunity requirements for components of fire,

intruder and social alarm systems

Power supply rating 2.5Amp at 24V dc

Mains operating voltage 110V to 230V ac – 50Hz to 60Hz

Battery supply (integral) 2 x 12V 12Ah

Battery standby with 40mA loop

load & 0.5A sounder alarm load

24Hr standby plus 0.5Hr during alarm

Buzzer for local audible indication Fire & System fault – continuous sound. Fault – intermittent sound using

piezoelectric buzzer operating at 60 dB (A) at 1 m

Common fault relay contact Normally On – 1 x NC and 1 x NO contacts

External fault input Internal switched 0V input

Access level 2 input Internal switched 0V input - allows keyswitch enable

Programmable MBLC input 7 Internal switched 0V inputs – Remote evacuate (default setting) or day

mode control or Isolate output groups

Programmable MBLC input 8 Internal switched 0V input – Day mode control (default setting) or Isolate

output groups or Remote evacuate

Number of repeater panels

supported

A maximum of 10 repeater panels - 6 with optional user controls

Repeater output driver card Part Number - 44782-K076

Repeater cable specification Screened twisted pair - Belden 9841 or similar

Repeater part number VR3000 or VR3000P

Network support CZN System or VegaNET Display System

Network card part numbers CZN - VN2108 & VegaNET – VN2107

Network cable specification 2 x Individually screened twisted pairs – Belden 9729 or similar

Printer type (optional) Thermal – Part Number VR0053

Detection loop specification Pirelli FP200 Gold™, MICC (Pyro™), Firetuff™ and Firecel™.

Detection loop length Cable length up to 1 km use 1.5 mm cross sectional area.

Cable length up to 2 km use 2.5 mm cross sectional area.

Control buttons Silence buzzer, Scroll alarms, Silence alarms, Reset, Delay override,

Evacuate, Numeric keypad and User cursors

Visual indications Alarm, Fire Output & Zones – Red LEDs ‘lights’

System fault, Disablement, Fault, Test, Fire output – Yellow LEDs ‘lights’

Power On – Green LED ‘light’

User access via numeric keypad

code entry (default passwords)

Level 1 – No password required

Level 2 – 7179

Level 3 – 7134

Table 22: Technical Specification
