A l a r m Manual

Model

KN-COSM-ICA

Model

KN-COSM-IBCA

Custom Assembled in China with U.S. and Foreign Components. Patents Pending

130 Esna Park Drive, Markham ON L3R 1E3

Consumer Hotline:

1-800-880-6788

w w w. k i d d e . c a

Maximum protection

only an Interconnectable System can offer:

Every floor... every living space... any place where a crisis could

begin, needs the added security of an interconnectable life safety

warning system! ANY unit that senses a problem automatically

triggers ALL units through-out the home immediately, allowing

extra time for escape.

Installing the Interconnectable System is simple:

Unlike competitive products, the Interconnectable System requires

no complex wiring or relay switches to separate alarms. Just direct

connect and you're done!

This Smoke & CO Alarm interconnects with up to 24 devices

directly. Use with Kidde Pro, Fyrnetics and Lifesaver Smoke

Alarms, including:

•1235CA Series •1285CA Series •PI2000CA •KN-COSM-ICA

•1275CA Series •PE120CA •HD135 •KN-COSM-IBCA

For more information about compatible interconnect units and their

functionality in an interconnect system, visit our web site at:

www.kidde.ca

SINGLE AND/OR MULTIPLE STATION

CARBON MONOXIDE ALARM

SINGLE AND/OR MULTIPLE STATION

SMOKE ALARM

SINGLE AND/OR MULTIPLE STATION

CARBON MONOXIDE ALARM

(model KN-COSM-IBCA only)

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 34

Thank you for purchasing the Kidde

Combination Smoke and Carbon Monoxide Alarm.

Model # KN-COSM-IBCA (with battery backup)

Model # KN-COSM-ICA (without battery backup)

This unit is suitable as a Single Station and/or Multiple

Station alarm (interconnects with up to 24 devices),

and has a five-year limited warranty.

IMPORTANT: This unit is only approved to

interconnect with the Kidde line of products. It is not

approved to interconnect with any other manufacturer’s

products.

Please take a few minutes to thoroughly read this

user’s guide, and save for future reference. Teach

children how to respond to the alarms, and that they

should never play with the unit.

Your Kidde Smoke/CO Alarm was designed to detect

both smoke and carbon monoxide from any source of

combustion in a residential environment. It is not

designed for use in a recreational vehicle (RV) or boat.

If you have any questions about the operation or

installation of your alarm, please call our toll free

Consumer Hotline at 1-800-880-6788.

The guide on Page 29 will help you determine the

correct location of safety products that will help keep

your home a safer place.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . 1

Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19

Alarm Removal . . . . . . . . . . . . . . . . . . . . . . 20

Battery Replacement . . . . . . . . . . . . . . . . . . 20-21

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 22

Carbon Monoxide Safety. . . . . . . . . . . . . . . 23-27

Fire Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 28-30

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-32

C o n t e n t s I n t r o d u c t i o n

1

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 2

32

I l l u s t r a t i o n s

I l l u s t r a t i o n s

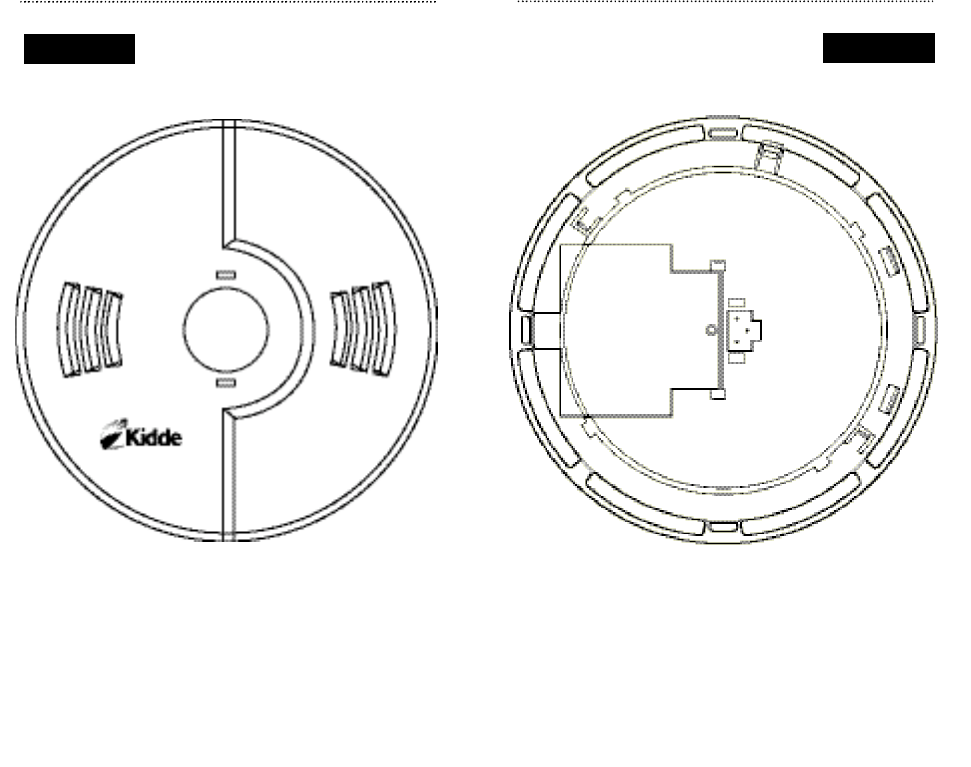

FRONT BACK

Red LED Light

Green LED Light

Test/Reset/

Hush®

Button

Alarm

Sounder

• Voice Message System that alerts user to the

following additional conditions:

• System announces, "Hush®mode on! Mode Hush®

activé!" when the unit is first put into Hush®Mode.

• System announces, "Hush®mode cancelled! Mode

Hush®annulé!" when unit resumes normal

operation after Hush®Mode has been cancelled.

• System announces, "Caution! Attention!" when the

unit has detected CO concentrations of 100 ppm or

higher.

• One "chirp" every 30 seconds indicates that the

alarm is malfunctioning. If this occurs call the

Consumer Hotline at 1-800-880-6788.

• Peak Level Memory Feature which alerts user when

the unit has detected CO concentrations of 100 ppm

or greater (see Page 17).

• Alarm Memory Feature that gives visual indication

when the alarm has sensed a hazardous condition.

• Green and red LED lights that indicate normal

operation and alarm status (see Page 18 for details).

• Tamper Resist Feature that deters children and others

from removing the alarm (see Page 19).

• For initial installation, model KN-COSM-IBCA

includes a pre-installed 9 V battery, and a battery

pull tab that allows for easy connection. Simply pull

the tab out, and the battery backup is connected!

• Model KN-COSM-IBCA is equipped with a battery

reminder tab that prohibits installation when a

battery is not present.

• Smoke alarm takes precedence when both smoke

and carbon monoxide are present.

• Seven (7) years after initial power up, this unit will

"chirp" every 30 seconds to indicate that it is time to

replace the alarm.

• Permanent, independent smoke and carbon

monoxide sensors (ionization and electrochemical).

• Powered by 120 V AC (60 Hz, 25 mA max) Quick-

Connect wire harness. Model KN-COSM-IBCA is

also equipped with a 9 V battery backup.

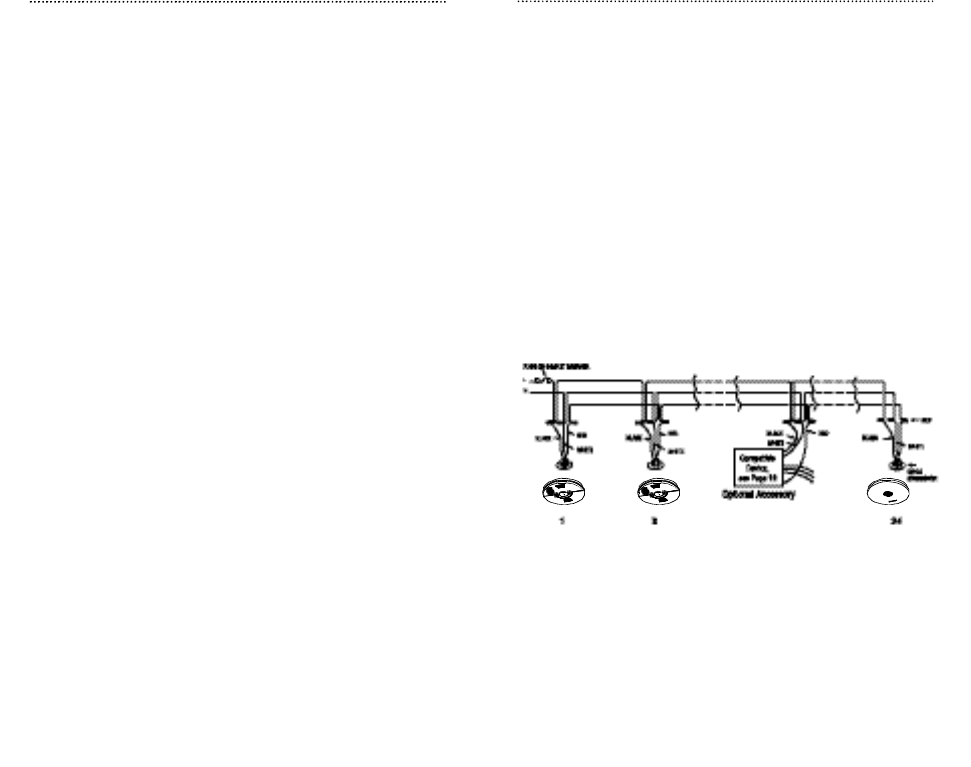

• Interconnectable to other alarms and safety

accessories (see Page 16 for details).

• Loud 85 decibel alarm.

•

Smoke Alarm

The smoke alarm constantly monitors the air for products of

combustion that are produced when something is burning or

smoldering. When smoke particles in the smoke sensor re a c h

a specified concentration, the alarm/voice message warn i n g

system will sound, accompanied by the flashing red LED light.

NOTE: The smoke alarm takes precedence when both

smoke and carbon monoxide are present.

WA R N I N G : PLEASE READ CAREFULLY AND T H O R O U G H LY

N F PA Standard 72 states: Life safety from fire in re s i d e n t i a l

occupancies is based primarily on early notification to

occupants of the need to escape, followed by the

a p p r opriate egress actions by those occupants. Fire warn i n g

systems for dwelling units are capable of protecting about

half of the occupants in potentially fatal fires. Victims are

often intimate with the fire, too old or young, or physically

or mentally impaired such that they cannot escape even

when warned early enough that escape should be possible.

For these people, other strategies such as pro t e c t i o n - i n - p l a c e

or assisted escape or rescue are necessary.

• Smoke alarms are devices that can provide early warn i n g

of possible fires at a reasonable cost, however, alarm s

have sensing limitations. Ionization type alarms offer a

b r oad range of fire sensing capabilities but are better at

detecting fast flaming fires than slow smoldering fire s .

Photoelectric alarms sense smoldering fires better than

flaming fires. Home fires develop in diff e rent ways and

a r e often unpredictable. Neither type of alarm

(photoelectric or ionization) is always best, and a

given alarm may not always provide warning of a fire.

• A battery powered alarm must have a battery of the

specified type, in good condition and installed pro p e r l y .

• AC powered alarms (without battery backup) will

not operate if the AC power has been cut off, such

as by an electrical fire or an open fuse.

• Smoke alarms must be tested regularly to make sure

the batteries and the alarm circuits are in good

operating condition.

F e a t u re s F e a t u r e s

76

• Smoke alarms cannot provide an alarm if smoke does

not reach the alarm. There f o re, smoke alarms may not

sense fires starting in chimneys, walls, on roofs, on the

other side of a closed door or on a diff e r ent floor.

• If the alarm is located outside the bedroom or on a

different floor, it may not wake up a sound sleeper.

• The use of alcohol or drugs may also impair one’s

ability to hear the smoke alarm. For maximum

protection, a smoke alarm should be installed in

each sleeping area on every level of a home.

Carbon Monoxide (CO) Alarm

The carbon monoxide (CO) alarm constantly monitors the

air for the presence of CO. It will alarm when there are

high levels of CO present, and when there are low levels

of CO present over a longer period of time (see Page 24

for alarm times). When a CO condition matches either of

these situations, the alarm/voice message warning system

will sound, accompanied by the flashing red LED light.

The carbon monoxide sensor uses an electro c hemical tech n o l o g y.

C AU T I O N : This alarm will only indicate the presence of

carbon monoxide gas at the sensor. Carbon monoxide gas

m ay be present in other are a s .

This device is designed to protect individuals from the

acute effects of carbon monoxide exposure. It will not

fully safeguard individuals with specific medical

conditions. If in doubt, consult a medical practitioner.

Installation of the device should not be used as a

substitute for proper installation, use, and maintenance

of fuel-burning appliances, including appropriate

ventilation and exhaust systems.

Individuals with medical problems may consider using

w a r ning devices which provide audible and visual signals

for carbon monoxide concentrations under 30 ppm.

Never ignore the sound of the alarm!

Determining what type of alarm has sounded is easy

with the Kidde Combination Smoke/CO Alarm. The

voice message warning system will inform you of the

type of hazard occurring.

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 6

Recommended Installation Locations

WARNING: This product is intended for use in

ordinary indoor locations of family living units.

It is not designed to measure compliance with

commercial or industrial standards.

IMPORTANT: This alarm must be mounted on a ceiling

or wall. It was not designed for use as a tabletop device.

Install only as directed.

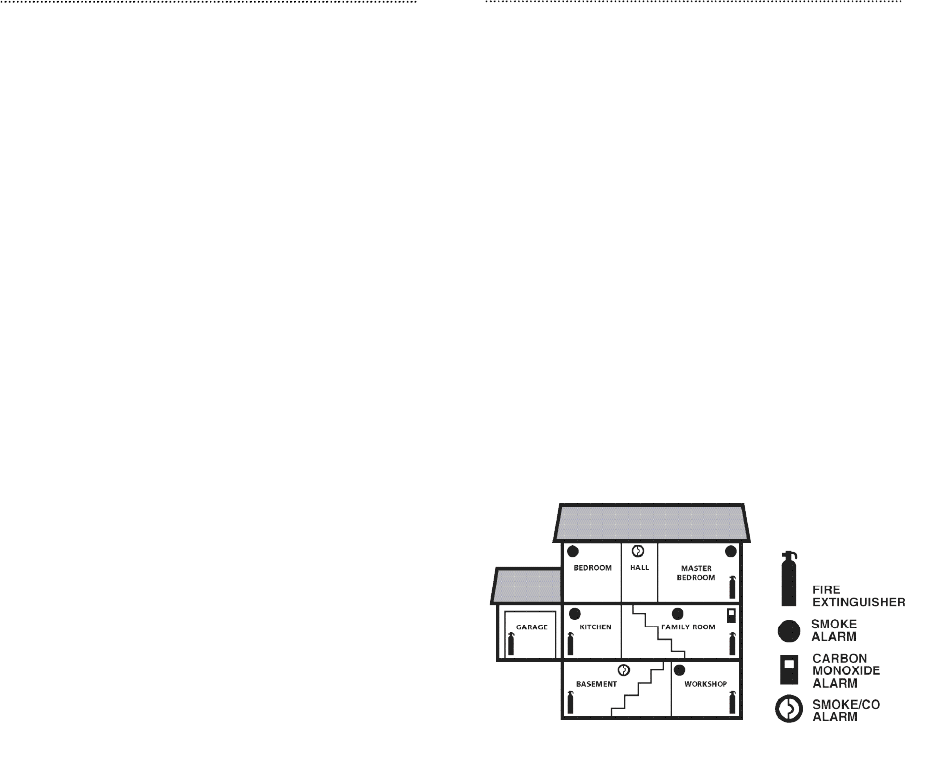

Kidde recommends the installation of a Smoke/CO

Alarm in the following locations. For maximum

protection we suggest an alarm be installed on each

level of a multilevel home, every bedroom, hallways,

finished attics and basements. Put alarms at both ends

of bedroom, hallway or large room if it is more than

9.1 m (30’) long. If you have only one alarm, ensure it

is placed in the hallway outside of the main sleeping

area, or in the main bedroom. Verify the alarm can be

heard in all sleeping areas.

Locate an alarm in every room where someone sleeps

with the door closed. The closed door may prevent

the alarm from waking the sleeper. Smoke, heat and

combustion products rise to the ceiling and spread

horizontally. Mounting the alarm on the ceiling in the

center of the room places it closest to all points in the

room.

Ceiling mounting is preferred in ordinary residential

construction. When mounting an alarm on the ceiling,

locate it at a minimum of 10 cm (4") from the side wall

(see Diagram A). If installing the alarm on the wall,

use an inside wall with the top edge of the alarm at a

minimum of 10 cm (4") and a maximum of

30.5 cm (12") below the ceiling (see Diagram A).

Locations To Avoid

WARNING: Do not install in garages, kitchens, furnace

rooms or bathrooms! Install at least 1.5 m (5’) away

from any fuel burning appliance.

Do not install within 0.9 m (3’) of the following:

The door to a kitchen, or a bathroom that contains a

tub or shower, forced air ducts used for heating or

cooling, ceiling or whole house ventilating fans, or

other high air flow areas. Avoid excessively dusty,

dirty or greasy areas. Dust, grease or household

chemicals can contaminate the alarm’s sensors, causing

it to not operate properly.

Place the alarm where drapes or other objects will not

block the sensor. Smoke and CO must be able to

reach the sensors to accurately detect these conditions.

Do not install in peaks of vaulted ceilings, “A” frame

ceilings or gabled roofs. Keep out of damp and humid

areas. Do not place near a diaper pail.

Install at least 30.5 cm (12”) away from fluorescent

lights as electronic noise may cause nuisance alarms.

Do not place in direct sunlight and keep out of insect

infested areas. Extreme temperatures will effect the

sensitivity of the Smoke/CO Alarm. Do not install in

areas where the temperature is colder than

4.4°C (40°F) or hotter than 37.8°C (100°F). Do not

install in areas where the relative humidity (RH) is

greater than 85%. Place away from doors and

windows that open to the outside.

Sloped Ceilings

Install Smoke Alarms on sloped, peaked or cathedral

ceilings at, or within 0.9 m (3’) of the highest point

(measured horizontally). Smoke alarms in rooms with

ceiling slopes greater than 0.3 m - 2.4 m (1’ to 8’)

horizontally should be located on the high side of the

room. Do not place the alarm in the peak of an “A”

frame type ceiling (see Diagram B).

Mobile Homes

Mobile homes built within the last five to seven years

are designed to be energy efficient. Install Smoke/CO

alarms as recommended above (refer to Recommended

Installation Instructions and Diagram A).

In mobile homes that are not well insulated, extreme

heat or cold can be transferred from the outside to the

inside through poorly insulated walls and roof. This

may cause a thermal barrier, which can prevent smoke

from reaching an alarm mounted on the ceiling. In

such mobile homes, install the Smoke/CO Alarm on an

inside wall with the top edge of the alarm at a

minimum of 10 cm (4”) and a maximum of

30.5 cm (12”) below the ceiling (see Diagram A). If

you are not sure about the insulation in your mobile

home, or if you notice that the outer walls and ceiling

are either hot or cold, install the alarm on an inside

wall only!

I n s t a l l a t i o n I n s t a l l a t i o n

1110

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 10

Wiring

Wiring Requirements:

•This Smoke/CO Alarm should be installed on a CSA

listed or recognized junction box. All connections

should be made by a qualified electrician and must

conform to codes having jurisdiction in your area.

•The appropriate power source is 120 V AC Single

Phase supplied from a non-switchable circuit, which

is not protected by a ground fault interrupter.

•The alarm should not be operated on power derived

from a square wave or modified square wave

inverter. These power sources produce high peak

voltages that will damage the alarm.

• Smoke alarms are not to be used with detector

guards unless the combination (alarm and guard) has

been evaluated and found suitable for that purpose.

Wiring For AC Quick-Connect Harness:

CAUTION: Turn off the main power to the circuit

before wiring the alarm.

• For alarms that are used as single station, do not

connect the red wire to any t h i n g. Leave the red wire

insulating cap in place to make certain that the red wire

cannot contact any metal parts or the electrical box.

•When alarms are interconnected, all interconnected

units must be powered from a single circuit.

•A maximum of 24 Kidde safety products may be

interconnected in a multiple station arrangement:

Limit of 12 smoke alarms and/or 18 alarms total

(smoke, CO, Smoke/CO Combination, heat, etc.).

This Smoke/CO Combination alarm is counted as a

smoke alarm when determining the maximum

number of units on an interconnect line. With 18

alarms interconnected, it is still possible to

interconnect up to a total of 6 remote signaling

I n s t a l l a t i o n I n s t a l l a t i o n

1312

devices and/or relay modules (see Page 16 for

details on interconnecting Kidde devices).

•The maximum wire run distance between the first

and last unit in an interconnected system is 305 m

(1000’).

•Figure 1 illustrates interconnection wiring. Improper

connection will result in damage to the alarm, failure

to operate, or a shock hazard.

•Make certain alarms are wired to a continuous (non-

switched) power line.

NOTE: Use standard CSA listed household wire

(18 gauge or larger as required by local codes) available

at all electrical supply stores and most hardware stores.

15

Mounting

C AU T I O N : This unit is sealed. The cover is not re m o vabl e .

• Seven (7) years after initial power up, this unit will "chirp"

every 30 seconds to indicate that it is time to replace the

a l a r m. After seven years, the device may no longer detect

carbon monoxide accurately and should be re p l a c e d

immediately. To help identify the date to replace the unit,

a label has been affixed to the side of the alarm. Wr i t e

the "Replace by" date (7 years from power up) in

p e rmanent marker on the label. Remove the mounting

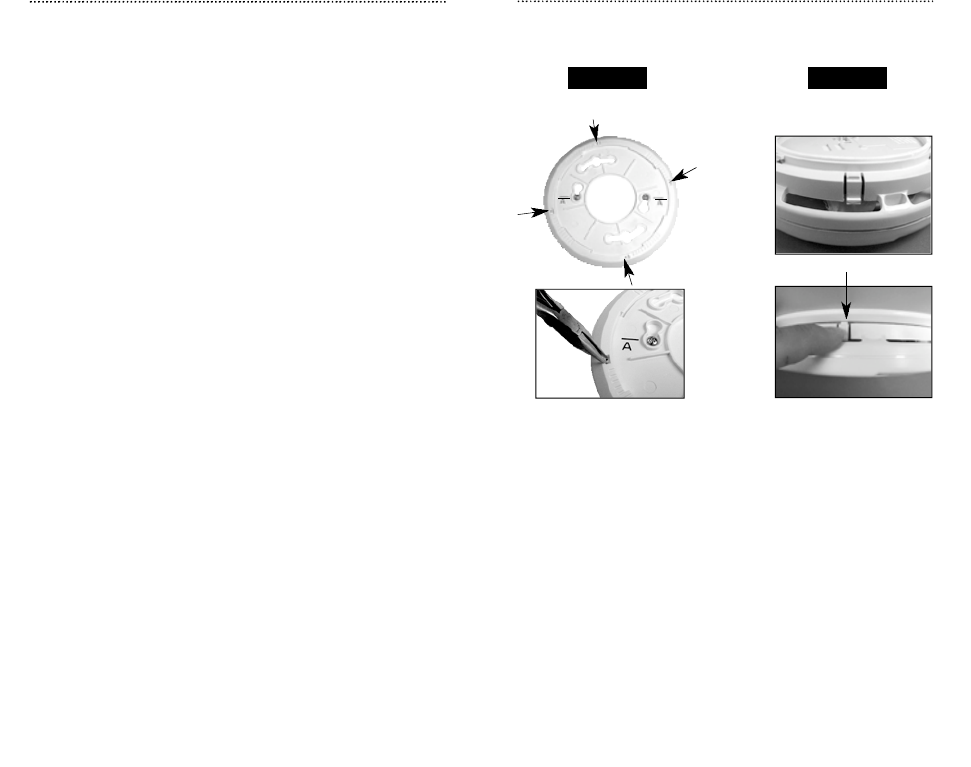

plate from the back of the alarm by holding the mounting

plate and twisting the alarm in the direction indicated by

the “OFF” arrow on the alarm cover.

• After selecting the proper Smoke/CO alarm location as

described on Pages 8-10, and wiring the AC Quick-

Connect wire harness as described in Wi ri n g, attach the

mounting plate to the electrical box. To ensure

aesthetic alignment of the alarm with the hallway, or

wall, the "A" line on the mounting plate must be

parallel with the hallway when ceiling mounted, or

horizontal when wall mounted.

• Pull the AC Quick-Connect wire harness through the

center hole in the mounting bracket and secure the

bracket, making sure that the mounting screws are

positioned in the small ends of the keyholes before

t i g h t e n i n g .

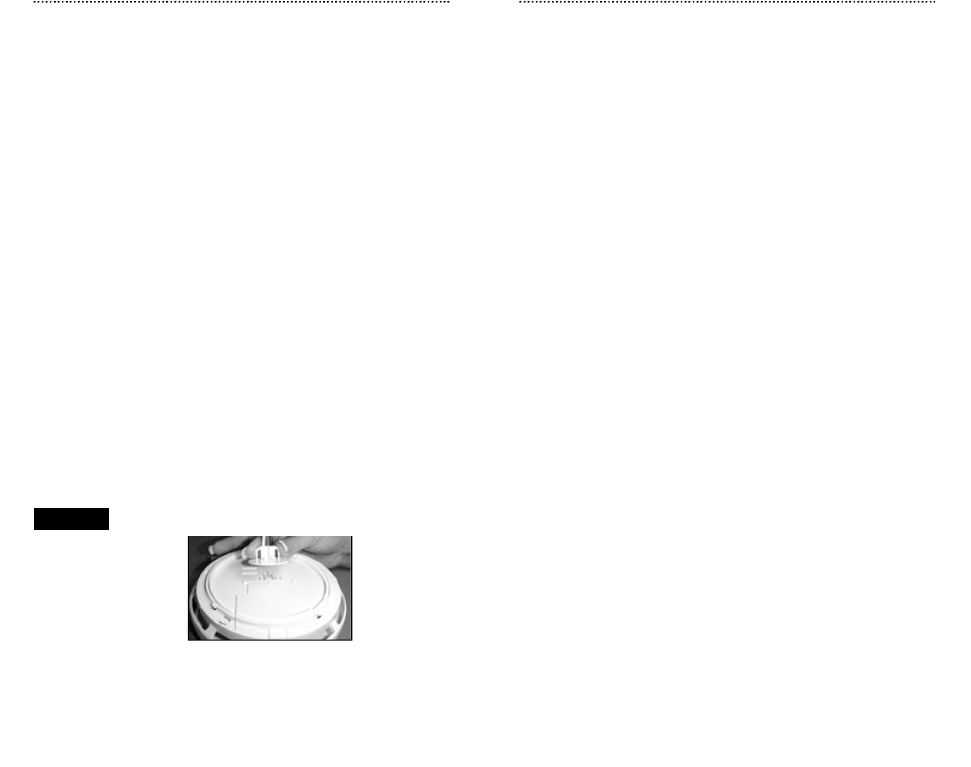

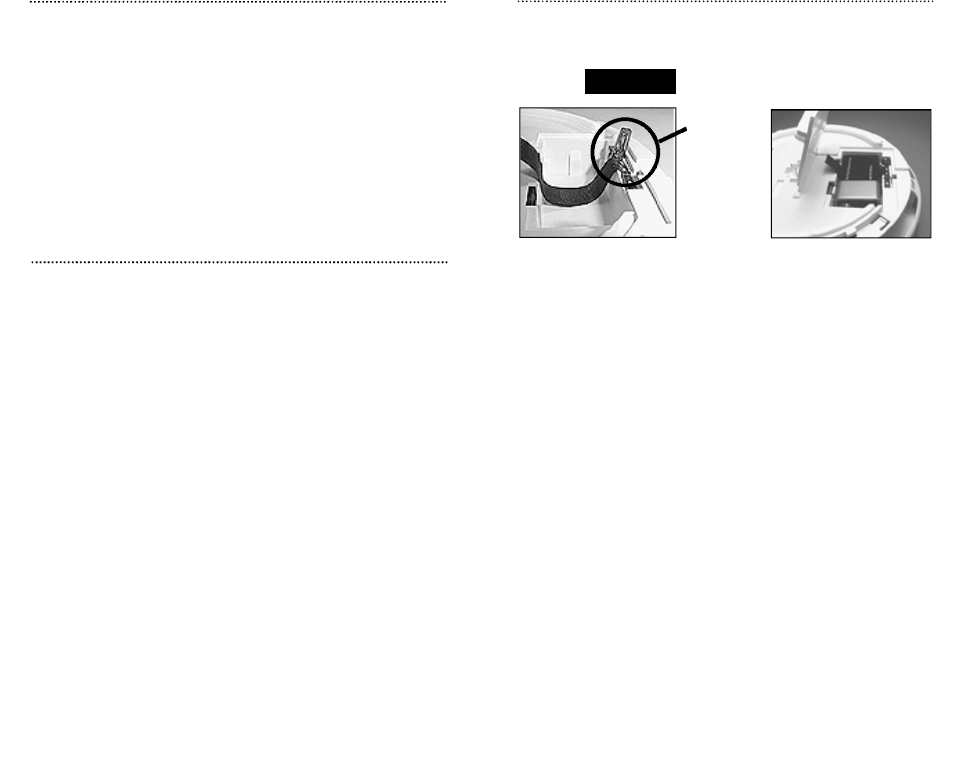

• Plug the AC Quick-Connect wire harn e s s into the back

of the alarm (see Figure 2), making sure that the locks on

the connector snap into place. Push the excess wire back

into the electrical box through the hole in the center of

the mounting plate.

I n s t a l l a t i o n I n s t a l l a t i o n

14

•Install the alarm on the mounting plate and rotate

the alarm in the direction of the “ON” arrow on the

cover until the alarm ratchets into place (this

ratcheting function allows for aesthetic alignment).

Note: The alarm will mount to the bracket in 4

positions (every 90 degrees).

• Turn on the AC power. The green AC Power On

Indicator should be lit when the alarm is operating

from AC power.

•For model KN-COSM-IBCA only, pull the Battery

Pull Tab (yellow tab protruding from unit)

completely out of unit. This will automatically

connect the battery.

Testing

CAUTION: Due to the loudness (85 decibels) of the

alarm, always stand an arms length away from the unit

when testing.

The Test/Reset/Hush®button has four purposes - it

tests the unit’s electronics, resets the CO alarm,

activates the Hush®feature, and activates the Peak

Level Memory feature.

After installation, test the unit’s electronics by pressing

the Test/Reset/Hush®button for five seconds. A series

of beeps will sound, followed by the message,

"Fire! Feu!" then another series of beeps and the

message, "Carbon Monoxide! Monoxyde de carbone!"

followed by 4 additional short beeps.

The unit needs to be tested weekly! If at anytime it

does not perform as described, verify that the power is

connected correctly and that the battery is fresh. Clean

any dust or other buildup on the unit. If it still does

not operate properly, call the Consumer Hotline at

1-800-880-6788.

FIGURE 2 ATTACHING THE AC QUICK-CONNECT WIRE HARNESS

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 14

The Hush®feature can be used repeatedly until the air

has been cleared of the condition causing the alarm.

While the unit is in Hush®mode, pushing the

Test/Reset/Hush®button on the alarm will also end the

Hush®period.

NOTE: Dense smoke will override the Hush®control

feature and sound a continuous alarm.

CAUTION: Before using the alarm Hush®feature,

identify the source of the smoke and be certain a safe

condition exists.

Reset Feature

If the the Smoke/CO Alarm is sounding a CO alarm,

pressing the Test/Reset/Hush®button will silence the

alarm. If the CO condition that caused the alert

continues, the alarm will reactivate. Reactivation times

depend on the amount of CO present (see Page 24).

Peak Level Memory

If the CO sensor has detected a CO level of 100 PPM

or higher since last reset, it will be recorded by the

Peak Level Memory function. To access the Peak Level

Memory, press the Test/Reset/Hush®button. If a

reading of 100 PPM or higher has been recorded, the

unit will announce, "Caution! Attention!" If you’ve

been away from home, this feature allows you to

check if there was a CO reading of 100 or higher

during your absence. Pushing the Test/Reset/Hush®

button resets the memory. The memory is also reset

when the unit loses power.

Interconnect Feature

IMPORTANT: This unit is only approved to

interconnect with the Kidde line of products. It is not

approved to interconnect with any other manufacturer's

products.

•When compatible smoke alarms (1235CA, 1275CA,

1285CA, PE120CA, PI2000CA) and heat alarms

(HD135F) are interconnected to this alarm, they will

only respond to a smokerelated event.

•When mixing compatible models with battery

backup (1275CA, 1285CA, PE120CA, PI2000CA,

HD135F, KN-COSM-IBCA) with models without

battery backup (1235CA, KN-COSM-ICA), be advised

that the models without battery backup will not

respond during an AC power failure.

For more information about compatible interconnect

units and their functionality in an interconnect system,

visit our web site at: www.kidde.ca

Hush®Control Feature

The Hush®feature has the capability of temporarily

desensitizing the smoke alarm circuit for about

10 minutes. This feature is to be used only when a

known alarm condition, such as smoke from cooking,

activates the alarm. You can put the Smoke/CO Alarm

in Hush®mode by pushing the Test/Reset/Hush®

button. If the smoke is not too dense, the alarm will

silence immediately, verbally announce, "Hush®mode

on! Mode Hush®activé!", and the green LED will flash

every 2 seconds for approximately 10 minutes. This

indicates that the smoke alarm is in a temporarily

desensitized condition. The alarm will automatically

reset after approximately 10 minutes. When the unit

returns to normal operation after being in Hush®

mode, it will verbally announce, "Hush®mode

cancelled! Mode Hush®annulé!" and sound the alarm

if smoke is still present.

O p e r a t i o n O p e r a t i o n

1716

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 16

Tamper Resist Feature

To make the Smoke/CO alarm somewhat tamper

resistant, a tamper resist feature has been provided.

Activate the tamper resist feature by breaking off the

four posts in the square holes in the mounting plate

(see Figure 3A). Rotate the alarm onto the mounting

plate until you hear the tamper resist tab snap into

place, locking the alarm.

Using the tamper resist feature will deter children and

others from removing the alarm. To remove the alarm,

press on the tamper resist tab, and rotate the alarm off

of the mounting plate (see Figure 3B).

LED Indicators

Red LED

The Red LED flashes in conjunction with the alarm.

The red LED will flash during a smoke alarm, a CO

alarm, a Low Battery Mode “chirp” and a Unit Error

Mode “chirp.”

Green LED

The green LED will flash under the following

conditions:

In Standby Condition (powered by AC and battery

backup) the green LED will be constantly on indicating

that 120 V AC power is being delivered to the alarm. It

will breifly flicker every 30 seconds when a CO

reading is taken.

For model KN-COSM-IBCA only, in Standby Condition

( p o w e r ed only by battery backup) the green LED will

flash every 5 seconds.

In Alarm Memory Condition the green LED will flash

every second signifying that the alarm has sensed a

smoke or CO hazard. It will continue to flash every

second until the Test/Reset/Hush®button is pressed to

reset the alarm. When interconnected alarms cease to

sound, this flashing green LED indicates the originating

alarm that triggered all the others in the circuit, thus

reducing the time spent troubleshooting.

While in Hush®Mode, the green LED will flash every 2

seconds.

O p e r a t i o n O p e r a t i o n

1918

FIGURE 3A FIGURE 3B

A

L o c a t i o n

of Posts

A

TAMPER RESIST FEATURE

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 18

21

If the tamper resist feature has been activated, refer to

tamper resist feature description on page 19 for

removal instructions.

Remove the alarm from the mounting plate by rotating

the alarm in the direction of the “OFF” arrow on the

cover. To disconnect the AC Quick-Connect wire

h a rn e s s, squeeze the locking arms on the sides while

pulling the connector away from the bottom of the

alarm (see Page 14, Figure 2).

For model KN-COSM-IBCA only.

If any form of battery failure is detected, the red LED

light will flash and the unit will “chirp” one time,

followed by the warning message, "Low Battery! Pile

faible!" This cycle will occur once every minute, and

will continue for at least 7 days.

If the red LED light flashes along with a “chirp” every

30 seconds, and is not followed by the voice message,

"Low Battery! Pile faible!" as described above, the unit

has malfunctioned. Call our toll free Consumer Hotline

at 1-800-880-6788 for instructions on how to return the

unit.

CAUTION: This unit is sealed. The cover is not

removable.

To replace the battery you must first remove the alarm

from the mounting plate by following the Alarm

Removal instructions above. After the alarm has been

removed, you can open the battery door and re p l a c e

the battery. Battery installation instructions are pro v i d e d

on the inside of the battery door.

When installing the battery, press the battery reminder

tab down into the battery compartment and install the

battery (see Figure 4).

Alarm Removal

20

Battery Replacement

B a t t e r y Replacement

CAUTION! If the battery reminder tab is not held down

in the battery compartment by the battery, the battery

door will not close, the AC Quick-Connect wire harness

will not attach to the alarm, and the alarm will not

attach to the mounting plate.

After changing the battery, reconnect the alarm and

test by using the Test/Reset/Hush®button, and check

that the green LED is on.

Replace battery with one of the following approved

brands:

Duracell MN1604 or MX1604

Energizer 522

Ultralife U9VL-J

These batteries can be purchased at your local retailer.

WARNING! Use only the batteries specified. Use of

different batteries may have a detrimental effect on the

Smoke/CO alarm. A good safety measure is to replace

the battery at least once a year,or at the same time you

change your clocks for daylight saving time.

Constant exposure to high or low humidity, or

temperature may reduce battery life.

Battery

tab

FIGURE 4 BATTERY REPLACEMENT

(For model KN-COSM-IBCA only)

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 20

General CO Information

Carbon monoxide (CO) is a colorless, odorless, and

tasteless poison gas that can be fatal when inhaled. CO

inhibits the blood’s capacity to carry oxygen.

Symptoms of CO Poisoning

The following symptoms are related to carbon

monoxide poisoning and should be discussed with ALL

members of the household:

Mild Exposure: Headaches, running nose, sore eyes,

often described as "flu"-like symptoms.

Medium Exposure: Dizziness, drowsiness, vomiting.

Extreme Exposure: Unconsciousness, brain damage,

death.

The above levels of exposure relate to healthy adults.

Levels differ for those at high risk. Exposure to high

levels of carbon monoxide can be fatal or cause

permanent damage and disabilities. Many cases of

reported carbon monoxide poisoning indicate that

while victims are aware they are not well, they become

so disoriented they are unable to save themselves by

either exiting the building, or calling for assistance.

Also, young children and household pets may be the

first affected. Familiarization with the effects of each

level is important.

To keep this Smoke/CO Alarm in peak condition:

• Verify the unit's alarm and LED lights operation by

pushing the Test/Reset/Hush®button once a week.

•Remove the unit from mounting plate and vacuum

the alarm cover and vents with a soft brush

attachment at least once a year to remove dust and

dirt. Reinstall immediately after cleaning and then

test using the Test/Reset/Hush®button.

•Never use detergents or other solvents to clean the

unit.

• Avoid spraying air fresheners, hair spray, or other

aerosols near the Smoke/CO Alarm.

Do not paint the unit. Paint will seal the vents and

interfere with the sensor’s ability to detect smoke and

CO. Never attempt to disassemble the unit or clean

inside. This action will void your warranty.

Move the Smoke/CO Alarm to another location prior to

performing any of the following:

•Staining or stripping wood floors or furniture

•Painting or wall-papering

•Using adhesives

Storing the unit in a plastic bag during any of the

above projects will protect the sensors from damage.

WARNING: Reinstall the Smoke/CO Alarm as soon as

possible to assure continuous protection.

When household cleaning supplies or similar

contaminants are used, the area must be well

ventilated. The following substances can affect the CO

sensor and may cause false readings and damage to

the sensor: Methane, propane, iso-butane, iso-

propanol, ethyl acetate, hydrogen sulfide, sulfide

dioxides, alcohol based products, paints, thinner,

solvents, adhesives, hair spray, after shave, perfume,

and some cleaning agents.

Carbon Monoxide Safety

22 23

M a i n t e n a n c e

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 22

Possible Sources of CO

CO can be produced when burning any fossil fuel, such

as gasoline, propane, natural gas, oil and wood. It can

be produced by any fuel-burning appliance that is

malfunctioning, improperly installed, or not ventilated

c o r rectly, such as:

• Fu rnaces, gas ranges/stoves, gas clothes dryers, water

heaters, portable fuel burning space heaters,

f i rep laces, wood-burning stoves and certain

swimming pool heaters.

• Blocked chimneys or flues, back drafts and changes

in air pre s s u re, corroded or disconnected vent pipes,

loose or cracked furnace exchangers.

• Vehicles and other combustion engines running in an

open or closed garage, attached or near a home.

•C h a rco al/gas grills and hibachis in an enclosed are a .

Carbon Monoxide Safety Carbon Monoxide Safety

24 25

Initial carbon monoxide poisoning symptoms are

similar to the flu with no fever and can include

dizziness, severe headaches, nausea, vomiting and

disorientation. Everyone is susceptible, but experts

agree that unborn babies, pregnant women, senior

citizens and people with heart or respiratory problems

are especially vulnerable. If symptoms of carbon

monoxide poisoning are experienced, seek medical

attention immediately. CO poisoning can be

determined by a carboxyhemoglobin test.

CO Sensor Response Times

The CO sensor meets the alarm response time

requirements as follows:

At 70 PPM, the unit must alarm within 60-240 minutes.

At 150 PPM, the unit must alarm within 10-50 minutes.

At 400 PPM, the unit must alarm within 4-15 minutes.

NOTE: This carbon monoxide alarm is designed to

detect carbon monoxide gas from ANY source of

combustion. It is NOT designed to detect any other

gasses.

Fire departments, most utility companies and HVAC

contractors will perform CO inspections. Some may

charge for this service. It’s advisable to inquire about

any applicable fees prior to having the service

performed. Kidde will not pay for, or reimburse, the

owner or user of this product, for any repair or

dispatch calls related to the alarm sounding.

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 24

2726

The fo l l owin g conditions can result in transient CO

s i t u a t i o n s :

Excessive spillage or reverse venting of fuel-burn i n g

appliances caused by:

•outdoor ambient conditions, such as wind direction

and/or velocity, including high gusts of wind, and

insufficient draft in the vent pipes;

•negative pressure differential resulting from the use

of exhaust fans;

•simultaneous operation of several fuel-burning

appliances competing for limited internal air;

•loose vent pipe connections from fuel-fired

appliances;

•obstructions, or unconventional vent pipe designs

that can amplify the above situations;

•poorly designed or maintained chimneys and/or

vents;

Extended operation of unvented fuel-burning devices

(range, oven, fireplace, etc.);

Temperature inversions that can trap exhaust gasses

near the ground; and a

Car idling in an open or closed attached garage, or

near a home.

Every year, have the heating system, vents, chimney

and flue inspected and cleaned by a qualified

technician. Always install appliances according to

manufacturer’s instructions and adhere to local building

codes. Most appliances should be installed by

professionals and inspected after installation. Regularly

examine vents and chimneys for improper connections,

visible rust, or stains, and check for cracks in furnace

heat exchangers. Verify that the color of flame on pilot

lights and burners is blue. A yellow or orange flame is

a sign that the fuel is not burning completely. Teach

all household members what the alarm sounds like and

how to respond in an emergency.

Carbon Monoxide Safety

Carbon Monoxide Safety

Carbon Monoxide Alarm Procedure

If alarm signal sounds 4 quick beeps, 5 seconds off:

1) Immediately move to fresh air - outdoors or by an

open door or window. Check that all persons are

accounted for. Do not re-enter the premises or

move away from the open door/window until

emergency services responders have arrived, the

premises have been aired out, and your alarm

remains in its normal operating condition.

2) Call your emergency local service

(fire deptartment or 911).

Never restart the source of a CO problem until it has

been corrected. NEVER IGNORE THE SOUND OF THE

ALARM!

PHONE NUMBER

WARNING: Actuation of the CO Alarm

indicates the presence of Carbon Monoxide

(CO) which can KILL YOU.

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 26

2928

•Go to a predetermined meeting place. When two

people have arrived, one should leave to call 911

from a neighbor’s home, and the other should stay

to perform a head count.

• Do not re-enter until fire officials say that it is safe to do so.

• There are situations where a smoke alarm may not

be effective to protect against fire as stated in the

NFPA Standard 72. For instance:

- smoking in bed;

- leaving children unsupervised;

- cleaning with flammable liquids, such as gasoline.

Fire Prevention

Never smoke in bed, or leave cooking food

unattended. Teach children never to play with

matches or lighters! Train everyone in the home to

recognize the alarm pattern, voice message warning

and to leave the home using their escape plan when

it’s heard. Be prepared to stop, drop and roll if clothes

catch on fire, and to crawl low under smoke. Install

and maintain fire extinguishers on every level of the

home and in the kitchen, basement and garage. Know

how to use a fire extinguisher prior to an emergency.

Second level and higher occupied rooms with

windows, should have an escape ladder.

Escape Plan

Familiarize everyone with the sound of the smoke alarm

and train them to leave the home when they hear it.

Practice a fire drill at least every six months, including fire

drills at night. Ensure that small children hear the alarm

and wake when it sounds. They must wake up in order

to execute the escape plan. Practice allows all occupants

to test your plan before an emergency. You may not be

able to reach your children. It is important they know

what to do. Know two ways out of every room (door &

window) and identify a meeting place outside the home

w h e r e everyone will gather once they have exited the

residence. When two people have reached the meeting

place, one should leave to call 911 while the second

person stays to account for additional family members.

Smoke Alarm Procedure

Smoke alarms are designed to minimize false alarms.

Cigarette smoke will not normally set off the alarm,

unless it’s blown directly into the alarm. Combustion

particles from spills or broiling may set off the alarm if

located too close to the cooking area. If the alarm

sounds, check for fires first. If a fire is discovered

follow these steps. Become thoroughly familiar with

these steps, and review them with all family members.

• Alert small children in the home.

•Leave immediately using one of your planned

escape routes (see above).

•Before opening inside doors look for smoke seeping

through the edges. Feel with the back of your hand

- if the door is hot use your second exit. If you feel

it’s safe, open the door very slowly and be prepared

to close it immediately if smoke and heat rush in.

•If the escape route requires going through smoke,

crawl low under the smoke where the air is clearer.

F i r e Safety

F i r e Safety

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 28

5 Year Limited Warranty

Kidde warrants that the enclosed alarm (but not the

battery) will be free from defects in material and

workmanship or design under normal use and service

for a period of five years from the date of purchase.

The obligation of Kidde under this warranty is limited

to repairing or replacing the alarm or any part w h i c h

we find to be defective in material, workmanship or

design, free of charge, upon sending the alarm with

proof of date of purchase, postage and return postage

prepaid, to: Kidde, Customer Service Department, 130

Esna Park Drive, Markham ON L3R 1E3.

This warranty shall not apply to the alarm if it has

been damaged, modified, abused or altered after the

date of purchase or if it fails to operate due to

improper maintenance or inadequate AC or DC power.

Any implied warranties arising out of this sale,

including but not limited to the implied warranties of

description,merchantability and fitness for a particular

purpose, are limited in duration to the above warranty

period. In no event shall Kidde be liable for loss of

use of this product or for any indirect, special,

incidental or consequential damages, or costs, or

expenses incurred by the consumer or any other user

of this product, whether due to a breach of contract,

negligence, strict liability in tort or otherwise. Kidde

shall have no liability for any personal injury, property

damage or any special, incidental, contingent or

consequential damage of any kind resulting from gas

leakage, fire or explosion.

Since some provinces do not allow limitations of the

duration of an implied warranty or do not allow the

exclusion or limitation of incidental or consequential

damages, the above limitations or exclusions may not

apply to you. While this warranty gives you specific

legal rights, you may also have other rights which vary

from province to province.

Wa r r a n t y

Additional Recommendations

Required number of smoke alarms: Smoke alarms

should be installed outside of each separate sleeping

area in the immediate vicinity of the bedrooms and on

each additional story of the family living unit (home),

including basements.

Some jurisdictions require that in new construction, a

smoke alarm be installed in each sleeping room.

Check with local officials for specific regulations

concerning your situation.

The required number of smoke alarms (protected areas

mentioned above) might not be reliable enough to

provide early warning for unprotected areas that are

separated by a door. For this reason, it is

recommended that the householder consider the use of

additional smoke alarms for those unprotected areas,

for increased protection. Additional areas include the

basement, bedrooms, dining room, furnace room,

utility room, and hallways not protected by the

required number of smoke alarms.

The installation of smoke alarms in kitchens, attics

(finished or unfinished), or garages is not normally

recommended, as these locations occasionally

experience conditions that can result in improper

operation.

F i r e Safety

30 31

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 30

N o t e s

33

Also, Kidde makes no warranty, express or implied,

written or oral, including that of

merchantability or fitness for any particular purpose,

with respect to the battery.

The above warranty may not be altered except in

writing signed by both parties hereto.

This Kidde Combination Smoke & CO Alarm is not a

substitute for property, fire, disability, life or other

insurance of any kind. Appropriate insurance coverage

is your responsibility. Consult your insurance agent.

Removal of the front cover will void the warranty.

NOTE: This alarm is not intended to alert hearing

impaired individuals.

During the specified warranty period Kidde will repair or

replace, at its discretion any defective Kidde C o m b i n a t i o n

Smoke & CO Alarms that are re t u r ned in a postage paid

package to the following address: Kidde, Customer Service

Department, 130 Esna Park Drive, Markham ON L3R 1E3.

Please include your name, address and phone number

along with a brief description of what is wrong with the

unit. For further assistance please call our toll fre e

Consumer Hotline at 1 - 8 0 0 - 8 8 0 - 6 7 8 8 . Damage from neglect,

abuse or failure to adhere to any of the enclosed

instructions will result in termination of the warranty, and

the unit will not be replaced or re p a i re d .

The model numbers are:

KN-COSM-IBCA (with battery backup)

KN-COSM-ICA (without battery backup)

This manual and the products described herein are

copyrighted, with all rights reserved. Under these copyright

laws, no part of this manual may be copied for use without

the written consent of Kidde. If you re q u i r e further

i n f o r mation please contact out Consumer Hotline at:

1 - 8 0 0 - 8 8 0 - 6 7 8 8 , or write us at: Kidde, Customer Service

Department, 130 Esna Park Drive, Markham ON L3R 1E3.

Our internet address is www.kidde.ca

Wa r r a n t y

32

810-1692_RevD_119-133_MAN_ENG 10/7/03 4:41 PM Page 32
