USE AND CARE GUIDE
BREEZEMORE 56-INCH CEILING FAN
2
Table of Contents ................................................................ 2
Safety Information ...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................6
Assembly ..............................................................................7
Operation ...........................................................................13
Care and Cleaning ............................................................. 16
Troubleshooting .................................................................16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part
no. RH786NR, manufactured by Rhine Electronic Co.,
LTD.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
56 in.
1
120
1 1878 1878
20.28 lbs
(9.2 kgs)
24.25 lbs
(11 kgs) 3.08 cu.ft.
2 2 2614 1307
3 3 3422 1141
4 5 4329 866
5 8 5061 633
6 13 5869 451
7 22 7100 323
8 28 7503 268
9 35 8201 234
4
Part Description Quantity
AA Transmitter (battery included) 1
BB Plastic wire connecting nut 3
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
DD
CC
BB
AA
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
NOTE: Hardware should be packaged in a
blister pack.
Part Description Quantity
CC Blade attachment screws 15
DD Decorative nut 15
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
Part Description Quantity
E Fan-motor assembly with light kit pan
pre-attached
1
F Blade 5
G Light kit tter assembly 1
H Glass bowl 1
I Light bulbs 2
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

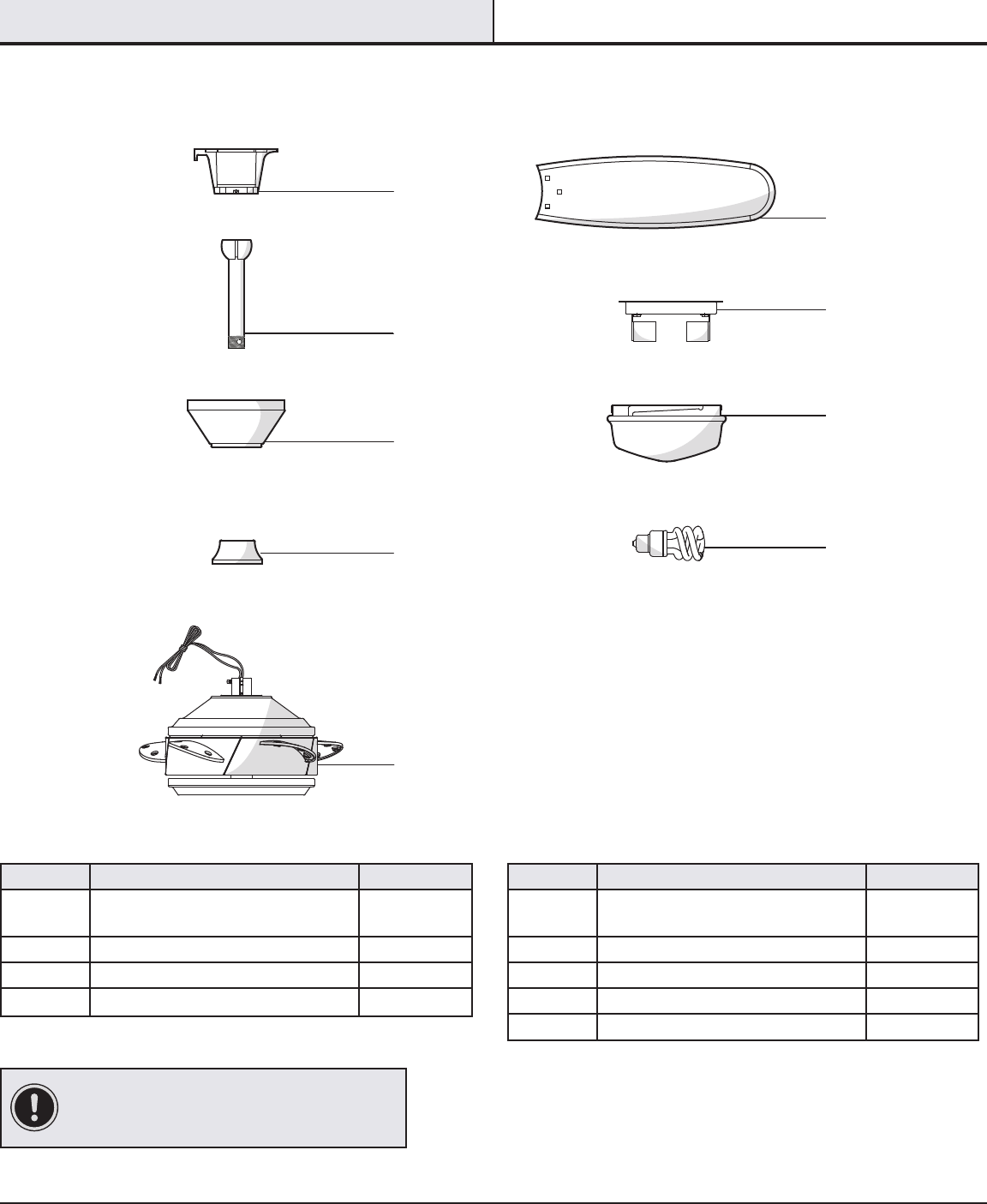

PACKAGE CONTENTS
A
B
C
F
D
H
G
E
I
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
Acceptable for fan support of 35 lbs. (15.9 Kg)
or less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs. (15.9kg). Use only
UL-listed outlet boxes marked Acceptable for fan support of
35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

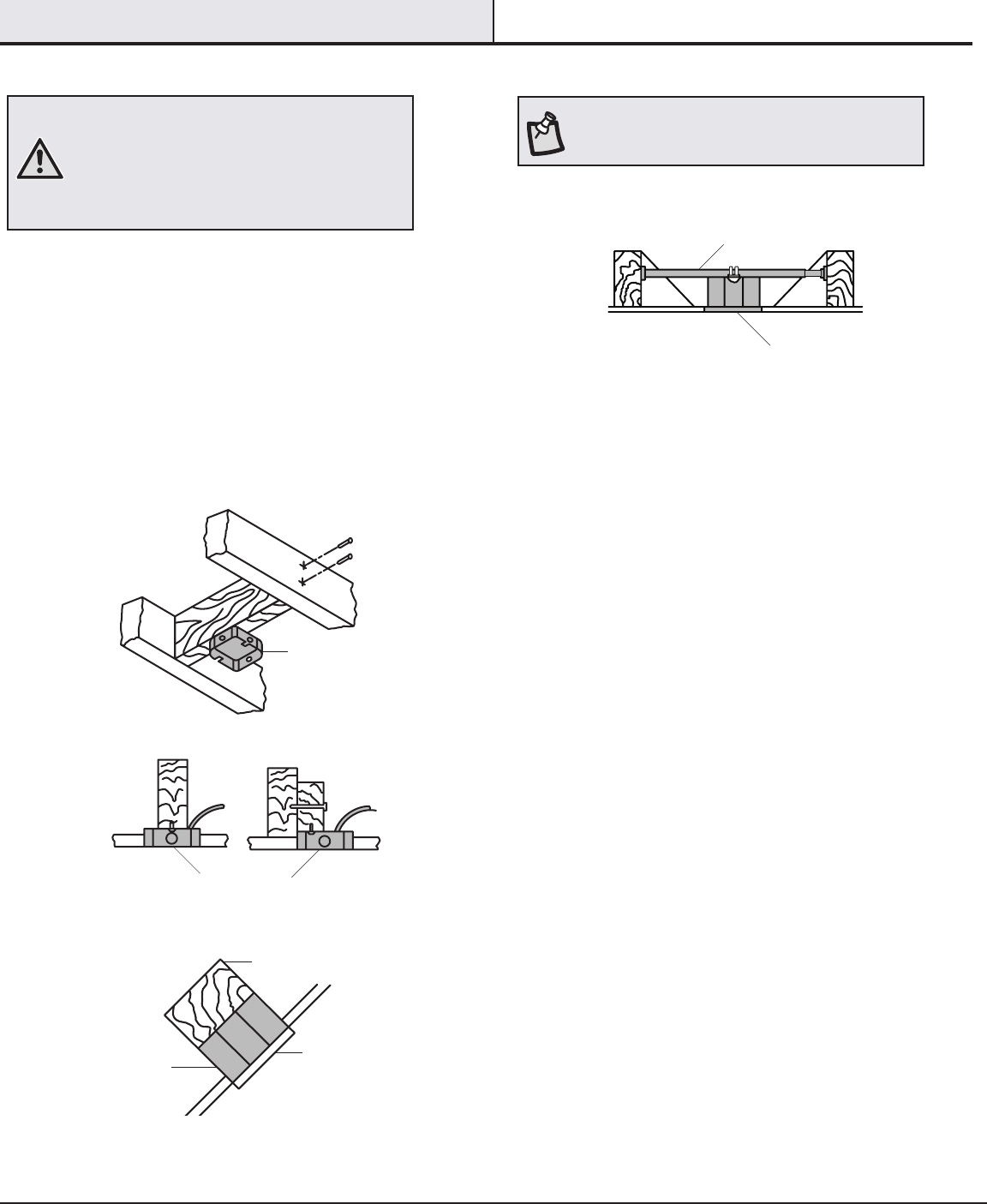

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount

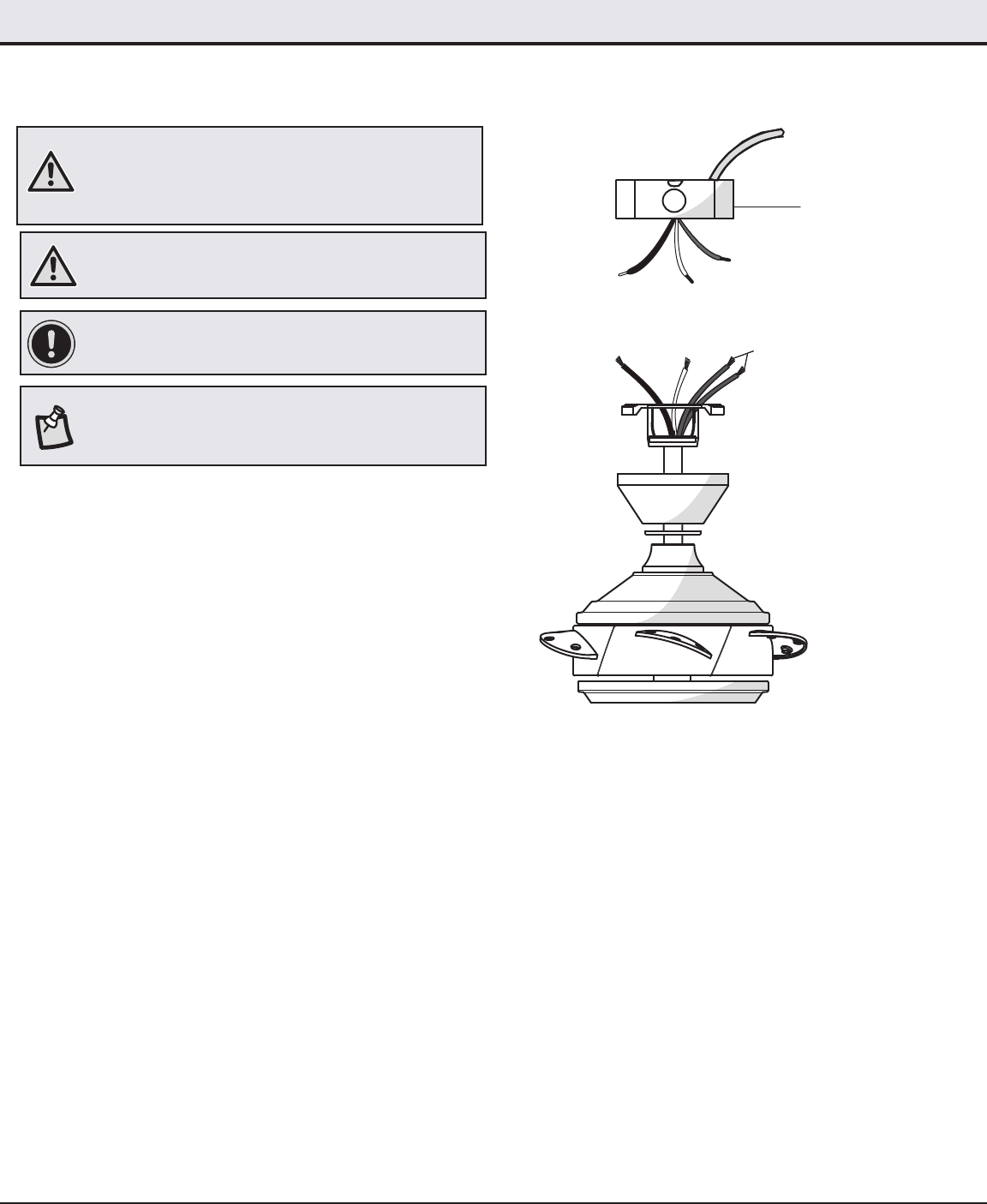

Routing the wires
Assembling the fan
Preparing for mounting

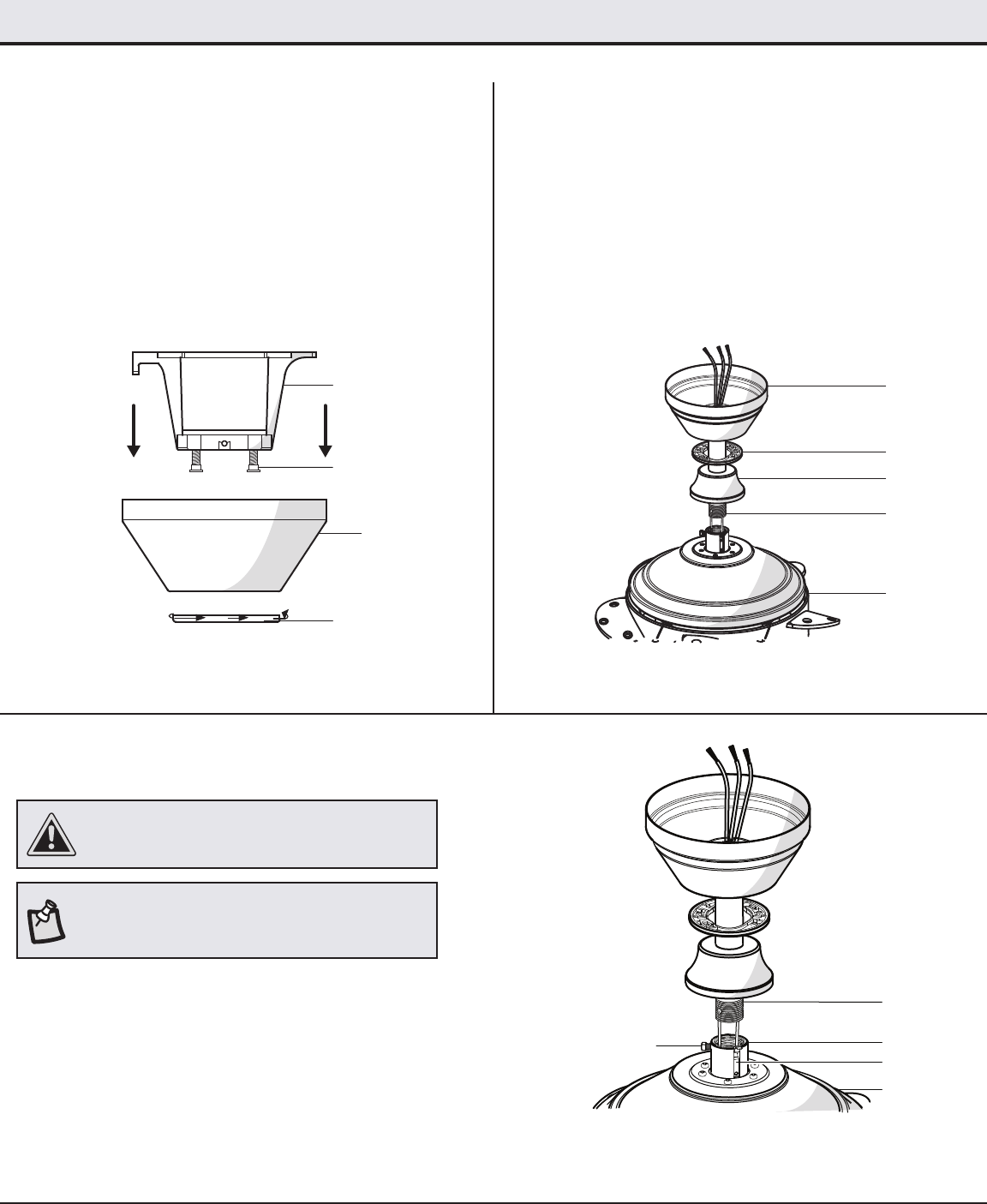

Remove the canopy bottom cover (J) from the canopy (C) by
turning the bottom cover counterclockwise until it unlocks.
Loosen the two canopy screws (EE) located in the
bottom of the mounting bracket, and turn the canopy
counterclockwise to remove the mounting bracket (A) from
the canopy (C).
Route the wires exiting the top of the fan-motor
assembly (E) through the center of the canopy bottom
cover (J).
Insert the ball/downrod (B) through the canopy (C) and
slide the decorative motor collar cover (D) onto the end
of the ball/downrod (B). Make sure the slots on the
canopy (C) are on top.
Route the wires exiting the top of the fan motor
assembly (E) through the downrod as shown.
2
3
1
C
A
EE
J
C
D
E
J
B
E
B
K
HH
FF

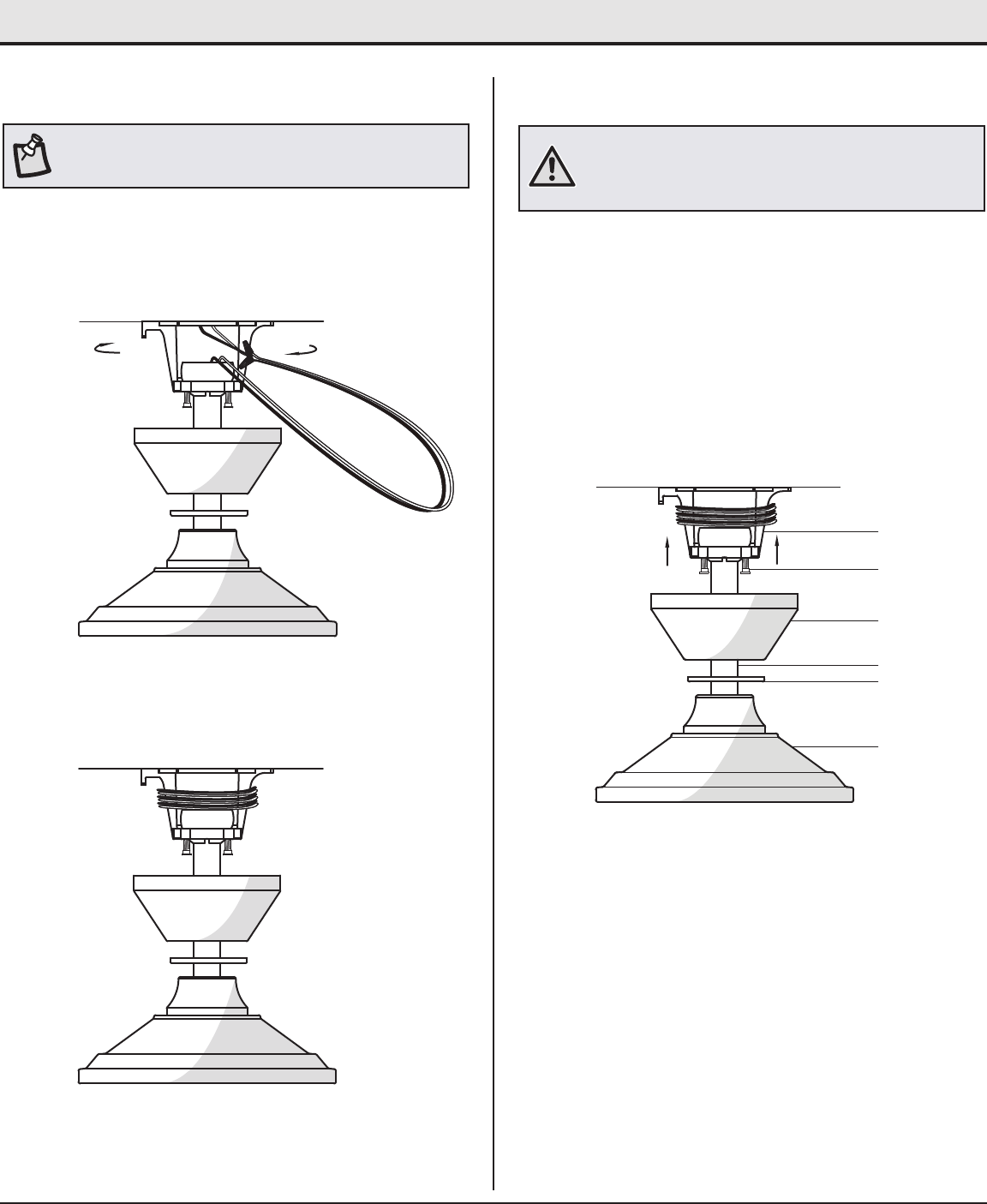

Remove the setscrew (FF) by turning it counterclockwise.
Install the downrod (B) by inserting it into the motor collar (K),
and turning it clockwise until it is tight.
Reinstall the setscrew (FF) turning clockwise until tight.
NOTE: This fan is equipped with a safety tab (HH). Should
the setscrew (FF) ever become loose while the fan is
running in reverse, the safety tab (HH) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(FF) must be completely tightened
8
Assembly - Hanging the Fan

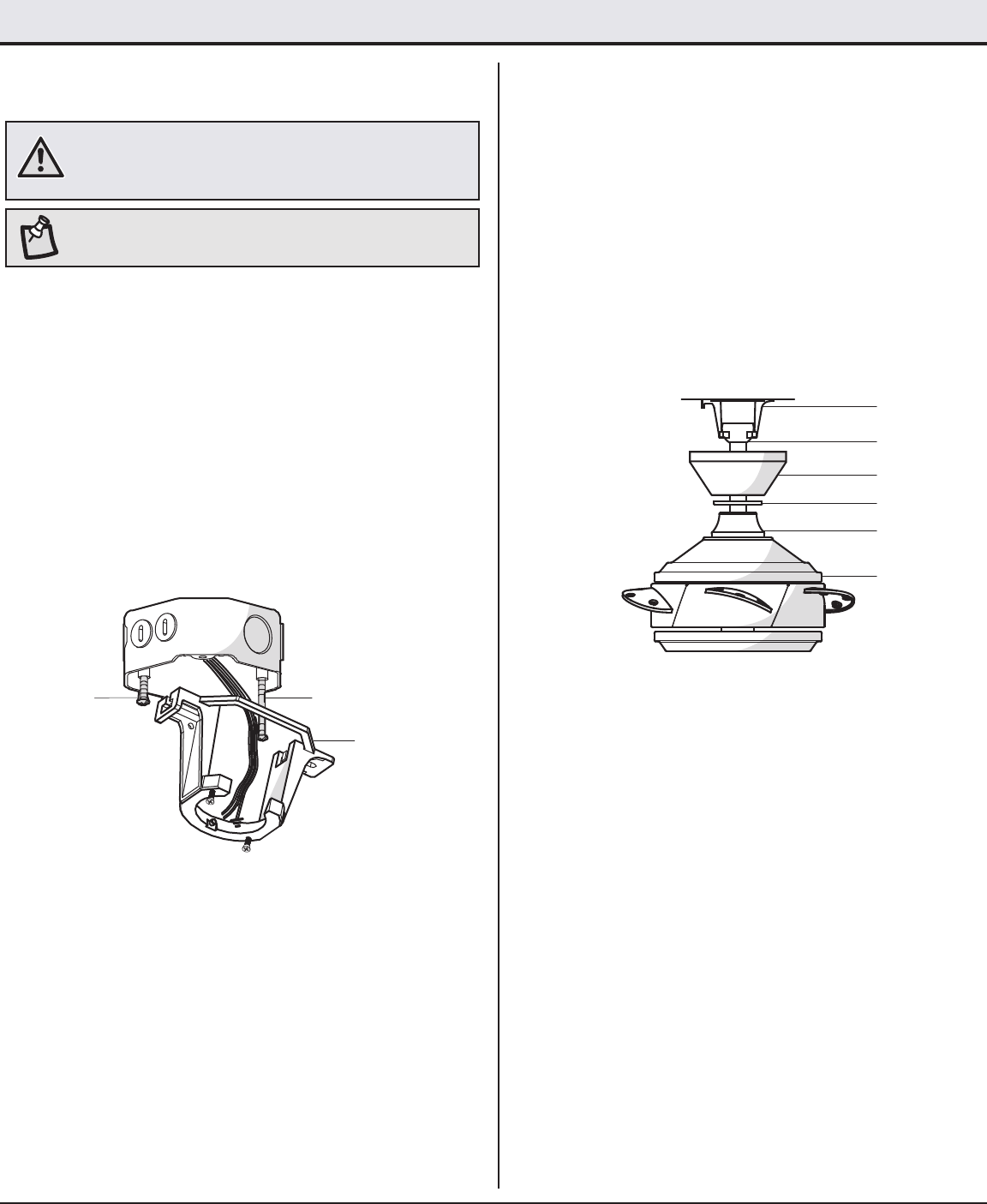

Attaching the fan to the electrical
box Hanging the fan
Loosen the two outlet box screws (GG) in the outlet box.
Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
Slide the mounting bracket (A) on to the outlet box screws (GG)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
Securely tighten the two outlet box screws (GG).
Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
Insert the ball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket (A).
Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
12
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.
A
GG
GG
A
B
E
C
D
J
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (GG) installed.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Outlet box
in the ceiling II
Green or bare wire
Black White
Green
Black White
Making the electrical connection
3
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
The fan comes with 78 in. lead wires for use with an extended
ball/ downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.). This will make extra
room in the canopy (C), if you do not wish to cut the wires,
you will need to neatly wrap them.
Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
Connect the fan motor white wires to the household white
wire using a wire connecting nut (BB).
Connect the fan motor black wires to the household black
wire using a wire connecting nut (BB).
Secure each wire connecting nut using electrical tape.
Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box (II).
NOTE: The fan comes with 78 in. lead wires for use with an
extended ball/ downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.)
WARNING: Remove the rubber motor stops on the bottom of the
fan before installing the blades or testing the motor.
10
Mounting the fan-motor assembly
(standard mount)
Align the locking slots of the canopy with two screws (EE)
in the mounting bracket (A). Push up to engage the slots and
turn clockwise to lock in place.
Firmly tighten the two screws (EE).
Install the decorative bottom cover (J) by aligning the cover’s
slots with the screws in the bottom of the canopy (C). Rotate
the bottom cover clockwise to lock in place.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
C
A
EE
J
B
E
Assembly - Hanging the Fan (continued)
5
Wrapping the extra wire
Gently wrap the excess wire around the mounting bracket.
Secure with electrical tape.
4
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Attaching the fan blades
6
Attach a blade (F) to blade bracket (L) using the decorative
nuts (DD) and blade attachment screws (CC) provided. Insert
a blade attachment screw (CC) through a hole in the blade
(F) and the blade bracket (L) and into the decorative nut (DD).
Repeat for the two remaining holes in the blade (F).
Tighten each screw (CC) securely.
Repeat these steps for the remaining blades.
E
CC
DD
F
L
Assembly - Hanging the Fan (continued)
Attaching the light kit tter assembly
7

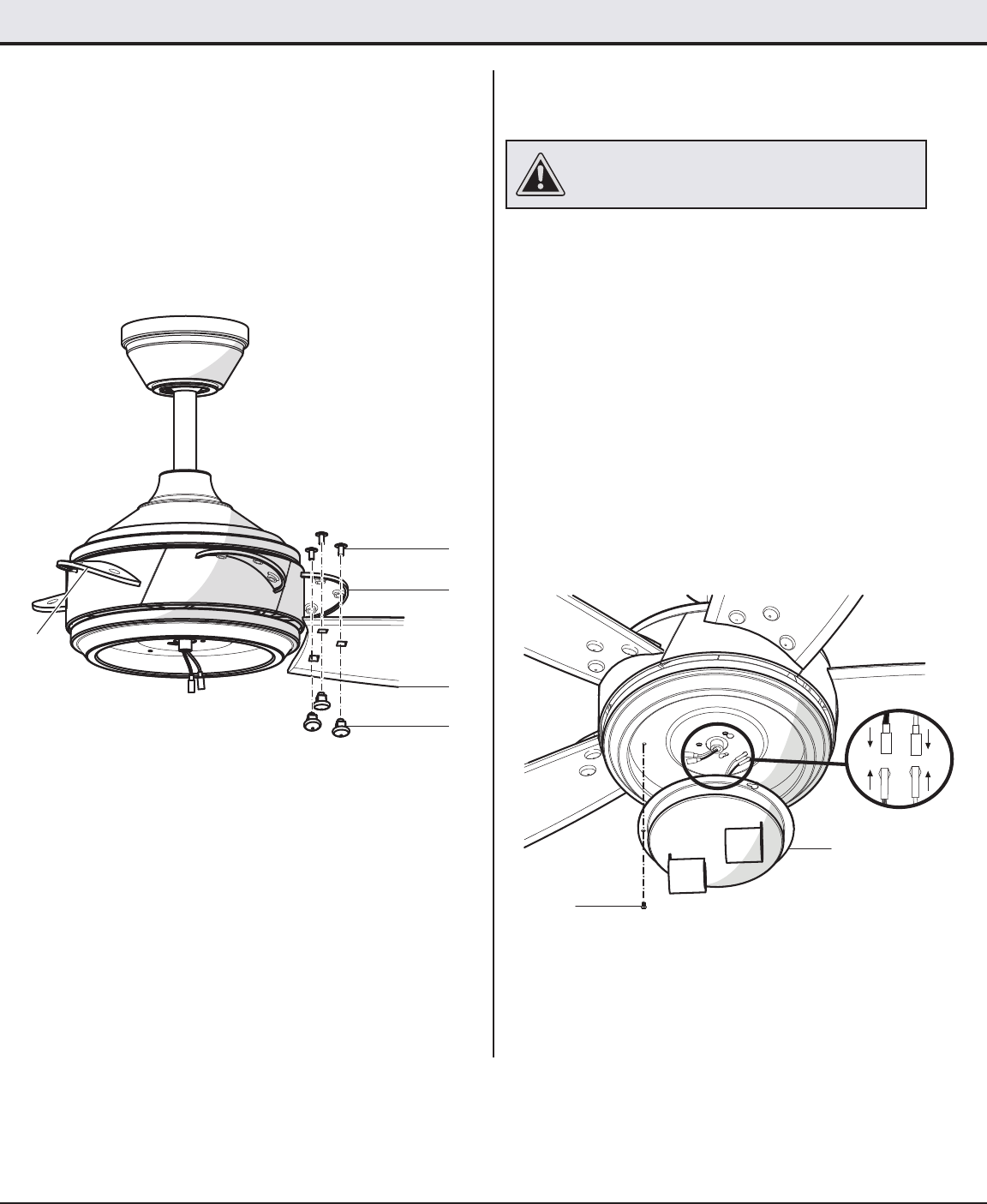

To attach the light kit tter assembly (G), remove on screw (JJ)
from the light kit pan (pre-installed), and loosen, but do not
remove the other two screws.
Connect the blue wire existing the bottom of the fan motor
assembly (E) with the black wire from the top of the light kit
tter assembly (G).
Connect the white wire existing the bottom of the fan motor
assembly (E) with the white wire from the top of the light kit
tter assembly (E)
Push the light kit tter assembly (G) up to the light kit pan
(pre-installed) so that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter assembly (G) to
secure.
Re-install the screw that was removed in step 1.
Make sure all the screws are rmly tightened.
JJ
G
CAUTION: To reduce the risk of electric shock,
disconnect the electrical supply circuit to the fan before
installing the light kit.
12
Assembly - Attaching the Accessories
Installing the bulbs and glass bowl
1
With the power off, install the two uoresecent bulbs (I) (Max.
14W, included) by screwing into the light bulb sockets.
Place the glass bowl (H) into the light kit assembly, aligning
the three at areas on the top ange of the glass bowl (H) with
the three raised dimples in the light kit assembly. Turn the
glass bowl (H) clockwise until it stops.
I
H
G
WARNING: Do not overtighten when installing the shade into the
light kit. Allow the shade to cool completely before removing.
CAUTION: Over lamping the fan will result in the fan lights
shutting down until the proper wattage of bulbs are installed.
Reset the lights by turning off the light and replacing the bulbs
with the correct wattage bulbs.
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operating Your Fan and Remote Control
Learning process
Should you desire to use another remote control unit with your
new fan, install one using the steps below:
Turn the main power source off to begin the learning process.
Return the power to the unit.
Within 30 seconds of turning the fan’s AC power ON, Press and
hold the button for 5 seconds to enter the learning function.
Once the receiver has detected the set frequency, the down light
of your fan, if applicable, will blink twice. There is no indication if
your fan is not equipped with a light.
NOTE: After the AC power is on, do not press any other button on
the remote control before pressing the “FAN OFF” button. Doing
so will cause the procedure to fail.
NOTE: The remote control can learn multiple receivers. Make sure
no other receivers are operating during the learning process.
Separate the fan power switches by approximately 2 meters.
Timer
Decreases fan speed
Increases fan speed
Fan on/off
Light on/off
Decreases the
light level
(Dimmer)
Warm weather
(Forward)
Comfort BreezeTM
LED bar
Scale indicating
fan speed
Cool weather
(Reverse)
Increases the
light level
(Dimmer)

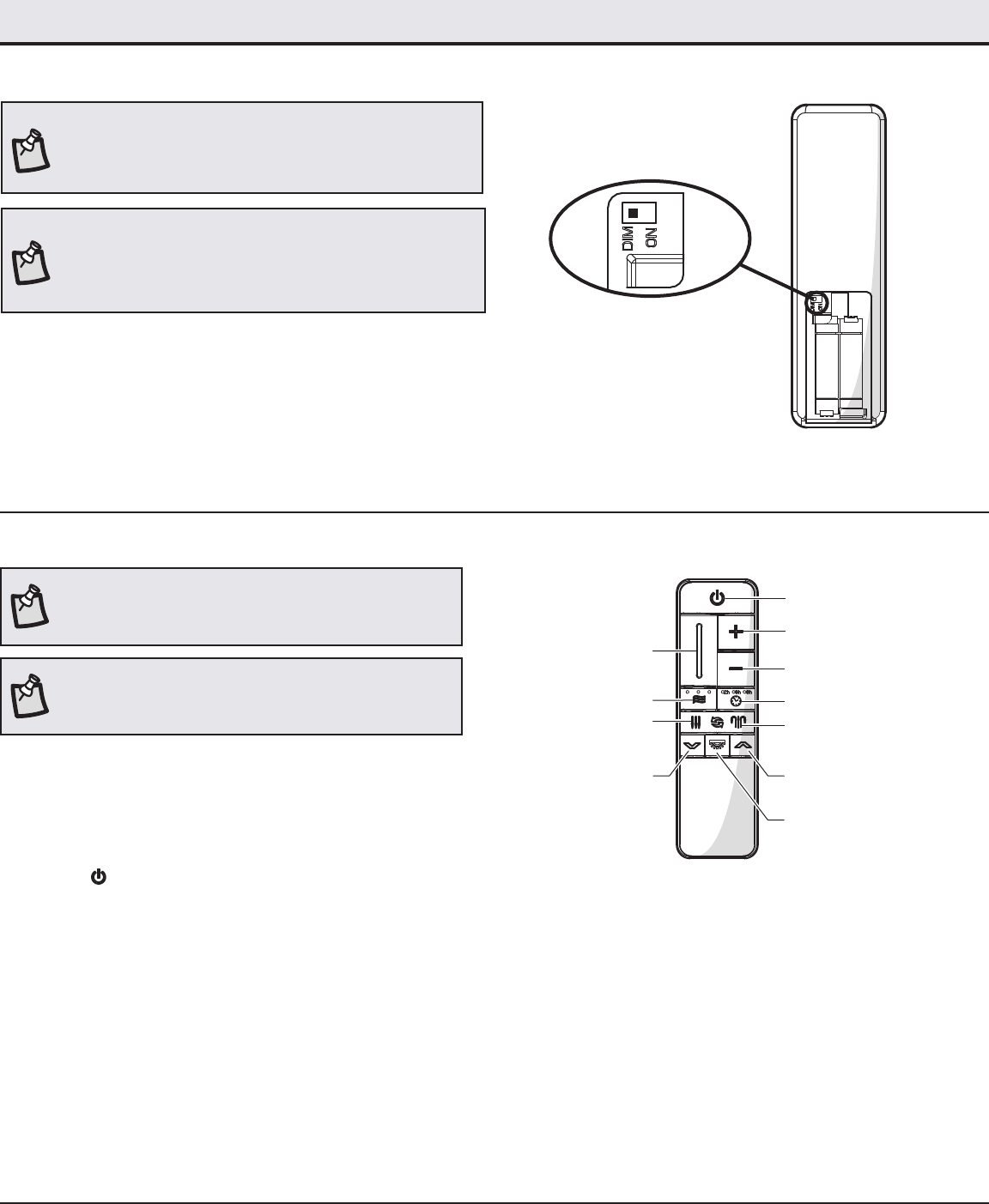

Setting the code on the transmitter
Remove the battery cover by pressing rmly on the arrow
and sliding the cover off.
Install two 1.5V AAA batteries (included).
Replace the battery cover on the remote control.
NOTE: The battery will weaken with age and should be replaced
before leaking takes place as this will damage the remote control.
Dispose of used battery properly and keep the battery out of the reach
of children.
NOTE: The switch marked ON/DIM controls the dimming function of
the lights. If using non-dimmable bulbs, use a ballpoint pen or small
screwdriver to set the switch to ON to disable the dimming function.
If using dimmable bulbs, set the switch to DIM to enable the dimming
function.
14
Operating Your Fan and Remote Control
1. Fan button. - Press and release the button to turn the fan on or off.
Press and hold the button for 5 seconds to enter the learning function.
Fan on. The fan memory function will resume the speed set on the fan prior to the power being turned off. The LED bar will display
the current settings for 5 seconds after the button is released.
Fan off. The fan memory function will store the current setting for the next time the fan is in use.
2. Speed functions
+ button, increases the fan speed
Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum speed setting, at that time the LED bar will be fully illuminated.
Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
Pressing the + button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal
fan operation.
button, decreases fan speed
Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar
to dim slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25%
illuminated.
Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
Pressing the - button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal
fan operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode and LED bar will
illuminate slowly from bottom to top to display the current setting.
Setting 1: Alternates through speeds 1 – 3, the LED bar should ll approximately 33%.
Setting 2: Alternates through speeds 1 – 6, the LED bar should ll approximately 66%.
Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
Note: If you are currently using Comfort BreezeTM mode, pressing the button will cancel Comfort BreezeTM mode and resume
normal fan operation.
Note: You must turn the fan on prior to using the timer function.
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depend on factors such as the
room size, ceiling height, number of fans and so on.

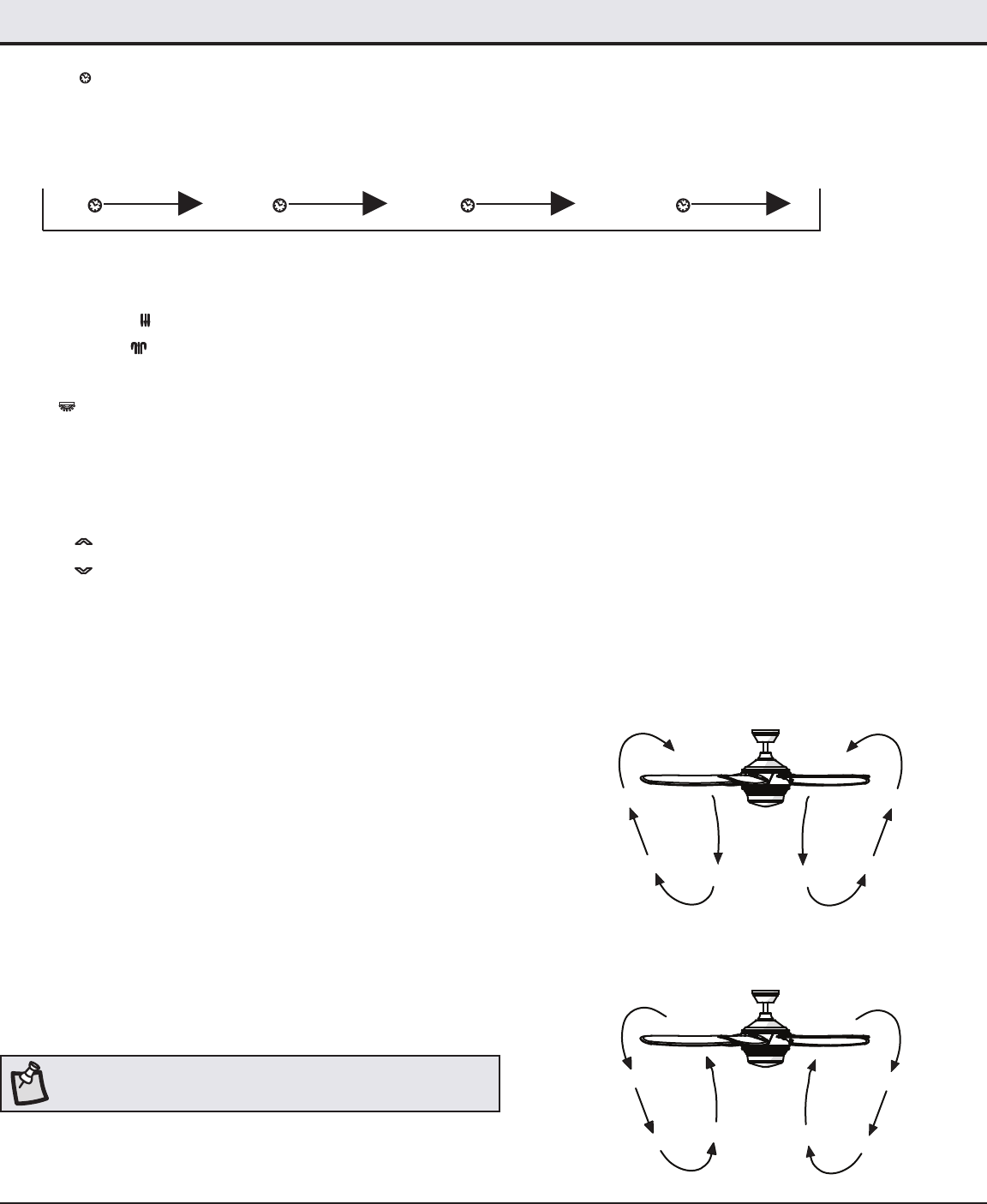

A. Warm weather - (Forward) A downward airow creates a cooling
effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse button.
The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Warm weather
4. Timer
Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the
LED to the left of the time above the clock will illuminate.
Off 2H 4H 8H Disables timer
5. Fan reverse button (Must be pushed when the fan is in operation)
Warm weather: LED bar will illuminate and the lights will ow from high to low.
Cool weather: LED bar will illuminate and the lights will ow from low to high.
6. Light
Press and release the light button to turn the light on or off
Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
7. Dimmer.
Press to increase the desired light level.
Press to decrease the desired light level.
16
Troubleshooting
Problem Solution
The fan will not start. Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check the battery in the remote control.
Ensure you are in the normal range of 10-20 feet.
Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. Ensure all motor housing screws are snug.
Ensure the screws that attach the fan blade bracket to the motor hub are tight.
Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Home Decorators Collection,
de lunes a viernes entre 8 a.m. y 6 p.m. (hora estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos para continuamente
crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las
necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm.
1001 029 135
Modelo núm. 51556
Modelo ETL núm. 56-BRM
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO BREEZEMORE, DE 1.42 M

Navigation menu
