Getting Connected
3. From the pop-up menu, tap Bluetooth Setting → Mode, and tap
the check box to turn on or off the Bluetooth function of your
Pocket PC Phone.
Using the Start Menu

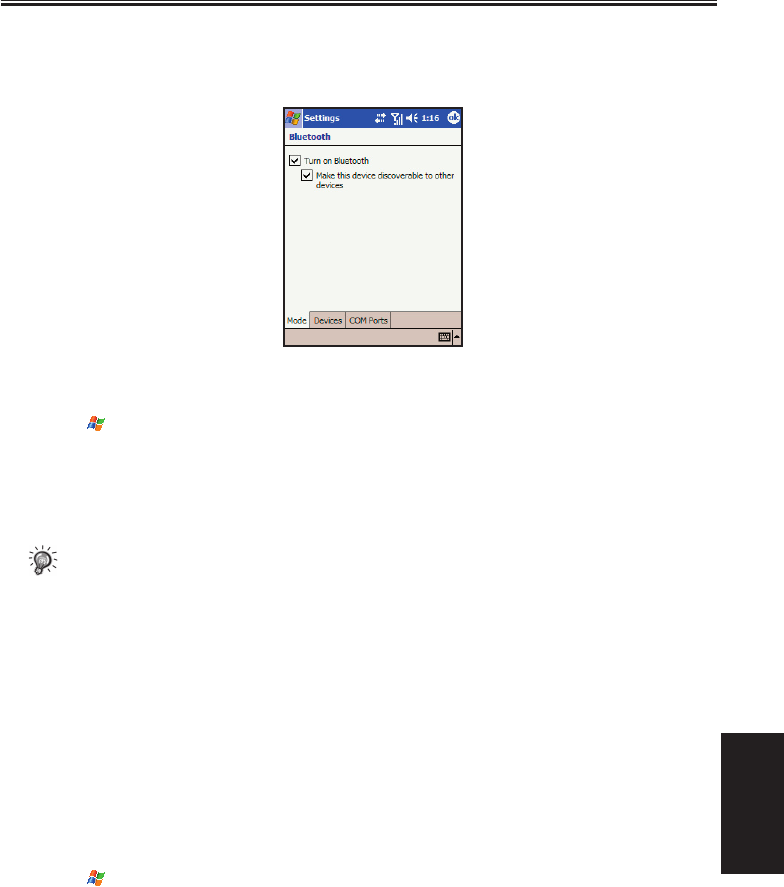

1. Tap → Settings → Connections → Bluetooth.
2. To turn on Bluetooth, select the Turn on Bluetooth check box. To make your device discoverable for
information exchange, select the Make this device discoverable to other devices check box.
To turn off Bluetooth, clear the Turn on Bluetooth check box.
3. Tap OK.
• By default the Bluetooth radio is turned off. If you turn it on, and then turn off your device, the
Bluetooth radio also turns off. When you turn on your device again, the Bluetooth radio turns on
automatically.
Bluetooth Information Exchange
Beaming Information with Bluetooth
1. Turn on the Bluetooth as described earlier in the “Turning on and off Bluetooth” section.
2. Tap and hold an item to beam, such as an appointment in Calendar, a task in Tasks, a contact card in
Contacts, or a file in File Explorer.
3. Tap Beam [type of item].
4. Your Pocket PC Phone will search for Bluetooth devices within a range of about 10 meters (30 feet) and
display the device names on the screen. Tap the device to which you want to send the beam.
Receiving a Bluetooth Beam
1. Tap → Settings → Connections → Beam.
2. Turn on the Bluetooth as described earlier in the “Turning on and off Bluetooth” section.
3. Make sure that the device is powered on, discoverable, and within 10 meters (30 feet) of your device.
4. When prompted to receive an incoming beam, tap Yes.
13-9 S600 User Manual
Getting Connected
Bonding with Other Devices
A bond is a relationship that you create between your Pocket PC Phone and another Bluetooth device in
order to help exchange information in a secure manner. Creating a bond involves entering the same PIN
on the two devices you want to bond. Once a bond is created, the devices need only have their Bluetooth
radios turned on to exchange information; they do not need to be in discoverable mode.
Creating a Bond
1. Make sure that the two devices are placed within 10 meters of one another and that Bluetooth is in
discoverable mode on both devices.
2. Tap → Settings → Connections → Bluetooth → Bonded Devices → New.
3. Your device searches for other Bluetooth devices and displays them in the list.
4. Tap the name of the other device, and then Next.
5. In PIN, enter a PIN of between 1 and 16 characters and tap Next.
6. Enter the same PIN on the other device.
7. If you want, in Name, edit the name of the other device. You may use any name.
8. Tap Finish.
Accepting a Bond
1. Make sure that the two devices are placed within 10 meters of one another and that Bluetooth is in
discoverable mode on both devices.
2. When prompted to bond with the other device, tap Yes.
3. In PIN, enter a PIN of between 1 and 16 characters and tap Next. You must enter the same PIN that
was entered on the device requested the bond.
4. If you want, in Name, edit the name of the other device. You may use any name.
5. Tap Finish. The bond is created. You can now exchange information with the other device.
Using a Bluetooth Phone as a Modem
You can use a phone that has Bluetooth capabilities as a modem for your device. To do this, you may create
a Bluetooth modem connection on your device and then send information to the phone by using Bluetooth.
Make sure that the GPRS of the Bluetooth phone has been correctly configured and is operating.
S600 User Manual 13-10
Getting Connected
Creating a Bluetooth Modem Connection
1. Make sure that the Bluetooth phone is powered on, that your device’s and the phone’s Bluetooth radios
are turned on, and that your device and the phone are placed within 10 meters (30 feet) of one another.
2. Tap → Settings → Connections → Connections → Add a new modem connection.
3. Enter a name for the connection.
4. In the Select a modem list, tap Bluetooth → Next.
5. Make sure that the phone is discoverable. Some phones may also need to be pairable in order to accept
a bonding request. For more information, see your phone documentation.
6. If the phone appears in the My Connections list, skip to step 14. If not, tap New and follow the
remaining steps.
7. In the list, tap the phone and then Next.
8. In PIN, enter a personal identification number (PIN) of between 1 and 16 characters, and tap Next.
9. Enter the same PIN on the phone.
10. If you want, in Name, edit the name of the phone.
11. Tap Finish.
12. In the My Connections list, tap the phone, and then Next.
13. Enter the phone number to dial for this connection and tap Next.
14. In User name, Password, and Domain, enter the logon information for this connection and tap Finish.
Using the Bluetooth Modem
Once you create a modem connection to the Bluetooth phone, you can reuse it whenever you want to use
the phone as a modem. Make sure that the Bluetooth phone is powered on, that your Pocket PC Phone’s
and the phone’s Bluetooth radios are turned on, and that your Pocket PC Phone and the phone are placed
within 10 meters (30 feet) of one another. Start using the program that uses the Bluetooth phone connec-
tion; for example Inbox to send and receive email, or Internet Explorer to browse the Web.
Chapter 14
Internet Explorer
14.1 Using Internet Explorer
14.2 Viewing Mobile Favorites
14.3 Changing Settings
S600 User Manual 14-2
Internet Explorer
14.1 Using Internet Explorer
You can use Pocket Internet Explorer to view Web pages on your mobile device in two ways:
downloading pages through synchronization (See Section 12.1)
connecting to the Internet (see Chapter 13)
To switch to the program, tap → Internet Explorer, or press the IE hot key on the Pocket PC Phone.
The Pocket Internet Explorer home page appears.
Sending a Link via Email
1. Tap → Internet Explorer.
2. Go to the page you want to send.
3. Tap Tools → Send Link via E-mail. A new message is created with the page address inserted in the
message body.
14.2 Viewing Favorites
Your Pocket PC Phone has incorporated some of the useful favorites for your use.
On the Internet Explorer screen, tap the icon on the cammand bar to open the favorite list.
If you are using Microsoft Internet Explorer 4 or greater on the desktop computer, you can synchronize
favorite links. If you are using Microsoft Internet Explorer 5 or later versions on the desktop computer, you
can also synchronize mobile favorites. Synchronizing favorite links enable you to have the URLs of your
favorite Web sites at your fingertips. Synchronizing a mobile favorite enables you to view Internet content
on your device while you are disconnected from your Internet service provider and desktop computer.
Favorites are stored in the Mobile Favorites subfolder of Favorites in Internet Explorer on the desktop
computer. This folder will be created when you select the Favorites information type for synchronization in
ActiveSync on your desktop computer. Favorites must be stored in this folder to be synchronized.
Synchronizing a Favorite Link
1. In ActiveSync on your desktop computer, click Tools → Options, and select Favorite. For more
information on using ActiveSync, see ActiveSync Help.
2. In Internet Explorer on your desktop computer, save or move favorite links to the Mobile Favorites
subfolder in the Favorites list. For more information on using Internet Explorer, see Internet Explorer
Help on the desktop computer.
3. Connect your mobile device to your desktop computer. If synchronization does not start automatically,
in ActiveSync on your desktop computer, click Sync.

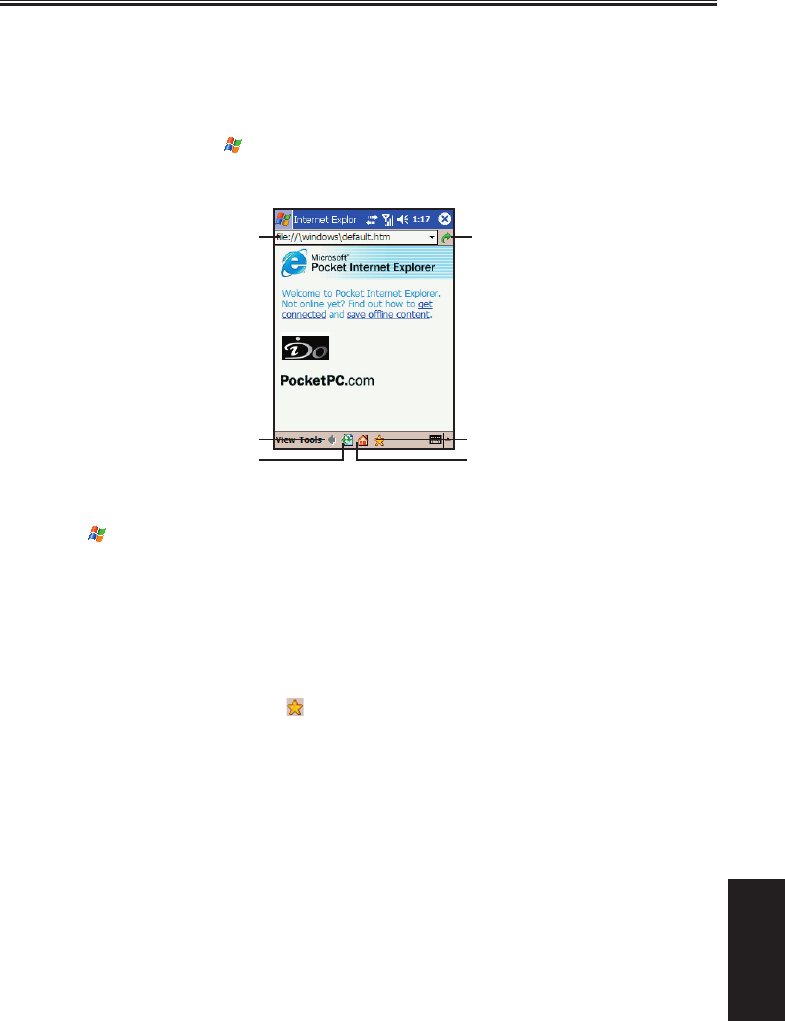

Previous page
Refresh
Favorites
Home page
Web address Link to
14-3 S600 User Manual
Internet Explorer
Synchronizing a Mobile Favorite
1. In ActiveSync on your desktop computer, click Tools → Options, and select Favorite. For more
information on using ActiveSync, see ActiveSync Help.
2. In Internet Explorer 5 or later versions, browse to the page you want to view offline.
3. Click Tools → Create Mobile Favorite.
4. To change the link name, enter a new name in the Name box.
5. In the Update box, select a desired update schedule to keep the page in the Mobile Favorites folder up
to date. You can also update content by clicking Tools → Synchronize in Internet Explorer.
6. To save the link in a subfolder of Mobile Favorites, click Create In and select the desired subfolder.
7. Click OK. Internet Explorer will download the latest version of the page.
8.
To download the pages that are linked to the mobile favorite you just created, in Internet Explorer on
the desktop computer, right-click the mobile favorite and then click Properties. On the Download tab,
specify the number of links deep you want to download. To conserve device memory, only go one level
deep.
9. Connect your mobile device to your desktop computer. If synchronization between your device and
desktop computer does not start, in ActiveSync on your desktop computer, click Sync.
14.3 Changing Settings

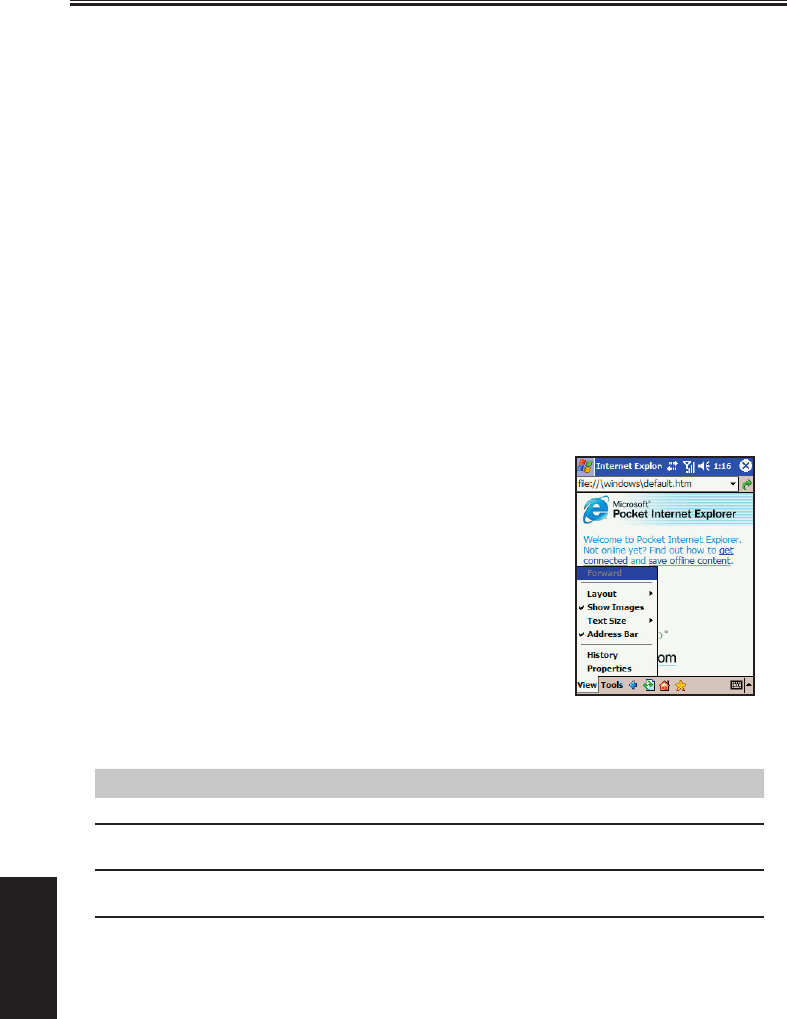

You can tap View on the main page of Internet Explorer to change
the display settings.
You can also tap Tools → Options on the main page of Internet Explorer to custmize more settings.
Item Description
General Enables you to change the home page or the displayed language.
Memory Enables you to set the period before clearing the visiting history, and delete
temporary files.
Security Enables you to accept or clear cookies, and send out a warning when visit-
ing unsecure Web pages.
Chapter 15
Troubleshooting
15.1 Resetting the Pocket PC Phone
15.2 Restoring Factory Defaults
15.3 Power Problems
15.4 Memory Problems
15.5 Screen Problems
15.6 Connection Problems
15.7 Hardware Problems
15.8 Software Problems
15.9 Other Problems
15.10 Appendix
15-2 S600 User Manual
Troubleshooting
15.1 Resetting the Pocket PC Phone
Occasionally, you may need to reset your Pocket PC Phone when your Pocket PC Phone stops
responding (it appears to be “frozen” or “locked up”).
1. Remove the miniSD card (if installed).
2. Use the stylus to press the Reset switch on the rear of your Pocket PC Phone.
15.2 Restoring Factory Defaults
In some cases, you may need to restore your Pocket PC to the factory default state by clearing the
memory (RAM) from your Pocket PC Phone. For example, you should clear the memory:
When your Pocket PC Phone cannot be powered on, even if you remove and then re-install the
battery.
When you forget your password.
When you want to remove the additional programs that you installed by yourself.
Before clearing the Pocket PC Phone memory and restoring the factory default state, make sure that
you have copied your data to the desktop computer or miniSD card.
• To restore the factory defaults, press the Power key, and at the same time, use the stylus to
press the Reset switch. All data you have entered in SDRAM, including all files, system
settings and additional programs you have installed, will be erased. You need to reinstall the
additional programs.
• Pressing the Power key, Reset switch and Talk key at the same time will restore the factory
defaults, and clear the data and programs in SDRAM and NADA Flash ROM.You need to
reinstall the additional programs.
15.3 Power Problems
Problem Solution
The device cannot
be powered on when
using battery power.
The remaining battery power may be too low to run your S600. Connect the
AC adapter to your S600 and to external AC power. Then, turn on your S600.
Battery runs out of
power quickly.
You might be using your Pocket PC in a manner that drain power quickly. Use
S600 with the AC power.
S600 keeps showing
the low battery
power messages.
Maker sure
S600
is fully charged. In such case, back up your data, restore the
device to the factory default state (see Section 15.1), and then fully charge the
device. If the problem persists, send your S600 to the authorized dealer for
inspection.
Battery does not
work correctly.
When the battery fails to charge and discharge, and it is not man-made
damage and still in the warranty period, send it to the authorized dealer for
replacement.
S600 User Manual 15-3
Troubleshooting
15.4 Memory Problems
Problem Solution
S600 sends out
warnings of
insufficient memory.
Please perform the following:
Delete files that you no longer need: tap → Programs → File
Explorer.
Delete programs that you no longer need: tap → Settings → System
→ Remove Programs.
Adjust memory allocation: tap → Settings → System → Memory →
Main.
Delete all files and history in Internet Explorer: tap → Internet
Explorer → Tools → Options → Memory.
Stop running programs: tap → Settings → System → Memory →
Running Programs; or tap on the Today screen.
Save data to a miniSD card.
How to find out the
memory capacity
after resetting?.
Tap → Settings → System → Memory → Main.
15.5 Screen Problems
Problem Solution
Screen is off. Connect the AC adapter to your device and to external AC power.
Remove the battery and then reinstall it.
Screen responds
slowly.
The battery power may be low. Connect the AC adapter to your device and
to external AC power.
Probably too many programs are in use. Stop the running programs: tap
→ Settings → System → Memory → Running Programs.
Screen is not clear
or hard to read.
Turn on the backlight of the display.
Move to a location with enough light.
Inaccurate response
to stylus taps.
Realign the touch screen: tap → Settings → System → Screen → Align
Screen.
15.6 Connection Problems
Problem Solution
Synchronization
to the desktop
computer fails.
Make sure that you have installed the correct version of ActiveSync on
your desktop computer. ActiveSync version 3.7 or later is recommended.
Make sure that the cable connection is correct.
Disconnect and then re-connect the cable.
Remove the driver for S600 and ActiveSync on the desktop computer,
and then reinstall them. Do not connect the cable during ActiveSync
installation.
Using infrared to
beam information
fails.
Transfer only one file, or no more than 25 contact cards, at a time.
When using IR, make sure nothing is between the two IR ports.
Adjust the room lighting or move to another location (some types of light
interfere with beaming).
15-4 S600 User Manual
Troubleshooting
Problem Solution
Network connection
is not working
properly.
If using an external modem, make sure that the modem is installed
properly and the dial-up phone number is correct.
If using a network card, make sure that it is installed properly.
Make sure the network connection settings are correct: tap → Settings
→ Connections → Connections.
Consult the network administrator if the user name and password are
correct.
Connection to the
desktop computer
automatically
disconnects.
Disconnect the USB cable from the desktop computer, and then re-connect
it. Allow the desktop computer to find S600 again. If the network is still
automatically disconnected, send S600 to an authorized dealer for inspection.
If necessary, the dealer will update the firmware of S600 for you. Make sure
to back up your data first because updating firmeare will restore the factory
default state.
The device cannot
receive various
beamed information
from other devices
via infrared. Only
contact information
and picture
exchange could
work.
Infrared information exchange is mainly for contact information exchange
with other mobile devices. Currently, most traditional mobile phones could
only exchange contact information and group pictures. The resources and
compatibility of information exchange with S600 is still limited.
However, regarding data sharing and program installation, you can still make
use of the connection to the desktop compouter.
15.7 Hardware Problems
Problem Solution
What is the CPU
and memory of
S600?
The CPU of your device is Freescale iMX21 266MHz, with memory
containing 128MB Flash ROM and 64MB SDRAM.
How to clean the
camera lens?
There is an acrylic material protecting the camera lens inside. Therefore, you
only need to clearn the external acrylic material.
What miniSD cards
are compatible with
S600?
S600 supports miniSD cards manufactured by SanDisk, KingMAX,
Transcend, A-DaTa, and so on.
The infrared
information
exchange only
applies to contact
information and
picture receipt?
Infrared information exchange is mainly for contact information exchange
with other mobile devices. Currently, most traditional mobile phones could
only exchange contact information and group pictures. The resources and
compatibility of information exchange with S600 is still limited.
S600 may often connect to the desktop computer using the USB cable for
data sharing and program installation. Due to the above fact, the USB cable is
supplied as a standard accessory for your use.
S600 User Manual 15-5
Troubleshooting
15.8 Software Problems
Problem Solution
Is there a limit for
assigning ring tone
groups?
No, there is no such limit on your S600.
Does S600 supoport
Java, Caller ID and
Bluetooth?
1. Yes, Java (MIDP 2.0) is supported.
2. Yes, Caller ID is built-in on your device.
3. Yes, the device supports Bluetooth.
How to play back
MPEG files from
desktop computer
on S600?
To play back MPEG files from the desktop computer, you need to use
Microsoft codecs to transfer them for playback on S600.
How to use key
words to find a
contact?
Take “John” for example: enter John.
Cannot log in to
MSN Messenger
from S600?
If your device is not updated since October 15, 2003, you will need to
updated the your device and MSN Messenger. Connect to Microsoft Web site
for updates. After updating, press the Reset switch to complete the update
procedure. Then restart S600 and log in to MSN Messenger.
How to copy MP3
files to S600?
You can copy files from the desktop computer to your S600 using ActiveSync.
See ActivSync Help on the desktop computer.
How to set up the
GPRS configuratoin
on S600?
Tap → Settings → Connections → GPRS Auto Configuration. Select
Auto Configuration, select your mobile phone service provider, and then tap
OK.
Why is it not
working to copy
data and MP3 files
from the supplied
miniSD card to a
newly-purchased
miniSD card?
You cannot copy files between two miniSD cards. Follow this procedure:
1. Format the new card.
2. Install ActiveSync using the supplied CD on the desktop computer.
3. Use ActiveSync to copy files from the supplied miniSD card to the desktop
computer, and then copy those files from the desktop computer to the new
card.
Some MP3 files
cannot play back on
S600?
Your S600 supports the standard MP3 format only. You need to purchase an
audio format transfer program to transfer files using non-standard codecs.
S600 can send but
cannot receive text
messages.
There may be too many text messges stored in S600. Clear the non using text
messages in S600 for receiving new text messages.
Why can’t I use
WMA files as the
group ring tone?
Caller ID on S600 does not suppoort the WMA format. Use MID, WAV and
MMF files.
How does S600
connect to the
Internet via the
desktop computer?
Connect to the desktop computer using the USB cable. In ActiveSync on the
desktop computer, click Tools → Options → Rules → Sharing connection
resources, and change the connection to Internet.
Failure occurs
during program
installation on S600.
The possible reasons are:
1. There is not enough memory. Delete the programs you no longer need.
2. There are some running programs.
15-6 S600 User Manual
Troubleshooting
Problem Solution
S600 cannot switch
to the GSM mode
from the flight
mode.
After switching to the flight mode, wait for 20 seconds to one minute before
switching back to the GSM mode.
Can I save the
text messages and
contact information
to a miniSD card?
Due to the limits of the operating system, you cannot save the text messages
and contact information to a miniSD card.
Why can’t I zoom
in/out and change
brightness when
using the Camera/
DV feature?
Please close the VideoCam application, and check if the zoom in/out keys and
navigation keys are working normally.
Note that the zoom in/out function is not available in DV mode.
15.9 Other Problems
Problem Solution
Some peripheral
devices are not
compatible with
S600.
Your S600 uses the new Windows Mobile 20003 Second Edition for Pocket
PC Phone as the operating system. The drivers of some peripheral devices
may not support the operating system. Contact the dealers of the peripheral
devices to see if they can provide drivers supporting the operating system.
The programs
are missing after
remvoing the
battery.
When you remove the battery for over five minutes or reset S600, it will
restore the factory default state. All data stored in RAM will be erased.
You are strongly recommended to back up your data regularly. You can use
ActiveSync to back up data to the desktop computer (see Section 12.1), or use
Backup to back up your data to a miniSD card (see Section 7.4).
S600 is broken, and
I cannot access the
data.
If S600 is broken and unable to restart, you have to restore it to the factory
default state and all saved data will be lost. To protect the data on your S600
(including all files, system settings and additional programs), we strongly
recommend you to back up your data regularly. You can use ActiveSync to
back up data to the desktop computer (see Section 12.1), or use Backup to
back up your data to a miniSD card (see Section 7.4).
S600 retains the
contact information
from the old SIM
card after changing
the SIM card.
S600 loads the contact information from the SIM card to S600. When
changing the SIM card, S600 will compare the contact information of the new
SIM card with the old one, and then remove the old information. Wait for
about two minutes for the comparison and deletion to complete. Otherwise,
the old contact information may not be deleted. In this case, insert another
SIM card into S600. Turn the Pocet PC Phone on and wait for two minutes
for S600 to load and update the contact information. Then replace the old
SIM card and wait for two minutes for S600 to delete old contact information
completely.
S600 User Manual 15-7
Troubleshooting
15.10 Appendix
European Declaration of Conformity
Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive
(R&TTE) (1995/5/EEC), the Electromagnetic Compatibility Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Standards:
EN 60950 (IEC 60950)
Safety of information technology equipment.
ETSI EN 301 511
Candidate Harmonized European Standard (Telecommunications series) Global System for Mobile
communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800
bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC).
ETSI EN 301 489-1
Electronic compatibility and Radio spectrum Matters, ElectroMagnetic Compatibility (Common tech-
nical requirements); Part 1: Common Techinal Requirements.
ETSI EN 301 489-7
Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility
(EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable
radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS).
ETSI EN 301 489-17
Electronic compatibility and Radio spectrum Matters, ElectroMagnetic Compatibility (Specific condi-
tions for Wideband data and HIPERLAN equipment); Part 17: Specific Requirements for Wideband
Data and Hyperlan.
ETSI EN 300 328
Electronic compatibility and Radio spectrum Matters, Wideband Transmission system; Data transmis-
sion equipment operating in the 2.4GHz ISM band and using spread spectrum modulation techniques.
GSM11.10
EN50360, EN50361 for SAR
Specific Absorption Rate (SAR).
FCC Regulations
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
15-8 S600 User Manual
Troubleshooting
RF Exposure Information (SAR)
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear
is 0.226W/kg and when worn on the body, as described in this user guide, is 1.02 W/kg (Body-
worn measurements differ among phone models, depending upon available enhancements and FCC
requirements).
While there may be differences between the SAR levels of various phones and at various positions, they all
meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone
is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: ESN-S600.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body.
Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If you do no t
use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.5
cm from your body when the phone is switched on.
According to the testing standards of the Directorate General of Telecommunications (DGT) of the
Ministry of Transportation and Communications (MOTC), this product has passed the following tests:
1. PLMN01 GSM900 and DCS1800 Mobile Equipment Technical Specifications.
2. CN13438 Limits and Methods of Measurement of Radio Interference Characteristics of Information
Technology Equipment.
3. SAR (GPRS:900/1800MHz) (OET65) Specific Absorption Rate (SAR) Test.
4. SAFETY LVD/EN60950 Safety of Information Technology Equipment.
5. RTTE01 2.4GHz Radio-frequency Telecommunications Terminal Equipment Technical Specifications.
The SAR limit set by the FCC is 1.6W/kg; the highest SAR value for this product is 0.322W/Kg @1g.
WARNING: To reduce the influences of the radio waves, please use this product carefully and properly.
This product meets the government’s requirements for exposure to radio waves.
