User Manual
1
Instructions
table pc
Brand Name: Kinwei
Model Name: PC7074ME
FCC ID: BRCPC7074ME
2
Content
1. Preface
2. Safety Notices
3. Ready to Use
3.1 Packing List
3.2 Product Appearance
3.3 Instructions on Keys
3.4 Features Overview
4. Quick Guides
4.1 Switch On/Off
4.2 Battery Management and Charging
4.3 Operation of the Function Icons
5. Operation Details
5.1.1 Music Player
5.1.2 Video Player
5.1.3 Picture Player
5.1.4 Sound Recorder
5.1.5 File Manager
5.1.6 Web Browser
5.1.7 E-book reader
5.1.8 Calculator
5.1.9 Clock
5.2.0 Camera
5.2.1 External Storage
5.2.2 APK install & uninstall
5.2.3 External mouse/keyboard
5.3Movil Teacher
5.3.1 Device setting
5.3.2 USER’S INTE RFACE
5.3.3NAVEGACION
6. Device setting
6.1.1 WIFI
6.1.2 External 3G USB Dongle：
6.1.3 External RJ45 USB Dongle
6.1.4 Sound
6.1.5 Display
6.1.6 Screen shot
6.1.7 Storage
6.1.8 Battery
6.1.9 Apps
6.2.0 Location & security
6.2.1 Language & input
6.2.2 Backup & reset
6.2.3 Date & time
6.2.4 Accessibility
3
6.2.5 Developer options
6.2.6 About tablet
6.3 Add, Move or Delete Desktop Icon
7. Firmware Upgrade
8. Troubleshooting
1. Preface
Dear Customers,
Thanks very much for purchasing our product!
This Tablet PC is a built-in high performance Wi-Fi receiver module, supporting an external 3G
USB-DONGLE wireless network card, using broadband wireless networks, breaking through the
restraint of network cables; it will bring you into the portable media player world and fulfill your
entertainment needs. It also supports picture browsing, e-book reading, games, online chat and other
functions; various settings will fully show your individuality.
To operate this player easily, first, please read this User Manual included with the player. Then you will
have a better understanding of the operations. Before operating this player, please carefully read all data
we provide about the player, so that you will have a better understanding of the product and its
operations.
The Company will not be responsible for any loss of personal data and damage caused by incorrect
operation of the Software/Hardware, artificial damages, replacement of batteries or any other accident.
To avoid loss of your data, please backup your data to your computer at all times.
Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against
the manual, the Company will not take any relevant responsibility for any accidental loss potentially
occurring in the process of using this manual.
Due to constant product development, the information in this manual is subject to change without any
prior notice.
This manual is protected by copyright and no part is permitted to be copied or reproduced in any way
without prior written permission of the Company.
The Company reserves the final explanation right of this manual, warranty as well as its related
information.
(Note: When compiling this manual, we are very careful to provide you completely reliable information.
However, there is inevitably some error and oversight, please understand, and we welcome your
suggestions. If any problem occurs during your use of this product, please immediately contact your
local seller)
Thanks for your support and please pay attention to our other products
2. Safety Notices
1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product.
2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use,
because this may cause surface scratches on the Tablet PC, battery damage, data loss or other damage to
the hardware.
3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet
PC could disable it to the extent of being beyond repair.
4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and
corrode the finish.
5) You are recommended not to use the headset with the volume at its highest settings, please adjust the
volume to an appropriate safe level and limit the amount of time you spend using headphones to avoid
possible damage to your hearing. Excessive volume will cause permanent hearing damage.
6) Please do not cut off the power abruptly during software updates or downloading, because this may
cause data loss or system errors.
7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must
be avoided to prevent the possibility of overheating or fire.
4
8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands.
9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed
as an infringement to the laws of copyright.
10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when
the usage of the Tablet PC will cause interference and possible danger.
11) All the wireless equipment is subject to external interference and this can affect its performance.
12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of
the plane; please consult the relevant airline company if you intend to use the Tablet PC on a plane.
13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals.
14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting
operations are in progress.
15) Only qualified maintenance personnel can install or repair the Tablet PC. Opening the Tablet PC in
any way will invalidate the warranty.
16) Please use the original accessories and battery provided with the Tablet PC, do not use the
incompatible products.
17) The Tablet PC is not waterproof, please keep it dry.
18) For the sake of data safety, please back up any important information on the Tablet PC, or keep a
handwritten record.
19) When the Tablet PC is connecting with other devices, please read the user manual for detailed safety
instructions. Don’t connect the Tablet PC to incompatible products.
20) Please upgrade device with enclosed optical disk when the device is set to operate in a different way.
Note: When the Tablet PC is connected to the computer, the computer must be equipped the play for
Windows Media Player 10, Windows Media Player 11 or above version.
3. Ready to Use
3.1 Packing list
3.2 Product Appearance
Accessories
Quantity
Device
1
Leather Case (Optional)）
1
Keyboard/Mouse (Optional)
1
TF (Micro SD) Card (Optional)
1
Adaptor
1
Earphone
1
USB Cable
1
HOST cable(optional )
1
3G USB Dongle(Optional)
1
RJ45 USB Dongle(Optional)
1
Paper User Manual（optional ）
1
CD-ROM (Firmware)
1
Warranty Card (optional )
1
5

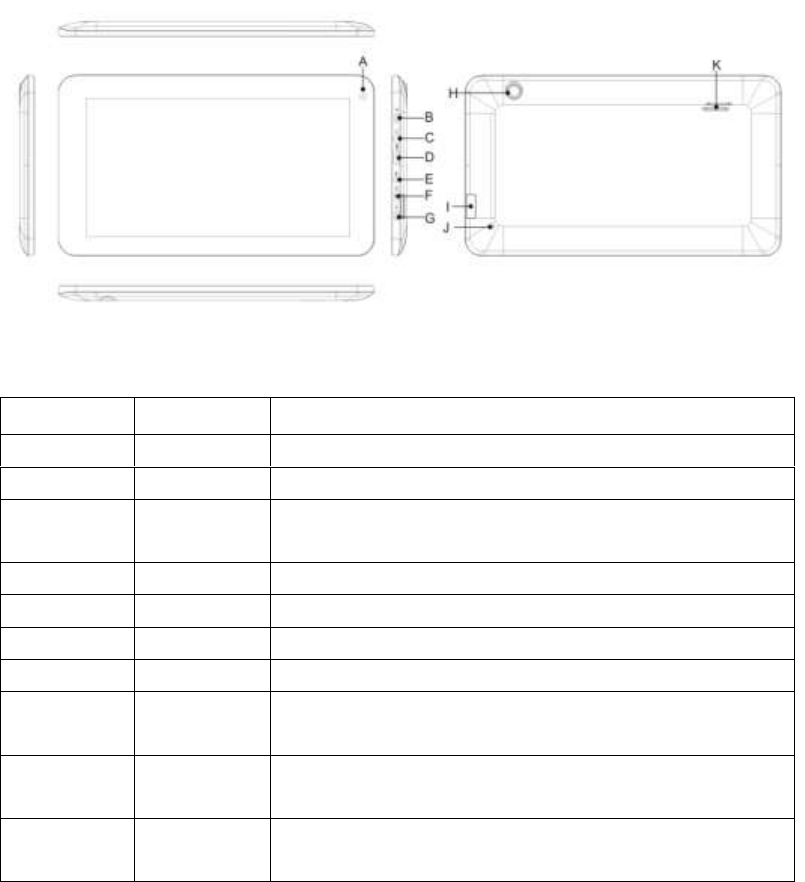

3.3 Instructions on Keys
Symbol
Name
Description
F
Volume+
Short pres to increase the volume
G
Volume -
Short pres to decrease the volume
B
POWER
Short press the button to enter sleeping/wake up
mode, long press to switch ON/OFF
I
TF card
External TF card slot
J
RESET
Press to reset the tablets
D
USB
MIC_5PIN connector
E
DC In
5V DC charger port
C
Earphone
Jack
3.5 Stereo Earphone Jack
A
Front
Camera
Optional
H
Rear
Camera
Optional
3.4 Features Overview
Adopts Rockchip3026 as the main chip, ARM Cortex A9, frequency at 1.0GHz GPU Mail-400MP2 ，
support Android 4.2；
Support RAM 512M/1G DDR3（optional）；
Build-in ROM Flash, 4GB/8GB/16GB/32GB（optional），
Support max 32GB TF card.
7 inch TFT Screen 800*480&1024*600（optional），capacitive multi-point touch.
Support MPEG-1，MPEG-2,MPEG-4，H.263, H.264, AVS, VC-1, RV etc audio formats, Max resolution
support: 1920*1080/60fps。
Support JPG、JPEG、BMP、GIF、PNG、JFIF etc picture format, max resolution support:8000*8000．
Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP etc audio formats and multi
EQ modes, and support Lyrics synchronized display or full-page display.
Support TXT、LRC、PDF、Html、Htm、EPUB etc file formats, supports auto-browse, zoom, bookmarks, flip
over functions.
Wi-Fi ready, you can connect with broadband wireless internet and operate various software in the
Android 4.2 OS, the system preset parts of third software: Google browser, Online MP3, online
6
novel, online video, E-book, etc.
Built-in microphone record/ voice call function。
Supports USB-HOST function for external U-disk, Keyboard, Mouse & 3g dongle etc.
Built-in 0.3MP front camera and 2.0MP back camera.
Supports G-sensor screen rotation function
Supports built-in speaker and external stereo earphone
Supports multiple languages
Can be used as a USB portable hard disk, driver not needed for WIN2000 or above.
Technical Specifications：
Display
size
7 inch TFT
resolution
800*480
Interface
USB port，USB OTG 2.0/USB Host2.0 (MIC 5PIN shift 4PIN HOST)
CPU
RK3026，ARM Cortex A9 Max frequency at 1.0GHz
Built-in Flash
Flash Memory ：8GB
Built-in RAM
ROM：DDRIII 512MB
Capacity
Expansion
Support TF Card 1GB~32GB
Power Supply
Built-in 3.7V by Built-in Li-ion rechargeable battery
Music Function
Format
MP1、MP2、MP3、WMA、WAV、OGG、OGA、
APE、FLAC、AAC、M4A、3GPP
Headset max. output
（L）5mW＋（R）5mW（32Ohm）
MP3 Bit rate
8Kbps ~ 392 Kbps
WMA, WMV, Bit
rate
5Kbps ~ 192 Kbps
Frequency response
20Hz ~ 20KHz
SN ratio
90dB
Distortion
＜0.05%
Video Function
Play format
MPEG-1，MPEG-2,MPEG-4，H.263, H.264, AVS,
VC-1, RV,etc
Max Resolution
1920*1088
Ratio
4: 3、16: 9、full screen optional.
Photo Browse
Support format: JPG、JPEG、BMP、GIF、PNG、JFIF etc., max
resolution support: 8000*8000．
E-book Function
Format
TXT、LRC、PDF、Html、Htm、EPUB etc
Max. capacity
5M
Wi-Fi Function
Main chipset
NMC1000
Transmission rate
Max54Mbps
Transmission range
Max100m
Frequency
b/g/n
Record Function
Format
WAV
Working
temperature
-10 ~ 50 ℃
Supported OS
Windows2000/XP/WIN7/Vista Mac OS V9.0/10.0
7
4. Quick Guides
4.1 Switch On/Off
Switch ON and Unlock: When the Tablet PC is in OFF mode, please press and hold the “POWER” key
for 3 seconds to enter the Android startup process. The Tablet PC will take about 100 seconds to enter

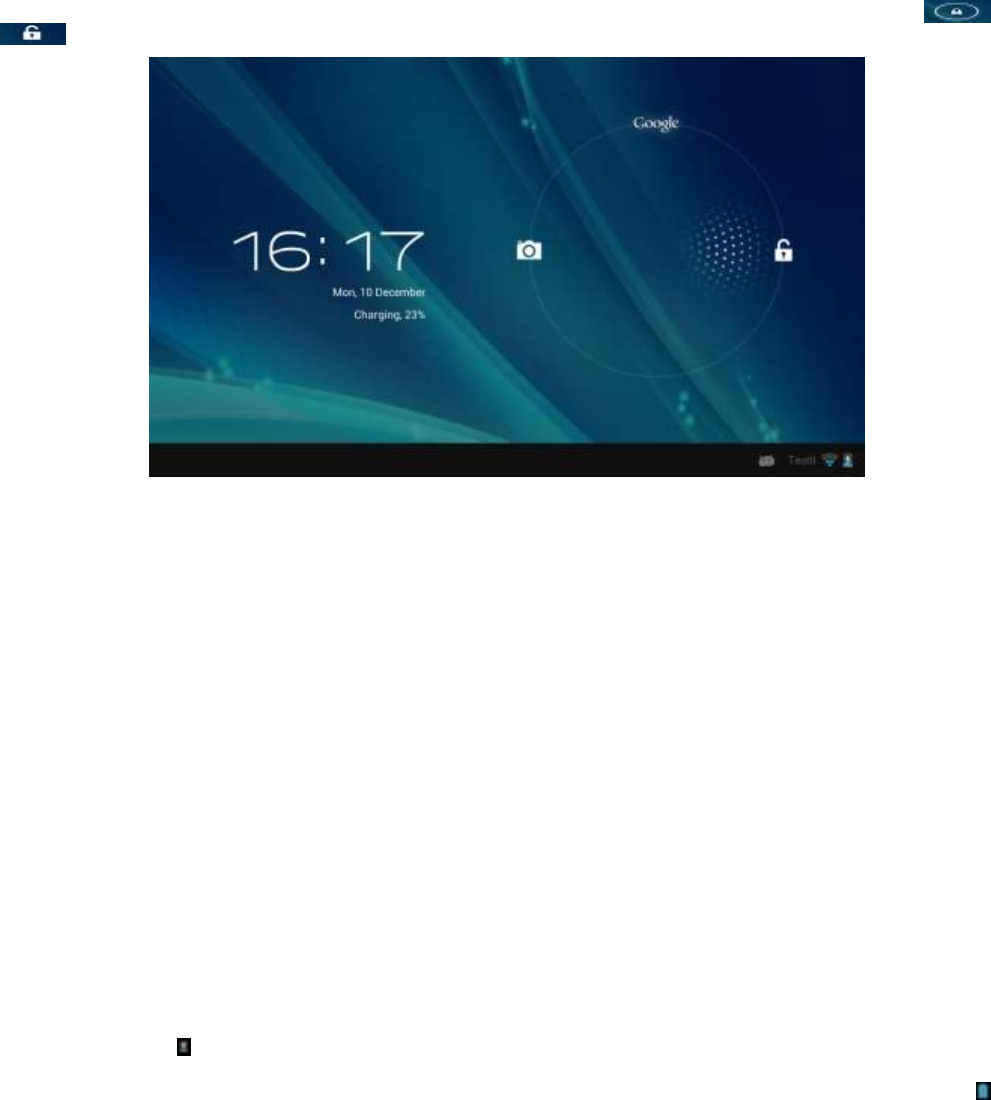

the system desktop with the display in locked mode. Please press and move right the icon
to , the display will unlock automatically, see the image below:
Power Saving Mode and Locked Mode: Pressing the “POWER” key when the Tablet PC is in use will
result in the system entering SLEEP power save and locked mode. Press the “POWER” key or tap the
touch screen for 3 seconds, the Tablet PC will return the system to locked mode within 1 second.
Note: The primary operation of the Tablet PC will not stop under the power saving mode, just the
display is turned off and showing a black screen with the Power light is on. This means that music play,
movies play etc. will still continue running in the system.
Switch OFF: When the Tablet PC is in use, please press and hold the “POWER” key for 3 seconds, the
screen will display the power off interface, choose the power off option to confirm your selection and
the system will shut down automatically.
Note:When system halted or device under blank screen, please restart the device after device automatic
power off by pressing reset key or long pressing power key for 6 second.
Note: When the Tablet PC is running low on battery power, it will sound an alarm and then shut
down automatically if it isn’t plugged into a power source to start charging. If the Tablet PC can’t
start up please check if the battery power is too low.
4.2 Battery Management and Charging
Note: Charge the battery at least 8 hours to make sure the battery is fully charged for the first time.
·Insert the adaptor into the DC slot on the Tablet PC, and connect the other side with the power socket.
Then the Power indicating lamp on the top right side of the Tablet PC will turn purple, and the desktop
icon of the battery keeps rolling to show it is charging. Note: Please wait until the battery is fully
charged and do not disconnect the adaptor when charging.
·Once the battery is fully charged, the indicating lamp will change into blue, the Icon on the desktop
will stop rolling.
· When the battery is exhausted completely, please charge at least 5 minutes before starting it up.
Note: In order to keep the battery working to its full potential, please pay attention to the following
advice:
1) Don’t charge the power in excessively high temperatures.
2) There is no need to run down the power for this Li-ion battery, you can charge the battery even when
there is still power left in the battery without it affecting the lifespan of the battery.
3) In order to keep the battery in good condition, Make sure you charge it at least once every two weeks
8
if the Tablet PC hasn’t been used for a long time.

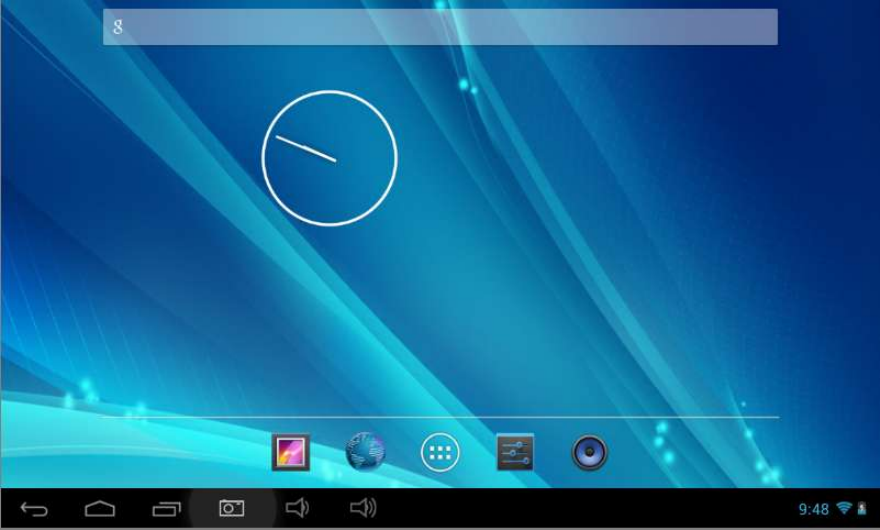

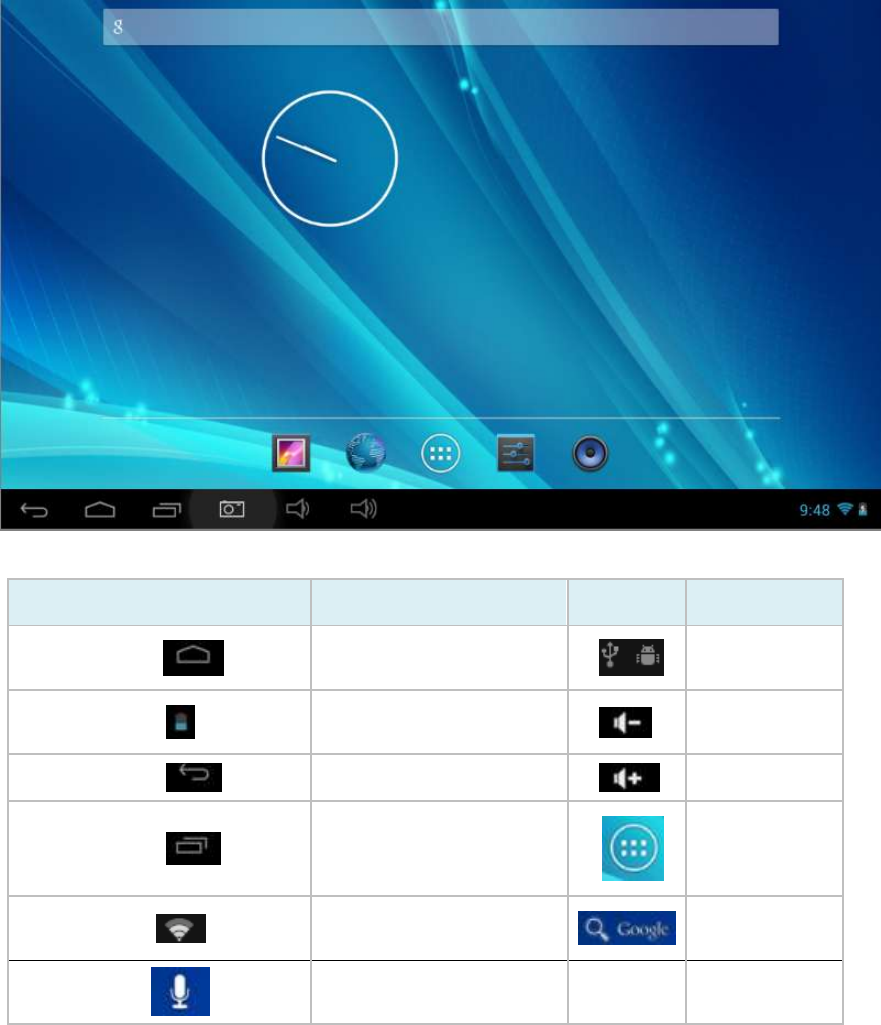

4.3 Operation of the Function Icons
Icon
Function
Icon
Function
Back to main menu
Notifications
Power Status
Reduce the
volume
Return
Increase the
volume
Recent apps and other
options
Function
Menu
Wi-Fi Status
Google
Search
Voice search
5. Operation Details
9
5.1.1 music Player

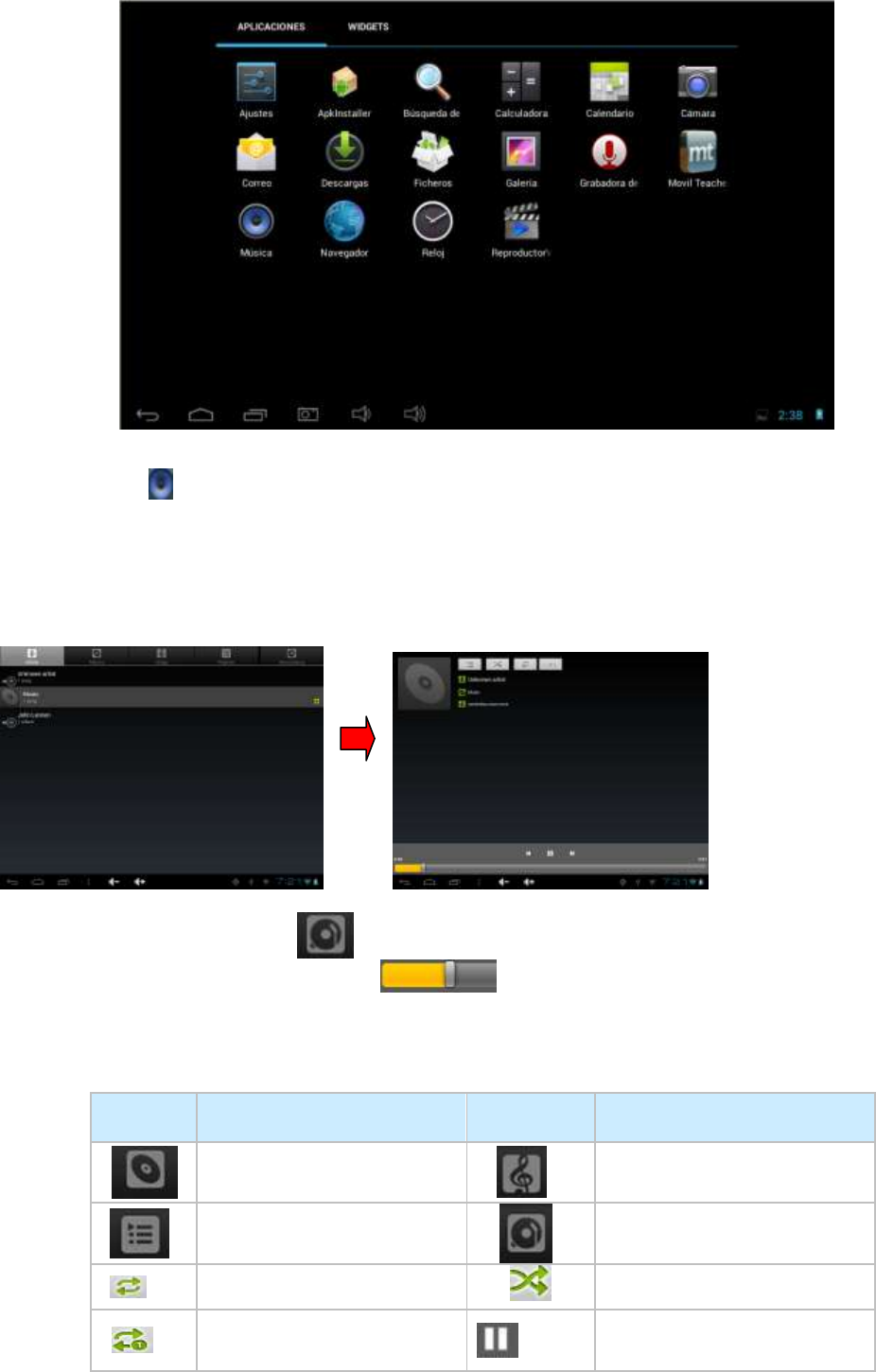

Press audio icon which is in main menu or desktop to enter audio playing.
If there is no music file in the player, files in sd or tf card will be loaded to the
playlist automatically. The device support music file format is : mp3、wav、midi、
wma.etc. The playlist shown as below picture.
In the playlist, paddle up or down on the screen for page turning. Double press your
favored songs to enter playing interface and start to pay audio files.
When in playing, click to enter into play list;
Drag the playback progress bar to adjust video playback progress.
Music Player Icons：
Icons
description
Icons
description
Albums
song
Music list
Current Playing
Loop playback
Random play
Repeat Single
Pause
10
Play the last song
Play the next song
Play Audio
Volume- & Volume+
Note: Audio player can play WAV audio files.
5.1.2 Video

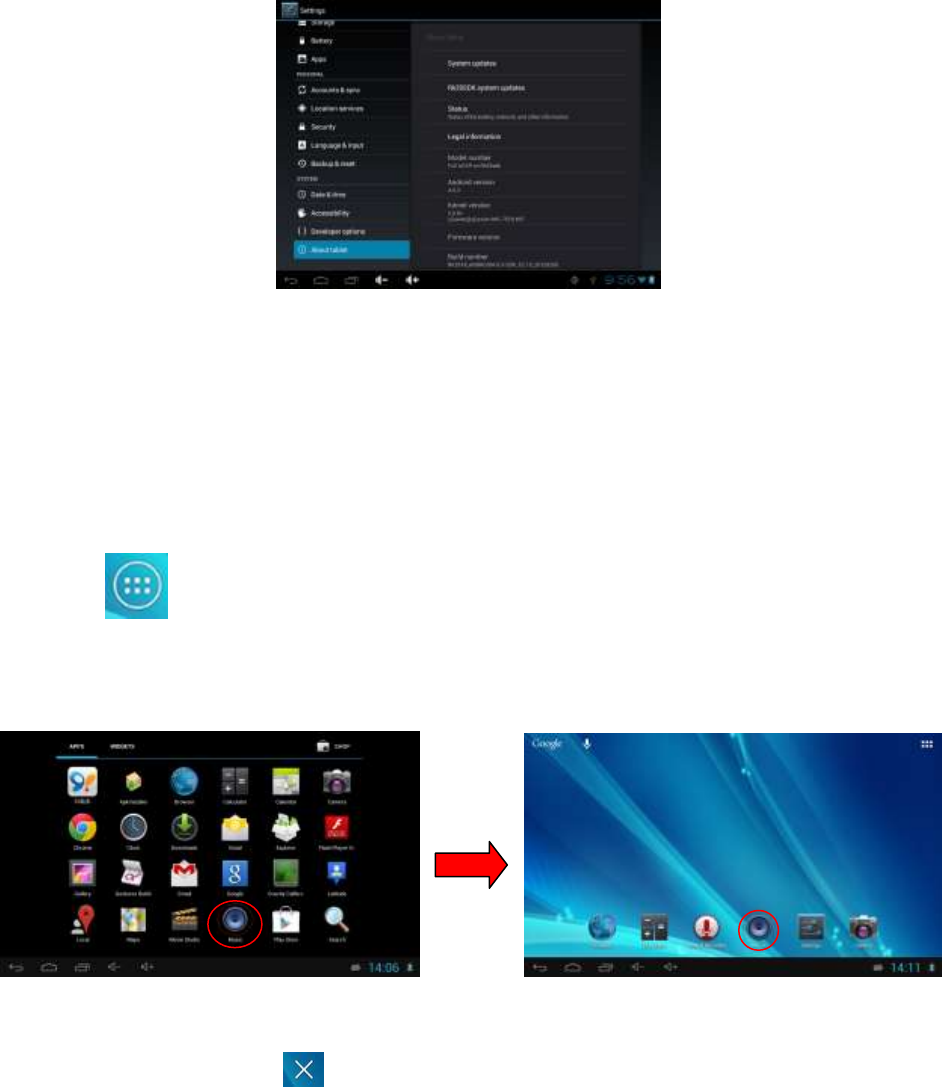

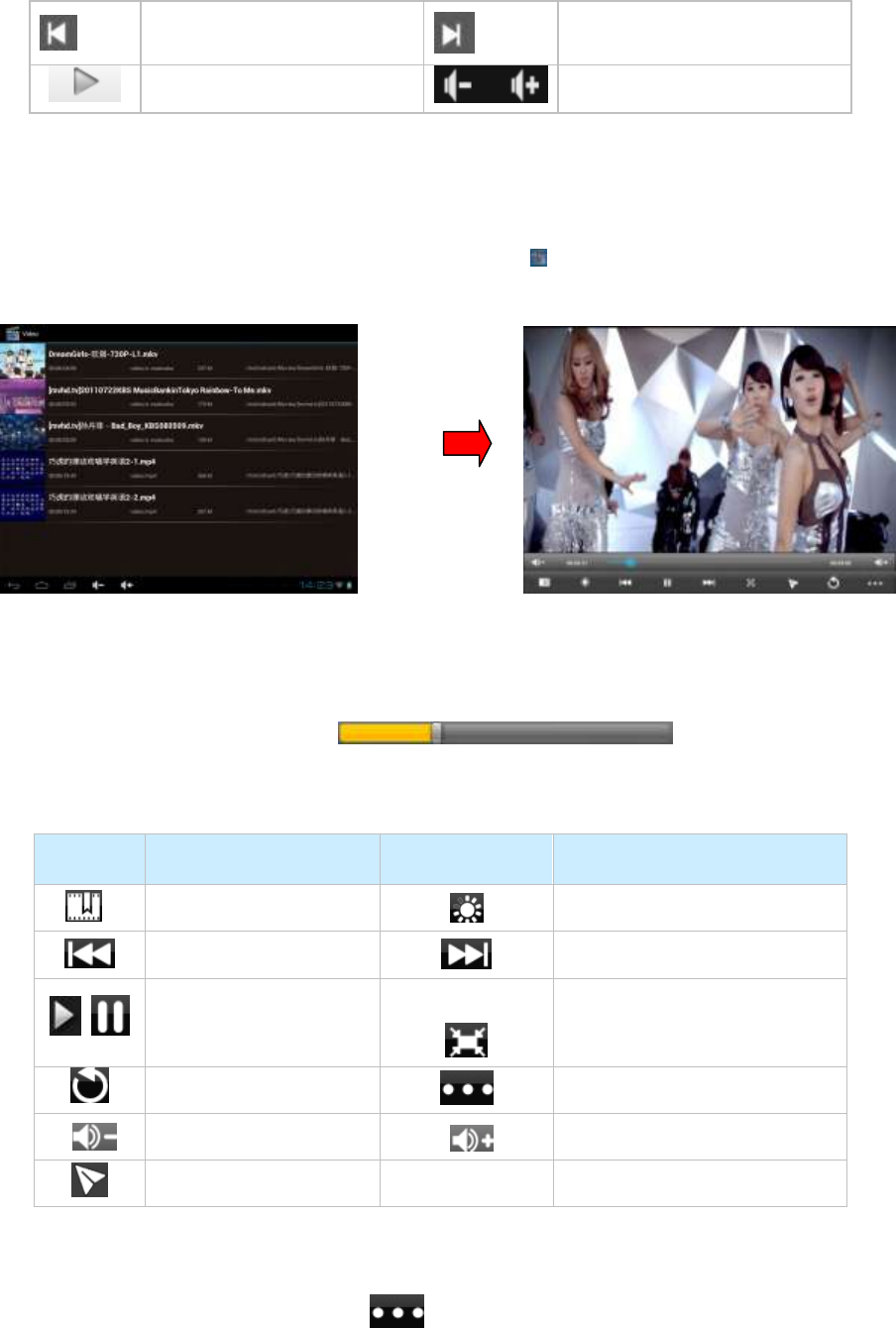

In the application menu or on the desktop, tap the icon to enter the video and picture player
interface, Double click the movie you’d like to start playing:
Video formats support：MKV、AVI、RM、RMVB、MP4、MOV、VOB、DAT、FLV、3GP
The system will automatically load any video files from the TF card to the playlist after the
video player has been launched.
Drag the playback progress bar ，to adjust video playback
progress.
Video playing button icons：
Icons
description
Icons
description
Add bookmark
brilliance control
Last
Next
Play & Pause
Video standard:16：9 /4：3/
recover
quit
menu
Decrease volume
Increase volume
Change to min window
During video playing, you can tap to achieve selection such as delete bookmark, play mode etc
as below shown:
11
a. Tap play mode for option single, repeat on, repeat all or return etc.:
5.1.3 Gallery
In the application menu or on the desktop, tap to enter picture player interface as below:
Picture Player Icons Description:
Icon
Function
Icon
Function
Delete the picture
Picture select and edit
Load images（The Tablet PC supports：BMP、JPG、JPEG、PNG、GIF）
The system will automatically load the image files from the TF card to the photo browsing list
12
after the photo browser has launched.

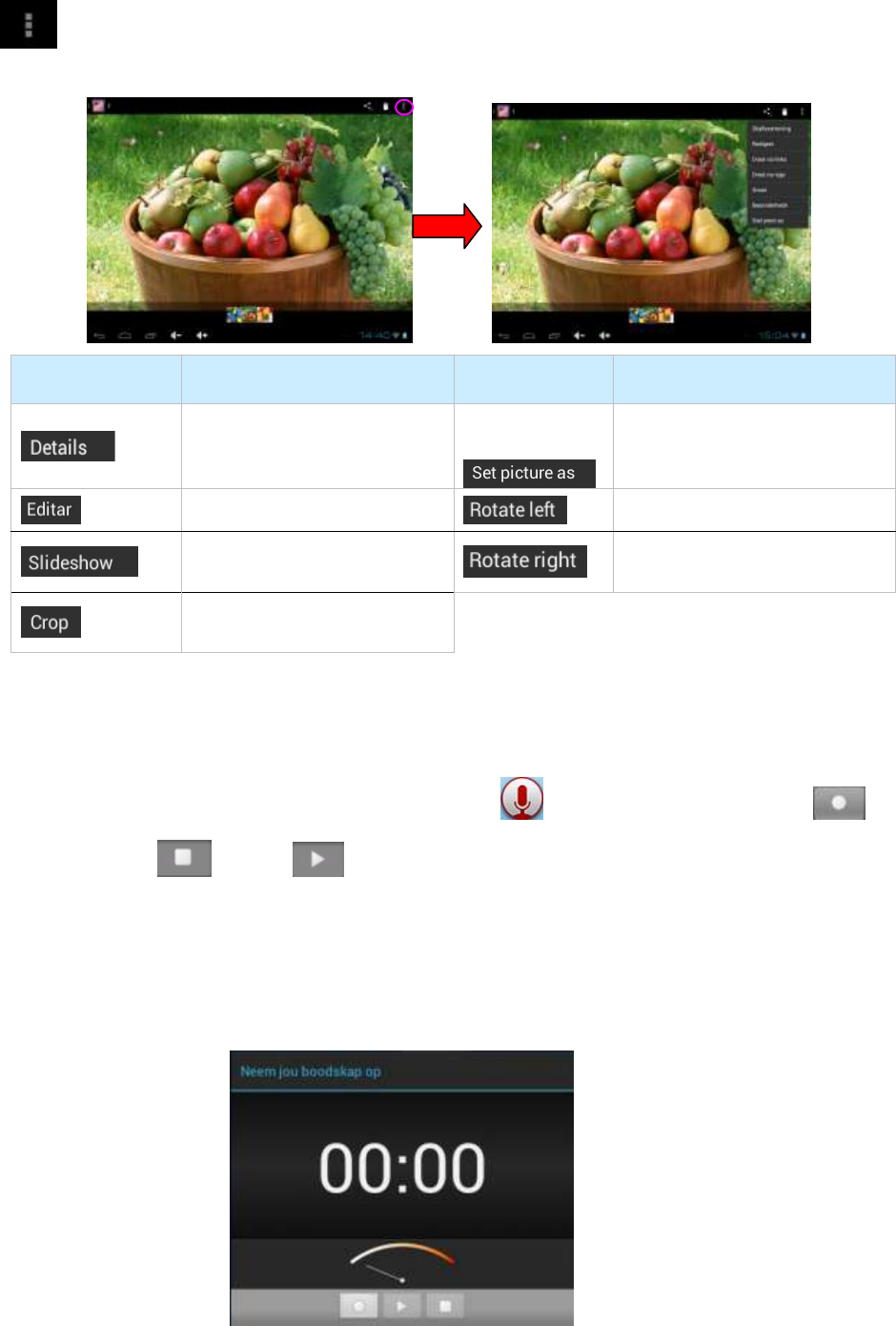

Tap to slide show, browse images, set the image as wallpaper, edit, rotate, crop or resize your
image.
Icon
Function
Icon
Function
set image as wallpaper
edit
Rotate left
Slide show
Rotate right
Crop and resize
5.1.4 Recording
In the application menu or on the desktop, click to the recording interface，tap to start
recording, to pause, to play. When recording finish, you’ll be asked if you wanna
“Discard” or “Save” the recording.
Recording playing：select playing recording by video player, finding the recording files from root
content of file manager, click the one you’d like to start playing, details see 5.1.1(video player).
5.1.5 File Manager
13

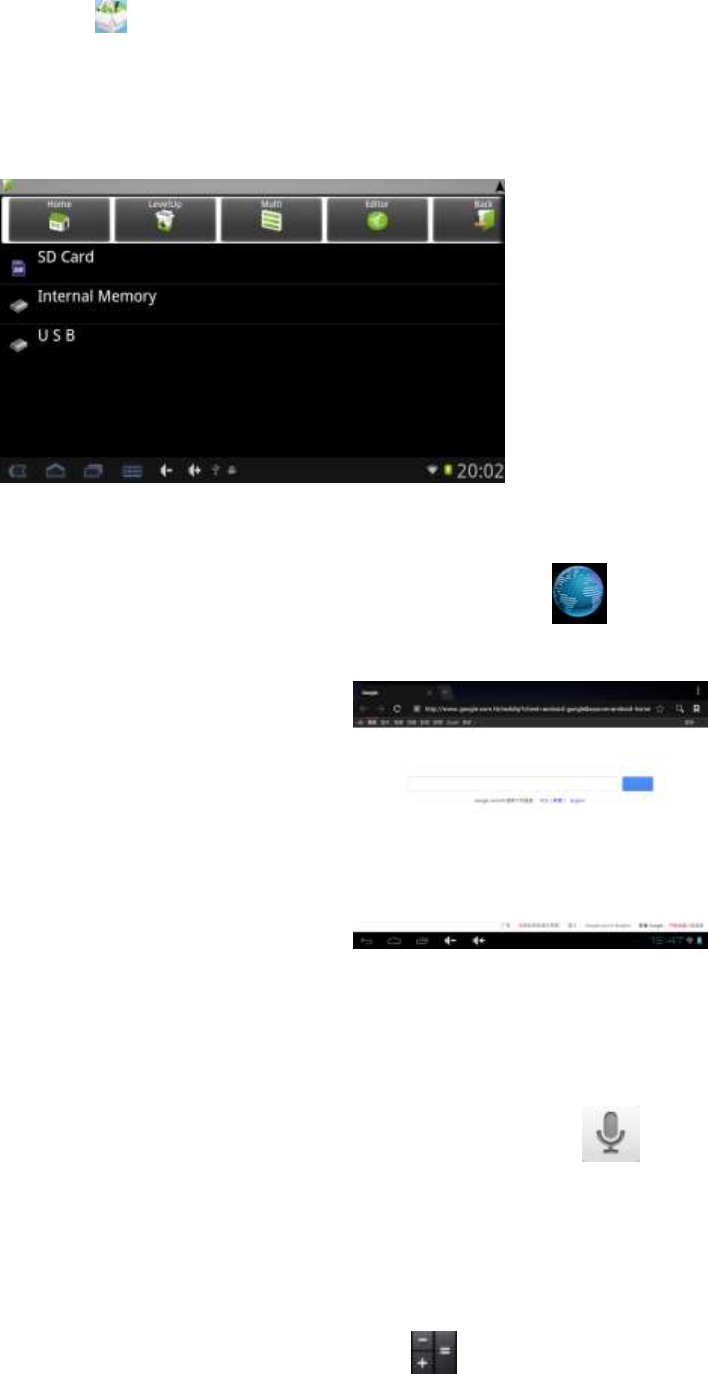

Tap icon on the menu or desktop to enter the interface of File Manager,click【SD Card】、【Internal
Memory】and【USB】the system will pop up the file or folder operations window, then you can choose to
Copy, Delete, Move, Rename etc。Long press a single folder or file, select the "last", "next", or "top" to
find the corresponding path, click on the "edit" in the pop-up window choose paste to the corresponding
path.
5.1.6 IE Web Browser
Under WIFI connected,(see chapter6.1.1 WiFi), tap icon enter to the Web Browser interface; tap
the address bar of the browser and input the website and enter.
Note: The IE Explorer uses the popular third-party IE Explorer software; please follow the IE Explorer's
standard operating mode to operate.
Voice Search
In the application menu or on the desktop, tap the icon [ ]and enter into the voice search page:
Once you have entered in, you can speak out the content to the device with standard language, and then
the device will recognize your voice and automatically search what you have said.
5.1.7 Calculator
In the main menu or the desktop Tap icon to open the calculator.
14
5.1.8 Clock：
In the main menu or the desktop Tap icon to the interface of clock.
Tap set up accordingly, as shown below:
click accordingly the time，Can be set up alarm clock detailed information: the alarm clock time, alarm
bell, repeated alarm condition, the label set.
Repeating: choose accordingly the day that the clock be expected to ring-down.
- On Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and Sunday: check you need the
number of days, for example: you choose from Monday to Friday alarm, respectively from Monday to
Friday behind box ticked on, set the alarm clock on Monday to Friday at the same time of the repeated
ring;
- No: set the alarm clock ring only once, don't repeat
- Click on the clock: select the clock model
After the set time and alarm clock can be adjustable according to personal likes to power-saving
15
mode.Touch the screen for the power saving mode, touch again below normal.Power saving mode as
shown in figure:
5.2．0 Camera Operation

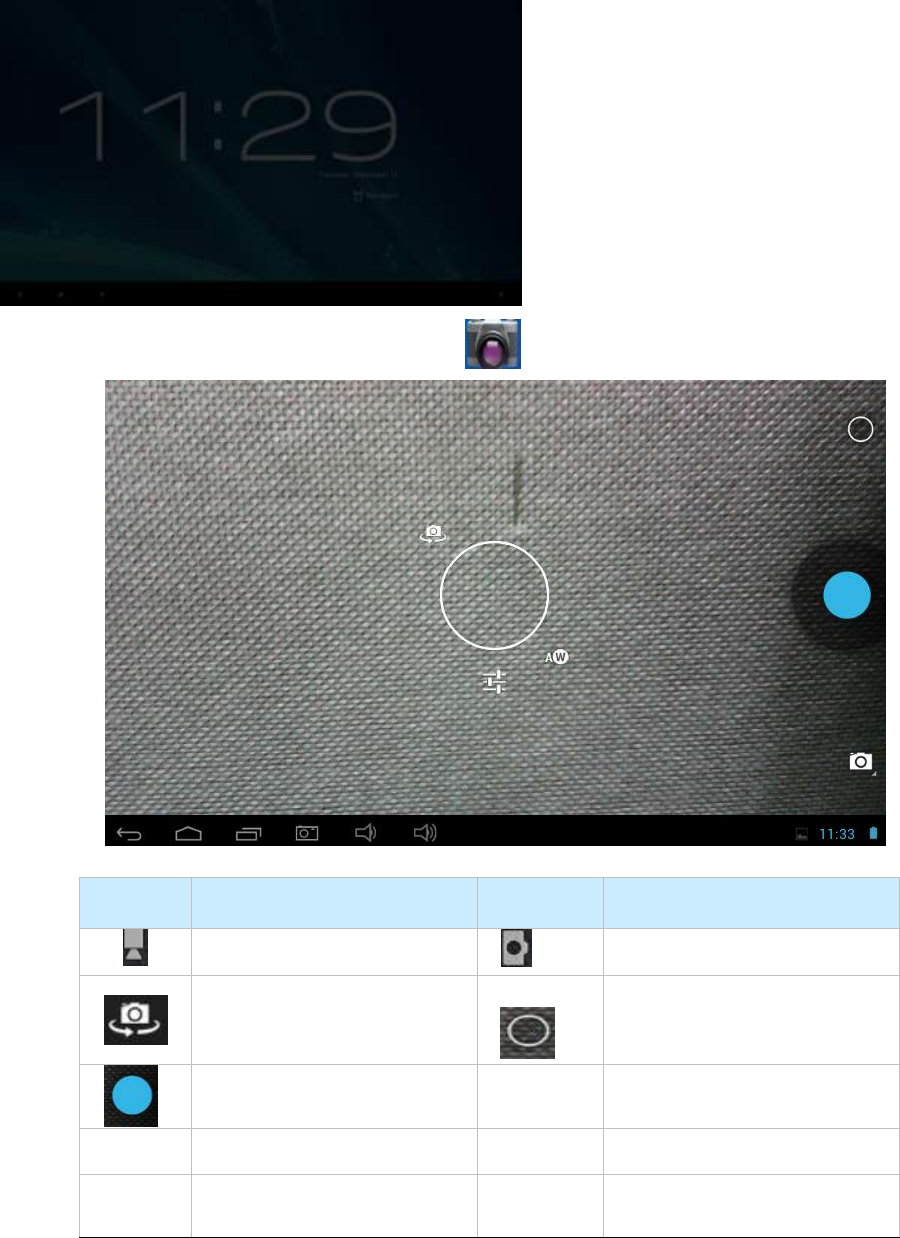

In the applications menu or on the desktop, tap the icon to enter into the camera function
interface as below:
按钮
说明
按钮
说明
Video Icon
Photo Icon
Front and rear Camera
switch
Photo debugging
Shutter
5.2.1 Usage of TF or SD Card
This device has SD or TF card slot and can read files in those cards. Operating should be in the
right way when plug in or take out those cards.
16
When using, according to the card slot will set the SD card, insert into tablet correctly, push into
the card, until you hear a click sound. If you want to take out the card, please push card into the
slot tightly, and then release. Memory card will automatically pop up, and then remove the memory
card.
Icon will appear if cards are inserted properly and it shows the SD card is connected to the
device.
Do not take out card if you want to copy or read files in card, or it will cause data mistake or lost
problem
Avoid high temperature and wet environment when using the card
Avoid liquid and corrosive materials.
5.2.2 APK software install and uninstall
Native support for third party applications based on Android platform, most applications can be

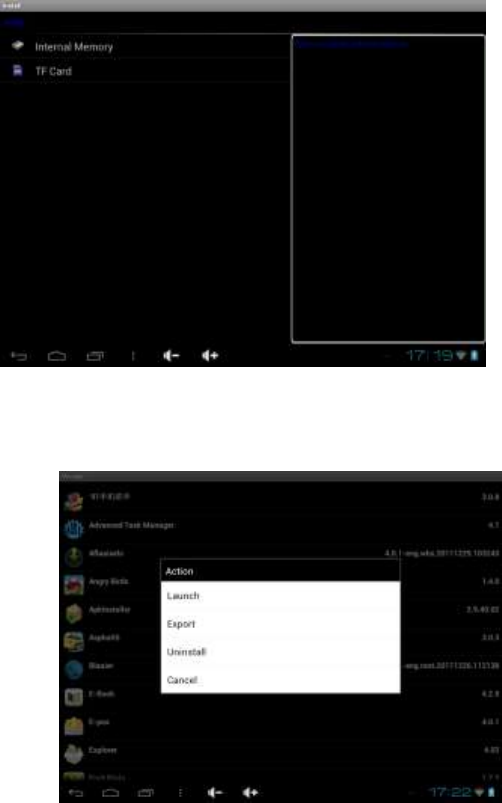

obtained from the Internet,copy into the machine flash or T - flash card, and then to install and use.
• click “”，for installation, see as below picture：Installation, management and exit, three
options.
• Installation ：Click install, enter the Apk installation interface。
Internal Memory and SD Card corresponding flash ram disk and the T - flash Card storage;
After entering, choose the right box APK format installer, double click install software.
Operation after the completion of the return to the main interface, that is, complete the
installation, and a corresponding software menu.
17
• Uninstall: Click on the management, into third party software interface.
Note: this system can only unload the users to install APK software, the original factory
own software unable to uninstall and delete.
- start: run the software
- export: export software to the T - Flash CARDS
- unloading: uninstall the software
- cancellation: cancel the operation
Exit: back to the main interface
(note: this only to install the software, if you need other software installation please according
to this instruction)
5.2.3 External Keyboard & Mouse
After add tieline before plug in the mouse on the screen appears the mouse pointer, mouse the
left key is to confirm that key, right is the return key, middle pulley key is moved up and
down:
18
Note: For the standard keyboard some buttons are not available, it needs o reset the keyboard software
according to ANDROIED system. We suggest you can use the default USB keyboard.
5.3Movil Teacher
5.3.1 Device setting
1, Click the "Setting" icon to enter in the the setting panel.
Locate and choose "Language and keyboard" and select "Voice Search"
Select "Language"
19
Select “English”
Under "Dialect" choose, select English(US)
Select "Keyboard and Language", and select "Output of Voice Text" on the right
Select “Language”
Select in the menu that appears "English (United States)"
20
5.3.2 USER’S INTE RFACE
5.3.3NAVEGACION
The main screen contains the Main Menu of each chapter.
From here you can enter all of the chapters of course.
There are two methods of navigation between chapters.

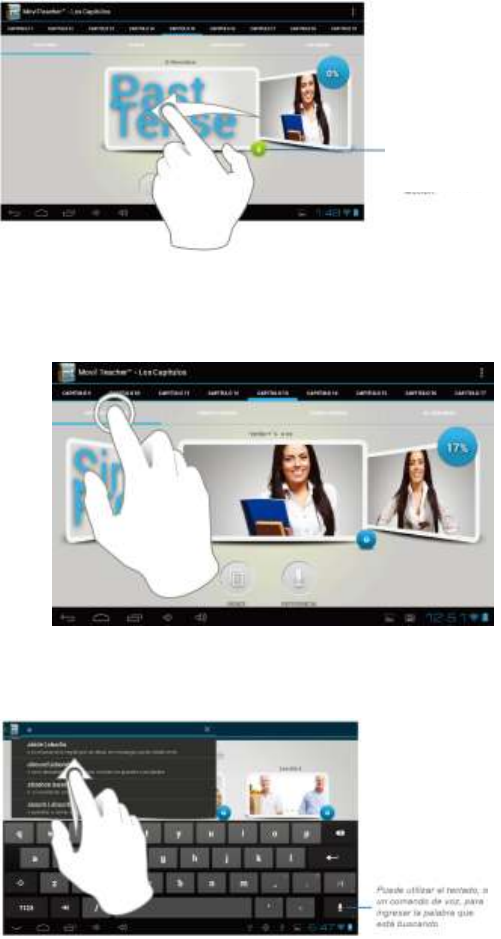

You can move forwards and back from one chapter to another as shown in the following image.
Drag the tabs to navigate between chapters.
Drag lessons’ panels for details of that lesson
.
Indicator of current chapter
Contact and Information
Indicator of current card
Global Punctuation of Chapter
Dynamic icon of progress and punctuation
Reference and pronunciation
Chapter Index
Title of Chapter
Compounds
chapters’ cards
Lessons’ panels
21
In compounds chapters touch tabs to access that section
Once you enter a letter or a word in the "search query" in the dictionary, you can scroll through
all the words in the dictionary, or choose the word that interests you to access more options
Once you choose a word from the list, you will see the dictionary.
From here you can:
• See the translation of the word.
• See the definition of the word.
• Practice writing.
• Listen to the pronunciation.
• Practice your pronunciation of the word.
Progress Icon is
automatically
updated to show
lesson’s progress
or score.
22
Touch the panels to access the main menu of the lessons in this chapter
The main menu of the lessons allows access to each individual lesson and also displays
information about your score and progress in each lesson.
To unlock the padlock and enter the next lesson, you should get 50% or more in the previous
lesson
Once the lock is opened, you will see the blue button 'play' to begin the next lesson
As you progress through the chapter, you will have access to more lessons.
You can always go back and review the finished lesson to review topics or improve your score.
Your current
pronunciation in the
lesson.
Menu to access
these different
chapters
General Instructions for this
set of lessons
Pull-down menu
with interactive
English/Spanish
Dictionary
The lock icon
represents the lesson
that has not been
released yet
Back to chapter menu
Tap this button to
start the lesson
Menu to access these
different chapters
General Instructions
for this set of lessons
Pull-down menu with
interactive English/Spanish
Dictionary
Press this button to practice
your pronunciation of the
word that you typed
Press this button to hear
the correct pronunciation
Back to chapter menu
Translation English
/ Spanish and
definition
23

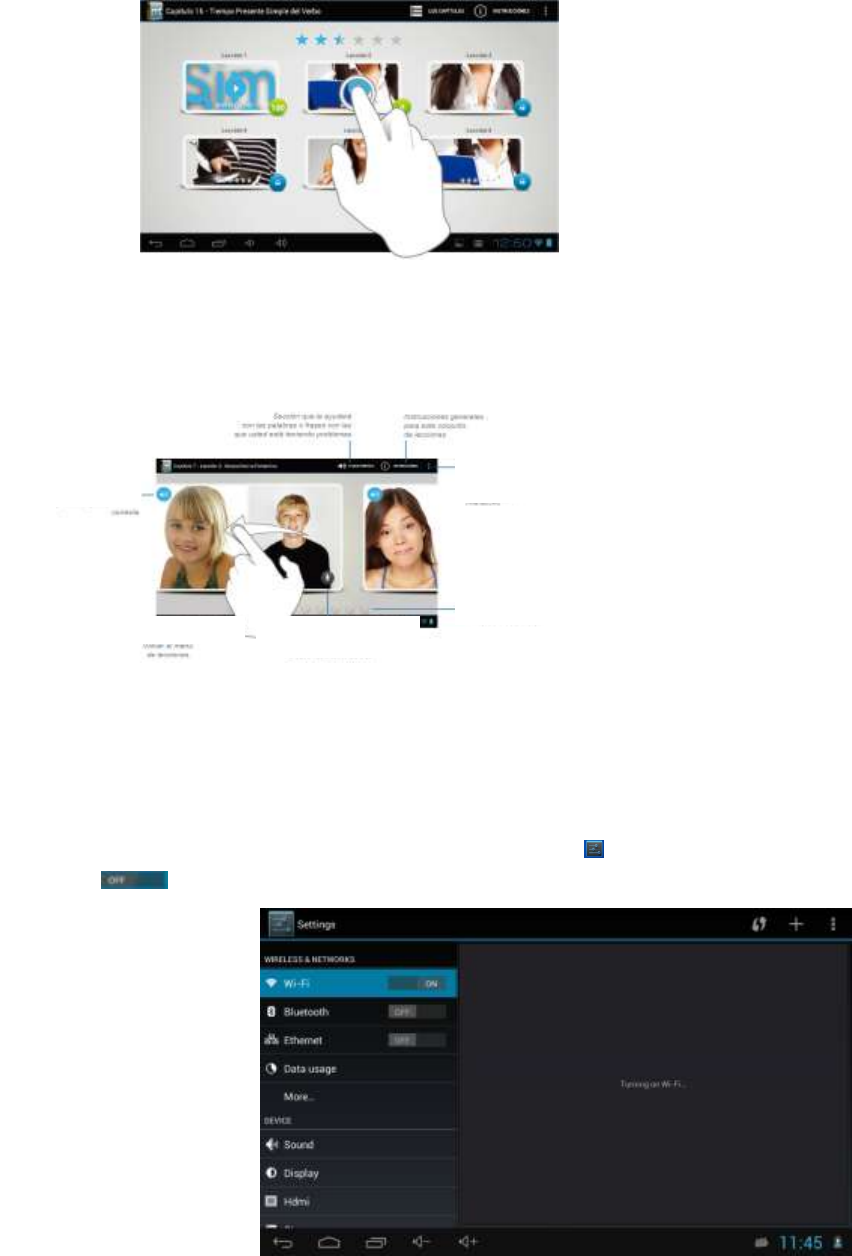

The lessons have several different types of activities, all complete
with instructions and guidance. In all the lessons you can find the
same functionality and continuity of concepts of user's interface.
6 System setting
6.1.1：WIFI Setting
In the applications menu or on the desktop tap to enter into the setting interface, and then
tap
a. Press WIFI and the system will search wireless networks automatically. Shown as below
picture.
Back to lessons menu
Click to play audio and / or hear
the correct pronunciation.
Progress bar and indicator
of correct and incorrect
answers
Pull-down menu with
interactive English/Spanish
Dictionary
General Instructions for this set
of lessons
Section to help with words or phrases
that you are having problems
Button to activate the voice
recognition
24

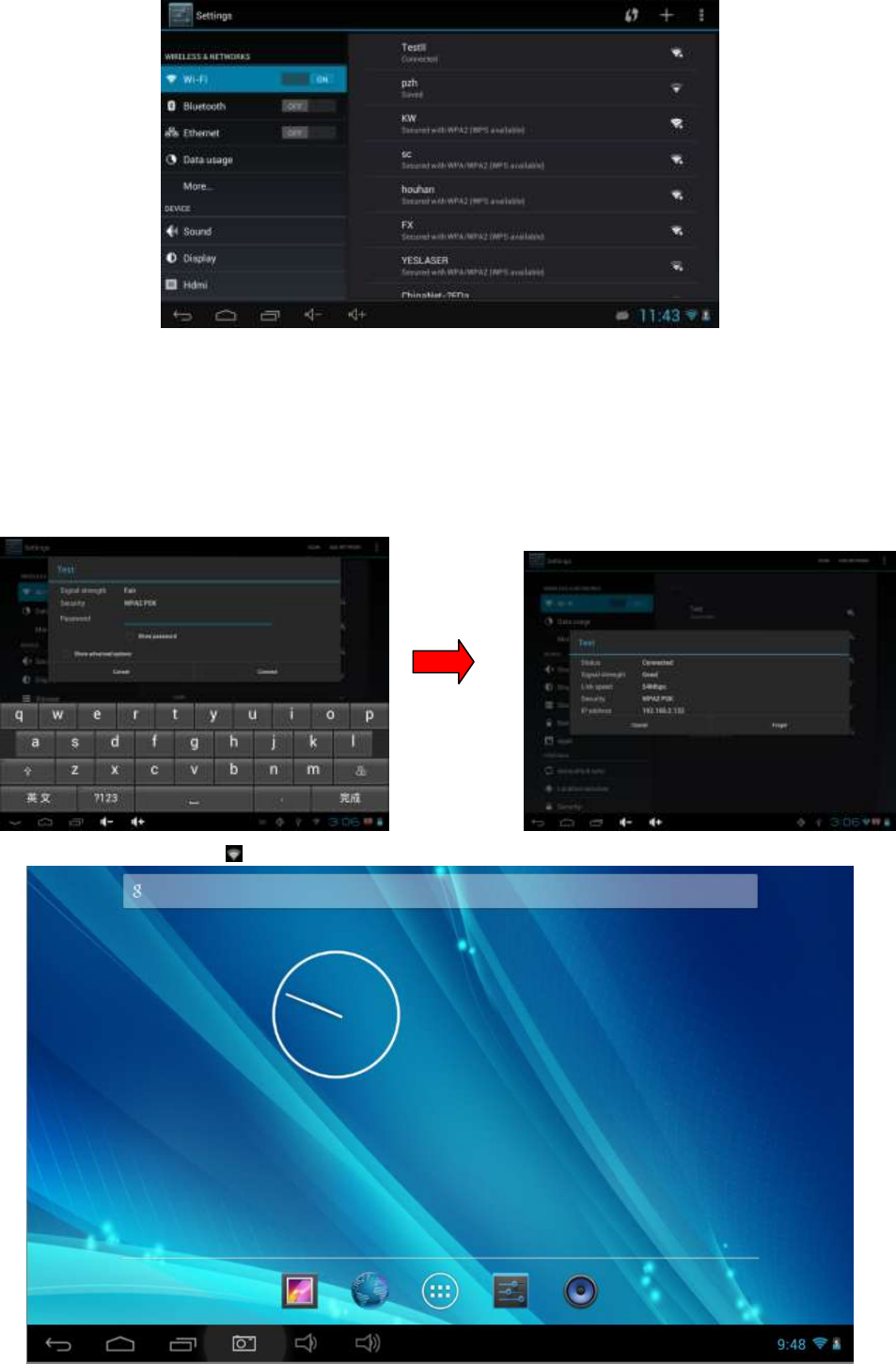

b. Connection ( It is dynamic IP address and needn’t set the IP address)
The dynamic IP address is assigned by WIFI router. If it is automatically assigned the IP address, and
then click the WiFi network name. For example, click “TestII” it will pop up a connection window
where you can input the correct security code and then tap “connect”. The system will connect to the
network automatically, and once connected will show a Status of “Connected” You can see the network
connection status by pressing the network name, see the figure below:
There will be a WIFI icon in the bottom right corner once it connected successfully.
25

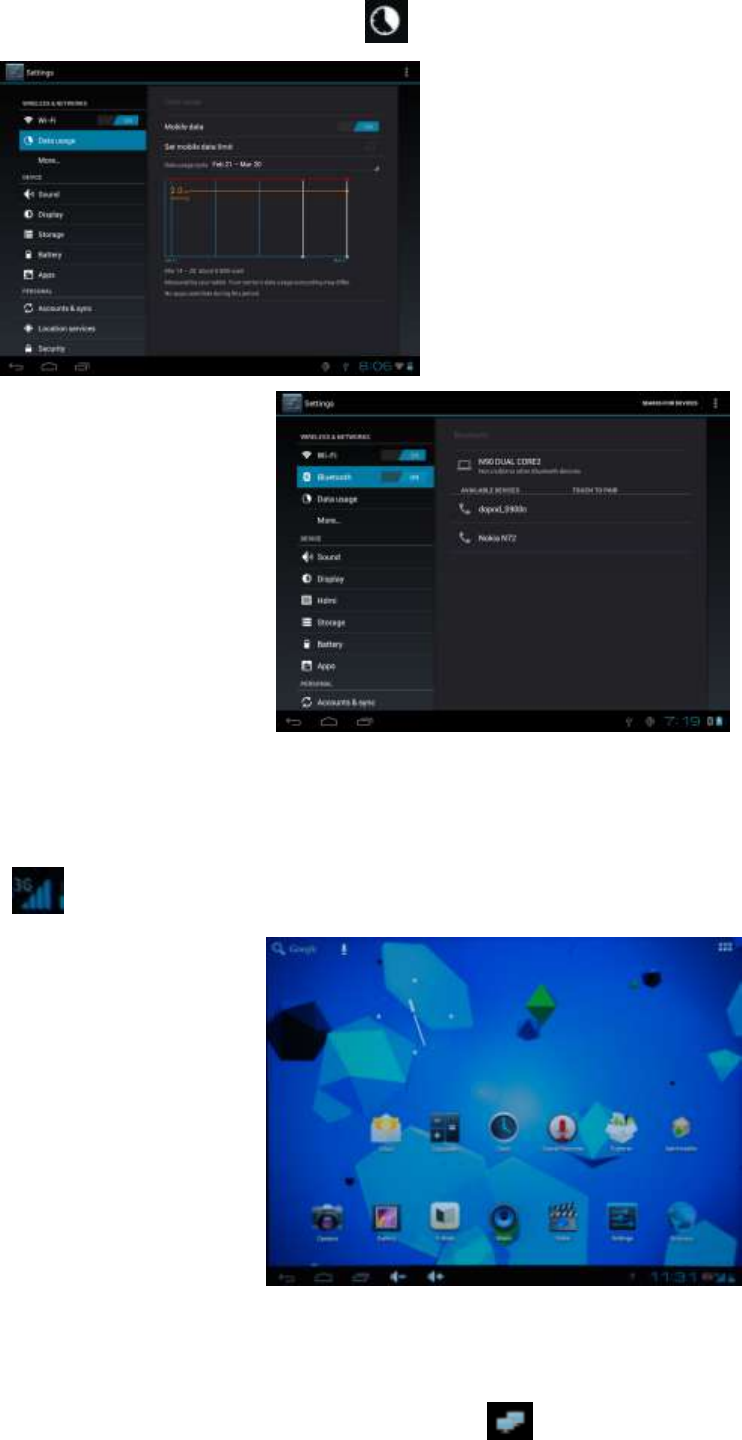

Traffic usage query, Click the icon ( )o check the network traffic
6.1.2 External 3G USB Dongle function
Connect the 3G USB-Dongle to the Tablet PC by USB HOST cable. The 3G network icon will be
showed in the bottom right corner of the screen when Tablet PC connects the 3G successfully as
below picture.
You can use the internet normally.
6.1.3 External RJ45 USB Dongle function
1、Connected RJ45USB Dongle to the tablet PC by USB HOST cable, MID will obtain IP address
automatically without any Settings. This iocn appears in the right lower corner when it is
connect well, then the network is available.
26
In the applications menu or on the desktop, click icon , click icon ， as below picture,
and tick “√”behind .
6.1.4 Sound setting

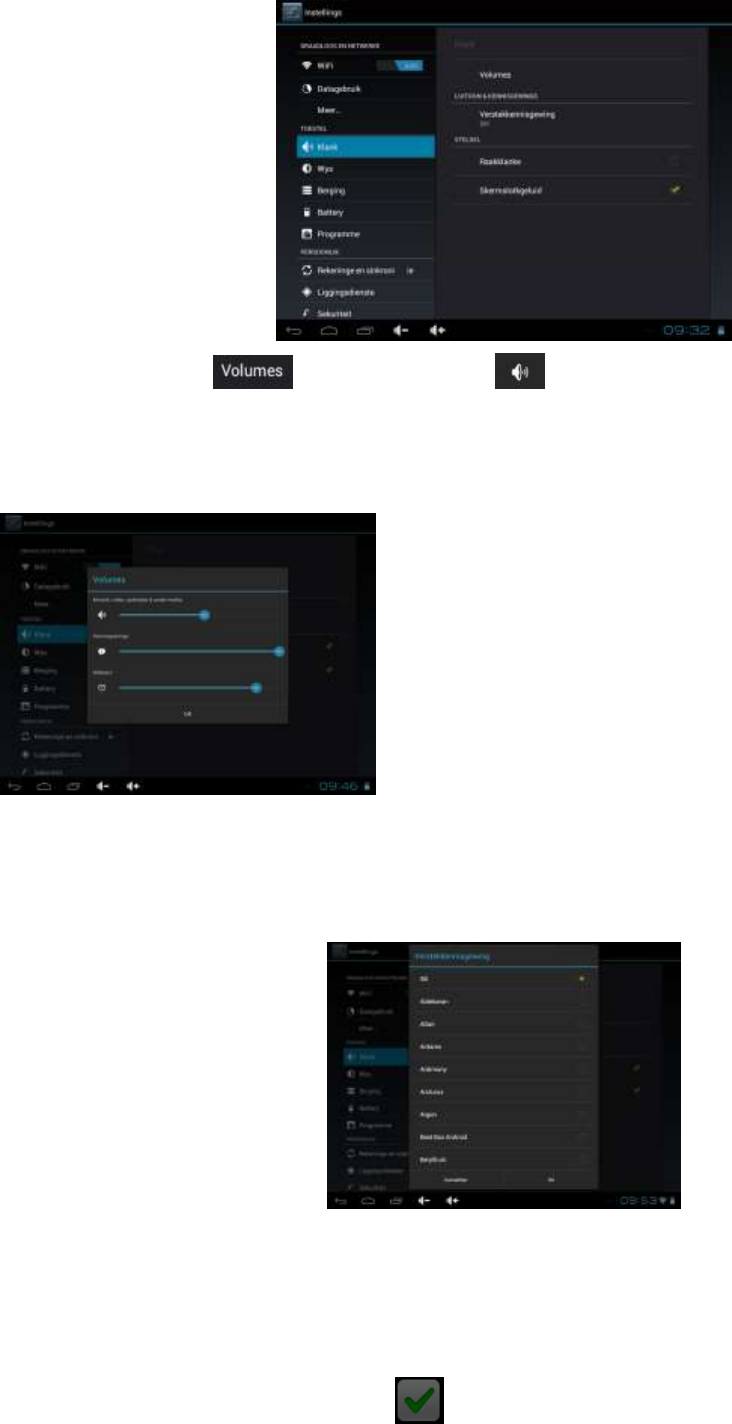

Tap the icon to enter the sound setting interface as below:
27
a. [Silent mode] :click into volumes settings ,tablet will be no sound..
b. [Volume] : Click into the volume Settings as shown in figure:
Set the media, the alarm clock, notify the volume;
C Ring setting
In the setting interface, tap “Ring notice” to enter into Ring setting interface:
System indicator sound setting
A touch indicator sound ( tap the touch screen)
B Lock indicator sound (lock and unlock the screen broadcast voice
C touch vibration;(if the machine is equipped with vibration motor, slight vibration when click on
the touch screen machine)
This two functions are optional, press to enter mute state if you do not want those functions.
28
6.1.5 Display setting

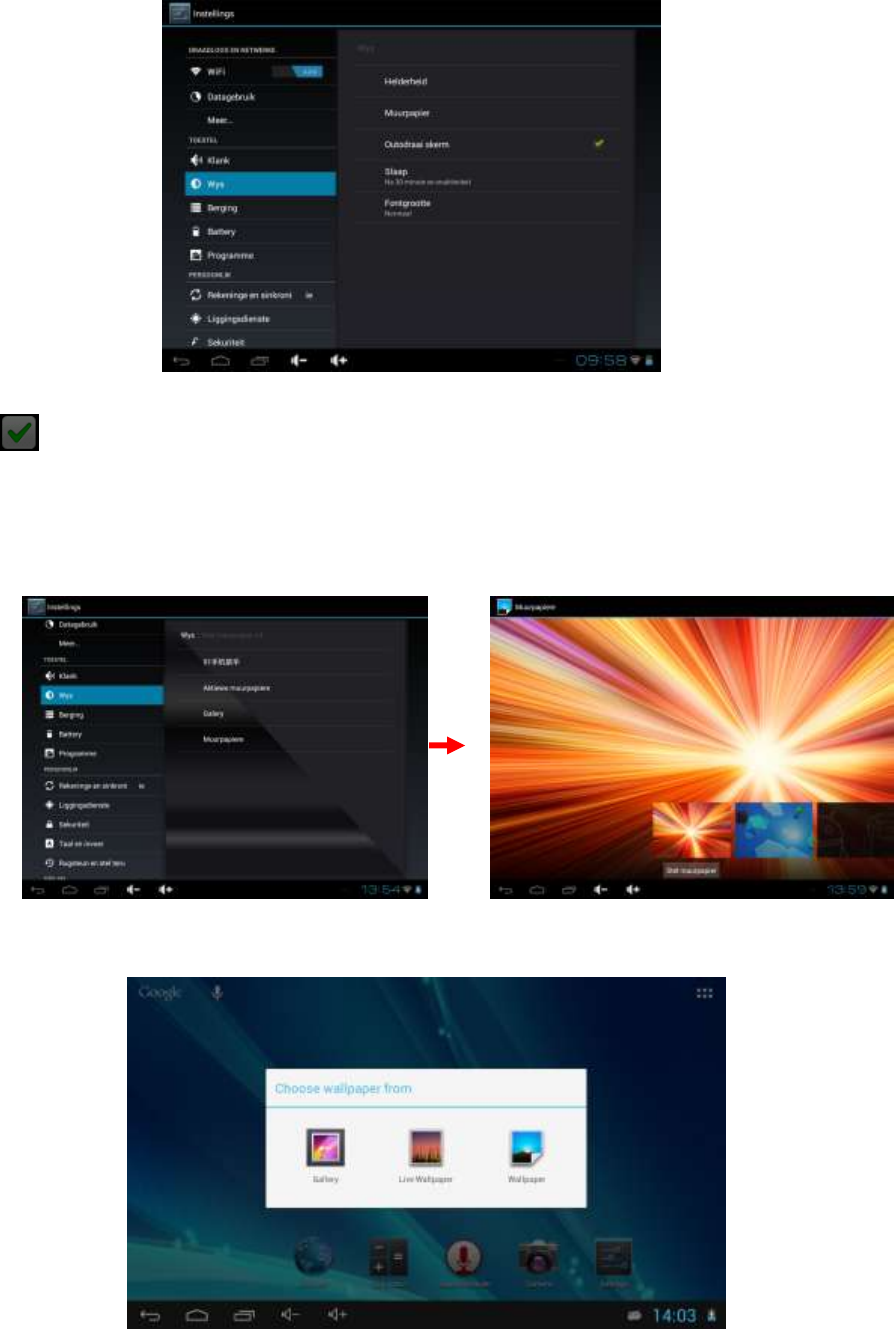

a 【Automatic rotary screen】
Tick behind the direction column, after that, tablet will automatically changes the display
direction.
b 【Wallpaper setting】
In Settings screen click show the wallpaper into the wallpaper Settings, can be in the position
or dynamic wallpaper wallpaper to choose your own favorite picture.
If you want to change the wallpaper you can long press the blank position of the desktop and you will
see the menu as shown in below picture:
29
C【Auto rotate screen】drag this icon to adjust the backlight brightness，Click confirm
Settings and return
D【sleep time choice】Choose machine standby sleep time

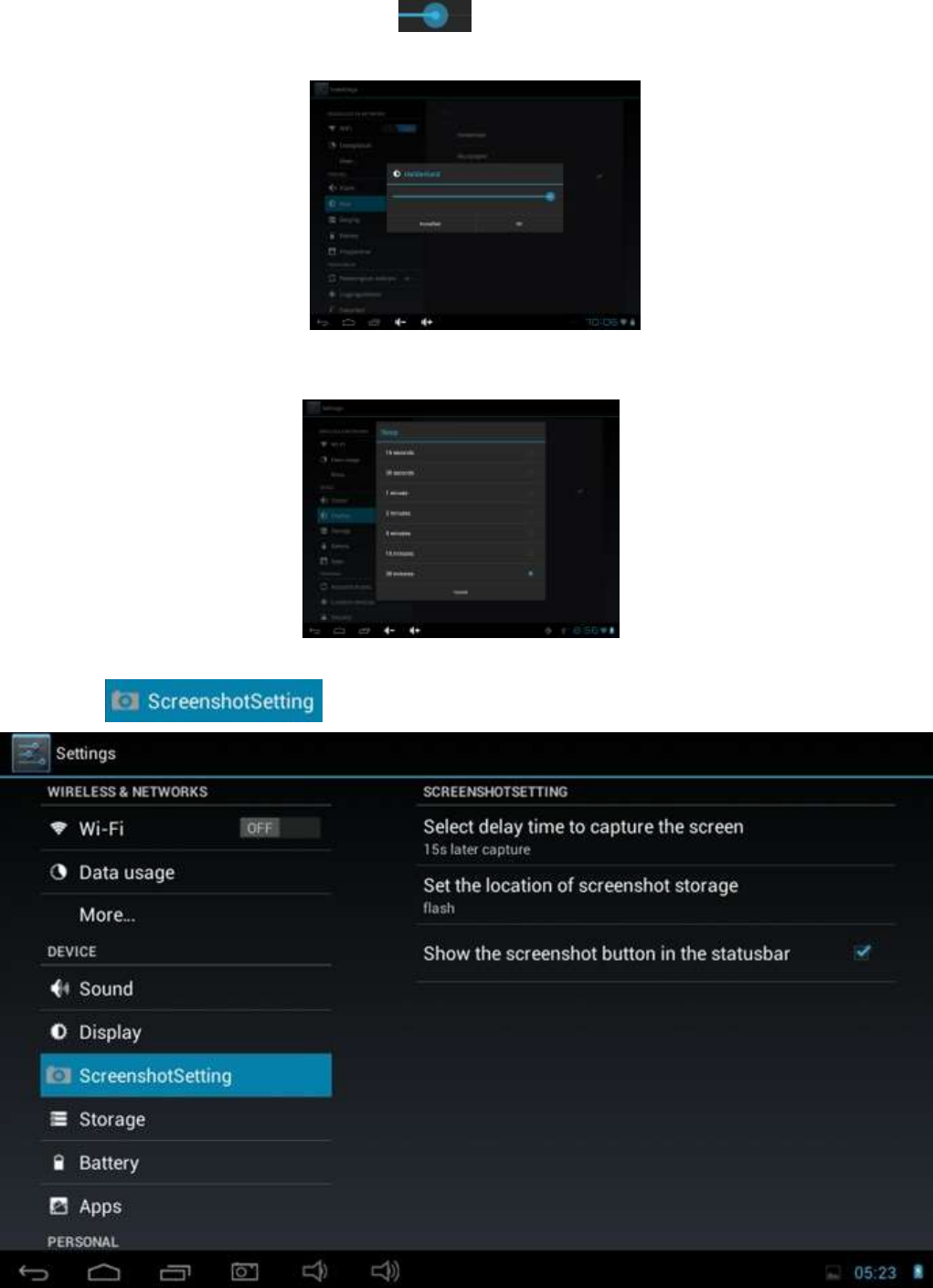

6.1.6 Screenshot function：
Click icon tick “√”on the screenshot keypad
30

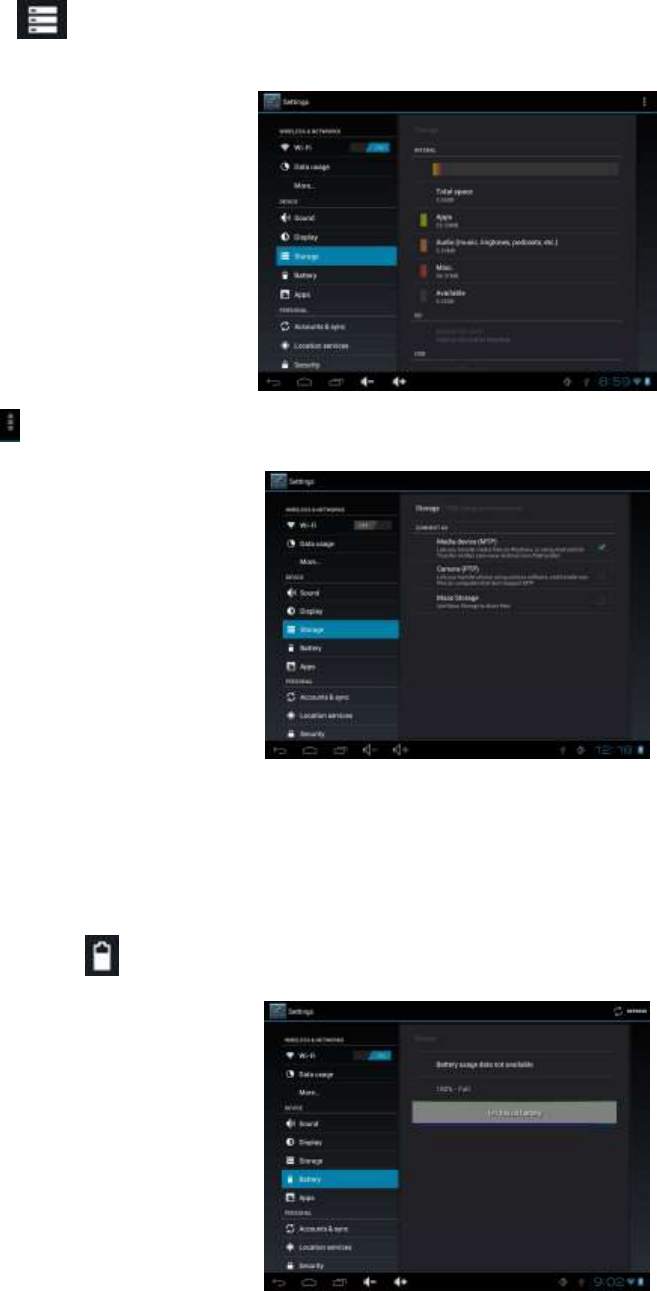

6.1.7 Storage
Click in the setting application interface, it will show all the storages status:
It can check the flash storage, SD storage, available storage and so on.
Press on the right upper corner to choose the way how to connect computer through USB jack.
1: Media device/MTP ;
2: Camera/PTP;
3:message storage;
6.1.8 Battery status:
Tap the icon to check the battery using status
31

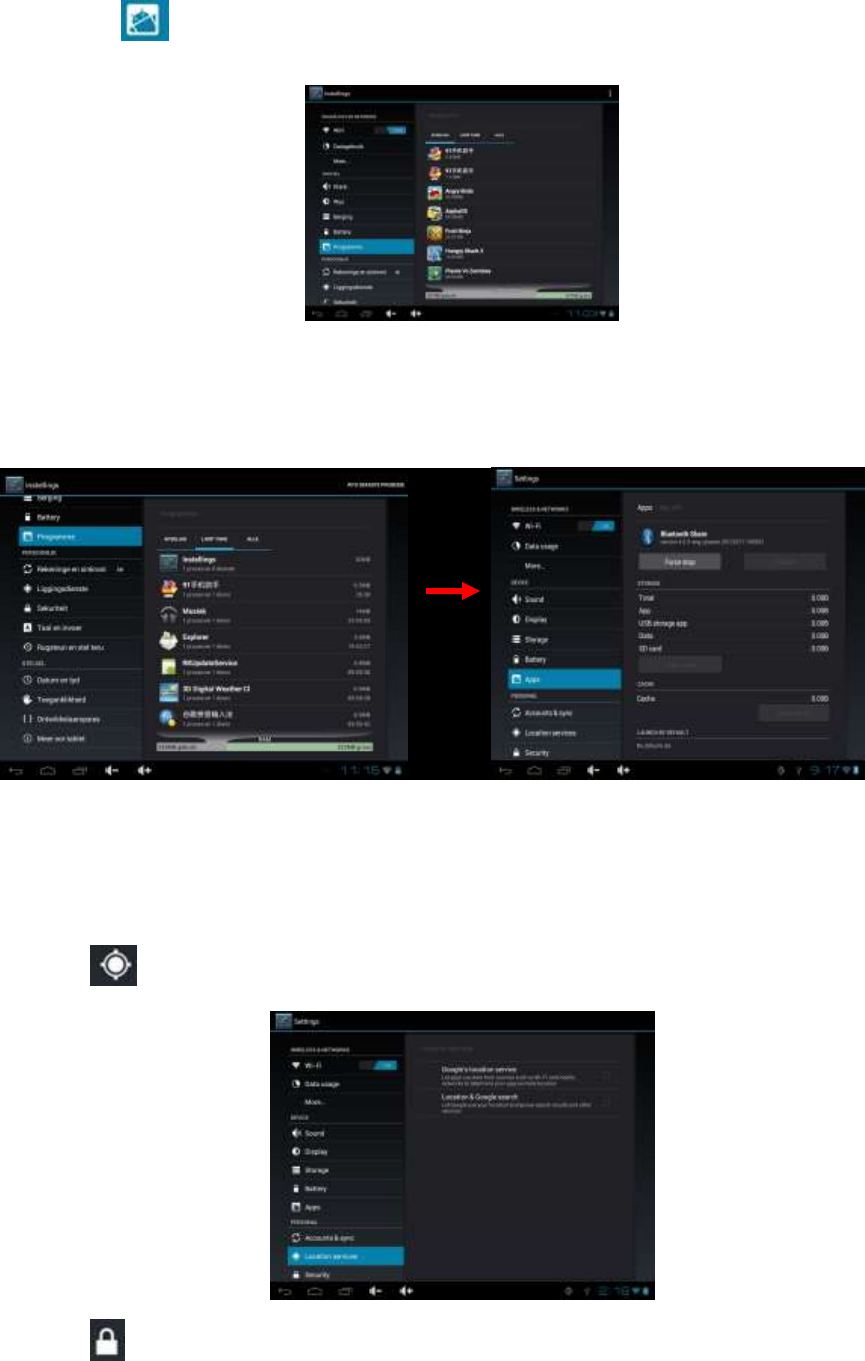

6.1.9 Apps
Tab the icon to enter the Application setting interface as below:
Setting on running service：
Click【program】to check the running service:
6.2.0 Location & security services
Tap the icon to set the Google’s location service and Location & Google search as below:
Tap the icon to enter the security settings interface as below:
32

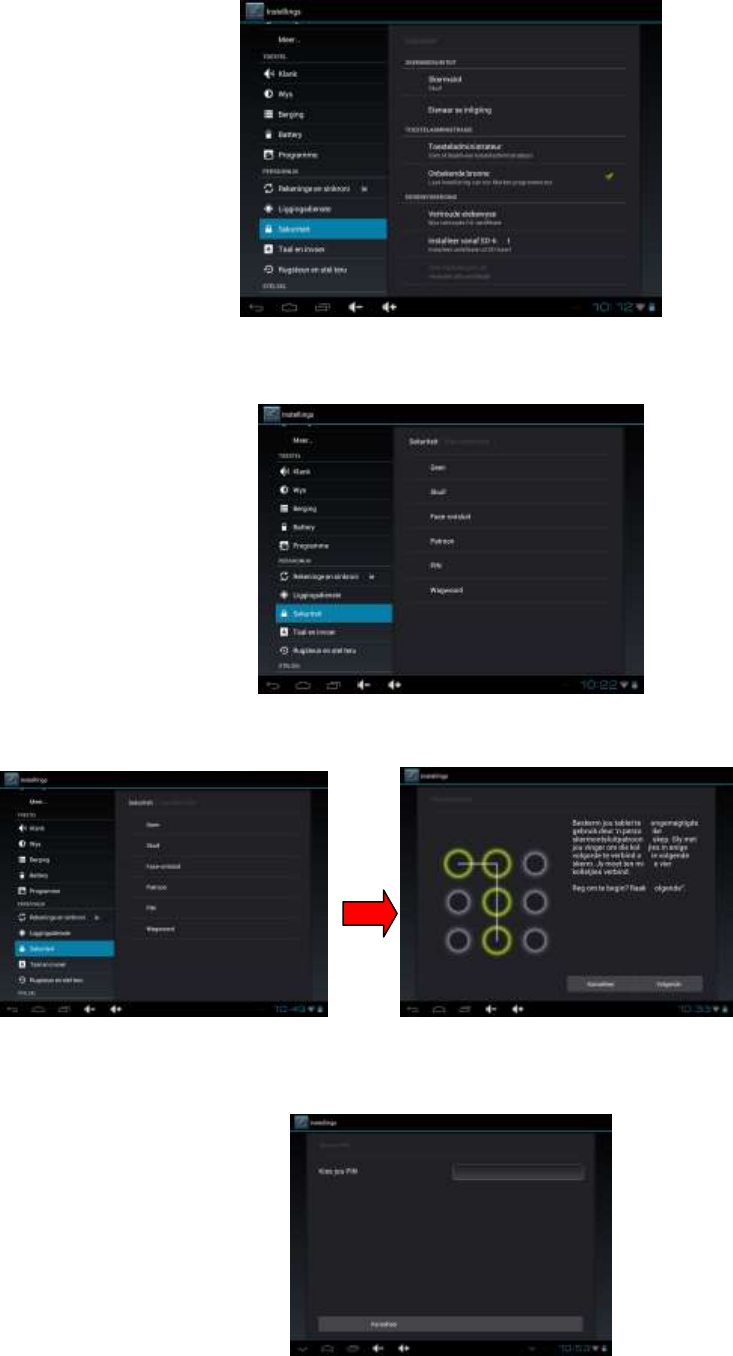

Screen Lock Settings: 1.None 2.Slide 3. Face Unlock 4.Pattern 5.PIN 6.Password
【Pattern settings】Enter Settings-security-choose Pattern to set password for screen as below:
Choose at least four points when set pattern pass word, click NEXT STEP to finish the setting procedure.

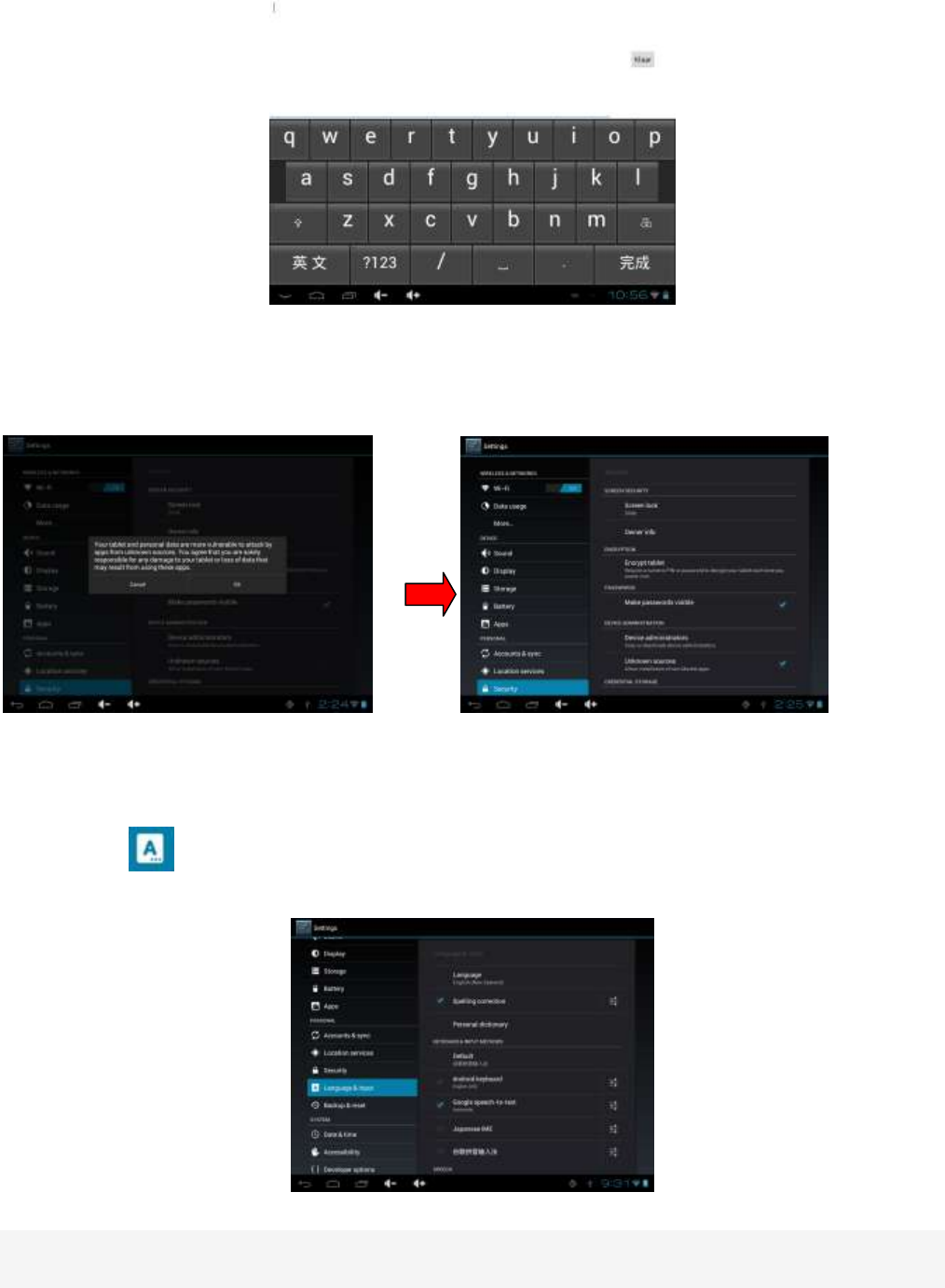

[PIN settings]: Set PIN pass word:
Click OK button after input four pass words, and remember pass word for later use.
It will inform you to input password when device boot ups:
33
Choose the way you like to unlock the screen :
Equipment management settings:
In security interface, choose UNKNOW SOURCES, then other APK can be installed on device, or it can not be done:
6.2.1 Language & input
Tap the icon to enter the language and input method settings interface to choose the language as
you need as below

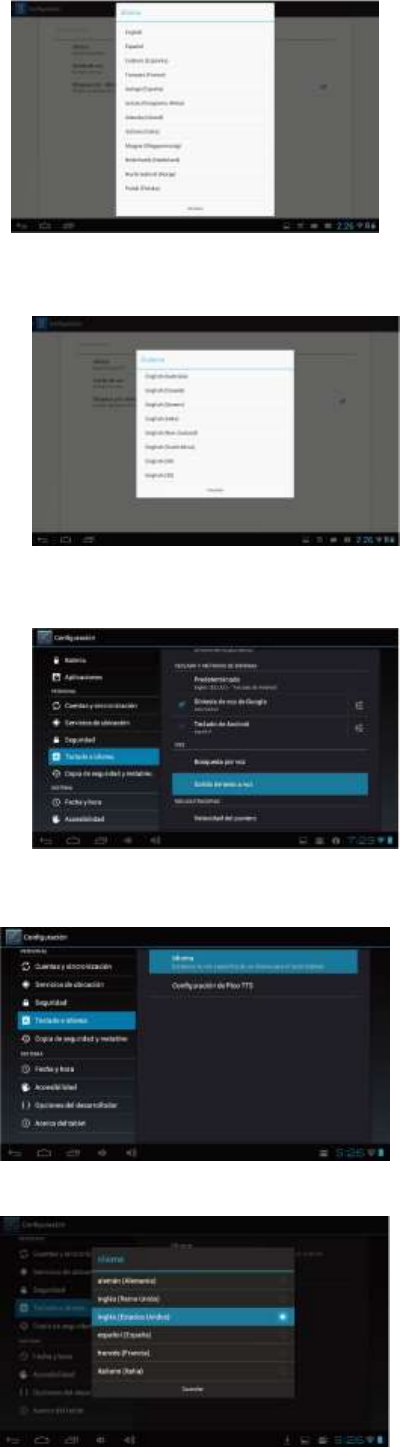

language settings：
The Tablet PC supports multi-languages. You can select an operation interface of corresponding
language according to your needs. Tap the corresponding language options
34
Keyboard and input settings：
According to your needs to set the corresponding input method: Tap the icon to enter the settings
interface, Tap settingsLanguage & inputAndroid keyboard settingsinput language, see as below:
Voice search settings：
Tap the icon to enter the voice search settings to select different languages.
Click to enter the Text-to speech output:
35
6.2.2 Backup & reset
Default factory recovery:
Note: Please back up all your data of the internal memory before reset the Tablet PC, or you will lose all
the data.

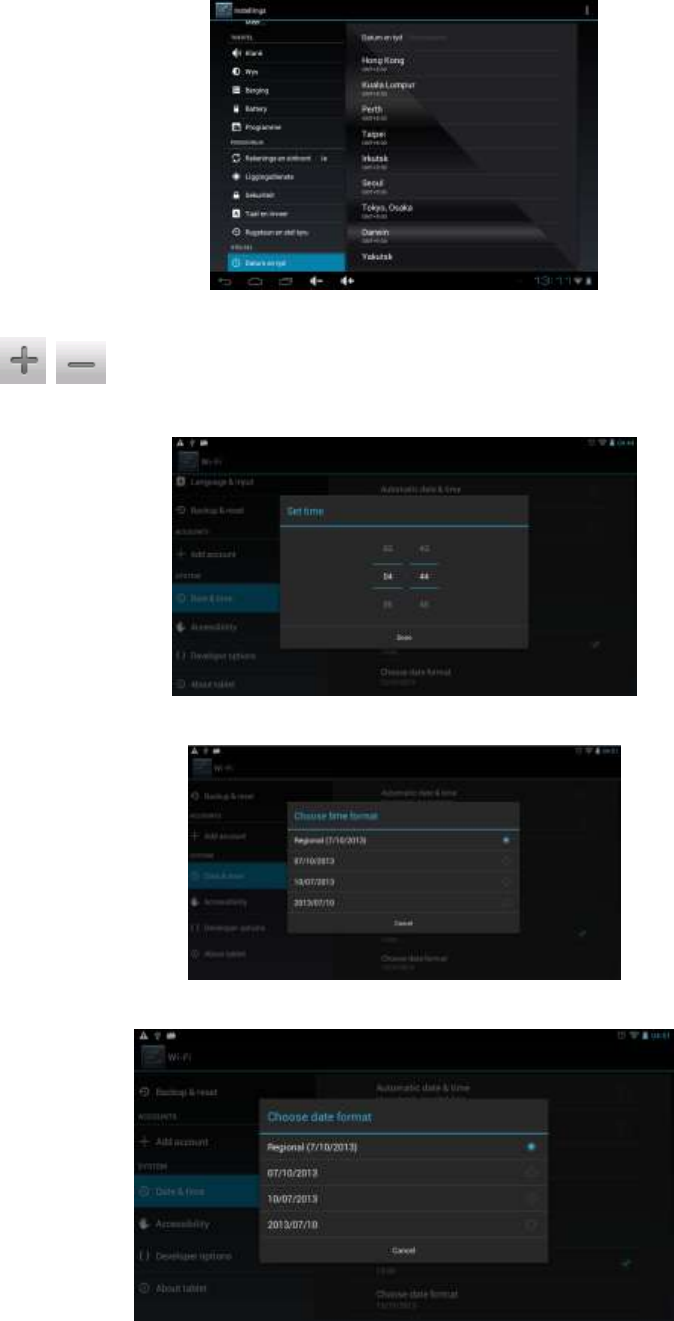

6.2.3 Date & time
Tap the icon to enter the date and time setting interface, click the box behind the “Automatic”
(click date & time) to modify the system date and time by manual as below.
Date setting：
tap + and - button to select Day, Month and Year or click the right numbers, and press OK to finish.
Choose time zone：
Choose the time zone where you are and click OK to finish：
36
Set time：
Click to choose time，for example：10：56, Click OK to finish.
Switching time format：
Date format：

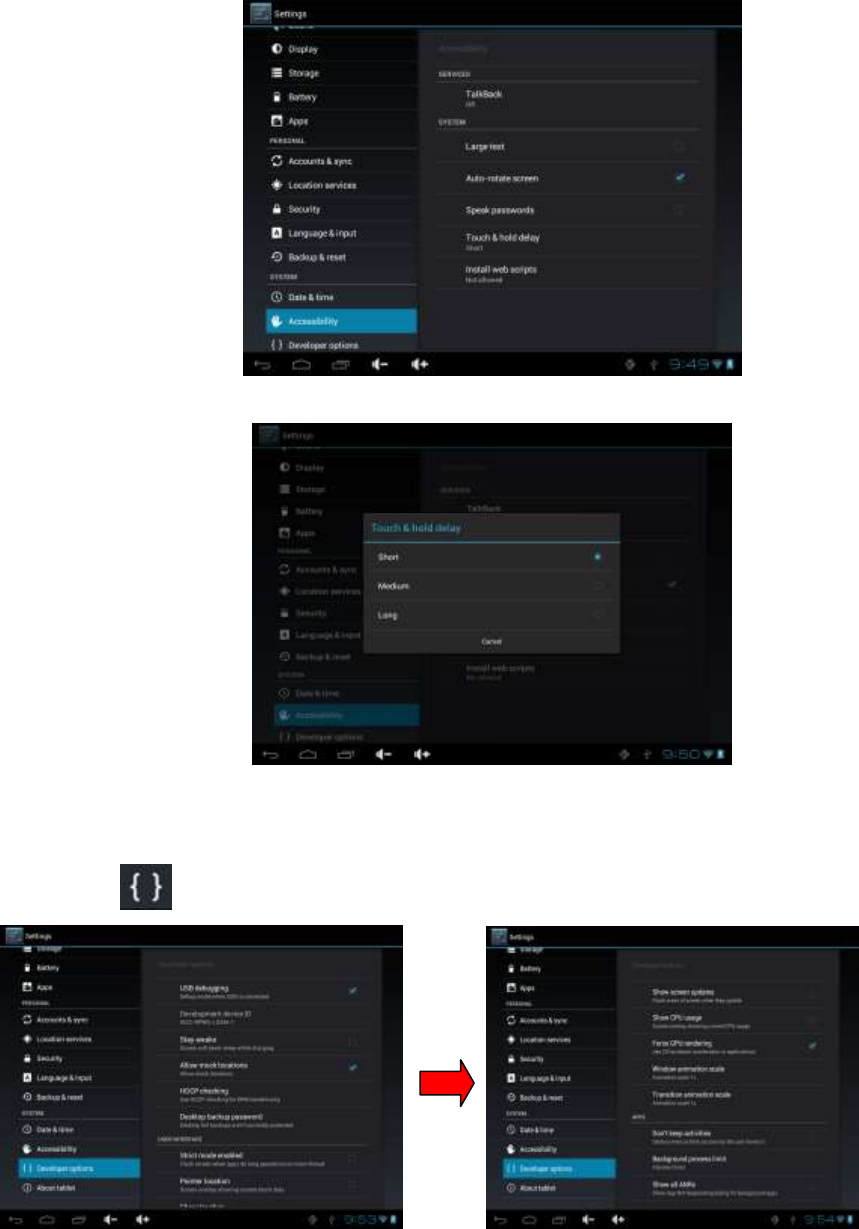

6.2.4 Accessibility:
• Can set the Auto-rotate screen, large test etc, as below……
37
Touch & hold delay:
6.2.5 Developer options: It is recommended to use the factory default developer options setting, or
some changes may affect the functions of the Tablet PC.
Tab the icon to enter the developer options setting interface as below:
6.2.6 About Tablet:
Check System updates, Status, Legal information and software version as below:
38
:

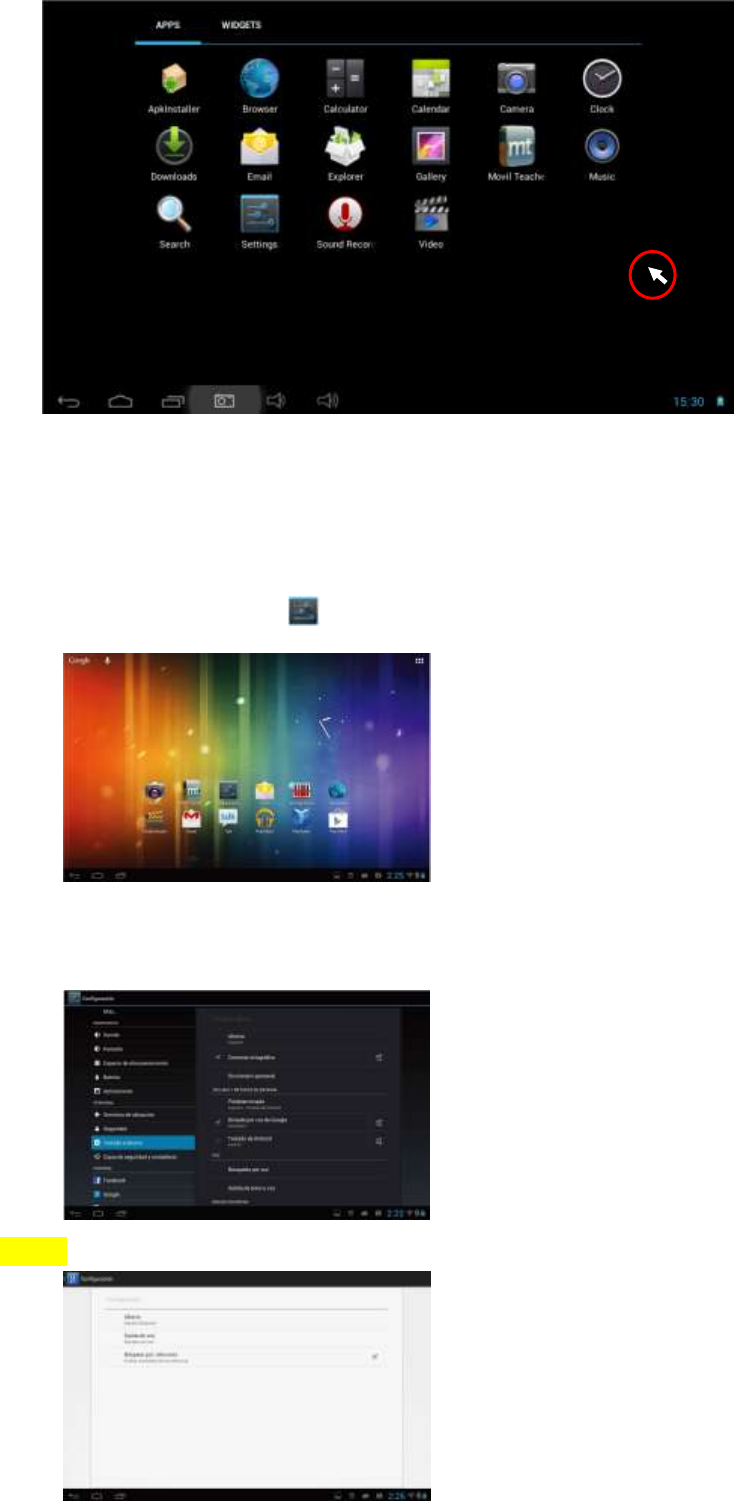

6.3 Add, Move or Delete Desktop Icon
Tap the icon on the desktop to enter the app menu list. lay out all the application icons with
paging display, Tap and drag the application icon to the current desktop, Long tap the app icon
on the desktop to enter the editing mode and you can remove the icon and set its location.,
When you drag the icon to the , it turns into the delete function, release the icon to delete it as
below:。
39

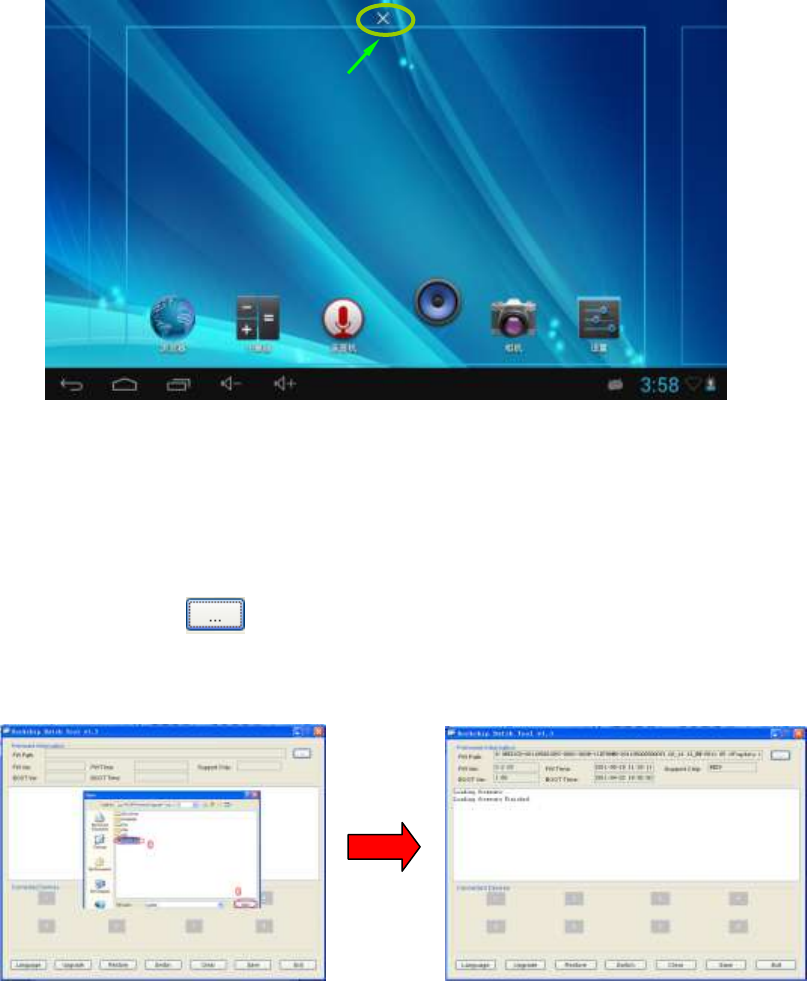

7. Firmware upgrade
Press the POWER button to turn off the device before updating (NOTE: Press and hold the POWER button for
at least 6 seconds if the device can not be turned on normally).
Insert the Driver CD and copy the file named “RK3026 Android Upgrade Tool” to your computer desktop (NOTE:
The device can not be updated directly from CD),Then Open file “RKBatchTool.exe” in Folder “RK3026 Android
Upgrade”, click the button next Image and choose “update.img” from the popup window, click open, as shown
in the picture below:
Hold down the VOL+ button on the device and without releasing it after device has been turned off; connect the
device to the PC by the USB cable supplied with the device.

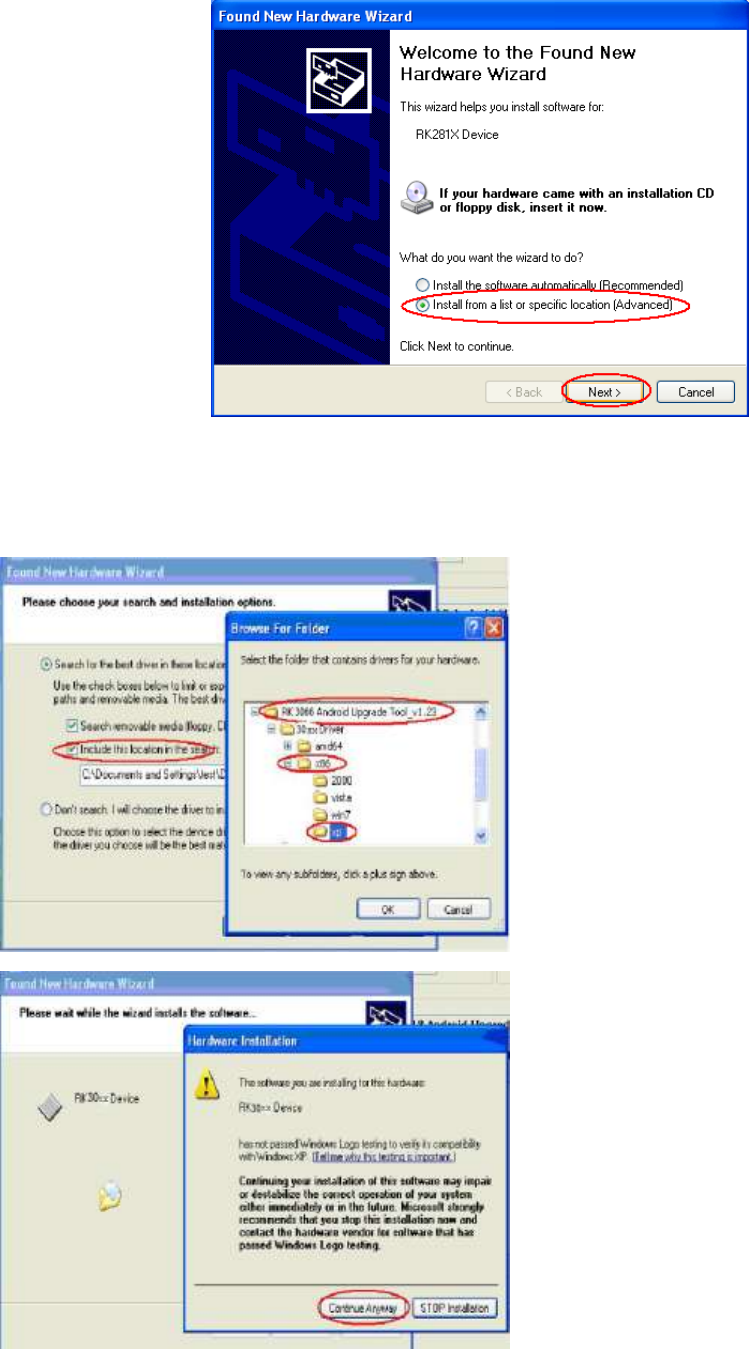

The “Found New Hardware Wizard” window will pop up on the bottom right corner as shown below. Choose “Install
from a list or specific location (Advanced)”, and then click “Next” to install the USB driver, see the picture below:
NOTE: The USB port of the PC must be USB2.0, or it cannot be used to update the device.
40
Select “Include this location in the search”, and go to find “RK3026 Android Upgrade Tool”
-“30xxDriver”-“x86”-“XP” then click “OK”. The system will detect and install the driver automatically, finally
click “Finish”, see the pictures as below:
41

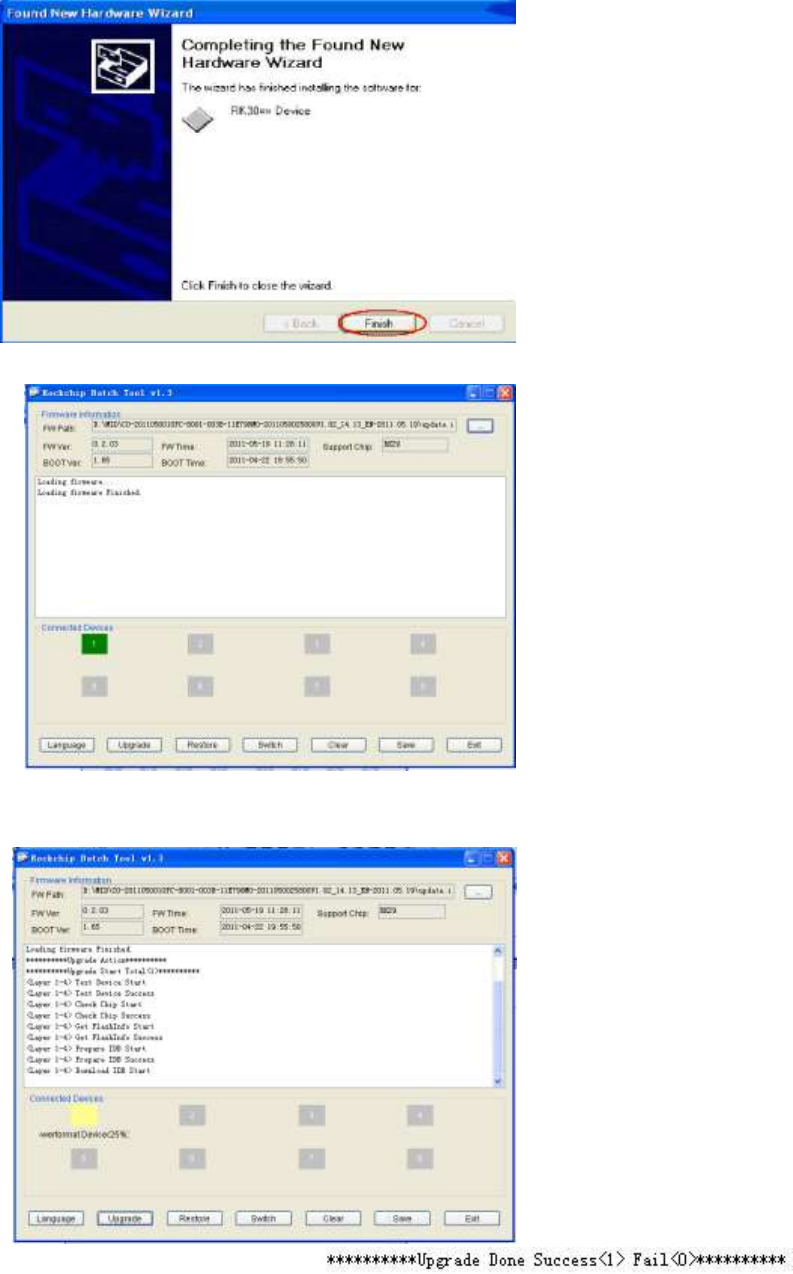

After the driver is installed successfully, “1” will turn green, see the picture as below：
Click “Upgrade”and begin to upgrade, during this process lots of information will be shown in the update
status bar. No operation should be done at this time：

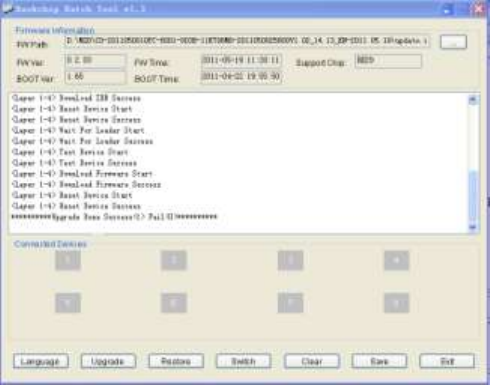

When waiting status bar shows: “ ”it means the
upgrading is successfully. device will come to the main interface after run system.（Notes：Please don’t
disconnect the USB cable during the updating process because this will cause update failure or possible system
failure of the device.）。
42
8 Troubleshooting
8.1Tablet PC doesn’t turn on
You can not turn on the Tablet PC when the battery charge is below the critical level, please charge the
battery by USB connecting with computer or power adapter to make sure your power before attempting
to turn on.
Press the “RESET” key of the Tablet PC and check if it is restarting is normally or not
Check if the charger is connected correctly
8.2 The stand-by time of the Tablet PC is too short
The duration of the lithium battery varies with environmental temperature changes and the
service conditions. If the environment temperature is too low or too high, the duration of the
battery will be affected. It is recommended to use the Tablet PC at normal temperature.
Battery life is dependent on usage. High volume, WIFI and the frequent use may cause the battery
to be drained at a higher rate. From usage point of view, the battery consumption is relatively
with big screen, but also by increasing the volume, open the speaker, frequent operation and other
factors, the actual use of the time there will be some differences.
8.3 No sound via earphone
Please check if the volume setting is 0
Please check if audio file is broken, and try to play another audio file to confirm. If the audio file is
broken, it may cause severe noise or static
8.4 Can not copy files
Please check if the Tablet PC is connected to the computer correctly
Please check if the memory storage space is full
Please check if the USB cable is broken.
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF warning for Portable device: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure condition
without restriction.
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -10 ℃ or maximum
over 50℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
