Operating Manual

PRESENTATION TECHNOLOGIES

KODAK

EKTAGRAPHIC III

Slide Projectors

Important Safety Instructions

When using your projector, always follow basic safety precautions:

1. Read and understand all instructions before using this equipment.

2. Operate this projector with 110- to 125-volt 60 Hz current only. Incorrect voltage can cause projector

malfunction. See “Startup” on page 3 for Models III BR and III ABR, which feature a multi-voltage

selector.)

3. Close supervision is necessary when any appliance is used by or near children, or others who may not

understand the need for these precautions. Do not leave the projector unattended during use.

4. Be careful not to touch hot parts. For lamp replacement, allow the module to cool before touching the

lamp and the surrounding area. Do not place the lamp module on heat-sensitive surfaces.

5. Do not operate your projector if the cord is damaged or if the projector has been dropped or damaged

(see “How to Obtain Service” on page 30).

6. Position the cord so that it is not tripped over, pulled, or placed in contact with hot surfaces.

7. If an extension cord is necessary, use a cord with a current rating at least equal to that of the projector.

Cords rated for less amperage than the projector may overheat.

8. Always unplug the projector from the electrical outlet before cleaning and servicing and when it is not

in use.

9. Allow the projector to cool before storing.

10. Do not immerse this equipment in water or other liquids.

11. Do not disassemble this projector. Use a qualified service technician when service or repair is required.

Incorrect reassembly can cause electric shock the next time the projector is used.

12. Use only safety electrical low-voltage (SELV) devices.

13. The use of an accessory attachment not recommended by the manufacturer may increase risk of

damage.

14. Keep the air-flow vents unobstructed.

Save These Instructions

Operating Manual

KODAK

EKTAGRAPHIC III

Slide Projectors

Congratulations!

You have just purchased a KODAK EKTAGRAPHIC III Slide Projector with

a KODAK Extra Bright Lamp Module.

This new lamp module procides 30% greater light intensity so your images

look brighter, richer and more saturated. This module features a “Lamp On”

indicator on the lamp module door.

KODAK EKTAGRAPHIC III Slide Projector 1

Contents

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Loading the Slide Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Projecting Your Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Editing Your Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Clearing a Gate Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Using the Built-In Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Using a Dissolve Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Changing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cleaning the Condenser, Heat-Absorbing Glass, and Mirror . . . . . . .23

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

How to Obtain Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Serial Number

The serial number of your projector is printed on the label affixed to the power

cord retainer on the base of the projector. Record this number, as well as the

model identification, date, and place of purchase, for future reference.

2 KODAK EKTAGRAPHIC III Slide Projector

Overview

FRONT RIGHT

BACK RIGHT

BASE

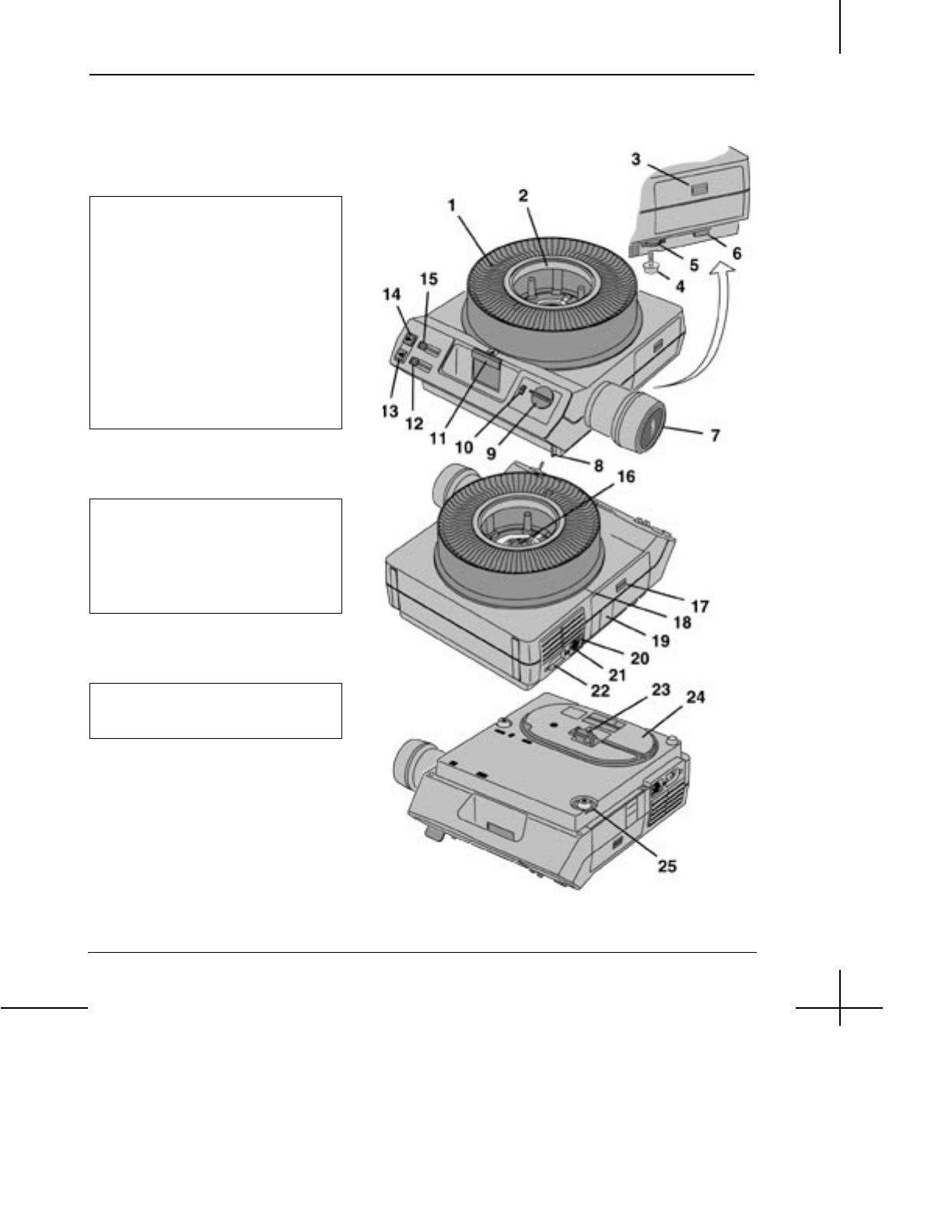

1 – Tray

2 – Lock Ring

3 – Storage Compartment/Remote

4 – Elevating Foot

5 – Elevating Adjustment Wheel

6 – Elevating Foot Release Button

7 – Lens

8 – Viewer (Model ATS)

9 – Focus Knob

10 – Autofocus (Models A, AMT, & ATS)

11 – Select Bar

12 – Timer (Models AMT & ATS)

13 – Reverse

14 – Forward

15 – Power/Fan/Half Lamp/Full Lamp

16 – Tray Release Latch

17 – Lamp Module

18 – Raised Index Mark

19 – Reading Light Cover

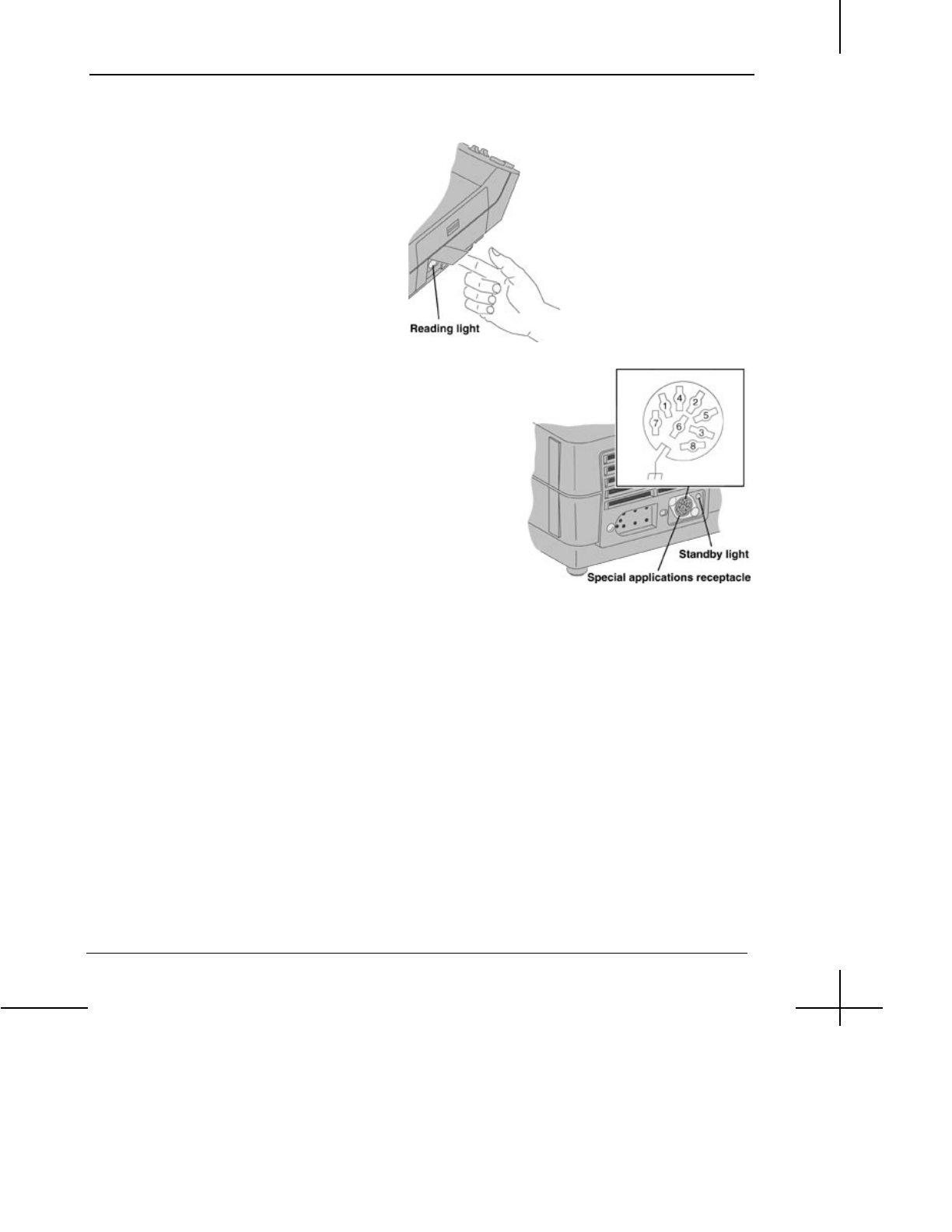

20 – Standby Light (Model E Plus)

21 – Special-Application Receptacle

22 – Remote Receptacle

23 – Power Cord

24 – Power Cord Retainer

25 – Leveling Foot

KODAK EKTAGRAPHIC III Slide Projector 3

Introduction

Take the time to read the instructions in this operating manual to become

familiar with your KODAK EKTAGRAPHIC III Slide Projector and how to

operate it properly.

Operation

Startup

Models III BR

and ABR Only

Important

Before you turn on your new KODAK EKTAGRAPHIC III BR or ABR Slide

Projector, it is critical to set the voltage selector to the proper setting. Use

the proper fuse for the voltage selection. See the fuse label on the back of the

projector.

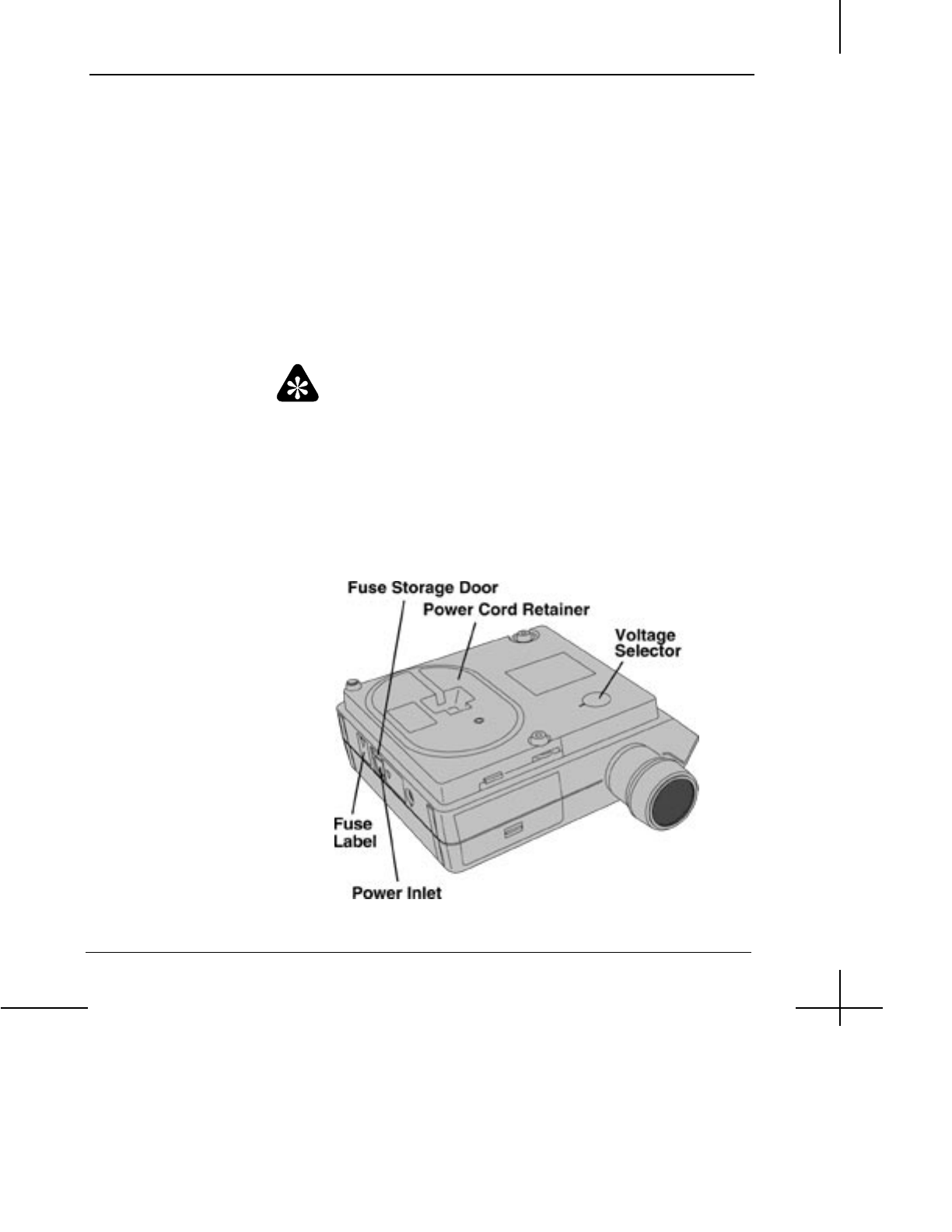

The voltage selector on the KODAK EKTAGRAPHIC III BR or ABR Slide

Projector is located on the base of the projector. Using a small object, such as

a coin, you can set the voltage selector for the proper voltage (100, 115, 130,

220, 230, and 240 V).

4 KODAK EKTAGRAPHIC III Slide Projector

Operation

EKTAGRAPHIC III BR and ABR Slide Projectors have a sensing capability

to automatically set the proper power cycle (50 or 60 Hz). This eliminates the

need to manually change the two-position switch included on models

manufactured before November 1996. These projectors are shipped with a

detachable power cord that is packaged separately (not wound on the Power

Cord Retainer).

A spare fuse is provided. The fuse is located in the small, pull-out storage door

below the Power Inlet. Simply pull the door with your finger. Remove the

spent fuse with a small object (e.g., pencil tip) by pushing the fuse up and

removing it from the receptacle. Press the spare fuse into the receptacle and

close the storage door.

Important

The EKTAGRAPHIC III BR and ABR Slide Projectors are supplied with a

3-wire grounding power cord to comply with UL122 (USA) and CSA222

(Canada) safety and electrical standards. We urge you to provide a permanent,

properly installed 3-wire receptacle as the source of power for this projector.

For advice and assistance, call a licensed electrician or your local power

company.

When used outside the United States of America, please use a proper adapter

that ensures grounding and polarization.

Although the Models III BR and ABR are approved to the standards of UL

and CSA, they are not intended to meet approval in all countries worldwide.

KODAK EKTAGRAPHIC III Slide Projector 5

Operation

Models A,

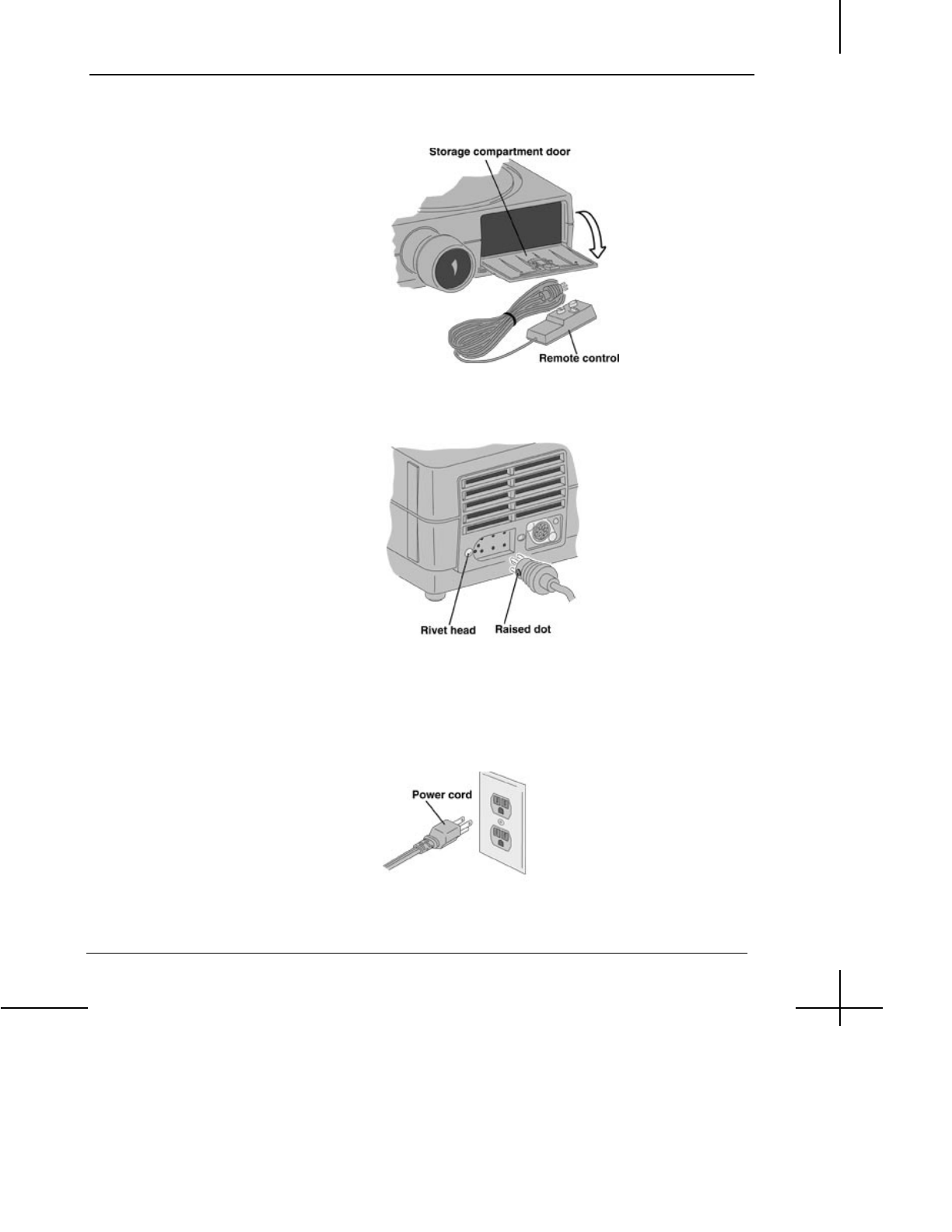

AMT and ATS Open the storage compartment and remove the remote control.

Plug the 5-pin cable remote connector into the remote-control receptacle,

aligning the raised dot with the metallic rivet head.

This receptacle also accepts plugs for accessories, such as Kodak dissolve

controls.

Plug the power cord into a grounded outlet with 110- to 125-volt 60 Hz

current only.

6 KODAK EKTAGRAPHIC III Slide Projector

Operation

Loading the Slide Tray

A KODAK EKTAGRAPHIC Universal Slide Tray is designed to hold up to

80 slides. Be sure that your slide mounts are in good condition; frayed or bent

mounts may fail to drop into the projector. A variety of slide trays are

available with capacity up to 140 slides. See your dealer in Kodak products

for a complete list of Kodak trays and accessories.

Note: Do not attempt to project slides mounted with sticky or loose tape.

Place the tray over the center post of the projector. Align the "0" slot with the

gate index; the tray will drop into position.

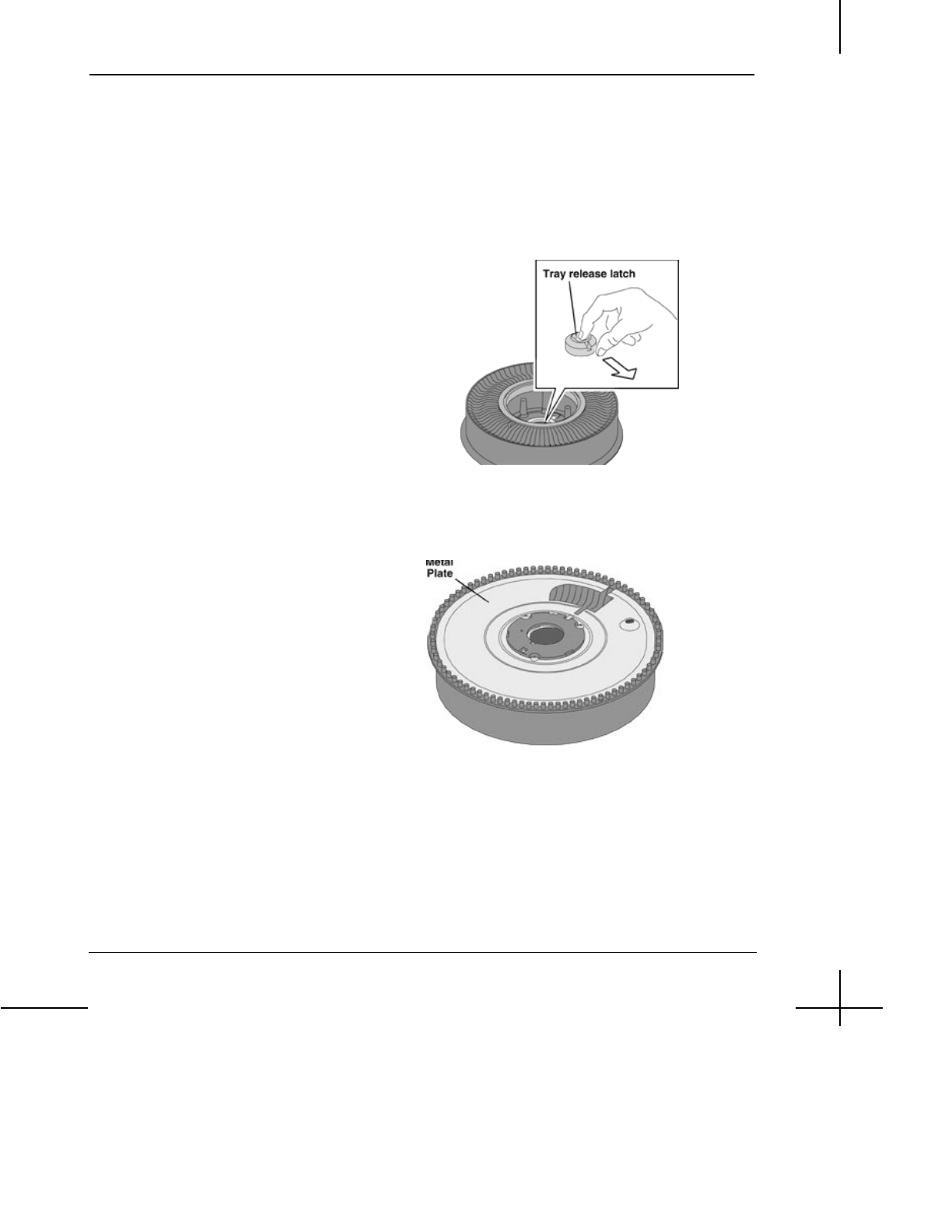

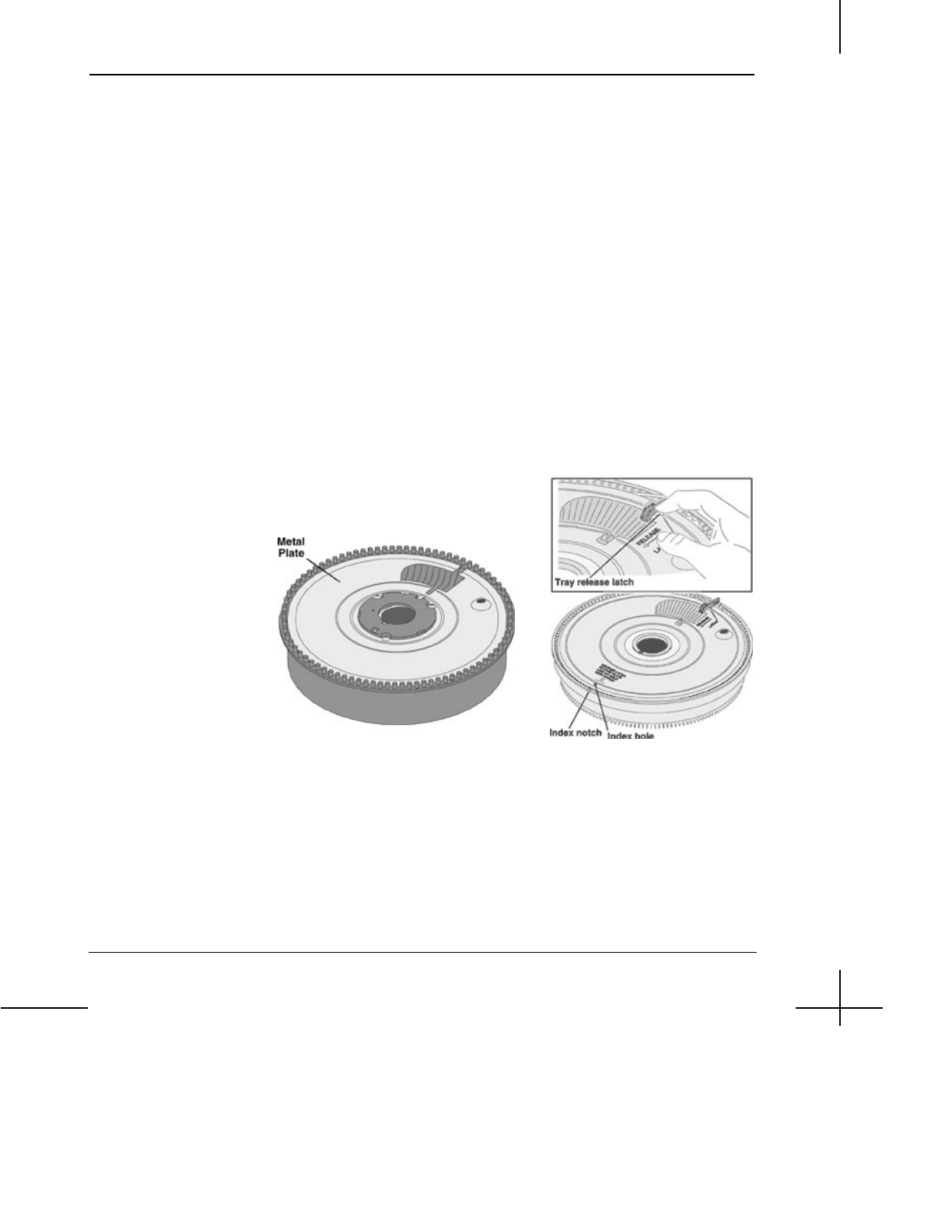

If your 80-slide tray does not drop easily, rotate the metal plate on the bottom

of the tray until it locks into position. For a 140-slide tray, secure the lock

ring, invert the tray, and align the index hole with the index notch. Slide and

hold the tray release latch in the direction of the arrow, and turn the bottom

plate until the index hole and notch align. Then release the latch.

80-Slide Tray 140-Slide Tray

KODAK EKTAGRAPHIC III Slide Projector 7

Operation

Front-Screen

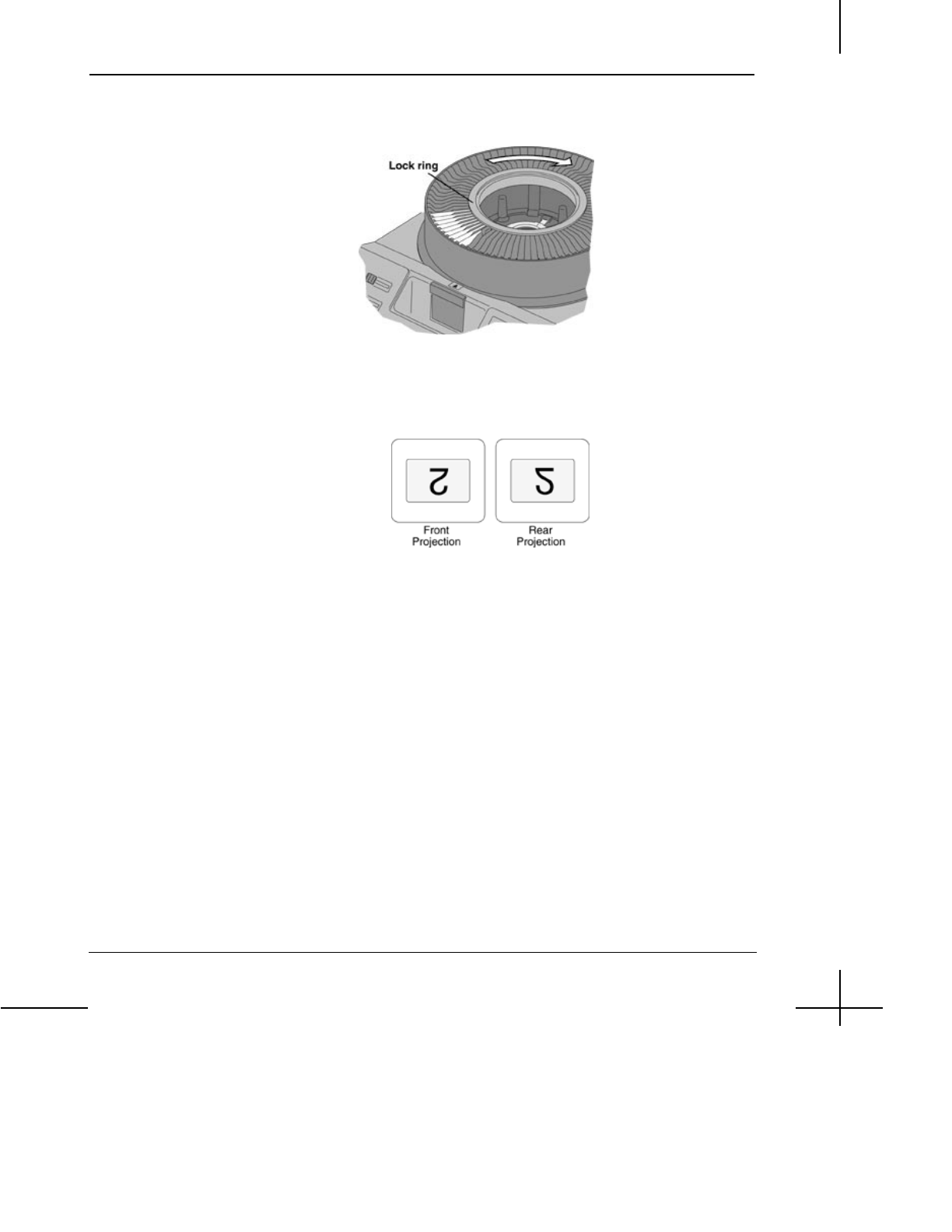

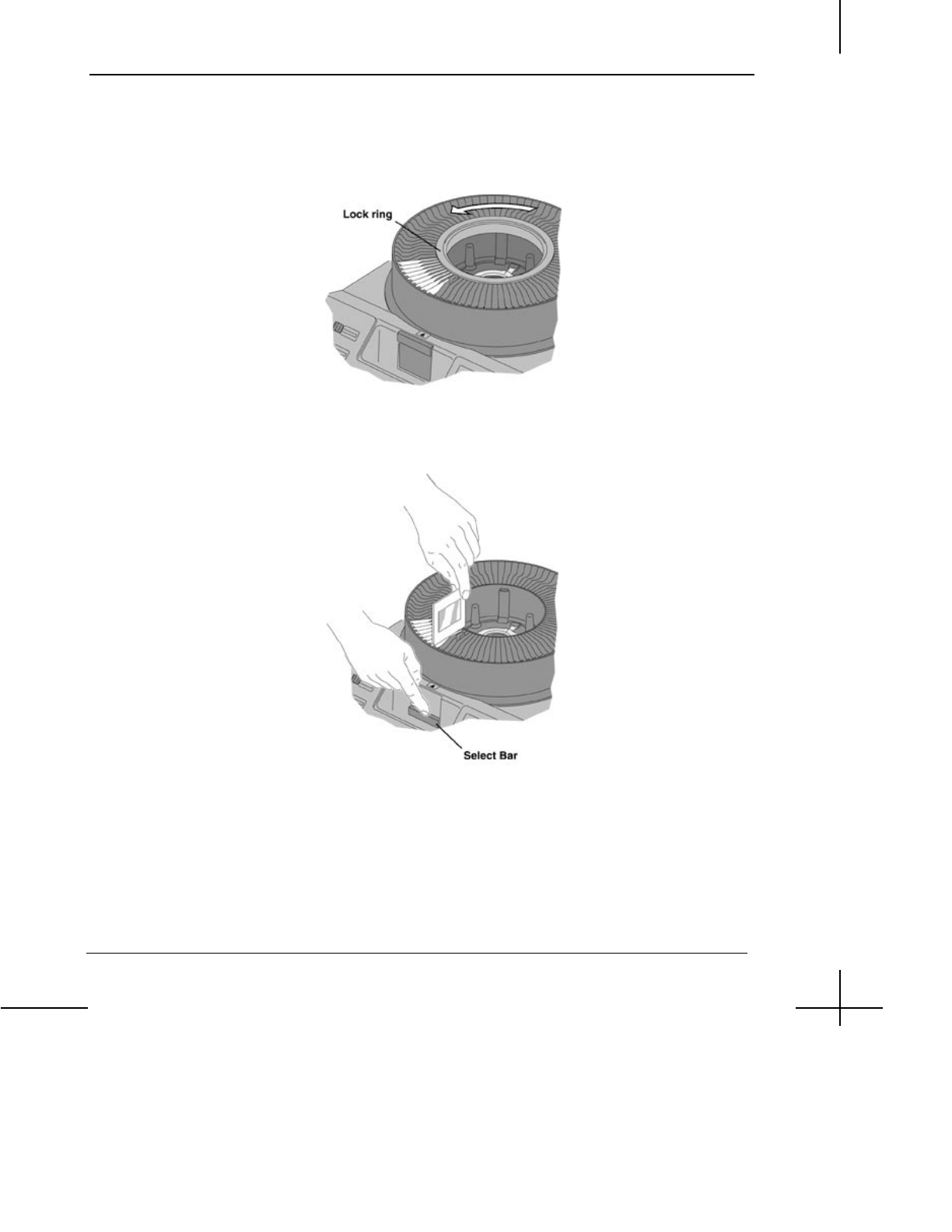

Projection Remove the lock ring by turning it counterclockwise and lifting it off.

Check each slide’s orientation (horizontal or vertical), and arrange them in the

order you wish to show them. Then turn the slides upside down.

Number each mount in the upper right-hand corner of the film’s shiny side.

Insert your first slide into the first slot in the tray so that the number is visible

on the outer circumference of the tray. Insert your second slide in the second

slot with the emulsion (dull side) facing your first slide, and so on.

8 KODAK EKTAGRAPHIC III Slide Projector

Operation

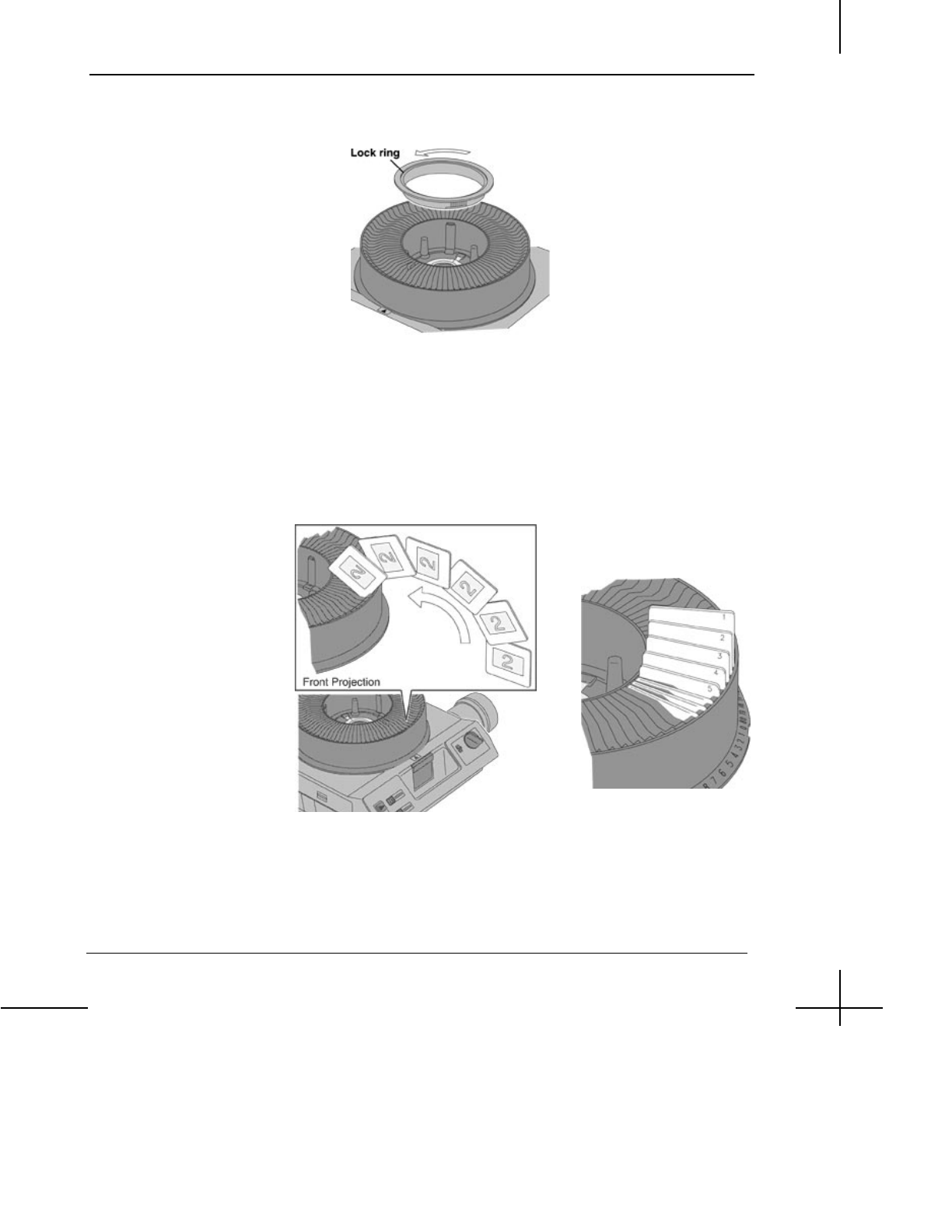

Replace the lock ring by turning it clockwise until it is secure

Rear-Screen

Projection You can easily adapt a show from front- to rear-screen projection. Remove

each slide from the tray and turn it around (keeping the slide upside down).

This will give the projected slide a mirror image on the screen.

Insert your first slide back into the first slot in the tray. The number is now

visible in the inner circumference of the tray.

Replace the lock ring by turning it clockwise until it is secure.

With a Dissolve

Control When you use a dissolve control, put your slides into two trays (one for odd-

and one for even-numbered slides).

KODAK EKTAGRAPHIC III Slide Projector 9

Operation

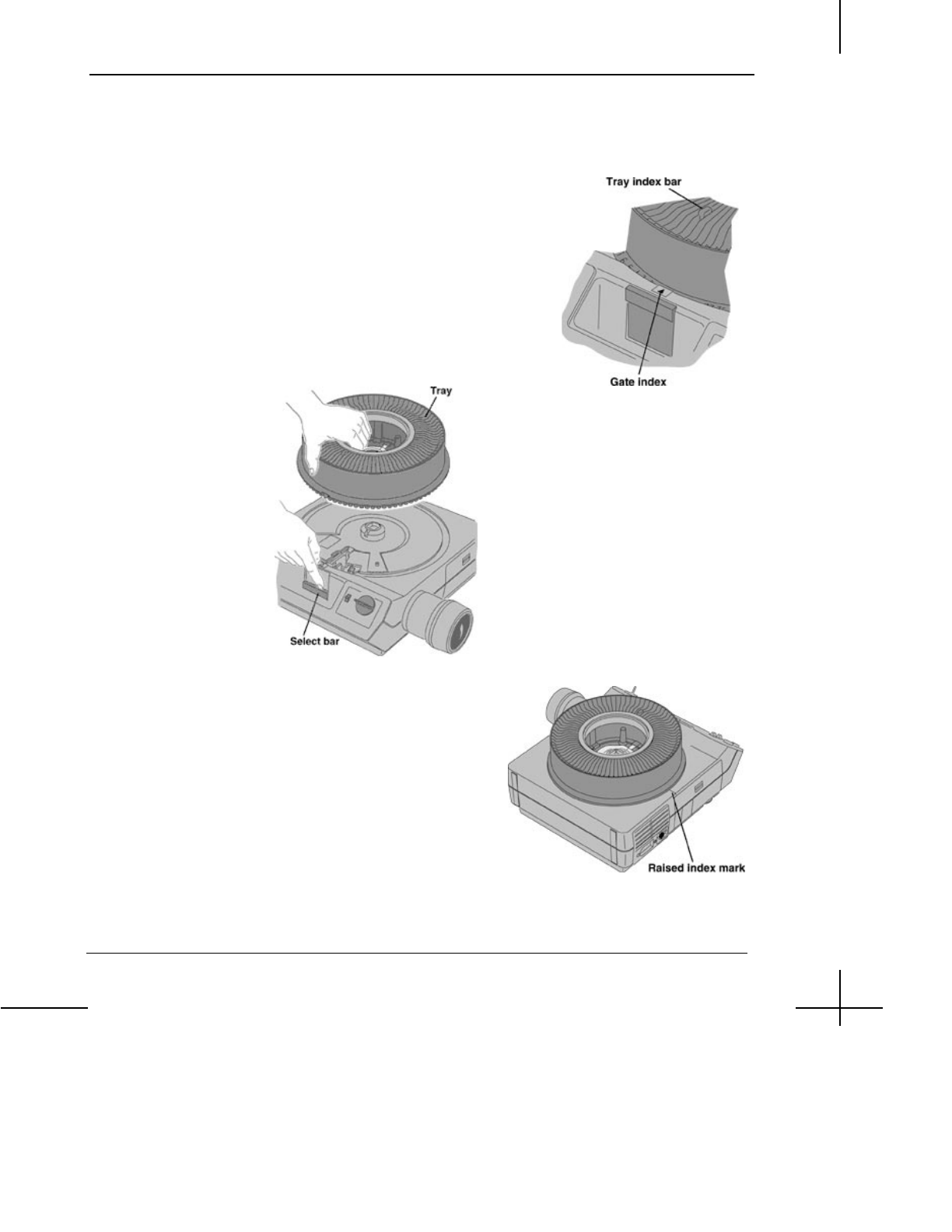

Tray Place the loaded slide tray on the projector. Align the tray index bar with the

gate index. The tray will drop into position.

Removing the Tray To remove the slide tray:

•press the select bar all the way down

•align the tray index bar with the gate

index.

You can then lift off the tray.

Raised Index Mark This feature allows you to

coordinate tray starting positions

for multiple-projector

presentations. For an 80-slide tray

in the zero position, the raised

index mark is at slot 20. If you

start with slide 6, it will align at

slot 26. For a 140-slide tray in the

zero position, the index mark is at

slot 35. So, if you start with

slide 12, it will align at slot 47.

10 KODAK EKTAGRAPHIC III Slide Projector

Operation

Projecting Your Slides

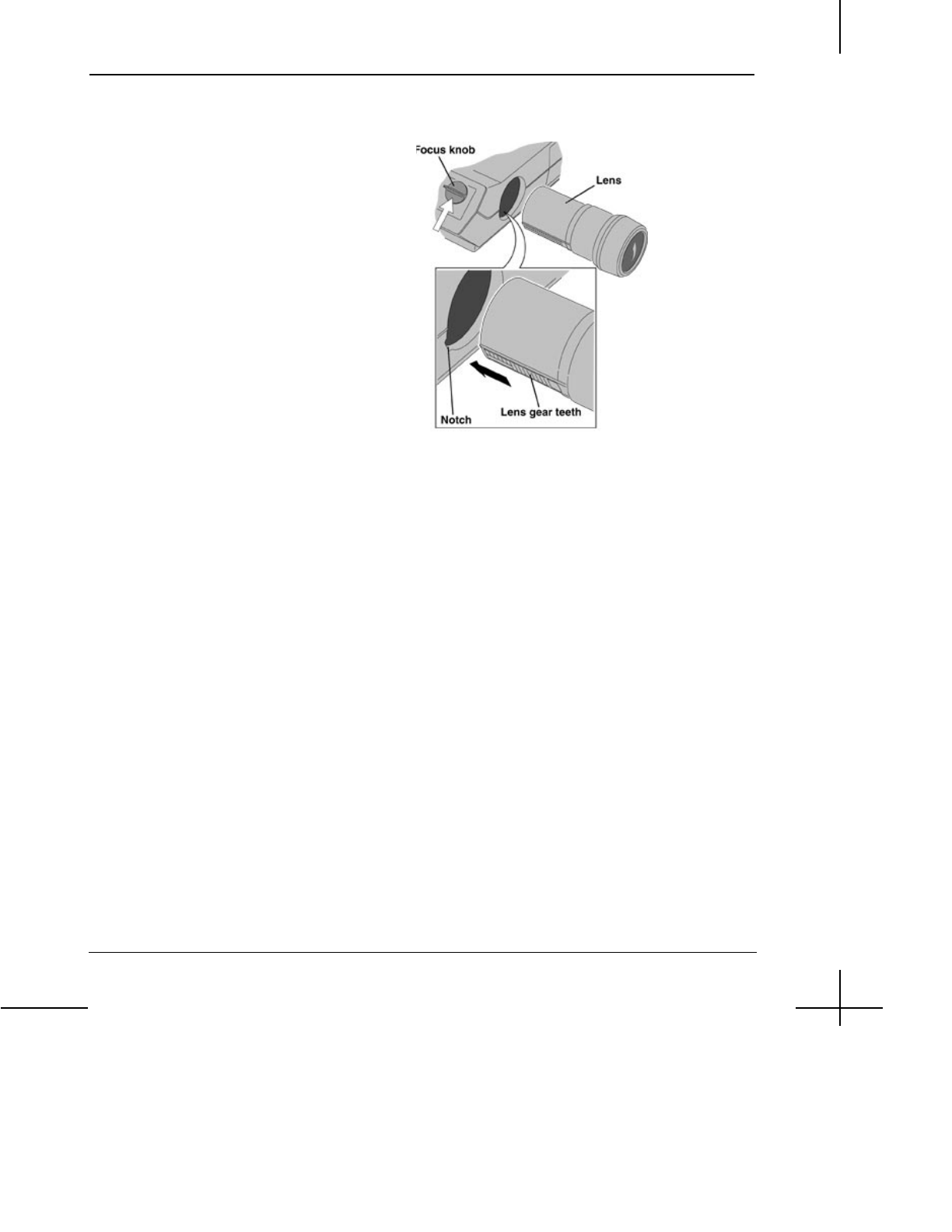

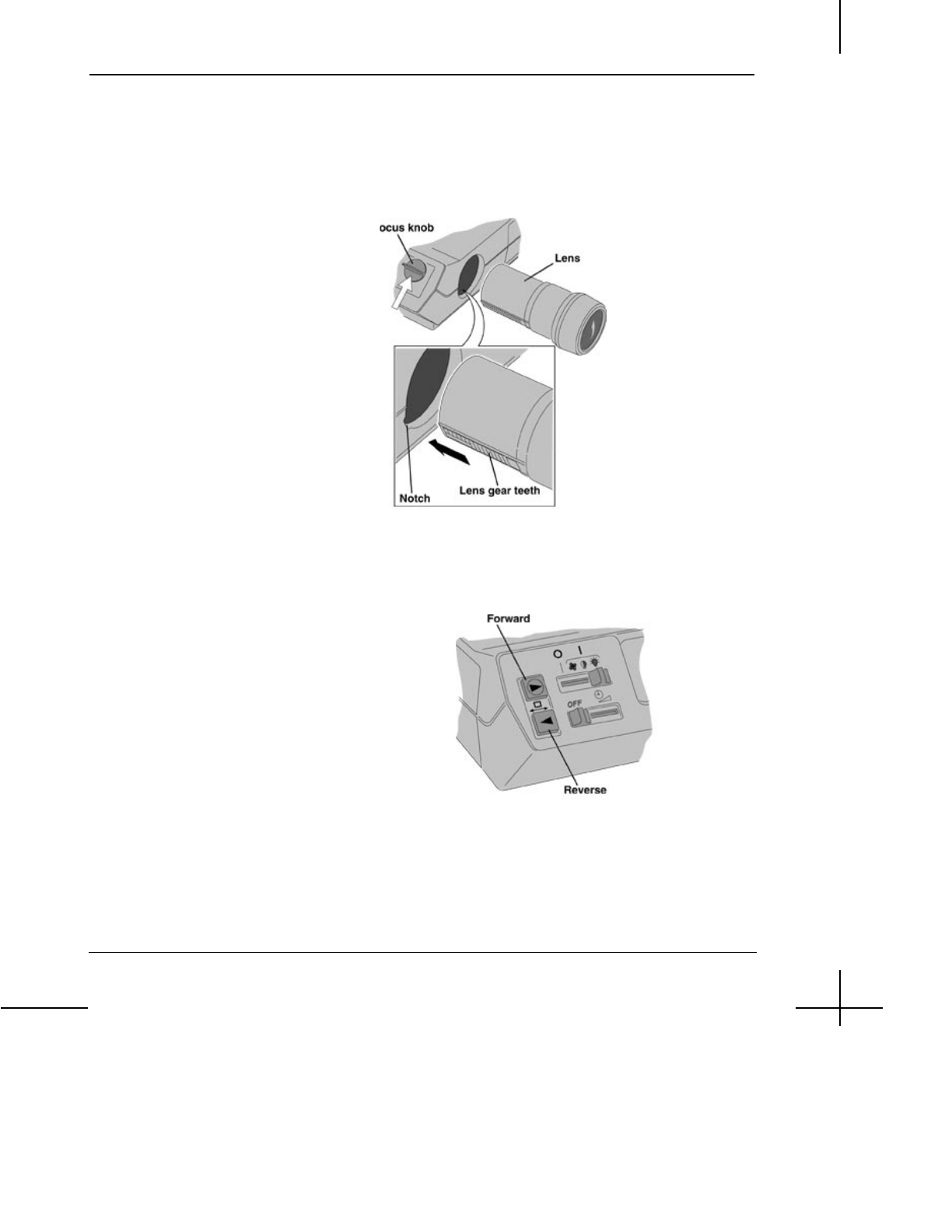

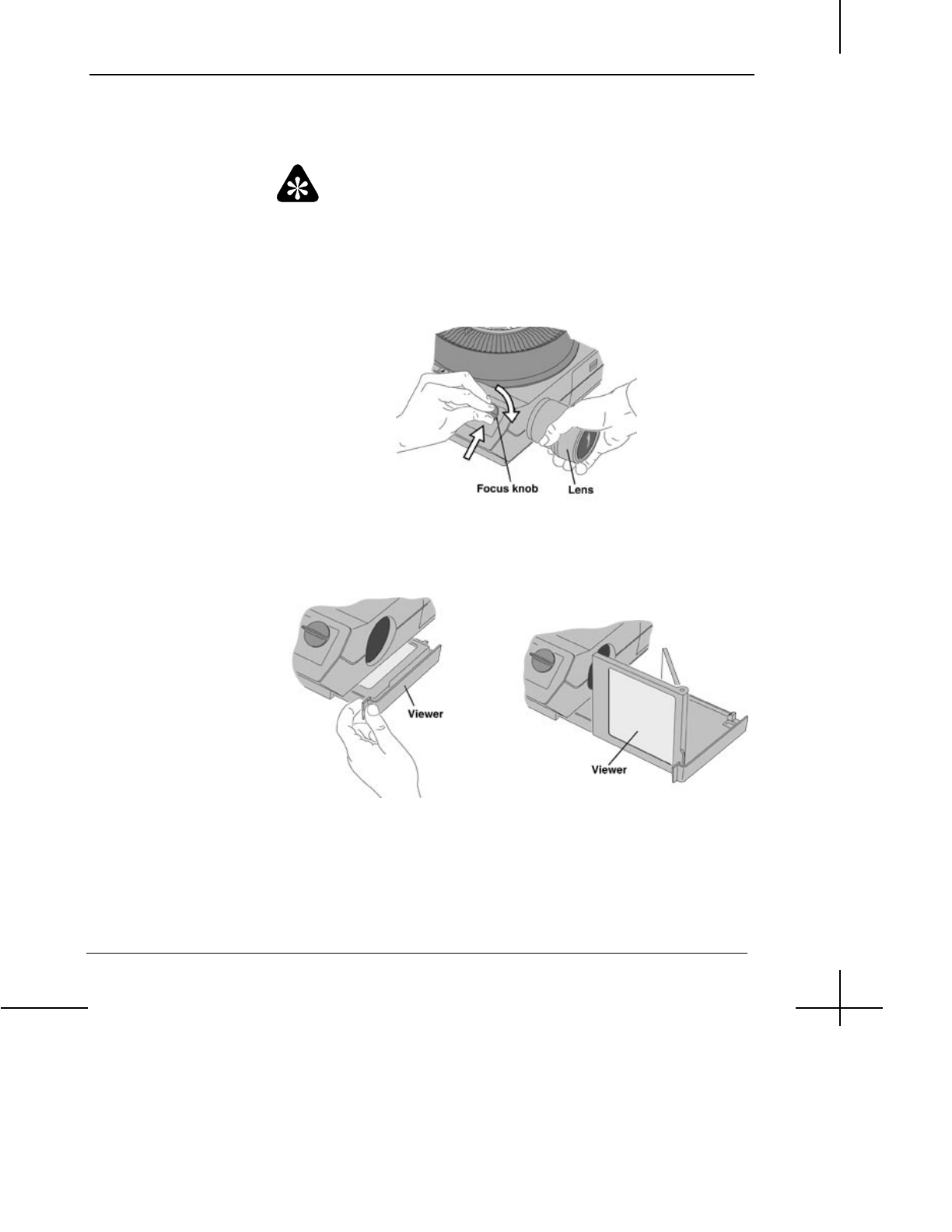

Lens To insert a lens, push the focus knob up and position the lens gear teeth on

the lens barrel with the notch on the projector.

Lamp Slide the power switch to half lamp (for longer lamp life) or lamp (for

maximum brightness).

You may want to keep a spare KODAK EC Lamp Module (CAT 831 3587)

handy in case the lamp burns out during a presentation. Replacing the entire

module makes the change quick and easy. (See “Maintenance” on page 21 for

instructions on changing the lamp module.) See your dealer in Kodak

products to order this module.

KODAK EKTAGRAPHIC III Slide Projector 11

Operation

Forward and

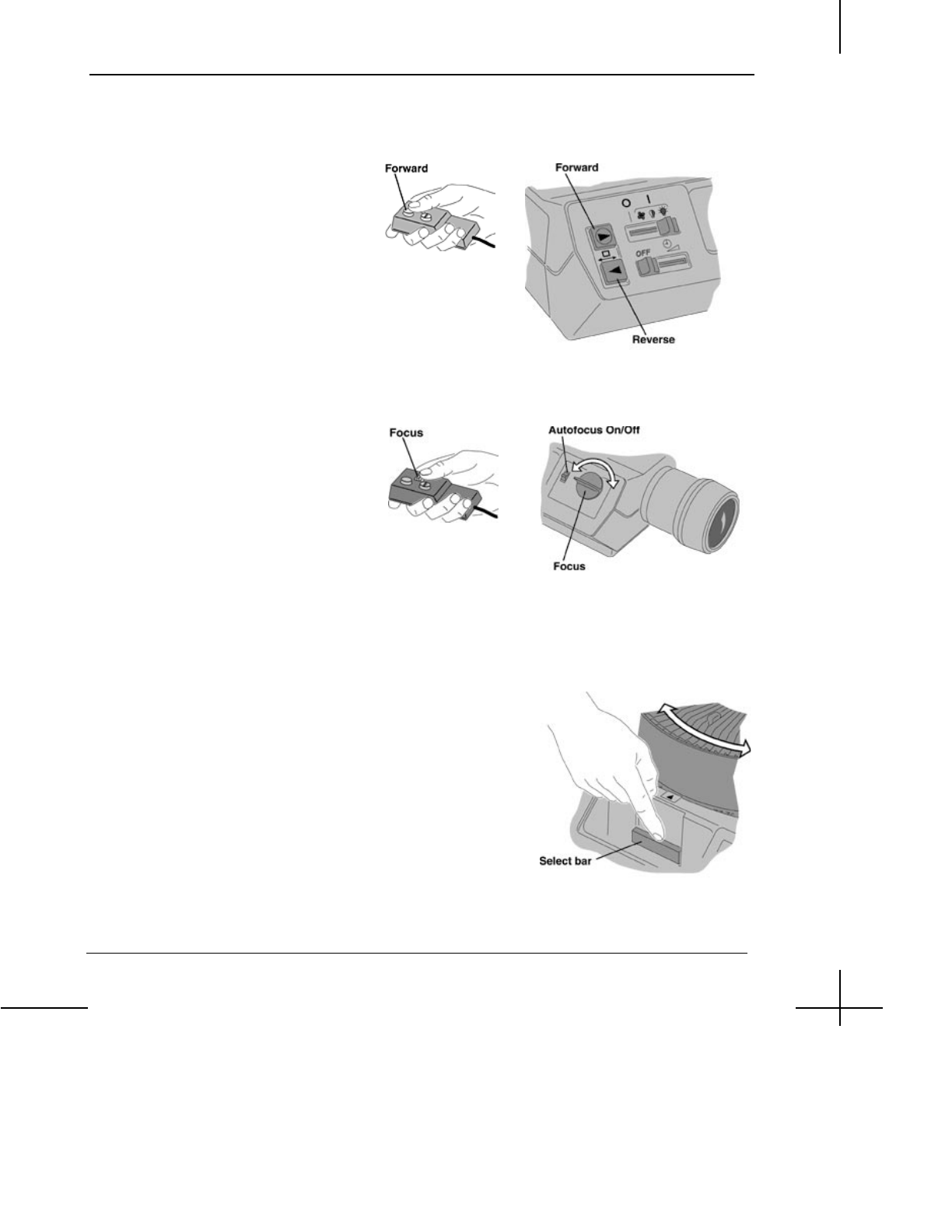

Reverse Press the forward button on the projector or the remote control to project the

first slide. To change slides, briefly press the forward or reverse buttons.

Focus Focus your first slide using the focus knob on the projector or the focus button

on the remote control.

Autofocus

(Models A, AMT,

and ATS only)

With autofocus on, the projector automatically focuses each slide, after you

focus your first slide manually. Turn autofocus off if glass slides make the

autofocus motor run continuously.

Random Projection For random projection of any slide in the

tray:

•press and hold down the

select bar,

•rotate the tray to the desired slide,

and

•release the select bar.

12 KODAK EKTAGRAPHIC III Slide Projector

Operation

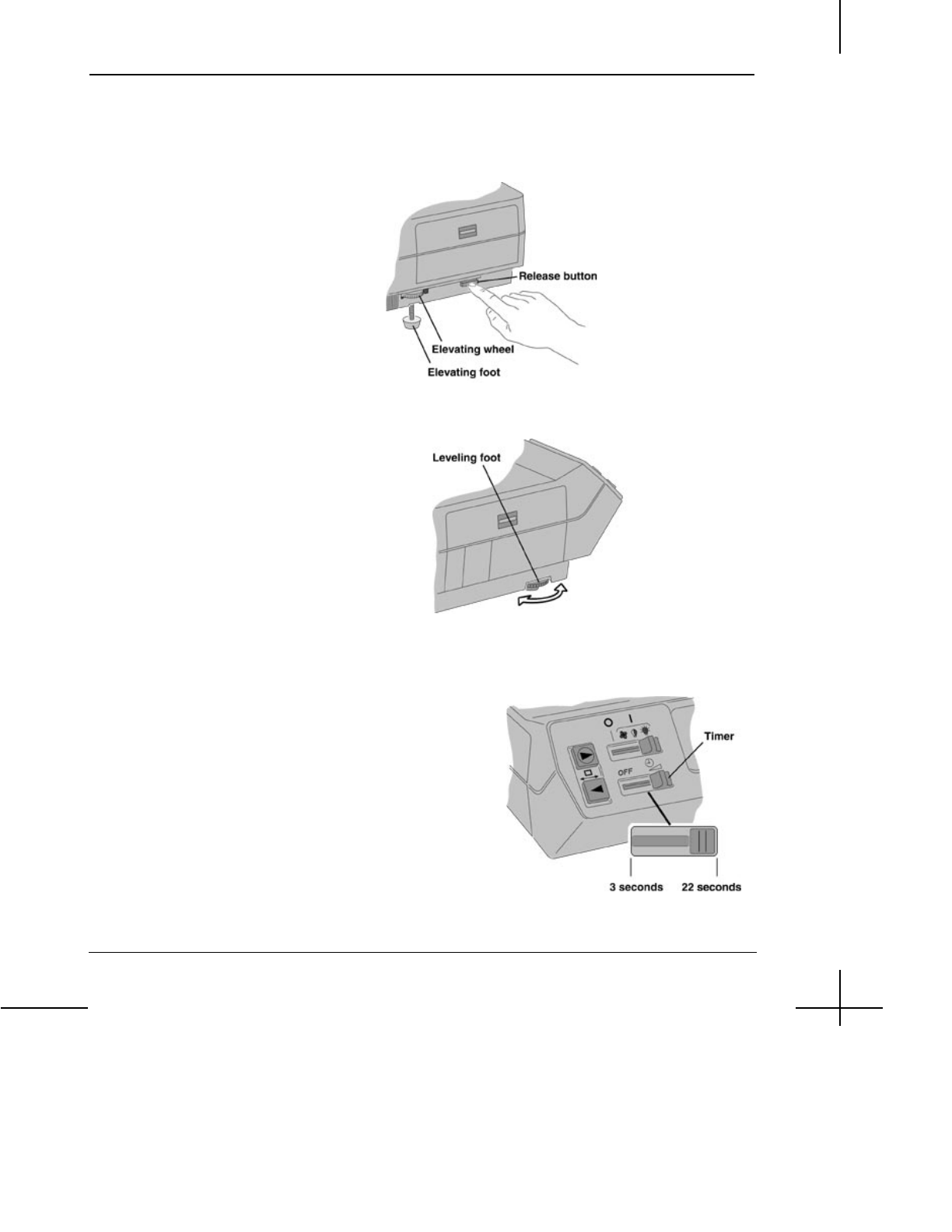

Screen Image Use the elevating foot to horizontally center the projected image on the

screen. To release the foot, press the release button, while lifting the front of

the projector to the desired height. Use the elevating wheel to make fine

adjustments.

If the image is not level, make an adjustment by turning the leveling foot at

the rear of the projector.

Timer

(Models AMT & ATS

only)

To time your slides, use the timer switch for slide changes from 3 to

22 seconds.

To interrupt the timer, press either

the forward or reverse button. For

manual operation, slide the timer

switch to Off.

KODAK EKTAGRAPHIC III Slide Projector 13

Operation

Reading Light To illuminate a small area for reading, lift the reading light cover while the

projector lamp is on.

Standby Light

(Model E Plus only) A glowing standby light indicates a

“ready” condition.

In a dissolve program, it indicates

that

• both projectors are receiving

power

• both power switches are set at

fan

• both projection lamps are

properly installed, not burned

out, and ready

• both standby lights are operational

• all thermal fuses are functional

Special-Application

Receptacle The special-application receptacle allows additional external control and

programming capability. It provides 22.5 V low-voltage power isolated from

the main power line.

Use this receptacle for:

•automatic “return-to-zero” devices (models A and E Plus)

•a low-voltage power supply

•a dark shutter switch

The receptacle accepts 8-pin plugs and DIN-type plugs with 3 or 5 pins at

180˚. (See “Appendix A” for contact identification descriptions.)

14 KODAK EKTAGRAPHIC III Slide Projector

Operation

Important

All equipment, cables, and connectors used with the special-application

receptacle must be assembled by qualified electronic personnel All circuits

connected electrically to the projector through this receptacle must have a

rating of not more than 30 V (rms) and must comply with Underwriters

Laboratories, Inc., low-voltage, limited energy circuit requirements.1

Single Slides To project single slides, slide the power switch to a half- or full-lamp position.

Remove the tray and insert a slide upside down into the projector gate. Push

the slide all the way down.

After viewing the slide, press forward, reverse, or the select bar to eject the

slide.

Selecting Slide

Projection Lenses When buying a lens, consider features such as focal length (measured in

millimetres), aperture (designed as an f/stop), and the lens design (curved or

flat).

When selecting a lens, remember that the shorter the focal length (i.e., the

smaller the f/number), the brighter the projected image. Also, a curved-field

lens, in combination with cardboard open face mounts from an automated

mounting process, provide superior projection quality. A flat-field lens is the

best choice for glass-mounted slides.

1.UL-122,

Photographic Equipment,

Underwriters Laboratories, Inc., 33 Pfingsten Road,

Northbrook, IL 60062-2096; CSA Specification C222, Number 118-1959 (R1965),


Machines Appliances,

CSA, 178 Rexdale Boulevard, Rexdale, Ontario M9W 1R3 Canada.

KODAK EKTAGRAPHIC III Slide Projector 15

Operation

Choosing a Curved-

or Flat-Field Lens The lens you select depends on how you use your projector and what type of

slide mount you use. So that you may choose the lens that best meets your

needs, we do not include a lens with the projector.

To obtain the best results of a projected image, insert slides with the emulsion

side toward the projection lens, slide curve toward the light source.

A flat-field lens works best for:

• general home projection

• glass mounts

• plastic mounts

• mixed mounts

• non-embossed cardboard mounts

• rear-projection applications

• duplicated slides

A curved-field lens works best for:

•embossed cardboard mounts (Embossed mounts have beveled edges

around the aperture. Kodak Premium Processing and Kodak Processing

labs provide embossed mounts.)

Lens Focal Length/

Projector Distance Use the illustration on the following page to help determine the lens focal

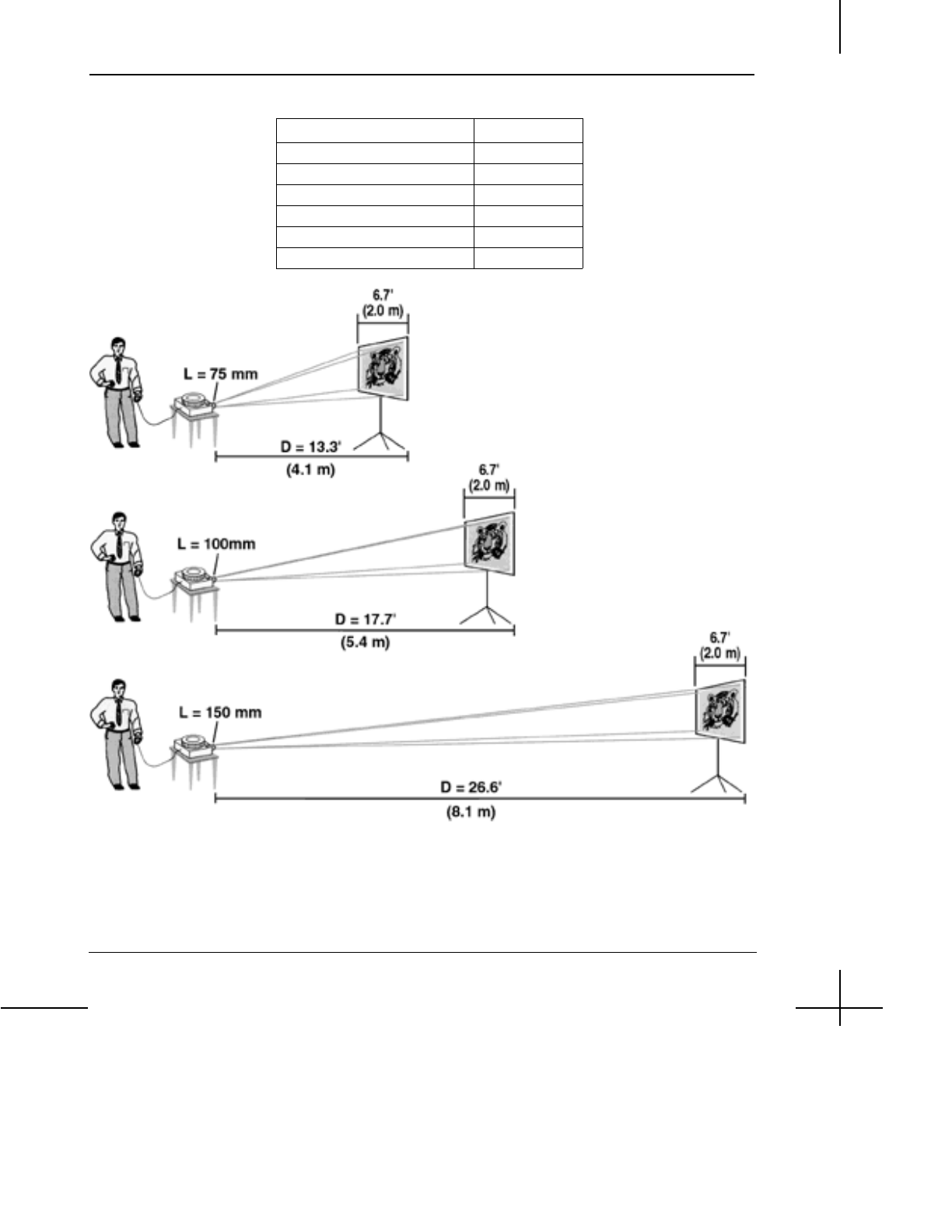

length and projector distance.

16 KODAK EKTAGRAPHIC III Slide Projector

Operation

LD

75 mm 13.3’

100 mm 17.7’

125 mm 22.2’

150 mm 26.6’

175 mm 31.0’

200 mm 35.4’

KODAK EKTAGRAPHIC III Slide Projector 17

Operation

Editing Your Presentation

Removing the

Lock Ring To add or remove slides in the tray, you must first remove the lock ring.

Turn the ring counterclockwise and lift off.

Removing a Slide Rotate the tray to the slide you wish to remove. Firmly press and hold down

the select bar to eject the slide.

Adding a Slide When the lock ring is off, you can add a slide to any empty slot.

(See “Front-Screen Projection” on page 7.)

Replace and secure the lock ring.

18 KODAK EKTAGRAPHIC III Slide Projector

Operation

Clearing a Gate Jam

To remove a defective slide or foreign object stuck in the projector gate, you

need to remove the tray.

• Slide the tray release latch in the direction of the arrow, and

• with your other hand, lift off the back of the tray.

Rotate the metal plate on the bottom of the tray until it locks into position.

(For a 140-slide tray, see “Loading the Slide Tray” on page 6.) Put the tray

aside.

Remove the slide or object from the projector gate by pressing the forward

button or removing the slide manually.

Remount damaged slides to protect your projector and slides from subsequent

damage.

KODAK EKTAGRAPHIC III Slide Projector 19

Operation

Using the Built-In Viewer

(Model ATS Only)

Important

Before opening the viewer, you must remove the projection lens from the

projector.

Removing the

Lens Turn the focus knob to the horizontal position. Push the knob toward the top

of the projector as you withdraw the lens.

Opening the

Viewer Grasp the viewer handle and pull it out from the base of the projector. It will

pop into place.

Slide the power switch to lamp to project your slides.

Closing the Viewer To close the viewer, fold it and push it back into the body of the projector.

20 KODAK EKTAGRAPHIC III Slide Projector

Operation

Reinserting the

Lens To reinsert the lens, push the focus knob up and position the lens gear teeth

on the lens barrel with the notch on the projector.

Using a Dissolve Control

One of the more common uses for a dissolve control is a simple two-projector

fade. This feature fades down the light beam in one projector, while changing

the image and fading up the light beam in the other projector. This eliminates

a dark-screen interval.

When using a dissolve control, you need to divide your slides into two trays

(odd- and even-numbered slides).

The dissolve control has two connectors that plug into the remote-control

receptacles in the rear of two projectors. Refer to your dissolve-control

operating manual for additional instructions and features.

See your dealer in Kodak products for more information on Kodak dissolve

controls.

Shutdown

To shut down,

• remove and store the tray

• slide the power switch to off

Your projector will remain warm for several minutes.

KODAK EKTAGRAPHIC III Slide Projector 21

Maintenance

To ensure a long life and trouble-free operation for your projector:

• Allow the air to flow freely around the projector.

• Do not recirculate warm air.

• Keep the projector dust free.

• If your projector is chilled, bring it to room temperature before operating.

Projection Lamps Quartz-halogen 82 V projection lamps—

Included: EXR, 300 W (35-hour lamp life at full lamp/medium-brightness)

Sampling of other lamps:

EXY (200 hours/less brightness)

EXW (15 hours/maximum brightness)

FHS (70 hours/medium brightness)

Use combinations of lamp brightness, plus half- and full-lamp settings to

approximate image brightness in multi-projector presentations.

Lamp Tips •Projector operation on line voltages above 125 volts greatly

reduces the lamp life.

•Unplug the projector before changing the lamp.

•Allow for unrestricted flow of air to the exhaust vent to prolong

lamp life.

•Gently wipe off any fingerprints with a soft cloth moistened with

rubbing alcohol.

Desired

Brightness EKTAGRPAHIC III

Projector Lamp

Maximum EXW

High EXR

Medium FHS

Low EXY

22 KODAK EKTAGRAPHIC III Slide Projector

Maintenance

Changing the Projection Lamp

Slide the power switch to Off and unplug the projector.

Allow the projector and lamp

to cool for about 10 minutes.

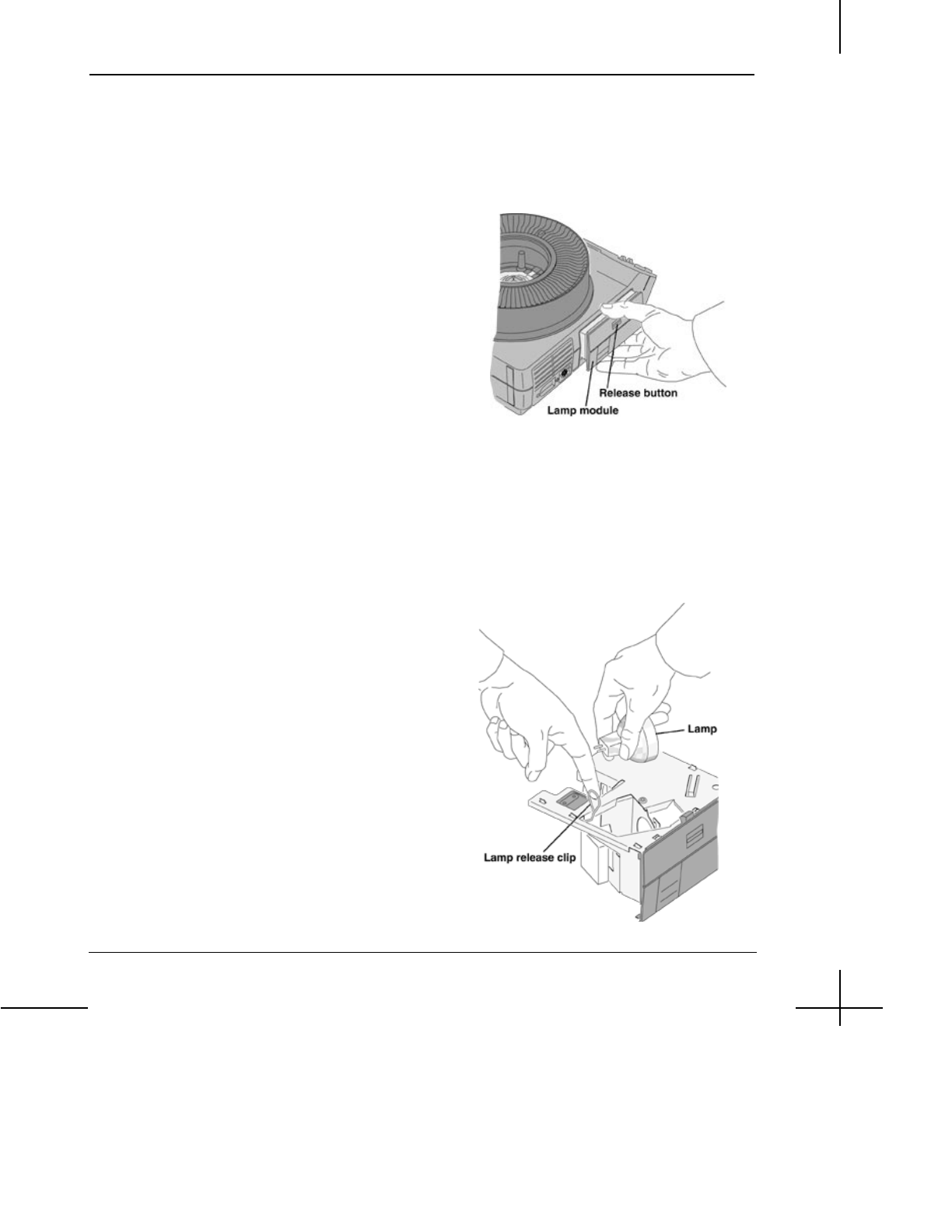

Push the lamp-module

release button and remove

the lamp module. You can

replace it with a new lamp

module or replace only the

lamp.

Note: There is an additional

safety latch, which reduces

the chance of an accident

with a loosely inserted lamp

module, that may cause some

resistance. To release the

latch, you may need to apply

extra effort when you pull out

the module.

To replace only the lamp, lift up the lamp release clip. Carefully remove the

worn lamp from the socket and place it on a heat-resistant surface.

Insert a new lamp into the

socket. Push down to tightly

seat the replacement lamp.

Relatch the clip in the forward

position and push the lamp

module all the way back into

the projector until it latches.

KODAK EKTAGRAPHIC III Slide Projector 23

Maintenance

Cleaning the Condenser, Heat-Absorbing Glass, and

Mirror

To clean the condenser, heat-absorbing glass, or mirror, you must disassemble

the lamp module.

Slide the power switch to Off and

unplug the projector. Allow the

projector to cool about 10 minutes.

Push the lamp-module release

button and remove the lamp

module.

Use a torx-head screwdriver to

remove the screw.

Using a flat-blade screwdriver, apply ample

pressure to release each of the metal tabs.

Lift off the top of the lamp module.

24 KODAK EKTAGRAPHIC III Slide Projector

Maintenance

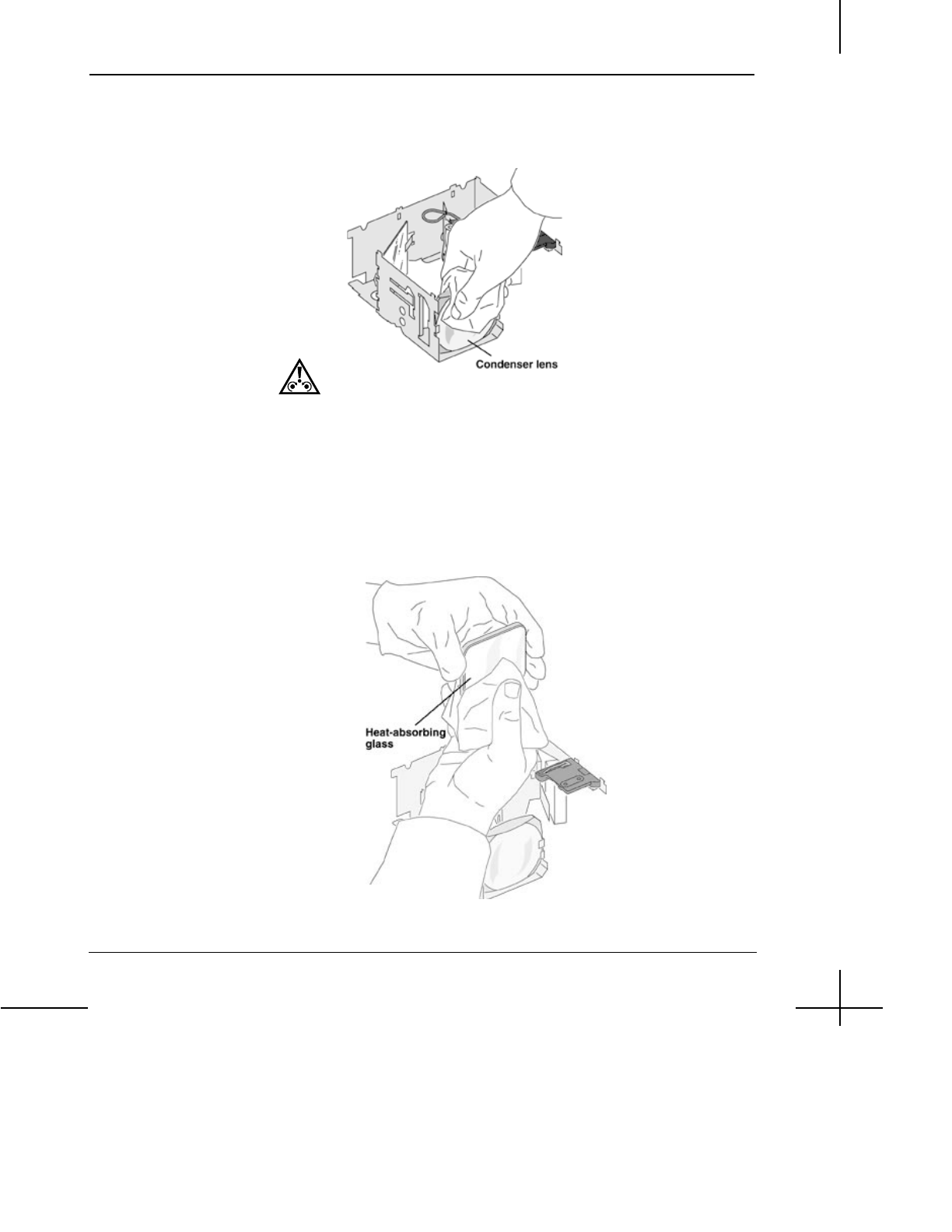

Condenser Lens You can clean the condenser lens in place, or by pulling it out. Wear gloves

to prevent fingerprints.

Heat-Absorbing

Glass

(Models without

KODAK Extra Bright

Lamp Module)

Caution

The heat-absorbing glass is fragile. Handle it only when cool.

The heat-absorbing glass easily removes for cleaning.

Clean both sides of the condenser lens and the heat-absorbing glass with a

soft, lint-free cloth.

Do not leave fingerprints. Replace the lens and heat-absorbing glass to their

original locations.

KODAK EKTAGRAPHIC III Slide Projector 25

Maintenance

Reassembling the

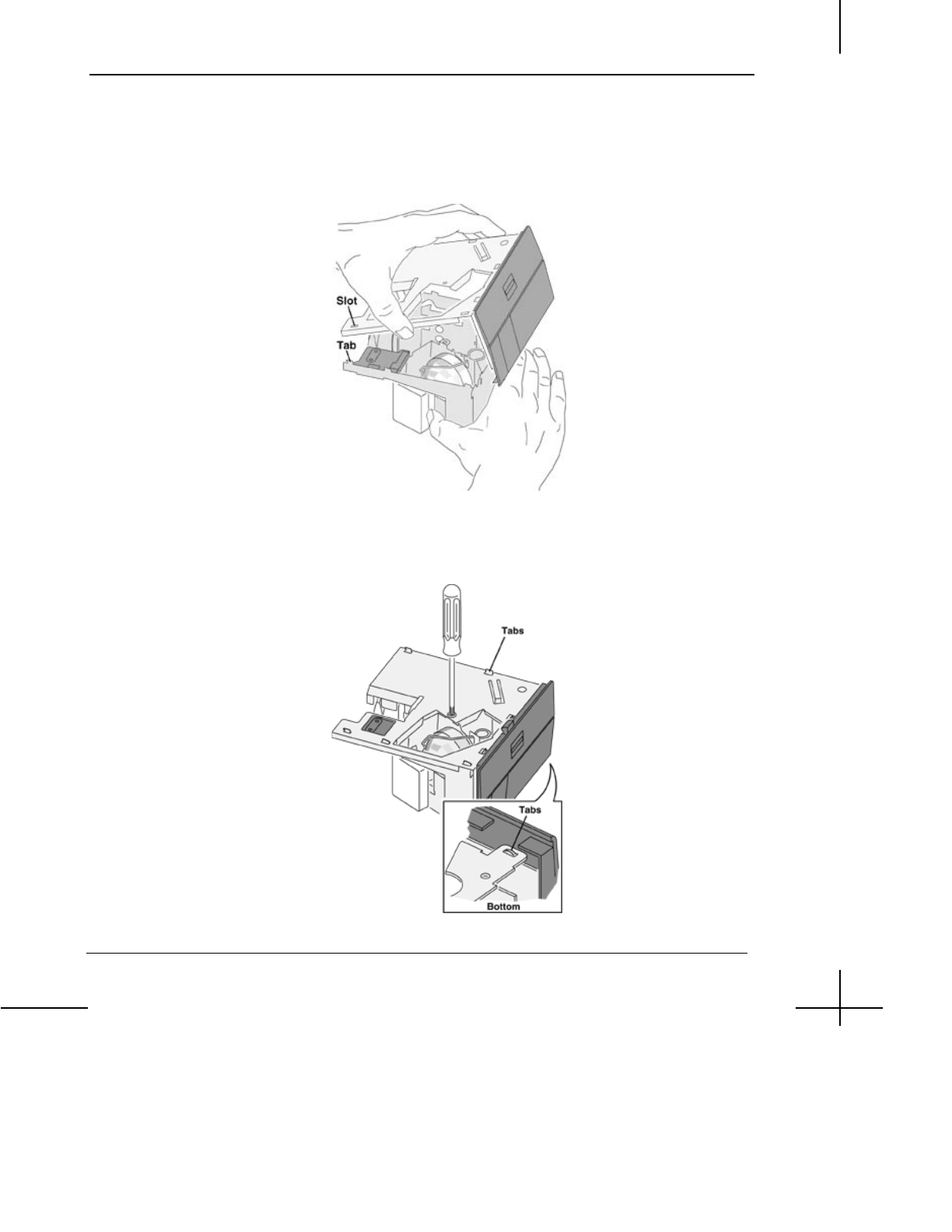

Lamp Module To reassemble the lamp module, you will need to align and insert each tab

into its appropriate slot.

Start with the tabs in the rear of the lamp module.

Insert the remainder of the tabs into slots until all 7 tabs on the top and 2 on

the bottom are secured. Insert the screw and tighten. Then insert and seat the

lamp.

26 KODAK EKTAGRAPHIC III Slide Projector

Maintenance

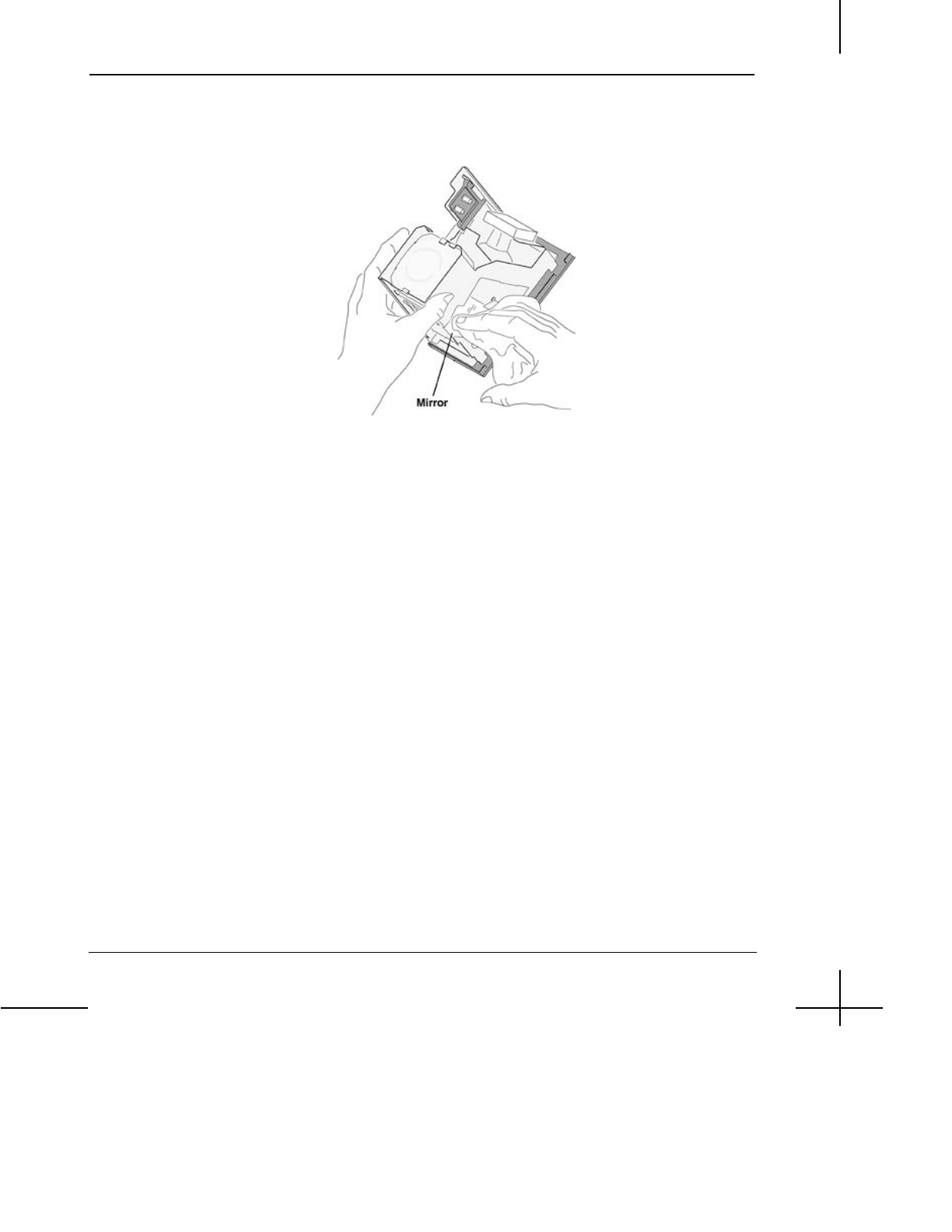

Mirror To clean the mirror, invert the lamp module to reach the mirror. Gently clean

the mirror with a soft, lint-free cloth moistened with lens cleaner.

When your maintenance is complete, push the lamp module back into the

projector.

Thermal Fuses Your projector has two thermal fuses that prevent overheating. If your

projector will not operate, call the Kodak Information Center or Kodak in your

country to obtain the name of a service center nearest you (see “How to Obtain

Service” on page 30).

KODAK EKTAGRAPHIC III Slide Projector 27

Troubleshooting

Consult this guide before calling for service.

PROBLEM CAUSE CORRECTION

Projector does not operate No power to projector Plug power cord into suitable

electrical outlet. Set power

switch to Lamp.

No illumination on screen with slide in

projector gate Power switch on Off or Fan Set switch to Lamp.

Lamp burned out Install new lamp or lamp module

Lamp not seated in socket Check lamp.

Slide not in proper focus on screen

focus. Slide itself not sharp Examine slide for proper focus.

First slide in tray not properly Focus center of first slide.

Slide in different type of mount from

others Focus manually.

Projection lens installed improperly Read and follow the instructions

for installing the lens.

Uneven edge-to-edge focus Slide itself is not sharp Examine slide.

Curved field lens used with glass,

plastic, or non-embosssed mounts Try a flat field lens.

(See “Choosing a Curved- or

Flat-Field Lens” on page 15.)

Curved field lens used for rear

projection Use a flat field lens.

Autofocus motor runs continuously Glass slides in tray Turn off autofocus or use slides

with mounts other than glass.

Autofocus fails to operate Lamp performance Install new lamp and try

autofocus again.

28 KODAK EKTAGRAPHIC III Slide Projector

Troubleshooting

Slide fails to drop into projection

position Tray base plate not properly indexed Rotate the tray base plate until

it locks into position.

Tray not properly positioned on

projector Reposition tray on projector.

Slide mount warped or frayed at

corners slide. Straighten mount or remount

slide.

Projector not level or tilted too high Set projector on a stand equal

with center of screen.

Uneven illumination on screen Projection lamp not fully seated Check lamp.

Condenser lens not installed or not

positioned properly in mount Check condenser lens.

Slide mount not seated properly in

projector gate Check slide position and slide-

mount condition.

Projector won't cycle to next slide Tray not properly positioned Reposition tray.

Slide or foreign object stuck in gate See "Clearing a Gate Jam" on

page 18.

Program does not start with the with

the correct slide Tray number is not aligned with the

with the raised index mark. Reposition tray (see “Tray” on

page 9).

PROBLEM CAUSE CORRECTION

KODAK EKTAGRAPHIC III Slide Projector 29

Warranty

Kodak warrants this KODAK EKTAGRAPHIC Slide Projector to function

properly for four years from the date of purchase.

If this KODAK EKTAGRAPHIC Slide Projector does not function properly

within the warranty period, upon submission of dated proof of purchase,

Kodak will repair it without charge, except for worn-out projector lamps. If

Kodak is unable to repair the projector, the option of replacement or refund of

the purchase price will be available.

See an audiovisual products dealer in your country for the KODAK

EKTAGRAPHIC III ABR Slide Projector's warranty coverage.

Limitations This warranty does not cover circumstances beyond Kodak’s control,

projector lamps, or problems caused by failure to follow the care and

operating instructions in the manual.

Any modification to the original design of this projector nullifies this

warranty.

Warranty service will not be provided without dated proof of purchase.

Kodak makes no other express warranty for this product.

Repair or replacement is Kodak’s only obligation. Kodak will not be

responsible for any consequential or incidental damages resulting from

the sale or use of this projector, regardless of the cause of such damages.

Your Rights Under

State Law Some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation or exclusion may not apply to

you. This warranty gives you specific legal rights, and you may also have

other rights that vary from state to state.

30 KODAK EKTAGRAPHIC III Slide Projector

How to Obtain Service

Assistance U.S.: 1-800-242-2424

Canada: 1-800-465-6325

www.kodak.com/go/projectors

To obtain service or for assistance in using your KODAK EKTAGRAPHIC

Slide Projector, contact the Kodak Information Center at 1-800-242-2424,

Monday through Friday, 8 a.m. to 8 p.m. (Eastern time). In Canada, call

1-800-465-6325, Monday through Friday, 8:30 a.m. to 5 p.m. (Eastern time).

Or call Kodak in your country.

Shipping

Instructions To help us get your KODAK EKTAGRAPHIC Slide Projector back to you

promptly, please enclose a note giving details of the problem, dated proof of

purchase, and your complete name and shipping address. Pack the unit in a

sturdy carton with ample packing material to protect the unit during shipping

and handling.

KODAK EKTAGRAPHIC III Slide Projector 31

Appendix A

Special-Application Receptacle Identification Chart

Contacts Function Description

1 & 3 Zero-Position Switch

(Models A and E Plus) Connects to an internal single-pole single-throw normally

open switch. Contacts are closed when the slide tray is at any

position other than zero. These leads connect only to the

switch terminals.

Do not exceed a switching load of 1 A at

30 V ac

.

4 & 5 Shutter Switch Connects to an internal single-pole single-throw normally

closed switch. Contacts are open when a slide is in the

projector gate and the shutter is open. These leads connect

only to the switch terminals.

Do not exceed a switching load

of 1 A at 30 V ac

.

7 & 8 Low-Voltage Supply For operating external equipment. The current is supplied by

a secondary winding on the main motor, isolated from the

line-voltage power, and is available whenever the main

projector motor is running. Supply is 25.5 V, 500 mA (1/2 A)

maximum. Contact number 8 is common (return) for the

remote-control circuit. Contact number 7 is the “hot” lead and

is fused with a slow-blowing fuse. (Replacement requires

disassembly of the projector by a qualified technician.)

6 & 8 Forward Tray Connects to the forward tray-advance circuitry in the

projector. These contacts are connected internally to the

remote-control receptacle and an electrical connection made

at either receptacle will result in a forward cycle.

2 & 8 Reverse Tray Cycle Connects to the reverse tray-advance circuitry in the

projector. These contacts are connected internally to the

remote-control receptacle and an electrical connection made

at either receptacle will result in a reverse cycle.

Shell Plug Ground If a plug with a conducting shell is used, it is connected to the

projector frame (chassis) through the special-application

receptacle and to earth ground through the projector's power

cable.

Part No. 5B905 12/98 Revision ©EastmanKodak Company Printed In U.S.A.

PRESENTATION TECHNOLOGIES

Presentation Technologies

EASTMAN KODKCOMPANY

Rochester, New York 14650

www.kodak.com/go/projectors

Kodak, Ektagraphic, and kodalux are trademarks.
