KODAK 10/100

Network Interface Card

KODAK XLS 8400 PS Color Printer

KODAK XLS 8600/8600 PS Color Printer

KODAK DIGITAL SCIENCE

8650/8650 PS Color Printer

KODAK PROFESSIONAL

8657 Color Printer

KODAK DIGITAL SCIENCE

Desktop Color Proofer 9000

KODAK DIGITAL SCIENCE

DCP 9300 Proofer

Part No. 3H0610

NIC front cover Page 1 Wednesday, July 15, 1998 2:30 PM

Contents

July 1998 iii

CONTENTS

1 Kodak 10/100 NIC Introduction and ConÞguration

..................... 1-1

1.1 About this Guide.......................................................................................................... 1-1

1.2 Using this Guide .......................................................................................................... 1-1

1.3 Contents of this Guide ................................................................................................. 1-2

1.4 NIC Package Contents................................................................................................. 1-3

1.5 Upgrading from a Kodak 10Mbit NIC ........................................................................ 1-4

1.6 Kodak 10/100 NIC Features ........................................................................................ 1-4

1.6.1 Hardware Features ............................................................................................ 1-4

1.7 Protocols ...................................................................................................................... 1-5

1.8 Network Performance.................................................................................................. 1-5

1.9 NIC and Printer Installation/Configuration Overview................................................. 1-5

2 NIC Installation and VeriÞcation

................................................... 2-1

2.1 Equipment Requirements............................................................................................. 2-1

2.2 Preparing the Kodak 8400/86xx series Printers........................................................... 2-1

2.3 Preparing the Kodak DCP 9000 and 9300 Proofers ................................................... 2-3

2.4 Installing or Removing the NIC................................................................................... 2-4

2.5 Printing a NIC Configuration Test Page...................................................................... 2-5

2.6 NIC Faceplate .............................................................................................................. 2-7

2.7 Operation Mode Switches............................................................................................ 2-7

2.8 Configuring the Network Parameters .......................................................................... 2-8

3 Windows - FastManage ConÞguration Utilities

........................... 3-1

3.1 FastManage Features ................................................................................................... 3-1

3.1.1 FastManage Hardware Requirements .............................................................. 3-2

3.1.2 Software Requirements .................................................................................... 3-2

Contents

iv July 1998

3.2 Extracting Files from the Windows Utilities Diskette................................................. 3-3

3.2.1 Setting up the FastManage Utilities ................................................................. 3-3

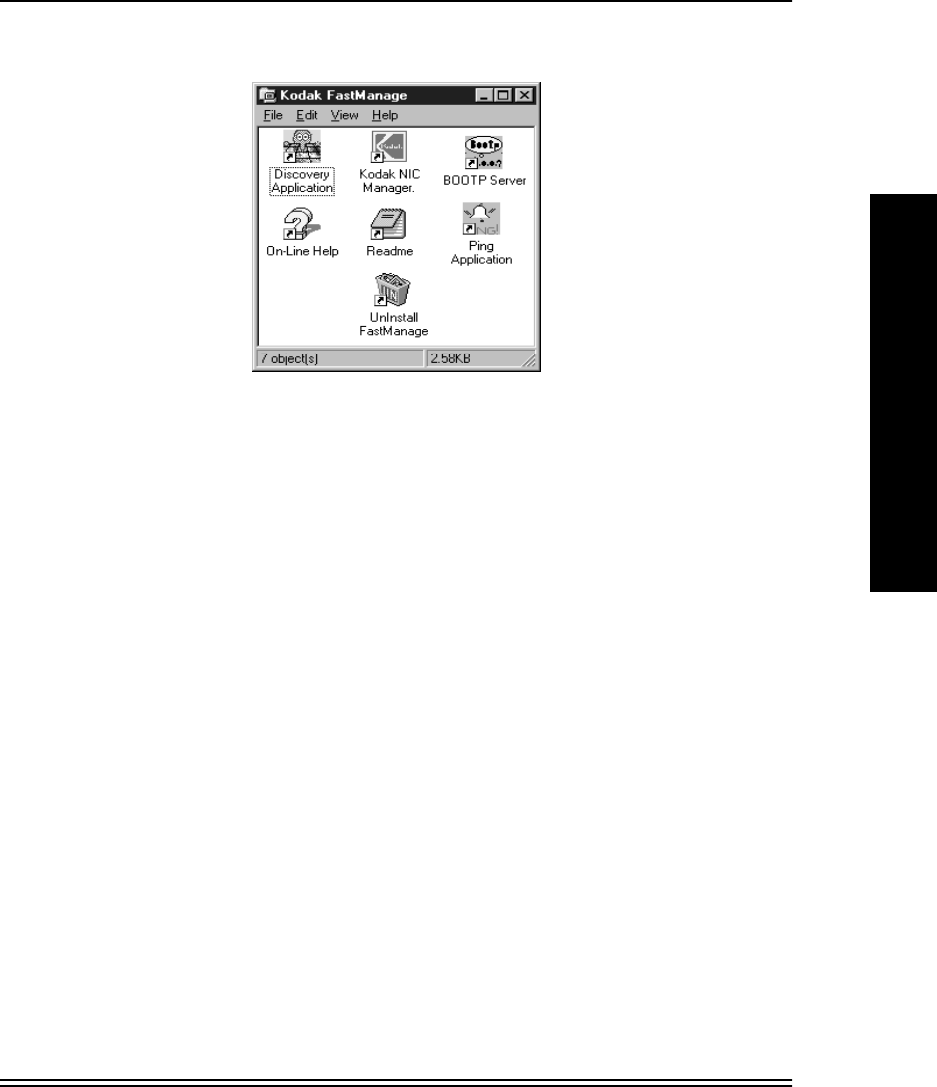

3.3 Installing FastManage.................................................................................................. 3-4

3.4 FastManage - Discovery Application .......................................................................... 3-7

3.4.1 Opening the Discovery Application ................................................................. 3-8

3.4.2 Kodak Printer/Proofer NIC Icon Names ........................................................ 3-10

3.4.3 Discovery Application Tools ......................................................................... 3-11

3.4.4 Discovery Application Preferences ................................................................ 3-14

3.4.5 Application Launch Parameters ..................................................................... 3-17

3.4.6 Mib2 System Parameters ................................................................................ 3-18

3.5 Fastmanage - Kodak NIC Manager Application ....................................................... 3-20

3.6 NIC Manager Configuration Menus.......................................................................... 3-21

3.6.1 TCP/IP Configuration .................................................................................... 3-22

3.6.2 Novell Configuration ...................................................................................... 3-23

3.7 General Configuration ............................................................................................... 3-24

3.7.1 Ethertalk Configuration .................................................................................. 3-25

3.7.2 SMB Configuration ........................................................................................ 3-26

3.7.3 NetBIOS Configuration .................................................................................. 3-26

3.7.4 Status Menu .................................................................................................... 3-27

3.7.5 Help Menu ...................................................................................................... 3-27

3.8 FastManage - Ping Application ................................................................................. 3-27

3.9 FastManage - BOOTP Application........................................................................... 3-29

3.10 NetBeui Browsing and Sharing Abilities................................................................... 3-31

3.10.1 DOS Tools for NetBIOS ................................................................................ 3-32

3.11 Troubleshooting FastManage .................................................................................... 3-33

3.11.1 Error Messages ............................................................................................... 3-33

3.11.2 IP Address Validation Messages .................................................................... 3-34

3.11.3 Discovery Application Messages ................................................................... 3-35

3.11.4 Ping Application Message .............................................................................. 3-35

3.11.5 BOOTP Server Application Messages ........................................................... 3-36

Contents

July 1998 v

4 Novell NetWare

............................................................................... 4-1

4.1 NetWare Client Installation Overview ........................................................................ 4-1

4.2 Configuring in a Bindery Environment ....................................................................... 4-1

4.2.1 Configuring using PCONSOLE ....................................................................... 4-1

4.3 Configuring in an NDS Environment .......................................................................... 4-2

4.3.1 Configuring Your NDS Server using PCONSOLE ......................................... 4-2

4.3.2 Configuring the NIC for NDS .......................................................................... 4-3

4.3.3 Additional Queues ............................................................................................ 4-3

4.3.4 Creating an NDS Print Server Using NWadmin .............................................. 4-4

4.4 Configuring in a Mixed Bindery and NDS Environment............................................ 4-7

4.5 Novell NetWare - AppleTalk....................................................................................... 4-9

4.5.1 Configuring Novell NetWare 3.x for AppleTalk ............................................. 4-9

4.5.2 Configuring Novell NetWare 4.x for AppleTalk ........................................... 4-10

4.6 Troubleshooting Netware .......................................................................................... 4-11

4.6.1 NIC Console Messages .................................................................................. 4-12

5 Windows for WorkGroups (3.x)

..................................................... 5-1

5.1 Configure the NIC ....................................................................................................... 5-1

5.2 Configure the Workstation for Printing....................................................................... 5-1

6 Windows 95

..................................................................................... 6-1

6.1 Configure the NIC ....................................................................................................... 6-1

6.2 Configure the Workstation for Printing....................................................................... 6-1

6.2.1 Printer/NIC selection and printer setup using Win 95/NT Network

Neighborhood: .................................................................................................. 6-2

6.2.2 Using the ÒAdd PrinterÓ Method ...................................................................... 6-3

6.2.3 Setting Printer Properties ................................................................................. 6-8

Contents

vi July 1998

7 Windows NT 3.51Workstation/Servers

......................................... 7-1

7.1 Configure the NIC, if necessary .................................................................................. 7-1

7.2 Configure the print servers, if necessary ..................................................................... 7-1

7.2.1 Network Service and Protocol Installation ....................................................... 7-2

7.2.2 Windows NT Server Queues ............................................................................ 7-2

7.3 Configuring your Workstation for Printing ................................................................. 7-3

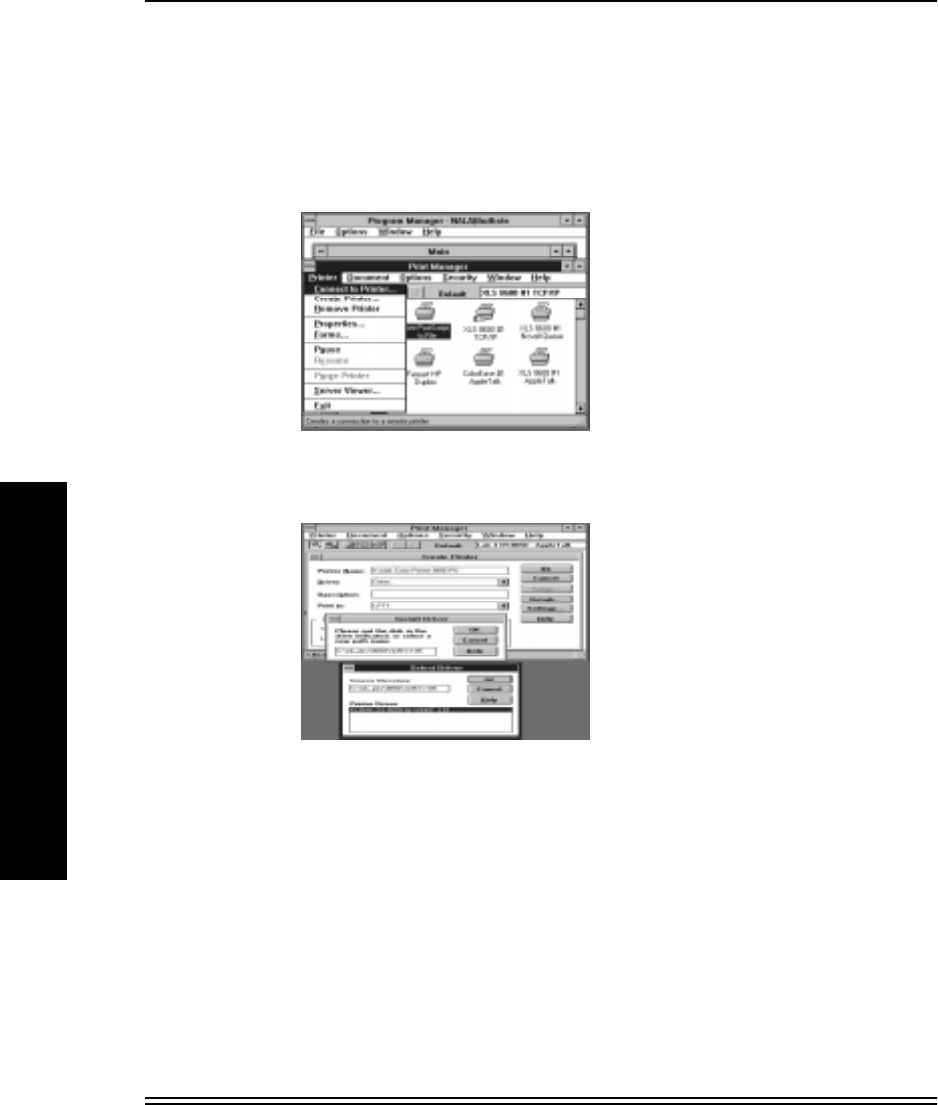

7.4 Adding a Printer........................................................................................................... 7-3

7.4.1 Adding a Printer ............................................................................................... 7-4

7.4.2 Printing via TCP/IP (LPR Port) ....................................................................... 7-5

7.4.3 Printing via AppleTalk ..................................................................................... 7-6

7.4.4 Printing via a Server/Print Queue ..................................................................... 7-8

7.4.5 Creating a Print Queue ..................................................................................... 7-8

8 Windows NT 4.0 Workstation/Servers

.......................................... 8-1

8.1 Configure the NIC ....................................................................................................... 8-1

8.2 Configure Print Servers ............................................................................................... 8-1

8.2.1 Network Service and Protocol Installation ....................................................... 8-2

8.2.2 Windows NT Server Queues ............................................................................ 8-2

8.3 Configuring your Workstation for Printing ................................................................. 8-2

8.4 Printer/NIC selection and printer setup using Win 95/NT Network Neighborhood: .. 8-3

8.5 Adding a Printer to Your System using ÒAdd PrinterÓ................................................ 8-3

8.5.1 Printing Via TCP/IP (LPR Port) ....................................................................... 8-3

8.5.2 Printing via AppleTalk ..................................................................................... 8-6

8.5.3 Printing via a Print Queue ................................................................................ 8-8

8.6 Installing the Kodak Printer Driver ............................................................................ 8-9

8.7 Printer Properties ....................................................................................................... 8-13

8.7.1 Setting Up Output Properties ......................................................................... 8-13

9 Apple/Macintosh Environments

.................................................... 9-1

9.1 Configuring the NIC .................................................................................................... 9-1

9.2 "NIC Configuration Test Page" vs "Printer Test Page" :............................................ 9-2

Contents

July 1998 vii

9.3 Contents of NIC/Macintosh Utilities Diskette............................................................. 9-3

9.3.1 Using the Laserwriter Utility for Downloading Configuration Files ............... 9-4

9.4 Configuring Macintosh Systems for Printing .............................................................. 9-5

10 Unix Environment

......................................................................... 10-1

10.1 Configuring the NIC from Unix (TCP/IP) Platforms ................................................ 10-1

10.1.1 Setting the IP Address Using Arp and Telnet ................................................ 10-2

10.1.2 Verifying IP Address is Set Properly ............................................................. 10-3

10.2 Introduction to LPD/LPR........................................................................................... 10-3

10.2.1 Setting up LPD/LPR ....................................................................................... 10-4

10.2.2 Remote or Direct Network Spooling .............................................................. 10-4

10.3 Printer/NIC Setup using the Installation Script ......................................................... 10-4

10.4 Manual NIC Installation for BSD Machines ............................................................. 10-5

10.4.1 Manual NIC Installation for System V Machines .......................................... 10-5

10.5 Printcap File Parameters ........................................................................................... 10-7

10.5.1 TFTP Support for the printer/NIC .................................................................. 10-8

11 Printing

.......................................................................................... 11-1

11.1 PostScript and Raster Modes ..................................................................................... 11-1

11.1.1 PostScript Drivers .......................................................................................... 11-1

11.1.2 Raster Drivers ................................................................................................. 11-1

11.1.3 Language Efficiency vs Network and Printer Performance ........................... 11-1

11.1.4 Non-Kodak Printer Software .......................................................................... 11-1

11.2 Changing between PostScript and Raster Printing

Modes - Kodak 8xxx series Printers 11-2

11.3 Changing From PostScript to Raster Printing Modes - Kodak DCP9000 Proofers .. 11-3

11.4 Printing in PostScript Mode from Windows/DOS Systems ...................................... 11-4

11.4.1 Printing from Windows .................................................................................. 11-4

11.4.2 Printing from DOS ......................................................................................... 11-4

11.4.3 Eliminating ÒCtrlDÓs from Print jobs ............................................................. 11-5

11.5 Printing in PostScript Mode from Macintosh Systems.............................................. 11-5

11.6 Printing from BSD UNIX Systems............................................................................ 11-6

Contents

viii July 1998

11.7 Printing from UNIX System V Systems.................................................................... 11-6

11.8 Printing from VMS Systems...................................................................................... 11-7

11.8.1 Printing in Raster Mode from Windows and Macintosh Platforms ............... 11-7

12 Troubleshooting

........................................................................... 12-1

12.1 Verifying Standalone Printer Functions .................................................................... 12-5

12.2 Verify Network Connectivity .................................................................................... 12-6

12.3 Verify Network Parameters ....................................................................................... 12-6

12.4 Verify Application and Printer Parameters................................................................ 12-7

12.5 Novell NetWare Installations..................................................................................... 12-7

12.5.1 Netware debug via Telnet session .................................................................. 12-8

12.6 NT Installations........................................................................................................ 12-10

12.7 AppleTalk Installations............................................................................................ 12-11

12.7.1 PostScript mode ............................................................................................ 12-11

12.8 TCP/IP Installations................................................................................................. 12-12

Appendix A NIC Telnet

........................................................................ A-1

A.1 NIC Telnet Mode........................................................................................................ A-1

A.2 NIC Telnet Session ..................................................................................................... A-1

A.3 Telnet Diagnostic and Configuration Commands ...................................................... A-2

A.4 Sample Telnet Session depicting Monitor options ..................................................... A-2

A.4.1 CÑConfigure Console (for status monitoring)............................................... A-2

A.4.2 DÑDisplay summary configuration parameters............................................. A-2

A.4.3 FÑFlash firmware load enable/disable........................................................... A-3

A.4.4 IÑDisplay/set IP address ................................................................................ A-3

A.4.5 LÑLimit monitor network access by password ............................................. A-4

A.4.6 NÑNetwork protocols menu .......................................................................... A-4

A.4.7 TÑTCP/IP (sockets, lpd, rarp, bootp, tftp) options ........................................ A-5

A.4.8 ZÑReset nvram to factory defaults ................................................................ A-6

A.4.9 +ÑPrint PostScript test page .......................................................................... A-6

A.5 Finishing Up a Telnet Session .................................................................................... A-6

Contents

July 1998 ix

Appendix B Third Party Network Applications and Utilities

........... B-1

B.1 Windows 95 LPR Utilities........................................................................................... B-1

B.2 PC-NFS for Windows.................................................................................................. B-1

Appendix C Upgrading NIC Firmware and Resetting NIC to

Factory Defaults

............................................................. C-1

C.1 Upgrading the Flash EPROMs .................................................................................... C-1

C.2 Using the Network Download Procedure .................................................................... C-1

C.2.1 Downloading the Flash Image.......................................................................... C-1

C.2.2 Recovering from a Failed Download ...............................................................C-2

C.2.3 Restoring the Alternate Bank Image ................................................................C-2

C.2.4 Completing the Download ...............................................................................C-3

C.2.5 Flash Download Commands ............................................................................C-3

C.3 Resetting the NIC to Factory Defaults......................................................................... C-4

Appendix D NIC SpeciÞcations

.......................................................... D-1

D.1 RJ-45 Connector ......................................................................................................... D-1

D.2 Climate: Storage Temperature .................................................................................... D-2

D.3 Electrical UTP Interface ............................................................................................. D-2

D.4 Regulatory Approvals................................................................................................. D-2

D.5 Test Print Settings When Using Defaults ................................................................... D-2

Appendix E Technical Assistance

..................................................... E-1

Index

......................................................................................... Index-1

Kodak 10/100 NIC Introduction and Configuration

July 1998 1-1

1 Kodak 10/100 NIC Introduction and ConÞguration

1.1 About this Guide

This guide provides information about the

Kodak 10/100 Network

Interface Card (NIC)

features, installation and conÞguration.

This NIC can be used with the following printers and proofers:

¥ Kodak XLS

8400 PS color printer

¥ Kodak XLS 8600/8600 PS color printer

¥ Kodak Professional

8657 color printer

Kodak Digital Science

8650/8650 PS color printer

Kodak Digital Science

desktop color proofer 9000

Kodak Digital Science

DCP 9000 proofer

This NIC

cannot

be used with the Kodak Professional 8670 PS printer.

1.2 Using this Guide

This guide is intended for system administrators responsible for

conÞguring, maintaining, and troubleshooting computers and peripherals

in networked environments.

Kodak 10/100 NIC Introduction and Configuration

1-2 July 1998

It is also intended for administrators and experienced users responsible

for conÞguring individual workstation platforms.

This guide assumes an understanding of Novell IPX, EtherTalk, TCP/IP,

and/or NetBeui networking protocols, and administrative experience with

Novell, Macintosh, Windows and/or Unix platforms.

This guide provides procedures for installing the NIC hardware,

conÞguring the NIC, conÞguring print queues, and conÞguring user

workstations.

This guide does

not

describe how to operate a printer or proofer. For that

information, refer to the appropriate printer or proofer user guides.

1.3 Contents of this Guide

Chapter 1 - Introduction and ConÞguration Overview:

Provides

overviews of the Kodak 10/100 NIC used with Kodak Printers and

Proofers. Also provides an overview of NIC and printer installation and

conÞguration procedures.

Chapter 2 - NIC Hardware Installation:

Has instructions for installing the

Kodak 10/100 NIC hardware in Kodak printers and proofers. Also

provides initial powerup details for verifying proper installation.

Chapter 3 - Windows - FastManage Utilities:

Has instructions for

installing FastManage utilities for conÞguring the NIC from Windows

platforms. Also describes the use of the FastManage utilitiesÑ Discovery,

Kodak NIC Manager, BootP and Ping.

Chapter 4 - Novell Netware Server:

Has procedures for setting up

Novell Netware Bindery or NDS server print queues to accommodate

Kodak printers.

Chapter 5

- Windows for Workgroups (3.x)

Chapter 6

- Windows 95

Chapter 7

- Windows NT 3.51

Chapter 8

- Windows NT 4.0

Chapter 9

- Apple Macintosh

Kodak 10/100 NIC Introduction and Configuration

July 1998 1-3

Chapter 10

- Unix

Chapter 11

- Network Printing: Summarizes techniques for printing from

Windows, Macintosh and Unix platforms.

Chapter 12

- TroubleShooting: Provides ßow charts and speciÞcs on

various steps.

Appendix A

- Telnet ConÞguration Utilities

Appendix B

- 3rd Party Networking Utilities

Appendix C -

Upgrading NIC ÒFlashÓ Firmware

Appendix D -

NIC SpeciÞcations

Appendix E -

Technical Assistance

1.4 NIC Package Contents

The Kodak 10/100 NIC may come already installed in your printer; it may

also be separately purchased as an option to support network printing.

If the NIC was pre-installed

, the following items should be included with

the printer, software and documentation packages:

¥ 10/100 Network Interface Card

¥ UserÕs Guide (this manual)

¥ 1 diskette - ConÞguration Utilities for DOS/Windows

¥ 1 diskette - ConÞguration Utilities for Macintosh

¥ 1 diskette - ConÞguration Utilities for Unix

¥ Ethernet Hardware Address labels

¥ Anti-static strap

¥ Kodak Printer Drivers and Export Modules for Windows and/or

Macintosh.

If you purchased the NIC as an option

, you should have all the items

listed above except the Windows and Macintosh drivers and export

modules software and documentation. These items were included with

your printer.

Kodak 10/100 NIC Introduction and Configuration

1-4 July 1998

1.5 Upgrading from a Kodak 10Mbit NIC

The Kodak 10/100 Mbit NIC may be used to upgrade any Kodak printers

that are currently using a Kodak 10Mbit NIC with a ÒMIL-3007EKÒsticker

on the bottom of the NIC.

Note: This manual is applicable only to Kodak printers using this Kodak

10/100 NIC upgrade relative to NIC conÞguration methods.

1.6 Kodak 10/100 NIC Features

The NIC is an autodetecting 10 or 100 Mbps, network interface card that

allows users to connect directly to a Kodak printer or proofer on Ethernet

networks using 10BaseT or 100BaseT network media.

The NIC connects printers directly to Ethernet networks utilizing IPX,

EtherTalk, TCP/IP and/or NetBios/Netbeui protocols in support of Novell

NetWare 3.x, Netware 4.x, Netware NDS, IBM OS/2, MS-DOS, Windows

3.x, Windows 95, Windows NT 3.51, Windows NT 4.0, Macintosh and

Unix environments. In general, any system that supports the NIC

protocols should be able to use this NIC to print to Kodak printers.

1.6.1 Hardware Features

¥ NIC motherboard, with Ethernet controller and custom shared DMA

interface to Kodak printer. The NIC connects directly to Ethernet

networks via an RJ-45 connector.

¥ CPU: An Intel 80186 processor, with a 16 MHz clock.

¥ 1 MByte of memory via Flash EPROMs: 2 Flash EPROMs are 29F040

devices. Each EPROM is 4 Mbits and arranged in 2

256k

8 format.

Firmware upgrades of the ßash EPROMs can be done via network

connections.

¥ MAC chipset: Ethernet controller is 10/100 Mbps, with SRAM for data

buffering, and its own memory management.10 Mbit vs. 100 Mbit

autosensing accommodates network speed capabilities.

¥ 2 switches on the NIC faceplate provide Normal, Normal + Telnet, and

NIC conÞguration test page modes of NIC operation.

¥ Green and Yellow LEDs indicate network connectivity and trafÞc.

Kodak 10/100 NIC Introduction and Configuration

July 1998 1-5

1.7 Protocols

¥ The NIC supports TCP/IP, Novell IPX, EtherTalk and NetBeui/NetBios

protocols.

¥ Users can print in either PostScript or raster mode.

IMPORTANT: Printing in raster mode using EtherTalk is possible only

from a Macintosh. For non-Macintosh systems using

EtherTalk, you can print only in PostScript mode.

1.8 Network Performance

Network performance depends heavily on the topology of a network

(networked elements, that is, the # of users/nodes, inter-connectivity and

conÞguration of hubs, switches, subnets, routers, etc.) and will vary for

speciÞc environments.

A color-capable printer accepting large print jobs (1 to 100 Mbytes) may

be a critical factor in environments where network utilization optimization

is critical. A Kodak printer with a Kodak 10/100 NIC operating in a 100

Mbit environment may drastically improve your networkÕs performance

because it will only require a fraction (1/10) of the subnet network

bandwidth that would be necessary if it was operating at 10 Mbits.

1.9 NIC and Printer Installation/ConÞguration Overview

The diagram on the next page and the text that follows provide an

overview of

NIC and printer installation and conÞguration procedures.

Kodak 10/100 NIC Introduction and Configuration

1-6 July 1998

Step 1:Determine your Network and Printing Environment. (Ch1:Intro/Overview)

NIC supports TCP/IP, Novell Netware, AppleTalk & Native Windows (NetBeui) Protocols.

Step 2: Gather Necessary Hardware & Software Components. (Ch1:Intro/Overview)

NIC, NIC ConÞg S/W, Printer, Printer ConÞg S/W, i.e.PostScript Drivers and Raster Export

Modules

NIC Pre-installed in Printer? Step 3: Install the NIC in the Printer.

(Ch2:NIC Install) Requires NIC, Phillips or

T10 Torque Screwdriver, and Static Strap.

Yes

Step 4: ConÞgure the NIC. (Ch3:FastManage, Ch9:Apple/Macintosh, Appendix: A Telnet)

Recommendation: Use defaults until successful network printing is demonstrated.

Complete the following if using TCP/IP. (TCP/IP minimally requires an IP Address).

The quickest method (when IP = 0.0.0.0) is to use ÒarpÓ and ÒtelnetÓ commands.

1) Set NIC mode switches in Telnet mode (D1 up, D2 down) and power cycle printer.

2) Use arp -s <IP Address> <NIC Ethernet Address>

3) Use telnet <IP Address> 2002.

5) Follow Telnet Ethernet>TCP/IP>Set IP menus to set IP address and then Reset the NIC.

6) Power cycle the printer.

Use Server

Print Queues?

Step 5:ConÞgure Server (Ch4:Novell, Ch7/8 Windows

NT, Ch10:Unix)

Yes

Step 6: ConÞgure Workstations for PostScript and/or Raster Mode Printing. (Ch5-8

Windows, Ch9 Macintosh)

Install proper PostScript Driver (for printer in PostScript mode) and/or Kodak Export Module

plug-in (for printer in raster mode).

Step7:Printer in PostScript Mode

(Ch11:Printing)

Use File > Print

from Applications and

Select the Kodak Printer.

Step7:Printer in Raster Mode

(Ch11:Printing)

Use File > Export

from Adobe PhotoShop and Select

the Kodak Printer.

Printer/NIC Installation and ConÞguration Overview

Kodak 10/100 NIC Introduction and Configuration

July 1998 1-7

Step 1: Assess your network/printing environment

Consult with your system/network administrator regarding

¥ Protocols: Determine the network protocol(s) (TCP/IP, Novell IPX,

AppleTalk and/or NetBIOS) to use for communicating to the printer/

NIC.

¥ NIC ConÞguration Platform: Determine the platform that is appropriate

for conÞguring NIC network parameters.

¥ Servers: Determine any servers that will be used to spool and manage

jobs sent to corresponding printer queues.

¥ Printing Platforms: Determine the workstation platforms that will be

used for creating and sending print jobs.

Step 2: Gather the necessary components

¥ Hardware: Kodak printer, Kodak 10/100 NIC, and network cabling

certiÞed for 10 or 100 Mbit operation depending on the speed of your

network.

¥ Networking components: Networking components (cables, converters,

hubs, etc.) are not included with the NIC. You must purchase

interconnecting networking components needed to support a speciÞc

environment separately.

If a BNC (10Base2) connection is required, purchase a BNC/RJ45

transceiver or hub from your local dealer or distributor.

If a direct RJ45 (10/100BaseT) connection from a single computer to

a printer is required, a mini-hub and two network cables should be

used, minimally. We do not recommend using an Rx/Tx crossover

cable to defeat the need for a hub because it is a custom cable that

may not be available from a local dealer/distributor. Refer to the RJ54

connector description in Appendix D.

¥ NIC ConÞguration Software: Determine the NIC conÞguration utility

software appropriate for the platform. Use FastManage Utilities

(provided) or NBMon for Windows platforms, Laserwriter Utilities

(provided) for Macintosh platforms. Telnet (not provided) can be used

for any platform that supports TCP/IP.

Kodak 10/100 NIC Introduction and Configuration

1-8 July 1998

¥ Windows & Macintosh Printer ConÞguration Software: PostScript

drivers for Kodak printers for printing when the printer is in PostScript

mode and Export modules for printing when the printer is in raster

mode. For Unix platforms, refer to Appendix E, Technical Assistance.

¥ Printer/NIC documentation and software: If you cannot locate the

software that came with your printer and NIC, the latest printer and

NIC documentation and software are available on the Kodak Web site

(www.kodak.com). You may wish to copy components that are

pertinent to your printer and NIC to a local server for quick access by

those who are responsible for setting up their individual workstations.

Note: If you have problems related to printer or NIC software, check

the Kodak Web site (www.kodak.com) to verify that you have

the latest version. Download the latest version, if necessary.

Step 3: Install the NIC hardware, if necessary

¥ Install the NIC in the Kodak printer, if necessary. Refer to the NIC

Hardware Installation chapter for installation details and to verify

proper NIC operation on powerup.

Step 4: ConÞgure the NIC from the desired platform

¥ NIC Defaults: We recommend that you use the default parameters

initially until the printer functions on your network.

¥ NIC ConÞguration SW: If you decide not to use the defaults, install the

remote conÞguration software utilities appropriate for the platform.

Refer to the appropriate chapter for details.

Kodak 10/100 NIC Introduction and Configuration

July 1998 1-9

NIC ConÞguration Software

¥Windows: The NIC may be conÞgured from Windows-based platforms

using NIC FastManage, NBMon or Telnet utilities. Refer to the

Windows FastManage Utility chapter.

¥Macintosh: The NIC may be conÞgured from Macintosh-based

platforms using NIC LaserWriter utilities. Refer to the Apple Macintosh

- Laserwriter Utilities section. Telnet may also be used.

¥Unix: Use Telnet utilities.

¥Telnet: The NIC may be conÞgured from any platform supporting TCP/

IP via TELNET utilities after an IP address has been established.

Refer to Appendix A, Telnet.

IMPORTANT: This 10/100 NIC is configurable ONLY by using remote

configuration utilities listed above. Use of the front control

panel and corresponding test page is not pertinent to this

NIC.

Step 5: ConÞgure the print servers, if necessary

Determine whether server print queues will be used and conÞgure the

appropriate servers.

Chapter 4 describes how to conÞgure Novell servers.

Procedures for conÞguring Windows NT servers are identical to

procedures for conÞguring Windows NT workstations with the exception

of ÒsharingÓ the printer. Refer to Windows NT chapters.

Step 6: ConÞgure the printer on workstations

Determine the printer modes (PostScript and raster) that will be used.

Install the PostScript and raster printer software.

PostScript mode: PostScript printer drivers or PPDs must be installed on

each platform that prints to the printer.

Kodak 10/100 NIC Introduction and Configuration

1-10 July 1998

Raster mode: Printer drivers (referred to as Export Modules) must be

installed on each platform that prints (exports) Þles to the printer. Export

modules are used with Adobe PhotoShop and with the Kodak Printer

Calibration Utilities. Applications that are Adobe Photoshop Plug-in

module-compliant could also use a Kodak printer export module.

Platform Print Drivers: Kodak develops printer-speciÞc drivers and

export modules for Macintosh and most PC platforms. Drivers for other

platforms (that is, Unix) may be available through alternate vendors who

support Kodak printers. Refer to Appendix E if necessary.

If a Kodak driver is not available for a particular platform, you can use a

generic PostScript driver; however, it may not support all printer features.

Step 7: Printing

Refer to Chapter 11, Printing, for information about mode selection and

printing to Kodak printers in PostScript or raster mode.

Troubleshooting

Refer to chapter 12, Troubleshooting, before contacting your retailer

(1st)or Kodak (2nd) for technical assistance.

NIC Installation and Verification

July 1998 2-1

2 NIC Installation and Veriﬁcation

This chapter describes how to install the NIC in the Kodak XLS 8400 and

8600 printers, the Kodak Digital Science 8650 printer, the Kodak

Professional 8657 printer, the Kodak Digital Science Desktop Color

Proofer 9000, and the Kodak Digital Science DCP 9300 Proofer. It also

describes how to run the veriﬁcation test using the default conﬁgurations

after the NIC is installed. See the last part of this chapter for information

about NIC LEDs and operating mode switches for power-up hardware

veriﬁcation.

For a fee, you may have a Kodak service representative install the NIC in

the printer. This fee covers hardware installation only. Network setup

tasks are still your responsibility. If you install the NIC yourself, you are

responsible for any damage that occurs during installation.

2.1 Equipment Requirements

When installing a new NIC or replacing a NIC, you need

• a Phillips-head or Torque-head (T15) screwdriver. Check the rear of

the printer to determine the screwdriver you need.

• network cabling certiﬁed for 10 and/or 100 Mbit operation depending

on the speed of your network. The Kodak Printer and NIC support

10BaseT or 100BaseT cabling directly. For 100 Mbit operation, use

category 5 (CAT 5), unshielded twisted pair (UTP) cabling.

2.2 Preparing the Kodak 8400/86xx series Printers

1. Turn off and unplug the printer.

NIC Installation and Verification

2-2 July 1998

2. Attach the wrist portion of the antistatic strap to your wrist. Attach the

other end of the strap to the metal plate on the back of the printer.

CAUTION: Wear the antistatic strap when you open the back of the

printer, remove the NIC from the antistatic bag, and

install the NIC. This helps prevent static discharge

damage to the printer and the NIC.

3. Remove the three screws that hold the NIC slot cover (or existing NIC)

in place and set the slot cover aside. Also, remove the ﬁve screws on

the back of the printer.

NIC Installation and Verification

July 1998 2-3

4. Grasp the two black handles on the metal plate. Slowly pull the drawer

out about six inches.

The printer is ready. Continue to Section 2.4,

Installing the Network

Interface Card

2.3 Preparing the Kodak DCP 9000 and 9300 Proofers

1. Turn off and unplug the proofer.

NIC Installation and Verification

2-4 July 1998

2. Attach the wrist portion of the antistatic strap to your wrist. Attach the

other end of the strap to the metal plate on the electronics drawer on

the proofer.

CAUTION: Wear the antistatic strap when you remove the

electronics drawer, remove the NIC from the antistatic

bag, and remove or install the NIC. This helps prevent

static discharge damage to the proofer and the NIC.

3. Remove the three screws that hold the NIC in place. Also, remove the

four screws (two on each side) on the back of the proofer holding the

electronics drawer with cable connectors in place.

4. Grasp the black handle on the metal plate. Slowly pull the drawer out

about six inches.

The proofer is ready. Continue to Section 2.4.

2.4 Installing or Removing the NIC

Do as follows to install and seat the NIC.

Note: To remove a NIC, complete these steps in reverse order. On some

printers/proofers, you may need to squeeze the standoffs with

pliers to remove the NIC.

1. Remove the NIC from its antistatic bag.

NIC Installation and Verification

July 1998 2-5

2. Hold the card so that the printer connector is facing down and the

network cable receptacle is toward you.

3. Tilt the card at about a 30-degree angle, and slide the front into the

NIC slot. Seat the card by positioning the connector on the bottom of

the card against the receptacle on the mother board. Press the card

gently into place.

The network cable receptacle should be accessible through the front

of the slot.

4. Secure the NIC faceplate to the printer / proofer back plate by

replacing the three screws you removed.

5. Grasp the handles on the back of the printer and slide the back of the

printer in.

6. Replace any back panel screws that you removed.

7. Attach the Ethernet cable to the network cable receptacle on the NIC.

8. Plug in the power cord.

2.5 Printing a NIC Conﬁguration Test Page

Note: Make sure that the Ethernet cable is connected.

1. Set the Operational Mode Switches in Test Page Mode (D1 Down, D2

Up). A NIC Conﬁguration Test Page will be generated when the printer

reaches its READY state.

2. Power up the printer. The NIC will do a self-test at startup.

3. Check the LEDs during the Power Up/ Initialization phase. The

following should occur:

NIC Installation and Verification

2-6 July 1998

The green Link LED should come ON and remain ON until the printer

reaches READY.

The yellow Net Trafﬁc should blink 3 to 4 times a second until the

printer reaches READY.

This process may occur twice; the NIC will start a power up sequence

and then the printer will issue an additional NIC reset during the printer

initialization sequence.

4. Check the LEDs again after the printer reaches READY. Ready

indicates the NIC is connected to the network.

The green Link LED should come ON and remain ON (this indicates

that there is connectivity to a network hub/switch).

The yellow Net Trafﬁc LED should blink intermittently as it detects

trafﬁc on the network.

If the LEDs do not behave as described above, refer to page 12-3.

There is also the possibility that the NIC may be defective.

5. Check the NIC Conﬁguration test print. Keep it to refer to when

conﬁguring NIC network-related parameters.

If you have taken the default settings and will not be using TCP/IP

, the

installation is complete. Proceed to the chapter that describes

installing the printer on your system.

If you will be using TCP/IP

, continue to section 2.8.

Note: Do not confuse this “NIC conﬁguration” test page with the “Printer”

test page that is produced from the printer front control panel. This

10/100 NIC is completely conﬁgured using remote conﬁguration

utilities. If you are not using NIC factory defaults and are concerned

with discrepancies between test pages, you should also enter

pertinent parameters, i.e.,TCP/IP address, via the front control

panel.

NIC Installation and Verification

July 1998 2-7

2.6 NIC Faceplate

The illustration below shows the NIC faceplate (as seen from the rear of

the printer after installation).

Switches: D1 and D2 are operation mode switches; they are shown in

Normal Operation Mode for printing (D1 & D2 Up).

LEDs: NET (Yellow) and LNK (Green) LEDs show network trafﬁc and

connectivity.

Ethernet Address: A unique NIC Ethernet address is assigned to each

NIC (i.e. 0040C8 1234AB). The ﬁrst six digits are always 00:40:C8. The

last six digits are unique to each NIC.

Network Broadcasts: The NIC uses its Ethernet address to advertise

itself on Macintosh via Appletalk and on Windows via NetBeui as

“KDxxxxxx” where “xxxxxx” are the last six digits of the address. For

example, a NIC with the address 0040C81234AB would advertise itself

as KD1234AB throughout.

2.7 Operation Mode Switches

Refer to the following table to select a NIC operating mode.

Selecting a NIC Operating Mode

D1 D2 Mode Description

Up Up Normal Default. Does not allow a telnet connection. Users can print to

the unit.

Up Down Telnet

Diagnostic Allows a telnet connection to change its parameters. Users

can also print.

Down Down Reset to

Defaults This setting is used to reset the NIC to use factory default

conﬁguration parameters.

Kodak

10/100 NIC

Normal NET

LNK

D1 D2

NIC Installation and Verification

2-8 July 1998

Power cycle the device whenever you reset the switches. When ﬁnished in

any mode, return the switches to Normal or Telnet mode, then power

cycle the device again for printing.

2.8 Conﬁguring the Network Parameters

If you will be using TCP/IP, conﬁgure the NIC networking parameters.

TCP/IP requires an IP address. You can set this up using Arp, then use a

NIC conﬁguration utility to save the IP address.

Note: Default conﬁguration parameters should sufﬁce for getting started

with IPX, EtherTalk or NetBeui protocols.

To use TCP/IP:

1. Set the operating mode switches to Telnet (D1 Up, D2 Down).

2. Power cycle the printer/NIC.

3. Map an IP address to the NIC Ethernet address using Arp.

Note: You can use Arp only if the computer supports TCP/IP and the

existing IP address is 0.0.0.0. If an IP address already exists,

change it using a NIC conﬁguration utility.

Use the syntax your system requires for mapping an IP address to the

hardware address. If needed, obtain the syntax using your system

help.

EXAMPLE: for MS-DOS, when the hardware address =

0040C8:1234AB and the IP address = 2.4.6.8, type:

arp -s 2.4.6.8 00-40-C8-12-34-AB

Note: If an error occurs, type arp or arp /help for the proper syntax for

your system.

4. To use Telnet (with MS-DOS), type telnet 2.4.6.8 2002

Note: 2002 is the NIC’s diagnostic port.

Down Up Test Page A parameter test page is generated when you power cycle the

printer. Print jobs are not accepted. NOTE: The printer must

be in PostScript mode. For raster-only printers, obtain the

parameters via a Telnet session.

Selecting a NIC Operating Mode

NIC Installation and Verification

July 1998 2-9

Follow the telnet menu to set the TCP/IP address; save it using the

NIC Reset command and then power cycle the printer.

If needed, see the platform-speciﬁc chapters for details on conﬁguring

NIC network-related parameters from that platform.

Next, you need to conﬁgure the computers for printing. Refer to the

platform-speciﬁc chapters for details.

Windows - FastManage Configuration Utilities

July 1998 3-1

3 Windows - FastManage ConÞguration Utilities

Windows FastManage Utilities: FastManage Utilities allow you to

conÞgure the NIC remotely from Windows platforms. They provide

complete control over all network protocols and related parameters via a

graphical user interface.

Alternate Method: You can also use Telnet to conÞgure and troubleshoot

the NIC from any platform that supports TCP/IP communications. Refer to

Appendix A for information on using Telnet.

Initial NIC check and printer setup using Win 95/NT Network

Neighborhood: If you have network browsing capabilities and you select

Workgroup, you should be able to see the printer/NIC initially advertising

itself as KDxxxxxx, where ÒxxxxxxÓ is consistent with the last six digits of

the Ethernet address for the NIC. This is just an initial check that the NIC

is functioning on your network. You must still use conÞguration utilities to

conÞgure non-default network parameters. If you are comfortable with

NIC conÞguration defaults, then you could select the ÒKDxxxxxxÓ printer/

NIC. Windows will prompt you to install a print driver, if necessary. After

installing an appropriate printer driver, you will be able to select the printer

within an application ÒPrintÓ window and and print to that printer.

3.1 FastManage Features

FastManage consists of the following applications:

¥Discovery Application: Used to Þnd devices that have an SNMP

agent on the network. An icon is displayed for each discovered device.

¥Kodak NIC Manager: Used to Þnd and conÞgure Kodak10/100 NICs

used in Kodak printers.

¥BOOTP Server: Allows you to assign IP addresses dynamically to

devices on the network.

¥Ping: A stand-alone program for debugging. You can ping the NIC IP

address to verify that is functional via the network.

¥On-line help: A list of available help options.

¥Uninstall FastManage: Removes FastManage from a system.

Windows - FastManage Configuration Utilities

3-2 July 1998

3.1.1 FastManage Hardware Requirements

FastManage requires:

¥ A 486 Pentium PC, 66 Mhz computer or higher

¥ 16 MB of RAM or higher

¥ At least 4 MB of free disk space

¥ Microsoft Windows 3.1 or higher

¥ Ethernet card installed

FastManage runs as a stand-alone tool (that is, users need not have any

TCP/IP packages on their systems). However, if a system has any

Winsock compatible TCP/IP stacks (that is, PC/TCP, Chameleon, or LAN

Workplace), FastManage will co-exist with these packages. FastManage

runs on top of public domain packet drivers as well as ODI drivers.

3.1.2 Software Requirements

IP ConÞguration

¥ Packet or ODI Driver must be loaded for the PC network interface.

¥ For ODI Drivers, add the following line to the net.cfg Þle:

Frame Ethernet_II

IPX ConÞgurations

¥ Novell 4.1 Drivers for Windows and DOS. Refer to the Novell Netware

Documentation for information.

¥ ODI Driver must be loaded for the PCÕs network interface.

NetBIOS ConÞguration

¥ NetBIOS over NetBEUI network conÞguration for Windows 3.11 or

Windows 95.

Windows - FastManage Configuration Utilities

July 1998 3-3

3.2 Extracting Files from the Windows Utilities Diskette

The NIC.exe Þle on the diskette is a compressed archive of DOS/

Windows for conÞguring the NIC networking parameters. To effectively

manage these Þles, do as follows:

1. Create a KODAK directory/folder on your hard drive, then copy the

NIC.exe Þle to that folder

2. From a RUN or MS-DOS window, type NIC -d to extract and

decompress the directories and Þles.

DOS and FASTMAN directories and Þles appear in the KODAK

directory. The FASTMAN directory contains the Kodak FastManage

Utility Setup Þles that are used when running setup.exe.The DOS

directory contains the PrintMon and NBMon utilities that are used to

detect and conÞgure the NIC in a DOS environment.

3.2.1 Setting up the FastManage Utilities

To set up the FastManage utilities, run setup.exe (in the FASTMAN

directory), then follow the on-screen prompts. We recommend using the

FM default installation directory.

The default installation directory, FM, will contain the Kodak Fast Manage

Utilities for Windows, including Discovery, NIC Manager, and BOOTP. You

access the utilities, which are graphical user interfaces for detecting and

conÞguring NICs in your network environment, from the Start/Program

menu.

Windows - FastManage Configuration Utilities

3-4 July 1998

3.3 Installing FastManage

To install FastManage on MS windows:

1. Select Run from the File menu.

2. Type c:\Kodak\Fast\setup.exe on the command line and click

OK. The FastManage Welcome screen appears.

3. Register FastManage and click Next.

4. ConÞrm that the registration is correct and click Next. The screen

below appears.

5. Choose one or more protocolsÑIP, IPX, and/or NetBIOSÑto search

for the Kodak NIC. Then click Next.

If multiple protocols are selected simultaneously, the same NIC will

appear multiple times displaying a name or address that is pertinent to

each protocol that discovers the NIC. In an environment with many

Kodak printers with this 10/100 NIC, multiple displays of the same NIC

could lead to confusion.

Recommendation : Select only 1 protocol that is prevalent on your

network to discover the NIC. If the Kodak NIC does not appear in

ÒDiscoveryÓ, then use the ÒParameters > DiscoveryÓ pulldown menu to

de-select that protocol and select a different protocol.

Windows - FastManage Configuration Utilities

July 1998 3-5

Note: IPX support requires that DOS and Windows drivers for Novell

already be installed.

If you selected IP, continue to the next step. Otherwise, jump to step 7.

6. (If you selected IP) Specify the local workstationÕs IP address and

subnet mask. Then click Next.

Note: The Gateway parameter is optional. The NIC IP address can be

established after these utilities are installed.

Windows - FastManage Configuration Utilities

3-6 July 1998

¥ If the IPX protocol is loaded and running on a system running

Windows 95, the check box for Send NetBIOS over IPX should

not be checked.

Send NetBIOS over IPX is located in the Control Panel-->

Network--> IPX Compatible Protocol screen.

¥ Open up the Control Panel, Networks screen. Choose NetBEUI

protocol. Check the checkbox marked Set this Protocol to be

the Default Protocol. In Windows 95, it is located in the

Advanced Options window.

7. Choose the location in which to install the FastManage application

(the default location is FM) then click Next.

A progress bar shows the progress of the installation process.

8. When prompted for a menu item for FastManage in NWADMIN utility,

answer Yes or No.

If you say Yes, a snap-fp.dll Þle is copied to the Windows directory

and the nwadmin.ini Þle is updated.

IMPORTANT: The NWADMIN utility must be loaded if you want to have a

menu item. If it is not loaded, an error message appears.

9. Click Finish when installation is complete to have FastManage restart

the system.

Note: If you choose not to restart at this time, you will be asked if you

want to view the ReadMe Þle. Enter Yes or No.

Windows - FastManage Configuration Utilities

July 1998 3-7

Once the system is operational, the FastManage screen appears.

3.4 FastManage - Discovery Application

The Discovery application detects network SNMP manageable devices

on IP, IPX, and NetBEUI (NetBIOS) networks.

On IP networks, Discovery supports and performs the following:

¥ Reads entries from a local host table and sends an SNMP query to

each.

¥ Pings a local broadcast address to detect all devices.

¥ Detects the current subnet devices using the subnet mask and the IP

address of the device.

¥ Through SNMP traps, FastManage sends a power-on trap at powerup

if they are conÞgured with a manager address.

Discovery options are conÞgurable and are stored in the issnmp.ini Þle.

Discovery uses the thumbnail (icon) to identify an SNMP device and then

displays it to represent the product. Click the thumbnail once to display

information for that device. Double-click the thumbnail to launch the

device.

Windows - FastManage Configuration Utilities

3-8 July 1998

Discovery supports a limited amount of placement so that you can

position the device on the ÒmapÓ most suited to your needs. You can also

make devices that you do not want to manage invisible, store a map, or

restore an old map. Discovery also contains a TFTP client. You can select

a device and download ßash image to upgrade the device to a different

Þrmware level.

Note: Kodak printers with a Kodak10 MBit NIC do not appear in

Discovery. ConÞguration utilities provided for this Kodak10/100

NIC are not applicable to the Kodak10 MBit NIC.

3.4.1 Opening the Discovery Application

After FastManage installation is complete, the Kodak FastManage

window should appear.

If the window does not appear, from the Program Manager, double-click

on the FastManage for Kodak NIC icon.

Windows - FastManage Configuration Utilities

July 1998 3-9

To open the Discovery Application,double-click on the icon. A

Discovery Map appears with all detected devices.

If, during installation, you chose more than one protocol to Þnd SNMP

devices, an icon will be displayed for each protocol you chose.

Recommendation : Select only one protocol that is prevalent on your

network to discover the NIC. If the Kodak NIC does not appear in

ÒDiscovery,Ó use the ÒParameters > DiscoveryÓ pulldown menu to de-

select that protocol and select a different protocol.

Note: You may need to use Discovery ÒOptions > Discover HostsÓ from

the pulldown menu if your Kodak printers do not appear in the

Discovery window at Þrst.

Click once on a ÒKodak Printer/ProoferÓ icon to highlight it. The device

type appears at the bottom of the discovery map. Click on the icon again

to view its system information.

Windows - FastManage Configuration Utilities

3-10 July 1998

Click twice on a Kodak Printer/Proofer icon to start up the NIC Manager

for conÞguring a Kodak Printer/Proofer 10/100 Network Interface Card.

3.4.2 Kodak Printer/Proofer NIC Icon Names

In the Discovery map, the following icon represents Kodak printers or

proofers with the 10/100 NIC.

The name or address of a discovered device is displayed below the

device. These names are based on certain criteria. For example:

¥KdxxxxxxÑThis device was discovered by the IPX protocol (where

xxxxxx are the last six digits of the Ethernet address. For example, a

device with an Ethernet address of Ò0040C00702CA,Ó will have an IPX

SAP name of Kd0702CA). You cannot change this name.

Windows - FastManage Configuration Utilities

July 1998 3-11

¥SNMPAxxxxxxÑThis device was discovered by the SNMP over

NetBIOS (where xxxxxx are the last six digits of the Ethernet address.

For example, a device with an Ethernet address of Ò0040C00702CA,Ó

will have a NetBIOS name of Kd0702CA). You cannot change this

name.

¥UNKNOWNÑThis device was discovered by the IP protocol; however,

there was no entry in the host table relating to this device. You can add

a name to the device by creating an input entry into a local hosts Þle

on your workstation, i.e. \fm\hosts. Use a standard text editor to do

this. You can change this name.

To toggle between node name and node address, use the Node/Address

icon. See section 3.5.2.

If the Kodak Printer/NIC shows up as a device on the network, you can

double click on the device and the Kodak NIC Manager utility will start up

automatically. Proceed to Section 3.6, Kodak NIC Manager, for

additional instructions for conÞguring the NIC.

If the Kodak Printer/NIC does not show up as a device on the network,

try using a different protocol. If, after trying all three protocols, the NIC still

does not show up, proceed to Chapter 12, Troubleshooting.

3.4.3 Discovery Application Tools

Below is a close-up view of the Discovery application tool bar.

3.4.3.1 Renaming a Discovery Map

1. Click the Rename Map icon (fourth from the left).

A Map Title Editor window appears.

New

Map

Open

Map

Save

Map

Rename

Map

View as

host name or

IP address

Rediscover

Refresh

screen

New

host

Ping

TFTP

Close all

Windows

Node

properties

Help

FastManage_025

Windows - FastManage Configuration Utilities

3-12 July 1998

2. Delete the old name and enter a new Map name.

3. Click OK.

3.4.3.2 Changing from the Node Name to an Address

You can display either the name or address of a device. To change from a

name to the address, click the Node/Address icon (Þfth from left). To

change back to the name, click the Node/Address icon again.

3.4.3.3 Using the Ping Manager

1. Click the Ping icon (Þfth from the right).

A Ping Manager window appears.

2. Click once on an IP address.

3. Click the Ping button.

The host that was contacted responds in the Report box.

3.4.3.4 Downloading Firmware Upgrade Files (TCP/IP Only)

1. Click the TFTP icon (fourth from right) OR use ÒAction > TFTPÓ from

the pulldown menu.

A Flash Download (TFTP) window appears.

Windows - FastManage Configuration Utilities

July 1998 3-13

2. Type the Þle name in the Download File Name Þeld, or click Browse to

search for the Þles.

3. Enter the IP address of the device to which you are downloading, then

click Download to download the Þle.

Note: The download process may take minutes (2-3000 packets). To

verify a proper download, you could telnet (See Appendices A & B)

into the NIC and monitor the progress of the download, resetting of

the NIC, etc.

Note: We recommend that only one NIC be upgraded at a time since mis-

synchronization of multiple downloads might result in corruption of

NIC Þrmware and the necessity to recover. Refer to Appendix C for

Þrmware upgrading and recover procedures.

3.4.3.5 Changing the Host Name for the Devices

1. Click the Node Properties icon (second from right).

A Node Properties window appears.

2. Click on the desired node to change its name.

The current node name appears at the top of the box, on the right-

hand side, the current name of the node appears (unless given a

name, it will say unknown).

3. Erase the current name.

4. Deselect the Visible box to make a device invisible.

5. Enter a name and click OK.

Windows - FastManage Configuration Utilities

3-14 July 1998

3.4.4 Discovery Application Preferences

To conÞgure general application preferences, select General Parameters

from the Parameters menu. A ÒGeneral ParametersÓ menu appears.

3.4.4.1 Display Fields

¥Show Node Name: Displays hostnames for the devices discovered.

¥Show Node Address: Displays IP and IPX addresses for the devices

discovered.

3.4.4.2 Automatic Operations Fields

¥Load Saved Maps: Loads the saved map when starting Discovery

Application.

¥Save Maps On Exit: Saves the map when Discovery Application is

exited.

¥Save Options On Exit: Save the options when you exit the Discovery

Application.

Windows - FastManage Configuration Utilities

July 1998 3-15

3.4.4.3 Broadcast Fields

¥Refresh Every: Broadcasts every <n> seconds to discover new

devices.

¥Discover: This parameter signiÞes how often ÒDiscoveryÓ will attempt

to re-discover nodes on the network.Default is 90 sec.

¥Dead: This parameter signiÞes the number of ÒDiscoveryÓ attempts to

try before marking a node as ÒdeadÓ (off-line). Default is 2 attempts.

¥Wait: This parameter signiÞes the amount of time ÒDiscoveryÓ waits for

a reply from a node. Default is 1 sec.

3.4.4.4 Files Fields

¥Default Map File: Enter the name of the default map Þle.

¥Map File Path: Enter the path for map Þles.

¥Hosts File Path: Enter the path for hosts Þle (default is \fm).

¥Bootptab File Path: Enter the path for bootptab Þle (default is \fm).

¥Allow To Edit Hosts File: If selected, Discovery will update the hosts

Þle if a new host is discovered.

To conÞgure Discovery application preferences, select Discovery

Parameters from the Parameters menu. A ÒDiscovery ParametersÓ

menu appears.

Windows - FastManage Configuration Utilities

3-16 July 1998

3.4.4.5 Protocols

¥ Enable IP, Enable IPX, Enable NetBIOS - after installation, Discovery

protocols may be selected and de-selected using this menu.

Note: If you disable all protocols and then close Discovery, Discovery will

not be able to start up again, so you will not be able to select a

protocol using this menu. To recover from this situation, edit the

issnmp.ini Þle and replace ÒNOÓ with ÒYESÓ in one of the protocol

statements, i.e. ÒIP=NOÓ, ÒIPX=NOÓ, and ÒNETBIOS=NOÓ.

3.4.4.6 IP Parameters

¥Use DNS: Use ÒDomain Naming SevicesÓ to reference nodes.

¥Poll IP Range: Traverses through the IP address range for that

subnet, discovers each host through SNMP, and displays those that

respond.

¥Do IP Broadcast: If this checkbox is selected, perform IP Discovery.

¥Every: Re-discovers hosts every <n> seconds.

Windows - FastManage Configuration Utilities

July 1998 3-17

¥# Times: Number of communication attempts before marking the node

dead.

3.4.4.7 IPX Parameters

¥Do IPX Routing: Search for devices across routers.

¥Do IPX Discovery: Use SNMP over IPX and Þnd all devices that

respond.

3.4.4.8 NetBIOS Parameters

¥ Strict Name Resolution: If this option is enabled, all device names

starting with SNMPA will be treated as NetBIOS names. The ÒEnable

NetBIOSÓ parameters must be selected to enable this option. Cecked

by default.

¥Do NetBIOS Discovery: Use SNMP over NetBIOS and Þnd all

devices that respond.

3.4.4.9 General Discovery Options

¥Poll ÒHostsÓ List: Poll a local hosts list address/names of devices.

¥Poll Map List: Discovers each host in Map 1 through SNMP.

¥Find Only Kodak Devices: If this checkbox is selected, Discovery

Þnds and displays only Kodak devices.

3.4.5 Application Launch Parameters

When a device is discovered, you can launch a thumbnail to view a full-

screen image of that device. The Edit Launch Parameter option allows

you to name and then launch another SNMP device besides the Kodak

Printer/NIC. For example, you can view a full-screen image of hubs and

servers.

To conÞgure application launch preferences, select Application

Launching Parameters from the Parameters menu. A Ò Launch

ParametersÓ conÞguration menu appears.

Windows - FastManage Configuration Utilities

3-18 July 1998

To conÞgure the Launch Parameter option:

1. In the Object IdentiÞer of the Device line, enter the SNMP deviceÕs

unique SNMP identiÞer.

2. In the Launch App and Cmd Line Paras line, enter the name of the

application to launch.

3. Click Add when Þnished.

You can now launch the SNMP device.

3.4.6 Mib2 System Parameters

The Mib2 system parameter allows you identify a workstation. If the NIC

has a Telnet password enabled, you cannot manage the device with the

FastManage software.

To conÞgure Mib2 system preferences, select Mib2 System Parameters

from the Parameters menu. A ÒMIB2 System ParametersÓ menu

appears.

Windows - FastManage Configuration Utilities

July 1998 3-19

1. Fill in the required parameters:

ÒGet CommunityÓ and ÒSet CommunityÓ are the only required

parameters. By default, Get Community is set to public; and Set

Community is set to private.

The parameters ÒDescription,Ó ÒName,Ó ÒLocation,Ó and ÒContactÓ are

information that will be returned by the FastManage software in

response to an SNMP query.

ÒEnable AgentÓ: When checked, the agent software is enabled. The

agent software is the portion of the software that responds to an

SNMP query, thus Þlling in the ÒDescription,Ó ÒName,Ó ÒLocation,Ó and

ÒContactÓ parameters.

Windows - FastManage Configuration Utilities

3-20 July 1998

3.5 Fastmanage - Kodak NIC Manager Application

Use the Kodak NIC Manager to conÞgure the NIC relative to the various

network protocols.

After FastManage installation is complete, a Kodak FastManage window

should appear (shown below). If the window does not appear, locate the

NIC Manager from the Windows NT Program Manager.

1. Double-click on the Kodak NIC Manager icon.

2. When prompted for an ÒIP Address/Alias,Ó ÒIPX Address/Name,Ó or a

ÒNetBIOS Name,Ó enter the device name or address as it appears on

the network.

Note: If needed, Þnd the name on the Discovery Map.

Windows - FastManage Configuration Utilities

July 1998 3-21

A graphic displaying the NIC faceplate appears. This graphic is the

same as displayed during the Discovery Application when you double

click the Kodak Printer/Proofer NIC icon.

Hot Spots on the graphic lets you obtain information. To Þnd a hot spot,

move the mouse around the screen. A box outlining the hot spot appears.

Hot spots are as follows:

¥ Traps:lists hardware or software problems affecting the device. If there

are no problems, a message to that effect appears.

¥ Uptime: shows how long the device has been running.

¥ Reset: asks you if you want to reset the NIC. Select Yes to continue,

No to stop.

¥ Kodak 10/100 NIC: displays NIC information. You can change the

Name, Location, and Contact. Press Set after making changes.

3.6 NIC Manager ConÞguration Menus

Several options are available from the ConÞguration menu. This section

discusses those options.

Windows - FastManage Configuration Utilities

3-22 July 1998

3.6.1 TCP/IP Configuration

You make a series of choices to conÞgure the NIC on TCP/IP networks.

Below is a hierarchy of these choices.

From TCP/IP ConÞde., selections include:

IP ConÞguration -->

¥IP Address: Allows you to change the IP address of the device.

Changes take effect at system reset. Exit and relaunch the utility.

¥Subnet Mask: Sets the subnet mask address for the device.

¥Gateway Address: Sets up the address of the router that routes IP

packets across subnets.

¥Enable RARP: When enabled, the device will try to obtain its IP

address using RARP at power-up.

¥Enable BOOTP: When enabled, the device tries to obtain its IP

address using BOOTP at power-up.

¥ IP Traps -->

¥Enable IP Traps: When enabled, sends ÒtrapsÓ (problems) to a

designated system.

¥IP Traps Hosts: Designates where the traps will be sent.

¥Enable DHCP: Enables/disables the DHCP feature.

LPD ConÞguration: Enables BSD-type LPD print services and its

options.

Windows - FastManage Configuration Utilities

July 1998 3-23

Restricted Hosts -->

¥Subnets: Limits access to FastManage. Only hosts in the selected

subnet can access FastManage.

¥Allowed IP Addresses: Limits access to FastManage. Only hosts

with IP addresses can access FastManage.

3.6.2 Novell Configuration

You make a series of choices to conÞgure the Kodak NIC for a Novell

network.

From Novell ConÞg., selections include:

IPX ConÞguration -->

¥IPX SAP Name: Changes the name used by the device in service

messages on the IPX network. This name appears in Map 1 of the

Discovery Application node.

¥IPX SAP Interval: ConÞguring the SAP internal of the device (valid

numbers are from 1 to 6)

¥IPX Traps -->

¥Enable IPX Traps: Same as enable IP traps.

¥IPX Trap Hosts: Designates where traps will be sent.

¥IPX Enabled: Enables/disables IPX protocol.

Windows - FastManage Configuration Utilities

3-24 July 1998

NDS ConÞguration -->

¥Enable NDS: Enables/disables NetWare directory services.

¥Preferred DS Tree: Sets the ÒtreeÓ where the print server and print

queues are deÞned.

¥Preferred DS Context: Sets the ÒcontextÓ where the print server and

print queues are deÞned.

Print Server ConÞguration -->

¥Queue Scan Rate: Sets the rate (times per second) that the printer/

NIC scans the Novell queue for print jobs.

¥Frame Type: Selects NetWareÕs frame type.

¥ConÞguration Server: Server where the bindery conÞguration Þle

for the printer resides.

¥NotiÞcation: When enabled, lets the printer send status to users on

the notify list.

3.7 General ConÞguration

Choices you can make to conÞgure FastManage for a general network

are shown below.

General ConÞg selections include:

¥Community Strings: Sets SNMP community strings.

Windows - FastManage Configuration Utilities

July 1998 3-25

¥Flash ConÞg. -->Allow Download: Enables/disables the upgrade of

the Þrmware.

3.7.1 Ethertalk Configuration

Choices you can make to conÞgure the printer/NIC for an Ethertalk

network are shown below.

Ethertalk ConÞg selections include:

¥General ConÞg.-->

¥Zone Name: Logical group where FastManage exists.

¥Enable Ethertalk: Enables/disables the Ethertalk protocol.

¥Ethertalk Phase: Sets the compatibility level of the Appletalk

network system (Phase II by default).

¥ Printer Setup -->ÓPrinter1Ó is the default printer port and cannot be

modiÞed.

Windows - FastManage Configuration Utilities

3-26 July 1998

3.7.2 SMB Configuration

The choices you can make to conÞgure the printer/NIC for a SMB network

are shown and described below.

SMB ConÞg options include:

¥SMB ConÞg.-->

¥HP DLC: Enables/disables HP DLC protocol

¥SMB Enabled: Enables/disables SMB protocol

¥SMB Names: Sets the SMB workgroup and unique identiÞcation

¥SMB Share Name: Sets the aliases of the printer port

Parameters for the SMB share name window include:

¥ SMB share name

¥ SMB description

¥ Type index

¥ Number

3.7.3 NetBIOS Configuration

¥NetBIOS ConÞg.-->

¥NetBIOS Names: Select the NetBIOS Names option to display

the NetBIOS Group and NetBIOS Unique Name for the Printer/

NIC. These names cannot be modiÞed.

Windows - FastManage Configuration Utilities

July 1998 3-27

3.7.4 Status Menu

These parameters currently have no function.

3.7.5 Help Menu

The Help menu has two options, ÒUsing HelpÓ and ÒAbout Kodak NIC

Manager.Ó

¥Using Help: A standard Windows help Þle appears.

¥About Kodak NIC Manager: Displays information on the current

FastManage being used, including:

¥ Firmware version

¥ Type of Printer/NIC being managed

¥ Address/Name of Printer/NIC

¥ Set community string

3.8 FastManage - Ping Application

Use the Ping utility to verify that a printer/NIC with an established IP

address is functional on the network.

Windows - FastManage Configuration Utilities

3-28 July 1998

After FastManage installation is complete, a Kodak FastManage window

appears (shown below). If the window does not appear, double-click on

the Kodak FastManage icon from the Program Manager.

1. From the Kodak FastManage window, double-click on the Ping

Application icon.

2. To Ping a known IP address, select the Ping pull-down window.

A Perform Ping Operation window appears.

3. Enter the IP address and click on the Ping button.

The response appears below the Ping button.

4. From the Settings menu, select View.

The Update Settings window appears.

Windows - FastManage Configuration Utilities

July 1998 3-29

3.9 FastManage - BOOTP Application

TheBOOTP application implements a BOOTP server and allows you to

assign IP addresses dynamically to network devices. FastManage

network print servers implement BOOTP and can obtain their IP

addresses from the BOOTP server. The BOOTP server looks for the

appropriate entry containing the IP and device addresses.

The BOOTP application is pertinent only if TCP/IP is the only protocol

selected and your NIC does not yet have an IP address conÞgured and

stored in its memory.

After FastManage installation is complete, the Kodak FastManage

window appears. If the window does not appear, double-click on the

Kodak FastManage icon from the Program Manager.

1. From the Kodak FastManage window, double-click on the BOOTP

Server icon

Windows - FastManage Configuration Utilities

3-30 July 1998

The following screen appears.

BOOTP needs a Bootptab Þle to operate. An empty Bootptab Þle is

provided with FastManage.

2. Make sure that the Bootptab Þle is displayed. If it does not, click

Browse to Þnd it.

Note: The Bootptab Þle is usually located in the \fm directory.

3. Click Ok.

The BootP Server window appears.

4. Click Add Entry to Bootptab File from the File menu to add an entry

to the Bootptab Þle.

5. To add a node with an Ethernet address of Ò0040C8 1234ABÓ and an

IP address of Ò199.86.12.1,Ó enter 00.40.C8.12.34.AB in the

Hardware Address box, and 199.86.12.1 in the IP Address box.

Note: The host name is user deÞnable.

6. Click Ok.

Windows - FastManage Configuration Utilities

July 1998 3-31

3.10 NetBeui Browsing and Sharing Abilities

When a client machine comes up on the network, it usually comes up in a

pre-conÞgured workgroup. The default workgroup for all NetBIOS

machines (including the Kodak NIC) is named Workgroup. When users

look for devices on the network, they normally see only those devices in

their workgroup. Windows 95 allows a user to browse multiple

workgroups, to choose a speciÞc workgroup, and then to view the devices

inside that workgroup. There must be at least one PC workstation in each

workgroup to store a list of all the other devices in that workgroup. That

PC is the BrowseMaster. The BrowseMaster is checked by the NetBIOS

clients without any user intervention.

The NIC cannot act as a BrowseMaster. For example, a NetBIOS

workstation is on a workgroup (for example, ÒMyCompanyÓ) and the

printer/NIC is installed on the network. The NIC will come up and

advertise itself in the default workgroup called workgroup. A user who

browses the network (using Net View or Network Neighborhood

applications) will not see the printer/NIC or even see a workgroup called

workgroup, because there is not at least one workstation in the

workgroup with the printer/NIC.

To solve this problem:

1. Connect to the printer/NIC.

2. Store a new NetBIOS workgroup name using either FastManage

package, nbmon.exe, or any other conÞguration tool.

3. Once connected to the printer/NIC, go to the Network Protocol

section, then to Microsoft SMB.

4. Change the property called NetBIOS Workgroup.

5. Change the workgroup name to the same as in the workgroup (that is,

MyCompany).

Users should now be able to browse the printer/NIC just as they would

any normal NetBIOS client.

As an alternative:

1. Use the net use or net view command without having the printer/NIC

in the same workgroup as the workstation.

2. Fill in the proper NetBIOS name of the printer/NIC.

Windows - FastManage Configuration Utilities

3-32 July 1998

3. Enter net? at a DOS prompt for more information about the utilities.

3.10.1 DOS Tools for NetBIOS

If you have problems installing and using the NetBIOS management

tools, the following suggestions might help:

¥ When using the showprn.exe tool, and the printer/NIC does not

appear, issue the command with a -d0, -d1 or -d2 switch:

showprn.exe -d1

This causes showprn to use an alternate stack to send the packet.

This problem shows up sometimes in systems that have multiple NICs

or multiple protocols loaded. If a -d1 switch was used with the

showprn.exe tool, use it on the NBMON command line.

¥ If the IPX protocol is loaded and running on a system running

Windows 95, the check box for Send NetBIOS over IPX should not be

checked.

Send NetBIOS over IPX is located in the Control Panel--> Network-

-> IPX Compatible Protocol screen.

¥ Open up the Control Panel, Networks screen. Choose NetBEUI

protocol. Check the checkbox marked Set this Protocol to be the

Default Protocol. In Windows 95, it is located in the Advanced

Options window.

Windows - FastManage Configuration Utilities

July 1998 3-33

3.11 Troubleshooting FastManage

The following table lists problems that may occur with FastManage; it also

lists possible solutions.

3.11.1 Error Messages

The following table contains error messages that you may see while using

the FastManage Network Manager.

Problem Solution

SNMP community strings are

defaulted to public and private

Change the community strings in the

issnmp.ini Þle

Unable to start the FastManage

application. A message such as

ÒUnable to start protocol stackÓ

displays

Restart Windows.

Applications start, but do not display

connected ports or SNMP statistics

Restart Windows. Verify Þrmware agent

is compatible with FastManage

Can not start applications and the

message ÒIP_STACK section

issnmp.ini Þle needs IPADDR= setÓ

appears

Reinstall FastManage with IP and IPX

protocols.

The message ÒUnable to Þnd and

start net driverÓ appears

Load IPX drivers before starting

Windows.

The message ÒNo Netware

connections foundÓ when running

Discovery or ÒHost not in IPX binderyÓ

appears

Load VLM.EXE before starting

Windows.

3.11.2 IP Address Validation Messages

The following table displays messages that you may see when entering

an IP address:

General Messages

Message Cause Solution

Bad status from target

device: <n>. Press

CANCEL to exit

program

Appears when the

SNMP agent on device

returns a

NO_SUCH_NAME for a

particular OID

The Þrmware on the agent

does not match with the

version of the Manager

software. Upgrade the agent

Þrmware and the

FastManage Software

Package.

Unable to open SNMP

Session

Usually appears if the IP

stack on the manager

has died

Restart Windows.

Bitmap Init Error Application is not able to

Þnd the bitmap

The FastManage installation

may be bad. Reinstall.

Unable to load

NPAPI.DLL

File NPAPI.DLL could

not be found

Put the Þle NPAPI.DLL in the

path.

Unable to load

NPSNMP.DLL

File NPSNMP.DLL could

not be found

¥ Put the Þle NPSNMP.DLL in

the path.

¥ Set NetBeui as a default

using the Network Control

Panel.

WINSNMP Error (%ld)

sending%s packet

Appears when the

manager is not able to

send a WINSNMP

packet. Sometimes

occurs due to an SNMP

agent in the device that

crashed.

Use the PING application to

Þnd out if the agent device is

reachable. If yes, restart

Windows. If not, power cycle

the device and try again.

IP Address Validation Messages

Message Solution

More than 3 dots exist in the address or No

characters present between dots or Invalid

character in IP Address or The address

contains one Þeld with value more than 255.

Not all Þelds are deÞned.

A valid IP address is of the form

a.b.c.d, where a.b.c.d can vary

from 0 to 255. For example,

193.25.86.214

Windows - FastManage Configuration Utilities

July 1998 3-35

3.11.3 Discovery Application Messages

The following table lists errors messages that you may see while using

the Discovery Application.

For reliable Discovery operation using IPX, it is recommended that the

following systems all be on the same subnet :

¥ Novell server servicing the printer

¥ Novell server you log into as a user from the workstation running

Discovery. (It is also recommended that this server be the same as

the server servicing the printer).

¥ Workstation running Discovery

¥ Kodak printer

3.11.4 Ping Application Message

The following message may appear while you are using the Ping

Application:

Discovery Application Messages

Message Solution

IP, IPX, and NetBIOS Discovery are

disabled. For Discovery to work, at least

one of them should be enabled. Please

update SNMP section, IP/IPX entries of

issnmp.ini Þle. Discovery will exit now

Valid Values are: IP=YES or IP=NO,

IPX=YES or IPX=NO, and

NetBIOS=Yes or NetBIOS=No

Unable to open Þle (bitmap Þle) or

Unable to copy palette for the bitmap or

Unable to create bitmap from Þle DIB

The FastManage installation may be

bad. Reinstall.

No such pathway or drive is not ready Restart Windows.

Ping Application Message

Message Solution

IP is disabled in the Þle issnmp.ini. IP

needs to be enabled for this application

to run. This application will exit now

Enable IP discovery in the Discovery

Application to enabled IP.

Windows - FastManage Configuration Utilities

3-36 July 1998

3.11.5 BOOTP Server Application Messages

The following messages may appear while you are using the BOOTP

Server Application.

BOOTP Server Application Messages

Problem Cause Solution

Please retry when there is a

bootptab Þle

No Bottleful found Enter bootptab Þle and

retry.

IP is disabled in the Þle

issnmp.ini. For this

application to run, enabled IP

IP discovery disabled

in the Discovery

Application

Enable IP Discovery in

the Discovery

Application to enabled

IP.

Error to read packet A bad BOOTP packet

is received

Retry. If the problem

persists, reset the

device.

The address should contain

only HEX digits. i.e., 0-9, and

A-F/(a-f)

Validation for

Macintosh address

Enter a valid Macintosh

address.

Hardware address is not

speciÞed. So this entry cannot

be saved

Appears during the

operation ÒAdd entry

to Bootptab ÞleÓ

Enter the Host name

address in the user entry

form.

IP address is not speciÞed. So

this entry cannot be save

Appears during the

operation ÒAdd entry

to Bootptab ÞleÓ

Enter the IP address in

the user entry form.

This is not a valid hardware

address

User input invalid

Macintosh address

A valid hardware

address is a 12-digit

HEX number. For

example:

01.23.45.67.89.AB

Novell NetWare

July 1998 4-1

4 Novell NetWare

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. This chapter

describes the conÞguration of Novell Netware print servers and queues.

4.1 NetWare Client Installation Overview

In general, to install on a NetWare workstation, determine whether the

Kodak printer/NIC will be installed in:

¥ NetWare 2.x, 3.x, 4.x bindery emulation environment

¥ NetWare 4.x NDS environment

¥ Netware AppleTalk (ATPS) environment.

Note: For complete information on using NetWareÕs client utilities, refer to

the NetWare documentation.

4.2 ConÞguring in a Bindery Environment

The Kodak printer/NIC can be conÞgured to service up to 16 print queues

on 16 different bindery style NetWare servers (NetWare 2.x, 3.x, 4.x). If

you are not using NetWare Directory Services (NDS), disable it.

4.2.1 Configuring using PCONSOLE

Refer to the NetWare documentation for information on using the

PCONSOLE command.

To conÞgure the KODAK NIC using the PCONSOLE command:

1. Create a print server called KDxxxxxx through PCONSOLE.

where xxxxxx are the last six digits of the unitÕs Ethernet address.

2. Create a queue for the printer using PCONSOLE.

3. Assign the queue created above to the print server KDxxxxxx.

4. Power cycle the printer.

The queue will send data to the printer.

Novell NetWare

4-2 July 1998

5. Set up the preferred server name on the NIC, using NIC conÞguration

utilities for Windows.

Note: For more information on setting the preferred server name, see

Chapter 3, Windows - FastManage ConÞguration Utilities.

4.3 ConÞguring in an NDS Environment

4.3.1 Configuring Your NDS Server using PCONSOLE

To conÞgure the NIC using PCONSOLE:

1. Run PCONSOLE using the following command (from the /public

directory on the server):

pconsole

2. Using the arrow keys, select Quick Setup and press [Enter].

3. In the Print Services Quick Setup window, select Print Server and

press [Enter].

4. Press [Insert] to create the Print Server Object for the NIC.

The name must have eight characters. Begin with ÒKDÓ and end with

the last six digits of the hardware address (found on the NIC

faceplate or NIC conÞguration test page). For example, if the

hardware address of a printer is Ò0040C81234AB,Ó create a print

server named KD1234AB.

Note: The print server name is not case sensitive.

5. After creating the print server object, select New Printer and press

[Enter].

6. Enter a name for the new printer object used by the printer. The name

should be less than 256 characters, including the context. The print

server will service only one printer per NDS Server.

7. After adding the new printer object, select New Print Queue and

press [Enter].

8. Type the name of a Queue (that the printer will service).

The queue name must be less than 256 characters, including the

context. By default, all queues are serviced by the printer.

Novell NetWare

July 1998 4-3

9. After typing in the names of the three objects, select Printer Type and

press [Enter].

10.Select Other/Unknown.

11. When Þnished, press [ESC] to Save changes.

The volume Þeld is Þlled in by PCONSOLE with the name of the nearest

volume. This is the name of the server volume that will hold the

queued jobs for the print server.

12.Turn off the Banners to eliminate user ID pages.

Note: If a user ID page is desired, the type of banner should be

ÒPostScriptÓ (not ÒtextÓ) for PostScript mode print jobs. The banner

must be OFF for Raster mode print jobs since ÒPostScriptÓ or ÒTextÓ

banners will cause the print job to fail (Printer will process job and

return to ÒREADYÓ without generating a print).

4.3.2 Configuring the NIC for NDS

ConÞgure a DS Tree Name and DS Context Name on the NIC. (You can

also use FastManage to conÞgure these two parameters.)

4.3.3 Additional Queues

The print server contains the name of a printer to service. The printer

contains a list of print queues belonging to it.

To add queues to the print server service:

1. Choose Printers under the Available Options window.

2. Select the printer created and press [Enter].

3. Select Print Queues Assigned. Pressing [Insert] allows a user to

choose from a list of created queues.

4. Create new print queues by pressing [Insert] again.

Once an object is created, it must remain in that context until deleted.

By default, quick setup creates these objects in the same context;

however, users have full control of the object context. Note the context

name at the top of the screen.

5. Press [ESC] to Exit.

Novell NetWare

4-4 July 1998

6. Once Þnished with the server conÞguration, run a NIC conÞguration

utility, i.e., FastManage, to set up a DS Context Name and DS Tree

Name.

4.3.4 Creating an NDS Print Server Using NWadmin

1. Open NetWare Tools and double-click on NWadmin.

2. Highlight the Organizational Unit where the print server, printer, and

print queue will be created.

3. Under the Object pull-down window, click Create.

The New Object window appears.

4. Select print server and click OK.

The Create Print Server window appears.

5. Type the printer name.

The name must have eight characters, must start with KD and end

with the last six digits of the hardware address. This number can be

found on the NIC faceplate.

6. Click Create.

4.3.4.1 Creating a New Printer

1. Under the Object pull-down window, click Create.

The New Object window appears.

2. Select Printer and click OK.

The create printer window appears.

3. Type the Printer Name and click Create.

Novell NetWare

July 1998 4-5

4.3.4.2 Creating a Print Queue

1. From the Object menu, click Create.

The New Object window appears.

2. Select Print Queue and click OK.

The Create Print Queue window appears.

3. To the right of the Print Queue Volume box, click the Select Object

icon.

4. In the Select Object window, highlight the Directory Context where

the print queue will be held and click OK.

The Create Print Queue window appears with the selected object

Þlled in the Print Queue Volume box.

5. Type the Print Queue Name and click Create.

¥ The queue name should have fewer than 256 characters, including

the context.

¥ By default, all queues are serviced by the printer attached to the

NIC.

A new print server, printer, and print queue have been created. Continue

to Section 4.3.4.3 to connect these objects.

Novell NetWare

4-6 July 1998

4.3.4.3 Connecting the Print Server to a Printer

1. In the Context Tree window, double-click the print server created.

2. Click Assignments in the following window.

3. In the next window, click Add.

4. Highlight the printer created and click OK.

The server queue is now connected to the Kodak printer. Continue to

Section 4.3.4.4 to assign a print queue to the print server.

Novell NetWare

July 1998 4-7

4.3.4.4 Assigning a Print Queue to a Print Server

1. Double-click the recently assigned printer.

2. In the window that appears, click Assignments.

3. In the Assignments window, click Add.

4. In the Select Object window, select the print queue created and click

OK.

In the next window that appears, the print queue is assigned.

5. Click OK if this is correct.

The print queue is assigned. Now you can use FastManage to set up a

DS Tree Name and DS Context Name.

4.4 ConÞguring in a Mixed Bindery and NDS Environment

The Kodak printer/NIC can operate in a mixed Bindery/NDS environment.

Adhere to the following restrictions:

¥ The Kodak printer/NIC can service up to 16 queues (NDS and/or

Bindery) on a total of 16 servers.

¥ The Kodak printer/NIC cannot service bindery queues and NDS

queues on the same server (i.e., two simultaneous connectionsÑone

bindery, one NDSÑon the same server).

¥ The Kodak printer/NIC can service NDS queues in only one tree.

Novell NetWare

4-8 July 1998

¥ When logged in to an NDS environment as an NDS Print Server, you

should conÞgure the print server with only one NDS Printer object. You

specify parameters, such as which port to send data (LPT or COM) by

creating special queue name sufÞxes.

The major differences between conÞguring a Kodak printer/NIC to

service bindery or NDS queues areÑ

¥ When using Bindery queues, users may modify the setting in the

printer/NIC called Preferred Server. This refers to the Bindery File

Server that holds the conÞguration Þle.

¥ When servicing NDS queues, the printer must be conÞgured with a

context name, and may be conÞgured (optionally) with a tree name.

This can be done with FastManage.

¥ When conÞgured for NDS, the printer does not use a conÞguration Þle.

It logs into the context where it was conÞgured, locates the printer and

queues that it should service.

¥ Regarding manual conÞguration of print server, queues, and printers

(within PCONSOLE or NWadmin): Bindery print servers are directly

attached to bindery print queues. NDS print servers are attached to a

single printer, which in turn is potentially attached to many print

queues.

When conÞgured to service both Bindery and NDS queues, the NIC does

the following:

1. At startup, the NIC tries to locate an NDS server.

2. Once it locates the server, the NIC looks at the context it has been

conÞgured with, and tries to log in as print server KDxxxxxx (the xxxs

are the six-digit hardware address).

3. Once successful, the NIC gets the printer attribute of that print server,

and then gets the list of print queues that the printer should service.

4. The NIC attaches to those print queues and moves on to the next

phase.

Note: If a context was not speciÞed in the NIC NVRAM, the NIC will not

log into the NDS tree.

5. The NIC then tries to locate normal Bindery Þle servers.

Novell NetWare

July 1998 4-9

6. Once it locates a Bindery Þle server, the NIC looks in its preferred

server for an NVRAM value, and if a value exists, routes itself to that

server.

7. The NIC then looks on the preferred server for a print server queue in

the form of KDxxxxxx.

8. The NIC then reads the print server queueÕs conÞguration Þle and logs

in and attaches to the queues and servers listed in that conÞguration

Þle.

9. If a preferred server was not speciÞed in its NVRAM, the NIC searches

up to 24 Þle servers on the network for a print queue.

10.If a print queue is not found, the NIC goes back periodically through

the list of servers and try to blindly log in as print server KDxxxxxx. If

successful, it gets the list of queues that the NIC should service and

attaches to those queues.

4.5 Novell NetWare - AppleTalk

If AppleTalk Print Services (ATPS) for Novell is not already in use, consult

the Novell CD-ROM on-line documentation to set up and use ATPS. To

use ATPS for the Kodak printer, an ATPS.CFG Þle must be edited

appropriately to deÞne an AppleTalk printer name and corresponding

zone.

Note: AppleTalk for Novell recognizes the printer only when it is in

PostScript mode. Raster mode cannot be accommodated. You

must set up an IPX queue to support both PostScript and raster

modes. Only Macintosh systems can print in raster mode using

AppleTalk.

4.5.1 Configuring Novell NetWare 3.x for AppleTalk

To use ATPS for Novell, an atps.cfg Þle must be edited appropriately to

deÞne an AppleTalk printer name and corresponding zone.

Note: You cannot print in raster mode using ATPS.

The following procedure describes how to conÞgure Novell ATPS to

service the printer and the queue. In this example, the printer is a Kodak

printer with a default name of Kodak Digital Scienceª 8650 PS.

1. Make a test print to obtain or verify the printerÕs name.

Novell NetWare

4-10 July 1998

2. On the server, back up the sys:\system\atps.cfg Þle.

Note: Make sure you include the beginning and end quotes in the

following commands.

Edit the atps.cfg Þle, and add a line with the Kodak printer AppleTalk

name and its associated AppleTalk zone to the list of printers in the

following format:

For example, enter the following command:

ÒKodak Printer:Kprinter_ZoneÓ

Note: Make sure you include the quotation marks in the command.

If no queue is stated, a NetWare queue associated with the AppleTalk

printer name, NW_Kodak_Printer, is created. You can verify this using

PCONSOLE.

To create a different queue name, enter the following command:

For example, enter:

ÒKodak Printer:KPrinter_ZoneÓ -o KPrinter_q

3. Save the atps.cfg Þle.

4. Load atps -s -v

Use the -v [verbose] option to view the atps activity and to verify that

the contents are executed properly.

Your server can now use the same print services that Macintosh

computers use to access a Kodak printer.

4.5.2 Configuring Novell NetWare 4.x for AppleTalk

Use the NetWare 4.x utilities provided to set up AppleTalk. This setup is

menu driven, so you do no need to edit any Þles.

Novell NetWare

July 1998 4-11

4.6 Troubleshooting Netware

The printer/NIC does not log in to bindery Novell 3.x server

The server may not have the bindery emulation mode enabled. To verify

that the bindery emulation is enabled, Þnd the following line in the

autoexec.ncf Þle in the system directory:

Set Bindery Context=<context>

where <context> is the name of the company to be used by bindery

emulation. If it is not there, bindery emulation is not running. Refer to the

NetWare userÕs manual for instructions on bindery emulation.

The printer/NIC does not login to the Þle server

¥ Use FastManage to see the messages sent by the printer/NIC.

¥ Use the userlist command (in NetWare 4.x, this is nlist user) to see

whether an assigned user to the printer/NIC has logged in.

¥ Use PCONSOLE to force a conÞguration Þle server to direct the

printer/NIC to search for a speciÞc server.

¥ Use a speciÞc frame type (refer to FastManage).

File server displays an Incomplete Packet error message

By default, the printer/NIC Þnds NetWare servers using repeated

broadcasts of different frame types. If a server is bound to a speciÞc

frame type, the server issues error messages for frames it does not

understand. Use FastManage to set a speciÞc frame type.

NotiÞcation not working when created with PCONSOLE

Verify that the printer type is DeÞned Elsewhere and not any other type.

Select the Print Servers menu and change the settings in the Printers

submenu.

Novell NetWare

4-12 July 1998

4.6.1 NIC Console Messages

This section lists and describes the printer/NIC console messages.

Could not attach QUEUE1

Verify that the queue name is spelled correctly and whether another print

server is servicing QUEUE1.

Attaching queue QUEUE1 on server SERVER1

The printer/NIC has read the conÞguration Þle and has attached to the

queue that asked to be serviced.

No such object FAKEQ

There is no queue named FAKEQ. Verify it and the spelling of its queue

name.

Failed to login to Þle server SERVER1 for server FAKEPS

The printer/NIC could not log in to a nonexistent Þle server.

The print server has not been created in PCONSOLE. This error may also

occur if the user has modiÞed the printer conÞguration in PCONSOLE.

Remove any recent conÞguration changes.

Windows for WorkGroups (3.x)

July 1998 5-1

5 Windows for WorkGroups (3.x)

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. In the list

below, the steps described in this chapter are highlighted.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC hardware, if needed

Step 4: ConÞgure the NIC, if necessary

Step 5: ConÞgure print servers, if needed

Step 6: ConÞgure the printer on user workstations

Step 7: Printing

5.1 ConÞgure the NIC

If possible, start with the default parameters. TCP/IP protocol is the only

protocol that minimally requires conÞguration of an IP address. if you

need to conÞgure NIC network parameters in Windows environments,

refer to Chapter 3, FastManage or Appendix A, Telnet.

5.2 ConÞgure the Workstation for Printing

You should verify that this platform is supported for printing to your printer

or proofer. Refer to the user guides and software provided with your

printer or proofer for information about installing software to support

PostScript and raster printing, calibration, etc. If needed, refer to

Appendix E, Technical Assistance.

Windows for WorkGroups (3.x)

5-2 July 1998

Adding a Printer to Your System

Use the following procedure to add a printer, install a PostScript driver

and select a server print queue. If needed, refer to the documentation and

software provided with your system.

For general information regarding potential third-party solutions and tools,

refer to Appendix B. Kodak is not responsible for troubleshooting

solutions done by vendors.

1. From the Main menu, double-click on the Control Panel icon.

2. From the Control Panel, double-click on the Printer icon.

3. Click on the Connect button.

4. From the Connect window, select an appropriate LPT port to use for

the printer from the Ports menu.

The Kodak printer should appear in the Installed Printers menu

within the Printer Control Panel if the PostScript driver was installed.

5. Click on the Network icon.

6. In the Network Printer Connections window, click on Servers and

select an appropriate server from the list. Log in to the server, if

necessary. Select the Printers icon and then an appropriate print

queue from the list.

7. Select LPT Settings. To eliminate extraneous banner (USER ID)

pages, make sure that the Enable Banner feature is not selected.

8. When Þnished, click on OK and close windows where appropriate.

Windows 95

July 1998 6-1

6 Windows 95

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. The steps

described in this chapter are highlighted in the list below.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC Hardware, if needed

Step 4: ConÞgure the NIC, if necessary

Step 5: ConÞgure the print servers, if needed

Step 6: ConÞgure the printer on user workstations

Step 7: Printing

6.1 ConÞgure the NIC

If possible, start with the default parameters. TCP/IP protocol is the only

protocol that minimally requires conÞguration of an IP address. Refer to

FastManage, Chapter 3, or Telnet, Appendix A. If you need to conÞgure

NIC network parameters in Windows environments.

6.2 ConÞgure the Workstation for Printing

You should verify that this platform is supported for printing to your printer

or proofer. Refer to the user guides and README Þles provided with your

printer or proofer for information about installing software to support

PostScript and raster printing, calibration, etc. If needed, refer to

Appendix E, Technical Assistance.

Windows 95

6-2 July 1998

Adding a Printer to Your System

Use the following procedure to add a printer, install a PostScript driver,

and select a server print queue to use for printing. If problems occur,

refer to the Windows 95 documentation, README FIles, and software

provided with your system. You may also need to consult the user guides

and README Þles provided with your printer and your applications.

There is general information about potential third- party solutions and

tools, i.e.,Windows 95 LPR, in Appendix B. Kodak is not responsible for

troubleshooting solutions provided by alternate vendors.

If NetBeui is enabled on the NIC, you can add a printer using Network

Neighborhood. You can also add a printer using the Win 95 ÒAdd PrinterÓ

utility.

6.2.1 Printer/NIC selection and printer setup using Win 95/NT Network Neighbor-

hood:

If you have network browsing capabilities and you select Workgroup, you

should be able to see the printer/NIC advertising itself as KDxxxxxx,

where ÒxxxxxxÓ is consistent with the last six digits of the Ethernet

address for the NIC.

1. Open Network Neighborhood

2. Locate and then double-click the printer icon named KDxxxxxx.

You must still use conÞguration utilities to conÞgure non-default network

parameters. If you are comfortable with NIC conÞguration defaults, then

you could select the ÒKDxxxxxxÓ printer/NIC. Windows will prompt you to

install a print driver, if necessary. After installing an appropriate printer

driver, you will be able to select the printer within an application ÒPrintÓ

window and and print to that printer.

Windows 95

July 1998 6-3

6.2.2 Using the ÒAdd PrinterÓ Method

1. From the Start icon, select Settings and then Printers.

2. Click on the Add Printer icon.

3. Click on Next.

Windows 95

6-4 July 1998

4. Select Network Printer to select a server/printQ. Then click on Next.

5. Browse the network for an appropriate server/queue name. Click on

Next.

6. To install a PostScript driver for the Kodak printer, click on Have Disk,

then Next.

Note: Drivers provided by Microsoft may appear in the Add Printer

Wizard window as Kodak drivers. These drivers have not been

tested or certiÞed by Kodak. If you are not sure if the PostScript

driver for the Kodak printer has been installed, install the PostScript

driver supplied with the Kodak printer.

Windows 95

July 1998 6-5

7. If you are installing the printer driver from a diskette or a CD-ROM,

insert the proper media, then click on OK.

If installation software has been copied to your system, click on

Browse to locate the directory where it resides. When the correct

directory opens in the Copy manufacturerÕs Þles from box, click on

OK.

8. Locate the drive and directory where the printer driver installation

diskette or CD-ROM is located. Click on OK.

Windows 95

6-6 July 1998

9. Select the printer relative to the ribbon media in the printer, then

Next.

10.If the current driver has been loaded previously and operates correctly,

select Keep existing driver, then Next.

If you are not sure that the current driver is the PostScript driver for the

Kodak printer, select Replace existing driver, then Next.

11. Either use the default printer name or enter a preferred name. Click on

Yes or No to use the printer as the default printer. Click on Next.

Windows 95

July 1998 6-7

12.Click on Yes to print a test page to verify that the setup is correct. Click

on Finish.

Note: If errors occur when you print a test page, check the Printer

Properties menus for the correct printer parameter settings. Refer

to Section 6.2.3, Setting Printer Properties.

13.If the installation proceeds successfully, a progress bar shows that the

driver is being installed. When the installation is complete, the Kodak

printer icon appears in the Printers window. Proceed to Section 6.2.3,

Setting Printer Properties.

If you had problems locating Þles, the installation may stop, and you

may be prompted to insert your Windows 95 CD-ROM. Proceed to

step 14.

14.Install the CD-ROM if this is the Þrst time you are installing a

PostScript printer driver. Click on OK.

Windows 95

6-8 July 1998

15. Click on Browse if you need to locate the C:\WINDOWS\SYSTEM

directory. Click on OK.

IMPORTANT: We recommend that you install all files. If you select the

option to skip a file, do so only if you are sure the file is a

generic PostScript file and is already installed on your

system. Check the C:\WINDOWS\SYSTEM directory for

previously installed files.

16.Click on OK in the Open window to load the Þles.

When the installation is complete, the Kodak printer icon appears in

the Printers window.

6.2.3 Setting Printer Properties

1. Select the newly created Kodak printer in the Printers window. Select

File > Properties from the pulldown menus.

The Printer Properties window appears.

2. From the Properties window:

Windows 95

July 1998 6-9

ÑSelect PostScript > Advanced, then make sure that all Ctrl Ds

before and after jobs are disabled. This prevents you from receiving

extra pages or a blank PostScript error page.

ÑCheck Capture Settings; to eliminate extraneous banner (USER

ID) pages, make sure that the Enable Banner feature is not selected.

ÑCheck all other tabs and set up all corresponding options to match

the type and size of media and ribbon materials in the printer as well

as printing features, i.e., Ultracolor, to avoid printing errors.

Windows NT 3.51Workstation/Servers

July 1998 7-1

7 Windows NT 3.51Workstation/Servers

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. Steps

covered in this chapter are highlighted in the list below.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC hardware, if necessary

Step 4: ConÞgure the NIC, if necessary

Step 5: ConÞgure print servers, if necessary

Step 6: ConÞgure the printer on user workstations

Step 7: Printing

7.1 ConÞgure the NIC, if necessary

If possible, start with default parameters. TCP/IP protocol is the only

protocol that minimally requires the conÞguration of an IP address. if it is

necessary to conÞgure NIC network parameters in Windows

environments, refer to Chapter 3, FastManage, or Appendix A, Telnet.

7.2 ConÞgure the print servers, if necessary

Servers are conÞgured as are workstations except that the printer is

shared for use by multiple users.

Windows NT 3.51Workstation/Servers

7-2 July 1998

7.2.1 Network Service and Protocol Installation

Windows NT supports network printing utilizing TCP/IP, Novel Netware

IPX, NetBeui and/or AppleTalk protocols. Appropriate protocols and

services must be installed prior to conÞguring printers using the network

control panel.

7.2.2 Windows NT Server Queues

Problem Downloading non-NT drivers from NT Servers

NT systems are supposed to support automatic downloading of other OS

drivers when users conÞgure their OS for printing to an NT queue. For

non-NT OSs, i.e., Windows 95, the proper Kodak OS driver is not

downloaded. When a printer is shared on a server, do not select other

OSs that will use the queue. Drivers should be installed locally on all non-

NT systems serviced by a server.

Corrupted Image Data

On NT servers, you may encounter corrupt image data when you print

Þles larger than 5 Mbytes (exhibited by color bands across the print). To

prevent this from happening, set up your server to accept the entire print

job before passing the Þle on to the printer. To do this, do NOT select Job

Prints While Spooling in Server Properties.

Protocols vs Printing Modes

Service/Protocol System Support

Module

Printer Modes

Supported

TCP//IP Microsoft TCP/IP Printing

Support

PostScript or Raster

IPX (Novell) Netware Services/

Support

PostScript or Raster

NetBeui Native Windows Support PostScript or Raster

AppleTalk AppleTalk Protocol PostScript only

Windows NT 3.51Workstation/Servers

July 1998 7-3

7.3 ConÞguring your Workstation for Printing

You should verify that this platform is supported for printing to your printer

or proofer. Refer to User Guides and software README Þles provided

with your printer or proofer for information on installing software to

support PostScript and raster printing, calibration, and so on. If

necessary, refer to Appendix E, Technical Assistance.

7.4 Adding a Printer

You may use the following generic procedures to add a printer and install

a PostScript driver. These include:

¥ Create a printer that will communicate via TCP/IP (LPR Port)

¥ Create a printer that will communicate via AppleTalk

¥ Create a printer that will communicate via a server/queue

¥ Create a Windows NT printer/queue that remote users can select

Note: Server conÞguration is identical to workstation conÞguration except

that the resulting printer must then be shared and a queue name

assigned.

For solving problems you might have, refer to the Windows NT

documentation provided with your system.

Windows NT 3.51Workstation/Servers

7-4 July 1998

7.4.1 Adding a Printer

Note: If needed, refer to your printer User Guide and application

README Þles.

3. From the Program Manager window, select Main, then Print

Manager.The Print Manager window appears.

4. Select Create Printer from the Printer menu. The following windows

appear.

5. In the Create Printer window, enter the following:

Printer name: Enter a name that you wish to appear on the resulting

printer icon in the Print Manager window.

Driver: The Kodak driver is a PostScript driver that uses Windows NT

PostScript (PSCRIPT.*) components that reside on the CD-ROM

provided with Windows NT. These components may already reside in

C:\windows\system if a PostScript driver was previously installed.

Windows NT 3.51Workstation/Servers

July 1998 7-5

Select Other, and install the appropriate Kodak driver (PPD) provided

by Kodak. If a Windows NT driver is not available for the Kodak printer,

you could use another Kodak or generic PostScript driver. However,

this driver might not provide full access/control of a different Kodak

printerÕs features. You may have problems if you use the Kodak 8600

v2014 driver that Microsoft provides with Windows NT systems.

The example below shows the installation of printer software that was

downloaded from the Kodak web site to the directory

C:ekptrs\8650\nt351v105.

Description: Enter a description of the printer, if desired.

Note: If a message such as CanÕt find File: PSCRIPT.* or

Unable to Open File PSCRIPT.* appears, insert the

Windows NT CD-ROM, then click on Retry.

7.4.2 Printing via TCP/IP (LPR Port)

Do as follows to set up a system to print using TCP/IP.

1. From the Create Printer window, select Other from the Print to list box.

The Print Destinations window appears.

2. Select LPR Port.

Windows NT 3.51Workstation/Servers

7-6 July 1998

3. Select LPR PORT.

Note: If LPR Port is not in the menu, select Other again, the install

Microsoft TCP/IP Printing Services.

The Add LPR compatible printer dialog box appears.

4. Enter the following information:

Name or address of host providing LPDÑEnter the IP Address that

has been assigned to the Kodak printer.

Name of printer on that machine.

5. Click on OK in the remaining open screens.

The newly conÞgured printer appears in the Print Manager window.

7.4.3 Printing via AppleTalk

Note: AppleTalk for Windows NT supports printing only in PostScript

mode. Use TCP/IP queues to print in both PostScript and raster

modes.

To set up a system to print using AppleTalk:

1. From the Create Printer window, select Other from the Print to list box.

2. Select AppleTalk Printing Devices, then click on OK.

Windows NT 3.51Workstation/Servers

July 1998 7-7

Note: If AppleTalk Printing Devices Port is not in the menu, select Other

again and install AppleTalk Protocol.

3. Double-click on the pertinent AppleTalk Zone to view the available

devices and to select the Kodak

printer..

IMPORTANT: If you CAPTURE a printer as an AppleTalk device, users

who previously could select the printer via AppleTalk will no

longer be able to do so. Use CAPTURE on a server only

when the goal is that users see only a queue and not the

actual printer on the network.

4. Click on OK in the open screens.

The newly conÞgured printer appears in the Print Manager window.

Windows NT 3.51Workstation/Servers

7-8 July 1998

7.4.4 Printing via a Server/Print Queue

To select a print queue for indirect printing:

Note: Use the Create Printer dialog box to select an appropriate print

queue.

1. From the Print Þeld, select an appropriate print queue.

Note: You may have to select Other and Browse the network to Þnd and

select an appropriate queue.

2. Click on OK in the Create Printer dialog box.

The newly conÞgured printer appears in the Print Manager window.

7.4.5 Creating a Print Queue

Use the Create Printer dialog box to set up a shared printer on a network.

1. Click on the Share this Printer on the Network check box.

2. Enter the printer queue name as you want it to appear to users.

Windows NT 3.51Workstation/Servers

July 1998 7-9

3. Enter the name of the Windows NT server for which the printer is

conÞgured.

Note: In the example above, Location = NALA and Share name =

DS8650 results in a \\ NALA \ DS8650 server/queue that is

available for users to select from the ADD PRINTER mechanism or

by using PRINTER>CONNECT TO PRINTER from the PRINT

MANAGER menu.

4. Click on OK in the open Create Printer window.

The printer appears in the Print Manager window.

Windows NT 4.0 Workstation/Servers

July 1998 8-1

8 Windows NT 4.0 Workstation/Servers

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. In the list

below, the steps described in this chapter are highlighted.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC hardware, if needed

Step 4: ConÞgure the NIC, if necessary

Step 5: ConÞgure the print servers, if needed

Step 6: ConÞgure the printer on user workstations

Step 7: Printing

8.1 ConÞgure the NIC

If possible, start with the default parameters. TCP/IP protocol is the only

protocol that minimally requires conÞguration of an IP address. if it is

necessary to conÞgure NIC network parameters in Windows

environments, refer to Chapter 3, FastManage, or Appendix A, Telnet.

8.2 ConÞgure Print Servers

Servers are conÞgured the same as workstations; however, the printer is

shared for use by multiple users.

Windows NT 4.0 Workstation/Servers

8-2 July 1998

8.2.1 Network Service and Protocol Installation

Windows NT supports network printing utilizing TCP/IP, Novel Netware

IPX, NetBeui and AppleTalk protocols. Appropriate protocols and services

must be installed prior to conÞguring printers.

8.2.2 Windows NT Server Queues

Problem Downloading non-Windows NT drivers From Windows NT

Servers

Windows NT systems are supposed to support automatic downloading of

other OS drivers when users conÞgure their OS for printing to a Windows

NT queue. For non-Windows NT OSs, i.e.,Windows 95, the proper Kodak

OS driver is not downloaded. When a printer is shared on a server, do

not select other OSs that will use the queue. Drivers should be installed

locally on all non-Windows NT systems serviced by a server.

Preventing Corrupt Image Data

On Windows NT servers, you may encounter corrupt data when printing

Þles over 5 Mbytes (exhibited by occurrences of color bands across the

printed image). You can correct this condition by setting up your server to

accept the entire print job before passing the Þle on to the printer. To do

this, do NOT select Job Prints While Spooling in Server Properties.

8.3 ConÞguring your Workstation for Printing

You should verify that this platform is supported for printing to your printer

or proofer. Refer to the user guides and software Þles provided with your

printer or proofer for information about installing software to support

PostScript and raster printing, calibration, etc. If needed, refer to

Appendix E, Technical Assistance.

Protocols vs Printing Modes

Service/Protocol System Support

Module

Printer Modes

Supported

TCP//IP Microsoft TCP/IP printing

support

PostScript or raster

IPX (Novell) Netware services/support PostScript or raster

NetBeui native Windows support PostScript or raster

AppleTalk AppleTalk Protocol PostScript only

Windows NT 4.0 Workstation/Servers

July 1998 8-3

8.4 Printer/NIC selection and printer setup using Win 95/NT Network

Neighborhood:

If you have network browsing capabilities and you select Workgroup, you

should be able to see the printer/NIC advertising itself as KDxxxxxx,

where ÒxxxxxxÓ is consistent with the last six digits of the Ethernet

address for the NIC.

1. Open Network Neighborhood

2. Locate and then double-click the printer icon named KDxxxxxx.

You must still use conÞguration utilities to conÞgure non-default network

parameters. If you are comfortable with NIC conÞguration defaults, then

you could select the ÒKDxxxxxxÓ printer/NIC. Windows will prompt you to

install a print driver, if necessary. After installing an appropriate printer

driver, you will be able to select the printer within an application ÒPrintÓ

window and and print to that printer.

8.5 Adding a Printer to Your System

Complete the following generic procedures to add a printer and install a

PostScript driver. These procedures include:

¥ Creating a printer that will communicate via TCP/IP (LPR Port) -

Section 8.5.1

¥ Creating a printer that will communicate via AppleTalk - Section 8.5.2

¥ Creating a printer that will communicate via a server/queue - Section

8.5.3

¥ Creating a Windows NT printer/queue that remote users may select

Note: Server conÞguration is the same as workstation conÞguration;

however, the resulting printer must then be shared and a queue

name assigned.

If needed, refer to the Windows NT documentation and software provided

with your system.

8.5.1 Printing Via TCP/IP (LPR Port)

1. From Start, select Settings and then Printers.

Windows NT 4.0 Workstation/Servers

8-4 July 1998

The Printers window appears.

2. Click on Add Printer. The Add Printer Wizard window appears.

3. Select My Computer, then click on Next.

4. From the Add Printer Wizard screen, do one of the following:

If you are conÞguring your server or workstation to print directly to the

printer from an LPR port, click on Add Port.

If you are conÞguring your workstation to print indirectly to the printer

from a predeÞned server print queue, click on LPT1 and then Next.

Windows NT 4.0 Workstation/Servers

July 1998 8-5

The Printer Ports window appears.

5. Double-click on LPR Port.

Note: If LPR Port is not in the menu, install Microsoft TCP/IP Printing

Services.

The Add LPR compatible printer window appears.

6. In the Name or address of server providing lpd textbox, enter the IP

address that has been assigned to the Kodak printer.

7. In the Name of printer or print queue textbox, enter the name of the

printer or print queue. (Any name is Ok.)

8. Click on OK.

9. Click on Close in the Printer Ports window.

10.From the Add Printer Wizard (Add Port) window, click on Next.

The procedure is complete. Proceed to Section 8.6, Installing the Kodak

Printer Driver.

Windows NT 4.0 Workstation/Servers

8-6 July 1998

8.5.2 Printing via AppleTalk

Note: AppleTalk for Windows NT supports printing in PostScript mode

only. Use TCP/IP queues to support both PostScript and Raster

mode printing.

1. From Start, select Settings and then Printers.

The Printers window appears.

2. Click on Add Printer. The Add Printer Wizard window appears.

3. Select My Computer, then click on Next.

4. Click on Add Port in the Add Printer Wizard window.

Windows NT 4.0 Workstation/Servers

July 1998 8-7

The Printer Ports window appears.

5. Select AppleTalk Printing Devices.

Note: If AppleTalk Printing Devices option is not available, install

AppleTalk Protocol.

The AppleTalk Printing Devices window appears.

6. Double-click on your AppleTalk Zone to view the list of available

AppleTalk Devices.

7. Select the Kodak printer by its AppleTalk name. Click on OK.

A message asks you if you want to Capture the printer as an AppleTalk

device.

8. Choose Yes or No.

Windows NT 4.0 Workstation/Servers

8-8 July 1998

IMPORTANT: If you CAPTURE a printer as an AppleTalk device, users

who previously could select the printer via AppleTalk will no

longer be able to do so. Use CAPTURE on a server only

when the goal is that users see only a queue and not the

actual printer on the network.

9. Click on Close in the Printer Port window.

The Add Printer Wizard window appears.

10.Click Next.

The procedure is complete. Proceed to Section 8.5, Installing the Kodak

Printer Driver.

8.5.3 Printing via a Print Queue

1. From Start, select Settings and then Printers.

The Printers window appears.

2. Click on Add Printer. The Add Printer Wizard window appears.

3. Select My Computer, then click on Next.

4. Select Network Printer Server, then click on Next.

Windows NT 4.0 Workstation/Servers

July 1998 8-9

5. Enter the name of the print queue.

For example: Server = NT Svr and Share name = KodakQ would

result in \\NTSvr\KodakQ being the name of the queue.

The procedure is complete. Proceed to Section 8.6, Installing the Kodak

Printer Driver.

8.6 Installing the Kodak Printer Driver

Do as follows to install the Kodak printer driver.

1. From the Add Printer Wizard window, select Kodak from the list of

Manufacturers. Click on Have Disk.

Note: Printer drivers provided by Microsoft appear in the Add Printer

Wizard window as Kodak printer drivers. These drivers have not

been tested or certiÞed by Kodak. If you are not sure that a Kodak

driver is installed, install the Kodak driver supplied with the printer.

The window below appears.

2. Insert the diskette containing the Kodak printer driver in the disk drive.

Click on OK.

Windows NT 4.0 Workstation/Servers

8-10 July 1998

The window below appears.

3. Select the Ntprint Þle. Click on Open.

The Add Printer Wizard window appears with your printer selected.

4. Click on Next.

If a printer driver is already installed, you are asked if you want to keep

or replace the existing driver.

5. If the current driver operates correctly, click on Keep existing driver.

Click on Next.

If the current driver does not operate correctly, click on Replace

existing driver. Click on Next.

Windows NT 4.0 Workstation/Servers

July 1998 8-11

The Add Printer Wizard window opens.

6. Enter the printer name you want to appear in the Print Manager.

Select Yes or No for default printer. Click on Next.

The following window appears.

7. To print only from your workstation, click on Not Shared and then on

Next.

To set up a server print queue for others to select, click on Shared.

Enter the name of the printer queue. Click on Next.

IMPORTANT: Do not select any other operating systems for installation of

equivalent printer drivers, or problems may occur. Drivers

for other operating systems should be installed locally on

those systems. Refer to Chapter 12, Troubleshooting, for

details.

Windows NT 4.0 Workstation/Servers

8-12 July 1998

You are prompted whether to print a test page.

8. Click on Yes and then on Finish.

Note: If errors appear on the printer display panel (load paper, ribbon)

when a test page is generated, check the Printer Properties menus

for correct and consistent printer parameters.

The Kodak driver is a PostScript driver that uses Windows NT PostScript

(PSCRIPT.*) Þles that reside on the Windows NT CD-ROM.

If a message such as CanÕt find File: PSCRIPT.* or Unable

to Open File PSCRIPT.* appears, insert the Windows NT CD-ROM.

These components may already reside in C:\windows\system if a

PostScript driver has been installed. If the Þle is already in

C:\windows\system, select Skip Þle.

After you install the printer driver, the newly conÞgured printer appears in

the Print Manager window.

Windows NT 4.0 Workstation/Servers

July 1998 8-13

8.7 Printer Properties

To avoid printing errors, set up the appropriate printer properties.

1. From the Printers window, select the Kodak printer you conÞgured.

2. Select Properties from the File menu.

The following window appears.

3. Select the properties you want for your printer.

8.7.1 Setting Up Output Properties

To set up properties for output from your printer:

1. From the Printers window, select the Kodak printer you conÞgured.

2. Select Document Defaults from the File menu.

Windows NT 4.0 Workstation/Servers

8-14 July 1998

The following window appears.

3. Select the properties you want for the output from your printer.

Apple/Macintosh Environments

July 1998 9-1

9 Apple/Macintosh Environments

Refer to Kodak Printer/NIC Installation and Conﬁguration Overview in

Chapter 1 for information about the overall conﬁguration process. Steps

covered in this chapter are highlighted in the list below.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC hardware

Step 4: Conﬁgure the NIC using Utilities for Macintosh

Note: If you are in a mixed environment with Windows platforms, we

recommend that you conﬁgure the NIC using the Kodak 10/100

NIC - Utilities for DOS/Windows software. Windows FastManage

Utilities include a network device Discovery tool, a robust NIC

Conﬁguration Manager, and troubleshooting tools.

Step 5: Conﬁgure the print servers, if necessary

Step 6: Conﬁgure the Macintosh workstation for printing

Step 7: Printing

Apple/Macintosh Environments

9-2 July 1998

9.1 Kodak 10/100 NIC - Utilities for Macintosh

Use the Kodak 10/100 NIC - Utilities for Macintosh software to remotely

conﬁgure the parameters for the 10/100 NIC installed in Kodak printers or

proofers.

IMPORTANT: Configuration for this 10/100 NIC is accomplished

exclusively by using the remote configuration utilities for

Windows, Macintosh or Unix platforms. Use of the printer

front control panel is NOT relevant for configuring this

10/100 NIC. Confirm that it is set up for printing with the

Kodak printers or proofers.

Note: If you are in a mixed platform environment and require changes to

additional protocol conﬁguration parameters beyond the general

parameters conﬁgurable with Macintosh utilities, use Utilities for

Windows (FastManage) from a Windows platform or use TELNET

on any platform that supports TCP/IP. See

Appendix A

for

information about using Telnet.

Apple/Macintosh Environments

July 1998 9-3

9.2 Conﬁguring Macintosh Systems for Printing

You should verify that this platform is supported for printing to your printer

or proofer. Refer to the user guides and Readme ﬁles that came with your

unit for information about installing software to support PostScript and

raster mode printing, calibration, and so on. If necessary, refer to

Appendix E,

Technical Assistance.

• Install the Kodak-developed PostScript driver for Macintosh for printing

when the printer is in PostScript mode.

• Install the Kodak - Adobe PhotoShop Export Module for Macintosh for

printing (exporting) when the printer is in raster mode.

Note: Check your printer Readme ﬁles for notes about your printer.

9.3 Contents of NIC Utilities for Macintosh Diskette

Note: These Macintosh utilities work only with a Kodak printer in

PostScript mode (LaserWriter). For Kodak printers that are raster

ONLY, use Telnet or utilities for Windows or Unix platforms.

The Macintosh Utilities diskette contains the following ﬁles. Copy the

contents to your hard drive.

• ! IMPORTANT!—provides important details that an administrator

MUST be aware of. It also includes steps for verifying that your printer

and NIC are functional on your network.

• Read Me—provides an overview of conﬁguration procedures.

• Namer—can be used to modify the AppleTalk name that the printer

(NIC) will use to advertise itself over the network. This is the printer

name you will see in the Chooser.

You may wish to rename the printer from its unique Network Interface

Card identiﬁer (“KDxxxxxx” where “xxxxxx” is the last 6 digits of the

Ethernet hardware address) to a name more descriptive of the printer.

Note: To modify the AppleTalk name, you must use the Namer utility.

• Apple Printer Utility—can be used to download NIC and printer

conﬁguration ﬁles after they have been edited to reﬂect your network

preferences.

Apple/Macintosh Environments

9-4 July 1998

• NIC Conﬁg—provides a conﬁguration ﬁle with default NIC parameters.

To change network parameters listed in the ﬁle, copy the ﬁle, edit it,

then download it to the NIC using the Apple Printer Utility. Instructions

are included in the NIC Conﬁg ﬁle.

• Printer Conﬁg—can be used to update NIC parameters that may be

reported on a test print generated using the printer front panel. To

change network parameters listed in the ﬁle, copy the ﬁle, edit it, then

download it to the printer using the Apple Printer Utility. Instructions

are included in the NIC Conﬁg ﬁle.

• TeachText—for reading and editing user conﬁguration ﬁles.

Note: Problems may occur if you try to use these utilities for Kodak

printers that are not listed in this guide. Make sure you have

Macintosh utilities intended for your speciﬁc NIC.

9.4 Conﬁguring the NIC

9.4.1 Configuring the NIC in PostScript Printers

Utilities for Macintosh will work only for PostScript printers. Therefore,

your Kodak printer must be in PostScript mode when conﬁguring the

printer's network interface.

9.4.2 Configuring the NIC in Raster Only Printers

Use any of the utilities below if you have a Kodak printer that is raster

ONLY and

- you require parameters other than the defaults or

- you need to verify existing NIC parameters

• Telnet from any platform that supports TCP/IP. If your environment has

only Macintosh workstations, it may be necessary to acquire a

Macintosh - TCP application on one Macintosh for conﬁguring the NIC

by using Telnet

• Utilities for DOS/Windows platforms (recommended)

• Utilities for Unix platforms

Apple/Macintosh Environments

July 1998 9-5

9.4.3 Default AppleTalk/EtherTalk Parameters

Parameter change methods listed here presume the use of Utilities for

Macintosh.

IMPORTANT: Verify that the printers are operating properly on your

network using the default parameters before you change

the NIC configuration parameters.

Check, for example, the following:

• Does the printer (in PostScript mode) show up in Chooser under its

default name?

• Can you print ﬁles from a Macintosh when the printer is in PostScript

mode?

• Can you export ﬁles from a Macintosh when the printer is in raster

mode?

AppleTalk Name: “KDxxxxxx” where “xxxxxx” is the last 6 digits of the

NIC's Ethernet Hardware Address. Use the Namer utility to set up a more

descriptive name.

AppleTalk Zone: “*” The NIC will automatically discover the default

AppleTalk zone name for the subnet on which it physically resides.

To change, follow the procedure in the NIC Conﬁg ﬁle.

AppleTalk Phase: “2”. To change, follow the procedure in the NIC Conﬁg

ﬁle.

9.4.4 NIC Configuration Test Print

IMPORTANT: The pertinent 10/100 NIC Configuration Test Print is NOT

the test print generated from the printer's front control

panel. This test print can be generated ONLY on printers in

PostScript mode.

Obtain the pertinent (functional) NIC parameters by generating a NIC

Conﬁguration Test Print. To do so, set the mode switches on the NIC

(D1 Down, D2 Up) and then power cycle the printer.

Apple/Macintosh Environments

9-6 July 1998

When the NIC Conﬁguration Test Print is complete, set the switches back

into Normal (D1 & D2 UP) or Telnet (D1 Up, D2 Down) mode for normal

printing operation.

9.4.5 Printer Test Page

Generate a Printer Test Page using the Print key on the printer front

panel. Use the Print key only to verify printer operation, NOT to verify

network parameters.

If network parameters reported on the Printer Test Page, (i.e. EtherTalk

Name, TCP/IP Address) do not match the ACTUAL parameters reported

on the NIC Conﬁguration Test Page, this will not affect network operation.

However, to avoid confusion from mis-matching parameters reported on

the Printer Test Page, the following mechanisms can be used to modify

parameters reported on a Printer test Page as well as those displayed

through the front display panel.

AppleTalk Name, AppleTalk Zone, Preferred Server

Copy, edit, and download the Printer Conﬁg ﬁle to update the appropriate

parameters on the Printer Test Page to be consistent with the parameters

reported on the NIC Conﬁguration Test Page.

TCP/IP Address, AppleTalk Phase, IPX Frametype

Use the front control panel to enter remaining parameters on the Printer

Test Page consistent with parameters reported on the NIC Conﬁguration

Test Page.

9.4.6 Using the Apple Printer Utility for Downloading Configuration Files

You can change NIC conﬁguration parameters (other than the AppleTalk

name) by modifying a NIC conﬁguration ﬁle, then downloading the ﬁle to

the printer/NIC.

To modify and download a conﬁguration ﬁle with the Apple Printer Utility:

1. Open the Utilities for Macintosh diskette or folder.

2. Copy the NIC Conﬁg ﬁle. It should open with TeachText; if not, use a

text editor that saves as ASCII.

3. Edit the list of conﬁguration choices.

Apple/Macintosh Environments

July 1998 9-7

4. Save the list and quit TeachText.

5. Double click on the Apple Printer Utility icon.

6. From the plodding menu, select Window and then Selector.

7. If there is a router on the network, select the appropriate zone for the

printer.

8. Select the printer.

Note: When the Printer is opened, a warning may state that this is a

spooler and that all utility features may not work. Click Continue.

9. Select Download PostScript File from the File menu.

10.Select the ﬁle to download.

11.When downloading is complete, quit the program.

If an error occurs while downloading a conﬁguration ﬁle, an error

message will appear. If a log ﬁle is created after downloading a ﬁle, an

error occurred.

9.4.6.1 Using the NIC Config File

The table below lists the NIC conﬁguration options that you can change

by editing and downloading the NIC Conﬁg.

Note:

Option (Default is in Parenthesis)

Option Choice Description

EtherTalk phase 1 or (2) AppleTalk revision level.

EtherTalk Zone Zone Name AppleTalk zone the printer resides in.

Network Protocols Enabled

Sockets (Yes) or No

LPD (Yes) or No

Interwar (Yes) or No

EtherTalk (Yes) or No Operational Parameters

Set IP address Set IP Address

(0.0.0.0) Use to specify an IP address for NIC when

using TCP/IP.

Reset the NIC Yes or (No) Forces the NIC to restart when the printer is

power cycled.

Reset NVRAM to

defaults Yes or (No) Forces NVRAM values to be returned to their

defaults when the printer is power cycled.

Unix Environment

July 1998 10-1

10 Unix Environment

Refer to Kodak Printer/NIC Installation and ConÞguration Overview in

Chapter 1 for overall conÞguration process steps and details. This chapter

describes how to conÞgure the NIC and conÞgure a queue to submit Þles

to a Kodak printer in a Unix environment. Steps covered in this chapter

are highlighted in the list below.

Step 1: Assess your network/printing environment

Step 2: Gather the necessary components

Step 3: Install the NIC hardware

Step 4: ConÞgure the NIC

Step 5: ConÞgure the print servers

Step 6: ConÞgure the printer for use on workstations

Step 7: Printing

Note: Although Kodak does not develop printer drivers and export

modules for Unix platforms, we do assist third-party developers

who provide applications and drivers to support Kodak printers.

Refer to Appendix E, Technical Assistance, for information on

searching the Kodak Web site (www.kodak.com) for third-party

developer solutions.

10.1 ConÞguring the NIC from Unix (TCP/IP) Platforms

Devices on a TCP/IP network are identiÞed by an Ethernet and IP

address. You need to minimally establish an IP address on the NIC,

because the factory default IP address is Ò0.0.0.0Ó. The NIC Ethernet

address is on the NIC faceplate; the IP address is assigned by your

system administrator.

When the IP address in NVRAM is 0.0.0.0, the device uses RARP,

BOOTP and DHCP to acquire a valid address from a RARP, BOOTP or

DHCP server.

Use any of the following methods to assign the IP address:

Unix Environment

10-2 July 1998

¥ Set a static ARP entry. Make a telnet connection to port 2002, then set

the IP address with your Unix workstation. You must be on the same

subnet as the printer/NIC.

¥ Dynamic methods, RARP, BOOTP and DHCP, can also be used to

allow the NIC to use an unused IP address each time the printer is

power cycled. RARP is limited to use on the same subnet as the NIC.

BOOTP and DHCP can be used in larger networks across routers.

Consult your Unix system documentation for the use and syntax of

RARP, BOOTP and DHCP.

¥ Run the install script distributed on the Unix diskette. Refer to Section

10.3, Printer/NIC Setup using the Install Script, for details.

¥ Additional methods for setting an IP address from non-Unix platforms

are covered in Chapter 3, FastManage, and Chapter 9, Apple/

Macintosh Environments.

10.1.1 Setting the IP Address Using Arp and Telnet

Arp and Telnet work only if the device is on the same subnet as the host.

Once an IP address is set, you cannot change it using Òarp.Ó You must

use a NIC conÞguration utility to change it unless you reset the NIC to

factory defaults.

To add a printer named ÒkodakÓ with an IP address Ò123.4.5.6Ó and an

Ethernet address of Ò00:40:c8:01:02:ABÓ:

1. Set NIC mode switches in Telnet mode (D1 up, D2 down) then power

cycle the printer.

2. Add an Ò<IP Addr> <Name>Ó line, (i.e. 123.4.5.6 kodak) to the /etc/

hosts Þle.

3. Use one of the following arp commands to set the static arp entry for a

host on the same subnet as the device:

arp -s ether kodak 0:40:C8:1:2:AB (no leading zeros on RS-6000

systems)

arp -s kodak 0:40:C8:1:2:AB (no leading zeros on most Unix

systems)

arpbypass set kodak 0X00.0X40.0XC8.0X01.0X02.0XAB (AT&T

and NCR)

Unix Environment

July 1998 10-3

Note: The printer/NICÕs assigned IP address must be on the same local

subnet as the Unix workstation.

4. Make a telnet connection to maintenance port 2002. (Type: telnet

kodak 2002).

5. Press [!] and press [Enter].

Note: The following warning may appear: ÒEntering monitor will

lock out other Ethernet access. Type yes to get to

the command prompt.Ó Press [Enter].

6. At the menu option, press [I] and then [Enter].

7. Press [Y] for yes when prompted.

This address will be stored in the deviceÕs NVRAM.

8. Restart the device with the R command, then power cycle the printer.

10.1.2 Verifying IP Address is Set Properly

To see if the printer/NIC is up and running on the network, use the ping

command. Type: ping <ptrname> or ping <IP Addr>

A message that the host is alive or Packets received OK should

appear.

10.2 Introduction to LPD/LPR

Printing to LPD allows you to print as if the printer were directly attached

to a remote BSD Unix system. ConÞguration requires assigning an IP

address to the printer/NIC and setting up a remote BSD Unix-like printer.

Kodak provides an installation script to conÞgure the printer/NIC on Unix

and add printers.

The printer/NIC supports multiple queues by simultaneously printing via

LPD from a maximum of 12 different queues (limitation does not apply for

host software printing).

The device listens for LPD connections on 12 ports; if all 12 are in use,

the 13th LP daemon will not make a connection. If this happens, restart

the line printer daemon.

Systems that support LPD/LPR include:

Unix Environment

10-4 July 1998

¥ BSD systems

¥ System V Release 4 machines

¥ IBM RS/6000

¥ TCP/IP packages for VMS

¥ TCP/IP packages for DOS

¥ IBM, HP, or DEC mainframe machines that run TCP/IP

¥ Microsoft Windows NT 3.5

¥ OS/2 2.x with IBMÕs TCP/IP or LAN Server 2.x and above

10.2.1 Setting up LPD/LPR

Install the printer on every host that prints to the printer/NIC.

1. Install the printer/NIC on the network.

2. Assign an IP address to the printer/NIC.

3. LPD and Sockets are enabled on the NIC by default.

Two items are required to conÞgure an LPD printer:

¥ Remote system name (host name for the device).

¥ Remote printer name (anything can be entered). A ÒrawÓ data

type is used by default with the expectation that proper PostScript

or raster Þles will be submitted to correspond with the mode

selected on the printer.

10.2.2 Remote or Direct Network Spooling

The printer/NIC Unix software allows a user to spool directly or remotely.

In direct spooling, each Unix workstation spools to the device

independently. In remote spooling, one UNIX workstation sends print jobs

received from all other workstation to the printer/NIC. Both methods

require some conÞguration on all UNIX workstations.

10.3 Printer/NIC Setup using the Installation Script

The install.sh script should accommodate most BSD and System V Unix

systems for printing to the Kodak printer/NIC.

To load the Unix utilities software:

Unix Environment

July 1998 10-5

1. As root, create a local directory (i.e. Ò/tmp/kodakÓ) to load the

software and then go to that directory.

2. Load the software from the disk by putting the diskette into a drive and

typing:

tar -xvf /dev/<diskette drive device>

3. Type./install.sh to launch the install script.

4. Follow the Installation Options menus and prompts to establish an IP

address and conÞgure printer names and queues.

10.4 Manual NIC Installation for BSD Machines

1. Add an Ò<IP Addr> <Name>Ó line, (i.e. 123.4.5.6 kodak) to the /etc/

hosts Þle.

2. Edit the /etc/printcap to create an entry for the printer.

A sample entry for a printer called ÒkodakÓ:

kodak:\

:lp=:\

:rm=kodak:\

:rp=ps:\

:mx#0:\

:sd=/usr/spool/kodak:\

:lf=/usr/adm/lpd-errs:

3. Create a spool directory.

4. Create a spool directory owned by the daemon, such as:

mkdir /usr/spool/kodak

chown daemon /usr/spool/kodak

10.4.1 Manual NIC Installation for System V Machines

Access to printers in System V systems is through the LP scheduler.

System V administration commands allow users to create a printer

description Þle called an interface Þle. This is the Þnal Þlter in the LP

spooler that sets up a print job and is designed to customize the data for a

printer.

Unix Environment

10-6 July 1998

Enable LPD on System V systems by using SAM on HP/UX, admintool

on Solaris, or any other system administration tool. To install the printer/

NIC manually, use the following procedure.

1. Log in as root.

2. Create a dummy device in the /dev directory for use with the printer

(e.g., ÒkodakÓ).

touch /dev/kodak

3. Change its ownership, group and access rights with these commands:

chown lp /dev/kodak

chgrp lp /dev/kodak

chmod 660 /dev/kodak

4. Shut down the lp scheduler.

/usr/lib/lpshut

5. Add a line in this format to the /etc/lp/systems Þle.

kodak:x-:bsd:-:1:10:-:-:

where kodak is the host name of the printer/NIC.

6. Use the lpadmin command to add a new printer.

/usr/lib/lpadmin -p <printer> -s <host name>! <remote queue>

where printer is the printerÕs name, host name is the printers host

name, and remote queue is a predeÞned queue.

Issue the following command when adding a PostScript printer on

Solaris:

lpadmin -p<printer name> -I any

Printer name of the device may be same as the host name. Interface

directory usually has these paths:

For SCO, Solaris, DG/UX, UnixWare 2.X and Interactive systems, it is

/usr/spool/lp/admins/lp/interfaces.

For HP/UX and Silicon Graphics systems, it is

/usr/spool/lp/interface.

For SGI Irix system, it is /varspool/lp/interface.

For AT&T and Sequent systems, it is /usr/spool/lp/admins/lp.

Unix Environment

July 1998 10-7

7. Enable the printer and accept these print job commands:

enable <printer name>

accept <printer name>

10.5 Printcap File Parameters

Some commonly used entries in the printcap Þle are listed below.

Note: The number of copies option with LPR (LPR-number of copies) is

not supported. To suppress banner pages for individual print jobs,

use LPR with the -h option or turn off the banner printing via telnet.

The suppress header (sh) option in /etc/printcap Þle does not

work.

Name Type Default Description

af string NULL full path and name of the accounting

Þle

br number none baud rate

lf string /dev/console full path and name of error log

lp string /dev/lp device name to open for output

mc num 0 maximum number of copies

mx num 1000 maximum Þle size in blocks

of string NULL full path and name of output Þlter

pl num 66 page length

pw num 132 page width

rm string NULL name of machine for remote printer

rp string lp remote <queuename> argument (ÒpsÓ)

rc boolean false restrict remote users to those with

local accounts

rw boolean false open printer device read/write instead

of write only

sb boolean false short banner (one line only) (see Note)

sd string /var/spool/lpd spool directory

sh boolean false suppress burst page headers (see

Note)

tf string NULL troff data Þlter

Unix Environment

10-8 July 1998

10.5.1 TFTP Support for the printer/NIC

The NIC Þrmware supports printing and ßash loading using TFTP from

TCP/IP hosts. To do this:

1. Connect to the printer/NIC assigned IP address.

2. Put the Þle to be printed (or the ßash Þle).

The Þle will be printed on parallel port 1. The Þle cannot be printed on

any other port. If the Þle is a valid ßash upgrade Þle, the NIC will

automatically update its ßash memory.

3. Issue the quit command to close the TFTP session.

Printing

July 1998 11-1

11 Printing

11.1 PostScript and Raster Modes

Kodak printers with the PS extension support both PostScript and raster

printing. Models without the PS extension support only raster mode.

Kodak provides PostScript drivers for PostScript mode printing and export

modules for raster mode printing from Macintosh and Windows platforms.

The Adobe Photoshop application must be purchased from Adobe for use

with export modules (plug-ins).

11.1.1 PostScript Drivers

Printing in PostScript mode is supported by PostScript drivers for Kodak

printers for most efÞcient generation of PostScript code.

Any PostScript driver can be used to generate PostScript Þles to send to

a Kodak printer. However, these drivers may not produce code as

efÞciently as a Kodak driver. Also, generic PostScript drivers may not be

able to support Kodak printer-speciÞc features unless your system uses

product- speciÞc PPDs that any PostScript driver can access.

11.1.2 Raster Drivers

Raster mode is supported by a Kodak proprietary raster printing language

that can generate printing code that is even more efÞcient than PostScript

code generated by a Kodak driver.

11.1.3 Language Efficiency vs Network and Printer Performance

Kodak raster drivers and PostScript drivers for Kodak printers were

developed with full knowledge of the architecture of Kodak printers.

Printer code generation efÞciency is reßected as improvements in print Þle

transfer speed and printer processing performance.

11.1.4 Non-Kodak Printer Software

Applications and drivers are also available from third-party support

vendors for most platforms. For information on vendors and software

solutions, see the Kodak Web site: www.kodak.com.

Printing

11-2 July 1998

If a Kodak driver is not available, you can use a generic PostScript driver

or LaserWriter driver with the Kodak printer PPD Þle to generate

PostScript output.

11.2 Changing between PostScript and Raster Printing

Modes - Kodak 8xxx series Printers

1. Press Setup/Select on the display panel when READY appears in the

panel.

2. Press until SETUP:MODE appears.

3. Press Setup/Select to access the SETUP:MODE submenu.

4. Press until MODE:POSTSCRIPTÓor MODE:raster appears.

The currently selected version is indicated by an asterisk (*).

5. Press Setup/Select to make your choice.

6. Press until MODE:EXIT appears.

7. Press Setup/Select.

8. Press until SETUP:EXIT appears.

9. Press Setup/Select.

If you change the mode, wait for the printer to reinitialize and return to

READY.

Power

Error

Cancel

Setup/Selectscroll

”“

Printing

July 1998 11-3

11.3 Changing From PostScript to Raster Printing Modes - Kodak

DCP 9000/9300 Proofers

1. If the Indicator next to the ON LINE key is lit, then Press ON LINE on

the display panel when READY appears in the panel to take the

proofer OFF LINE.

2. Press MENU and SETUP:EXIT will appear.

3. Press until SETUP:MODE appears.

4. Press ENTER to access the SETUP:MODE submenu.

5. Press until MODE:POSTSCRIPT or MODE:RASTER appears.

The currently selected version is indicated by an asterisk (*).

6. Press ENTER to make your choice.

7. Press until MODE:EXIT appears.

8. Press ENTER.

9. Press until SETUP:EXIT appears.

10.Press ENTER.

If you change the mode, wait for the printer to reinitialize and return to

READY.

ON LINE

TEST

CANCEL/ ENTER

RESET

”“

Printing

11-4 July 1998

11.4 Printing in PostScript Mode from Windows/DOS Systems

11.4.1 Printing from Windows

To print from applications to a Kodak printer in PostScript mode:

IMPORTANT: To avoid printing problems, make sure that ÒCtrlDÓ job

termination is disabled in Printer PostScript properties.

1. Select File>Page Setup and verify settings consistent with your

printer.

2. Select File>Print.

3. Select the printer that was created by the Add Printer mechanism.

4. Check printer settings for consistency with current printer media

before selecting OK.

11.4.2 Printing from DOS

NPrint

Print to the printer as if it were any other Novell print server. For example,

use the Novell CAPTURE command to redirect one of the LPT ports to a

queue serviced by the Network Interface Card. If the Þle server is named

raisa and the queue is named lp1, the command to redirect to LPT1

would be:

CAPTURE /S=raisa /Q=lp1

Use NPRINT to print as shown in the following example:

NPRINT myÞle S=raisa Q=lp1

You can include the /notify option to send a message to users who send

jobs once the jobs successfully print. For example:

NPRINT myÞle S=raisa Q=lp1 /notify

Copy

Use COPY to print to an LPT port redirected to a network port.

COPY myÞle LPT1

Printing

July 1998 11-5

LPR

The example below illustrates how to use the lpr command to send a Þle

to the printer from the DOS command line.

In this example, the server name is server1, and the printer name is 8650.

lpr -S server1 -P 8650 \fullpath\Þlename

11.4.3 Eliminating ÒCtrlDÓs from Print jobs

11.4.3.1Windows 3.x Systems

To eliminate the CtrlDs from PostScript output Þles on Windows 3.x

systems, a C:\WINDOWS\WIN.INI Þle must be edited.

Within the C:\WINDOWS\WIN.INI Þle, search for any occurrences of

Kodak printers and/or LPT ports that they may be associated with. A

typical entry might look like:

[Kodak DS 8650 PS, LPT1]

After this line, add the following line:

CTRLD=0

Save the Þle, and try printing it again.

11.4.3.2Windows 95 and Windows NT 3.51Systems

To eliminate the CtrlDs from PostScript output Þles on Windows 95 and

Windows NT systems, use the Printer >Properties setup menus and

select PostScript >Advanced features.Turn off the CtrlDs before and after

the job.

11.5 Printing in PostScript Mode from Macintosh Systems

To send PostScript Þles to a printer in PostScript mode, use the File>Print

function from applications. A pre-existing PostScript Þle can be

downloaded to the printer using the LaserWriter Font Utility.

Printing

11-6 July 1998

To select a Kodak printer in PostScript mode, select the Chooser from the

Apple Menu Icon, then select the following:

¥ Active for AppleTalk

¥ AppleTalk zone

¥ Appropriate Kodak printer icon (Left Chooser Window)

¥ Appropriate printer (Right Chooser Window)

1. Select File>Print from applications

2. Check Page Setup for consistency with current printer media before

selecting OK.

11.6 Printing from BSD UNIX Systems

Commonly used BSD print commands include:

An example for printing a Þle:

lpr -P8650ps Þlename.ps

11.7 Printing from UNIX System V Systems

Some common System V print commands are listed below.

BSD Print Commands

Command Function

lpr -p <printer> <Þle> Prints the Þle to the printer.

lpq -p <printer> Displays any active queues for the printer.

lpc stat <printer> Interactive program for printer management.

lpc clean <printer> *Remove all print jobs for the printer.

lpc restart <printer> *Restart this <printer> queue.

lprm -p <printer> <job#> *Removes the <job#> from the print queue.

Command Function

lp <Þle> Print deÞned Þle to default printer.

lpstat -t Display status of all printing jobs you

started with lp.

cancel <job-number> Remove a deÞned job from the print

queue.

lpc Type status after entering the lpc command

to display the status of the printers.

Printing

July 1998 11-7

11.8 Printing from VMS Systems

Printing with MultiNet on a VMS host

The NIC works with a MultiNet stream queue on a VMS host. Invoke

MultiNet's printer conÞguration utility to add a VMS print queue by

entering the following command:

multinet conÞgure/printers

The printer conÞguration utility will prompt you for the IP address, the

protocol type, and the queue name. Specify lpd as the protocol type, and

ps as the queue name.

The change takes effect at the next system boot up. To make it effective

immediately, invoke the COM procedure:

@MULTINET:REMOTE-PRINTER-QUEUES

Printing with WIN/TCP on a VMS network or with DEC UCX 2.0

Refer to your userÕs guide for details on installation and printing. Specify

ps as the remote queue name and the host name of the NIC as the

remote machine name.

11.8.1 Printing in Raster Mode from Windows and Macintosh Platforms

Kodak supports printing in raster mode only through the use of Kodak

printer-speciÞc export modules for Adobe Photoshop.

To select raster mode,

1. Select Export from the File menu.

A Select a Kodak Printer screen appears.

2. Click on Network or Update to view and select printers that are in

raster mode.

After you select a printer, an export module print screen appears; you can

now set up printer/printing parameters and export raster Þles from Adobe

Photoshop.

Printing

11-8 July 1998

To print to a Kodak printer in raster mode:

1. Install a Kodak export module.

2. Select File>Export from Adobe PhotoShop.

3. Click on Network or Update to view and select printers that are in

raster mode.

4. Select the printer OR queue associated with your printer.

5. Check printer settings for consistency with current printer media

before selecting OK.

Troubleshooting

July 1998 12-1

12 Troubleshooting

For easier referencing, troubleshooting steps are consistent with the

following ÒNIC and Printer Installation/ConÞguration OverviewÓ steps outlined

in theÓNIC Intro/OverviewÓ chapter :

¥ Step 1: Assess your Network/Printing Environment.

¥ Step 2: Gather Necessary Components.

¥ Step 3: Install the NIC Hardware, if necessary.

¥ Step 4: ConÞgure the NIC, if necessary.

¥ Step 5: ConÞgure print servers, if necessary.

¥ Step 6: ConÞgure the printer on user workstations.

¥ Step 7: Printing:

A troubleshooting ßowchart is provided with steps consistent with the

ßowcharts in the ÒIntroductionÓ chapter and ÒQuick Reference GuideÓthe

with references to further information. Also, step details are provided after

the ßowchart.

Troubleshooting

12-2 July 1998

Step 1:Determine your Network and Printing Environment. (Ch1:Intro/Overview)

(NIC supports TCP/IP, Novell Netware, AppleTalk & Native Windows (NetBeui) Protocols.)

Verify that NIC conÞguration parameters are consistent with your network environment

preferences.

Step 2 : Gather Necessary Hardware & Software Components. (Ch1:Intro/Overview)

NIC, NIC ConÞg S/W, Printer, Printer ConÞg S/W

(Kodak PostScript Drivers and Raster Export Modules)

Verify that you have the latest releases of printer and NIC software and Þrmware.

Refer to ÒTechnical AssistanceÓ (appendix) and Kodak website (www.kodak.com)

NIC Pre-installed in Printer ?

Yes

Troubleshooting Printer/NIC Installation and ConÞguration Steps

Step 2A : Verify Standalone Printer Functions OK.

Printer powers up and displays ÒREADYÓ?

Step 2A : Printer Errors.

Check paper tray settings, paper and ribbon

for consistency..

Yes

Goto 3A : Verify NIC Hardware

Go to Step 3 : Install the NIC in the Printer

Troubleshooting

July 1998 12-3

Step 3 : Install the NIC in the Printer.

(Ch1-ÓNIC Hardware InstallationÓ, Appendix-ÓNIC H/WÓ)

VeriÞy the NIC H/W when the Printer is ÒReadyÓ and ON the Network :

(Green ÒLinkÓ LED shoud be ON and Yellow ÒNetÓ LED should be BLINKING with net trafÞc.)

3A : Green ÒLINKÓ LED ON ?

(Network connectivity to Hub ?)

Verify cabling, port, hub/switch, etc. :

Does any other known working network

device work OK when plugged into the

same cable and port as the printer ?

Yes

NIC or Printer Defective :

1) Replace NIC. Goto 3A

2) If no difference with new NIC,

Replace Printer. Go to 3A.

Fix network cabling,

ports, etc. and go to 3A.

3B : Yellow ÒNETÓ LED ON ?

(Net TrafÞc detected ?)

Verify cabling, port, hub/switch, etc. :

Does any other known working network

device work OK when plugged into the

same cable and port as the printer ?

Yes

NIC or Printer Defective :

1) Replace NIC. Goto 3A

2) If no difference with new NIC,

Replace Printer. Go to 3A.

Fix network cabling,

ports, etc. and go to 3A.

Refer to Appendix -

ÒTechnical AssistanceÓ

Refer to Appendix -

ÒTechnical AssistanceÓ

3C : Print NIC ConÞguration Test Page.

Goto Step 4 : ÒConÞgure the NICÓ

Troubleshooting

12-4 July 1998

4B : Network Parameters on NIC ConÞguration Test

Page Correct ?

4A : Printer Recognized on the desired Platform ?

VeriÞy that the NIC is functional on the network and that NIC conÞguration test page

parameters are correct.

For Windows Network Neighborhood and Mac Choosers, printer advertizes as ÒKDxxxxxxÓ ?

For UNIX, can you ÒpingÓ the Printer after assigning an IP address

Yes

Step 5 : ConÞgure Servers, if necessaryÓ

Refer to sections after this ßowchart for Novell & NT troubleshooting details.

Step 6 : ConÞgure pertinent Workstations for printing to the Kodak printer.

Refer to platform speciÞc chapters and to sections after this ßowchart for troubleshooting

details.

Step 7 : Print

Refer to the ÒPrintingÓ Chapter for details.

4C : For Windows, use FastManage.

For Macs, Use Laserwriter Utilities.

For UNIX, use Telnet.

Telnet may also be used on any

platform that supports TCP/IP.

Yes

Step 4: ConÞgure the NIC. (Ch3:FastManage, Ch9:Apple/Macintosh, Appendix: A Telnet)

Recommendation: Use defaults until successful network printing is demonstrated.

Complete the following if using TCP/IP. (TCP/IP minimally requires an IP Address).

The quickest method (when IP = 0.0.0.0) is to use ÒarpÓ and ÒtelnetÓ commands.

1) Set NIC mode switches in Telnet mode (D1 up, D2 down) and power cycle printer.

2) Use arp -s <IP Address> <NIC Ethernet Address>

3) Use telnet <IP Address> 2002.

5) Follow Telnet Ethernet>TCP/IP>Set IP menus to set IP address and then Reset the NIC.

6) Power cycle the printer.

Troubleshooting

July 1998 12-5

12.1 Verifying Standalone Printer Functions

If you are having trouble printing, Þrst verify that the standalone printer with

no network interface connection operates correctly. Secondly, verify that the

printer is conÞgured correctly when connected to your network. If necessary,

go to the sections that pertain to the speciÞc platform and protocol used.

1. Is the printer plugged in, turned on, and displaying the ÒREADYÓ

prompt?

2. Is there an error message displayed on the printer?

Refer to the user's guide for the printer for information about error

messages that appear on the front control/display panel. Error code

numbers typically indicate that the printer hardware requires service.

3. Does the paper size displayed on the front control/display panel

match what is actually in the tray?

If not, the paper tray may be an adjustable tray that has not been

properly set up. Check and/or adjust the paper size selection switch

on the side of the tray for the proper paper size setting.

4. Is the printer in the appropriate mode (PostScript or Raster)?

PostScript mode is necessary for PostScript Þle printing. The printer

should only be in Raster mode when using the export module in

conjunction with Adobe Photoshop or when using another vendorÕs

application that speciÞcally states support for Kodak printers in

Raster mode.

If necessary, select the proper mode from the printerÕs front control/

display panel. Refer to ÒChanging the Printing ModeÓ in the ÒPrintingÓ

section.

5. Make a test print by pressing ÒPrintÓ on the printer front control panel

to determine if the printer is functioning in PostScript and/or Raster

modes. Do not be alarmed if your particular printer does not support

both modes of operation. Make sure that paper and ribbon are

loaded. To make a test print, press the print button on the printer

when Ò:READYÓ appears in the display panel.

Troubleshooting

12-6 July 1998

12.2 Verify Network Connectivity

1. When the printer Þnishes initialization and the front display/control

panel displays the message ÒREADY,Ó check that the LEDs on the

back of the printer operate correctly.

¥ The Yellow LED should illuminate and be in a stable condition. If

the light does not illuminate or is unstable, check the connectivity

between the Network Interface Card and the network hub switch.

If the connectivity is correct, the Network Interface Card may be

defective.

¥ The Green LED should blink intermittently indicating a burst of

trafÞc on the network. If the Green LED does not blink, the

Network Interface Card may be defective.

2. Make sure that the mode switches on the Network Interface Card are

set correctly. For printing the NIC must be in ÒNormalÓ (D1 & D2 Up)

or ÒTelentÓ (D1 Up, D2 Down) mode for printing. If necessary, refer to

the NIC Mode Switch diagram in the NIC installation chapter.

3. Make sure that the network cables are connected correctly and are

in good working condition. If necessary, install a new cable.

If the printer can print from the parallel or Local Talk ports, check for

the correct network setup.

12.3 Verify Network Parameters

1. With a printer in PostScript mode, make a NIC ConÞguration Test

Print if you have not already done so. The NIC must be in ÒTest

PageÓ (D1 Down, D2 Up) mode and power cycled to print a NIC Con-

Þguration page.

Verify that pertinent AppleTalk, IPX, NetBeui and/or TCP/IP

parameters that have been set up are correct.

Raster only printers can not print a NIC conÞguration Test Print.

Instead, use NIC conÞguration utilities to verify network parameters.

2. Power cycle the printer. Under some circumstances the printer may

lose network communications with the host and not regain them until

a reinitialization occurs. Parameters that are conÞgured on the NIC

are not effective until you power cycle the printer.

3. You may want to reset the NIC to factory defaults by using the NIC

faceplate mode switches. Refer to ÓAppendix CÓ for instructions on

resetting the NIC.

Troubleshooting

July 1998 12-7

12.4 Verify Application and Printer Parameters

1. Is there an error indication on the front control/display panel that the

wrong ribbon is in use with a ÒLoad Oversize RibbonÓ message or

the wrong paper with a ÒLoad PaperÓ message?

If pressing the ÒPRINTÓ button on the front control/display panel

results in a print, this is an indication that the printing problem is due

to a mismatch between application ÒPage SetupÓ and ÒPrintÓ menu

page/ribbon selection parameters and what is actually in the printer.

Check options in both menus carefully because some applications

require consistent selections in more than one menu.

2. In situations where a Kodak PostScript driver is not available, for

example on UNIX platforms, features pertaining to media may not be

selectable through the application being used. Some media features

are selectable, however, from the printer control/display panel. By

selecting the following, these characteristics can be set as defaults:

SETUP >DEFAULTS >MEDIA,

TYPE (Paper/Transparency/Draft) and

COLOR (Standard/Commercial/Publication)

12.5 Novell NetWare Installations

1. Check initial steps listed in this troubleshooting section to verify

printer and parameters and connectivity.

1. The primary or preferred server is the name of the Þle server that

contains the printerÕs Novell queue. Make sure a preferred server is

deÞned on the NIC.

2. Check the NIC ConÞguration test print to verify that the preferred

server is correct.

3. Make sure that your queue and print server names for the Network

Interface Card match those speciÞed in the conÞguration Þle and that

the queue is assigned to that server.

4. Check the display panel for error messages. Refer to the appropriate

user's guide for information about error messages.

5. Check to see if the Þle server is on line. Use the NetWare SLIST

command to list the currently available Þle servers.

6. Make sure the number of logged-in users does not exceed the user

license limit.

Troubleshooting

12-8 July 1998

7. From the DOS command line, enter the NetWare command

USERLIST (3.x) or NLISTUSER/A/B (4.x) to verify that the printer

has logged into the Þle server. The USERLIST (3.x) or NLISTUSER/

A/B (4.x) command displays all logged-in users from the currently

attached Þle server. Verify that your workstation is attached to the

printerÕs deÞned Þle server before running USERLIST (3.x) or

NLISTUSER/A/B (4.x). The printer should log in as the <print server>

name.

8. Check to see if the print queue has been disabled. If the queue is

enabled but your job is not in it, a workstation problem has prevented

the job from entering the print queue. Check the workstation.

9. Check the print queue contents using the PCONSOLE command.

10. If the printer has not logged in (determined by using the USERLIST

(3.x) or NLISTUSER/A/B (4.x) command), check the printers display

panel for error messages.

11. Verify that names were deÞned according to the instructions for

installation.

12. Verify that the correct frametype is chosen under the menu selection

PORTS:IPX of the display panel. The Þle server and printer must use

the same frametype.

13. Verify that CAPTURE has been run for the appropriate parallel port.

12.5.1 Netware debug via Telnet session

The following is a telnet session depicting NIC - Novell Primary Server Login

Process upon powerup :

telnet<IP Address>2002

NOTE: The Ôscript <Þlename>Ôis not necessary unless you want to

save the telnet session results to a Þle.

(Primary server = BINFORD)

/nic/telnet_test (1) script telnet.doc

UNIX Script started on Tue Oct 22 15:47:23 1996

/nic/telnet_test (2) telnet 159.56.12.62 2002

Trying 159.56.12.62.

Connected to 159.56.12.62.

Escape character is'^]'.

Troubleshooting

July 1998 12-9

Telnet Console on

Type "S" to see current status

Revision 1.2, Datecode 11/16 1994 10:6

No active job

status: idle

Getting route for BINFORD

route for BINFORD = 0 60 2f bf 35 8b

Getting route for D294-FPN1

route for D294-FPN1 = 0 60 2f bf 35 8b

. . .

Getting route for HSD_SAA_1

route for HSD_SAA_1 = 0 60 2f bf 35 8b

Found servers:

0: BINFORD

1: D294-FPN2

2: D294-FPN1

. . .

23: HSD_SAA_1

Trying to read Þle SYS:LOGIN\KODAK\K090681 on server BINFORD

Read ConÞg Þle:

BINFORD:TPS_LAB3_8650:TPS_LAB3_PS:::

Attaching queue TPS_LAB3_8650 on server BINFORD

Queue TPS_LAB3_8650 attached

telnet> q

Connection closed.

/nic/telnet_test (3) exit

UNIX script done to telnet.doc on Tue Oct 22 15:57:57 1996

Troubleshooting

12-10 July 1998

12.6 NT Installations

1. Check initial steps listed in this troubleshooting section to verify

printer and parameters and connectivity.

2. On NT systems, you may encounter corruption of data when printing

Þles over 5 Mbytes. Color bands may appear across the printed

image. This condition can be corrected by setting up server

properties to accept the entire print job before passing the Þle on to

the printer. For Windows NT 3.51 for workstations and servers ÒJob

Prints While SpoolingÓ must be deselected. For Windows NT 4.0 for

workstations and servers ÒStart Printing After Last Page SpooledÓ

must be selected.

3. Some systems such as Windows NT come with Kodak drivers

provided by Microsoft. If you use these drivers, you may encounter

problems. Be sure to install drivers provided by Kodak. When in

doubt, refer to the Kodak web site for availability and the latest

versions of drivers. Refer to ÒGetting HelpÓ for information on how to

access the Kodak web site.

4. You may encounter problems if you install drivers on remote

workstations by downloading them from an NT server. We

recommend that you install the printer driver and/or the export

module on each server and workstation on your network. When you

set up the servers for sharing, install only the software relevant to the

operating system for the server.

5. If you are setting up an NT ÒAppleTalkÓ printer or queue, it will only

work for PostScript mode printing from Windows. Exporting Þles to

Kodak printers in ÒRasterÓ mode via AppleTalk protocol is possible

only with Macintosh platforms.

6. If you are setting up an NT ÒAppleTalkÓ printer or queue and

ÒCaptureÓ the printer, Macintosh users will no longer see the printer

advertized by its ÒAppleTalk NameÓ. You should verify, however, that

they can see and select the printer by its ÒNT AppleTalk Queue

NameÓ.

Troubleshooting

July 1998 12-11

12.7 AppleTalk Installations

1. Check initial steps listed in this troubleshooting section to verify

printer and parameters and connectivity.

12.7.1 PostScript mode

1. Check the test print to verify that the preferred server is correct.

2. Are both the computer and the printer set for the same EtherTalk

phase (Phase 1 or Phase 2)?

3. Has the AppleTalk/EtherTalk network driver been selected in the

Network/AppleTalk control panel?

4. If the name of the correct printer driver does not appear as a

selection in the Chooser, verify that the printer driver was properly

loaded on the host. Check for the existence of your Kodak printer Þle

in the System FolderÕs Extensions folder.

If the host driver software is not there, install it according to the

instructions in the userÕs guide for the software.

5. Does the printer name appear as a selection in the Chooser? If not,

check the following:

¥ Make sure that AppleTalk is enabled (the Active button in the

Chooser should be selected).

¥ Make sure that the printer has been on for at least 3 minutes.

¥ If the printer is installed on a network with multiple zones, check

the other zones for the printer. The printer will boot up to the

default zone that is supplied by the network router.

¥ Make sure that the printer has been selected in the Chooser.

¥ If background printing is enabled, open the Print Monitor and

check for error conditions at the printer.

Raster Mode

1. Are both the computer and the printer set for the same EtherTalk

phase (Phase1 or 2)?

2. Has the AppleTalk/EtherTalk network driver been selected in the

Network/AppleTalk Control Panel dialog box?

Troubleshooting

12-12 July 1998

3. The appropriate printer must be selected for the export module. You

can do this by opening the Export Module dialog box and checking

the printer that is displayed in the Printer group box. If the correct

printer is not displayed, click on Select; and use the dialog box

options that appear to select the appropriate printer from the dialog

box.

Refer to the userÕs guide for the export module for more information.

4. Does the printerÕs name appear as a selection in the select window?

If not, make sure that the printer has been on for at least 3 minutes.

12.8 TCP/IP Installations

1. Check initial steps listed in this troubleshooting section to verify

printer and parameters and connectivity.

In the examples below, 8650 PS printer is the host name for the Network

Interface Card, and the host software is loaded in the directory /usr/local/

kodak.

The printer appears to be ready, but you cannot print

Check the /etc/hosts Þle and see whether the IP address is set correctly.

If the system uses Yellow Pages or NIS, use the following command to view

the hosts database:

ypcat hosts

Use the following command to view the IP address for the host 8650 PS

printer:

ypmatch DS 8650 hosts

If the following message appears, your system does not use NIS:

canÕt bind....

If the system uses NIS and you have changed the /etc/hosts or /etc/ethers

Þle, update the database by entering the command:

cd /var/yp; make

This updates the databases for both the YP server and the clients.

The IP address is correct, but you cannot print.

Enter the ping command and the host name:

ping -s <printername>

Troubleshooting

July 1998 12-13

This sends a packet to the Network Interface Card once every second. To

abort the ping command, use Ctrl-C or the Delete key. If a message like the

following appears, check the cable; and try it with another transceiver.

No answer from <printername>

You can ping the printer but cannot print.

The problem is with the lpr/lpd setting.

Verify that the printcap entries are correct. Each line should begin with a

colon (:) and except for the last line should end with:\. Each line after the Þrst

line should be indented (tabbed). A sample entry is shown in ÒUNIXÓ

Systems.Ó

If there are problems in the printcap entries, the Þles will not print, and you

will get the message Òwarning: no daemon presentÓ when you try to look at

the print queue using the lpq -P <printername> command. The Þle /usr/adm/

lpd-errs will contain error messages explaining why the Þle was not printed.

Check for error messages.

You can only print small Þles.

If large Þles (usually 1 MB or more) fail to print, check to see if the printcap

entry contains a line reading:mx#0. If the line does not exist, you should add

it. You should also check to see if there is enough room in the spool directory

to accommodate large Þles.

You cannot print from a DOS or Windows application.

If you cannot print from the application you are using, redirect the output to a

Þle from the application, and print the Þle from the command line. This will

help you to determine if the application is sending the data properly or if a

problem exists at the application or driver level.

NIC Telnet

July 1998 A-1

Appendix A NIC Telnet

If you are using TCP/IP protocol and have set up an IP address on the

NIC, a NIC Telnet session can be established that provides complete

control over all network protocols and related parameters.

A.1 NIC Telnet Mode

To invoke a Telnet session, place the mode switches on the NIC faceplate

in Telnet mode (D1 up, D2 down). To obtain a printout of the current NIC

conÞguration parameters, use Test Page mode (D1 down, D2 up). NIC

operating modes and settings are listed in the following table.

IMPORTANT: You must power cycle the Kodak printer for a NIC mode

change to take effect.

A.2 NIC Telnet Session

The Telnet/diagnostic port address on the NIC is 2002.

Macintosh TCP

For the Session name, enter the <IP Address>, a space, and then

2002.

Windows

For the Host name, enter the <IP Address>.

For the Port Type, enter 2002.

Selecting an Operating Mode

D1 D2 Mode Description

Up Up Normal Default. Does not allow a Telnet connection. Users can print

to the unit.

Up Down Telnet

Diagnostic

Allows a Telnet connection to change its parameters. Users

can also print when a Telnet monitor session is open.

Down Down NA Used to reset conÞguration parameters.

Down Up Test Page A parameter test page is generated when you power cycles

the printer. Print jobs are not accepted. NOTE: The printer

must be in PostScript mode. For raster-only printers, obtain

the parameters via a Telnet session.

NIC Telnet

A-2 July 1998

Unix:

Telnet <IP Address> <Port Address>

Ex: Telnet 123.234.10.5 2002

A.3 Telnet Diagnostic and ConÞguration Commands

C Ñ ConÞgure console (for status monitoring)

D Ñ Display summary conÞguration parameters

F Ñ Flash Þrmware load enable/disable

H Ñ Displays help menu

I Ñ Display/set IP address

L Ñ Limit monitor network access by password

N Ñ Network protocols menu

R Ñ Reset the NIC

Z Ñ Reset parameters to factory defaults

+ Ñ Print PostScript test page

A.4 Sample Telnet Session depicting Monitor options

Ver 6.1 Build 7, Datecode 4/1/1997 10:12

Type ÒSÓ to see current status

Type ÒDÓ to see current conÞguration

Type Ò!Ó to enter monitor

Type ÒAÓ to abort connection

A.4.1 CÑConfigure Console (for status monitoring)

Console options:

1 (Off)

2 (On - via network only)

<enter> (don't change/continue)

A.4.2 DÑDisplay summary configuration parameters

Command [?,C,D,E,F,H,I,L,N,Q,R,S,Z,*,+] --> d

Kodak 10/100 NIC (3011EK)

Firmware revision 6.1.5, Build 7, Datecode 3.13 1997 16:02

NIC Telnet

July 1998 A-3

Ethernet address:00 40 C8 00 0B 0B

IP address:0.0.0.0

Console status monitoring: Off

Network monitor password security: Off

TCP sockets enabled.

LPD enabled.

Netware enabled.

Microsoft Windows print services enabled.

AppleTalk enabled.

(type ÒNÓ in monitor to view the network protocol parameters)

A.4.3 FÑFlash firmware load enable/disable

Flash load is enabled.

This Bank: Vers. 6.1.5, Datecode 3/13/1997 16:15, (in Bank #1,

seqNum=10)

Other Bank: Vers. 6.0.29, Datecode 2/25/1997 12:20, (in Bank #0,

seqNum=9)

Flash load currently is enabled. Disable, yes or no (y or n)?:

Special Options for Flash Code Image Control:

1 (Restart Running Image in Other Bank)

2 (Copy This Image into Other Bank)

3 (Display ßash chip information)

<enter> (don't change/continue)

A.4.4 IÑDisplay/set IP address

current IP address: 0.0.0.0

Enter new IP address: 199.86.12.165 (<cr> for no change)

new IP address: 199.86.12.165

NIC Telnet

A-4 July 1998

A.4.5 LÑLimit monitor network access by password

Network monitor password security currently Off

Monitor Security

1 (Off)

2 (On/New Password)

3 <enter> (don't change/continue)

A.4.6 NÑNetwork protocols menu

Network Protocols Menu:

AÑAppleTalk options

MÑMicrosoft Windows print services options

NÑNetWare options

SÑSNMP options

TÑTCP/IP (sockets, LPD, RARP, BOOTP, TFTP) options

XÑReturn to Main Menu

AÑAppleTalk options

AppleTalk enabled

AppleTalk Phase 2

Default zone name: *

Printer name: KDxxxxxx

Modify?, yes or no (y or n)?:n

MÑMicrosoft Windows print services options

Microsoft Windows print services enabled

Workgroup / Domain: WORKGROUP

Machine Name: KD000B0B

Services: PRINTER

Modify?, yes or no (y or n)?:n

NIC Telnet

July 1998 A-5

NÑNetware options

Netware enabled

Print Server name used in SAP packets: KD000B0B

Auto-sense frame type

No primary server conÞgured

NotiÞcation disabled

Queue scan rate: 1 sec

Netware Directory Services (NDS) enabled

Tree name:

Context:

Modify?, yes or no (y or n)?:n

A.4.7 TÑTCP/IP (sockets, lpd, rarp, bootp, tftp) options

(E) Engine options (IP address, RARP, BOOTP, etc.)

(S) Socket Options

(L) LPD Options

(X) Exit

SNMP Options:

Current SNMP Trap Hosts:

0.0.0.0

Get community string is public

Set community string is private

Modify....

EÑTCP/IP engine options:

IP address: 0.0.0.0

RARP: Enabled

DHCP: Disabled

BOOTP: Enabled

BOOTP request interval: 2 hours

Subnet Mask: 0.0.0.0

Default Router: 0.0.0.0

Syslog Host: 0.0.0.0 Syslog Priority: 2

NIC Telnet

A-6 July 1998

Modify?, yes or no (y or n)?:n

TCP/IP menu options: (S) Socket Options

TCP Sockets enabled

Modify?, yes or no (y or n)?:n

TCP/IP menu options: (L) LPD Options

LPD enabled

LPD mode: DonÕt time out on printer error

Modify?, yes or no (y or n)?:n

TCP/IP menu options: (X) Exit

A.4.8 ZÑReset nvram to factory defaults

Also reset IP address?, yes or no (y or n)?:n

nvram reset to factory defaults

A.4.9 +ÑPrint PostScript test page

Printing PostScript test page on printer

A.5 Finishing Up a Telnet Session

If, when you Þnish a telnet session, you made no changes, you may

simply end your Telnet session.

If you changed one or more parameters:

1. Type R to Reset the NIC using the new parameters

2. Power cycle the printer to synchronize the printer and NIC.

To prevent unauthorized Telnet sessions that could cause conÞguration

changes, set the faceplate mode switches to Normal mode (D1 & D2 in

UP position), then power cycle the printer.

Third Party Network Applications and Utilities

July 1998 B-1

Appendix B Third Party Network Applications and Utilities

B.1 Windows 95 LPR Utilities

Other vendors provide utilities that allow printing from Windows 95 using

lpr.

B.2 PC-NFS for Windows

The NIC was designed as a direct network interface for printers in Unix

environments that support the line printer daemon (lpd). The NIC also

works with PC/TCP-compatible software, such as PC/TCP FTP, and with

VMS systems that support (lpd).

PC-NFS enables DOS users shared printers attached to hosts or to PCs.

PC-NFS users can access the printer through their Unix PC-NFS server

and print jobs at the rated speed of the printer.

To set up a shared printer:

1. Install PC-NFS on your PC. See your PC-NFS installation guide for

instructions.

2. Set up a PC-NFS server as described in the PC-NFS installation

guide. Make sure that the server runs the PC-NFS daemon

rpc.pcnfsd.

3. Set up a printer on the PC-NFS server as described in Chapter 10 in

this guide.

4. Edit the serverÕs /etc/exports Þle and add the print spool directory to

the list of directories being exported to the PCs running PC-NFS.

Make sure that the PCs have read and write access to this directory. If

the spool directory is not exported, PC-NFS will not mount the printer.

Third Party Network Applications and Utilities

B-2 July 1998

5. Update the list of exported directories using the command:

exportfs -a

6. Mount this printer using either the nfsconf program or the following

command:

net use <print device>: <host>:<printer name> [/option [/option]...]

(Enter the command on one line without returns.)

Note: The print device can be either lpt1, lpt2, or lpt3. The host is the

server name; the printer name is the name assigned to the printer.

7. Use the net printers command to see a list of printers attached to the

server.

net printers <servername>

8. Select raw mode of data transfer while mounting a printer in PC-NFS

for printing PostScript Þles.

Upgrading NIC Firmware and Resetting NIC to Factory Defaults

July 1998 C-1

Appendix C Upgrading NIC Firmware and Resetting NIC to

Factory Defaults

C.1 Upgrading the Flash EPROMs

The Flash EPROM memory feature allows you to upgrade future Þrmware

releases without opening the unit and replacing the EPROM chip.

If the download is successful, the unit will reset itself and run the new

Þrmware. If the download fails, the ßash job will print; one of the Þrmware

banks will become corrupt, the NIC may become inoperable, or the ßash

job will be rejected when the checksum is determined invalid.

Resetting the NIC terminates any print jobs in progress.

Repeat the download of the Þle if the download fails printing to the printer,

although failure usually means that the Þle is incorrect.

C.2 Using the Network Download Procedure

ConÞrm that you have the latest Þrmware version using a Telnet session

or the Kodak NIC Manager. Check the Kodak Web site (www.kodak.com)

to Þnd out if the Þrmware has been upgraded. To upgrade your system,

complete the steps in section C.2.1.

C.2.1 Downloading the Flash Image

To perform a network-based upgrade of the Flash EPROMs

Þrmware =>4.8:

1. Verify that the network download option is enabled.

2. Download the Þle to the printer, without sending the print job through

the printer driver.

Note: Downloading Þrmware may take up to 10 minutes. A useful tool for

downloading and monitoring progress is the Windows FastManage

Discovery tool. Use Discovery > Action > TFTP. A NIC telnet

session will also provide an indication that the NIC is accepting the

Þrmware.

Upgrading NIC Firmware and Resetting NIC to Factory Defaults

C-2 July 1998

The NIC recognizes the Þle as a Þrmware image and loads it into

memory instead of printing it. Once it is loaded and its checksum

values are veriÞed, the NIC automatically resets itself and runs the

new Þrmware.

Note: If an error or process interruption occurs, the NIC continues to run

the old Þrmware and sends an error message to the console.

C.2.2 Recovering from a Failed Download

During the ßash download procedure, an error may cause the ßash

update to fail. If this occurs, the NIC will remain at its current Þrmware

release or will fail to reboot properly.

If the NIC remains at its current Þrmware release, retry the download. If it

fails to start up correctly, it may store an alternate bank of code that can

be restored.

To recover from a failed download:

1. Reset the NIC to factory defaults.

2. Put front panel switches D1 and D2 down.

3. Power cycle the unit.

4. After powerup, toggle the D2 switch up and down quickly Þve times

(ten times total).

5. Put switches in normal printing mode (D1 up, D2 down).

6. Power cycle the unit again. If the box does not appear to recover, go to

step 2. If it does recover, stop here.

C.2.3 Restoring the Alternate Bank Image

1. Access the ßash commands by running a Telnet monitor.

2. Use the Copy This Image to Other Bank command to update the

alternate bank image.

Upgrading NIC Firmware and Resetting NIC to Factory Defaults

July 1998 C-3

C.2.4 Completing the Download

Flash memory holds two complete Þrmware images, so that you can try a

new image before implementing it. After download, the new image is

stored in the main bank and the old image is stored in the alternate bank.

Use the ßash command Restart in Other Bank to rerun the old version

for comparison.

Once you are satisÞed with the Þrmware update, copy it to the alternate

bank so that both banks contain the same image. If the new image does

not work, copy the alternate bank image into the main bank. Both banks

should be the same.

Finalize the download in this way for two reasons:

¥ Alternate update is automatically used if the main bank becomes

corrupt. This could cause confusion if it is a different version.

¥ Some parameter storage operations require both banks to be

identical. These operations may fail if the banks are not identical.

To update the alternate bank image, use the Copy This Image to Other

Bank command to update the alternate bank image.

To revert to the old version:

1. Return to the old version with the Restart in Other Bank command.

2. Use the Copy This Image to Other Bank command.

Note: The sequence number is assigned to the images that is listed when

using the DF console command or entering the ßash monitor. The

higher number indicates the more recent download.

C.2.5 Flash Download Commands

Access the ßash download command one of two ways:

¥ Connect to the serial port and run the serial monitor.

¥ For DOS machines, use the Telnet monitor.

The ßash download commands are:

¥Disable Network DownloadÑUsed for security against unauthorized

downloads.

¥Enable Network DownloadÑThe default state.

¥Restart in Other BankÑThe only way to cause the older image to

execute when the images differ. The effect is temporary. A power cycle

will always run the newer image. Use this command to compare the

old version to the new version to identify problems.

¥Copy This Image to Other BankÑUsed to make the images

identical. This command updates the alternate bank with the new main

bank version when the user is satisÞed with the new Þrmware image.

To revert to an old Þrmware version, use the Restart in Other Bank

command. When the old version comes up, this command will copy the

old version over the new.

C.3 Resetting the NIC to Factory Defaults

In addition to resetting the NIC to its factory defaults, completing this

procedure also resets the IP Address to 0.0.0.0.

1. Place the NIC faceplate mode switches, D1 and D2 in the down

position.

2. Power cycle the printer.

3. Wait until the printer returns to the Ready state.

4. Toggle switch D1 up and down quickly at least 5 times. (1 Toggle is

deÞned as one up and down cycle of the switch.)

5. Reset switches D1 and D2 back into normal mode.

6. Power cycle the printer.

NIC Specifications

July 1998 D-1

Appendix D NIC SpeciÞcations

D.1 RJ-45 Connector

RJ-45 pinouts are shown below.

¥ Pin 1: Transmit data +

¥ Pin 2: Transmit data -

¥ Pin 3: Receive data +

¥ Pin 6: Receive data -

Rx/Tx Crossover Cable

If you want a direct RJ45 (10/100BaseT) connection from a single

computer to a printer, use a mini-hub and two network cables. We do not

recommend using an Rx/Tx crossover cable to defeat the need for a hub

because it is a custom cable that may not be available from a local dealer

or distributor. A crossover cable that is not clearly labeled can also cause

problems if mixed with standard RJ45 network cables.

If needed, you can build an Rx/Tx Crossover cable by using a standard

RJ45 cable and swapping the Transmit (1, 2) and Receive (3, 6) signal

pairs at one end.

IMPORTANT: You must use the proper RJ45 connector/cable tools;

otherwise, the cable may be unreliable.

Clearly label a custom cable so you do not confuse it with

standard RJ45 cables.

1234568

NIC Specifications

D-2 July 1998

D.2 Climate: Storage Temperature

¥ Minimum: -25¡ C

¥ Maximum: 75¡ C

D.3 Electrical UTP Interface

¥ CAT 5 UTP

¥ Maximum cable length: 100 meters

¥ Data Rate: 10/100Mbps

D.4 Regulatory Approvals

¥ EN55022 Class B

¥ EN50082-1

¥ FCC Class A

¥ ICES-003

¥CE

D.5 Test Print Settings When Using Defaults

Firmware revision x.x Build x, Datecode x.x 199x hh:mm

Ethernet address: 00 40 C8 xx xx xx (xx xx xx is unique for your NIC)

¥ IP address: 0.0.0.0

¥ Console status monitoring: On

¥ Network monitor password security: Off

All protocols and services are enabled by default:

¥ TCP/IP and LPD enabled.

¥ Netware (IPX) enabled.

¥ Microsoft Windows Print Services (NetBeui) enabled.

¥ HP DLC enabled.

¥ AppleTalk enabled.

¥ SNMP enabled

NIC Specifications

July 1998 D-3

TCP/IP engine options:

¥ IP address: 0.0.0.0

¥ RARP enabled.

¥ BOOTP enabled.

¥ BOOTP request interval: 2 hours.

¥ Subnet Mask: 0.0.0.0

¥ Default Router: 0.0.0.0

¥ Syslog Host: 0.0.0.0 Syslog Priority: 2

¥ TCP Sockets: enabled

LPD options:

¥ LPD enabled

¥ LPD mode: Don't time-out on printer error

¥ Print banner page (after job)

¥ User deÞned queues: None

Netware options:

¥ Netware enabled

¥ Print Server name used in SAP packets: KDxxxxx

¥ Auto-sense frame type

¥ No primary server conÞgured

¥ NotiÞcation disabled

¥ Queue scan rate: 1 sec

¥ Netware Directory Services (NDS) enabled

¥ Tree name:

¥ Context:

Microsoft Windows (NetBeui) options:

¥ Microsoft Windows print services enabled

¥ Workgroup / Domain: WORKGROUP

NIC Specifications

D-4 July 1998

¥ Machine Name: KDxxxxx

SNMP Options:

¥ Current SNMP Trap Hosts: 0.0.0.0, 0.0.0.0

AppleTalk options:

¥ AppleTalk enabled

¥ AppleTalk Phase 2

¥ Default zone name: *

¥ Printer name: KDxxxxx

Technical Assistance

July 1998 E-1

Appendix E Technical Assistance

If you have question about the printer or the NIC, consult the resources

below.

Retailer

The retailer you purchased your printer from may be able to answer your

questions. Kodak provides retailers with additional technical information.

Kodak Customer Assistance Center

Contact the Kodak Customer Assistance Center if you:

¥ have questions about your warranty

¥ want to know where to get service

¥ have questions about software/printer interaction

In the U.S., call 1-800-235-6325 from 9:00 a.m. to 8:00 p.m., Eastern

Standard Time, on regular business days.

Refer to the User's Guide for your printer for telephone numbers outside

the United States.

Kodak Web Site

You may obtain this userÕs guide, software, Þrmware, and release notes

from the Kodak Web site at http://www.kodak.com by searching Technical

Information for information about dye sublimation printers.

Printing Solutions from other vendors

Kodak does not develop PostScript drivers or export modules for Unix

platforms. However, other vendors provide solutions in support of Kodak

printers. These solutions support various Unix/Windows/Macintosh

platforms and interfaces.

For more information, access the Kodak Web site (http://

www.kodak.com), then locate Product Information\Technical

Information\System & Software Solutions\Search by Product Category.

Index

July 1998 Index-1

INDEX

Numerics

10BaseT 2-1

about this guide 1-1

adding

printer, Windows for WorkGroups

(3.x) 5-2

address

IP 3-20, 3-28

name, changing 3-12

alternate bank image, restoring C-2

AppleTalk 4-9

application

BOOTP server, messages 3-36

BOOTP, FastManage 3-29

discovery 3-21

discovery, icon 3-9

discovery, messages 3-35

FastManage 3-20

launch parameters 3-17

ping, FastManage 3-27

ping, messages 3-35

third party network B-1

Arp, using 10-2

assigning a print queue to print server

4-7

auto field 3-14

bindery

environment 4-8, 4-11

environment, configuring 4-1

mixed, configuring 4-7

BOOTP

application, FastManage 3-29

server application messages 3-36

broadcast

field 3-15

BrowseMaster 3-31

BSD Unix, printing 11-6

changing

host name 3-13

node name to address 3-12

chipsets, MAC 1-4

climate, storage temperature D-2

components, gathering networking 1-7

configuration 1-1

Ethertalk 3-25

general 3-24

IP 3-2

IPX 3-2, 3-23

LPD 3-22

menus, manager 3-21

NDS 3-24

NetBIOS 3-2, 3-26

Novell 3-23

print server 3-24

SMB 3-26

Index

Index-2 July 1998

TCP/IP 3-22

utilities, FastManage 3-1

configuring

bindery environment 4-1

Macintosh 9-1

mixed bindery 4-7

NDS environment 4-2, 4-7

NIC 1-8

Novell NetWare 4-9

print servers 1-9

printer on workstations 1-9

printing, Macintosh 9-5

Unix 10-1

Windows 95 6-1

Windows for WorkGroups (3.x) 5-1

configuring for printing, Windows for

WorkGroups (3.51) 5-1

connecting the print server 4-6

connector, RJ-45 D-1

console messages 4-12

contents

guide 1-2

NIC package 1-3

creating

NDS print server 4-4

new printer 4-4

print queue 4-5

data buffering 1-4

direct network spooling 10-4

discovery application 3-21

FastManage 3-7

icon 3-9

messages 3-35

opening 3-8

preferences 3-14

discovery map, renaming 3-11

display fields 3-14

documentation

NIC 1-8

printer 1-8

DOS

printing PostScript 11-4

tools for NetBIOS 3-32

downloading firmware 3-12

drivers

Postscript 11-1

raster 11-1

electrical UTP interface D-2

enable agent 3-19

error messages

BOOTP server application 3-36

discovery application 3-35

FastManage 3-33

IP address validation 3-34

ping application 3-35

Ethernet cable, 2-5

Ethertalk configuration 3-25

extracting files 3-3

FAKEQ 4-12

FastManage

BOOTP application 3-29

configuration utilities 3-1

discovery application 3-7

error messages 3-33

Index

July 1998 Index-3

features 3-1

installing 3-4

manager application 3-20

ping application 3-27

troubleshooting 3-33

utilities, setting up 3-3

features

FastManage 3-1

hardware 1-4

NIC 1-4

field

auto 3-14

broadcast 3-15

display 3-14

files 3-15

files

extracting 3-3

field 3-15

firmware

downloading 3-12

upgrading C-1

flash

device 1-4

download commands C-3

EPROMs 1-4

flash EPROMs

upgrading C-1

general

configuration 3-24

discovery options 3-17

messages 3-34

get community 3-19

getting help E-1

hardware

features 1-4

gathering 1-7

installing NIC 1-8

requirements, FastManage 3-2

help menu 3-27

host name 3-30

host name, changing 3-13

icon

discovery application 3-9

names, printer/proofer 3-10

node properties 3-13

TFTP 3-12

installation

BSD machines, for Unix 10-5

script, Unix 10-4

System V machines, for Unix 10-5

installation/configuration 1-5

installing

FastManage 3-4

NIC hardware 1-8

Installing the hardware for the

Network Interface Card, 2-1Ð??

Intel 80186 CPU 1-4

introduction 1-1

configuration 3-2

parameters 3-16

IP address 3-28

prompt 3-20

validation messages 3-34

Index

Index-4 July 1998

IPX

configuration 3-2, 3-23

parameters 3-17

Kodak printer driver, installing 8-9

Kodak web site

finding information on non-Kodak

printer software E-1

getting help from E-1

language efficiency 11-1

LaserWriter utility, Macintosh 9-5

launch parameters, application 3-17

LPD 10-3

LPD configuration 3-22

LPR 10-3

Macintosh, using 9-1

manager configuration menus 3-21

help 3-27

status 3-27

messages

BOOTP server application 3-36

console 4-12

discovery application 3-35

error, FastManage 3-33

general 3-34

IP address validation 3-34

ping application 3-35

Mib2 system parameters 3-18

Microsoft printer drivers 6-4, 8-9

mode

PostScript 11-1

postscript 1-9

raster 1-10, 11-1

names

icon, printer/proofer 3-10

NDS

configuration 3-24

environment

configuring 4-2

environment, configuring 4-7

print server, creating 4-4

NetBIOS 3-20

configuration 3-2, 3-26

parameters 3-17

NetWare

client stations, installation overview 4-

Novell 4-1

troubleshooting 4-11

network

assessing 1-7

download procedure, using C-1

performance 1-5

spooling 10-4

Network Interface Card

installing, 2-4

requirements for installing, 2-1

using with Windows NT 3.51, 7-1Ð7-8

using with Windows NT 4.

workstations and servers,

8-1Ð8-14

Index

July 1998 Index-5

node

name, changing 3-12

properties, icon 3-13

Novell

configuration 3-23

NetWare 4-1

NetWare, AppleTalk 4-9

NetWare, configuring 4-9

opening

discovery application 3-8

overview 1-5

parameters

application launch 3-17

IP 3-16

IPX 3-17

Mib2 3-18

NetBIOS 3-17

printcap file 10-7

PC-NFS

for printing PostScript files, B-2

setting up a shared printer with, B-1

PCONSOLE 4-2, 4-12

performance, network 1-5

ping application

FastManage 3-27

messages 3-35

using manager 3-12

platform

configuration 1-7

print drivers 1-10

printing 1-7

PostScript

drivers 11-1

mode 1-9, 11-1

mode, changing to raster 11-2, 11-3

mode, printing 11-6

preferences, discovery application 3-14

pre-installed, NIC 1-3

print drivers platform 1-10

print queue, creating 4-5

print server

assigning print queue 4-7

configuration 3-24

configuring 1-9

connecting to a printer 4-6

NDS, creating 4-4

printcap file parameters 10-7

printer

adding, Windows for WorkGroups

(3.x) 5-2

configuring on workstations 1-9

new, creating 4-4

printer drivers

Microsoft 6-4

printing 1-10, 11-1

BSD Unix 11-6

environment, assessing 1-7

PostScript from Macintosh systems

11-5

raster from Windows and Macintosh

11-7

VMS systems 11-7

printing, PostScript from Windows &

DOS systems 11-4

protocols 3-16

protocols supported 1-5

Index

Index-6 July 1998

quick setup 4-2

raster

drivers 11-1

mode 1-10, 11-1

mode, changing to PostScript 11-2,

11-3

recovering from failed download C-2

regulatory approvals D-2

remote network spooling 10-4

requirements

FastManage hardware 3-2

software 3-2

resetting, factory defaults C-1, C-4

restoring alternate bank image C-2

restricted hosts 3-23

RJ-45 connector D-1

Serial diagnostic 2-7

serial diagnostic A-1

server 1-7

set community 3-19

setting up

defaults 9-5

FastManage utilities 3-3

sharing abilities

Windows 3-31

SMB configuration 3-26

software

Macintosh printer configuration 1-8

NIC 1-8

NIC configuration 1-7

Non-Kodak printer 11-1

printer 1-8

requirements 3-2

Windows printer configuration 1-8

specifications D-1

spooling, network 10-4

SRAM 1-4

status menu 3-27

storage, temperature D-2

TCP/IP configuration 3-22

technical assistance E-1

Telnet

commands A-2

diagnostic A-1

NIC, Appendix A A-1

password 3-18

using 10-2

Telnet Diagnostic 2-7

temperature, storage D-2

Test Page 2-8

test page A-1

test print settings D-2

TFTP icon 3-12

TFTP support 10-8

tools

DOS, NetBIOS 3-32

traps 3-21

troubleshooting tips

ÒIncomplete PacketÓ error message

4-11

Index

July 1998 Index-7

attaching QUEUE1 4-12

FAKEQ 4-12

FastManage 3-33

FastPort does not power up 3-31

NetWare 4-11

Novell Netware installations 12-7

overview 12-1

PCONSOLE 4-11

QUEUE1 4-12

SERVER1 4-12

SERVER1 for server FAKEPS 4-12

unit does not login to Novell serve

4-11

unit does not login to the file server

4-11

verifying application and printer

parameters 12-7

verifying network connectivity 12-6

verifying that the printer operates

correctly 12-5

verifying the printer and network

parameters 12-6

Unix environment 10-1

upgrade 1-4

upgrading

firmware C-1

flash EPROMs C-1

uptime 3-21

userlist command 4-11

using

Arp 10-2

Laserwriter utility, Macintosh 9-5

Macintosh 9-1

network download procedure C-1

ping manager 3-12

Telnet 10-2

this guide 1-1

Windows for WorkGroups (3.x) 5-1

using Windows 95 6-1

utilities

third party network B-1

Windows 95 LPR B-1

UTP interface, electrical D-2

validation messages, IP address 3-34

VMS, printing 11-7

Windows 3.51 for workstations and

servers

setting document defaults, 8-13

setting printer properties, 8-13

Windows 3.x Workstations

setting up with TCP/IP from PC-NFS,

B-1

Windows 95

using 6-1

Windows 95 workstations

installing the Kodak printer driver 6-4

setting the printer properties 6-8

Windows for WorkGroups (3.x)

using 5-1

Windows NT 3.51 for workstations and

servers

creating a print queue, 7-8

workstations

configuring the printer 1-9

EASTMAN KODAK COMPANY

Rochester, New York 14653

Kodak and Digital Science are

trademarks of Eastman Kodak Company.

PostScript and Adobe are trademarks of

Adobe Systems Incorporated or its

subsidiaries.

Kodak Printer 3H0610 Users Manual NICMan.bk
