Kohler Co. 5.8GHZ TOILET VENTILATION ACCESSORY INSTALLATION MANUAL

Contents

INSTALLATION MANUAL

For:ko02585
Printed on:Mon, Feb 1, 1999 11:10:50
Document:085984_2_aa__
Last saved on:Thu, Dec 17, 1998 11:29:51
85984-2-AA (-) E1999 Kohler Co.
IMPORTANT SAFEGUARDS
When using electrical products, especially when children are
present, basic safety precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
DANGER: Risk of electrical shock. To reduce the risk of electrical
shock:
Connect AC adapter only to a properly-grounded, grounding-type
receptacle which is protected by a Ground-Fault Circuit-Interrupter
(GFCI).
Do not place or store product where it can fall or be pulled into a tub
or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of personal injury, follow these
safety precautions:
Use this toilet vent kit for its intended use as described in this manual.
Do not use attachments not recommended by Kohler Co.
Never operate this toilet vent kit if it has a damaged cord or plug, if it
is not working properly, if it has been dropped or damaged, or dropped
into water. This product has no user serviceable parts.
Keep the cord away from heated surfaces.
SAVE THESE INSTRUCTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
TOILET VENT KIT
R
INSTALLATION
INSTRUCTIONS
2Kohler Co., Kohler, WI
85984-2-AA (-) 2
WARNING: Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage this product as
well as the other fittings in your toilet. Kohler Company shall not be
responsible or liable for any damage caused by the use of cleaners
containing chlorine.
SElectrical service requirements: 120 VAC, 15 A, 60 Hz (circuit protected
by a Class A GFCI). The power requirement for this vented toilet kit is ?
W at 12 VDC. The kit has an 8’ electrical cord and AC adapter.
SThis vented toilet kit uses a motion sensing device to automatically turn
itself on and off.
SPlug in the AC adapter only after the vent kit is properly installed in the
toilet tank.
SDo not use an extension cord with this product.
SDo not attempt to repair or replace the AC adapter.
INSTALL ELECTRICAL
SERVICE
NOTE: You can use an existing
electrical service if it meets the
following requirements.
SA licensed electrician should
install a properly-grounded,
grounding-type receptacle
which is protected by a GFCI.

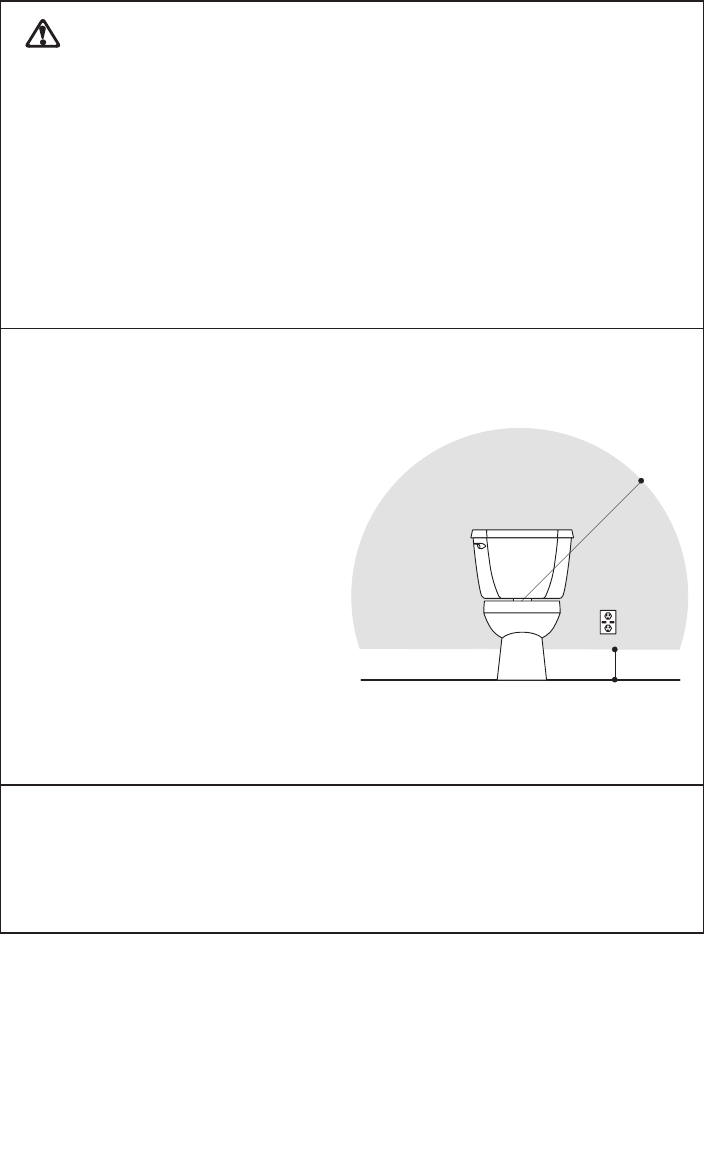

SWe recommend that the
electrician locate the
receptacle no less than 6”
above the floor line, and within
a 32” radius measured level
with the toilet ledge, as shown.
NOTICE: Do not connect this
product to an extension cord.
NOTICE: Follow all electrical
codes.
6” MIN.
32” R.
INSTALL VENT KIT
SShut off the water supply to
the toilet, and flush the toilet to
relieve the water pressure.
SCarefully remove the tank
cover.
3
Kohler Co., Kohler, WI 85984-2-AA (-)
SRemove and discard the
existing refill tube from the
float valve.
SPosition the snorkel assembly
over the overflow tube, and
hang the snorkel assembly on
the back wall of the tank.
SAdjust the snorkel assembly
from side-to-side and
front-to-back to prevent
interference with the trip lever
linkage and float mechanism.
SInsert the replacement refill
tube into the hole at the end of
the snorkel assembly. Connect
the refill tube to the float valve
and to the overflow tube. Make
sure the refill tube points
directly down into the overflow
tube to ensure proper toilet
operation.
STurn on the water supply to the
toilet. Allow the toilet tank to fill
to shut off. Adjust the water
level to the marked water line,
if necessary.
SInstall the power unit to the
snorkel assembly by first
engaging the power unit to the
clips on the snorkel assembly.
Then press down on the power
unit to snap it in place.
SRoute the power cable
between the clips, and plug the
AC adapter into a properly-
grounded, grounding-type
receptacle which is protected
by a GFCI.
SCarefully re-install the tank
cover.
CALL US FOR HELP – 1-800-4-KOHLER
REQUESTING SERVICE
Here’s what you need to do if you require service:
First review the installation instructions to ensure correct installation. If you
are unable to correct the problem, call our Customer Service Department for
direct help. In the United States dial 1-800-4-KOHLER.
R
4Kohler Co., Kohler, WI
85984-2-AA (-) 4
