Kolf MO12 Wireless Alarm User Manual p1

Kolf Industries (H.K.) Ltd. Wireless Alarm p1

User Manual

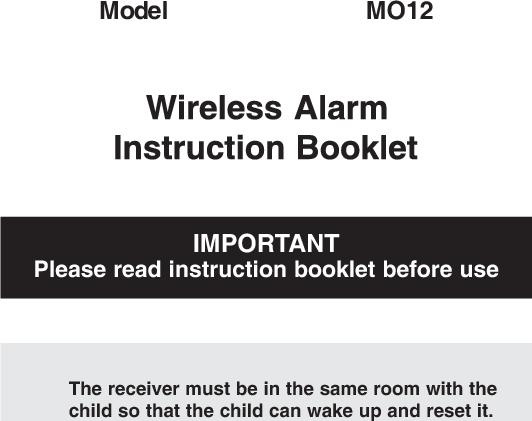

The receiver must be in the same room with thechild so that the child can wake up and reset it.IMPORTANTPlease read instruction booklet before useModel MO12

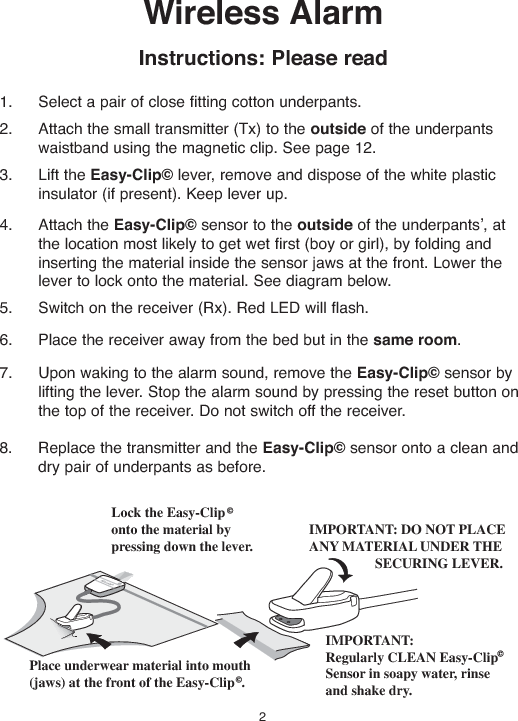

Wireless AlarmInstructions:Please read1. Select a pair of close fitting cotton underpants.2. Attach the small transmitter (Tx) to the outside of the underpantswaistband using the magnetic clip. See page 12.3. Lift the Easy-Clip©lever, remove and dispose of the white plasticinsulator (if present). Keep lever up.4. Attach the Easy-Clip©sensor to the outside of the underpants , atthe location most likely to get wet first (boy or girl), by folding andinserting the material inside the sensor jaws at the front. Lower thelever to lock onto the material. See diagram below.5. Switch on the receiver (Rx). Red LED will flash.6. Place the receiver away from the bed but in the same room.7. Upon waking to the alarm sound, remove the Easy-Clip©sensor bylifting the lever. Stop the alarm sound by pressing the reset button onthe top of the receiver. Do not switch off the receiver.8. Replace the transmitter and the Easy-Clip©sensor onto a clean anddry pair of underpants as before.Lock the Easy-Cliponto the material bypressing down the lever.IMPORTANT:Regularly CLEAN Easy-ClipSensor in soapy water, rinseand shake dry.IMPORTANT: DO NOT PLACEANY MATERIAL UNDER THESECURING LEVER.Place underwear material into mouth(jaws) at the front of the Easy-Clip .2,

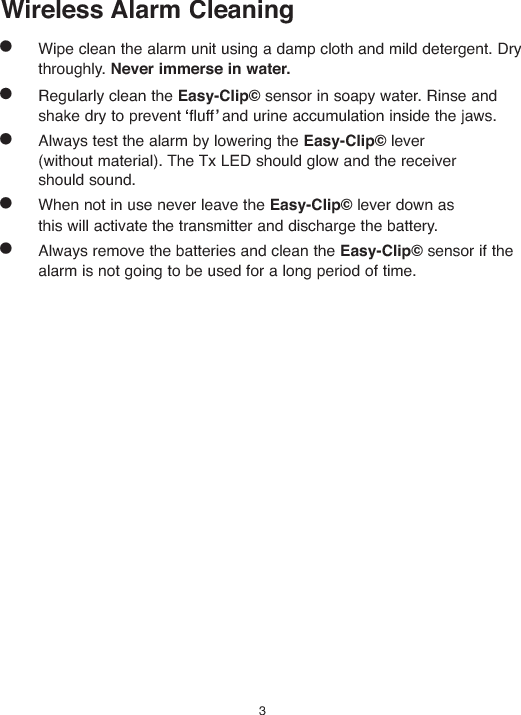

Wireless Alarm CleaningWipe clean the alarm unit using a damp cloth and mild detergent. Drythroughly. Never immerse in water.Regularly clean the Easy-Clip©sensor in soapy water. Rinse andshake dry to prevent fluff and urine accumulation inside the jaws.Always test the alarm by lowering the Easy-Clip©lever(without material). The Tx LED should glow and the receivershould sound.When not in use never leave the Easy-Clip©lever down asthis will activate the transmitter and discharge the battery.Always remove the batteries and clean the Easy-Clip©sensor if thealarm is not going to be used for a long period of time.3

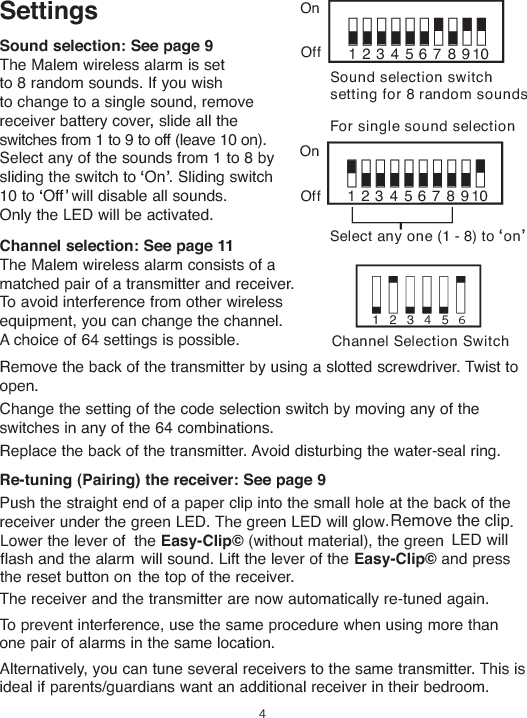

SettingsSound selection:See page9The Malem wireless alarm is setto 8 random sounds. If you wishto change to a single sound, removereceiver battery cover slide all theswitches from 1 to 9 to off (leave 10 on).Select any of the sounds from 1 to 8 bysliding the switch to On . Sliding switch10 to Off will disable all sounds.Only the LED will be activated.Channel selection:See page11The Malem wireless alarm consists of amatched pair of a transmitter and receiver.To avoid interference from other wirelessequipment, you can change the channel.A choice of 64 settings is possible.Remove the back of the transmitter by using a slotted screwdriver. Twist toopen.Change the setting of the code selection switch by moving any of theswitches in any of the 64 combinations.Replace the back of the transmitter. Avoid disturbing the water-seal ring.Re-tuning(Pairing) the receiver:See page912345678910123456Sound selection switchsetting for 8 random soundsChannel Selection SwitchOnOff12345678910For single sound selectionSelect any one (1 - 8) to onOnOff4Remove the clipPush the straight end of a paper clip into the small hole at the back of thereceiver under the green LED. The green LED will glow .Lower the lever of the Easy-Clip©(without material), the green LED willflash and the alarm will sound. Lift the lever of the Easy-Clip©and pressthe reset button on the top of the receiver.The receiver and the transmitter are now automatically re-tuned again.To prevent interference, use the same procedure when using more thanone pair of alarms in the same location.Alternatively, you can tune several receivers to the same transmitter. This isideal if parents/guardians want an additional receiver in their bedroom...

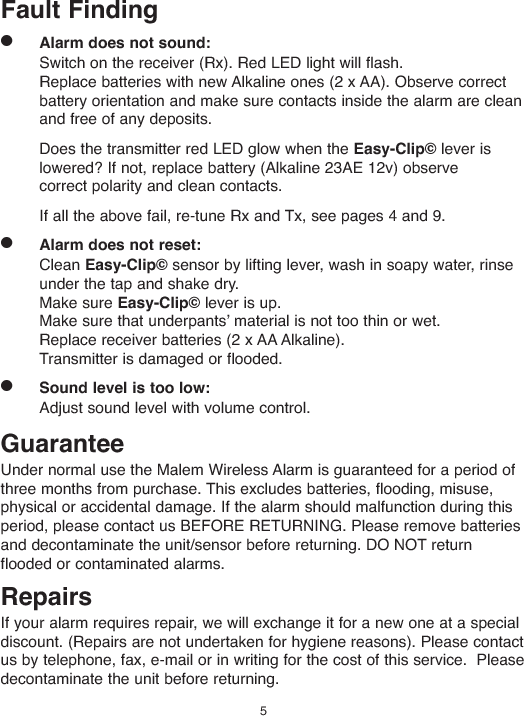

Fault Finding●Alarm does not sound:Switch on the receiver (Rx). Red LED light will flash.Replace batteries with new Alkaline ones (2 x AA). Observe correctbattery orientation and make sure contacts inside the alarm are cleanand free of any deposits.Does the transmitter red LED glow when the Easy-Clip© lever islowered? If not, replace battery (Alkaline 23AE 12v) observecorrect polarity and clean contacts.If all the above fail, re-tune Rx and Tx, see pages 4 and 9.●Alarm does not reset:Clean Easy-Clip© sensor by lifting lever, wash in soapy water, rinseunder the tap and shake dry.Make sure Easy-Clip© lever is up.Make sure that underpantsʼ material is not too thin or wet.Replace receiver batteries (2 x AA Alkaline).Transmitter is damaged or flooded.●Sound level is too low:Adjust sound level with volume control.GuaranteeUnder normal use the Malem Wireless Alarm is guaranteed for a period ofthree months from purchase. This excludes batteries, flooding, misuse,physical or accidental damage. If the alarm should malfunction during thisperiod, please contact us BEFORE RETURNING. Please remove batteriesand decontaminate the unit/sensor before returning. DO NOT returnflooded or contaminated alarms.RepairsIf your alarm requires repair, we will exchange it for a new one at a specialdiscount. (Repairs are not undertaken for hygiene reasons). Please contactus by telephone, fax, e-mail or in writing for the cost of this service. Pleasedecontaminate the unit before returning.5

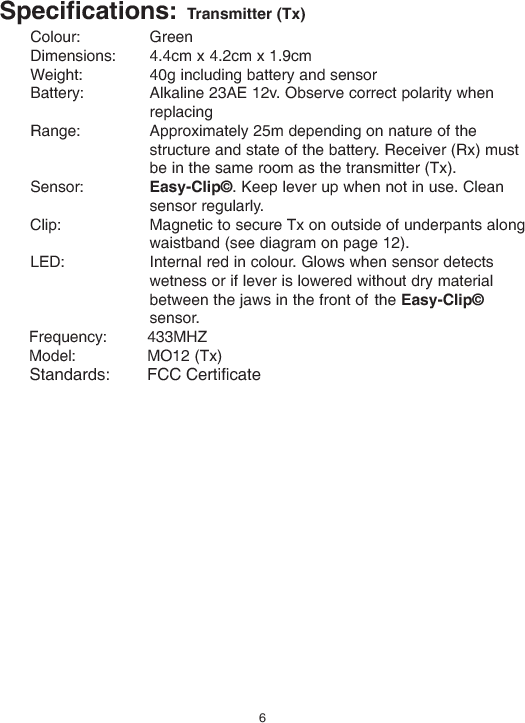

Specifications: Transmitter (Tx)Colour: GreenDimensions: 4.4cm x 4.2cm x 1.9cmWeight: 40g including battery and sensorBattery: Alkaline 23AE 12v. Observe correct polarity whenreplacingRange: Approximately 25m depending on nature of thestructure and state of the battery. Receiver (Rx) mustbe in the same room as the transmitter (Tx).Sensor: Easy-Clip©. Keep lever up when not in use. Cleansensor regularly.Clip: Magnetic to secure Tx on outside of underpants alongwaistband (see diagram on page 12).LED: Internal red in colour. Glows when sensor detectswetness or if lever is lowered without dry materialbetween the jaws in the front of the Easy-Clip©sensor.Frequency: 433MHZModel: MO12 (Tx)6Standards: FCC Certificate

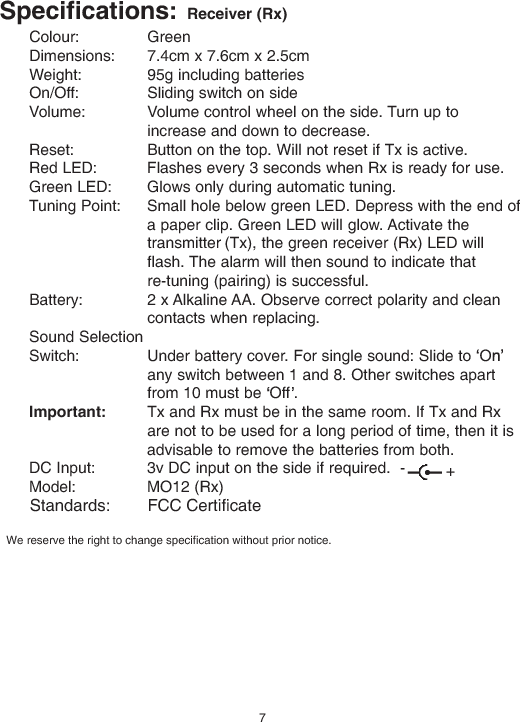

Specifications: Receiver (Rx)Colour: GreenDimensions: 7.4cm x 7.6cm x 2.5cmWeight: 95g including batteriesOn/Off: Sliding switch on sideVolume: Volume control wheel on the side. Turn up toincrease and down to decrease.Reset: Button on the top. Will not reset if Tx is active.Red LED: Flashes every 3 seconds when Rx is ready for use.Green LED: Glows only during automatic tuning.Tuning Point: Small hole below green LED. Depress with the end ofa paper clip. Green LED will glow. Activate thetransmitter (Tx), the green receiver (Rx) LED willflash. The alarm will then sound to indicate thatre-tuning (pairing) is successful.Battery: 2 x Alkaline AA. Observe correct polarity and cleancontacts when replacing.Sound SelectionSwitch: Under battery cover. For single sound: Slide to Oany switch between 1 and 8. Other switches apartfrom 10 must be Off .Important: Tx and Rx must be in the same room. If Tx and Rxare not to be used for a long period of time, then it isadvisable to remove the batteries from both.DC Input: 3v DC input on the side if required. -Model: MO12 (Rx)+7We reserve the right to change specification without prior notice.Standards: FCC Certificate

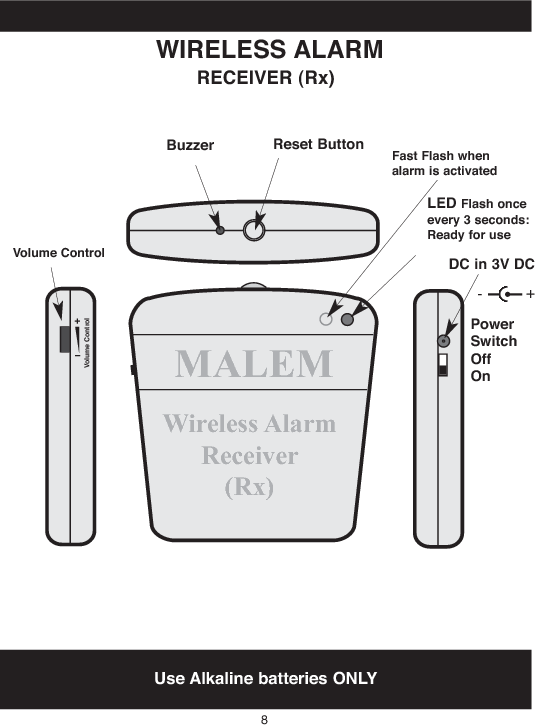

Volume ControlMALEMWireless AlarmReceiver(Rx)Use Alkaline batteries ONLYWIRELESS ALARMRECEIVER (Rx)BuzzerVolume Control8Reset ButtonLEDFlashonceevery 3seconds:Ready for useFast Flashwhenalarm is activatedDCin3V DCPowerSwitchOffOn+-

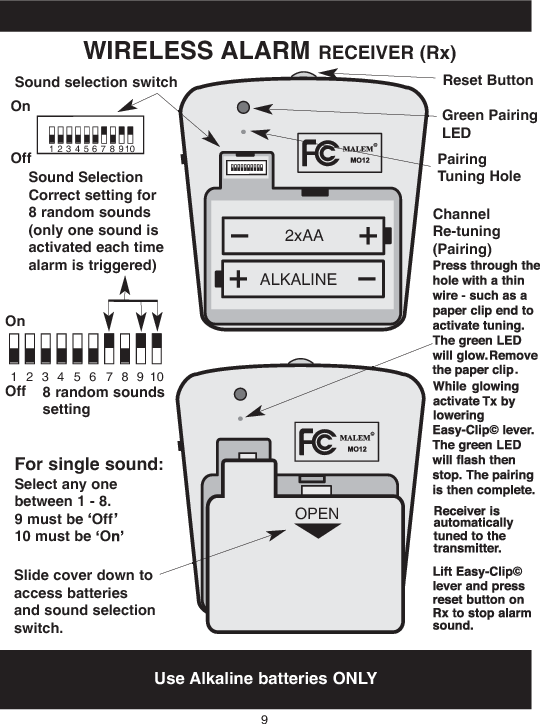

ALKALINE2xAAOPEN12345678910Use Alkaline batteries ONLYWIRELESS ALARMRECEIVER (Rx)9Reset ButtonOnOffSoundSelectionCorrect setting for8 random sounds(only one soundisactivatedeachtimealarm is triggered)12345678910ChannelRe-tuning(Pairing)Soundselection switchSlide cover downtoaccess batteriesandsoundselectionswitch.Green PairingLEDOnOff 8 random soundssettingPairingTuning HoleFor single sound:Select any onebetween 1 - 8.9must beOff10 must beO

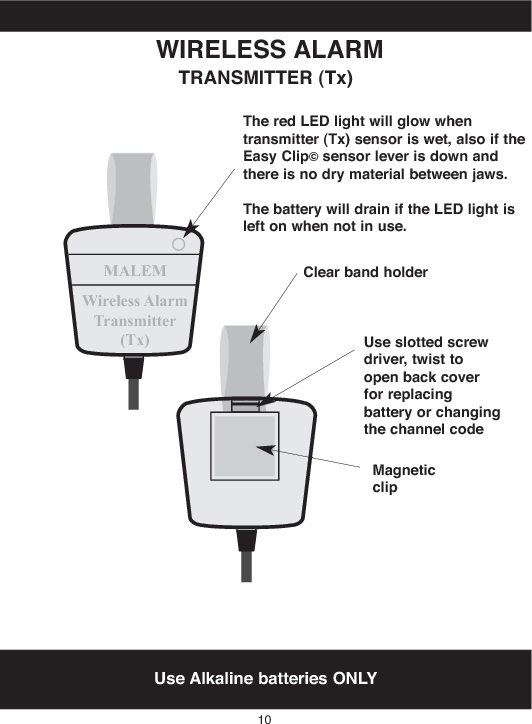

MALEMWireless AlarmTransmitter(Tx)Use Alkaline batteries ONLYWIRELESS ALARMTRANSMITTER (Tx)TheredLEDlightwill glowwhentransmitter (Tx) sensor is wet,also if theEasy Clip©sensor lever is downandthere is no dry material between jaws.Thebattery will drain if theLEDlightisleft on when not in use.10Clear bandholderUse slottedscrewdriver,twist toopen backcoverfor replacingbattery or changingthechannel codeMagneticclip

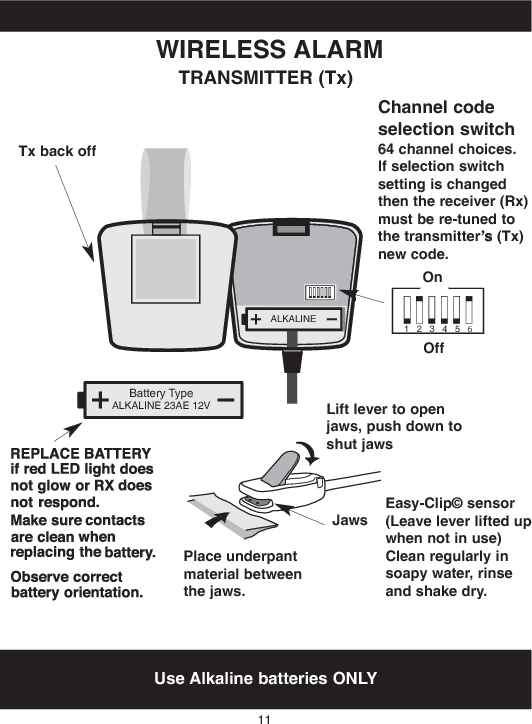

ALKALINEBattery TypeALKALINE 23AE 12V123456Use Alkaline batteries ONLYWIRELESS ALARMTRANSMITTER (Tx)11Channel codeselection switch64 channel choices.If selection switchsetting is changedthen the receiver (Rx)must be re-tunedtothe transmitter (Tx)newcode.OnOffLift lever to openjaws,pushdowntoshutjawsPlace underpantmaterial betweenthejaws.JawsEasy-Clip© sensor(Leave lever liftedupwhen not in use)Clean regularly insoapy water,rinseandshakedry.Tx backoff

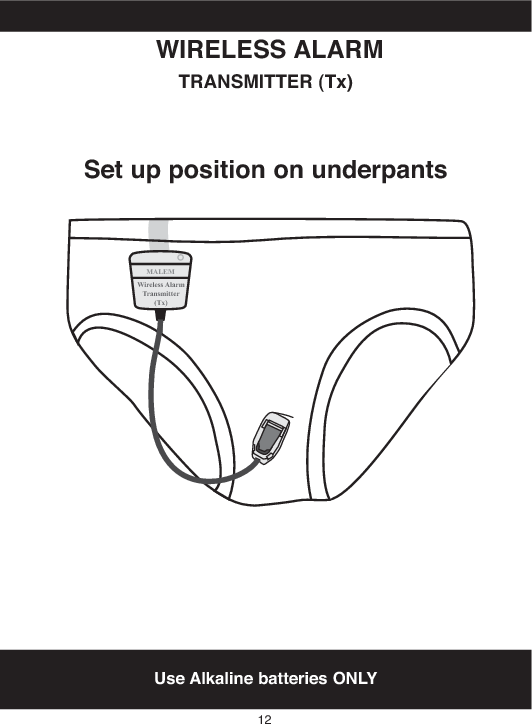

MALEMWireless AlarmTransmitter(Tx)Use Alkaline batteries ONLYWIRELESS ALARMTRANSMITTER (Tx)Set up position on underpants12

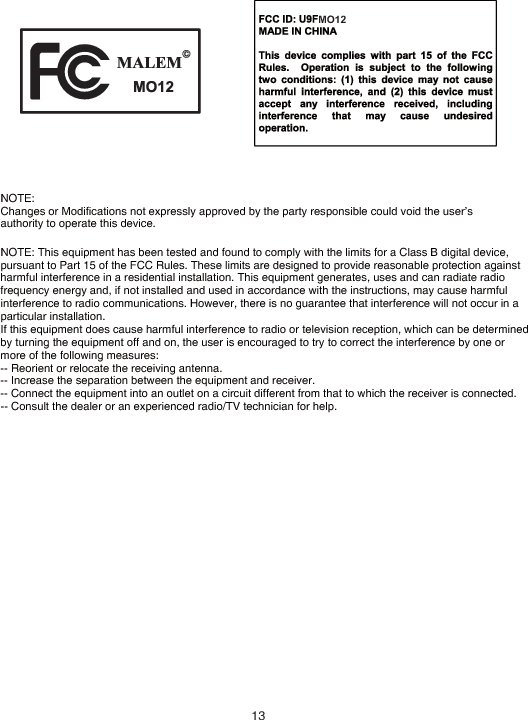

NOTE: Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. MO1213
