magicolor 5430 DL

User’s Guide

®

4138-7743-02A

1800760-001B

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of

KONICA MINOLTA HOLDINGS, INC.

magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING SOLU-

TIONS U.S.A., INC.

Copyright Notice

Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi Center

Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights Reserved. This

document may not be copied, in whole or part, nor transferred to any other media or language,

without written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make changes to

this guide and to the equipment described herein without notice. Considerable effort has been

made to ensure that this guide is free of inaccuracies and omissions. However, KONICA

MINOLTA BUSINESS TECHNOLOGIES, INC. makes no warranty of any kind including, but not

limited to, any implied warranties of merchantability and fitness for a particular purpose with

regard to this guide. KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no

responsibility for, or liability for, errors contained in this guide or for incidental, special, or conse-

quential damages arising out of the furnishing of this guide, or the use of this guide in operating

the equipment, or in connection with the performance of the equipment when so operated.

SOFTWARE LICENSE AGREEMENT

This package contains the following materials provided by Konica Minolta Business Technolo-

gies, Inc. (KMBT): software included as part of the printing system, the digitally-encoded

machine-readable outline data encoded in the special format and in the encrypted form (“Font

Programs”), other software which runs on a computer system for use in conjunction with the

Printing Software (“Host Software”), and related explanatory written materials (“Documenta-

tion”). The term “Software” shall be used to describe Printing Software, Font Programs and/or

Host Software and also include any upgrades, modified versions, additions, and copies of the

Software.

The Software is being licensed to you under the terms of this Agreement.

KMBT grants to you a non-exclusive sublicense to use the Software and Documentation, pro-

vided that you agree to the following:

1. You may use the Printing Software and accompanying Font Programs for imaging to the

licensed output de-vice(s), solely for your own internal business purposes.

2. In addition to the license for Font Programs set forth in Section 1 (“Printing Software”)

above, you may use Roman Font Programs to reproduce weights, styles, and versions of

letters, numerals, characters and symbols (“Typefaces”) on the display or monitor for your

own internal business purposes.

3. You may make one backup copy of the Host Software, provided your backup copy is not

installed or used on any computer. Notwithstanding the above restrictions, you may install

the on any number of computers solely for use with one or more printing systems running

the Printing Software.

4. You may assign its rights under this Agreement to an assignee of all of Licensee’s right and

interest to such Software and Documentation (“Assignee”) provided you transfer to

Assignee all copies of such Software and Documentation Assignee agrees to be bound by

all of the terms and conditions of this Agreement.

5. You agree not to modify, adapt or translate the Software and Documentation.

6. You agree that you will not attempt to alter, disassemble, decrypt, reverse engineer or

decompile the Software.

7. Title to and ownership of the Software and Documentation and any reproductions thereof

shall remain with KMBT.

8. Trademarks shall be used in accordance with accepted trademark practice, including iden-

tification of the trademark owner’s name. Trademarks can only be used to identify printed

output produced by the Software. Such use of any trademark does not give you any rights

of ownership in that trademark.

9. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software Lic-

ensee does not use, or Software contained on any unused media, except as part of the per-

manent transfer of all Software and Documentation as described above.

10. In no event will KMBT or its licensor be liable to you for any consequential, incidental INDI-

RECT, PUNITIVE or special damages, including any lost profits or lost saving, even if

KMBT has been advised of the possibility of such damages, or for any claim by any third

party. KMBT or its licensor disclaims all warranties with regard to the software, express or

implied, including, without limitation implied warranties of merchantability, fitness for a par-

ticular purpose, title and non-infringement of third party rights. Some states or jurisdictions

do not allow the exclusion or limitation of incidental, consequential or special damages, so

the above limitations may not apply to you.

11. Notice to Government End Users: The Software is a “commercial item,” as that term is

defined at 48 C.F.R.2.101, consisting of “commercial computer software” and “commercial

computer software documentation,” as such terms are used in 48 C.F.R. 12.212. Consis-

tent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4, all U.S. Govern-

ment End Users acquire the Software with only those rights set forth herein.

12. You agree that you will not export the Software in any form in violation of any applicable

laws and regulations regarding export control of any countries.

Contents

Contents i

Trademarks 2

Copyright Notice 2

Notice 2

SOFTWARE LICENSE AGREEMENT 3

1 Introduction ....................................................................................................... 1

Getting Acquainted with Your Printer 2

Space Requirements 2

Printer Parts 3

Front View 3

Rear View 4

Accessory 4

Front View with Options 4

2 Software Installation ......................................................................................... 5

Utilities and Documentation CD-ROM 6

Drivers 6

Utilities 6

System Requirements 7

Selecting Driver Options/Defaults

Contentsii

(For Windows) 8

Uninstalling the Printer Driver

(For Windows) 9

Displaying Printer Driver Settings

(For Windows) 9

Windows XP/Server 2003 9

Windows 2000/Me/98SE/NT 4.0 10

Using the Printer Driver 10

Common Buttons 10

OK 10

Cancel 10

Apply 10

Help 10

Easy Set 11

Page Layout 11

Printer Figure 11

Setup Tab 11

Paper Tab 11

Quality Tab 12

Device Options Setting Tab 12

3 Using the Windows Status Display and Printer Status Monitor Center .....13

Working with the Status Display 14

Introduction 14

Opening the Status Display and Showing the Supplies Status 14

Altering the Size of the Status Display Window 14

Using the Status Display 14

Recognizing Status Display Alerts 15

Recovering from a Status Display Alert 15

Closing the Status Display 15

Working With the Printer Status Monitor Center 16

Introduction 16

System Requirements 16

Opening the Printer Status Monitor Center and Showing the Supplies

Status 16

Using the Printer Status Monitor Center 17

Recognizing Printer Status Monitor Center Alerts 18

Closing the Printer Status Monitor Center 18

4 Printer Control Panel and Configuration Menu ............................................19

About the Control Panel 20

Control Panel Indicators and Keys 20

Toner Supply Indicators 22

Configuration Menu Overview 22

Configuration Menu 23

Special Pages Menu 25

Contents iii

Language Menu 25

Engine Menu 25

Network Menu 28

Consumables Menu 29

5 Using Media ..................................................................................................... 31

Media Specifications 32

Media Types 33

Plain Paper (Recycled Paper) 33

Thick Stock 34

Envelopes 35

Labels 36

Letterhead 37

Postcards 37

Transparencies 38

What Is the Guaranteed Imageable (Printable) Area? 39

Imageable Area—Envelopes 40

Page Margins 40

Loading Media 41

Tray 1 (Multipurpose Cassette) 41

Loading Plain Paper 41

Other Media 44

Loading Envelopes 44

Loading Label Sheets/Postcards/Thick Stock/Transparencies 49

Tray 2 and 3 (Optional Lower Feeder Units) 51

Loading Plain Paper 51

Duplexing 54

Output Tray 55

Media Storage 56

6 Replacing Consumables ................................................................................ 57

Replacing Consumables 58

Refilled Toner Cartridges 58

About Toner Cartridges 58

Replacing a Toner Cartridge 61

Replacing the Waste Toner Bottle 65

Replacing the Transfer Roller 68

Replacing the Transfer Roller 68

Replacing the Ozone Filter 71

Replacing the Transfer Belt Unit 72

7 Maintaining the Printer ................................................................................... 79

Maintaining the Printer 80

Cleaning the Printer 82

Exterior 82

Media Rollers 83

Contentsiv

Cleaning the Media Feed Rollers (All Trays) 83

Duplex Option Feed Rollers 84

Cleaning the Media Transfer Rollers for Tray 2 and 3 85

Cleaning the Laser Lens of the Printer 86

8 Troubleshooting ..............................................................................................87

Introduction 88

Printing the Configuration Page 88

Preventing Media Misfeeds 89

Understanding the Media Path 90

Clearing Media Misfeeds 91

Media Misfeed Messages and Clearing Procedures 92

Clearing a Media Misfeed in Tray 1 92

Clearing a Media Misfeed in Tray 2 and 3 96

Clearing a Media Misfeed from the Duplex Option 98

Clearing a Media Misfeed from the Fuser Unit 99

Clearing a Media Misfeed from the Transfer Roller 102

Solving Problems with Media Misfeeds 105

Solving Other Problems 108

Solving Problems with Printing Quality 112

Status, Error, and Service Messages 118

Standard Status Messages 118

Error Messages (Warning) 119

Error Messages (Operator Call) 121

Service Messages 124

9 Installing Accessories ..................................................................................125

Introduction 126

Antistatic Protection 126

Dual In-Line Memory Module (DIMM) 127

Installing a DIMM 127

Duplex Option 130

Installing the Duplex Option 130

Lower Feeder Unit 133

Kit Contents 133

Installing the Lower Feeder Unit 133

A Appendix ........................................................................................................137

Safety Specifications 138

Technical Specifications 138

Printer 138

Consumable Life Expectancy Chart 141

Our Concern for Environmental Protection 142

What is an ENERGY STAR product? 142

Introduction

Getting Acquainted with Your Printer2

Getting Acquainted with Your Printer

Space Requirements

To ensure easy operation, supply replacement and maintenance, adhere to

the recommended space requirements detailed below.

" The options appear shaded in the above illustration.

727 mm (28.6")

480 mm (18.9")

420 mm (16.5")

60 mm

(2.4")

22 mm

(0.9")

440 mm (17.3")

683 mm (26.9")

110.5 mm

(4.4")

957 mm (37.7")

337 mm (13.3") 520 mm (20.5")

100 mm

(3.9")

110.5 mm

(4.4")

Getting Acquainted with Your Printer 3

Printer Parts

The following drawings illustrate the parts of your printer referred to through-

out this guide, so please take some time to become familiar with them.

Front View

1—Control panel

2—Output tray

3—Top cover

4—Fuser unit

5—Right side cover

6—Transfer roller

7—Transfer belt unit

8—Tray 1 (Multipurpose cassette)

9—Grip

10—Front cover

11—Waste toner bottle

12—Toner cartridge

23

4

5

6

7

8

12

10

1

11

9

12

11

6

7

Getting Acquainted with Your Printer4

Rear View

1—Power switch

2—Ozone filter

3—Power connection

4—10Base-T/100Base-TX

(IEEE 802.3) Ethernet Interface

port

5—USB port

6—Ventilation grilles

Accessory

1—Laser lens cleaning tool

Front View with Options

1—Duplex option

2—Lower feeder units (Tray 2 and

Tray 3)

1

5

2

3

4

6

1

1

2

Software

Installation

Utilities and Documentation CD-ROM6

Utilities and Documentation CD-ROM

Drivers

" For details of the Macintosh printer driver, refer to the magicolor 5430

DL Reference Guide.

Utilities

Drivers Use/Benefit

Printer Driver for

Windows XP/Server 2003/2000

These drivers give you access to all of

the printer features, including

finishing, advanced layout. See also

“Displaying Printer Driver Settings

(For Windows)” on page 9.

Printer Driver for Windows Me/98SE

Printer Driver for Windows NT 4.0

Printer Driver for Macintosh OS X

Utilities Use/Benefit

Status Display (Windows only) From the Status Display, the current

status of this printer, such as its

consumables and error information,

can be checked.

For details, refer to “Working with the

Status Display” on page 14.

Printer Status Monitor Center

(Windows only)

The status of KONICA MINOLTA

products on the same network can be

checked.

For details, refer to “Working With the

Printer Status Monitor Center” on

page 16.

PageScope Web Connection With the Web browser, the status of

printers can be checked, and each

setting can be changed.

For details, refer to the magicolor

5430 DL Reference Guide.

System Requirements 7

System Requirements

Personal computer

Pentium 2 400 MHz (Pentium 3 500 MHz or higher is recommended.)

Operating System

–Microsoft Windows XP Home Edition/Professional,

Windows Server 2003, Windows 2000, Windows Me, Windows 98SE,

Windows NT 4.0

–Mac OS X v10.2 or later

Free hard disk space

–Approximately 20 MB of free hard disk space for printer driver and sta-

tus display

–Approximately 128 MB of free hard disk space for image processing

RAM

More than OS recommendation

CD-ROM/DVD drive

I/O interface

–10Base-T/100Base-TX (IEEE 802.3) Ethernet interface port

–USB Revision 1.1 and above compliant port

" For details of the Macintosh printer driver, refer to the magicolor 5430

DL Reference Guide.

Selecting Driver Options/Defaults (For Windows)8

Selecting Driver Options/Defaults

(For Windows)

Before you start working with your printer, you are advised to verify/change

the default driver settings. Also, in case you have options installed, you

should “declare” the options in the driver.

1Choose the driver’s properties as follows:

–(Windows XP/Server 2003)

From the Start menu, choose Printers and Faxes to display the

Printers and Faxes directory. Right-click the KONICA MINOLTA mag-

icolor 5430DL printer icon and choose Printing Preferences.

–(Windows 2000)

From the Start menu, choose Settings and then Printers to display

the Printers directory. Right-click the KONICA MINOLTA magicolor

5430DL printer icon and choose Printing Preferences.

–(Windows Me/98SE)

From the Start menu, choose Settings and then Printers to display

the Printers directory. Right-click the KONICA MINOLTA magicolor

5430DL printer icon and choose Properties. Choose the Printer

Properties.

–(Windows NT 4.0)

From the Start menu, choose Settings and then Printers to display

the Printers directory. Right-click the KONICA MINOLTA magicolor

5430DL printer icon and choose Document Defaults.

2If you have installed available options, proceed with the next step. Other-

wise, proceed with step 6.

3Select the Device Options Setting tab.

4Check that the options have been correctly identified.

" Since Auto configure is selected as a default with this driver, installed

options are automatically identified. If, for some reason, the options

are not correctly identified, follow the operations described in steps 5

through 7.

5Clear the Auto configure check box.

6Select an option (one at a time) and click Add. The option moves to the

Installed Options list.

" If you accidentally add an uninstalled option, select the option in the

Installed Options list and then click Remove.

Uninstalling the Printer Driver (For Windows) 9

7Click Apply.

" Depending on the version of the operating system, Apply may not

appear. If this is the case, continue with the next step.

8Select the Paper tab. Select the default settings for your printer, such as

the default media format you use.

9Click Apply.

10 Click OK to exit from the Properties dialog box.

Uninstalling the Printer Driver

(For Windows)

This section describes how to uninstall the magicolor 5430 DL Printer Driver if

necessary.

1From the Start menu, choose Programs (Windows XP/Server 2003: All

Programs), KONICA MINOLTA, magicolor 5430DL Utilities, and then

magicolor 5430DL Uninstall.

2In the Uninstall window, select the KONICA MINOLTA magicolor 5430DL.

Then click Uninstall.

3The magicolor 5430 DL driver will be uninstalled from your computer.

4Restart your computer.

Displaying Printer Driver Settings

(For Windows)

Windows XP/Server 2003

1From the Start menu, choose Printers and Faxes to display the Printers

and Faxes directory.

2Right-click the KONICA MINOLTA magicolor 5430DL printer icon and

choose Printing Preferences.

Using the Printer Driver10

Windows 2000/Me/98SE/NT 4.0

1From the Start menu, point to Settings, and then click Printers to display

the Printers directory.

2Display the printer driver settings:

Windows 2000—Right-click the KONICA MINOLTA magicolor

5430DL printer icon and choose Printing Preferences.

Windows Me/98SE—Right-click the magicolor 5430DL printer icon

and choose Properties, then select Printer Properties.

Windows NT 4.0—Right-click the KONICA MINOLTA magicolor

5430DL printer icon and choose Document Defaults.

Using the Printer Driver

Common Buttons

The buttons described below appear on each tab.

OK

Click to exit the Properties dialog box, saving any changes made.

Cancel

Click to exit the Properties dialog box without saving any changes made.

Apply

Click to save all changes without exiting the Properties dialog box.

" Depending on the version of the operating system, Apply may not

appear.

Help

Click to view the help.

Using the Printer Driver 11

Easy Set

To save the current settings, enter a name, and then click Save. Afterward,

the saved settings can be selected from the drop-down list.

Select Default from the drop-down list to reset the functions in all tabs to dis-

play to their default values.

Page Layout

Check this option button to display a sample of the page layout in the figure

area.

Printer Figure

Check this option button to display an image of the printer (with all installed

options) in the figure area.

Setup Tab

The Setup tab allows you to

Print several pages of a document on the same page (n-up printing)

Provide a watermark on printed documents

Design custom watermarks

Specify duplex and booklet printing

Specify the paper source

Define the type of media

Specify different paper for the first page of a document

Paper Tab

The Paper tab allows you to

Specify the size of the original document

Define custom media sizes

Fit printed documents to a specified media size

Select the output media size

Scale (enlarge/reduce) documents

Specify the orientation of the media

Specify the number of copies

Turn on/off the printer’s sorting function

Using the Printer Driver12

Turn on/off the Transmit Once function

Print using a form overlay

Create/edit a form overlay

Quality Tab

The Quality tab allows you to

Switch between color and monochrome printing

Specify color matching (Images, Graphics and Text)

Specify the resolution for the printout

Control the tones of an image (Contrast)

Control the darkness of an image (Brightness)

Control the color purity of an image (Saturation)

Control the clarity of an image (Sharpness)

Device Options Setting Tab

The Device Options Setting tab allows you to

Automatically identify installed options

Activate the optional lower feeder units (Tray 2 and 3) and/or the duplex

option

Enter the user name that is sent with the print job(s)

View information about the printer driver

Using the

Windows Status

Display and

Printer Status

Monitor Center

Working with the Status Display14

Working with the Status Display

Introduction

The Status Display shows information about the current status of the printer.

Opening the Status Display and Showing the Supplies

Status

Use one of the following steps to open the Status Display:

Windows XP/Server 2003—From the Start menu, choose All Pro-

grams, KONICA MINOLTA, magicolor 5430DL Utilities, and then mag-

icolor 5430DL Status.

Windows 2000/Me/98SE/NT 4.0—From the Start menu, choose Pro-

grams, KONICA MINOLTA, magicolor 5430DL Utilities, and then mag-

icolor 5430DL Status.

Altering the Size of the Status Display Window

From the Display menu, choose Status (Reduce) to decrease the size of

the window.

From the Display menu, choose Status (Expand) to increase the size of

the window.

Using the Status Display

When the background of the right-hand printer graphic is green, the

printer is in standby mode or a job is printing normally.

When the background of the right-hand printer graphic is red, there is an

error and the job has been interrupted. The status of the printer and the

error message are shown in the dialog boxes on the left.

The function areas include:

Printer Status—Displays text messages that describe the current opera-

tional status of the printer.

How to Recover—Provides you with explanations of what you need to do

in order to correct problems and recover from error conditions.

Warning Status—Displays text messages that alert you of conditions

such as low toner.

Printer Status Figure—Shows a graphic representation of the printer and

indicates where the problem is.

Printing Status—Displays the status of the current print job.

Recognizing Status Display Alerts 15

Select Popup Message—Allows you to choose which message(s) you

want to bring to the foreground when that particular condition occurs with

the printer.

Printer Information—Allows you to check various information such as

the number of prints.

Supplies Status—Displays the usage status (approximate percentage

remaining) of each toner cartridge.

Recognizing Status Display Alerts

When the Status Display detects a printing problem, the icon on the Windows

task bar changes from green to yellow or red, depending on the severity of

the printer problem.

Recovering from a Status Display Alert

When the Status Display notifies you of a printing problem, double-click its

icon on the Windows task bar to open the Status Display. The Status Display

identifies what type of error has occurred.

Closing the Status Display

To close the Status Display from the File menu, choose Exit.

" If you click the X button in the upper-right corner of the Status Display

window to close the window, the Status Display remains available at

the bottom right of the taskbar. Double-click the icon to open the Sta-

tus Display window again.

Working With the Printer Status Monitor Center16

Working With the Printer Status Monitor

Center

Introduction

Printer Status Monitor Center is an application that shows the status of multi-

ple printing devices connected to the host through local ports (LPT and USB)

or network ports. Printer Status Monitor Center locates network printing

devices by using the Service Location Protocol (SLP), and only supports

printing devices responding to KONICA MINOLTA–specific SLP and PJL que-

ries such as magicolor 2300 DL and magicolor 5430 DL.

" If a KONICA MINOLTA product is not compatible with both SLP and

KONICA MINOLTA–specific PJL, Printer Status Monitor Center cannot

be used.

System Requirements

Operating System

Windows XP/Server 2003/2000/Me/98SE/NT 4.0

Printer Ports Supported by Printer Status Monitor Center

–Ethernet port

–USB port

–Parallel port

Opening the Printer Status Monitor Center and Showing

the Supplies Status

Follow the appropriate operation described below to open the Printer Status

Monitor Center.

Windows XP/Server 2003—From the Start menu, choose All Pro-

grams, KONICA MINOLTA, magicolor 5430DL Utilities, and then mag-

icolor 5430DL Printer Status Monitor Center.

Windows 2000/Me/98SE/NT 4.0—From the Start menu, choose Pro-

grams, KONICA MINOLTA, magicolor 5430DL Utilities, and then mag-

icolor 5430DL Printer Status Monitor Center.

Working With the Printer Status Monitor Center 17

Using the Printer Status Monitor Center

Printer Name—Displays the model name of the local printer or printer on

the network together with a printer icon. The printer icon changes color

according to the connection and printer status. A red icon indicates an

error, a yellow icon indicates a warning, and a green icon indicates normal

operation.

Depending on the setting in the Options dialog box, Status Display or

PageScope Web Connection appears when you double-click the printer

name.

" If the name of the printer cannot be detected, “Unknown” appears next

to the Printer name.

" If the selected printer is incompatible with Status Display or Page-

Scope Web Connection, it will not appear when you double-click the

printer name.

" If the device is connected to the USB port through a local connection

or if “Unable Connect” appears under Status, Status Display or Page-

Scope Web Connection does not appear, even when you double-click

the printer name.

Port—Displays the name of the port where the printer is connected.

For a local printer, the type (USB, LPT) is displayed.

For a network printer, the IP address is displayed.

Status—Displays the printer status. The same information for Printer Sta-

tus in the Status Display is displayed.

Supply Status: C,M,Y,K %Remaining—Displays (in percent) the approx-

imate amount of toner remaining in the cartridges. The listed values are,

from the left: C (cyan), M (magenta), Y (yellow) and K (black).

" Click the heading of each column to switch the order between

descending and ascending.

Action Menu

Update Printers—Searches again for the printers on the network.

Network Printers—Allows the IP address of network printers to be added

or removed.

Recognizing Printer Status Monitor Center Alerts18

Options

Recognizing Printer Status Monitor Center

Alerts

If a red or yellow icon appears, open Status Display or PageScope Web Con-

nection, and then check the detailed information. For details on Status Dis-

play, refer to “Working with the Status Display” on page 14. For details on

PageScope Web Connection, refer to the magicolor 5430 DL Reference

Guide.

Closing the Printer Status Monitor Center

To close Printer Status Monitor Center, choose Exit from the File menu, or

click the X button in upper-right corner of the Printer Status Monitor Center

window.

Status Monitor Application

for Network Printers

Specify whether Status Display or PageScope

Web Connection appears when the name of the

printer in the screen is double-clicked. The

default setting is Status Display. This setting

only applies to network printers.

Timeout Two timeout intervals can be specified.

Printer Detection Timeout

Printer Status Query Timeout

Printer Control

Panel and

Configuration

Menu

About the Control Panel20

About the Control Panel

The control panel, located on the top of the printer, allows you to direct the

printer’s operation. In addition, it displays the current status of the printer,

including any condition that needs your attention.

Control Panel Indicators and Keys

No. Indicator Off On

1 The printer is not ready

to accept data.

The printer is ready to

accept data.

2 No problem. The printer requires

operator attention

(usually accompanied by

a status message in the

message window.)

1

2

5

7

6

8

MESSAGE

WINDOW

3

4

About the Control Panel 21

No. Key Function

3Cancels the currently displayed menu or menu

choice

Allows you to cancel one or all print jobs that

are currently being printed or processed:

1. Press the Cancel key.

2. Press the Right or Left keys to select either

JOB CANCEL/CURRENT JOB or JOB

CANCEL/ALL JOBS.

3. Press the Select key.

The print job(s) is cancelled.

4 Enters the menu system

Moves down in the menu structure

Selects the displayed menu choice

5 Moves up in the menu structure

Within a menu choice that is changeable char-

acter by character, scrolls upward through the

available characters

6 Moves right in the menu structure

Moves right through the available menu

choices

7 Moves down in the menu structure.

Within a menu choice that is changeable char-

acter by character, scrolls downward through

the available characters

8 Moves left in the menu structure

Moves left through the available menu choices

Configuration Menu Overview22

Toner Supply Indicators

The indicators shown below will appear, indicating the amount of toner that

remains in the yellow (Y), magenta (M), cyan (C), and black (K) toner car-

tridges.

Configuration Menu Overview

The menus with settings that can be set from the control panel of the magi-

color 5430 DL are structured as shown below.

READY

Configuration Menu Overview 23

Configuration Menu

READY PRINT

CONFIG PAGE

TOTAL FACE COUNT

xxxxxx

PRINT

TEST PAGES

COLOR FACE COUNT

xxxxxx

PRINT

MENU MAP

BW FACE COUNT

xxxxxx

LANGUAGE SET

ENGLISH

CONTROLLER VER.

xx.xxx

LANGUAGE SET

FRENCH

ENGINE VER.

xxxxxxxxxxxxxx

LANGUAGE SET

GERMAN

SERVICE

DIMM TEST

LANGUAGE SET

ITALIAN

SERVICE

SDRAM TEST

LANGUAGE SET

PORTUGUESE

COLOR

CALIBRATION

LANGUAGE SET

SPANISH

RESET COUNTER

TRANSFER ROLLER

LANGUAGE SET

CZECH

RESET COUNTER

TRANSFER UNIT

LANGUAGE SET

JAPANESE

ENERGY SAVER

xxx

ENGINE

TONER EMPTY

RESTORE

USER DEFAULT

ENERGY SAVER*

xxxxxxxx

AUTO CONTINUE

xxx

TRAY CHAINING**

xxx

ENGINE

SERVICE

MENU

SPECIAL PAGES

MENU

LANGUAGE

MENU

ENGINE

*Displays only if ENERGY

SAVER is set to ON in the

ENGINE/SERVICE/

ENERGY SAVER menu.

**Displays only if one or

more optional lower feeders

(Tray 2 and Tray 3) in

installed.

Configuration Menu Overview24

DHCP:xx

BOOTP:xx

IP ADDRESS

xxx.xxx.xxx.xxx

SUBNET MASK

xxx.xxx.xxx.xxx

GATEWAY

xxx.xxx.xxx.xxx

MAC ADDRESS

00206Bxxxxxx

HTTP:xx

SNMP:xx

MENU

NETWORK

BLACK TONER

xx% REMAINING

CYAN TONER

xx% REMAINING

MAGENTA TONER

xx% REMAINING

YELLOW TONER

xx% REMAINING

MENU

CONSUMABLE USAGE

FORCED MODES: *

SPEED/DUP/NEG.

* Some older network hubs

with fixed communication

modes do not communicate

properly with automatically

configured devices. In such

cases, use the NETWORK/

FORCED MODES menu to

configure the printer for the

appropriate hub settings and

enable communication.

Configuration Menu Overview 25

Special Pages Menu

Language Menu

Engine Menu

PRINT CON-

FIG PAGE

Print the configuration page.

PRINT TEST

PAGES

Print the test page.

PRINT MENU

MAP

Print the menu map.

ENGLISH/FRENCH/

GERMAN/ITALIAN/

PORTUGUESE/

SPANISH/CZECH/

JAPANESE

The display language of the message window

can be changed to the required language.

The default setting is English.

TONER EMPTY Settings STOP / CONTINUE

When set to CONTINUE, printing continues

even if the toner cartridge is empty.

When set to STOP, printing stops when the

toner cartridge is empty.

ENERGY SAVER Settings 15 MINUTES / 30 MINUTES

/ 1 HOUR / 2 HOURS

Sets the length of time until the printer enters

Energy Saver mode after it no longer receives

print jobs or is not operating.

The Energy Saver mode is automatically can-

celled when any of the following occurs:

The printer is restarted.

A print job is received.

Any key on the control panel is pressed.

The front cover or right side cover is

opened, then closed.

A tray is opend, then closed.

Configuration Menu Overview26

AUTO CONTINUE Settings ON / OFF

When set to ON, the printer continues printing

if the correct size media is not loaded in the

specified tray.

When set to OFF, the printer stops and

displays a message indicating that media

should be loaded into the specified tray if the

specified tray runs out of media.

TRAY CHAINING Settings ON / OFF

When set to ON, the printer automatically

switches to a different tray containing media

of the same size and type, if the specified tray

runs out of media.

When set to OFF, the printer stops and

displays a message indicating that media

should be loaded into the specified tray if the

specified tray runs out of media.

Configuration Menu Overview 27

ENGINE

SERVICE

Use this submenu to view information related to the engine.

TOTAL FACE

COUNT

The number of page faces that have been

printed to date.

COLOR FACE

COUNT

The number of color page faces that have

been printed to date.

BW FACE

COUNT

The number of monochrome page faces that

have been printed to date.

CONTROL-

LER VER.

The current controller firmware version.

ENGINE

VER.

The printer engine firmware version.

SERVICE

DIMM TEST

Verifies the DIMM by performing a DIMM test.

SERVICE

SDRAM TEST

Verifies the SDRAM.

COLOR

CALIBRA-

TION

Performs color calibrations in order to adjust

the color shift.

RESET

COUNTER

TRANSFER

ROLLER

Resets the counter when the transfer roller

has been replaced.

RESET

COUNTER

TRANSFER

UNIT

Resets the counter when the transfer belt unit

has been replaced.

ENERGY

SAVER

Settings ON / OFF

When set to ON, Energy Saver is enabled.

When set to OFF, Energy Saver is disabled

and the ENGINE/ENERGY SAVER menu is

not displayed.

RESTORE

USER

DEFAULT

Resets the ENERGY SAVER, AUTO

CONTINUE and TRAY CHAINING menus

to the factory defaults. In addition, the

administrator password is reset to the default

password.

Configuration Menu Overview28

Network Menu

If the printer is connected to a network, the following settings should be spec-

ified. For details about each setting, contact your network administrator.

DHCP Settings DHCP SET:ON

BOOTP SET:OFF

DHCP SET:OFF

BOOTP SET:ON

DHCP SET:OFF

BOOTP SET:OFF

If there is a DHCP server on the network, specify whether the

IP address is automatically assigned by the DHCP server and

other network information is loaded (can be set to ON or OFF).

BOOTP Specifies whether the IP address is automatically assigned by

BOOTP and other network information is loaded (can be set to

ON or OFF).

IP

ADDRESS

Setting 192.168.1.2

Sets the IP address of this printer on the network. Use the Up,

Down, Left, and Right keys to enter the value.

When manually setting the IP address, first set DHCP and

BOOTP to OFF.

SUBNET

MASK

Setting 255.255.255.0

Sets the subnet mask value of the network. Use the Up,

Down, Left, and Right keys to enter the value. When manually

setting the Subnet Mask, first set DHCP and BOOTP to OFF.

GATEWAY Setting 192.168.1.1

If a router is used on the network, enter the IP address of the

router. Use the Up, Down, Left, and Right keys to enter the

value. When manually setting the Gateway, first set DHCP

and BOOTP to OFF.

MAC

ADDRESS

Displays Ethernet hardware address for this printer. (It cannot

be changed.)

HTTP Settings ON / OFF

HTTP can be set to ON or OFF. ON enables the Internal Web

Page inside the printer, OFF disables it.

Configuration Menu Overview 29

Consumables Menu

SNMP Settings ON / OFF

SNMP is a scalable, distributed management suite for manag-

ing small to large size networks. SNMP can be set to ON or

OFF.

FORCED

MODES

Settings SPEED/DUP/NEG. : AUTO/AUTO/ON

- AUTO/FULL/ON - AUTO/HALF/ON

- 100M/AUTO/ON - 100M/FULL/ON

- 100M/FULL/OFF - 100M/HALF/ON

- 100M/HALF/OFF - 10M/AUTO/ON

- 10M/FULL/ON - 10M/FULL/OFF

- 10M/HALF/ON - 10M/HALF/OFF

SPEED indicates the network transmission speed. Select from

a 10Base-T connection (10M), 100Base-TX connection

(100M), or automatic recognition (AUTO). If AUTO is selected,

the transmission speed is set depending on the negotiation.

Therefore, there is no setting where negotiation (NEG.) is

turned off.

DUP indicates the communication method for bi-directional

communication. Select whether data is sent and received in

both directions simultaneously (FULL), or in one direction at a

time (HALF), or select automatic recognition (AUTO). If AUTO is

selected, the transmission speed is set depending on the

negotiation. Therefore, there is no setting where negotiation

(NEG.) is turned off.

NEG. indicates the negotiation setting (mutually sends and

receives information such as the transmission speed and

determines the transmission setting). When set to ON, negotia-

tion is performed. When set to OFF, negotiation is not per-

formed.

BLACK

TONER

The approximate percentage of toner remaining in the black

toner cartridge.

CYAN

TONER

The approximate percentage of toner remaining in the cyan

toner cartridge.

YELLOW

TONER

The approximate percentage of toner remaining in the yellow

toner cartridge.

MAGENTA

TONER

The approximate percentage of toner remaining in the

magenta toner cartridge.

Using Media

Media Specifications32

Media Specifications

What types and sizes of media can I load?

" For custom sizes, use the printer driver to specify the settings within

the ranges shown in the above table.

Media Media Size Tray* Duplex

Inch Millimeter

A4 8.2 x 11.7 210.0 x 297.0 1/2/3 Yes

A5 5.9 x 8.3 148.0 x 210.0 1 No

B5 (JIS) 7.2 x 10.1 182.0 x 257.0 1/2/3 Yes

Executive 7.25 x 10.5 184.0 x 267.0 1/2/3 Yes

Folio 8.3 x 13.0 210.0 x 330.0 2/3 Yes

Foolscap 8.0 x 13.0 203.2 x 330.2 2/3 Yes

Kai 16 7.3 x 10.2 185.0 x 260.0 1 Yes

Kai 32 5.1 x 7.3 130.0 x 185.0 1 No

16 K 7.7 x 10.6 195.0 x 270.0 1 Yes

Legal 8.5 x 14.0 215.9 x 355.6 2/3 Yes

Government Legal 8.5 x 13.0 216.0 x 330.0 2/3 Yes

Letter 8.5 x 11.0 215.9 x 279.4 1/2/3 Yes

Letter Plus 8.5 x 12.7 215.9 x 322.3 2/3 Yes

Government letter 8.0 x 10.5 203.2 x 266.7 1/2/3 Yes

Statement 5.5 x 8.5 140.0 x 216.0 1 No

UK Quarto 8.0 x 10.0 203.2 x 254.0 1 No

A4 Transparency 8.2 x 11.7 210.0 x 297.0 1 No

Letter Transparency 8.5 x 11.0 215.9 x 279.4 1 No

Japanese Postcard 3.9 x 5.8 100.0 x 148.0 1 No

Double Postcard 5.8 x 7.9 148.0 x 200.0 1 No

Envelope B5 (ISO) 6.9 x 9.8 176.0 x 250.0 1 No

Envelope C5 6.4 x 9.0 162.0 x 229.0 1 No

Envelope C6 4.5 x 6.4 114.0 x 162.0 1 No

Envelope #10 4.1 x 9.5 104.1 x 241.3 1 No

Envelope DL 4.3 x 8.7 110.0 x 220.0 1 No

Envelope Monarch 3.9 x 7.5 99.0 x 190.5 1 No

Envelope Chou #3 4.7 x 9.2 120.0 x 235.0 1 No

Envelope Chou #4 3.5 x 8.1 90.0 x 205.0 1 No

Envelope You #4 4.1 x 9.3 105.0 x 235.0 1 No

Thick Stock 1, 2—Only supported for letter, A4, or smaller media.

Custom, Minimum 3.6 x 5.9 92.0 x 148.0 1 No

Custom, Maximum 8.5 x 11.7 216.0 x 297.0 1 Yes

Notes: *Tray 1 = Multipurpose

Tray 2/3 = Lower feeder units (optional)

Media Types 33

Media Types

Before purchasing a large quantity of special media, do a trial printing

with the same media and check the print quality.

Keep media on a flat, level surface in its original wrapper until it is time to

load it. For a list of approved media, refer to printer.konicaminolta.com.

Plain Paper (Recycled Paper)

Use media that is

Suitable for plain paper laser printers, such as standard or recycled office

paper.

Note

Do not use the media types listed below. These could cause poor print

quality, media misfeeds, or damage to the printer.

DO NOT use media that is

Coated with a processed surface (such as carbon paper, digitally gloss-

coated media, and colored paper that has been treated)

Carbon backed

Unapproved iron-on transfer media (such as heat-sensitive paper,

heat-pressure paper, and heat-press transfer paper)

Cold-water-transfer paper

Pressure sensitive

Designed specifically for inkjet printers (such as superfine paper, glossy

paper, glossy film, and postcards)

Already been printed on by another printer, copier, or fax machine

Dusty

Wet (or damp)

Capacity Tray 1

(multipurpose)

250 sheets of 80 g/m2 (22 lb) paper; capacity

for other weights varies accordingly.

Tray 2 and 3 500 sheets of 80 g/m2 (22 lb) paper; capacity

for other weights varies accordingly.

Orientation Face up

Driver

Media Type

Plain paper (Recycled paper)

Weight 60–90 g/m² (16–24 lb bond)

Duplexing See page 32 for supported sizes.

Media Types34

" Keep media between 35% and 85% relative humidity. Toner does

not adhere well to moist or wet paper.

Layered

Adhesive

Folded, creased, curled, embossed, warped, or wrinkled

Perforated, three-hole punched, or torn

Too slick, too coarse, or too textured

Different in texture (roughness) on the front and back

Too thin or too thick

Stuck together with static electricity

Composed of foil or gilt; too luminous

Heat sensitive or cannot withstand the fusing temperature (180°C

[356°F])

Irregularly shaped (not rectangular or not cut at right angles)

Attached with glue, tape, paper clips, staples, ribbons, hooks, or buttons

Acidic

Any other media that is not approved

Thick Stock

Paper thicker than 90 g/m2 (24 lb bond) is referred to as thick stock. Test all

thick stock to ensure acceptable performance and to ensure that the image

does not shift.

DO NOT use thick stock that is

Mixed with any other media in the trays (as this will cause printer misfeed-

ing)

Capacity Tray 1 Up to 20 thick stock sheets, depending on

their thickness.

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Thick stock 1 (91-150 g/m2)

Thick stock 2 (151-210 g/m2)

Weight 91–210 g/m² (25–55.9 lb)

Duplexing Not supported

Media Types 35

Envelopes

Print on the front (address) side only. Some parts of the envelope consist of

three layers of paper—the front, back, and flap. Anything printed in these lay-

ered regions may be lost or faded.

Use envelopes that are

Common office envelopes approved for laser printing with diagonal joints,

sharp folds and edges, and ordinary gummed flaps

" Because the envelopes pass through heated rollers, the gummed

area on the flaps may seal. Using envelopes with emulsion-based

glue avoids this problem.

Approved for laser printing

Dry

DO NOT use envelopes that have

Sticky flaps

Tape seals, metal clasps, paper clips, fasteners, or peel-off strips for seal-

ing

Transparent windows

Too rough of a surface

Material that will melt, vaporize, offset, discolor, or emit dangerous fumes

Been presealed

Capacity Tray 1 Up to 10 envelopes, depending on their

thickness

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Envelope

Weight 91–163 g/m² (25–43 lb)

Duplexing Not supported

Media Types36

Labels

A sheet of labels consists of a face sheet (the printing surface), adhesive, and

a carrier sheet:

The face sheet must follow the plain paper specification.

The face sheet surface must cover the entire carrier sheet, and no adhe-

sive should come through on the surface.

You can print continuously with label sheets. However, this could affect the

media feed, depending on the media quality and printing environment. If

problems occur, stop the continuous printing and print one sheet at a time.

Format label data within your application. Try printing your data on a sheet of

plain paper first to check placement. Check your application documentation

for more information on printing labels.

Use label sheets that are

Recommended for laser printers

Letter or A4 size (adhesive label stock)

DO NOT use label sheets that

Have labels that easily peel off

Have backing sheets that have peeled away or have exposed adhesive

" Labels may stick to the fuser, causing them to peel off and media

misfeeds to occur.

Capacity Tray 1 Up to 20 label sheets, depending on their

thickness

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Labels

Weight 60–163 g/m² (16–90 lb)

Duplexing Not supported

Media Types 37

Are precut or perforated

Letterhead

Format letterhead data within your application. Try printing your data on a

sheet of plain paper first to check placement.

Postcards

Format postcard data within your application. Try printing your data on a

sheet of plain paper first to check placement.

Capacity Tray 1 Up to 250 sheets, depending on their size

and thickness

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Letterhead

Weight 60–90 g/m² (16–24 lb)

Duplexing See page 32 for supported sizes (face up—top of page first).

Capacity Tray 1 Up to 20 postcards, depending on their

thickness

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Postcard

Weight 60–163 g/m² (16–90 lb)

Duplexing Not supported

Full-page labels

(uncut)

Do not use OK to use

Shiny backed paper

Media Types38

Use postcards that are

Recommended for laser printers

DO NOT use postcards that are

Coated

Designed for inkjet printers

Precut or perforated

Preprinted or multicolored (may result in media mis-

feeds)

" If the postcard is warped, press on the warped

area before putting it in Tray 1.

Transparencies

" Do not fan transparencies before loading them. Resulting static elec-

tricity may cause printing errors.

" If you touch the face of the transparencies with your bare hands, print

quality may be affected.

" Keep the printer path clean. Transparencies are especially sensitive to

a dirty media path. If there are shadows on either the top or the bottom

of the sheets, see chapter 7, “Maintaining the Printer” .

" Remove transparencies as soon as possible from the output tray to

avoid static buildup.

You can print continuously with transparencies. However, this could affect the

media feed, depending on the media quality, static buildup, and printing envi-

ronment.

Format the information to be printed on the transparencies within your appli-

cation. Try printing your data on a sheet of plain paper first to check place-

ment.

Media Types 39

" If you have problems feeding 20 sheets, try loading only 1–10 sheets

at a time. Loading a large number of transparencies at one time may

cause static buildup, thus causing feeding problems.

Use transparencies that are

Approved for laser printing

DO NOT use transparencies that

Have static electricity that will cause them to stick together

What Is the Guaranteed Imageable (Printable) Area?

The printable area on all media sizes is

up to 4 mm (0.157") from the edges of

the media.

Each media size has a specific image-

able area, the maximum area on which

the printer can print clearly and without

distortion.

This area is subject to both hardware

limits (the physical media size and the

margins required by the printer) and

software constraints (the amount of

memory available for the full-page frame buffer). The guaranteed imageable

(printable) area for all media sizes is the page size minus 4 mm (0.157") from

all edges of the media.

Capacity Tray 1 Up to 20 transparencies, depending on their

thickness

Tray 2 and 3 Not supported

Orientation Face up

Driver

Media Type

Transparency

Duplexing Not supported

aa

a

a

a = 0a = 0.157" (4 mm)

Printable

Area

a = 4 mm (0.157")

Media Types40

Imageable Area—Envelopes

Envelopes have a nonguaranteed imageable area that varies with envelope

type.

" The envelope

print orienta-

tion is deter-

mined

by your appli-

cation.

Page Margins

Margins are set through your application. Some applications allow you to set

custom page sizes and margins while others have only standard page sizes

and margins from which to choose. If you choose a standard format, you may

lose part of your image (due to imageable area constraints). If you can cus-

tom-size your page in your application, use those sizes given for the imagea-

ble area for optimum results.

Guaranteed

area

Nonguaranteed area

Nonimageable area 4 mm (0.157")

Loading Media 41

Loading Media

How do I load media?

Take off the top and bottom sheets of a

ream of paper. Holding a stack of approx-

imately 200 sheets at a time, fan the

stack to prevent static buildup before

inserting it in a tray.

" Do not fan transparencies.

Note

Although this printer was designed for printing on a wide range of

media types, it is not intended to print exclusively on a single media

type except plain paper. Continuous printing on media other than plain

paper (such as envelopes, labels, thick stock, or transparencies) may

adversely affect print quality or reduce engine life.

When refilling media, first remove any media remaining in the tray. Stack it

with the new media, even the edges, then reload it.

Tray 1 (Multipurpose Cassette)

For details on the types and sizes of media that can be printed from Tray 1,

refer to “Media Specifications” on page 32.

Loading Plain Paper

1Pull out Tray 1.

Loading Media42

2Press down on the media pres-

sure plate to lock it into place.

3Slide the media guides to pro-

vide more space between them.

4Load the paper face up in the

tray.

Loading Media 43

" Do not load above the



mark. Up to 250 sheets

(80 g/m2 [22 lb]) of plain

paper can be loaded into

the tray at one time.

5Slide the media guides against

the edges of the paper.

6Close Tray 1.

Loading Media44

Other Media

When loading media other than plain paper, set the media mode (for exam-

ple, Envelope, Label, Thick Stock 1, Thick Stock 2, or Transparency) in the

driver for optimum print quality.

Loading Envelopes

1Pull out Tray 1.

2Remove any media in the tray.

3Press down on the media pres-

sure plate to lock it into place.

Loading Media 45

4Slide the media guides to pro-

vide more space between them.

5Load the envelopes flap side

down in the tray.

" Before loading enve-

lopes, press them down

to make sure that all air is

removed, and make sure

that the folds of the flaps

are firmly pressed, other-

wise the envelopes may

become wrinkled or a

media misfeed may

occur.

" Up to 10 envelopes can

be loaded into the tray at

one time.

" For envelopes with the

flap along the long edge,

load the envelopes with

the flap toward the back

of the printer.

Loading Media46

6Slide the media guides against

the edges of the envelopes.

7Close Tray 1.

8Pull the lever, and then open the

right side cover.

Loading Media 47

9Open the door at the side of the

right side cover.

10 Turn the two dials on the fuser

unit to the setting for envelopes. Plain paper Envelope

Loading Media48

11 Close the door at the side of the

right side cover.

12 Close the right side cover.

" Before printing on plain

paper, be sure to return

the dials on the fuser unit

to the setting for plain

paper.

Loading Media 49

Loading Label Sheets/Postcards/Thick Stock/

Transparencies

1Pull out Tray 1.

2Remove any media in the tray.

3Press down on the media pres-

sure plate to lock it into place.

Loading Media50

4Slide the media guides to pro-

vide more space between them.

5Load the media face up in the

tray.

" Up to 20 sheets can be

loaded into the tray at

one time.

6Slide the media guides against

the edges of the media.

Loading Media 51

7Close Tray 1.

Tray 2 and 3 (Optional Lower Feeder Units)

Loading Plain Paper

1Pull out Tray 2 (Tray 3).

2Press down on the media pres-

sure plate to lock it into place.

Loading Media52

3Slide the media guides to pro-

vide more space between them.

4Load the paper face up in the

tray.

" Do not load above the



mark. Up to 500 sheets

(80 g/m2 [22 lb]) of plain

paper can be loaded into

the tray at one time.

Loading Media 53

5Slide the media guides against

the edges of the paper.

6Close Tray 2 (Tray 3).

Duplexing54

Duplexing

Select paper with high opacity for duplex (2-sided) printing. Opacity refers to

how effectively paper blocks out what is written on the opposite side of the

page. If the paper has low opacity (high translucency), then the printed data

from one side of the page will show through to the other side. Check your

application for margin information. For best results, print a small quantity to

make sure the opacity is acceptable.

Duplex (2-sided) printing can be done manually or can be done automatically

with the duplex option installed and selected.

Note

Only plain paper, 60–90 g/m2 (16–24 lb) can be autoduplexed. See

“Media Specifications” on page 32 for supported sizes.

Duplexing envelopes, labels, postcards, thick stock, or transparencies

is not supported.

How do I autoduplex?

You should verify that the duplex option is physically installed on the printer to

have the job duplex successfully. If the duplex option is not installed and

duplex job is sent, the control panel will display DUPLEX UNIT NOT

ATTACHED.

Check your application to determine how to set your margins for duplex

printing.

The following Duplex/Booklet settings are available.

If “Short Edge Binding” is selected, the pages will be laid

out to flip at the top.

If “Long Edge Binding” is selected, the pages will be laid out

to flip at the sides.

1

3

1

2

1

1

1

1

1

2

3

Output Tray 55

1Load plain paper into the tray.

2From the printer driver, specify the layout for duplex printing.

3Click OK.

" With autoduplexing, the back side is printed first, and then the front

side is printed.

Output Tray

All media is output to the face-down output tray on top of the printer. This tray

has a capacity of 250 sheets (A4/Letter) of 80 g/m2 (22 lb) paper.

" If the media is stacked too high in the output tray, your printer may

experience media misfeeds, excessive media curl, or static buildup.

" Remove transparencies as soon as possible from the output tray to

avoid static buildup.

If “Booklet Left Binding” is selected, the pages can be

folded as a left-bound booklet.

If “Booklet Right Binding” is selected, the pages can be

folded as a right-bound booklet.

1

1

2

3

3

31

1

2

Media Storage56

Media Storage

How do I store media?

Keep media on a flat, level surface in its original wrapper until it is time to

load it.

Media that has been stored for a long time out of its packaging may dry up

too much and cause misfeeding.

If media has been removed from its wrapper, place it in its original pack-

aging and store in a cool, dark place on a level surface.

Avoid moisture, excessive humidity, direct sunlight, excessive heat (above

35°C [95°F]), and dust

Avoid leaning against other objects or placing it in an upright position.

Before using stored media, do a trial printing and check print quality.

Replacing

Consumables

Replacing Consumables58

Replacing Consumables

Note

Failure to follow instructions as outlined in this manual could result in

voiding your warranty.

Refilled Toner Cartridges

Note

Do not use refilled toner cartridges. Any damage to the printer or quality

problems caused by a refilled toner cartridge will void your warranty. No

technical support is provided to recover from these problems.

About Toner Cartridges

Your printer uses four toner cartridges: black, yellow, magenta, and cyan.

Handle the toner cartridges carefully to avoid spilling toner inside the printer

or on yourself.

" The toner is nontoxic. If you get toner on your skin, wash it off with

cool water and a mild soap. If you get toner on your clothes, lightly

dust them off as best as you can. If some toner remains on your

clothes, use cool, not hot water, to rinse the toner off.

CAUTION

If you get toner in your eyes, wash it out immediately with cool water

and consult a doctor.

" Contact the following URL for recycling information.

US:http://printer.konicaminolta.net/products/recycle/index.asp

Europe:http://www.minolta-qms.nl/nlen/frames/cleanplanet.htm

Replacing Consumables 59

When replacing the toner cartridge, refer to the following table. Use the toner

cartridge listed for your specific printer. Printer behavior will be severely

affected if a unspecified toner cartridge is used.

Printer

Type

Printer Parts

Number

Toner Cartridge Type Toner Cartridge

Parts Number

AM 5250218-100

Standard-Capacity Toner Cartridge -Black (K) 1710580-001

Standard-Capacity Toner Cartridge -Yellow (Y) 1710580-002

Standard-Capacity Toner Cartridge -Magenta (M) 1710580-003

Standard-Capacity Toner Cartridge -Cyan (C) 1710580-004

EU 5250218-200

Standard-Capacity Toner Cartridge -Black (K) 1710582-001

Standard-Capacity Toner Cartridge -Yellow (Y) 1710582-002

Standard-Capacity Toner Cartridge -Magenta (M) 1710582-003

Standard-Capacity Toner Cartridge -Cyan (C) 1710582-004

AP 5250218-350

Standard-Capacity Toner Cartridge -Black (K) 1710583-001

Standard-Capacity Toner Cartridge -Yellow (Y) 1710583-002

Standard-Capacity Toner Cartridge -Magenta (M) 1710583-003

Standard-Capacity Toner Cartridge -Cyan (C) 1710583-004

JP 5250218-300

Standard-Capacity Toner Cartridge -Black (K) 1710581-001

Standard-Capacity Toner Cartridge -Yellow (Y) 1710581-002

Standard-Capacity Toner Cartridge -Magenta (M) 1710581-003

Standard-Capacity Toner Cartridge -Cyan (C) 1710581-004

Replacing Consumables60

Note

Do not hold a toner cartridge

vertically.

Do not touch the OPC drum

surface. This could lower image

quality.

Keep toner cartridges:

In their packaging until you’re ready to install them.

In a cool, dry location away from sunlight (due to heat).

The maximum storage temperature is 35° C (95° F) and the maximum

storage humidity is 85% (noncondensing). If the toner cartridge is moved

from a cold place to a warm, humid place, condensation may occur,

degrading print quality. Allow the toner to adapt to the environment for

about one hour before use.

Level during storage.

Do not stand or store cartridges on their ends or turn them upside down;

the toner inside the cartridges may become caked or unequally

distributed.

Away from salty air and corrosive gases such as aerosols.

Replacing Consumables 61

Replacing a Toner Cartridge

Note

Be careful not to spill toner while replacing a toner cartridge. If toner

spills, immediately wipe it off with a soft, dry cloth.

When the message TONER EMPTY appears, follow the steps below to

replace the toner cartridge. As an example, the following procedure describes

the operation for the yellow toner cartridge.

1Check the message window to see which color of toner is empty.

2Open the printer’s front cover.

3Press down the area marked

“Push” on the toner cartridge to

be replaced, and then slide the

cartridge out until the handle is

visible.

Replacing Consumables62

4Grasp the handle as shown in

the illustration, and then slide

the cartridge all the way out of

the printer.

Note

Dispose of the toner cartridge according to your local regulations. Do

not burn the toner cartridge.

5Check the color of the new toner cartridge to be installed.

6Shake the cartridge a few times

to distribute the toner.

" Make sure that the OPC

drum cover is securely

attached before shaking

the cartridge.

3 ×

Replacing Consumables 63

7Lift the OPC drum cover on the

toner cartridge toward you.

8Slide the OPC drum cover off of

the toner cartridge.

9Holding the toner cartridge by its

handle, slide the cartridge into

the printer.

Replacing Consumables64

10 Lower the handle, and then slide

the cartridge the rest of the way

into the printer until it locks into

place.

11 Remove the protective film from

the toner cartridge by slowly

pulling it straight out.

12 Close the front cover.

" If the toner cartridge is not fully inserted, the front cover cannot be

closed.

Replacing Consumables 65

" The printer must complete a 75-second calibration cycle after the

toner cartridge has been replaced. If you open the front cover

before the message READY appears, the printer stops and

repeats the calibration cycle.

Replacing the Waste Toner Bottle

When the waste toner bottle becomes full, the message WASTE BOTTLE

FULL appears in the message window. The printer stops and will not start

again until the waste toner bottle is replaced.

1Open the printer’s front cover.

2Turn the dial on the waste toner

bottle counterclockwise until it is

in the unlock position.

Lock Unlock

Replacing Consumables66

3Slowly slide the waste toner bot-

tle all the way out.

" Be careful not to spill any

toner.

4Remove the cap attached to the

side of the waste toner bottle,

and then attach it at the position

shown in the illustration.

5Dispose of the waste toner bot-

tle.

Note

Dispose of the waste toner bottle according to your local

regulations. Do not burn the waste toner bottle.

6Prepare a new waste toner bottle.

" Before installing the waste toner bottle, be sure that the dial on the

waste toner bottle is unlocked.

Replacing Consumables 67

7Slide the waste toner bottle all

the way into the printer.

8Turn the dial clockwise until the

waste toner bottle is in the

locked position.

9Close the front cover.

" If the waste toner bottle is not fully inserted or if the dial is not

locked, the front cover cannot be closed.

LockUnlock

Replacing Consumables68

Replacing the Transfer Roller

When the time to replace the transfer roller is reached, the message

TRANS.ROLLER END appears. Printing can continue even after this mes-

sage appears; however, since the print quality is reduced, the transfer roller

should be replaced immediately.

When replacing the transfer roller, also replace the ozone filter. A new ozone

filter is included with the new transfer roller.

Replacing the Transfer Roller

1Pull the lever, and then open the

right side cover.

Replacing Consumables 69

2While pushing the levers to the

inside, move the roller presser

toward you.

3While continuing to press the

levers, remove the transfer

roller.

4Prepare a new transfer roller.

Replacing Consumables70

5While pressing the levers, insert

the shaft of the transfer roller

into the bearings.

6Move the levers away from you

until it snaps into place.

Replacing Consumables 71

7Close the right side cover.

8Reset the counter in the ENGINE/SERVICE/RESET COUNTER

TRANSFER ROLLER menu.

9Replace the ozone filter, using the following procedure.

Replacing the Ozone Filter

1Remove the ozone filter from the

printer.

2Slide the new ozone filter into

the printer until it snaps into

place.

Replacing Consumables72

Replacing the Transfer Belt Unit

When the time to replace the transfer belt unit is reached, the message

TRANSFER END appears. Printing can continue even after this message

appears; however, since the print quality is reduced, the transfer belt unit

should be replaced immediately.

1Open the printer’s front cover.

2Turn the dial to unlock the

waster toner bottle.

Lock Unlock

Replacing Consumables 73

3Pull out the waste toner bottle

and the toner cartridges for

about 10 cm (4").

4Using a coin, remove the screws

on the left side cover.

" Be careful not to lose the

screws.

5Remove the left side cover.

Replacing Consumables74

6Open the right side cover, and

then use a coin to loosen the

screws securing the transfer belt

unit.

7From the side where the left side

cover was removed, hold the

arm, and then carefully pull out

the transfer belt unit.

8Prepare a new transfer belt unit.

" Be careful not to touch

the surface of the belt.

Replacing Consumables 75

9Insert the new transfer belt unit

along the rails.

10 Fully insert the transfer belt unit.

Replacing Consumables76

11 From the right side cover side,

tighten the screws to secure the

transfer belt unit and then close

the right side cover.

12 Insert the waste toner bottle and

the toner cartridges all the way

in until they snap into place.

13 Turn the dial to lock the waste

toner bottle into place.

LockUnlock

Replacing Consumables 77

14 Attach the left side cover, and

then tighten the screws.

15 Close the front cover.

16 Reset the counter in the ENGINE/SERVICE/RESET COUNTER

TRANSFER UNIT menu.

Maintaining the

Printer

Maintaining the Printer80

Maintaining the Printer

CAUTION

Read all caution and warning labels carefully, making sure to follow any

instructions contained in them. These labels are located on the inside of

the printer’s covers and the interior of the printer body.

Handle the printer with care to preserve its life. Abuse may cause damage

and void your warranty. If dust and paper scraps remain on the inside or out-

side of the printer, printer performance and print quality will suffer, so the

printer should be cleaned periodically. Keep the following guidelines in mind.

WARNING!

Turn off the printer, unplug the power cord, and disconnect all interface

cables before cleaning. Do not spill water or detergent into the printer;

otherwise the printer will be damaged and an electric shock may occur.

CAUTION

The fuser unit is hot. When the right side cover is opened, the

fuser unit temperature drops gradually (one hour wait time).

Be careful when cleaning the inside of the printer or removing media mis-

feeds, as the fuser unit and other internal parts may be very hot.

Do not place anything on top of the printer.

Use a soft cloth to clean the printer.

Never spray cleaning solution directly on the printer’s surface; the spray

could penetrate through the air vents of the printer and damage the inter-

nal circuits.

Avoid using abrasive or corrosive solutions or solutions that contain sol-

vents (such as alcohol and benzene) to clean the printer.

Always test any cleaning solution (such as mild detergent) on a small

inconspicuous area of your printer to check the solution’s performance.

Never use sharp or rough implements, such as wire or plastic cleaning

pads.

Always close the printer’s covers gently. Never subject the printer to vibra-

tion.

Do not cover the printer immediately after using it. Turn it off and wait until

it cools down.

Maintaining the Printer 81

Do not leave the printer’s covers open for any length of time, especially in

well-lit places; light may damage the toner cartridges.

Do not open the printer during printing.

Do not tap media stacks on the printer.

Do not lubricate or disassemble the printer.

Do not tilt the printer.

Do not touch the electrical contacts, gears, or laser devices. Doing so may

damage the printer and cause the print quality to deteriorate.

Keep media in the output tray at a minimum level. If the media is stocked

too high, your printer may experience media misfeeds and excessive

media curl.

Make sure two people are avail-

able to lift the printer when mov-

ing it.

Keep the printer level to avoid

toner spillage.

When lifting the printer, grasp

the areas shown in the figure to

the right.

Even if an optional lower feeder

unit is installed, be sure to lift the

printer as shown below. Do not

grasp the grip of Tray 2, 3 or the

right side cover; otherwise, the

lower feeder unit may be dam-

aged.

Front

Cleaning the Printer82

If you get toner on your skin, wash it off with cool water and a mild soap.

CAUTION

If you get toner in your eyes, wash it out immediately with cool water

and consult a doctor.

Make sure any parts removed during cleaning are replaced before you

plug in the printer.

Cleaning the Printer

CAUTION

Be sure to turn off the printer and unplug the power cord before

cleaning.

Exterior

Control Panel Ventilation Grille

Printer Exterior

Cleaning the Printer 83

Media Rollers

The accumulation of paper dust and other debris on the media rollers can

cause media-feeding problems.

Cleaning the Media Feed Rollers (All Trays)

1Pull out the tray.

2Clean the media feed rollers by

wiping them with a soft, dry

cloth.

3Close the tray.

Cleaning the Printer84

Duplex Option Feed Rollers

1Open the duplex cover.

2Clean the feed rollers by wiping

them with a soft, dry cloth.

3Close the duplex cover.

Cleaning the Printer 85

Cleaning the Media Transfer Rollers for Tray 2 and 3

1Open the right side cover of

Tray 2 (Tray 3).

2Clean the media transfer rollers

by wiping them with a soft, dry

cloth.

3Close the right side cover of

Tray 2 (Tray 3).

Cleaning the Printer86

Cleaning the Laser Lens of the Printer

This printer is constructed with four laser lenses. Clean all lenses as

described below.

1Open the printer’s front cover.

2Align the marks at the bottom of

the toner cartridge, insert the

laser lens cleaning tool between

the waste toner bottle and the

yellow toner cartridge with the

cleaning pad pointing down, and

then slide it back and forth 2 or 3

times.

3Clean between each of the toner

cartridges in the same way.

" The laser lens cleaning tool

is included with the printer.

Safely store the laser lens

cleaning tool so that it will not

be lost.

4Close the front cover.

Troubleshooting

Introduction88

Introduction

This chapter provides information to aid you in resolving printer problems you

may encounter, or at least guide you to the proper sources for help.

Printing the Configuration Page

Print the configuration (CONFIG) page to verify the printer is printing cor-

rectly.

Printing the configuration page Page 88

Preventing media misfeeds Page 89

Understanding the media path Page 90

Clearing media misfeeds Page 91

Solving problems with media misfeeds Page 105

Solving other problems Page 108

Solving problems with printing quality Page 112

Status, error, and service messages Page 118

Press Key

(once)

Until Display Reads

READY

SPECIAL PAGES

PRINT CONFIG PAGE

The configuration page prints and the printer goes back

to READY.

Preventing Media Misfeeds 89

Preventing Media Misfeeds

Make sure that...

Media matches the printer specifications.

Media is flat, especially on the leading edge.

The printer is on a hard, flat, level surface.

You store media in a dry location away from moisture and humidity.

You remove transparencies from the output tray immediately after printing to

avoid static buildup.

You always adjust the media guides in the tray after inserting the media (a

guide that is not properly adjusted can cause poor print quality, media mis-

feeds, and printer damage).

You load the media printing-side up in the tray (many manufacturers place an

arrow on the end of the wrapper to indicate the printing side).

Avoid...

Media that is folded, wrinkled, or excessively curled.

Double feeding (remove the media and fan the sheets—they may be sticking

together).

Fanning transparencies since this causes static.

Loading more than one type/size/weight of media in a tray at the same time.

Overfilling the trays.

Allowing the output tray to overfill (the output tray has a 250-sheet capacity—

misfeeding may occur if you allow media to accumulate more than 250

sheets at one time).

Allowing the output tray to fill with more than a few transparencies.

Understanding the Media Path90

Understanding the Media Path

Understanding the printer’s media path will help you locate media misfeeds.

1 Output tray

2 Toner cartridge

3 Transfer belt unit

4 Laser

5 Tray 1

6 Tray 2 and 3 (optional)

7 Duplex option

8 Fuser unit

18

2

3

4

5

6

7

Clearing Media Misfeeds 91

Clearing Media Misfeeds

To avoid damage, always remove misfed media gently, without tearing it. Any

pieces of media left in the printer, whether large or small, can obstruct the

media path and cause further misfeeds. Do not reload media that has misfed.

Note

The image is not fixed on the media before the fusing process. If you

touch the printed surface, the toner may stick to your hands, so be

careful not to touch the print face when removing the misfed media.

Make sure not to spill any toner inside the printer.

CAUTION

Unfused toner can dirty your hands, clothes, or anything else it gets on.

If you accidentally get toner on your clothes, lightly dust them off as

best as you can. If some toner remains on your clothes, use cool, not

hot water, to rinse the toner off. If toner gets on your skin, wash it off

with cool water and a mild soap.

CAUTION

If you get toner in your eyes, wash it out immediately with cool water

and consult a doctor.

If, after clearing the media misfeed, the misfeed message in the control panel

window persists, open and close the printer’s covers. This should clear the

misfeed message.

Clearing Media Misfeeds92

Media Misfeed Messages and Clearing Procedures

Clearing a Media Misfeed in Tray 1

1Pull the lever, and then open the

right side cover.

Media Misfeed Message Page Reference

MEDIA JAM

TRAY 1

Page 92

MEDIA JAM

TRAY 2

Page 96

MEDIA JAM

TRAY 3

Page 96

MEDIA JAM

DUPLEX LOWER

Page 98

MEDIA JAM

DUPLEX UPPER

Page 98

MEDIA JAM

FUSER

Page 99

MEDIA JAM

TRANSFER ROLLER

Page 102

Clearing Media Misfeeds 93

2Carefully pull out the misfed

media.

CAUTION

The area around the fuser unit is

extremely hot.

Touching anything other than the

indicated levers and dials may

result in burns. If you get burned,

immediately cool the skin under

cold water, and then seek

professional medical attention.

Clearing Media Misfeeds94

Note

Decreased print quality may

result if the surface of the image

transfer belt or the transfer roller

is touched.

Be careful not to touch the

surface of the image transfer belt

or transfer roller.

3Close the right side cover.

Clearing Media Misfeeds 95

4Pull out Tray 1, and then remove

all media from the tray.

5Fan the media you removed and

then align it well.

" If transparencies are loaded, do not fan them; otherwise, static

electricity may be produced, resulting in another media misfeed.

6Load the media face up in Tray 1.

" Make sure that the media is flat.

" Do not load paper above the



mark.

Do not load more than 10 envelopes or 20 sheets of labels, post-

cards, thick stock, or transparencies at one time.

" Slide the media guides against the edges of the media.

7Close Tray 1.

Clearing Media Misfeeds96

Clearing a Media Misfeed in Tray 2 and 3

1Open the right side cover of Tray

2 (Tray 3).

2Carefully pull out the misfed

media.

3Close the right side cover of

Tray 2 (Tray 3).

Clearing Media Misfeeds 97

4Pull out Tray 2 (Tray 3), and then

remove all paper from the tray.

5Fan the paper you removed and

then align it well.

6Load the paper face up in Tray 2 (Tray 3).

" Make sure that the paper is flat.

" Do not load paper above the



mark.

" Slide the media guides against the edges of the paper.

7Close Tray 2 (Tray 3).

Clearing Media Misfeeds98

Clearing a Media Misfeed from the Duplex Option

1Open the duplex cover.

2Carefully pull out the misfed

media.

3Close the duplex cover.

Clearing Media Misfeeds 99

Clearing a Media Misfeed from the Fuser Unit

1Pull the lever, and then open the

right side cover.

2Push up the levers of the fuser

unit cover, and then open the

cover.

Clearing Media Misfeeds100

3Carefully pull out the misfed

media.

CAUTION

The area around the fuser unit is

extremely hot.

Touching anything other than the

indicated levers and dials may

result in burns. If you get burned,

immediately cool the skin under

cold water, and then seek

professional medical attention.

Clearing Media Misfeeds 101

Note

Decreased print quality may

result if the surface of the image

transfer belt or the transfer roller

is touched.

Be careful not to touch the

surface of the image transfer belt

or transfer roller.

4Push down the levers.

Clearing Media Misfeeds102

5Close the right side cover.

Clearing a Media Misfeed from the Transfer Roller

1Pull the lever, and then open the

right side cover.

Clearing Media Misfeeds 103

2Carefully pull out the misfed

media.

CAUTION

The area around the fuser unit is

extremely hot.

Touching anything other than the

indicated levers and dials may

result in burns. If you get burned,

immediately cool the skin under

cold water, and then seek

professional medical attention.

Clearing Media Misfeeds104

Note

Decreased print quality may

result if the surface of the image

transfer belt or the transfer roller

is touched.

Be careful not to touch the

surface of the image transfer belt

or transfer roller.

3Close the right side cover.

Solving Problems with Media Misfeeds 105

Solving Problems with Media Misfeeds

" Frequent misfeeds in any area indicate that area should be checked,

repaired, or cleaned. Repeated misfeeds may also happen if you’re

using unsupported print media.

Symptom Cause Solution

Several

sheets go

through the

printer

together.

The front edges of

the media are not

even.

Remove the media and even up the

front edges, then reload it.

The media is moist

from humidity.

Remove the moist media and replace it

with new, dry media.

Too much static elec-

tricity is present.

Do not fan transparencies.

Media mis-

feed mes-

sage stays

on.

Right side cover

needs to be opened

and closed again to

reset the printer.

Open and close the right side cover of

the printer again.

Some media remains

misfed in the printer.

Recheck the media path and make

sure that you have removed all of the

misfed media.

Duplex

option mis-

feeds.

Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Use KONICA MINOLTA-approved

media. See “Media Specifications” on

page 32 for supported sizes.

Only plain paper, 60–90 g/m2 (16–24

lb) can be autoduplexed if the duplex

option is installed and the media type

is set properly in the driver. See “Media

Specifications” on page 32 for sup-

ported sizes.

Make sure that you have not mixed

media types in Tray 1.

Do not duplex, envelopes, labels, thick

stock, or transparencies.

Media is still being

misfed.

Recheck the media path inside the

duplex option and make sure that you

have removed all of the misfed media.

Solving Problems with Media Misfeeds106

Media is

misfeeding.

The media is not cor-

rectly positioned in

the tray.

Remove the misfed media and reposi-

tion the media properly in the tray.

The number of sheets

in the tray exceeds

the maximum

allowed.

Remove the excess media and reload

the correct number of sheets in the

tray.

The media guides are

not correctly adjusted

to the media size.

Adjust the media guides in the tray to

match the size of the media.

Warped or wrinkled

media is loaded in the

tray.

Remove the media, smooth it out, and

reload it. If it still misfeeds, do not use

that media.

The media is moist

from humidity.

Remove the moist media and replace it

with new, dry media.

Custom-sized media,

envelopes, labels,

postcards, thick

stock, or transparen-

cies are loaded in

Tray 2 and 3.

Special media must be loaded in Tray

1 only.

The recommended

transparency or label

sheet is facing the

wrong way in Tray 1.

Load the transparencies or label

sheets according to the manufacturer’s

instructions.

Envelopes are facing

the wrong way in Tray

1.

Load the envelopes in Tray 1 so the

flaps are facing down.

If the flaps are on the long edge, set

the envelopes in Tray 1 so that the

flaps are facing into the printer.

Symptom Cause Solution

Solving Problems with Media Misfeeds 107

Media is

misfeeding.

Transparencies have

collected static elec-

tricity in the tray.

Remove the transparencies and load

them in the tray one sheet at a time.

Do not fan transparencies before load-

ing them.

Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Use KONICA MINOLTA-approved

media.

See “Media Specifications” on page 32

for supported size.

The media roller is

dirty.

Clean the media supply roller.

For more details, refer to “Media Roll-

ers” on page 83.

Symptom Cause Solution

Solving Other Problems108

Solving Other Problems

" For details on consumables, access www.q-shop.com.

Symptom Cause Solution

Printer

power is not

on.

The power cord is not

correctly plugged into

the outlet.

Turn off the printer, confirm that the

power cord is correctly plugged into the

outlet, and then turn on the printer.

Something is wrong

with the outlet con-

nected to the printer.

Plug another electrical appliance into

the outlet and see whether it operates

properly.

The power switch is

not correctly turned

on (I position).

Turn the power switch off (O position),

then turn it back to the on (I position).

The printer is con-

nected to an outlet

with a voltage or fre-

quency that does not

match the printer

specifications.

Use a power source with the specifica-

tions listed in appendix A, “Technical

Specifications.”

Data was

sent to the

printer, but it

doesn’t print.

An error message is

displayed in the mes-

sage window.

Handle according to the message dis-

played.

The control

panel dis-

plays

TONER

LOW much

sooner than

expected.

The toner cartridge is

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

You printed with

heavy toner cover-

age.

See specifications in Appendix A.

You can’t

print the con-

figuration

page.

The tray is empty. Check that at least Tray 1 is loaded

with media, in place, and secure.

The printer’s covers

aren’t closed

securely.

Make sure the covers are closed

securely. Close all covers gently to

avoid jarring the printer. Make sure the

waste toner bottle and toner cartridges

are installed correctly.

There is a media

misfeed.

Clear the media misfeed.

Solving Other Problems 109

Printing

takes too

much time.

The printer is set to a

slow printing mode

(for example, thick

stock or transpar-

ency).

It takes more time to print with special

media. When using regular paper,

make sure that the media type is set

properly in the driver.

The printer is set to

power saving mode.

It takes time for printing to start in

power saving mode. If you do not want

to use this mode, disable it.

The job is very com-

plex.

Wait. No action needed.

The printer memory is

insufficient.

Add more memory.

A toner cartridge for a

different region or a

non-genuine toner

cartridge is installed

(NO GENUINE

TONER X is dis-

played in the mes-

sage window).

Install a genuine KONICA MINOLTA

toner cartridge approved for your spe-

cific printer.

Blank pages

come out

during print-

ing.

One or more of the

toner cartridges are

defective or empty.

Check the toner cartridges. The image

will not be printed if the cartridges are

empty.

The wrong media is

being used.

Check that the media type set in the

driver matches the media loaded in the

printer.

Printer

returned to

READY

before the

menu was

changed.

The printer was in the

menu structure with-

out a selection being

made within two min-

utes.

When in the menu structure, select

your choice within 2 minutes.

Not all pages

print.

The printer has the

wrong kind of cable,

or the printer is not

configured for the

correct cable and

port.

Check your cable.

The Cancel key was

pressed.

Make sure no one pressed the Cancel

key while your job was printing.

Symptom Cause Solution

Solving Other Problems110

Not all pages

print.

The tray is empty. Check that the trays are loaded with

media, in place, and secure.

A document is printed

with an overlay file

which has been cre-

ated by a non-magi-

color 5430 DL driver.

Print the overlay file using a magicolor

5430 DL driver from the magicolor

5430 DL Utilities and Documentation

CD-ROM.

Printer

resets or

turns off fre-

quently.

The power cord is not

correctly plugged into

the outlet.

Turn off the printer, confirm that the

power cord is correctly plugged into the

outlet, and then turn on the printer.

A system error

occurred.

Contact Technical Support with the

error information.

You are

experienc-

ing duplex

problems.

Media or settings are

not correct.

For autoduplexing, make sure that you

have a duplex option installed.

Make sure that you are using correct

media.

See “Media Specifications” on page

32 for supported size.

Do not duplex custom-sized media,

envelopes, labels, postcards, thick

stock, or transparencies.

Make sure that you have not mixed

media types in Tray 1.

Make sure that your document has

more than one page.

Make sure the duplex option is installed

in the Windows printer driver (Device

Option Setting tab).

In the printer driver (Setup/Duplex/

Booklet), choose “Short Edge Binding”

(flipped as on a clipboard) or “Long

Edge Binding” (flipped as in a

loose-leaf notebook).

For N-up on duplexed pages, choose

Collate only in the driver’s Paper Tab.

Do not set collation in the application.

Symptom Cause Solution

Solving Other Problems 111

With N-up on

multiple cop-

ies, the out-

put is

incorrect.

Both the driver and

the application have

been set for collation.

For N-up on multiple copies, choose

Collate only in the driver’s Paper Tab.

Do not set collation in the application.

Booklet Left

and Right

Binding out-

put is incor-

rect.

Both the driver and

the application have

been set for collation.

For Booklet Left Binding and Booklet

Right Binding, choose Collate only in

the driver’s Paper Tab. Do not set colla-

tion in the application.

You hear

unusual

noises.

The printer is not

level.

Put the printer on a flat, hard, level sur-

face not to exceed ±1° slant in any

direction.

The tray is not

installed correctly.

Remove the tray that you are printing

from and reinsert it completely into the

printer.

There is a foreign

object stuck inside

the printer.

Turn off the printer and remove the

object. If you cannot remove it, contact

Technical Support.

The

web-based

utility cannot

be accessed.

The PageScope Web

Connection Adminis-

trator’s password is

incorrect.

The PageScope Web Connection

Administrator password has a 6-char-

acter minimum and a 16-character

maximum.

Media is

wrinkled.

The media is moist

from humidity or hav-

ing water spilled on it.

Remove the moist media and replace it

with new, dry media.

The transfer roller or

fuser unit is defective.

Check them for damage. If necessary,

contact Technical Support with the

error information.

Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Use KONICA MINOLTA-approved

media. See “Media Specifications” on

page 32 for supported size. For a com-

plete list of approved media, go to

www.printer.konicaminolta.com.

Symptom Cause Solution

Solving Problems with Printing Quality112

Solving Problems with Printing Quality

Symptom Cause Solution

Nothing is

printed, or

there are

blank spots

on the

printed page.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

The printer driver is

not set correctly.

Select the proper setting in the printer

driver to switch from transparencies to

plain paper.

The media is moist

from humidity.

Adjust the humidity for media storage.

Remove the moist media and replace it

with new, dry media.

The media set in the

printer driver mis-

matches the media

loaded in the printer.

Load the correct media in the printer.

The power source

does not match the

printer specifications.

Use a power source with the proper

specifications.

Several sheets are

being fed at the same

time.

Remove the media from the tray and

check for static electricity. Fan plain

paper or other media (but not transpar-

encies), and replace it in the tray.

Media is not set prop-

erly in the tray(s).

Remove the media, tap it to straighten

it out, return it to the tray, and realign

the media guides.

The printer is not

level.

Put the printer on a flat, hard, level sur-

face not to exceed ±1° slant in any

direction.

Entire sheet

is printed in

black or

color.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Solving Problems with Printing Quality 113

Image is too

light; there is

low image

density.

Laser lens is dirty. Clean the laser lens.

The media is moist

from humidity.

Remove the moist media and replace

with new, dry media.

There is not much

toner left in the car-

tridge.

Replace the toner cartridge.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Media type is set

incorrectly.

When printing envelopes, labels, post-

cards, thick stock, or transparencies,

specify the appropriate media type in

the printer driver.

Image is too

dark.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Image is

blurred;

background

is lightly

stained;

there is

insufficient

gloss of the

printed

image.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Symptom Cause Solution

Solving Problems with Printing Quality114

The print or

color density

is uneven.

One or more of the

toner cartridges are

defective or low.

Install new toner cartridges.

The printer is not

level.

Put the printer on a flat, hard, level sur-

face not to exceed ±1° slant in any

direction.

Irregular

print or mot-

tled image

appears.

The media is moist

from humidity.

Adjust the humidity in the media stor-

age area.

Remove the moist media and replace it

with new, dry media.

Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Use KONICA MINOLTA-approved

media. See “Media Specifications” on

page 32 for supported sizes.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

There is

insufficient

fusing or the


comes off

when

rubbed.

The media is moist

from humidity.

Remove the moist media and replace it

with new, dry media.

Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Use KONICA MINOLTA-approved

media. See “Media Specifications” on

page 32 for supported sizes.

Media type is set

incorrectly.

When printing envelopes, labels, post-

cards, thick stock, or transparencies,

specify the appropriate media type in

the printer driver.

Symptom Cause Solution

Solving Problems with Printing Quality 115

There are

toner

smudges or

residual

images.

One or more of the

toner cartridges are

defective or installed

incorrectly.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

There are

toner

smudges on

the back side

of the page

(whether or

not it has

been

duplexed).

The media transfer

roller is dirty.

Clean the media transfer roller.

If you think the transfer roller should be

replaced, contact Technical Support

with the error information.

The media path is

dirty with toner.

Print several blank sheets and the

excess toner should disappear.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Abnormal

areas (white,

black, or

color) appear

in a regular

pattern.

The laser lens is dirty. Clean the laser lens.

The toner cartridge is

defective.

Remove the toner cartridge with the

color causing the abnormal image.

Replace it with a new toner cartridge.

Symptom Cause Solution

Solving Problems with Printing Quality116


defects.

The laser lens is dirty. Clean the laser lens.

The toner cartridge is

leaking.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

The toner cartridge is

defective.

Remove the toner cartridge with the

color causing the abnormal image.

Replace it with a new toner cartridge.

Lateral lines

or bands

appear on

image.

The printer is not

level.

Put the printer on a flat, hard, level sur-

face not to exceed ±1° slant in any

direction.

The media path is

dirty with toner.

Print several sheets and the excess

toner should disappear.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Colors look

drastically

wrong.

One or more of the

toner cartridges are

defective.

Remove the toner cartridges and verify

that the toner is distributed evenly on

each cartridge roller, and reinstall the

toner cartridges.

One or more of the

toner cartridges are

low or empty.

Check the control panel for an X

TONER LOW or TONER EMPTY X

message. If necessary, replace the

specified toner cartridge.

Colors are

not register-

ing properly;

colors are

mixed or

have page-

to-page vari-

ation.

The front cover is not

properly closed.

Make sure that the printer’s front cover

is closed.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

The media is moist

from humidity.

Remove the moist media and replace it

with new, dry media.

Symptom Cause Solution

Solving Problems with Printing Quality 117

If the problem is not resolved, even after all of the above have been per-

formed, contact Technical Support with the error information.

Line art does

not print in

color.

The line art setting for

2400 x 600 dpi

requires Color Match-

ing to be turned off.

In the driver, go to Properties/Quality

and choose Off in the Color Matching.

If you want color, lower the resolution

to 1200 x 600 or 600 x 600.

The color

has a poor

reproduction

or has poor

color density.

One or more of the

toner cartridges are

defective.

Remove the toner cartridge and check

for damage. If it is damaged, replace it.

Symptom Cause Solution

Status, Error, and Service Messages118

Status, Error, and Service Messages

Status, error, and service messages are displayed in the control panel mes-

sage window. They provide information about your printer and help you locate

many problems. When the condition associated with a displayed message

has changed, the message is cleared from the window.

Standard Status Messages

This message... means... do this...

CALIBRATING After replacing the toner car-

tridges, and after rebooting

your printer after environ-

mental changes, your printer

automatically pauses to do

an Auto-Image Density Con-

trol (AIDC) cycle. This pro-

cess is provided to make

reliable printer operation

with optimum output quality

possible.

No action needed.

CANCELLING JOB The job is being cancelled.

ENERGY SAVER The printer is in Energy

Saver mode to reduce

power consumption during

periods of inactivity. When a

print job is received, the

printer returns to normal

power within 30 seconds.

PRINTING The printer is printing.

PROCESSING The printer is processing

data.

READY The printer is on and ready

to receive data.

WARMING UP The printer is warming up.

Status, Error, and Service Messages 119

Error Messages (Warning)

This message... means... do this...

FUSER LIFE END The fuser unit has

reached the end of its

life.

Contact Technical Sup-

port with the error infor-

mation.

FUSER LIFE LOW The fuser unit is near

the end of its life.

If necessary, contact

Technical Support with

the error information.

SIZE MISMATCH Size mismatch occurs

when AUTO CON-

TINUE (Engine

menu) is set to ON.

Load the correct media

size.

TONER EMPTY

X

The X toner cartridge

is empty.

(Appears when

ENGINE/TONER

EMPTY CONTINUE

is set)

Replace the toner car-

tridge.

X TONER LOW The X toner cartridge

is low and should be

replaced within 200

pages at 5% cover-

age of letter/A4

pages.

Prepare the specified

color toner cartridge.

TRANSFER END The transfer belt unit

has reached the end

of its life.

Replace the transfer belt

unit and reset the

counter in the ENGINE/

SERVICE/RESET

COUNTER TRANS-

FER UNIT menu.

TRANSFER LOW The transfer belt unit

is near the end of its

life.

Prepare a new transfer

belt unit.

TRANS.ROLLER END The transfer roller has

reached the end of its

life.

Replace the transfer

roller and reset the

counter in the ENGINE/

SERVICE/RESET

COUNTER TRANS-

FER ROLLER menu.

Status, Error, and Service Messages120

TRANS.ROLLER LOW The transfer roller is

near the end of its life.

Prepare a new transfer

roller.

TRAY X EMPTY Tray X (Tray 1, 2, or

3) was specified with

the printer driver for

printing, but Tray X is

empty.

Load media into the

specified tray.

UNSUPPORTED DIMM Unsupported DIMM is

installed.

Check the DIMM specifi-

cations and install a sup-

ported DIMM.

WASTE:NEAR FULL The waste toner bot-

tle is nearly full.

Prepare a new waste

toner bottle.

This message... means... do this...

Status, Error, and Service Messages 121

Error Messages (Operator Call)

This message... means... do this...

COVER OPEN

DUPLEX

Duplex cover is open. Close the duplex cover.

COVER OPEN

FRONT

The printer’s front

cover is open.

Close the front cover.

COVER OPEN

SIDE

The printer’s right

side cover is open.

Close the right side

cover.

COVER OPEN

TRAY X

The right side cover

of Tray X (Tray 2 or

3) is open.

Close the right side

cover of the tray.

DRAWER OPEN

TRAY X

The tray X is not

installed, or not fully

inserted into Tray X

(Tray 1, 2, or 3).

Insert the tray into the

media feed unit.

DUPLEX UNIT

NOT ATTACHED

Duplex printing was

specified with the

printer driver, but the

duplex option is not

installed.

Stop the print job and

change the printer driver

setting. If necessary,

install the duplex option.

ERROR

MEMORY OVERFLOW

The printer has

received more data

than can be pro-

cessed with its inter-

nal memory.

Turn the printer off, and

then, after a few sec-

onds, turn it on again.

Decrease the amount of

data to be printed (for

example, by decreasing

the resolution), and then

try printing again.

If that doesn’t solve the

problem, install an

optional memory mod-

ule.

ERROR

VIDEO UNDERRUN

The amount of data to

be printed exceeds

the printer’s internal

data transmission

speed.

Turn the printer off, and

then, after a few sec-

onds, turn it on again.

Decrease the amount of

data to be printed (for

example, by decreasing

the resolution), and then

try printing again.

Status, Error, and Service Messages122

FUSER

NOT ATTACHED

The fuser unit is not

installed.

Contact Technical Sup-

port with the error infor-

mation.

MEDIA JAM

DUPLEX LOWER

Media has misfed in

the duplex option.

Locate and remove the

misfeed.

MEDIA JAM

DUPLEX UPPER

Media has misfed in

the duplex option.

MEDIA JAM

FUSER

Media has misfed

leaving the fuser

area.

MEDIA JAM

TRANSFER ROLLER

Media has misfed in

the transfer roller

area. This type of

misfeed means that

the media did not

make it to the paper

exit area.

MEDIA JAM

TRAY X

Media has misfed

while being pulled

from the specified

tray (X).

MEDIA JAM

UNDEFINED

A media misfeed

occurred because the

driver settings are

inconsistent.

After clearing the media

misfeed, check the

driver settings.

NO GENUINE TONER

X

The X toner cartridge

is not genuine.

Install a genuine

KONICA MINOLTA toner

cartridge.

PUT MEDIA : TRAY 1

“MEDIA”

The media type set in

the printer driver is

different from the type

of media loaded into

Tray 1.

Load the correct media

type into Tray 1.

PUT MEDIA : TRAY X

“SIZE”

The media size set in

the printer driver is

different from the size

of media loaded.

Load the correct media

size into the specified

tray.

This message... means... do this...

Status, Error, and Service Messages 123

REPLACE TONER XThe X toner cartridge

is empty.

(Appears when

ENGINE/TONER

EMPTY STOP is set)

Replace the toner car-

tridge.

SIZE/TYPE ERROR Unsupported media

(wrong size, thick-

ness, type, etc.) is

being used.

Load the correct media

size and type.

SIZE/TYPE ERROR

DUPLEX

Media not compatible

with duplex printing.

Use the correct media

size and type when

duplexing.

TONER LIFE END XThe X toner cartridge

is completely empty.

(Appears when

ENGINE/TONER

EMPTY CONTINUE

is set)

Replace the toner car-

tridge.

X TONER

NOT INSTALLED

The X toner cartridge

is not installed prop-

erly.

Install the indicated

toner cartridge.

TRAY X

NOT ATTACHED

Tray X (Tray 2 or 3)

was specified with the

printer driver for print-

ing, but Tray X is not

installed.

Stop the print job and

change the printer driver

setting. If necessary,

install Tray X.

WASTE BOTTLE FULL The waste toner

bottle is full.

Install a new waste toner

bottle.

This message... means... do this...

Status, Error, and Service Messages124

Service Messages

These messages indicate a more serious fault that can only be corrected by a

customer service engineer. If one of these messages appears, turn the printer

off, then turn it on again. If the problem persists, contact your local vendor or

authorized service provider.

This service

message...

means... do this...

ERROR

AIDC SENSOR

AIDC sensor error. Contact Technical Sup-

port with the error infor-

mation.

ERROR

COMMUNICATION

A communication error

occurred in the USB or

Ethernet interface.

Check that the interface

cable is properly con-

nected to the printer.

If the error continues to

appear even though the

cables are correctly con-

nected, contact Techni-

cal Support.

ERROR

CONTROLLER

Controller internal error. Contact Technical Sup-

port with the error infor-

mation.

ERROR

DIMM

SDRAM DIMM error. Contact Technical Sup-

port with the error infor-

mation.

ERROR

ENGINE INTERFACE

A communication error

occured with the engine

controller.

Contact Technical Sup-

port with the error infor-

mation.

ERROR

RAM

RAM writing/reading

error.

Contact Technical Sup-

port with the error infor-

mation.

ERROR

ROM

ROM error. Contact Technical Sup-

port with the error infor-

mation.

FATAL ERROR

CODE:XX

An error has been

detected with the item

indicated “XX” in the ser-

vice message.

Reboot the printer. This

often clears the service

message, and printer

operation can resume.

If the problem persists,

contact Technical Sup-

port.

Installing

Accessories

Introduction126

Introduction

Note

Use of accessories not manufactured or supported by

KONICA MINOLTA will void your warranty.

" This chapter provides information about the following accessories.

Note

Installing accessories always requires that the printer and accessories

are turned off and unplugged during installation.

Antistatic Protection

Note

Before opening and handling the dual in-line memory module (DIMM),

first touch a metal part of the printer to avoid an electrostatic charge

building up. When the DIMM is taken out of its conductive bag, hold it by

its edges to avoid touching the electronic circuits. When handling the

DIMM, be sure to place it on an anti-static mat or a piece of aluminum

foil.

Dual In-Line

Memory Module

(DIMM)

512 MB DIMM (Buffered)

Duplex Option Auto duplexing

Lower Feeder Unit 500-sheet tray included

Dual In-Line Memory Module (DIMM) 127

Dual In-Line Memory Module (DIMM)

" You may need additional memory (DIMM) for complex graphics, and

for duplex printing.

Dual in-line memory module (or DIMM) is compact circuit board with sur-

face-mount memory chips.

Your printer comes with 64 MB SDRAM printer memory on board. However,

you can upgrade to a maximum of 512 MB of RAM through the installation

of an additional DIMM. Additional memory must be 512 MB DIMM. Your

printer comes with one free DIMM slot.

Installing a DIMM

Note

It’s very important to protect the printer controller board and any

associated circuit boards from electrostatic damage. Before performing

this procedure, review the antistatic caution on Page 126. In addition,

always handle circuit boards by the edges only.

1Turn off the printer and discon-

nect the power cord and inter-

face cables.

2Using a screwdriver, remove the

screw. Then, slide the rear cover

to the right and remove it.

Dual In-Line Memory Module (DIMM)128

3Using a screwdriver, loosen the

seven screws. (Do not remove

them from the printer.)

4Slide the panel slightly to the

right and lift it off the printer.

Dual In-Line Memory Module (DIMM) 129

5Insert the new DIMM straight

into the DIMM connector until

the latches snap into the locked

position.

Observe the keyed side of the

DIMM to align it with the connec-

tor. If you cannot snap the DIMM

into place, do not force it. Repo-

sition it, making sure that the

DIMM is seated completely in

the connector.

6Reinstall the panel and tighten the seven screws.

7Attach the rear cover.

8Reconnect all interface cables.

9Reconnect the power cord, and

turn on the printer.

10 Print a configuration page (SPECIAL PAGES/PRINT CONFIG PAGE

MENU) and verify that the total size of the RAM installed in your printer is

listed.

Duplex Option130

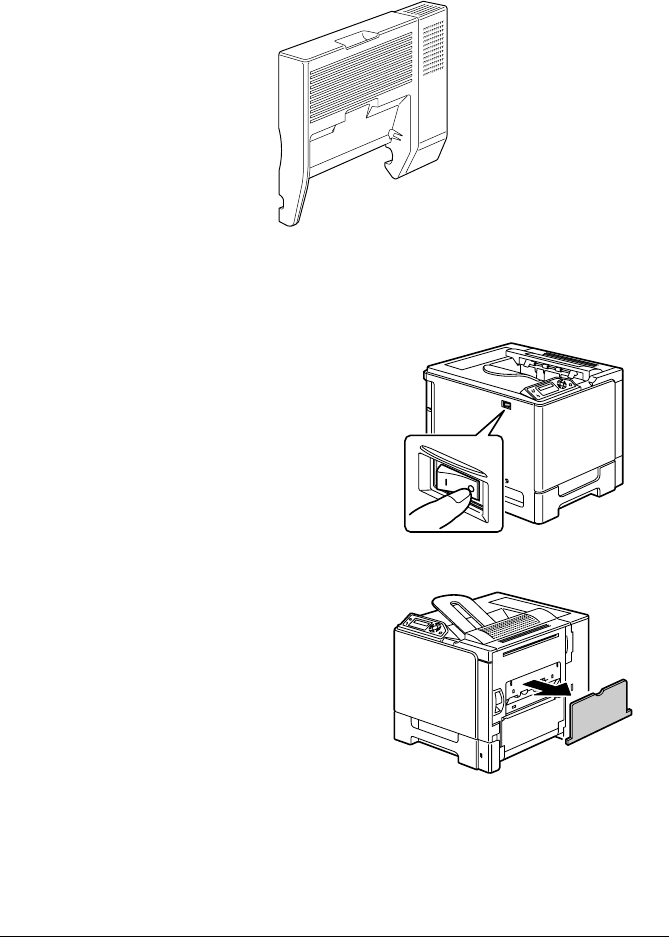

Duplex Option

Duplex (2-sided) printing can be performed automatically with the duplex

option and enough memory installed. See “Duplexing” on page 54.

Installing the Duplex Option

1Turn off the printer.

2Remove the cover on the right

side cover.

Duplex Option 131

3Remove the door at the side of

the right side cover.

4Prepare the duplex option.

" Before installing the

duplex option, open the

duplex cover, and then

check that the knob is

positioned as shown in

the illustration. Then,

close the duplex cover.

5Attach the duplex option, as

shown in the illustration.

Duplex Option132

6Open the duplex cover, and then

turn both knobs counterclock-

wise until they are horizontal to

secure the duplex option to the

right side cover.

7Pull the lever, open the right side

cover, and then attach the sup-

port wire for the duplex option to

the printer.

8Close the right side cover.

9Install the duplex unit in the driver (Device Options Setting tab).

Lower Feeder Unit 133

Lower Feeder Unit

You can install up to two optional lower feeder units (Tray 2 and 3). Each

lower feeder unit increases your printer’s media feed capacity by 500 sheets.

Kit Contents

Lower feeder unit with a tray (500-sheet capacity)

Four metal brackets

–Two front brackets

–Two rear brackets

Four securing screws

Transport guide (used only for Tray 2)

Installing the Lower Feeder Unit

Note

Since consumables are installed in the printer, be sure to keep the

printer level when moving it in order to prevent accidental spills.

1Turn off the printer and discon-

nect the power cord and inter-

face cables.

Lower Feeder Unit134

2Prepare the lower feeder unit.

" Be sure to place the lower feeder unit on a level surface.

3Open the right side cover of the

lower feeder unit.

" The right side cover of the lower feeder must be opened before the

feeder can be installed onto the printer.

4With another person’s help,

place the printer on top of the

lower feeder unit, making sure

that the positioning pins on the

lower feeder unit correctly fit into

the holes on the bottom of the

printer.

" If two lower feeder units are to be installed, stack the two lower

feeder units and secure them together before installing them to the

printer.

WARNING!

This printer weighs approximately 37 kg (81.6 lb) when it is fully loaded

with consumables. The printer must be lifted by two people.

37 kg

81.6 lbs

Lower Feeder Unit 135

5Using a screwdriver, install the

two securing brackets at the rear

of the printer.

6Pull out the trays.

7Install the two securing brackets

at the front of the printer.

8Close the trays.

Lower Feeder Unit136

9Attach the transport guide to the

right door of Tray 2.

" It is not necessary to

attach the transport guide

to the right door of Tray 3.

10 Close the right side cover of the

lower feeder unit.

11 Install Tray 2 (Tray 3) in the driver (Device Options Setting tab).

Appendix

Safety Specifications138

Safety Specifications

Technical Specifications

Printer

Printer

Safety standards U.S. model UL 60950-1, CSA C22.2 No.

60950-1-03

European model EU Directive 73/23/EEC

EU Directive 93/68/EEC

EN 60950-1 (IEC 60950)

China model GB 4943

EMC standards U.S. model FCC part 15 subpart B class B

ICES-003

European model EU Directive 89/336/EEC

EU Directive 93/68/EEC

EN 55022 (CISPR Pub. 22) class B

EN 61000-3-2

EN 61000-3-3

China model GB 9254 class B, GB 17625.1

Australian model EN 55022 class B

Type Desktop full color tandem laser beam printer

Print system Semiconductor laser beam scanning + Dry elec-

tron photography method

Exposure system 4 laser diode and polygon mirror

Developing system Mono-component SMT

Resolution 2400 dpi × 600 dpi,

1200 dpi × 600 dpi or 600 dpi × 600 dpi

Technical Specifications 139

First print Simplex (600 dpi)

Monochrome/Full color:

14.2 seconds for A4 (plain

paper)

Monochrome/Full color:

14.1 seconds for Letter (plain

paper)

Duplex (600 dpi)

Monochrome/Full color:

22.3 seconds for A4, Letter

(plain paper)

Print speed Simplex (600 dpi)

Monochrome/Full color:

20 pages per minute for A4

(plain paper)

Monochrome/Full color:

21 pages per minute for Letter

(plain paper)

Duplex (600 dpi)

Monochrome/Full color:

11.5 pages per minute for A4

(plain paper)

Monochrome/Full color:

11.8 pages per minute for Letter

(plain paper)

Warm-up time 30 seconds or less at startup

Media sizes Multipurpose cassette

Paper width: 92 to 216 mm (3.6 to 8.5")

Paper length: 148 to 297 mm (5.8 to 11.7")

Optional lower feeder unit

B5 - Legal

Paper/Media • Plain paper (60 to 90 g/m2; 16 to 24 lb)

• Recycled paper (60 to 90 g/m2; 16 to 24 lb)

• Transparencies

• Envelopes

• Thick Stock 1 (91 to 150 g/m2)

• Thick Stock 2 (151 to 210 g/m2)

•Postcard

• Letterhead

• Label sheet

Technical Specifications140

Input capacity Multipurpose cassette

Plain paper: 250 sheets

Envelope: 10 envelopes

Label/Postcard/Thick Stock/Transparency:

20 sheets

Optional Lower feeder unit

Plain paper: 500 sheets

Output capacity Output tray: 250 sheets (A4, Letter)

Operating temperature 10 to 35°C (50 to 95°F)

Operating humidity 15 to 85%

Power supply 110 to 127 V, 50 to 60 Hz

220 to 240 V, 50 to 60 Hz

Power consumption 120 V: 1250 W

230 V: 1250 W

Amperage 110 to 127 V: 11 A or less

220 to 240 V: 6 A or less

Acoustic Noise Printing: 54 dB or less

Standby: 39 dB or less

External dimensions Height: 440 mm (17.3") (Including outer projec-

tion)

Width: 420 mm (16.5")

Depth: 520 mm (20.5")

Weight Printer: approximately 30 kg (66.1 lb)

Toner cartridge:

Standard In-box Cartridge =

1.42 kg (3.13 lb) (Y, M, C)/

1.46 kg (3.22 lb) (K)

Replacement cartridge (Standard-Capacity)=

1.52 kg (3.35 lb) (Y, M, C)/

1.55 kg (3.42 lb) (K)

Interface USB 2.0 (High Speed) compliant, 10Base-T/

100Base-TX (IEEE 802.3) Ethernet

CPU ARM9 926EJ-S 200 MHz

Standard memory 64 MB

Technical Specifications 141

Consumable Life Expectancy Chart

" The values listed in the above chart represent the number of pages for

continuous simplex printing.

Item Average Life Expectancy

Toner cartridge At 5% coverage, using A4/Letter size media

Standard In-box Cartridge = 3,000 pages

Replacement Cartridge = 6,000 pages

(Standard-Capacity)

Waste toner bottle At 5% coverage, using A4/Letter size media

32,000 pages (Monochrome)

8,000 pages (Full color)

Transfer roller At 5% coverage, using A4/Letter size media

120,000 pages

Transfer unit At 5% coverage, using A4/Letter size media

120,000 pages

Our Concern for Environmental Protection142

Our Concern for Environmental Protection

As an ENERGY STAR® Partner, we have determined that this machine meets

the ENERGY STAR Guidelines for energy efficiency.

What is an ENERGY STAR product?

An ENERGY STAR product has a special feature that allows it to automati-

cally switch to a “low-power mode” after a period of inactivity. An ENERGY

STAR product uses energy more efficiently, saves you money on utility bills

and helps protect the environment.

Index

Index 143

A

Accessories 126

DIMMs 127

Duplex option 130

Lower feeder unit 133

Additional memory 127

Antistatic protection 126

B

Booklet binding 111

C

Configuration menu 22

Consumables

Toner cartridge 58

Transfer belt unit 72

Transfer roller 68

Waste toner bottle 65

Control panel 20

D

Dual in-line memory module 127

Duplexing 54

Duplex option 130

E

Electrostatic discharge 126

Envelopes 35

Error messages 119

I

Imageable area 39

L

Labels 36

Letterhead 37

Loading media 41

Lower feeder unit 133

Index144

M

Maintenance 80

Media

Clearing misfeeds 91

Imageable area 39

Loading 41

Path 90

Preventing misfeeds 89

Media misfeed

Duplex option 98

Fuser unit 99

Transfer roller 102

Tray 1 92

Tray 2 and 3 96

Media path 90

Media storage 56

Media type

Envelopes 35

Labels 36

Letterhead 37

Plain paper 33

Postcards 37

Thick stock 34

Transparencies 38

Message window 20

Messages 118

Misfeed problems 105

Clearing 91

Media path 90

Preventing 89

N

N-up 111

O

Output tray 55

Overlay printing 110

P

Page margins 40

PageScope Web Connection 111

Paper tab 11

Plain paper 33

Postcards 37

Preventing media misfeeds 89

Print quality 112

Printer

Parts 3

Printer driver 10

Paper tab 11

Quality tab 12

Setting 9

Setup tab 11

Q

Quality tab 12

S

Service messages 124

Setup tab 11

Static electricity discharge 126

Status display 14

Closing 15

Opening 14

Using 14

T

Thick stock 34

Transparencies 38

Troubleshooting 87

Duplexing 110

Media misfeed 105

Nothing is printed 112

Printer resets 110

Status, error, and service messages

118

W

Wrist strap for antistatic protection

126
