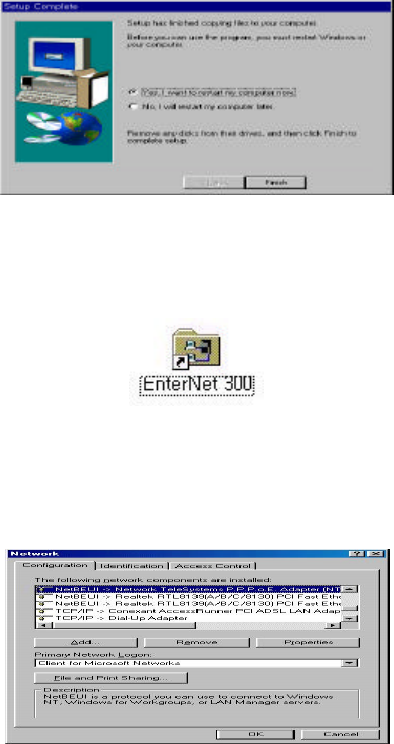

EnterNet 300 Setup Complete Screen
11. EnterNet 300 icon will be added on your desktop after rebooting the PC.
12. Open the Control Panel and double -click Network. When you see <The following
network components are installed> under tap of <Configuration>, you should check
<Network TeleSystems P.P.P.o.E Adapter (NTSP3)/ TCP/IP -> TeleSystems P.P.P.o.E
Adapter(NTSP3)> is added.
PPPoE Configuration added to Control Panel
3-2. Connecting to Internet
Connecting with EnterNet 300
1. Run EnterNet 300 by double -click on the <EnterNet 300> icon when a line is
22
connected via AcessRunner.

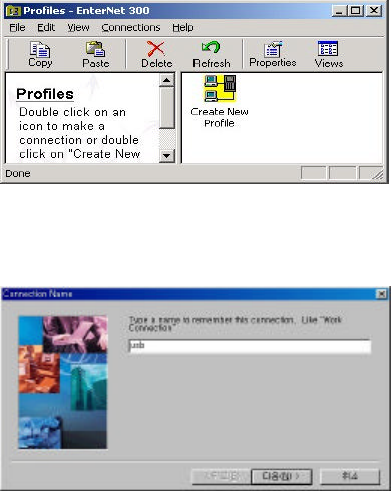

2. Double -click on the <Create New Profile> icon when <Profiles - EnterNet 300>
screen appears.
3. Type a name in the box of <Connection Name> and click “Next ”.

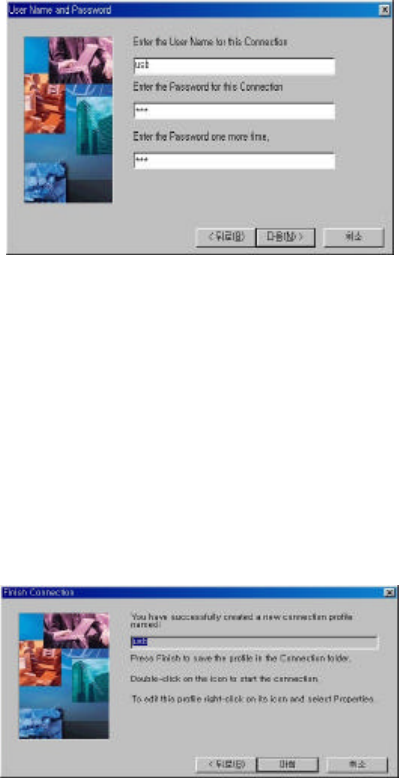

4. Enter the user name and the password for this ADSL connection in the <User
Name and Password> screen. Click “Next ”.
23
5. You can see the <Server Address> window for the entering server data of PPPoE.
l If Es -Link KCU2000 is already connected to the phone, pppsrv were
entered to the server directory of <Server Address> automatically.
Duble -click pppoe folder from <Service>, and then pppoe will be added to
Services. Click Next.
l If ES-LINK KCU2000 is not connected to the phone, enter pppoe to the
<Server> and <Services> each from <Server Address>. Click Next.
6. Click Finish and close this screen.
7. Find a connection profile, <USB>icon, from the <Profiles -EnterNet 300> screen.
Double-click the icon.
24
8. Click Connect.
9. You can access internet by using web browser.
3-3. PPPoA Protocol
Installing and Connecting in Windows 98(98SE)
25

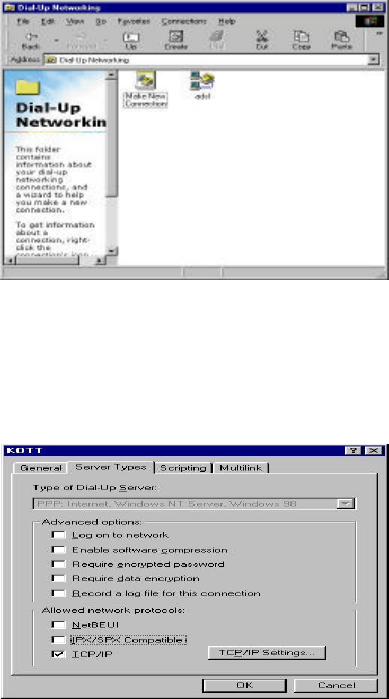

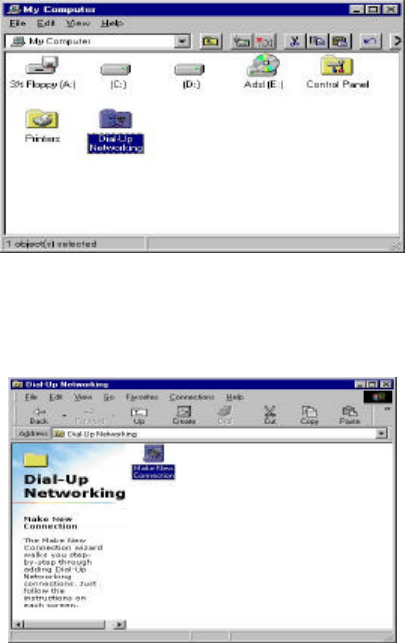

1. Double-click “Dial-Up Networking” icon on <My Computer>
2. Double-click on “Make New Connection” icon.

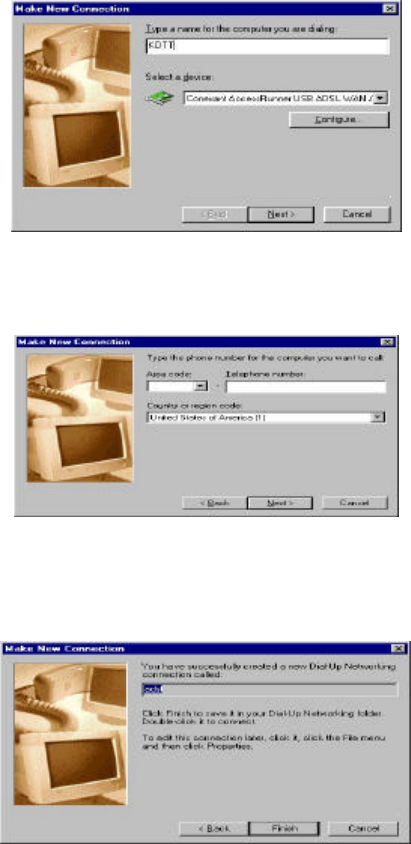

3. Type a name for the computer you are dialing. Select a device as “Conexant
AccessRunner USB ADSL WAN Adapter”and click “Next ”.
26
4. Type the phone number and click “Next ”.
5. Click “Finis h”.
6. Now, new icon is added. Select this icon and click on right button of mouse.
Select “Properties”.
27
7. Select “Server Types ” tap and check ”TCP/IP” only. Click on the “TCP/IP
Settings” button.

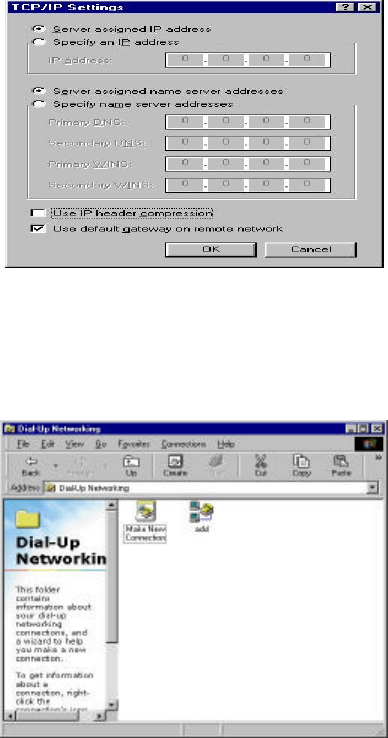

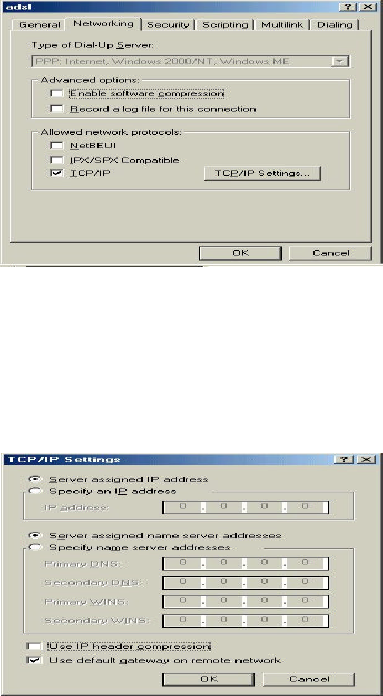

8. Check <Server assigned IP address>,<Server assigned name server addresses> and
<Use default gateway on remote network>. Click “OK”.
28

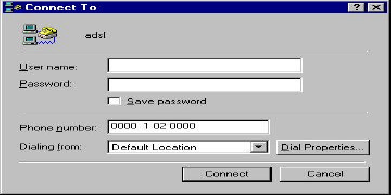

9. Double- click ‘adsl’ icon.
10. Fill out the User name and Password box and click “Connect”. Phone number
is automatically assigned.
(Note: If you change the phone number, you can not connect internet.)
29
User Identification
Installing and Connecting in Windows 2000

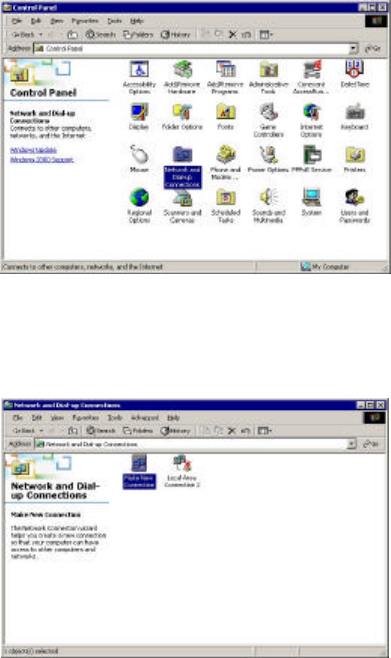

1. Double-click “Network and Dial-up connections ”on the control panel.
30
2. Double-click on “Make New Connection ”icon.

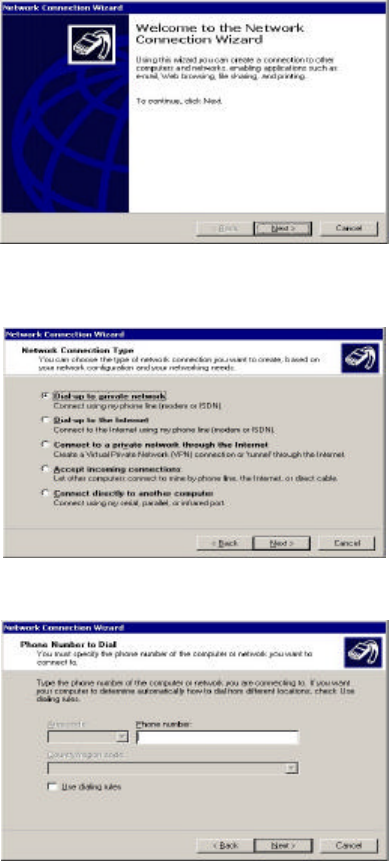

3. Network Connection Wizard is started. To continue click “Next ”
31
4. Select <Dial-up to private network> and click “Next ”
5. Type the phone number and click “Next ”

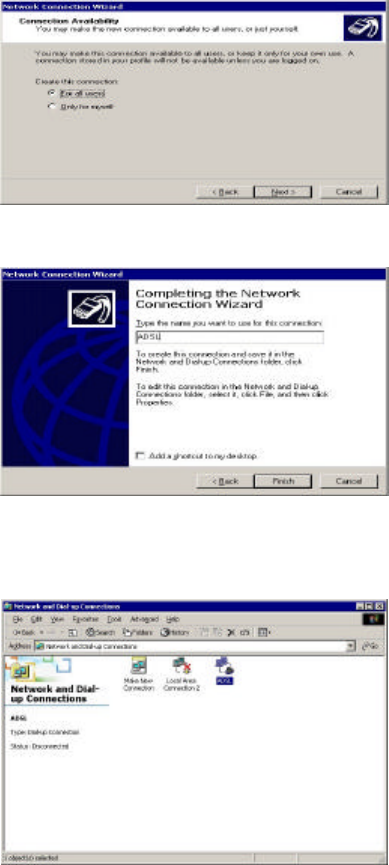

6. Choose one of “For all users” and “Only for my self”. Click “Next ”
32
7. Type the name you want to use for this connection and click “Finish”
8. Now, new icon is added. Select this icon and click on right button of mouse.
Select “Properties”
9. Select “Server Types ” tap and check <TCP/IP> only. Click on the “TCP/IP
Settings” button.
33
10. Check <Server assigned IP address>,<Server assigned name server addresses>
and <Use default gateway on remote network>. Click “OK”.

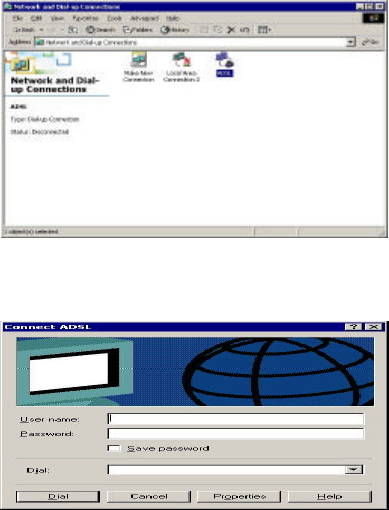

11. Double-click ‘ADSL”icon
34
12. Dial-up connection Networking has been finished now.
4. Remove Modem Driver
35
Note : Before you setup a modem or modem driver, you must remove an existing
driver completely. Otherwise, it will not work properly.
Removing Modem
Windows 98SE

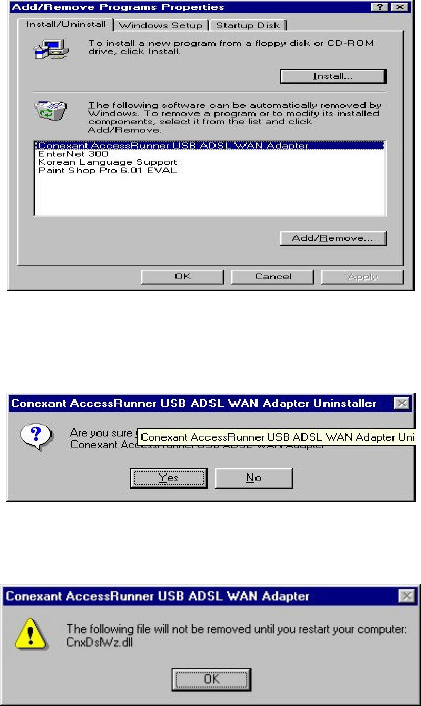

1. Process <Settings-> Control Panel-> Add/Remove Programs>.
36

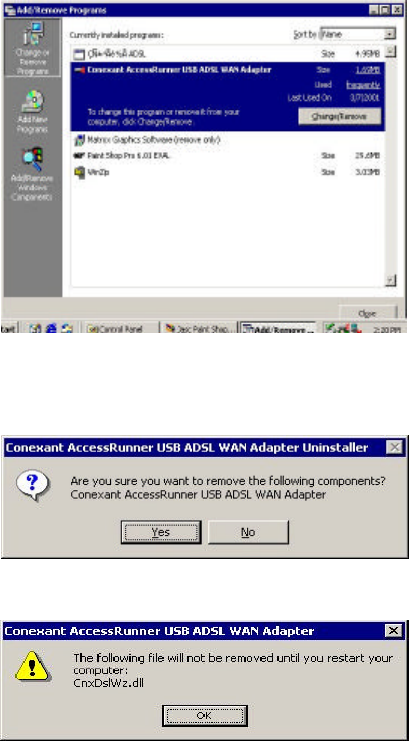

2. Select < Conexant AccessRunner USB ADSL LAN Adapter> in the tap of
<Install/Unintall>. Click on “Add/Remove” button.
3. Click “Yes”
4. Click “OK”
5. Click “OK”
37

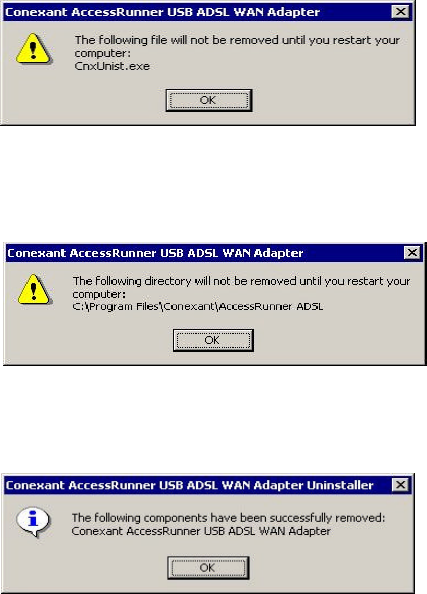

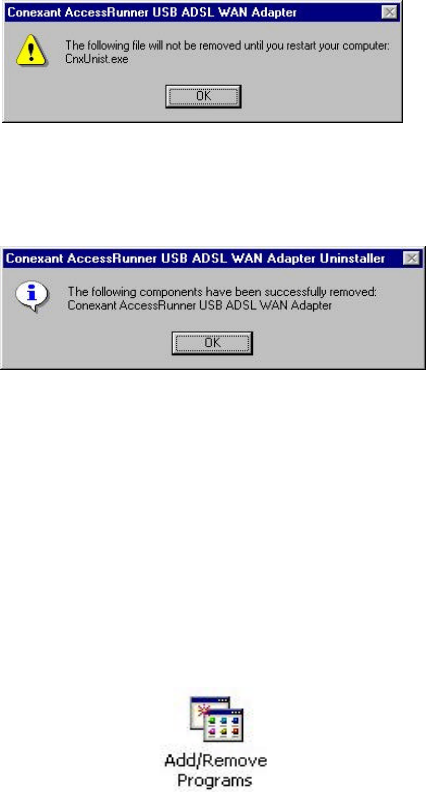

6. This Dialogue box appears to show the driver uninstalled.
Windows 2000
1. Process < Settings -> Control Panel -> Add/Remove Programs>
2. Select < Conexant AccessRunner USB ADSL LAN Adapter> in the tap of
<Change or Remove Programs>. Click on “Change/Remove” button.
38
3. To continue, click “Yes”
4. Click “OK”
5. Click “OK”
39
6. Click “OK”
.
7. This Dialogue box appears to show the driver uninstalled.
FCC NOTICE
NOTE: This equipment has been tested and found tocomply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are signed to provide
reasonable protection against harmful interference in a residential
instal-lation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
40
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
NOTE: The manufacturer is not responsible for any radio or
TV interference caused by unauthorized modifications to this
equip-ment. Such modifications could void the user's
authority to operate the equipment.
Product Warranty
1. Express Warranty
KOTT warrants to the original purchaser of the Product that, for the one year
period commencing on the date the Product was purchased (the warranty Period),
the Product will be substantially free from defects in materials and workmanship
under normal used and conditions.
2. Voiding of Warranty
The express warranty set forth above shall not apply to failure of the Product if the
Product has been subjected to:
41
-Physical abuse, misuse, improper installation , abnormal use, power failure or surge,
or use not consistent with the operating instructions provided by KOTT
-Unusual physical or electrical stress, unsuitable operation or physical conditions
negligence or accidents
-Modification or repair by any party in any manner other than as approved by KOTT
in writing
-All those cases, purchaser should pay the repair and components fee.
Korea One Telecommunication Technology, Inc
Suite 305, Daeha B/D 680 YeokSam-Dong, KangNam-Ku,
Seoul, KOREA
Tel: 82-2-553-3437
Fax: 82-2-553-3438
Product :
Model :
Serial No :
Name :
Phone :
Warranty period :
Purchasing date :
