Kortek P42SV PDP Monitor User Manual 1 of 2

Kortek Corporation PDP Monitor 1 of 2

Contents

User Manual 1 of 2

SID Cover 2001.11.29 10:19 AM Page 1

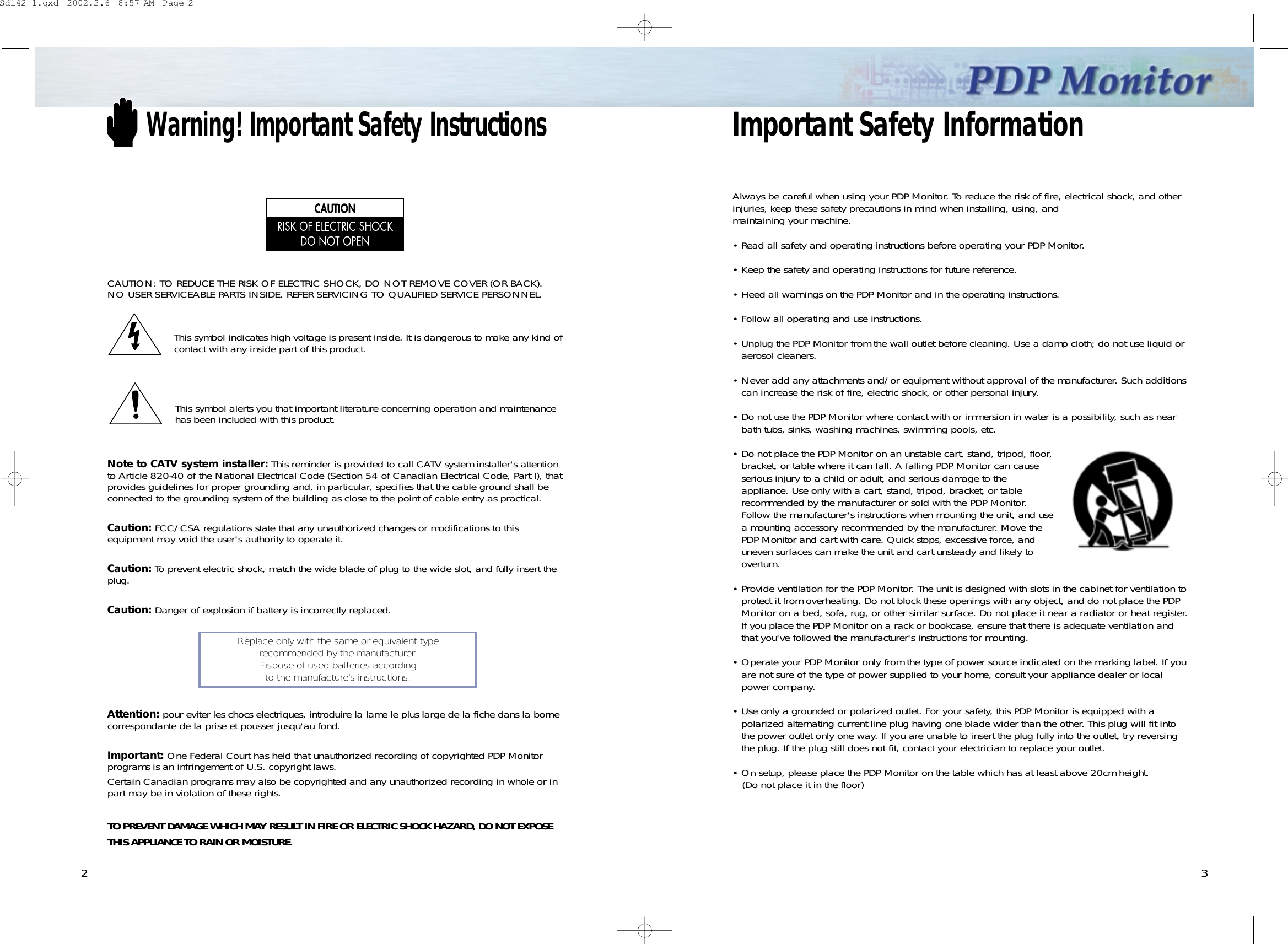

Warning! Important Safety Instructions32CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol indicates high voltage is present inside. It is dangerous to make any kind ofcontact with any inside part of this product.This symbol alerts you that important literature concerning operation and maintenancehas been included with this product.Note to CATV system installer: This reminder is provided to call CATV system installer's attentionto Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), thatprovides guidelines for proper grounding and, in particular, specifies that the cable ground shall beconnected to the grounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to thisequipment may void the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert theplug.Caution: Danger of explosion if battery is incorrectly replaced.Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la bornecorrespondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted PDP Monitorprograms is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or inpart may be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSETHIS APPLIANCE TO RAIN OR MOISTURE.Important Safety InformationAlways be careful when using your PDP Monitor. To reduce the risk of fire, electrical shock, and otherinjuries, keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your PDP Monitor.• Keep the safety and operating instructions for future reference.• Heed all warnings on the PDP Monitor and in the operating instructions.• Follow all operating and use instructions.• Unplug the PDP Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid oraerosol cleaners.• Never add any attachments and/or equipment without approval of the manufacturer. Such additionscan increase the risk of fire, electric shock, or other personal injury.• Do not use the PDP Monitor where contact with or immersion in water is a possibility, such as nearbath tubs, sinks, washing machines, swimming pools, etc.• Do not place the PDP Monitor on an unstable cart, stand, tripod, floor,bracket, or table where it can fall. A falling PDP Monitor can causeserious injury to a child or adult, and serious damage to theappliance. Use only with a cart, stand, tripod, bracket, or tablerecommended by the manufacturer or sold with the PDP Monitor.Follow the manufacturer's instructions when mounting the unit, and usea mounting accessory recommended by the manufacturer. Move thePDP Monitor and cart with care. Quick stops, excessive force, anduneven surfaces can make the unit and cart unsteady and likely tooverturn.• Provide ventilation for the PDP Monitor. The unit is designed with slots in the cabinet for ventilation toprotect it from overheating. Do not block these openings with any object, and do not place the PDPMonitor on a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register.If you place the PDP Monitor on a rack or bookcase, ensure that there is adequate ventilation andthat you've followed the manufacturer's instructions for mounting.• Operate your PDP Monitor only from the type of power source indicated on the marking label. If youare not sure of the type of power supplied to your home, consult your appliance dealer or localpower company.• Use only a grounded or polarized outlet. For your safety, this PDP Monitor is equipped with apolarized alternating current line plug having one blade wider than the other. This plug will fit intothe power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversingthe plug. If the plug still does not fit, contact your electrician to replace your outlet. • On setup, please place the PDP Monitor on the table which has at least above 20cm height.(Do not place it in the floor)Replace only with the same or equivalent typerecommended by the manufacturer.Fispose of used batteries according to the manufacture’s instructions.Sdi42-1.qxd 2002.2.6 8:57 AM Page 2

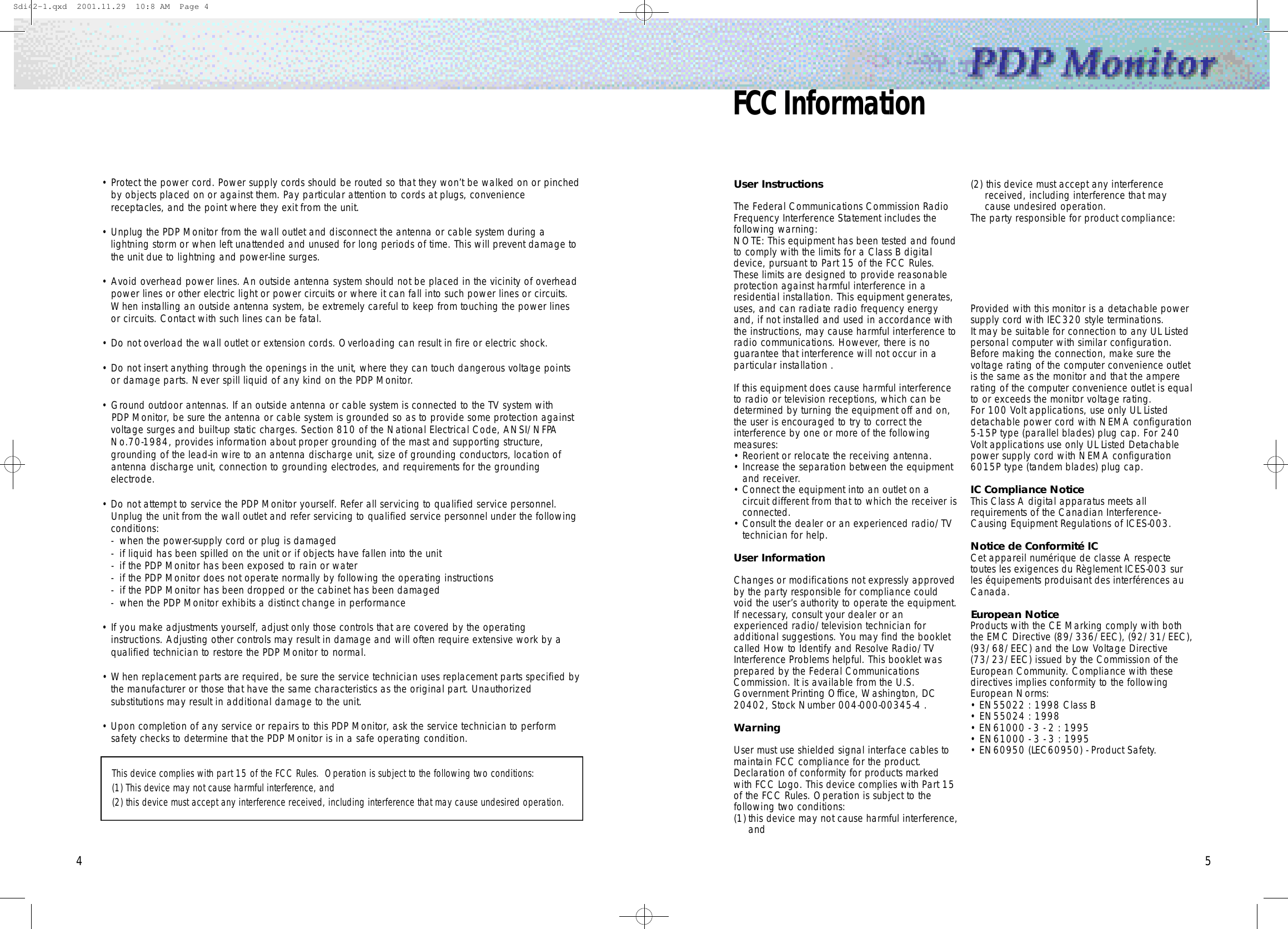

User InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes thefollowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in aresidential installation. This equipment generates,uses, and can radiate radio frequency energyand, if not installed and used in accordance withthe instructions, may cause harmful interference toradio communications. However, there is noguarantee that interference will not occur in aparticular installation .If this equipment does cause harmful interferenceto radio or television receptions, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct theinterference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipmentand receiver.• Connect the equipment into an outlet on acircuit different from that to which the receiver isconnected.• Consult the dealer or an experienced radio/TVtechnician for help.User InformationChanges or modifications not expressly approvedby the party responsible for compliance couldvoid the user’s authority to operate the equipment.If necessary, consult your dealer or anexperienced radio/television technician foradditional suggestions. You may find the bookletcalled How to Identify and Resolve Radio/TVInterference Problems helpful. This booklet wasprepared by the Federal CommunicationsCommission. It is available from the U.S.Government Printing Office, Washington, DC20402, Stock Number 004-000-00345-4 .WarningUser must use shielded signal interface cables tomaintain FCC compliance for the product.Declaration of conformity for products markedwith FCC Logo. This device complies with Part 15of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that maycause undesired operation.The party responsible for product compliance:Provided with this monitor is a detachable powersupply cord with IEC320 style terminations. It may be suitable for connection to any UL Listedpersonal computer with similar configuration.Before making the connection, make sure thevoltage rating of the computer convenience outletis the same as the monitor and that the ampererating of the computer convenience outlet is equalto or exceeds the monitor voltage rating.For 100 Volt applications, use only UL Listeddetachable power cord with NEMA configuration5-15P type (parallel blades) plug cap. For 240Volt applications use only UL Listed Detachablepower supply cord with NEMA configuration6015P type (tandem blades) plug cap.IC Compliance NoticeThis Class A digital apparatus meets allrequirements of the Canadian Interference-Causing Equipment Regulations of ICES-003.Notice de Conformité ICCet appareil numérique de classe A respectetoutes les exigences du Règlement ICES-003 surles équipements produisant des interférences auCanada.European NoticeProducts with the CE Marking comply with boththe EMC Directive (89/336/EEC), (92/31/EEC),(93/68/EEC) and the Low Voltage Directive(73/23/EEC) issued by the Commission of theEuropean Community. Compliance with thesedirectives implies conformity to the followingEuropean Norms:• EN55022 : 1998 Class B• EN55024 : 1998• EN61000 - 3 - 2 : 1995• EN61000 - 3 - 3 : 1995• EN60950 (LEC60950) - Product Safety.5• Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinchedby objects placed on or against them. Pay particular attention to cords at plugs, conveniencereceptacles, and the point where they exit from the unit.• Unplug the PDP Monitor from the wall outlet and disconnect the antenna or cable system during alightning storm or when left unattended and unused for long periods of time. This will prevent damage tothe unit due to lightning and power-line surges.• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overheadpower lines or other electric light or power circuits or where it can fall into such power lines or circuits.When installing an outside antenna system, be extremely careful to keep from touching the power linesor circuits. Contact with such lines can be fatal.• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.• Do not insert anything through the openings in the unit, where they can touch dangerous voltage pointsor damage parts. Never spill liquid of any kind on the PDP Monitor.• Ground outdoor antennas. If an outside antenna or cable system is connected to the TV system with PDP Monitor, be sure the antenna or cable system is grounded so as to provide some protection againstvoltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPANo.70-1984, provides information about proper grounding of the mast and supporting structure,grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location ofantenna discharge unit, connection to grounding electrodes, and requirements for the groundingelectrode.• Do not attempt to service the PDP Monitor yourself. Refer all servicing to qualified service personnel.Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the followingconditions:- when the power-supply cord or plug is damaged- if liquid has been spilled on the unit or if objects have fallen into the unit- if the PDP Monitor has been exposed to rain or water- if the PDP Monitor does not operate normally by following the operating instructions- if the PDP Monitor has been dropped or the cabinet has been damaged- when the PDP Monitor exhibits a distinct change in performance• If you make adjustments yourself, adjust only those controls that are covered by the operatinginstructions. Adjusting other controls may result in damage and will often require extensive work by aqualified technician to restore the PDP Monitor to normal.• When replacement parts are required, be sure the service technician uses replacement parts specified bythe manufacturer or those that have the same characteristics as the original part. Unauthorizedsubstitutions may result in additional damage to the unit.• Upon completion of any service or repairs to this PDP Monitor, ask the service technician to performsafety checks to determine that the PDP Monitor is in a safe operating condition.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.4FCC InformationSdi42-1.qxd 2001.11.29 10:8 AM Page 4

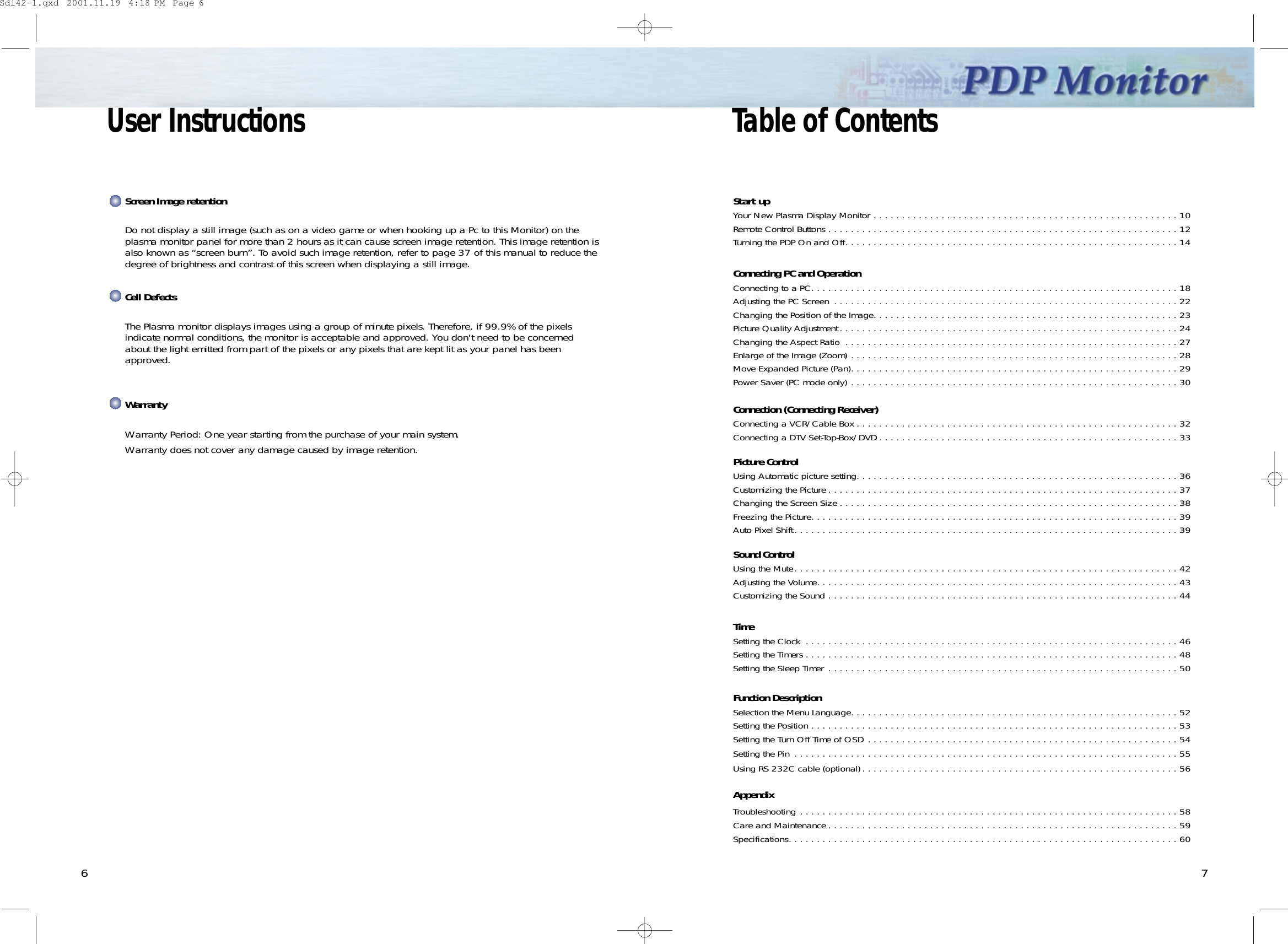

Start upYour New Plasma Display Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Turning the PDP On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Connecting PC and Operation Connecting to a PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Adjusting the PC Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Changing the Position of the Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Picture Quality Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Changing the Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Enlarge of the Image (Zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Move Expanded Picture (Pan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Power Saver (PC mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Connection (Connecting Receiver)Connecting a VCR/Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Connecting a DTV Set-Top-Box/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Picture ControlUsing Automatic picture setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Customizing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Changing the Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Freezing the Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Auto Pixel Shift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Sound ControlUsing the Mute. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Customizing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44TimeSetting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46Setting the Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Function DescriptionSelection the Menu Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Setting the Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Setting the Turn Off Time of OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Setting the Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Using RS 232C cable (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56AppendixTroubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607User Instructions Screen Image retentionDo not display a still image (such as on a video game or when hooking up a Pc to this Monitor) on theplasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention isalso known as “screen burn”. To avoid such image retention, refer to page 37 of this manual to reduce thedegree of brightness and contrast of this screen when displaying a still image.Cell Defects The Plasma monitor displays images using a group of minute pixels. Therefore, if 99.9% of the pixelsindicate normal conditions, the monitor is acceptable and approved. You don't need to be concernedabout the light emitted from part of the pixels or any pixels that are kept lit as your panel has beenapproved. WarrantyWarranty Period: One year starting from the purchase of your main system. Warranty does not cover any damage caused by image retention.6Table of ContentsSdi42-1.qxd 2001.11.19 4:18 PM Page 6

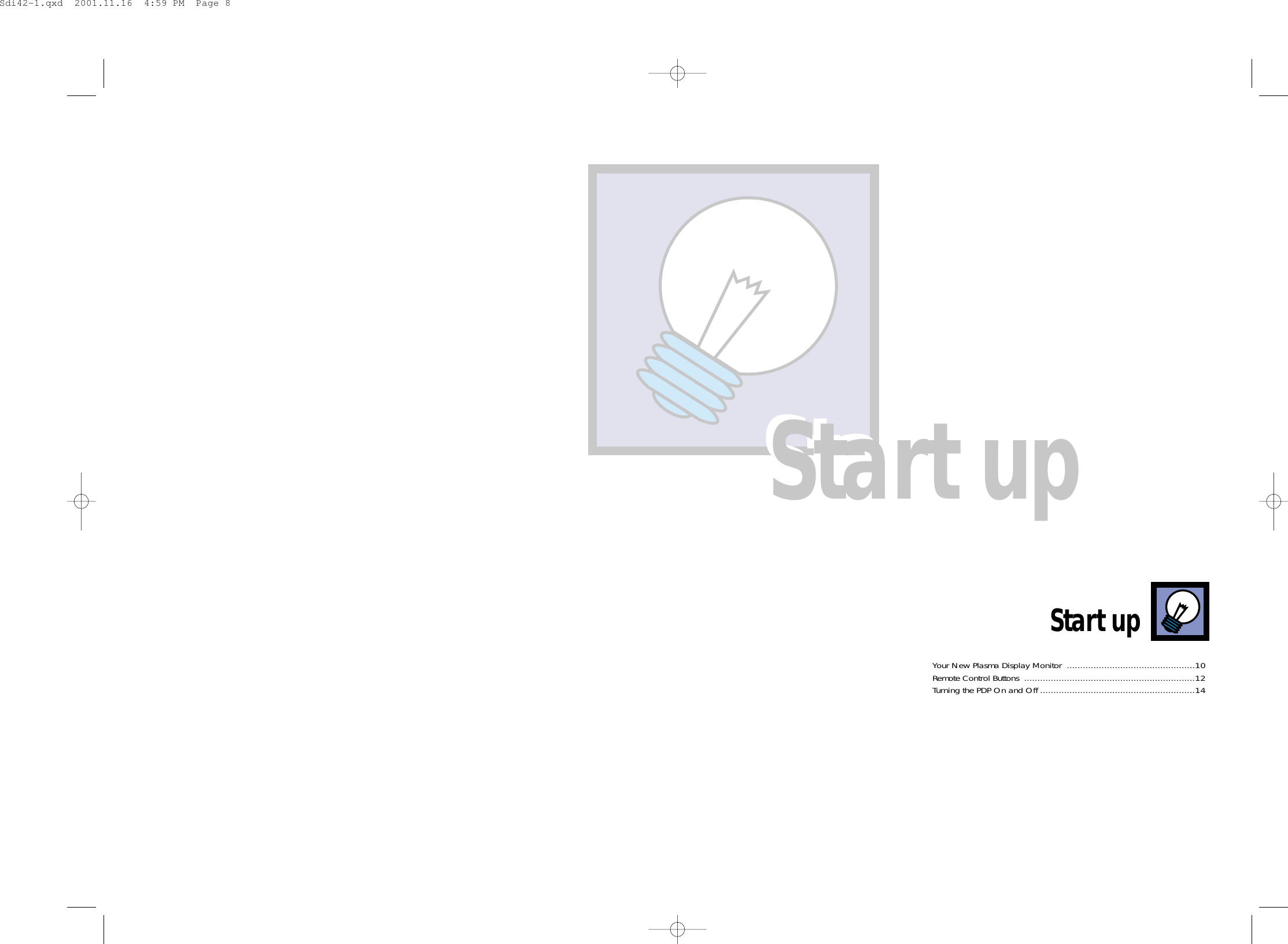

Your New Plasma Display Monitor ................................................10Remote Control Buttons ................................................................12Turning the PDP On and Off ..........................................................14Start upStart upStart upSdi42-1.qxd 2001.11.16 4:59 PM Page 8

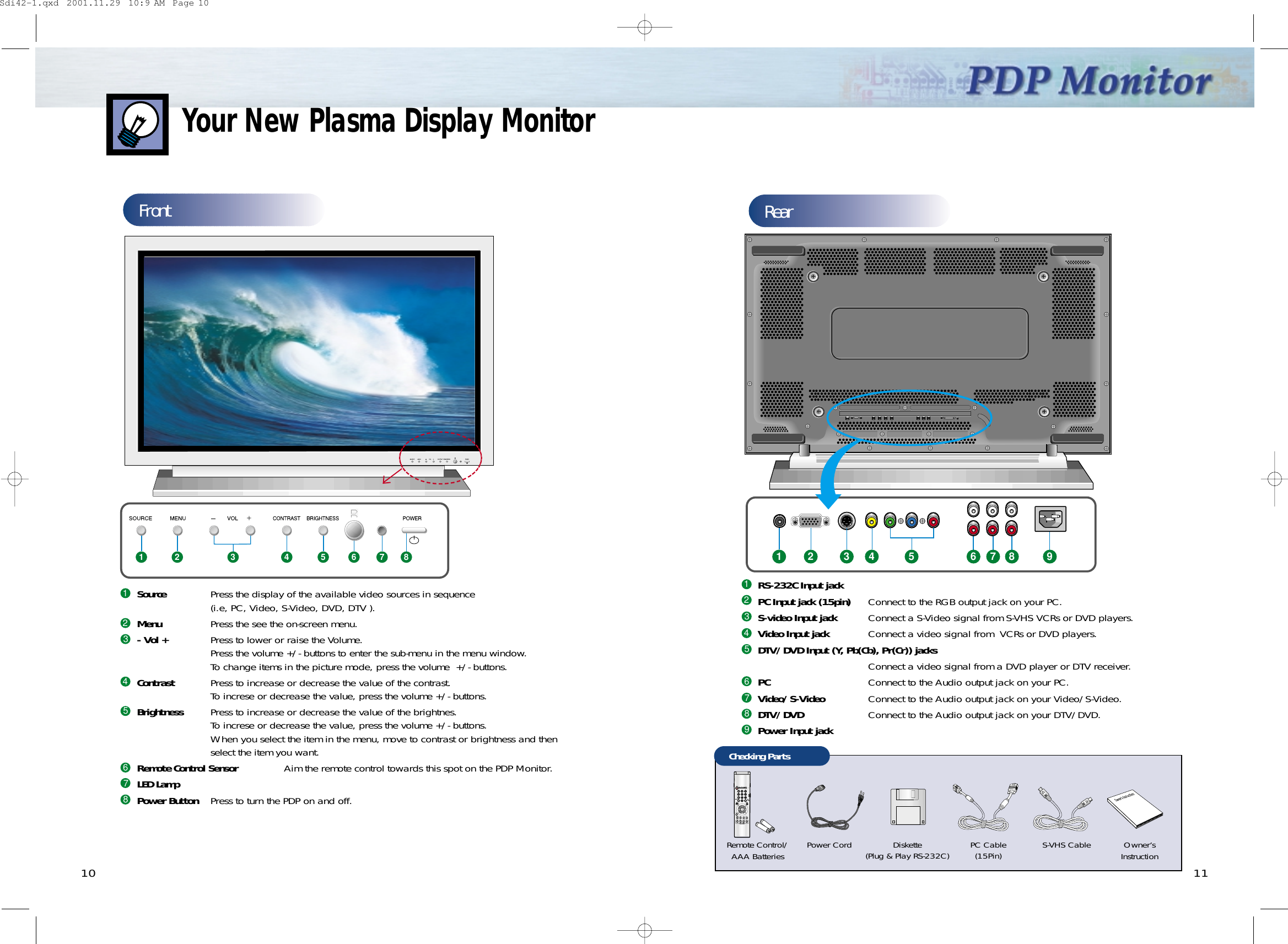

Front 11Your New Plasma Display Monitor10Rear Auto Adj. ZoomChecking PartsRemote Control/AAA Batteries Power Cord Diskette(Plug & Play RS-232C) PC Cable(15Pin) S-VHS Cable Owner’sInstructionRS-232C Input jackPC Input jack (15pin) Connect to the RGB output jack on your PC.S-video Input jack Connect a S-Video signal from S-VHS VCRs or DVD players.Video Input jack Connect a video signal from VCRs or DVD players.DTV/DVD Input (Y, Pb(Cb), Pr(Cr)) jacksConnect a video signal from a DVD player or DTV receiver.PC Connect to the Audio output jack on your PC.Video/S-Video Connect to the Audio output jack on your Video/S-Video.DTV/DVD Connect to the Audio output jack on your DTV/DVD.Power Input jack1234567896 7 8 91 2 3 541 2 3 5 6 7 8412345678Source Press the display of the available video sources in sequence(i.e, PC, Video, S-Video, DVD, DTV ).Menu Press the see the on-screen menu.- Vol + Press to lower or raise the Volume.Press the volume +/- buttons to enter the sub-menu in the menu window.To change items in the picture mode, press the volume +/- buttons.Contrast Press to increase or decrease the value of the contrast.To increse or decrease the value, press the volume +/- buttons.Brightness Press to increase or decrease the value of the brightnes.To increse or decrease the value, press the volume +/- buttons.When you select the item in the menu, move to contrast or brightness and then select the item you want.Remote Control Sensor Aim the remote control towards this spot on the PDP Monitor.LED LampPower Button Press to turn the PDP on and off.Sdi42-1.qxd 2001.11.29 10:9 AM Page 10

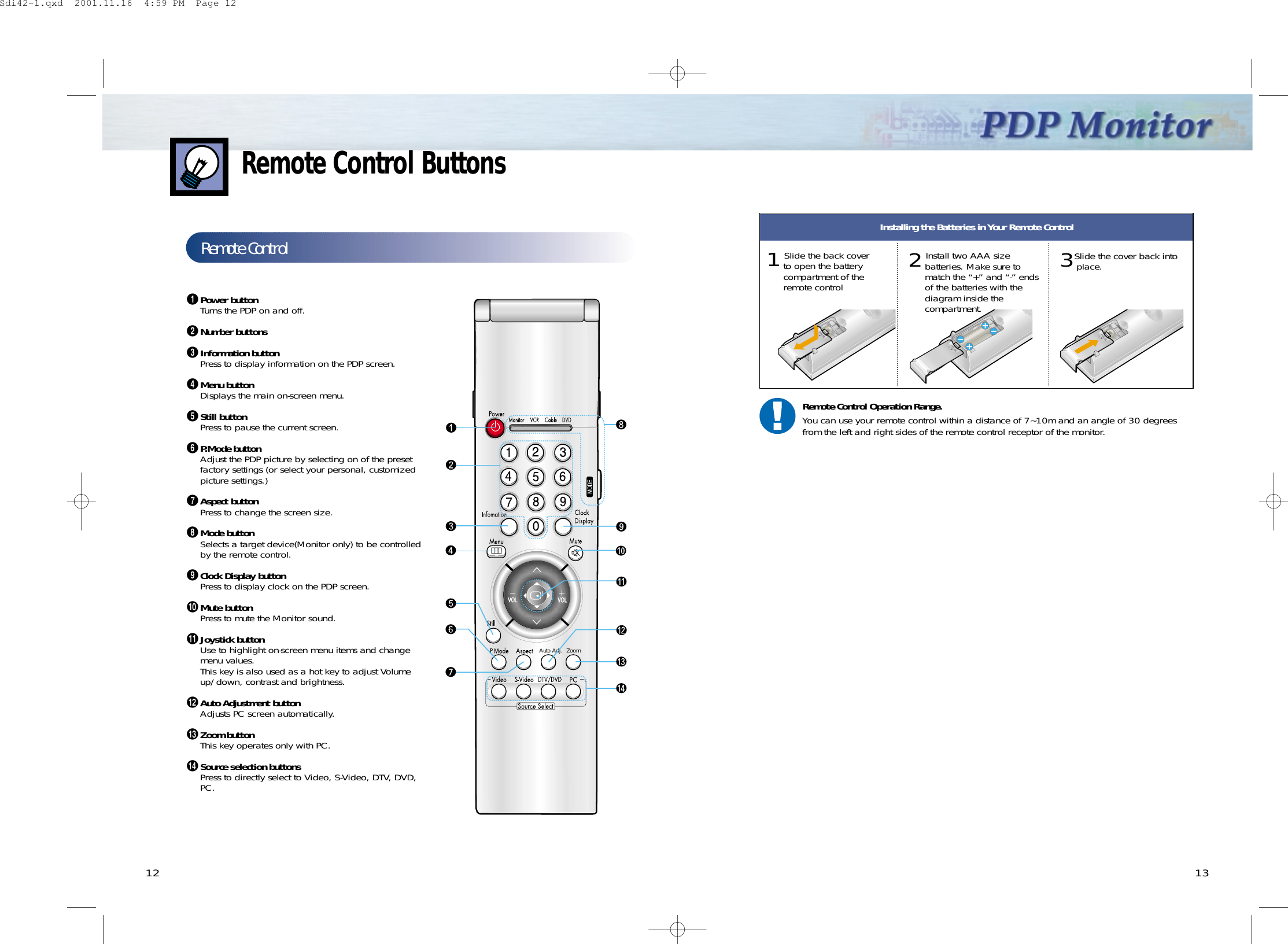

13Remote Control Buttons12Remote ControlŒPower buttonTurns the PDP on and off.´Number buttonsˇInformation buttonPress to display information on the PDP screen.¨Menu buttonDisplays the main on-screen menu.ˆStill buttonPress to pause the current screen.ØP.Mode buttonAdjust the PDP picture by selecting on of the presetfactory settings (or select your personal, customizedpicture settings.)∏Aspect buttonPress to change the screen size.”Mode buttonSelects a target device(Monitor only) to be controlledby the remote control.’Clock Display buttonPress to display clock on the PDP screen.˝Mute buttonPress to mute the Monitor sound.ÔJoystick buttonUse to highlight on-screen menu items and changemenu values.This key is also used as a hot key to adjust Volumeup/down, contrast and brightness.Auto Adjustment buttonAdjusts PC screen automatically.ÒZoom buttonThis key operates only with PC.ÚSource selection buttonsPress to directly select to Video, S-Video, DTV, DVD,PC.Auto Adj. ZoomInstalling the Batteries in Your Remote Control1Slide the back coverto open the batterycompartment of theremote control3Slide the cover back intoplace.Remote Control Operation Range.You can use your remote control within a distance of 7~10m and an angle of 30 degreesfrom the left and right sides of the remote control receptor of the monitor.2Install two AAA sizebatteries. Make sure tomatch the “+” and “-” endsof the batteries with thediagram inside thecompartment.Sdi42-1.qxd 2001.11.16 4:59 PM Page 12

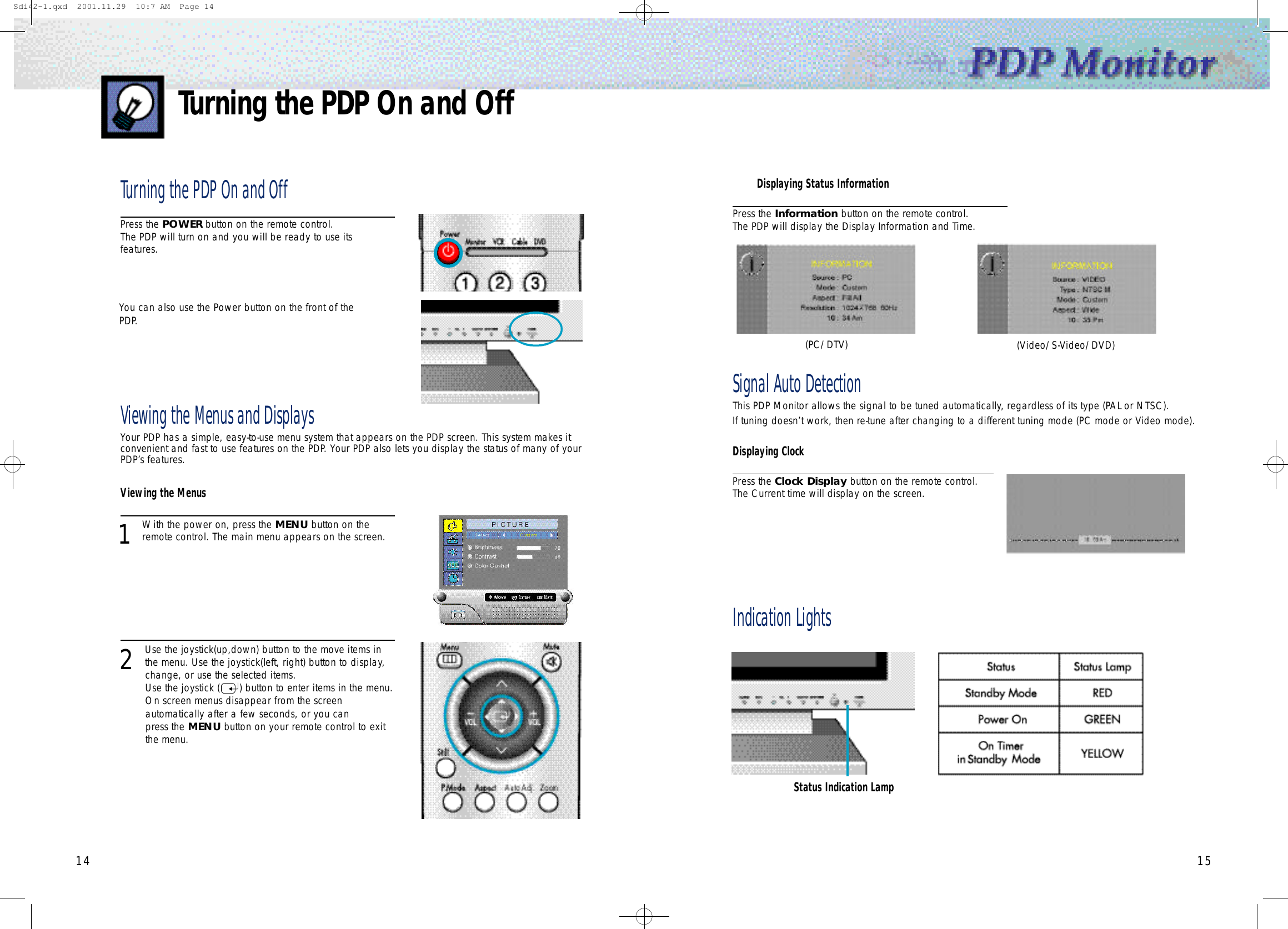

Displaying Status InformationPress the Information button on the remote control. The PDP will display the Display Information and Time.Signal Auto DetectionThis PDP Monitor allows the signal to be tuned automatically, regardless of its type (PAL or NTSC).If tuning doesn’t work, then re-tune after changing to a different tuning mode (PC mode or Video mode).Displaying ClockPress the Clock Display button on the remote control. The Current time will display on the screen.15Turning the PDP On and OffTurning the PDP On and OffPress the POWER button on the remote control.The PDP will turn on and you will be ready to use its features.Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes itconvenient and fast to use features on the PDP. Your PDP also lets you display the status of many of yourPDP’s features.Viewing the Menus1 With the power on, press the MENU button on theremote control. The main menu appears on the screen. 2 Use the joystick(up,down) button to the move items inthe menu. Use the joystick(left, right) button to display, change, or use the selected items.Use the joystick ( ) button to enter items in the menu.On screen menus disappear from the screen automatically after a few seconds, or you can press the MENU button on your remote control to exitthe menu.14(PC/DTV) (Video/S-Video/DVD)You can also use the Power button on the front of the PDP.Indication LightsStatus Indication LampSdi42-1.qxd 2001.11.29 10:7 AM Page 14

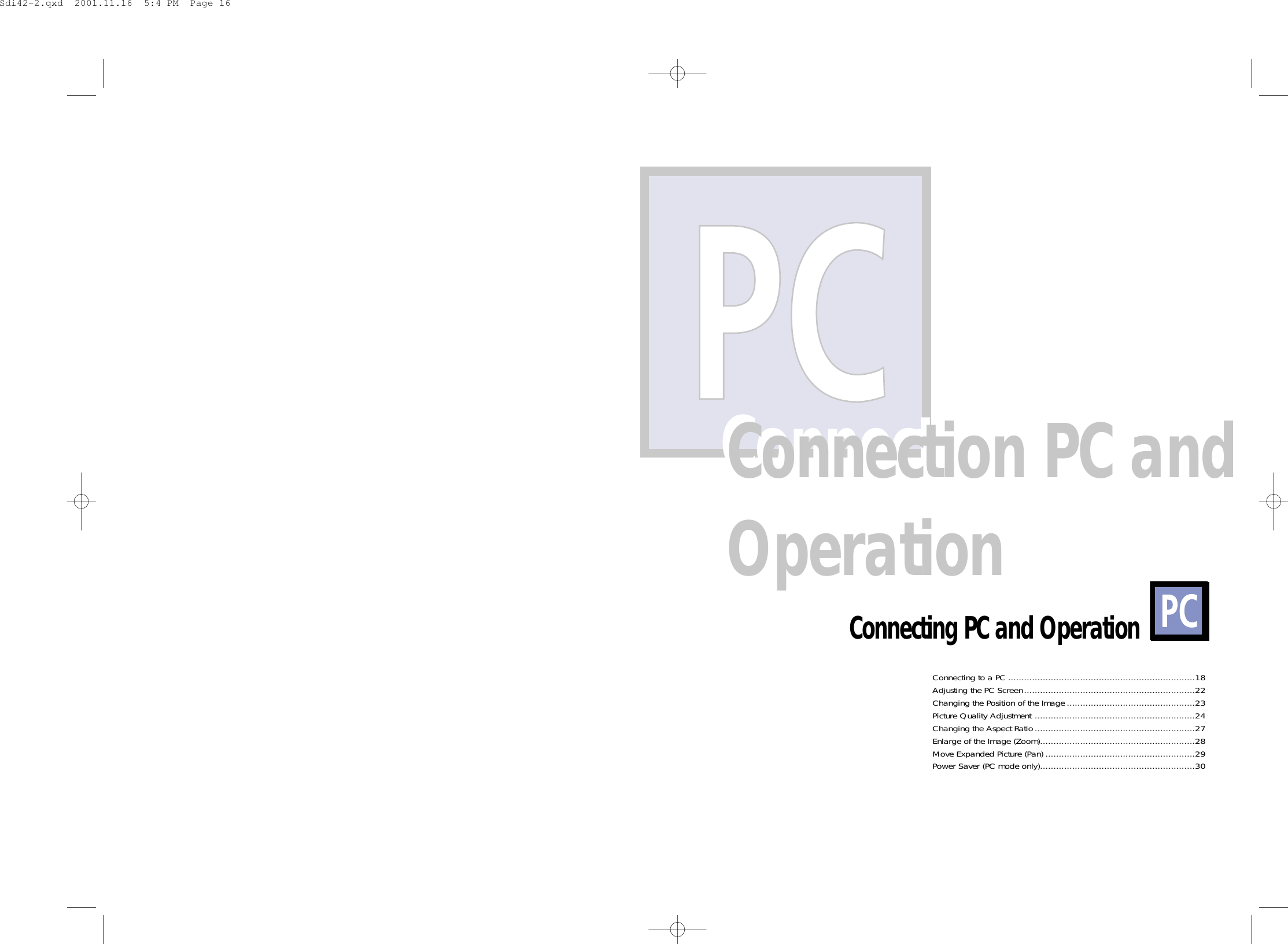

Connection PC andoperationConnection PC andOperationConnecting PC and OperationConnecting to a PC ......................................................................18Adjusting the PC Screen................................................................22Changing the Position of the Image ................................................23Picture Quality Adjustment ............................................................24Changing the Aspect Ratio............................................................27Enlarge of the Image (Zoom)..........................................................28Move Expanded Picture (Pan) ........................................................29Power Saver (PC mode only)..........................................................30Sdi42-2.qxd 2001.11.16 5:4 PM Page 16

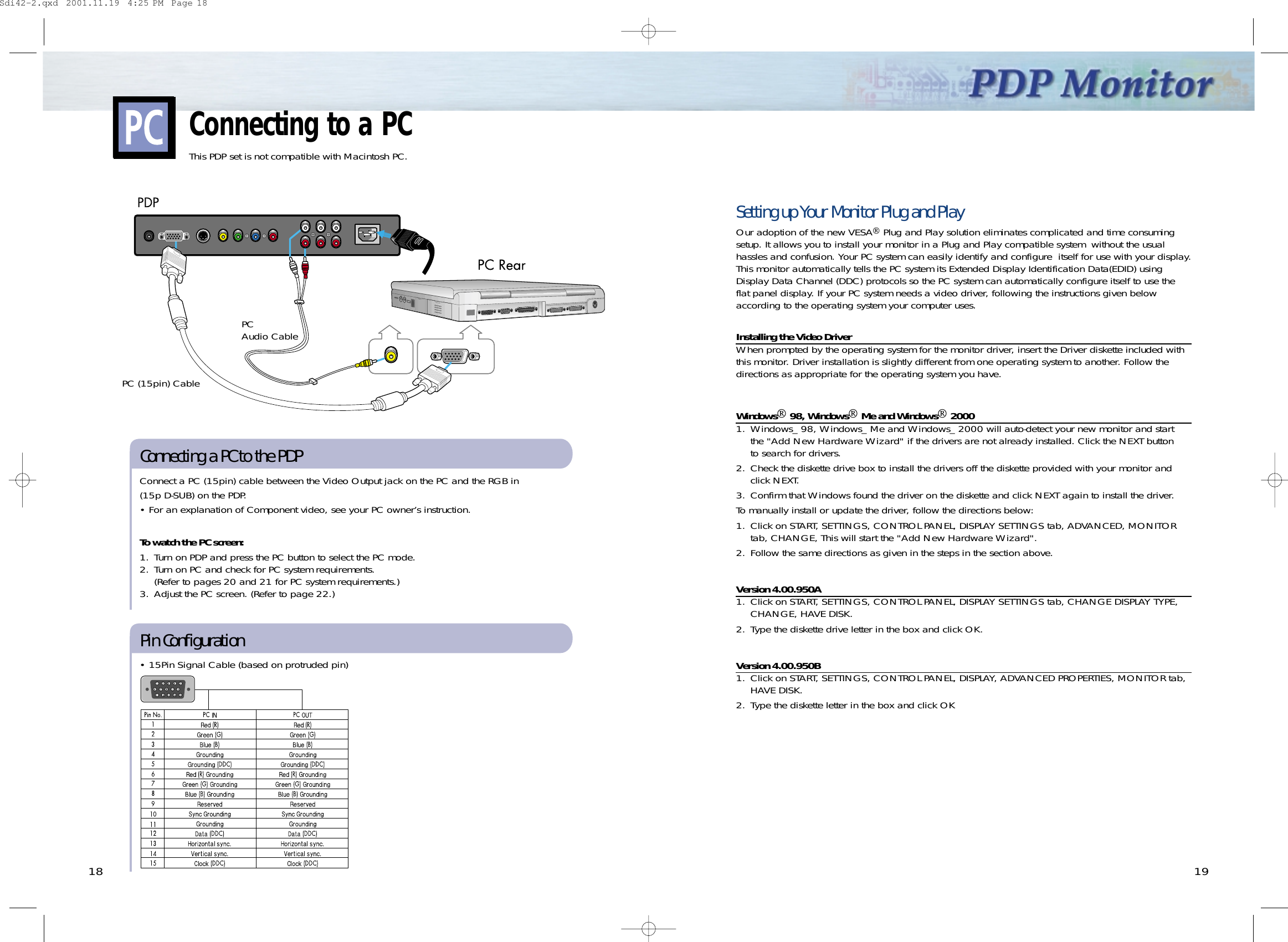

1918Connecting to a PCThis PDP set is not compatible with Macintosh PC.Power PlugConnect a PC (15pin) cable between the Video Output jack on the PC and the RGB in(15p D-SUB) on the PDP. • For an explanation of Component video, see your PC owner’s instruction.To watch the PC screen:1. Turn on PDP and press the PC button to select the PC mode.2. Turn on PC and check for PC system requirements.(Refer to pages 20 and 21 for PC system requirements.)3. Adjust the PC screen. (Refer to page 22.)Connecting a PC to the PDP• 15Pin Signal Cable (based on protruded pin)Pin ConfigurationPC (15pin) CablePC Audio CableSetting up Your Monitor Plug and PlayOur adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. Your PC system can easily identify and configure itself for use with your display.This monitor automatically tells the PC system its Extended Display Identification Data(EDID) using Display Data Channel (DDC) protocols so the PC system can automatically configure itself to use the flat panel display. If your PC system needs a video driver, following the instructions given belowaccording to the operating system your computer uses. Installing the Video DriverWhen prompted by the operating system for the monitor driver, insert the Driver diskette included withthis monitor. Driver installation is slightly different from one operating system to another. Follow thedirections as appropriate for the operating system you have.Windows98, WindowsMe and Windows20001. Windows_ 98, Windows_ Me and Windows_ 2000 will auto-detect your new monitor and start the "Add New Hardware Wizard" if the drivers are not already installed. Click the NEXT button to search for drivers. 2. Check the diskette drive box to install the drivers off the diskette provided with your monitor and click NEXT.3. Confirm that Windows found the driver on the diskette and click NEXT again to install the driver.To manually install or update the driver, follow the directions below:1. Click on START, SETTINGS, CONTROL PANEL, DISPLAY SETTINGS tab, ADVANCED, MONITOR tab, CHANGE, This will start the "Add New Hardware Wizard".2. Follow the same directions as given in the steps in the section above.Version 4.00.950A1. Click on START, SETTINGS, CONTROL PANEL, DISPLAY SETTINGS tab, CHANGE DISPLAY TYPE, CHANGE, HAVE DISK.2. Type the diskette drive letter in the box and click OK.Version 4.00.950B1. Click on START, SETTINGS, CONTROL PANEL, DISPLAY, ADVANCED PROPERTIES, MONITOR tab, HAVE DISK.2. Type the diskette letter in the box and click OKSdi42-2.qxd 2001.11.19 4:25 PM Page 18

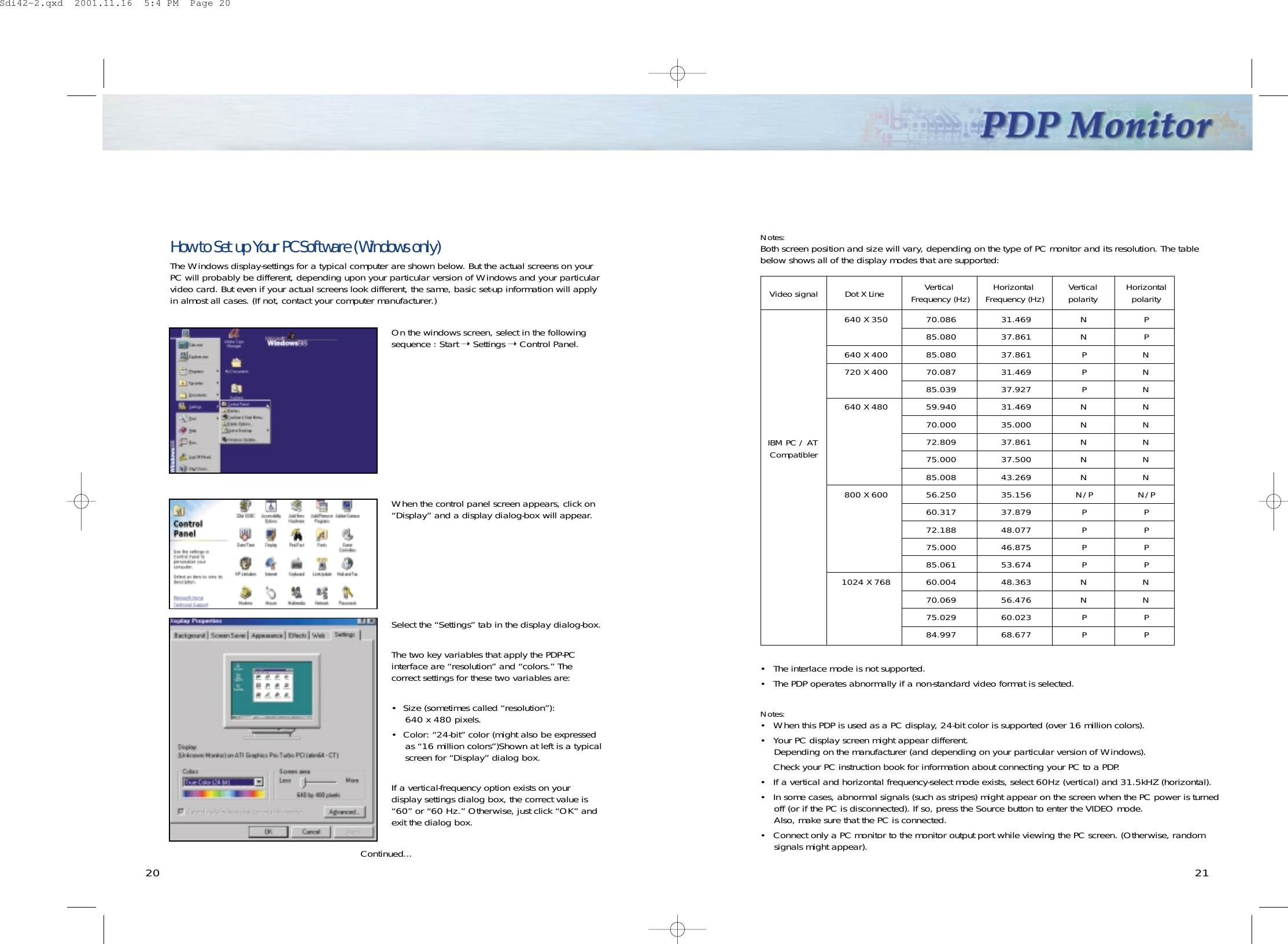

2120How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. But the actual screens on yourPC will probably be different, depending upon your particular version of Windows and your particularvideo card. But even if your actual screens look different, the same, basic set-up information will applyin almost all cases. (If not, contact your computer manufacturer.)On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.Select the “Settings” tab in the display dialog-box.The two key variables that apply the PDP-PCinterface are “resolution” and “colors.” Thecorrect settings for these two variables are:• Size (sometimes called “resolution”): 640 x 480 pixels.• Color: “24-bit” color (might also be expressedas “16 million colors”)Shown at left is a typicalscreen for “Display” dialog box. If a vertical-frequency option exists on yourdisplay settings dialog box, the correct value is“60” or “60 Hz.” Otherwise, just click “OK” andexit the dialog box.Continued...When the control panel screen appears, click on“Display” and a display dialog-box will appear.Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution. The tablebelow shows all of the display modes that are supported:• The interlace mode is not supported.• The PDP operates abnormally if a non-standard video format is selected.Notes:• When this PDP is used as a PC display, 24-bit color is supported (over 16 million colors).• Your PC display screen might appear different.Depending on the manufacturer (and depending on your particular version of Windows). Check your PC instruction book for information about connecting your PC to a PDP.• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHZ (horizontal).• In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turnedoff (or if the PC is disconnected). If so, press the Source button to enter the VIDEO mode. Also, make sure that the PC is connected.• Connect only a PC monitor to the monitor output port while viewing the PC screen. (Otherwise, randomsignals might appear).Video signal Dot X Line640 X 350640 X 400720 X 400640 X 480800 X 6001024 X 76870.08685.08085.08070.08785.03959.94070.00072.80975.00085.00856.25060.31772.18875.00085.06160.00470.06975.02984.99731.46937.86137.86131.46937.92731.46935.00037.86137.50043.26935.15637.87948.07746.87553.67448.36356.47660.02368.677NNPPPNNNNNN/PPPPPNNPPPPNNNNNNNNN/PPPPPNNPPVertical Frequency (Hz) Horizontal Frequency (Hz) Verticalpolarity HorizontalpolarityIBM PC / AT CompatiblerSdi42-2.qxd 2001.11.16 5:4 PM Page 20

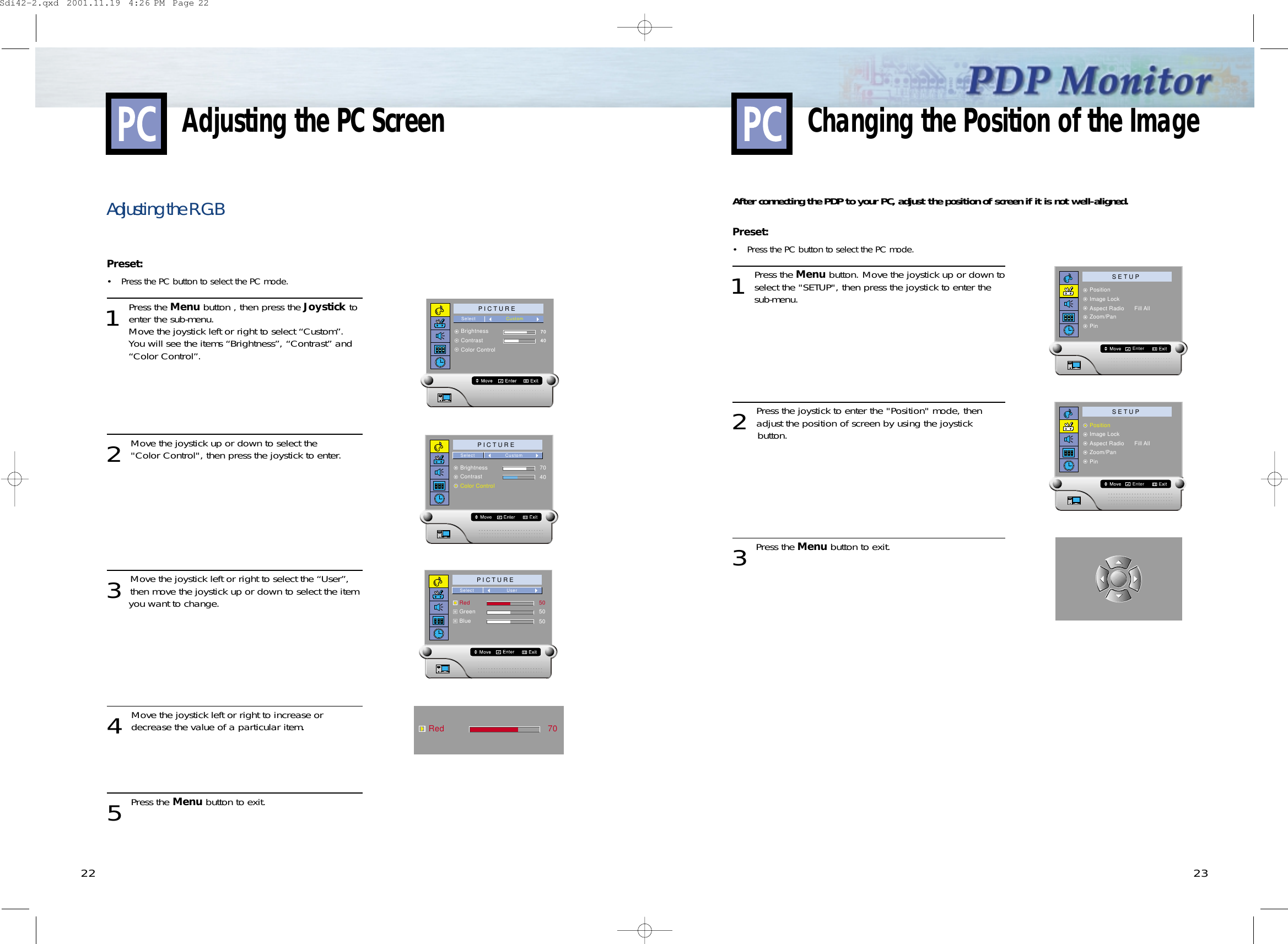

22 23Adjusting the R.G.BPreset: • Press the PC button to select the PC mode. 1 Press the Menu button , then press the Joystick toenter the sub-menu.Move the joystick left or right to select “Custom”.You will see the items “Brightness”, “Contrast” and “Color Control”.2 Move the joystick up or down to select the "Color Control", then press the joystick to enter.3 Move the joystick left or right to select the “User”,then move the joystick up or down to select the item you want to change.4 Move the joystick left or right to increase ordecrease the value of a particular item.5 Press the Menu button to exit.P I C T U R EBrightnessContrastColor ControlSelect Custom7040P I C T U R EBrightnessContrastColor ControlSelect Custom7040P I C T U R ERedGreenBlueSelect User505050Red 70After connecting the PDP to your PC, adjust the position of screen if it is not well-aligned.Preset: • Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up or down toselect the "SETUP", then press the joystick to enter the sub-menu. 2 Press the joystick to enter the "Position" mode, thenadjust the position of screen by using the joystick button. 3 Press the Menu button to exit.Changing the Position of the ImageAdjusting the PC ScreenS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterSdi42-2.qxd 2001.11.19 4:26 PM Page 22

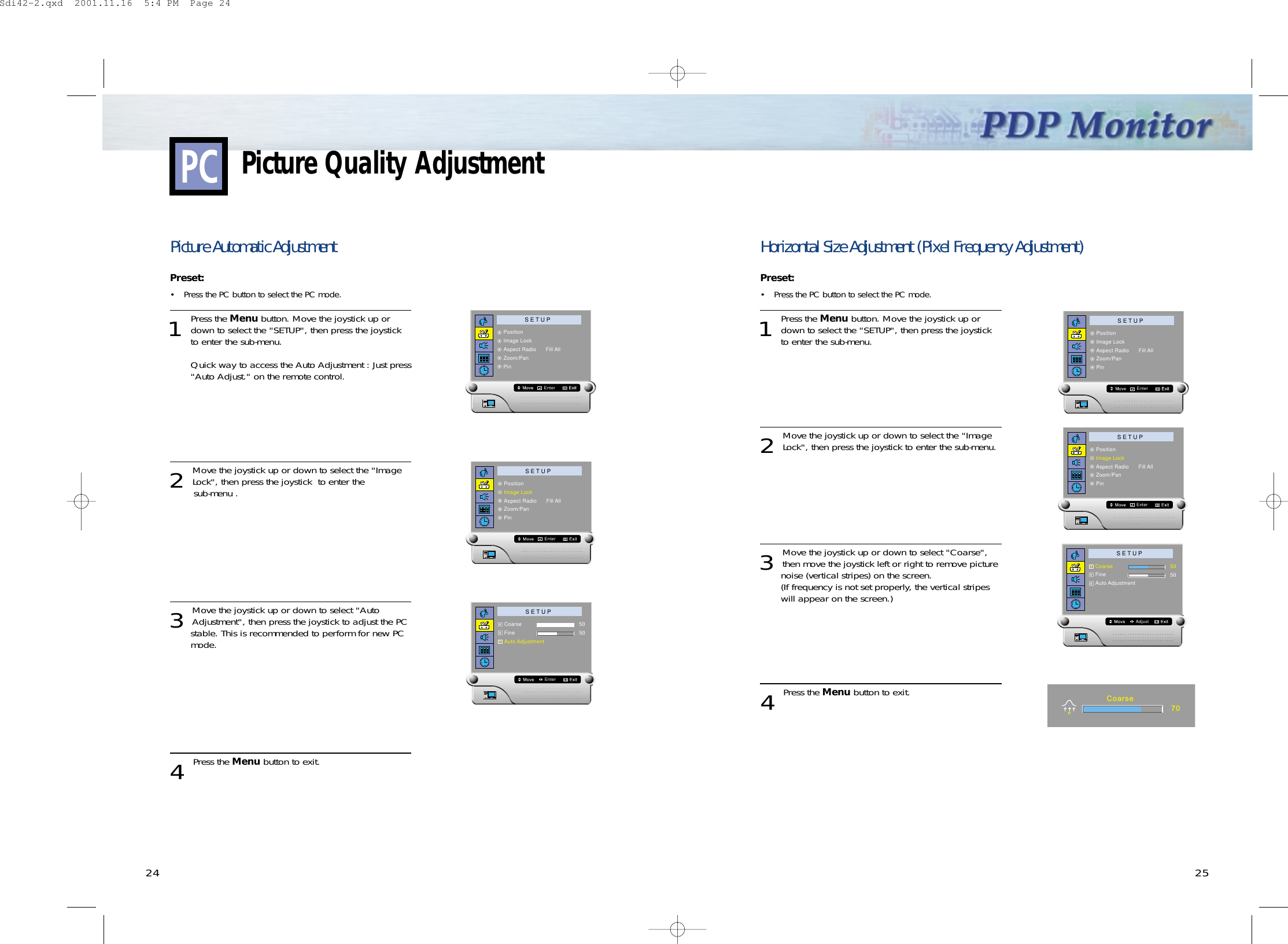

2524Picture Automatic AdjustmentPreset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystick to enter the sub-menu. Quick way to access the Auto Adjustment : Just press"Auto Adjust." on the remote control. 2 Move the joystick up or down to select the "ImageLock", then press the joystick to enter the sub-menu .3 Move the joystick up or down to select "AutoAdjustment", then press the joystick to adjust the PC stable. This is recommended to perform for new PC mode.4 Press the Menu button to exit.Picture Quality AdjustmentS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PCoarseFineAuto AdjustmentEnter5050Horizontal Size Adjustment (Pixel Frequency Adjustment)Preset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystick to enter the sub-menu.2 Move the joystick up or down to select the "ImageLock", then press the joystick to enter the sub-menu.3 Move the joystick up or down to select "Coarse",then move the joystick left or right to remove picture noise (vertical stripes) on the screen. (If frequency is not set properly, the vertical stripes will appear on the screen.)4 Press the Menu button to exit.S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PCoarseFineAuto AdjustmentAdjust5050Coarse70nSdi42-2.qxd 2001.11.16 5:4 PM Page 24

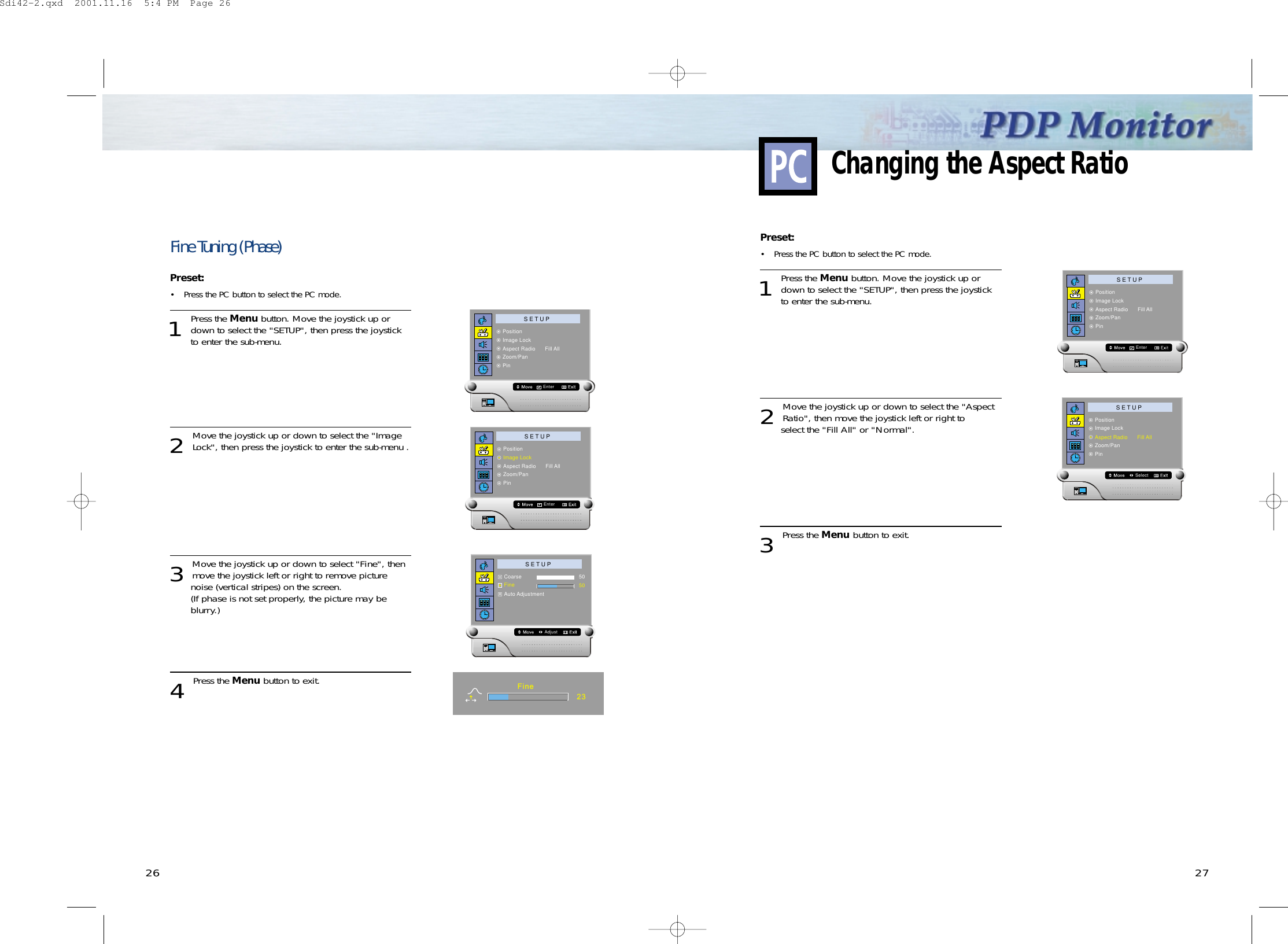

2726Fine Tuning (Phase)Preset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystick to enter the sub-menu.2 Move the joystick up or down to select the "ImageLock", then press the joystick to enter the sub-menu .3 Move the joystick up or down to select "Fine", thenmove the joystick left or right to remove picture noise (vertical stripes) on the screen. (If phase is not set properly, the picture may be blurry.)4 Press the Menu button to exit.S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PCoarseFineAuto AdjustmentAdjust5050Fine23Preset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystick to enter the sub-menu.2 Move the joystick up or down to select the "AspectRatio", then move the joystick left or right to select the "Fill All" or "Normal".3 Press the Menu button to exit.S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinSelectChanging the Aspect RatioSdi42-2.qxd 2001.11.16 5:4 PM Page 26

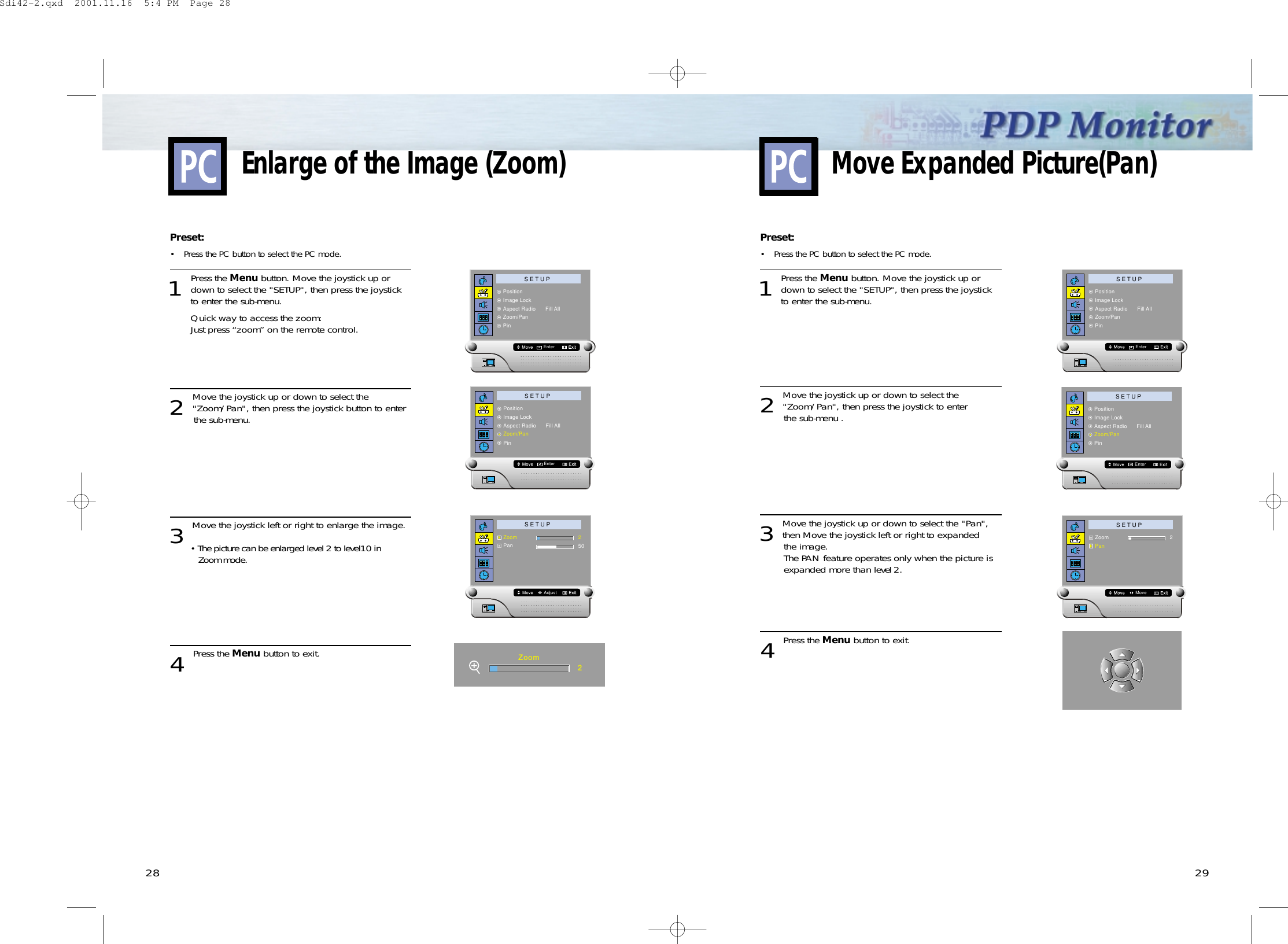

2928Preset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystickto enter the sub-menu. Quick way to access the zoom:Just press “zoom” on the remote control.2 Move the joystick up or down to select the"Zoom/Pan", then press the joystick button to enter the sub-menu.3 Move the joystick left or right to enlarge the image.• The picture can be enlarged level 2 to level10 in Zoom mode.4 Press the Menu button to exit.Enlarge of the Image (Zoom)S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PZoomPanAdjust250Zoom2S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterPreset: •Press the PC button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the "SETUP", then press the joystick to enter the sub-menu. 2 Move the joystick up or down to select the"Zoom/Pan", then press the joystick to enter the sub-menu .3 Move the joystick up or down to select the "Pan",then Move the joystick left or right to expanded the image.The PAN feature operates only when the picture is expanded more than level 2.4 Press the Menu button to exit.Move Expanded Picture(Pan)S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterS E T U PZoomPanMove2S E T U PPositionImage LockAspect Radio Fill AllZoom/PanPinEnterSdi42-2.qxd 2001.11.16 5:4 PM Page 28

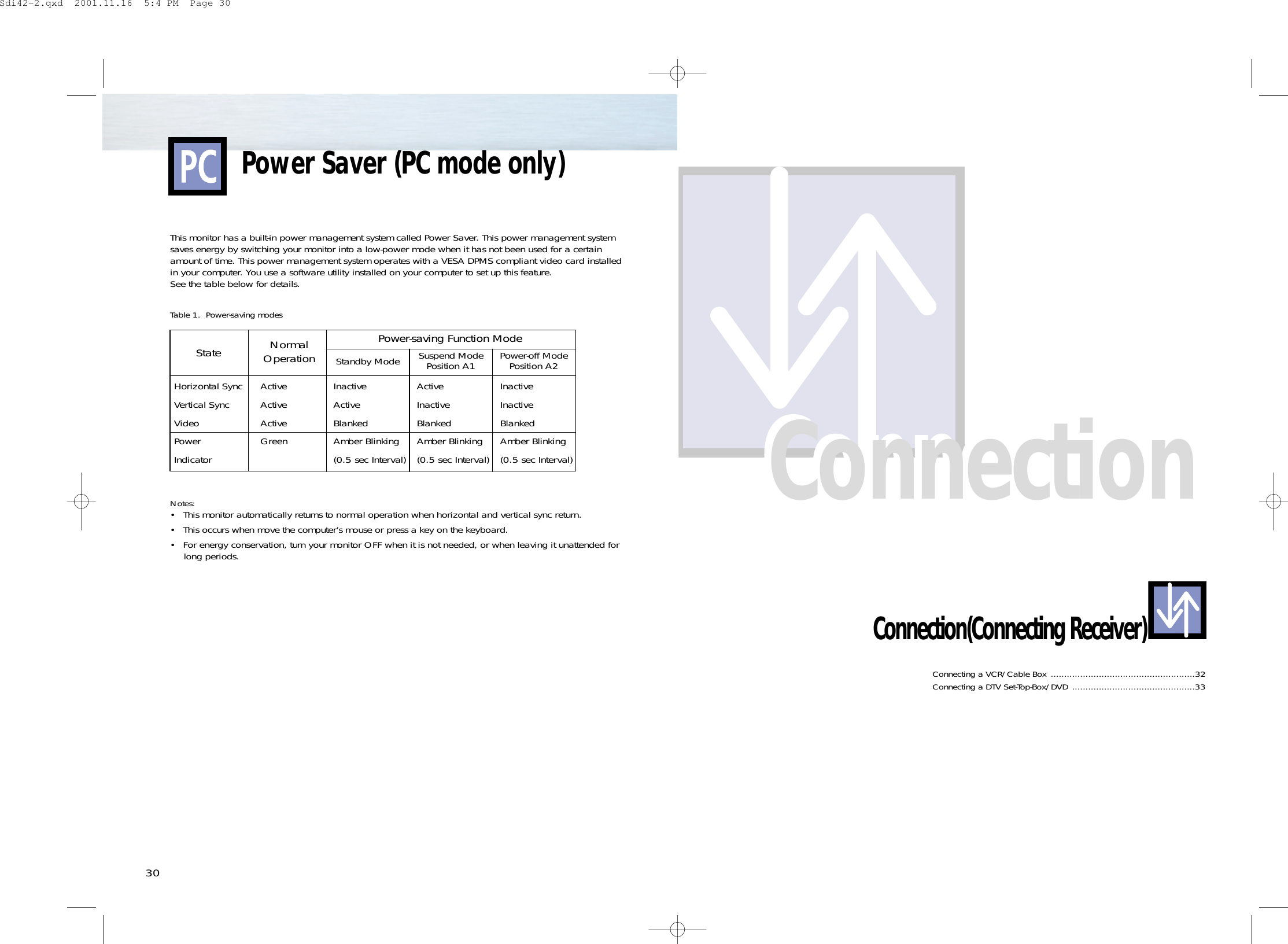

30Power Saver (PC mode only)This monitor has a built-in power management system called Power Saver. This power management system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. This power management system operates with a VESA DPMS compliant video card installed in your computer. You use a software utility installed on your computer to set up this feature. See the table below for details.Table 1. Power-saving modesNotes: •This monitor automatically returns to normal operation when horizontal and vertical sync return.•This occurs when move the computer’s mouse or press a key on the keyboard.•For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended forlong periods.State NormalOperationPower-saving Function ModeInactiveActiveBlankedAmber Blinking(0.5 sec Interval)ActiveInactiveBlankedAmber Blinking(0.5 sec Interval)InactiveInactiveBlankedAmber Blinking(0.5 sec Interval)Horizontal SyncVertical SyncVideoPowerIndicatorActiveActiveActiveGreenStandby Mode Suspend ModePosition A1 Power-off ModePosition A2Connection(Connecting Receiver)Connecting a VCR/Cable Box ......................................................32Connecting a DTV Set-Top-Box/DVD ..............................................33ConnectionConnectionSdi42-2.qxd 2001.11.16 5:4 PM Page 30

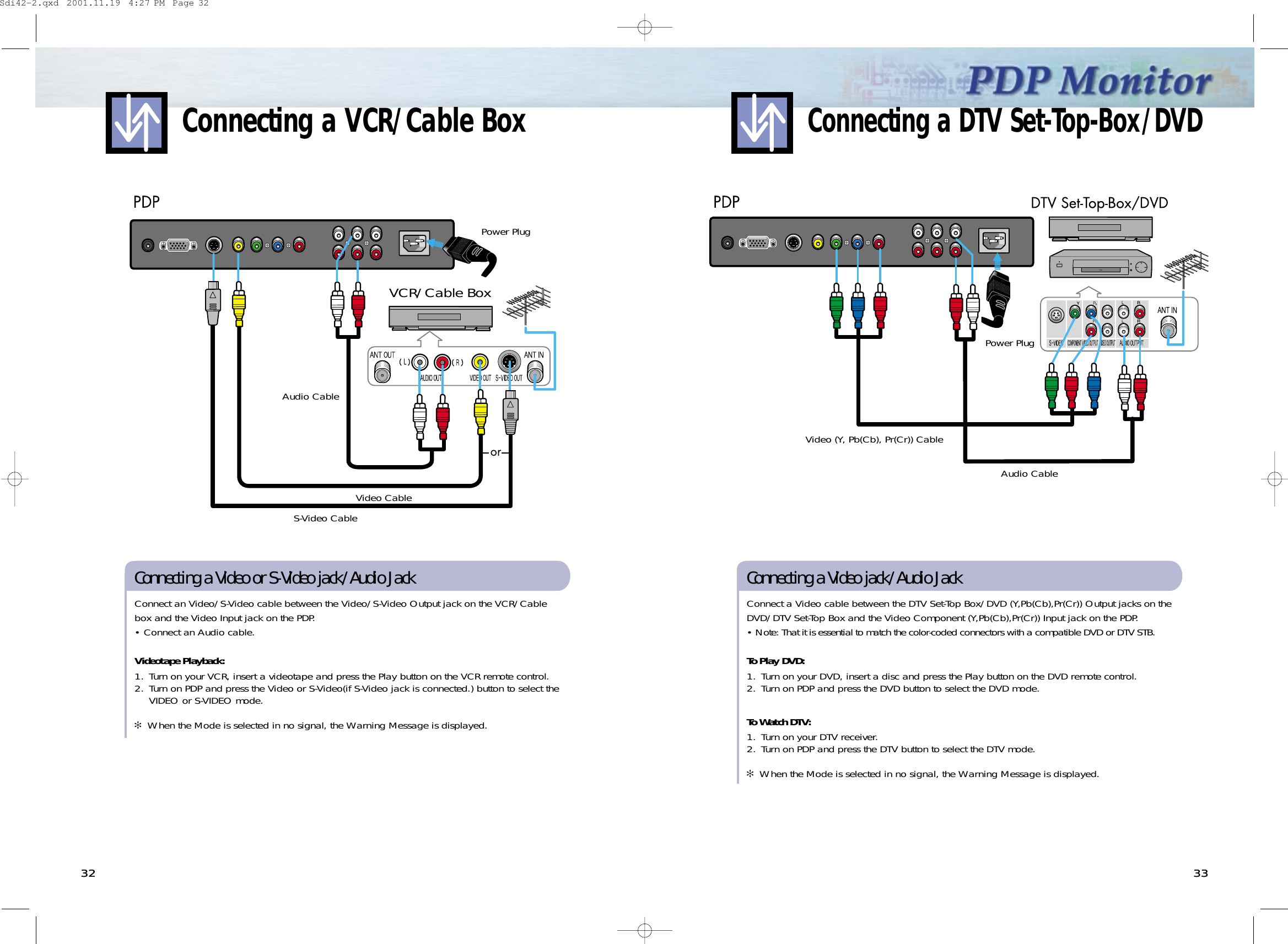

3332 3332Connecting a DTV Set-Top-Box/DVDVideo (Y, Pb(Cb), Pr(Cr)) CableConnect a Video cable between the DTV Set-Top Box/DVD (Y,Pb(Cb),Pr(Cr)) Output jacks on theDVD/DTV Set-Top Box and the Video Component (Y,Pb(Cb),Pr(Cr)) Input jack on the PDP. • Note: That it is essential to match the color-coded connectors with a compatible DVD or DTV STB.To Play DVD:1. Turn on your DVD, insert a disc and press the Play button on the DVD remote control.2. Turn on PDP and press the DVD button to select the DVD mode.To Watch DTV:1. Turn on your DTV receiver.2. Turn on PDP and press the DTV button to select the DTV mode.✻ When the Mode is selected in no signal, the Warning Message is displayed.Connecting a Video jack/Audio JackPower PlugAudio CableConnecting a VCR/Cable BoxVCR/Cable BoxVideo CableS-Video CableAudio CableConnect an Video/S-Video cable between the Video/S-Video Output jack on the VCR/Cablebox and the Video Input jack on the PDP. • Connect an Audio cable.Videotape Playback:1. Turn on your VCR, insert a videotape and press the Play button on the VCR remote control.2. Turn on PDP and press the Video or S-Video(if S-Video jack is connected.) button to select theVIDEO or S-VIDEO mode. ✻ When the Mode is selected in no signal, the Warning Message is displayed.Connecting a Video or S-Video jack/Audio JackPower PlugSdi42-2.qxd 2001.11.19 4:27 PM Page 32

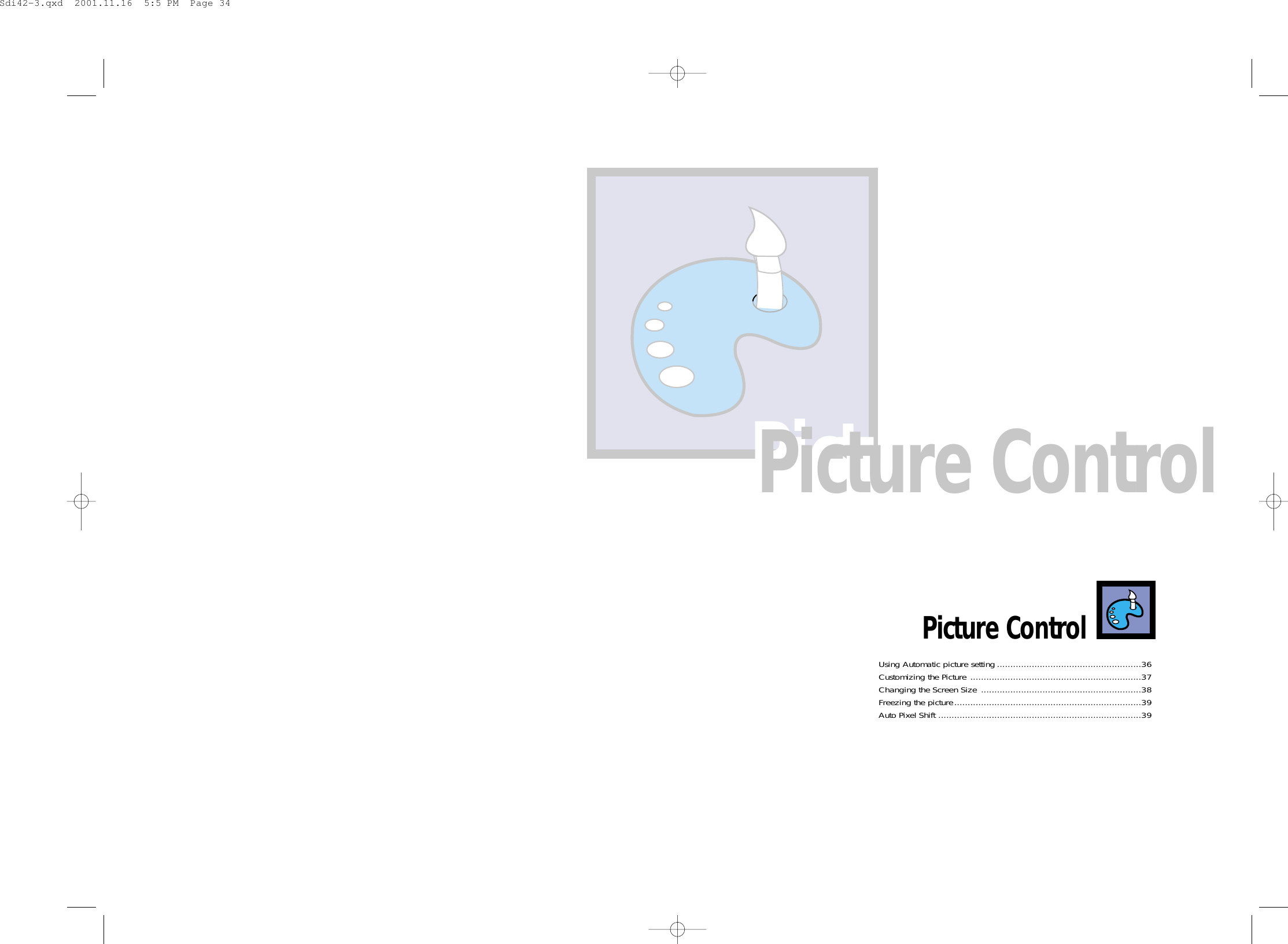

Picture ControlPicture ControlPicture ControlUsing Automatic picture setting ......................................................36Customizing the Picture ................................................................37Changing the Screen Size ............................................................38Freezing the picture......................................................................39Auto Pixel Shift ............................................................................39Sdi42-3.qxd 2001.11.16 5:5 PM Page 34

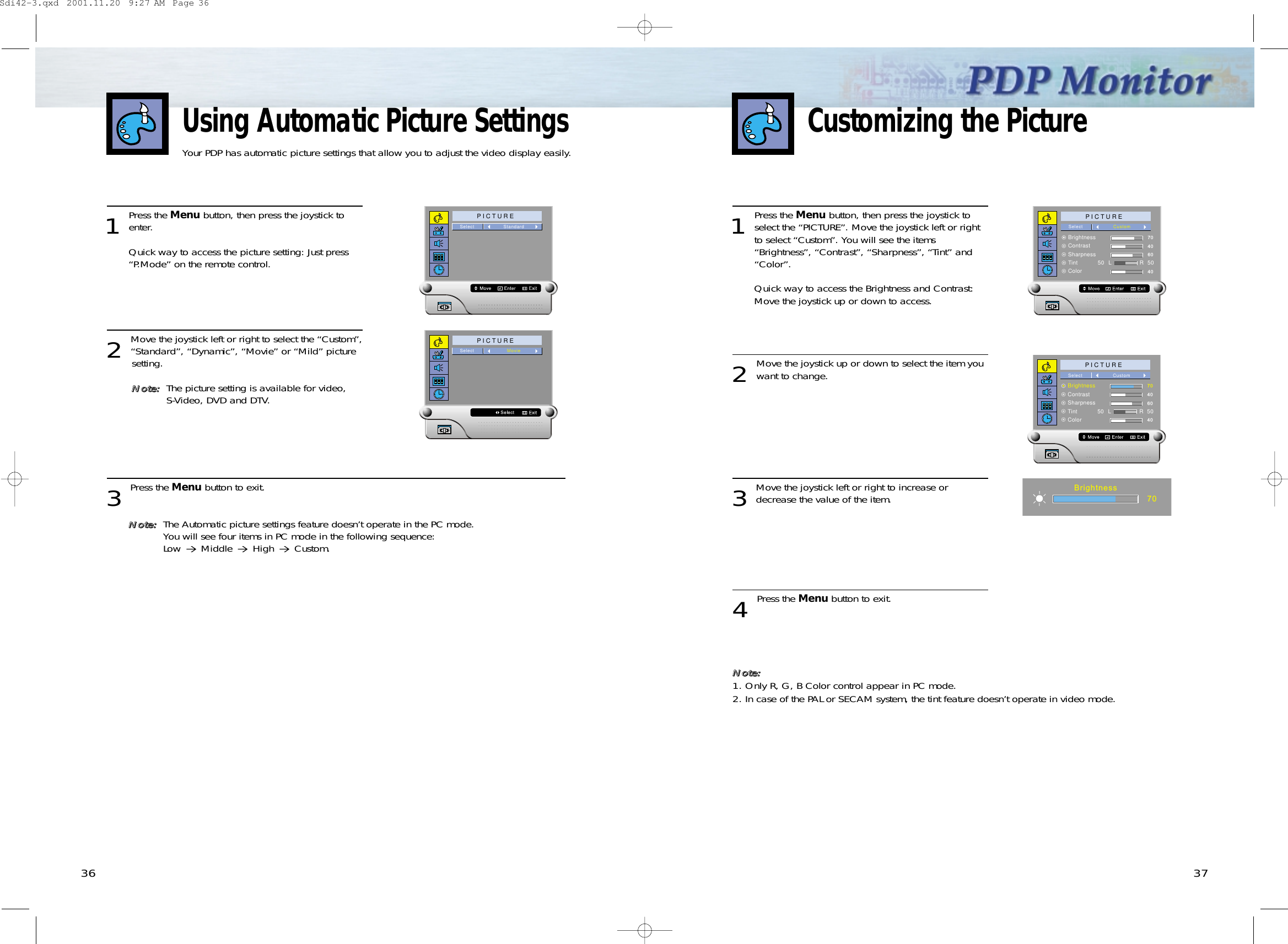

371 Press the Menu button, then press the joystick toselect the “PICTURE”. Move the joystick left or right to select “Custom”. You will see the items “Brightness”, “Contrast”, “Sharpness”, “Tint” and “Color”.2 Move the joystick up or down to select the item youwant to change.3 Move the joystick left or right to increase ordecrease the value of the item.4 Press the Menu button to exit.NNNNooootttteeee::::1. Only R, G, B Color control appear in PC mode.2. In case of the PAL or SECAM system, the tint feature doesn’t operate in video mode.P I C T U R EBrightnessContrastSharpnessTintColor Select Custom704060405050 L RP I C T U R EContrastSharpnessTintColorSelect Custom4060405050 L RBrightness 70Brightness7036Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.1 Press the Menu button, then press the joystick toenter.Quick way to access the picture setting: Just press “P.Mode” on the remote control.2 Move the joystick left or right to select the “Custom”,“Standard”, “Dynamic”, “Movie” or “Mild” picture setting.NNNNooootttteeee::::The picture setting is available for video, S-Video, DVD and DTV.3 Press the Menu button to exit.NNNNooootttteeee::::The Automatic picture settings feature doesn’t operate in the PC mode. You will see four items in PC mode in the following sequence: Low Middle High Custom.P I C T U R ESelect StandardP I C T U R ESelect MovieCustomizing the PictureQuick way to access the Brightness and Contrast:Move the joystick up or down to access.Sdi42-3.qxd 2001.11.20 9:27 AM Page 36

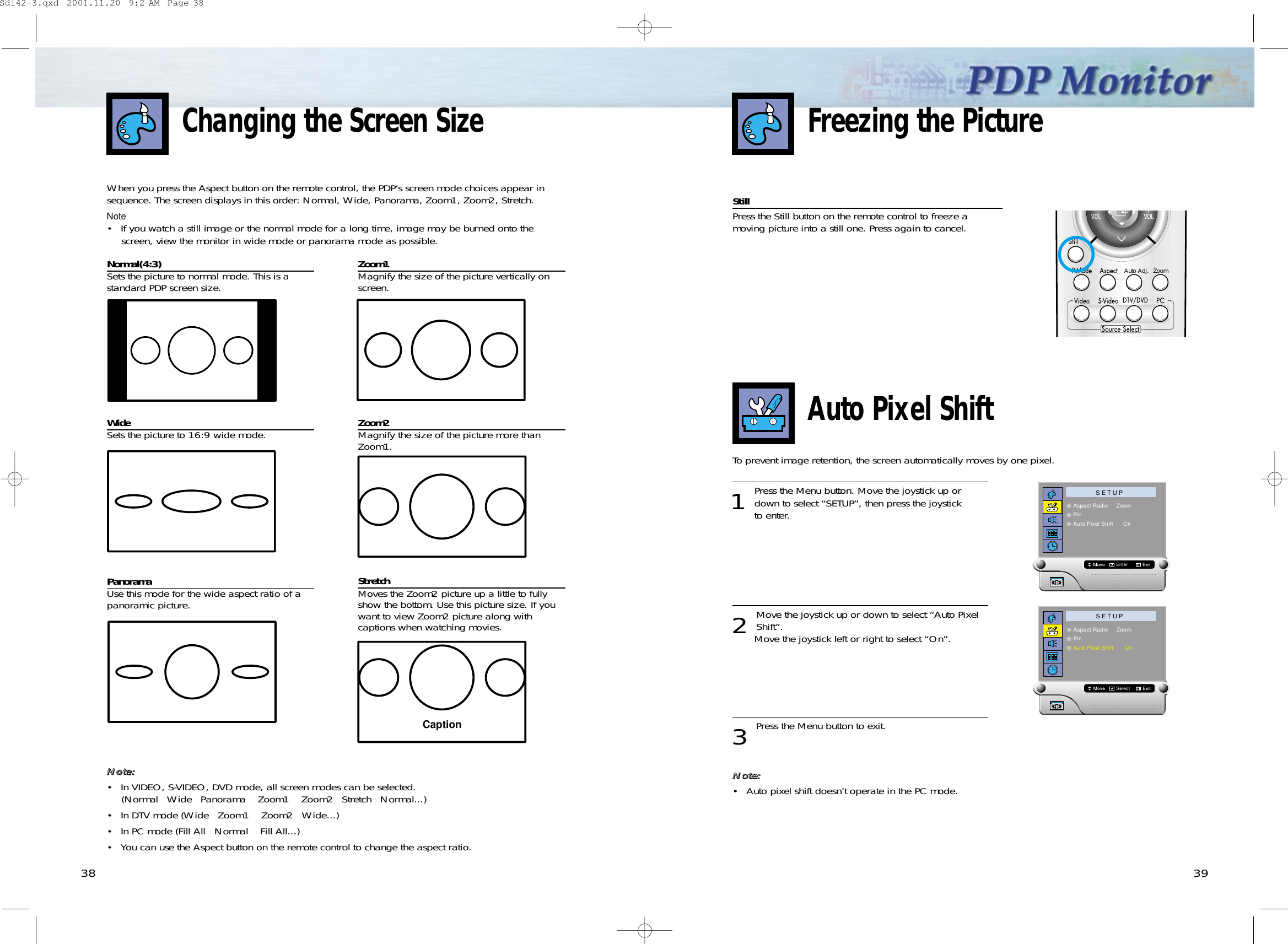

3938StillPress the Still button on the remote control to freeze amoving picture into a still one. Press again to cancel.Freezing the PictureAuto Adj. ZoomNormal(4:3)Sets the picture to normal mode. This is astandard PDP screen size.WideSets the picture to 16:9 wide mode. PanoramaUse this mode for the wide aspect ratio of apanoramic picture.Zoom1Magnify the size of the picture vertically onscreen.Zoom2Magnify the size of the picture more thanZoom1.StretchMoves the Zoom2 picture up a little to fullyshow the bottom. Use this picture size. If youwant to view Zoom2 picture along withcaptions when watching movies.CaptionNNNNooootttteeee::::• In VIDEO, S-VIDEO, DVD mode, all screen modes can be selected.(Normal Wide Panorama Zoom1 Zoom2 Stretch Normal...)• In DTV mode (Wide Zoom1 Zoom2 Wide...)• In PC mode (Fill All Normal Fill All...)• You can use the Aspect button on the remote control to change the aspect ratio.When you press the Aspect button on the remote control, the PDP’s screen mode choices appear insequence. The screen displays in this order: Normal, Wide, Panorama, Zoom1, Zoom2, Stretch.Note• If you watch a still image or the normal mode for a long time, image may be burned onto thescreen, view the monitor in wide mode or panorama mode as possible.Changing the Screen SizeAuto Pixel ShiftTo prevent image retention, the screen automatically moves by one pixel.1 Press the Menu button. Move the joystick up ordown to select “SETUP”, then press the joystick to enter.2 Move the joystick up or down to select “Auto PixelShift”.Move the joystick left or right to select “On”.3 Press the Menu button to exit.NNNNooootttteeee::::• Auto pixel shift doesn’t operate in the PC mode.S E T U PAspect Radio ZoomPinAuto Pixel Shift OnEnterS E T U PAspect Radio ZoomPinAuto Pixel Shift OnSelectSdi42-3.qxd 2001.11.20 9:2 AM Page 38
