  KRAMER ELECTRONICS LTD. USER MANUAL  MODELS: KW-11T Wireless High Definition Transmitter KW-11R Wireless High Definition Receiver    P/N: 2900-300194 Rev 3

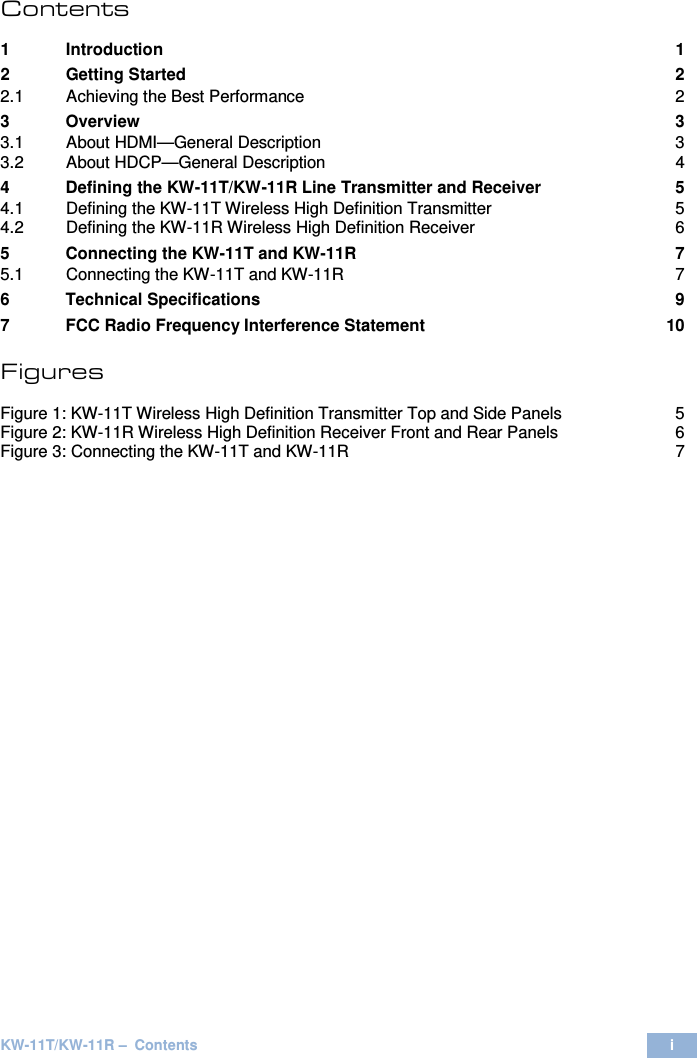

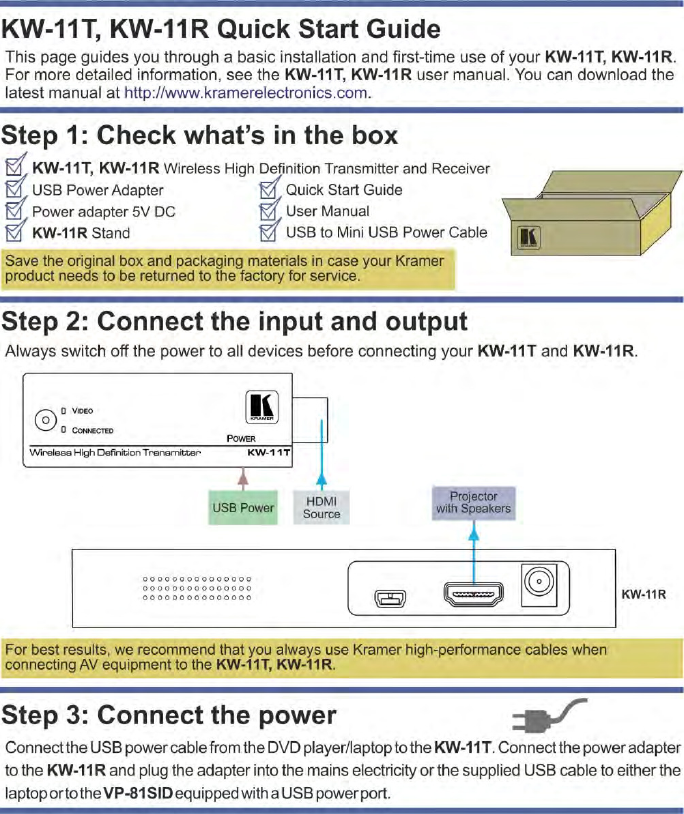

 KW-11T/KW-11R –  Contents i  Contents  1 Introduction  1 2 Getting Started  2 2.1 Achieving the Best Performance  2 3 Overview  3 3.1 About HDMI—General Description  3 3.2 About HDCP—General Description  4 4 Defining the KW-11T/KW-11R Line Transmitter and Receiver  5 4.1 Defining the KW-11T Wireless High Definition Transmitter  5 4.2 Defining the KW-11R Wireless High Definition Receiver  6 5 Connecting the KW-11T and KW-11R  7 5.1 Connecting the KW-11T and KW-11R  7 6 Technical Specifications  9 7 FCC Radio Frequency Interference Statement 10 Figures UFigure 1: KW-11T Wireless High Definition Transmitter Top and Side PanelsU  5 UFigure 2: KW-11R Wireless High Definition Receiver Front and Rear PanelsU  6 UFigure 3: Connecting the KW-11T and KW-11RU  7

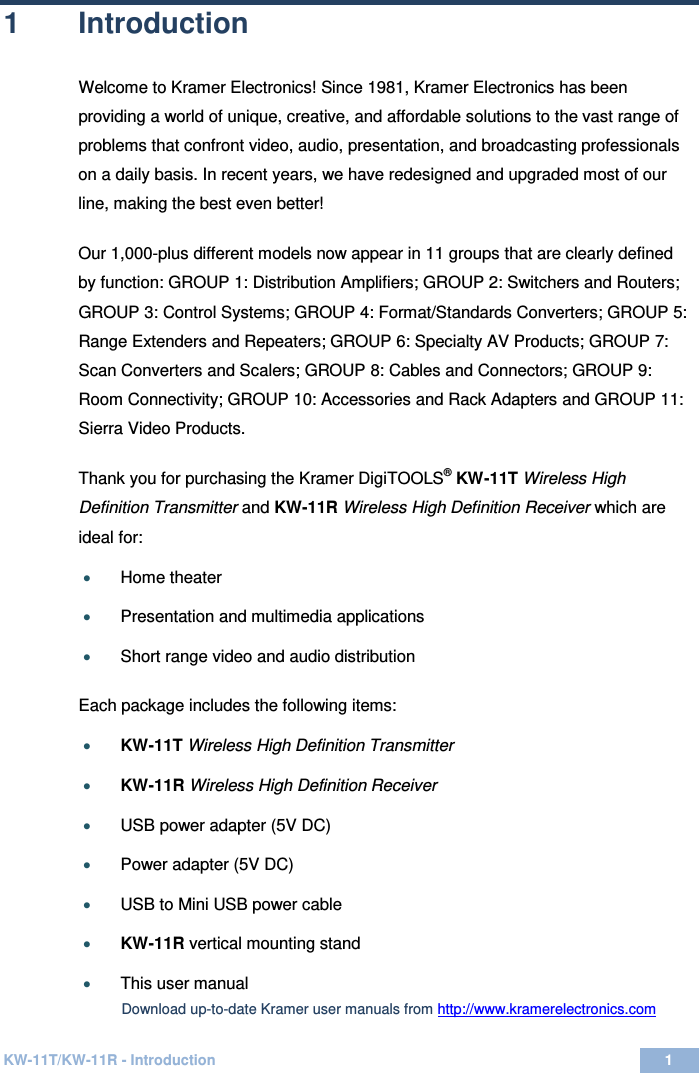

 KW-11T/KW-11R - Introduction 1  1 1  Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!  Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products.   Thank you for purchasing the Kramer DigiTOOLS® KW-11T Wireless High Definition Transmitter and KW-11R Wireless High Definition Receiver which are ideal for: • Home theater  • Presentation and multimedia applications  • Short range video and audio distribution   Each package includes the following items:  • KW-11T Wireless High Definition Transmitter  • KW-11R Wireless High Definition Receiver  • USB power adapter (5V DC)     • Power adapter (5V DC)   • USB to Mini USB power cable  • KW-11R vertical mounting stand   • This user manual   Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

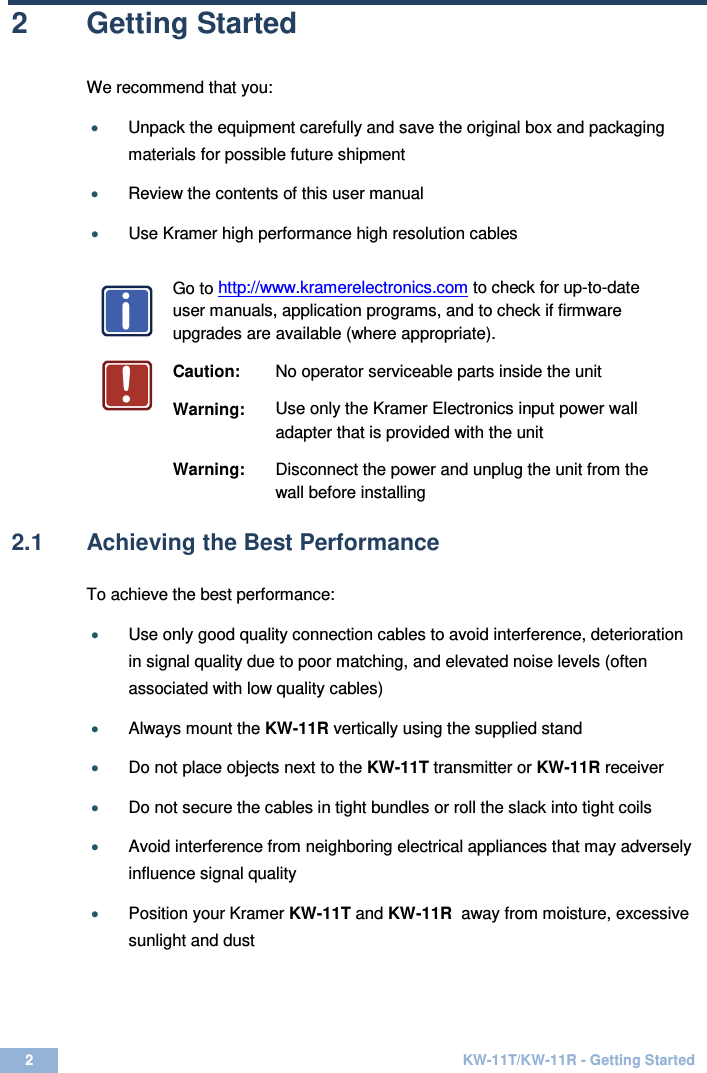

 2  KW-11T/KW-11R - Getting Started  2  Getting Started We recommend that you: • Unpack the equipment carefully and save the original box and packaging materials for possible future shipment  • Review the contents of this user manual  • Use Kramer high performance high resolution cables    Go to http://www.kramerelectronics.com to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).   Caution: No operator serviceable parts inside the unit  Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit  Warning: Disconnect the power and unplug the unit from the wall before installing   2.1  Achieving the Best Performance  To achieve the best performance:  • Use only good quality connection cables to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)   • Always mount the KW-11R vertically using the supplied stand   • Do not place objects next to the KW-11T transmitter or KW-11R receiver   • Do not secure the cables in tight bundles or roll the slack into tight coils   • Avoid interference from neighboring electrical appliances that may adversely influence signal quality   • Position your Kramer KW-11T and KW-11R  away from moisture, excessive sunlight and dust    i!

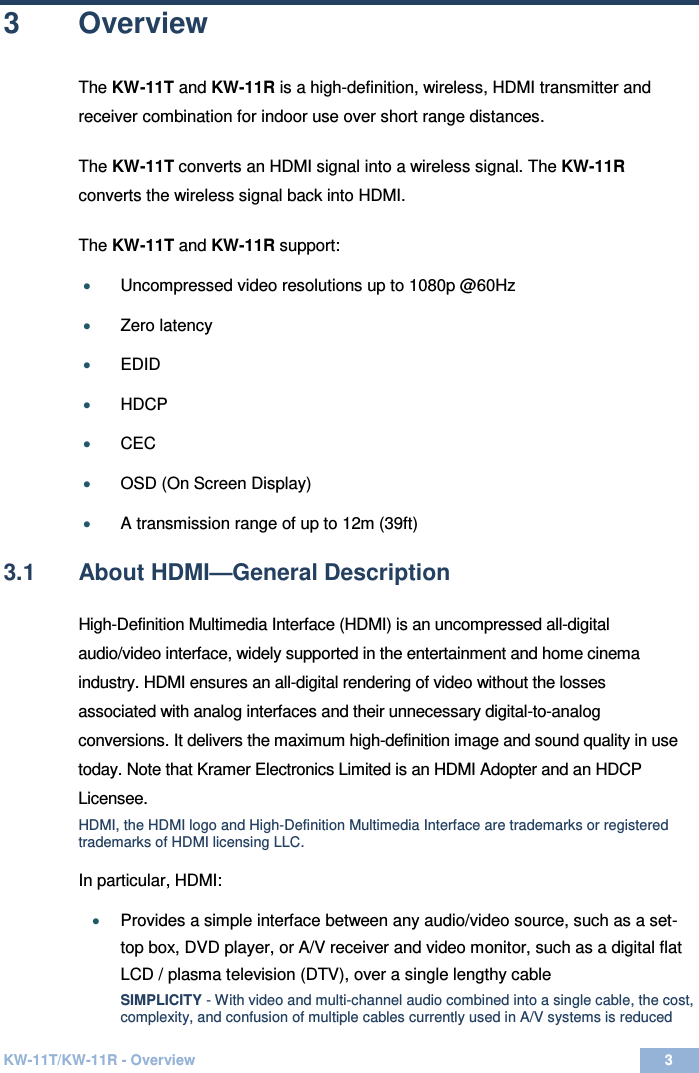

 KW-11T/KW-11R - Overview 3  3 3  Overview The KW-11T and KW-11R is a high-definition, wireless, HDMI transmitter and receiver combination for indoor use over short range distances.   The KW-11T converts an HDMI signal into a wireless signal. The KW-11R converts the wireless signal back into HDMI.  The KW-11T and KW-11R support:  • Uncompressed video resolutions up to 1080p @60Hz   • Zero latency   • EDID  • HDCP • CEC  • OSD (On Screen Display)    • A transmission range of up to 12m (39ft)   3.1  About HDMI—General Description High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. HDMI ensures an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-to-analog conversions. It delivers the maximum high-definition image and sound quality in use today. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. In particular, HDMI: • Provides a simple interface between any audio/video source, such as a set-top box, DVD player, or A/V receiver and video monitor, such as a digital flat  LCD / plasma television (DTV), over a single lengthy cable SIMPLICITY - With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables currently used in A/V systems is reduced

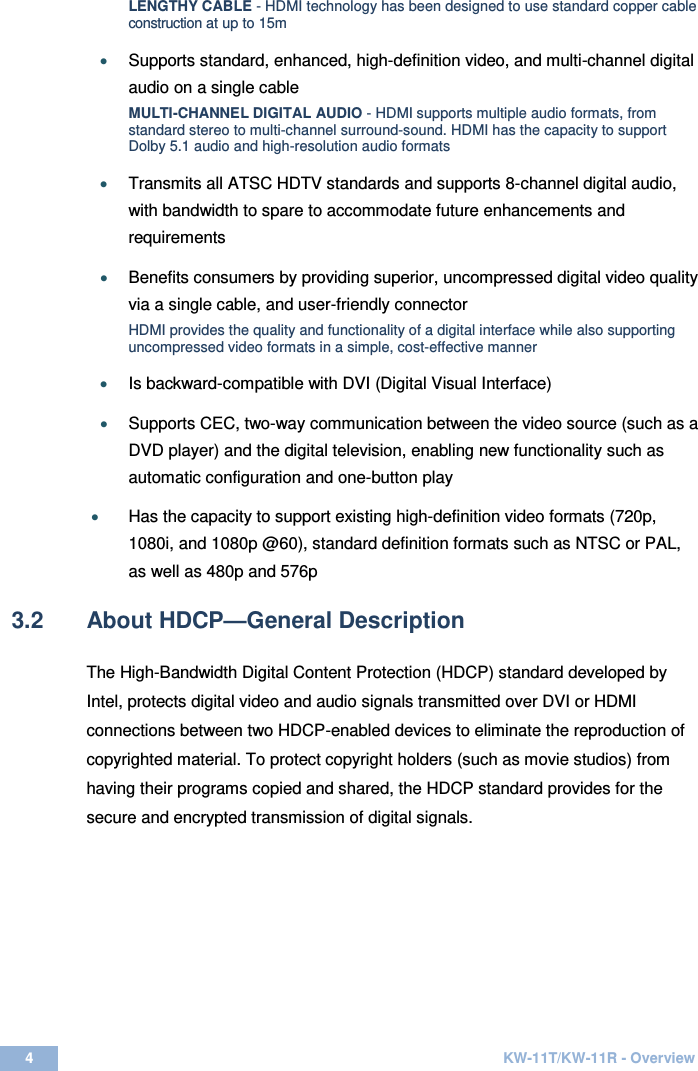

 4  KW-11T/KW-11R - Overview  LENGTHY CABLE - HDMI technology has been designed to use standard copper cable construction at up to 15m • Supports standard, enhanced, high-definition video, and multi-channel digital audio on a single cable MULTI-CHANNEL DIGITAL AUDIO - HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support Dolby 5.1 audio and high-resolution audio formats • Transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements • Benefits consumers by providing superior, uncompressed digital video quality via a single cable, and user-friendly connector HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner • Is backward-compatible with DVI (Digital Visual Interface) • Supports CEC, two-way communication between the video source (such as a DVD player) and the digital television, enabling new functionality such as automatic configuration and one-button play • Has the capacity to support existing high-definition video formats (720p, 1080i, and 1080p @60), standard definition formats such as NTSC or PAL, as well as 480p and 576p  3.2  About HDCP—General Description  The High-Bandwidth Digital Content Protection (HDCP) standard developed by Intel, protects digital video and audio signals transmitted over DVI or HDMI connections between two HDCP-enabled devices to eliminate the reproduction of copyrighted material. To protect copyright holders (such as movie studios) from having their programs copied and shared, the HDCP standard provides for the secure and encrypted transmission of digital signals.

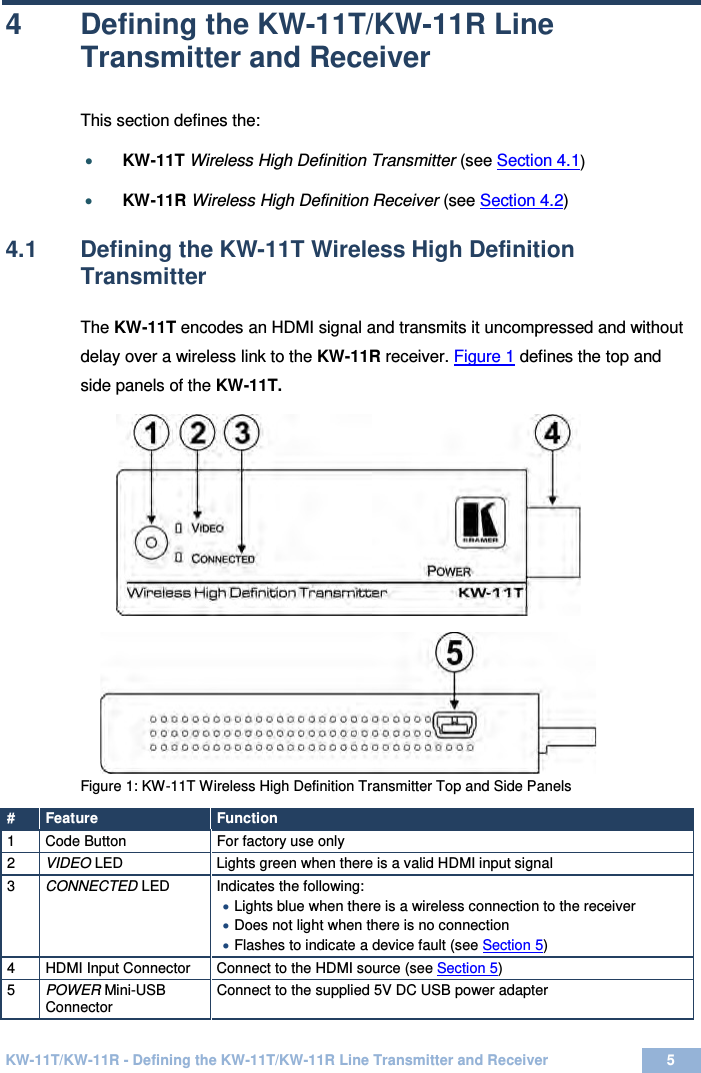

 KW-11T/KW-11R - Defining the KW-11T/KW-11R Line Transmitter and Receiver 5  5 4  Defining the KW-11T/KW-11R Line Transmitter and Receiver  This section defines the:  • KW-11T Wireless High Definition Transmitter (see Section   4.1• KW-11R Wireless High Definition Receiver (see )  Section  4.24.1  Defining the KW-11T Wireless High Definition Transmitter  )   The KW-11T encodes an HDMI signal and transmits it uncompressed and without delay over a wireless link to the KW-11R receiver. Figure 1 defines the top and side panels of the KW-11T.    Figure 1: KW-11T Wireless High Definition Transmitter Top and Side Panels  #  Feature Function  1  Code Button    For factory use only   2  VIDEO LED  Lights green when there is a valid HDMI input signal  3  CONNECTED LED  Indicates the following: • Lights blue when there is a wireless connection to the receiver • Does not light when there is no connection • Flashes to indicate a device fault (see Section  54 ) HDMI Input Connector  Connect to the HDMI source (see Section  55 ) POWER Mini-USB Connector  Connect to the supplied 5V DC USB power adapter

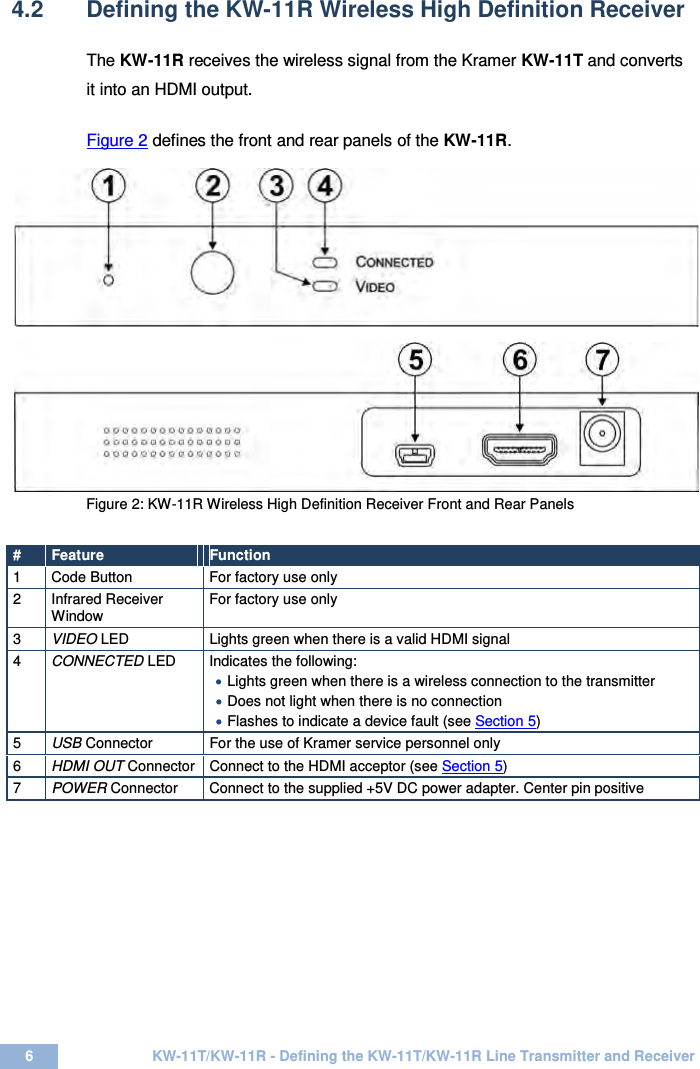

 6  KW-11T/KW-11R - Defining the KW-11T/KW-11R Line Transmitter and Receiver  4.2  Defining the KW-11R Wireless High Definition Receiver The KW-11R receives the wireless signal from the Kramer KW-11T and converts it into an HDMI output.  Figure 2 defines the front and rear panels of the KW-11R.    Figure 2: KW-11R Wireless High Definition Receiver Front and Rear Panels   #  Feature Function 1  Code Button  For factory use only  2  Infrared Receiver Window  For factory use only 3  VIDEO LED  Lights green when there is a valid HDMI signal   4  CONNECTED LED  Indicates the following:  • Lights green when there is a wireless connection to the transmitter  • Does not light when there is no connection  • Flashes to indicate a device fault (see Section  55 )  USB Connector  For the use of Kramer service personnel only  6  HDMI OUT Connector  Connect to the HDMI acceptor (see Section  57 )   POWER Connector Connect to the supplied +5V DC power adapter. Center pin positive

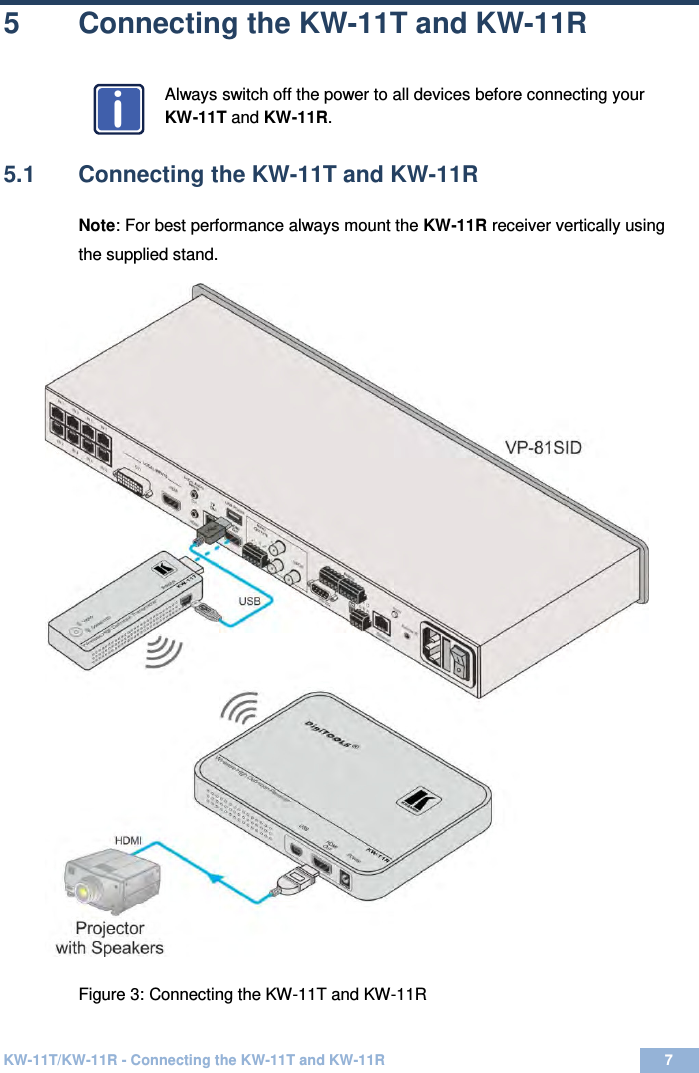

 KW-11T/KW-11R - Connecting the KW-11T and KW-11R 7  7 5  Connecting the KW-11T and KW-11R     Always switch off the power to all devices before connecting your  KW-11T and KW-11R.  5.1  Connecting the KW-11T and KW-11R  Note: For best performance always mount the KW-11R receiver vertically using the supplied stand.   Figure 3: Connecting the KW-11T and KW-11R     i

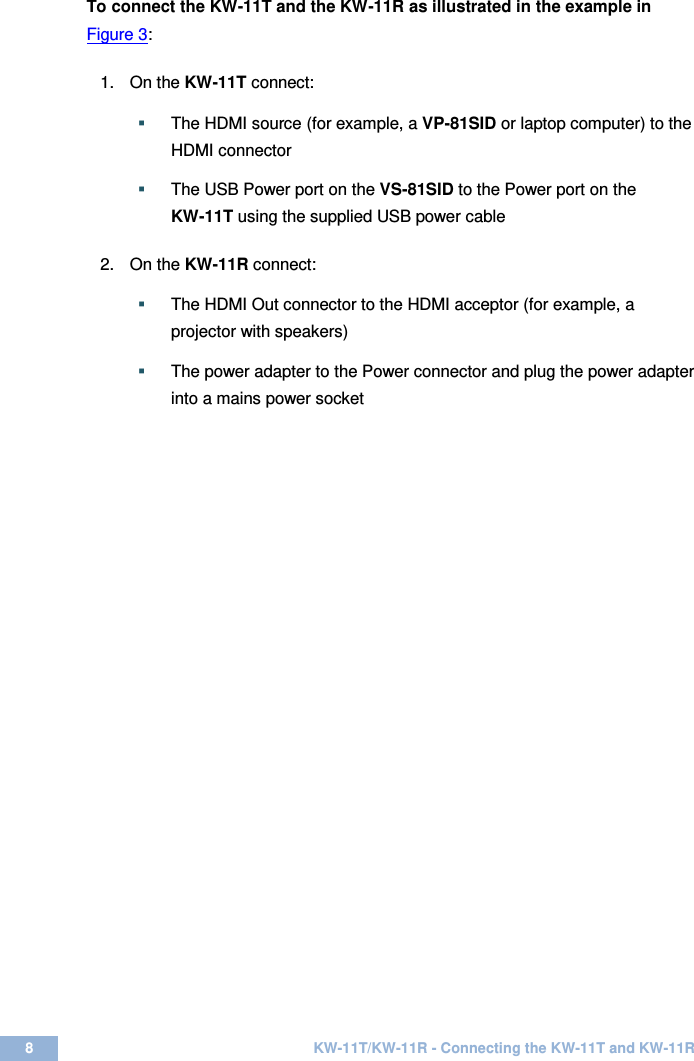

 8  KW-11T/KW-11R - Connecting the KW-11T and KW-11R  To connect the KW-11T and the KW-11R as illustrated in the example in Figure 3:   1.  On the KW-11T connect:   The HDMI source (for example, a VP-81SID or laptop computer) to the HDMI connector     The USB Power port on the VS-81SID to the Power port on the  KW-11T using the supplied USB power cable      2.  On the KW-11R connect:   The HDMI Out connector to the HDMI acceptor (for example, a projector with speakers)   The power adapter to the Power connector and plug the power adapter into a mains power socket

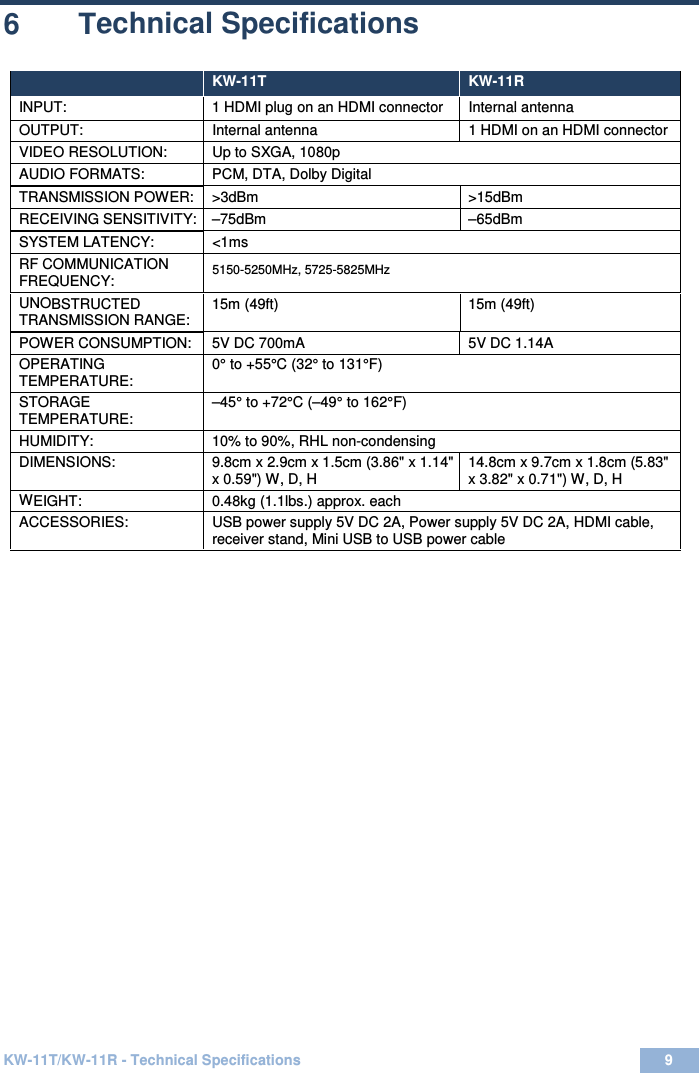

 KW-11T/KW-11R - Technical Specifications 9  9 6  Technical Specifications  KW-11T KW-11R  INPUT: 1 HDMI plug on an HDMI connector   Internal antenna OUTPUT: Internal antenna  1 HDMI on an HDMI connector  VIDEO RESOLUTION: Up to SXGA, 1080p AUDIO FORMATS: PCM, DTA, Dolby Digital TRANSMISSION POWER: >3dBm >15dBm RECEIVING SENSITIVITY:  –75dBm  –65dBm  SYSTEM LATENCY: <1ms RF COMMUNICATION FREQUENCY:    UNOBSTRUCTED TRANSMISSION RANGE: 15m (49ft)  15m (49ft) POWER CONSUMPTION:  5V DC 700mA    5V DC 1.14A    OPERATING TEMPERATURE:  0° to +55°C (32° to 131°F)   STORAGE TEMPERATURE: –45° to +72°C (–49° to 162°F)   HUMIDITY: 10% to 90%, RHL non-condensing  DIMENSIONS: 9.8cm x 2.9cm x 1.5cm (3.86" x 1.14" x 0.59") W, D, H   14.8cm x 9.7cm x 1.8cm (5.83" x 3.82" x 0.71") W, D, H  WEIGHT: 0.48kg (1.1lbs.) approx. each  ACCESSORIES: USB power supply 5V DC 2A, Power supply 5V DC 2A, HDMI cable, receiver stand, Mini USB to USB power cable       5150-5250MHz, 5725-5825MHz

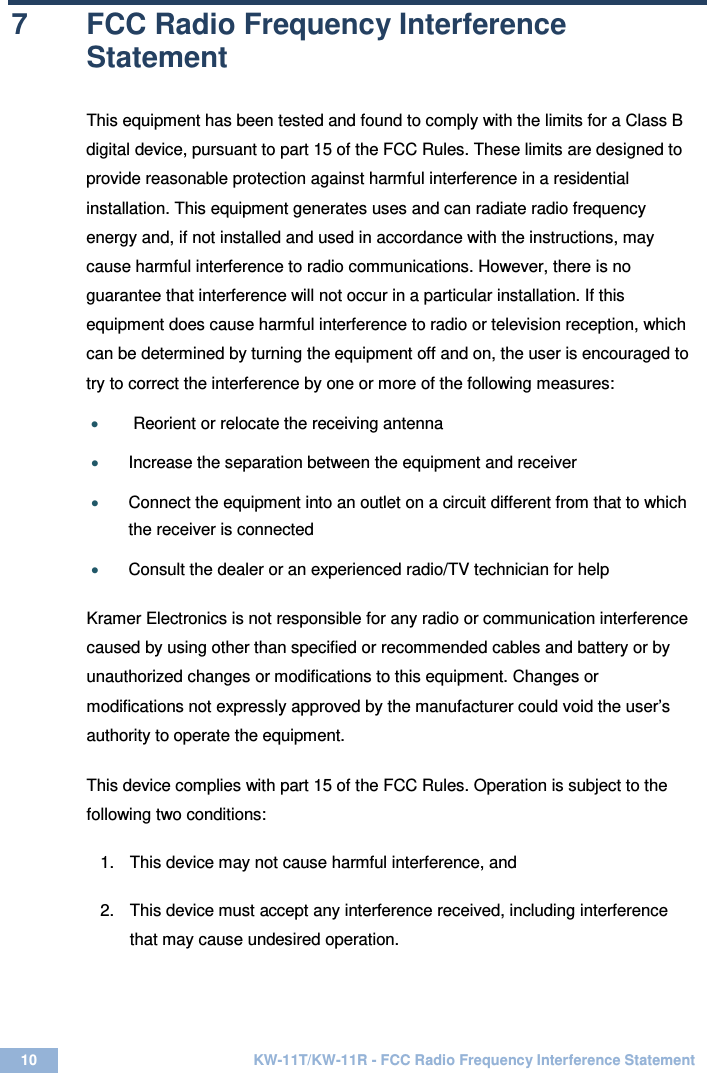

 10 KW-11T/KW-11R - FCC Radio Frequency Interference Statement  7  FCC Radio Frequency Interference Statement  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  •  Reorient or relocate the receiving antenna  • Increase the separation between the equipment and receiver  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  • Consult the dealer or an experienced radio/TV technician for help   Kramer Electronics is not responsible for any radio or communication interference caused by using other than specified or recommended cables and battery or by unauthorized changes or modifications to this equipment. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:  1.  This device may not cause harmful interference, and  2.  This device must accept any interference received, including interference that may cause undesired operation.
  11

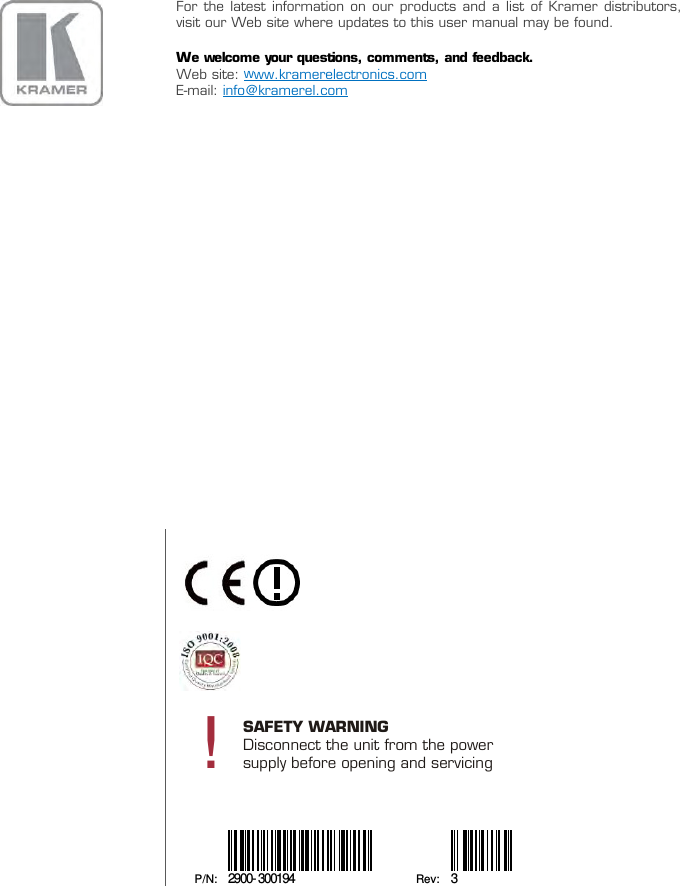

   For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: E-mail: www.kramerelectronics.com  info@kramerel.com                   P/N: 2900-300194 Rev: 3   !SAFETY WARNINGDisconnect the unit from the powersupply before opening and servicing
