User Manual
Operating Instructions

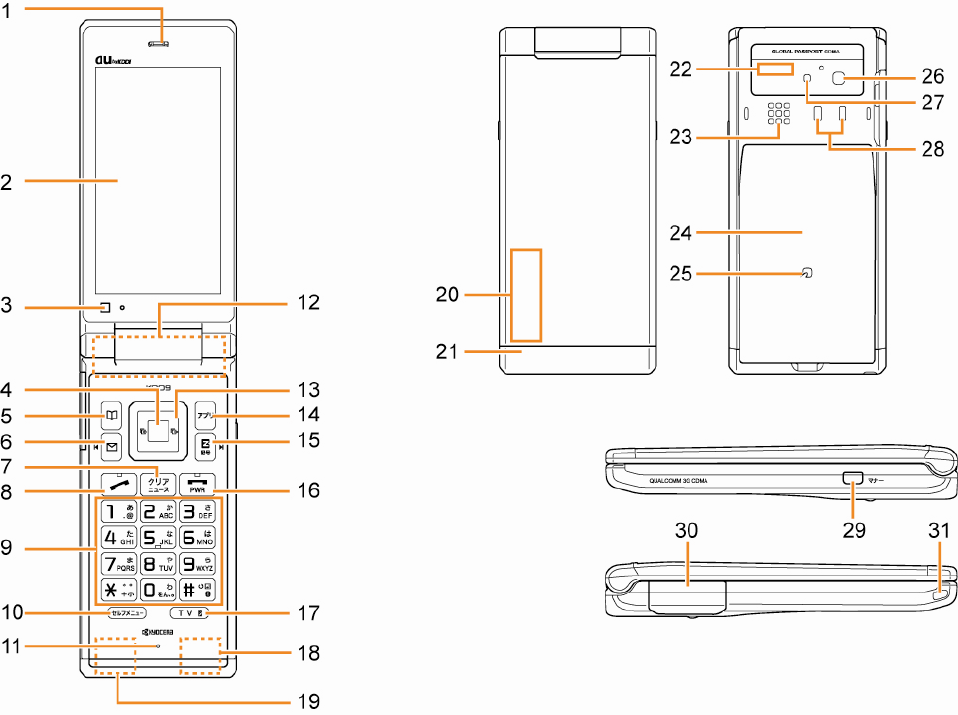

Name & Function of Parts
17 TV key 1 Earpiece
18 Built-in antenna (for Bluetooth) 2 Main Display
19 Built-in antenna (Sub antenna) 3 Optical sensor
20 LED Display 4 OK key
21 Illumination 5 Address book key
22 Infrared port 6 Mail key
23 Speaker 7 Clear /News key
24 Battery pack/cover 8 Answer/Pair key
25 FeliCa mark 9 Number keys
26 Camera lens 10 Self Menu key
27 Flash/Camera start indicator 11 Microphone
28 Charging terminals 12 Built-in antenna (Main antenna)
29 Manner key 13 Cursor key
30 External connection jack/cover 14 Application key
31 Strap hole 15 EZ key
16 Power/End key
- 1 -
■ Power saving during standby
In order to minimize the power consumption, the K009 display turns automatically to power saving mode
when key operation is stopped for a while.
The indication restores with key operation.
■akey
In this manual, the point at which to press the akey is indicated as shown below.
Example) Press uor d→j
Getting Ready to Make a Call
1. Charging with the AC Adapter
The battery charger can be charged by directly inserting the AC Adapter connector into the external
connection terminal on the K009 Main Unit.
2. Turning the power on
Press and hold Nor more than one second.
◆Turning the power off
Press and hold Ffor more than one second.
Switch to English
1. Press con the standby screen.
2. Select "機能設定" and pressc (選択).
3. Press 35.
4. Select "English" and press c (Set).
Displaying your own phone number
1. Press con the standby screen.
2. Press 0 to display your au telephone number.
Making a Call
1. Enter the phone number you want to call on the standby screen.
Area code - Local code - Subscriber's number.
<Example> 03-0001-XXXX
Always include the area code, even when calling to a number in the same area you are in.
If you enter a wrong number:
● Press C briefly - the last dialed digit will be deleted.
● Press and hold C - the entire phone number will be deleted.
2. Press N to make a call.
- 2 -
Making an International Call
1. Enter the phone number you want to call using the following pattern on the standby screen.
International dial code - Country code - Area code - Subscriber's number
2. Press N to make a call.
<Example> to call United States, number 212-123-XXXX in the USA.
Operation Explanation
1 Pressing "005345" Access code
2 Pressing "1" Country code of United States: 1
3 Pressing "212" Area code ※ : 212
4 Pressing "123-XXXX" Subscriber's number: 123-XXXX
5 Press N The following operation is the same as the normal telephone
operation.
※ When the first number of the area code is "0", press the area code number without "0".
Adjusting the receiver volume
1. During a call, press j.
u: Volume level raised.
d: Volume level lowered.
Answering a call
1. The ringer tone sounds/vibrator buzzes, and the incoming call lamp flashes.
2. Press N to answer the call.
An incoming call can also be answered by pressing any of the
0～9,* ,# ,L,R,s keys.
If you do not answer the call or the caller disconnects before the call is answered,
" Missed Call X" will be displayed. (A number appears in the "X".)
Entering characters
This is the method of entering names for registering address book and writing mail.
1. Press & (Char.Type).
2. Select the entry mode you want.
漢字 "Kanji", "Hiragana" entry mode (full size) 1234 "Number" entry mode (half size)
カナ "Katakana" entry mode (full size)
"Pictographs" entry mode
ｶﾀｶﾅ "Katakana" entry mode (half size) Sym "Symbol" entry mode
AB・ab "Alphanumeric" entry mode (full size) Face "Face marks" entry mode
１２ "Number" entry mode (full size)
ABCD・
abcd "Alphanumeric" entry mode (half size)
- 3 -
[Assignment of characters and key functions]
Characters are assigned to each key as shown below. Press a key repeatedly to cycle through characters
assigned to that key.
Entry
mode
key
Kanji・Hiragana
漢字
Katakana
カナ・ｶﾀｶﾅ
Alphanumeric
ＡＢ・ABCD
Alphanumeric
ａｂ・abcd
Number
１２・1234
1 あいうえおぁぃぅぇぉ アイウエオァィゥェォ . @ - _ / : ～ 1 . @ - _ / : ～ 1 1
2 かきくけこ カキクケコ ABC2 abc2 2
3 さしすせそ サシスセソ DEF3 def3 3
4 たちつてとっ タチツテトッ GHI4 ghi4 4
5 なにぬねの ナニヌネノ JKL5 jkl5 5
6 はひふへほ ハヒフヘホ MNO6 mno6 6
7 まみむめも マミムメモ PQRS7 pqrs7 7
8 やゆよゃゅょ ヤユヨャュョ TUV8 tuv8 8
9 らりるれろ ラリルレロ WXYZ9 wxyz9 9
[カナ]ワヲンヮ､｡ー
－･.！？（space）0 [ＡＢ] [ａｂ] 0（space）! ? ・ ， ’ ”＿ ．－
0 わをんゎ、。－・～！？
（space） [ｶﾀｶﾅ] ワヲン､｡ー
－･.！？（space）0
[ABCD] [abcd] 0（space） ! " #$%& ' ( )＊ + , - . / : ;
<=>?@[¥]^_` { | }
～
0
(before confirm)゛ (Voiced Sound symbol)
゜(Semi-voiced Sound symbol)
Switches lowercase/uppercase
(before confirm)
Switches lowercase/uppercase
*
(after confirm) 、。－・～！？（スペース） (after confirm) ． ， － ！ ？
．
(before confirm)Reverse toggle of entered characters
# (after confirm)line change line change
Remarks:
■ “～”can be inputted only when inputting full-sized characters. It changes to“
～
”when inputting
half-sized characters.
■ It is not likely to be able to change line on the input of part of character screen.
■ Inputting voiced sound symbol/semi-voiced sound symbol or switching uppercase/lowercase can be
done by pressing #after inputting the character.
(A list of Pictographs, Face marks, and Characters is displayed if you press it after the inputted character is
set.)
< Example >つ→っ→づ→つ ハ→バ→パ→ハ a→A→a
- 4 -
Registering in the Address Book
You can register frequently used phone numbers and E-mail addresses.
Up to 1000 addresses can be registered in the address book.
■ Registering in the address book
1. Press and hold & for more than one second on the standby screen.
The screen to register a contact is displayed.
2. Enter the item you want.
Select the icon of the item you want by jand press c (Select) to enter it.
As for the items you can enter, see "Items to register in the address book".
3. Press % (Reg) .
■ Items to register in the address book
The following data can be put in the address book.
Name Up to 12 full size (24 half size) characters.
Reading Up to 24 half size characters.
Registered automatically after "Name" is entered.
Phone No.1～3
Up to 32 digits.
Selecting from 7 Phone number types.
E-mail Address 1～3 Up to 64 half size alphanumeric characters.
Selecting from 6 E-mail address types.
Group You can classify it into 20 classes for managing.
Image An image stored in the data folder is selected.
Call Img Dsp You can set the display of the registered image.
Basic
Obtain GPS Info Up to 66 byte.
Incoming Call Setting the action (ringer, lamp) for voice call reception.
E-Mail Receive Setting the action (ringer, lamp, ring time) for E-mail reception.
C-Mail Receive Setting the action (ringer, lamp, ring time) for C-mail reception.
Set
Secret Setup Setting not to display the content of the address book.
Blood Type Selecting from 4 blood types and “No Settings”.
Birthday Inputting date of birth.
Star Sign Selecting from 13 constellations and “No Settings”.
Address Up to 40 full size (80 half size) characters.
Other
Memo Up to 40 full size (80 half size) characters.
- 5 -
Calling from the Address Book
Saved phone number in the Address Book can be loaded and a call is placed to that number.
1. Press L on the standby screen.
2. Use a to scroll through and display the name you want.
3. Press N.
Creating and Sending E-Mail
1. Press L on the standby screen.
2. Use a to select “Create New”and press c.
Icons
: ”Address”to which you send E-Mail : ”Attachment”of E-Mail
: ”Text”which is the mail contents.
: ”Subject”of E-Mail
3. Use j to select “ [Address] ” and press
c (Select).
4. Press c (Select).
5. Use j to select “Direct Input” and press
c ( Select).
6. Enter the address and press c (OK).
7. Press L (OK).
8. Use j to select “ [Subject] ” and press
c (Select).
7. Enter the subject and press c (OK).
8. Use j to select “ [Text] ” and press
c (Select).
9. Enter the body sentences and press c (OK).
10. Press L (Send).
Reading Received C-Mail
■ When you receive C-Mail
The message “ [C-Mail] # ” appears when receive new C-Mail.
The received C-Mail is stored in the Inbox.
1. Use j to select “ [C-Mail] # ” and press c (OK) .
Received C-Mail is displayed.
■ Reading C-Mail from the Inbox
C-Mail can be read from the Standby Screen when any now-read mail read again.
1. Press and hold L for more than one second on the standby screen.
2. Use j to select“ Inbox” and press
c (Select) .
3. Use j to select the folder including the C-Mail to read and press c (Select).
4. Use j to select the C-Mail to read and press c (View).
- 6 -
Using the EZweb Service
1. Press R on the standby screen.
2. Select "Top Menu/Search" and press c (Select).
To access information sites (sites that provide information):
Select the desired information site, and press c (Select).
■ Pressing C returns the display to the previous display. Holding down C for a longer time returns
you to au one Top.
Pressing F exits EZweb.
you can scroll the display up and down by pressing j.
List of Basic Setup
■ M0 Profile
Mode No. Function Description
M0 Profile Displaying own phone number and E-mail address
■ M1 Time / Toll / Sub
Mode No. Function Description
M11 Inquire Tool Inquiring the call charge
M12 Call Time / Tool Confirming the last call time and charge
M121 Voice Call Confirming about voice call
M122 Voice Call(OS) Confirming about voice call(overseas)
M13 Tool Display Displaying estimated charge after call
M14 Tool Rate Setting the multiplication of charge
M15 PC Site Viewer Rate Confirming the last charge about PC Site Viewer
M16 Subscription Connecting the site for various application
■ M2 Sound/Vib/Lamp
Mode No. Function Description
M21 Incoming Setup Setting for reception
M211 Incoming Call Setting for voice call reception
M212 E-Mail Receive Setting for E-mail reception
M213 Unreg E-Mail Setting for unreg E-Mail reception
M214 Message Receive Setting for message reception
M215 C-mail Receive Setting for C-mail reception
M216 NewsFlash Receive Setting for NewsFlash reception
M22 Machi-Uta Setup Setting for Machi-Uta
M23 Operation Tone Setting for operation tone
M231 Keypad Tone Setting key-in confirm tone volume
M232 OK Tone Setting OK tone volume
M233 NG Tone Setting NG tone volume
M234 Opening Tone Setting sound/ volume of opening tone
M235 Closing Tone Setting sound/ volume of closing tone
M236 RechargeStartTn Setting recharge start tone volume
M237 RechargeComp.Tn Setting recharge complete tone volume
M238 Wake-Up Tone Setting wake-up tone
M239 Power OFF Tone Setting power OFF
M24 Earphone Setup Setting for earphone
M241 Earphone Type Setting of kind of earphone
M242 Sound Output Setting at output destination of earphone
M243 Auto Answer Setting for answering calls automatically
M25 Vib/Lamp Setup Setting for various Vibration/lamp
M251 Talking Lamp Setting for lamp while talking
M252 Information Lamp Setting for Information lamp
M253 E/C-mail Send Lamp
Setting for Mail Send lamp
M254 Event Lamp Setting for Event lamp
M255 Birthday Lamp Setting for Birthday lamp
M256 E/C-mail Send Vib Setting for Mail Send Vibration
- 7 -
■ M3 Screen Display
Mode No. Function Description
M31 Display Setting display
M311 Standby Screen Setting image to display on standby screen
M312 Information Setup Setting information to display on standby screen
M313 Mail Sendg Scrn Setting image to display while sending mail
M314 Mail Rcvg Scrn Setting image to display while receiving mail
M315 EZ Connect Scrn Setting image to display while connecting to EZweb
M32 LED Display Setting LED Display
M321 Close Anim. Disp. Setting close animation display
M322 Caller’s Info Disp Setting caller’s information display
M33 Disp. Lighting Setting lighting of display and keys
M331 Display Light Setting lighting of display
M332 Key Light Setting lighting of keys
M333 Recharging Display Setting lighting of recharging display
M34 Font Size Setting character size
M341 Input Size Setting character size for input
M342 Mail Display Setting character size for mail display
M343 EZweb Display Setting character size for EZweb display
M344 Address Book Setting character size for address book
M345 History Setting character size for history
M346 Phone No. Setting character size for phone number
M35 Font Setting font of display
M351 Data Folder Setting font from data folder
M352 Download Setting font downloaded from EZweb
M353 Back to Default Backing to default font
M36 Transition Effect Setting transition effects in replacing screen
M37 Set Language Setting the English/Japanese display
■ M4 Privacy/Rstr
Mode No. Function Description
M41 Security Lock Locked setting
M411 Auto Lock Setting auto lock
M412 FeliCa Lock Setting FeliCa lock
M413 AddresBookLock Setting addres book lock
M414 Rem. Ctrl Lock Setting remote auto lock
M415 Open/Close Lock Setting Open/Close lock
M42 User Restrict Restricted user’s setting
M421 Dial Restrict Disabling dial-up calls
M422 EZweb Restrict Restricting EZweb access
M423 PCSiteViewerRstr Restricting the start of PC Site Viewer
M424 Mail Restrict Restricting mail access
M425 EZapps Restrict Restricting EZappli access
M426 Media Tuner Rstr Restricting Media Tuner
M427 Secret Mode Setting Secret
M43 Incoming Reject Rejecting designated unwanted phone numbers
M431 Specified No. Rejecting Incoming form specified numbers
M432 ID Unset Rejecting Incoming form ID Unset
M433 Payphone Rejecting Incoming form payphone
M434 Not Support Rejecting Incoming form Not Support
M435 Unreg Adrs Bk Rejecting Incoming form numbers not registered in Address Book
M436 Reject All Rejecting all Incoming calls while roaming abroad
M437 Save Incm History Set whether to save or not to save in incoming history
M44 Change Lock No. Changing lock number
M45 Reset Various resets
M451 Learning Reset Initializing the character memory
M452 Function Reset Initializing all functions
M453 Memory Reset Initializing all memories
M454 EZapps Reset Initializing the EZapplis
M455 All Reset Initializing all functions and memories
M46 Caller ID Announcing your number to the other party
M47 PIN Code Setup PIN code setting
M471 Change PIN Code Changing PIN code
M472 Need/No Setup Setting whether to input PIN code when powered ON or using au certificate
M48 Cert. Setup Certificate setting
- 8 -
M481 Cert. Disp Displaying downloaded certificate in detail
M482 Confirm Disp Setting whether to display check screen when sending certificate
M483 Root CA Setting to display Root Certificate
M49 Emer. Position On emergency call, location information notified to emergency can be viewed
M40 Incoming Display Setting to display while incoming call
■ M5 User Support
Mode No. Function Description
M51 Input Setting for the character input
M511 User Dictionary Registering words in the list
M512 Edit Phrase Editing phrases
M513 Edit Face Mark Editing Emoticon
M514 Input Setup Setting for the input prediction
M515 D/L Dictionary Registering the dictionary downloaded from EZweb
M516 Choice Palette Registering or Editing often used symbols and pictograms
M517 Write Now Setup Setting for Write Now
M52 Network Setting for network service
M521 Play Voice Mail Listening to messages
M522 Voice Mail1 ON Setting the answering message service 1
M523 Voice Mail2 ON Setting the answering message service 2
M524 Voice Mail OFF Stopping the answering message service
M525 Change Ans. Msg Recording/Confirming/Changing response messages
M526 Eng. Guidance Switching to English language guidance
M527 Jpn. Guidance Switching to Japanese language guidance
M528 Call Waiting ON Setting call waiting service
M529 Call Waiting OFF Stopping call waiting service
M53 Notice Screen Setting Notice Screen
M54 Clock Setting autonomous working
M541 Auto Time Adj Setting auto time set
M542 Auto Power On Setting auto power ON
M543 Auto Power Off Setting auto power OFF
M55 No.Append Setup Registering prefix or area code memory
M56 Comm/USB Exchanging dada connecting phone to PC
M561 Conn. Environment Checking connection
M562 au FemtoCell Setting and Search for au FemtoCell on
M563 Ext.Mem.TransMd Exchanging microSD data with external device
M564 USB Setup Setting operation when connecting USB cable
M565 USB Charge Setting for USB charge
M566 Emission OFF Setting Emission OFF
M57 Maintenance Updating software or checking for failure in the phone
M571 Software Update Beginning to update
M572 Check Menu Checking for failure in the phone
M573 StatsDataSending Setting status data sending of au phone
M574 Area Quality Setting whether to send out area quality info at connection error
M58 Customize Key Setting functions which can be started by Customize Key
M581 TV Key Setup Setting press the TV key
M582 Side Key Setup Setting press & hold the side key when closed on standby screen
M59 BlogUp/Tweet Setting BlogUp/Tweet
M591 BlogUp Setting E-mail address to BlogUp
M592 Tweet Setting E-mail address to Tweet
M50 Open & Anser Setting for Open & Anser
■ Mode setup (M6)
Mode No. Function Description
M6 Teens Mode Setting teens mode
■ Guide Function (M#)
Mode No. Function Description
M# Guide Function Displaying the operation instructions for functions other than M functions
M#1 Operation Guide Displaying the operation instructions for functions
M#2 Top Icon Guide Displaying explanation of top icon on screen
M#3 au Online Manual Connecting to EZweb au Onｌine Manual and check the operations
- 9 -
Specifications
Weight: approximately XX g (including battery pack)
Continuous talk time: approximately XX minutes ★
Continuous standby time: approximately XX hours ★
Dimensions (H/W/D): approximately XX mm x XX mm x XX mm ※
※ The height and depth are the dimensions when the telephone is folded.
★Used Japan
●The continuous talk time and continuous standby time are the average values of when the signals can be
received normally while the telephone is in the standstill status.
The operation time may be reduced to utmost half due to charging conditions, temperature, and other
operation environment conditions, signal condition at the location of use, function setting, roaming area.
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help and for additional suggestions.
Warning
The user is cautioned that changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
FCC RF EXPOSURE INFORMATION
Warning! Read this information before using your phone.
In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in
Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio
frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are
consistent with the safety standard previously set by both U.S. and international standards bodies. The
design of this phone complies with the FCC guidelines and these international standards.
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 0.59 inches
(1.5 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation
distance of 0.59 inches (1.5 cm) must be maintained between the user’s body and the back of the
phone, including the antenna. All beltclips, holsters and similar accessories used by this device must
not contain any metallic components. Body-worn accessories that do not meet these requirements may
- 10 -
- 11 -
not comply with FCC RF exposure limits and should be avoided.
Turn off your phone before flying
You should turn off your phone when boarding any aircraft. To prevent possible interference with
aircraft systems, U.S. Federal Aviation Administration (FAA) regulations require you to have permission
from a crew member to use your phone while the plane is on the ground. To prevent any risk of
interference, FCC regulations prohibit using your phone while the plane is in the air.
