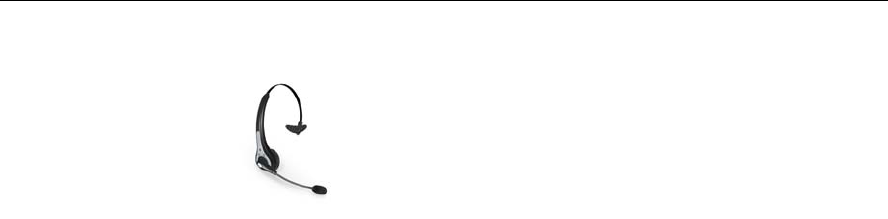

LANYA ELECTRONIC BH17 BLUETOOTH HEADSET User Manual
LANYA ELECTRONIC CO., Ltd. BLUETOOTH HEADSET Users Manual
Users Manual
Model：BH17
KEY FEATURES
* Supports connect to 2 phones simultaneously
* Operating range: 10M
* Certificate:
SPECIFICATION
* Bluetooth Specification v2.1+EDR class 2
* RF Frequency Range: 2.402-2.480GHZ, 2.4G ISM band
* Radio Performance: Receive Sensitivity of -92dBm, TX Power Max 4dBm
* Supports Bluetooth Headset and Handsfree profiles,
* Speaker volume gain control
* 3 Button design: MFB, VOL+, VOL-,
* LED Indicator Status: Blue, Red
* Rechargeable 130mAh Li-Polymer Battery
* USB charging Port
* Charger adapter Output: DC 5V&200mA
* Nominal charging time: Max 1.5 hours
* Talk time: Up to 9 hours
* Standby time: Up to 200 hours
*Operating Temperature: -10 ℃～50℃
*Storage Temperature: -20 ℃～60℃
* Dimensions (main body): ∮48mmx (T) 20mm
* Weight: grams
Package Accessories
* Box: standard or customization
* User Manual x1
Solution Description:
Bluetooth Standard Bluetooth 2.1+EDR
Chipset CSR BC6130A04-IQQB-R
Speaker 16 15% ohm, Normal 0.01W,Maximum 0.02W,
Microphone Omnidirectional, -42±3dB
Charging interface 2.0mm DC Jack
Button MFB,VOL+,VOL-,
Frequency band 2.4G ISM band
Frequency range 2.402-2.480GHZ
Spectrum FHSS
Modulation GFSK，π/4 DQPSK，8DPSK
RF Specification
Antenna PCB antenna
Electrical Characteristics:
Min Typ Max Unit
Power consumption
Charging input voltage range 4.7 5 6 V
Charger input current requirements 200 mA
Ripple And Noise (Charger input) 200 mV p-p
Battery Charging Saturation voltage 4.1 4.3 V
Battery capacity 130 mAH
Battery charge current(constant-current mode) 100 mA
Low-voltage warning 3.2 3.3 3.4 V
Low-voltage automatic shutdown 2.9 3.0 3.1 V
Talk Current(HV3 connection,Dc=3.7V) 15 mA
Standby current(ACL connection sniff mode, Dc=3.7V) 400 600 uA
leakage current(Power off mode, DC=3.7V) 0.1 uA
Talk time 9 H
Standby time 200 H
Audio Characteristics
Speaker Output frequency range 20 4000 HZ
Distortion and noise (relative to full scale )(32ohm Speaker) -72 -75 dB
Output Sound Pressure Level(S.P.L)(1Khz at 1cm ) 100 105 dB
Microphone input frequency range 200 4000 HZ
Distortion and noise at 1Khz(Microphone) -75 -78 dB
RF Characteristics
Frequency Range 2.402 2.480 GHZ
Transmitter power 0 4 dBm
Initial carrier -40 40 KHZ
Operating range(positive direction) 10 Meter
Operating range(opposite direction) 5 Meter
RF Receiver:
Sensitivity at 0.1% BER for all packet types at 2.441GHZ
(Bluetooth Specification ≤-70dBm) -82 -88 dBm
Maximum received signal at 0.1% BER (Bluetooth
Specification≥-20dBm) 0 3 dBm
RF Transmitter:
Transmit power(Bluetooth Specification-6to +4) -2 0 4 dBm
△f1avg Maximum Modulation.(Bluetooth Specification 140＜
f1avg＜175) 140 165 175 kHZ
△f2avg Minimum Modulation (Bluetooth Specification
≥115) 115 140 kHZ
△f1avg/△f2avg (Bluetooth Specification≥0.8) 0.8 0.9 -
Reliability Specifications
Operating Temperature
1.High, Low Temperature Operation Test：Under
ambient temperature on -10 Degree Celsius and +50
Degree Celsius (RH 20—30%) to power on 4 hours
each. Then place it on often-wet environment (Room
temperature 25Degree C, room humidity) for testing
after 2 hours. The test duration is for 6 cycles and must
end in the hot cycle, Sample should not have any
problems in order to pass the high, low temperature
operation test。 -10 50
℃
Storage Temperature
1.High Temperature Storage
Temperature : +60℃
Test Time : 48 Hrs
Load : No load
Mode: off mode
After the test, shall be left in ambient temperature for
1~2hrs.
Electrical and cosmetic defects should not happen. The
battery capacity do not guarantee
2. Low Temperature Storage
Under ambient temperature on -20 Degree Celsius, 48
hours on power off mode then place on often-wet
environment, i.e. 60% relative humidity, 25 Degree
Celsius for 2 hours. Sample should not have any
problems in order to pass the low temperature -20 60 ℃
Operating humidity
1.High humidity Operation Test:
Under ambient temperature on 0 Degree Celsius (RH
75%) to power on 12 hours , Sample should not have any
problems in order to pass the High humidity Operation
Test . 75 %
Storage humidity 95 %
1. High humidity Storage Test:
Under ambient temperature on 0 Degree Celsius (RH
95%) to power off mode 48 hours , After the test,
shall be left in ambient temperature for 1~2hrs.
Electrical and cosmetic defects should not happen.
Drop test height
1. Inspect the external appearance and function
b
efore a
unit is dropped (6 sides-each side 1 times) from a height
listed below
Drop height: 150cm to concrete floor
Power off mode
150cm 6 times, cement floor
Button Operating Force 180 + -50gf
Vibration Test
X, Y, Z three directions and do 30 minutes 10 ~
55Hz sweep cycle of vibration, scan rate for
1oct/min; 10 ~ 30Hz when the amplitude of
0.38mm, 30 ~ 50Hz at 0.19mm amplitude
Continuous Infliction Life Test:
1. Charging port test:
Power off mode, a continuous plug 1000, and then test the
function of a single charge, 10 cycles, charging should be no
problem.
2.earphone jack testing: power on mode, a continuous plug
1000, and then plug in your headphones, 360-degree
rotating plug headphones sound without exception, 10
cycles, functions should be no problem。
3. key test: power off mode, applied force 350gf, 20000
times, and then power on the test key functions should be no
problem
- Plug : 10,000 times
- Key : 20,000 times
Abrasion test
Use Rub an external edge of the test sample
by ethanol cotton cloth (coated surface:500gf,
25times/min;Printed surface 1kg,50
times/min.).Paint must stand 100cycles
without exposing the plastic materiall
The test environment must not exceed 50%
relative humidity. Paint must stand 15cycles at
175gf force without expose the underlying
material.
Chemical test
Put a drop of 90% alcohol on painted surface
and wait for 2 min. Wipe the surface with
white cloth to remove the chemical.
There can be small amount of paint that can
stick to white cloth. And no major
dis-colouration or paint removal is allowed.
ESD Test
Reference Standard :IEC 801-2 Part 2 ;
Sample Size: 3 sets
(Temperature: 15 ℃~35 ℃, Humidity:
30~60%RH, Atmospheric Pressure:
68~106Kpa)
1. Contact Discharge: (+/- 1KV to +/-4KV)
Conductive parts which are normally touched
by human body during operation, e.g. “MFB”
key and “Vol” key (Metal),etc.
Start from 1KV for 10 times discharge.
(Every time need do the discharge for outside
metal part)
Every Step increases 1KV and need achieve
the following requirements at the same times.
Up to +/- 4KV, there is no operation error
occurs and maintain the output specification;
2. Air Discharge : (+/-1KV to +/-8KV, far
away 1cm)
Non-conductive parts and areas which are
normally touched by human body during
operation, e.g. Microphone, Speaker, DC
j
ack, etc.
Start from 1KV for 10 times discharge. (Every
time need do the discharge for outside metal
part)
Every Step increases 1KV and need achieve
the following requirements at the same times.
Up to +/- 8KV, there is no physical defect and
maintain the output specification;
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
