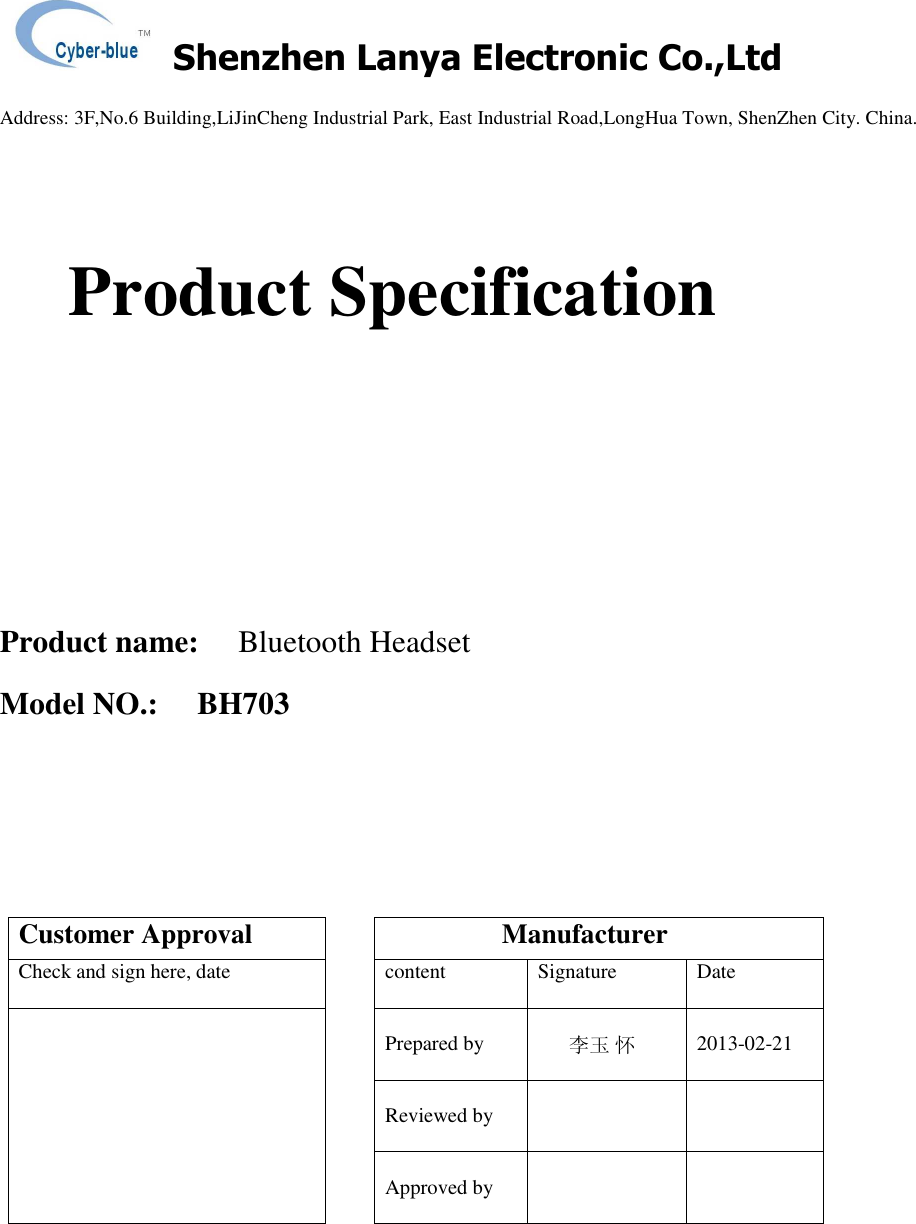

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. Product Specification Product name: Bluetooth Headset Model NO.: BH703 Customer Approval Manufacturer Check and sign here, date content Signature Date Prepared by 李玉 怀 2013-02-21 Reviewed by Approved by

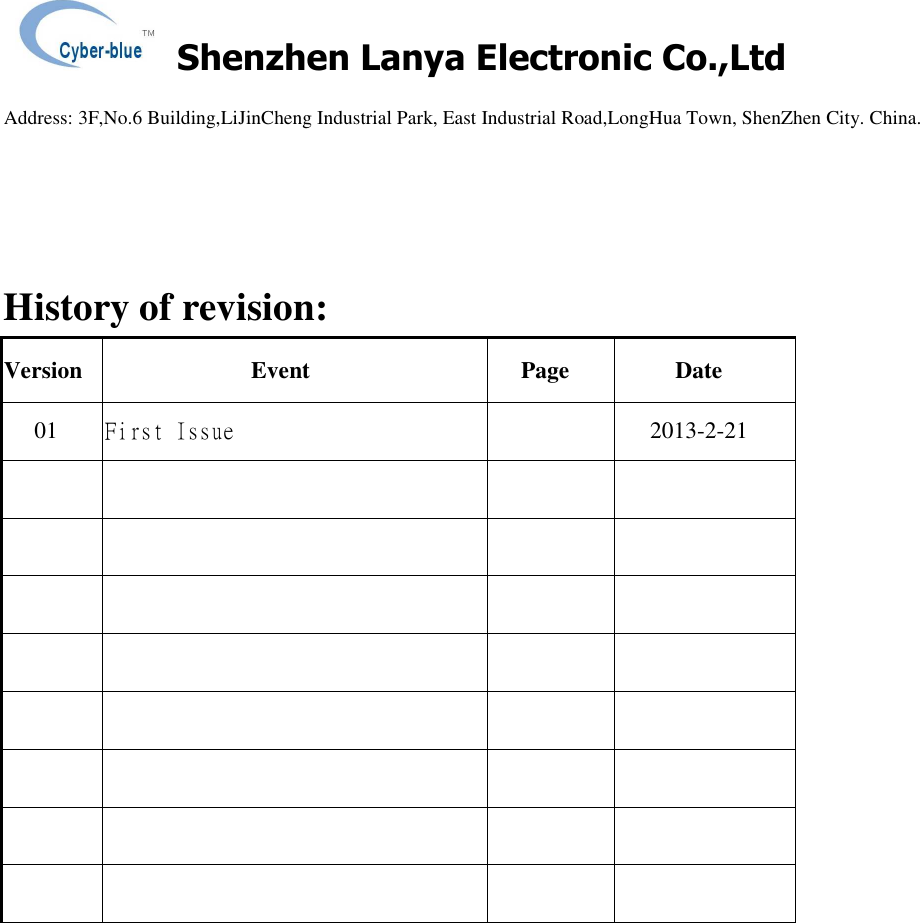

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. History of revision: Version Event Page Date 01 First Issue 2013-2-21

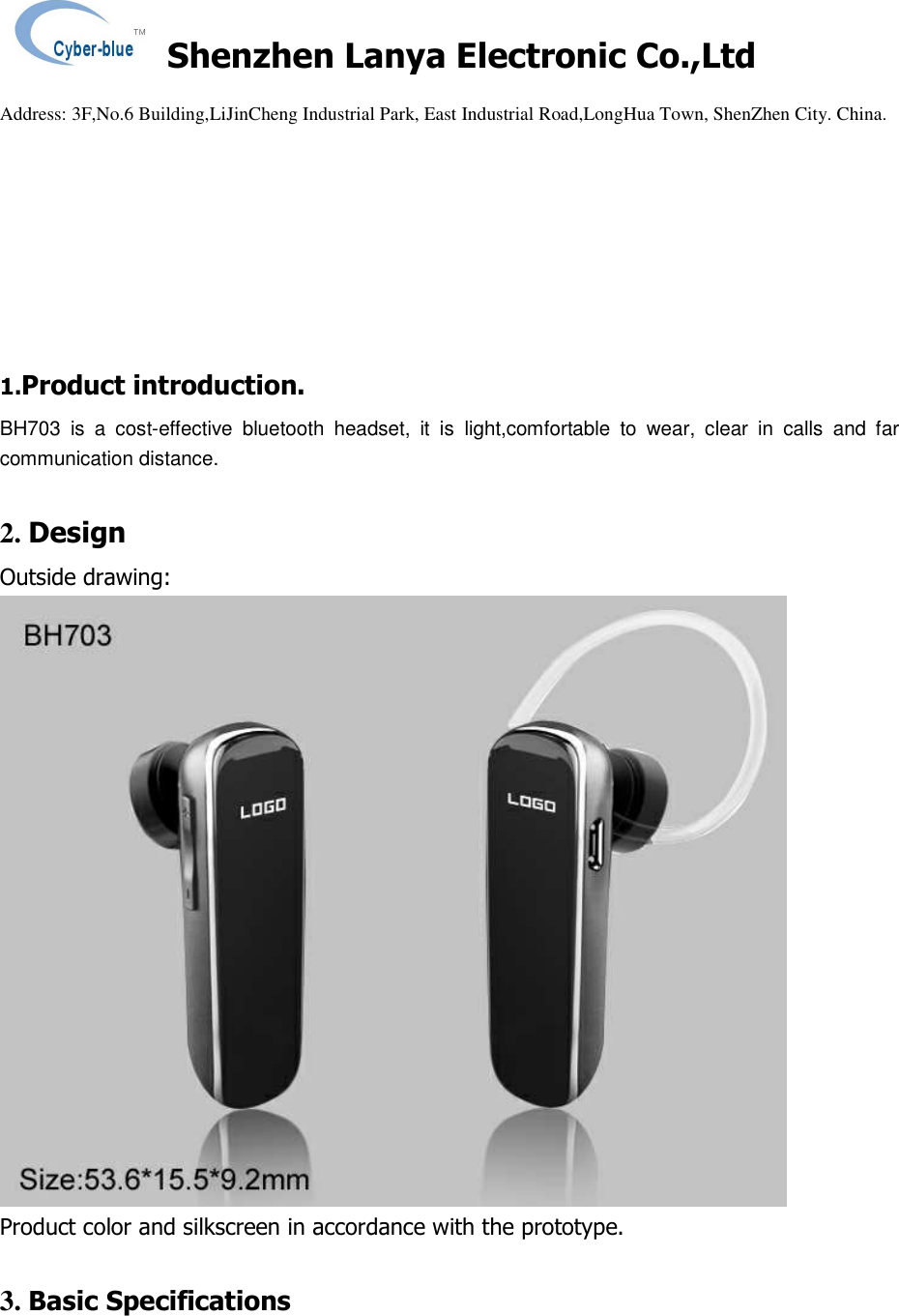

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. 1.Product introduction. BH703 is a cost-effective bluetooth headset, it is light,comfortable to wear, clear in calls and far communication distance. 2. Design Outside drawing: Product color and silkscreen in accordance with the prototype. 3. Basic Specifications

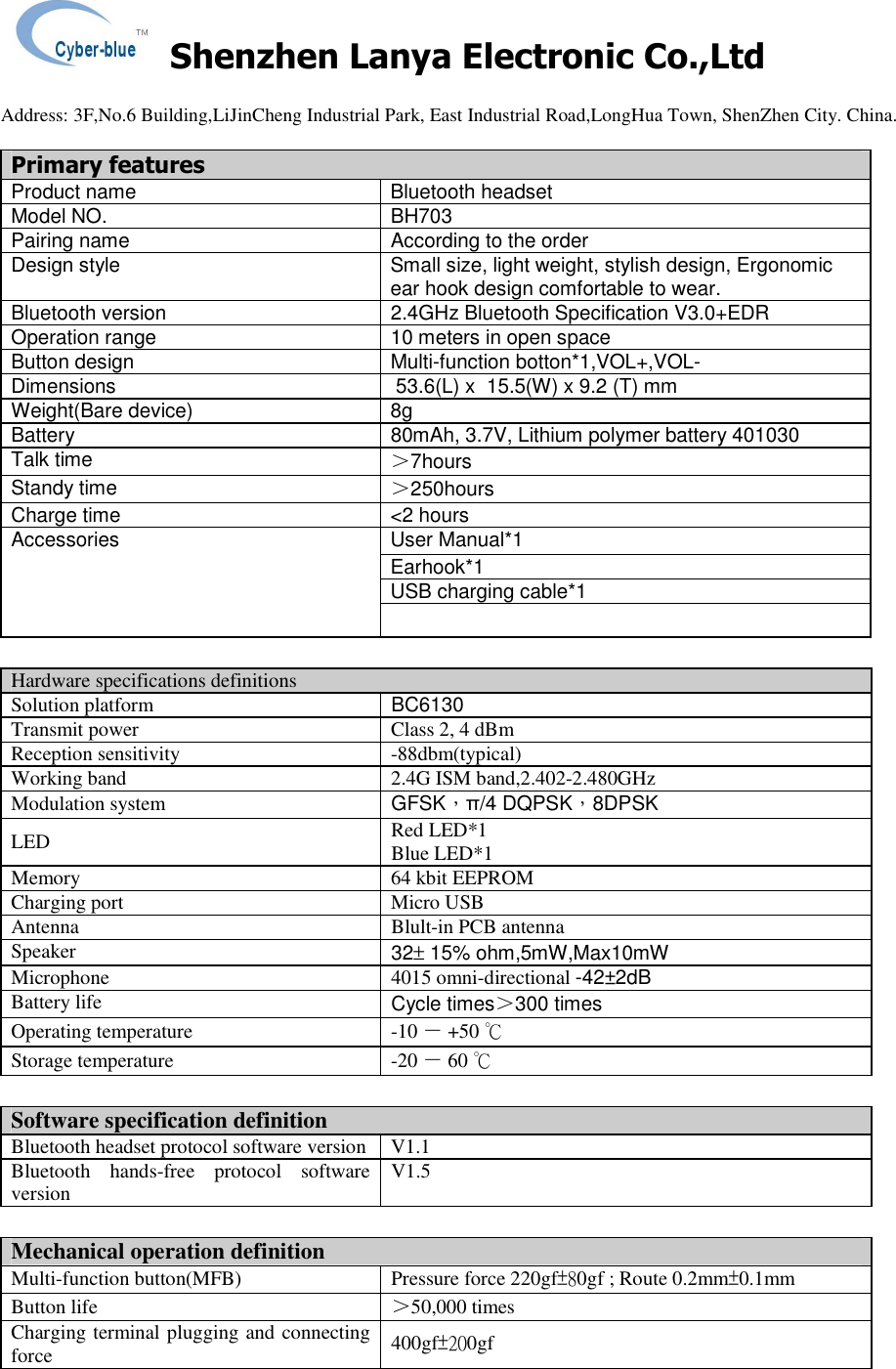

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. Primary features Product name Bluetooth headset Model NO. BH703 Pairing name According to the order Design style Small size, light weight, stylish design, Ergonomic ear hook design comfortable to wear. Bluetooth version 2.4GHz Bluetooth Specification V3.0+EDR Operation range 10 meters in open space Button design Multi-function botton*1,VOL+,VOL- Dimensions 53.6(L) x 15.5(W) x 9.2 (T) mm Weight(Bare device) 8g Battery 80mAh, 3.7V, Lithium polymer battery 401030 Talk time ＞7hours Standy time ＞250hours Charge time <2 hours User Manual*1 Earhook*1 USB charging cable*1 Accessories Hardware specifications definitions Solution platform BC6130 Transmit power Class 2, 4 dBm Reception sensitivity -88dbm(typical) Working band 2.4G ISM band,2.402-2.480GHz Modulation system GFSK，π/4 DQPSK，8DPSK LED Red LED*1 Blue LED*1 Memory 64 kbit EEPROM Charging port Micro USB Antenna Blult-in PCB antenna Speaker 32± 15% ohm,5mW,Max10mW Microphone 4015 omni-directional -42±2dB Battery life Cycle times＞300 times Operating temperature -10 － +50 ℃ Storage temperature -20 － 60 ℃ Software specification definition Bluetooth headset protocol software version V1.1 Bluetooth hands-free protocol software version V1.5 Mechanical operation definition Multi-function button(MFB) Pressure force 220gf±80gf ; Route 0.2mm±0.1mm Button life ＞50,000 times Charging terminal plugging and connecting force 400gf±200gf

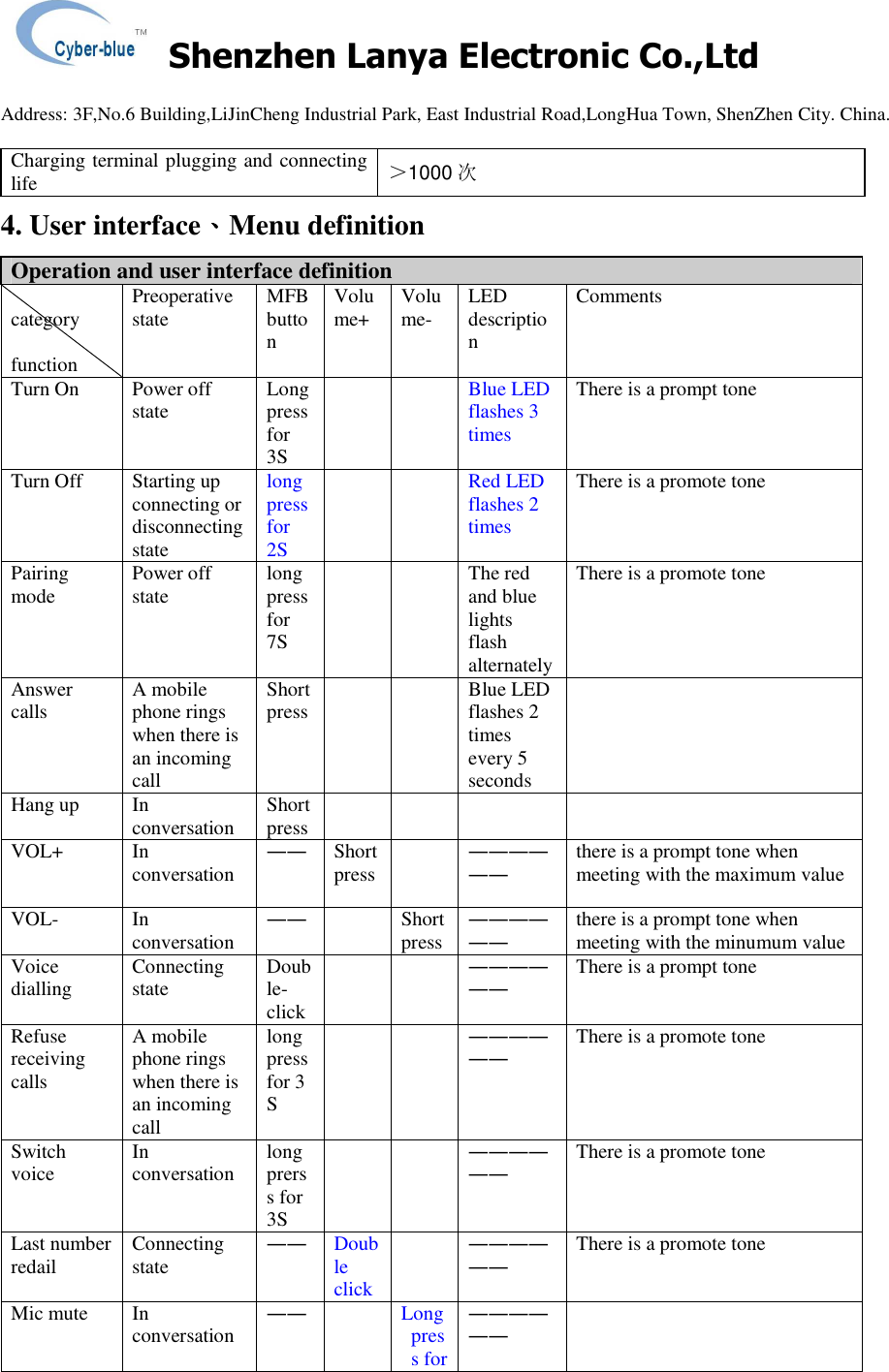

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. Charging terminal plugging and connecting life ＞1000 次 4. User interface、、、、Menu definition Operation and user interface definition category function Preoperative state MFB button Volume+ Volume- LED description Comments Turn On Power off state Long press for 3S Blue LED flashes 3 times There is a prompt tone Turn Off Starting up connecting or disconnecting state long press for 2S Red LED flashes 2 times There is a promote tone Pairing mode Power off state long press for 7S The red and blue lights flash alternately There is a promote tone Answer calls A mobile phone rings when there is an incoming call Short press Blue LED flashes 2 times every 5 seconds Hang up In conversation Short press VOL+ In conversation ―― Short press ―――――― there is a prompt tone when meeting with the maximum value VOL- In conversation ―― Short press ―――――― there is a prompt tone when meeting with the minumum value Voice dialling Connecting state Double-click ―――――― There is a prompt tone Refuse receiving calls A mobile phone rings when there is an incoming call long press for 3 S ―――――― There is a promote tone Switch voice In conversation long prerss for 3S ―――――― There is a promote tone Last number redail Connecting state ―― Double click ―――――― There is a promote tone Mic mute In conversation ―― Longpress for ――――――

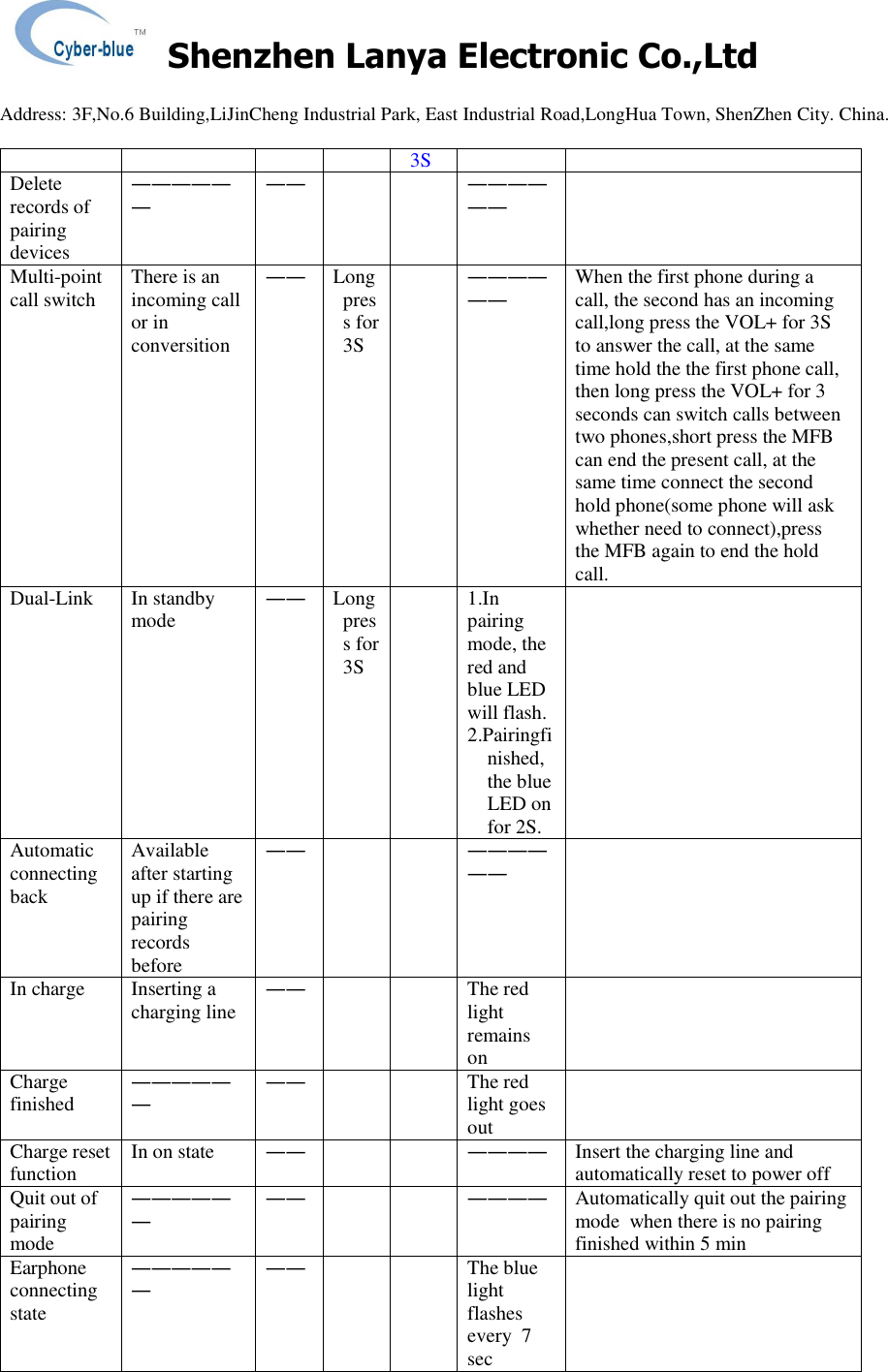

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. 3S Delete records of pairing devices ―――――― ―― ―――――― Multi-point call switch There is an incoming call or in conversition ―― Longpress for 3S ―――――― When the first phone during a call, the second has an incoming call,long press the VOL+ for 3S to answer the call, at the same time hold the the first phone call, then long press the VOL+ for 3 seconds can switch calls between two phones,short press the MFB can end the present call, at the same time connect the second hold phone(some phone will ask whether need to connect),press the MFB again to end the hold call. Dual-Link In standby mode ―― Longpress for 3S 1.In pairing mode, the red and blue LED will flash. 2.Pairingfinished, the blue LED on for 2S. Automatic connecting back Available after starting up if there are pairing records before ―― ―――――― In charge Inserting a charging line ―― The red light remains on Charge finished ―――――― ―― The red light goes out Charge reset function In on state ―― ―――― Insert the charging line and automatically reset to power off Quit out of pairing mode ―――――― ―― ―――― Automatically quit out the pairing mode when there is no pairing finished within 5 min Earphone connecting state ―――――― ―― The blue light flashes every 7 sec

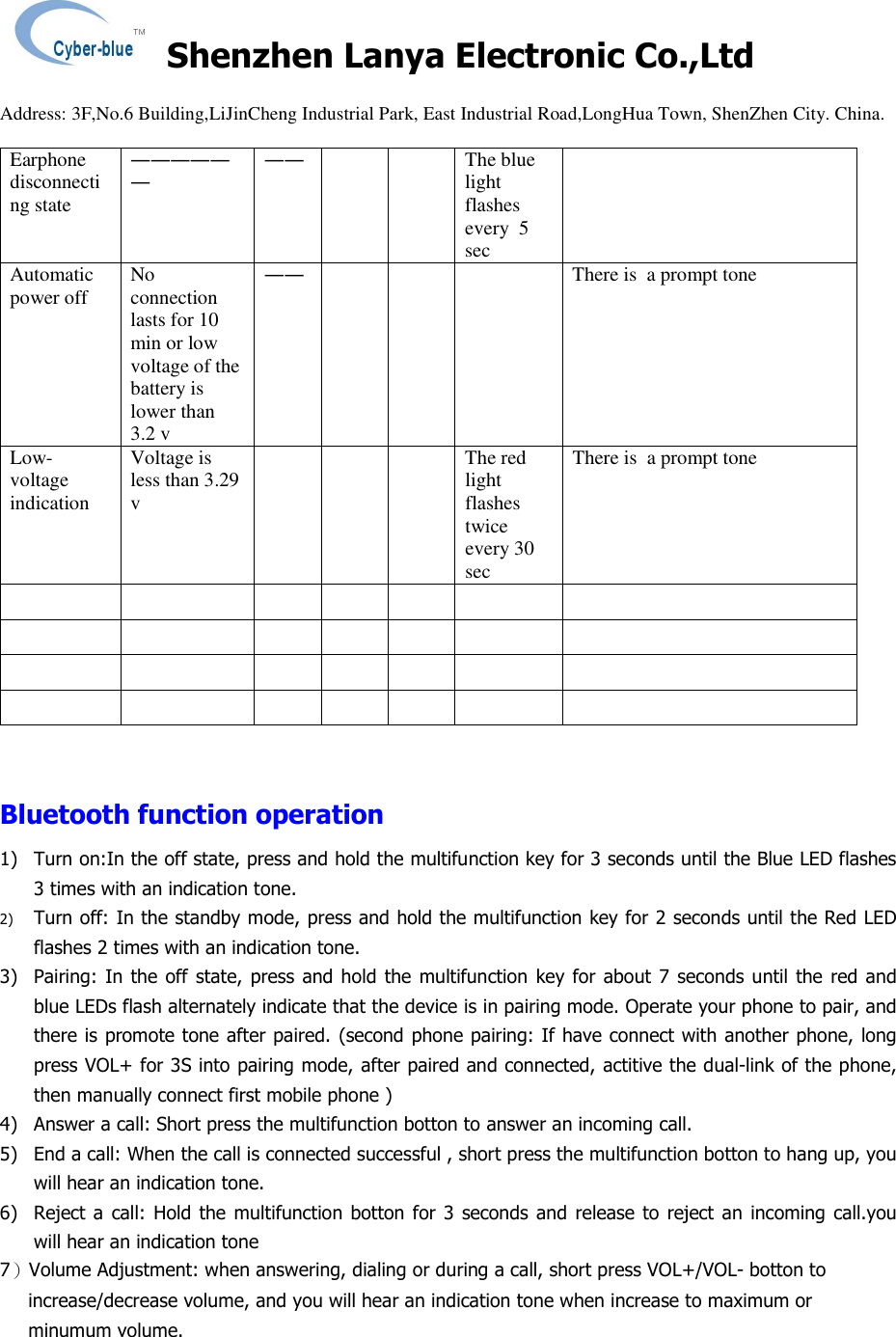

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. Earphone disconnecting state ―――――― ―― The blue light flashes every 5 sec Automatic power off No connection lasts for 10 min or low voltage of the battery is lower than 3.2 v ―― There is a prompt tone Low-voltage indication Voltage is less than 3.29 v The red light flashes twice every 30 sec There is a prompt tone Bluetooth function operation 1) Turn on:In the off state, press and hold the multifunction key for 3 seconds until the Blue LED flashes 3 times with an indication tone. 2) Turn off: In the standby mode, press and hold the multifunction key for 2 seconds until the Red LED flashes 2 times with an indication tone. 3) Pairing: In the off state, press and hold the multifunction key for about 7 seconds until the red and blue LEDs flash alternately indicate that the device is in pairing mode. Operate your phone to pair, and there is promote tone after paired. (second phone pairing: If have connect with another phone, long press VOL+ for 3S into pairing mode, after paired and connected, actitive the dual-link of the phone, then manually connect first mobile phone ) 4) Answer a call: Short press the multifunction botton to answer an incoming call. 5) End a call: When the call is connected successful , short press the multifunction botton to hang up, you will hear an indication tone. 6) Reject a call: Hold the multifunction botton for 3 seconds and release to reject an incoming call.you will hear an indication tone 7）Volume Adjustment: when answering, dialing or during a call, short press VOL+/VOL- botton to increase/decrease volume, and you will hear an indication tone when increase to maximum or minumum volume.

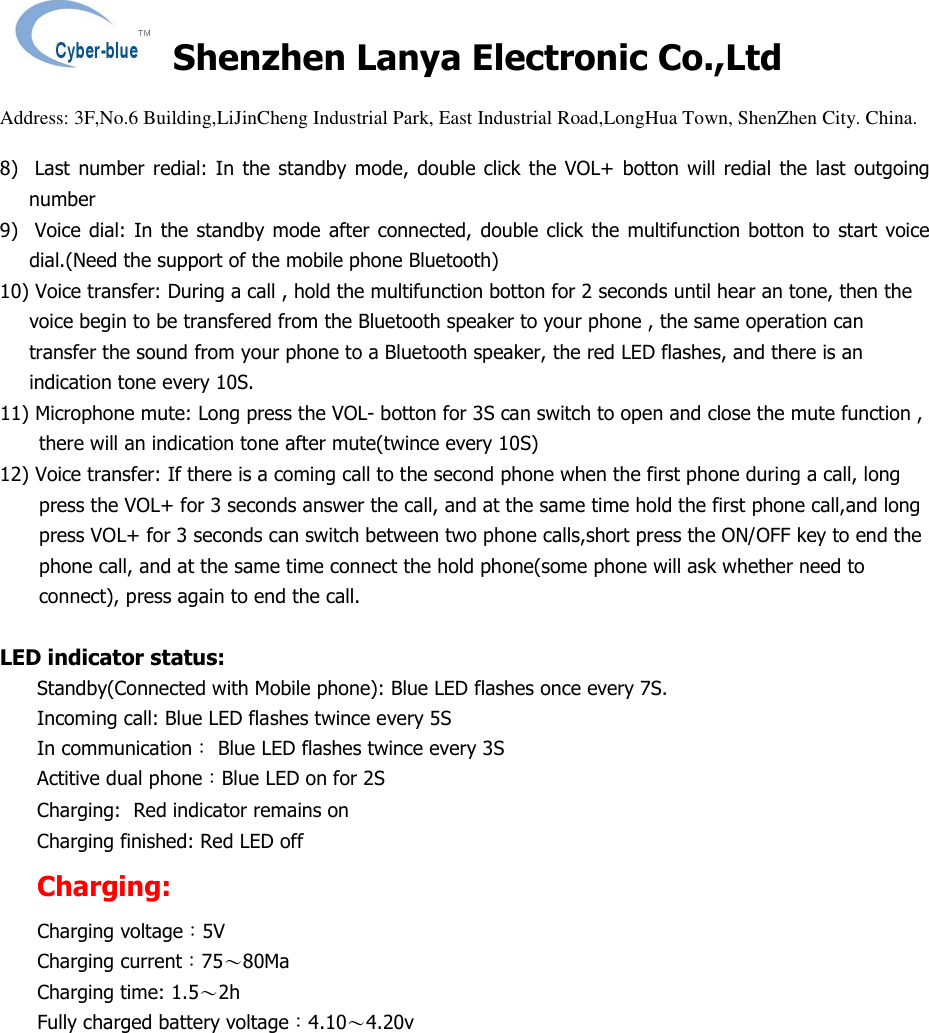

Shenzhen Lanya Electronic Co.,Ltd Address: 3F,No.6 Building,LiJinCheng Industrial Park, East Industrial Road,LongHua Town, ShenZhen City. China. 8) Last number redial: In the standby mode, double click the VOL+ botton will redial the last outgoing number 9) Voice dial: In the standby mode after connected, double click the multifunction botton to start voice dial.(Need the support of the mobile phone Bluetooth) 10) Voice transfer: During a call , hold the multifunction botton for 2 seconds until hear an tone, then the voice begin to be transfered from the Bluetooth speaker to your phone , the same operation can transfer the sound from your phone to a Bluetooth speaker, the red LED flashes, and there is an indication tone every 10S. 11) Microphone mute: Long press the VOL- botton for 3S can switch to open and close the mute function , there will an indication tone after mute(twince every 10S) 12) Voice transfer: If there is a coming call to the second phone when the first phone during a call, long press the VOL+ for 3 seconds answer the call, and at the same time hold the first phone call,and long press VOL+ for 3 seconds can switch between two phone calls,short press the ON/OFF key to end the phone call, and at the same time connect the hold phone(some phone will ask whether need to connect), press again to end the call. LED indicator status: Standby(Connected with Mobile phone): Blue LED flashes once every 7S. Incoming call: Blue LED flashes twince every 5S In communication： Blue LED flashes twince every 3S Actitive dual phone：Blue LED on for 2S Charging: Red indicator remains on Charging finished: Red LED off Charging: Charging voltage：5V Charging current：75～80Ma Charging time: 1.5～2h Fully charged battery voltage：4.10～4.20v

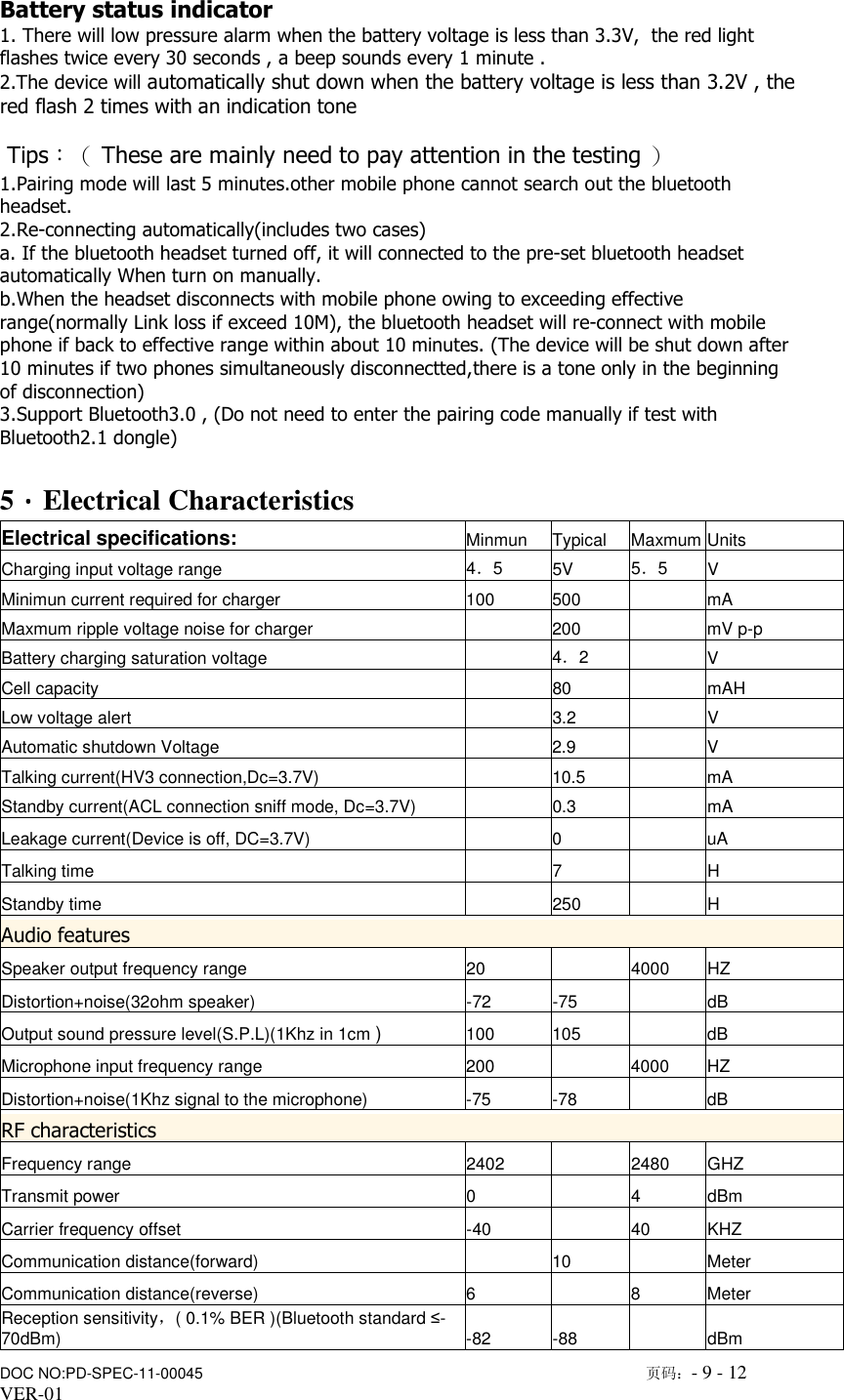

DOC NO:PD-SPEC-11-00045 页码：- 9 - 12 VER-01 Battery status indicator 1. There will low pressure alarm when the battery voltage is less than 3.3V, the red light flashes twice every 30 seconds , a beep sounds every 1 minute . 2.The device will automatically shut down when the battery voltage is less than 3.2V , the red flash 2 times with an indication tone Tips：（ These are mainly need to pay attention in the testing ） 1.Pairing mode will last 5 minutes.other mobile phone cannot search out the bluetooth headset. 2.Re-connecting automatically(includes two cases) a. If the bluetooth headset turned off, it will connected to the pre-set bluetooth headset automatically When turn on manually. b.When the headset disconnects with mobile phone owing to exceeding effective range(normally Link loss if exceed 10M), the bluetooth headset will re-connect with mobile phone if back to effective range within about 10 minutes. (The device will be shut down after 10 minutes if two phones simultaneously disconnectted,there is a tone only in the beginning of disconnection) 3.Support Bluetooth3.0 , (Do not need to enter the pairing code manually if test with Bluetooth2.1 dongle) 5．．．．Electrical Characteristics Electrical specifications: Minmun Typical Maxmum Units Charging input voltage range 4．5 5V 5．5 V Minimun current required for charger 100 500 mA Maxmum ripple voltage noise for charger 200 mV p-p Battery charging saturation voltage 4．2 V Cell capacity 80 mAH Low voltage alert 3.2 V Automatic shutdown Voltage 2.9 V Talking current(HV3 connection,Dc=3.7V) 10.5 mA Standby current(ACL connection sniff mode, Dc=3.7V) 0.3 mA Leakage current(Device is off, DC=3.7V) 0 uA Talking time 7 H Standby time 250 H Audio features Speaker output frequency range 20 4000 HZ Distortion+noise(32ohm speaker) -72 -75 dB Output sound pressure level(S.P.L)(1Khz in 1cm ) 100 105 dB Microphone input frequency range 200 4000 HZ Distortion+noise(1Khz signal to the microphone) -75 -78 dB RF characteristics Frequency range 2402 2480 GHZ Transmit power 0 4 dBm Carrier frequency offset -40 40 KHZ Communication distance(forward) 10 Meter Communication distance(reverse) 6 8 Meter Reception sensitivity，( 0.1% BER )(Bluetooth standard ≤-70dBm) -82 -88 dBm

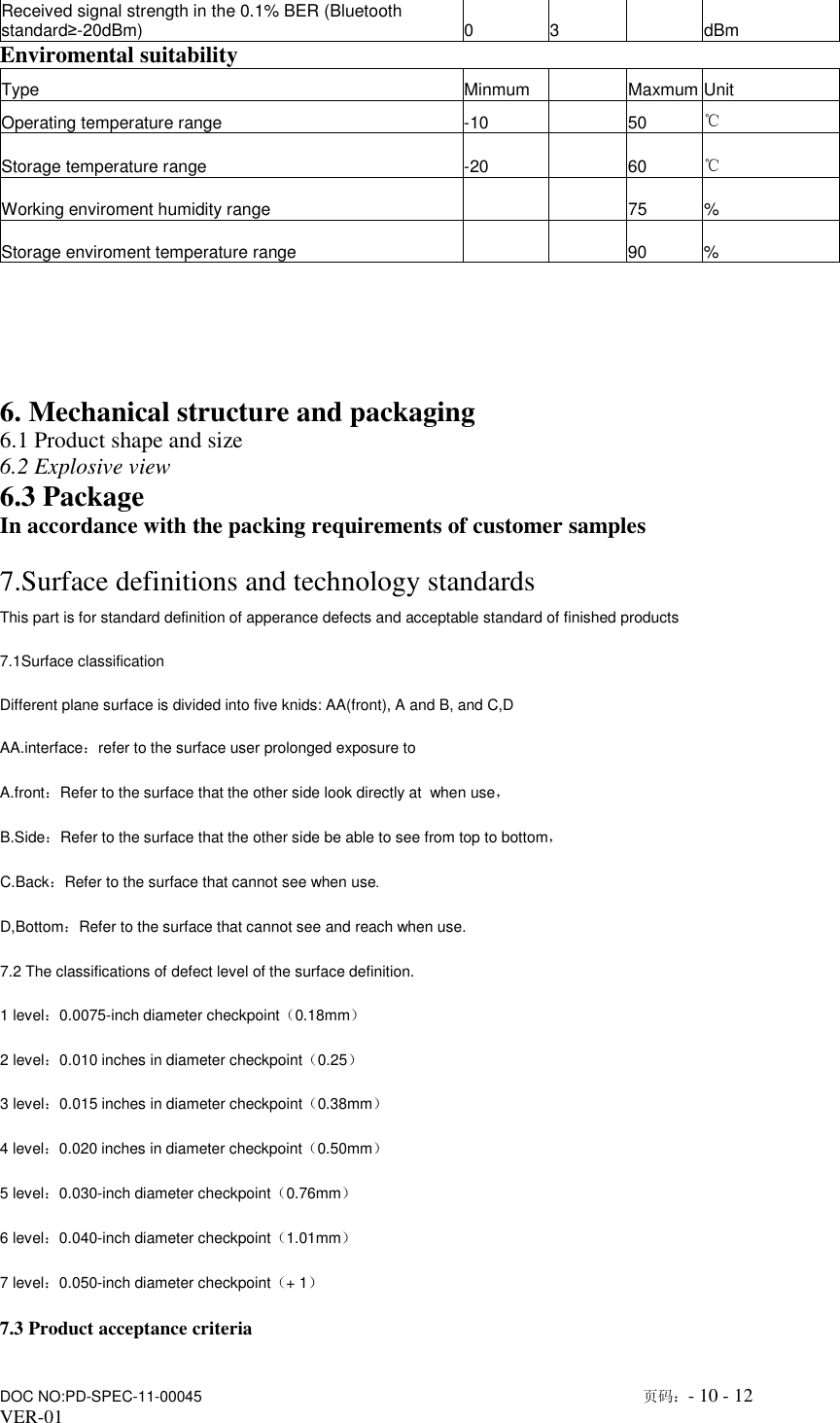

DOC NO:PD-SPEC-11-00045 页码：- 10 - 12 VER-01 Received signal strength in the 0.1% BER (Bluetooth standard≥-20dBm) 0 3 dBm Enviromental suitability Type Minmum Maxmum Unit Operating temperature range -10 50 ℃ Storage temperature range -20 60 ℃ Working enviroment humidity range 75 % Storage enviroment temperature range 90 % 6. Mechanical structure and packaging 6.1 Product shape and size 6.2 Explosive view 6.3 Package In accordance with the packing requirements of customer samples 7.Surface definitions and technology standards This part is for standard definition of apperance defects and acceptable standard of finished products 7.1Surface classification Different plane surface is divided into five knids: AA(front), A and B, and C,D AA.interface：refer to the surface user prolonged exposure to A.front：Refer to the surface that the other side look directly at when use， B.Side：Refer to the surface that the other side be able to see from top to bottom， C.Back：Refer to the surface that cannot see when use. D,Bottom：Refer to the surface that cannot see and reach when use. 7.2 The classifications of defect level of the surface definition. 1 level：0.0075-inch diameter checkpoint（0.18mm） 2 level：0.010 inches in diameter checkpoint（0.25） 3 level：0.015 inches in diameter checkpoint（0.38mm） 4 level：0.020 inches in diameter checkpoint（0.50mm） 5 level：0.030-inch diameter checkpoint（0.76mm） 6 level：0.040-inch diameter checkpoint（1.01mm） 7 level：0.050-inch diameter checkpoint（+ 1） 7.3 Product acceptance criteria

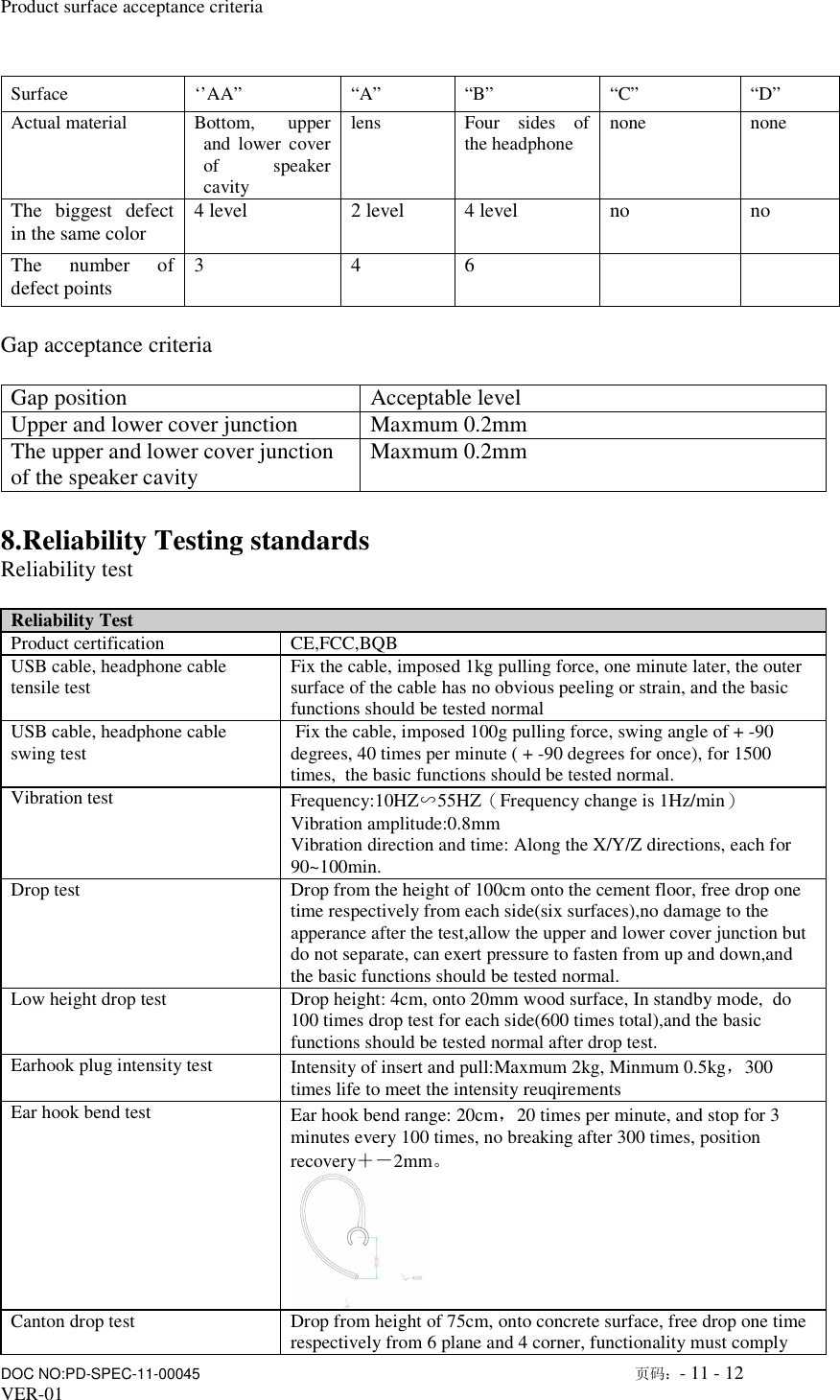

DOC NO:PD-SPEC-11-00045 页码：- 11 - 12 VER-01 Product surface acceptance criteria Surface ‘’AA” “A” “B” “C” “D” Actual material Bottom, upper and lower cover of speaker cavity lens Four sides of the headphone none none The biggest defect in the same color 4 level 2 level 4 level no no The number of defect points 3 4 6 Gap acceptance criteria Gap position Acceptable level Upper and lower cover junction Maxmum 0.2mm The upper and lower cover junction of the speaker cavity Maxmum 0.2mm 8.Reliability Testing standards Reliability test Reliability Test Product certification CE,FCC,BQB USB cable, headphone cable tensile test Fix the cable, imposed 1kg pulling force, one minute later, the outer surface of the cable has no obvious peeling or strain, and the basic functions should be tested normal USB cable, headphone cable swing test Fix the cable, imposed 100g pulling force, swing angle of + -90 degrees, 40 times per minute ( + -90 degrees for once), for 1500 times, the basic functions should be tested normal. Vibration test Frequency:10HZ∽55HZ（Frequency change is 1Hz/min） Vibration amplitude:0.8mm Vibration direction and time: Along the X/Y/Z directions, each for 90~100min. Drop test Drop from the height of 100cm onto the cement floor, free drop one time respectively from each side(six surfaces),no damage to the apperance after the test,allow the upper and lower cover junction but do not separate, can exert pressure to fasten from up and down,and the basic functions should be tested normal. Low height drop test Drop height: 4cm, onto 20mm wood surface, In standby mode, do 100 times drop test for each side(600 times total),and the basic functions should be tested normal after drop test. Earhook plug intensity test Intensity of insert and pull:Maxmum 2kg, Minmum 0.5kg，300 times life to meet the intensity reuqirements Ear hook bend test Ear hook bend range: 20cm，20 times per minute, and stop for 3 minutes every 100 times, no breaking after 300 times, position recovery＋－2mm。 Canton drop test Drop from height of 75cm, onto concrete surface, free drop one time respectively from 6 plane and 4 corner, functionality must comply

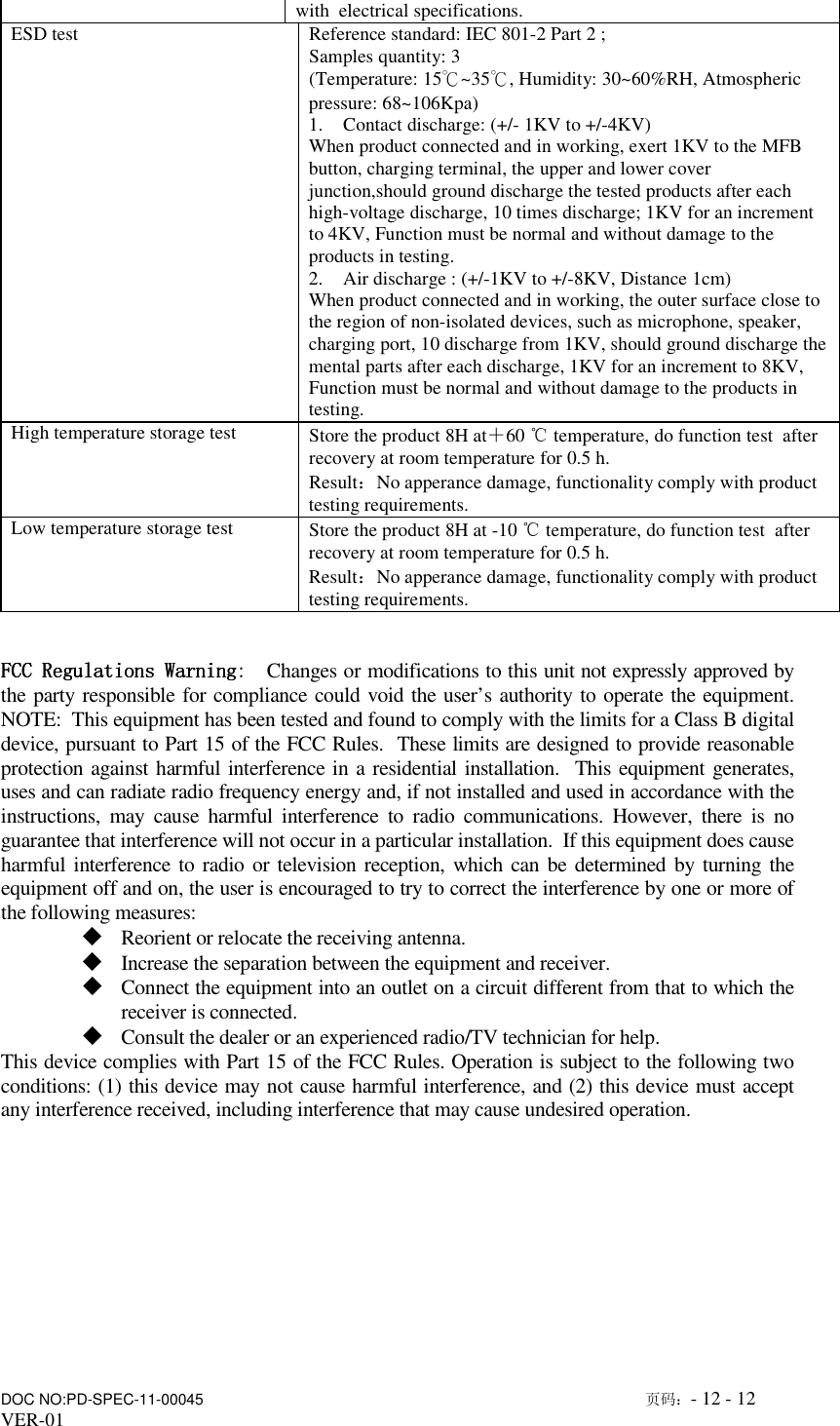

DOC NO:PD-SPEC-11-00045 页码：- 12 - 12 VER-01 with electrical specifications. ESD test Reference standard: IEC 801-2 Part 2 ; Samples quantity: 3 (Temperature: 15℃~35℃, Humidity: 30~60%RH, Atmospheric pressure: 68~106Kpa) 1. Contact discharge: (+/- 1KV to +/-4KV) When product connected and in working, exert 1KV to the MFB button, charging terminal, the upper and lower cover junction,should ground discharge the tested products after each high-voltage discharge, 10 times discharge; 1KV for an increment to 4KV, Function must be normal and without damage to the products in testing. 2. Air discharge : (+/-1KV to +/-8KV, Distance 1cm) When product connected and in working, the outer surface close to the region of non-isolated devices, such as microphone, speaker, charging port, 10 discharge from 1KV, should ground discharge the mental parts after each discharge, 1KV for an increment to 8KV, Function must be normal and without damage to the products in testing. High temperature storage test Store the product 8H at＋60 ℃ temperature, do function test after recovery at room temperature for 0.5 h. Result：No apperance damage, functionality comply with product testing requirements. Low temperature storage test Store the product 8H at -10 ℃ temperature, do function test after recovery at room temperature for 0.5 h. Result：No apperance damage, functionality comply with product testing requirements. FCC RegulationsFCC RegulationsFCC RegulationsFCC Regulations WarningWarningWarningWarning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
