LANYA ELECTRONIC BSH23 Bluetooth Stereo Headset User Manual

LANYA ELECTRONIC CO., Ltd. Bluetooth Stereo Headset Users Manual

User Manual

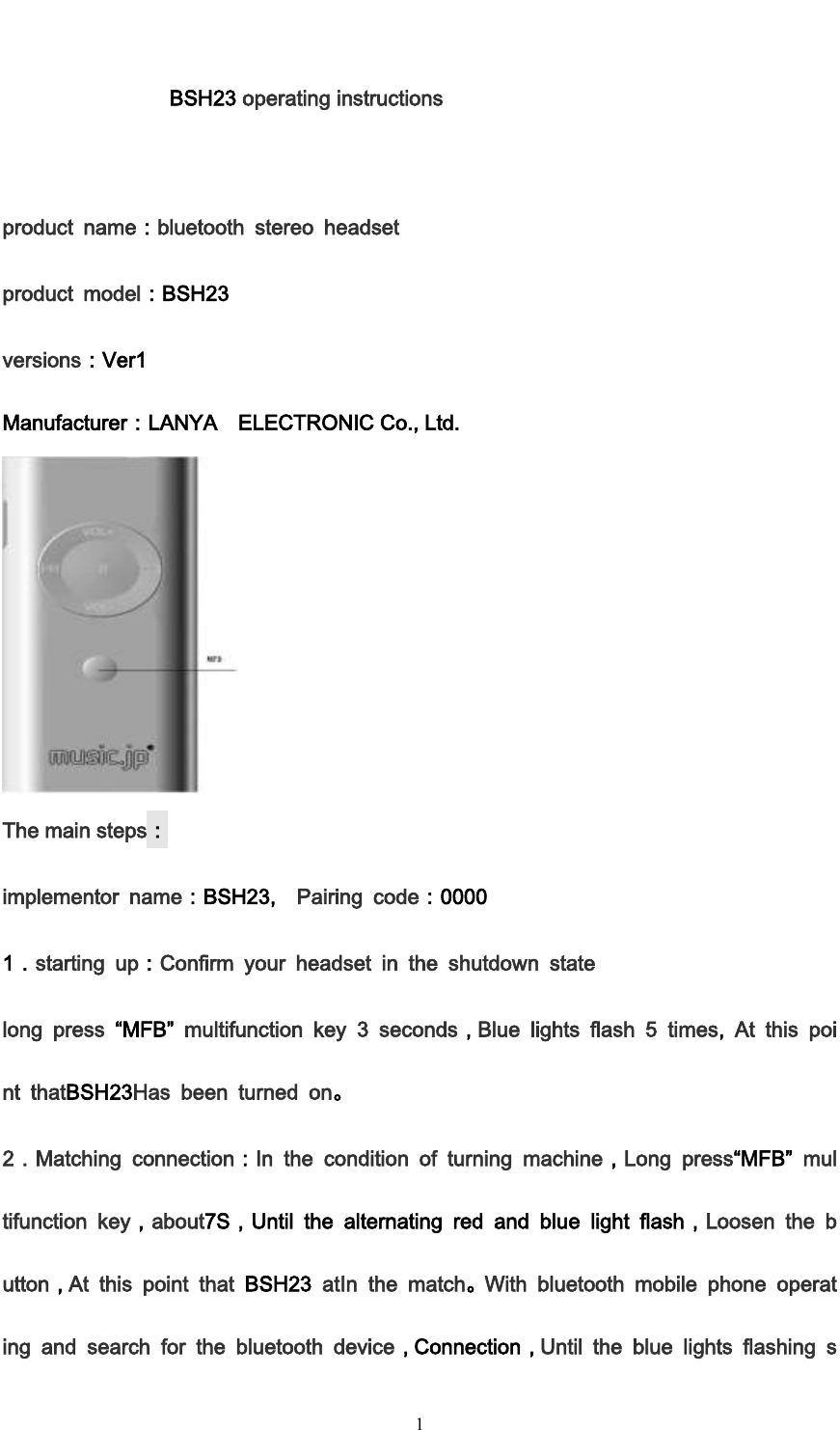

        1  BSH23 operating instructions  product  name:bluetooth  stereo  headset   product  model:BSH23 versions:Ver1   Manufacturer:LANYA    ELECTRONIC Co., Ltd.  The main steps: implementor  name:BSH23,    Pairing  code:0000 1.starting  up:Confirm  your  headset  in  the  shutdown  state long  press  “MFB”  multifunction  key  3  seconds,Blue  lights  flash  5  times,  At  this  point  thatBSH23Has  been  turned  on。 2.Matching  connection:In  the  condition  of  turning  machine,Long  press“MFB”  multifunction  key,about7S,Until  the  alternating  red  and  blue  light  flash,Loosen  the  button,At  this  point  that  BSH23  atIn  the  match。With  bluetooth  mobile  phone  operating  and  search  for  the  bluetooth  device,Connection,Until  the  blue  lights  flashing  s

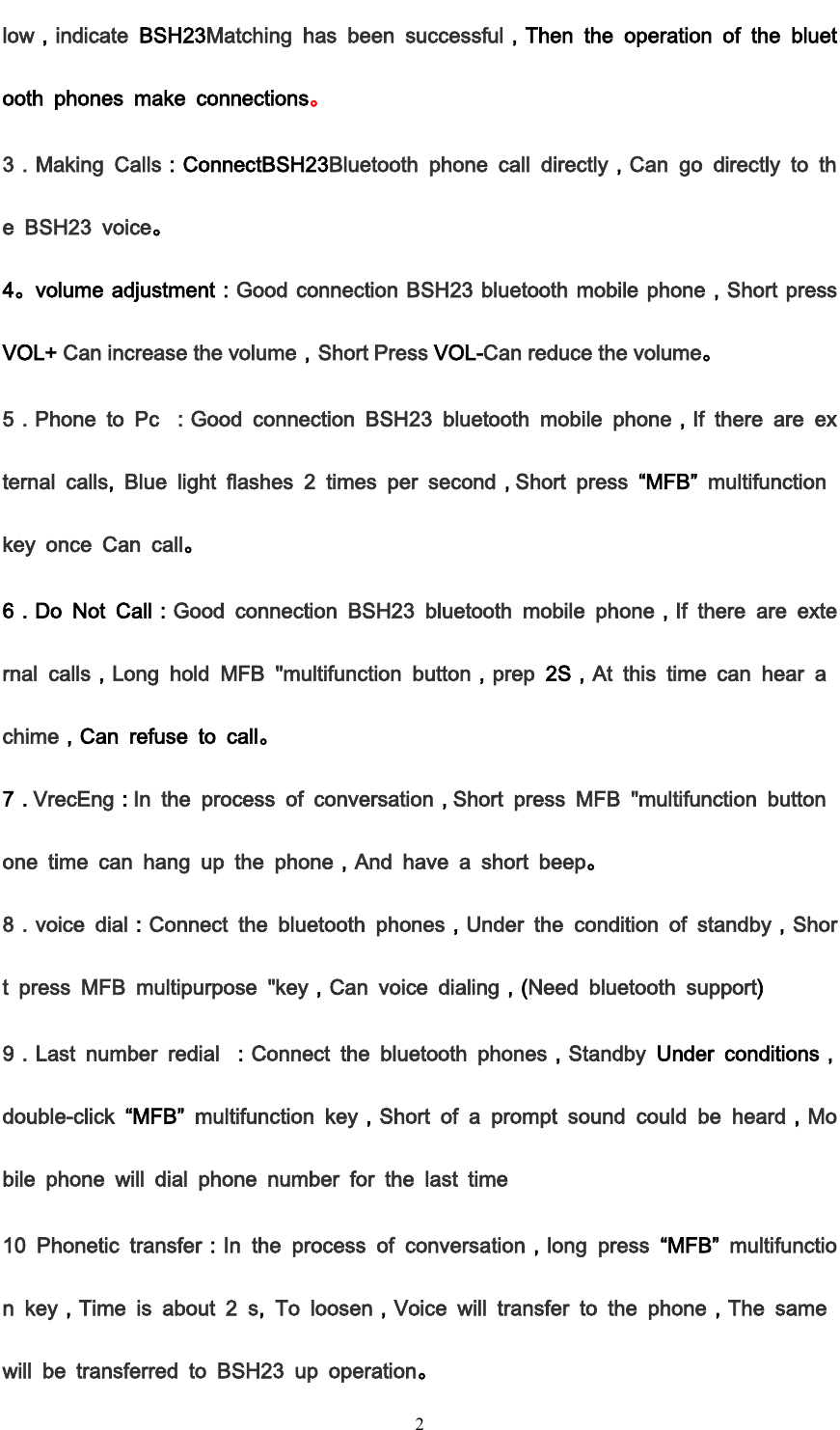

        2 low,indicate  BSH23Matching  has  been  successful,Then  the  operation  of  the  bluetooth  phones  make  connections。 3.Making  Calls:ConnectBSH23Bluetooth  phone  call  directly,Can  go  directly  to  the  BSH23  voice。 4。volume adjustment:Good connection BSH23 bluetooth mobile phone,Short press VOL+ Can increase the volume,Short Press VOL-Can reduce the volume。 5.Phone  to  Pc  :Good  connection  BSH23  bluetooth  mobile  phone,If  there  are  external  calls,  Blue  light  flashes  2  times  per  second,Short  press “MFB” multifunction key  once  Can  call。 6.Do  Not  Call:Good  connection  BSH23  bluetooth  mobile  phone,If  there  are  external  calls,Long  hold  MFB  "multifunction  button,prep  2S,At  this  time  can  hear  a chime,Can  refuse  to  call。 7.VrecEng:In  the  process  of  conversation,Short  press  MFB  "multifunction  button one  time  can  hang  up  the  phone,And  have  a  short  beep。 8.voice  dial:Connect  the  bluetooth  phones,Under  the  condition  of  standby,Short  press  MFB  multipurpose  "key,Can  voice  dialing,(Need  bluetooth  support) 9.Last  number  redial  :Connect  the  bluetooth  phones,Standby  Under  conditions,double-click “MFB”  multifunction  key,Short  of  a  prompt  sound  could  be  heard,Mobile  phone  will  dial  phone  number  for  the  last  time 10  Phonetic  transfer:In  the  process  of  conversation,long  press  “MFB”  multifunction  key,Time  is  about  2  s,  To  loosen,Voice  will  transfer  to  the  phone,The  same will  be  transferred  to  BSH23  up  operation。

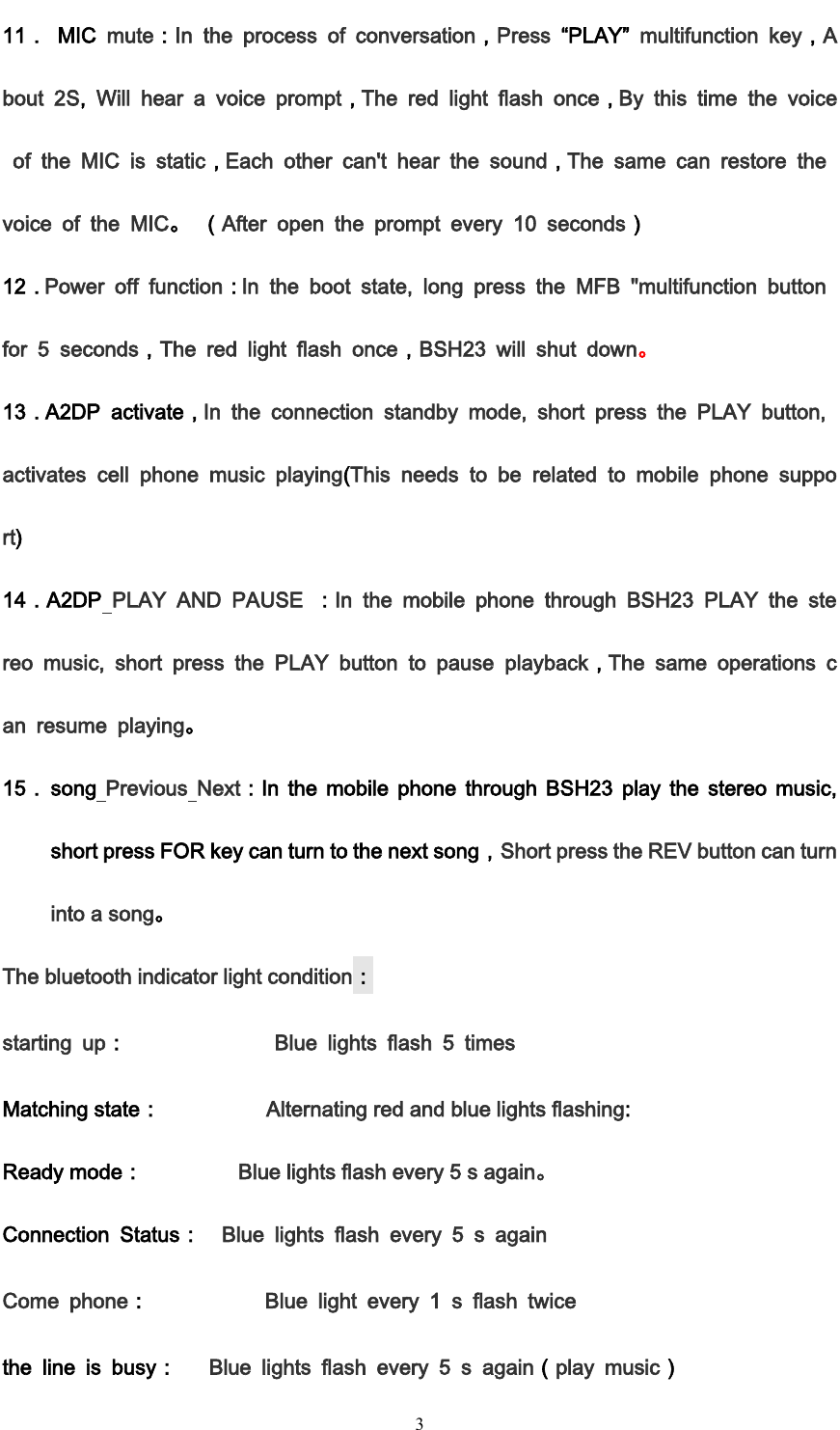

        3 11.  MIC  mute:In  the  process  of  conversation,Press  “PLAY”  multifunction  key,About  2S,  Will  hear  a  voice  prompt,The  red  light  flash  once,By  this  time  the  voice  of  the  MIC  is  static,Each  other  can't  hear  the  sound,The  same  can  restore  the voice  of  the  MIC。 (After  open  the  prompt  every  10  seconds) 12.Power  off  function:In  the  boot  state,  long  press  the  MFB  "multifunction  button for  5  seconds,The  red  light  flash  once,BSH23  will  shut  down。  13.A2DP  activate,In  the  connection  standby  mode,  short  press  the  PLAY  button, activates  cell  phone  music  playing(This  needs  to  be  related  to  mobile  phone  support) 14.A2DP  PLAY  AND  PAUSE  :In  the  mobile  phone  through  BSH23  PLAY  the  stereo  music,  short  press  the  PLAY  button  to  pause  playback,The  same  operations  can  resume  playing。 15. song  Previous  Next:In  the  mobile  phone  through  BSH23  play  the  stereo  music, short press FOR key can turn to the next song,Short press the REV button can turn into a song。 The bluetooth indicator light condition: starting  up:              Blue  lights  flash  5  times Matching state:          Alternating red and blue lights flashing: Ready mode:         Blue lights flash every 5 s again。 Connection  Status:  Blue  lights  flash  every  5  s  again Come  phone:           Blue  light  every  1  s  flash  twice the  line  is  busy:   Blue  lights  flash  every  5  s  again(play  music)

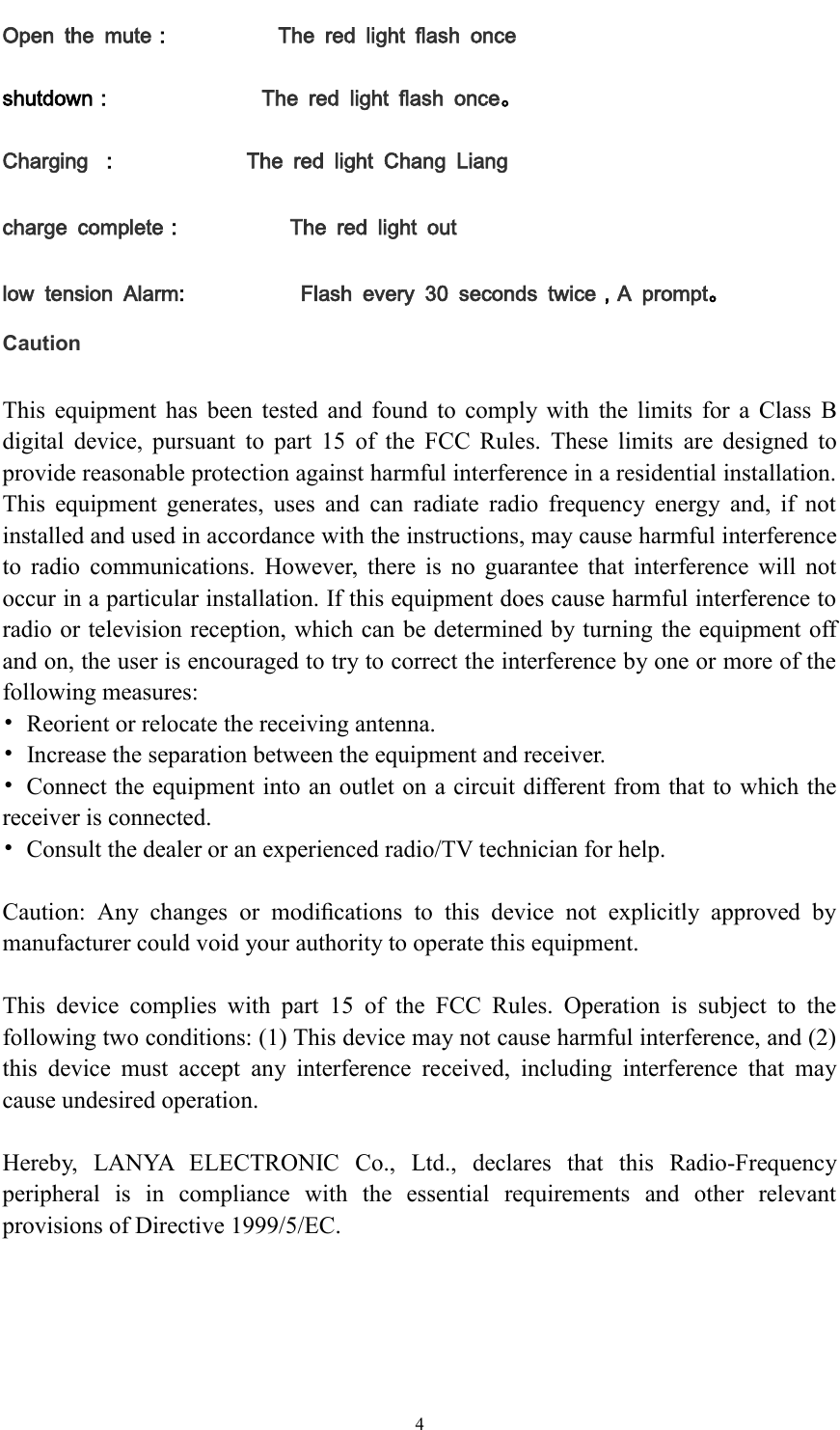

        4 Open  the  mute:          The  red  light  flash  once shutdown:              The  red  light  flash  once。 Charging  :            The  red  light  Chang  Liang charge  complete:          The  red  light  out low  tension  Alarm:           Flash  every  30  seconds  twice,A  prompt。 Caution  This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B digital  device,  pursuant  to  part  15  of  the  FCC  Rules.  These  limits  are  designed  to provide reasonable protection against harmful interference in a residential installation. This  equipment  generates,  uses  and  can  radiate  radio  frequency  energy  and,  if  not installed and used in accordance with the instructions, may cause harmful interference to  radio  communications.  However,  there  is  no  guarantee  that  interference  will  not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •  Reorient or relocate the receiving antenna. •  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •  Consult the dealer or an experienced radio/TV technician for help.  Caution:  Any  changes  or  modifications  to  this  device  not  explicitly  approved  by manufacturer could void your authority to operate this equipment.  This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the following two conditions: (1) This device may not cause harmful interference, and (2) this  device  must  accept  any  interference  received,  including  interference  that  may cause undesired operation.  Hereby,  LANYA  ELECTRONIC  Co.,  Ltd.,  declares  that  this  Radio-Frequency peripheral  is  in  compliance  with  the  essential  requirements  and  other  relevant provisions of Directive 1999/5/EC.
